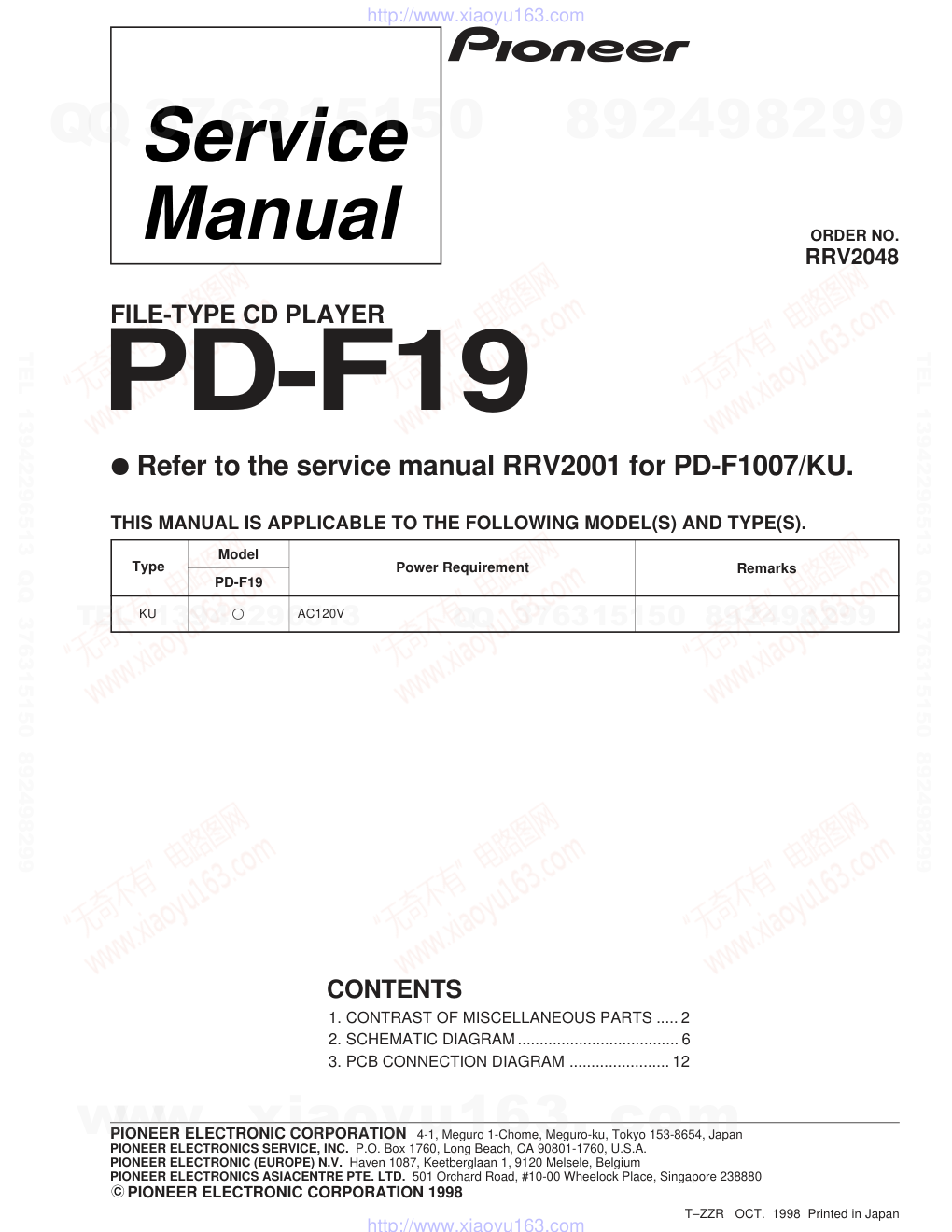

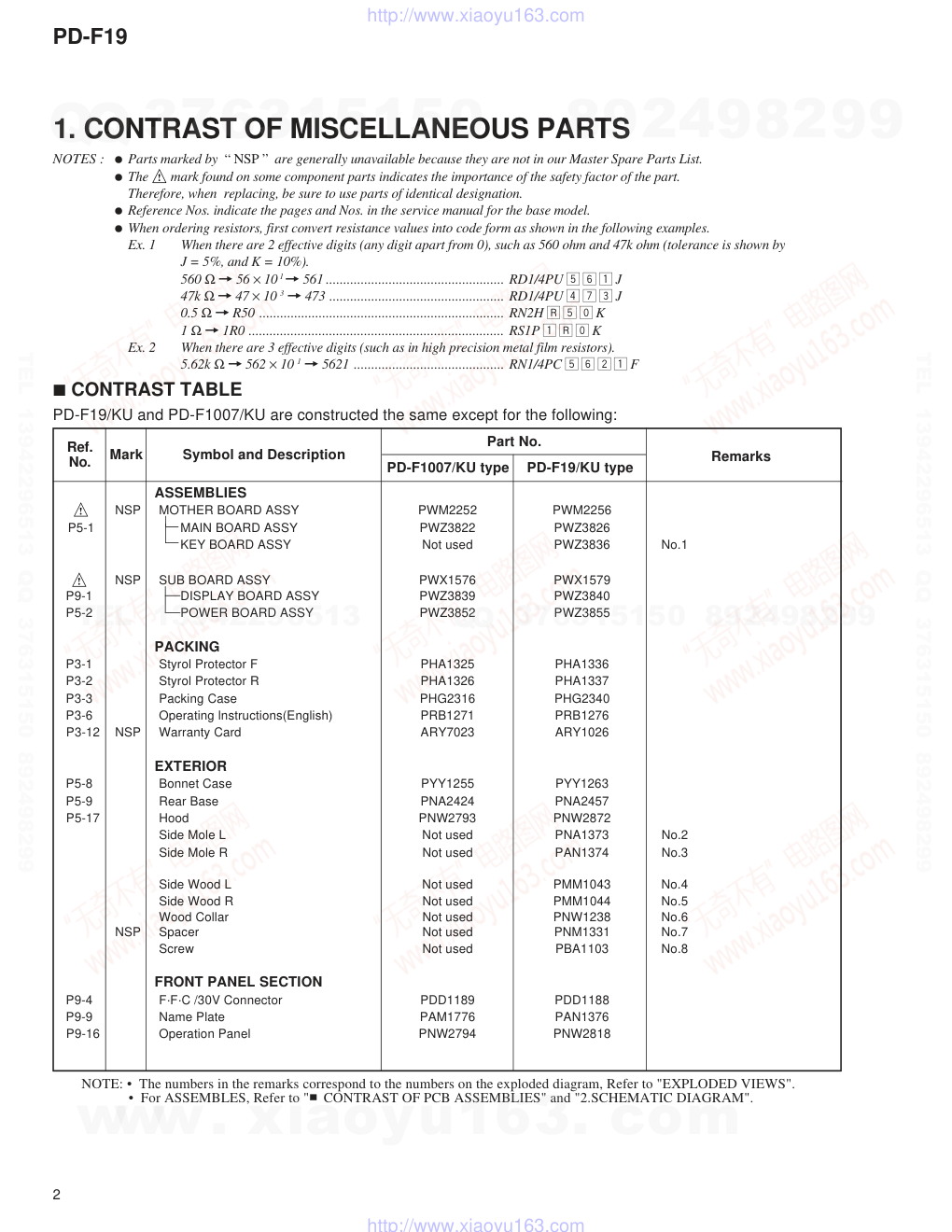

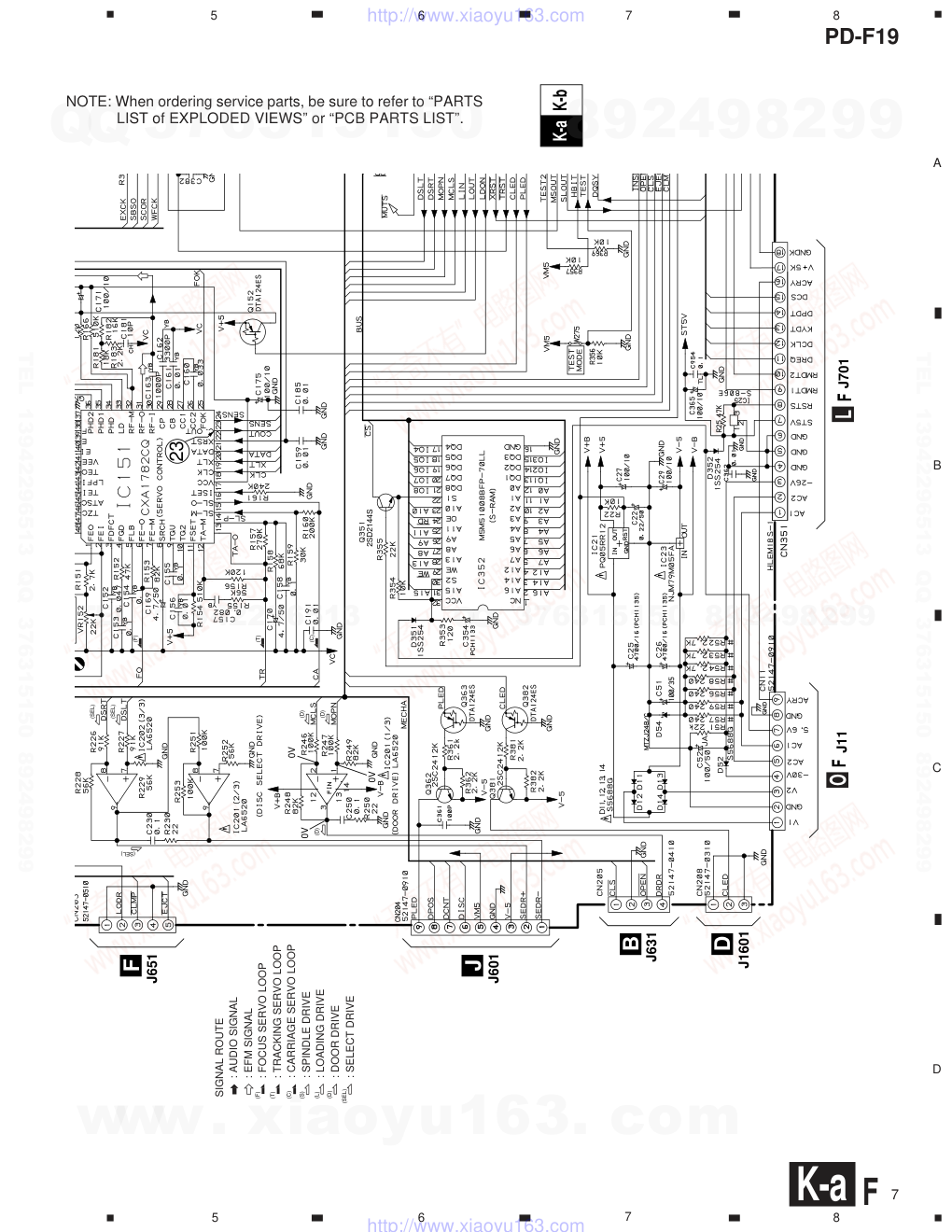

ORDER NO. PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 501 Orchard Road, #10-00 Wheelock Place, Singapore 238880 PIONEER ELECTRONIC CORPORATION 1998 FILE-TYPE CD PLAYER RRV2048 T–ZZR OCT. 1998 Printed in Japan PD-F19 1. CONTRAST OF MISCELLANEOUS PARTS ..... 2 2. SCHEMATIC DIAGRAM ..................................... 6 3. PCB CONNECTION DIAGRAM ....................... 12 CONTENTS THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S). Type Model PD-F19 Power Requirement Remarks KU AC120V ¶ Refer to the service manual RRV2001 for PD-F1007/KU. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-F19 2 ASSEMBLIES NSP MOTHER BOARD ASSY PWM2252 PWM2256 P5-1 MAIN BOARD ASSY PWZ3822 PWZ3826 KEY BOARD ASSY Not used PWZ3836 No.1 NSP SUB BOARD ASSY PWX1576 PWX1579 P9-1 DISPLAY BOARD ASSY PWZ3839 PWZ3840 P5-2 POWER BOARD ASSY PWZ3852 PWZ3855 PACKING P3-1 Styrol Protector F PHA1325 PHA1336 P3-2 Styrol Protector R PHA1326 PHA1337 P3-3 Packing Case PHG2316 PHG2340 P3-6 Operating lnstructions(English) PRB1271 PRB1276 P3-12 NSP Warranty Card ARY7023 ARY1026 EXTERIOR P5-8 Bonnet Case PYY1255 PYY1263 P5-9 Rear Base PNA2424 PNA2457 P5-17 Hood PNW2793 PNW2872 Side Mole L Not used PNA1373 No.2 Side Mole R Not used PAN1374 No.3 Side Wood L Not used PMM1043 No.4 Side Wood R Not used PMM1044 No.5 Wood Collar Not used PNW1238 No.6 NSP Spacer Not used PNM1331 No.7 Screw Not used PBA1103 No.8 FRONT PANEL SECTION P9-4 F·F·C /30V Connector PDD1189 PDD1188 P9-9 Name Plate PAM1776 PAN1376 P9-16 Operation Panel PNW2794 PNW2818 1. CONTRAST OF MISCELLANEOUS PARTS NOTES : ÷ Parts marked by “ NSP ” are generally unavailable because they are not in our Master Spare Parts List. ÷ The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. ÷ Reference Nos. indicate the pages and Nos. in the service manual for the base model. ÷ When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex. 1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J = 5%, and K = 10%). 560 Ω = 56 × 10 1 = 561 ................................................... RD1/4PU 5 6 1 J 47k Ω = 47 × 10 3 = 473 .................................................. RD1/4PU 4 7 3 J 0.5 Ω = R50 ...................................................................... RN2H Â 5 0 K 1 Ω = 1R0 ......................................................................... RS1P 1 Â 0 K Ex. 2 When there are 3 effective digits (such as in high precision metal film resistors). 5.62k Ω = 562 × 10 1 = 5621 ........................................... RN1/4PC 5 6 2 1 F 7 CONTRAST TABLE PD-F19/KU and PD-F1007/KU are constructed the same except for the following: Ref. No. Remarks PD-F1007/KU type PD-F19/KU type Part No. Mark Symbol and Description NOTE: • The numbers in the remarks correspond to the numbers on the exploded diagram, Refer to "EXPLODED VIEWS". • For ASSEMBLES, Refer to " CONTRAST OF PCB ASSEMBLIES" and "2.SCHEMATIC DIAGRAM". www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-F19 3 EXTERIOR SECTION EXPLODED VIEWS Operation Panel KEY BOARD ASSY PPZ30P050FMC Bonnet Case No.4 No.8 No.6 No.3 No.1 No.7 No.5 BBZ30P080FZK BBZ30P080FZK No.7 No.2 No.6 No.6 No.8 No.8 RNH-184 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-F19 4 IC71 Not used PQ05RA1 D71 , D72 Not used S5688G C71 Not used CEAT332M16 C72 Not used CEAT101M10 R71 Not used RD1/4PU103J R72 Not used RD1/4PU471J J11 D20PDY0925B D20PDY0925G J71 Not used D20PDY0315E 3P CABLE HOLDER Not used 51048-0300 NSP HEAT SINK Not used RNE1011 CONTRAST OF PCB ASSEMBLIES Mark Symbol and Description Part No. PWZ3852 PWZ3855 Remarks CN701 HLEM16R-1 HLEM18R-1 CN702 Not used 52151-0410 R708, R709 Not used RD1/4PU471J Mark Symbol and Description Part No. PWZ3839 PWZ3840 Remarks KEY BOARD ASSY Q PCB PARTS LIST SEMICONDUCTORS D801, D802 DA204K CAPACITORS C805 CEAL101M6R3 C801– C804, C806 CKSQYF104Z50 RESISTORS R801– R803 RS1/10S0R0J OTHERS J801 4P WIRE 2mmP D20PWY0455E NSP J802 LEAD WIRE UNIT PDF1012 JA801 MIN DIN 6P SOCKET RKN1038 Mark No. Description Part No. Mark No. Description Part No. POWER BOARD ASSY PWZ3855 and PWZ3852 are constructed the same except for the following: O F DISPLAY BOARD ASSY PWZ3840 and PWZ3839 are constructed the same except for the following: L F Note : Refer to 2. SCHEMATIC DIAGRAM. Note : Refer to 2. SCHEMATIC DIAGRAM. K F MAIN BOARD ASSY (PWZ3826) SEMICONDUCTORS IC151 CXA1782CQ IC301 CXD2529Q IC35, IC36 ICP-N10 IC203 LA6517 IC201, IC202 LA6520 IC302 LC89170M IC406 M5218AFP IC352 M5M51008BFP-70LL IC405, IC407, IC408 NJM4558MD IC23 NJM79M05FA IC351 PD4996C IC341 PD0236AM IC21 PQ05RR12 IC401 PE8001A IC25 S-806E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-F19 5 Mark No. Description Part No. Mark No. Description Part No. IC951 TC74HC157AF IC331 TC74HCU04AF Q151 2SA854S Q391 2SC1740S Q362, Q381 2SC2412K Q351, Q403, Q404, Q413, Q414 2SD2144S Q423, Q424 2SD2144S Q152, Q363, Q382, Q406, Q416 DTA124EK Q426 DTA124EK Q405, Q415, Q425, Q451 DTC124EK D351, D352, D391–D397, D958 1SS254 D401–D404, D951, D953, D956 DA204K D957, D959 DA204K D54 MTZJ24B D11–D14, D52 S5688G D218 UDZS6.2B COILS AND FILTERS L351 LAU100J L391, L395, L396 LAU1R0J L334 (COIL) PTL1003 CAPACITORS C449, C450 CCCSL101J50 C181 CCSQCH100D50 C361, C386, C405–C407 CCSQCH101J50 C315 CCSQCH221J50 C403 CCSQCH240J50 C404 CCSQCH300J50 C332 CCSQCH390J50 C171, C175, C27, C29 CEAT101M10 C301, C302, C311–C314, C316 CEAT101M10 C322, C351, C365, C413, C414 CEAT101M10 C51 CEAT101M35 C52 CEAT101M50 C427–C428, C433–C434, C439–C440 CEAT220M25 C131–C133, C211, C212 CEAT330M16 C169, C170, C415, C416 CEAT4R7M50 C335 CEAT470M25 C22 CEATR22M50 C309 CEATR47M50 C954 CFTLA104J50 C441, C442 CKCYB102K50 C1429, C1430, C1435–C1438 CKCYB152K50 C317 CKCYF103Z50 C359, C398, C951, C952 CKCYF473Z50 C163 CKSQYB102K50 C156, C161, C164, C168, C218 CKSQYB103K50 C153–C155, C158, C230, C250 CKSQYB104K25 C176, C306 CKSQYB152K50 C305 CKSQYB222K50 C162 CKSQYB332K50 C160 CKSQYB333K25 C167 CKSQYB472K50 C152, C307 CKSQYB473K25 C151 CKSQYB682K50 C157 CKSQYB823K25 C159, C185, C191, C205, C210 CKSQYF103Z50 C215, C219, C303, C308, C318 CKSQYF103Z50 C331, C334, C343, C344, C352 CKSQYF103Z50 C353, C362, C363, C381, C382 CKSQYF103Z50 C401, C402, C408, C409, C461 CKSQYF103Z50 C953 CKSQYF103Z50 C321, C336, C339, C411, C412 CKSQYF104Z50 C1431, C1432 CKSQYF104Z50 C354 (0.1F/5.5V) PCH1133 C25, C26 (4700µF/16V) PCH1135 RESISTORS R56–R59 RD1/4PU241J R52–R54 RD1/4PU272J R496, R499, R973, R974 RD1/4PU332J R977, R978 RD1/4PU332J R163, R164, R470, R471 RD1/4PU470J R441, R442, R489, R490 RN1/10SE1002D R437, R438 RN1/10SE1801D R459, R460, R463, R464 RN1/10SE2202D R451– R456 RN1/10SE4702D VR153, VR155 (10kΩ) VCP1156 VR151, VR152, VR154 (22kΩ) VCP1158 VR156 (220kΩ) VCP1164 Other Resistors RS1/10S J OTHERS CN207 MT 4P CONNECTOR 173981-4 CN12 3P JUMPER CONNECTOR 52147-0310 CN208, CN401 3P JUMPER CONNECTOR 52147-0310 CN205 4P JUMPER CONNECTOR 52147-0410 CN203 5P JUMPER CONNECTOR 52147-0510 CN11, CN204 9P JUMPER CONNECTOR 52147-0910 JA401, JA402 JACK DKB1031 JA321 OPTICAL LINK OUT GP1F32T CN351 CONNECTOR HLEM18S-1 JA331 1P JACK PKB1028 JA393 JACK PKN1005 J391–J392, J951–J952REMOTE JACK RKN1004 CN201 6P CONNECTOR RKP-533 CN202 CONNECTOR SLW16S-1C7 X401 XTAL. RES. (16.9344MHz) PSS1008 X351 CERAMIC RESONATOR VSS1028 PCB BINDER VEF1040 SCREW PLATE VNE1948 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-F19 6 A B C D 1 2 3 4 1 2 3 4 2. SCHEMATIC DIAGRAM 2.1 MAIN BOARD ASSY MAIN BOARD ASSY (PWZ3826) F J651 A CN610 to PICUP ASSY 1.8V 1.8V -0.7V 1.6V 1.6V 0V 1.6V 1.6V 0V 1.7V 1.7V 0.2V 0V 0V 0V CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE NO. ICP-N10, MFD BY ROHM CO., FOR IC35 AND IC36. K (S) (S) (S) (F) (F) (F) (F) (F) (F) (T) (T) (T) (T) (C) (L) (L) (L) (SEL) (SEL) (SEL) (F) (F) (F) (F) (F) (T) (T) 7 5 6 8 2 23 4 3 33 53 18 19 16 K-b K-a K-a F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-F19 7 A B C D 5 6 7 8 5 6 7 8 B J631 J J601 F J651 D J1601 J11 J701 0V 0V 0V 2SD2144S L F O F SIGNAL ROUTE : AUDIO SIGNAL : EFM SIGNAL : FOCUS SERVO LOOP : TRACKING SERVO LOOP : CARRIAGE SERVO LOOP : SPINDLE DRIVE : LOADING DRIVE : DOOR DRIVE : SELECT DRIVE (S) (C) (T) (F) (D) (SEL) (L) (SEL) (SEL) (SEL) (D) (D) (D) (F) (T) (C) 23 K-b K-a NOTE: When ordering service parts, be sure to refer to “PARTS LIST of EXPLODED VIEWS” or “PCB PARTS LIST”. K-a F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-F19 8 A B C D 1 2 3 4 1 2 3 4 COAXIAL DIGITAL OUT MAIN BOARD ASSY (PWZ3826) K N J501 TO IC301(CXD2529Q) TO IC151(P22) K-b K-a K-b F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-F19 9 A B C D 5 6 7 8 5 6 7 8 HLEM18S–1 SIGNAL ROUTE : AUDIO SIGNAL ROUTE J71 CN701 TO BUS MECHA TO BUS MECHA TO CN11 L F O F Metal film K-b K-a K-b F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-F19 10 A B C D 1 2 3 4 1 2 3 4 2.2 DISPLAY BOARD ASSY, POWER BOARD ASSY and KEY BOARD ASSY L F DISPLAY BOARD ASSY (PWZ3840) CN351 Q J801 M J701 DISPLAY BOARD ASSY S701 : MODE S702 : CLEAR S703 : PROGRAM S704 : RANDOM S705 : TIME/CHARA S706 : POWER S707 : SINGLE LOADER ACCESS S708 : SINGLE LOADER PLAY L K F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-F19 11 A B C D 1 2 3 4 1 2 3 4Q O F KEY BOARD ASSY (PWZ3836) Q POWER BOARD ASSY (PWZ3855) CN702 CN11 CN12 To AC POWER CORD NEUTRAL LIVE HEAT SINK: O L F K F K F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-F19 12 A B C D 1 2 3 4 1 2 3 4 NOTE FOR PCB DIAGRAMS: 1. Part numbers in PCB diagrams match those in the schematic diagrams. 2. A comparison between the main parts of PCB and schematic diagrams is shown below. Symbol in PCB Diagrams Symbol in Schematic Diagrams Part Name Transistor Transistor with resistor Field effect transistor B C E B C E B C E D G S B C E B C E B C E D G S D G S 3. The parts mounted on this PCB include all necessary parts for several destination. For further information for respective destinations, be sure to check with the schematic diagram. 4. Viewpoint of PCB diagrams Symbol in PCB Diagrams Symbol in Schematic Diagrams Part Name Resistor array 3-terminal regulator Capacitor Connector P. C. Board Chip Part SIDE B SIDE A (PNP1450-A) KEY BOARD ASSY Q KEY BOARD ASSY Q L CN702 3. PCB CONNECTION DIAGRAM SIDE B SIDE A Q www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
