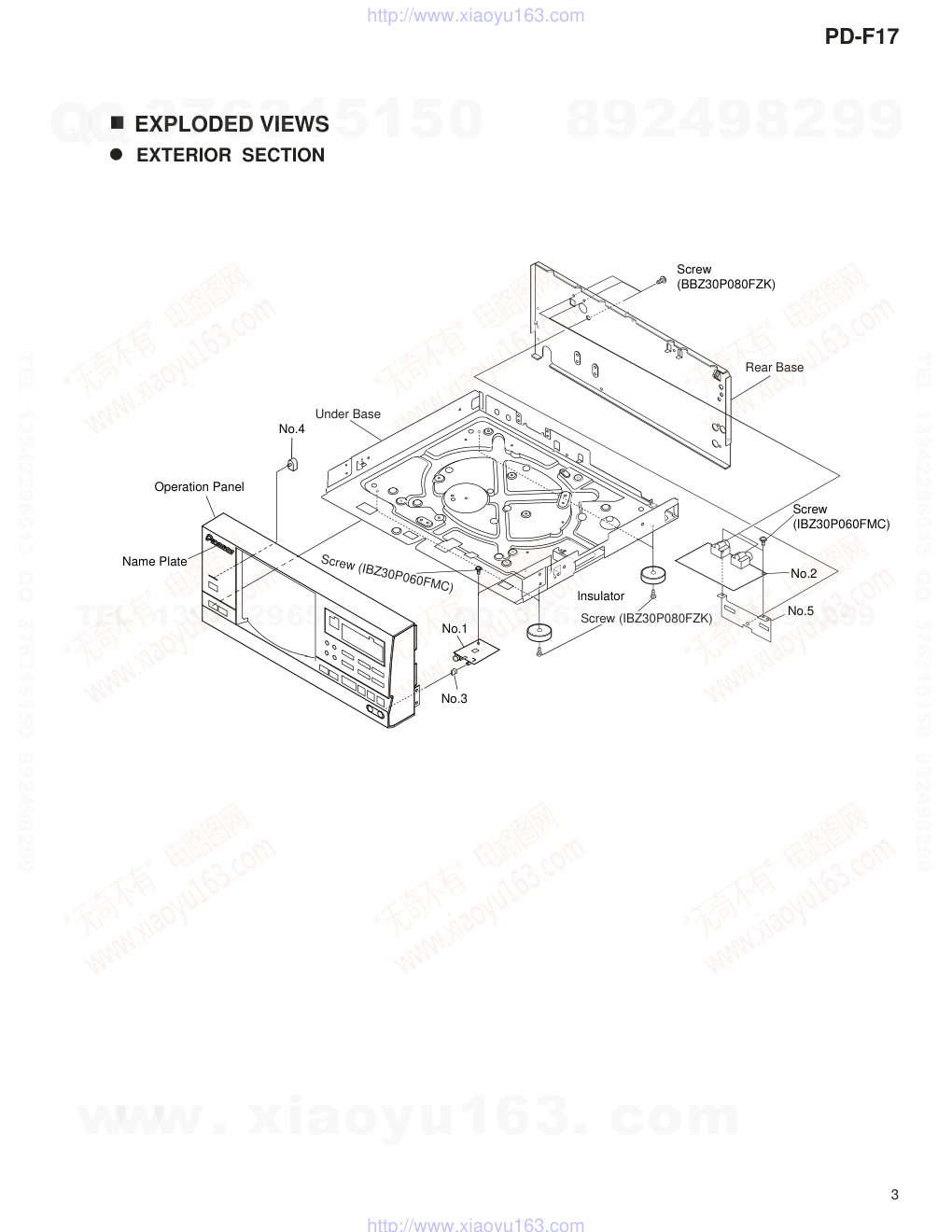

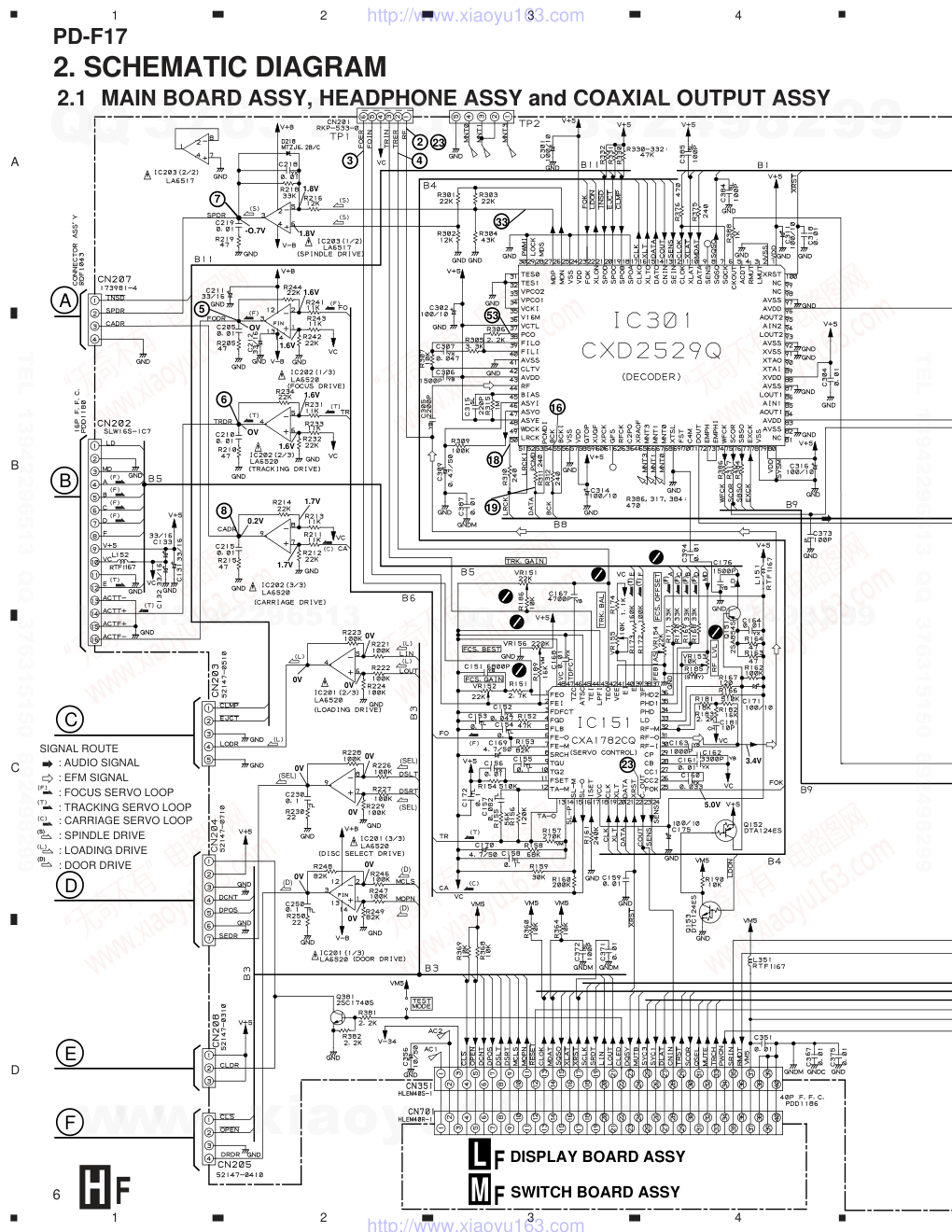

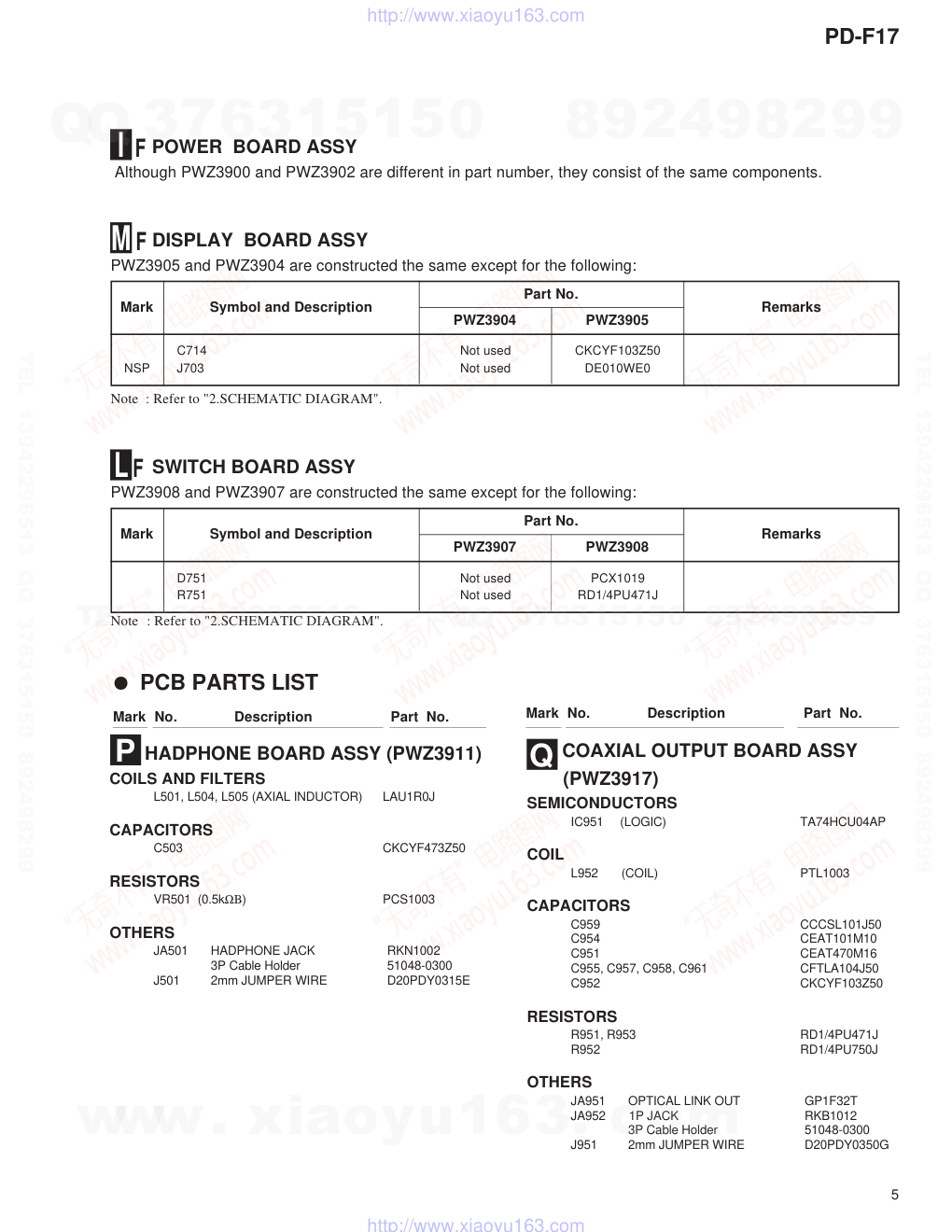

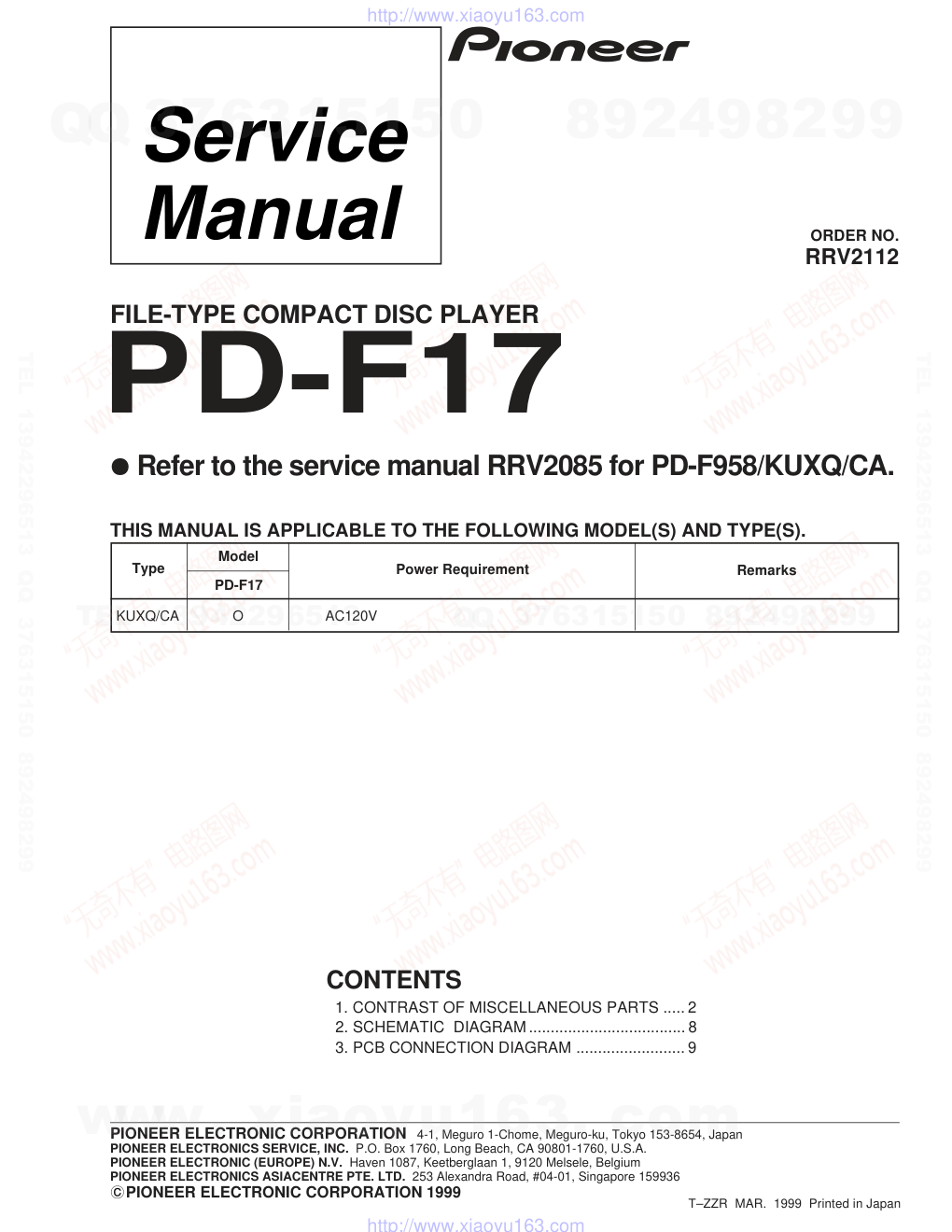

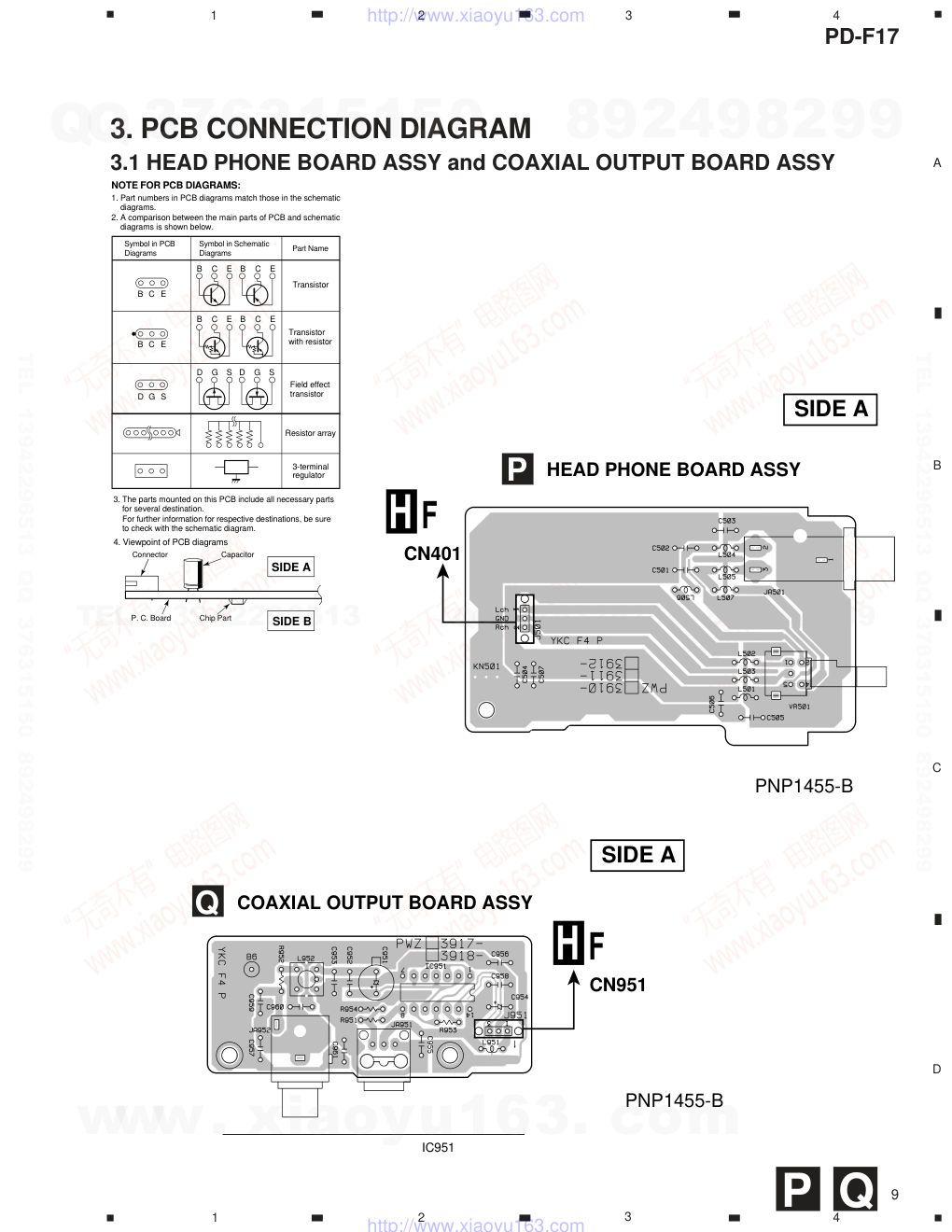

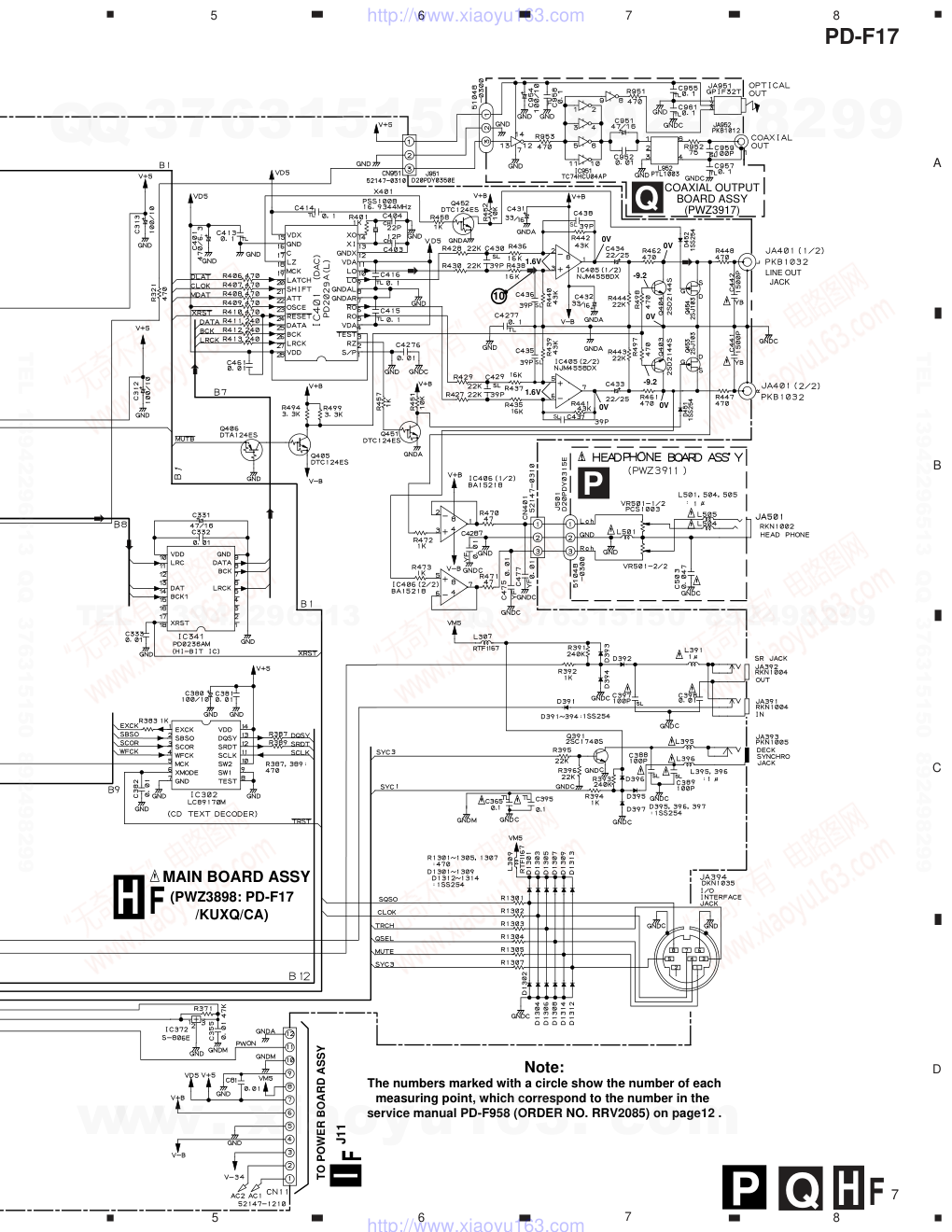

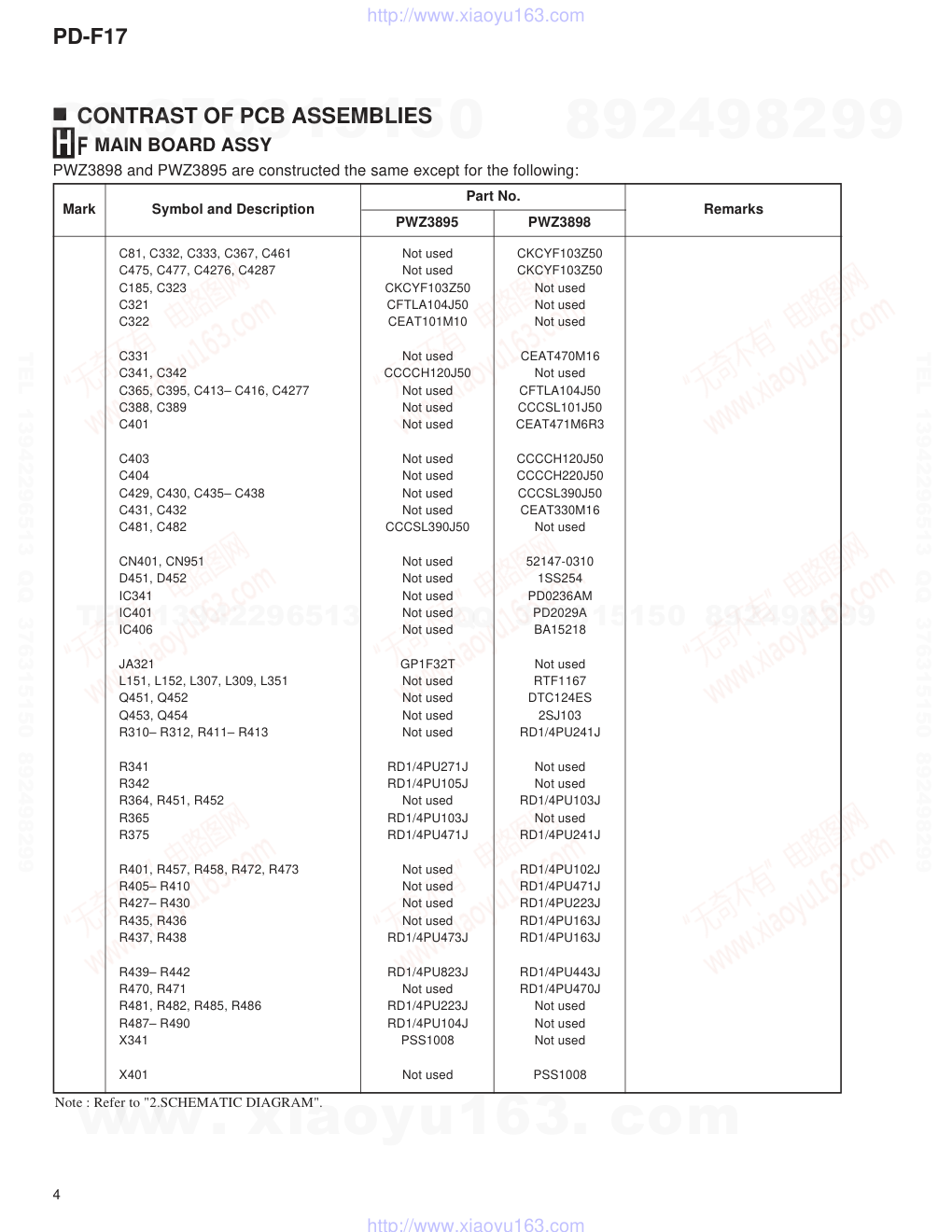

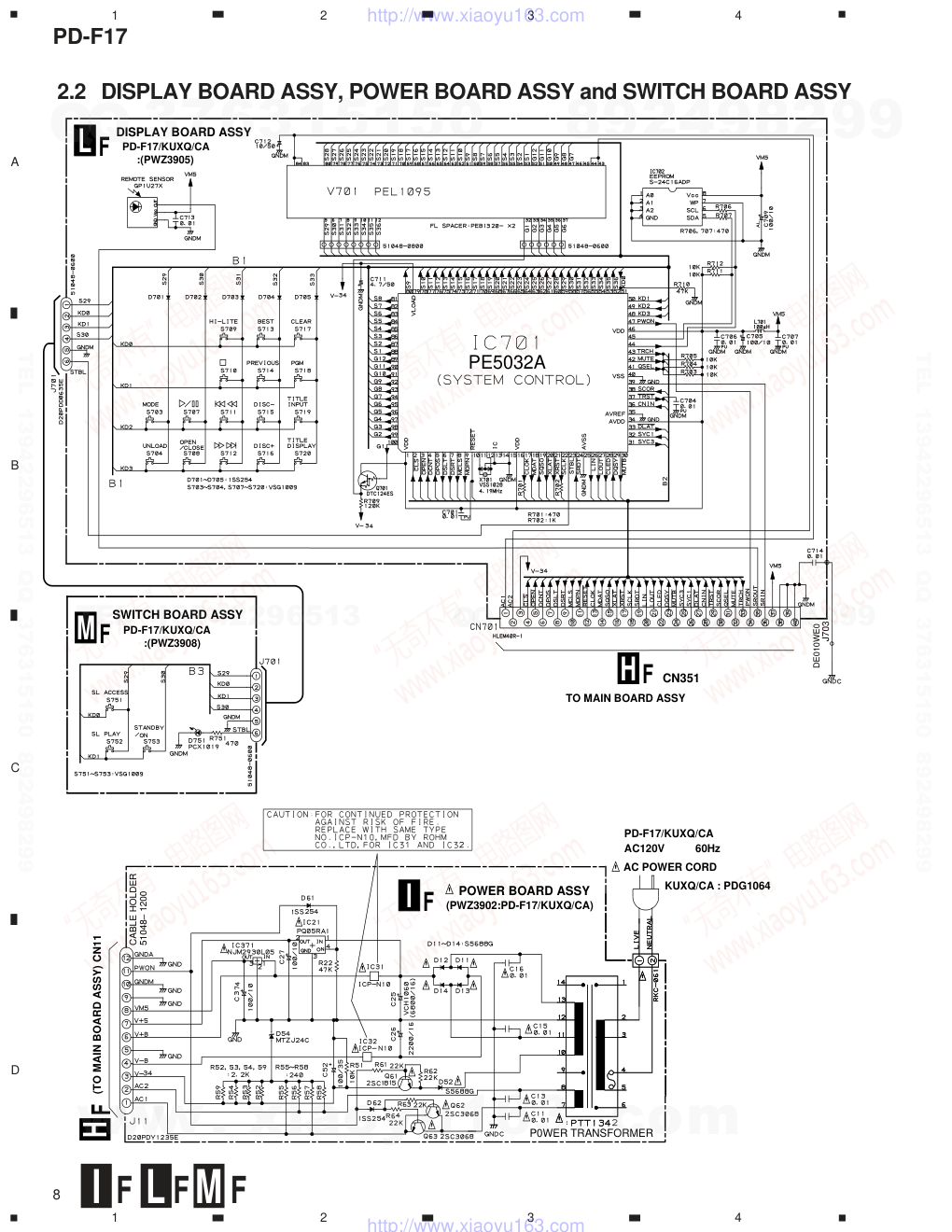

ORDER NO. PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 � � � � � � � � � �PIONEER ELECTRONIC CORPORATION 1999 KUXQ/CA O AC120V FILE-TYPE COMPACT DISC PLAYER RRV2112 T–ZZR MAR. 1999 Printed in Japan PD-F17 ¶ Refer to the service manual RRV2085 for PD-F958/KUXQ/CA. Remarks Type Model PD-F17 Power Requirement THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S). 1. CONTRAST OF MISCELLANEOUS PARTS ..... 2 2. SCHEMATIC DIAGRAM .................................... 8 3. PCB CONNECTION DIAGRAM ......................... 9 CONTENTS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-F17 2 1. CONTRAST OF MISCELLANEOUS PARTS NOTES : ÷ Parts marked by “ NSP ” are generally unavailable because they are not in our Master Spare Parts List. ÷ The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. ÷ Reference Nos. indicate the pages and Nos. in the service manual for the base model. ÷ When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex. 1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J = 5%, and K = 10%). 560 Ω = 56 × 10 1 = 561 ................................................... RD1/4PU 5 6 1 J 47k Ω = 47 × 10 3 = 473 .................................................. RD1/4PU 4 7 3 J 0.5 Ω = R50 ...................................................................... RN2H Â 5 0 K 1 Ω = 1R0 ......................................................................... RS1P 1 Â 0 K Ex. 2 When there are 3 effective digits (such as in high precision metal film resistors). 5.62k Ω = 562 × 10 1 = 5621 ........................................... RN1/4PC 5 6 2 1 F 7 CONTRAST TABLE PD-F17/ KUXQ/CA and PD-F958/KUXQ/CA are constructed the same except for the following: Note : ÷ The numbers in the remarks column correspond to the numbers on the exploded diagram, Refer to "EXPLODED VIEWS". EXTERIOR NSP MOTHER BOARD ASSY PWM2269 PWM2272 P6-1 MAIN BOARD ASSY PWZ3895 PWZ3898 P6-2 POWER BOARD ASSY PWZ3900 PWZ3902 P6-3 DISPLAY BOARD ASSY PWZ3904 PWZ3905 P6-4 NSP SWITCH BOARD ASSY PWZ3907 PWZ3908 NSP HEADPHONE BOARD ASSY Not used PWZ3911 No.1 NSP COAXIAL OUTPUT BOARD ASSY Not used PWZ3917 No.2 P6-14 Foot Assy REC1263 Not used P6-18 Rear Base PNA2452 PNA2502 P6-20 Insulator PNW2766 PNW2766 (X2) (X4) P6-46 Name Plate PAM1776 PAN1376 P6-50 Operation Panel PNW2869 PNW2918 P6-52 Hood PNW2865 PNW2919 Headphone Knob Not used PAC1707 No.3 LED Lens Not used PNW2019 No.4 SR Angle Not used PNB1192 No.5 PACKING P3-5 NSP Warranty Card ARY7023 ARY7007 P3-7 Operating Instructions (English) PRB1278 PRB1289 P3-11 Packing Case PHG2337 PHG2374 Ref. No. Remarks PD-F958/ PD-F17/ KUXQ/CA KUXQ/CA Part No. Mark Symbol and Description www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-F17 3 EXPLODED VIEWS EXTERIOR SECTION Rear Base Under Base Screw (IBZ30P080FZK) Screw (IBZ30P060FMC) No.4 Operation Panel lnsulator No.3 No.1 Name Plate No.5 No.2 Screw (IBZ30P060FMC) Screw (BBZ30P080FZK) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-F17 4 C81, C332, C333, C367, C461 Not used CKCYF103Z50 C475, C477, C4276, C4287 Not used CKCYF103Z50 C185, C323 CKCYF103Z50 Not used C321 CFTLA104J50 Not used C322 CEAT101M10 Not used C331 Not used CEAT470M16 C341, C342 CCCCH120J50 Not used C365, C395, C413– C416, C4277 Not used CFTLA104J50 C388, C389 Not used CCCSL101J50 C401 Not used CEAT471M6R3 C403 Not used CCCCH120J50 C404 Not used CCCCH220J50 C429, C430, C435– C438 Not used CCCSL390J50 C431, C432 Not used CEAT330M16 C481, C482 CCCSL390J50 Not used CN401, CN951 Not used 52147-0310 D451, D452 Not used 1SS254 IC341 Not used PD0236AM IC401 Not used PD2029A IC406 Not used BA15218 JA321 GP1F32T Not used L151, L152, L307, L309, L351 Not used RTF1167 Q451, Q452 Not used DTC124ES Q453, Q454 Not used 2SJ103 R310– R312, R411– R413 Not used RD1/4PU241J R341 RD1/4PU271J Not used R342 RD1/4PU105J Not used R364, R451, R452 Not used RD1/4PU103J R365 RD1/4PU103J Not used R375 RD1/4PU471J RD1/4PU241J R401, R457, R458, R472, R473 Not used RD1/4PU102J R405– R410 Not used RD1/4PU471J R427– R430 Not used RD1/4PU223J R435, R436 Not used RD1/4PU163J R437, R438 RD1/4PU473J RD1/4PU163J R439– R442 RD1/4PU823J RD1/4PU443J R470, R471 Not used RD1/4PU470J R481, R482, R485, R486 RD1/4PU223J Not used R487– R490 RD1/4PU104J Not used X341 PSS1008 Not used X401 Not used PSS1008 Note : Refer to "2.SCHEMATIC DIAGRAM". MAIN BOARD ASSY PWZ3898 and PWZ3895 are constructed the same except for the following: CONTRAST OF PCB ASSEMBLIES Mark Symbol and Description Part No. PWZ3895 PWZ3898 Remarks H F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-F17 5 COAXIAL OUTPUT BOARD ASSY (PWZ3917) SEMICONDUCTORS IC951 (LOGIC) TA74HCU04AP COIL L952 (COIL) PTL1003 CAPACITORS C959 CCCSL101J50 C954 CEAT101M10 C951 CEAT470M16 C955, C957, C958, C961 CFTLA104J50 C952 CKCYF103Z50 RESISTORS R951, R953 RD1/4PU471J R952 RD1/4PU750J OTHERS JA951 OPTICAL LINK OUT GP1F32T JA952 1P JACK RKB1012 3P Cable Holder 51048-0300 J951 2mm JUMPER WIRE D20PDY0350G Mark No. Description Part No. HADPHONE BOARD ASSY (PWZ3911) COILS AND FILTERS L501, L504, L505 (AXIAL INDUCTOR) LAU1R0J CAPACITORS C503 CKCYF473Z50 RESISTORS VR501 (0.5kΩΒ) PCS1003 OTHERS JA501 HADPHONE JACK RKN1002 3P Cable Holder 51048-0300 J501 2mm JUMPER WIRE D20PDY0315E C714 Not used CKCYF103Z50 NSP J703 Not used DE010WE0 Mark Symbol and Description Part No. PWZ3904 PWZ3905 Remarks DISPLAY BOARD ASSY PWZ3905 and PWZ3904 are constructed the same except for the following: Note : Refer to "2.SCHEMATIC DIAGRAM". D751 Not used PCX1019 R751 Not used RD1/4PU471J Mark Symbol and Description Part No. PWZ3907 PWZ3908 Remarks SWITCH BOARD ASSY PWZ3908 and PWZ3907 are constructed the same except for the following: Note : Refer to "2.SCHEMATIC DIAGRAM". POWER BOARD ASSY Although PWZ3900 and PWZ3902 are different in part number, they consist of the same components. Q ¶ PCB PARTS LIST P Mark No. Description Part No. I F M F L F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-F17 6 A B C D 1 2 3 4 1 2 3 4 DISPLAY BOARD ASSY SWITCH BOARD ASSY D E F C B A SIGNAL ROUTE : AUDIO SIGNAL : EFM SIGNAL : FOCUS SERVO LOOP : TRACKING SERVO LOOP : CARRIAGE SERVO LOOP : SPINDLE DRIVE : LOADING DRIVE : DOOR DRIVE (SEL) (SEL) (SEL) (D) (D) (D) (S) (D) 2 23 19 18 53 4 3 7 6 8 5 16 33 23 3.4V 5.0V 0V 0V 0V 0V 0V 0V 0V 0V 0V 1.7V 1.7V 0.2V 1.6V 1.6V 1.6V 1.8V 1.8V 1.6V OV OV -O.7V (F) (T) (T) (F) (F) (F) L F M F 2. SCHEMATIC DIAGRAM H F 2.1 MAIN BOARD ASSY, HEADPHONE ASSY and COAXIAL OUTPUT ASSY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-F17 7 A B C D 5 6 7 8 5 6 7 8 LINE OUT JACK MAIN BOARD ASSY P Q 10 (PWZ3898: PD-F17 /KUXQ/CA) TO POWER BOARD ASSY 0V 0V 0V 0V 0V -9.2 -9.2 1.6V 1.6V J11 I F H F COAXIAL OUTPUT BOARD ASSY (PWZ3917) Note: The numbers marked with a circle show the number of each measuring point, which correspond to the number in the service manual PD-F958 (ORDER NO. RRV2085) on page12 . H F Q www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-F17 8 A B C D 1 2 3 4 1 2 3 4 2.2 DISPLAY BOARD ASSY, POWER BOARD ASSY and SWITCH BOARD ASSY M N L F M F I F SWITCH BOARD ASSY DISPLAY BOARD ASSY CN351 PD-F17/KUXQ/CA :(PWZ3908) POWER BOARD ASSY (PWZ3902:PD-F17/KUXQ/CA) (TO MAIN BOARD ASSY) CN11 PD-F17/KUXQ/CA AC120V TO MAIN BOARD ASSY 60Hz H F H F L F I F M F AC POWER CORD KUXQ/CA : PDG1064 P0WER TRANSFORMER PD-F17/KUXQ/CA :(PWZ3905) PE5032A CABLE HOLDER 51048– 1200 J703 DE010WE0 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-F17 9 A B C D 1 2 3 4 1 2 3 4 3. PCB CONNECTION DIAGRAM D E A B C HEAD PHONE BOARD ASSY COAXIAL OUTPUT BOARD ASSY CN401 SIDE A SIDE A NOTE FOR PCB DIAGRAMS: 1. Part numbers in PCB diagrams match those in the schematic diagrams. 2. A comparison between the main parts of PCB and schematic diagrams is shown below. Symbol in PCB Diagrams Symbol in Schematic Diagrams Part Name Transistor Transistor with resistor Field effect transistor B C E B C E B C E D G S B C E B C E B C E D G S D G S 3. The parts mounted on this PCB include all necessary parts for several destination. For further information for respective destinations, be sure to check with the schematic diagram. 4. Viewpoint of PCB diagrams Resistor array 3-terminal regulator Capacitor Connector P. C. Board Chip Part SIDE B SIDE A PNP1455-B PNP1455-B H F CN951 H F P Q IC951 P Q 3.1 HEAD PHONE BOARD ASSY and COAXIAL OUTPUT BOARD ASSY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
