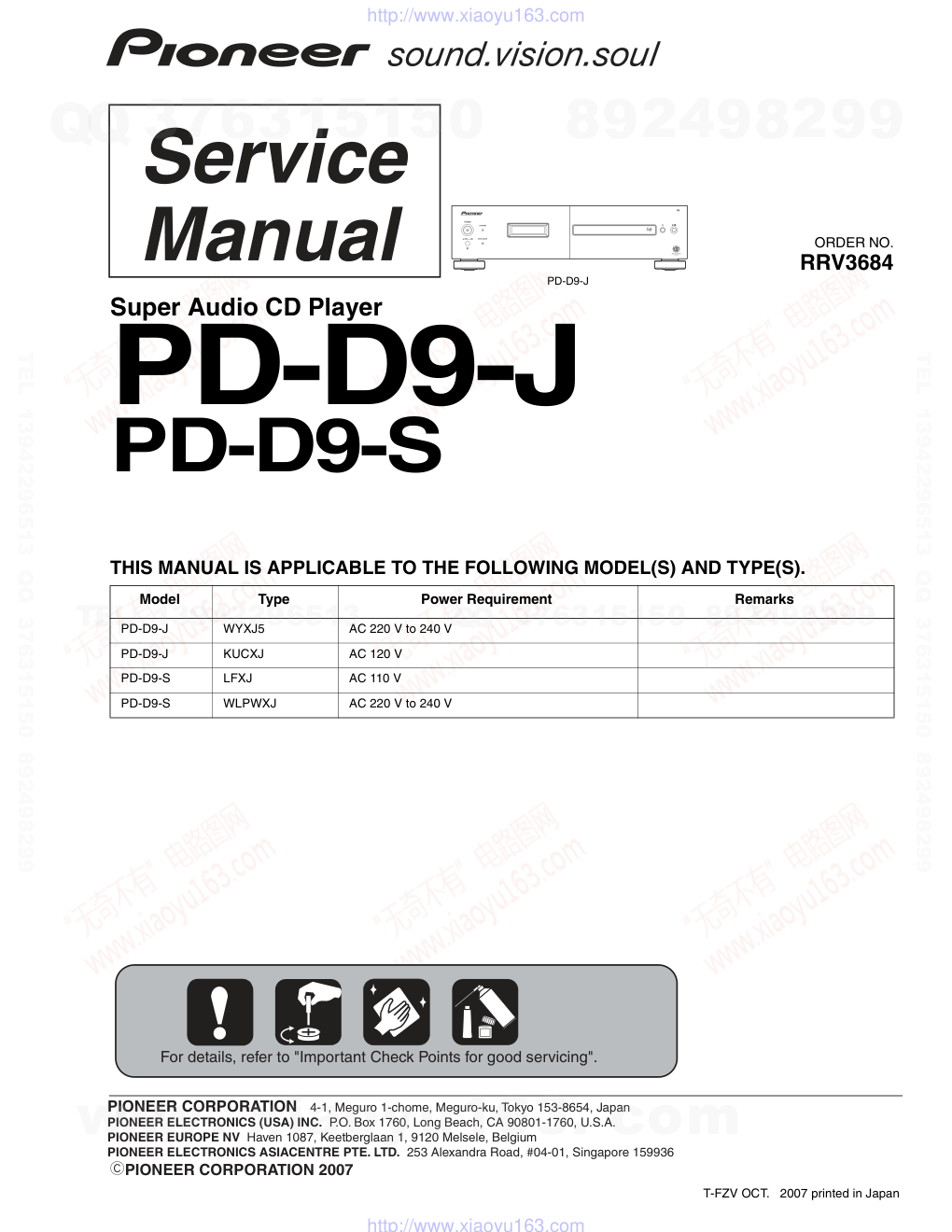

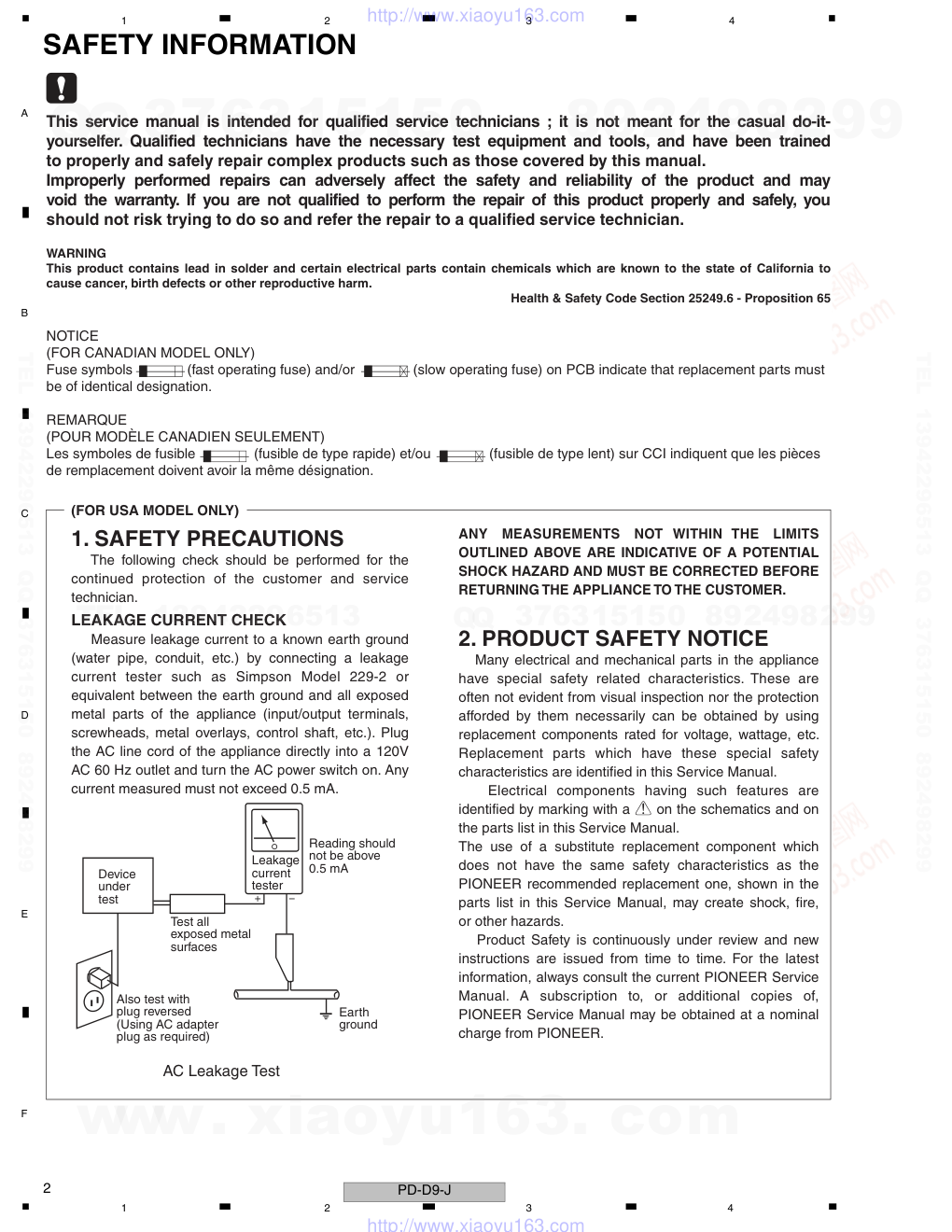

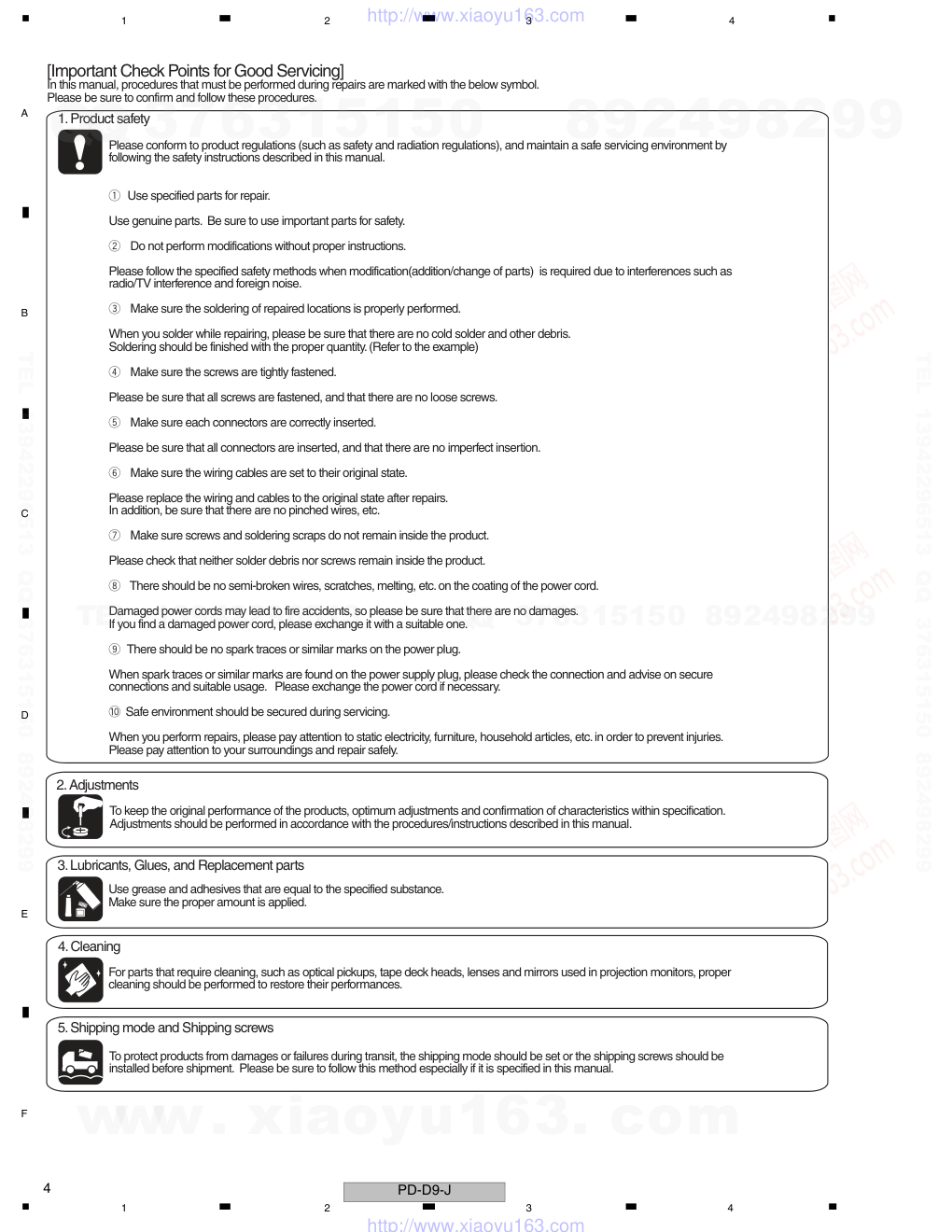

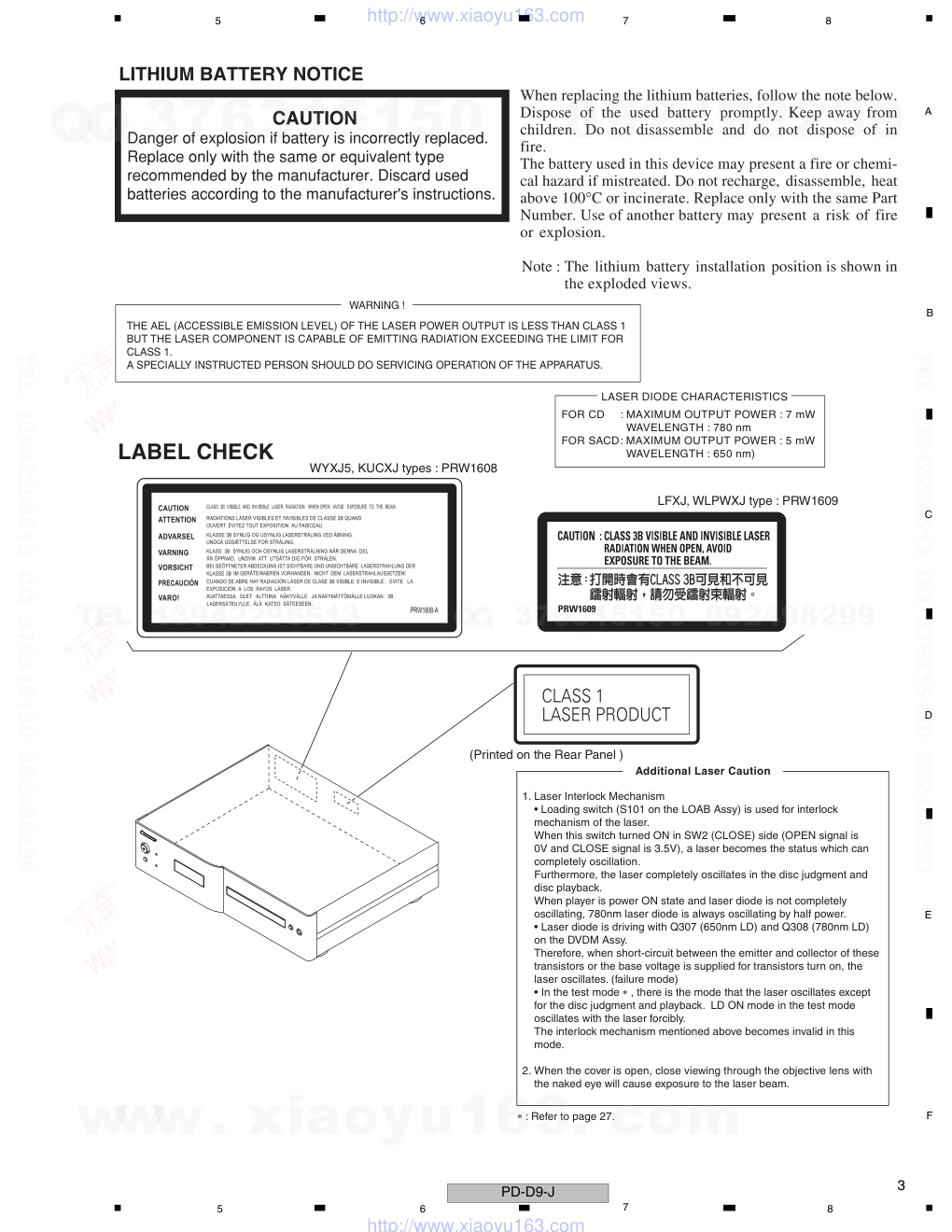

ORDER NO. PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2007 ON OFF POWER STANDBY PURE AUDIO D9 PD-D9-J RRV3684 Super Audio CD Player PD-D9-J PD-D9-S THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S). Model Type Power Requirement Remarks PD-D9-J WYXJ5 AC 220 V to 240 V PD-D9-J KUCXJ AC 120 V PD-D9-S LFXJ AC 110 V PD-D9-S WLPWXJ AC 220 V to 240 V For details, refer to "Important Check Points for good servicing". T-FZV OCT. 2007 printed in Japan www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 2 1 2 3 4 1 2 3 4 C D F A B E SAFETY INFORMATION 1. SAFETY PRECAUTIONS The following check should be performed for the continued protection of the customer and service technician. LEAKAGE CURRENT CHECK Measure leakage current to a known earth ground (water pipe, conduit, etc.) by connecting a leakage current tester such as Simpson Model 229-2 or equivalent between the earth ground and all exposed metal parts of the appliance (input/output terminals, screwheads, metal overlays, control shaft, etc.). Plug the AC line cord of the appliance directly into a 120V AC 60 Hz outlet and turn the AC power switch on. Any current measured must not exceed 0.5 mA. ANY MEASUREMENTS NOT WITHIN THE LIMITS OUTLINED ABOVE ARE INDICATIVE OF A POTENTIAL SHOCK HAZARD AND MUST BE CORRECTED BEFORE RETURNING THE APPLIANCE TO THE CUSTOMER. 2. PRODUCT SAFETY NOTICE Many electrical and mechanical parts in the appliance have special safety related characteristics. These are often not evident from visual inspection nor the protection afforded by them necessarily can be obtained by using replacement components rated for voltage, wattage, etc. Replacement parts which have these special safety characteristics are identified in this Service Manual. Electrical components having such features are identified by marking with a > on the schematics and on the parts list in this Service Manual. The use of a substitute replacement component which does not have the same safety characteristics as the PIONEER recommended replacement one, shown in the parts list in this Service Manual, may create shock, fire, or other hazards. Product Safety is continuously under review and new instructions are issued from time to time. For the latest information, always consult the current PIONEER Service Manual. A subscription to, or additional copies of, PIONEER Service Manual may be obtained at a nominal charge from PIONEER. Leakage current tester Reading should not be above 0.5 mA Device under test Test all exposed metal surfaces Also test with plug reversed (Using AC adapter plug as required) Earth ground AC Leakage Test (FOR USA MODEL ONLY) WARNING This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 - Proposition 65 NOTICE (FOR CANADIAN MODEL ONLY) Fuse symbols (fast operating fuse) and/or (slow operating fuse) on PCB indicate that replacement parts must be of identical designation. REMARQUE (POUR MODÈLE CANADIEN SEULEMENT) Les symboles de fusible (fusible de type rapide) et/ou (fusible de type lent) sur CCI indiquent que les pièces de remplacement doivent avoir la même désignation. This service manual is intended for qualified service technicians ; it is not meant for the casual do-it- yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 3 5 6 7 8 5 6 7 8 C D F A B E WARNING ! THE AEL (ACCESSIBLE EMISSION LEVEL) OF THE LASER POWER OUTPUT IS LESS THAN CLASS 1 BUT THE LASER COMPONENT IS CAPABLE OF EMITTING RADIATION EXCEEDING THE LIMIT FOR CLASS 1. A SPECIALLY INSTRUCTED PERSON SHOULD DO SERVICING OPERATION OF THE APPARATUS. LASER DIODE CHARACTERISTICS FOR CD : MAXIMUM OUTPUT POWER : 7 mW WAVELENGTH : 780 nm FOR SACD : MAXIMUM OUTPUT POWER : 5 mW WAVELENGTH : 650 nm) Additional Laser Caution 1. Laser Interlock Mechanism • Loading switch (S101 on the LOAB Assy) is used for interlock mechanism of the laser. When this switch turned ON in SW2 (CLOSE) side (OPEN signal is 0V and CLOSE signal is 3.5V), a laser becomes the status which can completely oscillation. Furthermore, the laser completely oscillates in the disc judgment and disc playback. When player is power ON state and laser diode is not completely oscillating, 780nm laser diode is always oscillating by half power. • Laser diode is driving with Q307 (650nm LD) and Q308 (780nm LD) on the DVDM Assy. Therefore, when short-circuit between the emitter and collector of these transistors or the base voltage is supplied for transistors turn on, the laser oscillates. (failure mode) • In the test mode ∗ , there is the mode that the laser oscillates except for the disc judgment and playback. LD ON mode in the test mode oscillates with the laser forcibly. The interlock mechanism mentioned above becomes invalid in this mode. 2. When the cover is open, close viewing through the objective lens with the naked eye will cause exposure to the laser beam. LABEL CHECK LFXJ, WLPWXJ type : PRW1609 WYXJ5, KUCXJ types : PRW1608 (Printed on the Rear Panel ) ∗ : Refer to page 27. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 4 1 2 3 4 1 2 3 4 C D F A B E [Important Check Points for Good Servicing] In this manual, procedures that must be performed during repairs are marked with the below symbol. Please be sure to confirm and follow these procedures. 1. Product safety Please conform to product regulations (such as safety and radiation regulations), and maintain a safe servicing environment by following the safety instructions described in this manual. 1 Use specified parts for repair. Use genuine parts. Be sure to use important parts for safety. 2 Do not perform modifications without proper instructions. Please follow the specified safety methods when modification(addition/change of parts) is required due to interferences such as radio/TV interference and foreign noise. 3 Make sure the soldering of repaired locations is properly performed. When you solder while repairing, please be sure that there are no cold solder and other debris. Soldering should be finished with the proper quantity. (Refer to the example) 4 Make sure the screws are tightly fastened. Please be sure that all screws are fastened, and that there are no loose screws. 5 Make sure each connectors are correctly inserted. Please be sure that all connectors are inserted, and that there are no imperfect insertion. 6 Make sure the wiring cables are set to their original state. Please replace the wiring and cables to the original state after repairs. In addition, be sure that there are no pinched wires, etc. 7 Make sure screws and soldering scraps do not remain inside the product. Please check that neither solder debris nor screws remain inside the product. 8 There should be no semi-broken wires, scratches, melting, etc. on the coating of the power cord. Damaged power cords may lead to fire accidents, so please be sure that there are no damages. If you find a damaged power cord, please exchange it with a suitable one. 9 There should be no spark traces or similar marks on the power plug. When spark traces or similar marks are found on the power supply plug, please check the connection and advise on secure connections and suitable usage. Please exchange the power cord if necessary. a Safe environment should be secured during servicing. When you perform repairs, please pay attention to static electricity, furniture, household articles, etc. in order to prevent injuries. Please pay attention to your surroundings and repair safely. 2. Adjustments To keep the original performance of the products, optimum adjustments and confirmation of characteristics within specification. Adjustments should be performed in accordance with the procedures/instructions described in this manual. 4. Cleaning For parts that require cleaning, such as optical pickups, tape deck heads, lenses and mirrors used in projection monitors, proper cleaning should be performed to restore their performances. 3. Lubricants, Glues, and Replacement parts Use grease and adhesives that are equal to the specified substance. Make sure the proper amount is applied. 5. Shipping mode and Shipping screws To protect products from damages or failures during transit, the shipping mode should be set or the shipping screws should be installed before shipment. Please be sure to follow this method especially if it is specified in this manual. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 5 5 6 7 8 5 6 7 8 C D F A B E CONTENTS SAFETY INFORMATION .....................................................................................................................................2 1. SERVICE PRECAUTIONS................................................................................................................................6 1.1 NOTES ON SOLDERING...........................................................................................................................6 2. SPECIFICATIONS.............................................................................................................................................7 2.1 ACCESSORIES..........................................................................................................................................7 2.2 SPECIFICATIONS......................................................................................................................................8 2.3 PANEL FACILITIES ....................................................................................................................................9 3. BASIC ITEMS FOR SERVICE ........................................................................................................................11 3.1 CHECK POINTS AFTER SERVICING (SACD PLAYER).........................................................................11 3.2 PCB LOCATIONS.....................................................................................................................................12 3.3 JIGS LIST .................................................................................................................................................13 4. BLOCK DIAGRAM ..........................................................................................................................................14 4.1 OVERALL WIRING DIAGRAM.................................................................................................................14 4.2 OVERALL BLOCK DIAGRAM ..................................................................................................................16 5. DIAGNOSIS ....................................................................................................................................................18 5.1 TROUBLESHOOTING..............................................................................................................................18 5.2 SEQUENCE AFTER POWER ON/OFF....................................................................................................22 5.3 METHOD FOR DIAGNOSING DEGRADATION OF THE LDS ON THE PICKUP ASSY.........................26 6. SERVICE MODE.............................................................................................................................................27 6.1 TEST MODE.............................................................................................................................................27 7. DISASSEMBLY...............................................................................................................................................28 8. EACH SETTING AND ADJUSTMENT............................................................................................................36 8.1 ADJUSTMENT ITEMS AND LOCATION..................................................................................................36 8.2 JIGS AND MEASURING INSTRUMENTS ...............................................................................................36 8.3 NECESSARY ADJUSTMENT POINTS....................................................................................................37 8.4 TEST MODE.............................................................................................................................................38 8.5 MECHANISM ADJUSTMENT...................................................................................................................40 9. EXPLODED VIEWS AND PARTS LIST ..........................................................................................................42 9.1 PACKING..................................................................................................................................................42 9.2 EXTERIOR SECTION ..............................................................................................................................44 9.3 CHASSIS SECTION.................................................................................................................................46 9.4 FRONT PANEL SECTION........................................................................................................................48 9.5 LOADER ASSY ........................................................................................................................................50 9.6 TRAVERSE MECHANISM ASSY-S..........................................................................................................52 10. SCHEMATIC DIAGRAM................................................................................................................................54 10.1 DVDM ASSY (1/2) ..................................................................................................................................54 10.2 DVDM ASSY (2/2) ..................................................................................................................................56 10.3 AJKB ASSY ............................................................................................................................................58 10.4 CONNECTOR ASSY..............................................................................................................................60 10.5 LCD, PLED, IR and KEY ASSYS ...........................................................................................................62 10.6 PRIMARY, MNSW and REGULATOR ASSYS .......................................................................................64 10.7 WAVEFORMS.........................................................................................................................................66 11. PCB CONNECTION DIAGRAM ....................................................................................................................69 11.1 LOAB ASSY............................................................................................................................................69 11.2 DVDM ASSY...........................................................................................................................................70 11.3 AJKB ASSY ............................................................................................................................................72 11.4 LCD ASSY ..............................................................................................................................................74 11.5 PLED, KEY and IR ASSYS.....................................................................................................................76 11.6 PRIMARY ASSY .....................................................................................................................................78 11.7 CONNECTOR and MNSW ASSYS ........................................................................................................80 11.8 REGULATOR ASSY ...............................................................................................................................82 12. PCB PARTS LIST..........................................................................................................................................84 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 6 1 2 3 4 1 2 3 4 C D F A B E 1. SERVICE PRECAUTIONS 1.1 NOTES ON SOLDERING • For environmental protection, lead-free solder is used on the printed circuit boards mounted in this unit. Be sure to use lead-free solder and a soldering iron that can meet specifications for use with lead-free solders for repairs accompanied by reworking of soldering. • Compared with conventional eutectic solders, lead-free solders have higher melting points, by approximately 40 ºC. Therefore, for lead-free soldering, the tip temperature of a soldering iron must be set to around 373 ºC in general, although the temperature depends on the heat capacity of the PC board on which reworking is required and the weight of the tip of the soldering iron. Do NOT use a soldering iron whose tip temperature cannot be controlled. Compared with eutectic solders, lead-free solders have higher bond strengths but slower wetting times and higher melting temperatures (hard to melt/easy to harden). The following lead-free solders are available as service parts: • Parts numbers of lead-free solder: GYP1006 1.0 in dia. GYP1007 0.6 in dia. GYP1008 0.3 in dia. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 7 5 6 7 8 5 6 7 8 C D F A B E 2. SPECIFICATIONS 2.1 ACCESSORIES • Power cable (ADG7062 : WYXJ5) (ADG7061 : KUCXJ) • RCA/phono stereo audio cable (XDE3047) • SR control cable (XDE3063) • Remote Control (PWW1175 : WYXJ5,KUCXJ) (PWW1176 : LFXJ,WLPWXJ) (ADG7076 : LFXJ) (ADG7104 : WLPWXJ) • Lithium Battery (CR2025) (Attached inside the remote control) > SUPER AUDIO CD PLAYER DIMMER ENTER 1 2 3 4 5 6 7 8 9 0 PROGRAM REPEAT SACD SETUP RANDOM TIME OPEN/CLOSE PURE AUDIO CLEAR LEGATO LINK www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 8 1 2 3 4 1 2 3 4 C D F A B E 2.2 SPECIFICATIONS General System .......................... Super Audio CD player Power requirements ................................................ AC 120 V, 60 Hz PD-D9-J/WYXJ5, PD-D9-S/WLPWXJ ........................AC 220 V to 240 V, 50 Hz/60 Hz PD-D9-J/KUCXJ ......................................AC 110 V, 50 Hz/60 Hz Power consumption....................................22 W Power consumption (standby)...................0.4 W Weight Dimensions PD-D9-S/LFXJ PD-D9-S/WLPWXJ PD-D9-J/WYXJ5 ................................................................ 11.0kg PD-D9-J/KUCXJ, PD-D9-S/LFXJ, ................................................................ 10.0kg ..... 420 mm (W) x 113 mm (H) x 340 mm (D) Operating temperature ...............+5°C to +35 °C Operating humidity ..........................5 % to 85 % (no condensation) Audio output (1 stereo pair) Output level .........................During audio output 200 mVrms (1 kHz, –20 dB) Number of channels ......................................... 2 Jacks ..........................................................RCA Digital audio characteristics Frequency response...... 4 Hz to 50 kHz (SACD) 4 Hz to 20 kHz (CD) S/N ratio: CD .......................................................115 dB SACD...................................................110 dB Dynamic range: CD .......................................................100 dB SACD...................................................110 dB Total harmonic distortion: CD ..................................................... 0.002 % SACD................................................. 0.003 % Wow and flutter ................Limit of measurement (±0.001 % W. PEAK) or lower Digital output Coaxial digital output ........................... RCA jack Optical digital output.............. Optical digital jack Accessories Remote control ................................................. 1 Lithium battery (CR2025) ................................. 1 RCA/phono stereo audio cable ........................ 1 SR control cable ............................................... 1 Power cable...................................................... 1 The specifications and design of this product are subject to change without notice, due to improvement. Disc/content format playback compatibility This player is compatible with a wide range of audio disc types and media formats. Playable discs will generally feature one of the following logos on the disc and/or disc packaging. Note however that some disc types, such as recordable CDs, may be in an unplayable format — see the Disc compatibility table below for further compatibility information. Please also note that recordable discs cannot be recorded using this player. Audio CD CD-R CD-RW Super Audio CD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 9 5 6 7 8 5 6 7 8 C D F A B E 2.3 PANEL FACILITIES 1 POWEROFFON 2 STANDBY indicator 3 Display 4 Disc tray 5  6  7 Remote sensor 8 PURE AUDIO indicator ON OFF POWER STANDBY PURE AUDIO D9 3 4 1 7 2 5 6 8 Front Panel www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 10 1 2 3 4 1 2 3 4 C D F A B E 1  2 Playback controls 3 Number buttons 4 PROGRAM REPEAT RANDOM 5 SACD SETUP 6 OPEN/CLOSE 7 DIMMER 8 PURE AUDIO 9 CLEAR 10 ENTER 11 TIME 12 LEGATO LINK SUPER AUDIO CD PLAYER DIMMER ENTER 1 2 3 4 5 6 7 8 9 0 PROGRAM REPEAT SACD SETUP RANDOM TIME OPEN/CLOSE PURE AUDIO CLEAR LEGATO LINK 1 2 3 4 5 6 7 8 11 12 9 10 Using the remote control Keep in mind the following when using the remote control: • Make sure that there are no obstacles between the remote and the remote sensor on the unit. • The remote has a range of about 7 m at an angle of about 30º from the remote sensor. • Remote operation may become unreliable if strong sunlight or fluorescent light is shining on the unit’s remote sensor. • Remote controllers for different devices can interfere with each other. Avoid using remotes for other equipment located close to this unit. • Replace the batteries when you notice a fall off in the operating range of the remote. 1 TRACK – Lights when the track number is indicated. 2 / – Light during playback/when paused. 3 Scan display – Shows the scan speed. 4 SACD – Lights during SACD playback. 5 LEGATO – Lights when Legato Link Pro is switched on. 6 (ALL) REPEAT/RANDOM/PGM – Light to indicate the playback mode. 7 Character display 8 TOTAL/REMAIN – Indicate the disc/track information currently displayed. LEGATO LEGATO ALL ALL TOTAL TOTAL REPEAT REPEAT PGM PGM REMAIN REMAIN RANDOM RANDOM TRACK TRACK SACD SACD 1 2 3 4 5 6 7 8 Remote Control Display www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 11 5 6 7 8 5 6 7 8 C D F A B E 3. BASIC ITEMS FOR SERVICE 3.1 CHECK POINTS AFTER SERVICING (SACD PLAYER) To keep the product quality after servicing, confirm recommended check points shown below. See the table below for the items to be checked regarding audio: No. Procedure Check points 1 Confirm the firmware version on Service Mode. The version of the firmware must be latest. Update firmware to the latest one, if it is not the latest. The customer complain must not be reappeared. Video, audio and operations must be normal. 2 Confirm whether the customer complain has been solved. If the customer complain occurs with the specific disc, use it for the operation check. The error rates must be less than 5.0e-4. 3 Confirm playback error rates at the innermost and outermost tracks by using the following disc. DVD test disc (GGV1025) 4 Play back a CD/SACD. (Menu operation, Title/chapter search) Audio and operations must be normal. 5 Check the appearance of the product. No scratches or dirt on its appearance after receiving it for service. Item to be checked regarding audio Distortion Noise Volume too low Volume too high Volume fluctuating Sound interrupted www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 12 1 2 3 4 1 2 3 4 C D F A B E 3.2 PCB LOCATIONS REGULATOR ASSY J AJKB ASSY C CONNECTOR ASSY H KEY ASSY G LOAB ASSY A LCD ASSY D PLED ASSY E IR ASSY K MNSW ASSY F PRIMARY ASSY I DVDM ASSY B Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: LIST OF ASSEMBLIES Mark No. Description PD-D9-J /WYXJ5 PD-D9-J /KUCXJ PD-D9-S /LFXJ PD-D9-S /WLPWXJ NSP 1..LOADER ASSY PXA1648 PXA1648 PXA1648 PXA1648 2..LOAB ASSY NSP VWG2346 VWG2346 VWG2346 VWG2346 1..DVDM ASSY AWM8069 AWM8069 AWM8069 AWM8069 1..AJKB ASSY PWM2359 PWM2359 PWM2359 PWM2359 2..AJKB ASSY PWX1661 PWX1661 PWX1661 PWX1661 2..CONNECTOR ASSY PWX1662 PWX1662 PWX1662 PWX1662 1..FLKB ASSY PWM2358 PWM2361 PWM2362 PWM2358 2..LCD ASSY PWX1651 PWX1651 PWX1651 PWX1651 2..PLED ASSY PWX1655 PWX1655 PWX1655 PWX1655 2..MNSW ASSY PWX1654 PWX1654 PWX1654 PWX1654 2..KEY ASSY PWX1652 PWX1652 PWX1652 PWX1652 2..PRIMARY ASSY PWX1657 PWX1659 PWX1660 PWX1657 2..REGULATOR ASSY PWX1656 PWX1663 PWX1663 PWX1656 2..IR ASSY PWX1653 PWX1653 PWX1653 PWX1653 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 13 5 6 7 8 5 6 7 8 C D F A B E 3.3 JIGS LIST Service Remote Control Unit GGF1381 DVD Test Disc (DVD-Video) GGV1025 adjustment, diagnosis Name Jig No. Remarks Check of DVD-Video CD Test Disc STD-905 Check of CD 5P FFC GGD1425 Diagnosis of DVDM ASSY 17P FFC GGF1157 Diagnosis of DVDM ASSY Jigs list Silicone Adhesive GYA1011 refer to "9.4 FRONT PANEL SECTION" Lubricating Oil GYA1001 GEM1036 Daifree Name Lubricants and Glues No. Remarks refer to "9.5 LOADER ASSY" refer to "9.5 LOADER ASSY" GEM1037 Silicone Adhesive refer to "9.6 TRAVERSE MECHANISM ASSY-S" GYL1001 Screw tight refer to "8.5 MECHANISM ADJUSTMENT" Lubricants and Glues list Before shipping out the product, be sure to clean the following positions by using the prescribed cleaning tools: Position to be cleaned Cleaning tools Pickup leneses Cleaning liquid : GEM1004 Cleaning paper : GED-008 CLEANING www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 14 1 2 3 4 1 2 3 4 C D F A B E 4. BLOCK DIAGRAM 4.1 OVERALL WIRING DIAGRAM FLAT CABLE P=2.0mm L=35mm J2106A 1 VOUT V+5U GNDD 3 2 PKP1025 J2106 3 2 1 2 P=2.0mm PLED 2 2 PLED P=2.0mm L=50mm L=50mm 2 1 PKP1023 J2601 V+5U 1 1 V+5U 1 6 GNDD PKP1024 J2102 2 1 5 4 3 V+58U GNDU V+56ST AC SYSPOW PF06PG-D07 J2101 CN2105 9607S-17F 1 2 5 4 3 8 7 6 GNDD SROUT SRIN GNDD XDFDT XDFCLK XDFCS GNDD 11 10 9 14 13 12 17 16 15 XDFRST GNDD XSYSMUTE LEGATO XDACCK XSRRST XDACDT XDACCS2 XDACCS1 RKP1834 CN2502 6 CN2501 VKN2024 FU1 Power SW) (Mechanical S2301 L=70mm 2 1 LIVE NUETRAL 1 2 J11 PKP1022 NEUTRAL LIVE 1 2 LIVE 1 B2P3-VH-Y CN12 LIVE NEUTRAL NEUTRAL 2 1 2 CN10 B2P3-VH L=190mm L=90mm WLPW,WY:PTT1374 (DIGITAL) KUC,LF:PTT1373 MECHA2 MECHA1 Power Transformer L=140mm DIGITAL1 DIGITAL2 KUC,LF:PTT1371 WLPW,WY:PTT1372 AUDIO CT L=190mm PKP1021 Transformer Power (AUDIO) AUDIO 1 L=120mm AUDIO 2 L=75mm P=2.0mm 5 4 3 B6B-PH-K-S CN11 2 1 L=290mm FFC P=1.25mm PDD1235 SPINDLE MOTOR 3 4 5 6 2 1 7 8 9 10 11 12 STEPPING MOTOR 4 1 2 3 V+58U B2B-PH-K-S CN13 2 1 10 9 8 7 P=1.0mm 12 11 W+ V- U+ U- V+ V+5S FFC 2 1 GNDD PF02PG-S05 J1702 L=50mm P=2.0mm 4 3 W- HB INSIDE FFC P=1.0mm ST1-(A) U V W 6 5 4 3 1 2 4 ST1+(A) ST2+(B) ST2-(B) 3 2 1 RKN1045 CN103 AKN7031 CN102 CN1701 B4P-VH 2 1 B4B-EH GNDM CN1702 4 3 1 2 V+9D V+6R5V GNDD 3 XDFCLK 1 2 CN1801 B3P-VH SROUT GNDD SRIN GNDD XDFDT GNDD XDFCS 2 1 5 4 3 8 7 6 L=360mm P=2.5mm PKP1020 XSRRST XDACCS1 XDFRST LEGATO XSYSMUTE XDACCK XDACDT XDACCS2 GNDD 11 10 9 14 13 12 17 16 15 CN1401 CKS3382 AC INLET AC CORD LF : ADG7076 WLPW : ADG7104 KUC : ADG7061 WY : ADG7062 9 V+12RY 8 7 V+3D GNDRY 6 5 4 V-12A GNDD 9 8 7 6 5 4 B9B-EH 2 3 CN1802 GNDA V+12A GNDA 1 V+5A L=100mm P=2.5mm RKN1004 JA1601 2 1 PKP1019 J1901 3 SR-OUT RKN1004 JA1602 SR-IN I PRIMARY ASSY (PD-D9-J/WYXJ5, PD-D9-S/WLPWXJ:PWX1657) (PD-D9-J/KUCXJ:PWX1659) (PD-D9-S/LFXJ:PWX1660) E PLED ASSY (PWX1655) K IR ASSY (PWX1653) F MNSW ASSY (PWX1654) J REGULATOR ASSY (PD-D9-J/WYXJ5, PD-D9-S/WLPWXJ:PWX1656) (PD-D9-J/KUCXJ, PD-D9-S/LFXJ:PWX1663) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 15 5 6 7 8 5 6 7 8 C D F A B E J2104 2 1 KEY1 VE+5 3 GNDD D20PYY0320E 2 1 3 J2104A L=200mm P=2.0mm 1 2 WCLK WEN/DI RST VCC WD0 5 6 3 4 4 3 2 1 PU 13 12 11 10 9 8 7 6 5 N.C. 52492-0720 VSS 7 CN2101 14 22 21 20 19 18 17 16 15 23 24 PG05KK-E07 FOCS RTN FOCS DRV TRKG RTN TRKG DRV 24 23 22 21 GNDD VSHF LD(650) GNDD LD(780) PD VR650 VRCOM VR780 20 19 18 17 16 15 14 13 12 VREF VCC RF A B SW D C E 11 10 9 8 7 6 5 4 3 ADD7546 GNDD FFC P=0.5mm SW1 L=220mm LOAD+ SW2 GNDD F 1 2 5 2 4 3 LOAD- 1 L=80mm FFC PDD1236 P=1.0mm L=75mm CN101 CKS5045 AKM1291 CN104 29 28 V+12A V+9D 27 26 V+6R5V V+9D 25 24 V+6R5V GNDM 22 23 GNDM GNDD 20 21 DOUT GNDD 17 19 18 GNDD GNDD 1 2 4 3 7 6 5 11 10 9 8 GNDD DATA0 LRCK GNDD MCLK(22M) GNDD GNDD DATA1 GNDD BCK GNDD 17 15 16 14 11 12 13 7 8 9 10 14 13 12 17 16 15 CN953 CKS3885 16 15 XDVDRST DVDPOWER XREADY 13 14 SDATA SCLK 12 11 ACK MDATA XDACDT XDACCK XDACCS2 XDACCS1 L=60mm P=1.0mm GNDD XPCM/DSD PDD1234 FFC 10 9 GNDD GNDD 8 7 VDET DVDMUTE 6 5 4 TRKUP SPDIF_RQ 4 5 6 3 1 2 PKN1033 CN1402 1 2 CN901 VKN1321 3 TRIN CVBS TROUT TRGAIN SPDIFP_RQ VDET TRIN 14 11 15 12 13 TRGAIN TROUT MDATA GNDD GNDD 8 9 10 ACK SCLK SDATA 7 5 6 2 XDVDRST XREADY 3 4 DVDPOWER CN2106 CKS3829 1 GNDD 3 2 1 5 4 7 8 6 10 11 9 14 13 12 L=300mm VKN1191 PDD1229 FFC 15 P=1.0mm CN2703 2 1 6 5 4 3 CN2704 B2P-SHF-1AA CVBS GNDD 2 1 12 11 10 9 8 7 15 14 13 17 16 19 18 21 20 23 22 25 24 S4B-EH CN2701 VKN1205 29 28 27 26 05PL-FJ (TOTX147L) AKB7102 JA1101 AKB7102 JA1501 JA1502 VKS1002 AKB7102 JA1201 Lch OUT OPT-OUT COAX-OUT Rch OUT CN2704 2 1 4 3 GNDD V+6R5V GNDM V+9D 3 4 5 GNDD GNDD DVDMUTE DOUT 2 CN2702 V+12A P=2.0mm 1 3 4 5 2 05R-FJ CN1501 1 G KEY ASSY (PWX1652) D LCD ASSY (PWX1651) 3 4 2 1 5 V+3D SW2 LOAD+ LOAD- SW1 S5B-PH-K-S CN601 CN602 LOADING MOTOR ASSY : VXX2912 LOAB ASSY (VWG2346) A 1 2 MECHA ASSY (AWM7967) B DVDM ASSY (AWM8069) H CONNECTOR ASSY (PWX1662) B 1/2, B 2/2 C AJKB ASSY (PWX1661) When ordering service parts, be sure to refer to "EXPLODED VIEWS and PARTS LIST" or "PCB PARTS LIST". The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. : The power supply is shown with the marked box. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 16 1 2 3 4 1 2 3 4 C D F A B E 4.2 OVERALL BLOCK DIAGRAM CN101 CN953 CN901(1/2) CN2105 J2104 CN1401 J2106 J2104A CN901(2/2) CN2106 J2106A CN103 CN102 CN104 IC201 MAIN DECODER (CD,SACD) 1389EE 3.3V&1.8V 64M SDRAM IC202 KS641632H-TC75 3.3V IC203 PGM FLASH MEMORY 16M AYW7197 3.3V EEPROM IC204 4k 3.3V S-24C04AFJ LOADING MOTOR SPDL MOTOR PU STEPPING MOTOR TRAVERSE 05 PICK UP IC101 SERVO DRIVER BD7995EFS 6.5&5V IC2101 SYSTEM CONTROL CPU 5V PDC170A LCD Display AAV7111 5V KEY S2301, S2302 IR GP1UM28XK 5V Front Panel Block X202 Clock OSC ASS7075 (27MHz) 3.3V SPDIF DVDM ASSY B LCD ASSY D KEY ASSY G IR ASSY K www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 17 5 6 7 8 5 6 7 8 C D F A B E CN1402 CN1501 CN1401 OPTICAL OUT COAXIAL OUT SR-IN SR-OUT L R JA1101 JA1201 JA1502 JA1501 JA1602 JA1601 LPF IC1101 (1/2) IC1101 (2/2) IC1201 (2/2) IC1201 (1/2) (PCM) IC1401 AQE PD0274A 3.3V (DSD) MCLK IC1251 IC1151 192k,24bit, 2chDAC WM8741 3.3V&5V 192k,24bit, 2chDAC WM8741 3.3V&5V SEL SEL IC1152 IC1252 IC1402 SRC SRC4192 3.3V X1401 Clock OSC ASS7071 (22MHz) 3.3V MCLK AJKB ASSY C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 18 1 2 3 4 1 2 3 4 C D F A B E 5. DIAGNOSIS 5.1 TROUBLESHOOTING Start (Power → ON) Lighting LCD come out of the pure audio mode or dimmer mode Refer to Addendum No. 1. Appearance some waveform on LCD communication line (LCCDT,LCDCK,LCDCS,LCDRS) Confirm the port logic of BLOFF and DIMMER when operate Confirmation HB at CN1801or change D1801,D1802,D1803D1804 FU1 Connection between J1702 and CN13 Power line CN11 3 : 5.6V,CN11 5 : 5.8V D1809 is shorten HB at CN1802 and J1901 CN1802 3 is +13V Yes Yes No No No input and output of F2201,Q2103 is 5V Yes No No LCD displays correctly V2201 1 is 4.4V and V2201 2 is 5V Yes No Tray movement (open/close) Refer to Addendum No. 2. Yes No Focus movement OK? Refer to Addendum No. 3. Yes No Spindle movement OK? Refer to Addendum No. 4. Yes No Can stop spicdle movement (stop key react) Yes No Connection between CN1802 and J1901 Connection between CN1501 and CN2702 Connection between CN2701 and CN901 Connection between CN1702 and CN2704 Yes Yes Yes No No Change parts D1805,Q1801, Q1802 in turn Change parts D1807,Q1803, in turn No HB at IC1101,IC1201 No (V+3D line) CN1802 3 is 3.3V HB at J1901,CN1802, IC1151,IC1152,IC1251,IC1252, IC1401-IC1406 No Yes HB at CN1701 Change IC1701 No LCD disappers and flashing pure audio LED (V+12V line) Cathode of 1801, D1802 is +17V (V+5V line) CN1802 1 is +5V Yes No (V+9D line) D1701 1 is +7.5V Is status of IC1701 OK? Yes HB at CN1701 Change IC1702 No No Is status of IC1702 OK? CN1702 3 is +6.5V HB at CN1702,CN2704,IC101 No Yes (V+6R5V line) D1702 1 is +8.5V A Working at pure audio mode or dimmer? www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 19 5 6 7 8 5 6 7 8 C D F A B E no ploblem HB of CN1801 CN1802 is -13V Change parts D1808,Q1804, in turn Yes No Audio analog output is OK? only analog output at SACD mode All output audio signal are OK? Yes Only optical or coaxial output Yes Yes No IC201-225 Connection between CN953and CN1402 Input and output of IC1501 V+3DO is 3.3V Yes RY1302 a is 0V Yes Yes No Change parts D1806, Q1804,Q1805 in turn Yes HB at IC1101,IC1201 Yes Change RY1302 No XSYSMUTE : H DVDMUTE : L HB at CN1701 or change D1709,D1710 No IC1707 1 is +17V Yes Change IC1707 No status of IC1706 is OK? Yes Change IC1706 No No (V+12RY line) RY1302 1 is +12V No No (V-12V line) anode of D1803, D1804 is -17V A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 20 1 2 3 4 1 2 3 4 C D F A B E No. Symptoms Diagnosis Contents Possible Defective Points 1 The power is not turned on. Are wires of output connector (POWER SUPPLY Unit) and CN901 (DVDM Assy) disconnected or damaged ? Connector / cable Check that the following voltage is output : + side of C739 : 3.3V DVDM Assy 3.3V Regulator IC (IC341) 2 An opening screen is not displayed on the monitor (The FL display lights. The mechanism does not work.) Are the signals output from IC201-pin 98 (MDATA) and pin 99 (SCLK) on the DVDM Assy ? (in the range of 0-3V) DVDM Assy DVD IC (IC201) Are the signals input into IC2101-pin 50 (MDATA) and pin 51 (SCLK) on the LCD Assy ? (in the range of 0-3V) LCD Assy UCOM (IC2101) Check that the following voltage are output : IC751-pin 1 on the DVDM Assy : 5V DVDM Assy 5V Regulator IC (IC751) Is a resonator (X202: 27MHz) on the DVDM Assy oscillating ? DVDM Assy Crystal resonator (X202) • Is a signal input into IC203-pin26 (PCE#) on the DVDM Assy ? (Is a signal "H" for 80 mS and then "L" after the power is turned on ?) → Communication with flash ROM. • Are the signals input into IC202-pin 16 (DWE#), pin 19 (DCS#) and pin 38 (SDCLK) on the DVDM Assy ? (Is a signal fluctuating ?) → Communication with SDRAM DVDM Assy DVD IC (IC201) Flash ROM (IC203) SDRAM (IC202) Is a signal output from IC203-pin 28 (PRD#) on the DVDM Assy? (Is a signal fluctuating for several hundred mS after the power is turned on ?) DVDM Assy Flash ROM (IC203) Is a signal input into IC2101-pin 67 (DVD ACK) on the LCD Assy ? (Is a signal fluctuating ?) → Communication with FL Control IC DVDM Assy DVD IC (IC201) LCD Assy UCOM (IC2101) Is a signal output from IC2101-pin 30 (XREADY) on the LCD Assy ? (Is a signal fluctuating in the range of 0-5V ?) LCD Assy UCOM (IC2101) Are the signals output from IC2101-pin 49 (SDATA) on the LCD Assy ? (in the range of 0-5V) DVDM Assy DVD IC (IC201) LCD Assy UCOM (IC2101) Are the signals of IC204-pin 5(SDA) and pin 6(SCL) on the DVDM Assy fluctuating for one or two seconds after the power is turned ? DVDM Assy EEPROM (IC204) Addendum No.1 3 A tray cannot be opened. (An opening screen is displayed on the monitor) LOAB Assy Tray SW (S101) Is the signal input into IC101-pin 11 (TROPEN) on the DVDM Assy ? At open: 3.3V, At close: 0V DVDM Assy DVD IC (IC201) Are the signals output from IC101-pin 1 and pin 2 (CN103-pin 1 and pin 2) on the DVDM Assy ? Pin 2: Approx. 6V during opening tray approx. 0V during closing tray. Pin 1: Approx. 0V during opening tray approx. 6V during closing tray. DVDM Assy FTS Driver IC (IC101) Are wires of CN104 and CN103 on the DVDM Assy disconnected or damaged ? Connector / cable Does the voltage of CN102-pin 1 on the DVDM Assy change to 0V by pressing the Inside switch. Inside switch Does the voltage of CN104-pin 3 and pin 5 on the DVDM Assy change normally ? Pin 3 (SW2(TRIN)): Tray is fully closed: "L" Pin 5 (SW1(TROUT)): Tray is fully opened: "L" www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 21 5 6 7 8 5 6 7 8 C D F A B E No. Symptoms Diagnosis Contents Possible Defective Points 4 Playback impossible (no focusing) Are the signals output from IC101-pin 3 (FOCS_DRV) and pin 4 (FOCS_RTN) on the DVDM Assy ? DVDM Assy FTS Driver IC (IC101) Does 650-nm LD emit light ? Does a pickup lens move up / down ? Does an actuator spring bend ? Pickup Are plastic parts damaged ? Or is a shaft detached ? Is the turntable detached or tilted ? Mechanism section (motor) Is flexible cable of CN101 on the DVDM Assy disconnected or damaged ? Flexible cable / connector Is signal output from IC201-pin 42 (FOSO) on the DVDM Assy ? (Device control of about 1.4 V is output usually. It is fluctuated by about 250 mV with focus up / down.) DVDM Assy DVD IC (IC201) 5 Playback impossible (Spindle does not turn) Are the signals output from IC101-pin 30 (W), pin 33 (V) and pin 35 (U) on the DVDM Assy ? Is pin 26 (STBY) fixed LOW ? (pin 26 is High at playback: 3V) DVDM Assy FTS Driver IC (IC101) Is there any part detached from the spindle motor ? Or Is there any foreign object lodged in it ? Mechanism section (Spindle motor) Are wires of CN102 on the DVDM Assy disconnected or damaged ? Flexible cable / connector Is signal output from IC201-pin 37 (DMSO) on the DVDM Assy ? DVDM Assy DVD IC (IC201) 6 Playback impossible (Playback stops) Does 650-nm LD deteriorate ? If the voltage at each both ends of R322 and R325 on the DVDM Assy is 0.4 V or more, the 650-nm LD is definitely deteriorated. 650-nm LD deteriorated. (When playback of a DVD is impossible) Does 780-nm LD deteriorate ? If the voltage at each both ends of R321 and R326 on the DVDM Assy is 0.4 V or more, the 780-nm LD is definitely deteriorated. 780-nm LD deteriorated. (When playback of a CD is impossible) Is there abnormality in FG waveform ? (IC201-pin 47) DVDM Assy FG output : FTS Driver IC (IC101) Are there scratches or dirt on the disc ? Disc Addendum No.2 Addendum No.4 Addendum No.3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 22 1 2 3 4 1 2 3 4 C D F A B E 5.2 SEQUENCE AFTER POWER ON/OFF Set time for the current step Elapsed time Details on control 0 msec POWER ON start, Various initial settings 1 All keys are masked. XSYSMUTE ON + 60 msec 60 msec Various initial settings 2 SYSPOW ON When the power is turned on, the HELLO display is requested (3.5 sec). + 240 msec 300 msec Various initial settings 3 RESET L ⇒ H + 60 msec 360 msec Various initial settings 4 Control of the LCD driver starts. Data transmission Various initial settings 5 SRC reset RESET L ⇒ H + 240 msec 600 msec + 120 msec 1890 msec Various initial settings 9 Masking of all keys is canceled. + 390 msec 1770 msec Various initial settings 8 + 480 msec 1380 msec Various initial settings 7 Bus communication starts. + 300 msec 900 msec Various initial settings 6 DAC setting + 3120 msec 5010 msec Various initial settings a Temporary data transmission + 30 msec 5040 msec POWER ON completed Normal POWER-ON sequences Normal POWER-OFF sequences Set time for the current step Elapsed time Details on control 0 msec POWER OFF start, Various settings 1 The mask flags for all keys are set. + 30 msec 30 msec (Note 1) Various settings 2 Whether the DVD is turned power-off or not is checked. Bus communication is terminated. + 120 msec 150 msec Various settings 3 + 330 msec 480 msec Various settings 4 + 1320 msec 1800 msec Various settings 4 All the indications on the LCD are deleted. Various settings 5 Bus communication is terminated. + 90 msec 1890 msec + 240 msec 2130 msec Processing for the ports required when the power is turned off + 30 msec 2160 msec POWER OFF completed (passes every loop in the POWER OFF) Note 1: In this step, the unit wait for the DVD module to turn the power off. If the DVD module takes a longer time to turn itself off, the elapsed time will become longer, by just that much. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 23 5 6 7 8 5 6 7 8 C D F A B E Display only POWER-ON sequences Display only POWER-OFF sequences Set time for the current step Elapsed time Details on control 0 msec Display only POWER ON start, Various initial settings 1 Masking of all keys is canceled. The normal operation keys are masked. POWER MUTE ON SYSTEM POWER1 ON (Pin 91: H) + 60 msec 60 msec Various initial settings 2 + 240 msec 300 msec Various initial settings 3 Switched 5 V ON completed (power supply is stabilized) Masking of the normal operation keys is canceled. SYSTEM POWER2 ON (Pin 92: H) + 60 msec 360 msec Various initial settings 4 Power-on of the LCD driver starts. + 330 msec 690 msec Display Only POWER ON completed Set time for the current step Elapsed time Details on control 0 msec Display only POWER OFF start, Various settings 1 • The mask flags for all the keys are set. • The mask flags for the normal operation keys are set. • Muting the power system (SYSTEM MUTE REQUEST) • Power-off of the LCD driver starts. + 4120 msec 4120 msec Various settings 2 + 120 msec 4240 msec Various settings 3 + 760 msec 5000 msec Various settings 4 • Masking of all keys is canceled. • Muting of the power system is canceled. • Other than in an emergency power-off, the unit awaits for a while. • SYSTEM POWER2 OFF (Pin 92: H) + 240 msec 5240 msec Display only POWER OFF completed • SYSTEM POWER1 OFF (Pin 91: H) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 24 1 2 3 4 1 2 3 4 C D F A B E POWER-ON timing waveform 300 600 900 1200 1500 1800 2100 2400 2700 4800 5100 SYSTEM ok SYSPOW (41pin ) ok XSYSMUTE (38pin) DVD control DVD ON/OFF XDVD RESET ok SYSTEM BUS (DVD) SRC control XSRCRST (79pin) DAC control XDACCLK (65pin) XDACDT (64pin) XDACCS1 (63pin) XDACCS2 (62pin) LCD control ok LCD setting ok LCD reset others Subsequently, H or L is output, as appropriate. (Port setting) Other output port PON4 600msec 300msec 360msec 1 Standby → On PON1 60msec KEY input 0msec PON2 PON3 PON5 900msec 1380msec 1770msec 1890msec 5010msec PON6 PON9 5040msec PON10 Mute cancel PON7 PON8 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 25 5 6 7 8 5 6 7 8 C D F A B E SYSTEM DVD control LCD control Others POWER-OFF timing waveform 300 600 900 1200 1500 1800 2100 2400 2700 3000 3300 3600 3900 4200 4500 4800 SYSPOW (41pin ) XSYSMUTE (38pin) DVD ON/OFF (1pin/DVD ON/OFF) XDVDRESET (93pin/XDVDRST) SYSTEM BUS(DVD) (30,49,50,51,67pin) LCD setting (26,27,28pin) LCD reset (36pin/XLCDRST) XDimmer (70pin/DIMMER) POFF4 2 On → Standby POFF1 30msec 150msec 480msec 1800msec 1890msec 2130msec POFFGO 0msec POFF2 POFF3 POFF5 POFF6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 26 1 2 3 4 1 2 3 4 C D F A B E 5.3 METHOD FOR DIAGNOSING DEGRADATION OF THE LDS ON THE PICKUP ASSY DVDM ASSY B SIDE A Front side R915 R914 R919 R906 R904 L751 R712 Q702 C761 R714 R713 C712 C133 C374 R214 R520 CN101 C215 C104 R207 C213 R134 R136 C161 R154 C143 C142 C141 C144 R135 C146 R132 R133 C152 R153 R152 CN901 C320 C347 R918 R913 R912 R911 R910 D CN102 C1002 Q801 R801 R736 R751 R711 R907 R750 D881 C801 D801 R737 R761 R731 C751 Q305 C371 R325 C309 CN103 C509 Q506 IC761 R762 C345 Q881 C373 C506 R507 C752 D751 R734 C713 IC501 R502 R313 R508 R901 R903 IC711 R931 R932 R933 R934 R935 R936 R937 R938 R939 R940 R373 R595 R594 IC101 CN953 C505 Q C508 Q R505 C502 R506 R504 C503 C145 R314 Q304 R315 L309 L308 R602 R601 R20 C101 R131 C131 C310 R151 R310 R321 Q308 R322 R509 C102 C132 C140 C151 C153 C103 Q307 C346 R318 R905 C206 C204 C203 C221 C202 C343 C344 R59 UP SIDE 1 24 BOTTOM SIDE 1 2 GNDD 3.3V 5V GNDM 6.5V BOTTOM SIDE BOTTOM SIDE 8V 3.3V 1 12 5 4 3 1 4 1 UP SIDE 1 4 5 7 1 9 65 64 25 1 C LD_CD LD_DVD 1 3 4 5 A D 8 5 4 1 E 1 22 17 1 3.3V LF R326 R326 R325 R322 R321 Case when this diagnosis is required : When playback of any disc, including a test disc (DVD: GGV1025, CD: STD-905), won't play or doesn't play How to diagnose In the case mentioned above, degradation of the laser diodes (LDs) mounted on the 05SD Pickup Assy is suspected. Measure the voltage between the two ends of one of the resistors mentioned below. If the measurements show degradation of an LD, replace the 05SD Pickup Assy. Measure the voltage between the both ends of R322 or R325 on the DVDM Assy. If the voltage is 0.4 V or higher, the 650-nm LD is degraded. No playback of a DVD (Test Mode), No playback of a SACD : Measure the voltage between the both ends of R321 or R326 on the DVDM Assy. If the voltage is 0.4 V or higher, the 780-nm LD is degraded. No playback of a CD : 05SD PICKUP ASSY CN101 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 27 5 6 7 8 5 6 7 8 C D F A B E 6. SERVICE MODE 6.1 TEST MODE 50 51 51 50 15 1 3 1 17 1 R R2142 R2151 R2146 R2147 R2143 C2112 C2 C2205 C2204 D2204 D2203 R21 R2149 R2150 60 R2112 R2176 C2211 L2102 L2103 L2104 L2105 R2102 R2109 R2119 C2107 R2144 R2145 R2152 R2156 11.XDFCLK B E A 10.XDFCS 9.XDFRST 8.XSYSMUTE 7.GNDD 6.XSRRST 5.LEGATO 4.XDACCK 3.XDACDT 2.XDACCS1 1.XDACCS2 1.KEY1 2.V+5U 3.GNDD 15.TROUT 14.TRGAIN 13.TRIN 12.VDET 11.SPDIF_RQ 9.10.GNDD 8.MDATA 7.ACK 6.SCLK 5.SDATA 4.XDVDRST 3.XREADY 2.DVDPOWER 1.GNDD 16.SROUT 17.GNDD 15.SRIN 14.SRIN 13.XDFDT 12.GNDD DVD MODE TEST MODE The Version Display Mode Functional Specification Mechanical control computer How to display the version of the mechanical control computer 1 Power-on in DVD mode With the AC power off, turn the AC power on by pulling up Pin 44 of IC2101 with 5 V (by short-circuiting R2109). Note: When the unit is turned on in DVD mode, "-DVD-" is indicated on the LCD. 2 Displaying the version of the mechanical control computer Press the [ESC] then the [CHAP] key on the remote control unit for DVD Test mode (GGF1381) to indicate the version of the mechanical control computer. Ex. (1) : This means that the part number is " AYW7153 ". (2) : This means that the version is " 1.06 ". 3 Canceling version display • Press the [ESC] key on the remote control unit. • Press the [POWER] button to turn the unit off. Note: Even if you intend to continuously use the unit after displaying the error rate, be sure to turn the power off then back on again. System control computer Displaying the version of the system control computer 1 Displaying the version of the system control computer With the unit on, press and hold the [/] key on the main unit for 8 seconds. The version (part number) of the system control computer will be displayed. Ex. 2 Canceling version display The version display will automatically disappear after a while. P D C 1 4 8 A 7 1 5 3 1 - 0 6 (1) (2) LCD ASSY D SIDE B R2109 Short www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 28 1 2 3 4 1 2 3 4 C D F A B E 7. DISASSEMBLY 1 Remove the Top Panel by removing the twelve screws. 2 Remove the Side Panel L and R by removing the ten screws. 3 Press the  STANDBY/ON button to turn on the power. 4 Press the  OPEN/CLOSE button to open the Tray. 5 Remove the Tray Panel. 6 Set the Test Disc. 7 Press the  OPEN/CLOSE button to close the Tray. (Test Disc is clamped.) 8 Press the  STANDBY/ON button to turn off the power. 9 Pull out the Power cord. Top Panel, Side Panel L and R, Tray Panel 1 4 7 6 5 Tray Panel Screwdriver (small) Screwdriver (small) LOADER ASSY Tray open Slit Test Disc Tray How to open the Tray when the power cannot be on Insert a Screwdriver (small) into the Slit located at the bottom of the unit, and slide the projection of the Drive Cam in the LOADER ASSY in the direction of the arrow, as indicated in the photo. If the Tray pops out a little, fully pull it out by hand. Diagnosis of PCB's Note 1: Do NOT look directly into the pickup lens. The laser beam may cause eye injury. Note 2: Even if the unit shown in the photos and illustrations in this manual may differ from your product, the procedures described here are common. Note 3: For performing the diagnosis the DVDM ASSY side B, the following jigs for service is required: • Cable for service (GGD1425) 8 3 Drive cam Projection Bottom view 1 1 1 1 7 4 Top Panel Side Panel L Side Panel R 1 ×8 2 ×6 2 ×2 2 ×2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 29 5 6 7 8 5 6 7 8 C D F A B E 8 Grounding wire LOADER ASSY LOADER ASSY Chassis 11 Grounding wire Mecha Cover 989 2 ×3 1 7 ×2 7 ×2 5 ×4 Mecha Angle DVDM ASSY 2 1 Remove the screw which secure Grounding wire in place. 6 Remove the Mecha Angle. 9 Extend the Grounding wire which were removed in procedures 1 and connect them to Chassis for grounding. 11 Raise the LOADER ASSY. 10 Connect a extension jig cable between DVDM ASSY (CN953) and AJKB ASSY (CN1402). Remove the three screws. 2 Remove the Mecha Cover 989. 3 4 Disconnect the one flexible cable. Remove the four screws. 5 8 Slightly lift the LOADER ASSY and displace it slightly backward. Remove the four screws. 7 Diagnosis Note: Service cable 5P (GGD1425) is required when diagnosing the DVDM ASSY side B. 3 4 17P FFC extension jig cable (GGF1157) 10 CN953 CN1402 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 30 1 2 3 4 1 2 3 4 C D F A B E Removing the Traverse Mechanism Assy-S and 05SD Pickup Assy-S 1 LOADER Assy 1 Short-circuit point by soldering. 2 Disconnect the three flexible cables. Note: After replacement, connect the flexible cable for pickup, then remove the soldered joint (open). 1 2 2 2 Rear view Bottom view DVDM Assy LOADER Assy 05SD Pickup Assy-S 1 Remove the one screw. 2 Remove the bridge 04. 3 Pull out the tray, then remove it by pressing the hook. 1 2 3 Bridge 04 Front side Hook Tray Loading base Triangle Pin Drive cam -2 3 -2 Note when reinserting the tray When reinserting the tray, first align the triangle printed on the loading base and the pin of the drive cam, then insert the tray. Bridge 04, Tray 2 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 31 5 6 7 8 5 6 7 8 C D F A B E 1 Traverse Mechanism Assy-S 3 Dislodge the two flexible cables from their factory placement. 2 Unhook the four hooks. 3 Remove the Traverse Mechanism Assy-S × 2 2 × 2 2 3 Traverse Mechanism Assy-S 1 1 Front Side Flexible cable for the spindle motor Flexible cable for the pickup Bottom view www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 32 1 2 3 4 1 2 3 4 C D F A B E 3 2 2 Adjustment screw (skew screw VK1) Adjustment screw (skew screw VK1) Adjustment screw (skew screw VK1) Adjustment spring (skew spring VK1) 05SD Pickup Assy-S 4 Note: The 05SD Pickup Assy can be removed without removing the Traverse Mechanism Assy-S.(shown as Step .) Note: Be careful not to lose the adjustment spring (skew spring VK1). Flexible cable for the pickup 05SD Pickup Assy-S 1 Front Side 1 Disconnect the flexible cable for the pickup. 2 Remove the two adjustment screws. 3 Remove the 05SD Pickup Assy. Bottom view 05SD Pickup Assy-S 3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 33 5 6 7 8 5 6 7 8 C D F A B E Note: The screw is secured with the silicone adhesive. Make sure to apply the silicone adhesive after reattaching the screw. 4 Remove the one screw. 4 Silicone Adhesive GEM1037 05SD Pickup Assy Joint VK1B Joint spring VK1 : Conductive surface Arrangement of the flexible cable for the spindle motor Front Side Hook Hook Bottom view www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 34 1 2 3 4 1 2 3 4 C D F A B E 1 Traverse Mechanism Assy-S 3 Dislodge the two flexible cables from their factory placement. 2 Unhook the four hooks. 3 Remove the Traverse Mechanism Assy-S × 2 2 × 2 2 3 Traverse Mechanism Assy-S 1 1 Front Side Flexible cable for the spindle motor Flexible cable for the pickup Bottom view Front Side Note: Be sure to move the 05SD Pickup Assy to the innermost perimeter. : Conductive surface Arrangement of the flexible cable for the pickup 2 3 7 2 Attach the flexible cable for the pickup to the connector. 6 Fold the flexible cable along the hook. 7 Pass the flexible cable through the hook. 3 Pass the flexible cable through the hook. Bottom View Make sure that the cable is loose Backing Backing Reference line Hook Hook 4 5 5 Pass the flexible cable through the hook. 4 Hook the part folded in Step 1 to the hook. Hook Reference line 6 Hook 1 Fold the flexible cable for the pickup with the backing outward in the illustration below. 76 mm 1 Hook Hook www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 35 5 6 7 8 5 6 7 8 C D F A B E How to adjust the Front Panel (when replacing the Front Panel L) Front Panel L Front Panel R Adjust this gap to zero (0). Set the top and bottom edges of the Front Panel L even with R and tighten the screws. Screw for securing the Front Panel L (Tighten the screw while adjusting the gap.) OK NG Rear face of the Panel ASSY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 36 1 2 3 4 1 2 3 4 C D F A B E 8. EACH SETTING AND ADJUSTMENT 8.1 ADJUSTMENT ITEMS AND LOCATION 8.2 JIGS AND MEASURING INSTRUMENTS 1 2 Adjustment Items [Mechanism Part] [Electrical Part] Tangential and Radial Height Coarse Adjustment DVD (CD) Error Rate Adjustment Electrical adjustments are not required. Adjustment Points (Mechanism Part) Cautions: After adjustment, adjustment screw locks with the Screw tight. 1 2 Radial adjustment screw 1 2 Tangential adjustment screw Screwdriver (large) Precise screwdriver DVD test disc (GGV1025) Test mode remote control unit (GGF1381) Screw tight (GYL1001) Screwdriver (medium) Soldering iron www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 37 5 6 7 8 5 6 7 8 C D F A B E 8.3 NECESSARY ADJUSTMENT POINTS ∗ After adjustment, screw locks with the Screw tight. 1, 2 Mechanical point Electric point Mechanical point Electric point Mechanical point Electric point LOAB and DVDM ASSYS Exchange Parts of Mechanism Exchange PCB Assy When Adjustment Points Exchange the 05SD Pickup Assy Exchange the Traverse Mechanism Assy-S Exchange PC Board ∗ After adjustment, screw locks with the Screw tight. 2 Mechanical point Electric point Exchange the Spindle Motor www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 38 1 2 3 4 1 2 3 4 C D F A B E 8.4 TEST MODE POWER ON GGF1381 Test mode remote control unit GGF1381 Test mode remote control unit OPEN/CLOSE (Player) OPEN/CLOSE Press the play key ( ) of the normal remote control unit. (Player) TEST MODE: PLAY TEST MODE: OFF An error rate is displayed ESC ESC 5 DISC SET Notes: • The audio signal are outputted during the test mode. • The SKIP key and the SCAN key are effective during the test mode. Note: Even if you intend to continuously use the unit after displaying the error rate, be sure to turn the power off then back on How to display the error rate Power-on in DVD mode With the AC power off, turn the AC power on by pulling up Pin 44 of IC2101 with 5 V (by short-circuiting R2109). (See next page. ) Note: When the unit is turned on in DVD mode, "-DVD-" is indicated on the LCD. POWER ON DVD disc POWER OFF 9 9 0 E - 6 The error rate is displayed as above. But this means " 9.90E - 6 ". www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 39 5 6 7 8 5 6 7 8 C D F A B E 50 51 51 50 15 1 3 1 17 1 R R2142 R2151 R2146 R2147 R2143 C2112 C2 C2205 C2204 D2204 D2203 R21 R2149 R2150 60 R2112 R2176 C2211 L2102 L2103 L2104 L2105 R2102 R2109 R2119 C2107 R2144 R2145 R2152 R2156 11.XDFCLK B E A 10.XDFCS 9.XDFRST 8.XSYSMUTE 7.GNDD 6.XSRRST 5.LEGATO 4.XDACCK 3.XDACDT 2.XDACCS1 1.XDACCS2 1.KEY1 2.V+5U 3.GNDD 15.TROUT 14.TRGAIN 13.TRIN 12.VDET 11.SPDIF_RQ 9.10.GNDD 8.MDATA 7.ACK 6.SCLK 5.SDATA 4.XDVDRST 3.XREADY 2.DVDPOWER 1.GNDD 16.SROUT 17.GNDD 15.SRIN 14.SRIN 13.XDFDT 12.GNDD DVD MODE TEST MODE Short Service Test mode connecting point LCD ASSY D SIDE B R2109 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 40 1 2 3 4 1 2 3 4 C D F A B E 8.5 MECHANISM ADJUSTMENT • Remove the 05SD Pickup Assy from the Traverse Mechanism Assy-S. • Remove the joint and the joint spring of the 05SD Pickup Assy. • Put the joint between the Tangential (or Radial) adjustment screw and the mechanism base and turn each screw to adjust the height. (Refer to "8.1 ADJUSTMENT ITEMS AND LOCATION".) START Tangential and Radial Height Coarse Adjustment 1 Note: Before removing the flexible cable for the pickup, soldering of the pickup circuit is necessary. For details, see "7. DISASSEMBLY". • Pass through the guide shaft to a new 05SD Pickup Assy. • Attach it to the Traverse Mechanism Assy-S. • Attach the Traverse Mechanism Assy-S to the 05 LOADER Assy. • Turn it over and attach the joint and the joint spring. • Arrange the flexible cables. (Refer to "7. DISASSEMBLY".) 7.5mm Joint Mechanism base 05SD Pickup Assy 05SD Pickup Assy Joint Joint Spring Guide Shaft www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 41 5 6 7 8 5 6 7 8 C D F A B E Player • Play the DVD test disc at inner track (around #30000) (Play title1) * At stop mode, press 1 , then ENTER key of the set remote control. Traverse Mechanism Assy-S Adjust the radial adjustment screw so that ERROR RATE becomes around "5E-4". Traverse Mechanism Assy-S Fasten the radial adjustment screw so that ERROR RATE becomes around "1E-3". START DVD Error Rate Adjustment 2 Service mode end Disc playback normally. • The measurement of block error rate If error rate is OK, locks a root of tangential and radial adjustment screws with the Screw tight. Screw tight: GYL1001 Turn the POWER OFF in case of NG once, and perform the adjustment once again. 5 ESC ESC  Service mode Service mode end ESC NG OK • Play the DVD test disc at inner track • Display ERROR RATE on the LCD display 5 ESC Notes: • Use disc: GGV1025 • Unfasten the radial adjustment screw by 90 degrees step till ERROR RATE becomes around "1E-3" again . • Record the number of rotation (N1). (memorizing how much the screw was rotated.) • Fasten the radial adjustment screw till the number of rotation becomes harf of N1. Traverse Mechanism Assy-S Fasten the tangential adjustment screw so that ERROR RATE becomes around "1E-3". • Unfasten the tangential screw by 90 degrees step till ERROR RATE becomes around "1E-3" again . • Record the number of rotation (N1). • Fasten the tangential adjustment screw till the number of rotation becomes harf of N1. In this check, the error rate that is less than "5E-5"is better. CHECK 5 ESC A B B C Best Radial point C Best tangential point 1E-3 5E-4 Rotation of Radial screw and Tangential screw Anticlock wise Clock wise Best point A A B C ERROR RATE 9 9 0 E - 6 The error rate is displayed as above. But this means " 9.90E - 6 ". • Play the DVD test disc at outer track (around #200000)  (Play title 22) * At stop mode, press 2 , 2 , then ENTER key of the set remote control. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 42 1 2 3 4 1 2 3 4 C D F A B E 9. EXPLODED VIEWS AND PARTS LIST 9.1 PACKING Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly. For the applying amount of lubricants or glue, follow the instructions in this manual. (In the case of no amount instructions, apply as you think it appropriate.) NOTES: PD-D9-J/WYXJ5 Only PD-D9-J/KUCXJ, PD-D9-S/LFXJ Only PD-D9-S/WLPWXJ Only PD-D9-J/WYXJ5 Only PD-D9-J/WYXJ5 Only PD-D9-J/KUCXJ Only PD-D9-S/LFXJ, PD-D9-S/WLPWXJ Only PD-D9-J/KUCXJ Only www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 43 5 6 7 8 5 6 7 8 C D F A B E (1) PACKING SECTION PARTS LIST (2) CONTRAST TABLE PD-D9-J/WYXJ5, PD-D9-J/KUCXJ, PD-D9-S/LFXJ and PD-D9-S/WLPWXJ are constructed the same except for the following : Mark No. Description Part No. NSP 1 Energy Star Label See Contrast table (2) 2 Label (WEEE) See Contrast table (2) > 3 AC Power Cord See Contrast table (2) > 4 AC Power Cord See Contrast table (2) > 5 AC Power Cord See Contrast table (2) 6 Packing Sheet AHG7010 NSP 7 Polyethylene Bag AHG7117 NSP 8 Label VRW1629 9 • • • • • 10 • • • • • NSP 11 Warranty Card (EL) See Contrast table (2) NSP 12 Warranty Card (EU) See Contrast table (2) 13 Operating Instructions See Contrast table (2) (English, French) 14 Operating Instructions See Contrast table (2) (English, French, German, Italian, Dutch, Spanish) 15 Operating Instructions See Contrast table (2) (English, Chinese) 16 PAD L PHA1355 17 PAD R PHA1356 NSP 18 Spacer PHC1097 19 Packing Case See Contrast table (2) 20 Remote Control Unit See Contrast table (2) 21 Battery Cover See Contrast table (2) 22 RCA/phono stereo audio cable XDE3047 23 SR control cable XDE3063 Mark No. Description Part No. Mark No. Symbol and Description PD-D9-J/ WYXJ5 PD-D9-J/ KUCXJ PD-D9-S/ LFXJ PD-D9-S/ WLPWXJ NSP 1 Energy Star Label Not used AAX8022 Not used Not used 2 Label (WEEE) ARW7322 Not used Not used Not used > 3 AC Power Cord ADG7062 Not used Not used Not used > 4 AC Power Cord Not used ADG7061 ADG7076 Not used > 5 AC Power Cord Not used Not used Not used ADG7104 NSP 11 Warranty Card (EL) Not used PRY1007 Not used Not used NSP 12 Warranty Card (EU) ARY7111 ARY7007 Not used Not used 13 Operating Instructions Not used PRD1075 Not used Not used (English, French) 14 Operating Instructions PRD1074 Not used Not used Not used (English, French, German, Italian, Dutch, Spanish) 15 Operating Instructions Not used Not used PRD1073 PRD1073 (English, Chinese) 19 Packing Case PHG2457 PHG2458 PHG2460 PHG2460 20 Remote Control Unit PWW1175 PWW1175 PWW1176 PWW1176 21 Battery Cover AZN8024 AZN8024 AZN8025 AZN8025 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 44 1 2 3 4 1 2 3 4 C D F A B E 9.2 EXTERIOR SECTION CONTACT SIDE NON-CONTACT SIDE Refer to "9.3 CHASSIS SECTION". Refer to "9.4 FRONT PANEL SECTION". A A C C B B PRIMARY CN11 AJKB CN1401 MNSW CN2501 CONNECTOR CN2703 Tape 19 X 40 Tape 19 X 50 Tape 19 X 50 PD-D9-S/LFXJ ONLY PD-D9-S/WLPWXJ ONLY PD-D9-J/WYXJ5 Only PD-D9-J/KUCXJ, PD-D9-S/LFXJ, PD-D9-S/WLPWXJ Only www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 45 5 6 7 8 5 6 7 8 C D F A B E (1) EXTERIOR SECTION PARTS LIST (2) CONTRAST TABLE PD-D9-J/WYXJ5, PD-D9-J/KUCXJ, PD-D9-S/LFXJ and PD-D9-S/WLPWXJ are constructed the same except for the following : Mark No. Description Part No. 1 Cusion See Contrast table (2) 2 Insulater See Contrast table (2) 3 Top Panel See Contrast table (2) 4 Side Panel L See Contrast table (2) 5 Side Panel R See Contrast table (2) 6 SR Sheet L PEB1319 7 SR Sheet S PEB1320 8 Spacer SR PEC1052 9 • • • • • 10 Bottom Spacer R PEB1335 11 Spacer FT PEC1051 12 Spacer ST PEB1341 13 AC Inlet Assy PKP1021 14 Rear Panel See Contrast table (2) NSP 15 Bottom Plate T PNB1672 NSP 16 Bottom Plate B PNB1673 NSP 17 Bottom Cover See Contrast table (2) 18 Cushion 55 See Contrast table (2) 19 Beam L PNS1064 20 Beam S PNS1065 21 Caution Label See Contrast table (2) NSP 22 Label VRW1629 NSP 23 SISIR Label See Contrast table (2) 24 Screw ABA1192 25 Screw ABA1193 26 Screw ABA7002 27 Screw ABA7017 28 Screw 4X19 See Contrast table (2) 29 Deco. Screw 4X10 See Contrast table (2) 30 Screw BBT30P080FCC 31 Screw BBT30P100FCC 32 Screw BBZ30P080FCC 33 Screw BBZ30P200FCC 34 Screw CBZ30P080FCC 35 Screw IBZ30P060FCC NSP 36 Name Label See Contrast table (2) Mark No. Description Part No. Mark No. Symbol and Description PD-D9-J/ WYXJ5 PD-D9-J/ KUCXJ PD-D9-S/ LFXJ PD-D9-S/ WLPWXJ 1 Cusion AEC7224 Not used Not used Not used 2 Insulater ANL7028 PNW2766 PNW2766 PNW2766 3 Top Panel PAN1401 PAN1401 PAN1402 PAN1402 4 Side Panel L PAN1403 PAN1403 PAN1405 PAN1405 5 Side Panel R PAN1404 PAN1404 PAN1406 PAN1406 14 Rear Panel PNA2617 PNA2618 PNA2620 PNA2620 NSP 17 Bottom Cover PNB1674 PNB1679 PNB1679 PNB1679 18 Cushion 55 Not used PNM1339 PNM1339 PNM1339 21 Caution Label PRW1608 PRW1608 PRW1609 PRW1609 NSP 23 SISIR Label Not used Not used Not used PRW1606 28 Screw 4X19 ABA7120 Not used Not used Not used 29 Deco. Screw 4X10 ABA7136 ABA7136 ABA7135 ABA7135 NSP 36 Name Label Not used Not used PRW1607 Not used www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 46 1 2 3 4 1 2 3 4 C D F A B E 9.3 CHASSIS SECTION CONTACT SIDE NON-CONTACT SIDE PD-D9-J/KUCXJ, PD-D9-S/LFXJ ONLY PD-D9-J/KUCXJ, PD-D9-S/LFXJ ONLY Refer to "9.5 LOADER ASSY SECTION". F H H D D I J J K L M K L M N O O P I F A a A a B a B a B b B b C a E a G a G a G b G b G c G c G d G d E a E b E b C a C b C b A b A b N P LCD J2102 LCD J2101 LCD CN2106 Tape 19 X 60 Tape 19 X 20 Tape 19 X 20 Tape 19 X 20 Tape 19 X 50 Tape 19 X 40 F C H B I E J LCD CN2105 LCD CN2105 Tape 19 X 40 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 47 5 6 7 8 5 6 7 8 C D F A B E (1) CHASSIS SECTION PARTS LIST (2) CONTRAST TABLE PD-D9-J/WYXJ5, PD-D9-J/KUCXJ, PD-D9-S/LFXJ and PD-D9-S/WLPWXJ are constructed the same except for the following : Mark No. Description Part No. 1 DVDM Assy AWM8069 2 MNSW Assy PWX1654 3 PLED Assy PWX1655 4 REGULATOR Assy See Contrast table (2) 5 PRIMARY Assy See Contrast table (2) 6 AJKB Assy PWX1661 NSP 7 LOADER Assy PXA1648 8 CONNECTOR Assy PWX1662 NSP 9 Cord With Plug ADH7022 10 Connector Assy PG05KK-E07 11 17P FFC PDD1234 12 29P FFC PDD1236 13 4P Connector Assy PKP1020 > 14 Power Transfomer See Contrast table (2) > 15 Power Transfomer See Contrast table (2) > 16 Fuse See Contrast table (2) 17 Barrier VK1 AEC7533 18 Edge Saddle AEC7590 19 Adapter05 L ANW7282 20 Adapter05 R ANW7283 21 Side Clamp DEC2007 22 SR Sheet S PEB1320 23 Screw Spacer PEB1329 24 Trans Sheet PEB1333 25 C Cusion PEB1336 NSP 26 Chassis PNA2616 27 Trans Case PNB1666 28 Trans Cover PNB1667 29 Trans Angle PNB1668 30 Center Plate PNB1669 31 PCB Angle L PNB1670 32 Mecha Angle PNB1671 33 Side Angle L PNB1677 34 Side Angle R PNB1678 35 PCB Holder PNW2029 36 Fuse Caution EN See Contrast table (2) 37 Fuse Caution FR See Contrast table (2) 38 Power Button Assy See Contrast table (2) NSP 39 PCB Angle 989 VNE2409 NSP 40 Mecha Cover 989 VNE2410 41 Fuse Label See Contrast table (2) NSP 42 Binder ZCA-BK1 43 Screw ABA1192 44 Screw ABA7017 45 Screw BBT30P080FCC 46 Screw BBZ30P080FCC 47 Screw BPZ30P080FTC 48 Screw IBZ30P060FCC 49 Screw VBA1094 50 Washer PEC1046 Mark No. Description Part No. Mark No. Symbol and Description PD-D9-J/ WYXJ5 PD-D9-J/ KUCXJ PD-D9-S/ LFXJ PD-D9-S/ WLPWXJ 4 REGULATOR Assy PWX1656 PWX1663 PWX1663 PWX1656 5 PRIMARY ASSY PWX1657 PWX1659 PWX1660 PWX1657 > 14 Power Transfomer PTT1372 PTT1371 PTT1371 PTT1372 > 15 Power Transfomer PTT1374 PTT1373 PTT1373 PTT1374 > 16 Fuse REK1134 REK1058 REK1023 REK1134 (T500 mA/ 250 V) (1.25 A/ 250 V) (T1.25 A / 250 V) (T500 mA/ 250 V) 36 Fuse Caution EN Not used PRW1611 PRW1611 Not used 37 Fuse Caution FR Not used PRW1612 PRW1612 Not used 38 Power Button ASSY PXA1644 PXA1644 VXA2724 VXA2724 41 Fuse Label Not used XAX3161 XAX3161 Not used www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 48 1 2 3 4 1 2 3 4 C D F A B E 9.4 FRONT PANEL SECTION CONTACT SIDE NON-CONTACT SIDE AJKB CN1401 CONNECTOR CN2703 PRIMARY CN11 PLED J2601 IC2101 IC2101 G D K Double Side Tape 10 X 40 Double Side Tape Double Side Tape 10 X 30 Double Side Tape 10 X 20 Silicone Adhesive GYA1011 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 49 5 6 7 8 5 6 7 8 C D F A B E (1) FRONT PANEL SECTION PARTS LIST (2) CONTRAST TABLE PD-D9-J/WYXJ5, PD-D9-J/KUCXJ, PD-D9-S/LFXJ and PD-D9-S/WLPWXJ are constructed the same except for the following : Mark No. Description Part No. 1 LCD Assy PWX1651 2 KEY Assy PWX1652 3 IR Assy PWX1653 4 15P FFC PDD1229 5 17P FFC PDD1235 6 D.Window PAM1866 7 Front Panel L See Contrast table (2) 8 Front Panel R See Contrast table (2) 9 Earth Plate PNB1662 10 Earth Plate C PNB1675 11 Lens See Contrast table (2) NSP 12 Panel Assy See Contrast table (2) 13 Tray Panel Base PNW3052 14 Panel Stay See Contrast table (2) 15 Pioneer Badge VAM1124 NSP 16 LED Lens VNK5073 17 Tray Panel See Contrast table (2) 18 Tray Spacer PEB1326 19 Spacer FS PEB1340 20 Screw BBZ30P080FCC 21 Screw BPZ30P080FTC 22 Bottom Spacer F PEB1334 23 EMI Spacer (15X20) PEB1339 Mark No. Description Part No. Mark No. Symbol and Description PD-D9-J/ WYXJ5 PD-D9-J/ KUCXJ PD-D9-S/ LFXJ PD-D9-S/ WLPWXJ 7 Front Panel L PAN1392 PAN1392 PAN1395 PAN1395 8 Front Panel R PAN1393 PAN1394 PAN1396 PAN1396 11 Lens PNW3047 PNW3047 AAK7586 AAK7586 NSP 12 Panel Assy PXA1649 PXA1649 PXA1650 PXA1650 14 Panel Stay PNW3054 PNW3054 PNW3055 PNW3055 17 Tray Panel PAN1399 PAN1407 PAN1400 PAN1400 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 50 1 2 3 4 1 2 3 4 C D F A B E 9.5 LOADER ASSY LOADER ASSY PARTS LIST A A To DVDM CN101 (Pickup) To DVDM CN103 (Stepping Motor) To DVDM CN102 (Spindle Motor) To DVDM CN104 Refer to "9.6 Traverse Mechanism Assy-S". A Lubricating Oil GYA1001 Daifree GEM1036 Refer to " Application of Lubricant". Note : Lubricating Oil GYA1001 Pickup leneses Cleaning liquid GEM1004 Cleaning paper GED-008 Mark No. Description Part No. NSP 1 LOAB Assy VWG2346 2 Traverse Mechanism Assy-S DXX2581 3 Loading Motor Assy VXX2912 4 • • • • • 5 • • • • • 6 Flexible Cable (24P) ADD7546 7 Connector Assy 2P VKP2253 8 Floating Rubber VEB1351 9 Belt VEB1358 10 Stabilizer VNE2253 11 Loading Base VNL1917 12 Float Base 04 VNL1968 13 Drive Cam VNL1919 14 Gear Pulley VNL1921 15 Loading Gear VNL1922 16 Drive Gear VNL1923 17 SW Lever VNL1925 18 Clamper Plate 04 VNE2342 19 Bridge 04 VNE2343 20 Clamper 04 VNL1969 21 Screw JGZ17P028FTC 22 Screw VBA1094 23 Tray PNW3041 24 Clamp Magnet VMG1029 25 EMI Spacer PEB1332 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 51 5 6 7 8 5 6 7 8 C D F A B E Application of Lubricant Lubricating Oil GYA1001 Around the shaft No. 11 Loading Base No. 13 Drive Cam No. 13 Drive Cam No. 23 Tray No. 23 Tray No. 25 EMI Spacer Front View Rear View Daifree GEM1036 Inner side of a ditch Concave of unevenness Top View Bottom View Daifree GEM1036 Daifree GEM1036 Side of the rib Concave of unevenness Daifree GEM1036 Concave of unevenness Daifree GEM1036 Inner side of a ditch Lubricating Oil GYA1001 Inner side of a ditch Lubricating Oil GYA1001 Lubricating Oil GYA1001 Lubricating Oil GYA1001 Lubricating Oil GYA1001 Lubricating Oil GYA1001 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 52 1 2 3 4 1 2 3 4 C D F A B E 9.6 TRAVERSE MECHANISM ASSY-S TRAVERSE MECHANISM ASSY-S PARTS LIST CONTACT SIDE NON-CONTACT SIDE To DVDM CN101 (Pickup Assy) To DVDM CN103 (Stepping Motor) To DVDM CN102 (Spindle Motor) Silicone Adhesive GEM1037 Lubricant Oil GYA1001 Refer to " Application of Lubricant". Note : Note : When part #2 is replaced, part #13 also need to be replaced at the same time. Note : Spindle screw (DBA1252) of No.13 is the screw which applied special bond. Therefore the adhesion becomes ineffective when takes it off once. Spindle screw is the part which cannot recycle. When part #2 is replaced, part #13 also need to be replaced at the same time. Mark No. Description Part No. > 1 05SD Pickup Assy-s OXX8019 2 Spindle Motor N200 DXM1197 NSP 3 Guide Shaft VK1 DLA1940 NSP 4 Sub Guide Shaft VK1 DLA1941 NSP 5 Joint VK1B DNK4272 NSP 6 Joint Spring VK1 DBK1235 7 Stepping Motor VK1 DXM1201 NSP 8 Mechanism Frame VK1 DNK4160 9 Precision Screw VK1 DBA1209 10 Skew Screw VK1 DBA1211 11 Skew Spring VK1 DBH1516 NSP 12 Stepping Screw DBA1205 13 Spindle Screw VK1(for Service) DBA1252 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 53 5 6 7 8 5 6 7 8 C D F A B E PRECAUTIONS WHEN REPLACING THE STEPPING MOTOR (DXM1201) You must apply grease to the following locations when replacing the stepping motor. Follow the instructions below to apply grease to these locations. (1) Stepping motor feed screw Apply grease GYA1001 to the 3 locations shown in the picture Amount of grease: 3 ± 1 mg each for 3 locations After applying GYA1001, smooth the grease evenly over the stepping motor feed screw, as shown in the picture. Take care not to scratch the shaft. Spread the GYA1001 grease from screw hole A to B shown in the picture. Fibers or dirt in the grease have an adverse affect on operation and must be removed. (2) Guide bar Apply grease GYA1001 to the crosshatched area shown in the center of the picture Amount of grease: 2 ± 1 mg for 1 location A B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 54 1 2 3 4 1 2 3 4 C D F A B E 10. SCHEMATIC DIAGRAM 10.1 DVDM ASSY (1/2) DVDM ASSY (AWM8069) TROUT TRIN LIMIT TRGAIN 2 3 1 8 6 7 4 5 47 46 48 45 44 42 41 43 12 9 11 10 14 13 15 16 17 40 38 39 37 36 34 35 33 32 5 3 4 1 2 4 3 2 1 1 3 2 6 8 7 5 4 12 11 10 8 9 44 42 43 38 39 37 40 41 6 7 4 5 2 3 1 24 22 23 21 20 18 19 16 17 15 14 5 2 1 5 6 7 4 3 2 8 1 10 9 11 12 14 15 16 13 18 21 20 19 17 22 B E C 33 35 34 36 31 32 30 29 26 27 24 25 28 23 13 12 11 10 9 8 4 3 6 7 5 4 2 3 1 R284 R285 IC203 C289 C296 R282 CN104 C153 C152 C151 C103 CN103 R132 R133 R131 R136 R134 C133 R135 C101 IC101 C140 C102 C141 C142 C143 CN102 R302 R318 Q102 R142 R219 R218 R208 Q101 R141 R152 R154 R151 R153 C104 C121 IC204 C290 C221 R216 C219 C217 C131 C132 R214 Q201 C144 C161 C209 C212 C145 C146 C210 C208 C211 R210 R211 R213 R215 R212 C218 C216 R206 R205 R202 R204 R201 C206 C214 C204 C205 C213 C203 C215 Q307 Q307 R325 R322 C309 L308 L309 Q308 C310 C345 C347 C344 C346 C343 C207 C201 C202 R371 R303 R372 R373 R374 Q305 R315 R313 R314 Q304 R375 C371 C373 C372 CN101 C374 R301 R321 R326 C320 R310 Q308 R200 R207 PWR# PCE# A16 A15 A14 A10 A13 A12 A9 A11 ALE IOCE# IOWR# UP3_1 INT0# URD# UWR# A17 AD6 AD7 A0 PWR# A20 A19 A18 AD5 AD3 AD2 AD4 TROUT TRIN LOAD+ LOAD- LOAD+ LOAD- F- F+ T+ T- ST2+ ST1- ST1+ ST2- HU- HU+ HV+ HV- W V HW+ HW- U HU+ HW+ HW- HV- HV+ HU- F+ F- T+ T- SDA SCL ST1- ST2- ST2+ ST1+ TRSO FOSO TROPEN FMSO PWMOUT1 A4 A7 A6 A18 A3 A19 A8 A2 A5 STBY ENDM TROUT TRIN FG FOSO TRSO TROPEN FMSO PWMOUT1 DMSO DMSO ENDM STBY FG U W V LDO1 F LDO2 E MDI1 LDO2 C RF B A D LDO1 MDI1 B A IOA RF C D E F IOA 10k GNDD *** S29AL016D70TFI010-K V+3D GNDD FLASH GNDD V+3D 1000p 1 *** S-24CS04AFJ GNDD AKM1291 0.01 0.01 0.01 YB YB YB GNDM RKN1045 GNDD *** 4.7 4.7 4.7 4.7 4.7 4.7 1 100/16 BD7995EFS 1 V+5S V+6R5 1 *** *** *** AKN7031 GNDD GNDD 0 100K DTC124EUA 2SA1576A(RS) 22k 10K 10K 0 120k V+3R3 V+3D 1.8 1.8 1 1 1 V+5M EEPROM 0.1 *** 0 1500p 0.1 1 0.1 100/16 VCH1252- 0 *** 2200p 1000p V1P4 0.1 2200p 2200p 2200p 56p V1P4 V20 2200p *** *** *** 10K 10K *** 0.1 180k 220k 22K 22k 56p 1.5K 47/16 0.1 0.1 0.1 0.1 47/16 47/16 HN1A01F(YGR) HN1A01F(YGR) 4.7 4.7 47/35 *** *** HN1A01F(YGR) 47/35 GNDD 0.1 1 1 1 1 1 220/4 220/4 0 *** *** *** *** UM5K1N GNDD 10K 100K 2SC4081(QR) 10K *** 0.1 VCH1260 0.1 V+5S CKS5045 VCH1260 GNDD GNDD V+5S 0 V20 4.7 4.7 HN1A01F(YGR) *** V+3R3 0 STBY V+1R8BE V+1R8 0 V+3RF V+3R3 A13 A15 A14 A8 A12 A10 A11 A9 ~BYTE~ A16 VSS D6 D7 D15 D14 for ICE MODE A19 ~WE~ NC ~RESET~ NC NC A18 RY/~BY~ A17 AYW7197 D12 D5 D13 D4 VCC D10 D11 D2 D3 D9 SW1 SW2 GNDD LOAD- LOAD+ (side type) ST1-(~A~) ST1+(A) ST2+(B) (side type) ST2-(~B~) FCO+ LDOP LDON FCO- AGND AVM TKO+ TKO- SERVO DRIVER V+5S U+ U- V+ V- VCC HU+ HU- HV+ HV- HB HW+ HW- W- W+ U HB W V (side type) INSIDE FOCS RTN TRKG RTN FOCS DRV TRKG DRV VSHF GNDD LD(650) LD(780) PD VR780 GNDD SDA SCL WP NC NC GND VCC NC 1.8v 3.3v TKIN FCIN LDIN DVCC SLO1P SLO1N SLGND SLVDD SLO2N SLO2P SLIN2 SLIN1 SLRNF2 SLRNF1 U SPGND1 V SPVM1 W SPGND2 SPVM1 SPRNF FG SPIN CTL1 CTL2 DGND VC (1/2) (2/2) 6 3 2 4 1 5 VCH1260 (1/2) 6 3 2 4 1 5 VCH1260 3.3v VR650 VRCOM A B SW RF C D VCC E F VREF (47/35) GNDD (side type) (47/35) (2/2) PICKUP ASSY SPINDLE MOTOR B 1/2 B 1/2 CN601 A 2/2 B 2/2 B STEPPING MOTOR 1 4 : AUDIO DATA SIGNAL ROUTE (AD) : DIGITAL SIGNAL ROUTE (D) : FOCUS SERVO LOOP LINE (F) (RF) : RF SIGNAL ROUTE : TRACKING SERVO LOOP LINE (T) : STEPPING SERVO LOOP LINE (S) (S) (S) (S) (S) (T) (T) (F) (F) (RF) (RF) (F) (T) (F) (F) (S) (S) (S) (S) (F) (T) (T) (T) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 55 5 6 7 8 5 6 7 8 C D F A B E LIMIT SYS VIDEO AUDIO 20 21 19 18 22 24 23 28 31 29 30 26 25 27 3 2 4 1 63 62 64 66 65 68 67 72 73 70 69 71 74 77 75 76 80 78 81 79 86 83 82 84 85 87 90 89 88 61 60 59 56 57 58 55 53 54 92 93 91 94 99 95 98 96 97 101 100 103 102 106 105 107 104 112 109 111 110 108 116 115 113 114 118 117 120 119 125 121 124 122 123 128 126 127 131 130 129 140 132 133 137 138 139 136 134 135 50 51 52 48 49 47 46 45 44 41 43 42 39 40 38 36 37 35 33 32 34 31 29 30 28 27 26 149 148 145 144 147 146 142 143 141 151 150 153 152 154 155 156 157 158 167 164 165 159 160 161 162 163 166 23 25 24 22 21 20 17 18 19 13 14 15 16 10 11 12 7 8 9 6 5 4 3 2 1 256 253 254 255 249 248 252 250 251 246 244 245 247 240 243 242 241 238 236 239 235 237 231 232 233 234 172 176 174 170 175 168 171 169 173 184 181 185 182 183 180 177 178 179 186 228 230 229 227 223 222 225 224 226 219 220 218 221 216 217 214 215 209 211 210 213 212 206 205 208 207 187 188 189 191 190 192 201 204 203 202 200 197 198 199 196 195 193 194 54 1 53 52 51 50 49 48 47 46 44 45 4 2 3 7 5 6 10 11 9 8 41 42 43 38 39 40 35 36 37 14 13 12 16 15 17 18 19 20 33 34 32 31 30 29 28 23 22 21 26 25 24 27 1 2 4 3 R908 CN204 R909 R232 R233 R224 C220 R217 C222 C223 R237 R221 R261 R258 R260 R259 R234 R223 C224 R235 C225 C227 R220 C226 R236 R239 C228 C230 IC201 C269 C268 C261 R602 R604 R603 R601 R225 C286 C231 R226 R227 C285 C287 C232 C233 R228 R229 C284 IC202 C288 C234 R266 C235 R267 R262 C281 C282 R281 C283 R263 R264 R265 C236 C244 R280 R279 C242 C243 C237 C273 C271 C270 C266 C272 R256 C267 C259 C258 C257 C260 C256 R254 C265 R255 C264 C263 C254 C255 C262 R271 R251 L201 C298 C299 X202 C251 X201 R273 C253 C241 R257 R248 R249 R247 R238 C240 C248 C247 C246 C239 C245 C250 R246 R272 R245 R252 R253 R244 R241 R243 R242 R270 R231 R268 R269 R230 C252 R240 R209 A8 A7 A6 A5 A4 A2 A3 XREADY AD0 PRD# IOWR# AD1 A1 PCE# A16 PWR# A14 A15 A11 A12 A13 A1 A20 PCE# A10 A9 PRD# IOCE# AD0 AD1 AD4 AD2 AD3 AD5 AD6 ALE AD7 SCLK ACK MDATA SDATA XDVDRST A17 A0 UWR# URD# SCL SDA UP3_1 INT0# TRKUP TXD RXD DQ6 DQM0 DQ7 DQ5 DQ4 DQ3 DQ2 DQ0 DQ1 DQ14 DQ15 DQ11 DQ13 DQ12 DQ9 DQ10 DQ8 DQM1 DRAS# DCAS# DWE# DBA0 DCS# DQ14 DQ15 MA10 DBA1 DQ13 DQ12 MA1 MA0 DQ10 DQ11 DQ6 DQ7 DQ5 DQ4 DQ2 DQ3 MA3 MA2 DQ8 DQ9 DQM1 MA11 SDCKE SDCLK DQ1 DQ0 DQM0 DWE# DRAS# DCAS# DCS# MA9 MA8 MA11 MA9 MA8 MA6 MA7 MA5 MA6 MA7 MA5 MA4 MA4 DBA1 MA10 DBA0 MA1 MA0 MA2 MA3 I/XP LETTER SQUEEZE VSEL2 VSEL1 ASPDIF ASDAT1 ASDAT2 ASDAT0 ACLK ALRCK ABCK DAC_XCS1 XAMUTE DAC_SCK DAC_SO DAC_XCS0 B_CB R_CR G_CY CVBS S_C S_Y RF IOA 3.3k GNDD *** 6.8k V+3DR 0 0 33 0.1 0 0.1 0.1 33 33 33 33 33 33 33 33 0.1 4.7k 220p 0.1 *** 0.01 *** *** 0.1 1000p MT1389EE/B2-L 0.033 GNDD GNDD GNDD *** *** *** V+5V *** RAB4C330J 33*4 0.1 GNDD 0.1 33 33 0.1 0.1 0.1 0.1 *** 33 0.1 64M SD-RAM K4S641632K-UC75 0.1 0.1 0.1 33 0.1 0 *** 220/4 0 1 *** *** *** 0.1 V+3D V+3DR 0.1 *** 560F *** 1 220/4 0.1 0.1 STBY 0.1 0.1 15k 1000p 0.1 1 0.047 0.047 0.1 0.1 750K 100K 22p V1P4 GNDD 1000p 1 10/16 0.47 390p 0.1 0.1 100 *** *** 0 V+3R3 1 ASS7075 *** GNDD 0 0.1 0.1 0 10K 10K 10k *** 0.1 *** 0.1 0.1 0.1 *** 33 33 33 *** *** 33 33 10 33 100 100 100 1k 100 *** *** 0.01 0 V+3R3 V+3V A4 A5 A7 A6 A3 A1 A2 D0 D8 D1 VSS ~OE~ A0 ~CE~ DOWNLOAD CH:CCSRCH~ OTHERS:CKSRYB~ CAPACITOR (F):RS1/16S****F OTHERS:RS1/16S***J CKSQ**~ :1608 Size :2125 Size :1608 Size :2125 Size DIODE Chip Size RESISTOR 1SS355 RS1/10S***J DVSS APLLVSS APLLCAP HIGHA6(PU) HIGHA4(PU) HIGHA3(PU) HIGHA5(PU) DVDD3 HIGHA1(PU) HIGHA2(PU) IOA20 XIOCS (PU) AD0 AD1 DVDD3 XIOOE IOCA1 (PU) DVSS (18) AD4 AD3 AD2 IOA2/V_ADIN0 AD5 ALE (PU) AD6 IOA19 (PU) IOA18 (PU) HIGHA0(PU) IOA7 (PU) IOA5 (PU) IOA6 (PU) IOA4 (PU) IOA3 (PU) IOA2 (PU) 65:APLLVSSVDD3 66:XIOWR 67:A16 68:HIGHA7(PU) 3.3v 1.8v 1.8v 3.3v AD7 A17 XUWR (PU) DVSS (3) IOA0 (PU) UP1_3 (PU) UP1_2 (PU) DVDD18 XURD (PU) UP1_4 (PU) UP1_7 (PU) UP1_5 (PU) UP1_6 (PU) UP3_4 (PU) UP3_5 (PU) UP3_1 (PU) UP3_0 (PU) DVDD3 IR ICE (PD) XINT0 (PU) XPRST (PU) DVSS (18) DQS0 DQM0 RD7 RD6 DVSS (3) RD3 RD4 RD5 DVDD18 RD0 RD1 RD2 RD11 RD13 RD12 126:RD15 127:DVDD3 128:RD14 DQM1 RD10 (3)DVSS RD9 RD8 XRWE DQS1 XCAS XRAS TCK/V_ADIN6 (JTAG) DVDD18 TDO/V_ADIN7 (JTAG) FG/V_ADIN8 (PU) TMS/V_ADIN5 (JTAG) TDI/V_ADIN4 (JTAG) USB_VDD3 USBM USBP TRO FOO USB_VSS PWMOUT1/V_ADIN9 TROPENPWM FMO OP_INP OP_INN DMO TEO OP_OUT TEZISILV FEO VREFO V2O V2REFO RFLV/RFON CSO/RFOP SGND XRCS DVDD3 (18) DVSS BA0 BA1 (3) DVSS RA10 RA0 RA1 RA2 DVDD18 RVREFN_ADIN3 RCLKB DVDD3 RA3 RA11 RCLK CKE RA9 RA8 DVDD3 (PU)RD3/ASDATA5 RA4 (18) DVSS (3) DVSS RA7 RA6 RA5 SVDD3 LDO1 LDO2 MIDI2 MIDI1 TPI CDFON CDFOP TNI SD SC SB MD MC SA MB MA DVDRFIN IREF:255 RFGC:254 AVDD3:256 OSP:252 OSN:253 DVDRFIP DVDD DVDC AGND DVDA DVDB CEQP RFGND CEQN CRTPLP RFRPDC RFVDD3 RFRPAC HRFZC S_VREFP S_VREFN S_VCM ADCVDD3 ADCVSS LPFON LPFIP LPFOP LPFIN PLLVDD3 JITFN IDACEXLP PLLVSS (PU) RD30 RD29 (INPUT) RD24 RD25 DVDD18 RD27 RD28 RD26 (3) DVSS DVDD3 (INPUTPU) RD21 RD22 (INPUTPU) RD20 (INPUTPU) RD19 (INPUTPU) RD18 DACVDDC:189 (INPUTPU) DQM3 (INPUT PU) DQM2 RD23 VREF:190 (3) DVSS (PD) ASDATA4 (PD) ASDATA3 (PD) ASDATA2 (PD) ASDATA1 JITFO XTALI RFGND18 XTALO RFVDD18 SPDIF MC_DATA DVDD18 (PD) ALRCK (18) DVSS (PD) ASDATA0 SPBCK/ADATA5 VSYN/V_ADIN1 HSYN/V_ADIN2 YUV7/ASDATA5 ACLK ABCK SPDATA SPLRCK DVDD3 SPMCLK YUV0/CIN:192 (INPUTPU) RD16 (INPUTPU) RD17 FS:191 YUV3/CVBS DVDD3 YUV4/G DACVSSA YUV5/B YUV6/R DACVDDA YUV2/C DACVSSB DACVDDB YUV1/Y DACVSSC STBY VSS VCC VSSQ DQ14 DQ15 DQ12 DQ13 VCCQ DQ10 VSSQ DQ11 VCCQ DQ1 DQ0 DQ3 DQ2 VSSQ VCCQ DQ4 DQ5 DQ9 DQ8 VCCQ VSS NC UDQM CKE NC CLK DQ6 DQ7 VSSQ VCC LDQM WE CS RAS CAS 3.3v 1.8v A11 A9 A8 A6 A7 A5 VSS A4 A10/AP BA0 BA1 A0 A1 A2 VCC A3 1.8v 3.3v (27MHz) (R203) CONT GND OUT VDD 1.8v DSD_Rch control DAC 3.3v 1.8v 3.3v to VIDEO PART (Page 2/2) to AUDIO PART (Page 2/2) B 1/2 2/2 B 2/2 B 3 2 5 (D) (AD) (D) (AD) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 56 1 2 3 4 1 2 3 4 C D F A B E 10.2 DVDM ASSY (2/2) 17 16 14 15 12 13 10 11 9 8 7 6 5 4 3 2 1 8 6 7 4 5 3 2 1 13 11 12 4 2 5 3 10 9 11 14 13 12 16 15 B E C 10 5 6 9 7 8 3 2 1 4 ASDAT2 DAC_XCS1 DAC_SO DAC_SCK DAC_XCS0 ASDAT1 ALRCK ASDAT0 ALRCK ASDAT0 ACLK DAC_SCK DAC_SO DAC_XCS0 XAMUTE DVDMUTE ASDAT1 ASDAT0 ASDAT2 ALRCK ASPDIF ABCK VDET R940 R939 R938 R936 R937 R935 R934 R933 R932 CN953 R931 R590 R500 C501 C500 C502 C504 C503 R501 C506 C505 C507 R502 R503 R504 R505 IC501 R591 C592 C591 R592 C512 R512 R511 R514 C514 C513 Q502 R516 C508 C509 C511 R513 Q503 R519 R515 Q501 R509 R508 R506 R507 Q504 R518 Q505 R517 Q506 R520 IC591 R595 CN951 R594 D862 D861 R821 D852 R824 R822 R823 Q821 D821 Q801 D851 R853 R852 Q851 D881 R883 R801 R882 Q881 R851 R881 C801 D801 GNDD 0 CTF1389 CTF1389 CTF1389 CTF1389 0 0 0 0 CTF1384 CKS3885 GNDA 0.1 *** 100/16 0.1 0 *** 1 0 V+5V *** 10/16 0.1 GNDD V+3R3 0 100 100 100 PCM1753DBQ GNDD 0 *** GNDD 10 10/16 22K 22K 470 1000p 1000p CH 2SD2114K(VW) 2.2K 2.2K 10/16 10/16 0.1 470 CH DTC114YUA GNDD GNDA 2SD2114K(VW) 10K 100 100 22 100 DTC114YUA 1K 2SA1576A(RS) V+5V GNDD DTC114YUA 1K 1K V+5V V+3R3 TC7SHU04FU 1 0 VKN1417 0 GNDD 10k 10K 47K 15K 2SA1576A(RS) GNDD DTC124EUA V+6R5 V+5V V+12 GNDD 10K 2SA1576A(RS) 10K 47K GNDD *** 2SA1576A(RS) 470 10K 47K V+3R3 V+5V V+12 V+12 VPR+8 UDZS4.7B 0.1 VIDEO ABCK1 ACLK0 ABCK0 ABCK1 FR FL ACLK0 ACLK0 SYS ABCK1 ACLK0 ABCK0 AUDIO ***:parts not mounted OTHERS:CKSRYB~ CH:CCSRCH~ :2125Size (F):RS1/16S****F OTHERS:RS1/16S***J :1608 Size CKSQ**~ :1608 Size CAPACITOR Chip Size RESISTOR RS1/10S***J Size 1SS355 DIODE from PAGE 1/2 LRCLK DATA0 GNDD GNDD BCLK XCS1 GNDD GNDD DATA2 XCS0 DATA1 GNDD external DAC control (L939) SCL SO (L938) (L937) (L936) DSD_Rch GNDD MCLK GNDD (L931) VOUTR VOUTL VCC VCOM ZEROR/ZEROA GNDA STBY PCMLRCK PCMDATA GNDD VDD ZEROL/NA PCMBCK PCMMCK DAC AUDIO (FL,FR) GNDD BCLK GNDD SCK CS SI STBY to PAGE 1/2 DATA1 GNDD DATA0 GNDD GNDD DATA2 STBY PCM OUT GNDD LRCLK GNDD MCLK STBY DAC 2ch STBY from PAGE 1/2 VOLTAGE DETECT DVDM ASSY (AWM8069) B 2/2 B 2/2 1/2 B 1/2 B 1/2 B (5V_OVD) 5V_OVER_VOLTAGE_DETECT on the VDET line. pull-down(470Ω) Need to add external *[3.3V u-com] ABNORMAL >4.25V <2.5V >2.45V <0.85V voltage NORMAL 3.3V 1.65V * 5V supply u-com 3.3V CN1402 C (D) (D) (D) (AD) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 57 5 6 7 8 5 6 7 8 C D F A B E 5 8 7 9 10 6 3 5 4 1 2 13 12 11 14 15 16 1 3 14 13 12 11 10 7 8 9 15 16 19 18 17 21 20 22 1 6 4 5 1 2 3 4 3 2 24 23 25 26 27 28 2 4 5 4 2 3 5 6 4 1 7 5 3 4 2 1 27 25 26 24 23 21 22 19 20 17 18 15 16 13 14 12 11 9 10 7 8 6 5 3 4 2 2 1 1 1 2 3 4 2 3 6 5 7 8 9 10 1 12 11 13 14 15 16 3 4 5 6 2 1 8 7 1 3 2 4 5 3 5 3 4 1 2 4 2 1 6 5 17 18 19 20 22 21 23 24 25 26 27 28 29 VSEL1 R_CR B_CB G_CY S_Y I/XP CVBS S_C LETTER SQUEEZE VSEL1 VSEL2 SQUEEZE I/XP TRKUP DVDMUTE VDET MDATA ACK SCLK SDATA XDVDRST XREADY R436 R416 R1003 R1002 R1001 C1001 R435 R415 R434 R414 R433 R413 C466 C455 C465 C464 C454 C453 IC451 C452 C451 Q401 R401 R405 R432 R412 R411 R431 IC205 C416 C415 C414 R404 C405 C404 C412 C413 C411 CN904 C403 IC401 C402 C401 R250 C249 C754 L751 R406 C752 C753 C751 C761 C763 R762 R750 IC751 R751 D751 R764 R763 IC761 R765 R522 CN905 R476 R521 C476 C475 R426 R474 R475 C474 C426 C425 R424 R423 R425 C424 C423 C422 C406 R422 R402 R421 R403 R924 R923 C421 Q481 R921 R922 R481 CN902 CN952 C762 R914 R912 R913 R920 R915 R761 R910 R911 L901 R918 R907 R905 R903 R917 R916 R919 R904 R906 R713 R712 C712 C714 C713 R714 C711 IC711 R739 R736 R734 C740 C739 R737 C738 D731 R740 C736 D733 R733 R732 C735 C734 C733 C732 R738 C737 R735 R711 IC731 D732 L732 L731 Q731 R702 C702 C701 Q732 Q701 C731 R731 R902 R901 Q702 C1002 C1003 R701 CN901 GNDD *** *** GNDD2 CKSQYB104K16 GNDD *** *** *** GNDA GNDA GNDD GNDD *** *** GNDD *** *** GNDD *** *** GNDD 0.1 0.1 GNDD 0.1 0.1 DTC114YUA GNDD 100/16 *** MM1566AJ 0.1 100/16 10K V+5V GNDD *** 75 GNDD *** *** TC7SH08FUS1 GNDD 0.1 V+5V 1 0.1 *2 *2 0.1 100/16 1 1 0.1 *** *** MM1623BF 0.1 100/16 V+5V GNDD 0 0.1 V+3D V+5S CTF1395 75 GNDD 470P 2.2 *** 1 100/16 *** *** 0 MM1565AF V+5M V+5V GNDD 1SR154-400 0 STBY 0 *** V+6R5 *** *** 0 0 *** 0 0 *** GNDD *** 0 0 0 *** *** *** 0 0 0 *** *** *** 0.1 0 10K 0 0 0 0 *** DTC114YUA GNDD 0 0 1K GNDD VKN1319 AKM1288 V+5V *** GNDM 6.8k 10k 3.3k 0 0 *** 220 220 CTF1334 *** 470 3.3k 3.3k 0 22k *** 6.8k 22K 6.8k *** *** GNDD 470P *** 2.2 *** MM1661JH V+1R8 18K(F) 0 47k 27K(F) DCH1165 0.1 10 22 RSX201L-30 DCH1165 10 DCH1165 100/16 10 DCH1165 10 22 *** 100/16 1 10 15K(F) 120P 2.7K *** R1224N102H 22 ATH7011 DTL1099 *** GNDD GNDD V+3R3 1 *** RSQ035P03 2SA1576A(RS) V+12 *** *** 0 GNDM 10K DTC124EUA *** *** 47K VPR+8 VDVD+12 VKN1321 FR FL TROUT TRIN TRGAIN (C1011) GNDA STBY BIAS GND1 B in GND2 B out YSAG MUTE1 G in MODE1 R in Vcc1 G out MODE2 VSAG R out Vcc2 EXTRA VIDEO OUT MUTE2 Cr in Cb in CLP CY in BIAS GND1 I/P Cr out GND2 Cb out GND2 GND2 CY out GND2 Y out V in Y in YC MIX Vcc1 MUTE1 C in S2 S1 V out Vcc2 DC out C out 1K R405 R404 PROGRESSIVE except STBY *2 1K VSEL2 V+RGB S PROGRESSIVE STBY VSEL1 RGB V NC GND Cn Sub Cont Vo Vin DAC 2ch GNDA FL GNDA FR FR GNDA FL GNDA GNDD B GNDD GNDD G GNDD R Cr/R GNDD Cb/B GNDD GNDD CY/G SY GNDD V GNDD SC ASPECT VSEL1 VSEL2 STBY SQUEEZE P/XI PROGRESSIVE CVBS TROUT TRGAIN TRIN SPDIF_RQ TRKUP DVDMUTE VDET GNDD GNDD ACK MDATA SDATA SCLK XREADY XDVDRST Cn GND NC Cont NC Vo NC Vin VOUT EXT CE GND VIN DC-DC CONVERTER GNDD DVD POWER DOUT GNDD GNDD GNDD GNDM GNDM 6R5V 6R5V VPR+8 VPR+8 VDVD+12 B 2/2 1/2 B CN2701 H 7.8V 6.5V 5.0V : AUDIO DATA SIGNAL ROUTE : DIGITAL SIGNAL ROUTE (AD) (D) (D) (D) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 58 1 2 3 4 1 2 3 4 C D F A B E 10.3 AJKB ASSY PCM/DSD SEL Rch DAC Rch PCM/DSD SEL Lch DAC Lch SRIN SROUT XSRRST XPCM XDFCS XDFDT XDFCLK XSYSMUTE XDACCS1 XDACCS2 DT/DSDL XDFDT XDFRST XDFCLK XDFCS XSRRST XDACDT XDACCK DSDR LRCK MCLK XDACCS2 XDACCS1 BCK DSDR AD XDACCK XDACDT XPCM MCLK XDFRST BCK DT/DSDL LRCK CN1401 J1901 C1907 C1908 C1901 C1903 C1905 C1906 C1902 C1904 C1418 CN1402 R1423 R1424 R1434 R1435 C1415 IC1405 IC1405 R1425 R1427 R1426 IC1405 IC1405 R1439 R1442 R1441 R1440 R1428 R1429 R1430 R1431 R1437 R1438 C1923 C1922 C1921 IC1404 IC1901 D1901 L1901 L1902 C1417 R1416 R1418 R1417 R1419 C1421 C1416 C1420 C1414 C1413 R1422 R1420 F1403 IC1402 R1432 R1412 R1433 R1409 F1404 R1411 Q1402 C1408 C1409 C1410 IC1403 R1436 X1401 IC1403 R1408 R1410 F1402 IC1403 C1405 C1406 C1407 IC1406 R1421 C1254 C1255 C1262 C1266 C1918 R1266 R1259 R1263 R1256 R1255 C1253 R1265 R1257 R1262 R1261 R1254 R1258 C1265 C1252 C1251 R1260 C1411 C1412 C1264 IC1252 C1263 R1252 R1253 R1251 R1264 IC1251 IC1403 F1251 C1155 C1154 R1159 R1158 R1156 R1155 R1154 C1162 C1166 R1404 C1404 C1403 R1403 R1402 C1402 R1407 R1406 IC1401 R1401 R1405 C1401 F1401 R1157 R1162 R1161 C1163 C1164 IC1152 C1153 C1165 C1152 C1151 R1160 R1153 R1152 R1151 F1151 IC1151 1 2 3 8 9 7 6 5 4 3 20 6 4 5 11 12 7 8 9 10 17 15 16 13 14 13 14 12 17 15 16 6 1 4 2 19 8 11 13 15 17 2 5 7 7 10 3 14 6 4 14 1 9 7 12 7 8 11 13 14 14 10 5 6 11 7 8 9 10 3 4 1 2 1 1 STBY 1 1 2 2 2 2 1 2 1 2 1 2 2 1 3 14 13 16 15 12 11 9 10 7 8 17 18 20 19 21 22 5 6 2 3 4 1 24 23 25 26 27 28 7 8 9 10 14 7 12 14 11 13 E B 1 2 4 3 7 14 2 3 1 C 12 10 11 9 8 14 15 16 17 13 18 12 7 5 14 9 3 16 2 5 3 4 8 7 9 10 6 5 3 2 4 1 12 11 13 15 14 16 7 13 12 11 10 14 15 17 16 19 18 8 9 6 7 4 5 21 20 23 22 24 25 2 3 1 27 26 28 5 6 4 14 8 7 5 6 9 10 12 11 11 13 14 12 15 16 18 17 7 6 4 3 5 1 2 19 18 22 21 20 24 23 3 4 2 1 14 13 16 15 10 9 7 8 5 6 19 20 22 21 23 24 3 4 2 1 28 26 27 25 SROUT SRIN GNDD GNDD GNDRY V+3D V+12RY V-12V GNDA V+12V GNDA XSYSMUTE XDFDT XDFCS XDFRST GNDD GNDD GNDD XSRRST XDFCLK LEGATO XDACCK XDACDT XDACCS1 XDACCS2 LRCK GNDD MCLK(22M) GNDD GNDD XDACCS2 XDACCS1 XDACDT XDACCK GNDD GNDD GNDD DATA0 BCK DATA1 GNDD PCM/DSD V+5A GNDA MUTE XRST XRDY OWL1 IFMT2 IFMT1 IFMT0 BYPASS VIO LRCKI DGND SRC OWL0 OFMT1 OFMT0 TDMI VDD DGND SDOUT BCLKI SDIN N.C. RCKI LGRP LRCKO BCKO MODE0 MODE1 MODO2 GND CONT OUT VDD (3/4) (4/4) (1/4) NC1 CSB SDATA SCKL ICVDD NC6 NC5 NC4 NC3 NC2 GNDA 2B 2Y GND (LR/DT) (BCK/BCK) 3Y 3B 3A 1Y 2A (DT/G) 1A 1B SELECT 4Y 4B ST 4A VCC AGNDR VMIDR VOUTRP VOUTRN AGND VOUTLN VOUTLP AVDD AGNDL VMIDL DVDD AVDDR DIFFHW DGND MCLK FSEL ZFLAG AVDDL DOUT DSDR SDOUT MODE DIN/GND BCK/DSDCK LRCK/GND CSB SCLK SDIN (2/4) GNDA 2Y (LR/DT) GND 2B 2A (BCK/BCK) 3B 3Y 4Y 3A AGND VOUTRN VOUTRP VMIDR AVDD VOUTLN VOUTLP VMIDL IGND XIN CGND RSTB BCKIN LRIN DAIN OGND OVDD BCKOUT CGND LROUT DAROUT DALOUT 1Y 1B (DT/G) 1A SELECT 4A 4B VCC ST AGNDR AVDDR DGND DVDD DIFFHW MCLK AGNDL AVDDL DSDR ZFLAG DOUT MODE FSEL BCK/DSDCK DIN/GND LRCK/DSDL SDIN SDOUT SCLK CSB PKP1019 CKS3382- GNDRY V-12A * 0.01 GNDD 0.1 470/16 * 0.1 0.1 1 0.1 PKN1033 10 10 10 10 TC74VHC125FTS1 TC74VHC125FTS1 68 68 TC74VHC125FTS1 TC74VHC125FTS1 * * * * 68 68 68 * * * * V+5A GNDD V+12A V+12RY V+3D TC74LCX244FTS1 V+3D * * * * * GNDD * * 0.01 100 V+3A * 0 100 0.1 180/16 PCH1163 OS 180/16 PCH1163 0.1 0.1 OS 100 V+3DS1 CTF1661 100 CTF1661 SRC4192IDB 47 0 * 220 V+3DS2 220 RT1N241M VCH1249 22.5796MHz TC74VHC125FTS1 0.1 0.1 47/16 ASS7071 100 TC74VHC125FTS1 220 TC74VHC125FTS1 CTF1661 GNDD 47k V+3DX * 22 0.01 * YF 1 AQE 0.1 V+3D 0.1 TC7SZU04FU 100 V+3D * 0.1 0.01 * 0.01 68 * 22 68 22 PCH1158 ZLG 470/16 220/25 0.1 22 22 22 TC74VHC157FTS1 47 * PCH1157 AWJ 0.1 VCH1249 PCH1163 180/16 47/16 PCH**** 0.1 47/16 * OS 22 22 22 22 WM8741GEDS 0.1 TC74VHC125FTS1 68 22 68 22 47 ZLG 0.1 470/16 PCH1158 CTF1661 V+3DR 0.01 * 0.1 22 22 22 220 220 220 PD0274A PCH1158 470/16 ZLG V+3DAQE CTF1661 22 22 22 TC74VHC157FTS1 0.1 47/16 220/25 PCH1157 0.1 VCH1249 AWJ 180/16 PCH1163 0.1 V+3D OS 22 22 22 22 CTF1661 WM8741GEDS V+3DL 2G 1G 1A1 1A2 1A3 1A4 2A2 2A3 2A4 2A1 B1 B2 B3 B4 B5 B6 B7 B8 (AD) (AD) (AD) (AD) (AD) (AD) (AD) (AD) CN1802 J CN2105 D C 3.3V 3.3V 3.3V 3.3V 3.3V 3.3V 3.3V 7 6 4 3 5 2 1 CN953 B 2/2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 59 5 6 7 8 5 6 7 8 C D F A B E - + + - - + + - CT XPCM XSYSMUTE XDACCS2 XDACDT XDACCK XDACCS1 XDACCK XDACDT SRIN SROUT C1909 C1910 CN1501 R1501 C1501 C1502 C1503 IC1501 C1504 L1502 C1509 F1502 C1507 C1510 JA1501 KN1902 KN1901 KN1903 KN1904 KN1905 C1911 C1259 C1258 C1260 IC1501 R1502 R1506 IC1501 R1503 C1506 IC1501 C1505 R1505 IC1501 IC1501 R1301 R1303 R1302 R1305 D1301 C1257 F1252 C1261 C1256 R1201 R1202 R1204 R1203 Q1301 D1306 D1302 D1303 R1205 C1201 C1202 RY1301 C1208 C1210 R1206 R1207 R1208 IC1201 C1204 C1205 C1203 C1207 C1206 R1209 C1301 J1902 IC1301 R1104 R1103 C1159 C1158 C1160 R1102 F1152 R1101 C1104 C1105 C1106 C1107 R1108 R1107 C1103 IC1101 R1109 C1101 R1106 R1105 C1102 C1110 L1501 R1504 F1501 C1514 C1513 C1515 JA1502 Q1303 Q1302 C1303 C1302 KN1301 R1306 D1304 R1304 D1305 R1210 C1211 RY1302 JA1201 R1212 IC1201 C1209 R1211 RY1301 R1213 RY1302 C1212 RY1301 J1902A R1111 IC1101 RY1302 C1112 C1109 R1112 R1110 C1111 R1113 JA1101 C1157 C1161 C1156 D1601 C1108 C1603 C1601 C1602 JA1602 JA1601 5 4 2 3 1 7 11 7 10 14 7 2 3 6 14 5 13 14 7 9 14 7 8 3 14 4 1 14 7 12 2 1 3 E 2 B C 1 2 E C B 2 2 1 1 10 1 6 8 5 7 4 5 1 3 2 4 4 2 3 9 7 3 4 8 2 1 8 1 1 3 2 E 3 C B 4 1 3 2 2 1 2 1 10 1 8 2 1 4 3 4 2 3 1 3 2 4 3 2 5 6 7 8 9 7 8 1 2 1 3 2 1 3 V+12A GNDD DVDMUTE DOUT GNDD (3/6) GNDS OUT COAXIAL *4 KN1906 PNB1676 (1/6) (2/6) (4/6) (6/6) KN1907 PNB1676 (5/6) (1/3) (2/2) (1/2) OUT OPTICAL MPE (1/3) (1/2) (2/3) Rch OUT (3/3) (2/3) (2/2) (3/3) MPE GNDS Lch OUT CEAT*** CKSQ*** 1608 SIZE CAPACITOR CKSRYB*** CCSR*** 2125 SIZE SOD-323 TYPE (UMD2) DIODE (UMT6) RS1/10S***J 1608 SIZE 2125 SIZE RS1/16S***J RESISTOR Descrete Type Descrete Type Descrete Type Descrete Type SOT-363 TYPE (SMD3,SMT3) (UMD3,UMT3) SOT-346 TYPE SOT-323 TYPE TRANSISTOR SR-IN SR-OUT V+12A GNDD * * GNDD 05R-FJ 0 ZLG 0.1 470/16 PCH1158 0 * 22 33/50 PCH1164 GNDD * PTL1017 75 1000p * CTF1661 * AKB7102 VNF1084-T VNF1084-T VNF1084-T VNF1084-T * 0.01 0.1 0.1 470/16 PCH1158 0 (2125) TC74VHCU04FT TC74VHCU04FT TC74VHCU04FT TC74VHCU04FT 0.01 47 V+3D V+3DO TC74VHCU04FT TC74VHCU04FT 1k * 1k 0 * 0.1 ZLG * STBY 220/25 AWJ PCH1157 V+5AR * STBY PCN1042 V+5A PCN1042 PCN1042 RT1N241M 1SS355 1SS355 DAP202K VSR1008 (F) 2.4k VCN1138 1.2k (F) 2.4k VCE1052 1200p 1.8k VCN1139 (F) 470p VCE1051 (F) V+12RY 1.8k (F) 2.4k VCN1139 (F) 2.4k VCN1138 VCE1051 1.2k (F) OPA2134PAS1 470p VCH1257 * 6.2k VCH1257 (F) * PCN1042 * * PCH1158 PCN1042 PCN1042 0.1 0.1 ZLG 470/16 PCN1042 * STBY PCN1042 (F) 0.1 100/25 V-12A VCH1257 100/25 0.1 VCH1257 (F) 2.4k VCE1051 1.2k VCN1138 (F) 2.4k VCN1139 (F) 1.8k 470p 0.1 100/25 (F) OPA2134PAS1 0.1 100/25 (F) 6.2k (F) 2.4k VCE1052 1.8k 1200p (F) 2.4k 1.2k VCN1138 VCN1139 (F) (F) 470p VCE1051 * VTL1172 DTF1068 GNDD 47/16 1 0.01 GNDRY GNDD VKS1002 YF RT1N241M RT1N241M 0.01 0.1 V+12RY VNE1948- 10K 1SS355 V+3D VCE1051 10k 1SS355 VSR1008 PCN1044 470p PCE1002 3.3k (F) 0.1 NP 51 PCN1045 V+12RY (F) 51(F) PCN1045 VCH1255 47/50 PCN1046 OPA2134PAS1 22k VCN1136 (F) VSR1008 * AKB7102 VSR1008 VSR1008 * 22k PCN1046 OPA2134PAS1 (F) VCH1255 47/50 VCN1136 (F) VSR1008 (F) * 51 AKB7102 NP 51 3.3k (F) 0.1 PCN1045 PCN1044 PCE1002 PCN1045 220/25 0.1 AWJ PCH1157 V+5AL * STBY V+5A V+12A 1SS355 470p VCE1051 0.1 RKN1004- * * RKN1004- (+) (+) R1199 0Ω R1299 0Ω : AUDIO SIGNAL ROUTE(Lch) (L) : DIGITAL SIGNAL ROUTE (D) : AUDIO DATA SIGNAL ROUTE (AD) (L) (L) (L) (L) (D) (D) (D) (D) (D) (L) (L) CN2702 H 13 12 10 11 C C AJKB ASSY (PWX1661) 5V 5V 13.3V 12V 13.3V 3.3V 8 9 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 60 1 2 3 4 1 2 3 4 C D F A B E 10.4 CONNECTOR ASSY CN2703 CN2701 CN2705 R2702 C2705 R2701 C2710 C2701 CN2704 C2702 C2703 R2703 C2704 C2707C2706 C2708 C2709 CN2702 KN2701 VKN1191- VKN1205 B2P-SHF-1AA * GNDM * * S4B-EH 0.1 0.1 0.1 0.1 22 * 0.1 * V+6R5V V+12AV V+9D * * 05PL-FJ VNF1084- -T 15 14 10 8 11 12 9 13 1 5 3 4 7 6 2 27 29 28 18 21 19 20 25 23 24 26 22 1 2 1 3 2 4 5 3 4 1 2 10 9 16 17 13 11 15 14 12 3 8 7 1 2 5 4 6 GNDD GNDD DVDPOWER ACK SCLK XREADY MDATA SDATA XDVDRST GNDD SPDIF_RQ TRGAIN TRIN TROUT VDET GNDD (NC) TROUT TRIN CVBS GNDD DVDMUTE GNDD MDATA TRGAIN VDET ACK TRKUP SPDIF_RQ GNDS GNDD GNDD GNDS GNDM GNDD V+9D V+6R5V DVDMUTE DOUT V+12A GNDD GNDD GNDD SDATA XDVDRST SCLK XREADY GNDD GNDD DVDPOWER DOUT GNDD V+6R5V V+9D V+9D V+12A GNDM GNDM V+6R5V H H H CONNECTOR ASSY (PWX1662) CN2106 D CN1501 C CN1702 J : DIGITAL SIGNAL ROUTE (D) (D) CN901 B 2/2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 61 5 6 7 8 5 6 7 8 C D F A B E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 62 1 2 3 4 1 2 3 4 C D F A B E 10.5 LCD, PLED, IR and KEY ASSYS PWX1653 IR ASSY XRST LED1 LED3 SYSPOW AC SROUT DIMMER BLOFF XLCDRST LCDRS LCDCS SYSPOW2 LCDDT LCDCK LED2 E 6 5 4 2 3 1 3 2 1 E2 E C2 C B2 B 1 2 3 E E B C C B E B C 8 7 B C 1 3 2 3 2 1 3 1 2 5 6 4 3 2 1 2 2 1 1 2 1 2 1 C2212 C2218 Q2106 D2104 C2114 R2154 Q2107 C2219 Q2108 R2153 C2220 C2213 C2217 C2214 R2101 Q2104 D2101 D2102 R2135 C2208 J2101 2401 J2105 R2216 R2214 R2212 R2215 R2213 R2211 Q2204 D2210 D2209 Q2204 Q2203 D2208 Q2202 Q2201 D2207 D2206 R2210 D2103 R2155 L2101 C2401 Q2105 C2101 D2105 C2106 R2124 J2106A J2106 R2139 Q2109 R2120 C2206 D2201 D2205 C2207 D2204 C2204 D2202 C2203 C2205 D2203 C2201 C2209 C2210 R2219 C2202 Q2102 F2201 Q2103 R2114 V2201 R2113 C2602 D2601 C2601 R2601 J2601 J2102 C2104 Q2101 GNDD * RT1N431M * 0.01 2.2K RT1N241M 2SC4097(PQR) 10/50 47k ACH1246 0.047F 0.1 0.01 RT1N241M SLI-343URCW(RST) SLR-343VC(NPQ) 1k 270 0.1 0.1 PF06PG-D07 GP1UM28XK0VF * 0 0 0 62 62 62 1SS355 UMH1N-T UMH1N-T DAN217 2SC4081(QR) 2SC4081(QR) 2SC4081(QR) 1K V+5LCD NSPW510BS-7199 NSPW510BS-7199 NSPW510BS-7199 V+58U DAP202K 47/16 100 22u V+5U V+56ST V+5B V+5B1 0.1 RT1N431M 47/16 RT1P241M * * 1SS352 470 PKP1025 22K *** 22p 22p 22P *** *** *** V+5U 0.1 *** 22p CH CH CH CH 2.2 YF (F) 1.8k 1000p 100/10 JQ CTF1661 RT1N241M 1000p 51048-0800 2SA1577(QR) V+SW5U 1k 22k HAZA 47/16 1000p SLR343BC4T(JKLM) 270 PK1023 PKP1024 V+5U 0.01 RT1N241M V+5U DIODE Descrete Type Descrete Type (UMD2) SOD-323 TYPE (UMT6) (UMD3,UMT3) SOT-363 TYPE (SMD3,SMT3) SOT-323 TYPE SOT-346 TYPE TRANSISTOR 2125 SIZE CEAT*** CKSQ*** RESET [STBY] [PURE AUDIO] 1608 SIZE CKSRYB*** CAPACITOR RD1/4MUF***J 2125 SIZE RS1/10S***J GNDD V+58U GNDD V+56ST AC RS1/16S***J 1608 SIZE NOTES RESISTOR Descrete Type Descrete SYSPOW GNDD GND VOUT VCC GNDS *3 *3 RS XRESET GND VOUT VCC SCL CSB SI VSS LCD VO VDD CABLE HOLDER (FOR LCD INSERTION) WITH COG DRIVER AAV7111 PLED V+5U [POWER-ON] K E D E PLED ASSY (PWX1655) K IR ASSY (PWX1653) CN11 I 5V 4.4V 5V 5.6V 5.8V 5.2V 5V 6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 63 5 6 7 8 5 6 7 8 C D F A B E XSYSMUTE SYSPOW MDATA SDATA XREADY XDFRST XDFCS LCDDT XDFDT LCDCK LCDCS XDFCLK KEY1 VDET LED1 AC XRST SRIN LED2 XRST FLASHCLK FLASHE/D FLASHDO FLASHE/D FLASHCLK FLASHDO DIMMER SYSPOW2 SPDIF_RQ XLCDRST LED3 BLOFF SROUT XDFDT SRIN XDFCLK XDFCS XDFRST XSYSMUTE XDACCS1 XSRRST XDACCS2 XDACCK XDACDT LEGATO LCDRS XDVRST SCLK LEGATO XDACCS2 XDACCS1 XDACDT KEY1 XDACCK ACK TRGAIN TRIN TROUT XSRRST DVDP XREADY DVDP XDVRST SDATA SCLK SPDIF_RQ ACK MDATA VDET TRIN TROUT TRGAIN CT 30 32 31 35 34 33 29 28 37 36 38 39 40 41 44 42 43 45 46 47 50 48 49 51 53 52 26 27 24 25 22 23 54 55 57 56 58 59 20 21 19 18 17 16 15 60 61 62 63 64 65 66 14 13 12 11 9 10 72 67 68 69 71 70 8 7 5 6 4 3 74 73 76 75 77 79 78 1 2 100 99 96 97 98 93 94 95 92 91 90 87 88 89 80 86 85 84 82 81 83 3 3 2 2 1 1 2 1 3 4 5 6 7 8 10 9 11 12 15 13 14 3 2 4 1 7 5 6 17 16 8 7 13 14 11 12 15 9 10 4 2 1 3 6 5 R2119 R2109 C2111 R2137 R2136 R2138 R2134 R2133 R2131 R2132 R2127 R2130 R2129 R2128 R2160 C2112 R2141 R2142 R2143 R2147 R2146 L2102 L2103 L2105 L2104 C2113 C2110 R2123 R2126 C2109 R2122 R2125 X2101 C2216 R2121 C2115 C2105 R2117 R2171 R2102 R2156 R2152 R2145 R2144 IC2101 PDC170A R2151 R2149 R2150 R2148 R2104 R2118 C2102 R2105 R2106 R2107 R2108 R2165 R2162 R2163 R2110 R2116 C2103 R2111 R2115 R2176 R2161 R2140 KN2101 R2112 C2107 C2301 J2104 J2104A S2301 S2302 R2301 2301 R2302 R2103 C2211 CN2106 CN2101 CN2105 * * * 47k 47k 47k 220 220 220 220 220 220 220 220 10k 10k CTF1389 CTF1389 220 0.1 220 220 220 CTF1389 CTF1389 0.1 0.01 1M 220 47k 0.01 220 ASS7034- 10MHz * 220 47K * 0.1 1M 0.1 220 220 * V+5B1 0.1 * 10k 220 220 220 220 220 220 220 220 * 220 220 GNDD VNF1084 47k GNDD 0.01 220 220 220 220 D20PYY0320E 0.01 VSG1024 VSG1024 10k 10k V+5U V+5U 220 220 220 220 47k * CKS3829 220 52492-0720 9607S-17F Product TEST MODE TEST POINT SHORT for DVD MODE NC NC XDFRST XREADY LCDRS XSYSMUTE NC SYSPOW VDD4 VSS4 NC UTEST STEST NC NC NC XDVDRST NC SCLK LCDCS LCDDAT LCDCLK XDFCLK XDFCS NC XDFDT NC NC SDATA NC NC VDD2 NC MDATA VSS2 NC (not use) for JIGU NC NC NC NC KEY1 NC VDET NC SYSCOM(FP) PDC170A8 (Flash) LEGATO NC XDACCS1 XDACCS2 NC XDACCK XDACDT VDD1 SIMUKE VSS1 CF1 CF2 XT1 XT2 NC NC NC NC NC DVDACK REMOCON XRESET FLASHCLK LED2 LED1 NC ACPULSE NC XLCDRST SPDIF_RQ SYSPOW2 FLASHE/D FLASHDO TRIN NC NC TRGAIN TROUT NC NC NC NC LED3 NC MS_DCT DIMMER BLOFF NC NC VSS3 VDD3 DVDON/OFF NC LCDRS NC XSRRST 51048-0300 CABLE HOLDER 51048-0300 CABLE HOLDER PLAY/STOP OPEN/CLOSE GNDU V+5U KEY1 PWX1652 VEF1040 GNDD DVDPOWER XREADY XDVDRST SCLK SDATA ACK MDATA GNDD GNDD SPDIF_RQ TRIN VDET TRGAIN TROUT NC VSS VCC RST WD0 WCLK WEN/DI SROUT GNDD GNDD XDFRST XDFDT XDFCLK XDFCS GNDD SRIN GNDD XSYSMUTE LEGATO XSRRST XDACCS2 XDACCS1 XDACDT XDACCK Switches S2301 : OPEN/CLOSE S2302 : PLAY/STOP G D G KEY ASSY (PWX1652) D LCD ASSY (PWX1651) CN2703 H CN1401 C 6 2 1 3 5 4 5 4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 64 1 2 3 4 1 2 3 4 C D F A B E 10.6 PRIMARY, MNSW and REGULATOR ASSYS 4 2 1 1 1 1 1 2 2 2 1 2 3 4 2 2 1 1 2 6 4 8 3 1 1 3 2 2 6 4 3 5 2 1 2 2 1 1 2 2 4 3 2 1 1 1 3 1 2 11 12 CN2501 J11 C12 L11 S2501 C2501 H2502 H2501 CN2502 KN11 C13 R11 CN13 C19 T10 C15 C16 IC11 C18 R15 D15 C17 D11 D14 C14 R14 CN11 D13 D12 R12 R13 Q11 CN10 RY11 T12 C11 CN12 T11 0.01/275 RKP1834 PKP1022 XTF3004 ACE7013 PSA1006 * AKR7001 AKR7001 VKN2024 * * * KM200NA2 0.01 GNDU 1000/25 UDZS5R1(B) 10K 220/16 0.01 22(1/4W MUF) S1VB20/F03 NJM78M56FA 1SS355 3.3K * 0.01 KM200NA6 1SS355 1SS355 * RT1N241M B2P3-VH ASR7013 * B2P3-VH-Y SOD-323 TYPE LEAD TYPE DIODE (UMD2) SOT-363 TYPE (UMT6) LEAD TYPE (SMD3,SMT3) TRANSISTOR CEAT*** (UMD3,UMT3) SOT-323 TYPE SOT-346 TYPE V+58U GNDD LEAD TYPE 2125 SIZE CKSQ*** LF,KU : ATT7079 RS2LMF***J CAPACITOR 1608 SIZE CCSR*** CKSRYB*** RS1/10S***J LEAD TYPE RD1/4MUF***J WY,WLPW : ATT7078 NEUTRAL LIVE RESISTOR 1608 SIZE RS1/16S***J 2125 SIZE *2( , ) VEF1040 4 NEUTRAL LIVE 3 LF:REK1023(1.25A/250V) WY,WLPW:REK1134(500mA/250V) KU:REK1058(1.25A/250V) FU1 LIVE NEUTRAL To CHASSIS GNDU V+56ST V+58U GNDD AC SYSPOW NEUTRAL LIVE DIGITAL TRANS KU,LF:PTT1371 WY,WLPW:PTT1372 MECHA DIGITAL LIVE NEUTRAL AUDIO TRANS KU,LF:PTT1373 WY,WLPW:PTT1374 CT PKP1021 AC IN + - OUT IN I F I PRIMARY ASSY (PD-D9-J/WYXJ5, PD-D9-S/WLPWXJ:PWX1657) (PD-D9-J/KUCXJ:PWX1659) (PD-D9-S/LFXJ:PWX1660) F MNSW ASSY (PWX1654) J2101 D J1702 J 12.3V 12.9V 5.6V CAUTION FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE WITH SAME TYPE AND RATINGS OF FUSE. • NOTE FOR FUSE REPLACEMENT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 65 5 6 7 8 5 6 7 8 C D F A B E VAC8 VAC7 VAC6 VAC5 AUDIO1 AUDIO2 1 3 2 4 4 2 1 3 3 4 1 2 5 4 3 2 1 2 3 4 1 5 1 4 2 3 1 3 2 3 1 2 C E S C G D B B E 3 1 2 2 1 9 8 7 6 5 4 3 G S D B C E C E B 1 2 3 1 2 VAC4 KN1701 R1715 R1714 IC1706 KN1702 R1716 D1709 D1710 D1706 C1713 C1714 C1718 D1707 IC1705 R1708 C1716 C1719 C1720 D1708 C1721 C1725 IC1707 C1717 C1724 IC1702 R1702 C1715 C1712 R1707 R1710 R1709 D1702 D1705 C1708 IC1704 C1701 CN1701 C1702 R1701 R1703 D1704 D1701 C1705 C1711 C1703 C1704 D1703 IC1703 IC1701 R1811 R1810 IC1802 C1821 CN1801 D1804 Q1806 C1802 C1804 Q1804 C1816 Q1805 R1805 R1812 R1804 C1808 C1801 D1803 D1802 D1806 C1806 D1805 C1805 C1813 D1808 C1812 C1723 CN1702 R1704 C1710 C1709 C1722 J1702 R1705 R1706 C1706 C1707 R1713 R1711 R1712 KN1703 R1830 R1823 CN1802 KN1802 C1820 C1819 C1810 C1818 C1817 R1809 IC1801 R1808 C1803 R1801 R1803 Q1801 C1815 Q1802 D1807 C1807 R1802 R1813 D1801 Q1803 C1809 D1809 IC1803 C1811 C1814 C1822 R1821 R1820 KN1801 GNDS VNF1084 (400mA) * * AEK7004 VNF1084 * • WY, WLPW:1SR139-400 100/35 ACE7060 0.015 ACE7060 0.015 100/25 * * V+18URY BA00BC0WT-V5 39k(F) RB501V-40 0.1 470/16 GNDRY 0.1 NJM78M12FA V+12RY 100/16 0.1 (3.5A) AEK7017 (1/4W) 4.7 KZH 4700/16 PCH1162 YF 1 1k (2125) 330k LN4SB60-4003 V+9UM RB501V-40 BA00BC0WT-V5 (2125) 1 B4P-VH YF 1k RB501V-40 LN4SB60-4003 KZE LA 0.82 1000/16 KZE 1000/16 PCH1160 GNDD (2125) BA033CCOT (1/4W) 4.7 0.82 LA KZE 1000/16 RB501V-40 YF 1 AEK7015 (2125) * (2A) (2125) * AEK7013 0.01 B3P-VH (3A) V-16UA 31DQ06-FC5 V+9UD 2SB1186A V-12A ACE7063 0.56 31DQ06-FC6 PCH1159 4700/25 2SK246(Y) * 2SA1514K(RS) 330 47 680 220/25 PCH1157 RB501V-40 ACE7063 0.56 31DQ06-FC6 4700/25 PCH1159 100/25 UDZS15(B) VCH1247 VCH1247 100/25 UDZS15(B) AWJ 0.01 0.01 0.1 330k 0.1 B4B-EH V+6R5V PF02PG-S05 33k(F) 0.1 HAZA 100/16 * 120k (F) * V+58U GNDS ZLG 470/16 PCH1158 0 0 0 VNF1084 0.1 V+3D * * GNDS B9B-EH VNF1084 0.01 0.01 GNDA RB501V-40 ZLG 0.01 0.01 (2125) * (2A) AEK7013 (2125) * 4.7 330 2SK246(Y) * 2SC3906K(RS) RB501V-40 AWJ 220/25 PCH1157 680 47 31DQ06-FC5 V+16UA 2SD1763A V+12A 0.1 1000/16 PCH1161 NJM78M05FA 0.1 GNDS 0.01 V+5A 0.01 * * VNF1084 To CHASSIS To CHASSIS • KU, LF:11EQS06 GNDM GNDM P=2.5 WY.WLPW: KUC.LF: AEK7019 (5A) HEAT SINK PNC-457 MECHA2 DIGITAL1 DIGITAL2 MECHA1 *3 KUC.LF: WY.WLPW: AEK7018(4A) GNDS AUDIO CT HEAT SINK PNS1043 V+6R5V V+9D GNDD GNDD V+58U To CHASSIS To CHASSIS P=2.5 GNDD V+3D GNDRY V+12RY GNDA V-12A V+12A HEAT SINK PNS1043 GNDA V+5A PNS1043 HEAT SINK To CHASSIS + - + - OUT IN J J REGULATOR ASSY (PD-D9-J/WYXJ5,PD-D9-S/WLPWXJ:PWX1656) (PD-D9-J/KUCXJ,PD-D9-S/LFXJ:PWX1663) CN2704 H CN13 I J1901 C 17.3V 13.3V 5V 7.6V 3.3V 17.3V -13.3V -18V 5.8V 6.5V 12V 8.6V CAUTION FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE NO. 49103.5 MFD. BY LITTELFUSE INC. FOR IC1702. CAUTION FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE NO. 491003 MFD. BY LITTELFUSE INC. FOR IC1701. CAUTION FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE NO. 491002 MFD. BY LITTELFUSE INC. FOR IC1801 AND IC1802. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 66 1 2 3 4 1 2 3 4 C D F A B E 10.7 WAVEFORMS Note : The encircled numbers denote measuring point in the schematic diagram. Measurement condition ; No. 1 to 10 : reference A1 (DVD), T2-chp 19, Color-bar No. 11 to 14 : reference A1 (DVD), T1 DVDM ASSY B 2 IC201-pin 39 [TROPENPWM] V: 1V/div. H: 5μsec/div. 3 IC201-pin37 [DMSO] V: 1V/div. H: 10μsec/div. V: 1V/div. H: 10μsec/div. V: 1V/div. H: 2sec/div. 1 IC201-pin47 [FG] V: 1V/div. H: 2msec/div. 4 CN102-pin 2, 3, 4 (IC101-pin 30, 33, 35) [SPINDLE (WVU)] V: 2V/div. H: 2msec/div. GND GND GND GND GND GND GND GND PLAY Tray : opening Pless OPEN key Pless PLAY key Braking a turn of disc [Tray stops] [TRAY OPEN] [DVD PLAY] [DMSO] [Tray is opening] [Tray is closing] 5 IC201-pin225 [ASPDIF AUDIO DIGITAL SIGNAL] V: 2V/div. H: 500nsec/div. GND www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 67 5 6 7 8 5 6 7 8 C D F A B E 1 Ch1: CN1402-pin16 [MCLK] Ch2: CN1402-pin14 [LRCK] Ch3: CN1402-pin8 [BCK] Ch1: CN1402-pin8 [BCK] Ch2: CN1402-pin12 [DSDL] Ch3: CN1402-pin10 [DSDR] Ch1: IC1401-pin22 [LROUT] Ch2: IC1401-pin21 [BCKOUT] Ch3: IC1401-pin24 [DALOUT] Ch1: IC1401-pin22 [LROUT] Ch2: IC1401-pin21 [BCKOUT] Ch3: IC1401-pin24 [DALOUT] Ch4: CN1402-pin12 [DT] Ch1: IC1151-pin1 [LRCK] Ch3: IC1151-pin2 [DIN] Ch2: IC1151-pin3 [BCK] Ch4: IC1151-pin5 [MCLK] Ch1: IC1151-pin1 [DSDL] Ch3: IC1151-pin2 [GND] Ch2: IC1151-pin3 [DSDCK] Ch1: IC1151-pin17 [VOUTTLP] Ch3: IC1151-pin13 [VOUTTRN] Ch4: IC1151-pin5 [MCLK] Ch2: IC1151-pin16 [VOUTTLN] Ch4: IC1151-pin12 [VOUTTRP] V: 5V/div. H: 500ns/div. V: 5V/div. H: 500ns/div. 6 7 GND GND GND 2 3 4 8 Ch1: IC1151-pin17 [VOUTTLP] Ch3: IC1151-pin13 [VOUTTRN] Ch2: IC1151-pin16 [VOUTTLN] Ch4: IC1151-pin12 [VOUTTRP] 9 [PCM] LEGATO: ON [DSD] V: 5V/div. H: 2μs/div. V: 5V/div. H: 500ns/div. [PCM] [DSD] V: 5V/div. H: 500ns/div. [PCM] LEGATO: ON V: 2V/div. H: 1ms/div. [PCM] Ch1: JA1502-pin3 [OPTICAL OUT] Ch2: L1501-IN [COAXIAL OUT] V: 2V/div. H: 500ns/div. [PCM] V: 5V/div. H: 2μs/div. [PCM] LEGATO: OFF V: 2V/div. H: 1ms/div. [DSD] V: 5V/div. H: 500ns/div. [PCM] LEGATO: ON GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND Ch1 Ch2 Ch3 Ch1 Ch2 Ch3 Ch1 Ch2 Ch3 Ch1 Ch2 Ch3 Ch4 Ch1 Ch2 Ch3 Ch4 Ch1 Ch2 Ch3 Ch4 Ch1 Ch2 Ch1 Ch2 Ch3 Ch3 13 GND GND Ch1 Ch2 Ch1: IC1406-pin4 [LRCK0] Ch2: IC1402-pin25 [BCK0] Ch3: IC1402-pin23 [SDOUT] IC1101-pin1 [LOUT] V: 1V/div. H: 500μs/div. 5 10 [DSD] GND GND GND GND Ch1 Ch2 Ch3 IC1101-pin1 [LOUT] V: 1V/div. H: 500μs/div. 11 [PCM] JA1101 [Lch OUT] V: 1V/div. H: 500μs/div. 12 [PCM/DSD] AJKB ASSY C Measurement condition ; No.1, No.3-No.6, No.8, No.11,N0.13 : 1 kHz, 0 dB (L/R), PCM No.12 : 1 kHz, 0 dB (L/R), PCM/DSD No.2, No.7, No.9, No.10 : 1 kHz, 0 dB (L/R), DSD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 68 1 2 3 4 1 2 3 4 C D F A B E 1 2 GND GND [MD] 3 [ANY FUNCTION] 4 5 [DVD] [DVD] [MD] GND GND GND GND GND GND GND GND GND GND Ch1: IC2101-pin 25 [XDFCLK] Ch2: IC2101-pin 23 [XDFDT] Ch1: IC2101-pin 28 [LCDCLK] Ch2: IC2101-pin 26 [LCDDATA] Ch1: IC2101-pin 51 [SCLK] Ch2: IC2101-pin 49 [SDATA] Ch1: IC2101-pin 51 [SCLK] Ch2: IC2101-pin 50 [MDATA] Ch1: IC2101-pin 25 [XDFCLK] Ch2: IC2101-pin 24 [XDFCS] V: 2V/div. H: 20us/div. 6 Ch1: 2401-pin 1 [2401Out] (IR Receiver Out) Ch2: IC2101-pin 7 [SR IN] V: 1V/div. H: 10ns/div. V: 2V/div. H: 20us/div. V: 2V/div. H: 10us/div. V: 2V/div. H: 10us/div. V: 2V/div. H: 5us/div. Ch1 Ch2 Ch1 Ch2 Ch1 Ch2 Ch1 Ch2 Ch1 Ch2 Ch1 Ch2 LCD ASSY D SYSTEM Microcomputer(IC)<->Each part communication waveform www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 69 5 6 7 8 5 6 7 8 C D F A B E 11. PCB CONNECTION DIAGRAM 11.1 LOAB ASSY NOTE FOR PCB DIAGRAMS : 1. Part numbers in PCB diagrams match those in the schematic diagrams. 2. A comparison between the main parts of PCB and schematic diagrams is shown below. 3. The parts mounted on this PCB include all necessary parts for several destinations. For further information for respective destinations, be sure to check with the schematic diagram. 4. View point of PCB diagrams. Symbol In PCB Diagrams Symbol In Schematic Diagrams Part Name B C E D D G G S S B C E B C E D G S B C E B C E B C E Transistor Transistor with resistor Field effect transistor Resistor array 3-terminal regulator Capacitor Connector P.C.Board Chip Part SIDE A SIDE B 1 5 5 1 SW2 (V+5D) V+3D LOAD- LOAD+ GND PNE-1B1 C102 C101 CN602 CN601 1 2 5 1 VWG2346- VWG2279- 5 VWG LOAB 5 1 VNP1836-C CN602 S101 CN601 SIDE A SIDE B LOAB ASSY A LOAB ASSY A CN104 B (VNP1836-C) (VNP1836-C) LOADING MOTOR ASSY M CN601 CN602 CN601 CN602 A A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 70 1 2 3 4 1 2 3 4 C D F A B E 11.2 DVDM ASSY 0 10 20 30 40 50 60 70 80 90 100 110 120 130 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 X Y C474 C476 C451 C454 CN902 R915 R914 R919 Q731 R906 C426 R904 C425 C423 C424 C422 C421 L751 R712 Q702 C761 R714 R713 C712 D821 C133 R404 C374 R214 R520 Q851 R852 CN101 R220 R237 R284 R221 C215 C217 C104 C216 C244 R232 R216 R207 R209 C220 C213 R217 R235 R211 R134 R136 C161 R154 C143 C142 C141 C144 R135 C146 R132 R133 C152 R153 R152 R405 R210 CN904 R269 R270 CN905 CN901 C320 C347 R225 C222 C223 C224 IC204 R224 R918 R913 R912 R911 R910 D733 CN102 R228 R411 R226 R227 C1002 C1001 R821 R435 R415 R414 C290 R433 D852 Q801 R882 R801 R701 R702 C701 R736 R751 R711 R413 R436 R907 R750 R824 D881 D862 R823 R851 R822 C801 D801 Q701 C702 R739 L731 L732 R737 C738 C711 R434 R431 R412 R432 R761 R731 C751 C733 Q305 C371 R325 CN104 C309 CN103 R265 R264 R263 R262 Q505 R519 C509 Q506 IC761 R762 C345 R416 Q881 R763 C373 R516 C511 R511 C506 R481 Q481 Q401 R507 C514 R401 C753 R733 R740 C752 R738 C736 D731 D751 R732 R735 R734 C754 IC751 C735 C739 C731 C714 C713 C732 C740 C734 IC501 Q501 Q502 R513 R502 C507 IC201 R313 R508 IC731 R901 R229 D851 R903 D861 C737 Q821 IC711 R931 R932 R933 R934 R935 R936 R937 R938 R939 R940 R373 C762 C763 R764 R595 R594 IC101 CN953 C505 Q504 R515 R514 C508 Q503 R503 R518 R512 R505 C501 C502 R506 R501 C513 R504 R591 C503 R234 C145 C504 R314 Q304 R315 L309 L308 R326 R881 R258 R602 R213 R601 R212 R200 C101 R131 C131 R261 C310 R151 R310 R321 Q308 R322 R260 C404 R259 C219 R218 R219 R509 C512 C102 C132 C140 C242 C243 C151 IC591 R280 C153 C103 Q307 C346 R318 R905 R246 R245 R244 R243 R242 R241 C206 C204 C203 R223 C221 C237 C201 C202 C273 R256 C272 C271 C270 C269 C268 C267 C265 C263 C262 C259 R253 C258 R252 CN204 R251 C251 X201 C252 R204 C210 C212 C211 C208 C209 R206 R205 R202 R201 C343 C344 R592 R853 R883 R522 R521 R279 R215 R924 R922 R923 R921 C475 UP SIDE 1 27 2 1 5 3 GNDD GNDD 1 24 BOTTOM SIDE 4 1 5 1 1 29 V 5 8 1 4 R UP SIDE GNDD 12V 1.8V 3.3V 5V GNDM 6.5V BOTTOM SIDE BOTTOM SIDE 8V GNDD 3.3V 5V L GNDD R GNDA 5V 2/2 1 12 5 4 3 1 1 5 4 1 UP SIDE 1 4 5 7 1 9 129 128 65 64 256 193 192 1 C LD_CD LD_DVD 1 3 4 5 A A B B C D D E 8 5 4 1 E 1 22 17 1 4 3 1 5 1 4 3.3V LF SIDE A B SIDE A B CN2701 H CN901 CN601 A CN104 CN101 To SPINDLE Motor To Pickup Assy CN103 To STEPPING Motor CN102 DVDM ASSY B (ANP7583-A) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 71 5 6 7 8 5 6 7 8 C D F A B E 0 10 20 30 40 50 60 70 80 90 100 110 120 130 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 X Y 1 6 4 3 LF 48 1 24 25 1 13 A B C 1 0 0 3 2 1 0 9 8 7 6 5 4 3 2 1 0 1 1 8 16 9 54 1 27 28 28 1 14 15 3 1 5 4 ICT FC 2 1 DVDM ASSY AWM8 999 888 777 666 555 444 333 222 111 000 PRODUCTION CODE C466 C455 C464 C452 C465 C453 Q732 R403 L901 R1002 C250 R257 C207 C214 R236 R249 R247 C246 C245 R285 R238 R208 R233 R267 R1003 R1001 C228 C226 C225 C289 IC203 R917 R266 D732 CN951 R500 R272 X202 L201 C298 C299 C283 C234 C287 C232 C286 C285 C231 R268 IC451 R590 R282 C282 C406 R402 R423 R421 R422 R604 C403 R271 IC202 C592 IC401 C401 R426 C372 R273 R375 C405 C402 C412 R425 R424 R902 C233 C284 R908 R909 R920 C1003 R517 C249 R476 R475 R474 C236 C281 C235 IC205 Q101 Q102 C500 R141 R142 R406 R250 R374 C415 R281 R603 C230 C414 C413 R765 C416 C218 C591 C227 C121 C288 R231 C205 R255 C266 C264 C260 C261 C255 C256 R254 C254 R230 C239 C240 C241 C253 C257 R240 R372 R371 C247 C248 C296 R239 R916 C411 R248 R301 R302 Q201 R303 CN952 SIDE B SIDE B (ANP7583-A) B B DVDM ASSY B CN901 CN104 CN101 CN103 CN102 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 72 1 2 3 4 1 2 3 4 C D F A B E 11.3 AJKB ASSY 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 50 60 70 80 90 100 110 120 130 140 150 160 170 180 40 X Y 28 15 14 1 1 7 8 14 1 2 3 4 5 1 4 8 5 1 3 4 5 16 1 8 9 24 13 12 1 1 2 3 4 28 15 14 1 16 1 8 9 1 17 28 15 14 1 1 2 3 4 1 7 8 14 1 4 8 5 1 5 6 10 1 5 6 10 1 2 3 4 1 2 3 4 1 17 1 10 11 20 1 5 IN GND OUT 1 9 1 7 8 14 1 3 4 5 1 14 15 28 8 14 1 7 1 4 5 8 1 3 5 4 1 8 9 16 1 12 13 24 14 1 28 15 1 8 9 16 1 17 7 1 14 8 1 4 5 8 + - + - 1 17 1 10 11 20 1 5 NP NP FC ICT LF R 1 9 8 14 1 7 A30C5/C7 [[ G ]] 1 5 4 3 IC1151 KN1901 C1501 R1506 IC1501 C1161 L1501 C1153 F1151 C1158 C1513 C1154 C1506 C1301 R1505 C1502 R1160 R1153 KN1902 C1155 C1160 C1111 C1112 C1211 C1212 IC1101 JA1502 IC1301 IC1152 IC1401 C1404 R1405 R1406 R1407 C1402 R1426 R1427 R1428 R1431 R1430 R1429 L1502 C1401 JA1602 JA1601 KN1903 KN1904 R1425 JA1501 C1418 C1407 C1406 C1405 C1159 C1157 C1152 R1152 R1151 C1151 R1155 R1154 R1156 C1164 C1163 R1159 R1158 R1157 C1252 R1256 R1254 R1255 C1259 R1252 R1251 F1251 C1251 R1253 R1260 C1258 C1260 C1261 C1255 C1254 C1253 IC1251 IC1252 C1257 R1257 R1259 R1258 C1263 C1264 C1256 C1156 CN1402 F1401 C1902 C1904 C1903 C1905 F1252 F1152 C1162 C1262 R1101 C1101 R1102 R1103 C1103 R1104 R1105 R1106 R1107 C1102 R1108 IC1402 F1403 F1404 R1416 C1417 C1420 C1416 C1414 C1413 R1420 R1422 R1421 X1401 R1408 F1402 C1410 C1409 C1408 IC1403 C1412 C1411 R1417 R1205 R1208 R1201 C1201 R1202 R1203 R1204 C1202 R1206 C1203 R1207 IC1201 C1108 R1110 RY1301 Q1301 R1210 C1208 R1209 C1105 C1104 C1107 C1106 R1111 R1112 RY1302 C1206 C1207 C1204 C1205 JA1101 JA1201 R1212 R1211 D1304 D1305 D1302 D1303 CN1401 IC1404 Q1302 CN1501 R1109 R1113 R1213 C1109 C1209 C1921 C1922 C1923 D1901 R1306 IC1901 L1901 L1902 C1909 J1901 J1902 J1902A C1165 C1265 C1415 IC1405 Q1402 R1161 R1162 R1261 R1262 R1436 R1304 C1911 KN1301 KN1905 R1265 R1263 R1264 R1437 R1438 R1440 R1442 R1266 C1421 IC1406 R1419 L ZERO DVDMUTE ch ch R V+12RY RST XDACCS1 GNDD XDACDT 10.BCK DATA1 DATA0 FR4 P LRCK MCLK 1.GNDD GNDD 5.GNDD GNDD GNDD GNDD XDACCK 17. PCM/DSD 15. XDACCS2 28 15 14 1 SR-OUT SR-IN V-12V V+12V GNDD V+5A V+3D V+3D V+5A V+3D V+3D V+3D V+3DO GNDA ASS'Y PWX1661 PWX V-12V V+12V GNDA GNDD GNDD GNDD GNDD GNDA DOUT AJKB PC WARNING ELECTRICAL PARTS CONTAIN CHEMICALS WHICH ARE KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER,BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM. HEALTH & SAFETY CODE SECTION 25249.6 - PROPOSITION 65 1.V+5A GNDA V+12V GNDA 5.V-12V V+12RY GNDRY V+3D 9.GNDD GNDD DVDMUTE GNDD V+12A 1.GNDD 8.XDFCS 7.XDFCLK 6.GNDD 5.XDFDT 4.GNDD 3.SRIN 2.SROUT XDFRST MUTE 17.XDACCS2 16.XDACCS1 15.XDACDT 14.XDACCK 13.LEGATO 12. 11.GNDD XSR 10.XSYS THIS PRODUCT CONTAINS LEAD IN SOLDER AND CERTAIN 9. SIDE A C SIDE A C CN2702 H CN1501 J2105 D CN1401 AJKB ASSY C (PNP1492-A) CN953 B CN1402 CN1802 J J1901 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 73 5 6 7 8 5 6 7 8 C D F A B E 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 50 60 70 80 90 100 110 120 130 140 150 160 170 180 40 X Y 1 4 5 8 17 1 1 4 5 8 17 1 1 5 LF 1 9 C1509 F1501 F1502 C1504 R1302 C1507 Q1303 C1503 C1505 C1515 C1514 R1503 R1502 R1501 C1510 R1504 R1301 C1602 C1601 D1601 C1403 R1404 R1303 R1401 R1402 R1403 C1603 C1302 C1908 C1906 R1423 R1424 C1901 C1907 R1412 R1409 R1411 R1410 R1418 D1301 D1306 R1432 R1433 C1166 R1305 C1266 C1918 C1110 C1210 R1434 R1435 C1910 C1303 R1439 R1441 DVDMUTE GNDA V+3D GNDRY V+12RY GNDD V+12A GNDD DOUT V+5AL V+5AR V-12A V+12RY GNDRY GNDA GNDD V+5A 10. 7.XDFCLK 2.SROUT 4.GNDD 6.GNDD 8.XDFCS XSYS 12. XSRRST 14.XDACCK 16.XDACCS1 1.GNDD 3.SRIN 5.XDFDT 11.GNDD 13.LEGATO 15.XDACDT 17.XDACCS2 9.XDFRST 9.GNDD V+3D GNDRY V+12RY 5.V-12V GNDA V+12V GNDA 1.V+5A MUTE GNDD GNDD 5. GNDD GNDD 1.GNDD MCLK(22M) LRCK DATA0 CN1901 DATA1 10.BCK 15.XDACCS2 17.PCM/DSD XDACCK GNDD XDACDT 16.GNDD XDACCS1 CN1401 CN1402 CN1501 V+3D GNDA GNDD GNDD C C AJKB ASSY C (PNP1492-A) SIDE B SIDE B CN1501 CN1401 CN1402 J1901 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 74 1 2 3 4 1 2 3 4 C D F A B E 11.4 LCD ASSY 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 160 170 180 190 200 210 220 230 240 X Y 1 7 1 15 1 8 1 3 1 3 1 6 1 2 1 17 1 7 15 1 1 8 1 1 6 1 2 1 1 17 C7 [[ G ]] R C2219 X2101 CN2101 D2206 D2101 D2102 D2207 D2208 CN2106 V2201 C2210 C2101 J2106 KN2101 C2220 J2104 J2105 J2101 J2102 CN2105 C2213 LCD ASS'Y PWX1651 PWX 2101 UPPER SIDE UPPER SIDE SIDE A SIDE A D D CN1401 C CN2105 CN11 I J2101 CN2703 H CN2106 LCD ASSY D (PNP1491-A) J2601 E J2102 J2104A G J2104 J2106A K J2106 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 75 5 6 7 8 5 6 7 8 C D F A B E 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 160 170 180 190 200 210 220 230 240 X Y 100 81 1 30 31 50 51 80 1 80 30 51 31 100 50 81 7 1 15 1 8 1 1 3 NP 3 1 1 6 1 2 17 1 LF R D2104 C2114 R2153 R2154 R2125 C2218 C2113 IC2101 R2117 C2111 R2142 R2151 R2141 R2108 R2123 R2106 R2107 R2133 R2134 R2121 C2102 R2105 R2146 R2147 R2143 Q2106 R2122 R2126 C2109 C2103 C2216 C2112 R2118 R2103 R2110 R2111 Q2103 Q2102 R2113 R2114 R2136 C2105 C2203 C2206 C2205 C2204 D2202 D2204 D2203 R2148 R2149 R2150 C2110 R2137 R2138 D2205 D2210 R2211 R2210 R2212 R2216 R2215 R2101 R2135 Q2104 R2160 C2209 C2207 D2201 C2201 C2202 R2219 R2213 R2214 D2105 R2163 R2162 R2112 R2140 R2115 R2116 R2130 R2131 R2132 R2127 R2128 R2129 Q2201 Q2202 Q2203 Q2204 R2139 C2115 Q2108 L2101 C2217 R2155 R2171 D2209 R2176 Q2107 R2165 C2211 F2201 L2102 L2103 L2104 L2105 Q2101 D2103 R2102 R2104 R2161 R2109 R2119 Q2105 C2208 Q2109 R2120 R2124 C2212 C2104 C2106 C2107 C2214 R2144 R2145 R2152 R2156 11.XDFCLK D B E V+5LCD A 10.XDFCS 9.XDFRST V+5B 8.XSYSMUTE 7.GNDD 6.XSRRST 5.LEGATO 4.XDACCK 3.XDACDT 2.XDACCS1 1.XDACCS2 2.PLED 1.KEY1 2.V+5U 3.GNDD 2.V+5U 1.VOUT 3.GNDD 1.V+5U 15.TROUT 14.TRGAIN 13.TRIN 12.VDET 11.SPDIF_RQ 9.10.GNDD 8.MDATA 7.ACK 6.SCLK 5.SDATA 4.XDVDRST 7.NC 6.VSS 5.VCC 4.RST 3.WCLK 3.XREADY 2.DVDPOWER 1.GNDD 2.WD0 1.WEN/DI 16.SROUT 17.GNDD 15.SRIN 14.SRIN 13.XDFDT 12.GNDD DVD MODE TEST MODE V+5U V+56ST V+5B1 V+58U V+SW5U C SIDE B D SIDE B D LCD ASSY D (PNP1491-A) CN2105 J2101 CN2106 J2102 J2104 J2106 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 76 1 2 3 4 1 2 3 4 C D F A B E 11.5 PLED, KEY and IR ASSYS 10 20 30 40 170 180 190 X Y 10 20 30 40 210 220 230 240 X Y 170 180 190 200 210 220 230 240 X Y 190 200 210 220 230 240 1 3 1 1 3 1 2 1 1 1 2 C7 [[ G ]] C7 [[ G ]] R R R J2106A C2602 2401 D2601 S2301 S2302 J2104A J2601 PWX1652 PWX1655 PWX1653 PWX PWX KEY ASS'Y PC PLED ASS'Y IR ASS'Y 2301 SIDE A E G K E G K SIDE A IR ASSY K KEY ASSY G PLED ASSY E (PNP1492-A) (PNP1492-A) (PNP1492-A) J2106 D J2106A J2102 D J2601 J2104 D J2104A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 77 5 6 7 8 5 6 7 8 C D F A B E 10 20 30 40 170 180 190 X Y 10 20 30 40 210 220 230 240 X Y 170 180 190 200 210 220 230 240 X Y 190 200 210 220 230 240 3 1 3 1 1 2 LF LF R R LF R C2601 R2601 C2401 C2301 R2302 R2301 A C B 1.V+5U 2.PLED 2.V+5U 1.KEY1 3.GNDD (PNP1492-A) (PNP1492-A) SIDE B E G K E G K SIDE B IR ASSY K KEY ASSY G PLED ASSY E (PNP1492-A) J2106A J2601 J2104A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 78 1 2 3 4 1 2 3 4 C D F A B E 11.6 PRIMARY ASSY 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 80 90 100 110 120 130 140 150 160 170 180 X Y 1 1 2 6 1 1 1 2 3 4 1 4 5 9 1 2 6 1 1 2 1 C7 [[ G ]] R C11 C12 C15 C16 CN10 CN11 CN12 CN13 D11 IC11 KN11 L11 R12 R13 RY11 T10 J11 12 11 PWX1657 PWX1658 PWX1659 PWX1660 PRIMARY ASS'Y PWX PRIMARY SECONDARY -1 J11-2 WHITE YELLOW E A B C D V+5R6ST YELLOW WHITE 1.SYSPOW 2.AC 3.V+56ST 4.GNDU 5.V+58U 6.GNDD SIDE A I SIDE A I PRIMARY ASSY I (PNP1491-A) J1702 J CN13 J1701 J CN10 J1801 J CN12 CN2502 F J11 J2101 D CN11 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 79 5 6 7 8 5 6 7 8 C D F A B E 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 80 90 100 110 120 130 140 150 160 170 180 X Y 1 2 1 6 1 2 1 R LF C13 C14 C19 D12 D13 D14 D15 C17 C18 Q11 R11 R14 R15 PRIMARY SECONDARY 1.SYSPOW 2.AC 3.V+56ST 4.GNDU 5.V+58U 6.GNDD 1.V+58U 2.GNDD (PNP1491-A) SIDE B I SIDE B I PRIMARY ASSY I CN13 CN10 CN12 J11 CN11 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 80 1 2 3 4 1 2 3 4 C D F A B E 11.7 CONNECTOR and MNSW ASSYS 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 10 20 30 40 50 60 X Y 130 140 150 160 170 180 190 200 210 220 230 240 100 110 120 130 140 150 160 170 180 X Y 1 2 1 15 1 29 1 5 1 4 1 2 1 15 1 29 1 5 1 4 LF R A30C5/C7 [[ G ]] CN2705 C2705 KN2701 C2703 C2702 CN2703 CN2701 CN2702 CN2704 R2703 C2708 CONNECTOR PWX1662 PWX ASS'Y FR4 P 1.V+12A V+9D V+9D V+6R5V 5.V+6R5V GNDM GNDM GNDD GNDD 10.DOUT GNDD GNDD DVDPOWER XDVDRST 15.XREADY SCLK SDATA MDATA ACK 20.GNDD GNDD VDET DVDMUTE TRKUP SPDIF_RQ TRGAIN TRIN TROUT 29.CVBS 1.TROUT TRIN TRGAIN VDET 5.SPDIF_RQ GNDD GNDD MDATA ACK 10.SCLK SDATA XDVDRST XREADY DVDPOWER 15.GNDD DVDMUTE GNDD V+12A DOUT GNDD 1.V+9D GNDD V+6R5V 4.GNDM V+6R5 V+9D V+12A 1 R C7 [[ G ]] C2501 CN2502 H2501 H2502 S2501 CN2501 PRIMARY MNSW ASS'Y PWX1654 PWX FU1 RISK OF FIRE REPLACE FUSE AS MARKED. FU1 SIDE A SIDE A F H F H CONNECTOR ASSY H MNSW ASSY F (PNP1492-A) (PNP1491-A) CN1702 J CN2704 CN901 B CN2701 CN1501 C CN2702 CN2106 D CN2703 AC IN CN2501 J11 I CN2502 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 81 5 6 7 8 5 6 7 8 C D F A B E 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 10 20 30 40 50 60 X Y 130 140 150 160 170 180 190 200 210 220 230 240 100 110 120 130 140 150 160 170 180 X Y 1 2 1 15 29 1 1 5 1 4 LF R2702 R2701 C2701 C2704 C2709 C2710 C2706 C2707 V+12A GNDM MUTE CN2701 CN2704 CN2702 CN2703 V+12A GNDD DVD GNDD DOUT GNDM V+6R5V GNDD V+9D 15.GNDD DVDPOWER XREADY XDVDRST SDATA 10.SCLK ACK MDATA GNDD GNDD 5.SPDIF_RQ VDET TRGAIN TRIN 1.TROUT 29.CVBS TROUT TRIN TRGAIN SPDIF_RQ TRKUP DVDMUTE VDET GNDD 20.GNDD ACK MDATA SDATA SCLK XREADY XDVDRST DVDPOWER GNDD GNDD DOUT GNDD GNDD GNDM GNDM 5.V+6R5V V+6R5V V+9D V+9D 1.V+12A R LF PRIMARY 1.NEUTRAL 2.LIVE A B F H F H SIDE B SIDE B CONNECTOR ASSY H MNSW ASSY F (PNP1492-A) (PNP1491-A) CN2704 CN2701 CN2702 CN2703 CN2501 CN2502 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 82 1 2 3 4 1 2 3 4 C D F A B E 11.8 REGULATOR ASSY 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 0 10 20 30 40 50 60 70 80 90 100 X Y 1 2 3 4 1 2 3 4 1 3 1 3 4 1 4 1 1 9 C7 [[ G ]] 1 3 1 4 4 1 2 1 1 9 R C1701 D1709 D1710 C1807 C1805 C1806 D1701 D1802 D1803 IC1701 D1804 C1803 IC1802 C1808 IC1801 D1801 C1804 D1702 C1712 Q1801 Q1804 C1801 C1802 R1801 C1707 IC1704 C1710 C1717 IC1705 IC1703 CN1801 CN1701 R1701 C1702 IC1702 R1702 C1714 C1713 CN1702 J1702 IC1706 C1718 C1719 IC1707 C1721 C1703 C1704 C1711 CN1802 IC1803 C1810 KN1701 KN1702 Q1806 Q1803 KN1801 KN1802 KN1703 REPLACE WITH SAME TYPE NO. 491003 FOR IC1701, TYPE NO. 49103.5 FOR IC1702, ATTENTION MFD. BY LITTEL FUSE INC. EN CAS DE REMPLACEMENT DES FUSIBLES IC1701, N'UTILISER QUE LA REFERENCE 491003 DE CHEZ LITTEL FUSE INC. EN CAS DE REMPLACEMENT DES FUSIBLES IC1702, N'UTILISER QUE LA REFERENCE 49103.5 DE CHEZ LITTEL FUSE INC. PWX 2SA1859A GNDD 2SC4883A CAUTION REPLACE WITH IC1802, MFD. BY V+3D INC. V+12RY G F V+5A V-12A V+12A V+12RY TYPE NO.491.400 FOR IC1706, LITTEL FUSE PWX1663 REGULATOR PWX1656 V+3D 3.AUDIO CT 1.AUDIO1 2.AUDIO2 1.V+5A GNDA V+12A GNDA V-12A V+12RY GNDRY V+3D 9.GNDD 1.DIGITAL1 DIGITAL2 MECHA1 4.MECHA2 1.V+58U GNDD 1.V+9D GNDD V+6R5V 4.GNDM V+6R5V V+58U A B C D E SAME TYPE NO. 491002 FOR IC1801, V+5A 2SB1186A 2SD1763A GNDM GNDA GNDM GNDD Ass'y CAUTION SIDE A J SIDE A J REGULATOR ASSY J (PNP1491-A) J1901 C CN1802 CN10 I CN1701 CN13 I J1702 CN12 I CN1801 CN2704 H CN1702 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 83 5 6 7 8 5 6 7 8 C D F A B E 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 0 10 20 30 40 50 60 70 80 90 100 X Y R 1 3 1 4 1 4 1 9 LF R1830 R1713 R1711 R1712 R1805 R1803 R1804 D1805 R1802 D1808 D1807 D1806 Q1805 Q1802 C1706 C1709 R1704 D1704 R1706 R1703 D1703 C1705 C1708 R1705 R1710 R1707 D1705 C1715 C1716 R1708 R1709 C1815 C1816 R1808 R1809 R1810 R1811 D1706 D1707 C1720 D1708 C1809 D1809 C1811 R1812 R1813 C1722 C1723 C1724 C1725 C1812 C1813 C1814 C1817 C1818 C1819 C1820 C1821 C1822 R1714 R1715 R1716 R1820 R1821 R1823 FUSE INC. V-16UA V+12RY V-12A V+12A V+12A V-16UA GNDS IC1801,IC1802,N'UTILISER QUE LA EN CAS DE REMPLACEMENT DES FUSIBLES ATTENTION REFERENCE 491002 DE CHEZ LITTEL ATTENTION EN CAS DE REMPLACEMENT DES FUSIBLES IC1706,N'UTILISER QUE LA REFERENCE 491.400 DE CHEZ LITTEL FUSE INC. GNDRY GNDD V+12R V+9UD GNDM 1.V+5A GNDA V+12A GNDA V-12A V+12RY GNDRY V+3D 9.GNDD 1.DIGITAL1 DIGITAL2 MECHA1 4.MECHA2 AUDIO CT 1.AUDIO1 AUDIO2 1.V+58U GNDD 1.V+9D GNDD V+6R5V 4.GNDM V+5A V+12A GNDA V-12A V+16UA V+18RUY V+12RY REGULATOR ASSY J SIDE B J SIDE B J (PNP1491-A) CN1802 CN1701 J1702 CN1801 CN1702 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 84 1 2 3 4 1 2 3 4 C D F A B E 12. PCB PARTS LIST LIST OF WHOLE PCB ASSEMBLIES CONTRAST OF PCB ASSEMBLIES PWX1657, PWX1659 and PWX1660 are constructed the same except for the following: PWX1656 and PWX1663 are constructed the same except for the following: PCB PARTS LIST Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 5 6 1 4 7 3 R 5 0 1 R 0 5 6 2 1 NOTES: 560 Ω 47k Ω 0.5 Ω 1 Ω RD1/4PU J RD1/4PU J RN2H K RS1P K 56 x 10 1 47 x 10 3 R50 1R0 561 473 5.62k Ω RN1/4PC F 562 x 10 1 5621 Meaning of the figures and others in the parentheses in the parts list. Example) IC 301 is on the point (face A, 91 of x-axis, and 111 of y-axis) of the corresponding PC board. IC 301 (A, 91, 111) IC NJM2068V Mark Symbol and Description PD-D9-J/ WYXJ5 PD-D9-J/ KUCXJ PD-D9-S/ LFXJ PD-D9-S/ WLPWXJ NSP 1..LOADER ASSY PXA1648 PXA1648 PXA1648 PXA1648 NSP 2..LOAB ASSY VWG2346 VWG2346 VWG2346 VWG2346 1..DVDM ASSY AWM8069 AWM8069 AWM8069 AWM8069 1..AJKB ASSY PWM2359 PWM2359 PWM2359 PWM2359 2..AJKB ASSY PWX1661 PWX1661 PWX1661 PWX1661 2..CONNECTOR ASSY PWX1662 PWX1662 PWX1662 PWX1662 1..FLKB ASSY PWM2358 PWM2361 PWM2362 PWM2358 2..LCD ASSY PWX1651 PWX1651 PWX1651 PWX1651 2..PLED ASSY PWX1655 PWX1655 PWX1655 PWX1655 2..MNSW ASSY PWX1654 PWX1654 PWX1654 PWX1654 2..KEY ASSY PWX1652 PWX1652 PWX1652 PWX1652 2..PRIMARY ASSY PWX1657 PWX1659 PWX1660 PWX1657 2..REGULATOR ASSY PWX1656 PWX1663 PWX1663 PWX1656 2..IR ASSY PWX1653 PWX1653 PWX1653 PWX1653 I PRIMARY ASSY Mark Symbol and Description PWX1657 PWX1659 PWX1660 > T10 Power Transformer ATT7078 ATT7079 ATT7079 J REGULATOR ASSY Mark Symbol and Description PWX1656 PWX1663 > IC1701 IC Protector (3A) AEK7015 Not used > IC1701 IC Protector (4A) Not used AEK7018 > IC1702 IC Protector (3.5A) AEK7017 Not used > IC1702 IC Protector (5A) Not used AEK7019 > D1709, D1710 1SR139-400 11EQS06 Mark No. Description Part No. A LOAB ASSY MISCELLANEOUS S 101 VSK1011 CN 602 CONNECTOR S2B-PH-K CN 601 CONNECTOR S5B-PH-K B DVDM ASSY MISCELLANEOUS IC 101 (A,62,106) 6CH DRIVER IC BD7995EFS IC 201 (A,50,44) DVD IC MT1389EE/B2-L IC 202 (B,34,25) IC K4S641632K-UC75 IC 203 (B,34,54) FLASH ROM AYW7197 IC 204 (A,19,44) EEPROM S-24CS04AFJ Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 85 5 6 7 8 5 6 7 8 C D F A B E IC 205 (B,54,46) IC TC7SH08FUS1 > IC 711 (A,33,74) REGULATOR (1.8V) MM1661JH > IC 731 (A,29,92) DC/DC CONTROLLER IC R1224N102H > IC 751 (A,32,113) REGULATOR IC (5.0V) MM1565AF Q 101 (B,55,113) TRANSISTOR 2SA1576A Q 102 (B,60,116) DIGITAL TRANSISTOR DTC124EUA Q 304 (A,77,127) TRANSISTOR 2SC4081 Q 305 (A,84,125) NMOS FET TRANSISTOR UM5K1N Q 307 (A,71,87) CHIP TRANSISTOR HN1A01F Q 308 (A,63,87) CHIP TRANSISTOR HN1A01F Q 506 (A,114,69) CHIP TRANSISTOR DTC114YUA Q 701 (A,24,134) TRANSISTOR 2SA1576A Q 702 (A,27,129) DIGITAL TRANSISTOR DTC124EUA > Q 732 (B,22,90) FET RSQ035P03 Q 801 (A,50,87) DIGITAL TRANSISTOR DTC124EUA Q 821 (A,42,86) TRANSISTOR 2SA1576A Q 851 (A,42,89) TRANSISTOR 2SA1576A Q 881 (A,42,93) TRANSISTOR 2SA1576A D 731 (A,29,87) DIODE 1SS355 D 732 (B,18,92) DIODE RSX201L-30 D 733 (A,24,94) DIODE 1SS355 D 801 (A,50,85) DIODE UDZS4R7(B) D 821 (A,46,86) DIODE 1SS355 D 851 (A,46,89) DIODE 1SS355 D 852 (A,42,82) DIODE 1SS355 D 861 (A,46,82) DIODE 1SS355 D 862 (A,46,83) DIODE 1SS355 D 881 (A,46,93) DIODE 1SS355 L 731 (A,23,109) POWER INDUCTOR(22U) DTL1099 L 732 (A,22,84) POWER INDUCTOR ATH7011 L 751 (A,34,99) INDUCTOR CTF1395 L 901 (B,44,129) INDUCTOR CTF1334 L 931 INDUCTOR CTF1384 L 936 INDUCTOR CTF1389 L 937 INDUCTOR CTF1389 L 938 INDUCTOR CTF1389 L 939 INDUCTOR CTF1389 X 202 (B,76,48) CRYSTAL(27MHz) ASS7075 CN 101 (A,88,140) CONNECTOR CKS5045 CN 102 (A,69,142) 12P CONNECTOR AKN7031 CN 103 (A,103,139) 04P CONNECTOR RKN1045 CN 104 (A,79,9) CONNECTOR AKM1291 CN 901 (A,41,142) 29P CONNECTOR VKN1321 CN 953 (A,116,102) CONNECTOR CKS3885 RESISTORS R 131 (A,61,95) RS1/10S4R7J R 132 (A,63,95) RS1/10S4R7J R 133 (A,66,95) RS1/10S4R7J R 134 (A,65,95) RS1/10S4R7J R 135 (A,68,95) RS1/10S4R7J R 136 (A,70,95) RS1/10S4R7J R 141 (B,54,110) RS1/16S124J R 142 (B,58,114) RS1/16S223J R 151 (A,59,117) RS1/10S1R0J R 152 (A,59,121) RS1/10S1R8J R 153 (A,57,117) RS1/10S1R0J R 154 (A,57,121) RS1/10S1R8J R 200 (A,25,56) RS1/10S0R0J Mark No. Description Part No. R 201 (A,49,67) RS1/16S152J R 202 (A,48,67) RS1/16S223J R 203 RS1/16S0R0J R 204 (A,47,67) RS1/16S223J R 205 (A,45,67) RS1/16S184J R 206 (A,46,64) RS1/16S224J R 207 (A,65,60) RS1/10S0R0J R 208 (B,27,71) RS1/10S0R0J R 209 (A,57,16) RS1/10S0R0J R 212 (A,40,70) RS1/16S103J R 213 (A,41,70) RS1/16S103J R 214 (A,45,72) RS1/16S0R0J R 216 (A,36,62) RS1/16S0R0J R 217 (A,31,61) RS1/10S0R0J R 218 (A,18,37) RS1/16S103J R 219 (A,18,35) RS1/16S103J R 221 (A,25,44) RS1/16S330J R 223 (A,29,35) RS1/16S330J R 224 (A,29,49) RS1/16S330J R 225 (A,40,23) CHIP RESISTOR ARRAY RAB4C330J R 226 (A,43,23) RS1/16S330J R 227 (A,44,23) RS1/16S330J R 229 (A,48,24) RS1/16S330J R 230 (B,71,35) RS1/16S101J R 231 (B,71,37) RS1/16S101J R 232 (A,34,60) RS1/16S0R0J R 233 (B,42,50) RS1/16S0R0J R 234 (A,26,42) RS1/16S330J R 235 (A,26,41) RS1/16S472J R 237 (A,23,41) RS1/16S330J R 238 (B,60,35) RS1/16S103J R 241 (A,71,36) RS1/16S330J R 242 (A,71,37) RS1/16S330J R 243 (A,69,39) RS1/16S100J R 244 (A,69,41) RS1/16S330J R 246 (A,69,43) RS1/16S330J R 247 (B,58,37) RS1/16S103J R 248 (B,58,46) RS1/16S330J R 249 (B,59,40) RS1/16S103J R 250 (B,50,47) RS1/16S0R0J R 254 (B,65,48) RS1/16S754J R 255 (B,57,52) RS1/16S104J R 256 (A,73,59) RS1/16S153J R 257 (B,64,42) RS1/16S0R0J R 258 (A,23,39) RS1/16S330J R 259 (A,26,39) RS1/16S330J R 260 (A,24,37) RS1/16S330J R 261 (A,27,38) RS1/16S330J R 266 (B,51,38) RS1/16S330J R 267 (B,56,30) RS1/16S0R0J R 268 (B,68,37) RS1/16S101J R 269 (A,73,33) RS1/16S102J R 270 (A,73,35) RS1/16S101J R 271 (B,73,48) RS1/16S101J R 272 (B,69,42) RS1/16S330J R 273 (B,81,46) RS1/16S0R0J R 279 (A,63,25) RS1/16S5600F R 281 (B,19,33) RS1/10S0R0J R 284 (A,34,61) RS1/16S103J R 301 (B,89,136) RS1/10S0R0J Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 86 1 2 3 4 1 2 3 4 C D F A B E R 302 (B,86,136) RS1/10S0R0J R 303 (B,87,133) RS1/10S0R0J R 313 (A,80,125) RS1/16S104J R 314 (A,75,125) RS1/16S103J R 315 (A,80,128) RS1/16S103J R 318 (A,80,126) RS1/16S104J R 321 (A,61,87) RS1/16S4R7J R 322 (A,73,87) RS1/16S4R7J R 325 (A,68,87) RS1/16S4R7J R 326 (A,66,87) RS1/16S4R7J R 406 (B,77,142) RS1/16S750J R 412 (A,70,23) RS1/16S750J R 517 (B,105,68) RS1/16S102J R 520 (A,111,69) RS1/16S102J R 590 (B,90,52) RS1/10S0R0J R 591 (A,83,50) RS1/16S0R0J R 592 (A,79,55) RS1/16S100J R 595 (A,80,64) RS1/16S0R0J R 701 (A,24,137) RS1/16S473J R 702 (A,27,134) RS1/16S103J R 732 (A,25,91) RS1/10S100J R 733 (A,25,93) RS1/16S220J R 734 (A,30,89) RS1/16S473J R 735 (A,29,84) RS1/16S272J R 736 (A,32,93) RS1/16S1802F R 737 (A,31,83) RS1/16S2702F R 738 (A,29,82) RS1/16S1502F R 739 (A,19,78) RS1/16S0R0J R 740 (A,29,85) RS1/16S0R0J R 750 (A,30,99) RS1/16S0R0J R 751 (A,33,119) RS1/16S0R0J R 765 (B,39,108) RS1/10S0R0J R 801 (A,54,85) RS1/16S471J R 821 (A,42,83) RS1/16S103J R 822 (A,39,86) RS1/16S473J R 823 (A,36,86) RS1/16S153J R 824 (A,37,86) RS1/16S103J R 851 (A,39,89) RS1/16S473J R 852 (A,36,89) RS1/16S103J R 853 (A,37,89) RS1/16S103J R 881 (A,39,93) RS1/16S473J R 882 (A,36,93) RS1/16S103J R 901 (A,39,128) RS1/16S0R0J R 902 (B,40,131) RS1/16S0R0J R 903 (A,43,128) RS1/16S332J R 904 (A,41,128) RS1/16S682J R 905 (A,44,128) RS1/16S332J R 906 (A,42,126) RS1/16S682J R 907 (A,46,128) RS1/16S471J R 908 (B,21,40) RS1/16S332J R 909 (B,23,38) RS1/16S682J R 910 (A,48,128) RS1/16S221J R 911 (A,50,128) RS1/16S221J R 912 (A,53,128) RS1/16S0R0J R 913 (A,55,128) RS1/16S0R0J R 914 (A,56,128) RS1/16S103J R 915 (A,57,128) RS1/16S682J R 916 (B,47,128) RS1/16S223J R 917 (B,44,125) RS1/16S223J R 920 (B,52,135) RS1/16S332J Mark No. Description Part No. R 932 (A,104,97) RS1/16S0R0J R 933 (A,104,99) RS1/16S0R0J R 934 (A,104,101) RS1/16S0R0J R 935 (A,104,103) RS1/16S0R0J R 940 (A,104,111) RS1/16S0R0J CAPACITORS C 101 (A,49,120) CEVW101M16 C 102 (A,73,101) CKSRYB105K10 C 103 (A,66,116) CKSRYB105K10 C 104 (A,61,117) CKSRYB105K10 C 121 (B,61,112) CKSRYB105K10 C 131 (A,52,103) CKSRYB104K25 C 132 (A,49,108) CHIP PV CAPACITOR VCH1252 C 140 (A,60,137) CKSRYB105K10 C 144 (A,62,99) CKSRYB222K50 C 145 (A,64,98) CKSRYB222K50 C 146 (A,60,98) CKSRYB222K50 C 151 (A,68,114) CKSRYB103K50 C 152 (A,71,114) CKSRYB103K50 C 153 (A,73,111) CKSRYB103K50 C 161 (A,58,96) CKSRYB102K50 C 201 (A,21,52) CHIP ELECT.CAPACITOR CEVW221M4 C 202 (A,69,64) CHIP ELECT.CAPACITOR CEVW221M4 C 203 (A,55,78) CHIP ELECT.CAPACITOR CEVW470M16 C 204 (A,52,63) CKSRYB104K25 C 205 (B,52,69) CKSRYB104K25 C 206 (A,47,77) CHIP ELECT.CAPACITOR CEVW470M16 C 207 (B,53,55) CKSRYB104K25 C 208 (A,48,70) CKSRYB222K50 C 209 (A,50,70) CKSRYB104K25 C 210 (A,47,70) CKSRYB222K50 C 211 (A,46,70) CCSRCH560J50 C 212 (A,44,70) CCSRCH560J50 C 213 (A,55,63) CKSRYB104K25 C 214 (B,50,54) CKSRYB104K25 C 215 (A,55,69) CHIP ELECT.CAPACITOR CEVW470M16 C 216 (A,46,62) CKSRYB104K25 C 217 (A,42,62) CKSRYB104K25 C 219 (A,36,61) CKSRYB152K50 C 220 (A,31,58) CKSRYB104K25 C 222 (A,29,53) CKSRYB104K25 C 223 (A,29,51) CKSRYB104K25 C 224 (A,25,45) CKSRYB104K25 C 225 (B,34,39) CKSRYB104K25 C 226 (B,40,39) CKSRYB103K50 C 227 (B,36,40) CCSRCH221J50 C 228 (B,39,37) CKSRYB104K25 C 230 (B,37,35) CKSRYB102K50 C 231 (B,42,35) CKSRYB104K25 C 232 (B,46,36) CKSRYB104K25 C 233 (B,49,33) CKSRYB104K25 C 234 (B,52,33) CKSRYB104K25 C 235 (B,55,35) CKSRYB104K25 C 236 (B,56,33) CKSRYB104K25 C 237 (A,65,16) CHIP ELECT.CAPACITOR CEVW221M4 C 239 (B,60,34) CKSRYB104K25 C 240 (B,59,39) CKSRYB104K25 C 241 (B,61,43) CKSRYB104K25 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 87 5 6 7 8 5 6 7 8 C D F A B E C 243 (A,61,25) CKSRYB105K10 C 244 (A,60,25) CKSRYB104K25 C 245 (B,61,31) CKSRYB104K25 C 246 (B,63,32) CKSRYB104K25 C 249 (B,54,44) CKSRYB104K25 C 250 (B,64,36) CKSRYB103K50 C 253 (B,64,44) CKSRYB104K25 C 254 (B,64,48) CCSRCH391J50 C 255 (B,65,53) CKSRYB474K10 C 256 (B,72,52) CEVW100M16 C 257 (B,60,49) CKSRYB104K25 C 258 (A,69,49) CKSRYB473K50 C 259 (A,72,50) CKSRYB473K50 C 260 (B,60,50) CKSRYB104K25 C 261 (B,67,53) CKSRYB105K10 C 262 (A,73,52) CKSRYB104K25 C 263 (A,70,51) CKSRYB105K10 C 264 (B,68,53) CKSRYB104K25 C 265 (A,73,53) CCSRCH220J50 C 266 (B,60,52) CKSRYB104K25 C 267 (A,70,53) CKSRYB102K50 C 268 (A,73,56) CKSRYB104K25 C 269 (A,72,56) CKSRYB333K16 C 271 (A,70,57) CKSRYB104K25 C 272 (A,70,58) CKSRYB104K25 C 273 (A,69,60) CKSRYB104K25 C 281 (B,18,27) CHIP ELECT.CAPACITOR CEVW221M4 C 282 (B,22,31) CKSRYB105K10 C 283 (B,46,33) CKSRYB104K25 C 284 (B,33,17) CKSRYB104K25 C 285 (B,27,17) CKSRYB104K25 C 286 (B,27,33) CKSRYB104K25 C 287 (B,31,33) CKSRYB104K25 C 288 (B,34,33) CKSRYB104K25 C 289 (B,34,40) CKSRYB105K10 C 290 (A,20,39) CKSRYB104K25 C 296 (B,34,42) CKSRYB102K50 C 298 (B,80,48) CKSRYB105K10 C 299 (B,79,48) CKSRYB102K50 C 309 (A,71,77) CHIP TZV CAPACITOR VCH1260 C 310 (A,63,77) CHIP TZV CAPACITOR VCH1260 C 343 (A,64,64) CKSRYB105K10 C 344 (A,60,64) CKSRYB105K10 C 345 (A,62,64) CKSRYB105K10 C 346 (A,63,64) CKSRYB105K10 C 347 (A,59,64) CKSRYB105K10 C 371 (A,94,134) CKSRYB104K25 C 372 (B,94,134) CKSRYB104K25 C 373 (A,99,127) CHIP TZV CAPACITOR VCH1260 C 374 (A,106,127) CHIP TZV CAPACITOR VCH1260 C 701 (A,24,131) CKSQYB105K16 C 711 (A,28,73) CKSRYB105K10 C 712 (A,35,78) CCSRCH471J50 C 713 (A,29,66) CKSQYB225K10 C 732 (A,22,113) CHIP CERAMIC C. DCH1165 C 733 (A,20,105) CHIP CERAMIC C. DCH1165 C 734 (A,21,100) CEVW101M16 C 735 (A,20,95) CHIP CERAMIC C. DCH1165 C 736 (A,25,89) CKSRYB104K25 C 737 (A,28,82) CCSRCH121J50 Mark No. Description Part No. C 738 (A,24,78) CHIP CERAMIC C. DCH1165 C 739 (A,21,66) CEVW101M16 C 751 (A,32,119) CKSRYB105K10 C 752 (A,34,108) CCSRCH471J50 C 753 (A,30,108) CKSQYB225K10 C 761 (A,41,103) CEVW101M16 C 801 (A,50,83) CKSRYB104K25 C 1011 CERAMIC CAPACITOR CKSQYB104K16 C AJKB ASSY MISCELLANEOUS IC 1101(A,127,161) OP AMP IC OPA2134PAS1 IC 1151(A,85,151) D/A CONVERTER IC WM8741GEDS IC 1152(A,59,146) IC TC74VHC157FTS1 IC 1201(A,127,111) OP AMP IC OPA2134PAS1 IC 1251(A,85,111) D/A CONVERTER IC WM8741GEDS IC 1252(A,59,111) IC TC74VHC157FTS1 IC 1401(A,112,76) AQE IC PD0274A IC 1402(A,88,76) SRC IC SRC4192IDB IC 1403(A,61,91) IC TC74VHC125FTS1 IC 1404(A,54,71) IC TC74LCX244FTS1 IC 1405(A,65,73) IC TC74VHC125FTS1 IC 1406(A,74,74) LOGIC IC TC7SZU04FU IC 1501(A,211,128) IC TC74VHCU04FT Q 1301(A,133,138) TRANSISTOR RT1N241M Q 1302(A,173,137) TRANSISTOR RT1N241M Q 1303(B,173,114) TRANSISTOR RT1N241M Q 1402(A,48,90) TRANSISTOR RT1N241M D 1302(A,132,134) DIODE 1SS355 D 1303(A,132,129) DIODE 1SS355 D 1304(A,172,134) DIODE 1SS355 D 1305(A,172,128) DIODE 1SS355 D 1306(B,176,117) DIODE DAP202K D 1601(B,53,168) DIODE 1SS355 L 1501(A,216,149) COIL VTL1172 L 1502(A,205,153) COIL PTL1017 F 1152(A,72,164) INDUCTOR CTF1661 F 1252(A,72,124) INDUCTOR CTF1661 F 1401(A,106,63) INDUCTOR CTF1661 F 1402(A,54,99) INDUCTOR CTF1661 F 1403(A,101,63) INDUCTOR CTF1661 F 1404(A,71,63) INDUCTOR CTF1661 F 1501(B,206,160) CHIP MAGNET CORE DTF1068 F 1502(B,213,159) INDUCTOR CTF1661 J 1901(A,26,151) 9P CONNECTOR ASSY PKP1019 JA 1101(A,145,178) PIN JACK(1P) AKB7102 JA 1201(A,165,178) PIN JACK(1P) AKB7102 JA 1501(A,213,178) PIN JACK(1P) AKB7102 JA 1502(A,194,178) OPT. LINK OUT VKS1002 JA 1601(A,38,176) JACK RKN1004 JA 1602(A,48,176) JACK RKN1004 KN 1301(A,181,178) SCREW PLATE VNE1948 KN 1901(A,27,82) WRAPPING TERMINAL VNF1084 KN 1902(A,224,77) WRAPPING TERMINAL VNF1084 KN 1903(A,224,147) WRAPPING TERMINAL VNF1084 KN 1905(A,175,92) WRAPPING TERMINAL VNF1084 RY 1301(A,118,127) RELAY VSR1008 RY 1302(A,158,127) RELAY VSR1008 X 1401(A,52,90) CRYSTAL(22.5792MHz) ASS7071 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 88 1 2 3 4 1 2 3 4 C D F A B E CN 1401(A,45,62) CONNECTOR CKS3382 CN 1402(A,151,62) CONNECTOR PKN1033 CN 1501(A,223,61) CONNECTOR 05R-FJ RESISTORS R 1101(A,93,150) CARBON FILM RESISTOR PCN1042 R 1102(A,93,156) CARBON FILM RESISTOR PCN1042 R 1103(A,93,147) CARBON FILM RESISTOR PCN1042 R 1104(A,93,153) CARBON FILM RESISTOR PCN1042 R 1105(A,106,166) CARBON FILM RESISTOR VCN1138 R 1106(A,106,163) CARBON FILM RESISTOR VCN1139 R 1107(A,106,150) CARBON FILM RESISTOR VCN1139 R 1108(A,116,147) CARBON FILM RESISTOR VCN1138 R 1109(A,128,138) CARBON FILM RESISTOR PCN1046 R 1110(A,118,141) CARBON FILM RESISTOR PCN1044 R 1111(A,158,141) CARBON FILM RESISTOR VCN1136 R 1112(A,161,151) CARBON FILM RESISTOR PCN1045 R 1113(A,164,141) CARBON FILM RESISTOR PCN1045 R 1151(A,77,145) RS1/16S220J R 1152(A,77,147) RS1/16S220J R 1153(A,77,149) RS1/16S220J R 1154(A,66,148) RS1/16S470J R 1155(A,66,146) RS1/16S220J R 1156(A,66,144) RS1/16S680J R 1157(A,52,147) RS1/16S220J R 1158(A,52,145) RS1/16S220J R 1159(A,52,143) RS1/16S680J R 1160(A,77,151) RS1/16S220J R 1161(A,59,142) RS1/16S220J R 1162(A,52,149) RS1/16S220J R 1199 RS1/10S0R0J R 1201(A,93,107) CARBON FILM RESISTOR PCN1042 R 1202(A,93,110) CARBON FILM RESISTOR PCN1042 R 1203(A,93,113) CARBON FILM RESISTOR PCN1042 R 1204(A,93,116) CARBON FILM RESISTOR PCN1042 R 1205(A,106,97) CARBON FILM RESISTOR VCN1138 R 1206(A,106,100) CARBON FILM RESISTOR VCN1139 R 1207(A,106,113) CARBON FILM RESISTOR VCN1139 R 1208(A,116,116) CARBON FILM RESISTOR VCN1138 R 1209(A,118,124) CARBON FILM RESISTOR PCN1046 R 1210(A,118,121) CARBON FILM RESISTOR PCN1044 R 1211(A,158,111) CARBON FILM RESISTOR VCN1136 R 1212(A,161,111) CARBON FILM RESISTOR PCN1045 R 1213(A,164,121) CARBON FILM RESISTOR PCN1045 R 1251(A,77,105) RS1/16S220J R 1252(A,77,107) RS1/16S220J R 1253(A,77,109) RS1/16S220J R 1254(A,67,114) RS1/16S470J R 1255(A,68,113) RS1/16S220J R 1256(A,66,109) RS1/16S680J R 1257(A,52,112) RS1/16S220J R 1259(A,52,107) RS1/16S680J R 1260(A,77,111) RS1/16S220J R 1261(A,59,107) RS1/16S220J R 1262(A,52,114) RS1/16S220J R 1265(A,52,109) RS1/16S220J R 1299 RS1/10S0R0J R 1301(B,181,106) RS1/16S102J R 1302(B,170,112) RS1/16S102J Mark No. Description Part No. R 1304(A,154,131) RS1/16S103J R 1305(B,177,114) RS1/16S0R0J R 1306(A,178,117) RS1/16S103J R 1401(B,126,68) RS1/16S220J R 1402(B,126,70) RS1/16S220J R 1403(B,126,72) RS1/16S220J R 1404(B,126,76) RS1/16S220J R 1405(A,102,72) RS1/16S221J R 1406(A,102,76) RS1/16S221J R 1407(A,102,74) RS1/16S221J R 1408(A,54,91) RS1/16S101J R 1409(B,63,87) RS1/16S221J R 1410(B,59,93) RS1/16S221J R 1411(B,62,93) RS1/16S221J R 1412(B,63,85) RS1/16S470J R 1416(A,98,78) RS1/16S101J R 1417(A,98,81) RS1/16S0R0J R 1419(A,78,75) RS1/16S101J R 1420(A,78,72) RS1/16S101J R 1421(A,71,74) RS1/16S101J R 1422(A,78,77) RS1/16S101J R 1423(B,49,67) RS1/16S100J R 1424(B,49,70) RS1/16S100J R 1425(A,136,68) RS1/16S680J R 1426(A,138,68) RS1/16S680J R 1427(A,140,68) RS1/16S680J R 1428(A,142,68) RS1/16S680J R 1429(A,144,68) RS1/16S680J R 1433(B,98,69) RS1/16S0R0J R 1434(B,50,77) RS1/16S100J R 1435(B,50,79) RS1/16S100J R 1436(A,52,93) RS1/16S473J R 1501(B,223,68) RS1/16S0R0J R 1502(B,209,128) RS1/16S0R0J R 1503(B,209,130) RS1/16S220J R 1504(B,206,149) RS1/16S750J R 1505(A,218,127) RS1/16S470J R 1506(A,198,116) RS1/10S0R0J CAPACITORS C 1101(A,109,153) PORYPROPYLENE FILM C VCE1052 C 1102(A,122,166) PORYPROPYLENE FILM C VCE1051 C 1103(A,106,138) PORYPROPYLENE FILM C VCE1051 C 1104(A,116,158) CKSRYB104K16 C 1105(A,137,155) VCH1257 C 1106(A,130,152) CKSRYB104K16 C 1107(A,137,144) VCH1257 C 1108(A,122,147) PORYPROPYLENE FILM C VCE1051 C 1109(A,147,141) VCH1255 C 1111(A,148,155) PP FILM CAPACITOR PCE1002 C 1151(A,71,138) PCH1163 C 1152(A,83,145) CKSRYB104K16 C 1153(A,86,145) CKSRYB104K16 C 1154(A,90,144) CKSRYB104K16 C 1155(A,95,138) PCH1158 C 1157(A,86,159) CKSRYB104K16 C 1158(A,90,157) CKSRYB104K16 C 1159(A,87,157) CKSRYB104K16 C 1160(A,90,165) PCH1158 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 89 5 6 7 8 5 6 7 8 C D F A B E C 1161(A,78,165) PCH1157 C 1162(A,77,157) CKSRYB103K50 C 1163(A,62,150) CKSRYB104K16 C 1164(A,62,153) ELECT. CAPACITOR VCH1249 C 1165(A,83,137) PCH1157 C 1201(A,109,110) PORYPROPYLENE FILM C VCE1052 C 1202(A,122,97) PORYPROPYLENE FILM C VCE1051 C 1203(A,106,125) PORYPROPYLENE FILM C VCE1051 C 1204(A,116,108) CKSRYB104K16 C 1205(A,137,110) VCH1257 C 1206(A,130,102) CKSRYB104K16 C 1207(A,137,99) VCH1257 C 1208(A,122,116) PORYPROPYLENE FILM C VCE1051 C 1209(A,147,121) VCH1255 C 1211(A,148,107) PP FILM CAPACITOR PCE1002 C 1251(A,71,98) PCH1163 C 1252(A,83,105) CKSRYB104K16 C 1253(A,86,105) CKSRYB104K16 C 1254(A,90,104) CKSRYB104K16 C 1255(A,95,98) PCH1158 C 1257(A,86,119) CKSRYB104K16 C 1258(A,90,117) CKSRYB104K16 C 1259(A,87,117) CKSRYB104K16 C 1260(A,90,125) PCH1158 C 1261(A,78,125) PCH1157 C 1262(A,77,117) CKSRYB103K50 C 1263(A,62,115) CKSRYB104K16 C 1264(A,62,118) ELECT. CAPACITOR VCH1249 C 1265(A,83,97) PCH1157 C 1302(B,101,173) CKSRYB104K16 C 1303(B,138,139) CKSRYB103K50 C 1401(A,112,63) PCH1158 C 1402(A,118,77) CKSRYB104K16 C 1403(B,126,74) CKSRYB104K16 C 1404(A,105,78) CKSRYF105Z10 C 1407(A,119,81) CKSRYB103K50 C 1408(A,50,98) ELECT. CAPACITOR VCH1249 C 1409(A,55,95) CKSRYB104K16 C 1410(A,52,95) CKSRYB104K16 C 1411(A,62,98) CEAT470M16 C 1412(A,64,95) CKSRYB104K16 C 1413(A,77,63) PCH1163 C 1414(A,82,77) CKSRYB104K16 C 1415(A,65,69) CKSRYB104K16 C 1416(A,95,63) PCH1163 C 1417(A,98,79) CKSRYB103K50 C 1418(A,54,66) CKSRYB104K16 C 1420(A,94,77) CKSRYB104K16 C 1421(A,73,72) CKSRYB104K16 C 1501(A,211,124) CKSRYB104K16 C 1502(A,209,117) PCH1158 C 1505(B,211,140) CKSRYB103K50 C 1506(A,203,144) PCH1164 C 1510(B,209,171) CKSRYB103K50 C 1513(A,195,157) CEAT470M16 C 1514(B,192,161) CKSRYF105Z10 C 1515(B,192,164) CKSRYB102K50 C 1603(B,54,171) CKSRYB104K16 C 1901(B,29,153) CKSRYB104K16 C 1902(A,30,149) CKSRYB104K16 Mark No. Description Part No. C 1903(A,30,142) CKSRYB104K16 C 1906(B,23,143) CKSRYB104K16 C 1907(B,27,128) CKSRYB104K16 C 1908(B,29,137) CKSRYB103K50 C 1911(A,101,168) CKSRYB103K50 C 1918(B,92,93) CKSRYB103K50 D LCD ASSY MISCELLANEOUS IC 2101(B,134,209) CPU PDC170A Q 2101(B,78,221) TRANSISTOR RT1N241M Q 2102(B,77,212) TRANSISTOR RT1N241M Q 2103(B,82,212) TRANSISTOR 2SA1577 Q 2104(B,60,187) TRANSISTOR RT1N241M Q 2105(B,63,188) DIGITAL TR(SC-70) RT1N431M Q 2106(B,92,223) DIGITAL TR(SC-70) RT1N431M Q 2107(B,55,198) TRANSISTOR RT1N241M Q 2108(B,100,222) TRANSISTOR 2SC4097 Q 2109(B,64,180) DIGITAL TR(SC-70) RT1P241M Q 2201(B,68,211) TRANSISTOR 2SC4081 Q 2202(B,68,205) TRANSISTOR 2SC4081 Q 2203(B,68,198) TRANSISTOR 2SC4081 Q 2204(B,76,192) TRANSISTOR UMH1N D 2101(A,53,204) LED(RED) SLI-343URCW(RST) D 2102(A,53,180) LED(RED) SLR-343VC(NPQ) D 2103(B,85,223) DIODE DAP202K D 2105(B,63,183) DIODE 1SS352 D 2206(A,63,210) LED(WHITE) NSPW510BS-7199 D 2207(A,63,204) LED(WHITE) NSPW510BS-7199 D 2208(A,63,197) LED(WHITE) NSPW510BS-7199 D 2209(B,81,192) DIODE DAN217 D 2210(B,85,192) DIODE 1SS355 L 2101(B,88,211) INDUCTOR LCYA220J2520 L 2102(B,159,209) INDUCTOR CTF1389 L 2103(B,157,209) INDUCTOR CTF1389 L 2104(B,156,205) INDUCTOR CTF1389 L 2105(B,153,204) INDUCTOR CTF1389 F 2201(B,82,207) INDUCTOR CTF1661 J 2101(A,89,233) CONNECTOR ASS'Y PF06PG-D07 J 2102(A,80,229) 2P CONECTOR ASSY PKP1024 J 2104(A,193,185) JUMPER WIRE D20PYY0320E J 2106(A,47,177) JUMPER WIRE PKP1025 KN 2101(A,76,178) WRAPPING TERMINAL VNF1084 V 2201(A,130,185) LCD MODULE AAV7111 X 2101(A,124,221) CERAMIC(10MHz) ASS7034 CN 2101(A,61,228) CONNECTOR 7P 52492-0720 CN 2105(A,183,225) CONNECTOR 9607S-17F CN 2106(A,192,218) CONNECTOR CKS3829 8P CABLE HOLDER 51048-0800 LCD LT COND. (PLS) XAK3494 2101 PCB BINDER VEF1040 LCD COVER R(PLS) XMR3094 LCD COVER L(PLS) XMR3093 LCD HOLDER (PLS) XMR3092 DIFFUSSION SHEET XAK3521 3P CABLE HOLDER 51048-0300 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 90 1 2 3 4 1 2 3 4 C D F A B E RESISTORS R 2101(B,83,217) RS1/16S102J R 2103(B,139,193) RS1/16S473J R 2105(B,110,200) RS1/16S103J R 2106(B,116,203) RS1/16S221J R 2107(B,110,202) RS1/16S221J R 2108(B,116,201) RS1/16S221J R 2110(B,110,191) RS1/16S221J R 2111(B,115,193) RS1/16S221J R 2112(B,150,200) RS1/16S473J R 2113(B,79,215) RS1/16S102J R 2114(B,83,215) RS1/16S223J R 2115(B,139,195) RS1/16S221J R 2117(B,112,212) RS1/16S221J R 2118(B,65,218) RS1/16S221J R 2120(B,57,185) RS1/16S223J R 2121(B,115,218) RS1/16S105J R 2122(B,113,232) RS1/16S221J R 2123(B,120,227) RS1/16S221J R 2124(B,63,185) RS1/16S471J R 2125(B,111,227) RS1/16S473J R 2126(B,115,230) RS1/16S105J R 2127(B,125,231) RS1/16S221J R 2128(B,121,231) RS1/16S221J R 2129(B,123,231) RS1/16S221J R 2130(B,128,226) RS1/16S221J R 2131(B,132,231) RS1/16S221J R 2132(B,136,234) RS1/16S221J R 2133(B,138,234) RS1/16S221J R 2134(B,140,231) RS1/16S221J R 2135(B,83,219) RS1/16S271J R 2136(B,128,235) RS1/16S473J R 2137(B,122,235) RS1/16S473J R 2138(B,124,235) RS1/16S473J R 2140(B,127,192) RS1/16S221J R 2141(B,142,229) RS1/16S221J R 2142(B,155,216) RS1/16S221J R 2143(B,157,213) RS1/16S221J R 2144(B,151,195) RS1/16S221J R 2145(B,156,196) RS1/16S221J R 2146(B,161,209) RS1/16S103J R 2147(B,152,219) RS1/16S103J R 2148(B,146,191) RS1/16S221J R 2149(B,151,193) RS1/16S221J R 2150(B,156,192) RS1/16S221J R 2151(B,156,194) RS1/16S221J R 2152(B,151,197) RS1/16S221J R 2153(B,95,221) RS1/16S473J R 2154(B,93,217) RS1/16S222J R 2155(B,87,215) RS1/16S101J R 2156(B,156,198) RS1/16S221J R 2160(B,140,225) RS1/16S221J R 2161(B,125,192) RS1/16S221J R 2162(B,115,197) RS1/16S221J R 2163(B,109,195) RS1/16S221J R 2165(B,116,199) RS1/16S221J R 2171(B,110,221) RS1/16S473J R 2176(B,151,190) RS1/16S221J R 2210(B,66,214) RS1/16S102J R 2211(B,71,211) RS1/16S620J Mark No. Description Part No. R 2212(B,73,211) RS1/16S0R0J R 2213(B,71,205) RS1/16S620J R 2214(B,73,205) RS1/16S0R0J R 2215(B,71,198) RS1/16S620J R 2216(B,73,198) RS1/16S0R0J R 2219(B,129,182) RS1/16S1801F CAPACITORS C 2101(A,52,190) CEAT470M16 C 2103(B,124,196) CKSRYB104K16 C 2104(B,79,226) CKSRYB103K50 C 2107(B,189,182) CKSRYB103K50 C 2109(B,113,227) CKSRYB103K50 C 2110(B,118,227) CKSRYB103K50 C 2112(B,145,220) CKSRYB104K16 C 2113(B,147,203) CKSRYB104K16 C 2114(B,92,214) CKSRYB103K50 C 2115(B,120,218) CKSRYB104K16 C 2201(B,133,182) CKSQYF225Z16 C 2202(B,80,209) CKSRYB102K50 C 2203(B,127,188) CKSRYB104K16 C 2204(B,161,181) CCSRCH220J50 C 2205(B,157,179) CCSRCH220J50 C 2206(B,144,181) CCSRCH220J50 C 2207(B,123,188) CCSRCH220J50 C 2208(B,94,231) CKSRYB104K16 C 2209(B,123,182) CKSRYB102K50 C 2210(A,119,185) CEJQ101M16 C 2212(B,98,231) CKSRYB104K16 C 2213(A,109,228) CEAT470M16 C 2214(B,90,208) CKSRYB103K50 C 2216(B,124,218) CKSRYB104K16 C 2217(B,87,213) CKSRYB104K16 C 2219(A,87,227) CEAT100M50 C 2220(A,95,225) ACH1246 E PLED ASSY MISCELLANEOUS D 2601(A,24,217) LED(BLUE) SLR343BC4T(JKLM) J 2601(A,33,221) 2P CONECTOR ASSY PKP1023 RESISTORS R 2601(B,31,224) RS1/16S271J CAPACITORS C 2601(B,21,224) CKSRYB104K16 C 2602(A,19,225) CEHAZA470M16 F MNSW ASSY MISCELLANEOUS H 2501(A,200,159) FUSE CLIP AKR7001 H 2502(A,200,139) FUSE CLIP AKR7001 > S 2501(A,161,128) POWER SWITCH PSA1006 > CN 2501(A,190,156) AC CODE SOCKET RKP1751 > CN 2502(A,206,166) AMP U-P CONNECTOR VKN2024 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 91 5 6 7 8 5 6 7 8 C D F A B E G KEY ASSY MISCELLANEOUS S 2301(A,209,193) SWITCH VSG1024 S 2302(A,229,193) SWITCH VSG1024 2301 PCB BINDER VEF1040 3P CABLE HOLDER 51048-0300 RESISTORS R 2301(B,211,190) RS1/16S103J R 2302(B,228,190) RS1/16S103J CAPACITORS C 2301(B,209,183) CKSRYB103K50 H CONNECTOR ASSY MISCELLANEOUS KN 2701(A,218,43) WRAPPING TERMINAL VNF1084 CN 2701(A,205,38) CONNECTOR VKN1205 CN 2702(A,109,47) FJ CONNECTOR 5P 05PL-FJ CN 2703(A,227,42) CONNECTOR VKN1191 CN 2705(A,171,48) CONNECTOR B2P-SHF-1AA RESISTORS R 2703(A,193,28) RS1/16S220J CAPACITORS C 2701(B,101,31) CKSRYB104K16 C 2702(A,106,30) CKSRYB104K16 C 2703(A,110,30) CKSRYB104K16 C 2705(A,102,30) CKSRYB104K16 C 2706(B,200,44) CKSRYB104K16 I PRIMARY ASSY MISCELLANEOUS > IC 11 (A,32,140) REGULATOR IC NJM78M56FA Q 11 (B,108,158) TRANSISTOR RT1N241M > D 11 (A,43,124) BRIDGE DIODE S1VB20/F03 D 12 (B,46,106) DIODE 1SS355 D 13 (B,47,101) DIODE 1SS355 D 14 (B,95,151) DIODE 1SS355 D 15 (B,103,156) DIODE UDZS5R1(B) > L 11 (A,113,138) LINE FILTER XTF3004 > J 11 (A,126,129) 2P CONECTOR ASSY PKP1022 > RY 11 (A,75,107) JOE LOWPOWER RELAY ASR7013 > T 10 (A,75,144) POWER TRANSFORMER ATT7078 > CN 10 (A,100,99) CONNECTOR B2P3-VH CN 11 (A,105,165) PLUG(6P) KM200NA6 > CN 12 (A,118,99) CONNECTER B2P3-VH-Y CN 13 (A,31,100) PLUG(2P) KM200NA2 12 PCB BINDER VEF1040 11 PCB BINDER VEF1040 RESISTORS R 12 (A,39,105) CARBON FILM RESISTOR RD1/4MUF220J R 14 (B,103,150) RS1/16S332J R 15 (B,103,154) RS1/16S103J Mark No. Description Part No. CAPACITORS > C 12 (A,89,128) FILM CAPACITOR ACE7013 C 15 (A,35,128) ELECT. CAPACITOR CEAT102M25 C 16 (A,35,152) CEAT221M16 C 17 (B,100,162) CKSRYB103K50 C 18 (B,91,164) CKSRYB103K50 C 19 (B,30,104) CKSRYB103K50 J REGULATOR ASSY MISCELLANEOUS > IC 1701(A,148,61) PROTECTOR(3A) AEK7015 > IC 1702(A,153,52) PROTECTOR(3.5A) AEK7017 > IC 1703(A,183,69) IC BA033CC0T > IC 1704(A,206,56) REGULATOR BA00BC0WT-V5 > IC 1705(A,191,33) REGULATOR BA00BC0WT-V5 > IC 1706(A,131,82) PROTECTOR(400MA) AEK7004 > IC 1707(A,107,85) REGULATOR IC NJM78M12FA > IC 1801(A,143,32) PROTECTOR(2A) AEK7013 > IC 1802(A,133,32) PROTECTOR(2A) AEK7013 > IC 1803(A,29,32) IC NJM78M05FA Q 1801(A,72,30) N-FET 2SK246 Q 1802(B,60,26) CHIP TRANSISTOR 2SC3906K > Q 1803(A,54,24) TRANSISTOR 2SD1763A Q 1804(A,72,70) N-FET 2SK246 Q 1805(B,60,68) CHIP TRANSISTOR 2SA1514K > Q 1806(A,54,68) TRANSISTOR 2SB1186A > D 1701(A,153,63) LOWNOISE BRIDGEDIODE LN4SB60-4003 > D 1702(A,151,37) LOWNOISE BRIDGEDIODE LN4SB60-4003 D 1703(B,176,73) CHIP DIODE RB501V-40 D 1704(B,198,59) CHIP DIODE RB501V-40 D 1705(B,182,36) CHIP DIODE RB501V-40 D 1708(B,108,76) CHIP DIODE RB501V-40 > D 1709(A,117,86) DIODE 1SR139-400 > D 1710(A,113,81) DIODE 1SR139-400 > D 1801(A,108,15) SCHOTTKY DIODE 31DQ06-FC5 > D 1802(A,108,22) SCHOTTKY DIODE 31DQ06-FC6 > D 1803(A,123,38) SCHOTTKY DIODE 31DQ06-FC6 > D 1804(A,123,31) SCHOTTKY DIODE 31DQ06-FC5 D 1805(B,81,44) DIODE UDZS15(B) D 1806(B,81,54) DIODE UDZS15(B) D 1807(B,72,43) CHIP DIODE RB501V-40 D 1808(B,72,54) CHIP DIODE RB501V-40 D 1809(B,35,50) CHIP DIODE RB501V-40 J 1702(A,205,73) CONNECTOR ASSY PF02PG-S05 KN 1701(A,180,18) WRAPPING TERMINAL VNF1084 KN 1702(A,124,64) WRAPPING TERMINAL VNF1084 KN 1703(A,201,79) WRAPPING TERMINAL VNF1084 KN 1801(A,34,13) WRAPPING TERMINAL VNF1084 KN 1802(A,20,89) WRAPPING TERMINAL VNF1084 CN 1701(A,135,74) 4P-TOP POST(VH) B4P-VH CN 1702(A,205,45) CONNECTOR B4B-EH CN 1801(A,140,41) CONNECTOR B3P-VH CN 1802(A,18,73) CONNECTOR B9B-EH SCREW BBZ30P080FCC SCREW PMH30P080FCC HEAT SINK PNS1043 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PD-D9-J 92 1 2 3 4 1 2 3 4 C D F A B E RESISTORS R 1701(A,142,70) CARBON FILM RESISTOR RD1/4MUF4R7J R 1702(A,164,41) CARBON FILM RESISTOR RD1/4MUF4R7J R 1703(B,205,53) RS1/16S102J R 1704(B,202,68) RS1/16S3302F R 1705(B,197,62) RS1/16S1203F R 1707(B,189,29) RS1/16S102J R 1708(B,196,36) RS1/16S3902F R 1709(B,197,40) RS1/16S334J R 1710(B,195,40) RS1/16S334J R 1711(B,190,90) RS1/10S0R0J R 1712(B,190,88) RS1/10S0R0J R 1713(B,190,86) RS1/10S0R0J R 1801(A,142,15) CARBON FILM RESISTOR RD1/4MUF4R7J R 1802(B,63,34) RS1/16S681J R 1803(B,68,29) RS1/16S331J R 1804(B,64,63) RS1/16S681J R 1805(B,68,67) RS1/16S331J R 1812(B,62,63) RS1/16S470J R 1813(B,53,34) RS1/16S470J CAPACITORS C 1701(A,142,82) CFTLA824J50 C 1702(A,147,75) CFTLA824J50 C 1703(A,165,83) PCH1160 C 1704(A,165,71) PCH1160 C 1705(B,188,69) CKSQYF105Z25 C 1706(B,188,74) CKSRYB104K16 C 1707(A,190,75) PCH1158 C 1708(B,201,52) CKSQYF105Z25 C 1709(B,191,59) CKSRYB104K16 C 1710(A,192,57) ELECT. CAPACITOR CEHAZA101M16 C 1711(A,165,58) PCH1160 C 1712(A,163,25) PCH1162 C 1713(A,148,46) AUDIO FILM CAPACITOR ACE7060 C 1714(A,159,46) AUDIO FILM CAPACITOR ACE7060 C 1715(B,179,34) CKSQYF105Z25 C 1716(B,196,34) CKSRYB104K16 C 1717(A,198,29) CEAT101M16 C 1718(A,122,85) ELECT. CAPACITOR CEAT101M25 C 1719(A,114,74) ELECT. CAPACITOR CEAT101M35 C 1720(B,115,78) CKSRYB104K16 C 1721(A,110,69) CEAT471M16 C 1722(B,200,72) CKSRYB104K16 C 1723(B,202,45) CKSRYB104K16 C 1724(B,204,33) CKSRYB104K16 C 1725(B,110,66) CKSRYB104K16 C 1801(A,137,15) AUDIO FILM CAPACITOR ACE7063 C 1802(A,130,20) AUDIO FILM CAPACITOR ACE7063 C 1803(A,90,24) PCH1159 C 1804(A,90,64) PCH1159 C 1805(A,78,41) ELECT. CAPACITOR VCH1247 C 1806(A,78,51) ELECT. CAPACITOR VCH1247 C 1807(A,67,38) PCH1157 C 1808(A,67,54) PCH1157 C 1809(B,34,33) CKSRYB104K16 C 1810(A,32,53) PCH1161 C 1811(B,34,39) CKSRYF104Z25 C 1812(B,83,44) CKSRYB103K50 C 1813(B,83,54) CKSRYB103K50 Mark No. Description Part No. C 1814(B,19,70) CKSRYB103K50 C 1817(B,25,76) CKSRYB103K50 C 1818(B,27,70) CKSRYB103K50 C 1819(B,32,76) CKSRYB103K50 C 1820(B,43,76) CKSRYB103K50 C 1821(B,130,46) CKSRYB103K50 C 1822(B,39,20) CKSRYB103K50 K IR ASSY MISCELLANEOUS 2401(A,29,180) REMOTE RECEIVER UNIT GP1UM28XK0VF CAPACITORS C 2401(B,33,182) CKSRYB104K16 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
