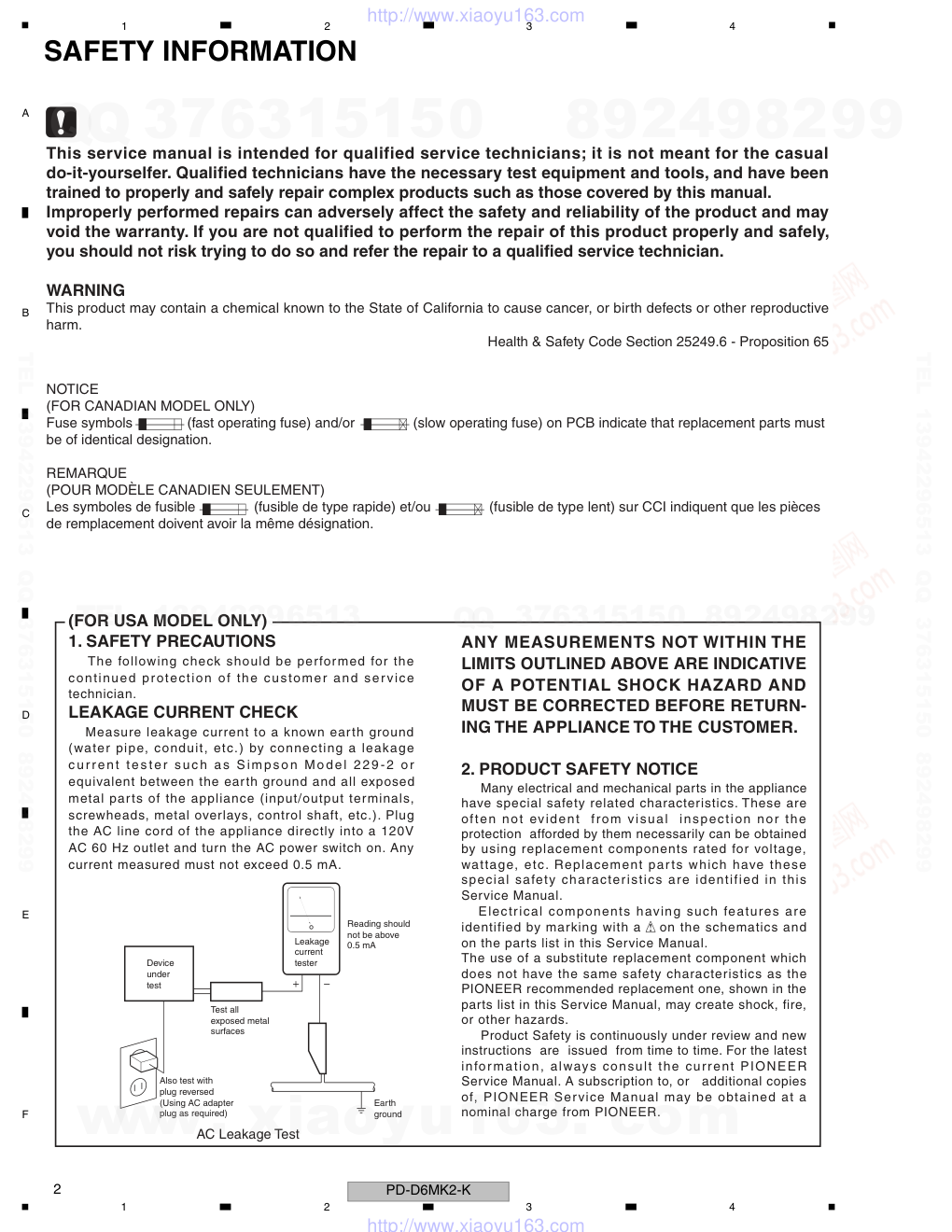

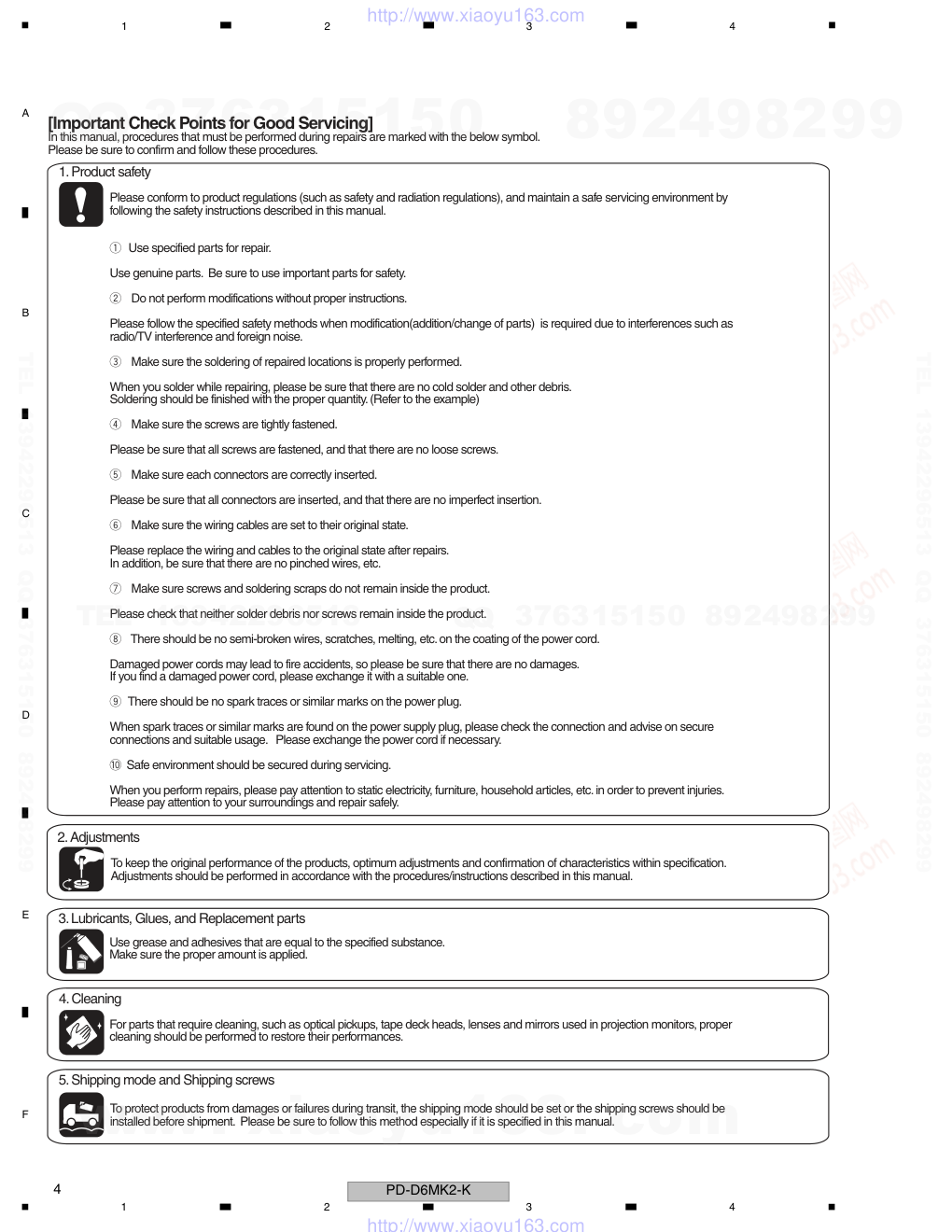

ORDER NO. PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2009 2009 Printed in Japan ON OFF POWER STANDBY PURE AUDIO D6 PD-D6MK2-K RRV3940 SUPER AUDIO CD PLAYER PD-D6MK2-K THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S). Model Type Power Requirement Remarks PD-D6MK2-K SYXJ5 AC 220 V to 240 V PD-D6MK2-K CUXJ AC 120 V For details, refer to "Important Check Points for good servicing". T-ZZK MAY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 PD-D6MK2-K 1 2 3 4 A B C D E F 1 2 3 4 SAFETY INFORMATION NOTICE (FOR CANADIAN MODEL ONLY) Fuse symbols (fast operating fuse) and/or (slow operating fuse) on PCB indicate that replacement parts must be of identical designation. REMARQUE (POUR MODÈLE CANADIEN SEULEMENT) Les symboles de fusible (fusible de type rapide) et/ou (fusible de type lent) sur CCI indiquent que les pièces de remplacement doivent avoir la même désignation. This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. WARNING This product may contain a chemical known to the State of California to cause cancer, or birth defects or other reproductive harm. Health & Safety Code Section 25249.6 - Proposition 65 ANY MEASUREMENTS NOT WITHIN THE LIMITS OUTLINED ABOVE ARE INDICATIVE OF A POTENTIAL SHOCK HAZARD AND MUST BE CORRECTED BEFORE RETURN- ING THE APPLIANCE TO THE CUSTOMER. 2. PRODUCT SAFETY NOTICE Many electrical and mechanical parts in the appliance have special safety related characteristics. These are often not evident from visual inspection nor the protection afforded by them necessarily can be obtained by using replacement components rated for voltage, wattage, etc. Replacement parts which have these special safety characteristics are identified in this Service Manual. Electrical components having such features are identified by marking with a on the schematics and on the parts list in this Service Manual. The use of a substitute replacement component which does not have the same safety characteristics as the PIONEER recommended replacement one, shown in the parts list in this Service Manual, may create shock, fire, or other hazards. Product Safety is continuously under review and new instructions are issued from time to time. For the latest information, always consult the current PIONEER Service Manual. A subscription to, or additional copies of, PIONEER Service Manual may be obtained at a nominal charge from PIONEER. (FOR USA MODEL ONLY) 1. SAFETY PRECAUTIONS The following check should be performed for the continued protection of the customer and service technician. LEAKAGE CURRENT CHECK Measure leakage current to a known earth ground (water pipe, conduit, etc.) by connecting a leakage current tester such as Simpson Model 229-2 or equivalent between the earth ground and all exposed metal parts of the appliance (input/output terminals, screwheads, metal overlays, control shaft, etc.). Plug the AC line cord of the appliance directly into a 120V AC 60 Hz outlet and turn the AC power switch on. Any current measured must not exceed 0.5 mA. Device under test Leakage current tester Earth ground Reading should not be above 0.5 mA Also test with plug reversed (Using AC adapter plug as required) Test all exposed metal surfaces AC Leakage Test www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 PD-D6MK2-K 5 6 7 8 5 6 7 8 A B C D E F WARNING ! THE AEL (ACCESSIBLE EMISSION LEVEL) OF THE LASER POWER OUTPUT IS LESS THAN CLASS 1 BUT THE LASER COMPONENT IS CAPABLE OF EMITTING RADIATION EXCEEDING THE LIMIT FOR CLASS 1. A SPECIALLY INSTRUCTED PERSON SHOULD DO SERVICING OPERATION OF THE APPARATUS. LASER DIODE CHARACTERISTICS FOR CD : MAXIMUM OUTPUT POWER : 7 mW WAVELENGTH : 780 nm (FOR DVD : MAXIMUM OUTPUT POWER : 5 mW WAVELENGTH : 650 nm) Additional Laser Caution 1. Laser Interlock Mechanism • Loading switch (S101 on the LOAB Assy) is used for interlock mechanism of the laser. When this switch turned ON in SW2 (CLOSE) side (OPEN signal is 0V and CLOSE signal is 3.5V), a laser becomes the status which can completely oscillation. Furthermore, the laser completely oscillates in the disc judgment and disc playback. When player is power ON state and laser diode is not completely oscillating, 780nm laser diode is always oscillating by half power. • Laser diode is driving with Q307 (650nm LD) and Q308 (780nm LD) on the DVDM Assy. Therefore, when short-circuit between the emitter and collector of these transistors or the base voltage is supplied for transistors turn on, the laser oscillates. (failure mode) • In the test mode ∗ , there is the mode that the laser oscillates except for the disc judgment and playback. LD ON mode in the test mode oscillates with the laser forcibly. The interlock mechanism mentioned above becomes invalid in this mode. 2. When the cover is open, close viewing through the objective lens with the naked eye will cause exposure to the laser beam. LABEL CHECK (Printed on the Rear Panel ) ∗ : Refer to page 38. SYXJ5, CUXJ types : PRW1608 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 PD-D6MK2-K 1 2 3 4 A B C D E F 1 2 3 4 [Important Check Points for Good Servicing] In this manual, procedures that must be performed during repairs are marked with the below symbol. Please be sure to confirm and follow these procedures. 1. Product safety Please conform to product regulations (such as safety and radiation regulations), and maintain a safe servicing environment by following the safety instructions described in this manual. 1 Use specified parts for repair. Use genuine parts. Be sure to use important parts for safety. 2 Do not perform modifications without proper instructions. Please follow the specified safety methods when modification(addition/change of parts) is required due to interferences such as radio/TV interference and foreign noise. 3 Make sure the soldering of repaired locations is properly performed. When you solder while repairing, please be sure that there are no cold solder and other debris. Soldering should be finished with the proper quantity. (Refer to the example) 4 Make sure the screws are tightly fastened. Please be sure that all screws are fastened, and that there are no loose screws. 5 Make sure each connectors are correctly inserted. Please be sure that all connectors are inserted, and that there are no imperfect insertion. 6 Make sure the wiring cables are set to their original state. Please replace the wiring and cables to the original state after repairs. In addition, be sure that there are no pinched wires, etc. 7 Make sure screws and soldering scraps do not remain inside the product. Please check that neither solder debris nor screws remain inside the product. 8 There should be no semi-broken wires, scratches, melting, etc. on the coating of the power cord. Damaged power cords may lead to fire accidents, so please be sure that there are no damages. If you find a damaged power cord, please exchange it with a suitable one. 9 There should be no spark traces or similar marks on the power plug. When spark traces or similar marks are found on the power supply plug, please check the connection and advise on secure connections and suitable usage. Please exchange the power cord if necessary. a Safe environment should be secured during servicing. When you perform repairs, please pay attention to static electricity, furniture, household articles, etc. in order to prevent injuries. Please pay attention to your surroundings and repair safely. 2. Adjustments To keep the original performance of the products, optimum adjustments and confirmation of characteristics within specification. Adjustments should be performed in accordance with the procedures/instructions described in this manual. 4. Cleaning For parts that require cleaning, such as optical pickups, tape deck heads, lenses and mirrors used in projection monitors, proper cleaning should be performed to restore their performances. 3. Lubricants, Glues, and Replacement parts Use grease and adhesives that are equal to the specified substance. Make sure the proper amount is applied. 5. Shipping mode and Shipping screws To protect products from damages or failures during transit, the shipping mode should be set or the shipping screws should be installed before shipment. Please be sure to follow this method especially if it is specified in this manual. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 PD-D6MK2-K 5 6 7 8 5 6 7 8 A B C D E F CONTENTS SAFETY INFORMATION..........................................................................................................................................................2 1. SERVICE PRECAUTIONS.................................................................................................................................................... 6 1.1 NOTES ON SOLDERING...............................................................................................................................................6 2. SPECIFICATIONS................................................................................................................................................................. 7 2.1 SPECIFICATIONS ..........................................................................................................................................................7 2.2 PANEL FACILITIES......................................................................................................................................................... 8 3. BASIC ITEMS FOR SERVICE ............................................................................................................................................ 10 3.1 CHECK POINTS AFTER SERVICING (SACD PLAYER) ............................................................................................. 10 3.2 PCB LOCATIONS......................................................................................................................................................... 11 3.3 JIGS LIST ..................................................................................................................................................................... 12 4. BLOCK DIAGRAM ..............................................................................................................................................................14 4.1 OVERALL WIRING DIAGRAM ..................................................................................................................................... 14 4.2 OVERALL BLOCK DIAGRAM....................................................................................................................................... 16 5. DIAGNOSIS ........................................................................................................................................................................ 18 5.1 TROUBLESHOOTING.................................................................................................................................................. 18 5.2 SEQUENCE AFTER POWER ON/OFF........................................................................................................................22 5.3 METHOD FOR DIAGNOSING DEGRADATION OF THE LDS ON THE PICKUP ASSY ............................................. 26 6. SERVICE MODE................................................................................................................................................................. 27 6.1 TEST MODE................................................................................................................................................................. 27 7. DISASSEMBLY ................................................................................................................................................................... 28 8. EACH SETTING AND ADJUSTMENT ................................................................................................................................ 36 8.1 ADJUSTMENT ITEMS AND LOCATION...................................................................................................................... 36 8.2 JIGS AND MEASURING INSTRUMENTS.................................................................................................................... 36 8.3 NECESSARY ADJUSTMENT POINTS ........................................................................................................................37 8.4 TEST MODE................................................................................................................................................................. 38 8.5 MECHANISM ADJUSTMENT....................................................................................................................................... 40 9. EXPLODED VIEWS AND PARTS LIST............................................................................................................................... 42 9.1 PACKING SECTION ..................................................................................................................................................... 42 9.2 EXTERIOR SECTION .................................................................................................................................................. 44 9.3 FRONT PANEL SECTION ............................................................................................................................................ 46 9.4 05 LOADER ASSY ....................................................................................................................................................... 48 9.5 TRAVERSE MECHANISM ASSY-S.............................................................................................................................. 50 10. SCHEMATIC DIAGRAM.................................................................................................................................................... 52 10.1 DVDM ASSY (1/2) ...................................................................................................................................................... 52 10.2 DVDM ASSY (2/2) ...................................................................................................................................................... 54 10.3 AJKB ASSY (1/2)........................................................................................................................................................56 10.4 AJKB ASSY (2/2)........................................................................................................................................................58 10.5 LCD, PLED, MNSW, KEY, CONNECTOR, PRIMARY and TRANS ASSYS ............................................................... 60 10.6 WAVEFORMS............................................................................................................................................................. 62 11. PCB CONNECTION DIAGRAM ........................................................................................................................................ 66 11.1 LOAB and DVDM ASSYS........................................................................................................................................... 66 11.2 AJKB ASSY ................................................................................................................................................................ 68 11.3 LCD ASSY.................................................................................................................................................................. 70 11.4 PLED, KEY and PRIMARY ASSYS ............................................................................................................................ 72 11.5 CONNECTOR and MNSW ASSYS ............................................................................................................................ 74 11.6 PRIMARY ASSY......................................................................................................................................................... 76 12. PCB PARTS LIST..............................................................................................................................................................78 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 PD-D6MK2-K 1 2 3 4 A B C D E F 1 2 3 4 1. SERVICE PRECAUTIONS 1.1 NOTES ON SOLDERING • For environmental protection, lead-free solder is used on the printed circuit boards mounted in this unit. Be sure to use lead-free solder and a soldering iron that can meet specifications for use with lead-free solders for repairs accompanied by reworking of soldering. • Compared with conventional eutectic solders, lead-free solders have higher melting points, by approximately 40 ºC. Therefore, for lead-free soldering, the tip temperature of a soldering iron must be set to around 373 ºC in general, although the temperature depends on the heat capacity of the PC board on which reworking is required and the weight of the tip of the soldering iron. Do NOT use a soldering iron whose tip temperature cannot be controlled. Compared with eutectic solders, lead-free solders have higher bond strengths but slower wetting times and higher melting temperatures (hard to melt/easy to harden). The following lead-free solders are available as service parts: • Parts numbers of lead-free solder: GYP1006 1.0 in dia. GYP1007 0.6 in dia. GYP1008 0.3 in dia. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 PD-D6MK2-K 5 6 7 8 5 6 7 8 A B C D E F 2. SPECIFICATIONS 2.1 SPECIFICATIONS Specifications General System. . . . . . . . . . . . . . . Super Audio CD player Power requirements. . . . . . . . . . AC 120 V, 60 Hz Power consumption . . . . . . . . . . . . . . . . . . . 22 W Power consumption (standby) . . . . . . . . . 0.4 W Weight . . . . . . . . . . . . . . . . . . 4.5 kg (9 lb. 15 oz.) Dimensions . . . . . . 420 mm (W) x 100 mm (H) x 340 mm (D) (16 9/16 in. (W) x 3 15/16 in. (H) x 13 3/8 in. (D)) Operating temperature . . . . . . .+5 °C to +35 °C Operating humidity. . . . . . . . . . . . . . .5 % to 85 % (no condensation) Audio output (1 stereo pair) Output level. . . . . . . . . . . . . During audio output 200 mVrms (1 kHz, –20 dB) Number of channels . . . . . . . . . . . . . . . . . . . . . 2 Jacks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .RCA Digital audio characteristics Frequency response . . . .4 Hz to 50 kHz (SACD) 4 Hz to 20 kHz (CD) S/N ratio: CD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .118 dB SACD. . . . . . . . . . . . . . . . . . . . . . . . . . . .110 dB Dynamic range: CD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .99 dB SACD. . . . . . . . . . . . . . . . . . . . . . . . . . . .108 dB Total harmonic distortion: CD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.002 % SACD. . . . . . . . . . . . . . . . . . . . . . . . . . . 0.003 % Wow and flutter . . . . . . . .Limit of measurement (±0.001 % W. PEAK) or lower Digital output Coaxial digital output . . . . . . . . . . . . . . .RCA jack Optical digital output . . . . . . .Optical digital jack Accessories Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . 1 AAA/IEC R03 dry cell batteries . . . . . . . . . . . . 2 RCA/phono stereo audio cable . . . . . . . . . . . . . 1 SR control cable . . . . . . . . . . . . . . . . . . . . . . . . . 1 Power cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Warranty card Operating Instructions Note • Specifications and the design are subject to possible modifications without notice, due to improvements. Disc/content format playback compatibility This player is compatible with a wide range of audio disc types and media formats. Playable discs will generally feature one of the following logos on the disc and/or disc packaging. Note however that some disc types, such as recordable CDs, may be in an unplayable format. Please also note that recordable discs cannot be recorded using this player. *“Super Audio CD” is a registered trademark. Audio CD CD-R CD-RW Super Audio CD* www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 PD-D6MK2-K 1 2 3 4 A B C D E F 1 2 3 4 2.2 PANEL FACILITIES Front panel 1 POWER vOFF wON 1 2 STANDBY indicator 3 Display (below) 4 Disc tray 5 h 6 d/g 7 Remote sensor 8 PURE AUDIO indicator Display 1 TRACK – Lights when the track number is indicated. 2 d/e – Light during playback/when paused. 3 Scan display – Shows the scan speed. 4 SACD – Lights during SACD playback. 5 LEGATO – Lights when Legato Link Pro is switched on. 6 (ALL) REPEAT/RANDOM/PGM – Light to indicate the playback mode. 7 Character display 8 TOTAL/REMAIN – Indicate the disc/track information currently displayed. ON OFF POWER STANDBY PURE AUDIO D6 3 4 1 7 2 5 6 8 Note 1 When the unit is in the standby mode, if the power is turned off by pressing the main unit’s POWER button, the power will not turn on if the button is pressed again. To turn on the power in this case, press either the remote control unit’s CD PLAYER u button or a different button (other than the POWER button) on the main unit. LEGATO LEGATO ALL ALL TOTAL TOTAL REPEAT REPEAT PGM PGM REMAIN REMAIN RANDOM RANDOM TRACK TRACK SACD SACD 1 2 3 4 5 6 7 8 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 PD-D6MK2-K 5 6 7 8 5 6 7 8 A B C D E F Remote control 1 CD PLAYER u 2 TIME 3 SACD/CD 4 Number buttons 5 CLEAR 6 Playback controls 7 PROGRAM REPEAT RANDOM 8 h OPEN/CLOSE 9 DIMMER 10 PURE AUDIO 11 LEGATO LINK 12 ENTER 13 AMP controls Use to control Pioneer amplifier. AMP u VOLUME MUTE PROGRAM REPEAT VOLUME RANDOM AMP SACD PLAYER CD PLAYER OPEN/CLOSE TIME DIMMER SACD/CD PURE AUDIO CLEAR ENTER LEGATO LINK 1 2 3 4 5 6 7 8 0 9 MUTE 1 8 9 10 12 13 11 2 3 4 6 7 5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 PD-D6MK2-K 1 2 3 4 A B C D E F 1 2 3 4 3. BASIC ITEMS FOR SERVICE 3.1 CHECK POINTS AFTER SERVICING (SACD PLAYER) Item to be checked regarding audio Distortion Noise Volume too low Volume too high Volume fluctuating Sound interrupted No. Procedures Check points 1 2 3 4 Confirm the firmware version on Test Mode. The version of the firmware must be latest. Update firmware to the latest one, if it is not the latest. Confirm whether the customer complain has been solved. If the customer complain occurs with the specific disc, use it for the operation check. The customer complain must not be reappeared. Video, audio and operations must be normal. Play back a CD. (track search) Audio and operations must be normal. Check the appearance of the product. No scratches or dirt on its appearance after receiving it for service. Items to be checked after servicing / PD To keep the product quality after servicing, confirm recommended check points shown below. See the table below for the items to be checked regarding audio. Cleaning Before shipping out the product, be sure to clean the following positions by using the prescribed cleaning tools. Name Position to be cleaned Part No. Remarks Refer to “9.5 Traverse Mechanism Assy-S”. Cleaning liquid Pickup leneses GEM1004 Cleaning paper GED-008 No. Procedures Check points 1 Play back a SACD. *Models supporting SACD (track search) Audio and operations must be normal. Specific Items to be Checked www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 PD-D6MK2-K 5 6 7 8 5 6 7 8 A B C D E F 3.2 PCB LOCATIONS KEY ASSY G LCD ASSY D PLED ASSY E MNSW ASSY F AJKB ASSY C PRIMARY ASSY I TRANS ASSY J CONECTOR ASSY H DVDM ASSY B Mark No. Description Part No. LIST OF ASSEMBLIES For PD-D6MK2-K/SYXJ5 NSP 1..LOADER ASSY VWT1230 NSP 2..LOAB ASSY VWG2346 1..DVDM ASSY AWM8184 1..FLKB ASSY PWM2363 2..CONNECTOR ASSY(D6) AWX8796 2..TRANS ASSY(D6) AWX8802 2..MNSW ASSY(D6K) PWX1668 2..LCD ASSY(D6) PWX1670 2..PLED ASSY(D6) PWX1671 2..PRIMARY ASSY(D6/WY) PWX1673 2..KEY ASSY(D6) PWX1687 1..AJKB ASSY PWM2367 Mark No. Description Part No. For PD-D6MK2-K/CUXJ NSP 1..LOADER ASSY VWT1230 NSP 2..LOAB ASSY VWG2346 1..DVDM ASSY AWM8184 1..FLKB ASSY PWM2365 2..CONNECTOR ASSY(D6) AWX8796 2..TRANS ASSY(D6) AWX8802 2..MNSW ASSY(D6K) PWX1668 2..LCD ASSY(D6) PWX1670 2..PLED ASSY(D6) PWX1671 2..PRIMARY ASSY(D6/KU) PWX1675 2..KEY ASSY(D6) PWX1687 1..AJKB ASSY PWM2367 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 PD-D6MK2-K 1 2 3 4 A B C D E F 1 2 3 4 3.3 JIGS LIST Service Remote Control Unit GGF1381 DVD Test Disc (DVD-Video) GGV1025 adjustment, diagnosis Name Jig No. Remarks Check of DVD-Video CD Test Disc STD-905 Check of CD Cable for service (5P) GGD1425 Diagnosis of DVDM ASSY k Jigs list Lubricating Oil GYA1001 GEM1036 Daifree Name Lubricants and Glues No. Remarks refer to "9.4 05 LOADER ASSY" refer to "9.4 05 LOADER ASSY" GEM1037 Silicone Adhesive refer to "9.5 TRAVERSE MECHANISM ASSY-S" k Lubricants and Glues list GYL1001 Screw tight refer to "8.5 MECHANISM ADJUSTMENT" www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 PD-D6MK2-K 5 6 7 8 5 6 7 8 A B C D E F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 PD-D6MK2-K 1 2 3 4 A B C D E F 1 2 3 4 4. BLOCK DIAGRAM 4.1 OVERALL WIRING DIAGRAM DVDM ASSY (AWM8184) LCD ASSY (PWX1670) MECHA ASSY D PLED ASSY (PWX1671) E MNSW ASSY (PWX1668) F TRANS ASSY (AWX8802) J B B ( ) 1/2, B 2/2 SYXJ5: ADG7062 CUXJ: ADG7061 PRIMARY ASSY (PD-D6MK2-K/SYXJ5: PWX1673) (PD-D6MK2-K/CUXJ: PWX1675) I SYXJ5: PTT1383 CUXJ: PTT1384 PKB1043 PKB1044 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 PD-D6MK2-K 5 6 7 8 5 6 7 8 A B C D E F V+3D SW2 LOAD+ LOAD- SW1 S5B-PH-K-S CN601 CN602 LOADING MOTOR ASSY : VXX2912 1 2 CONNECTOR ASSY (AWX8796) H KEY ASSY (PWX1687) G AJKB ASSY (PWM2367) C C ( ) 1/2, C 2/2 LOAB ASSY (VWG2346) A PKB1043 PKB1044 PKB1045 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 PD-D6MK2-K 1 2 3 4 A B C D E F 1 2 3 4 4.2 OVERALL BLOCK DIAGRAM MAIN DECODER IC201 (CD,SACD) MT1389EE/B2-L EEPROM IC204 4k S-24CS04AFJ LOADING MOTOR SPDL MOTOR PU STEPPING MOTOR TRAVERSE 05 PICK UP SERVO IC101 DRIVER BD7995EFS IC205 TC7SH08FUS1 Clock OSC X202 ASS7103 (27MHz) ASPDIF DOUT SPDIF RQ CN101 CN104 CN103 CN102 DVDM ASSY B LCD ASSY D IC203 PGM FLASH MEMORY 16M S29AL016D70TFI010-K 64M SDRAM IC202 K4S641632K-UC75 CN953 2 CN901 5 20 90 7 5 J2104A J2104 KEY ASSY G SYSTEM IC2101 CONTROL CPU PDC170B IR 2401 GP1UM28XK0VF LCD Display 1 1 KEY S2301,S2302 6 217 215 225 6 18 41 41 42 9 10 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 PD-D6MK2-K 5 6 7 8 5 6 7 8 A B C D E F PLED ASSY E SR-IN SR-OUT L R LPF L/R (PCM) I/V L/R (DSD) DOUT DOUT DOUT SPDIF_RQ SRIN SROUT SRIN SROUT MCLK IC1101 IC1102(1/2) IC1201 IC1102(2/2) 192k,24bit, IC1301 DAC Lch PCM1738EG-3 192k,24bit, IC1401 DAC Rch PCM1738EG-3 AJKB ASSY C CONNECTOR ASSY H TRANS ASSY J PRIMARY ASSY I CN1501 CN2701 CN2702 2 6 14 PCM/DSD IC1601 TC74VHC157FTS1 SEL Lch 16 17 25 26 14 PCM/DSD IC1602 TC74VHC157FTS1 SEL Rch 16 17 25 26 AQE IC1501 PD0274A JA1101 JA1201 JA1752 JA1751 OPTICAL OUT JA1702 COAXIAL OUT JA1701 25 10 3 CN1851 CN1503 J51 CN13 J11 CN2501 J12 J13 13 CN2703 CN1801 J52 5 CN2106 11 J2102 CN2105 2 1 CN1502 1 2 AC IN J2601 PLED MNSW ASSY F 2 6 1 24 6 5 6 5 7 7 5 5 16 16 SYSPOW SYSPOW 1 1 2 2 1 1 1 2 T51 8.3V 10.8V 3.3V 5V 5.8V 6.5V POWER SUPPLY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 PD-D6MK2-K 1 2 3 4 A B C D E F 1 2 3 4 5. DIAGNOSIS 5.1 TROUBLESHOOTING Start (Power → ON) Does the LCD light? Cancel the pure audio or dimmer function. Refer to Addendum No. 1. Check the connections at D1801, D1802, and CN1801. • Check that the voltage at V2201 1 is 4.4 V and that that at V2201 2 is 5 V. • Are any data transmitted on the LCD communication line (LCCDT, LCDCK, LCDCS, LCDRS) when the voltage is switched between 0 and 5 V? • Are H and L switched when BLOFF or DIMMER functions? • Check the FU1. • Check the connection between the PRIMARY and AJKB (4 pin) Assys. • Check the connection between the AJKB and LCD Assys (17-pin FFC). • Check that the voltage at J11 3 is 5.6 V. • Check the connections at D1851 and CN1801. • Check the connection between the AJKB and CONNECTOR Assys (15-pin FFC). • Check the connection between the CONNECTOR and DVDM Assys (29-pin FFC). • Is D1809 short-circuited? • Are the pins bridged at IC1301 or IC1401? Check that the voltage at C1805(+) is +12 V. Yes Yes No [V+5A] No No Does the pure audio or dimmer function operate? Are the indications on the LCD correct? Yes No Does the tray open? Refer to Addendum No. 2. Yes No Does the focus function operate? Refer to Addendum No. 3. Yes No Does the spindle rotate? Refer to Addendum No. 4. Yes No Can any operation be stopped? Yes No • Check the connection between the AJKB and CONNECTOR Assys (15-pin FFC). • Check the connection between the CONNECTOR and DVDM Assys (29-pin FFC). • Check the voltages at V+12A, V+5A, V+9D, and V+6R5V. Yes Yes Yes No No Replace D1805 and Q1801, in that order. Replace D1807 and Q1803, in that order. Yes Check if the pins are short-circuited at IC1101, IC1201, or IC1102. No Check that the voltage at V+3D is +3.3 V. Are the pins bridged at IC1301 or IC1401 or IC1501? No Is IC1851 damaged? Yes Replace IC1851. No The LCD display goes dark, and the pure audio LED starts flashing. [V+12V system] Check that the voltage at C1803(+) is +17 V. Yes No [V+9D system] Check that the voltage at C1852(+) is +8.3 V. • Check the connections at D1852 and CN1801. • Check the connection between the AJKB and CONNECTOR Assys (15-pin FFC). • Check the connection between the CONNECTOR and DVDM Assys (29-pin FFC). Check that the voltage at V+6R5V is +6.5 V. Are the pins bridged at IC101? No Is IC1852 damaged? Yes Replace IC1852. No Yes No [V+6R5V system] Check that the voltage at C1854(+) is +11 V. Awww. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 PD-D6MK2-K 5 6 7 8 5 6 7 8 A B C D E F Normal operation Check the connections at D1803, D1804, and CN1801. Check that the voltage at C1804 is -10.8 V. Yes No Only analog audio signals are output. Signals available in the SACD format are only analog outputs. Are all types of audio signals output? Yes Only optical or COAX audio signals are output. Yes Yes No • Check pin 225 at IC201. • Check the connection between the DVDM and CONNECTOR Assys (29-pin FFC). • Check the connection between the CONNECTOR and AJKB Assys (15-pin FFC). • Check the input and output signals to/from IC1701. • Check V+3D. Yes Yes No Replace D1805 and Q1801, in that order. Replace D1808 and Q1804, in that order. Yes Check if the pins are short-circuited at IC1101, IC1201, or IC1102. No [V-12V system] Check that the voltage at C1804(-) is -17 V. A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 PD-D6MK2-K 1 2 3 4 A B C D E F 1 2 3 4 No. Symptoms Diagnosis Contents Possible Defective Points 1 The power is not turned on. Are wires of output connector (POWER SUPPLY Unit) and CN901 (DVDM Assy) disconnected or damaged ? Connector / cable Check that the following voltage is output : + side of C739 : 3.3V DVDM Assy 3.3V Regulator IC (IC341) 2 An opening screen is not displayed on the monitor (The FL display lights. The mechanism does not work.) Are the signals output from IC201-pin 98 (MDATA) and pin 99 (SCLK) on the DVDM Assy ? (in the range of 0-3V) DVDM Assy DVD IC (IC201) Are the signals input into IC2101-pin 50 (MDATA) and pin 51 (SCLK) on the LCD Assy ? (in the range of 0-3V) LCD Assy UCOM (IC2101) Check that the following voltage are output : IC751-pin 1 on the DVDM Assy : 5V DVDM Assy 5V Regulator IC (IC751) Is a resonator (X202: 27MHz) on the DVDM Assy oscillating ? DVDM Assy Crystal resonator (X202) • Is a signal input into IC203-pin26 (PCE#) on the DVDM Assy ? (Is a signal "H" for 80 mS and then "L" after the power is turned on ?) → Communication with flash ROM. • Are the signals input into IC202-pin 16 (DWE#), pin 19 (DCS#) and pin 38 (SDCLK) on the DVDM Assy ? (Is a signal fluctuating ?) → Communication with SDRAM DVDM Assy DVD IC (IC201) Flash ROM (IC203) SDRAM (IC202) Is a signal output from IC203-pin 28 (PRD#) on the DVDM Assy? (Is a signal fluctuating for several hundred mS after the power is turned on ?) DVDM Assy Flash ROM (IC203) Is a signal input into IC2101-pin 67 (DVD ACK) on the LCD Assy ? (Is a signal fluctuating ?) → Communication with FL Control IC DVDM Assy DVD IC (IC201) LCD Assy UCOM (IC2101) Is a signal output from IC2101-pin 30 (XREADY) on the LCD Assy ? (Is a signal fluctuating in the range of 0-5V ?) LCD Assy UCOM (IC2101) Are the signals output from IC2101-pin 49 (SDATA) on the LCD Assy ? (in the range of 0-5V) DVDM Assy DVD IC (IC201) LCD Assy UCOM (IC2101) Are the signals of IC204-pin 5(SDA) and pin 6(SCL) on the DVDM Assy fluctuating for one or two seconds after the power is turned ? DVDM Assy EEPROM (IC204) Addendum No.1 3 A tray cannot be opened. (An opening screen is displayed on the monitor) LOAB Assy Tray SW (S101) Is the signal input into IC101-pin 11 (TROPEN) on the DVDM Assy ? At open: 3.3V, At close: 0V DVDM Assy DVD IC (IC201) Are the signals output from IC101-pin 1 and pin 2 (CN103-pin 1 and pin 2) on the DVDM Assy ? Pin 2: Approx. 6V during opening tray approx. 0V during closing tray. Pin 1: Approx. 0V during opening tray approx. 6V during closing tray. DVDM Assy FTS Driver IC (IC101) Are wires of CN104 and CN103 on the DVDM Assy disconnected or damaged ? Connector / cable Does the voltage of CN102-pin 1 on the DVDM Assy change to 0V by pressing the Inside switch. Inside switch Does the voltage of CN104-pin 3 and pin 5 on the DVDM Assy change normally ? Pin 3 (SW2(TRIN)): Tray is fully closed: "L" Pin 5 (SW1(TROUT)): Tray is fully opened: "L" www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 PD-D6MK2-K 5 6 7 8 5 6 7 8 A B C D E F No. Symptoms Diagnosis Contents Possible Defective Points 4 Playback impossible (no focusing) Are the signals output from IC101-pin 3 (FOCS_DRV) and pin 4 (FOCS_RTN) on the DVDM Assy ? DVDM Assy FTS Driver IC (IC101) Does 650-nm LD emit light ? Does a pickup lens move up / down ? Does an actuator spring bend ? Pickup Are plastic parts damaged ? Or is a shaft detached ? Is the turntable detached or tilted ? Mechanism section (motor) Is flexible cable of CN101 on the DVDM Assy disconnected or damaged ? Flexible cable / connector Is signal output from IC201-pin 42 (FOSO) on the DVDM Assy ? (Device control of about 1.4 V is output usually. It is fluctuated by about 250 mV with focus up / down.) DVDM Assy DVD IC (IC201) 5 Playback impossible (Spindle does not turn) Are the signals output from IC101-pin 30 (W), pin 33 (V) and pin 35 (U) on the DVDM Assy ? Is pin 26 (STBY) fixed LOW ? (pin 26 is High at playback: 3V) DVDM Assy FTS Driver IC (IC101) Is there any part detached from the spindle motor ? Or Is there any foreign object lodged in it ? Mechanism section (Spindle motor) Are wires of CN102 on the DVDM Assy disconnected or damaged ? Flexible cable / connector Is signal output from IC201-pin 37 (DMSO) on the DVDM Assy ? DVDM Assy DVD IC (IC201) 6 Playback impossible (Playback stops) Does 650-nm LD deteriorate ? If the voltage at each both ends of R322 and R325 on the DVDM Assy is 0.4 V or more, the 650-nm LD is definitely deteriorated. 650-nm LD deteriorated. (When playback of a DVD is impossible) Does 780-nm LD deteriorate ? If the voltage at each both ends of R321 and R326 on the DVDM Assy is 0.4 V or more, the 780-nm LD is definitely deteriorated. 780-nm LD deteriorated. (When playback of a CD is impossible) Is there abnormality in FG waveform ? (IC201-pin 47) DVDM Assy FG output : FTS Driver IC (IC101) Are there scratches or dirt on the disc ? Disc Addendum No.2 Addendum No.4 Addendum No.3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 22 PD-D6MK2-K 1 2 3 4 A B C D E F 1 2 3 4 5.2 SEQUENCE AFTER POWER ON/OFF Set time for the current step Elapsed time Details on control 0 msec POWER ON start, Various initial settings 1 All keys are masked. XSYSMUTE ON + 60 msec 60 msec Various initial settings 2 SYSPOW ON When the power is turned on, the HELLO display is requested (3.5 sec). + 240 msec 300 msec Various initial settings 3 RESET L ⇒ H + 60 msec 360 msec Various initial settings 4 Control of the LCD driver starts. Data transmission + 1020 msec 1380 msec Various initial settings 4 Bus communication starts. + 390 msec 1770 msec Various initial settings 5 + 120 msec 1890 msec Various initial settings 6 Masking of all keys is canceled. + 3120 msec 5010 msec Various initial settings 7 Temporary data transmission + 30 msec 5040 msec POWER ON completed Normal POWER-ON sequences Normal POWER-OFF sequences Set time for the current step Elapsed time Details on control 0 msec POWER OFF start, Various settings 1 The mask flags for all keys are set. + 30 msec 30 msec (Note 1) Various settings 2 Whether the DVD is turned off or not is checked. Bus communication is terminated. + 120 msec 150 msec Various settings 3 + 330 msec 480 msec Various settings 4 + 1320 msec 1800 msec Various settings 4 All the indications on the LCD are deleted. + 90 msec 1890 msec Various settings 5 + 240 msec 2130 msec Processing for the ports required when the power is turned off + 30 msec 2160 msec POWER OFF completed (passes every loop in the POWER OFF) Note 1: In this step, the unit wait for the DVD module to turn the power off. If the DVD module takes a longer time to turn itself off, the elapsed time will become longer, by just that much. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 23 PD-D6MK2-K 5 6 7 8 5 6 7 8 A B C D E F Display Only POWER-ON sequences Display-only POWER-OFF sequences Set time for the current step Elapsed time Details on control 0 msec Display only POWER ON start, Various initial settings 1 All keys are masked. The normal operation keys are masked. POWER MUTE ON SYSTEM POWER1 ON (Pin 91: H) + 60 msec 60 msec Various initial settings 2 + 240 msec 300 msec Various initial settings 3 Switched 5 V ON completed (power supply is stabilized) Masking of the normal operation keys is canceled. SYSTEM POWER2 ON (Pin 92: H) + 60 msec 360 msec Various initial settings 4 Power-on of the LCD driver starts. + 330 msec 690 msec Display Only POWER ON completed Set time for the current step Elapsed time Details on control 0 msec Display-only POWER OFF start, Various settings 1 • The mask flags for all the keys are set. • The mask flags for the normal operation keys are set. • Muting the power system (SYSTEM MUTE REQUEST) • Power-off of the LCD driver starts. + 4120 msec 4120 msec Various settings 2 + 120 msec 4240 msec Various settings 3 + 760 msec 5000 msec Various settings 4 • The mask flags for all keys are set. • Muting of the power system is canceled. • Other than in an emergency power-off, the unit awaits for a while. • SYSTEM POWER2 OFF (Pin 92: H) + 240 msec 5240 msec Display-only POWER OFF completed • SYSTEM POWER1 OFF (Pin 91: H) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 24 PD-D6MK2-K 1 2 3 4 A B C D E F 1 2 3 4 1 Standby → On KEY input 0 msec ok SYSPOW (pin 41) ok XSYSMUTE (pin 38) DVD ON/OFF XDVDRESET ok SYSTEM BUS (DVD) ok LCD setting ok LCD reset Other output port Subsequently, H or L is output, as appropriate. (Port setting) SYSTEM DVD control LCD control Others PON1 60 msec PON4 1380 msec PON2 PON5 PON6 PON7 PON8 PON2 300 600 900 1200 1500 1800 2100 2400 2700 4800 5100 POWER-ON timing waveform www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 25 PD-D6MK2-K 5 6 7 8 5 6 7 8 A B C D E F 2 On → Standby POFFG0 0 msec SYSPOW (pin 41) SYSMUTE (pin 38) DVD ON/OFF (pin 1) (DVD ON/OFF) XDVDRESET (pin 93) (XDVDRST) SYSTEM BUS (DVD) (pins 30,49,50,51,67) LCD setting (pins 26,27,28) LCD reset (pin 36) (XLCDRST) XDimmer (pin 70) (DIMMER) SYSTEM DVD control LCD control Others POFF1 30 msec POFF2 POFF3 POFF4 POFF5 POFF6 300 600 900 1200 1500 1800 2100 2400 2700 3000 3300 3600 4500 4800 POWER-OFF timing waveform www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 26 PD-D6MK2-K 1 2 3 4 A B C D E F 1 2 3 4 5.3 METHOD FOR DIAGNOSING DEGRADATION OF THE LDS ON THE PICKUP ASSY DVDM ASSY B SIDE A Front side R915 R914 R919 R906 R904 L751 R712 Q702 C761 R714 R713 C712 C133 C374 R214 R520 CN101 C215 C104 R207 C213 R134 R136 C161 R154 C143 C142 C141 C144 R135 C146 R132 R133 C152 R153 R152 CN901 C320 C347 R918 R913 R912 R911 R910 D CN102 C1002 Q801 R801 R736 R751 R711 R907 R750 D881 C801 D801 R737 R761 R731 C751 Q305 C371 R325 C309 CN103 C509 Q506 IC761 R762 C345 Q881 C373 C506 R507 C752 D751 R734 C713 IC501 R502 R313 R508 R901 R903 IC711 R931 R932 R933 R934 R935 R936 R937 R938 R939 R940 R373 R595 R594 IC101 CN953 C505 Q C508 Q R505 C502 R506 R504 C503 C145 R314 Q304 R315 L309 L308 R602 R601 R20 C101 R131 C131 C310 R151 R310 R321 Q308 R322 R509 C102 C132 C140 C151 C153 C103 Q307 C346 R318 R905 C206 C204 C203 C221 C202 C343 C344 R59 UP SIDE 1 24 BOTTOM SIDE 1 2 GNDD 3.3V 5V GNDM 6.5V BOTTOM SIDE BOTTOM SIDE 8V 3.3V 1 12 5 4 3 1 4 1 UP SIDE 1 4 5 7 1 9 65 64 25 1 C LD_CD LD_DVD 1 3 4 5 A D 8 5 4 1 E 1 22 17 1 3.3V LF R326 R326 R325 R322 R321 Case when this diagnosis is required : When playback of any disc, including a test disc (DVD: GGV1025, CD: STD-905), won't play or doesn't play How to diagnose In the case mentioned above, degradation of the laser diodes (LDs) mounted on the 05SD Pickup Assy is suspected. Measure the voltage between the two ends of one of the resistors mentioned below. If the measurements show degradation of an LD, replace the 05SD Pickup Assy. Measure the voltage between the both ends of R322 or R325 on the DVDM Assy. If the voltage is 0.4 V or higher, the 650-nm LD is degraded. No playback of a DVD (Test Mode), No playback of a SACD : Measure the voltage between the both ends of R321 or R326 on the DVDM Assy. If the voltage is 0.4 V or higher, the 780-nm LD is degraded. No playback of a CD : 05SD PICKUP ASSY CN101 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 27 PD-D6MK2-K 5 6 7 8 5 6 7 8 A B C D E F 6. SERVICE MODE 6.1 TEST MODE V+5U V+5U GNDD V+5U GNDD GNDD V+56ST V+5U GNDD GNDD UPPER SIDE UPPER SIDE ss'y 1 IROUT 2.SRIN 3.GNDD 4.GNDD 5.XDFCLK 6.XDFDT 7.XDFCS 8.XDFRST 9.XSYSMUTE 10.V+56ST 11.GNDD 12.V+58U 17.XDACRST 16.SYSPOW 15.AC 14.GNDD 13.GNDD 1,8,9.GNDD 2.DVDROWER 3.XREADY 4.XDVDRST 5.SDATA 6.SCLK 8.MDATA 7.ACK 11.SPDIF_RQ 12.VDET 13.TRIN 14.TRGAIN 15.TROUT 15 1 1 17 1 1.KEY1 2.VE+5 3.GNDU J2105 JP2102 JP2101 W169 C2210 W146 CN2106 CN2105 W191 W187 W186 W192 W166 W164 J2104 W167 W190 W185 W168 W165 W163 84 W188 W147 W161 W189 The Version Display Mode Functional Specification Mechanical control computer How to display the version of the mechanical control computer 1 Power-on in DVD mode With the AC power off, turn the AC power on by pulling up Pin 44 of IC2101 with 5 V (by short-circuiting JP2101). Note: When the unit is turned on in DVD mode, "-DVD-" is indicated on the LCD. 2 Displaying the version of the mechanical control computer Press the [ESC] then the [CHAP] key on the remote control unit for DVD Test mode to indicate the version of the mechanical control computer. Ex. (1) : This means that the part number is " AYW7153 ". (2) : This means that the version is " 1.06 ". 3 Canceling version display • Press the [ESC] key on the remote control unit. • Press the [POWER] button to turn the unit off. Note: Even if you intend to continuously use the unit after displaying the error rate, be sure to turn the power off then back on again. System control computer Displaying the version of the system control computer 1 Displaying the version of the system control computer With the unit on, press and hold the [d/g] key on the main unit for 8 seconds. The version (part number) of the system control computer will be displayed. Ex. 2 Canceling version display The version display will automatically disappear after a while. LCD ASSY D SIDE A JP2101 Short P D C 1 4 8 A 7 1 5 3 1 – 0 6 (1) (2) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 28 PD-D6MK2-K 1 2 3 4 A B C D E F 1 2 3 4 7. DISASSEMBLY 1 Remove the Bonnet by removing the ten screws. 2 Press the u STANDBY/ON button to turn on the power. 3 Press the h OPEN/CLOSE button to open the Tray. 4 Remove the Tray Panel. 5 Set the Test Disc. 6 Press the h OPEN/CLOSE button to close the Tray. (Test Disc is clamped.) 7 Press the u STANDBY/ON button to turn off the power. 8 Pull out the Power cord. Bonnet , Tray Panel 1 3 6 5 4 Tray Panel Screwdriver (small) Screwdriver (small) 05 LOADER ASSY Tray open Slit Test disc Tray How to open the Tray when the power cannot be on Insert a Screwdriver (small) into the Slit located at the bottom of the unit, and slide the projection of the Drive Cam in the 05 LOADER ASSY in the direction of the arrow, as indicated in the photo. If the Tray pops out a little, fully pull it out by hand. Diagnosis of PCB's Note 1: Do NOT look directly into the pickup lens. The laser beam may cause eye injury. Note 2: Even if the unit shown in the photos and illustrations in this manual may differ from your product, the procedures described here are common. Note 3: For performing the diagnosis the DVDM ASSY side B, the following jigs for service is required: • Cable for service (GGD1425) 7 2 Drive cam Projection Bottom view 1 1 1 1 1 1 1 1 1 1 6 3 Bonnet www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 29 PD-D6MK2-K 5 6 7 8 5 6 7 8 A B C D E F 3 2 2 2 2 1 1 Grounding wires 05 LOADER ASSY 05 LOADER ASSY Chassis 5 Grounding wires DVDM ASSY 2 1 Remove the two screws which secure two Grounding wires in place. 3 Slightly lift the 05 LOADER ASSY and displace it slightly backward. 4 Extend the two Grounding wires which were removed in procedures 1 and connect them to Chassis for grounding. 5 Raise the 05 LOADER ASSY. Top View Remove the four screws. 2 Diagnosis Note: Service cable 5P (GGD1425) is required when diagnosing the DVDM ASSY side B. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 30 PD-D6MK2-K 1 2 3 4 A B C D E F 1 2 3 4 Removing the Traverse Mechanism Assy-S and 05SD Pickup Assy-S 1 05 LOADER Assy 1 Short-circuit point by soldering. 2 Disconnect the three flexible cables. Note: After replacement, connect the flexible cable for pickup, then remove the soldered joint (open). 1 2 2 2 Rear view Bottom view DVDM Assy 05 LOADER Assy 05SD Pickup Assy-S 1 Remove the one screw. 2 Remove the bridge 04. 3 Pull out the tray, then remove it by pressing the hook. 1 2 3 Bridge 04 Front side Hook Tray Loading base Triangle Pin Drive cam -2 3 -2 Note when reinserting the tray When reinserting the tray, first align the triangle printed on the loading base and the pin of the drive cam, then insert the tray. Bridge 04, Tray 2 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 31 PD-D6MK2-K 5 6 7 8 5 6 7 8 A B C D E F 1 Traverse Mechanism Assy-S 3 Dislodge the two flexible cables from their factory placement. 2 Unhook the four hooks. 3 Remove the Traverse Mechanism Assy-S × 2 2 × 2 2 3 Traverse Mechanism Assy-S 1 1 Front Side Flexible cable for the spindle motor Flexible cable for the pickup Bottom view www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 32 PD-D6MK2-K 1 2 3 4 A B C D E F 1 2 3 4 3 2 2 Adjustment screw (skew screw VK1) Adjustment screw (skew screw VK1) Adjustment screw (skew screw VK1) Adjustment spring (skew spring VK1) 05SD Pickup Assy-S 4 Note: The 05SD Pickup Assy can be removed without removing the TTraverse Mechanism Assy-S.(shown as Step 3.) Note: Be careful not to lose the adjustment spring (skew spring VK1). Flexible cable for the pickup 05SD Pickup Assy-S 1 Front Side 1 Disconnect the flexible cable for the pickup. 2 Remove the two adjustment screws. 3 Remove the 05SD Pickup Assy. Bottom view 05SD Pickup Assy-S www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 33 PD-D6MK2-K 5 6 7 8 5 6 7 8 A B C D E F Note: The screw is secured with the silicone adhesive. Make sure to apply the silicone adhesive after reattaching the screw. 4 Remove the one screw. 4 Silicone Adhesive GEM1037 05SD Pickup Assy Joint VK1B Joint spring VK1 : Conductive surface Arrangement of the flexible cable for the spindle motor Front Side Hook Hook Bottom view www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 34 PD-D6MK2-K 1 2 3 4 A B C D E F 1 2 3 4 Front Side Note: Be sure to move the 05SD Pickup Assy to the innermost perimeter. : Conductive surface Arrangement of the flexible cable for the pickup 2 3 7 2 Attach the flexible cable for the pickup to the connector. 6 Fold the flexible cable along the hook. 7 Pass the flexible cable through the hook. 3 Pass the flexible cable through the hook. Bottom View Make sure that the cable is loose Backing Backing Reference line Hook Hook 4 5 5 Pass the flexible cable through the hook. 4 Hook the part folded in Step 1 to the hook. Hook Reference line 6 Hook 1 Fold the flexible cable for the pickup with the backing outward in the illustration below. 76 mm 1 Hook Hook www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 35 PD-D6MK2-K 5 6 7 8 5 6 7 8 A B C D E F How to adjust the AL Panel (when replacing the AL Panel L) AL Panel L AL Panel R Adjust this gap to zero (0). Set the top and bottom edges of the AL Panel L even with R and tighten the screws. Screw for securing the AL Panel L (Tighten the screw while adjusting the gap.) OK NG Rear face of the Panel ASSY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 36 PD-D6MK2-K 1 2 3 4 A B C D E F 1 2 3 4 8. EACH SETTING AND ADJUSTMENT 8.1 ADJUSTMENT ITEMS AND LOCATION 8.2 JIGS AND MEASURING INSTRUMENTS 1 2 Adjustment Items [Mechanism Part] [Electrical Part] Tangential and Radial Height Coarse Adjustment DVD (CD) Error Rate Adjustment Electrical adjustments are not required. Adjustment Points (Mechanism Part) Cautions: After adjustment, adjustment screw locks with the Screw tight. 1 2 Radial adjustment screw 1 2 Tangential adjustment screw Screwdriver (large) Precise screwdriver DVD test disc (GGV1025) Test mode remote control unit (GGF1381) Screw tight (GYL1001) Screwdriver (medium) Soldering iron www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 37 PD-D6MK2-K 5 6 7 8 5 6 7 8 A B C D E F 8.3 NECESSARY ADJUSTMENT POINTS ∗ After adjustment, screw locks with the Screw tight. 1, 2 Mechanical point Electric point Mechanical point Electric point Mechanical point Electric point LOAB and DVDM ASSYS Exchange Parts of Mechanism Exchange PCB Assy When Adjustment Points Exchange the 05SD Pickup Assy Exchange the Traverse Mechanism Assy-S Exchange PC Board ∗ After adjustment, screw locks with the Screw tight. 2 Mechanical point Electric point Exchange the Spindle Motor www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 38 PD-D6MK2-K 1 2 3 4 A B C D E F 1 2 3 4 8.4 TEST MODE POWER ON GGF1381 Test mode remote control unit GGF1381 Test mode remote control unit OPEN/CLOSE (Player) OPEN/CLOSE Press the play key ( ) of the normal remote control unit. (Player) TEST MODE: PLAY TEST MODE: OFF An error rate is displayed ESC ESC 5 DISC SET Notes: • The audio signal are outputted during the test mode. • The SKIP key and the SCAN key are effective during the test mode. Note: Even if you intend to continuously use the unit after displaying the error rate, be sure to turn the power off then back on How to display the error rate Power-on in DVD mode With the AC power off, turn the AC power on by pulling up Pin 44 of IC2101 with 5 V (by short-circuiting JP2101). (See next page. ) Note: When the unit is turned on in DVD mode, "-DVD-" is indicated on the LCD. POWER ON DVD disc POWER OFF 9 9 0 E – 6 The error rate is displayed as above. But this means " 9.90E – 6 ". www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 39 PD-D6MK2-K 5 6 7 8 5 6 7 8 A B C D E F V+5U V+5U GNDD V+5U GNDD GNDD V+56ST V+5U GNDD GNDD UPPER SIDE UPPER SIDE ss'y 1 IROUT 2.SRIN 3.GNDD 4.GNDD 5.XDFCLK 6.XDFDT 7.XDFCS 8.XDFRST 9.XSYSMUTE 10.V+56ST 11.GNDD 12.V+58U 17.XDACRST 16.SYSPOW 15.AC 14.GNDD 13.GNDD 1,8,9.GNDD 2.DVDROWER 3.XREADY 4.XDVDRST 5.SDATA 6.SCLK 8.MDATA 7.ACK 11.SPDIF_RQ 12.VDET 13.TRIN 14.TRGAIN 15.TROUT 15 1 1 17 1 1.KEY1 2.VE+5 3.GNDU J2105 JP2102 JP2101 W169 C2210 W146 CN2106 CN2105 W191 W187 W186 W192 W166 W164 J2104 W167 W190 W185 W168 W165 W163 84 W188 W147 W161 W189 JP2101 Short LCD ASSY Service Test mode connecting point D SIDE A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 40 PD-D6MK2-K 1 2 3 4 A B C D E F 1 2 3 4 8.5 MECHANISM ADJUSTMENT • Remove the 05SD Pickup Assy from the Traverse Mechanism Assy-S. • Remove the joint and the joint spring of the 05SD Pickup Assy. • Put the joint between the Tangential (or Radial) adjustment screw and the mechanism base and turn each screw to adjust the height. (Refer to "8.1 ADJUSTMENT ITEMS AND LOCATION".) START Tangential and Radial Height Coarse Adjustment 1 Note: Before removing the flexible cable for the pickup, soldering of the pickup circuit is necessary. For details, see "7 DISASSEMBLY". • Pass through the guide shaft to a new 05SD Pickup Assy. • Attach it to the Traverse Mechanism Assy-S. • Attach the Traverse Mechanism Assy-S to the 05 LOADER Assy. • Turn it over and attach the joint and the joint spring. • Arrange the flexible cables. (Refer to "7 DISASSEMBLY".) 7.5mm Joint Mechanism base 05SD Pickup Assy 05SD Pickup Assy Joint Joint Spring Guide Shaft www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 41 PD-D6MK2-K 5 6 7 8 5 6 7 8 A B C D E F Player • Play the DVD test disc at inner track (around #30000) →(Play title1) * At stop mode, press 1 , then ENTER key of the set remote control. Traverse Mechanism Assy-S Adjust the radial adjustment screw so that ERROR RATE becomes around "5E-4". Traverse Mechanism Assy-S Fasten the radial adjustment screw so that ERROR RATE becomes around "1E-3". START DVD Error Rate Adjustment 2 Service mode end Disc playback normally. • The measurement of block error rate If error rate is OK, locks a root of tangential and radial adjustment screws with the Screw tight. Screw tight: GYL1001 Turn the POWER OFF in case of NG once, and perform the adjustment once again. 5 ESC ESC → Service mode Service mode end ESC NG OK • Play the DVD test disc at inner track • Display ERROR RATE on the LCD display 5 ESC Notes: • Use disc: GGV1025 • Unfasten the radial adjustment screw by 90 degrees step till ERROR RATE becomes around "1E-3" again . • Record the number of rotation (N1). (memorizing how much the screw was rotated.) • Fasten the radial adjustment screw till the number of rotation becomes harf of N1. Traverse Mechanism Assy-S Fasten the tangential adjustment screw so that ERROR RATE becomes around "1E-3". • Unfasten the tangential screw by 90 degrees step till ERROR RATE becomes around "1E-3" again . • Record the number of rotation (N1). • Fasten the tangential adjustment screw till the number of rotation becomes harf of N1. In this check, the error rate that is less than "5E-5"is better. CHECK 5 ESC A B B C Best Radial point C Best tangential point 1E-3 5E-4 Rotation of Radial screw and Tangential screw Anticlock wise Clock wise Best point A A B C ERROR RATE 9 9 0 E – 6 The error rate is displayed as above. But this means " 9.90E – 6 ". • Play the DVD test disc at outer track (around #200000) → (Play title 22) * At stop mode, press 2 , 2 , then ENTER key of the set remote control. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 42 PD-D6MK2-K 1 2 3 4 A B C D E F 1 2 3 4 9. EXPLODED VIEWS AND PARTS LIST 9.1 PACKING SECTION NOTES: - Parts marked by “NSP” are generally unavailable because they are not in our Master Spare Parts List. - The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. - Screws adjacent to b mark on product are used for disassembly. - For the applying amount of lubricants or glue, follow the instructions in this manual. (In the case of no amount instructions, apply as you think it appropriate.) SYXJ5 type Only SYXJ5 type Only 6 18 16 17 19 11 13 12 14 15 3 1 23 22 2 CUXJ type Only CUXJ type Only CUXJ type Only 25 25 21 20 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 43 PD-D6MK2-K 5 6 7 8 5 6 7 8 A B C D E F (1) PACKING SECTION PARTS LIST (2) CONTRAST TABLE PD-D6MK2-K/SYXJ5 and PD-D6MK2-K/CUXJ are constructed the same except for the following : Mark No. Description Part No. NSP 1 Energy Star Label See Contrast table (2) 2 Label (WEEE) See Contrast table (2) > 3 Power Cable See Contrast table (2) 4 • • • • • 5 Packing Sheet RHC1023 NSP 6 Polyethylene Bag AHG7117 7 • • • • • 8 • • • • • 9 • • • • • 10 • • • • • NSP 11 Warranty Card See Contrast table (2) NSP 12 Warranty Card (EU) See Contrast table (2) NSP 13 Warranty Card See Contrast table (2) 14 Operating Instructions See Contrast table (2) (En / Fr / De / It / Nl / Es / Ru) 15 Operating Instructions See Contrast table (2) (En / Frca) 16 PAD L PHA1353 17 PAD R PHA1354 NSP 18 Spacer PHC1097 19 Packing Case See Contrast table (2) 20 Remote Control PWW1177 21 Battery Cover PZN1108 22 RCA/phono stereo audio cable XDE3047 23 SR control cable XDE3063 NSP 24 AAA/IEC R03 dry cell batteries VEM1049 25 Protection Sheet See Contrast table (2) Mark No. Description Part No. Mark No. Symbol and Description PD-D6MK2-K/SYXJ5 PD-D6MK2-K/CUXJ NSP 1 Energy Star Label Not used Not used 2 Label (WEEE) ARW7322 Not used > 3 Power Cable ADG7062 ADG7061 NSP 11 Warranty Card Not used ARY7007 NSP 12 Warranty Card (EU) ARY7128 Not used NSP 13 Warranty Card Not used PRY1007 14 Operating Instructions PRE1299 Not used (En / Fr / De / It / Nl / Es / Ru) 15 Operating Instructions Not used PRD1076 (En / Frca) 19 Packing Case PHG2462 PHG2464 25 Protection Sheet Not used PHF1002 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 44 PD-D6MK2-K 1 2 3 4 A B C D E F 1 2 3 4 9.2 EXTERIOR SECTION CONTACT SIDE NON-CONTACT SIDE CUXJ type Only A A B B E E F G F C C D D 41 46 46 44 3 31 47 8 17 29 46 46 46 21 40 40 44 12 13 1 9 48 43 43 42 43 30 26 22 4 46 10 11 7 20 32 25 20 18 22 32 43 43 27 45 40 39 37 40 39 42 23 24 44 44 38 43 5 14 39 6 2 19 36 15 41 28 40 43 35 J I F E B H C G H H I J I J K K L L M M Refer to "9.3 FRONT PANEL SECTION". Refer to "9.4 05 LOADER ASSY". 33 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 45 PD-D6MK2-K 5 6 7 8 5 6 7 8 A B C D E F (1) EXTERIOR SECTION PARTS LIST (2) CONTRAST TABLE PD-D6MK2-K/SYXJ5 and PD-D6MK2-K/CUXJ are constructed the same except for the following : Mark No. Description Part No. 1 DVDM ASSY AWM8184 2 MNSW ASSY AWX8794 3 PLED ASSY AWX8795 4 CONNECTOR ASSY AWX8796 5 PRIMARY ASSY AWX8799 6 TRANS ASSY AWX8802 7 AJKB ASSY PWM2367 NSP 8 Cord With Plug ADH7022 9 17P FFC PDD1230 10 29P FFC PDD1231 11 15P FFC PDD1232 12 Connector ASSY PG05KK-E07 NSP 13 Cord With Plug DE005VF0 > 14 Power Transfomer See Contrast table (2) > 15 Fuse 1 See Contrast table (2) 16 • • • • • NSP 17 05 LOADER ASSY VWT1230 18 Shield Cusion AEB7372 19 SR Sheet L PEB1319 20 SR Sheet S PEB1320 NSP 21 Flatcable Clamp AEC7376 22 PCB Spacer KGPS-12S AEC7517 23 Adapter05 L ANW7282 24 Adapter05 R ANW7283 25 Side Clamp DEC2007 NSP 26 Chassis PNA2602 27 Rear Panel See Contrast table (2) 28 Bonnet PNA2642 29 PCB Holder PNW2029 30 Insulater AMR7198 31 Power Button ASSY VXA2726 NSP 32 PCB Angle 989 VNE2409 NSP 33 Label VRW1629 34 • • • • • 35 Caution Label PRW1608 36 Fuse Label See Contrast table (2) NSP 37 Binder ZCA-BK1 38 Tray Panel See Contrast table (2) 39 Screw ABA1192 40 Screw ABA7017 41 Deco. Screw 4X10 ABA7136 42 Screw BBT30P080FNI 43 Screw BBZ30P080FCC 44 Screw BPZ30P080FTC 45 Screw CBZ30P080FCC 46 Screw IBZ30P060FCC 47 Screw VBA1094 48 Washer PEC1046 49 • • • • • Mark No. Description Part No. Mark No. Symbol and Description PD-D6MK2-K/SYXJ5 PD-D6MK2-K/CUXJ > 14 Power Transfomer PTT1383 PTT1384 > 15 Fuse (FU1) REK1134 REK1058 (500 mA/ 250 V) (1.25 A/250 V) 27 Rear Panel PNA2637 PNA2639 36 Fuse Label Not used XAX3161 38 Tray Panel PNW3067 PNW3060 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 46 PD-D6MK2-K 1 2 3 4 A B C D E F 1 2 3 4 9.3 FRONT PANEL SECTION CONTACT SIDE NON-CONTACT SIDE 1 4 3 2 18 18 17 10 17 9 8 5 16 15 11 6 D G Refer to "9.2 EXTERIOR SECTION. " A Refer to "9.2 EXTERIOR SECTION. " B Refer to "9.2 EXTERIOR SECTION. " C 12: 1/2 13 7 14 12: 2/2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 47 PD-D6MK2-K 5 6 7 8 5 6 7 8 A B C D E F (1) FRONT PANEL SECTION PARTS LIST (2) CONTRAST TABLE PD-D6MK2-K/SYXJ5 and PD-D6MK2-K/CUXJ are constructed the same except for the following : Mark No. Description Part No. 1 LCD ASSY AWX8790 2 KEY ASSY AWX8792 3 15P FFC PDD1229 4 17P FFC PDD1233 5 D.Window PAM1867 6 Front Panel L See Contrast table (2) 7 Front Panel R See Contrast table (2) 8 Himelon Sheet PEB1321 9 Earth Plate PNB1662 10 Earth Plate C PNB1664 11 Lens PNW3047 NSP 12 Panel ASSY See Contrast table (2) 13 Tray Panel See Contrast table (2) 14 Panel Stay PNW3057 15 Pioneer Badge See Contrast table (2) NSP 16 LED Lens VNK5073 17 Screw BBZ30P080FCC 18 Screw BPZ30P080FTC Mark No. Description Part No. Mark No. Symbol and Description PD-D6MK2-K/SYXJ5 PD-D6MK2-K/CUXJ 6 Front Panel L PAN1417 PAN1421 7 Front Panel R PAN1418 PAN1422 NSP 12 Panel ASSY PXA1656 PXA1653 13 Tray Panel PNW3067 PNW3060 15 Pioneer Badge BAM1004 PAN1376 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 48 PD-D6MK2-K 1 2 3 4 A B C D E F 1 2 3 4 9.4 05 LOADER ASSY 05 LOADER ASSY PARTS LIST A A To DVDM CN101 (Pickup) To DVDM CN104 (Stepping Motor) To DVDM CN102 (Spindle Motor) To DVDM CN103 2 Refer to "9.5 Traverse Mechanism Assy-S". 12 23 13 17 21 16 22 15 14 22 22 22 20 19 9 1 7 10 11 6 8 8 8 8 18 24 A Lubricating Oil GYA1001 Daifree GEM1036 Refer to " Application of Lubricant". Note : Lubricating Oil GYA1001 3 Pickup leneses Cleaning liquid GEM1004 Cleaning paper GED-008 Mark No. Description Part No. NSP 1 LOAB Assy VWG2346 2 Traverse Mechanism Assy-S DXX2581 3 Loading Motor Assy VXX2912 4 • • • • • 5 • • • • • 6 Flexible Cable (24P) ADD7546 7 Connector Assy 2P VKP2253 8 Floating Rubber VEB1351 9 Belt VEB1358 10 Stabilizer VNE2253 11 Loading Base VNL1917 12 Float Base 04 VNL1968 13 Drive Cam VNL1919 14 Gear Pulley VNL1921 15 Loading Gear VNL1922 16 Drive Gear VNL1923 17 SW Lever VNL1925 18 Clamper Plate 04 VNE2342 19 Bridge 04 VNE2343 20 Clamper 04 VNL1969 21 Screw JGZ17P028FTC 22 Screw VBA1094 23 Tray VNL1920 24 Clamp Magnet VMG1029 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 49 PD-D6MK2-K 5 6 7 8 5 6 7 8 A B C D E F Application of Lubricant Lubricating Oil GYA1001 Around the shaft No. 11 Loading Base No. 13 Drive Cam No. 13 Drive Cam No. 23 Tray No. 23 Tray Front View Rear View Daifree GEM1036 Inner side of a ditch Concave of unevenness Top View Bottom View Daifree GEM1036 Daifree GEM1036 Side of the rib Concave of unevenness Daifree GEM1036 Concave of unevenness Daifree GEM1036 Inner side of a ditch Lubricating Oil GYA1001 Inner side of a ditch Lubricating Oil GYA1001 Lubricating Oil GYA1001 Lubricating Oil GYA1001 Lubricating Oil GYA1001 Lubricating Oil GYA1001 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 50 PD-D6MK2-K 1 2 3 4 A B C D E F 1 2 3 4 9.5 TRAVERSE MECHANISM ASSY-S TRAVERSE MECHANISM ASSY-S PARTS LIST CONTACT SIDE NON-CONTACT SIDE To DVDM CN101 (Pickup Assy) To DVDM CN103 (Stepping Motor) To DVDM CN102 (Spindle Motor) Silicone Adhesive GEM1037 Lubricant Oil GYA1001 Refer to " Application of Lubricant". Note : Note : When part #2 is replaced, part #13 also need to be replaced at the same time. Note : Spindle screw (DBA1252) of No.13 is the screw which applied special bond. Therefore the adhesion becomes ineffective when takes it off once. Spindle screw is the part which cannot recycle. When part #2 is replaced, part #13 also need to be replaced at the same time. Mark No. Description Part No. > 1 05SD Pickup Assy-s OXX8019 2 Spindle Motor N200 DXM1197 NSP 3 Guide Shaft VK1 DLA1940 NSP 4 Sub Guide Shaft VK1 DLA1941 NSP 5 Joint VK1B DNK4272 NSP 6 Joint Spring VK1 DBK1235 7 Stepping Motor VK1 DXM1201 NSP 8 Mechanism Frame VK1 DNK4160 9 Precision Screw VK1 DBA1209 10 Skew Screw VK1 DBA1211 11 Skew Spring VK1 DBH1516 NSP 12 Stepping Screw DBA1205 13 Spindle Screw VK1(for Service) DBA1252 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 51 PD-D6MK2-K 5 6 7 8 5 6 7 8 A B C D E F PRECAUTIONS WHEN REPLACING THE STEPPING MOTOR (DXM1201) You must apply grease to the following locations when replacing the stepping motor. Follow the instructions below to apply grease to these locations. (1) Stepping motor feed screw Apply grease GYA1001 to the 3 locations shown in the picture Amount of grease: 3 ± 1 mg each for 3 locations After applying GYA1001, smooth the grease evenly over the stepping motor feed screw, as shown in the picture. Take care not to scratch the shaft. Spread the GYA1001 grease from screw hole A to B shown in the picture. Fibers or dirt in the grease have an adverse affect on operation and must be removed. (2) Guide bar Apply grease GYA1001 to the crosshatched area shown in the center of the picture Amount of grease: 2 ± 1 mg for 1 location A B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 52 PD-D6MK2-K 1 2 3 4 A B C D E F 1 2 3 4 10. SCHEMATIC DIAGRAM 10.1 DVDM ASSY (1/2) DVDM ASSY (AWM8184) TROUT TRIN LIMIT TRGAIN 2 3 1 8 6 7 4 5 47 46 48 45 44 42 41 43 12 9 11 10 14 13 15 16 17 40 38 39 37 36 34 35 33 32 5 3 4 1 2 4 3 2 1 1 3 2 6 8 7 5 4 12 11 10 8 9 44 42 43 38 39 37 40 41 6 7 4 5 2 3 1 24 22 23 21 20 18 19 16 17 15 14 5 2 1 5 6 7 4 3 2 8 1 10 9 11 12 14 15 16 13 18 21 20 19 17 22 B E C 33 35 34 36 31 32 30 29 26 27 24 25 28 23 13 12 11 10 9 8 4 3 6 7 5 4 2 3 1 R284 R285 IC203 C289 C296 R282 CN104 C153 C152 C151 C103 CN103 R132 R133 R131 R136 R134 C133 R135 C101 IC101 C140 C102 C141 C142 C143 CN102 R302 R318 Q102 R142 R219 R218 R208 Q101 R141 R152 R154 R151 R153 C104 C121 IC204 C290 C221 R216 C219 C217 C131 C132 R214 Q201 C144 C161 C209 C212 C145 C146 C210 C208 C211 R210 R211 R213 R215 R212 C218 C216 R206 R205 R202 R204 R201 C206 C214 C204 C205 C213 C203 C215 Q307 Q307 R325 R322 C309 L308 L309 Q308 C310 C345 C347 C344 C346 C343 C207 C201 C202 R371 R303 R372 R373 R374 Q305 R315 R313 R314 Q304 R375 C371 C373 C372 CN101 C374 R301 R321 R326 C320 R310 Q308 R200 R207 PWR# PCE# A16 A15 A14 A10 A13 A12 A9 A11 ALE IOCE# IOWR# UP3_1 INT0# URD# UWR# A17 AD6 AD7 A0 PWR# A20 A19 A18 AD5 AD3 AD2 AD4 TROUT TRIN LOAD+ LOAD- LOAD+ LOAD- F- F+ T+ T- ST2+ ST1- ST1+ ST2- HU- HU+ HV+ HV- W V HW+ HW- U HU+ HW+ HW- HV- HV+ HU- F+ F- T+ T- SDA SCL ST1- ST2- ST2+ ST1+ TRSO FOSO TROPEN FMSO PWMOUT1 A4 A7 A6 A18 A3 A19 A8 A2 A5 STBY ENDM TROUT TRIN FG FOSO TRSO TROPEN FMSO PWMOUT1 DMSO DMSO ENDM STBY FG U W V LDO1 F LDO2 E MDI1 LDO2 C RF B A D LDO1 MDI1 B A IOA RF C D E F IOA 10k GNDD *** S29AL016D70TFI010-K V+3D GNDD FLASH GNDD V+3D 1000p 1 *** S-24CS04AFJ GNDD AKM1291 0.01 0.01 0.01 YB YB YB GNDM RKN1045 GNDD *** 4.7 4.7 4.7 4.7 4.7 4.7 1 100/16 BD7995EFS 1 V+5S V+6R5 1 *** *** *** AKN7031 GNDD GNDD 0 100K DTC124EUA 2SA1576A(RS) 22k 10K 10K 0 120k V+3R3 V+3D 1.8 1.8 1 1 1 V+5M EEPROM 0.1 *** 0 1500p 0.1 1 0.1 100/16 VCH1252- 0 *** 2200p 1000p V1P4 0.1 2200p 2200p 2200p 56p V1P4 V20 2200p *** *** *** 10K 10K *** 0.1 180k 220k 22K 22k 56p 1.5K 47/16 0.1 0.1 0.1 0.1 47/16 47/16 HN1A01F(YGR) HN1A01F(YGR) 4.7 4.7 47/35 *** *** HN1A01F(YGR) 47/35 GNDD 0.1 1 1 1 1 1 220/4 0 *** *** *** *** UM5K1N GNDD 10K 100K 2SC4081(QR) 10K *** 0.1 VCH1260 0.1 V+5S CKS5045 VCH1260 GNDD GNDD V+5S 0 V20 4.7 4.7 HN1A01F(YGR) *** V+3R3 0 STBY V+1R8BE V+1R8 0 V+3RF V+3R3 A13 A15 A14 A8 A12 A10 A11 A9 ~BYTE~ A16 VSS D6 D7 D15 D14 for ICE MODE A19 ~WE~ NC ~RESET~ NC NC A18 RY/~BY~ A17 AYW7197 D12 D5 D13 D4 VCC D10 D11 D2 D3 D9 SW1 SW2 GNDD LOAD- LOAD+ (side type) ST1-(~A~) ST1+(A) ST2+(B) (side type) ST2-(~B~) FCO+ LDOP LDON FCO- AGND AVM TKO+ TKO- SERVO DRIVER V+5S U+ U- V+ V- VCC HU+ HU- HV+ HV- HB HW+ HW- W- W+ U HB W V (side type) INSIDE FOCS RTN TRKG RTN FOCS DRV TRKG DRV VSHF GNDD LD(650) LD(780) PD VR780 GNDD SDA SCL WP NC NC GND VCC NC 1.8v 3.3v TKIN FCIN LDIN DVCC SLO1P SLO1N SLGND SLVDD SLO2N SLO2P SLIN2 SLIN1 SLRNF2 SLRNF1 U SPGND1 V SPVM1 W SPGND2 SPVM1 SPRNF FG SPIN CTL1 CTL2 DGND VC (1/2) (2/2) 6 3 2 4 1 5 VCH1260 (1/2) 6 3 2 4 1 5 VCH1260 3.3v VR650 VRCOM A B SW RF C D VCC E F VREF (47/35) GNDD (side type) (47/35) (2/2) PICKUP ASSY SPINDLE MOTOR B 1/2 B 1/2 CN601 A 2/2 B 2/2 B STEPPING MOTOR 1 4 : AUDIO DATA SIGNAL ROUTE (AD) : DIGITAL SIGNAL ROUTE (D) : FOCUS SERVO LOOP LINE (F) (RF) : RF SIGNAL ROUTE : TRACKING SERVO LOOP LINE (T) : STEPPING SERVO LOOP LINE (S) (S) (S) (S) (S) (T) (T) (F) (F) (RF) (RF) (F) (T) (F) (F) (S) (S) (S) (S) (F) (T) (T) (T) 150/4(VCH1234) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 53 PD-D6MK2-K 5 6 7 8 5 6 7 8 A B C D E F LIMIT SYS VIDEO AUDIO 20 21 19 18 22 24 23 28 31 29 30 26 25 27 3 2 4 1 63 62 64 66 65 68 67 72 73 70 69 71 74 77 75 76 80 78 81 79 86 83 82 84 85 87 90 89 88 61 60 59 56 57 58 55 53 54 92 93 91 94 99 95 98 96 97 101 100 103 102 106 105 107 104 112 109 111 110 108 116 115 113 114 118 117 120 119 125 121 124 122 123 128 126 127 131 130 129 140 132 133 137 138 139 136 134 135 50 51 52 48 49 47 46 45 44 41 43 42 39 40 38 36 37 35 33 32 34 31 29 30 28 27 26 149 148 145 144 147 146 142 143 141 151 150 153 152 154 155 156 157 158 167 164 165 159 160 161 162 163 166 23 25 24 22 21 20 17 18 19 13 14 15 16 10 11 12 7 8 9 6 5 4 3 2 1 256 253 254 255 249 248 252 250 251 246 244 245 247 240 243 242 241 238 236 239 235 237 231 232 233 234 172 176 174 170 175 168 171 169 173 184 181 185 182 183 180 177 178 179 186 228 230 229 227 223 222 225 224 226 219 220 218 221 216 217 214 215 209 211 210 213 212 206 205 208 207 187 188 189 191 190 192 201 204 203 202 200 197 198 199 196 195 193 194 54 1 53 52 51 50 49 48 47 46 44 45 4 2 3 7 5 6 10 11 9 8 41 42 43 38 39 40 35 36 37 14 13 12 16 15 17 18 19 20 33 34 32 31 30 29 28 23 22 21 26 25 24 27 1 2 4 3 R908 CN204 R909 R232 R233 R224 C220 R217 C222 C223 R237 R221 R261 R258 R260 R259 R234 R223 C224 R235 C225 C227 R220 C226 R236 R239 C228 C230 IC201 C269 C268 C261 R602 R604 R603 R601 R225 C286 C231 R226 R227 C285 C287 C232 C233 R228 R229 C284 IC202 C288 C234 R266 C235 R267 R262 C281 C282 R281 C283 R263 R264 R265 C236 C244 R280 R279 C242 C243 C237 C273 C271 C270 C266 C272 R256 C267 C259 C258 C257 C260 C256 R254 C265 R255 C264 C263 C254 C255 C262 R271 R251 L201 C298 C299 X202 C251 X201 R273 C253 C241 R257 R248 R249 R247 R238 C240 C248 C247 C246 C239 C245 C250 R246 R272 R245 R252 R253 R244 R241 R243 R242 R270 R231 R268 R269 R230 C252 R240 R209 A8 A7 A6 A5 A4 A2 A3 XREADY AD0 PRD# IOWR# AD1 A1 PCE# A16 PWR# A14 A15 A11 A12 A13 A1 A20 PCE# A10 A9 PRD# IOCE# AD0 AD1 AD4 AD2 AD3 AD5 AD6 ALE AD7 SCLK ACK MDATA SDATA XDVDRST A17 A0 UWR# URD# SCL SDA UP3_1 INT0# TRKUP TXD RXD DQ6 DQM0 DQ7 DQ5 DQ4 DQ3 DQ2 DQ0 DQ1 DQ14 DQ15 DQ11 DQ13 DQ12 DQ9 DQ10 DQ8 DQM1 DRAS# DCAS# DWE# DBA0 DCS# DQ14 DQ15 MA10 DBA1 DQ13 DQ12 MA1 MA0 DQ10 DQ11 DQ6 DQ7 DQ5 DQ4 DQ2 DQ3 MA3 MA2 DQ8 DQ9 DQM1 MA11 SDCKE SDCLK DQ1 DQ0 DQM0 DWE# DRAS# DCAS# DCS# MA9 MA8 MA11 MA9 MA8 MA6 MA7 MA5 MA6 MA7 MA5 MA4 MA4 DBA1 MA10 DBA0 MA1 MA0 MA2 MA3 I/XP LETTER SQUEEZE VSEL2 VSEL1 ASPDIF ASDAT1 ASDAT2 ASDAT0 ACLK ALRCK ABCK DAC_XCS1 XAMUTE DAC_SCK DAC_SO DAC_XCS0 B_CB R_CR G_CY CVBS S_C S_Y RF IOA 3.3k GNDD *** 6.8k V+3DR 0 0 33 0.1 0 0.1 33 33 33 33 33 33 33 33 100p(CH) 4.7k 220p *** 0.01 *** *** 0.01 1000p MT1389EE/B2-L 0.033 GNDD GNDD GNDD *** *** *** V+5V *** RAB4C330J 33*4 0.1 GNDD 0.1 33 33 0.1 0.1 0.1 *** 33 0.1 64M SD-RAM K4S641632K-UC75 0.1 0.1 33 0 *** 220/4 0 1 *** *** *** V+3D V+3DR 0.1 *** 560F *** 1 220/4 0.1 STBY 0.1 0.1 15k 1000p 0.1 1 0.047 0.047 0.1 0.1 750K 100K 22p V1P4 GNDD 1 10/16 0.47 390p 0.1 0.1 100 *** *** V+3R3 1 *** GNDD 0.1 0 10K 10K 10k *** 0.1 *** 0.1 0.1 0.1 *** 33 33 33 *** *** 33 33 10 33 100 100 100 1k 100 *** *** 0.01 0 V+3R3 V+3V A4 A5 A7 A6 A3 A1 A2 D0 D8 D1 VSS ~OE~ A0 ~CE~ DOWNLOAD CH:CCSRCH~ OTHERS:CKSRYB~ CAPACITOR (F):RS1/16S****F OTHERS:RS1/16S***J CKSQ**~ :1608 Size :2125 Size :1608 Size :2125 Size DIODE Chip Size RESISTOR 1SS355 RS1/10S***J DVSS APLLVSS APLLCAP HIGHA6(PU) HIGHA4(PU) HIGHA3(PU) HIGHA5(PU) DVDD3 HIGHA1(PU) HIGHA2(PU) IOA20 XIOCS (PU) AD0 AD1 DVDD3 XIOOE IOCA1 (PU) DVSS (18) AD4 AD3 AD2 IOA2/V_ADIN0 AD5 ALE (PU) AD6 IOA19 (PU) IOA18 (PU) HIGHA0(PU) IOA7 (PU) IOA5 (PU) IOA6 (PU) IOA4 (PU) IOA3 (PU) IOA2 (PU) 65:APLLVSSVDD3 66:XIOWR 67:A16 68:HIGHA7(PU) 3.3v 1.8v 1.8v 3.3v AD7 A17 XUWR (PU) DVSS (3) IOA0 (PU) UP1_3 (PU) UP1_2 (PU) DVDD18 XURD (PU) UP1_4 (PU) UP1_7 (PU) UP1_5 (PU) UP1_6 (PU) UP3_4 (PU) UP3_5 (PU) UP3_1 (PU) UP3_0 (PU) DVDD3 IR ICE (PD) XINT0 (PU) XPRST (PU) DVSS (18) DQS0 DQM0 RD7 RD6 DVSS (3) RD3 RD4 RD5 DVDD18 RD0 RD1 RD2 RD11 RD13 RD12 126:RD15 127:DVDD3 128:RD14 DQM1 RD10 (3)DVSS RD9 RD8 XRWE DQS1 XCAS XRAS TCK/V_ADIN6 (JTAG) DVDD18 TDO/V_ADIN7 (JTAG) FG/V_ADIN8 (PU) TMS/V_ADIN5 (JTAG) TDI/V_ADIN4 (JTAG) USB_VDD3 USBM USBP TRO FOO USB_VSS PWMOUT1/V_ADIN9 TROPENPWM FMO OP_INP OP_INN DMO TEO OP_OUT TEZISILV FEO VREFO V2O V2REFO RFLV/RFON CSO/RFOP SGND XRCS DVDD3 (18) DVSS BA0 BA1 (3) DVSS RA10 RA0 RA1 RA2 DVDD18 RVREFN_ADIN3 RCLKB DVDD3 RA3 RA11 RCLK CKE RA9 RA8 DVDD3 (PU)RD3/ASDATA5 RA4 (18) DVSS (3) DVSS RA7 RA6 RA5 SVDD3 LDO1 LDO2 MIDI2 MIDI1 TPI CDFON CDFOP TNI SD SC SB MD MC SA MB MA DVDRFIN IREF:255 RFGC:254 AVDD3:256 OSP:252 OSN:253 DVDRFIP DVDD DVDC AGND DVDA DVDB CEQP RFGND CEQN CRTPLP RFRPDC RFVDD3 RFRPAC HRFZC S_VREFP S_VREFN S_VCM ADCVDD3 ADCVSS LPFON LPFIP LPFOP LPFIN PLLVDD3 JITFN IDACEXLP PLLVSS (PU) RD30 RD29 (INPUT) RD24 RD25 DVDD18 RD27 RD28 RD26 (3) DVSS DVDD3 (INPUTPU) RD21 RD22 (INPUTPU) RD20 (INPUTPU) RD19 (INPUTPU) RD18 DACVDDC:189 (INPUTPU) DQM3 (INPUT PU) DQM2 RD23 VREF:190 (3) DVSS (PD) ASDATA4 (PD) ASDATA3 (PD) ASDATA2 (PD) ASDATA1 JITFO XTALI RFGND18 XTALO RFVDD18 SPDIF MC_DATA DVDD18 (PD) ALRCK (18) DVSS (PD) ASDATA0 SPBCK/ADATA5 VSYN/V_ADIN1 HSYN/V_ADIN2 YUV7/ASDATA5 ACLK ABCK SPDATA SPLRCK DVDD3 SPMCLK YUV0/CIN:192 (INPUTPU) RD16 (INPUTPU) RD17 FS:191 YUV3/CVBS DVDD3 YUV4/G DACVSSA YUV5/B YUV6/R DACVDDA YUV2/C DACVSSB DACVDDB YUV1/Y DACVSSC STBY VSS VCC VSSQ DQ14 DQ15 DQ12 DQ13 VCCQ DQ10 VSSQ DQ11 VCCQ DQ1 DQ0 DQ3 DQ2 VSSQ VCCQ DQ4 DQ5 DQ9 DQ8 VCCQ VSS NC UDQM CKE NC CLK DQ6 DQ7 VSSQ VCC LDQM WE CS RAS CAS 3.3v 1.8v A11 A9 A8 A6 A7 A5 VSS A4 A10/AP BA0 BA1 A0 A1 A2 VCC A3 1.8v 3.3v (27MHz) (R203) CONT GND OUT VDD 1.8v DSD_Rch control DAC 3.3v 1.8v 3.3v to VIDEO PART (Page 2/2) to AUDIO PART (Page 2/2) B 1/2 2/2 B 2/2 B 3 2 5 (D) (AD) (D) (AD) Therefore, when replacing, be sure to use parts of identical designation. When ordering service parts, be sure to refer to "EXPLODED VIEWS and PARTS LIST" or "PCB PARTS LIST". The > mark found on some component parts indicates the importance of the safety factor of the part. : The power supply is shown with the marked box. 1 1000p(CH) ASS7103 QTL1013 *** 1000p(CH) 1000p(CH) 1000p(CH) 0.01 1000p(CH) 0.01 680p www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 54 PD-D6MK2-K 1 2 3 4 A B C D E F 1 2 3 4 10.2 DVDM ASSY (2/2) 17 16 14 15 12 13 10 11 9 8 7 6 5 4 3 2 1 8 6 7 4 5 3 2 1 13 11 12 4 2 5 3 10 9 11 14 13 12 16 15 B E C 10 5 6 9 7 8 3 2 1 4 ASDAT2 DAC_XCS1 DAC_SO DAC_SCK DAC_XCS0 ASDAT1 ALRCK ASDAT0 ALRCK ASDAT0 ACLK DAC_SCK DAC_SO DAC_XCS0 XAMUTE DVDMUTE ASDAT1 ASDAT0 ASDAT2 ALRCK ASPDIF ABCK VDET R940 R939 R938 R936 R937 R935 R934 R933 R932 CN953 R931 R590 R500 C501 C500 C502 C504 C503 R501 C506 C505 C507 R502 R503 R504 R505 IC501 R591 C592 C591 R592 C512 R512 R511 R514 C514 C513 Q502 R516 C508 C509 C511 R513 Q503 R519 R515 Q501 R509 R508 R506 R507 Q504 R518 Q505 R517 Q506 R520 IC591 R595 CN951 R594 D862 D861 R821 D852 R824 R822 R823 Q821 D821 Q801 D851 R853 R852 Q851 D881 R883 R801 R882 Q881 R851 R881 C801 D801 GNDD 0 CTF1389 CTF1389 CTF1389 CTF1389 0 0 0 0 CTF1384 CKS3885 GNDA 0.1 *** 100/16 0.1 0 *** 1 0 V+5V *** 10/16 0.1 GNDD V+3R3 0 100 100 100 PCM1753DBQ GNDD 0 GNDD 10 10/16 22K 22K 470 1000p 1000p CH 2SD2114K(VW) 2.2K 2.2K 10/16 10/16 0.1 470 CH DTC114YUA GNDD GNDA 2SD2114K(VW) 10K 100 100 22 100 DTC114YUA 1K 2SA1576A(RS) V+5V GNDD DTC114YUA 1K 1K V+5V V+3R3 TC7SHU04FU 1 0 VKN1417 0 GNDD 10k 10K 47K 15K 2SA1576A(RS) GNDD DTC124EUA V+6R5 V+5V V+12 GNDD 10K 2SA1576A(RS) 10K 47K GNDD *** 2SA1576A(RS) 470 10K 47K V+3R3 V+5V V+12 V+12 VPR+8 UDZS4.7B 0.1 VIDEO ABCK1 ACLK0 ABCK0 ABCK1 FR FL ACLK0 ACLK0 SYS ABCK1 ACLK0 ABCK0 AUDIO ***:parts not mounted OTHERS:CKSRYB~ CH:CCSRCH~ :2125Size (F):RS1/16S****F OTHERS:RS1/16S***J :1608 Size CKSQ**~ :1608 Size CAPACITOR Chip Size RESISTOR RS1/10S***J Size 1SS355 DIODE from PAGE 1/2 LRCLK DATA0 GNDD GNDD BCLK XCS1 GNDD GNDD DATA2 XCS0 DATA1 GNDD external DAC control (L939) SCL SO (L938) (L937) (L936) DSD_Rch GNDD MCLK GNDD (L931) VOUTR VOUTL VCC VCOM ZEROR/ZEROA GNDA STBY PCMLRCK PCMDATA GNDD VDD ZEROL/NA PCMBCK PCMMCK DAC AUDIO (FL,FR) GNDD BCLK GNDD SCK CS SI STBY to PAGE 1/2 DATA1 GNDD DATA0 GNDD GNDD DATA2 STBY PCM OUT GNDD LRCLK GNDD MCLK STBY DAC 2ch STBY from PAGE 1/2 VOLTAGE DETECT DVDM ASSY (AWM8184) B 2/2 B 2/2 1/2 B 1/2 B 1/2 B (5V_OVD) 5V_OVER_VOLTAGE_DETECT on the VDET line. pull-down(470Ω) Need to add external *[3.3V u-com] ABNORMAL >4.25V <2.5V >2.45V <0.85V voltage NORMAL 3.3V 1.65V * 5V supply u-com 3.3V CN1402 C (D) (D) (D) (AD) 0.01 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 55 PD-D6MK2-K 5 6 7 8 5 6 7 8 A B C D E F 5 8 7 9 10 6 3 5 4 1 2 13 12 11 14 15 16 1 3 14 13 12 11 10 7 8 9 15 16 19 18 17 21 20 22 1 6 4 5 1 2 3 4 3 2 24 23 25 26 27 28 2 4 5 4 2 3 5 6 4 1 7 5 3 4 2 1 27 25 26 24 23 21 22 19 20 17 18 15 16 13 14 12 11 9 10 7 8 6 5 3 4 2 2 1 1 1 2 3 4 2 3 6 5 7 8 9 10 1 12 11 13 14 15 16 3 4 5 6 2 1 8 7 1 3 2 4 5 3 5 3 4 1 2 4 2 1 6 5 17 18 19 20 22 21 23 24 25 26 27 28 29 VSEL1 R_CR B_CB G_CY S_Y I/XP CVBS S_C LETTER SQUEEZE VSEL1 VSEL2 SQUEEZE I/XP TRKUP DVDMUTE VDET MDATA ACK SCLK SDATA XDVDRST XREADY R436 R416 R1003 R1002 R1001 C1001 R435 R415 R434 R414 R433 R413 C466 C455 C465 C464 C454 C453 IC451 C452 C451 Q401 R401 R405 R432 R412 R411 R431 IC205 C416 C415 C414 R404 C405 C404 C412 C413 C411 CN904 C403 IC401 C402 C401 R250 C249 C754 L751 R406 C752 C753 C751 C761 C763 R762 R750 IC751 R751 D751 R764 R763 IC761 R765 R522 CN905 R476 R521 C476 C475 R426 R474 R475 C474 C426 C425 R424 R423 R425 C424 C423 C422 C406 R422 R402 R421 R403 R924 R923 C421 Q481 R921 R922 R481 CN902 CN952 C762 R914 R912 R913 R920 R915 R761 R910 R911 L901 R918 R907 R905 R903 R917 R916 R919 R904 R906 R713 R712 C712 C714 C713 R714 C711 IC711 R739 R736 R734 C740 C739 R737 C738 D731 R740 C736 D733 R733 R732 C735 C734 C733 C732 R738 C737 R735 R711 IC731 D732 L732 L731 Q731 R702 C702 C701 Q732 Q701 C731 R731 R902 R901 Q702 C1002 C1003 R701 CN901 GNDD *** *** GNDD2 GNDD *** *** *** GNDA GNDA GNDD GNDD *** *** GNDD *** *** GNDD *** *** GNDD 0.1 0.1 GNDD 0.1 0.1 DTC114YUA GNDD 100/16 *** MM1566AJ 0.1 100/16 10K V+5V GNDD *** 75 GNDD *** *** TC7SH08FUS1 GNDD 0.1 V+5V 1 0.1 *2 *2 0.1 100/16 1 1 0.1 *** *** MM1623BF 0.1 100/16 V+5V GNDD 0 0.1 V+3D V+5S CTF1395 75 GNDD 470P 2.2 *** 1 100/16 *** *** 0 MM1565AF V+5M V+5V GNDD 1SR154-400 0 STBY 0 *** V+6R5 *** *** 0 0 *** 0 0 *** GNDD *** 0 0 0 *** *** *** 0 0 0 *** *** *** 0.1 0 10K 0 0 0 0 *** DTC114YUA GNDD 0 0 1K GNDD VKN1319 AKM1288 V+5V *** GNDM 6.8k 10k 3.3k 0 0 *** 220 220 CTF1334 *** 470 3.3k 3.3k 0 22k *** 6.8k 22K 6.8k *** *** GNDD 470P 2.2 *** MM1661JH V+1R8 18K(F) 0 47k 27K(F) DCH1165 0.1 10 22 RSX201L-30 DCH1165 10 DCH1165 100/16 10 DCH1165 10 22 *** 100/16 1 10 15K(F) 120P 2.7K *** R1224N102H 22 ATH7011 DTL1099 *** GNDD GNDD V+3R3 1 *** RSQ035P03 2SA1576A(RS) V+12 *** *** 0 GNDM 10K DTC124EUA *** *** 47K VPR+8 VDVD+12 VKN1321 FR FL TROUT TRIN TRGAIN (C1011) GNDA STBY BIAS GND1 B in GND2 B out YSAG MUTE1 G in MODE1 R in Vcc1 G out MODE2 VSAG R out Vcc2 EXTRA VIDEO OUT MUTE2 Cr in Cb in CLP CY in BIAS GND1 I/P Cr out GND2 Cb out GND2 GND2 CY out GND2 Y out V in Y in YC MIX Vcc1 MUTE1 C in S2 S1 V out Vcc2 DC out C out 1K R405 R404 PROGRESSIVE except STBY *2 1K VSEL2 V+RGB S PROGRESSIVE STBY VSEL1 RGB V NC GND Cn Sub Cont Vo Vin DAC 2ch GNDA FL GNDA FR FR GNDA FL GNDA GNDD B GNDD GNDD G GNDD R Cr/R GNDD Cb/B GNDD GNDD CY/G SY GNDD V GNDD SC ASPECT VSEL1 VSEL2 STBY SQUEEZE P/XI PROGRESSIVE CVBS TROUT TRGAIN TRIN SPDIF_RQ TRKUP DVDMUTE VDET GNDD GNDD ACK MDATA SDATA SCLK XREADY XDVDRST Cn GND NC Cont NC Vo NC Vin VOUT EXT CE GND VIN DC-DC CONVERTER GNDD DVD POWER DOUT GNDD GNDD GNDD GNDM GNDM 6R5V 6R5V VPR+8 VPR+8 VDVD+12 B 2/2 1/2 B CN2701 H 7.8V 6.5V 5.0V : AUDIO DATA SIGNAL ROUTE : DIGITAL SIGNAL ROUTE (AD) (D) (D) (D) 220/4 *** www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 56 PD-D6MK2-K 1 2 3 4 A B C D E F 1 2 3 4 10.3 AJKB ASSY (1/2) C 1/2 (AD) (AD) (AD) (AD) (AD) (AD) CN2105 D J11 I C 1/2 CN953 B 2/2 :PCM (LEGATO : OFF) 5 6 7 :PCM (LEGATO : ON) :DSD 3 4 :LEGATO:ON :LEGATO:OFF 2 1 7 7 6 6 5 5 7 6 5 7 6 5 1 3 4 4 3 4 3 1 2 1 2 2/2 C AJKB ASSY (PWM2367) 1k www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 57 PD-D6MK2-K 5 6 7 8 5 6 7 8 A B C D E F C 1/2 1500p : AUDIO SIGNAL ROUTE(Lch) (L) : DIGITAL SIGNAL ROUTE (D) : AUDIO DATA SIGNAL ROUTE (AD) (AD) (AD) (D) (D) (L) (AD) (L) (L) (D) 2/2 C 3 4 4 3 4 3 9 8 8 10 10 PKB1044 PKB1043 PKB1045 1.1k (D) 1.1k (D) 1.1k (D) 1.1k (D) 1500p 1.8k 1.8k 100 100 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 58 PD-D6MK2-K 1 2 3 4 A B C D E F 1 2 3 4 10.4 AJKB ASSY (2/2) C 2/2 C 2/2 +17.2V -17.2V +10.8V -10.8V +5V +8.3V +3.3V +5.8V +6.5V +11V C 2/2 AJKB ASSY (PWM2367) (D) : DIGITAL SIGNAL ROUTE (D) CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 491003.HXR FOR IC1851 MFD, BY LITTELFUSE INC. CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 491004.HXR FOR IC1852 MFD, BY LITTELFUSE INC. > > J52 J CN2702 H 1/2 C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 59 PD-D6MK2-K 5 6 7 8 5 6 7 8 A B C D E F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 60 PD-D6MK2-K 1 2 3 4 A B C D E F 1 2 3 4 10.5 LCD, PLED, MNSW, KEY, CONNECTOR, PRIMARY and TRANS ASSYS F E D +5.6V +5.2V +5.0V +5.8V 6 1 2 1 2 3 4 5 5 4 3 6 D LCD ASSY (PWX1670) F MNSW ASSY (PWX1668) E PLED ASSY (PWX1671) CN2106 D CN2501 F CN2703 H CN1502 C 1/2 J13 I NOTE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 61 PD-D6MK2-K 5 6 7 8 5 6 7 8 A B C D E F J I H G D +12.4V +12.8V +5.6V G KEY ASSY (PWX1687) J TRANS ASSY (AWX8802) I PRIMARY ASSY (PD-D6MK2-K/SYXJ5: PWX1673) (PD-D6MK2-K/CUXJ: PWX1675) H CONNECTOR ASSY (AWX8796) CN1851 C 2/2 CN1801 C 2/2 CN1503 C 1/2 CN901 B 2/2 CN2106 D CN2501 F NOTE FOR FUSE REPLACEMENT FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE WITH SAME TYPE AND RATINGS OF FUSE. CAUTION - Switches S2301 : OPEN/CLOSE S2302 : PLAY/STOP (D) : DIGITAL SIGNAL ROUTE (D) ATT7078: SYXJ5 ATT7079: CUXJ PTT1383: SYXJ5 PTT1384: CUXJ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 62 PD-D6MK2-K 1 2 3 4 A B C D E F 1 2 3 4 10.6 WAVEFORMS Note : The encircled numbers denote measuring point in the schematic diagram. Measurement condition ; No. 1 to 10 : reference A1 (DVD), T2-chp 19, Color-bar No. 11 to 14 : reference A1 (DVD), T1 DVDM ASSY B 2 IC201-pin 39 [TROPENPWM] V: 1V/div. H: 5μsec/div. 3 IC201-pin37 [DMSO] V: 1V/div. H: 10μsec/div. V: 1V/div. H: 10μsec/div. V: 1V/div. H: 2sec/div. 1 IC201-pin47 [FG] V: 1V/div. H: 2msec/div. 4 CN102-pin 2, 3, 4 (IC101-pin 30, 33, 35) [SPINDLE (WVU)] V: 2V/div. H: 2msec/div. GND GND GND GND GND GND GND GND PLAY Tray : opening Pless OPEN key Pless PLAY key Braking a turn of disc [Tray stops] [TRAY OPEN] [DVD PLAY] [DMSO] [Tray is opening] [Tray is closing] 5 IC201-pin225 [ASPDIF AUDIO DIGITAL SIGNAL] V: 2V/div. H: 500nsec/div. GND www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 63 PD-D6MK2-K 5 6 7 8 5 6 7 8 A B C D E F 1 Ch1: CN1501-pin 4 [LRCK] Ch2: CN1501-pin 10 [BCK] Ch3: CN1501-pin 6 [DATA0] Ch1: CN1501-pin 10 [BCK] Ch2: CN1501-pin 6 [DATA0] Ch3: CN1501-pin 8 [DATA1] Ch1: IC1501-pin 22 [LRCK] Ch2: IC1501-pin 21 [BCK] Ch3: IC1501-pin 24 [DATA] Ch1: IC1501-pin 22 [LRCK] Ch2: IC1501-pin 21 [BCK] Ch3: IC1501-pin 24 [DATA] Ch4: CN1501-pin 2 [MCLK] Ch1: IC1401-pin 4 [LRCK] JA1101 [Lch Out] Ch3: IC1401-pin 6 [BCK] Ch2: IC1401-pin 5 [DATA] Ch4: IC1401-pin 7 [MCLK] Ch1: IC1401-pin 4 [LRCK] Ch3: IC1401-pin 6 [BCK] Ch1: L1701-pin 1 [COAXIAL Out] Ch2: JA1702-pin 3 [OPTICAL Out] Ch2: IC1401-pin 5 [DATA] Ch1: IC1401-pin 4 [GND] Ch3: IC1401-pin 6 [GND] Ch1: IC1101-pin 1 [LOUT1] Ch3: IC1101-pin 7 [LOUT2] Ch4: IC1401-pin 7 [MCLK] Ch2: IC1401-pin 5 [DSD_L] Ch4: IC1401-pin 7 [BCK] V: 1V/div. H: 2us/div. V: 1V/div. H: 2us/div. V: 1V/div. H: 2us/div. V: 1V/div. H: 500ns/div. V: 1V/div. H: 500ns/div. V: 10V/div. H: 500us/div. V: Ch 1 0.5V/div. Ch 2 1V/div. H: 200ns/div. V: 1V/div. H: 500ns/div. V: 1V/div. H: 500us/div. V: 1V/div. H: 500ns/div. 5 9 6 10 GND GND GND 2 3 4 7 8 [LEGATO:OFF] [LEGATO:ON] [PCM] LEGATO: ON [PCM] LEGATO: OFF [DSD] GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND Ch1 Ch2 Ch3 Ch1 Ch2 Ch3 Ch1 Ch2 Ch3 Ch1 Ch2 Ch3 Ch4 Ch1 Ch2 Ch3 Ch4 Ch1 Ch2 Ch1 Ch2 Ch3 Ch4 Ch1 Ch2 Ch1 Ch2 Ch3 Ch4 AJKB ASSY C Measurement condition ; No.1, No.3-No.6, No.8-No.10 : 1kHz, 0 dB(L/R), PCM No.2, No.7-No.9 : 1kHz, 0 dB(L/R), DSD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 64 PD-D6MK2-K 1 2 3 4 A B C D E F 1 2 3 4 1 2 GND GND [MD] 3 [ANY FUNCTION] 4 5 [DVD] [DVD] [MD] GND GND GND GND GND GND GND GND GND GND Ch1: IC2101-pin 25 [XDFCLK] Ch2: IC2101-pin 23 [XDFDT] Ch1: IC2101-pin 28 [LCDCLK] Ch2: IC2101-pin 26 [LCDDATA] Ch1: IC2101-pin 51 [SCLK] Ch2: IC2101-pin 49 [SDATA] Ch1: IC2101-pin 51 [SCLK] Ch2: IC2101-pin 50 [MDATA] Ch1: IC2101-pin 25 [XDFCLK] Ch2: IC2101-pin 24 [XDFCS] V: 2V/div. H: 20us/div. 6 Ch1: 2401-pin 1 [2401Out] (IR Receiver Out) Ch2: IC2101-pin 7 [SR IN] V: 1V/div. H: 10ns/div. V: 2V/div. H: 20us/div. V: 2V/div. H: 10us/div. V: 2V/div. H: 10us/div. V: 2V/div. H: 5us/div. Ch1 Ch2 Ch1 Ch2 Ch1 Ch2 Ch1 Ch2 Ch1 Ch2 Ch1 Ch2 LCD ASSY D SYSTEM Microcomputer(IC)<–>Each part communication waveform www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 65 PD-D6MK2-K 5 6 7 8 5 6 7 8 A B C D E F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 66 PD-D6MK2-K 1 2 3 4 A B C D E F 1 2 3 4 11. PCB CONNECTION DIAGRAM 11.1 LOAB and DVDM ASSYS A B B A 0 10 20 30 40 50 60 70 80 90 100 110 120 130 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 X Y SIDE A SIDE A B DVDM ASSY (ANP7733-A) NOTE FOR PCB DIAGRAMS : 1. The parts mounted on this PCB include all necessary parts for several destinations. For further information for respective destinations, be sure to check with the schematic diagram. Capacitor Connector P.C.Board Chip Part SIDE A SIDE B 2. View point of PCB diagrams. C474 C476 C451 C454 CN902 R915 R914 R919 Q731 R906 C426 R904 C425 C423 C424 C422 C421 L751 R712 Q702 C761 R714 R713 C712 D821 C133 R404 C374 R214 R520 Q851 R852 CN101 R220 R237 R284 R221 C215 C217 C104 C216 C244 R232 R216 R207 R209 C220 C213 R217 R235 R211 R134 R136 C161 R154 C143 C142 C141 C144 R135 C146 R132 R133 C152 R153 R152 R405 R210 CN904 R269 R270 CN905 CN901 C320 C347 R225 C222 C223 C224 IC204 R224 R918 R913 R912 R911 R910 D733 CN102 R228 R411 R226 R227 C1002 C1001 R821 R435 R415 R414 C290 R433 D852 Q801 R882 R801 R701 R702 C701 R736 R751 R711 R413 R436 R907 R750 R824 D881 D862 R823 R851 R822 C801 D801 Q701 C702 R739 L731 L732 R737 C738 C711 R434 R431 R412 R432 R761 R731 C751 C733 Q305 C371 R325 CN104 C309 CN103 R265 R264 R263 R262 Q505 R519 C509 Q506 IC761 R762 C345 R416 Q881 R763 C373 R516 C511 R511 C506 R481 Q481 Q401 R507 C514 R401 C753 R733 R740 C752 R738 C736 D731 D751 R732 R735 R734 C754 IC751 C735 C739 C731 C714 C713 C732 C740 C734 IC501 Q501 Q502 R513 R502 C507 IC201 R313 R508 IC731 R901 R229 D851 R903 D861 C737 Q821 IC711 R931 R932 R933 R934 R935 R936 R937 R938 R939 R940 R373 C762 C763 R764 R595 R594 IC101 CN953 C505 Q504 R515 R514 C508 Q503 R503 R518 R512 R505 C501 C502 R506 R501 C513 R504 R591 C503 R234 C145 C504 R314 Q304 R315 L309 L308 R326 R881 R258 R602 R213 R601 R212 R200 C101 R131 C131 R261 C310 R151 R310 R321 Q308 R322 R260 C404 R259 C219 R218 R219 R509 C512 C102 C132 C140 C242 C243 C151 IC591 R280 C153 C103 Q307 C346 R318 R905 R246 R245 R244 R243 R242 R241 C206 C204 C203 R223 C221 C237 C201 C202 C273 R256 C272 C271 C270 C269 C268 C267 C265 C263 C262 C259 R253 C258 R252 CN204 R251 C251 X201 C252 R204 C210 C212 C211 C208 C209 R206 R205 R202 R201 C343 C344 R592 R853 R883 R522 R521 R279 R215 R924 R922 R923 R921 C475 UP SIDE GNDD GNDD V UP SIDE GNDD 12V 1.8V 3.3V 5V GNDM 6.5V BOTTOM SIDE BOTTOM SIDE 8V GNDD 3.3V 5V L GNDD R GNDA 5V 2/2 C LD_CD LD_DVD A A B B C D D E E 3.3V 27 1 3 5 1 2 BOTTOM SIDE 24 1 1 4 1 5 29 1 4 1 8 5 R 12 1 1 3 4 5 5 1 UP SIDE 1 4 7 5 4 1 9 1 1 192 193 256 64 65 128 129 5 4 3 1 1 4 5 8 22 1 1 17 5 1 3 4 4 1 LF 1 27 1 24 1 4 1 5 1 29 1 4 8 5 1 12 1 3 4 5 1 5 1 4 1 4 5 7 1 8 9 16 1 64 65 128 129 192 193 256 1 4 8 5 23 44 1 22 1 17 1 3 4 5 1 4 H CN2701 CN901 To SPINDLE Motor CN102 To Pickup Assy CN101 To STEPPING Motor CN101 CN104 1 2 5 1 VWG2346- VWG2279- 5 VWG LOAB 5 1 VNP1836-C CN602 S101 CN601 LOAB ASSY A (VNP1836-C) LOADING MOTOR ASSY M CN601 CN602 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 67 PD-D6MK2-K 5 6 7 8 5 6 7 8 A B C D E F A B B A 0 10 20 30 40 50 60 70 80 90 100 110 120 130 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 X Y SIDE B SIDE B B DVDM ASSY (ANP7733-A) C466 C455 C464 C452 C465 C453 Q732 R403 L901 X202 R1002 C250 R257 C207 C214 R236 R249 R247 C246 C245 R285 R238 R208 R233 R267 R1003 R1001 C228 C226 C225 C289 IC203 R917 R266 D732 CN951 R500 R272 L201 C298 C299 C283 C234 C287 C232 C286 C285 C231 R268 IC451 R590 R282 C282 C406 R402 R423 R421 R422 R604 C403 R271 IC202 C592 IC401 C401 R426 C372 R273 R375 C405 C402 C412 R425 R424 R902 C233 C284 R908 R909 R920 C1003 R517 C249 R476 R475 R474 C236 C281 C235 IC205 Q101 Q102 C500 R141 R142 R406 R250 R374 C415 R281 R603 C230 C414 C413 R765 C416 C218 C591 C227 C121 C288 R231 C205 R255 C266 C264 C260 C261 C255 C256 R254 C254 R230 C239 C240 C241 C253 C257 R240 R372 R371 C247 C248 C296 R239 R916 C411 R248 R301 R302 Q201 R303 CN952 DVDM ASSY AWM8 999 888 777 666 555 444 333 222 111 000 PRODUCTION CODE 3 4 6 1 LF 25 24 1 48 13 1 1 0 1 2 3 4 5 6 7 8 9 0 1 2 3 0 0 1 C B A 9 16 8 1 28 27 1 54 15 14 1 28 4 5 1 3 FC ICT 1 2 1 6 4 3 1 4 24 25 1 48 1 13 9 16 8 1 54 28 27 1 28 15 14 1 1 3 4 5 1 2 1 5 5 1 SW2 (V+5D) V+3D LOAD- LOAD+ GND PNE-1B1 C102 C101 CN602 CN601 LOAB ASSY A (VNP1836-C) CN601 CN602 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 68 PD-D6MK2-K 1 2 3 4 A B C D E F 1 2 3 4 11.2 AJKB ASSY 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 0 10 20 30 40 50 60 70 80 90 100 110 120 X Y 28 15 14 1 28 15 14 1 5 8 1 4 8 14 1 7 NP NP NP 8 5 4 1 5 8 1 4 T 1 7 8 14 9 16 1 8 9 16 1 8 13 12 1 24 1 17 V+3D V+58U V+9D V+6R5V GNDD V+3D V+12A 17 1 V-12A VAC3 4 1 VAC4 V+5A GNDS WARNING GNDA ELECTRICAL PARTS CONTAIN CHEMICALS WHICH ARE KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER,BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM. HEALTH & SAFETY CODE SECTION 25249.6 - PROPOSITION 65 GNDA 7 1 15 1 7 1 14 8 MFD. BY LITTELFUSE INC. V+3D SR-OUT SR-IN AWM8075 AJKB Ass'y LF ICT FC 1/2 AWM 2SD1763A 2SB1186A V+3D PC 17.PCM/DSD 15.XDACCS2 14.XDACCS1 13.XDACCK 12.XDACDT 10.BCK 8.DATA1 6.DATA0 4.LRCK 2.MCLK(22M) GNDD:1,3,5,7, 9,11,16 15.GNDD 14.GNDD 13.DOUT 12.GNDD 11.DVDMUTE 10.GNDD 8,9.GNDM 6,7.V+6R5V 4,5.GNDD 2,3.V+9D 1.V+12A 7.AUDIO CT 6.AUDIO1 5.AUDIO2 4.DIGITAL1 3.DIGITAL2 2.MECHA1 1.MECHA2 4.GNDU 3.V+56ST 2.AC 1.SYSPOW 17.XDACRST 16.SYSPOW 15.AC 14.GNDU 13.GNDU 12.V+58U 11.GNDD 10.V+56ST 9.XSYSMUTE 8.XDFRST 7.XDFCS 6.XDFCLK 5.XDFDT 4.GNDD 3.GNDD 2.SRIN 1.SROUT BOND (WHITE) (RED) (ORANGE) CAUTION REPLACE WITH SAME TYPE NO.491003 FOR IC1851, TYPE NO.491004 FOR IC1852, BOND BOND BOND R FR4 P V+58U V+3D THIS PRODUCT CONTAINS LEAD IN SOLDER AND CERTAIN C1108 R1105 R1208 R1107 C1301 IC1301 C1306 C1653 R1307 IC1401 C1207 C1206 R1110 R1407 C1704 R1701 C1408 R1902 IC1101 C1111 C1212 IC1701 C1205 R1213 C1204 C1110 C1105 C1407 L1701 R1102 R1201 R1101 R1202 C1115 C1403 C1722 C1213 Q1652 C1303 R1655 F1401 C1304 C1404 R1205 R1108 D1653 C1651 R1210 C1118 C1117 C1708 C1505 Q1651 C1402 C1209 C1109 C1710 R1651 C1711 C1302 C1652 C1113 C1211 C1112 R1705 C1705 R1704 R1703 R1702 R1838 C1305 C1405 C1210 C1107 C1106 R1402 C1104 R1401 R1302 R1301 KN1902 IC1102 R1104 R1106 R1204 R1207 R1103 R1206 R1203 JA1101 IC1201 C1401 C1308 C1406 C1116 JA1702 F1301 R1114 C1307 C1208 R1652 R1115 C1119 R1214 R1215 C1902 C1120 IC1651 JA1752 IC1601 IC1602 IC1501 C1601 C1602 C1603 C1605 R1612 R1602 R1604 R1609 R1606 R1607 R1608 R1603 R1601 C1503 C1502 R1503 R1504 R1505 C1501 R1501 JA1701 C1504 R1610 R1611 Q1201 Q1101 R1502 C1219 C1220 C1507 C1508 CN1501 L1702 R1516 JA1751 R1517 CN1502 CN1503 R1605 KN1903 C1811 C1807 C1805 C1806 D1851 D1802 D1803 C1852 JA1201 R1560 IC1852 IC1851 CN1801 R1807 R1806 Q1803 Q1806 C1802 R1801 C1801 D1804 C1803 IC1802 C1808 IC1801 C1813 D1801 C1804 D1852 C1854 CN1851 IC1804 Q1801 Q1804 C1835 D1831 KN1904 R1835 R1836 R1613 R1614 R1615 R1616 R1617 R1618 R1619 R1620 R1621 R1622 R1623 D1832 R1837 C1834 C1836 C1831 C1832 C1833 IC1831 IC1502 KN1901 R1551 R1552 R1553 C1310 C1410 C1506 IC1832 C1838 IC1833 R1661 R1662 D1651 KN1905 SIDE A C SIDE A C CN2702 H CN1851 CN953 B CN1501 J52 J CN1081 J11 J CN1503 J2105 D CN1502 AJKB ASSY C (PNP1489-A) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 69 PD-D6MK2-K 5 6 7 8 5 6 7 8 A B C D E F 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 0 10 20 30 40 50 60 70 80 90 100 110 120 X Y 1 17 17 1 4 1 7 1 1 15 LF 9 9 9 9 8 8 8 8 7 7 7 7 6 6 6 6 5 5 5 5 4 4 4 4 3 3 3 3 2 2 2 2 1 1 1 1 0 0 0 0 AWM R 2,3.V+9D 4,5.GNDD V+12A GNDS -VCC +VCC GNDA GNDA V-12A V-12A V+12A V+12A FUSIBLES IC1851 N'UTILISER QUE LA REFERENCE 491003 DE CHEZ LITTELFUSE INC. 6,7.V+6R5V 8,9.GNDM 14.GNDD 13.DOUT 12.GNDD 11.DVDMUTE 10.GNDD 15.GNDD ATTENTION EN CAS DE REMPLACEMENT DES V+9D V+6R5V GNDD GNDM V+12A V-12A GNDA GNDA V+5A -VCC +VCC EN CAS DE REMPLACEMENT DES FUSIBLES IC1852 N'UTILISER QUE LA REFERENCE 491004 DE CHEZ LITTELFUSE INC. ATTENTION 14.XDACCS1 15.XDACCS2 17.PCM/DSD GNDD:1,3,5,7, 9,11,16 1.V+12A 1.SROUT 2.SRIN 5.XDFDT 6.XDFCLK 7.XDFCS 8.XDFRST 9.XSYSMUTE 10.V+56ST 12.V+58U 13.GNDU 14.GNDU 15.AC 16.SYSPOW 17.XDACRST 3.GNDD 4.GNDD 11.GNDD 1.SYSPOW 2.AC 3.V+56ST 4.GNDU 1.MECHA2 2.MECHA1 3.DIGITAL2 4.DIGITAL1 5.AUDIO2 6.AUDIO1 7.AUDIO CT 2.MCLK(22M) 4.LRCK 6.DATA0 8.DATA1 10.BCK 12.XDACDT 13.XDACCK GNDM GNDD GNDD GNDM V+9D V+6R5V V+58U V+3D V+3D V+9D GNDD GNDD GNDA FR4 P C1716 R1111 F1701 F1702 C1901 C1753 R1901 C1714 C1712 R1209 R1653 R1109 R1211 C1203 R1405 C1103 R1305 R1406 C1409 C1309 R1303 R1403 C1202 C1201 C1101 C1102 C1214 C1114 C1713 R1112 R1212 C1709 C1721 F1901 C1707 C1706 R1903 C1717 R1706 R1304 R1654 C1752 C1751 C1511 D1751 R1515 R1507 R1508 R1509 R1512 R1511 R1510 R1513 C1512 R1656 R1805 R1803 C1809 R1804 D1805 R1802 C1903 D1809 D1808 D1807 D1806 Q1805 Q1802 C1510 D1652 R1904 R1905 R1906 C1815 C1837 C1839 D1833 R1839 R1840 R1841 R1842 C1816 R1808 R1809 R1810 R1811 R1843 R1844 C C CN1851 CN1081 CN1503 CN1502 AJKB ASSY C (PNP1489-A) SIDE B SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 70 PD-D6MK2-K 1 2 3 4 A B C D E F 1 2 3 4 11.3 LCD ASSY D D 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 170 180 190 200 210 220 X 160 170 180 190 200 Y SIDE A SIDE A D LCD ASSY (PNP1488-C) 2401 W133 C2219 X2101 W153 C2220 CN2101 J2105 JP2102 JP2101 W169 C2402 V2201 C2210 W179 D2206 W157 W158 W146 W145 D2101 D2102 D2207 D2208 CN2106 CN2105 W141 W195 W175 W191 W187 W186 W152 W182 W192 W136 W138 W173 W193 W166 W164 KN2101 J2102 J2104 W167 W190 W143 W144 W155 W185 W180 W137 W168 W165 W163 W162 W142 W176 W139 W184 W188 W147 W161 W189 W151 W181 W200 W140 W177 W174 W149 W183 W156 W160 W178 W194 W148 W172 W171 W170 W150 W159 W154 GNDD V+5U V+5U GNDD GNDD GNDD V+5U V+5U GNDD V+5U GNDD GNDD V+56ST V+5U V+5U V+5U GNDD GNDD V+5B V+5B V+5U V+5U V+5U GNDD GNDD GNDD GNDD GNDD GNDD (2P) (4P) J2199 1.WHITE BLK WHITE GNDD UPPER SIDE UPPER SIDE PWX V+56ST PNE-1B1 AWX8787 AWX8788 AWX8789 AWX8790 LCD Ass'y 1.WEN/DI 2.WD0 3.WCLK 4.RST 5.VCC 6.VSS 7.NC 1.MSDCT 2.LED2 3.V+5U 4.GNDD 1.IROUT 2.SRIN 3.GNDD 4.GNDD 5.XDFCLK 6.XDFDT 7.XDFCS 8.XDFRST 9.XSYSMUTE 10.V+56ST 11.GNDD 12.V+58U 17.XDACRST 16.SYSPOW 15.AC 14.GNDD 13.GNDD 1,8,9.GNDD 2.DVDROWER 3.XREADY 4.XDVDRST 5.SDATA 6.SCLK 8.MDATA 7.ACK 11.SPDIF_RQ 12.VDET 13.TRIN 14.TRGAIN 15.TROUT PNE-1B1 1.KEY1 2.VE+5 3.GNDU V+5B PWX1670 R 1 7 1 8 R 1 15 17 1 4 1 1 C7 [[ G ]] 1 1 7 1 8 1 15 1 17 1 2 4 1 3 2 1 F CN2503 J2102 C CN1502 CN2105 M CN2703 CN2106 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 71 PD-D6MK2-K 5 6 7 8 5 6 7 8 A B C D E F D D 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 170 180 190 200 210 220 X Y SIDE B SIDE B (PNP1488-C) D LCD ASSY D2105 C2401 R2402 C2211 D2104 C2114 R2153 R2154 Q2199 R2199 R2198 R2125 C2218 R2175 Q2402 C2113 R2176 R2165 IC2101 R2115 R2116 R2117 R2127 R2129 C2111 C2216 R2142 L2103 L2102 R2151 R2141 R2108 L2104 C2101 R2104 R2128 R2123 R2106 R2107 R2133 R2134 L2105 R2121 C2102 R2105 R2146 C2217 R2147 R2143 D2103 L2101 Q2108 R2155 R2171 Q2106 R2122 R2126 C2109 C2103 C2112 R2118 R2103 R2112 R2160 R2161 R2110 R2111 Q2103 Q2102 R2113 C2226 R2114 C2115 R2136 C2105 C2203 C2206 C2205 C2204 D2202 D2204 D2203 D2201 C2202 C2201 F2201 R2140 R2130 R2131 R2132 R2401 Q2401 R2403 R2148 R2149 R2150 C2110 R2137 R2138 D2205 C2209 C2207 Q2203 D2209 D2210 Q2202 R2211 Q2201 R2210 R2212 R2215 R2216 R2101 Q2101 R2135 Q2104 D2402 Q2204 R2213 R2214 R2219 R2162 R2163 J2199 ( ) 13,14.GNDD 2 1 GNDD PNE-1B1 2.WD0 1.WEN/DI 3.WCLK 4.RST 5.VCC 6.VSS 7.NC MSDCT LED2 V+5U GNDD 15.TROUT 14.TRGAIN 13.TRIN 12.VDET 11.SPDIF_RQ 8.MDATA 7.ACK 6.SCLK 5.SDATA 4.XDVRST 3.XREADY 2.DVDP 1,9,10.GNDD 3,4,11, 1.IROUT 2.SRIN 5.XDFCLK 6.XDFDT 7.XDFCS 8.XDFRST 9.XSYSMUTE 10.V+56ST 12.V+58U 15.AC 16.SYSPOW 17.XDCRST 1.KEY1 2.VE+5 3.GNDU PWX1670 GNDD V+5U V+5U GNDD GNDD GNDD GNDD GNDD GNDD V+5U V+5U V+5U V+56ST V+5B V+5B GNDD V+5B GNDD V+5U GNDD GNDD V+5U GNDD V+56ST GNDD V+5U V+5U GNDD GNDD AWX8790 V+5U PNE-1B1 V+5U CN2101 R 51 80 81 100 1 30 31 50 7 1 1 8 1 15 1 17 NP R LF 1 4 3 1 100 81 1 30 31 50 51 80 CN2105 J2102 CN2106 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 72 PD-D6MK2-K 1 2 3 4 A B C D E F 1 2 3 4 11.4 PLED, KEY and PRIMARY ASSYS E G J 0 10 20 30 40 50 210 220 230 240 X Y 190 200 210 220 230 240 170 180 190 200 210 220 230 240 X Y 160 170 180 190 200 210 220 230 80 90 100 110 120 130 140 150 160 170 180 X Y C2602 D2601 J2601 PLED ASS'Y AWX8795 PWX1671 1.V+5U 2.PLED PNE-1B1 C7 [[ G ]] 1 R 1 J2104A S2301 S2302 2301 W317 W318 KEY ASS'Y AWX8792 PC 1.KEY1 PNE-1B1 STOP/PLAY OPEN/CLOSE 2.VE+5 3.GNDU PWX1687 PWX AWX C7 [[ G ]] 1 R 1 3 T51 J51 C51 C52 C53 C54 R51 W312 W313 W316 R52 J52 TRANS ASS'Y AWX8802 WHITE RED YELLOW J51-2 J51-3 -1 PWX PTT1367/PTT1382 (JJ) PTT1368/PTT1383 (WY) PTT1369/PTT1384 (KU) PTT1370- (RLF) VL VH NEUTRAL 1.MECHA2 2.MECHA1 3.DIGITAL2 4.DIGITAL1 5.AUDIO2 6.AUDIO1 7.AUDIOCT AWX8797 PNE-1B1 PRIMARY SECONDARY 7 1 C7 [[ G ]] R 1 7 8 17 1 7 F CN2502 J2601 C CN1802 J52 SIDE A SIDE A E PLED ASSY J PRIMARY ASSY (PNP1488-C) G KEY ASSY (PNP1488-C) (PNP1488-C) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 73 PD-D6MK2-K 5 6 7 8 5 6 7 8 A B C D E F E G J 0 10 20 30 40 50 210 220 230 240 X Y 170 180 190 200 210 220 230 240 X 190 200 210 220 230 240 Y 80 90 100 110 120 130 140 150 160 170 180 160 170 180 190 200 210 220 230 X Y C2601 R2601 AWX8795 PWX1671 V+5U PLED PNE-1B1 R LF C2301 R2301 R2302 1.KEY1 2.VE+5 3.GNDU OPEN/CLOSE STOP/PLAY PNE-1B1 LF 3 1 R VH VL NEUTRAL 7.AUDIOCT 6.AUDIO1 5.AUDIO2 4.DIGITAL1 3.DIGITAL2 2.MECHA1 1.MECHA2 PRIMARY SECONDARY PNE-1B1 7 1 R LF J52 SIDE B SIDE B J PRIMARY ASSY (PNP1488-C) E PLED ASSY (PNP1488-C) G KEY ASSY (PNP1488-C) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 74 PD-D6MK2-K 1 2 3 4 A B C D E F 1 2 3 4 11.5 CONNECTOR and MNSW ASSYS F H F H 40 50 60 70 80 90 100 110 120 130 0 10 20 30 40 50 60 X Y 130 140 150 0 10 20 30 40 50 60 X 160 170 180 190 200 210 220 230 240 Y CN2703 CN2702 CN2701 W113 W114 W101 W132 W109 W110 W104 W105 W107 W102 W106 W103 W111 W112 W108 CN2704 KN2701 GNDD GNDD GNDD GNDM V+9M V+9D V+12A CONNECTOR ASS'Y AWX8796 2.GNDD 1.CVBS 14.V+9D 15.V+12A 13.V+9D 12.GNDD 11.GNDD 8.GNDM 7.GNDM 10.V+6R5V 9.V+6R5V 6.GNDD 5.DVDMUTE 4.GNDD 2.GNDD 3.DOUT 1.GNDD 1.TROUT TRGAIN TRIN VDET SPDIF_RQ GNDD GNDD MDATA ACK SCLK SDATA XDVDRST XREADY DVDPOWER 15.GNDD 29.CVBS 28.TROUT 26.TRGAIN 27.TRIN 22.VDET _RQ 21.GNDD 20.GNDD 18.MDATA 19.ACK 16.SCLK 17.SDATA 14.XDVDRST 15.XREADY 13.DVDPOWER 9.GNDD 12.GNDD 10.DOUT 11.GNDD MUTE 8.GNDD 6.GNDM 7.GNDM 5.V+6R5V 4.V+6R5V 3.V+9D 2.V+9D 1.V+12A 24.TRKUP GNDD PNE-1B1 25.SPDIF 23.DVD DVDPOWER XREADY SDATA ACK TRIN SPDIF_RQ DOUT 15 1 1 15 29 1 C7 [[ G ]] R 2 1 1 15 1 15 1 29 1 2 W314 W315 C2501 CN2501 CN2502 CN2503 S2501 PWX AWX MNSW ASS'Y AWX8794 PWX1668 1.V+5U 2.PLED 1.MSDCT 2 2.LED2 3.V+5U 4.GNDD PNE-1B1 PRIMARY C7 [[ G ]] 1 2 1 1 4 R 1 2 1 2 4 7 8 6 5 1 2 3 4 6 5 B CN901 CN2701 C CN1851 CN2702 D CN2106 CN2703 E J2601 CN2502 D J2102 CN2503 SIDE A SIDE A (PNP1488-C) H CONNECTOR ASSY F MNSW ASSY (PNP1488-C) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 75 PD-D6MK2-K 5 6 7 8 5 6 7 8 A B C D E F F H F H 40 50 60 70 80 90 100 110 120 130 0 10 20 30 40 50 60 X Y 130 140 150 160 170 180 190 200 210 220 230 240 0 10 20 30 40 50 60 X Y R2701 C2705 R2702 C2701 C2702 C2703 C2704 GNDD MDATA ACK SCLK V+12A V+9D V+9M GNDM GNDD GNDD GNDD GNDD TROUT TRGAIN VDET TRIN SPDIF_RQ GNDD 5.DVDMUTE 14.V+9D 15.V+12A 12.GNDD 13.V+9D 11.GNDD 10.V+6R5V 9.V+6R5V 8.GNDM 7.GNDM 6.GNDD 4.GNDD 3.DOUT 2.GNDD 1.GNDD 29.CVBS 28.TROUT 27.TRIN 26.TRGAIN 25.SPDIF 24.TRKUP MUTE 22.VDET 21.GNDD 20.GNDD 19.ACK 18.MDATA 17.SDATA 16.SCLK 15.XREADY 14.XDVDRST 13.DVDPOWER 12.GNDD 11.GNDD 10.DOUT 9.GNDD 8.GNDD 7.GNDM 6.GNDM 5.V+6R5V 4.V+6R5V 3.V+9D 2.V+9D 1.V+12A SDATA XDVDRST XREADY DVDPOWER GNDD 1. 15. PNE-1B1 _RQ 23.DVD SPDIF_RQ TRIN DOUT DVDPOWER XREADY SDATA ACK 15 1 1 15 29 1 LF R 2 1 R2501 R2502 C2502 Q2501 1.V+5U 3.V+5U 2.PLED 4.GNDD 2.LED2 1.MSDCT PRIMARY PNE-1B1 LF 4 1 R SIDE B SIDE B (PNP1488-C) H CONNECTOR ASSY F MNSW ASSY (PNP1488-C) CN2701 CN2702 CN2703 CN2502 CN2503 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 76 PD-D6MK2-K 1 2 3 4 A B C D E F 1 2 3 4 11.6 PRIMARY ASSY I I 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 X Y C16 IC11 D11 L11 RY11 S11 T11 J11 C15 CN13 W126 R12 C13 C12 C11 R13 W128 W127 W125 W307 W308 W309 W310 W311 J12 J13 W121 W115 W134 W130 W129 H11 H12 H13 W123 W119 W116 W120 H14 W135 W122 W117 W124 W131 11 12 13 W118 HIGH CHARACTER SIDE LOW AWX 8798 AWX 8799 AWX 8800 8801 AWX AWX PRIMARY ASS'Y ORANGE RED PWX1673 PWX1674 PWX1675 PWX J12-2 -1 SECONDARY PRIMARY RISK OF FIRE REPLACE FUSE AS MARKED. FU1 T500mAL250V FU2 T500mAL250V YELLOW WHITE GNDU J13-2 -1 3.VL 2.VH 1.NEUTRAL 1.SYSPOW 2.AC 3.V+5.6ST 4.GNDU NJM78M56FA PNE-1B1 except RLF model RLF model 1 4 1 3 C7 [[ G ]] R 1 2 3 4 1 4 5 9 1 4 1 3 C CN1503 J11 F CN2501 J13 F AC IN J12 SIDE A SIDE A I PRIMARY ASSY (PNP1488-C) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 77 PD-D6MK2-K 5 6 7 8 5 6 7 8 A B C D E F I I 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 X Y C14 Q11 D12 D13 D14 D15 R14 R15 PWX1673 PWX1674 PWX1675 PWX SECONDARY PRIMARY GNDU VL VH NEUTRAL 4.GNDU 3.V+5.6ST 2.]AC 1.SYSPOW PNE-1B1 1 4 3 1 R LF I PRIMARY ASSY (PNP1488-C) SIDE B SIDE B J11 J13 J12 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 78 PD-D6MK2-K 1 2 3 4 A B C D E F 1 2 3 4 12. PCB PARTS LIST CONTRAST OF PCB ASSEMBLIES PWX1673 and PWX1675 are constructed the same except for the following: PCB PARTS LIST FOR PD-D6MK2-K/SYXJ5 UNLESS OTHERWISE NOTED - Meaning of the figures and others in the parentheses in the parts list. Example) IC 301 is on the point (face A, 91 of x-axis, and 111 of y-axis) of the corresponding PC board. IC 301 (A, 91, 111) IC NJM2068V 5 6 2 1 1 R 0 R 5 0 5 6 1 4 7 3 NOTES: - Parts marked by “NSP” are generally unavailable because they are not in our Master Spare Parts List. - The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. - When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47 k ohm (tolerance is shown by J = 5%, and K = 10%). 560 Ω → 56 × 101 → 561 ...................................................................RD1/4PU J 47 kΩ → 47 × 103 → 473 ...................................................................RD1/4PU J 0.5 Ω → R50 .................................................................................................RN2H K 1 Ω → 1R0 .................................................................................................RS1P K Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 5.62 kΩ → 562 × 101 → 5621 .................................................................RN1/4PC F Mark No. Description Part No. LIST OF ASSEMBLIES NSP 1..LOADER ASSY VWT1230 NSP 2..LOAB ASSY VWG2346 1..DVDM ASSY AWM8184 1..FLKB ASSY(SYXJ5) PWM2363 1..FLKB ASSY(CUXJ) PWM2365 2..CONNECTOR ASSY(D6) AWX8796 2..TRANS ASSY(D6) AWX8802 2..MNSW ASSY(D6K) PWX1668 2..LCD ASSY(D6) PWX1670 2..PLED ASSY(D6) PWX1671 2..PRIMARY ASSY(D6/WY)(SYXJ5) PWX1673 2..PRIMARY ASSY(D6/KU)(CUXJ) PWX1675 2..KEY ASSY(D6) PWX1687 1..AJKB ASSY PWM2367 Mark No. Description Part No. I F PRIMARY ASSY Mark Symbol and Description PWX1673 PWX1675 Remarks T11 ATT7078 ATT7079 Mark No. Description Part No. A LOAB ASSY MISCELLANEOUS S 101 VSK1011 CN602 CONNECTOR S2B-PH-K CN601 CONNECTOR S5B-PH-K B DVDM ASSY MISCELLANEOUS IC 101 (A,62,106) 6CH DRIVER IC BD7995EFS IC 201 (A,50,44) DVD IC MT1389EE/B2-L IC 202 (B,34,25) IC K4S641632K-UC75 IC 203 (B,34,54) FLASH ROM AYW7212 IC 204 (A,19,44) EEPROM S-24CS04AFJ IC 205 (B,54,46) IC TC7SH08FUS1 IC 711 (A,33,74) REGULATOR (1.8V) MM1661JH IC 731 (A,29,92) DC/DC CONTROLLER IC R1224N102H IC 751 (A,32,113) REGULATOR IC (5.0V) MM1565AF Q 101 (B,55,113) TRANSISTOR 2SA1576A Q 102 (B,60,116) DIGITAL TRANSISTOR DTC124EUA Q 304 (A,77,127) TRANSISTOR 2SC4081 Q 305 (A,84,125) NMOS FET TRANSISTOR UM5K1N Q 307 (A,71,87) CHIP TRANSISTOR HN1A01F Q 308 (A,63,87) CHIP TRANSISTOR HN1A01F Q 506 (A,114,69) CHIP TRANSISTOR DTC114YUA Q 701 (A,24,134) TRANSISTOR 2SA1576A Q 702 (A,27,129) DIGITAL TRANSISTOR DTC124EUA Q 732 (B,22,90) FET RSQ035P03 Q 801 (A,50,87) DIGITAL TRANSISTOR DTC124EUA Q 821 (A,42,86) TRANSISTOR 2SA1576A Q 851 (A,42,89) TRANSISTOR 2SA1576A Q 881 (A,42,93) TRANSISTOR 2SA1576A D 731 (A,29,87) DIODE 1SS355 D 732 (B,18,92) DIODE RSX201L-30 D 733 (A,24,94) DIODE 1SS355 D 801 (A,50,85) DIODE UDZS4R7(B) D 821 (A,46,86) DIODE 1SS355 D 851 (A,46,89) DIODE 1SS355 D 852 (A,42,82) DIODE 1SS355 D 861 (A,46,82) DIODE 1SS355 D 862 (A,46,83) DIODE 1SS355 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 79 PD-D6MK2-K 5 6 7 8 5 6 7 8 A B C D E F D 881 (A,46,93) DIODE 1SS355 L 201 (B,80,51) CHIP SOLID INDUCTOR QTL1013 L 731 (A,23,109) POWER INDUCTOR(22U) DTL1099 L 732 (A,22,84) POWER INDUCTOR ATH7011 L 751 (A,34,99) INDUCTOR CTF1395 L 901 (B,44,129) INDUCTOR CTF1334 L 931 INDUCTOR CTF1384 L 936 INDUCTOR CTF1389 L 937 INDUCTOR CTF1389 L 938 INDUCTOR CTF1389 L 939 INDUCTOR CTF1389 X 202 (B,76,48) CRYSTAL (27 MHz) ASS7103 CN101 (A,88,140) CONNECTOR CKS5045 CN102 (A,69,142) 12P CONNECTOR AKN7031 CN103 (A,103,139) 04P CONNECTOR RKN1045 CN104 (A,79,9) CONNECTOR AKM1291 CN901 (A,41,142) 29P CONNECTOR VKN1321 CN953 (A,116,102) CONNECTOR CKS3885 RESISTORS R 131 (A,61,95) RS1/8SQ4R7J R 132 (A,63,95) RS1/8SQ4R7J R 133 (A,66,95) RS1/8SQ4R7J R 134 (A,65,95) RS1/8SQ4R7J R 135 (A,68,95) RS1/8SQ4R7J R 136 (A,70,95) RS1/8SQ4R7J R 141 (B,54,110) RS1/10SR124J R 142 (B,58,114) RS1/10SR223J R 151 (A,59,117) RS1/8SQ1R0J R 152 (A,59,121) RS1/8SQ1R8J R 153 (A,57,117) RS1/8SQ1R0J R 154 (A,57,121) RS1/8SQ1R8J R 200 (A,25,56) RS1/8SQ0R0J R 201 (A,49,67) RS1/10SR152J R 202 (A,48,67) RS1/10SR223J R 204 (A,47,67) RS1/10SR223J R 205 (A,45,67) RS1/10SR184J R 206 (A,46,64) RS1/10SR224J R 207 (A,65,60) RS1/8SQ0R0J R 208 (B,27,71) RS1/8SQ0R0J R 209 (A,57,16) RS1/8SQ0R0J R 212 (A,40,70) RS1/10SR103J R 213 (A,41,70) RS1/10SR103J R 214 (A,45,72) RS1/10SR0R0J R 216 (A,36,62) RS1/10SR0R0J R 217 (A,31,61) RS1/8SQ0R0J R 218 (A,18,37) RS1/10SR103J R 219 (A,18,35) RS1/10SR103J R 221 (A,25,44) RS1/10SR330J R 223 (A,29,35) RS1/10SR330J R 224 (A,29,49) RS1/10SR330J R 225 (A,40,23) CHIP RESISTOR ARRAY RAB4C330J R 226 (A,43,23) RS1/10SR330J R 227 (A,44,23) RS1/10SR330J R 229 (A,48,24) RS1/10SR330J R 230 (B,71,35) RS1/10SR101J R 231 (B,71,37) RS1/10SR101J R 232 (A,34,60) RS1/10SR0R0J R 233 (B,42,50) RS1/10SR0R0J R 234 (A,26,42) RS1/10SR330J Mark No. Description Part No. R 235 (A,26,41) RS1/10SR472J R 237 (A,23,41) RS1/10SR330J R 238 (B,60,35) RS1/10SR103J R 241 (A,71,36) RS1/10SR330J R 242 (A,71,37) RS1/10SR330J R 243 (A,69,39) RS1/10SR100J R 244 (A,69,41) RS1/10SR330J R 246 (A,69,43) RS1/10SR330J R 247 (B,58,37) RS1/10SR103J R 248 (B,58,46) RS1/10SR330J R 249 (B,59,40) RS1/10SR103J R 250 (B,50,47) RS1/10SR0R0J R 254 (B,65,48) RS1/10SR754J R 255 (B,57,52) RS1/10SR104J R 256 (A,73,59) RS1/10SR153J R 257 (B,64,42) RS1/10SR0R0J R 258 (A,23,39) RS1/10SR330J R 259 (A,26,39) RS1/10SR330J R 260 (A,24,37) RS1/10SR330J R 261 (A,27,38) RS1/10SR330J R 266 (B,51,38) RS1/10SR330J R 267 (B,56,30) RS1/10SR0R0J R 268 (B,68,37) RS1/10SR101J R 269 (A,73,33) RS1/10SR102J R 270 (A,73,35) RS1/10SR101J R 271 (B,73,48) RS1/10SR101J R 272 (B,69,42) RS1/10SR330J R 279 (A,63,25) RS1/10SR5600F R 281 (B,19,33) RS1/8SQ0R0J R 284 (A,34,61) RS1/10SR103J R 301 (B,89,136) RS1/8SQ0R0J R 302 (B,86,136) RS1/8SQ0R0J R 303 (B,87,133) RS1/8SQ0R0J R 313 (A,80,125) RS1/10SR104J R 314 (A,75,125) RS1/10SR103J R 315 (A,80,128) RS1/10SR103J R 318 (A,80,126) RS1/10SR104J R 321 (A,61,87) RS1/10SR4R7J R 322 (A,73,87) RS1/10SR4R7J R 325 (A,68,87) RS1/10SR4R7J R 326 (A,66,87) RS1/10SR4R7J R 406 (B,77,142) RS1/10SR750J R 412 (A,70,23) RS1/10SR750J R 517 (B,105,68) RS1/10SR102J R 520 (A,111,69) RS1/10SR102J R 590 (B,90,52) RS1/8SQ0R0J R 591 (A,83,50) RS1/10SR0R0J R 592 (A,79,55) RS1/10SR100J R 595 (A,80,64) RS1/10SR0R0J R 701 (A,24,137) RS1/10SR473J R 702 (A,27,134) RS1/10SR103J R 732 (A,25,91) RS1/8SQ100J R 733 (A,25,93) RS1/10SR220J R 734 (A,30,89) RS1/10SR473J R 735 (A,29,84) RS1/10SR272J R 736 (A,32,93) RS1/10SR1802F R 737 (A,31,83) RS1/10SR2702F R 738 (A,29,82) RS1/10SR1502F R 739 (A,19,78) RS1/10SR0R0J R 740 (A,29,85) RS1/10SR0R0J Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 80 PD-D6MK2-K 1 2 3 4 A B C D E F 1 2 3 4 R 750 (A,30,99) RS1/10SR0R0J R 751 (A,33,119) RS1/10SR0R0J R 765 (B,39,108) RS1/8SQ0R0J R 801 (A,54,85) RS1/10SR471J R 821 (A,42,83) RS1/10SR103J R 822 (A,39,86) RS1/10SR473J R 823 (A,36,86) RS1/10SR153J R 824 (A,37,86) RS1/10SR103J R 851 (A,39,89) RS1/10SR473J R 852 (A,36,89) RS1/10SR103J R 853 (A,37,89) RS1/10SR103J R 881 (A,39,93) RS1/10SR473J R 882 (A,36,93) RS1/10SR103J R 901 (A,39,128) RS1/10SR0R0J R 902 (B,40,131) RS1/10SR0R0J R 903 (A,43,128) RS1/10SR332J R 904 (A,41,128) RS1/10SR682J R 905 (A,44,128) RS1/10SR332J R 906 (A,42,126) RS1/10SR682J R 907 (A,46,128) RS1/10SR471J R 908 (B,21,40) RS1/10SR332J R 909 (B,23,38) RS1/10SR682J R 910 (A,48,128) RS1/10SR221J R 911 (A,50,128) RS1/10SR221J R 912 (A,53,128) RS1/10SR0R0J R 913 (A,55,128) RS1/10SR0R0J R 914 (A,56,128) RS1/10SR103J R 915 (A,57,128) RS1/10SR682J R 916 (B,47,128) RS1/10SR223J R 917 (B,44,125) RS1/10SR223J R 920 (B,52,135) RS1/10SR332J R 932 (A,104,97) RS1/10SR0R0J R 933 (A,104,99) RS1/10SR0R0J R 934 (A,104,101) RS1/10SR0R0J R 935 (A,104,103) RS1/10SR0R0J R 940 (A,104,111) RS1/10SR0R0J CAPACITORS C 101 (A,49,120) CEVW101M16 C 102 (A,73,101) CKSRYB105K10 C 103 (A,66,116) CKSRYB105K10 C 104 (A,61,117) CKSRYB105K10 C 121 (B,61,112) CKSRYB105K10 C 131 (A,52,103) CKSRYB104K25 C 132 (A,49,108) CHIP PV CAPACITOR ACH7274 C 140 (A,60,137) CKSRYB105K10 C 144 (A,62,99) CKSRYB222K50 C 145 (A,64,98) CKSRYB222K50 C 146 (A,60,98) CKSRYB222K50 C 151 (A,68,114) CKSRYB103K50 C 152 (A,71,114) CKSRYB103K50 C 153 (A,73,111) CKSRYB103K50 C 161 (A,58,96) CKSRYB102K50 C 201 (A,21,52) CHIP ELECT.CAPACITOR CEVW221M4 C 202 (A,69,64) CHIP PX CAPACITOR VCH1234 C 203 (A,55,78) CHIP ELECT.CAPACITOR CEVW470M16 C 204 (A,52,63) CKSRYB104K25 C 205 (B,52,69) CKSRYB104K25 C 206 (A,47,77) CHIP ELECT.CAPACITOR CEVW470M16 Mark No. Description Part No. C 207 (B,53,55) CKSRYB104K25 C 208 (A,48,70) CKSRYB222K50 C 209 (A,50,70) CKSRYB104K25 C 210 (A,47,70) CKSRYB222K50 C 211 (A,46,70) CCSRCH560J50 C 212 (A,44,70) CCSRCH560J50 C 213 (A,55,63) CKSRYB104K25 C 214 (B,50,54) CKSRYB104K25 C 215 (A,55,69) CHIP ELECT.CAPACITOR CEVW470M16 C 216 (A,46,62) CKSRYB104K25 C 217 (A,42,62) CKSRYB104K25 C 219 (A,36,61) CKSRYB152K50 C 220 (A,31,58) CKSRYB104K25 C 222 (A,29,53) CCSRCH102J50 C 223 (A,29,51) CKSRYB104K25 C 224 (A,25,45) CCSRCH101J50 C 225 (B,34,39) CKSRYB103K25 C 226 (B,40,39) CKSRYB103K50 C 227 (B,36,40) CCSRCH221J50 C 228 (B,39,37) CKSRYB103K25 C 230 (B,37,35) CKSRYB102K50 C 231 (B,42,35) CKSRYB104K25 C 232 (B,46,36) CKSRYB104K25 C 233 (B,49,33) CKSRYB104K25 C 234 (B,52,33) CKSRYB103K25 C 235 (B,55,35) CCSRCH102J50 C 236 (B,56,33) CCSRCH102J50 C 237 (A,65,16) CHIP ELECT.CAPACITOR CEVW221M4 C 239 (B,60,34) CKSRYB104K25 C 240 (B,59,39) CKSRYB104K25 C 241 (B,61,43) CCSRCH102J50 C 243 (A,61,25) CKSRYB105K10 C 244 (A,60,25) CKSRYB104K25 C 245 (B,61,31) CKSRYB104K25 C 246 (B,63,32) CKSRYB104K25 C 249 (B,54,44) CKSRYB104K25 C 250 (B,64,36) CKSRYB103K50 C 253 (B,64,44) CKSRYB104K25 C 254 (B,64,48) CCSRCH391J50 C 255 (B,65,53) CKSRYB474K10 C 256 (B,72,52) CEVW100M16 C 257 (B,60,49) CKSRYB104K25 C 258 (A,69,49) CKSRYB473K50 C 259 (A,72,50) CKSRYB473K50 C 260 (B,60,50) CKSRYB104K25 C 261 (B,67,53) CKSRYB105K10 C 262 (A,73,52) CKSRYB104K25 C 263 (A,70,51) CKSRYB105K10 C 264 (B,68,53) CKSRYB104K25 C 265 (A,73,53) CCSRCH220J50 C 266 (B,60,52) CKSRYB104K25 C 267 (A,70,53) CKSRYB102K50 C 268 (A,73,56) CKSRYB104K25 C 269 (A,72,56) CKSRYB333K16 C 271 (A,70,57) CKSRYB104K25 C 272 (A,70,58) CKSRYB104K25 C 273 (A,69,60) CCSRCH102J50 C 281 (B,18,27) CHIP ELECT.CAPACITOR CEVW221M4 C 282 (B,22,31) CKSRYB105K10 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 81 PD-D6MK2-K 5 6 7 8 5 6 7 8 A B C D E F C 283 (B,46,33) CKSRYB104K25 C 284 (B,33,17) CKSRYB104K25 C 285 (B,27,17) CCSRCH681J50 C 286 (B,27,33) CKSRYB104K25 C 287 (B,31,33) CKSRYB104K25 C 288 (B,34,33) CKSRYB104K25 C 289 (B,34,40) CKSRYB105K10 C 290 (A,20,39) CKSRYB104K25 C 296 (B,34,42) CKSRYB102K50 C 298 (B,80,48) CKSRYB105K10 C 299 (B,79,48) CKSRYB105K10 C 309 (A,71,77) CHIP TZV CAPACITOR VCH1260 C 310 (A,63,77) CHIP TZV CAPACITOR VCH1260 C 343 (A,64,64) CKSRYB105K10 C 344 (A,60,64) CKSRYB105K10 C 345 (A,62,64) CKSRYB105K10 C 346 (A,63,64) CKSRYB105K10 C 347 (A,59,64) CKSRYB105K10 C 371 (A,94,134) CKSRYB104K25 C 372 (B,94,134) CKSRYB104K25 C 373 (A,99,127) CHIP TZV CAPACITOR VCH1260 C 374 (A,106,127) CHIP TZV CAPACITOR VCH1260 C 591 (B,80,55) CCSRCH102J50 C 592 (B,78,55) CKSRYB103K25 C 701 (A,24,131) CKSQYB105K16 C 711 (A,28,73) CKSRYB105K10 C 712 (A,35,78) CCSRCH471J50 C 713 (A,29,66) CKSQYB225K10 C 714 (A,21,59) CHIP ELECT.CAPACITOR CEVW221M4 C 732 (A,22,113) CHIP CERAMIC C. DCH1165 C 733 (A,20,105) CHIP CERAMIC C. DCH1165 C 734 (A,21,100) CEVW101M16 C 735 (A,20,95) CHIP CERAMIC C. DCH1165 C 736 (A,25,89) CKSRYB104K25 C 737 (A,28,82) CCSRCH121J50 C 738 (A,24,78) CHIP CERAMIC C. DCH1165 C 739 (A,21,66) CEVW101M16 C 751 (A,32,119) CKSRYB105K10 C 752 (A,34,108) CCSRCH471J50 C 753 (A,30,108) CKSQYB225K10 C 761 (A,41,103) CEVW101M16 C 801 (A,50,83) CKSRYB104K25 C AJKB ASSY MISCELLANEOUS IC 1101 (A,144,58) OP-AMP IC NJM5532MD IC 1102 (A,156,72) OP-AMP IC NJM5532MD IC 1201 (A,169,58) OP-AMP IC NJM5532MD IC 1301 (A,142,39) D/A CONVERTER IC PCM1738EG-3 IC 1401 (A,171,39) D/A CONVERTER IC PCM1738EG-3 IC 1501 (A,97,24) AQE IC PD0274A IC 1502 (A,56,44) IC TC74VHC125FTS1 IC 1601 (A,110,30) IC TC74VHC157FTS1 IC 1602 (A,123,28) IC TC74VHC157FTS1 IC 1651 (A,187,70) IC TC74VHC08FTS1 IC 1701 (A,196,84) IC TC74VHCU04FT > IC 1804 (A,115,60) IC NJM78M05FA > IC 1831 (A,86,54) REGULATOR IC BD7802FP Mark No. Description Part No. > IC 1832 (A,71,44) REGURATOR (ADJ.) BA3948FP > IC 1833 (A,43,29) REGURATOR IC BA00BC0WCP-V5 > IC 1851 (A,29,80) PROTECTOR(3A) AEK7015 > IC 1852 (A,36,74) PROTECTOR(4A) AEK7018 Q 1101 (A,154,100) TRANSISTOR 2SD2114K Q 1201 (A,161,100) TRANSISTOR 2SD2114K Q 1651 (A,172,89) CHIP TRANSISTOR UMH9N Q 1652 (A,174,94) TRANSISTOR LSA1576UB Q 1801 (A,91,71) N-FET 2SK246 Q 1802 (B,108,81) CHIP TRANSISTOR 2SC3906K > Q 1803 (A,108,72) TRANSISTOR 2SD1763A Q 1804 (A,96,105) N-FET 2SK246 Q 1805 (B,105,94) CHIP TRANSISTOR 2SA1514K > Q 1806 (A,113,104) TRANSISTOR 2SB1186A D 1651 (A,171,98) DIODE DAP202U D 1652 (B,176,90) DIODE DAN202U D 1751 (B,48,108) DIODE 1SS355 > D 1801 (A,65,98) SCHOTTKY DIODE 11EQS10 > D 1802 (A,65,90) SCHOTTKY DIODE 11EQS10 > D 1803 (A,60,114) SCHOTTKY DIODE 11EQS10 > D 1804 (A,60,106) SCHOTTKY DIODE 11EQS10 D 1805 (B,94,81) DIODE UDZS12(B) D 1806 (B,94,95) DIODE UDZS12(B) D 1807 (B,116,77) CHIP DIODE RB501V-40 D 1808 (B,118,106) CHIP DIODE RB501V-40 D 1809 (B,131,68) CHIP DIODE RB501V-40 D 1831 (A,79,54) CHIP DIODE RB501V-40 D 1832 (A,72,56) CHIP DIODE RB501V-40 D 1833 (B,50,28) CHIP DIODE RB501V-40 > D 1851 (A,49,84) BRIDGE DIODE S1VB20/F03 > D 1852 (A,41,64) DIODE D3SBA20(B) L 1701 (A,203,90) COIL VTL1172 L 1702 (A,191,94) COIL PTL1017 F 1301 (A,152,20) INDUCTOR CTF1661 F 1302 INDUCTOR CTF1661 F 1401 (A,181,20) INDUCTOR CTF1661 F 1402 INDUCTOR CTF1661 F 1701 (B,197,102) CHIP MAGNET CORE DTF1068 F 1702 (B,199,100) INDUCTOR CTF1661 JA 1101 (A,143,118) 1P PIN JACK PKB1043 JA 1201 (A,163,118) 1P PIN JACK PKB1044 JA 1701 (A,198,118) 1P PIN JACK PKB1045 JA 1702 (A,179,118) OPT. LINK OUT VKS1002 JA 1751 (A,33,116) JACK RKN1004 JA 1752 (A,43,116) JACK RKN1004 KN1901 (A,23,22) WRAPPING TERMINAL VNF1084 KN1902 (A,220,18) WRAPPING TERMINAL VNF1084 KN1903 (A,220,88) WRAPPING TERMINAL VNF1084 KN1904 (A,19,101) WRAPPING TERMINAL VNF1084 KN1905 (A,64,29) WRAPPING TERMINAL VNF1084 CN1501 (A,82,39) 17P CONNECTOR VKN1248 CN1502 (A,23,27) CONNECTOR CKS3382 CN1503 (A,23,59) PLUG(4P) KM200NA4 CN1851 (A,218,48) CONNECTOR CKS3380 HEAT SINK PNS1043 SCREW PMH30P080FCC C CUSHION RING PEB1324 SCREW BBZ30P080FCC Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 82 PD-D6MK2-K 1 2 3 4 A B C D E F 1 2 3 4 RESISTORS R 1103 (A,148,68) RN1/16SE1101D R 1104 (A,144,73) RN1/16SE1101D R 1105 (A,148,70) RN1/16SE1201D R 1106 (A,148,71) CHIP METAL FILM R RN1/16SE1801D R 1107 (A,148,73) CHIP METAL FILM R RN1/16SE1801D R 1108 (A,148,74) RN1/16SE1201D R 1109 (B,154,95) RS1/10SR223J R 1110 (A,168,101) RS1/10SR101J R 1111 (B,154,97) RS1/10SR182J R 1112 (B,154,102) RS1/10SR221J R 1114 (A,152,62) CARBON FILM RESISTOR PCN1041 R 1115 (A,135,62) CARBON FILM RESISTOR PCN1041 R 1203 (A,168,73) RN1/16SE1101D R 1204 (A,164,68) RN1/16SE1101D R 1205 (A,164,70) RN1/16SE1201D R 1206 (A,164,71) CHIP METAL FILM R RN1/16SE1801D R 1207 (A,164,73) CHIP METAL FILM R RN1/16SE1801D R 1208 (A,164,74) RN1/16SE1201D R 1209 (B,158,95) RS1/10SR223J R 1210 (A,168,99) RS1/10SR101J R 1211 (B,158,97) RS1/10SR182J R 1212 (B,161,102) RS1/10SR221J R 1214 (A,177,62) CARBON FILM RESISTOR PCN1041 R 1215 (A,160,62) CARBON FILM RESISTOR PCN1041 R 1301 (A,138,29) RS1/10SR220J R 1302 (A,140,29) RS1/10SR470J R 1303 (B,136,44) RN1/16SE1602D R 1401 (A,167,29) RS1/10SR220J R 1402 (A,169,30) RS1/10SR470J R 1403 (B,170,42) RN1/16SE1602D R 1501 (A,104,44) RS1/8SQ4R7J R 1502 (A,89,24) RS1/10SR220J R 1503 (A,101,31) RS1/10SR220J R 1504 (A,98,31) RS1/10SR220J R 1505 (A,102,28) RS1/10SR220J R 1507 (B,90,36) RS1/10SR680J R 1508 (B,90,34) RS1/10SR680J R 1509 (B,90,31) RS1/10SR680J R 1510 (B,90,29) RS1/10SR680J R 1511 (B,87,24) RS1/10SR100J R 1512 (B,83,18) RS1/10SR100J R 1513 (B,83,20) RS1/10SR100J R 1515 (B,88,41) RS1/10SR680J R 1516 (A,29,32) RS1/10SR220J R 1517 (A,29,33) RS1/10SR220J R 1551 (A,91,29) RS1/10SR220J R 1552 (A,95,31) RS1/10SR220J R 1553 (A,94,31) RS1/10SR220J R 1560 (A,125,22) RS1/10SR220J R 1602 (A,109,23) RS1/10SR560J R 1604 (A,114,25) RS1/10SR560J R 1605 (A,112,23) RS1/10SR220J R 1606 (A,108,37) RS1/10SR220J R 1607 (A,109,37) RS1/10SR100J R 1609 (A,111,37) RS1/10SR101J R 1610 (A,112,37) RS1/10SR100J R 1612 (A,114,35) RS1/10SR560J R 1614 (A,122,21) RS1/10SR560J R 1616 (A,128,22) RS1/10SR560J Mark No. Description Part No. R 1617 (A,120,35) RS1/10SR220J R 1618 (A,122,35) RS1/10SR100J R 1620 (A,123,35) RS1/10SR101J R 1621 (A,125,35) RS1/10SR100J R 1623 (A,127,31) RS1/10SR560J R 1651 (A,169,83) RS1/8SQ0R0J R 1652 (A,175,91) RS1/8SQ102J R 1653 (B,170,84) RS1/10SR472J R 1654 (B,180,89) RS1/10SR102J R 1655 (A,171,92) RS1/10SR103J R 1656 (B,180,91) RS1/10SR102J R 1661 (A,163,31) RS1/10SR332J R 1662 (A,162,33) RS1/10SR682J R 1701 (A,193,75) RS1/8SQ0R0J R 1702 (A,199,78) RS1/10SR0R0J R 1703 (A,202,83) RS1/10SR0R0J R 1704 (A,203,85) RS1/10SR220J R 1705 (A,191,88) RS1/10SR470J R 1706 (B,192,90) RS1/10SR750J R 1751 RS1/10SR0R0J R 1752 RS1/10SR0R0J R 1801 (A,48,95) CARBON FILM RESISTOR RD1/4MUF4R7J R 1802 (B,111,75) RS1/10SR681J R 1803 (B,101,83) RS1/10SR331J R 1804 (B,116,106) RS1/10SR681J R 1805 (B,101,92) RS1/10SR331J R 1806 (A,130,103) METAL OXIDE RESISTOR RS2LMF331J R 1807 (A,136,103) METAL OXIDE RESISTOR RS2LMF331J R 1808 (B,24,93) RS1/8SQ0R0J R 1809 (B,26,93) RS1/8SQ0R0J R 1810 (B,32,90) RS1/8SQ0R0J R 1811 (B,34,90) RS1/8SQ0R0J R 1835 (A,73,51) RS1/10SR102J R 1836 (A,67,51) RS1/10SR3302F R 1837 (A,69,52) RS1/10SR1203F R 1839 (B,46,33) RS1/10SR102J R 1840 (B,42,20) RS1/10SR3902F R 1841 (B,46,18) RS1/10SR334J R 1842 (B,46,20) RS1/10SR334J CAPACITORS C 1104 (A,150,57) CCSRCH152J50 C 1105 (A,137,58) CCSRCH152J50 C 1106 (A,143,54) CKSRYB104K16 C 1107 (A,137,65) CEAT101M16 C 1108 (A,146,62) CKSRYB104K16 C 1109 (A,146,65) CEAT101M16 C 1110 (A,146,72) CCSRCH152J50 C 1111 (A,150,70) CCSRCH471J50 C 1112 (A,150,73) CCSRCH471J50 C 1113 (A,150,90) ELECT. CAPACITOR CEANP470M50 C 1115 (A,159,76) CKSRYB104K16 C 1116 (A,163,79) CEAT101M16 C 1117 (A,155,68) CKSRYB104K16 C 1118 (A,154,79) CEAT101M16 C 1204 (A,175,57) CCSRCH152J50 C 1205 (A,162,58) CCSRCH152J50 C 1206 (A,168,54) CKSRYB104K16 C 1207 (A,162,65) CEAT101M16 C 1208 (A,171,62) CKSRYB104K16 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 83 PD-D6MK2-K 5 6 7 8 5 6 7 8 A B C D E F C 1209 (A,171,65) CEAT101M16 C 1210 (A,166,72) CCSRCH152J50 C 1211 (A,162,70) CCSRCH471J50 C 1212 (A,162,73) CCSRCH471J50 C 1213 (A,163,90) ELECT. CAPACITOR CEANP470M50 C 1301 (A,152,31) ELECT. CAPACITOR CEAT471M6R3 C 1302 (A,142,31) CKSRYB105K10 C 1303 (A,135,35) CKSRYB104K16 C 1305 (A,133,46) ELECT. CAPACITOR CEHAZG121M16 C 1307 (A,139,49) ELECT. CAPACITOR CEHAZL470M25 C 1308 (A,150,45) ELECT. CAPACITOR CEHAZL470M25 C 1309 (B,144,38) CCSRCH471J50 C 1310 (A,148,34) CKSRYB103K50 C 1401 (A,181,31) ELECT. CAPACITOR CEAT471M6R3 C 1402 (A,171,31) CKSRYB105K10 C 1403 (A,164,35) CKSRYB104K16 C 1405 (A,162,45) ELECT. CAPACITOR CEHAZG121M16 C 1407 (A,168,49) ELECT. CAPACITOR CEHAZL470M25 C 1408 (A,180,45) ELECT. CAPACITOR CEHAZL470M25 C 1409 (B,168,38) CCSRCH471J50 C 1410 (A,177,34) CKSRYB103K50 C 1501 (A,104,38) CEAT331M10 C 1502 (A,91,26) CKSRYB104K16 C 1503 (A,91,23) CKSRYB105K10 C 1504 (A,102,24) CKSRYB105K10 C 1505 (A,60,42) CKSRYB104K16 C 1506 (A,91,18) CKSRYB103K50 C 1511 (B,16,39) CKSRYB104K16 C 1601 (A,106,33) CKSRYB105K10 C 1602 (A,107,43) CEAT470M35 C 1603 (A,119,30) CKSRYB105K10 C 1605 (A,120,43) CEAT470M35 C 1652 (A,190,68) CKSRYB104K16 C 1704 (A,193,80) CKSRYB104K16 C 1705 (A,190,80) CEAT331M10 C 1706 (B,178,105) CKSRYB105K10 C 1707 (B,178,107) CCSRCH102J50 C 1708 (A,183,99) CEAT470M35 C 1709 (B,205,88) CKSRYB103K50 C 1710 (A,208,86) CEAT470M35 C 1717 (B,197,109) CKSRYB102K50 C 1751 (B,39,109) CKSRYB105K10 C 1752 (B,37,109) CKSRYB103K50 C 1753 (B,50,111) CKSRYB104K16 C 1801 (A,54,90) AUDIO FILM CAPACITOR ACE7063 C 1802 (A,43,90) AUDIO FILM CAPACITOR ACE7063 C 1803 (A,80,72) PCH1156 C 1804 (A,80,95) PCH1156 C 1805 (A,96,81) CEAT101M16 C 1806 (A,91,95) CEAT101M16 C 1807 (A,132,81) CEAT101M25 C 1808 (A,139,85) CEAT101M25 C 1809 (B,116,64) CKSRYB104K16 C 1811 (A,131,64) CKSRYB105K16 C 1813 (A,128,71) ELECT. CAPACITOR CEHAZL102M16 C 1831 (A,81,61) CKSQYB105K16 C 1832 (A,82,46) CEAT471M16 C 1834 (A,74,53) CKSQYB105K16 C 1835 (A,64,56) CEAT101M16 Mark No. Description Part No. C 1837 (B,46,35) CKSQYB105K16 C 1838 (A,45,14) CEAT101M16 C 1852 (A,61,81) PCH1155 C 1854 (A,53,64) ELECT. CAPACITOR CEAT472M16 C 1901 (B,118,56) CKSRYB104K16 D LCD ASSY(D6) MISCELLANEOUS IC 2101 (B,132,210) CPU PDC170B Q 2101 (B,75,193) TRANSISTOR LTC124EUB Q 2102 (B,179,189) TRANSISTOR LTC124EUB Q 2103 (B,181,184) TRANSISTOR 2SA1577 Q 2104 (B,56,178) TRANSISTOR LTC124EUB Q 2106 (B,71,227) TRANSISTOR LTC143EUB Q 2108 (B,172,218) TRANSISTOR 2SC4097 Q 2199 (B,84,218) TRANSISTOR LTC124EUB Q 2201 (B,61,212) TRANSISTOR 2SC4081 Q 2203 (B,61,196) TRANSISTOR 2SC4081 Q 2204 (B,48,220) TRANSISTOR UMH1N Q 2401 (B,56,183) CHIP DIGITAL TRANS. LTA124EUB Q 2402 (B,50,188) TRANSISTOR LTC143EUB D 2101 (A,50,204) LED(RED) SLI-343URCW(RST) D 2102 (A,50,180) LED(RED) SLR-343VC(NPQ) D 2103 (B,170,212) DIODE 1SS355 D 2105 (B,119,226) DIODE 1SS355 D 2206 (A,58,210) LED(BLUE) NSPB500AR10A2252 D 2208 (A,58,197) LED(BLUE) NSPB500AR10A2252 D 2209 (B,49,214) DIODE DAN217 D 2210 (B,53,217) DIODE 1SS355 D 2402 (B,44,197) DIODE 1SS355 L 2101 (B,115,226) INDUCTOR LCYA220J2520 L 2102 (B,175,207) INDUCTOR CTF1389 L 2103 (B,154,202) INDUCTOR CTF1389 L 2104 (B,154,200) INDUCTOR CTF1389 L 2105 (B,149,201) INDUCTOR CTF1389 F 2201 (B,185,185) INDUCTOR CTF1661 J 2104 (A,188,185) JUMPER WIRE D20PYY0320E J 2199 2P CONECTOR ASSY PKP1024 KN2101 (A,71,178) WRAPPING TERMINAL VNF1084 V 2201 (A,125,185) LCD MODULE AAV7118 X 2101 (A,119,221) CERAMIC RESONATOR (10 MHz)ASS7034 CN2105 (A,158,225) CONNECTOR 9607S-17F CN2106 (A,189,218) CONNECTOR CKS3829 3P CABLE HOLDER 51048-0300 LCD LT COND. (PLS) XAK3494 2401 (A,21,180) REMOTE RECEIVER UNIT GP1UM28XK0VF LCD HOLDER (PLS) XMR3092 LCD COVER R(PLS) XMR3094 LCD COVER L(PLS)XMR3093 8P CABLE HOLDER 51048-0800 DIFFUSSION SHEET XAK3521 RESISTORS R 2101 (B,48,201) RS1/10SR102J R 2103 (B,183,194) RS1/10SR473J R 2105 (B,107,201) RS1/10SR103J R 2108 (B,113,202) RS1/10SR221J R 2110 (B,91,191) RS1/10SR221J Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 84 PD-D6MK2-K 1 2 3 4 A B C D E F 1 2 3 4 R 2111 (B,105,191) RS1/10SR221J R 2112 (B,151,201) RS1/10SR473J R 2113 (B,175,184) RS1/10SR102J R 2114 (B,177,185) RS1/10SR223J R 2115 (B,156,192) RS1/10SR221J R 2117 (B,107,208) RS1/10SR221J R 2121 (B,119,218) RS1/10SR105J R 2122 (B,123,226) RS1/10SR221J R 2123 (B,126,229) RS1/10SR221J R 2125 (B,106,219) RS1/10SR473J R 2126 (B,120,229) RS1/10SR105J R 2127 (B,127,233) RS1/10SR221J R 2128 (B,130,229) RS1/10SR221J R 2129 (B,127,231) RS1/10SR221J R 2130 (B,120,193) RS1/10SR221J R 2131 (B,102,193) RS1/10SR221J R 2132 (B,154,179) RS1/10SR221J R 2133 (B,166,219) RS1/10SR221J R 2134 (B,166,216) RS1/10SR221J R 2135 (B,53,181) RS1/10SR271J R 2136 (B,122,233) RS1/10SR473J R 2137 (B,118,231) RS1/10SR473J R 2138 (B,124,233) RS1/10SR473J R 2140 (B,123,194) RS1/10SR221J R 2141 (B,149,217) RS1/10SR221J R 2142 (B,152,216) RS1/10SR221J R 2143 (B,157,207) RS1/10SR221J R 2146 (B,159,204) RS1/10SR103J R 2147 (B,163,204) RS1/10SR103J R 2148 (B,139,198) RS1/10SR221J R 2149 (B,143,198) RS1/10SR221J R 2150 (B,141,196) RS1/10SR221J R 2151 (B,141,201) RS1/10SR221J R 2153 (B,78,212) RS1/10SR473J R 2154 (B,69,223) RS1/10SR222J R 2155 (B,105,231) RS1/10SR101J R 2160 (B,166,214) RS1/10SR221J R 2161 (B,116,194) RS1/10SR221J R 2162 (B,100,202) RS1/10SR221J R 2163 (B,92,201) RS1/10SR221J R 2165 (B,71,190) RS1/10SR221J R 2171 (B,90,206) RS1/10SR473J R 2175 (B,183,232) RS1/10SR0R0J R 2198 (B,80,217) RS1/10SR0R0J R 2210 (B,54,210) RS1/10SR102J R 2211 (B,63,213) RS1/10SR620J R 2212 (B,65,208) RS1/10SR0R0J R 2215 (B,62,200) RS1/10SR620J R 2216 (B,65,199) RS1/10SR0R0J R 2219 (B,126,188) RS1/10SR1201F R 2401 (B,43,208) RS1/10SR471J R 2403 (B,45,200) RS1/10SR223J CAPACITORS C 2103 (B,122,198) CKSRYB104K16 C 2109 (B,122,229) CKSRYB103K50 C 2110 (B,124,229) CKSRYB103K50 C 2112 (B,149,220) CKSRYB104K16 C 2113 (B,143,203) CKSRYB104K16 C 2114 (B,72,222) CKSRYB103K50 Mark No. Description Part No. C 2115 (B,112,216) CKSRYB104K16 C 2201 (B,129,188) CKSRYB104K16 C 2203 (B,103,181) CKSRYB104K16 C 2204 (B,113,181) CCSRCH220J50 C 2205 (B,151,180) CCSRCH220J50 C 2206 (B,128,180) CCSRCH220J50 C 2207 (B,107,181) CCSRCH220J50 C 2209 (B,174,179) CKSRYB104K16 C 2210 (A,176,180) CEAL101M10 C 2216 (B,118,223) CKSRYB104K16 C 2217 (B,96,229) CKSRYB104K16 C 2219 (A,73,230) CEAT100M50 C 2220 (A,110,232) ACH1246 C 2226 (B,174,220) CKSRYB105K10 C 2401 (B,25,182) CKSRYB104K16 C 2402 (A,49,194) ELECT. CAPACITOR CEAT470M35 E PLED ASSY(D6) MISCELLANEOUS D 2601 (A,27,217) LED(BLUE) SLR343BC4T(JK) J 2601 (A,36,221) 2P CONECTOR ASSY PKP1023 RESISTORS R 2601 (B,32,221) RS1/10SR271J CAPACITORS C 2601 (B,27,222) CKSRYB105K10 C 2602 (A,22,223) CEJQ470M16 F MNSW ASSY(D6K) MISCELLANEOUS > S 2501 (A,219,31) POWER SWITCH PSA1006 > CN2501 (A,153,22) AMP U-P CONNECTOR VKN2024 G KEY ASSY(D6) MISCELLANEOUS S 2301 (A,204,193) SWITCH VSG1024 S 2302 (A,224,193) SWITCH VSG1024 2301 (A,202,222) PCB BINDER VEF1040 3P CABLE HOLDER 51048-0300 RESISTORS R 2301 (B,203,190) RS1/10SR103J R 2302 (B,216,193) RS1/10SR103J H CONNECTOR ASSY(D6) MISCELLANEOUS KN2701 (A,113,34) WRAPPING TERMINAL VNF1084 CN2701 (A,94,28) CONNECTOR VKN1205 CN2702 (A,55,16) CONNECTOR CKS3380 CN2703 (A,110,30) CONNECTOR VKN1191 CN2704 (A,61,13) CONNECTOR B2P-SHF-1AA CAPACITORS C 2701 (B,49,24) CKSRYB104K16 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 85 PD-D6MK2-K 5 6 7 8 5 6 7 8 A B C D E F I PRIMARY ASSY(D6/WY) MISCELLANEOUS > IC 11 (A,26,99) REGULATOR IC NJM78M56FA Q 11 (B,26,79) TRANSISTOR LTC124EUB > D 11 (A,32,99) BRIDGE DIODE S1VB20/F03 D 12 (B,39,73) DIODE 1SS355 D 13 (B,39,65) DIODE 1SS355 D 14 (B,29,91) DIODE 1SS355 D 15 (B,21,85) DIODE UDZS5R1(B) > L 11 (A,122,137) LINE FILTER XTF3004 H 11 (A,144,113) FUSE CLIP AKR7001 H 12 (A,144,133) FUSE CLIP AKR7001 J 11 (A,17,100) CONNECTOR ASSY PF04PG-C07 > J 12 (A,126,116) AC INLET ASSY PKP1014 > J 13 (A,130,162) 2P CONECTOR ASSY PKP1015 > RY11 (A,65,71) JOE LOWPOWER RELAY ASR7013 > T 11 (A,65,110) POWER TRANSFORMER ATT7078 > CN13 (A,70,165) CONNECTOR B2P3-VH 13 (A,118,109) PCB BINDER VEF1040 11 (A,15,148) PCB BINDER VEF1040 12 (A,30,168) PCB BINDER VEF1040 RESISTORS R 12 (A,32,88) CARBON FILM RESISTOR RD1/4MUF220J R 14 (B,29,85) RS1/10SR332J R 15 (B,21,88) RS1/10SR103J CAPACITORS > C 12 (A,122,162) FILM CAPACITOR ACE7013 C 15 (A,25,88) ELECT. CAPACITOR CEAT102M25 C 16 (A,25,110) CEAT221M16 J TRANS ASSY(D6) MISCELLANEOUS > J 51 (A,192,166) 2P CONECTOR ASSY PKP1018 J 52 (A,193,89) 7P CONNECTOR ASSY PKP1017 RESISTORS R 51 (A,210,91) CARBON FILM RESISTOR RD1/4MUF4R7J R 52 (A,193,97) CARBON FILM RESISTOR RD1/4MUF4R7J CAPACITORS C 51 (A,213,98) AUDIO FILM CAPACITOR ACE7060 C 52 (A,205,92) AUDIO FILM CAPACITOR ACE7060 C 53 (A,196,103) CFTLA824J50 C 54 (A,186,100) CFTLA824J50 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
