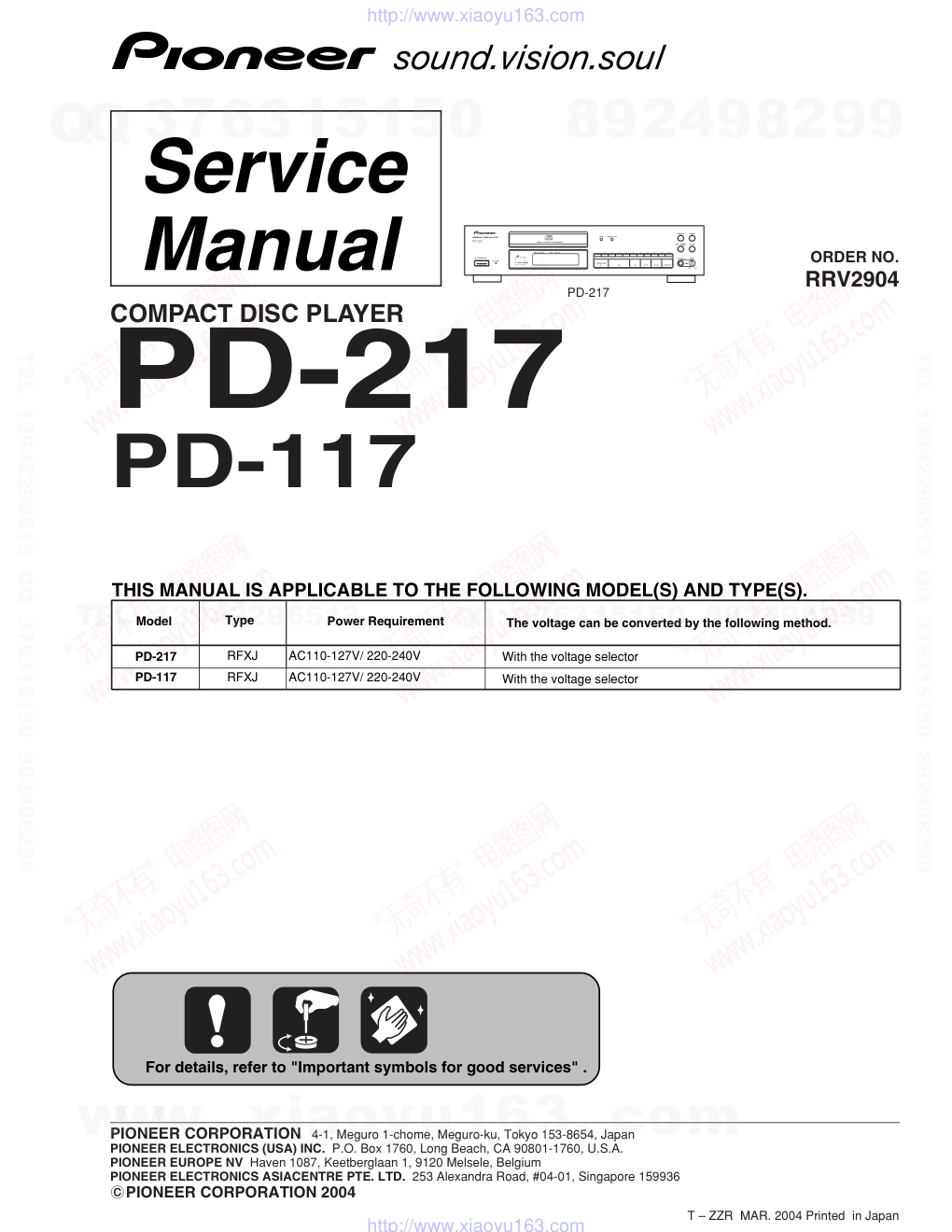

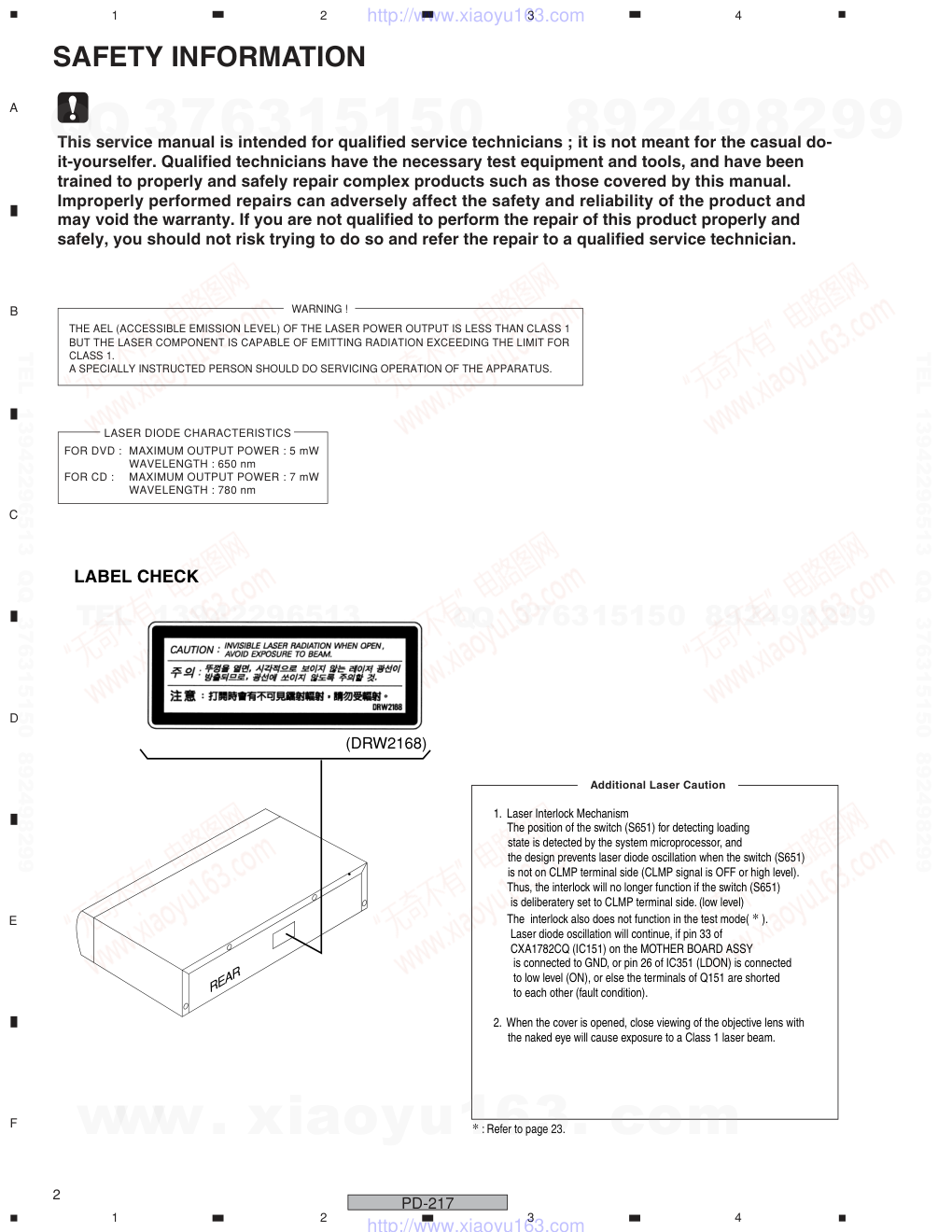

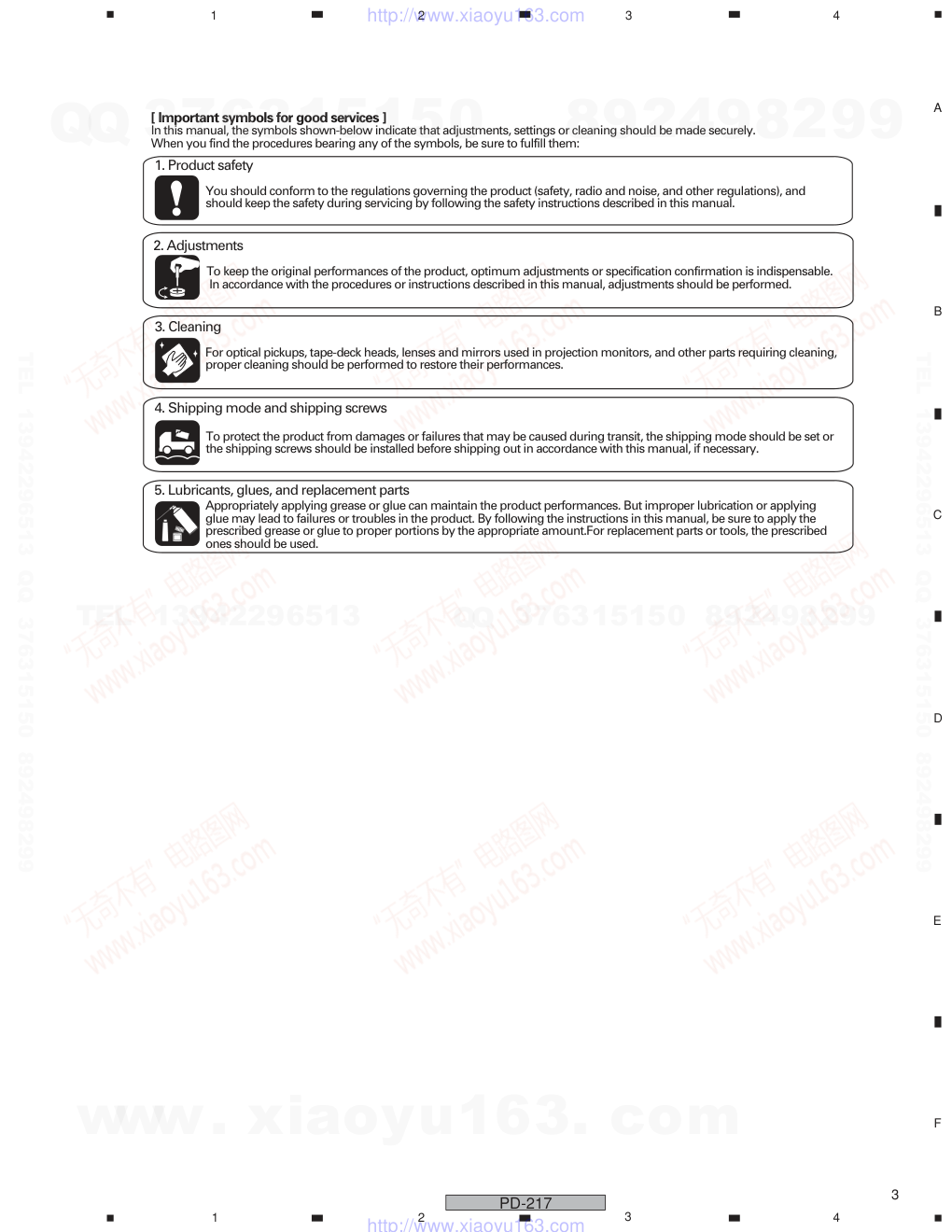

ORDER NO. PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2004 RRV2904 COMPACT DISC PLAYER PD-217 T – ZZR MAR. 2004 Printed in Japan PD-217 For details, refer to "Important symbols for good services" . PD-117 Type Model Power Requirement The voltage can be converted by the following method. PD-117 PD-217 RFXJ RFXJ AC110-127V/ 220-240V AC110-127V/ 220-240V THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S). With the voltage selector With the voltage selector www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 1 2 3 4 1 2 3 4 C D F A B E PD-217 SAFETY INFORMATION This service manual is intended for qualified service technicians ; it is not meant for the casual do- it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. WARNING ! THE AEL (ACCESSIBLE EMISSION LEVEL) OF THE LASER POWER OUTPUT IS LESS THAN CLASS 1 BUT THE LASER COMPONENT IS CAPABLE OF EMITTING RADIATION EXCEEDING THE LIMIT FOR CLASS 1. A SPECIALLY INSTRUCTED PERSON SHOULD DO SERVICING OPERATION OF THE APPARATUS. LASER DIODE CHARACTERISTICS FOR DVD : MAXIMUM OUTPUT POWER : 5 mW WAVELENGTH : 650 nm FOR CD : MAXIMUM OUTPUT POWER : 7 mW WAVELENGTH : 780 nm Additional Laser Caution * : Refer to page 23. LABEL CHECK REAR (DRW2168) 1. Laser Interlock Mechanism The position of the switch (S651) for detecting loading state is detected by the system microprocessor, and the design prevents laser diode oscillation when the switch (S651) is not on CLMP terminal side (CLMP signal is OFF or high level). Thus, the interlock will no longer function if the switch (S651) is deliberatery set to CLMP terminal side. (low level) The interlock also does not function in the test mode( * ). Laser diode oscillation will continue, if pin 33 of CXA1782CQ (IC151) on the MOTHER BOARD ASSY is connected to GND, or pin 26 of IC351 (LDON) is connected to low level (ON), or else the terminals of Q151 are shorted to each other (fault condition). 2. When the cover is opened, close viewing of the objective lens with the naked eye will cause exposure to a Class 1 laser beam. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 1 2 3 4 1 2 3 4 C D F A B E PD-217 [ Important symbols for good services ] In this manual, the symbols shown-below indicate that adjustments, settings or cleaning should be made securely. When you find the procedures bearing any of the symbols, be sure to fulfill them: 2. Adjustments To keep the original performances of the product, optimum adjustments or specification confirmation is indispensable. In accordance with the procedures or instructions described in this manual, adjustments should be performed. 3. Cleaning For optical pickups, tape-deck heads, lenses and mirrors used in projection monitors, and other parts requiring cleaning, proper cleaning should be performed to restore their performances. 5. Lubricants, glues, and replacement parts Appropriately applying grease or glue can maintain the product performances. But improper lubrication or applying glue may lead to failures or troubles in the product. By following the instructions in this manual, be sure to apply the prescribed grease or glue to proper portions by the appropriate amount.For replacement parts or tools, the prescribed ones should be used. 4. Shipping mode and shipping screws To protect the product from damages or failures that may be caused during transit, the shipping mode should be set or the shipping screws should be installed before shipping out in accordance with this manual, if necessary. 1. Product safety You should conform to the regulations governing the product (safety, radio and noise, and other regulations), and should keep the safety during servicing by following the safety instructions described in this manual. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 1 2 3 4 1 2 3 4 C D F A B E PD-217 SAFETY INFORMATION ......................................................................................................................................2 1. SPECIFICATIONS.................................................................................................................................................5 2. EXPLODED VIEWS AND PARTS LIST ............................................................................................................... 6 2.1 PACKING SECTION ............................................................................................................................... 6 2.2 EXTERIOR (1/2)SECTION ............................................................................................................................. 8 2.3 EXTERIOR (2/2)SECTION ................................................................................................. ................................................................................................. 9 2.4 SINGLE MECHANISM SECTION ................................................................................................. .................. 10 3. SCHEMATIC DIAGRAM ......................................................................................... ......................................................................................... ... 12 3.1 MOTHER, DISPLAY and SW BOARD ASSYS ........................................................................................... 12 3.2 WAVEFORMS MOTHER BOARD ASSY ..................................................................................................... 14 4. PCB CONNECTION DIAGAM ............................................................................................................................ 16 4.1 MECHA, DISPLAY, SW and HP BOARD ASSYS 16 ....................................................................................... 4.2 MOTHER BOARD ASSY .......................................................................................... .......................................................................................... 17 6.1 PREPARATIONS .......................................................................................... .......................................................................................... .......................................................................................... 22 6.2 ADJUSTMENT .......................................................................................... .......................................................................................... .......................................................................................... 23 5. PCB PARTS LIST............................................................................................................................................... 19 6. ADJUSTMENT.................................................................................................................................................... 22 7. GENERAL INFORMATION ................................................................................................................................ 30 7.1 DISPLAY .................................................................................................................................................. 30 7.2 CLEANING ............................................................................................................................................ 31 7.3 BLOCK DIAGRAM .................................................................................................................................... 31 8. PANEL FACILITIES............................................................................................................................................ 32 CONTENTS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 1 2 3 4 1 2 3 4 C D F A B E PD-217 1. SPECIFICATIONS Accessories Remote Control Unit x 1 (CU-PD112) (PWW1158) PD-217 Only Output Cable x 1 (PDE1315 : L=1m) AA/R6P Dry Cell Batteries x 2 Operating instructions (PRE1296) Control Cable x 1 (PDE-319 : L=1m) PD-117 Only SPECIFICATIONS Red White 1. General Type ...........................................Compact disc digital audio system Power requirements .......... .......... 110 - 127/220 -240 V(switchable) ,50/60 Hz Power consumption .................................................................12 W Operating temperature ................................................ +5˚C - +35˚C Weight ................................................................................... 3.1 kg External dimensions PD-217 ........................................420(W) X 101(H) X 267(D) mm PD-117 ........................................420(W) X 101(H) X 263(D) mm 2. Audio section Frequency response ................................................... 2 Hz - 20 kHz S/N ratio .......................................................... 98 dB or more (EIAJ) Dynamic range ................................................ 96 dB or more (EIAJ) Harmonic distortion ........................................0.003% or less (EIAJ) Output voltage ...............................................................2.0 V (EIAJ) Wow and flutter ............................................Limit of measurement (±0.001% W.PEAK) or less (EIAJ) Channels ..............................................................2-channel (stereo) 3. Output terminal Audio line output jacks CD•DECK SYNCHRO jack Headphones jack (with volume control) (PD-217 Only) Control input/output jacks (available with the PD-117 ) 4. Accessories Remote control unit(PD-217 Only) ............................................ 1 AA/R6P dry cell batteries(PD-217 Only) ................................... 2 Control cable(PD-117 Only) ......................................................1 Output cable ............................................................................. 1 Operating instructions ............................................................... 1 NOTE: Specifications and design subject to possible modification without notice, due to improvements. OUTPUT – LEVEL + RANDOM HI-LITE 1 ¡ 4 ¢ 7 8 3 1 2 3 4 5 6 7 8 9 10 >10 PROGRAM Î COMPACT DISC PLAYER REMOTE CONTROL UNIT PD-217 Only www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 1 2 3 4 1 2 3 4 C D F A B E PD-217 2. EXPLODED VIEWS AND PARTS LIST 2.1 PACKING Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly. For the applying amount of lubricants or glue, follow the instructions in this manual. (In the case of no amount instructions, apply as you think it appropriate.) NOTES: PD-117 Only 12 FRONT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 1 2 3 4 1 2 3 4 C D F A B E PD-217 (1) PACKING PARTS LIST • PACKING PARTS LIST 1 Styrol Protector R PHA1289 2 Styrol Protector L PHA1290 3 Packing Case See Contrast table (2) 4 Packing Sheet Z23–007 (750 x 600 x 0.5) 5 Output Cable (L=1.0m) PDE1315 6 Operating Instructions PRE1296 (English/Spanish/Chinese) NSP 7 Polyethylene Bag See Contrast table (2) (340 × 230 × 0.03) 8 Caution 220V Label ARR1003 9 Remote Control Unit See Contrast table (2) (CU–PD112) 10 Battery Cover See Contrast table (2) NSP 11 Dry Cell Batteries(AA/R6P) VEM1031 12 Control Cable (L=1.0m) See Contrast table (2) Mark No. Description Part No. (2) CONTRAST TABLE PD-217/RFXJ and PD-117/RFXJ are constructed the same except for the following: Part No. Remarks Mark PD-217/ PD-117/ RFXJ RFXJ 3 Packing Case PHG2370 PHG2369 NSP 7 Polyethylene Bag Z21–038 Not used 9 Remote Control Unit PWW1158 Not used 10 Battery Cover AZA7148 Not used NSP 11 Dry Cell Batteries(AA/R6P) VEM1031 Not used 12 Control Cable (L=1.0m) Not used PDE-319 No. Symbol and Description www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 1 2 3 4 1 2 3 4 C D F A B E PD-217 2.2 EXTERIOR (1/2) Mark No. Description Part No. Mark No. Description Part No. 1 MOTHER BOARD ASSY See Contrast table (2) 2 Strain Relief CM–22C 3 AC Power Cord PDG1075 4 Power Transformer PTT1238 5 Screw BBZ30P080FZK 6 Screw BBZ30P160FMC NSP 7 PCB Spacer PNY-404 8 Screw PDZ30P050FMC NSP 9 SINGLE MECHANISM ASSY PXA1593 10 Screw IBZ30P080FCC 11 Screw IBZ30P150FCC 12 Foot Assy AEC1531 NSP 13 Under Base PNA2177 14 Screw BBZ30P060FMC 15 Rear Base See Contrast table (2) 16 Binder (SKB–90BK) ZCA–SKB90BK 17 Caution Label DRW2168 NSP 18 HEADPHONE BOARD ASSY See Contrast table (2) 19 Headphone Knob See Contrast table (2) (2) CONTRAST TABLE PD-217/RFXJ and PD-117/RFXJ are constructed the same except for the following: Part No. Remarks Mark PD-217/RFXJ PD-117/RFXJ 1 MOTHER BOARD ASSY PWM2139 PWM2136 15 Rear Base PNA2594 PNA2595 NSP 18 HEADPHONE BOARD ASSY PWZ2949 Not used 19 Headphone Knob PAC1707 Not used No. Symbol and Description (1) EXTERIOR PARTS LIST EXTERIOR (1/2) PARTS LIST www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 1 2 3 4 1 2 3 4 C D F A B E PD-217 EXTERIOR (2/2) PARTS LIST Mark No. Description Part No. Mark No. Description Part No. 2.3 EXTERIOR (2/2) 1 Bonnet PYY1182 2 Screw FBT40P080FZK 3 Screw BBZ30P080FZK 4 Tray Name Plate PNW2923 5 Screw IBZ30P080FCC 6 Display Window See Contrast table (2) 7 Name Plate PAM1776 8 Function Panel See Contrast table (2) (2) CONTRAST TABLE PD-217/RFXJ and PD-117/RFXJ are constructed the same except for the following: Part No. Remarks Mark PD-217/RFXJ PD-117/RFXJ 6 Display Window PAM1849 PAM1856 8 Function Panel PNW2911 PNW2910 NSP 15 DISPLAY BOARD ASSY PWZ2937 PWZ2395 16 F · F · C/30V PDD1041 PDD1049 17 10 Key PAC1797 Not used No. Symbol and Description 9 Mode Button PAC1796 10 Operate Button PAC1798 11 LED Lens PNW2019 12 Power Button PAC1708 NSP 13 SW BOARD ASSY PWZ2942 14 Screw PPZ30P100FMC NSP 15 DISPLAY BOARD ASSY See Contrast table (2) 16 F · F · C/30V See Contrast table (2) 17 10 Key See Contrast table (2) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 1 2 3 4 1 2 3 4 C D F A B E PD-217 2.4 SINGLE MECHANISM ASSY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 1 2 3 4 1 2 3 4 C D F A B E PD-217 SINGLE MECHANISM ASSY PARTS LIST 1 Lever Switch (S601) DSK1003 2 Float Screw PBA1048 3 Rubber Belt PEB1193 4 Motor Pulley PNW3026 5 Tray Black V PNW2455 6 Float Base PNW2032 7 Drive Gear 2 PNW2369 8 Gear Pulley PNW2034 9 Clamper Base PNW2375 10 Clamp Cam PNW2364 11 D.C. Motor (0.75W, LOADING) PXM1010 12 Float Rubber B REB1287 13 Float Rubber G REB1288 14 Screw BPZ26P080FMC 15 Screw Z39-019 16 Screw BMZ26P040FMC 17 Pinion Gear PNW2055 NSP 18 D.C. Motor (CARRIAGE) PXM1027 19 D.C. Motor ASSY (SPINDLE) PEA1235 20 Carriage Base PNW2699 21 Disc Holder PNW1608 22 Screw JFZ20P030FNI 23 Screw JFZ17P025FZK 24 Gear 3 PNW2054 25 Gear 2 PNW2053 26 Washer WT12D032D025 27 PICK UP ASSY-S PEA1335 28 Guide Bar PLA1094 29 Gear 1 PNW2052 30 Gear Stopper PNB1303 31 Screw BBZ20P060FMC 32 FFC Holder PNW2734 33 Screw BPZ26P100FMC 34 Earth Lead Unit PDF1104 35 Screw BBZ26P060FMC NSP 36 MECHANISM BOARD ASSY PWX1192 37 Clamp Magnet PMF1014 38 Yoke PNB1216 NSP 39 H Rubber PEB1249 40 Clamper S PNW1609 41 Loading Base PNW2376 42 D.C. Motor Assy (CARRIAGE) PEA1246 NSP 43 SERVO MECHANISM ASSY PXA1596 44 Binder Z09-056 45 Connector Assy (4P) RDE1043 46 Connector Assy (5P) PDE1239 47 PU Rack Spring ABH7077 48 Rack Holder PNW2056 49 16P F·F·C/30V PDD1185 Mark No. Description Parts No. Mark No. Description Parts No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 1 2 3 4 1 2 3 4 C D F A B E PD-217 53 18 19 16 33 2 23 3 4 7 5 6 8 23 -0.7V 1.8V 1.8V 0V 1.6V 1.6V 0V 1.6V 1.6V 0.2V 1.7V 1.7V 0V 0V 0V 5.0V 3.4V 5.0V S801 A PICK UP ASSY PEA1335 SERVO MECHANISM ASSY PXA1596 MECHANISM BOARD ASSY PWX1192 SINGLE MECHANISM ASSY PXA1593 D801 SIGNAL ROUTE : AUDIO SIGNAL : AUDIO SIGNAL : FOCUS SERVO LOOP : TRACKING SERVO LOOP : CARRIAGE SERVO LOOP : SPINDLE DRIVE : LOADING DRIVE SPINDLE MOTOR ASSY PEA1235 CARRIAGE MOTOR ASSY PEA1246 CONNECTOR ASSY RDE1043 PD-217 model Only PD-217 model Only PD-217 PD-217 PD-117 PD-117 VCP1164 VCP1158 VCP1158 VCP1158 VCP1156 VCP1156 A B C D DISPLAY BOARD ASSY PWZ2937 : PD-217 TYPE PWZ2935 : PD-117 TYPE C MOTHER BOARD ASSY B PWM2139 : PD-217 TYPE PWM2136 : PD-117 TYPE SW BOARD ASSY (PWZ2942) D 3. SCHEMATIC DIAGRAM 3.1 MOTHER BOARD ASSY, DISPLAY BOARD ASSY and SW BOARD ASSY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 5 6 7 8 5 6 7 8 C D F A B E PD-217 1.6V 1.6V 0V 0V -9.2V 0V -9.2V 0V 1.6V 1.6V 0V HP BOARD ASSY PWZ2949 : PD-217 TYPE Only E 22/25 22/25 PD-217 TYPE Only AC POWER CORD PDG1075 AC110-127V/220-240V 50/60Hz POWER TRANSFORMER PTT1238 MTZJ5.1B/C PIN No. Volta- ge(V) PLAY STOP 5.0 5.0 -23.2 -23.8 1 2 3 4 5 -23.2 -23.2 -23.2 -23.7 -23.7 -23.8 6 7 8 9 -23.2 -23.8 -23.2 -23.8 -23.2 -23.8 -23.2 -23.8 10 11 12 13 14 -23.2 -23.8 -23.2 -23.8 4.9 0.2 15 16 17 18 19 -0.1 -0.1 -25.9 -26.4 -5.2 -5.2 20 PIN No. Volta- ge(V) PLAY STOP 21 22 23 24 25 26 27 28 29 4.9 4.9 -25.8 -26.2 30 31 32 33 34 4.9 4.8 4.0 2.5 35 36 37 38 39 4.9 4.9 1.3 1.0 40 4.8 4.9 2.9 4.0 2.3 0.1 0.0 0.1 0.0 1.3 1.0 PIN No. Volta- ge(V) PLAY STOP 41 42 43 44 45 46 47 48 49 1.0 1.2 50 51 52 53 54 4.9 1.2 4.9 4.9 55 56 57 58 59 4.9 4.9 0.1 0.1 60 4.9 4.9 4.9 2.3 2.3 2.2 2.2 0.1 0.1 4.9 4.9 1.3 1.0 1.3 1.0 5.0 5.0 1.2 1.0 -0.9 1.0 1.2 1.0 1.2 5.0 -1.0 4.9 6.8 4.9 61 62 63 64 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 DISPLAY BOARD ASSY S701 : OPEN/CLOCE S702 : STOP S705 : RANDOM S706 : HI-LITE SCAN S708 : TIME S710 : PROGRAM S711 : DISPLAY OFF S713 : REPEAT S714 : EDIT S715 : 5 S716 : 10 S717 : 1 S718 : 2 S719 : 3 S720 : 4 S721 : 6 S722 : 7 S723 : 8 S724 : 9 S725 : PLAY/PAUSE S726 : TRACK /MANUAL SEARCH REV S727 : TRACK /MANUAL SEARCH FWD S728 : >10 SW BOARD ASSY S801 : POWER STANDBY/ON IC351(PD4835A) 1SS254 10 PD-217 model Only PD-117 model Only PD-217 model Only B E Note : When ordering service parts, be sure to refer to "EXPLODED VIEWS and PARTS LIST" or "PCB PARTS LIST" : The power supply is shown with the marked box. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 1 2 3 4 1 2 3 4 C D F A B E PD-217 TP1-Pin 1: PLAY MODE (RF) 500mV/div 500nsec/div IC202-Pin 9: PLAY MODE (CADR) 0.2V/div 2sec/div 2 2 5 5 7 7 8 6 4 3 6' 4' TP1-Pin 1: TRACK SEARCH MODE (RF) 500 mV/div 200 µsec/div TP1-Pin 6: PLAY MODE (FOER) 100mV/div 10msec/div TP1-Pin 2: PLAY MODE (TRER) 200mV/div 1msec/div TP1-Pin 2: 50T - JUMP (*1) MODE (TRER) 200mV/div 1msec/div IC202-Pin 4: FOCUS-IN (*2) MODE (FODR) 1V/div 200msec/div IC202-Pin 4: PLAY MODE (FODR) 1V/div 1msec/div IC202-Pin 3: PLAY MODE (TRDR) 500mV/div 1msec/div IC202-Pin 3: 50T - JUMP (*1) MODE (TRDR) 500mV/div 1msec/div IC201-Pin 9: PLAY MODE (SPDR) 1V/div 50msec/div IC201-Pin 9: TRACK SEARCH MODE (SPDR) 2V/div 50msec/div – VC – VC – VC – VC – VC – GND – GND – GND – GND – GND – GND – GND B Waveforms (Mother Board Assy) Note: The encircled numbers denote measuring point in the schematic diagram. *1 50T-JUMP: After switching to the pause mode, press the manual search key. *2 FOCUS-IN: Press the play key without loading a disc. 3.2 WAVEFORMS MOTHER BOARD ASSY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 1 2 3 4 1 2 3 4 C D F A B E PD-217 IC301-Pin 38 : PLAY MODE (PCO) 2V/div 10 µsec/div 53 33 19 23 10 18 16 8 IC202-Pin 9: TRACK SEARCH MODE (CADR) 2V/div 200msec/div IC301-Pin 86 : PLAY MODE (1kHz) (LOUT 1) 1V/div 200msec/div IC301-Pin 54 : PLAY MODE (1kHz) (BCK) 2V/div 500nsec/div IC301-Pin 50 : PLAY MODE (1kHz) (LRCK) 2V/div 10 µsec/div IC301-Pin 52 : PLAY MODE (1kHz) (PCMD) 2V/div 500nsec/div TRACK SEARCH MODE Upper : TP1-Pin 1 (RF) 1V/div Lower : IC151-Pin 23 (C.OUT) 2V/div 50 µsec/div IC301-Pin 27 : PLAY MODE (MDP) 2V/div 2 µsec/div – GND – GND – GND – GND – GND – GND – GND – GND – GND www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 1 2 3 4 1 2 3 4 C D F A B E PD-217 CARRIAGE MOTOR M SPINDLE MOTOR M INSIDE MECHANISM BOARD ASSY A HP BOARD ASSY E DISPLAY BOARD ASSY C SW BOARD ASSY D B CN202 B CN401 B CN351 (PNP1239-C) (PNP1386-A) (PNP1386-A) NOTE FOR PCB DIAGRAMS : 1. Part numbers in PCB diagrams match those in the schematic diagrams. 2. A comparison between the main parts of PCB and schematic diagrams is shown below. 3. The parts mounted on this PCB include all necessary parts for several destinations. For further information for respective destinations, be sure to check with the schematic diagram. 4. View point of PCB diagrams. Symbol In PCB Diagrams Symbol In Schematic Diagrams Part Name B C E D D G G S S B C E B C E D G S B C E B C E B C E Transistor Transistor with resistor Field effect transistor Resistor array 3-terminal regulator Capacitor Connector P.C.Board Chip Part SIDE A SIDE B A C D E SIDE A 4. PCB CONNECTION DIAGRAM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 1 2 3 4 1 2 3 4 C D F A B E PD-217 (PNP1424–B) AC POWER CORD VR151 VR152 Q391 Q452 Q454 Q404 Q403 Q453 Q451 Q405 IC406 IC405 IC31 IC401 IC34 Q341 Q151 Q152 IC202 IC21 Q321 VR153 VR154 VR155 VR156 B B SIDE A B MOTHER BOARD ASSY C CN701 E J501 A CN610 To PICKUP ASSY To LOADING MOTOR and CLAMP SW www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 1 2 3 4 1 2 3 4 C D F A B E PD-217 B B SIDE B B MOTHER BOARD ASSY PNP1424–B IC301 IC151 IC351 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 1 2 3 4 1 2 3 4 C D F A B E PD-217 5. PCB PARTS LIST Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 5 6 1 4 7 3 R 5 0 1 R 0 5 6 2 1 NOTES: 560 47k 0.5 1 RD1/4PU J RD1/4PU J RN2H K RS1P K 56 x 101 47 x 103 R50 1R0 561 473 5.62k RN1/4PC F 562 x 101 5621 MOTHER BOARD ASSY PWM2139 PWM2136 NSP SUB BOARD ASSY PWX1400 PWX1398 NSP DISPLAY BOADR ASSY PWZ2937 PWZ2935 NSP SW BOARD ASSY PWZ2942 PWZ2942 NSP HP BOARD ASSY PWZ2949 Not used NSP SINGLE MECHANISM ASSY PXA1593 PXA1593 NSP SERVO MECHANISM ASSY PXA1596 PXA1596 NSP MECHANISM BOARD ASSY PWX1192 PWX1192 LIST OF WHOLE PCB ASSEMBLIES CONTRAST OF PCB ASSEMBLIES MOTHER BOARD ASSY PWM2139 and PWM2136 are constructed the same except for the following: IC406 BA15218 Not used D392- D394 Not used 1SS254 C470 CKCYF103Z50 Not used C393 Not used CCCSL101J50 L391 Not used LAU1R0J R391 Not used RD1/4PU244J R392 Not used RD1/4PU102J R470, R471 RD1/4PU470J Not used R472, R473 RD1/4PU102J Not used CN351 HLEM32S-1 HLEM30S-1 CN401 52147-0310 Not used JA391, JA392 Not used RKN1004 Mark Remarks Symbol and Description Part No. PWM2139 PWM2136 Mark Symbol and Description Part No. PD-217/RFXJ PD-117/RFXJ Remarks www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 1 2 3 4 1 2 3 4 C D F A B E PD-217 OTHERS CN202 MT 4P CONNECTOR 173981-4 CN205 MT 5P CONNECTOR 173981-5 CN351 32P FFC CONNECTOR HLEM32S-1 JA401 2P JACK PKB1023 JA393 JACK PKN1005 X341 XTAL RES (16.9344 MHz) PSS1008 CN201 CONNECTOR 6P RKP-533 CN131 CONNECTOR SLW16S-1C7 X351 CERAMIC RESONATOR VSS1014 (4.19MHz) CN401 3P JUMPER CONNECTOR 52147-0310 TERMINAL RKC–061 S5 VOLTAGE SELECTOR PSB1006 DISPLAY BOARD ASSY SEMICONDUCTORS D701– D707 1SS254 CAPACITOR C701 CKCYF103Z50 SWITCHES S701, S702, S705, S706, S708, S710 PSG1006 S711, S713– S728 PSG1006 OTHERS CN702 4P JUMPER CONNECTOR 52147-0410 CN701 CONNECTOR HLEM32R-1 V701 FL INDICATOR TUBE PEL1085 REMOTE SENSOR SBX1976-51 SEMICONDUCTOR D801 PCX1019 SWITCH S801 PSG1006 OTHER J801 2mm JUMPER WIRE D20PWY0405G HP BOARD ASSY RESISTOR VR501 (5kΩ- B) PCS1003 COILS AND FILTERS L501, L504, L505 (AXIAL INDUCTOR) LAU1R0J CAPACITORS C501, C502 CKCYF223Z50 C504 CKCYF473Z50 OTHERS JA501 HP JACK RKN1002 J501 3P JUMPER WIRE D20PWY0310G C D SW BOARD ASSY E MOTHER BOARD ASSY B Mark No. Description Part No. PARTS LIST FOR PD-217/RFXJ Mark No. Description Part No. SEMICONDUCTORS IC406 BA15218 IC151 CXA1782CQ IC301 CXD2519Q IC31, IC34 ICP-N10 IC201, IC202 LA6520 IC405 NJM4558D-D IC351 PD4835A IC21 PQ05RR12 Q151 2SA854S Q391 2SC1740S Q403, Q404 2SD2144S Q152 DTA124ES Q405 DTC124ES Q341 2SK246 D341, D351, D352, D395– D397 1SS254 D54 MTZJ18B D359 MTZJ5.1B D218 MTZJ6.2B D11– D14, D52 S5688G COILS AND FILTERS L351 (RADIAL INDUCTOR) LFA100J L395, L396 (RADIAL INDUCTOR) LFA1R0J CAPACITORS C181 CCCCH100D50 C341, C342 CCCCH120J50 C383 CCCSL181J50 C315 CCCSL221J50 C481, C482 CCCSL390J50 C309 CEASR47M50 C171, C175, C301, C311– C314 CEAS101M10 C316, C302 CEAS101M10 C52 CEAS101M35 C26 CEAS102M16 C433, C434 CEAS220M25 C27, C131– C133, C431, C432 CEAS330M16 C25 CEAS332M16 C169, C170, C356 CEAS4R7M50 C351 CEAS471M6R3 C156, C161, C164, C168, C218 CGCYX103K25 C160 CGCYX333K25 C167 CGCYX472K25 C152, C307 CGCYX473K25 C157 CGCYX823K25 C163 CKCYB102K50 C176, C306, C441, C442 CKCYB152K50 C305 CKCYB222K50 C162 CKCYB332K50 C151 CKCYB682K50 C29, C159, C205, C210 CKCYF103Z50 C215, C219, C304, C310, C353 CKCYF103Z50 C357, C382, C470 CKCYF103Z50 C11, C13, C15, C16, C17 CKCYF103Z50 C153, C154, C155, C158 CQMBA104J50 RESISTORS VR153, VR155 (10kΩ- B) VCP1156 VR151, VR152, VR154 (22kΩ- B) VCP1158 VR156 (220kΩ- B) VCP1164 Other Resistors RD1/4PU&&&J www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 5 6 7 8 5 6 7 8 C D F A B E PD-217 MECHANISM BOARD ASSY SWITCH S610 DSG1016 OTHER CN610 MT 4P CONNECTOR 173979-4 Mark No. Description Part No. A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 22 1 2 3 4 1 2 3 4 C D F A B E PD-217 6. ADJUSTMENT 6.1 PREPARATIONS 6.1.1 Jigs and Measuring Instruments 6.1.2 Necessary Adjustment Points When Adjustment points Exchange PICKUP Exchange MOTHER BOARD ASSY Exchange SERVO MECH ASSY Exchange SPINDLE MOTOR 1.2.3.4.5.6.7. 8.9.10.11.12 ADJ = Page 10 CD TEST DISC (YEDS-7) screwdriver (small) Precise screwdriver screwdriver (medium) screwdriver (large) 39 kΩ 0.001µF Low-frequency oscillator Dual-trace oscilloscope (10 : 1 probe) Low pass filter 1 (39 kΩ + 0.001µF) 56 kΩ 0.001µF Low pass filter 2 (56 kΩ + 0.001µF) Ball point hexagon wrench (size: 1.5mm) GGK1002 = Page 24 - 29 1.3.5.6.7.8. 9.10.11.12 1.2.3.4.5.6.7. 8.9.10.11.12 = Page 24 - 29 = Page 24 - 29 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 23 1 2 3 4 1 2 3 4 C D F A B E PD-217 TEST MODE W107 W108 Short point MOTHER BOARD ASSY TEST MODE : ON TEST MODE : PLAY TEST MODE : STOP = CANCEL Spindle motor: START Spindle servo: CLOSE CLOSE OPEN Tracking servo: TEST DISC: YEDS-7 PICKUP ASSY MOTHER BOARD ASSY (REAR) (FRONT) ADJUSTMENT SCREW (Radial direction) ADJUSTMENT SCREW (Tangential tilt direction) Stop all operation 6.2.1 How to Start/Cancel Test Mode 6.2.2 Adjustment Location 6.2 ADJUSTMENT TEST MODE W107 W108 Short point MOTHER BOARD ASSY Laser diode: LIGHTS UP Focus servo: CLOSE TEST CN201 TP1 1. RF 2. TR. ER 3. TR. IN 4. VC 5. FO. IN 6. FO. ER VR151. TR GAIN VR152. FO GAIN VR153. RF LEVEL VR154. FO OFFSET VR155. TR BAL VR156. FO BEST PROGRAM inwards outwards Pickup Move ¡¥¢ 4¥1 6 6 6 1 6 CN201 W107 W108 VR151 VR152 VR155 VR156 VR154 VR153 Grating www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 24 1 2 3 4 1 2 3 4 C D F A B E PD-217 4 2 6 1. Focus Offset Adjustment Test mode None disc VR154 MOTHER BOARD ASSY DC voltage 0±50mV Oscilloscope DC Mode V: 5mV/div H: 10mSec/div Prove (10:1) GND START TP1 (CN201) Player 2. Grating Adjustment Oscilloscope DC Mode V: 10mV/div H: 5mSec/div Player FE VC START TP1 (CN201) TE VC Locate null. Counterclockwise, Maximum amplitude. 39kΩ 0.001µF Prove (10:1) GND Low pass filter 1 MOTHER BOARD ASSY MOTHER BOARD ASSY 6.2.3 Check and Adjustment 4 Grating Turn counterclockwise from null. 8-cm DISC PLAY Test mode FOCUS servo SPDL servo TRKG servo CLOSE CLOSE OPEN Position at whitch the adjust- ment hole is visible outside the disc when moving toward the outer circumference. = = = www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 25 1 2 3 4 1 2 3 4 C D F A B E PD-217 1 4 2 3. Tracking Error Balance Adjustment Probe (10:1) VR155 A=B Oscilloscope DC Mode V: 10mV/div H: 5mSec/div START TP1 (CN201) Player TE VC 39kΩ 0.001µF Low pass filter 1 Test mode SPDL servo FOCUS servo TRKG servo = = = CLOSE CLOSE OPEN TEST DISC PLAY Innermost circumference (1 TRK) VC A B GND GND Player TP1 (CN201) RF VC START Probe (10:1) Oscilloscope AC Mode V: 20mV/div H: 200nSec/div NG OK (Smooth) Eye pattern 4. Pickup 1Radial 2Tangential Direction Tilt Adjustment MOTHER BOARD ASSY MOTHER BOARD ASSY MOTHER BOARD ASSY TEST DISC PLAY Test mode SPDL servo FOCUS servo TRKG servo = = = CLOSE CLOSE CLOSE Position where the screw is visible through the adjustment hole of the float base after moving toward the outer peripheral. 4 Remove lock tight 1 2 2 1 TEST DISC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 26 1 2 3 4 1 2 3 4 C D F A B E PD-217 11 4 5. RF Level Adjustment VR153 1.2VP-P ±0.1V Oscilloscope AC Mode V: 50mV/div H: 10mSec/div START TP1 (CN201) Player RF VC GND Prove (10:1) 6. Focus Best Adjustment Oscilloscope DC Mode CH1: 5mV/div CH2: 20mV/div H: 200ns/div Prove(10:1) Player START TP1 (CN201) RF VC MAX GND Prove(10:1) FE 6 1 4 GND Adjust the RF level to maximum, with the focus error voltage within ±150mV. MOTHER BOARD ASSY MOTHER BOARD ASSY MOTHER BOARD ASSY Test mode SPDL servo FOCUS servo TRKG servo = = = CLOSE CLOSE CLOSE TEST DISC PLAY Innermost circumference (1 TRK) VR156 MOTHER BOARD ASSY Test mode SPDL servo FOCUS servo TRKG servo = = = CLOSE CLOSE CLOSE TEST DISC PLAY Innermost circumference (1 TRK) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 27 1 2 3 4 1 2 3 4 C D F A B E PD-217 11 4 7. RF Level Adjustment 1.2VP-P ±0.1V Oscilloscope AC Mode V: 50mV/div H: 10mSec/div START TP1 (CN201) Player RF VC GND Prove (10:1) 8. Focus Servo Loop Gain Adjustment UNDER Oscilloscope X-Y Mode X: 20mV/div Y: 5mV/div GND Prove (10:1) Player START TP1 (CN201) FI VC UPPER JUST Low-frequency oscillator 1.2kHz 1Vp-p GND GND Prove (10:1) 56kΩ 0.001µF Low pass filter 2 100kΩ FE Make adjustment if the value exceeds the specified range. Check 6 5 4 Lissajous Waveform MOTHER BOARD ASSY MOTHER BOARD ASSY VR153 MOTHER BOARD ASSY Test mode SPDL servo FOCUS servo TRKG servo = = = CLOSE CLOSE CLOSE TEST DISC PLAY Innermost circumference (1 TRK) Test mode SPDL servo FOCUS servo TRKG servo = = = CLOSE CLOSE CLOSE TEST DISC PLAY Innermost circumference (1 TRK) VR152 MOTHER BOARD ASSY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 28 1 2 3 4 1 2 3 4 C D F A B E PD-217 10. Focus Servo Loop Gain Adjustment 9. Focus Best Adjustment Oscilloscope DC Mode CH1: 5mV/div CH2: 20mV/div H: 200ns/div Prove (10:1) Player START TP1 (CN201) RF VC MAX GND Prove (10:1) FE 6 1 4 GND Readjust if adjustment is incorrect. Adjust the RF level to maximum, with the focus error voltage within ±150mV. MOTHER BOARD ASSY VR156 MOTHER BOARD ASSY Test mode SPDL servo FOCUS servo TRKG servo = = = CLOSE CLOSE CLOSE TEST DISC PLAY Innermost circumference (1 TRK) UNDER Oscilloscope X-Y Mode X: 20mV/div Y: 5mV/div GND Prove (10:1) Player START TP1 (CN201) FI VC UPPER JUST Low-frequency oscillator 1.2kHz 1Vp-p GND GND Prove (10:1) 56kΩ 0.001µF Low pass filter 2 100kΩ FE 6 5 4 Lissajous Waveform MOTHER BOARD ASSY Test mode SPDL servo FOCUS servo TRKG servo = = = CLOSE CLOSE CLOSE TEST DISC PLAY Innermost circumference (1 TRK) VR152 MOTHER BOARD ASSY Check www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 29 1 2 3 4 1 2 3 4 C D F A B E PD-217 11. Focus Best Adjustment Oscilloscope DC Mode CH1: 5mV/div CH2: 20mV/div H: 200ns/div Prove (10:1) Player START TP1 (CN201) RF VC MAX GND Prove (10:1) FE 6 1 4 GND Adjust the RF level to maximum, with the focus error voltage within ±150mV. Adjust this point only if adjustment was made in item 10. MOTHER BOARD ASSY VR156 MOTHER BOARD ASSY Test mode SPDL servo FOCUS servo TRKG servo = = = CLOSE CLOSE CLOSE TEST DISC PLAY Innermost circumference (1 TRK) 12. Tracking Servo Loop Gain Adjustment UNDER Oscilloscope X-Y Mode X: 20mV/div Y: 10mV/div GND Prove (10:1) Player START TP1 (CN201) TI VC UPPER JUST Low-frequency oscillator 1.2kHz 1Vp-p GND GND Prove (10:1) 100kΩ TE 2 3 4 Lissajous Waveform MOTHER BOARD ASSY Test mode SPDL servo FOCUS servo TRKG servo = = = CLOSE CLOSE CLOSE TEST DISC PLAY Innermost circumference (1 TRK) VR151 MOTHER BOARD ASSY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 30 1 2 3 4 1 2 3 4 C D F A B E PD-217 7. GENERAL INFORMATION 7.1 DISPLAY 7 PEL1085 (V701: DISPLAY BOARD ASSY) 7 FL INDICATOR TUBE ¶ Pin Assignment ¶ Pin Connection ¶ Grid Assignment ¶ Anode Connection www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 31 1 2 3 4 1 2 3 4 C D F A B E PD-217 7.2 CLEANING 7.3 BLOCK DIAGRAM Before shipping out the product, be sure to clean the following positions by using the prescribed cleaning tools: Position to be cleaned Cleaning tools Pickup lenses Cleaning liquid : GEM1004 Cleaning paper : GED-008 PICKUP Assembly SERVO CONTROLLER IC151 CXA1782CQ DECODER + DAC IC301 CXD2519Q LPF IC405 NJM4558D-D AUDIO SIGNAL CPU IC351 PD4835A AMP IC201 IC202 LA6520 Spindle Carriage Loading etc Focus Tracking M DISPLAY FUNCTION KEY POWER SUPPLY . . . . . ( ( ( ( ( ( ( ( ( ( DECK SYNCHRO SR HEADPHONE JACK (PD-217 Only) (PD-117 Only) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 32 1 2 3 4 1 2 3 4 C D F A B E PD-217 8. PANEL FACILITIES 7 PANEL FACILITIES 1 2 3 45 6 7890 $ # @ ! ~ = - COMPACT DISC PLAYER STANDBY/ON STANDBY OPEN/CLOSE 0 6 7 4 1 ¡ ¢ PROGRAM RANDOM REPEAT EDIT HI-LITE PHONES LEVEL ¶ COMPU ¶¶ AUTO MIN MAX 1 2 3 4 5 6 7 8 9 10 >10 TIME DISPLAY OFF Î CD DECK SYNCHRO TRACK INDEX MIN SEC/dB ' DIRECT LINEAR CONVERSION FRONT PANEL 1 STANDBY/ON switch and STANDBY indicator 2 Remote sensor (PD-217 Only) Receives the signal from the remote control unit. 3 Disc tray 4 TIME button 5 DISPLAY OFF button 6 Digit buttons (1 - 10, >10) (PD-217 Only) 7 COMPU/AUTO EDIT button 8 RANDOM button 9 REPEAT button 0 HI-LITE scan button - OPEN/CLOSE button (0) = Play/Pause button (6) ~ Stop button (7) ! Track/Manual search buttons (4 1/¡ ¢) @ PROGRAM button # Headphones jack (PHONES)(PD-217 Only) $ Headphones volume control (LEVEL) (PD-217 Only) 1 2 3 4 5 6 7 8 9 0 - OUTPUT – LEVEL + RANDOM HI-LITE 1 ¡ 4 ¢ 7 8 3 1 2 3 4 5 6 7 8 9 10 >10 PROGRAM Î COMPACT DISC PLAYER REMOTE CONTROL UNIT REMOTE CONTROL UNIT Remote control buttons with the same names or marks as buttons on the front panel of the player control the same operations as the corresponding front panel buttons. 1 STANDBY/ON( ) button 2 RANDOM play button 3 HI-LITE scan button 4 PAUSE button ( 8 ) 5 STOP button ( 7 ) 6 OUTPUT LEVEL buttons (–/+) 7 MANUAL search buttons ( 1 / ¡ ) 8 TRACK search buttons ( 4 / ¢ ) 9 PLAY button ( 3 ) 0 Digit buttons (1 - 10, >10) - PROGRAM button REMOTE CONTROL UNIT (PD-217 : Only) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
