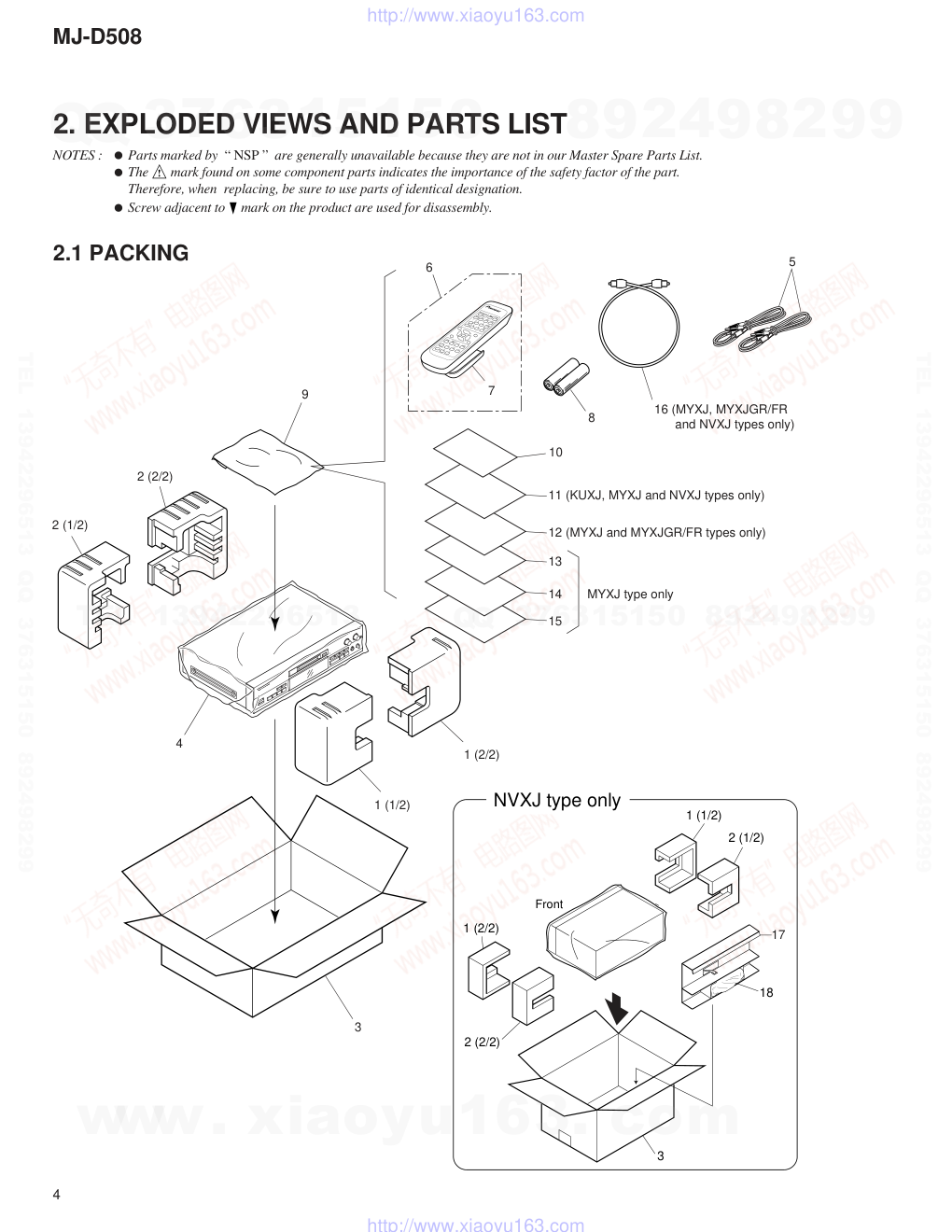

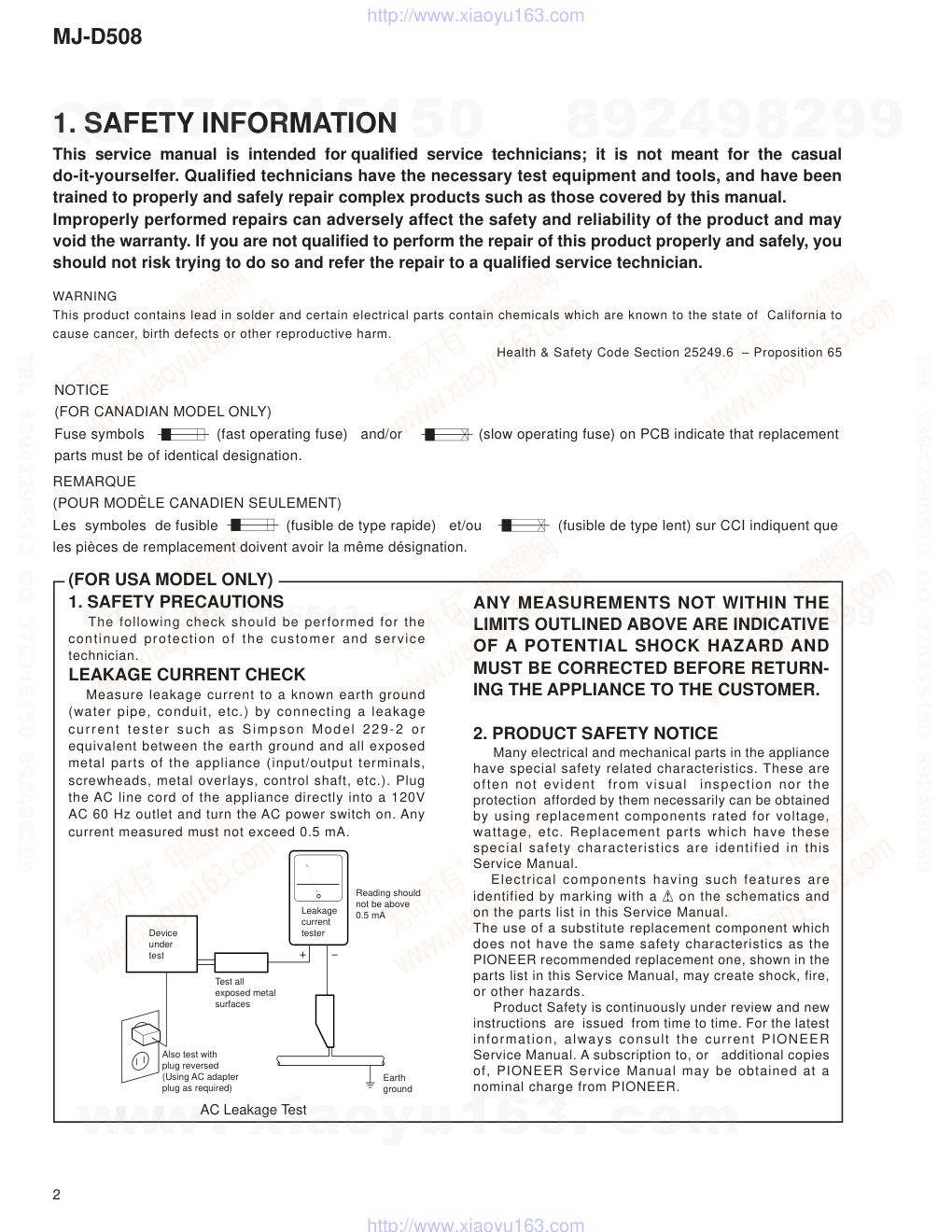

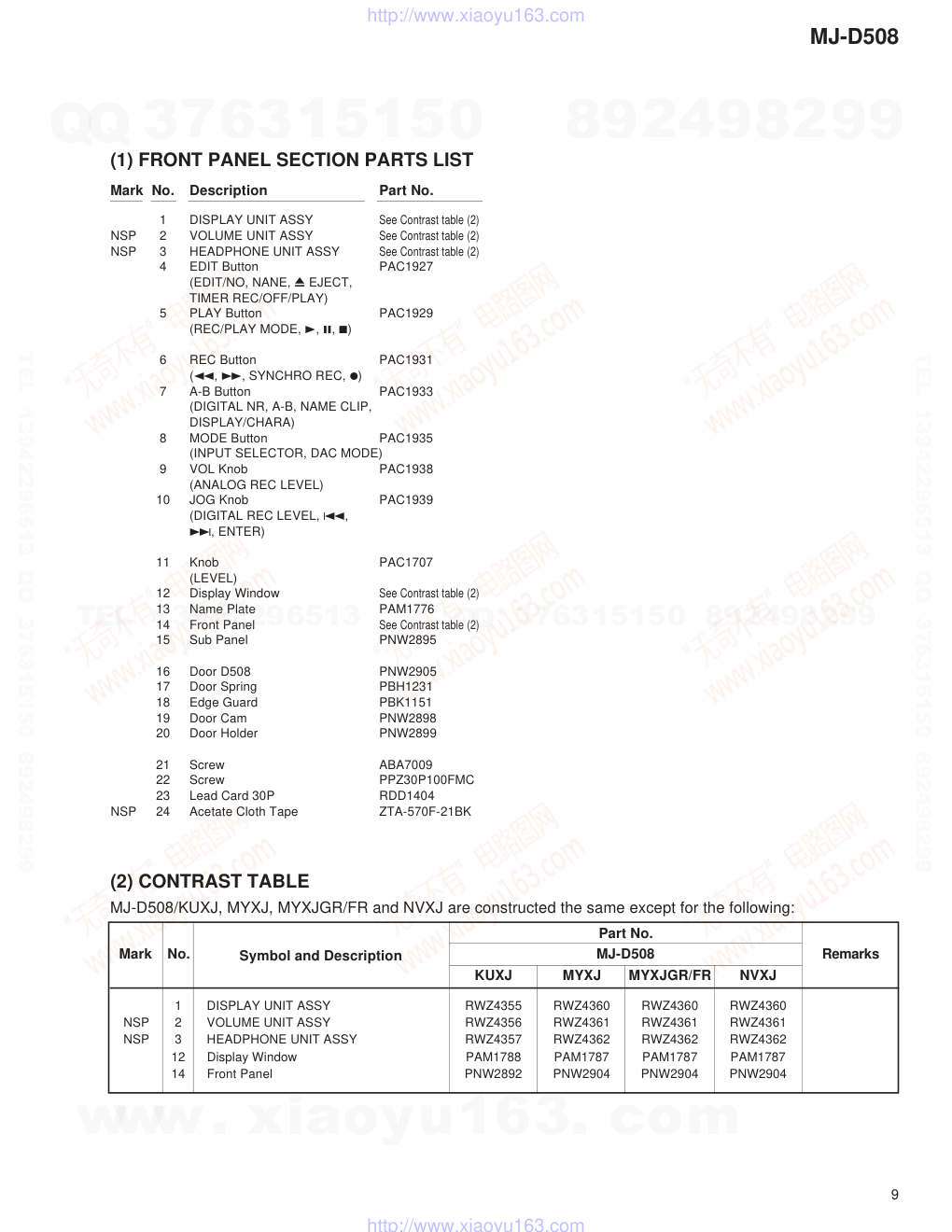

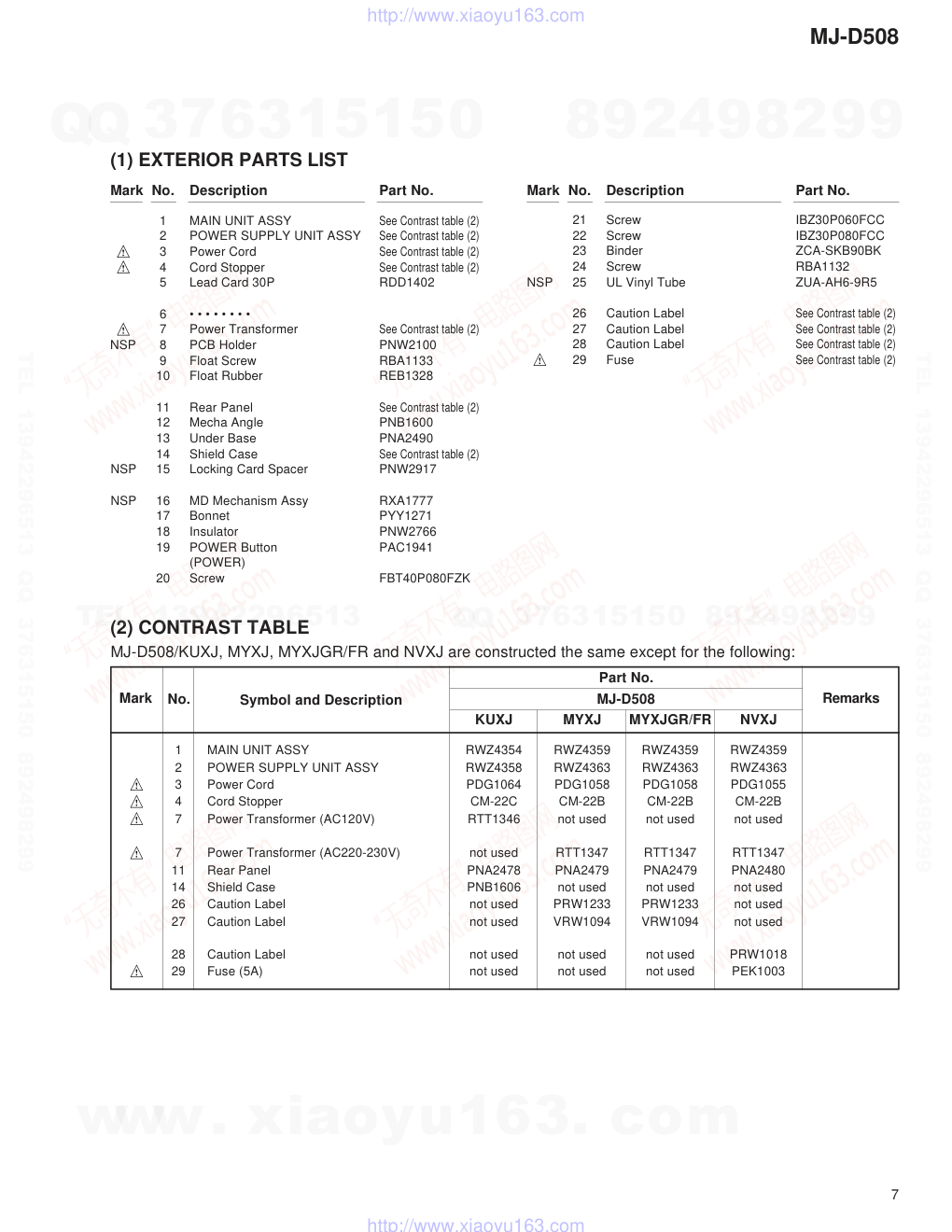

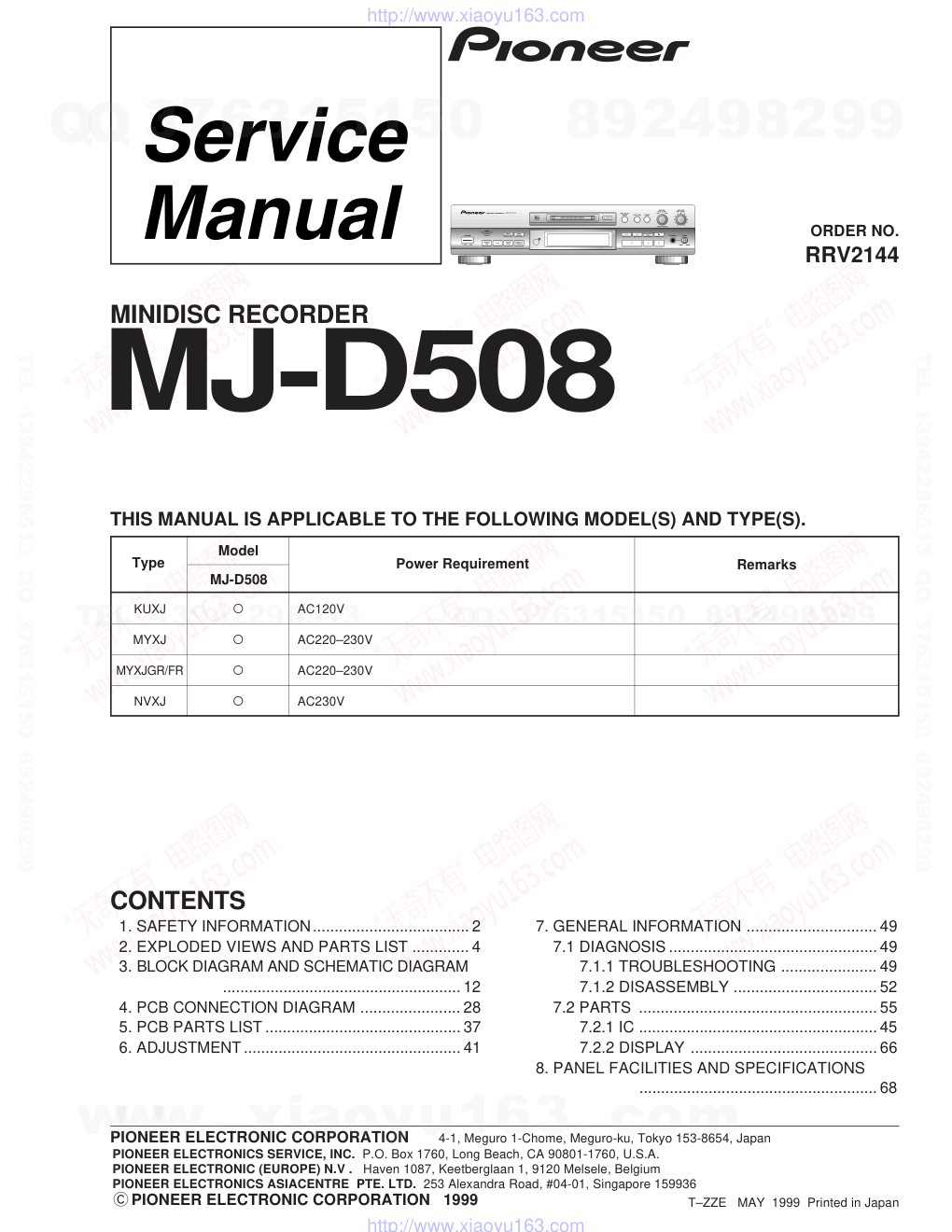

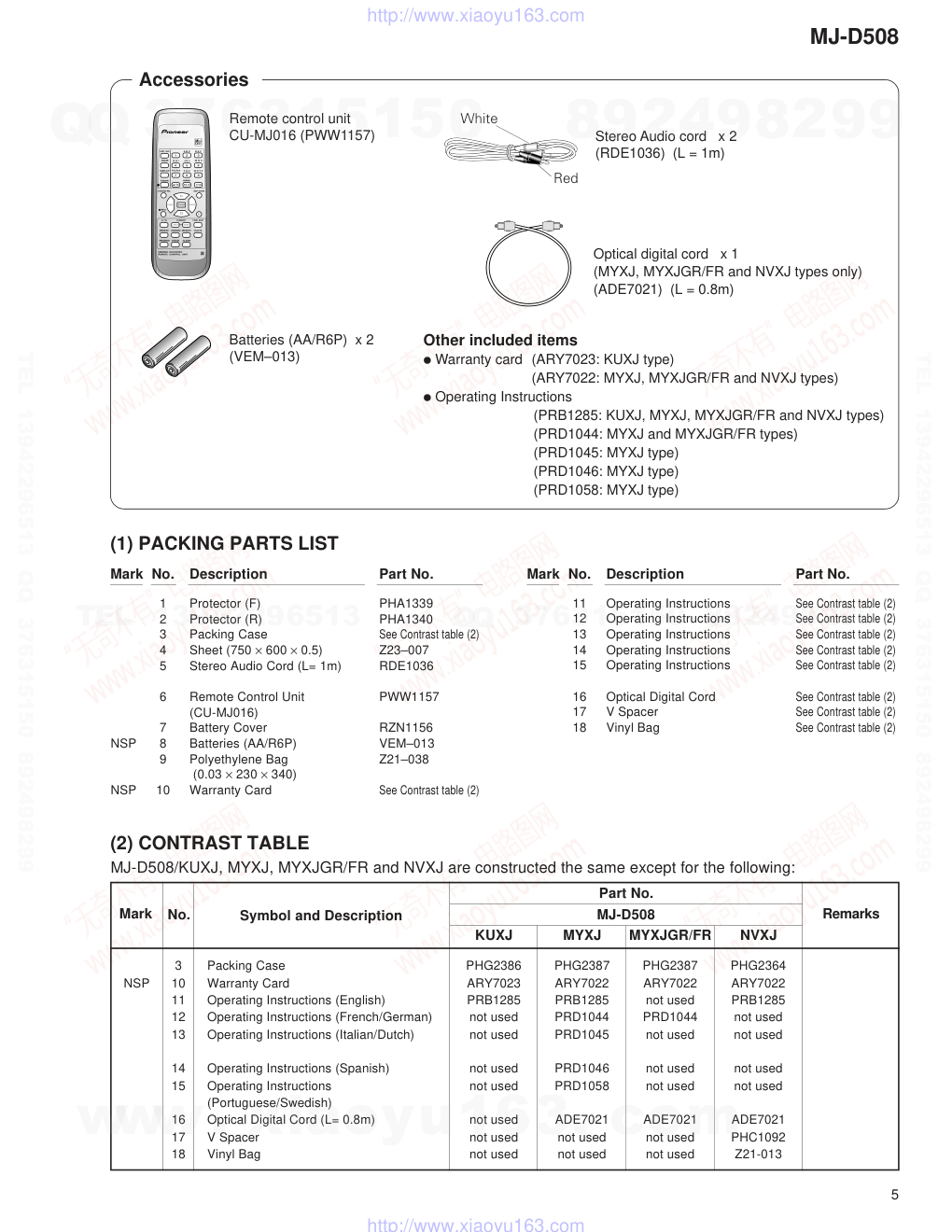

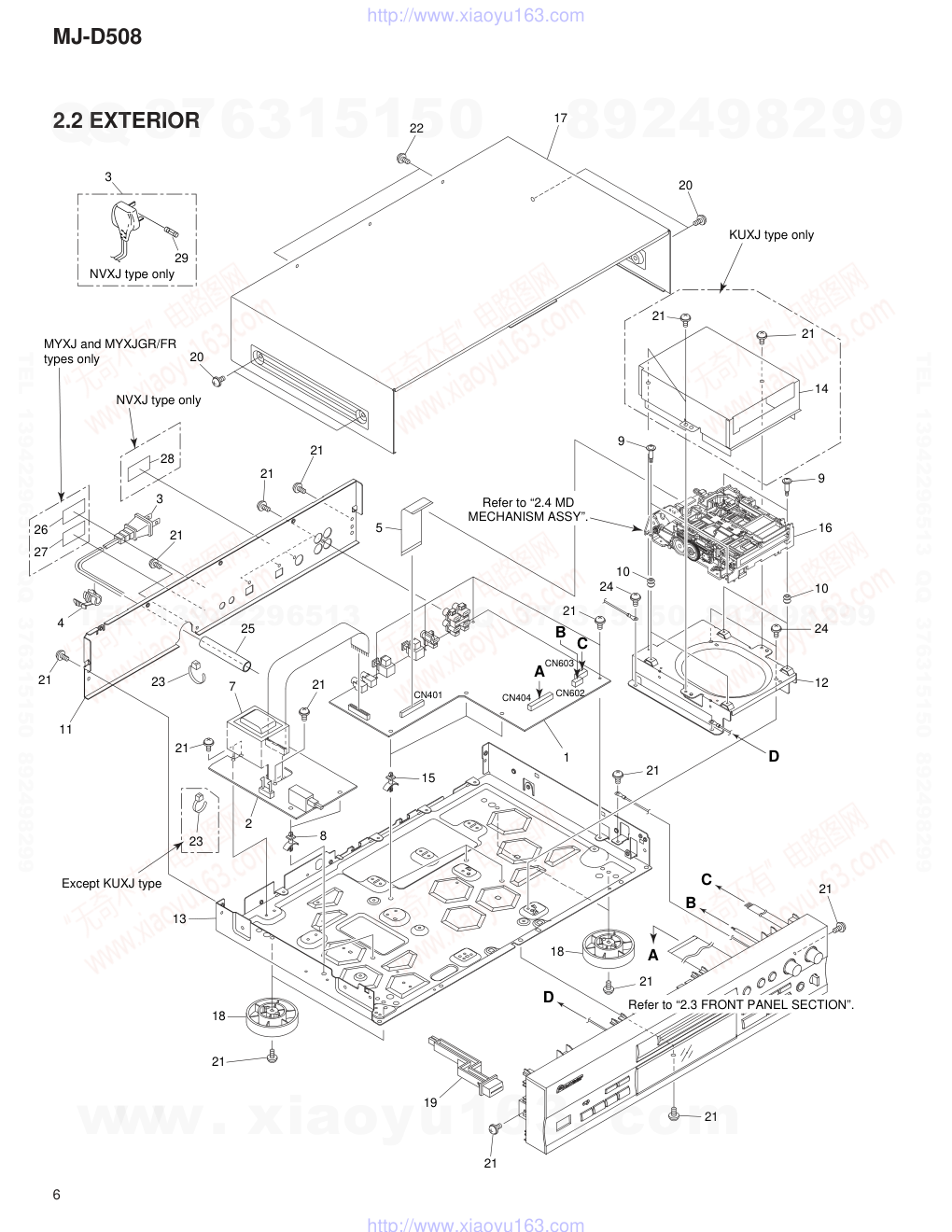

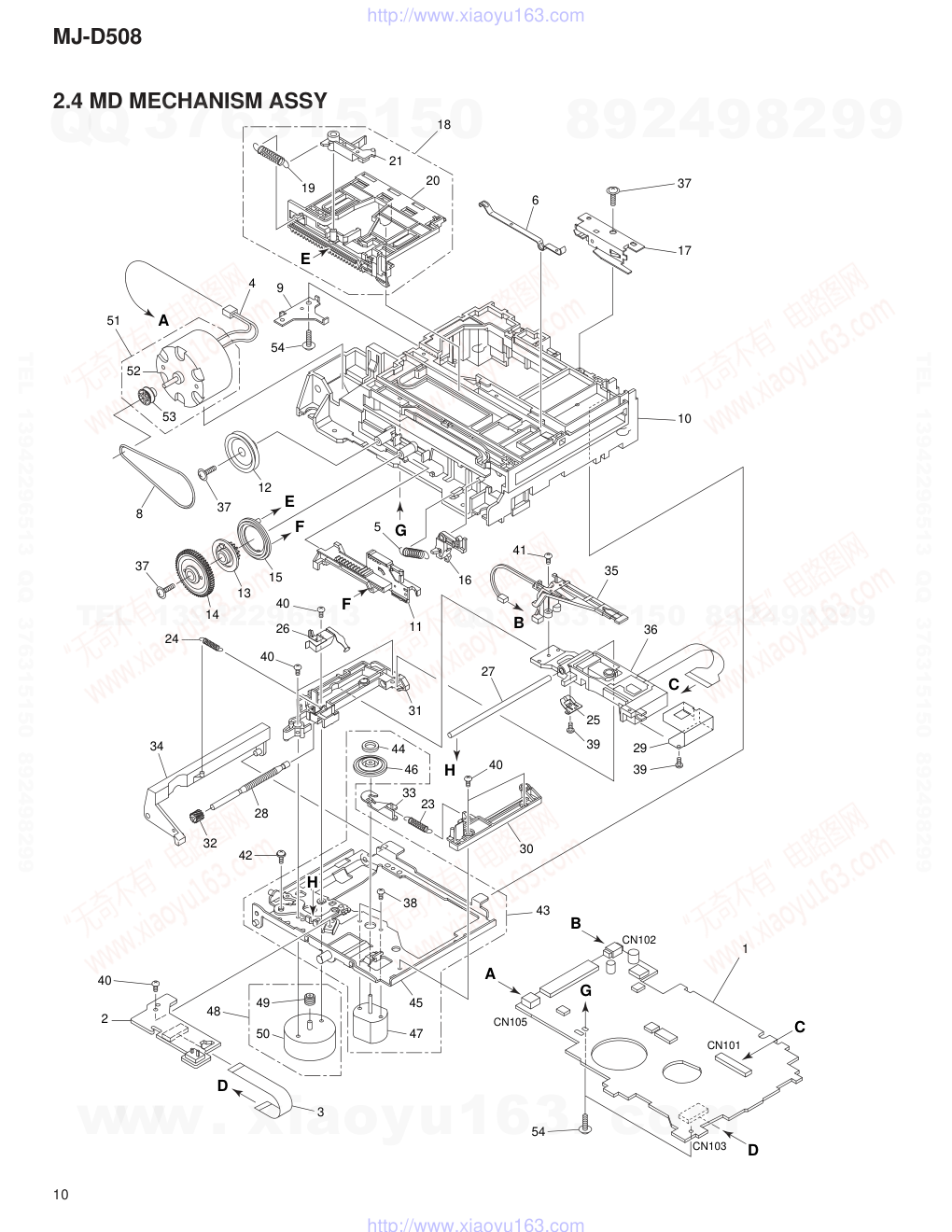

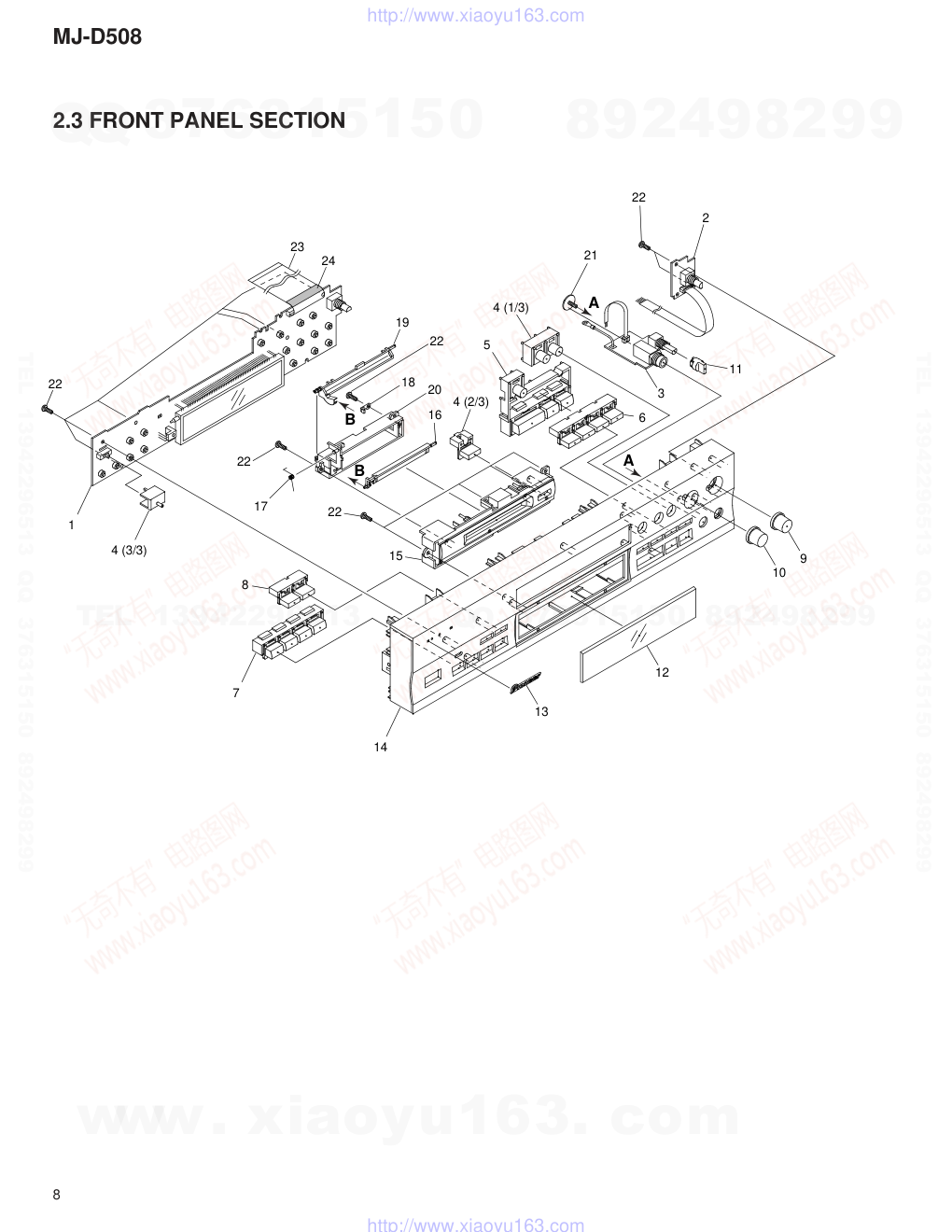

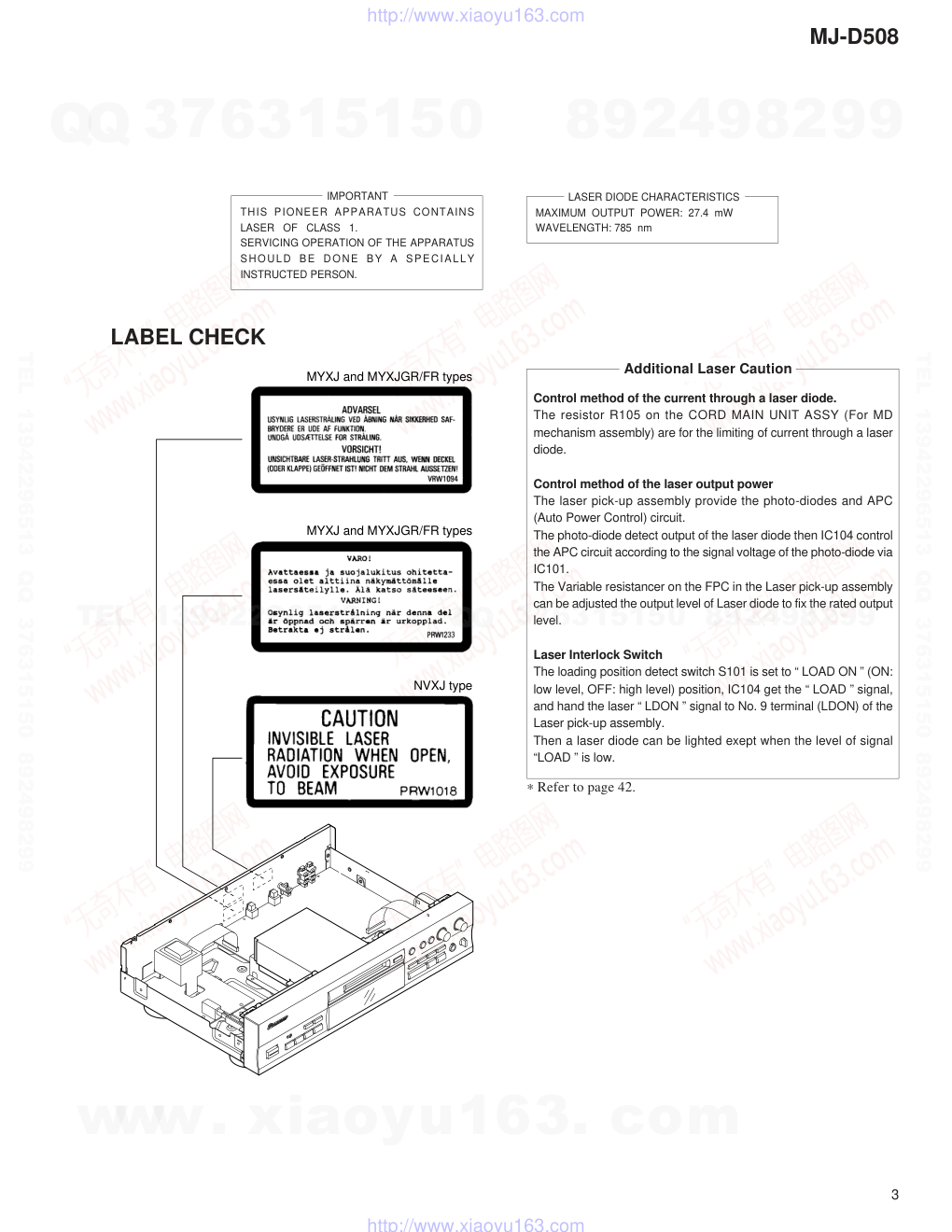

ORDER NO. PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER ELECTRONIC (EUROPE) N.V . Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER ELECTRONIC CORPORATION 1999 7. GENERAL INFORMATION .............................. 49 7.1 DIAGNOSIS ................................................ 49 7.1.1 TROUBLESHOOTING ...................... 49 7.1.2 DISASSEMBLY ................................. 52 7.2 PARTS ....................................................... 55 7.2.1 IC ....................................................... 45 7.2.2 DISPLAY ........................................... 66 8. PANEL FACILITIES AND SPECIFICATIONS ....................................................... 68 MINIDISC RECORDER RRV2144 MJ-D508 1. SAFETY INFORMATION.................................... 2 2. EXPLODED VIEWS AND PARTS LIST ............. 4 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM ....................................................... 12 4. PCB CONNECTION DIAGRAM ....................... 28 5. PCB PARTS LIST ............................................. 37 6. ADJUSTMENT.................................................. 41 CONTENTS T–ZZE MAY 1999 Printed in Japan Type Power Requirement Remarks Model MJ-D508 THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S). KUXJ ‡ AC120V MYXJ ‡ AC220–230V MYXJGR/FR ‡ AC220–230V NVXJ ‡ AC230V DAC MODE INPUT SELECTOR DISPLAY /CHARA NAME CLIP REC/PLAY MODE SYNCHRO REC DIGITAL REC LEVEL 4������� ¢� ANALOG REC LEVEL EDIT/NO ! ⁄� ¶� & * # NAME PUSH ENTER LEVEL PHONES MIN MAX A–B 0 EJECT DISC LOADING MECHANISM POWER MINIDISC RECORDER – OFF - ON DIGITAL NR TIMER REC OFF PLAY vC¿Û.?˘� 1 0 2 3 4 5 6 7 8 9 10 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MJ-D508 2 1. SAFETY INFORMATION This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. WARNING This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 – Proposition 65 NOTICE (FOR CANADIAN MODEL ONLY) Fuse symbols (fast operating fuse) and/or (slow operating fuse) on PCB indicate that replacement parts must be of identical designation. REMARQUE (POUR MODÈLE CANADIEN SEULEMENT) Les symboles de fusible (fusible de type rapide) et/ou (fusible de type lent) sur CCI indiquent que les pièces de remplacement doivent avoir la même désignation. ANY MEASUREMENTS NOT WITHIN THE LIMITS OUTLINED ABOVE ARE INDICATIVE OF A POTENTIAL SHOCK HAZARD AND MUST BE CORRECTED BEFORE RETURN- ING THE APPLIANCE TO THE CUSTOMER. 2. PRODUCT SAFETY NOTICE Many electrical and mechanical parts in the appliance have special safety related characteristics. These are often not evident from visual inspection nor the protection afforded by them necessarily can be obtained by using replacement components rated for voltage, wattage, etc. Replacement parts which have these special safety characteristics are identified in this Service Manual. Electrical components having such features are identified by marking with a on the schematics and on the parts list in this Service Manual. The use of a substitute replacement component which does not have the same safety characteristics as the PIONEER recommended replacement one, shown in the parts list in this Service Manual, may create shock, fire, or other hazards. Product Safety is continuously under review and new instructions are issued from time to time. For the latest information, always consult the current PIONEER Service Manual. A subscription to, or additional copies of, PIONEER Service Manual may be obtained at a nominal charge from PIONEER. (FOR USA MODEL ONLY) 1. SAFETY PRECAUTIONS The following check should be performed for the continued protection of the customer and service technician. LEAKAGE CURRENT CHECK Measure leakage current to a known earth ground (water pipe, conduit, etc.) by connecting a leakage current tester such as Simpson Model 229-2 or equivalent between the earth ground and all exposed metal parts of the appliance (input/output terminals, screwheads, metal overlays, control shaft, etc.). Plug the AC line cord of the appliance directly into a 120V AC 60 Hz outlet and turn the AC power switch on. Any current measured must not exceed 0.5 mA. Device under test Leakage current tester Earth ground Reading should not be above 0.5 mA Also test with plug reversed (Using AC adapter plug as required) Test all exposed metal surfaces AC Leakage Test www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MJ-D508 3 IMPORTANT THIS PIONEER APPARATUS CONTAINS LASER OF CLASS 1. SERVICING OPERATION OF THE APPARATUS SHOULD BE DONE BY A SPECIALLY INSTRUCTED PERSON. LASER DIODE CHARACTERISTICS MAXIMUM OUTPUT POWER: 27.4 mW WAVELENGTH: 785 nm Control method of the current through a laser diode. The resistor R105 on the CORD MAIN UNIT ASSY (For MD mechanism assembly) are for the limiting of current through a laser diode. Control method of the laser output power The laser pick-up assembly provide the photo-diodes and APC (Auto Power Control) circuit. The photo-diode detect output of the laser diode then IC104 control the APC circuit according to the signal voltage of the photo-diode via IC101. The Variable resistancer on the FPC in the Laser pick-up assembly can be adjusted the output level of Laser diode to fix the rated output level. Laser Interlock Switch The loading position detect switch S101 is set to “ LOAD ON ” (ON: low level, OFF: high level) position, IC104 get the “ LOAD ” signal, and hand the laser “ LDON ” signal to No. 9 terminal (LDON) of the Laser pick-up assembly. Then a laser diode can be lighted exept when the level of signal “LOAD ” is low. Additional Laser Caution LABEL CHECK NVXJ type MYXJ and MYXJGR/FR types MYXJ and MYXJGR/FR types ∗ Refer to page 42. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MJ-D508 4 RANDOM HI-LITE MEDLEYFADER REPEAT PGM CHECK CLEAR DISP/ CHARA EDIT /NO ENTER A B SYNCHRO REC REC CURSOR 1 2 3 4 5 6 & * # ! ! $ $ 3 8 11 (KUXJ, MYXJ and NVXJ types only) 10 7 6 9 5 4 1 (1/2) 2 (1/2) 2 (2/2) 1 (2/2) 12 (MYXJ and MYXJGR/FR types only) MYXJ type only 13 14 15 16 (MYXJ, MYXJGR/FR and NVXJ types only) 18 3 Front 17 1 (1/2) 2 (1/2) 1 (2/2) 2 (2/2) NVXJ type only 2. EXPLODED VIEWS AND PARTS LIST NOTES : Parts marked by “ NSP ” are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screw adjacent to mark on the product are used for disassembly. 2.1 PACKING www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MJ-D508 5 Mark No. Description Part No. (1) PACKING PARTS LIST (2) CONTRAST TABLE 1 Protector (F) PHA1339 2 Protector (R) PHA1340 3 Packing Case See Contrast table (2) 4 Sheet (750 × 600 × 0.5) Z23–007 5 Stereo Audio Cord (L= 1m) RDE1036 6 Remote Control Unit PWW1157 (CU-MJ016) 7 Battery Cover RZN1156 NSP 8 Batteries (AA/R6P) VEM–013 9 Polyethylene Bag Z21–038 (0.03 × 230 × 340) NSP 10 Warranty Card See Contrast table (2) MJ-D508/KUXJ, MYXJ, MYXJGR/FR and NVXJ are constructed the same except for the following: 3 Packing Case PHG2386 PHG2387 PHG2387 PHG2364 NSP 10 Warranty Card ARY7023 ARY7022 ARY7022 ARY7022 11 Operating Instructions (English) PRB1285 PRB1285 not used PRB1285 12 Operating Instructions (French/German) not used PRD1044 PRD1044 not used 13 Operating Instructions (Italian/Dutch) not used PRD1045 not used not used 14 Operating Instructions (Spanish) not used PRD1046 not used not used 15 Operating Instructions not used PRD1058 not used not used (Portuguese/Swedish) 16 Optical Digital Cord (L= 0.8m) not used ADE7021 ADE7021 ADE7021 17 V Spacer not used not used not used PHC1092 18 Vinyl Bag not used not used not used Z21-013 KUXJ MYXJ MYXJGR/FR NVXJ Part No. Mark Remarks Symbol and Description No. MJ-D508 Mark No. Description Part No. 11 Operating Instructions See Contrast table (2) 12 Operating Instructions See Contrast table (2) 13 Operating Instructions See Contrast table (2) 14 Operating Instructions See Contrast table (2) 15 Operating Instructions See Contrast table (2) 16 Optical Digital Cord See Contrast table (2) 17 V Spacer See Contrast table (2) 18 Vinyl Bag See Contrast table (2) NAME G H I J K L DISP/CHARA SYNCHRO REC M N O EDIT/NO HI-LITE REPEAT CHECK CLEAR RANDOM PROGRAM MEDLEY A B C D E F NAME CLIP P Q R S T U V MARK W X Y Z FADER REC TIME SKIP A B CURSOR 1 2 3 4 5 6 7 8 9 10 10/0 >10 ! ! Î MINIDISC RECORDER REMOTE CONTROL UNIT & # $ $ ENTER * Remote control unit CU-MJ016 (PWW1157) Batteries (AA/R6P) x 2 (VEM–013) Accessories Stereo Audio cord x 2 (RDE1036) (L = 1m) White Red Optical digital cord x 1 (MYXJ, MYXJGR/FR and NVXJ types only) (ADE7021) (L = 0.8m) Other included items ÷ Warranty card (ARY7023: KUXJ type) (ARY7022: MYXJ, MYXJGR/FR and NVXJ types) ÷ Operating Instructions (PRB1285: KUXJ, MYXJ, MYXJGR/FR and NVXJ types) (PRD1044: MYXJ and MYXJGR/FR types) (PRD1045: MYXJ type) (PRD1046: MYXJ type) (PRD1058: MYXJ type) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MJ-D508 6 A B A C B C D D 21 21 21 21 19 21 18 18 13 8 7 21 2 21 21 3 21 21 20 20 22 17 4 11 15 12 24 1 5 10 16 9 9 21 21 24 10 26 27 28 21 25 CN404 CN603 CN602 CN401 23 Refer to “2.3 FRONT PANEL SECTION”. Refer to “2.4 MD MECHANISM ASSY”. 23 Except KUXJ type 21 21 14 KUXJ type only NVXJ type only MYXJ and MYXJGR/FR types only NVXJ type only 3 29 2.2 EXTERIOR www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MJ-D508 7 Mark No. Description Part No. (1) EXTERIOR PARTS LIST 1 MAIN UNIT ASSY See Contrast table (2) 2 POWER SUPPLY UNIT ASSY See Contrast table (2) 3 Power Cord See Contrast table (2) 4 Cord Stopper See Contrast table (2) 5 Lead Card 30P RDD1402 6 • • • • • • • • 7 Power Transformer See Contrast table (2) NSP 8 PCB Holder PNW2100 9 Float Screw RBA1133 10 Float Rubber REB1328 11 Rear Panel See Contrast table (2) 12 Mecha Angle PNB1600 13 Under Base PNA2490 14 Shield Case See Contrast table (2) NSP 15 Locking Card Spacer PNW2917 NSP 16 MD Mechanism Assy RXA1777 17 Bonnet PYY1271 18 Insulator PNW2766 19 POWER Button PAC1941 (POWER) 20 Screw FBT40P080FZK 21 Screw IBZ30P060FCC 22 Screw IBZ30P080FCC 23 Binder ZCA-SKB90BK 24 Screw RBA1132 NSP 25 UL Vinyl Tube ZUA-AH6-9R5 26 Caution Label See Contrast table (2) 27 Caution Label See Contrast table (2) 28 Caution Label See Contrast table (2) 29 Fuse See Contrast table (2) Mark No. Description Part No. (2) CONTRAST TABLE MJ-D508/KUXJ, MYXJ, MYXJGR/FR and NVXJ are constructed the same except for the following: 1 MAIN UNIT ASSY RWZ4354 RWZ4359 RWZ4359 RWZ4359 2 POWER SUPPLY UNIT ASSY RWZ4358 RWZ4363 RWZ4363 RWZ4363 3 Power Cord PDG1064 PDG1058 PDG1058 PDG1055 4 Cord Stopper CM-22C CM-22B CM-22B CM-22B 7 Power Transformer (AC120V) RTT1346 not used not used not used 7 Power Transformer (AC220-230V) not used RTT1347 RTT1347 RTT1347 11 Rear Panel PNA2478 PNA2479 PNA2479 PNA2480 14 Shield Case PNB1606 not used not used not used 26 Caution Label not used PRW1233 PRW1233 not used 27 Caution Label not used VRW1094 VRW1094 not used 28 Caution Label not used not used not used PRW1018 29 Fuse (5A) not used not used not used PEK1003 KUXJ MYXJ MYXJGR/FR NVXJ Part No. Mark Remarks Symbol and Description No. MJ-D508 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MJ-D508 8 2.3 FRONT PANEL SECTION A A B B 21 2 22 3 11 6 4 (1/3) 5 4 (2/3) 16 9 10 12 13 14 7 22 4 (3/3) 1 8 15 22 17 22 19 23 22 18 20 24 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MJ-D508 9 Mark No. Description Part No. (1) FRONT PANEL SECTION PARTS LIST 1 DISPLAY UNIT ASSY See Contrast table (2) NSP 2 VOLUME UNIT ASSY See Contrast table (2) NSP 3 HEADPHONE UNIT ASSY See Contrast table (2) 4 EDIT Button PAC1927 (EDIT/NO, NANE, 0 EJECT, TIMER REC/OFF/PLAY) 5 PLAY Button PAC1929 (REC/PLAY MODE, 3, 8, 7) 6 REC Button PAC1931 (1, ¡, SYNCHRO REC, ¶) 7 A-B Button PAC1933 (DIGITAL NR, A-B, NAME CLIP, DISPLAY/CHARA) 8 MODE Button PAC1935 (INPUT SELECTOR, DAC MODE) 9 VOL Knob PAC1938 (ANALOG REC LEVEL) 10 JOG Knob PAC1939 (DIGITAL REC LEVEL, 4, ¢, ENTER) 11 Knob PAC1707 (LEVEL) 12 Display Window See Contrast table (2) 13 Name Plate PAM1776 14 Front Panel See Contrast table (2) 15 Sub Panel PNW2895 16 Door D508 PNW2905 17 Door Spring PBH1231 18 Edge Guard PBK1151 19 Door Cam PNW2898 20 Door Holder PNW2899 21 Screw ABA7009 22 Screw PPZ30P100FMC 23 Lead Card 30P RDD1404 NSP 24 Acetate Cloth Tape ZTA-570F-21BK (2) CONTRAST TABLE MJ-D508/KUXJ, MYXJ, MYXJGR/FR and NVXJ are constructed the same except for the following: 1 DISPLAY UNIT ASSY RWZ4355 RWZ4360 RWZ4360 RWZ4360 NSP 2 VOLUME UNIT ASSY RWZ4356 RWZ4361 RWZ4361 RWZ4361 NSP 3 HEADPHONE UNIT ASSY RWZ4357 RWZ4362 RWZ4362 RWZ4362 12 Display Window PAM1788 PAM1787 PAM1787 PAM1787 14 Front Panel PNW2892 PNW2904 PNW2904 PNW2904 KUXJ MYXJ MYXJGR/FR NVXJ Part No. Mark Remarks Symbol and Description No. MJ-D508 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MJ-D508 10 2.4 MD MECHANISM ASSY 49 48 40 42 38 43 40 33 44 31 28 32 34 40 11 5 10 17 6 4 9 54 19 21 20 18 37 16 26 15 13 14 37 12 53 52 51 A E E F F G G H A B B C C D D 37 8 40 24 25 39 27 41 35 36 29 39 46 23 30 45 2 3 50 47 54 CN103 CN101 CN102 CN105 1 H www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MJ-D508 11 Mark No. Description Part No. MD MECHANISM ASSY PARTS LIST 1 CORE MAIN UNIT ASSY RWZ4334 NSP 2 CORE SW UNIT ASSY RWZ4335 3 Lead Card 7P RDD1403 4 Lead Wire RKP1814 5 Lever Spring RBH1463 6 Clamp Spring 1 RBK1074 7 • • • • • • • • 8 Loading Belt REB1329 9 Lock Plate RNE1949 10 Loading Base RNK2323 11 Under Slider RNK2314 12 Gear Pulley RNK2316 13 Drive Gear RNK2317 14 Clutch Gear RNK2318 15 Flip Disk RNK2319 16 SW Lever RNK2320 17 Shutter Assy RXA1774 NSP 18 Upper Slider Assy RXA1782 19 Eject Spring RBH1461 20 Upper Slider RNK2324 21 Carrier RNK2315 22 • • • • • • • • 23 Spindle Spring RBH1460 24 Lifter Spring RBH1462 25 Screw Guide RBK1072 26 S. H. Spring RBK1073 27 Guide Shaft RLA1312 28 Lead Screw RLA1311 29 Shield Case RNE1950 30 Reference Plate RNK2306 31 S. Holder RNK2307 32 Worm Wheel RNK2309 33 Hook RNK2310 34 Head Lifter RNK2311 35 MD Head RPB1063 36 MD Pick-up RWY1019 37 Screw Z39-019 38 Screw JFZ17P020FZK 39 Screw JGZ14P020FMC 40 Screw JGZ17P028FMC Mark No. Description Part No. 41 Screw JGZ17P040FMC 42 Screw PMB20P040FMC 43 Servo Base Assy REA1283 NSP 44 Clamp Magnet RMF1002 NSP 45 Servo Base RNE1946 NSP 46 Disc Table RNK2305 NSP 47 Spindle Motor RXM1091 48 Carriage Motor Assy REA1284 49 Worm RNK2308 NSP 50 Carriage Motor RXM1090 51 Loading Motor Assy REA1290 52 DC Motor /0.75W PXM1010 53 CA Pulley RNK2322 54 Screw BPZ20P080FMC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MJ-D508 12 A B C D 1 2 3 4 1 2 3 4 PICKUP ASSY INSIDE SW (S701) 13 16 17 21 25–28 DRIVER (IC106) M56758FP HEAD DRIVER (IC116) BD7910FV 13 17 15 7 30 31 29 28 35 34 9 12 8 LOAD SW (S101) LOAD SW (S102) DISC SW (S702) RF–AMP (IC101) IR3R55M 4 3 2 1 ENC/DEC + DIGITAL SERVO (IC102) LR376487 MECHA CONTROL µCOM (IC104) PD5523A 3 50 74 73 40 67 66 4M–DRAM (IC103) M5M4V4400CTP-7 X'tal (X101) 33.8688MHz 26–29, 32–37, 39–46 1–5, 9–12, 14–18, 22–25 EEP–ROM (IC110) BR93LC56F 3–6 31–33, 55 7 25 24 26 25 6 31 15 16 3 2 23 22 21 20 19 18 37 24 23 27 28 23 1 90 89 20 23 57 59 92 82–86, 89–100 15, 18, 19, 29, 40, 80, 44–54 35 36 12 25 34 37 64, 65 DIFFERENTIAL AMP (IC112) BA4510F EFM EFMO EFMI EFMO FODF FODF FODR FODR TRDF TRDR SLDF SLDR TRDF TRDR SLDF SLDR DSCK LD+ SW1 PLOAD RLOAD DISC LD- SPDF DSTB DADATA DOUT DIN ADDATA MDDATA SYSDATA RESET P–DOWN SPDR LOADING MOTOR SLED MOTOR (CARRIAGE) REC HEAD SPINDLE MOTOR CORE MAIN UNIT ASSY (RWZ4334) A POWER SUPPLY UNIT ASSY (RWZ4358 : KUXJ) (RWZ4363 : MYXJ, MYXJGR/FR, NVXJ) D CORE SW UNIT ASSY (RWZ4335) B S201 KU MY, NV D203 D201 POWER TRANSFORMER POWER CORD IC202 NJM7805FA : PLAYBACK SIGNAL : REC SIGNAL : OUTPUT DIGITAL AUDIO SIGNAL : INPUT DIGITAL AUDIO SIGNAL : RF SIGNAL SIGNAL ROUTE 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM 3.1 BLOCK DIAGRAM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MJ-D508 13 A B C D 5 6 7 8 5 6 7 8 J801 LINE IN Rch LINE IN Lch LINE OUT Rch LINE OUT Lch COAXIAL IN OPTICAL IN 1 OPTICAL OUT INPUT SELECTOR (IC404) TC74HC153AF S–RAM (IC605) BR62256F-70LL SYSTEM CONTROL µCOM (IC701) PDG240A 4 6 7 1 3 A/D, D/A (in DSP) (IC602) AK7712A-VQ 94 20 19 11 13 92 84 85 7 5 1 3 7 5 1 3 7 5 INPUT AMP (IC601) NJM2100D L.P.F (IC603) NJM4588DD INPUT VOLUME (VR801) HEADPHONE AMP (IC604) BA15218 11 13 HEADPHONE OUT KEY 14 15 17 18 19 20 21 22 23 24 25 26 27 35 36 42, 45–70 1–19, 21–28 36 39 35 32 31 8 7 7, 9, 29, 32–34 2 14 BUFFER (3V–5V CONVERTER) (IC401) TC74HCT08AF BUFFER (3V–5V CONVERTER) (IC402) TC74HCT08AF DADATA ADDATA DIN DIN1 DIN0 XPD SYSRST XCS XWRQ XSCLK ROUT LOUT LIN+ RIN+ SO SI MAIN UNIT ASSY (RWZ4354 : KUXJ) (RWZ4359 : MYXJ, MYXJGR/FR, NVXJ) C C 1/2, C 2/2 ( ) DISPLAY UNIT ASSY (RWZ4355 : KUXJ) (RWZ4360 : MYXJ, MYXJGR/FR, NVXJ) E HEADPHONE UNIT ASSY (RWZ4357 : KUXJ) (RWZ4362 : MYXJ, MYXJGR/FR, NVXJ) F AC1 AC2 VM+5 VOLUME UNIT ASSY (RWZ4356 : KUXJ) (RWZ4361 : MYXJ, MYXJGR/FR, NVXJ) G Note : When ordering service parts, be sure to refer to "EXPLODED VIEWS and PARTS LIST" or "PCB PARTS LIST". www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MJ-D508 14 A B C D 1 2 3 4 1 2 3 4 CORE SW UNIT ASSY (RWZ4335) B CORE MAIN UNIT ASSY (RWZ4334) A PICKUP ASSY (CARRIAGE) CN101 CN102 CN105 CN701 CN103 1 2 10 11 8 9 3 3.2 CORE MAIN UNIT and CORE SW UNIT ASSYS B A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MJ-D508 15 A B C D 5 6 7 8 5 6 7 8A C CN401 CN104 : PLAYBACK SIGNAL : REC SIGNAL : OUTPUT DIGITAL AUDIO SIGNAL : INPUT DIGITAL AUDIO SIGNAL : RF SIGNAL SIGNAL ROUTE 6 5 4 ¶�1 – - are waveform numbers on pages 26 and 27. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MJ-D508 16 1.53V 3.18V 1.65V 0V 1.42V 0V 1.59V 1.41V 1.97V 1.39V 1.64V 3.18V 0V 0V 0V 0V 1.69V 1.52V 1.70V 1.47V 1.47V 1.65V 1.54V 1.69V 1.51V 0.82V 2.0V 2.0V 1.81V 1.4V 0.82V 1.67V 1.67V 1.67V 2.86V 1.32V 2.23V 0V 2.4V 1.2V 1.5V 0V 2.0V 3.0V 1.2V 1.2V 0.02V 3.04V 1.57V 0.05V 9 8 7 6 5 4 3 2 1 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 49 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31 PIN NO. VOLTAGE 50 IC102 1.59V 0V 0V 1.59V 0V 0V 0V 0V 0V 0V 0.56V 3.18V 0V 1.5V 1.5V 3.2V 1.6V 0V 0V 1.6V 1.6V 1.48V 0V 0V 1.68V 1.82V 1.59V 0.35V 0.02V 3.2V 3.2V 0.02V 0.03V 1.9V 1.56V 3.1V 3.2V 0V 3.19V 1.4V 1.4V 1.4V 0.8V 1.5V 1.4V 1.5V 1.3V 3.2V 3.2V 0V 59 58 57 56 55 54 53 52 51 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 60 98 97 96 95 94 93 92 91 90 89 88 87 86 85 84 83 82 81 80 PIN NO. VOLTAGE 99 100 3.2V 0V 0V 0V 0V 0V 0V 0V 0V 0V 0V 3.1V 1.5V 0V 1.5V 3.2V 3.2V 3.1V 0V 0V 0V 3.2V 3.2V 0V 3.2V 3.2V 0V 0V 2.4V 0V 0V 0V 0V 1.6V 1.0V 0V 2.8V 0V 0V 0V 3.19V 3.2V 0V 0V 3.2V 3.2V 1.3V 1.5V 1.4V 1.5V 9 8 7 6 5 4 3 2 1 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 49 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31 PIN NO. VOLTAGE 50 IC104 0.8V 1.4V 1.4V 1.4V 0V 0V 0V 0V 3.2V 0V 0V 3.2V 0V 0V 3.2V 0V 0V 0V 0V 0V 0V 3.1V 3.2V 0V 0V 3.2V 0V 0V 0V 3.2V 0V 0V 0V 3.19V 0V 3.18V 3.2V 0V 2.2V 1.2V 0.56V 1.49V 2.5V 0.88V 0.90V 0V 0.87V 3.2V 3.2V 0V 59 58 57 56 55 54 53 52 51 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 60 98 97 96 95 94 93 92 91 90 89 88 87 86 85 84 83 82 81 80 PIN NO. VOLTAGE 99 100 0.78V 0.73V 0.77V 0.75V 1.61V 1.61V 0.75V 1.61V 1.61V 1.61V 1.61V 1.61V 3.19V 3.19V 0V 0V 3.19V 0V 0V 1.5V 3.2V 0V 0V 3.19V 2.0V 0V 1.40V 1.42V 1.40V 1.63V 1.61V 1.61V 0V 0V 0V 1.62V 0.59V 1.61V 1.61V 1.61V 1.61V 3.19V 0V 1.08V 1.61V 1.61V 0V 0.74V 9 8 7 6 5 4 3 2 1 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 42 43 44 45 46 47 48 41 40 39 38 37 36 35 34 33 32 31 VOLTAGE IC101 PIN NO. 1.2V 1.2V 3.0V 2.0V 0V 2.23V 1.32V 2.86V 1.67V 3.18V 1.67V 1.67V 1.67V 2.86V 1.32V 2.23V 2.4V 1.2V 1.5V 0V 9 5 4 3 2 1 26 25 24 23 22 18 17 16 15 14 13 12 11 10 PIN NO. VOLTAGE IC103 Voltages of CORE MAIN UNIT ASSY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MJ-D508 17 9 8 7 6 5 4 3 2 1 14 13 12 11 10 PIN NO. VOLTAGE IC109 2.77V 2.77V 3.2V 1.58V 1.58V 1.56V 0V 0V 0V 0V 0V 0V 0V 3.2V 9 8 7 6 5 4 3 2 1 20 19 18 17 16 15 14 13 12 11 10 PIN NO. VOLTAGE IC116 4.98V 0V 0V 4.99V 3.2V 0V 0.03V 3.18V 0V 0V 0V 0.22V 0V 0.25V 0.25V 2.82V 0.16V 4.94V 2.82V 1.33V 1.6V 0.49V 1.61V 4.99V 4.99V 1.61V 1.62V 2.46V 2.51V 0V 0V 2.54V 2.45V 1.62V 1.62V 1.61V 3.17V 0V 1.61V 1.61V 1.61V 1.61V 1.36V 1.36V 1.61V 1.61V 1.63V 2.41V 2.55V 2.47V 2.48V 0V 0V 2.79V 2.18V 0V 1.69V 5.0V 4.99V 1.67V 1.69V 1.69V 9 8 7 6 5 4 3 2 1 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 42 41 40 39 38 37 36 35 34 33 32 31 VOLTAGE IC106 PIN NO. 1.66V 1.62V 1.62V 0V 1.67V 1.67V 1.67V 3.19V 8 7 6 5 4 3 2 1 PIN NO. VOLTAGE IC112 0V 3.2V 0V 3.2V 0V 0.11V 0V 0V 8 7 6 5 4 3 2 1 PIN NO. VOLTAGE IC110 9 8 7 6 5 4 3 2 1 14 13 12 11 10 PIN NO. VOLTAGE IC113 4.95V 3.96V 0V 0V 0V 0V 0V 0V 4.94V 4.12V 3.19V 0V 0V 4.94V 0V 4.19V 3.21V 2.81V 0V 5 4 3 2 1 PIN NO. VOLTAGE IC114 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MJ-D508 18 A B C D 1 2 3 4 1 2 3 4 C JA601 : RKB1032 LA C633, C634, C549, C550 : 220p (CH) G J704 S201 : POWER POWER CORD KUXJ : PDG1064 120V/60Hz MYXJ, MYXJ/GR/FR : PDG1058 220V/50Hz NVXJ : PDG1055 230V/50Hz RTT1346 POWER SUPPLY UNIT ASSY (RWZ4358 : KUXJ) (RWZ4363 : MYXJ, MYXJGR/FR, NVXJ) D : The power supply is shown with the marked box. CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE NO. 49102.5 MFD. BY LITTELFUSE INC. FOR IC201(AEK7014). 2.5A 3.3 MAIN UNIT (1/2) and POWER SUPPLY UNIT ASSYS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MJ-D508 19 A B C D 5 6 7 8 5 6 7 8 C JA601 : RKB1034 MAIN UNIT ASSY (1/2) (RWZ4354 : KUXJ) (RWZ4359 : MYXJ, MYXJGR/FR, NVXJ) C 1/2 F J901 CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE NO. 491.400 MFD. BY LITTELFUSE INC. FOR IC301 AND IC305(AEK7004). 400mA 400mA : PLAYBACK SIGNAL : REC SIGNAL SIGNAL ROUTE 18 ¶�% is waveform number on page 27. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MJ-D508 20 A B C D 1 2 3 4 1 2 3 4 3.4 MAIN UNIT ASSY (2/2) C E CN701 13 14 16 15 12 17 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MJ-D508 21 A B C D 5 6 7 8 5 6 7 8 C RKB1049 MAIN UNIT ASSY (2/2) (RWZ4354 : KUXJ) (RWZ4359 : MYXJ, MYXJGR/FR, NVXJ) C 2/2 A CN104 KUXJ type only MYXJ, MYXJGR/FR, NVXJ types only : PLAYBACK SIGNAL : REC SIGNAL : OUTPUT DIGITAL AUDIO SIGNAL : INPUT DIGITAL AUDIO SIGNAL SIGNAL ROUTE ¶�= – $ are waveform numbers on page 27. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MJ-D508 22 A B C D 1 2 3 4 1 2 3 4 100k 100k 100k 100k 100k 100k 100k 100k 100k 100k 100k 100k 100k 100k 100k 100k 100k 100k CN404 C DISPLAY UNIT ASSY (RWZ4355 : KUXJ) (RWZ4360 : MYXJ MYXJGR/FR NVXJ) E 3.5 DISPLAY UNIT, HEADPHONE UNIT and VOLUME UNIT ASSYS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MJ-D508 23 A B C D 5 6 7 8 5 6 7 8 RCV1123 C904, C905, C907 : 0.1 (YF) CN603 C CN602 C VR801 : ANALOG REC LEVEL VR901 : (HEADPHONE) LEVEL S701 : DIGITAL REC LEVEL S711 : 8 (ENTER) S712 : 3 S702 : NAME S713 : DISPLAY/CHARA S703 : 0 EJECT S714 : NAME CLIP S704 : REC/PLAY MODE S715 : A-B S705 : EDIT/NO S716 : DIGITAL NR S706 : 1� S717 : INPUT SELECTOR S707 : SYNCHRO REC S718 : DAC MODE S708 : ¡� S719 : TIMER S709 : ¶� (REC/OFF/PLAY) S710 : 7 HEADPHONE UNIT ASSY (RWZ4357 : KUXJ) (RWZ4362 : MYXJ, MYXJGR/FR, NVXJ) F VOLUME UNIT ASSY (RWZ4356 : KUXJ) (RWZ4361 : MYXJ, MYXJGR/FR, NVXJ) G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MJ-D508 24 9 8 7 6 5 4 3 2 1 16 15 14 13 12 11 10 PIN NO. VOLTAGE IC407 2.5V 2.7V 5.0V 2.7V 1.8V 0V 0V 5.0V 0V 2.2V 5.0V 5.0V 5.0V 5.0V 5.0V 5.0V 9 8 7 6 5 4 3 2 1 16 15 14 13 12 11 10 PIN NO. VOLTAGE IC404 0V 5.0V 5.0V 5.0V 5.0V 3.5V 5.0V 0V 0V 0V 0V 0V 0V 5.0V 0V 5.0V 9 8 7 6 5 4 3 2 1 14 13 12 11 10 PIN NO. VOLTAGE IC401 3.1V 3.1V 5.0V 0.0V 1.9V (REC) 0.0V 1.9V (REC) 0.0V 1.7V (REC) 0V 2.5V 1.6V 1.6V 1.6V 1.0V 1.0V 5.0V 9 8 7 6 5 4 3 2 1 14 13 12 11 10 PIN NO. VOLTAGE IC402 0V 0V 0V 1.5V 1.5V 2.5V 0V 2.5V 1.6V 1.6V 1.6V 1.0V 1.0V 5.0V 9 8 7 6 5 4 3 2 1 14 13 12 11 10 PIN NO. VOLTAGE IC403 2.5V 2.5V 2.5V 3.5V 0V 5.0V 0V 5.0V 0.0V 5.0V 0V 5.0V 0.0V 5.0V Voltages of MAIN UNIT ASSY (1kHz, 0dB, PLAY) 0V 0V 0V –10.1V 0V 0V 0V 9.0V 8 7 6 5 4 3 2 1 PIN NO. VOLTAGE IC604 2.5V 2.5V 2.5V 0V 2.5V 2.5V 2.5V 5.0V 8 7 6 5 4 3 2 1 PIN NO. VOLTAGE IC601 0V 0V 0V –10.5V 0V 0V 0V 9.4V 8 7 6 5 4 3 2 1 PIN NO. VOLTAGE IC603 0V 0V 0V 0V 0V 0V 5.0V 5.0V 0V 0V 0V 5.0V 0V 0V 0V 0V 0V 0V 0V 1.9V (REC) 1.6V 0V 2.5V 2.5V 0V 5.0V 0V 0V 2.2V 2.7V 5.0V 0.0V 5.0V 0V 5.0V 5.0V 0.0V 5.0V 5.0V 0.0V 4.7V 0.0V 4.9V 2.5V 2.5V 2.5V 2.5V 2.5V 2.5V 2.5V 2.5V 9 8 7 6 5 4 3 2 1 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 49 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31 PIN NO. VOLTAGE 50 IC602 0V 5.0V 2.5V 2.5V 2.5V 2.5V 2.5V 2.5V 2.5V 2.5V 2.5V 2.5V 2.5V 2.5V 2.5V 2.5V 2.5V 2.5V 2.5V 2.5V 0V 5.0V 5.0V 0V 5.0V 0.0V 5.0V 5.0V 5.0V 0V 5.0V 2.5V 2.5V 2.5V 2.5V 0V 0V 5.02V 5.02V 5.02V 2.5V 2.5V 2.5V 2.5V 2.5V 0V 0V 5.0V 5.0V 5.0V 59 58 57 56 55 54 53 52 51 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 60 98 97 96 95 94 93 92 91 90 89 88 87 86 85 84 83 82 81 80 PIN NO. VOLTAGE 99 100 2.5V 2.5V 2.5V 2.5V 2.5V 2.5V 2.5V 2.5V 2.5V 4.8V 2.5V 2.5V 2.5V 0V 2.5V 2.5V 2.5V 2.5V 2.5V 0V 2.5V 0.5V 2.5V 2.5V 2.5V 2.5V 4.9V 5.0V 9 8 7 6 5 4 3 2 1 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 PIN NO. VOLTAGE IC605 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MJ-D508 25 Voltages of DISPLAY UNIT ASSY – 28.0V – 28.0V 5.0V 0V 5.0V 0.6V 5.0V 4.9V 5.0V 0V 0.0V 0.0V 5.0V 4.9V 4.9V 0.0V 5.0V 5.0V 0.1V 4.9V 2.5V 4.6V 1.5V 0V 4.9V 2.5V 1.6V 5.0V 5.0V 5.0V 2.5V 5.0V 4.2V 5.0V 5.0V 5.0V 0V 5.0V 2.3V 2.6V 0V 5.0V 0V 5.0V Entire FL not lit – 30.5V Entire FL lit – 26.3V 0V 0V 0V 0V Entire FL not lit – 30.7V Entire FL lit 5.0V 9 8 7 6 5 4 3 2 1 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 49 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31 PIN NO. VOLTAGE 50 IC701 59 58 57 56 55 54 53 52 51 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 60 98 97 96 95 94 93 92 91 90 89 88 87 86 85 84 83 82 81 80 PIN NO. VOLTAGE 99 100 Entire FL not lit – 28.9V Entire FL lit – 24.4V Entire FL not lit – 28.9V Entire FL lit – 24.4V Entire FL not lit – 30.7V Entire FL lit 5.0V – 30.4V 5.0V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MJ-D508 26 1 –– GND DC500mV/div., 10 µSec/div. IC101-pin35 (ADIPO) (CORE MAIN UNIT ASSY) MODE: PLAY DISC: GGF1328 (MMD–212) 2 IC101-pin30 (WBO) (CORE MAIN UNIT ASSY) MODE: PLAY DISC: GGF1328 (MMD–212) –– GND DC1V/div., 10 µSec/div. 3 IC102-pin1 (EFM MON) (CORE MAIN UNIT ASSY) MODE: PLAY DISC: TGTS1 or MMD–110 –– GND DC500mV/div., 0.5mSec/div. 8 –– GND DC500mV/div., 2mSec/div. CN103-pin1 (SLD +) (CORE MAIN UNIT ASSY) MODE: PLAY 9 CN103-pin4 (SP +) (CORE MAIN UNIT ASSY) MODE: PLAY –– GND DC500mV/div., 5mSec/div. 10 CN105-pin1 (LOAD –) (CORE MAIN UNIT ASSY) MODE: STOP –– GND DC1V/div., 1mSec/div. 6 –– GND DC500mV/div., 2mSec/div. IC102-pin77 (TE MON) (CORE MAIN UNIT ASSY) MODE: PLAY DISC: TGTS1 or MMD–110 4 –– GND DC1V/div., 0.2 µSec/div. IC102-pin50 (EFMO) (CORE MAIN UNIT ASSY) MODE: REC DISC: GGF1328 (MMD–212) 5 IC102-pin75 (FE MON) (CORE MAIN UNIT ASSY) MODE: PLAY DISC: TGTS1 or MMD–110 –– GND DC100mV/div., 2mSec/div. 39 kΩ 820pF FE MON Note: The encircled numbers denote measuring point in the schematic diagram and the PCB connection diagram. Measurement Method Measurement Method REFO (MD Mechanism Assy TP) To Oscilloscope 39 kΩ 820pF TE MON REFO (MD Mechanism Assy TP) To Oscilloscope Waveforms www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MJ-D508 27 11 –– GND DC1V/div., 1mSec/div. CN105-pin1 (LOAD –) (CORE MAIN UNIT ASSY) MODE: EJECT 12 IC602-pin28 (SYS CLK) (MAIN UNIT ASSY) MODE: STOP –– GND DC2V/div., 50nSec/div. 13 IC602-pin19 (AD DATA) (MAIN UNIT ASSY) MODE: REC (ANALOG) DISC: GGF1328 (MMD-212) –– GND DC2V/div., 0.5 µSec/div. 14 –– GND DC2V/div., 0.5 µSec/div. CN602-pin20 (DA DATA) (MAIN UNIT ASSY) MODE: PLAY (1 kHz, 0 dB) 15 IC602-pin23 (LRCK) (MAIN UNIT ASSY) MODE: PLAY (1 kHz, 0 dB) –– GND DC2V/div., 10 µSec/div. 17 –– GND DC2V/div., 0.2mSec/div. CN602-pin85 (LOUT) (MAIN UNIT ASSY) MODE: PLAY (1 kHz, 0 dB) 18 IC603-pin1 (MAIN UNIT ASSY) MODE: PLAY (1 kHz, 0 dB) –– GND AC2V/div., 0.2mSec/div. 16 IC602-pin22 (BCLK) (MAIN UNIT ASSY) MODE: PLAY (1 kHz, 0 dB) –– GND DC2V/div., 0.2 µSec/div. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MJ-D508 28 A B C D 1 2 3 4 1 2 3 4 4.1 CORE SW UNIT ASSY 4. PCB CONNECTION DIAGRAM NOTE FOR PCB DIAGRAMS : 1. Part numbers in PCB diagrams match those in the schematic diagrams. 2. A comparison between the main parts of PCB and schematic diagrams is shown below. 3. The parts mounted on this PCB include all necessary parts for several destinations. For further information for respective destinations, be sure to check with the schematic diagram. 4. View point of PCB diagrams. Symbol In PCB Diagrams Symbol In Schematic Diagrams Part Name B C E D D G G S S B C E B C E D G S B C E B C E B C E Transistor Transistor with resistor Field effect transistor Resistor array 3-terminal regulator Capacitor Connector P.C.Board Chip Part SIDE A SIDE B A CN103 SPINDLE MOTOR SLED MOTOR (RNP1733-B) CORE SW UNIT ASSY B SIDE A SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MJ-D508 29 A B C D 1 2 3 4 1 2 3 4 SIDE A SIDE B CORE MAIN UNIT ASSY A B CN701 IC101 IC106 IC102 IC103 IC104 IC114 Q101 Q102 (RNP1733-B) IC112 IC108 IC113 IC109 Q104 IC116 Q103 IC110 (RNP1733-B) LOADING MOTOR C CN401 REC HEAD PICKUP ASSY 1 2 6 5 8 9 3 10 11 4 4.2 CORE MAIN UNIT ASSY ¶ 1 – - are waveform numbers on pages 26 and 27. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MJ-D508 30 A B C D 1 2 3 4 1 2 3 4 A CN104 NEUTRAL LIVE POWER CORD IC305 IC301 IC302 IC306 POWER SUPPLY UNIT ASSY D MAIN UNIT ASSY C SIDE A 4.3 MAIN UNIT and POWER SUPPLY UNIT ASSYS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MJ-D508 31 A B C D 5 6 7 8 5 6 7 8 F J901 G J801 E CN701 IC604 IC603 IC307 IC601 SIDE A (RNP1732-C) (RNP1732-C) 12 15 16 14 13 18 17 ¶ = – % are waveform numbers on page 27. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MJ-D508 32 A B C D 1 2 3 4 1 2 3 4 IC605 IC602 Q502 Q504 IC401 IC403 IC404 Q501 Q503 Q602 Q603 Q605 Q601 IC407 IC402 Q604 SIDE B (RNP1732-C) (RNP1732-C)www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MJ-D508 33 A B C D 5 6 7 8 5 6 7 8 Q304 POWER SUPPLY UNIT ASSY D MAIN UNIT ASSY C SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MJ-D508 34 A B C D 1 2 3 4 1 2 3 4 DISPLAY UNIT ASSY E 4.4 DISPLAY UNIT ASSY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MJ-D508 35 A B C D 5 6 7 8 5 6 7 8 C CN404 SIDE A SIDE B (RNP1732-C) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MJ-D508 36 A B C D 1 2 3 4 1 2 3 4 VOLUME UNIT ASSY G HEADPHONE UNIT ASSY F C CN603 C CN602 SIDE A SIDE B (RNP1732-C) (RNP1732-C) 4.5 VOLUME UNIT and HEADPHONE UNIT ASSYS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MJ-D508 37 NSP MD MECHANISM ASSY RXA1777 RXA1777 RXA1777 RXA1777 CORE UNIT ASSY RWM2058 RWM2058 RWM2058 RWM2058 CORE MAIN UNIT ASSY RWZ4334 RWZ4334 RWZ4334 RWZ4334 NSP CORE SW UNIT ASSY RWZ4335 RWZ4335 RWZ4335 RWZ4335 NSP MOTHER UNIT ASSY RWM2057 RWM2062 RWM2062 RWM2062 MAIN UNIT ASSY RWZ4354 RWZ4359 RWZ4359 RWZ4359 POWER SUPPLY UNIT ASSY RWZ4358 RWZ4363 RWZ4363 RWZ4363 DISPLAY UNIT ASSY RWZ4355 RWZ4360 RWZ4360 RWZ4360 NSP HEADPHONE UNIT ASSY RWZ4357 RWZ4362 RWZ4362 RWZ4362 ∗1 NSP VOLUME UNIT ASSY RWZ4356 RWZ4361 RWZ4361 RWZ4361 ∗2 5. PCB PARTS LIST NOTES : Parts marked by “ NSP ” are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex. 1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J = 5%, and K = 10%). 560 Ω = 56 × 10 1 = 561 ................................................... RD1/4PU 5 6 1 J 47k Ω = 47 × 10 3 = 473 .................................................. RD1/4PU 4 7 3 J 0.5 Ω = R50 ...................................................................... RN2H  5 0 K 1 Ω = 1R0 ......................................................................... RS1P 1  0 K Ex. 2 When there are 3 effective digits (such as in high precision metal film resistors). 5.62k Ω = 562 × 10 1 = 5621 ........................................... RN1/4PC 5 6 2 1 F LIST OF WHOLE PCB ASSEMBLIES KUXJ MYXJ MYXJGR/FR NVXJ Part No. Mark Remarks Symbol and Description MJ-D508 ∗1 Although RWZ4357 and RWZ4362 are different in part number, they have the same service parts. ∗2 Although RWZ4356 and RWZ4361 are different in part number, they have the same service parts. CONTRAST OF PCB ASSEMBLIES RWZ4354 and RWZ4359 are constructed the same except for the following: MAIN UNIT ASSY C C315 CEAT470M16 CEAT221M6R3 C319 CEAT101M10 CEAT471M6R3 C406, C417, C429, C443, C604, C619 CEAT101M10 CEAT221M6R3 C419 CKSQYF104Z25 not used C559, C560 CEAT470M16 CEAT220M50 C569, C570 not used CEAT220M50 C619, C621 CEAT470M16 CEAT221M16 D401 DA202K-TLB not used D402 1SS133-T not used R322 not used RS1/10S122J R412, R437 RS1/10S102J not used R413 RS1/10S274J not used R455 not used RS1/10S0R0J JA405, JA406 RKN1004 not used Mark Remarks Symbol and Description Part No. RWZ4354 RWZ4359 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MJ-D508 38 Mark No. Description Part No. Mark No. Description Part No. PARTS LIST FOR MJ-D508/KUXJ RWZ4358 and RWZ4363 are constructed the same except for the following: POWER SUPPLY UNIT ASSY D C217 CEAT101M10 CEAT471M6R3 Mark Remarks Symbol and Description Part No. RWZ4358 RWZ4363 RWZ4355 and RWZ4360 are constructed the same except for the following: DISPLAY UNIT ASSY E R723 not used RS1/10S104J R724 RS1/10S104J not used Mark Remarks Symbol and Description Part No. RWZ4355 RWZ4360 CORE MAIN UNIT ASSY SEMICONDUCTORS IC112 BA4510F IC116 BD7910FV IC110 BR93LC56F IC101 IR3R55M IC102 LR376487 IC106 M56758FP IC103 M5M4V4400CTP-7 IC104 PD5523A IC114 RN5RG32AA IC109 TC74VHC08FT Q102 2SA1036K Q101 2SB1188 Q103, Q104 DTC124EU D101, D102 SB02-09CP COILS AND FILTERS L101, L103, L104, L107 (4.7µH) DTL1024 L110 CHIP SOLID INDUCTOR QTL1015 L108 (47µH) RTL1003 L102 (0.47µH) RTL1007 SWITCHES AND RELAYS S101, S102 RSF1012 CAPACITORS C115, C146 CCSQCH101J50 C119, C120 CCSQCH120J50 C141–C144, C155 CCSQCH220J50 C174–C178 CCSQCH271J50 C194 CCSQCH331J50 C139 CEV101M4 C166 CEV101M6R3 C147, C148, C201 CEV470M6R3 C112 CEV4R7M35 C1000, C199 CKSQYB103K50 C129 CKSQYB122K50 C153, C154 CKSQYB153K50 C158 CKSQYB222K50 C196–C198 CKSQYB223K50 C103, C145 CKSQYB273K50 C171 CKSQYB332K50 C149, C170 CKSQYB333K50 C106, C159 CKSQYB472K50 C156, C157 CKSQYB562K50 C151, C152, C160, C162 CKSQYB821K50 C132, C134, C137, C138, C161 CKSQYF104Z25 C163, C164, C195, C202–C205 CKSQYF104Z25 C101, C102, C104, C108 CKSQYF105Z16 C113, C114, C116–C118 CKSQYF105Z16 C121, C122, C124, C135, C136 CKSQYF105Z16 C140, C165, C169, C207, C208 CKSQYF105Z16 C123 CKSQYF473Z25 C105, C107 CKSQYF474Z16 RESISTORS R105 RS1/8S270J Other Resistors RS1/10S&&&J OTHERS CN104 30P CONNECTOR RKN1039 X101 (33.8688MHz) RSS1055 CN105 CONNECTOR S2B-ZR-SM3A CN102 CONNECTOR S2B-ZR-SM3A-R CN101 CONNECTOR SFV28R-1ST CN103 CONNECTOR SFW7R-2ST www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MJ-D508 39 Mark No. Description Part No. Mark No. Description Part No. CORE SW UNIT ASSY SWITCHES AND RELAYS S701 RSF1009 S702 RSF1010 RESISTORS All Resistors RS1/10S&&&J OTHERS CN701 CONNECTOR SFW7R-1ST MAIN UNIT ASSY SEMICONDUCTORS IC301, IC305 (400mA) AEK7004 IC602 AK7712A-VQ IC306 BA05T IC604 BA15218 IC605 BR62256F-70LL IC601 NJM2100D IC603 NJM4558D-D IC302 NJM7805FA IC307 S-806D IC404 TC74HC153AF IC401, IC402 TC74HCT08AF IC403 TC74HCU04AF IC407 TC9246F Q303 2SA1037K Q304 2SC2412K Q501–Q504 2SD2114K Q601, Q602 DTA124EK Q603–Q605 DTC124EK D307 1SR139-400-TA D308, D402 1SS133X D401, D603 DAP202K D303–D306 S5566G(TPB2) COILS AND FILTERS L308 LAU1R0J L403, L603, L611 LFA100J L401 LFA151J L412, L602, L610 FERRITE BEADS PTH1016 L413 FERRITE BEADS PTH1017 L404 EMI FILTER 101 RTF1162 L304, L402, L410, L608 COIL RTF1167 CAPACITORS C448 CCSQCH100D50 C445 CCSQCH101J50 C440 CCSQCH150J50 C411, C413, C446, C453, C454 CCSQCH220J50 C450, C451, C549, C550 CCSQCH221J50 C627, C628, C633, C634 CCSQCH221J50 C412, C423, C617 CCSQCH470J50 C319, C321, C403, C406, C415 CEAT101M10 C417, C421, C429, C443, C601 CEAT101M10 C604, C612, C616 CEAT101M10 C507, C508 CEAT220M50 C614 CEAT221M6R3 C314 CEAT222M16 C551, C552 CEAT2R2M50 C410 CEAT330M50 C313 CEAT332M16 C315, C444, C505, C506 CEAT470M16 C559, C560, C565, C566, C619 CEAT470M16 C621 CEAT470M16 C324 CEAT471M6R3 C503, C504, C624 CEAT4R7M50 C442 CFTLA474J50 C447, C625, C626 CKSQYB102K50 C409, C441, C449 CKSQYB103K50 C553–C558 CKSQYB152K50 C511, C512 CKSQYB332K50 C401, C402, C404, C405, C414 CKSQYF104Z25 C416, C418–C420, C422, C438 CKSQYF104Z25 C452, C603, C605–C611, C613 CKSQYF104Z25 C615, C630, C632 CKSQYF104Z25 C629 CKSQYF105Z16 C439 CKSQYF473Z25 C323 (1.00F) RCH1152 RESISTORS R441 RD1/4VM120J R559, R560 RN1/10SE1202D Other Resistors RS1/10S&&&J OTHERS CN602 3P JUMPER CONNECTOR 52147-0310 CN603 6P JUMPER CONNECTOR 52147-0610 CN301 13PJUMPER CONNECTOR 52147-1310 JA401 OPTICAL RECEIV MOD. GP1F32R JA404 OPTICAL LINK OUT GP1F32T CN404 CONNECTOR HLEM30S-1 JA403 JACK RKB1021 JA601 JACK RKB1032 JA405, JA406 JACK RKN1004 PCB BINDER VEF1040 CN401 30P CONNECTOR VKN1206 KN301 EARTH METAL FITTING VNF1084 POWER SUPPLY UNIT ASSY SEMICONDUCTORS IC201 (2.5A) AEK7014 IC202 NJM7805FA D205 1SS133X D204 DAN202K D202 MTZJ11B D203 S2VB20 D201 S5566G(TPB2) SWITCHES AND RELAYS S201 RSA1001 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MJ-D508 40 Mark No. Description Part No. Mark No. Description Part No. COILS AND FILTERS L206 LAU1R0J L204, L205 COIL RTF1167 CAPACITORS C206 (10000pF/AC250V) ACG7020 C217 CEAT101M10 C219 CEAT101M50 C218 CEAT4R7M50 C210 CFTLA104J50 C203–C205, C207–C209 CKCYF103Z50 C211–C214 CKCYF103Z50 C215 CKSQYF104Z25 C216 (15000µF/16V) RCH1124 RESISTORS All Resistors RS1/10S&&&J OTHERS 13P CABLE HOLDER 51048-1300 HEAT SINK ANH-575 J202 JUMPER WIRE 13P D20PYY1315E J204 CORD WITH PLUG DE005WE0 TERMINAL RKC-061 DISPLAY UNIT ASSY SEMICONDUCTORS IC701 PDG240A COILS AND FILTERS L704 COIL RTF1167 SWITCHES AND RELAYS S701 RSC1003 S719 RSH1041 S702–S718 VSG1009 CAPACITORS C709 CEAL220M6R3 C705, C707, C710, C711 CKSQYB103K50 C713 CKSQYF103Z50 C703, C704, C706, C708 CKSQYF104Z25 RESISTORS All Resistors RS1/10S&&&J OTHERS REMOTE RECEIVER UNIT GP1U27X CN701 CONNECTOR HLEM30S-1 V701 FL RAW1164 X701 (8.388MHz) RSS1042 HEADPHONE UNIT ASSY COILS AND FILTERS L903 COIL RTF1167 L901, L902 FERRITE BEADS VTH1020 CAPACITORS C904, C905, C907 CKSQYF104Z25 RESISTORS VR901 (500Ω-B) RCV1123 Other Resistors RS1/10S&&&J OTHERS 3P CABLE HOLDER 51048-0300 J901 JUMPER WIRE D20PYY0310E J902 CORD WITH PLUG DE005WE0 JA901 JACK RKN1002 VOLUME UNIT ASSY RESISTORS VR801 (50kΩ-A) RCV1118 Other Resistors RS1/10S&&&J OTHERS 6P CABLE HOLDER 51048-0600 J801 PARALLEL WIRE D20PYY0615E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MJ-D508 41 6. ADJUSTMENT Thermometer Oscilloscope Optical Power Meter Jitter Meter Test Disc For servo system adjustment ............................................. GGF1328 (MMD-212) For recording/playback inspection ................... GGF1328 (MMD-212), GGF1277, TGYS1 (or MMD-110), Commercial discs JIGS AND MEASURING INSTRUMENTS Adjustment points When Exchange Exchange Exchange Exchange Exchange Exchange Exchange PICKUP Servo Base Assy (SPINDLE MOTOR) CORE MAIN UNIT ASSY MD HEAD Loading Mechanism Assy Servo Mechanism Assy MD Mechanism Assy (Loading Mechanism Assy + Servo Mechanism Assy) 2 – 8 = Page 43–48 2 – 8 = Page 43–48 8 = Page 48 1 , 4 – 8 = Page 43–48 3 – 8 = Page 44–48 3 – 8 = Page 44–48 6.1 NECESSARY ADJUSTMENT POINTS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MJ-D508 42 Operation Keys FL Display Contents REC (¶) PLAY (3) STOP (7) JOG (4, ¢) Same operation as in normal mode CUE (¡) REV (1) INPUT SELECTOR EJECT (0) Disc ejection (no TOC writing) DIGITAL-NR D S P O K ! ! Normal DSP IC operation D S P E R R O R 1 Communication between the DSP IC and the system controller is not possible. D S P E R R O R 2 Calculation in the DSP IC not correct 6.2 TEST MODE There are two test modes: test mode 1 for main unit operation check and test mode 2 for MD mechanism assy adjustment and check. 6.2.1 Test Mode 1 (main unit operation check) How to enter into test mode 1 1) Hold the “ENTER” key and the “STOP” key depressed and press the POWER switch. 2) SYSTEM TEST will be displayed on the FL display. Operation check for the operation keys Operation check for other keys Operation Keys FL Display OFF S Y S T E M T E S T TIMER SW REC Entire FL lit PLAY Entire FL not lit DAC MODE D A C NAME CLIP N A M E C L I P DISPLAY/CHARA D I S P A–B When each key is pressed, display according to the following table shall be made on the FL display. Operation Keys FL Display JOG (Push) E N T E R EDIT/NO E D I T / N O NAME N A M E SYNCHRO REC S Y N C H R O R E C Cancellation of Test Mode 1 Press the POWER switch. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MJ-D508 43 Step No. Operation Keys and Operation Method FL Display Status Remarks 1 Power ON while holding the ENTER key and the EJECT Test mode PLAY key depressed. 2 Press the NAME CLIP key. TEMP The microcomputer starts measuring. : Measuring value 3 When is 80 or more at this time, the adjustment End is OK (step 4 and following can be omitted). : Set value When is 80 (not passed) TEMP 8 0 80 is the default value (unadjusted). 4 Measure the ambient temperature T (°C) andcheck hat the measuring value ( ) is within the standard in regard to the microcomputer set value ( ). Note: When the indication of the measuring value ( ) is not stable, and the ambient temperature T (°C) is 25 °C or less, set to the lower value. When the ambient temperature is over 25 °C, set to the higher value. 5 Change with the DAC MODE key (UP) and the TEMP 7B 7B INPUT SELECTOR key (DOWN). 6 Press the EDIT/NO key. No Disc Writing to EEPROM is made and return is made automatically from test mode to normal mode. 6.2.2 Test Mode 2 (MD Mechanism Assy Adjustment, Check) Step No. Operation Keys and Operation Method FL Display Status Remarks 1 Power ON while holding the ENTER key and the EJECT Test mode Laser Wavelength: PLAY key depressed. 780 nm 2 Press the NAME key. ppw PLAY power output status 3 Measure the laser power with an optical power meter. ppw 4 At this time, check that the measuring value (PLAY ppw May be omitted. power) meets the standard value of the table on the right. Note: When the standard value on the right is applied, the numerical value immediately after entry into test mode 2 shall be taken as the standard. 5 Press the NAME key. rpw REC power output status 6 At this time, check that the measuring value (REC rpw power) meets the standard value of the table on the right. 7 Press the STOP key. The LD goes out. 1 Temperature Check (Please perform this check soon after the power has been switched on.) 2 Laser Power Check Note: When IC101 (RF-AMP), IC104 (mechanical controller) or IC110 (EEPROM) has been exchanged or when a correction changing VD+3 has been made, be sure to correctly perform all steps up to step 6. TEMP µ-com Measuring value 11.6 to 16.9 +1 to +3 17.0 to 22.3 0 to +2 22.4 to 27.6 –1 to +1 27.7 to 33.0 0 to –2 33.1 to 38.4 –1 to –3 79 7A 7B 7C 7D hex= ( – ) Room Temperature [ T (°C) ] µ-com Set value When the microcomputer value is + – hex = Standard Value ( – ) (mW) +02 to +04 0.69±0.12 –01 to +01 0.67±0.1 –02 to –04 0.63±0.1 TEMP µ-com Measuring value µ-com Set value hex = Standard Value ( – ) (mW) +02 to +04 6.18±0.93 –01 to +01 5.79±0.87 –02 to –04 5.47±0.82 CAUTION • Never look directly at the objective lens. Rec power (rpw) is than ten times greater than Playback power (ppw) is released. • Never turn the pickup volume and be careful of touch it. Laser power of pickup has been adjusted in the factory shipping. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MJ-D508 44 Screw A Adjustment Hole Ocsilloscope b a 470p 470p 100kΩ 100kΩ CORE MAIN UNIT ASSY SIDE A REFO EOUT FOUT Lissajous waveform a:b = Within 3:1 Step No. Operation Keys and Operation Method FL Display Status Remarks 1 Power ON while holding the ENTER key and the PLAY EJECT Test mode key depressed. 2 Insert the test disc GGF1328 (MMD-212). LOADING GRT AJST Grating adjustment status 3 Press the PLAY key. LON : Playback is started in tracking open LAg : status. (The servo is closed only for GEG : focus and spindle.) 4 Connect an oscilloscope according to the following GRT AJST Lissajous waveform a:b = Within 3:1 connection diagram and loosen the screw A at the side of the adjustment hole. Turn the hole with a screwdriver until the Lissajous waveform becomes as shown in the figure, and then tighten the screw A. 5 Press the STOP key. Adjustment end 3 Grating Adjustment Connection Diagram Adjustment Point Step No. Operation Keys and Operation Method FL Display Status Remarks 1 Power ON while holding the ENTER key and the PLAY EJECT Test mode key depressed. 2 Insert the test disc GGF1328 (MMD-212). LOADING GRT AJST 3 Press the A-B key (until AUT YOBI is displayed). AUT YOBI Preliminary adjustment mode 4 Preliminary adjustment starts when the PLAY key is HAo : pressed. RFg : PTG : | Can't ADJ. Defective adjustment (problem with the servo system) COMPLETE Adjustment end 4 Preliminary Adjustment www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MJ-D508 45 Step No. Operation Keys and Operation Method FL Display Status Remarks 1 Power ON while holding the ENTER key and the PLAY EJECT Test mode key depressed. 2 Insert the test disc GGF1328 (MMD-212). LOADING GRT AJST 3 Press the A-B key (until AUTO AJST is displayed). AUTO AJST Normal adjustment mode 4 Normal adjustment starts when the PLAY key is pressed. PEG : HAG: | Can't ADJ. Defective adjustment (problem with the servo system) COMPLETE Adjustment end 5 Press the STOP key. AUTO AJST Return to menu display Step No. Operation Keys and Operation Method FL Display Status Remarks 1 Power ON while holding the ENTER key and the EJECT Test mode PLAY key depressed. 2 Insert the test disc GGF1328 (MMD-212). LOADING GRT AJST 3 Press the A-B key deFO AJST (until deFO AJST is displayed). 4 Press the PLAY key. PEG : Defocus mode is entered, and after automatic FESpp : execution of normal adjustment, the C1 error at of000c0015 the time of focus offset 0 is displayed. 5 Check the jitter value and end the adjustment when the intermediate jitter value is 29 nsec or less. 6 Press the NAME CLIP key. of+04 c0032 The C1 error with application of a focus offset of about 0.4 µm on the + side is displayed. The jitter value (J+) at this time is recorded. 5 Normal adjustment 6 Defocus adjustment Step No. Operation Keys and Operation Method FL Display Status Remarks 5 Press the STOP key. AUT YOBI Return to menu display 6 Press the EDIT/NO key. EEPROM W Writing to the EEPROM Toc Reading GGF1328 (MMD-212) 4 Preliminary Adjustment Note: When this adjustment is performed after defocus adjustment has been performed, defocus is returned to the initial status, and defocus adjustment must be performed. of c Deforcus Value C1 Error Value www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MJ-D508 46 Step No. Operation Keys and Operation Method FL Display Status Remarks 7 Press the NAME CLIP key. of-04 c0020 The C1 error with application of a focus offset of about 0.4 µm on the – side is displayed. The jitter value (J–) at this time is recorded. 8 When J+ is larger than J-, press the A-B key of+04 c0032 and display the C1 error when the focus offset is applied up to +0.4 µm. (Do nothing when J- is larger than J+.) 9 Change the value with CUE (1)/REV (1) until of+04 c0032 When the smaller offset of the jitter value has the value becomes the same. of+03 c0025 been corrected mistakenly, press the NAME key of+02 c0020 and return to step 4. 10 Press the PLAY key. COMPLETE The mean value of the changed set value and the offset of the other setting limit is written into the EEPROM as the compensation offset. 11 Power OFF Test mode is ended. 6 Defocus adjustment Connection diagram Jitter Meter LEVEL JITTER GND CORE MAIN UNIT ASSY SIDE A REFO EFM MON Step No. Operation Keys and Operation Method FL Display Status Remarks 1 Power ON while holding the ENTER key and the EJECT Test mode PLAY key depressed. 2 Insert the test disc GGF1328 (MMD-212). LOADING GRT AJST 3 Perform “ 5 Normal Adjustment ” (step 3, step 4). AUTO AJST 4 Press the NAME CLIP key. TEST PLAY TEST PLAY mode 5 Press the NAME key and display the inner ADRES 0050 circumference address. 6 Press the PLAY key and display the C1 error for a0050 c0015 Check that the jitter value meets the standard the inner circumference. value of the following table. GGF1328 (MMD-212) jitter value 7 Press the REC key. A0062 c0013 Seven data are acquired, the largest and the AVE. c0012 smallest value are discarded, and fixed display is made for the mean value of the remaining five data. Check that this value is 200 or less. Inner circumference 31 nsec or less Intermediate circumference 29 nsec or less Outer circumference 29 nsec or less 7 Jitter/C1 Error Check at the time of Playback www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MJ-D508 47 Step No. Operation Keys and Operation Method FL Display Status Remarks 8 Press the REC key. a006F c0017 The fixed display of the C1 error is ended. 9 Press the STOP key. TEST PLAY 10 Press the NAME key and display the inner ADRES 0050 circumference address. 11 Press the NAME CLIP key and display the ADRES 03C0 intermediate circumference address. a03C0 c0009 Perform steps 6 to 9 in this condition. TEST PLAY 12 Press the NAME key and display the inner ADRES 0050 circumference address. 13 Press the NAME CLIP key twice to display the ADRES 0700 outer circumference address. a0700 c0008 Perform steps 6 to 9 in this condition. TEST PLAY 14 Press the EJECT key, eject the test disc EJECT GGF1328 (MMD-212), and insert TGYS1 (or LOADING MMD-110.) GRT AJST 15 Perform steps 3 to 13 and check the jitter/C1 a0062 c0009 Check that the jitter value meets the standard error with the test disc TGYS1 ( or MMD-110). a03d2 c0007 value of the following table. a0712 c0006 16 Press the EJECT key. EJECT The test disc TGYS1 ( or MMD-110) is ejected. 17 Power OFF Test mode is ended. 7 Jitter/C1 Error Check at the time of Playback Jitter Meter LEVEL JITTER GND CORE MAIN UNIT ASSY SIDE A REFO EFM MON Connection diagram Inner circumference 29 nsec or less Intermediate circumference 27 nsec or less Outer circumference 27 nsec or less TGYS1 ( or MMD-110) jitter value Intermediate and outer circumference may be omitted. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MJ-D508 48 Step No. Operation Keys and Operation Method FL Display Status Remarks 1 Power ON while holding the ENTER key and the EJECT Test mode PLAY key depressed. 2 Insert the test disc (GGF1277). LOADING GRT AJST 3 Perform “ 5 Normal Adjustment ” (step 3, step 4). AUTO AJST 4 Press the NAME CLIP key twice. TEST REC TEST REC mode 5 Press the NAME key and display the inner a0050 pw0D circumference address. 6 When the PLAY key is pressed, TEST REC starts, a0069 pw0D and when 25 addresses or more have been sent, TEST REC stop by pressing the STOP key. 7 Press the NAME key and display the inner a0050 pw0D circumference address. 8 Press the NAME CLIP key and display the a03C0 pw0D intermediate circumference. 9 Perform step 6. a03D9 pw0D TEST REC 10 Press the NAME key and display the inner a0050 pw0D circumference address. 11 Press the NAME CLIP key twice and display the a0700 pw0D outer circumference address. 12 Perform step 6. a0719 pw0D TEST REC 13 Press the NAME CLIP key. TEST PLAY TEST PLAY mode 14 Perform steps 5 to 13 of “ 7 Jitter/C1 Error Check a0069 c0009 Check the jitter/C2 error at the inner/ at the time of Playback ”. a03D9 c0007 intermediate/outer circumference of GGF1277, At the time of self-recording, wait for seven a0719 c0006 and check that the jitter value satisfies the addresses after TEST PLAY start, and then press standard value of the following table. the REC key and enter into mean value mode. (Good recording may not be possible for several addresses at the beginning.) 15 Press the EJECT key. EJECT The test disc (GGF1277) is ejected. 16 Power OFF Test mode is ended. 8 Jitter/C1 Error Check at the time of Recording/Playback Jitter Meter LEVEL JITTER GND CORE MAIN UNIT ASSY SIDE A REFO EFM MON Inner circumference 33 nsec or less Intermediate circumference 31 nsec or less Outer circumference 31 nsec or less Connection diagram Note:When the initial address (0050) part of the inner circumference (or intermediate/ outer circumference) has been used 1000 times or more, press the CUE key and shift the address by 10hex. (The address is shifted (up to 10 times) according to the use frequency of the disc.) Intermediate and outer circumference may be omitted. GGF1277 jitter value www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MJ-D508 49 7. GENERAL INFORMATION 7.1.1 TROUBLESHOOTING 7.1 DIAGNOSIS 7 The power of the system does not turn to ON. Display does not light up. Detal of Display is normal ? OK Display lights UP ? Check for connection of Transformer to MAIN UNIT ASSY and connection of DISPLAY UNIT ASSY to MAIN UNIT ASSY. START POWER ON No Yes Yes No Display is dark or Display flickers D202(Zener diode) is short-circuited or open. " SIO Error " Message shown on the display Refer to "DETAILS OF ERROR DISPLAY" (next page). ¶ Connection of DISPLAY UNIT ASSY to MAIN UNIT ASSY or Connection of MD MECHANISM ASSY to MAIN UNIT ASSY is wrong. ¶ IC301(Protector) is open. ¶ IC305(Protector) is open. ¶ IC201(Protector) is open. ¶ Transformer temperrature fuse is open. ¶ IC201(SYSTEM CONTROL µCOM) is broken. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MJ-D508 50 Error Display Can't REC Can't COPY Din Unlock DAC Unlock TOC Full UTOC R ERR UTOC ERR A UTOC ERR L Not Audio Unkown Disc Disc Full Premastered Protected 7 DETAILS OF ERROR DISPLAY Details of Error ÷ DEFECT occurred 10 times continuously during REC-PLAY. ÷ Recordable cluster became 0 since DEFECT occurred during REC-PLAY. ÷ Address is unreadable. REC state can not be set for 20 seconds even after try again. ÷ Determined as follows according to the channel status of the signals input from D-IN during REC-PAUSE or REC-PLAY. 1. Other than audio 2. Other than consumer use 3. Copy NG due to inversion of COPY bit of CD ÷ The following occurred for digital signal input from D-IN during REC-PAUSE, REC-PLAY 1. Digital IN PLL unlocked. 2. Locked at other than FS = 32, 44.1 and 48 kHz. ÷ The following occurred for digital signal input from D-IN during DAC mode 1. Digital IN PLL unlocked. 2. Locked at other than FS = 32, 44.1 and 48 kHz. ÷ No area for registering music number and character information during REC-PLAY (music name, disc number, etc.) ÷ FTNO > LTNO. ÷ FTNO ≠ 0 or 1. ÷ UTOC recorded on DISC could not be read. ÷ Start address > End address. ÷ Any one data of UTOC 0 to 4 has looped. ÷ Data not for audio is recorded for TNO track mode currently selected. ÷ Data called MINI of system ID written in ASCII codes in TOC is incorrect. ÷ Disc type written in TOC is not pre-mastered MD, recording MD, or hybrid MD. ÷ TOC read was incorrect or could not be read properly. ÷ Inserted a disc but could not bring in FOCUS. ÷ No recordable space when attempted to set REC-PAUSE. ÷ Disc only for playback was loaded when attempted to set REC- PAUSE or edit. ÷ Attempted to record or edit even through REC-proof knob of disc for recording was in the REC-proof state. ÷ Attempted to edit track with write-protect according to information on UTOC. Measure ÷ Check if there are scratches, dusts, fingerprints, or black spots on disc. Check if disc fluctuates eccentrically or moves up and down largely. ÷ Check if CD is copy-proof. (Example: CD-R, etc.) ÷ Check if D-IN signal line is normal. ÷ Check if D-IN signal is FS = 32, 44.1 and 48 kHz. ÷ Check if D-IN signal line is normal. ÷ Check if D-IN signal is FS = 32, 44.1 and 48 kHz. ÷ Replace with recording/playback disc with space for registering UTOC. ÷ Replace with other discs to check if UTOC data is normal. ÷ Replace with other discs to check if UTOC data is normal. ÷ Replace with other discs to check if UTOC data is normal. ÷ Select other TNO or replace with other discs. ÷ Disc is outside specifications. Replace with different disc and check. ÷ The TOC data recorded on the disc do not comply with MD Standards, so try using another disc. ÷ The disc may be scratched or damaged, so try using another disc. ÷ Check if there are scratches, dusts, fingerprints, or black spots on disc. Check if disc fluctuates eccentrically or moves up and down largely. ÷ Replace with different disc with recording space. ÷ Disc is for playback only. Replace with disc for recording. ÷ Track attempted to be edited is write-protected. Try again with different track. ÷ Restore the REC-proof knob and try again. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MJ-D508 51 Error Display Can' t Edit Temp Over Disc ERR Disc ERR R Disc ERR S Disc ERR W UTOC W ERR Memory Full BlankDisc Defect UTOC W ERR EEPROM ERR MECHA ERR [ ] Details of Error ÷ Editing conditions were not satisfied for each editing function. ÷ Temperature inside unit (MD unit) was too high due to fault. ÷ Data read was incorrect or could not be read properly. ÷ Error occurred during music data recording and recording could not be performed correctly. ÷ Music data READ search time exceeded ÷ REC PAUSE shift abnormality (search time exceeded) ÷ SD WRITE (search time exceeded) ÷ Fault occurred during rewriting of UTOC rewriting, and rewriting could not be performed correctly. ÷ The DRAM has become filled with music data, but they can not be written (to the disc). ÷ After reading UTOC, total number of TNO and NAME characters was 0. ÷ Focus execution error, etc. occurred due to shock during REC- PLAY. ÷ UTOC read was correct but could not be rewrite it. ÷ The EEPROM data are incorrect. ÷ Never completes EJECT. ÷ Never moves HEAD UP. ÷ Never moves HEAD DOWN. ÷ The set microcomputer and MD mechanism microcomputer are not communicating properly. Measure ÷ Operating method is wrong. Try again using correct method. ÷ Check according to TROUBLESHOOTING. ÷ Faulty TOC or UTOC data or scratch on disc. Replaced with other discs. ÷ Scratch on disc. Replaced with other discs. ÷ Check if there are scratches, dusts, fingerprints, or black spots on disc. Check if disc fluctuates eccentrically or moves up and down largely. ÷ Record and check if disc is recordable. ÷ Check if there are scratches, dusts, fingerprints, or black spots on disc. Check if disc fluctuates eccentrically or moves up and down largely. ÷ Check to see if the recording head contact is correct or if there are any disconnections between the board and the recording head. ÷ Try doing a RESET operation again. If the problem still persists, replace the EEPROM. Details of Error Display www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MJ-D508 52 5 4 Under Slider Upper Slider Lock Plate Part B Screw C CN101 CORE MAIN UNIT ASSY CN103 CN105 CN102 1 1 3 2 2 2 Screw A Screw B Part A 6 Servo Mechanism Assy 7.1.2 DISASSEMBLY Removal of the Servo Mechanism Assy 1 Remove the screw A and screw B. 2 Disconnect the connectors (CN102, CN103, CN105), open the hook of part A, and tilt the upper side of the CORE MAIN UNIT ASSY to the front. 3 Disconnect the connector (CN101) at the rear of the CORE MAIN UNIT ASSY and remove the CORE MAIN UNIT ASSY. 4 After the Carrier has been pushed in, move the Upper Slider to the rear and stop it at the position where the Under Slider starts to move. 5 Shift part B to the position shown in the figure while raising the Under Slider. (At the same time, the Upper Slider moves to the front.) 6 Remove the Lock Plate. (One screw B) 7 Remove the Servo Mechanism Assy. Caution for the time of installation of the servo mechanism assy Move the MD Pick-up to the innermost circumference. The servo mechanism assembly is not installed other than the innermost circumference. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MJ-D508 53 Safety Screw Screw B� (M1.4 × 2) MD Head S. H. Spring Screw A (M1.7 × 4) Screw C� (M1.7 × 3) 1 2 3 5 4 Screw Guide Servo Mechanism Assy Remove the hook after the screw has been removed. 6 7 Reference Plate Hook Guide Shaft MD Pickup 1 3 2 S. H. Spring Insert Push in while changing the point. Press in with a screwdriver or similar until the hook becomes engaged. Confirm from the rear that the tip of the hook is engaged sufficiently. 1 Remove the MD Head. (One screw A) 2 Remove the Screw Guide at the lower side of the MD Pick-up. (One screw B) 3 Remove the S. H. Spring. (One screw C) 4 Remove the hook of the S. H. Spring as shown in the figure on the right. 5 Remove the Safety Screw. 6 Raise the left side of the Guide Shaft and pull it out to the left. 7 Remove the MD Pick-up. (With the front facing down, remove it to the front. At this time, the MD Pick-up can be removed more easily when the Reference Plate is removed.) Removal of the MD Pick-up MD Pick-up Installation Perform installation in reverse order of the removal. (Please use care as the MD Head mounting screw can be crushed easily. MD Head mounting screw tightening torque: 1.1 kg • cm S. H. Spring Installation When the Reference Plate has been removed, confirm that the hook is engaged with the shaft of the spindle motor. (Take care that the mounting reference boss does not ride up.) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MJ-D508 54 1 2 Head Lifter Lifter SP Push Part A 1 3 2 Head Lifter Servo Base Head Lifter Part A Push Part B Part B Matching Position Removal of the Head Lifter Head Lifter Installation 1 Remove the Lifter SP. 2 Tilt the Head Lifter to the rear and push part A to disengage it. 1 Install part A in the Servo Base with the Head Lifter tilted to the back. 2 Match the Head Lifter and the Servo Base as shown in the figure, and then engage part B. 3 While holding part B with your hand, tilt the Head Lifter to the front and install the Lifter SP. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MJ-D508 55 No. Name Description 1 DQ1 Data Input/Output 2 DQ2 3 W Write control input 4 RAS Line address strobe input 5 A9 Address input 6 | 8 9 A0 | | Address input 12 A3 13 Vcc Power supply voltage (+3.3 V) 13 12 11 10 9 5 4 3 2 1 DQ1 DQ2 W RAS A9 A0 A1 A2 A3 VCC VSS DQ4 DQ3 CAS OE A8 A7 A6 A5 A4 14 15 16 17 18 22 23 24 25 26 4 3 10 23 14 15 12 11 16 17 18 Clock Generation Circuit Memory Cell (4194304bits) Sense Reflesh Amp. Input/Output Control Circuit Address Buffer Line Decoder Column Decoder Output Buffer Input Buffer A0 A1 A2 A3 A4 A5 A6 A7 A8 9 24 DQ2 DQ3 25 DQ4 13 Vcc (3.3V) 26 Vss (0V) 22 2 DQ1 1 A9 5 CAS RAS W OE 7.2.1 IC 7.2 PARTS Block Diagram Pin Function M5M4V4400CTP-7 (IC103: CORE MAIN UNIT ASSY) DRAM Pin Assignment (Top view) ¶ The information shown in the list is basic information and may not correspond exactly to that shown in the schematic diagrams. No. Name Description 14 A4 | | Address input 18 A8 19 | 21 22 OE Output-enable input 23 CAS Column address strobe input 24 DQ3 Data Input/Output 25 DQ4 26 Vss Ground (0 V) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MJ-D508 56 + – + – CH1 ×5 VBS1 VBS1 + – + – + – + – CH2 ×5 VBS1 VBS1 E2 VREF VREG VBS1 VBS1 VBS1 1.25V + – Vm1 + – + – + – + – CH3 ×8 VBS2 VBS2 VBS2 E4 E5 VBS2 VBS2 VREFO Vrefm1 Vrefm2 VBS2 E3 + – + – + – CH4 ×8 Vm2 R R R R + – + – + – + – CH5 ×8 + – 3 6 5 4 39 38 7 9 8 12 13 16 21 15 14 2 1 19 17 20 40 37 41 42 34 35 31 30 29 28 24 23 22 25 26 27 CH 1 to 4 CH5 SLEEP TSD BIAS L: Open MUTE ON H: Sleep 18 10 11 32 33 IN1+ IN1– OUT1 VM1+ VM1– VM2+ VM2– OUT2 IN2– IN2+ VREFO VREF REGB REG+ IN5+ IN5– OUT5 VM5– VM5+ VM4– VM4+ VM3– VM3+ Vm2 VBS2 VBS1 Vm1 CH3IN OUT3 IN3+ IN3– IN4+ IN4– OUT4 SS. GND MUTE1 MUTE2 GND 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 REG+ REGB IN1+ VBS1 Vm1 IN1– OUT1 VM1– VM1+ GND GND VM2+ VM2– OUT2 IN2– IN2+ MUTE1 MUTE2 SS. GND VREF VREFO CH3IN OUT3 IN3– VBS2 Vm2 IN3+ N.C. VM3– VM3+ GND GND VM4+ VM4– VM5+ VM5– OUT5 IN5– IN5+ IN4+ IN4– OUT4 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 M56758FP No. Name Description 1 REG+ Regulator voltage setting resistor connection terminal 2 REGB Regulator PNP base connection terminal 3 IN1+ E1 amplifier nonreversed input terminal 4 VBS1 Bootstrap power supply terminal 5 Vm1 Motor power supply terminal 6 IN1– E1 amplifier reversed input terminal 7 OUT1 E1 amplifier output terminal 8 VM1 (–) CH1 reversed output terminal 9 VM1 (+) CH1 nonreversed output terminal 10 GND Motor GND 11 12 VM2 (+) CH2 nonreversed output terminal 13 VM2 (–) CH2 reversed output terminal 14 OUT2 E2 amplifier output terminal 15 IN2– E2 amplifier reversed input terminal 16 IN2+ E2 amplifier nonreversed input terminal 17 MUTE1 Mute terminal (CH1 to CH4) 18 MUTE2 Mute terminal (CH5) 19 SS. GND Small-signal ground 20 VREF Reference voltage input terminal 21 VREFO Reference voltage output terminal Pin Assignment (Top view) Block Diagram Pin Function No. Name Description 22 OUT4 E4 amplifier output terminal 23 IN4– E4 amplifier reversed input terminal 24 IN4+ E4 amplifier nonreversed input terminal 25 IN5+ E5 amplifier nonreversed input terminal 26 IN5– E5 amplifier reversed input terminal 27 OUT5 E5 amplifier output terminal 28 VM5 (–) CH5 reversed output terminal 29 VM5 (+) CH5 nonreversed output terminal 30 VM4 (–) CH4 reversed output terminal 31 VM4 (+) CH4 nonreversed output terminal 32 GND Motor GND 33 34 VM3 (+) CH3 nonreversed output terminal 35 VM3 (–) CH3 reversed output terminal 36 N.C. Not connected 37 IN3+ E3 amplifier nonreversed input terminal 38 Vm2 Motor power supply terminal 39 VBS2 Bootstrap power supply terminal 40 IN3– E3 amplifier reversed input terminal 41 OUT3 E3 amplifier output terminal 42 CH3IN E3 amplifier nonreversed input terminal M56758FP (IC106: CORE MAIN UNIT ASSY) 5-channel Actuator Driver www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MJ-D508 57 PD5523A (IC104: CORE MAIN UNIT ASSY) Mechanism Control m-com. R0H R0L R1H R1L R2 R3 A0 A1 FB TIMER Timer TA0 (16bits) Timer TA1 (16bits) Timer TA2 (16bits) Timer TA3 (16bits) Timer TA4 (16bits) Timer TB0 (16bits) Timer TB1 (16bits) Timer TB2 (16bits) DMAC (2 channels) D/A Converter (8bits× 2 channels) A/D Converter (10bits × 8 channels) (expansion to 10 channels possible) System clock generation XIN – XOUT XCIN – XCOUT UART/clock-synchronized SI/O (8bits × 2 channels) SB R0H R0L R1H R1L R2 R3 A0 A1 FB INTB ISP USP ROM MEMORY 16 bits CPU CORE I/O PORT RAM 10k bite Port P0 8 Port P1 8 Port P2 8 Port P3 8 Port P4 8 Port P5 8 Port P6 8 Port P7 8 Port P8 7 Port P85 Port P9 8 Port P10 8 Internal Peripheral Functions Monitoring timer (16 bits) Register Stack Pointer Vector Table Analog Multiplier CHC operation circuit (CCITT method) (formation polynomial: X16 + X12 + X5 + 1) Pin Assignment (Top view) Block Diagram www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MJ-D508 58 No. Name I/O 1 to 7, 100 P96 to P90, P97 I/O 8 BYTE I 9 CNVss I 10 P87 I/O 11 P86 I/O 17 P85 I 18 to 22 P84 toP80 I/O 12 RESET I 13 XOUT I 15 XIN O 14 Vss –– 16 Vcc –– 23 to 30 P77 to P70 I/O 31 to 38 P67 to P60 I/O 39 to 46 P57 to P50 I/O WRL/WR, O WRH/BHE, O RD, O BCLK, O HLDA, O HOLD, I ALE, O RDY I 47 to 54 P47 to P40 I/O CS3 to CS0, O A19 to A16 O Description These are 8 bit I/O ports with the same functions as P0. By software selection, it functions as the input terminals for the timers B0 to B2, the output terminals for the D/A converter, the expansion input terminals of the A/D converter, or the A/D trigger input terminals. This is the terminal for switching the external data bus width. When the level of this terminal is "L", the width is 16 bits, and when it is "H", the width is 8 bits. Please fix it to one of these levels. At the time of single-chip mode, connect it to the Vss terminal. This is the terminal for processor mode switching. At the time of single-chip mode or at the time of memory expansion mode, connect it to the Vss terminal. At the time of microprocessor mode, connect it to the Vcc terminal. P80 to P84, P86, and P87 are I/O ports with the same functions as P0. By software selection, they function as the I/O terminals for the timer A4 or the input terminals for external interrupt. P86 and P87 function by software selection as the I/O terminals for the subclock oscillation circuit. In this case, connect a crystal oscillator between P86 (XCOUT terminal) and P87 (XCIN terminal). P85 is an input-only port serving also as NMI. When the input of this terminal changes from "H" to "L", and NMI interrupt is generated. The NMI function can not be cancelled by software. A pullup resistance can not be set for this terminal. When the input to this terminal is "L", the microcomputer is reset. This are the I/O terminals of the main clock oscillation circuit. Connect a ceramic oscillator or a crystal oscillator between the terminals XIN and XOUT. In case of an externally generated clock, enter the clock from the XIN terminal and leave the XOUT terminal open. Impress 0 V. Impress 2.7 V to 5.5 V. These are 8 bit I/O ports with the same functions as P0. By software selection, they function as the I/O terminals for the timers A0 to A3. These are 8 bit I/O ports with the same functions as P0. By software selection, they function as the I/O terminals for the UART0 and UART1. These are 8 bit I/O ports with the same functions as P0. By software selection, they put out a clock with 1/8 or 1/32 of XIN or with the same cycle as XCIN from P57. WRL, WRH, (WR, BHE), RD, BCLK, HLDA, and ALE signals are put out. Switching between WRL and WRH and between BHE and WR is possible by software. At the time of WRL, WRH, RD selection When the external data bus width is 16 bits and the WRL signal is at "L" level, writing is done to an even address, and the WRH signal is at "L" level, writing is done to an odd address. Reading is performed when the RD signal is at "L" level. At the time of WR, BHE, RD selection Writing is done when the WR signal is at "L" level. Reading is done when the RD signal is at "L" level. An odd address is accessed when the BHE signal is at "L" level. Please use this mode when the external data bus width is 8 bits. The microcomputer is in hold status while the input level to the HOLD terminal is "L". During hold status, the output from HLDA is at "L" level. ALE is the signal for address latching. The microcomputer is in ready status while the input to RDY is at "L" level. A clock with the same frequency as the internal clock ø is put out from the BCLK terminal. These are 8 bit I/O ports with the same functions as P0. The A16 to A19 and CS0 to CS3 signals are put out. A16 to A19 are the upper 4 bits of the address. CS0 to CS3 are the chip select signals, and they are used for specification of the access space. Pin Function www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MJ-D508 59 Description These are 8 bit I/O ports with the same functions as P0. The middle 8 bits (A8 to A15) of the address are put out. With an external data bus width of 16 bits and multiplex bus setting, time sharing is performed for data (D7) I/O and address (A8) output. Address (A9 to A15) output also is performed. Impress 2.7 V to 5.5 V. Impress 0 V. These are 8 bit I/O ports with the same functions as P0. Output of the lower 8 bits (A0 to A7) of the address is performed. With an external data bus width of 16 bits and multiplex bus setting, time sharing is performed for data (D0 to D7) I/O and address lower 8 bits (A0 to A7) output. With an external data bus width of 16 bits and multiplex bus setting, time sharing is performed for data (D0 to D6) I/O and address (A1 to A7) output. Address (A0) output also is performed. These are 8 bit I/O ports with the same functions as P0. Data (D8 to D15) I/O is performed at the time of separate bus setting. These are CMOS 8 bit I/O ports. They have direction registers for I/O selection, and input or output port setting is possible individually for each terminal. For an input port, the existence or absence of a pull-up resistance can be set by software in 4 bit units. Data (D0 to D7) I/O is performed at the time of separate bus setting. This are 8 bit I/O ports with the same functions as P0. By software selection, they function as input terminals of the A/D converter. P104 to P107 also function as input terminals for the key input interrupt function. This is the A/D converter power supply input terminal. Please connect it to the Vss terminal. This is the A/D converter reference voltage input terminal. This is the A/D converter power supply input terminal. Please connect it to the Vcc terminal. No. Name I/O 55 to 61, 63 P37 to P31, P30 I/O A15 to A9, A8 O A15 toA9 I/O A8/D7 O 62 Vcc –– 64 Vss –– 65 to 72 P27 to P20 I/O A7 to A0 O A7/D7 to A0/D0 I/O A0 O A7/D6 to A1/D0 I/O 73 to 80 P17 to P10 I/O D15 to D8 I/O 81 to 88 P07 to P00 I/O D7 to D0 I/O 89 to 95, P107 to P101, I/O 97 P100 96 AVss –– 98 VREF I 99 AVcc –– www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MJ-D508 60 LR376487 (IC102: CORE MAIN UNIT ASSY) Encode/Decode/ATRAC 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 1 2 3 4 5 6 7 8 9 10111213141516171819202122232425 75747372717069686766656463626160595857565554535251 50 49 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 TOTMON TEMON SBCK SBO SBSY SFSY FOK SENSE COUT MCCK DINTX VDD1 DGND RSTX SYD0 SYD1 SYD2 SYD3 SYD4 SYD5 SYD6 SYD7 SYWRX SYRDX SYRS EFMO PLCK ACRCER TCRS RAD0 RAD1 RAWEX RARASX RAA9 RAD3 RAD2 RACASX DGND RAOEX RAA8 RAA7 RAA6 RAA5 RAA4 VDD2 RAA10 RAA0 RAA1 RAA2 RAA3 FEMON DADATA ADDATA DFCK BCLK LRCK DGND PLLBVC DOUT DIN XO XI DGND VDD1 VPO VXI CDBCLK CDLRCK CDDATA TEST4 TEST3 TESO1 EXPORT1 EXPORT0 X700KO EFMMON AVCC EFMI AGND AIN EIN TCG BIN FIN VBAT WBI VDD1 DGND TEST0 TEST1 TEST2 X176KO FODRF FODRR TRDRF TRDRR SLDRF SLDRR SPDRF SPDRR LR376487 No. Name I/O Description 1∗ EFMMON O EFM monitor output 2 AVCC – Analog power supply 3 EFMI I EFM signal input from RF amp 4 AGND – Analog GND 5 AIN I Focus error signal A 6 EIN I Tracking error signal E 7 TCG I Track cross signal 8 BIN I Focus error signal B 9 FIN I Tracking error signal F 10∗ VBAT I Power-supply voltage detection signal for constant-voltage servo 11 WBI I ADIP wobble signal 12 VDD1 – Digital power supply 13 DGND – Digital GND 14 TEST0 I Test-use input; normally connected to GND when used. 15 TEST1 I 16 TEST2 I Test-use input; Encoder/Servo Mode and ATRAC Mode changeover No. Name I/O Description 17 X176KO O Clock output; f = 176.4kHz (4fs) 18 FODRF O Focus servo forward output; PWM 19 FODRR O Focus servo reverse output; PWM 20 TRDRF O Tracking servo forward output; PWM 21 TRDRR O Tracking servo reverse output; PWM 22 SLDRF O Slide servo forward output; PWM 23 SLDRR O Slide servo reverse output; PWM 24 SPDRF O Spindle servo forward output or spindle servo output; PWM 25 SPDRR O Spindle servo reverse output or spindle rotation forward/reverse changeover 26 RAA3 O Address output to external D-RAM; ADR3 27 RAA2 O Address output to external D-RAM; ADR2 28 RAA1 O Address output to external D-RAM; ADR1 29 RAA0 O Address output to external D-RAM; ADR0 (LSB) 30∗ RAA10 O Address output to external D-RAM; ADR10 (MSB) 31 VDD2 – Power supply for DRAM interface Pin Assignment (Top view) Pin Function www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MJ-D508 61 No. Name I/O Description 32 RAA4 Address output to external D-RAM; ADR4 | | O | 36 RAA8 Address output to external D-RAM; ADR8 37 RAOEX O Data output enable signal output to external D- RAM 38 DGND – Digital GND 39 RACASX O Column address strobe signal output to external D-RAM 40 RAD2 I/O External D–RAM and data input/output; D2 41 RAD3 I/O External D-RAM and data input/output; D3 (MSB) 42 RAA9 O Address output to external D-RAM; ADR9 43 RARASX O Low address strobe signal output to external D- RAM 44 RAWEX O Data write enable signal output to external D- RAM 45 RAD1 I/O External D-RAM and data input/output; D1 46 RAD0 I/O External D-RAM and data input/output; D0 (LSB) 47∗ TCRS O Track cross signal 48∗ ACRCER O ADIP CRC error flag monitor output 49∗ PLCK O EFM PLL clock output during Play 50 EFM0 O EFM signal output during Record; C1F (C1 error flag) monitor output during Play. 51∗ X700KO O Clock output; f = 705.6kHz; clock is not output when RSTX = 0. 52∗ EXPORT0 O Microcomputer extension output port 0 53∗ EXPORT1 O Microcomputer extension output port 1 54 TESO1 O Microcomputer extension output port 2 during PLLLR changeover 55 TEST3 I/O Microcomputer extension output port 3 during PLLOSC changeover 56 TEST4 I/O Microcomputer extension output port 4 during EXTCLK changeover 57 CDDATA I/O CD data input for high-speed dubbing; micro- computer extension port 5 during changeover 58 CDLRCK I/O CD LR clock input for high-speed dubbing; microcomputer extension port 6 during changeover 59 CDBCLK I/O CD bit clock input for high-speed dubbing; microcomputer extension port 7 during changeover 60 VXI I PLL clock input for varying pitch 61∗ VPO O PLL phase error input for varying pitch 62 VDD1 – Digital power supply 63 DGND – Digital GND 64 XI I Oscillation circuit input; 33.8688MHz 65 XO O No. Name I/O Description 66 DIN I Digital input signal 67 DOUT O Digital output signal 68 PLLBVC – Capacitor connection terminal for PLLB signal 69 DGND – Digital GND 70 LRCK O Music data Lch/Rch changeover output 71 BCLK O Music data shift lock 72 DFCK O Clock for AD/DA converter digital filter; 256fs 73 ADDATA I Audio data input 74 DADATA O Audio data output 75∗ FEMON O Focus error signal monitor output 76∗ TOTMON O Total signal monitor output 77∗ TEMON O Tracking error signal monitor output 78∗ SBCK I DIN sub code readout clock; EIAJ CP-309 format 79∗ SBO O DIN sub code serial data; EIAJ CP-309 format 80∗ SBSY O DIN sub code block synchronization signal; EIAJ CP-309 format 81∗ SFSY O DIN sub code frame synchronization signal; EIAJ CP-309 format 82 FOK O Focus OK detection signal; "0": Focus OK 83 SENSE O Servo status detection signal; "1": Auto Move/ Auto Jump/Auto Focus lead-in in progress 84 COUT O Track cross signal output 85 MCCK O Clock output for microcomputer; clock is output even when RSTX = 0. 86 DINTX O Interrupt Request output signal for system computer interface 87 VDD1 – Digital power supply 88 DGND – Digital GND 89 RSTX I Tip reset input; reset with L (NOTE) 90 SYD0 I/O System computer interface data bus terminal; (LSB) 91 SYD1 | | I/O System computer interface data bus terminal 96 SYD6 97 SYD7 I/O System computer interface data bus terminal; (MSB) 98 SYWRX I System computer interface register write pulse input 99 SYRDX I System computer interface register read pulse input 100 SYRS I System computer interface register select input Terminals denoted with an asterisk (*) are (Open) terminals that are not externally connected. NOTE) Set RSTX to "L" when the power is being turned ON or after it has been turned ON. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MJ-D508 62 PDG240A (IC701: DISPLAY UNIT ASSY) System Control µ-com Block Diagram Pin Assignment (Top view) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MJ-D508 63 No. Name I/O Description 1 G1/A1 Output terminals used jointly for the FDP timing signal (grid connection) and the 2 G0/A0 O/O segment signal (anode connection). 3 NC –– NC (connected to VDD) 4 PE0/INT0/EC0 I/I/I Timer/counter external event input terminal 5 PE1/INT1/EC1 6 PE2/INT2 I/I External interrupt request input terminal 7 PE3/INT3/NMI I/I/I Nonmaskable interrupt request input terminal 8 PE4/RMC I/I Remote control reception circuit input terminal 9 PE5 10 PE6/PWM O/O 14 bit PWM output terminal 11 PE7/TO/ADJ O/O/O 16 bit timer/counter rectangular waveform output, 32 kHz oscillation division output terminal 12 PC0/KR0 Key return input terminal for performing of | | IO/I key scanning with the FDP segment signal 19 PC7/KR7 20 PB0/CINT IO/I External capture input terminal to the 16 bit timer/counter 21 PB1/CS0 I Serial interface (CH0) chip select input terminal 22 PB2/SCK0 IO/IO Serial clock (CH0) Input/Output terminal 23 PB3/SI0 IO/I Serial data (CH0) input terminal 24 PB4/SO0 IO/O Serial data (CH0) output terminal 25 PB5/SCK1 IO/IO Serial clock (CH1) Input/Output terminal 26 PB6/SC1 IO/I Serial data (CH1) input terminal 27 PB7/SO1 IO/O Serial data (CH1) output terminal 28 AVREF –– A/D converter reference voltage input terminal 29 PA0/AN0 | | I/O A/D converter analog input terminal 36 PA7/AN7 37 AVss –– A/D converter GND terminal 38 RST System reset terminal, L: Active 39 EXTAL I System clock oscillation crystal connection terminal 40 XTAL O 41 Vss –– GND terminal 42 TX O Crystal connection terminal for 32 kHz timer counter clock oscillation 43 TEX I 44 VDD –– Positive power supply terminal 45 VFDP –– FDP voltage supply terminal when the internal resistor is specified by the mask option. No. Name I/O Description 46 PD0/A55 | | 53 PD7/A48 54 PF0/A47 | | 61 PF7/A40 62 PG0/A39 FDP segment signal (anode connection) | | O/O output terminal 69 PG7/A32 70 PH0/A31 | | 77 PH7/A24 78 A23 | | O 85 A16 86 G15/A15 Output terminals for FDP timing signal | | O/O (grid connection) and segment signal 88 G13/A13 (anode connection) 89 VDD –– Positive power supply terminal 90 G12/A12 Output terminals for FDP timing signal | | O/O (grid connection) and segment signal 100 G2/A2 (anode connection) Note: The NC terminal of pin 3 must be connected to VDD. Connect the VDD terminals of pin 44 and pin 89 both to VDD. Pin Function www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MJ-D508 64 No. Name Description 1 NC Not connected 2 Vcc Power supply 3 CS Chip selection input 4 SK Serial clock input 5 DI Start bit, operation code, address, and serial data input 6 DO Serial data output, READY/BUSY internal status indication output 7 GND Ground 8 NC Not connected BD7910FV (IC116: CORE MAIN UNIT ASSY) Head Driver No. Name Description 6 PDGND Predrive GND 7 EFM EFM signal input 8 MUTE Mute control 9 N.C. 10 N.C. Not used 11 N.C. 12 VOD2 Sink output (lower side power MOS drain) 13 VSS H-bridge GND (lower side power MOS source) 14 VOD1 Sink output (lower side power MOS drain) 15 VOS1 Source output (upper side power MOS source) 16 VDD H-bridge power supply (upper side power MOS drain) 17 VOS2 Source output (upper side power MOS source) 18 RegDRV External PNP drive output for the regulator 19 RegOUT Regulator output (emitter follower output) 20 RegNF Regulator feedback terminal Pre Driver 20 19 18 17 16 15 14 13 12 11 1 2 3 4 5 6 7 8 9 10 – + Vreg IN Reg NF Reg OUT Reg DRV VOS2 VDD VOS1 VOD1 VOD2 N.C. VSS Reg GND Reg SEL VG SVCC PD GND EFM MUTE N.C. N.C. + – No. Name Description 1 VregIN Regulator input and regulator power supply 2 RegGND Regulator GND 3 RegSEL Regulator selection terminal 4 VG Power MOS drive voltage input 5 SVCC EFM high-level output voltage BR93LC56F (IC110: CORE MAIN UNIT ASSY) EEPROM Dummy Bit Order Register Order Decode Control Clock Generation Data Register Address Buffer Power Voltage Detection Write Inhibit High Voltage Generation Address Decoder R/W Amp. 2048bits EEPROM Array 16bits 16bits 7bits 7bits 3 4 SK CS Vcc NC DI DO GND NC 6 5 1 2 8 7 4 3 2 1 NC Vcc CS SK NC GND DO DI 5 6 7 8 Block Diagram Pin Function Pin Assignment (Top view) Block Diagram Pin Function www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MJ-D508 65 1 2 3 4 5 6 7 8 9 10 11 12 27 26 25 RF1 RF2 RF3 RF4 REFI REFO RFADD TCGI AIN BIN EIN FIN 36 35 34 33 32 31 30 29 28 ADIPI ADIPO NC ADLPFO 22KO 22KI WBO TCGO AOUT BOUT EOUT FOUT POUT GOUT ATTR EFMAGI EFMAGC AGND AVCC EFMI EFMO RF2-1 ADAGI ADAGC BAIS AVCC XSTBY XDISC AGND XSGAIN DGND DTEMP LATCH CLOCK DATA DVCC LOGIC HPF LPF BIAS ADIP AGC DIFF DIFF EFM AGC RESISTOR & SW 13 14 15 16 17 18 19 20 21 22 23 24 48 47 46 45 44 43 42 41 40 39 38 37 Block Diagram IR3R55M (IC101: CORE MAIN UNIT ASSY) RF Signal Processor No. Name Description 1 RF1 Inputs RF signal input terminal 1 pickup RF signal output. 2 RF2 Inputs RF signal input terminal 2 pickup RF signal output. 3 RF3 Inputs RF signal input terminal 3 pickup RF signal output. 4 RF4 Inputs RF signal input terminal 4 pickup RF signal output. 5 REFI Standard voltage amp input terminal 6 REFO Standard voltage amp output terminal 7 RFADD RF1 – 4 resistance addition output terminal 8 TCGI Track cross detection signal amp input terminal during groove input 9 AIN Servo-use signal amp (Focus servo system) inversion input terminal 10 BIN Servo-use signal amp (Focus servo system) inversion input terminal 11 EIN Servo-use signal amp (Tracking servo system) inversion input terminal 12 FIN Servo-use signal amp (Tracking servo system) inversion input terminal 13 BIAS Bias input terminal 14 AVCC Analog power terminal 15∗ VSTBY Logic signal output terminal (outputs STBY signal inversion signal) No. Name Description 16∗ XDISC Logic signal output terminal (outputs DISC signal inversion signal) 17∗ XSGAIN Logic signal output terminal (outputs SGAIN signal inversion signal) 18 AGND Analog part GND terminal 19 DGND Digital part GND terminal 20 DTEMP Tip temperature detection terminal 21 LATCH Latch signal input terminal 22 CLOCK Clock signal input terminal 23 DATA Serial data input terminal 24 DVCC Digital part power terminal 25 FOUT Servo-use signal amp (Tracking servo system) output terminal 26 EOUT Servo-use signal amp (Tracking servo system) output terminal 27 BOUT Servo-use signal amp (Focus servo system) output terminal 28 AOUT Servo-use signal amp (Focus servo system) output terminal 29 TCGO Track cross detection signal amp output terminal during groove output 30 WBO Comparator output terminal for ADIP signal 2-value conversion 31 22KI Comparator input terminal for ADIP signal 2-value conversion 32 22KO ADIP signal HPF amp output terminal 33 ADLPFO ADIP signal LPF amp output terminal 34∗ NC NC 35 ADIPO ADIP signal preamp output terminal 36 ADIPI ADIP signal AGC amp output terminal 37 ADAGC Smoothing capacitor connection terminal for ADIP signal AGC 38 ADAGI ADIP signal AGC amp input terminal 39 RF2–1 RF1, RF2 differential signal 40 EFMO RF signal preamp output terminal 41∗ EFMI RF signal AGC amp output terminal 42 AVCC Analog part power terminal 43 AGND Analog part GND terminal 44 EFMAGC Smoothing capacitor connection terminal for EFM signal AGC 45 EFMAGI EFM signal AGC amp input terminal 46∗ ATTR Terminal for attenuating 47, 48 pin output signal 47 GOUT Outputs RF1 + RF2 + RF3 – RF3 – RF4 signal during groove output 48 POUT RF1 – 4 resistance addition output during pit output Pin Function Terminals denoted with an asterisk (∗) are (Open) terminals that are not externally connected. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MJ-D508 66 7.2.2 DISPLAY RAW1164 (V701: DISPLAY UNIT ASSY) Vacuum Fluorescent Display 62 1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 DISC TRACK TIME DATE TOC DNR D.VOL ANALOG OPTICAL 1 2 3 COAXIAL ADLC ALCA MONO A.MARK S.CUT SYNCHRO#1 REHEARSAL TOTAL REMAIN REC A B REPEAT 1 # # # # # � PGM RDM FADER TIMESKIP MEDLEY L dB R 50 30 20 12 10 6 2 0 OVER � L dB R 50 30 20 12 10 6 2 0 OVER 1G 2G (2G–13G) (15G) 3G 4G 5G 6G 7G 8G 15G 9G 10G 11G 12G 13G 14G S1 S2 1–1 1–2 1–3 1–4 1–5 1–6 1–7 2–1 2–2 2–3 2–4 2–5 2–6 2–7 3–1 3–2 3–3 3–4 3–5 3–6 3–7 4–1 4–2 4–3 4–4 4–5 4–6 4–7 5–1 B1 B2 5–2 5–3 5–4 5–5 5–6 5–7 7 8 9 10 11 12 13 14 15 17 18 19 20 21 22 23 24 25 16 1 2 3 4 5 6 TOC DNR D.VOL COAXIAL OPTICAL ANALOG REMAIN TOTAL REHEARSAL #1 SYNCHRO S.CUT A.MARK MONO ALCA ADLC REC DISC # TRACK # TIME # DATE # L R B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 P36 S1 –– P35 5–7 –– P34 4–7 S2 P33 3–7 P32 2–7 B32 P31 1–7 B31 P30 5–6 B30 P29 4–6 B29 P28 3–6 B28 P27 ––– ––– ––– ––– ––– ––– ––– ––– ––– ––– ––– 2–6 B27 2G – 13G 1G 14G 15G P6 1–2 B6 P5 5–1 B5 P4 4–1 B4 P3 3–1 B3 P2 2–1 B2 P1 1–1 B1 2G – 13G 1G 14G 15G P16 1–4 B16 P15 5–3 B15 P14 4–3 B14 P13 3–3 B13 P12 2–3 B12 P11 1–3 B11 P10 5–2 B10 P9 4–2 B9 P8 3–2 B8 P7 2–2 B7 2G – 13G 1G 14G 15G P26 1–6 B26 P25 5–5 B25 P24 4–5 B24 P23 3–5 B23 P22 2–5 B22 P21 1–5 B21 P20 5–4 B20 P19 4–4 B19 P18 3–4 B18 P17 2–4 B17 2G – 13G 1G 14G 15G Pin Assignment Pin Connection Grid Assignment Anode Connection www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MJ-D508 67 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MJ-D508 68 8. PANEL FACILITIES AND SPECIFICATIONS 7 PANEL FACILITIES Front Panel 1 POWER ON/OFF Switches power to the unit on and off. 2 TIMER (REC/OFF/PLAY) Switches the timer mode between timer-controlled recording, timer-controlled playback, and timer off. 3 INPUT SELECTOR Switches between the analog, optical digital and coaxial digital inputs. 4 DAC MODE Press to switch on/off the DAC function. 5 MD loading slot 6 EJECT 0 Press to eject a disc from the recorder. 7 REC/PLAY MODE Press to access various record and playback options. 8 EDIT/NO. Press to access various editing features. 9 NAME Press to enter and exit the disc/track naming process. p DIGITAL REC LEVEL / 4 ¢ Multifunction control used to set the digital recording level, skip time/tracks, choose between different menu options, and select characters in disc/track naming mode. Push to confirm selections. q ANALOG REC LEVEL Use to set the recording level when the analog inputs are used. w DIGITAL NR Press to switch digital noise reduction on/off during playback or recording. e A–B Use to set a start point and an end point to mark a section of the disc for editing or repeat play. r NAME CLIP Press to copy the current disc or track name to the recorder’s memory. t DISPLAY/CHARA Press to switch between display modes (elapsed time, time remaining, etc.), and between upper and lower-case characters in disc/track naming mode. y Remote control sensor Picks up the infrared signals from the remote control unit. u Display i 1 and ¡ Press and hold for fast-reverse and fast-forward playback. o 3 Press to start playback. (or recording) ; SYNCHRO REC Press to enter synchronous recording mode: recording starts when the recorder senses an input signal. a 8 Press to pause playback or recording. s 7 Press to stop playback or recording. d ¶ Press to put the recorder into record-pause mode. f PHONES jack g Phones LEVEL Use to raise or lower the headphone volume level. DAC MODE INPUT SELECTOR DISPLAY /CHARA NAME CLIP REC/PLAY MODE SYNCHRO REC DIGITAL REC LEVEL 4������� ¢� ANALOG REC LEVEL EDIT/NO ! ⁄� ¶� & * # NAME PUSH ENTER LEVEL PHONES MIN MAX A–B 0 EJECT DISC LOADING MECHANISM POWER MINIDISC RECORDER – OFF - ON DIGITAL NR TIMER REC OFF PLAY vC¿Û.?˘� 1 0 2 3 4 5 6 7 8 9 10 1 2 3 4 5 6 7 8 9 p q w e d s a ; o i u y t r g f www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MJ-D508 69 DAC MODE INPUT SELECTOR DISPLAY /CHARA NAME CLIP REC/PLAY MODE SYNCHRO REC DIGITAL REC LEVEL 4������� ¢� ANALOG REC LEVEL EDIT/NO ! ⁄� ¶� & * # NAME PUSH ENTER LEVEL PHONES MIN MAX A–B 0 EJECT DISC LOADING MECHANISM POWER MINIDISC RECORDER – OFF - ON DIGITAL NR TIMER REC OFF PLAY vC¿Û.?˘� 1 0 2 3 4 5 6 7 8 9 10 7 Front View www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MJ-D508 70 Display 1 DISC # Indicates that the character display (5) is showing disc information (e.g. disc name). 2 MONO Lights in long-play recording/playback mode. 3 A.MARK Lights when automatic track numbering is on. 4 S.CUT Indicates that the space cut function is active. 5 Character display Displays recorder functions, disc/track names or disc times, depending on the mode of the recorder. 6 SYNCHRO Lights when sync recording mode is on. 7 REHEARSAL Lights when auditioning the effects of an edit. 8 TOTAL Lights to show that the current time displayed is how far the recorder is into the disc. 9 REMAIN Lights to show that the current time displayed is how much time is left on the disc. p Track number display Track numbers light to show how many tracks are on the disc. q ] Indicates that the disc has more than 25 tracks. w REPEAT #1 Lights when the recorder is in repeat play mode. e FADER Lights when the recorder is in fade play mode. r MEDLEY Lights when the recorder is in medley play mode. t RDM Lights when the recorder is in random play mode. y TIMESKIP Lights when the recorder is in time-skip mode. u PGM Lights when the recorder is in program play mode. i A–B Indicates that a section of disc has been marked. o REC Lights during record mode. ; 3 Lights during playback. a 8 Lights when playback/recording is paused. s COAXIAL Lights when recording from the coaxial digital input. d OPTICAL Lights when recording from the optical digital input. f ANALOG Lights when recording from the analog inputs. g D.VOL Lights when the digital volume control is active. h DNR Indicates that Digital Noise Reduction is on. j TOC Indicates that there is TOC information in the recorder’s memory that hasn’t been written to the disc yet. When this display is lit don’t turn the power of the unit off or this information will be lost. k TIME # Indicates that the character display (5) is showing time information (e.g. elapsed time of track). l TRACK # Indicates that the character display (5) is showing track information (e.g. track name). / RECORDING LEVEL Shows the recording level of a disc. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 DISC TRACK TIME DATE TOC DNR D.VOL ANALOG OPTICAL 1 2 3 COAXIAL ADLC ALCA MONO A.MARK S.CUT SYNCHRO#1 REHEARSAL TOTAL REMAIN REC A B REPEAT 1 # # # # # � PGM RDM FADER TIMESKIP MEDLEY L dB R 50 30 20 12 10 6 2 0 OVER 1 2 3 4 5 6 7 8 9 p q w e d s a ; o i u y t r g f j h l k / www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MJ-D508 71 Remote Control 1 EDIT/NO Press to access various editing features. 2 NAME Press to enter and exit the disc/track naming process. 3 NAME CLIP Press to copy the current disc or track name to the recorder’s memory. 4 +10 Use to select track numbers greater than 10. 5 FADER Press to fade in or out during playback, or to record a fade in or out during recording. 6 SYNCHRO REC Press to enter synchronous recording mode: recording starts when the recorder senses an input signal. 7 ¶ REC Press to put the recorder into record-pause mode. 8 A–B Use to set a start point and an end point to mark a section of the disc for editing or repeat play. 9 REPEAT Press to set the repeat mode (repeat disc, track, or segment). p RANDOM Press to play tracks in a random order. q PROGRAM Press to start programming the track playback order. w CHECK Press to check the programmed track order. e CLEAR Press to clear the last programmed track number. r Number / letter buttons Use to jump directly to track numbers in playback mode, select track numbers in edit mode, and select letters in disc/track naming mode. t MARK, 10/0 Use for 0 or 10 when selecting track numbers. y >10 Press to select track numbers over 10. u DISP/CHARA Press to switch between display modes (elapsed time, time remaining, etc.), and between upper and lower-case characters in disc/track naming mode . i Playback control / ENTER 3 Play 7 Stop 4 Skip back to last track ¢ Skip forward to next track ENTER Confirm playback, recording and editing options. o 8 Press to pause playback or recording. ; TIME SKIP Press to change the skip track buttons to skip time. a CURSOR, 1 / ¡ Press to move cursor in disc or track naming mode, or fast forward/reverse through a disc in playback mode. s HI-LITE Press to search for a track based on a short sample of each track. d MEDLEY Press to switch medley mode on/off. Tracks play end-to- end with each track fading out before the next one starts. NAME G H I J K L DISP/CHARA SYNCHRO REC M N O EDIT/NO HI-LITE REPEAT CHECK CLEAR RANDOM PROGRAM MEDLEY A B C D E F NAME CLIP P Q R S T U V MARK W X Y Z FADER REC TIME SKIP A B CURSOR 1 2 3 4 5 6 7 8 9 10 10/0 >10 ! ! Î� MINIDISC RECORDER REMOTE CONTROL UNIT & # $ $ ENTER * 1 2 3 4 5 6 7 8 9 p q w e d s a ; o i u y t r www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MJ-D508 72 Specifications Type ......................................................................Minidisc digital audio system Recording system...................................... Field modulation overwrite system Reproduction system ............................................ Non-contact optical readout Sampling frequency ............................................................................... 44.1 kHz Frequency response ...................................................................... 8 Hz to 20 kHz S/N ratio ..................................................................................................... 100 dB Wow & flutter ............................................................... Below measurable limit Power requirements U.S. model .............................................................................. AC 120V, 60 Hz U.K. model ........................................................................... AC230V, 50/60Hz European model (except U.K.) .................................. AC 220~230V, 50/60Hz Power consumption U.S. model ............................................................................................... 15W European model ...................................................................................... 15W Dimensions ..........................................................420(W) x 105(H) x 294(D) mm (19-9/16 x 4-1/8 x 11-9/16 in.) Main unit weight ..................................................................... 3.5 kg (7 lb 12oz.) Audio input : Line input jacks .............................. RCA PIN x2 ; reference input level 500mV (input impedance 50 kΩ) Audio output : Line output jacks ............................. RCA PIN x2 ; reference output level 500mV (output impedance1 kΩ) Headphone output jack ............................................................................ 1.0mW (volume max. , load impedance 32 Ω) Other jacks : Coaxial digital input jack....................................................... RCA PIN ; 0.5 Vp-p (output impedance 75 Ω) Optical digital input jack .................................................................................. x1 Optical digital output jack ................................................................................ x1 Control IN jack (Except European model) ....................................................... x1 Control OUT jack (Except European model) ................................................... x1 Accessories Warranty card ................................................................................................. x 1 Operating Instructions .................................................................................... x 1 Audio cord ....................................................................................................... x 2 Optical cord (Except U.S. model) ................................................................... x 1 Remote control unit ........................................................................................ x 1 batteries (AA/R6P) ........................................................................................... x 2 NOTE: Specifications and design subject to possible modification without notice, due to improvements. U.S. and foreign patents licenced from Dolby Laboratories Licencing Corporation. 7 SPECIFICATIONS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
