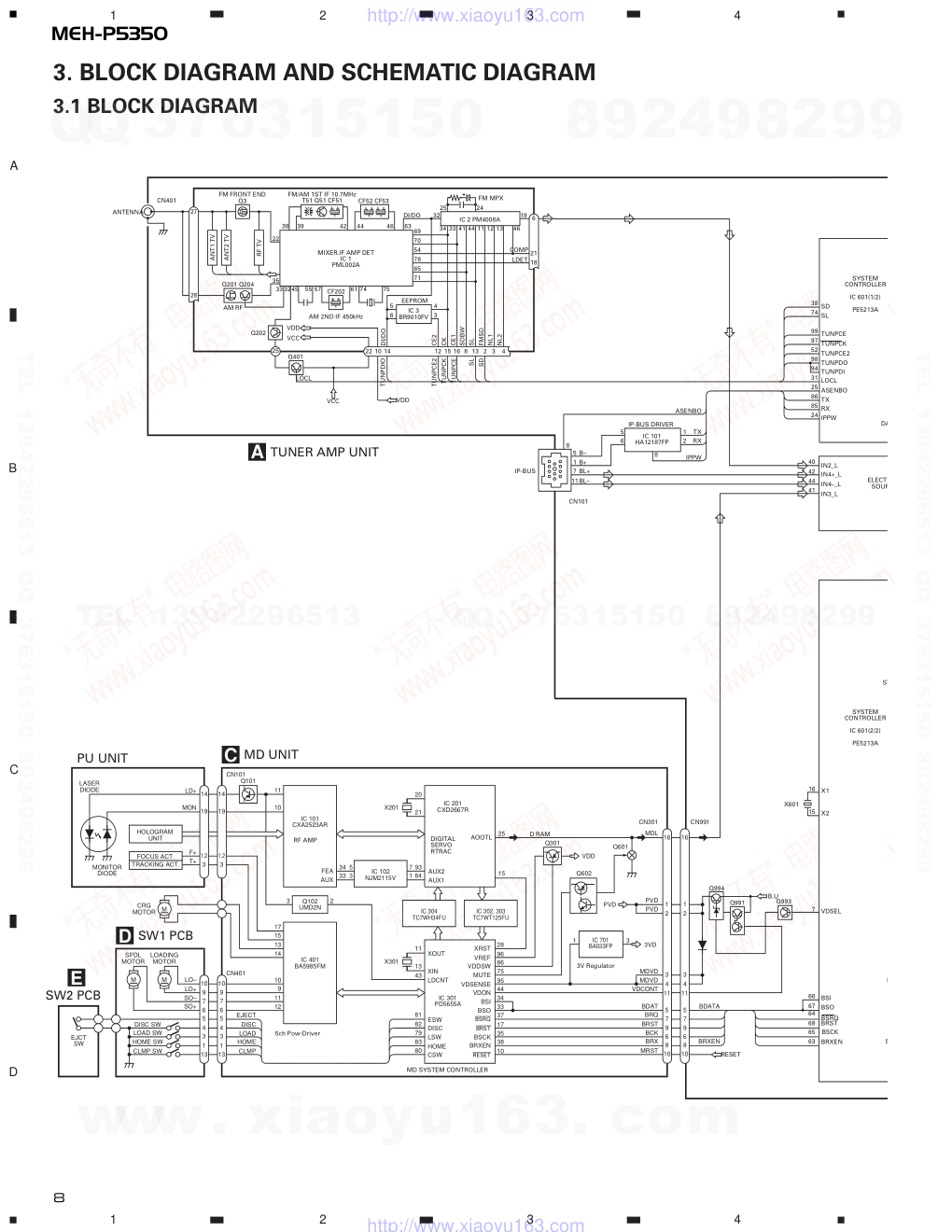

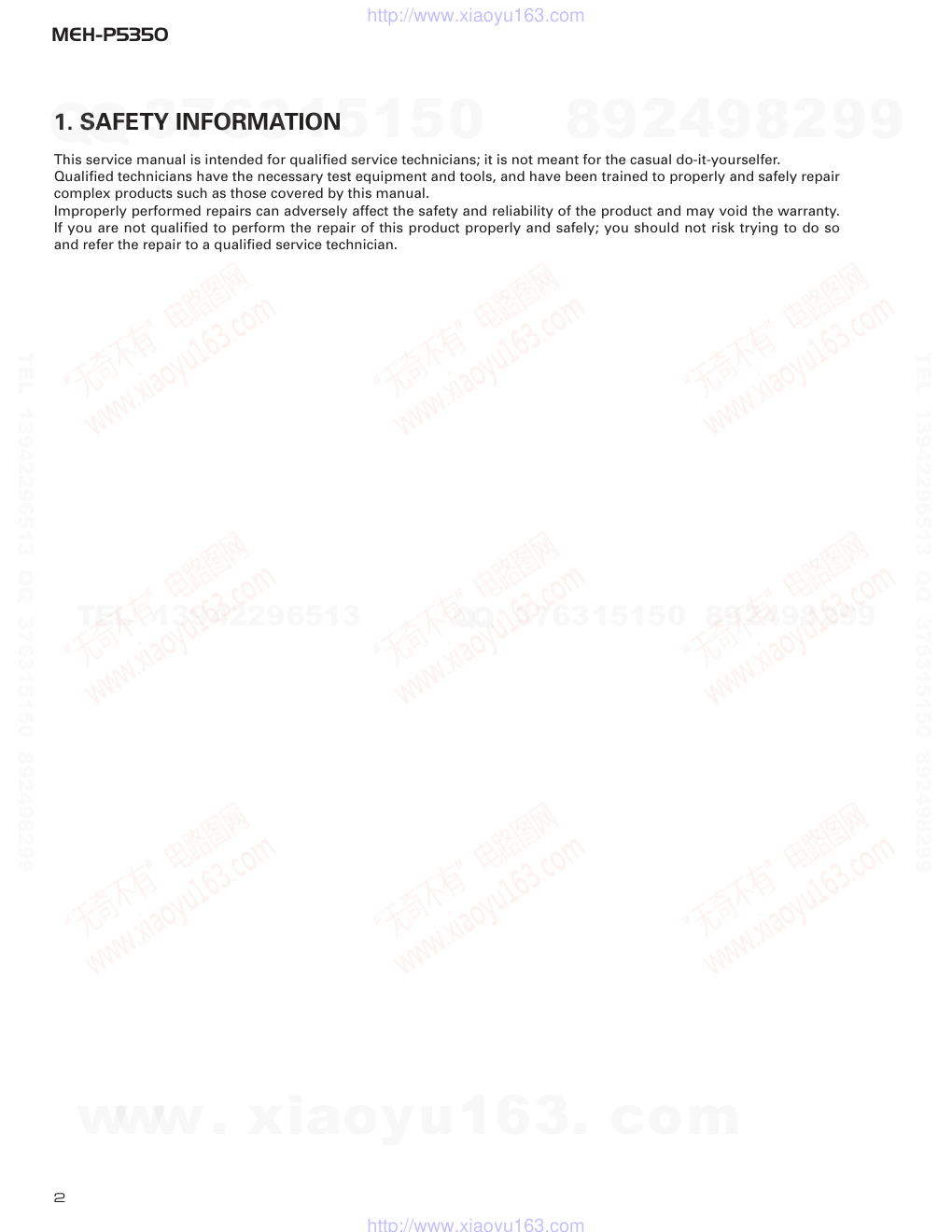

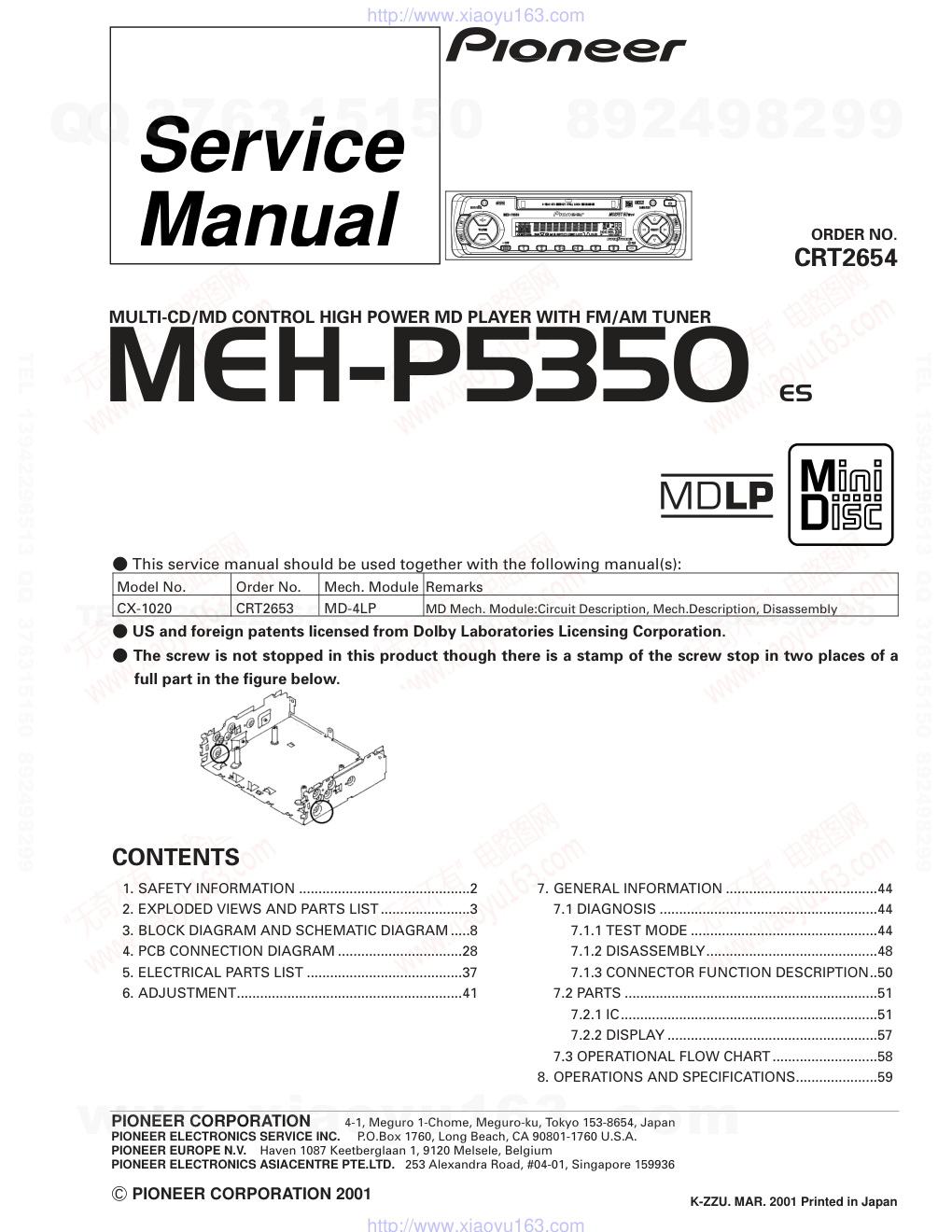

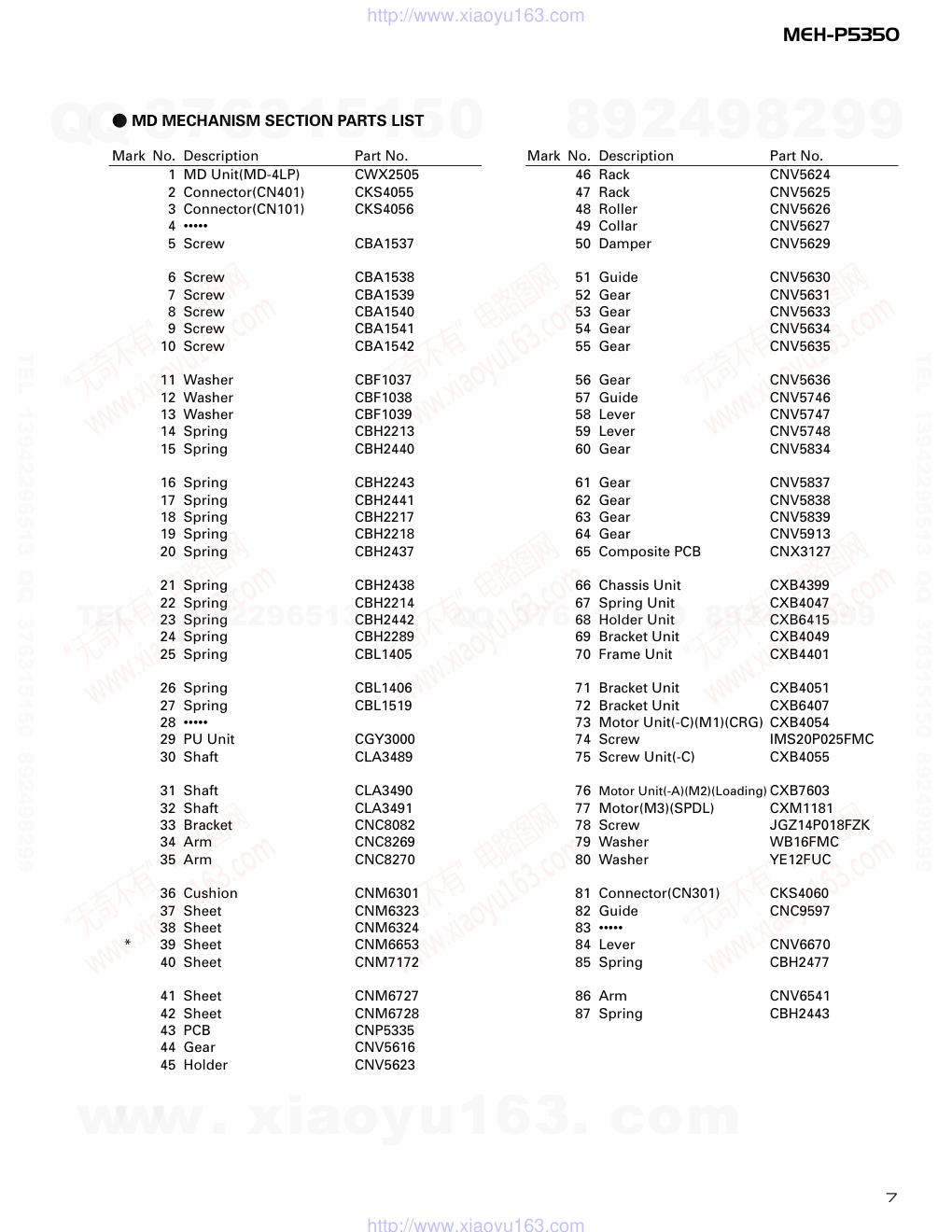

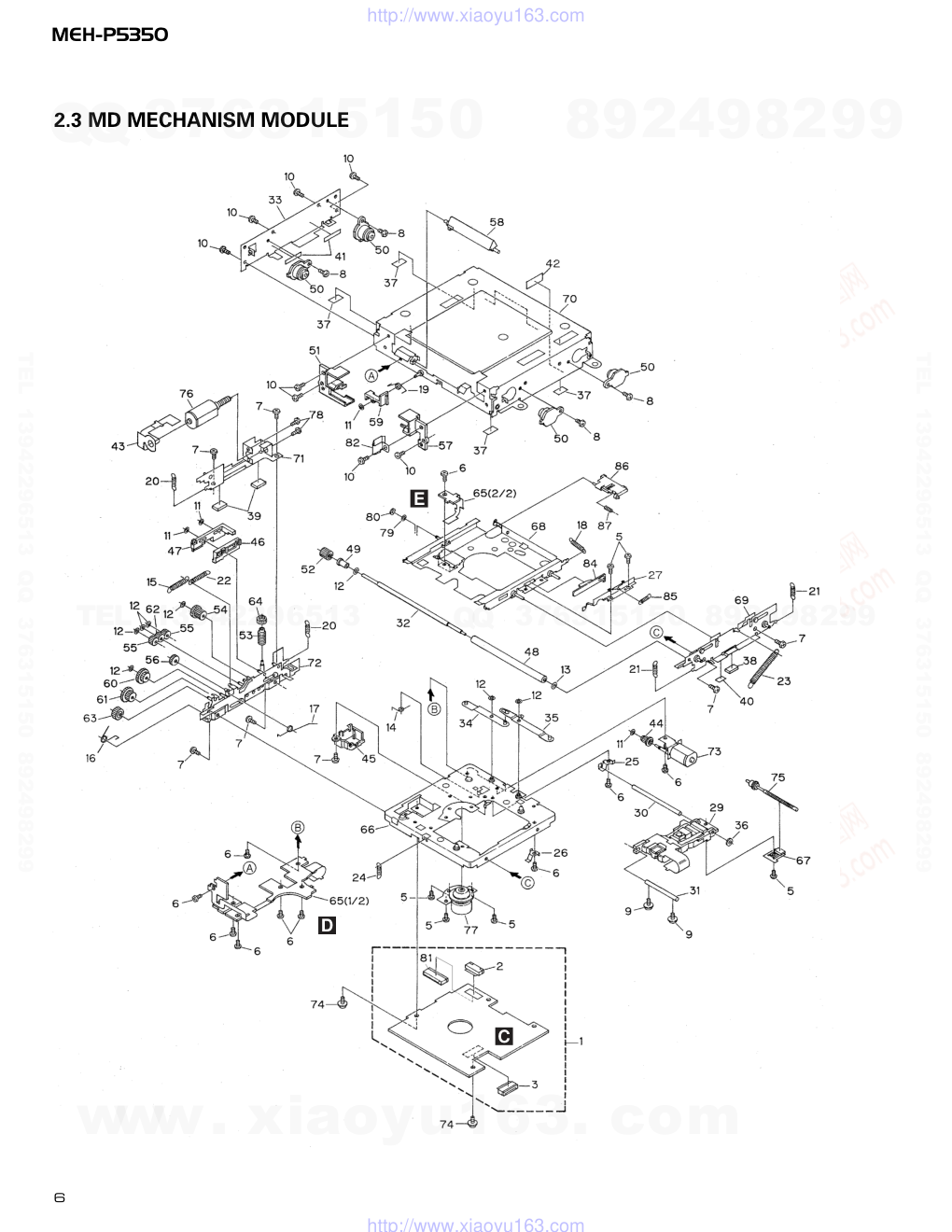

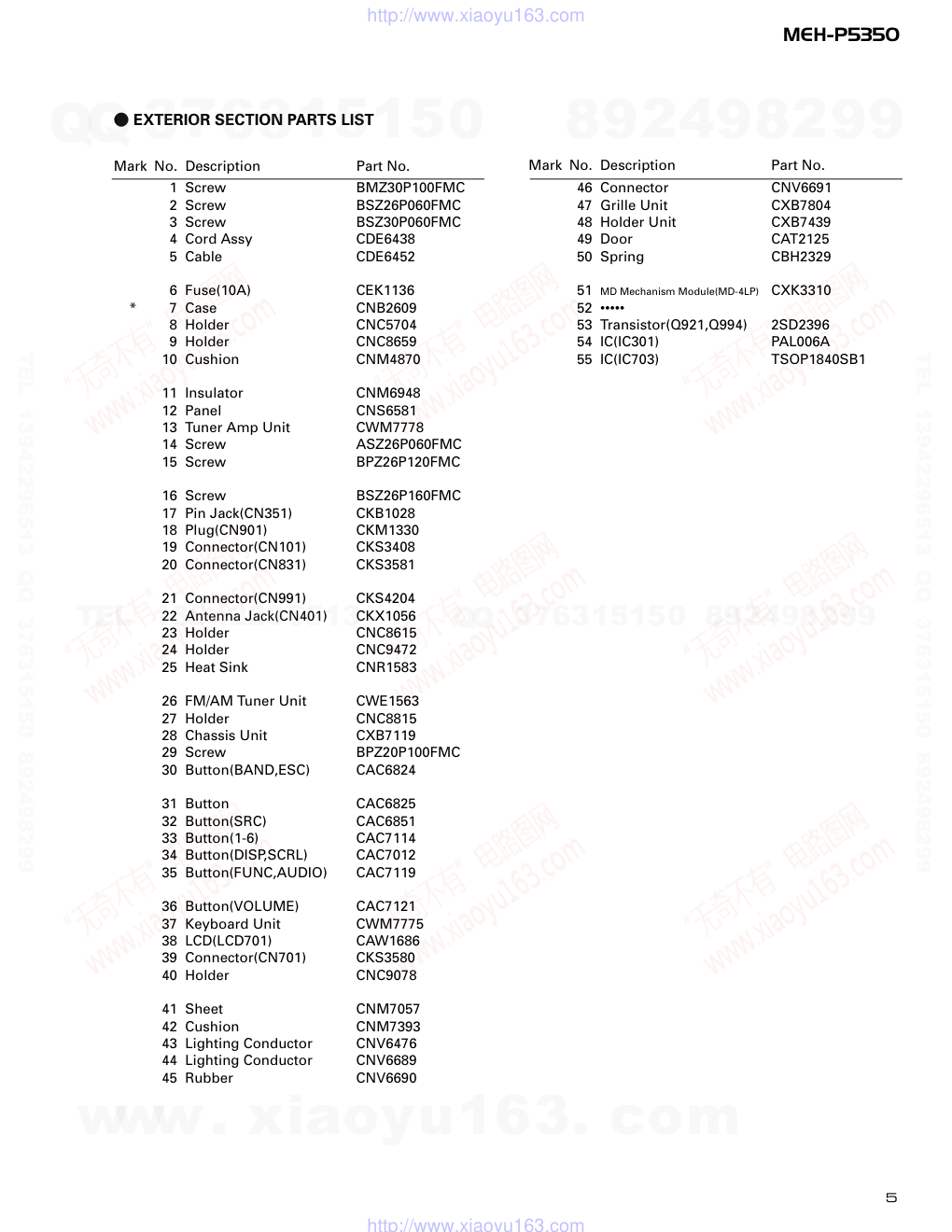

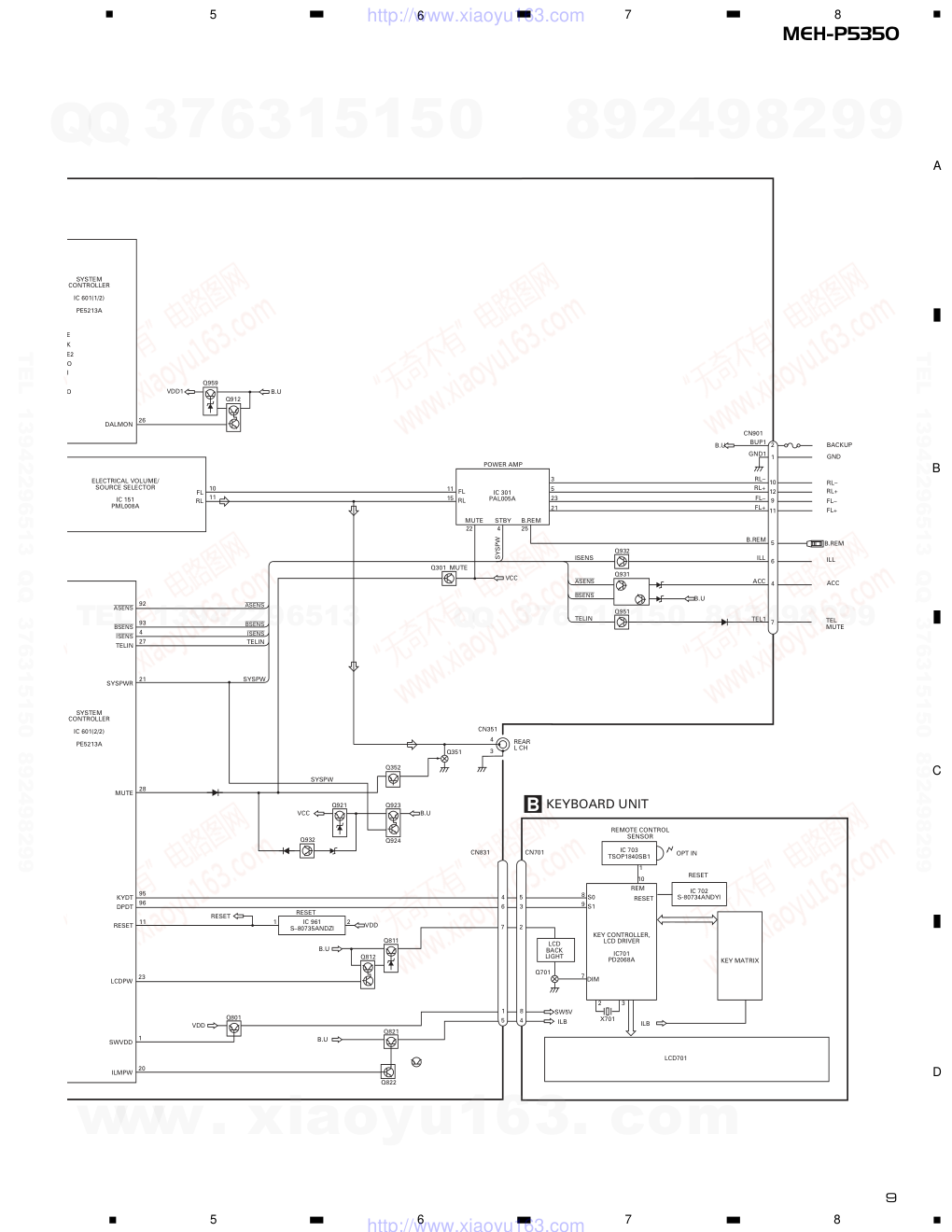

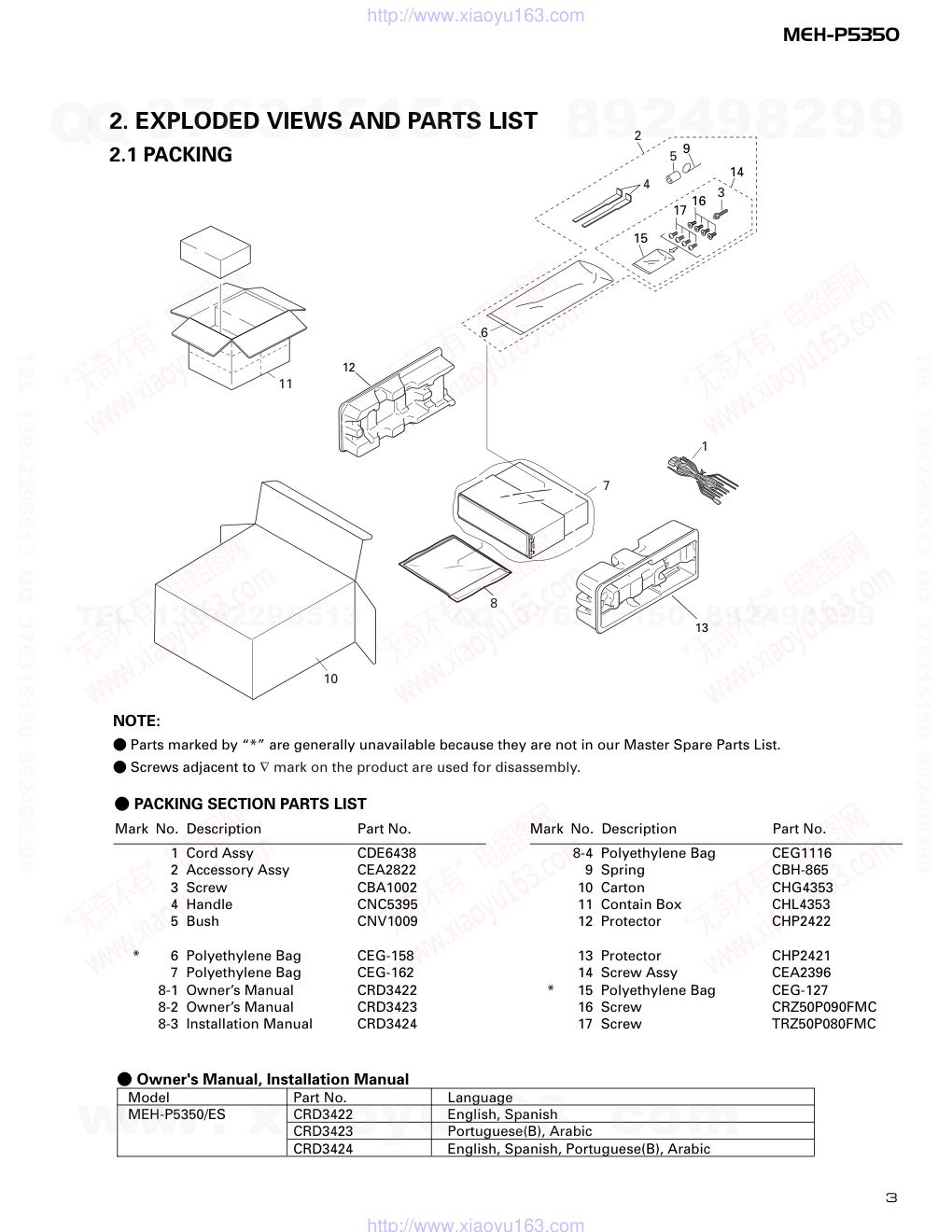

PIONEER CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS SERVICE INC. P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A. PIONEER EUROPE N.V. Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #04-01, Singapore 159936 C PIONEER CORPORATION 2001 K-ZZU. MAR. 2001 Printed in Japan ORDER NO. CRT2654 MULTI-CD/MD CONTROL HIGH POWER MD PLAYER WITH FM/AM TUNER MEH-P5350 ES Service Manual CONTENTS 1. SAFETY INFORMATION ............................................2 2. EXPLODED VIEWS AND PARTS LIST.......................3 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM .....8 4. PCB CONNECTION DIAGRAM ................................28 5. ELECTRICAL PARTS LIST ........................................37 6. ADJUSTMENT..........................................................41 7. GENERAL INFORMATION .......................................44 7.1 DIAGNOSIS ........................................................44 7.1.1 TEST MODE ................................................44 7.1.2 DISASSEMBLY............................................48 7.1.3 CONNECTOR FUNCTION DESCRIPTION..50 7.2 PARTS .................................................................51 7.2.1 IC..................................................................51 7.2.2 DISPLAY ......................................................57 7.3 OPERATIONAL FLOW CHART...........................58 8. OPERATIONS AND SPECIFICATIONS.....................59 - This service manual should be used together with the following manual(s): Model No. Order No. Mech. Module Remarks CX-1020 CRT2653 MD-4LP MD Mech. Module:Circuit Description, Mech.Description, Disassembly - US and foreign patents licensed from Dolby Laboratories Licensing Corporation. - The screw is not stopped in this product though there is a stamp of the screw stop in two places of a full part in the figure below. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 MEH-P5350 1. SAFETY INFORMATION This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely; you should not risk trying to do so and refer the repair to a qualified service technician. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 MEH-P5350 - Owner's Manual, Installation Manual Model Part No. Language MEH-P5350/ES CRD3422 English, Spanish CRD3423 Portuguese(B), Arabic CRD3424 English, Spanish, Portuguese(B), Arabic 1 Cord Assy CDE6438 2 Accessory Assy CEA2822 3 Screw CBA1002 4 Handle CNC5395 5 Bush CNV1009 * 6 Polyethylene Bag CEG-158 7 Polyethylene Bag CEG-162 8-1 Owner’s Manual CRD3422 8-2 Owner’s Manual CRD3423 8-3 Installation Manual CRD3424 8-4 Polyethylene Bag CEG1116 9 Spring CBH-865 10 Carton CHG4353 11 Contain Box CHL4353 12 Protector CHP2422 13 Protector CHP2421 14 Screw Assy CEA2396 * 15 Polyethylene Bag CEG-127 16 Screw CRZ50P090FMC 17 Screw TRZ50P080FMC Mark No. Description Part No. Mark No. Description Part No. - PACKING SECTION PARTS LIST 2. EXPLODED VIEWS AND PARTS LIST 2.1 PACKING 11 8 5 4 6 3 2 7 12 13 10 1 15 9 16 17 14 NOTE: - Parts marked by “*” are generally unavailable because they are not in our Master Spare Parts List. - Screws adjacent to ∇ mark on the product are used for disassembly. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 MEH-P5350 2.2 EXTERIOR A B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 MEH-P5350 1 Screw BMZ30P100FMC 2 Screw BSZ26P060FMC 3 Screw BSZ30P060FMC 4 Cord Assy CDE6438 5 Cable CDE6452 6 Fuse(10A) CEK1136 * 7 Case CNB2609 8 Holder CNC5704 9 Holder CNC8659 10 Cushion CNM4870 11 Insulator CNM6948 12 Panel CNS6581 13 Tuner Amp Unit CWM7778 14 Screw ASZ26P060FMC 15 Screw BPZ26P120FMC 16 Screw BSZ26P160FMC 17 Pin Jack(CN351) CKB1028 18 Plug(CN901) CKM1330 19 Connector(CN101) CKS3408 20 Connector(CN831) CKS3581 21 Connector(CN991) CKS4204 22 Antenna Jack(CN401) CKX1056 23 Holder CNC8615 24 Holder CNC9472 25 Heat Sink CNR1583 26 FM/AM Tuner Unit CWE1563 27 Holder CNC8815 28 Chassis Unit CXB7119 29 Screw BPZ20P100FMC 30 Button(BAND,ESC) CAC6824 31 Button CAC6825 32 Button(SRC) CAC6851 33 Button(1-6) CAC7114 34 Button(DISP,SCRL) CAC7012 35 Button(FUNC,AUDIO) CAC7119 36 Button(VOLUME) CAC7121 37 Keyboard Unit CWM7775 38 LCD(LCD701) CAW1686 39 Connector(CN701) CKS3580 40 Holder CNC9078 41 Sheet CNM7057 42 Cushion CNM7393 43 Lighting Conductor CNV6476 44 Lighting Conductor CNV6689 45 Rubber CNV6690 46 Connector CNV6691 47 Grille Unit CXB7804 48 Holder Unit CXB7439 49 Door CAT2125 50 Spring CBH2329 51 MD Mechanism Module(MD-4LP) CXK3310 52 ••••• 53 Transistor(Q921,Q994) 2SD2396 54 IC(IC301) PAL006A 55 IC(IC703) TSOP1840SB1 - EXTERIOR SECTION PARTS LIST Mark No. Description Part No. Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C D E 6 MEH-P5350 2.3 MD MECHANISM MODULE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 MEH-P5350 1 MD Unit(MD-4LP) CWX2505 2 Connector(CN401) CKS4055 3 Connector(CN101) CKS4056 4 ••••• 5 Screw CBA1537 6 Screw CBA1538 7 Screw CBA1539 8 Screw CBA1540 9 Screw CBA1541 10 Screw CBA1542 11 Washer CBF1037 12 Washer CBF1038 13 Washer CBF1039 14 Spring CBH2213 15 Spring CBH2440 16 Spring CBH2243 17 Spring CBH2441 18 Spring CBH2217 19 Spring CBH2218 20 Spring CBH2437 21 Spring CBH2438 22 Spring CBH2214 23 Spring CBH2442 24 Spring CBH2289 25 Spring CBL1405 26 Spring CBL1406 27 Spring CBL1519 28 ••••• 29 PU Unit CGY3000 30 Shaft CLA3489 31 Shaft CLA3490 32 Shaft CLA3491 33 Bracket CNC8082 34 Arm CNC8269 35 Arm CNC8270 36 Cushion CNM6301 37 Sheet CNM6323 38 Sheet CNM6324 * 39 Sheet CNM6653 40 Sheet CNM7172 41 Sheet CNM6727 42 Sheet CNM6728 43 PCB CNP5335 44 Gear CNV5616 45 Holder CNV5623 46 Rack CNV5624 47 Rack CNV5625 48 Roller CNV5626 49 Collar CNV5627 50 Damper CNV5629 51 Guide CNV5630 52 Gear CNV5631 53 Gear CNV5633 54 Gear CNV5634 55 Gear CNV5635 56 Gear CNV5636 57 Guide CNV5746 58 Lever CNV5747 59 Lever CNV5748 60 Gear CNV5834 61 Gear CNV5837 62 Gear CNV5838 63 Gear CNV5839 64 Gear CNV5913 65 Composite PCB CNX3127 66 Chassis Unit CXB4399 67 Spring Unit CXB4047 68 Holder Unit CXB6415 69 Bracket Unit CXB4049 70 Frame Unit CXB4401 71 Bracket Unit CXB4051 72 Bracket Unit CXB6407 73 Motor Unit(-C)(M1)(CRG) CXB4054 74 Screw IMS20P025FMC 75 Screw Unit(-C) CXB4055 76 Motor Unit(-A)(M2)(Loading) CXB7603 77 Motor(M3)(SPDL) CXM1181 78 Screw JGZ14P018FZK 79 Washer WB16FMC 80 Washer YE12FUC 81 Connector(CN301) CKS4060 82 Guide CNC9597 83 ••••• 84 Lever CNV6670 85 Spring CBH2477 86 Arm CNV6541 87 Spring CBH2443 - MD MECHANISM SECTION PARTS LIST Mark No. Description Part No. Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 MEH-P5350 1 2 3 4 1 2 3 4 D C B A ANT1 TV ANT2 TV RF TV IC 3 BR9010FV AM 2ND IF 450kHz ANTENNA CN401 27 28 FM FRONT END Q3 Q201 Q204 AM RF FM/AM 1ST IF 10.7MHz T51 Q51 CF51 CF52 CF53 MIXER.IF AMP DET IC 1 PML002A 38 39 42 44 46 63 25 24 32 DI/DO 19 46 6 21 18 LDET COMP 34 33 41 44 11 12 13 69 70 54 78 65 71 75 74 61 57 55 45 33 35 22 22 25 10 14 12 15 16 8 13 2 3 4 CF202 VCC LOCL VDD Q401 VCC VDD DI/DO CE2 CK CE1 SDBW SL FMSD TUNPCE2 TUNPCK SL SD TUNPDIO NL1 NL2 EEPROM 5 6 4 3 IC 2 PM4008A FM MPX IP-BUS 8 5 1 7 11 ASENBO TX RX IPPW 1 8 2 5 6 IP-BUS DRIVER IC 101 HA12187FP B– B+ BL+ BL– SD SL TUNPCE TUNPCK TUNPCE2 TUNPDO TUNPDI LOCL ASENBO TX RX IPPW IN2_L IN4+_L IN4–_L IN3_L 38 74 99 97 52 98 94 31 25 86 85 24 40 42 44 41 BSCK 65 BSO 67 BRST 68 BRXEN 63 BSRQ 64 X1 16 X2 15 SYSTEM CONTROLLER IC 601(1/2) PE5213A DA ELECT SOUR SYSTEM CONTROLLER IC 601(2/2) PE5213A SY L S X601 B.U Q993 RESET BSI 66 VDSEL 7 TUNPCE CN101 32 Q202 Q991 Q994 M M M LASER DIODE MONITOR DIODE FOCUS ACT. LOADING MOTOR DISC SW LOAD SW HOME SW CLMP SW SPDL MOTOR EJCT SW CRG MOTOR TRACKING ACT. LD+ MON F+ T+ LO– LO+ SO– SO+ EJECT DISC LOAD HOME CLMP 14 19 1,2 3 10 12 11 9 10 14 13 15 17 3 2 34 33 XOUT AUX2 AUX1 XIN ESW DISC LSW HOME CSW 7 25 15 1 5 3 93 20 AOOTL 28 XRST FEA AUX 96 VREF 86 VDDSW 75 MUTE 95 VDSENSE 44 VDON 34 BSI 33 BSO 37 bsrq 17 brst 35 BSCK 38 BRXEN 10 reset MDVD VDCONT MDVD BDAT BRQ BRST BCK BRX BDATA BRXEN MRST 21 84 10 11 9 7 6 5 4 3 1 13 10 9 7 6 5 4 3 1 13 14 19 1,2 3 D SW1 PCB C MD UNIT E SW2 PCB PU UNIT CN101 IC 101 CXA2523AR IC 401 BA5985FM IC 201 CXD2667R CN401 Q101 Q102 UMD2N IC 102 NJM2115V IC 304 TC7WH34FU IC 301 PD5655A IC 302, 303 TC7WT125FU X201 11 81 82 79 83 80 13 LDCNT 43 X301 Q301 Q602 Q601 VDD 3VD PVD 1 3 IC 701 BA033FP 5 11 4 3 7 9 6 8 10 5 11 4 3 PVD PVD 2 1 2 1 MDL 16 16 7 9 6 8 10 CN301 CN991 HOLOGRAM UNIT RF AMP DIGITAL SERVO RTRAC 5ch Pow-Driver MD SYSTEM CONTROLLER D RAM 3V Regulator A TUNER AMP UNIT 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM 3.1 BLOCK DIAGRAM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 MEH-P5350 5 6 7 8 5 6 7 8 D C B A IC 703 TSOP1840SB1 REMOTE CONTROL SENSOR OPT IN RESET REM S0 S1 KEY CONTROLLER, LCD DRIVER IC701 PD2068A ILB SW5V 5 3 8 4 4 6 1 5 KEY MATRIX 1 10 E K E2 O I O SYSTEM CONTROLLER IC 601(1/2) PE5213A Q912 B.U VDD1 DALMON Q959 B.U BUP1 GND1 RL– RL+ FL– FL+ B.REM ILL ACC TEL MUTE TEL1 2 1 10 12 9 11 5 6 4 7 ELECTRICAL VOLUME/ SOURCE SELECTOR IC 151 PML008A SYSTEM CONTROLLER IC 601(2/2) PE5213A asens 92 bsens 93 isens asens bsens isens 4 TELIN 27 SYSPWR 21 MUTE 28 KYDT 95 DPDT 96 RESET 11 LCDPW 23 SWVDD 1 ILMPW 20 FL 10 RL 11 POWER AMP IC 301 PAL005A 11 15 22 4 25 21 23 5 3 FL MUTE STBY B.REM RL B.U TELIN bsens asens ISENS Q951 Q931 Q932 Q301 MUTE Q351 CN351 REAR L CH 4 3 CN701 CN831 ILB LCD701 2 3 X701 8 9 Q352 Q924 Q923 Q921 Q932 B.U VCC SYSPW Q811 Q812 Q821 Q822 B.U Q801 VDD B.U RESET IC 961 S–80735ANDZI VDD 1 2 RESET SYSPW TELIN SYSPW CN901 26 VCC LCD BACK LIGHT Q701 DIM 7 2 7 BACKUP GND RL– RL+ FL– FL+ B.REM ILL ACC IC 702 S-80734ANDYI RESET B KEYBOARD UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3.2 OVERALL CONNECTION DIAGRAM(GUIDE PAGE) Note: When ordering service parts, be sure to refer to “EXPLODED VIEWS AND PARTS LIST” or “ELECTRICAL PARTS LIST”. A-a A-b A-a A-a A-b A-b A-b A-b A-a A-a Large size SCH diagram Guide page Detailed page 10 MEH-P5350 1 2 3 4 1 2 3 4 D C B A A-a MD:+1dBs IP-BUS:+2.2dBs FM:-19.5dBs AM:-30.0dBs C MD UNIT CN301 FM/AM TUNER UNIT IP-BUS The > the im Theref identic S N d NOTE : S N d A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 MEH-P5350 5 6 7 8 5 6 7 8 D C B A A-b L151 FM:+0.6dBs AM: -9.9dBs MD:+5.1dBs IP-BUS:+5.3dBs FM:+4.75dBs AM: -5.75dBs MD:+19.25dBs IP-BUS:+9.45dBs FM:+31.6dBs AM: -21.1dBs MD:+36.1dBs IP-BUS:+36.3dBs FM:+5.6dBs AM: -4.9dBs MD:+10.1dBs IP-BUS:+10.3dBs FM:+5.6dBs AM: -4.9dBs MD:+10.1dBs IP-BUS:+10.3dBs A TUNER AMP UNIT B KEYBOARD UNIT CN701 CEK1136 10A FUSE > Decimal points for resistor and capacitor fixed values are expressed as : 2.2 2R2 0.022 R022 ← ← > mark found on some component parts indicates mportance of the safety factor of the part. efore, when replacing, be sure to use parts of ical designation. Symbol indicates a resistor. No differentiation is made between chip resistors and discrete resistors. : Symbol indicates a capacitor. No differentiation is made between chip capacitors and discrete capacitors. 600µH A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 MEH-P5350 1 2 3 4 1 2 3 4 D C B A MD:+1dBs IP-BUS:+2.2dBs FM:-19.5dBs AM:-30.0dBs C MD UNIT CN301 FM/AM TUNER UNIT IP-BUS A-a A-a A-b 1 2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 MEH-P5350 5 6 7 8 5 6 7 8 D C B A The > mark foun the importance of Therefore, when r identical designat Symbol indic No differenti discrete resis NOTE : Symbol indic No differenti discrete capa A-a A-b A-a 3 4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 MEH-P5350 1 2 3 4 1 2 3 4 D C B A L151 FM:+0.6dBs AM: -9.9dBs MD:+5.1dBs IP-BUS:+5.3dBs FM:+4.75dBs AM: -5.75dBs MD:+19.25dBs IP-BUS:+9.45dBs FM:+5.6dBs AM: -4.9dBs MD:+10.1dBs IP-BUS:+10.3dBs FM:+5.6dBs AM: -4.9dBs MD:+10.1dBs IP-BUS:+10.3dBs A TUNER AMP UNIT CEK1136 10A FUSE A-a A-b A-b 1 2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 MEH-P5350 5 6 7 8 5 6 7 8 D C B A FM:+31.6dBs AM: -21.1dBs MD:+36.1dBs IP-BUS:+36.3dBs B KEYBOARD UNIT CN701 CEK1136 10A FUSE > Decimal points for resistor and capacitor fixed values are expressed as : 2.2 2R2 0.022 R022 ← ← ark found on some component parts indicates tance of the safety factor of the part. , when replacing, be sure to use parts of designation. bol indicates a resistor. ifferentiation is made between chip resistors and ete resistors. bol indicates a capacitor. ifferentiation is made between chip capacitors and ete capacitors. 600µH A-b A-a A-b 3 4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com KEY MICROCOMPUTER RESET 560 R47 2R7K 16 MEH-P5350 1 2 3 4 1 2 3 4 D C B A 3.3 KEYBOARD UNIT B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com B LCD BACK LIGTH B A KEYBOARD UNIT CN831 17 MEH-P5350 5 6 7 8 5 6 7 8 D C B A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 MEH-P5350 1 2 3 4 1 2 3 4 D C B A 3.4 MD MECHANISM MODULE(GUIDE PAGE) C M1 D FOCUS SERVO LINE TRACKING SERVO LINE CARRIAGE SERVO LINE SPINDLE SERVO LINE F T C S S S C T T F F C C S S T T F F S S C C C C S S F T T F 1 ( 0 4 6 5 # @ ) fi ‹ fl ¤ › ⁄ · * RF AMP & 5ch Pow-Driver C-a www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 MEH-P5350 5 6 7 8 5 6 7 8 D C B A CK SELECT A CN991 MD UNIT C MD SYSTEM CONTROLLER 3-5V LEVEL SHIFT S S C C F F T T 2 3 7 $ 8 9 ° % ^ ‡ 3V Reg DIGITAL SERVO ATRAC,ATRAC3 DECODER ! C C-b www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 MEH-P5350 1 2 3 4 1 2 3 4 D C B A C-a FOCUS SERVO LINE TRACKING SERVO LINE CARRIAGE SERVO LINE SPINDLE SERVO LINE F T C S S S C C F T T F 1 · * RF AMP & C-a C-b 1 2 3 4 5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 MEH-P5350 5 6 7 8 5 6 7 8 D C B A C-a M1 D T T F F C C S S T T F F S S C C C C S S ( 0 4 6 5 # @ ) fi ‹ fl ¤ › ⁄ 5ch Pow-Driver C-a C-b 6 7 8 9 10 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 22 MEH-P5350 1 2 3 4 1 2 3 4 D C B A MD UNIT C F F T T 2 3 7 $ 8 9 ° % ^ ‡ 3V Reg DIGITAL SERVO ATRAC,ATRAC3 DECODER ! C-a C-b 1 2 3 4 5 C-bwww. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 23 MEH-P5350 5 6 7 8 5 6 7 8 D C B A CK SELECT A CN991 MD SYSTEM CONTROLLER 3-5V LEVEL SHIFT C-a C-b C-b 6 7 8 9 10 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 24 MEH-P5350 1 RF 0.4V/div. 0.5µs/div. Normal mode: Play 1 CH1: RF 0.5V/div. 2 CH2: MNT3 2V/div. (OFTRK) Test mode: Tracking open 0.5ms/div. 1 CH1: RF 0.5V/div. 3 CH2: MNT2 2V/div. (DFCT) Test mode: The defect part passes 800µm 0.5ms/div. 4 CH1: FIN 0.2mV/div. 5 CH2: FOP 1V/div. 6 CH2: FOM 1V/div. Test mode: No disc, Focus close 0.5s/div. 4 CH1: FIN 0.5V/div. 7 CH2: MNT0 2V/div. (FOK) Normal mode: Focus close 0.2s/div. 8 CH1: FEY 0.2V/div. 9 CH2: TEY 1V/div. Normal mode: Focus close 2ms/div. 9 CH1: TEY 1V/div. 0 CH2: TIN 0.1V/div. Test mode: 32 tracks jump (REV) 0.5ms/div. 9 CH1: TEY 0.5V/div. 0 CH2: TIN 0.2V/div. Test mode: Single jump (REV) 0.5ms/div. 9 CH1: TEY 1V/div. 0 CH2: TIN 0.2V/div. ! CH3: CIN 0.5V/div. Test mode: Fine jump (REV) 5ms/div. 8 CH1: FEY 0.2V/div. 4 CH2: FIN 0.2V/div. Normal mode: Play 5ms/div. 4 CH1: FIN 0.1V/div. @ CH2: SIN 0.5V/div. Normal mode: Play 0.5s/div. 4 CH1: FIN 0.1V/div. @ CH2: SIN 0.5V/div. Normal mode: Play(Recordable MD) 0.5s/div. - Waveforms Notes: 1. Circled figures represent the measuring points in the circuit diagram. 2. Reference voltage VC: 1.65V < ·VC > 3. Premastered MD, Make measurements using the MMD110. Nonetheless, waveforms indicated as “Recordable MD” should be measured using the MMD212. 4. Use TMD325W as the Defect MD. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 25 MEH-P5350 9 CH1: TEY 0.5V/div. 0 CH2: TIN 0.1V/div. Normal mode: Play 9 CH1: TEY 0.5V/div. 0 CH2: TIN 0.1V/div. Normal mode: Play 2ms/div. ! CH1: SE 0.1V/div. @ CH2: CIN 0.2V/div. Normal mode: Play # CH1: SIN 0.1V/div. 9 CH2: TEY 0.5V/div. Normal mode: Play # CH1: SIN 0.5V/div. 9 CH2: TEY 0.5V/div. Normal mode: Long search (Last track->1st track) 9 CH1: TEY 1V/div. $ CH2: ABCD 0.2V/div. Test mode: Focus close,Tracking open 2ms/div. 9 CH1: TEY 0.5V/div. 8 CH2: FEY 0.5V/div. Normal mode: AGC after focus close (Recordable MD) 0.2s/div. 50ms/div. *1 Use the AGND pin for grounding. < ‡ GND > *2 Use the GND pin for grounding. < ° GND > Due to dispersion in electrical and mechanical characteristics of the MD MECH module, observed waveforms for TEY, TIN, FEY and FIN signals might be a little different from those shown below. 50ms/div. 500ms/div. 50ms/div. % CH1: ROUT 1V/div. ^ CH2: LOUT 1V/div. Normal mode: Play(1kHz 0dB) 0.5ms/div. 8 CH1: FEY 0.2V/div. 4 CH2: FIN 0.2V/div. Test mode: During AGC 1ms/div. 9 CH1: TEY 0.5V/div. 0 CH2: TIN 0.1V/div. Test mode: During AGC 1ms/div. 0 CH1: TIN 0.1V/div. 3 CH2: MNT2 2V/div. (DFCT) Test mode: The defect part passes 800µm 0.5ms/div. *1 9 CH1: TEY 0.5V/div. @ CH2: CIN 0.2V/div. Test mode: 32 tracks jump (FWD) 1ms/div. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 26 MEH-P5350 ( CH1: MLOAD 5V/div. ) CH2: MEJCT 5V/div. ⁄ CH3: CLMP 5V/div. ¤ CH4: LOP 5V/div. Normal mode: Load (Recordable MD) 0.2s/div. *1 Cautions on measuring While measuring, keep the leads from the measuring terminals (ADFM, ADFG and GND on the MD CORE unit) , which is connected to the probe of an oscilloscope, apart from each other. *2 Use the GND pin for grounding. < ° GND > *2 ( CH1: MLOAD 5V/div. ) CH2: MEJCT 5V/div. ‹ CH3: EJCT 5V/div. › CH4: LOM 5V/div. Normal mode: Eject 0.2s/div. *2 ( CH1: MLOAD 5V/div. @ CH2: CIN 1V/div. fi CH3: HOME 5V/div. fl CH4: DISC 5V/div. Normal mode: Load 0.2s/div. *2 ( CH1: MLOAD 5V/div. @ CH2: CIN 1V/div. fi CH3: HOME 5V/div. fl CH4: DISC 5V/div. Normal mode: Load (Recordable MD) 0.2s/div. *2 & CH1: ADFG 2V/div. * CH2: ADFM 0.5V/div. Test mode: Play (Recordable MD) 50µs/div. *1 *2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 27 MEH-P5350 1 2 3 4 1 2 3 4 D C B A 1 2 HOME GND 3 LOAD 4 5 DISC EJCT 6 SO+ 7 8 SO- LO+ 9 LO+ 10 11 LO- LO- 12 GND 13 CLMP M M S402 CSN1052 HOME SW S405 CSN1052 LOAD SW S404 CSN1042 DISC SW S401 CSN1055 CLMP SW S403 CSN1053 EJCT SW LOADING MOTOR M2 CXB7603 SPDL MOTOR M3 CXM1181 E D E SW2 PCB D SW1 PCB PCB UNIT Consists of SW1 PCB SW2 PCB C CN401 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 28 MEH-P5350 1 2 3 4 1 2 3 4 D C B A 4. PCB CONNECTION DIAGRAM 4.1 TUNER AMP UNIT NOTE FOR PCB DIAGRAMS 1. The parts mounted on this PCB include all necessary parts for several destination. For further information for respective destinations, be sure to check with the schematic dia- gram. 2. Viewpoint of PCB diagrams A A Capacitor Connector P.C.Board Chip Part SIDE A SIDE B TUNER AMP UNIT B CN701 CORD ASSY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 29 MEH-P5350 5 6 7 8 5 6 7 8 D C B A A SIDE A IC,Q FRONT IP-BUS REAR OUT ANTENNA FM/AM TUNER UNIT C CN301 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 30 MEH-P5350 1 2 3 4 1 2 3 4 D C B A A A TUNER AMP UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 31 MEH-P5350 5 6 7 8 5 6 7 8 D C B A A SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 32 MEH-P5350 1 2 3 4 1 2 3 4 D C B A 4.2 KEYBOARD UNIT DISPLAY + + - - EQ SFEQ SRC SRC 1 2 3 4 5 6 CLOCK BAND EJECT FUNCTION AUDIO B B SIDE A KEYBOARD UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 33 MEH-P5350 1 2 3 4 1 2 3 4 D C B A A CN831 B B SIDE B KEYBOARD UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com IC, Q E E 1 CN991 A 34 MEH-P5350 1 2 3 4 1 2 3 4 D C B A 4.3 MD MECHANISM MODULE MD UNIT C C PU UNIT SIDE A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com IC, Q D 35 MEH-P5350 D C B A 1 2 3 4 1 2 3 4 C MD UNIT C SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 36 MEH-P5350 1 2 3 4 1 2 3 4 D C B A S403 EJCT SW S405 LOAD SW S404 DISC SW SW2 PCB SW1 PCB M2 LOADING MOTOR M3 SPINDLE MOTOR E D D CN401 S401 CLMP SW E E S402 HOME SW C D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 37 MEH-P5350 5. ELECTRICAL PARTS LIST NOTES: - Parts whose parts numbers are omitted are subject to being not supplied. - The part numbers shown below indicate chip components. Chip Resistor RS1/_S___J,RS1/__S___J Chip Capacitor (except for CQS.....) CKS....., CCS....., CSZS..... =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- Unit Number : CWM7778 Unit Name : Tuner Amp Unit MISCELLANEOUS IC 101 IC HA12187FP IC 151 IC PML008A IC 301 IC PAL006A IC 601 IC PE5213A IC 961 IC S-80735ANDZI Q 101 Transistor 2SA1037K Q 102 Transistor DTC114EK Q 301 Transistor DTC124EK Q 351 Transistor IMH3A Q 352 Transistor DTA124EK Q 401 Transistor 2SC2412K Q 601 Transistor DTA114EK Q 801 Transistor 2SA1037K Q 811 Transistor 2SC1740S Q 812 Transistor IMD2A Q 821 Transistor 2SB1238 Q 822 Transistor DTC114EK Q 911 Transistor 2SD1760F5 Q 912 Transistor IMD2A Q 921 Transistor 2SD2396 Q 923 Transistor 2SB1238 Q 924 Transistor DTC114EK Q 931 Transistor IMX1 Q 932 Transistor IMX1 Q 951 Transistor 2SA1037K Q 991 Transistor IMD2A Q 993 Transistor DTC114EK Q 994 Transistor 2SD2396 D 451 Diode DAN202U D 453 Diode HZS9L(A2) D 811 Diode HZS11L(B3) D 901 Diode MPG06G-6415G50 D 902 Diode MPG06G-6415G50 D 911 Diode MPG06G-6415G50 D 912 Diode HZS6L(B2) D 921 Diode HZS9L(B3) D 931 Diode HZS7L(C3) D 932 Diode HZS7L(A1) D 951 Diode DAN202U D 971 Diode MPG06G-6415G50 D 972 Diode MPG06G-6415G50 D 991 Diode HZS9L(B1) D 992 Diode HZS6L(B2) D 993 Diode RB160L-40 ZNR 401 DSP-201M-A21F L 101 Ferri-Inductor LAU2R2K L 401 Ferri-Inductor LAU2R2K L 402 Ferri-Inductor LAU1R0M L 403 Ferri-Inductor LAU4R7K L 601 Ferri-Inductor LAU2R2K L 651 Inductor LAU100K L 801 Ferri-Inductor LAU2R2K L 901 Choke Coil 600µH CTH1221 L 951 Ferri-Inductor LAU2R2K X 601 Radiator 12.58291MHz CSS1402 SP 621 Buzzer CPV1050 FM/AM Tuner Unit CWE1563 RESISTORS R 101 RS1/16S222J R 102 RD1/4PU472J R 103 RS1/16S223J R 104 RS1/16S102J R 105 RS1/16S102J R 106 RS1/16S473J R 107 RS1/16S473J R 108 RS1/16S101J R 109 RS1/16S470J R 110 RS1/16S101J R 111 RS1/16S102J R 112 RS1/16S150J R 113 RS1/16S181J R 114 RS1/16S181J R 115 RS1/16S223J R 116 RS1/16S223J R 117 RS1/16S102J R 118 RS1/16S102J R 151 RAB4C102J R 153 RS1/16S101J R 154 RS1/16S101J R 155 RS1/16S101J R 156 RS1/16S101J R 301 RS1/16S103J R 302 RS1/16S103J R 303 RS1/16S331J R 351 RS1/16S821J R 352 RS1/16S821J R 353 RS1/16S223J R 354 RS1/16S223J R 401 RS1/16S473J R 402 RS1/16S473J R 403 RS1/16S681J R 404 RS1/16S681J R 405 RS1/16S681J R 406 RS1/16S103J R 407 RS1/16S681J R 408 RS1/16S681J R 409 RS1/16S681J R 410 RS1/16S473J R 411 RS1/16S472J R 412 RS1/16S473J R 413 RS1/16S393J R 414 RS1/16S473J R 415 RS1/16S473J =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 38 MEH-P5350 R 416 RS1/16S222J R 417 RS1/16S222J R 421 RS1/16S272J R 422 RS1/16S272J R 423 RS1/16S182J R 424 RS1/16S182J R 425 RS1/16S153J R 426 RS1/16S153J R 452 RS1/16S103J R 453 RS1/16S473J R 455 RS1/16S222J R 601 RS1/16S473J R 602 RS1/16S102J R 603 RS1/16S0R0J R 604 RS1/16S473J R 605 RS1/16S104J R 606 RAB4C473J R 607 RAB4C221J R 608 RS1/16S221J R 609 RS1/16S473J R 612 RS1/16S104J R 621 RS1/16S102J R 652 RS1/16S221J R 654 RS1/16S221J R 656 RS1/16S102J R 801 RS1/16S223J R 802 RS1/16S332J R 811 RD1/4PU471J R 821 RS1/16S1R0J R 822 RD1/4PU332J R 823 RS1/16S223J R 832 RS1/16S222J R 834 RS1/16S222J R 912 RD1/4PU223J R 913 RD1/4PU222J R 922 RD1/4PU102J R 923 RD1/4PU332J R 924 RS1/16S223J R 931 RS1/16S104J R 932 RS1/16S473J R 933 RS1/16S223J R 934 RS1/16S473J R 935 RD1/4PU472J R 936 RD1/4PU102J R 937 RS1/16S473J R 938 RS1/16S103J R 939 RD1/4PU102J R 940 RS1/16S104J R 941 RS1/16S104J R 942 RS1/16S104J R 951 RS1/16S473J R 952 RS1/16S102J R 953 RS1/16S472J R 954 RS1/16S472J R 955 RD1/4PU153J R 961 RS1/16S822J R 991 RD1/4PU471J R 992 RD1/4PU221J CAPACITORS C 101 CKSRYB104K16 C 102 CKSRYB102K50 C 103 CEJQ1R0M50 C 104 CEJQ1R0M50 C 105 CEJQ1R0M50 C 106 CEJQ1R0M50 C 151 CKSRYB104K16 C 152 CEJQ470M10 C 153 CEJQNP4R7M16 C 154 CEJQNP4R7M16 C 157 CEJQNP4R7M16 C 158 CEJQNP4R7M16 C 161 CEJQNP4R7M16 C 162 CEJQNP4R7M16 C 165 CEJQ100M16 C 301 CFTNA224J50 C 302 CFTNA224J50 C 303 CFTNA224J50 C 304 CFTNA224J50 C 305 CEJQ330M10 C 306 CFTNA105J50 C 307 CEJQ100M16 C 308 CKSRYB104K16 C 309 4700µF/16V CCH1362 C 351 CEJQ4R7M35 C 352 CEJQ4R7M35 C 401 CKSRYB473K16 C 402 CEJQ101M6R3 C 404 CKSRYB472K50 C 405 CKSRYB103K25 C 406 CEJQ220M10 C 407 CKSQYB103K50 C 409 CKSRYB223K25 C 410 CKSRYB223K25 C 421 CKSRYB183K25 C 422 CKSRYB183K25 C 425 CEJQR22M50 C 426 CEJQR22M50 C 602 CKSRYB102K50 C 603 CEJQ4R7M35 C 604 CCSRCH180J50 C 605 CCSRCH180J50 C 606 CKSRYB104K16 C 618 CCSRCH101J50 C 653 CEJQ1R0M50 C 654 CEJQ1R0M50 C 801 CCSRCH101J50 C 802 CKSRYB104K16 C 811 CKSRYB103K25 C 911 CEJQ470M10 C 912 CKSRYB103K25 C 913 470µF/16V CCH1183 C 921 CEJQ101M10 C 922 CKSRYB473K16 C 923 CKSRYB103K25 C 924 CEJQ100M16 C 931 CEJQ100M16 C 961 CEJQ2R2M50 C 991 CKSRYB473K16 C 992 CKSRYB103K25 C 993 CEJQ101M10 C 994 1000µF/10V CCH1184 Unit Number : CWX2505 Unit Name : MD Unit(MD-4LP) MISCELLANEOUS IC 101 IC CXA2523AR IC 102 IC NJM2115V IC 201 IC CXD2667R IC 301 IC PD5655A IC 302 IC TC7WT125FU =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 39 MEH-P5350 IC 303 IC TC7WT125FU IC 304 IC TC7WH34FU IC 401 IC BA5985FM IC 701 IC BA033FP Q 101 Transistor 2SB1132 Q 102 Transistor UMD2N Q 301 Transistor DTA144EU Q 601 Transistor FMG13 Q 602 Transistor IMD3A D 601 Chip Diode MA151WA TH 301 Thermistor CCX1037 X 201 Ceramic Resonator 22.579MHz CSS1545 X 301 Ceramic Resonator 10.00MHz CSS1476 RESISTORS R 101 RS1/16S473J R 102 RS1/16S681J R 103 RS1/10S100J R 104 RS1/16S681J R 105 RS1/16S474J R 106 RS1/16S682J R 107 RS1/16S133J R 108 RS1/16S913J R 109 RS1/16S432J R 110 RS1/16S563J R 111 RS1/16S133J R 112 RS1/16S133J R 113 RS1/16S103J R 114 RS1/16S103J R 115 RS1/16S242J R 116 RS1/16S103J R 117 RS1/16S242J R 118 RS1/16S103J R 119 RS1/16S473J R 120 RS1/16S561J R 121 RS1/16S561J R 201 RS1/16S151J R 202 RS1/16S104J R 203 RS1/16S103J R 204 RS1/16S152J R 205 RAB4C123J R 206 RAB4C104J R 207 RS1/16S101J R 208 RS1/16S101J R 209 RS1/16S684J R 210 RN1/16SE1002D R 211 RN1/16SE1002D R 212 RS1/16S105J R 213 RS1/16S102J R 214 RS1/16S332J R 215 RS1/16S123J R 216 RS1/16S221J R 217 RS1/16S123J R 218 RS1/16S123J R 219 RS1/16S123J R 301 RS1/16S221J R 302 RS1/16S221J R 303 RS1/16S221J R 304 RS1/16S104J R 305 RN1/16SE1002D R 308 RS1/16S104J R 309 RAB4C104J R 310 RS1/16S104J R 311 RS1/16S473J R 312 RAB4C681J R 313 RAB4C681J R 314 RAB4C104J R 315 RS1/16S393J R 316 RS1/16S104J R 317 RS1/16S683J R 318 RS1/16S0R0J R 319 RS1/16S0R0J R 401 RS1/16S221J R 402 RS1/16S222J R 403 RS1/16S333J R 404 RS1/16S333J R 405 RS1/16S222J R 406 RS1/16S0R0J R 407 RS1/16S121J R 408 RS1/16S332J R 409 RS1/16S183J R 410 RS1/16S0R0J R 411 RS1/16S0R0J R 412 RS1/16S121J R 413 RS1/16S332J R 414 RS1/16S183J R 415 RS1/16S0R0J R 416 RS1/16S221J R 417 RS1/16S152J R 418 RS1/16S183J R 419 RS1/16S152J R 420 RS1/16S183J R 421 RS1/16S512J R 422 RS1/16S183J R 423 RS1/16S512J R 424 RS1/16S183J R 425 RS1/16S221J R 603 RS1/16S223J R 604 RS1/16S223J CAPACITORS C 101 CEVL100M16 C 102 CKSRYB223K25 C 103 CEVL100M16 C 104 CKSRYB223K25 C 105 CKSRYB104K16 C 106 CEVL101M6R3 C 107 CCSRCH220J50 C 108 CKSRYB102K50 C 109 CKSRYB103K50 C 110 CKSRYB224K16 C 111 CKSRYB473K25 C 112 CKSRYB223K25 C 113 CKSRYB472K50 C 114 CKSRYB104K16 C 115 CKSRYB102K50 C 116 CKSRYB473K25 C 117 CKSRYB102K50 C 118 CKSRYB105K10 C 119 CKSRYB472K50 C 120 CKSRYB104K16 C 121 CKSRYB105K10 C 122 CKSRYB103K50 C 201 CKSRYB103K50 C 202 CKSRYB474K10 C 203 CKSRYB104K16 C 204 CKSRYB222K50 C 205 CKSRYB222K50 C 206 CKSRYB103K50 C 207 CKSRYB104K16 C 208 CKSRYB474K10 =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 40 MEH-P5350 C 209 CKSRYB104K16 C 210 CKSRYB471K50 C 211 CKSRYB104K16 C 212 CKSRYB104K16 C 213 CKSRYB104K16 C 214 CKSRYB104K16 C 215 CKSRYB104K16 C 216 CKSRYB102K50 C 217 CKSRYB104K16 C 218 CKSRYB105K10 C 219 CKSRYB105K10 C 220 CKSRYB102K50 C 221 CKSRYB105K10 C 222 CKSRYB104K16 C 223 CKSRYB104K16 C 224 CKSRYB104K16 C 225 22µF/6.3V CCH1350 C 301 CKSRYB103K50 C 302 CKSRYB103K50 C 303 CKSRYB103K50 C 306 CKSRYB104K16 C 307 CKSRYB104K16 C 308 CKSRYB102K50 C 309 CKSRYB102K50 C 310 CKSRYB104K16 C 311 CKSRYB221K50 C 312 CKSRYB102K50 C 401 CKSRYB471K50 C 402 CKSRYB471K50 C 403 CKSRYB224K16 C 404 CKSRYB103K50 C 405 CKSRYB224K16 C 406 CKSRYB103K50 C 407 CCSRCH151J50 C 408 CCSRCH151J50 C 409 CCSRCH151J50 C 410 CCSRCH151J50 C 411 CEVL470M16 C 412 CKSRYB105K10 C 601 CEVL4R7M35 C 602 CEVL4R7M35 C 701 CKSRYB224K16 C 702 CEVL100M16 C 703 CKSRYB104K16 C 704 22µF/6.3V CCH1350 C 705 CEVL101M6R3 Unit Number : CWM7775 Unit Name : Keyboard Unit MISCELLANEOUS IC 701 IC PD2068A IC 702 IC S-80734ANDYI IC 703 IC TSOP1840SB1 Q 701 Transistor 2SC2412K D 701 LED NSSW440-9159 D 702 LED NSSW440-9159 D 703 LED SML210PT D 704 LED SML210PT D 705 LED SML210PT D 706 LED SML210PT D 707 LED SML210PT D 708 LED SML210PT D 709 LED SML210PT D 710 LED SML210PT X 701 Radiator CSS1559 IL 701 Lamp 40mA 14V CEL1687 IL 702 Lamp 40mA 14V CEL1687 LCD 701 LCD CAW1686 RESISTORS R 701 RS1/16S222J R 702 RS1/16S222J R 703 RS1/16S2R2J R 704 RS1/16S121J R 706 RS1/16S5600D R 707 RS1/16S2701D R 708 RS1/16S822J R 709 RS1/16S121J R 710 RS1/16S121J R 711 RS1/16S101J R 712 RS1/16S121J R 713 RS1/16S101J R 714 RS1/16S221J R 715 RS1/16S472J R 719 RS1/16S101J R 720 RS1/16S121J R 721 RS1/16S101J R 732 RS1/16S473J R 733 RAB4C104J CAPACITORS C 701 CEV2R2M50 C 702 CKSRYB474K10 C 703 CKSRYB104K16 C 704 CKSRYB104K16 C 705 CKSRYB104K16 C 706 CKSRYB104K16 C 707 CKSRYB104K16 C 708 CKSRYB104K16 C 709 CKSRYB104K16 C 710 CKSRYB104K16 Unit Number : Unit Name : PCB Unit S 401 Spring Switch(CLMP SW) CSN1055 S 402 Spring Switch(HOME SW) CSN1052 S 403 Spring Switch(EJCT SW) CSN1053 S 404 Spring Switch(DISC SW) CSN1042 S 405 Spring Switch(LOAD SW) CSN1052 Miscellaneous Parts List PU Unit CGY3000 M 1 Motor Unit(-C)(CRG) CXB4054 M 2 Motor Unit(-B)(Loading) CXB7603 M 3 Motor(SPDL) CXM1181 =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- B D E PCB Unit Consists SW1 PCB SW2 PCB www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 41 MEH-P5350 6. ADJUSTMENT 6.1 ADJUSTING THE MD SECTION 1) Precautions Since the single voltage (3.3V) system is being employed for the regulator of this equipment, the reference potential for the servo signals becomes Vc (1.65V, approximately). In this manual, the Vc reference potential will be indicated as **Vc (e.g. 1.5Vc) and the reference GND will be indicat- ed as **V. If connection errors of the Vc and the GND are made while product adjustment is being made, it becomes unfeasible to measure the electric potential correctly and, moreover, the servo can make malfunctioning to apply severe impacts to the pick up. Consequently, to prevent occurrence of such an error, observe the followings. 1.Do not make connection errors of the Vc and the GND when connecting the negative side of the probe of the instru- ment. For example, do not connect the Vc to the negative side of the probe ch1 nor connect the GND to the negative side of the probe ch2 of the oscilloscope. Also, since the measuring instrument proper usually carries the same potential as that of the negative side of the probe, in many cases, set the measuring instrument proper to a floated state. 2.When installing and removing the filters and wires necessary for the measurement work, always turn “OFF” the batt. and Acc line. (Only when the regulator is turned off, the microcomputer is negatively occasionally affected.)*1 3.Since various protection means of the software are not valid under the test mode, be careful not to apply mechanical shock and electric shocks while adjustment work is in progress. 4.This equipment works to discriminate the discs namely, high reflection discs (premaster) and low reflection discs (recordable), when the discrimination SW is duly operated. (High reflection Disc=0V and low reflection Disc=5V with the CN401 / 4-pin / Contact Pin Name: DISC as is shown in the circuit diagram) Disc discrimination can be confirmed by the following indications appearing under (the above octonary digits) the TEST MD mode, after completing floating of the disc under the TEST mode. In case of high refection: 02200000 In case of low refection: 01100000 (The second and third digits counting from the Left-hand side will become “2” or “1”.) Unless disc discrimination is made properly, accurate automatic adjustment and grating adjustment cannot be expected and always confirm the above when starting up the TEST mode. 2)LD protection for the pickup Unlike MD pickups, the MD pickups being used for this equipment are not equipped with the LD protection short pin but, instead, a shorting land by soldering is being provided. When removing, make a shorting by soldering before removing the flex. To protect the flex., limit the time to apply the soldering iron to a short time. Reference application time: within 2 seconds. 3)Regarding the TEST mode This mode should be used when adjusting and inspecting the MD mechanism module of this equipment. 1.When entering into the TEST mode: Pressing and holding the “4” key and “6” key simultaneously, turn ON the “B.u” and “Acc” at the same time. Select the “MD Source” using the SOURCE key. (Keep the Disc inserted.) 2.When canceling the TEST mode: Turn OFF the “B.u” and “Acc”. 3.When turning ON the MD power Press the key “BAND” to start up the 3.3v for the MD regulator. Meanwhile, pay attention to the fact that the microcomputer supply power Vdd5v starts up when the “B.u” and “Acc” are turned on. 4.Measuring LD electric current When measuring the voltage between 3VD and VI using a multimeter or the like, be sure to connect the measuring instrument on the power supply off before turning on the power supply. If you make contact between 3VD and VI using a clip or the like after turning on the power supply, the noise could cause LD failure. *1 At "Batt. Line" is on and "Acc Line" is on , MD is off(regulator id off). Power supply of MD mechanism for microcomputer : VDD is on. Additionally , power supply for IC : MDVD and PVD are off. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 42 MEH-P5350 - Grating adjustment 1) Regarding the TEST Disc When performing grating adjustment and grating confirmations, use the high reflection Disc (MMD-110). When confirming the operation state and automatic adjustment state, us the high reflection Disc (MMD-110) and low reflection Disc (MMD-212), respectively. 2) When the pickup unit or the spindle motor has been replaced, be sure to perform the grading adjust- ment and grating confirmation. 3) Grating adjustment Purpose: To check and confirm if the grating is properly adjusted after the pickup unit or the spindle motor has been replaced. Observe the waveforms of “E” and “F” after having been passed through the iv amplifier L.P.F. using an oscilloscope (X-Y ch) to check if the phase difference is within 30 deg. and, otherwise, to adjust it within the range. Failure phenomena when the grating is being deviated substantially: Tracking close becomes unworkable, tracking search becomes inoperable or tracking search takes too long time. Checking method Measuring instruments: Oscilloscope , GGD1223(21Pin cord) and GGF1370(MD adjustment PCB) Measuring points: E. F and Vc TEST Disc: MMD-110 (TEAC), TEST mode Focus closed state (Tracking open) 4) Confirmation procedures 1. Select the “MD Source” to inter into the TEST MD mode. Use the MMD-110 as the test Disc. An indication read- ing “POWER ON” will appear. 2. Make the key operation of 2 -> 2 -> 1 -> 1 to bring into the focus close state. The indication will be “2221 0000” and the pickup will be located at the innermost track position. Key operation Indications(the above octonary digits) Statuses BAND "POWER ON" MD circuit 3.3v power “ON” 2 "02200 00" Disc discrimination (High reflection) 2 "02210 00" Offset adjustment 1 "12210 00" LD on 1 "22210 00" Focus close Re-adjust when the grating deviation exceeds 30 deg. (Refer to the drawing indicated below and grating waveform.) 1. Slightly loosen the screws <2> and <3> for the spindle motor (do not touch the screw <1>) and, inserting a minus screwdriver head into the groove, turn it slowly checking the Lissajous’s figure. When doing this, be careful not to insert the screwdriver head too deeply since it may hit the Disc surface. 2. After finishing the adjustment, tighten the screws <2> and <3> in given order. 3. Check the Lissajous’s figure once again. * While making this adjustment, if the waveform disappears by some sock, repeat the key operation in the order of 1 - > 1 (starting from the “LD on” process) and the waveform appears again. If the above key operation procedures do not work to restore the state, press the key BAND (POWER OFF) -> press the key BAND (POWER ON) to enter into the TEST MD mode once again before repeating the aforementioned proce- dures once again in given sequence. Re-adjust when the grating deviation exceeds 30 deg. (Refer to the drawing indicated below and grating waveform.) 1. Loosen the screws <1>, <2> and <3> for the spindle motor in given order. 2. Re-adjust when the grating deviation exceeds 30 deg. 3. Follow the aforementioned procedures starting from the procedure according to Paragraph 1 in given sequence. * When the eccentricity of the disc is excessive, the grating waveform starts swinging. (It differs depending on the rotation cycle.) When it is difficult to make the adjustment, re-load the disc to decrease the eccentricity to lessen the swing before reading the average phase difference. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 43 MEH-P5350 Grating waveform 45° 0° 75° 60° 30° 90° Ech → Xch 50mV/div, AC Fch → Ych 50mV/div, AC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 44 MEH-P5350 7. GENERAL INFORMATION 7.1 DIAGNOSIS 7.1.1 TEST MODE (1) When entering into the TEST MODE 1 Pressing and holding the "4" key and "6" key simultaneously, turn ON the "ACC" and "B.UP" (Reset Start) at the same time. 2 Select the MD using the [SOURCE] key. 3 Insert the Disc or press the POWER ON [BAND] key. ↓ Each mode starts up. Indication POWER ON (2) When ending the operation 1 Press the [SOURCE] key again to end the MD mode. 2 Although the operation can be stopped by pressing the POWER OFF [BAND] key, when resuming the oper- ation after once stopping it, take the above procedure 1 to turn off the MD mode. (3) Operation methods under respective modes ♦TESTMD (When making servo checks) 1 Press the TEST_MD mode [2]. 2 Press the OFST Adjustment [2] key. 3 Press the LD_ON [1]. 4 Press the Focus CLOSE [1]. 5 Press the IV Adjustment [2]. 6 Press the EF.B Adjustment [3]. 7 Press the Tracking CLOSE [1]. ↓ Tracing starts from the address where the P.UP is currently located. 8 Press the AGC Setting [3] to select "With BIAS". 9 Press the AGC Execution [2]. "***11111111" appears and returns when it ends. [Disc+] ↓ Tracing movement starts. Indication XXXcXXs (Cluster : Sector) Positions of the cluster and the Disc (Starting and ending addresses are approximate ones.) PreDisc FFE0 (inner periphery) ~ 0000 ~ 0900 (outer periphery) RecDisc 0032 (inner periphery) ~ 0900 (outer periphery) Address changing method 1 After the tracing movement ends, select the desired address (0003/0032/00b4/0500/0700) using the [6] key. 2 [Disc+] to execute. or 1 After the tracing movement ends, select the desired jump (1T, 10T, 16T, 32T, FINE, FINE_LG) using the [4] key. 2 [Disc+] to enter the setting. 3 [trk+]/[trk-] to shift to FWD/REW. ** Do not use JUMP for any other purposes than the above!! *** If the Pickup runs out of the Disc range, the serve will run out. Consequently, go into Search or turn OFF the power before the Pickup runs out of the Disc range. ♦Executing the Test Normal (Normal play under the TestMode) 1 Press the [3] key after each mode has started to start PLAY. Indications XXX XX XX 7-digit indication Trk Minutes Seconds 2 [trk+]/[trk-] to change the "trk". (ff/rew are not workable here.) 3 Press the [3] key to call the occurring "err" code. (Use this function when determining the diagnosis when making trouble shooting.) When multiple err/ng are occurring, each time the [3] key is pressed, the newer error code appears. err-n-xx The larger the "n" is, the newer the error is. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 45 MEH-P5350 err-n+1-xx err-n+1-xx xx:err code, NG code appear. (The NG code is of the internal mode which is not indicated under the actual product mode.) ** Once the "Test Normal" is executed, the adjusted value and the play address will be stored into the micro- computer as the LAST values. When resetting to the initial value, turn off the "ACC" and "B.UP" to resume the "TestMode". ♦Refer to the "TestMode" chart regarding the MECHA mode. * Make the CRG operation, LOAD/EJCT and spindle rotation forcefully. List of ERR codes Codes Categorization Error contents A0 System VDSENSE:2.5V SENSE ⇒Power supply UP/DOWN sense HEAT System TEMP SENSE Communications B0 Electricity ⇒ Imperfect contact between the IC and the microcomputer or IC failure The CRG cannot move into the inner periphery. 01 CRGHOME_NG The CRG cannot move out from the inner periphery. ⇒ Home SW failure or cartridge operation failure 11 F.CLOSE_NG Focus CLOSE failure ⇒ Soiled disc, scratches or severe vibration 12 T.CLOSE_NG Tracking, spindle CLOSE failures ⇒ Soiled disc, scratches or severe vibration, or the focus runs out easily. 17 OFSTA adjustment_NG OFST adjustment failure ⇒ Imperfect contact between the IC and the microcomputer or IC failure 17 IV Adjustment_NG IV adjustment failure ⇒ Imperfect contact between the IC and the microcomputer or IC failure 17 EF.B Adjustment_NG EF.B adjustment failure ⇒ Imperfect contact between the IC and the microcomputer or IC failure 20 TOC_TIMEOUT TOCREAD_timeout ⇒ Time is over after various retries. 21 UTOC_TIMEOUT UTOCREAD_timeout ⇒ Time is over after various retries. 23 No_audio_NG The test piece is not an audio Disc. ⇒ MD_Data_Disc 24 TOC_NG TOC/UTOC contents_NG ⇒ Disc_data_NG (Defective disc) - BLANK ⇒ Raw Disc, all erased disc 30 Search_NG Cannot reach the targeted address. ⇒ Cartridge/tacking failure, scratches Mechanical errors will not be indicated. * When a LoadErr occurs, eject the disc to end the error state. * When an EJCTErr occurs, load a disc to end the error state. List of NG codes These NG codes will only be indicated under the ERR indication mode of the "Test Normal" Codes Categorization Error contents 35 Electricity Jump NG 36 Electricity CRG movement NG 40 Mechanism LOAD_NG 41 Mechanism EJCT_NG 50 Electricity IV adjustment NG 51 Electricity EF.B adjustment NG 52 Electricity Spindle LOCK_NG 53 Electricity FOK_NG 54 Electricity Spindle OK_NG 60 Electricity Focus AGC_NG 61 Electricity Tracking AGC_NG 62 Electricity Focus BIAS adjustment_NG www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 46 MEH-P5350 POWER ON TEST MECHA BAND TRK + TRK – 1 2 POWER OFF CRG FF CRG REW SPDL CW LOAD durability SPDL STOP TEST NOMAL T search REW T search FF DISPS CONT. RST ERR DISPLAY POWER OFF MON Changeover 3 1 BAND 4 3 4 TRK + TRK – 5 6 1 2 3 BAND BAND TRK + TRK – POWER OFF CRG FF CRG REW DISC + E0003212 Valid while any key is pressed. Valid while any key is pressed. Valid while any key is pressed. Valid while any key is pressed. Valid while any key is pressed. (Disc drawing in) Valid while any key is pressed. (Disc eject) Spindle stop Monitor output is changed over with the toggle. Determination with [DISC+]. Normal track search Normal track search P.UP address→ making sound address→ RAM remaining capacity→ F.T ERR times → NEW CRG value are rotated with the toggle. ERR count value reset (After the 1-minute display, the original screen appears.) → Occurrence sequence and NG and ERR codes → It returns to IDLE. ERR times : out-of-focus times and track jumping times 3212 times 4 6 SOURCE ACC,Back-up ON MD select *1 Repetition of LOAD and EJECT, Display of number of times. The first 1bit is for load. Type of EJECT, L : LOAD, E : EJECT *1 LOAD CCW LOAD CW NEW CRG FF key push one plus. NEW CRG REW key push one plus. - Flow Chart(Mechanism Section) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 47 MEH-P5350 POWER ON TEST MD BAND TRK + TRK – 1 2 POWER OFF POWER OFF POWER OFF POWER OFF CRG FF CRG REW 3 2 MD 4 6 4 5 6 BAND TRK + TRK – 1 2 CRG FF CRG REW LDOFF FSEACH DISC+ BAND TRK + TRK – 1 2 EF.B AUTO 3 4 5 6 DISC_+ DISC_– BAND TRK + TRK – 1 2 FJUMP RJUMP DSP3 AGC MODE JUMP MODE GAIN 3 4 5 DSP4 6 DISC_+ TOPEN DISC_– BIAS manual adjustment ADR setiing DISC_+ ADR. SEARCH LDON FCLOSE TCLOSE DISP1 EQ HOME DISC MODE OFF SET CRG FF CRG REW IV AUTO SPDL MODE TE_ OFST DISP2 FOPEN IV manual adjustment The displays of the the aboves two and three digits are disk modes identified with the mechanical switch. Valid while any key is pressed. Valid while any key is pressed. Valid while any key is pressed. Valid while any key is pressed. Valid while any key is pressed. Valid while any key is pressed. Valid while any key is pressed. Valid while any key is pressed. T gain UP returns to IDLE - Normal returns to IDLE. Changeover of TJUMP type Determine it with [DISC+], and it will return to IDLE. FGAIN (K07) → TGAIN (K13) → FBIAS (FB : $35) → return to IDLE. The upper level appears. Turn the target address for address search with the toggle for setting. Conduct a search aiming at the displayed address. After the search ends, it will return to IDLE. "000" during execution of AGC. After the adjustment ends, it will return to IDLE with "11111111" [DISC+]. Offset adjustment After the adjustment ends, 0 at the above four digit changes to 1. Display of offset adjustment result (The four measurement results are rotated with the toggle.) VC → FE → P I → TE → FOK Each servo is turned on by force. (The four EQs are rotated with the toggle.) Returns to the upper level. Motion at the home position The mode of disc is changed irrespectively of the state of the mechanical switch. (The display at the above treble digit is changed over according to the mode, is determined with.) S curve measurement Comes off with pre-pushing. Befor FCLOSE ***1XXX, After FCLOSE ***2XXX After the adjustment ends, change the 7th figure 0 to 1 with the key ON. After the FE balance adjustment ends, change the 8th figure 0 to 1 with the key ON. After the TE-OFST adjustment ends, change the 8th figure 9 to 1 with the key ON. Changeover between Offset Drive and CLVS. Indication at the above sixth digit : 0 in case of offset or 1 in case of CLVS The cycle is as follows: VI set value → ABCD measured value → EF.B set value →SE measured value → TEOFST. The upper level appears. After the adjustment on the right and left sides, press it again to end this. (Two the above digits are set value) Adjustment on the right and left sides. End with [DISP]. (Two the above digits are set value) The address display is selected with T.CLOSE. The cycle is as follows: B.E.R measurement for a second → B.E.R measurement for 10 seconds → ATER measurement for a second → ATER measurement for 10 second → F.T ERR count value → NewCRG value Revers * ATER is only in the Rcc GRV mode. (All the measurement vale exept F.T ERR are numberical values of two digits on.) MD select Mode Name : Alphanumeric characters were considered to be displayed in 8 digits. * : The values before operation are thoroughly checked. $ : Data read from CXD2655 are displayed. X : Set values are displayed. Data not shown on the display remain as they were before operation. BAND Reset - Flow Chart(Servo Section) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 48 MEH-P5350 7.1.2 DISASSEMBLY - Removing the Tuner Amp Unit (Fig.2) Remove the two screws. Straight the tabs at four locations indicated. Remove the three screws and then remove the Tuner Amp Unit. - Removing the Case (not shown) 1. Remove the Case. - Removing the MD Mechanism Module (Fig.1) Remove the four screws. Disconnect the connector and then remove the MD Mechanism Module. - Removing the Grille Assy (Fig.1) Disconnect the three stoppers and then remove the Grille Assy. Fig.1 Fig.2 Tuner Amp Unit MD Mechanism Module Grille Assy www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 49 MEH-P5350 - Removing the PU Unit 1. Provide short solder in section A, then remove the connector 2. Remove the two screws, then erect the board in the direction indicated by the white arrow head. 3. Remove the two screws and two springs. 4. Drive out the PU Unit through the direction indicated by the white arrow head. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 50 MEH-P5350 1. BUS+ 2. GND 3. GND 4. NC 5. BUS- 6. GND 7. BUS L+ INPUT 8. ASENB 9. BUS R+ INPUT 10. BUS R- INPUT 11. BUS L- INPUT 11 10 9 8 7 6 5 4 3 2 1 REAR OUTPUT ANTENNA JACK 1. RR+ 2. FR+ 3. RR- 4. FR- 5. RL+ 6. FL+ 7. RL- 8. FL- 9. NC 10. TEL 11. ILM 12. B.REM 13. ACC 14. NC 15. GND 16. B.UP FUSE 10A 1 2 10 16 15 7.1.3 CONNECTOR FUNCTION DESCRIPTION L R www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 51 MEH-P5350 7.2 PARTS 7.2.1 IC - Pin Functions (PE5213A) Pin No. Pin Name I/O Function and Operation 1 swvdd O Keyboard unit power supply control output 2,3 NC Not used 4 isens I Illumination power supply sense input 5 TESTIN I Test program mode input 6 NC Not used 7 VDSEL VD select 8-10 NC Not used 11 reset I Reset input 12 NC Not used 13 XT1 Not used 14 VSS GND 15 X2 Crystal oscillator connection pin 16 X1 Crystal oscillator connection pin 17 REGOFF Not used 18 REGC Not used 19 VDD Power supply 20 ILMPW O Illumination power supply control output 21 SYSPWR O System power control output 22 adpw O A/D converter power supply control output 23 LCDPW O LCD back light power supply control output 24 IPPW O Power supply control output for IP BUS interface IC 25 ASENBO O Slave power supply control output 26 DALMON O VDD power supply control output 27 TELIN I Telephone mute input 28 MUTE O System mute output 29,30 NC Not used 31 LOCL O LOCL output 32 LOCH O LOCH output 33 VCK O Clock output for electronic volume 34 VST O Strobe pulse output for electronic volume 35 VDT O Data output for electronic volume 36 emute O E.VOL mute output 37 A.ANT O Not used 38 SD I Station detector input 39 ST I FM stereo input 40 VSS GND 41 VDD Power supply 42-51 NC Not used 52 TUNPCE2 O PLL chip enable 2 output 53-61 NC Not used 62 PCL O Clock adjustment output 63 BRXEN I/O P-BUS reception enable input/output 64 bsrq I P-BUS service request output pin 65 BSCK I/O P-BUS serial clock input/output 66 BSI I P–BUS serial data input 67 BSO O P–BUS serial data output 68 BRST I P–BUS reset input 69-72 NC Not used 73 TEST I Test terminal 74 SL I Signal level input from tuner 75 MODEL I Model select input 76-81 NC Not used 82 AVDD A/D converter power supply 83 AVREF A/D converter reference voltage 84 AVSS A/D converter GND 85 RX I IP BUS data input 86 TX O IP BUS data output 87 GND GND 88 ldet GND www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 52 MEH-P5350 Pin No. Pin Name I/O Function and Operation 89 rck GND 90 RDS57K GND 91 GND GND 92 asens I ACC power sense input 93 bsens I Back up power sense input 94 TUNPDI I PLL IC data input 95 KYDT I Key data input 96 DPDT O Display data output 97 tunpck O Serial clock output for PLL IC 98 TUNPDO O Data output for PLL IC 99 TUNPCE O Chip enable output for PLL IC 100 PEE O Beep tone output 30 31 50 51 80 81 100 1 IC's marked by* are MOS type. Be careful in handling them because they are very liable to be damaged by electrostatic induction. 1 TAB 2 P-GND2 3 OUT2- 4 STBY 5 OUT2+ 6 VCC 7 OUT1- 8 P-GND1 9 OUT1+ 10 SVR 11 IN1 12 IN2 13 S-GND 14 IN4 15 IN3 16 AC-GND 17 OUT3+ 18 P-GND3 19 OUT3- 20 VCC 21 OUT4+ 22 MUTE 23 OUT4- 24 P-GND4 SWITCH 25 + - + - Offset Detection + - + - Offset Detection + - + - Offset Detection + - + - Offset Detection Protector; Over current limit sw_vcc stby Protector; Short circuit Mute circuit amp_vcc Stand-by Circuit Protector; Over voltage sw_vcc Protector; Thermal Reference amp_vcc PAL006A *PE5213A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 53 MEH-P5350 - Pin Functions (PD2068A) Pin No. Pin Name I/O Format Function and Operation 1 VSS GND 2 X1 Crystal oscillator connection pin 3 X0 Crystal oscillator connection pin 4 NC GND 5 VDD Power supply 6 NC Not used 7 DIM O C Dimmer output 8 RESET Reset 9,10 NC Not used 11 REM I Remote control reception input 12,13 NC Not used 14–17 KDT0-3 I Key data input 18 VDD Power supply 19 NC Not used 20 S0 O C System micro computer UART communication data output 21 S1 I System micro computer UART communication data input 22 NC Not used 23–78 SEG55-0 O L LCD segment output 79–86 COM0-7 O L LCD common output 87–92 KST1-6 O C Key strobe output 93,94 NC Not used 95-98 V4-1 LCD drive power supply 99,100 C1,C0 Not used *PD2068A 30 31 50 51 80 81 100 1 Format Meaning C C MOS L LCD C output DGND CLK Vref NC MUTE STB DATA IN4 -_R IN4+_R IN3_R IN1_R IN2_R Vcc IN1_L IN2_L IN3_L IN4+_L IN4 -_L 12 11 10 9 8 7 6 5 4 3 2 1 20 19 18 17 16 15 14 13 30 29 28 27 26 25 24 23 22 21 40 39 38 37 36 35 34 33 32 31 44 43 42 41 Tone_out_RL SV_in_RL SV_in_FL Tone_out_FL Front_out_L Rear_out_L NC NC NC NC PV_in_R PV_in_L Sel_out_R AGND_L NC NC NC NC Tone_out_FR AGND_R SV_in_RR SV_in_FR Tone_out_RR Rear_out_R Front_out_R Sel_out_L Isolator circuit Digital block Zero cross Secondary volume MUTE Secondary volume Treble2 Bass2 Anti radiation filter Anti radiation filter Primary volume Anti Alias filter Loudness volume Bass Middle Treble from Rch to Rch LPF (L+R) Rch block (same as Lch) detect circuit Source Gain adjuster PML008A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 54 MEH-P5350 * PD5655A 25 26 50 51 75 76 100 1 CXD2667R 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 GFS/SLD VDIO3 VSIO3 VDC0 MNT0 MNT1 MNT2 MNT3 SWDT SCLK XLAT VSCO SRDT SENS XRST SQSY TST2 DATA1 VDIOSC OSCI OSCO VSIOSC DAVSSL VREFL AOUTL DAVDDL DAVDDR AOUTR VREFR DAVSSR 90 89 88 87 86 85 84 83 82 81 80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 ADRB AVS2 AVD2 ADRT ADIO VC AUX1 FE ABCD BOTM PEAK VSC2 VDC2 TFDR TRDR LDDR APCREF DTRF CKRF XLRF FOCNT VSIO2 VDIO2 ADFG MVCI FRDR FFDR D3 D2 D0/FOK 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 SE TE AUX2 DCHG APC DDIN DDOUT ASYO ASYI AVDI BIAS RFI AVSI PCO FILI FILO CLTV VDC3 VSC3 FS4 SRDR SFDR SPRD SPFD FGIN TEST1 TEST2 TEST3 MTFLGR/TRK FOK/FKS 60 59 58 57 56 55 54 53 52 51 50 49 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31 D1/GFS DVSS DVDD XWE XRAS A09 XCAS XOE VSIO1 A11 A08 A07 A06 A05 A04 A10 A00 A01 A02 A03 VDIO1 FS256 XBCK LRCK DADT XINT DOUT MTFLGL VDC1 VSC1 Monitor Control CPU/IF OSC Cell LPF EACH BLOCK EACH BLOCK S S PWM Generator A/D Converter PLL DC-DC Converter Auto Sequencer S Servo DSP Analog MUX Spindle Servo ADIP Decoder EFM/ACIRC Decoder Shock Resistant Memory Controller COMP Subcode Processor 4M DRAM DAC ATRAC/ ATRAC3 TRK Digital Audio I/F 4 S BA033FP REFERENCE VOLTAGE 1 2 3 VCC GND OUT - + www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 55 MEH-P5350 - Pin Functions(PD5655A) Pin No. Pin Name I/O Format Function and Operation 1-5 NC Open 6 BYTE I VSS 7 CNVSS I VSS 8,9 NC O C Open 10 reset I Resetting input 11 XOUT O Main clock oscillation pin 12 VSS1 GND 13 XIN I Main clock oscillation pin 14 VCC1 5V 15 NC Not used 16 SQSY I DISC sub-code Q sink/ADIP sink 17 brst I P-BUS resetting input 18 XINT I Decoder interrupting input 19 NC O C Open 20 SENS I MD LSI SENSE output monitor 21-27 NC Open 28 XRST O C MD LSI resetting output 29 SWDT O C MD LSI IF data output 30 SRDT I MD LSI IF data input 31 SCLK I MD LSI IF clock output 32 XLAT O C MD LSI IF latch signal output 33 BSO O C P-BUS data output 34 BSI I P-BUS data input 35 BSCK I/O C P-BUS clock input/output 36 NC Open 37 bsrq O C P-BUS serial pole request output 38 BRXEN I/O C Receivable I/O 39-42 NC Open 43 LDCNT O C Laser diode ON/OFF 44 VDON O C Power ON/OFF 45-59 NC Open 60 VCC2 5V 61 CK I Clock signals 62 VSS2 GND 63-74 NC Open 75 MUTE O C Comprehensive mute output 76 CONT O C Servo-driver power control 77 MDEJECT O C Loading motor control output 78 MDLOAD O C Loading motor control output 79 LSW I Disc loading start signal input 80 CSW I Loading end signal input 81 ESW I EJECT end signal input 82 DISC I Reflectance discriminating signal input 83 HOME I C Home position detection input 84,85 NC Open 86 VDDSW O C SW VDD ON/OFF 87-90 NC Open 91 2.5VSENSE Open 92 NC Open 93 TEMP HIGH/LOW temperature detection input 94 AVSS A/D GND 95 VDSENSE VD power UP/DOWN sensing 96 VREF Reference voltage input for A/D converter 97 AVCC Analog power supply 98-100 NC Open www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 56 MEH-P5350 No. Symbol I/O Explain 1 STIND O stereo "Low" when the FM stereo signals are received. indicator To be pulled up to the "VDD" at 47kΩ. 2 FMSD O FM station "High" when signals are received. To be pulled up to the "VDD" at 47kΩ detector Meanwhile, 10kΩ should be used when taking diver FIX trigger from here and "High: 0.9VDD or more" and "Low: 250mV or less". (Should satisfy the diver IC specifications) 3 NL1 O noise level-1 "High" when noise is received. Output for the RDS. GND at 47kΩ //1,800pF. 4 NL2 O noise level-2 "High" when noise is received. Output for the RDS. GND at 36kΩ //330pF. 5 Rch O R channel FM stereo "R-ch" signal output or AM audio output. output Add the specified di-emphasis constant. 6 Lch O L channel FM stereo "L-ch" signal output or AM audio output. output Add the specified di-emphasis constant. 7 WC write control EEPROM write control. Writing permissible at "Low". Normally open. 8 SDBW O SD bandwidth SD bandwidth signal output. For detection of detuning data for the RDS. 9 NC Not used 10 VDD power Power supply pin for the digital section. supply D.C. 5V +/- 0.25V. Be careful about overlapping noise in the logic section. 11 DGND digital ground Grounding for the digital section. 12 CE2 I chip enable-2 EEPROM chip enable. Active a "Low" To be pulled up to the "VDD" at 47kΩ 13 SL I/O signal level Received FM/AM signal level (strength) output. Connect the specified load resistor and capacitor (10k Ω + 39k Ω //4,700pF) 14 DI/DO I/O data input/ Data input/Data output data output To be pulled up to the "VDD" at 47kΩ 15 CK I clock Clock input To be pulled up to the "VDD" at 47kΩ 16 CE1 I chip enable-1 AF·RF chip enable. Active at "High" To be grounded at 47kΩ 17 NC Not used 18 LDET O lock detector Active at "Low". To be pulled up to the "VDD" at 47kΩ 19 CREQ I current request Active at "Low". To be grounded at 47kΩ 20 NC Not used 21 COMP O composite signal FM composite signal output. r out < 100Ω 22 VCC power supply Analog section power supply pin.D.C.8.4V +/- 0.3V 23 LOCH I local high FM local high pin. When seeking local high, apply 5V together with "LOCL". 24 FMLOCL I FM local low FM local low pin. When seeking local low, apply 5V to the base of the NPN transistor with which the specified resistor is being connected to the emitter. Keep it open in case of ordinary marketed models. 25 LOCL I local low FM/AM local low pin. When seeking local low, apply 5V to the base of the NPN transistor. Since this pin is exclusive for AM when the FMLOCL is in use, do not drive it under FM. 26 RFGND RF ground Grounding for the antenna section. 27 FMANT I FM antenna input FM antenna input. 75Ω. Serge absorber (DSP-201M-S00B) is necessary. 28 AMANT I AM antenna input AM antenna input. High impedance. Connect to the antenna through an L (LAU type) of 4.7µH.To cope with the power transmission line hums, insert a series circuit consisting of an L (a coil of about 100mH) + R (a resistor of 470 Ω to 2.2kΩ) between the GND. IC 3 EEPROM FM/AM TUNER UNIT 28 27 FM/AM 1ST IF 10.7MHz T51 Q51 CF51 CF52 CF53 IC1 MIXER, IF AMP, DET. 6 21 18 LDET COMP 22 25 10 14 12 15 16 8 13 2 3 4 CF202 VDD VCC DI/DO CE2 CK CE1 SDBW SL FMSD NL1 NL2 IC 2 FM MPX AMANT FMANT ATT ATT AMRF FMRF IMG ADJ RF ADJ X901 10.25MHz ANT ADJ LOCL 23 LOCH AMDET MPXREF 41kHz AM 2ND IF 450kHz 19 CREQ 11 DGND 1 STIND L ch 5 R ch 9 24 NC FMLOCL 20 17 7 NC NC WC 26 RFGND - FM/AM Tuner Unit www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 57 MEH-P5350 COM 7 COM 7 COM 7 COM 6B COM 6B COM 6B COM 5 COM 5 COM 5 COM 4 COM 4 COM 4 COM 6A COM 6A COM 6A COM 3 COM 3 COM 3 COM 1B COM 1B COM 1B COM 2 COM 2 COM 2 COM 1A COM 1A COM 1A COM 0 COM 0 COM 0 COM 7 COM 7 COM 7 COM 6B COM 6B COM 6B SEG52A SEG52A SEG52A COM 5 COM 5 COM 5 COM 4 COM 4 COM 4 COM 6A COM 6A COM 6A COM 3 COM 3 COM 3 COM 1B COM 1B COM 1B COM 2 COM 2 COM 2 COM 1A COM 1A COM 1A COM 0 COM 0 COM 0 SEG10 SEG SEG SEG11 SEG SEG SEG12 SEG SEG SEG13 SEG SEG SEG14 SEG SEG SEG15 SEG SEG SEG16 SEG SEG SEG17 SEG SEG SEG18 SEG SEG SEG19 SEG SEG SEG20 SEG SEG SEG21 SEG SEG SEG25 SEG SEG SEG26 SEG SEG SEG24 SEG SEG22 SEG23 SEG SEG SEG SEG SEG SEG SEG SEG SEG SEG SEG27 SEG28 SEG29 SEG30 SEG31 SEG32 SEG33 SEG34 SEG35 SEG36 SEG37 SEG38 SEG39 SEG40 SEG41 SEG42 SEG43 SEG44 SEG45 SEG46 SEG47 SEG48 SEG49 SEG50 SEG51B SEG52B SEG53B SEG54B SEG55B SEG SEG SEG 9 SEG 9 SEG 9 SEG 8 SEG 8 SEG 8 SEG 7 SEG 7 SEG 7 SEG 6 SEG 6 SEG 6 SEG 5 SEG 5 SEG 5 SEG 4 SEG 4 SEG 4 SEG 3 SEG 3 SEG 3 SEG 2 SEG 2 SEG 2 SEG 1 SEG 1 SEG 1 SEG53A SEG53A SEG53A SEG51A SEG51A SEG51A SEG 0 SEG 0 SEG 0 SEG54A SEG54A SEG54A SEG55A SEG55A SEG55A COMMON SEGMENT 7.2.2 DISPLAY - CAW1686 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 58 MEH-P5350 7.3 OPERATIONAL FLOW CHART VDD=5V 41pin Power ON L YES L bsens 93pin dsens 2pin adpw←H 22pin swvdd←L 41pin Source keys operative Completes power-on operation. (After that, proceed to each source operation) SYSPW←H 21pin Starts communication with Grille microcomputer. Source ON 300ms 300ms In case of the above signal, the communication with Grille microcomputer may fail. If the time interval is not 300msec, the oscillator may be defective. IPPW←H 24pin ASNBO←H 25pin BRST←H 68pin www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 59 MEH-P5350 8. OPERATIONS AND SPECIFICATIONS 8.1 OPERATIONS Key Finder Head Unit Remote Controller (CD-R600) The remote controller (CD-R600) enabling remote control of the head unit is sold separately. Operation is the same as when using buttons on the head unit. ATT button This lets you quickly lower volume level (by about 90%). Press once more to return to the original volume level. FUNCTION button SOURCE/OFF button BAND button +/– button 5/∞ buttons 2/3 buttons AUDIO button PGM button EQ button +/– buttons MD Loading Slot AUDIO button SFEQ button 5/∞/2/3 buttons BAND button Buttons 1–6 FUNCTION button DISPLAY button CLOCK button EJECT button SOURCE button www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 60 MEH-P5350 Before Using This Product About This Product Playback of MDs featuring long recordings This product is MDLP* compatible, so you can playback MDs featuring long recordings. * MDLP is a data compression system that lets you record on regular MDs for 2 or 4 times the length of time previously possible. About This Manual This product features a number of sophisticated functions ensuring superior reception and operation. All are designed for the easiest possible use, but many are not self-explanatory. This operation manual is intended to help you benefit fully from their potential and to maximize your listening enjoyment. We recommend that you familiarize yourself with the functions and their operation by reading through the manual before you use this product. It is especially important that you read and observe the “Precaution” on page. This manual explains head unit operation. You can perform the same operations with the remote controller. When using the Remote Controller (CD-R600) CD-R600, another sold separately remote controller, is equipped with the PGM button in which a frequently used function is preprogramed by each source. A press of PGM button activates the functions in the following chart. Source Function name Tuner Best Stations Memory (OFF) Best Stations Memory (ON) (Hold for 2 seconds) Built-in MD player Pause CD player (one disc only) Pause Multi-CD player Pause TV Best Station Sequential Memory (OFF) Best Station Sequential Memory (ON) (Hold for 2 seconds) Note: • For the details of TV and CD player (one disc only) functions, refer to their manuals. Before Using This Product Precaution • Keep this manual handy as a reference for operating procedures and precautions. • Always keep the volume low enough for outside sounds to be audible. • Protect the product from moisture. • If the battery is disconnected, the preset memory will be erased and must be repro- grammed. • If this product fails to operate properly, contact your dealer or your nearest authorized Pioneer Service Station. When using the 50-Disc Type Multi-CD Player The available functions of the 50-Disc Type Multi-CD Player are described in this Operation Manual. Note that other 50-Disc Type Multi-CD Player functions cannot be used with this product. CAUTION: USE OF CONTROL OR ADJUSTMENT OR PERFOR- MANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. CAUTION: THE USE OF OPTICAL INSTRUMENTS WITH THIS PRODUCT WILL INCREASE EYE HAZARD. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 61 MEH-P5350 Basic Operation To Listen to Music The following explains the initial operations required before you can listen to music. Note: • Loading a disc in this product. 1. Select the desired source (e.g. Tuner). Each press of the SOURCE button selects the desired source in the following order: CD player (one disc only) = TV = Tuner = Built-in MD player = Multi-CD player = External Unit = AUX Note: • External Unit refers to a Pioneer product (such as one available in the future) that, although incom- patible as a source, enables control of basic functions by this product. Only one External Unit can be controlled by this product. • In the following cases, the sound source will not change: * When a product corresponding to each source is not connected to this product. * When no disc is set in this product. * When no disc is set in the CD player (one disc only). * When no magazine is set in the Multi-CD player. * When the AUX (external input) is set to OFF. • When this product’s blue/white lead is connected to the car’s Auto-antenna relay control terminal, the car’s Auto-antenna extends when this product’s source is switched ON. To retract the antenna, switch the source OFF. 2. Raise or lower the volume. 3. Turn the source OFF. Hold for 1 second Each press changes the Source ... Basic Operation Basic Operation of Tuner Reset the AM tuning step from 9 kHz (the factory preset step) to 10 kHz when using the tuner in North, Central or South America. Manual and Seek Tuning • You can select the tuning method by changing the length of time you press the 2/3 button. Manual Tuning (step by step) 0.5 seconds or less Seek Tuning 0.5 seconds or more Note: • If you continue pressing the button for longer than 0.5 seconds, you can skip broadcasting stations. Seek Tuning starts as soon as you release the button. • Stereo indicator “” lights when a stereo station is selected. • With this product, “LP:” is not displayed before track titles regardless of the MD recording method. (On some MDs featuring long recordings, “LP:” is previously input before track titles.) Preset Number Indicator Band F1 (FM1) = F2 (FM2) = F3 (FM3) = A1 (AM) Band Indicator Frequency Indicator Preset Tuning • You can memorize broadcast stations in buttons 1 through 6 for easy, one-touch station recall. Preset station recall 2 seconds or less Broadcast station preset memory 2 seconds or more Note: • Up to 18 FM stations (6 in F1 (FM1), F2 (FM2) and F3 (FM3)) and 6 AM stations can be stored in memory. • You can also use the 5 or ∞ buttons to recall broadcast sta- tions memorized in buttons 1 through 6. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 62 MEH-P5350 Basic Operation of Built-in MD Player Eject Note: • The MD function can be turned ON/OFF with the disc remaining in this product. • A disc left partially inserted after ejection may incur damage or fall out. Play Time Indicator Track Number Indicator Track Search and Fast Forward/Reverse • You can select between Track Search or Fast forward/Reverse by pressing the 2/3 button for a different length of time. Track Search 0.5 seconds or less Fast forward/Reverse Continue pressing Note: • When you load a disc, this product reads information recorded on the disc such as the number of tracks. While the disc is being read, “TOC READ” is indicated in the display. • If you load a disc with the arrow pointing in the wrong direction, it is automatically ejected. • If the Built-in MD player cannot operate properly, an error message (such as “ERROR-11”) appears on the display. Refer to “Built-in MD Player’s Error Message” . MD Loading Slot The Built-in MD player plays one MD at a time. Load the MD in the direction of the arrow, with the label side facing up. Note: • Load an MD after confirming the MD shutter) is closed. • Do not insert anything other than a MD into the MD Loading Slot. Basic Operation Basic Operation of Multi-CD Player This product can control a Multi-CD player (sold separately). Play Time Indicator Track Number Indicator Disc Number Indicator Disc Number Search (for 6-Disc, 12-Disc types) • You can select discs directly with the 1 to 6 buttons. Just press the num- ber corresponding to the disc you want to listen to. Note: • When a 12-Disc Multi-CD Player is connected and you want to select disc 7 to 12, press the 1 to 6 buttons for 2 seconds. Note: • The Multi-CD player may perform a preparatory operation, such as verifying the presence of a disc or reading disc information, when the power is turned ON or a new disc is selected for playback. “READY” is displayed. • If the Multi-CD player cannot operate properly, an error message such as “ERROR-14” is displayed. Refer to the Multi-CD player owner’s manual. • If there are no discs in the Multi-CD player magazine, “NO DISC” is displayed. Track Search and Fast Forward/Reverse • You can select between Track Search or Fast Forward/Reverse by pressing the 2/3 button for a different length of time. Track Search 0.5 seconds or less Fast Forward/Reverse Continue pressing Disc Search www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 63 MEH-P5350 15. Blue/white To system control terminal of the power amp or Auto-antenna relay control terminal (max. 300mA 12 V DC). 13. Connecting cords with RCA pin plugs (sold separately) 23. Right 18. White 20. Gray 19. White/black 25. Green 26. Green/black 21. Gray/black 27. Violet 28. Violet/black 17. Front speaker 22. Left 30. Perform these connections when using a different amp (sold separately). 29. With a 2 speaker system, do not connect anything to the speaker leads that are not connected to speakers. 8. Yellow To terminal always supplied with power regardless of ignition switch position. 11. Black (ground) To vehicle (metal) body. 9. Red To electric terminal controlled by ignition switch (12 V DC) ON/OFF. 10. Orange/white To lighting switch terminal. 24. Rear speaker or Subwoofer 24. Rear speaker or Subwoofer 17. Front speaker 24. Rear speaker or Subwoofer 24. Rear speaker or Subwoofer 14. Power amp (sold separately) 31. 12. Fuse 6. IP-BUS cable 4. IP-BUS input (Blue) 1. This Product 3.Antenna jack 2. Rear or Subwoofer output 5. Multi-CD player (sold separately) Note: When a subwoofer is connected to this unit instead of a rear speaker, change the rear output setting in the Initial Setting (refer to the Operation Manual). The subwoofer output of this unit is monaural. 7. ellow/black Y If you use a cellular telephone, connect it via the Audio Mute lead on the cellular telephone. If not, keep the Audio Mute lead free of any connections. 16. System remote control - CONNECTION DIAGRAM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MEH-P5350 8.2 SPECIFICATIONS General Power source .......... 14.4 V DC (10.8 – 15.1 V allowable) Grounding system ........................................ Negative type Max. current consumption ...................................... 10.0 A Backup current ................................................ 5mA or less Dimensions (DIN) (chassis) ...... 178 (W) × 50 (H) × 157 (D) mm (nose) .......... 188 (W) × 58 (H) × 22 (D) mm (D) (chassis) ...... 178 (W) × 50 (H) × 162 (D) mm (nose) .......... 170 (W) × 46 (H) × 17 (D) mm Weight ...................................................................... 1.1 kg Amplifier Continuous power output is 22 W per channel min. into 4 ohms, both channels driven 50 to 15,000 Hz with no more than 5% THD. Maximum power output ...................................... 50 W × 4 70 W × 1 ch/2 Ω (for Subwoofer) Load impedance ...................... 4 Ω (4 – 8 Ω [2 Ω for 1 ch] allowable) Preout maximum output level/ output impedance .................................... 2.2 V/1 kΩ Equalizer (3-Band Parametric Equalizer) (Low) .......................... Frequency: 40/80/100/160 Hz Q Factor: 0.35/0.59/0.95/1.15 (+6 dB when boosted) Level: ±12 dB (Mid) .......................... Frequency: 200/500/1k/2k Hz Q Factor: 0.35/0.59/0.95/1.15 (+6 dB when boosted) Level: ±12 dB (High) ................ Frequency: 3.15k/8k/10k/12.5k Hz Q Factor: 0.35/0.59/0.95/1.15 (+6 dB when boosted) Level: ±12 dB Loudness contour (Low) .................. +3.5 dB (100 Hz), +3 dB (10 kHz) (Mid) ................ +10 dB (100 Hz), +6.5 dB (10 kHz) (High) ................ +11 dB (100 Hz), +11 dB (10 kHz) (volume: –30 dB) Tone controls (Bass) .......................... Frequency: 40/63/100/160 Hz Level: ±12 dB (Treble) .................. Frequency: 2.5k/4k/6.3k/10k Hz Level: ±12 dB Subwoofer output Frequency ............................................ 50/80/125 Hz Slope ........................................................ –12 dB/oct. Gain ................................................................ ±12 dB MD player System ................................ Mini disc digital audio system Usable discs ........................................................ Mini disc Signal format .................... Sampling frequency: 44.1 kHz Number of quantization bits: 16; linear Frequency characteristics ............ 20 – 20,000 Hz (±1 dB) Signal-to-noise ratio ...... 94 dB (1 kHz) (IEC-A network) Dynamic range ............................................ 92 dB (1 kHz) Number of channels ............................................ 2 (stereo) FM tuner Frequency range ...................................... 87.5 – 108 MHz Usable sensitivity ...................................................... 9 dBf (0.8 µV/75 Ω, mono, S/N: 30 dB) 50 dB quieting sensitivity ........................................ 15 dBf (1.5 µV/75 Ω, mono) Signal-to-noise ratio ...................... 70 dB (IEC-A network) Distortion .......................... 0.3% (at 65 dBf, 1 kHz, stereo) Frequency response ...................... 30 – 15,000 Hz (±3 dB) Stereo separation .......................... 40 dB (at 65 dBf, 1 kHz) AM tuner Frequency range ........................ 531 – 1,602 kHz (9 kHz) 530 – 1,640 kHz (10 kHz) Usable sensitivity .............................. 18 µV (S/N: 20 dB) Selectivity .................................................. 50 dB (±9 kHz) 50 dB (±10 kHz) Note: • US and foreign patents licensed from Dolby Laboratories. • Specifications and the design are subject to possi- ble modification without notice due to improve- ments. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
