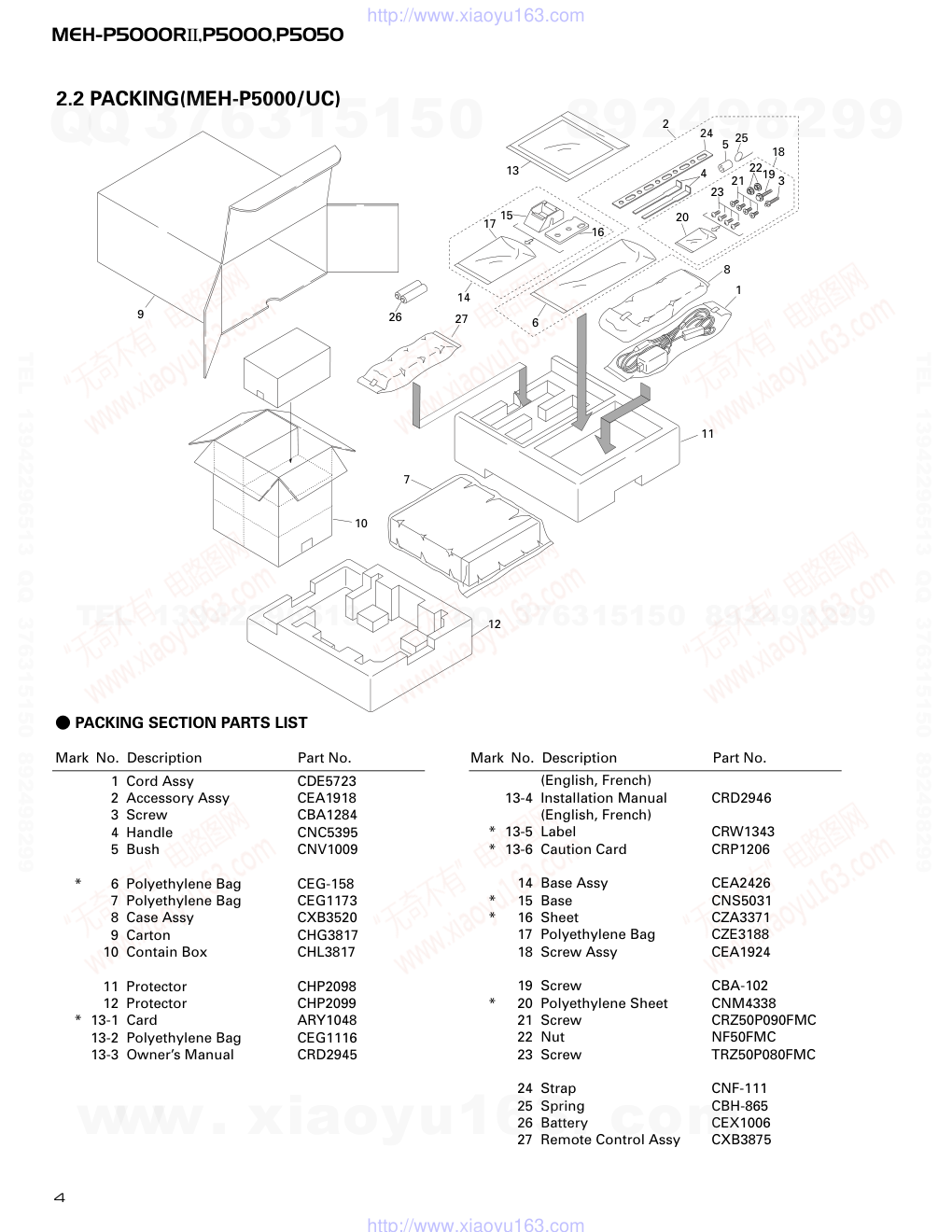

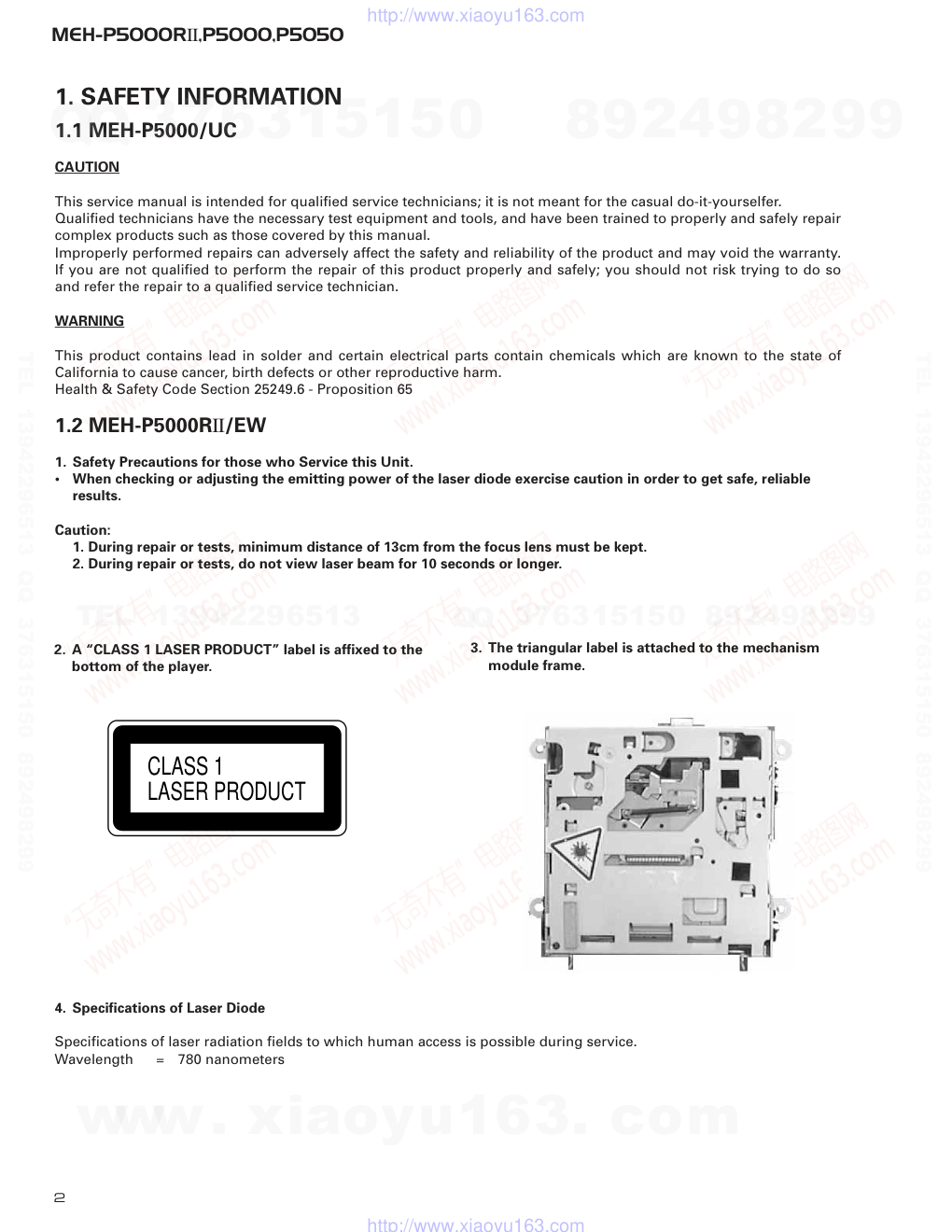

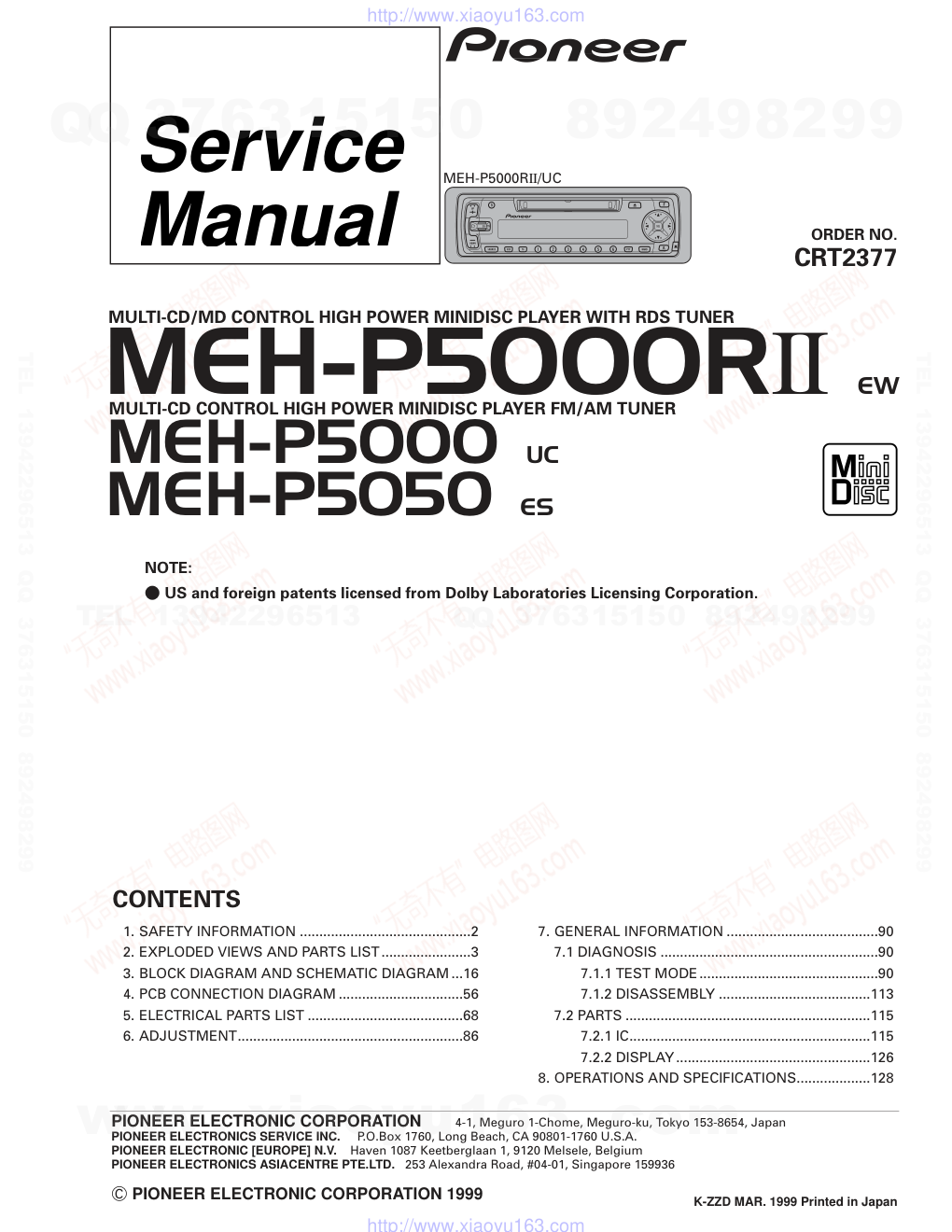

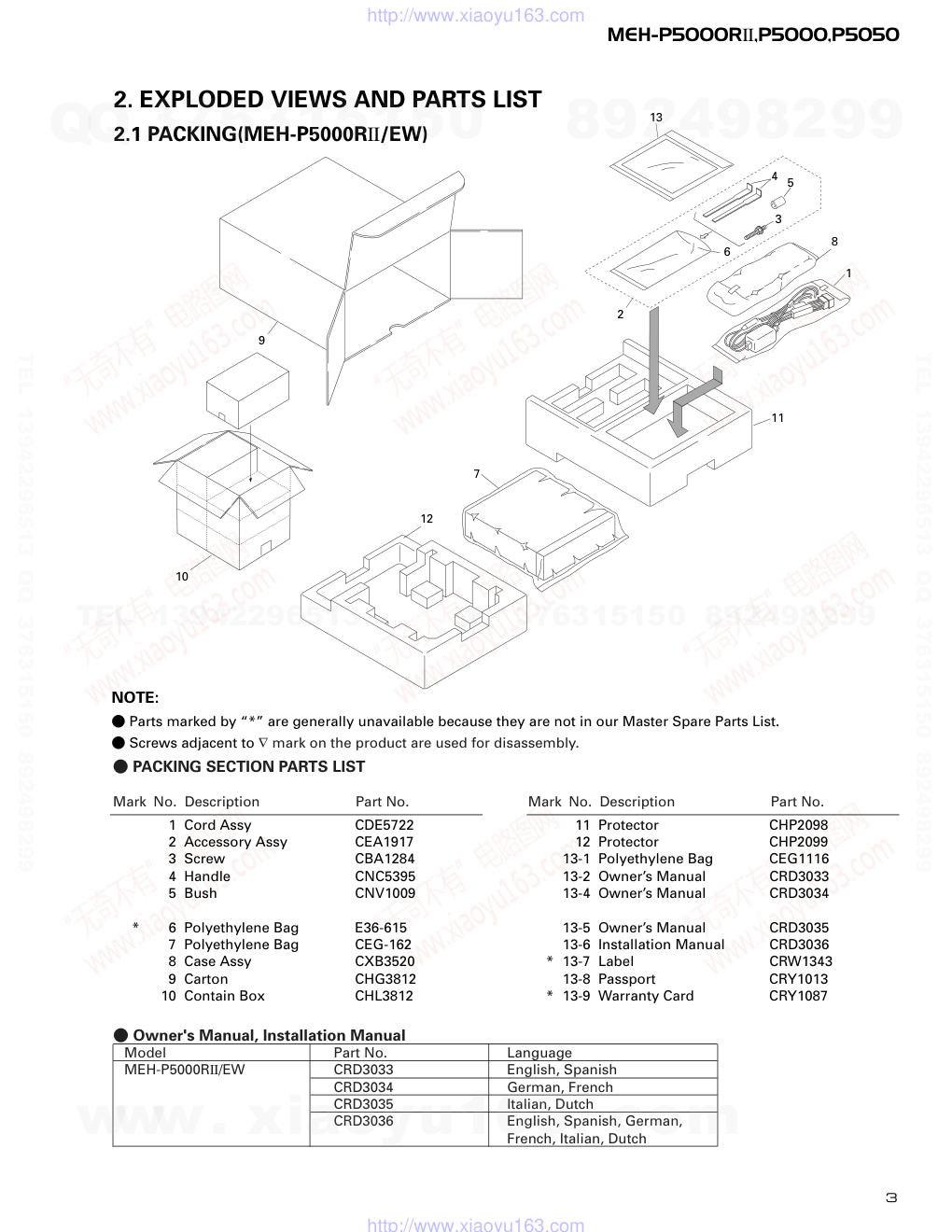

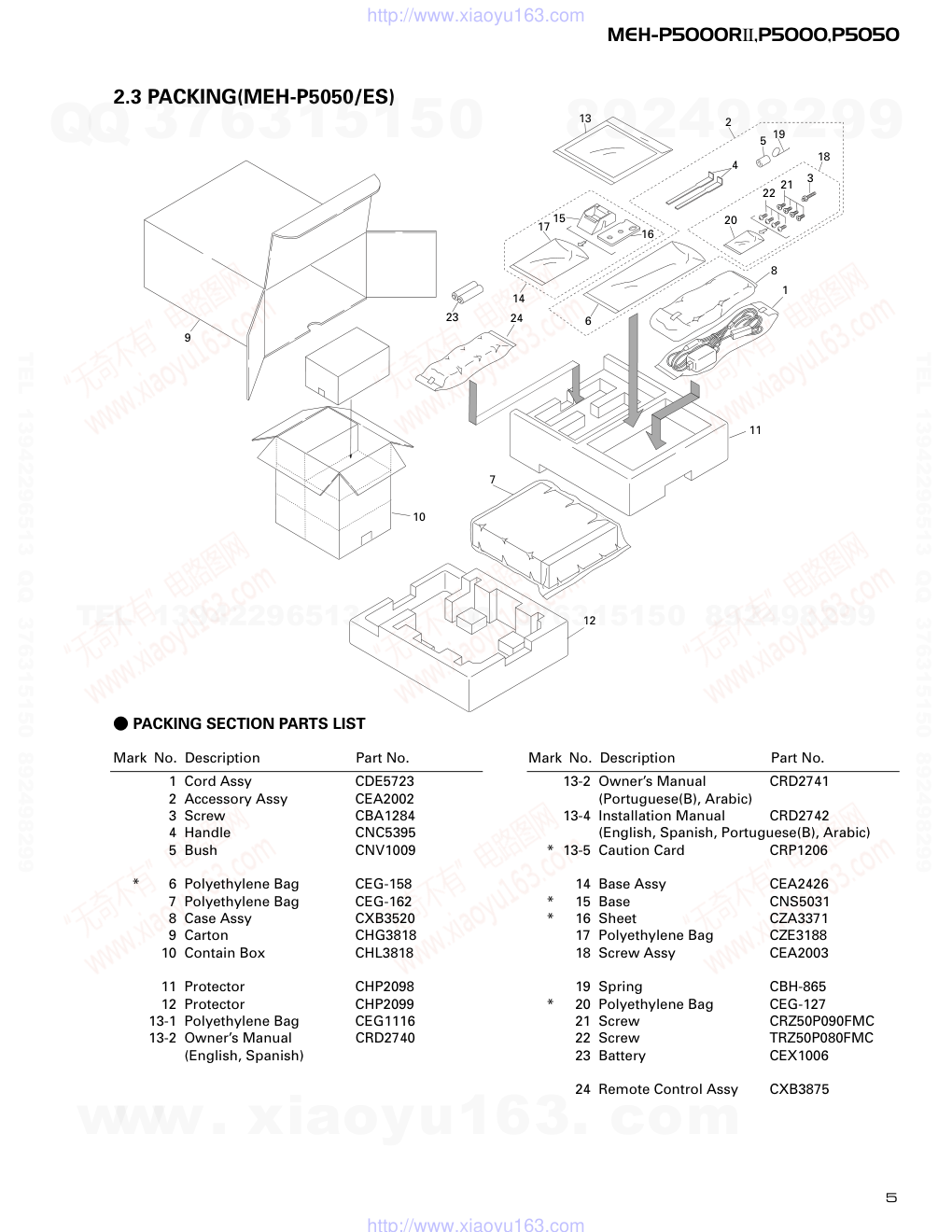

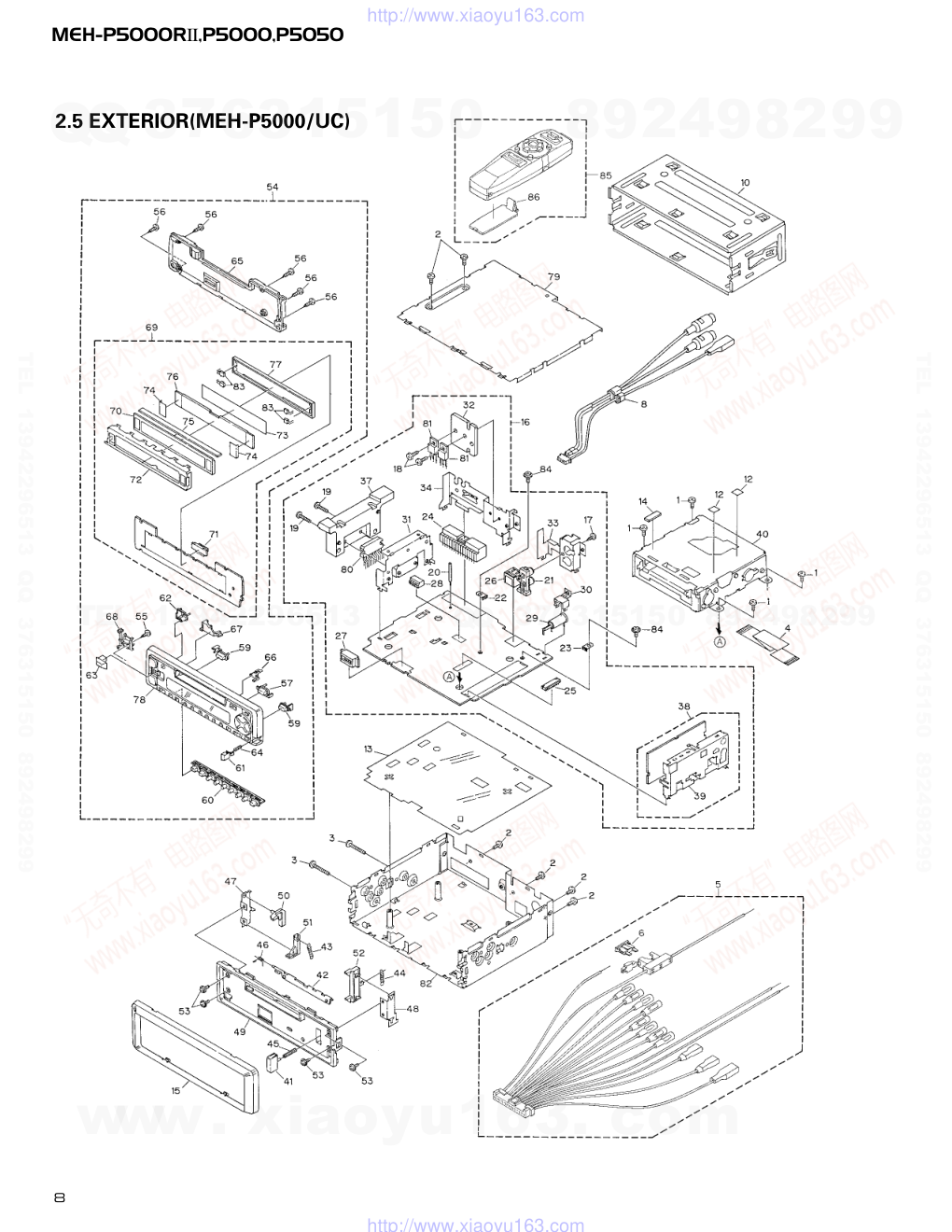

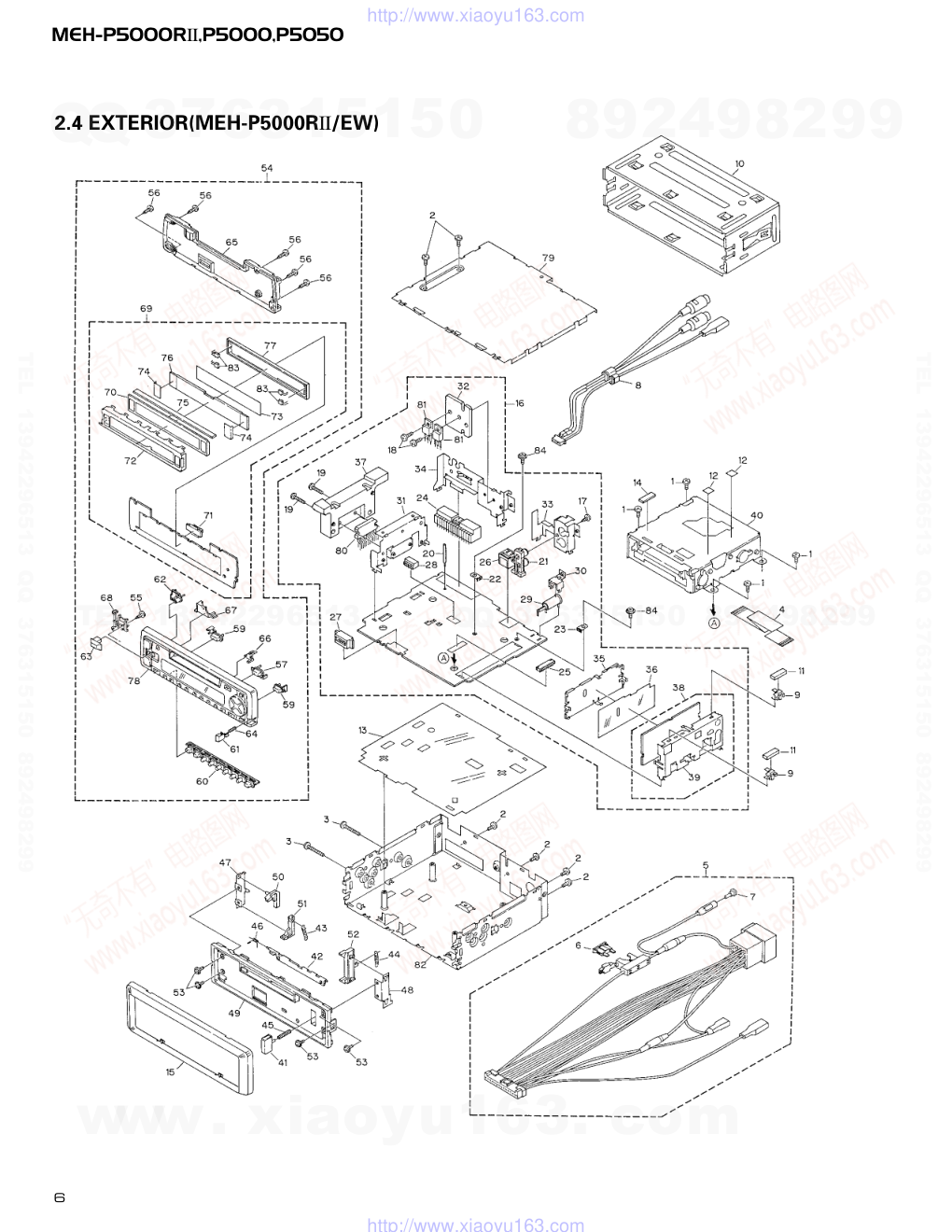

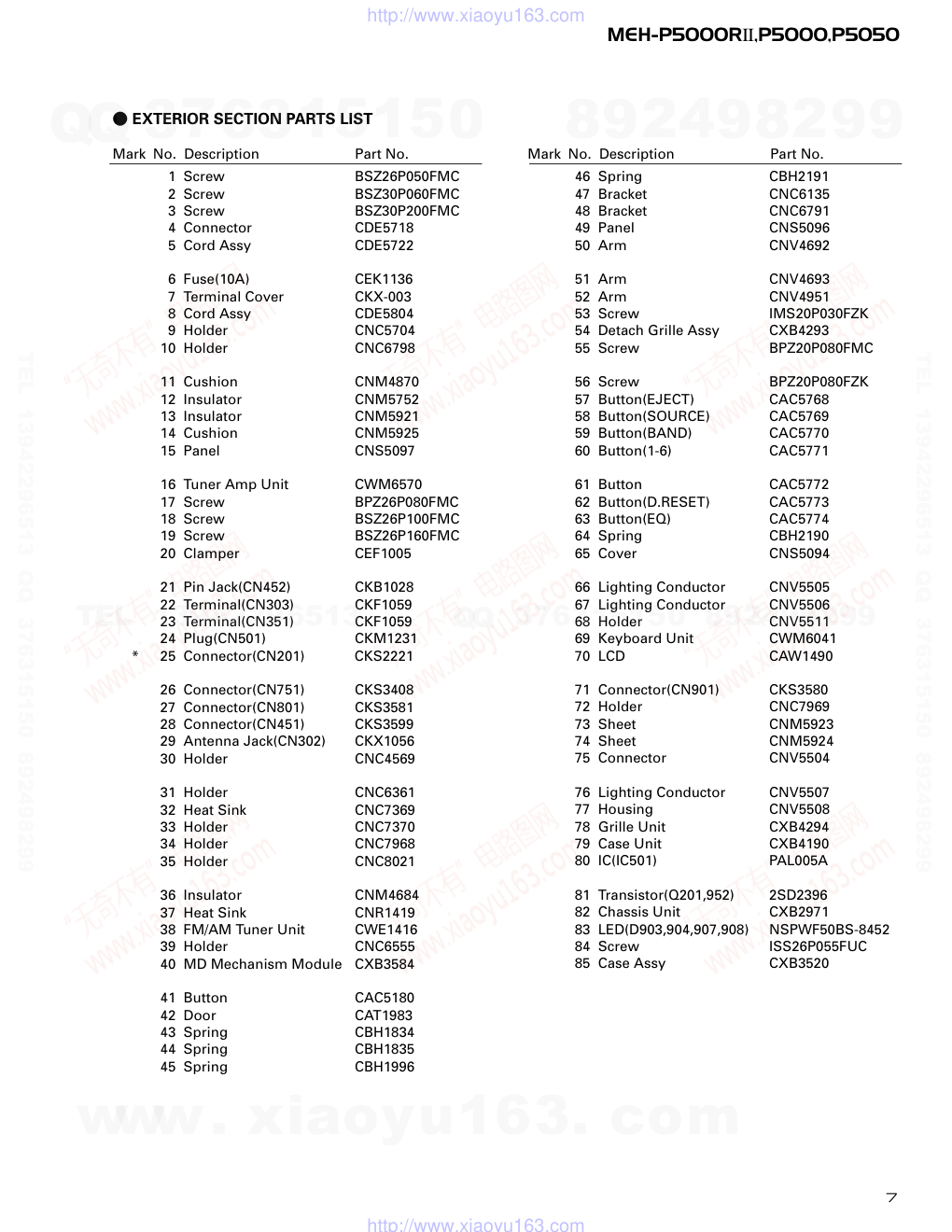

PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS SERVICE INC. P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A. PIONEER ELECTRONIC [EUROPE] N.V. Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #04-01, Singapore 159936 C PIONEER ELECTRONIC CORPORATION 1999 K-ZZD MAR. 1999 Printed in Japan ORDER NO. CRT2377 MULTI-CD/MD CONTROL HIGH POWER MINIDISC PLAYER WITH RDS TUNER MEH-P5000R— EW Service Manual MULTI-CD CONTROL HIGH POWER MINIDISC PLAYER FM/AM TUNER MEH-P5000 UC MEH-P5050 ES CONTENTS 1. SAFETY INFORMATION ............................................2 2. EXPLODED VIEWS AND PARTS LIST.......................3 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM ...16 4. PCB CONNECTION DIAGRAM ................................56 5. ELECTRICAL PARTS LIST ........................................68 6. ADJUSTMENT..........................................................86 7. GENERAL INFORMATION .......................................90 7.1 DIAGNOSIS ........................................................90 7.1.1 TEST MODE..............................................90 7.1.2 DISASSEMBLY .......................................113 7.2 PARTS ...............................................................115 7.2.1 IC..............................................................115 7.2.2 DISPLAY..................................................126 8. OPERATIONS AND SPECIFICATIONS...................128 NOTE: - US and foreign patents licensed from Dolby Laboratories Licensing Corporation. MEH-P5000R—/UC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 MEH-P5000R—,P5000,P5050 1. SAFETY INFORMATION 1.1 MEH-P5000/UC CAUTION This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely; you should not risk trying to do so and refer the repair to a qualified service technician. WARNING This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 - Proposition 65 1.2 MEH-P5000R—/EW 1. Safety Precautions for those who Service this Unit. • When checking or adjusting the emitting power of the laser diode exercise caution in order to get safe, reliable results. Caution: 1. During repair or tests, minimum distance of 13cm from the focus lens must be kept. 2. During repair or tests, do not view laser beam for 10 seconds or longer. 2. A “CLASS 1 LASER PRODUCT” label is affixed to the bottom of the player. 3. The triangular label is attached to the mechanism module frame. 4. Specifications of Laser Diode Specifications of laser radiation fields to which human access is possible during service. Wavelength = 780 nanometers CLASS 1 LASER PRODUCT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 MEH-P5000R—,P5000,P5050 2. EXPLODED VIEWS AND PARTS LIST 2.1 PACKING(MEH-P5000R—/EW) 1 Cord Assy CDE5722 2 Accessory Assy CEA1917 3 Screw CBA1284 4 Handle CNC5395 5 Bush CNV1009 * 6 Polyethylene Bag E36-615 7 Polyethylene Bag CEG-162 8 Case Assy CXB3520 9 Carton CHG3812 10 Contain Box CHL3812 11 Protector CHP2098 12 Protector CHP2099 13-1 Polyethylene Bag CEG1116 13-2 Owner’s Manual CRD3033 13-4 Owner’s Manual CRD3034 13-5 Owner’s Manual CRD3035 13-6 Installation Manual CRD3036 * 13-7 Label CRW1343 13-8 Passport CRY1013 * 13-9 Warranty Card CRY1087 NOTE: - Parts marked by “*” are generally unavailable because they are not in our Master Spare Parts List. - Screws adjacent to ∇ mark on the product are used for disassembly. - PACKING SECTION PARTS LIST Mark No. Description Part No. Mark No. Description Part No. - Owner's Manual, Installation Manual Model Part No. Language MEH-P5000R—/EW CRD3033 English, Spanish CRD3034 German, French CRD3035 Italian, Dutch CRD3036 English, Spanish, German, French, Italian, Dutch 13 5 3 8 1 6 11 7 12 10 9 4 2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MEH-P5000R—,P5000,P5050 2.2 PACKING(MEH-P5000/UC) 1 Cord Assy CDE5723 2 Accessory Assy CEA1918 3 Screw CBA1284 4 Handle CNC5395 5 Bush CNV1009 * 6 Polyethylene Bag CEG-158 7 Polyethylene Bag CEG1173 8 Case Assy CXB3520 9 Carton CHG3817 10 Contain Box CHL3817 11 Protector CHP2098 12 Protector CHP2099 * 13-1 Card ARY1048 13-2 Polyethylene Bag CEG1116 13-3 Owner’s Manual CRD2945 (English, French) 13-4 Installation Manual CRD2946 (English, French) * 13-5 Label CRW1343 * 13-6 Caution Card CRP1206 14 Base Assy CEA2426 * 15 Base CNS5031 * 16 Sheet CZA3371 17 Polyethylene Bag CZE3188 18 Screw Assy CEA1924 19 Screw CBA-102 * 20 Polyethylene Sheet CNM4338 21 Screw CRZ50P090FMC 22 Nut NF50FMC 23 Screw TRZ50P080FMC 24 Strap CNF-111 25 Spring CBH-865 26 Battery CEX1006 27 Remote Control Assy CXB3875 - PACKING SECTION PARTS LIST Mark No. Description Part No. Mark No. Description Part No. 13 20 24 5 25 2219 3 21 23 8 1 6 27 11 7 12 10 14 17 26 15 16 9 4 2 18 4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 MEH-P5000R—,P5000,P5050 2.3 PACKING(MEH-P5050/ES) 1 Cord Assy CDE5723 2 Accessory Assy CEA2002 3 Screw CBA1284 4 Handle CNC5395 5 Bush CNV1009 * 6 Polyethylene Bag CEG-158 7 Polyethylene Bag CEG-162 8 Case Assy CXB3520 9 Carton CHG3818 10 Contain Box CHL3818 11 Protector CHP2098 12 Protector CHP2099 13-1 Polyethylene Bag CEG1116 13-2 Owner’s Manual CRD2740 (English, Spanish) 13-2 Owner’s Manual CRD2741 (Portuguese(B), Arabic) 13-4 Installation Manual CRD2742 (English, Spanish, Portuguese(B), Arabic) * 13-5 Caution Card CRP1206 14 Base Assy CEA2426 * 15 Base CNS5031 * 16 Sheet CZA3371 17 Polyethylene Bag CZE3188 18 Screw Assy CEA2003 19 Spring CBH-865 * 20 Polyethylene Bag CEG-127 21 Screw CRZ50P090FMC 22 Screw TRZ50P080FMC 23 Battery CEX1006 24 Remote Control Assy CXB3875 - PACKING SECTION PARTS LIST Mark No. Description Part No. Mark No. Description Part No. 13 20 5 19 3 21 22 8 1 6 24 11 7 12 10 14 17 23 15 16 9 4 2 18 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 MEH-P5000R—,P5000,P5050 2.4 EXTERIOR(MEH-P5000R—/EW) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 MEH-P5000R—,P5000,P5050 1 Screw BSZ26P050FMC 2 Screw BSZ30P060FMC 3 Screw BSZ30P200FMC 4 Connector CDE5718 5 Cord Assy CDE5722 6 Fuse(10A) CEK1136 7 Terminal Cover CKX-003 8 Cord Assy CDE5804 9 Holder CNC5704 10 Holder CNC6798 11 Cushion CNM4870 12 Insulator CNM5752 13 Insulator CNM5921 14 Cushion CNM5925 15 Panel CNS5097 16 Tuner Amp Unit CWM6570 17 Screw BPZ26P080FMC 18 Screw BSZ26P100FMC 19 Screw BSZ26P160FMC 20 Clamper CEF1005 21 Pin Jack(CN452) CKB1028 22 Terminal(CN303) CKF1059 23 Terminal(CN351) CKF1059 24 Plug(CN501) CKM1231 * 25 Connector(CN201) CKS2221 26 Connector(CN751) CKS3408 27 Connector(CN801) CKS3581 28 Connector(CN451) CKS3599 29 Antenna Jack(CN302) CKX1056 30 Holder CNC4569 31 Holder CNC6361 32 Heat Sink CNC7369 33 Holder CNC7370 34 Holder CNC7968 35 Holder CNC8021 36 Insulator CNM4684 37 Heat Sink CNR1419 38 FM/AM Tuner Unit CWE1416 39 Holder CNC6555 40 MD Mechanism Module CXB3584 41 Button CAC5180 42 Door CAT1983 43 Spring CBH1834 44 Spring CBH1835 45 Spring CBH1996 46 Spring CBH2191 47 Bracket CNC6135 48 Bracket CNC6791 49 Panel CNS5096 50 Arm CNV4692 51 Arm CNV4693 52 Arm CNV4951 53 Screw IMS20P030FZK 54 Detach Grille Assy CXB4293 55 Screw BPZ20P080FMC 56 Screw BPZ20P080FZK 57 Button(EJECT) CAC5768 58 Button(SOURCE) CAC5769 59 Button(BAND) CAC5770 60 Button(1-6) CAC5771 61 Button CAC5772 62 Button(D.RESET) CAC5773 63 Button(EQ) CAC5774 64 Spring CBH2190 65 Cover CNS5094 66 Lighting Conductor CNV5505 67 Lighting Conductor CNV5506 68 Holder CNV5511 69 Keyboard Unit CWM6041 70 LCD CAW1490 71 Connector(CN901) CKS3580 72 Holder CNC7969 73 Sheet CNM5923 74 Sheet CNM5924 75 Connector CNV5504 76 Lighting Conductor CNV5507 77 Housing CNV5508 78 Grille Unit CXB4294 79 Case Unit CXB4190 80 IC(IC501) PAL005A 81 Transistor(Q201,952) 2SD2396 82 Chassis Unit CXB2971 83 LED(D903,904,907,908) NSPWF50BS-8452 84 Screw ISS26P055FUC 85 Case Assy CXB3520 - EXTERIOR SECTION PARTS LIST Mark No. Description Part No. Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 MEH-P5000R—,P5000,P5050 2.5 EXTERIOR(MEH-P5000/UC) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 MEH-P5000R—,P5000,P5050 1 Screw BSZ26P050FMC 2 Screw BSZ30P060FMC 3 Screw BSZ30P200FMC 4 Connector CDE5718 5 Cord Assy CDE5723 6 Fuse(10A) CEK1136 7 Terminal Cover CKX-003 8 Cord Assy CDE5804 9 ••••• 10 Holder CNC6798 11 ••••• 12 Insulator CNM5752 13 Insulator CNM5921 14 Cushion CNM5925 15 Panel CNS5097 16 Tuner Amp Unit CWM6066 17 Screw BPZ26P080FMC 18 Screw BSZ26P100FMC 19 Screw BSZ26P160FMC 20 Clamper CEF1005 21 Pin Jack(CN452) CKB1028 22 Terminal(CN303) CKF1059 23 Terminal(CN351) CKF1059 24 Plug(CN501) CKM1231 * 25 Connector(CN201) CKS2221 26 Connector(CN751) CKS3408 27 Connector(CN801) CKS3581 28 Connector(CN451) CKS3599 29 Antenna Jack(CN302) CKX1056 30 Holder CNC4569 31 Holder CNC6361 32 Heat Sink CNC7369 33 Holder CNC7370 34 Holder CNC7968 35 ••••• 36 ••••• 37 Heat Sink CNR1419 38 FM/AM Tuner Unit CWE1417 39 Holder CNC6555 40 MD Mechanism Module CXB3584 41 Button CAC5180 42 Door CAT1984 43 Spring CBH1834 44 Spring CBH1835 45 Spring CBH1996 46 Spring CBH2191 47 Bracket CNC6135 48 Bracket CNC6791 49 Panel CNS5096 50 Arm CNV4692 51 Arm CNV4693 52 Arm CNV4951 53 Screw IMS20P030FZK 54 Detach Grille Assy CXB3046 55 Screw BPZ20P080FMC 56 Screw BPZ20P080FZK 57 Button(EJECT) CAC5768 58 Button(SOURCE) CAC5769 59 Button(BAND) CAC5770 60 Button(1-6) CAC5775 61 Button CAC5772 62 Button(D.RESET) CAC5773 63 Button(EQ) CAC5774 64 Spring CBH2190 65 Cover CNS5094 66 Lighting Conductor CNV5505 67 Lighting Conductor CNV5506 68 Holder CNV5511 69 Keyboard Unit CWM6067 70 LCD CAW1491 71 Connector(CN901) CKS3580 72 Holder CNC7969 73 Sheet CNM5923 74 Sheet CNM5924 75 Connector CNV5504 76 Lighting Conductor CNV5507 77 Housing CNV5508 78 Grille Unit CXB2982 79 Case Unit CXB4190 80 IC(IC501) PAL005A 81 Transistor(Q201,952) 2SD2396 82 Chassis Unit CXB2973 83 LED(D903,904,907,908) NSPWF50BS-8452 84 Screw ISS26P055FUC 85 Remote Control Assy CXB3875 86 Battery Cover CNS5032 - EXTERIOR SECTION PARTS LIST Mark No. Description Part No. Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 MEH-P5000R—,P5000,P5050 2.6 EXTERIOR(MEH-P5050/ES) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 MEH-P5000R—,P5000,P5050 1 Screw BSZ26P050FMC 2 Screw BSZ30P060FMC 3 Screw BSZ30P200FMC 4 Connector CDE5718 5 Cord Assy CDE5723 6 Fuse(10A) CEK1136 7 Terminal Cover CKX-003 8 Cord Assy CDE5804 9 Holder CNC5704 10 Holder CNC6798 11 Cushion CNM4870 12 Insulator CNM5752 13 Insulator CNM5921 14 Cushion CNM5925 15 Panel CNS5097 16 Tuner Amp Unit CWM6038 17 Screw BPZ26P080FMC 18 Screw BSZ26P100FMC 19 Screw BSZ26P160FMC 20 Clamper CEF1005 21 Pin Jack(CN452) CKB1028 22 Terminal(CN303) CKF1059 23 Terminal(CN351) CKF1059 24 Plug(CN501) CKM1231 * 25 Connector(CN201) CKS2221 26 Connector(CN751) CKS3408 27 Connector(CN801) CKS3581 28 Connector(CN451) CKS3599 29 Antenna Jack(CN302) CKX1056 30 Holder CNC4569 31 Holder CNC6361 32 Heat Sink CNC7369 33 Holder CNC7370 34 Holder CNC7968 35 ••••• 36 ••••• 37 Heat Sink CNR1419 38 FM/AM Tuner Unit CWE1485 39 Holder CNC6555 40 MD Mechanism Module CXB3584 41 Button CAC5180 42 Door CAT1984 43 Spring CBH1834 44 Spring CBH1835 45 Spring CBH1996 46 Spring CBH2191 47 Bracket CNC6135 48 Bracket CNC6791 49 Panel CNS5096 50 Arm CNV4692 51 Arm CNV4693 52 Arm CNV4951 53 Screw IMS20P030FZK 54 Detach Grille Assy CXB2916 55 Screw BPZ20P080FMC 56 Screw BPZ20P080FZK 57 Button(EJECT) CAC5768 58 Button(SOURCE) CAC5769 59 Button(BAND) CAC5770 60 Button(1-6) CAC5775 61 Button CAC5772 62 Button(D.RESET) CAC5773 63 Button(EQ) CAC5774 64 Spring CBH2190 65 Cover CNS5094 66 Lighting Conductor CNV5505 67 Lighting Conductor CNV5506 68 Holder CNV5511 69 Keyboard Unit CWM6042 70 LCD CAW1491 71 Connector(CN901) CKS3580 72 Holder CNC7969 73 Sheet CNM5923 74 Sheet CNM5924 75 Connector CNV5504 76 Lighting Conductor CNV5507 77 Housing CNV5508 78 Grille Unit CXB2977 79 Case Unit CXB4190 80 IC(IC501) PAL005A 81 Transistor(Q201,952) 2SD2396 82 Chassis Unit CXB2973 83 LED(D903,904,907,908) NSPWF50BS-8452 84 Screw ISS26P055FUC 85 Remote Control Assy CXB3875 86 Battery Cover CNS5032 - EXTERIOR SECTION PARTS LIST Mark No. Description Part No. Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 MEH-P5000R—,P5000,P5050 2.7 MD MECHANISM MODULE(1) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 MEH-P5000R—,P5000,P5050 Mark No. Description Part No. Mark No. Description Part No. 1-100 ••••• 101 Side Plate Assy, Left 1242000186 102 Side Bracket 1242000188 103 Loading Motor Bracket 1242000189 104 Front Guide 1242000190 105 Loading Chassis Assy 1242070066 106 Disc Holder Assy 1242140176 107 Disc Holder Arm 1242400018 108 Mode Gear 1242410003 109 FLT Lock Arm 1242480151 110 FLT Lock Plate 1242480112 111 Clamper Arm 1242480114 112 Loading Plate 1242480105 113 Mode Plate 1242480107 114 Catch Block 1242480108 115 Lift Arm 1242500001 116 Spring, Damper 1242580146 117 Spring, FLT Lock 1242580147 118 Spring, Disk Holder 1242580148 119 Spring, Clamper Arm 1242580149 120 Spring, Lift Arm 1242580150 121 Gear, Worm Wheel 1242810060 122 Gear, Pinion 1242810061 123 Roller, Clamper Arm 1242870012 124 Shaft, Worm Wheel 1242900093 125 Oil Damper 1243300001 126 Spring, FLT Lock Arm 1242580204 127 Spring, Slider 1242580201 128 Spring, Mode Plate 1242580202 129-600 ••••• 601 Screw,1.7X1.6MM 1249700045 602 Screw,1.7X2.5MM 1249700040 603 Screw,2.0X3.0MM 1249700133 604 Screw,2.0X3.5MM 1249700134 605 Screw,2.0X2.2MM 1249700135 606 Washer,1.2X3X0.2MM 1249900021 607 Screw,2.0X4.0MM 1249700140 608 Washer YE15FUC 609 Screw,2.0X2.5MM 1249700158 610 Ball CNR1189 611 Loading Motor(M651) 1246300043 612 Flat Cable, 8 Pin 1245120221 613 Main PCB 1246840289 614 Switch PCB 1246840145 615 Connector(CN301) CKS2417 616 Connector(CN651) CKS1946 617 Connector(CN652) CKS2407 618 Socket(CN101) 1245100201 619 Socket(CN601) 1245100039 - MD MECHANISM MODULE(1) SECTION PARTS LIST www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 MEH-P5000R—,P5000,P5050 2.8 MD MECHANISM MODULE(2) *One or two washers may be added to the parts for fine tuning of accuracy. When you exchange the parts such as (509 : spin motor) or (508: motor spacer), mount it exactly as it was placed before the exchange. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 MEH-P5000R—,P5000,P5050 Mark No. Description Part No. Mark No. Description Part No. 1 Holder Shaft Plate 1242000279 2 Shaft Guide Holder 1242000064 3 Drive Screw Assy Unit 1242000346 4 Main Chassis Assy 1242070065 5 Shaft Catch Spring 1242580007 6 Clip Spring 1242580067 7 Grip Rack 1242810021 8 Pickup Slide Shaft 1242900127 9 Slide Shaft(S) 1242900011 10 Mechanism Cushion 1243260122 11 Spring Cushion 1243260031 12 Spacer(C) 1244130006 13 Mechanism Flexible PCB 1245210120 14 Optical Pickup Assy 1246170028 15 Spring B 1242580050 16-500 ••••• 501 Screw,1.4X2MM 1249700203 502 Screw,1.4X2.5MM 1249700007 503 Screw,1.4X2.2MM 1249700011 504 Screw,1.7X4.3MM 1249700055 505 Screw,1.4X4.5MM 1249700033 506 Screw,1.4X2.2MM 1309701315 507 Washer,1.4X0.5MM 1309900937 508 Washer,2.8X3.9X0.05MM 1249900020 509 Spin Motor(M902) 1246300069 510 Slide Motor(M901) 1246300073 511 Mechanism PCB 1246840251 512 Connector(CN901) 1425100236 - MD MECHANISM MODULE(2) SECTION PARTS LIST www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 MEH-P5000R—,P5000,P5050 B A D E TUNER AMP UNIT FM/AM TUNER UNIT MAIN PCB OPTICAL PICKUP ASSY SWITCH PCB 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM 3.1 BLOCK DIAGRAM(MEH-P5000R—/EW) F MECHANISM PCB www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 MEH-P5000R—,P5000,P5050 C KEYBOARD UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 MEH-P5000R—,P5000,P5050 B A D E TUNER AMP UNIT FM/AM TUNER UNIT MAIN PCB OPTICAL PICKUP ASSY SWITCH PCB 3.2 BLOCK DIAGRAM(MEH-P5000/UC, MEH-P5050/ES) F MECHANISM PCB www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 MEH-P5000R—,P5000,P5050 C KEYBOARD UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 MEH-P5000R—,P5000,P5050 A 1 2 3 4 B C D 1 2 3 4 3.3 OVERALL CONNECTION DIAGRAM(GUIDE PAGE)(MEH-P5000R—/EW) Note: When ordering service parts, be sure to refer to “EXPLODED VIEWS AND PARTS LIST” or “ELECTRICAL PARTS LIST”. A-a A-a A-b A-b A-a A-a A-b A-b A-b A-b A-a A-a Large size SCH diagram Guide page Detailed page % % CN801 CN751 CN201 CN302 A-a A A B E D C TUNER AMP UNIT FM/AM TUNER UNIT MD MECHANISM MODULE CN901 F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 MEH-P5000R—,P5000,P5050 5 6 7 8 A B C D 5 6 7 8 DFS ALARM RR+ RR- FR+ FL+ RL+ FR- FL- RL- BACK UP ILM B REMOTE GND ACC RR+ RR- FR+ FL+ RL+ FR- FL- RL- BACK UP ILM B REMOTE GND ACC B REMOTE CEK1136 CN501 CN451 CN452 A A-b www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 22 MEH-P5000R—,P5000,P5050 % % CN751 CN302 A 1 2 3 4 B C D 1 2 3 4 A-a A-a A-b A B TUNER AMP UNIT FM/AM TUNER UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 23 MEH-P5000R—,P5000,P5050 CN801 CN201 5 6 7 8 A B C D 5 6 7 8 A-a A-a A-b E D MD MECHANISM MODULE F C CN901 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 24 MEH-P5000R—,P5000,P5050 A 1 2 3 4 B C D 1 2 3 4 RR+ RR- FR+ FL+ RL+ FR- FL- RL- BACK UP CEK1136 CN501 CN451 CN452 A-a A-b A-b www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 25 MEH-P5000R—,P5000,P5050 5 6 7 8 A B C D 5 6 7 8 DFS ALARM RR+ RR- FR+ FL+ RL+ FR- FL- RL- BACK UP ILM B REMOTE GND ACC BACK UP ILM B REMOTE GND ACC B REMOTE CEK1136 A-b A-a A-b www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 26 MEH-P5000R—,P5000,P5050 % % CN801 CN751 CN201 1R6K 1R6K MA151WK 4R7K 1K 0R0 1R8K 4R7K 4R7K 4R7K 1R5K R047 R047 CN302 A 1 2 3 4 B C D 1 2 3 4 3.4 OVERALL CONNECTION DIAGRAM(GUIDE PAGE)(MEH-P5000/UC) Note: When ordering service parts, be sure to refer to “EXPLODED VIEWS AND PARTS LIST” or “ELECTRICAL PARTS LIST”. A-a A-a A-b A-b A-a A-a A-b A-b A-b A-b A-a A-a Large size SCH diagram Guide page Detailed page A-a A A B E D C TUNER AMP UNIT FM/AM TUNER UNIT MD MECHANISM MODULE CN901 F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 27 MEH-P5000R—,P5000,P5050 DFS ALARM CN501 CN451 CN452 5 6 7 8 A B C D 5 6 7 8A A-b www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 28 MEH-P5000R—,P5000,P5050 % % CN751 1R6K 1R6K 4R7K 1K 0R0 1R8K 4R7K 4R7K 4R7K 1R5K R047 R047 CN302 A 1 2 3 4 B C D 1 2 3 4 A-a A-a A-b A B TUNER AMP UNIT FM/AM TUNER UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 29 MEH-P5000R—,P5000,P5050 CN801 CN201 MA151WK 5 6 7 8 A B C D 5 6 7 A-a A-a A-b C CN901 E D MD MECHANISM MODULE F 8 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 30 MEH-P5000R—,P5000,P5050 CN501 CN451 CN452 A 1 2 3 4 B C D 1 2 3 4 A-a A-b A-b www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 31 MEH-P5000R—,P5000,P5050 DFS ALARM 5 6 7 8 A B C D 5 6 7 8 A-b A-a A-b www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 32 MEH-P5000R—,P5000,P5050 % % CN801 CN751 CN201 1R6K 1R6K MA151WK 4R7K 1K 0R0 1R8K 4R7K 4R7K 4R7K 1R5K R047 R047 CN302 68 1R5K A 1 2 3 4 B C D 1 2 3 4 3.5 OVERALL CONNECTION DIAGRAM(GUIDE PAGE)(MEH-P5050/ES) Note: When ordering service parts, be sure to refer to “EXPLODED VIEWS AND PARTS LIST” or “ELECTRICAL PARTS LIST”. A-a A-a A-b A-b A-a A-a A-b A-b A-b A-b A-a A-a Large size SCH diagram Guide page Detailed page A-a A A B E D TUNER AMP UNIT FM/AM TUNER UNIT MD MECHANISM MODULE F C CN901 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 33 MEH-P5000R—,P5000,P5050 DFS ALARM CN501 CN451 CN452 5 6 7 8 A B C D 5 6 7 8 A A-b www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 34 MEH-P5000R—,P5000,P5050 % % CN751 1R6K 1R6K 4R7K 1K 0R0 1R8K 4R7K 4R7K 4R7K 1R5K R047 R047 CN302 68 1R5K A 1 2 3 4 B C D 1 2 3 4 A-a A-a A-b A B TUNER AMP UNIT FM/AM TUNER UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 35 MEH-P5000R—,P5000,P5050 CN801 CN201 MA151WK 5 6 7 8 A B C D 5 6 7 A-a A-a A-b E D MD MECHANISM MODULE F C CN901 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 36 MEH-P5000R—,P5000,P5050 CN501 CN451 CN452 A 1 2 3 4 B C D 1 2 3 4 A-a A-b A-b www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 37 MEH-P5000R—,P5000,P5050 DFS ALARM 5 6 7 8 A B C D 5 6 7 8 A-b A-a A-b www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 38 MEH-P5000R—,P5000,P5050 A 1 2 3 4 B C D 1 2 3 4 3.6 FM/AM TUNER UNIT(MEH-P5000R—/EW) B 3 1 2 FM/AM TUNER UN B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 39 MEH-P5000R—,P5000,P5050 5 6 7 8 A B C D 5 6 7 8B ER UNIT A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 40 MEH-P5000R—,P5000,P5050 A 1 2 3 4 B C D 1 2 3 4 3.7 FM/AM TUNER UNIT(MEH-P5000/UC) B 3 1 2 FM/AM TUNER UN D1 D2 RD39JS RD39JS R1 R2 2R2M 2R2M D6 MA157 B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 41 MEH-P5000R—,P5000,P5050 5 6 7 8 A B C D 5 6 7 8B ER UNIT IFC A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 42 MEH-P5000R—,P5000,P5050 A 1 2 3 4 B C D 1 2 3 4 3.8 FM/AM TUNER UNIT(MEH-P5050/ES) B 3 1 2 FM/AM TUNER UN D1 D2 RD39JS RD39JS R1 R2 2R2M 2R2M D6 MA157 B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 43 MEH-P5000R—,P5000,P5050 5 6 7 8 A B C D 5 6 7 8 B ER UNIT IFC A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 44 MEH-P5000R—,P5000,P5050 CN901 A 1 2 3 4 B C D 1 2 3 4 3.9 KEYBOARD UNIT(MEH-P5000R—/EW) C C KEYBOARD UNIT A CN801 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 45 MEH-P5000R—,P5000,P5050 KEY CONTROLLER/ LCD DRIVER 5 6 7 8 A B C D 5 6 7 8 C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 46 MEH-P5000R—,P5000,P5050 CL170PGCD CL170PGCD LD CLOCK CN901 A 1 2 3 4 B C D 1 2 3 4 3.10 KEYBOARD UNIT(MEH-P5000/UC, MEH-P5050/ES) C KEYBOARD UNIT A CN801 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 47 MEH-P5000R—,P5000,P5050 KEY CONTROLLER/ LCD DRIVER PURE GREEN PURE GREEN 5 6 7 8 A B C D 5 6 7 8 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 48 MEH-P5000R—,P5000,P5050 A 1 2 3 4 B C D 1 2 3 4 3.11 MD MECHANISM MODULE D E F D-a E F A-a A-a A-b A-b A-a A-a A-b A-b A-b A-b A-a A-a Large size SCH diagram Guide page Detailed page D MAIN PCB www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 49 MEH-P5000R—,P5000,P5050 5 6 7 8 A B C D 5 6 7 8D D-b www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 50 MEH-P5000R—,P5000,P5050 A 1 2 3 4 B C D 1 2 3 4 D-a D-a D-b D MAIN PCB www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 51 MEH-P5000R—,P5000,P5050 5 6 7 8 A B C D 5 6 7 D-a D-b F E 8 D-a www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 52 MEH-P5000R—,P5000,P5050 A 1 2 3 4 B C D 1 2 3 4 D-b D-a D-b www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 53 MEH-P5000R—,P5000,P5050 5 6 7 8 A B C D 5 6 7 8 D-b D-a D-b www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 54 MEH-P5000R—,P5000,P5050 - Waveforms 1 CH1 : FEMON 5V/div 2ms/div 1 CH2 : FEMON+LPF 2V/div 2ms/div 2 CH3 : TEMON 5V/div 2ms/div 2 CH4 : TEMON+LPF 2V/div 2ms/div Normal mode : play Disc : Recordable Note: The encircled numbers denote measuring pointes in the circuit diagram. 2 CH1 : TEMON+LPF 1V/div 1ms/div 3 CH2 : E 500mV/div 1ms/div 4 CH3 : F 500mV/div 1ms/div Normal mode : play Disc : Recordable 1 CH1 : FEMON 1V/div 2ms/div 1 CH2 : FEMON+LPF 500mV/div 2ms/div 2 CH3 : TEMON 500mV/div 2ms/div 2 CH4 : TEMON+LPF 500mV/div 2ms/div Normal mode : play Disc : Premastered 2 CH1 : TEMON+LPF 1V/div 1ms/div 3 CH2 : E 500mV/div 1ms/div 4 CH3 : F 500mV/div 1ms/div Normal mode : play Disc : Premastered 5 CH1 : EFM 1V/div 500ns/div Test mode : play Disc : Recordable 5 CH1 : EFM 1V/div 500ns/div Test mode : play Disc : Premastered 6 CH1 : WBO 2V/div 100ms/div 7 CH2 : ADLPFO 1V/div 100ms/div Test mode : play Disc : Recordable 8 CH1 : DFCK 5V/div 2ms/div 9 CH2 : BCLK 5V/div 2ms/div 0 CH3 : DADATA 5V/div 2ms/div ! CH3 : LRCK 5V/div 2ms/div Normal mode : play Disc : Recordable 8 CH1 : DFCK 5V/div 200ns/div 9 CH2 : BCLK 5V/div 200ns/div 0 CH3 : DADATA 5V/div 200ns/div ! CH4 : LRCK 5V/div 200ns/div Normal mode : play Disc : Recordable www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 55 MEH-P5000R—,P5000,P5050 1 CH1 : FEMON+LPF 1V/div 100ms/div @ CH2 : F+ 2V/div 100ms/div # CH3 : F- 2V/div 100ms/div @# CH4 : F+ - F- 2V/div 100ms/div Focus close Disc : Recordable @# CH1 : F+ - F- 2V/div 200ms/div 2 CH2 : TEMON+LPF 1V/div 200ms/div $ CH3 : SP+ 2V/div 200ms/div % CH4 : SP- 2V/div 200ms/div Focus close Disc : Recordable 1 CH1 : FEMON+LPF 1V/div 10ms/div ^ CH2 : A 500mV/div 10ms/div & CH3 : B 500mV/div 10ms/div Focus close Disc : Recordable 2 CH1 : TEMON+LPF 1V/div 200ms/div * CH2 : T+ 2V/div 200ms/div ( CH3 : T- 2V/div 200ms/div *( CH4 : T+ - T- 2V/div 200ms/div Test mode : 1T REV jump Disc : Recordable ¤ CH1 : LOADSTART 5V/div 200ms/div ‹ CH2 : LOADEND 5V/div 200ms/div › CH3 : L+ 5V/div 200ms/div fi CH3 : L- 5V/div 200ms/div Loading fl CH1 : EJECTEND 5V/div 200ms/div › CH2 : L+ 5V/div 200ms/div fi CH3 : L- 5V/div 200ms/div Eject 2 CH1 : TEMON+LPF 1V/div 500ms/div * CH2 : T+ 2V/div 500ms/div ( CH3 : T- 2V/div 500ms/div *( CH4 : T+ - T- 2V/div 500ms/div Test mode : 10T REV jump Disc : Recordable 2 CH1 : TEMON+LPF 1V/div 1ms/div ) CH2 : SL+ 2V/div 1ms/div ⁄ CH3 : SL- 2V/div 1ms/div )⁄ CH4 : SL+ - SL- 2V/div 1ms/div Test mode : 10T REV jump Disc : Recordable 2 CH1 : TEMON+LPF 1V/div 20ms/div ) CH2 : SL+ 2V/div 20ms/div ⁄ CH3 : SL- 2V/div 20ms/div )⁄ CH4 : SL+ - SL- 2V/div 20ms/div Test mode : 400T REV jump Disc : Recordable www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 56 MEH-P5000R—,P5000,P5050 A 1 2 3 4 B C D 1 2 3 4 A A CORD ASSY TUNER AMP UNIT 4. PCB CONNECTION DIAGRAM 4.1 TUNER AMP UNIT NOTE FOR PCB DIAGRAMS 1. The parts mounted on this PCB include all necessary parts for several destination. For further information for respective destinations, be sure to check with the schematic dia- gram. 2. Viewpoint of PCB diagrams Capacitor Connector P.C.Board Chip Part SIDE A SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 57 MEH-P5000R—,P5000,P5050 5 6 7 8 A B C D 5 6 7 8A REAR PREOUT ANTENNA JACK R ch L ch RESET IP BUS IN CN901 C SIDE A FRONT PREOUT CN301 D B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 58 MEH-P5000R—,P5000,P5050 A 1 2 3 4 B C D 1 2 3 4 A A TUNER AMP UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 59 MEH-P5000R—,P5000,P5050 5 6 7 8 A B C D 5 6 7 8A SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 60 MEH-P5000R—,P5000,P5050 A 1 2 3 4 B C D 1 2 3 4 4.2 FM/AM TUNER UNIT B SIDE A B A FM/AM TUNER UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 61 MEH-P5000R—,P5000,P5050 1 2 3 4 A B C D 1 2 3 4 B SIDE B B FM/AM TUNER UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 62 MEH-P5000R—,P5000,P5050 A 1 2 3 4 B C D 1 2 3 4 CN801 A 6 5 4 2 3 1 6 5 4 2 3 1 6 5 4 2 3 1 6 5 4 2 3 1 6 5 4 2 3 1 6 5 4 2 3 1 6 5 4 2 3 1 6 5 4 2 3 1 TA/LD 4.3 KEYBOARD UNIT C C KEYBOARD UNIT KEYBOARD UNIT C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 63 MEH-P5000R—,P5000,P5050 5 6 7 8 A B C D 5 6 7 8 C 6 5 4 2 3 1 6 5 4 2 3 1 6 5 4 2 3 1 6 5 4 2 3 1 6 5 4 2 3 1 6 5 4 2 3 1 6 5 4 2 3 1 6 5 4 2 3 1 6 5 4 2 3 1 6 5 4 2 3 1 6 5 4 2 3 1 6 5 4 2 3 1 6 5 4 2 3 1 PTY/CLOCK SIDE A SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 64 MEH-P5000R—,P5000,P5050 A 1 2 3 4 B C D 1 2 3 4 4.4 MAIN PCB D IC, Q Q403 IC402 IC401 IC861 Q801 Q821 Q706 Q705 IC501 Q841 IC201 IC202 D MAIN PCB F E CN652 A CN201 Optical Pickup Assy SIDE A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 65 MEH-P5000R—,P5000,P5050 1 2 3 4 A B C D 1 2 3 4D D MAIN PCB IC, Q IC101 IC351 IC601 IC354 IC353 Q402 Q401 IC403 Q842 Q703 IC356 Q822 IC801 IC811 IC305 Q704 IC355 IC302 IC306 IC303 IC301 SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 66 MEH-P5000R—,P5000,P5050 A 1 2 3 4 B C D 1 2 3 4 E E SWITCH PCB D CN651 4.5 SWITCH PCB www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 67 MEH-P5000R—,P5000,P5050 1 2 3 4 A B C D 1 2 3 4F F F MECHANISM PCB MECHANISM PCB D CN601 4.6 MECHANISM PCB SIDE A SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Unit Number : CWM6570(MEH-P5000R—/EW) Unit Name : Tuner Amp Unit MISCELLANEOUS IC 301 IC PM2007A IC 351 IC PMW001B IC 352 IC TA75S393F IC 401 IC PML003AM IC 501 IC PAL005A IC 601 IC PD4960B IC 602 IC S-80734ANDYI IC 751 IC CA0008AM Q 201 Transistor 2SD2396 Q 202 Transistor DTA114EK Q 203 Transistor DTC124EK Q 251 Transistor 2SA1037K Q 252 Transistor DTC124EK Q 253 Transistor 2SC2412K Q 301 Transistor 2SC2412K Q 302 Transistor IMD2A Q 351 Transistor 2SC2412K Q 451 Transistor IMH3A Q 452 Transistor IMH3A Q 453 Transistor DTA124EK Q 455 Transistor DTC124EK Q 456 Transistor 2SC2412K Q 457 Transistor DTC124EK Q 551 Transistor 2SC2412K Q 552 Transistor 2SC2412K Q 553 Transistor 2SC2412K Q 554 Transistor 2SA1037K Q 601 Transistor DTC124EK Q 602 Transistor DTA114EK Q 701 Transistor 2SD1757K Q 702 Transistor 2SD1757K Q 703 Transistor DTC143TK Q 704 Transistor DTC143TK Q 705 Transistor 2SC2412K Q 706 Transistor DTA114EK Q 751 Transistor 2SA1037K Q 752 Transistor DTC114EK Q 801 Transistor 2SA1037K Q 802 Transistor 2SB1243 Q 803 Transistor DTC143EK Q 804 Transistor 2SA1037K Q 805 Transistor DTC114EK Q 807 Transistor DTC124EK Q 951 Transistor 2SA1037K Q 952 Transistor DTC114EK Q 953 Transistor 2SD2396 Q 954 Transistor 2SA1048 Q 955 Transistor 2SA1048 Q 956 Transistor IMH1A Q 957 Transistor 2SA1037K Q 958 Transistor DTC124EK Q 959 Transistor 2SD1760F5 D 201 Diode HZS7L(A3) D 251 Diode MA3150(M) D 252 LED BR4361F D 301 Chip Diode MA151K D 302 Chip Diode MA151K D 451 Chip Diode MA151WK D 452 Diode HZS9L(A2) D 501 Diode ERA15-02 D 502 Diode ERA15-02 D 551 Diode HZS7L(C2) D 552 Diode MA3062(M) D 553 Diode ERA15-02 D 554 Chip Diode MA151WK D 556 Diode ERA15-02 D 558 Diode ERA15-02 D 601 Diode 1SS270 D 801 Diode MA153 D 802 Diode MA153 D 803 Diode MA153 D 804 Diode MA3062(M) D 951 Diode HZS9L(B3) D 952 Diode ERA15-02 D 953 Diode HZS6L(B2) D 954 Diode 1SS270 L 201 Ferri-Inductor LAU2R2K L 301 Ferri-Inductor LAU2R2K L 303 Ferri-Inductor LAU2R2K L 304 Ferri-Inductor LAU2R2K L 351 Ferri-Inductor LAU101K L 501 Choke Coil 600mH CTH1226 L 551 Ferri-Inductor LAU2R2K L 601 Ferri-Inductor LAU2R2K L 602 Ferri-Inductor LAU2R2K L 603 Ferri-Inductor LAU2R2K L 604 Ferri-Inductor LAU2R2K L 605 Inductor LCTB2R2K2125 L 751 Ferri-Inductor LAU2R2K L 801 Ferri-Inductor LAU2R2K CF 601 Filter CTF1071 X 301 Crystal Resonator 7.200MHz CSS1379 X 351 Crystal Resonator 4.332MHz CSS1056 X 601 Radiator 12.58291MHz CSS1402 S 601 Switch(RESET) CSG1046 VR 351 Semi-fixed 22kΩ(B) CCP1321 FM/AM Tuner Unit CWE1416 BZ 601 Buzzer CPV1011 RESISTORS R 201 RS1/10S221J R 202 RS1/10S221J R 204 RS1/10S221J R 206 RD1/4PU221J R 207 RD1/4PU162J 68 MEH-P5000R—,P5000,P5050 =====Circuit Symbol & No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol & No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- A 5. ELECTRICAL PARTS LIST NOTE: - Parts whose parts numbers are omitted are subject to being not supplied. - The part numbers shown below indicate chip components. Chip Resistor RS1/_S___J,RS1/__S___J Chip Capacitor (except for CQS.....) CKS....., CCS....., CSZS..... www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 69 MEH-P5000R—,P5000,P5050 R 251 RS1/10S103J R 252 RS1/10S102J R 253 RS1/10S223J R 254 RS1/10S223J R 255 RS1/10S103J R 256 RS1/10S751J R 257 RS1/10S473J R 258 RS1/10S272J R 259 RS1/10S223J R 260 RS1/8S102J R 261 RS1/10S221J R 262 RS1/10S221J R 301 RS1/10S272J R 302 RS1/10S272J R 305 RS1/10S0R0J R 306 RS1/10S102J R 307 RS1/10S0R0J R 308 RS1/10S102J R 309 RS1/10S222J R 310 RS1/10S473J R 311 RS1/10S0R0J R 312 RS1/10S222J R 313 RS1/10S472J R 314 RS1/10S682J R 315 RS1/10S682J R 316 RS1/10S472J R 317 RS1/10S561J R 318 RS1/10S103J R 319 RS1/10S222J R 320 RS1/10S152J R 321 RS1/10S392J R 322 RS1/10S392J R 323 RS1/10S272J R 324 RS1/10S103J R 325 RS1/10S393J R 326 RS1/10S222J R 327 RS1/10S681J R 328 RA4C681J R 329 RS1/10S473J R 330 RS1/10S222J R 331 RS1/10S562J R 332 RS1/10S0R0J R 333 RS1/10S102J R 334 RS1/10S222J R 335 RS1/10S473J R 336 RS1/10S562J R 337 RS1/10S105J R 338 RS1/10S222J R 339 RS1/10S102J R 340 RS1/10S102J R 341 RS1/10S0R0J R 351 RS1/10S333J R 352 RA4C102J R 356 RS1/10S102J R 357 RS1/10S102J R 358 RS1/10S102J R 359 RS1/10S222J R 360 RS1/10S222J R 361 RS1/10S562J R 362 RS1/10S473J R 363 RS1/10S473J R 364 RS1/10S684J R 365 RS1/10S681J R 366 RS1/10S562J R 368 RS1/10S103J R 401 RD1/4PU751J R 402 RD1/4PU751J R 405 RD1/4PU181J R 406 RD1/4PU181J R 407 RD1/4PU223J R 408 RD1/4PU223J R 409 RD1/4PU102J R 410 RD1/4PU102J R 411 RS1/10S102J R 412 RS1/10S102J R 413 RS1/10S102J R 451 RD1/4PU821J R 452 RD1/4PU821J R 453 RD1/4PU821J R 454 RD1/4PU821J R 455 RS1/10S223J R 456 RS1/10S223J R 457 RS1/10S223J R 458 RS1/10S223J R 460 RD1/4PU182J R 461 RS1/10S103J R 462 RS1/10S223J R 463 RS1/10S103J R 464 RS1/10S103J R 501 RS1/10S221J R 502 RS1/10S101J R 503 RS1/10S153J R 504 RS1/10S103J R 551 RS1/10S223J R 552 RS1/10S473J R 553 RS1/10S223J R 554 RS1/10S473J R 555 RS1/10S472J R 556 RS1/10S103J R 557 RS1/10S103J R 558 RS1/10S473J R 559 RD1/4PU153J R 560 RS1/10S472J R 561 RS1/10S472J R 562 RS1/10S102J R 563 RS1/10S473J R 564 RS1/10S473J R 567 RD1/4PU102J R 568 RD1/4PU102J R 569 RS1/10S473J R 570 RS1/10S473J R 571 RS1/10S0R0J R 572 RS1/10S0R0J R 573 RS1/10S0R0J R 574 RS1/10S0R0J R 601 RS1/10S152J R 602 RS1/10S152J R 603 RS1/10S822J R 604 RS1/10S471J R 606 RS1/10S0R0J R 608 RS1/10S473J R 609 RS1/10S102J R 610 RS1/10S473J R 611 RS1/10S473J R 612 RS1/10S0R0J R 613 RS1/10S102J R 614 RS1/10S102J R 615 RS1/10S102J R 617 RS1/10S102J R 618 RS1/10S222J =====Circuit Symbol & No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol & No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com R 619 RS1/10S473J R 620 RS1/10S473J R 621 RS1/10S473J R 622 RS1/10S473J R 623 RS1/10S221J R 624 RS1/10S102J R 625 RA4C221J R 626 RS1/10S473J R 627 RS1/10S473J R 629 RS1/10S0R0J R 701 RS1/10S224J R 702 RS1/10S224J R 703 RS1/10S222J R 704 RS1/10S222J R 705 RS1/10S223J R 706 RS1/10S223J R 707 RS1/10S224J R 751 RS1/10S102J R 752 RS1/10S102J R 753 RS1/10S473J R 754 RS1/10S473J R 755 RS1/10S101J R 756 RS1/10S101J R 757 RS1/10S620J R 758 RS1/10S223J R 759 RS1/10S102J R 760 RS1/10S102J R 761 RS1/10S222J R 762 RS1/10S472J R 801 RS1/10S223J R 802 RS1/10S332J R 803 RS1/10S0R0J R 804 RS1/10S222J R 805 RS1/10S222J R 806 RS1/10S222J R 807 RS1/10S222J R 808 RS1/10S222J R 809 RS1/10S222J R 810 RS1/10S222J R 811 RS1/4S182J R 813 RS1/10S473J R 814 RS1/4S512J R 816 RS1/10S1R0J R 819 RS2PMF330J R 820 RS2PMF180J R 951 RS1/10S473J R 952 RS1/10S472J R 953 RD1/4PU102J R 954 RS1/10S103J R 955 RS1/10S362J R 956 RS1/10S103J R 957 RS1/10S362J R 958 RS1/10S101J R 959 RS1/10S104J R 960 RS1/8S222J R 961 RS1/10S104J R 962 RS1/10S103J R 963 RS1/10S103J R 964 RS1/10S0R0J R 966 RS1/10S0R0J CAPACITORS C 203 CEJA101M10 C 204 CKSQYB473K25 C 205 CKSQYB103K50 C 251 CKSQYB104K50 C 252 CKSQYB103K50 C 301 CKSQYB223K50 C 302 CKSQYB223K50 C 303 CKSYB105K16 C 304 CKSYB105K16 C 307 CKSQYB223K50 C 308 CKSQYB103K50 C 309 CKSQYB273K50 C 310 CKSQYB103K50 C 311 CKLSR473K16 C 312 CKSQYB223K50 C 314 CKSQYB223K50 C 319 CKSQYB103K50 C 320 CEJA220M10 C 321 CKSQYB103K50 C 322 CKSQYB471K50 C 323 CKSQYB103K50 C 325 CKSQYB103K50 C 326 CKSQYB103K50 C 327 CCSQCH101J50 C 328 CCSQCH101J50 C 329 CEJA220M6R3 C 330 CKSQYB473K25 C 332 CKSQYB103K50 C 335 CEJA220M10 C 336 CKSQYB103K50 C 337 4.7µF/16V CCH1250 C 339 CKSQYB103K50 C 340 CKSQYB103K50 C 341 4.7µF/16V CCH1250 C 342 CCSQCH150J50 C 343 CCSQCH150J50 C 345 CEJAR47M50 C 346 CKSQYB103K50 C 347 CEJA100M16 C 351 CEJA100M16 C 352 CCSQCH101J50 C 353 CKSQYB222K50 C 354 CKSQYB104K50 C 355 CKSYB105K16 C 356 CKSQYB104K50 C 357 CKSQYB472K50 C 358 CEJA4R7M35 C 359 CKSQYB104K50 C 360 CCSQCH220J50 C 361 CCSQCH220J50 C 362 CKSQYB103K50 C 363 CKSQYB104K50 C 364 CKSQYB223K50 C 403 CKSQYB105K10 C 404 CKSQYB105K10 C 405 CKSQYB105K10 C 406 CKSQYB105K10 C 407 CKSQYB105K10 C 408 CKSQYB105K10 C 409 CKSQYB224K16 C 410 CKSQYB224K16 C 411 CKSQYB105K10 C 412 CKSQYB105K10 C 413 CKSQYB153K50 C 414 CKSQYB153K50 C 415 CKSQYB104K50 C 416 CEJA470M10 C 417 CEJA100M16 C 451 CEJA4R7M35 C 452 CEJA4R7M35 70 MEH-P5000R—,P5000,P5050 =====Circuit Symbol & No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol & No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C 453 CEJA4R7M35 C 454 CEJA4R7M35 C 455 CCSQCH101J50 C 456 CCSQCH101J50 C 457 CCSQCH101J50 C 458 CCSQCH101J50 C 501 4700µF/16V CCH1187 C 502 CKSQYB104K50 C 503 CKSYB224K16 C 504 CKSYB224K16 C 505 CKSYB224K16 C 506 CKSYB224K16 C 507 CEJA330M10 C 509 CKSQYB105K10 C 510 CEJA100M16 C 551 CKSYB105K16 C 602 CEJA2R2M50 C 603 CCSQCH200J50 C 604 CCSQCH200J50 C 605 CKSQYB104K50 C 606 CCSQCH101J50 C 607 CCSQCH101J50 C 612 CCSQCH101J50 C 701 CKSQYB223K50 C 751 CKSQYB102K50 C 752 CKSQYB102K50 C 753 CKSQYB104K50 C 803 CCSQCH101J50 C 804 CKSQYB104K50 C 805 CCSQCH101J50 C 951 CEJA101M10 C 952 CKSQYB103K50 C 953 CKSQYB473K25 C 954 CEJA101M10 C 955 1500µF/16V CCH1201 C 956 CEJA100M16 C 957 CKSQYB103K50 C 958 CEJA470M10 Unit Number : CWM6066(MEH-P5000/UC) Unit Name : Tuner Amp Unit MISCELLANEOUS IC 301 IC PM2006A IC 401 IC PML003AM IC 501 IC PAL005A IC 551 IC TPD1018F IC 601 IC PD4959A IC 602 IC S-80734ANDYI IC 751 IC CA0008AM Q 201 Transistor 2SD2396 Q 202 Transistor DTA114EK Q 203 Transistor DTC124EK Q 251 Transistor 2SA1037K Q 252 Transistor DTC124EK Q 253 Transistor 2SC2412K Q 301 Transistor 2SC2412K Q 451 Transistor IMH3A Q 452 Transistor IMH3A Q 453 Transistor DTA124EK Q 455 Transistor DTC124EK Q 456 Transistor 2SC2412K Q 457 Transistor DTC124EK Q 551 Transistor 2SC2412K Q 552 Transistor 2SC2412K Q 553 Transistor 2SC2412K Q 554 Transistor 2SA1037K Q 601 Transistor DTC124EK Q 602 Transistor DTA114EK Q 751 Transistor 2SA1037K Q 752 Transistor DTC114EK Q 801 Transistor 2SA1037K Q 802 Transistor 2SB1243 Q 803 Transistor DTC143EK Q 804 Transistor 2SA1037K Q 805 Transistor DTC114EK Q 807 Transistor DTC124EK Q 951 Transistor 2SA1037K Q 952 Transistor DTC114EK Q 953 Transistor 2SD2396 Q 954 Transistor 2SA1048 Q 955 Transistor 2SA1048 Q 956 Transistor IMH1A Q 957 Transistor 2SA1037K Q 958 Transistor DTC124EK Q 959 Transistor 2SD1760F5 D 201 Diode HZS7L(A3) D 251 Diode MA3150(M) D 252 LED BR4361F D 302 Chip Diode MA151WK D 451 Chip Diode MA151WK D 452 Diode HZS9L(A2) D 501 Diode ERA15-02 D 502 Diode ERA15-02 D 551 Diode HZS7L(C2) D 552 Diode MA3062(M) D 553 Diode ERA15-02 D 554 Chip Diode MA151WK D 555 Diode ERA15-02 D 556 Diode ERA15-02 D 557 Diode ERA15-02 D 558 Diode ERA15-02 D 601 Diode 1SS270 D 801 Diode MA153 D 802 Diode MA153 D 803 Diode MA153 D 804 Diode MA3062(M) D 951 Diode HZS9L(B3) D 952 Diode ERA15-02 D 953 Diode HZS6L(B2) D 954 Diode 1SS270 L 201 Ferri-Inductor LAU2R2K L 301 Ferri-Inductor LAU2R2K L 303 Ferri-Inductor LAU2R2K L 304 Ferri-Inductor LAU2R2K L 307 Inductor LCTBR47K2125 L 501 Choke Coil 600mH CTH1226 L 551 Ferri-Inductor LAU2R2K L 601 Ferri-Inductor LAU2R2K L 602 Ferri-Inductor LAU2R2K L 603 Ferri-Inductor LAU2R2K L 604 Ferri-Inductor LAU2R2K L 605 Inductor LCTB2R2K2125 L 751 Ferri-Inductor LAU2R2K L 801 Ferri-Inductor LAU2R2K CF 601 Filter CTF1071 X 301 Crystal Resonator 7.200MHz CSS1379 X 601 Radiator 12.58291MHz CSS1402 S 601 Switch(RESET) CSG1046 FM/AM Tuner Unit CWE1417 BZ 601 Buzzer CPV1011 71 MEH-P5000R—,P5000,P5050 =====Circuit Symbol & No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol & No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com RESISTORS R 201 RS1/10S221J R 202 RS1/10S221J R 204 RS1/10S221J R 206 RD1/4PU221J R 207 RD1/4PU162J R 251 RS1/10S103J R 252 RS1/10S102J R 253 RS1/10S223J R 254 RS1/10S223J R 255 RS1/10S103J R 256 RS1/10S751J R 257 RS1/10S473J R 258 RS1/10S272J R 259 RS1/10S223J R 260 RS1/8S102J R 261 RS1/10S221J R 262 RS1/10S221J R 301 RS1/10S162J R 302 RS1/10S162J R 303 RS1/10S0R0J R 304 RS1/10S0R0J R 305 RS1/10S0R0J R 306 RS1/10S102J R 308 RS1/10S102J R 309 RS1/10S222J R 312 RS1/10S472J R 313 RS1/10S152J R 314 RS1/10S472J R 315 RS1/10S472J R 317 RS1/10S182J R 318 RS1/10S103J R 319 RS1/10S0R0J R 320 RS1/10S152J R 321 RS1/10S392J R 322 RS1/10S392J R 323 RS1/10S102J R 324 RS1/10S103J R 325 RS1/10S393J R 326 RS1/10S222J R 328 RA4C681J R 329 RS1/10S473J R 330 RS1/10S472J R 331 RS1/10S562J R 332 RS1/10S0R0J R 333 RS1/10S102J R 334 RS1/10S222J R 335 RS1/10S473J R 338 RS1/10S222J R 339 RS1/10S102J R 343 RS1/10S0R0J R 344 RS1/10S0R0J R 401 RD1/4PU751J R 402 RD1/4PU751J R 405 RD1/4PU181J R 406 RD1/4PU181J R 407 RD1/4PU223J R 408 RD1/4PU223J R 409 RD1/4PU102J R 410 RD1/4PU102J R 411 RS1/10S102J R 412 RS1/10S102J R 413 RS1/10S102J R 451 RD1/4PU821J R 452 RD1/4PU821J R 453 RD1/4PU821J R 454 RD1/4PU821J R 455 RS1/10S223J R 456 RS1/10S223J R 457 RS1/10S223J R 458 RS1/10S223J R 460 RD1/4PU182J R 461 RS1/10S103J R 462 RS1/10S223J R 463 RS1/10S103J R 464 RS1/10S103J R 501 RS1/10S221J R 502 RS1/10S101J R 503 RS1/10S153J R 504 RS1/10S103J R 551 RS1/10S223J R 552 RS1/10S473J R 553 RS1/10S223J R 554 RS1/10S473J R 555 RS1/10S472J R 556 RS1/10S103J R 557 RS1/10S103J R 558 RS1/10S473J R 559 RD1/4PU153J R 560 RS1/10S472J R 561 RS1/10S472J R 562 RS1/10S102J R 563 RS1/10S473J R 564 RS1/10S473J R 566 RS1/10S103J R 567 RD1/4PU102J R 568 RD1/4PU102J R 569 RS1/10S473J R 570 RS1/10S473J R 571 RS1/10S0R0J R 572 RS1/10S0R0J R 573 RS1/10S0R0J R 574 RS1/10S0R0J R 601 RS1/10S152J R 602 RS1/10S152J R 603 RS1/10S822J R 604 RS1/10S471J R 606 RS1/10S0R0J R 608 RS1/10S473J R 609 RS1/10S102J R 610 RS1/10S473J R 611 RS1/10S473J R 612 RS1/10S0R0J R 613 RS1/10S102J R 614 RS1/10S102J R 615 RS1/10S102J R 616 RS1/10S102J R 617 RS1/10S102J R 618 RS1/10S222J R 619 RS1/10S473J R 620 RS1/10S473J R 621 RS1/10S473J R 622 RS1/10S473J R 623 RS1/10S221J R 624 RS1/10S102J R 625 RA4C221J R 626 RS1/10S473J R 627 RS1/10S473J R 628 RS1/10S473J R 630 RS1/16S473J R 631 RS1/16S473J 72 MEH-P5000R—,P5000,P5050 =====Circuit Symbol & No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol & No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com R 632 RS1/16S473J R 751 RS1/10S102J R 752 RS1/10S102J R 753 RS1/10S473J R 754 RS1/10S473J R 755 RS1/10S101J R 756 RS1/10S101J R 757 RS1/10S620J R 758 RS1/10S223J R 759 RS1/10S102J R 760 RS1/10S102J R 761 RS1/10S222J R 762 RS1/10S472J R 801 RS1/10S223J R 802 RS1/10S332J R 804 RS1/10S222J R 805 RS1/10S222J R 806 RS1/10S222J R 807 RS1/10S222J R 808 RS1/10S222J R 809 RS1/10S222J R 810 RS1/10S222J R 811 RS1/4S182J R 813 RS1/10S473J R 814 RS1/4S512J R 816 RS1/10S1R0J R 819 RS2PMF330J R 820 RS2PMF180J R 951 RS1/10S473J R 952 RS1/10S472J R 953 RD1/4PU102J R 954 RS1/10S103J R 955 RS1/10S362J R 956 RS1/10S103J R 957 RS1/10S362J R 958 RS1/10S101J R 959 RS1/10S104J R 960 RS1/8S222J R 961 RS1/10S104J R 962 RS1/10S103J R 963 RS1/10S103J R 964 RS1/10S0R0J R 966 RS1/10S0R0J CAPACITORS C 203 CEJA101M10 C 204 CKSQYB473K25 C 205 CKSQYB103K50 C 251 CKSQYB104K50 C 252 CKSQYB103K50 C 301 CKSQYB473K25 C 302 CKSQYB473K25 C 307 CKSQYB223K50 C 308 CKSQYB103K50 C 309 CKSQYB273K50 C 310 CKSQYB103K50 C 311 CKLSR473K16 C 312 CKSQYB223K50 C 314 CKSQYB223K50 C 319 CKSQYB103K50 C 320 CEJA220M10 C 321 CKSQYB103K50 C 323 CKSQYB103K50 C 325 CKSQYB103K50 C 326 CKSQYB103K50 C 327 CCSQCH101J50 C 328 CCSQCH101J50 C 329 CEJA220M6R3 C 330 CKSQYB473K25 C 332 CKSQYB103K50 C 333 CEJA220M6R3 C 334 CKSQYB103K50 C 338 CKSQYB154K16 C 339 CKSQYB103K50 C 341 4.7µF/16V CCH1250 C 342 CCSQCH150J50 C 343 CCSQCH150J50 C 346 CKSQYB103K50 C 347 CEJA100M16 C 403 CKSQYB105K10 C 404 CKSQYB105K10 C 405 CKSQYB105K10 C 406 CKSQYB105K10 C 407 CKSQYB105K10 C 408 CKSQYB105K10 C 409 CKSQYB224K16 C 410 CKSQYB224K16 C 411 CKSQYB105K10 C 412 CKSQYB105K10 C 413 CKSQYB153K50 C 414 CKSQYB153K50 C 415 CKSQYB104K50 C 416 CEJA470M10 C 417 CEJA100M16 C 451 CEJA4R7M35 C 452 CEJA4R7M35 C 453 CEJA4R7M35 C 454 CEJA4R7M35 C 455 CCSQCH101J50 C 456 CCSQCH101J50 C 457 CCSQCH101J50 C 458 CCSQCH101J50 C 501 4700µF/16V CCH1187 C 502 CKSQYB104K50 C 503 CKSYB224K16 C 504 CKSYB224K16 C 505 CKSYB224K16 C 506 CKSYB224K16 C 507 CEJA330M10 C 509 CKSQYB105K10 C 510 CEJA100M16 C 551 CKSYB105K16 C 555 CKSQYB473K25 C 557 CKSQYB473K25 C 602 CEJA2R2M50 C 603 CCSQCH200J50 C 604 CCSQCH200J50 C 605 CKSQYB104K50 C 606 CCSQCH101J50 C 607 CCSQCH101J50 C 612 CCSQCH101J50 C 751 CKSQYB102K50 C 752 CKSQYB102K50 C 753 CKSQYB104K50 C 803 CCSQCH101J50 C 804 CKSQYB104K50 C 805 CCSQCH101J50 C 951 CEJA101M10 C 952 CKSQYB103K50 C 953 CKSQYB473K25 C 954 CEJA101M10 C 955 1500µF/16V CCH1201 C 956 CEJA100M16 C 957 CKSQYB103K50 C 958 CEJA470M10 73 MEH-P5000R—,P5000,P5050 =====Circuit Symbol & No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol & No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Unit Number : CWM6038(MEH-P5050/ES) Unit Name : Tuner Amp Unit MISCELLANEOUS IC 301 IC PM2006A IC 401 IC PML003AM IC 501 IC PAL005A IC 551 IC TPD1018F IC 601 IC PD4959A IC 602 IC S-80734ANDYI IC 751 IC CA0008AM Q 201 Transistor 2SD2396 Q 202 Transistor DTA114EK Q 203 Transistor DTC124EK Q 251 Transistor 2SA1037K Q 252 Transistor DTC124EK Q 253 Transistor 2SC2412K Q 301 Transistor 2SC2412K Q 451 Transistor IMH3A Q 452 Transistor IMH3A Q 453 Transistor DTA124EK Q 455 Transistor DTC124EK Q 456 Transistor 2SC2412K Q 457 Transistor DTC124EK Q 551 Transistor 2SC2412K Q 552 Transistor 2SC2412K Q 553 Transistor 2SC2412K Q 554 Transistor 2SA1037K Q 601 Transistor DTC124EK Q 602 Transistor DTA114EK Q 751 Transistor 2SA1037K Q 752 Transistor DTC114EK Q 801 Transistor 2SA1037K Q 802 Transistor 2SB1243 Q 803 Transistor DTC143EK Q 804 Transistor 2SA1037K Q 805 Transistor DTC114EK Q 807 Transistor DTC124EK Q 951 Transistor 2SA1037K Q 952 Transistor DTC114EK Q 953 Transistor 2SD2396 Q 954 Transistor 2SA1048 Q 955 Transistor 2SA1048 Q 956 Transistor IMH1A Q 957 Transistor 2SA1037K Q 958 Transistor DTC124EK Q 959 Transistor 2SD1760F5 D 201 Diode HZS7L(A3) D 251 Diode MA3150(M) D 252 LED BR4361F D 302 Chip Diode MA151WK D 451 Chip Diode MA151WK D 452 Diode HZS9L(A2) D 501 Diode ERA15-02 D 502 Diode ERA15-02 D 551 Diode HZS7L(C2) D 552 Diode MA3062(M) D 553 Diode ERA15-02 D 554 Chip Diode MA151WK D 555 Diode ERA15-02 D 556 Diode ERA15-02 D 557 Diode ERA15-02 D 558 Diode ERA15-02 D 601 Diode 1SS270 D 801 Diode MA153 D 802 Diode MA153 D 803 Diode MA153 D 804 Diode MA3062(M) D 951 Diode HZS9L(B3) D 952 Diode ERA15-02 D 953 Diode HZS6L(B2) D 954 Diode 1SS270 L 201 Ferri-Inductor LAU2R2K L 301 Ferri-Inductor LAU2R2K L 303 Ferri-Inductor LAU2R2K L 304 Ferri-Inductor LAU2R2K L 501 Choke Coil 600mH CTH1226 L 551 Ferri-Inductor LAU2R2K L 601 Ferri-Inductor LAU2R2K L 602 Ferri-Inductor LAU2R2K L 603 Ferri-Inductor LAU2R2K L 604 Ferri-Inductor LAU2R2K L 605 Inductor LCTB2R2K2125 L 751 Ferri-Inductor LAU2R2K L 801 Ferri-Inductor LAU2R2K CF 601 Filter CTF1071 X 301 Crystal Resonator 7.200MHz CSS1379 X 601 Radiator 12.58291MHz CSS1402 S 601 Switch(RESET) CSG1046 FM/AM Tuner Unit CWE1485 BZ 601 Buzzer CPV1011 RESISTORS R 201 RS1/10S221J R 202 RS1/10S221J R 204 RS1/10S221J R 206 RD1/4PU221J R 207 RD1/4PU162J R 251 RS1/10S103J R 252 RS1/10S102J R 253 RS1/10S223J R 254 RS1/10S223J R 255 RS1/10S103J R 256 RS1/10S751J R 257 RS1/10S473J R 258 RS1/10S272J R 259 RS1/10S223J R 260 RS1/8S102J R 261 RS1/10S221J R 262 RS1/10S221J R 301 RS1/10S162J R 302 RS1/10S162J R 303 RS1/10S0R0J R 304 RS1/10S0R0J R 305 RS1/10S152J R 306 RS1/10S102J R 307 RS1/10S680J R 308 RS1/10S102J R 309 RS1/10S222J R 312 RS1/10S472J R 313 RS1/10S152J R 314 RS1/10S472J R 315 RS1/10S472J R 317 RS1/10S182J R 318 RS1/10S103J R 319 RS1/10S0R0J R 320 RS1/10S152J R 321 RS1/10S392J R 322 RS1/10S392J R 323 RS1/10S102J R 324 RS1/10S103J R 325 RS1/10S393J R 326 RS1/10S222J R 328 RA4C681J R 329 RS1/10S473J R 330 RS1/10S472J R 331 RS1/10S562J R 333 RS1/10S102J 74 MEH-P5000R—,P5000,P5050 =====Circuit Symbol & No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol & No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com R 334 RS1/10S222J R 335 RS1/10S473J R 338 RS1/10S222J R 339 RS1/10S102J R 341 RS1/10S0R0J R 401 RD1/4PU751J R 402 RD1/4PU751J R 405 RD1/4PU181J R 406 RD1/4PU181J R 407 RD1/4PU223J R 408 RD1/4PU223J R 409 RD1/4PU102J R 410 RD1/4PU102J R 411 RS1/10S102J R 412 RS1/10S102J R 413 RS1/10S102J R 451 RD1/4PU821J R 452 RD1/4PU821J R 453 RD1/4PU821J R 454 RD1/4PU821J R 455 RS1/10S223J R 456 RS1/10S223J R 457 RS1/10S223J R 458 RS1/10S223J R 460 RD1/4PU182J R 461 RS1/10S103J R 462 RS1/10S223J R 463 RS1/10S103J R 464 RS1/10S103J R 501 RS1/10S221J R 502 RS1/10S101J R 503 RS1/10S153J R 504 RS1/10S103J R 551 RS1/10S223J R 552 RS1/10S473J R 553 RS1/10S223J R 554 RS1/10S473J R 555 RS1/10S472J R 556 RS1/10S103J R 557 RS1/10S103J R 558 RS1/10S473J R 559 RD1/4PU153J R 560 RS1/10S472J R 561 RS1/10S472J R 562 RS1/10S102J R 563 RS1/10S473J R 564 RS1/10S473J R 566 RS1/10S103J R 567 RD1/4PU102J R 568 RD1/4PU102J R 569 RS1/10S473J R 570 RS1/10S473J R 571 RS1/10S0R0J R 572 RS1/10S0R0J R 573 RS1/10S0R0J R 574 RS1/10S0R0J R 601 RS1/10S152J R 602 RS1/10S152J R 603 RS1/10S822J R 604 RS1/10S471J R 606 RS1/10S0R0J R 608 RS1/10S473J R 609 RS1/10S102J R 610 RS1/10S473J R 611 RS1/10S473J R 612 RS1/10S0R0J R 613 RS1/10S102J R 614 RS1/10S102J R 615 RS1/10S102J R 616 RS1/10S102J R 617 RS1/10S102J R 618 RS1/10S222J R 619 RS1/10S473J R 620 RS1/10S473J R 621 RS1/10S473J R 622 RS1/10S473J R 623 RS1/10S221J R 624 RS1/10S102J R 625 RA4C221J R 626 RS1/10S473J R 628 RS1/10S473J R 630 RS1/16S473J R 631 RS1/16S473J R 632 RS1/16S473J R 751 RS1/10S102J R 752 RS1/10S102J R 753 RS1/10S473J R 754 RS1/10S473J R 755 RS1/10S101J R 756 RS1/10S101J R 757 RS1/10S620J R 758 RS1/10S223J R 759 RS1/10S102J R 760 RS1/10S102J R 761 RS1/10S222J R 762 RS1/10S472J R 801 RS1/10S223J R 802 RS1/10S332J R 804 RS1/10S222J R 805 RS1/10S222J R 806 RS1/10S222J R 807 RS1/10S222J R 808 RS1/10S222J R 809 RS1/10S222J R 810 RS1/10S222J R 811 RS1/4S182J R 813 RS1/10S473J R 814 RS1/4S512J R 816 RS1/10S1R0J R 819 RS2PMF330J R 820 RS2PMF180J R 951 RS1/10S473J R 952 RS1/10S472J R 953 RD1/4PU102J R 954 RS1/10S103J R 955 RS1/10S362J R 956 RS1/10S103J R 957 RS1/10S362J R 958 RS1/10S101J R 959 RS1/10S104J R 960 RS1/8S222J R 961 RS1/10S104J R 962 RS1/10S103J R 963 RS1/10S103J R 964 RS1/10S0R0J R 966 RS1/10S0R0J 75 MEH-P5000R—,P5000,P5050 =====Circuit Symbol & No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol & No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CAPACITORS C 203 CEJA101M10 C 204 CKSQYB473K25 C 205 CKSQYB103K50 C 251 CKSQYB104K50 C 252 CKSQYB103K50 C 301 CKSQYB473K25 C 302 CKSQYB473K25 C 307 CKSQYB223K50 C 308 CKSQYB103K50 C 309 CKSQYB273K50 C 310 CKSQYB103K50 C 311 CKLSR473K16 C 312 CKSQYB223K50 C 314 CKSQYB223K50 C 319 CKSQYB103K50 C 320 CEJA220M10 C 321 CKSQYB103K50 C 323 CKSQYB103K50 C 324 CKSQYB103K50 C 325 CKSQYB103K50 C 326 CKSQYB103K50 C 327 CCSQCH101J50 C 328 CCSQCH101J50 C 329 CEJA220M6R3 C 330 CKSQYB473K25 C 332 CKSQYB103K50 C 333 CEJA220M6R3 C 334 CKSQYB103K50 C 338 CKSQYB154K16 C 339 CKSQYB103K50 C 341 4.7µF/16V CCH1250 C 342 CCSQCH150J50 C 343 CCSQCH150J50 C 346 CKSQYB103K50 C 347 CEJA100M16 C 403 CKSQYB105K10 C 404 CKSQYB105K10 C 405 CKSQYB105K10 C 406 CKSQYB105K10 C 407 CKSQYB105K10 C 408 CKSQYB105K10 C 409 CKSQYB224K16 C 410 CKSQYB224K16 C 411 CKSQYB105K10 C 412 CKSQYB105K10 C 413 CKSQYB153K50 C 414 CKSQYB153K50 C 415 CKSQYB104K50 C 416 CEJA470M10 C 417 CEJA100M16 C 451 CEJA4R7M35 C 452 CEJA4R7M35 C 453 CEJA4R7M35 C 454 CEJA4R7M35 C 455 CCSQCH101J50 C 456 CCSQCH101J50 C 457 CCSQCH101J50 C 458 CCSQCH101J50 C 501 CCH1187 C 502 4700µF/16V CKSQYB104K50 C 503 CKSYB224K16 C 504 CKSYB224K16 C 505 CKSYB224K16 C 506 CKSYB224K16 C 507 CEJA330M10 C 509 CKSQYB105K10 C 510 CEJA100M16 C 551 CKSYB105K16 C 555 CKSQYB473K25 C 557 CKSQYB473K25 C 602 CEJA2R2M50 C 603 CCSQCH200J50 C 604 CCSQCH200J50 C 605 CKSQYB104K50 C 606 CCSQCH101J50 C 607 CCSQCH101J50 C 612 CCSQCH101J50 C 751 CKSQYB102K50 C 752 CKSQYB102K50 C 753 CKSQYB104K50 C 803 CCSQCH101J50 C 804 CKSQYB104K50 C 805 CCSQCH101J50 C 951 CEJA101M10 C 952 CKSQYB103K50 C 953 CKSQYB473K25 C 954 CEJA101M10 C 955 1500µF/16V CCH1201 C 956 CEJA100M16 C 957 CKSQYB103K50 C 958 CEJA470M10 Unit Number : CWE1416(MEH-P5000R—/EW) Unit Name : FM/AM Tuner Unit MISCELLANEOUS IC 1 IC PA4023B IC 2 IC PA4024A Q 1 Transistor 2SC2412K Q 2 Transistor DTC124EU Q 3 FET 3SK263 Q 31 Transistor 2SC2412K Q 154 Transistor DTC124EU Q 165 Transistor 2SC2412K Q 201 FET 2SK932 Q 202 Transistor 2SC2412K Q 203 Transistor DTC124EU D 4 Diode 1SV250 D 5 Diode KV1410-F1 D 7 Diode KV1410-F1 D 8 Diode KV1410-F1 D 201 Diode MA157 D 202 Diode MA157 D 231 Diode SVC253 L 2 Coil CTC1108 L 3 Inductor LCTB2R2K2125 L 4 Coil CTC1108 L 5 Coil CTC1107 L 6 Inductor LCTBR15K1608 L 51 Ferri-Inductor LAU150K L 201 Ferri-Inductor LAU4R7K L 202 Ferri-Inductor LAU330K L 203 Inductor CTF1287 L 208 Inductor LAU121K L 231 Inductor LCTA3R3J3225 T 31 Coil CTE1116 T 51 Coil CTC1136 TC 1 Trimmer CCL1046 CF 51 Ceramic Filter CTF1442 CF 52 Ceramic Filter CTF1442 CF 53 Ceramic Filter CTF1442 76 MEH-P5000R—,P5000,P5050 =====Circuit Symbol & No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol & No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CF 232 Ceramic Filter CTF1348 X 151 Radiator 918.5Hz CSS1365 X 231 Crystal Resonator 10.26MHz CSS1111 VR 154 Semi-fixed 150kΩ(B) CCP1213 AR 1 DSP-201M RESISTORS R 1 RS1/16S0R0J R 4 RS1/16S154J R 5 RS1/16S391J R 6 RS1/16S223J R 7 RS1/16S123J R 8 RS1/16S332J R 9 RS1/16S473J R 10 RS1/16S223J R 11 RS1/16S124J R 13 RS1/16S563J R 15 RS1/16S271J R 16 RS1/16S104J R 17 RS1/16S332J R 18 RS1/16S332J R 31 RS1/16S470J R 32 RS1/16S822J R 33 RS1/16S822J R 34 RS1/16S331J R 35 RS1/16S331J R 51 RS1/16S271J R 52 RS1/16S560J R 55 RS1/16S102J R 56 RS1/16S823J R 61 RS1/16S392J R 62 RS1/16S393J R 101 RS1/16S272J R 102 RS1/16S682J R 103 RS1/16S333J R 104 RS1/16S334J R 105 RS1/16S683J R 107 RS1/16S222J R 151 RS1/16S222J R 152 RS1/16S393J R 154 RS1/16S104J R 155 RS1/16S273J R 156 RS1/16S243J R 157 RS1/16S203J R 160 RS1/16S222J R 161 RS1/16S563J R 162 RS1/16S105J R 163 RS1/16S222J R 202 RS1/16S223J R 203 RS1/16S225J R 204 RS1/16S103J R 206 RS1/16S220J R 207 RS1/16S101J R 208 RS1/16S102J R 209 RS1/16S471J R 214 RS1/16S822J R 215 RS1/16S822J R 217 RS1/16S102J R 231 RS1/16S272J R 232 RS1/16S473J R 237 RS1/16S103J R 238 RS1/16S104J R 239 RS1/16S104J R 240 RS1/16S332J R 241 RS1/16S202J R 243 RS1/16S123J R 244 RS1/16S103J R 247 RS1/16S123J CAPACITORS C 1 CCSQCH6R0D50 C 2 CCSRCK2R0C50 C 4 CCSRCH820J50 C 6 CCSRCH820J50 C 8 CKSRYB103K25 C 9 CKSQYB104K16 C 10 CCSRCKR50C50 C 11 CEJA1R0M50 C 13 CKSRYB222K50 C 14 CCSRCH220J50 C 16 CCSRCH8R0D50 C 17 CKSRYB222K50 C 18 CKSRYB103K25 C 19 CKSRYB222K50 C 20 CKSRYB222K50 C 21 CEJA100M16 C 22 CCSRTH9R0D50 C 23 CCSRTH120J50 C 24 CCSRCH471J50 C 25 CKSRYB103K25 C 31 CKSRYB103K25 C 32 CKSQYB472K50 C 33 CCSRCH5R0C50 C 34 CKSQYB104K16 C 36 CCSRRH201J50 C 51 CKSRYB223K25 C 52 CKSRYB103K25 C 54 CCSRCH470J50 C 55 CKSQYB223K25 C 56 CKSQYB104K16 C 57 CKSRYB472K50 C 58 CEJA330M10 C 59 CKSRYB103K25 C 61 CCSRCH270J50 C 62 CKSRYB103K25 C 63 CEJAR15M50 C 101 CEJANP100M10 C 102 CKSRYB182K50 C 103 CKSRYB682K25 C 104 CEJA2R2M50 C 105 CKSRYB103K25 C 106 CCSRCH151J50 C 107 CKSRYB103K25 C 151 CKSRYB472K50 C 152 CKSQYB104K16 C 153 CEJA3R3M50 C 154 CKSQYB104K16 C 157 CEJA3R3M50 C 158 CKSYB474K16 C 159 CEJA220M6R3 C 160 CKSQYB104K16 C 161 CKSQYB104K16 C 162 CEJA3R3M50 C 163 CKSRYB102K50 C 170 CCSRCH100D50 C 201 CCSRCH471J50 C 202 CCSRCH100D50 C 203 CKSRYB332K50 C 204 CKSQYB473K16 C 205 CKSQYB473K16 C 206 CKSQYB104K16 C 207 CCSRCH560J50 C 209 CKSQYB104K16 C 211 CCSRCH101J50 C 212 CEJA470M6R3 77 MEH-P5000R—,P5000,P5050 =====Circuit Symbol & No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol & No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C 213 CKSRYB103K25 C 216 CCSRCH101J50 C 217 CEJA1R5M50 C 219 CCSRCH471J50 C 220 CKSRYB103K25 C 230 CKSRYB103K25 C 231 CCSRCH330J50 C 232 CCSRCH150J50 C 233 CKSQYB104K16 C 234 CEJA330M10 C 235 CKSRYB332K50 C 236 CKSQYB473K16 C 237 CCSRCH120J50 C 239 CKSRYB472K50 C 240 CEJAR47M50 C 241 CKSQYB104K16 C 242 CEJAR47M50 C 243 CEJAR33M50 C 244 CKSQYB473K16 C 245 CKSRYB123K25 C 246 CKSQYB473K16 C 250 CCSRCH471J50 Unit Number : CWE1417(MEH-P5000/UC) Unit Name : FM/AM Tuner Unit MISCELLANEOUS IC 1 IC PA4023B IC 2 IC PA4024A Q 1 Transistor 2SC2412K Q 2 Transistor DTC124EU Q 3 FET 3SK263 Q 31 Transistor 2SC2412K Q 201 FET 2SK932 Q 202 Transistor 2SC2412K Q 203 Transistor DTC124EU D 1 Diode RD39JS D 2 Diode RD39JS D 4 Diode 1SV250 D 5 Diode KV1410-F1 D 6 Diode MA157 D 7 Diode KV1410-F1 D 8 Diode KV1410-F1 D 201 Diode MA157 D 202 Diode MA157 D 231 Diode SVC253 L 2 Coil CTC1108 L 3 Inductor LCTB2R2K2125 L 4 Coil CTC1108 L 5 Coil CTC1107 L 51 Ferri-Inductor LAU150K L 201 Ferri-Inductor LAU4R7K L 202 Ferri-Inductor LAU330K L 203 Inductor CTF1287 L 208 Inductor LAU121K L 231 Inductor LCTA3R3J3225 T 31 Coil CTE1116 T 51 Coil CTC1136 CF 51 Ceramic Filter CTF1441 CF 52 Ceramic Filter CTF1441 CF 53 Ceramic Filter CTF1441 CF 232 Ceramic Filter CTF1348 X 151 Radiator 918.5Hz CSS1365 X 231 Crystal Resonator 10.26MHz CSS1111 VR 154 Semi-fixed 150kΩ(B) CCP1213 RESISTORS R 1 RS1/16S225J R 2 RS1/16S225J R 4 RS1/16S154J R 5 RS1/16S391J R 6 RS1/16S223J R 7 RS1/16S123J R 8 RS1/16S332J R 9 RS1/16S473J R 10 RS1/16S223J R 11 RS1/16S124J R 13 RS1/16S563J R 15 RS1/16S271J R 16 RS1/16S104J R 17 RS1/16S332J R 18 RS1/16S332J R 31 RS1/16S470J R 32 RS1/16S822J R 33 RS1/16S822J R 34 RS1/16S331J R 35 RS1/16S331J R 51 RS1/16S271J R 52 RS1/16S560J R 55 RS1/16S102J R 56 RS1/16S823J R 61 RS1/16S392J R 62 RS1/16S273J R 101 RS1/16S272J R 102 RS1/16S682J R 103 RS1/16S333J R 104 RS1/16S334J R 105 RS1/16S683J R 107 RS1/16S222J R 151 RS1/16S222J R 152 RS1/16S393J R 155 RS1/16S273J R 156 RS1/16S243J R 157 RS1/16S203J R 160 RS1/16S222J R 161 RS1/16S563J R 162 RS1/16S105J R 163 RS1/16S223J R 202 RS1/16S223J R 203 RS1/16S225J R 204 RS1/16S103J R 206 RS1/16S220J R 207 RS1/16S101J R 208 RS1/16S102J R 209 RS1/16S471J R 214 RS1/16S822J R 215 RS1/16S822J R 217 RS1/16S102J R 231 RS1/16S272J R 232 RS1/16S473J R 237 RS1/16S103J R 238 RS1/16S104J R 239 RS1/16S104J R 240 RS1/16S332J R 241 RS1/16S202J R 243 RS1/16S183J R 244 RS1/16S392J R 247 RS1/16S123J 78 MEH-P5000R—,P5000,P5050 =====Circuit Symbol & No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol & No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CAPACITORS C 1 CCSQCH6R0D50 C 2 CCSRCK2R0C50 C 4 CCSRCH820J50 C 6 CCSRCH820J50 C 8 CKSRYB103K25 C 9 CKSQYB104K16 C 10 CCSRCKR50C50 C 11 CEJA1R0M50 C 12 CKSRYB222K50 C 13 CKSRYB222K50 C 14 CCSRCH220J50 C 15 CCSRCH6R0D50 C 16 CCSRCH8R0D50 C 17 CKSRYB222K50 C 18 CKSRYB103K25 C 19 CKSRYB222K50 C 20 CKSRYB222K50 C 21 CEJA100M16 C 22 CCSRTH9R0D50 C 23 CCSRTH120J50 C 24 CCSRCH471J50 C 25 CKSRYB103K25 C 26 CCSRCH101J50 C 31 CKSRYB103K25 C 32 CKSQYB472K50 C 33 CCSRCH5R0C50 C 34 CKSQYB104K16 C 36 CCSRRH201J50 C 51 CKSRYB223K25 C 52 CKSRYB103K25 C 54 CCSRCH470J50 C 55 CKSQYB223K25 C 56 CKSQYB104K16 C 57 CKSRYB472K50 C 58 CEJA330M10 C 59 CKSRYB103K25 C 60 CKSRYB102K50 C 61 CCSRCH270J50 C 62 CKSRYB103K25 C 63 CEJAR22M50 C 101 CEJANP100M10 C 102 CKSRYB182K50 C 103 CKSRYB682K25 C 104 CEJA2R2M50 C 105 CKSRYB103K25 C 106 CCSRCH151J50 C 107 CKSRYB103K25 C 151 CKSRYB472K50 C 152 CKSQYB104K16 C 153 CEJA3R3M50 C 154 CKSQYB104K16 C 157 CEJA3R3M50 C 158 CKSYB474K16 C 159 CEJA220M6R3 C 160 CKSQYB104K16 C 161 CKSQYB104K16 C 162 CEJA3R3M50 C 163 CKSRYB102K50 C 170 CCSRCH100D50 C 201 CCSRCH471J50 C 202 CCSRCH100D50 C 203 CKSRYB332K50 C 204 CKSQYB473K16 C 205 CKSQYB473K16 C 206 CKSQYB104K16 C 207 CCSRCH560J50 C 209 CKSQYB104K16 C 211 CCSRCH101J50 C 212 CEJA470M6R3 C 213 CKSRYB103K25 C 216 CCSRCH101J50 C 217 CEJA1R5M50 C 219 CCSRCH471J50 C 220 CKSRYB103K25 C 230 CKSRYB103K25 C 231 CCSRCH330J50 C 232 CCSRCH150J50 C 233 CKSQYB104K16 C 234 CEJA330M10 C 235 CKSRYB332K50 C 236 CKSQYB473K16 C 237 CCSRCH120J50 C 239 CKSRYB472K50 C 240 CEJAR47M50 C 241 CKSQYB104K16 C 242 CEJAR47M50 C 243 CEJAR33M50 C 244 CKSQYB473K16 C 245 CKSRYB333K16 C 246 CKSQYB473K16 C 250 CCSRCH471J50 Unit Number : CWE1485(MEH-P5050/ES) Unit Name : FM/AM Tuner Unit MISCELLANEOUS IC 1 IC PA4023B IC 2 IC PA4024A Q 1 Transistor 2SC2412K Q 2 Transistor DTC124EU Q 3 FET 3SK263 Q 31 Transistor 2SC2412K Q 201 FET 2SK932 Q 202 Transistor 2SC2412K Q 203 Transistor DTC124EU D 1 Diode RD39JS D 2 Diode RD39JS D 4 Diode 1SV250 D 5 Diode KV1410-F1 D 6 Diode MA157 D 7 Diode KV1410-F1 D 8 Diode KV1410-F1 D 201 Diode MA157 D 202 Diode MA157 D 231 Diode SVC253 L 2 Coil CTC1108 L 3 Inductor LCTB2R2K2125 L 4 Coil CTC1108 L 5 Coil CTC1107 L 6 Inductor LCTBR15K1608 L 51 Ferri-Inductor LAU150K L 201 Ferri-Inductor LAU4R7K L 202 Ferri-Inductor LAU330K L 203 Inductor CTF1287 L 208 Inductor LAU121K L 231 Inductor LCTA3R3J3225 T 31 Coil CTE1117 T 51 Coil CTC1136 CF 51 Ceramic Filter CTF1441 CF 52 Ceramic Filter CTF1441 CF 53 Ceramic Filter CTF1441 79 MEH-P5000R—,P5000,P5050 =====Circuit Symbol & No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol & No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CF 232 Ceramic Filter CTF1348 X 151 Radiator 918.5Hz CSS1365 X 231 Crystal Resonator 10.26MHz CSS1111 VR 154 Semi-fixed 150kΩ(B) CCP1213 RESISTORS R 1 RS1/16S225J R 2 RS1/16S225J R 4 RS1/16S154J R 5 RS1/16S391J R 6 RS1/16S223J R 7 RS1/16S123J R 8 RS1/16S332J R 9 RS1/16S473J R 10 RS1/16S223J R 11 RS1/16S124J R 13 RS1/16S563J R 15 RS1/16S271J R 16 RS1/16S104J R 17 RS1/16S332J R 18 RS1/16S332J R 31 RS1/16S470J R 32 RS1/16S822J R 33 RS1/16S822J R 34 RS1/16S331J R 35 RS1/16S331J R 51 RS1/16S271J R 52 RS1/16S560J R 55 RS1/16S102J R 56 RS1/16S823J R 61 RS1/16S392J R 62 RS1/16S273J R 101 RS1/16S272J R 102 RS1/16S682J R 103 RS1/16S333J R 104 RS1/16S334J R 105 RS1/16S683J R 107 RS1/16S222J R 151 RS1/16S222J R 152 RS1/16S393J R 155 RS1/16S273J R 156 RS1/16S243J R 157 RS1/16S203J R 160 RS1/16S222J R 161 RS1/16S563J R 162 RS1/16S105J R 163 RS1/16S223J R 202 RS1/16S223J R 203 RS1/16S225J R 204 RS1/16S103J R 206 RS1/16S220J R 207 RS1/16S101J R 208 RS1/16S102J R 209 RS1/16S471J R 214 RS1/16S822J R 215 RS1/16S822J R 217 RS1/16S102J R 231 RS1/16S272J R 232 RS1/16S473J R 237 RS1/16S103J R 238 RS1/16S104J R 239 RS1/16S104J R 240 RS1/16S332J R 241 RS1/16S202J R 243 RS1/16S183J R 244 RS1/16S392J R 247 RS1/16S123J CAPACITORS C 1 CCSQCH6R0D50 C 2 CCSRCK2R0C50 C 4 CCSRCH820J50 C 6 CCSRCH820J50 C 8 CKSRYB103K25 C 9 CKSQYB104K16 C 10 CCSRCKR50C50 C 11 CEJA1R0M50 C 12 CKSRYB222K50 C 13 CKSRYB222K50 C 14 CCSRCH220J50 C 15 CCSRCH6R0D50 C 16 CCSRCH8R0D50 C 17 CKSRYB222K50 C 18 CKSRYB103K25 C 19 CKSRYB222K50 C 20 CKSRYB222K50 C 21 CEJA100M16 C 22 CCSRTH9R0D50 C 23 CCSRTH120J50 C 24 CCSRCH471J50 C 25 CKSRYB103K25 C 31 CKSRYB103K25 C 32 CKSQYB472K50 C 33 CCSRCH5R0C50 C 34 CKSQYB104K16 C 36 CCSRRH201J50 C 51 CKSRYB223K25 C 52 CKSRYB103K25 C 54 CCSRCH470J50 C 55 CKSQYB223K25 C 56 CKSQYB104K16 C 57 CKSRYB472K50 C 58 CEJA330M10 C 59 CKSRYB103K25 C 60 CKSRYB102K50 C 61 CCSRCH270J50 C 62 CKSRYB103K25 C 63 CEJAR22M50 C 101 CEJANP100M10 C 102 CKSRYB182K50 C 103 CKSRYB682K25 C 104 CEJA2R2M50 C 105 CKSRYB103K25 C 106 CCSRCH151J50 C 107 CKSRYB103K25 C 151 CKSRYB472K50 C 152 CKSQYB104K16 C 153 CEJA3R3M50 C 154 CKSQYB104K16 C 157 CEJA3R3M50 C 158 CKSYB474K16 C 159 CEJA220M6R3 C 160 CKSQYB104K16 C 161 CKSQYB104K16 C 162 CEJA3R3M50 C 163 CKSRYB102K50 C 170 CCSRCH100D50 C 201 CCSRCH471J50 C 202 CCSRCH100D50 C 203 CKSRYB332K50 C 204 CKSQYB473K16 C 205 CKSQYB473K16 C 206 CKSQYB104K16 C 207 CCSRCH560J50 80 MEH-P5000R—,P5000,P5050 =====Circuit Symbol & No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol & No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C 209 CKSQYB104K16 C 211 CCSRCH101J50 C 212 CEJA470M6R3 C 213 CKSRYB103K25 C 216 CCSRCH101J50 C 217 CEJA1R5M50 C 219 CCSRCH471J50 C 220 CKSRYB103K25 C 230 CKSRYB103K25 C 231 CCSRCH330J50 C 232 CCSRCH150J50 C 233 CKSQYB104K16 C 234 CEJA330M10 C 235 CKSRYB332K50 C 236 CKSQYB473K16 C 237 CCSRCH120J50 C 239 CKSRYB472K50 C 240 CEJAR47M50 C 241 CKSQYB104K16 C 242 CEJAR47M50 C 243 CEJAR33M50 C 244 CKSQYB473K16 C 245 CKSRYB333K16 C 246 CKSQYB473K16 C 250 CCSRCH471J50 Unit Number : CWM6041(MEH-P5000R—/EW) Unit Name : Keyboard Unit MISCELLANEOUS IC 901 IC PD6277A IC 902 IC LC75874W IC 903 RS-140 Q 901 Transistor IMH10A Q 903 Transistor IMH10A Q 904 Transistor IMH10A Q 905 Transistor IMH10A Q 906 Transistor DTC143TK Q 907 Transistor 2SC2412K D 901 Diode MA153 D 902 Diode MA153 D 903 LED NSPWF50BS-8452 D 904 LED NSPWF50BS-8452 D 907 LED NSPWF50BS-8452 D 908 LED NSPWF50BS-8452 D 909 LED CL170DCD D 910 LED CL170DCD D 911 LED CL170PGCD D 912 LED CL170PGCD D 913 LED CL170DCD D 914 LED CL170PGCD D 915 LED CL170UBX L 901 Inductor LCTB4R7K3216 X 901 Radiator 5.00MHz CSS1423 S 901 Switch CSG1115 S 902 Switch CSG1113 S 903 Switch CSG1113 S 904 Switch CSG1113 S 905 Switch CSG1113 S 906 Switch CSG1113 S 907 Switch CSG1113 S 908 Switch CSG1043 S 909 Switch CSG1043 S 910 Switch CSG1113 S 911 Switch CSG1113 S 912 Switch CSG1113 S 913 Switch CSG1113 S 914 Switch CSG1113 S 915 Switch CSG1113 S 916 Switch CSG1113 S 917 Switch CSG1113 S 918 Switch CSG1113 S 919 Switch CSG1113 S 920 Switch CSG1113 S 921 Switch CSG1113 S 922 Switch CSG1113 S 923 Switch CSG1113 LCD CAW1490 RESISTORS R 901 RS1/10S222J R 902 RS1/10S222J R 903 RS1/10S103J R 904 RS1/10S121J R 905 RS1/10S2R2J R 907 RA4C102J R 908 RS1/16S102J R 909 RS1/16S102J R 910 RA4C102J R 911 RA4C102J R 912 RA4C103J R 913 RS1/8S751J R 915 RS1/8S751J R 916 RS1/16S472J R 917 RS1/16S472J R 918 RS1/16S472J R 919 RS1/16S473J R 920 RA4C102J R 921 RS1/16S472J R 922 RS1/16S472J R 923 RS1/16S472J R 924 RS1/10S472J R 925 RS1/8S751J R 926 RS1/8S751J R 928 RS1/8S751J R 929 RS1/8S181J R 930 RS1/8S181J R 931 RS1/8S121J R 932 RS1/8S121J R 933 RS1/8S121J R 934 RS1/8S121J R 935 RS1/8S121J R 936 RS1/8S121J R 937 RS1/8S121J R 938 RS1/8S121J R 939 RS1/8S121J R 940 RS1/8S121J R 941 RS1/8S181J R 942 RS1/8S181J R 943 RS1/8S121J R 944 RS1/8S121J R 949 RS1/8S242J R 950 RS1/10S103J R 1001 RS1/8S242J R 1002 RS1/8S242J R 1003 RS1/8S242J R 1004 RS1/8S751J R 1005 RS1/8S751J R 1007 RS1/10S0R0J R 1009 RS1/8S751J R 1010 RS1/8S181J R 1011 RS1/8S181J R 1012 RS1/8S751J CAPACITORS C 902 CSZSR100M6R3 C 903 CSZSR100M6R3 C 904 CKSQYB473K16 C 905 CKSQYB104K16 C 906 CKSQYB681K50 81 MEH-P5000R—,P5000,P5050 =====Circuit Symbol & No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol & No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C 907 CKSQYB104K16 C 908 CKSQYB104K16 C 909 CKSQYB104K16 C 910 CKSQYB104K16 C 911 CKSQYB104K16 C 913 CKSQYB104K16 C 914 CKSQYB104K16 C 917 CKSQYB104K16 C 918 CKSQYB104K16 C 919 CKSQYB104K16 Unit Number : CWM6067(MEH-P5000/UC) Unit Name : Keyboard Unit MISCELLANEOUS IC 901 IC PD6277A IC 902 IC LC75874W IC 903 RS-140 Q 907 Transistor 2SC2412K D 901 Diode MA153 D 902 Diode MA153 D 903 LED NSPWF50BS-8452 D 904 LED NSPWF50BS-8452 D 907 LED NSPWF50BS-8452 D 908 LED NSPWF50BS-8452 D 909 LED CL170PGCD D 910 LED CL170PGCD D 913 LED CL170PGCD D 915 LED CL170UBX L 901 Inductor LCTB4R7K3216 X 901 Radiator 5.00MHz CSS1423 S 901 Switch CSG1107 S 902 Switch CSG1112 S 903 Switch CSG1112 S 904 Switch CSG1112 S 905 Switch CSG1112 S 906 Switch CSG1112 S 907 Switch CSG1112 S 908 Switch CSG1043 S 909 Switch CSG1043 S 910 Switch CSG1112 S 911 Switch CSG1112 S 912 Switch CSG1112 S 913 Switch CSG1112 S 914 Switch CSG1112 S 915 Switch CSG1112 S 916 Switch CSG1112 S 917 Switch CSG1112 S 918 Switch CSG1112 S 919 Switch CSG1112 S 920 Switch CSG1112 S 921 Switch CSG1112 S 922 Switch CSG1112 S 923 Switch CSG1112 LCD CAW1491 RESISTORS R 901 RS1/10S222J R 902 RS1/10S222J R 903 RS1/10S103J R 904 RS1/10S121J R 905 RS1/10S2R2J R 907 RA4C102J R 908 RS1/16S102J R 909 RS1/16S102J R 910 RA4C102J R 911 RA4C102J R 912 RA4C103J R 913 RS1/8S751J R 915 RS1/8S751J R 916 RS1/16S472J R 917 RS1/16S472J R 918 RS1/16S472J R 919 RS1/16S473J R 920 RA4C102J R 921 RS1/16S472J R 922 RS1/16S472J R 923 RS1/16S472J R 924 RS1/10S472J R 925 RS1/8S751J R 926 RS1/8S751J R 928 RS1/8S751J R 929 RS1/8S181J R 930 RS1/8S181J R 931 RS1/8S121J R 932 RS1/8S121J R 933 RS1/8S121J R 934 RS1/8S121J R 935 RS1/8S121J R 936 RS1/8S121J R 937 RS1/8S121J R 938 RS1/8S121J R 939 RS1/8S121J R 940 RS1/8S121J R 941 RS1/8S181J R 942 RS1/8S181J R 943 RS1/8S121J R 944 RS1/8S121J R 947 RS1/10S0R0J R 948 RS1/10S0R0J R 1004 RS1/8S751J R 1005 RS1/8S751J R 1006 RS1/10S0R0J R 1007 RS1/10S0R0J R 1009 RS1/8S751J R 1010 RS1/8S181J R 1011 RS1/8S181J R 1012 RS1/8S751J CAPACITORS C 902 CSZSR100M6R3 C 903 CSZSR100M6R3 C 904 CKSQYB473K16 C 905 CKSQYB104K16 C 906 CKSQYB681K50 C 907 CKSQYB104K16 C 908 CKSQYB104K16 C 909 CKSQYB104K16 C 910 CKSQYB104K16 C 911 CKSQYB104K16 C 913 CKSQYB104K16 C 914 CKSQYB104K16 C 917 CKSQYB104K16 C 918 CKSQYB104K16 C 919 CKSQYB104K16 Unit Number : CWM6042(MEH-P5050/ES) Unit Name : Keyboard Unit MISCELLANEOUS IC 901 IC PD6277A IC 902 IC LC75874W IC 903 RS-140 Q 907 Transistor 2SC2412K D 901 Diode MA153 82 MEH-P5000R—,P5000,P5050 =====Circuit Symbol & No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol & No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- C C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D 902 Diode MA153 D 903 LED NSPWF50BS-8452 D 904 LED NSPWF50BS-8452 D 907 LED NSPWF50BS-8452 D 908 LED NSPWF50BS-8452 D 909 LED CL170PGCD D 910 LED CL170PGCD D 913 LED CL170PGCD D 915 LED CL170UBX L 901 Inductor LCTB4R7K3216 X 901 Radiator 5.00MHz CSS1423 S 901 Switch CSG1107 S 902 Switch CSG1112 S 903 Switch CSG1112 S 904 Switch CSG1112 S 905 Switch CSG1112 S 906 Switch CSG1112 S 907 Switch CSG1112 S 908 Switch CSG1043 S 909 Switch CSG1043 S 910 Switch CSG1112 S 911 Switch CSG1112 S 912 Switch CSG1112 S 913 Switch CSG1112 S 914 Switch CSG1112 S 915 Switch CSG1112 S 916 Switch CSG1112 S 917 Switch CSG1112 S 918 Switch CSG1112 S 919 Switch CSG1112 S 920 Switch CSG1112 S 921 Switch CSG1112 S 922 Switch CSG1112 S 923 Switch CSG1112 LCD CAW1491 RESISTORS R 901 RS1/10S222J R 902 RS1/10S222J R 903 RS1/10S103J R 904 RS1/10S121J R 905 RS1/10S2R2J R 907 RA4C102J R 908 RS1/16S102J R 909 RS1/16S102J R 910 RA4C102J R 911 RA4C102J R 912 RA4C103J R 913 RS1/8S751J R 915 RS1/8S751J R 916 RS1/16S472J R 917 RS1/16S472J R 918 RS1/16S472J R 919 RS1/16S473J R 920 RA4C102J R 921 RS1/16S472J R 922 RS1/16S472J R 923 RS1/16S472J R 924 RS1/10S472J R 925 RS1/8S751J R 926 RS1/8S751J R 928 RS1/8S751J R 929 RS1/8S181J R 930 RS1/8S181J R 931 RS1/8S121J R 932 RS1/8S121J R 933 RS1/8S121J R 934 RS1/8S121J R 935 RS1/8S121J R 936 RS1/8S121J R 937 RS1/8S121J R 938 RS1/8S121J R 939 RS1/8S121J R 940 RS1/8S121J R 941 RS1/8S181J R 942 RS1/8S181J R 943 RS1/8S121J R 944 RS1/8S121J R 947 RS1/10S0R0J R 948 RS1/10S0R0J R 1004 RS1/8S751J R 1005 RS1/8S751J R 1006 RS1/10S0R0J R 1007 RS1/10S0R0J R 1009 RS1/8S751J R 1010 RS1/8S181J R 1011 RS1/8S181J R 1012 RS1/8S751J CAPACITORS C 902 CSZSR100M6R3 C 903 CSZSR100M6R3 C 904 CKSQYB473K16 C 905 CKSQYB104K16 C 906 CKSQYB681K50 C 907 CKSQYB104K16 C 908 CKSQYB104K16 C 909 CKSQYB104K16 C 910 CKSQYB104K16 C 911 CKSQYB104K16 C 913 CKSQYB104K16 C 914 CKSQYB104K16 C 917 CKSQYB104K16 C 918 CKSQYB104K16 C 919 CKSQYB104K16 Unit Number :1246840289 Unit Name :Main PCB MISCELLANEOUS IC 101 IC 1245730345 IC 201 IC 1245730449 IC 202 IC 1245730502 IC 301 IC 1245730310 IC 302 IC TC74VHC125FT IC 303 IC 1245730310 IC 305 IC TC7SH08F IC 306 IC TC7SH08F IC 401 IC 1245730513 IC 402 IC 1245730376 IC 403 IC 1245730309 IC 501 IC 1245730515 IC 601 IC BA5985FM IC 801 IC 1245730444 IC 811 IC NJM2904V IC 861 IC 1245730311 Q 401 Transistor DTC144EE Q 402 1245760006 Q 403 Transistor DTA114TE Q 703 Transistor 2SA1037K Q 704 Transistor DTC114EE Q 705 Transistor 2SC4213 Q 706 Transistor 2SC4213 Q 801 Transistor 1245760001 Q 802 FET 2SK1830 83 MEH-P5000R—,P5000,P5050 =====Circuit Symbol & No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol & No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Q 821 Transistor 2SA1244LB Q 822 Transistor 2SC4081 Q 841 Transistor 2SA1244LB Q 842 Transistor 2SC4081 D 701 Diode 1115700031 L 101 Inductor 1246140017 L 201 Inductor 1246140016 L 202 Inductor 1306140318 L 501 Inductor 1246140016 L 600 Inductor 1246120014 L 801 Inductor 1246140014 L 842 Inductor 1246120002 XL 201 Ceramic Resonator 33.868MHz 1245790011 XL 401 Ceramic Resonator 5.64MHz 1245790006 RESISTORS R 101 RS1/16SS104J R 102 RS1/16SS563J R 111 RS1/16SS223J R 112 RS1/16SS223J R 113 RS1/16SS223J R 114 RS1/16SS223J R 131 RS1/16SS1R0J R 132 RS1/16SS103J R 161 RS1/16SS122J R 204 RS1/16SS102J R 222 RS1/16SS105J R 303 RS1/16SS103J R 304 RS1/16SS332J R 305 RS1/16SS473J R 306 RS1/16SS681J R 307 RS1/16SS681J R 308 RS1/16SS681J R 309 RS1/16SS681J R 310 RS1/16SS681J R 311 RS1/16SS102J R 312 RS1/16SS102J R 351 RS1/16SS681J R 352 RS1/16SS101J R 403 RS1/16SS223J R 404 RS1/16SS223J R 406 RS1/16SS223J R 407 RS1/16SS223J R 408 RS1/16SS223J R 409 RS1/16SS223J R 411 RS1/16SS104J R 412 RS1/16SS103J R 413 RS1/16SS102J R 414 RS1/16SS102J R 415 RS1/16SS102J R 431 RS1/16SS104J R 432 RS1/16SS104J R 433 RS1/16SS104J R 441 RS1/16SS102J R 442 RS1/16SS102J R 443 RS1/16SS102J R 444 RS1/16SS102J R 445 RS1/16SS102J R 446 RS1/16SS102J R 448 RS1/16SS103J R 601 RS1/16SS103J R 610 RS1/16SS123J R 611 RS1/16SS123J R 614 RS1/16SS682J R 616 RS1/16SS682J R 622 RS1/16SS103J R 624 RS1/16SS103J R 628 RS1/16SS822J R 629 RS1/16SS822J R 630 RS1/16SS104J R 631 RS1/16SS104J R 634 RS1/16SS104J R 636 RS1/16SS104J R 638 RS1/16SS104J R 640 RS1/16SS104J R 642 RS1/16SS823J R 644 RS1/16SS823J R 713 RS1/16SS104J R 714 RS1/16SS104J R 717 RS1/16SS561J R 718 RS1/16SS561J R 719 RS1/16SS102J R 720 RS1/16SS102J R 801 RS1/16SS223J R 802 RS1/16SS471J R 803 1245810051 R 804 1305810059 R 805 1245810088 R 806 1245810090 R 807 RS1/16SS473J R 808 1245810098 R 821 1245810091 R 822 RS1/16SS101J R 823 1245810087 R 824 1245810050 R 828 1245810082 R 841 1245810091 R 842 RS1/16SS101J R 843 1245810087 R 844 1245810050 R 848 1245810082 CAPACITORS C 101 CSZS100M10 C 102 CKSQYB105K16 C 103 CKSQYB105K16 C 104 CKSQYB104K25 C 106 CKSQYB224K16 C 107 CKSRYB123K25 C 109 CKSYB475K10 C 110 CKSQYB224K16 C 112 CKSRYB332K50 C 113 CKSRYB333K16 C 114 CCSRCH331J50 C 121 CCSRCH271J50 C 122 CCSRCH271J50 C 123 CCSRCH391J50 C 124 CCSRCH391J50 C 165 CKSRYB333K16 C 166 CKSYB475K10 C 201 CSZSR330M10 C 202 CSZS100M10 C 203 CKSRYB104K16 C 204 CKSRYB104K16 C 205 CKSQYB105K16 C 301 CKSRYB104K16 C 302 CKSRYB104K16 C 303 CKSRYB104K16 C 305 CKSRYB104K16 C 306 CKSRYB104K16 C 307 CKSQYB224K16 C 401 CKSQYB105K16 C 402 CKSYB105K16 84 MEH-P5000R—,P5000,P5050 =====Circuit Symbol & No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol & No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C 403 CKSQYB105K16 C 405 CKSRYB104K16 C 501 1245900059 C 502 CKSYB105K16 C 503 CSZS100M10 C 504 CSZS100M10 C 505 CSZS100M10 C 600 1245920021 C 601 CKSYB105K16 C 603 CKSQYB105K16 C 610 CCSRSL681J50 C 611 CCSRSL681J50 C 612 CKSRYB122K50 C 613 CKSRYB122K50 C 616 CKSRYB562K50 C 617 CKSRYB562K50 C 620 CKSRYB223K25 C 621 CKSRYB223K25 C 705 CSZS100M10 C 706 CSZS100M10 C 707 CCSRCH151J50 C 708 CCSRCH151J50 C 801 CKSYB105K16 C 802 CKSRYB104K16 C 803 CKSYB105K16 C 804 1245900058 C 805 CKSYB105K16 C 806 1245900059 C 807 CKSYB105K16 C 808 CKSQYB184K16 C 810 CKSRYB103K25 C 821 CCSRSL681J50 C 824 1245900003 C 825 1245900059 C 826 1245900059 C 827 CCSRCH151J50 C 840 CKSYB105K16 C 841 CCSRSL681J50 C 842 CCSRCH151J50 C 843 CKSQYB224K16 C 844 1245900059 C 846 1245900059 C 847 1245900059 C 861 CKSYB105K16 C 862 1245900058 Unit Number :1246840251 Unit Name :Mechanism PCB SW 901 Spring Switch(LEAD) CSN1033 SW 902 Switch(DISC ID) 1245300030 SW 903 Switch(DISK IN) 1245300030 R 901 RS1/16SS104J R 902 RS1/16SS333J R 903 RS1/16SS104J C 901 CKSYB105K16 C 902 CKSYB105K16 Unit Number :1246840145 Unit Name :Switch PCB SW 651 Switch(LOAD END) 1305301313 SW 652 Switch(LOAD START) 1305301313 SW 653 Switch(EJECT END) 1305301313 Miscellaneous Parts List M 651 Motor(LOADING) 1246300043 M 901 Motor(SLIDE) 1246300073 M 902 Motor(SPINDLE) 1246300069 Optical Pickup Assy 1246170028 85 MEH-P5000R—,P5000,P5050 =====Circuit Symbol & No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- E F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 86 MEH-P5000R—,P5000,P5050 FM/AM TUNER UNIT 4Ω 4Ω Lch + Lch - Rch + Rch - BACK UP ACC GND +14.4V GND Antenna Jack mV Meter(1) Oscilloscope DC Regulated Power Supply TUNER AMP UNIT DC V Meter(1) Center Meter Pin 19 FM/AM TUNER UNIT (BOTTOM VIEW) C63 FM/AM TUNER UNIT (TOP VIEW) L2 L5 T51 T31 Pin1 Pin13 Pin14 Pin26 L4 T51 VR154 50 Ω(75Ω ) FM SSG Stereo Modulator 50Ω (37.5Ω ) Antenna Plug Dummy Antenna VR351 DC V Meter(2) SIDE B Q351 EMITTER TC1 6. ADJUSTMENT 6.1 TUNER ADJUSTMENT - Connection Diagram www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 87 MEH-P5000R—,P5000,P5050 Modulation M:MONO MOD., 400Hz 30%(22.5kHz Dev.) or 400Hz 100%(75kHz Dev.) S1:STEREO MOD., 1kHz, L or R=30%(20.25kHz+7.5kHz Dev.) S2:STEREO MOD., 400Hz, L or R=60%(40.5kHz+7.5kHz Dev.) NOTE:Before proceeding to further adjustments after switching power ON, let the tuner run for ten minutes to allow the circuits to stabilize. FM ADJUSTMENT(MEH-P5000R—/EW) FM SSG Displayed Adjustment Adjustment Method No. Frequency(MHz) Level(dBf) Frequency(MHz) Point (Switch Position) TUN Volt 1 ••••• ••••• 108.0 L5 DC V Meter(1) : 6V IF 2 98.1 M 60—100 98.1 T51 Center Meter : 0 ANT Coil 3 98.1 M 5 98.1 L2 mV Meter(1) : Maximum RF Coil 4 98.1 M 5 98.1 L4 mV Meter(1) : Maximum RF 5 129.3 M 60—80 107.9 TC1 mV Meter(1) : Minimum Trimmer 6 RF Coil and RF Trimmer shall be adjusted twice or more IFT 7 98.1 M 5 98.1 T31 mV Meter(1) : Maximum (STEREO MODE) ARC 8 98.1 S1 40 98.1 VR154 mV Meter(1) : Separation 5dB (STEREO MODE) FM ADJUSTMENT(MEH-P5000/UC, MEH-P5050/ES) FM SSG Displayed Adjustment Adjustment Method No. Frequency(MHz) Level(dBf) Frequency(MHz) Point (Switch Position) TUN Volt 1 ••••• ••••• 107.9(UC) L5 DC V Meter(1) : 6V 108.0(ES) IF 2 98.1 M 60—100 98.1 T51 Center Meter : 0 ANT Coil 3 98.1 M 5 98.1 L2 mV Meter(1) : Maximum RF Coil 4 98.1 M 5 98.1 L4 mV Meter(1) : Maximum IFT 5 98.1 M 5 98.1 T31 mV Meter(1) : Maximum (STEREO MODE) ARC 6 98.1 S1 40 98.1 VR154 mV Meter(1) : Separation 5dB (STEREO MODE) RDS SL ADJUSTMENT FM SSG Displayed Adjustment Adjustment Method No. Frequency(MHz) Level(dBf) Frequency(MHz) Point (Switch Position) 1 104.0 S2 35 104.0 VR351 DC V Meter(2) : 1.75V+0.05V -0.35V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 88 MEH-P5000R—,P5000,P5050 6.2 MD MECHANISM MODULE ADJUSTMENT - About test disc Use a low reflection disc (MMD-211) for preliminary auto tuning (AUTO1). Use a high reflection disc (MMD-110), low reflection disc (MMD-211) for ATT auto tuning (AUTO2). Disc No. : TEAC MMD-211B or MMD-212B Tool No. : GGF1328 1. Be sure to perform “preliminary auto tuning” when you exchanged a PCB, Mechanism Unit, or Pickup Unit. 2. Let TP421 and TP435 (IC402: pin6, pin8) short circuited before preliminary auto tuning or overwriting EE-PROM (IC402) to clear protection on EE-PROM. * To overwrite EE-PROM, please see page 9 of the CX-893 Service Manual. - How to tune optical pick up grating Adjust Lissajous’ figure (x-y) of EOUT (TP131) to FOUT (TP130) after automatically adjusting in a test mode AUTO2 using a high reflection disc. 1. Loosen the three screws of the spinning motor and adjust checking Lissajous’ figure. 2. After the tuning is completed, tighten the screws 1, 2, and 3, in that order. 3. Check Lissajous’ figure again. Check Lissajous’ figure while shifting positions to which the spinning motor is mounted. IC101 26pin EOUT IC101 25pin POUT Oscilloscope Lissajous’ figure Within the range a:b = 3:1 Main PCB MD Mechanism Module GGD1141 GGF1346 Tuner Amp Unit CN201 GGD1180 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 89 MEH-P5000R—,P5000,P5050 - About tuning of jitter and how to tune it Use the following circuit as a tool to measure jitter. Check jitter value of EFM with the step continuous play in TESTPLAY mode after automatically tuning in a test mode AUTO2 (ATT auto tuning) using a low reflection disc. TP201 EFMNON IC201 1pin Jitter meter - How to tune the position of read-in switch Check the sub code cluster value of the position of read-in switch in INNER mode. If the SUBQ value is outside the range between FF85 and FFD2, tighten the screws by shifting the mechanism PCB to the directions indicated with the arrow in the figure below, and then check the sub code cluster value of the position of read-in switch again. Mechanism PCB Read-in switch Loosen the two screws Loosen the screws while tuning. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 90 MEH-P5000R—,P5000,P5050 7. GENERAL INFORMATION 7.1 DIAGNOSIS 7.1.1 TEST MODE Key name Outline of key operations BAND Used to power ON/OFF. ] Move through threads, jump, change settings, etc. [ Move through threads, jump, change settings, etc. ' Switch through MENU in the forward direction. Switch through MENU in the backward direction. SCR Switch to TEST STOP mode. FUNCTION Confirm the item you selected from MENU. 1 Changing display. - Specifications of test mode operation Test mode is used to tune the MD player part in this model. • How to switch to test mode. Turn ACC and Back Up ON while holding down 4 key and 6 key. • How to deselect test mode. Turn ACC and Back Up OFF. ' www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 91 MEH-P5000R—,P5000,P5050 - Menus in Test Mode TEST STOP RIGHT LEFT " " key in the main unit "'" key in the main unit " " key in the main unit " " key in the main unit " " key in the main unit " " key in the main unit " " key in the main unit " " key in the main unit " " key in the main unit " " key in the main unit " " key in the main unit "'" key in the main unit "'" key in the main unit "'" key in the main unit "'" key in the main unit "'" key in the main unit "'" key in the main unit "'" key in the main unit "'" key in the main unit "'" key in the main unit AUTO1 AUTO2 RESULT1 RESULT2 MANUAL1 MANUAL2 ERR-DATA TEST PLAY EEPROM NORMAL INNER : Preliminary auto tuning menu : STOP test mode : ATT auto tuning checking menu : Preliminary auto tuning checing menu : ATT auto tuning checking menu : Preliminary manual tuning menu : ATT manual tuning menu : Error history displaying menu : Continuous playing menu : EEPROM setting menu : Test mode normal playing menu : INNER switch position measuring menu * Pressing "SCR" key in the main unit in each status switches to "TEST STOP" . Switch through outer circumference of slide Switch through inner circumference of slide � � � � � � � � � � " " key in the main unit ' ' ' ' ' ' ' ' ' ' ' www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 92 MEH-P5000R—,P5000,P5050 AUTO1 AT1 AT2 COMPLETE "F" key in the main unit "F" key in the main unit CANT-ADJ Tuning error Normal end : Preliminary auto tuning menu : Preliminary auto tuning is in progress : Preliminary tuning ends in an error : Preliminary tuning normally ends : ATT tuning is in progress * Pressing "SCR" key in the main unit in each status switches to "TEST STOP" . * " " is one of the following tuning numbers: 00 : Switch through most inner circumference 02 : Tentative measurement of ABEF offset 04 : Rough tuning of RF side focus gain 05 : Tentative setting of focus ATT 06 : Tuning of tracking gain in RF side pit part 07 : COUT level setting for tuning pit part 08 : Switch through outer circumference 09 : Tuning of tracking gain in RF side groove part 10 : COUT level setting for tuning groove part 11 : Tuning of RF side TCRS gain 12 : Initial setting of tracking ATT 13 : Fine tuning of RF side focus gain 14 : Initial setting of focus ATT 15 : Measurement of S gain "High" ABEF offset 16 : Measurement of TCRS offset 17 : Measurement of S gain "Low" ABEF offset - Preliminary auto tuning www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 93 MEH-P5000R—,P5000,P5050 AUTO2 AT2 SUBQ #### ADIP #### COMPLETE "F" key in the main unit "F" key in the main unit CANT-ADJ Tuning error Normal end : ATT auto tuning menu : ATT auto tuning is in progress : ATT tuning ends in an error : ATT tuning normally ends : Continuous playing (high reflection) : Continuous playing (low reflection) * Pressing "SCR" key in the main unit in each status switches to "TEST STOP" . * " " is one of the following tuning numbers: 00 : Switch through most inner circumference 03 : ATT setting of tracking in pit part 04 : ATT setting of focus in pit part 06 : Switch through outer circumference (low reflection only) 07 : ATT setting of TCRS (low reflection only) 08 : ATT setting of tracking in groove part (low reflection only) 09 : ATT setting of focus in groove part (low reflection only) - ATT auto tuning www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 94 MEH-P5000R—,P5000,P5050 MANUAL1 "F" key in the main unit PCH -- "'" key in the main unit "'" key in the main unit "'" key in the main unit "'" key in the main unit "'" key in the main unit " " key in the main unit " " key in the main unit " " key in the main unit " " key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit : Temperature code display $$ : Temperature code : Preliminary manual tuning menu : Tentative setting of A signal offset (AINO) : Measured value : Tentative setting of B signal offset (BINO) : Measured value : Tentative setting of E signal offset (EINO) : Measured value : Tentative setting of F signal offset (FINO) : Measured value : Laser power on (Play power on) : Rough tuning of RF side focus gain : Setting value of gain : E-ATT (Tracking) initial setting ___ : ATT setting value : F-ATT (Tracking) initial setting ___ : ATT setting value : A-ATT (Focus) tentative setting ___ : ATT setting value : B-ATT (Focus) tentative setting ___ : ATT setting value : Tuning of tracking gain in RF side pit part : Setting value of gain : COUT level setting for tuning pit part -- : Setting value of COUT level : Tuning of tracking gain in RF side grove part : Setting value of gain : COUT level setting for tuning grove part -- : Setting value of COUT level : Tuning of RF side TCRS gain : Setting value of gain TMP $$ RFS GCH -- PTG SET ___ SFT ___ GTG RCG IAO IBO IEO IFO IAT ___ IBT ___ LON P � � � � � � � � � � � � � � � � � � � � � � � � � � ' ' ' ' ' ' ' ' ' ' ' ' ' ' ' ' - Preliminary manual tuning www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 95 MEH-P5000R—,P5000,P5050 * Pressing "SCR" key in the main unit in each status switches to "TEST STOP" . * Pressing "F" key in the main unit in each status where a setting value is displayed changes the digit of the setting value that will be changed. • When the setting value has two digits. "F" key in the main unit "F" key in the main unit The first digit (Initial value) The second digit "F" key in the main unit "F" key in the main unit "F" key in the main unit The first digit (Initial value) The second digit The third digit • When the setting value has three digits. * Pressing VOL UP/DOWN key in each status where a setting value is displayed changes the value in the digit you selected in the range from 0H through FH. However, the setting value of RF side gain changes in the range from 0H through 6H. "'" key in the main unit " " key in the main unit "'" key in the main unit "'" key in the main unit "'" key in the main unit "'" key in the main unit "'" key in the main unit "'" key in the main unit : Measurement of S gain "High" B signal offset (BINO) : Measured value : Measurement of S gain "High" E signal offset (EINO) : Measured value : Measurement of S gain "High" F signal offset (FINO) : Measured value : Measurement of TCRS signal offset (TCRSO) : Measured value : Measurement of S gain "Low" A signal offset (AINO) : Measured value : Measurement of S gain "Low" B signal offset (BINO) : Measured value : Measurement of S gain "Low" E signal offset (EINO) : Measured value HBO HEO HFO LAO LBO LEO : Measurement of S gain "Low" F signal offset (FINO) : Measured value LFO TCO " " key in the main unit " " key in the main unit " " key in the main unit " " key in the main unit " " key in the main unit " " key in the main unit -- *** ___ *** ___ *** ___ *** -- *** "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit : Fine tuning of RF side focus gain : Setting value of gain : A-ATT (Focus) initial setting ___ : ATT setting value : B-ATT (Focus) initial setting ___ : ATT setting value : Measurement of S gain "High" A signal offset (AINO) : Measured value SBT ___ HAO SAT ___ RFG "'" key in the main unit � � � � � � � � � � � � � � � � � � � � � ' ' ' ' ' ' ' ' ' ' ' www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 96 MEH-P5000R—,P5000,P5050 RCG TCM : RF-side pit tracking gain tuning : Pit tuning COUT level setting : RF-side groove tracking gain tuning : Groove tuning COUT level setting PTG PCH GTG GCH : LPFEFO measurement display : RF-side TCRS gain tuning : TCRSMIO measurement display LEF • LPFEFO measurement • TCRSMIO measurement SET LEI EFM : E-ATT (tracking) default setting : LPFEINO measurement display : EFMIO measurement display • LPFEINO/EFMIO measurement SFT LSI EFM : F-ATT (tracking) default setting : LPFFINO measurement display : EFMIO measurement display • LPFFINO/EFMIO measurement *The display changes as follows by operating main unit "1" key. • ABMAXO measurement : RF-side focus gain rough-tuning : A-ATT (focus) pre-setting : B-ATT (focus) pre-setting RFS IAT IBT : ABMAXO measurement display ABM : RF-side focus gain fine-tuning : A-ATT (focus) default setting : B-ATT (focus) default setting RFG SAT SBT : LPFABO measurement display LAB • LPFABO measurement "1" key in the main unit "1" key in the main unit "1" key in the main unit "1" key in the main unit "1" key in the main unit "1" key in the main unit "1" key in the main unit "1" key in the main unit "1" key in the main unit "1" key in the main unit "1" key in the main unit "1" key in the main unit "1" key in the main unit "1" key in the main unit ___ -- -- ___ ___ ___ ___ ___ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 97 MEH-P5000R—,P5000,P5050 * Pressing RIGHT/LEFT key in each status where a setting value is displayed changes the value in the digit you selected in the range from 0H through FH. " " key in the main unit "F" key in the main unit " " key in the main unit HBT LBT SUBQ #### ADIP #### * Pressing "SCR" key in the main unit in each status switches to "TEST STOP" status. * Pressing "F" key in the main unit in the B-ATT setting status switches to continuous play. Pressing "F key in the main unit in the continuous playing status switches to the B-ATT setting status in the ATT manual tuning. : Setting of high reflection B-ATT (Focus) in pit part : Setting of low reflection B-ATT (Focus) in pit part : Setting of low reflection B-ATT (Focus) in groove part : ATT setting value : Continuous play (pit part) #### : Address * Pressing "F" key in the main unit in each status where a setting value is displayed changes the digit of the setting value that will be changed. The first digit (Initial value) The second digit The third digit "F" key in the main unit "F" key in the main unit *** *** *** ' ___ ' ___ ___ ___ ___ ___ "F" key in the main unit " " key in the main unit " " key in the main unit " " key in the main unit " " key in the main unit " " key in the main unit " " key in the main unit " " key in the main unit " " key in the main unit " " key in the main unit " " key in the main unit " " key in the main unit " " key in the main unit " " key in the main unit " " key in the main unit " " key in the main unit " " key in the main unit " " key in the main unit " " key in the main unit " " key in the main unit " " key in the main unit : ATT manual tuning menu : Temperature code display $$ : Temperature code MANUAL2 : Laser power on (Play power on) : E-ATT (Tracking) setting of pit part : ATT setting value : F-ATT (Tracking) setting of pit part : ATT setting value : Setting of high reflection A-ATT (Focus) : Setting of low reflection A-ATT (Focus) : ATT setting value : Setting of high reflection B-ATT (Focus) : Setting of low reflection B-ATT (Focus) : ATT setting value : ATT setting of TCRS : ATT setting value : Setting of E-ATT (Tracking) in groove part : ATT setting value : Setting of F-ATT (Tracking) in groove part : ATT setting value : Setting of low reflection A-ATT (Focus) : ATT setting value : Setting of low reflection B-ATT (Focus) : ATT setting value PFT LON P PET HBT GCT GET GFT LAT LBT TMP $$ HAT LAS LBS � ' ' ' ' ' ' ' ' ' ' ' ___ ___ ___ ___ __ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ __ ' ' ' ' ' ' ' ' ' - ATT manual tuning www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 98 MEH-P5000R—,P5000,P5050 PET GET LEI "1" key in the main unit "1" key in the main unit "1" key in the main unit "1" key in the main unit "1" key in the main unit "1" key in the main unit "1" key in the main unit "1" key in the main unit "1" key in the main unit "1" key in the main unit : High reflection pit A-ATT (focus) setting : High reflection pit B-ATT (focus) setting : Low reflection pit A-ATT (focus) setting : Low reflection pit B-ATT (focus) setting : Low reflection groove A-ATT (focus) setting : Low reflection groove B-ATT (focus) setting HAT HBT LAS LBS LAT LBT : LPFABO measurement display : Pit E-ATT (tracking) setting : Groove E-ATT (tracking) setting LAB • LPFABO measurement • LPFEINO/EFMIO measurement • TCRSMIO measurement EFM : LPFEINO measurement display : EFMIO measurement display : TCRS ATT setting : TCRSMIO measurement display TCM PFT GFT LFI : Pit F-ATT (tracking) setting : Groove F-ATT (tracking) setting • LPFFINO/EFMIO measurement EFM : LPFFINO measurement display : EFMIO measurement display GCT * The display changes as follows by operating main unit "1"key . ___ ___ ___ ___ ___ ___ ___ ___ __ ___ ___ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 99 MEH-P5000R—,P5000,P5050 "F" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit : Preliminary tuning checking menu : Measured value of S gain "High" A signal offset (Setting value) : Measured value of S gain "High" B signal offset (Setting value) : Measured value of S gain "High" E signal offset (Setting value) : Measured value of S gain "High" F signal offset (Setting value) : Measured value of S gain "Low" A signal offset (Setting value) : Measured value of S gain "Low" B signal offset (Setting value) : Measured value of S gain "Low" E signal offset (Setting value) : Measured value of S gain "Low" F signal offset (Setting value) : Measured value of TCRS signal offset : Measured value of tracking gain in RF side pit part : Measured value of RF side TCRS gain : Measured value of tracking gain in RF side groove part : Measured value of RF side focus gain : Setting value of COUT level for tuning pit part : Initial value of B-ATT (Focus) : Initial value of A-ATT (Focus) : Setting value of COUT level for tuning groove part : Initial value of E-ATT (Tracking) : Initial value of F-ATT (Tracking) HAO HBO HEO HFO LAO LBO LEO LFO SAT ___ SBT ___ SFT ___ TCO PCH -- GCH -- PTG GTG RCG RFG RESULT1 SET ___ � � � � � � � � � � � � � � � � � � � � � � � � � � � � ' ' ' ' ' ' ' ' ' ' � � � � � � � � ' ' ' ' ' ' ' ' - Checking preliminary tuned value www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 100 MEH-P5000R—,P5000,P5050 * Pressing "SCR" key in the main unit in each status switches to "TEST STOP" . * Pressing "F "key in the main unit in each status where a setting value is displayed changes the digit of the setting value that will be changed. • When the setting value has three digits. * Pressing VOL UP/DOWN key in each status where a setting value is displayed changes the value in the digit you selected in the range from 0H through FH. However, the setting value of RF side gain changes in the range from 0H through 6H. "F" key in the main unit The first digit (Initial value) The second digit The first digit (Initial value) The second digit The third digit "F" key in the main unit "F" key in the main unit "F" key in the main unit "F" key in the main unit • When the setting value has two digits. -- *** ___ *** ___ *** ___ *** -- *** www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 101 MEH-P5000R—,P5000,P5050 "F" key in the main unit : ATT value checking menu : Setting value of E-ATT (Tracking) in pit part : Setting value of F-ATT (Tracking) in pit part : Setting value of E-ATT (Tracking) in grove part : Setting value of F-ATT (Tracking) in grove part : Setting value of high reflection A-ATT (Focus) : Setting value of high reflection B-ATT (Focus) : Setting value of low reflection A-ATT (Focus) : Setting value of low reflection B-ATT (Focus) : Setting value of TCRS-ATT PET ___ PFT ___ GET ___ GFT ___ HAT ___ HBT ___ GCT __ RESULT2 * Pressing "SCR" key in the main unit in each status switches to "TEST STOP" . * Pressing "F" key in the main unit in each status where a setting value is displayed changes the digit of the setting value that will be changed. * Pressing RIGHT/LEFT key in each status where a setting value is displayed changes the value in the digit you selected in the range from 0H through FH. "F" key in the main unit The first digit (Initial value) The second digit The third digit "F" key in the main unit " " key in the main unit • When the setting value has three digits. ___ *** ___ *** ___ *** LAT ___ LBT ___ " " key in the main unit " " key in the main unit " " key in the main unit " " key in the main unit " " key in the main unit " " key in the main unit " " key in the main unit " " key in the main unit ' ' ' ' ' ' ' ' "'" key in the main unit "'" key in the main unit "'" key in the main unit "'" key in the main unit "'" key in the main unit "'" key in the main unit "'" key in the main unit "'" key in the main unit ' � � � � � � � � - Checking ATT setting value www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 102 MEH-P5000R—,P5000,P5050 RIGHT : Continuous play menu : Continuous play menu : Continuous play (pit part) : Continuous play (groove part) #### : Address : Continuous play (pit part) : Continuous play (groove part) #### : Address : Continuous play (pit part) : Continuous play (groove part) #### : Address : B-ATT (Focus) setting of high reflection pit part : B-ATT (Focus) setting of low reflection pit part ___ : ATT setting value • When you start continuous play with the position which is picked up. SUBQ #### ADIP #### SUBQ #### ADIP #### TESTPLAY TESTPLAY ADRS0050 "F" key in the main unit "'" key in the main unit "F" key in the main unit : Specify the address from which you start playing. • When you start continuous play with any address. SUBQ #### ADIP #### * Pressing "SCR" key in the main unit in each status switches to "TEST STOP" status. * Pressing " " key in the main unit in the status where you specified the address to start playing switches the digit of the address that will be changed. * Pressing "'" key in the main unit in the status where you specified the address to start playing switches the digit of the address as shown below. 0050H (Initial value) 03C0H 0700H 08A0H ADRS0050 ADRS03C0 ADRS0700 The first digit (Initial value) The second digit The third digit ADRS0050 ADRS0050 ADRS0050 ADRS08A0 * Pressing RIGHT/LEFT key in each the status where you specified the address to start playing switches the value in the digit you selected in the range from 0H through FH. * Pressing "'" key in the main unit in the continuous play status switches to the B-ATT setting status in the ATT manual tuning. HBT ___ LBT ___ " " key in the main unit " " key in the main unit " " key in the main unit "'" key in the main unit "'" key in the main unit "'" key in the main unit � � � � � � " " key in the main unit �' ' ' ' ' - Continuous play www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 103 MEH-P5000R—,P5000,P5050 "F" key in the main unit : INNER switch position measuring menu : Continuous play (pit part) #### : Address SUBQ #### INNER * Pressing "SCR" key in the main unit in each status switches to "TEST STOP" . "F" key in the main unit : Test mode normal playing menu : Normal play mode @@@@@@ : Mode and address @@ @@@@@ NORMAL * Pressing "SCR" key in the main unit in each status switches to "TEST STOP" . - Measuring the position of INNER switch - Test mode normal play "F" key in the main unit One (Initial value) 10 400 1T JMP 10T JMP 400T JMP * Pressing "F" key in the main unit in switches the number of trucks to be jumped as shown below. * Pressing RIGHT key in the continuous play status jumps the trucks by the number you specified in the direction of the outer circumference. * Pressing LEFT key in the continuous play status jumps the trucks by the number you specified in the direction of the inner circumference. "F" key in the main unit "F" key in the main unit www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 104 MEH-P5000R—,P5000,P5050 LEFT " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit : Error history displaying menu : Clear error history SKIP UP SKIP DOWN CLEAR ERR DATA "F" key in the main unit : Error history displaying menu : Display error history 0 : Error code : Display error history 1 : Error code : Display error history 2 : Error code : Display error history 3 : Error code : Display error history 4 : Error code : Display error history 5 : Error code : Display error history 6 : Error code : Display error history 7 : Error code : Display error history 8 : Error code : Display error history 9 : Error code ER0 ER1 ER2 ER3 ER4 ER5 ER6 ER7 ER8 ER9 ERR DATA * Pressing "SCR" key in the main unit in each status switches to "TEST STOP" . • Clearing error history • Displaying error history " " key in the main unit � � � � � � � � � � � � � � � � � � ' ' ' ' ' ' ' ' ' - Displaying error history www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 105 MEH-P5000R—,P5000,P5050 "F" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit : EEPROM setting menu : Focus setting menu : Control setting menu : Tuning setting menu : Digital EQ setting menu : Tracking setting menu : Slide setting menu : Spinning setting menu EEPROM Focus CONTROL ADJSET DEQSET TRKING SLED SPINDLE * Pressing "SCR" key in the main unit in each status switches to "TEST STOP" . "'" key in the main unit � � � � � � � � � � � � ' ' ' ' ' ' - Setting EEPROM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 106 MEH-P5000R—,P5000,P5050 "F" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit : Focus setting menu : Setting value of the gain constant for focus based loop filter (PIT) __ : Setting value : Setting value of the gain constant for focus based loop filter (GRV) __ : Setting value : The first setting value of the number specifying f for focus based loop filter __ : Setting value : The second setting value of the number specifying f for focus based loop filter __ : Setting value : Setting value of the hysteresis level to be detected in FZC __ : Setting value : Setting value of the hysteresis level to be detected in FOK __ : Setting value : Setting value of LPF factor during FOK generation __ : Setting value : Reserve for focus control __ : Setting value : Amplitude of focus search __ : Setting value : Setting value of wait time during feeding with auto focus __ : Setting value : Slope of focus search __ : Setting value FGP __ FGG __ FF1 __ FF2 __ FZHLEV__ FOKLEV__ FSRESV__ FOKLPF__ FSLEV __ WAITF __ FSSLP __ Focus * Pressing "SCR" key in the main unit in each status switches to "TEST STOP" . * Pressing RIGHT/LEFT key in each status switches the setting value in the range from 00H through FFH. (Upper limits depend on items.) � � � � � � � � � � � � � � � � � � � � ' ' ' ' ' ' ' ' ' ' - Setting focus www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 107 MEH-P5000R—,P5000,P5050 "F" key in the main unit he first digit (Initial value) The second digit "F" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit : Control setting menu : EEPROM version __ : Setting value : The number of accumulated sectors when voice starts. __ : Setting value : Setting value 3 for controlling __ : Setting value : Setting value 4 for controlling __ : Setting value : Setting value 5 for control __ : Setting value : Special mode select data __ : Setting value : Setting data related to controlling and others __ : Setting value : Monitor select data __ : Setting value EPVER __ STSDN __ CTRL3 __ CTRL4 __ CTRL5 __ SMODE __ MOSEL __ RVSEL __ CONTROL * Pressing "SCR" key in the main unit in each status switches to "TEST STOP" . * Pressing "F" key in the main unit in each status where a setting value is displayed changes the digit of the setting value that will be changed. * Pressing RIGHT/LEFT key in each status where a setting value is displayed changes the value in the digit you selected in the range from 0H through FH. "F" key in the main unit __ ***** __ ***** � � � � � � � � � � � � � � � ' ' ' ' ' ' ' - Setting control www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 108 MEH-P5000R—,P5000,P5050 "F" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit : Environment setting menu : Reference value of COUT level for tuning __ : Setting value : Focus ATT reference value __ : Setting value : Tracking ATT reference value __ : Setting value : TCRS ATT reference value __ : Setting value : Focus balance factor __ : Setting value COKPL __ FATPL __ TATPL __ CATPL __ FABPL __ ADJSET * Pressing "SCR" key in the main unit in each status switches to "TEST STOP" . * Pressing "F" key in the main unit in each status where a setting value is displayed changes the digit of the setting value that will be changed. * Pressing RIGHT/LEFT key in each status where a setting value is displayed changes the value in the digit you selected in the range from 0H through FH. "F" key in the main unit The first digit (Initial value) The second digit "F" key in the main unit __ ***** __ ***** � � � � � � � � ' ' ' ' - Tuning setting www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 109 MEH-P5000R—,P5000,P5050 "F" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit : Digital EQ setting menu : Digital EQ tap factor A, D for high reflection pit part __ : Setting value : Digital EQ tap factor B, C for high reflection pit part __ : Setting value : Gain of auto level slicer for high reflection pit part __ : Setting value : Slice level offset of auto level slicer for high reflection pit part __ : Setting value : Digital EQ tap factor A, D for low reflection pit part __ : Setting value : Digital EQ tap factor B, C for low reflection pit part __ : Setting value : Slice level offset of auto level slicer for low reflection pit part __ : Setting value : Gain of auto level slicer for low reflection pit part __ : Setting value HQ1 __ HQ2 __ LQ1 __ LQ2 __ HSG __ HSO __ LSG __ LSO __ : Digital EQ tap factor A, D for low reflection groove part __ : Setting value : Digital EQ tap factor B, C for low reflection groove part __ : Setting value : Gain of auto level slicer for low reflection groove part __ : Setting value : Reverse switch of servo AD input __ : Setting value : Slice level offset of auto level slicer for low reflection groove part __ : Setting value GQ2 __ GQ1 __ GSO __ GSG __ ADPSW __ DEQSET * Pressing "SCR" key in the main unit in each status switches to "TEST STOP" . * Pressing "F" key in the main unit in each status where a setting value is displayed changes the digit of the setting value that will be changed. * Pressing RIGHT/LEFT key in each status where a setting value is displayed changes the value in the digit you selected in the range from 0H through FH. "'" key in the main unit The first digit (Initial value) The second digit __ ***** __ ***** � � � � � � � � � � � � � � � � � � � � � � � ' ' ' ' ' ' ' ' ' ' ' ' - Setting digital EQ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 110 MEH-P5000R—,P5000,P5050 "F" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit : Spinning setting menu : Setting value of the gain constant for spin based loop filter __ : Setting value : Setting value of the gain constant for spin based loop filter (Inner circumference) __ : Setting value : Setting value of the gain constant for spin based loop filter (Mid circumference) __ : Setting value : Setting value of the gain constant for spin based loop filter (Outer circumference) __ : Setting value : The first setting value of the number specifying f for spin based loop filter __ : Setting value : The second setting value of the number specifying f for spin based loop filter __ : Setting value : The fourth setting value of the number specifying f for spin based loop filter __ : Setting value : The third setting value of the number specifying f for spin based loop filter __ : Setting value SPG __ SP1 __ SP2 __ SPGMID__ SPGOUT__ SPDLIM__ SP3 __ SP4 __ : The fifth setting value of the number specifying f for spin based loop filter __ : Setting value : Limiter setting value of spin drive PWM duty __ : Setting value : Initial kick level of spinning (duration) __ : Setting value : Interval between spinning and resuming __ : Setting value : Rotation kick level of spinning (time) __ : Setting value SP5 __ HCWLV __ HCCWL __ SPKT1 __ SPKT2 __ SPKT3 __ : Level to determine high speed forward rotation __ : Setting value : Level to determine high speed backward rotation __ : Setting value : KICK wait during high speed rotation __ : Setting value HWAIT __ : Reserve for spindle controlling __ : Setting value SPRSV __ SPGIN __ SPINDLE * Pressing "SCR" key in the main unit in each status switches to "TEST STOP" . * Pressing RIGHT/LEFT key in each status where a setting value is displayed changes the value in the digit you selected in the range from 0H through FH. (Upper limits depend on items.) � � � � � � � � � � � � � � � � � � � � � � � � � � ' ' ' ' ' ' ' ' ' ' ' ' ' ' ' ' - Setting spinning www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MEH-P5000R—,P5000,P5050 "F" key in the main unit : Tracking setting menu : Setting value of the gain constant for tracking based loop filter (PIT) __ : Setting value : Setting value of the gain constant for tracking based loop filter (GRV) __ : Setting value : The first setting value of the number specifying f for spin based loop filter __ : Setting value : The second setting value of the number specifying f for spin based loop filter __ : Setting value TGP __ TGG __ TF1 __ TF2 __ TRBLV___ TRBLVT__ TRKLVO__ TRKLVT__ : Nonslid time setting for jumping over ten trucks __ : Setting value : Nonslid time setting for jumping over one truck __ : Setting value : Tracking filter switch __ : Setting value : Break level setting for jumping over ten trucks __ : Setting value : Break level setting for jumping over one truck __ : Setting value : Kick pulse level setting for jumping over one truck __ : Setting value : Kick pulse level setting for jumping over ten trucks __ : Setting value : Drive pulse width time setting for jumping over one truck __ : Setting value : Drive pulse width time setting for jumping over ten trucks __ : Setting value : Move nonslid time setting __ : Setting value : PWM output offset setting __ : Setting value : Comparison level setting value during COUT generation __ : Setting value : TCRSC0 level setting (pit part) __ : Setting value : TCRSC0 level setting (groove part) __ : Setting value TRKING * Pressing "SCR" key in the main unit in each status switches to "TEST STOP" . * Pressing RIGHT/LEFT key in each status where a setting value is displayed changes the value in the digit you selected in the range from 00H through FFH. (Upper limits depend on items.) SVCT4 __ DBOFST__ TCSC0P__ TCSC0G__ : TCRSC1 level setting (pit part) __ : Setting value TCSC1P__ COTLV __ SLCTO __ SLCTT __ SLCTM __ TDPWO __ TDPWT __ "'" key in the main unit "'" key in the main unit "'" key in the main unit "'" key in the main unit "'" key in the main unit "'" key in the main unit "'" key in the main unit "'" key in the main unit "'" key in the main unit "'" key in the main unit "'" key in the main unit "'" key in the main unit "'" key in the main unit "'" key in the main unit "'" key in the main unit "'" key in the main unit " " key in the main unit " " key in the main unit " " key in the main unit " " key in the main unit " " key in the main unit " " key in the main unit " " key in the main unit " " key in the main unit " " key in the main unit " " key in the main unit " " key in the main unit " " key in the main unit " " key in the main unit " " key in the main unit " " key in the main unit " " key in the main unit ' ' ' ' ' ' ' ' ' ' ' ' ' ' ' ' "'" key in the main unit "'" key in the main unit " " key in the main unit " " key in the main unit ' ' � � � � � � � � � � � � � � � � � � - Setting tracking 111 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 112 MEH-P5000R—,P5000,P5050 "F" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit " " key in the main unit "'" key in the main unit : Slide setting menu : Thread gain constant __ : Setting value : Slide filter factor 2 __ : Setting value SLG __ SL2 __ SLDLIM__ SLDLEV__ SLKLVK__ SLKLVT__ SLKLVM__ : Supplementary feeding time for jumping over ten trucks __ : Setting value : Break setting during feeding through inner circumference __ : Setting value : Move overrun table 1 __ : Setting value : Slide output limiter __ : Setting value : Slide output dead zone __ : Setting value : Kick level for jumping over ten trucks __ : Setting value : Kick level during compelled slide move __ : Setting value : Kick level during move __ : Setting value : Feed wait time after move __ : Setting value : Minimum number of move trucks to be started __ : Setting value : Move overrun table 2 __ : Setting value : PIT GRV feeding time __ : Setting value : Thread control reserve __ : Setting value SLED * Pressing "SCR" key in the main unit in each status switches to "TEST STOP" . * Pressing RIGHT/LEFT key in each status where a setting value is displayed changes the value in the digit you selected in the range from 00H through FFH. (Upper limits depend on items.) SLRBK __ SLKTMT__ SLKTMF__ SLRESV__ MOVR1 __ MOVR2 __ WAITM __ MVMIN __ � � � � � � � � � � � � ' ' ' ' ' ' ' ' ' ' ' ' ' ' - Setting slide www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 113 MEH-P5000R—,P5000,P5050 7.1.2 DISASSEMBLY - Removing the Case Unit(not shown) 1. Remove the two screws. 2. Insert and turn a flat screwdriver to remove the case unit. - Removing the Detach Grille Assy 1. Press the detach button, and then remove the detach grille assy. - Removing the Panel Assy 1. Disconnect the two stoppers, and then remove the panel assy. - Removing the MD Mechanism Module 1. Remove the four screws A. 2. Disconnect the connector indicated by arrow. 3. Remove the MD Mechanism Module. - Removing the Tuner Amp Unit 1. Remove the four screws B, two screws C and two screws D 2. Unbend the tabs at two locations indicated by arrows. 3. Remove the Tuner Amp Unit. A A A A MD Mechanism Module Detach Grille Assy Detach Button Panel Assy D D B B B B C C Tuner Amp Unit Chassis Unit www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 114 MEH-P5000R—,P5000,P5050 - Removing the MD Mechanism 1. Remove No.3 screws and remove the loading motor. 2. Rotate No.4 gear in the direction indicated by the arrow. 3. Remove the No.1 screws , No.2 screw and then No.5 screws and take out the mechanism. - How to remove optical pickup 1. Release the three screws. 2. Pull one shaft out a little to the slide motor side and lift the optical pickup upward slowly. x2 x1 x1 Shaft Optical pickup www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 115 MEH-P5000R—,P5000,P5050 7.2 PARTS 7.2.1 IC PAL005A PAL005A PD4960B PD4959A PD6277A LC75874W PML003AM BA5985FM 1245730345 1245730449 1245730502 1245730310 TC7SH08F TC74VHC125FT NJM2904V 1 2 3 4 5 6 7 Mute 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 Mute Mute Mute STBY Protector Amp2 Amp1 Amp3 Amp4 TAB P-GND2 OUT2- OUT2+ STBY VCC OUT1- OUT1+ P-GND1 P-GND3 P-GND4 Switch_out MUTE OUT4+ OUT4- SVR IN1 IN2 IN4 S-GND IN3 Ac_gnd OUT3+ OUT3- VCC PML003AM 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 Vref IN1_L IN2_L IN3_L IN4+_L AGND Loud- out_L SVin_L Front- out_L Rear- out_L FIE_L DGND IN4-_L CLK VCC IN1_R IN2_R IN3_R IN4+_R AGND Loud- out_R SVin_R Front- out_R Rear- out_R FIE_R STB IN4-_R DATA Isolator circuit Primary volume Anti Alias filter Treble Anti radiation filter Middle Bass Loudness volume FIE Fader volume Secondary volume Zero cross detect circuit Primary volume Anti Alias filter Middle Treble Bass Isolator circuit Anti radiation filter Loudness volume Zero cross detect circuit Fader volume Secondary volume FIE Digital block Auto-Zero Auto-Zero www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 116 MEH-P5000R—,P5000,P5050 - Pin Functions (PD4960B) Pin No. Pin Name I/O Function and Operation 1 SWVDD O Keyboard unit power supply control output 2 dsens I Grille detach sense input 3 NC Not used 4 isens I Illumination power supply sence input 5 TESTIN I Test program mode input 6 drst O RDS decoder reset output 7 NC Not used 8 sk I SK signal input 9,10 NC Not used 11 reset I Reset input 12 XT2 Not used 13 XT1 Not used 14 VSS GND 15 X2 Crystal oscillator connection pin 16 X1 Crystal oscillator connection pin 17 REGOFF Not used 18 REGC Not used 19 VDD Power supply 20 ILMPW O Illumination power supply control output 21 SYSPWR O System power control output 22 adpw O A/D converter power supply control output 23 LCDPW O LCD back light power supply control output 24 IPPW O Power supply control output for IP BUS interface IC 25 ASENBO O Slave power supply control output 26 AMPW O AM power supply control output 27 TELIN I Telephone mute input 28 mute O System mute output 29 DIM O Dimmer select output 30 FMPW O FM power supply control output 31,32 NC Not used 33 VCK O Clock output for electronic volume 34 VST O Strobe pulse output for electronic volume 35 VDT O Data output for electronic volume 36 tmute O Tuner mute output 37 DRELAY O External relay output 38 SD I Station detector input 39 st I FM stereo input 40 VSS GND 41 VDD Power supply 42 mdsens I RDS modulation detect input 43 NC Not used 44 rdslk I RDS LK signal input 45 currq O RDS tuning voltage FIX output 46 RDT I RDS Fdata input 47 NC Not used 48 DRSENS I Door open/close sense input 49 DRSYS O Door system select output 50 DLED O Alarm LED output 51 DALMON O DFS alarm output 52–61 NC Not used 62 PCL O Clock adjustment output 63 brxen I/O P-BUS reception enable input/output 64 bsrq I P-BUS service request output pin 65 BSCK I/O P-BUS serial clock input/output 66 BSI I P–BUS serial data input 67 BSO O P–BUS serial data output 68 brst I P–BUS reset input www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 117 MEH-P5000R—,P5000,P5050 Pin No. Pin Name I/O Function and Operation 69–72 NC Not used 73 TEST I Test terminal 74 SL I Signal level input from tuner 75 MODEL I Model select input 76 CL I Synchronizing signal input of display data latch 77 NL I RDS noise level input 78–81 NC Not used 82 AVDD A/D converter power supply 83 AVREF1 A/D converter reference voltage 84 GND A/D converter GND 85 RX I IP BUS data input 86 TX O IP BUS data output 87 GND GND 88 ldet I RDS PLL lock sense input 89 rck I RDS demodulation clock input 90 RDS57K I RDS 57kHzBP-OUT sense input 91 GND GND 92 asens I ACC power sense input 93 bsens I Back up power sense input 94 TUNPDI I PLL IC data input 95 KYDT I Key data input 96 DPDT O Display data output 97 TUNPCK O Serial clock output for PLL IC 98 TUNPDO O Data output for PLL IC 99 TUNPCE O Chip enable output for PLL IC 100 PEE O Beep tone output 30 31 50 51 80 81 100 1 *PD4960B IC's marked by* are MOS type. Be careful in handling them because they are very liable to be damaged by electrostatic induction. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 118 MEH-P5000R—,P5000,P5050 - Pin Functions (PD4959A) Pin No. Pin Name I/O Function and Operation 1 SWVDD O Keyboard unit power supply control output 2 dsens I Grille detach sense input 3 NC Not used 4 isens I Illumination power supply sence input 5 TESTIN I Test program mode input 6-10 NC Not used 11 reset I Reset input 12 XT2 Not used 13 XT1 Not used 14 VSS GND 15 X2 Crystal oscillator connection pin 16 X1 Crystal oscillator connection pin 17 REGOFF Not used 18 REGC Not used 19 VDD Power supply 20 ILMPW O Illumination power supply control output 21 SYSPWR O System power control output 22 adpw O A/D converter power supply control output 23 LCDPW O LCD back light power supply control output 24 IPPW O Power supply control output for IP BUS interface IC 25 ASENBO O Slave power supply control output 26 AMPW O AM power supply control output 27 TELIN I Telephone mute input 28 mute O System mute output 29 DIM O Dimmer select output 30 FMPW O FM power supply control output 31,32 NC Not used 33 VCK O Clock output for electronic volume 34 VST O Strobe pulse output for electronic volume 35 VDT O Data output for electronic volume 36 NC Not used 37 DRELAY O External relay output 38 SD I Station detector input 39 st I FM stereo input 40 VSS GND 41 VDD Power supply 42 NC Not used 43 NC Not used 44-46 NC Not used 47 NC Not used 48 DRSENS I Door open/close sense input 49 DRSYS O Door system select output 50 DLED O Alarm LED output 51 DALMON O DFS alarm output 52–61 NC Not used 62 PCL O Clock adjustment output 63 brxen I/O P-BUS reception enable input/output 64 bsrq I P-BUS service request output pin 65 BSCK I/O P-BUS serial clock input/output 66 BSI I P–BUS serial data input 67 BSO O P–BUS serial data output 68 brst I P–BUS reset input Pin No. Pin Name I/O Function and Operation 69–72 NC Not used 73 TEST I Test terminal 74 SL I Signal level input from tuner 75 MODEL I Model select input www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 119 MEH-P5000R—,P5000,P5050 Pin No. Pin Name I/O Function and Operation 76–81 NC Not used 82 AVDD A/D converter power supply 83 AVREF1 A/D converter reference voltage 84 GND A/D converter GND 85 RX I IP BUS data input 86 TX O IP BUS data output 87 GND GND 88-90 NC Not used 91 GND GND 92 asens I ACC power sense input 93 bsens I Back up power sense input 94 TUNPDI I PLL IC data input 95 KYDT I Key data input 96 DPDT O Display data output 97 TUNPCK O Serial clock output for PLL IC 98 TUNPDO O Data output for PLL IC 99 TUNPCE O Chip enable output for PLL IC 100 PEE O Beep tone output 30 31 50 51 80 81 100 1 *PD4959A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 120 MEH-P5000R—,P5000,P5050 - Pin Functions (PD6277A) Pin No. Pin Name I/O Format Function and Operation 1 VSS GND 2 X1 Crystal oscillator connection pin 3 X0 Crystal oscillator connection pin 4 reset I System reset input 5 MOD1 I Operation mode appointment input 6 MOD0 I Operation mode appointment input 7 LED O C LED control output 8 S0 O C System micro computer UART communication data output 9 S1 I System micro computer UART communication data input 10 REM I Remote control reception input 11 dim O C Dimmer output 12 ILM O C Illumination color select output 13–16 kd$–kd! I Key data input 17–22 kst^–! O C Key strobe output 23 VCC Power supply 24 inh O N LCD driver display inhibit output 25 CE O N Chip enable output for display driver 26 CL O N Synchronizing signal output for display driver 27 DI O N Data output for display driver 28–73 SEG45-0 O L LCD segment output 74–77 COM3–0 O L LCD common output 78 V3 LCD drive power supply 79 V2 LCD bias power supply 80 V1 LCD bias power supply *PD6277A 20 21 40 41 60 61 80 1 Format Meaning C C MOS N N channel open drain L LCD C output LC75874W 20 21 40 41 60 61 80 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 121 MEH-P5000R—,P5000,P5050 - Pin Functions (LC75874W) Pin No. Pin Name I/O Function and Operation 1–64 SE3-66 O LCD segment signal output 65–68 CO1-CO4 O LCD common signal output 69 VDD Power supply 70 VLCD LCD Power supply 71 VLCD1 LCD bias power supply 72 VLCD2 LCD bias power supply 73 VSS GND 74 OSC I/O 75 linh I Inhibit input from IC901 76 CE I Chip enable output pin for LCD driver 77 CL I Clock output for LCD driver 78 DI I Data output for LCD driver 79,80 SE1,SE2 O LCD segment signal 28 27 26 25 REV OPIN4(+) OPIN4(-) OPOUT4 24 23 22 OPIN3(+) OPIN3(-) OPOUT3 21 20 19 18 MUTE BIAS GND VO3(-) 17 16 15 VO3(+) VO4(-) VO4(+) 1 2 3 4 FWD OPIN1(+) OPIN1(-) OPOUT1 5 6 7 OPIN2(+) OPIN2(-) OPOUT2 8 9 10 11 VCC VOL(-) VOL(+) VO2(-) 12 13 14 VO2(+) VO1(-) VO1(+) Mute Level shift Level shift Level shift Level shift REV FWD OUTF OUTR VCC LOADING DRIVER BA5985FM *1245730345 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 122 MEH-P5000R—,P5000,P5050 - Pin Functions (1245730345) Pin No. Pin Name I/O Function and Operation 1-4 RF1-4 I RF signal input terminals 1-4 Input RF signal output from pickup 5 REFI I Reference voltage amplifier input 6 REFO O Reference voltage amplifier output 7 RFADD O Terminal outputting added resistance of RF 1-4 8 TCGI I Terminal amplified inputting track cross detected signal at groove 9 AIN I Inverted input terminal of signal amplifier for the servo (Focus servo based) 10 BIN I Inverted input terminal of signal amplifier for the servo (Focus servo based) 11 EIN I Inverted input terminal of signal amplifier for the servo (Tracking servo based) 12 FIN I Inverted input terminal of signal amplifier for the servo (Tracking servo based) 13 BIAS I Bias input 14 AVCC Analog power supply 15 XSTBY O Logic signal outputting terminal (Outputs inverted STBY signal ) 16 XDISC O Logic signal outputting terminal (Outputs inverted DISC signal ) 17 XGAIN O Logic signal outputting terminal (Outputs inverted SGAIN signal ) 18 AGND Analog GND 19 DGND Digital GND 20 DTEMP I Chip temperature detection 21 LATCH I Latch signal input 22 CLOCK I Clock signal input 23 DATA I Serial data input 24 DVCC Digital GND 25 FOUT O Output terminal of signal amplifier for the servo (Tracking servo based) 26 EOUT O Output terminal of signal amplifier for the servo (Tracking servo based) 27 BOPUT O Output terminal of signal amplifier for the servo (Focus servo based) 28 AOUT O Output terminal of signal amplifier for the servo (Focus servo based) 29 TCGO O Terminal amplified inputting tracking cross detected signal at groove 30 WBO O Converter output terminal for ADIP signal binarization 31 22KI I Converter input terminal for ADIP signal trinarization 32 22KO O ADIP signal HPF amplifier output 33 ADLPFO O ADIP signal LPF amplifier output 34 NC Not used 35 ADIPO O ADIP signal pre-amplifier output 36 ADIPI O ADIP signal AGC amplifier output 37 ADAGC ADIP signal AGC smoothing capacitor connection pin 38 ADAGI I ADIP signal AGC amplifier input 39 RF2-1 Differential signal of RF1 and RF2 40 EFMO O RF signal pre-amplifier output 41 EFMI O RF signal AGC amplifier output 42 AVCC Analog power supply 43 AGND Analog GND 44 EFMAGC EFM signal AGC smoothing capacitor connection pin 45 EFMAGI I EFM signal AGC amplifier input 46 ATTR 47and 48 pin output signal attenuation terminal 47 GOUT O Outputs RF1+RF2+RF3−RF4 signal at groove 48 ROUT O Outputs added resistance of RF1-4 at PIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MEH-P5000R—,P5000,P5050 - Pin Functions (1245730449) Pin No. Pin Name I/O Function and Operation 1 EFMMON O EFM monitor output 2 AVCC Analog power supply 3 EFMI I EFM signal input from RF AMP 4 AGND Analog GND 5 AIN I Focus error signal A 6 EIN I Tracking error signal E 7 TCG I Tracking cross signal 8 BIN I Focus error signal B 9 FIN I Tracking error signal F 10 VBAT I Power supply voltage detection signal for constant voltage servo 11 WBI I ADIP wobble signal 12 VDD1 Digital power supply 13 DGND Digital GND 14,15 TEST0,1 I Test input normality : GND 16 TEST2 I Test input en-deco/servo mode, ATRAC mode select normality : GND 17 X176KO O Clock output f=176.4KHz (4fs) 18 FODRF O Focus servo forward output PWM 19 FODRR O Focus servo reverse output PWM 20 TRDRF O Tracking servo forward output PWM 21 TRDRR O Tracking servo reverse output PWM 22 SLDRF O Slide servo forward output PWM 23 SLDRR O Slide servo reverse output PWM 24 SPDRF O Spindle servo forward output or spindle servo output PWM 25 SPDRR O Spindle servo reverse output or spindle rotary FWD/REV select 26-28 RAA3-1 O Address output to external D-RAM ADR3-1 29 RAA0 O Address output to external D-RAM ADR0 (LSB) 30 RAA10 O Address output to external D-RAM ADR10 (MSB) 31 VDD2 D-RAM interface power supply 32-36 RAA4-8 O Address output to external D-RAM ADR4-8 37 RA0EX O Data output enable signal to external D-RAM 38 DGND Digital GND 39 RACASX O Column address strobe signal output to external D-RAM 40 RAD2 I/O Data input/output with external D-RAM D2 41 RAD3 I/O Data input/output with external D-RAM D3 (MSB) 42 RAA9 O Address output to external D-RAM ADR9 43 RARASX O Row address strobe signal output to external D-RAM 44 RAWEX O Data write enable signal output to external D-RAM 45 RAD1 I/O Data input/output with external D-RAM D1 46 RAD0 I/O Data input/output with external D-RAM D0 (LSB) 47 TCRS O Track cross signal 48 ACRCER O ADIP CRC error flag monitor output 49 PLCK O EFM PLL clock output at playback 50 EFMO O Outputs EFM signal when recording Outputs C1F (C1 error flag) monitor when playbacking 51 X700KO O Clock output f=705.6KHz Dose not output clock when RSTX=0 52,53 EXPORT0,1 O Microprocessor extended output port 0,1 54 TESO1 O PLLLR Microprocessor extended output port 2 when switching 55 TEST3 I/O PLLOSC Microprocessor extended output port 3 when switching 56 TEST4 I/O EXTCLK Microprocessor extended output port 4 when switching 57 CDDATA I/O Inputs CD data for high speed dubbing Microprocessor extended output port 5 when switching 58 CDLRCK I/O Inputs CD LR clock for high speed dubbing Microprocessor extended output port 6 when switching 59 CDBCLK I/O Inputs CD bit clock for high speed dubbing Microprocessor extended output port 7 when switching 60 VXI I Inputs PLL clock for varipitch 61 VPO O Outputs PLL phase error for varipitch 62 VDD1 Digital power supply 63 DGND Digital GND www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 124 MEH-P5000R—,P5000,P5050 *1245730449 1 2 3 4 5 6 7 8 9 10 20 19 18 17 16 15 14 13 12 11 Vss I/04 I/03 /CAS /OE A8 A7 A6 A5 A4 I/01 I/02 /WE /RAS A9 A0 A1 A2 A3 Vcc *1245730502 Pin No. Pin Name I/O Function and Operation 64 XI I Inputs oscillator 33.8688MHz 65 XO O Outputs oscillator 33.8688MHz 66 DIN I Digital input signal 67 DOUT O Digital output signal 68 VDD3 Internal PLL power supply 69 DGND Digital GND 70 LRCK O Lch/Rch select output of audio data 71 BCLK O Shift clock of audio data 72 DFCK O AD/DA converter digital filter clock 256Fs 73 ADDATA I Audio data input 74 DADATA O Audio data output 75 FEMON O Focus error signal monitor output 76 TOTMON O Total signal monitor output 77 TEMON O Tracking error signal monitor output 78 SBCK I DIN subcode read clock EIAJ CP-309 format 79 SBO O DIN subcode read serial data EIAJ CP-309 format 80 SBSY O DIN subcode block synchronizing signal CP-309 format 81 SFSY O DIN subcode frame synchronizing signal CP-309 format 82 FOK O Focus OK detection signal "0" : Focus OK 83 SENSE O Servo condition detection signal "1": During pull in auto move, auto jump, auto focus 84 COUT O Track cross signal output 85 MCCK O Clock output for microcomputer Outputs clock when RSTX=0 86 DINTX O Interrupt request output to system control interface 87 VDD1 Digital power supply 88 DGND Digital GND 89 RSTX I Chip reset input L : Reset 90-97 SYD0-7 I/O System control interface data bus 98 SYWRX I System control interface register write pulse input 99 SYRDX I System control interface register read pulse input 100 SYRS I System control interface register select input www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 125 MEH-P5000R—,P5000,P5050 8 Vcc 7 2G 6 1Y 5 2A 1G 1 1A 2 2Y 3 GND 4 1245730310 1G 1 1A 2 1Y 3 2G 4 2A 5 2Y 6 GND 7 14 Vcc 13 4G 12 4A 11 4Y 10 3G 9 3A 8 3Y TC74VHC125FT 5 Vcc A 1 B 2 GND 3 4 C TC7SH08F 4 3 2 1 5 6 7 8 NJM2904V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 126 MEH-P5000R—,P5000,P5050 7.1.2 DISPLAY - CAW1490(MEH-P5000R—/EW) COMMON SEGMENT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MEH-P5000R—,P5000,P5050 - CAW1491(MEH-P5000/UC, MEH-P5050/ES) 127 COMMON SEGMENT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 128 MEH-P5000R—,P5000,P5050 8. OPERATIONS AND SPECIFICATIONS 8.1 OPERATIONS Key Finder Head Unit(MEH-P5000R—/EW) Remote Controller (CD-R600) The remote controller (CD-R600) enabling remote control of the head unit is sold separate- ly. Operation is the same as when using buttons on the head unit. ATT button This lets you quickly lower volume level (by about 90%). Press once more to return to the original volume level. FUNCTION button SOURCE/OFF button BAND button +/– button 5/∞ buttons 2/3 buttons AUDIO button PGM button PTY button Buttons 1 – 6 TA button EJECT button Disc loading slot AUDIO button 5/∞/2/3 buttons FUNCTION button SOURCE button +/– button BAND button DISP button DETACH button SCROLL button EQ button www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 129 MEH-P5000R—,P5000,P5050 Key Finder Head Unit(MEH-P5000/UC, MEH-P5050/ES) Remote Controller A remote controller that enables remote operation of the head unit is supplied. Operation is the same as when using buttons on the head unit. ATT button This lets you quickly lower volume level (by about 90%). Press once more to return to the original volume level. FUNCTION button SOURCE/OFF button BAND button +/- button 5/∞ buttons 2/3 buttons AUDIO button PGM button CLOCK button Buttons 1 – 6 LOUD button EJECT button Disc loading slot AUDIO button 5/∞/2/3 buttons FUNCTION button SOURCE button +/– button BAND button DISP button DETACH button SCROLL button EQ button www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 130 MEH-P5000R—,P5000,P5050 Basic Operation To Listen to Music The following explains the initial operations required before you can listen to music. Note: • Loading a disc in this product. 1. Select the desired source (e.g. tuner). Each press of the SOURCE button selects the desired source in the following order: CD player (one disc only) = Tuner = Built-in MD player = Multi-MD player = Multi-CD player = AUX Note: • In the following cases, the sound source will not change: * No CD player is connected to this product. * No Multi-CD player is connected to this product. * No Multi-MD player is connected to this product. * No disc is set in this product. * No disc is set in the CD player. * No magazine is set in the Multi-CD player. * No disc is set in the Multi-MD player. * AUX (external input) is set to OFF. Each press changes the Source ... 2. Raise or lower the volume. 3. Source OFF. Hold for 1 second or more www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 131 MEH-P5000R—,P5000,P5050 Basic Operation Basic Operation of Tuner This product’s AF function can be switched ON and OFF. AF should be switched OFF for normal tuning operations. Manual and Seek Tuning • You can select the tuning method by changing the length of time you press the 2/3 button. Manual Tuning (step by step) 0.5 seconds or less Seek Tuning 0.5 seconds or more Note: • If you continue pressing the button for longer than 0.5 seconds, you can skip broadcasting stations. Seek Tuning starts as soon as you stop pressing the button. • “” stereo indicator lights when a stereo station is selected. Preset Tuning • You can memorize broadcast stations in buttons 1 through 6 for easy, one-touch station recall. Preset station recall 2 seconds or less Broadcast station preset memory 2 seconds or more Note: • Up to 18 FM stations (6 in F1 (FM1), F2 (FM2) and F3 (FM3)) and 6 MW/LW stations can be stored in memory. • You can also use the 5 �or ∞ buttons to recall broadcast stations memorized in buttons 1 through 6. Frequency Indicator Band Indicator Band F1 (FM1) = F2 (FM2) = F3 (FM3) = MW/LW Preset Number Indicator www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 132 MEH-P5000R—,P5000,P5050 Basic Operation Basic Operation of Multi-CD Player This product can control a multi-CD player. (With certain old type multi-CD players, using a multiple connection adapter lets you connect multiple units which you can control with this product.) Track Search and Fast Forward/Reverse • You can select between Track Search or Fast forward/Reverse by pressing the 2/3 button for a different length of time. Track Search 0.5 seconds or less Fast forward/Reverse Continue pressing Elapsed Play Time Indicator Disc Search Disc Number Indicator Track Number Indicator Switching the Multi-CD Player When two or more multi-CD players are connected using a multiple connection adapter, you can select the multi-CD player by pressing the BAND button. M-CD 1 = M-CD 2= M-CD 3 (Displayed about for 2 seconds.) Switching the Display Each press of the DISP button changes the display in the following order: Playback mode (Elapsed play time) = Disc Title When playing a CD TEXT disc on a CD TEXT compatible Multi-CD Player such as the CDX-P650: • You can use the following two functions. Refer to Multi-CD Player’s Owner’s Manual for operation details. * Title display switching * Title scroll • You cannot switch to the Disc Title Input mode in the Detailed Setting Menu. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 133 MEH-P5000R—,P5000,P5050 Disc Number Search (for 6-Disc, 12-Disc types) • You can select discs directly with the 1 to 6 buttons. Just press the number corresponding to the disc you want to listen to. Note: • When a 12-Disc Multi-CD Player is connected and you want to select disc 7 to 12, press the 1 to 6 buttons for 2 seconds or longer. Disc Number Rough Search (for 50-Disc type only) This handy function lets you select discs loaded in a 50-Disc Multi-CD Player using the 1 to 5 buttons. The 50 discs are divided into five blocks, with each of the 1 to 5 buttons assigned to a block. • Select the desired block with the 1 to 5 buttons. Note: • After completing a rough search, use the 5 and ∞ buttons to select a desired disc. Note: • If you switch displays when disc titles have not been input, “NO TITLE” is displayed . • The multi-CD player may perform a preparatory operation, such as verifying the presence of a disc or reading disc information, when the power is turned ON or a new disc is selected for playback. “READY” is displayed. • When a magazine is loaded into a 50-Disc type Multi-CD Player, information on all the discs in the magazine is read. If you start playing a disc on a 50-Disc type Multi-CD Player before reading of information on all discs has been completed, reading of information stops part way through. This will prevent you from using a number of functions. (If you try and use these functions, “NOT READY” is dis- played.) If this happens, reading of information begins again when you switch to a component other than the 50-Disc type Multi-CD Player. • If the multi-CD player cannot operate properly, an error message such as “ERROR-14” is dis- played. Refer to the multi-CD player owner’s manual. • If there are no discs in the multi-CD player magazine, “NO DISC” is displayed. • “LOAD” will be displayed in the following cases: * If the disc in the extra tray in selected. * If the disc in moved from the extra tray to the magazine. (Refer to the 50-Disc type multi-CD player owner’s manual.) • You cannot use the “Ejecting a Single Disc”, “Frequency Play”, “Music Group Play” or “ABC Disc Title Search” functions with this product. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 134 MEH-P5000R—,P5000,P5050 Basic Operation of Built-in MD Player Track Search and Fast Forward/Reverse • You can select between Track Search or Fast forward/Reverse by pressing the 2/3 button for a different length of time. Track Search 0.5 seconds or less Fast forward/Reverse Continue pressing Note: • When you load a disc, this product reads information recorded on the disc such as the number of tracks. While the disc is being read, “TOC READ” is indicated in the display. • If you load a disc with the arrow pointing in the wrong direction, it is automatically ejected. • If the built-in MD player cannot operate properly, an error message (such as “ERROR-11”) appears on the display. Disc Loading Slot You can only load one MD at a time in the built-in MD player. Load the MD in the direction of the arrow, with the label side facing up. Note: • Load an MD after confirming the MD shutter is closed. Eject Note: • The MD function can be turned ON/OFF with the disc remaining in this product. • Discs left partially inserted after ejec- tion may incur damage or fall out. Elapsed Play Time Indicator Track Number Indicator Switching the Display Each press of the DISP button changes the dis- play in the following order: Playback mode (Elapsed play time) = Disc Title = Track Title Scrolling the Display Displayed disc and track names are only up to 10 letters long, but indications can be scrolled. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 135 MEH-P5000R—,P5000,P5050 Audio AdjustmentEa Selecting the Equalizer Curve You can switch between Equalizer curves. • Move the EQ button up or down to select the desired Equalizer curve. POWERFUL += NATURAL += VOCAL += CUSTOM += EQ FLAT += SUPER BASS Note: • “CUSTOM” stores an equalizer curve you have made adjustments to. • You can create different “CUSTOM” curves for different sources. (The CD player (one disc only) and multi-CD player are set to the same Equalizer Curve Adjustment setting automatically. The built-in MD player and multi-MD player are set to the same Equalizer Curve Adjustment setting automatically.) Entering the Audio Menu With this Menu, you can adjust the sound quality. Note: • After entering the Audio Menu, if you do not perform an operation within about 30 seconds, the Audio Menu is automatically canceled. 1. Select the desired mode in the Audio Menu. 2. Operate a mode. 3. Cancel the Audio Menu. Each press changes the Mode ... Equalizer curve www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 136 MEH-P5000R—,P5000,P5050 Audio Menu Functions The Audio Menu features the following functions. Balance Adjustment (FADER) This function allows you to select a Fader/Balance setting that provides ideal listening con- ditions in all occupied seats. 1. Press the AUDIO button and select Fader/Balance mode (FADER) in the Audio Menu. Note: • “FADER 0” is the proper setting when 2 speakers are in use. Equalizer Curve Adjustment (EQ-LOW/MID/HIGH) You can adjust equalizer curve settings as desired. Adjusted equalizer curve settings are memorized in “CUSTOM”. 1. Press the AUDIO button and select the Equalizer mode (EQ-LOW/MID/HIGH) in the Audio Menu. Continued overleaf. 2. Select the band you want to adjust with the 2/3 buttons. EQ-LOW += EQ-MID += EQ-HIGH 3. Adjust left/right speaker bal- ance with the 2/3 buttons. “BAL L 9” – “BAL R 9” is displayed as it moves from left to right. 2. Adjust front/rear speaker bal- ance with the 5/∞ buttons. “FADER F15” – “FADER R15” is displayed as it moves from front to rear. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 137 MEH-P5000R—,P5000,P5050 + ≠ + ≠ Note: Depending on the kind of vehicle, the function of 3* and 5* may be different. If this is the case, be sure to connect 2* to 5* and 4* to 3*. + ≠ + ≠ Use this for connections when you have the separately available amplifier. Speaker leads Rear Connecting cords with RCA pin plugs (sold separately) Cap (1*) When not using this terminal, do not remove the cap. ISO connector System remote control Rear output Fuse holder 1* 2* 4* 3* 5* White/yellow Antenna jack Yellow (2*) To terminal always supplied with power regardless of ignition switch position. Red (4*) To electric terminal controlled by ignition switch (12 V DC) ON/OFF. Yellow (3*) Back-up (or accessory) Red (5*) Accessory (or back-up) Black (ground) To vehicle (metal) body. Orange To lighting switch terminal. Blue/white To Auto-antenna relay control terminal. (Max. 300 mA 12 V DC.) Connect leads of the same color to each other. Note: In some vehicles, the ISO connector may be divided into two. If this is the case, be sure to connect to both connectors. See the section “RFP Alert Installation”. Power amp (sold separately) Blue/white To system control terminal of the power amp. (Max. 300 mA 12 V DC.) Rear White White/black Gray Gray/black Green Green/black Violet Violet/black : Front left + : Front left ≠ : Front right + : Front right ≠ : Rear left + : Rear left ≠ : Rear right + : Rear right ≠ Left speaker Right speaker Multi-CD player (sold separately) IP-BUS input (Blue) IP-BUS cable This Product Front Front System remote control Power amp (sold separately) Front output Yellow/black If you use a cellular telephone, connect it via the Audio Mute lead on the cellular telephone. If not, keep the Audio Mute lead free of any connections. - MEH-P5000R—/EW www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 138 MEH-P5000R—,P5000,P5050 + ≠ + ≠ + ≠ + ≠ + ≠ + ≠ + ≠ + ≠ Rear speaker Rear speaker Connecting cords with RCA pin plugs (sold separately) System remote control Fuse holder System remote control Brown Yellow To terminal always supplied with power regardless of ignition switch position. Red To electric terminal controlled by ignition switch (12 V DC) ON/OFF. Black (ground) To vehicle (metal) body. Orange To lighting switch terminal. See the section “DFS Alarm Installation”. Blue/white To system control terminal of the power amp or Auto- antenna relay control terminal. (Max. 300 mA 12 V DC.) Front speaker Rear speaker Front speaker Rear speaker White Gray Left Right White/black Green Green/black Gray/black Violet Violet/black Power amp (sold separately) Power amp (sold separately) Front speaker Front speaker Perform these connections when using a different amp (sold separately). With a 2 speaker system, do not connect anything to the speaker leads that are not connected to speakers. This Product Multi-CD player (sold separately) IP-BUS cable Rear output Antenna jack IP-BUS input (Blue) Front output White/yellow Yellow/black If you use a cellular telephone, connect it via the Audio Mute lead on the cellular telephone. If not, keep the Audio Mute lead free of any connections. - MEH-P5000/UC, MEH-P5050/ES www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 139 MEH-P5000R—,P5000,P5050 General Power source .......... 14.4 V DC (10.8 – 15.1 V allowable) Grounding system ........................................ Negative type Max. current consumption ...................................... 10.0 A Dimensions (mounting size) ...... 178 (W) × 50 (H) × 150 (D) mm (front face) .............. 188 (W) × 58 (H) × 18 (D) mm Weight ...................................................................... 1.3 kg Amplifier Maximum power output ...................................... 45 W × 4 Continuous power output .................................... 27 W × 4 (DIN45324, +B = 14.4 V) Load impedance .......................... 4 Ω (4 – 8 Ω allowable) Preout output level/output impedance ............ 2.2 V/1 kΩ Equalizer (3-Band Parametric Equalizer) (Low) .......................... Frequency: 40/80/100/160 Hz Q Factor: 0.35/0.59/0.95/1.15 (+6 dB when boosted) Level: ±12 dB (Mid) .......................... Frequency: 200/500/1k/2k Hz Q Factor: 0.35/0.59/0.95/1.15 (+6 dB when boosted) Level: ±12 dB (High) ................ Frequency: 3.15k/8k/10k/12.5k Hz Q Factor: 0.35/0.59/0.95/1.15 (+6 dB when boosted) Level: ±12 dB Loudness contour (Low) .................. +3.5 dB (100 Hz), +3 dB (10 kHz) (volume: –30 dB) (Mid) ................ +10 dB (100 Hz), +6.5 dB (10 kHz) (volume: –30 dB) (High) ................ +11 dB (100 Hz), +11 dB (10 kHz) (volume: –30 dB) MD player System ................................ Mini disc digital audio system Usable discs ........................................................ Mini disc Signal format .................... Sampling frequency: 44.1 kHz Number of quantization bits: 16; linear Frequency characteristics ............ 20 – 20,000 Hz (±1 dB) Signal-to-noise ratio ...... 94 dB (1 kHz) (IEC-A network) Dynamic range ............................................ 93 dB (1 kHz) Number of channels ............................................ 2 (stereo) FM tuner Frequency range ...................................... 87.5 – 108 MHz Usable sensitivity .................. 11 dBf (1.0 µV/75 Ω, mono, S/N: 30 dB) 50 dB quieting sensitivity .... 16 dBf (1.7 µV/75 Ω, mono) Signal-to-noise ratio ...................... 70 dB (IEC-A network) Distortion .......................... 0.3% (at 65 dBf, 1 kHz, stereo) Frequency response ...................... 30 – 15,000 Hz (±3 dB) Stereo separation .......................... 40 dB (at 65 dBf, 1 kHz) MW tuner Frequency range ...................................... 531 – 1,602 kHz Usable sensitivity .............................. 18 µV (S/N: 20 dB) Selectivity .................................................. 50 dB (±9 kHz) LW tuner Frequency range ........................................ 153 – 281 kHz Usable sensitivity .............................. 30 µV (S/N: 20 dB) Selectivity .................................................. 50 dB (±9 kHz) Note: • US and foreign patents licensed from Dolby Laboratories Licensing Corporation. • Specifications and the design are subject to possi- ble modification without notice due to improve- ments. 8.2 SPECIFICATIONS - MEH-P5000R—/EW www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 140 MEH-P5000R—,P5000,P5050 - MEH-P5000/UC General Power source .......... 14.4 V DC (10.8 – 15.1 V allowable) Grounding system ........................................ Negative type Max. current consumption ...................................... 10.0 A Dimensions (DIN) (chassis) ...... 178 (W) × 50 (H) × 150 (D) mm [7 (W) × 2 (H) × 5-7/8 (D) in] (nose) ............ 188 (W) × 58 (H) × 18 (D) mm [7-3/8 (W) × 2-1/4 (H) × 3/4 (D) in] (D) (chassis) ...... 178 (W) × 50 (H) × 155 (D) mm [7 (W) × 2 (H) × 6-1/8 (D) in] (nose) ............ 170 (W) × 48 (H) × 13 (D) mm [6-3/4 (W) × 1-7/8 (H) × 1/2 (D) in] Weight ........................................................ 1.3 kg (2.9 lbs) Amplifier Continuous power output is 22 W per channel min. into 4 ohms, both channels driven 50 to 15,000 Hz with no more than 5% THD. Maximum power output ...................................... 45 W × 4 Load impedance .......................... 4 Ω (4 – 8 Ω allowable) Preout maximum output level/output impedance .................................................................. 2.2 V/1 kΩ Equalizer (3-Band Parametric Equalizer) (Low) .......................... Frequency: 40/80/100/160 Hz Q Factor: 0.35/0.59/0.95/1.15 (+6 dB when boosted) Level: ±12 dB (Mid) .......................... Frequency: 200/500/1k/2k Hz Q Factor: 0.35/0.59/0.95/1.15 (+6 dB when boosted) Level: ±12 dB (High) ................ Frequency: 3.15k/8k/10k/12.5k Hz Q Factor: 0.35/0.59/0.95/1.15 (+6 dB when boosted) Level: ±12 dB Loudness contour (Low) .................. +3.5 dB (100 Hz), +3 dB (10 kHz) (volume: –30 dB) (Mid) ................ +10 dB (100 Hz), +6.5 dB (10 kHz) (volume: –30 dB) (High) ................ +11 dB (100 Hz), +11 dB (10 kHz) (volume: –30 dB) MD player System ................................ Mini disc digital audio system Usable discs ........................................................ Mini disc Signal format .................... Sampling frequency: 44.1 kHz Number of quantization bits: 16; linear Frequency characteristics ............ 20 – 20,000 Hz (±1 dB) Signal-to-noise ratio ...... 94 dB (1 kHz) (IHF-A network) Dynamic range ............................................ 93 dB (1 kHz) Number of channels ............................................ 2 (stereo) FM tuner Frequency range .................................... 87.9 – 107.9 MHz Usable sensitivity .................. 11 dBf (1.0 µV/75 Ω, mono, S/N: 30 dB) 50 dB quieting sensitivity .... 16 dBf (1.7 µV/75 Ω, mono) Signal-to-noise ratio ...................... 70 dB (IHF-A network) Distortion .......................... 0.3% (at 65 dBf, 1 kHz, stereo) Frequency response ...................... 30 – 15,000 Hz (±3 dB) Stereo separation .......................... 40 dB (at 65 dBf, 1 kHz) Selectivity .................................................... 70 dB (2ACA) Three-signal intermodulation (desired signal level) ........................................ 30 dBf (two undesired signal level: 100 dBf) AM tuner Frequency range ...................................... 530 – 1,710 kHz Usable sensitivity .............................. 18 µV (S/N: 20 dB) Selectivity ................................................ 50 dB (±10 kHz) Note: • US and foreign patents licensed from Dolby Laboratories Licensing Corporation. • Specifications and the design are subject to possi- ble modification without notice due to improve- ments. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 141 MEH-P5000R—,P5000,P5050 - MEH-P5050/ES General Power source .......... 14.4 V DC (10.8 – 15.1 V allowable) Grounding system ........................................ Negative type Max. current consumption ...................................... 10.0 A Dimensions (DIN) (chassis) ...... 178 (W) × 50 (H) × 150 (D) mm (nose) ............ 188 (W) × 58 (H) × 18 (D) mm (D) (chassis) ...... 178 (W) × 50 (H) × 155 (D) mm (nose) ............ 170 (W) × 48 (H) × 13 (D) mm Weight ...................................................................... 1.3 kg Amplifier Continuous power output is 22 W per channel min. into 4 ohms, both channels driven 50 to 15,000 Hz with no more than 5% THD. Maximum power output ...................................... 45 W × 4 Load impedance .......................... 4 Ω (4 – 8 Ω allowable) Preout maximum output level/output impedance .................................................................. 2.2 V/1 kΩ Equalizer (3-Band Parametric Equalizer) (Low) .......................... Frequency: 40/80/100/160 Hz Q Factor: 0.35/0.59/0.95/1.15 (+6 dB when boosted) Level: ±12 dB (Mid) .......................... Frequency: 200/500/1k/2k Hz Q Factor: 0.35/0.59/0.95/1.15 (+6 dB when boosted) Level: ±12 dB (High) ................ Frequency: 3.15k/8k/10k/12.5k Hz Q Factor: 0.35/0.59/0.95/1.15 (+6 dB when boosted) Level: ±12 dB Loudness contour (Low) .................. +3.5 dB (100 Hz), +3 dB (10 kHz) (volume: –30 dB) (Mid) ................ +10 dB (100 Hz), +6.5 dB (10 kHz) (volume: –30 dB) (High) ................ +11 dB (100 Hz), +11 dB (10 kHz) (volume: –30 dB) MD player System ................................ Mini disc digital audio system Usable discs ........................................................ Mini disc Signal format .................... Sampling frequency: 44.1 kHz Number of quantization bits: 16; linear Frequency characteristics ............ 20 – 20,000 Hz (±1 dB) Signal-to-noise ratio ...... 94 dB (1 kHz) (IEC-A network) Dynamic range ............................................ 93 dB (1 kHz) Number of channels ............................................ 2 (stereo) FM tuner Frequency range ...................................... 87.5 – 108 MHz Usable sensitivity .................. 11 dBf (1.0 µV/75 Ω, mono, S/N: 30 dB) 50 dB quieting sensitivity .... 16 dBf (1.7 µV/75 Ω, mono) Signal-to-noise ratio ...................... 70 dB (IEC-A network) Distortion .......................... 0.3% (at 65 dBf, 1 kHz, stereo) Frequency response ...................... 30 – 15,000 Hz (±3 dB) Stereo separation .......................... 40 dB (at 65 dBf, 1 kHz) AM tuner Frequency range ........................ 531 – 1,602 kHz (9 kHz) 530 – 1,710 kHz (10 kHz) Usable sensitivity .............................. 18 µV (S/N: 20 dB) Selectivity .................................................. 50 dB (±9 kHz) 50 dB (±10 kHz) Note: • US and foreign patents licensed from Dolby Laboratories Licensing Corporation. • Specifications and the design are subject to possi- ble modification without notice due to improve- ments. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
