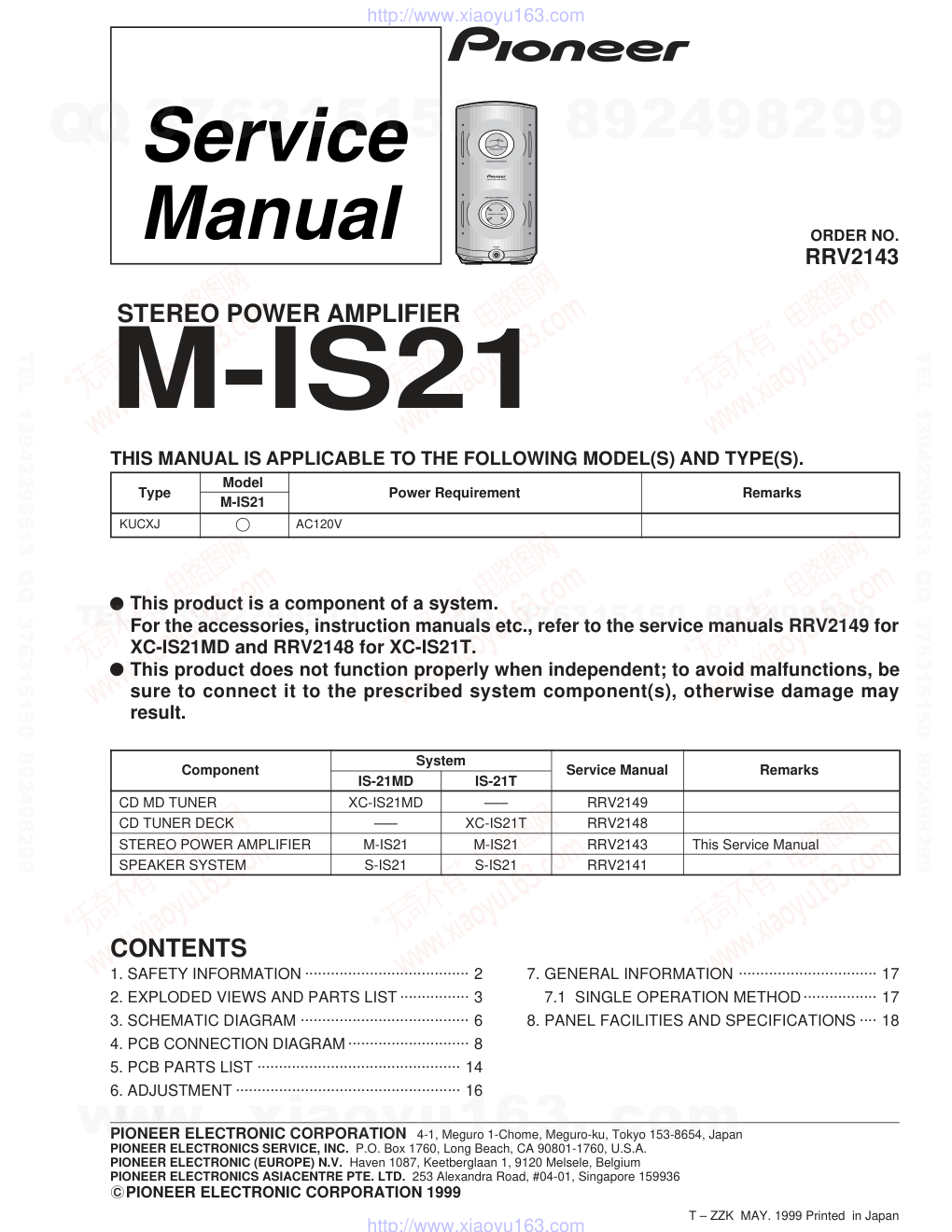

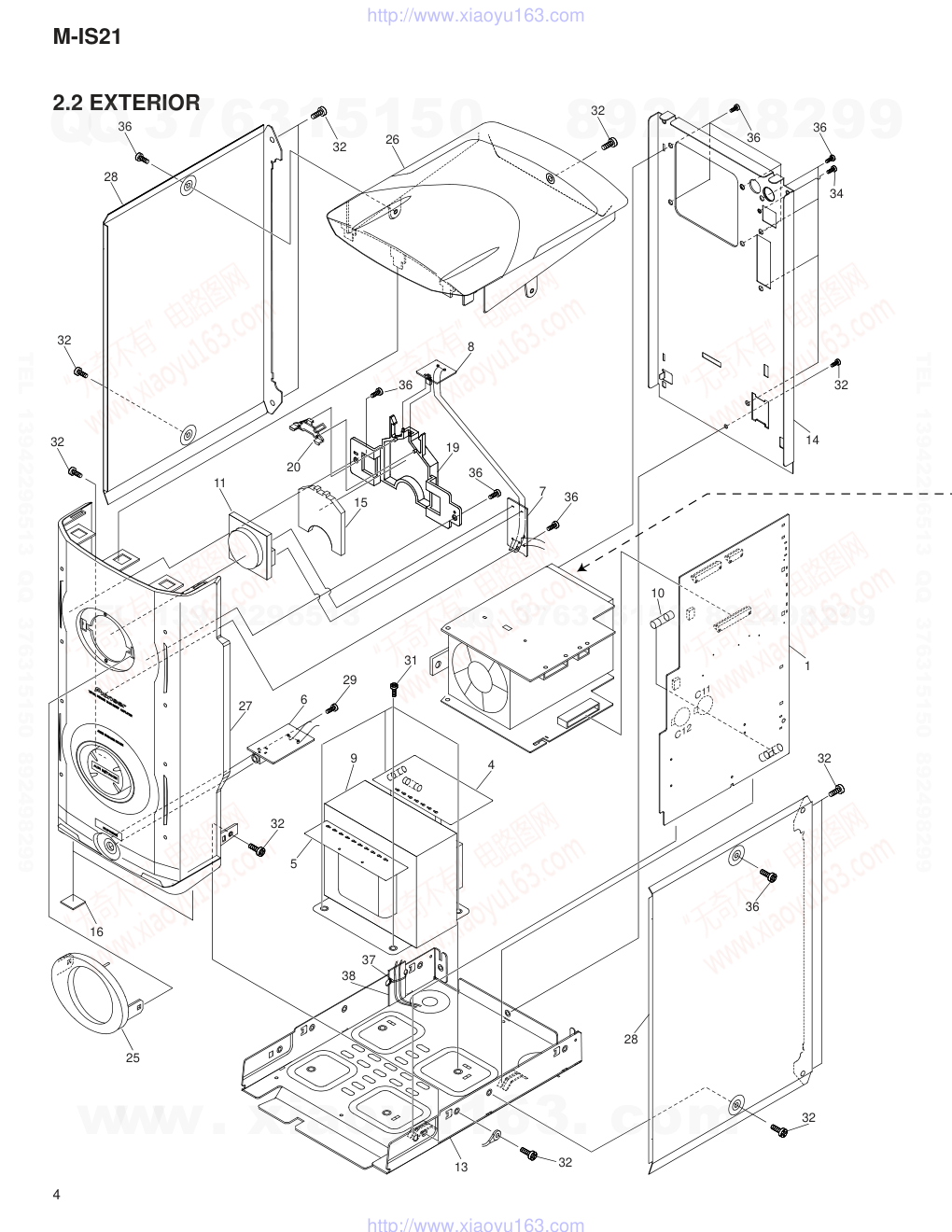

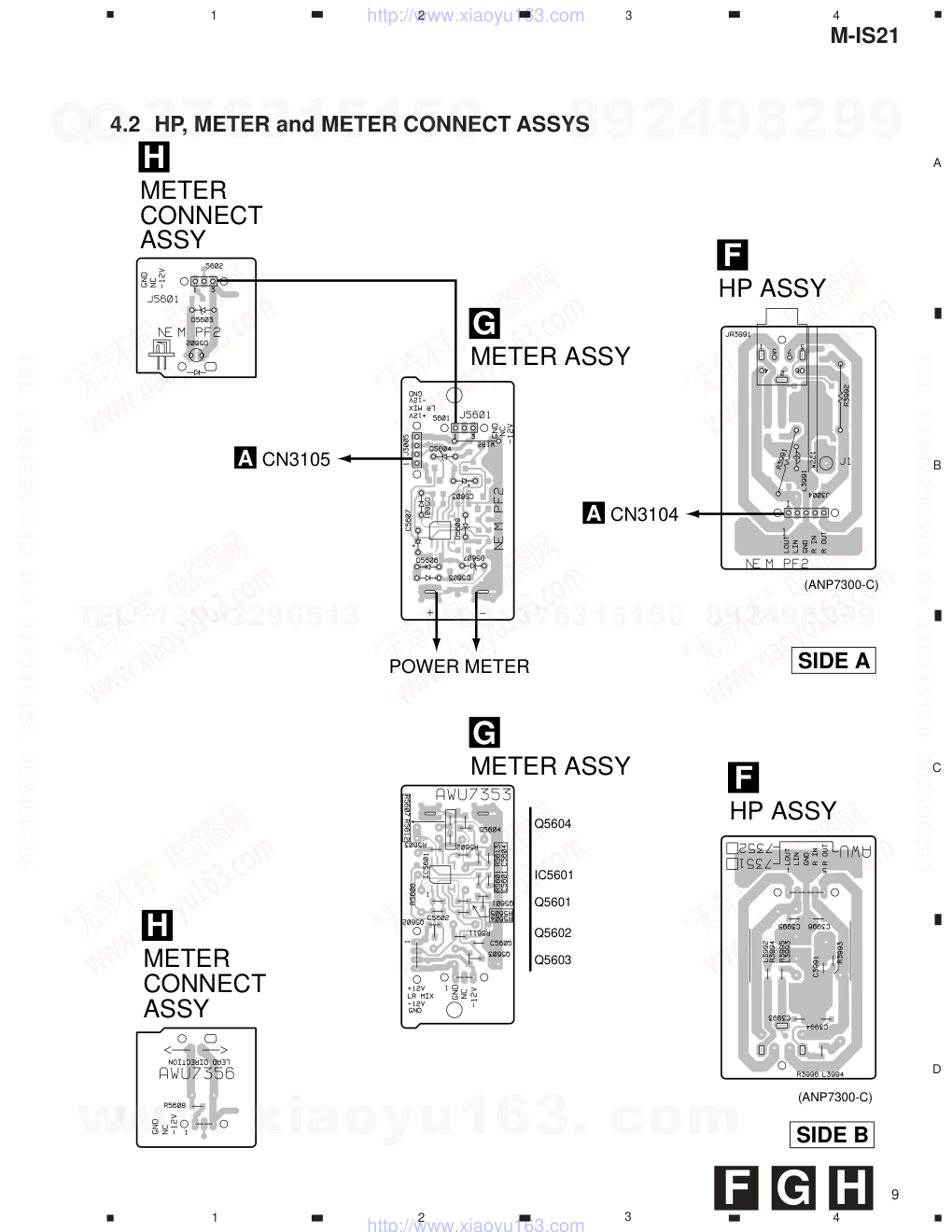

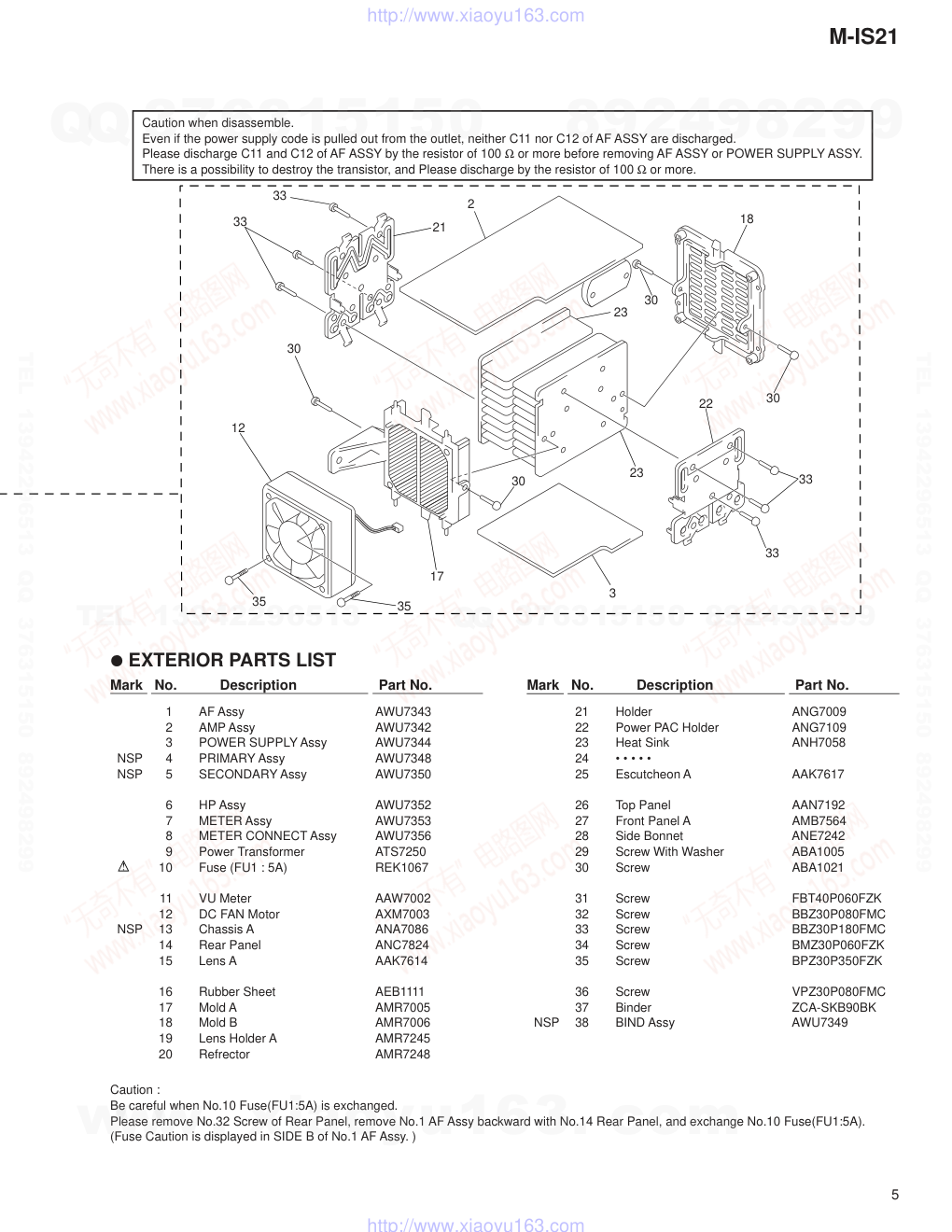

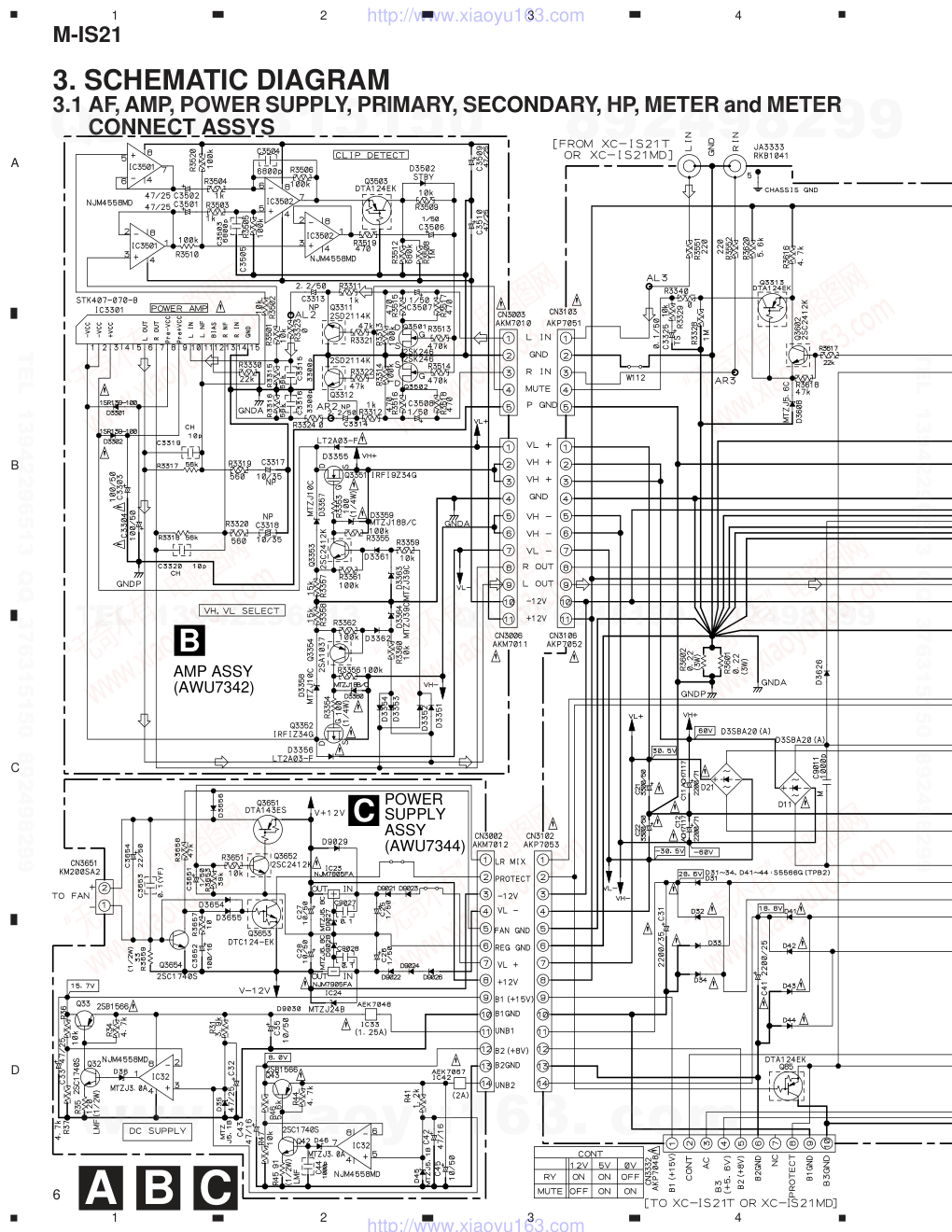

ORDER NO. PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 � � � � � � � � � �PIONEER ELECTRONIC CORPORATION 1999 RRV2143 STEREO POWER AMPLIFIER M-IS21 1. SAFETY INFORMATION ...................................... 2 2. EXPLODED VIEWS AND PARTS LIST ................ 3 3. SCHEMATIC DIAGRAM ....................................... 6 4. PCB CONNECTION DIAGRAM ............................ 8 5. PCB PARTS LIST ............................................... 14 6. ADJUSTMENT .................................................... 16 CONTENTS 7. GENERAL INFORMATION ................................ 17 7.1 SINGLE OPERATION METHOD................. 17 8. PANEL FACILITIES AND SPECIFICATIONS .... 18 THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S). T – ZZK MAY. 1999 Printed in Japan Type Model Power Requirement Remarks M-IS21 KUCXJ AC120V This product is a component of a system. For the accessories, instruction manuals etc., refer to the service manuals RRV2149 for XC-IS21MD and RRV2148 for XC-IS21T. This product does not function properly when independent; to avoid malfunctions, be sure to connect it to the prescribed system component(s), otherwise damage may result. Component System Service Manual Remarks IS-21MD IS-21T CD MD TUNER XC-IS21MD ––– RRV2149 CD TUNER DECK ––– XC-IS21T RRV2148 STEREO POWER AMPLIFIER M-IS21 M-IS21 RRV2143 This Service Manual SPEAKER SYSTEM S-IS21 S-IS21 RRV2141 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com M-IS21 2 1. SAFETY INFORMATION This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. WARNING This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 – Proposition 65 NOTICE (FOR CANADIAN MODEL ONLY) Fuse symbols (fast operating fuse) and/or (slow operating fuse) on PCB indicate that replacement parts must be of identical designation. REMARQUE (POUR MODÈLE CANADIEN SEULEMENT) Les symboles de fusible (fusible de type rapide) et/ou (fusible de type lent) sur CCI indiquent que les pièces de remplacement doivent avoir la même désignation. ANY MEASUREMENTS NOT WITHIN THE LIMITS OUTLINED ABOVE ARE INDICATIVE OF A POTENTIAL SHOCK HAZARD AND MUST BE CORRECTED BEFORE RETURN- ING THE APPLIANCE TO THE CUSTOMER. 2. PRODUCT SAFETY NOTICE Many electrical and mechanical parts in the appliance have special safety related characteristics. These are often not evident from visual inspection nor the protection afforded by them necessarily can be obtained by using replacement components rated for voltage, wattage, etc. Replacement parts which have these special safety characteristics are identified in this Service Manual. Electrical components having such features are identified by marking with a on the schematics and on the parts list in this Service Manual. The use of a substitute replacement component which does not have the same safety characteristics as the PIONEER recommended replacement one, shown in the parts list in this Service Manual, may create shock, fire, or other hazards. Product Safety is continuously under review and new instructions are issued from time to time. For the latest information, always consult the current PIONEER Service Manual. A subscription to, or additional copies of, PIONEER Service Manual may be obtained at a nominal charge from PIONEER. (FOR USA MODEL ONLY) 1. SAFETY PRECAUTIONS The following check should be performed for the continued protection of the customer and service technician. LEAKAGE CURRENT CHECK Measure leakage current to a known earth ground (water pipe, conduit, etc.) by connecting a leakage current tester such as Simpson Model 229-2 or equivalent between the earth ground and all exposed metal parts of the appliance (input/output terminals, screwheads, metal overlays, control shaft, etc.). Plug the AC line cord of the appliance directly into a 120V AC 60 Hz outlet and turn the AC power switch on. Any current measured must not exceed 0.5 mA. Device under test Leakage current tester Earth ground Reading should not be above 0.5 mA Also test with plug reversed (Using AC adapter plug as required) Test all exposed metal surfaces AC Leakage Test www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com M-IS21 3 2. EXPLODED VIEWS AND PARTS LIST Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly. NOTES: Mark No. Description Part No. 2.1 PACKING ¶ PACKING PARTS LIST 2 1 4 3 1 Side Pad AL AHA7238 2 Side Pad AR AHA7239 3 Packing Case AMP MY AHD7748 4 Packing Sheet AHG7053 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com M-IS21 4 28 11 15 20 19 8 7 36 29 31 4 10 C12 C11 9 5 36 28 6 27 32 32 32 38 37 25 13 16 36 36 26 36 32 32 36 32 32 32 36 34 32 14 1 2.2 EXTERIOR www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com M-IS21 5 35 35 17 30 30 33 33 12 33 33 30 30 18 23 3 23 22 21 2 1 AF Assy AWU7343 2 AMP Assy AWU7342 3 POWER SUPPLY Assy AWU7344 NSP 4 PRIMARY Assy AWU7348 NSP 5 SECONDARY Assy AWU7350 6 HP Assy AWU7352 7 METER Assy AWU7353 8 METER CONNECT Assy AWU7356 9 Power Transformer ATS7250 10 Fuse (FU1 : 5A) REK1067 11 VU Meter AAW7002 12 DC FAN Motor AXM7003 NSP 13 Chassis A ANA7086 14 Rear Panel ANC7824 15 Lens A AAK7614 16 Rubber Sheet AEB1111 17 Mold A AMR7005 18 Mold B AMR7006 19 Lens Holder A AMR7245 20 Refrector AMR7248 21 Holder ANG7009 22 Power PAC Holder ANG7109 23 Heat Sink ANH7058 24 • • • • • 25 Escutcheon A AAK7617 26 Top Panel AAN7192 27 Front Panel A AMB7564 28 Side Bonnet ANE7242 29 Screw With Washer ABA1005 30 Screw ABA1021 31 Screw FBT40P060FZK 32 Screw BBZ30P080FMC 33 Screw BBZ30P180FMC 34 Screw BMZ30P060FZK 35 Screw BPZ30P350FZK 36 Screw VPZ30P080FMC 37 Binder ZCA-SKB90BK NSP 38 BIND Assy AWU7349 Mark No. Description Part No. Mark No. Description Part No. ¶ EXTERIOR PARTS LIST Caution when disassemble. Even if the power supply code is pulled out from the outlet, neither C11 nor C12 of AF ASSY are discharged. Please discharge C11 and C12 of AF ASSY by the resistor of 100 Ω or more before removing AF ASSY or POWER SUPPLY ASSY. There is a possibility to destroy the transistor, and Please discharge by the resistor of 100 Ω or more. Caution : Be careful when No.10 Fuse(FU1:5A) is exchanged. Please remove No.32 Screw of Rear Panel, remove No.1 AF Assy backward with No.14 Rear Panel, and exchange No.10 Fuse(FU1:5A). (Fuse Caution is displayed in SIDE B of No.1 AF Assy. ) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com M-IS21 6 A B C D 1 2 3 4 1 2 3 4 AMP ASSY (AWU7342) B POWER SUPPLY ASSY (AWU7344) C 3. SCHEMATIC DIAGRAM C B A 3.1 AF, AMP, POWER SUPPLY, PRIMARY, SECONDARY, HP, METER and METER CONNECT ASSYS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com M-IS21 7 A B C D 5 6 7 8 5 6 7 8 AF ASSY (AWU7343) A PRIMARY ASSY (AWU7348) D SECONDARY ASSY (AWU7350) E HP ASSY (AWU7352) F METER CONNECT ASSY (AWU7356) H METER ASSY (AWU7353) G : AUDIO SIGNAL ROUTE • NOTE FOR FUSE REPLACEMENT FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE WITH SAME TYPE AND RATINGS ONLY. CAUTION - CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE NO. 4911.25, MFD BY LITTELFUSE INK. FOR IC33 (AEK7048). CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE NO. 491002F, MFD BY LITTELFUSE INK. FOR IC42 (AEK7067). CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE NO. 491004, MFD BY LITTELFUSE INK. FOR IC31 (AEK7018). CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE NO. 491007, MFD BY LITTELFUSE INK. FOR IC11, IC12 (AEK7021). CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE NO. 49103.5, MFD BY LITTELFUSE INK. FOR IC41 (AEK7017). CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE NO. 491005, MFD BY LITTELFUSE INK. FOR IC21, IC22 (AEK7019). REK1067 (5A) AC120V AC POWER CORD KUCXJ TYPE : XDG3007 Note : When ordering service parts, be sure to refer to "EXPLODED VIEWS and PARTS LIST" or "PCB PARTS LIST" H G F E D A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com M-IS21 8 A B C D 1 2 3 4 1 2 3 4 4. PCB CONNECTION DIAGRAM NOTE FOR PCB DIAGRAMS: 1. Part numbers in PCB diagrams match those in the schematic diagrams. 2. A comparison between the main parts of PCB and schematic diagrams is shown below. Symbol in PCB Diagrams Symbol in Schematic Diagrams Part Name Transistor Transistor with resistor Field effect transistor Resistor array 3-terminal regulator B C E B C E B C E D G S B C E B C E B C E D G S D G S 3. The parts mounted on this PCB include all necessary parts for several destination. For further information for respective destinations, be sure to check with the schematic diagram. 4. Viewpoint of PCB diagrams Capacitor Connector P.C.Board Chip Part SIDE A SIDE B 4.1 PRIMARY and SECONDARY ASSYS D E (ANP7300-C) SECONDARY ASSY E PRIMARY ASSY D SIDE A 3101 A L BROWN A N BLUE A POWER TRANSFORMER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com M-IS21 9 A B C D 1 2 3 4 1 2 3 4H G F 4.2 HP, METER and METER CONNECT ASSYS (ANP7300-C) METER CONNECT ASSY H HP ASSY F METER ASSY G SIDE B Q5602 Q5604 Q5601 Q5603 IC5601 (ANP7300-C) HP ASSY F METER ASSY G CN3104 A POWER METER CN3105 A SIDE A METER CONNECT ASSY H www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com M-IS21 10 A B C D 1 2 3 4 1 2 3 4 (ANP7300-C) Q81 IC81 IC82 IC3302 J3004 F AF ASSY A CN3006 B CN3003 B CN3002 C 3001 E J3005 G SIDE A XC-IS21MD or XC-IS21T N BLUE D L BROWN D AC IN LIVE NEUTRAL A 4.3 AF ASSY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com M-IS21 11 A B C D 1 2 3 4 1 2 3 4 (ANP7300-C) Q82 Q3621 Q3605 Q3606 Q3608 Q3607 Q3601 Q3603 Q3602 Q3313 Q85 AF ASSY A SIDE B A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com M-IS21 12 A B C D 1 2 3 4 1 2 3 4 (ANP7300-C) IC24 IC23 Q33 Q43 Q42 Q32 Q3651 Q3654 IC33 IC42 Q3352 Q3351 IC3301 Q3502 Q3501 POWER SUPPLY ASSY C AMP ASSY B CN3102 A CN3106 A CN3103 A SIDE A 4.4 AMP and POWER SUPPLY ASSYS B C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com M-IS21 13 A B C D 1 2 3 4 1 2 3 4 (ANP7300-C) IC32 Q31 Q41 Q3652 Q3653 Q3353 Q3354 IC3501 IC3502 Q3503 Q3311 Q3312 POWER SUPPLY ASSY C AMP ASSY B SIDE B C B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com M-IS21 14 Mark No. Description Part No. Mark No. Description Part No. 5. PCB PARTS LIST Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 5 6 1 4 7 3 R 5 0 1 R 0 5 6 2 1 NOTES: 560 47k 0.5 1 RD1/4PU J RD1/4PU J RN2H K RS1P K 56 x 101 47 x 103 R50 1R0 561 473 5.62k RN1/4PC F 562 x 101 5621 LIST OF ASSEMBLIES NSP MAIN ASSY AWK7515 AF ASSY AWU7343 AMP ASSY AWU7342 POWER SUPPLY ASSY AWU7344 NSP PRIMARY ASSY AWU7348 NSP SECONDARY ASSY AWU7350 HP ASSY AWU7352 METER ASSY AWU7353 METER CONNECT ASSY AWU7356 AF ASSY SEMICONDUCTORS IC82 NJM78M56FA Q3601, Q3621 2SA1037K Q3602, Q3603, Q3605–Q3608 2SC2412K Q81 2SD1859X Q3313, Q85 DTA124EK Q82 DTC124EK D3601, D3603–D3606, D3609, D3621 1SS133 D3625, D3626, D3651, D3652 1SS133 D85–D87 1SS133 D11, D21 D3SBA20(A) D3608 MTZJ5.6C D31–D34, D41–D44 S5566G(TPB2) D81–D84 S5688G COILS AND FILTERS L1 LINE FILTER ATF7020 L3331, L3332 (1µH) ATH-133 TRANSFORMERS T1 STANDBY TRANSFORMER ATT7049 SWITCHES AND RELAYS RY3601 SP RELAY/12V ASR7008 RY81 ASR7018 CAPACITORS C1–C3 (10000pF/AC250V) ACG7020 C11, C12 (2200µF/71v) ACH7117 C3602, C84 CEAT100M50 C83 CEAT1R0M50 C3601 CEAT221M16 A C82 CEAT221M25 C41 CEAT222M25 C31 CEAT222M35 C3621 CEAT2R2M2A C21, C22 CEAT332M50 C3325 CEATR10M50 C3331–C3334 CKSQYF104Z50 C9011 CQMA102K2E RESISTORS R1 (2.2MΩ/ 1/2W) RCN1080 R3333, R3334 RD1/4LMF100J R82 RD1/4PU220J R3601, R3602 RS3LMFR22J Other Resistors RS1/10S J OTHERS 3101 12P CABLE HOLDER 51048-1200 CN3105 4PJUMPER CONNECTOR 52151-0410 JA3333 2P PIN JACK AKB7043 CN3332 10P SOCKET AKP7048 CN3103 5P SOCKET AKP7051 CN3106 11P SOCKET AKP7052 CN3102 14P SOCKET AKP7053 H1, H2 FUSE CLIP AKR7001 AN1 AC INLET 1P AKP7032 J3001 JUMPER WIRE D20PYY1220E CN3331 4P SPEAKER TERMINAL XKE3001 AMP ASSY SEMICONDUCTORS IC3501,IC3502 NJM4558MD IC3301 STK407-070B Q3354 2SA1037K Q3353 2SC2412K Q3311, Q3312 2SD2114K Q3501, Q3502 2SK246 Q3503 DTA124EK Q3351 IRFI9Z34G Q3352 IRFIZ34G D3301, D3302 1SR139-100 B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com M-IS21 15 Mark No. Description Part No. Mark No. Description Part No. D3351–D3354, D3361, D3362 1SS133 D3355, D3356 LT2A03 D3357, D3358 MTZJ10C D3359, D3360 MTZJ18B D3363, D3364 MTZJ39C CAPACITORS C3319, C3320 CCSQCH100D50 C3317, C3318 CEANP100M35 C3313, C3314 CEANP2R2M50 C3303, C3304 CEAT101M50 C3506–C3508 CEAT1R0M50 C3501, C3502, C3509, C3510 CEAT470M25 C3315, C3316 CKSQYB332K50 C3503, C3504 CKSQYB682K50 RESISTORS R3353, R3354 RD1/4PU101J R3510 RD1/4PU104J Other Resistors RS1/10S J OTHERS CN3003 5P PLUG AKM7010 CN3006 11P PLUG AKM7011 POWER SUPPLY ASSY SEMICONDUCTORS IC33 PROTECTOR(1.25A) AEK7048 IC42 PROTECTOR(2A) AEK7067 IC32 NJM4558MD IC23 NJM7805FA IC24 NJM7905FA Q33, Q43 2SB1566 Q32, Q3654, Q42 2SC1740S Q3652 2SC2412K Q3651 DTA143ES Q3653 DTC124EK D3654–D3656, D9021–D9024, D9026 1SS133 D9029 1SS133 D9030 MTZJ24B D36, D46 MTZJ3.0B D35, D45 MTZJ5.1B D9027, D9028 MTZJ6.8C CAPACITORS C27, C28, C35, C45 CEAT100M50 C3652 CEAT101M16 C25, C26, C3651 CEAT1R0M50 C3654 CEAT220M35 C42, C43 CEAT470M16 C32, C33 CEAT470M25 C44 CKSQYB102K50 C3653, C9027, C9028 CKSQYF104Z50 RESISTORS R35 RD1/2LMF121J R45 RD1/2LMF910J R3659 RD1/2PM330J Other Resistors RS1/10S J OTHERS CN3002 14P PLUG AKM7012 PRIMARY ASSY PRIMARY assembly has no service part. SECONDARY ASSY SEMICONDUCTORS IC41 PROTECTOR(3.5A) AEK7017 IC31 PROTECTOR(4A) AEK7018 IC21, IC22 PROTECTOR(5A) AEK7019 IC11, IC12 PROTECTOR(7A) AEK7021 OTHERS 3001 12P CABLE HOLDER 51048-1200 HP ASSY RESISTORS R3991, R3992 RS2LMF331J Other Resistors RS1/10S J OTHERS 3004 5P CABLE HOLDER 51048-0500 3991 MINI JACK AKN7003 J3004 5P JUMPER WIRE D20PYY0535E METER ASSY SEMICONDUCTORS IC5601 NJM4558MD Q5601 2SA1037K Q5602 DTA124EK Q5603, Q5604 DTC124EK D5601, D5605, D5606 1SS133 D5608 MTZJ10B D5604 MTZJ12B D5607 MTZJ5.1B CAPACITORS C5603, C5607 CEAT1R0M50 C5604, C5605 CKSQYF104Z50 RESISTORS All Resistors RS1/10S J C D E F G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com M-IS21 16 Mark No. Description Part No. 6. ADJUSTMENT There is no information to be shown in this chapter. OTHERS 5601 3P CABLE HOLDER 51048-0300 3005 4P CABLE HOLDER 51048-0400 J3005 4P JUMPER WIRE D20PYY0410E METER CONNECT ASSY SEMICONDUCTORS D5603 MTZJ5.6C D5602 NSPBF50S-8451 RESISTORS All Resistors RS1/10S J OTHERS 5602 3P CABLE HOLDER 51048-0300 J5601 3P JUMPER WIRE D20PYY0315E H www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com M-IS21 17 7.1 SINGLE OPERATION METHOD 7. GENERAL INFORMATION AF ASSY A SIDE B INPUT SIGNAL 10mV OUTPUT SIGNAL R85 – 1kΩ CONTROLL 0V, 5V or 12V CONNECT A POINT (GND) (FOUR PLACES) Single operation method and inputlevel. The procedure and the input level of a single operation are shown below. 1. R85 are shorted by 1kΩ. 2. A point of the figure below in four places is connected. GND is not common because it is independent with chassis GND (GND of the amplifier), B1GND, B2GND, and B3GND. The potential of B1GND, B2GND, and B3GND is done by connecting A point in four places as well as chassis GND. 2. The power supply of the product is turned on. 3. the terminal CONT (2 pin of CN3332) are controlled respectively by the following voltages. CONT 12V 5V 0V RY ON ON OFF MUTE OFF ON ON 4. The signal of 10mV is input from input terminal (JA3333), and the output is confirmed with speaker terminal (CN3331). Note : If the music signal is input directly to input terminal (JA3333) with CD PLAYER etc. , the output becomes a large volume because there are 40dB GAIN of the amplifier. Caution when disassemble. Even if the power supply code is pulled out from the outlet, neither C11 nor C12 of AF ASSY are discharged. Please discharge C11 and C12 of AF ASSY by the resistor of 100 Ω or more before removing AF ASSY or POWER SUPPLY ASSY. There is a possibility to destroy the transistor, and Please discharge by the resistor of 100 Ω or more. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com M-IS21 18 ¶ SPECIFICATIONS 7 Amplifier Section Continuous average power output of 55 watts* per channel, min., at 6 ohms, from 60 Hz to 15,000 Hz with no more than 1.0 %** total harmonic dis- tortion. * Measured pursuant to the Federal Trade Commission’s Trade Regulation rule on Power Output Claims for Amplifiers. ** Measured by Audio Spectrum Analyzer. 7 Micellaneous Power Requirements .......................................... AC120 V, 60 Hz Power Consumption ............................................. 120 W, 160 VA Power Consumption in standby mode ................................... 1 W Dimensions: Power Amplifier .................... 150 (W) x 300 (H) x 233 (D) mm 5-7/8 (W) x 11-13/16 (H) x 9-3/16 (D) in. Weight: Power Amplifier .......................................... 4.0 kg (8 lb 13 oz) NOTE: Specifications and design subject to possible modification without notice, due to improvements. ¶ PANEL FACILITIES 8. PANEL FACILITIES AND SPECIFICATIONS •� ¶� ¶ POWER OUTPUT METER • PHONES jack www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ORDER NO. PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 � � � � � � � � � �PIONEER ELECTRONIC CORPORATION 1999 RRV2129 STEREO POWER AMPLIFIER M-IS21 1. SAFETY INFORMATION ...................................... 2 2. EXPLODED VIEWS AND PARTS LIST ................ 3 3. SCHEMATIC DIAGRAM ....................................... 6 4. PCB CONNECTION DIAGRAM ............................ 8 5. PCB PARTS LIST ............................................... 14 6. ADJUSTMENT .................................................... 16 CONTENTS 7. GENERAL INFORMATION ................................ 17 7.1 SINGLE OPERATION METHOD................. 17 8. PANEL FACILITIES AND SPECIFICATIONS .... 18 THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S). T – ZZK APR. 1999 Printed in Japan Type Model Power Requirement Remarks M-IS21 MYXJ AC220-230V NVXJ AC230V This product is a component of a system. For the accessories, instruction manuals etc., refer to the service manuals RRV2124 for XC-IS21MD and RRV2123 for XC-IS21T. This product does not function properly when independent; to avoid malfunctions, be sure to connect it to the prescribed system component(s), otherwise damage may result. Component System Service Manual Remarks IS-21MD IS-21T CD MD TUNER XC-IS21MD ––– RRV2124 CD TUNER DECK ––– XC-IS21T RRV2123 STEREO POWER AMPLIFIER M-IS21 M-IS21 RRV2129 This Service Manual SPEAKER SYSTEM S-IS21 S-IS21 RRV2128 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com M-IS21 2 1. SAFETY INFORMATION This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. WARNING This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 – Proposition 65 NOTICE (FOR CANADIAN MODEL ONLY) Fuse symbols (fast operating fuse) and/or (slow operating fuse) on PCB indicate that replacement parts must be of identical designation. REMARQUE (POUR MODÈLE CANADIEN SEULEMENT) Les symboles de fusible (fusible de type rapide) et/ou (fusible de type lent) sur CCI indiquent que les pièces de remplacement doivent avoir la même désignation. ANY MEASUREMENTS NOT WITHIN THE LIMITS OUTLINED ABOVE ARE INDICATIVE OF A POTENTIAL SHOCK HAZARD AND MUST BE CORRECTED BEFORE RETURN- ING THE APPLIANCE TO THE CUSTOMER. 2. PRODUCT SAFETY NOTICE Many electrical and mechanical parts in the appliance have special safety related characteristics. These are often not evident from visual inspection nor the protection afforded by them necessarily can be obtained by using replacement components rated for voltage, wattage, etc. Replacement parts which have these special safety characteristics are identified in this Service Manual. Electrical components having such features are identified by marking with a on the schematics and on the parts list in this Service Manual. The use of a substitute replacement component which does not have the same safety characteristics as the PIONEER recommended replacement one, shown in the parts list in this Service Manual, may create shock, fire, or other hazards. Product Safety is continuously under review and new instructions are issued from time to time. For the latest information, always consult the current PIONEER Service Manual. A subscription to, or additional copies of, PIONEER Service Manual may be obtained at a nominal charge from PIONEER. (FOR USA MODEL ONLY) 1. SAFETY PRECAUTIONS The following check should be performed for the continued protection of the customer and service technician. LEAKAGE CURRENT CHECK Measure leakage current to a known earth ground (water pipe, conduit, etc.) by connecting a leakage current tester such as Simpson Model 229-2 or equivalent between the earth ground and all exposed metal parts of the appliance (input/output terminals, screwheads, metal overlays, control shaft, etc.). Plug the AC line cord of the appliance directly into a 120V AC 60 Hz outlet and turn the AC power switch on. Any current measured must not exceed 0.5 mA. Device under test Leakage current tester Earth ground Reading should not be above 0.5 mA Also test with plug reversed (Using AC adapter plug as required) Test all exposed metal surfaces AC Leakage Test www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com M-IS21 3 2. EXPLODED VIEWS AND PARTS LIST Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly. NOTES: Mark No. Description Part No. 2.1 PACKING ¶ PACKING PARTS LIST 2 1 4 3 1 Side Pad AL AHA7238 2 Side Pad AR AHA7239 3 Packing Case AMP MY AHD7747 4 Packing Sheet AHG7053 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com M-IS21 4 28 11 15 20 19 8 7 36 29 31 4 10 C12 C11 9 5 36 28 6 27 32 32 32 38 37 25 13 16 36 36 26 36 32 32 36 32 32 32 36 34 32 14 1 2.2 EXTERIOR www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com M-IS21 5 35 35 17 30 30 33 33 12 33 33 30 30 18 23 3 23 22 21 2 1 AF Assy AWU7337 2 AMP Assy AWU7340 3 POWER SUPPLY Assy AWU7344 NSP 4 PRIMARY Assy AWU7345 NSP 5 SECONDARY Assy AWU7350 6 HP Assy AWU7351 7 METER Assy AWU7353 8 METER CONNECT Assy AWU7356 9 Power Transformer ATS7249 10 Fuse (FU1 : T2.5A) REK1026 11 VU Meter AAW7002 12 DC FAN Motor AXM7003 NSP 13 Chassis A ANA7086 14 Rear Panel See Contrast table (2) 15 Lens A AAK7614 16 Rubber Sheet AEB1111 17 Mold A AMR7005 18 Mold B AMR7006 19 Lens Holder A AMR7245 20 Refrector AMR7248 21 Holder ANG7009 22 Power PAC Holder ANG7109 23 Heat Sink ANH7058 24 • • • • • 25 Escutcheon A AAK7617 26 Top Panel AAN7192 27 Front Panel A AMB7564 28 Side Bonnet ANE7242 29 Screw With Washer ABA1005 30 Screw ABA1021 31 Screw FBT40P060FZK 32 Screw BBZ30P080FMC 33 Screw BBZ30P180FMC 34 Screw BMZ30P060FZK 35 Screw BPZ30P350FZK 36 Screw VPZ30P080FMC 37 Binder ZCA-SKB90BK NSP 38 BIND Assy AWU7349 Mark No. Description Part No. Mark No. Description Part No. (1) EXTERIOR PARTS LIST Mark No. Symbol and Description Part No. Remarks MYXJ Type NVXJ Type 14 Rear Panel ANC7823 ANC7839 (2) CONTRAST TABLE M-IS21/MYXJ and NVXJ are constructed the same except for the following : Caution when disassemble. Even if the power supply code is pulled out from the outlet, neither C11 nor C12 of AF ASSY are discharged. Please discharge C11 and C12 of AF ASSY by the resistor of 100 Ω or more before removing AF ASSY or POWER SUPPLY ASSY. There is a possibility to destroy the transistor, and Please discharge by the resistor of 100 Ω or more. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com M-IS21 6 A B C D 1 2 3 4 1 2 3 4 AMP ASSY (AWU7340) B POWER SUPPLY ASSY (AWU7344) C 3. SCHEMATIC DIAGRAM C B A 3.1 AF, AMP, POWER SUPPLY, PRIMARY, SECONDARY, HP, METER and METER CONNECT ASSYS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com M-IS21 7 A B C D 5 6 7 8 5 6 7 8 AF ASSY (AWU7337) A PRIMARY ASSY (AWU7345) D SECONDARY ASSY (AWU7350) E HP ASSY (AWU7351) F METER CONNECT ASSY (AWU7356) H METER ASSY (AWU7353) G : AUDIO SIGNAL ROUTE • NOTE FOR FUSE REPLACEMENT FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE WITH SAME TYPE AND RATINGS ONLY. CAUTION - CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE NO. 4911.25, MFD BY LITTELFUSE INK. FOR IC33 (AEK7048). CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE NO. 491002F, MFD BY LITTELFUSE INK. FOR IC42 (AEK7067). CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE NO. 491004, MFD BY LITTELFUSE INK. FOR IC31 (AEK7018). CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE NO. 491007, MFD BY LITTELFUSE INK. FOR IC11, IC12 (AEK7021). CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE NO. 49103.5, MFD BY LITTELFUSE INK. FOR IC41 (AEK7017). CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE NO. 491005, MFD BY LITTELFUSE INK. FOR IC21, IC22 (AEK7019). REK1026 (T2.5A) AC220-230V AC POWER CORD MYXJ TYPE : XDG3001 NVXJ TYPE : ADG1156 Note : When ordering service parts, be sure to refer to "EXPLODED VIEWS and PARTS LIST" or "PCB PARTS LIST" H G F E D A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com M-IS21 8 A B C D 1 2 3 4 1 2 3 4 4. PCB CONNECTION DIAGRAM NOTE FOR PCB DIAGRAMS: 1. Part numbers in PCB diagrams match those in the schematic diagrams. 2. A comparison between the main parts of PCB and schematic diagrams is shown below. Symbol in PCB Diagrams Symbol in Schematic Diagrams Part Name Transistor Transistor with resistor Field effect transistor Resistor array 3-terminal regulator B C E B C E B C E D G S B C E B C E B C E D G S D G S 3. The parts mounted on this PCB include all necessary parts for several destination. For further information for respective destinations, be sure to check with the schematic diagram. 4. Viewpoint of PCB diagrams Capacitor Connector P.C.Board Chip Part SIDE A SIDE B 4.1 PRIMARY and SECONDARY ASSYS D E (ANP7300-C) SECONDARY ASSY E PRIMARY ASSY D SIDE A 3101 A L BROWN A N BLUE A POWER TRANSFORMER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com M-IS21 9 A B C D 1 2 3 4 1 2 3 4H G F 4.2 HP, METER and METER CONNECT ASSYS (ANP7300-C) METER CONNECT ASSY H HP ASSY F METER ASSY G SIDE B Q5602 Q5604 Q5601 Q5603 IC5601 (ANP7300-C) HP ASSY F METER ASSY G CN3104 A POWER METER CN3105 A SIDE A METER CONNECT ASSY H www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com M-IS21 10 A B C D 1 2 3 4 1 2 3 4 (ANP7300-C) Q81 IC81 IC82 IC3302 J3004 F AF ASSY A CN3006 B CN3003 B CN3002 C 3001 E J3005 G SIDE A XC-IS21MD or XC-IS21T N BLUE D L BROWN D AC IN LIVE NEUTRAL A 4.3 AF ASSY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com M-IS21 11 A B C D 1 2 3 4 1 2 3 4 (ANP7300-C) Q82 Q3621 Q3605 Q3606 Q3608 Q3607 Q3601 Q3603 Q3602 Q3313 Q85 AF ASSY A SIDE B A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com M-IS21 12 A B C D 1 2 3 4 1 2 3 4 (ANP7300-C) IC24 IC23 Q33 Q43 Q42 Q32 Q3651 Q3654 IC33 IC42 Q3352 Q3351 IC3301 Q3502 Q3501 POWER SUPPLY ASSY C AMP ASSY B CN3102 A CN3106 A CN3103 A SIDE A 4.4 AMP and POWER SUPPLY ASSYS B C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com M-IS21 13 A B C D 1 2 3 4 1 2 3 4 (ANP7300-C) IC32 Q31 Q41 Q3652 Q3653 Q3353 Q3354 IC3501 IC3502 Q3503 Q3311 Q3312 POWER SUPPLY ASSY C AMP ASSY B SIDE B C B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com M-IS21 14 Mark No. Description Part No. Mark No. Description Part No. 5. PCB PARTS LIST Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 5 6 1 4 7 3 R 5 0 1 R 0 5 6 2 1 NOTES: 560 47k 0.5 1 RD1/4PU J RD1/4PU J RN2H K RS1P K 56 x 101 47 x 103 R50 1R0 561 473 5.62k RN1/4PC F 562 x 101 5621 LIST OF ASSEMBLIES NSP MAIN ASSY AWK7512 AF ASSY AWU7337 AMP ASSY AWU7340 POWER SUPPLY ASSY AWU7344 NSP PRIMARY ASSY AWU7345 NSP SECONDARY ASSY AWU7350 HP ASSY AWU7351 METER ASSY AWU7353 METER CONNECT ASSY AWU7356 AF ASSY SEMICONDUCTORS IC82 NJM78M56FA Q3601, Q3621 2SA1037K Q3602, Q3603, Q3605–Q3608 2SC2412K Q81 2SD1859X Q3313, Q85 DTA124EK Q82 DTC124EK D3601, D3603–D3606, D3609, D3621 1SS133 D3625, D3626, D3651, D3652 1SS133 D85–D87 1SS133 D11, D21 D3SBA20(A) D3608 MTZJ5.6C D31–D34, D41–D44 S5566G(TPB2) D81–D84 S5688G COILS AND FILTERS L1 LINE FILTER ATF7019 L3331–L3334 (1µH) ATH-133 TRANSFORMERS T1 STANDBY TRANSFORMER ATT7050 SWITCHES AND RELAYS RY3601 SP RELAY/12V ASR7008 RY81 ASR7018 CAPACITORS C1–C3 (10000pF/AC250V) ACG7020 C3345, C3346 (10000pF/100V) ACG7021 C11, C12 (2200µF/71v) ACH7117 C3551–C3554 CCSQCH331J50 C3602, C84 CEAT100M50 A C83 CEAT1R0M50 C3601 CEAT221M16 C41 CEAT222M25 C31 CEAT222M35 C3621 CEAT2R2M2A C21, C22 CEAT332M50 C82 CEAT471M25 C3325 CEATR10M50 C3331–C3334 CKSQYF104Z50 C9011 CQMA102K2E RESISTORS R3333, R3334 RD1/4LMF101J R82 RD1/4PU220J R3601, R3602 RS3LMFR22J Other Resistors RS1/10S J OTHERS 3101 12P CABLE HOLDER 51048-1200 CN3105 4PJUMPER CONNECTOR 52151-0410 JA3333 2P PIN JACK AKB7043 CN3332 10P SOCKET AKP7048 CN3103 5P SOCKET AKP7051 CN3106 11P SOCKET AKP7052 CN3102 14P SOCKET AKP7053 H1, H2 FUSE CLIP AKR7001 AN1 AC INLET 1P BKP1046 J3001 JUMPER WIRE D20PYY1220E CN3331 4P SPEAKER TERMINAL XKE3001 AMP ASSY SEMICONDUCTORS IC3501,IC3502 NJM4558MD IC3301 STK407-070B Q3354 2SA1037K Q3353 2SC2412K Q3311, Q3312 2SD2114K Q3501, Q3502 2SK246 Q3503 DTA124EK Q3351 IRFI9Z34G Q3352 IRFIZ34G D3301, D3302 1SR139-100 B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com M-IS21 15 Mark No. Description Part No. Mark No. Description Part No. D3351–D3354, D3361, D3362 1SS133 D3355, D3356 LT2A03 D3357, D3358 MTZJ10C D3359, D3360 MTZJ18B D3363, D3364 MTZJ39C CAPACITORS C3319, C3320 CCSQCH100D50 C3327, C3328 CCSQCH680J50 C3317, C3318 CEANP100M35 C3313, C3314 CEANP2R2M50 C3303, C3304 CEAT101M50 C3506–C3508 CEAT1R0M50 C3501, C3502, C3509, C3510 CEAT470M25 C3315, C3316 CKSQYB332K50 C3503, C3504 CKSQYB682K50 C3308 CKSQYB822K50 RESISTORS R3353, R3354 RD1/4PU101J R3510 RD1/4PU104J Other Resistors RS1/10S J OTHERS CN3003 5P PLUG AKM7010 CN3006 11P PLUG AKM7011 POWER SUPPLY ASSY SEMICONDUCTORS IC33 PROTECTOR(1.25A) AEK7048 IC42 PROTECTOR(2A) AEK7067 IC32 NJM4558MD IC23 NJM7805FA IC24 NJM7905FA Q33, Q43 2SB1566 Q32, Q3654, Q42 2SC1740S Q3652 2SC2412K Q3651 DTA143ES Q3653 DTC124EK D3654–D3656, D9021–D9024, D9026 1SS133 D9029 1SS133 D9030 MTZJ24B D36, D46 MTZJ3.0B D35, D45 MTZJ5.1B D9027, D9028 MTZJ6.8C CAPACITORS C27, C28, C35, C45 CEAT100M50 C3652 CEAT101M16 C25, C26, C3651 CEAT1R0M50 C3654 CEAT220M35 C42, C43 CEAT470M16 C32, C33 CEAT470M25 C44 CKSQYB102K50 C3653, C9027, C9028 CKSQYF104Z50 RESISTORS R35 RD1/2LMF121J R45 RD1/2LMF910J R3659 RD1/2PM330J Other Resistors RS1/10S J OTHERS CN3002 14P PLUG AKM7012 PRIMARY ASSY PRIMARY assembly has no service part. SECONDARY ASSY SEMICONDUCTORS IC41 PROTECTOR(3.5A) AEK7017 IC31 PROTECTOR(4A) AEK7018 IC21, IC22 PROTECTOR(5A) AEK7019 IC11, IC12 PROTECTOR(7A) AEK7021 OTHERS 3001 12P CABLE HOLDER 51048-1200 HP ASSY COILS AND FILTERS L3992–L3994 CHIP BEADS VTL1096 CAPACITORS C3991, C3995, C3996 CKSQYB472K50 RESISTORS R3991, R3992 RS2LMF331J OTHERS 3004 5P CABLE HOLDER 51048-0500 3991 MINI JACK AKN7003 J3004 5P JUMPER WIRE D20PYY0535E METER ASSY SEMICONDUCTORS IC5601 NJM4558MD Q5601 2SA1037K Q5602 DTA124EK Q5603, Q5604 DTC124EK D5601, D5605, D5606 1SS133 D5608 MTZJ10B D5604 MTZJ12B D5607 MTZJ5.1B CAPACITORS C5603, C5607 CEAT1R0M50 C5604, C5605 CKSQYF104Z50 C D E F G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com M-IS21 16 Mark No. Description Part No. 6. ADJUSTMENT There is no information to be shown in this chapter. RESISTORS All Resistors RS1/10S J OTHERS 5601 3P CABLE HOLDER 51048-0300 3005 4P CABLE HOLDER 51048-0400 J3005 4P JUMPER WIRE D20PYY0410E METER CONNECT ASSY SEMICONDUCTORS D5603 MTZJ5.6C D5602 NSPBF50S-8451 RESISTORS All Resistors RS1/10S J OTHERS 5602 3P CABLE HOLDER 51048-0300 J5601 3P JUMPER WIRE D20PYY0315E H www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com M-IS21 17 7.1 SINGLE OPERATION METHOD 7. GENERAL INFORMATION AF ASSY A SIDE B INPUT SIGNAL 10mV OUTPUT SIGNAL R85 – 1kΩ CONTROLL 0V, 5V or 12V CONNECT A POINT (GND) (FOUR PLACES) Single operation method and inputlevel. The procedure and the input level of a single operation are shown below. 1. R85 are shorted by 1kΩ. 2. A point of the figure below in four places is connected. GND is not common because it is independent with chassis GND (GND of the amplifier), B1GND, B2GND, and B3GND. The potential of B1GND, B2GND, and B3GND is done by connecting A point in four places as well as chassis GND. 2. The power supply of the product is turned on. 3. the terminal CONT (2 pin of CN3332) are controlled respectively by the following voltages. CONT 12V 5V 0V RY ON ON OFF MUTE OFF ON ON 4. The signal of 10mV is input from input terminal (JA3333), and the output is confirmed with speaker terminal (CN3331). Note : If the music signal is input directly to input terminal (JA3333) with CD PLAYER etc. , the output becomes a large volume because there are 40dB GAIN of the amplifier. Caution when disassemble. Even if the power supply code is pulled out from the outlet, neither C11 nor C12 of AF ASSY are discharged. Please discharge C11 and C12 of AF ASSY by the resistor of 100 Ω or more before removing AF ASSY or POWER SUPPLY ASSY. There is a possibility to destroy the transistor, and Please discharge by the resistor of 100 Ω or more. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com M-IS21 18 ¶ SPECIFICATIONS 7 Amplifier Section Continuous Power (RMS) .................................. 100 W + 100 Wz (1 kHz, THD 10%, 6 Ω) Continuous Power (DIN) .......................................... 65 W + 65 W (1 kHz, THD 1%, 6 Ω) Music Power (DIN) .............................................. 150 W + 150 W (1 kHz, THD 1%, 6 Ω) ¶ Above specifications are for when the power supply is 230 V. 7 Micellaneous Power Requirements .............................. AC220-230 V, 50/60 Hz Power Consumption .......................................................... 120 W Power Consumption in standby mode ................................... 1 W Dimensions: Power Amplifier .................... 150 (W) x 300 (H) x 233 (D) mm Weight: Power Amplifier .............................................................4.0 kg NOTE: Specifications and design subject to possible modification without notice, due to improvements. ¶ PANEL FACILITIES 8. PANEL FACILITIES AND SPECIFICATIONS •� ¶� ¶ POWER OUTPUT METER • PHONES jack www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ORDER NO. PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Allexandra Road, #04-01, Singapore 159936 � � � � � � � � � �PIONEER ELECTRONIC CORPORATION 1999 RRV2162 T – ZZR JUN 1999 Printed in Japan THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S). Model M-IS21 Type DBDXJ DLXJ/NC M-IS21 ‡ ‡ AC110-127V/220-230V/240V AC110-120V/220-230V/240V STEREO POWER AMPLIFIER Power Requirement The voltage can be converted by the following method. With the voltage selector With the voltage selector ¶ This service manual should be used together with the following manual(s): Model Order No. Remarks M-IS21/MYXJ RRV2129 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com M-IS21 2 1. CONTRAST OF MISCELLANEOUS PARTS Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly. Reference Nos. indicate the pages and Nos. in the service manual for the base model. NOTES: When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 5 6 1 4 7 3 R 5 0 1 R 0 5 6 2 1 560 47k 0.5 1 RD1/4PU J RD1/4PU J RN2H K RS1P K 56 x 101 47 x 103 R50 1R0 561 473 5.62k RN1/4PC F 562 x 101 5621 M-IS21/DBDXJ, DLXJ/NC and MYXJ are constructed the same except for the following : CONTRAST TABLE Part No. Remarks MYXJ type DBDXJ type DLXJ/NC type PCB ASSEMBLEIES NSP MAIN ASSY AWK7521 AWM7513 AWM7513 P5-1 AF ASSY AWU7337 AWU7338 AWU7338 P5-2 AMP ASSY AWU7340 AWU7341 AWU7341 P5-4 NSP PRIMARY ASSY AWU7345 AWU7346 AWU7346 PACKING P3-3 Packing Case AMP AHD7747 AHD7759 AHD7673 EXTERIOR P5-9 Power Transformer ATS7249 ATS7247 ATS7247 P5-14 Rear Panel ANC7823 ANC7843 ANC7734 Barrier Not used AAK7726 AAK7726 No.1 NSP Fuse Card Not used AAX7098 AAX7098 No.2 Fuse (FU1 ) REK1026 REK1029 REK1029 (FU1 : T2.5A) (FU1 : T5A) (FU1 : T5A) Fuse (FU2, FU3 : T2.5A) Not used REK1026 REK1026 No.3 Ref. No. Mark Symbol and Description Note : • The numbers in the remarks column correspond to the numbers on the exploded diagram. Refer to “EXPLDED VIEWS” EXPLDED VIEWS EXTERIOR SECTION Screw (FBT40P060FZK) No.3 Power Transformer PRIMARY ASSY No.2 No.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com M-IS21 3 C3308 CKSQYB822K50 Not used C3319, C3320 CCSQCH6R0D50 CCSQCH100D50 C3327, C3328 CCSQCH680J50 Not used R3307 RS1/10S100J Not used Mark Symbol and Description Part No. AWU7340 AWU7341 Remarks AMP ASSY AWU7341 and AWU7340 are constructed the same except for the following: CONTRAST OF PCB ASSEMBLIES B L001 ATF7019 ATF7020 S002 Not used AKX7004 T001 ATT7050 ATT7048 Mark Symbol and Description Part No. AWU7337 AWU7338 Remarks Note : Refer to "2.SCHEMATIC DIAGRAM" AF ASSY AWU7338 and AWU7337 are constructed the same except for the following: A F H103- H106 Not used AKR7001 S001 Not used AKX7006 Mark Symbol and Description Part No. AWU7345 AWU7346 Remarks Note : Refer to "2.SCHEMATIC DIAGRAM" PRIMARY ASSY AWU7346 and AWU7345 are constructed the same except for the following: D F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com M-IS21 4 A B C D 1 2 3 4 1 2 3 4 2. SCHEMATIC DIAGRAM D F 2.1 AF ASSY and PRIMARY ASSY Power Transformer PRIMARY ASSY (AWU7346) D F AF ASSY (AWU7338) AF ASSY A F REK1029 (T5.0A) REK1026 (T2.5A) REK1026 (T2.5A) AC POWER CORD DBDXJ : ADG1158 DLXJ/NC : ADG1154 AC 110-127V/220-230V /240V 50/60Hz A F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ORDER NO. PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 � � � � � � � � � �PIONEER CORPORATION 2000 RRV2406 T – ZZK NOV. 2000 Printed in Japan Model No. Order No. Remarks M-IS21/MYXJ RRV2129 ¶ This service manual should be used together with the following manual(s): STEREO POWER AMPLIFIER M-IS21 Type Model Power Requirement Remarks M-IS21 MAMXQ AC220-230V THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S). This product is a component of a system. For the accessories, instruction manuals etc., refer to the service manuals RRV2404 for XC-IS21V. This product does not function properly independently; to avoid malfunctions, be sure to connect it to the prescribed system component(s), otherwise damage may result. Component Model Service Manual Remarks IS-21VCD STEREO CD/VCD TUNER DECK XC-IS21V RRV2404 (RRV2326) STEREO POWER AMPLIFIER M-IS21 RRV2406 (RRV2129) This Service Manual SPEAKER SYSTEM S-IS21V RRV2398 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com M-IS21 2 1. CONTRAST OF MISCELLANEOUS PARTS Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly. Reference Nos. indicate the pages and Nos. in the service manual for the base model. NOTES: CONTRAST TABLE Part No. Ref. No. Mark Symbol and Description M-IS21 M-IS21 Remarks /MYXJ /MAMXQ PACKING SECTION P3- 1 Side Pad AL AHA7238 AHA7317 P3- 2 Side Pad AR AHA7239 AHA7318 P3- 3 Packing Case AHD7747 AHD7954 EXTERIOR SECTION P5-12 DC FAN Motor AXM7003 AXM7014 P5-14 Rear Panel ANC7823 ANC7985 P5-26 Top Panel AAN7192 AAN7202 P5-27 Front Panel A AMB7564 AMB7740 P5-28 Side Bonnet ANE7242 ANE7265 Label (REAR) Not used VRW1739 *1 M-IS21/MAMXQ and MYXJ are constructed the same except for the following : *1 Stick Label on the Rear Panel. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ORDER NO. PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2001 RRV2430 T – ZZK FEB. 2001 Printed in Japan Model No. Order No. Remarks M-IS21/MYXJ RRV2129 ¶ This service manual should be used together with the following manual(s): STEREO POWER AMPLIFIER M-IS21 THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S). This product is a component of a system. For the accessories, instruction manuals etc., refer to the service manuals RRV2428 for XC-IS21T. This product does not function properly independently; to avoid malfunctions, be sure to connect it to the prescribed system component(s), otherwise damage may result. Component Model Service Manual Remarks IS-21T STEREO CD TUNER DECK XC-IS21T RRV2428 (RRV2148) STEREO POWER AMPLIFIER M-IS21 RRV2430 (RRV2129) This Service Manual SPEAKER SYSTEM S-IS21 RRV2427 Type Model Power Requirement The voltage can be converted by M-IS21 the following method. DDXBR AC110-127V/220-230V/240V With the voltage selector www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com M-IS21 2 1. CONTRAST OF MISCELLANEOUS PARTS CONTRAST TABLE Part No. Ref. No. Mark Symbol and Description M-IS21 M-IS21 Remarks /MYXJ /DDXBR PCB ASSEMBLIES NSP MAIN ASSY AWK7512 AWK7513 P5- 1 AF ASSY AWU7337 AWU7338 P5- 2 AMP ASSY AWU7340 AWU7341 P5- 4 NSP PRIMARY ASSY AWU7345 AWU7346 PACKING SECTION P3- 3 Packing Case AHD7747 AHD7961 EXTERIOR SECTION P5- 9 Power Transformer (AC220-230V) ATS7249 Not used P5- 9 Power Transformer (AC110-127V/220-230V/240V) Not used ATS7247 P5-10 Fuse (FU1 : T2.5A) REK1026 Not used P5-10 Fuse (FU1 : T5.0A) Not used REK1029 P5-14 Rear Panel ANC7823 ANC7988 Fuse (FU2, FU3 : T2.5A) Not used REK1026 No. 1 Barrier Not used AAK7726 No. 2 NSP Fuse Card Not used AAX7098 No. 3 M-IS21/DDXBR and MYXJ are constructed the same except for the following : Notes : For PCB ASSEMBLIES, Refer to “CONTRAST OF PCB ASSEMBLIES” and “2. SCHEMATIC DIAGRAM”. The numbers in the remarks column correspond to the numbers on the “ EXPLODED VIEWS ”. Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly. Reference Nos. indicate the pages and Nos. in the service manual for the base model. NOTES: When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 5 6 1 4 7 3 R 5 0 1 R 0 5 6 2 1 560 47k 0.5 1 RD1/4PU J RD1/4PU J RN2H K RS1P K 56 x 101 47 x 103 R50 1R0 561 473 5.62k RN1/4PC F 562 x 101 5621 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com M-IS21 3 Screw (FBT40P060FZK) No.1 No.1 No.3 PRIMARY ASSY No.2 Power Transformer AMP ASSY F B Mark Symbol and Description Part No. Remarks AWU7337 AWU7338 L1 LINE FILTER ATF7019 ATF7020 S2 VOLTAGE SELECT SWITCH Not used AKX7013 T1 STANDBY TRANSFORMER ATT7050 ATT7048 PRIMARY ASSY F D AF ASSY F A AWU7338 and AWU7337 are constructed the same except for the following : CONTRAST OF PCB ASSEMBLIES EXPLODED VIEWS Mark Symbol and Description Part No. Remarks AWU7340 AWU7341 C3308 CKSQYB822K50 Not used C3319, C3320 CCSQCH6R0D50 CCSQCH100D50 C3327, C3328 CCSQCH680J50 Not used R3307 RS1/10S100J Not used AWU7341 and AWU7340 are constructed the same except for the following : Mark Symbol and Description Part No. Remarks AWU7345 AWU7346 H103–H106 FUSE CLIP Not used AKR7001 S1 VOLTAGE SELECT SWITCH Not used AKX7006 AWU7346 and AWU7345 are constructed the same except for the following : www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com M-IS21 4 A B C D 1 2 3 4 1 2 3 4 AF ASSY (AWU7338) PRIMARY ASSY (AWU7346) REK1029 (T5.0A) REK1026 (T2.5A) REK1026 (T2.5A) POWER TRANSFORMER AC110-127V/220-230V/240V AC POWER CORD ADG1158 A F D F 2.1 AF and PRIMARY ASSYS 2. SCHEMATIC DIAGRAM Note : When ordering service parts, be sure to refer to "EXPLODED VIEWS and PARTS LIST" or "PCB PARTS LIST" F A F D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
