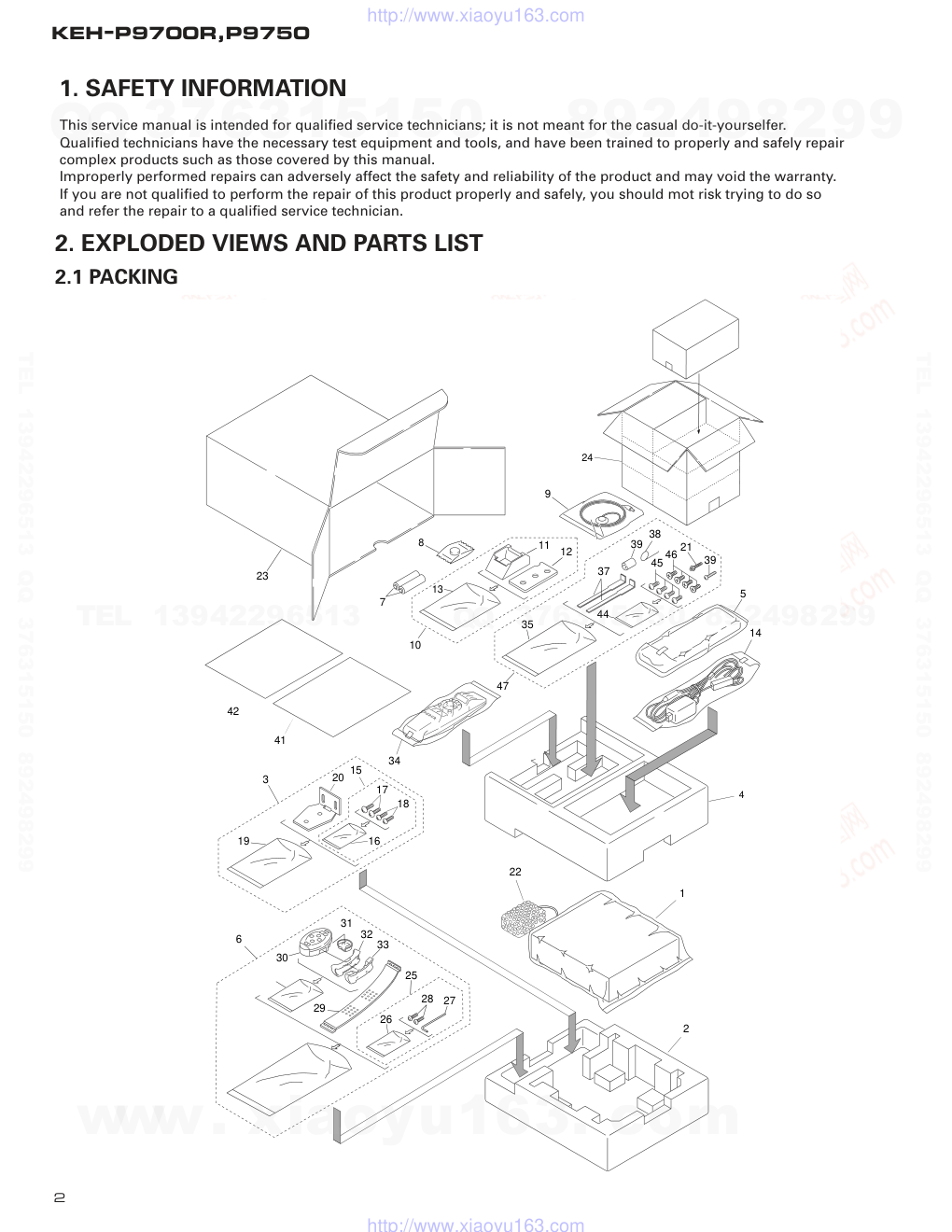

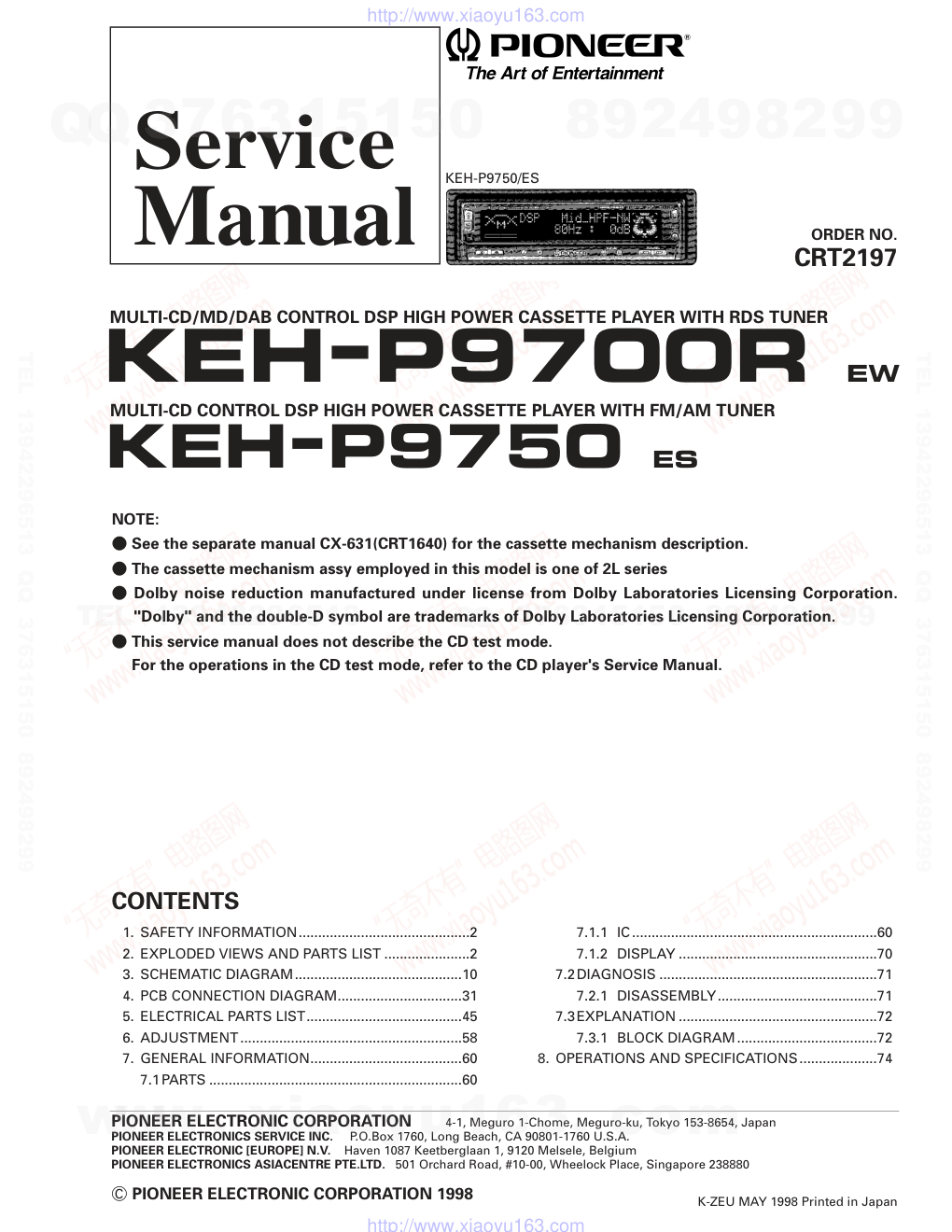

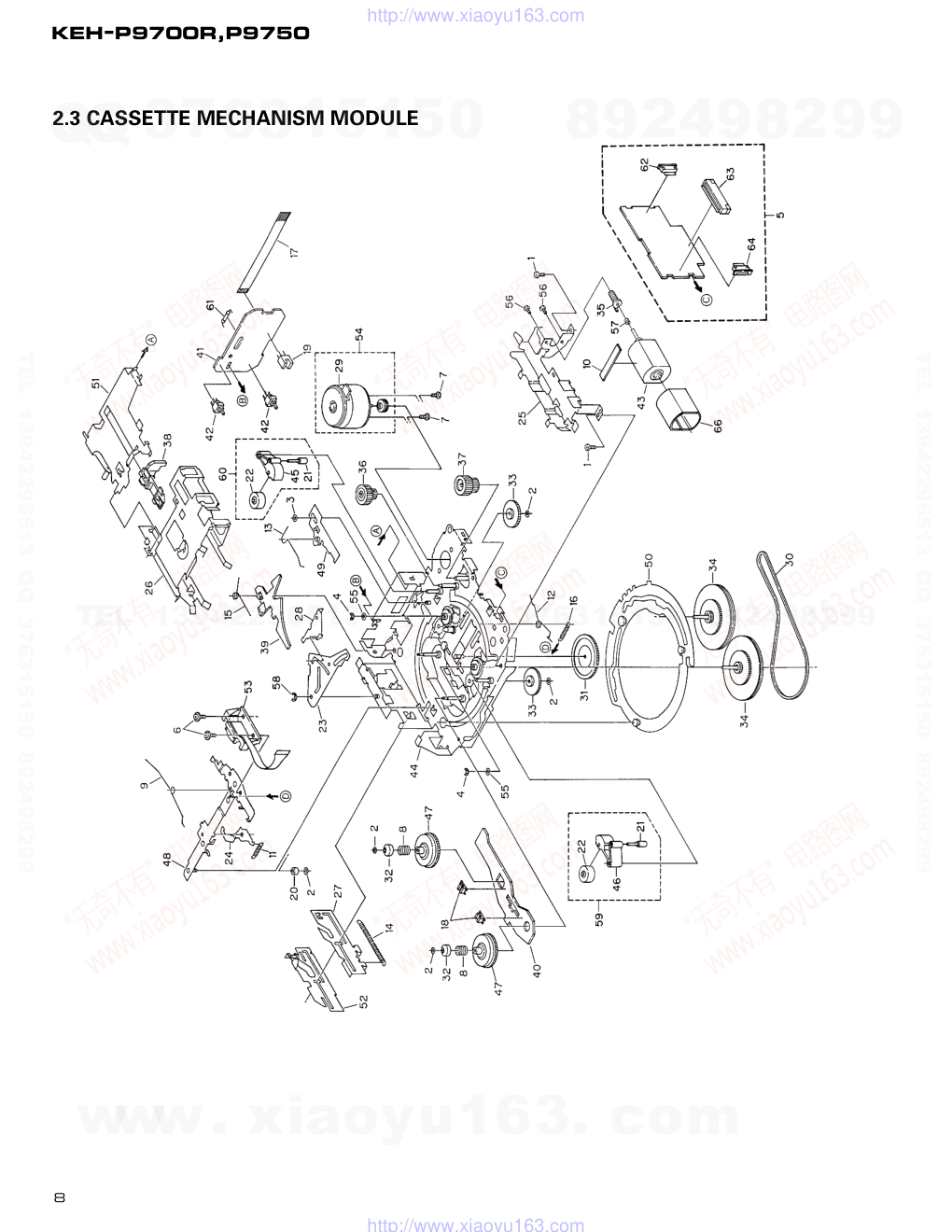

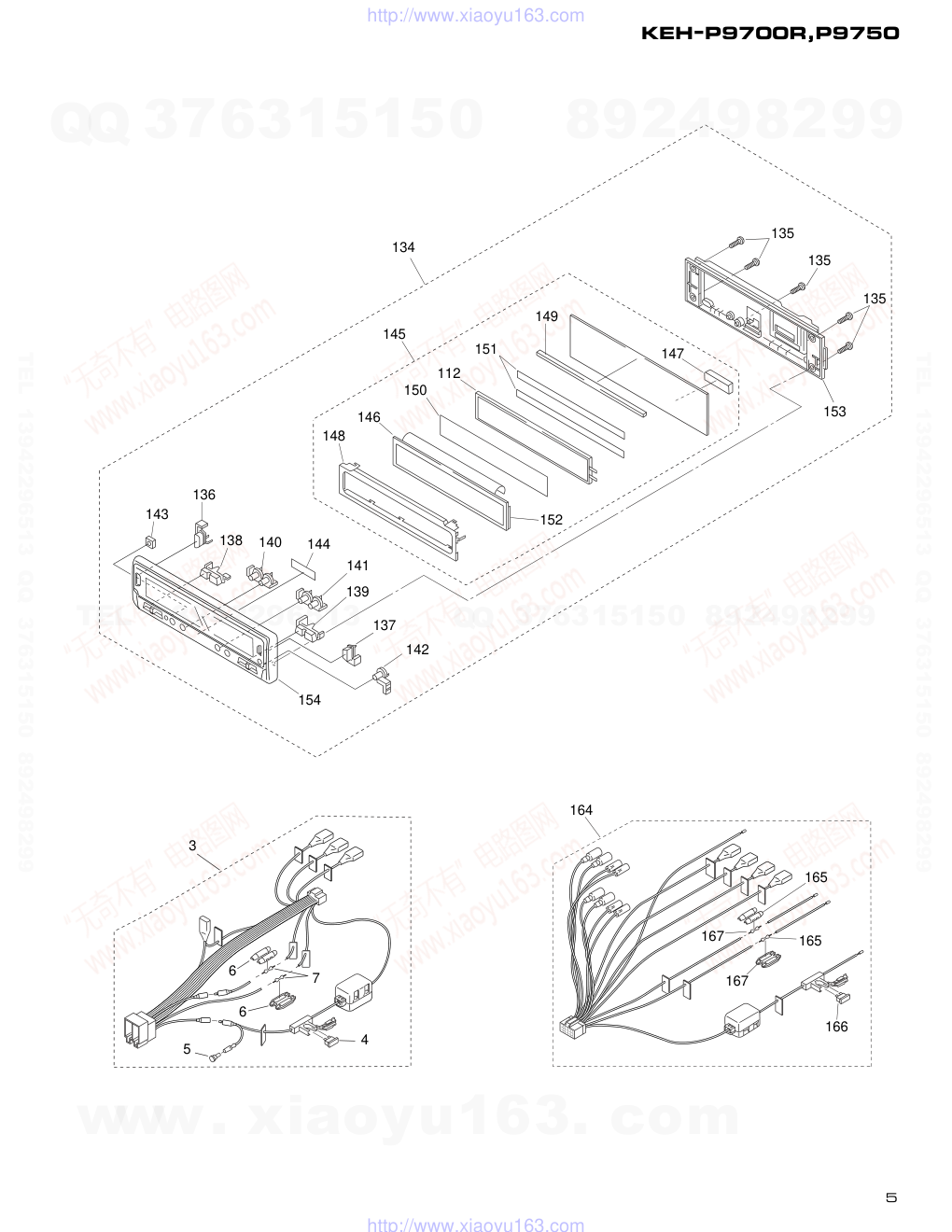

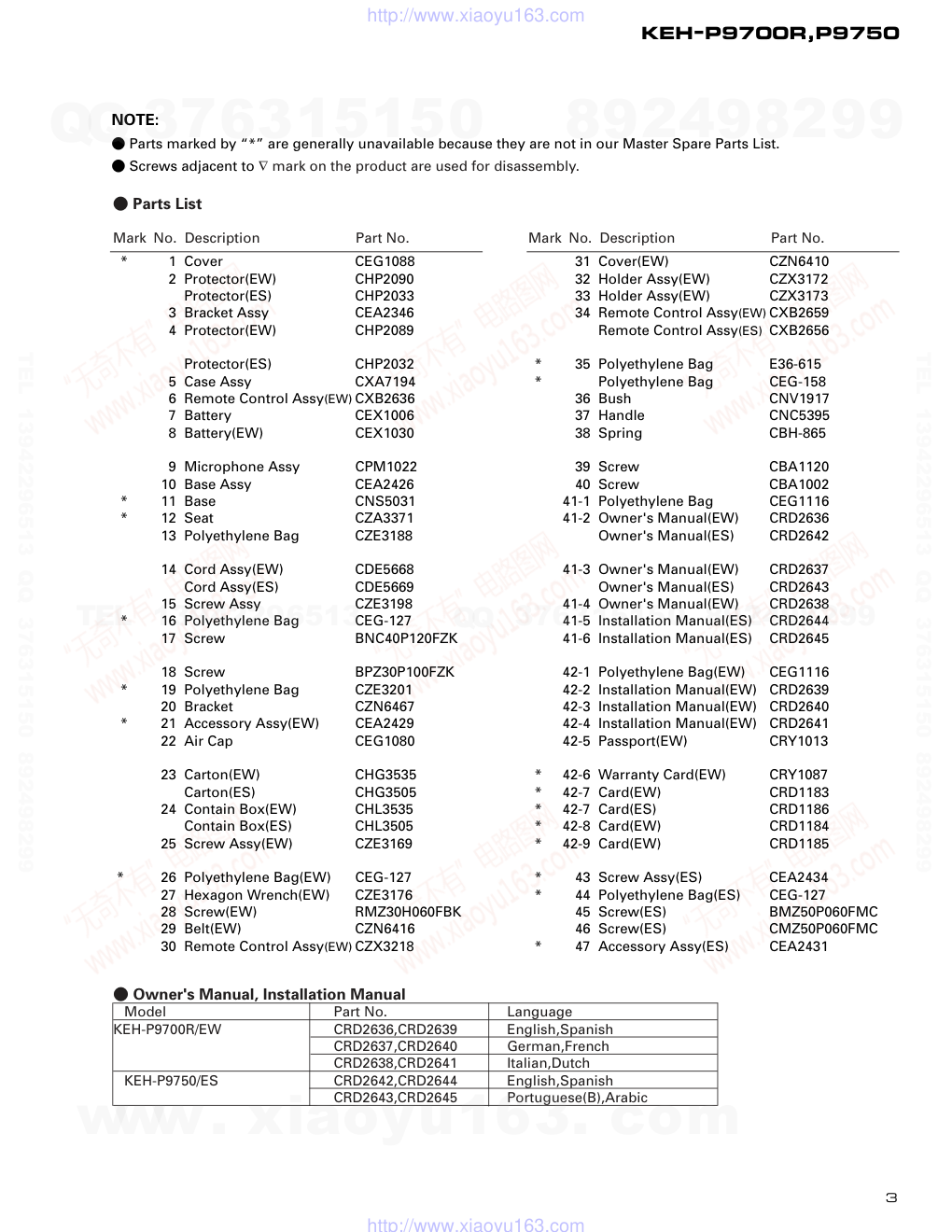

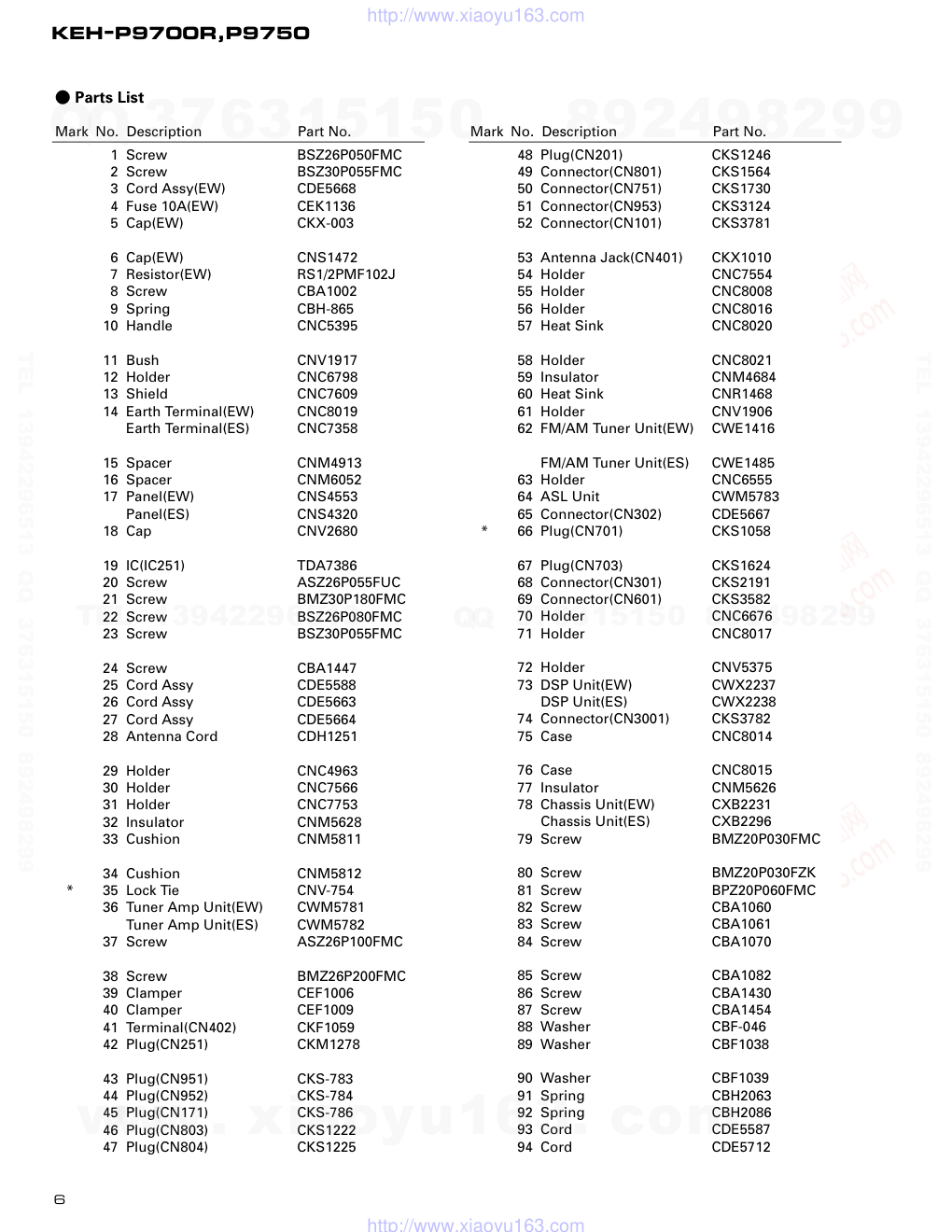

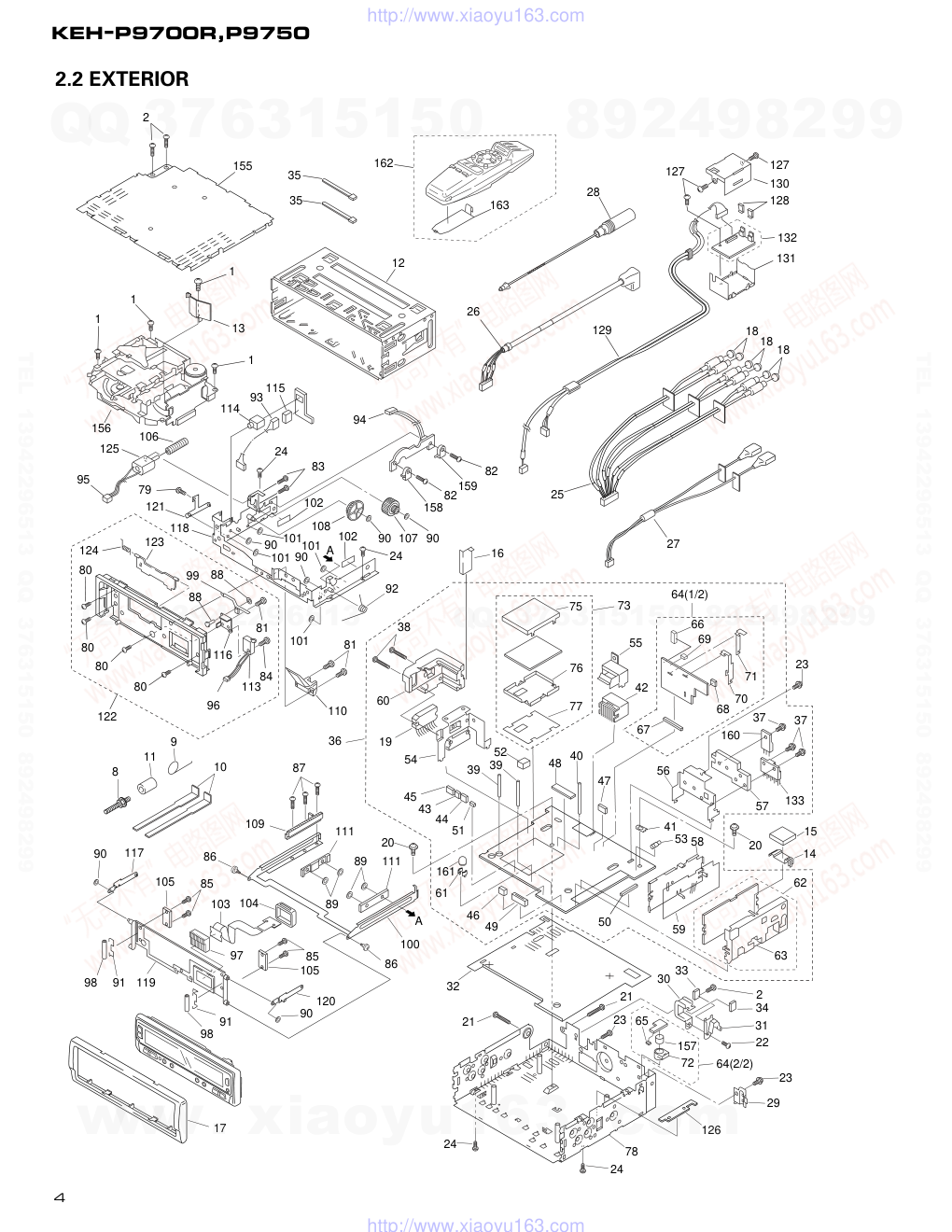

PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS SERVICE INC. P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A. PIONEER ELECTRONIC [EUROPE] N.V. Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 501 Orchard Road, #10-00, Wheelock Place, Singapore 238880 C PIONEER ELECTRONIC CORPORATION 1998 K-ZEU MAY 1998 Printed in Japan ORDER NO. CRT2197 MULTI-CD/MD/DAB CONTROL DSP HIGH POWER CASSETTE PLAYER WITH RDS TUNER Service Manual KEH-P9700R EW NOTE: - See the separate manual CX-631(CRT1640) for the cassette mechanism description. - The cassette mechanism assy employed in this model is one of 2L series - Dolby noise reduction manufactured under license from Dolby Laboratories Licensing Corporation. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation. - This service manual does not describe the CD test mode. For the operations in the CD test mode, refer to the CD player's Service Manual. KEH-P9750 ES CONTENTS 1. SAFETY INFORMATION............................................2 2. EXPLODED VIEWS AND PARTS LIST ......................2 3. SCHEMATIC DIAGRAM...........................................10 4. PCB CONNECTION DIAGRAM................................31 5. ELECTRICAL PARTS LIST........................................45 6. ADJUSTMENT.........................................................58 7. GENERAL INFORMATION.......................................60 7.1PARTS .................................................................60 7.1.1 IC...............................................................60 7.1.2 DISPLAY ...................................................70 7.2DIAGNOSIS ........................................................71 7.2.1 DISASSEMBLY.........................................71 7.3EXPLANATION ...................................................72 7.3.1 BLOCK DIAGRAM....................................72 8. OPERATIONS AND SPECIFICATIONS....................74 KEH-P9750/ES MULTI-CD CONTROL DSP HIGH POWER CASSETTE PLAYER WITH FM/AM TUNER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS SERVICE INC. P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A. PIONEER ELECTRONIC [EUROPE] N.V. Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 501 Orchard Road, #10-00, Wheelock Place, Singapore 238880 C PIONEER ELECTRONIC CORPORATION 1998 K-ZZB. JULY 1998 Printed in Japan ORDER NO. CRT2212 MULTI-CD/MD/DAB CONTROL DSP HIGH POWER CASSETTE PLAYER WITH RDS TUNER KEH-P9700R X1B/EW Service Manual - This additional service manual is designed to be used together with Model KEH-P9700R/EW Service Manual CRT2197. Refer to it for finding parts numbers and adjustment,etc. which are not shown in this manual. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com KEH-P9700R ELECTRICAL PARTS LIST(Page 45) Tuner Amp Unit Part No. Symbol and Description KEH-P9700R/EW KEH-P9700R/X1B/EW R601 RS1/16S472J RS1/16S473J R684 RS1/16S101J RS1/16S102J EXPLODED VIEWS AND PARTS LIST PACKING (Page 2) - PACKING SECTION PARTS LIST *:Non Spare Part Part No. Mark No. Description KEH-P9700R/EW KEH-P9700R/X1B/EW * 1 Cover CEG1088 UEG-012 2 Protector CHP2090 UHP2090 4 Protector CHP2089 UHP2089 7 Battery CEX1006 UEX1006 21 Accessory Assy *CEA2429 UEA2429 22 Air Cap CEG1080 UEG1080 23 Carton CHG3535 UHG3535 24 Contain Box CHL3535 UHL3535 41-1 Polyethylene Bag CEG1116 UEG1116 41-2 Owner's Manual CRD2636 URD2636 41-3 Owner's Manual CRD2637 URD2637 41-4 Owner's Manual CRD2638 URD2638 42-2 Installation Manual CRD2639 URD2639 42-3 Installation Manual CRD2640 URD2640 42-4 Installation Manual CRD2641 URD2641 42-5 Passport CRY1013 CRY1014 * 42-6 Warranty Card CRY1087 URY1087 EXTERIOR (Page 4) - EXTERIOR SECTION PARTS LIST Part No. Mark No. Description KEH-P9700R/EW KEH-P9700R/X1B/EW 12 Holder CNC6798 UNC6798 18 Cap CNV2680 Not used 36 Tuner Amp Unit CWM5781 UWM5781 64 ASL Unit CWM5783 UWM5783 73 DSP Unit CWX2237 UWX2237 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 KEH-P9700R,P9750 1. SAFETY INFORMATION This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should mot risk trying to do so and refer the repair to a qualified service technician. 2. EXPLODED VIEWS AND PARTS LIST 2.1 PACKING 38 39 35 37 44 5 14 4 34 47 10 7 9 23 11 12 8 13 45 46 21 39 16 17 18 19 3 20 15 22 1 24 2 42 41 6 26 27 28 25 29 30 32 31 33 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 KEH-P9700R,P9750 * 1 Cover CEG1088 2 Protector(EW) CHP2090 Protector(ES) CHP2033 3 Bracket Assy CEA2346 4 Protector(EW) CHP2089 Protector(ES) CHP2032 5 Case Assy CXA7194 6 Remote Control Assy(EW) CXB2636 7 Battery CEX1006 8 Battery(EW) CEX1030 9 Microphone Assy CPM1022 10 Base Assy CEA2426 * 11 Base CNS5031 * 12 Seat CZA3371 13 Polyethylene Bag CZE3188 14 Cord Assy(EW) CDE5668 Cord Assy(ES) CDE5669 15 Screw Assy CZE3198 * 16 Polyethylene Bag CEG-127 17 Screw BNC40P120FZK 18 Screw BPZ30P100FZK * 19 Polyethylene Bag CZE3201 20 Bracket CZN6467 * 21 Accessory Assy(EW) CEA2429 22 Air Cap CEG1080 23 Carton(EW) CHG3535 Carton(ES) CHG3505 24 Contain Box(EW) CHL3535 Contain Box(ES) CHL3505 25 Screw Assy(EW) CZE3169 * 26 Polyethylene Bag(EW) CEG-127 27 Hexagon Wrench(EW) CZE3176 28 Screw(EW) RMZ30H060FBK 29 Belt(EW) CZN6416 30 Remote Control Assy(EW) CZX3218 31 Cover(EW) CZN6410 32 Holder Assy(EW) CZX3172 33 Holder Assy(EW) CZX3173 34 Remote Control Assy(EW) CXB2659 Remote Control Assy(ES) CXB2656 * 35 Polyethylene Bag E36-615 * Polyethylene Bag CEG-158 36 Bush CNV1917 37 Handle CNC5395 38 Spring CBH-865 39 Screw CBA1120 40 Screw CBA1002 41-1 Polyethylene Bag CEG1116 41-2 Owner's Manual(EW) CRD2636 Owner's Manual(ES) CRD2642 41-3 Owner's Manual(EW) CRD2637 Owner's Manual(ES) CRD2643 41-4 Owner's Manual(EW) CRD2638 41-5 Installation Manual(ES) CRD2644 41-6 Installation Manual(ES) CRD2645 42-1 Polyethylene Bag(EW) CEG1116 42-2 Installation Manual(EW) CRD2639 42-3 Installation Manual(EW) CRD2640 42-4 Installation Manual(EW) CRD2641 42-5 Passport(EW) CRY1013 * 42-6 Warranty Card(EW) CRY1087 * 42-7 Card(EW) CRD1183 * 42-7 Card(ES) CRD1186 * 42-8 Card(EW) CRD1184 * 42-9 Card(EW) CRD1185 * 43 Screw Assy(ES) CEA2434 * 44 Polyethylene Bag(ES) CEG-127 45 Screw(ES) BMZ50P060FMC 46 Screw(ES) CMZ50P060FMC * 47 Accessory Assy(ES) CEA2431 NOTE: - Parts marked by “*” are generally unavailable because they are not in our Master Spare Parts List. - Screws adjacent to ∇ mark on the product are used for disassembly. - Parts List Mark No. Description Part No. Mark No. Description Part No. - Owner's Manual, Installation Manual Model Part No. Language KEH-P9700R/EW CRD2636,CRD2639 English,Spanish CRD2637,CRD2640 German,French CRD2638,CRD2641 Italian,Dutch KEH-P9750/ES CRD2642,CRD2644 English,Spanish CRD2643,CRD2645 Portuguese(B),Arabic www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A A 23 64(2/2) 72 157 65 23 21 30 33 2 63 62 14 15 20 56 57 133 160 37 37 23 58 53 41 32 34 31 22 21 24 24 78 126 29 50 49 46 61 51 44 43 45 36 110 81 101 92 24 90 107 90 16 158 82 159 82 25 94 83 24 114 93 115 1 13 2 155 35 35 162 12 26 129 28 127 127 130 128 132 131 1 1 1 95 125 156 106 79 121 124 123 99 88 80 80 80 80 96 113 84 116 88 81 101 90 101 108 102 101 90 102 118 87 10 90 117 98 91 119 98 91 90 120 105 85 104 85 105 86 109 111 89 89 111 100 86 103 9 11 8 122 19 54 39 39 52 48 40 77 76 75 73 64(1/2) 55 42 66 69 71 70 68 67 47 161 20 59 38 60 97 17 163 27 18 18 18 4 KEH-P9700R,P9750 2.2 EXTERIOR www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 KEH-P9700R,P9750 164 167 165 165 167 166 3 6 5 7 6 4 154 142 137 139 141 144 140 138 136 148 146 150 112 151 149 145 134 143 152 147 153 135 135 135 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 KEH-P9700R,P9750 1 Screw BSZ26P050FMC 2 Screw BSZ30P055FMC 3 Cord Assy(EW) CDE5668 4 Fuse 10A(EW) CEK1136 5 Cap(EW) CKX-003 6 Cap(EW) CNS1472 7 Resistor(EW) RS1/2PMF102J 8 Screw CBA1002 9 Spring CBH-865 10 Handle CNC5395 11 Bush CNV1917 12 Holder CNC6798 13 Shield CNC7609 14 Earth Terminal(EW) CNC8019 Earth Terminal(ES) CNC7358 15 Spacer CNM4913 16 Spacer CNM6052 17 Panel(EW) CNS4553 Panel(ES) CNS4320 18 Cap CNV2680 19 IC(IC251) TDA7386 20 Screw ASZ26P055FUC 21 Screw BMZ30P180FMC 22 Screw BSZ26P080FMC 23 Screw BSZ30P055FMC 24 Screw CBA1447 25 Cord Assy CDE5588 26 Cord Assy CDE5663 27 Cord Assy CDE5664 28 Antenna Cord CDH1251 29 Holder CNC4963 30 Holder CNC7566 31 Holder CNC7753 32 Insulator CNM5628 33 Cushion CNM5811 34 Cushion CNM5812 * 35 Lock Tie CNV-754 36 Tuner Amp Unit(EW) CWM5781 Tuner Amp Unit(ES) CWM5782 37 Screw ASZ26P100FMC 38 Screw BMZ26P200FMC 39 Clamper CEF1006 40 Clamper CEF1009 41 Terminal(CN402) CKF1059 42 Plug(CN251) CKM1278 43 Plug(CN951) CKS-783 44 Plug(CN952) CKS-784 45 Plug(CN171) CKS-786 46 Plug(CN803) CKS1222 47 Plug(CN804) CKS1225 48 Plug(CN201) CKS1246 49 Connector(CN801) CKS1564 50 Connector(CN751) CKS1730 51 Connector(CN953) CKS3124 52 Connector(CN101) CKS3781 53 Antenna Jack(CN401) CKX1010 54 Holder CNC7554 55 Holder CNC8008 56 Holder CNC8016 57 Heat Sink CNC8020 58 Holder CNC8021 59 Insulator CNM4684 60 Heat Sink CNR1468 61 Holder CNV1906 62 FM/AM Tuner Unit(EW) CWE1416 FM/AM Tuner Unit(ES) CWE1485 63 Holder CNC6555 64 ASL Unit CWM5783 65 Connector(CN302) CDE5667 * 66 Plug(CN701) CKS1058 67 Plug(CN703) CKS1624 68 Connector(CN301) CKS2191 69 Connector(CN601) CKS3582 70 Holder CNC6676 71 Holder CNC8017 72 Holder CNV5375 73 DSP Unit(EW) CWX2237 DSP Unit(ES) CWX2238 74 Connector(CN3001) CKS3782 75 Case CNC8014 76 Case CNC8015 77 Insulator CNM5626 78 Chassis Unit(EW) CXB2231 Chassis Unit(ES) CXB2296 79 Screw BMZ20P030FMC 80 Screw BMZ20P030FZK 81 Screw BPZ20P060FMC 82 Screw CBA1060 83 Screw CBA1061 84 Screw CBA1070 85 Screw CBA1082 86 Screw CBA1430 87 Screw CBA1454 88 Washer CBF-046 89 Washer CBF1038 90 Washer CBF1039 91 Spring CBH2063 92 Spring CBH2086 93 Cord CDE5587 94 Cord CDE5712 - Parts List Mark No. Description Part No. Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 KEH-P9700R,P9750 95 Cord CDE5713 96 Connector CDE5738 97 Socket CKS2497 98 Roller CLA3458 99 Arm CNC1280 100 Frame CNC7548 101 Spacer CNM5808 102 Spacer CNM5988 103 PCB CNP5068 104 Cover CNS4841 105 Holder CNV2141 106 Gear CNV5271 107 Gear Unit CNV5272 108 Gear CNV5273 109 Rack CNV5274 110 Lighting Conductor CNV5287 111 Guide CNV5356 112 EL(EL1901) CEL1580 113 Switch CSN-088 114 Jack(CN4602) CKN1015 115 Plug(CN4601) CKS-786 116 Holder Unit CXA8599 117 Arm Unit CXB2215 118 Frame Unit CXB2216 119 Holder Unit CXB2217 120 Arm Unit CXB2218 121 Bracket Unit CXB2598 122 Panel Unit CXB2678 Panel Unit CXB2679 123 Door CAT1963 124 Spring CBH2184 125 Motor(M951) CXM1085 126 Guide Unit CXB3234 127 Screw BSZ26P050FMC 128 Clip MBK9001 129 Cord MDE9019 130 Holder MNC9008 131 Holder MNC9009 132 Inverter Unit MWM9026 133 IC(IC901) PA2024A 134 Detach Grille Assy(EW) CXB2610 Detach Grille Assy(ES) CXB2611 135 Screw BPZ20P080FZK 136 Button(+,-) CAC5486 137 Button(EJECT) CAC5488 138 Button(EW)(S/A,CLOCK) CAC5491 Button(ES)(S/A,CLOCK) CAC5490 139 Button(TRACK) CAC5494 140 Button(P,D) CAC5498 141 Button CAC5499 142 Button(S) CAC5504 143 Spacer CNM5910 144 Spacer CNM6021 145 Keyboard Unit(EW) CWM5688 Keyboard Unit(ES) CWM5689 * 146 LCD(LCD1901) CAW1471 147 Plug(CN1901) CKS2496 148 Holder CNC7547 149 Spacer CNM5622 150 Spacer CNM5623 151 Spacer CNM5894 * 152 PCB CNP5063 153 Cover Unit(EW) CXB2208 Cover Unit(ES) CXB2207 154 Grille Unit(EW) CXB2223 Grille Unit(ES) CXB2224 155 Case Unit CXB3114 156 Cassette Mechanism Module EXK3375 157 Microphone(MIC301) CPM1011 158 Switch(S951) CSN1012 159 Switch(S952) CSN1022 160 IC(IC902) NJM7805FA 161 Lamp(IL801) CEL1359 162 Remote Control Assy(EW) CXB2659 Remote Control Assy(ES) CXB2656 163 Battery Cover CNS5032 164 Cord Assy(ES) CDE5669 165 Cap(ES) CNS1472 166 Fuse 10A(ES) CEK1136 167 Resistor(ES) RS1/2PMF102J Mark No. Description Part No. Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 KEH-P9700R,P9750 2.3 CASSETTE MECHANISM MODULE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 KEH-P9700R,P9750 - CASSETTE MECHANISM MODULE - PARTS LIST Mark No. Description Part No. Mark No. Description Part No. 1 Screw BSZ20P040FMC 2 Washer CBF1037 3 Washer CBF1038 4 Washer CBG1003 5 Deck Unit EWM1020 6 Screw EBA1028 7 Screw EBA1037 8 Spring EBH1531 9 Spring EBH1575 10 Cushion EWM1034 11 Spring EBH1515 12 Spring EBH1587 13 Spring EBH1517 14 Spring EBH1518 15 Spring EBH1519 16 Spring EBH1537 17 Cord EDD1015 18 Photo-interrupter(EGN2,3) EGN1006 19 Photo-interrupter(EGN1) EGN1005 20 Roller ENR1031 21 Shaft ELA1373 22 Pinch Roller ENV1518 23 Arm ENC1489 24 Arm ENC1397 25 Guide ENC1398 26 Holder ENC1417 27 Lever ENC1448 28 Arm ENC1488 29 Motor EXM1027 30 Belt ENT1027 31 Gear ENV1347 32 Pulley ENV1503 33 Gear ENV1350 34 Flywheel ENV1410 35 Worm Gear ENV1439 36 Worm Wheel ENV1440 37 Gear ENR1028 38 Lever ENV1442 39 Arm ENV1525 40 Gathering P.C.Board ENX1037 41 P.C.Board ENP1152 42 Switch(S1,S2) ESG1004 43 Motor Unit(M2) EXA1485 44 Chassis Unit EXA1511 45 Pinch Holder ENV1485 46 Pinch Holder ENV1486 47 Reel Unit EXA1543 48 Head Base Unit EXA1457 49 Lever Unit EXA1438 50 Gear Unit EXA1436 51 Frame Unit EXA1458 52 Lever Unit EXA1439 53 Head Assy(HD1) EXA1527 54 Motor Unit(M1) EXA1490 55 Washer HBF-179 56 Screw BMZ20P022FMC 57 Spring EBH1545 58 Washer YE20FUC 59 Pinch Holder Unit EXA1529 60 Pinch Holder Unit EXA1528 61 Resistor(R1) RD1/4PM181J 62 Connector(CN253) CKS2129 63 Connector(CN251) CKS1711 64 Connector(CN252) CKS2127 65 ••••• 66 Shield ENC1410 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 KEH-P9700R,P9750 A 1 2 3 4 B C D 1 2 3 4 3. SCHEMATIC DIAGRAM 3.1 OVERALL CONNECTION DIAGRAM(GUIDE PAGE) Note: When ordering service parts, be sure to refer to “EXPLODED VIEWS AND PARTS LIST” or “ELECTRICAL PARTS LIST”. A-a A-b A-a A-b A-b A-a Large size SCH diagram Guide page Detailed page 10k(B) 22k(B) REMOTE CONTROL INPUT MIC JACK UNIT G H CASSETTE MECHANISM MODULE B FM/AM TUNER UNIT C ASL PCB K SWITCH PCB M951 CXK1085 A-a A C D K www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DFS ALARM UNBALANCE-BALANCE CONVERTER 10k(B) REMOTE CONTROL INPUT E D MIC PCB A TUNER AMP UNIT F ASL UNIT Consists of ASL PCB MIC PCB 680K CTH1127 CEK1136 11 KEH-P9700R,P9750 5 6 7 8 A B C D 5 6 7 8 A A-b C D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 KEH-P9700R,P9750 A 1 2 3 4 B C D 1 2 3 4 10k(B) B FM/AM TUNER UNIT C ASL PCB D MIC 680K A-a A-a A-b C D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 KEH-P9700R,P9750 5 6 7 8 A B C D 5 6 7 8 22k(B) REMOTE CONTROL INPUT MIC JACK UNIT G H CASSETTE MECHANISM MODULE E K SWITCH PCB M951 CXK1085 A-a A-a A-b K www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 KEH-P9700R,P9750 A 1 2 3 4 B C D 1 2 3 4 UNBALANCE-BALANCE CONVERTER MIC PCB A TUNER AMP UNIT F ASL UNIT Consists of ASL PCB MIC PCB A-a A-b A-b C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 KEH-P9700R,P9750 5 6 7 8 A B C D 5 6 7 8 DFS ALARM CTH1127 CEK1136 A-b A-a A-b www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 KEH-P9700R,P9750 A 1 2 3 4 B C D 1 2 3 4 3.2 FM/AM TUNER UNIT B - KEH-P9700R/EW A B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 KEH-P9700R,P9750 5 6 7 8 A B C D 5 6 7 8B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 KEH-P9700R,P9750 A 1 2 3 4 B C D 1 2 3 4 B - KEH-P9750/ES www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 KEH-P9700R,P9750 5 6 7 8 A B C D 5 6 7 8B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 KEH-P9700R,P9750 A 1 2 3 4 B C D 1 2 3 4 3.3 CASSETTE MECHANISM MODULE H H A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 KEH-P9700R,P9750 5 6 7 8 A B C D 5 6 7 8J I H I J www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 22 KEH-P9700R,P9750 A 1 2 3 4 B C D 1 2 3 4 CAW E CL170SBX(ES) CL170SBX(ES) CL170PGCD(EW) CL170DCD(EW) CL170PGCD(EW) CL170DCD(EW) CL170DCD(EW) CL170SBX(ES) CL170SBX(ES) D1906 (ES) (ES) (ES) (ES) (ES) (ES) (ES) (ES) (ES) (ES) (ES) (ES) (EW) CL170DCD(EW) (EW) (EW) (EW) (EW) LED ILM 3.4 KEYBOARD UNIT E CN801 A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CAW1471 23 KEH-P9700R,P9750 5 6 7 8 A B C D 5 6 7 8E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 24 KEH-P9700R,P9750 A 1 2 3 4 B C D 1 2 3 4 M.CD:+4.5dBs FM100%:-1.45dBs AM30%:-14.45dBs R3133 0R0 R3132 0R0 R3134 0R0 1K 1K 1K 1K R3131 0R0 F-a F 3.5 DSP UNIT(GUIDE PAGE) A-a A-b A-a A-b A-b A-a Large size SCH diagram Guide page Detailed page www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 25 KEH-P9700R,P9750 5 6 7 8 A B C D 5 6 7 8 M.CD:+6.5dBs FM100%:+0.55dBs AM30%:-12.45dBs M,CD:+2.1dBs FM100%:-4.45dBs AM30%:-17.45dBs 1k 1k 1k 1k AK7712AVT(EW) PE2001AF(ES) :ANALOG AUDIO INPUT :FRONT AUDIO OUTPUT(Front/Miid) :REAR AUDIO OUTPUT(Rear/Hi) :SUBWOOFER AUDIO OUTPUT (Sub.w/Low) :DIGITAL AUDIO :FRONT AUDIO DIGITAL :REAR AUDIO DIGITAL :SUBWOOFER AUDIO DIGITAL F-b F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 26 KEH-P9700R,P9750 A 1 2 3 4 B C D 1 2 3 4 F-a M.CD:+4.5dBs FM100%:-1.45dBs AM30%:-14.45dBs R3131 0R0 F-a F-b www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 27 KEH-P9700R,P9750 5 6 7 8 A B C D 5 6 7 8 F-a 1K 1K 1K 1K R3133 0R0 R3132 0R0 R3134 0R0 F-a F-b www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 28 KEH-P9700R,P9750 A 1 2 3 4 B C D 1 2 3 4 M.CD:+6.5dBs FM100%:+0.55dBs AM30%:-12.45dBs M.CD:+2.1dBs FM100%:-4.45dBs AM30%:-17.45dBs :ANALOG AUDIO INPUT :FRONT AUDIO OUTPUT(Front/Miid) :REAR AUDIO OUTPUT(Rear/Hi) :SUBWOOFER AUDIO OUTPUT (Sub.w/Low) :DIGITAL AUDIO :FRONT AUDIO DIGITAL :REAR AUDIO DIGITAL :SUBWOOFER AUDIO DIGITAL AK4321VF(EW) PE2001AF(ES) F-b F-a F-b www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 29 KEH-P9700R,P9750 5 6 7 8 A B C D 5 6 7 8 1K 1K 1K 1K R01 F-b F-a F-b www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 30 KEH-P9700R,P9750 A 1 2 3 4 B C D 1 2 3 4 G 3.6 MIC JACK UNIT G A CN171 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 31 KEH-P9700R,P9750 1 2 3 4 A B C D 1 2 3 4. PCB CONNECTION DIAGRAM 4.1 MIC JACK UNIT NOTE FOR PCB DIAGRAMS 1. The parts mounted on this PCB include all necessary parts for several destination. For further information for respective destinations, be sure to check with the schematic diagram. 2. Viewpoint of PCB diagrams CLOSE S951 OPEN S952 3 2 1 CN952 A 4.2 SWITCH PCB CN171 A K G SIDE A SIDE B Capacitor Connector P.C.Board Chip Part SIDE A SIDE B 4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 32 KEH-P9700R,P9750 A 1 2 3 4 B C D 1 2 3 4 4.3 TUNER AMP UNIT A A F CN4601 G CN3001 CARD ASSY K TUNER AMP UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 33 KEH-P9700R,P9750 5 6 7 8 A B C D 5 6 7 8A SIDE A B CN251 H CN703 C CN1901 E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 34 KEH-P9700R,P9750 A 1 2 3 4 B C D 1 2 3 4 A A TUNER AMP UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 35 KEH-P9700R,P9750 5 6 7 8 A B C D 5 6 7 8A SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com KEH-P9700R,P9750 A 1 2 3 4 B C D 1 2 3 4 4.4 KEYBOARD UNIT E E KEYBOARD UNIT 36 E KEYBOARD UNIT CN801 A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 37 KEH-P9700R,P9750 5 6 7 8 A B C D 5 6 7 8E SIDE A SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 38 KEH-P9700R,P9750 A 1 2 3 4 B C D 1 2 3 4 4.5 DSP UNIT F SIDE A DSP UNIT F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 39 KEH-P9700R,P9750 5 6 7 8 A B C D 5 6 7 8F SIDE B DSP UNIT F CN101 A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 40 KEH-P9700R,P9750 A 1 2 3 4 B C D 1 2 3 4 4.6 FM/AM TUNER UNIT B SIDE A B A FM/AM TUNET UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 41 KEH-P9700R,P9750 5 6 7 8 A B C D 5 6 7 8 B SIDE B B FM/AM TUNET UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 42 KEH-P9700R,P9750 A 1 2 3 4 B C D 1 2 3 4 4.7 CASSETTE MECHANISM MODULE H H A DECK UNIT I www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 43 KEH-P9700R,P9750 5 6 7 8 A B C D 5 6 7 8J I I PCB UNIT J REEL PCB I PCB UNIT SIDE A SIDE B I J H www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 44 KEH-P9700R,P9750 A 1 2 3 4 B C D 1 2 3 4 4.8 ASL UNIT SIDE A SIDE B C ASL PCB C ASL PCB SIDE A SIDE B D MIC PCB C CN601 D CN302 A CN702 C D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 45 KEH-P9700R,P9750 5. ELECTRICAL PARTS LIST NOTE: - Parts whose parts numbers are omitted are subject to being not supplied. - The part numbers shown below indicate chip components. Chip Resistor RS1/_S___J,RS1/__S___J Chip Capacitor (except for CQS.....) CKS....., CCS....., CSZS..... R 8 RS1/16S332J R 9 RS1/16S473J R 10 RS1/16S223J R 11 RS1/16S124J R 13 RS1/16S563J R 15 RS1/16S271J R 16 RS1/16S104J R 17 RS1/16S332J R 18 RS1/16S332J R 31 RS1/16S470J R 32 RS1/16S822J R 33 RS1/16S822J R 34 RS1/16S331J R 35 RS1/16S331J R 51 RS1/16S271J R 52 RS1/16S560J R 55 RS1/16S102J R 56 RS1/16S823J R 61 RS1/16S392J R 62 RS1/16S393J R 101 RS1/16S272J R 102 RS1/16S682J R 103 RS1/16S333J R 104 RS1/16S334J R 105 RS1/16S683J R 107 RS1/16S222J R 151 RS1/16S222J R 152 RS1/16S393J R 154 RS1/16S104J R 155 RS1/16S273J R 156 RS1/16S243J R 157 RS1/16S203J R 160 RS1/16S222J R 161 RS1/16S563J R 162 RS1/16S105J R 163 RS1/16S222J R 202 RS1/16S223J R 203 RS1/16S225J R 204 RS1/16S103J R 206 RS1/16S220J R 207 RS1/16S101J R 208 RS1/16S102J R 209 RS1/16S471J R 214 RS1/16S822J R 215 RS1/16S822J R 217 RS1/16S102J R 231 RS1/16S272J R 232 RS1/16S473J R 237 RS1/16S103J R 238 RS1/16S104J R 239 RS1/16S104J R 240 RS1/16S332J R 241 RS1/16S202J R 243 RS1/16S123J R 244 RS1/16S103J Unit Number : CWE1416(EW) Unit Name : FM/AM Tuner Unit MISCELLANEOUS IC 1 IC PA4023B IC 2 IC PA4024A Q 1 Transistor 2SC2412K Q 2 Transistor DTC124EU Q 3 FET 3SK263 Q 31 Transistor 2SC2412K Q 154 Transistor DTC124EU Q 165 Transistor 2SC2412K Q 201 FET 2SK932 Q 202 Transistor 2SC2412K Q 203 Transistor DTC124EU D 4 Diode 1SV250 D 5 Diode KV1410-F1 D 7 Diode KV1410-F1 D 8 Diode KV1410-F1 D 201 Diode MA157 D 202 Diode MA157 D 231 Diode SVC253 L 2 Coil CTC1108 L 3 Inductor LCTB2R2K2125 L 4 Coil CTC1108 L 5 Coil CTC1107 L 6 Inductor LCTBR15K1608 L 51 Ferri-Inductor LAU150K L 201 Ferri-Inductor LAU4R7K L 202 Ferri-Inductor LAU330K L 203 Inductor CTF1287 L 208 Inductor LAU121K L 231 Inductor LCTA3R3J3225 T 31 Coil CTE1116 T 51 Coil CTC1136 TC 1 CCL1046 CF 51 Ceramic Filter CTF1292 CF 52 Ceramic Filter CTF1292 CF 53 Ceramic Filter CTF1292 CF 232 Ceramic Filter CTF1348 X 151 918.5Hz CSS1365 X 231 Crystal Resonator 10.26MHz CSS1111 VR 154 Semi-fixed 150kΩ(B) CCP1213 AR 1 DSP-201M RESISTORS R 1 RS1/16S0R0J R 4 RS1/16S154J R 5 RS1/16S391J R 6 RS1/16S223J R 7 RS1/16S123J =====Circuit Symbol & No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol & No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 46 KEH-P9700R,P9750 R 247 RS1/16S123J CAPACITORS C 1 CCSQCH6R0D50 C 2 CCSRCK2R0C50 C 4 CCSRCH820J50 C 6 CCSRCH820J50 C 8 CKSRYB103K25 C 9 CKSQYB104K16 C 10 CCSRCKR50C50 C 11 CEJA1R0M50 C 12 CCSRCH100D50 C 13 CKSRYB222K50 C 14 CCSRCH220J50 C 16 CCSRCH8R0D50 C 17 CKSRYB222K50 C 18 CKSRYB103K25 C 19 CKSRYB222K50 C 20 CKSRYB222K50 C 21 CEJA100M16 C 22 CCSRTH9R0D50 C 23 CCSRTH120J50 C 24 CCSRCH471J50 C 25 CKSRYB103K25 C 31 CKSRYB103K25 C 32 CKSQYB472K50 C 33 CCSRCH5R0C50 C 34 CKSQYB104K16 C 36 CCSRRH201J50 C 51 CKSRYB223K25 C 52 CKSRYB103K25 C 54 CCSRCH470J50 C 55 CKSQYB223K25 C 56 CKSQYB104K16 C 57 CKSRYB472K50 C 58 CEJA330M10 C 59 CKSRYB103K25 C 61 CCSRCH270J50 C 62 CKSRYB103K25 C 63 CEJAR15M50 C 101 CEJANP100M10 C 102 CKSRYB182K50 C 103 CKSRYB682K25 C 104 CEJA2R2M50 C 105 CKSRYB103K25 C 106 CCSRCH151J50 C 107 CKSRYB103K25 C 151 CKSRYB472K50 C 152 CKSQYB104K16 C 153 CEJA3R3M50 C 154 CKSQYB104K16 C 157 CEJA3R3M50 C 158 CKSYB474K16 C 159 CEJA220M6R3 C 160 CKSQYB104K16 C 161 CKSQYB104K16 C 162 CEJA3R3M50 C 163 CKSRYB102K50 C 170 CCSRCH100D50 C 201 CCSRCH471J50 C 202 CCSRCH100D50 C 203 CKSRYB332K50 C 204 CKSQYB473K16 C 205 CKSQYB473K16 C 206 CKSQYB104K16 C 207 CCSRCH560J50 C 209 CKSQYB104K16 C 211 CCSRCH101J50 C 212 CEJA470M6R3 C 213 CKSRYB103K25 C 216 CCSRCH101J50 C 217 CEJA1R5M50 C 219 CCSRCH471J50 C 220 CKSRYB103K25 C 230 CKSRYB103K25 C 231 CCSRCH330J50 C 232 CCSRCH150J50 C 233 CKSQYB104K16 C 234 CEJA330M10 C 235 CKSRYB332K50 C 236 CKSQYB473K16 C 237 CCSRCH120J50 C 239 CKSRYB472K50 C 240 CEJAR47M50 C 241 CKSQYB104K16 C 242 CEJAR47M50 C 243 CEJAR33M50 C 244 CKSQYB473K16 C 245 CKSRYB123K25 C 246 CKSQYB473K16 C 250 CCSRCH471J50 Unit Number : CWE1485(ES) Unit Name : FM/AM Tuner Unit MISCELLANEOUS IC 1 IC PA4023B IC 2 IC PA4024A Q 1 Transistor 2SC2412KLN Q 2 Transistor DTC124EU Q 3 FET 3SK263 Q 31 Transistor 2SC2412KLN Q 201 FET 2SK932 Q 202 Transistor 2SC2412KLN Q 203 Transistor DTC124EU D 1 Diode RD39JS D 2 Diode RD39JS D 4 Diode 1SV250 D 5 Diode KV1410-F1 D 6 Diode MA157 D 7 Diode KV1410-F1 D 8 Diode KV1410-F1 D 201 Diode MA157 D 202 Diode MA157 D 231 Diode SVC253 L 2 Coil CTC1108 L 3 Inductor LCTB2R2K2125 L 4 Coil CTC1108 L 5 Coil CTC1107 L 6 Inductor LCTBR15K1608 L 51 Ferri-Inductor LAU150K L 201 Ferri-Inductor LAU4R7K L 202 Ferri-Inductor LAU330K L 203 Inductor CTF1287 L 208 Inductor LAU121K L 231 Inductor LCTA3R3J3225 T 31 Coil CTE1117-B-TX T 51 Coil CTC1136-A-TX CF 51 Ceramic Filter CTF1290 CF 52 Ceramic Filter CTF1290 CF 53 Ceramic Filter CTF1290 CF 232 Ceramic Filter CTF1348 X 151 918.5Hz CSS1365 X 231 Crystal Resonator 10.26MHz CSS1111 VR 154 Semi-fixed 150kΩ(B) CCP1213 =====Circuit Symbol & No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol & No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 47 KEH-P9700R,P9750 RESISTORS R 1 RS1/16S225J R 2 RS1/16S225J R 4 RS1/16S154J R 5 RS1/16S391J R 6 RS1/16S223J R 7 RS1/16S123J R 8 RS1/16S332J R 9 RS1/16S473J R 10 RS1/16S223J R 11 RS1/16S124J R 13 RS1/16S563J R 15 RS1/16S271J R 16 RS1/16S104J R 17 RS1/16S332J R 18 RS1/16S332J R 31 RS1/16S470J R 32 RS1/16S822J R 33 RS1/16S822J R 34 RS1/16S331J R 35 RS1/16S331J R 51 RS1/16S271J R 52 RS1/16S560J R 55 RS1/16S102J R 56 RS1/16S823J R 61 RS1/16S392J R 62 RS1/16S273J R 101 RS1/16S272J R 102 RS1/16S682J R 103 RS1/16S333J R 104 RS1/16S334J R 105 RS1/16S683J R 107 RS1/16S222J R 151 RS1/16S222J R 152 RS1/16S393J R 155 RS1/16S273J R 156 RS1/16S243J R 157 RS1/16S203J R 160 RS1/16S222J R 161 RS1/16S563J R 162 RS1/16S105J R 163 RS1/16S223J R 202 RS1/16S223J R 203 RS1/16S225J R 204 RS1/16S103J R 206 RS1/16S220J R 207 RS1/16S101J R 208 RS1/16S102J R 209 RS1/16S471J R 214 RS1/16S822J R 215 RS1/16S822J R 217 RS1/16S102J R 231 RS1/16S272J R 232 RS1/16S473J R 237 RS1/16S103J R 238 RS1/16S104J R 239 RS1/16S104J R 240 RS1/16S332J R 241 RS1/16S202J R 243 RS1/16S183J R 244 RS1/16S392J R 247 RS1/16S123J CAPACITORS C 1 CCSQCH6R0D50 C 2 CCSRCK2R0C50 C 4 CCSRCH820J50 C 6 CCSRCH820J50 C 8 CKSRYB103K25 C 9 CKSQYB104K16 C 10 CCSRCKR50C50 C 11 CEJA1R0M50 C 12 CKSRYB222K50 C 13 CKSRYB222K50 C 14 CCSRCH220J50 C 15 CCSRCH6R0D50 C 16 CCSRCH8R0D50 C 17 CKSRYB222K50 C 18 CKSRYB103K25 C 19 CKSRYB222K50 C 20 CKSRYB222K50 C 21 CEJA100M16 C 22 CCSRTH9R0D50 C 23 CCSRTH120J50 C 24 CCSRCH471J50 C 25 CKSRYB103K25 C 31 CKSRYB103K25 C 32 CKSQYB472K50 C 33 CCSRCH5R0C50 C 34 CKSQYB104K16 C 36 CCSRRH201J50 C 51 CKSRYB223K25 C 52 CKSRYB103K25 C 54 CCSRCH470J50 C 55 CKSQYB223K25 C 56 CKSQYB104K16 C 57 CKSRYB472K50 C 58 CEJA330M10 C 59 CKSRYB103K25 C 60 CKSRYB102K50 C 61 CCSRCH270J50 C 62 CKSRYB103K25 C 63 CEJAR22M50 C 101 CEJANP100M10 C 102 CKSRYB182K50 C 103 CKSRYB682K25 C 104 CEJA2R2M50 C 105 CKSRYB103K25 C 106 CCSRCH151J50 C 107 CKSRYB103K25 C 151 CKSRYB472K50 C 152 CKSQYB104K16 C 153 CEJA3R3M50 C 154 CKSQYB104K16 C 157 CEJA3R3M50 C 158 CKSYB474K16 C 159 CEJA220M6R3 C 160 CKSQYB104K16 C 161 CKSQYB104K16 C 162 CEJA3R3M50 C 163 CKSRYB102K50 C 170 CCSRCH100D50 C 201 CCSRCH471J50 C 202 CCSRCH100D50 C 203 CKSRYB332K50 C 204 CKSQYB473K16 C 205 CKSQYB473K16 C 206 CKSQYB104K16 C 207 CCSRCH560J50 =====Circuit Symbol & No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol & No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 48 KEH-P9700R,P9750 C 209 CKSQYB104K16 C 211 CCSRCH101J50 C 212 CEJA470M6R3 C 213 CKSRYB103K25 C 216 CCSRCH101J50 C 217 CEJA1R5M50 C 219 CCSRCH471J50 C 220 CKSRYB103K25 C 230 CKSRYB103K25 C 231 CCSRCH330J50 C 232 CCSRCH150J50 C 233 CKSQYB104K16 C 234 CEJA330M10 C 235 CKSRYB332K50 C 236 CKSQYB473K16 C 237 CCSRCH120J50 C 239 CKSRYB472K50 C 240 CEJAR47M50 C 241 CKSQYB104K16 C 242 CEJAR47M50 C 243 CEJAR33M50 C 244 CKSQYB473K16 C 245 CKSRYB333K16 C 246 CKSQYB473K16 C 250 CCSRCH471J50 Unit Number : CWM5781(EW) CWM5782(ES) Unit Name : Tuner Amp Unit MISCELLANEOUS IC 101 IC BA3131FS IC 102 IC BA3131FS IC 103 IC NJM2100M IC 104 IC NJM2100M IC 251 IC TDA7386 IC 401 IC See Contrast Table IC 501 IC See Contrast Table IC 502 IC See Contrast Table IC 601 IC See Contrast Table IC 602 IC S-80734ANDYI IC 604 IC TPD1018F IC 605 IC TPD1018F IC 901 IC PA2024A IC 902 IC NJM7805FA IC 951 IC BA6288FS Q 171 Transistor 2SC2412K Q 172 Transistor IMD2A Q 203 Transistor DTC314TK Q 204 Transistor DTC314TK Q 207 Transistor DTC314TK Q 208 Transistor DTC314TK Q 211 Transistor DTC314TK Q 212 Transistor DTC314TK Q 401 Transistor IMD2A Q 402 Transistor 2SC2412K Q 403 Transistor See Contrast Table Q 404 Transistor See Contrast Table Q 405 Transistor See Contrast Table Q 406 Transistor See Contrast Table Q 407 Transistor See Contrast Table Q 501 Transistor See Contrast Table Q 601 Transistor DTA114EK Q 602 Transistor 2SC2412K Q 603 Transistor IMD2A Q 604 Transistor DTC124EK Q 605 Transistor DTC124EK Q 606 Transistor 2SC2412K Q 607 Transistor 2SC2412K Q 608 Transistor 2SC2412K Q 609 Transistor 2SA1162 Q 610 Transistor DTC124EK Q 611 Transistor 2SC2412K Q 612 Transistor 2SC2412K Q 613 Transistor 2SC2412K Q 614 Transistor 2SA1162 Q 615 Transistor DTC114EK Q 805 Transistor 2SB1238 Q 807 Transistor 2SC2412K Q 808 Transistor DTC114EK Q 809 Transistor 2SB1238 Q 810 Transistor DTC143EK Q 811 Transistor 2SC2412K Q 812 Transistor 2SC2412K Q 813 Transistor DTA144EK Q 901 Transistor IMD2A Q 902 Transistor 2SD1760F5 Q 903 Transistor DTC124EK Q 904 Transistor 2SB1243 Q 951 Transistor DTC124EK Q 952 Transistor DTA114EK Q 953 Transistor 2SD1760F5 Q 954 Transistor IMD2A Q 955 Transistor 2SD1760F5 D 171 Diode MA3039(L) D 401 Diode See Contrast Table D 402 Diode See Contrast Table D 601 Diode MA152K D 603 Diode MA152WK D 604 Diode ERA15-02VH D 605 Diode ERA15-02VH D 606 Diode ERA15-02VH D 607 Diode ERA15-02VH D 608 Diode MA3062(H) D 610 Diode MA152WK D 612 Diode MA3075(M) D 613 Diode MA152K D 801 Diode MA153 D 802 Diode MA153 D 803 Diode MA153 D 804 Diode MA153 D 805 Diode MA153 D 806 Diode MA3062(M) D 810 Diode MA3062(M) D 901 Diode ERA15-02VH D 902 Diode ERA15-02VH D 903 Diode ERA15-02VH D 904 Diode MA3056(M) D 907 Diode MA152WK D 951 Diode MA152K D 952 Diode MA152K D 953 Diode MA3075(H) D 954 Diode MA3056(M) L 101 Inductor LCTA2R2J3225 L 102 Inductor LCTA2R2J3225 L 103 Inductor CTF1420 L 401 Ferri-Inductor LAU2R2K L 402 Ferri-Inductor LAU2R2K L 501 Ferri-Inductor See Contrast Table L 601 Ferri-Inductor LAU2R2K L 603 Inductor LCTA2R2J3225 =====Circuit Symbol & No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol & No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 49 KEH-P9700R,P9750 L 604 Inductor CTF1420 L 801 Ferri-Inductor LAU2R2K L 810 Inductor CTF1420 L 811 Inductor CTF1420 L 812 Inductor CTF1420 L 901 Inductor LCTB2R2K3216 CF 201 Filter CTF1071 X 401 Crystal Resonator 7.200MHz CSS1379 X 501 Crystal Resonator See Contrast Table X 601 12.58291MHz CSS1402 IL 801 Lamp 14V40mA CEL1359 VR 501 Semi-fixed See Contrast Table FU 801 Fuze 0.4A ICP-N10 BV 601 Buzzer CPV1011 DSP Unit CWX2237 ASL Unit CWM5783 FM/AM Tuner Unit See Contrast Table RESISTORS R 101 RS1/10S102J R 102 RS1/10S102J R 103 RS1/10S473J R 104 RS1/10S473J R 105 RS1/10S102J R 106 RS1/10S102J R 107 RS1/10S473J R 108 RS1/10S473J R 109 RS1/10S473J R 110 RS1/10S473J R 111 RS1/10S122J R 112 RS1/10S122J R 113 RS1/10S362J R 114 RS1/10S362J R 115 RS1/10S332J R 116 RS1/10S332J R 117 RS1/10S473J R 118 RS1/10S473J R 119 RS1/10S102J R 120 RS1/10S102J R 125 RS1/10S473J R 126 RS1/10S473J R 127 RS1/10S473J R 128 RS1/10S473J R 129 RS1/10S473J R 130 RS1/10S473J R 131 RS1/10S102J R 132 RS1/10S102J R 133 RS1/10S103J R 134 RS1/10S103J R 135 RS1/10S103J R 136 RS1/10S103J R 137 RS1/10S103J R 138 RS1/10S103J R 139 RS1/10S103J R 140 RS1/10S103J R 141 RS1/10S331J R 142 RS1/10S331J R 143 RS1/10S331J R 144 RS1/10S331J R 145 RS1/16S102J R 146 RS1/16S102J R 147 RS1/16S102J R 148 RS1/16S102J R 149 RS1/10S103J R 150 RS1/10S121J R 151 RS1/10S103J R 171 RS1/10S471J R 172 RS1/8S751J R 173 RS1/10S103J R 174 RS1/10S273J R 175 RS1/10S104J R 176 RS1/10S104J R 177 RS1/10S222J R 178 RS1/10S561J R 201 RS1/10S331J R 202 RS1/10S331J R 203 RS1/10S331J R 204 RS1/10S331J R 205 RS1/10S331J R 206 RS1/10S331J R 207 RS1/10S0R0J R 208 RS1/10S0R0J R 209 RS1/10S561J R 210 RS1/10S561J R 211 RS1/10S223J R 212 RS1/10S223J R 213 RS1/10S0R0J R 214 RS1/10S0R0J R 215 RS1/10S561J R 216 RS1/10S561J R 217 RS1/10S223J R 218 RS1/10S223J R 219 RS1/10S0R0J R 220 RS1/10S0R0J R 221 RS1/10S561J R 222 RS1/10S561J R 223 RS1/10S223J R 224 RS1/10S223J R 251 RS1/10S103J R 316 RN1/10SE4702D R 317 RN1/10SE4702D R 401 See Contrast Table R 402 RS1/10S102J R 403 RS1/10S103J R 404 RS1/10S680J R 405 See Contrast Table R 406 See Contrast Table R 407 RS1/10S103J R 408 See Contrast Table R 409 RS1/10S392J R 410 RS1/16S392J R 411 See Contrast Table R 412 See Contrast Table R 413 RS1/10S102J R 414 See Contrast Table R 415 See Contrast Table R 416 See Contrast Table R 417 See Contrast Table R 418 See Contrast Table R 419 RS1/10S222J R 420 RS1/16S222J R 421 RS1/16S102J R 422 See Contrast Table R 423 RS1/10S0R0J R 424 RS1/16S222J R 426 RS1/16S222J R 427 RS1/16S562J R 428 See Contrast Table R 429 RS1/16S473J =====Circuit Symbol & No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol & No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 50 KEH-P9700R,P9750 R 430 RS1/16S393J R 431 See Contrast Table R 432 RS1/10S473J R 433 See Contrast Table R 434 See Contrast Table R 435 See Contrast Table R 436 See Contrast Table R 437 See Contrast Table R 438 See Contrast Table R 439 See Contrast Table R 440 See Contrast Table R 441 See Contrast Table R 442 RS1/16S224J R 443 See Contrast Table R 501 See Contrast Table R 503 See Contrast Table R 504 See Contrast Table R 506 See Contrast Table R 507 See Contrast Table R 508 See Contrast Table R 509 See Contrast Table R 510 See Contrast Table R 511 See Contrast Table R 512 See Contrast Table R 513 See Contrast Table R 514 See Contrast Table R 515 See Contrast Table R 516 See Contrast Table R 517 See Contrast Table R 601 RS1/16S472J R 602 RS1/16S473J R 603 RS1/10S473J R 606 RS1/16S473J R 607 RS1/16S473J R 608 RS1/16S473J R 609 RS1/16S473J R 610 RS1/16S473J R 611 RA4C221J R 615 RS1/16S221J R 616 RS1/16S473J R 617 RS1/16S473J R 618 RS1/16S473J R 619 RS1/16S681J R 620 See Contrast Table R 621 See Contrast Table R 622 See Contrast Table R 623 RS1/16S473J R 624 RS1/16S393J R 625 RS1/16S473J R 626 RA4C681J R 627 RS1/16S102J R 628 RS1/16S473J R 629 RS1/16S473J R 630 RS1/16S473J R 632 RS1/16S102J R 634 RS1/16S124J R 635 RS1/16S473J R 636 RS1/10S472J R 637 RS1/10S102J R 638 RS1/10S103J R 639 RS1/10S103J R 640 RS1/10S221J R 641 RS1/10S101J R 642 RS1/16S223J R 643 RS1/16S473J R 644 RS1/16S223J R 645 RS1/16S473J R 646 RS1/10S472J R 647 RS1/10S473J R 648 RS1/10S103J R 649 RS1/16S473J R 650 RS1/16S472J R 651 RS1/16S102J R 652 RS1/16S472J R 653 RS1/8S153J R 654 RS1/10S102J R 655 RS1/16S152J R 656 RS1/16S152J R 657 RS1/16S473J R 658 RS1/16S272J R 659 RS1/16S223J R 660 RS1/16S473J R 661 RS1/16S272J R 662 RS1/16S223J R 663 RS1/16S103J R 664 RS1/16S473J R 665 RS1/16S272J R 666 RS1/16S223J R 667 RS1/16S223J R 668 RS1/16S223J R 669 RS1/16S103J R 672 RS1/10S103J R 673 RS1/10S103J R 676 RS1/10S103J R 677 RS1/10S102J R 678 RS1/16S102J R 679 RS1/16S102J R 680 RS1/16S102J R 681 RS1/16S102J R 682 RS1/16S102J R 683 RS1/16S473J R 684 RS1/16S101J R 685 RS1/16S102J R 686 RS1/16S102J R 687 RS1/4S0R0J R 688 RS1/16S223J R 751 RA3C473J R 752 RA3C473J R 753 RS1/10S243J R 754 RS1/10S243J R 755 RS1/10S473J R 756 RS1/10S473J R 757 RA3C222J R 758 RA4C222J R 759 RA4C222J R 760 RA4C681J R 761 RS1/10S0R0J R 802 RS1/8S472J R 804 RS1/8S222J R 805 RS1/8S222J R 806 RS1/8S222J R 807 RS1/16S103J R 808 RS1/8S222J R 809 RS2PMF330J R 810 RS1/10S472J R 811 RS1/10S1R0J R 812 RS1/10S104J R 813 RS1/10S222J R 814 RS1/4S152J R 820 RS1/4S152J =====Circuit Symbol & No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol & No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 51 KEH-P9700R,P9750 R 821 RS1/10S103J R 822 RS1/10S224J R 823 RS1/10S222J R 824 RS1/10S104J R 901 RS1/10S101J R 902 RS1/10S152J R 903 RS1/10S752J R 904 RS1/16S472J R 905 RS1/16S102J R 906 RS1/16S102J R 907 RS1/10S472J R 908 RS1/4S152J R 951 RS1/4S561J R 952 RS1/10S102J R 953 RS1/10S102J R 954 RS1/10S152J CAPACITORS C 101 CEV2R2M50 C 102 CEV2R2M50 C 103 CCSQCH101J50 C 104 CCSQCH101J50 C 105 CCSQCH220J50 C 106 CCSQCH220J50 C 107 CEJA100M16 C 108 CEJA100M16 C 111 CEJA4R7M35 C 112 CEJA4R7M35 C 113 CCSQCH101J50 C 114 CCSQCH101J50 C 117 CKSQYB104K25 C 118 CEJA470M6R3 C 119 CEJA220M10 C 120 CEJA101M10 C 121 CEJA330M10 C 122 CKSQYB473K50 C 123 CEJA101M10 C 124 CKSQYB473K50 C 127 CCSQCH101J50 C 128 CCSQCH101J50 C 131 CCSQCH101J50 C 135 CKSQYB104K25 C 136 CKSQYB102K50 C 171 CKSQYB471K50 C 172 CEJA101M10 C 173 CEJANP4R7M16 C 201 CKSQYB222K50 C 202 CKSQYB222K50 C 203 CKSQYB222K50 C 204 CKSQYB222K50 C 205 CKSQYB222K50 C 206 CKSQYB222K50 C 207 CEJA100M16 C 208 CEJA100M16 C 209 CKSQYB102K50 C 210 CKSQYB102K50 C 211 CEJA100M16 C 212 CEJA100M16 C 213 CKSQYB102K50 C 214 CKSQYB102K50 C 215 CEJA100M16 C 216 CEJA100M16 C 217 CKSQYB102K50 C 218 CKSQYB102K50 C 251 CEJAR22M50 C 252 CEJAR22M50 C 253 CEJAR22M50 C 254 CEJAR22M50 C 263 4700µF/16V CCH1178 C 264 CKSQYB104K25 C 265 CEJA1R0M50 C 266 CEJA220M16 C 267 CEJA1R0M50 C 312 CEJANP100M10 C 401 CKSYB473K50 C 402 CKSQYB102K50 C 403 CKSQYB223K50 C 405 See Contrast Table C 406 CKLSR473K16 C 407 CKSQYB103K50 C 408 See Contrast Table C 409 4.7µF/16V CCH1250 C 410 CKSQYB103K50 C 411 CCSQCH150J50 C 412 CCSQCH150J50 C 413 See Contrast Table C 414 See Contrast Table C 415 See Contrast Table C 416 See Contrast Table C 417 CKSRYB103K25 C 418 CKSQYB103K50 C 419 CEJA220M10 C 420 CKSQYB103K50 C 421 CKSQYB103K50 C 422 CKSQYB471K50 C 423 CKSQYB223K50 C 424 See Contrast Table C 425 CKSRYB103K25 C 426 CKSRYB103K25 C 427 CCSRCH101J50 C 428 CEJA220M6R3 C 429 CKSQYB473K50 C 431 See Contrast Table C 432 See Contrast Table C 433 See Contrast Table C 434 See Contrast Table C 435 See Contrast Table C 436 See Contrast Table C 437 See Contrast Table C 501 See Contrast Table C 502 See Contrast Table C 503 See Contrast Table C 504 See Contrast Table C 506 See Contrast Table C 507 See Contrast Table C 508 See Contrast Table C 509 See Contrast Table C 510 See Contrast Table C 511 See Contrast Table C 512 See Contrast Table C 513 See Contrast Table C 514 See Contrast Table C 515 See Contrast Table C 601 CKSQYB223K50 C 602 CEJA4R7M35 C 603 CCSQCH200J50 C 604 CCSQCH200J50 C 605 CKSRYB104K16 =====Circuit Symbol & No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol & No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 52 KEH-P9700R,P9750 C 606 CCSRCH470J50 C 608 CEJA2R2M50 C 609 CKSRYB104K16 C 610 CEJA330M10 C 611 CKSQYB473K50 C 612 CKSQYB473K50 C 613 CKSQYB473K50 C 614 CKSQYB473K50 C 615 CEAL100M16 C 616 CKSRYB103K25 C 617 CKSRYB103K25 C 618 CKSRYB103K25 C 619 CCSRCH330J50 C 620 CKSQYB473K50 C 622 CKSQYB472K50 C 751 CEJA100M16 C 752 CEJA100M16 C 801 CCSRCH101J50 C 802 CCSQCH101J50 C 803 See Contrast Table C 901 1800µF/16V CCH1313 C 902 CKSRYB472K50 C 903 CEJA470M10 C 904 CKSRYB103K25 C 906 CEJA100M16 C 907 CEJA100M16 C 908 CKSQYB104K25 C 909 CEAS470M10 C 910 CEJA101M10 C 911 330µF/10V CCH1181 C 912 CEAS470M10 C 913 CKSQYB102K50 C 914 CKSRYB102K50 C 915 CEJA1R0M50 C 951 CKSQYB103K50 C 952 CKSYB105K16 C 953 CEJA220M10 C 954 CKSQYB222K50 C 955 CKSRYB472K50 C 956 CEJA220M10 =====Circuit Symbol & No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol & No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- CONTRAST TABLE of TUNER AMP UNIT KEH-P9700R/EW and KEH-P9750/ES have the same construction except for the following: Part No. Symbol & Description KEH-P9700R/EW KEH-P9750/ES Tuner Amp Unit CWM5781 CWM5782 IC401 PM2007A PM2006A IC501 PMW001B Not Used IC502 TA75S393F Not Used IC601 PD4903A PD4904A L501 LAU101K Not Used D401 MA152K MA152WK D402 MA152K Not Used Q403,Q404 2SD1757K Not Used Q405 IMH3A Not Used Q406 DTA114EK Not Used Q407 2SC2412K Not Used Q501 2SC2412K Not Used VR501 CCP1129 22kΩ(B) Not Used X501 CSS1056 4.332MHz Not Used FM/AM Tuner Unit CWE1416 CWE1485 DSP Unit CWX2237 CWX2238 C405 CKSRYB103K50 Not Used C408 CCH1250 4.7µF/16V Not Used C413 CKSQYB103K50 Not Used C414 CEJA220M6R3 Not Used C415,C424 Not Used CKSQYB103K50 C416 Not Used CEJA220M6R3 C422 CKSQYB471K50 Not Used C431,C432 CKSQYB223K50 CKSQYB473K50 C433,C434 CEJA1R0M50 Not Used C435 CKSRYB223K50 Not Used C436 CEJAR47M50 Not Used C437 Not Used CKSQYB154K16 C501 CKSRYB223K25 Not Used C502,C504,C507,C512 CKSQYB104K25 Not Used C503 CKSQYB223K50 Not Used C506 CKSRYB222K50 Not Used C508 CKSYB105K16 Not Used C509 CKSRYB104K16 Not Used www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 53 KEH-P9700R,P9750 ASL UNIT Consists of ASL PCB MIC PCB Unit Number : CWM5783 Unit Name : ASL Unit MISCELLANEOUS IC 301 IC NJM2068MD IC 302 IC NJM2068MD IC 701 IC CA0008AM IC 702 IC TA2050S Q 301 Transistor 2SC2412K Q 701 Transistor 2SA1162 Q 702 Transistor DTC124EK D 307 Diode MA3043(M) D 308 Diode MA152K L 701 Inductor LCTB3R3K2125 S 601 Switch CSH1048 VR 301 Semi-fixed 10kΩ(B) CCP1073 MIC 301 Microphone CPM1011 RESISTORS R 121 RS1/10S222J R 122 RS1/10S222J R 123 RS1/10S362J R 124 RS1/10S362J R 301 RS1/10S561J R 302 RS1/10S222J R 303 RS1/10S683J R 304 RS1/10S103J R 305 RS1/10S472J R 306 RS1/10S471J R 307 RS1/10S562J R 308 RS1/10S682J R 309 RS1/10S684J R 310 RS1/10S472J R 311 RS1/10S472J R 312 RS1/10S472J R 313 RS1/10S153J R 314 RS1/10S153J R 315 RS1/10S102J R 605 RS1/10S473J R 670 RS1/8S102J R 671 RS1/8S102J R 701 RS1/10S222J R 702 RS1/10S620J R 703 RS1/10S101J R 704 RS1/10S101J R 705 RS1/10S473J R 706 RS1/10S473J R 707 RS1/10S102J R 708 RS1/10S102J R 709 RS1/10S103J R 710 RS1/10S332J R 711 RS1/10S562J R 712 RS1/10S472J R 713 RS1/10S181J =====Circuit Symbol & No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol & No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- D C Part No. Symbol & Description KEH-P9700R/EW KEH-P9750/ES C510 CKSQYB472K50 Not Used C511 CEJA4R7M35 Not Used C513,C514 CCSQCH220J50 Not Used C515 CKSRYB103K25 Not Used C803 CKSQYB104K25 CKSQYB104K16 R401 RS1/10S0R0J RS1/10S152J R405 RS1/16S222J RS1/16S0R0J R406 RS1/16S561J RS1/16S182J R408 RS1/10S152J RS1/10S222J R411 RS1/16S272J RS1/16S102J R412 RS1/16S472J Not Used R414 RS1/16S682J RS1/16S472J R415 RS1/10S682J RS1/10S472J R416 RS1/10S472J RS1/10S152J R417 RS1/10S222J RS1/10S472J R418,R422 RS1/10S0R0J Not Used R428 RS1/16S562J Not Used R431 RS1/10S105J Not Used R433,R434 RS1/10S272J RS1/10S162J R435,R436 Not Used RS1/10S0R0J R437,R438,R513,R514 RS1/16S222J Not Used R439,R440 RS1/16S223J Not Used R441-R443 RS1/16S224J Not Used R501 RS1/16S103J Not Used R503 RS1/10S562J Not Used R504 RS1/16S333J Not Used R506-R512 RS1/16S102J Not Used R515 RS1/10S684J Not Used R516 RS1/16S681J Not Used R517 RS1/16S562J Not Used R620-R622 Not Used RS1/16S473J www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 54 KEH-P9700R,P9750 R 714 RS1/10S181J R 715 RS1/10S223J R 716 RS1/10S223J R 717 RS1/10S102J R 718 RS1/10S102J CAPACITORS C 109 CEJA4R7M35 C 110 CEJA4R7M35 C 301 CEAL330M10 C 302 CEAL330M10 C 303 CEJA470M10 C 304 CSZSR68M20 C 305 CEJA100M16 C 306 CEJA470M10 C 307 CEAL100M16 C 308 CEJAR68M50 C 309 CEJANP220M10 C 310 CKSQYB823K25 C 311 CEJANP100M16 C 320 CCSQCH101J50 C 701 CKSQYB104K25 C 702 CKSQYB104K25 C 703 CKSQYB102K50 C 704 CEJA100M16 C 705 CEJA1R0M50 C 706 CEJA1R0M50 C 707 CEJA1R0M50 C 708 CEJA1R0M50 C 709 CEJA100M16 Unit Number : CWM5688(EW) CWM5689(ES) Unit Name : Keyboard Unit MISCELLANEOUS IC 1901 HIC RS-140 IC 1902 IC PD6237C IC 1903 IC SED1540F0A IC 1904 IC SED1526F0A IC 1905 IC SED1526F0A Q 1901 Transistor(EW) IMH10A Q 1902 Transistor(EW) IMH10A Q 1903 Transistor(EW) IMH10A D 1901 Diode MA153 D 1902 Diode MA153 D 1903 Diode MA153 D 1904 Diode MA152WA D 1905 LED(EW) CL170PGCD D 1905 LED(ES) CL170SBX D 1906 LED(EW) CL170DCD D 1907 LED CL170PGCD D 1909 LED CL170PGCD D 1910 LED(EW) CL170PGCD D 1910 LED(ES) CL170SBX D 1911 LED(EW) CL170DCD D 1912 LED CL170PGCD D 1913 LED CL170PGCD D 1914 LED CL170PGCD D 1915 LED(EW) CL170DCD D 1915 LED(ES) CL170SBX D 1917 LED CL170PGCD D 1918 LED CL170PGCD D 1919 LED(EW) CL170DCD D 1919 LED(ES) CL170SBX D 1920 LED CL170PGCD L 1901 Inductor LCTA2R2J3225 L 1902 Inductor LCTB2R2K2125 L 1903 Inductor LCTB2R2K2125 L 1904 Inductor LCTB2R2K2125 L 1905 Inductor LCTA4R7J3225 X 1901 Osillator 3.77MHz CSS1427 S 1901 Switch CSN1042 S 1902 Switch CSG1117 S 1903 Switch CSG1075 S 1904 Switch CSG1117 S 1906 Switch CSG1118 S 1907 Switch CSG1075 S 1908 Switch CSG1117 S 1909 Switch CSG1117 S 1910 Switch CSG1118 S 1911 Switch CSG1108 S 1913 Switch CSG1117 S 1914 Switch CSG1118 S 1915 Switch CSG1107 S 1916 Switch CSG1117 VR 1901 Semi-fixed 220kΩ(B) CCP1237 VR 1902 Semi-fixed 220kΩ(B) CCP1237 EL 1901 EL CEL1580 LCD1901 LCD CAW1471 RESISTORS R 1901 RS1/8S222J R 1902 RS1/8S222J R 1903 RS1/8S222J R 1904 RS1/10S121J R 1905 RS1/10S473J R 1906 (ES) RS1/8S102J R 1907 RS1/8S751J R 1908 RS1/10S103J R 1909 (ES) RS1/10S0R0J R 1910 RS1/8S751J R 1911 RS1/8S751J R 1912 RS1/8S102J R 1913 RS1/10S103J R 1914 (ES) RS1/10S0R0J R 1915 (EW) RS1/10S0R0J R 1916 RS1/8S751J R 1917 RS1/4S471J R 1918 RS1/10S103J R 1919 (ES) RS1/10S0R0J R 1920 (EW) RS1/10S0R0J R 1922 RS1/10S103J R 1923 (ES) RS1/10S0R0J R 1924 (ES) RS1/10S0R0J R 1927 RS1/10S473J R 1928 RS1/10S473J R 1929 RS1/10S473J R 1930 RS1/10S473J R 1931 RS1/16S470J R 1932 RS1/16S470J R 1935 RS1/10S473J R 1936 RS1/10S473J R 1937 RS1/10S103J R 1938 RS1/10S473J R 1939 RA4C101J R 1940 RS1/10S103J R 1941 RA4C101J R 1942 RS1/10S103J R 1943 RS1/10S473J R 1944 RS1/10S473J R 1945 RS1/10S473J R 1946 RA3C102J R 1947 RA3C102J R 1948 RA3C102J R 1950 RS1/10S624J R 1951 RS1/10S754J R 1952 RS1/10S624J R 1953 RS1/10S754J R 1954 RS1/10S471J R 1955 RS1/10S471J R 1956 RS1/10S471J =====Circuit Symbol & No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol & No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com R 1957 RS1/10S471J R 1958 RS1/10S473J R 1959 RS1/10S472J R 1960 RS1/10S103J R 1961 RS1/10S103J R 1962 RS1/10S103J R 1963 (ES) RS1/10S0R0J R 1964 (ES) RS1/8S102J R 1965 RS1/8S751J R 1966 RS1/8S751J R 1967 RS1/8S751J R 1968 RS1/8S102J R 1970 RS1/8S751J CAPACITORS C 1901 CSZSR100M6R3 C 1902 (ES) CKSQYB104K50 C 1903 (ES) CKSQYB104K50 C 1904 (ES) CKSQYB104K50 C 1905 (ES) CKSQYB104K50 C 1906 CKSQYB103K50 C 1907 CKSQYB103K50 C 1908 CKSQYB103K50 C 1909 CKSQYF105Z16 C 1910 CKSQYF105Z16 C 1911 CKSQYF105Z16 C 1912 CKSQYF105Z16 C 1913 CKSQYF105Z16 C 1914 CKSQYF105Z16 C 1915 CKSQYF105Z16 C 1916 CKSQYF105Z16 C 1917 CKSQYB103K50 C 1918 CSZS1R0M16 C 1919 CSZS1R0M16 C 1920 CSZS1R0M16 C 1921 CKSQYF105Z16 C 1922 CKSQYF105Z16 C 1923 CKSQYF105Z16 C 1924 CKSQYF105Z16 C 1925 CKSQYF105Z16 C 1926 CKSQYB103K50 C 1927 CSZS1R0M16 C 1928 CSZS1R0M16 C 1929 CSZS1R0M16 C 1934 CSZSR100M6R3 C 1935 CKSQYB104K16 C 1936 CSZSR100M6R3 Unit Number : CWX2237(EW) CWX2238(ES) Unit Name : DSP Unit MISCELLANEOUS IC 3001 IC PD5445A IC 3101 IC AK7712AVT IC 3102 IC TC9331F IC 3103 IC(M5M51016BTP-70LL) GGC1325 IC 3201 IC(EW) AK4321VF IC 3201 IC(ES) PE2001AF IC 3301 IC PM0017AM L 3001 Inductor CTF1410 L 3002 Inductor CTF1410 L 3003 Inductor CTF1410 L 3004 Inductor CTF1410 L 3101 Inductor CTF1410 L 3102 Inductor CTF1410 L 3103 Inductor CTF1410 L 3104 Inductor CTF1410 L 3143 Inductor CTF1420 L 3151 Inductor CTF1410 L 3152 Inductor CTF1410 L 3153 Inductor CTF1410 L 3154 Inductor CTF1410 L 3201 Inductor CTF1410 L 3301 Inductor CTF1410 L 3302 Inductor CTF1410 L 3303 Inductor CTF1410 L 3304 Inductor CTF1410 L 3305 Inductor CTF1410 L 3306 Inductor CTF1410 X 3001 Osillator 10.0MHz CSS1428 X 3101 Crystal Resonator 16.9344MHz CSS1067 X 3102 Crystal Resonator 32.0MHz CSS1360 RESISTORS R 3001 RS1/16S102J R 3002 RS1/16S102J R 3003 RS1/16S102J R 3004 RS1/16S681J R 3005 RS1/16S681J R 3006 RS1/16S681J R 3007 RS1/16S681J R 3008 RS1/16S681J R 3011 RS1/16S102J R 3012 RS1/16S102J R 3015 RS1/16S473J R 3016 RA3C102J R 3018 RS1/16S102J R 3019 RS1/16S102J R 3020 RS1/16S102J R 3021 RS1/16S102J R 3022 RS1/16S102J R 3023 RS1/16S102J R 3024 RS1/16S102J R 3025 RS1/16S102J R 3026 RS1/16S102J R 3027 RS1/16S102J R 3028 RS1/16S102J R 3030 RS1/16S102J R 3031 RS1/16S102J R 3032 RS1/16S102J R 3033 RS1/16S473J R 3034 RS1/16S473J R 3035 RS1/16S473J R 3036 RS1/16S105J R 3037 RS1/16S102J R 3101 RS1/16S473J R 3102 RS1/16S473J R 3103 RA4C102J R 3104 RA4C102J R 3105 RA4C102J R 3106 RA4C102J R 3108 RA4C102J R 3109 RA4C102J R 3110 RA4C102J R 3111 RA4C102J R 3112 RS1/16S105J R 3113 RS1/16S105J R 3114 RS1/16S102J R 3115 RS1/16S102J R 3116 RS1/16S473J R 3131 RS1/16S0R0J R 3132 RS1/16S0R0J R 3133 RS1/16S0R0J R 3134 RS1/16S0R0J R 3141 RA3C103J R 3151 RSK1/16S151J R 3152 RSK1/16S151J R 3153 RSK1/16S151J R 3154 RSK1/16S151J 55 KEH-P9700R,P9750 =====Circuit Symbol & No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol & No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com R 3155 RSK1/16S151J R 3156 RSK1/16S151J R 3160 RS1/10S0R0J CAPACITORS C 3002 CKSYB106K6R3 C 3102 CKSQYB103K50 C 3104 CCSRCH100D50 C 3105 CCSRCH100D50 C 3107 CKSYB106K6R3 C 3108 CKSQYB104K16 C 3109 CSZSR470M6R3 C 3110 CKSQYB104K16 C 3111 CKSYB106K6R3 C 3112 CKSQYB104K16 C 3113 CKSQYB103K50 C 3114 CKSYB106K6R3 C 3115 CCSQCH100J50 C 3116 CCSQCH100J50 C 3117 CKSYB106K6R3 C 3119 CKSYB106K6R3 C 3120 CKSQYB104K16 C 3151 CKLSRB152K50 C 3152 CKLSRB152K50 C 3159 CKLSRR103K16 C 3160 CKLSRR103K16 C 3161 CKLSRR103K16 C 3162 CKLSRR103K16 C 3163 CKLSRR103K16 C 3164 CKLSRR103K16 C 3201 CKSYB106K6R3 C 3203 CKSQYB104K16 C 3205 CSZSR470M6R3 C 3206 CKSQYB104K16 C 3207 CKSYB106K6R3 C 3301 CKSYB475K10 C 3302 CKSYB475K10 C 3303 CKSYB475K10 C 3304 CKSYB475K10 C 3305 CKSYB475K10 C 3306 CKSYB475K10 C 3307 CKSQYB104K16 C 3308 CKSYB106K6R3 C 3309 CKSQYB104K16 Unit Number : CWM5684 Unit Name : MIC Jack Unit D 4601 LED BR4361F Unit Number : EWM1020 Unit Name : Deck Unit MISCELLANEOUS IC 251 IC HA12163 IC 351 IC PA2020A Q 271 Transistor 2SC4116 Q 351 Transistor 2SB1260 Q 352 Transistor 2SC4102 D 351 Diode MA141K VR 301 Semi-fixed 33kΩ(B) CCP1130 VR 302 Semi-fixed 33kΩ(B) CCP1130 RESISTORS R 251 RS1/16S333J R 252 RS1/16S333J R 253 RS1/16S333J R 254 RS1/16S333J R 255 RS1/16S181J R 256 RS1/16S181J R 257 RS1/16S183J R 258 RS1/16S183J R 259 RS1/16S133J R 260 RS1/16S133J R 261 RS1/16S274J R 262 RS1/16S274J R 271 RS1/16S183J R 272 RS1/8S223J R 273 RS1/8S223J R 274 RS1/8S103J R 275 RS1/16S473J R 276 RS1/16S104J R 277 RS1/16S224J R 278 RS1/16S104J R 281 RS1/8S0R0J R 282 RS1/8S0R0J R 283 RS1/8S0R0J R 284 RS1/8S0R0J R 285 RS1/16S0R0J R 286 RS1/16S0R0J R 288 RS1/16S0R0J R 289 RS1/16S0R0J R 322 RS1/8S223J R 351 RS1/16S102J R 352 RS1/16S102J R 353 RS1/16S102J R 354 RS1/16S102J R 355 RS1/10S274J R 356 RS1/10S202J R 357 RS1/10S472J R 358 RS1/10S103J R 359 RS1/10S103J R 360 RS1/10S102J R 361 RS1/10S622J R 373 RS1/8S0R0J R 374 RS1/8S0R0J R 375 RS1/8S0R0J R 401 RS1/16S273J R 402 RS1/16S223J R 403 RS1/16S274J R 404 RS1/16S823J R 405 RS1/16S274J CAPACITORS C 251 CKSRYB331K50 C 252 CKSRYB331K50 C 253 CKSRYB331K50 C 254 CKSRYB331K50 C 255 CKSRYB103K25 C 256 CKSRYB103K25 C 271 CEV1R0M50 C 272 CKSQYB104K16 C 301 CKSYB474K16 C 302 CKSYB474K16 56 KEH-P9700R,P9750 =====Circuit Symbol & No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol & No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- G H www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 57 KEH-P9700R,P9750 C 309 CKSQYB104K16 C 310 CKSQYB104K16 C 351 CKSYB224K25 C 352 CKSQYB392K50 C 353 CKSQYB103K50 C 354 CKSQYB103K50 C 355 CKSYB104K50 C 356 CKSQYB103K50 C 401 CKSRYB182K50 C 402 CKSRYB822K25 C 403 CKSRYB333K16 C 404 CKSRYB471K50 Unit Number : Unit Name : PCB Unit S 1 Switch (Load) ESG1004 S 2 Switch (70µS) ESG1004 EGN 1 Photo-Interrupter EGN1005 R 1 Resistor RD1/4PM181J Unit Number : Unit Name : Reel PCB EGN 2 Photo-Interrupter EGN1006 EGN 3 Photo-Interrupter EGN1006 Unit Number : Unit Name : Switch PCB S 951 Switch CSN1012 S 952 Switch CSN1022 Miscellaneous Parts List M 1 Motor Unit (Main) EXA1454 M 2 Motor Unit (Sub) EXA1485 HD 1 Head Assy EXA1527 M 951 Motor CXM1085 =====Circuit Symbol & No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- I J K www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 58 KEH-P9700R,P9750 FM/AM TUNER UNIT 4Ω 4Ω Lch + Lch - Rch + Rch - BACK UP ACC GND +14.4V GND Main Antenna Jack mV Meter (1) Oscilloscope DC Regulated Power Supply TUNER AMP UNIT DC V Meter(1) Center Meter Pin 19 FM/AM TUNER UNIT (BOTTOM VIEW) C63 FM/AM TUNER UNIT (TOP VIEW) L2 L5 TC1 T51 T31 Pin1 Pin13 Pin14 Pin26 L4 T51 VR154 50 Ω(75Ω ) FM SSG Stereo Modulator 50Ω (37.5Ω ) Antenna Plug Dummy Antenna VR302 mV Meter(2) VR301 L-CH R-CH DECK UNIT DECK UNIT Pin2 Pin3 CN251 VR501 DC V Meter(2) SIDE B Q501 E 6. ADJUSTMENT - Connection Diagram www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 59 KEH-P9700R,P9750 Modulation M:MONO MOD., 400Hz 30%(22.5kHz Dev.) S:STEREO MOD., 1kHz, L or R=30%(20.25kHz+7.5kHz Dev.) NOTE:Before proceeding to further adjustments after switching power ON, let the tuner run for ten minutes to allow the circuits to stabilize. FM ADJUSTMENT(EW model) FM SSG Displayed Adjustment Adjustment Method No. Frequency(MHz) Level(dBf) Frequency(MHz) Point (Switch Position) TUN Volt 1 ••••• ••••• 108.0 L5 DC V Meter(1) : 6V IF 1 98.1 M 60 98.1 T51 Center Meter : 0 ANT Coil 1 98.1 M 5 98.1 L2 mV Meter(1) : Maximum RF Coil 1 98.1 M 5 98.1 L4 mV Meter(1) : Maximum Image 1 129.3 M 60—80 107.9 TC1 mV Meter(1) : Minimum IFT 1 98.1 M 5 98.1 T31 mV Meter(1) : Maximum (STEREO MODE) ARC 1 98.1 S 39 98.1 VR154 mV Meter(1) : Separation 5dB (STEREO MODE) FM ADJUSTMENT(ES model) FM SSG Displayed Adjustment Adjustment Method No. Frequency(MHz) Level(dBf) Frequency(MHz) Point (Switch Position) TUN Volt 1 ••••• ••••• 108.0 L5 DC V Meter(1) : 6V IF 2 98.1 M 60 98.1 T51 Center Meter : 0 ANT Coil 3 98.1 M 5 98.1 L2 mV Meter(1) : Maximum RF Coil 4 98.1 M 5 98.1 L4 mV Meter(1) : Maximum IFT 5 98.1 M 5 98.1 T31 mV Meter(1) : Maximum (STEREO MODE) ARC 6 98.1 S 40 98.1 VR154 mV Meter(1) : Separation 5dB (STEREO MODE) RDS SL ADJUSTMENT FM SSG Displayed Adjustment Adjustment Method No. Frequency(MHz) Level(dBf) Frequency(MHz) Point (Switch Position) 1 106.1 M 52 106.1 VR501 DC V Meter(2) : 2.25V±0.05V DOLBY B NR ADJUSTMENT No. Test Tape Adjustment Point Adjustment Method (Switch Position) 1 NCT-150 VR301(Lch),VR302(Rch) mV Meter(2) : –8.24dBs±1.0dB (400Hz,200nwb/m) (DOLBY NR Switch : OFF) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 60 KEH-P9700R,P9750 7. GENERAL INFORMATION 7.1 PARTS 7.1.1 IC VDA 24 25 Bip - + Z ADD SUB (12) I/O-3 9 10 I/O-2 FMOUT 27 IN HS - + NC AMTV 30 - + Bip 12bit AMIN 32 33 - + 34 PD1 PD REF 36 X-GND XI 39 38 Z (X-Y) LDET MODE SW (12) P(12) 8bit SHIFT IF FM 7 8 4 5 FM VCO AM VCO I/F 40 CE 41 DI 42 CK 43 DO 2 NC NC 1 (14) 37 XIO SR 44 28 29 FMIN 11 DA(12) DAC (12bit) Vref - NC 23 + VCO SUB (14) X Y CRESET IN3 REG (22bit) A-GND VDD 6 PD0 VREF2 MOS Bip I/O-1 VREF2 VREFP 17 18 IF 35 VREF2 MOS OUT AM 12 13 14 15 16 I/O-5 I/O-4 NC O-7 O-6 CUR REQUEST 20 LDET 21 22 19 VCC OUT1 SEL OUT2 SEL IN1 REG (31bit) (16) (4) 31 DIVIDER 4 BIT SHIFT 4 2 1 1 12bit REG PROGRAMABLE DIVIDER NC COUNTER 3 D-GND NC DATA REGISTER 26 IF AM COUNTER VCC BAND GAP FMTV Bip + 12bit SRx4 (12) (12) TVMEMORY SEL X Y PD & LDET - NC 14k 28k 35k 10k UCOM PM2007A PM2007A PD4903A PD6237C SED1540F0A SED1526F0A PD5445C PM0017AM AK4321VF AK7712AVT GGC1325(M5M51016BTP-70LL) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 61 KEH-P9700R,P9750 - Pin Functions (PD4903A) Pin No. Pin Name I/O Function and Operation 1 isens I Illumination sense input 2 SYSPW O System power supply control output 3 LCDPW O CD power control 4 DIM O Dimmer select output 5 DRELAY O External relay output 6 DRSENS I Door open/close sense input 7 DRSYS O Door system select output 8 DLSENS I Door lock sense input 9 NC Not used 10 mosens I Motion/window damage sensor input 11 reset I Reset input 12 XT2 Not used 13 XT1 Connect to GND 14 VSS GND 15 X2 Crystal oscillator connection pin 16 X1 Crystal oscillator connection pin 17 REGOFF VDD 18 REGC VDD 19 VDD Power supply 20 ADSEL I Serial data audio source select input 21 ILMPW O Illumination power supply control output 22 mute O Mute output 23 tmute O Tuner mute output 24 SOR0 O Source select output 25 SOR1 O Source select output 26 SOR2 O Source select output 27 SOR3 O Source select output 28 FLPCLS O Flap motor close output 29 FLPOPN O Flap motor open output 30 fopnsw I Flap motor open switch input 31 fclssw I Flap motor close switch put 32 FLPPW O Flap motor driver power ON/OFF output 33 mcsens I Microphone sennse input 34 casens I Half load sense input 35 std/PRO I STD/PRO select input 36,37 NC Not used 38 dled O Alarm LED output 39 psense I Grille button sense input 40 VSS GND 41 VDD Power supply 42 SWVDD O Grille power supply control output 43 drst O Reset output 44 mdsens I Modulation detect input 45 sk I SK signal input 46 rdslk I RDS LK signal input 47 RDT I FROM data input 48 MSIN I MS sense 49 DIRO O Head F/R select output 50 PLAY O MS gain select output 51 mtlsw I Metal sense input 52 BC O Dolby B/C select output 53 NR O NR output 54 loadsw I Tape loading input 55 POS I Position sense input 56 RES I Reverse end sense input 57 NES I Forward end sense input 58 SC2 O Sub motor control output www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 62 KEH-P9700R,P9750 Pin No. Pin Name I/O Function and Operation 59 SC1 O Sub motor control output 60 CM O Capstan motor control output 61 stby O Stand-by output 62 PCL O Clock adjustment output 63 brxen I/O P-BUS reception enable input/output 64 bsrq O P-BUS service request output pin 65 bsck I/O P-BUS serial clock input/output 66 BSI I P–BUS serial data input 67 BSO O P-BUS output 68 brst O P–BUS reset output 69 dsens I Grille detach sense 70 st I FM stereo input 71 adpw O Control output for analog input reference power 72 DALMON O DFS alarm output 73 TEST I Test terminal 74 SL I SD level input from tuner 75 CL I Synchronizing signal input of display data latch 76 NL I Noise level input 77 SD I SD input 78 TESTIN I Test program mode input 79 IPPW O Power supply control output for IP BUS interface IC 80 ASENBO O Slave power supply control output 81 currq O Tuner voltage FIX output 82,83 VDD Power supply 84 GND GND 85 RX I IP BUS data input 86 TX O Digital audio interface data output terminal 87 GND GND 88 ldet I PLL lock sense input 89 RCK I FROM clock input 90 RDS57K I 57kHzBP-OUT sense input 91 TELIN I Telephone mute input 92 asens I ACC power sense input 93 bsens I Back up power sense input 94 TUNPDI I PLL IC data input 95 KEYDT I Display data input 96 DPDT O Display data input 97 TUNPCK O PLL IC clock 98 TUNPDO O PLL IC data output 99 TUNPCE O PLL IC chip enable 100 PEE O Beep tone output 25 26 50 51 75 76 100 1 *PD4903A IC's marked by* are MOS type. Be careful in handling them because they are very liable to be damaged by electrostatic induction. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 63 KEH-P9700R,P9750 - Pin Functions (PD6237C) Pin No. Pin Name I/O Format Function and Operation 1-9 NC O C Not used 10 RDX O C Address read strobe output 11 VSS O C Digital GND 12 WRX O C Address write strobe output 13-18 NC O C Not used 19 KYDT O C Key data for system micro-computer 20 DPDT I Display data from system micro-computer 21 SCDCLK I Test program clock 22 DATAOT O C Test program data 23 Vcc Digital GND 24 DATAIN I Test program data 25,26 NC O C Not used 27 C C Reference voltage 28-33 NC O Not used 34 AVcc Analog power supply 35,36 NC Not used 37 AVSS Analog GND 38 ILM1 O C Illumination control output 1 39 ILM2 O C Illumination control output 2 40,41 NC O C Not used 42 GND Digital GND 43-48 NC O C Not used 49 MD0 I mode pin 0 (PULL-UP) 50 MD1 I mode pin 1 (PULL-UP) 51 MD2 I mode pin 2 (PULL-DOWN) 52 HSTX I Hardware standby input (PULL-UP) 53 REMIN I Remote control pulse input 54-58 NC O C Not used 59 KST0 O C Key scan output 60 KST1 O C Key scan output 61 KST2 O C Key scan output 62 KST3 O C Key scan output 63,64 NC O C Not used 65 RES1 O C SED 1450 Reset output 66 RES2 O C SED 1526 Reset output 67 KDT0 I C Key data input 68 KDT1 I C Key data input 69 KDT2 I C Key data input 70 KDT3 I C Key data input 71-73 NC O C Not used 74 OSC4K O C SED 1540 Clock output 75,76 NC O C Not used 77 NC I Not used 78 CS1 O C SED 1526 Chip select output 79 CS2 O C SED 1526 Chip select output 80 CS3 O C SED 1540 Chip select output 81 VSS Digital GND 82 X0 Oscillator circuit 83 X1 Oscillator circuit 84 Vcc Digital power supply 85 AD00 I/O C External data bus input/output 86 AD01 I/O C External data bus input/output 87 AD02 I/O C External data bus input/output 88 AD03 I/O C External data bus input/output 89 AD04 I/O C External data bus input/output 90 AD05 I/O C External data bus input/output 91 AD06 I/O C External data bus input/output 92 AD07 I/O C External data bus input/output 93 A0 O C External address output 94-100 NC O C Not used www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 64 KEH-P9700R,P9750 *PD6237C 30 31 50 81 100 1 80 51 Format Meaning C C MOS SED1540F0A - Pin Functions (SED1540F0A) Pin No. Pin Name I/O Function and Operation 1-72 SEG71-0 O Output for driving segment of LC 73 A0 I Normally the lowest bit in the address bus of MPU is connected to distinguish between data and command. 74,75 OSC1,2 Terminal to connect resistor for internal oscillation 76 E(rd) I Enable clock input terminal of 68-system MPU Terminal to connect RD signal of 80-system MPU. While this signal is set to “L,” data bus of SED1540 will be output. 77 R/w(wr) I Input terminal of read/write control signal Terminal to connect write signal of 80-system MPU 78 VSS 0V connect to system GND 79-86 DB0-7 8-bit duplex data bus to be connected to a data bus of 8-bit or 16-bit standard MPU 87 VDD Connect to +5V power supply VDD 88 res Can be set to initial setting by setting RES to “L” when using 68-system MPU, or by setting RES to “H” when using 80-system MPU. 89 FR I/O Input/output terminal of LC alternating signal 90 V3 Multilevel power supply for driving LC 91 cs I Chip select signal. Normally, signal obtained by decoding address bus signal is input. 92 NC Not used 93 M/S Terminal to select between master and slave operation to SED1540. Connect to VDD or VSS. 94,95 V2,1 Multilevel power supply for driving LC 96-99 COM0-3 O Output for LC common (low) driving 100 SEG72 I/O Output for driving segment of LC 30 31 50 81 100 1 80 51 SED1526F0A 38 39 64 102 65 103 128 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 65 KEH-P9700R,P9750 *PD5445C 20 21 40 41 60 80 1 61 Format Meaning C C MOS - Pin Functions (SED1526F0A) Pin No. Pin Name I/O Function and Operation 1-5 V1-V5 Multilevel power supply for driving LCD 6 VR I Voltage adjustment 7 VDD +5V power supply 8 VOUT O Ascending voltage output 9 CAP2- O Ascending voltage capacitor connection 10 CAP2+ O Not used 11 CAP1- O Ascending voltage capacitor connection 12 CAP2+ O Ascending voltage capacitor connection 13 VSS GND 14 M/S I IC master/slave operation select 15 SR2 I MPU interface select, pararel/serial data inpur select and reset input 16 SR1 I MPU interface select, pararel/serial data inpur select and reset input 17 wr I MPU WR signal connection 18 rd I MPU RD signal connection 19 CS2 I Chip select signal 20 CS1 I Chip select signal 21 A0 I Data/command discrimination 22 FR O Not used 23 CL O Not used 24-31 D0-D7 I/O Serial data bus 32-39 COM0-7 O Output for LCD common driving 40-48 NC Not used 49-110 SEG0-61 O Output for driving segment of LCD 111-128 NC Not used www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 66 KEH-P9700R,P9750 - Pin Functions (PD5445C) Pin No. Pin Name I/O Format Function and Operation 1 SPCK I C Connect to GND 2 NC O C Not used 3 VST O C Electronic volume strobe output 4 VDT O C Electronic volume data output 5 VCK O C Electronic volume clock output 6 CNVss I Connect to Vss 7 MCKRQ I C CD unit MCK request input 8 NC O C Not used 9 reset I Micro-computer hard reset input 10 Xout O System clock output 11 Vss I GND 12 Xin I System clock input 13 Vcc I Micro-computer power supply 5V 14 nmi I C Connect to Vcc 15 BMUTEIN I C CD unit LR clock supply data 16 SPRQ I C Connect to GND 17 brst I C P-Bus reset input 18 ADTEST I C A.EQ test mode start 19 MICSNS I C A.EQ mic connection data 20 ADSEL O C Signal/select input of A.EQ mic 21 MUTERQ O C Hard mute output 22,23 NC O C Not used 24 DSPOUT O C DSP serial data output 25 DSPIN I C DSP serial data input 26 DSPCK O C DSP serial clock output 27 NC O C Not used 28 BSO O C P-BUS data output 29 BSI I C P-BUS data input 30 BSCK I/O C P-BUS serial clock input/output 31 NC O C Not used 32 bsrq I/O C Service request input 33 brxen I/O C Reception enable input 34,35 DSPERR1 I C Connect to GND 36 DZF1 I C Front digital 0 data input 37 DZF0 I C Rear digital 0 data input 38 DZF2 I C Sub woofer digital 0 data input 39 testin I C test program start/enable 40 DSPPW O C DSP power supply switching 41 NGO O C Noise gate ON/OFF 42-48 NC O C Not used 49 FMUTE O C Not used 50 SWMUTE O C Not used 51 VOICE I C Connect to GND 52-58 NC O C Not used 59 IFHIZ I C DSP micro-computer port Hi2 set (test mode port) 60 dsprst O C TC9331 hard reset 61 pd O C AK7712 power down 62 akrst O C AK7712 reset 63 dspcs@ O C AK7712 chip select 64 dspcs! O C TC9331 chip select 65 dsprq O C AK7712 data output request 66 DSPCd O C TC9331 command/data 67 DSPRDY I C AK7712 data ready 68 dspack I C DSP data write ready/ACK 69 SMODE O C Ak7712 master/slave 70 EMPIN I C CD unit emphasis data input 71 empout O C DAC emphasis output 72 LRCKK O C LRCK/BCLK select www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 67 KEH-P9700R,P9750 Pin No. Pin Name I/O Format Function and Operation 73 SDATAK O C Audio data select:LRCKK inverted gate 74 NOISE I ASL noise input 75 AVss I Connect Vss 76 MCKOUT O C CD MCLK gate control 77 Vref I AD select reference voltage input 78 AVcc I Connect to Vcc 79 MO/ST I C Connect to GND 80 SPDT O C Not used AK4321VF - Pin Functions (PM0017AM) Pin No. Pin Name Function and Operation 1 AGND Analog GND 2 Vref Reference voltage noise cut 3-8 IN1-6 CH1-6 input 9,10 NC Note used 11 Ct Terminal to set forced switching time 12 DGND Digital GND 13 STB Strobe input 14 CLK Clock input 15 DATA Data input 16 NC Not used 17-22 OUT6-1 CH6-1 output 23 DVCC Digital GND 24 AVCC Analog GND PM0017AM 1 2 3 4 24 23 22 21 A GND Vref IN1 IN2 AVCC 5 6 7 8 20 19 18 17 IN3 IN4 IN5 IN6 9 10 11 12 16 15 14 13 NC NC Ct D GND NC DVCC OUT1 OUT2 OUT3 OUT4 OUT5 OUT6 DATA CLK STB CKS DVDD DVSS XTO XTI PD BICK SDATA DFS DEM0 SMUTE TTL VREF BVDD DIF0 DZF AVSS AVDD VCOM 1 2 3 4 5 6 7 8 9 10 11 12 24 23 22 21 20 19 18 17 16 15 14 13 LRCK DEM1 DIF1 AOUTL AOUTR Clock OSC/Divider Serial Input Interface De-emphasis Control 8x Interpolator CTF SCF 8x Interpolator Modulator Modulator CTF SCF www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 68 KEH-P9700R,P9750 - Pin Functions (AK7712AVT) Pin No. Pin Name I/O Function and Operation 1 TSTI1 I Test input 1 2 OPCL I ADC,DAC connection select 3 pdad I AD reset control 4 pdda I DA reset control 5 pd I Power down 6 rst I Reset input 7 TSTIO1 I/O Test input/output 1 8 TSTIO2 I/O Test input/output 2 9 TSTIO3 I/O Test input/output 3 10,11 DVB Digital PCB power supply 12 SDIN2 I Serial data input 2 13 SDAD O Serial data output 2 14 SDOUT2 O Serial data output 3 15 SDDA I Serial data input 3 16 SDDA2 I Serial data input 4 17 SDOUT3 O Serial data output 4 18 SDOUT1 O Serial data output 1 19 SDIN1 I Serial data input 1 20 SMODE I Interface clock select 21 BCLK I/O Clock input/output for serial data input signal input/output 22 LRCK I/O L/R channel Identification Signal input/output 23 CLKO O Master clock output 24 DVDD Digital power supply 25 DVSS Digital GND 26 XTI I Clock input 27 XTO O Oscillator output 28 TSTI2 I CLKO output control 29 cs I Chip select input for micro-computer interface 30 wrq I Command register reset input for micro-computer interface 31 DVSS Digital GND 32 DVDD Digital power supply 33 SCLK I Serial data input clock input for micro-computer interface 34 SI I Serial data input for micro-computer interface 35 WRDY O Data write ready output for micro-computer interface 36 DRDY O Output data ready output for micro-computer interface 37 SO O Serial data output for micro-computer interface 38 casrf O External DRAM CAS/pseudo SRAM refresh 39 rasce O External DRAM RAS/pseudo SRAM-ce 40 we O External SRAM/pseudo SRAM/DRAM write signal output 41-48 A16-A9 O External RAM address output 49 DVSS Digital GND 50 DVDD Digital power supply 51-59 A8-A0 O External RAM address output 60 oe O External SRAM/pseudo SRAM/DRAM output enable signal output 61-68 IO0-IO7 I/O External RAM data input/output 69 DVSS Digital GND 70 DVDD Digital power supply 71 DZFSET I Zero position detect setup 72 DVSS Digital GND 73 DVDD Digital power supply 74,75 DVB Digital PCB power supply 76 DZF2 O Zero input detect (DAC2) 77 DZF1 O Zero input detect (DAC1) 78 NC Not used 79 AVB Analog PCB power supply 80 AOUTR2 O DAC2 Rch analog output 2 81 AOUTL2 O DAC2 Lch analog output 2 82 NC Not used www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 69 KEH-P9700R,P9750 Pin No. Pin Name I/O Function and Operation 83 AOUTR1 O DAC1 Rch analog output 1 84 AOUTL1 O DAC1 Lch analog output 1 85 VRDAL I DAC reference voltage input 86 AVSS Analog GND 87 AVDD Analog power supply 88 VRDAH I DAC reference voltage input 89 NC Not used 90 AINR- I ADC Rch analog inverted input 91 AINR+ I ADC Rch analog input 92 AINL- I ADC Lch analog inverted input 93 AINL+ I ADC Lch analog input 94 VCOM O Common voltage 95 VRADL I ADC reference voltage input 96 AVSS Analog GND 97 AVDD Analog power supply 98 VRADH I ADC reference voltage input 99 AVB Analog PCB power supply 100 NC Not used AK7712AVT 25 26 50 51 75 76 100 1 GGC1325(M5M51016BTP-70LL) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 A0-A15 : Address input BC1,BC2 : Byte control input CS : Chip select input DQ1-DQ16 : Data input/output GND : Ground OE : Output enable input VCC : Power supply W : Write control input NC A12 A7 A6 A5 A4 A3 A2 A1 A0 CS GND OE NC DQ1 DQ2 DQ3 DQ4 DQ5 DQ6 DQ7 DQ8 NC BC1 BC2 A14 A15 A13 W A8 A9 A11 A10 GND NC DQ16 DQ15 DQ14 DQ13 DQ12 DQ11 DQ10 DQ9 VCC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 70 KEH-P9700R,P9750 7.1.2 DISPLAY - CAW1471 COMMON SEGMENT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 71 KEH-P9700R,P9750 7.2 DIAGNOSIS 7.2.1 DISASSEMBLY Cassette Mechanism Module Connector Mic PCB B B C A A A Grille Assy A A A A C C A Note : Pull up and remove with Mic PCB. (Be careful connecting for Connector.) - Remove the Grille Assy 1. A × 4 2. Stopper × 2 3. Connector × 5 - Remove the Case (Not shown) - Remove the Cassette Mechanism Module 1. A × 4 2. Connector × 1 A - Remove the Tuner Amp Unit 1. A × 2 2. B × 2 3. C × 4 4. Stopper × 2 A Connector Connector - Remove the DSP Unit 1. Stopper × 4 2. Connector × 1 3. Stopper × 2 Connector C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 72 KEH-P9700R,P9750 MIC SENSE 18 M M M MIC-L TUN-L TAPE-L IP-BUS L VDD Q901 Q902 VDD REGULATOR B.U Q171 Q172 VDD PROSTD 1 3 Q904 DSP+5V REGULATOR IC902 NJM78M05A DSP+5V B.U Q903 SYSPW 12 3 82 83 53 1 X0 X1 RE KEYBOARD PCB E SWITCH PCB K CN1901 S1902 RESET S1901 P SENS X1901 IC1901 RS-140 OPTICAL INPUT KEY MATRIX Q3 FM RF ANT T31 FM MIX Q31 CF51 FM IF FM OSC AM OSC FM / AM PROCESSOR IC1 PA4023B FM PROCESSOR IC2 PA4024A CF52 FM IF CF53 FM IF T51 41 6 34 35 32 36 16 18 23 25 31 30 28 33 40 7 43 19 20 14 20 18 L DET 7 9 18 19 25 29 9 4 5 37 1 2 3 12 6 7 15 16 3 1 8 14 12 6 7 15 16 3 1 8 14 6 7 11 1 5 8 11 6 B.U B.U 5 14 3 1 2 3 1 34 29 28 30 31 80 8 10 85 86 23 74 77 87 43 44 39 12 3 2 2 1 2 1 2 1 5 2 1 51 53 56 Q271 PLAY MTL LOAD METAL MODE SENSE MAIN MOTOR FWD SENSE SUB MOTOR REV SENSE 2 1 4 5 17 19 22 CN251 CN751 CN252 6 5 19 18 7 17 2 38 19 7 20 15 17 21 14 13 5 6 2 20 11 12 18 1 4 3 26 25 9 10 14 15 17 18 47 1 2 AM TV Q201 Q202 FM +B AM +B TUN +B FM +B X401 7.2MHz AM +B TUN +B AMRF / AGC IC401 PM2007A PLL CF232 AM IF GATE DRIVER FM SL AM SL FM IFC AM IFC VCO FM SD COMP CN401 RX TX DRLK MSENS NOISE A SENBO SWDB FMTV XO XI LDET LDET AMTV AMIF FMVCO AMVCO CN701 IP-BUS ISOLATOR IP-BUS DRIVER B.U B.U VREF B.U B.U VCC IP-BUS IN MOTION SENSE DOOR LOCK Q701 Q702 Q301 CN601 CN301 CN302 MIC301 VR301 ASL AMP ASL FILTER S601 VR501 Q501 Q407 Q403 Q406 SOURSE SELECTOR SOURSE SELECTOR Q405 CN101 X501 4.33MHz RDS DECODER RDS 57K DETECTOR IC501 PMW001B IC502 TA7S5393F Q612 Q613 IC702 TA2050S IC701 CA0008 BUS L+ BUS L- BUS + BUS - 3 2 IC302 NJM2068M 5 1 IC301 NJM2068M ASL PCB C DECK UNIT H REEL UNIT J PCB UNIT I TUNER AMP UNIT A FM / AM TUNER UNIT B MOTOR DRIVER Q953 MOTOR DRIVE REGULATOR IC951 BA6288FS Q952 Q951 S951 S952 AUTOMATIC FLAP SENSE CN952 CN951 AUTOMATIC FLAP MOTOR T MUTE TUN L LDET SL SD RDS57K 15 DRST 13 MDSENS IC102 BA3131FS IC101 BA3131FS Q351 Q352 IC351 PA2020A IC251 HA12163 TAPE EQUALIZER 4 6 8 10 9 8 1 1 3 2 4 6 8 1 3 2 SYSTEM CONT IC601 PD4903 FLPPW FCLSSW TX LDET SD SL DRST MDSENS TMUTE RX MOSENS DLSENS ASENBO FOPNSW FLCLS FLOPN PSENS UNBAL. /BAL. 2 7 IC103 NJM2100M IP-BUSL MIC JACK UNIT G 2 4 4 1 TAPE L MCSENS CN4601 CN171 CN4602 MICS DLED 38 DLED 72 DALMON 35 STD/PRO CN703 CN702 FWD LCH REV LCH STBY LOAD CN253 20 4 3 20 4 3 CN801 FMIF PEE 16 MIC PCB D 7.3 EXPLANATION 7.3.1 BLOCK DIAGRAM - KEH-P9700R/EW www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 73 KEH-P9700R,P9750 5 1 ALARM IC604 TPD1018F B.U 6 Q607 9 10 5 6 1 2 FRONT Lch OUT REAR Lch OUT SUB WOOFER OUT B.U CN201 Q203 Q603 Q207 Q211 2 4 6 17 FL IN FL + FL - RL + RL - FL + FL - RL + RL - RL IN STBY MUTE 3 21 23 5 14 12 12 10 11 9 CN251 POWER AMP IC251 TDA7386 FRONT Lch SPEALER REAR Lch SPEALER FL RL SWL DSPMUTE 22 4 SYSPW 11 3 5 4 7 9 2 Q604 AUDIO+8V REGULATOR IC901 PA2024A AM +B VDD FM +B TUN +B B.U BACK UP Q605 SYSPW Q606 Q608 BSENS ASENS ISENS Q614 B.U TELIN 5 1 B.REMOTE IC605 TPD1018F B.U 6 SYSPW DRERAY Q611 DRSENS Q609 Q610 B.U DRSYS PEE Q615 BUZZER DRIVE BV601 DFS ALARM Q601 1 2 RESET VDD IC602 S-80730ANDYI Q602 RESET 11 VDD Q954 Q955 SWD VDD REGULATOR B.U B.U B.U Q809 Q810 Q813 Q807 Q805 Q808 BACK UP ACC B REMOTE DOOR SW ILL TEL MUTE 1 5 3 8 4 6 7 ALARM 8 9 2 82 83 53 19 KYDT X0 X1 REMIN DPDT 20 S LCD CONTROL IC1902 PD6237C LCD DRIVE LCD1901 EL1901 LCD DRIVE LCD DRIVE IC1903 SED1540FOA IC1904 SED1526FOA IC1905 SED1526FOA INVERTER ASSY 8 9 10 13 91 84 23 18 SD AD SD IN 12 11 11 13 13 74 19 9 40 10 12 76 21 18 5 8 18 1 2 4 2 4 6 17 5 3 22 20 18 21 S DATA 15 28 29 43 44 90 95 96 20 8 9 2 1 CN101 CN3001 SWITCH DSP UNIT F Q812 Q811 IC3141 BU4066BCFV IC3101 AK7712AVT IC3201 PE2001AF SWITCH DAC IC3102 TC9331F IC3103 GGC1325 (M5M51016BTP-70LL) DSP SYSTEM CONTROL IC3001 PD5445A AOUTL1 A OUT L A OUT L1 MCK MCK SD OUT1 AINL- AL- NOISE MCK OUT SD OUT1 MIC SENS RESET DSPPW MUTE X3001 DSP S-RAM MCK IC3142 TC7S08FU IC3301 PM0017AM CN3001 ELECTRONIC VOLUME M CONTROLLER IC601 PD4903A DRST MDSENS RDS57K KEYDT DPDT ILMPW BSENS 93 ASENS ISENS TELIN DRELAY SYSPW DRSENS DRSYS 92 1 91 5 2 6 7 100 VDD ADPW 71 83 15 28 29 33 MCSENS 15 16 X601 12.5879MHz X2 X1 CN101 MUTE 22 SWVDD 42 1 2 3 2 1 4 5 CN803 CN804 EL+B IL GND IL801 1 DSENS 69 DIM 4 LCDPW 3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 74 KEH-P9700R,P9750 8. OPERATIONS AND SPECIFICATIONS(ES model) Connecting the Units Green/red Gray/red + ≠ Green Green/black Gray Gray/black + ≠ + ≠ Black/green Black/gray + ≠ Multi-CD player (sold separately) Power amp (sold separately) Power amp (sold separately) Power amp (sold separately) Do not connect anything to the speaker leads that are not connected to speakers. Orange To terminal always supplied with power regardless of ignition switch position. Red To electric terminal controlled by ignition switch (12 V DC) ON/OFF. Yellow To light switch terminal. Black (ground) To vehicle (metal) body. Antenna jack Brown White Yellow/black If you use a cellular telephone, connect it via the Audio Mute lead on the cellular telephone. If not, keep the Audio Mute lead free of any connections. Fuse holder Fuse resistor Fuse resistor Blue To system control terminal of the power amp or Auto-antenna relay control terminal. (Max. 300 mA 12 V DC) White/red White/orange See the section “DFS Alarm Installation”. White label (MID/FRONT OUTPUT) Green label (HIGH/REAR OUTPUT) Black label (LOW/SUBWOOFER OUTPUT) IP-BUS cable This Product Small inverter unit Connecting cords with RCA pin plugs (sold separately) Left speaker Use this for connections when you have the separately available amplifier. Blue PRO: Middle STD: Front Blue Blue Right speaker PRO: High STD: Rear PRO: Low STD: Subwoofer Left speaker PRO: Middle STD: Front Right speaker PRO: High STD: Rear PRO: When connecting to the speaker leads, do not connect the RCA outputs. When connecting to the RCA outputs, do not connect the speaker leads. Switch the PRO/STD Switch PRO or STD. (Refer to “The PRO/STD Switch”.) - Connection Diagram www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 75 KEH-P9700R,P9750 Basic Operation Switching Power ON/OFF • Select the desired source (such as the tuner). - Head Unit Each press of the SOURCE/OFF button selects the desired source in the following order: CD player (one disc only) → Tuner → Tape → Multi-CD player→ AUX To switch the sources OFF, hold down the SOURCE/OFF button for 1 second or more. - Remote Controller Each press of the button selects the desired source in the following order: TUNER button : Tuner → OFF TAPE button : Tape → AUX → OFF CD button : CD player (one disc only) → Multi-CD player→ OFF Note: • In the following cases, the sound source will not change: * When a product is not connected to this unit. * When no tape is set in this product. * When no magazine is loaded in the Multi-CD player. * When the AUX (external input) is set to OFF. Key Finder Head Unit Remote Controller Buttons 1—6 +/– button DSP button [/] button BAND button FUNCTION button TUNER button TAPE button PGM button ATT button ANGLE button CD button DISPLAY button L/M button BSM button +/– button S/A button PGM button 2/3 button CLOCK button 5/∞ button SOURCE/OFF button OPEN/EJECT button DISPLAY button www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 76 KEH-P9700R,P9750 4. Raise or lower the volume. 5. Turn the source OFF. Entering the Function Menu In this menu you can select tuner functions. • Select the desired mode in the Function Menu. Each press of the FUNCTION button selects the mode in the following order: BSM → Local To cancel the Function Menu, press the BAND button. Note: • After entering the Function Menu, if you do not perform an operation within about 30 seconds, the Function Menu is automatically canceled. Each press changes the Mode ... Hold for 1 second Tuner Operation Reset the AM tuning step from 9 kHz (the factory preset step) to 10 kHz when using the tuner in North, Central or South America. Basic Operation of Tuner 1. Select Tuner. 2. Select the desired band. 3. Tune the receiver to a higher or lower frequency. This product’s tuner lets you select the tuning by changing the length of the time you press the button. Manual Tuning (step by step) 0.3 seconds or less Seek Tuning (automatically) 0.3–2 seconds Manual Tuning (continuously) 2 seconds or more Note: • “STEREO ” indicator lights when a stereo station is selected. • To select a weak broadcasting station that cannot be tuned in with the Seek Tuning function, tune in with Manual Tuning. “STEREO ” FM1 → FM2 → FM3 → AM Each press changes the Source ... www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 77 KEH-P9700R,P9750 Preset Tuning Up to 18 FM stations (6 in FM1, FM2 and FM3) and 6 AM stations can be stored in memory. Store the stations in memory under buttons 1–6 beforehand with the BSM (Best Stations Memory) or Preset Memory function. BSM (Best Stations Memory) The BSM function stores stations in memory automatically. • Switch the BSM mode ON. The stations with the strongest signals will be stored under buttons 1–6 and in order of their signal strength. • To cancel the process, press the BSM button before memorization is complete. Note: • You can also switch the BSM function ON/OFF in the Function Menu. Hold for 2 seconds Tuner Operation Local Seek Tuning This mode selects only stations with especially strong signals. 1. Select the Local mode (Local) in the Function Menu. 2. Switch the Local mode ON or OFF. 3. Select the desired Local Seek sensitivity. FM : Local 1 ↔ Local 2 ↔ Local 3 ↔ Local 4 AM : Local 1 ↔ Local 2 Note: • The “Local 4” setting allows reception of only the strongest stations, while lower settings let you receive progressively weaker stations. To cancel the Function Menu, press the BAND button. “LOC” www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 78 KEH-P9700R,P9750 Using CD Player (one disc only) This product can control a CD player (one disc only). Basic Operation of CD Player 1. Select the CD player source. Note: • The CD player is selected only when a CD is loaded. • If the CD player cannot operate properly, an error message such as “ERROR- 14” is displayed. Refer to the CD player owner’s manual. 2. Select the desired track (or fast-forward/reverse, per the chart below). This product lets you select the track search function or fast- forward/reverse function by changing the length of the time you press the button. Track search 0.5 seconds or less Fast-forward/Reverse Continue pressing 3. Raise or lower the volume. 4. Turn the source OFF. Each press changes the Source ... Hold for 1 second Each press changes the Source ... Each press changes the Source ... Using the Cassette Player Basic Operation of Cassette Player 1. Open the front panel and insert the cassette tape. “METAL” appears on the display for a few seconds when a metal or chrome tape is inserted. Nothing is displayed for a normal tape. 2. Switch tape playback from side A to side B, or vice versa. 3. Raise or lower the volume. 4. Remove the cassette tape. Be sure to close the front panel by pressing the OPEN/EJECT button after removing the cassette tape. Note: • The Tape function can only be turned ON/OFF with the cassette tape remaining in this product. Hold for 2 seconds www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 79 KEH-P9700R,P9750 Music Group Playback Only discs in the same group are played. 1. Select the Music Group Playback mode (Music Group) in the Function Menu. 2. Select the desired Music Group. Note: • At first, the group of the disc playing is displayed. If the disc playing does not belong to a group, “NO GROUP” is displayed. 3. Switch music group playback ON or OFF. To cancel the Function Menu, press the BAND button. Note: • If there are no discs registered in the selected group, “MG EMPTY” is displayed. Deleting a Disc from a Music Group 1. Play the disc you want to delete from a group. 2. Select the Music Group Input mode (MG Input) in the Detailed Setting Menu. 3. Delete the disc from the group. To cancel the Detailed Setting Menu, press the BAND button. Note: • During music group playback, if you have deleted the disc currently playing from the group, the next disc in the group is played. If all discs in the same group have been deleted, “NO GROUP” is displayed. “Music G '” Using Multi-CD Players Music Group Play (for 50-Disc type only) The Music Group Play function classifies discs loaded in a 50-Disc type multi-CD player into 10 groups, and plays only discs from the same group. Up to 100 discs can be classified into groups. (Music Group, ITS program and Disc Title data for up to 100 discs can be stored in memory.) Note: • Music Group types are as follows: ROCK 1, ROCK 2, POP, JAZZ, INSTRMNT, CLASSIC, GROUP 1, GROUP 2, GROUP 3, GROUP 4 Classifying a Disc into a Group 1. Play the disc you want to classify into a group. 2. Select the Music Group Input mode (MG Input) in the Detailed Setting Menu. 3. Select the desired group. 4. Register the disc in the selected group. To cancel the Detailed Setting Menu, press the BAND button. Note: • Even if you remove a disc from a magazine after you have registered it in a group, its assigned group is stored in memory. This means that when you reinsert the disc in the magazine, there’s no need to reassign it to the group. • After assigning 100 discs to groups, data input for a new disc overwrites data for the disc that has been played least recently. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 80 KEH-P9700R,P9750 Entering the DSP Function Menu In this menu you can select DSP Functions. • Select the desired mode in the DSP Function Menu. - PRO mode Each press of the DSP button selects the mode in the following order: Auto-equalizer mode (A.EQ Mode)* → Balance Adjustment mode (Balance) → Graphic Equalizer mode (EQ-Nuance) → 13-Band Graphic Equalizer Adjustment mode (EQ-Fine)** → Position Selector mode (Position) * If Auto-equalizing is not performed, you cannot switch to the Auto-equalizer mode. ** You can switch to the 13-Band Graphic Equalizer Adjustment mode only when selecting a user curve in the Graphic Equalizer mode. To cancel the DSP Function Menu, press the BAND button. Note: • After entering the DSP Function Menu, if you do not perform an operation within about 30 seconds, the DSP Function Menu is automatically canceled. - STD mode Each press of the DSP button selects the mode in the following order: Auto-equalizer mode (A.EQ Mode)* → Balance Adjustment mode (Fader) → Graphic Equalizer mode (EQ-Nuance) → 13-Band Graphic Equalizer Adjustment mode (EQ-Fine)** → Sound Field Control (SFC Mode) → Position Selector mode (Position) * If Auto-equalizing is not performed, you cannot switch to the Auto-equalizer mode. ** You can switch to the 13-Band Graphic Equalizer Adjustment mode only when selecting a user curve in the Graphic Equalizer mode. To cancel the DSP Function Menu, press the BAND button. Note: • After entering the DSP Function Menu, if you do not perform an operation within about 30 seconds, the DSP Function Menu is automatically canceled. Each press changes the Mode ... Using the Digital Signal Processor (DSP) Switching the Operation Mode • Set the PRO/STD switch to PRO or STD. Set the PRO/STD switch on the side of the unit to the desired Operation mode with a pen tip or other pointed instrument. After switching, reset the unit. Note: • If you press the RESET button, information in the unit’s Preset memory and other information is erased. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 81 KEH-P9700R,P9750 Position Selector Function One way to assure a more natural sound is to clearly position the stereo sound image (putting you in the center of the sound field). The Position Selector function adjusts delay time and volume level of sound from each speaker to match seat positions and the number of people in the car, and lets you recall settings at the touch of a button. The result is a natural sound regardless of the seat you are sitting in. Button Position ' Front seat ' Front and Rear seat [ Driver’s seat (steering located on the LEFT side) ] Driver’s seat (steering located on the RIGHT side) Note: • In the PRO mode, front and rear seats cannot be selected. About the Position Indicator This lets you confirm current Position setting without switching to the Position Selector mode. Front-Left Front-Right Front All Setting the Listening Position 1. Select the Position Selector mode (Position) in the DSP Function Menu. 2. Press one of buttons '/'/[/] to select the desired Position. (e.g. Press button [.) To cancel the listening position, press the same button again. Note: • In the PRO mode, pressing the ' button cancels the listening position. Using the Digital Signal Processor (DSP) Entering the DSP Detailed Setting Menu In this Menu, you can select functions enabling adjustment of settings to match conditions in your car, such as the Network mode and Automatic Sound Levelizer. • Enter the DSP Detailed Setting Menu. - PRO mode Each press of the DSP button selects the mode in the following order: Network mode (Low-NW) → Time Alignment mode (T.Alignment) → Loudness mode (Loudness) → Automatic Sound Levelizer mode (ASL) → Source Level Adjustment mode (SLA)* * When the source is an FM broadcast, you cannot switch to the Source Level Adjustment mode (SLA). To cancel the DSP Detailed Setting Menu, press the BAND button. Note: • After entering the DSP Detailed Setting Menu, if you do not perform an operation within about 30 seconds, the DSP Detailed Setting Menu is automatically canceled. - STD mode Each press of the DSP button selects the mode in the following order: Network mode (Sub-W-NW) → Loudness mode (Loudness) → Automatic Sound Levelizer mode (ASL) → Source Level Adjustment mode (SLA)* * When the source is an FM broadcast, you cannot switch to the Source Level Adjustment mode (SLA). To cancel the DSP Detailed Setting Menu, press the BAND button. Note: • After entering the DSP Detailed Setting Menu, if you do not perform an operation within about 30 seconds, the DSP Detailed Setting Menu is automatically canceled. Hold for 2 seconds www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com KEH-P9700R,P9750 DSP Equalizer (13 Band Graphic Equalizer) Frequency...............50, 80, 125, 200, 315, 500, 800, 1.25 k, 2 k, 3.15 k, 5 k, 8 k, 12.5 k (Hz) Level ............................................... ± 12 dB (2 dB) Auto Equalizer (STD Mode) (Front & Rear & Subwoofer 13 band graphic + Rear 2 band parametric) Frequency (Front & Rear & Subwoofer) ............................ 50, 80, 125, 200, 315, 500, 800, 1.25 k, 2 k, 3.15 k, 5 k, 8 k, 12.5 k (Hz) Frequency (Rear) ............ 100 Hz – 8 kHz (1/3 oct) Level ...................................... +6 — –12 dB (2 dB) Q Factor (Rear) .......................................... 1.2, 3.6 Auto Equalizer (PRO Mode) (13 band graphic) Frequency ............ 50, 80, 125, 200, 315, 500, 800, 1.25 k, 2 k, 3.15 k, 5 k, 8 k, 12.5 k (Hz) Level ...................................... +6 — –12 dB (2 dB) Network (STD Mode) Front/Rear HPF frequency: 50, 80, 125, 200 (Hz) Slope: 0, –6, –12 dB/oct Level: 0 — –24 dB (1 dB) Subwoofer (Mono) ............................ LPF frequency: 50, 63, 80, 100, 125, 160, 200 (Hz) Slope: –6, –12, –18 dB/oct Level: +6 — –24 dB (1 dB) Phase: Normal/Reverse Network (PRO Mode) High .. HPF frequency: 2 k, 2.5 k, 3.15 k, 4 k, 5 k, 6.3 k, 8 k, 10 k, 12.5 k (Hz) Slope: –6, –12, –18, –24 dB/oct Level: +6 — –24 dB (1 dB) Phase: Normal/Reverse Mid .... LPF frequency: 2 k, 2.5 k, 3.15 k, 4 k, 5 k, 6.3 k, 8 k, 10 k, 12.5 k (Hz) HPF frequency: 40, 50, 63, 80, 100, 125, 160, 200, 250 (Hz) Slope: 0, –6, –12, –18, –24 dB/oct Level: 0 — –24 dB (1 dB) Phase: Normal/Reverse Low (Stereo/Mono) ...................... LPF frequency: 40, 50, 63, 80, 100, 125, 160, 200, 250 (Hz) Slope: –12, –18, –24, –30, –36 dB/oct Level: +6 — –24 dB (1 dB) Phase: Normal/Reverse Time Alignment ....................... 0 — 400 cm (2 cm) 0 — 160 inch (0.5 inch) Note: • Specifications and the design are subject to possible modification without notice due to improvements. Specifications General Power source ...... 14.4 V DC (10.8 – 15.1 V allowable) Grounding system .................................... Negative type Max. current consumption......................................... 10 A Dimensions (DIN) (chassis) ....178 (W) × 50 (H) × 155 (D) mm (nose) ....... 188 (W) × 58 (H) × 20 (D) mm (D) (chassis) ... 178 (W) × 50 (H) × 160 (D) mm (nose) ......... 170 (W) × 46 (H) × 15 (D) mm Weight ..................................................................... 1.8 kg Amplifier (KEH-P9700R/EW) Maximum power output .................................... 40 W × 4 Continuous power ourput ................................. 25 W × 4 (DΙΝ45324, +Β =14.4 V) Load impedance ....................... 4 Ω (4 – 8 Ω allowable) Preout output level/output impedance ..... 500 mV/1 kΩ Amplifier (KEH-P9750/ES) Continuous power output is 20 W per channel min. into 4 ohms, both channels driven 50 to 15,000 Hz with no more than 5% THD. Maximum power output ................................... 40 W × 4 Load impedance ........................ 4 Ω (4 – 8 Ω allowable) Preout output level/output impedance ...... 500 mV/1 kΩ Cassette player Tape .......................Compact cassette tape (C-30 – C-90) Tape speed .... 4.76 cm/sec.(+0.14cm/sec.,-0.05cm/sec.) Fast forward/rewinding time Approx. 100 sec. for C-60 Wow & flutter ........................................ 0.09% (WRMS) Frequency response........ Metal: 30 – 22,000 Hz (±3 dB) Stereo separation .................................................... 45 dB Signal-to-noise ratio .... Metal: Dolby B NR IN: 67 dB (IEC-A network) Dolby NR OUT: 61 dB (IEC-A network) FM tuner Frequency range .................................... 87.5 – 108 MHz Usable sensitivity ............... 11 dBf (1.0 µV/75 Ω, mono, S/N: 30 dB) 50 dB quieting sensitivity .. 16 dBf (1.7 µV/75 Ω, mono) Signal-to-noise ratio .................... 70 dB (IEC-A network) Distortion ........................ 0.3% (at 65 dBf, 1 kHz, stereo) Frequency response .................... 30 – 15,000 Hz (±3 dB) Stereo separation ...................... 40 dB (at 65 dBf, 1 kHz) AM tuner (KEH-P9750/ES) Frequency range ....................... 531 – 1,602 kHz (9 kHz) 530 – 1,710 kHz (10 kHz) Usable sensitivity ............................ 18 µV (S/N: 20 dB) Selectivity ................................................ 50 dB (±9 kHz) 50 dB (±10 kHz) MW tuner (KEH-P9700R/EW) Frequency range .................................... 531 – 1,602 kHz Usable sensitivity ............................ 18 µV (S/N: 20 dB) Selectivity ............................................... 50 dB (±9 kHz) LW tuner (KEH-P9700R/EW) Frequency range ....................................... 153 – 281 kHz Usable sensitivity ............................ 30 µV (S/N: 20 dB) Selectivity ............................ .................. 50 dB (±9 kHz) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
