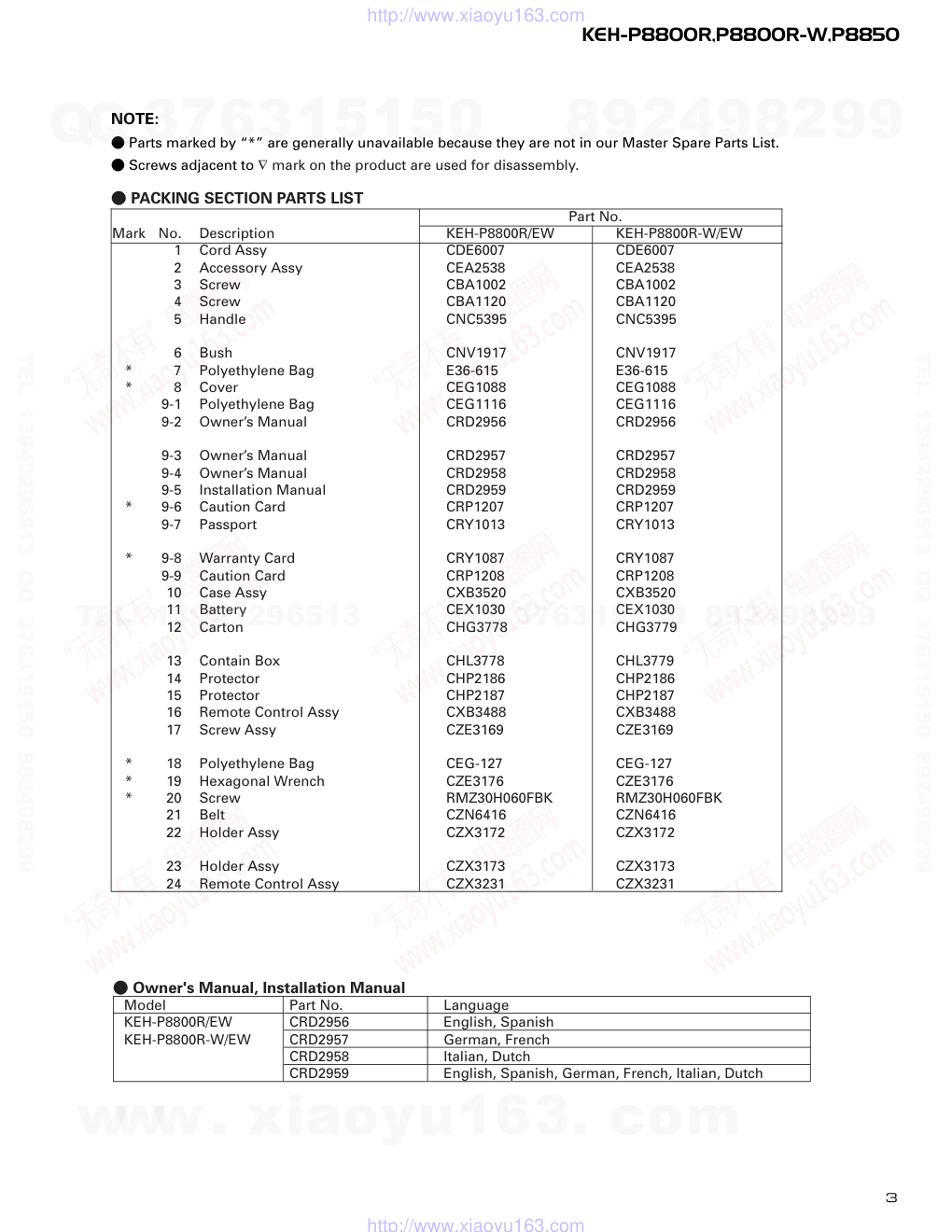

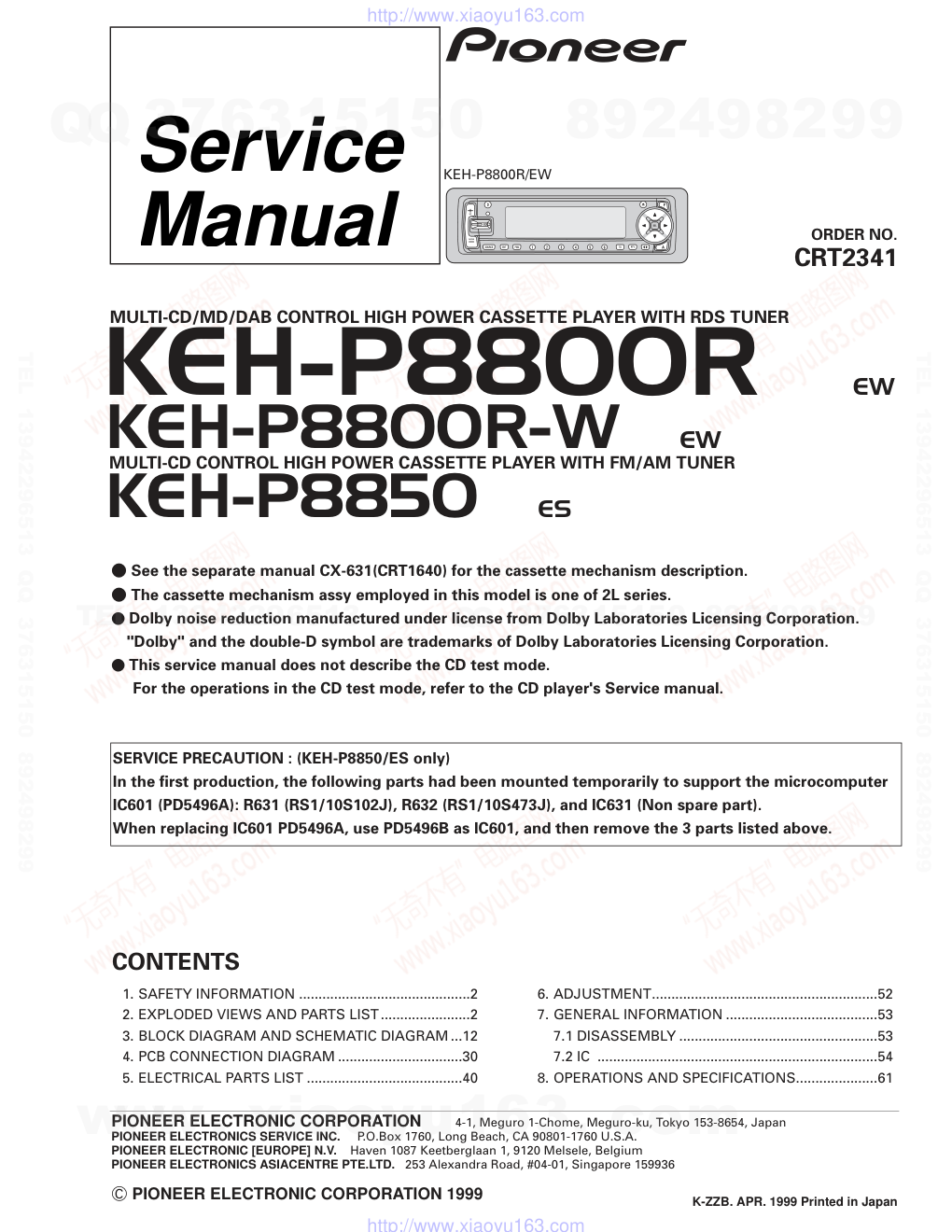

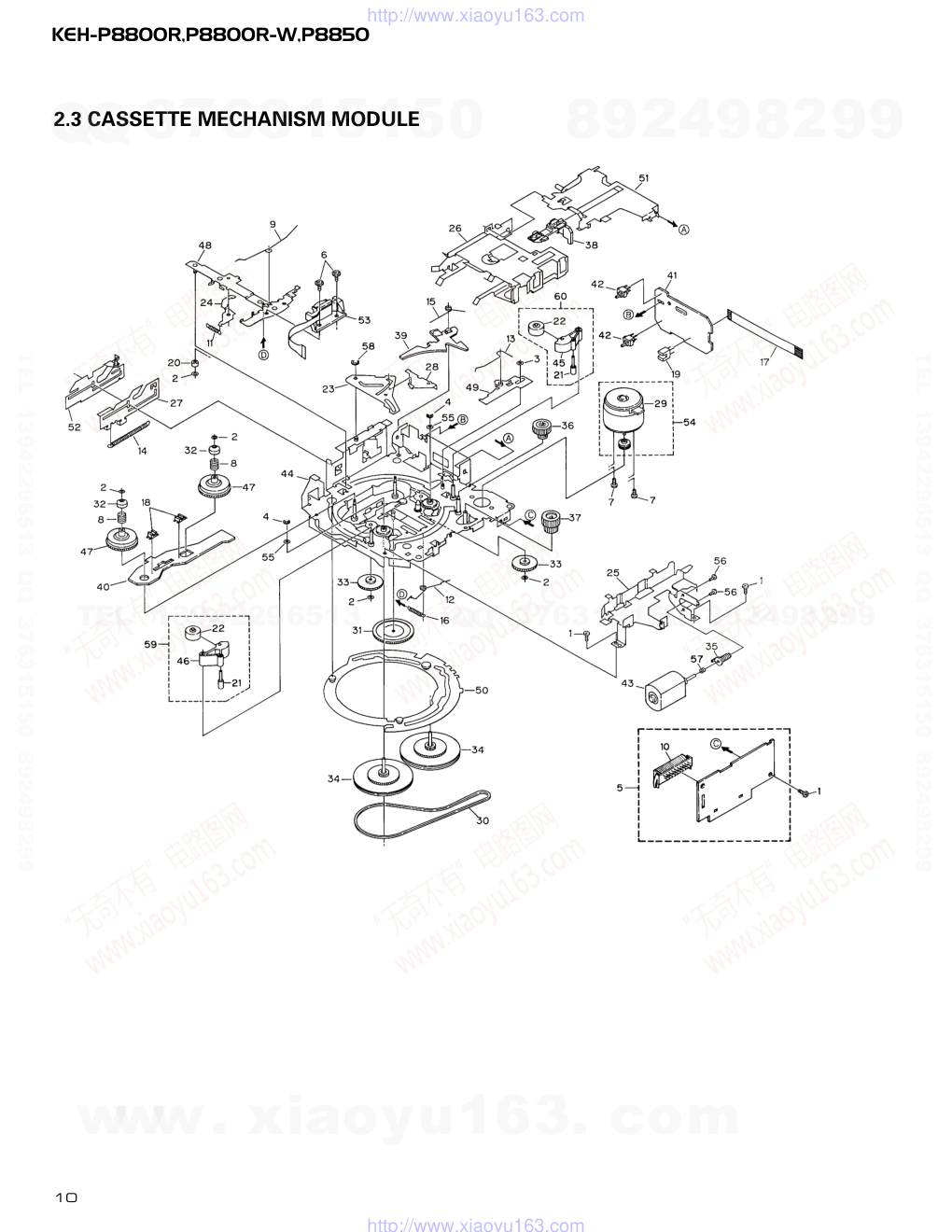

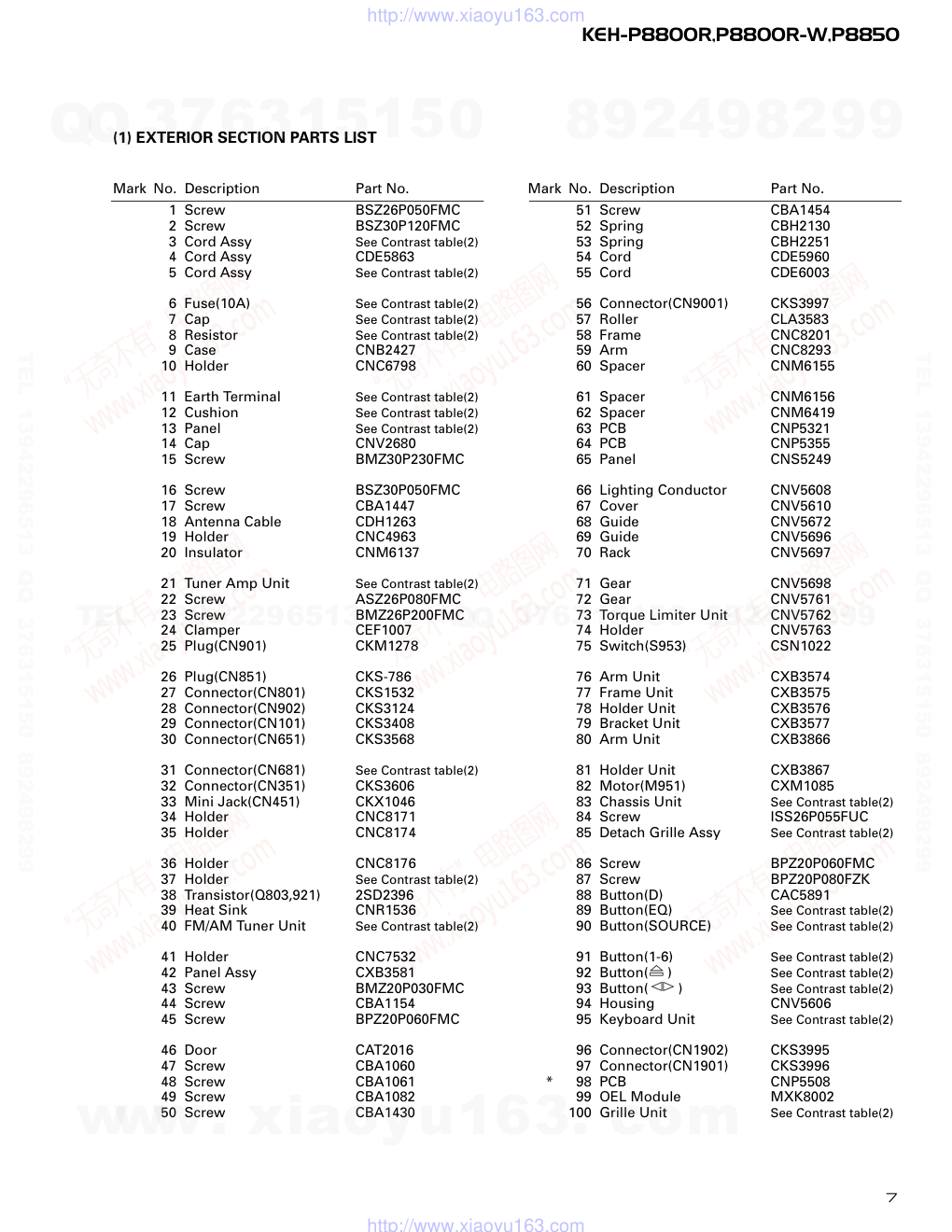

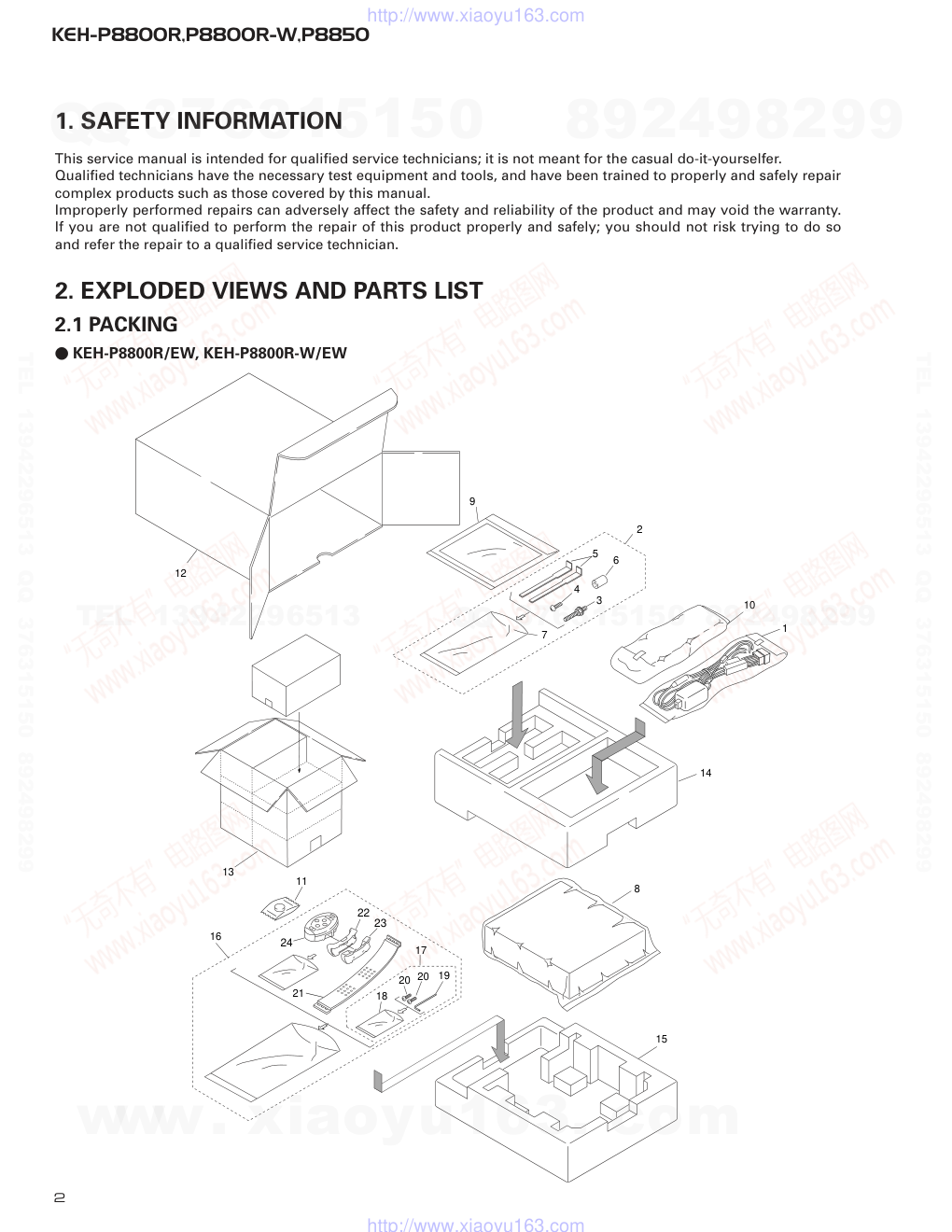

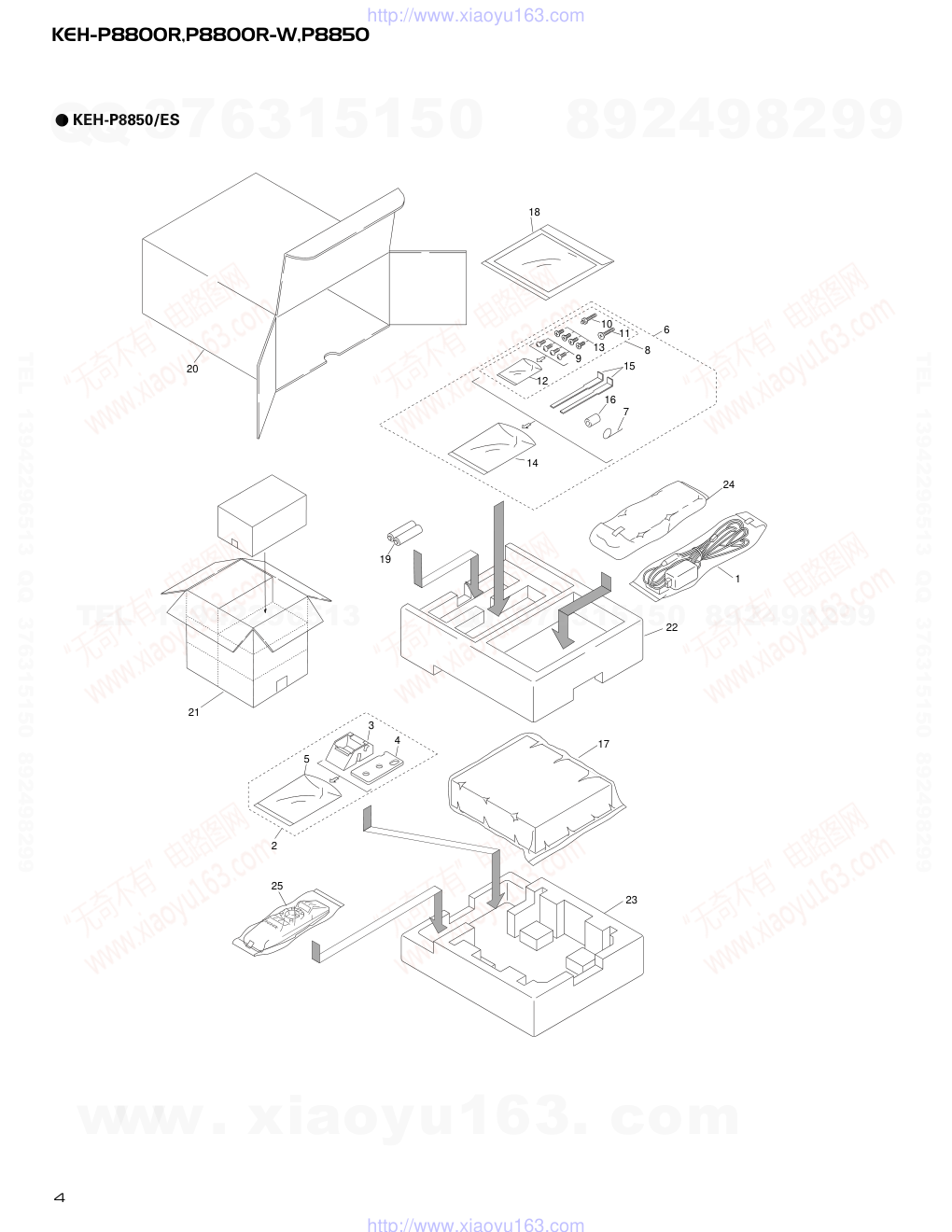

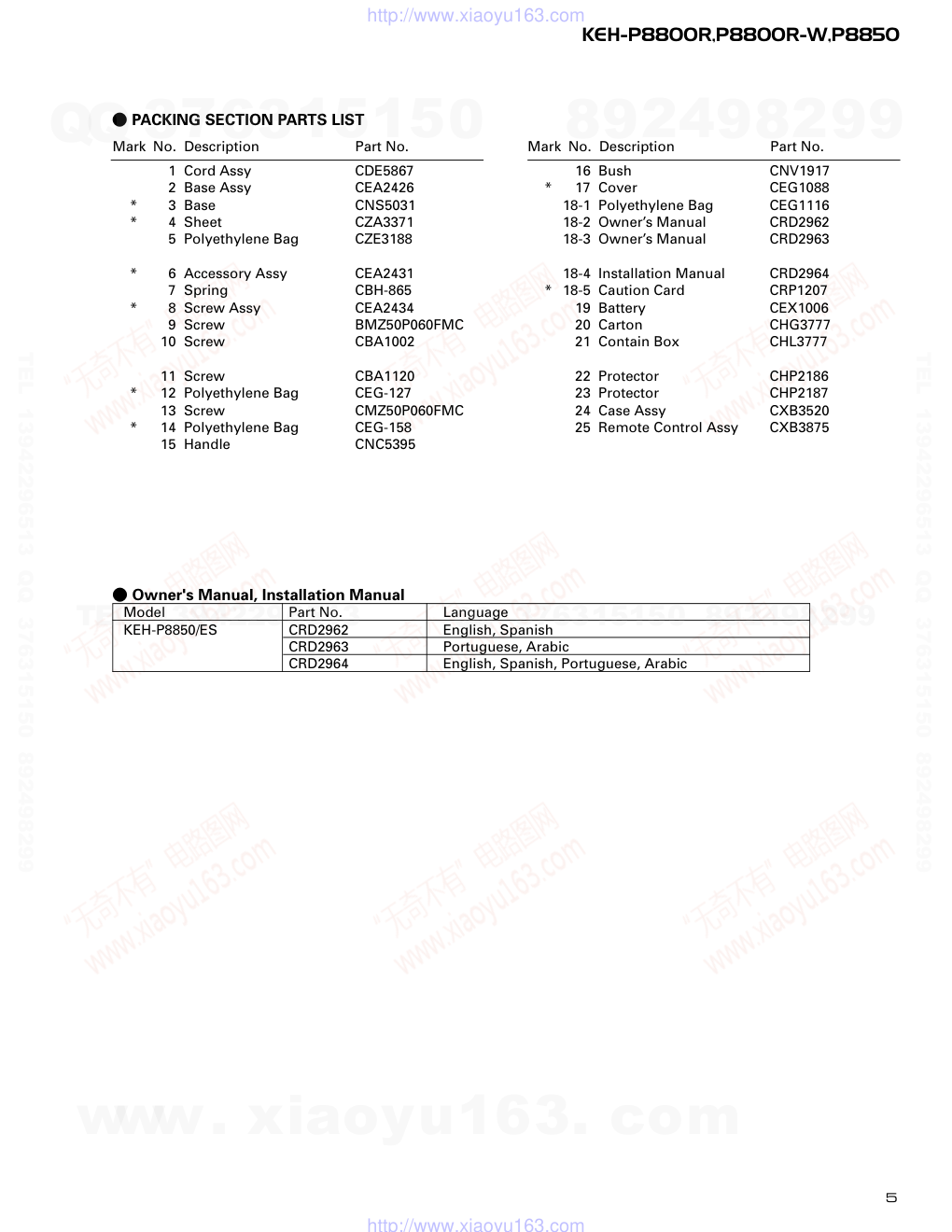

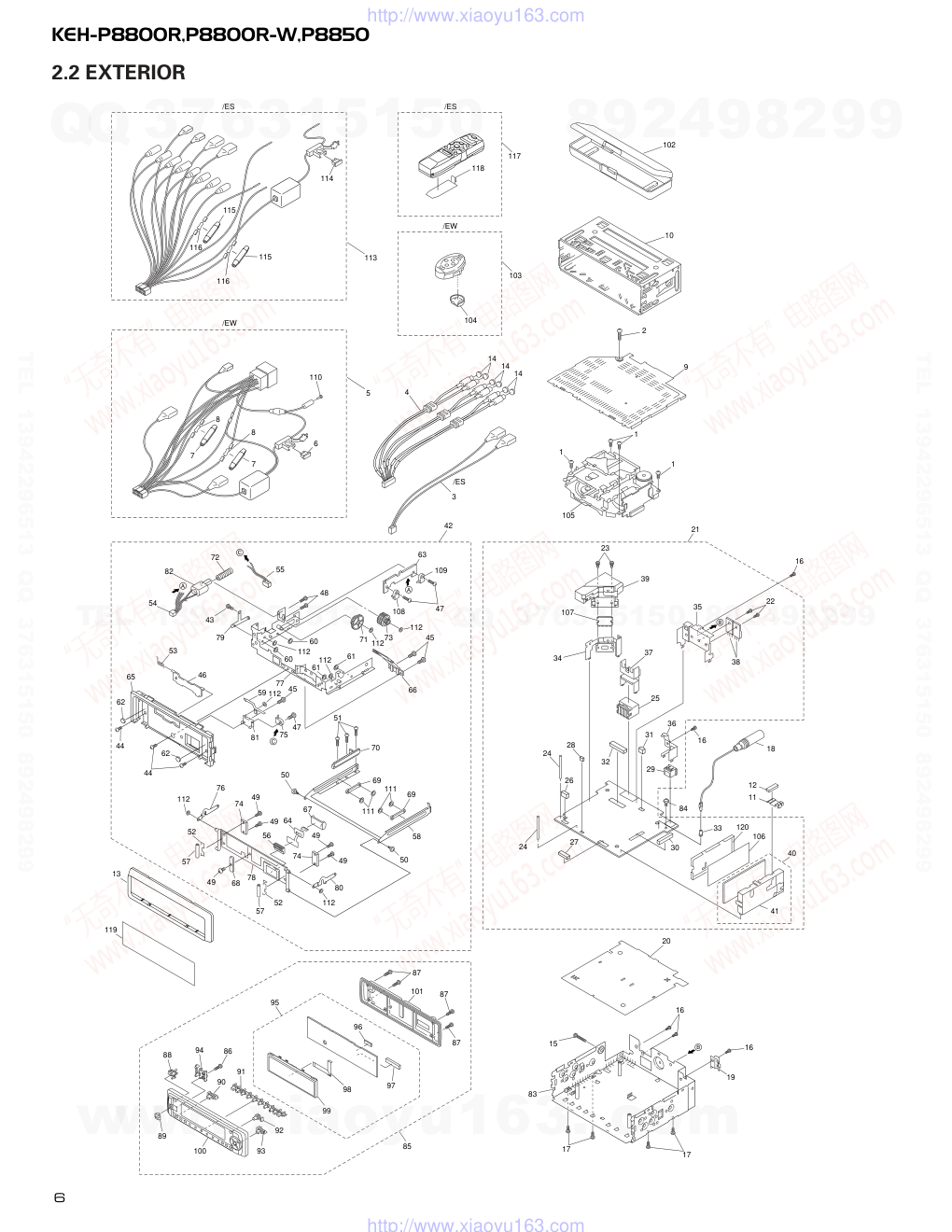

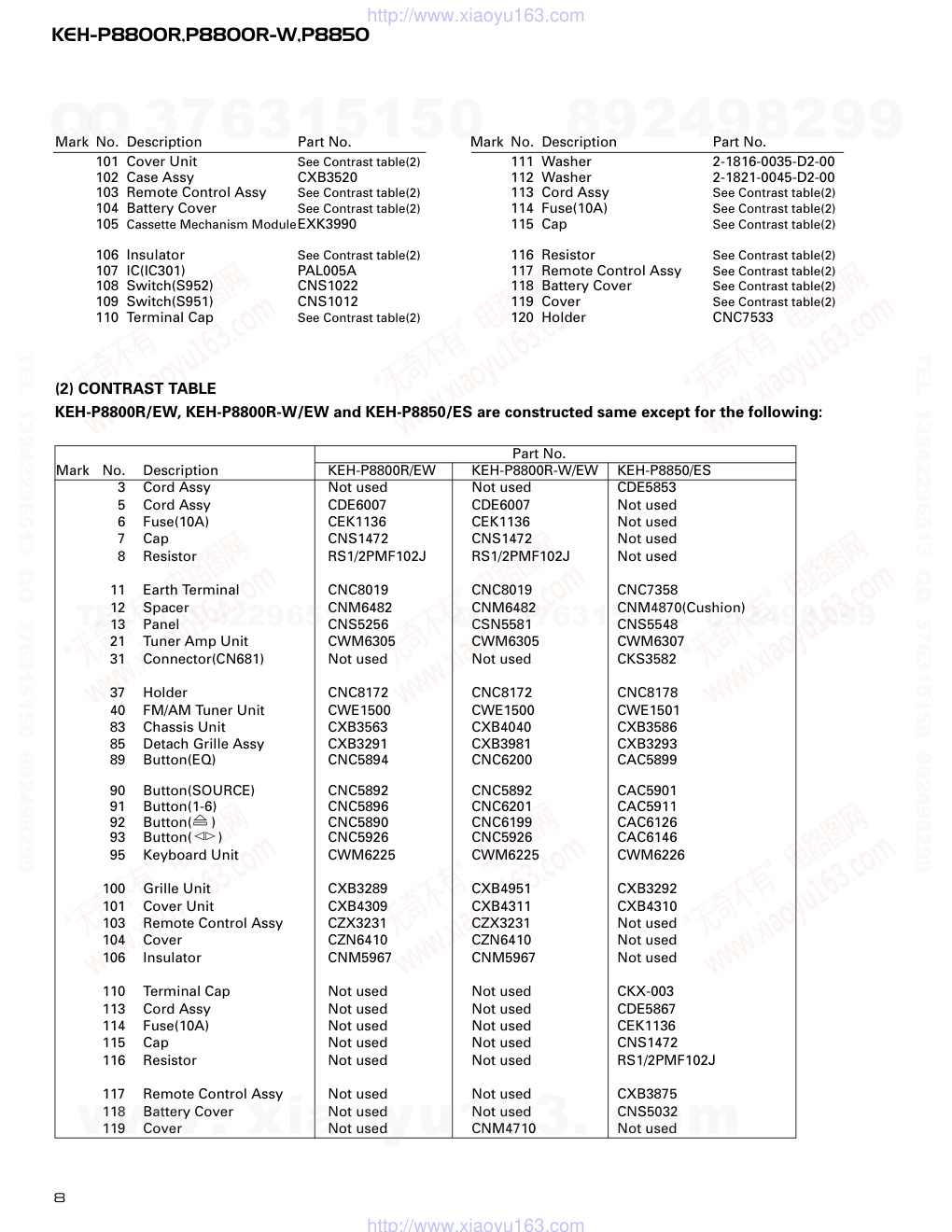

PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS SERVICE INC. P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A. PIONEER ELECTRONIC [EUROPE] N.V. Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #04-01, Singapore 159936 C PIONEER ELECTRONIC CORPORATION 1999 K-ZZB. APR. 1999 Printed in Japan ORDER NO. CRT2341 MULTI-CD/MD/DAB CONTROL HIGH POWER CASSETTE PLAYER WITH RDS TUNER KEH-P8800R�EW Service Manual CONTENTS 1. SAFETY INFORMATION ............................................2 2. EXPLODED VIEWS AND PARTS LIST.......................2 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM ...12 4. PCB CONNECTION DIAGRAM ................................30 5. ELECTRICAL PARTS LIST ........................................40 6. ADJUSTMENT..........................................................52 7. GENERAL INFORMATION .......................................53 7.1 DISASSEMBLY ...................................................53 7.2 IC ........................................................................54 8. OPERATIONS AND SPECIFICATIONS.....................61 - See the separate manual CX-631(CRT1640) for the cassette mechanism description. - The cassette mechanism assy employed in this model is one of 2L series. - Dolby noise reduction manufactured under license from Dolby Laboratories Licensing Corporation. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation. - This service manual does not describe the CD test mode. For the operations in the CD test mode, refer to the CD player's Service manual. KEH-P8800R/EW KEH-P8850�ES MULTI-CD CONTROL HIGH POWER CASSETTE PLAYER WITH FM/AM TUNER KEH-P8800R-W�EW SERVICE PRECAUTION : (KEH-P8850/ES only) In the first production, the following parts had been mounted temporarily to support the microcomputer IC601 (PD5496A): R631 (RS1/10S102J), R632 (RS1/10S473J), and IC631 (Non spare part). When replacing IC601 PD5496A, use PD5496B as IC601, and then remove the 3 parts listed above. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 KEH-P8800R,P8800R-W,P8850 1. SAFETY INFORMATION This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely; you should not risk trying to do so and refer the repair to a qualified service technician. 2. EXPLODED VIEWS AND PARTS LIST 2.1 PACKING - KEH-P8800R/EW, KEH-P8800R-W/EW 9 6 2 3 4 7 14 8 15 5 10 12 11 1 13 16 21 20 20 17 18 19 24 22 23 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com KEH-P8800R,P8800R-W,P8850 3 NOTE: - Parts marked by “*” are generally unavailable because they are not in our Master Spare Parts List. - Screws adjacent to ∇ mark on the product are used for disassembly. - Owner's Manual, Installation Manual Model Part No. Language KEH-P8800R/EW CRD2956 English, Spanish KEH-P8800R-W/EW CRD2957 German, French CRD2958 Italian, Dutch CRD2959 English, Spanish, German, French, Italian, Dutch - PACKING SECTION PARTS LIST Part No. Mark No. Description KEH-P8800R/EW KEH-P8800R-W/EW 1 Cord Assy CDE6007 CDE6007 2 Accessory Assy CEA2538 CEA2538 3 Screw CBA1002 CBA1002 4 Screw CBA1120 CBA1120 5 Handle CNC5395 CNC5395 6 Bush CNV1917 CNV1917 * 7 Polyethylene Bag E36-615 E36-615 * 8 Cover CEG1088 CEG1088 9-1 Polyethylene Bag CEG1116 CEG1116 9-2 Owner’s Manual CRD2956 CRD2956 9-3 Owner’s Manual CRD2957 CRD2957 9-4 Owner’s Manual CRD2958 CRD2958 9-5 Installation Manual CRD2959 CRD2959 * 9-6 Caution Card CRP1207 CRP1207 9-7 Passport CRY1013 CRY1013 * 9-8 Warranty Card CRY1087 CRY1087 9-9 Caution Card CRP1208 CRP1208 10 Case Assy CXB3520 CXB3520 11 Battery CEX1030 CEX1030 12 Carton CHG3778 CHG3779 13 Contain Box CHL3778 CHL3779 14 Protector CHP2186 CHP2186 15 Protector CHP2187 CHP2187 16 Remote Control Assy CXB3488 CXB3488 17 Screw Assy CZE3169 CZE3169 * 18 Polyethylene Bag CEG-127 CEG-127 * 19 Hexagonal Wrench CZE3176 CZE3176 * 20 Screw RMZ30H060FBK RMZ30H060FBK 21 Belt CZN6416 CZN6416 22 Holder Assy CZX3172 CZX3172 23 Holder Assy CZX3173 CZX3173 24 Remote Control Assy CZX3231 CZX3231 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 KEH-P8800R,P8800R-W,P8850 - KEH-P8850/ES 16 7 6 8 24 14 22 17 23 21 19 20 15 11 10 13 18 2 5 3 4 25 9 12 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 KEH-P8800R,P8800R-W,P8850 1 Cord Assy CDE5867 2 Base Assy CEA2426 * 3 Base CNS5031 * 4 Sheet CZA3371 5 Polyethylene Bag CZE3188 * 6 Accessory Assy CEA2431 7 Spring CBH-865 * 8 Screw Assy CEA2434 9 Screw BMZ50P060FMC 10 Screw CBA1002 11 Screw CBA1120 * 12 Polyethylene Bag CEG-127 13 Screw CMZ50P060FMC * 14 Polyethylene Bag CEG-158 15 Handle CNC5395 16 Bush CNV1917 * 17 Cover CEG1088 18-1 Polyethylene Bag CEG1116 18-2 Owner’s Manual CRD2962 18-3 Owner’s Manual CRD2963 18-4 Installation Manual CRD2964 * 18-5 Caution Card CRP1207 19 Battery CEX1006 20 Carton CHG3777 21 Contain Box CHL3777 22 Protector CHP2186 23 Protector CHP2187 24 Case Assy CXB3520 25 Remote Control Assy CXB3875 Mark No. Description Part No. Mark No. Description Part No. - PACKING SECTION PARTS LIST - Owner's Manual, Installation Manual Model Part No. Language KEH-P8850/ES CRD2962 English, Spanish CRD2963 Portuguese, Arabic CRD2964 English, Spanish, Portuguese, Arabic www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 KEH-P8800R,P8800R-W,P8850 55 A A B B C C 10 102 2 9 1 105 1 1 14 14 14 4 42 48 72 82 54 43 79 53 46 59 75 47 81 45 76 74 78 49 49 56 64 67 50 51 49 49 62 62 70 69 58 50 80 74 57 52 68 49 57 13 88 94 86 90 89 100 93 92 99 98 97 87 85 87 101 20 16 19 16 17 17 15 83 87 96 95 91 52 69 65 44 44 77 60 60 61 61 66 45 73 108 109 63 47 71 103 104 3 27 24 28 24 21 38 35 39 107 34 37 25 23 16 22 32 31 16 29 84 33 30 41 40 106 18 12 11 36 26 117 118 5 113 114 115 115 116 116 110 /ES /ES /ES /EW /EW 6 8 8 7 7 111 111 112 112 112 112 112 112 112 119 120 2.2 EXTERIOR www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 KEH-P8800R,P8800R-W,P8850 1 Screw BSZ26P050FMC 2 Screw BSZ30P120FMC 3 Cord Assy See Contrast table(2) 4 Cord Assy CDE5863 5 Cord Assy See Contrast table(2) 6 Fuse(10A) See Contrast table(2) 7 Cap See Contrast table(2) 8 Resistor See Contrast table(2) 9 Case CNB2427 10 Holder CNC6798 11 Earth Terminal See Contrast table(2) 12 Cushion See Contrast table(2) 13 Panel See Contrast table(2) 14 Cap CNV2680 15 Screw BMZ30P230FMC 16 Screw BSZ30P050FMC 17 Screw CBA1447 18 Antenna Cable CDH1263 19 Holder CNC4963 20 Insulator CNM6137 21 Tuner Amp Unit See Contrast table(2) 22 Screw ASZ26P080FMC 23 Screw BMZ26P200FMC 24 Clamper CEF1007 25 Plug(CN901) CKM1278 26 Plug(CN851) CKS-786 27 Connector(CN801) CKS1532 28 Connector(CN902) CKS3124 29 Connector(CN101) CKS3408 30 Connector(CN651) CKS3568 31 Connector(CN681) See Contrast table(2) 32 Connector(CN351) CKS3606 33 Mini Jack(CN451) CKX1046 34 Holder CNC8171 35 Holder CNC8174 36 Holder CNC8176 37 Holder See Contrast table(2) 38 Transistor(Q803,921) 2SD2396 39 Heat Sink CNR1536 40 FM/AM Tuner Unit See Contrast table(2) 41 Holder CNC7532 42 Panel Assy CXB3581 43 Screw BMZ20P030FMC 44 Screw CBA1154 45 Screw BPZ20P060FMC 46 Door CAT2016 47 Screw CBA1060 48 Screw CBA1061 49 Screw CBA1082 50 Screw CBA1430 51 Screw CBA1454 52 Spring CBH2130 53 Spring CBH2251 54 Cord CDE5960 55 Cord CDE6003 56 Connector(CN9001) CKS3997 57 Roller CLA3583 58 Frame CNC8201 59 Arm CNC8293 60 Spacer CNM6155 61 Spacer CNM6156 62 Spacer CNM6419 63 PCB CNP5321 64 PCB CNP5355 65 Panel CNS5249 66 Lighting Conductor CNV5608 67 Cover CNV5610 68 Guide CNV5672 69 Guide CNV5696 70 Rack CNV5697 71 Gear CNV5698 72 Gear CNV5761 73 Torque Limiter Unit CNV5762 74 Holder CNV5763 75 Switch(S953) CSN1022 76 Arm Unit CXB3574 77 Frame Unit CXB3575 78 Holder Unit CXB3576 79 Bracket Unit CXB3577 80 Arm Unit CXB3866 81 Holder Unit CXB3867 82 Motor(M951) CXM1085 83 Chassis Unit See Contrast table(2) 84 Screw ISS26P055FUC 85 Detach Grille Assy See Contrast table(2) 86 Screw BPZ20P060FMC 87 Screw BPZ20P080FZK 88 Button(D) CAC5891 89 Button(EQ) See Contrast table(2) 90 Button(SOURCE) See Contrast table(2) 91 Button(1-6) See Contrast table(2) 92 Button( ) See Contrast table(2) 93 Button( ) See Contrast table(2) 94 Housing CNV5606 95 Keyboard Unit See Contrast table(2) 96 Connector(CN1902) CKS3995 97 Connector(CN1901) CKS3996 * 98 PCB CNP5508 99 OEL Module MXK8002 100 Grille Unit See Contrast table(2) Mark No. Description Part No. Mark No. Description Part No. (1) EXTERIOR SECTION PARTS LIST www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 KEH-P8800R,P8800R-W,P8850 101 Cover Unit See Contrast table(2) 102 Case Assy CXB3520 103 Remote Control Assy See Contrast table(2) 104 Battery Cover See Contrast table(2) 105 Cassette Mechanism ModuleEXK3990 106 Insulator See Contrast table(2) 107 IC(IC301) PAL005A 108 Switch(S952) CNS1022 109 Switch(S951) CNS1012 110 Terminal Cap See Contrast table(2) 111 Washer 2-1816-0035-D2-00 112 Washer 2-1821-0045-D2-00 113 Cord Assy See Contrast table(2) 114 Fuse(10A) See Contrast table(2) 115 Cap See Contrast table(2) 116 Resistor See Contrast table(2) 117 Remote Control Assy See Contrast table(2) 118 Battery Cover See Contrast table(2) 119 Cover See Contrast table(2) 120 Holder CNC7533 Mark No. Description Part No. Mark No. Description Part No. (2) CONTRAST TABLE KEH-P8800R/EW, KEH-P8800R-W/EW and KEH-P8850/ES are constructed same except for the following: Part No. Mark No. Description KEH-P8800R/EW KEH-P8800R-W/EW KEH-P8850/ES 3 Cord Assy Not used Not used CDE5853 5 Cord Assy CDE6007 CDE6007 Not used 6 Fuse(10A) CEK1136 CEK1136 Not used 7 Cap CNS1472 CNS1472 Not used 8 Resistor RS1/2PMF102J RS1/2PMF102J Not used 11 Earth Terminal CNC8019 CNC8019 CNC7358 12 Spacer CNM6482 CNM6482 CNM4870(Cushion) 13 Panel CNS5256 CSN5581 CNS5548 21 Tuner Amp Unit CWM6305 CWM6305 CWM6307 31 Connector(CN681) Not used Not used CKS3582 37 Holder CNC8172 CNC8172 CNC8178 40 FM/AM Tuner Unit CWE1500 CWE1500 CWE1501 83 Chassis Unit CXB3563 CXB4040 CXB3586 85 Detach Grille Assy CXB3291 CXB3981 CXB3293 89 Button(EQ) CNC5894 CNC6200 CAC5899 90 Button(SOURCE) CNC5892 CNC5892 CAC5901 91 Button(1-6) CNC5896 CNC6201 CAC5911 92 Button( ) CNC5890 CNC6199 CAC6126 93 Button( ) CNC5926 CNC5926 CAC6146 95 Keyboard Unit CWM6225 CWM6225 CWM6226 100 Grille Unit CXB3289 CXB4951 CXB3292 101 Cover Unit CXB4309 CXB4311 CXB4310 103 Remote Control Assy CZX3231 CZX3231 Not used 104 Cover CZN6410 CZN6410 Not used 106 Insulator CNM5967 CNM5967 Not used 110 Terminal Cap Not used Not used CKX-003 113 Cord Assy Not used Not used CDE5867 114 Fuse(10A) Not used Not used CEK1136 115 Cap Not used Not used CNS1472 116 Resistor Not used Not used RS1/2PMF102J 117 Remote Control Assy Not used Not used CXB3875 118 Battery Cover Not used Not used CNS5032 119 Cover Not used CNM4710 Not used www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 KEH-P8800R,P8800R-W,P8850 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 KEH-P8800R,P8800R-W,P8850 2.3 CASSETTE MECHANISM MODULE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 KEH-P8800R,P8800R-W,P8850 1 Screw BSZ20P040FMC 2 Washer CBF1037 3 Washer CBF1038 4 Washer CBG1003 5 Deck Unit EWM1018 6 Screw EBA1028 7 Screw EBA1037 8 Spring EBH1531 9 Spring EBH1575 10 Plug(CN251) CKS3540 11 Spring EBH1515 12 Spring EBH1587 13 Spring EBH1517 14 Spring EBH1518 15 Spring EBH1519 16 Spring EBH1537 17 Cord EDD1020 18 Photo-interrupter(EGN2,3) EGN1006 19 Photo-interrupter(EGN1) EGN1005 20 Roller ENR1031 21 Shaft ELA1373 22 Pinch Roller ENV1518 23 Arm ENC1489 24 Arm ENC1397 25 Guide ENC1481 26 Holder ENC1417 27 Lever ENC1448 28 Arm ENC1488 29 Motor EXM1027 30 Belt ENT1027 31 Gear ENV1347 32 Collar ENV1508 33 Gear ENV1350 34 Flywheel ENV1500 35 Worm Gear ENV1439 36 Worm Wheel ENV1440 37 Gear ENR1037 38 Lever ENV1442 39 Arm ENV1525 40 Gathering PCB ENX1037 41 Gathering PCB ENX1042 42 Switch(S1,S2) ESG1004 43 Motor Unit(M2) EXA1485 44 Chassis Unit EXA1567 45 Pinch Holder ENV1485 46 Pinch Holder ENV1486 47 Reel Unit EXA1543 48 Head Base Unit EXA1457 49 Lever Unit EXA1438 50 Gear Unit EXA1545 51 Frame Unit EXA1458 52 Lever Unit EXA1439 53 Head Assy(HD1) EXA1506 54 Motor Unit(M1) EXA1490 55 Washer HBF-179 56 Screw BMZ20P022FMC 57 Spring EBH1545 58 Washer YE20FUC 59 Pinch Holder Unit EXA1529 60 Pinch Holder Unit EXA1528 Mark No. Description Part No. Mark No. Description Part No. - CASSETTE MECHANISM MODULE SECTION PARTS LIST www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 KEH-P8800R,P8800R-W,P8850 1 2 3 4 1 2 3 4 A KEH-P8800R,P8800R-W,P8850 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM 3.1 BLOCK DIAGRAM ANT1 TV ANT2 TV RF TV IC 3 BR9010FV AM 2ND IF 450kHz M ADDRESS DATA IC 1903 RS-140 REMOTE CONTROL SENSOR OPT IN SWVDD AVCC VDD REM KYDT DPDT KEY AND OEL MODULE CONTROLLER IC 1901 PD5471A ILMD ILB SWVDD 1 4 5 7 11 2 9 8 12 9 8 6 2 11 4 5 KEY MATRIX IC 1902 PD8051A SWVDD DATA ROM 25 4 97 14 1 5 B.U Q851 Q852 Q853 FLAP MOTOR CONTROL IC 851 BA6288FS 4 5 FIN FIN OUT1 OUT2 6 3 14 11 FLPOPN FLPCLS 5 2 1 4 3 2 1 CN851 CN851 FCLSSW SHELL FOPNSW BLUE RED WHITE S951 CLOSE S952 OPEN D SWITCH PCB M951 AUTOMATIC FLAP MOTOR ANT GND2 CN451 1 2 A TUNER AMP UNIT B FM/AM TUNER UNIT 27 28 FM FRONT END Q3 Q201 Q204 AM RF FM/AM 1ST IF 10.7MHz T51 Q51 CF51 CF52 CF53 MIXER.IF AMP DET IC 1 PML002A 38 39 42 44 46 63 32 19 46 6 21 18 LDET COMP 34 33 41 44 11 12 13 69 70 54 78 65 71 75 74 61 57 55 45 33 35 22 22 10 14 12 15 16 8 13 2 3 4 CF202 VCC VDD VCC VDD DI/DO CE2 CK CE1 SDBW SL FMSD PDIO NL1 NL2 EEPROM 5 6 4 3 IC 2 PM4008A FM MPX IP-BUS CONNECTOR 8 5 1 7 11 B.U ASENBO TX RX IPPW 1 8 2 5 6 IP-BUS DRIVER IC 101 CA0008AM BUS– BUS+ BUS+L BUS–L Q402 Q101 Q102 NL2 NL2 Q153 TMUTE Q151 RMUTE Q154 Q155 RDS DECODER IC 501 PM4009A 20 11 12 24 X501 3.648MHz Q501 VDD TMUTE FM/AM 82 19 81 95 NL FM/AM ldet tmute SK SD SL SDBW tunpce@ TUNPCE tunpck TUNPDO ASENBO TX RX1 IPPW IN3_L IN4+_L IN4–_L IN2_L IN1_L PEE 89 49 97 94 4 3 2 1 10 30 29 7 42 43 44 41 40 24 FLPPW RIMUTE stby metal LOAD FLPPW 26 79 63 53 55 FLPOPN 34 FLPCLS 37 fopnsw 38 fclssw 40 42 Q913 B.U VDD Q911 B.U BACKUP BACKUP GND RL– RL+ FL– FL+ B.REM ILL ACC ILL1 ACC1 MUTE DOOR SW TEL1 DOOR SW BZ641 ALARM BUZZER ELECTRICAL VOLUME/ SOURCE SELECTOR IC 203 PML004AF Q641 SYSTEM CONTROL IC 601(2/2) PD5495A PD5496A LEVEL L 92 3 74 73 23 TELIN 11 DRSYS 87 DRSENS 86 DRELAY XOUT XIN 76 DALMON 20 MUTE 27 DSENS 47 KYDT 36 DPDT 35 RESET 12 OEL PW 46 ILMPW 44 SWVDD 45 Frontout_L 10 PV in_L 2 Setout_L 1 Rearout_L 11 Preout_L 9 LEVEL DET. IC 231 NJM2068MD 1 POWER AMP IC 301 PAL005A 12 14 22 4 25 5 3 21 23 FL RL– RL+ FL– FL+ MUTE STBY B.REM FL B.U B.U DRELAY DRSENS DRSYS TELIN bsens asens isens Q681 Q951 Q931 Q932 Q682 Q683 /ES Q301 MUTE 7 11 16 14 18 9 IN1 RLI FLI FLO RLO SWLO IC 271 PA2028A HIGH OUT Q353 Q355 Q351 CN351 FRONT L CH REAR L CH SUB WOOFER L CH 5 6 9 10 1 2 C KEYBOARD UNIT CN1901 CN801 DSENS ILL, DUAL DRIVE EW ONLY ILB CN1902 OEL MODULE MXK8002 18 17 1-15 11 13 X1901 33 34 32 RST S1925 Q261 Q262 Q922 Q923 Q921 Q981 B.U B.U SYS+B SYSPW Q803 Q808 Q801 Q802 VDD B.U Q806 Q807 B.U B.U RESET IC 961 S–80735ANDZI VDD 1 2 Q962 LDET M M S953 HALF LOADING SWITCH shell B.U SYS+B FLPILM 43 Q805 B.U SYSPW 22 1 2 CN681 MOSEN1 DLSEN1 MOSENS 5 DLSENS 6 Q684 Q685 DFS Q1901–1906 ILM H:ORANGE L:PURE GREEN RL– RL+ FL– FL+ B.REM 9 11 10 12 4 1 2 3 5 8 7 POWER DRIVE IC 681 TPD1018F ALARM 6 TUN5V B.U 15V REG. IC 911 S-81250SGUP CN901 FUSE 10A 6 1 E DECK UNIT F PCB UNIT G REEL PCB AM RF AGC DI/DO 25 24 VST VCK VDT isens asens bsens SYSTEM CONTROL IC 601(1/2) PD5495A PD5496A PB HEAD FWD LCH REV LCH M2 SUB MOTOR M1 MAIN MOTOR 1 5 4 1 2 CN252 CN254 CN255 37 36 39 EQ AMP/DOLBY NR B CN251 IC 251 CXA2560Q 2 10 9 8 17 19 18 5 2 1 4 3 18 17 7 5 VR301 VCC Lch MUTE B.U STBY METAL MECHANISM DRIVER 4 3 9 20 19 8 11 4 3 9 20 19 8 11 LOAD 1 2 3 5 7 1 2 3 5 6 4 6 4 7 EGN1 MODE SENSE EGN3 REV END SENSE EGN2 FWD END SENSE S2 70µS S1 LOAD /EW RI MUTE MTL LOADSW 13 15 X601 10.000MHz IC 351 PA2020A ALARM SENSOR DOOR LOCK /ES RR + RR - FR + FR - FL + FL - RL + RL - ACC GND ANT ILL BACK UP /EW CN651 stby CN101 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 KEH-P8800R,P8800R-W,P8850 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com S951 CSN1022 S952 CSN1012 CLOSE OPEN M951 AUTOMATIC FLAP MOTOR CXM1085 S953 CSN1022 HALF LOADING SWITCH NC NC NC NC NC IC631 GND TEST NC VCC DO DI SK CS 4 3 2 1 5 6 7 8 GND7 VDT VCK ROMCS R631 1K DI1 R632 47K DO1 ROMCK ROMCS B FM/AM TUNER UNIT C KEYBOA UNIT D SWITCH PCB E DECK UNIT CN251 IP-BUS DRIVER IP-BUS TUNER RDS DECODER CASSETTE MOTOR DRIVE E-VO 1 2 3 4 5 6 7 8 9 10 11 FM(100%):-26dBs AM(30%):-26dBs FM(100%):-30dBs AM(30%):-30dBs (/EW) (/ES) } } TAPE:-9dBs IP-BUS:+2.2dBs FM(100%):-16.5dBs AM(30%):-27dBs FM(100%):-20.5dBs AM(30%):-31dBs (/EW) (/ES) } } IP-BUS:+2.2dBs TAPE:-9dBs 14 KEH-P8800R,P8800R-W,P8850 1 2 3 4 1 2 3 4 D C B A 3.2 OVERALL CONNECTION DIAGRAM(GUIDE PAGE) Note: When ordering service parts, be sure to refer to “EXPLODED VIEWS AND PARTS LIST” or “ELECTRICAL PARTS LIST”. A-a A-b A-a A-b A-b A-a Large size SCH diagram Guide page Detailed page A A-a D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com : The power supply is shown with the marked box. NC NC NC NC NC NC ALARM SENSOR DOOR LOCK A TUNER AMP UNIT OARD CN1901 RR + RR - FR + FR - FL + FL - RL + RL - ACC GND ANT ILL BACK UP 10A CEK1136 GND ILL B REMOTE ACC ALARM BACK UP MUTE RL- FL- RL+ FL+ RR- FR- RR+ FR+ DOOR SW /EW 1K(1/2W) 1K(1/2W) SWDVDD 5V OEL 9V SYSTEM CONTROL VOL LEVEL INDICATOR HIGH-OUT RESET BUZZER DFS SENSE VDD 5V SYS 8V TUN 5V POWER AMP PRE. OUT TUNER SIGNAL IP-BUS SIGNAL TAPE SIGNAL TAPE,TUNER,IP-BUS SIGNAL TAPE:-5.8dBs TAPE:+20.2dBs TAPE:+20.2dBs 15 KEH-P8800R,P8800R-W,P8850 5 6 7 8 5 6 7 8 D C B A A-b A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com NC NC IC631 GND TEST NC VCC DO DI SK CS 4 3 2 1 5 6 7 8 GND7 VDT VCK ROMCS R631 1K DI1 R632 47K DO1 ROMCK ROMCS B FM/AM TUNER UNIT IP-BUS DRIVER IP-BUS TUNER E-VOL 1 2 3 4 5 6 7 8 9 10 11 FM(100%):-26dBs AM(30%):-26dBs FM(100%):-30dBs AM(30%):-30dBs (/EW) (/ES) } } TAPE:-9dBs IP-BUS:+2.2dBs FM(100%):-16.5dBs AM(30%):-27dBs FM(100%):-20.5dBs AM(30%):-31dBs (/EW) (/ES) } } IP-BUS:+2.2dBs TAPE 16 KEH-P8800R,P8800R-W,P8850 1 2 3 4 1 2 3 4 D C B A A-a A-a A-b 1 2 3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 KEH-P8800R,P8800R-W,P8850 5 6 7 8 5 6 7 8 D C B A S951 CSN1022 S952 CSN1012 CLOSE OPEN M951 AUTOMATIC FLAP MOTOR CXM1085 S953 CSN1022 HALF LOADING SWITCH NC NC NC NC NC C KEYBOARD UNIT D SWITCH PCB CN1901 E DECK UNIT CN251 RDS DECODER CASSETTE MOTOR DRIVE SYSTEM CONT TAPE:-9dBs A-a A-a A-b D 4 5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 1 2 3 4 1 2 3 4 D C B A A-a A-b A-b KEH-P8800R,P8800R-W,P8850 A TUNER AMP UNIT LEVEL INDICATOR HIGH-OUT RESET POWER AMP PRE. OUT TUNER SIGNAL IP-BUS SIGNAL TAPE SIGNAL TAPE,TUNER,IP-BUS SIGNAL TAPE:-5.8dBs TAPE:+20.2dBs 1 2 3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 KEH-P8800R,P8800R-W,P8850 5 6 7 8 5 6 7 8 D C B A A-b A-a A-b : The power supply is shown with the marked box. NC NC NC NC NC NC ALARM SENSOR DOOR LOCK D 1901 RR + RR - FR + FR - FL + FL - RL + RL - ACC GND ANT ILL BACK UP 10A CEK1136 GND ILL B REMOTE ACC ALARM BACK UP MUTE RL- FL- RL+ FL+ RR- FR- RR+ FR+ DOOR SW /EW 1K(1/2W) 1K(1/2W) SWDVDD 5V OEL 9V TEM CONTROL BUZZER DFS SENSE VDD 5V SYS 8V TUN 5V TAPE:+20.2dBs TAPE:+20.2dBs 4 5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Voltage of IC Terminals KV1410(23) KV1410(23) Mark None F0 F65 F125 A0 A74 A125 Band – FM FM FM AM AM AM Input Level – 0dBf 65dBf 125dBf 0dBµ 74dBµ 125dBµ 20 KEH-P8800R,P8800R-W,P8850 1 2 3 4 1 2 3 4 D C B A B 3.3 FM/AM TUNER UNIT - KEH-P8800R/EW, KEH-P8800R-W/EW B A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 KEH-P8800R,P8800R-W,P8850 5 6 7 8 5 6 7 8 D C B A B KV1410(23) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 22 KEH-P8800R,P8800R-W,P8850 1 2 3 4 1 2 3 4 D C B A - KEH-P8850/ES KV1410(23) Voltage of IC Terminals Mark None F0 F65 F125 A0 A74 A125 Band – FM FM FM AM AM AM Input Level – 0dBf 65dBf 125dBf 0dBµ 74dBµ 125dBµ B A B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 23 KEH-P8800R,P8800R-W,P8850 5 6 7 8 5 6 7 8 D C B A KV1410(23) B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com S1901,1902:CSG1113 S1903,1904:CSG1111 S1905-1924:CSG1113 S1925:CSG1111 DISP VOL+ EQ+ EQ- VOL- SOURCE ENT PGM 1 2 3 5 4 6 TA PTY BAND AUDIO FUNC EJECT RESET A CN801 24 KEH-P8800R,P8800R-W,P8850 1 2 3 4 1 2 3 4 D C B A C 3.4 KEYBOARD UNIT - KEH-P8800R/EW www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 25 KEH-P8800R,P8800R-W,P8850 5 6 7 8 5 6 7 8 D C B A C C KEYBOARD UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com S1901,1902:CSG1112 S1903,1904:CSG1111 S1905-1924:CSG1112 S1925:CSG1111 DISP VOL+ EQ+ EQ- VOL- SOURCE ENT PGM 1 2 3 5 4 6 LOUD CLOCK BAND AUDIO FUNC EJECT RESET 26 KEH-P8800R,P8800R-W,P8850 1 2 3 4 1 2 3 4 D C B A - KEH-P8850/ES C A CN801 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 27 KEH-P8800R,P8800R-W,P8850 5 6 7 8 5 6 7 8 D C B A C C KEYBOARD UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 28 KEH-P8800R,P8800R-W,P8850 1 2 3 4 1 2 3 4 D C B A 3.5 DECK UNIT DECK UNIT MUTE CXA2560Q 11 12 13 14 15 16 17 18 19 20 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21 1 2 3 4 5 6 7 8 9 10 R256 220 R287 0R0 C273 22/16 R283 0R0 R284 0R0 R282 0R0 C253 330P C254 330P C252 330P C251 330P R281 0R0 R255 220 C256 R01 R258 1K VR302 CCP1280 33K(B) R301 18K C310 R1 R273 1K R274 1K R271 1K R272 1K R290 0R0 C403 R068 R403 82K C402 4700P C401 R33 R402 16K R401 4R7K R323 0R0 R257 1K C255 R01 C272 R1 VR301 33K(B) CCP1280 C309 R1 C313 100P R386 0R0 R285 0R0 HD1 HEAD ASSY EXA1506 TEST TAPE NCT-150 (400Hz, 200nWb/m) RL RR FR FL Signal GND C302 R1 C302 R1 C301 R1 R322 1K -6dBs(388mV)±1dB Fwd-R Fwd-L Rev-R Rev-L E CN651 A E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 29 KEH-P8800R,P8800R-W,P8850 5 6 7 8 5 6 7 8 D C B A PCB UNIT REEL PCB SWITCHES: PCB UNIT S1:LOAD SWITCH..........EJECT-PLAY S2:70µs SWITCH............ON-OFF The underlined indicates the switch position. 0R0 R068 82K R402 16K R401 4R7K R351 1K R352 1K R353 1K R354 1K R373 0R0 R375 0R0 R355 270K C352 3900P R362 180 C351 R22 C353 R01 C354 R01 R374 0R0 C356 R01 C355 R1 D352 1SS355 M1 MOTOR UNIT (MAIN MOTOR) EXA1490 S1 LOAD ESG1004 S2 ESG1004 70µs MODE SENSE EGN1 EGN1005 EGN2 EGN1006 FWD END SENSE EGN3 EGN1006 REV END SENSE M2 MOTOR UNIT (SUB MOTOR) EXA1485 Power GND F G F E G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 30 KEH-P8800R,P8800R-W,P8850 1 2 3 4 1 2 3 4 D C B A 4. PCB CONNECTION DIAGRAM 4.1 TUNER AMP UNIT NOTE FOR PCB DIAGRAMS 1. The parts mounted on this PCB include all necessary parts for several destination. For further information for respective destinations, be sure to check with the schematic dia- gram. 2. Viewpoint of PCB diagrams A A Capacitor Connector P.C.Board Chip Part SIDE A SIDE B TUNER AMP UNIT CORD ASSY M951 D S953 PRE OUT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 31 KEH-P8800R,P8800R-W,P8850 5 6 7 8 5 6 7 8 D C B A A SIDE A B CN1901 C CORD ASSY IP-BUS E CN251 ANTENNA www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 32 KEH-P8800R,P8800R-W,P8850 1 2 3 4 1 2 3 4 D C B A A A TUNER AMP UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 33 KEH-P8800R,P8800R-W,P8850 5 6 7 8 5 6 7 8 D C B A A SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 34 KEH-P8800R,P8800R-W,P8850 1 2 3 4 1 2 3 4 D C B A 4.2 FM/AM TUNER UNIT B B SIDE A FM/AM TUNER UNIT A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 35 KEH-P8800R,P8800R-W,P8850 1 2 3 4 1 2 3 4 D C B A B B SIDE B FM/AM TUNER UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 36 KEH-P8800R,P8800R-W,P8850 1 2 3 4 1 2 3 4 D C B A 4.3 KEYBOARD UNIT VOL+ DISP RESET EQ+ EQ- VOL- SOURCE ENT PGM 1 2 3 4 5 6 TA PTY EJECT FUNC BAND AUDIO C KEYBOARD UNIT C KEYBOARD UNIT SIDE A SIDE B CN801 A OEL MODULE C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 37 KEH-P8800R,P8800R-W,P8850 1 2 3 4 1 2 3 4 D C B A 4.4 SWITCH PCB BLUE RED WHITE CN851 A D D SWITCH PCB www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SIDE B 38 KEH-P8800R,P8800R-W,P8850 1 2 3 4 1 2 3 4 D C B A E E SIDE A DECK UNIT 4.5 DECK UNIT HEAD ASSY M2 M1 CN651 A F E DECK UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 39 KEH-P8800R,P8800R-W,P8850 1 2 3 4 1 2 3 4 D C B A G G REEL PCB E CN253 F PCB UNIT 4.6 PCB UNIT F PCB UNIT SIDE A SIDE B F G 4.7 REEL PCB F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 40 KEH-P8800R,P8800R-W,P8850 5. ELECTRICAL PARTS LIST NOTES: - Parts whose parts numbers are omitted are subject to being not supplied. - The part numbers shown below indicate chip components. Chip Resistor RS1/_S___J,RS1/__S___J Chip Capacitor (except for CQS.....) CKS....., CCS....., CSZS..... =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- Unit Number : CWM6305(KEH-P8800R/EW) (KEH-P8800R-W/EW) Unit Name : Tuner Amp Unit MISCELLANEOUS IC 101 IC CA0008AM IC 203 IC PML004AF IC 231 IC NJM4558MD IC 271 IC PA2028A IC 301 IC PAL005A IC 501 IC PM4009A IC 601 IC PD5495A IC 851 IC BA6288FS IC 911 IC S-81250SGUP IC 961 IC S-80735ANDZI Q 101 Transistor 2SA1162 Q 102 Transistor DTC124EK Q 151 Transistor 2SD1757K Q 152 Transistor 2SD1757K Q 153 Transistor IMH3A Q 154 Transistor DTA114EK Q 155 Transistor 2SC2412K Q 261 Transistor 2SA1162 Q 262 Transistor DTC144EK Q 301 Transistor DTC124EK Q 351 Transistor 2SC3326 Q 352 Transistor 2SC3326 Q 353 Transistor 2SC3326 Q 354 Transistor 2SC3326 Q 355 Transistor 2SC3326 Q 356 Transistor 2SC3326 Q 401 Transistor 2SC2412K Q 402 Transistor 2SC2412K Q 501 Transistor DTA124EK Q 641 Transistor DTC114EK Q 681 Transistor 2SA1162 Q 682 Transistor DTC124EK Q 683 Transistor 2SC2412K Q 801 Transistor 2SD1760F5 Q 802 Transistor IMD2A Q 803 Transistor 2SD2396 Q 805 Transistor 2SC2412K Q 806 Transistor 2SB1238 Q 807 Transistor DTC143EK Q 808 Transistor IMD2A Q 851 Transistor 2SD1760F5 Q 852 Transistor DTA114EK Q 853 Transistor DTC124EK Q 911 Transistor 2SD1760F5 Q 913 Transistor IMD2A Q 921 Transistor 2SD2396 Q 922 Transistor DTC124EK Q 923 Transistor 2SB1238 Q 931 Transistor IMX1 Q 932 Transistor 2SC2412K Q 951 Transistor 2SA1162 Q 962 Transistor 2SC2412K Q 981 Transistor 2SC2412K Q 983 Transistor 2SC2412K D 231 Diode MA153 D 232 Diode MA153 D 233 Diode MA153 D 234 Diode MA153 D 651 Diode 1SS133 D 683 LED BR4361F D 801 Diode MA153 D 802 Diode MA153 D 803 Diode MA153 D 804 Diode MA153 D 805 Diode HZS6L(B1) D 806 Diode HZS9L(C3) D 807 LED CL170PGCD D 808 LED CL170PGCD D 809 LED CL170PGCD D 810 Diode MA3062(M) D 851 Diode HZS7L(C3) D 852 Diode 1SS133 D 853 Diode 1SS133 D 901 Diode ERA15-02VH D 902 Diode ERA15-02VH D 903 Diode ERA15-02VH D 911 Diode ERA15-02VH D 912 Diode HZS6L(B1) D 914 Diode HZS16(2) D 921 Diode HZS9L(B3) D 931 Diode HZS7L(A1) D 932 Diode HZS7L(C2) D 951 Diode MA152WK D 961 Diode MA152K D 981 Diode MA152WK D 982 Diode HZS9L(A2) ZNR 451 Surge Protector DSPS-201M-S00B L 101 Inductor LAU3R3K L 167 Inductor LCTB2R2K1608 L 168 Inductor LCTB2R2K1608 L 271 Ferri-Inductor LAU101K L 401 Ferri-Inductor LAU2R2K L 402 Inductor LCTB4R7K2125 L 403 Ferri-Inductor LAU1R0M L 501 Inductor CTF1420 L 502 Ferri-Inductor LAU101K L 601 Inductor LAU100K L 801 Inductor LAU100K L 802 Inductor CTF1489 L 951 Ferri-Inductor LAU2R2K X 501 Crystal Resonator 3.648MHz CSS1447 X 601 Radiator 10.00MHz CSS1475 BZ 641 Buzzer CPV1012 FM/AM Tuner Unit CWE1500 =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com RESISTORS R 101 RS1/10S101J R 102 RS1/10S620J R 103 RS1/10S101J R 104 RS1/10S222J R 105 RS1/10S103J R 106 RS1/10S562J R 107 RS1/10S332J R 109 RS1/10S181J R 110 RS1/10S181J R 111 RS1/10S223J R 112 RS1/10S223J R 113 RS1/10S102J R 114 RS1/10S102J R 153 RS1/10S224J R 154 RS1/10S224J R 155 RS1/10S222J R 156 RS1/10S222J R 157 RS1/10S223J R 158 RS1/10S223J R 159 RS1/10S224J R 160 RS1/10S473J R 161 RS1/10S162J R 162 RS1/10S162J R 163 RS1/10S272J R 164 RS1/10S272J R 231 RS1/10S474J R 232 RS1/10S474J R 233 RS1/10S273J R 234 RS1/10S273J R 235 RS1/10S104J R 236 RS1/10S104J R 241 RS1/16S0R0J R 242 RS1/16S0R0J R 283 RS1/10S203J R 301 RS1/10S103J R 302 RS1/10S103J R 304 RS1/10S331J R 351 RS1/16S820J R 352 RS1/16S820J R 353 RS1/16S820J R 354 RS1/16S820J R 355 RS1/16S820J R 356 RS1/16S820J R 357 RS1/16S223J R 358 RS1/16S223J R 359 RS1/16S223J R 360 RS1/16S223J R 361 RS1/16S223J R 362 RS1/16S223J R 363 RS1/16S103J R 364 RS1/16S103J R 365 RS1/16S103J R 366 RS1/16S103J R 367 RS1/16S103J R 368 RS1/16S103J R 369 RS1/16S471J R 370 RS1/16S471J R 371 RS1/16S471J R 372 RS1/16S471J R 373 RS1/16S471J R 374 RS1/16S471J R 401 RS1/10S473J R 402 RS1/10S473J R 403 RS1/10S681J R 404 RS1/10S681J R 405 RS1/10S681J R 406 RS1/10S102J R 407 RS1/10S473J R 409 RS1/10S681J R 410 RS1/10S103J R 411 RS1/10S681J R 412 RS1/10S681J R 413 RS1/10S681J R 414 RS1/10S473J R 415 RS1/10S472J R 416 RS1/10S473J R 417 RS1/10S473J R 418 RS1/10S473J R 419 RS1/10S222J R 420 RS1/10S222J R 421 RS1/10S681J R 422 RS1/10S681J R 424 RS1/10S393J R 426 RS1/16S153J R 427 RS1/16S474J R 428 RS1/16S681J R 501 RS1/16S102J R 502 RS1/16S102J R 503 RS1/16S102J R 507 RS1/16S102J R 508 RS1/10S0R0J R 511 RS1/16S102J R 512 RS1/10S0R0J R 513 RS1/10S225J R 518 RS1/16S681J R 601 RS1/10S473J R 602 RS1/10S472J R 609 RS1/10S473J R 610 RS1/10S473J R 611 RS1/10S473J R 612 RA3C102J R 620 RS1/10S473J R 623 RS1/10S473J R 627 RS1/10S473J R 629 RS1/10S473J R 630 RS1/10S473J R 634 RS1/10S102J R 641 RS1/10S202J R 642 RS1/10S102J R 651 RA4C681J R 652 RA4C102J R 653 RA4C102J R 654 RS1/10S473J R 655 RS1/10S102J R 656 RS1/10S102J R 657 RS1/10S103J R 658 RS1/10S473J R 663 RS1/10S473J R 664 RS1/10S473J R 665 RS1/10S473J R 681 RS1/8S102J R 686 RS1/10S103J R 687 RS1/10S223J R 688 RS1/10S223J R 689 RS1/10S223J R 690 RS1/10S272J R 695 RS1/10S473J R 698 RS1/8S471J R 699 RS1/10S102J R 700 RS1/10S103J KEH-P8800R,P8800R-W,P8850 =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- 41 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 42 KEH-P8800R,P8800R-W,P8850 R 801 RS1/8S222J R 802 RS1/8S471J R 803 RS1/8S471J R 804 RS1/8S103J R 805 RS1/8S472J R 806 RS2PMF220J R 807 RS1/4S471J R 809 RS1/10S103J R 810 RS1/10S222J R 811 RS1/4S152J R 812 RS1/10S152J R 813 RS1/10S221J R 814 RS1/10S152J R 815 RS1/10S1R0J R 819 RS1/10S103J R 821 RS1/8S222J R 822 RS1/8S222J R 851 RS1/4S271J R 852 RS1/10S102J R 853 RS1/10S102J R 862 RS1/10S102J R 864 RS1/10S102J R 865 RS1/10S102J R 912 RS1/10S152J R 913 RS1/10S512J R 914 RS1/8S151J R 922 RS1/8S221J R 923 RS1/10S122J R 924 RS1/8S272J R 926 RS1/10S223J R 931 RS1/10S472J R 932 RS1/10S473J R 933 RS1/10S223J R 934 RS1/10S473J R 935 RS1/10S473J R 936 RS1/10S103J R 937 RS1/10S473J R 951 RS1/8S153J R 952 RS1/10S472J R 953 RS1/10S472J R 954 RS1/10S102J R 961 RS1/10S103J R 962 RS1/10S102J R 963 RS1/10S473J R 964 RS1/10S822J R 981 RS1/10S223J R 982 RS1/10S473J R 983 RS1/10S103J R 984 RS1/10S223J R 985 RS1/10S102J R 986 RS1/10S103J R 987 RS1/10S224J R 988 RS1/10S333J R 989 RS1/10S473J CAPACITORS C 101 CKSQYB104K16 C 102 CKSQYB104K16 C 151 CEJA1R0M50 C 152 CEJA1R0M50 C 153 CKSQYB223K50 C 155 CCSRCH101J50 C 161 CKSQYB123K25 C 162 CKSQYB123K25 C 171 CEJA470M16 C 172 CKSQYB104K16 C 173 CEJA100M16 C 203 CEJA1R0M50 C 204 CEJA1R0M50 C 205 CEJAR22M50 C 206 CEJAR22M50 C 207 CEJA1R0M50 C 208 CEJA1R0M50 C 209 CEJA1R0M50 C 210 CEJA1R0M50 C 211 CEJANP4R7M16 C 212 CEJANP4R7M16 C 213 CEJANP4R7M16 C 214 CEJANP4R7M16 C 215 CKSQYB473K25 C 216 CKSQYB473K25 C 217 CKSQYB473K25 C 218 CKSQYB473K25 C 225 CKSQYB333K50 C 226 CKSQYB123K25 C 227 CKSQYB473K25 C 228 CKSQYB153K50 C 229 CKSQYB153K50 C 231 CCSQCH101J50 C 232 CCSQCH101J50 C 233 CKSYB474K16 C 234 CKSYB474K16 C 235 CKSQYB104K16 C 236 CKSQYB104K16 C 237 CKSQYB104K16 C 238 CKSQYB104K16 C 239 CKSQYB103K50 C 271 CEJANP1R0M50 C 272 CEJANP1R0M50 C 273 CEJANP1R0M50 C 274 CEJANP1R0M50 C 275 CEJANP1R0M50 C 276 CEJANP1R0M50 C 277 CEJA4R7M35 C 278 CEJA101M16 C 279 CEJA100M16 C 280 CEJA100M16 C 281 CKSQYB105K16 C 284 CEJA330M25 C 285 CEJA330M25 C 286 CASAQ3R3M16 C 288 CKSYB684K25 C 301 CKSQYB224K16 C 302 CKSQYB224K16 C 303 CKSQYB224K16 C 304 CKSQYB224K16 C 306 CEHAR330M10 C 307 4700µF/16V CCH1178 C 309 CKSQYB104K16 C 310 CEHAR100M16 C 311 CKSYB105K16 C 351 CEJA100M35 C 352 CEJA100M35 C 353 CEJA100M35 C 354 CEJA100M35 C 355 CEJA100M35 C 356 CEJA100M35 C 357 CKSRYB222K50 C 358 CKSRYB222K50 C 359 CKSRYB222K50 C 360 CKSRYB222K50 =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com KEH-P8800R,P8800R-W,P8850 C 361 CKSRYB222K50 C 362 CKSRYB222K50 C 401 CKSQYB182K50 C 403 CKSQYB473K25 C 404 CEJA470M10 C 405 CKSQYB103K50 C 406 CEJA220M10 C 407 CKSQYB103K50 C 408 CKSQYB223K50 C 409 CKSQYB223K50 C 411 CKSQYB472K50 C 412 CKSQYB472K50 C 503 CCSQCH270J50 C 504 CCSQCH270J50 C 505 CKSQYB104K16 C 506 CKSQYB471K50 C 507 CKSQYB471K50 C 508 CKSQYB104K16 C 509 CEJA220M6R3 C 510 CCSQCH101J50 C 511 CKSQYB103K50 C 512 CCSRCH101J50 C 513 CCSRCH101J50 C 514 CKSRYB102K50 C 515 CCSRCH101J50 C 601 CEJA4R7M35 C 602 CKSQYB103K50 C 604 CCSRCH150J50 C 605 CCSRCH220J50 C 651 CEJA100M16 C 652 CEJA220M10 C 683 CKSQYB103K50 C 686 CKSQYB473K25 C 801 CKSQYB104K16 C 802 CCSQCH101J50 C 803 CEJA470M10 C 804 CKSQYB103K50 C 806 CKSQYB103K50 C 808 CEJA101M10 C 809 CKSQYB104K16 C 810 CKSQYB104K16 C 811 CKSQYB104K16 C 812 CKSQYB105K16 C 851 CKSQYB103K50 C 852 CKSYB104K25 C 853 CEJA220M16 C 855 CKSQYB222K50 C 856 CCSQCH101J50 C 857 CCSQCH101J50 C 901 CKSQYB103K50 C 911 CEAS102M16 C 912 CKSQYB472K50 C 913 CKSQYB103K50 C 914 CEJA470M10 C 915 CEJA470M10 C 921 330µF/10V CCH1181 C 922 CKSQYB103K50 C 923 CEJA101M16 C 931 CEJA100M16 C 933 CKSQYB472K50 C 961 CKSQYB102K50 C 962 CKSQYB104K16 C 963 CEJA2R2M50 C 964 CEJA4R7M35 Unit Number : CWM6307(KEH-P8850/ES) Unit Name : Tuner Amp Unit MISCELLANEOUS IC 101 IC CA0008AM IC 203 IC PML004AF IC 231 IC NJM4558MD IC 271 IC PA2028A IC 301 IC PAL005A IC 601 IC PD5496A IC 681 IC TPD1018F IC 851 IC BA6288FS IC 911 IC S-81250SGUP IC 961 IC S-80735ANDZI Q 101 Transistor 2SA1162 Q 102 Transistor DTC124EK Q 261 Transistor 2SA1162 Q 262 Transistor DTC144EK Q 301 Transistor DTC124EK Q 351 Transistor 2SC3326 Q 352 Transistor 2SC3326 Q 353 Transistor 2SC3326 Q 354 Transistor 2SC3326 Q 355 Transistor 2SC3326 Q 356 Transistor 2SC3326 Q 401 Transistor 2SC2412K Q 641 Transistor DTC114EK Q 681 Transistor 2SA1162 Q 682 Transistor DTC124EK Q 683 Transistor 2SC2412K Q 684 Transistor 2SC2412K Q 685 Transistor 2SC2412K Q 801 Transistor 2SD1760F5 Q 802 Transistor IMD2A Q 803 Transistor 2SD2396 Q 805 Transistor 2SC2412K Q 806 Transistor 2SB1238 Q 807 Transistor DTC143EK Q 808 Transistor IMD2A Q 851 Transistor 2SD1760F5 Q 852 Transistor DTA114EK Q 853 Transistor DTC124EK Q 911 Transistor 2SD1760F5 Q 913 Transistor IMD2A Q 921 Transistor 2SD2396 Q 922 Transistor DTC124EK Q 923 Transistor 2SB1238 Q 931 Transistor IMX1 Q 932 Transistor 2SC2412K Q 951 Transistor 2SA1162 Q 962 Transistor 2SC2412K Q 981 Transistor 2SC2412K Q 983 Transistor 2SC2412K D 231 Diode MA153 D 232 Diode MA153 D 233 Diode MA153 D 234 Diode MA153 D 651 Diode 1SS133 D 681 Diode ERA15-02VH D 682 Diode ERA15-02VH D 683 LED BR4361F D 801 Diode MA153 D 802 Diode MA153 D 803 Diode MA153 D 804 Diode MA153 D 805 Diode HZS6L(B1) D 806 Diode HZS9L(C3) D 807 LED CL170PGCD D 808 LED CL170PGCD =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- 43 A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D 809 LED CL170PGCD D 810 Diode MA3062(M) D 851 Diode HZS7L(C3) D 852 Diode 1SS133 D 853 Diode 1SS133 D 901 Diode ERA15-02VH D 902 Diode ERA15-02VH D 903 Diode ERA15-02VH D 911 Diode ERA15-02VH D 912 Diode HZS6L(B1) D 914 Diode HZS16(2) D 921 Diode HZS9L(B3) D 931 Diode HZS7L(A1) D 932 Diode HZS7L(C2) D 951 Diode MA152WK D 961 Diode MA152K D 981 Diode MA152WK D 982 Diode HZS9L(A2) ZNR 451 Surge Protector DSPS-201M-S00B L 101 Inductor LAU3R3K L 271 Ferri-Inductor LAU101K L 401 Ferri-Inductor LAU2R2K L 402 Inductor LCTB4R7K2125 L 403 Ferri-Inductor LAU1R0M L 601 Inductor LAU100K L 801 Inductor LAU100K L 802 Inductor CTF1489 L 951 Ferri-Inductor LAU2R2K X 601 Radiator 10.00MHz CSS1475 BZ 641 Buzzer CPV1012 FM/AM Tuner Unit CWE1501 RESISTORS R 101 RS1/10S101J R 102 RS1/10S620J R 103 RS1/10S101J R 104 RS1/10S222J R 105 RS1/10S103J R 106 RS1/10S562J R 107 RS1/10S332J R 109 RS1/10S181J R 110 RS1/10S181J R 111 RS1/10S223J R 112 RS1/10S223J R 113 RS1/10S102J R 114 RS1/10S102J R 151 RS1/10S0R0J R 152 RS1/10S0R0J R 161 RS1/10S272J R 162 RS1/10S272J R 163 RS1/10S162J R 164 RS1/10S162J R 167 RS1/16S0R0J R 168 RS1/16S0R0J R 231 RS1/10S474J R 232 RS1/10S474J R 233 RS1/10S273J R 234 RS1/10S273J R 235 RS1/10S104J R 236 RS1/10S104J R 241 RS1/16S0R0J R 242 RS1/16S0R0J R 283 RS1/10S203J R 301 RS1/10S103J R 302 RS1/10S103J R 304 RS1/10S331J R 351 RS1/16S820J R 352 RS1/16S820J R 353 RS1/16S820J R 354 RS1/16S820J R 355 RS1/16S820J R 356 RS1/16S820J R 357 RS1/16S223J R 358 RS1/16S223J R 359 RS1/16S223J R 360 RS1/16S223J R 361 RS1/16S223J R 362 RS1/16S223J R 363 RS1/16S103J R 364 RS1/16S103J R 365 RS1/16S103J R 366 RS1/16S103J R 367 RS1/16S103J R 368 RS1/16S103J R 369 RS1/16S471J R 370 RS1/16S471J R 371 RS1/16S471J R 372 RS1/16S471J R 373 RS1/16S471J R 374 RS1/16S471J R 401 RS1/10S473J R 402 RS1/10S473J R 403 RS1/10S681J R 404 RS1/10S681J R 409 RS1/10S681J R 410 RS1/10S103J R 411 RS1/10S681J R 412 RS1/10S681J R 413 RS1/10S681J R 414 RS1/10S473J R 415 RS1/10S472J R 416 RS1/10S473J R 417 RS1/10S473J R 418 RS1/10S473J R 419 RS1/10S222J R 420 RS1/10S222J R 424 RS1/10S393J R 601 RS1/10S473J R 602 RS1/10S472J R 609 RS1/10S473J R 610 RS1/10S473J R 611 RS1/10S473J R 612 RA3C102J R 620 RS1/10S473J R 623 RS1/10S473J R 627 RS1/10S473J R 629 RS1/10S473J R 630 RS1/10S473J R 631 RS1/10S102J R 632 RS1/10S473J R 634 RS1/10S102J R 641 RS1/10S202J R 642 RS1/10S102J R 651 RA4C681J R 652 RA4C102J R 653 RA4C102J R 654 RS1/10S473J R 655 RS1/10S102J R 656 RS1/10S102J R 657 RS1/10S103J R 658 RS1/10S473J R 663 RS1/10S473J R 664 RS1/10S473J R 665 RS1/10S473J R 681 RS1/8S102J R 682 RS1/8S102J R 683 RS1/8S102J R 684 RS1/10S103J 44 KEH-P8800R,P8800R-W,P8850 =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com R 685 RS1/10S103J R 686 RS1/10S103J R 687 RS1/10S223J R 688 RS1/10S223J R 689 RS1/10S223J R 690 RS1/10S272J R 691 RS1/10S223J R 692 RS1/10S272J R 693 RS1/10S223J R 694 RS1/10S272J R 695 RS1/10S473J R 696 RS1/10S473J R 697 RS1/10S473J R 698 RS1/8S471J R 699 RS1/10S102J R 700 RS1/10S103J R 801 RS1/8S222J R 802 RS1/8S471J R 803 RS1/8S471J R 804 RS1/8S103J R 805 RS1/8S472J R 806 RS2PMF220J R 807 RS1/4S471J R 809 RS1/10S103J R 810 RS1/10S222J R 811 RS1/4S152J R 812 RS1/10S152J R 813 RS1/10S221J R 814 RS1/10S152J R 815 RS1/10S1R0J R 819 RS1/10S103J R 821 RS1/8S222J R 822 RS1/8S222J R 851 RS1/4S271J R 852 RS1/10S102J R 853 RS1/10S102J R 862 RS1/10S102J R 864 RS1/10S102J R 865 RS1/10S102J R 912 RS1/10S152J R 913 RS1/10S512J R 914 RS1/8S151J R 922 RS1/8S221J R 923 RS1/10S122J R 924 RS1/8S272J R 926 RS1/10S223J R 931 RS1/10S472J R 932 RS1/10S473J R 933 RS1/10S223J R 934 RS1/10S473J R 935 RS1/10S473J R 936 RS1/10S103J R 937 RS1/10S473J R 951 RS1/8S153J R 952 RS1/10S472J R 953 RS1/10S472J R 954 RS1/10S102J R 961 RS1/10S103J R 962 RS1/10S102J R 963 RS1/10S473J R 964 RS1/10S822J R 981 RS1/10S223J R 982 RS1/10S473J R 983 RS1/10S103J R 984 RS1/10S223J R 985 RS1/10S102J R 986 RS1/10S103J R 987 RS1/10S224J R 988 RS1/10S333J R 989 RS1/10S473J CAPACITORS C 101 CKSQYB104K16 C 102 CKSQYB104K16 C 155 CCSRCH101J50 C 161 CKSQYB183K50 C 162 CKSQYB183K50 C 171 CEJA470M16 C 172 CKSQYB104K16 C 173 CEJA100M16 C 203 CEJA1R0M50 C 204 CEJA1R0M50 C 205 CEJAR22M50 C 206 CEJAR22M50 C 207 CEJA1R0M50 C 208 CEJA1R0M50 C 209 CEJA1R0M50 C 210 CEJA1R0M50 C 211 CEJANP4R7M16 C 212 CEJANP4R7M16 C 213 CEJANP4R7M16 C 214 CEJANP4R7M16 C 215 CKSQYB473K25 C 216 CKSQYB473K25 C 217 CKSQYB473K25 C 218 CKSQYB473K25 C 225 CKSQYB333K50 C 226 CKSQYB123K25 C 227 CKSQYB473K25 C 228 CKSQYB153K50 C 229 CKSQYB153K50 C 231 CCSQCH101J50 C 232 CCSQCH101J50 C 233 CKSYB474K16 C 234 CKSYB474K16 C 235 CKSQYB104K16 C 236 CKSQYB104K16 C 237 CKSQYB104K16 C 238 CKSQYB104K16 C 239 CKSQYB103K50 C 271 CEJANP1R0M50 C 272 CEJANP1R0M50 C 273 CEJANP1R0M50 C 274 CEJANP1R0M50 C 275 CEJANP1R0M50 C 276 CEJANP1R0M50 C 277 CEJA4R7M35 C 278 CEJA101M16 C 279 CEJA100M16 C 280 CEJA100M16 C 281 CKSQYB105K16 C 284 CEJA330M25 C 285 CEJA330M25 C 286 CASAQ3R3M16 C 288 CKSYB684K25 C 301 CKSQYB224K16 C 302 CKSQYB224K16 45 KEH-P8800R,P8800R-W,P8850 =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 46 KEH-P8800R,P8800R-W,P8850 C 303 CKSQYB224K16 C 304 CKSQYB224K16 C 306 CEHAR330M10 C 307 4700µF/16V CCH1178 C 309 CKSQYB104K16 C 310 CEHAR100M16 C 311 CKSYB105K16 C 351 CEJA100M35 C 352 CEJA100M35 C 353 CEJA100M35 C 354 CEJA100M35 C 355 CEJA100M35 C 356 CEJA100M35 C 357 CKSRYB222K50 C 358 CKSRYB222K50 C 359 CKSRYB222K50 C 360 CKSRYB222K50 C 361 CKSRYB222K50 C 362 CKSRYB222K50 C 403 CKSQYB473K25 C 404 CEJA470M10 C 405 CKSQYB103K50 C 406 CEJA220M10 C 407 CKSQYB103K50 C 408 CKSQYB223K50 C 409 CKSQYB223K50 C 411 CKSQYB472K50 C 413 CCSRCH101J50 C 511 CKSQYB103K50 C 601 CEJA4R7M35 C 602 CKSQYB103K50 C 604 CCSRCH150J50 C 605 CCSRCH220J50 C 651 CEJA100M16 C 652 CEJA220M10 C 653 CCSRCH101J50 C 681 CKSYB104K25 C 682 CKSQYB473K25 C 683 CKSQYB103K50 C 684 CKSQYB103K50 C 685 CKSQYB103K50 C 686 CKSQYB473K25 C 801 CKSQYB104K16 C 802 CCSQCH101J50 C 803 CEJA470M10 C 804 CKSQYB103K50 C 806 CKSQYB103K50 C 808 CEJA101M10 C 809 CKSQYB104K16 C 810 CKSQYB104K16 C 811 CKSQYB104K16 C 812 CKSQYB105K16 C 851 CKSQYB103K50 C 852 CKSYB104K25 C 853 CEJA220M16 C 855 CKSQYB222K50 C 856 CCSQCH101J50 C 857 CCSQCH101J50 C 901 CKSQYB103K50 C 911 CEAS102M16 C 912 CKSQYB472K50 C 913 CKSQYB103K50 C 914 CEJA470M10 C 915 CEJA470M10 C 921 330µF/10V CCH1181 C 922 CKSQYB103K50 C 923 CEJA101M16 C 931 CEJA100M16 C 933 CKSQYB472K50 C 961 CKSQYB102K50 C 962 CKSQYB104K16 C 963 CEJA2R2M50 C 964 CEJA4R7M35 Unit Number : CWE1500(KEH-P8800R/EW) (KEH-P8800R-W/EW) Unit Name : FM/AM Tuner Unit MISCELLANEOUS IC 1 IC PML002A IC 2 IC PM4008A IC 3 IC BR9010FV Q 1 Transistor 2SC4081 Q 2 Transistor DTC124EU Q 3 FET 3SK263 Q 51 Transistor 2SC4081 Q 201 FET 2SK932 Q 202 Transistor DTC124EU Q 204 Transistor 2SC4081 D 1 Diode KV1410(23) D 2 Diode 1SV248 D 4 Diode KV1410(23) D 6 Diode KV1410(23) D 101 Diode MA110 D 201 Diode MA143 D 202 Diode MA147 D 903 Diode KV1410(23) D 904 Diode SVC253 L 1 Coil CTC1155 L 2 Coil CTC1155 L 3 Inductor LCTB100K2125 L 4 Coil CTC1155 L 201 Inductor LCTB330K1608 L 202 Inductor CTF1287 L 203 Inductor LCTA121J3225 L 901 Coil CTC1154 L 902 Inductor LCTA3R3J3225 L 904 Inductor LCTBR47K1608 L 905 Inductor LCTBR47K1608 T 51 Coil CTE1132 CF 51 Ceramic Filter CTF1442 CF 52 Ceramic Filter CTF1442 CF 53 Ceramic Filter CTF1442 CF 202 Ceramic Filter CTF1476 X 901 Crystal Resonator 10.250MHz CSS1432 RESISTORS R 1 RS1/16S153J R 2 RS1/16S103J R 6 RS1/16S103J R 7 RS1/16S273J R 8 RS1/16S473J R 9 RS1/16S223J R 10 RS1/16S473J R 11 RS1/16S221J R 12 RS1/16S103J R 13 RS1/16S104J R 16 RS1/16S223J R 17 RS1/16S221J R 18 RS1/16S221J R 19 RS1/16S473J R 20 RS1/16S470J =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 47 KEH-P8800R,P8800R-W,P8850 R 51 RS1/16S470J R 52 RS1/16S103J R 53 RS1/16S103J R 54 RS1/16S331J R 55 RS1/16S331J R 56 RS1/16S560J R 57 RS1/16S560J R 58 RS1/16S102J R 59 RS1/16S225J R 60 RS1/16S133J R 61 RS1/16S433J R 62 RS1/16S562J R 101 RS1/16S333J R 102 RS1/16S103J R 103 RS1/16S333J R 104 RS1/16S562J R 106 RS1/16S0R0J R 108 RS1/16S0R0J R 110 RS1/16S154J R 111 RS1/16S273J R 112 RS1/16S223J R 113 RS1/16S222J R 114 RS1/16S333J R 115 RS1/16S334J R 116 RS1/16S473J R 117 RS1/16S333J R 118 RS1/16S223J R 122 RS1/16S0R0J R 202 RS1/16S472J R 203 RS1/16S225J R 204 RS1/16S102J R 205 RS1/16S220J R 206 RS1/16S471J R 208 RS1/16S104J R 209 RS1/16S104J R 210 RS1/16S563J R 213 RS1/16S223J R 902 RS1/16S103J R 904 RS1/16S473J R 907 RS1/16S103J R 908 RS1/16S681J R 909 RS1/16S473J R 914 RS1/16S562J CAPACITORS C 1 CCSQCH5R0C50 C 2 CCSRCH5R0C50 C 4 CCSRCJ3R0C50 C 6 CKSQYB105K10 C 8 CKSRYB222K50 C 10 CCSRCH220J50 C 11 CCSRCH150J50 C 12 CCSRCH8R0D50 C 14 CCSRCJ3R0C50 C 15 CKSRYB103K50 C 16 CKSRYB222K50 C 17 CKSRYB222K50 C 18 CCSRCJ3R0C50 C 19 CKSRYB103K50 C 20 CKSRYB103K50 C 21 CKSRYB103K50 C 24 CKSQYB334K16 C 31 CKSRYB222K50 C 32 CCSRCH470J50 C 35 CKSRYB103K50 C 51 CKSRYB103K50 C 52 CKSRYB473K16 C 53 CCSRCK2R0C50 C 54 CKSRYB103K50 C 55 CKSRYB104K16 C 56 CKSRYB104K16 C 58 CKSQYB224K16 C 59 CKSRYB223K25 C 60 CKSRYB104K16 C 101 CEALNP100M10 C 102 CCSRCH151J50 C 103 CKSRYB473K16 C 105 CKSRYB682K25 C 106 CEAL2R2M50 C 107 CKSRYB103K50 C 108 CKSQYB474K16 C 109 CKSQYB474K16 C 110 CKSRYB104K16 C 111 CKSRYB104K16 C 112 CKSRYB104K16 C 113 CKSRYB123K25 C 114 CEAL220M6R3 C 115 CKSRYB473K16 C 116 CEAL2R2M50 C 117 CKSRYB102K50 C 120 CKSRYB153K25 C 121 CKSRYB332K50 C 122 CKSRYB682K25 C 123 CKSRYB681K50 C 125 CKSRYB103K50 C 126 CKSRYB103K50 C 127 CEAL2R2M50 C 128 CKSRYB103K50 C 201 CCSRCH471J50 C 202 CCSRCH100D50 C 203 CKSRYB104K16 C 204 CKSRYB332K50 C 205 CKSRYB103K50 C 206 CKSRYB104K16 C 207 CKSRYB473K16 C 208 CCSRCH560J50 C 209 CEAL470M6R3 C 210 CKSRYB103K50 C 211 CKSRYB103K50 C 212 CCSRCH101J50 C 215 CKSRYB223K25 C 216 CKSQYB334K16 C 217 CKSRYB103K50 C 219 CKSQYB105K10 C 220 CKSRYB104K16 C 221 CKSRYB473K16 C 222 CKSQYB334K16 C 223 CKSQYB474K16 C 224 CKSRYB104K16 C 225 CKSRYB272K50 C 226 CKSRYB682K25 C 902 CCSRCH270J50 C 904 CKSRYB223K25 C 905 CKSRYB103K50 C 906 CCSRTH100D50 C 907 CCSRTH150J50 C 909 CCSRTH100D50 C 910 CKSRYB332K50 C 912 CKSQYB474K16 C 913 CKSRYB223K25 C 914 CKSRYB682K25 C 915 CKSQYB223K25 C 916 CKSQYB474K16 C 917 CKSYB475K10 C 918 CKSRYB223K25 =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 48 KEH-P8800R,P8800R-W,P8850 C 919 CKSQYB225K10 C 920 CCSRCH270J50 C 921 CCSRCH270J50 C 922 CKSYB105K16 C 923 CKSRYB103K50 Unit Number : CWE1501(KEH-P8850/ES) Unit Name : FM/AM Tuner Unit MISCELLANEOUS IC 1 IC PML002A IC 2 IC PM4008A IC 3 IC BR9010FV Q 1 Transistor 2SC4081 Q 2 Transistor DTC124EU Q 3 FET 3SK263 Q 51 Transistor 2SC4081 Q 201 FET 2SK932 Q 202 Transistor DTC124EU Q 204 Transistor 2SC4081 D 1 Diode KV1410(23) D 2 Diode 1SV248 D 6 Diode KV1410(23) D 201 Diode MA143 D 202 Diode MA147 D 903 Diode KV1410(23) D 904 Diode SVC253 L 1 Coil CTC1155 L 3 Inductor LCTB1R5K2125 L 4 Coil CTC1155 L 201 Inductor LCTB330K1608 L 202 Inductor CTF1287 L 203 Inductor LCTA121J3225 L 901 Coil CTC1154 L 902 Inductor LCTA3R3J3225 L 904 Inductor LCTBR47K1608 L 905 Inductor LCTBR47K1608 T 51 Coil CTE1132 CF 51 Ceramic Filter CTF1442 CF 52 Ceramic Filter CTF1442 CF 53 Ceramic Filter CTF1442 CF 202 Ceramic Filter CTF1476 X 901 Crystal Resonator 10.250MHz CSS1432 RESISTORS R 1 RS1/16S183J R 2 RS1/16S103J R 5 RS1/16S0R0J R 7 RS1/16S273J R 8 RS1/16S473J R 9 RS1/16S223J R 10 RS1/16S473J R 11 RS1/16S221J R 12 RS1/16S103J R 13 RS1/16S104J R 16 RS1/16S223J R 17 RS1/16S221J R 18 RS1/16S221J R 19 RS1/16S473J R 20 RS1/16S470J R 31 RS1/16S0R0J R 51 RS1/16S470J R 52 RS1/16S103J R 53 RS1/16S103J R 54 RS1/16S331J R 55 RS1/16S331J R 56 RS1/16S560J R 57 RS1/16S560J R 58 RS1/16S102J R 59 RS1/16S225J R 60 RS1/16S133J R 61 RS1/16S433J R 101 RS1/16S333J R 102 RS1/16S103J R 103 RS1/16S333J R 104 RS1/16S562J R 106 RS1/16S0R0J R 108 RS1/16S0R0J R 110 RS1/16S154J R 111 RS1/16S273J R 113 RS1/16S222J R 114 RS1/16S333J R 115 RS1/16S334J R 116 RS1/16S473J R 202 RS1/16S472J R 203 RS1/16S225J R 204 RS1/16S102J R 205 RS1/16S220J R 206 RS1/16S471J R 208 RS1/16S104J R 209 RS1/16S104J R 210 RS1/16S563J R 213 RS1/16S223J R 902 RS1/16S103J R 904 RS1/16S473J R 907 RS1/16S103J R 908 RS1/16S681J R 909 RS1/16S473J R 914 RS1/16S562J CAPACITORS C 1 CCSQCH4R0C50 C 6 CKSQYB105K10 C 8 CKSRYB222K50 C 10 CCSRCH220J50 C 11 CCSRCH150J50 C 12 CCSRCH8R0D50 C 14 CCSRCJ3R0C50 C 15 CKSRYB103K50 C 16 CKSRYB222K50 C 17 CKSRYB222K50 C 18 CCSRCJ3R0C50 C 19 CKSRYB103K50 C 20 CKSRYB103K50 C 21 CKSRYB103K50 C 24 CKSQYB334K16 C 26 CKSRYB472K50 C 30 CCSRCH220J50 C 32 CCSRCH470J50 C 35 CKSRYB103K50 C 51 CKSRYB103K50 C 52 CKSRYB473K16 C 53 CCSRCK2R0C50 C 54 CKSRYB103K50 C 55 CKSRYB104K16 C 56 CKSRYB104K16 C 58 CKSQYB224K16 C 101 CEALNP100M10 C 102 CCSRCH151J50 C 103 CKSRYB473K16 C 105 CKSRYB682K25 C 106 CEALR68M50 C 107 CKSRYB103K50 C 108 CKSQYB474K16 C 109 CKSQYB474K16 C 110 CKSRYB104K16 =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 49 KEH-P8800R,P8800R-W,P8850 C 111 CKSRYB104K16 C 112 CKSRYB104K16 C 113 CKSRYB123K25 C 114 CEAL220M6R3 C 115 CKSRYB473K16 C 116 CEAL2R2M50 C 117 CKSRYB102K50 C 120 CKSRYB183K25 C 121 CKSRYB332K50 C 122 CKSRYB562K25 C 123 CKSRYB681K50 C 125 CKSRYB103K50 C 126 CKSRYB103K50 C 127 CEAL2R2M50 C 128 CKSRYB103K50 C 201 CCSRCH471J50 C 202 CCSRCH100D50 C 203 CKSRYB104K16 C 204 CKSRYB332K50 C 205 CKSRYB103K50 C 206 CKSRYB104K16 C 207 CKSRYB473K16 C 208 CCSRCH560J50 C 209 CEAL470M6R3 C 210 CKSRYB103K50 C 211 CKSRYB103K50 C 212 CCSRCH101J50 C 215 CKSRYB223K25 C 216 CKSQYB334K16 C 217 CKSRYB103K50 C 219 CKSQYB105K10 C 220 CKSRYB104K16 C 221 CKSRYB473K16 C 222 CKSQYB334K16 C 223 CKSQYB474K16 C 224 CKSRYB104K16 C 225 CKSRYB272K50 C 226 CKSRYB682K25 C 902 CCSRCH270J50 C 904 CKSRYB223K25 C 905 CKSRYB103K50 C 906 CCSRTH100D50 C 907 CCSRTH150J50 C 909 CCSRTH100D50 C 910 CKSRYB332K50 C 912 CKSQYB474K16 C 913 CKSRYB223K25 C 914 CKSRYB682K25 C 915 CKSQYB223K25 C 916 CKSQYB474K16 C 917 CKSYB475K10 C 918 CKSRYB223K25 C 919 CKSQYB225K10 C 920 CCSRCH270J50 C 921 CCSRCH270J50 C 922 CKSYB105K16 C 923 CKSRYB103K50 Unit Number : CWM6225(KEH-P8800R/EW) (KEH-P8800R-W/EW) Unit Name : Keyboard Unit MISCELLANEOUS IC 1901 IC PD5471A IC 1902 IC PD8051A IC 1903 HIC Module RS-140 Q 1901 Transistor DTC143TK Q 1902 Transistor IMH10A Q 1903 Transistor IMH10A Q 1904 Transistor IMH10A Q 1905 Transistor IMH10A Q 1906 Transistor IMH10A D 1901 Diode Network DA204U D 1902 Diode Network DA204U D 1904 Diode MA110 D 1905 LED CL170UBX L 1901 Chip Inductor LCTA2R2J3225 L 1902 Chip Inductor LCTA2R2J3225 L 1903 Inductor CTF1484 L 1904 Inductor LCTA220J2520 L 1905 Inductor Array CTF1421 L 1906 Inductor Array CTF1421 L 1907 Inductor CTF1295 L 1908 Inductor CTF1295 X 1901 Ceramic Resonator 15.62MHz CSS1458 S 1901 Push Switch CSG1113 S 1902 Push Switch CSG1113 S 1903 Push Switch CSG1111 S 1904 Push Switch CSG1111 S 1905 Push Switch CSG1113 S 1906 Push Switch CSG1113 S 1907 Push Switch CSG1113 S 1908 Push Switch CSG1113 S 1909 Push Switch CSG1113 S 1910 Push Switch CSG1113 S 1911 Push Switch CSG1113 S 1912 Push Switch CSG1113 S 1913 Push Switch CSG1113 S 1914 Push Switch CSG1113 S 1915 Push Switch CSG1113 S 1916 Push Switch CSG1113 S 1917 Push Switch CSG1113 S 1918 Push Switch CSG1113 S 1919 Push Switch CSG1113 S 1920 Push Switch CSG1113 S 1921 Push Switch CSG1113 S 1922 Push Switch CSG1113 S 1923 Push Switch CSG1113 S 1924 Push Switch CSG1113 S 1925 Push Switch CSG1111 RESISTORS R 1901 RS1/16S154J R 1902 RS1/16S473J R 1903 RA4C101J R 1904 RA3C101J R 1905 RA3C101J R 1906 RA4C101J R 1907 RS1/16S473J R 1908 RA3C101J R 1909 RA3C101J R 1910 RA4C101J R 1911 RA4C101J R 1912 RA4C101J R 1913 RA3C101J R 1914 RA4C101J R 1915 RA4C101J R 1922 RS1/10S121J R 1923 RS1/10S2R2J R 1924 RS1/8S222J R 1925 RS1/8S222J R 1930 RS1/16S472J R 1931 RS1/16S473J R 1951 RS1/8S242J R 1952 RS1/8S242J R 1953 RS1/10S103J R 1954 RS1/8S242J =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 50 KEH-P8800R,P8800R-W,P8850 R 1955 RS1/8S242J R 1960 RS1/8S911J R 1961 RS1/8S911J R 1962 RS1/10S511J R 1963 RS1/10S511J R 1964 RS1/10S511J R 1965 RS1/10S511J R 1966 RS1/8S511J R 1967 RS1/8S511J R 1968 RS1/8S511J R 1969 RS1/8S511J R 1970 RS1/8S511J R 1971 RS1/8S511J R 1972 RS1/8S511J R 1973 RS1/8S511J R 1974 RS1/8S751J R 1975 RS1/8S751J R 1976 RS1/8S751J R 1977 RS1/8S751J CAPACITORS C 1901 CKSQYB105K10 C 1902 CKSRYB103K25 C 1903 CSZS100M6R3 C 1904 CSZS100M6R3 C 1906 CKSQYB103K25 C 1907 CSZS100M6R3 C 1908 CKSRYB473K16 C 1911 CKSRYB473K16 C 1914 CKSRYB103K25 C 1916 CKSQYB104K25 C 1917 CSZSR100M16 C 1918 CKSRYB102K50 C 1919 CCSQCH221J50 Unit Number : CWM6226(KEH-P8850/ES) Unit Name : Keyboard Unit MISCELLANEOUS IC 1901 IC PD5471A IC 1902 IC PD8051A IC 1903 HIC Module RS-140 D 1901 Diode Network DA204U D 1902 Diode Network DA204U D 1904 Diode MA110 D 1905 LED CL170UBX L 1901 Chip Inductor LCTA2R2J3225 L 1902 Chip Inductor LCTA2R2J3225 L 1903 Inductor CTF1484 L 1904 Inductor LCTA220J2520 L 1905 Inductor Array CTF1421 L 1906 Inductor Array CTF1421 L 1907 Inductor CTF1295 L 1908 Inductor CTF1295 X 1901 Ceramic Resonator 15.62MHz CSS1458 S 1901 Push Switch CSG1112 S 1902 Push Switch CSG1112 S 1903 Push Switch CSG1111 S 1904 Push Switch CSG1111 S 1905 Push Switch CSG1112 S 1906 Push Switch CSG1112 S 1907 Push Switch CSG1112 S 1908 Push Switch CSG1112 S 1909 Push Switch CSG1112 S 1910 Push Switch CSG1112 S 1911 Push Switch CSG1112 S 1912 Push Switch CSG1112 S 1913 Push Switch CSG1112 S 1914 Push Switch CSG1112 S 1915 Push Switch CSG1112 S 1916 Push Switch CSG1112 S 1917 Push Switch CSG1112 S 1918 Push Switch CSG1112 S 1919 Push Switch CSG1112 S 1920 Push Switch CSG1112 S 1921 Push Switch CSG1112 S 1922 Push Switch CSG1112 S 1923 Push Switch CSG1112 S 1924 Push Switch CSG1112 S 1925 Push Switch CSG1111 RESISTORS R 1901 RS1/16S154J R 1902 RS1/16S473J R 1903 RA4C101J R 1904 RA3C101J R 1905 RA3C101J R 1906 RA4C101J R 1907 RS1/16S473J R 1908 RA3C101J R 1909 RA3C101J R 1910 RA4C101J R 1911 RA4C101J R 1912 RA4C101J R 1913 RA3C101J R 1914 RA4C101J R 1915 RA4C101J R 1922 RS1/10S121J R 1923 RS1/10S2R2J R 1924 RS1/8S222J R 1925 RS1/8S222J R 1930 RS1/16S472J R 1931 RS1/16S473J R 1956 RS1/10S0R0J R 1957 RS1/10S0R0J R 1958 RS1/10S0R0J R 1959 RS1/10S0R0J R 1960 RS1/8S911J R 1961 RS1/8S911J R 1962 RS1/10S511J R 1963 RS1/10S511J R 1964 RS1/10S511J R 1965 RS1/10S511J R 1966 RS1/8S511J R 1967 RS1/8S511J R 1968 RS1/8S511J R 1969 RS1/8S511J R 1970 RS1/8S511J R 1971 RS1/8S511J R 1972 RS1/8S511J R 1973 RS1/8S511J R 1974 RS1/8S751J R 1975 RS1/8S751J R 1976 RS1/8S751J R 1977 RS1/8S751J CAPACITORS C 1901 CKSQYB105K10 C 1902 CKSRYB103K25 C 1903 CSZS100M6R3 C 1904 CSZS100M6R3 C 1906 CKSQYB103K25 C 1907 CSZS100M6R3 C 1908 CKSRYB473K16 C 1911 CKSRYB473K16 C 1914 CKSRYB103K25 C 1916 CKSQYB104K25 =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 51 KEH-P8800R,P8800R-W,P8850 C 1917 CSZSR100M16 C 1918 CKSRYB102K50 C 1919 CCSQCH221J50 Unit Number : Unit Name : Switch PCB S 951 Switch(CLOSE) CSN1012 S 952 Switch(OPEN) CSN1022 Unit Number : EWM1018 Unit Name : Deck Unit MISCELLANEOUS IC 251 IC CXA2560Q IC 351 IC PA2020A D 352 Diode 1SS355 VR 301 Semi-fixed 33kΩ(B) CCP1280 VR 302 Semi-fixed 33kΩ(B) CCP1280 RESISTORS R 255 RS1/16S221J R 256 RS1/16S221J R 257 RS1/16S102J R 258 RS1/16S102J R 271 RS1/16S102J R 272 RS1/16S102J R 273 RS1/16S102J R 274 RS1/16S102J R 281 RS1/8S0R0J R 282 RS1/8S0R0J R 283 RS1/8S0R0J R 284 RS1/8S0R0J R 285 RS1/16S0R0J R 286 RS1/16S0R0J R 287 RS1/8S0R0J R 290 RS1/8S0R0J R 301 RS1/16S183J R 322 RS1/16S102J R 323 RS1/8S0R0J R 351 RS1/16S102J R 352 RS1/16S102J R 353 RS1/16S102J R 354 RS1/16S102J R 355 RS1/10S274J R 362 RS1/8S181J R 373 RS1/8S0R0J R 374 RS1/8S0R0J R 375 RS1/8S0R0J R 401 RS1/16S472J R 402 RS1/16S163J R 403 RS1/16S823J CAPACITORS C 251 CKSRYB331K50 C 252 CKSRYB331K50 C 253 CKSRYB331K50 C 254 CKSRYB331K50 C 255 CKSRYB103K25 C 256 CKSRYB103K25 C 272 CKSQYB104K16 C 273 CEJA220M16 C 301 CKSYB104K50 C 302 CKSYB104K50 C 309 CKSQYB104K16 C 310 CKSQYB104K16 C 313 CCSQCH101K50 C 351 CKSYB224K25 C 352 CKSQYB392K50 C 353 CKSQYB103K50 C 354 CKSQYB103K50 C 355 CKSYB104K50 C 356 CKSQYB103K50 C 401 CKSQYB334K16 C 402 CKSQYB472K50 C 403 CKSQYB683K16 Unit Number : Unit Name : PCB Unit S 1 Switch (LOAD) ESG1004 S 2 Switch (70µS) ESG1004 EGN 1 Photo-Interrupter EGN1005 Unit Number : Unit Name : Reel PCB EGN 2 Photo-Interrupter EGN1006 EGN 3 Photo-Interrupter EGN1006 Miscellaneous Parts List M 1 Motor Unit (MAIN) EXA1490 M 2 Motor Unit (SUB) EXA1485 M 951 Motor(AUTO FLAP) CXM1085 HD 1 Head Assy EXA1506 S 953 Switch (HALF LOADING) CSN1022 =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- D E F G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 52 KEH-P8800R,P8800R-W,P8850 6. ADJUSTMENT - Connection Diagram FM/AM TUNER UNIT BACK UP ACC GND +14.4V GND DC Regulated Power Supply TUNER AMP UNIT VR302 mV Meter(2) VR301 L-CH R-CH DECK UNIT DECK UNIT Pin2 Pin3 CN251 DOLBY B NR ADJUSTMENT No. Test Tape Adjustment Point Adjustment Method (Switch Position) 1 NCT-150 VR301(Lch),VR302(Rch) mV Meter(2) : –6dBs±1.0dB (400Hz,200nwb/m) (DOLBY NR Switch : OFF) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 53 KEH-P8800R,P8800R-W,P8850 7. GENERAL INFORMATION 7.1 DISASSEMBLY - Removing the Case (Not shown) 1. Remove the screw, and then remove the Case. - Removing the Cassette Mechanism Module 1. Remove the four screws A. 2. Disconnect the connector, and then remove the Cassette Mechanism Module. - Removing the Tuner Amp Unit (1/2) 1. Disconnect the three connectors. 2. Remove the four screws A. 3. Disconnect the two stoppers indicated by arrows, and then remove the Grille Assy. - Removing the Tuner Amp Unit (2/2) 1. Remove the five screws A. 2. Remove the screw B, and C. 3. Stretch the three tabs, and then remove the Tuner Amp Unit. A A A A Cassette Mechanism Module A Grille Assy A A A A C B Tuner Amp Unit A A A A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 54 KEH-P8800R,P8800R-W,P8850 7.2 IC PML004AF PA2028A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 55 KEH-P8800R,P8800R-W,P8850 PAL005A 1 2 3 4 5 6 7 Mute 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 Mute Mute Mute STBY Protector Amp2 Amp1 Amp3 Amp4 TAB P-GND2 OUT2- OUT2+ STBY VCC OUT1- OUT1+ P-GND1 P-GND3 P-GND4 Switch_out MUTE OUT4+ OUT4- SVR IN1 IN2 IN4 S-GND IN3 Ac_gnd OUT3+ OUT3- VCC PM4009A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 56 KEH-P8800R,P8800R-W,P8850 - Pin Functions (PD5495A, PD5496A) Pin No. Pin Name I/O Function and Operation 1 TUNPDO O PLL data output 2 tunpck O PLL clock output 3 TUNPCE O PLL chip enable output 4 tunpce2 O PLL chip enable output 2 5 MOSENS I Motion/window damage sensor input 6 DLSENS I Door lock sense input 7 IPPW O IP-BUS power supply control output 8,9 VSS1,2 GND 10 ASENBO O IP-BUS slave power supply control output 11 TELIN I Cellular mute input 12 reset I Reset input 13 XOUT O Oscillator connection pin 1 14 VSS3 GND 15 XIN I Oscillator connection pin 2 16,17 VCC1, 2 5V 18 rck I RDS clock input 19 ldet I PLL lock sense input 20 DALMON O DFS alarm output 21 RX2 I IP-BUS data input 2 22 SYSPW O System power supply control output 23 isens I Illumination sense input 24 PEE O Beep tone output 25 RDS57K I 57kHzBP-OUT sense input 26 FLPPW O Flap motor driver power ON/OFF output 27 MUTE O Mute output 28 NC Not used 29 RX1 I IP-BUS data input 30 TX O IP-BUS data output 31-33 NC Not used 34 FLPOPN O Flap motor open output 35 DPDT O Display serial data output 36 KYDT I Display enable data input 37 FLPCLS O Flap motor close output 38 fopnsw I Flap open switch input 39 NC Not used 40 fclssw I Flap close switch input 41 dled O Alarm LED output 42 shell I Shell sense input 43 FLPILM O Inside of flap illumination output 44 ILMPW O Illumination power supply control output 45 SWVDD O Display chip select output 46 OELPW O OEL module power supply control output 47 dsens I Grille detach sense input 48 st I FM stereo input 49 SD I SD input 50 MS I MS sense input 51 DIRO O Head F/R select output 52 PLAY O MS gain select output 53 metal I Metal switch sense input 54 NR O Noise reduction output 55 LOAD I Load switch sense input 56 POS I Position sense input 57 RES I Reverse sense input 58 NES I Normal reel sense input 59,60 SC2, 1 O Sub motor control output 61 CM O Not used 62 VCC3 5V 63 stby O Stand-by output www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 57 KEH-P8800R,P8800R-W,P8850 IC's marked by* are MOS type. Be careful in handling them because they are very liable to be damaged by electrostatic induction. *PD5495A,PD5496A 30 31 50 51 80 81 100 1 Pin No. Pin Name I/O Function and Operation 64 VSS4 GND 65 VCK O E-VOL clock output 66 VDT I E-VOL data input 67 VST I E-VOL strobe pulse input 68 ROMCS O ROM correction chip select output 69-72 NC Not used 73 bsens I Back up power sense input 74 asens I ACC power sense input 75 NC Not used 76 DRELAY O External relay output 77 LOCH O Local “H” output 78 LOCL O Local “L” output 79 TAPEMUTE O RINT mute output 80 NC Not used 81 FM/AM O FM/AM power select output 82 tmute O Tuner mute output 83 drst O RDS decoder reset output 84 rdslk I RDS lock signal input 85 RDT I RDS data input 86 DRSENS I Door open/close sense input 87 DRSYS O Door system select output 88 TESTIN I Test mode IN/test enable 89 SK I SK signal input 90 currq O Tuner voltage FIX output 91 LEVELR I Level meter “R“ AD input 92 LEVELL I Level meter “L“ AD input 93 NC Not used 94 SDBW I SD input 95 NL I Noise level input 96 VSS5 GND 97 SL I Signal level input 98 VREF A/D converter reference voltage 99 VCC4 5V 100 TUNPDI I PLL data input www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 58 KEH-P8800R,P8800R-W,P8850 BA6288FS 16 15 14 13 12 11 10 9 RNF OUT2 VREF RIN 1 2 3 4 5 6 7 8 GND OUT1 VM VCC FIN CONTROL LOGIC TSD POWER SAVE DRIVER DRIVER S-81250SGUP - + GND VIN VOUT 3 2 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 59 KEH-P8800R,P8800R-W,P8850 BR9010FV NC VCC CS SK WC GND DO DI 1 2 3 4 8 7 6 5 CS SK DI DO WC : Chip select input : Serial data clock input : Serial data input : Serial data output : Write control input - Pin Functions (PD5471A) Pin No. Pin Name I/O Format Function and Operation 1–4 NC Not used 5 REM I Remote control reception 6 BYTE I External data BUS width select input 7 CNVSS I Processor mode select input 8,9 NC Not used 10 RESET I Reset input 11 XOUT O Crystal oscillating element connection pin 12 VSS GND 13 XIN I Crystal oscillating element connection pin 14 VDD VDD 15 nmi I NMI input 16 NC Not used 17–20 kd1-4 I Key data 1-4 21–26 ks1-6 I/O Key strobe input/output 1-6 27–31 NC Not used 32 ILMD O C Dual illumination 33 KYDT O C Key data output 34 DPDT I Display data input 35 NC Not used 36 OEL O C OEL controller ON 37 rdy I OEL controller ready input 38 NC Not used 39 hold I Hold input 40,41 NC Not used 42 rd O C Read strobe 43 bhe O C Write High byte enable 44 wr O C Write strobe 45 NC Not used 46 cs2 O C Bank address (High) 47 cs1 O C Bank address (Low) 48 cs0 O C External ROM chip select 49–59 A19-9 O C Address bus Output 19bit-9bit 60 VDD VDD 61 A8 O C Address bus Output 8bit 62 VSS GND 63–70 A7-0 O C Address bus Output 7bit-0bit 71–86 D15-0 I/O Data bus 15bit-0bit 87–100 NC Not used Format Meaning C C MOS *PD5471A 25 26 50 51 75 76 100 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 60 KEH-P8800R,P8800R-W,P8850 PD8051A 2 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 43 42 41 40 47 46 45 44 48 NC NC NC A18 A17 A7 A6 A5 A4 A3 A2 A1 A0 ce VSS oe D0 D8 D1 D9 D2 D10 D3 D11 NC NC NC A19 A8 A9 A10 A11 A12 A13 A14 A15 A16 byte VSS D15/A1 D7 D14 D6 D13 D5 D12 D4 VCC A0-A19 :Address input D0-D15 :Data output byte :8/16 bit mode select ce :Chip enable input oe :Output enable input VCC :Power supply VSS :GND 8 9 4 5 6 7 3 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 61 KEH-P8800R,P8800R-W,P8850 8. OPERATIONS AND SPECIFICATIONS + ≠� + ≠� + ≠� + ≠� + ≠� + ≠� 1* 2* 4* 3* 5* Blue/white To system control terminal of the power amp or Auto-anten- na relay control terminal. (Max. 300 mA 12 V DC.) System remote control Power amp (sold separately) Rear speaker Subwoofer Subwoofer Rear speaker Front speaker Front speaker Perform these connections when using a different amp (sold separately). Power amp (sold separately) Power amp (sold separately) Yellow/black If you use a cellular telephone, connect it via the Audio Mute lead on the cellular telephone. If not, keep the Audio Mute lead free of any connections. White/yellow See the section “RFP Alert Installation”. Note: Depending on the kind of vehicle, the function of 3* and 5* may be different. If this is the case, be sure to connect 2* to 5* and 4* to 3*. Connect leads of the same color to each other. Speaker leads Cap (1*) When not using this terminal, do not remove the cap. ISO connector Fuse holder Yellow (2*) To terminal always supplied with power regardless of ignition switch position. Red (4*) To electric terminal controlled by ignition switch (12 V DC) ON/OFF. Yellow (3*) Back-up (or accessory) Red (5*) Accessory (or back-up) Black (ground) To vehicle (metal) body. Orange To lighting switch terminal. Blue/white To Auto-antenna relay control terminal. (Max. 300 mA 12 V DC.) Note: In some vehicles, the ISO connector may be divided into two. In this case, be sure to connect to both connectors. White White/black Gray Gray/black Green Green/black Violet Violet/black : Front left + : Front left ≠� : Front right + : Front right ≠� : Rear left + or Not used : Rear left ≠ or Not used : Rear right + or Subwoofer + : Rear right ≠ or Subwoofer ≠� Connecting cords with RCA pin plugs (sold separately) Fuse resistor Fuse resistor Subwoofer output or Non-Fading output This Product IP-BUS input (Blue) Rear output Front output Antenna jack Multi-CD player (sold separately) IP-BUS cable Note: When a subwoofer is connected to this unit instead of a rear right speaker, do not connect the rear left speaker lead to anything. For details, refer to the Initial Setting Menu in the Operation Manual. - Connection Diagram (KEH-P8800R/EW, KEH-P8800R-W/EW) Orange/White www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 62 KEH-P8800R,P8800R-W,P8850 - Connection Diagram (KEH-P8850/ES) + ≠� + ≠� + ≠� + ≠� + ≠� + ≠� + ≠� + ≠� + ≠� + ≠� Blue/white To system control terminal of the power amp or Auto-antenna relay control terminal. (Max. 300 mA 12 V DC.) Connecting cords with RCA pin plugs (sold separately) System remote control Power amp (sold separately) Rear speaker Subwoofer Subwoofer Rear speaker Right Front speaker Rear speaker White Gray White/black Green Green/black Gray/black Violet Violet/black Front speaker Rear speaker Left Front speaker Front speaker Perform these connections when using a different amp (sold separately). With a 2 speaker system, do not connect anything to the speaker leads that are not connected to speakers. Yellow To terminal always supplied with power regardless of ignition switch position. Orange/White To lighting switch terminal. Red To electric terminal controlled by ignition switch (12 V DC) ON/OFF. White/yellow Brown See the section “DFS Alarm Installation”. Power amp (sold separately) Power amp (sold separately) White/orange White/red Yellow/black If you use a cellular telephone, connect it via the Audio Mute lead on the cellular telephone. If not, keep the Audio Mute lead free of any connections. Black (ground) To vehicle (metal) body. Fuse holder Fuse resistor Fuse resistor Subwoofer output or Non-Fading output This Product IP-BUS input (Blue) Rear output Front output Antenna jack Multi-CD player (sold separately) IP-BUS cable www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 63 KEH-P8800R,P8800R-W,P8850 8.1 OPERATIONS 5/∞/2/3 buttons SOURCE/OFF button +/– button AUDIO button PTY button Buttons 1–6 TA button PGM button FUNCTION button EQ button DISPLAY button ENTERTAINMENT button EJECT button BAND button RESET button - KEH-P8800R/EW, KEH-P8800R-W/EW - KEH-P8850/ES 5/∞/2/3 buttons SOURCE/OFF button +/– button AUDIO button CLOCK button Buttons 1–6 LOUD button PGM button FUNCTION button EQ button DISPLAY button ENTERTAINMENT button EJECT button BAND button RESET button www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 64 KEH-P8800R,P8800R-W,P8850 - KEH-P8800R/EW, KEH-P8800R-W/EW +/– button AUDIO button 2/3 buttons BAND button FUNCTION button SOURCE/OFF button ATT button This lets you quickly lower volume level (by about 90%). Press once more to return to the original volume level. 5/∞ buttons ATT button This lets you quickly lower volume level (by about 90%). Press once more to return to the original volume level. FUNCTION button SOURCE/OFF button BAND button +/– button 5/∞ buttons 2/3 buttons AUDIO button PGM button - KEH-P8850/ES www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 65 KEH-P8800R,P8800R-W,P8850 Basic Operation To Listen to Music The following explains the initial of operations required before you can listen to music. Note: • Loading a cassette in this product. 1. Select the desired source (e.g. Tuner). Each press of the SOURCE/OFF button selects the desired source in the following order: Tuner = DAB (Digital Audio Broadcasting) Tuner = Cassette player = Multi-MD player = Multi-CD player = AUX Note: • In the following cases, the sound source will not change: * No Multi-CD player is connected to this product. * No Multi-MD player is connected to this product. * No DAB tuner is connected to this product. * No tape is set in this product. * No magazine is set in the Multi-CD player. * AUX (external input) is set to OFF. 2. Raise or lower the volume. 3. Source OFF. Hold for 1 second or more Each press changes the Source ... Basic Operation of Tuner This product’s AF function can be switched ON and OFF. AF should be switched OFF for normal tuning operations. Manual and Seek Tuning • You can select the tuning method by changing the length of time you press the 2/3 button. Manual Tuning (step by step) 0.5 seconds or less Seek Tuning 0.5 seconds or more Note: • If you continue pressing the button for longer than 0.5 seconds, you can skip broadcast stations. Seek Tuning starts as soon as you stop pressing the button. • “” stereo indicator lights when a stereo station is selected. Preset Tuning • You can memorize broadcast stations in buttons 1 through 6 for easy, one-touch station recall. Preset station recall 2 seconds or less Broadcast station preset memory 2 seconds or more Note: • Up to 18 FM stations (6 in FM-1, FM-2 and FM-3) and 6 MW/LW stations can be stored in memory. • You can also use the 5 or ∞ buttons to recall broadcast stations memorized in buttons 1 through 6. Preset Number Indicator Band Indicator Band FM-1 = FM-2 = FM-3 = MW/LW Frequency Indicator www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 66 KEH-P8800R,P8800R-W,P8850 Basic Operation Basic Operation of Cassette Player Note: • Be sure to close the front panel after loading or ejecting a cassette. Fast Forward/Rewind and Music Search • Each press of the 3 button selects Fast forward or Forward-Music Search. Fast Forward = FF M-Search (Forward-Music Search) = Nomal Playback • Each press of the 2 button selects Rewind-Music Search. Rewind = REW M-Search (Rewind-Music Search) = Nomal Playback Note: • Fast Forward/Rewind and Music Search can be canceled by pressing the BAND button. Cassette Loading Slot If a cassette tape is inserted, the front panel is closed automatically. Note: • “METAL” appears on the display when a metal or chrome tape is inserted. Nothing is displayed for a normal tape. Direction Indicator Eject Press the EJECT button, and you can open the front panel before ejection. In case of opening the front panel, you can just eject a cassette tape. Note: • The Tape function can be turned ON/OFF with the cassette tape remaining in this product. Open Press the EJECT button for 1 second or more, and you can open the front panel without ejecting a cassette tape. In case of opening the front panel, you can close it. Note: • When opening the front panel, the 1 to 6 buttons are not available. WARNING: • Do not use with the front panel left open. If you do leave it open, it may result in injury in the event of an accident. Direction Change Elapsed Play Time Indicator Note: • The continuous playback time count starts at “00m00s” at the following times. * When a tape is inserted. * When the tape direction is changed. * When you rewind the tape side currently playing back to the beginning. • The continuous playback time count is halted when fast-forwarding/rewinding and while the Music Search function is operating. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 67 KEH-P8800R,P8800R-W,P8850 Basic Operation Basic Operation of Multi-CD Player This product can control a Multi-CD player. (With certain old type Multi-CD players, using a multiple connection adapter lets you connect multiple units which you can control with this product.) Track Search and Fast Forward/Reverse • You can select between Track Search or Fast Forward/Reverse by pressing the 2/3 button for a different length of time. Track Search 0.5 seconds or less Fast Forward/Reverse Continue pressing Disc Number Search (for 6-Disc, 12-Disc types) • You can select discs directly with the 1 to 6 buttons. Just press the number corresponding to the disc you want to listen to. Note: • When a 12-Disc Multi-CD Player is connected and you want to select disc 7 to 12, press the 1 to 6 buttons for 2 seconds or longer. Disc Number Rough Search (for 50-Disc type only) This handy function lets you select discs loaded in a 50-Disc Multi-CD Player using the 1 to 5 buttons. The 50 discs are divided into five blocks, with each of the 1 to 5 buttons assigned to a block. • Select the desired block with the 1 to 5 buttons. Note: • After completing a rough search, use the 5 and ∞ buttons to select a desired disc. Note: • The Multi-CD player may perform a preparatory operation, such as verifying the presence of a disc or reading disc information, when the power is turned ON or a new disc is selected for playback. “READY” is displayed. • When a magazine is loaded into a 50-Disc type Multi-CD Player, information on all the discs in the magazine is read. If you start playing a disc on a 50-Disc type Multi-CD Player before reading of information on all discs has been completed, reading of information stops part way through. This will prevent you from using the ITS function. (If you try and use this function, “Not Ready” is displayed.) If this happens, reading of information begins again when you switch to a component other than the 50-Disc Type Multi-CD Player. • If the Multi-CD player cannot operate properly, an error message such as “ERROR-14” is dis- played. Refer to Multi-CD Player Owner’s Manual. • If there are no discs in the Multi-CD player magazine, “No Disc” is displayed. • “LOADING” will be displayed in the following cases: * If the disc in the extra tray in selected. * If the disc in moved from the extra tray to the magazine. (Refer to the 50-Disc Type Multi-CD Player Owner’s Manual.) • You cannot use the “Ejecting a Single Disc”, “Frequency Play”, “Music Group Play” or “ABC Disc Title Search” functions with this product. When playing a CD TEXT disc on a CD TEXT compatible Multi-CD Player: • You can use the following two functions. Refer to Multi-CD Player’s Owner’s Manual for opera- tion details. * Title display switching * Title scroll • You cannot switch to the Disc Title Input mode in the Detailed Setting Menu. Switching the Multi-CD Player When two or more Multi-CD players are connected using a multiple connection adapter, you can select the Multi-CD player by pressing the BAND button. Magazine 1 = Magazine 2 = Magazine 3 (Displayed about for 2 seconds.) Play Time Indicator Disc Search Disc Number Indicator Track Number Indicator Switching the Display Each press of the DISPLAY button changes the display in the following order: Play mode (Play Time) = Disc Title Note: • If you switch displays when disc titles have not been input, “No Title” is displayed. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com KEH-P8800R,P8800R-W,P8850 Specifications (KEH-P8800R/EW, KEH-P8800R-W/EW) General Power source .......... 14.4 V DC (10.8 – 15.1 V allowable) Grounding system ........................................ Negative type Max. current consumption ...................................... 10.0 A Dimensions (mounting size) ...... 178 (W) × 50 (H) × 155 (D) mm (front face) .............. 188 (W) × 58 (H) × 20 (D) mm Weight ...................................................................... 1.6 kg Audio Maximum power output ...................................... 45 W × 4 45 W × 2 ch/4 Ω + 70 W × 1 ch/2 Ω (for Subwoofer) Continuous power output .................................... 27 W × 4 (DIN45324, +B = 14.4 V) Load impedance ...................... 4 Ω (4 – 8 Ω [2 Ω for 1 ch] allowable) Preout maximum output level/output impedance .......................... 4.0 V/100 Ω Equalizer (3-Band Parametric Equalizer) (Low) .......................... Frequency: 40/80/100/160 Hz Q Factor: 0.35/0.59/0.95/1.15 (+6 dB when boosted) Gain: ±12 dB (Mid) .......................... Frequency: 200/500/1k/2k Hz Q Factor: 0.35/0.59/0.95/1.15 (+6 dB when boosted) Gain: ±12 dB (High) ................ Frequency: 3.15k/8k/10k/12.5k Hz Q Factor: 0.35/0.59/0.95/1.15 (+6 dB when boosted) Gain: ±12 dB Loudness contour (Low) .................. +3.5 dB (100 Hz), +3 dB (10 kHz) (Mid) ................ +10 dB (100 Hz), +6.5 dB (10 kHz) (High) ................ +11 dB (100 Hz), +11 dB (10 kHz) (volume: –30 dB) HPF Frequency ............................................ 50/80/125 Hz Slope ........................................................ –12 dB/oct. Subwoofer Frequency ............................................ 50/80/125 Hz Slope ........................................................ –18 dB/oct. Gain ................................................................ ±12 dB Phase ................................................ Normal/Reverse Cassette player Tape ........................ Compact cassette tape (C-30 – C-90) Tape speed ......4.76 cm/sec.(+0.14 cm/sec.,-0.05 cm/sec.) Fast forward/rewinding time .... Approx. 100 sec. for C-60 Wow & flutter .......................................... 0.09% (WRMS) Frequency response .......... Metal: 30 – 19,000 Hz (±3 dB) Stereo separation ...................................................... 45 dB Signal-to-noise ratio ...... Metal: Dolby B NR IN: 67 dB (IEC-A network) Dolby NR OUT: 61 dB (IEC-A network) FM tuner Frequency range ...................................... 87.5 – 108 MHz Usable sensitivity .................. 11 dBf (1.0 µV/75 Ω, mono, S/N: 30 dB) 50 dB quieting sensitivity .... 16 dBf (1.7 µV/75 Ω, mono) Signal-to-noise ratio ...................... 70 dB (IEC-A network) Distortion .......................... 0.3% (at 65 dBf, 1 kHz, stereo) Frequency response ...................... 30 – 15,000 Hz (±3 dB) Stereo separation .......................... 40 dB (at 65 dBf, 1 kHz) MW tuner Frequency range ...................................... 531 – 1,602 kHz Usable sensitivity .............................. 18 µV (S/N: 20 dB) Selectivity .................................................. 50 dB (±9 kHz) LW tuner Frequency range ........................................ 153 – 281 kHz Usable sensitivity .............................. 30 µV (S/N: 20 dB) Selectivity .................................................. 50 dB (±9 kHz) Specifications (HEH-P8850/ES) General Power source .......... 14.4 V DC (10.8 – 15.1 V allowable) Grounding system ........................................ Negative type Max. current consumption ...................................... 10.0 A Dimensions (DIN) (chassis) ...... 178 (W) × 50 (H) × 155 (D) mm (nose) .......... 188 (W) × 58 (H) × 20 (D) mm (D) (chassis) ...... 178 (W) × 50 (H) × 160 (D) mm (nose) .......... 170 (W) × 46 (H) × 15 (D) mm Weight ...................................................................... 1.6 kg Audio Continuous power output is 22 W per channel min. into 4 ohms, both channels driven 50 to 15,000 Hz with no more than 5% THD. Maximum power output ...................................... 45 W × 4 45 W × 2 ch/4 Ω + 70 W × 1 ch/2 Ω (for Subwoofer) Load impedance ...................... 4 Ω (4 – 8 Ω [2 Ω for 1 ch] allowable) Preout maximum output level/ output impedance .................................. 4.0 V/100 Ω Equalizer (3-Band Parametric Equalizer) (Low) .......................... Frequency: 40/80/100/160 Hz Q Factor: 0.35/0.59/0.95/1.15 (+6 dB when boosted) Gain: ±12 dB (Mid) .......................... Frequency: 200/500/1k/2k Hz Q Factor: 0.35/0.59/0.95/1.15 (+6 dB when boosted) Gain: ±12 dB (High) ................ Frequency: 3.15k/8k/10k/12.5k Hz Q Factor: 0.35/0.59/0.95/1.15 (+6 dB when boosted) Gain: ±12 dB Loudness contour (Low) ..................+3.5 dB (100 Hz), +3 dB (10 kHz) (Mid) ..................+10 dB (100 Hz), +6.5 dB (10 kHz) (High) ..................+11 dB (100 Hz), +11 dB (10 kHz) (volume: –30 dB) HPF Frequency ............................................ 50/80/125 Hz Slope ........................................................ –12 dB/oct. Subwoofer output Frequency ............................................ 50/80/125 Hz Slope ........................................................ –18 dB/oct. Gain ................................................................ ±12 dB Phase ................................................ Normal/Reverse Cassette player Tape ........................ Compact cassette tape (C-30 – C-90) Tape speed ...... 4.76 cm/sec.(+0.14 cm/sec.,-0.05 cm/sec.) Fast forward/rewinding time .... Approx. 100 sec. for C-60 Wow & flutter .......................................... 0.09% (WRMS) Frequency response .......... Metal: 30 – 19,000 Hz (±3 dB) Stereo separation ...................................................... 45 dB Signal-to-noise ratio ...... Metal: Dolby B NR IN: 67 dB (IEC-A network) Dolby NR OUT: 61 dB (IEC-A network) FM tuner Frequency range ...................................... 87.5 – 108 MHz Usable sensitivity .................. 10 dBf (0.9 µV/75 Ω, mono, S/N: 30 dB) 50 dB quieting sensitivity .... 15 dBf (1.5 µV/75 Ω, mono) Signal-to-noise ratio ...................... 70 dB (IEC-A network) Distortion .......................... 0.3% (at 65 dBf, 1 kHz, stereo) Frequency response ...................... 30 – 15,000 Hz (±3 dB) Stereo separation .......................... 40 dB (at 65 dBf, 1 kHz) AM tuner Frequency range ........................ 531 – 1,602 kHz (9 kHz) 530 – 1,710 kHz (10 kHz) Usable sensitivity .............................. 18 µV (S/N: 20 dB) Selectivity .................................................. 50 dB (±9 kHz) 50 dB (±10 kHz) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
