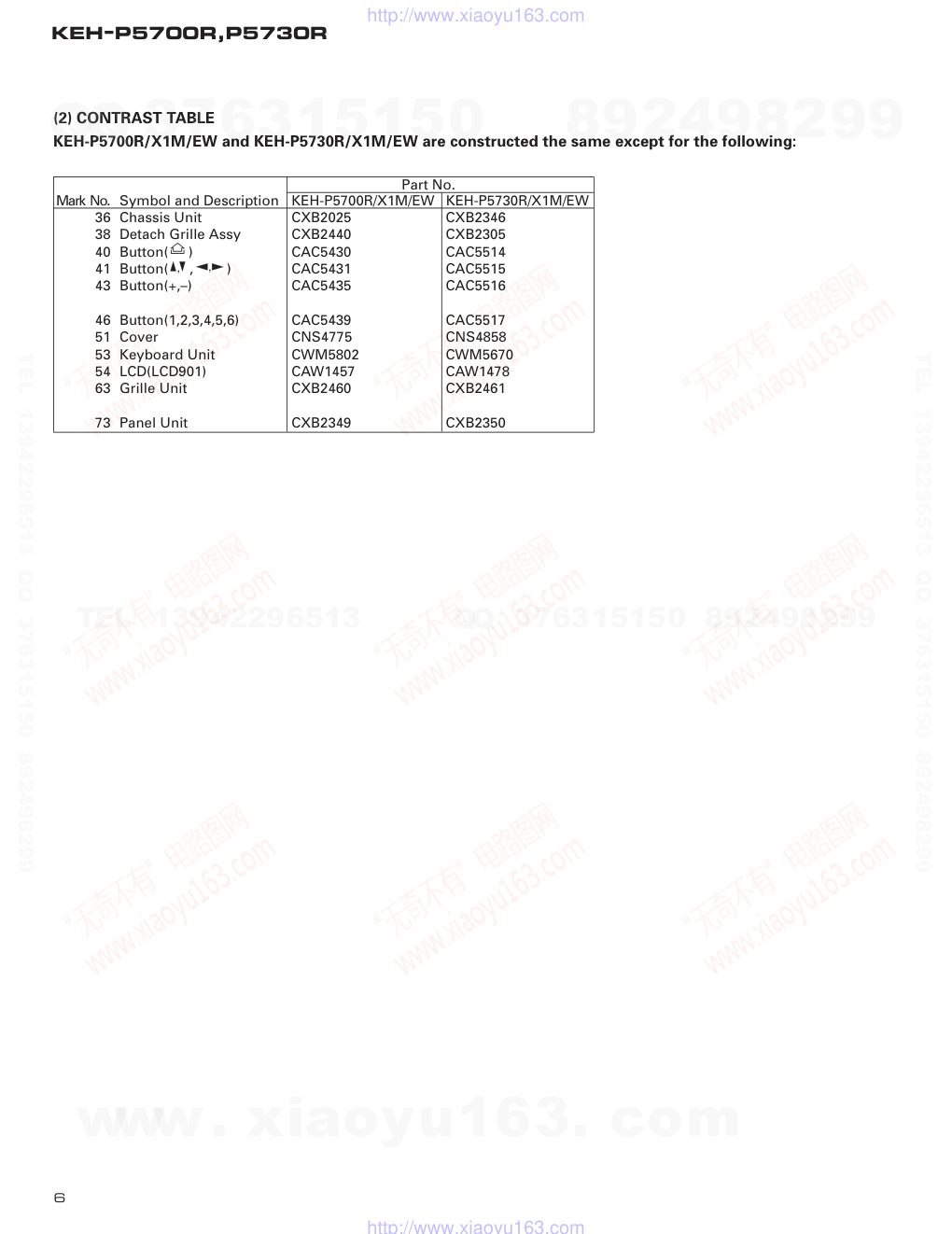

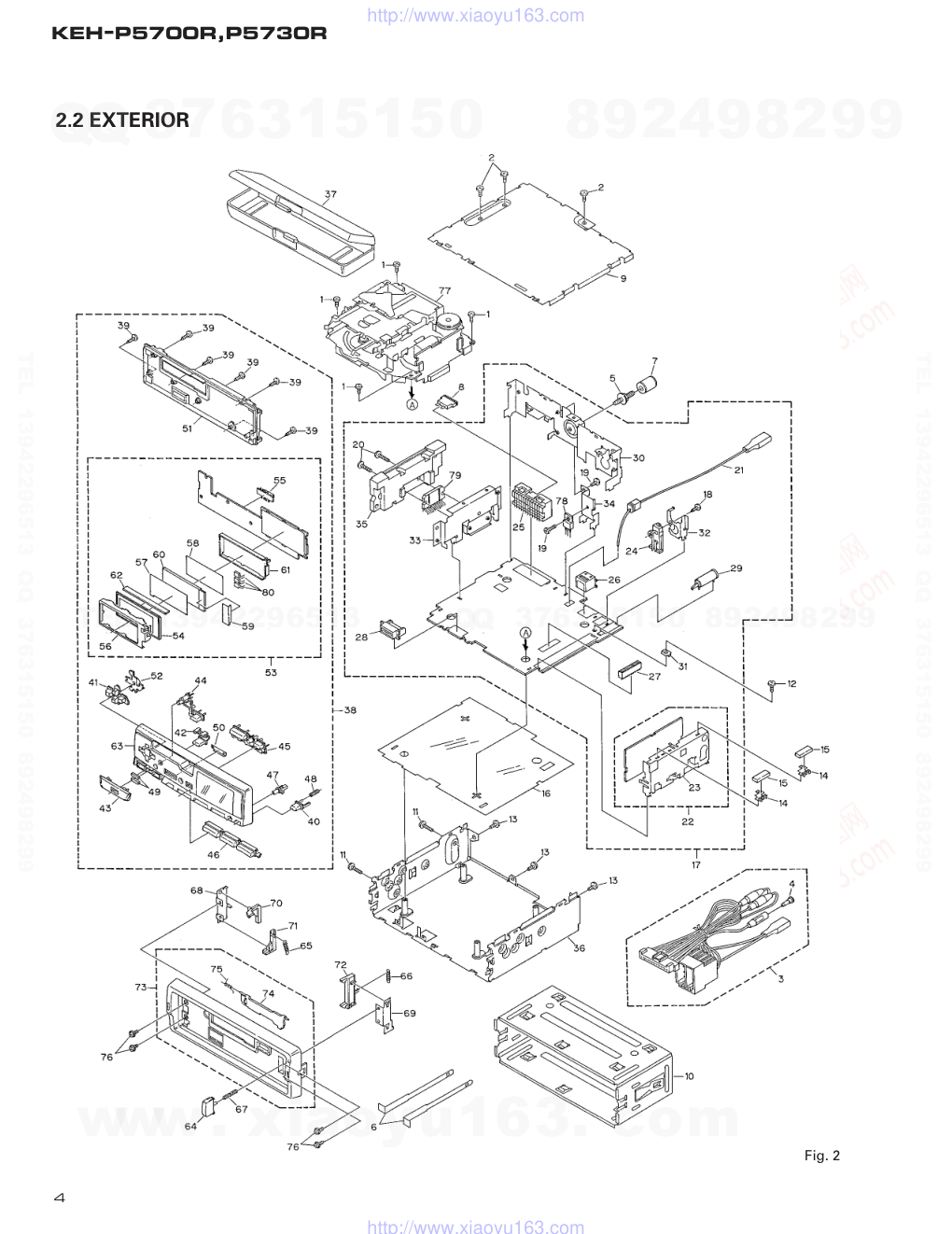

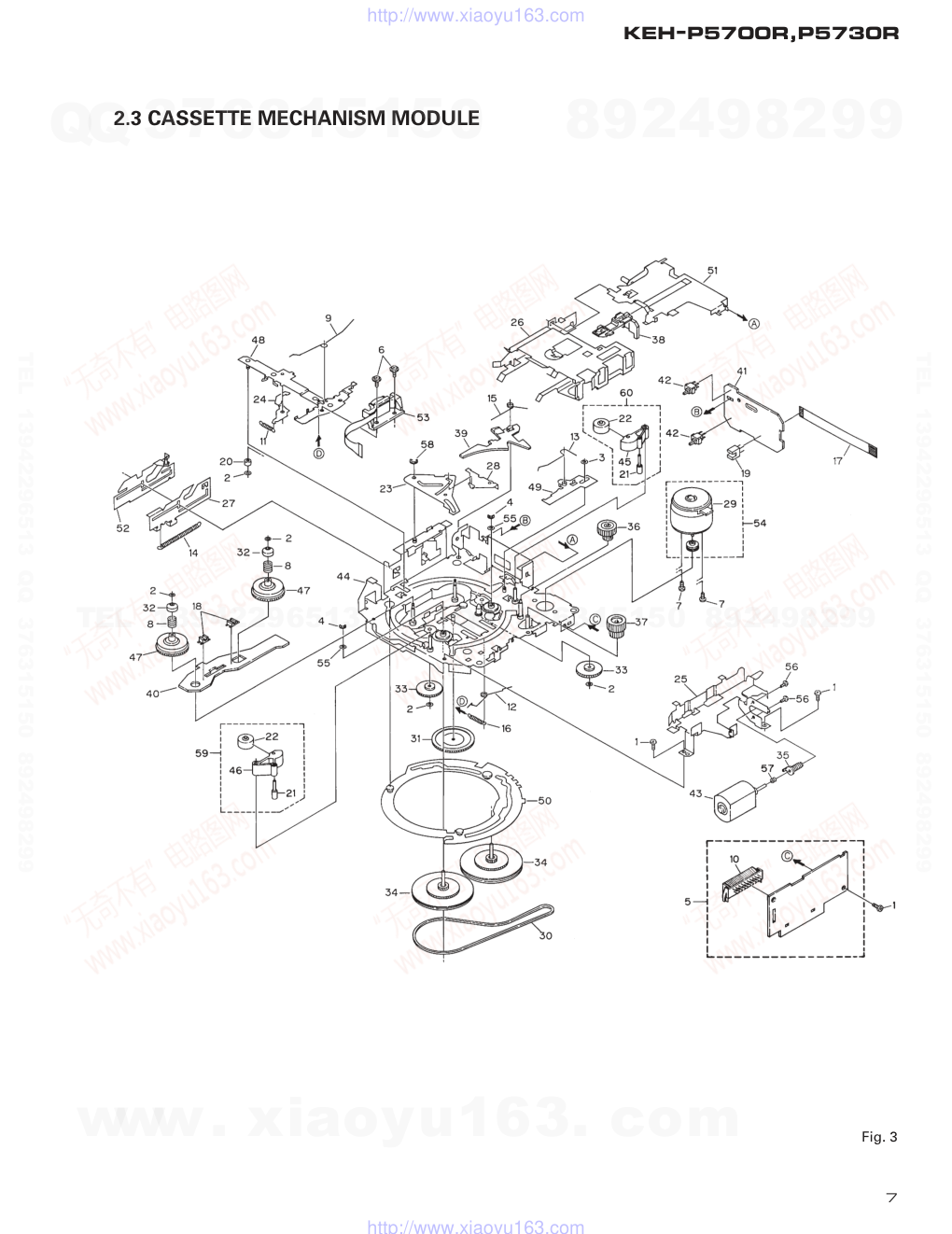

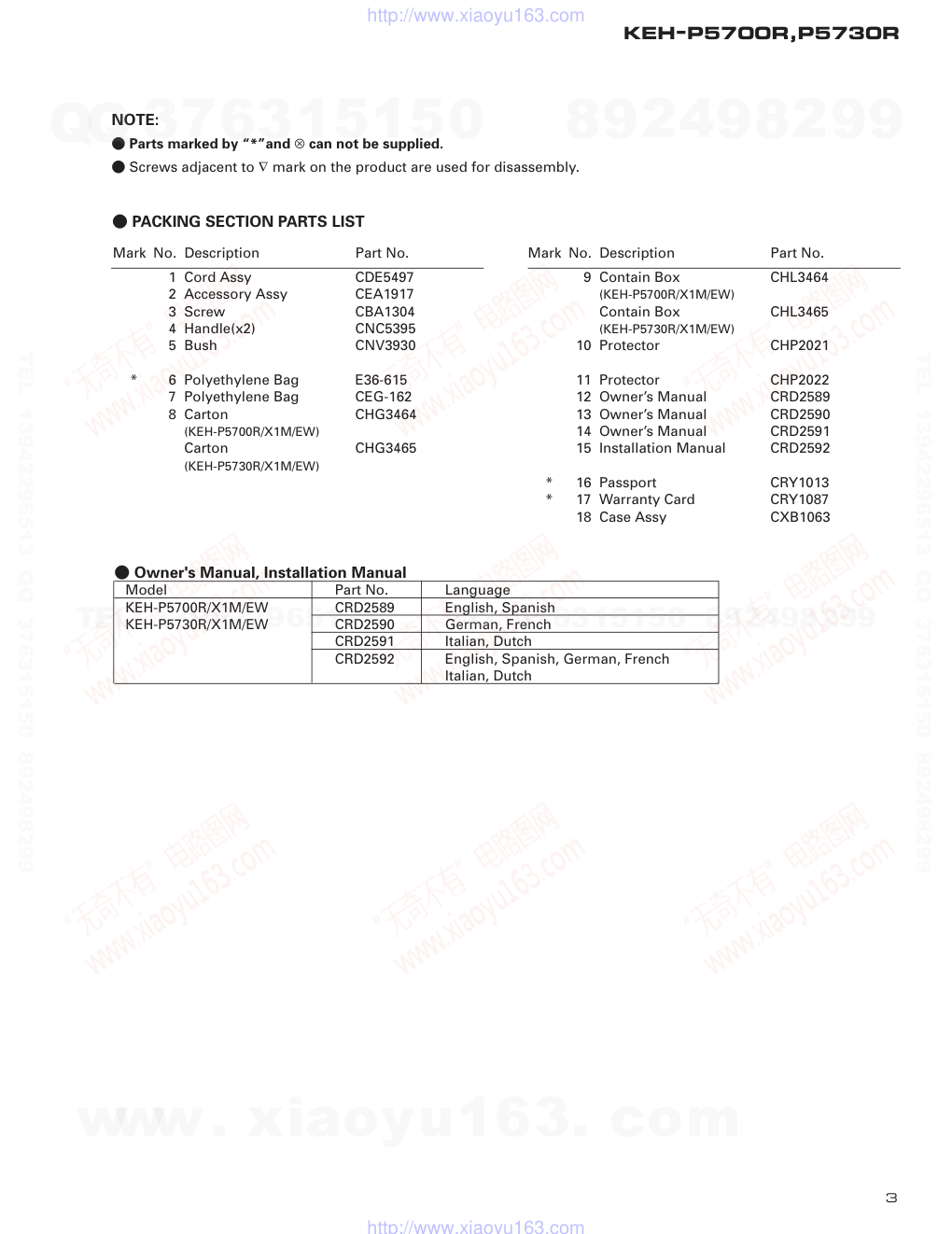

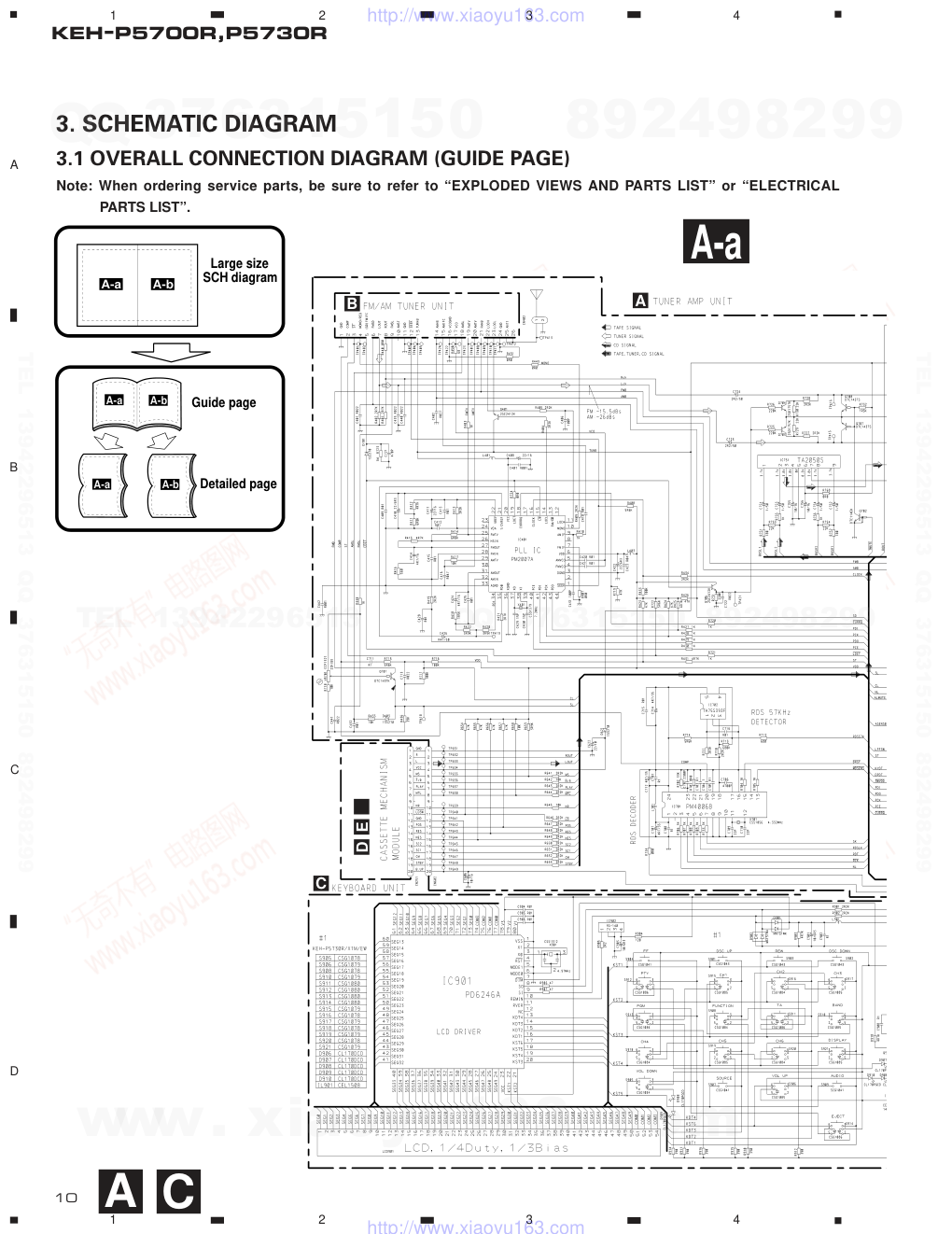

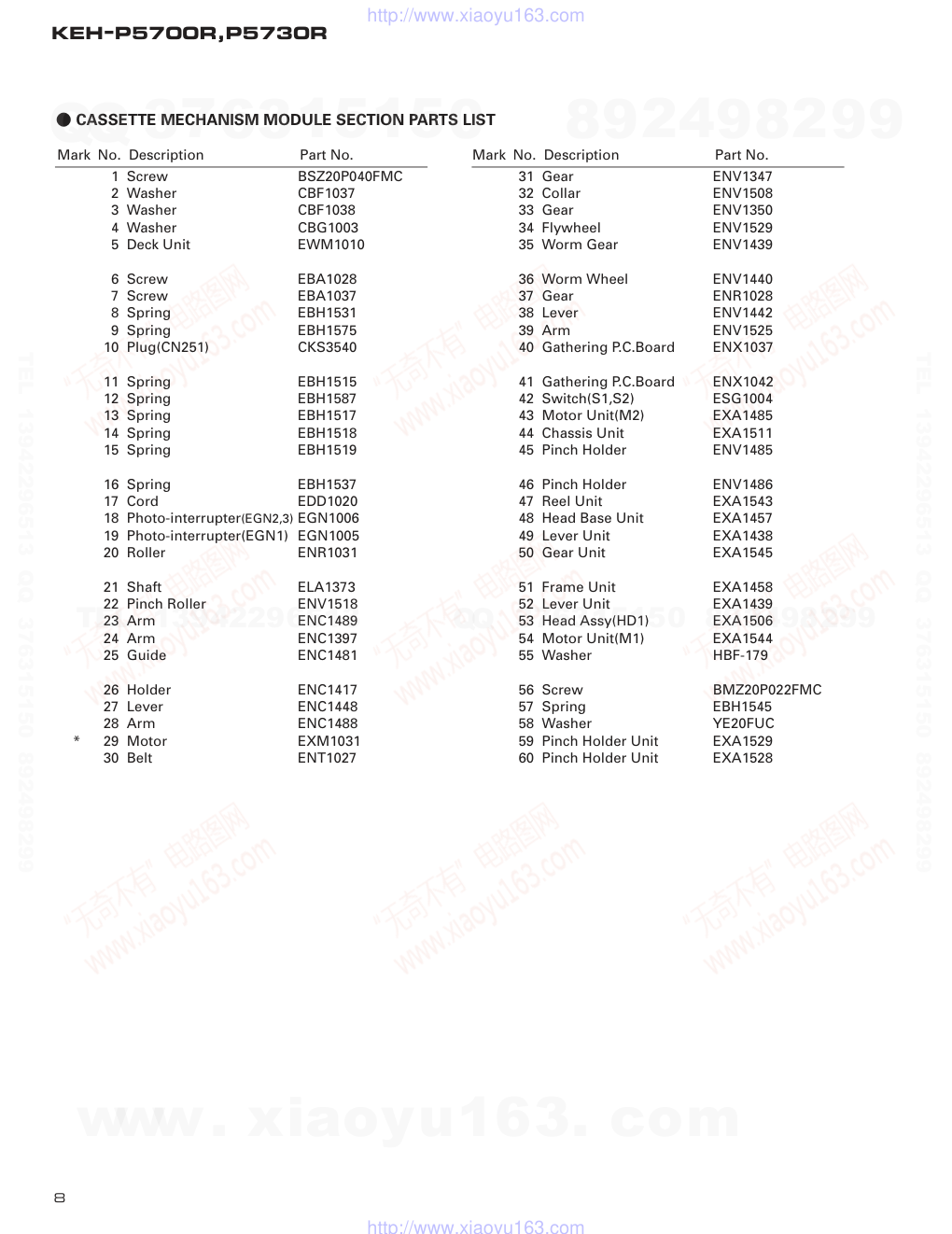

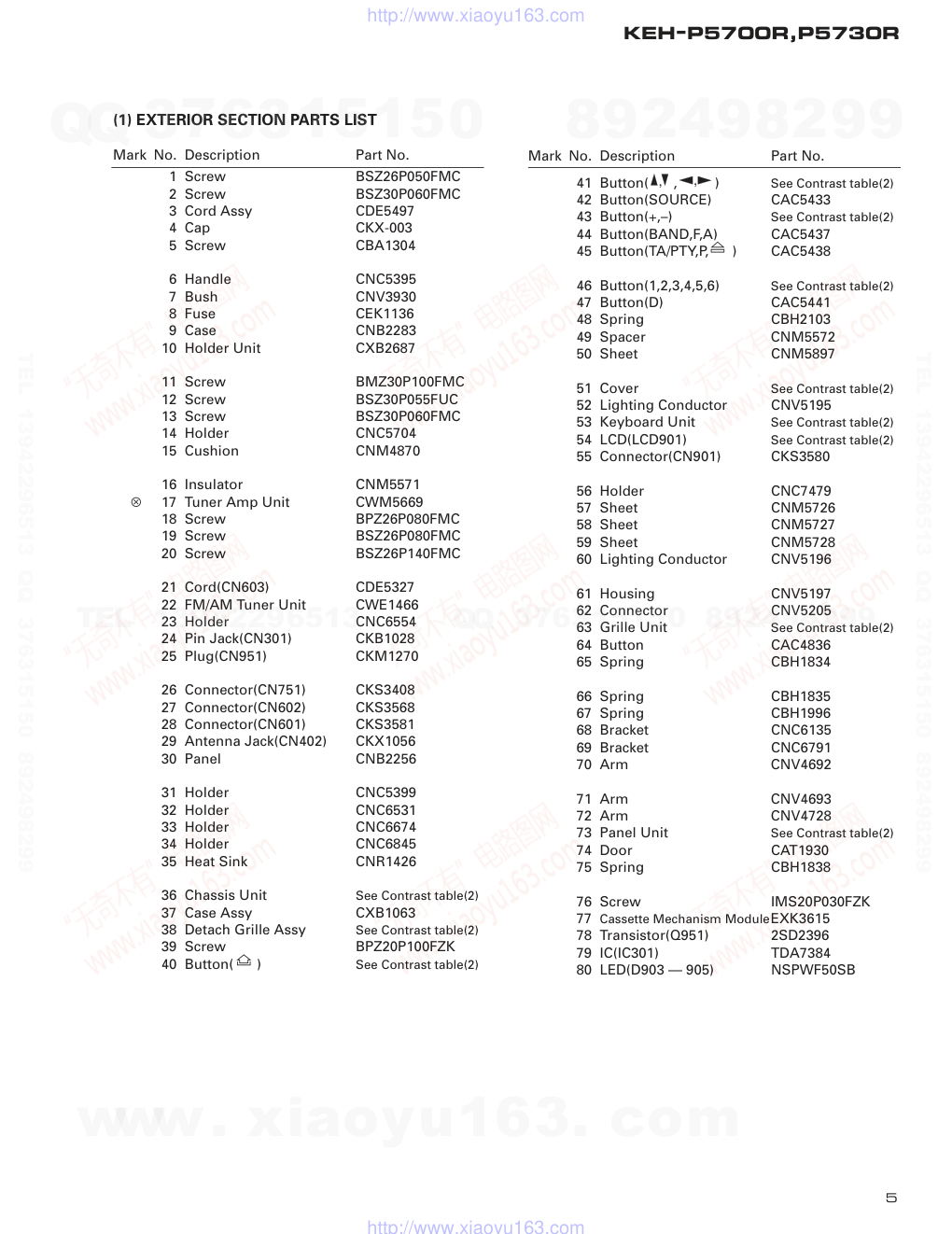

PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS SERVICE INC. P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A. PIONEER ELECTRONIC [EUROPE] N.V. Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 501 Orchard Road, #10-00, Wheelock Place, Singapore 238880 C PIONEER ELECTRONIC CORPORATION 1998 K-ZEM. FEB. 1998 Printed in Japan ORDER NO. CRT2171 MULTI-CD CONTROL HIGH POWER CASSETTE PLAYER WITH RDS TUNER Service Manual KEH-P5700R X1M/EW NOTE: - See the separate manual CX-631(CRT1640) for the cassette mechanism description. - The cassette mechanism assy employed in this model is one of 2L series. - Dolby noise reduction manufactured under license from Dolby Laboratories Licensing Corporation. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation. - This service manual does not describe the CD test mode. For the operations in the CD test mode, refer to the CD player's Service Manual. KEH-P5730R X1M/EW • KEH-P5700R/X1M/EW CONTENTS 1. SAFETY INFORMATION ...........................................2 2. EXPLODED VIEWS AND PARTS LIST......................2 3. SCHEMATIC DIAGRAM ..........................................10 4. PCB CONNECTION DIAGRAM ...............................20 5. ELECTRICAL PARTS LIST .......................................30 6. ADJUSTMENT ........................................................36 7. GENERAL INFORMATION ......................................38 7.1 PARTS.................................................................38 7.1.1 IC ...............................................................38 7.1.2 DISPLAY ...................................................43 7.2 DISASSEMBLY ..................................................44 7.3 BLOCK DIAGRAM..............................................45 8. OPERATIONS AND SPECIFICATIONS ...................46 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2. EXPLODED VIEWS AND PARTS LIST 2.1 PACKING 2 KEH-P5700R,P5730R 1. SAFETY INFORMATION This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. 11 10 9 8 12,15,16,17 18 1 13,14 5 4 6 3 2 7 Fig. 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 KEH-P5700R,P5730R NOTE: - Parts marked by “*”and ⊗ can not be supplied. - Screws adjacent to ∇ mark on the product are used for disassembly. 1 Cord Assy CDE5497 2 Accessory Assy CEA1917 3 Screw CBA1304 4 Handle(x2) CNC5395 5 Bush CNV3930 * 6 Polyethylene Bag E36-615 7 Polyethylene Bag CEG-162 8 Carton CHG3464 (KEH-P5700R/X1M/EW) Carton CHG3465 (KEH-P5730R/X1M/EW) 9 Contain Box CHL3464 (KEH-P5700R/X1M/EW) Contain Box CHL3465 (KEH-P5730R/X1M/EW) 10 Protector CHP2021 11 Protector CHP2022 12 Owner’s Manual CRD2589 13 Owner’s Manual CRD2590 14 Owner’s Manual CRD2591 15 Installation Manual CRD2592 * 16 Passport CRY1013 * 17 Warranty Card CRY1087 18 Case Assy CXB1063 Mark No. Description Part No. Mark No. Description Part No. - PACKING SECTION PARTS LIST - Owner's Manual, Installation Manual Model Part No. Language KEH-P5700R/X1M/EW CRD2589 English, Spanish KEH-P5730R/X1M/EW CRD2590 German, French CRD2591 Italian, Dutch CRD2592 English, Spanish, German, French Italian, Dutch www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 KEH-P5700R,P5730R Fig. 2 2.2 EXTERIOR www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 KEH-P5700R,P5730R 1 Screw BSZ26P050FMC 2 Screw BSZ30P060FMC 3 Cord Assy CDE5497 4 Cap CKX-003 5 Screw CBA1304 6 Handle CNC5395 7 Bush CNV3930 8 Fuse CEK1136 9 Case CNB2283 10 Holder Unit CXB2687 11 Screw BMZ30P100FMC 12 Screw BSZ30P055FUC 13 Screw BSZ30P060FMC 14 Holder CNC5704 15 Cushion CNM4870 16 Insulator CNM5571 ⊗ 17 Tuner Amp Unit CWM5669 18 Screw BPZ26P080FMC 19 Screw BSZ26P080FMC 20 Screw BSZ26P140FMC 21 Cord(CN603) CDE5327 22 FM/AM Tuner Unit CWE1466 23 Holder CNC6554 24 Pin Jack(CN301) CKB1028 25 Plug(CN951) CKM1270 26 Connector(CN751) CKS3408 27 Connector(CN602) CKS3568 28 Connector(CN601) CKS3581 29 Antenna Jack(CN402) CKX1056 30 Panel CNB2256 31 Holder CNC5399 32 Holder CNC6531 33 Holder CNC6674 34 Holder CNC6845 35 Heat Sink CNR1426 36 Chassis Unit See Contrast table(2) 37 Case Assy CXB1063 38 Detach Grille Assy See Contrast table(2) 39 Screw BPZ20P100FZK 40 Button( ) See Contrast table(2) 41 Button( , ) See Contrast table(2) 42 Button(SOURCE) CAC5433 43 Button(+,–) See Contrast table(2) 44 Button(BAND,F,A) CAC5437 45 Button(TA/PTY,P, ) CAC5438 46 Button(1,2,3,4,5,6) See Contrast table(2) 47 Button(D) CAC5441 48 Spring CBH2103 49 Spacer CNM5572 50 Sheet CNM5897 51 Cover See Contrast table(2) 52 Lighting Conductor CNV5195 53 Keyboard Unit See Contrast table(2) 54 LCD(LCD901) See Contrast table(2) 55 Connector(CN901) CKS3580 56 Holder CNC7479 57 Sheet CNM5726 58 Sheet CNM5727 59 Sheet CNM5728 60 Lighting Conductor CNV5196 61 Housing CNV5197 62 Connector CNV5205 63 Grille Unit See Contrast table(2) 64 Button CAC4836 65 Spring CBH1834 66 Spring CBH1835 67 Spring CBH1996 68 Bracket CNC6135 69 Bracket CNC6791 70 Arm CNV4692 71 Arm CNV4693 72 Arm CNV4728 73 Panel Unit See Contrast table(2) 74 Door CAT1930 75 Spring CBH1838 76 Screw IMS20P030FZK 77 Cassette Mechanism ModuleEXK3615 78 Transistor(Q951) 2SD2396 79 IC(IC301) TDA7384 80 LED(D903 — 905) NSPWF50SB , , (1) EXTERIOR SECTION PARTS LIST Mark No. Description Part No. Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 KEH-P5700R,P5730R Part No. Mark No. Symbol and Description KEH-P5700R/X1M/EW KEH-P5730R/X1M/EW 36 Chassis Unit CXB2025 CXB2346 38 Detach Grille Assy CXB2440 CXB2305 40 Button( ) CAC5430 CAC5514 41 Button( , ) CAC5431 CAC5515 43 Button(+,–) CAC5435 CAC5516 46 Button(1,2,3,4,5,6) CAC5439 CAC5517 51 Cover CNS4775 CNS4858 53 Keyboard Unit CWM5802 CWM5670 54 LCD(LCD901) CAW1457 CAW1478 63 Grille Unit CXB2460 CXB2461 73 Panel Unit CXB2349 CXB2350 , , (2) CONTRAST TABLE KEH-P5700R/X1M/EW and KEH-P5730R/X1M/EW are constructed the same except for the following: www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 KEH-P5700R,P5730R Fig. 3 2.3 CASSETTE MECHANISM MODULE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 KEH-P5700R,P5730R 1 Screw BSZ20P040FMC 2 Washer CBF1037 3 Washer CBF1038 4 Washer CBG1003 5 Deck Unit EWM1010 6 Screw EBA1028 7 Screw EBA1037 8 Spring EBH1531 9 Spring EBH1575 10 Plug(CN251) CKS3540 11 Spring EBH1515 12 Spring EBH1587 13 Spring EBH1517 14 Spring EBH1518 15 Spring EBH1519 16 Spring EBH1537 17 Cord EDD1020 18 Photo-interrupter(EGN2,3) EGN1006 19 Photo-interrupter(EGN1) EGN1005 20 Roller ENR1031 21 Shaft ELA1373 22 Pinch Roller ENV1518 23 Arm ENC1489 24 Arm ENC1397 25 Guide ENC1481 26 Holder ENC1417 27 Lever ENC1448 28 Arm ENC1488 * 29 Motor EXM1031 30 Belt ENT1027 31 Gear ENV1347 32 Collar ENV1508 33 Gear ENV1350 34 Flywheel ENV1529 35 Worm Gear ENV1439 36 Worm Wheel ENV1440 37 Gear ENR1028 38 Lever ENV1442 39 Arm ENV1525 40 Gathering P.C.Board ENX1037 41 Gathering P.C.Board ENX1042 42 Switch(S1,S2) ESG1004 43 Motor Unit(M2) EXA1485 44 Chassis Unit EXA1511 45 Pinch Holder ENV1485 46 Pinch Holder ENV1486 47 Reel Unit EXA1543 48 Head Base Unit EXA1457 49 Lever Unit EXA1438 50 Gear Unit EXA1545 51 Frame Unit EXA1458 52 Lever Unit EXA1439 53 Head Assy(HD1) EXA1506 54 Motor Unit(M1) EXA1544 55 Washer HBF-179 56 Screw BMZ20P022FMC 57 Spring EBH1545 58 Washer YE20FUC 59 Pinch Holder Unit EXA1529 60 Pinch Holder Unit EXA1528 Mark No. Description Part No. Mark No. Description Part No. - CASSETTE MECHANISM MODULE SECTION PARTS LIST www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 KEH-P5700R,P5730R www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 KEH-P5700R,P5730R A 1 2 3 4 B C D 1 2 3 4 3. SCHEMATIC DIAGRAM 3.1 OVERALL CONNECTION DIAGRAM (GUIDE PAGE) Note: When ordering service parts, be sure to refer to “EXPLODED VIEWS AND PARTS LIST” or “ELECTRICAL PARTS LIST”. A-a A-b A-a A-b A-b A-a Large size SCH diagram Guide page Detailed page A C A-a A B C D E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 KEH-P5700R,P5730R 5 6 7 8 A B C D 5 6 7 8 A-b A Fig. 4 POWER AMP www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 KEH-P5700R,P5730R A 1 2 3 4 B C D 1 2 3 4 A B A-a A-a A-b www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 KEH-P5700R,P5730R 5 6 7 8 A B C D 5 6 7 8 C D E F Fig. 5 A-a A-a A-b C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 KEH-P5700R,P5730R A 1 2 3 4 B C D 1 2 3 4 POWER AMP A-a A-b A-b www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 KEH-P5700R,P5730R 5 6 7 8 A B C D 5 6 7 8 Fig. 6 A-b A-a A-b www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 KEH-P5700R,P5730R A 1 2 3 4 B C D 1 2 3 4 A B 3.2 FM/AM TUNER UNIT B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 KEH-P5700R,P5730R 5 6 7 8 A B C D 5 6 7 8B Fig. 7 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 KEH-P5700R,P5730R A 1 2 3 4 B C D 1 2 3 4 3.3 CASSETTE MECHANISM MODULE A D D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 KEH-P5700R,P5730R 5 6 7 8 A B C D 5 6 7 8 . E F Fig. 8 D E F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 KEH-P5700R,P5730R A 1 2 3 4 B C D 1 2 3 4 C CN901 CORD ASSY NOTE FOR PCB DIAGRAMS 1. The parts mounted on this PCB include all necessary parts for several destination. For further information for respective destinations, be sure to check with the schematic diagram. 2. Viewpoint of PCB diagrams 4. PCB CONNECTION DIAGRAM 4.1 TUNER AMP UNIT A A C Capacitor Connector P.C.Board Chip Part SIDE A SIDE B TUNER AMP UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 KEH-P5700R,P5730R 5 6 7 8 A B C D 5 6 7 8 B D CN251 CN901 SY Fig. 9 SIDE A D B A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 22 KEH-P5700R,P5730R A 1 2 3 4 B C D 1 2 3 4 A A TUNER AMP UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 23 KEH-P5700R,P5730R 5 6 7 8 A B C D 5 6 7 8 Fig. 10 A SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 24 KEH-P5700R,P5730R A 1 2 3 4 B C D 1 2 3 4 4.2 KEYBOARD UNIT Fig. 11 AUDIO SOURCE FF REW FUNCTION TA PTY PGM EJECT VOL DOWN VOL UP BAND 1 2 3 4 5 6 DISPLAY DISC UP DISC DOWN C SIDE A C KEYBOARD UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 25 KEH-P5700R,P5730R 1 2 3 4 A B C D 1 2 3 4 Fig. 12 C A CN601 SIDE B A CN601 C KEYBOARD UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 26 KEH-P5700R,P5730R A 1 2 3 4 B C D 1 2 3 4 4.3 FM/AM TUNER UNIT Fig. 13 B B SIDE A FM/AM TUNER UNIT A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 27 KEH-P5700R,P5730R 1 2 3 4 A B C D 1 2 3 4 Fig. 14 B B SIDE B FM/AM TUNER UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 28 KEH-P5700R,P5730R A 1 2 3 4 B C D 1 2 3 4 IC,Q ADJ VR302 IC351 IC251 Q351 Q352 VR301 HEAD ASSY E M1 M2 4.4 CASSETTE MECHANISM MODULE D Fig. 15 D A CN602 A E SIDE B SIDE A DECK UNIT D DECK UNIT Fig. 16 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 29 KEH-P5700R,P5730R 1 2 3 4 A B C D 1 2 3 4 E E F SIDE B SIDE A PCB UNIT PCB UNIT REEL PCB D F Fig. 17 Fig. 18 Fig. 19 E F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 30 KEH-P5700R,P5730R 5. ELECTRICAL PARTS LIST NOTE: - Parts whose parts numbers are omitted are subject to being not supplied. - The part numbers shown below indicate chip components. Chip Resistor RS1/_S___J,RS1/__S___J Chip Capacitor (except for CQS.....) CKS....., CCS....., CSZS..... R 8 RS1/16S332J R 9 RS1/16S473J R 10 RS1/16S223J R 11 RS1/16S124J R 13 RS1/16S563J R 15 RS1/16S271J R 16 RS1/16S104J R 17 RS1/16S332J R 18 RS1/16S332J R 31 RS1/16S470J R 32 RS1/16S822J R 33 RS1/16S822J R 34 RS1/16S331J R 35 RS1/16S331J R 51 RS1/16S271J R 52 RS1/16S560J R 55 RS1/16S102J R 56 RS1/16S823J R 61 RS1/16S392J R 62 RS1/16S393J R 101 RS1/16S272J R 102 RS1/16S682J R 103 RS1/16S333J R 104 RS1/16S334J R 105 RS1/16S683J R 107 RS1/16S222J R 151 RS1/16S222J R 152 RS1/16S393J R 154 RS1/16S104J R 155 RS1/16S273J R 156 RS1/16S243J R 157 RS1/16S203J R 160 RS1/16S222J R 161 RS1/16S563J R 162 RS1/16S105J R 163 RS1/16S222J R 202 RS1/16S223J R 203 RS1/16S225J R 204 RS1/16S103J R 206 RS1/16S220J R 207 RS1/16S101J R 208 RS1/16S102J R 209 RS1/16S471J R 214 RS1/16S822J R 215 RS1/16S822J R 217 RS1/16S102J R 231 RS1/16S272J R 232 RS1/16S473J R 237 RS1/16S103J R 238 RS1/16S104J R 239 RS1/16S104J R 240 RS1/16S332J R 241 RS1/16S202J R 243 RS1/16S123J R 244 RS1/16S103J Unit Number : CWE1466 Unit Name : FM/AM Tuner Unit MISCELLANEOUS IC 1 IC PA4023B IC 2 IC PA4024A Q 1 Transistor 2SC2412KLN Q 2 Transistor DTC124EU Q 3 FET 3SK263 Q 31 Transistor 2SC2412KLN Q 154 Transistor DTC124EU Q 165 Transistor 2SC2412KLN Q 201 FET 2SK932 Q 202 Transistor 2SC2412KLN Q 203 Transistor DTC124EU D 4 Diode 1SV250 D 5 Diode KV1410-F1 D 6 Diode MA157 D 7 Diode KV1410-F1 D 8 Diode KV1410-F1 D 201 Diode MA157 D 202 Diode MA157 D 231 Diode SVC253 L 2 Coil CTC1133 L 3 Inductor LCTB2R2K2125 L 4 Coil CTC1133 L 5 Coil CTC1132 L 6 Inductor LCTBR15K1608 L 51 Ferri-Inductor LAU150K L 201 Ferri-Inductor LAU4R7K L 202 Ferri-Inductor LAU330K L 203 Inductor CTF1287 L 208 Inductor LAU121K L 231 Inductor LCTA3R3J3225 T 31 Coil CTE1116 T 51 Coil CTC1136 TC 1 Capacitor CCL1038 CF 51 Ceramic Filter CTF1292 CF 52 Ceramic Filter CTF1292 CF 53 Ceramic Filter CTF1292 CF 232 Ceramic Filter CTF1348 X 151 Resonator 920.5kHz CSS1365 X 231 Crystal Resonator 10.26MHz CSS1111 VR 154 Semi-fixed 150kΩ(B) CCP1213 AR 1 Capacitor with Discharge Gap DSP-201M RESISTORS R 1 RS1/16S0R0J R 4 RS1/16S154J R 5 RS1/16S391J R 6 RS1/16S223J R 7 RS1/16S123J =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 31 KEH-P5700R,P5730R R 247 RS1/16S123J CAPACITORS C 1 CCSQCH6R0D50 C 2 CCSRCK2R0C50 C 4 CCSRCH820J50 C 6 CCSRCH820J50 C 8 CKSRYB103K25 C 9 CKSQYB104K16 C 10 CCSRCKR50C50 C 11 CEJA1R0M50 C 12 CKSRYB222K50 C 13 CKSRYB222K50 C 14 CCSRCH220J50 C 16 CCSRCH8R0D50 C 17 CKSRYB222K50 C 18 CKSRYB103K25 C 19 CKSRYB222K50 C 20 CKSRYB222K50 C 21 CEJA100M16 C 22 CCSRTH9R0D50 C 23 CCSRTH120J50 C 24 CCSRCH471J50 C 25 CKSRYB103K25 C 31 CKSRYB103K25 C 32 CKSQYB472K50 C 33 CCSRCH5R0C50 C 34 CKSQYB104K16 C 36 CCSRRH201J50 C 51 CKSRYB223K25 C 52 CKSRYB103K25 C 54 CCSRCH470J50 C 55 CKSQYB223K25 C 56 CKSQYB104K16 C 57 CKSRYB472K50 C 58 CEJA330M10 C 59 CKSRYB103K25 C 61 CCSRCH270J50 C 62 CKSRYB103K25 C 63 CEJAR15M50 C 101 CEJANP100M10 C 102 CKSRYB182K50 C 103 CKSRYB682K25 C 104 CEJA2R2M50 C 105 CKSRYB103K25 C 106 CCSRCH151J50 C 107 CKSRYB103K25 C 151 CKSRYB472K50 C 152 CKSQYB104K16 C 153 CEJA3R3M50 C 154 CKSQYB104K16 C 157 CEJA3R3M50 C 158 CKSYB474K16 C 159 CEJA220M6R3 C 160 CKSQYB104K16 C 161 CKSQYB104K16 C 162 CEJA3R3M50 C 163 CKSRYB102K50 C 170 CCSRCH100D50 C 201 CCSRCH471J50 C 202 CCSRCH100D50 C 203 CKSRYB332K50 C 204 CKSQYB473K16 C 205 CKSQYB473K16 C 206 CKSQYB104K16 C 207 CCSRCH560J50 C 209 CKSQYB104K16 C 211 CCSRCH101J50 C 212 CEJA470M6R3 C 213 CKSRYB103K25 C 216 CCSRCH101J50 C 217 CEJA1R5M50 C 219 CCSRCH471J50 C 220 CKSRYB103K25 C 230 CKSRYB103K25 C 231 CCSRCH330J50 C 232 CCSRCH150J50 C 233 CKSQYB104K16 C 234 CEJA330M10 C 235 CKSRYB332K50 C 236 CKSQYB473K16 C 237 CCSRCH120J50 C 239 CKSRYB472K50 C 240 CEJAR47M50 C 241 CKSQYB104K16 C 242 CEJAR47M50 C 243 CEJAR33M50 C 244 CKSQYB473K16 C 245 CKSRYB123K25 C 246 CKSQYB473K16 C 250 CCSRCH471J50 Unit Number : CWM5669 Unit Name : Tuner Amp Unit MISCELLANEOUS IC 201 IC SN761027DL IC 301 IC TDA7384 IC 401 IC PM2007A IC 601 IC PD4914A IC 604 IC S-80734AN IC 701 IC PM4006B IC 702 IC TA75S393F IC 751 IC TA2050S IC 752 IC CA0008AM IC 951 IC TPD1018F Q 203 Transistor DTC114TS Q 204 Transistor DTC114TS Q 205 Transistor DTA124ES Q 206 Transistor DTA124EK Q 207 Transistor DTC143TK Q 208 Transistor DTC143TK Q 209 Transistor DTC114EK Q 301 Transistor DTC124EK Q 302 Transistor 2SC1740S Q 401 Transistor 2SC2412K Q 601 Transistor 2SC2412K Q 602 Transistor 2SC2412K Q 604 Transistor 2SA933S Q 605 Transistor DTC124EK Q 606 Transistor 2SC1740S Q 609 Transistor 2SA933S Q 701 Transistor DTC143TK Q 702 Transistor DTC114EK Q 703 Transistor 2SD1757K Q 704 Transistor 2SD1757K Q 706 Transistor 2SC2412K Q 707 Transistor DTC143TS Q 708 Transistor DTC143TS Q 751 Transistor 2SA1037K Q 752 Transistor DTC114EK Q 951 Transistor 2SD2396 Q 952 Transistor 2SD2037 Q 953 Transistor 2SA933S Q 954 Transistor DTC114EK Q 955 Transistor 2SA1674 =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 32 KEH-P5700R,P5730R Q 956 Transistor 2SA1048 Q 957 Transistor DTC114TK Q 958 Transistor DTC114TK Q 959 Transistor 2SC2412K Q 960 Transistor DTC114TK Q 961 Transistor 2SB1243 D 301 Diode MA152WK D 403 Diode 1SS270 D 601 Diode HZS7L(C2) D 602 Diode HZS7L(A1) D 603 Diode 1SS270 D 614 LED BR4361F D 615 Diode 1SS270 D 616 Diode 1SS270 D 617 Diode 1SS270 D 618 Diode 1SS270 D 619 Diode 1SS270 D 620 Diode 1SS270 D 621 Diode 1SS270 D 622 Diode HZS7L(A1) D 701 Diode 1SS270 D 951 Diode 1SR139-400 D 952 Diode 1SR139-400 D 953 Diode 1SR139-400 D 954 Diode 1SR139-400 D 955 Diode 1SR139-400 D 956 Diode HZS6L(B2) D 957 Diode HZS9L(B3) D 959 Diode HZS9L(A2) L 401 Ferri-Inductor LAU2R2K L 403 Ferri-Inductor LAU2R2K L 601 Ferri-Inductor LAU2R2K L 602 Ferri-Inductor LAU2R2K L 603 Ferri-Inductor LAU2R2K L 701 Ferri-Inductor LAU101K L 751 Ferri-Inductor LAU2R2K L 951 Choke Coil 600µH CTH1168 X 401 Crystal Resonator 7.200MHz CSS1379 X 631 Ceramic Resonator 6.29MHz CSS1310 X 701 Crystal Resonator 4.332MHz CSS1056 VR 701 Semi-fixed 22kΩ(B) CCP1321 FM/AM Tuner Unit CWE1466 RESISTORS R 201 RS1/10S821J R 202 RS1/10S821J R 203 RS1/10S104J R 204 RS1/10S104J R 205 RS1/8S563J R 206 RS1/10S563J R 207 RS1/10S152J R 208 RS1/10S152J R 209 RS1/10S272J R 210 RS1/10S272J R 211 RS1/8S151J R 212 RS1/10S151J R 213 RS1/10S221J R 214 RS1/10S221J R 215 RS1/10S104J R 216 RS1/10S104J R 217 RS1/10S103J R 218 RS1/8S102J R 223 RS1/10S473J R 224 RS1/10S473J R 228 RS1/10S123J R 229 RS1/10S392J R 230 RS1/10S392J R 301 RD1/4PU103J R 302 RS1/10S221J R 303 RS1/10S153J R 304 RS1/10S103J R 305 RS1/10S152J R 306 RS1/10S101J R 307 RS1/8S562J R 308 RS1/8S223J R 401 RS1/10S272J R 402 RS1/10S272J R 403 RS1/10S102J R 404 RS1/10S222J R 405 RS1/10S222J R 407 RS1/10S0R0J R 408 RS1/10S562J R 409 RS1/10S222J R 410 RS1/10S102J R 411 RS1/10S682J R 412 RS1/10S472J R 413 RS1/10S222J R 414 RS1/10S682J R 415 RS1/10S472J R 416 RS1/10S561J R 417 RS1/10S103J R 418 RS1/10S152J R 419 RS1/10S222J R 420 RS1/10S392J R 421 RS1/10S272J R 422 RS1/10S392J R 423 RS1/10S473J R 424 RS1/10S473J R 425 RS1/10S472J R 426 RS1/8S473J R 427 RD1/4PU102J R 428 RD1/4PU102J R 429 RD1/4PU102J R 430 RD1/4PU102J R 431 RS1/10S472J R 433 RS1/10S104J R 434 RD1/4PU222J R 435 RS1/10S103J R 436 RS1/10S393J R 440 RS1/8S0R0J R 448 RS1/10S102J R 449 RS1/8S0R0J R 450 RS1/10S680J R 451 RS1/8S0R0J R 601 RS1/10S223J R 602 RS1/8S473J R 603 RS1/10S473J R 604 RS1/10S223J R 605 RS1/10S473J R 606 RS1/10S473J R 607 RS1/10S0R0J R 609 RS1/10S0R0J R 611 RS1/10S751J R 612 RS1/10S103J R 613 RS1/10S223J R 614 RS1/10S223J R 615 RS1/10S223J R 616 RS1/10S272J R 617 RS1/10S473J R 629 RS1/10S0R0J R 631 RS1/10S473J R 633 RS1/10S473J R 637 RD1/4PU102J R 638 RS1/10S124J R 639 RD1/4PU222J R 640 RS1/10S223J R 641 RD1/4PU222J R 642 RS1/8S103J R 643 RS1/8S222J =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 33 KEH-P5700R,P5730R R 644 RD1/4PU222J R 645 RD1/4PU103J R 646 RS1/8S222J R 647 RS1/8S222J R 648 RS1/10S222J R 649 RS1/10S222J R 650 RD1/4PU222J R 651 RD1/4PU222J R 652 RD1/4PU222J R 653 RS1/10S222J R 654 RS1/10S473J R 655 RS1/10S473J R 656 RS1/10S473J R 657 RS1/10S473J R 658 RS1/10S103J R 659 RS1/10S392J R 660 RS1/10S472J R 661 RD1/4PU472J R 662 RS1/10S222J R 663 RS1/8S222J R 664 RD1/4PU102J R 665 RD1/4PU102J R 667 RS1/10S102J R 695 RS1/8S472J R 702 RS1/10S333J R 703 RS1/10S0R0J R 704 RD1/4PU102J R 705 RD1/4PU102J R 706 RD1/4PU102J R 707 RD1/4PU102J R 708 RD1/4PU102J R 709 RD1/4PU102J R 710 RS1/10S222J R 711 RS1/10S222J R 712 RS1/10S681J R 713 RS1/10S684J R 714 RS1/10S562J R 715 RS1/10S562J R 716 RS1/10S104J R 717 RS1/10S104J R 718 RS1/10S103J R 719 RS1/10S473J R 720 RD1/4PU102J R 721 RD1/4PU102J R 722 RS1/10S562J R 723 RS1/10S105J R 724 RD1/4PU0R0J R 725 RS1/10S224J R 726 RS1/10S224J R 727 RS1/10S222J R 728 RS1/10S222J R 729 RS1/10S223J R 730 RS1/10S223J R 731 RS1/10S224J R 732 RD1/4PU152J R 733 RD1/4PU102J R 734 RS1/10S0R0J R 751 RS1/10S181J R 752 RS1/10S181J R 753 RS1/10S223J R 754 RS1/10S223J R 755 RS1/10S102J R 756 RS1/10S102J R 757 RS1/10S102J R 758 RS1/8S102J R 759 RS1/10S473J R 760 RS1/10S473J R 761 RS1/10S102J R 762 RS1/10S101J R 763 RS1/10S101J R 764 RS1/10S620J R 765 RS1/10S223J R 766 RS1/10S472J R 767 RS1/10S222J R 768 RS1/10S0R0J R 951 RS1/10S473J R 952 RD1/4PU102J R 953 RD1/4PU471J R 954 RD1/4PU101J R 955 RS1/10S472J R 956 RS1/10S473J R 957 RS1/10S102J R 958 RS1/10S473J R 959 RS1/10S102J R 960 RS1/8S103J R 961 RS1/8S1R0J R 962 RS1/10S103J R 963 RS1/10S223J R 964 RS1/10S152J R 967 RS1/10S473J R 968 RS1/10S102J R 973 RS1/10S0R0J CAPACITORS C 201 CEJA2R2M50 C 202 CEJA2R2M50 C 203 CEJA1R0M50 C 204 CEJA1R0M50 C 205 CEJA4R7M35 C 206 CEJA4R7M35 C 207 CEJA100M16 C 208 CEJA100M16 C 209 CKSQYB822K50 C 210 CKSQYB822K50 C 211 CEJA1R0M50 C 212 CEJA1R0M50 C 213 CKSQYB183K25 C 214 CKSQYB183K25 C 215 CKSQYB102K50 C 216 CKSQYB102K50 C 217 CEJA2R2M50 C 218 CEJA2R2M50 C 219 CKSQYB333K25 C 220 CKSQYB333K25 C 221 CEJA220M10 C 222 CEJA220M10 C 223 CKSQYF104Z25 C 225 CKSQYB473K16 C 226 CKSQYB102K50 C 227 CEJA2R2M50 C 228 CEJA2R2M50 C 229 CEJA2R2M50 C 230 CEJA2R2M50 C 236 CKSQYB473K16 C 309 3300µF/16V CCH1018 C 310 CKSQYB104K16 C 311 CKSQYB224K16 C 312 CKSQYB224K16 C 313 CKSQYB224K16 =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 34 KEH-P5700R,P5730R C 314 CKSQYB224K16 C 315 CEJA100M16 C 316 CKSQYB224K16 C 317 CEJA1R0M50 C 318 CEJA330M10 C 401 CKSQYB223K25 C 402 CKSYB273K25 C 406 CCSQSL101J50 C 407 CKSQYB102K50 C 408 CEJA220M16 C 409 CKSQYB103K25 C 410 CEJA220M6R3 C 411 CEJA220M16 C 412 CKSQYB103K25 C 413 CKSQYB103K25 C 414 4.7µF/16V CCH1250 C 415 CKSQYB103K25 C 416 CKLSR473K16 C 418 CKSQYB103K25 C 420 CKSQYB103K25 C 421 CKSQYB103K25 C 422 CEJA220M6R3 C 423 CKSQYB473K16 C 424 4.7µF/16V CCH1250 C 425 CKSQYB103K25 C 426 CEJAR47M50 C 428 CKSQYB103K25 C 429 CCSQCH150J50 C 430 CCSQCH150J50 C 431 CCSQSL101J50 C 432 CKSQYB103K25 C 439 CKSQYB223K25 C 440 CKSQYB223K25 C 441 CKSQYB223K25 C 442 CKSQYB102K50 C 602 CKSQYB103K25 C 606 CEJA100M16 C 607 CCSQSL101J50 C 612 CEAL2R2M50 C 613 CKSYB102K50 C 614 CCSQSL101J50 C 615 CEJA4R7M35 C 616 CKSQYB103K25 C 619 CKSQYB473K16 C 622 CEJA220M10 C 624 CKSYB102K50 C 701 CKSQYF104Z25 C 702 CKSQYB222K50 C 703 CKSQYB104K16 C 704 CKSYB105K16 C 705 CKSYB104K16 C 706 CKSQYB472K50 C 707 CEJA4R7M35 C 708 CKSQYB104K16 C 709 CCSQCH220J50 C 710 CCSQCH220J50 C 711 CKSQYB104K16 C 712 CEJA4R7M35 C 713 CKSQYB223K25 C 714 CEJA4R7M35 C 715 CKSQYB103K25 C 716 CKSQYB103K25 C 721 CKSQYB471K50 C 722 CKSQYB223K25 C 723 CEAL2R2M50 C 724 CEJA2R2M50 C 751 CEJA1R0M50 C 752 CEJA1R0M50 C 753 CEJA1R0M50 C 754 CEJA1R0M50 C 755 CEJA100M16 C 756 CEJA100M16 C 757 CKSQYB102K50 C 758 CKSQYB104K16 C 951 470µF/16V CCH1183 C 952 CEJA470M10 C 953 CEAS101M10 C 954 CKSQYB103K25 C 956 CKSQYB103K25 C 957 CKSQYB103K25 C 958 CEAS101M10 C 959 CKSYB103K50 C 960 CKSQYB472K50 Unit Number : EWM1016 Unit Name : Deck Unit MISCELLANEOUS IC 251 IC CXA2560Q IC 351 IC PA2020A Q 351 Transistor 2SB1260 Q 352 Transistor 2SC4102 D 351 Diode 1SS355 VR 301 Semi-fixed 33kΩ(B) CCP1280 VR 302 Semi-fixed 33kΩ(B) CCP1280 RESISTORS R 255 RS1/16S221J R 256 RS1/16S221J R 257 RS1/16S102J R 258 RS1/16S102J R 271 RS1/16S102J R 272 RS1/16S102J R 273 RS1/16S102J R 281 RS1/8S0R0J R 282 RS1/8S0R0J R 283 RS1/8S0R0J R 284 RS1/8S0R0J R 285 RS1/16S0R0J R 286 RS1/16S0R0J R 287 RS1/8S0R0J R 290 RS1/8S0R0J R 301 RS1/16S183J R 322 RS1/16S102J R 351 RS1/16S102J R 352 RS1/16S102J R 353 RS1/16S102J R 354 RS1/16S102J R 355 RS1/10S274J R 356 RS1/10S202J R 357 RS1/10S472J R 358 RS1/10S103J R 359 RS1/10S103J R 360 RS1/10S102J R 361 RS1/10S622J R 362 RS1/8S181J R 373 RS1/8S0R0J R 374 RS1/8S0R0J R 375 RS1/8S0R0J R 401 RS1/16S472J R 402 RS1/16S163J R 403 RS1/16S823J =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 35 KEH-P5700R,P5730R CAPACITORS C 251 CKSRYB331K50 C 252 CKSRYB331K50 C 253 CKSRYB331K50 C 254 CKSRYB331K50 C 255 CKSRYB103K25 C 256 CKSRYB103K25 C 272 CKSQYB104K16 C 273 CEJA220M16 C 301 CKSYB104K50 C 302 CKSYB104K50 C 309 CKSQYB104K16 C 310 CKSQYB104K16 C 313 CCSQCH101K50 C 351 CKSYB224K25 C 352 CKSQYB392K50 C 353 CKSQYB103K50 C 354 CKSQYB103K50 C 355 CKSYB104K50 C 356 CKSQYB103K50 C 401 CKSQYB334K16 C 402 CKSQYB472K50 C 403 CKSQYB683K16 Unit Number : CWM5802(KEH-P5700R/X1M/EW) : CWM5670(KEH-P5730R/X1M/EW) Unit Name : Keyboard Unit MISCELLANEOUS IC 901 IC PD6246A IC 902 IC RS-140 Q 901 Transistor 2SC2412K D 901 Chip Diode MA151WK D 902 Diode MA151WA D 903 LED NSPWF50SB D 904 LED NSPWF50SB D 905 LED NSPWF50SB D 906 LED See Contrast table D 907 LED See Contrast table D 908 LED See Contrast table D 909 LED See Contrast table D 910 LED See Contrast table L 901 Inductor LCTA101J3225 X 901 Ceramic Resonator 4.97MHz CSS1312 S 901 Switch CSG1043 S 902 Switch CSG1043 S 903 Switch CSG1043 S 904 Switch CSG1041 S 905 Switch See Contrast table S 906 Switch See Contrast table S 907 Switch CSG1041 S 908 Switch See Contrast table S 909 Switch CSG1041 S 910 Switch See Contrast table S 911 Switch See Contrast table S 912 Switch See Contrast table S 913 Switch See Contrast table S 914 Switch See Contrast table S 915 Switch See Contrast table S 916 Switch See Contrast table S 917 Switch See Contrast table S 918 Switch See Contrast table S 919 Switch See Contrast table S 920 Switch See Contrast table S 921 Switch See Contrast table IL 901 Lamp 14V 40mA See Contrast table LCD 901 LCD See Contrast table RESISTORS R 901 RS1/10S222J R 902 RS1/10S222J R 903 RS1/10S472J R 904 RS1/10S121J R 905 RS1/10S2R2J R 906 RS1/10S470J R 907 RS1/10S470J R 908 RS1/4S511J R 909 RS1/4S751J R 910 RS1/4S391J R 911 RS1/4S391J R 912 RS1/4S391J R 913 RS1/4S391J R 914 RS1/4S391J R 915 RS1/4S391J R 916 RS1/4S391J R 917 RS1/4S391J R 918 RS1/10S472J R 919 RS1/4S391J CAPACITORS C 901 CSZSR100M6R3 C 902 CKSQYF104Z50 C 903 CSZSR100M6R3 C 904 CKSQYB103K25 C 905 CKSQYB103K25 C 906 CKSQYB103K25 C 907 CKSQYF104Z50 C 908 CKSQYF104Z50 C 909 CKSQYF104Z50 Unit Number : Unit Name : PCB Unit S 1 Switch (Load) ESG1004 S 2 Switch (70µS) ESG1004 EGN 1 Photo-Interrupter EGN1005 Unit Number : Unit Name : Reel PCB EGN 2 Photo-Interrupter EGN1006 EGN 3 Photo-Interrupter EGN1006 Miscellaneous Parts List M 1 Motor Unit (Main) EXA1544 M 2 Motor Unit (Sub) EXA1485 HD 1 Head Assy EXA1506 =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- Part No. Symbol and Description KEH-P5700R/X1M/EW KEH-P5730R/X1M/EW LCD 901 LCD CAW1457 CAW1478 IL 901 Lamp CEL1558(14V 40mA) CEL1508(14V 40mA) D 906 – 910 Diode CL170PGCD CL170DCD S 905,908,916 Switch CSG1084 CSG1078 S 906,910,915 Switch CSG1085 CSG1079 S 911 – 914 Switch CSG1086 CSG1080 S 917,919,921 Switch CSG1085 CSG1079 S 918,920 Switch CSG1084 CSG1078 CONTRAST TABLE of KEYBOARD UNIT KEH-P5700R/X1M/EW and KEH-P5730/X1M/EW have the same construction except for the following: E F C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 36 KEH-P5700R,P5730R FM/AM TUNER UNIT 4Ω 4Ω Lch + Lch - Rch + Rch - BACK UP ACC GND +14.4V GND Main Antenna mV Meter (1) Oscilloscope DC Regulated Power Supply TUNER AMP UNIT DC V Meter(1) Center Meter Pin 19 FM/AM TUNER UNIT (BOTTOM VIEW) C63 FM/AM TUNER UNIT (TOP VIEW) L2 L5 TC1 T51 T31 Pin1 Pin13 Pin14 Pin26 L4 T51 VR154 50Ω(75Ω) FM SSG Stereo Modulator 50Ω(37.5Ω) Antenna Dummy Antenna Q701 E VR701 DC V Meter(2) VR302 mV Meter(2) VR301 L-CH R-CH Pin2 Pin3 CN251 DECK UNIT DECK UNIT(BOTTOM VIEW) Fig. 20 6. ADJUSTMENT - Connection Diagram www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 37 KEH-P5700R,P5730R FM ADJUSTMENT Modulation M:MONO MOD., 400Hz 30%(22.5kHz Dev.) or 400Hz 100%(75kHz Dev.) S:STEREO MOD., 1kHz, L or R=30%(20.25kHz+7.5kHz Dev.) S2:STEREO MOD., 400Hz, L or R=60%(40.50kHz+7.5kHz Dev.) NOTE:Before proceeding to further adjustments after switching power ON, let the tuner run for ten minutes to allow the circuits to stabilize. FM SSG Displayed Adjustment Adjustment Method No. Frequency(MHz) Level(dBf) Frequency(MHz) Point (Switch Position) TUN Volt 1 ••••• ••••• 108.0 L5 DC V Meter(1) : 6V IF 2 98.1 M 60 98.1 T51 Center Meter : 0 ANT Coil 3 98.1 M 5 98.1 L2 mV Meter(1) : Maximum RF Coil 4 98.1 M 5 98.1 L4 mV Meter(1) : Maximum Image 5 129.3 M 60—80 107.9 TC1 mV Meter(1) : Minimum IFT 6 98.1 M 5 98.1 T31 mV Meter(1) : Maximum (STEREO MODE) ARC 7 98.1 S 40 98.1 VR154 mV Meter(1) : Separation 5dB (STEREO MODE) RDS SL ADJUSTMENT FM SSG Displayed Adjustment Adjustment Method No. Frequency(MHz) Level(dBf) Frequency(MHz) Point (Switch Position) 1 104.0 S2 35 104.0 VR701 DC V Meter(2) : 1.75V+0.05V,-0.35V DOLBY B NR ADJUSTMENT No. Test Tape Adjustment Point Adjustment Method (Switch Position) 1 NCT-150 VR301(Lch),VR302(Rch) mV Meter(2) : –6dBs±1.0dB (400Hz,200nwb/m) (DOLBY NR Switch : OFF) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 38 KEH-P5700R,P5730R 7. GENERAL INFORMATION 7.1 PARTS 7.1.1 IC TDA7384 PM2007A VDA 24 25 Bip - + Z ADD SUB (12) I/O-3 9 10 I/O-2 FMOUT 27 IN HS - + NC AMTV 30 - + Bip 12bit AMIN 32 33 - + 34 PD1 PD REF 36 X-GND XI 39 38 Z (X-Y) LDET MODE SW (12) P(12) 8bit SHIFT IF FM 7 8 4 5 FM VCO AM VCO I/F 40 CE 41 DI 42 CK 43 DO 2 NC NC 1 (14) 37 XIO SR 44 28 29 FMIN 11 DA(12) DAC (12bit) Vref - NC 23 + VCO SUB (14) X Y CRESET IN3 REG (22bit) A-GND VDD 6 PD0 VREF2 MOS Bip I/O-1 VREF2 VREFP 17 18 IF 35 VREF2 MOS OUT AM 12 13 14 15 16 I/O-5 I/O-4 NC O-7 O-6 CUR REQUEST 20 LDET 21 22 19 VCC OUT1 SEL OUT2 SEL IN1 REG (31bit) (16) (4) 31 DIVIDER 4 BIT SHIFT 4 2 1 1 12bit REG PROGRAMABLE DIVIDER NC COUNTER 3 D-GND NC DATA REGISTER 26 IF AM COUNTER VCC BAND GAP FMTV Bip + 12bit SRx4 (12) (12) TVMEMORY SEL X Y PD & LDET - NC 14k 28k 35k 10k UCOM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 39 KEH-P5700R,P5730R PM4006B CXA2560Q www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 40 KEH-P5700R,P5730R - Pin Functions (PD4914A) Pin No. Pin Name I/O Format Function and Operation 1 ASENBO O C Slave power supply control output 2 NC Not used 3 ADPW O C A/D converter power 4 AVSS A/D GND 5 FIEOUT O C FIE ON/OFF control output 6 st I FM stereo input 7 AVREF1 (Connect to VDD) 8 KYDT I Key data input 9 DPDT O C Display data output 10 swvdd O C Key board unit power supply control output 11 TUNPD1 I PLL IC data input 12 TUNPD0 O C PLL IC data output 13 TUNPCK O C PLL IC clock 14 TUNPCE O C PLL IC chip enable 15 currrq O C Tuner voltage FIX output 16–19 NC Not used 20 DRELAY Not used 21 EORR Not used 22 EVST O C Electric volume strobe output 23 EVCK O C Electric volume serial clock output 24 EVDT O C Electric volume serial data output 25 LCDPW Not used 26 DRSYS O C Door system select output 27 DRSENS I Door open/close sense input 28 ILPW O C Illumination power 29 FM O C FM power control output 30 AM O C AM power control output 31 NR O C NR output 32 CM O C Cassette mechanism capstan motor control output 33 VSS GND 34 SC2 O C Cassette mechanism sub motor control output 35 SC1 O C Cassette mechanism sub motor control output 36 MS I Cassette mechanism MS sense input 37 NC Not used 38 mtl I Cassette mechanism tape select input 39 dled O N Alarm LED output 40 n/R O C Normal reverse output 41 PLAY O C Tape MS filter select output 42 loadsw I Tape loading input 43 POS I Cassette mechanism position sense input 44 RES I Cassette mechanism reverse end sense input 45 PEE O C Beep tone output 46 NES I Cassette mechanism forward end sense input 47 RDS57K I 57kHzBP-OUT sense input 48 STBY O Stand-by output 49 SK I SK signal input 50 drst O C Reset output 51 tmute O C Tuner mute output 52 mdsens I Modulation detect input 53 SD I SD input 54 mute O C System mute output 55 SYSPW O C System power supply control output 56 TX O C IP BUS data output 57 RX I IP BUS data input 58 RDSLK I RDS LK signal input 59 RDT I RDS demodulation data input 60 reset I Reset input www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 41 KEH-P5700R,P5730R 20 21 40 41 60 61 80 1 *PD4914A IC's marked by* are MOS type. Be careful in handling them because they are very liable to be damaged by electrostatic induction. Format Meaning C C MOS N N Channel open drain Pin No. Pin Name I/O Format Function and Operation 61 ldet I PLL lock sense input 62 rck I RDS demodulation clock input 63 dsens I Grille detach sense 64 isens Not used 65 asens I ACC power sense input 66 bsens I Back up power sense input 67 CLKIN I Clock input 68 VDD Power supply 69 X2 Oscillator output 70 X1 Oscillator input 71 IC GND 72 NC Not used 73 TESTIN I Test program mode input 74 AVDD I A/D converter analogue power 75 AVREF0 I A/D converter standard voltage input 76 SL I Signal level input 77 CL I Synchronizing signal input of display data latch 78 NL I Noise level input 79 NC Not used 80 ALMUTE O C Mute output for Detach alram www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 42 KEH-P5700R,P5730R - Pin Functions(PD6246A) Pin No. Pin Name I/O Function and Operation 1 VSS GND 2 X1 Crystal oscillator connection pin 3 X0 Crystal oscillator connection pin 4 rst I System reset 5,6 MODE1,0 GND 7 dim O Dimmer select output 8 SO O UART output 9 SI I UART input 10 REMIN I Remote control reception 11 RVER Not used 12 NC Not used 13–16 KDT4–1 I Key data input 17–22 KST6–1 O Key strobe output 23 VCC 5V 24–73 SEG49–0 O LCD segment output 74–77 COM3–0 O Common driver output 78–80 V3–1 LCD bias power supply 20 21 40 41 60 61 80 1 *PD6246A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 43 KEH-P5700R,P5730R 7.1.2 DISPLAY - CAW1457(KEH-P5700R/X1M/EW) - CAW1478(KEH-P5730R/X1M/EW)) Fig. 21 COMMON SEGMENT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 44 KEH-P5700R,P5730R 7.2 DISASSEMBLY Fig. 23 - Removing the Tuner Amp Unit(Fig.23) 1.Removing the two screws A, three screws B and screw C. 2.Unbend the tabs at four locations indicated by arrow until straight. 3.Remove the Tuner Amp Unit. - Removing the Case(not shown) 1.Remove the three screws. 2.Remove the Case. - Removing the Cassette Mechanism Module (not shown) 1.Remove the four screws. 2.Disconnect the connector, and then removing the Cassette Mechanism Module. - Removing the Detach Grille Assy(Fig.22) 1.Push the detach button. 2.Remove the Detach Grille Assy. - Removing the Panel Unit(Fig.22) 1.Disengage the stopper at four locations indicated by white-arrows and then remove the Panel. 2.Disengage the stopper at two locations indicated by black-arrows. 3.Remove the Panel Unit. Fig. 22 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 45 KEH-P5700R,P5730R 7.3 BLOCK DIAGRAM Fig. 24 D C B E A F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 46 KEH-P5700R,P5730R 8. OPERATIONS AND SPECIFICATIONS + 1.This Unit 2.Rear output 13.ISO connector Note: In some vehicles, the ISO connector may be divided into two. If this is the case, be sure to connect to both connectors. 17.Blue 17.Blue 19.To system control terminal of the power amp or Auto- antenna relay control terminal. (Max. 300 mA 12 V DC) ≠ + ≠ 8.Orange To terminal always supplied with power regardless of ignition switch position. 10.Red To electric terminal controlled by ignition switch (12 V DC) ON/OFF. 12.Black (ground) To vehicle (metal) body. 4.Multi-CD player (sold separately) 5.Connect leads of the same color to each other. 18.Fuse 22.Right speaker 23.Rear 24.Use this for connections when you have the sepa- rately available amplifier. 16.White See the section ”RFP Alert Installation”. 15.Connecting cords with RCA pin plugs (sold separately). Green: Front left +� Green/black: Front left ≠� Gray: Front right +� Gray/black: Front right ≠� Green/red: Rear left +� Black/green: Rear left ≠� Gray/red: Rear right +� Black/gray: Rear right ≠ 7.Cap 9.Orange Back-up (or accessory) 11.Red Accessory (or Back-up) 20.Power amp (sold separately) 14.Speaker leads 21.Left speaker 23.Rear 7 9 11 8 10 6 Note: Depending on the kind of vehicle, the function of 9 and 11 may be different. If this is the case, be sure to connect 8 to 11 and 9 to 10. 3.Antenna jack Fig. 25 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 47 KEH-P5700R,P5730R Basic Operation To Listen to Music The following explains the initial operations required before you can listen to music. Note: • Loading a cassette in this product. (Refer to page 8.) 1. Select the desired source (e.g. Tuner). 7 Head Unit Each press of the SO button selects the desired source in the following order: Tuner = Tape = Multi-CD player = AUX 7 Remote Controller Each press of the button selects the desired source in the following order: TUNER button : Tuner = OFF TAPE button : Tape = OFF CD button : Multi-CD player = OFF Note: • In the following cases, the sound source will not change: * No Multi-CD player is connected to this product. * No cassette tape is set in this product. * No magazine is set in the Multi-CD player. * AUX (external input) is set to OFF. (Refer to page 37.) 2. Raise or lower the volume. 3. Turn the source OFF. Hold for 1 second or more Each press changes the Source ... Key Finder Head Unit 5/∞/2/3� buttons SO button +/– button ` button AUDIO button PGM button DETACH button DISPLAY button Buttons 1–6 FUNCTION button Cassette door EJECT button PTY button TA/AF button 8.1. OPERATIONS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 48 KEH-P5700R,P5730R Basic Operation of Cassette Player Direction Change Direction Indicator Eject Note: • The Tape function can be turned ON/OFF with the cassette tape remaining in this product. (Refer to page 6.) Fast Forward/Rewind and Music Search • Each press of the 2 button selects Rewind or Rewind-Music Search. REW (Rewind) = R-MS (Rewind-Music Search) = Normal Playback • Each press of the 3 button selects Fast forward or Forward-Music Search. FF (Fast forward) = F-MS (Forward-Music Search) = Normal Playback Note: • Fast forward/Rewind and Music Search can be canceled by pressing the ` button. Cassette Loading Slot Note: • “METAL” appears on the display for 2 seconds when a metal or chrome tape is inserted. Nothing is displayed for a normal tape. Basic Operation of Tuner Basic Operation Manual and Seek Tuning • You can select the tuning method by changing the length of time you press the 2/3 button. Manual Tuning (step by step) 0.3 seconds or less Seek Tuning (automatically) 0.3 – 2 seconds Manual Tuning (continuously) 2 seconds or more Note: • “” stereo indicator lights when a stereo station is selected. Preset Tuning • You can memorize broadcast stations in but- tons 1 through 6 for easy, one-touch station recall. Preset station recall 2 seconds or less Broadcast station preset memory 2 seconds or more Note: • Up to 18 FM stations (6 in F1 (FM1), F2 (FM2) and F3 (FM3)) and 6 MW/LW stations can be stored in memory. • You can also use the 5 or ∞ buttons to recall broadcast stations memorized in buttons 1 through 6. Preset Number Indicator Band F1 (FM1) = F2 (FM2) = F3 (FM3) = MW/LW Band Indicator Frequency Indicator This product’s AF function can be switched ON and OFF. AF should be switched OFF for normal tuning operations. (Refer to page 17.) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 49 KEH-P5700R,P5730R Disc Number Search (for 6-Disc, 12-Disc types) • You can select discs directly with the 1 to 6 buttons. Just press the number corresponding to the disc you want to listen to. Note: • When a 12-Disc Multi-CD Player is connected and you want to select disc 7 to 12, press the 1 to 6 buttons for 2 seconds or longer. Disc Number Rough Search (for 50-Disc type only) This handy function lets you select discs loaded in a 50-Disc Multi-CD Player using the 1 to 5 buttons. The 50 discs are divided into five blocks, with each of the 1 to 5 buttons assigned to a block. • Select the desired block with the 1 to 5 button. Note: • After completing a rough search, use the 5 and ∞ buttons to select a desired disc. Displaying Disc Titles • Press the DISPLAY button, to change the Disc Title display of the current disc. Note: • If you switch displays when disc titles have not been input, “NO TITLE” is displayed for about 8 seconds. • Repeat the preceding operation to return to the normal display. Note: • The multi-CD player may perform a preparatory operation, such as verifying the presence of a disc or reading disc information, when the power is turned ON or a new disc is selected for play- back. “READY” is displayed. • When a magazine is loaded into a 50-Disc type Multi-CD Player, information on all the discs in the magazine is read. If you start playing a disc on a 50-Disc type Multi-CD Player before reading of information on all discs has been completed, reading of information stops part way through. This will prevent you from using a number of functions. (If you try and use these functions, “NOT READY” is displayed.) If this happens, reading of information begins again when you switch to a component other than the 50-Disc type Multi-CD Player. • If the multi-CD player cannot operate properly, an error message such as “ERROR-14” is dis- played. Refer to the multi-CD player owner’s manual. • If there are no discs in the multi-CD player magazine, “NO DISC” is displayed. • “LOAD” will be displayed in the following cases: * If the disc in the extra tray in selected. * If the disc in moved from the extra tray to the magazine. (Refer to the 50-Disc type multi-CD player owner’s manual.) Basic Operation of Multi-CD Player Basic Operation Track Search and Fast Forward/Reverse • You can select between Track Search or Fast forward/Reverse by pressing the 2/3 button for a different length of time. Track Search 0.5 seconds or less Fast forward/Reverse Continue pressing Switching the Multi-CD Player Using a multiple connection adapter lets you connect up to three Multi-CD players. M-CD 1 = M-CD 2= M-CD 3 (Displayed for about 2 seconds.) Elapsed Play Time Indicator Disc Search Disc Number Indicator Track Number Indicator This product can control one or more multi-CD players. (There are some types of Multi- CD players such as “CDX-P630S” which you cannot connect more than one.) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 50 KEH-P5700R,P5730R Basic Operation Entering the Function Menu The Function Menu lets you operate simple functions for each source. Note: • After entering the Function Menu, if you do not perform an operation within about 30 seconds, the Function Menu is automatically canceled. 1. Select the desired mode in the Function Menu. (Refer to “Function Menu functions”.) 2. Operate a mode. (e.g. Repeat Play) 3. Cancel the Function Menu. The button used and the operation it performs are indicated by the key guidance indicator. Press the 5 button to switch the key guidance indicator ON, and the ∞ button to switch it OFF. Each press changes the Mode ... www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 51 KEH-P5700R,P5730R Specifications General Power source .......... 14.4 V DC (10.8 – 15.1 V allowable) Grounding system ........................................ Negative type Max. current consumption ........................................ 8.5 A Dimensions (mounting size) ...... 178 (W) × 50 (H) × 153 (D) mm (front face) .............. 188 (W) × 58 (H) × 19 (D) mm Weight ...................................................................... 1.2 kg Amplifier Maximum power output ...................................... 35 W × 4 Continuous power output .................................... 22 W × 4 (DIN45324, +B = 14.4 V) Load impedance .......................... 4 Ω (4 – 8 Ω allowable) Preout output level/output impedance ........ 500 mV/1 kΩ Tone controls (Bass) .............................................. ±12 dB (100 Hz) (Treble) ............................................ ±12 dB (10 kHz) Loudness contour ........ +10 dB (100 Hz), +7 dB (10 kHz) (volume: –30 dB) Cassette player Tape ........................ Compact cassette tape (C-30 – C-90) Tape speed ...... 4.76 cm/sec.(+0.14 cm/sec.,-0.05 cm/sec.) Fast forward/rewinding time .... Approx. 100 sec. for C-60 Wow & flutter .......................................... 0.09% (WRMS) Frequency response .......... Metal: 30 – 19,000 Hz (±3 dB) Stereo separation ...................................................... 45 dB Signal-to-noise ratio ...... Metal: Dolby B NR IN: 67 dB (IEC-A network) Dolby NR OUT: 61 dB (IEC-A network) FM tuner Frequency range ...................................... 87.5 – 108 MHz Usable sensitivity .................. 11 dBf (1.0 µV/75 Ω, mono, S/N: 30 dB) 50 dB quieting sensitivity .... 16 dBf (1.7 µV/75 Ω, mono) Signal-to-noise ratio ...................... 70 dB (IEC-A network) Distortion .......................... 0.3% (at 65 dBf, 1 kHz, stereo) Frequency response ...................... 30 – 15,000 Hz (±3 dB) Stereo separation .......................... 40 dB (at 65 dBf, 1 kHz) MW tuner Frequency range ...................................... 531 – 1,602 kHz Usable sensitivity .............................. 18 µV (S/N: 20 dB) Selectivity .................................................. 50 dB (±9 kHz) LW tuner Frequency range ........................................ 153 – 281 kHz Usable sensitivity .............................. 30 µV (S/N: 20 dB) Selectivity .................................................. 50 dB (±9 kHz) Note: • Specifications and the design are subject to possi- ble modification without notice due to improve- ments. 8.2 SPECIFICATIONS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
