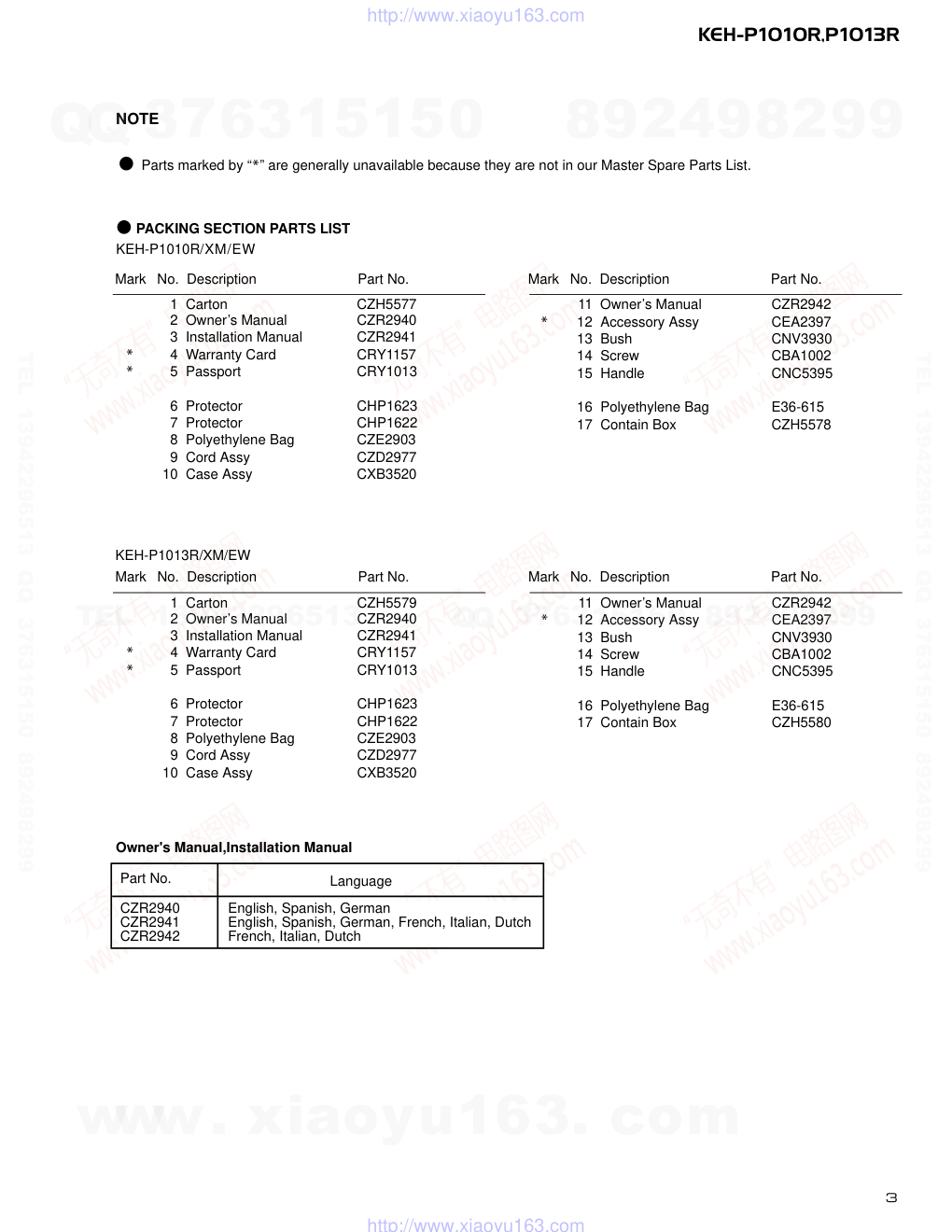

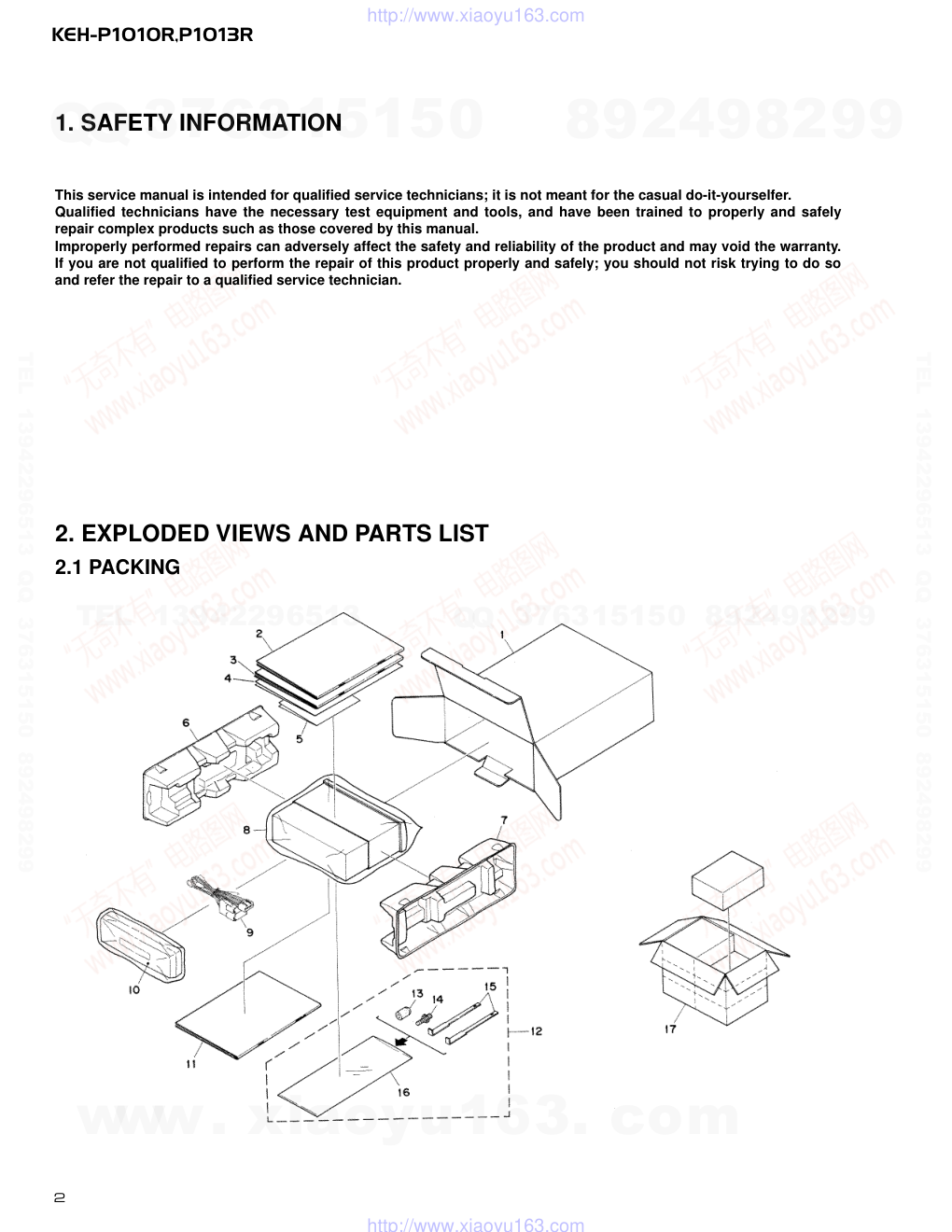

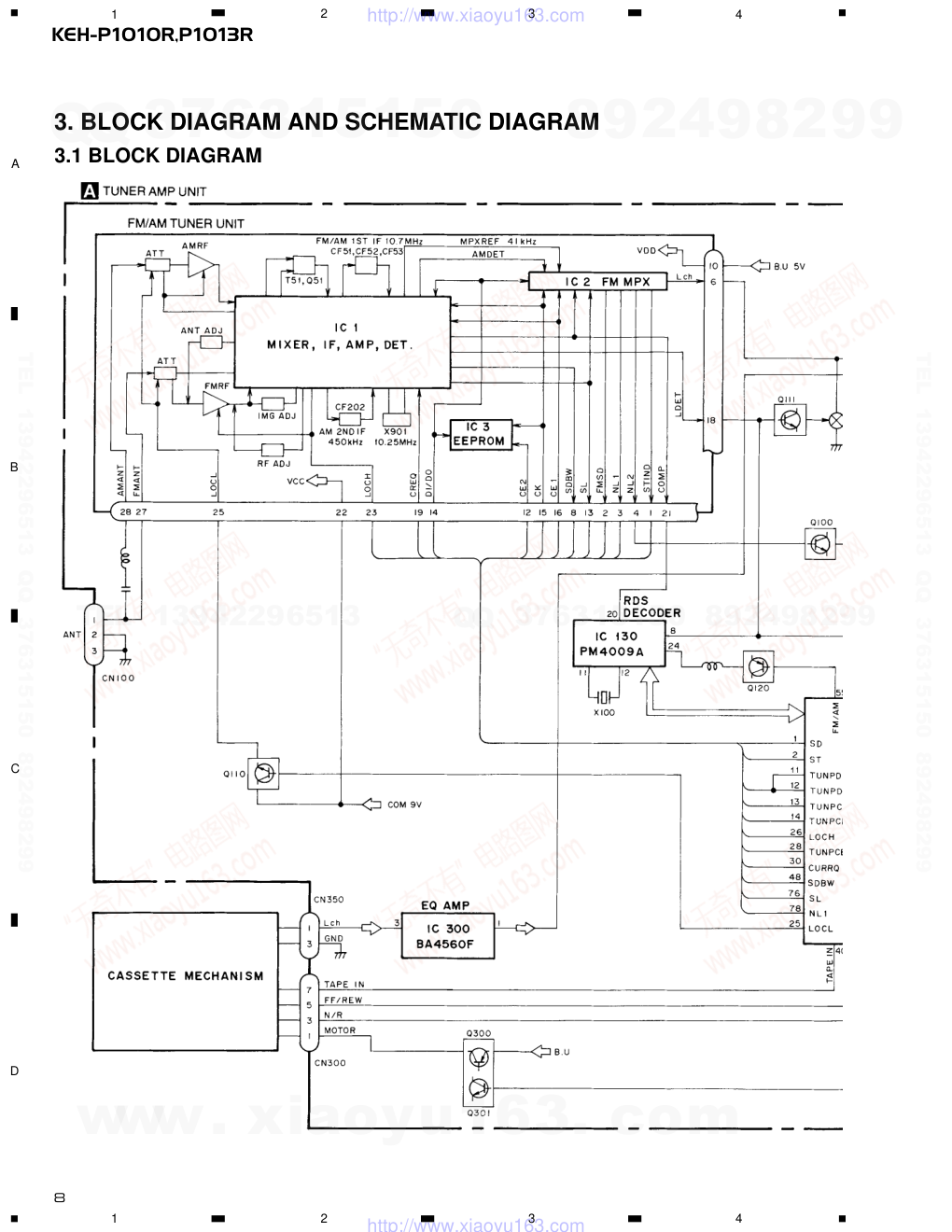

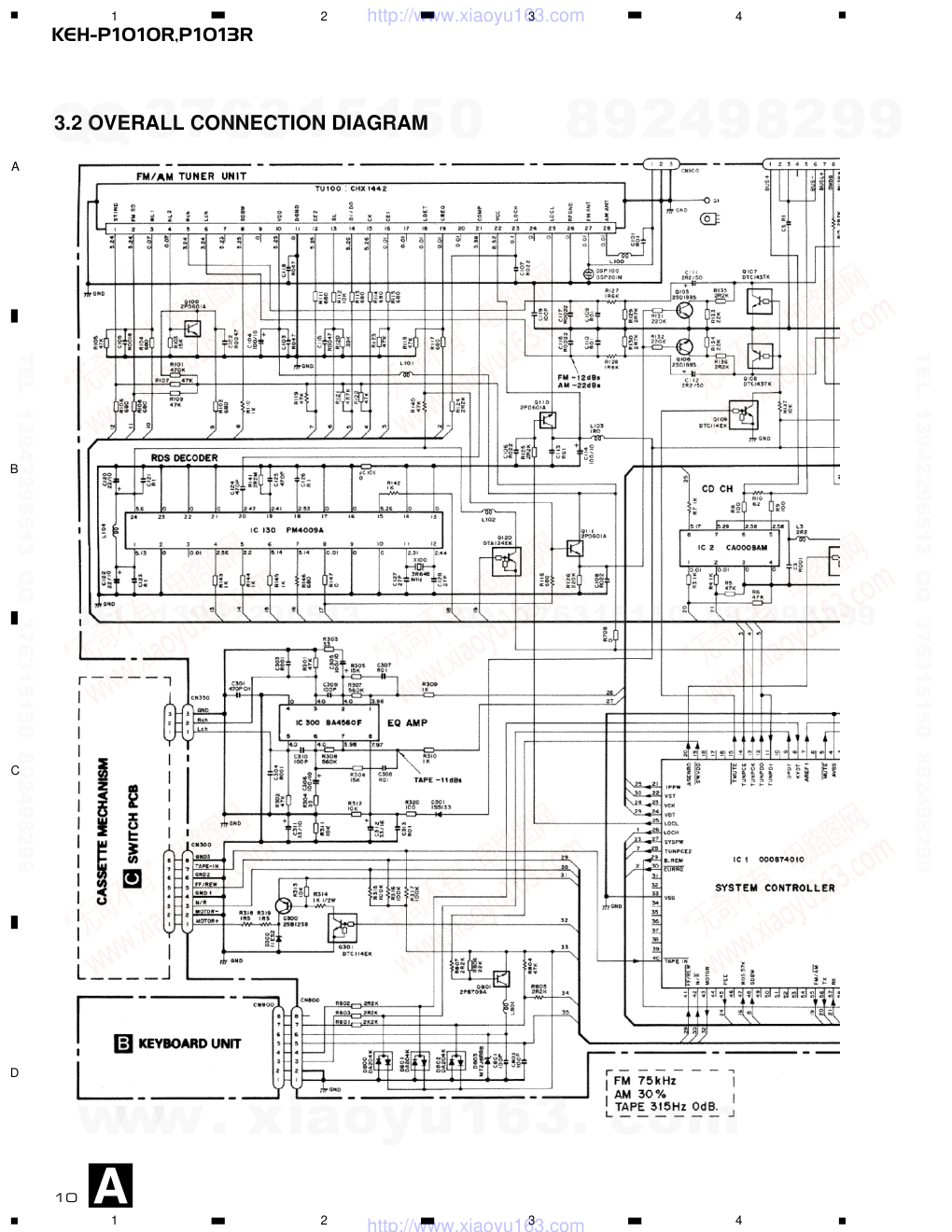

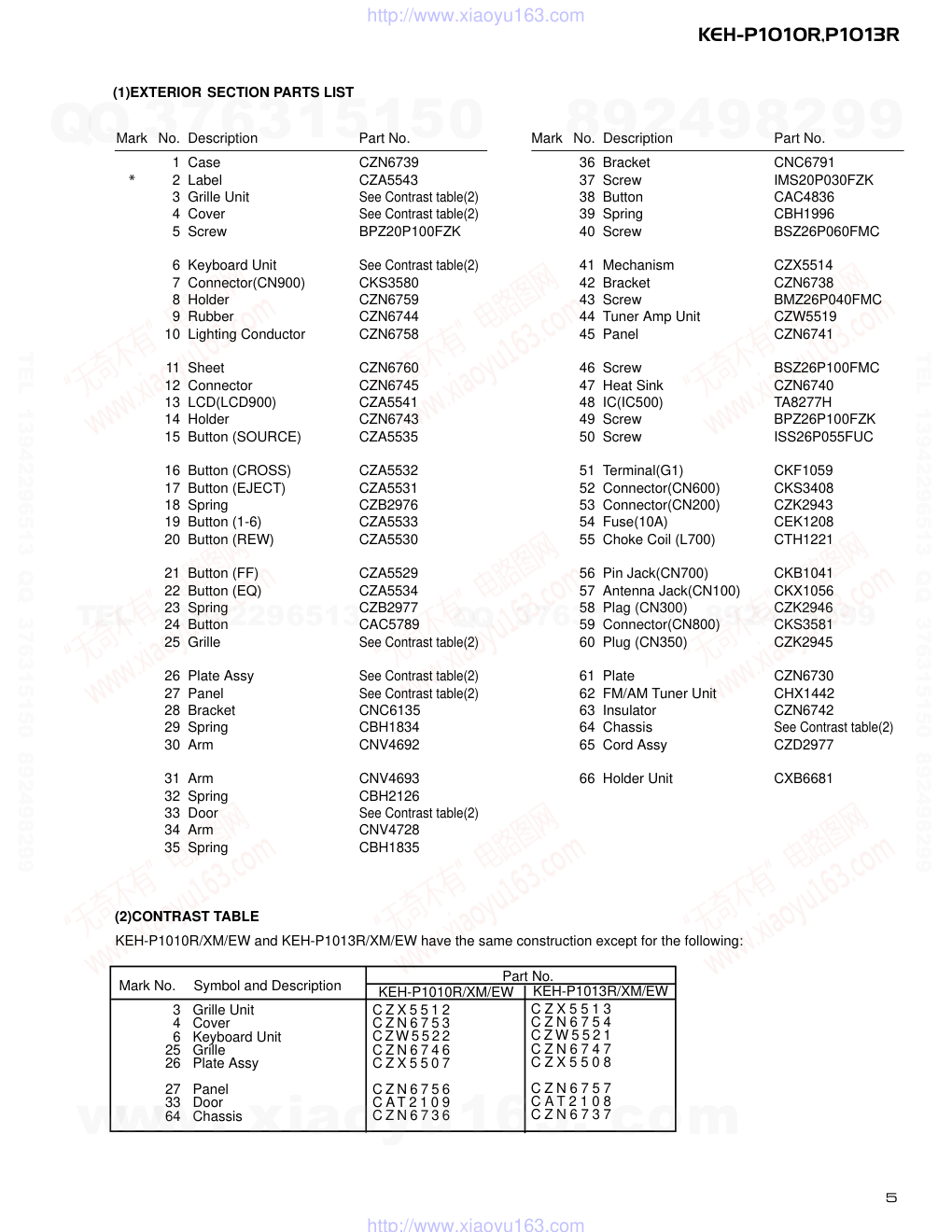

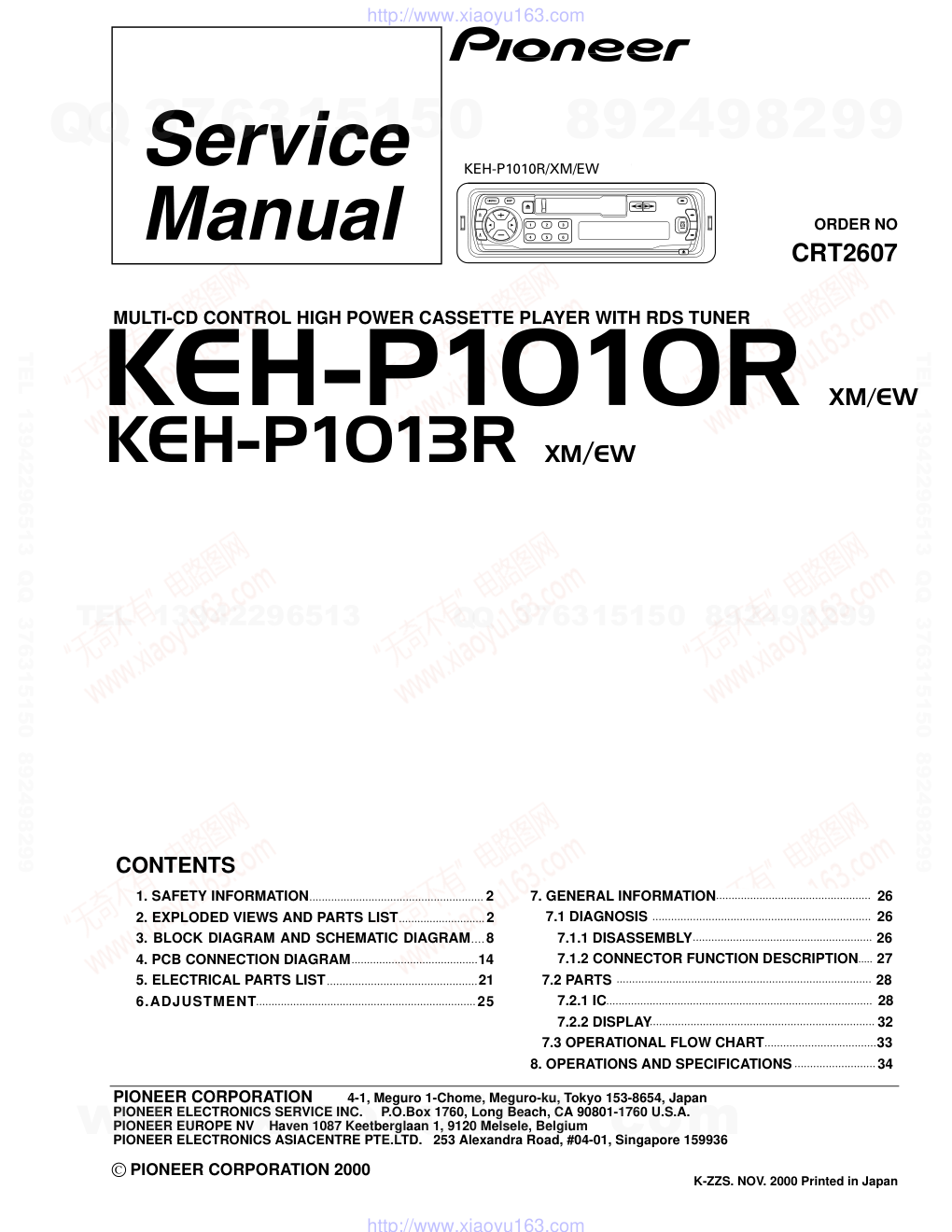

PIONEER CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS SERVICE INC. P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A. PIONEER EUROPE NV Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2000 MULTI-CD CONTROL HIGH POWER CASSETTE PLAYER WITH RDS TUNER ORDER NO CRT2607 K-ZZS. NOV. 2000 Printed in Japan 1. SAFETY INFORMATION 2 2. EXPLODED VIEWS AND PARTS LIST 2 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM 8 4. PCB CONNECTION DIAGRAM 14 5. ELECTRICAL PARTS LIST 21 6.ADJUSTMENT 25 7. GENERAL INFORMATION 26 7.1 DIAGNOSIS 26 7.1.1 DISASSEMBLY 26 7.1.2 CONNECTOR FUNCTION DESCRIPTION 27 7.2 PARTS 28 7.2.1 IC 28 7.2.2 DISPLAY 32 7.3 OPERATIONAL FLOW CHART 33 8. OPERATIONS AND SPECIFICATIONS 34 CONTENTS KEH-P1010R XM/EW KEH-P1013R XM/EW KEH-P1010R/XM/EW www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 KEH-P1010R,P1013R 1. SAFETY INFORMATION CAUTION This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely; you should not risk trying to do so and refer the repair to a qualified service technician. 2. EXPLODED VIEWS AND PARTS LIST 2.1 PACKING www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 KEH-P1010R,P1013R NOTE Parts marked by “*” are generally unavailable because they are not in our Master Spare Parts List. Mark No. Description Part No. Mark No. Description Part No. 1 Carton CZH5577 2 Owner’s Manual CZR2940 3 Installation Manual CZR2941 * 4 Warranty Card CRY1157 * 5 Passport CRY1013 6 Protector CHP1623 7 Protector CHP1622 8 Polyethylene Bag CZE2903 9 Cord Assy CZD2977 10 Case Assy CXB3520 11 Owner’s Manual CZR2942 * 12 Accessory Assy CEA2397 13 Bush CNV3930 14 Screw CBA1002 15 Handle CNC5395 16 Polyethylene Bag E36-615 17 Contain Box CZH5578 KEH-P1013R/XM/EW Mark No. Description Part No. Mark No. Description Part No. 1 Carton CZH5579 2 Owner’s Manual CZR2940 3 Installation Manual CZR2941 * 4 Warranty Card CRY1157 * 5 Passport CRY1013 6 Protector CHP1623 7 Protector CHP1622 8 Polyethylene Bag CZE2903 9 Cord Assy CZD2977 10 Case Assy CXB3520 11 Owner’s Manual CZR2942 * 12 Accessory Assy CEA2397 13 Bush CNV3930 14 Screw CBA1002 15 Handle CNC5395 16 Polyethylene Bag E36-615 17 Contain Box CZH5580 Owner's Manual,Installation Manual Part No. CZR2940 CZR2941 CZR2942 English, Spanish, German English, Spanish, German, French, Italian, Dutch French, Italian, Dutch Language PACKING SECTION PARTS LIST KEH-P1010R/XM/EW www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 KEH-P1010R,P1013R 2.2 EXTERIOR www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 KEH-P1010R,P1013R 3 4 6 25 26 27 33 64 Grille Unit Cover Keyboard Unit Grille Plate Assy Panel Door Chassis C Z X 5 5 1 2 C Z N 6 7 5 3 C Z W 5 5 2 2 C Z N 6 7 4 6 C Z X 5 5 0 7 C Z N 6 7 5 6 C A T 2 1 0 9 C Z N 6 7 3 6 C Z X 5 5 1 3 C Z N 6 7 5 4 C Z W 5 5 2 1 C Z N 6 7 4 7 C Z X 5 5 0 8 C Z N 6 7 5 7 C A T 2 1 0 8 C Z N 6 7 3 7 1 Case CZN6739 * 2 Label CZA5543 3 Grille Unit See Contrast table(2) 4 Cover See Contrast table(2) 5 Screw BPZ20P100FZK 6 Keyboard Unit See Contrast table(2) 7 Connector(CN900) CKS3580 8 Holder CZN6759 9 Rubber CZN6744 10 Lighting Conductor CZN6758 11 Sheet CZN6760 12 Connector CZN6745 13 LCD(LCD900) CZA5541 14 Holder CZN6743 15 Button (SOURCE) CZA5535 16 Button (CROSS) CZA5532 17 Button (EJECT) CZA5531 18 Spring CZB2976 19 Button (1-6) CZA5533 20 Button (REW) CZA5530 21 Button (FF) CZA5529 22 Button (EQ) CZA5534 23 Spring CZB2977 24 Button CAC5789 25 Grille See Contrast table(2) 26 Plate Assy See Contrast table(2) 27 Panel See Contrast table(2) 28 Bracket CNC6135 29 Spring CBH1834 30 Arm CNV4692 31 Arm CNV4693 32 Spring CBH2126 33 Door See Contrast table(2) 34 Arm CNV4728 35 Spring CBH1835 36 Bracket CNC6791 37 Screw IMS20P030FZK 38 Button CAC4836 39 Spring CBH1996 40 Screw BSZ26P060FMC 41 Mechanism CZX5514 42 Bracket CZN6738 43 Screw BMZ26P040FMC 44 Tuner Amp Unit CZW5519 45 Panel CZN6741 46 Screw BSZ26P100FMC 47 Heat Sink CZN6740 48 IC(IC500) TA8277H 49 Screw BPZ26P100FZK 50 Screw ISS26P055FUC 51 Terminal(G1) CKF1059 52 Connector(CN600) CKS3408 53 Connector(CN200) CZK2943 54 Fuse(10A) CEK1208 55 Choke Coil (L700) CTH1221 56 Pin Jack(CN700) CKB1041 57 Antenna Jack(CN100) CKX1056 58 Plag (CN300) CZK2946 59 Connector(CN800) CKS3581 60 Plug (CN350) CZK2945 61 Plate CZN6730 62 FM/AM Tuner Unit CHX1442 63 Insulator CZN6742 64 Chassis See Contrast table(2) 65 Cord Assy CZD2977 66 Holder Unit CXB6681 Mark No. Description Part No. Mark No. Description Part No. (1)EXTERIOR SECTION PARTS LIST KEH-P1010R/XM/EW and KEH-P1013R/XM/EW have the same construction except for the following: (2)CONTRAST TABLE Mark No. Symbol and Description KEH-P1010R/XM/EW KEH-P1013R/XM/EW Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 KEH-P1010R,P1013R 2.3 CASSETTE MECHANISM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 KEH-P1010R,P1013R 1 Washer 1-0036-5024 2 Roller 1-0363-3018 3 Spring 1-0036-4011 4 Head 1-0036-7123 5 Screw 1-0138-5002 6 Screw 2-1012-0040-C2 7 Plate 1-0036-1015 8 Spring 1-0036-4010 9 Arm 10138-2005-3 10 Shim 1-0138-1006 11 Pinch Arm (F) Assy 1-0036-6014 12 Spring 1-0363-4003 13 Screw 2-1032-0070-C2 14 Tape Guide 1-0038-2018 15 Link 1-0363-2006 16 Pinch Arm (R) Assy 1-0036-6013 17 Spring 1-0363-4004 18 Motor Assy (M1) X-0363-7006 19 Power Switch (S1) 1-0363-7005 20 Mute Switch (S2) 1-0363-7001 21 Screw 213317040-C2 22 Screw 2-1032-0025-C2 23 Arm Assy X-0363-6003 24 Slide Switch (S3) 1-0363-7002 25 SW PWB 1-0363-7008 26 Belt 1-0036-5018 27 Screw 213820030-C2 28 Belt 1-0036-5004 Mark No. Description Part No. CASSETTE MECHANISM SECTION PARTS LIST NOTE For the cassette mechanism, only the parts listde here are available as spare parts. The others (not shown in the list)cannot be supplied. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 KEH-P1010R,P1013R 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM 3.1 BLOCK DIAGRAM 1 2 3 4 1 2 3 4 D C B A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 KEH-P1010R,P1013R 5 6 7 8 5 6 7 8 D C B A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 KEH-P1010R,P1013R 3.2 OVERALL CONNECTION DIAGRAM 1 2 3 4 1 2 3 4 D C B A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 KEH-P1010R,P1013R 5 6 7 8 5 6 7 8 D C B A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 KEH-P1010R,P1013R 3.3 KEYBOARD UNIT 1 2 3 4 1 2 3 4 D C B A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 KEH-P1010R,P1013R 3.4 CASSETTE MECHANISM 1 2 3 4 1 2 3 4 D C B A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 KEH-P1010R,P1013R 4. PCB CONNECTION DIAGRAM 4.1 TUNER AMP UNIT A Capacitor Connector P.C.Board Chip Part SIDE A SIDE B NOTE FOR PCB DIAGRAMS 1. The parts mounted on this PCB include all necessary parts for several destination. For further information for respective destinations, be sure to check with the schematic diagram. 1 2 3 4 1 2 3 4 D C B A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 KEH-P1010R,P1013R A SIDE A 5 6 7 8 5 6 7 8 D C B A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 KEH-P1010R,P1013R 1 2 3 4 1 2 3 4 D C B A TUNER AMP UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 KEH-P1010R,P1013R SIDE B 5 6 7 8 5 6 7 8 D C B A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 KEH-P1010R,P1013R 4.2 KEYBOARD UNIT 1 2 3 4 1 2 3 4 D C B A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 KEH-P1010R,P1013R SIDE B SIDE A 5 6 7 8 5 6 7 8 D C B A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 KEH-P1010R,P1013R 4.3 CASSETTE MECHANISM 1 2 3 4 1 2 3 4 D C B A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 KEH-P1010R,P1013R 5. ELECTRICAL PARTS LIST NOTES: Parts whose parts numbers are omitted are subject to being not supplied. The part numbers shown below indicate chip components. Chip Resistor RS1/_S___J,RS1/__S___J Chip Capacitor (except for CQS.....) CKS....., CCS....., CSZS..... Unit Number :CZW5519 Unit Name :Tuner Amp Unit MISCELLANEOUS IC 1 IC 000874010 IC 2 IC CA0008AM IC 3 IC S-80834ANMP IC 130 IC PM4009A IC 300 IC BA4560F IC 400 IC PML003AM IC 500 IC TA8277H Q 2 Transistor 2PB709A Q 3 Transistor DTC114EK Q 100 Transistor 2PD601A Q 105 Transistor 2SD1865 Q 106 Transistor 2SD1865 Q 107 Transistor DTC143TK Q 108 Transistor DTC143TK Q 109 Transistor DTC114EK Q 110 Transistor 2PD601A Q 111 Transistor 2PD601A Q 120 Transistor DTA124EK Q 300 Transistor 2SB1238 Q 301 Transistor DTC114EK Q 401 Transistor DTC143TK Q 402 Transistor DTC143TK Q 403 Transistor DTA124EK Q 500 Transistor DTC124EK Q 501 Transistor 2PD601A Q 700 Transistor 2PD601A Q 701 Transistor 2SB1238 Q 702 Transistor 2SD1760F5 Q 703 Transistor 2PD601A Q 704 Transistor 2SA1428 Q 705 Transistor DTC114EK Q 706 Transistor 2SA1703 Q 707 Transistor 2PB709A Q 708 Transistor DTA124EK Q 709 Transistor 2PD601A Q 710 Transistor 2PD601A Q 711 Transistor DTC124EK Q 801 Transistor 2PB709A D 1 Diode 1SS133 D 300 Diode 11ES2 D 301 Diode 1SS133 D 500 Diode 1SS133 D 501 Diode 1SS133 D 502 Diode 11ES2 D 503 Diode 11ES2 D 504 Diode 11ES2 D 505 Diode 11ES2 D 506 Diode 11ES2 D 507 Diode 11ES2 D 508 Diode 11ES2 D 509 Diode 11ES2 D 700 Diode 11ES2 D 701 Diode 11ES2 D 702 Diode 11ES2 D 703 Diode HZS6L(B2) D 704 Diode HZS9L(A2) D 705 Diode HZS9L(B3) D 706 Diode 11ES2 D 709 Diode 1SS133 D 710 Diode 11ES2 D 711 Diode 11ES2 D 712 Diode HZS7L(C2) D 713 Diode HZS7L(A1) D 800 Diode DA204K D 801 Diode DA204K D 802 Diode DA204K D 803 Diode MTZJ6R8(B) L 1 Ferri-Inductor LAU2R2K L 3 Ferri-Inductor LAU2R2K L 100 Ferri-Inductor LAU4R7K L 101 Ferri-Inductor LAU1R0M L 102 Inductor LAU100K L 103 Ferri-Inductor LAU1R0M L 104 Ferri-Inductor LAU101K L 700 Choke Coil 250uH CTH1221 =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 22 KEH-P1010R,P1013R L 801 Inductor LAU100K G 1 Terminal CKF1059 X 1 Ceramic Resonator 6.29MHz CSS1310 X 100 Crystal Resonator 3.648MHz CSS1447 JC 101 RS1/16S0R0J TU 100 FM/AM Tuner Unit CHX1442 DSP100 Surge Protector DSP-200-A11F RESISTORS R 1 RS1/16S473J R 3 RS1/16S102J R 4 RS1/16S102J R 5 RS1/16S473J R 6 RS1/16S473J R 7 RD1/4PU102J R 8 RS1/16S101J R 9 RS1/16S101J R 10 RD1/4PU620J R 11 RS1/16S223J R 12 RS1/16S472J R 13 RS1/16S822J R 14 RD1/4PU102J R 15 RD1/4PU222J R 18 RD1/4PU473J R 101 RS1/16S474J R 102 RS1/16S681J R 103 RS1/16S153J R 104 RS1/16S681J R 105 RS1/16S473J R 106 RS1/16S681J R 107 RS1/16S473J R 108 RS1/16S681J R 109 RS1/16S473J R 110 RD1/4PU102J R 111 RS1/16S681J R 112 RS1/16S103J R 113 RS1/16S681J R 114 RS1/16S681J R 115 RS1/16S681J R 116 RD1/4PU681J R 117 RS1/16S681J R 118 RS1/16S473J R 119 RD1/4PU473J R 120 RS1/16S393J R 121 RS1/16S472J R 122 RS1/16S473J R 123 RS1/16S473J R 124 RS1/16S222J R 125 RS1/16S222J R 126 RS1/16S224J R 127 RD1/4PU162J R 128 RD1/4PU162J R 129 RS1/16S272J R 130 RS1/16S272J R 131 RS1/16S224J R 132 RS1/16S224J R 133 RS1/16S223J R 134 RS1/16S223J R 135 RS1/16S222J R 136 RS1/16S222J R 137 RD1/4PU103J R 140 RD1/4PU473J R 141 RS1/16S225J R 142 RD1/4PU102J R 143 RS1/16S102J R 144 RS1/16S102J R 145 RS1/16S102J R 146 RD1/4PU681J R 147 RS1/16S0R0J R 301 RS1/16S473J R 302 RS1/16S473J R 303 RS1/16S330J R 304 RS1/16S330J R 305 RS1/16S153J R 306 RS1/16S153J R 307 RS1/16S564J R 308 RS1/16S564J R 309 RS1/16S102J R 310 RS1/16S102J R 311 RS1/16S103J R 312 RS1/16S103J R 313 RS1/16S103J R 314 RD1/2PM102J R 315 RD1/4PU104J R 316 RD1/4PU104J R 317 RD1/4PU104J R 318 RD1/4PU1R5J R 319 RD1/4PU1R5J R 320 RS1/16S101J R 401 RS1/16S821J R 402 RD1/4PU821J R 403 RS1/16S223J R 404 RD1/4PU223J R 405 RS1/16S102J R 406 RD1/4PU102J R 407 RS1/16S0R0J R 408 RS1/16S0R0J R 409 RS1/16S0R0J R 410 RS1/16S0R0J =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 23 KEH-P1010R,P1013R R 411 RD1/4PU222J R 413 RD1/4PU222J R 415 RS1/16S821J R 416 RS1/16S821J R 417 RS1/16S473J R 418 RS1/16S473J R 419 RD1/4PU562J R 421 RS1/16S472J R 422 RS1/16S472J R 500 RS1/16S101J R 501 RS1/16S221J R 502 RS1/16S103J R 503 RS1/16S152J R 504 RD1/4PU223J R 505 RD1/4PU103J R 506 RS1/16S153J R 701 RS1/16S223J R 702 RS1/16S472J R 703 RS1/16S103J R 704 RS1/16S223J R 705 RS1/16S223J R 706 RS1/16S102J R 707 RS1/16S122J R 708 RS1/16S0R0J R 709 RS1/16S104J R 710 RS1/16S473J R 716 RD1/4PU102J R 717 RS1/16S472J R 718 RS1/16S473J R 719 RS1/16S223J R 720 RS1/16S473J R 721 RS1/16S473J R 722 RD1/2PM102J R 723 RS1/16S223J R 724 RD1/2PM102J R 801 RS1/16S222J R 802 RS1/16S222J R 803 RS1/16S222J R 804 RD1/4PU473J R 805 RD1/4PU222J R 806 RS1/16S223J R 807 RD1/4PU222J CAPACITORS C 1 CEAL4R7M16 C 2 CCSRCH101J50 C 3 CKSRYB102K50 C 4 CEAL2R2M50 C 5 CKSRYB104K25 C 101 CKSRYB103K50 C 102 CKSRYB472K50 C 103 CKSRYB473K25 C 104 CEAL101M10 C 105 CKSRYB182K50 C 106 CKSRYB223K25 C 107 CKSRYB223K25 C 108 CKSRYB223K25 C 109 CKSRYB103K50 C 110 CKSRYB103K50 C 111 CEAL2R2M50 C 112 CEAL2R2M50 C 113 CKSRYB103K50 C 114 CEAL101M10 C 115 CKSRYB472K50 C 116 CKSRYB222K50 C 117 CKSRYB222K50 C 118 CKSRYB473K25 C 119 CCSRCH101J50 C 120 CEAL220M10 C 121 CKSRYB104K25 C 122 CEAL220M10 C 123 CKSRYB104K25 C 124 CCSRCH471J50 C 125 CCSRCH471J50 C 126 CKSRYB104K25 C 127 CCSRCH270J50 C 128 CCSRCH270J50 C 301 CCSRCH471J50 C 303 CKSRYB102K50 C 304 CKSRYB102K50 C 305 CEAL101M10 C 306 CEAL101M10 C 307 CKSRYB103K50 C 308 CKSRYB103K50 C 309 CCSRCH101J50 C 310 CCSRCH101J50 C 311 CEAL330M10 C 312 CEAL100M16 C 313 CKSRYB103K50 C 401 CKSRYB105K10 C 402 CKSRYB105K10 C 403 CKSRYB105K10 C 404 CKSRYB105K10 C 405 CKSRYB224K10 C 406 CKSRYB224K10 C 407 CKSRYB224K10 C 408 CKSRYB224K10 C 409 CKSRYB104K25 C 410 CEAL470M10 =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 24 KEH-P1010R,P1013R C 411 CEAL100M16 C 413 CKSRYB105K10 C 414 CKSRYB105K10 C 415 CKSRYB103K50 C 416 CKSRYB103K50 C 417 CKSRYB472K50 C 418 CKSRYB472K50 C 419 CKSRYB103K50 C 420 CKSRYB103K50 C 421 CEAL2R2M50 C 422 CEAL2R2M50 C 423 CKSRYB222K50 C 424 CKSRYB222K50 C 427 CKSRYB474K10 C 428 CKSRYB474K10 C 429 CKSRYB474K10 C 430 CKSRYB474K10 C 431 CKSRYB474K10 C 432 CKSRYB474K10 C 433 CKSRYB474K10 C 434 CKSRYB474K10 C 500 CKSRYB104K25 C 501 3300µF/16V CCH1018 C 502 CKSRYB474K10 C 503 CKSRYB474K10 C 504 CKSRYB105K10 C 505 CKSRYB105K10 C 506 CKSRYB473K25 C 508 CEAL100M16 C 509 CEAL330M10 C 511 CKSRYB224K10 C 700 CEA471M16 C 701 CKSRYB103K50 C 703 CEAL470M10 C 704 CEAL101M10 C 705 CKSRYB103K50 C 706 CEAL101M10 C 709 CKSRYB102K50 C 712 CEAL3R3M50 C 713 CKSRYB473K25 C 714 CEALR10M50 C 801 CCSRCH101J50 C 803 CCSRCH101J50 Unit Number :CZW5522(KEH-P1010R/XM/EW) :CZW5521(KEH-P1013R/XM/EW) Unit Name :Keyboard Unit MISCELLANEOUS IC 900 IC PD6293A D 900 Diode DA204K D 901 Diode DA204K L 900 Ferri-Inductor LAU101K X 900 Ceramic Resonator 4.97MHz CSS1422 PL 901 Lamp 14V 65mA See Contrast table PL 902 Lamp 14V 65mA See Contrast table PL 903 Lamp 14V 65mA See Contrast table RN 901 RAB4C473J RN 902 RAB4C473J LCD900 LCD CZA5541 RESISTORS R 900 RS1/16S473J R 901 RS1/16S472J R 902 RS1/16S222J R 903 RS1/16S222J CAPACITORS C 900 CKSRYB102K50 C 901 CKSQYB225K10 C 902 CKSRYB104K25 Unit Number : Unit Name :Switch PCB S 3 Slide Switch(FWD/REV) 1-0363-7002 Miscellaneous Parts List S 1 Switch(TAPE/TUN) 1-0363-7005 S 2 Switch(Mute) 1-0363-7001 M 1 Motor Assy X-0363-7006 HD 1 Head 1-0036-7123 =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- KEH-P1010R/XM/EW and KEH-P1013R/XM/EW have the same construction except for the following: CONTRAST TABLE of KEYBOARD UNIT Symbol and Description PL 901 PL 902 PL 903 CZE2950 CZE2950 CZE2950 CZE2951 CZE2951 CZE2951 KEH-P1010R/XM/EW KEH-P1013R/XM/EW Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 25 KEH-P1010R,P1013R 6. ADJUSTMENT There is no information to be shown in this chapter. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 26 KEH-P1010R,P1013R 7. GENERAL INFORMATION 7.1 DIAGNOSIS 7.1.1 DISASSEMBLY Removing the Upper Case(not shown) 1.Remove the Upper Case. Removing the Cassette Mechanism Module(Fig.1) Remove the four screws and then remove the Cassette Mechanism. Remove the Grille Assy(Fig.1) Remove the two screws. Disconnect the two stoppers and then remove the Grille Assy. Removing the Tuner Amp Unit(Fig.2) Remove the three screws. Remove the screw. Unbend the five claws and then remove the Tuner Amp Unit. Fig. 1 Fig. 2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 27 KEH-P1010R,P1013R 7.1.2 CONNECTOR FUNCTION DESCRIPTION www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 28 KEH-P1010R,P1013R BA4560F CA0008AM S-80834ANMP TB2118F TA8277H TAB GND2 STBY VCC2 RIP IN1 IN2 PRE-GND IN4 IN3 AUX IN OUT3(+) OUT3(+) GND3 OUT3(-) VCC1 OUT4(+) MUTE OUT4(-) GND4 CRIP OUT 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 OUT2(-) OUT2(+) OUT1(-) GND1 OUT1(+) + – + – + – + – + – + – + – + – 7.2 PARTS 7.2.1 IC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 29 KEH-P1010R,P1013R * PD6293A IC's marked by * are MOS type. Be careful in handling them because they are very liable to be damaged by electrostatic induction www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 30 KEH-P1010R,P1013R Pin No. Pin Name I/O Format Function and Operation 1 SD I SD signal input 2 ST I FM stereo input 3 ADPW O A/D converter power supply control output 4 AVSS GND 5 MUTE O C System mute output 6 NC Not used 7 AVREF1 O C A/D converter reference voltage terminal 8 KYDT I Display data input 9 DPDT O C Key data output 10 NC Not used 11 TUNPDI I PLL IC data input 12 TUNPDO O C PLL IC data output 13 TUNPCK O C PLL IC clock output 14 TUNPCE O C PLL IC chip enable output 15 TMUTE O C Tuner mute output 16-18 NC Not used 19 SWVDD O C Grille chip enable output 20 ASENBO O C Slave power supply control output 21 IPPW O C Power supply control output for IP BUS interface IC 22 VST O C Strobe pulse output for electronic volume 23 VCK O C Clock output for electronic volume 24 VDT O C data output for electronic volume 25 LOCK O C Local L output 26 LOCH O C Local H output 27 SYSPW O C System power output 28 TUNPCE2 O C EEPROM chip enable output 29 BREM O C System power ON/OFF output 30 CURRQ O C Tuner voltage FIX output 31,32 NC Not used 33 VSS GND 34-39 NC Not used 40 TAPE IN I TAPE pack-in detection input 41 FF/REW I FF/REW detection input 42 N/R I Cassette mechanism tape direction input 43 MOTOR O C MOTOR power supply control output 44 NC C Not used 45 PEE O C Beep tone output 46 NC Not used 47 RDS57K I RDS 57kHz pulse count input 48 SDBW I SD input at NF 49-54 NC Not used 55 FM / AM O C FM/AM band select pin “H” : AM “L” : FM 56 TX O C IP BUS data output 57 RX I IP BUS data input 58 NC Not used 59 RDSLK I RDS LK input 60 RESET I Reset input 61 IDET I PLL lock detect input 62 RCK I RDS clock input 63 DSENS I Grille detach sense input 64 RDT I RDS data input 65 ASENS I ACC power sense input 66 BSENS I Back up power sense input 67 DRST O C RDS reset output 68 VDD Power supply 69 X2 Crystal oscillator connection pin 70 X1 Crystal oscillator connection pin 71 IC (GND) 72 XT2 Not used 73 TESTIN I Test program mode input 74 AVDD S/D converter power supply terminal 75 AVREF0 I S/D converter reference voltage terminal 76 SL I Signal level input 77 NC I Not used 78 NL1 I RDS noise level input 1 79 NL2DT I RDS noise level input 2 80 NC Not used Pin Functions(000874010) Format Meaning C C MOS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 31 KEH-P1010R,P1013R * 000874010 - FM/AM Tuner Unit www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 32 KEH-P1010R,P1013R 7.2.2 DISPLAY CZA5541 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 33 KEH-P1010R,P1013R 7.3 OPERATIONAL FLOW CHART www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 34 KEH-P1010R,P1013R 8. OPERATIONS AND SPECIFICATIONS Key Finder Head Unit buttons SOURCE button +/– buttons AUDIO button Detach button Buttons 1–6 Cassette door EJECT button LOCAL/BSM button PTY button TA/AF button BAND button DISPLAY button EQ button buttons / / www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 35 KEH-P1010R,P1013R Basic Operation To Listen to Music The following explains the initial operations required before you can listen to music. Note: • Loading a cassette in this product. 1. Select the desired source (e.g. Tuner). Each press of the SOURCE button selects the desired source in the following order: Tuner Cassette player Multi-CD player External Unit Note: • External Unit refers to a Pioneer product (such as one available in the future) that, although incom- patible as a source, enables control of basic functions by this product. Only one External Unit can be controlled by this product. • In the following cases, the sound source will not change: * When a product corresponding to each source is not connected to this product. * When no tape is set in this product. * When no magazine is set in the Multi-CD player. • When this product’s blue/white lead is connected to the car’s Auto-antenna relay control terminal, the car’s Auto-antenna extends when this product’s source is switched ON. To retract the antenna, switch the source OFF. 2. Raise or lower the volume. 3. Turn the source OFF. Hold for 1 second Each press changes the Source ... Basic Operation Basic Operation of Tuner This product’s AF function can be switched ON and OFF. AF should be switched OFF for normal tuning operations. Manual and Seek Tuning • You can select the tuning method by changing the length of time you press the button. Manual Tuning (step by step) 0.5 seconds or less Seek Tuning 0.5 seconds or more Note: • If you continue pressing the button for longer than 0.5 seconds, you can skip broadcast stations. Seek Tuning starts as soon as you release the button. • Stereo indicator “” lights when a stereo station is selected. Preset Tuning • You can memorize broadcast stations in buttons 1 through 6 for easy, one-touch station recall. Preset station recall 2 seconds or less Broadcast station preset memory 2 seconds or more Note: • Up to 12 FM stations (6 each in F1 (FM1) and F2 (FM2)) and 6 MW/LW stations can be stored in memory. Band F1 (FM1) F2 (FM2) MW/LW Preset Number Indicator Band Indicator Frequency Indicator / www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 36 KEH-P1010R,P1013R Basic Operation of Multi-CD Player This product can control a Multi-CD player (sold separately). Basic Operation Track Search and Fast Forward/Reverse • You can select between Track Search or Fast Forward/Reverse by pressing the button for a different length of time. Track Search 0.5 seconds or less Fast Forward/Reverse Continue pressing Disc Number Search (for 6-Disc, 12-Disc types) • You can select discs directly with the 1 to 6 buttons. Just press the number corresponding to the disc you want to listen to. Note: • When a 12-Disc Multi-CD Player is connected and you want to select disc 7 to 12, press the 1 to 6 buttons for 2 seconds. Note: • The Multi-CD Player may perform a preparatory operation, such as verifying the presence of a disc or reading disc information, when the power is turned ON or a new disc is selected for play- back. “READY” is displayed. • If the Multi-CD Player cannot operate properly, an error message such as “ERROR-14” is dis- played. Refer to the Multi-CD Player owner’s manual. • If there are no discs in the Multi-CD Player magazine, “NO DISC” is displayed. • You can not operate the 50-Disc Type Multi-CD Player with this product. Play Time Indicator Switching the Display Each press of the DISPLAY button changes the display in the following order: Playback mode (Play Time) Disc and Track Number Basic Operation of Cassette Player Fast Forward/Rewind • To select Fast Forward, press the button for the same direction as the direction indicator. • To select Rewind, press the button for the opposite direction as the direction indicator. Note: • To release Fast Forward/Rewind, lightly press the or button located on the opposite side of the one you pressed to Fast Forward or Rewind. Eject Note: • The Tape function can be turned ON/OFF with the cassette tape remaining in this product. Direction Indicator Cassette Loading Slot Direction Change • To change the direction, press the and buttons at the same time. / www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 37 KEH-P1010R,P1013R 1* 2* 4* 3* 5* Connect leads of the same color to each other. Cap (1*) When not using this terminal, do not remove the cap. ISO connector Yellow (2*) To terminal always supplied with power regardless of ignition switch position. Red (4*) To electric terminal controlled by ignition switch (12 V DC) ON/OFF. Yellow (3*) Back-up (or accessory) Red (5*) Accessory (or back-up) Black (ground) To vehicle (metal) body. Note: In some vehicles, the ISO connector may be divided into two. In this case, be sure to connect to both connectors. Blue/white (7*) Blue/white(6*) The pin position of the ISO connector will differ depends on the type of vehicle. Connect 6* and 7* when Pin 5 is an antenna control type. In another type of vehicle, never connect 6* and 7*. Blue/white To system control terminal of the power amp (max. 300 mA 12 V DC). To Auto-antenna relay control terminal (max. 300 mA 12 V DC). Note: Depending on the kind of vehicle, the function of 3* and 5* may be different. In this case, be sure to connect 2* to 5* and 4* to 3*. Speaker leads White White/black Gray Gray/black : Front left : Front left : Front right : Front right Green Green/black V V iolet iolet/black : Rear left : Rear left : Rear right : Rear right Multi-CD player (sold separately) Connecting cords with RCA pin plugs (sold separately) System remote control Rear speaker Perform these connections when using a different amp (sold separately). Power amp (sold separately) Rear speaker This Product IP-BUS input (Blue) Antenna jack Fuse Rear output IP-BUS cable www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com KEH-P1010R,P1013R Specifications General Power source .......... 14.4 V DC (10.8 – 15.1 V allowable) Grounding system ........................................ Negative type Max. current consumption ........................................ 8.5 A Dimensions (mounting size) ...... 178 (W) × 50 (H) × 155 (D) mm (front face) .............. 188 (W) × 58 (H) × 19 (D) mm Weight Buckup current ...................................................................... ..................................................... 1.2 kg 4.3 mA Amplifier Maximum power output ...................................... 45 W × 4 Continuous power output .................................... 25 W × 4 (DIN45324, +B = 14.4 V) Load impedance .......................... 4 Ω (4 – 8 Ω allowable) Preout maximum output level/output impedance .................................................................. 2.2 V /1 kΩ Equalizer (3 band equalizer) (Low) .............................................................. ±12 dB (Mid) .............................................................. ±12 dB (High) ............................................................ ±12 dB Loudness contour (Low) .................. +3.5 dB (100 Hz), +3 dB (10 kHz) (Mid) ................ +10 dB (100 Hz), +6.5 dB (10 kHz) (High) ................ +11 dB (100 Hz), +11 dB (10 kHz) (volume: –30 dB) Cassette player Tape ........................ Compact cassette tape (C-30 – C-90) Tape speed ................ Fast forward/rewinding time .... Approx. 100 sec. for C-60 Wow & flutter .......................................... 0.13% (WRMS) Frequency response ...................... 30 – 16,000 Hz (±3 dB) Stereo separation ...................................................... 45 dB Signal-to-noise ratio .................... 41 dB (IEC-A network) FM tuner Frequency range ...................................... 87.5 – 108 MHz Usable sensitivity ...................................................... 9 dBf (0.77 µV/75 Ω, mono, S/N: 30 dB) 50 dB quieting sensitivity ........................................ 15 dBf (1.5 µV/75 Ω, mono) Signal-to-noise ratio ...................... 70 dB (IEC-A network) Distortion .......................... 0.3% (at 65 dBf, 1 kHz, stereo) Frequency response ...................... 30 – 15,000 Hz (±3 dB) Stereo separation .......................... 40 dB (at 65 dBf, 1 kHz) MW tuner Frequency range ........................ 531 – 1,602 kHz (9 kHz) Usable sensitivity .............................. 18 µV (S/N: 20 dB) Selectivity .................................................. 50 dB (±9 kHz) LW tuner Frequency range ........................................ 153 – 281 kHz Usable sensitivity .............................. 30 µV (S/N: 20 dB) Selectivity .................................................. 50 dB (±9 kHz) Note: • Specifications and the design are subject to possi- ble modification without notice due to improve- ments. 4.76 cm/sec.(+0.14cm/sec.,-0.05cm/sec.) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
