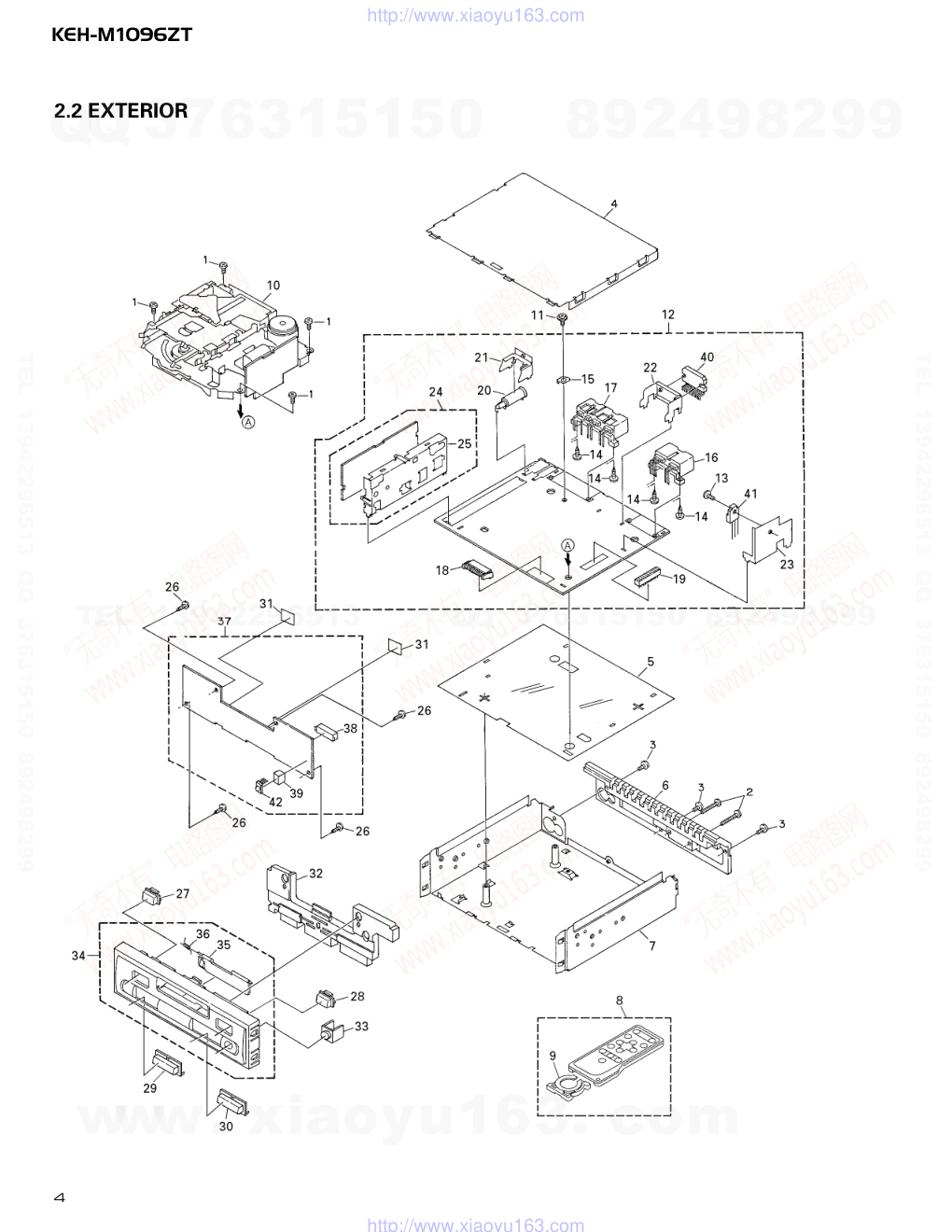

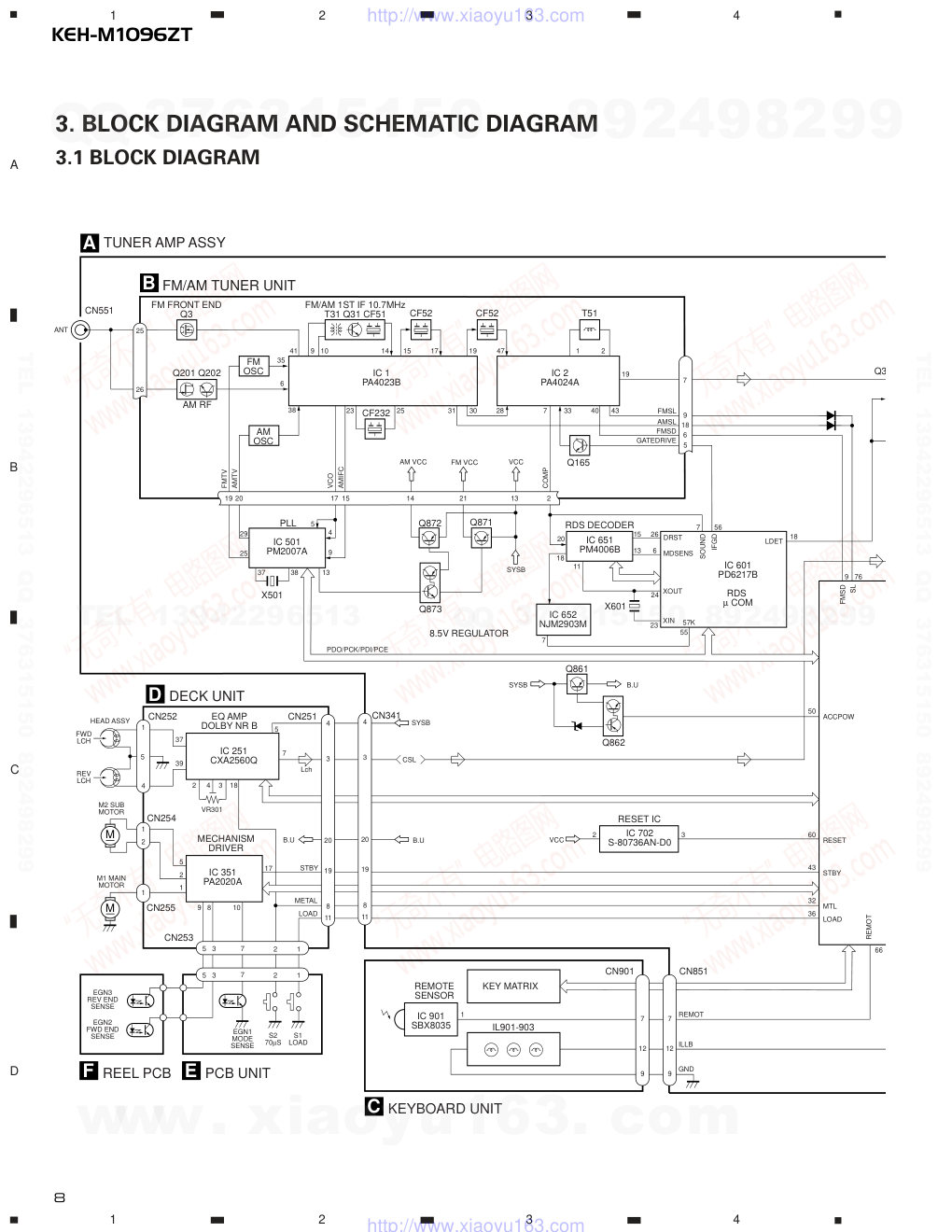

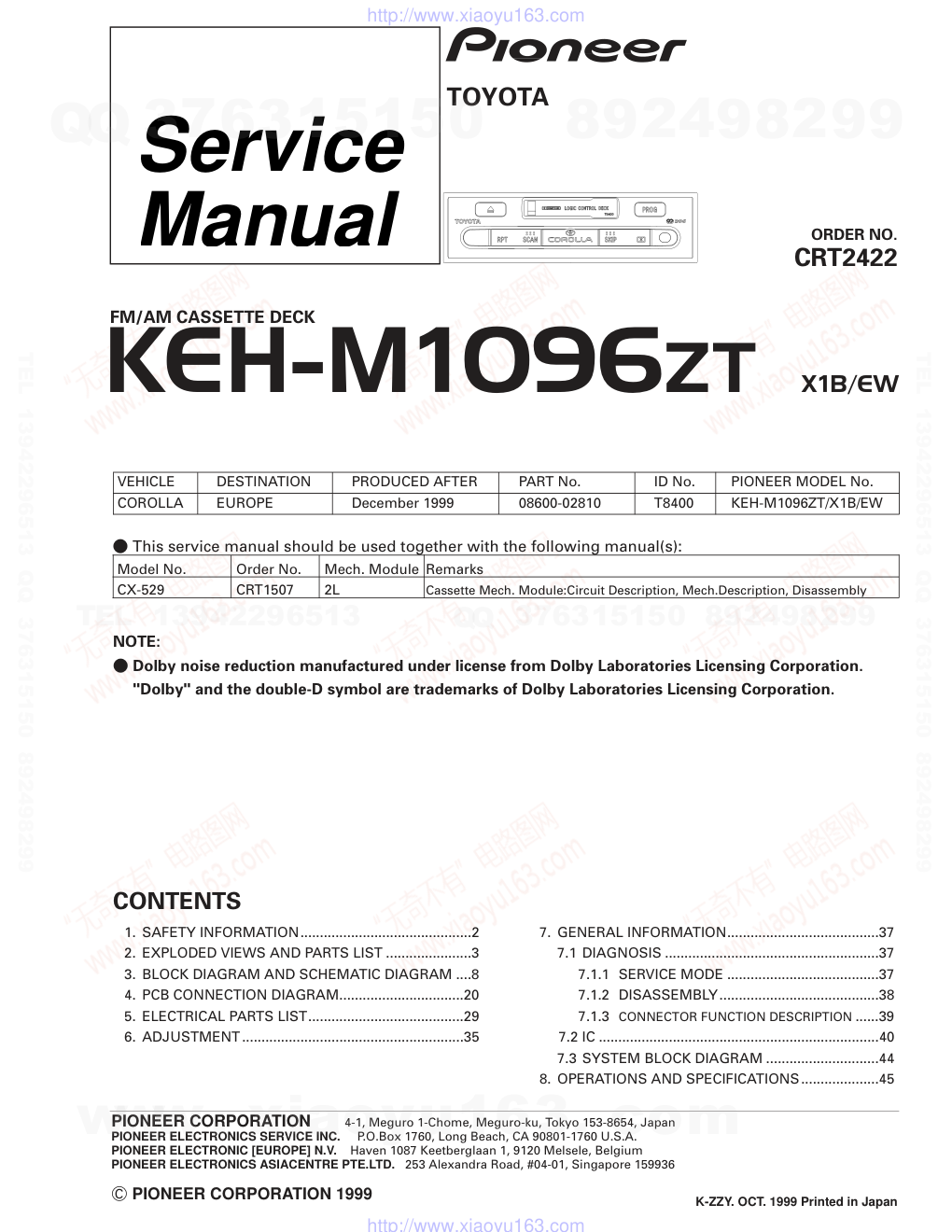

PIONEER CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS SERVICE INC. P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A. PIONEER ELECTRONIC [EUROPE] N.V. Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #04-01, Singapore 159936 C PIONEER CORPORATION 1999 K-ZZY. OCT. 1999 Printed in Japan ORDER NO. CRT2422 FM/AM CASSETTE DECK KEH-M1096ZT X1B/EW Service Manual NOTE: - Dolby noise reduction manufactured under license from Dolby Laboratories Licensing Corporation. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation. TOYOTA VEHICLE DESTINATION PRODUCED AFTER PART No. ID No. PIONEER MODEL No. COROLLA EUROPE December 1999 08600-02810 T8400 KEH-M1096ZT/X1B/EW CONTENTS 1. SAFETY INFORMATION............................................2 2. EXPLODED VIEWS AND PARTS LIST ......................3 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM ....8 4. PCB CONNECTION DIAGRAM................................20 5. ELECTRICAL PARTS LIST........................................29 6. ADJUSTMENT.........................................................35 7. GENERAL INFORMATION.......................................37 7.1 DIAGNOSIS .......................................................37 7.1.1 SERVICE MODE .......................................37 7.1.2 DISASSEMBLY.........................................38 7.1.3 CONNECTOR FUNCTION DESCRIPTION ......39 7.2 IC ........................................................................40 7.3 SYSTEM BLOCK DIAGRAM .............................44 8. OPERATIONS AND SPECIFICATIONS....................45 - This service manual should be used together with the following manual(s): Model No. Order No. Mech. Module Remarks CX-529 CRT1507 2L Cassette Mech. Module:Circuit Description, Mech.Description, Disassembly www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 KEH-M1096ZT 1. SAFETY INFORMATION This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely; you should not risk trying to do so and refer the repair to a qualified service technician. - Service Precautions 1. During disassembly, be sure to turn the power off since an internal IC might be destroyed when a connector is plugged or unplugged. 2. Whenever the amplifier may be put into operation, a heat sink should be mounted. ICs and transistors may be damaged if the amplifier should be put into operation without mounting any heat sink. 3. When operating with large output power, the heat sink becomes very hot. Be careful not to touch it. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 KEH-M1096ZT 2. EXPLODED VIEWS AND PARTS LIST 2.1 PACKING NOTE: - Parts marked by “*” are generally unavailable because they are not in our Master Spare Parts List. - Screws adjacent to ∇ mark on the product are used for disassembly. 1 2 3 4 10 5 9 8 6 7 - PACKING SECTION PARTS LIST Mark No. Description Part No. Mark No. Description Part No. 1 Screw Assy CEA1854 * 2 Polyethylene Bag CEG-127 3 Screw HMF50P080FMC 4 Battery CEX1030 5 Polyethylene Bag UEG-012 6 Carton UHA2416 7 Contain Box UHL3835 8 Protector UHP2200 9 Protector UHP2201 10 Remote Control Unit CXB4201 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 KEH-M1096ZT 2.2 EXTERIOR www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 KEH-M1096ZT - EXTERIOR SECTION PARTS LIST Mark No. Description Part No. Mark No. Description Part No. 1 Screw BMZ26P050FMC 2 Screw BMZ26P180FMC 3 Screw BMZ30P060FMC 4 Case CNB2460 5 Insulator CNM6079 6 Heat Sink CNR1510 7 Chassis Unit CXB3977 8 Remote Control Unit CXB4201 9 Cover CNS4948 10 Cassette Mechanism ModuleEXK3850 11 Screw IMS30P050FMC 12 Tuner Amp Assy UWM6541 13 Screw BMZ30P060FMC 14 Screw(M3x8) CBA1339 15 Terminal(CN803) CKF1059 16 Connector(CN802) CKM1306 17 Connector(CN801) CKM1307 18 Plug(CN851) CKS3536 19 Connector(CN341) CKS3568 20 Antenna Jack(CN551) CKX1006 21 Holder CNC7523 22 Holder CNC8105 23 Holder CNC8395 24 FM/AM Tuner Unit CWE1416 25 Holder CNC6555 26 Screw BPZ26P100FMC 27 Button(EJECT) CAC6693 28 Button(PROG) CAC6694 29 Button(RPT,SCAN) CAC6695 30 Button(SKIP,DOLBY) CAC6696 31 Cushion CNM6632 32 Lighting Conductor CNV5835 33 Lens CNV5836 34 Grille Unit CXB4195 35 Door CAT2071 36 Spring CBH1371 37 Keyboard Unit UWM6542 38 Socket(CN901) CKS3549 39 Cushion CNM6331 40 IC(IC351) TDA7385 41 Transistor(Q861) 2SB1185 42 IC(IC901) SBX8035 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 KEH-M1096ZT 2.3 CASSETTE MECHANISM MODULE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 KEH-M1096ZT 1 Screw BSZ20P040FMC 2 Washer CBF1037 3 Washer CBF1038 4 Washer CBG1003 5 Deck Unit EWM1016 6 Screw(M2x5) EBA1028 7 Screw(M2x2.5) CBA1037 8 Spring EBH1531 9 Spring EBH1589 10 Plug(CN251) CKS3540 11 Spring EBH1515 12 Spring EBH1587 13 Spring EBH1517 14 Spring EBH1518 15 Spring EBH1519 16 Spring EBH1537 17 Wire EDD1020 18 Photo-interrupter(EGN2,3) EGN1006 19 Photo-interrupter(EGN1) EGN1005 20 Roller ENR1031 21 Shaft ELA1362 22 Roller ELA1348 23 Arm ENC1490 24 Arm ENC1397 25 Guide ENC1519 26 Holder ENC1516 27 Lever ENC1448 28 Arm ENC1488 29 Roller ENR1023 30 Belt ENT1027 31 Gear ENV1347 32 Collar ENV1508 33 Gear ENV1350 34 Flywheel ENV1500 35 Worm Gear ENV1439 36 Worm Wheel ENV1440 37 Gear ENR1037 38 Lever ENV1533 39 Arm ENV1525 40 Gathering PCB ENX1037 41 Gathering PCB ENX1042 42 Switch(S1,S2) ESG1004 43 Motor Unit(M2) EXA1382 44 Chassis Unit EXA1559 45 Tube ENM1039 46 Roller ENR1027 47 Reel Unit EXA1560 48 Head Base Unit EXA1434 49 Lever Unit EXA1578 50 Gear Unit EXA1545 51 Frame Unit EXA1476 52 Lever Unit EXA1439 53 Head Assy(HD1) EXA1594 54 Motor Unit(M1) EXA1499 55 Washer HBF-179 56 Screw JGZ20P025FNI 57 Spring EBH1545 58 Washer YE20FUC 59 Pinch Roller Unit EXA1533 60 Pinch Roller Unit EXA1532 Mark No. Description Part No. Mark No. Description Part No. - CASSETTE MECHANISM MODULE SECTION PARTS LIST www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 KEH-M1096ZT A 1 2 3 4 B C D 1 2 3 4 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM 3.1 BLOCK DIAGRAM ANT CN551 A TUNER AMP ASSY B FM/AM TUNER UNIT 25 26 FM FRONT END Q3 Q201 Q202 AM RF FM/AM 1ST IF 10.7MHz T31 Q31 CF51 CF52 IC 1 PA4023B IC 2 PA4024A 9 10 14 15 17 19 9 18 6 7 38 13 37 25 30 28 7 33 43 40 31 23 38 35 6 41 2 5 13 21 14 15 17 20 19 CF232 Q872 Q873 Q871 FM VCC AM VCC 20 15 13 26 23 24 6 11 RDS DECODER 8.5V REGULATOR IC 651 PM4006B FM OSC AM OSC CF52 19 47 T51 1 2 VCC SYSB SYSB B.U PDO/PCK/PDI/PCE M M D DECK UNIT E PCB UNIT C KEYBOARD UNIT F REEL PCB HEAD ASSY FWD LCH REV LCH M2 SUB MOTOR M1 MAIN MOTOR 1 5 4 1 1 2 CN252 CN254 CN255 CN253 37 39 EQ AMP DOLBY NR B CN251 CN341 IC 251 CXA2560Q 2 10 9 8 17 5 2 1 4 3 18 7 5 VR301 Lch B.U B.U SYSB STBY METAL MECHANISM DRIVER 4 3 20 19 8 11 4 3 20 19 8 11 LOAD 1 2 3 5 7 1 2 3 5 7 EGN1 MODE SENSE EGN3 REV END SENSE EGN2 FWD END SENSE S2 70µS S1 LOAD 7 56 IC 601 PD6217B RDS µ COM RESET IC IC 702 S-80736AN-D0 VCC 2 3 IC 351 PA2020A IC 901 SBX8035 REMOTE SENSOR KEY MATRIX FMTV AMTV VCO AMIFC COMP GATEDRIVE PLL X501 X601 IC 501 PM2007A 29 25 4 9 DRST LDET MDSENS XIN XOUT SOUND IFGD FMSD SL 18 Q165 FMSL AMSL FMSD Q3 76 9 REMOT 66 7 12 9 7 12 9 CN901 CN851 GND ILLB REMOT 1 IL901-903 LOAD 36 MTL 32 STBY 43 RESET 60 ACCPOW 50 CSL Q861 Q862 5 IC 652 NJM2903M 18 55 7 57K www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 KEH-M1096ZT 5 6 7 8 A B C D 5 6 7 8 IC 301 SN761029DL SYSTEM CONTROL µ COM IC701 PE5059A E-VOL IC 351 TDA7385 POWER IC TULin FRNToutL REARoutL TAPELin AUXinL+ AUXinL- MUTE ASEN BSEN ISEN MUTEIN IPPOW IPDI IPDO ACCPOW ILLPOW Q821 Q812 Q841 Q351 Q852 Q802 Q801 Q851 B.U Q823 Q822 Q824 VCC VCC IC 401 CA0008AM AVC-LAN DRIVER B.U B.U B.U B.U FMSD SL RDSMUTE RDS MUTE Q301 Q303 Q305 Q352 76 9 21 MUTE 59 BMUTE 58 62 63 64 67 55 8 57 56 BUS+ BUS- 6 5 50 51 REMOT 66 2 3 5 6 20 19 15 22 12 5 3 17 19 TUNER Lch TAPE Lch AUX L+ AUX L- Q353 FL RL FL- RL- VDD 5V REGULATOR STBY 2 DOUT 7 DIN LOAD 36 MTL 32 STBY 43 RESET 60 ACCPOW 50 CN801 CN802 FL+ FL- RL+ RL- ILL ACC ACCO TX+ TX- L+ L- MUTE 12 1 2 16 10 5 12 3 2 7 4 10 9 5 VDT/VCK/VST RL+ FL+ B.U Q302 Q304 Q853 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CN341 CN551 UN551 8.5V REGURATOR RDS A TUNER AMP ASSY B FM/AM TUNER UNIT D DECK UNIT CN251 2R2K(B) PM4006B R526 330 -27dBs -5.5dBs 10 KEH-M1096ZT A 1 2 3 4 B C D 1 2 3 4 A-a A-b A-a A-b A-b A-a Large size SCH diagram Guide page Detailed page A 3.2 OVERALL CONNECTION DIAGRAM(GUIDE PAGE) Note: When ordering service parts, be sure to refer to “EXPLODED VIEWS AND PARTS LIST” or “ELECTRICAL PARTS LIST”. A-a www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CN901 CN851 CN801 CN802 5V REGULATOR AVC-LAN DRIVER ILL DRIVER POWER IC ELECTRIC VOLUME RESET IC CN803 KEYBOARD UNIT C RDS MUTE 6.3A OUTPUT BALANCE AMP+ C826 1500P DOLBY NR +2dBs CD -6dBs TAPE -12.5dBs FM/AM -29dBs 11 KEH-M1096ZT 5 6 7 8 A B C D 5 6 7 8 A-b C A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 KEH-M1096ZT A 1 2 3 4 B C D 1 2 3 4 CN551 UN551 8.5V REGURATOR RDS A TUNER AMP ASSY B FM/AM TUNER UNIT RDS MUTE R526 330 -27dBs -5.5dBs A-a A-a A-b 1 2 3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 KEH-M1096ZT 5 6 7 8 A B C D 5 6 7 8 CN341 RDS D DECK UNIT CN251 2R2K(B) PM4006B -5.5dBs A-a A-a A-b 4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 KEH-M1096ZT A 1 2 3 4 B C D 1 2 3 4 CN801 CN802 5V REGULATOR POWER IC ELECTRIC VOLUME RESET IC CN803 MUTE OUTPUT BALANCE AMP+ C826 1500P CD -6dBs TAPE -12.5dBs FM/AM -29dBs A-a A-b A-b 1 2 3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 KEH-M1096ZT 5 6 7 8 A B C D 5 6 7 8 CN901 CN851 AVC-LAN DRIVER ILL DRIVER CN803 KEYBOARD UNIT C 6.3A DOLBY NR +2dBs A-a A-b A-b C 4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 KEH-M1096ZT A 1 2 3 4 B C D 1 2 3 4 3.3 FM/AM TUNER UNIT B 3 1 2 FM/AM TUNER UN DSP-201M-A11F B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 KEH-M1096ZT 5 6 7 8 A B C D 5 6 7 8B ER UNIT A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Fwd-R Fwd-L Rev-R Rev-L EXA1594 18 KEH-M1096ZT A 1 2 3 4 B C D 1 2 3 4 3.4 CASSETTE MECHANISM MODULE D DECK UNIT D A CN341 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 KEH-M1096ZT 5 6 7 8 A B C D 5 6 7 8 . EXA1499 EXA1382 SWITCHES: PCB UNIT S1:LOAD SWITCH..........EJECT-PLAY S2:70µs SWITCH............ON-OFF The underlined indicates the switch position. E PCB UNIT F REEL PCB E F D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 KEH-M1096ZT A 1 2 3 4 B C D 1 2 3 4 A TUNER AMP ASSY 4. PCB CONNECTION DIAGRAM 4.1 TUNER AMP ASSY NOTE FOR PCB DIAGRAMS 1. The parts mounted on this PCB include all necessary parts for several destination. For further information for respective destinations, be sure to check with the schematic diagram. 2. Viewpoint of PCB diagrams Capacitor Connector P.C.Board Chip Part SIDE A SIDE B A B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 KEH-M1096ZT 5 6 7 8 A B C D 5 6 7 8A SIDE A C CN901 D CN251 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 22 KEH-M1096ZT A 1 2 3 4 B C D 1 2 3 4 A A TUNER AMP ASSY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 23 KEH-M1096ZT 5 6 7 8 A B C D 5 6 7 8A SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 24 KEH-M1096ZT A 1 2 3 4 B C D 1 2 3 4 4.2 FM/AM TUNER UNIT B SIDE A B FM/AM TUNER UNIT A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 25 KEH-M1096ZT 1 2 3 4 A B C D 1 2 3 4 B SIDE B B FM/AM TUNER UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A CN851 KEH-M1096ZT A 1 2 3 4 B C D 1 2 3 4 4.3 KEYBOARD UNIT C C KEYBOARD UNIT 26 SIDE B SIDE A C KEYBOARD UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A CN602 27 KEH-M1096ZT 1 2 3 4 A B C D 1 2 3 4D D DECK UNIT 4.4 CASSETTE MECHANISM MODULE CN341 IC,Q ADJ VR302 IC351 IC251 Q351 Q352 VR301 HEAD ASSY E M1 M2 E A SIDE A SIDE B D DECK UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 28 KEH-M1096ZT A 1 2 3 4 B C D 1 2 3 4 E PCB UNIT E PCB UNIT F REEL PCB F E D SIDE A SIDE B CN253 E F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 29 KEH-M1096ZT L 341 Inductor LFEA4R7J L 501 Inductor LCTB2R2K3216 L 502 Inductor LCTB4R7K3216 L 551 Inductor LCTA4R7J3225 L 552 Inductor LCTA4R7J3225 L 553 Inductor LCTA4R7J3225 L 601 Inductor LCTB4R7K3216 L 651 Inductor LCTA220J3225 L 702 Inductor LCTA4R7J3225 L 801 Coil CTH1191 X 501 Crystal Resonator 7.200MHz CSS1379 X 601 Crystal Resonator 4.332MHz CSS1056 X 701 Ceramic Resonator 6.290MHz CSS1305 VR 651 Semi-fixed 2.2kΩ(B) CCP1177 FU 801 Fuse 6.3A CEK1008 AR 551 DSP-201M FM/AM Tuner Unit CWE1416 RESISTORS R 301 RS1/10S472J R 302 RS1/10S472J R 303 RS1/10S102J R 304 RS1/10S102J R 305 RS1/10S102J R 306 RS1/10S102J R 307 RS1/10S102J R 308 RS1/10S102J R 309 RS1/10S221J R 310 RS1/10S221J R 311 RS1/10S472J R 312 RS1/10S472J R 313 RS1/10S473J R 314 RS1/10S473J R 315 RS1/10S221J R 316 RS1/10S221J R 317 RS1/10S823J R 318 RS1/10S823J R 319 RS1/10S824J R 320 RS1/10S224J R 321 RS1/10S224J R 322 RS1/10S222J R 323 RS1/10S222J R 324 RS1/10S223J R 325 RS1/10S223J R 341 RS1/10S153J R 342 RS1/10S153J R 343 RS1/10S183J R 344 RS1/10S183J R 351 RS1/10S103J R 352 RS1/10S103J R 353 RS1/10S103J R 354 RS1/10S103J R 357 RS1/10S331J R 360 RS1/10S153J 5. ELECTRICAL PARTS LIST NOTE: - Parts whose parts numbers are omitted are subject to being not supplied. - The part numbers shown below indicate chip components. Chip Resistor RS1/_S___J,RS1/__S___J Chip Capacitor (except for CQS.....) CKS....., CCS....., CSZS..... Unit Number : UWM6541 Unit Name : Tuner Amp Assy MISCELLANEOUS IC 301 IC SN761029DL IC 351 IC TDA7385 IC 401 IC CA0008AM IC 501 IC PM2007A IC 601 IC PD6217B IC 651 IC PM4006B IC 652 IC NJM2903M IC 701 IC PE5059A IC 702 IC S-80736AN-D0 Q 301 Chip Transistor 2SC2712 Q 302 Chip Transistor 2SC2712 Q 303 Transistor DTC143TK Q 304 Transistor DTC143TK Q 305 Transistor DTA114EK Q 351 Transistor 2SA1162 Q 352 Transistor DTC114EK Q 353 Transistor DTC114EK Q 501 Chip Transistor 2SC2712 Q 651 Transistor DTC114TK Q 801 Transistor 2SC4132 Q 802 Transistor IMD3A Q 812 Transistor DTC144TK Q 821 Transistor DTC124TK Q 822 Transistor DTA143TK Q 823 Transistor 2SB1260 Q 824 Transistor DTC124TK Q 841 Transistor DTC124TK Q 851 Transistor DTC114EK Q 852 Transistor 2SB1132 Q 853 Transistor DTA143TK Q 861 Transistor 2SB1185 Q 862 Transistor IMX1 Q 871 Transistor 2SB1132 Q 872 Transistor 2SB1132 Q 873 Transistor IMD3A D 301 Diode 1SS355 D 302 Diode 1SS355 D 351 Diode 1SS355 D 352 Diode 1SS355 D 353 Diode UDZ20(B) D 551 Chip Diode MA151WK D 651 Diode MA8047(H) D 801 Diode RM4Z-LFJ1 D 802 Diode ERA15-02VH D 803 Diode UDZS5R6(B) D 804 Diode 1SS355 D 811 Diode UDZS7R5(B) D 821 Diode MA8082(L) D 841 Diode MA8082(L) D 861 Diode RD8R2M(B1) =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 30 KEH-M1096ZT R 371 RS1/10S682J R 372 RS1/10S682J R 373 RS1/10S472J R 374 RS1/10S472J R 375 RS1/10S682J R 376 RS1/10S682J R 377 RS1/10S472J R 378 RS1/10S472J R 401 RS1/10S102J R 402 RS1/10S102J R 403 RS1/10S102J R 404 RS1/4S101J R 405 RS1/4S101J R 406 RS1PMF680J R 501 RS1/10S103J R 504 RS1/10S102J R 505 RS1/10S222J R 506 RS1/10S222J R 507 RS1/10S222J R 508 RS1/10S472J R 509 RS1/10S682J R 510 RS1/10S222J R 511 RS1/10S472J R 512 RS1/10S102J R 513 RS1/10S682J R 514 RS1/10S472J R 515 RS1/10S561J R 516 RS1/10S682J R 517 RS1/10S152J R 518 RS1/10S392J R 519 RS1/10S222J R 520 RS1/10S392J R 521 RS1/10S272J R 522 RS1/10S102J R 523 RS1/10S102J R 524 RS1/10S102J R 525 RS1/10S102J R 526 RS1/10S331J R 551 RS1/10S103J R 552 RS1/10S102J R 553 RS1/10S272J R 554 RS1/10S272J R 555 RS1/10S472J R 601 RS1/10S102J R 602 RS1/10S102J R 603 RS1/10S102J R 604 RS1/10S562J R 605 RS1/10S223J R 606 RS1/10S223J R 607 RS1/10S102J R 608 RS1/10S222J R 609 RS1/10S681J R 610 RS1/10S473J R 611 RS1/10S681J R 612 RS1/10S473J R 613 RS1/10S681J R 614 RS1/10S681J R 615 RS1/10S105J R 616 RS1/10S681J R 617 RS1/10S224J R 618 RS1/10S681J R 619 RS1/10S473J R 620 RS1/10S473J R 621 RS1/10S681J R 622 RS1/10S473J R 623 RS1/10S681J R 624 RS1/10S473J R 625 RS1/10S681J R 626 RS1/10S473J R 627 RS1/10S681J R 628 RS1/10S473J R 629 RS1/10S102J R 630 RS1/10S102J R 651 RS1/10S222J R 652 RS1/10S102J R 653 RS1/10S102J R 654 RS1/10S102J R 655 RS1/10S102J R 656 RS1/10S222J R 657 RS1/10S0R0J R 658 RS1/10S333J R 659 RS1/4S151J R 660 RS1/10S222J R 661 RS1/10S222J R 662 RS1/10S222J R 663 RS1/10S684J R 664 RS1/10S222J R 701 RS1/10S223J R 702 RS1/10S223J R 703 RS1/10S103J R 704 RS1/10S472J R 705 RS1/10S472J R 706 RS1/10S222J R 707 RS1/10S222J R 708 RS1/10S473J R 709 RS1/10S102J R 710 RS1/10S102J R 711 RS1/10S102J R 712 RS1/10S102J R 713 RS1/10S102J R 714 RS1/10S102J R 715 RS1/10S102J R 716 RS1/10S102J R 717 RS1/10S102J R 718 RS1/10S102J R 719 RS1/10S473J R 720 RS1/10S103J R 721 RS1/10S473J R 722 RS1/10S473J R 723 RS1/10S473J R 724 RS1/10S473J R 725 RS1/10S223J R 726 RS1/10S223J R 727 RS1/10S102J R 728 RS1/10S102J R 729 RS1/10S681J R 730 RS1/10S222J R 731 RS1/10S222J R 732 RS1/10S102J R 733 RS1/10S473J R 734 RS1/10S222J R 735 RS1/10S223J R 736 RS1/10S474J R 737 RS1/10S222J R 738 RS1/10S222J R 739 RS1/10S222J R 740 RS1/10S222J R 741 RS1/10S103J R 742 RS1/10S473J R 743 RS1/10S222J =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 31 KEH-M1096ZT R 744 RS1/10S102J R 745 RS1/10S393J R 746 RS1/10S222J R 747 RS1/10S473J R 748 RS1/8S0R0J R 749 RS1/8S0R0J R 750 RS1/10S102J R 751 RS1/10S102J R 752 RS1/10S102J R 753 RS1/10S104J R 801 RS1/10S183J R 802 RS1/10S222J R 811 RS1/10S104J R 814 RS1/10S104J R 821 RS1/10S472J R 822 RS1/4S222J R 823 RS1/10S104J R 824 RS1/10S473J R 825 RS1/10S4R7J R 826 RS1/10S223J R 827 RS1/10S332J R 828 RS1/10S473J R 841 RS1/8S472J R 842 RS1/4S222J R 843 RS1/10S104J R 844 RS1/10S473J R 851 RS1/10S272J R 852 RS1/10S223J R 853 RS1/10S3R9J R 861 RS1/10S223J R 862 RS1/10S562J R 863 RS1/10S471J R 864 RS1/10S471J R 865 RS1/10S222J R 866 RS1/10S473J R 867 RS1/10S223J R 871 RS1/10S223J R 872 RS1/10S152J R 873 RS1/10S223J R 874 RS1/10S152J CAPACITORS C 301 CEJA2R2M50 C 302 CEJA2R2M50 C 303 CEJA2R2M50 C 304 CEJA2R2M50 C 305 CEJANP4R7M16 C 306 CEJANP4R7M16 C 307 CEJA2R2M50 C 308 CEJA2R2M50 C 309 CKSQYB332K50 C 310 CKSQYB332K50 C 311 CEJANP4R7M16 C 312 CEJANP4R7M16 C 313 CKSQYB153K50 C 314 CKSQYB153K50 C 315 CKSQYB104K50 C 316 CKSQYB104K50 C 317 CKSQYB474K16 C 318 CKSQYB474K16 C 319 CEJANP4R7M16 C 320 CEJANP4R7M16 C 321 CEJA4R7M35 C 322 CEJA2R2M50 C 323 CKSQYB473K50 C 324 CKSQYB473K50 C 325 CFTNA224J50 C 326 CFTNA224J50 C 327 CFTNA224J50 C 328 CFTNA224J50 C 329 CKSQYB332K50 C 330 CKSQYB332K50 C 331 CKSQYB103K50 C 332 CEJA1R0M50 C 333 CKSQYB104K50 C 334 CEJA470M10 C 341 CEJA1R0M50 C 342 CEJA1R0M50 C 351 CEJA330M10 C 352 CEJA2R2M50 C 353 CFTNA224J50 C 354 CEJA100M16 C 355 CKSQYB272K50 C 356 CKSQYB272K50 C 357 CKSQYB272K50 C 358 CKSQYB272K50 C 359 CKSQYB272K50 C 360 CKSQYB272K50 C 361 CKSQYB272K50 C 362 CKSQYB272K50 C 363 CKSQYB104K50 C 371 CCSQCH221J50 C 372 CCSQCH221J50 C 373 CCSQCH221J50 C 374 CCSQCH221J50 C 375 CEJA4R7M35 C 376 CEJA4R7M35 C 377 CEJA4R7M35 C 378 CEJA4R7M35 C 401 CKSQYB103K50 C 402 CKSQYB221K50 C 403 CKSQYB221K50 C 501 CKSQYB102K50 C 502 CKSQYB103K50 C 503 CKSQYB103K50 C 505 CKSQYB473K50 C 506 CCSQCH101J50 C 507 CKSQYB103K50 C 508 CKSQYB273K50 C 509 CKSQYB103K50 C 510 CKSQYB102K50 C 511 CKSQYB103K50 C 512 CEJA100M16 C 513 CKSQYB103K50 C 514 CEJA220M10 C 515 CKSQYB103K50 C 516 CEJA220M10 C 517 CKSQYB103K50 C 518 4.7µF/10V CCH1280 C 519 CKSQYB103K50 C 520 CKSQYB473K50 C 521 CKSQYB332K50 C 522 CKSQYB103K50 C 523 4.7µF/10V CCH1280 C 524 CEJAR47M50 C 525 CKSQYB103K50 C 526 CCSQCH150J50 C 527 CCSQCH150J50 C 528 CKSQYB102K50 C 529 CEJA220M16 C 551 CKSQYB103K50 C 552 CKSQYB103K50 =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 32 KEH-M1096ZT =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- C 553 CEJA100M16 C 554 CKSQYB102K50 C 555 CKSQYB103K50 C 556 CKSQYB103K50 C 557 CASAQ100M10 C 558 CKSQYB102K50 C 559 CKSQYB103K50 C 560 CEJA100M16 C 561 CKSQYB102K50 C 562 CKSQYB223K50 C 563 CKSQYB223K50 C 564 CKSQYB223K50 C 566 CKSQYB152K50 C 567 CKSQYB103K50 C 601 CEJANP4R7M16 C 602 CKSQYB103K50 C 603 CKSQYB103K50 C 604 CEJA221M6R3 C 606 CCSQCH270J50 C 607 CCSQCH270J50 C 609 CKSQYB821K50 C 610 CKSQYB103K50 C 651 CKSQYB104K50 C 652 CEJA4R7M35 C 653 CKSQYB102K50 C 654 CKSQYB472K50 C 655 CKSQYB104K50 C 656 CKSQYB472K50 C 657 CKSQYB104K50 C 658 CKSQYB222K50 C 659 CKSQYB103K50 C 660 CEAS470M10 C 661 CKSQYB103K50 C 662 CKSQYB103K50 C 701 CKSQYB471K50 C 702 CKSQYB471K50 C 703 CKSQYB472K50 C 704 CKSQYB472K50 C 705 CKSQYB472K50 C 706 CKSQYB103K50 C 707 CEJA221M6R3 C 710 CKSQYB561K50 C 711 CKSQYB103K50 C 714 CKSQYB182K50 C 715 CKSQYB273K50 C 801 3300µF/16V CCH1177 C 802 CEAS221M16 C 803 CEJA1R0M50 C 804 CKSQYB103K50 C 805 CKSQYB103K50 C 806 0.047F/5.5V CCL1040 C 807 CEJA101M6R3 C 808 CKSQYB103K50 C 821 CKSQYB103K50 C 822 CEJA1R0M50 C 823 CKSQYB103K50 C 824 CKSQYB103K50 C 825 CKSQYB103K50 C 826 CKSQYB152K50 C 841 CKSQYB473K50 C 861 CKSQYB103K50 C 862 CKSQYB102K50 C 863 CEJA330M10 C 864 CKSQYB102K50 C 871 CKSQYB223K50 C 872 CKSQYB472K50 C 873 CKSQYB223K50 Unit Number : CWE1416 Unit Name : FM/AM Tuner Unit MISCELLANEOUS IC 1 IC PA4023B IC 2 IC PA4024A Q 1 Transistor 2SC2412K Q 2 Transistor DTC124EU Q 3 FET 3SK263 Q 31 Transistor 2SC2412K Q 154 Transistor DTC124EU Q 165 Transistor 2SC2412K Q 201 FET 2SK932 Q 202 Transistor 2SC2412K Q 203 Transistor DTC124EU D 4 Diode 1SV250 D 5 Diode KV1410-F1 D 7 Diode KV1410-F1 D 8 Diode KV1410-F1 D 201 Diode MA157 D 202 Diode MA157 D 231 Diode SVC253 L 2 Coil CTC1108 L 3 Inductor LCTB2R2K2125 L 4 Coil CTC1108 L 5 Coil CTC1107 L 6 Inductor LCTBR15K1608 L 51 Ferri-Inductor LAU150K L 201 Ferri-Inductor LAU4R7K L 202 Ferri-Inductor LAU330K L 203 Inductor CTF1287 L 208 Inductor LAU121K L 231 Inductor LCTA3R3J3225 T 31 Coil CTE1116 T 51 Coil CTC1136 TC 1 Trimmer CCL1046 CF 51 Ceramic Filter CTF1442 CF 52 Ceramic Filter CTF1442 CF 53 Ceramic Filter CTF1442 CF 232 Ceramic Filter CTF1348 X 151 Radiator 918.5Hz CSS1365 X 231 Crystal Resonator 10.26MHz CSS1111 VR 154 Semi-fixed 150kΩ(B) CCP1213 AR 1 DSP-201M-A11F RESISTORS R 1 RS1/16S0R0J R 4 RS1/16S154J R 5 RS1/16S391J R 6 RS1/16S223J R 7 RS1/16S123J R 8 RS1/16S332J R 9 RS1/16S473J R 10 RS1/16S223J R 11 RS1/16S124J R 13 RS1/16S563J R 15 RS1/16S271J R 16 RS1/16S104J R 17 RS1/16S332J R 18 RS1/16S332J R 31 RS1/16S470J R 32 RS1/16S822J R 33 RS1/16S822J R 34 RS1/16S331J R 35 RS1/16S331J R 40 RS1/16S470J B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 33 KEH-M1096ZT R 51 RS1/16S271J R 52 RS1/16S560J R 55 RS1/16S102J R 56 RS1/16S823J R 61 RS1/16S392J R 62 RS1/16S393J R 101 RS1/16S272J R 102 RS1/16S682J R 103 RS1/16S333J R 104 RS1/16S334J R 105 RS1/16S683J R 107 RS1/16S222J R 151 RS1/16S222J R 152 RS1/16S393J R 154 RS1/16S104J R 155 RS1/16S273J R 156 RS1/16S243J R 157 RS1/16S203J R 160 RS1/16S222J R 161 RS1/16S563J R 162 RS1/16S105J R 163 RS1/16S222J R 202 RS1/16S223J R 203 RS1/16S225J R 204 RS1/16S103J R 206 RS1/16S220J R 207 RS1/16S101J R 208 RS1/16S102J R 209 RS1/16S471J R 214 RS1/16S822J R 215 RS1/16S822J R 217 RS1/16S102J R 231 RS1/16S272J R 232 RS1/16S473J R 237 RS1/16S103J R 238 RS1/16S104J R 239 RS1/16S104J R 240 RS1/16S332J R 241 RS1/16S202J R 243 RS1/16S123J R 244 RS1/16S103J R 247 RS1/16S123J CAPACITORS C 1 CCSQCH6R0D50 C 2 CCSRCK2R0C50 C 4 CCSRCH820J50 C 6 CCSRCH820J50 C 8 CKSRYB103K25 C 9 CKSQYB104K16 C 10 CCSRCKR50C50 C 11 CEJA1R0M50 C 13 CKSRYB222K50 C 14 CCSRCH220J50 C 16 CCSRCH8R0D50 C 17 CKSRYB222K50 C 18 CKSRYB103K25 C 19 CKSRYB222K50 C 20 CKSRYB222K50 C 21 CEJA100M16 C 22 CCSRTH9R0D50 C 23 CCSRTH120J50 C 24 CCSRCH471J50 C 25 CKSRYB103K25 C 31 CKSRYB103K25 C 32 CKSQYB472K50 C 33 CCSRCH5R0C50 C 34 CKSQYB104K16 C 36 CCSRRH201J50 C 51 CKSRYB223K25 C 52 CKSRYB103K25 C 54 CCSRCH470J50 C 55 CKSQYB223K25 C 56 CKSQYB104K16 C 57 CKSRYB472K50 C 58 CEJA330M10 C 59 CKSRYB103K25 C 61 CCSRCH270J50 C 62 CKSRYB103K25 C 63 CEJAR15M50 C 101 CEJANP100M10 C 102 CKSRYB182K50 C 103 CKSRYB682K25 C 104 CEJA2R2M50 C 105 CKSRYB103K25 C 106 CCSRCH151J50 C 107 CKSRYB103K25 C 151 CKSRYB472K50 C 152 CKSQYB104K16 C 153 CEJA3R3M50 C 154 CKSQYB104K16 C 157 CEJA3R3M50 C 158 CKSYB474K16 C 159 CEJA220M6R3 C 160 CKSQYB104K16 C 161 CKSQYB104K16 C 162 CEJA3R3M50 C 163 CKSRYB102K50 C 170 CCSRCH100D50 C 201 CCSRCH471J50 C 202 CCSRCH100D50 C 203 CKSRYB332K50 C 204 CKSQYB473K16 C 205 CKSQYB473K16 C 206 CKSQYB104K16 C 207 CCSRCH560J50 C 209 CKSQYB104K16 C 211 CCSRCH101J50 C 212 CEJA470M6R3 C 213 CKSRYB103K25 C 216 CCSRCH101J50 C 217 CEJA1R5M50 C 219 CCSRCH471J50 C 220 CKSRYB103K25 C 230 CKSRYB103K25 C 231 CCSRCH330J50 C 232 CCSRCH150J50 C 233 CKSQYB104K16 C 234 CEJA330M10 C 235 CKSRYB332K50 C 236 CKSQYB473K16 C 237 CCSRCH120J50 C 239 CKSRYB472K50 C 240 CEJAR47M50 C 241 CKSQYB104K16 C 242 CEJAR47M50 C 243 CEJAR33M50 C 244 CKSQYB473K16 C 245 CKSRYB123K25 =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C 246 CKSQYB473K16 C 250 CCSRCH471J50 Unit Number : UWM6542 Unit Name : Keyboard Unit MISCELLANEOUS IC 901 IC SBX8035 S 901 Switch CSG1140 S 902 Switch CSG1140 S 903 Switch CSG1140 S 904 Switch CSG1140 S 905 Switch CSG1140 S 906 Switch CSG1140 IL 901 Lamp 14V 60mA CEL1626 IL 902 Lamp 14V 60mA CEL1626 IL 903 Lamp 14V 60mA CEL1626 RESISTORS R 901 RS1/10S102J R 902 RS1/10S470J R 903 RS1/4S300J R 904 RS1/4S300J CAPACITORS C 901 CEV100M16 Unit Number : EWM1016 Unit Name : Deck Unit MISCELLANEOUS IC 251 IC CXA2560Q IC 351 IC PA2020A Q 351 Transistor 2SB1260 Q 352 Transistor 2SC4102 D 351 Diode 1SS355 VR 301 Semi-fixed 33kΩ(B) CCP1280 VR 302 Semi-fixed 33kΩ(B) CCP1280 RESISTORS R 255 RS1/16S221J R 256 RS1/16S221J R 257 RS1/16S102J R 258 RS1/16S102J R 271 RS1/16S102J R 272 RS1/16S102J R 273 RS1/16S102J R 281 RS1/8S0R0J R 282 RS1/8S0R0J R 283 RS1/8S0R0J R 284 RS1/8S0R0J R 285 RS1/16S0R0J R 286 RS1/16S0R0J R 287 RS1/8S0R0J R 290 RS1/8S0R0J R 301 RS1/16S183J R 322 RS1/16S102J R 351 RS1/16S102J R 352 RS1/16S102J R 353 RS1/16S102J R 354 RS1/16S102J R 355 RS1/10S274J R 356 RS1/10S202J R 357 RS1/10S472J R 358 RS1/10S103J R 359 RS1/10S103J R 360 RS1/10S102J R 361 RS1/10S622J R 362 RS1/8S181J R 373 RS1/8S0R0J R 374 RS1/8S0R0J R 375 RS1/8S0R0J R 401 RS1/16S472J R 402 RS1/16S163J R 403 RS1/16S823J CAPACITORS C 251 CKSRYB331K50 C 252 CKSRYB331K50 C 253 CKSRYB331K50 C 254 CKSRYB331K50 C 255 CKSRYB103K25 C 256 CKSRYB103K25 C 272 CKSQYB104K16 C 273 CEJA220M16 C 301 CKSYB104K50 C 302 CKSYB104K50 C 309 CKSQYB104K16 C 310 CKSQYB104K16 C 313 CCSQCH101K50 C 351 CKSYB224K25 C 352 CKSQYB392K50 C 353 CKSQYB103K50 C 354 CKSQYB103K50 C 355 CKSYB104K50 C 356 CKSQYB103K50 C 401 CKSQYB334K16 C 402 CKSQYB472K50 C 403 CKSQYB683K16 Unit Number: Unit Name : PCB Unit S 1 Switch(LOAD) ESG1004 S 2 Switch(70µS) ESG1004 EGN 1 Photo-Interrupter EGN1005 Unit Number : Unit Name : Reel PCB EGN 2 Photo-Interrupter EGN1006 EGN 3 Photo-Interrupter EGN1006 Miscellaneous Parts List M 1 Motor Unit(MAIN) EXA1499 M 2 Motor Unit(SUB) EXA1382 HD 1 Head Assy EXA1594 34 KEH-M1096ZT D =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No. --- ------ ------------------------------------------ ------------------------- E F C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 35 KEH-M1096ZT FM SSG Stereo Modulator 50Ω(37.5Ω) Antenna Plug Dummy Antenna 50Ω(75Ω) TUNER AMP ASSY FM/AM TUNER UNIT 4kΩ 4kΩ +13.2V Antenna Jack mV Meter (1) Oscilloscope DC Regulated Power Supply DECK UNIT DECK UNIT RR– RR+ RL+ RL– GND ACC BUP VR301 VR302 CN251 Pin2 Pin3 R-CH L-CH GGD1019 mV Meter(2) FM/AM TUNER UNIT (TOP VIEW) T31 T51 C63 T51 Center Meter FM/AM TUNER UNIT (BOTTOM VIEW) Pin1 Pin13 Pin14 Pin 19 Pin26 L2 L4 L5 VR154 TC1 DC V Meter(1) VR651 DC V Meter(2) RDSSL(SIDE B) 6. ADJUSTMENT - Connection Diagram www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 36 KEH-M1096ZT DOLBY B NR ADJUSTMENT No. Test Tape Adjustment Point Adjustment Method (Switch Position) 1 ACT-150 VR301(Lch),VR302(Rch) mV Meter(2) : –6dBs±1dB (400Hz,200nwb/m) (DOLBY NR Switch : OFF) FM ADJUSTMENT Modulation M:MONO MOD., 400Hz 30%(22.5kHz Dev.) or 400Hz 100%(75kHz Dev.) S:STEREO MOD., 1kHz, L or R=30%(20.25kHz+7.5kHz Dev.) NOTE:Before proceeding to further adjustments after switching power ON, let the tuner run for ten minutes to allow the circuits to stabilize. FM SSG Displayed Adjustment Adjustment Method No. Frequency(MHz) Level(dBf) Frequency(MHz) Point (Switch Position) TUN Volt 1 ••••• ••••• 108.0 L5 DC V Meter(1) : 6V IF 2 98.1 M 60—100 98.1 T51 Center Meter : 0 ANT Coil 3 98.1 M 5 98.1 L2 mV Meter(1) : Maximum RF Coil 4 98.1 M 5 98.1 L4 mV Meter(1) : Maximum RF 5 129.3 M 60—80 107.9 TC1 mV Meter(1) : Minimum Trimmer 6 RF Coil and RF Trimmer shall be adjusted twice or more IFT 7 98.1 M 5 98.1 T31 mV Meter(1) : Maximum (STEREO MODE) ARC 8 98.1 S 40 98.1 VR154 mV Meter(1) : Separation 5dB (STEREO MODE) RDS SL ADJUSTMENT FM SSG Displayed Adjustment Adjustment Method No. Frequency(MHz) Level(dBf) Frequency(MHz) Point (Switch Position) 1 104.0 S2 35 104.0 VR651 DC V Meter(2) : 1.75V+0.05V,-0.35V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 37 KEH-M1096ZT 7. GENERAL INFORMATION 7.1 DIAGNOSIS 7.1.1 SERVICE MODE 1. Entering the mode Input "H" to the SMODE terminal when the microcomputer resets. (Set the RESET terminal to "L," while inputting "H" to the SMODE terminal.) 2. Terminating the mode Set ACC (accessories) to OFF. 3. Valid keys in the mode Keys valid for always : POWER, MODE (REMOTE CONTROL UNIT) : EJECT (HEAD UNIT) Keys valid for POWER ON : MUTE, VOL UP/DOWN (REMOTE CONTROL UNIT) TAPE : PROG, APS+/-, FF/REW (REMOTE CONTROL UNIT) : PROG, RPT, SCAN, DOLBY (HEAD UNIT) TUNER : UP/DOWN (REMOTE CONTROL UNIT) In Service mode, only the keys listed above are valid. The analog switch is switched to output audio from an internal source. Note : If a navigator or display is connected to the system in this state, the connected equipment does not operate normally, even though it appears as if operating. Be sure to set ACC to OFF to terminate Service mode, then connect the equipment. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 38 KEH-M1096ZT - Remove the Tuner Amp Assy (Fig.2) Remove the screw. Unbend the tabs at two locations indicated by arrow until straight. Remove the Tuner Amp Assy. - Remove the Heat Sink(Fig.1) Remove the three screws. Remove the two screws and then Heat Sink. Fig.2 Heat Sink Fig.1 7.1.2 DISASSEMBLY - Remove the Cassette Mechanism Module(not shown) 1. Remove the four screws. 2. Remove the connector and then remove the Cassette Mechanism Module. - Remove the Grille Assy(not shown) 1. Disengage the stopper at four locations and then remove the Grille Assy. Tuner Amp Assy www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 39 KEH-M1096ZT 7.1.3 CONNECTOR FUNCTION DESCRIPTION +B MUT ACC NC TX+ TX- SGND GND L+ L- R- R+ +B ACC ILL AMP+ GND FL+ FL- FR+ FR- RL+ RR+ RL- NC NC RR- ANTENNA JACK NC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 40 KEH-M1096ZT - Pin Functions(PD6217B) Pin No. Pin Name I/O Format Function and Operation 1 PCK O N PLL communications clock output 2 PDO O N PLL communications data output 3 PDI I PLL communications data input 4 SL I Signal level input 5 NL I Noise level input 6 MDSENS I Demodulation detection input 7 SOUND I Detuning sense composite signal input 8 rmute O N RDS mute output 9-11 NC Not used 12 AVCC 5V power supply input 13 AVR 5V power supply input 14 AVSS Connect to GND 15 IRSEL I µCOM select input 16 rck I RDS recovery modulation clock input 17 RDT I RDS recovery modulation data input 18 ldet I PLL lock detection input 19 rdslk I RDSLK signal input 20 irrst I µCOM reset input 21 MOD0 Connect to GND 22 MOD1 Connect to GND 23 XIN I Oscillator input 24 XOUT O C Oscillator output 25 VSS Connect to GND 26 drst O C Decoder reset output 27 NC Not used 28 currq O C PLL-TV-Fix output 29 IRRDY O C Communications ready output 30 RECIVE O C Open 7.2 IC HPF1 HPF2 LIMITER AGC1 BPF1 AGC2 BPF2 DETECTOR AMP SLICE WAVE FORM SHAPE AGC2 PEAK DETECTOR INPUT MATCHING CIRCUIT PD f.ADJUST REGISTER FIRST TEMPERATURE CHARACTERISTICS CORRECTION SECOND TEMPERATURE CHARACTERISTICS CORRECTION REGULATOR VCC 5 Bits LENS PACKAGE RMC OUT VCC GND INFRARED FILTER INTERNAL ELECTROMAGNETIC SHIELD SBX8035 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 41 KEH-M1096ZT 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 VCC AVcc IN1-R IN1-L IN2-R IN2-L IN3-R IN3-L IN4(+)-R IN4(+)-L IN4(-)-R IN4(-)-L AGND AGND SWout-R SWout-L ZCin-R ZCin-L LOUD-R LOUD-L VRin-R VRin-L TREB-R TREB-L BASS-C1-R BASS-C1-L BASS-R-R BASS-R-L BASS-C2-R BASS-C2-L NC NC TONEout-R TONEout-L FADERin-R FADERin-L FRNTout-R FRNTout-L REARout-R REARout-L DVcc VREFin DATA AGND CLK DGND STB Ct 3 Line Serial Bus Bass Treble Volume, Loudness Fader Gain Adjust Isolator Zero-cross Detector Power Supply Bass Treble Volume, Loudness Fader Gain Adjust Isolator Power Supply A A Pin No. Pin Name I/O Format Function and Operation 31 CORR O C Open 32 ERROR O C Open 33-38 NC Not used 39 sk I Open 40-49 NC Not used 50 VSS Connect to GND 51 TEST I Test program input 52 irck I Communications clock input 53 DI I Communications data input 54 DO O C Communications data output 55 57K I 57kHz BP-OUT sense input 56 IFGD O C Tuner unit gate line control output 57 VDD 5V power supply 58 SD I SD signal input 59 PCE O C PLL communications enable output 60-64 NC Not used Format Meaning C C MOS N N channel open drain IC's marked by* are MOS type. Be careful in handling them because they are very liable to be damaged by electrostatic induction. 64 1 19 20 32 33 51 52 SN761029DL *PD6217B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 42 KEH-M1096ZT - Pin Functions(PE5059A) Pin No. Pin Name I/O Format Function and Operation 1-3 NC Not used 4 AVSS GND 5 NC Not used 6 SWVDD Not used 7 AVREF1 VDD 8 ST I Stereo input 9 SD I Station detect input 10 NC Not used 11 PDI I PLL data input 12 PDO O C PLL data output 13 PCK O C PLL clock output 14 PCE O C PLL enable output 15 NC Not used 16 RDSDI I RDS micro-computer data input 17 RDSDO O C RDS micro-computer data output 18 RDSCK O C RDS micro-computer clock output 19 RDSRST O C RDS micro-computer reset output 20 RDSSEL O C RDS micro-computer enable output 21 RDSMUTE O C RDS micro-computer mute output 22 NC Not used 23 KST0 O C Key strobe 0 output 24 KST1 O C Key strobe 1 output 25 KST2 O C Key strobe 2 output 26-28 NC Not used 29 MS I Cassette mechanism MS sense input 30 F/R O C Cassette mechanism normal/reverse output 31 PLAY O C Cassette mechanism MS filter output 32 MTL I Cassette mechanism metal tape detect input 33 VSS GND 34 B/C Not used 35 NR O C Cassette mechanism noise reduction output 36 LOAD I Cassette mechanism loading detect input 37 POS I Cassette mechanism position detect input 38 RES I Cassette mechanism reverse end detect input 39 NES I Cassette mechanism normal end detect input 40 SC2 O C Cassette mechanism sub motor control output2 41 SC1 O C Cassette mechanism sub motor control output1 42 CM O C Cassette mechanism capstan motor control output 43 STBY O C Cassette mechanism stand-by control output 44 KD0 I Key data input 0 45 PEE O C Beep tone output 46 KD1 I Key data input 1 47 VST O C Strobe pulse output for electronic volume 48 VCK O C Clock output for electronic volume 49 VDT O C Data output for electronic volume 50 ACCPOW O C ACC power output 51 ILLPOW O C Illumination power output 52 NC O C Not used 53 SYSPOW O C System power output 54 NC Not used 55 IPPOW O C Power output for IE-BUS driver 56 IPDO O C Data output for IE-BUS driver 57 IPDI I Data input from IE-BUS driver 58 BMUTE O C Mute output 2 59 MUTE O C Mute output 60 RESET I System reset input www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 43 KEH-M1096ZT 80 1 20 21 40 41 60 61 *PE5059A Pin No. Pin Name I/O Format Function and Operation 61 RDSRDY I RDS ready input 62 ASEN I ACC sense input 63 BSEN I Back up sense input 64 ISEN I Illumination sense input 65 EJECT I Tape eject sense input 66 REMOT I Remote control input 67 MUTEIN I External mute input 68 VDD Power supply 69 X2 O Oscillator output 70 X1 I Oscillator input 71 IC GND 72 NC Not used 73 TEST I Chip test mode detect input 74 AVDD A/D converter analog power supply 75 AVREF0 A/D converter standard voltage 76 SL I Signal level input from tuner 77 AVSENS I System power short sense input 78 NC Not used 79 SMODE I Service mode input 80 NC Not used www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 44 KEH-M1096ZT 7.3 SYSTEM BLOCK DIAGRAM 00'00 FR FL RR RL FOUR SPEAKERS AUDIO SYSTEM ANT AVC-LAN KEH-M1096ZT/X1B/EW SOURCE UNIT (OTHER COMPANY) DISPLAY UNIT (OTHER COMPANY) AVC-LAN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 45 KEH-M1096ZT 8. OPERATIONS AND SPECIFICATIONS 8.1 OPERATIONS Listening to the Radio Listening to the Tape BLANK SKIP MUSIC SCAN EJECT DIRECTION DOLBY B NR REPEAT Multi-CD Control FF REW DIRECTION AUTOMATIC PROGRAM SEARCH MANUAL TUNING (Short push) DISC SELECT SEEK TUNING (Long push) TRACK UP/DOWN (Short push) FAST UP/DOWN (Long push) No operations. (All are operated with the display unit.) No operations. (All are operated with the display unit.) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com KEH-M1096ZT 8.2 SPECIFICATIONS Power source.............................................13.2V±0.26V DC Grounding system........................................Negative type Dimensions ...............................180(W)x50(H)x165(D)mm Weight......................................................................1.160kg Amplifier Maximum power output ...............................20W or more Tone controls(bass) ........................................±9dB(100Hz) (treble) ......................................±9dB(10kHz) Loudness Contour ..........6.0±3dB(100Hz),5.5±3dB(10kHz) Tape Tape................................Compact cassette tape(C30-C90) Tape speed ......4.76 cm/sec.(+0.14 cm/sec.,-0.05 cm/sec.) Crosstalk........................................................40dB or more Separation.....................................................30dB or more S/N .................................................................41dB or more Distortion.............................................................3% or less FM tuner Frequency...................................................87.5–108.0 MHz S/N .................................................................50dB or more Distortion..........................................................1.5% or less IF interference ...............................................89dB or more Image interference........................................55dB or more AM tuner Frequency ......................................................522–1611 kHz Selectivity .........................................45dB or more(±9kHz) S/N .................................................................40dB or more Distortion..........................................................1.0% or less IF interference ...............................................60dB or more Image interference........................................50dB or more www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
