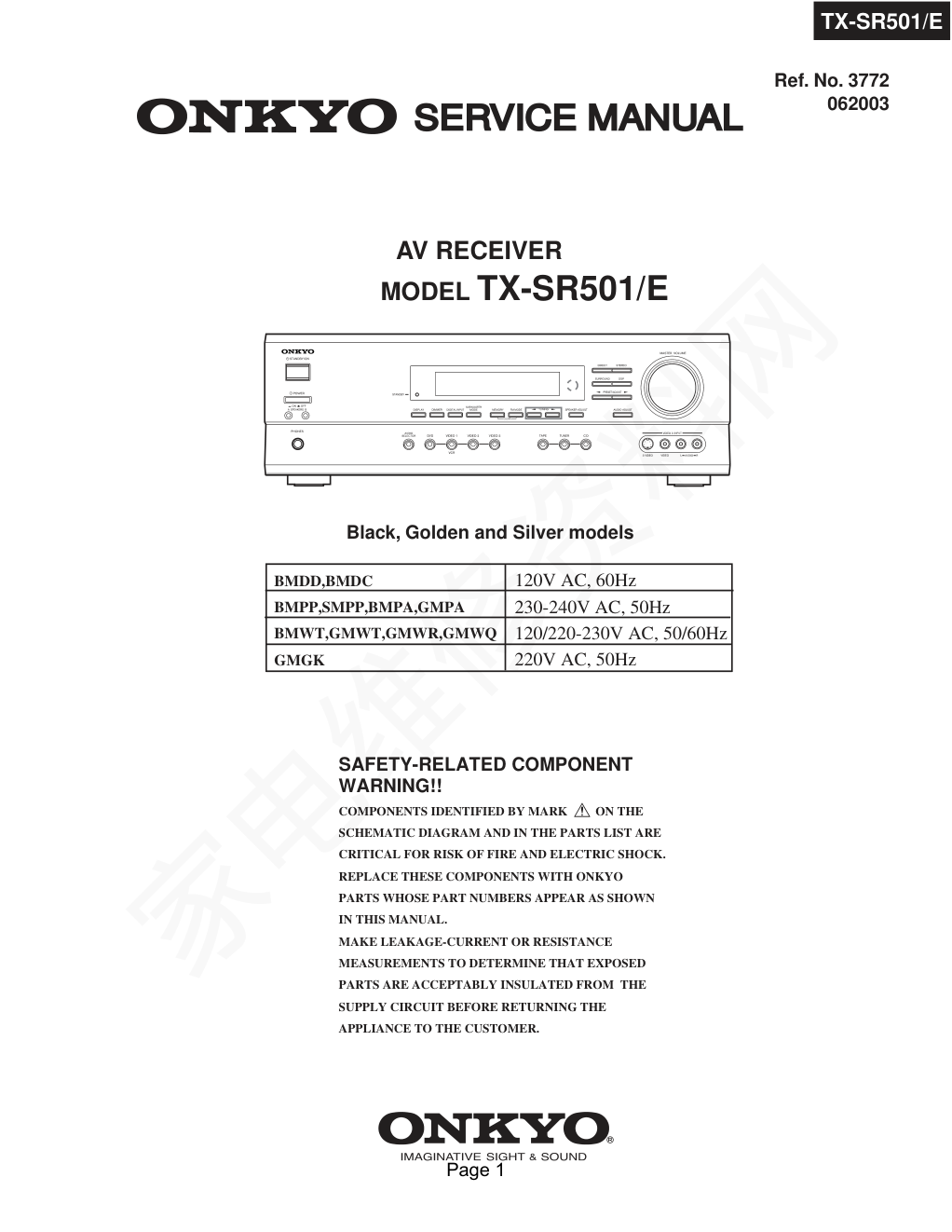

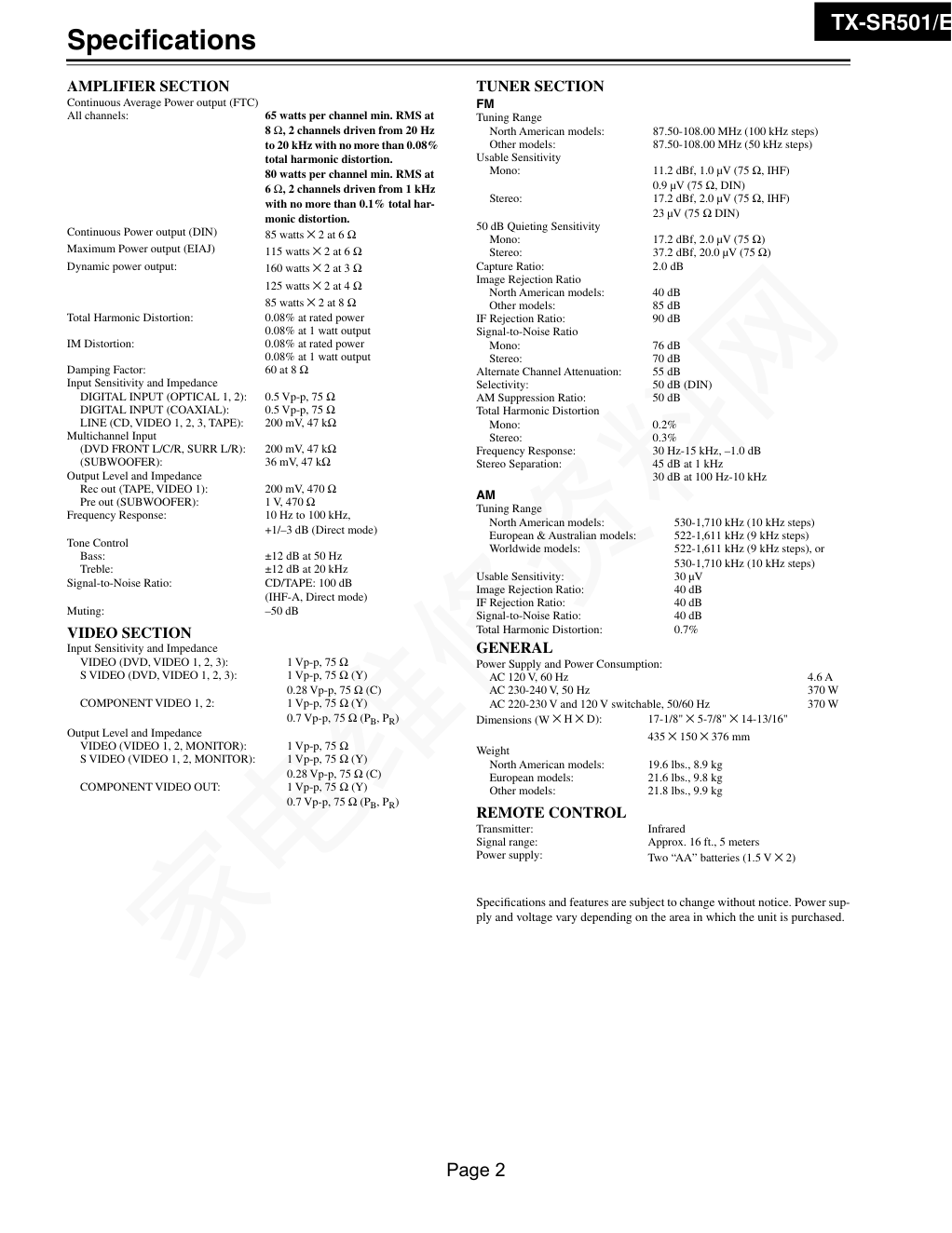

TX-SR501/E SERVICE MANUAL SERVICE MANUAL Ref. No. 3772 062003 120V AC, 60Hz 230-240V AC, 50Hz 120/220-230V AC, 50/60Hz 220V AC, 50Hz AV RECEIVER MODEL TX-SR501/E Black, Golden and Silver models BMDD,BMDC BMPP,SMPP,BMPA,GMPA BMWT,GMWT,GMWR,GMWQ GMGK SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK ON THE SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK. REPLACE THESE COMPONENTS WITH ONKYO PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL. MAKE LEAKAGE-CURRENT OR RESISTANCE MEASUREMENTS TO DETERMINE THAT EXPOSED PARTS ARE ACCEPTABLY INSULATED FROM THE SUPPLY CIRCUIT BEFORE RETURNING THE APPLIANCE TO THE CUSTOMER. Page 1 家电维修资料网 TX-SR501/ Specifications AMPLIFIER SECTION VIDEO SECTION TUNER SECTION FM AM GENERAL REMOTE CONTROL Specifications and features are subject to change without notice. Power sup- ply and voltage vary depending on the area in which the unit is purchased. Continuous Average Power output (FTC) All channels: 65 watts per channel min. RMS at 8 Ω, 2 channels driven from 20 Hz to 20 kHz with no more than 0.08% total harmonic distortion. 80 watts per channel min. RMS at 6 Ω, 2 channels driven from 1 kHz with no more than 0.1% total har- monic distortion. Continuous Power output (DIN) 85 watts × 2 at 6 Ω Maximum Power output (EIAJ) 115 watts × 2 at 6 Ω Dynamic power output: 160 watts × 2 at 3 Ω 125 watts × 2 at 4 Ω 85 watts × 2 at 8 Ω Total Harmonic Distortion: 0.08% at rated power 0.08% at 1 watt output IM Distortion: 0.08% at rated power 0.08% at 1 watt output Damping Factor: 60 at 8 Ω Input Sensitivity and Impedance DIGITAL INPUT (OPTICAL 1, 2): 0.5 Vp-p, 75 Ω DIGITAL INPUT (COAXIAL): 0.5 Vp-p, 75 Ω LINE (CD, VIDEO 1, 2, 3, TAPE): 200 mV, 47 kΩ Multichannel Input (DVD FRONT L/C/R, SURR L/R): 200 mV, 47 kΩ (SUBWOOFER): 36 mV, 47 kΩ Output Level and Impedance Rec out (TAPE, VIDEO 1): 200 mV, 470 Ω Pre out (SUBWOOFER): 1 V, 470 Ω Frequency Response: 10 Hz to 100 kHz, +1/–3 dB (Direct mode) Tone Control Bass: ±12 dB at 50 Hz Treble: ±12 dB at 20 kHz Signal-to-Noise Ratio: CD/TAPE: 100 dB (IHF-A, Direct mode) Muting: –50 dB Input Sensitivity and Impedance VIDEO (DVD, VIDEO 1, 2, 3): 1 Vp-p, 75 Ω S VIDEO (DVD, VIDEO 1, 2, 3): 1 Vp-p, 75 Ω (Y) 0.28 Vp-p, 75 Ω (C) COMPONENT VIDEO 1, 2: 1 Vp-p, 75 Ω (Y) 0.7 Vp-p, 75 Ω (PB, PR) Output Level and Impedance VIDEO (VIDEO 1, 2, MONITOR): 1 Vp-p, 75 Ω S VIDEO (VIDEO 1, 2, MONITOR): 1 Vp-p, 75 Ω (Y) 0.28 Vp-p, 75 Ω (C) COMPONENT VIDEO OUT: 1 Vp-p, 75 Ω (Y) 0.7 Vp-p, 75 Ω (PB, PR) Tuning Range North American models: 87.50-108.00 MHz (100 kHz steps) Other models: 87.50-108.00 MHz (50 kHz steps) Usable Sensitivity Mono: 11.2 dBf, 1.0 µV (75 Ω, IHF) 0.9 µV (75 Ω, DIN) Stereo: 17.2 dBf, 2.0 µV (75 Ω, IHF) 23 µV (75 Ω DIN) 50 dB Quieting Sensitivity Mono: 17.2 dBf, 2.0 µV (75 Ω) Stereo: 37.2 dBf, 20.0 µV (75 Ω) Capture Ratio: 2.0 dB Image Rejection Ratio North American models: 40 dB Other models: 85 dB IF Rejection Ratio: 90 dB Signal-to-Noise Ratio Mono: 76 dB Stereo: 70 dB Alternate Channel Attenuation: 55 dB Selectivity: 50 dB (DIN) AM Suppression Ratio: 50 dB Total Harmonic Distortion Mono: 0.2% Stereo: 0.3% Frequency Response: 30 Hz-15 kHz, –1.0 dB Stereo Separation: 45 dB at 1 kHz 30 dB at 100 Hz-10 kHz Tuning Range North American models: 530-1,710 kHz (10 kHz steps) European & Australian models: 522-1,611 kHz (9 kHz steps) Worldwide models: 522-1,611 kHz (9 kHz steps), or 530-1,710 kHz (10 kHz steps) Usable Sensitivity: 30 µV Image Rejection Ratio: 40 dB IF Rejection Ratio: 40 dB Signal-to-Noise Ratio: 40 dB Total Harmonic Distortion: 0.7% Power Supply and Power Consumption: AC 120 V, 60 Hz 4.6 A AC 230-240 V, 50 Hz 370 W AC 220-230 V and 120 V switchable, 50/60 Hz 370 W Dimensions (W × H × D): 17-1/8" × 5-7/8" × 14-13/16" 435 × 150 × 376 mm Weight North American models: 19.6 lbs., 8.9 kg European models: 21.6 lbs., 9.8 kg Other models: 21.8 lbs., 9.9 kg Transmitter: Infrared Signal range: Approx. 16 ft., 5 meters Power supply: Two “AA” batteries (1.5 V × 2) Page 2 家电维修资料网 2. To initialize the unit This device employs a microprocessor to perform various functions and operations. If interference generated by an external power supply, radio wave, or other electrical source results in accident which causes the specified operations and functions to operate abnormally. To perform a result, please follow the procedure below. 1.Press and hold down the VIDEO-1 button, then press the STANDBY/ON button. 2.After "CLEAR" is displayed, the preset memory and each mode stored in the memory, such as surround, are initialized and will return to the factory setting. 3. Unplug the power supply cord. 3. Safety-check out (U.S.A. model only) After correcting the original service problem, perform the following safety check before releasing the set to the customer. Leakage Current Check Measure leakage current to a known earth ground(water pipe, conduit, etc.) by connecting a leakage current tester between the earth ground and exposed metal parts of the appliance (input/output terminals, screwheads,metal overlays, etc.). Plug the power supply cord directly into a 120V AC 60 Hz outlet and turn Standby switch on. Any current meausred must not exceed 0.5mA. 1. Replacing the fuses This symbol located near the fuses indicates that the fuse used is fast operating type. For continued protection against fire hazard, replace with same type fuse. For fuse rating refer to the marking adjacent to the symbol. Ce symbole indique que le fusible utlise est a rapide. Pour une protection permanente, n'untiliser que fusibles de meme type. Ce darnier est la qu le present symbol est appse. 4.Setting the voltage selector (Worldwide models only) Worldwide models are equipped with a voltage selector to conform with local power supplies. Be sure to set this switch to match the voltage of the power supply in your area before plugging in the unit. Determine the proper voltage for your area: 220-230 V or 120 V. If the preset voltage is not correct for your area, insert a screwdriver into the groove in the switch. Slide the switch all the way to the upper (120 V) or to the lower (220-230 V), whichever is appropriate. 5.Setting the AM tuning step frequency (Worldwide models only) CIRCUIT NO. PART NO. DESCRIPTION Note: :120V model only : Other models except 120V model : Asian model only for 230V : Chinese model only : Hongkong model only L R R L R L ANTENNA FM 75 AM FRONT SPEAKERS A FRONT SPEAKERS B SURROUND SPEAKERS CENTER SPEAKER R L SURROUND BACK SPEAKER REMOTE CONTROL IN IN IN OPTICAL COAXIAL 1 2 IN IN IN IN FRONT SURR CENTER SUB WOOFER OUT OUT OUT DIGITAL INPUT VIDEO 2 VIDEO 1 DVD MONITOR OUT VIDEO S VIDEO DVD TAPE CD L R VIDEO 2 VIDEO 1 SUBWOOFER PRE OUT VIDEO 1/2/3 IN DVD IN COMPONENT VIDEO Y PB PR OUT L R SWITCHED 100W MAX. AC OUTLET 120 V VOLTAGE SELECTOR 220-230 V 120 V VOLTAGE SELECTOR 220-230 V If you are using the Worldwide model (i.e., your TX-SR501/ TX-SR501E has a VOLTAGE SELECTOR on the rear panel), you need to set the AM tuning interval for compati- bility with AM broadcasts in your particular country. The ini- tial setting is 9 kHz. North America: 10 kHz Other countries: 9 kHz Note: All presets are deleted when you change this setting. To set the AM tuning interval, while holding down the [TUNER] button, press the [MEMORY] button. TUNER FM MODE MEMORY CLEAR F6901,F6902 252198 or 8A-UL or 252261 8A-T/UL-ST2 252099 8A-EAK ,Fuse F901 252166 or 6.3A-UL/T-237 or 252260 6.3A-T/UL-ST2,Fuse F902 252076, 3.15A-SE-EAK, 252242 or 3.15A-SE-TL250V or 252276 3.15A-SE-TL250V F903 252075, 2.5A-SE-EAK, 252241 or 2.5A-SE-TL250V or 252275 2.5A-SE-TL250V,Fuse TX-SR501/E SERVICE PROCEDURES Page 3 家电维修资料网 TX-SR501/ Controls & Connectors—Continued Rear Panel A COMPONENT VIDEO (10, 12, 14, 16) These RCA/phono connectors can be used to connect a TV, DVD player, or other AV component with component video inputs and outputs. B AM ANTENNA (22, 23) These push terminals are for connecting an AM antenna. C FM ANTENNA (22, 23) This connector is for connecting an FM antenna. D FRONT SPEAKERS B (21) These push terminals are for connecting speaker set B. E FRONT SPEAKERS A, SURROUND SPEAKERS, CENTER SPEAKER & SURROUND BACK SPEAKER (21) These terminal posts are for connecting speaker set A, includ- ing the front, surround, center, and surround-back speakers. They accept bare wires or banana plugs (European models don’t accept banana plugs). F AC OUTLET (11) This switched AC outlet can be used to supply power to another AV component. The connector type depends on the country in which you purchased your TX-SR501/ TX-SR501E. G DIGITAL INPUT OPTICAL 1, 2 & COAXIAL (10, 13, 14, 16–18) These optical and coaxial connectors can be used to connect a CD, DVD, or LD (laser disc) player, or other AV component with digital outputs. H SUBWOOFER PRE OUT (21) This RCA/phono connector can be used to connect an active subwoofer. I CD IN (10, 17) These RCA/phono connectors can be used to connect a CD player with analog outputs. J TAPE IN/OUT (10, 17, 18) These RCA/phono connectors can be used to connect a cas- sette recorder, MiniDisc recorder, or other recorder with ana- log inputs and outputs. K (19) This (Remote Interactive) connector can be connected to the connector on another Onkyo AV component, for example, a CD player, DVD player, or cassette recorder. The TX-SR501/TX-SR501E’s remote controller can then be used to control that component. To use , you must make an ana- log RCA/phono connection between your TX-SR501/ TX-SR501E and the other AV component, even if they are connected digitally. L VIDEO 1 IN/OUT & VIDEO 2 IN (10, 14–16, 39) These connectors can be used to connect a VCR or other AV component. There are RCA/phono connectors for connecting to stereo analog audio inputs and outputs, and S-Video and composite video (RCA/phono) connectors for connecting to video inputs and outputs. M DVD IN/MULTI CH INPUT (10, 12, 13) The FRONT, SURR, CENTER, and SUBWOOFER RCA/ phono connectors can be used to connect AV components with multiple analog audio outputs, including DVD players with individual 5.1 surround analog outputs. There’s an S-Video input and composite video (RCA/phono) input for connecting the video signal. N MONITOR OUT (10, 12) These S-Video and composite video (RCA/phono) outputs can be connected to the video input on your TV or projector. O VOLTAGE SELECTOR (Worldwide model only) (5) This voltage selector provides compatibility with power sys- tems around the world. Tip: A turntable with a built-in preamp can be connected to a pair of unused TX-SR501/TX-SR501E analog inputs. To connect a turntable without a built-in preamp, you’ll need a commer- cially available phono preamp. See pages 17 and 18 and the instructions supplied with your phono preamp and turntable for more information. L R R L R L ANTENNA FM 75 AM FRONT SPEAKERS A FRONT SPEAKERS B SURROUND SPEAKERS CENTER SPEAKER R L SURROUND BACK SPEAKER REMOTE CONTROL IN IN IN OPTICAL COAXIAL 1 2 IN IN IN IN FRONT SURR CENTER SUB WOOFER OUT OUT OUT DIGITAL INPUT VIDEO 2 VIDEO 1 DVD MONITOR OUT VIDEO S VIDEO DVD TAPE CD L R VIDEO 2 VIDEO 1 SUBWOOFER PRE OUT VIDEO 1/2/3 IN DVD IN COMPONENT VIDEO Y PB PR OUT L R SWITCHED 100W MAX. AC OUTLET 120 V VOLTAGE SELECTOR 220-230 V 1 6 7 8 9 J K M N O 4 5 3 2 L Worldwide model only Page 4 家电维修资料网 TX-SR501/ Front Panel A POWER switch (24) The North American model doesn’t have this switch. This is the main power switch. When set to OFF, the TX-SR501/TX-SR501E is completely shutdown. When set to ON, the TX-SR501/TX-SR501E is in Standby mode and the STANDBY indicator lights up. Don’t turn on the power until you’ve completed, and double checked all connections. Note: Turning on the TX-SR501/TX-SR501E may cause a momen- tary power surge that might interfere with other electrical equipment on the same circuit. If this is a problem, plug the TX-SR501/TX-SR501E into a different branch circuit. B STANDBY/ON button (24) This button is used to set the TX-SR501/TX-SR501E to On or Standby. For models with a POWER switch, this button has no effect unless the POWER switch is set to ON. C STANDBY indicator (24) This indicator lights up when the TX-SR501/TX-SR501E is in Standby mode, and it flashes while a signal is being received from the remote controller. D DIMMER button (32) This button is used to adjust the display brightness. E DIGITAL INPUT button (24) This button is used to assign the digital inputs. F SUBWOOFER MODE button (25) This button is used to select the Subwoofer modes. STANDBY/ON PHONES MASTER VOLUME VIDEO 2 TAPE TUNER C D VIDEO 3 DVD A B SPEAKERS DIMMER SURROUND VIDEO 1 VCR AUDIO SELECTOR DSP STEREO STANDBY DISPLAY AUDIO ADJUST SPEAKER ADJUST FM MODE SUBWOOFER MODE DIGITAL INPUT MEMORY DIRECT S VIDEO AUDIO VIDEO L R TUNING CLEAR PRESET/ADJUST VIDEO 3 INPUT O Q R T U S P 2 3 4 5 8 9 J K M L 6 N 7 North American Model STANDBY/ON PHONES MASTER VOLUME VIDEO 2 TAPE TUNER C D VIDEO 3 DVD A B SPEAKERS DIMMER SURROUND VIDEO 1 VCR AUDIO SELECTOR DSP STEREO STANDBY DISPLAY AUDIO ADJUST SPEAKER ADJUST FM MODE SUBWOOFER MODE DIGITAL INPUT MEMORY DIRECT S VIDEO AUDIO VIDEO L R TUNING CLEAR PRESET/ADJUST VIDEO 3 INPUT O Q R T U S P 2 3 4 5 8 9 J K M L 6 N 7 OFF ON POWER 1 Other Models Page 5 家电维修资料网 TX-SR501/ Controls & Connectors—Continued G MEMORY button (30, 31) This button is used when storing and deleting radio presets. H FM MODE button (31) This button is used to select the FM radio Stereo and Mono modes. It’s also used when deleting radio presets. I TUNING [ ] [ ] buttons (30) These buttons are used to tune into radio stations. J Remote control sensor (5) This sensor receives control signals from the remote control- ler. K Listening mode buttons (36) These buttons are used to select the listening modes. L PRESET/ADJUST [ ] [ ] buttons (25, 26, 31, 37) This button is used to select radio presets and adjust parameter values. M MASTER VOLUME control (28, 30) This control is used to set the volume of the TX-SR501/ TX-SR501E. N SPEAKER A & B buttons (28, 32) These buttons are used to turn speaker sets A and B on and off. O PHONES jack (33) This 1/4-inch phone jack is for connecting a standard pair of stereo headphones for private listening. P DISPLAY button (32) This button is used to display various information about the currently selected source. Q AUDIO SELECTOR button (28, 29) This button is used to select the input signal format. R Input selector buttons (24, 28–30, 39) These buttons are used to select the audio and video sources: CD, DVD, TAPE, TUNER, VIDEO 1, VIDEO 2, or VIDEO 3. S SPEAKER ADJUST button (25, 26) This button is used to adjust various speaker-related parame- ters. T AUDIO ADJUST button (37) This button is used to set the Bass, Treble, Late Night, Cinema Filter, Center Image, Panorama, Dimension, and Center Width functions. U VIDEO 3 INPUT connectors (15, 39) These S-Video, composite video (RCA/phono), and analog audio (RCA/phono) inputs can be used to connect a video camera or games console. Display For detailed information, refer to the pages in parenthesis. 1 A & B speaker indicators (28, 32) Indicator A lights up when speaker set A is on. Indicator B lights up when speaker set B is on. 2 MUTING indicator (33) This indicator flashes when the TX-SR501/TX-SR501E is muted. 3 Source/listening mode indicators (28, 36) These indicators display information about the currently selected source and listening mode. 4 Tuning indicators (30, 31) TUNED (30): This indicator lights up when the TX-SR501/ TX-SR501E is tuned into a radio station. AUTO (30): This indicator lights up when the Auto Tuning function is on. RDS (European model only) (31): This indicator lights up when the TX-SR501E is tuned into a radio station that sup- ports RDS (Radio Data System). MEMORY (31): This indicator lights up when programming radio presets. FM STEREO (31): This indicator lights up when the TX-SR501/TX-SR501E is tuned into a stereo FM station. 5 SLEEP indicator (33) This indicator lights up when the Sleep function has been set. 6 Message area This area of the display shows various information about the currently selected source. 1 2 3 4 5 6 Page 6 家电维修资料网 TX-SR501/ Supplied Accessories Make sure you have the following accessories: * In catalogs and on packaging, the letter added to the end of the product name indicates the color of the TX-SR501/TX-SR501E. Specifications and operation are the same regardless of color. AM loop antenna Indoor FM antenna (connector type varies from country to country) Power-plug adapter Only supplied in certain countries. Use this adapter if your AC outlet does not match with the plug on the TX-SR501/ TX-SR501E’s power cord. (Adapter var- ies from country to country.) Remote controller & two batteries (AA/R6) Speaker cable labels 75/300-ohm antenna adapter Not supplied with North American and European models. Front Left Front Left SP-B / Zone 2 Left SP-B / Zone 2 Left Surround Right Surround Right Surround Back Right Surround Back Right Zone 2 Right Zone 2 Right Front Left Front Left SP-B / Zone 2 Left SP-B / Zone 2 Left Front Right Front Right SP-B / Zone 2 Right SP-B / Zone 2 Right Front Right Front Right SP-B / Zone 2 Right SP-B / Zone 2 Right Surround Right Surround Right Center Center Center Center Surround Left Surround Left Surround Left Surround Left Surround Back Right Surround Back Right Zone 2 Right Zone 2 Right Surround Back Left Surround Back Left Zone 2 Left Zone 2 Left Surround Back Left Surround Back Left Zone 2 Left Zone 2 Left 1 2 3 Speaker Cable Page 7 家电维修资料网 TX-SR501/ Controls & Connectors—Continued RC-518M (North American model) RC-479S (other models) This page describes only those buttons that can be used to control the TX-SR501/TX-SR501E when the remote con- troller is in RCVR mode (Receiver mode). To select RCVR mode, press the [RCVR] button. A SLEEP button (33) This button is used to set the Sleep function. This function can be set only with the remote controller. B STANDBY/ON button (24) This button is used to set the TX-SR501/TX-SR501E to On or Standby. C Listening mode buttons (36) These buttons are used to select the listening modes. D CINE FLTR button (37) This button is used to set the Cinema Filter function. E LATE NIGHT button (37) This button is used to set the Late Night function. F TEST, CH SEL & LEVEL [ ] [ ] buttons (27, 29, 33) These buttons are used to set the level of each speaker individ- ually. This function can be set only with the remote controller. G AUDIO SEL button (29) This button is used to select analog or digital inputs for the CD, DVD, TAPE, VIDEO 1, VIDEO 2, and VIDEO 3 sources. H Input selector buttons (28, 30, 39) These buttons are used to select the audio and video sources: CD, DVD, TAPE, TUNER, VIDEO 1, VIDEO 2, and VIDEO 3. I MUTING button (33) This button is used to mute the TX-SR501/TX-SR501E. This function can be set only with the remote controller. J PRESET [ ] [ ] buttons (31) These buttons are used to select radio presets. K DIMMER button (32) This button is used to adjust the display brightness. L Remote Controller Mode buttons (28, 40, 42) These buttons are used to select the remote controller modes. To select RCVR mode, press the [RCVR] button. M SP A & SP B buttons (28, 32) These buttons are used to turn on and off speaker sets A and B individually. N AUDIO ADJUST button (37) This button is used to set the Bass, Treble, Late Night, Cinema Filter, Center Image, Panorama, Dimension, and Center Width functions. O ADJUST [ ] [ ] buttons (37) These buttons are used to adjust the functions selected with the AUDIO ADJUST button. P VOLUME [ ] [ ] buttons (27, 28, 33) These buttons are used to set the volume of the TX-SR501/ TX-SR501E. Remote Controller—RCVR Mode 1 J K 2 3 4 5 M O 6 7 9 L N P 8 Press this to select RCVR mode 1 J K 2 3 4 5 M O 6 7 9 L N P 8 Press this to select RCVR mode Page 8 家电维修资料网 TX-SR501/E EXPLODED VIEW TX-SR501/E ** ** P901 11 33 33 32 31 U9 U31 U17 U26 2 2 2 17 17 17 16 P7502 P7503 24 53 51 1 2 25 U3 U6 P101 53 52 2 U5 4 3 U1 2 U15 33 F903 F901 F902 U24 9 U23 T901 9 U25 U13 13 Q6050 Q6065 55 12 21 22 23 21 22 23 8 8 7 6 U21 F6901 F6902 U14 U27 U28 2 U12 10 2 U4 U22 5 54 2 * 3, 4 & U22:Except 120V model * * Chinese model only 56 U27 U28 2 ** U27X2:Except 120V model * 18 63 Q6060 Q6055 U10 Page 9 家电维修资料网 TX-SR501/E BLOCK DIAGRAM OPTICAL OUT INPUT GAIN 0/6dB OPAMP OPAMP 10.5dB INPUT GAIN 0/6dB INPUT GAIN 0/6dB INPUT GAIN 0/6dB INPUT GAIN 0/6dB INPUT GAIN 0/6dB 73 74 NC NC VIDEO3 VIDEO-3 CD TAPE IN TAPE OUT VIDEO-1 OUT VIDEO-1 IN VIDEO-2 IN DVD MLS/MRS C/SW BACK UP STANDBY S S INPUT ATT -6dB 50KLPF SB 50KLPF SW 50KLPF C 50KLPF SR 50KLPF SL 50KLPF R 50KLPF L AK4384 2CH D/A MX27L2000 FLASH ROM MX27L4000 AK4586 96/24 2CH A/D (1/2) AK4586 DIR 1 VIDEO SW 1 1 1 -1 1 -1 1 MAIN MICRO PROCESSOR 78K/4 UPD7842 25AGC SUB MICRO PROCESSOR 78K/0 UPD780232 GC-8BT CS493292 DSP AK4586 96/24 6CH D/A OPTICAL 2 OPTICAL 1 REMOTE SENSOR COMPOSITE VIDEO INPUT VIDEO2 VIDEO1 DVD 12.5MHZ 5MHZ 12.288MHZ COMPOSITE VIDEO OUT MONITOR OUT VIDEO 1 OSC +2.5V DSP +5V +3.3V MEMORY COAXIAL VIDEO3 Y C S-VIDEO OUTPUT MONITOR OUT Y C VIDEO 3 Y C VIDEO 2 Y C S-VIDEO INPUT VIDEO 1 Y C VIDEO 1 Y C DVD 80 79 78 77 2 69 1 72 66 71 4 3 43 6 5 40 8 7 30 76 75 33 10 9 23 21 26 25 28 27 24 22 12 18 11 14 20 13 16 15 17 19 SELMUT SELDA SELCL RST.CS.INTREQ/CL/DA/SCDO RST.CS/CL/DA/CDTO/INT1.2. A17 A16 A15 ROM/RAM CTLA/B VMUT2 VMUT1 0dB LA7956 LA7956 LA7956 AK4586 BD3811K1 FL DISPLAY KEY 0dB 0dB 6dB 6dB 6dB M5M5V1080KV UPD441000LGU 1M SRAM FM/AM TUNER PACK RDS DECODER BU1923F European model only Main microprocessor A 1 2 3 4 5 B C D Page 10 家电维修资料网 TX-SR501/E BLOCK DIAGRAM L R AC OUTLET BASSBOOST OPAMP BD3812 OUTPUT GAIN OUTPUT GAIN OUTPUT GAIN OUTPUT GAIN OUTPUT GAIN OPAMP OUTPUT GAIN 0~18dB Q305 OPAMP 15dB SEC1H RELAY POWER RELAY MASTER VOLUME 0~-103dB SEC2 BASS/TREBLE BASS/TREBLE AC IN T901 PRI SEC1 T902 RI SEC3 +B1L +B1H HEADPHONE +12V -12V -7V AUDIO +7V AUDIO +5V DSP/TU AF/TU +12V AF -12V VOLTAGE SENSOR VOLH PROTE CTION PRO VOLTAGE SENSOR CURRENT SENSOR VIDEO +12V -27V -VP To FL TUBE FLAC FLAC SEC1H CONTROL RELAY +B2 SEC1H +B1 +5.6V STANDBY POWER RI INTER FACE SPHP +27dB POWER SW FUSE SL SR C SB 69 68 55 66 65 57 43 42 38 40 39 37 30 31 35 33 34 36 SWPO AMUT SPF SPCS HPMUT HPDET LAY Power Amplifier OPAMP 0~18dB OPAMP 0~18dB OPAMP 0~18dB OPAMP 0~18dB OPAMP 0~18dB OUTPUT GAIN +27dB +27dB +27dB +27dB +27dB SPBL SPBR SPB A 1 2 3 4 5 B C D Page 11 家电维修资料网 TX-SR501/E SCHEMATIC DIAGRAM 1 Display and video sections P7502A C7523 102J C7522 101J F2 F2 NP NP P35 P34 P33 P32 P31 P30 P29 P28 P27 P26 P25 P24 P23 P22 P21 P20 P19 P18 P17 P16 P15 P14 P13 P12 P11 P10 P9 P8 P7 P6 P5 P4 P3 P2 P1 16G 15G 14G 13G 12G 11G 10G 9G 8G 7G 6G 5G 4G 3G 2G 1G NP NP F1 F1 Q7501 HNA-16MM39T 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 JL7501B JL7501A S7615 SP B S7616 SP A S7614 STANDBY S7647 AUDIO ADJUST S7645 PRE SET< S7644 DSP S7643 SURRO UND S7642 STE REO S7641 DIRECT S7646 PRE SET> S7635 MEMO RY S7634 TAPE S7633 TUNER S7632 CD S7631 SP ADJUST S7636 TUNI NG< S7637 TUNI NG< S7627 FM MODE S7625 VIDEO2 S7624 VIDEO1 S7623 DVD S7622 AUDIO SEL S7621 DIS PLAY S7626 VIDEO3 S7613 DIM MER S7612 SW MODE S7611 DIGITAL INPUT S7501 Q7504 KRA103S U7501 SPS4441E1 L7505 220K NCH1477 Q7502 UPD780232GC -030-8BT 21:ANI1 21 22:ANI0 22 41:P45/FIP37 41 42:P44/FIP36 42 43:P43/FIP35 43 61:FIP19 61 ANI2 20 ANI3 19 AVDD 24 AVSS 18 FIP0 80 FIP1 79 FIP10 70 FIP11 69 FIP12 68 FIP13 67 FIP14 66 FIP15 65 FIP16 64 FIP17 63 FIP18 62 FIP2 78 FIP20 58 FIP21 57 FIP22 56 FIP23 55 FIP3 77 FIP4 76 FIP5 75 FIP6 74 FIP7 73 FIP8 72 FIP9 71 IC 5 P01/INTP1 16 P02/TI 17 P20/SCK3 14 P21/SO3 13 P22 12 P23 11 P24/BUSY 10 P25SO1 9 P26/SI1 8 P27/SCK1 7 P30/FIP2454 P31/FIP2553 P32/FIP2652 P33/FIP2751 P34/FIP2850 P35/FIP2949 P36/FIP3048 P37/FIP3147 P40/FIP3246 P41/FIP3345 P42/FIP3444 P46/FIP38 40 P47/FIP39 39 P50/FIP40 38 P51/FIP41 37 P52/FIP42 36 P53/FIP43 35 P54/FIP44 34 P55/FIP45 33 P56/FIP46 32 P57/FIP47 31 P60/FIP48 30 P61/FIP49 29 P62/FIP50 28 P63/FIP51 27 P64/FIP52 26 POO/INTP0 15 VDD0 25 VDD1 1 VDD259 VLOAD 60 VSS0 23 VSS1 2 X1 3 X2 4 RESET 6 R7519 100K R7614 820 R7613 560 R7524 1K R7646 2.2K R7615 1.2K R7531 220 R7641 330 R7645 1.2K R7644 820 R7643 560 R7642 470 R7631 330 R7632 470 R7633 560 R7634 820 R7635 1.2K R7636 2.2K R7626 2.2K R7621 330 R7625 1.2K R7624 820 R7623 560 R7622 470 R7612 470 R7611 330 Q7506 RN1402 KRC102S X7501 CST5.00MGW Q7503 2SC2712 KTC3875 D7505 STANDBY D7502 UDZ5.1B D7503 1SS352 C7514 100/6.3 C7513 104Z C7515 104Z C7516 104Z C7517 102J C7508 102J C7509 102J C7507 104Z C7510 102J C7511 102J R7518 100K R7517 1K R7503 10K R7520 2.7K R7521 2.7K R7504 47K R7507 4.7K R7506 4.7K R7532 10K R7527 10K R7526 10K R7530 1K R7529 560 R7528 560 R7508 4.7K R7509 4.7K R7510 1K R7511 1K R751210K R7513 10K R7514 10K R7515 10K R7516 10K R7522 2.7K R7523 2.7K R7505 220K SYSOUT IRF VAJ VBJ STBYLED SYSIN K0 K1 K2 K3 SBMLDY SBMDI SBMDO SBMCLK SBMRST K0 K1 K2 K3 GND KEY0 SYSIN HPDET SBMLDY SBMDI SBMDO SBMCLK SBMRST -VP NASW-7404 NADIS-7403 TO NADG-7401 U3 U4 A 1 2 3 4 5 B C D Page 12 家电维修资料网 TX-SR501/E A 1 2 3 4 5 B C D P206A TO NAVD-7847 P801B P243A TO NAVD-7831 P7502A 2G 1G NP NP F1 F1 1 2 3 4 5 6 P253B P261B Y C P251 JL7502A JL7502B P7503A P254 E7501 L7505 220K NCH1477 220K NCH1477 P7501 HEADPHONE R7519 100K D7501 UDZ8.2B D7507 1SS352 C7521 220/6.3 C7502 33/50 C263 104Z C253 104Z C261 471J 101J C262 C7519 102J C7520 102J C7518 102J C7506 104Z C7501 104Z C7503 104Z C7505 473Z C7504 473Z R262 330 R261 330 R252 75 R251 75 R253 75 R7501 220 R7502 220 +12V GND GND CNPT RI A B VMUT2 VMUT1 OPT2 DGND OPT1 +5V COAX OPTOUT HPDET GND HPL HPE HPR -VP +5.6S FAC2 FAC1 HPR HPE HPL GND GND NAETC-7838 NAETC-7406 NAETC-7405 TO NADG-7821 TO NAETC-7410 VIDEO3 IN S R L V L7504 U3 U17 U5 U6 471J 101J PRINTED CIRCUIT BOARD VIEW 1-2 U4 Component side Soldering side Component side Soldering side NASW-7404,Standby switch PC board NAETC-7406,Front video PC board U6 2 R7613 R7614 R7615 R251 R253 R252 R261 R262 C262 C261 C263 C253 V4C GND GND V4Y V4 V4L V4R GND 2 2 2 S7616 S7615 S7614 JL7501B STANDBY SPA SPB NCSW-7404 25137404 0 P251 P251 P253B P261B P254 NCETC-7406 25137406 1 Page 13 家电维修资料网 TX-SR501/E SCHEMATIC DIAGRAM 4 Driver amplifier section U9 Q5013 Q5003 Q5043 Q5053 Q5014 Q5004 Q5044 Q5054 Q5015 Q5005 Q5045 Q5055 Q5033 Q5034 Q5035 R5013 56K R5003 1K R5023 330 R5063 1.2K R5163 120(1/4W) R5133 18K R5173 120(1/4W) R5033 56K R5083 3.3K R5113 1K R5093 82K R5053 4.7K R5073 560 R5103 100K R5183 10 (1/4W) R5193 10 (1/4W) R5043 2.2K R5014 56K R5004 1K R5024 330 R5064 1.2K R5164 120(1/4W) R5134 18K R5174 120(1/4W) R5034 56K R5084 3.3K R5114 1K R5094 82K R5054 4.7K R5074 560 R5104 100K R5184 10 (1/4W) R5194 10 (1/4W) R5044 2.2K R5015 56K R5005 1K R5025 330 R5065 1.2K R5165 120(1/4W) R5135 18K R5175 120(1/4W) R5035 56K R5085 3.3K R5115 1K R5095 82K R5055 4.7K R5075 560 R5105 100K R5185 10 (1/4W) R5195 10 (1/4W) R5045 2.2K C5013 22/16 C5043 220/16 [100/16] C5053 47/50 C5113 10/63 C5103 10/63 C5023 10/50 C5014 22/16 C5044 220/16 C5054 47/50 C5114 10/63 C5104 10/63 C5024 10/50 C5015 22/16 C5045 220/16 C5055 47/50 C5115 10/63 C5105 10/63 C5025 10/50 C5003 101K C5083 040D C5093 101J C5004 101K C5084 040D C5094 101J C5005 101K C5085 040D C5095 101J P6003A TO NAAF-7842 (SCH-4) P6004A TO NAAF-7842 (SCH-4) P6005A TO NAAF-7842 (SCH-4) C5073 C5074 C5075 D5003 MTZJ5.6B D5004 MTZJ5.6B D5005 MTZJ5.6B 48.5V -48.5V 47.1V 47.7V -43.0V -47.7V -43.6V 1.1V -47.1V 0V -0.1V -1.1V -0.7V 48.5V -48.5V 47.1V 47.7V -43.0V -47.7V -43.6V 1.1V -47.1V 0V -0.1V -1.1V -0.7V 48.5V -48.5V 47.1V 47.7V -43.0V -47.7V -43.6V 1.1V -47.1V 0V -0.1V -1.1V -0.7V P406A SEMICONDUCTORS NO. Q5000-05,5010-15 KTC3200-BL OR 2SC1775A-E,F OR 2SC1845-E Q5030-35 KTA1024-Y,O OR 2SA949-Y,O Q5040-45 KTC3206-Y,O OR 2SC2229-Y,O Q5050-55 KTC3199-GR,2SC1740S-R,S,2SC2458-GR SL SR SB NAAF-7830 NF -B1 +B1 B+ B- NF -B1 +B1 B+ B- NF -B1 +B1 B+ B- A 1 2 3 4 5 B C D Page 14 家电维修资料网 TX-SR501/E SCHEMATIC DIAGRAM 4 Driver amplifier section U9 Q5012 Q5002 Q5042 Q5052 Q5011 Q5001 Q5041 Q5051 Q5010 Q5000 Q5040 Q5050 Q5032 Q5031 Q5030 R5012 56K R5002 1K R5022 330 R5062 1.2K R5162 120(1/4W) R5132 18K R5172 120(1/4W) R5032 56K R5082 3.3K R5112 1K R5092 82K R5052 4.7K R5072 560 R5102 100K R5182 10 (1/4W) R5192 10 (1/4W) R5042 2.2K R5011 56K R5001 1K R5021 330 R5061 1.2K R5161 120(1/4W) R5131 18K R5171 120(1/4W) R5031 56K R5081 3.3K R5111 1K R5091 82K R5051 4.7K R5071 560 R5101 100K R5181 10 (1/4W) R5191 10 (1/4W) R5041 2.2K R5010 56K R5000 1K R5020 330 R5060 1.2K R5160 120(1/4W) R5130 18K R5170 120(1/4W) R5030 56K R5080 3.3K R5110 1K R5090 82K R5050 4.7K R5070 560 R5100 100K R5180 10 (1/4W) R5190 10 (1/4W) R5040 2.2K C5012 22/16 C5042 220/16 C5052 47/50 C5112 10/63 C5102 10/63 C5022 10/50 C5011 22/16 C5041 220/16 C5051 47/50 C5111 10/63 C5101 10/63 C5021 10/50 C5010 22/16 C5040 220/16 C5050 47/50 C5110 10/63 C5100 10/63 C5020 10/50 C5002 101K C5082 040D C5092 101J C5001 101K C5081 040D C5091 101J C5000 101K C5080 040D C5090 101J P6002A TO NAAF-7842 (SCH-4) P6001A TO NAAF-7842 (SCH-4) P6000A TO NAAF-7842 (SCH-4) C5072 C5071 C5070 D5002 MTZJ5.6B D5001 MTZJ5.6B D5000 MTZJ5.6B 48.5V -48.5V 47.1V 47.7V -43.0V -47.7V -43.6V 1.1V -47.1V 0V -0.1V -1.1V -0.7V 48.5V -48.5V 47.1V 47.7V -43.0V -47.7V -43.6V 1.1V -47.1V 0V -0.1V -1.1V -0.7V 48.5V -48.5V 47.1V 47.7V -43.0V -47.7V -43.6V 1.1V -47.1V 0V -0.1V -1.1V -0.7V P406A P306A TO NADG-7821 (SCH-2) P6011A TO NAAF-7842 (SCH-4) E E SB E C E SL E SR E R E L E E E E E E E E E E SEMICONDUCTORS NO. Q5000-05,5010-15 KTC3200-BL OR 2SC1775A-E,F OR 2SC1845-E Q5030-35 KTA1024-Y,O OR 2SA949-Y,O Q5040-45 KTC3206-Y,O OR 2SC2229-Y,O Q5050-55 KTC3199-GR,2SC1740S-R,S,2SC2458-GR L R C NF -B1 +B1 B+ B- NF -B1 +B1 B+ B- NF -B1 +B1 B+ B- A 1 2 3 4 5 B C D Page 15 家电维修资料网 TX-SR501/E SCHEMATIC DIAGRAM 2 Digital and main microprocessor sections U1 Q805 AK4384 AOUTL 11 AOUTR 10 BICK 2 CCLK 7 CDTI 8 DZFL 16 DZFR 15 LRCK 4 MCLK 1 P/S 9 SDTI 3 VCOM 12 VDD 14 VSS 13 CSN 6 PDN 5 Q323 BD3812F AGND1 2 AGND2 4 AGND3 6 CL 8 DA 9 DGND11 IN1 1 IN2 3 MUTE10 OUT1 14 OUT2 13 SEL 12 VCC 7 VEE 5 L805 BK1608LM182 Q6402 78M12 G I O Q6406 78M05 G I O Q6405 78M12 G I O Q6403 79M12 G I O Q321 78L07 G I O Q322 79L07 G I O P261A P304 VIDEO-1 OUT VIDEO-1 IN VIDEO-2 IN P305 DVD MLS/MRS C/SW P301 CD TAPE-1 IN TAPE-1 OUT R 10 TVDD DVDD VCOM DFZ1 LOUT3 ROUT3 LOUT2 ROUT2 LOUT1 ROUT1 LIN RIN PVDD 23:VREFH AVDD AVSS DFZ2 CSN CCLK CDTI CDTO INT1 INT0 SDTI3 SDTI2 PDN RX1 I2C RX2 TST RX3 SLAVE RX4 PVSS R SDTI1 SDTO BICK LRCK MCKO TX DVSS XTI XTO Q801 AK4586 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 X701 CSTCV12.2M L806 022M NCH-1471 L804 022M L801 022M L802 022M L803 022M X801 HC-49/U03C 12.288M Q707 TC7WU04FU GND 4 1 6 3 7 2 5 VCC8 DA CL MUT VEE VCC BAAS BOOST BASS TREBLE 47k 47k 47k 47k 47k 47k 47k 47k 47k 47k 47k 47k 47k 47k 47k 47k 47k 47k 47k 47k 47k 47k 47k 47k 47k 47k 47k 47k Q301 BD3811K1 29 70 32 41 44 49 51 53 54 67 56 58 62 60 61 59 47 46 45 66 69 33 40 43 30 10 77 78 21 22 79 80 23 24 1 2 3 4 5 6 7 8 9 11 12 27 26 25 28 15 14 13 16 48 55 19 20 57 17 18 36 37 38 35 71 72 73 74 75 76 63 64 52 50 65 68 34 39 42 31 NADG-7821 C849 153J C841 822J C338 563J C340 563J Q313 RN1441 Q312 RN1441 Q307 RN1441 Q308 RN1441 C821 104Z C360 474K C816 104Z D801 D802 C822 220/6.3 C860 10/16 C854 10/16 C855 47/16 C856 10/16 C857 10/16 C858 10/16 C859 10/16 C364 10/16 C363 10/16 C820 10/16 C834 10/16 C835 10/16 C833 10/16 C832 10/16 C863 10/16 C358 47/16 C331 10/16 C353 47/16 C354 47/16 C362 10/16 C349 10/16 C359 10/16 C6412 10/16 C6410 10/16 C6404 10/16 C6406 10/16 C836 10/16 C837 10/16 C809 10/16 C806 220/6.3 C801 47/16 C810 47/16 C348 100/16 C347 100/16 C329 10/16 C330 10/16 C332 10/16 C333 10/16 C334 10/16 Q305 OR MPC4570G2 NJM4565M 3 2 4 1 Q302 OR MPC4570G2 NJM4565M 3 2 4 1 Q802 NJM4565M 5 6 4 7 Q804 NJM4565M 5 6 4 7 Q803 NJM4565M 5 6 4 7 Q305 OR MPC4570 NJM4565M 5 8 6 7 Q302 OR MPC4570 NJM4565M 5 8 6 7 Q802 NJM4565M 3 8 2 1 Q804 NJM4565M 3 8 2 1 Q803 NJM4565M 3 8 2 1 R856 22K R858 15K R857 12K 470 R814 220 R813 220 R812 220 R826 10K R822 47 R823 47 R824 47 R825 47 R855 2.2K R854 8.2K R384 220K R388 100 R376 270 R389 470 R359 470 R360 470 R348 10K R387 2.2K R386 2.2K R347 10K R6407 3.3 1W R6403 33 1/2W R6402 10 1/2W R331 470 R330 470 R373 470 R374 470 R375 R821 470 R801 47 R368 47K R367 1K R369 2.2K R370 5.6K R383 10K R304 330 R300 330 R302 330 R310 330 R314 330 R312 330 R316 330 R318 330 R320 330 R6410 2.2 1/2W R361 10K R362 10K R311 330 R301 330 R321 330 R319 330 R317 330 R315 330 R313 330 R303 330 R305 330 R816 330 R832 100K R833 100K R840 2.2K R841 2.2K R848 2.2K R849 2.2K R844 2.2K R835 100K R834 100K R836 100K R837 100K R845 2.2K R852 2.2K R853 2.2K R842 2.2K R843 2.2K R850 2.2K R851 2.2K R809 1K R810 1K R811 220 R807 47 R808 47 R817 330 R818 330 R819 330 R820 10K R803 47 R804 47 R805 47 R806 47 R815 18K R739 1M R364 10K R363 10K C308 103Z C323 104Z C862 681J C818 102J C819 104Z C861 102J C6405 223Z C817 150J C350 221J C351 330J C336 332J C335 332J C848 152J C840 821J C6411 223Z C6409 223Z C6403 223Z C367 104Z C366 104Z C9512 223Z C327 330J C328 330J C311 C310 C808 104Z C302 101J C301 C300 C321 * C320 * C319 * C318 * C317 * C316 * C315 * C314 * C313 101J C312 101J C303 101J C305 * C304 * C322 104Z C326 104Z C325 104Z C800 330J C812 330J C850 152J C851 152J C852 152J C853 152J C845 821J C844 821J C843 821J C842 821J C807 104Z C811 104Z C805 104Z C804 104Z C815 102J C814 330J C813 330J C715 104Z +7V CDR +12VAF VP -7V CDL TOR -12VAF TUL TUR TOL +12VVD V1OL V1OR TOL TOR GND V4R V4L TUL TUR TIR +22V -22V +5VDSP CDR TIL CDL GND TIR TIL V3IR V3IL V2IR V2IL OUT_L V1IR V1IL OUT_R DVDR DVDL OUT_L MRS MLS MSW V2IR MC ADCL SELMUT SELCK ADCR SELDA OUT_R V2IL DAC_R V1OR OUT_RS DMIXR DAC_L DMIXL V1OL V1IR OUT_LS OUT_RS DAC_RS DAC_LS DAC_SW DAC_C OUT_C OUT_SW OUT_C OUT_SW V1IL OUT_C DVDR +12VAF DVDL DAC_L +7V -7V MSW MC DAC_SW DAC_R -12VAF +12VAF DAC_SB DSPSCK DIRCS DSPDO CDTO/SCDO[L] INT1[L] INT0[L] DAC _C CDA SRDA +3.3V DAC_ SW GND L LRDA SDTO BCK LRCK DAC_LS MCK2 DSPRST1[L] DAC_RS +5VDSP DAC_L DIRPD GND RX3 GND RX2 +5VDSP RX1 TX DAC_R ADCL ADCR LOGIC 101K <120V> 471J 101K <120V> 471J 101J <120V> 471J 101J <120V> 471J C310~C321:101J <120V> 471J A 1 2 3 4 5 B C D Page 16 家电维修资料网 TX-SR501/E SCHEMATIC DIAGRAM 2 Digital and main microprocessor sections U1 T2 T1 VSS2 VDD2 XI X0 T57 RCLK CMP VSS3 VSS1 VDD1 MUX VREF RDSDATA QUAL Q181 * BU1923F 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 Q7004 BA33C25 2.5V 5 3.3V 4 G 3 NC 2 VI 1 P306 P410B TO NAETC-7833 P406 Q702 MX27L2000 A0 20 A1 19 A10 31 A11 1 A1212 A13 4 A14 5 A1511 A1610 A17 6 A18/VPP 9 A2 18 A3 17 A4 16 A5 15 A6 14 A7 13 A8 3 A9 2 DQ0 21 DQ1 22 DQ2 23 DQ3 25 DQ4 26 DQ5 27 DQ6 28 DQ7 29 VCC 8 VSS 24 CE 30 OE 32 WE/A18 7 Q9501 2SA1015-GR KTA1266-GR P6403 P411B TO NAETC-7833 P7502B TO SUB MPU Q7003 TC74HCT7007 1 2 3 4 5 6 7 8 9 10 11 12 13 14 P412B FLASH P801 P101 TO TUNER PACK Q101 * European model only Q7008 MPD784225GC- 222-8BT 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 D7702 UDZ6.2B D9508 UDZ27D Q7007 Q7006 KRC104SOR RN1404 Q7001 KRC104S RN1404 R761 10 R747 10 R743 1K R744 1K R745 1K R740 1K R187 47K * R186 47K * R182 1K * R183 1K * R185 47K * R184 1K * R7000 100 R9508 15K R9509 100K R9506 22 1/2W R9507 15K Q701 CS493292-CL A0/SCCLK 7 A1/S CDIN 6 AUDATA0 41 AUDATA1 40 AUDA TA2 39 CLKIN 30 CLKSEL 31 CMPCLK/SCLKN2 28 CMPDAT/RCV958/SDATAN2 27 CMPRE Q/LRC LKN2 29 DATA017 DATA116 DATA215 DATA314 DATA411 DATA510 DATA6 9 DATA7 8 DC 38 DD 37 FILT1 33 FILT2 32 LRCKN1 26 LRCLK 42 MCLK 44 SCDIO/SCDOUT 19 SCLK 43 SCLKN1/STCCLK2 25 SDTAN1 22 VDD1 1 VDD212 VDD3 23 VDDA 34 VSS1 2 VSS2 13 VSS3 24 VSSA 35 XMT958 3 ABOOT/_INTREQ 20 CS 18 EXTMEM 21 RD/R/_W 5 RESET 36 WR/DA 4 CSTCV12.2MTJ0C4 X7001 CSTCV12.5MXJ L7001 470K NCH-1479 L181 220K * L7002 022M NCH-1471 L703 470M NCH-1479 L706 BK1608LM182 L705 BK1608 LM182 L704 022M NCH-1471 L701 022M NCH-1471 L702 022M NCH1471 X181 * 707 WU04FU 6 7 5 VCC8 Q7002 TC74VHC541FT A1 2 A2 3 A3 4 A4 5 A5 6 A6 7 A7 8 A8 9 GND10 VCC 20 Y1 18 Y2 17 Y3 16 Y4 15 Y5 14 Y6 13 Y7 12 Y8 11 G1 1 G2 19 Q704 TC74VHC574FT 0D 2 0Q 19 1D 3 1Q 18 2D 4 2Q 17 3D 5 3Q 16 4D 6 4Q 15 5D 7 5Q 14 6D 8 6Q 13 7D 9 7Q 12 CK 11 GND 10 OUTCTL 1 VCC 20 Q705 TC74VHC574FT 0D 2 0Q 19 1D 3 1Q 18 2D 4 2Q 17 3D 5 3Q 16 4D 6 4Q 15 5D 7 5Q 14 6D 8 6Q 13 7D 9 7Q 12 CK 11 GND 10 OUTCTL 1 VCC20 NADG-7821 C9503 104J C9502 104J C6401 104J C9501 104J P351 Q306 OR KRA102S RN2402 Q313 RN1441 Q307 RN1441 Q308 RN1441 C360 474K C7010 104Z D9512 D9502 D7001 D9504 D9505 D7003 D9511 D9510 D9509 D9506 1SR154-400 D9507 1SR154-400 D9503 D9502-9505: RL1N4003 D7002 D7004 1SS352 C706 100/6.3 C184 47/6.3 * C181 2.2/50 * C7015 47/16 C7012 47/16 C7011 47/16 C7001 104F C103 3.3/50 C101 3.3/50 C9508 4700/16 C9510 220/63 C9507 220/35 C9506 470/35 C9505 2200/35 C7005 100/6.3 C7004 1/50 C7002 100/6.3 C716 100/6.3 R181 1K * R390 22K R746 R7078 * INIT1 R7080 * INIT3 R7180 * R7178 * R385 100 R382 22K R388 100 R106 3.3K * R105 680K * R7138 22K R7839 22K R7079 * INIT2 R7033 47K R7179 * R7004 * R7141 10K R7041 10K R7083 220 R7085 220 R7084 220 R7082 220 R7081 220 R7075 220 R7074 220 R7073 220 R7072 220 R7070 220 R7069 220 R7068 220 R7067 220 R7134 1K R7034 470 R7035 220 R7037 220 R7032 220 R7031 220 R7038 2.2K R7040 220 R7039 2.2K R7036 220 R104 100K R103 22K R102 22K R7030 220 R7029 220 R7028 220 R7027 220 R379 22K R378 22K R377 22K R381 22K R380 22K R7077 1K R7055 220 R7054 220 R7062 220K 1M R729 47 R7060 47K R7120 1K R7043 220 R7059 220 R7058 1K R7057 1K R7056 1K R7052 1K R7053 220 R7047 R7051 1K R7050 1K R7049 1K R7046 R7048 220 R7045 R7044 R7042 220 R7071 4.7K R7066 1K R7076 1K R7065 1K R7064 1K R7063 1K R7026 220 R7025 220 R7024 220 R7023 220 R7022 220 R7021 2.2K R7020 220 R7019 220 R7018 82 R7017 82 R7016 82 R7015 82 R7012 220 R7011 1K R7003 * BAND R7002 2.2K R7001 2.2K R750 10 R749 10 R748 10 R751 10 R752 10 R753 10 R754 10 R755 10 R756 10 R757 10 R713 47 R719 330 R703 4.7K R711 10K R709 10K R710 10K R732 10K R731 10K R712 47 R714 330 R715 330 R716 330 R717 330 R704 10K R705 330 R702 330 R701 47 R730 47 R728 47 R727 47 R726 47 R733 10K R734 10K R735 10K R736 10K R737 10K R738 10K R708 220 R707 220 R706 220 R720 47 R721 4.7K R722 1K R723 4.7K R724 4.7K R725 47 R718 33K C729 104Z C183 561J * C182 103K * C185 104Z * C187 330J * C186 330J * C7014 104Z C365 222J C352 104Z C188 470J * C105 104Z * C106 101J C7006 104Z C726101J C727101J C728101J C104 101J C9511 223Z C9512 223Z C715 104Z C7007 104Z C7009 104Z C7008 104Z C7003 104Z C712 104Z C703 104Z C707 104Z C701 101J C714 104Z C709 105K C710 105K C711 471J C713 101J C708 103K C720 104Z C721 104Z +22V SEC1-1 GND SEC1-2 SEC3-1 SEC3-2 -VP DET RX2 GND RX3 GND +12VVD STEREO SD TMUT TUR GND TUL +12VAF +5VDSP GND PLLCL PLLDA PLLSTB TX RX1 FMSIG VMUT1 VMUT2 CTLB CTLA CNPT 5.6S +5VDSP RI PROTHERM POWER SPF GND SPCS +22V SEC1H -22V SPB VOLH PROTECT GND TMUT PLLCL PLLDA PLLSTB CTLB CTLA POWER SPF SPCS STEREO SD CNPT VMUT1 VMUT2 SEC1H SPB GND RDSDET HPIN +13V RI AMUT HPIN MCRDY MCSDA SELMUT HPMUT MCMDA SELCK MCRST MCCLK SELDA MCCLK MCRST MCMDA HPMUT MCSDA -VP ADDR18 MCRDY DIRCS DSPCS MCRDY ROM/RAM 232TXD IC A151 232RXD FVCC LPO A161 MPURST GND A171 MCCLK RPO DSPSCK MCMDA DSPDO MCSDA RSPO DSPRST GND GND CDTO/SCDO LSPO INT1 INT0 CPO DIRPD VOLH PROTECT SBO POFF RDSSCK INTREQ1 SWPO RDSDATA RDSSIG AMUT CDTO/SCDO INT1 INT0 INT0[L] INT1[L] RDSDET DSPCS1[L] FMEM/SRAM1[L] A151[L] A161[L] A171[L] +5VDSP +3.3V INTREQ1 CDTO/SCDO[L] DSPCS1[L] A0 A8 DSPMCK A1 A9 A2 A10 A3 A11 A4 A12 A5 A13 BCK SDTO LRCK BCK SDTO A6 A14 EXTMEM A7 A15 GND RD RD LRCK DSPMCK A4 A5 A6 A7 A12 _WEF A14 A13 A8 A9 A11 FMEM/SRAM1[L] DSPRST1[L] A171[L] A161[L] A151[L] A3 A2 A1 A0 IO0 IO1 IO2 IO3 IO4 IO5 IO6 IO7 A10 +2.5V LRDA MCK2 DSPCL[3.3V] SBDA WE RD DSPDA[3.3V] * PARTS MD MPP MPA MW* R7003 0 33K 10K 10K R7004 NO 56K 33K 10K R7046 NO NO NO NO R7078 0 0 0 0 R7079 0 0 0 0 R7080 33K 33K 33K 33K R7146 NO NO NO NO R7178 NO NO NO NO R7179 NO NO NO NO R7180 56K 56K 56K 56K 10 European model only R185~R187: Except European model. A 1 2 3 4 5 B C D Page 17 家电维修资料网 TX-SR501/E SCHEMATIC DIAGRAM 5 Power amplifier section P6011 TO NAAF-7830 (SCH-3) JL6952A TO NAPS-7846 (SCH-5) JL6951A TO NAPS-7846 (SCH-5) F6901 * F6902 * RL6901 RL6902 D6903 RS603M RBV602 D5SBA20 D6903,6904: D6904 0.1V 0.8V -48.6V [-58.2V] -0.5V 0.5V 1.1V -1.1V -0.5V 1V 0.2V -0.3V -0.3V 48.6V 0V 0V 0.5V -48.6V -0.5V 0.5V 1.1V -1.1V -0.5V 1V 0.2V -0.3V -0.3V 48.6V 0V 0V 0.5V -48.6V -0.5V 0.5V 1.1V -1.1V -0.5V 1V 0.2V -0.3V -0.3V 48.6V 0V 0V 0.5V Q6901 Q6033 Q6073 Q6023 Q6013 Q6053 Q6034 Q6074 Q6024 Q6014 Q6054 Q6035 Q6075 Q6025 Q6015 Q6055 R6902 1K R6904 0 (1/2W) R6905 0 (1/2W) R6605 8.2 (1/2W) R6053 3.9K R6083 2.2 (1/4W) R6073 100 [110] (1/4W) R6013 3.9K R6003 5.6K R6033 470 R6163 33K R6093 2.2 (1/4W) R6153 12K R6143 22K R6193 220K R6173 47K R6183 47K R6233 8.2 (1W) R6054 3.9K R6084 2.2 (1/4W) R6074 100 (1/4W) R6014 3.9K R6004 5.6K R6034 470 R6164 33K R6094 2.2 (1/4W) R6154 12K R6144 22K R6194 220K R6174 47K R6184 47K R6234 8.2 (1W) R6055 3.9K R6085 2.2 (1/4W) R6075 100 (1/4W) R6015 3.9K R6005 5.6K R6035 470 R6165 33K R6095 2.2 (1/4W) R6155 12K R6145 22K R6195 220K R6175 47K R6185 47K R6235 8.2 (1W) C6902 C6901 10000/56 C6043 47/50 C6044 47/50 C6045 47/50 C6906 104J C6907 104J C6904 334J C6905 334J C6053 223J C6233 473J C6054 223J C6234 473J C6055 223J C6235 473J R6043 1K R6044 1K R6045 1K R6103 0.22X2 (2W) R6104 0.22 X2 (2W) R6105 0.22 X2 (2W) P6083 ID+ ID- P6084 ID+ ID- P6085 ID+ ID- D6906 D6013 D6003 D6014 D6004 D6015 D6005 R6023 R6024 R6025 P6003 TO NAAF-7830 (SCH-3) TO NAAF-7830 (PART-4) TO NAAF-7830 (SCH-3) TO NAAF-7830 (SCH-3) P6004 TO NAAF-7830 (SCH-3) P6005 TO NAAF-7830 (SCH-3) P931 TO NAPS-7845 (SCH-5) Q6043 Q6063 Q6044 Q6064 Q6045 Q6065 C6903 104J C6920 223Z NF -B1 E +B1 E B+ E B- E E E E E E NF -B1 +B1 B+ B- NF -B1 +B1 B+ B- +13VS +13VS MPUGND MPUGND POWER TYPE F6901,6902 D 8A/125V P T8AL250V G T8AL250V W T8AL250V SEMICONDUCTORS NO. Q6010-6015 2SC1740S-R,S Q6020-6025 2SC1740S-R,S Q6030-6035 KTD2061-Y OR 2SC5171 Q6040-6045 KTB1369-Y OR 2SA1930 Q6050-6055 MN100S-Y,P,O OR KTD1047-Y,O Q6060-6065 MP100P-Y,P,O OR KTB817-Y,O Q6070-6075 KTC3200-BL,GR OR 2SC1775A-E,F OR 2SC1845-E,F Q6601-6603,Q6901 KTC3199-GR,2SC1740S-R,S,2SC2458-GR Q6701,6702 KTC3200-BL,GR OR 2SC1775A-E,F OR 2SC1845-E,F Q6703 KTA1268-GR,BL OR 2SA992-E,F Q6303 KTA1267-GR OR 2SA933S-R,S C6708 P6906 SL SR SB NAAF-7842 10000/56 U21 A 1 2 3 4 5 B C D Page 18 家电维修资料网 TX-SR501/E SCHEMATIC DIAGRAM 5 Power amplifier section A 1 2 3 4 5 B C D TO NAAF 7830 (SCH-3) JL6805A TO NAETC-7835 (SCH-5) D6703 MTZJ5.1B D6704 MTZJ5.1B D6714 MTZJ5.1B * 0V 24V 24V 24V 0.05V 0V 0V 0V 0V -48.6V -0.5V 0.5V 1.1V -1.1V -0.5V 1V 0.2V -0.3V -0.3V 48.6V 0V 0V 0.5V -48.6V -0.5V 0.5V 1.1V -1.1V -0.5V 1V 0.2V -0.3V -0.3V 48.6V 0V 0V 0.5V -48.6V -0.5V 0.5V 1.1V -1.1V -0.5V 1V 0.2V -0.3V -0.3V 48.6V 0V 0V [0V] 0.5V Q6701 Q6702 Q6602 Q6603 Q6601 Q6032 Q6072 Q6022 Q6012 Q6052 Q6031 Q6071 Q6021 Q6011 Q6051 Q6030 Q6070 Q6020 Q6010 Q6050 R6704 47K R6701 22K R6702 10K R6706 220K R6708 33K R6602 1K R6601 1K R6603 1K R6851 390 (1/2W) R6308 4.7K R6318 4.7K * R6307 2.2K R6317 2.2K * R6306 10K R6710 47K R6709 5.6K R6719 5.6K * R6850 390 (1/2W) R6604 8.2 (1/2W) R6052 3.9K R6082 2.2 (1/4W) R6072 100 (1/4W) R6012 3.9K R6002 5.6K R6032 470 R6162 33K R6092 2.2 (1/4W) R6152 12K R6142 22K R6192 220K R6172 47K R6182 47K R6232 8.2 (1W) R6051 3.9K R6081 2.2 (1/4W) R6071 100 (1/4W) R6011 3.9K R6001 5.6K R6031 470 R6161 33K R6091 2.2 (1/4W) R6151 12K R6141 22K R6191 220K R6171 47K R6181 47K R6231 8.2 (1W) R6050 3.9K R6080 2.2 (1/4W) R6070 100 (1/4W) R6010 3.9K R6000 5.6K R6030 470 R6160 33K R6090 2.2 (1/4W) R6150 12K R6140 22K R6190 220K R6170 47K R6180 47K R6230 8.2 (1W) C6701 100/6.3 C6704 1/50 C6706 100/6.3 C6716 100/6.3 * * P/W/G-TYPE ONLY C6042 47/50 C6041 47/50 C6040 47/50 C6052 223J C6232 473J C6051 223J C6231 473J C6050 223J C6230 473J R6042 1K R6041 1K R6040 1K R6102 0.22 X2 (2W) R6101 0.22 X2 (2W) R6100 0.22 X2 (2W) P6082 ID+ ID- P6081 ID+ ID- P6080 ID+ ID- D6702 D6701 D6306 D6307 D6012 D6002 D6011 D6001 D6010 D6000 P6002 TO NAAF-7830 (PART-4) P6001 TO NAAF-7830 (SCH-3) P6000 TO NAAF-7830 (SCH-3) Q6042 Q6062 Q6041 Q6061 Q6040 Q6060 Q6703 Q6303 Q6313 * * P/DG-TYPE ONLY C6703 223Z R6380 THERMISTOR [PTH9M04BF 222TS2F333] R6381 P/W/G-TYPE ONLY [PTH9M04BC 222TS2F333] JL6402A JL6402B P6931 NAETC-7833 (SCH-5) P6301 TH1 COM TH2 JL6803A TO NAETC-7835 (SCH-5) JL6804A TO NAETC-7835 (SCH-5) NF -B1 +B1 B+ B- TH1 +24V TH2 NF -B1 +B1 B+ B- NF -B1 +B1 B+ B- BRLD +B1 FRLD CSRLD +24V HPL HPR E +24V MPUGND MPUGND VOLH SEC1H SPB SPCS SPF PRO +13VS POWER +13VS RLGND POWER PROTHERM SEMICONDUCTORS NO. Q6010-6015 2SC1740S-R,S Q6020-6025 2SC1740S-R,S Q6030-6035 KTD2061-Y OR 2SC5171 Q6040-6045 KTB1369-Y OR 2SA1930 Q6050-6055 MN100S-Y,P,O OR KTD1047-Y,O Q6060-6065 MP100P-Y,P,O OR KTB817-Y,O Q6070-6075 KTC3200-BL,GR OR 2SC1775A-E,F OR 2SC1845-E,F Q6601-6603,Q6901 KTC3199-GR,2SC1740S-R,S,2SC2458-GR Q6701,6702 KTC3200-BL,GR OR 2SC1775A-E,F OR 2SC1845-E,F Q6703 KTA1268-GR,BL OR 2SA992-E,F Q6303 KTA1267-GR OR 2SA933S-R,S RSSPE LSSPE CSPE RSPE LSPE RSSP LSSP CSP RSP C R L NAETC-7849 NAETC-7850 LSP SBSP SBSPE U28 U21 Page 19 家电维修资料网 TX-SR501/E SCHEMATIC DIAGRAM 6 Power supply and Speaker terminal sections U24 U14 U22 U23 JL6804B TO NAAF-7842 (SCH-4) JL6803B TO NAAF-7842 (SCH-4) P6800 FRONT SPEAKER L R P6801 SPEAKER-B L R P6802 SURROUND SPEAKER CENTER SL SR SB 0.1V R923 1K L6805 S1.3C P/W/G-TYPE L6804 S1.3C P/W/G-TYPE L6803 S1.3C P/W/G-TYPE L6802 S1.3C P/W/G-TYPE L6801 S1.3C P/W/G-TYPE L6800 S1.3C P/W/G-TYPE P931A TO NNAF-7842 (SCH-4) RL901 RL6600 RL6601 RL6603 RL6604 C6843 222J * C6844 222J * C6855 102K * C6852 102K* C6845 222J * C6842 222J * * ARE P/W/G TYPE C6854 102K* C6853 102K* C6851 102K * C6850 102K * C6841 222J * C6840 222J * C923 223Z C921 223Z C901 103M/275VAC C902 472M /250VAC C6600103J C6601 103Z C6604 103J D923 D921-D924 GP104003E OR RL1N4003 D924 D921 D922 D925 D6600 D6601 D6604 J D-TYPE J D-TYPE J D-TYPE J D-TYPE J D-TYPE J D-TYPE J6306 D TYPE ONLY R6815 22 R6805 22 R6814 22 R6804 22 R6813 22 R6803 22 R6812 22 R6802 22 R6811 22 R6801 22 R6810 22 R6800 22 R901 3.3M D-TYPE ONLY R924 82 (1/2W) R926 4.7K F903 T2.5AL250V F902 * F902 * F901 * F903 T2.5AL250V F902 * F903 T2.5AL250V F901 * C922 220/35 P926A P925 P926 P911A P925A P913 P911 P913A P913A P912A P913 P912 P911 P911A P912A P912 P912 P911A P912A P911 P918 P917 P918A P917A Q921 2SC2458-GR 2SC1740S-R,S P901A AC-H AC-G T902 W TYPE T902 G TYPE T902 P TYPE T902 D TYPE SEE LEFT DIAGRAM FOR OTHER TYPE P901 S906 POWER P/W/G-TYPE ONLY S902 VOLTAGE SELECTOR 220V 120V T901 THERMAL FUSE T901 THERMAL FUSE T901 THERMAL FUSE T THERMAL FUSE JL6805B TO NAAF-7842 (SCH-4) E921 RATING REFER TO THE MARK FOR CONTINUED PROTECTIO HAZARD,REPLACE WITH SAM THIS SYMBOL LOCATED NEAR THAT THE FUSE USED IS SLO E LENT. POUR UNE PROTEC CE SYMBOLE INDIQUE QUE INDIQUE LA QU LE PRESENT QUE DES FUSIBLES DE MEM P902 120W AC OUTLET 1A MAX P902A AC OUTLET 100WMAX GK TYPE P902 AC OUTLET 100WMAX GT TYPE P902 AC OUTLET 100WMAX P902 LSP RSP CSP LSSP RSSP SBSP BRLD FRLD CSRLD +24V LSPE RSPE CSPE LSSPE RSSPE SBSPE +13VS +13VS MPUGND MPUGND POWER 7 3 3 7 7 1 3 TYPE F901 F902 D 6.3A/125V - P - T3.15AL250V G - - J 8A/125V - W 6.3A/125V T3.15AL250V T901 TYPE D P G J W T902 TYPE D NPT-1358D P NPT-1358P G J NPT-1358J W NPT-1358DG NAPS-7851 NAPS-7844 NAETC-7835 NAPS-7845 NASW-7843 NAPS-7419 NAPS-7419 NPT-1358DG A 1 2 3 4 5 B C D Page 20 家电维修资料网 TX-SR501/E SCHEMATIC DIAGRAM 6 Power supply and Speaker terminal sections U12 U13 U25 3 P410A TO NADG-7821 (SCH-2) P6931A TO NAAF-7842 (SCH-4) 17.8V 5.6V C6932 103Z D6932 D6932,6933: GP104003E OR RL1N4003 D6933 C9513 223Z R9501 1(1/2W) R9502 0.47(1/2W) R9521 3.9 3.3 (1/2W) R9503 0.22 (1/2W) R6935 120 (2W) C6931 1000/25 C6933 10/16 8 9 10 11 12 13 14 A 18 17 16 15 19 Q6931 NJM78M56FA G I O T901 THERMAL FUSE JL6951B TO NAAF-7842 (SCH-4) JL6952B TO NAAF-7842 (SCH-4) V A AGAINST FIRE HAZARD, REPLACE FOR CONTINUED PROTECTION AND RATING INDICATED. ONLY WITH FUSE OF SAME TYPE CAUTION ATTENTION V A ET CALIBRATION COMME INDIQUE. D'INCENDIE, REMPLACER UNIQUEMENT PERMANENTE CONTRE LES RISQUES AFIN D'ASSURER UNE PROTECTION PAR UN FUSIBLE DE MEME TYPE RATING REFER TO THE MARKING ADJACENT TO THE SYMBOL FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,REPLACE WITH SAME TYPE FUSE. FOR FUSE THIS SYMBOL LOCATED NEAR THE FUSE INDICATES THAT THE FUSE USED IS SLOW OPERATING TYPE E LENT. POUR UNE PROTECTION PERMANENTE,N'UTILISER CE SYMBOLE INDIQUE QUE LE FUSIBLE UTLISE EST INDIQUE LA QU LE PRESENT SYMBOL EST APPOSE. QUE DES FUSIBLES DE MEME TYPE. CE DARNIER EST JL9501A JL9501B P411A TO NADG-7821 (SCH-2) P7503B TO NADIS-7403 (SCH-1) FLAC1 FLAC2 MPUGND MPUGND HPL AGND HPR +5.6V +24V S3 S3GND S3GND S3 S2 S2 S2 S2 +5.6V PROTHERM POWER SPF SPCS SE1H SPB VOLH PRO MPUGND +13VS PROTHERM MPUGND MPUGND S3GND +13VS POWER PRO SPF SPCS SPB SE1H VOLH +24V AGND HPR HPL 3 7 T901 TYPE D NPT-1462D P NPT-1462P G J NPT-1462J W NPT-1462DG NAPS-7846 NAETC-7834 NAETC-7833 NPT-1462DG A 1 2 3 4 5 B C D Page 21 家电维修资料网 TX-SR501/E SCHEMATIC DIAGRAM 3 Video section U26 P281 Y C Y C C Y P202 Y C C Y P201 P206B Q281 74HCU04 1 2 3 4 5 6 7 8 9 10 11 12 13 14 P282 U282 U281 P253A Q209 2SA933-S KTA1267-GR VIDEO OUT VCC VIN4 VIN3 VIN2 GND VIN1 B A Q203 LA7956 1 2 3 4 5 6 7 8 9 VIDEO OUT VCC VIN4 VIN3 VIN2 GND VIN1 B A Q213 LA7956 1 2 3 4 5 6 7 8 9 VIDEO OUT VCC VIN4 VIN3 VIN2 GND VIN1 B A Q212 LA7956 1 2 3 4 5 6 7 8 9 P201 P202 Q201 RN1241 Q202 RN1241 Q208 RN1241 Q207 RN1241 Q210 RN1241 Q211 RN1241 Q205 DTA114ES KRA102M Q206 DTA114ES KRA102M L283 022M L281 220K NCH-1452 L282 220K NCH-1452 C203 470/16 C201 2.2/50 C202 2.2/50 C204 2.2/50 C205 470/16 C211 470/16 C209 2.2/50 C288 47/6.3 C285 47/6.3 C225 47/16 C223 47/16 C217 2.2/50 C218 2.2/50 C207 2.2/50 C213 2.2/50 C215 470/16 C227 223Z C220 223Z C216 223Z C210 223Z C208 223Z C286 223Z C281 223Z C284 080D C283 223Z C226 223Z C224 223Z C219 223Z C287 223Z C282101J C206 223Z C212 223Z C214 223Z R223 100K R230 680K R205 75 R207 680K R201 75 R202 75 R208 680K R209 680K R203 75 R206 75 R204 100K R228 220 R220 75 R219 75 R226 680K R214 75 R213 75 R224 100K R284 10K R229 680K R282 470 R281 75 R225 680K R21275 R21175 R217 100K R218 100K R216 75 R222 75 R221 75 R215 75 R227 680K V4 V4Y V4C +12V GND A B VMUT2 VMUT1 RI OPT2 DGND OPT1 +5V COAX OPTOUT NAVD-7847 IN VIDEO-2 VIDEO-1 DVD IN MONITOR OUT OUT IN OUT IN MONITOR IN VIDEO-2 VIDEO-1 DVD IN Q209 A 1 2 3 4 5 B C D Page 22 家电维修资料网 SCHEMATIC DIAGRAM 7 Video section PRINTED CIRCUIT BOARD VIEW 6 U10 NAVD-7831,Component video PC board P243B TO NAETC-7838 Q241 2SC1740 RL241 RL242 D241 R249 1K C242 103Z C241 103Z P241 COMPONENT OUT Y CB CR P241 COMPONENT IN 2 Y CB(PB) CR(PR) P241 COMPONENT IN1 Y CB(PB) CR(PR) DGND DGND CNPT +5V NAVD-7831 U10 15 7 7 17 20 22 20 DGND COMPONENT OUT COMPONENT1 COMPONENT2 +5V CNPT NCVD-7831 25137831 0 D241 C241 Q241 R249 P242A CB Y CR CB1 Y1 CR1 Y2 CR2 CB2 J242 J249 J250 J245 J244 J241 C242 +5V DGND CPNT J243 J247 J246 J248 P243B DGND J251 P241 P241 P250 C243 RL242 RL241 TX-SR501/E A 1 2 3 4 5 B C D Page 23 家电维修资料网 TX-SR501/E WIRING VIEW JL6952B JL6951B P911A P912A P913A 7 3 1 5 JL9501B P6072 POWER SWITCH JL6804A P6922 P6923 P6301 P995A P931 JL6952A JL6951A D6706 D6705 C6708 P6907 P6909 JL6805A P997A P996A P6906 P995B P6910 P6801 JL6803A P6011A P6073A JL6402A COM TH1 LS RS P6072A SB ID- ID+ -B1 ID- ID+ ID- ID+ ID- ID+ ID- ID+ ID- ID+ ID+ P6931 P6083 P6084 P6085 P6082 P6081 P6003 P6004 P6005 P6002 P6001 P6000 R6043 R6044 R6045 R6042 R6041 R6040 P6802 R L TH2 P6903 P6080 JL7501A JL7502A P7501 JL7502B NADIS-7403,Display circuit NASW-7404, Standby switch PC board ass'y NAETC-7405, Headphone terminal PC board ass'y NAETC-783 circuit PC b NAETC-7834, Secondary PC board ass'y NAETC-7835,Speaker terminal PC board ass'y NAAF-7842, Power amplifier PC board ass'y NASW-7843,Power switch PC board ass'y NAPS-7844, Transformer terminal PC board ass'y U24 NAPS-7845,Primary circuit PC board ass'y NAPS-7846, Secondary terminal PC board ass'y U22 Except 120V model U13 U25 U23 T901 POWER TRANS- FORMER NPT-1462 NPT-1465D U3 U4 U5 U21 U14 U28 P917A P918A S906 P902 P901A P909 P908 T902 AC-G S902 P917 P918 P911 P922 P923 E921 AC-H P931A 120V 220V P921A P921 P922A P923A P913 P912 P926 P925 AC-G AC-H P902A P926A P925A 15 16 17 18 19 JL7501B NCSW-7404 JL7501A 14 13 12 11 10 9 8 JL6805B JL6803B JL6804B NCETC-7835 P6800 P6802 P6801 P6931A JL9501 U30 NAETC-7851,AC outlet terminal PC board ass'y Korean model only A 1 2 3 4 5 B C D Page 24 家电维修资料网 TX-SR501/E WIRING VIEW P7701 P253B P261B V4C GND GND V4Y V4 P101 P301 P302 P304 P305 P306 P261A P351 P801 P410B P411B P412B P6403 P7502B P7701 P7502A P7503A FLAC FLAC GND GND HPL HPE HPR +5.6V NADG-7821, DSP circuit PC board ass'y circuit PC board ass'y NAETC-7406, Front video PC board ass'y NAETC-7838, Connector PC board ass'y NAAF-7830, Driver circuit PC board ass'y C-7833,Const. voltage PC board ass'y NAVD-7847,Video circuit PC board ass'y TUNER PACK U12 U6 U17 U26 U1 U9 U28 : Flat cable : Jumper Wire : Socket : PC board to PC board P282 P201 P203 P204 P202 P253A P281 U281 U282 U283 JL6402B NAETC-7849, Thermal detector PC board ass'y U31 P242A P243B P241 P801B P206A P243A P6011A P6000A P6001A P6002A P6003A P6004A P6005A P306A P7503B P410A P411A NAVD-7831,Component video PC board ass'y U10 P206B A 1 2 3 4 5 B C D Page 25 家电维修资料网 TX-SR501/E BLOCK DIAGRAM U3 NADIS-7403,Display circuit PC board Soldering side Component side C7501 C7503 C7504 C7505 C7506 C7515 C7516 C7517 D7501 D7507 L7504 L7505 Q7503 R7501 R7502 R7503 R7526 R7527 R7646 R7631 R7632 R7633 R7634 R7635 R7636 R7641 R7642 R7643 R7644 R7645 61 -VP HPMUT SBMRST SBMCLK SBMDO SBMDI SBMLDY HPDET SYSIN GND FLAC FLAC GND GND HPL HPE HPR +5.6V 2 2 2 2 2 2 2 2 2 2 2 2 2 2 7 7 17 12 7 17 27 30 30 20 15 12 VOUT VCC GND 15 15 C7502 C7514 C7521 P7502A P7503A Q7501 R7580 S7501 S7501 S7631 S7632 S7633 S7634 S7635 S7636 S7637 S7641 S7642 S7643 S7644 S7645 S7646 S7647 J7501 J7502 J7510 J7511 J7512 J7513 J7514 J7515 J7518 J7519 J7522 J7523 J7524 J7525 J7526 J7527 J7528 J7529 J7530 J753 J7537 J7538 J7539 J7540 J7542 J7543 J7544 J7548 J7549 STEREO DIRECT DSP SURROUND PRESET AUDIO ADJUST SP ADJUST CD TUNER TAPE TUNING TUNING FM MODE U7501 -VP GND SYSIN HPDET SBMLDY SBMDI SBMDO SBMCLK SBMRST HPMUT +5.6V HPR HPE HPL GND GND FLAC FLAC NCDIS-7403 25137403B 1 J7552 J7553 J7554 UP DOWN ADJUST A 1 2 3 4 5 B C D Page 26 家电维修资料网 TX-SR501/E PRINTED CIRCUIT BOARD VIEW FROM SOLDERING SIDE 1 U5 U17 Soldering side Component side C7507 C7508 C7509 C7510 C7511 C7513 D7502 D7503 Q7502 Q7502 Q7504 Q7506 R7504 R7505 R7506 R7507 R7508 R7509 R7510 R7511 R7513 R7514 R7515 R7516 R7517 R7518 R7520 R7521 R7522 R7523 R7524 R7528 R7529 R7530 R7531 R7532 R7611 R7612 R7621 R7622 R7623 R7624 R7625 R7626 Q7507 R7512 1 21 41 D7504 C7523 C7522 R7519 L7503 750 L7502 L750 L7501 C77519 C7520 C7518 R L P7501 P7501 JL7502B J7572 J7573 J7571 E7501 NCETC-7405 25137405 0 R L J7574 2 2 2 2 2 2 2 2 2 2 12 15 12 7 20 17 22 7 15 22 7 0 15 7 7 12 7 C7512 D7505 JL7501A JL7502A 7501 Q7501 R7581 R7582 S7611 S7612 S7613 S7621 S7622 S7623 S7624 S7625 S7626 S7627 X7501 J7503 J7504 J7506 J7507 J7508 J7509 J7516 J7517 J7520 J7521 J7531 J7532 J7533 J7534 J7535 J7536 J7541 J7545 J7546 J7547 MEMORY DIGITAL INPUT SW MODE DIMMER DISPLAY DVD VIDEO1 VIDEO2 VIDEO3 AUDIO SELECTER RL7501 J7550 J7551 HPR HPE HPL GND HPDET 7 P801B P206A +12V GND CNPT CTLA CTLB VMUT2 VMUT1 RI +5V DGND OPT2 OPT1 COAX OPTOUT J301 NCETC-7838 25137838 0 P243A +5V CNPT DGND DGND GND NAETC-7838,Connector PC board ass'y NAETC-7405,Headphone terminal PC board A 1 2 3 4 5 B C D Page 27 家电维修资料网 TX-SR501 PRINTED CIRCUIT BOARD VIEW 2 U1 NADG-7821, DSP circuit PC board A 1 2 3 4 5 B C D 1 C181 C182 C183 C184 C185 C186 C187 C701 C702 C703 C704 C705 C707 C7 C7 C7 C7 C7 C7 C714 C717 C720 C721 C722 C726 C727 C728 C729 C730 C731 C732 C6401 C6403 C6404 C6405 C6406 C6409 C6410 C6411 C6412 C7001 C7002 C7003 C7004 C7005 C7006 C7007 C7008 C7009 C7010 C7011 C7012 C7014 C7015 C9501 C9502 C9503 C9505 C9505 C9506 C9506 C9507 C9507 C9508 C9508 C9510 C9510 C9511 C9512 D7001 D7002 D7003 D7004 D7702 D9502 D9503 D9504 D9505 D9506 D9507 D9508 L181 L701 L703 L7001 L7002 P802 P410B P411B P412B P6403 P7502B P7502B P7701 Q181 Q181 Q701 Q701 Q702 Q702 Q703 Q703 Q704 Q704 Q705 Q705 Q706 Q706 Q710 Q710 Q6402 Q6403 Q6405 Q6406 Q7001 Q7002 Q7002 Q7003 Q7003 Q9501 R181 R182 R183 R184 R185 R186 R187 R701 R702 R703 R704 R705 R706 R707 R708 R709 R710 R711 R712 R713 R714 R715 R716 R717 R7 R719 R720 R721 R7 R7 R7 R7 R726 R727 R728 R729 R730 R731 R732 R733 R734 R735 R736 R737 R738 R740 R742 R743 R744 R745 R746 R747 R748 R749 R750 R751 R752 R753 R754 R755 R756 R757 R6402 R6403 R6407 R6408 R6410 R7000 R7001 R7002 R7003 R7004 R7011 R7012 R7015 R7016 R7017 R7018 R7019 R7020 R7 R7 R7 R7 R7 R7 R7033 R7 R7 R7 R7 R7 R7 R7 R7044 R7045 R7046 R7047 R7048 R7049 R7050 R7051 R7052 R7053 R7054 R7055 R7056 R7057 R7058 R7059 R7060 R7062 R7063 R7064 R7065 R7066 R7071 R7076 R7077 R7078 R7079 R7080 R7083 R7085 R7120 R7 R7 R7 R9506 R9507 R9508 R9509 X181 X7001 D9509 D9510 D9511 D9512 Q7008 Q7008 1 1 1 1 1 1 1 1 1 1 1 R7180 R7179 R7178 Q7004 R7146 R761 R758 C733 R759 R760 Page 28 家电维修资料网 TX-SR501 PRINTED CIRCUIT BOARD VIEW 2 U1 NADG-7821, DSP circuit PC board A 1 2 3 4 5 B C D C101 C103 C104 C105 C106 C300 C301 C302 C303 C304 C305 C306 C307 C310 C311 C312 C313 C314 C315 C316 C317 C318 C319 C320 C321 C322 C323 C325 C326 C327 C328 C329 C330 C331 C332 C333 C334 C335 C336 C337 C338 C339 C340 C341 C342 C343 C344 C345 C346 C347 C348 C349 C350 C351 C352 C353 C354 C355 C356 C357 C358 C359 C360 C361 C362 C363 C364 C365 C366 C367 C371 C372 C373 C374 C375 C376 C701 C702 C703 C704 C705 C706 C707 C708 C709 C710 C711 C712 C713 C714 C715 C716 7 C720 C721 C731 C800 C801 C802 C803 C804 C805 C806 C807 C808 C809 C810 C811 C812 C813 C814 C815 C816 C832 C833 C834 C835 C836 C837 C840 C841 C842 C843 C844 C845 C848 C849 C850 C851 C852 C853 C7002 C7003 7004 C7006 C7007 09 C7010 C7011 C7014 D801 D802 D7001 D7002 03 D7004 E300 L701 L702 L703 L704 L705 L801 L802 L803 L804 P101 P301 P301 P302 P302 P304 P304 P305 P305 P306 P261A P351 P351 P801 P7701 Q101 Q301 Q301 Q302 Q305 Q306 Q307 Q308 Q309 Q310 Q311 Q312 Q313 Q321 Q701 Q701 Q707 Q Q801 Q801 Q802 Q803 Q804 Q7001 Q7002 Q7002 Q7003 Q7003 R102 R103 R104 R105 R106 R300 R301 R302 R303 R304 R305 R306 R307 R310 R311 R312 R313 R314 R315 R316 R317 R318 R319 R320 R321 R322 R323 R324 R325 R326 R327 R328 R329 R332 R333 R334 R335 R336 R337 R338 R339 R340 R341 R342 R343 R345 R346 R347 R348 R359 R360 R361 R362 R363 R364 R365 R366 R367 R368 R369 R370 R371 R372 R373 R374 R375 R376 R377 R378 R379 R380 R381 R382 R383 R384 R385 R386 R387 R388 R701 R702 R703 R704 R705 R706 R707 R708 R709 R710 R711 R712 R713 R714 R715 R716 R717 R718 R719 R720 R721 R722 R723 R724 R725 R726 R727 R728 R729 R730 R739 R748 R749 R750 R751 R752 R753 R754 R755 R756 R757 R801 R803 R804 R805 R806 R807 R808 R809 R810 R811 R812 R813 R814 R815 R816 R817 R818 R819 R820 R832 R833 R834 R835 R836 R837 R840 R841 R842 R843 R844 R845 R848 R849 R850 R851 R852 R853 R7000 R7001 R7002 R7003 R7004 R7011 R7012 R7015 R7016 R7017 R7018 R7019 R7020 R7021 R7022 R7023 R7024 R7025 R7026 R7027 R7028 R7029 R7030 R7031 R7032 R7033 R7034 R7035 R7036 R7037 R7038 R7039 R7040 R7041 R7042 R7043 R7044 R7045 R7046 R7047 R7048 R7049 R7050 R7051 R7052 R7053 R7054 R7055 R7056 R7057 R7058 R7059 R7060 R7067 R7068 R7069 R7070 R7071 R7072 R7073 R7074 R7075 076 077 R7078 R7079 R7080 R7081 R7082 083 R7084 085 R7120 R7134 R7138 R7839 X701 X801 X7001 C817 C854 C855 C856 C857 C858 C859 L706 L805 Q322 Q7006 Q7007 Q7008 Q7008 R330 R331 R344 R396 R397 R821 R7141 P406 NCDG-7821 25137821A 1 1 1 1 1 1 1 1 1 1 1 1 1 1 C188 R7180 R7179 R7178 C308 Q805 Q805 C822 C820 L806 R822 R823 R824 R825 R826 C818 Q323 Q323 C863 C862 R855 R856 R854 C860 C861 Q314 R389 R390 Q7004 C821 C819 1 R7146 R857 R858 1 1 Page 29 家电维修资料网 TX-SR501/E PRINTED CIRCUIT BOARD VIEW 4 A 1 2 3 4 5 B C D U21 NAAF-7842,Power amplifier PC board NAETC-7849,Thermal det. PC board U28 7 12 27 27 2 2 25 25 12 12 25 25 12 20 17 17 17 15 12 17 20 17 17 12 12 22 25 15 17 17 17 15 17 15 15 12 12 20 17 17 25 22 15 17 12 27 25 17 20 20 15 22 15 25 20 7 7 25 7 15 THPRO AGND RLGND VOLH SE1H +13VS SPB SPCS SPF POWER PRO J6110 J6111 HPL HPR MPUGND NCAF-7842 25137842 0 J P6073A LS RS P6072A SB +24V ID- ID+ NF -B1 +B1 B+ B- ID- ID+ NF -B1 +B1 B+ B- ID- ID+ NF -B1 +B1 B+ B- ID- ID+ NF -B1 +B1 B+ B- P6931 R6851 R6850 J6175 J6178 J6179 J6128 J6129 J6130 J6131 J6150 J6151 J6159 J6160 J6176 J6185 J6184 J6183 J6181 J6182 J6189 J6188 J6190 J6186 J6187 R6145 R6035 R6005 R6015 R6165 R6175 R6185 R6155 R6055 R6025 Q6075 Q6045 Q6035 Q6025 Q6015 J6165 J6166 J6172 J6161 J6171 J6170 J6162 J6163 J6152 J6158 J6174 J6168 J6169 R6014 R6004 R6034 R6144 R6024 R6054 R6184 R6164 R6174 R6154 Q6014 Q6024 Q6074 Q6044 Q6034 R6143 R6013 R6003 R6033 R6153 R6173 R6163 R6183 R6053 R6023 J6141 J6132 J6145 J6148 J6147 J6140 J6143 J6144 J6136 J6139 J6137 J6133 J6134 J6146 Q6033 Q6043 Q6013 Q6073 Q6023 R6103 R6193 D6003 D6013 R6093 R6083 R6073 C6043 C6044 C6045 P6083 P6084 P6085 P6082 P6003 P6004 P6005 P6002 R6043 R6044 R6045 R6042 R6085 R6095 R6075 R6105 R6104 R610 R6195 D6005 D6004 D6002 D6015 R6084 R6094 R6074 R6072 R6194 D6014 J6123 J6119 J6120 J6127 J6121 J6125 J6115 J6114 R6192 R6092 R R R6 R6142 J6116 R6172 R6162 R6182 R6152 R6022 R6052 Q6012 Q6022 Q6072 J6126 Q6042 Q6032 D6012 J6180 J6153 J6177 J6138 J6149 J6164 J6173 J6135 MPUGND J6124 J6109 R6318 D6714 C6716 R6719 J6157 J6156 J6154 J6142 J6155 C6904 C6905 J610 P6909 C E E E B B B B B B B B E E E E E E E E B B B B B B B B B B B B E E E E E E E E Q6065 Q6055 Q6062 Q6064 Q6054 Q6063 Q6053 C6055 C6054 C6052 J6191 C6053 J6167 B C E B C E B C E B C E B C E B C E B C E R6381 25137850 NCETC-7850 0 J6501 J6502 JL6402B R6380 TH2 +24V TH1 25137849 ETC7849 0 Page 30 家电维修资料网 TX-SR501/E PRINTED CIRCUIT BOARD VIEW 4 U21 NAAF-7842,Power amplifier PC board 25 7 27 25 25 27 27 27 27 25 25 15 15 12 12 20 17 17 25 22 15 20 17 12 27 25 17 20 20 12 25 22 17 17 15 15 25 20 20 17 17 15 22 17 15 20 12 17 17 20 20 22 12 20 17 17 17 17 15 15 17 17 27 17 30 27 30 30 7 7 15 15 7 22 25 15 15 30 30 30 7 7 7 25 27 17 20 7 17 20 30 30 15 25 25 12 27 22 7 25 22 30 30 C6901 C6901 C6902 C6902 J6008 JL6803A JL6804A P6011A R6706 C6704 D6703 R6704 Q6703 R6702 C6703 R6701 J6108 J6110 J6111 +B1 -B1 R6708 NCAF-7842 25137842 0 J010 J6046 J6071 P6922 P6923 R6235 R6230 R6233 R6232 R6231 C6234 C6233 C6232 C6231 C6230 J011 P6073A C6706 D6704 R6710 R6709 C6701 Q6701 D6702 Q6702 D6701 Q6303 D6307 D6306 R6306 R6307 R6308 P6301 J6067 JL6402A COM TH1 TH2 TH1 +24V LSP RSP CSP LSSP RSSP LSPE RSPE CSPE LSSPE RSSPE P995A C6235 R6234 SBSPE SBSP ID- ID+ NF -B1 +B1 B+ B- ID- ID+ NF -B1 +B1 B+ B- ID- ID+ NF -B1 +B1 B+ B- E J6066 J010A J011A J6031 J6032 J6053 J6054 J6092 J6093 J6094 J6095 J6128 J6129 J6130 J6131 R6013 R6003 R6033 R6023 J6141 J6132 5 J6136 J6139 J6137 J6133 J6134 Q6033 Q6013 3 R6103 R6083 R6073 C6043 C6042 C6041 C6040 P6082 P6081 P6080 P6002 P6001 P6000 043 R6042 R6041 R6040 R6102 R6101 R6100 D6002 D6001 D6000 R6080 R6090 R6091 R6072 R6071 R6070 J6099 J6122 J6123 J6119 J6120 J6112 J6127 J6117 J6097 J6121 J6125 J6115 J6113 J6114 R6192 R6092 R6082 R6012 R6002 R6032 R6142 J6116 R6172 R6162 R6182 R6152 R6022 R6052 Q6012 Q6022 Q6072 J6126 Q6042 Q6032 J6074 J6059 J6060 J6075 J6055 J6080 J6089 J6073 J6079 J6078 J6076 J6058 R6191 R6141 R6031 R6001 R6011 Q6011 Q6031 R6081 J6090 D6011 Q6071 Q6021 R6171 R6161 R6181 R6151 R6051 R6021 Q6041 D6010 Q6040 Q6010 J6025 J6022 J6033 J6009 J6028 J6027 J6013 J6030 J6024 J6014 R6030 R6000 R6010 R6140 R6150 R6190 J6048 Q6020 Q6070 Q6030 R6170 R6160 R6180 R6050 R6020 J6026 D6012 J6138 J6135 J6098 J6118 J6096 J6091 J6077 J6072 J6050 J6057 J6052 J6051 J6056 J6049 J6029 J6023 J6010 J6011 J6012 J6005 J6006 J6007 J6047 R6317 J6124 Q6313 J6068 J6109 J6020 J6088 R6318 D6903 D6904 J6103 J6102 J6064 J6065 RL6901 RL6901 RL6902 RL6902 P931 JL6952A JL6951A J6083 J6084 J6085 J6086 J6081 J6041 J6040 J6087 J6104 J6063 J6062 Q6603 R6603 Q6602 D6906 Q6901 C6920 J6019 R6902 D6706 D6705 C6708 D6901 C6903 D6902 C6904 C6905 R6904 R6905 C6906 C6907 J6107 J6044 J6045 F6901A F6901B F6902B F6902A J6037 J6082 J6043 J6042 +13VS +13VS MPUGND MPUGND POWER P6907 P6909 F6901 F6902 8A/125V J6106 E E B J6001 J6015 J6034 J6035 J6016 J6036 R6605 J6002 J6003 J6061 +24V CSRLD FRLD BRLD Q6601 R6601 J6105 J6018 J6039 J6017 J6038 JL6805A R6604 R6602 B B B E E J6101 J6100 P997A P996A P6906 P995B P6910 J6004 P6802 P6801 C R L TH2 E E E E B B B B B B B B E E E E E E E E B B B B B B B B E E E E E B E B B E E E E B B B J6021 Q6062 Q6052 Q6061 Q6051 Q6060 Q6050 Q6053 P6903 C6050 C6051 C6052 C6909 C6908 J6069 J6070 B C E B C E B C E B C E B C E B C E B C E A 1 2 3 4 5 B C D Page 31 家电维修资料网 TX-SR501/E PRINTED CIRCUIT BOARD VIEW 5 U14 NAETC-7833,Const. Voltage circuit PC board NAETC-7835,Speaker terminal PC board NAPS-7844,Transformer terminal PC board U12 U23 P911A P912A P913A 7 3 1 25137844 NCPS-7844 0 5 J6201 J6202 J6203 15 27 15 25 7 30 15 12 30 17 25 20 15 22 15 7 RL6600 RL6600 RL6603 RL6603 D6604 L6803 L6803 R6810 R6800 R6815 R6805 L6802 L6802 R6812 L6804 L6804 R6813 R6803 JL6805B C6840 C6841 C6850 C6851 C6846 RL6601 RL6601 RL6604 RL6604 C6845 C6852 R6811 R6801 L6800 L6800 C6842 L6801 L6801 C6855 JL6803B JL6804B C6604 LSP RSP CSP LSSP RSSP LSPE RSPE CSPE LSSPE RSSPE +24V CSRLD FRLD BRLD R6802 L+ L- R+ R- L+ R+ R- L- LS+ RS+ LS- RS- C+ C- NCETC-7835 25137835 1 C6600 D6600 D6601 C6601 SB+ SB- P6800 P6800 J5326 L6805 L6805 C6854 C6853 C6843 C6844 J5304 J5303 J5302 J5307 J5306 J5311 J5310 J5312 J5308 J5309 J5313 J5314 J5315 J5316 J5318 J5321 R6814 R6804 J5323 J5322 J5325 SBSP SBSPE J5324 J5320 J5317 J5305 J5301 P6802 P6802 P6801 P6801 J5319 17 25 25 25 25 25 30 20 15 12 P7503B P7503B R6932 C6933 D6933 C6932 D6932 R6935 P410A P411A +24V S2 S2 S2 S2 S3 S3GND S3GND S3 +5.6V MPUGND MPUGND PRO VOLH SPB SE1H SPCS SPF POWER +13VS J5208 Q6931 J5209 C6931 C6931 R6933 J5207 J5202 J5203 J5204 J5205 J5206 FLAC1 FLAC2 MPUGND MPUGND HPL HPR AGND +5.6V J5210 J5201 J5213 J5211 O I J5212 PROTHERM A 1 2 3 4 5 B C D Page 32 家电维修资料网 TX-SR501/E PRINTED CIRCUIT BOARD VIEW 2 U1 NADG-7821,DSP circuit PC board A 1 2 3 4 5 B C D C328 C328 28 288 9 711 C771 C7 712 C7712 7 C845 D801 Q301 R362 R362 R362 R376 722 R7 723 R7 724 R7724 R7 725 R7725 R7725 R7 R844 844 R845 R852 R8 R 52 85 R853 X 806 L806 R826 R8 C818 C818 C821 C821 C821 1 1 Page 33 家电维修资料网 TX-SR501/E PRINTED CIRCUIT BOARD VIEW 3 Video section U26 U9 NAVD-7847,Video circuit PC board NAAF-7830, Driver circuit PC board L R C LS RS SB 30 7 20 30 30 30 30 30 7 7 27 27 12 7 22 30 22 25 15 7 20 15 7 30 7 30 25 7 15 J5029 P5001 NCAF-7830 25137830A 1 L R C LS RS E E E E E J5013 J5004 P6011A J5001 J5009 J5008 J5010 J5007 J5005 J5014 J5006 J5016 J5011 J5012 J5017 J5018 J5015 J5019 J5020 J5035 J5027 J5043 J5024 P6073 C5040 C5010 R5010 R5000 R5020 R5040 C5030 R5030 C5080 Q5000 Q5010 R5160 C5070 R5050 Q5030 C5000 B B E E C5050 C5020 R5080 R5070 Q5040 R5170 P6000A B- B+ NF +B1 -B1 R5190 R5180 C5100 C5110 J5002 R5110 R5130 C5090 B B E E Q5050 D5000 R5100 R5090 R5060 J5003 B E C5041 C5011 R5011 R5001 R5021 R5041 C5031 R5031 C5081 Q5001 Q5011 R5161 C5071 R5051 Q5031 C5001 B B E E C5051 C5021 R5081 R5071 Q5041 R5171 P6001A B- B+ NF +B1 -B1 R5191 R5181 C5101 C5111 J5021 R5111 R5131 C5091 B B E E Q5051 D5001 R5101 R5091 R5061 J5022 B E C5042 C5012 R5012 R5002 R5022 R5042 C5032 R5032 C5082 Q5002 Q5012 R5162 C5072 R5052 Q5032 C5002 B B E E C5052 C5022 R5082 R5072 Q5042 R5172 P6002A B- B+ NF +B1 -B1 R5192 R5182 C5102 C5112 J5028 R5112 R5132 C5092 B B E E Q5052 D5002 R5102 R5092 R5062 J5030 B E C5043 C5013 R5013 R5003 R5023 R5043 C5033 R5033 C5083 Q5003 Q5013 R5163 C5073 R5053 Q5033 C5003 B B E E C5053 C5023 R5083 R5073 Q5043 R5173 P6003A B- B+ NF +B1 -B1 R5193 R5183 C5103 C5113 J5036 R5113 R5133 C5093 B B E E Q5053 D5003 R5103 R5093 R5063 J5038 B E C5044 C5014 R5014 R5004 R5024 R5044 C5034 R5034 C5084 Q5004 Q5014 R5164 C5074 R5054 Q5034 C5004 B B E E C5054 C5024 R5084 R5074 Q5044 R5174 P6004A B- B+ NF +B1 -B1 R5194 R5184 C5104 C5114 J5044 R5114 R5134 C5094 B B E E Q5054 D5004 R5104 R5094 R5064 J5045 B E J5050 R5065 R5095 R5105 D5005 Q5055 C5095 R5135 R5115 J5049 C5115 C5105 R5185 R5195 R5175 Q5045 R5075 R5085 C5025 C5055 C5005 Q5035 R5055 C5075 R5165 Q5015 Q5005 C5085 R5035 C5035 R5045 R5025 R5005 R5015 C5015 C5045 P6005A J5032 J5026 J5025 J5037 J5034 J5042 J5041 J5047 SB E B B B B E E E E E B +B1 NF -B1 B+ B- P407A P306A P306A J5040 J5048 J5033 J5023 J5031 J5039 J5046 15 15 12 12 20 15 12 12 15 12 17 7 15 7 7 12 20 17 12 7 17 7 7 7 12 7 C201 C202 C203 C204 C205 C206 C207 C208 C209 C210 C211 C212 C213 C214 C215 C216 C217 C218 C219 C220 C221 C222 C223 C224 C225 C226 C227 C281 C282 C283 C284 C285 C286 C287 C288 C289 D201 D202 L282 P201 P201 P203 P203 P204 P204 P253A P253A P206B P281 P281 Q201 Q202 Q203 Q204 Q205 Q206 Q207 Q208 Q209 Q210 Q211 Q212 Q213 R201 R202 R203 R204 R205 R206 R207 R208 R209 R210 R211 R212 R213 R214 R215 R216 R217 R218 R219 R220 R221 R222 R223 R224 R225 R226 R227 R228 R229 R230 R281 R282 L283 R284 U281 U281 U282 U282 U283 U283 J202 J203 J204 J205 J206 J207 J208 J209 J210 J211 J212 J213 J215 J216 J217 J218 J219 J220 J221 J222 J223 J224 J225 J226 J227 J228 J229 J230 J231 J232 J233 J236 J237 J238 J239 J240 J241 J242 +12V GND CNPT A B OPTOUT COAX OPT2 OPT1 DGND +5V RI VM1 VM2 NCVD-7847 25137847 0 J243 P299 J244 J247 J245 J246 J248 Q281 1 L281 P282 P282 GND P202 P202 A 1 2 3 4 5 B C D Page 34 家电维修资料网 LRCK BICK SDTI Audio Data Interface MCLK PDN Modulator AOUTL 8X Interpolator SCF LPF AOUTR VDD VSS VCOM De-emphasis Control P/S µP Interface Clock Divider SMUTE/CSN ACKS/CCLK DIF0/CDTI Modulator 8X Interpolator DZFR DZFL SCF LPF ATT ATT 1 MCLK LRCK BICK SMUTE/CSN ACKS/CCLK DIF0/CDTI Top View 2 3 4 5 6 7 8 DZFL DZFR VSS VDD VCOM AOUTL AOUTR P/S 16 15 14 13 12 11 10 9 PDN SDTI No. Pin Name I/O Function 1 MCLK I Master Clock Input Pin An external TTL clock should be input on this pin. 2 BICK I Audio Serial Data Clock Pin 3 SDTI I Audio Serial Data Input Pin 4 LRCK I L/R Clock Pin 5 PDN I Power -Down Mode Pin When at “L”, the AK4384 is i n the power-down mode and is held in reset. The AK4384 should always be reset upon power-up. SMUTE I Soft Mute Pin in parallel mode “H”: Enable, “L”: Disable 6 CSN I Chip Select Pin in serial mode ACKS I Auto Setting Mode Pin in parallel mode “L”: Manual Setting Mode, “H”: Auto Setting Mode 7 CCLK I Control Data Clock Pin in serial mode DIF0 I Audio Data Interface Format Pin in parallel mode 8 CDTI I Control Data Input Pin in serial mode 9 P/S I Parallel/Serial Select Pin (Internal pull-up pin) “L”: Serial control mode, “H”: Parallel control mode 10 AOUTR O Rch Analog Output Pin 11 AOUTL O Lch Analog Output Pin 12 VCOM O Common Voltage Pin, VDD/2 Normally connected to VSS with a 0.1mF ceramic capacitor in parallel with a 10 m F electrolytic cap. 13 VSS - Ground Pin 14 VDD - Power Supply Pin 15 DZFR O Rch Data Zero Input Detect Pin 16 DZFL O Lch Data Zero Input Detect Pin TX-SR501/E AK4384(106dB 192kHz 24-Bit 2ch DAC ) IC BLOCK DIAGRAMS AND DESCRIPTIONS Page 35 家电维修资料网 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 29 6 5 4 3 2 1 A1,SCDIN RD,R/W,EMOE,GPIO11 WR,DS,EMWR,GPIO10 AUDATA3,XMT958 DGND1 VD1 MCLK SCLK LRCLK AUDATA0 AUDATA1 AUDATA2 DC DD RESET AGND VA FILT1 FILT2 CLKSEL CLKIN CMPREQ,LRCLKN2 CS SCDIO,SCDOUT,PSEL,GPIO9 INTREQ,ABOOT EXTMEM,GPIO8 SDATAN1 VD3 DGND3 SCLKN1,STCCLK2 LRCLKN1 CMPDAT,SDATAN2,RCV958 CMPCLK,SCLKN2 A0,SCCLK DATA7,EMAD7,GPIO7 DATA6,EMAD6,GPIO6 DATA5,EMAD5,GPIO5 DATA4,EMAD4,GPIO4 VD2 DGND2 DATA3,EMAD3,GPIO3 DATA2,EMAD2,GPIO2 DATA1,EMAD1,GPIO1 DATA0,EMAD0,GPIO0 COMPRESSED DATA INPUT INTERFACE DIGITAL AUDIO INPUT INTERFACE PLL CLOCK MANAGER FRAMER SHIFTER INPUT BUFFER CONTROLLER RAM INPUT BUFFER PARALLEL or SERIAL HOST INTERFACE 24-BIT DSP PROCESSING RAM PROGRAM MEMORY RAM DATA MEMORY ROM PROGRAM MEMORY ROM DATA MEMORY STC RAM OUTPUT BUFFER OUTPUT FORMATTER RESET DATA7:0, EMAD7:0, GPIO7:0 CS RD, R/W, EMOE, GPIO11 WR, DS, EMWR, GPIO10 SCDIO, SCDOUT, PSEL, GPIO9 A0, SCCLK A1, SCDIN ABOOT, INTREQ EXTMEM, GPIO8 DD DC MCLK SCLK LRCLK AUDATA<2.0> XMT958/AUDATA3 FLT2 FLT1 VA AGND DGND(3:1) VD(3:1) CMPDAT, SDATAN2 CMPCLK, SCLKN2 CMPREQ, LRCLKN2 SCLKN1, STCCLK2 LRCLKN1 SDATAN1 CLKIN CLKSEL No. Symbol 1 VD1 Digital positive supply 2 DGMD1 Digital supply ground 3 AUDATA3,XMT958 SPDIF transmitter output. Digital audio output. 6 A1,SCDIN Host address bit one or SPI serial control data input. 7 A0,SCCLK Host parallel address bit zero or serial control port clock. 8 DATA7 9 DATA6 10 DATA5 11 DATA4 12 VD2 Digital positive supply 13 DGND2 Digital supply ground 14 DATA3 15 DATA2 16 DATA1 17 DATA0 18 CS Host parallel chip select, host serial SPI chip select pin. Serial control port data input and output, parallel port type select pin. 20 INREQ,ABOOT Control port interrupt request, automatic boot enable 21 EXTMEM, External memory chip select or general purpose input & output number pin 22 SDATAN1 PCM audio data input number one 23 VD3 Digital positive supply 24 DGND3 Digital supply ground 25 SCLK1,STCLK2 PCM audio data input bit clock 26 LRCLKN1 PCM audio input sample rate clock CMPDAT,ECV958 SDATAN2 CMPCLK, SCLKN2 CMPREQ LRCLKN2 30 CLKIN Master clock input pin 31 CLKSEL DSP clock select pin 32 FILT2 Connect to an external filter for phase-locked loop. 33 FILT1 Connect to an external filter for phase-locked loop. 34 VA Analog positive supply. 35 AGND Analog supply ground/ 36 RESET Master reset input 37 DD 38 DC 39 AUDATA2 Digital audio output 2. 40 AUDATA1 Digital audio output 1. 41 AUDATA0 Digital audio output 0. 42 LRCLK Audio output sample rate clock 43 SCLK audio output bit clock 44 MCLK Audio master clock 19 4 WR,DS,EMWR,GPIO10 Host write strobe or host data strobe or external memory write enable or general purpose input & output number 10. 5 RD,R/W,EMOE,GPIO11 Host parallel output enable or host parallel R/W or external memory output enable or general purpose input & output number 11. In parallel host mode these pins provide a bi-directional data bus. If a serial host mode is selected, these pins can provide a multiplexed address and data bus for connecting an 8-bit external memory. Otherwise, in serial data host mode, these pins can act as general-purpose input or output pins that can be individually configured by this DSP. 27 28 29 PCM audio data input number two. PCM audio input bit clock PCM audio input sample rate clock These pins are reserved and should be pulled up with an external 4.7k resistors. SCDIO,SCDOUT,PSEL ,GPIO8 In parallel host mode these pins provide a bi-directional data bus. If a serial host mode is selected, these pins can provide a multiplexed address and data bus for connecting an 8-bit external memory. Otherwise, in serial data host mode, these pins can act as general-purpose input or output pins that can be individually configured by this DSP. Description TX-SR501 CS493264(DSP IC) IC BLOCK DIAGRAMS AND DESCRIPTIONS Page 36 家电维修资料网 + (4) (3) (5) (6) (12) (11) (16) (1) (2) (10) (9) Measurement circuit Differential decoder Bi-phase decoder PLL 1187.5Hz PLL 57kHz RDS/ARI Reference clock (13) (14) (7) (8) Analog Power supply Digital power supply anti-aliasing filter 8ch Switched capacitor filter Comparator RCLK QUAL RDATA T2 T1 XO X1 VSS2 VDD2 VSS1 VDD1 VREF MUX VSS3 CMP Pin name Demodulator quality Demodulator data Reference voltage Input Analog power supply GND Comparator input Test input Digital power supply Crystal oscillor - Demodulator clock Function Good data : High , Bad data : Low RDS data output 1/2 VDD1 Composite signal input 4.5V to 5.5V - C-junction Open or connected to ground 4.5V to 5.5V Connects to 4.332MHz oscillator - 1187.5Hz clock Pin No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 Symbol QUAL RDATA Vref MUX VDD1 Vss1 Vss3 CMP T2 T1 VDD2 Vss2 XI XO (NC) RCLK BU1923F(RDS Decoder) BLOCK DIAGRAM TERMINAL DESCRIPTION TX-SR501/E IC BLOCK DIAGRAMS AND DESCRIPTIONS Page 37 家电维修资料网 TX-SR501/E IC BLOCK DIAGRAMS AND DESCRIPTIONS BD3812F(Audio Sound Processor) IN1 AGND1 IN2 AGND2 VEE AGND3 VCC 1 2 3 4 5 6 7 14 13 12 11 10 9 8 OUT1 OUT2 SEL DGND MUTE DA CL LOGIC 1ch input Analog ground 2ch input Analog ground (-)Power supply Analog ground (+)Power supply 1ch output 2ch output Serial data select Comparator ground Mute Serial data Serial clock A11 A9 A8 A13 A14 A17 PGM VCC VPP A16 A15 A12 A7 A6 A5 A4 OE A10 CE Q7 Q6 Q5 Q4 Q3 GND Q2 Q1 Q0 A0 A1 A2 A3 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 MX27L2000TC-12(2M-Bit CMOS EPROM) PIN DESCRIPTION SYMBOL A0~A17 Q0~Q7 CE OE PGM VPP NC VCC GND PIN NAME Address Input Data Input/Output Chip Enable Input Output Enable Input Programmable Enable Input Program Supply Voltage No Internal Connection Power Supply Pin (+5V) Ground Pin CE PGM OE A0~A17 ADDRESS INPUTS VCC VSS CONTROL LOGIC Y-SELECT X-DECODER OUTPUT BUFFERS Y-DECODER 2M BIT CELL MATRIX Q0~Q7 Page 38 家电维修资料网 No. Terminal Description 1 IN31 1ch input terminal 3 2 IN32 2ch input terminal 3 3 IN41 1ch input terminal 4 4 IN42 2ch input terminal 4 5 IN51 1ch input terminal 5 6 IN52 2ch input terminal 5 7 IN61 1ch input terminal 6 8 IN62 2ch input terminal 6 9 IN71 1ch input terminal 7 10 IN72 2ch input terminal 7 11 IN81 1ch input terminal 8 12 IN82 2ch input terminal 8 13 INDVDSR DVD surround Rch input terminal 14 INDVDSL DVD surround Lch input terminal 15 INDVDC DVD center input terminal 16 INDVDSW DVD sub woofer input terminal 17 OUT2(+) 2ch (+) A/D output terminal 18 OUT2(-) 2ch (-) A/D output terminal 19 OUT1(+) 1ch (+) A/D output terminal 20 OUT1(-) 1ch (-) A/D output terminal 21 IN1DSP 1ch DSP input terminal 22 IN1MIX 1ch DSP MIX input terminal 23 IN2DSP 2ch DSP input terminal 24 IN2MIX 2ch DSP MIX input terminal 25 INDSPSR DSP surround Rch input terminal No. Terminal Description 26 INDSPSL DSP surround Lch input terminal 27 INDSPC DSP center input terminal 28 INDSPSW DSP sub woofer input terminal 29 AGND1 Analog ground terminal 30 GOUTSW Sub woofer input gain output terminal 31 VINSW Sub woofer volume input terminal 32 AGND2 Analog ground terminal 33 GOUTC Center input gain out put terminal 34 VINC Center volume input terminal 35 OUTSW Sub woofer output terminal 36 OUTC Center output terminal 37 OUTSL Surround Lch output terminal 38 OUTSR Surround Rch output terminal 39 VINSL Surround Lch volume input terminal 40 GOUTSL Surround Lch input gain output terminal 41 AGND3 Analog ground terminal 42 VINSR Surround Rch volume input terminal 43 GOUTSR Surround Rch input gain output terminal 44 AGND4 Analog ground terminal 45 DGND Ground terminal for comparator 46 DA Serial data and latch input terminal 47 CL Serial clock input terminal 48 MUTE Mute terminal 49 AGND5 Analog ground terminal 50 VEE (-) Power supply terminal 51 AGND6 Analog ground terminal 52 VCC (+) Power supply terminal 53 AGND7 Analog ground terminal 54 AGND8 Analog ground terminal 55 OUT1 1ch output terminal 56 BBNF1 1ch bass boost filter terminal 57 OUT2 2ch output terminal 58 BBNF2 2ch bass boost filter terminal 59 BNF22 2ch bass filter terminal 2 60 BNF12 2ch bass filter terminal 1 61 BNF21 1ch bass filter terminal 2 62 BNF11 1ch bass filter terminal 1 63 TNF1 1ch treble filter terminal 1 64 TNF2 2ch treble filter terminal 1 65 VIN1 1ch(Lch) volume input terminal 66 GOUT1 1ch(Lch) input gain output terminal 67 AGND9 Analog ground terminal 68 VIN2 2ch(Rch) volume input terminal 69 GOUT2 2ch(Rch) input gain output terminal 70 AGND10 Analog ground terminal 71 ROUT11 1ch recording input/output terminal 1 72 ROUT12 2ch recording input/output terminal 1 73 ROUT21 1ch recording output terminal 2 74 ROUT22 2ch recording output terminal 2 75 ROUT31 1ch recording output terminal 3 76 ROUT32 2ch recording output terminal 3 77 IN11 1ch input terminal 1 78 IN12 2ch input terminal 1 79 IN21 1ch input terminal 2 80 IN22 2ch input terminal 2 TX-SR501/E IC BLOCK DIAGRAMS AND DESCRIPTIONS BD3811K1(6ch Volume with 8ch input selector) LOGIC DA CL MUT VEE VCC BAAS BOOST BASS TREBLE 47k 47k 47k 47k 47k 47k 47k 47k 47k 47k 47k 47k 47k 47k 47k 47k 47k 47k 47k 47k 47k 47k 47k 47k 47k 47k 47k 47k 29 70 32 41 44 49 51 53 54 67 56 58 62 60 61 59 47 46 45 66 69 33 40 43 30 10 77 78 21 22 79 80 23 24 1 2 3 4 5 6 7 8 9 11 12 27 26 25 28 15 14 13 16 48 55 19 20 57 17 18 36 37 38 35 71 72 73 74 75 76 63 64 52 50 65 68 34 39 42 31 IN31 IN32 IN41 IN42 IN51 IN52 IN61 IN62 IN71 IN72 IN81 IN82 INDVDSR INDVDSL INDVDC INDVDSW OUT2+ OUT2- OUT1+ OUT1- IN1DSP IN1MIX IN2DSP IN2MIX TNF2 TNF1 BNF11 BNF21 BNF12 BNF22 BBNF2 OUT2 BBNF1 OUT1 AGND8 AGND7 VCC AGND6 VEE AGND5 MUTE CL DA DGND AGND4 GOUTSR VINSR AGND3 IN22 IN21 IN12 IN11 ROUT32 ROUT31 ROUT22 ROUT21 ROUT12 ROUT11 AGND10 GOUT2 VIN2 AGND9 GOUT1 VIN1 INDSPSR INDSPSL INDSPC INDSPSW AGND1 GOUTSW VINSW AGND2 GOUTC VINC OUTSW OUTC OUTSL OUTSR VINSL GOUTSL 5.1ch Mode SW2 DSP 5.1ch Mode SW1 5.1ch Mode SW2 DVD Input mute Sw REC SW3 REC INSW REC SW1 REC SW2 Page 39 家电维修资料网 Pin Layout 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 33 32 31 30 29 28 27 26 25 24 23 44 43 42 41 40 39 38 37 36 35 34 AK4586VQ Top View XTO XTI/EXTCLK DVDD DVSS TVDD TX MCKO LRCK BICK SDTO SDTI1 SDTI2 SDTI3 INT0 INT1 CAD1/CDTO SDA/CDT1 SCL/CCLK CAD0/CSN DZF2/OVF AVSS AVDD RIN LIN ROUT1 LOUT1 ROUT2 LOUT2 ROUT3 LOUT3 DZF1 VCOM VREFH PDN RX1 I2C RX2 TST RX3 SLAVE RX4 PVSS R PVDD Audio I/F LPF LPF DAC DATT LPF DAC DATT LPF DAC DATT LPF DAC DATT LPF DAC DATT LOUT1 ROUT1 LOUT2 ROUT2 LOUT3 ROUT3 DAC DATT AK4586VQ ADC HPF ADC HPF RIN LIN SDTI1 SDTI2 SDTI3 MCLK SDOUT SDIN1 SDIN2 SDIN3 BICK LRCK Input Selector Clock Generator X'tal Oscillator uP I/F Clock Recovery DEM SDTO XTI XTO MCKO TX RX1 RX2 RX3 RX4 CSN CCLK CDTI CDTO DAIF Decoder No. Name I/O Description 1 XTO O Crystal oscillator output pin XTI I Crystal oscillator input pin EXTCLK I Master clock input pin 3 TVDD - Power supply pin for output buffer. 2.7V to 5.5V 4 DVSS - Digital ground pin 5 DVDD - Power supply pin for digital section. 4.5V to 5.5V 6 TX O Transmitter channel output pin 7 MCKO O Master clock output pin 8 LRCK I/O Input/Output channel clock pin 9 BICK I/O Audio serial data clock pin 10 SDTO O Audio serial data output pin 11 SDTI1 I Audio serial data input pin for DAC1 12 SDTI2 I Audio serial data input pin for DAC2 13 SDTI3 I Audio serial data input pin for DAC3 14 INT0 O Interrupter pin 0 15 INT1 O Interrupter pin 1 CDTO O Control data output pin (Serial mode) CADI I Chip address pin 1 (Bus mode) CDTI I Control data input pin (Serial mode) SDA I/O Control data input/output pin (Bus mode) CCLK I Control data clock pin (Serial mode) SCL I Control data clock pin (Bus mode) CSN I Chip select pin (Serial mode) CAD0 I Chip address pin 0 (Bus mode) DZF2 O Zero input detection pin 2 OVF O Overflow detection pin for analog input 21 AVSS - Analog ground pin 22 AVDD - Power supply pin for analog section. 4.5V to 5.5V 23 VREFH I Reference voltage input pin, AVDD 24 VCOM O Common voltage output pin, AVDD/2 25 DZF1 O Zero input detection pin 1 26 LOUT3 O DAC 3 left channel analog output pin 27 ROUT3 O DAC 3 right channel analog output pin 28 LOUT2 O DAC 2 left channel analog output pin 29 ROUT2 O DAC 2 right channel analog output pin 30 LOUT1 O DAC 1 left channel analog output pin 31 ROUT1 O DAC 1 right channel analog output pin 32 LIN I Left channel analog input pin 33 RIN I Right channel analog input pin 34 PVDD - PLL power supply pin. 4.5V to 5.5V 35 R - External resistor connection pin 36 PVSS - PLL ground pin 37 RX4 I Receiver channel input pin 4 38 SLAVE I Slave mode pin 39 RX3 I Receiver channel input pin 3 40 TST I Test pin 41 RX2 I Receiver channel input pin 2 42 I2C I Serial control mode select pin. Serial at H. 43 RX1 I Receiver channel input pin 1 44 PDN I Power down and reset pin 19 20 2 16 17 18 Block diagram driver control 6dB amp. video switch (4 input 1 output) 1 2 3 4 5 6 7 8 9 VIDEO OUT A B VIN1 GND VIN2 VCC VIN3 VIN4 S2 (2 pin) H L H L S3 (3 pin) H H L L VIN1 (4 pin) ON OFF OFF OFF VIN2 (6 pin) OFF ON OFF OFF VIN3 (8 pin) OFF OFF ON OFF VIN4 (9 pin) OFF OFF OFF ON LA7956(Video Switch) TX-SR501E AK4586VQ(96kHz 6ch CODEC) IC BLOCK GIAGRAMS AND DESCRIPTIONS Page 40 家电维修资料网 1 2 3 4 8 7 6 5 1A 3Y 2A GND Vcc 1Y 3A 2Y 1 2 3 4 5 6 7 14 13 12 11 10 9 8 1A 1Y 2A 2Y 3A 3Y GND Vcc 6A 6Y 5A 5Y 4A 4Y 1A 1Y 2A 2Y 3A 3Y GND 1 2 3 4 5 6 7 14 13 12 11 10 9 8 Vcc 6A 6Y 5A 5Y 4A 4Y (TOP VIEW) A L H Y H L Truth table TX-SR501/E IC BLOCK DIAGRAMS AND DESCRIPTIONS G1 A1 A2 A3 A4 A5 A6 A7 A8 GND 1 2 3 4 5 6 7 8 9 10 20 19 18 17 16 15 14 13 12 11 Vcc G2 Y1 Y2 Y3 Y4 Y5 Y6 Y7 Y8 Z Z H L X :Don't care Z :High impedance G1 H X L L G2 X H L L An X X H L OUTPUT INPUTS TC74VHC541FT(Octal bus buffer) TC7WU04FU(Triple inverter) TC7HTC7007AF(Hex buffer) 74HCU04F(Hex Inverter) TC74VHC574FT(Octal D-FF with 3-state output) OE D0 D1 D2 D3 D4 D5 D6 D7 GND 1 2 3 4 5 6 7 8 9 10 20 19 18 17 16 15 14 13 12 11 Vcc Q0 Q1 Q2 Q3 Q4 Q5 Q6 Q7 CK Z Qn L H X :Don't care Z :High impedance Qn :No change OE H L L L CK X D X X L H OUTPUT INPUTS Q0 19 D CK Q D0 2 D CK Q D1 Q1 3 18 D CK Q D2 Q2 4 17 D CK Q D3 Q3 5 16 D CK Q D6 Q6 8 13 D CK Q D7 Q7 9 12 D CK Q D5 Q5 7 14 D CK Q D4 Q4 6 15 CK OE 11 1 Page 41 家电维修资料网 Q7008 MPD784225 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 70 71 72 73 74 79 80 X7001 12.5MHz TMUT PLLCL PLLDA PLLSTB CTLB CTLA POWER SPF SPCS STEREO SD VMUT1 VMUT2 SEC1H SPB HPIN AMUT SELMUT HPMUT SELCK MCRST SELDA MCCLK SNONE MCMDA SWNONE MCSDA ADDR18 MCRDY DIRCS DSPCS ROM/RAM 232TXD A151 232RXD A161 A171 DSPSCK DSPDO DSPRST CDTO/SCDO INT1 INT0 DIRPD VOLH PROTECT POFF RDSSCK INTREQ1 RDSDATA RDSSIG TUNER UNIT Q801 DIR, 2CH A/D 6CH D/A CONVERTER AK4586 Q703 RAM Q702 BOOT ROM Q921 POWER RELAY SW RL901 Q203 COMPOSITE VIDEO SW Q212 C SIGNAL SW Q213 Y SIGNAL SW Q7001 RESET POWER FAILURE DET. Q181 RDS DECODER Q6701,2 DC DET. Q6703 GATE CIRCUIT Q6070~75 CURRENT DET. R6380,Q6303 THERMAL DETECTION CIRCUIT Q7502 SUB-MICRORPOCESSOR MPD70232GC Q701 DSP CS493292 39 40 6 7 8 9 10 P7501 HP JACK DET. SW Q7007,Q206 VIDEO 1 MUTE DRIVE CIRCUIT Q7006,Q205 VIDEO 2 MUTE DRIVE CIRCUIT 59 60 61 62 63 64 65 66 67 68 69 Q301 ANALOG SW VOLUME TONE BD3811K1 VOLTAGE SENSOR Q306 AUDIO MUTE GATE CIRCUIT Q307~Q313 AUDIO MUTE SW Q201,Q207,Q208 VIDEO 1 MUTE SW Q202,Q210,Q211 VIDEO 2 MUTE SW RL6600 RL6603, RL6604 RL6601 RL6901, RL6902 Q6901 +B SELECT RELAY SW Q6601 FRONT SP RELAY SW Q6603 SP B RELAY SW Q6602 CENTER/ SURROUND SP RELAY SW European model only Japanese model only Japanese model only Q241 COMPONENT VIDEO RELAY SW RL241,2 PROTHERM R6380 THERMAL DETECTOR Q323 VOLUME FOR SURROUND BACK BD3812F Except 120V model 75 76 77 78 INITIALIZING BAND CNPI TX-SR501/E MAIN MICROPROCESSOR-CONNECTION DIAGRAM TX-SR501/E A 1 2 3 4 B C D E Page 42 家电维修资料网 Q7502 SUB-MICROPROCESSOR UPD70232GC K1 21 K0 22 P45/FIP37 41 P44/FIP36 42 P43/FIP35 43 FIP19 61 ANI2 20 ANI3 19 AVDD 24 AVSS 18 FIP0 80 FIP1 79 FIP10 70 FIP11 69 FIP12 68 FIP13 67 FIP14 66 FIP15 65 FIP16 64 FIP17 63 FIP18 62 FIP2 78 FIP20 58 FIP21 57 FIP22 56 FIP23 55 FIP3 77 FIP4 76 FIP5 75 FIP6 74 FIP7 73 FIP8 72 FIP9 71 IC 5 P01/INTP1 16 P02/TI 17 P20/SCK3 14 P21/SO3 13 P22 12 P23 11 P24/BUSY 10 P25SO1 9 P26/SI1 8 P27/SCK1 7 P30/FIP24 54 P31/FIP25 53 P32/FIP26 52 P33/FIP27 51 P34/FIP28 50 P35/FIP29 49 P36/FIP30 48 P37/FIP31 47 P40/FIP32 46 P41/FIP33 45 P42/FIP34 44 P46/FIP38 40 P47/FIP39 39 P50/FIP40 38 P51/FIP41 37 P52/FIP42 36 P53/FIP43 35 P54/FIP44 34 P55/FIP45 33 P56/FIP46 32 P57/FIP47 31 P60/FIP48 30 P61/FIP49 29 P62/FIP50 28 SYSOUT 27 SYSIN 26 POO/INTP0 15 VDD0 25 VDD1 1 VDD2 59 VLOAD 60 VSS0 23 VSS1 2 X1 3 X2 4 RESET 6 Q7501 FL TUBE HNA-16MM39T Q7504 BUFFER S7627 FM MODE S7625 VIDEO2 S7624 VIDEO1 S7623 DVD S7622 AUDIO SEL S7621 DISPLAY S7626 VIDEO3 2.2K 330 1.2K 820 560 470 S7635 MEMORY S7634 TAPE S7633 TUNER S7632 CD S7631 SP ADJUST S7636 TUNING< S7637 TUNING< 330 470 560 820 1.2K 2.2K S7647 AUDIO ADJUST S7645 PRESET< S7644 DSP S7643 SURRO UND S7642 STEREO S7641 DIRECT S7646 PRESET> 2.2K 330 1.2K 820 560 470 S7615 SP-B S7614 STANDBY S7613 DIMMER S7612 SW MODE S7611 DIGITAL INPUT S7616 SP-A 330 1.2K 820 560 470 P282 K2 K3 U7501 SPS4441E1 IRF Q7506 D7505 STANDBY IND. K2 S7501 MAIN VOLUME Q7008 MAIN MICROPROCESSOR X7501 5MHZ OSC TX-SR501/E SUB-MICROPROCESSOR CONNECTION DIAGRAM TX-SR500/E A 1 2 3 4 B C D E Page 43 家电维修资料网 No. Terminal I/O Description 1 PROTECT I Protection circuit detection input terminal 2 VOLH I Power amplifier voltage detection terminal. 3 BAND I Region setting input terminal. 11 232TXD Not used. 15 MCRDY I Data ready detection input terminal from the sub microprocessor. 16 MCSDa I Data input terminal from the sub microprocessor. 17 MCMDA O Data output terminal to the sub microprocessor. 18 MCCLK O Serial clock output terminal to the sub microprocessor 19 ~MCRST O Reset signal output terminal to the sub microprocessor 20 HPMUT O Muting control output terminal for headphone amplifier. 21 HPIN I Input terminal to detect the connection of headphone 22 SPBRL O Speaker B relay control output terminal. 23 SEC1H O Voltage +/-B control output terminal. 24 SPACSRL O Speaker relay control output terminal for center and surround channels 25 SPAFRL O Speaker relay A control output terminal for front channels 26 POWERRL O Power source relay control output terminal 27 VCTRLA O Control signal A output terminal for the video selector switch 28 VCTRLB O Control signal B output terminal for the video selector switch 29 VMUT2 O Muting control output terminal for the video section 2 30 VMUT1 O 34 AMUT O Audio muting control output terminal 35 PLLSTB O Strobe signal output terminal to PLL IC 36 PLLSDO O Serial data output terminal to PLL IC 37 PLLCLK O Serial clock output terminal to PLL IC 38 TUMUT O Muting control output terminal for the tuner section 39 ~SD I Broadcast detection input terminal more than a muting level. 40 ~STEREO I FM stereo broadcast detection input terminal 41 SELMUT O Muting control output terminal for selector, volume and tone IC BD3811. 42 SELCLK O Serial clock output terminal of IC BD3811. 43 SELSDO O Serial data and latch signal output terminal for IC BD3811 44 SNONE O Not used. 45 SWNONE O Not used. 46 ADDR181 O 47 ~DIRCS O Chip select signal output terminal to DIR IC AK4586 48 ~DSPCS O Chip select signal output terminal to DSP IC. 49 ~ROM/RAM O ROM/RAM select terminal. Not used. 50 ADDR151 O DSP boot ROM address 15 select terminal. Not used. 51 ADDR161 O DSP boot ROM address 16 select terminal.Not used. 52 ADDR171 O DSP boot ROM address 17 select terminal.Not used. 53 DSPCLK O Serial clock output terminal for DIR and DSP ICs. 54 DSPSDO O Serial data output terminal for DIR and DSP ICs. 55 ~DSPRST O Reset signal output terminal to DSP IC. 56 CDTO/SCDO I Serial data input terminal from DIR and DSP ICs. 57 INT1 I Input terminal to detect the status of DIR IC. 58 INT0 I Input terminal to detect the unlock of DIR IC. 59 ~DIRPD O Power down terminal to DIR and CODEC ICs. 60 RESET I Reset input terminal 62 POFF I Power failure detection input terminal 64 ~INTREQ I/O Interrupter input terminal from DSP IC. 66 ~RDSCLK I RDS clock input terminal (European model only) 69 X2 Connect the ceramic oscillator 12.5MHz. 70 X1 Connect the ceramic oscillator 12.5MHz. 71 TEST/VPP Test terminal. 72,3 XT2,XT1 Not used. 76 RDSDATA I Data input terminal of RDS broadcast (European model only) 77 RDSSIG I Input terminal to check the signal of RDS broadcast (European model only) Muting control output terminal for the video section 1 31 CNPI O Componet video relay control output DSP boot ROM address 18 select terminal. Not used. 65 PROTHERM I Theraml detector input TX-SR501/E TERMINAL DESCRIPTION MAIN MICROPROCESSOR Page 44 家电维修资料网 Pin No. Symbol I/O Description Pin No. Symbol I/O Description 1 VDD Power supply terminal. Connect to 5V. 41 P22 O Segment output terminal of P22. 2 VSS Ground terminal. 42 P21 O Segment output terminal of P21. 3 X1 Ceramic oscillator connection terminals for main system. 43 P20 O Segment output terminal of P20. 4 X2 Connect the 5MHz ceramic oscillator between #3 and #4. 44 P19 O Segment output terminal of P19. 5 IC/VPP Internal connection terminal 45 P18 O Segment output terminal of P18. 6 ~RESET I System reset signal input terminal. 46 P17 O Segment output terminal of P17. 7 SUBCL/SCK I Clock input terminal to transmit the signal from main microprocessor. 47 P16 O Segment output terminal of P16. 8 SUBDO/SDI I Data input terminal to transmit the signal from main microprocessor. 48 P15 O Segment output terminal of P15. 9 SUBDI/SDD O Data output terminal to transmit the signal to main microprocessor. 49 P14 O Segment output terminal of P14. 10 SUBLDY O Data ready output terminal to transmit to the main microprocessor. 50 P13 O Segment output terminal of P13. 11 VBJ I Pulse input terminal from the rotary encoder of volume. 51 P12 O Segment output terminal of P12. 12 VAJ I Pulse input terminal from the rotary encoder of volume. 52 P11 O Segment output terminal of P11. 13 SSCBJ I Not used. 53 P10 O Segment output terminal of P10. 14 SSCAJ I Not used. 54 P9 O Segment output terminal of P9. 15 ~IRIN I Not used. 55 P8 O Segment output terminal of P8. 16 ~IRF I Signal input terminal from the remote controller. 56 P7 O Segment output terminal of P7. 17 STBYLED O Standby LED control output terminal. 57 P6 O Segment output terminal of P6. 18 AVSS Ground terminal for A/D converter. 58 P5 O Segment output terminal of P5. 19 K3 I Operation key connection terminal. 59 VDD2 Power supply terminal. Apply +5V. 20 K2 I Operation key connection terminal. 60 VLOAD Negative power supply terminal of FL controller. 21 K1 I Operation key connection terminal. 61 P4 O Segment output terminal of P4. 22 K0 I Operation key connection terminal. 62 P3 O Segment output terminal of P3. 23 VSS0 Ground terminal 63 P2 O Segment output terminal of P2. 24 AVDD Power supply terminal for A/D converter. 64 P1 O Segment output terminal of P1. 25 VDDD Power supply terminal. Apply +5V. 65 16G O Grid output terminal of 16G. 26 ~SYSIN I System code input terminal. 66 15G O Grid output terminal of 15G. 27 ~SYSOUT O System code output terminal. 67 14G O Grid output terminal of 14G. 28 P35 O Segment output terminal of P35. 68 13G O Grid output terminal of 13G. 29 P34 O Segment output terminal of P34. 69 12G O Grid output terminal of 12G. 30 P33 O Segment output terminal of P33. 70 11G O Grid output terminal of 11G. 31 P32 O Segment output terminal of P32. 71 10G O Grid output terminal of 10G. 32 P31 O Segment output terminal of P31. 72 9G O Grid output terminal of 9G. 33 P30 O Segment output terminal of P30. 73 8G O Grid output terminal of 8G. 34 P29 O Segment output terminal of P29. 74 7G O Grid output terminal of 7G. 35 P28 O Segment output terminal of P28. 75 6G O Grid output terminal of 6G. 36 P27 O Segment output terminal of P27. 76 5G O Grid output terminal of 5G. 37 P26 O Segment output terminal of P26. 77 4G O Grid output terminal of 4G. 38 P25 O Segment output terminal of P25. 78 3G O Grid output terminal of 3G. 39 P24 O Segment output terminal of P24. 79 2G O Grid output terminal of 2G. 40 P23 O Segment output terminal of P23. 80 1G O Grid output terminal of 1G. TX-SR501/E TERMINAL DESCRIPTION SUB MICROPROCESSOR TX-SR501/E Page 45 家电维修资料网 TX-SR501/E ADJUSTMENT AND CONFIRMATION PROCEDURES 1 NCAF-7966 P6301 L R C LS ID- ID+ R6040 P6080 BIAS ID- ID+ R6041 P6081 BIAS ID- ID+ P6082 BIAS ID- ID+ R6043 P6083 BIAS ID- ID+ R6044 P6084 BIAS ID- ID+ R6045 P6085 P6302 H/L SWITCH SHUTDOWN RS SB R6042 Idling current adjustment Before Idling adjustment, turn the trimming resistors R6040,R6041,R6042,R6043 and R6044 to counter clockwise. Connect the DC voltmeter to sockets P6080,P6081,P6082,P6083,P6084 and P6085. After turn POWER to ON, adjust the trimming resistors R6040,R6041 and R6042 so that the reading of voltmeter becomes 2.5 mV. (Front and center channels) Adjust the trimming resistors R6043, R6044 and R6045 so that the reading of After adjustment, attach the top cover. voltmeter becomes 1.5 mV. (Surround and surround back channels) Confirm the voltage of points above after about five minutes. Front and center channels When less than 7.0 mV, readjust the resistors above so that the voltage becomes 7.0 mV. When 7.0 mV to 9.0 mV, you are not necessary to adjust. When more than 9.0 mV, readjust the resistors above so that the voltage becomes 9.0 mV. Surround and surround back channels When less than 4.0 mV, readjust the resistors above so that the voltage becomes 4.0 mV. When 4.0 mV to 6.0 mV, you are not necessary to adjust. When more than 6.0 mV, readjust the resistors above so that the voltage becomes 6.0 mV. Note: No load and No signal Confirmation of protection circuit 1. Confirmation of operation of speaker relay Confirm that the speaker relays turn ON approximate. 5 seconds after the power switch is turned ON. Confirm that the speaker relays turn OFF immediately after the power switch is turned OFF. 2. Confirmation of DC detection circuit Press and hold down CD button, then press STANDBY/ON and DVD buttons to set the unit to "TEST-1" mode. After "TEST-1" on the FL tube light on, press SPEAKER B button to set the unit to "TEST-1-00". Apply DC 1.5 to 3V to DVD INPUT terminal with no load. Confirm that the speaker relay turns OFF. Apply DC -1.5 to -3V to DVD INPUT terminal with no load. Confirm that the speaker relay turns OFF. Caution: Don't apply DC voltage more than 1 sec.. Note: When surroun back channel, confirm at "TEST-1-01". L R R L ANTENNA FM 75 AM FRON SPEA FRONT SPEAKERS B R L REMOTE CONTROL IN IN IN OPTICAL COAXIAL 1 2 IN IN IN IN FRONT SURR CENTER SUB WOOFER OUT OUT OUT DIGITAL INPUT VIDEO 2 VIDEO 1 DVD MONITOR OUT VIDEO S VIDEO DVD TAPE CD L R VIDEO 2 VIDEO 1 SUBWOOFER PRE OUT VIDEO 1/2/3 IN DVD IN COMPONENT VIDEO Y PB PR OUT L R Apply the DC voltage at these terminals. Page 46 家电维修资料网 TX-SR501/E ADJUSTMENT AND CONFIRMATION PROCEDURES 2 3. Confirmation of Current detection circuit Set the unit to "TEST-1-00". Connect the differentiating circuit and apply the 200Hz square signal to DVD INPUT terminal of each channel. Adjust the attenuator or Volume so that the output level becomes 35V p-p. Confirm that the speaker relay does not turn OFF when a 3.0 ohm load is connected. Confirm that the speaker relay turn on when a 1.5 ohm load is connected. Caution:Don't continue more than 3 seconds. CR OSCILLATOR DIFFEREN- TIATING CIRCUIT ATTENU- ATOR UNIT SPEAKER TERMINAL DVD INPUT INPUT OUT- PUT 3.3k 10k 1SS133 3.3k GND 0.01 F 0.1 F OSCILLO- SCOPE Differentiating Circuit 200Hz SQUARE 35Vp-p Test Mode 1. Turn POWER button on. 2. Press and hold down CD button, then press STANDBY/ON button. 3. After "TEST-" on the FL tube is displayed, press CD button to set the unit to the test mode of FL tube. Note: DVD:TEST-1 VIDEO 1 :TEST-2 SP-B or SUBWOOFER MODE: UP VIDEO 2 :TEST-3 VIDEO 3:TEST-4 SP-A or DIGITAL INPUT: DOWN Test-X YZ Item FL TUBE The segments of odd number light on . All segments light on. "FEDCBA987654321" light on. Test mode of FL tube SP-B SP-A Press POWER button to finish the test mode of FL tube. **: Region US:U.S.A. EU:Europe WR:Other models The segments of even number light on . Confirmation of voltage sensor and thermal protect 1. Set the unit to TEST-3-03. 2. Apply the signal 1kHz, -15dBV to the DVD terminal input. Confirm that the FM STEREO on FL tube light on. Confirm the all channels except SUBWOFFER. 3. When connect the resistor 2.7 kohm/1 W between the terminals COM and TH1 of P6301, confirm that "MEMORY" light on. Note: No input signal. Except 120V model. 4.When set the unit to "TEST-4-33,confirm that the speaker relays of RL6901 and RL6902 turn off. Note: No input signal. S D o F o C o B o R U S A W R - - E U Tuner R:Yes A:No D:Optical 2 F:Front video C:Component video B:Surround back :Yes :No Page 47 家电维修资料网 Front Left Front Left SP-B / Zone 2 Left SP-B / Zone 2 Left Surround Right Surround Right Surround Back Right Surround Back Right Zone 2 Right Zone 2 Right Front Left Front Left SP-B / Zone 2 Left SP-B / Zone 2 Left Front Right Front Right SP-B / Zone 2 Right SP-B / Zone 2 Right Front Right Front Right SP-B / Zone 2 Right SP-B / Zone 2 Right Surround Right Surround Right Center Center Center Center Surround Left Surround Left Surround Left Surround Left Surround Back Right Surround Back Right Zone 2 Right Zone 2 Right Surround Back Left Surround Back Left Zone 2 Left Zone 2 Left Surround Back Left Surround Back Left Zone 2 Left Zone 2 Left 1 2 3 Speaker Cable TX-SR501/E PACKING PROCEDURES Accessary bag (120V models) 85 83 88 89 90 93 86 71 71 72 73 73 75 81 76 77 74 74 87 75 Except 120V model Printed matters (Other models) Accessary bag (Other models) (Canadian model only) Put the label 81 between page 2 and page 3 of instruction manual E. Put the label 81 between page 2 and page 3 of instruction manual E. 88 89 90 91 92 Front Left Front Left SP-B / Zone 2 Left SP-B / Zone 2 Left Surround Right Surround Right Surround Back Right Surround Back Right Zone 2 Right Zone 2 Right Front Left Front Left SP-B / Zone 2 Left SP-B / Zone 2 Left Front Right Front Right SP-B / Zone 2 Right SP-B / Zone 2 Right Front Right Front Right SP-B / Zone 2 Right SP-B / Zone 2 Right Surround Right Surround Right Center Center Center Center Surround Left Surround Left Surround Left Surround Left Surround Back Right Surround Back Right Zone 2 Right Zone 2 Right Surround Back Left Surround Back Left Zone 2 Left Zone 2 Left Surround Back Left Surround Back Left Zone 2 Left Zone 2 Left 1 2 3 Speaker Cable 84 83 85 81 Bottom Top Top 79 Page 48 家电维修资料网
