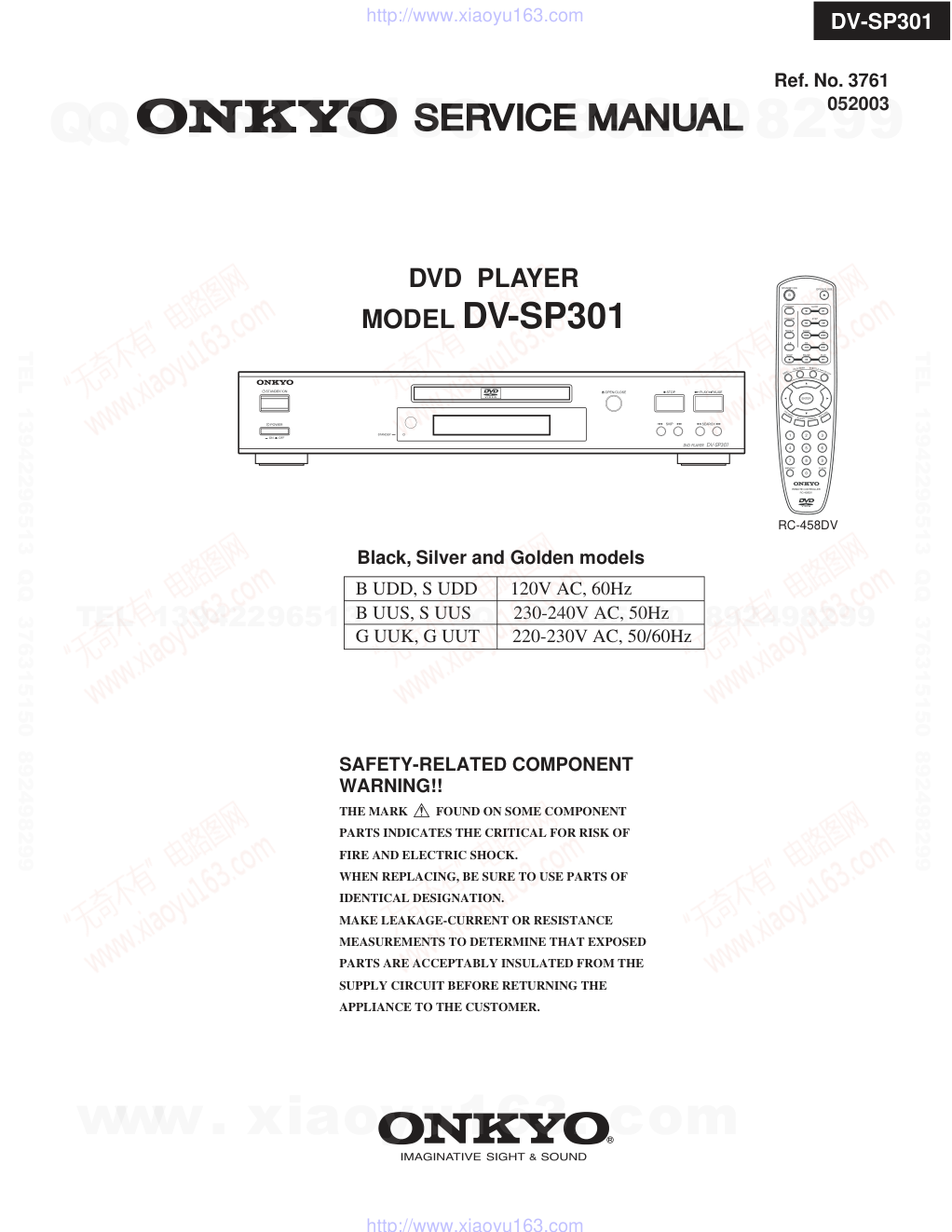

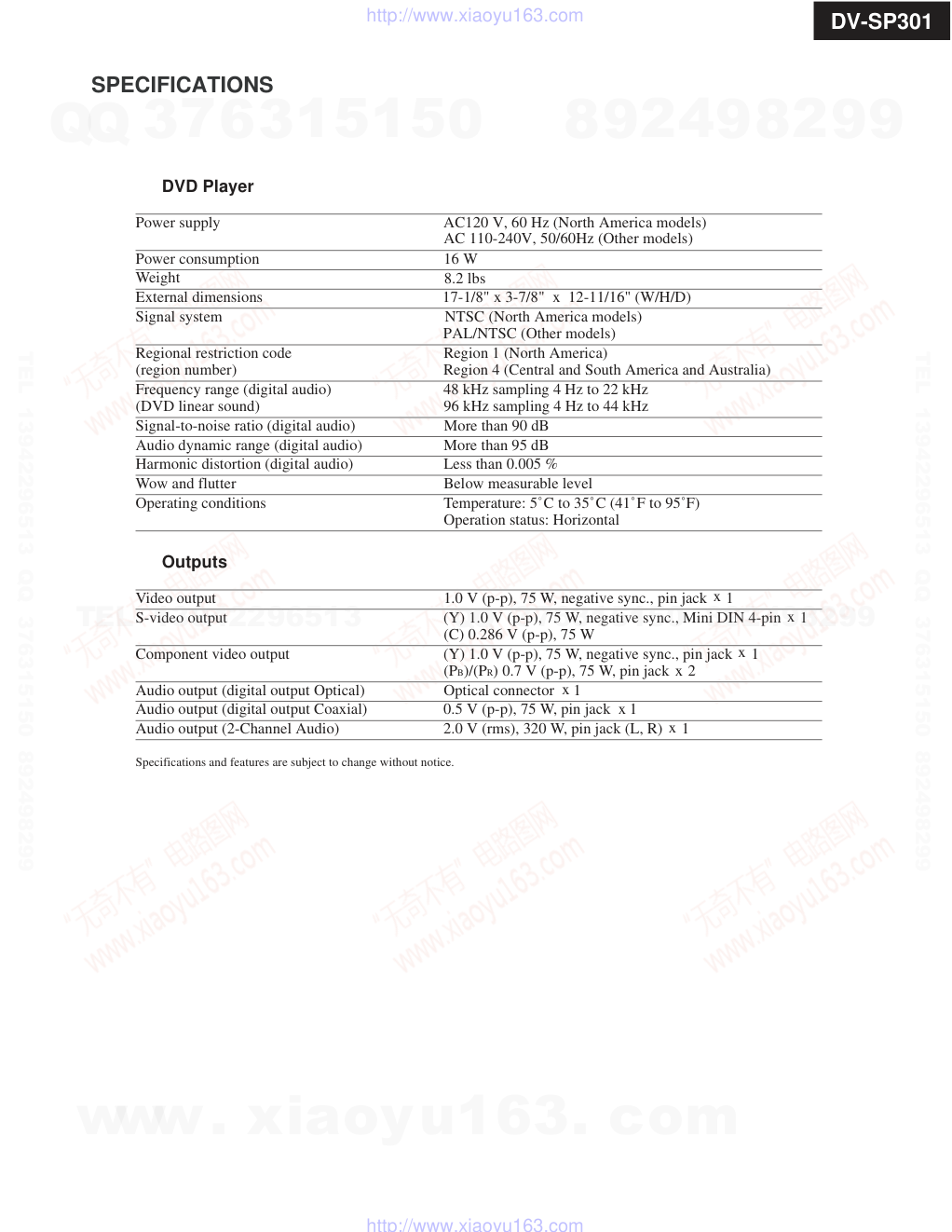

DV-SP301 SERVICE MANUAL SERVICE MANUAL DVD PLAYER Black, Silver and Golden models MODEL DV-SP301 Ref. No. 3761 052003 B UDD, S UDD 120V AC, 60Hz B UUS, S UUS 230-240V AC, 50Hz G UUK, G UUT 220-230V AC, 50/60Hz RC-458DV SAFETY-RELATED COMPONENT WARNING!! THE MARK FOUND ON SOME COMPONENT PARTS INDICATES THE CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK. WHEN REPLACING, BE SURE TO USE PARTS OF IDENTICAL DESIGNATION. MAKE LEAKAGE-CURRENT OR RESISTANCE MEASUREMENTS TO DETERMINE THAT EXPOSED PARTS ARE ACCEPTABLY INSULATED FROM THE SUPPLY CIRCUIT BEFORE RETURNING THE APPLIANCE TO THE CUSTOMER. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-SP301 SPECIFICATIONS DVD Player Power supply AC120 V, 60 Hz (North America models) Power consumption 16 W Weight External dimensions Signal system Regional restriction code Region 1 (North America) (region number) Region 4 (Central and South America and Australia) Frequency range (digital audio) 48 kHz sampling 4 Hz to 22 kHz (DVD linear sound) 96 kHz sampling 4 Hz to 44 kHz Signal-to-noise ratio (digital audio) More than 90 dB Audio dynamic range (digital audio) More than 95 dB Harmonic distortion (digital audio) Less than 0.005 % Wow and flutter Below measurable level Operating conditions Temperature: 5˚C to 35˚C (41˚F to 95˚F) Operation status: Horizontal Outputs Video output 1.0 V (p-p), 75 W, negative sync., pin jack 1 S-video output (Y) 1.0 V (p-p), 75 W, negative sync., Mini DIN 4-pin 1 (C) 0.286 V (p-p), 75 W Component video output (Y) 1.0 V (p-p), 75 W, negative sync., pin jack 1 (PB)/(PR) 0.7 V (p-p), 75 W, pin jack 2 Audio output (digital output Optical) Optical connector 1 Audio output (digital output Coaxial) 0.5 V (p-p), 75 W, pin jack 1 Audio output (2-Channel Audio) 2.0 V (rms), 320 W, pin jack (L, R) 1 Specifications and features are subject to change without notice. AC 110-240V, 50/60Hz (Other models) 8.2 lbs 17-1/8" x 3-7/8" x 12-11/16" (W/H/D) NTSC (North America models) PAL/NTSC (Other models) x x x x x x x www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FFC Short land DV-SP301 SERVICE PROCEDURE REPLACING THE FUSES SAFETY CHECK (Only U.S.A. model) After correcting the original service problem perform the following safety check before releasing the set to the customer Connect the insulating-resistance tester between the plug of power supply cord and terminal GND on the back panel. Specifications: More than 10M ohm at 500V The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instruction in the literature accompanying the appliance. RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING AVIS RISOUE DE CHOC ELECTRIQUE NE PAS OUVRIR This unit contains a semiconductor laser system and is classified as a “CLASS 1 LASER PRODUCT”. So, to use this model properly, read this Instruction Manual carefully. In case of any trouble, please contact the store where you purchased the unit. To prevent being exposed to the laser beam, do not try to open the enclosure. CAUTION: VISIBLE LASER RADIATION WHEN OPEN AND INTERLOCK FAILED OR DEFEATED. DO NOT STARE INTO BEAM. CAUTION: THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. The label on the right is applied on the rear panel except for USA and Canadian models. 1. This unit is a CLASS 1 LASER PRODUCT and employs a laser inside the cabinet. 2. To prevent the laser from being exposed, do not remove the cover. Refer servicing to qualified personnel. “CLASS 1 LASER PRODUCT” LASER CAUTION CAUTION VISIBLE AND INVISIVLE LASER RADIATION WHEN OPEN DO NOT STARE INTO THE BEEM OR VIEW DIRECTLY WITH OPTICAL INSTRUMENTS. DO NOT PRESS ON THIS SURFACE 1.Remove the solder of Laser Diode shorting 1-1 Remove the bracket magnet. 1-2 Shorting the short land with solder. 1-3 Remove the FFC (CC21) and other connectors. 2. Factory setting (Initial setting) 2-1 Push the power switch "ON" (Mechanical switch) 2-2 Press the [STOP] and [STANDBY ON] keys at same time, and it waits until the display of FL tube will be the display of "No Disc" from "Loading". F1 0215002_M Fuse, 250V 2A CIRCUIT NO. PART NO. DESCRIPTION www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Bottom side Fig-1 DV-SP301 SERVICE PROCEDURE-2 Replace the DVD mechanism 1. Remove the top cover (six screws) 2. Remove two screws of both side of front panel. 3. Remove the bracket mecha. (two screws). 4. Shift the cam slider on bottom side. (See Fig-1) 5. Remove the tray. 6. Remove FFC, connector and one screw (Mecha. GND wire). 7. A tray is drawn out extending a nail. (See Fig-2) 8. Remove two screws (3 x 6 upper side) and two screws (3 x 8 bottom side). www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-SP301 EXPLODED VIEW CHASSIS 36 36 7 11 10 9 8 7 6 5 4 3 2 1 16 15 S7 x 8 S8 17 18 S8 17 18 S8 17 18 S8 x 2 S8 17 18 19 20 S2 x 4 19 S2 x 5 22 23 24 25 26 27 28 S4 x 11 29 30 UUS4P & UUT3P 30 UUK3P 30 UUD1N S5 x 3 S2 x 2 31 32 S3 x 2 33 S1 x 2 34 S2 x 2 35 S7 x 3 S6 S9 12 13 S9 37 x 3 S3 x 2 S3 x 2 S1 S2 S3 S4 S5 S6 S7 S8 S9 3 x 6Y BK/BH 3 x 8 ZNY/BH 3 x 10 BK/BH 3 x 8 Silver/BH 3 x 10 BK/BH DOT 3 x 18 W/Washer 3 x 10 BK/BH 3 x 8 W/Washer 2.6 x 8 ZNY/PH 3 x 10 BK/BH 3 x 8 BK/FH SCREW 14 CC24 CN25 CN81 CC21 To Mecha. CATION 41 40 x 3 NOTE: : Black color : Silver color : Golden color F1 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-SP301 EXPLODED VIEW Yoke pick 10698670 Pick load 10765150 Label caution 2 TD 10763260 Gear cover 10727240 Bracket magnet 2 10763050 Gear compound 10775110 Gear pulley 10775120 Belt 28 10778340 Belt wheel (10775090) Spring slider 10727210 Cam slider 1072725A Tray 10793320 Motor DC MSN5E358A (20581790) Screw 2.6 x 4mm 20349530 Drive moment 12N.cm (+/-2N.cm) Apply screw lock (0.022g) Screw 2.6 x 4mm 20349530 Felt 10738740 Felt 10738740 Gear pin 1 10778520 Gear pin 2 10783720 Bracket support 1072717A DVD MECHANISM-1 (TVM503R6) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-SP301 Cushion mounting Screw 10742170 Bracket DVD 10727260 Cushion 8 10741230 Main plate Felt position 10738740 On bracket support: In the groove of Bracket DVD rotation axle going half outside the groove On Cam slider Belt wheel mounting Belt wheel (10775090) Motor (20581790) 3.1 +/- 0.1 EXPLODED VIEW DVD MECHANISM-2 (TVM503R6) Bracket DVD 10727260 TVM503 R-6 10724940 4 x Cushion 8 10741230 4 x Screw shoulder 2 x 14.7mm 10742170 Driver moment 28N.cm (+/-3N.cm) 2 x Screw-ST 3mm x 10mm 205835800 Driver moment 25N.cm (+/- 2N.cm) Motor assy part no. 10840810 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-SP301 E F G H CLK UDQM/LDQM/ CA/CAS/RAS/WE SMI_ADD (01:13) SMI_DATA (01:15) CPU_ADD (01:18) CPU_DATA (01:14) W/E/G/RP BYTE/RB SDIDEM MCLK SERIAL INTERFACE (BCKIN/LRCIN/DIN) MODE/LAT12S/SCKDSD/CSBIWL VOUTL VOUTR AUDIO_OUT_L AUDIO_OUT_R SPDIF_OUT (Y) LUMINANCE_OUT (Cb) BLUE_OUT (Cr) RED_OUT COMPOSITE_OUT CHROMINANCE_OUT LUMINANCE_OUT Y Cb Cr S C Y www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com BLOCK DIAGRAM OVERALL DV-SP301 IIC DATA IIC CLK A 1 2 3 4 5 B C D OPEN/CLOSE SLIDE_IN SLIDE_OUT LO_MO- LO_MO+ IIC DATA IIC CLK SXX_INT DVD_RESET BCLK DATA PACKCLK S_START VFD_CONTROL +FL5V -FL27V -FL5V +5V6S +9VA -9VA +3V5D +5VD +9V_MOTOR A_D_M_GND www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-SP301 BLOCK DIAGRAM OVERALL DV-SP301 IIC DATA IIC CLK A 1 2 3 4 5 B C D E F G H OPEN/CLOSE SLIDE_IN SLIDE_OUT LO_MO- LO_MO+ IIC DATA IIC CLK SXX_INT DVD_RESET BCLK DATA PACKCLK S_START VFD_CONTROL CLK UDQM/LDQM/ CA/CAS/RAS/WE SMI_ADD (01:13) SMI_DATA (01:15) CPU_ADD (01:18) CPU_DATA (01:14) W/E/G/RP BYTE/RB SDIDEM MCLK SERIAL INTERFACE (BCKIN/LRCIN/DIN) MODE/LAT12S/SCKDSD/CSBIWL VOUTL VOUTR AUDIO_OUT_L AUDIO_OUT_R SPDIF_OUT (Y) LUMINANCE_OUT (Cb) BLUE_OUT (Cr) RED_OUT COMPOSITE_OUT CHROMINANCE_OUT LUMINANCE_OUT Y Cb Cr S C Y +FL5V -FL27V -FL5V +5V6S +9VA -9VA +3V5D +5VD +9V_MOTOR A_D_M_GND w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-SP301 BLOCK DIAGRAM OUTPUT TERMINAL CIRCUIT To Power supply POWER SUPPLY To DVD Main circuit To Main PCB To Display PCB www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-SP301 BLOCK DIAGRAM DVD MAIN CIRCUIT 8 2 6 5 6 FAN8082 MOTOR_DRIVE LOGIC_SW PRE_DRIVE DRIVE_OUT IC23 LOADING_MOTOR M CP28:02PIN CP28:01PIN IC22 IC-EEPROM M24C02WMN6 SDA SCL 5 6 194 195 IIC DATA IIC CLK IIC_DATA IIC_CLK 192 193 196 SLIDE_SEN(O/C) SLIDE_IN SLOIDE_OUT 19 18 16 17 13 127 195 194 SECTOR_START EXT_DATA EXT_BCLK BIT_CLK DVD_RESET DXX_INTERRUPT IIC_CLK IIC_DATA 10 188 191 190 189 IR_REMOCON VFD_STB DATA_IN DATA_OUT VFD_CLOCK 57 44 41 42 45 51 56 52 55 208 34 33 32 27 26 25 2 CV_OUT C_OUT Y_OUT AUDIO_MUTE Cr_OUT G(Y)_OUT Cb_OUT VIDEO_MUTE RESET 120 PIX_CLK CPU_BE CPU_CE CPU_OE F_RESET 128 132 117 124 82 95 74 76 77 78 80 79 SMI_CLKIN SMI_CLKOUT /CS /RAS /CAS /WE UDQM LDQM 38 19 18 17 16 39 15 SMI_CLKOUT /CS /RAS /CAS /WE UDQM LDQM IC31 IC-DRAM HY57V561620BTC-8 125M 64M (1M*16*4) IC41 IC-MEMFLASH M29W800DT70N1 11 26 28 12 /W /E /G /RP /W /E /G /RP +5VA +5VD +9VM +3V3D +1V8D 20 19 18 15 CONTROL INTERFACE 8 11 VOUT R VOUT L IC61 IC-CONV WN8728 D/A 3 1 2 4 PCM_BCK DAC_LRCLK DAC_PCM_DATA DAC_PCM_CLK IC21 IC-VIDEO PROC STI5589 MPEG VIDEO DECODER To PICK_UP To DISPLAY PCB POWER SUPPLY 3 1 To OUT To OUT IC51 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-SP301 BLOCK DIAGRAM DISPLAY CIRCUIT From Power supply unit To Output Terminal To Main circuit IC91 IC-DISPLAY uPD16311GC-AB6 HIGH VOLTAGE DRIVER FL91 VFD_012BT159GNK RM91 38KHz www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-SP301 SCHEMATIC DIAGRA MAIN CIRCUIT PC BOARD DV-SP301 A 1 2 3 4 5 B C D E F G H L501 B-1K(S) D3V3 100N-05 C504 R503 1M-05 0R-03 R511 0R-03 R512 C505 470/6.3 IC51 IC-M74HCU04M1R 1 2 3 4 5 6 7 A0 O0 A1 O1 A2 O2 GND VCC A3 O3 A4 O4 A5 O5 14 13 12 11 10 9 8 R502 56R-05 X501 27M0 C502 22P-05 C503 22P-05 +3.3VM R416 1K-05 C407 100N-05 B-1K(S) R415 R413 47K-05 IC41 IC-M29W800AT90N1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 A15 A14 A13 A12 A11 A10 A9 A8 NC NC WE RP NC NC RY/BY A18 A17 A7 A6 A5 A4 A3 A2 A1 A16 BYTE VSS DQ15 DQ7 DQ14 DQ6 DQ13 DQ5 DQ12 DQ4 VCC DQ11 DQ3 DQ10 DQ2 DQ9 DQ1 DQ8 DQ0 QE VSS CE A0 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 R411 0R-03 R412 0R-03 F_ADDR19 F_ADDR18 F_ADDR08 F_ADDR07 F_ADDR06 F_ADDR05 F_ADDR04 F_ADDR03 F_ADDR02 F_ADDR16 F_ADDR15 F_ADDR14 F_ADDR13 F_ADDR12 F_ADDR11 F_ADDR10 F_ADDR09 F_ADDR20 F_ADDR01 R411 0 Ohm NC NC R412 NC 0 Ohm NC ST 16M ATMEL 16M ST 8M +5V6S 100N-03 C225 IC22 IC-M24C02WMN6 1 2 3 4 E0 E1 E2 VSS 8 7 6 5 VDD WC SCL SDA GND 10R-03 R266 27K-03 R269 R267 47R-05 R268 47R-05 2K7-03 R270 J511 0R-03 J512 0R-03 CHGND Q203 KTC3875S R325 68K-03 1N4148 D203 R324 10K-05 R326 10K-05 R329 22R-05 R330 22R-05 1N414B D204 5K6-05 R331 C253 10/16 R332 1K8-05 Q204 KTA1504(S) 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200 201 202 203 204 205 206 207 208 CPU_DATA(14) CPU_DATA(15) VDD3_3 VSS CPU_ADR(1) CPU_ADR(2) CPU_ADR(3) CUP_ADR(4) CUP_ADR(5) CPU_ADR(6) CUP_ADR(7) CUP_ADR(8) CPU_ADR(9) CPU_ADR(10) VDD2_5 VSS CUP_ADR(11) CPU_ADR(12) CPU_ADR(13) CPU_ADR(14) CPU_ADR(15) CPU_ADR(16) CPU_ADR(17) CPU_ADR(18) CPU_ADR(19) CPU_ADR(20) CPU_ADR(21) VDD_3 VSS PIO0(0) T_SROBE PIO0(1) MOD_SW PIO0(2) VFD_STB PIO0(3) VFD_CLK PIO0(4) VFD_DATA_OUT PIO0(5) VFD_DATA_IN PIO0(6) SLIDER_SENSOR_OPEN/CLOSE (DRAWER_POSITION_P PIO0(7) SLIDER_IN(DRAWER_CCW_CTRL) PIO1(0) SDA PIO0(1) SCL PIO1(2) SLIDER_OUT (DRAWER_CW_CTRL) PIO1(3) TXD (JIG) VDD_5 VSS PIO1(4) RXD (JIG) PIO1(5) FRONT_TXD1 TRIGGER_IN TRIGGRER_OUT PIO2(0) H/P_IND PIO2(1) FRONT_RXD PIO2(2) MIC_DET PIO2(3) MIC_MUTE PIO2(4) AUDIO_MUTE 156 155 154 153 152 151 150 149 148 147 146 145 144 143 142 141 140 139 138 137 136 135 134 133 132 131 130 129 128 127 126 125 124 123 122 121 120 119 118 117 116 115 114 113 112 111 110 109 108 107 106 105 CPU_DATA(13) CPU_DATA(12) CPU_DATA(11) CPU_DATA(10) CPU_DATA(9) CPU_DATA(8) VSS VDD2_5 CPU_DATA(7) CPU_DATA(6) CPU_DATA(5) CPU_DATA(4) CPU_DATA(3) CPU_DATA(2) CPU_DATA(1) CPU_DATA(0) CPU_CAS1 CPU_CAS0 CPU_RAS1 VSS VDD3_3 CPU_CE(0) CPU_CE(1) CPU_CE(2) CPU_CE(3) CPU_WAIT CPU_RW CPU_BE(1) CPU_BE(0) IRQ(0) IRQ(1) IRQ(2) RESET VSS_PLL VDD_PLL VSS PIX_CLK VDD2_5 CPU_PROCLK CPU_OE PWM0 PWM1 PWM2 TCK TDI TDO TMS TRST VSS VDD3_3 ADC_PCMCLK ADC_DATA 104 103 102 101 100 99 98 97 96 95 94 93 92 91 90 89 88 87 86 85 84 83 82 81 80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 60 59 58 57 56 55 54 53 ADC_LRCLK ADC_SCLK SMI_DATA(15) SMI_DATA(14) SMI_DATA(13) SMI_DATA(12) SMI_DATA(11) SMI_DATA(10) VSS SMI_CLKOUT VDD2_5 SMI_DATA(9) SMI_DATA(8) SMI_DATA(7) SMI_DATA(6) SMI_DATA(5) SMI_DATA(4) SMI_DATA(3) SMI_DATA(2) SMI_DATA(1) SMI_DATA(0) VSS SMI_CLKIN VDD3_3 SMI_DQMU SMI_DQML SMI_WE SMI_CAS SMI_RAS SMI_CS(1) SMI_CS(0) SMI_ADE(13) SMI_ADR(12) SMI_ADR(11) SMI_ADR(10) SMI_ADR(0) SMI_ADR(1) SMI_ADR(2) SMI_ADR(3) VSS VDD2_5 SMI_ADR(9) SMI_ADR(8) SMI_ADR(7) SMI_ADR(6) SMI_ADR(5) SMI_ADR(4) SPDIF_OUT (LRCIN) DAC_LRCLK (MCLK) DAC_PCMCLK DAC_PCMOUT2 DAC_PCMOUT1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 PIO2(5) RGB_SEL PIO2(6) VIDEO_MUTE PIO2(7) 16:9_INDICATOR VDD3_3 VSS PIO3(0) SCART_H (TV/AUX) PIO3(1) PIO3(2) PIO3(3) PIO3(4) IR (REMOCON) PIO3(5) PIO3(6) PIO3(7) DVD_RESET VDD2_5 VSS B_DATA B_BCLK B_FLAG B_SYNC B_WCLK B_V4 NRSS_OUT VDD_RGB VSS_RGB B_OUT G_OUT R_OUT V_REF_RG I_REF_RG VDD_YCC VSS_YCC Y_OUT C_OUT CV_OUT V_REF_YC I_REF_YC VDD2_5 VSS PIO4(0) H/P_MUTE PIO4(1) PIO4(2) DAC_SCKDSO PIO4(3) DAC_SDIDEM PIO4(4) DAC_MUTEB PIO4(5) DAC_LAT12S PIO4(6) DAC_CSBIWL PIO4(7) DAC_ZERO VDD3_3 VDD_PCM VSS_PCM VSS DAC_SCLK (BCK) DAC_PCMOUT0 (DATA) FPC-ST-27P (GF120) CP24 1 2 3 4 5 6 7 8 9 10 LRCIN DIN BCKIN MCLK ZERO DGND DVDD VOUTR AGND AVDD 20 19 18 17 16 15 14 13 12 11 LAT12S SCKDSD SDIDEM MUTEB MODE CSBIWL VREFP VREFN VMID VOUTL 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15. TRIGOUT TRIGIN GND (option) TMS GND TCK GND TDI GND TDO +5VD TXD (JIG) RXD (JIG) JTAG_RST/ TRST 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 JTAG TEST CONNECTION To Output terminal PC board 27. 26. 25. 24. 23. 22. 21. 20. 19. 18. 17. 16. 15. 14. 13. 12. 11. 10. 9. 8. 7. 6. 5. 4. 3. 2. 1. A_L A_GND A_R +5VA RI CROMA(C) A_GND CVBS A_GND LUMA(Y) A_GND B(Pb) A_GND G(Y) A_GND R(Pr) A_GND V_MUTE P/RESET A_GND A_MUTE 3V3D +5VD D_GND +1V8VM +9VM M_GND 27. 26. 25. 24. 23. 22. 21. 20. 19. 18. 17. 16. 15. 14. 13. 12. 11. 10. 9. 8. 7. 6. 5. 4. 3. 2. 1. IC21 STI5589 INVERTER Motor Driver Sub EPROM From Main PCB to Pick up CP28 CP-2.5-ST-02P(XH) 100N-05 C251 1 2 IC23 IC-FAN8082 R322 470R-05 UZ5V6 D201 R327 10K-05 R323 5K6-05 1/50 C252 1 2 3 4 8 7 6 5 VO2 PVCC SVCC VIN2 GND VO1 VCTL VIN1 R328 10K-05 D202 RB441Q R338 0R-05 R337 0R-05 R336 0R-03 R333 47K-03 +5V_DIGI_VCC +8V_MOTOR_LOADING_VCC L207 22UH-05 C254 100/16 F_ADDR [01:21] F_ADDR01 F_ADDR02 F_ADDR03 F_ADDR04 F_ADDR05 F_ADDR06 F_ADDR07 F_ADDR08 F_ADDR09 F_ADDR10 F_ADDR11 F_ADDR12 F_ADDR13 F_ADDR14 F_ADDR15 F_ADDR16 F_ADDR17 F_ADDR18 F_ADDR19 F_ADDR20 R407 R408 R409 R410 47R-03 47R-03 47R-03 47R-03 RA48 47Rx4 RA47 47Rx4 1 2 1 2 RA46 47Rx4 RA45 47Rx4 1 2 1 2 R262 47R-03 R263 47R-03 100N-05 C403 100N-05 C224 R289 47R-03 R290 47R-03 R264 75R-03 R265 75R-03 TRIGIN TRIGOUT GND 47R-03 R223 L209 2U2H-05 100/10 C232 100N-05 C201 2U2H-05 L208 100R-03 R221 100R-05 R201 100R-05 R202 100R-05 R203 100R-05 R204 10P-05 C235 10P-05 C244 10P-05 C243 10P-05 C242 GND R1 1k R3 100K F_ADDR17 (BLANK) GND 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 VCC DQ0 VCCQ DQ1 DQ2 VSSQ DQ3 DQ4 VCCQ DQ5 DQ6 VSSQ DQ7 VCC LDQM WE CAS RAS CS BA0 BA1 A10 A0 A1 A2 A3 VCC VSS DQ15 VSSQ DQ14 DQ13 VCCQ DQ12 DQ11 VSSQ DQ10 DQ9 VCCQ DQ8 VSS NC UDQM CLK CKE NC A11 A9 A8 A7 A6 A5 A4 VSS 54 53 52 51 50 49 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-SP301 E F G H TION_P 143 142 141 140 139 138 137 136 135 134 133 132 131 130 129 128 127 126 125 124 123 122 121 120 119 118 117 116 115 114 113 112 111 110 109 108 107 106 105 CPU_DATA(2) CPU_DATA(1) CPU_DATA(0) CPU_CAS1 CPU_CAS0 CPU_RAS1 VSS VDD3_3 CPU_CE(0) CPU_CE(1) CPU_CE(2) CPU_CE(3) CPU_WAIT CPU_RW CPU_BE(1) CPU_BE(0) IRQ(0) IRQ(1) IRQ(2) RESET VSS_PLL VDD_PLL VSS PIX_CLK VDD2_5 CPU_PROCLK CPU_OE PWM0 PWM1 PWM2 TCK TDI TDO TMS TRST VSS VDD3_3 ADC_PCMCLK ADC_DATA 104 103 102 101 100 99 98 97 96 95 94 93 92 91 90 89 88 87 86 85 84 83 82 81 80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 60 59 58 57 56 55 54 53 ADC_LRCLK ADC_SCLK SMI_DATA(15) SMI_DATA(14) SMI_DATA(13) SMI_DATA(12) SMI_DATA(11) SMI_DATA(10) VSS SMI_CLKOUT VDD2_5 SMI_DATA(9) SMI_DATA(8) SMI_DATA(7) SMI_DATA(6) SMI_DATA(5) SMI_DATA(4) SMI_DATA(3) SMI_DATA(2) SMI_DATA(1) SMI_DATA(0) VSS SMI_CLKIN VDD3_3 SMI_DQMU SMI_DQML SMI_WE SMI_CAS SMI_RAS SMI_CS(1) SMI_CS(0) SMI_ADE(13) SMI_ADR(12) SMI_ADR(11) SMI_ADR(10) SMI_ADR(0) SMI_ADR(1) SMI_ADR(2) SMI_ADR(3) VSS VDD2_5 SMI_ADR(9) SMI_ADR(8) SMI_ADR(7) SMI_ADR(6) SMI_ADR(5) SMI_ADR(4) SPDIF_OUT (LRCIN) DAC_LRCLK (MCLK) DAC_PCMCLK DAC_PCMOUT2 DAC_PCMOUT1 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 VDD2_5 VSS B_DATA B_BCLK B_FLAG B_SYNC B_WCLK B_V4 NRSS_OUT VDD_RGB VSS_RGB B_OUT G_OUT R_OUT V_REF_RG I_REF_RG VDD_YCC VSS_YCC Y_OUT C_OUT CV_OUT V_REF_YC I_REF_YC VDD2_5 VSS PIO4(0) H/P_MUTE PIO4(1) PIO4(2) DAC_SCKDSO PIO4(3) DAC_SDIDEM PIO4(4) DAC_MUTEB PIO4(5) DAC_LAT12S PIO4(6) DAC_CSBIWL PIO4(7) DAC_ZERO VDD3_3 VDD_PCM VSS_PCM VSS DAC_SCLK (BCK) DAC_PCMOUT0 (DATA) FPC-ST-27P (GF120) CP24 1 2 3 4 5 6 7 8 9 10 LRCIN DIN BCKIN MCLK ZERO DGND DVDD VOUTR AGND AVDD 20 19 18 17 16 15 14 13 12 11 LAT12S SCKDSD SDIDEM MUTEB MODE CSBIWL VREFP VREFN VMID VOUTL 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15. TRIGOUT TRIGIN GND (option) TMS GND TCK GND TDI GND TDO +5VD TXD (JIG) RXD (JIG) JTAG_RST/ TRST 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 JTAG TEST CONNECTION To Output terminal PC board 27. 26. 25. 24. 23. 22. 21. 20. 19. 18. 17. 16. 15. 14. 13. 12. 11. 10. 9. 8. 7. 6. 5. 4. 3. 2. 1. A_L A_GND A_R +5VA RI CROMA(C) A_GND CVBS A_GND LUMA(Y) A_GND B(Pb) A_GND G(Y) A_GND R(Pr) A_GND V_MUTE P/RESET A_GND A_MUTE 3V3D +5VD D_GND +1V8VM +9VM M_GND 27. 26. 25. 24. 23. 22. 21. 20. 19. 18. 17. 16. 15. 14. 13. 12. 11. 10. 9. 8. 7. 6. 5. 4. 3. 2. 1. IC21 STI5589 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 VCC DQ0 VCCQ DQ1 DQ2 VSSQ DQ3 DQ4 VCCQ DQ5 DQ6 VSSQ DQ7 VCC LDQM WE CAS RAS CS BA0 BA1 A10 A0 A1 A2 A3 VCC VSS DQ15 VSSQ DQ14 DQ13 VCCQ DQ12 DQ11 VSSQ DQ10 DQ9 VCCQ DQ8 VSS NC UDQM CLK CKE NC A11 A9 A8 A7 A6 A5 A4 VSS 54 53 52 51 50 49 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SCHEMATIC DIAGRA MAIN CIRCUIT PC BOARD DV-SP301 A 1 2 3 4 5 B C D L501 B-1K(S) D3V3 100N-05 C504 R503 1M-05 0R-03 R511 0R-03 R512 C505 470/6.3 IC51 IC-M74HCU04M1R 1 2 3 4 5 6 7 A0 O0 A1 O1 A2 O2 GND VCC A3 O3 A4 O4 A5 O5 14 13 12 11 10 9 8 R502 56R-05 X501 27M0 C502 22P-05 C503 22P-05 +3.3VM R416 1K-05 C407 100N-05 B-1K(S) R415 R413 47K-05 IC41 IC-M29W800AT90N1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 A15 A14 A13 A12 A11 A10 A9 A8 NC NC WE RP NC NC RY/BY A18 A17 A7 A6 A5 A4 A3 A2 A1 A16 BYTE VSS DQ15 DQ7 DQ14 DQ6 DQ13 DQ5 DQ12 DQ4 VCC DQ11 DQ3 DQ10 DQ2 DQ9 DQ1 DQ8 DQ0 QE VSS CE A0 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 R411 0R-03 R412 0R-03 F_ADDR19 F_ADDR18 F_ADDR08 F_ADDR07 F_ADDR06 F_ADDR05 F_ADDR04 F_ADDR03 F_ADDR02 F_ADDR16 F_ADDR15 F_ADDR14 F_ADDR13 F_ADDR12 F_ADDR11 F_ADDR10 F_ADDR09 F_ADDR20 F_ADDR01 R411 0 Ohm NC NC R412 NC 0 Ohm NC ST 16M ATMEL 16M ST 8M +5V6S 100N-03 C225 IC22 IC-M24C02WMN6 1 2 3 4 E0 E1 E2 VSS 8 7 6 5 VDD WC SCL SDA GND 10R-03 R266 27K-03 R269 R267 47R-05 R268 47R-05 2K7-03 R270 J511 0R-03 J512 0R-03 CHGND Q203 KTC3875S R325 68K-03 1N4148 D203 R324 10K-05 R326 10K-05 R329 22R-05 R330 22R-05 1N414B D204 5K6-05 R331 C253 10/16 R332 1K8-05 Q204 KTA1504(S) 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200 201 202 203 204 205 206 207 208 CPU_DATA(14) CPU_DATA(15) VDD3_3 VSS CPU_ADR(1) CPU_ADR(2) CPU_ADR(3) CUP_ADR(4) CUP_ADR(5) CPU_ADR(6) CUP_ADR(7) CUP_ADR(8) CPU_ADR(9) CPU_ADR(10) VDD2_5 VSS CUP_ADR(11) CPU_ADR(12) CPU_ADR(13) CPU_ADR(14) CPU_ADR(15) CPU_ADR(16) CPU_ADR(17) CPU_ADR(18) CPU_ADR(19) CPU_ADR(20) CPU_ADR(21) VDD_3 VSS PIO0(0) T_SROBE PIO0(1) MOD_SW PIO0(2) VFD_STB PIO0(3) VFD_CLK PIO0(4) VFD_DATA_OUT PIO0(5) VFD_DATA_IN PIO0(6) SLIDER_SENSOR_OPEN/CLOSE (DRAWER_POSITION_ PIO0(7) SLIDER_IN(DRAWER_CCW_CTRL) PIO1(0) SDA PIO0(1) SCL PIO1(2) SLIDER_OUT (DRAWER_CW_CTRL) PIO1(3) TXD (JIG) VDD_5 VSS PIO1(4) RXD (JIG) PIO1(5) FRONT_TXD1 TRIGGER_IN TRIGGRER_OUT PIO2(0) H/P_IND PIO2(1) FRONT_RXD PIO2(2) MIC_DET PIO2(3) MIC_MUTE PIO2(4) AUDIO_MUTE 156 155 154 153 152 151 150 149 148 147 146 145 144 143 142 CPU_DATA(13) CPU_DATA(12) CPU_DATA(11) CPU_DATA(10) CPU_DATA(9) CPU_DATA(8) VSS VDD2_5 CPU_DATA(7) CPU_DATA(6) CPU_DATA(5) CPU_DATA(4) CPU_DATA(3) CPU_DATA(2) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 PIO2(5) RGB_SEL PIO2(6) VIDEO_MUTE PIO2(7) 16:9_INDICATOR VDD3_3 VSS PIO3(0) SCART_H (TV/AUX) PIO3(1) PIO3(2) PIO3(3) PIO3(4) IR (REMOCON) PIO3(5) PIO3(6) PIO3(7) DVD_RESET VDD2_5 VSS INVERTER Motor Driver Sub EPROM From Main PCB to Pick up CP28 CP-2.5-ST-02P(XH) 100N-05 C251 1 2 IC23 IC-FAN8082 R322 470R-05 UZ5V6 D201 R327 10K-05 R323 5K6-05 1/50 C252 1 2 3 4 8 7 6 5 VO2 PVCC SVCC VIN2 GND VO1 VCTL VIN1 R328 10K-05 D202 RB441Q R338 0R-05 R337 0R-05 R336 0R-03 R333 47K-03 +5V_DIGI_VCC +8V_MOTOR_LOADING_VCC L207 22UH-05 C254 100/16 F_ADDR [01:21] F_ADDR01 F_ADDR02 F_ADDR03 F_ADDR04 F_ADDR05 F_ADDR06 F_ADDR07 F_ADDR08 F_ADDR09 F_ADDR10 F_ADDR11 F_ADDR12 F_ADDR13 F_ADDR14 F_ADDR15 F_ADDR16 F_ADDR17 F_ADDR18 F_ADDR19 F_ADDR20 R407 R408 R409 R410 47R-03 47R-03 47R-03 47R-03 RA48 47Rx4 RA47 47Rx4 1 2 1 2 RA46 47Rx4 RA45 47Rx4 1 2 1 2 R262 47R-03 R263 47R-03 100N-05 C403 100N-05 C224 R289 47R-03 R290 47R-03 R264 75R-03 R265 75R-03 TRIGIN TRIGOUT GND 47R-03 R223 L209 2U2H-05 100/10 C232 100N-05 C201 2U2H-05 L208 100R-03 R221 100R-05 R201 100R-05 R202 100R-05 R203 100R-05 R204 10P-05 C235 10P-05 C244 10P-05 C243 10P-05 C242 GND R1 1k R3 100K F_ADDR17 (BLANK) GND www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-SP301 SCHEMATIC DIAGRAM DV-SP301 A 1 2 3 4 5 B C D E F G H OUTPUT TERMINAL PC BOARD 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 Vcc1 CIN MUTE1 VIN SELECT YIN BIAS GND1 NC GND1 NC CY CLP Cb MUTE2 Cr GND2 LPF LPF LPF LPF LPF LPF 34 33 32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 Vcc2 C GND2 CVBS GND2 Y GND2 CY GND2 Cb GND2 Cr 6dB 6dB 6dB 6dB 6dB 6dB 13.5MHz 13.5MHz 13.5MHz OPTICAL OUT COAXIAL OUT L R Cr Cb Y S-VIDEO OUT VIDEO OUT RI RI From MAIN CIRCUIT PC BOARD MGND +9VM +1V8M DGND +5VD +3V3D A-MUTE AGND P-RESET V-MUTE AGND Pr(R) AGND Y(G) AGND Pb(B) AGND Y AGND CVBS AGND C RI +5VA R-CH AGND L-CH 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 From POWER SUPPLY UNIT MGND +9VM +5VD +1V8D DGND +3V5D P-RESET -9VA AGND +9VA 1 2 3 4 5 6 7 8 9 10 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SCHEMATIC DIAGRAM DV-SP301 A 1 2 3 4 5 B C D OUTPUT TERMINAL PC BOARD 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 Vcc1 CIN MUTE1 VIN SELECT YIN BIAS GND1 NC GND1 NC CY CLP Cb MUTE2 Cr GND2 LPF LPF LPF LPF LPF LPF 34 33 32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 Vcc2 C GND2 CVBS GND2 Y GND2 CY GND2 Cb GND2 Cr 6dB 6dB 6dB 6dB 6dB 6dB 13.5MHz 13.5MHz 13.5MHz RI RI From MAIN CIRCUIT PC BOARD MGND +9VM +1V8M DGND +5VD +3V3D A-MUTE AGND P-RESET V-MUTE AGND Pr(R) AGND Y(G) AGND Pb(B) AGND Y AGND CVBS AGND C RI +5VA R-CH AGND L-CH 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 From POWER SUPPLY UNIT MGND +9VM +5VD +1V8D DGND +3V5D P-RESET -9VA AGND +9VA 1 2 3 4 5 6 7 8 9 10 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-SP301 E F G H OPTICAL OUT COAXIAL OUT L R Cr Cb Y S-VIDEO OUT VIDEO OUT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-SP301 SCHEMATIC DIAGRAM DV-SP301 A 1 2 3 4 5 B C D E F G H OUTPUT TERMINAL PC BOARD 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 Vcc1 CIN MUTE1 VIN SELECT YIN BIAS GND1 NC GND1 NC CY CLP Cb MUTE2 Cr GND2 LPF LPF LPF LPF LPF LPF 34 33 32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 Vcc2 C GND2 CVBS GND2 Y GND2 CY GND2 Cb GND2 Cr 6dB 6dB 6dB 6dB 6dB 6dB 13.5MHz 13.5MHz 13.5MHz OPTICAL OUT COAXIAL OUT L R Cr Cb Y S-VIDEO OUT VIDEO OUT RI RI From MAIN CIRCUIT PC BOARD MGND +9VM +1V8M DGND +5VD +3V3D A-MUTE AGND P-RESET V-MUTE AGND Pr(R) AGND Y(G) AGND Pb(B) AGND Y AGND CVBS AGND C RI +5VA R-CH AGND L-CH 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 From POWER SUPPLY UNIT MGND +9VM +5VD +1V8D DGND +3V5D P-RESET -9VA AGND +9VA 1 2 3 4 5 6 7 8 9 10 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-SP301 SCHEMATIC DIAGRAM DISPLAY CIRCUIT PC BOARD A 1 2 3 4 B C D E From Power supply unit To DVD Main PC board STANDBY SWITCH PC BOARD IC91 IC-PT6311 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-SP301 SCHEMATIC DIAGRAM POWER SUPPLY UNIT CN3 1 2 3 4 5 GND FL5V+ -27V FL5V- 5.5VS CN2 1 2 3 4 5 6 7 8 9 10 2mm +9VA AGND -9VA P-RWS +3V5D DGND NC +5VD MGND +9VM 2.5mm U2 KA8709 VI GND VO C16 100uF 16V R20 12K 1/8W C21 10uF 50V R18 1.2K 1/8W R19 10K 1/8W D13 1N5819 U4 KIA7042AP VI VO GND R17 100 1W R29 390 R26 1.5K R27 150 R28 820 (F) R24 2.2 R23 10K (F) PC1 LTV817 R25 10 C25 1uF/50V U3 431 C24 470uF 10V R22 120 C23 1000uF 10V C22 102P 1KV R21 10 1/2W 13 11, 12 C28 222P 250V C27 222P 250V 13 10 D15 SR204 L3 5.5uH 470uFx2 10V C18 C19 D12 SF24 10 R16 10/1/2W C17 102P 1KV L2 15uH 15 10 1/2W C13 R13 102P 1KV C14 22uF 25V D10 SF24 L1 15uH C15 100uF 25V R9 20/1/8W D8 1N4937 11, 12 R11 2.2 D9 1N4937 9 14 R8 120 ZD2 3.3V C11 1uF 50 C12 100uF 25V R10 12K R12 1K R7 1K C10 100uF 16V D7 HER105 R6 3.0 9 7 T1 EER2828 C7 222P 1KV R2 56K 1W D5 HER107 6 4 R1 200K 1/2W R4 200K 1/2W C6 47uF 400V D1-D4 1N4007 x 4 C3 222P C2 104P C4 222P LF1 TH1 10D7 C1 104P F1 AC250V2A VR1 10D471 SW1 CN1 1 2 U1 2 Drain KASM0365RB-YD1U Vcc 3 GND 1 FB 4 C8 223 50V ZD1 9.1V 4 3 PC1 LTV817 D6 1N4937 R5 5.6 C9 22F 50V 1 2 C6 222P CATION (The shapes shaded on marked with designate components whitch have special characterics impotant for safety.) www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1. Connection from GND terminal of U2 to the Ground line as seen is added in the schematic. No change in hardware is needed. 2. R24 value is 2.2K ohm. Model: DV-SP301 03/01/2004 1 2 Ref#SP301-030204 Subject: Correction of service manual. DV-SP301 Service Manual Correction www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-SP301 WIRING VIEW POWER SUPPLY PC BOARD ASSY DISPLAY CIRCUIT PC BOARD DVD MAIN CIRCUIT PC BOARD OUTPUT TERMINAL PC BOARD MECHANISM F/F BOARD STANDBY SW PC BOARD AC CORD www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-SP301 PRINTED CIRCUIT BOARD VIEW 20: DVD MAIN CIRCUIT PC BOARD Top pattern and top silk www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-SP301 20: DVD MAIN CIRCUIT PC BOARD PRINTED CIRCUIT BOARD VIEW Bottom Pattern and bottom silk www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRINTED CIRCUIT BOARD VIEW U**: DISPLAY CIRCUIT PC BOARD FROM BOTTOM SIDE VIEW BOTTOM PATTERN and BOTTOM SILK U**: STANDBY SWITCH PC BOARD DV-SP301 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 TEL 13 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-SP301 PRINTED CIRCUIT BOARD VIEW 16: DISPLAY CIRCUIT PC BOARD FROM TOP SIDE VIEW Top silk and Bottom pattern 16: STANDBY SWITCH PC BOARD Top silk and Bottom pattern www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-SP301 PRINTED CIRCUIT BOARD VIEW 21: OUTPUT TERMINAL PC BOARD Bottom silk and bottom pattern www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1. MGND 2. +9VM 3. +1V8D 4. DGND 5. +5VD 6. +3V3D 7. A-MUTE 8. AGND 9. P-RESET 10. V-MUTE 11. AGND 12. Pr (R) 13. AGND 14. Y (G) 15. AGND 16. Pb (B) 17. AGND 18. Y 19. AGND 20. CVBS 21. AGND 22. C 23. RI 24. +5VA 25. R-CH 26. AGND 27. L-CH +9VA AGND -9VA P-RESET +3V5D DGND +1V8 +5VD MGND +9VM DV-SP301 PRINTED CIRCUIT BOARD VIEW 21: OUTPUT TERMINAL PC BOARD FROM TOP SIDE VIEW Top silk and bottom pattern www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com IC61: WM8728 STEREO DAC 1 LRCIN DAC SAMPLE RATE CLOCK INPUT I 2 DIN SERIAL AUDIO DATA INPUT I 3 BCKIN AUDIO DATA BIT CLOCK INPUT I 4 MCLK MASTER CLOCK INPUT I 5 ZERO INFINITE ZERO DEFECT FLAG(OPEN DRAIN) O 6 DGND DIGITAL GROUND SUPPLY - 7 DVDD DIGITAL POSITIVE SUPPLY - 8 VOUTR RIGHT CHANNEL DAC OUTPUT O 9 AGND ANALOG GROUND SUPPLY - 10 AVDD ANALOG POSITIVE SUPPLY - 11 VOUTL LEFT CHANNEL DAC OUTPUT O 12 VMID MID RAIL DECOUPLING POINT O 13 VREFN DAC NAGATIVE REFERENCE-NORMAIIY AGND,MUST NOT BE BELOW AGND - 14 VREFP DAC POSITIVE REFERENCE-NORMAIIY AGND,MUST NOT BE BELOW AGND - 15 CSBIWL SOFTWARE MODE:3-WIRE SERIAL CONTROL CHIP SELECT I 16 MODE CONTROL MODE SELECTION(L=HARDWARE,H=SOFTWARE) I 17 MUTEB MUTE CONTROL(L=MUTE ON,H=MUTE OFF,Z=AUTOMUTE ENABLED) - 18 SDIDEM SOFTWARE MODE:3 OR 2-WIRE SERIAL CONTROL DATA INPUT I 19 SCKDSD SOFTWARE MODE:3 OR 2-WIRE SERIAL CONTROL CLOCK INPUT I 20 LATI2S SOFTWARE MODE:3 OR 2-WIRE SERIAL CONTROL LOAD INPUT I PIN NAME MAIN FUNCTION PIN NUMBER I/O DV-SP301 IC TERMINAL DESCRIPTION www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com IC23: FAN8082 BI-DIRECTIONAL DC MOTOR DRIVER 1 GND GROUND - 2 VO1 OUTPUT1 O 3 VCTL MOTOR SPEED CONTROL I 4 VIN1 INPUT1 I 5 VIN2 INPUT2 I 6 SVCC SUPPLY VOLTAGE(SIGNAL) - 7 PVCC SUPPLY VOLTAGE(POWER) - 8 VO2 OUTPUT2 O PIN NAME MAIN FUNCTION PIN NUMBER I/O DV-SP301 IC TERMINAL DESCRIPTION www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com IC88: MM1568AJBE VIDEOPROC AMPLIFIER&DRIVER 1 VCC1 VCC - 2 CIN CROMA INPUT I 3 MUTE1 MUTE SELECT(USING OF MUTE AND POWER-SAVING) - 4 VIN VIDEO INPUT COMPOSITE(INPUT CLAMP:SYNC TIP) I 5 YC MIX YC MIX - 6 YIN VIDEO INPUT LUMINANCE(INPUT CLAMP:SYNC TIP) I 7 BIAS BIAS - 8 GND1 GROUND - 9 NC NC - 10 GND1 GROUND - 11 NC NC - 12 CYIN LUMINANCE INPUT(THE INPUT CAN SELECT SYNC TIP CLAMP OR BIAS) I 13 CLP INPUT CLAMP SELECT I 14 CbIN COMPONENT INPUT I 15 MUTE2 MUTE SELECT(USING OF MUTE AND POWER-SAVING) - 16 CrIN COMPONENT INPUT I 17 GND2 GROUND - 18 CrOUT SIGNAL OUT O 19 CrSAG SAG CORRECTION O 20 GND2 GROUND - 21 CbOUT SIGNAL OUT O 22 CbSAG SAG CORRECTION O 23 GND2 GROUND - 24 CYOUT SIGNAL OUT O 25 CYSAG SAG CORRECTION O 26 GND2 GROUND - 27 YOUT SIGNAL OUT O 28 YSAG SAG CORRECTION O 29 GND2 GROUND - 30 VOUT SIGNAL OUT O 31 VSAG SAG CORRECTION O 32 GND2 GROUND - 33 COUT CROMA OUTPUT O 34 VCC2 VCC - PIN NAME MAIN FUNCTION PIN NUMBER I/O DV-SP301 IC TERMINAL DESCRIPTION www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com IC41: M29W800AT FLASH MEMORY 1 A15 ADDRESS INPUT I 2 A14 ADDRESS INPUT I 3 A13 ADDRESS INPUT I 4 A12 ADDRESS INPUT I 5 A11 ADDRESS INPUT I 6 A10 ADDRESS INPUT I 7 A9 ADDRESS INPUT I 8 A8 ADDRESS INPUT I 9 NC NOT CONNECTED INTERNALLY - 10 NC NOT CONNECTED INTERNALLY - 11 WE WRITE ENABLE I/O 12 RP RESET/BLOCK TEMPORARY UNPROTECT O 13 NC NOT CONNECTED INTERNALLY - 14 NC NOT CONNECTED INTERNALLY - 15 RY/BY READY/BUSY OUTPUT O 16 A18 ADDRESS INPUT I 17 A17 ADDRESS INPUT I 18 A7 ADDRESS INPUT I 19 A6 ADDRESS INPUT I 20 A5 ADDRESS INPUT I 21 A4 ADDRESS INPUT I 22 A3 ADDRESS INPUT I 23 A2 ADDRESS INPUT I 24 A1 ADDRESS INPUT I 25 A0 ADDRESS INPUT I 26 CE CHIP ENABLE I 27 VSS GROUND - 28 OE OUTPUT ENABLE O 29 DQ0 DATA INPUT/OUTPUT OR COMMAND INPUT I/O 30 DQ8 DATA INPUT/OUTPUT I/O 31 DQ1 DATA INPUT/OUTPUT OR COMMAND INPUT I/O 32 DQ9 DATA INPUT/OUTPUT I/O 33 DQ2 DATA INPUT/OUTPUT OR COMMAND INPUT I/O 34 DQ10 DATA INPUT/OUTPUT I/O 35 DQ3 DATA INPUT/OUTPUT OR COMMAND INPUT I/O 36 DQ11 DATA INPUT/OUTPUT I/O 37 VCC SUPPLY VOLTAGE I 38 DQ4 DATA INPUT/OUTPUT OR COMMAND INPUT I/O 39 DQ12 DATA INPUT/OUTPUT I/O 40 DQ5 DATA INPUT/OUTPUT OR COMMAND INPUT I/O 41 DQ13 DATA INPUT/OUTPUT I/O 42 DQ6 DATA INPUT/OUTPUT OR COMMAND INPUT I/O 43 DQ14 DATA INPUT/OUTPUT I/O 44 DQ7 DATA INPUT/OUTPUT OR COMMAND INPUT I/O 45 DQ15 DATA INPUT/OUTPUT OR ADDRESS INPUT I/O 46 VSS GROUND - 47 BYTE BYTE/WORD ORGANIZATION I/O 48 A16 ADDRESS INPUT I PIN NAME MAIN FUNCTION PIN NUMBER I/O DV-SP301 IC TERMINAL DESCRIPTION www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-SP301 IC22: M24C02 SERIAL I S BUS EEPROM 1 E0 CHIP ENABLE INPUT I 2 E1 CHIP ENABLE INPUT I 3 E2 CHIP ENABLE INPUT I 4 VSS GROUND - 5 SDA SERIAL DATA ADDRESS INPUT/OUTPUT I/O 6 SCL SERIAL CLOCK I 7 WC WRITE CONTROL I 8 VCC SUPPLY VOLTAGE - PIN NAME MAIN FUNCTION PIN NUMBE I/O 2 IC TERMINAL DESCRIPTION www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com IC31: HY57V641620HGT-H CMOS SYNCHRRONOUS DRAM 1 VDD POWER SUPPLY - 2 DQ0 MULTIPLEXED DATA INPUT/OUTPUT I/O 3 VDDQ DATA OUTPUT POWER - 4 DQ1 MULTIPLEXED DATA INPUT/OUTPUT I/O 5 DQ2 MULTIPLEXED DATA INPUT/OUTPUT I/O 6 VSSQ DIGITAL GROUND SUPPLY - 7 DQ3 MULTIPLEXED DATA INPUT/OUTPUT I/O 8 DQ4 MULTIPLEXED DATA INPUT/OUTPUT I/O 9 VDDQ DATA OUTPUT POWER - 10 DQ5 MULTIPLEXED DATA INPUT/OUTPUT I/O 11 DQ6 MULTIPLEXED DATA INPUT/OUTPUT I/O 12 VSSQ DATA OUTPUT GROUND O 13 DQ7 MULTIPLEXED DATA INPUT/OUTPUT I/O 14 VDD POWER SUPPLY - 15 LDQM DATA INPUT/OUTPUT MASK I/O 16 /WE WRITE ENABLE I 17 /CAS COLUMN ADDRESS STROBE I 18 /RAS ROW ADDRESS STROBE I 19 /CS CHIP SELECT I/O 20 A13(BA0) BANK ADDRESS I/O 21 A12(BA1) BANK ADDRESS I/O 22 A10(AP) ADDRESS I/O 23 A0 ADDRESS I/O 24 A1 ADDRESS I/O 25 A2 ADDRESS I/O 26 A3 ADDRESS I/O 27 VDD POWER SUPPLY - 28 VSS GROUND I/O 29 A4 ADDRESS I/O 30 A5 ADDRESS I/O 31 A6 ADDRESS I/O 32 A7 ADDRESS I/O 33 A8 ADDRESS I/O 34 A9 ADDRESS I/O 35 A11 ADDRESS I/O 36 NC NO CONNECTION - 37 CKE CLOCK ENABLE I 38 CLK CLOCK I 39 UDQM DATA INPUT/OUTPUT MASK I/O 40 NC NO CONNECTION - 41 VSS GROUND - 42 DQ8 MULTIPLEXED DATA INPUT/OUTPUT I/O 43 VDDQ DATA OUTPUT POWER - 44 DQ9 MULTIPLEXED DATA INPUT/OUTPUT I/O 45 DQ10 MULTIPLEXED DATA INPUT/OUTPUT I/O 46 VSSQ DATA OUTPUT GROUND - 47 DQ11 MULTIPLEXED DATA INPUT/OUTPUT I/O 48 DQ12 MULTIPLEXED DATA INPUT/OUTPUT I/O 49 ADDQ DATA OUTPUT POWER - 50 DQ13 MULTIPLEXED DATA INPUT/OUTPUT I/O 51 DQ14 MULTIPLEXED DATA INPUT/OUTPUT I/O 52 VSSQ DATA OUTPUT GROUND - 53 DQ5 MULTIPLEXED DATA INPUT/OUTPUT I/O 54 VSS GROUND - PIN NAME MAIN FUNCTION PIN NUMBER I/O DV-SP301 IC TERMINAL DESCRIPTION www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-SP301 IC TERMINAL DESCRIPTION 208 207 206 205 204 203 202 201 200 199 198 197 196 195 194 193 192 191 190 189 188 187 186 185 184 183 182 181 180 179 178 177 176 175 174 173 172 171 170 169 168 167 166 165 164 163 162 161 160 159 158 157 PIO2[4] PIO2[3] PIO2[2] PIO2[1] PIO2[0] TRIGGER_OUT TRIGGER_IN PIO1[5] PIO1[4] VSS VDD1_8 PIO1[3] PIO1[2] PIO1[1] PIO1[0] PIO0[7] PIO0[6] PIO0[5] PIO0[4] PIO0[3] PIO0[2] PIO0[1] PIO0[0] VSS VDD3_3 CPU_ADR[21] CPU_ADR[20] CPU_ADR[19] CPU_ADR[18] CPU_ADR[17] CPU_ADR[16] CPU_ADR[15] CPU_ADR[14] CPU_ADR[13] CPU_ADR[12] CPU_ADR[11] VSS VDD1_8 CPU_ADR[10] CPU_ADR[9] CPU_ADR[8] CPU_ADR[7] CPU_ADR[6] CPU_ADR[5] CPU_ADR[4] CPU_ADR[3] CPU_ADR[2] CPU_ADR[1] VSS VDD3_3 CPU_DATA[15] CPU_DATA[14] 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 PIO2[5] PIO2[6] PIO2[7] VDD3_3 VSS PIO3[0] PIO3[1] PIO3[2] PIO3[3] PIO3[4] PIO3[5] PIO3[6] PIO3[7] VDD1_8 VSS B_DATA B_BCLK B_FLAG B_SYNC PIO5[0] PIO5[1] PIO5[2] VDD_RGB VSS_RGB B_OUT G_OUT R_OUT V_REF_RG I_REF_RG VDD_YCC VSS_YCC Y_OUT C_OUT CV_OUT V_REF_YC I_REF_YC VDD1_8 VSS PIO4[0] PIO4[1] PIO4[2] PIO4[3] PIO4[4] PIO4[5] PIO4[6] PIO4[7] VDD3_3 VDD_PCM VSS_PCM VSS DAC_SCLK DAC_PCMOUT0 156 155 154 153 152 151 150 149 148 147 146 145 144 143 142 141 140 139 138 137 136 135 134 133 132 131 130 129 128 127 126 125 124 123 122 121 120 119 118 117 116 115 114 113 112 111 110 109 108 107 106 105 CPU_DATA[13] CPU_DATA[12] CPU_DATA[11] CPU_DATA[10] CPU_DATA[9] CPU_DATA[8] VSS VDD1_8 CPU_DATA[7] CPU_DATA[6] CPU_DATA[5] CPU_DATA[4] CPU_DATA[3] CPU_DATA[2] CPU_DATA[1] CPU_DATA[0] CPU_CAS1 CPU_CAS0 CPU_RAS1 VSS VDD3_3 CPU_CE[0] CPU_CE[1] CPU_CE[2] CPU_CE[3] CPU_WAIT CPU_RW CPU_BE[1] CPU_BE[0] IRQ[0] IRQ[1] IRQ[2] RESET VSS_PLL VDD_PLL VSS PIX_CLK VDD1_8 CPU_PROCLK CPU_OE PWM0 PWM1 PWM2 TCK TDI TDO TMS TRST VSS VDD3_3 AUX_CLK PIO5[5] DAC_PCMOUT1 DAC_PCMOUT2 DAC_PCMCLK DAC_LRCLK SPDIF_OUT SMI_ADR[4] SMI_ADR[5] SMI_ADR[6] SMI_ADR[7] SMI_ADR[8] SMI_ADR[9] VDD1_8 VSS SMI_ADR[3] SMI_ADR[2] SMI_ADR[1] SMI_ADR[0] SMI_ADR[10] SMI_ADR[11] SMI_ADR[12] SMI_ADR[13] SMI_CS[0] SMI_CS[1] SMI_RAS SMI_CAS SMI_WE SMI_DQML SMI_DQMU VDD3_3 SMI_CLKIN VSS SMI_DATA[0] SMI_DATA[1] SMI_DATA[2] SMI_DATA[3] SMI_DATA[4] SMI_DATA[5] SMI_DATA[6] SMI_DATA[7] SMI_DATA[8] SMI_DATA[9] VDD1_8 SMI_CLKOUT VSS SMI_DATA[10] SMI_DATA[11] SMI_DATA[12] SMI_DATA[13] SMI_DATA[14] SMI_DATA[15] PIO5[3] PIO5[4] 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 PQFP 208 (rev F) STm5589 PIN LAYOUT IC21: STM5589 DVD HOST PROCESSOR WITH PROGRESSIVE SCAN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-SP301 IC TERMINAL DESCRIPTION Internal peripherals Front-end & link interface DMA Central command port block move Debug MPEG MPEG DMAs Communications arbiter CPU (C2+) Clock generator Refill control RID Diagnostic controller DCache SRAM ICache TAP CPU arbiter Cache sub-system ST20 arbiter & memory controller I/F SDRAM block move CD FIFOs Command I/F SDRAM arbiter (LMC) OSD, SP decoder Video filtering DENC Programmable CPU interface (EMI) Shared SDRAM interface (SMI) Video decoder and mixing JTAG debugging interface Analog/digital Video output, 480i/480p 16, 32, 64 or 128-Mbit SDRAM Ext peripherals: flash, additional DRAM SDRAM DVD 2 UARTs, 2 I2C-SSCs, IR transceiver MAFE interface Audio Low power mode Audio out BLOCK DIAGRAM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-SP301 IC TERMINAL DESCRIPTION Pin number Pin name Main function Alternate function Pin type Input Output Left Side 1 PIO2[5] PIO2[5] SC1_CMD_VCC AUD_DEBUG_OUT SSC1_MTSRout I/O 2 PIO2[6] PIO2[6] SC1_DATA_DIR DAC_PCMOUT3 (VCR) I/O 3 PIO2[7] PIO2[7] SC1_DETECT AUD_DEBUG_IN YC_CLKOUT I/O 4 VDD3_3 3.3 V power supply Power 5 VSS Ground Power 6 PIO3[0] PIO3[0] MAFEIF_SCLK PARA_DATA{0] I2S_DATA_OUT I/O 7 PIO3[1] PIO3[1] MAFEIF_DIN PARA_DATA[1] I2S_BCLK_OUT I/O 8 PIO3[2] PIO3[2] MAFEIF_FSI PARA_DATA[2] I2S_BFLAG_OUT I/O 9 PIO3[3] PIO3[3] CAPTURE_IN0 PARA_DATA[3] I/O 10 PIO3[4] PIO3[4] CAPTURE_IN1 PARA_DATA[4] UART1 RTS (RTS1) I/O 11 PIO3[5] PIO3[5] CAPTURE_IN2 PARA_DATA[5] UART2 RTS (RTS2) I/O 12 PIO3[6] PIO3[6] PARA_DATA[6] UART1 CTS (CTS1) COMP_OUT1 I/O 13 PIO3[7] PIO3[7] PARA_DATA[7] UART2 CTS (CTS2) COMP_OUT0 I/O 14 VDD1_8 1.8V power supply Power 15 VSS Ground Power 16 B_DATA I2S data SER_DATA RS_DATA I 17 B_BCLK I2S bit clock SER_BCLK RS_BCLK I 18 B_FLAG I2S error flag DVD SER_VALID RS_DVALID I 19 B_SYNC I2S sector/ABS time SER_SYNC The table column A/ternate function shows the secondary use of the PIOs. PIN LIST SORTED BY FUNCTION 1 I www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-SP301 IC TERMINAL DESCRIPTION 20 PIO5[0] PIO5[0] B_WCLK RS_ERROR_EN I/O SSC1_DATA/ NRSS_CLOCK1 21 PIO5[1] PIO5[1] B_V4 RS_ECCB_START NRSS_OUT1 & 2 I/O SSC1_CLK 22 PIO5[2] PIO5[2] IRB_IRin/NRSS_IN2 I/O SDAV_CLK/ P1394_Clk3 23 VDD_RGB VDDA_RGB=3.3V Power 24 VSS_RGB VSSA_RGB=GND Power 25 B_OUT B output O 26 G_OUT G output O 27 R_OUT R output O 28 V_REF_RGB RGB DAC reference voltage I 29 I_REF_RGB RGB DAC reference current I 30 VDD_YCC VDDA_YCC=3.3V Power 31 VSS_YCC VSSA_YCC=GND Power 32 Y_OUT Y output O 33 C_OUT C output O 34 CV_OUT CV output O 35 V_REF_YCC YCC DAC reference voltage I 36 I_REF_YCC YCC DAC reference current I 37 VDD1_8 1.8V power supply Power 38 VSS Ground Power 39 PIO4[0] PIO4[0] YC[0] I/O 40 PIO4[1] PIO4[1] YC[1] I/O 41 PIO4[2] PIO4[2] YC[2] I/O 42 PIO4[3] PIO4[3] YC[3] I/O 43 PIO4[4] PIO4[4] YC[4] I/O 44 PIO4[5] PIO4[5] YC[5] I/O 45 PIO4[6] PIO4[6] YC[6] I/O 46 PIO4[7] PIO4[7] YC[7] I/O Pin number Pin name Main function Alternate function Pin type Input Output PIN LIST SORTED BY FUNCTION 2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-SP301 IC TERMINAL DESCRIPTION 47 VDD3_3 3.3 V power supply Power 48 VDD_PCM VDD frequency synthesizer=1.8V Power 49 VSS_PCM VSS frequency synthesizer=GND Power 50 VSS Ground Power 51 DAC_SCLK Sampling clock EXT_AUD_CLK O 52 DAC_PCMOUT0 PCM output 0 EXT_AUD_DATA O Bottom side 53 DAC_PCMOUT1 PCM output 1 EXT_AUD_REQ I/O 54 DAC_PCMOUT2 PCM output 2 O 55 DAC_PCMCLK PCM clock in/out I/O 56 DAC_LRCLK Left/right clock EXT_AUD_WCLK O 57 SPDIF_OUT SPDIF output O 58 SMI_ADR[4] Address bus SDRAM O 59 SMI_ADR[5] Address bus SDRAM O 60 SMI_ADR[6] Address bus SDRAM O 61 SMI_ADR[7] Address bus SDRAM O 62 SMI_ADR[8] Address bus SDRAM O 63 SMI_ADR[9] Address bus SDRAM O 64 VDD1_8 1.8V power supply Power 65 VSS Ground Power 66 SMI_ADR[3] Address bus SDRAM O 67 SMI_ADR[2] Address bus SDRAM O 68 SMI_ADR[1] Address bus SDRAM O 69 SMI_ADR[0] Address bus SDRAM O 70 SMI_ADR[10] Address bus SDRAM O 71 SMI_ADR[11] Address bus SDRAM O 72 SMI_ADR[12] Address bus SDRAM O 73 SMI_ADR[13] Address bus SDRAM O 74 SMI_CS[0] Chip select bank 0 O 75 SMI_CS[1] Chip select bank 1 O 76 SMI_RAS RAS SDRAM O 77 SMI_CAS CAS SDRAM O Pin number Pin name Main function Alternate function Pin type Input Output PIN LIST SORTED BY FUNCTION 3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-SP301 IC TERMINAL DESCRIPTION 78 SMI_WE SDRAM write enable O 79 SMI_DQML DQ mask en low O 80 SMI_DQMU DQ mask en up O 81 VDD3_3 3.3 V power supply Power 82 SMI_CLKIN SDRAM clock in I 83 VSS Ground Power 84 SMI_DATA[0] Data bus SDRAM I/O 85 SMI_DATA[1] Data bus SDRAM I/O 86 SMI_DATA[2] Data bus SDRAM I/O 87 SMI_DATA[3] Data bus SDRAM I/O 88 SMI_DATA[4] Data bus SDRAM I/O 89 SMI_DATA[5] Data bus SDRAM I/O 90 SMI_DATA[6] Data bus SDRAM I/O 91 SMI_DATA[7] Data bus SDRAM I/O 92 SMI_DATA[8] Data bus SDRAM I/O 93 SMI_DATA[9] Data bus SDRAM I/O 94 VDD1_8 1.8V power supply Power 95 SMI_CLKOUT SDRAM clock out O 96 VSS Ground Power 97 SMI_DATA[10] Data bus SDRAM I/O 98 SMI_DATA[11] Data bus SDRAM I/O 99 SMI_DATA[12] Data bus SDRAM I/O 100 SMI_DATA[13] Data bus SDRAM I/O 101 SMI_DATA[14] Data bus SDRAM I/O 102 SMI_DATA[15] Data bus SDRAM I/O 103 PIO5[3] PIO5[3] IRB_UHFin ADC_SCLK I/O SDAV_DATA3 104 PIO5[4] PIO5[4] ADC_LRCLK IRB_PPMout I/O SDAV_DIR / P1394_P_CLK3 Right side 105 PIO5[5] PIO5[5] ADC_DATA IRB_DRIVE0orZ4 (jack) I/O OSC_IN_CLK3 Pin number Pin name Main function Alternate function Pin type Input Output PIN LIST SORTED BY FUNCTION 4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-SP301 IC TERMINAL DESCRIPTION 106 AUX_CLK Auxiliary clock out I/O 107 VDD3_3 3.3 V power supply Power 108 VSS Ground Power 109 TRST5 Test reset I 110 TMS Test mode select I 111 TDO Test data out O 112 TDI Test data in I 113 TCK Test clock I 114 PWM2 Pulse Width Modulator 2 ODDEVEN6 I/O 115 PWM1 Pulse Width Modulator 1 BOOT_FROM_ROM7 I/O 116 PWM0 Pulse Width Modulator 0 HSYNC I/O 117 CPU_OE Output enable I/O 118 CPU_PROCLK EMI clock O 119 VDD1_8 1.8V power supply Power 120 PIX_CLK 27 MHz main clock I 121 VSS Ground Power 122 VDD_PLL VDD PLL=1.8V Power 123 VSS_PLL GND PLL=GND Power 124 RESET Chip reset I 125 IRQ[2] IRQ[2] (MD_IRQ) I 126 IRQ[1] IRQ[1] (ATAPI IRQ) I 127 IRQ[0] IRQ[0] (SERVO_IRQ) I 128 CPU_BE[0] Byte 0 enable DQM[0] O 129 CPU_BE[1] Byte 1 enable DQM[1] O 130 CPU_RW Read-not-write NOT_SDRAM_WE O 131 CPU_WAIT Wait state I 132 CPU_CE[3] Chip select bank 3 CS_SUB_BANK3 O 133 CPU_CE[2] Chip select bank 2 O 134 CPU_CE[1] Chip select bank 1 O 135 CPU_CE[0] DRAM RAS 0 SDRAM_RAS O 136 VDD3_3 3.3 V power supply Power 137 VSS Ground Power 138 CPU_RAS1 DRAM RAS 1 NOT_SDRAM_CS1 I/O Pin number Pin name Main function Alternate function Pin type Input Output PIN LIST SORTED BY FUNCTION 5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-SP301 IC TERMINAL DESCRIPTION 139 CPU_CAS0 DRAM CAS 0 SDRAM_CAS/ CPU_ADR[22] O 140 CPU_CAS1 DRAM CAS 1 NOT_SDRAM_CS0 O 141 CPU_DATA[0] Data[0] I/O 142 CPU_DATA[1] Data[1] I/O 143 CPU_DATA[2] Data[2] I/O 144 CPU_DATA[3] Data[3] I/O 145 CPU_DATA[4] Data[4] I/O 146 CPU_DATA[5] Data[5] I/O 147 CPU_DATA[6] Data[6] I/O 148 CPU_DATA[7] Data[7] I/O 149 VDD1_8 1.8V power supply Power 150 VSS Ground Power 151 CPU_DATA[8] Data[8] I/O 152 CPU_DATA[9] Data[9] I/O 153 CPU_DATA[10] Data[10] I/O 154 CPU_DATA[11] Data[11] I/O 155 CPU_DATA[12] Data[12] I/O 156 CPU_DATA[13] Data[13] I/O Top side 157 CPU_DATA[14] Data[14] I/O 158 CPU_DATA[15] Data[15] I/O 159 VDD3_3 3.3 V power supply Power 160 VSS Ground Power 161 CPU_ADR[1] Address[1] O 162 CPU_ADR[2] Address[2] O 163 CPU_ADR[3] Address[3] O 164 CPU_ADR[4] Address[4] O 165 CPU_ADR[5] Address[5] O 166 CPU_ADR[6] Address[6] O 167 CPU_ADR[7] Address[7] O 168 CPU_ADR[8] Address[8] O 169 CPU_ADR[9] Address[9] O 170 CPU_ADR[10] Address[10] O Pin number Pin name Main function Alternate function Pin type Input Output PIN LIST SORTED BY FUNCTION 6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-SP301 IC TERMINAL DESCRIPTION 171 VDD1_8 1.8V power supply Power 172 VSS Ground Power 173 CPU_ADR[11] Address[11] O 174 CPU_ADR[12] Address[12] O 175 CPU_ADR[13] Address[13] O 176 CPU_ADR[14] Address[14] O 177 CPU_ADR[15] Address[15] O 178 CPU_ADR[16] Address[16] O 179 CPU_ADR[17] Address[17] O 180 CPU_ADR[18] Address[18] O 181 CPU_ADR[19] Address[19] O 182 CPU_ADR[20] Address[20] O 183 CPU_ADR[21] Address[21] O 184 VDD3_3 3.3 V power supply Power 185 VSS Ground Power 186 PIO0[0] PIO0[0] UART0_DATA (SC0_DATA) I/O 187 PIO0[1] PIO0[1] PARA_SYNC RS_ERROR ATAPI_RD I/O 188 PIO0[2] PIO0[2] ATAPI_WR PARA_REQ I/O 189 PIO0[3] PIO0[3] SC0_CLOCK I/O 190 PIO0[4] PIO0[4] SC0_RST I/O 191 PIO0[5] PIO0[5] SC0_CMD_VCC I/O 192 PIO0[6] PIO0[6] SC0_DATA_DIR I/O 193 PIO0[7] PIO0[7] SC0_DETECT I2S_SYNC_OUT I/O 194 PIO1[0] PIO1[0] SSC0_DATA (MTSROut/MRSTin) I/O 195 PIO1[1] PIO1[1] SSC0_CLK I/O 196 PIO1[2] PIO1[2] SC_EXT_CLKIN PARA_DVALID I2S_WCLK_OUT I/O 197 PIO1[3] PIO1[3] UART2_TXD I/O 198 VDD1_8 1.8V power supply Power 199 VSS Ground Power 200 PIO1[4] PIO1[4] UART2_RXD I/O 201 PIO1[5] PIO1[5] PARA_SYNC UART1_TXD I/O Pin number Pin name Main function Alternate function Pin type Input Output PIN LIST SORTED BY FUNCTION 7 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-SP301 FW DOWNLOAD Confirm the version of firmware. 1. Open a tray. 2. Press the "SERCH DOWN" and "STANDBY" button at the same time. Displayed on the FL tube like "70******" 3. Turn off the power switch and power on, again. 4. Close the tray. Firmware and regional code Upgrade the firmware 1. Connect a video monitor to video out jack on the DV-SP301. 2. Turn on th epower switch and standby switch on. 3. Setting the disc on the tray. (Down load firmware dat adisc) 4. Press "PLAY" button. 5. Will start the Firm Ware updating automatically. Will tray open after finish the updating and take out the disc. 6. Turn off power switch. 7. Turn on the power switch, standby on and close the tray. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-SP301 PACKING VIEW RIGHT PS FRONT SIDE 150 130 70 60 REAR SIDE 240 50 REAR SIDE FRONT SIDE F 06 RC-458DV Coaxial cable Conversion plug (Except UDD) Audio/ video cable RI cable DV-SP301 Instruction manual Instruction manual 80 90 110 120 140 170 200 210 220 190 230 180 130 160 DV-SP301 Warranty card (UDD only) 250 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EXPLODED VIEW PARTS LIST (DV-SP301) REF. NO. PART NO. DESCRIPTION (B) UDD1N (S) UDD1N (B) UUS4P (S) UUS4P (G) UUT3P (G) UUK3P 1 55209110 Finger 1 1 1 1 1 1 2 55221140 Shield Cover DV-C503 1 1 1 1 1 1 3 55186710 Facet S /BY DV-C503 1 1 1 1 1 1 4 55683090 Standby switch PC board 1 1 1 1 1 1 55678210 Standby button 1 1 55688530 Standby button 1 1 55688540 Standby button 1 1 55678090 Front panel 1 55706410 Front panel 1 55688350 Front panel 1 55706310 Front panel 1 55688360 Front panel 1 1 7 55768220 Plate 1 1 1 1 55186750 Badge logo DV-C503 1 1 55688330 Badge logo 1 1 1 1 55678180 Tray 1 1 55688430 Tray 1 1 55688440 Tray 1 1 55384980 Plate DVD DPC5.3 1 1 55688340 Plate DVD 1 1 1 1 55678230 Clear plate 1 1 55688570 Clear plate 1 1 1 1 55678220 Button 6key 1 1 55688550 Button 6key 1 1 55688560 Button 6key 1 1 55678190 Button OPEN/CLOSE 1 1 55688510 Button OPEN/CLOSE 1 1 55688520 Button OPEN/CLOSE 1 1 14 55009420 FL Display PT6311 1 1 1 1 1 1 15 55678240 FL Holder 1 1 1 1 1 1 16 55683090 Display circuit PC board 1 1 1 1 1 1 17 55141370 Rubber 3.0MM 25.0MM 4 4 4 4 4 4 18 55125120 Foot 12.5MM 50MM 4 4 4 4 4 4 19 55683390 Chassis 1 1 1 1 1 1 20 55682580 Main circuit PC board assy 1 1 1 1 1 1 21 55683150 Output terminal PC board assy 1 1 1 1 1 1 22 55164740 Optical out terminal GP1F32T 1 1 1 1 1 1 23 55164750 Coaxial terminal 1 1 1 1 1 1 24 55175260 Analog out terminal RCA 2P 1 1 1 1 1 1 25 55191220 S-Video terminal 1 1 1 1 1 1 26 55149420 Component out terminal 1 1 1 1 1 1 27 55739620 RI terminal 1 1 1 1 1 1 55683410 Rear panel 1 1 55688020 Rear panel 1 1 55707610 Rear panel 1 1 29 55125180 Cord bushing 1 1 1 1 1 1 55190780 Power cord 1 1 55190790 Power cord 1 1 1 55330320 Power cord 1 31 55702120 Power supply unit 1 1 1 1 1 1 55678120 Knob power 1 1 55688410 Knob power 1 1 55688420 Knob power 1 1 55683400 Top cover 1 1 55688580 Top cover 1 1 55688590 Top cover 1 1 34 10779940 DVD Mechanism assy TVM503R6 1 1 1 1 1 1 35 55269540 Bracket mecha. 1 1 1 1 1 1 36 55179040 Connector assy 1 1 1 1 37 5516498A Holder 3 3 3 3 3 3 40 260208 Wire tie 3 3 3 3 3 3 41 20752500 Label (Hazard) 1 1 1 1 1 1 Qt'y REMARK 10 11 5 6 8 9 12 13 28 30 32 33 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CN81 55687570 Socket AS 1 1 1 1 1 1 CC24 55687510 FFC 27P x 1.25 x 50 1 1 1 1 1 1 CC21 55318540 FFC 19P x 1.25 x 70 1 1 1 1 1 1 F1 0215002.M Fuse 250V 2A 1 1 1 1 1 1 CN25 55420050 Socket AS 1 1 1 1 1 1 S1 55049000 SCREW-ST 3MM 06MM JIS B 1122 2 2 2 2 2 2 S2 838130088 Tapping screw 3TTB+8B 13 13 13 13 13 13 838430088 Tapping screw 3TTB+8B (BC) 7 7 838930088 Tapping screw 3TTB+8B (NI) 7 7 7 7 S4 55135460 SCREW-SPEC 3MM 10MM JIS 27 0 0 11 11 11 11 11 11 S5 55127290 SCREW-ST 3MM 18MM JIS B 1122 3 3 3 3 3 3 838130088 Tapping screw 3TTB+8B 2 2 55127120 Tapping screw W/Washer 2 2 2 2 S7 55712510 SCREW-ST 2.6MM 8MM JIS 53 0 A4 11 11 11 11 11 11 S8 55127070 SCREW-ST 3MM 10MM JIS B 1122 6 6 6 6 6 6 S9 55127180 SCREW-ST 3MM 8MM JIS B 1122 2 2 2 2 1 1 S3 S6 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRINTED CIRCUIT BOARD PARTS LIST OUTPUT TERMINAL PC BOARD !: Safety part CIRCUIT NO. PART NO. DESCRIPTION ICs Output PC IC82 55128990 OPERAMP BA4560F DUAL OP Output PC IC83 55164460 OPERAMP NJM4556AM DUAL OP Output PC IC84 55164740 D-LEM GP1F32T RD RND CL Output PC IC85 55491690 REGPOSFXD KIA7805AP NORMAL Output PC IC85 55505580 REGPOSFXD KA7805 TO-220 NORMAL Output PC IC86 55164460 OPERAMP NJM4556AM DUAL OP Output PC IC87 55164460 OPERAMP NJM4556AM DUAL OP Output PC IC88 55420450 VIDEO PROC MM1568AJBE SSOP34A AMPLIFIER&DRIVER Transistors Output PC Q801 20970460 KTC3875Y N 50V 150MI0A Output PC Q802 20970480 KTA1504Y P -50V -150MI0A Output PC Q803 55039430 DTC323TK N 2K2 OHM Output PC Q804 55133190 DTA114YKA P 10K0 OHM 47K0 OHM Output PC Q805 55133180 DTC114YKA N 10K0 OHM 47K0 OHM Output PC Q806 20970460 KTC3875Y N 50V 150MI0A Output PC Q811 55039430 DTC323TK N 2K2 OHM Diodes Output PC D801 20496510 1SS355 35.0V 225MI0A Output PC D803 20496510 1SS355 35.0V 225MI0A Output PC D804 70436540 1N4148 100.0V 150E-3A Output PC D810 55177710 ZENER UDZS 5.1 B 5.1V 200MI0W Output PC D811 55177710 ZENER UDZS 5.1 B 5.1V 200MI0W Output PC D812 55177710 ZENER UDZS 5.1 B 5.1V 200MI0W Output PC D813 55177710 ZENER UDZS 5.1 B 5.1V 200MI0W Output PC D814 55177710 ZENER UDZS 5.1 B 5.1V 200MI0W Output PC D815 55177710 ZENER UDZS 5.1 B 5.1V 200MI0W Output PC D816 55177710 ZENER UDZS 5.1 B 5.1V 200MI0W Output PC D817 55177710 ZENER UDZS 5.1 B 5.1V 200MI0W Output PC D818 55177710 ZENER UDZS 5.1 B 5.1V 200MI0W Output PC D819 55177710 ZENER UDZS 5.1 B 5.1V 200MI0W Output PC D820 55177710 ZENER UDZS 5.1 B 5.1V 200MI0W Output PC D821 55177710 ZENER UDZS 5.1 B 5.1V 200MI0W Socket AS Output PC CN81 55687570 10P 60MM UL1007 PVC DISCRETE 26 12 Socket Output PC CP82 55179440 CONN 1.25MM 27 FE ST WH GF120-27S-TS 2794 A4 Output PC CP83 55090070 CONN 2.0MM 2 MA ST NAT LW2002P0200T 0 0 Pin Jack Output PC JK81 55164750 CON PHONO SCKT W/GN 1 PINS Output PC JK82 55175260 CON PHONO SCKT RCA 2P W/GND CAP JE020059PN Output PC JK83 55191220 CON DIN SCKT MIX SOCKET RCA & S-VIDEO Output PC JK84 55149420 CON PHONO SCKT RCA-314P RBG Output PC JK85 55739620 CON PHONO SCKT EST-J35228 2 PINS Capacitors Output PC C801 20251250 Film. 47N0F +10% -10% 50.0V X7R Output PC C803 20251250 Film. 47N0F +10% -10% 50.0V X7R Output PC C804 11058670 Film. 100P0F +5% -5% 50.0V NP0 Output PC C805 30939240 Film. 22N0F +10% -10% 50.0V X7R Output PC C806 30939240 Film. 22N0F +10% -10% 50.0V X7R Output PC C811 20267830 Elect. C 47U0F +20% 16.0V 85C 20251640 Output PC C812 50882800 Film. 1N5F +10% -10% 50.0V X7R Output PC C813 20468970 Film. 330P0F +5% -5% 50.0V NP0 Output PC C814 20267830 Elect. C 47U0F +20% 16.0V 85C 20251640 Output PC C815 50882800 Film. 1N5F +10% -10% 50.0V X7R Output PC C816 20267830 Elect. C 47U0F +20% 16.0V 85C 20251640 Output PC C817 11058670 Film. 100P0F +5% -5% 50.0V NP0 Output PC C818 80436820 Film. 680P0F +10% -10% 50.0V X7R Output PC C819 20267830 Elect. C 47U0F +20% 16.0V 85C 20251640 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Output PC C820 20268840 Elect. C 1U0F +20% 50.0V 85C Output PC C825 20268180 Elect. C 330U0F +20% 16.0V 85C Output PC C827 11059320 Film. 1N0F +10% -10% 50.0V X7R Output PC C829 20468970 Film. 330P0F +5% -5% 50.0V NP0 Output PC C830 11058670 Film. 100P0F +5% -5% 50.0V NP0 Output PC C831 50882800 Film. 1N5F +10% -10% 50.0V X7R Output PC C832 20267830 Elect. C 47U0F +20% 16.0V 85C 20251640 Output PC C834 20267830 Elect. C 47U0F +20% 16.0V 85C 20251640 Output PC C835 20267830 Elect. C 47U0F +20% 16.0V 85C 20251640 Output PC C836 20269080 Elect. C 220U0F +20% 10.0V 85C Output PC C837 11058670 Film. 100P0F +5% -5% 50.0V NP0 Output PC C838 80436820 Film. 680P0F +10% -10% 50.0V X7R Output PC C839 50882800 Film. 1N5F +10% -10% 50.0V X7R Output PC C840 11059320 Film. 1N0F +10% -10% 50.0V X7R Output PC C841 20267830 Elect. C 47U0F +20% 16.0V 85C 20251640 Output PC C842 11058670 Film. 100P0F +5% -5% 50.0V NP0 Output PC C845 20267290 Film. 100N0F +80% -20% 50.0V Y5V Output PC C846 20269020 Elect. C 100U0F +20% 16.0V 85C Output PC C847 11059320 Film. 1N0F +10% -10% 50.0V X7R Output PC C848 20267290 Film. 100N0F +80% -20% 50.0V Y5V Output PC C849 11059340 Film. 10N0F +10% -10% 50.0V X7R Output PC C850 20267290 Film. 100N0F +80% -20% 50.0V Y5V Output PC C851 20267290 Film. 100N0F +80% -20% 50.0V Y5V Output PC C852 20251930 Elect. C 22U0F +20% 16.0V 85C Output PC C853 20267290 Film. 100N0F +80% -20% 50.0V Y5V Output PC C854 20268840 Elect. C 1U0F +20% 50.0V 85C Output PC C855 20268840 Elect. C 1U0F +20% 50.0V 85C Output PC C856 20267290 Film. 100N0F +80% -20% 50.0V Y5V Output PC C857 20269020 Elect. C 100U0F +20% 16.0V 85C Output PC C858 20251930 Elect. C 22U0F +20% 16.0V 85C Output PC C859 20269020 Elect. C 100U0F +20% 16.0V 85C Output PC C860 20251930 Elect. C 22U0F +20% 16.0V 85C Output PC C861 20269020 Elect. C 100U0F +20% 16.0V 85C Output PC C862 20251930 Elect. C 22U0F +20% 16.0V 85C Output PC C863 20269020 Elect. C 100U0F +20% 16.0V 85C Output PC C864 20251930 Elect. C 22U0F +20% 16.0V 85C Output PC C865 20269020 Elect. C 100U0F +20% 16.0V 85C Output PC C866 20251930 Elect. C 22U0F +20% 16.0V 85C Output PC C867 11059440 Film. 10P0F +0P25F -0P25F 50.0V NP0 DISPLAY CIRCUIT PC BOARD CIRCUIT NO. PART NO. DESCRIPTION ICs Display PC IC91 20920150 UPD16311GC-AB6 HIGH VOLTAGE DRIVER Display PC IC91 55009420 PT6311 VFD DRIVER Display PC RM91 55193920 NJL64H380A RECEIVER 38KHZ Transistor Display PC Q701 55133180 DTC114YKA N 10K0 OHM 47K0 OHM Diodes Display PC D901 70436540 1N4148 100.0V 150E-3A Display PC D902 70436540 1N4148 100.0V 150E-3A Display PC D904 70436540 1N4148 100.0V 150E-3A Display PC D905 20415060 1N4004 400.0V 1.0A Display PC LD91 55125510 D-LEM LTL-1CHE RD RND 3.0 DIFU 5.6CD Socket AS Display PC CN92 55212780 WIRE CON ASY UNIQUE 7P 60MM UL1007 PVC DISCRETE 26 Display PC CN93 55158680 WIRE CON ASY UNIQUE 2 80MM UL1007 PVC DISCRETE 26 Display PC CN91 55543550 WIRE CON ASY 05235F 5P 230MM UL1007 PVC DISCRETE 26 1 Socket Display PC CP91 55078520 CONN 2.0MM 2 MA R NAT LW2003P02 0 0 FL Display www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Display PC FL91 55684080 DISPLAY 12-BT-159GNK Holder Display PC 0050 55678240 MLD HOLDER VFD DV-SP301 Capacitors Display PC C901 11059320 Film C 1N0F +10% -10% 50.0V X7R Display PC C902 20251250 Film C 47N0F +10% -10% 50.0V X7R Display PC C903 20267710 Elect. C 10U0F +20% 16.0V 85C 20251630 Display PC C904 20267290 Film C 100N0F +80% -20% 50.0V Y5V Display PC C905 20267290 Film C 100N0F +80% -20% 50.0V Y5V Display PC C916 30938700 Film C 68P0F +5% -5% 50.0V NP0 Display PC C917 30938700 Film C 68P0F +5% -5% 50.0V NP0 Display PC C918 30938700 Film C 68P0F +5% -5% 50.0V NP0 Display PC C919 30938700 Film C 68P0F +5% -5% 50.0V NP0 Display PC C920 30938700 Film C 68P0F +5% -5% 50.0V NP0 Display PC C921 30938700 Film C 68P0F +5% -5% 50.0V NP0 Display PC C922 30938700 Film C 68P0F +5% -5% 50.0V NP0 Display PC C923 30938700 Film C 68P0F +5% -5% 50.0V NP0 Display PC C924 30938700 Film C 68P0F +5% -5% 50.0V NP0 Display PC C925 30938700 Film C 68P0F +5% -5% 50.0V NP0 Display PC C926 30938700 Film C 68P0F +5% -5% 50.0V NP0 Display PC C927 30938700 Film C 68P0F +5% -5% 50.0V NP0 Tact Switches Display PC SW91 55145270 SWI TACT VERTICAL TACTILE F/B 50MI0A 12.0V 500MI0OHM 1T 1P Display PC SW92 55145270 SWI TACT VERTICAL TACTILE F/B 50MI0A 12.0V 500MI0OHM 1T 1P Display PC SW93 55145270 SWI TACT VERTICAL TACTILE F/B 50MI0A 12.0V 500MI0OHM 1T 1P Display PC SW94 55145270 SWI TACT VERTICAL TACTILE F/B 50MI0A 12.0V 500MI0OHM 1T 1P Display PC SW95 55145270 SWI TACT VERTICAL TACTILE F/B 50MI0A 12.0V 500MI0OHM 1T 1P Display PC SW96 55145270 SWI TACT VERTICAL TACTILE F/B 50MI0A 12.0V 500MI0OHM 1T 1P Display PC SW97 55145270 SWI TACT VERTICAL TACTILE F/B 50MI0A 12.0V 500MI0OHM 1T 1P Display PC SW98 55145270 SWI TACT VERTICAL TACTILE F/B 50MI0A 12.0V 500MI0OHM 1T 1P Resistors Display PC R912 55261210 RCF 15R0 OHM +5% 250MI0W Display PC R913 55261210 RCF 15R0 OHM +5% 250MI0W Display PC R914 55261210 RCF 15R0 OHM +5% 250MI0W Display PC R915 55261210 RCF 15R0 OHM +5% 250MI0W Display PC R916 30939360 RCF 10R0 OHM +5% 250MI0W Display PC R917 11066420 RMGCFMIN 390R0 OHM +5% 100MI0W Display PC R918 80440510 RMGCFMIN 0 OHM +0% 100MI0W Display PC R919 80440510 RMGCFMIN 0 OHM +0% 100MI0W Finger Display PC FG91 55209110 PIN-STRIP 0.0MM 1 MAIN CIRCUIT PC BOARD CIRCUIT NO. PART NO. DESCRIPTION ICs Main PC IC21 5568753A STM5589 PQFP208 MPEG VIDEO DECODER Main PC IC22 20940740 EEPROM M24C02WMN6 Main PC IC23 55116380 FAN8082 MOTOR DRIVER Main PC IC24 55421050 BA18BC0FP TO252-3 LOW VOLTAGE DROP Main PC IC31 55156290 IC-DRAM 100M0 HZ 8N0 64M(1M*16*4) HY57V651620BTC-8 125M Main PC IC41 5552334A MEMORY FLASH M29W160ET70N6 Main PC IC51 55133310 M74HCU04M1R INVERTER HCT Main PC IC61 55291470 IC-CONV WM8728 D/A Transistors Main PC Q201 20970460 KTC3875Y N 50V 150MI0A Main PC Q202 20970460 KTC3875Y N 50V 150MI0A Main PC Q203 20970460 KTC3875Y N 50V 150MI0A Main PC Q204 20970480 KTA1504Y P -50V -150MI0A Main PC Q206 55133180 DTC114YKA N 10K0 OHM 47K0 OHM Main PC Q207 55133190 DTA114YKA P 10K0 OHM 47K0 OHM Coils www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Main PC L201 55188040 LF-SMD 2U2H +10% Main PC L202 55188040 LF-SMD 2U2H +10% Main PC L203 55188040 LF-SMD 2U2H +10% Main PC L204 55126670 F BEAD SURFACE MT 1000OHM FCM2012H-102T04 Main PC L205 55126670 F BEAD SURFACE MT 1000OHM FCM2012H-102T04 Main PC L206 55126670 F BEAD SURFACE MT 1000OHM FCM2012H-102T04 Main PC L207 55185100 LF-SMD 22U0H +10% Main PC L208 55188040 LF-SMD 2U2H +10% Main PC L209 55188040 LF-SMD 2U2H +10% Main PC L211 10328750 RMGCFMIC 0 OHM +0% 62MI5W Main PC L301 55188040 LF-SMD 2U2H +10% Main PC L501 55126670 F BEAD SURFACE MT 1000OHM FCM2012H-102T04 Main PC L601 10328750 RMGCFMIC 0 OHM +0% 62MI5W Main PC L602 10328750 RMGCFMIC 0 OHM +0% 62MI5W Diodes Main PC D201 20414280 D-ZENER 1N5232B 5.6V 500MI0W Main PC D202 55165360 D-SLP RB441Q-40 40.0V 100MI0A Main PC D203 70436540 D-SLP 1N4148 100.0V 150E-3A Main PC D204 70436540 D-SLP 1N4148 100.0V 150E-3A Socket AS Main PC CN25 55420050 2P 250MM UL1533 SHIELD 26 1 Sockets Main PC CP21 55124600 1.25MM 19 FE ST WH GF120-19S-TS 2794 A6 Main PC CP22 55125910 1.0MM 15 FE ST BK 00-6232-015-006-800 0 0 Main PC CP23 55125910 1.0MM 15 FE ST BK 00-6232-015-006-800 0 0 Main PC CP24 55179440 1.25MM 27 FE ST WH GF120-27S-TS 2794 A4 Main PC CP27 55090060 2.0MM 7 MA ST NAT LW2002P07 0 0 Main PC CP28 55164790 2.5MM 02 MA ST BK 1649 C2 Capacitors Main PC C201 20267290 Film C 100N0F +80% -20% 50.0V Y5V Main PC C202 20267290 Film C 100N0F +80% -20% 50.0V Y5V Main PC C203 11059340 Film C 10N0F +10% -10% 50.0V X7R Main PC C204 20268940 Elect. C 100U0F +20% 10.0V 85C Main PC C205 11059340 Film C 10N0F +10% -10% 50.0V X7R Main PC C206 20268940 Elect. C 100U0F +20% 10.0V 85C Main PC C207 20267290 Film C 100N0F +80% -20% 50.0V Y5V Main PC C208 20267290 Film C 100N0F +80% -20% 50.0V Y5V Main PC C209 11059340 Film C 10N0F +10% -10% 50.0V X7R Main PC C210 20268940 Elect. C 100U0F +20% 10.0V 85C Main PC C211 11059440 Film C 10P0F +0P25F -0P25F 50.0V NP0 Main PC C212 11059440 Film C 10P0F +0P25F -0P25F 50.0V NP0 Main PC C213 11059440 Film C 10P0F +0P25F -0P25F 50.0V NP0 Main PC C214 11059440 Film C 10P0F +0P25F -0P25F 50.0V NP0 Main PC C215 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V Main PC C216 30938740 Film C 470P0F +5% -5% 50.0V NP0 Main PC C217 20267290 Film C 100N0F +80% -20% 50.0V Y5V Main PC C218 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V Main PC C219 20267290 Film C 100N0F +80% -20% 50.0V Y5V Main PC C220 11059340 Film C 10N0F +10% -10% 50.0V X7R Main PC C221 20268940 Elect. C 100U0F +20% 10.0V 85C Main PC C222 20267290 Film C 100N0F +80% -20% 50.0V Y5V Main PC C223 20267290 Film C 100N0F +80% -20% 50.0V Y5V Main PC C224 20267290 Film C 100N0F +80% -20% 50.0V Y5V Main PC C225 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V Main PC C226 10137340 CCCFMIC 68P0F +10% -10% 50.0V NP0 Main PC C227 10137340 CCCFMIC 68P0F +10% -10% 50.0V NP0 Main PC C228 20267830 Elect. C 47U0F +20% 16.0V 85C 20251640 Main PC C229 20268620 Elect. C 470U0F +20% 6.3V 85C Main PC C230 20267830 Elect. C 47U0F +20% 16.0V 85C 20251640 Main PC C231 20268940 Elect. C 100U0F +20% 10.0V 85C Main PC C232 20268940 Elect. C 100U0F +20% 10.0V 85C Main PC C233 20268620 Elect. C 470U0F +20% 6.3V 85C Main PC C234 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Main PC C235 11059440 Film C 10P0F +0P25F -0P25F 50.0V NP0 Main PC C236 11058670 Film C 100P0F +5% -5% 50.0V NP0 Main PC C237 11058670 Film C 100P0F +5% -5% 50.0V NP0 Main PC C239 11058670 Film C 100P0F +5% -5% 50.0V NP0 Main PC C240 11058670 Film C 100P0F +5% -5% 50.0V NP0 Main PC C242 11059440 Film C 10P0F +0P25F -0P25F 50.0V NP0 Main PC C243 11059440 Film C 10P0F +0P25F -0P25F 50.0V NP0 Main PC C244 11059440 Film C 10P0F +0P25F -0P25F 50.0V NP0 Main PC C245 10138550 CCCFMIC 1N0F +10% -10% 50.0V X7R Main PC C246 20288040 CCCFMIC 100N0F +80% -20% 16.0V Y5V Main PC C251 20267290 Film C 100N0F +80% -20% 50.0V Y5V Main PC C252 20268840 Elect. C 1U0F +20% 50.0V 85C Main PC C253 15002130 Elect. C 10U0F +20% 16.0V 85C Main PC C254 20269020 Elect. C 100U0F +20% 16.0V 85C Main PC C301 20267290 Film C 100N0F +80% -20% 50.0V Y5V Main PC C302 20267290 Film C 100N0F +80% -20% 50.0V Y5V Main PC C303 20267290 Film C 100N0F +80% -20% 50.0V Y5V Main PC C304 20267290 Film C 100N0F +80% -20% 50.0V Y5V Main PC C305 20267290 Film C 100N0F +80% -20% 50.0V Y5V Main PC C306 20267290 Film C 100N0F +80% -20% 50.0V Y5V Main PC C307 20267290 Film C 100N0F +80% -20% 50.0V Y5V Main PC C308 20267290 Film C 100N0F +80% -20% 50.0V Y5V Main PC C309 20267290 Film C 100N0F +80% -20% 50.0V Y5V Main PC C310 20267290 Film C 100N0F +80% -20% 50.0V Y5V Main PC C311 20268620 Elect. C 470U0F +20% 6.3V 85C Main PC C312 20267290 Film C 100N0F +80% -20% 50.0V Y5V Main PC C401 20267290 Film C 100N0F +80% -20% 50.0V Y5V Main PC C402 20267290 Film C 100N0F +80% -20% 50.0V Y5V Main PC C403 20267290 Film C 100N0F +80% -20% 50.0V Y5V Main PC C404 11059320 Film C 1N0F +10% -10% 50.0V X7R Main PC C405 11059320 Film C 1N0F +10% -10% 50.0V X7R Main PC C406 20268940 Elect. C 100U0F +20% 10.0V 85C Main PC C407 20267290 Film C 100N0F +80% -20% 50.0V Y5V Main PC C501 40435170 Film C 20P0F +5% -5% 50.0V NP0 Main PC C502 60441080 Film C 22P0F +5% -5% 50.0V NP0 Main PC C503 60441080 Film C 22P0F +5% -5% 50.0V NP0 Main PC C504 20267290 Film C 100N0F +80% -20% 50.0V Y5V Main PC C505 20268940 Elect. C 100U0F +20% 10.0V 85C Main PC C601 20267830 Elect. C 47U0F +20% 16.0V 85C 20251640 Main PC C602 11058710 Film C 560P0F +5% -5% 50.0V NP0 Main PC C603 20268880 Elect. C 10U0F +20% 50.0V 85C Main PC C604 11058710 Film C 560P0F +5% -5% 50.0V NP0 Main PC C605 20506540 CCCFMIC 10P0F +0P5F -0P5F 50.0V NP0 Main PC C606 15002130 Elect. C 10U0F +20% 16.0V 85C Main PC C607 11058710 Film C 560P0F +5% -5% 50.0V NP0 Main PC C608 20268940 Elect. C 100U0F +20% 10.0V 85C Main PC C609 20506540 CCCFMIC 10P0F +0P5F -0P5F 50.0V NP0 Main PC C610 20506540 CCCFMIC 10P0F +0P5F -0P5F 50.0V NP0 Main PC C611 20506540 CCCFMIC 10P0F +0P5F -0P5F 50.0V NP0 Main PC C612 20506540 CCCFMIC 10P0F +0P5F -0P5F 50.0V NP0 Main PC C613 20506540 CCCFMIC 10P0F +0P5F -0P5F 50.0V NP0 Resonator Main PC X501 55128980 FILQZ 27M0 HZ +15 PPM 50.0 OHM FUNDAMENTAL 16P5 F FFC Main PC CC21 55318540 FFC-JUMPER 19X 1.25MM 70MM DV603 Main PC CC24 55687510 FFC-JUMPER 27X 1.25MM 50MM TYPE C (TYPE BT) Terminals Main PC GND1 55135980 GND TERMINAL (LUG) Main PC GND2 55135980 GND TERMINAL (LUG) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PACKING PARTS LIST !: Safety part REF. NO. PART NO. PART NAME DESCRIPTION 50 55683300 Carton Box 55688200 Carton Box 55410420 Carton Box 55410470 Carton Box 55688100 Carton Box 55688310 Carton Box 60 55683310 Pad Right 70 55683320 Pad Left 80 55683330 Instruction Manual 55706710 Instruction Manual 90 55683340 POS Label 55410490 POS Label 55688710 POS Label 55688320 POS Label 55688720 POS Label 110 55176530 Audio Cable Stereo 1500MM BK 120 55169520 Sheet 820MM x 820MM 130 55030950 PE Bag 45MM x 80MM 140 55170650 PE Bag 260MM x 410MM 150 20194780 Cable Tie 160 20715540 PE Bag 70MM x 250MM 170 55511980 Warranty Card 180 5520874A Cushion 80MM x 35MM 190 55186190 Coaxial Cable 1000MM OG 200 55167260 Remote Controller DV-S353 W/O Battery 210 3010054 Battery UM3 x 2 220 55236070 Conversion plug 230 55743520 RI Cable Audio Cable MONO 800MM 240 55429850 Cushion 160MM x 29MM 29MM 250 29110148 PP tape : Black color model : Silver color model : Golden color model : North American and Canadian area only : South American area only : Asia area only : Korea area only www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-SP301 http://www.onkyo.co.jp/ HOMEPAGE ONKYO U.S.A. CORPORATION 18 Park Way, Upper Saddle River, N.J. 07458, U.S.A. Tel: 201-785-2600 Fax: 201-785-2650 E-mail: onkyo@onkyousa.com ONKYO EUROPE ELECTRONICS GmbH Liegnitzerstrasse 6, 82194 Groebenzell, GERMANY Tel: +49-8142-4401-0 Fax: +49-8142-4401-555 E-mail: info@onkyo.de ONKYO CHINA LIMITED Units 2102-2107, Metroplaza Tower I, 223 Hing Fong Road, Kwai Chung, N.T., HONG KONG Tel: 852-2429-3118 Fax: 852-2428-9039 Sales & Product Planning Div. : 2-1, Nisshin-cho, Neyagawa-shi, OSAKA 572-8540, JAPAN Tel: 072-831-8111 Fax: 072-833-5222 ONKYO CORPORATION www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
