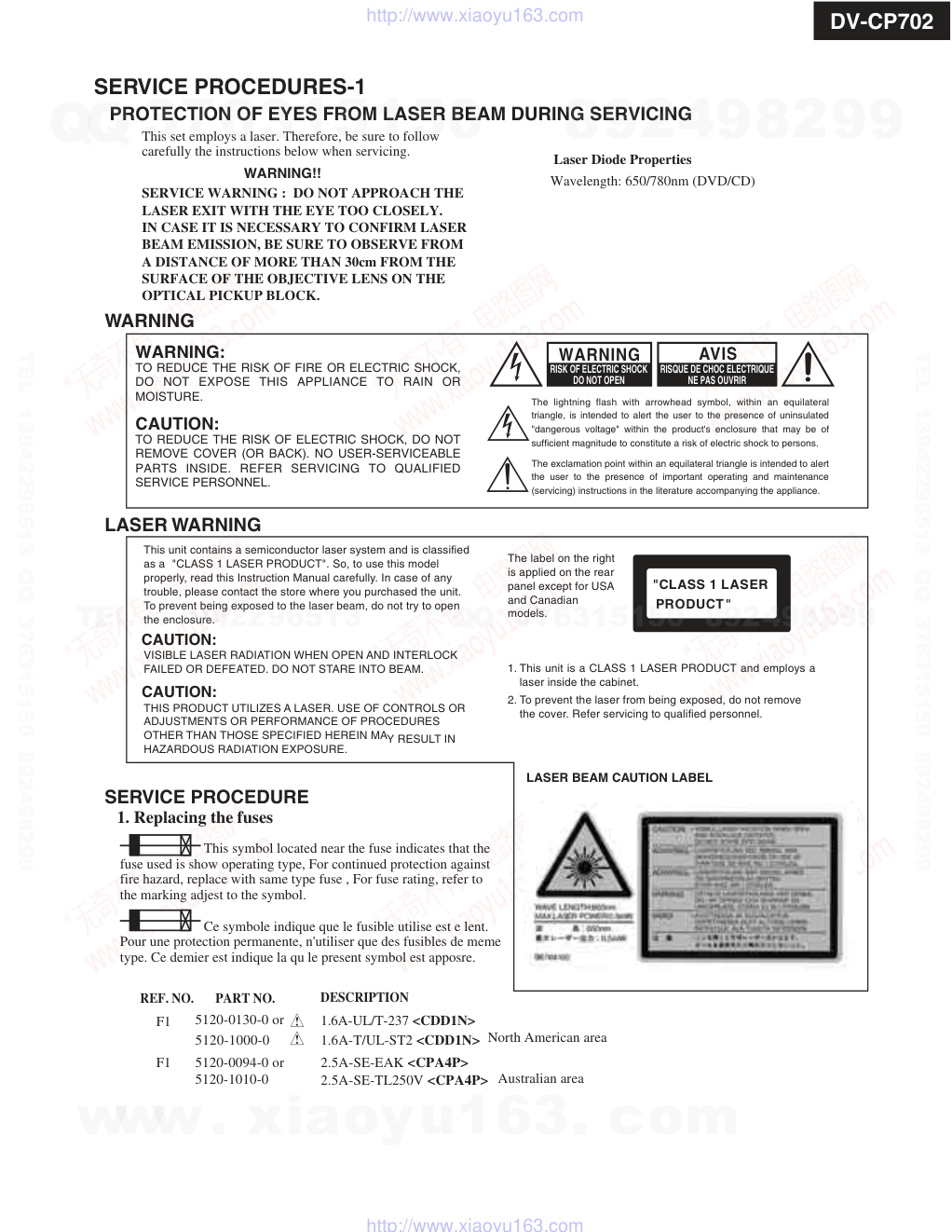

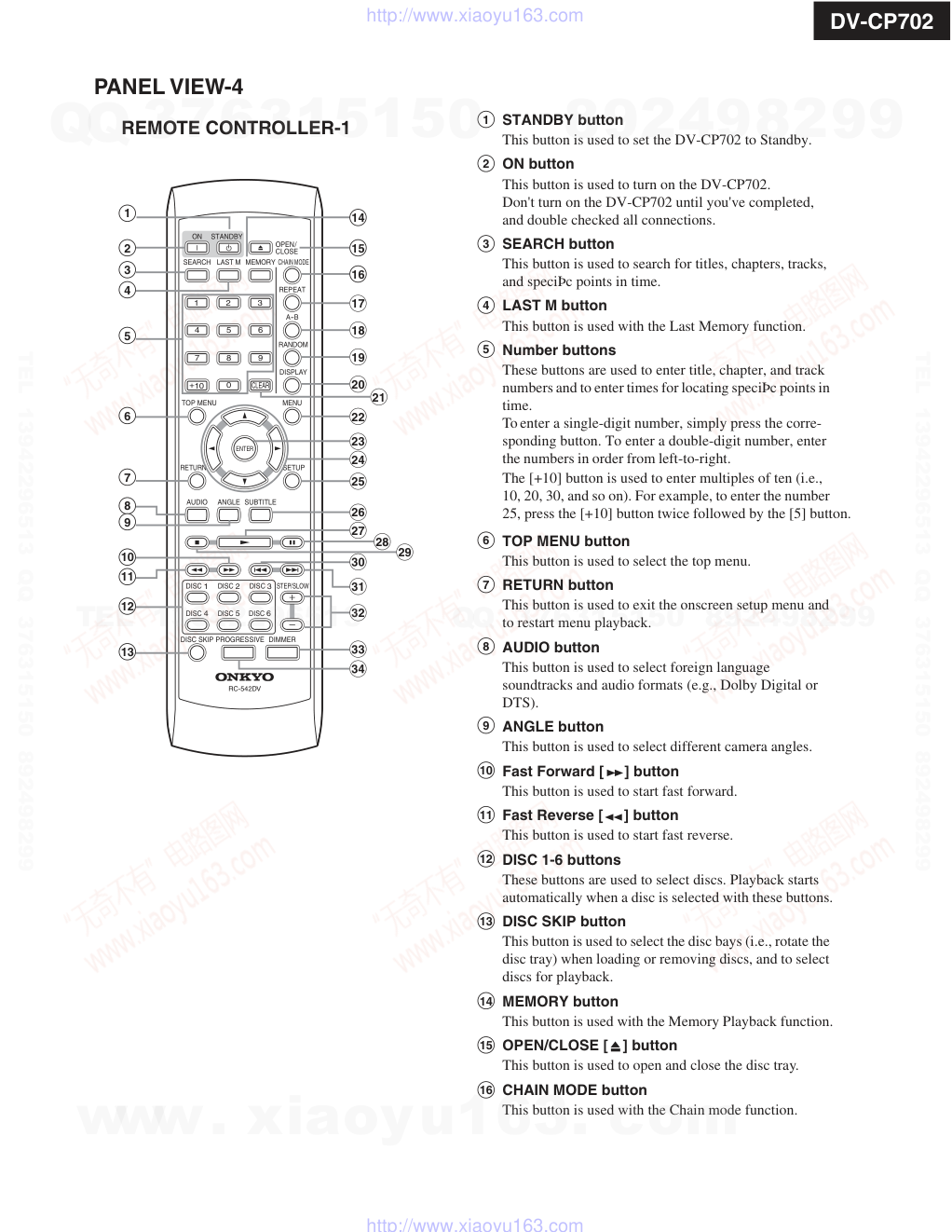

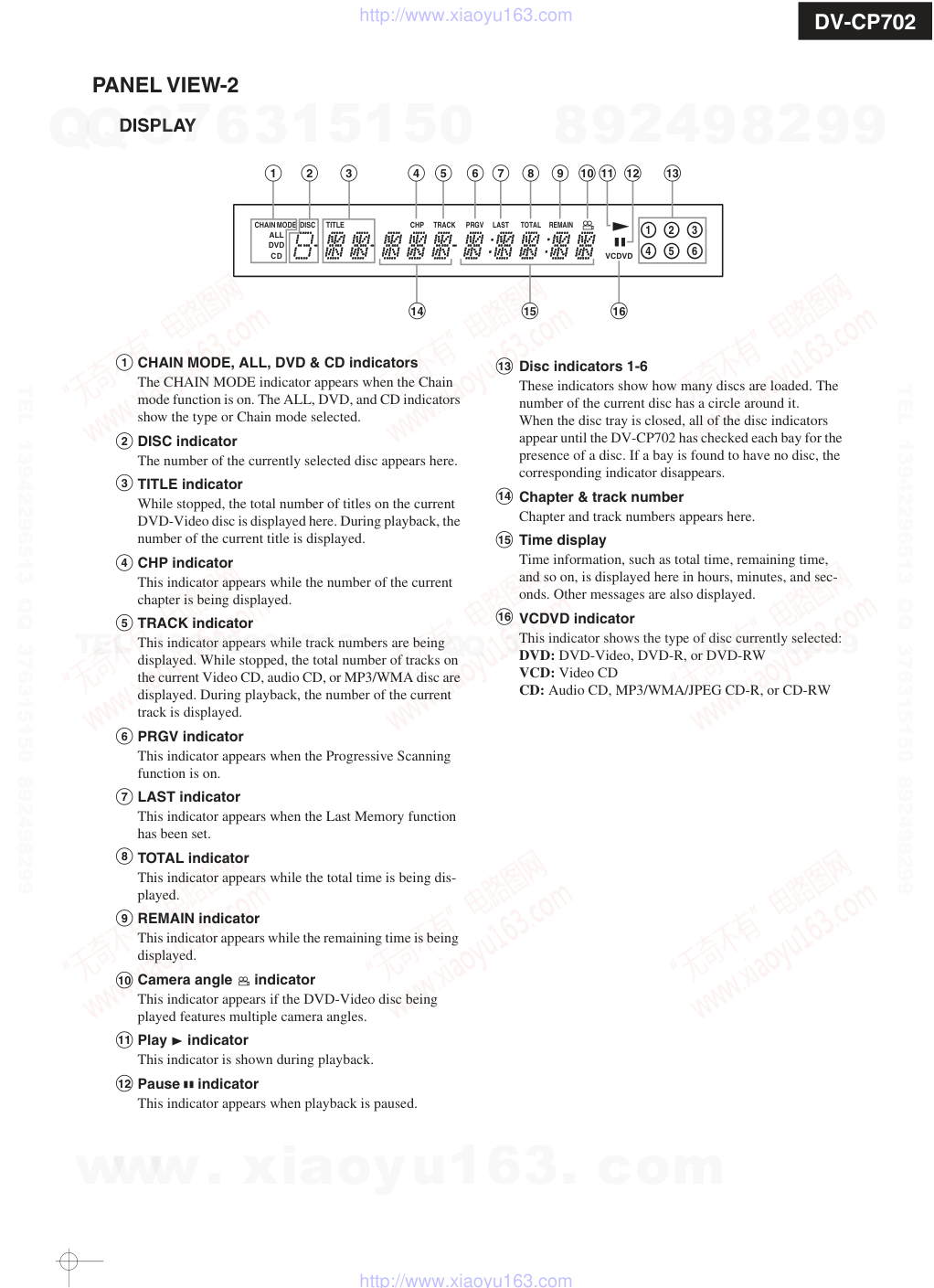

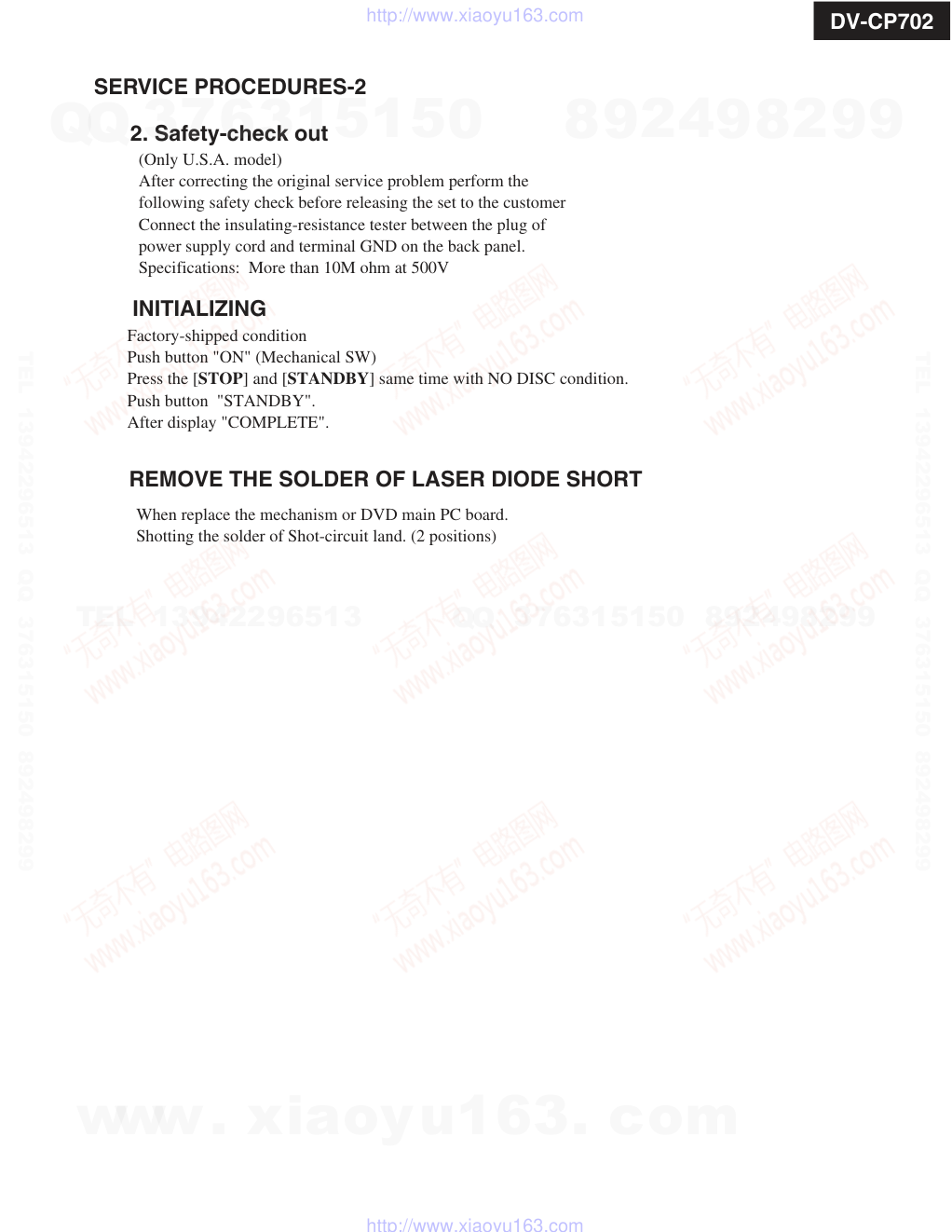

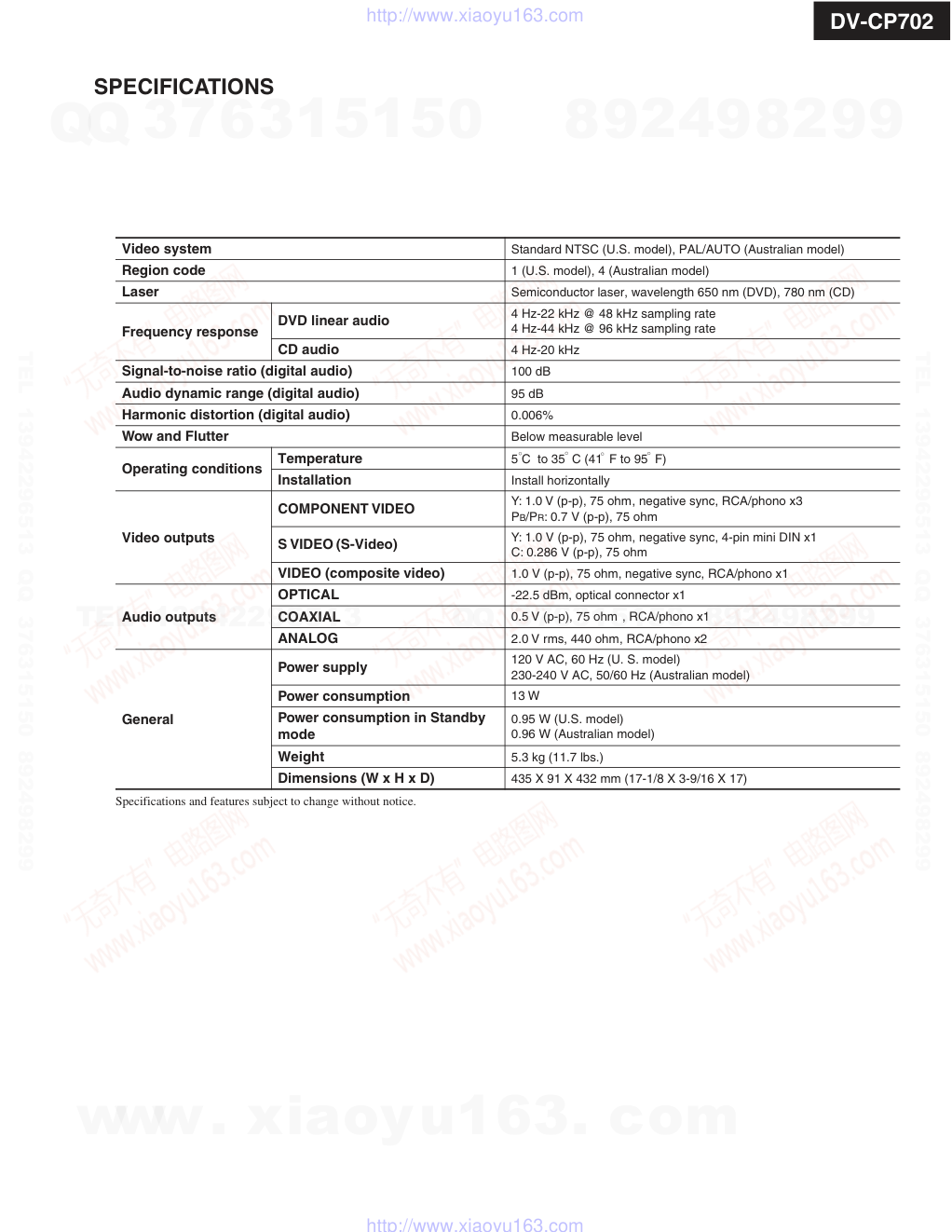

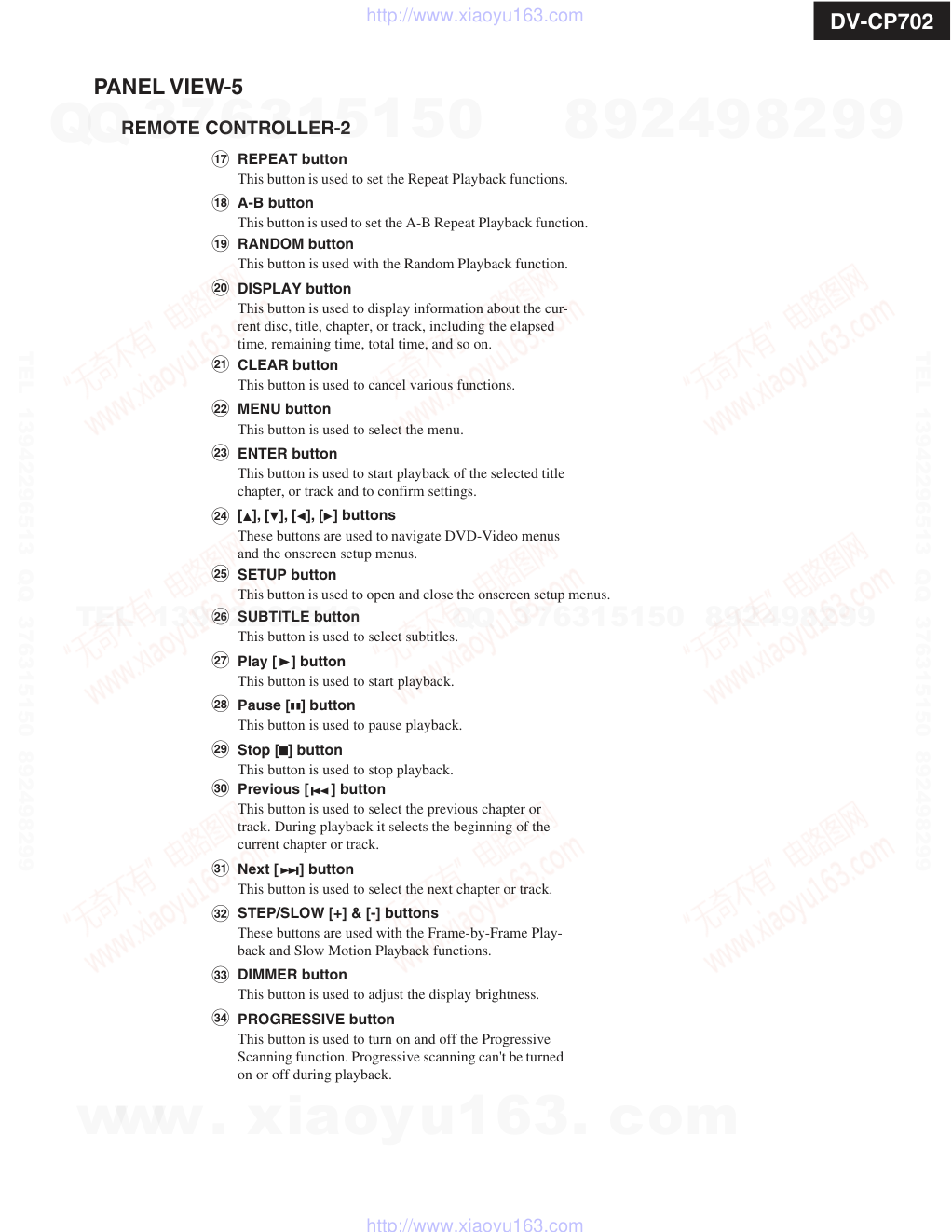

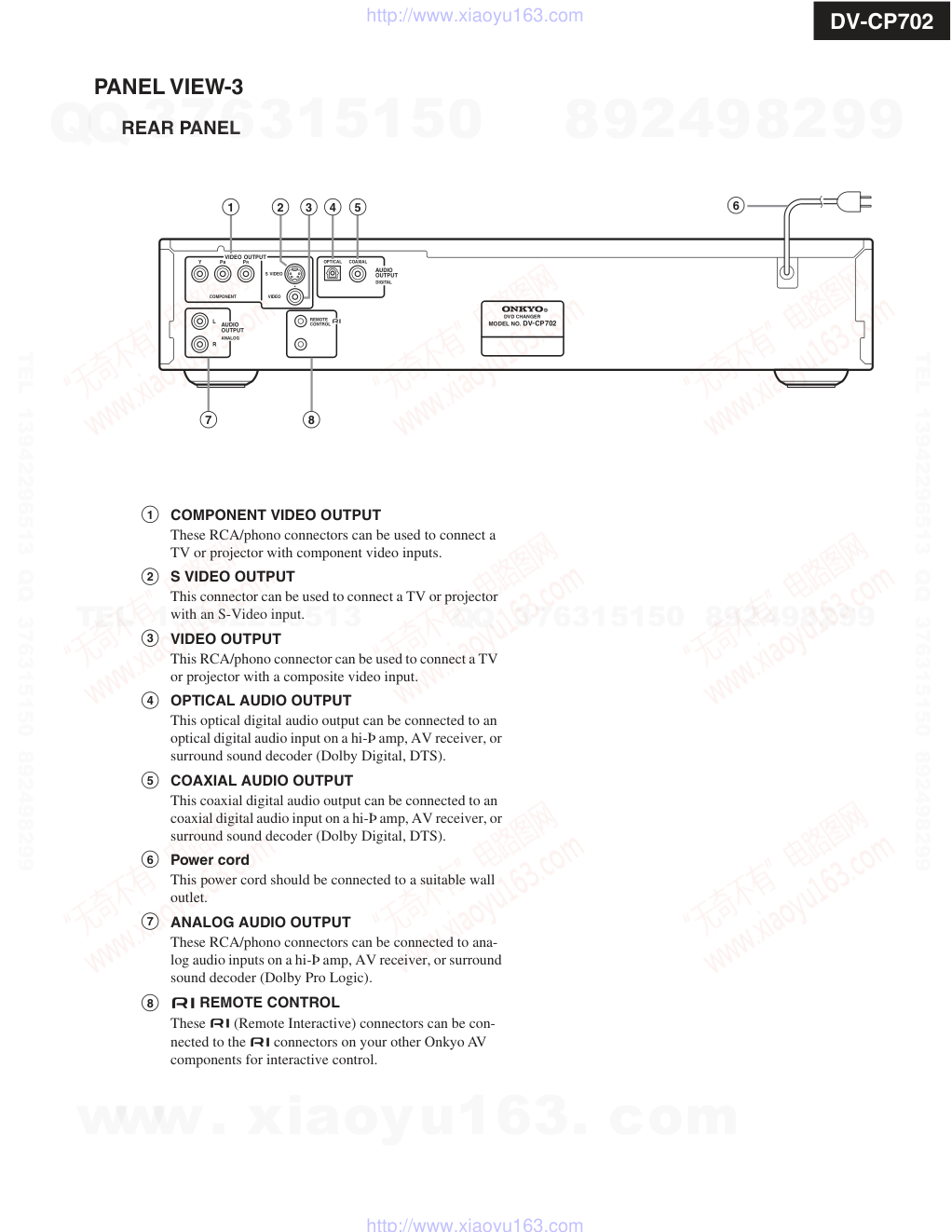

DV-CP702 SERVICE MANUAL SERVICE MANUAL DVD CHANGER Black and Silver models MODEL DV-CP702 Ref. No. 3794 052004 120V AC, 60 Hz 230-240V AC, 50/60 Hz B CDD1N S CDD1N B CPA4P S CPA4P RC-542DV ON STANDBY SEARCH LAST M MEMORY CHAIN MODE REPEAT A-B RANDOM DISPLAY MENU SETUP TOP MENU RETURN AUDIO ANGLE SUBTITLE ZOOM DISC 1 DISC 2 DISC 3 DISC 4 DISC 5 DISC 6 DISC SKIP DIMMER RC-542DV STEP/SLOW CLEAR OPEN/ CLOSE PROGRESSIVE ENTER +10 0 1 2 3 4 5 6 7 8 9 SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK ON THE SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK. REPLACE THESE COMPONENTS WITH ONKYO PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL. MAKE LEAKAGE-CURRENT OR RESISTANCE MEASUREMENTS TO DETERMINE THAT EXPOSED PARTS ARE ACCEPTABLY INSULATED FROM THE SUPPLY CIRCUIT BEFORE RETURNING THE APPLIANCE TO THE CUSTOMER. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-CP702 SPECIFICATIONS Specifications and features subject to change without notice. Video system Standard NTSC (U.S. model), PAL/AUTO (Australian model) Region code 1 (U.S. model), 4 (Australian model) Laser Semiconductor laser, wavelength 650 nm (DVD), 780 nm (CD) Frequency response DVD linear audio 4 Hz-22 kHz @ 48 kHz sampling rate 4 Hz-44 kHz @ 96 kHz sampling rate CD audio 4 Hz-20 kHz Signal-to-noise ratio (digital audio) 100 dB Audio dynamic range (digital audio) 95 dB Harmonic distortion (digital audio) 0.006% Wow and Flutter Below measurable level Operating conditions Temperature 5 C to 35 C (41 F to 95 F) Installation Install horizontally Video outputs COMPONENT VIDEO Y: 1.0 V (p-p), 75 ohm , negative sync, RCA/phono x3 PB/PR: 0.7 V (p-p), 75 ohm S VIDEO (S-Video) Y: 1.0 V (p-p), 75 ohm, negative sync, 4-pin mini DIN x1 C: 0.286 V (p-p), 75 ohm VIDEO (composite video) 1.0 V (p-p), 75 ohm, negative sync, RCA/phono x1 Audio outputs OPTICAL -22.5 dBm, optical connector x1 COAXIAL 0.5 V (p-p), 75 ohm , RCA/phono x1 ANALOG 2.0 V rms, 440 ohm , RCA/phono x2 General Power supply 120 V AC, 60 Hz (U. S. model) 230-240 V AC, 50/60 Hz (Australian model) Power consumption 13 W Power consumption in Standby mode 0.95 W (U.S. model) 0.96 W (Australian model) Weight 5.3 kg (11.7 lbs.) Dimensions (W x H x D) 435 X 91 X 432 mm (17-1/8 X 3-9/16 X 17) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-CP702 SERVICE PROCEDURES-1 PROTECTION OF EYES FROM LASER BEAM DURING SERVICING This set employs a laser. Therefore, be sure to follow carefully the instructions below when servicing. WARNING!! SERVICE WARNING : DO NOT APPROACH THE LASER EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS NECESSARY TO CONFIRM LASER BEAM EMISSION, BE SURE TO OBSERVE FROM A DISTANCE OF MORE THAN 30cm FROM THE SURFACE OF THE OBJECTIVE LENS ON THE OPTICAL PICKUP BLOCK. Laser Diode Properties LASER WARNING Wavelength: 650/780nm (DVD/CD) WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR AVIS WARNING This unit contains a semiconductor laser system and is classified as a "CLASS 1 LASER PRODUCT". So, to use this model properly, read this Instruction Manual carefully. In case of any trouble, please contact the store where you purchased the unit. To prevent being exposed to the laser beam, do not try to open the enclosure. VISIBLE LASER RADIATION WHEN OPEN AND INTERLOCK FAILED OR DEFEATED. DO NOT STARE INTO BEAM. THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. The label on the right is applied on the rear panel except for USA and Canadian models. 1. This unit is a CLASS 1 LASER PRODUCT and employs a laser inside the cabinet. 2. To prevent the laser from being exposed, do not remove the cover. Refer servicing to qualified personnel. "CLASS 1 LASER PRODUCT" CAUTION: CAUTION: SERVICE PROCEDURE 1. Replacing the fuses REF. NO. PART NO. DESCRIPTION This symbol located near the fuse indicates that the fuse used is show operating type, For continued protection against fire hazard, replace with same type fuse , For fuse rating, refer to the marking adjest to the symbol. Ce symbole indique que le fusible utilise est e lent. Pour une protection permanente, n'utiliser que des fusibles de meme type. Ce demier est indique la qu le present symbol est apposre. F1 5120-0130-0 or 1.6A-UL/T-237 5120-1000-0 1.6A-T/UL-ST2 LASER BEAM CAUTION LABEL 5120-0094-0 or 5120-1010-0 2.5A-SE-EAK 2.5A-SE-TL250V North American area Australian area F1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-CP702 SERVICE PROCEDURES-2 Factory-shipped condition Push button "ON" (Mechanical SW) Press the [STOP] and [STANDBY] same time with NO DISC condition. Push button "STANDBY". After display "COMPLETE". INITIALIZING 2. Safety-check out (Only U.S.A. model) After correcting the original service problem perform the following safety check before releasing the set to the customer Connect the insulating-resistance tester between the plug of power supply cord and terminal GND on the back panel. Specifications: More than 10M ohm at 500V REMOVE THE SOLDER OF LASER DIODE SHORT When replace the mechanism or DVD main PC board. Shotting the solder of Shot-circuit land. (2 positions) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com STANDBY/ON button This button is used to set the DV-CP702 to On or Standby. Don't turn on the power until you've completed, and double checked all connections. STANDBY indicator This indicator lights up when the DV-CP702 is in Standby mode. Disc tray The disc tray has six bays for loading up to six discs. Disc tray light This light illuminates the disc tray. It comes on when the DV-CP702 is turned on, and is brighter while the disc tray is open. DISC SKIP button This button is used to select the disc bays (i.e., rotate the disc tray) when loading or removing discs, and to select discs for playback. DISC SELECT 1-6 buttons These buttons are used to select discs. Playback starts automatically when a disc is selected with these buttons. Open/Close [ ] button This button is used to open and close the disc tray. LAST MEMORY button This button is used with the Last Memory function. DIMMER button This button is used to adjust the display brightness. DISPLAY button This button is used to display information about the cur- rent disc, title, chapter, or track, including the elapsed time, remaining time, total time, and so on. REPEAT button This button is used with the Repeat function. Display Remote control sensor This sensor receives control signals from the remote controller. Previous [ ] button This button is used to select the previous chapter or track. During playback it selects the beginning of the current chapter or track. Next [ ] button This button is used to select the next chapter or track. PAUSE [ ] button This button is used to pause playback. CHAIN MODE button This button is used with the Chain mode function. STOP [ ] button This button is used to stop playback. PLAY/ENTER [ ] button This button is used to start playback and to cancel fast forward and fast reverse. It's also used to start Chain mode playback. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 1 2 3 4 5 6 7 8 9 17 18 19 17 18 19 10 11 12 13 14 15 16 DV-CP702 PANEL VIEW-1 FRONT PANEL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com CHAIN MODE, ALL, DVD & CD indicators The CHAIN MODE indicator appears when the Chain mode function is on. The ALL, DVD, and CD indicators show the type or Chain mode selected. DISC indicator The number of the currently selected disc appears here. TITLE indicator While stopped, the total number of titles on the current DVD-Video disc is displayed here. During playback, the number of the current title is displayed. CHP indicator This indicator appears while the number of the current chapter is being displayed. TRACK indicator This indicator appears while track numbers are being displayed. While stopped, the total number of tracks on the current Video CD, audio CD, or MP3/WMA disc are displayed. During playback, the number of the current track is displayed. PRGV indicator This indicator appears when the Progressive Scanning function is on. LAST indicator This indicator appears when the Last Memory function has been set. TOTAL indicator This indicator appears while the total time is being dis- played. REMAIN indicator This indicator appears while the remaining time is being displayed. Camera angle indicator This indicator appears if the DVD-Video disc being played features multiple camera angles. Play indicator This indicator is shown during playback. Pause indicator This indicator appears when playback is paused. Disc indicators 1-6 These indicators show how many discs are loaded. The number of the current disc has a circle around it. When the disc tray is closed, all of the disc indicators appear until the DV-CP702 has checked each bay for the presence of a disc. If a bay is found to have no disc, the corresponding indicator disappears. Chapter & track number Chapter and track numbers appears here. Time display Time information, such as total time, remaining time, and so on, is displayed here in hours, minutes, and sec- onds. Other messages are also displayed. VCDVD indicator This indicator shows the type of disc currently selected: DVD: DVD-Video, DVD-R, or DVD-RW VCD: Video CD CD: Audio CD, MP3/WMA/JPEG CD-R, or CD-RW CD DVD ALL CHAIN MODE DISC TITLE CHP TRACK PRGV LAST TOTAL REMAIN 1 2 3 4 5 6 VCDVD 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 DV-CP702 PANEL VIEW-2 DISPLAY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-CP702 PANEL VIEW-3 REAR PANEL COMPONENT VIDEO OUTPUT These RCA/phono connectors can be used to connect a TV or projector with component video inputs. S VIDEO OUTPUT This connector can be used to connect a TV or projector with an S-Video input. VIDEO OUTPUT This RCA/phono connector can be used to connect a TV or projector with a composite video input. OPTICAL AUDIO OUTPUT This optical digital audio output can be connected to an optical digital audio input on a hi-Þ amp, AV receiver, or surround sound decoder (Dolby Digital, DTS). COAXIAL AUDIO OUTPUT This coaxial digital audio output can be connected to an coaxial digital audio input on a hi-Þ amp, AV receiver, or surround sound decoder (Dolby Digital, DTS). Power cord This power cord should be connected to a suitable wall outlet. ANALOG AUDIO OUTPUT These RCA/phono connectors can be connected to ana- log audio inputs on a hi-Þ amp, AV receiver, or surround sound decoder (Dolby Pro Logic). REMOTE CONTROL These (Remote Interactive) connectors can be con- nected to the connectors on your other Onkyo AV components for interactive control. DVD CHANGER MODEL NO. DV-CP 702 COMPONENT PB PR Y L R REMOTE CONTROL VIDEO OUTPUT VIDEO S VIDEO OPTICAL COAXIAL ANALOG AUDIO OUTPUT DIGITAL AUDIO OUTPUT 8 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-CP702 PANEL VIEW-4 REMOTE CONTROLLER-1 STANDBY button This button is used to set the DV-CP702 to Standby. ON button This button is used to turn on the DV-CP702. Don't turn on the DV-CP702 until you've completed, and double checked all connections. SEARCH button This button is used to search for titles, chapters, tracks, and speciÞc points in time. LAST M button This button is used with the Last Memory function. Number buttons These buttons are used to enter title, chapter, and track numbers and to enter times for locating speciÞc points in time. To enter a single-digit number, simply press the corre- sponding button. To enter a double-digit number, enter the numbers in order from left-to-right. The [+10] button is used to enter multiples of ten (i.e., 10, 20, 30, and so on). For example, to enter the number 25, press the [+10] button twice followed by the [5] button. TOP MENU button This button is used to select the top menu. RETURN button This button is used to exit the onscreen setup menu and to restart menu playback. AUDIO button This button is used to select foreign language soundtracks and audio formats (e.g., Dolby Digital or DTS). ANGLE button This button is used to select different camera angles. Fast Forward [ ] button This button is used to start fast forward. Fast Reverse [ ] button This button is used to start fast reverse. DISC 1-6 buttons These buttons are used to select discs. Playback starts automatically when a disc is selected with these buttons. DISC SKIP button This button is used to select the disc bays (i.e., rotate the disc tray) when loading or removing discs, and to select discs for playback. MEMORY button This button is used with the Memory Playback function. OPEN/CLOSE [ ] button This button is used to open and close the disc tray. CHAIN MODE button This button is used with the Chain mode function. ON STANDBY SEARCH LAST M MEMORY CHAIN MODE REPEAT A-B RANDOM DISPLAY MENU SETUP TOP MENU RETURN AUDIO ANGLE SUBTITLE ZOOM DISC 1 DISC 2 DISC 3 DISC 4 DISC 5 DISC 6 DISC SKIP DIMMER RC-542DV STEP/SLOW CLEAR OPEN/ CLOSE PROGRESSIVE ENTER +10 0 1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-CP702 PANEL VIEW-5 REMOTE CONTROLLER-2 REPEAT button This button is used to set the Repeat Playback functions. A-B button This button is used to set the A-B Repeat Playback function. RANDOM button This button is used with the Random Playback function. DISPLAY button This button is used to display information about the cur- rent disc, title, chapter, or track, including the elapsed time, remaining time, total time, and so on. CLEAR button This button is used to cancel various functions. MENU button This button is used to select the menu. ENTER button This button is used to start playback of the selected title chapter, or track and to confirm settings. [ ], [ ], [ ], [ ] buttons These buttons are used to navigate DVD-Video menus and the onscreen setup menus. SETUP button This button is used to open and close the onscreen setup menus. SUBTITLE button This button is used to select subtitles. Play [ ] button This button is used to start playback. Pause [ ] button This button is used to pause playback. Stop [ ] button This button is used to stop playback. Previous [ ] button This button is used to select the previous chapter or track. During playback it selects the beginning of the current chapter or track. Next [ ] button This button is used to select the next chapter or track. STEP/SLOW [+] & [-] buttons These buttons are used with the Frame-by-Frame Play- back and Slow Motion Playback functions. DIMMER button This button is used to adjust the display brightness. PROGRESSIVE button This button is used to turn on and off the Progressive Scanning function. Progressive scanning can't be turned on or off during playback. 21 22 23 24 25 26 27 28 29 30 31 32 33 34 17 18 19 20 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EXPLODED VIEW A 1 2 3 4 5 B C D A31 A32 A33 A25 A25 A25 A25 A25 A26 A26 A26 M20 A26 M20 A4 A41 A42 A42 A42 A42 A46 A46 A48 A53 A54 A54 A54 A56 E102 F1 A25 P901 U1 U30 E821 M1 M2 M6 M4 M7 M8 M9 M10 M11 M11 M11 M12 M13 M14 M14 M15 M15 P1101 M16 M16 M16 P1001 M17 M18 M19 M50 M32 A26 A26 (U4) P2501 P2901 A25 P2401 P2001 A54 A25 A51 A32 P704A M53 M52 b a b a c c d d e f e f e e M30 Blue Blue Black Black 70mm M5 M20 A25 M22 M23 M54 A26 A26 A217 (U6) (U5) (U11) (U12) P702 Up side www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-CP702 E F G H 3 2 5 6 4 1 A22 A22 A19 A19 A19 A19 A25 A26 A30 A50 A214 A215 A215 A215 A215 A215 A215 (U3) M37 M34 M35 M36 (U9) A19 A19 (U8) A19 A19 (U7) (U10) (U13) P707 M40 M20 M31 M37 M37 51 A25 A19 A19 A216 g M42 g A1 A2 A3 A4 A5 A6 A8 A12 A13 A14 A18 A21 M38 M38 M38 M39 A7 only M41 A16 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-CP702 EXPLODED VIEW A 1 2 3 4 5 B C D E F G H 3 2 5 6 4 1 A22 A22 A19 A19 A19 A19 A25 A26 A30 A31 A32 A33 A25 A25 A25 A25 A25 A26 A26 A26 M20 A26 M20 A41 A41 A42 A42 A42 A42 A46 A46 A48 A50 A53 A54 A54 A54 A56 A214 A215 A215 A215 A215 A215 A215 E102 F1 A25 P901 U1 (U3) U30 E821 M37 M34 M1 M2 M6 M4 M7 M8 M9 M10 M11 M11 M11 M12 M13 M14 M14 M15 M15 P1101 M16 M16 M16 P1001 M17 M18 M19 M50 M32 M35 M36 A26 A26 (U9) A19 A19 (U8) A19 A19 (U7) (U10) (U13) P707 (U4) P2501 P2901 A25 P2401 P2001 A54 M40 A25 A51 A32 P704A M53 M52 b a b a c c d d e f e f e e M30 Blue Blue Black Black 70mm M5 M20 M20 A25 M22 M23 M31 M37 M37 A51 M54 A26 A26 A25 A19 A19 A216 A217 (U6) (U5) (U11) (U12) g M42 g A1 A2 A3 A4 A5 A6 A8 A12 A13 A14 A18 A21 M38 M38 M38 M39 A7 only P702 Up side M41 A16 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com BLOCK DIAGRAM P 9 0 1 Z X801 5MHZ LASER etc SPD+,SPD-,SLD+,SLD,LMT-SW P1001 P1101 DVD MECHA EV5V DSPSI,DSPSO DSPCK,DSTBX SW8V SW5V SW3.3V P2501 P 7 1 0 A P2901 U3 : NADIS-7808 U4 : NADG-7809 Mecha. control PC board P704A REMOTE CONTROL SENSOR FL TUBE HNV-12SM34 RPM7138 Q808 MPD780232GC-070-8BT Q801 EV5V,SW5V,SW3 EV5V,-30V,F1,F2 Q704,Q706 DRIVE ROULETTE MOTOR SUBRST,SUBCL,SUBREQ,SUBSI,SU NGPS-0037( AUS) NGPS-0036 (US) DVD Main circuit PC board U1 : NADG-7807 F2 F1 -30V A-12V A+12V SW8V SW3.3V SW5V EV5V U30 : POWER SUPPLY UNIT LED KEY INPUT U11:Roulette motor C S S U8 : Key operation U10 : LED Disp. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-CP702 OPT_OUT COAXAL_OUT CV S PR COMPONENT PB Y Q ROULETTE SENSOR Q716 DISC SENSOER Z X 7 0 1 4 . 5 M H Z MD,MC,CSDACD,DACRST P2001A DIG OUT EV5V,SW5V,SW3.3V,A+12V,A-12V P 2 4 0 1 A RGBON MPD780053GC-141-8BT P403A P701B U5 : NAVD-7810 Video output terminal PC board DIGTAL OUT DRIVE TC74VHCU04T Q411 VIDEO AMP LA73054 Q201 W3.3V,A+12V,A-12V EV5V,SW5V RESET IC S-80130 Q702 SENSER POSITION Q717,Q711,Q708 DISC SENSER Q706,Q710,Q709 Q705,Q707 DRIVE LOADING MOTOR I,SUBSO Q701 Q110:DTC114YKA Q109:DTA114YKA Q407,Q408:HN1C03F MUTING Q407,Q408 Q109,Q110 Q403-Q406:NJM4580M-D U6 : NAAF-7811 Audio out terminal PC board AUDIO OUT Rch Lch VLSC Q404(2/2) Q406 Q405 FILTER CCT Q404(1/2) Q403(1/2) AUDIO DAC PCM1742KE Q401 Q403(2/2) P702B RI,RESET,AMUTE VIDEO OFF,RXD1,TXD1 DACCLK,LRCLK,BCLK,DATAD,DOUT0-1 U12:Loading motor U13 : Disc sensor CR/R,CB/B,CY/G SY,SC,LETTER SQEZ,P/IX,AR2/AR1X www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-CP702 BLOCK DIAGRAM P 9 0 1 OPT_OUT COAXAL_OUT CV S PR COMPONENT PB Y Q ROULETTE SENSOR Q716 DISC SENSOER Z Z X801 5MHZ X 7 0 1 4 . 5 M H Z MD,MC,CSDACD,DACRST P2001A DIG OUT LASER etc SPD+,SPD-,SLD+,SLD,LMT-SW P1001 P1101 DVD MECHA EV5V,SW5V,SW3.3V,A+12V,A-12V P 2 4 0 1 A RGBON EV5V DSPSI,DSPSO DSPCK,DSTBX SW8V SW5V SW3.3V P2501 P 7 1 0 A P2901 U3 : NADIS-7808 U4 : NADG-7809 Mecha. control PC board P704A REMOTE CONTROL SENSOR FL TUBE HNV-12SM34 RPM7138 Q808 MPD780232GC-070-8BT Q801 MPD780053GC-141-8BT P403A P701B U5 : NAVD-7810 Video output terminal PC board DIGTAL OUT DRIVE TC74VHCU04T Q411 VIDEO AMP LA73054 Q201 EV5V,SW5V,SW3.3V,A+12V,A-12V EV5V,-30V,F1,F2 EV5V,SW5V RESET IC S-80130 Q702 SENSER POSITION Q717,Q711,Q708 DISC SENSER Q706,Q710,Q709 Q705,Q707 Q704,Q706 DRIVE LOADING MOTOR DRIVE ROULETTE MOTOR SUBRST,SUBCL,SUBREQ,SUBSI,SUBSO Q701 Q110:DTC114YKA Q109:DTA114YKA Q407,Q408:HN1C03F MUTING Q407,Q408 Q109,Q110 Q403-Q406:NJM4580M-D U6 : NAAF-7811 Audio out terminal PC board AUDIO OUT Rch Lch VLSC Q404(2/2) Q406 Q405 FILTER CCT Q404(1/2) Q403(1/2) AUDIO DAC PCM1742KE Q401 Q403(2/2) NGPS-0037( AUS) NGPS-0036 (US) DVD Main circuit PC board U1 : NADG-7807 P702B RI,RESET,AMUTE F2 F1 -30V A-12V A+12V SW8V SW3.3V SW5V EV5V U30 : POWER SUPPLY UNIT LED KEY INPUT VIDEO OFF,RXD1,TXD1 DACCLK,LRCLK,BCLK,DATAD,DOUT0-1 U11:Roulette motor U12:Loading motor U13 : Disc sensor CR/R,CB/B,CY/G SY,SC,LETTER SQEZ,P/IX,AR2/AR1X U8 : Key operation U10 : LED Disp. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SCHEMATIC DIAGRAM-1 A 1 2 3 4 5 B C D Q1004 2SK3019 Q1003 2SK3019 Q1005 2SK3019 P1001 C1010 222K C1009 222K C1008 222K C1007 222K C1011 331J C1006 220J C1005 220J C1004 220J C1003 220J C1001 472K C1002 472K C1012 104Z C1038 104Z C1034 104Z C1033 104Z C1035 103K C1030 104Z C1027 102J C1031 104Z C1024 473K C1020 104Z C1051 104Z C1049 104Z C1025 104Z C1015 333K C1016 333K C1017 151J C1251 471J C1252 104Z C1253 471J C1254 104Z C1023 104Z C1021 104Z C1040 102J C1044 102J C1226 103K C1102 101J C1103 102J C1101 101J C1108 104Z C1107 104Z C1110 104Z C1113 103K C1114 103K C1105 104Z C1104 104Z C1037 100D C1036 100D C1028 104Z C1029 104Z C1255 471J C1256 104Z C1116 473K C1115 473K C1117 104 C1014 104Z C1018 224Z C1019 C1050 100/6.3 C1052 22/16 C1026 10/16 C1053 1/50 C1257 100/6.3 C1022 22/16 C1042 10/16 C1039 47/6.3 C1041 10/16 C1046 10/16 C1043 47/6.3 C1045 10/16 C1111 10/16 C1112 10/16 C1236 100/6.3 C1237 100/6.3 C1238 C1106 22/16 C1047 22/16 C1013 22/16 C1032 22/16 C1109 22/16 R1029 100K R1028 22K R1008 R1022 100 R1021 100 R1025 R1024 R1026 R1003 12K F R1017 33 R1015 1K R1016 33 R1020 33 R1018 1K R1019 33 R1233 33K R1232 1.5K R1104 33K R1103 56K R1106 33K R1105 56K R1102 33K R1101 56K R1109 10K R1108 10K R1111 10K R1110 10K R1114 33K R1113 33K R1115 33K R1116 33K R1118 10K R1117 10K R1112 0 R1107 0 R1231 R1012 22K R1007 22K R1011 22K R1010 22K R1014 10K R1005 22K R1006 22K R1009 10K R1013 R1004 10K R1119 22K R1123 22K R1120 10K R1124 10K R1125 10K R1126 100K R1122 100K R1121 10K R1127 0 R1128 0 R1023 0 R1027 1K Q1006 2SB1132 Q1007 2SB1132 L1001 47U L1002 47U L1203 2.2U L1204 2.2U L1251 2.2U P01 VC25 P02 A5V P168 D P167 C P166 B P165 A P164 CD_D P163 CD_C P162 CD_B P161 CD_A P17 CD/DVD-PD P29 AIN P25 AIP P24 CD-F P26 CD-E P35 MP P36 MB P37 MLPF P50 CE P51 AMPSEN P52 AMPSDT P53 AMPSCK P23 RFSIN P18 RFN P19 RFP P12 RFOP P20 RFDC P07 AGND P06 T- P05 T+ P04 F- P03 F+ P56 RA10 P55 RA11 GPWM4 GPWM2 GPWM0 TI P41 LINK P08 LD-DVD P11 IOP_DV P13 A5V P14 A5V P10 IOP_CD P09 LD-CD P57 GPWM5 P33 TD P34 FD P32 SLD P27 SPD P16 XSPMUTE P15 XFTSMUTE P22 LDM2 P21 LDM1 P40 SPWM1 P46 SPWM2 P42 SPDL1 P43 SLED1 P44 TSCON P45 FSCON P48 SPDL0 P49 SLED0 P28 LDRSP P38 MIRR P62 FEO P63 TEO P60 PI P58 AMPMNT P59 A3.3VDSP P61 A1.8VDSP P30 RFAC0 P54 DFCT P39 LDON P47 MIN P145 VC16 P149 SPDET P150 LDNG- P151 LDNG+ P155 SPD- P158 SPD+ P159 SLD+ P160 SLD- Q1002 NJM2115V 3 +B 8 2 1 Q1002 NJM2115V 5 6 -B 4 7 Q1101 FAN8042 CTL 15 DO1+ 36 DO1- 35 DO2+ 34 DO2- 33 DO3+ 32 DO3- 29 DO4+ 28 DO4- 27 DO5+ 26 DO5- 25 FWD 16 GND_0 6 GND_1 7 GND_2 18 GND_3 19 GND_4 30 GND_5 31 GND_6 42 GND_7 43 IN1+ 1 IN1- 2 IN2+ 4 IN2- 5 IN3+ 9 IN3-10 IN4+ 12 IN4- 13 MUTE123 21 MUTE4 22 OPIN1+ 48 OPIN1- 47 OPIN2+ 41 OPIN2- 40 OPOUT1 46 OPOUT2 39 OUT1 3 OUT2 8 OUT311 OUT4 14 PS 38 37: PVCC1 37 24: PVCC2 24 REV 17 SGND 20 SVCC 45 TSD-M 23 VREF 44 16 2 1 Q1001 CXD1881AR A 12 A2 3 AIN 60 AIP 59 ATON 61 ATOP 62 B 11 B2 4 BYP 56 C 10 C2 5 CDLD 22 CDPD 24 CD_A 16 CD_B 15 CD_C 14 CD_D 13 CD_E 18 CD_F 17 CE 41 CN 8 CP 7 D 9 D2 6 DFT 34 DIN 55 DIP 54 DVDLD 21 DVDPD 23 DVDRFN 2 DVDRFP 1 FE 40 FNN 52 FNP 53 LCN 43 LCP 44 LDON 26 LINK 33 MB 29 MEV 50 MEVO 32 MIN 31 MIRR 27 MLPF 30 MNTR 42 MP 28 PI 38 RFAC 57 RFDC 64 RFSIN 63 RX 49 SCLK 46 SDATA 47 SDEN 48 TE 39 TPH 35 V125 36 V25 37 V33 45 VC 20 VNA 51 VNB 25 VPA 58 VPB 19 P1102 P1101 Q1251 IC41LV16100-50T A0 21 A1 22 A2 23 A3 24 A4 27 A5 28 A6 29 A7 30 A8 31 A9 32 DQ0 2 DQ1 3 DQ10 43 DQ11 44 DQ12 46 DQ13 47 DQ14 48 DQ15 49 DQ2 4 DQ3 5 DQ4 7 DQ5 8 DQ6 9 DQ7 10 DQ8 41 DQ9 42 LCAS 35 NC1 11 NC2 15 NC3 16 NC4 19 NC5 20 NC6 36 NC7 40 OE 33 RAS 18 UCAS 34 VCC1 1 VCC2 6 VCC3 25 VSS1 26 VSS2 45 VSS3 50 WR 17 R1001 1.5K*4 1 2 3 4 5 6 7 8 R1002 0*4 1 2 3 4 5 6 7 8 R1235 100*4 1 2 3 4 5 6 7 8 R1236 100*4 1 2 3 4 5 6 7 8 R1234 100*4 1 2 3 4 5 6 7 8 R1237 100*4 1 2 3 4 5 6 7 8 R1238 100*4 1 2 3 4 5 6 7 8 R1252 100*4 1 2 3 4 5 6 7 8 R1251 100*4 1 2 3 4 5 6 7 8 R1253 100*4 1 2 3 4 5 6 7 8 R1254 100*4 1 2 3 4 5 6 7 8 Q1102 BA4510FV 3 8 2 4 1 Q1102 BA4510FV 5 6 7 A3.3V CD/XDVD RFAC CD/XDVD VR_CD VR_DVD A5V AGND RF-OP RF-OP F AMPSEN VC25 AMPSDT AMPSCK A A G G H H AGND C C D3.3V D D E E B B A LD-DVD B DGND AGND C VR-DVD D NC AMPMNT PD VR-CD D FE0 FE0 AGND C TE0 LD-CD B PI NC1 A A3.3V NC2 D VC16 F+ C A5V TE0 F- B DFCT T+ A LINK T- MIRR T- T+ F- F+ LD-CD LD-DVD F E H G PD AGND G A5V H VC25 A5V VC25 AGND E MIRR F VC25 A5V AGND LDONO A3.3V A1.8V A5V LD-DVD AGND T- T+ F- F+ LD-CD SP_DET A3 TSCON TSCON SLED FSCON SPWM1 SPWM2 VC16 MIRR LDON CD/XDVD DGND LDRSPO LMT-SW SLD- SLD+ TSD-M XSPMUTE XFTSMUTE LDM2 LDM1 LDRSPO XLCAS SPD- XUCAS SPD+ XMOE SPDO SPDLO RA11 PGND DGND VC16 RA10 RA9 VC16 RA8 LOD- SLED RA7 LOD+ SLDO RA6 SPD- RA5 SPD+ RA4 SLD+ TDO TSCON RA3 RA2 SLD- RA1 T- RA0 T+ FDO CLS-SW F+ FSCON R LOD- F- R OPN-SW VC16 XRAS LOD+ XMWR R DGND R R A5V R AGND R SPDLO R R SPWM1 R R SPWM2 R R R P8V PGND R VC16 A3.3V R VC16 MIRR LDON CD/XDVD AGND A3.3V A1.8V DGND XLCAS XUCAS XMOE A5V RD7 RD6 RD5 RD4 RD3 RD2 RD1 RD0 SPD- SP_DET XRAS XMWR SPD+ RA3 RA2 RA1 RA0 A3.3V EDO3.3V VC16 DGND RA4 RA5 RA6 RA7 RA8 RA9 XMOE XUCAS XLCAS RD8 RD9 RD10 RD11 RD12 RD13 RD14 RD15 CD/XDVD LDON MIRR A1.8V A3.3V A5V AGND DGND PGND P8V To Optical pickup To Spindle motor www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-CP702 U1 : DVD MAIN PC BOARD-1 NADG-7807 E F G H C1239 105Z C1230 105Z C1225 105Z C1218 105Z C1217 105Z C1221 105Z C1223 105Z C1222 104Z C1224 473K C1216 154Z C1215 471J C1214 154Z C1213 471J C1212 104Z C1211 223K C1210 102J C1209 223K C1208 105Z C1206 105Z C1207 105Z C1232 105Z C1233 105Z C1203 105Z C1201 105Z C1202 105Z C1205 C1204 C1219 331J C1220 331J C1227 105Z C1228 105Z C1229 105Z C1238 10/16 C1234 22/16 C1235 22/6.3 R1243 0 R1242 0 R1244 0 R1229 0 R1228 0 R1223 22K R1216 150K R1217 470 R1219 47K R1220 100K R1222 1K R1221 1.8K R1218 68K R1215 R1214 10K R1240 10K R1203 R1204 R1202 0 R1201 R1207 180 R1227 10K R1225 10K R1224 0 R1226 0 R1231 33K R1230 0 L1201 2.2U L1202 2.2U P66 GPWM4 P65 GPWM2 P64 GPWM0 P70 GPWM3 P69 GPWM1 P67 TILT P74 VREFH P89 VCOI P78 JITT P90 HF P109 TP P110 TP P75 BLKSYNC P77 FMSYNC P79 STS3 P80 TST4 P81 TST5 P82 TST6 P83 TST7 P84 TST8 P85 TST9 P86 TST10 P87 TST11 P88 TST12 P96 RSV0 P94 ST4 P93 ST3 P92 ST2 P91 ST1 P97 RSV1 P111 EDCNG P112 CLVLOCK P113 SYNCLOCK P114 CD/XDVD P115 LDON P116 XFTSMUTE P117 XSPMUTE P118 TSD-M P119 FOK P120 BUFEMP P121 TRST P122 TMS P123 TDI P124 TCK P125 TDO P107 LRCK P106 DOUT P105 DADT P104 C2PO P103 DRVRDY P108 BCK P102 DRVTX P101 DRVIRQ P100 DRVCLK P99 DRVRX P98 DRVRST P139 DCK P138 XSHD P137 VEFG P135 HDRQ P136 XHAC P134 VDT0 P133 VDT1 P132 VDT2 P131 VDT3 P130 VDT4 P129 VDT5 P128 VDT6 P127 VDT7 P68 SE P62 FEO P71 FE1 P72 TE1 P63 TEO A1.8VDSP P141 XRDY P140 XINT P95 RSV2 P144 XCSI P143 XWR P142 XRD P73 VREFL P76 PLCK P126 MCK P148 ATC Q1201 CXD1885Q AD0 91 AD1 92 AD2 93 AD3 95 AD4 96 AD5 97 AD6 98 AD7 99 AD8100 AD9101 ALCR 2 ATC 74 AVDD18_0 84 AVDD18_1 104 AVDD33_0 79 AVDD33_1 94 105: AVDD33_2 105 AVSS_0 73 AVSS_1 89 AVSS_2 90 AVSS_3 110 BCK 62 C2PO 58 CHG 82 CSL 65 106: DA0/TSCON 106 107: DA1/SLED 107 108: DA2/FSCON 108 DA3/SLED2_TILT 109 DADT 59 DCK 49 DOTX 60 DRVCLK 56 DRVIRQ 50 DRVRDY 57 DRVRST 51 DRVRX 55 DRVTX 54 DTC 72 DVDD18_0 32 DVDD18_1 52 DVDD18_2 136 DVDD18_3 156 DVDD18_4 188 DVDD18_5 208 DVDD33_0 1 DVDD33_1 27 DVDD33_2 53 DVDD33_3 131 DVDD33_4 157 DVDD33_5 183 DVSS_0 21 DVSS_1 35 DVSS_2 38 DVSS_3 125 DVSS_4 142 DVSS_5 177 DVSS_6 194 EXPLDT 64 EXVCO 63 FG 111 GIO0 179 GIO1 180 GIO10 191 GIO11 192 GIO12 193 GIO13 195 GIO14 196 GIO15 197 GIO16 198 GIO17 199 GIO18 200 GIO19 201 GIO2 181 GIO3 182 GIO4 184 GIO5 185 GIO6 186 GIO7 187 GIO8 189 GIO9 190 GPWM0 114 GPWM1 115 GPWM2 116 GPWM3 117 GPWM4 118 GPWM5 119 HDRQ 45 HF 75 HFD 70 IREF 78 JMOUT 81 JMREF 80 LPF1 86 LPF2 87 LRCK 61 MA0 5 MA1 6 MA2 7 MA3 8 MA4 9 MA5 10 MA6 11 MA7 12 MA8 13 MALE 24 MCS 25 MD0 15 MD1 16 MD2 17 MD3 18 MD4 19 MD5 20 MD6 22 MD7 23 MINT 30 MIRRORH 71 MODSEL0 175 MODSEL1 176 MODSEL2 178 MRD 28 MRDY 29 MSEL0 3 MSEL1 4 MWR 26 RA0 137 RA1 135 RA10 124 RA11 123 RA2 134 RA3 133 RA4 132 RA5 130 RA6 129 RA7 128 RA8 127 RA9 126 RC 88 RD0 148 RD1 147 RD10 154 RD11 153 RD12 152 RD13 151 RD14 150 RD15 149 RD2 146 RD3 145 RD4 144 RD5 143 RD6 141 RD7 140 RD8 158 RD9 155 RFOKGH 69 SCLKH 68 SI 66 SO 67 SPWM1 112 SPWM2 113 SYSCK 31 TCK 205 TDI 204 TDO 206 TEST0 159 TEST1 160 TEST10 169 TEST11 170 TEST12 171 TEST13 172 TEST14 173 TEST15 174 TEST2 161 TEST3 162 TEST4 163 TEST5 164 TEST6 165 TEST7 166 TEST8 167 TEST9 168 TESTSEL 14 TLC0 76 TLC1 77 TMS 203 TRST 202 VCOI 85 VDT0 44 VDT1 43 VDT2 42 VDT3 41 VDT4 40 VDT5 39 VDT6 37 VDT7 36 VEFG 47 VFBC 83 VMCHG 207 VREFH102 VREFL103 XHAC 46 XI 33 XLCAS 120 XMOE 122 XMWR 139 XO 34 XRAS 138 XSHD 48 XUCAS 121 R1212 180*4 1 2 3 4 5 6 7 8 R1211 100*4 1 2 3 4 5 6 7 8 R1209 33*4 1 2 3 4 5 6 7 8 R1213 10K*4 1 2 3 4 5 6 7 8 R1241 100*4 1 2 3 4 5 6 7 8 R1210 100*4 1 2 3 4 5 6 7 8 R1205 100*4 1 2 3 4 5 6 7 8 R1206100*4 1 2 3 4 5 6 7 8 R1208 100*4 1 2 3 4 5 6 7 8 R1292 10K*8 1 2 3 4 5 6 7 8 9 10 R1291 10K*8 1 2 3 4 5 6 7 8 9 10 R1293 10K*8 1 2 3 4 5 6 7 8 9 10 X1201 P1291 P1292 RFAC AMPSEN AMPSDT AMPSCK DFCT MIRR C2PO DADT BCK D3.3V RFAC MIRR DFCT AMPSEN LRCK AMPSCK AMPSDT DOUT DGND FE DRVRDY DRVTX DRVIRQ DRVCLK DRVRX TE DRVRST LRCK BCK DADT C2PO AGND VDT7 VDT6 VDT5 VDT4 VDT3 VDT2 AGND VDT1 VDT0 XHAC PI VEFG AMPMNT XSHD AMPSCK AMPSDT AMPSEN BCK LRCK DOUT DADT C2PO DRVRDY DRVTX DRVIRQ DRVCLK DRVRX DRVRST DCK HDRQ RFAC TE1 AMPMNT PI TE FE D3.3V LPF2 LPF1 JMOUT A3.3VDSP VC16 A1.8VDSP HDRQ VDT4 VDT5 VDT6 VDT7 VDT0 VDT1 VDT2 VDT3 DCK XSHD VEFG XHAC AGND DRVRST0 VREFH DRVIRQ0 JMOUT VREFL SP_DET SE MIRR DFCT D3.3VDSP AGND PI TE FE DGND A3.3VDSP D1.8VDSP DRVRST0 VDT04 VDT05 VDT06 VDT07 VDT00 VDT01 VDT02 VDT03 HDRQ0 DCK0 XSHD0 VEFG0 XHAC0 SLED DRVIRQ0 FSCON DCK0 XSHD0 VEFG0 FG XHAC0 SPWM1 HDRQ0 SPWM2 VDT00 GPWM0 VDT01 GPWM1 VDT02 GPWM2 VDT03 GPWM3 VDT04 GPWM4 VDT05 DGND VDT06 VDT07 DGND 33.8688MHZ 33.8688MHZ D1.8VDSP MCKO0 MCKO XINT XRDY XINT XINT XRD XRDY XRDY D3.3VDSP XRD XRD D3.3VDSP XWR XWR XWR XCS1 XCS1 XCS1 MCUD7 MCUD7 MCUD7 MCUD6 MCUD6 MCUD6 D1.8VDSP DGND D3.3V MCUD5 MCUD5 MCUD5 MCUD4 MCUD4 MCUD4 MCUD3 MCUD3 MCUD3 RD7 MCUD2 MCUD2 MCUD2 RD6 MCUD1 MCUD1 MCUD1 MCUD0 MCUD0 MCUD0 RD5 MCUA9 MCUA9 MCUD0 MCUD2 MCUD4 MCUD6 MCUD7 MCUD5 MCUD3 MCUD1 RD4 MCUA8 MCUA8 MCUA9 RD3 MCUA7 MCUA7 MCUA8 RD2 MCUA6 MCUA6 D3.3V MCUA7 RD1 MCUA5 MCUA5 MCUA6 RD0 MCUA4 MCUA4 MCUA5 RD15 MCUA3 MCUA3 XCS1 RD14 MCUA2 MCUA2 XWR MCUA4 RD13 MCUA1 MCUA1 XRD MCUA3 RD12 MCUA0 MCUA0 MCUA8 MCUA9 MCUA2 RD11 MCUA1 MCUA7 MCUA5 MCUA3 MCUA1 MCUA0 MCUA2 MCUA4 MCUA6 RD10 MCUA0 RD9 XRST D1.8VDSP D3.3VDSP XRST VMCHG D3.3VDSP D1.8VDSP DGND DGND TST10 TST11 TST12 EDCNG RSV2 FOK RSV0 RSV1 PLCK0 FMSYNC TST3 TST4 TST5 TST6 TST7 TST8 TST9 MIRR ST1 ST2 ST3 ST4 TSD-M LDM1 LDM2 CLS-SW OPN-SW LMT-SW BUFEMP TRST TMS TDI TCK TDOA BLKSYNC CLVLOCK SYNCLOCK CD/XDVD LDON XFTSMUTE XSPMUTE RD8 VMCHG D3.3VDSP D3.3V D3.3V D1.8VDSP D1.8V D1.8V DGND DGND DGND D3.3V TDOA TDOA TCKA TCK TCKA TDIA TDI TDIA TMSA TMS TMSA TRST TRSTA TRSTA BUFEMP FOK BUFEMP BUFEMP TSD-M FOK FOK TSD-M TSD-M XSPMUTE XSPMUTE XSPMUTE XFTSMUTE XFTSMUTE XFTSMUTE CD/XDVD LDON LDON LDON CD/XDVD CD/XDVD DGND EDCNG SYNCLOCK SYNCLOCK SYNCLOCK CLVLOCK CLVLOCK CLVLOCK EDCNG EDCNG C2PO LRCK BCK DADT CLS-SW XFTSMUTE XSPMUTE TSD-M LDM1 LDM2 OPN-SW LMT-SW A1.8V A1.8V A3.3V A3.3V A5V A5V AGND AGND DGND PGND PGND P8V P8V NC NC NC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SCHEMATIC DIAGRAM-2 A 1 2 3 4 5 B C D P2701 P2501A Q2001 M65783FP ACLKI 32 AGND18_0 107 AGND33_0 116 AGND33_2 128 AO0 26 AO1 23 AO2 22 AOD 21 AVDD18_0 105 AVDD33_0 112 AVDD33_1 115 AVDD33_2 119 AVDD33_3 124 AVDD33_4 127 AVDD33_5 131 AVRI 114 AVRIO 126 BCLK 45 BD0 54 BD1 53 BD2 51 BD3 50 BD4 49 BD5 48 BD6 47 BD7 46 BDEN 44 BDREQ 41 BIAS01 132 BIAS02 130 BIAS1 120 BIAS2 118 BSECH 55 CAS 78 CDBCK 34 CDDATA 31 CDDIN 36 CDLRCK 35 CDMCK 37 CLKIN 106 CLKO 108 DACCLK 20 DAOUTB 110 DCS 73 DCS2 76 DOCLK 28 DOUT0 30 DOUT1 29 DOUTOB 122 DQML 83 DQMU 82 DWE 80 GND_1 33 GND_2 52 GND_3 67 GND_4 81 GND_5 96 GND_6 109 GND_7 134 IREF 113 IREFO 125 LRCLK 27 MA0 64 MA1 62 MA10 66 MA11 72 MA2 58 MA3 56 MA4 57 MA5 61 MA6 63 MA7 65 MA8 68 MA9 70 MBA0 71 MBA1 69 MCLK 79 MD0 101 MD1 99 MD10 91 MD11 93 MD12 95 MD13 98 MD14 100 MD15 102 MD2 97 MD3 94 MD4 92 MD5 90 MD6 86 MD7 84 MD8 85 MD9 87 PA0 111 PA00 123 PA01 129 PA02 133 PA1 117 PA2 121 PIO10SIN2 19 PIO11/SOUT2 18 PIO12/SCLK2 17 PIO31/ADBCK 40 PIO32/ADLRCK 39 PIO33/ADDIN 38 PIO40/PD0/SDITRDATA0 135 PIO41/PD1/SDITRDATA1 136 PIO42/PD2/SDITRDATA2 137 PIO43/PD3/SDITRDATA3 138 PIO44/PD4/SDITRDATA4 139 PIO45/PD5/SDITRDATA5 140 RAS 77 VDD18_1 24 VDD18_2 42 VDD18_3 59 VDD18_4 74 VDD18_5 88 VDD18_6 103 VDD33_1 25 VDD33_2 43 VDD33_3 60 VDD33_4 75 VDD33_5 89 VDD33_6 104 Q2303 IS42S16400-7T A0 23 A1 24 A10/AP 22 A11 35 A2 25 A3 26 A4 29 A5 30 A6 31 A7 32 A8 33 A9 34 BA0 20 BA1 21 CKE 37 CLK 38 DQ0 2 DQ1 4 DQ10 45 DQ11 47 DQ12 48 DQ13 50 DQ14 51 DQ15 53 DQ2 5 DQ3 7 DQ4 8 DQ5 10 DQ6 11 DQ7 13 DQ8 42 DQ9 44 LDQM 15 NC0 36 NC1 40 UDQM 39 VDD0 1 VDD1 14 VDD2 27 VDDQ0 3 VDDQ1 9 VDDQ2 43 VDDQ3 49 VSS0 28 VSS1 41 VSS2 54 VSSQ0 6 VSSQ1 12 VSSQ2 46 VSSQ3 52 CAS 17 CS 19 RAS 18 WE 16 Q2401 NJM2373AF ANOD 2 CATH 5 NC0 1 NC1 3 REF 4 Q2501 TC74VHCT125AFT 1A 2 1Y 3 2A 5 2Y 6 3A 9 3Y 8 4A 12 4Y 11 GND 7 VCC 14 1G 1 2G 4 3G 10 4G 13 Q2502 TC7SZ125FU 2 GND 3 VCC 5 4 G 1 P2401B Q2601 BU2288FV AO1 9 AO2 10 FSEL 14 MO1 3 MO2 4 NC 16 SO1 13 SO2 15 VDD1 1 VDD2 5 VDD3 12 VSS1 2 VSS2 6 VSS3 11 XTI 7 XTO 8 P2002B C2951 560 C2314 105Z C2003 105Z C2004 105Z C2006 105Z C2005 105Z C2007 105Z C2008 105Z C2009 105Z C2010 105Z C2011 105Z C2012 105Z C2013 105Z C2014 105Z C2402 105Z C2404 C2416 102J C2417 102J C2309 105Z C2310 105Z C2311 105Z C2312 105Z C2315 105Z C2313 105Z C2317 105Z C2318 105Z C2501 104Z C2502 104Z C2606 120J C2608 120J C2609 C2607 C2604 105Z C2603 105Z C2605 105Z C2406 105Z C2408 105Z C2411 105Z C2413 105Z C2410 105Z C2414 105Z C2412 105Z C2409 105Z C2407 105Z C2405 105Z C2401 100/6.3 C2415 10/16 C2316 10/16 C2602 100/6.3 C2601 22/6.3 R2021 10 R2433 R2432 R2431 0 R2054 0 R2608 0 R2607 R2020 0 R2401 22 R2402 220 R2019 10K R2018 22 R2017 22 R2016 22 R2015 22 R2014 R2013 R2012 R2011 22 R2010 22 R2009 47 R2008 47 R2007 47 R2405 10 R2416 R2415 220 F R2422 R2421 220 F R2419 R2418 220 F R2428 R2427 220 F R2425 R2424 220 F R2414 1.2K R2417 1.2K R2420 1.2K R2423 1.2K R2426 1.2K R2501 0 R2502 22 R2503 22 R2504 22 R2505 22 R2601 560 R2606 R2603 100 R2403 0 R2404 R2429 0 R2430 0 R2408 3.3K F R2409 R2412 3.3K F R2413 R2406 270 F R2407 270 F R2410 270 F R2411 270 F R2046 R2047 R2048 Q2402 2SA1774 Q2404 2SA1774 Q2403 2SA1774 Q2406 2SA1774 Q2405 2SA1774 R2604 BK1608HM471 R2602 BK1608TS431 R2605 BK1608TS431 L2401 2.2U L2302 2.2U L2602 BLM21P221SG L2604 L2603 L2601 BLM21P221SG P146 4A P147 4Y R2023 47*4 3 4 5 6 R2022 47*4 1 2 3 4 5 6 7 8 X2601 FCX-03-27MHZ LRCLK CSDACSUR CSDACCSW CSDACLR DAT-CSW DAT-SLSR DIGOUT0 DIGOUT1 BITCLK DAT-DMIX DACCLK DAT-LR DRVIRQ DRVRDY DRVCLK DRVRX DRVTX DRVRST DOUT BCK LRCK DADT LRCLK CSDACSUR CSDACCSW CSDACLR DADT LRCK BCK ACLKI DOUT DIGOUT0 DIGOUT1 BITCLK DAT-LR DAT-CSW DAT-SLSR DAT-DMIX DACCLK CSDMIX MD MC HDRQ FP_CLK FP_CS FP_SOUT FP_SIN XHAC DCK XSHD VDT0 VDT1 VDT2 VDT3 VDT4 VDT5 VDT6 VDT7 DCK XHAC HDRQ XSHD VDT7 BED+3.3V VDT6 BED+1.8V VDT5 VDT4 VDT3 VDT2 VDT1 VDT0 E+5V MICONGND BEMA3 DSTBX BEMA4 DSPSCK BEMA2 DSPSO DSPSI BEMA5 BEMA1 BEMA6 BEMA0 BEMA7 BEMA10 BEMA8 BEMA4 BEMA3 BEMBA1 BEMA5 BEMA2 BEMA9 BEMA6 BEMA1 BEMBA0 BEMA7 BEMA0 BEMA11 BEMA8 BEMA10 BEMA9 BEMBA1 BEMA11 BEMBA0 BEDCS BERAS BEMCKA BECAS BEDQMU BEDWE BEDQML BEMD8 BEMD7 BEMD9 BEMD6 BEMD7 BEMD10 BEMD5 BEMD8 BEMD6 BEMD11 BEMD4 BEMCKA BEDQMU FSEL ACLKI BEMD9 BEMD12 BEMD3 BEMD13 BEMD2 BEMD5 BEMD14 BEMD1 BEMD10 BEMD4 BEMD15 BEMD0 BEMD11 BEMD3 BEMD12 SDRAM_D3 BEMD2 BEMD13 BEMD1 BEMD14 BEMD0 BEMD15 DGND1 DGND1 SW+3.3V CR IREF VREF CB BIAS2 BIAS1 CY S_Y IREF0 VREF S_C BIAS02 BIAS01 27MHZ AVENC1.8V AVENC3.3V 33.8688MHZ VDACGND PLLA3.3V PLLD3.3V VDACGND FSEL V+5V ACLKI DGND PD0 PD1 PD2 PD4 PD5 PD6 SW+1.8V DGND1 SW+3.3V PD0 PD1 PD2 PD4 PD5 PD6 CR/R DGND CB/B DGND CY/G DGND SY DGND SC DGND LETTER SQUEEZE I/PX AR2/AR1X RGBON U1 : DVD MAIN PC BOARD NADG-7807-2 To Audio out P To Mecha. control PC board NADG-7809 (U4) To Video output terminal PC board NAVD-7810 (U5) N www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-CP702 E F G H D2901 D _ L E D Q2904 MPC29M33T G I O Q2903 MPC2918T G I O Q2901 MPC29M33T G I O Q2902 MPC2918T G I O ALE 171 BSEL0 169 GND_0 16 GND_10 189 GND_11 208 GND_8 152 GND_9 170 HA11 194 HA12 193 HA13 192 HA14 191 HAD0 190 HAD1 188 HAD10 177 HAD11 176 HAD12 175 HAD13 174 HAD14 173 HAD15 172 HAD2 187 HAD3 186 HAD4 185 HAD5 184 HAD6 183 HAD7 182 HAD8 181 HAD9 178 NC1 195 NC2 204 NC3 205 NC4 206 PIO00/SIN0 10 PIO01/SOUT0 9 PIO02/SCLK0 6 PIO03/SRDY0 5 PIO04/SIN1 4 PIO05/SOUT1 3 PIO06/SCLK1 2 PIO07/SRDY1 1 PIO12/SCLK2 17 PIO13/SRDY2 15 PIO14/RXD 14 PIO15/TXD 13 PIO16CTS 12 PIO17/RTS 11 PIO20/INTM0 150 PIO21/INTM1 151 PIO22/INTM2/TMO0 153 PIO23//TMO1 154 PIO24BSEL3/TMO2 155 PIO25/BSEL2 156 PIO26/BSEL1 157 PIO27/HA10 158 PIO30/EXWIT 145 PIO34/ADMCK/SDITRSYNC 146 PIO35/PXCLK/SDITRCLK 147 PIO36/HSYNC/SDIEVENT0 148 PIO37/VSYNC/SDIEVENT1 149 PIO45/PD5/SDITRDATA5 140 PIO46/PD6/SDITRDATA6 141 PIO47/PD7/SDITRDATA7 144 RESET 207 RS 168 SDIDBI 159 SDITCK 160 SDITDI 163 SDITDO 164 SDITMS 165 SDITRST 166 TEST0 203 TEST1 202 TEST2 201 TEST3 200 TEST4 197 TEST5 196 VDD18_0 7 VDD18_10 198 VDD18_7 142 VDD18_8 161 VDD18_9 179 VDD33_0 8 VDD33_10 199 VDD33_7 143 VDD33_8 162 VDD33_9 180 WS167 Q2302 MX29LV160ABTC-90 A0 25 A1 24 A10 6 A11 5 A12 4 A13 3 A14 2 A15 1 A16 48 A17 17 A18 16 A19 9 A2 23 A20 10 A3 22 A4 21 A5 20 A6 19 A7 18 A8 8 A9 7 DQ0 29 DQ1 31 DQ10 34 DQ11 36 DQ12 39 DQ13 41 DQ14 43 DQ2 33 DQ3 35 DQ4 38 DQ5 40 DQ6 42 DQ7 44 DQ8 30 DQ9 32 NC2 13 QD15/A-1 45 VCC 37 VSS0 27 VSS1 46 BY/RY 15 BYTE 47 CE 26 OE 28 RESET 12 WE 11 WP/ACC 14 Q2002 S-80127CNMC-JKM-T2 DS 1 NC 3 VDD 5 VOUT4 VSS 2 Q2301 TC74VCX162373FT 1D1 47 1D2 46 1D3 44 1D4 43 1D5 41 1D6 40 1D7 38 1D8 37 1LE 48 1Q1 2 1Q2 3 1Q3 5 1Q4 6 1Q5 8 1Q6 9 1Q7 11 1Q8 12 2D1 36 2D2 35 2D3 33 2D4 32 2D5 30 2D6 29 2D7 27 2D8 26 2LE 25 2Q1 13 2Q2 14 2Q3 16 2Q4 17 2Q5 19 2Q6 20 2Q7 22 2Q8 23 GND_0 4 GND_1 10 GND_2 15 GND_3 21 GND_4 28 GND_5 34 GND_6 39 GND_7 45 VCC_0 7 VCC_1 18 VCC_2 31 VCC_3 42 1OE 1 2OE 24 Q2003 IS24C02-3Z A0 1 A1 2 A2 3 NC 7 SCL 6 SDA 5 VCC 8 VSS 4 P2001B P2702 C2419 105Z C2002 105Z C2001 105Z C2015 105Z C2016 105Z C2017 105Z C2018 105Z C2020 105Z C2021 105Z C2022 105Z C2023 105Z C2024 101J C2028 105Z C2304 104Z C2303 104Z C2301 104Z C2302 104Z C2306 105Z C2308 105Z C2305 101J C2025 104Z C2019 105Z C2029 105Z C 2 9 0 7 2 2 0 / 4 . 0 C2403 100/6.3 C2418 22/6.3 C2307 100/6.3 C2027 100/6.3 C2026 100/6.3 C2905 100/6.3 C2903 100/6.3 C2902 100/6.3 C2901 100/6.3 C2904 100/6.3 C2906 100/6.3 R2906 R 2 9 0 5 R2033 47 R2304 R2303 R2302 10K R2301 1K R2055 10K R2057 10K R2056 10K R 2 9 0 4 R2050 47 R2051 47 R2052 47 R2053 47 R2005 47 R2006 47 R2043 10K R2008 47 R2007 47 R2004 47 R2003 47 R2002 47 R2001 47 R2029 2.2K R2028 2.2K R2031 10 R2030 10 R2027 0 R2026 0 R2044 1K R2024 47 R2032 47 R2045 4.7K R2034 47 R2036 10K R2901 0 R2902 0 R2903 0 R2037 10K R2049 0 L2904 2.2UF L2404 2.2U L2405 2.2U L2301 2.2U L2002 2.2U L2001 2.2U L2903 2.2U L2902 2.2U L2901 2.2U P152 INTM1 P157 BY/RD P2901A R2042 15*4 1 2 3 4 5 6 7 8 R2025 47*4 1 2 3 4 5 6 7 8 R2038 15*4 1 2 3 4 5 6 7 8 R2040 15*4 1 2 3 4 5 6 7 8 R2039 15*4 1 2 3 4 5 6 7 8 R2041 15*4 1 2 3 4 5 6 7 8 R2023 47*4 1 2 3 4 5 6 7 8 R2035 47*4 1 2 3 4 5 6 7 8 A G N D A 3 . 3 V D G N D D 3 . 3 V A G N D DACCLK CSDMIX MD MC AMUTE DACRST A 1 . 8 V D G N D D 1 . 8 V A 5 V P G N D P 8 V P 8 V P G N D S W + 5 V D G N D S W + 3 . 3 V MC FSEL AMUTE DACRST DRVRST DRVTX DRVRX DRVCLK DRVRDY FP_SIN FP_SOUT FP_CLK FP_CS D G N D 1 SW+3.3V SW+1.8V BED+3.3V BED+1.8V MC_RST S W + 1 . 8 V S W + 3 . 3 V S W + 5 V DGND1 MCA14 ROM3.3V ROM3.3V MCA15 MCA11 MC_RST MCA16 MCA12 MCAD0 MCA15 MCA17 MCA13 MCAD1 MCA16 MCA18 M C A D 0 MCA14 MCA19 M C A D 8 MCAD2 MCA17 MCA20 M C A D 1 MCAD0 MCAD3 MCA18 MCA21 M C A D 9 MCAD1 MCA22 M C A D 2 MCAD2 MCAD4 MCA19 MCA11 M C A D 1 0 MCAD3 MCAD5 MCA20 MCA10 M C A D 3 MCAD4 MC_WS0 M C A D 1 1 MCAD5 MCAD6 MCA21 MC_RSTO TEST4 MCAD6 DRVIRQ MC_RST MCAD7 MCA22 M C A D 4 MCAD7 MCAD8 MCA23 WP M C A D 1 2 MCAD9 MCA24 M C A D 5 MCA12 M C A D 1 3 MCAD8 MCAD10 MCA25 MCA13 M C A D 6 MCAD9 MCAD11 MCA26 MCA23 M C A D 1 4 MCAD10 MCA24 M C A D 7 MCAD11 MCAD12 MCA27 MCA25 M C A D 1 5 MCAD12 MCAD13 MCA28 MCA26 MC_RS MCAD13 MCA27 MCAD14 MCAD14 MCA29 MCA28 FROMCS MCAD15 MCAD15 MCA30 MCA29 ALE MCA30 FROMCS MC_RS MC_WS0 DGND1 SDITRST MCA10 SDITMS SDITDO SDITDI SDITCK SDIDBI MCA10 LETTER DGND1 DRVIRQ SQUEEZE SDA SCL SW+1.8V DGND1 SW+3.3V SW+5V DGND DRVIRQ PD5 PD6 PD7 PD8 I/PX TRSYNCA PIXCLK HSYNC VSYNC RGBON SDA SCL AR2/AR1X MC_RST SDITRST SDITMS SDITDO SDITDI SDITCK SDIDBI BED+3.3V TEST4 I/PX PD5 PD6 PD7 PD8 PIXCLK HSYNC VSYNC SDA TRSYNCA MC_RST SDITRST SDITMS SDITDO SDITDI SDITCK SDIDBI BED+3.3V BED+3.3V TEST4 SCL DGND1 t PC board (U6) NC NC To Mecha. control PC board NADG-7809 (U4) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SCHEMATIC DIAGRAM-3 A 1 2 3 4 5 B C D E LENT.POUR UNE PROTECTION PERMANENTE,N'UTILISER ATTENTION FOR CONTINUED PROTECTION AGAINST FIRE AGAINST FIRE HAZARD, REPLACE RATING REFER TO THE MARKING ADJACENT TO THE SYMBOL. INDIQUE LA QU LE PRESENT SYMBOL EST APPOSE. QUE DES FUSIBLES DE MEME TYPE. CE DARNIER EST CE SYMBOLE INDIQUE QUE LE FUSIBLE UTLISE EST HAZARD,REPLACE WITH SAME TYPE FUSE. FOR FUSE THIS SYMBOL LOCATED NEAR THE FUSE INDICATES THAT THE FUSE USED IS SLOW OPERATING TYPE V A ET CALIBRATION COMME INDIQUE. D'INCENDIE, REMPLACER UNIQUEMENT PERMANENTE CONTRE LES RISQUES AFIN D'ASSURER UNE PROTECTION PAR UN FUSIBLE DE MEME TYPE V A FOR CONTINUED PROTECTION AND RATING INDICATED. ONLY WITH FUSE OF SAME TYPE CAUTION P AC_G AC_H P901 Q808 RPM7138 OUT VCC R846 4.7 (1/2W) Q802 HNV-12SM34 F10 1 F11 2 G1 5 G10 14 G11 15 G12 16 G2 6 G3 7 G4 8 G5 9 G6 10 G7 11 G8 12 G9 13 P1 40 P2 41 P3 42 P4 43 P5 44 P6 45 P7 46 P704B P704C P704 D804 NC C827 223Z C829 223Z C828 223Z C803 104Z C806 104Z C805 104Z C815 330 C817 330 C816 330 C818 330 C819 330 C813 223Z C808 104Z C807 104Z C823 NC C814 NC C802 104Z C804 100/6.3 C820 2.2/50 C801 10/16 R827 100 R826 100 R856 27K R824 2.7K R825 2.7K R821 0 R844 470 R845 470 R843 470 R842 470 R841 470 R822 2.7K R823 2.7K R839 NC R840 NC X801 5MHZ Q801 MPD780232GC-070-8BT 10G 71 11G 70 12G 69 13G 68 14G 67 1G 80 2G 79 3G 78 4G 77 5G 76 5V 1 6G 75 7G 74 8G 73 9G 72 AVDD 24 AVSS 18 CLOCK1 3 CLOCK2 4 FRAIC 5 GND 2 IRIN 15 JOGA 26 JOGB 27 KEY0 22 KEY1 21 KEY2 20 KEY3 19 LED1[ORG] 14 LED2[GRN] 16 NC1 17 NC2 66 P1 64 P10 53 P11 52 P12 51 P13 50 P14 49 P15 48 P16 47 P17 46 P18 45 P19 44 P2 63 P20 43 P21 42 P22 41 P23 40 P24 39 P25 38 P26 37 P27 36 P28 35 P29 34 P3 62 P30 33 P31 32 P32 31 P33 30 P34 29 P35 28 P36 65 P4 61 P5 58 P6 57 P7 56 P8 55 P9 54 RESET 6 STBYLED 13 SUBCL 7 SUBREQ 10 SUBSI 8 SUBSO 9 VDD 25 VDD2 59 VDISP 60 VOLA 11 VOLB 12 VSS 23 from NADG-7809 DPC-7.4 ONLY NAETC-7896 CDD1N:NGPS0036 CPA4P:NGPS0037 NADIS- SUBRST VDISP F2 F1 SUBSO SUBSI GND SUBREQ SUBCL GND 5V From Mecha. contol PC board NADG-7809 (U4) POWER SUPLLY UNIT U3 : FRONT DISPLAY PC BOARD NADIS-7808 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-CP702 E F G H P861 P806A P806B P802A P805A P802B P805B F22 62 F23 61 P10 49 P11 50 P12 51 P13 52 P14 53 P15 54 P16 55 P17 56 P18 57 P19 58 P7 46 P8 47 P9 48 Q810 DTC114YKA Q809 DTC114YKA Q805 DTC114YKA Q806 2SC2712 P804A P804B D801 SLR-343BBT D802 SLR-343BBT D803 SLR-342VR STBY LED R850 150 R847 390 R849 390 R848 150 R806 3.9K R805 1.8K R804 1K R803 820 R802 470 R801 390 R807 10K R812 1.8K R811 1K R810 820 R809 470 R808 390 R813 390 R814 470 R815 820 R816 1K R835 100K R836 100K R837 100K R838 100K R828 470 R831 2.7K R832 2.7K R833 2.7K R834 2.7K S807 DISC1 S806 DISC2 S805 DISC3 S804 DISC4 S803 DISC5 S802 DISC6 S801 OPEN/CLOSE S808 DISC/SKIP S809 PLAY S814 REW S813 FF S812 PAUSE S811 CHAIN MODE S810 STOP S817 LAST MEMORY S816 REPEAT S815 STBY/ON S818 DISPLAY S819 DIMMER NADIS-7815 NASW-7812 -7808 NASW-7814 NASW-7813 THE COMPONENTS IDENTIFIED BY MARK ARE CRITICAL FOR SAFETY. REPLACE ONLY WITH PART NUMBER SPECIFIED. VOLTAGE (MEASURED WITH VOLTMETER) IS DC VOLTAGE. (NO INPUT SIGNAL) ELECTROLYTIC CAPACITORS ARE IN uF/WV. ALL CAPACITORS ARE IN pF/50WV UNLESS OTHERWISE NOTED. EX) 030 3pF 330 33pF 331 330pF 333 0.033uF ALL RESISTORS ARE IN OHMS 1/4WATTS UNLESS OTHERWISE NOTED. THE THICK LINES ON PC BOARD ARE THE PRINTING SIDE OF THE PARTS. EX) PRINTING SIDE CIRCUIT IS SUBJECT TO CHANGE FOR IMPROVEMENT. NOTE ( ) U7 : DISC SELECT SWITCH PC BOARD NASW-7812 U9 : STANDBY SWITCH PC BOARD NASW-7814 U8 : KEY OPERATION SWITCH PC BOARD NASW-7813 U10 : LED DISPLAY PC BOARD NADIS-7815 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SCHEMATIC DIAGRAM-4 A 1 2 3 4 5 B C D Q704 TA7291S ROULETTE MOTOR DRIVE GND 5 IN1 9 IN2 1 NC 4 OUT1 7 OUT2 3 VCC 2 VREF 8 VS 6 Q705 TA7291S LOADING MOTOR DRIVE GND 5 IN1 9 IN2 1 NC 4 OUT1 7 OUT2 3 VCC 2 VREF 8 VS 6 P706B P706A P706 P710A Q707 2SA1162 Q711 DTC114YKA Q710 DTC114YKA Q709 DTC114YKA Q712 DTC114YKA Q708 NC Q706 DTC114YKA I_38 S701 SPVF1 I_37 S703 SPVF1 I_36 S702 SPVF1 D702 UDZ2.2B D701 UDZ2.7B D704 NC D703 UDZS4.7B C766 104 C765 104 C761 223 C764 223 C762 104 C701 NC C702 NC C716 104 C714 104 C712 104 C718 104 C720 104 C722 104 C707 223 C706 223 C705 223 C763 NC C715 10/16 C713 10/16 C711 10/16 C717 10/16 C721 10/16 C719 10/16 C703 100/16 C704 100/16 R768 2.2K R766 4.7K R765 270K R761 180 R763 390 R764 470K R762 150K R703 1M R704 10K R702 3.3K R707 1M R708 10K R706 5.6K R701 8.2K R705 8.2K R711 100K R712 100K R709 4.7 (1/4W) R710 2.2K R713 100K R714 100K R715 4.7 (1/4W) R716 5.6K R717 10K R720 2.2K R718 4.7K R719 5.6K R723 10K R722 10K R721 10K P707A FFC1MM P707B FFC1MM Q717 RPI-576 STOP_POSITION SENSER Q716 GP2S28 DISC SENSER P708B P709B P708A P709A Z701 Z702 ROTHI PWRCNT EV5V EV5V SW+3.3V SW+5V F2 SW+8V SW+8V/GND SW+5V SW+5V/GND SW+3.3V SW+5V/GND A+12V AGND A-12V * Model&Ar DPC7.5CP DPC7.5CD DV-CP702C DV-CP702C NCETC-7896 IC EV5V RESET SUBCLK SUBSO SUBSI GND NADG-7809 NAETC-7817 NAETC-7816 NAETC-7818 A+12V A-12V VDISP/-30V SW+8V LOADING MOTOR ROULETTE MOTOR 6 1 15 10 5 1 SW+8V/GND EV5V F2 F1 AGND SW+8V SW+3.3V SW+5V/GND SW+5V EV+5V/GND P-ON U13 : DISC SENSOR PC BOARD U11 : ROULETTE MOTOR PC BOARD U12 : LOADING MOTOR PC BOARD From Power supply unit www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-CP702 E F G H L702 47UH L701 47UH P2501B Q702 S-80145 DS 1 NC 3 VDD 5 VOUT 4 VSS 2 Q713 2SD655 Q714 2SD655 Q701 MPD78005X AMUT 46 AN15/NC 1 AN16/NC 2 AVREF1 7 AVREF2 75 AVSS0 4 DISC/SEN 24 DSPCKX 13 DSPSI 12 DSPSO 11 DSTBX 63 FLON/OFF 6 IC 71 IRIN 61 K1/DESTI 76 LMCURRENT 22 LML 28 LMR 27 LMVOLH/L 26 LOADHI 32 MODE1 77 MODE2 78 NC 5 P/OFF 62 P04/GND 65 P05/GND 66 P120/GND 52 P121/GND 53 P122/GND 54 P123/GND 55 P126/GND 58 P127/GND 59 P13/GND 79 P14/GND 80 P23/STB/TXD1 14 P24/BUSY/RXD1 15 P31/NC 45 P34/GND 48 P35/GND 49 P36/GND 50 P37/GND 51 P40/SW1 19 P41/SW2 20 P42/SW3 21 P46/NC 25 P56/NC 34 P57/NC 35 P60/GND 36 P61/GND 37 P62/GND 38 P63/GND 39 P64/GND 40 P65/GND 41 P66/GND 42 P67/GND 43 PWRCTR 47 R/SEN 23 RESET 60 RIIN 56 RIOUT 57 RML 30 RMR 29 ROTHI 31 SUBCLK 18 SUBCLK/FLASH 10 SUBRST 3 SUBSDI 16 SUBSDI/FLASH 8 SUBSDO 17 SUBSDO/FLASH 9 SUB_RDY 64 VDD0 74 VDD1 68 VDOFF 44 VSS1 33 VSS2 67 X1 70 X2 69 XT1/P07/VDD0 73 XT2/OPEN 72 D734 1SS352 D731 1SS352 D733 1SS352 Q703 DTA114YKA Q715 DTA114YKA X701 4.5MHZ P702A P704A D732 UDZS5.1B C729 104 C732 104 C733 102 C768 100/6.3 C767 100/16 C728 100/6.3 C731 1/50 R767 10K R771 10K DV-CP702_ONLY R736 100 R735 100 R737 100 R734 100 R757 * R758 * R755 * R756 * R743 100 R744 100 R759 100 R748 47K R746 100 R747 100 R732 100 R742 100 R739 100 R741 100 R753 NC R754 2.7K R752 1K R745 100 R724 220K R725 22K R726 22K R751 4.7K R733 2.7K R731 2.7K R740 2.7K R738 2.7K R749 470 R750 220K P701A P2901B P711A AMUTE/UCOM VDOFF IRIN ROTHI RI IR_IN VIDEO/OFF SW+5V SUBSDO SUBCLK SUSDI RI AMUTE_UCOM R/SEN R/SEN EV5V DISC/SEN DISC/SEN SW+5V LMVOLH/L LMVOLH/L ROTHI ROTHI SW+3.3V A+12V LMR LMR A-12V LML LML RML RML RMR RMR EV5V VDISP VDISP F1 SW+8V 5V SW+5V +3.3V SW+3.3V A+12V AGND A-12V 0 0 0 0 2.7K 2.7K 2.7K 2.7K del&Area NC NC NC NC NC NC NC NC 7.5CPA4P 7.5CDD1N P702CPA4P P702CDD1N R755 R756 R757 R758 WRITE IN FLASH PLUG EV5V TXD1 RXD1 DGND SW+5V VIDEO OFF 1 SW+5/GND SW8/GND SW8V RI DSPSO-DSPSI DSPSI-DSPSO SUBCLK SUBSDO-SUBSDI SUBSDI-SUBSDO to Front disp. PC board NADIS-7808 (U3) SUBREQ 11 1 6 11 7 1 1 6 SW+3.3V A+12V AGND A-12V EV5VGND SW+5V DGND EV5V 1 AMUTE/UCOM RST 200mS Delay EV5V F1 F2 VDISP SUBRST GND GND DGND1 SW+3.3V SW+5V to Main circuit PC board NADG-7807 (U1) EV5V DSPSCK DSTBX GND(MICON) U4 : MECHANISM CONTROL PC BOARD NADG-7809 NC NC To Video output PC board U5 To Audio output PC board U6 to Main circuit PC board NADG-7807 (U1) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SCHEMATIC DIAGRAM-5 A 1 2 3 4 5 B C D Q418 DTA114TKA J1A J1B Q413 NJM2370U05 CTRL 1 GND 2 NB 3 VIN 5 VOUT 4 P701B P404 P403 P404A P403A P702B Q401 PCM1742KE AGND 9 BCKIN 1 DATA 2 GND 4 LRCKIN 3 MC 14 MCLK 16 MD 13 ML 15 VCC 6 VCOM 10 VDD 5 VOUTL 7 VOUTR 8 ZEROL 12 ZEROR 11 R471 100 (1/2W) R416 100K R415 100K R456 15 (1/2 Q419 DTC114YKA Q415 DTC114YKA Q416 DTC114YKA Q204 NC Q Q202 DTC114YKA Q417 DTA114YKA Q205 NC Q203 DTA114YKA C436 104 C439 102 C440 102 C414 221 C413 221 C410 104 C407 104 C231 152 C201 104K C202 NC C408 104 C404 104 C403 104 L221 220UH NCH-1482 L402 NC L401 NC L406 2.2UH NCH1471 L403 2.2UH NCH1471 C412 22/50 C411 22/50 C405 220/6.3 C434 10/16 C442 1/50 C435 10/16 C406 220/6.3 C409 4.7/50 C402 100/16 C401 100/16 C211 100/6.3 C210 100/6.3 C209 10/16 C207 10/16 C205 10/16 C203 10/16 R482 27K R481 12K R480 3.9K R477 2.2K R460 100 R282 2.2 R281 270 R275 10K R4004 NC R4003 0 R476 47K R412 2.2K R411 2.2K R414 15K R413 15K R474 10K R406 100 R408 100 R405 100 R403 100 R401 100 R409 100 R407 100 R404 100 R402 100 R272 NC R271 NC R237 10K R238 10K R235 100 R236 100 R201 NC R203 NC R202 NC R205 1K GAIN6DB R204 GAIN9DB NC R207 P2001A P2401A VIDEO/OFF SQEZ SQEZ LTTR LTTR CR/R CB/B YC/C SY EV5V SC I/PX AR2/ARIX RGBON LTTR SQEZ D-OU D-OUT0 D-OUT1 SW+5V SW+5V EV5V A+12V SW+12V A-GND A-12V SW-12V AMUTE/DAC DACRST AMUTE/MAIN MC MD MD CSDMIX MC CSDMIX DACCLK DACCLK DAT-DMIX LRCLK BITCLK AMUTE/DAC GND SW+5V VIDEO/OFF from Mecha. control board NADG-7808 YC/G RI SW+3.3V A+12V A-GND A-12V from DVD Main board NADG-7807 RST DGND SW+5V EV5GND EV5V AMUTE/UCOM [D/A CONVERTOR] AMUTE/MAIN GND GND GND DIGOUT0 DIGOUT1 BITCLK LRCLK DAT-DMIX DACCLK CSDMIX MD MC DACRST CUTOFFFREQ=50KHz from DVD MAIN board NADG-7807 RGBON AR2/ARIX I/PX SQUEEZE LETTER VGND SC VGND SY VGND VGND CB/B VGND CR/R H:INTR/L:PRGV from DVD Main board NADG-7807 U5 : VIDEO OUTPUT TERMINAL PC BOARD NAVD-7810 U6 : AUDIO OUTPUT TERMINAL PC BOARD NAAF-7811 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-CP702 E F G H J1 Q481 TC7WU04FU NC 1 2 3 4 5 6 7 8 P204A P201 Y1 PB1 PR1 5 3 1 6 4 2 P401 P602 1 2 3 4 Q412 TOTX179 OPTICAL_DIG.OUT GND IN VCC P202A 1 2 3 4 5 7 8 Q403 NJM4580M-D 3 2 1 Q404 NJM4580M-D 5 6 7 Q405 NJM4580M-D 3 2 1 Q406 NJM4580M-D 5 6 7 150 (1/2W) R455 150 (1/2W) D401 1SS352 D102 1SS352 D101 1SS352 D104 1SS352 D103 1SS352 Q206 NC Q110 DTC114YKA Q207 NC Q109 DTA114YKA Q411 TC74VHCU04T 1 2 3 4 5 6 8 9 10 11 12 13 GND 7 VCC14 Q404 NJM4580M-D 3 8 2 4 1 Q403 NJM4580M-D 5 8 6 4 7 Q406 NJM4580M-D 3 8 2 4 1 Q405 NJM4580M-D 5 8 6 4 7 Q408 HN1C03F 2 6 1 Q407 HN1C03F 2 6 1 Q408 HN1C03F 5 3 4 Q407 HN1C03F 5 3 4 221 221 C437 330 C438 330 C416 122 C415 122 C418 272 C417 272 C431 220 C430 104K C604 104 C426 104 C482 NC C429 020 C481 NC C427 104K C433 104 C428 020 C603 104 C424 223 C217 104K L407 BK1608LM182-T L404 2.2UH NCH-1471 L405 BK1608LM182-T L205 BK1608LM182-T L206 BK1608LM182-T L202 0 L203 NC L201 BK1608LM182-T L204 BK1608LM182-T C425 220/6.3 C441 47/16 C432 100/6.3 C421 470/16 C422 470/16 C216 470/6.3 C213 470/6.3 C212 1000/6.3 C215 470/6.3 C214 1000/6.3 100/6.3 100/6.3 C423 1/50 C420 22/50 C419 22/50 R467 180 R466 330 R469 NC R468 180 R206 4.7K R482 NC R484 NC R485 NC R465 100 R463 470K R483 NC R464 100K R462 100K R481 NC R461 100 R229 NC R234 NC R418 10K R417 10K R420 33K R419 33K R422 10K R129 22K R427 22K R230 0 R231 100 R225 68 R226 100 R220 75 R222 68 R223 75 R219 NC R221 0 R218 75 R217 10K R216 NC R224 NC R215 75 R273 NC R207 4.7K R209 1K GAIN9DB R211 1K 1_DRIVE R210 1K 2_DRIVE R208 1K GAIN6DB R214 1K 2_DRIVE R213 1K 1_DRIVE R212 0 R444 0 R443 0 R446 100K R445 100K R457 4.7K R458 3.3K R459 1M R448 220 R452 2.2K R451 2.2K R447 220 R450 220 R449 220 R454 2.2K R453 2.2K R421 10K R424 10K R423 10K R426 1.5K R425 1.5K R428 22K R432 22K R431 22K R437 1.5K R433 22K R435 1.5K R430 22K R438 1.5K R434 22K R436 1.5K R439 10K R440 10K R442 10K R441 10K P402 COAXAL_DIG.OUT Q201 LA73054 AMP1.S36 AMP2.S 15 C.IN 6 C.OUT31 CB.IN 14 CB.O23 CR.IN 16 CR.O21 CV.IN 2 CV.O33 C_DC30 DRIVE135 DRIVE219 GND1 7 GND2 17 GND320 GND422 GND526 GND627 GND729 GND832 LETTER 4 LPF.SW 13 MIX.SW 9 MUTE1 5 MUTE2 12 REG 18 RGB.SW 10 SQUEEZE 3 VCC1 1 VCC224 VCC334 Y1.IN 8 Y1.O28 Y2.IN 11 Y2.O25 CV Y1 SW+5V Y2 CB CR D-OUT1 SW+5V D-OUT0 SW+5V AMUTE/UCOM RST EV5V AMUTE/MAIN A-12VD AMUTE/DAC AMUTE/DAC AMUTE AMUTE/MAIN A-12VD A+12VD [VLC CIRCUIT] LchOUT-1 RchOUT-1 Hz [VIDEO AMP] www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-CP702 SCHEMATIC DIAGRAM-6 U30 : POWER SUPPLY UNIT (NGPS-0036-100-120V ) IC1 1 11 7 8 10 9 4 2 6 3 5 12 13 14 15 CN2 IC5 IC2 IC4 D7 C28 T1 18 1 3 2 C9 D8 17 C30 R32 C12 L3 15.16 D9 R27 C11 L2 R14 PHC1 1 2 R15 C14 D14 R16 IC3 C15 R19 R17 R18 R20 C16 C17 1 4 3 3 C23 R13 C18 R22 Q5 Q3 R12 R21 C19 R23 CP4 R26 C26 R24 R25 C24 C25 D18 D16 C21 R29 R30 C27 D12 12 11 10 D11 D10 R28 C29 13 2 14 3 D6 PHC1 3 4 R4 C6 R5 C22 C8 C7 3 1 2 6 7 8 C5 R3 C4 D5 D1 C2 C31 D2 D3 D4 C3 L1 C1 R1 R2 VS1 F1 L N CN1 AC-H AC-G C10 SJW1 D13 5.6 3 4 Q3 R6 C13 R31 Q1 R7 R8 R9 Q2 D17 Q4 R11 CP3 CP2 R10 D19 CP1 D15 EV+12V P-con GND SW+8V SW+8V GND SW+5V EV+5V SW+3.3V GND EV-12V EV+30V FLAC FLAC 2 1 3 C20 AC INPUT MIP2E4DMY C11: Open , 102K * C30: Open , 102K * R27: Open , 8.2 ohm * R32: Open , 8.2 ohm * (NGPS-0037-100-240V ) www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-CP702 SCHEMATIC DIAGRAM-1 U1 : DVD MAIN PC BOARD-1 NADG-7807 A 1 2 3 4 5 B C D E F G H Q1004 2SK3019 Q1003 2SK3019 Q1005 2SK3019 P1001 C1010 222K C1009 222K C1008 222K C1007 222K C1011 331J C1006 220J C1005 220J C1004 220J C1003 220J C1001 472K C1002 472K C1012 104Z C1038 104Z C1034 104Z C1033 104Z C1035 103K C1030 104Z C1027 102J C1031 104Z C1024 473K C1020 104Z C1051 104Z C1049 104Z C1025 104Z C1015 333K C1016 333K C1017 151J C1239 105Z C1230 105Z C1251 471J C1252 104Z C1253 471J C1254 104Z C1225 105Z C1218 105Z C1217 105Z C1221 105Z C1223 105Z C1222 104Z C1224 473K C1216 154Z C1215 471J C1214 154Z C1213 471J C1212 104Z C1211 223K C1210 102J C1209 223K C1208 105Z C1206 105Z C1207 105Z C1232 105Z C1233 105Z C1203 105Z C1201 105Z C1202 105Z C1205 C1204 C1023 104Z C1021 104Z C1040 102J C1044 102J C1226 103K C1102 101J C1103 102J C1101 101J C1108 104Z C1107 104Z C1110 104Z C1113 103K C1114 103K C1105 104Z C1104 104Z C1219 331J C1220 331J C1037 100D C1036 100D C1028 104Z C1029 104Z C1255 471J C1256 104Z C1116 473K C1115 473K C1117 104 C1014 104Z C1018 224Z C1019 C1227 105Z C1228 105Z C1229 105Z C1050 100/6.3 C1052 22/16 C1026 10/16 C1053 1/50 C1257 100/6.3 C1022 22/16 C1042 10/16 C1039 47/6.3 C1041 10/16 C1046 10/16 C1043 47/6.3 C1045 10/16 C1111 10/16 C1112 10/16 C1236 100/6.3 C1237 100/6.3 C1238 10/16 C1234 22/16 C1235 22/6.3 C1106 22/16 C1047 22/16 C1013 22/16 C1032 22/16 C1109 22/16 R1029 100K R1028 22K R1008 R1243 0 R1242 0 R1244 0 R1022 100 R1021 100 R1025 R1024 R1026 R1003 12K F R1229 0 R1228 0 R1223 22K R1216 150K R1217 470 R1219 47K R1220 100K R1222 1K R1221 1.8K R1218 68K R1215 R1214 10K R1240 10K R1203 R1204 R1202 0 R1201 R1207 180 R1017 33 R1015 1K R1016 33 R1020 33 R1018 1K R1019 33 R1233 33K R1232 1.5K R1104 33K R1103 56K R1106 33K R1105 56K R1102 33K R1101 56K R1109 10K R1108 10K R1111 10K R1110 10K R1114 33K R1113 33K R1115 33K R1116 33K R1118 10K R1117 10K R1112 0 R1107 0 R1227 10K R1225 10K R1224 0 R1226 0 R1231 33K R1230 0 R1012 22K R1007 22K R1011 22K R1010 22K R1014 10K R1005 22K R1006 22K R1009 10K R1013 R1004 10K R1119 22K R1123 22K R1120 10K R1124 10K R1125 10K R1126 100K R1122 100K R1121 10K R1127 0 R1128 0 R1023 0 R1027 1K Q1006 2SB1132 Q1007 2SB1132 L1001 47U L1002 47U L1201 2.2U L1202 2.2U L1203 2.2U L1204 2.2U L1251 2.2U P01 VC25 P02 A5V P168 D P167 C P166 B P165 A P164 CD_D P163 CD_C P162 CD_B P161 CD_A P17 CD/DVD-PD P29 AIN P25 AIP P24 CD-F P26 CD-E P35 MP P36 MB P37 MLPF P50 CE P51 AMPSEN P52 AMPSDT P53 AMPSCK P23 RFSIN P18 RFN P19 RFP P12 RFOP P20 RFDC P07 AGND P06 T- P05 T+ P04 F- P03 F+ P56 RA10 P55 RA11 P66 GPWM4 P65 GPWM2 P64 GPWM0 P70 GPWM3 P69 GPWM1 P67 TILT P74 VREFH P89 VCOI P78 JITT P90 HF P109 TP P110 TP P75 BLKSYNC P77 FMSYNC P79 STS3 P80 TST4 P81 TST5 P82 TST6 P83 TST7 P84 TST8 P85 TST9 P86 TST10 P87 TST11 P88 TST12 P96 RSV0 P94 ST4 P93 ST3 P92 ST2 P91 ST1 P97 RSV1 P111 EDCNG P112 CLVLOCK P113 SYNCLOCK P114 CD/XDVD P115 LDON P116 XFTSMUTE P117 XSPMUTE P118 TSD-M P119 FOK P120 BUFEMP P121 TRST P122 TMS P123 TDI P124 TCK P125 TDO P107 LRCK P106 DOUT P105 DADT P104 C2PO P103 DRVRDY P108 BCK P102 DRVTX P101 DRVIRQ P100 DRVCLK P99 DRVRX P98 DRVRST P139 DCK P138 XSHD P137 VEFG P135 HDRQ P136 XHAC P134 VDT0 P133 VDT1 P132 VDT2 P131 VDT3 P130 VDT4 P129 VDT5 P128 VDT6 P127 VDT7 P41 LINK P08 LD-DVD P11 IOP_DV P13 A5V P14 A5V P10 IOP_CD P09 LD-CD P68 SE P57 GPWM5 P33 TD P34 FD P32 SLD P27 SPD P16 XSPMUTE P15 XFTSMUTE P22 LDM2 P21 LDM1 P40 SPWM1 P46 SPWM2 P42 SPDL1 P43 SLED1 P44 TSCON P45 FSCON P48 SPDL0 P49 SLED0 P28 LDRSP P38 MIRR P62 FEO P71 FE1 P72 TE1 P63 TEO P60 PI P58 AMPMNT P59 A3.3VDSP P61 A1.8VDSP P141 XRDY P140 XINT P95 RSV2 P30 RFAC0 P54 DFCT P144 XCSI P143 XWR P142 XRD P39 LDON P73 VREFL P47 MIN P76 PLCK P126 MCK P145 VC16 P148 ATC P149 SPDET P150 LDNG- P151 LDNG+ P155 SPD- P158 SPD+ P159 SLD+ P160 SLD- Q1002 NJM2115V 3 +B 8 2 1 Q1002 NJM2115V 5 6 -B 4 7 Q1101 FAN8042 CTL 15 DO1+ 36 DO1- 35 DO2+ 34 DO2- 33 DO3+ 32 DO3- 29 DO4+ 28 DO4- 27 DO5+ 26 DO5- 25 FWD 16 GND_0 6 GND_1 7 GND_2 18 GND_3 19 GND_4 30 GND_5 31 GND_6 42 GND_7 43 IN1+ 1 IN1- 2 IN2+ 4 IN2- 5 IN3+ 9 IN3-10 IN4+ 12 IN4- 13 MUTE123 21 MUTE4 22 OPIN1+ 48 OPIN1- 47 OPIN2+ 41 OPIN2- 40 OPOUT1 46 OPOUT2 39 OUT1 3 OUT2 8 OUT311 OUT4 14 PS 38 37: PVCC1 37 24: PVCC2 24 REV 17 SGND 20 SVCC 45 TSD-M 23 VREF 44 16 2 1 Q1001 CXD1881AR A 12 A2 3 AIN 60 AIP 59 ATON 61 ATOP 62 B 11 B2 4 BYP 56 C 10 C2 5 CDLD 22 CDPD 24 CD_A 16 CD_B 15 CD_C 14 CD_D 13 CD_E 18 CD_F 17 CE 41 CN 8 CP 7 D 9 D2 6 DFT 34 DIN 55 DIP 54 DVDLD 21 DVDPD 23 DVDRFN 2 DVDRFP 1 FE 40 FNN 52 FNP 53 LCN 43 LCP 44 LDON 26 LINK 33 MB 29 MEV 50 MEVO 32 MIN 31 MIRR 27 MLPF 30 MNTR 42 MP 28 PI 38 RFAC 57 RFDC 64 RFSIN 63 RX 49 SCLK 46 SDATA 47 SDEN 48 TE 39 TPH 35 V125 36 V25 37 V33 45 VC 20 VNA 51 VNB 25 VPA 58 VPB 19 P1102 P1101 Q1251 IC41LV16100-50T A0 21 A1 22 A2 23 A3 24 A4 27 A5 28 A6 29 A7 30 A8 31 A9 32 DQ0 2 DQ1 3 DQ10 43 DQ11 44 DQ12 46 DQ13 47 DQ14 48 DQ15 49 DQ2 4 DQ3 5 DQ4 7 DQ5 8 DQ6 9 DQ7 10 DQ8 41 DQ9 42 LCAS 35 NC1 11 NC2 15 NC3 16 NC4 19 NC5 20 NC6 36 NC7 40 OE 33 RAS 18 UCAS 34 VCC1 1 VCC2 6 VCC3 25 VSS1 26 VSS2 45 VSS3 50 WR 17 Q1201 CXD1885Q AD0 91 AD1 92 AD2 93 AD3 95 AD4 96 AD5 97 AD6 98 AD7 99 AD8100 AD9101 ALCR 2 ATC 74 AVDD18_0 84 AVDD18_1 104 AVDD33_0 79 AVDD33_1 94 105: AVDD33_2 105 AVSS_0 73 AVSS_1 89 AVSS_2 90 AVSS_3 110 BCK 62 C2PO 58 CHG 82 CSL 65 106: DA0/TSCON 106 107: DA1/SLED 107 108: DA2/FSCON 108 DA3/SLED2_TILT 109 DADT 59 DCK 49 DOTX 60 DRVCLK 56 DRVIRQ 50 DRVRDY 57 DRVRST 51 DRVRX 55 DRVTX 54 DTC 72 DVDD18_0 32 DVDD18_1 52 DVDD18_2 136 DVDD18_3 156 DVDD18_4 188 DVDD18_5 208 DVDD33_0 1 DVDD33_1 27 DVDD33_2 53 DVDD33_3 131 DVDD33_4 157 DVDD33_5 183 DVSS_0 21 DVSS_1 35 DVSS_2 38 DVSS_3 125 DVSS_4 142 DVSS_5 177 DVSS_6 194 EXPLDT 64 EXVCO 63 FG 111 GIO0 179 GIO1 180 GIO10 191 GIO11 192 GIO12 193 GIO13 195 GIO14 196 GIO15 197 GIO16 198 GIO17 199 GIO18 200 GIO19 201 GIO2 181 GIO3 182 GIO4 184 GIO5 185 GIO6 186 GIO7 187 GIO8 189 GIO9 190 GPWM0 114 GPWM1 115 GPWM2 116 GPWM3 117 GPWM4 118 GPWM5 119 HDRQ 45 HF 75 HFD 70 IREF 78 JMOUT 81 JMREF 80 LPF1 86 LPF2 87 LRCK 61 MA0 5 MA1 6 MA2 7 MA3 8 MA4 9 MA5 10 MA6 11 MA7 12 MA8 13 MALE 24 MCS 25 MD0 15 MD1 16 MD2 17 MD3 18 MD4 19 MD5 20 MD6 22 MD7 23 MINT 30 MIRRORH 71 MODSEL0 175 MODSEL1 176 MODSEL2 178 MRD 28 MRDY 29 MSEL0 3 MSEL1 4 MWR 26 RA0 137 RA1 135 RA10 124 RA11 123 RA2 134 RA3 133 RA4 132 RA5 130 RA6 129 RA7 128 RA8 127 RA9 126 RC 88 RD0 148 RD1 147 RD10 154 RD11 153 RD12 152 RD13 151 RD14 150 RD15 149 RD2 146 RD3 145 RD4 144 RD5 143 RD6 141 RD7 140 RD8 158 RD9 155 RFOKGH 69 SCLKH 68 SI 66 SO 67 SPWM1 112 SPWM2 113 SYSCK 31 TCK 205 TDI 204 TDO 206 TEST0 159 TEST1 160 TEST10 169 TEST11 170 TEST12 171 TEST13 172 TEST14 173 TEST15 174 TEST2 161 TEST3 162 TEST4 163 TEST5 164 TEST6 165 TEST7 166 TEST8 167 TEST9 168 TESTSEL 14 TLC0 76 TLC1 77 TMS 203 TRST 202 VCOI 85 VDT0 44 VDT1 43 VDT2 42 VDT3 41 VDT4 40 VDT5 39 VDT6 37 VDT7 36 VEFG 47 VFBC 83 VMCHG 207 VREFH102 VREFL103 XHAC 46 XI 33 XLCAS 120 XMOE 122 XMWR 139 XO 34 XRAS 138 XSHD 48 XUCAS 121 R1001 1.5K*4 1 2 3 4 5 6 7 8 R1002 0*4 1 2 3 4 5 6 7 8 R1235 100*4 1 2 3 4 5 6 7 8 R1236 100*4 1 2 3 4 5 6 7 8 R1234 100*4 1 2 3 4 5 6 7 8 R1237 100*4 1 2 3 4 5 6 7 8 R1238 100*4 1 2 3 4 5 6 7 8 R1252 100*4 1 2 3 4 5 6 7 8 R1251 100*4 1 2 3 4 5 6 7 8 R1253 100*4 1 2 3 4 5 6 7 8 R1254 100*4 1 2 3 4 5 6 7 8 R1212 180*4 1 2 3 4 5 6 7 8 R1211 100*4 1 2 3 4 5 6 7 8 R1209 33*4 1 2 3 4 5 6 7 8 R1213 10K*4 1 2 3 4 5 6 7 8 R1241 100*4 1 2 3 4 5 6 7 8 R1210 100*4 1 2 3 4 5 6 7 8 R1205 100*4 1 2 3 4 5 6 7 8 R1206100*4 1 2 3 4 5 6 7 8 R1208 100*4 1 2 3 4 5 6 7 8 R1292 10K*8 1 2 3 4 5 6 7 8 9 10 R1291 10K*8 1 2 3 4 5 6 7 8 9 10 R1293 10K*8 1 2 3 4 5 6 7 8 9 10 X1201 P1291 Q1102 BA4510FV 3 8 2 4 1 Q1102 BA4510FV 5 6 7 P1292 A3.3V CD/XDVD RFAC CD/XDVD RFAC VR_CD VR_DVD A5V AGND RF-OP RF-OP F AMPSEN AMPSEN VC25 AMPSDT AMPSDT AMPSCK AMPSCK A A DFCT G G MIRR H H AGND C2PO C C D3.3V DADT D D BCK E E D3.3V RFAC MIRR DFCT AMPSEN LRCK AMPSCK AMPSDT B B A LD-DVD B DGND AGND C DOUT VR-DVD D DGND NC AMPMNT PD VR-CD D FE0 FE0 FE DRVRDY AGND C TE0 DRVTX LD-CD B PI DRVIRQ NC1 A A3.3V DRVCLK NC2 D VC16 DRVRX F+ C A5V TE0 TE DRVRST F- B DFCT T+ A LINK T- MIRR LRCK BCK DADT C2PO T- T+ F- F+ LD-CD LD-DVD F E H G PD AGND AGND VDT7 VDT6 VDT5 VDT4 VDT3 VDT2 G AGND VDT1 A5V VDT0 H XHAC VC25 PI VEFG AMPMNT XSHD AMPSCK AMPSDT AMPSEN BCK LRCK DOUT DADT C2PO DRVRDY DRVTX DRVIRQ DRVCLK DRVRX DRVRST DCK A5V VC25 AGND E MIRR HDRQ RFAC TE1 F AMPMNT PI TE FE D3.3V VC25 A5V AGND LPF2 LPF1 LDONO JMOUT A3.3V A3.3VDSP A1.8V A5V VC16 LD-DVD A1.8VDSP HDRQ VDT4 VDT5 VDT6 VDT7 VDT0 VDT1 VDT2 VDT3 DCK XSHD VEFG XHAC AGND DRVRST0 VREFH DRVIRQ0 JMOUT AGND VREFL SP_DET T- T+ F- F+ SE MIRR DFCT D3.3VDSP LD-CD AGND PI TE FE DGND SP_DET A3.3VDSP D1.8VDSP TSCON TSCON DRVRST0 VDT04 VDT05 VDT06 VDT07 VDT00 VDT01 VDT02 VDT03 HDRQ0 DCK0 XSHD0 VEFG0 XHAC0 SLED SLED DRVIRQ0 FSCON FSCON DCK0 XSHD0 VEFG0 FG XHAC0 SPWM1 SPWM1 HDRQ0 SPWM2 SPWM2 VDT00 GPWM0 VDT01 VC16 GPWM1 VDT02 MIRR LDON CD/XDVD GPWM2 VDT03 GPWM3 VDT04 DGND LDRSPO GPWM4 VDT05 LMT-SW DGND SLD- VDT06 SLD+ TSD-M XSPMUTE XFTSMUTE LDM2 LDM1 LDRSPO XLCAS VDT07 SPD- XUCAS DGND SPD+ XMOE 33.8688MHZ 33.8688MHZ SPDO SPDLO RA11 D1.8VDSP PGND DGND VC16 RA10 MCKO0 MCKO RA9 XINT VC16 RA8 XRDY XINT XINT XRD XRDY XRDY LOD- SLED RA7 D3.3VDSP XRD XRD LOD+ SLDO RA6 D3.3VDSP XWR XWR XWR SPD- RA5 XCS1 XCS1 XCS1 SPD+ RA4 SLD+ TDO MCUD7 MCUD7 MCUD7 TSCON RA3 MCUD6 MCUD6 MCUD6 RA2 D1.8VDSP DGND D3.3V MCUD5 SLD- RA1 MCUD5 MCUD5 MCUD4 T- RA0 MCUD4 MCUD4 T+ FDO MCUD3 MCUD3 MCUD3 CLS-SW F+ FSCON RD7 MCUD2 MCUD2 MCUD2 LOD- F- RD6 MCUD1 MCUD1 MCUD1 OPN-SW VC16 XRAS MCUD0 MCUD0 MCUD0 LOD+ XMWR RD5 MCUA9 MCUA9 MCUD0 MCUD2 MCUD4 MCUD6 MCUD7 MCUD5 MCUD3 MCUD1 DGND RD4 MCUA8 MCUA8 MCUA9 RD3 MCUA7 MCUA7 MCUA8 A5V RD2 MCUA6 MCUA6 D3.3V MCUA7 AGND RD1 MCUA5 MCUA5 MCUA6 SPDLO RD0 MCUA4 MCUA4 MCUA5 RD15 MCUA3 MCUA3 XCS1 SPWM1 RD14 MCUA2 MCUA2 XWR MCUA4 RD13 MCUA1 MCUA1 XRD MCUA3 SPWM2 RD12 MCUA0 MCUA0 MCUA8 MCUA9 MCUA2 RD11 MCUA1 MCUA7 MCUA5 MCUA3 MCUA1 MCUA0 MCUA2 MCUA4 MCUA6 RD10 MCUA0 P8V PGND RD9 XRST D1.8VDSP D3.3VDSP XRST VMCHG VC16 D3.3VDSP D1.8VDSP DGND A3.3V DGND TST10 TST11 TST12 EDCNG RSV2 FOK RSV0 RSV1 PLCK0 FMSYNC TST3 TST4 TST5 TST6 TST7 TST8 TST9 MIRR ST1 ST2 ST3 ST4 TSD-M LDM1 LDM2 CLS-SW OPN-SW LMT-SW BUFEMP TRST TMS TDI TCK TDOA BLKSYNC CLVLOCK SYNCLOCK CD/XDVD LDON XFTSMUTE XSPMUTE RD8 VMCHG D3.3VDSP D3.3V D3.3V VC16 MIRR LDON CD/XDVD AGND A3.3V A1.8V DGND XLCAS XUCAS XMOE A5V D1.8VDSP D1.8V D1.8V RD7 RD6 RD5 RD4 RD3 RD2 RD1 RD0 SPD- DGND DGND DGND SP_DET XRAS XMWR SPD+ RA3 RA2 RA1 RA0 D3.3V A3.3V TDOA TDOA EDO3.3V TCKA TCK TCKA TDIA VC16 TDI TDIA TMSA TMS TMSA TRST TRSTA TRSTA BUFEMP FOK BUFEMP BUFEMP TSD-M FOK FOK TSD-M TSD-M XSPMUTE XSPMUTE XSPMUTE XFTSMUTE XFTSMUTE XFTSMUTE CD/XDVD LDON LDON LDON CD/XDVD CD/XDVD DGND EDCNG DGND SYNCLOCK SYNCLOCK SYNCLOCK CLVLOCK CLVLOCK CLVLOCK EDCNG EDCNG C2PO LRCK RA4 RA5 RA6 RA7 RA8 RA9 BCK XMOE XUCAS XLCAS DADT RD8 RD9 RD10 RD11 RD12 RD13 RD14 RD15 CD/XDVD LDON MIRR CLS-SW XFTSMUTE XSPMUTE TSD-M LDM1 LDM2 OPN-SW LMT-SW A1.8V A1.8V A1.8V A3.3V A3.3V A3.3V A5V A5V A5V AGND AGND AGND DGND DGND PGND PGND PGND P8V P8V P8V NC NC NC To Optical pickup To Spindle motor w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-CP702 SCHEMATIC DIAGRAM-2 A 1 2 3 4 5 B C D E F G H D2901 D _ L E D P2701 Q2904 MPC29M33T G I O Q2903 MPC2918T G I O Q2901 MPC29M33T G I O Q2902 MPC2918T G I O P2501A Q2001 M65783FP ACLKI 32 AGND18_0 107 AGND33_0 116 AGND33_2 128 ALE 171 AO0 26 AO1 23 AO2 22 AOD 21 AVDD18_0 105 AVDD33_0 112 AVDD33_1 115 AVDD33_2 119 AVDD33_3 124 AVDD33_4 127 AVDD33_5 131 AVRI 114 AVRIO 126 BCLK 45 BD0 54 BD1 53 BD2 51 BD3 50 BD4 49 BD5 48 BD6 47 BD7 46 BDEN 44 BDREQ 41 BIAS01 132 BIAS02 130 BIAS1 120 BIAS2 118 BSECH 55 BSEL0 169 CAS 78 CDBCK 34 CDDATA 31 CDDIN 36 CDLRCK 35 CDMCK 37 CLKIN 106 CLKO 108 DACCLK 20 DAOUTB 110 DCS 73 DCS2 76 DOCLK 28 DOUT0 30 DOUT1 29 DOUTOB 122 DQML 83 DQMU 82 DWE 80 GND_0 16 GND_1 33 GND_10 189 GND_11 208 GND_2 52 GND_3 67 GND_4 81 GND_5 96 GND_6 109 GND_7 134 GND_8 152 GND_9 170 HA11 194 HA12 193 HA13 192 HA14 191 HAD0 190 HAD1 188 HAD10 177 HAD11 176 HAD12 175 HAD13 174 HAD14 173 HAD15 172 HAD2 187 HAD3 186 HAD4 185 HAD5 184 HAD6 183 HAD7 182 HAD8 181 HAD9 178 IREF 113 IREFO 125 LRCLK 27 MA0 64 MA1 62 MA10 66 MA11 72 MA2 58 MA3 56 MA4 57 MA5 61 MA6 63 MA7 65 MA8 68 MA9 70 MBA0 71 MBA1 69 MCLK 79 MD0 101 MD1 99 MD10 91 MD11 93 MD12 95 MD13 98 MD14 100 MD15 102 MD2 97 MD3 94 MD4 92 MD5 90 MD6 86 MD7 84 MD8 85 MD9 87 NC1 195 NC2 204 NC3 205 NC4 206 PA0 111 PA00 123 PA01 129 PA02 133 PA1 117 PA2 121 PIO00/SIN0 10 PIO01/SOUT0 9 PIO02/SCLK0 6 PIO03/SRDY0 5 PIO04/SIN1 4 PIO05/SOUT1 3 PIO06/SCLK1 2 PIO07/SRDY1 1 PIO10SIN2 19 PIO11/SOUT2 18 PIO12/SCLK2 17 PIO13/SRDY2 15 PIO14/RXD 14 PIO15/TXD 13 PIO16CTS 12 PIO17/RTS 11 PIO20/INTM0 150 PIO21/INTM1 151 PIO22/INTM2/TMO0 153 PIO23//TMO1 154 PIO24BSEL3/TMO2 155 PIO25/BSEL2 156 PIO26/BSEL1 157 PIO27/HA10 158 PIO30/EXWIT 145 PIO31/ADBCK 40 PIO32/ADLRCK 39 PIO33/ADDIN 38 PIO34/ADMCK/SDITRSYNC 146 PIO35/PXCLK/SDITRCLK 147 PIO36/HSYNC/SDIEVENT0 148 PIO37/VSYNC/SDIEVENT1 149 PIO40/PD0/SDITRDATA0 135 PIO41/PD1/SDITRDATA1 136 PIO42/PD2/SDITRDATA2 137 PIO43/PD3/SDITRDATA3 138 PIO44/PD4/SDITRDATA4 139 PIO45/PD5/SDITRDATA5 140 PIO46/PD6/SDITRDATA6 141 PIO47/PD7/SDITRDATA7 144 RAS 77 RESET 207 RS 168 SDIDBI 159 SDITCK 160 SDITDI 163 SDITDO 164 SDITMS 165 SDITRST 166 TEST0 203 TEST1 202 TEST2 201 TEST3 200 TEST4 197 TEST5 196 VDD18_0 7 VDD18_1 24 VDD18_10 198 VDD18_2 42 VDD18_3 59 VDD18_4 74 VDD18_5 88 VDD18_6 103 VDD18_7 142 VDD18_8 161 VDD18_9 179 VDD33_0 8 VDD33_1 25 VDD33_10 199 VDD33_2 43 VDD33_3 60 VDD33_4 75 VDD33_5 89 VDD33_6 104 VDD33_7 143 VDD33_8 162 VDD33_9 180 WS167 Q2303 IS42S16400-7T A0 23 A1 24 A10/AP 22 A11 35 A2 25 A3 26 A4 29 A5 30 A6 31 A7 32 A8 33 A9 34 BA0 20 BA1 21 CKE 37 CLK 38 DQ0 2 DQ1 4 DQ10 45 DQ11 47 DQ12 48 DQ13 50 DQ14 51 DQ15 53 DQ2 5 DQ3 7 DQ4 8 DQ5 10 DQ6 11 DQ7 13 DQ8 42 DQ9 44 LDQM 15 NC0 36 NC1 40 UDQM 39 VDD0 1 VDD1 14 VDD2 27 VDDQ0 3 VDDQ1 9 VDDQ2 43 VDDQ3 49 VSS0 28 VSS1 41 VSS2 54 VSSQ0 6 VSSQ1 12 VSSQ2 46 VSSQ3 52 CAS 17 CS 19 RAS 18 WE 16 Q2302 MX29LV160ABTC-90 A0 25 A1 24 A10 6 A11 5 A12 4 A13 3 A14 2 A15 1 A16 48 A17 17 A18 16 A19 9 A2 23 A20 10 A3 22 A4 21 A5 20 A6 19 A7 18 A8 8 A9 7 DQ0 29 DQ1 31 DQ10 34 DQ11 36 DQ12 39 DQ13 41 DQ14 43 DQ2 33 DQ3 35 DQ4 38 DQ5 40 DQ6 42 DQ7 44 DQ8 30 DQ9 32 NC2 13 QD15/A-1 45 VCC 37 VSS0 27 VSS1 46 BY/RY 15 BYTE 47 CE 26 OE 28 RESET 12 WE 11 WP/ACC 14 Q2002 S-80127CNMC-JKM-T2 DS 1 NC 3 VDD 5 VOUT4 VSS 2 Q2401 NJM2373AF ANOD 2 CATH 5 NC0 1 NC1 3 REF 4 Q2301 TC74VCX162373FT 1D1 47 1D2 46 1D3 44 1D4 43 1D5 41 1D6 40 1D7 38 1D8 37 1LE 48 1Q1 2 1Q2 3 1Q3 5 1Q4 6 1Q5 8 1Q6 9 1Q7 11 1Q8 12 2D1 36 2D2 35 2D3 33 2D4 32 2D5 30 2D6 29 2D7 27 2D8 26 2LE 25 2Q1 13 2Q2 14 2Q3 16 2Q4 17 2Q5 19 2Q6 20 2Q7 22 2Q8 23 GND_0 4 GND_1 10 GND_2 15 GND_3 21 GND_4 28 GND_5 34 GND_6 39 GND_7 45 VCC_0 7 VCC_1 18 VCC_2 31 VCC_3 42 1OE 1 2OE 24 Q2501 TC74VHCT125AFT 1A 2 1Y 3 2A 5 2Y 6 3A 9 3Y 8 4A 12 4Y 11 GND 7 VCC 14 1G 1 2G 4 3G 10 4G 13 Q2502 TC7SZ125FU 2 GND 3 VCC 5 4 G 1 Q2003 IS24C02-3Z A0 1 A1 2 A2 3 NC 7 SCL 6 SDA 5 VCC 8 VSS 4 P2401B Q2601 BU2288FV AO1 9 AO2 10 FSEL 14 MO1 3 MO2 4 NC 16 SO1 13 SO2 15 VDD1 1 VDD2 5 VDD3 12 VSS1 2 VSS2 6 VSS3 11 XTI 7 XTO 8 P2001B P2702 P2002B C2951 560 C2314 105Z C2419 105Z C2002 105Z C2001 105Z C2003 105Z C2004 105Z C2006 105Z C2005 105Z C2007 105Z C2008 105Z C2009 105Z C2010 105Z C2011 105Z C2012 105Z C2013 105Z C2014 105Z C2015 105Z C2016 105Z C2017 105Z C2018 105Z C2020 105Z C2021 105Z C2022 105Z C2023 105Z C2402 105Z C2404 C2416 102J C2024 101J C2028 105Z C2417 102J C2309 105Z C2310 105Z C2311 105Z C2312 105Z C2315 105Z C2313 105Z C2317 105Z C2318 105Z C2501 104Z C2502 104Z C2304 104Z C2303 104Z C2301 104Z C2302 104Z C2306 105Z C2308 105Z C2305 101J C2025 104Z C2606 120J C2608 120J C2609 C2607 C2604 105Z C2603 105Z C2605 105Z C2406 105Z C2408 105Z C2411 105Z C2413 105Z C2410 105Z C2414 105Z C2412 105Z C2409 105Z C2407 105Z C2405 105Z C2019 105Z C2029 105Z C 2 9 0 7 2 2 0 / 4 . 0 C2403 100/6.3 C2418 22/6.3 C2401 100/6.3 C2415 10/16 C2316 10/16 C2307 100/6.3 C2602 100/6.3 C2601 22/6.3 C2027 100/6.3 C2026 100/6.3 C2905 100/6.3 C2903 100/6.3 C2902 100/6.3 C2901 100/6.3 C2904 100/6.3 C2906 100/6.3 R2021 10 R2906 R 2 9 0 5 R2033 47 R2304 R2303 R2302 10K R2301 1K R2433 R2432 R2431 0 R2055 10K R2057 10K R2056 10K R2054 0 R 2 9 0 4 R2608 0 R2607 R2050 47 R2051 47 R2052 47 R2053 47 R2005 47 R2006 47 R2020 0 R2043 10K R2401 22 R2402 220 R2019 10K R2018 22 R2017 22 R2016 22 R2015 22 R2014 R2013 R2012 R2011 22 R2010 22 R2009 47 R2008 47 R2007 47 R2004 47 R2003 47 R2002 47 R2001 47 R2029 2.2K R2028 2.2K R2031 10 R2030 10 R2027 0 R2026 0 R2405 10 R2416 R2415 220 F R2422 R2421 220 F R2419 R2418 220 F R2428 R2427 220 F R2425 R2424 220 F R2414 1.2K R2417 1.2K R2420 1.2K R2423 1.2K R2426 1.2K R2501 0 R2502 22 R2503 22 R2504 22 R2505 22 R2044 1K R2024 47 R2032 47 R2045 4.7K R2034 47 R2036 10K R2601 560 R2606 R2603 100 R2403 0 R2404 R2429 0 R2430 0 R2901 0 R2902 0 R2903 0 R2037 10K R2408 3.3K F R2409 R2412 3.3K F R2413 R2406 270 F R2407 270 F R2410 270 F R2411 270 F R2046 R2047 R2048 R2049 0 Q2402 2SA1774 Q2404 2SA1774 Q2403 2SA1774 Q2406 2SA1774 Q2405 2SA1774 L2904 2.2UF R2604 BK1608HM471 R2602 BK1608TS431 R2605 BK1608TS431 L2404 2.2U L2405 2.2U L2401 2.2U L2302 2.2U L2301 2.2U L2602 BLM21P221SG L2604 L2603 L2601 BLM21P221SG L2002 2.2U L2001 2.2U L2903 2.2U L2902 2.2U L2901 2.2U P152 INTM1 P146 4A P147 4Y P157 BY/RD P2901A R2042 15*4 1 2 3 4 5 6 7 8 R2025 47*4 1 2 3 4 5 6 7 8 R2038 15*4 1 2 3 4 5 6 7 8 R2040 15*4 1 2 3 4 5 6 7 8 R2039 15*4 1 2 3 4 5 6 7 8 R2041 15*4 1 2 3 4 5 6 7 8 R2023 47*4 1 2 3 4 5 6 7 8 R2022 47*4 1 2 3 4 5 6 7 8 R2035 47*4 1 2 3 4 5 6 7 8 X2601 FCX-03-27MHZ A G N D A 3 . 3 V D G N D D 3 . 3 V A G N D LRCLK CSDACSUR CSDACCSW CSDACLR DAT-CSW DAT-SLSR DIGOUT0 DIGOUT1 BITCLK DAT-DMIX DACCLK CSDMIX MD MC AMUTE DACRST A 1 . 8 V DAT-LR D G N D DRVIRQ D 1 . 8 V DRVRDY A 5 V DRVCLK DRVRX P G N D DRVTX P 8 V DRVRST DOUT BCK P 8 V LRCK P G N D DADT S W + 5 V D G N D S W + 3 . 3 V LRCLK CSDACSUR CSDACCSW CSDACLR DADT LRCK BCK ACLKI DOUT DIGOUT0 DIGOUT1 BITCLK DAT-LR DAT-CSW DAT-SLSR DAT-DMIX DACCLK CSDMIX MD MC FSEL AMUTE DACRST DRVRST DRVTX DRVRX DRVCLK DRVRDY FP_SIN FP_SOUT FP_CLK FP_CS D G N D 1 HDRQ FP_CLK FP_CS FP_SOUT FP_SIN XHAC SW+3.3V DCK XSHD VDT0 VDT1 VDT2 VDT3 VDT4 VDT5 VDT6 VDT7 DCK XHAC HDRQ SW+1.8V XSHD VDT7 BED+3.3V BED+3.3V VDT6 BED+1.8V BED+1.8V VDT5 VDT4 VDT3 VDT2 VDT1 VDT0 MC_RST S W + 1 . 8 V S W + 3 . 3 V S W + 5 V E+5V MICONGND BEMA3 DSTBX BEMA4 DSPSCK BEMA2 DSPSO DSPSI BEMA5 BEMA1 BEMA6 BEMA0 DGND1 MCA14 BEMA7 ROM3.3V ROM3.3V BEMA10 MCA15 MCA11 MC_RST MCA16 BEMA8 MCA12 MCAD0 MCA15 MCA17 BEMA4 BEMA3 BEMBA1 MCA13 MCAD1 MCA16 MCA18 M C A D 0 BEMA5 BEMA2 BEMA9 MCA14 MCA19 M C A D 8 BEMA6 BEMA1 BEMBA0 MCAD2 MCA17 MCA20 M C A D 1 BEMA7 BEMA0 BEMA11 MCAD0 MCAD3 MCA18 MCA21 M C A D 9 BEMA8 BEMA10 MCAD1 MCA22 M C A D 2 BEMA9 BEMBA1 MCAD2 MCAD4 MCA19 MCA11 M C A D 1 0 BEMA11 BEMBA0 MCAD3 MCAD5 MCA20 MCA10 M C A D 3 BEDCS MCAD4 MC_WS0 M C A D 1 1 BERAS MCAD5 MCAD6 MCA21 MC_RSTO TEST4 BEMCKA BECAS MCAD6 DRVIRQ MC_RST MCAD7 MCA22 M C A D 4 BEDQMU BEDWE MCAD7 MCAD8 MCA23 WP M C A D 1 2 BEDQML MCAD9 MCA24 M C A D 5 MCA12 M C A D 1 3 BEMD8 BEMD7 MCAD8 MCAD10 MCA25 MCA13 M C A D 6 MCAD9 MCAD11 MCA26 MCA23 M C A D 1 4 BEMD9 BEMD6 BEMD7 MCAD10 MCA24 M C A D 7 BEMD10 BEMD5 BEMD8 MCAD11 MCAD12 MCA27 MCA25 M C A D 1 5 BEMD6 MCAD12 MCAD13 MCA28 MCA26 MC_RS BEMD11 BEMD4 BEMCKA BEDQMU FSEL ACLKI BEMD9 MCAD13 MCA27 BEMD12 BEMD3 MCAD14 MCAD14 MCA29 MCA28 FROMCS MCAD15 MCAD15 MCA30 MCA29 BEMD13 BEMD2 BEMD5 ALE BEMD14 BEMD1 BEMD10 MCA30 BEMD4 FROMCS BEMD15 BEMD0 BEMD11 MC_RS BEMD3 MC_WS0 DGND1 BEMD12 SDITRST MCA10 SDRAM_D3 SDITMS BEMD2 SDITDO BEMD13 SDITDI BEMD1 SDITCK BEMD14 BEMD0 BEMD15 SDIDBI MCA10 DGND1 LETTER DGND1 SW+3.3V DGND1 CR IREF VREF CB BIAS2 BIAS1 CY S_Y IREF0 VREF S_C BIAS02 BIAS01 27MHZ AVENC1.8V DRVIRQ SQUEEZE AVENC3.3V 33.8688MHZ VDACGND SDA PLLA3.3V PLLD3.3V SCL VDACGND SW+1.8V DGND1 SW+3.3V SW+5V DGND FSEL DRVIRQ V+5V ACLKI DGND PD0 PD1 PD2 PD4 PD5 PD6 PD7 PD8 I/PX TRSYNCA PIXCLK HSYNC VSYNC RGBON SDA SCL AR2/AR1X MC_RST SDITRST SDITMS SDITDO SDITDI SDITCK SDIDBI BED+3.3V TEST4 SW+1.8V DGND1 SW+3.3V I/PX PD0 PD1 PD2 PD4 PD5 PD6 PD7 PD8 PIXCLK HSYNC VSYNC SDA TRSYNCA MC_RST SDITRST SDITMS SDITDO SDITDI SDITCK SDIDBI BED+3.3V BED+3.3V TEST4 CR/R DGND CB/B DGND CY/G DGND SY DGND SC DGND LETTER SQUEEZE I/PX AR2/AR1X RGBON SCL DGND1 U1 : DVD MAIN PC BOARD NADG-7807-2 To Audio out PC board (U6) To Mecha. control PC board NADG-7809 (U4) To Video output terminal PC board NAVD-7810 (U5) NC NC To Mecha. control PC board NADG-7809 (U4) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-CP702 SCHEMATIC DIAGRAM-3 A 1 2 3 4 5 B C D E F G H E LENT.POUR UNE PROTECTION PERMANENTE,N'UTILISER ATTENTION FOR CONTINUED PROTECTION AGAINST FIRE AGAINST FIRE HAZARD, REPLACE RATING REFER TO THE MARKING ADJACENT TO THE SYMBOL. INDIQUE LA QU LE PRESENT SYMBOL EST APPOSE. QUE DES FUSIBLES DE MEME TYPE. CE DARNIER EST CE SYMBOLE INDIQUE QUE LE FUSIBLE UTLISE EST HAZARD,REPLACE WITH SAME TYPE FUSE. FOR FUSE THIS SYMBOL LOCATED NEAR THE FUSE INDICATES THAT THE FUSE USED IS SLOW OPERATING TYPE V A ET CALIBRATION COMME INDIQUE. D'INCENDIE, REMPLACER UNIQUEMENT PERMANENTE CONTRE LES RISQUES AFIN D'ASSURER UNE PROTECTION PAR UN FUSIBLE DE MEME TYPE V A FOR CONTINUED PROTECTION AND RATING INDICATED. ONLY WITH FUSE OF SAME TYPE CAUTION P P861 AC_G AC_H P901 Q808 RPM7138 OUT VCC R846 4.7 (1/2W) P806A P806B P802A P805A P802B P805B Q802 HNV-12SM34 F10 1 F11 2 F22 62 F23 61 G1 5 G10 14 G11 15 G12 16 G2 6 G3 7 G4 8 G5 9 G6 10 G7 11 G8 12 G9 13 P1 40 P10 49 P11 50 P12 51 P13 52 P14 53 P15 54 P16 55 P17 56 P18 57 P19 58 P2 41 P3 42 P4 43 P5 44 P6 45 P7 46 P8 47 P9 48 Q810 DTC114YKA Q809 DTC114YKA Q805 DTC114YKA P704B P704C P704 Q806 2SC2712 D804 NC P804A P804B C827 223Z C829 223Z C828 223Z C803 104Z C806 104Z C805 104Z C815 330 C817 330 C816 330 C818 330 C819 330 C813 223Z C808 104Z C807 104Z C823 NC C814 NC C802 104Z C804 100/6.3 C820 2.2/50 C801 10/16 D801 SLR-343BBT D802 SLR-343BBT D803 SLR-342VR STBY LED R850 150 R847 390 R849 390 R848 150 R806 3.9K R805 1.8K R804 1K R803 820 R802 470 R801 390 R807 10K R827 100 R826 100 R812 1.8K R811 1K R810 820 R809 470 R808 390 R813 390 R814 470 R815 820 R816 1K R856 27K R835 100K R836 100K R837 100K R838 100K R824 2.7K R825 2.7K R821 0 R828 470 R844 470 R845 470 R843 470 R842 470 R841 470 R822 2.7K R823 2.7K R831 2.7K R832 2.7K R839 NC R840 NC R833 2.7K R834 2.7K S807 DISC1 S806 DISC2 S805 DISC3 S804 DISC4 S803 DISC5 S802 DISC6 S801 OPEN/CLOSE S808 DISC/SKIP S809 PLAY S814 REW S813 FF S812 PAUSE S811 CHAIN MODE S810 STOP S817 LAST MEMORY S816 REPEAT S815 STBY/ON S818 DISPLAY S819 DIMMER X801 5MHZ Q801 MPD780232GC-070-8BT 10G 71 11G 70 12G 69 13G 68 14G 67 1G 80 2G 79 3G 78 4G 77 5G 76 5V 1 6G 75 7G 74 8G 73 9G 72 AVDD 24 AVSS 18 CLOCK1 3 CLOCK2 4 FRAIC 5 GND 2 IRIN 15 JOGA 26 JOGB 27 KEY0 22 KEY1 21 KEY2 20 KEY3 19 LED1[ORG] 14 LED2[GRN] 16 NC1 17 NC2 66 P1 64 P10 53 P11 52 P12 51 P13 50 P14 49 P15 48 P16 47 P17 46 P18 45 P19 44 P2 63 P20 43 P21 42 P22 41 P23 40 P24 39 P25 38 P26 37 P27 36 P28 35 P29 34 P3 62 P30 33 P31 32 P32 31 P33 30 P34 29 P35 28 P36 65 P4 61 P5 58 P6 57 P7 56 P8 55 P9 54 RESET 6 STBYLED 13 SUBCL 7 SUBREQ 10 SUBSI 8 SUBSO 9 VDD 25 VDD2 59 VDISP 60 VOLA 11 VOLB 12 VSS 23 NADIS-7815 NASW-7812 from NADG-7809 DPC-7.4 ONLY NAETC-7896 CDD1N:NGPS0036 CPA4P:NGPS0037 NADIS-7808 NASW-7814 NASW-7813 SUBRST VDISP F2 F1 SUBSO SUBSI GND SUBREQ SUBCL GND 5V THE COMPONENTS IDENTIFIED BY MARK ARE CRITICAL FOR SAFETY. REPLACE ONLY WITH PART NUMBER SPECIFIED. VOLTAGE (MEASURED WITH VOLTMETER) IS DC VOLTAGE. (NO INPUT SIGNAL) ELECTROLYTIC CAPACITORS ARE IN uF/WV. ALL CAPACITORS ARE IN pF/50WV UNLESS OTHERWISE NOTED. EX) 030 3pF 330 33pF 331 330pF 333 0.033uF ALL RESISTORS ARE IN OHMS 1/4WATTS UNLESS OTHERWISE NOTED. THE THICK LINES ON PC BOARD ARE THE PRINTING SIDE OF THE PARTS. EX) PRINTING SIDE CIRCUIT IS SUBJECT TO CHANGE FOR IMPROVEMENT. NOTE ( ) From Mecha. contol PC board NADG-7809 (U4) POWER SUPLLY UNIT U7 : DISC SELECT SWITCH PC BOARD NASW-7812 U9 : STANDBY SWITCH PC BOARD NASW-7814 U8 : KEY OPERATION SWITCH PC BOARD NASW-7813 U10 : LED DISPLAY PC BOARD NADIS-7815 U3 : FRONT DISPLAY PC BOARD NADIS-7808 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-CP702 SCHEMATIC DIAGRAM-4 A 1 2 3 4 5 B C D E F G H L702 47UH L701 47UH Q704 TA7291S ROULETTE MOTOR DRIVE GND 5 IN1 9 IN2 1 NC 4 OUT1 7 OUT2 3 VCC 2 VREF 8 VS 6 Q705 TA7291S LOADING MOTOR DRIVE GND 5 IN1 9 IN2 1 NC 4 OUT1 7 OUT2 3 VCC 2 VREF 8 VS 6 P706B P706A P2501B Q702 S-80145 DS 1 NC 3 VDD 5 VOUT 4 VSS 2 P706 P710A Q713 2SD655 Q714 2SD655 Q707 2SA1162 Q701 MPD78005X AMUT 46 AN15/NC 1 AN16/NC 2 AVREF1 7 AVREF2 75 AVSS0 4 DISC/SEN 24 DSPCKX 13 DSPSI 12 DSPSO 11 DSTBX 63 FLON/OFF 6 IC 71 IRIN 61 K1/DESTI 76 LMCURRENT 22 LML 28 LMR 27 LMVOLH/L 26 LOADHI 32 MODE1 77 MODE2 78 NC 5 P/OFF 62 P04/GND 65 P05/GND 66 P120/GND 52 P121/GND 53 P122/GND 54 P123/GND 55 P126/GND 58 P127/GND 59 P13/GND 79 P14/GND 80 P23/STB/TXD1 14 P24/BUSY/RXD1 15 P31/NC 45 P34/GND 48 P35/GND 49 P36/GND 50 P37/GND 51 P40/SW1 19 P41/SW2 20 P42/SW3 21 P46/NC 25 P56/NC 34 P57/NC 35 P60/GND 36 P61/GND 37 P62/GND 38 P63/GND 39 P64/GND 40 P65/GND 41 P66/GND 42 P67/GND 43 PWRCTR 47 R/SEN 23 RESET 60 RIIN 56 RIOUT 57 RML 30 RMR 29 ROTHI 31 SUBCLK 18 SUBCLK/FLASH 10 SUBRST 3 SUBSDI 16 SUBSDI/FLASH 8 SUBSDO 17 SUBSDO/FLASH 9 SUB_RDY 64 VDD0 74 VDD1 68 VDOFF 44 VSS1 33 VSS2 67 X1 70 X2 69 XT1/P07/VDD0 73 XT2/OPEN 72 D734 1SS352 D731 1SS352 D733 1SS352 Q711 DTC114YKA Q710 DTC114YKA Q709 DTC114YKA Q712 DTC114YKA Q708 NC Q706 DTC114YKA I_38 S701 SPVF1 I_37 S703 SPVF1 I_36 S702 SPVF1 Q703 DTA114YKA Q715 DTA114YKA X701 4.5MHZ P702A P704A D702 UDZ2.2B D701 UDZ2.7B D704 NC D703 UDZS4.7B D732 UDZS5.1B C729 104 C766 104 C765 104 C761 223 C764 223 C762 104 C701 NC C702 NC C716 104 C714 104 C712 104 C718 104 C720 104 C722 104 C732 104 C733 102 C707 223 C706 223 C705 223 C768 100/6.3 C767 100/16 C763 NC C715 10/16 C713 10/16 C711 10/16 C717 10/16 C721 10/16 C719 10/16 C728 100/6.3 C703 100/16 C704 100/16 C731 1/50 R767 10K R768 2.2K R771 10K DV-CP702_ONLY R736 100 R735 100 R766 4.7K R765 270K R737 100 R734 100 R757 * R758 * R755 * R756 * R761 180 R763 390 R764 470K R762 150K R703 1M R704 10K R702 3.3K R707 1M R708 10K R706 5.6K R701 8.2K R705 8.2K R711 100K R712 100K R709 4.7 (1/4W) R710 2.2K R713 100K R714 100K R715 4.7 (1/4W) R716 5.6K R717 10K R720 2.2K R718 4.7K R719 5.6K R743 100 R744 100 R759 100 R748 47K R746 100 R747 100 R732 100 R742 100 R739 100 R741 100 R753 NC R754 2.7K R752 1K R745 100 R724 220K R725 22K R726 22K R751 4.7K R733 2.7K R731 2.7K R740 2.7K R738 2.7K R749 470 R750 220K R723 10K R722 10K R721 10K P707A FFC1MM P701A P2901B P707B FFC1MM Q717 RPI-576 STOP_POSITION SENSER Q716 GP2S28 DISC SENSER P708B P709B P708A P711A P709A Z701 Z702 AMUTE/UCOM VDOFF IRIN ROTHI ROTHI RI IR_IN VIDEO/OFF SW+5V SUBSDO SUBCLK SUSDI RI AMUTE_UCOM R/SEN R/SEN EV5V DISC/SEN DISC/SEN SW+5V LMVOLH/L LMVOLH/L ROTHI ROTHI SW+3.3V A+12V LMR LMR A-12V LML LML RML RML RMR RMR PWRCNT EV5V EV5V SW+3.3V SW+5V EV5V VDISP VDISP F1 F2 SW+8V SW+8V SW+8V/GND SW+5V SW+5V SW+5V/GND SW+3.3V SW+3.3V SW+5V/GND A+12V A+12V AGND AGND A-12V A-12V * 0 0 0 0 2.7K 2.7K 2.7K 2.7K Model&Area NC NC NC NC NC NC NC NC DPC7.5CPA4P DPC7.5CDD1N DV-CP702CPA4P DV-CP702CDD1N R755 R756 R757 R758 NCETC-7896 WRITE IN FLASH PLUG IC EV5V RESET SUBCLK SUBSO SUBSI GND NADG-7809 NAETC-7817 NAETC-7816 NAETC-7818 EV5V TXD1 RXD1 DGND SW+5V VIDEO OFF 1 A+12V A-12V VDISP/-30V SW+5/GND SW8/GND SW8V RI DSPSO-DSPSI DSPSI-DSPSO SUBCLK SUBSDO-SUBSDI SUBSDI-SUBSDO to Front disp. PC board NADIS-7808 (U3) SUBREQ 11 1 6 11 7 1 1 6 SW+3.3V A+12V AGND A-12V SW+8V LOADING MOTOR ROULETTE MOTOR 6 1 15 10 5 1 SW+8V/GND EV5V F2 F1 AGND SW+8V SW+3.3V SW+5V/GND SW+5V EV+5V/GND P-ON EV5VGND SW+5V DGND EV5V 1 AMUTE/UCOM RST 200mS Delay EV5V F1 F2 VDISP SUBRST GND GND DGND1 SW+3.3V SW+5V to Main circuit PC board NADG-7807 (U1) EV5V DSPSCK DSTBX GND(MICON) U13 : DISC SENSOR PC BOARD U11 : ROULETTE MOTOR PC BOARD U12 : LOADING MOTOR PC BOARD U4 : MECHANISM CONTROL PC BOARD NADG-7809 NC NC To Video output PC board U5 To Audio output PC board U6 From Power supply unit to Main circuit PC board NADG-7807 (U1) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-CP702 SCHEMATIC DIAGRAM-5 A 1 2 3 4 5 B C D E F G H Q418 DTA114TKA J1A J1 J1B Q413 NJM2370U05 CTRL 1 GND 2 NB 3 VIN 5 VOUT 4 Q481 TC7WU04FU NC 1 2 3 4 5 6 7 8 P204A P201 Y1 PB1 PR1 5 3 1 6 4 2 P701B P404 P403 P404A P403A P702B P401 Q401 PCM1742KE AGND 9 BCKIN 1 DATA 2 GND 4 LRCKIN 3 MC 14 MCLK 16 MD 13 ML 15 VCC 6 VCOM 10 VDD 5 VOUTL 7 VOUTR 8 ZEROL 12 ZEROR 11 P602 1 2 3 4 Q412 TOTX179 OPTICAL_DIG.OUT GND IN VCC P202A 1 2 3 4 5 7 8 Q403 NJM4580M-D 3 2 1 Q404 NJM4580M-D 5 6 7 Q405 NJM4580M-D 3 2 1 Q406 NJM4580M-D 5 6 7 R471 100 (1/2W) R416 100K R415 100K R456 150 (1/2W) R455 150 (1/2W) D401 1SS352 D102 1SS352 D101 1SS352 D104 1SS352 D103 1SS352 Q419 DTC114YKA Q415 DTC114YKA Q416 DTC114YKA Q204 NC Q206 NC Q202 DTC114YKA Q110 DTC114YKA Q417 DTA114YKA Q205 NC Q207 NC Q203 DTA114YKA Q109 DTA114YKA Q411 TC74VHCU04T 1 2 3 4 5 6 8 9 10 11 12 13 GND 7 VCC14 Q404 NJM4580M-D 3 8 2 4 1 Q403 NJM4580M-D 5 8 6 4 7 Q406 NJM4580M-D 3 8 2 4 1 Q405 NJM4580M-D 5 8 6 4 7 Q408 HN1C03F 2 6 1 Q407 HN1C03F 2 6 1 Q408 HN1C03F 5 3 4 Q407 HN1C03F 5 3 4 C436 104 C439 102 C440 102 C414 221 C413 221 C437 330 C438 330 C410 104 C416 122 C415 122 C418 272 C417 272 C407 104 C431 220 C430 104K C604 104 C231 152 C201 104K C426 104 C482 NC C429 020 C481 NC C427 104K C202 NC C408 104 C404 104 C403 104 C433 104 C428 020 C603 104 C424 223 C217 104K L407 BK1608LM182-T L221 220UH NCH-1482 L404 2.2UH NCH-1471 L402 NC L401 NC L405 BK1608LM182-T L205 BK1608LM182-T L206 BK1608LM182-T L406 2.2UH NCH1471 L403 2.2UH NCH1471 L202 0 L203 NC L201 BK1608LM182-T L204 BK1608LM182-T C412 22/50 C411 22/50 C405 220/6.3 C434 10/16 C425 220/6.3 C442 1/50 C435 10/16 C441 47/16 C406 220/6.3 C409 4.7/50 C402 100/16 C401 100/16 C432 100/6.3 C421 470/16 C422 470/16 C216 470/6.3 C213 470/6.3 C212 1000/6.3 C215 470/6.3 C214 1000/6.3 C211 100/6.3 C210 100/6.3 C209 10/16 C207 10/16 C205 10/16 C203 10/16 C423 1/50 C420 22/50 C419 22/50 R482 27K R481 12K R480 3.9K R467 180 R466 330 R469 NC R468 180 R477 2.2K R460 100 R282 2.2 R281 270 R206 4.7K R275 10K R482 NC R4004 NC R4003 0 R484 NC R485 NC R465 100 R463 470K R483 NC R464 100K R462 100K R481 NC R461 100 R476 47K R229 NC R234 NC R418 10K R417 10K R420 33K R419 33K R412 2.2K R411 2.2K R414 15K R413 15K R474 10K R406 100 R408 100 R405 100 R403 100 R401 100 R409 100 R407 100 R404 100 R402 100 R272 NC R271 NC R422 10K R129 22K R427 22K R237 10K R238 10K R235 100 R236 100 R230 0 R231 100 R225 68 R226 100 R220 75 R222 68 R223 75 R219 NC R221 0 R218 75 R217 10K R216 NC R224 NC R215 75 R273 NC R201 NC R203 NC R202 NC R205 1K GAIN6DB R204 GAIN9DB NC R207 4.7K R209 1K GAIN9DB R211 1K 1_DRIVE R210 1K 2_DRIVE R208 1K GAIN6DB R214 1K 2_DRIVE R213 1K 1_DRIVE R212 0 R444 0 R443 0 R446 100K R445 100K R457 4.7K R458 3.3K R459 1M R448 220 R452 2.2K R451 2.2K R447 220 R450 220 R449 220 R454 2.2K R453 2.2K R421 10K R424 10K R423 10K R426 1.5K R425 1.5K R428 22K R432 22K R431 22K R437 1.5K R433 22K R435 1.5K R430 22K R438 1.5K R434 22K R436 1.5K R439 10K R440 10K R442 10K R441 10K P2001A P2401A P402 COAXAL_DIG.OUT Q201 LA73054 AMP1.S36 AMP2.S 15 C.IN 6 C.OUT31 CB.IN 14 CB.O23 CR.IN 16 CR.O21 CV.IN 2 CV.O33 C_DC30 DRIVE135 DRIVE219 GND1 7 GND2 17 GND320 GND422 GND526 GND627 GND729 GND832 LETTER 4 LPF.SW 13 MIX.SW 9 MUTE1 5 MUTE2 12 REG 18 RGB.SW 10 SQUEEZE 3 VCC1 1 VCC224 VCC334 Y1.IN 8 Y1.O28 Y2.IN 11 Y2.O25 VIDEO/OFF SQEZ SQEZ LTTR LTTR CV CR/R CB/B Y1 YC/C SW+5V SY Y2 EV5V SC CB CR I/PX AR2/ARIX RGBON LTTR SQEZ D-OUT1 SW+5V D-OUT0 D-OUT0 D-OUT1 SW+5V AMUTE/UCOM SW+5V SW+5V RST EV5V EV5V A+12V SW+12V A-GND AMUTE/MAIN A-12V SW-12V A-12VD AMUTE/DAC AMUTE/DAC AMUTE AMUTE/DAC AMUTE/MAIN DACRST AMUTE/MAIN MC MD MD CSDMIX MC CSDMIX DACCLK DACCLK DAT-DMIX LRCLK BITCLK AMUTE/DAC A-12VD A+12VD GND SW+5V VIDEO/OFF [VLC CIRCUIT] from Mecha. control board NADG-7808 YC/G LchOUT-1 RchOUT-1 RI SW+3.3V A+12V A-GND A-12V from DVD Main board NADG-7807 RST DGND SW+5V EV5GND EV5V AMUTE/UCOM [D/A CONVERTOR] AMUTE/MAIN GND GND GND DIGOUT0 DIGOUT1 BITCLK LRCLK DAT-DMIX DACCLK CSDMIX MD MC DACRST CUTOFFFREQ=50KHz [VIDEO AMP] from DVD MAIN board NADG-7807 RGBON AR2/ARIX I/PX SQUEEZE LETTER VGND SC VGND SY VGND VGND CB/B VGND CR/R H:INTR/L:PRGV from DVD Main board NADG-7807 U5 : VIDEO OUTPUT TERMINAL PC BOARD NAVD-7810 U6 : AUDIO OUTPUT TERMINAL PC BOARD NAAF-7811 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com P805B STBY REPEAT LAST_MEMORY DIMMER DISPLAY NASW-7814 P709A + - ETC7816 P708B ETC-7817 Z702 P805A NADIS-78 P707B P709B NAETC-7818 CN2 CN1 AC-H AC-G P806B U3: Front display U10: LED Displa NGPS-0036-100-120V NGPS-0037-100-240V PC BOARD CONNECTION DIAGRAM U30 : Power supply unit U12: Loading motor PC board U9: Standby switch PC board AC IN From Pickup To Spindle motor PCB U13: Disc sensor PC board U11: Roulette motor PC board www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com P2501B P704A P2901B P706A P707A P708A P711A NADG-7809 P710A P702A P-ON EV5V EVGND SW5V GND SW33 SW8 SW8 SW8GND A+12 AGND A-12 VDISP F F EV5V GND DSTBX DSPSCK DSPSO DSPSI SW8V 8G SW5V SW5VGND SW5VGND SW5V SW8VGND SW8V SW3.3 SW3.3 GND GND L701 F F VDISP EV5V SRST GND SCLK SREQ GND SDO SDI GND SSI SSO SCLK RST EV5V IC S814 S813 S812 S811 S810 S809 S829 S830 S831 S832 S833 S834 P802B P804B STOP PLAY CHAIN_MODE PAUSE UP DOWN NASW-7813 S808 S807 S806 S805 S804 S803 S802 S801 P802A P806A NASW-7812 OPEN/CLOSE DISC6 DISC5 DISC4 DISC3 DISC2 DISC1 DISC/SKIP P201 P301 P402 P202A P202B P2401A Q412 P701B NAVD-7810 CR/R CB/B YC/C SY SC LETR SQWZ I/PX AR/ARX RGBON VD/OFF SW5V GND Y R B P204A P404A P704 P804A Q802 808 F1 F2 VDISP EV5V SUBRST EVGND SUBCLK SUBREQ GND SUBSI SUBSO P861 P401 P601 P602 P403 P702B P2001A NAAF-7811 A-12V AGND A+12V SW3.3V DGND SW5V EVGND EV5V AMUTE RST RI DG0 DIG1 DG BITCLK LRC DAT-DMIX DG DACCLK DGND CSDMIX MD MC AMUTE/M DACRST NADIS-7815 ay PC board lay PC board U7: Disc select PC board U8: Key operation switch PC board U6: Audio output terminal PC board U3: Mechanism control circuit PC board U5: Video output terminal PC board P701A DV-CP702 P1001 P1101 P1291 P1292 P2001B P2002B P2401B P2501A P2702 P2901A Q1201 Q2001 NADG-7807 SLD- SLD+ SPD+ SPD- SW+5V P8V DACRST AMUTE MC MD CSDMIX DGND1 DGND1 DACCLK D-DMIX LRCK BCTCLK DGND1 DOUT1 DOUT2 DGND1 D-SLSR D-CSW D-LR DGND1 CS-LR CS-CSW CS-SLR E+5V MICONG DSTBX DSPSCK DSPSO DSPSI NA CR/R DGND DGND DGND DGND DGND CB/B CY/G SY SC LETTER SQUEEZE I/PX AR2/AR1X RGBON LMT-SW DGND U1: DVD Main circuit PC board FFC mark www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com P2501B P704A P2901B P706A P707A P708A P711A NADG-7809 P710A P702A P-ON EV5V EVGND SW5V GND SW33 SW8 SW8 SW8GND A+12 AGND A-12 VDISP F F EV5V GND DSTBX DSPSCK DSPSO DSPSI SW8V 8G SW5V SW5VGND SW5VGND SW5V SW8VGND SW8V SW3.3 SW3.3 GND GND L701 F F VDISP EV5V SRST GND SCLK SREQ GND SDO SDI GND SSI SSO SCLK RST EV5V IC S814 S813 S812 S811 S810 S809 S829 S830 S831 S832 S833 S834 P802B P804B STOP PLAY CHAIN_MODE PAUSE UP DOWN NASW-7813 S808 S807 S806 S805 S804 S803 S802 S801 P802A P806A NASW-7812 OPEN/CLOSE DISC6 DISC5 DISC4 DISC3 DISC2 DISC1 DISC/SKIP P805B STBY REPEAT LAST_MEMORY DIMMER DISPLAY NASW-7814 P709A + - ETC7816 P708B ETC-7817 Z702 P201 P301 P402 P202A P202B P2401A Q412 P701B NAVD-7810 CR/R CB/B YC/C SY SC LETR SQWZ I/PX AR/ARX RGBON VD/OFF SW5V GND Y R B P204A P404A P704 P804A P805A Q802 NADIS-7808 F1 F2 VDISP EV5V SUBRST EVGND SUBCLK SUBREQ GND SUBSI SUBSO P861 P401 P601 P602 P403 P702B P2001A NAAF-7811 A-12V AGND A+12V SW3.3V DGND SW5V EVGND EV5V AMUTE RST RI DG0 DIG1 DG BITCLK LRC DAT-DMIX DG DACCLK DGND CSDMIX MD MC AMUTE/M DACRST P707B P709B NAETC-7818 CN2 CN1 AC-H AC-G P806B NADIS-7815 U3: Front display PC board U10: LED Display PC board U7: Disc select PC board U8: Key operation switch PC board U6: Audio output terminal PC board U3: Mechanism control circuit PC board NGPS-0036-100-120V NGPS-0037-100-240V U5: Video output terminal PC board P701A DV-CP702 PC BOARD CONNECTION DIAGRAM P1001 P1101 P1291 P1292 P2001B P2002B P2401B P2501A P2702 P2901A Q1201 Q2001 NADG-7807 SLD- SLD+ SPD+ SPD- SW+5V P8V DACRST AMUTE MC MD CSDMIX DGND1 DGND1 DACCLK D-DMIX LRCK BCTCLK DGND1 DOUT1 DOUT2 DGND1 D-SLSR D-CSW D-LR DGND1 CS-LR CS-CSW CS-SLR E+5V MICONG DSTBX DSPSCK DSPSO DSPSI NA CR/R DGND DGND DGND DGND DGND CB/B CY/G SY SC LETTER SQUEEZE I/PX AR2/AR1X RGBON LMT-SW DGND U30 : Power supply unit U12: Loading motor PC board U9: Standby switch PC board U1: DVD Main circuit PC board AC IN From Pickup To Spindle motor PCB U13: Disc sensor PC board U11: Roulette motor PC board FFC mark w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com out 1 1.1.111.1.1.111 : Side A pattern : Sise B pattern U1 : DVD MAIN CIRCUIT PC BOARD (NADG-7807) DV-CP702 PRINTED CIRCUIT BOARD VIEW-1 A 1 2 3 4 5 B C D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C1234 Q DV-CP702 PRINTED CIRCUIT BOARD VIEW-2 : Side B pattern : Side A pattern U1 : DVD MAIN CIRCUIT PC BOARD (NADVG-7807) A 1 2 3 4 5 B C D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C403 C404 C424 C436 C603 C604 D101 D102 D103 D104 L401 L402 L403 L406 L601 Q109 Q110 Q401 Q403 Q404 Q405 Q406 Q407 Q408 Q413 Q602 Q603 R129 R401 R402 R403 R404 R405 R406 R407 R408 R409 R411 R412 R413 R414 R415 R416 R417 R418 R419 R420 R421 R422 R423 R424 R425 R426 R427 R428 R430 R431 R432 R433 R434 R435 R436 R437 R438 R439 R440 R441 R442 R443 R444 R445 R446 R447 R448 R449 R450 R451 R452 R453 R454 R457 R458 R459 R460 R474 R601 R602 R603 R604 R605 R606 C437 C438 1 1 1 1 1 1 1 R4001 RI RST AMUTE/U EV5V EVGND SW5V DGND SW3.3V A+12V AGND A-12V DIG0 IR R476 D401 R4003 R4004 1 1 R477 Q416 Q418 Q419 Q415 Q417 R480 R481 R482 C401 C402 C405 C406 C407 C409 C411 C412 C413 C414 C415 C416 C417 C418 C419 C420 C421 C421 C422 C422 C423 C434 C435 C601 C602 P401 P401 P601 P601 P602 P602 P711 P403 P702B P2001A Q601 Q601 R455 R456 R471 C439 C440 J418 J427 J416 J417 J424 J426 J406 J422 J411 J412 J407 J405 J409 J420 J410 J404 J402 J425 J423 J415 J421 J414 C410 C408 J401 25137811 NCAF-7811 2 A-12V AGND A+12V SW3.3V DGND SW5V EVGND EV5V AMUTE RST RI DG0 DIG1 DG BITCLK LRC DAT-DMIX DG DACCLK DGND CSDMIX MD MC AMUTE/M DACRST C442 C441 J403 J413 J419 P404 J408 J430 J1 J1A J1B 22 12 17 7 7 17 17 15 20 12 15 15 15 17 15 20 7 12 DV-CP702 PRINTED CIRCUIT BOARD VIEW FROM SOLDERING SIDE-3 Component side Soldering side U6 : AUDIO OUTPUT TREMINAL PC BOARD NAAF-7811 A 1 2 3 4 5 B C D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C201 C202 C217 C222 C303 C426 C427 C428 C429 C430 C431 C433 L201 L202 L203 L204 L205 L206 L211 L212 L213 L301 L302 L303 L304 L404 L405 Q201 Q201 Q202 Q203 Q204 Q205 Q206 Q207 Q301 Q301 Q411 Q411 R201 R202 R203 R204 R205 R206 R207 R208 R209 R210 R211 R212 R213 R214 R215 R216 R217 R218 R219 R220 R221 R222 R223 R224 R225 R226 R229 R230 R231 R234 R235 R236 R237 R238 R241 R242 R243 R244 R245 R246 R247 R271 R272 R273 R275 R301 R302 R303 R304 R305 R306 R307 R308 R309 R310 R461 R462 R463 R464 R465 R466 R467 R468 R2002 R2009 R2008 R2005 R2006 R2004 R2001 R2003 R2007 1 20 1 36 1 14 R469 L407 VIDEO/OFF SW5V GND RXD1 TXD1 CR/R CB/B YC/C SY SC LETR SQWZ I/PX AR2/ARIX RGBON R311 Q481 R999 C481 R998 R483 R484 R485 C482 1 L221 R281 C231 R282 J201 J201 J202 J202 C203 C205 C207 C209 C210 C211 C212 C212 C213 C214 C214 C215 C216 C221 C221 C223 C301 C302 C304 C305 C306 C425 C432 P201 P201 P301 P301 P402 P402 P403A P202A P202A P202B P202B P2401A Q412 Q412 J228 J223 J231 J214 J207 J206 J205 J209 J213 J204 J233 J226 J234 J224 J232 J216 J217 J220 J219 J215 J201 J202 J203 J208 J225 J218 J221 J211 J212 P701B P701B J230 J229 GND GND GND GND GND GND GND NCVD-7810 25137810 2 E201 CR/R CB/B YC/C SY SC LETR SQWZ I/PX AR/ARX RGBON VD/OFF SW5V GND RXD1 TXD1 Y R J227 B P204A J210 EV5V P404A J222 7 7 7 12 17 12 20 22 20 7 27 7 15 17 15 7 17 7 22 12 22 22 7 12 DV-CP702 PRINTED CIRCUIT BOARD VIEW FROM SOLDERING SIDE-4 U5 : VIDEO OUTPUT TERMINAL PC BOARD NAVD-7810 Component side Soldering side A 1 2 3 4 5 B C D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C802 C803 C805 C806 C807 C808 C813 C814 C815 C816 C817 C818 C819 C823 D804 Q801 Q805 Q806 R821 R822 R823 R824 R825 R826 R827 R828 R831 R832 R833 R834 R835 R836 R837 R838 R839 R840 R841 R842 R843 R844 R845 1 R856 R813 R814 R816 R815 C801 C804 C820 P704 P804A P805A Q802 Q802 Q808 R846 X801 J803 J804 J802 J808 J814 J811 J813 NCDIS-7808 1 J815 J809 J810 J806 J812 J805 J801 J807 F1 F2 VDISP EV5V SUBRST EVGND SUBCLK SUBREQ GND SUBSI SUBSO C829 C828 J871 P861 C827 ANGLE_TYPE/DV-CP701 /DV-CP702 S816 S817 S818 S819 S821 S822 S815 P805B J861 D803 STBY REPEAT REPEAT LAST_MEMORY LAST_MEMORY DIMMER DISPLAY DPC-7.4 DPC-7.4 25137814 NCSW-7814 0 J862 DV-CP701/DPC7.4 DV-CP702/DPC7.5 DPC-7.5 DPC-7.5 15 7 30 12 27 15 15 20 20 17 2 2 2 2 2 2 2 DV-CP702 PRINTED CIRCUIT BOARD VIEW FROM SOLDERING SIDE-5 U3 : FRONT DISPLAY PC BOARD NADIS-7808 Component side Soldering side U9 : STANDBY SWITCH PC BOARD NASW-7814 Component side Soldering side A 1 2 3 4 5 B C D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com R812 R811 R810 R809 R808 R801 R802 R803 R804 R805 R806 R807 S814 S813 S812 S811 S810 S809 S829 S830 S831 S832 S833 S834 P802B P804B J851 J852 J853 J854 J855 J856 J857 STOP PLAY CHAIN_MODE PAUSE UP DOWN NCSW-7813 0 J858 DV-CP701 DV-CP702 S808 S807 S806 S805 S804 S803 S802 S801 P802A P806A 25137812 NCSW-7812 0 OPEN/CLOSE DISC6 DISC5 DISC4 DISC3 DISC2 DISC1 DISC/SKIP DV-CP701 DV-CP702 2 2 2 2 2 2 2 2 2 2 2 2 7 7 7 7 7 7 15 2 2 2 2 2 2 2 2 DV-CP702 PRINTED CIRCUIT BOARD VIEW FROM SOLDERING SIDE-6 Component side Soldering side Component side Soldering side U8 : KEY OPERATION PC BOARD NASW-7813 U7 : DISC SELECT SWITCH PC BOARD NASW-7812 A 1 2 3 4 5 B C D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C703 C704 C711 C713 C715 C717 C719 C721 C731 P2501B P704A P2901B P706A P707A P708A Q704 Q705 R709 R715 S701 S702 S703 X701 P711A C729 J760 J738 J740 J741 J711 J713 J714 J715 J709 J710 J712 J754 J742 J735 J730 J732 J733 J749 J751 J756 J757 J764 J746 J718 J719 J725 J745 J705 J706 J707 J729 J728 J724 J723 J753 J752 J737 J701 J758 J755 J748 J704 J731 J708 J726 J727 J717 J762 J761 J739 J716 J743 J736 J750 J744 J747 NCDG-7809 P710A 0 P702A P701A J765 J763 Q713 Q714 25137809 J759 J720 J721 J722 1 J703 J702 P-ON EV5V EVGND SW5V GND SW33 SW8 SW8 SW8GND A+12 AGND A-12 VDISP F F CONTACT EV5V GND DSTBX DSPSCK DSPSO DSPSI SW8V 8G SW5V SW5VGND SW5VGND SW5V SW8VGND SW8V SW3.3 SW3.3 GND GND L701 L701 C767 SIDE L702 L702 C768 J734 F F VDISP EV5V SRST GND SCLK SREQ GND SDO SDI GND SSI SSO SCLK RST EV5V IC 30 30 30 22 7 7 7 7 12 20 7 7 20 15 20 30 15 30 7 30 12 20 20 7 27 22 25 27 12 20 12 12 12 12 25 22 27 27 27 27 7 15 8 C701 C702 C705 C706 C707 C712 C714 C716 C718 C720 C722 C732 C733 D701 D702 D703 D704 D731 D732 D733 D734 Q701 Q701 Q702 Q703 Q706 Q707 Q708 Q709 Q710 Q711 Q712 Q715 R701 R702 R703 R704 R705 R706 R707 R708 R710 R711 R712 R713 R714 R716 R717 R718 R719 R720 R721 R722 R723 R724 R725 R726 R731 R732 R733 R734 R735 R736 R737 R738 R739 R740 R741 R742 R743 R744 R745 R746 R747 R748 R749 R750 R751 R752 R753 R754 R755 R756 R757 R758 R759 C728 R783 R782 R784 R781 1 1 1 1 R786 R7001 R766 R765 R767 R768 R771 8 9 9 8 DV-CP702 PRINTED CIRCUIT BOARD VIEW FROM SOLDERING SIDE-7 Component side Soldering side U4 : MECHANISM CONTROL PC BOARD NADG-7809 A 1 2 3 4 5 B C D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com R847 R848 R849 R850 Q809 Q810 R851 R852 Q811 R761 R762 C762 R763 R764 R792 R791 C761 C764 C765 C766 P709A Z701 Z701 + - 25137816 ETC7816 P708B + ETC-7817 Z702 Z702 25137817 1 P806B D801 25137815 NCDIS-7815 1 D802 D805 Q717 Q716 Q716 P707B P709B C763 NCETC-7818 25137818 0 576 DV-CP702 PRINTED CIRCUIT BOARD VIEW FROM SOLDERING SIDE-8 U10 : LED DISPLAY PC BOARD NADIS-7815 U13 : DISC SENSOR PC BOARD NAETC-7818 U11 : ROULETTE MOTOR PC BOARD NAETC-7816 U12 : LOADING MOTOR PC BOARD NAETC-7817 Component side Soldering side Component side Soldering side Soldering side Component side Soldering side Component side A 1 2 3 4 5 B C D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Q1102: BA4510FV OPE. AMP Block diagram + + 1 2 3 4 8 7 6 5 OUT1 Ð IN1 + IN1 VEE VCC OUT2 Ð IN2 + IN2 1ch 2ch Ð Ð DV-CP702 IC BLOCK DIAGRAM/ TERMINAL DESCRIPTION www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-CP702 IC BLOCK DIAGRAM/ TERMINAL DESCRIPTION 1 2 3 4 5 6 7 8 VDD2 VSS2 CLK27M TEST AVDD AVSS XTALOUT XTALIN 16 15 14 13 12 11 10 9 OE CLK33M 33.8688MHz 24.576 or 22.5792MHz 16.9344 or 36.864MHz L or NC (pull up) 16.9344MHz FSEL1 CLK16M DVDD DVSS CLK512FS CLKA Q2601: BU2288FV CLOCK GENERATOR PIN No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 PIN NAME VDD2 VSS2 CLK27M TEST AVDD AVSS XTALOUT XTALIN CLKA CLK512FS DVSS DVDD CLK16M FSEL1 CLK33M OE FUNCTION Digital VDD for 27MHz clock output Digital GND for 27MHz clock output 27MHz clock output Output for test Analog VDD Analog GND Standard crystal output Standard crystal input Clock output (FSEL1=Open: 16.9344MHz, FEL1=36.864MHz) Clock output (FSEL1=Open: 22.5792MHz, FEL1=24.576MHz) Digital GND Digital VDD 16.9344MHz clock output Output select: with pull up Open: 16.9344MHz (9pin), 22.5792MHz (10pin) L: 36.864MHz (9pin), 24.576Mhz (10pin) 33.8688MHz clock output Output enable (open: enable, L: disable): with pull up PIN FUNCTION PIN CONFIGURATION www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-CP702 IC BLOCK DIAGRAM/ TERMINAL DESCRIPTION 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 17 18 19 20 37 38 39 40 41 42 43 44 45 46 47 48 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 CXD1881BR RX MEV VNA FNN FNP DIP DIP DIN BYP RFAC VPA AIP AIN ATON ATOP RFSIN RFDC DVDRFN DVDRFN A2 B2 C2 D2 CP CN D C B A CD_D CD_C CD_B CD_A SDEN SDATA SCLK V33 LCP LCN MNTR CE FE TE PI V25 V125 TPH DFT LINK MEVO MIN MLPH MB MP MIRR LDON VNB CDPD DVDPD COLD DVDLD VC VPB CD_E CD_F Q1001 : CXD1881BR DVD ANALOG FRONTEND-1 PIN LAYOUT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-CP702 IC BLOCK DIAGRAM/ TERMINAL DESCRIPTION 56 40 38 35 34 61 41 42 44 43 7 8 39 36 37 20 48 47 46 45 25 33 27 58 19 51 30 28 29 31 32 50 21 22 26 23 24 4 5 6 18 17 2 10 14 9 13 12 16 11 15 1 2 63 62 61 60 59 53 52 55 54 57 49 GCA GCA GCA GCA GCA GCA GCA GCA MUX D C B W/LPF W/LPF W/LPF SIGR b2-0 12dB is added @ high gain mode (CDR b5=1) A MUX SIGR b3 INPUT SEL RFCR b7-6 INPUT IMP SEL SIGR b7-4 ATT ATT INPUT BIAS RFCR b5-4 INPUT IMP SEL SSOUT CAR b1-0 Env/Clamp TENV + - Clamp & Env FCCR b7-0 FBCR b6-0 AGC PROGRAMMABLE EQUALIZER DIFFERENTIATOR AGCO FULL WAVE RECTIFIER CGR b1 OUTPUT INHIBIT AGC CHARGE PUMP AGC HOLD RFCR b3 HOLDEN CDR b6 FOCR b7-4 FS Gain 70kHz GCA+/-4dB LPF Offset cancel LPF Offset cancel GCA +/-6dB, 4bit FOCR b3-0 FO Gain Pll COMP DAC TOPHLD CTCR b7 BCA DET CBR b3-2 CGR b0 OUTPUT INHIBIT CTCR b3-0 CO Gain GCA 0-+8dB, 4bit Offset cancel TOPHLD TOPHLD CER b4-0 CE offset A+D B+C 3 SIGR b2-0 12dB is added @ high gain mode (CDR b5-1) 4D SUM PDCR b3 CD/DVD 6dB is added @ high gain mode (CDR b5-1) GCA RFCR b2-0 TRCR2 b3-0 3B 12dB is added @ high gain mode (CDR b5=1) GCA GCA GCA GCA EQ EQ EQ EQ Comp. RFCR b2-0 VC TRCR2 b6-4 DPD EQ TRCR b6 DPD COMP HYS ON PHASE DETECTOR PHASE DETECTOR MUX LPF SUB Offset cancel GCA TE RST CFR b7-5 TR Gain TRCR b5-0 TT offset CEFDB TRCR2 b7 CP/CN Low imp PDCR b3 CD/DVD for PI output ref. CHR b7-6 Mirr Defect Comp ATT VCI for servo input V25/3 V25/2 for TE, FE & CE output ref CDR b2 CDR b3 V33 for output buff VC SERIAL POET REGISTER CONTROL Signal To each block MRCR b6-4 Mirr Comp ATT Level MRCR b7-0 drop rate control TOP HLD TOP ENV TOP HLD TOP ENV MUX Dual APC CDR b4 LD H/L CCR b5 APC SEL DVD/CD AGCO AGC BTM ENV BENV Pll CTCR b5-4 MEVO SEL Btm Env MUX Btm Clamp & clip MUX CGR b5-4 Gain CDR b7 LINKEN CCR b7 DISK DET MUX MUX Offset ATT MUX Vref CFR b2-0 CE-ATT CFR b3 CEPOL LPF ATT Pol sel. buff (-12dB) PI FE TE CE V25 V125 V25/3 PIOR b7-5 MON SEL CAR b7-4 TE MASK SEL CBR b1-0 SEL SEL CCR b4-0 FE offset Level DAC CAR b3-2 SIGDET B+D A+C SUM Amp. W/LPF 4 2 2 2 5 4 70kHz 5 2 4 2 2 2 4 3 3 RESUM +3dB +/-4dB CDR b5 High Gain 4 3 3 3 6 3 2 3 2 V33 SCLK SDATA SDEN VC V25 V125 TE CN CP LCN LCP MNTR CE RFDC DFT TPH PI FE RC BYP LDON CDLD DVDLD MEV MEVO MIN MP MB MLPF LINK MIRR VPA VPB VNA VNB ATOP ATON AIN AIP FNP FNN DIN DIP RFAC DVDRFP DVDRFN AFSIN A CD_A B CD_B C CD_C D CD_D CD_E A2 B2 C2 D2 DVDPD CDPD 4 ATT Q1001 : CXD1881BR DVD ANALOG FRONTEND-2 CD_F GCA GCA www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-CP702 IC BLOCK DIAGRAM/ TERMINAL DESCRIPTION TERMINAL DESCRIPTION Q1001 : CXD1881BR DVD ANALOG FRONTEND-3 Power supply Pin Name VPA VPB VNA VNB V33 V25 I/O - - - - - - Description Power supply for RF section and serial port. Power supply for servo section. Ground pin for RF section and serial port section. Ground of servo section. Power supply for output buffer. Reference voltage pin for servo output. Input pin Pin name DVDRFP, DVDRFN RFSIN AIP, AIN DIP, DIN A, B, C, D A2, B2, C2, D2 CD_A, B, C, D CD_E, F MIN DVDPD CDPD LDON LINK I/O I I I I I I I I I I I I I O Description RF signal: RF attenuate deferential signal input pin. RF signal: Single end RF signal input pin. AGC Amp. input: Input pin of deferential amp. Analog input pin for RF single buffer. Interface input pin of photo detector. Interface input pin of photo detector. AC coupling input pin for DPD from main beam photo detector. Interface input pin of CD photo detector. Interface input pin of CD photo detector. RF signal input pin for mirror detection. APC input pin. DVD APC input pin from monitor photo diode. APC input pin. CD APC input pin from monitor photo diode. APC output control pin. H: LD output signal is active. Link signal input pin. Mirror monitor signal output pin. Output pin Pin name ATOP, ATON FNP, FNN RFAC RFDC FE TE CE MEVO DFT MIRR OI DVDLD CDLD MNTR I/O O O O O O O O O O O O O O O Description Deferential attenuation output pin. Deferential normal output pin. Single end normal output pin RF signal output pin. Focus error signal output pin. Tracking error signal output pin. Center error signal output pin. RFDDC bottom envelope output pin. Defect output pin. Mirror detection output pin. Puu in signal output pin. APC output pin. For controlled laser power. (DVD APC) APC output pin. For controlled laser power. (CD APC) Monitor output pin. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-CP702 IC BLOCK DIAGRAM/ TERMINAL DESCRIPTION TERMINAL DESCRIPTION Q1001 : CXD1881BR DVD ANALOG FRONTEND-4 Analog pins Pin Name BYP CP CN LCP LCN MP MB MEV MLPF TPH VC V125 RX I/O - - - - - - - - - - - - - Description The RF AGC integration capacitor CBYP is connected between BYP and VPA. Deferential phase tracking LPF pin. Deferential phase tracking LPF pin. The LPF terminal which lens shift offset cancel. The LPF terminal which lens shift offset cancel. MIRR top hold pin. MIRR top hold pin. RFDC bottom envelope pin. Mirror LPF pin. PI top hold pin. Reference voltage output pin. Reference voltage output pin. Connect the reference resistor. Serial port pin Pin Name SDEN SDATA SCLK I/O I I/O I Description Serial data enable input pin. Serial data input and output pin. Serial clock input pin. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-CP702 IC BLOCK DIAGRAM/ TERMINAL DESCRIPTION M Video Audio Buffer RAM MPEG DEC MCU NTSC ENC DAC DRAM PLL/ Demod. ECC/EDC MPEG I/F Serial I/F Audio I/F MCU I/F MCU AD DA CLD/CAV GIO DSP (DSP) RF Signal Processor Pick up Driver CXD1885Q Driver DVD/CD BLOCK DIAGRAM Q1201: CXD1885Q (DVD DSP)-1 General I/O port 0-19 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-CP702 IC BLOCK DIAGRAM/ TERMINAL DESCRIPTION BCA Data Sicer DVD Demodulator Data-PLL CD-DSP (DDCD) ASP Serial I/F VSTEM Serial I/F Spindle TZC TC GIO A/D DSP Command ROM/RAM Data RAM ICU Timer D/A PWM CMD/ RSP reg. Audio I/F CD-ROM Header Dec. Peri. CLK Memory mamager 16/4M DRAM ECC Core EDC MPEG I/F MCU I/F ICU Video Serial Command Audio MCU Servo conyrol X'tal VSTEM HFD HF ASP PWM ATC Mecha control Servo signal The functional block controlled by DSP The functional block which can choose control by DSP or MCU DSP CLK Mode The clock / mode setting register of operation for DSP. (MCU or VSTEM serial data) Q1201: CXD1885Q (DVD DSP)-2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-CP702 IC BLOCK DIAGRAM/ TERMINAL DESCRIPTION 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 DVDD33 ALCR MSEL0 MSEL1 MA0 MA1 MA2 MA3 MA4 MA5 MA6 MA7 MA8 TESTSEL MD0 MD1 MD2 MD3 MD4 MD5 DVSS MD6 MD7MALE MCS MWR DVDD33 MRD MRDY MINT SYSCK DVDD18 XI XO DVSS VDT7 VDT6 DVSS VDT5 VDT4 VDT3 VDT2 VDT2 VDT1 VDT0 HDRQ XHAC VEFG XSHD DCK DRVIRQ DRVRST DVDD18 104 103 102 101 100 99 98 97 96 95 94 93 92 91 90 89 88 87 86 85 84 83 82 81 80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 60 59 58 57 56 55 54 53 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200 201 202 203 204 205 206 207 208 DVDD33 RD8 TEST0 TEST1 TEST2 TEST3 TEST4 TEST5 TEST6 TEST6 TEST7 TEST8 TEST9 TEST10 TEST11 TEST12 TEST13 TEST14 TEST15 MODSEL0 MODSEL1 DVSS MODSEL2 GIO0 GIO1 GIO2 GIO3 DVDD33 GIO4 GIO5 GIO6 GIO7 DVSS18 GIO9 GIO10 GIO11 GIO12 DVSS GIO13 GIO14 GIO15 GIO16 GIO17 GIO18 GIO19 TRST TMS TDI TCK TDO VNCHG DVDD18 156 155 154 153 152 151 150 149 148 147 146 145 144 143 142 141 140 139 138 137 136 135 134 133 132 131 130 129 128 127 126 125 124 123 122 121 120 119 118 117 116 115 114 113 112 111 110 109 108 107 106 105 DVDD19 RD9 RD10 RD11 RD12 RD13 RD14 RD15 RD0 RD1 RD2 RD3 RD4 RD5 DVSS RD6 RD7 XMWR XRAS RA0 DVDD18 RA1 RA2 RA3 RA4 DVDD33 RA5 RA6 RA7 RA8 RA9 DVSS RA10 RA11 XMOE XUCAS XLCAS GPWM5 GPWM4 GPWM3 GPWM2 GPWM1 GPWM0 SPWM2 SPWM1 FG AVSS DA (SLED2_TILT) DA2 (FSCON) DA1 (SLED) DA0 (TSCON) AVDD33 Q1201: CXD1885Q (DVD DSP)-3 PIN LAYOUT JTAG B/E MCU I/F Clock VSTEM I/F Audio D/A AVDD18 VREFL VREFH AD9 AD8 AD7 AD6 AD5 AD4 AD3 AVDD33 AD2 AD1 AD0 AVSS AVSS RC LFP2 LFP1 VCOI AVDD18 VFBC CHG JMOUT JMREF AVDD33 IREF TLC1 TLC0 HF ATC AVSS DTC MIRRORH HFD RFOKGH SCLKH SO SI CSL EXPLDT EXVCO BCK LRCK DOTK DADT C2PO DRVRDY DRVCLK DRVRX DRVTX DVDD33 ASP S-I/O, Defect etc Data PLL/Data Slicer AD PWM FG D/A DRAM I/F General Port Test/ Monitor Pin www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-CP702 IC BLOCK DIAGRAM/ TERMINAL DESCRIPTION No. Sign I/O Classification Description 1 DVDD33 P VDD & GND Digital power supply (3.3V) 2 ALCR I MCU I/F Chip reset input port. L: Reset mode 3 MSEL0 I MCU I/F MUCH I/F mode select 0 4 MSEL1 I MCU I/F MUCH I/F mode select 1 5 MA0 I/O MCU I/F MUCH address input 0 / Data in/ out 0 port 6 MA1 I/O MCU I/F MUCH address input 1 / Data in/ out 1 port 7 MA2 I/O MCU I/F MUCH address input 2 / Data in/ out 2 port 8 MA3 I/O MCU I/F MUCH address input 3 / Data in/ out 3 port 9 MA4 I/O MCU I/F MUCH address input 4 / Data in/ out 4 port 10 MA5 I/O MCU I/F MUCH address input 5 / Data in/ out 5 port 11 MA6 I/O MCU I/F MUCH address input 6 / Data in/ out 6 port 12 MA7 I/O MCU I/F MUCH address input 7 / Data in/ out 7 port 13 MA8 I MCU I/F MUCH address input 8 / Data in/ out 8 port 14 TESTSEL I MCU I/F Test select input port 15 MD0 I/O MCU I/F MUCH data in/ out 0 port. (LBS.) 16 MD1 I/O MCU I/F MUCH data in/ out 1 port 17 MD2 I/O MCU I/F MUCH data in/ out 2 port 18 MD3 I/O MCU I/F MUCH data in/ out 3 port 19 MD4 I/O MCU I/F MUCH data in/ out 4 port 20 MD5 I/O MCU I/F MUCH data in/ out 5 port 21 DVSS P VDD & GND Digital GOD 22 MD6 I/O MCU I/F MUCH data in/ out 6 port 23 MD7 I/O MCU I/F MUCH data in/ out 7 port. (MOB) 24 MALE I MCU I/F MUCH address latch signal input port 25 MCS I MCU I/F MUCH chip select signal input port 26 MWR I MCU I/F MUCH write strobe signal input port 27 DVDD33 P VDD & GND Digital power supply (3.3V) 28 MRD I MCU I/F MUCH read strobe signal input port 29 MRDY O MCU I/F MUCH reedy signal output port. L: Wait condition 30 MINT O MCU I/F MUCH interruption output signal port. L: demand state of interruption 31 SYSCK O Clock Clock monitor output port 32 DVDD18 P VDD & GND Digital power supply (1.8V), for internal logic circuit 33 XI I Clock Crystal oscillator connection port 34 XO O Clock Crystal oscillator connection port 35 DVSS P VDD & GND Digital GOD 36 VDT7 O VSTEM A/V MPEG data output 7 port 37 VDT6 O VSTEM A/V MPEG data output 6 port 38 DVSS P VDD & GND Digital GOD 39 VDT5 O VSTEM A/V MPEG data output 5 port 40 VDT4 O VSTEM A/V MPEG data output 4 port 41 VDT3 O VSTEM A/V MPEG data output 3 port 42 VDT2 O VSTEM A/V MPEG data output 2 port 43 VDT1 O VSTEM A/V MPEG data output 1 port 44 VDT0 O VSTEM A/V MPEG data output 0 port 45 HDRQ I VSTEM A/V MPEG data request input port 46 XHAC O VSTEM A/V Data valid output port 47 VEFG O VSTEM A/V BECK error select (Flag) output port. L: Error selector 48 XSHD O VSTEM A/V DVD first sector flag signal output port 49 DCK O VSTEM A/V Data strobe signal output port 50 DRVIRQ O VSTEM Command Interrupt request output port. (for host ) 51 DRVRST I VSTEM Command Drive H/W reset input port. L: reset 52 DVSDD18 P VDD & I/F Digital power supply (1.8V), for internal logic circuit 53 DVSDD33 P VDD & I/F Digital power supply (3.3V), for I/O 54 DRVTX O VSTEM Command Serial data output port (for host) 55 DRVRX I VSTEM Command Serial data input port (from host) 56 DRVCLK I VSTEM Command Clock signal input port 57 DRVRDY O VSTEM Command Drive ready signal output port. L: ready condition 58 C2PO O Audio I/F CD-DSL C2 pointer output port 59 DADT O Audio I/F Audio serial data output port 60 DOTX O Audio I/F Digital audio output port 61 LRCK O Audio I/F L/R clock output port 62 BCK O Audio I/F Audio-bit clock output port 63 EXVCO I TEST/ Monitor External channel clock input port 64 EXPLDT I TEST/ Monitor External FRO data input port 65 CSL O ASP I/F FRO signal processing port. Latch signal output control Q1201: CXD1885Q (DVD DSP)-4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-CP702 IC BLOCK DIAGRAM/ TERMINAL DESCRIPTION 66 SI I ASP I/F FRO signal processing port. Serial data input control 67 SO O ASP I/F FRO signal processing port. Serial data output control 68 SCLKH O ASP I/F FRO signal processing port. Serial clock output control 69 RFOKGH I ASP I/F FRO signal OK output port 70 HFD I ASP I/F FRO lack signal input port 71 MIRRORH I ASP I/F Detect mirror signal input port. H: mirror detect 72 DTC I ASP I/F Track cross signal input port 73 AVSS P VDD & GND Analog GND 74 ATC I Data PLL Track cross signal input port. (Analog level input) 75 HFD I Data PLL RF signal input port 76 TLC0 O Data PLL Asymmetry charge pump output port 0 77 TLC1 O Data PLL Asymmetry charge pump output port 1 78 IREF I Data PLL Reference current setting port for asymmetry circuit 79 AVDD33 P VDD & GND Analog voltage port. 3.3V 80 JMREF I Data PLL Reference current setting port for jitter monitor 81 JMOUT O Data PLL Jitter monitor output port 82 CHG I Data PLL Reference setting pin of charge pump for PLL data 83 VFBC I Data PLL Reference setting pin for off-set of PLL data (VCO) 84 AVDD18 I VDD & GND Analog power supply. 1.8V 85 VCOI I Data PLL Reference voltage input port for PLL data (VCO) 86 LPF1 O Data PLL To connect the loop filer for PLL data 1 87 LPF2 O Data PLL To connect the loop filer for PLL data 2 88 RC I Data PLL Gain control port for PLL data (VCO) 89 AVSS P VDD & GND Analog GND 90 AVSS P VDD & GND Analog GND 91 AD0 I ADC AD0 input port 92 AD1 I ADC AD1 input port 93 AD2 I ADC AD2 input port 94 AVDD33 P VDD & GND Analog power supply. 3.3V 95 AD3 I ADC AD3 input port 96 AD4 I ADC AD4 input port 97 AD5 I ADC AD5 input port 98 AD6 I ADC AD6 input port 99 AD7 I ADC AD7 input port 100 AD8 I ADC AD8 input port 101 AD9 I ADC AD9 input port 102 VREFH I/O ADC Maximum reference voltage input port for ADC 103 VREFL I/O ADC Minimum reference voltage input port for ADC 104 AVDD18 P VDD & GND Analog power supply. 1.8V 105 AVDD33 P VDD & GND Analog power supply. 3.3V 106 DA0 (TSCON) O DAC Track servo output port 107 DA1 (SLED) O DAC Sled servo output port 108 DA2 (FSCON) O DAC Focus servo output port 109 DA3 (SLED2_T ILT) O DAC Sled servo/ Tilt servo control output port 110 AVSS P VDD & GND Analog GND 111 FG I SPM FG signal input port 112 SPWM1 O SPM Spindle motor PWM output-1 port 113 SPWM2 O SPM Spindle motor PWM output-2 port 114 GPWM0 O General PWM General PWM output-0 port 115 GPWM1 O General PWM General PWM output-1 port 116 GPWM2 O General PWM General PWM output-2 port 117 GPWM3 O General PWM General PWM output-3 port 118 GPWM4 O General PWM General PWM output-4 port 119 GPWM5 O General PWM General PWM output-5 port 120 XLCAS O DRAM I/F LCAS of DRAM output port 121 XUCAS O DRAM I/F UCAS of DRAM output port 122 XMOE O DRAM I/F Enable output port of DRAM 123 RA11 O DRAM I/F Address output port-11 of DRAM 124 RA10 O DRAM I/F Address output port-10 of DRAM 125 DVSS P VDD & GND Digital GND 126 RA9 O DRAM I/F Address output port-9 of DRAM No. Sign I/O Classification Description Q1201: CXD1885Q (DVD DSP)-5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-CP702 IC BLOCK DIAGRAM/ TERMINAL DESCRIPTION 127 RA8 O DRAM I/F Address output port-8 of DRAM 128 RA7 O DRAM I/F Address output port-7 of DRAM 129 RA6 O DRAM I/F Address output port-6 of DRAM 130 RA5 O DRAM I/F Address output port-5 of DRAM 131 DVDD33 P VDD & GND Digital power supply. 3.3V 132 RA4 O DRAM I/F Address output port-4 of DRAM 133 RA3 O DRAM I/F Address output port-3 of DRAM 134 RA2 O DRAM I/F Address output port-2 of DRAM 135 RA1 O DRAM I/F Address output port-1 of DRAM 136 DVDD18 P VDD & GND Digital power supply. 1.8V 137 RA0 O DRAM I/F Address output port-0 of DRAM 138 XRAS O DRAM I/F RAS output port of DRAM 139 XMWR O DRAM I/F Write enable port of DRAM 140 RD7 I/O DRAM I/F Data input port-7 141 RD6 I/O DRAM I/F Data input port-6 142 DVSS P VDD & GND Digital GND 143 RD5 I/O DRAM I/F Data input port-5 144 RD4 I/O DRAM I/F Data input port-4 145 RD3 I/O DRAM I/F Data input port-3 146 RD2 I/O DRAM I/F Data input port-2 147 RD1 I/O DRAM I/F Data input port-1 148 RD0 I/O DRAM I/F Data input port-0 149 RD15 I/O DRAM I/F Data input port-15 150 RD14 I/O DRAM I/F Data input port-14 151 RD13 I/O DRAM I/F Data input port-13 152 RD12 I/O DRAM I/F Data input port-12 153 RD11 I/O DRAM I/F Data input port-11 154 RD10 I/O DRAM I/F Data input port-10 155 RD9 I/O DRAM I/F Data input port-9 156 DVDD18 P VDD & GND Digital power supply. 1.8V 157 DVDD33 P VDD & GND Digital power supply. 3.3V 158 RD8 I/O DRAM I/F Data input port-8 159 TEST0 O Test/ Monitor Test for I/O-0 160 TEST1 O Test/ Monitor Test for I/O-1 161 TEST2 O Test/ Monitor Test for I/O-2 162 TEST3 O Test/ Monitor Test for I/O-3 163 TEST4 O Test/ Monitor Test for I/O-4 164 TEST5 O Test/ Monitor Test for I/O-5 165 TEST6 O Test/ Monitor Test for I/O-6 166 TEST7 O Test/ Monitor Test for I/O-7 167 TEST8 O Test/ Monitor Test for I/O-8 168 TEST9 O Test/ Monitor Test for I/O-9 169 TEST10 O Test/ Monitor Test for I/O-10 170 TEST11 O Test/ Monitor Test for I/O-11 171 TEST12 O Test/ Monitor Test for I/O-12 172 TEST13 O Test/ Monitor Test for I/O-13 173 TEST14 O Test/ Monitor Test for I/O-14 174 TEST15 O Test/ Monitor Test for I/O-15 175 MODSEL0 I Test/ Monitor Test mode select-0 input port 176 MODSEL1 I Test/ Monitor Test mode select-1 input port 177 DVSS P VDD & GND Digital GND 178 MODSEL2 I Test/ Monitor Test mode select-2 input port 179 GIO0 I/O General Port General port-0 180 GIO1 I/O General Port General port-1 181 GIO2 I/O General Port General port-2 182 GIO3 I/O General Port General port-3 183 DVDD33 P VDD & GND Digital power supply. 3.3V 184 GIO4 I/O General Port General port-4 185 GIO5 I/O General Port General port-5 186 GIO6 I/O General Port General port-6 187 GIO7 I/O General Port General port-7 188 DVDD18 I/O VDD & GND Digital power supply. 1.8V 189 GIO8 I/O General Port General port-8 190 GIO9 I/O General Port General port-9 191 GIO10 I/O General Port General port-10 192 GIO11 I/O General Port General port-11 No. Sign I/O Classification Description Q1201: CXD1885Q (DVD DSP)-6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-CP702 IC BLOCK DIAGRAM/ TERMINAL DESCRIPTION 193 GIO12 I/O General Port General port-12 194 DVSS P VDD & GND Digital GND 195 GIO13 I/O General Port General port-13 196 GIO14 I/O General Port General port-14 197 GIO15 I/O General Port General port-15 198 GIO16 I/O General Port General port-16 199 GIO17 I/O General Port General port-17 200 GIO18 I/O General Port General port-18 201 GIO19 I/O General Port General port-19 202 TRST I JTAG I/F JYAG reset input port 203 TMS I JTAG I/F JYAG mode select input port 204 TDI I JTAG I/F JYAG data input port 205 TCK I JTAG I/F JYAG clock input port 206 TDO O JTAG I/F JYAG data output port 207 VMCHG I MCU I/F System select port for DSP. (L: VSTEM, H: External MCU) 208 DVDD18 P VDD & GND Digital power supply. 1.8V (for internal logic) No. Sign I/O Classification Description Q1201: CXD1885Q (DVD DSP)-7 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-CP702 IC BLOCK DIAGRAM/ TERMINAL DESCRIPTION Q1101: FAN8042 5-CH MOTOR DRIVER-1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 36 35 34 33 32 31 30 29 28 27 26 25 48 47 46 45 44 43 42 41 40 39 38 37 FAN8042 IN1+ IN1- OUT1 IN2+ IN2- GND GND OUT2 IN3+ IN3- OUT3 IN4+ IN4- OUT4 CTL FWD REV GND GND SGND MUTE123 MUTE4 TSD-M PVCC2 DO1+ DO1- DO2+ DO2- DO3+ GND GND DO3- DO4+ DO4- DO5+ DO5- OPIN1+ OPIN1- OPOUT1 SVCC VREF GND GND OPIN2+ OPIN2- OPOUT2 PS PVCC1 PIN ASSIGNMENT PIN DEFINITION Pin Number 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 IN1+ IN1- OUT1 IN2+ IN2- GND GND OUT2 IN3+ IN3- OUT3 IN4+ IN4- OUT4 CTL FWD REV GND GND SGND MUTE123 MUTE4 TSD-M PVCC2 DO5- DO5+ DO4- DO4+ DO3- GND GND DO3+ DO2- DO2+ DO1- DO1+ PVCC1 PS OPOUT2 OPIN2- OPIN2+ GND GND VREF SVCC OPOUT1 OPIN1- OPIN1+ Pin Name I/O I I O I I - - O I I O I I O I I I - - - I I O - O O O O O - - O O O O O - I O I I - - I - O I I Pin Function description CH1 op-amp input (+) CH1 op-amp input (-) CH1 op-amp output CH2 op-amp input (+) CH2 op-amp input (-) Ground Ground CH2 op-amp output CH3 op-amp input (+) CH3 op-amp input (-) CH3 op-amp output CH4 op-amp input (+) CH4 op-amp input (-) CH4 op-amp output CH5 motor speed control CH5 forward input CH5 reverse input Ground Ground Signal Ground Mute for CH1,2,3 Mute for CH4 TSD monitor Power supply voltage 2 (For CH4, CH5) CH5 driver output (-) CH5 driver output (+) CH4 driver output (-) CH4 driver output (+) CH3 driver output (-) Ground Ground CH3 driver output (-) CH2 driver output (-) CH2 driver output (+) CH1 driver output (-) CH1 driver output (+) Power supply voltage 1 (For CH1, CH2, CH3) Power save Normal op-amp2 output Normal op-amp2 input (-) Normal op-amp2 input (+) Ground Ground Bias voltage input Signal & op-amps supply voltage Normal op-amp1 output Normal op-amp1 input (-) Normal op-amp1 input (+) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-CP702 IC BLOCK DIAGRAM/ TERMINAL DESCRIPTION Q1101: FAN8042 5-CH MOTOR DRIVER-2 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 30 29 28 27 26 25 36 35 34 33 32 31 42 41 40 39 38 37 48 47 46 45 44 43 MUTE123 MUTE4 TSD-M S W M S C D D POWER SAVE 40K 10K 10K 10K 10K 40K 40K 40K 40K 10K 10K 10K 10K 40K 40K 40K 40K 10K 10K 10K 10K 40K 40K 40K 40K 10K 10K 10K 10K 40K 40K 40K Input op-amp Input op-amp Input op-amp PREF PREF PREF DO+ DO- DO+ DO- DO+ DO- VREF IN1+ IN1- OUT1 IN2+ IN2- GND GND OUT2 IN3+ IN3- OUT3 IN4+ IN4- OUT4 CLK FWD REV GND GND SGND MUTE123 MUTE4 TSD-M PVCC2 GND DO3- DO4+ DO4- DO5+ DO5- DO1+ DO1- DO2+ DO2- DO3+ GND GND OPIN2+ OPIN2- OPOUT2 PS PVCC1 OPIN1+ OPIN1- OPOUT1 SVCC VREF GND OP-AMP IN+ IN- OUT OP-AMP IN+ IN- OUT OP-AMP IN+ IN- OUT OP-AMP IN+ IN- OUT OP-AMP IN+ IN- OUT OP-AMP IN+ IN- OUT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-CP702 IC BLOCK DIAGRAM/ TERMINAL DESCRIPTION Q1251: IC41LV16100-50T 16-MBIT DYNAMIC RAM 1 2 3 4 5 6 7 8 9 10 11 15 16 17 18 19 20 21 22 23 24 25 36 35 34 33 32 31 30 29 28 27 26 50 49 48 47 46 45 44 43 42 41 40 NC NC WE RAS NC NC A0 A1 A2 A3 VCC VCC I/O0 1/O1 1/O2 1/O3 VCC 1/O4 1/O5 1/O6 1/O7 NC GND 1/O15 1/O14 1/O13 1/O12 GND 1/O11 1/O10 1/O9 1/O8 NC NC LCAS UCAS CE A9 A8 A7 A6 A5 A4 GND A0-A9 I/O0-15 WE OE RAS UCAS LCAS VCC GND NC Address input Data inputs/outputs Write enable Output enable Row address strobe Upper column address strobe Lower column address strobe Power Ground No connection PIN DESCRIPTION PIN CONFIGURATION CAS CLOCK GENERATOR RAS CLOCK GENERATOR REFRESH COUNTER ADDRESS BUFFERS ROW DECODER MEMORY ARRAY 1.048.576 x 16 SENSE AMPLIFIERS DATA I/O BUS COLUMN DECODES DATA I/O BUFFERS WE CONTROL LOGICS OE CONTROL LOGICS CAS RAS OE WE LCAS UCAS RAS FUNCTIONAL BLOCK DIAGRAM WE I/O0-I/O15 TRUTH TABLE Function RAS LCAS UCAS WE OE Address tR/tC I/O Standby H H H X X X High-Z Read: Word L L L H L ROW/COL Dout Read: Lower Byte L L H H L ROW/COL Lower Byte. Dout Upper Byte, High-Z Read: Upper Byte L H L H L ROW/COL Lower Byte, High-Z Upper Byte. Dout Write: Word (Early Write) L L L L X ROW/COL Din Write: Lower Byte (Early Write) L L H L X ROW/COL Lower Byte. Din Upper Byte, High-Z Write: Upper Byte (Early Write) L H L L X ROW/COL Lower Byte, High-Z Upper Byte. Din Read Write L L L H L H L ROW/COL Dout, Din EDO Page-Mode Read 1st Cycle L H L H L H L ROW/COL Dout 2nd Cycle L H L H L H L NA/COL Dout Any Cycle L L H L H H L NA/NA Dout EDO Page-Mode Read 1st Cycle L H L H L L X ROW/COL Din 2nd Cycle L H L H L L X NA/COL Din EDO Page-Mode 1st Cycle L H L H L H L L ROW/COL Dout, Din Read-Write 2nd Cycle L H L H L H L L H NA/COL Dout, Din Hidden Refresh 1st Cycle L H L L L H L ROW/COL Dout 2nd Cycle L H L L L L X ROW/COL Dout RAS-Only Refresh L H H X X ROW/NA High-Z CBR Refresh H L L L X X X High-Z www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-CP702 IC BLOCK DIAGRAM/ TERMINAL DESCRIPTION 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 54 53 52 51 50 49 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 VSS DQ15 VSSQ DQ14 DQ13 VDDQ DQ12 DQ11 VSSQ DQ10 DQ9 VDDQ DQ8 VSS NC UDQM CLK CKE NC A11 A9 A8 A7 A6 A5 A4 VSS Q2303 : IC42S16400-7T SYNCHRONOUS DYNAMIC RAM PIN CONFIGURATIONS PIN DESCRIPTIONS Master Clock Clock Enable Chip Select Row Address Strobe Column Address Strobe Write Enable Data I/O DQM A0 - 11 BA0, 1 VDD VDDQ VSS VSSQ CLK CKE CS RAS CAS WE DQ0 - DQ15 VDD DQ0 VDDQ DQ1 DQ2 VSSQ DQ3 DQ4 VDDQ DQ5 DQ6 VSSQ DQ7 VDD LDQM WE CAS RAS CS BA0 BA1 A10 A0 A1 A2 A3 VDD DQ Mask Enable Address Input Bank Address Power Supply Power Supply for DQ Ground Ground for DQ Row Address Buffer and Refresh Counter Column Address Buffer and Burst Counter Mode Register Clock Generator Control Logic Command Decoder CS RAS CAS WE Data Control Circuit Sense Amplifier Column Decoder & Latch Circuit Row Decoder Bank D Bank C Bank B Bank A Latch Circuit Input & Output Buffer DQM DQ CLK CKE BLOCK DIAGRAM Address The IC42S16400 are high-speed 67, 108, 864-bit synchronous dynamic ramdam-access memories, organized as 2,097, 152 x 8 x 4 and 1,48, 576 x 16 x 4 (word x bit x bank), respectively. The synchronous DRAMs achieved high-speed data transfer using the pipeline architecture and clock frequency up to 133MHz for -7. All input and outputs are synchronized with the positive edge of the clock. The synchronous DRAMs are compatible with Low Voltage TTL. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-CP702 IC BLOCK DIAGRAM/ TERMINAL DESCRIPTION A0-A2 Address Inputs SDA Serial Address/Data I/O SCL Serial Clock Input WP Write Protect Input Vcc Power Supply GND Ground SCL This input clock pin is used to synchronize the data transfer to and from the device. SDA The SDA is a Bi-directional pin used to transfer addresses and data into and out of the device. The SDA pin is an open drain output and can be wire-Ored with other open drain or open collector outputs. The SDA bus requires a pullup resistor to Vcc. PIN CONFIGURATION 1 2 3 4 8 7 6 5 A0 A1 A2 GND VCC WP SCL SDA A0, A1, A2 The A0, A1 and A2 are the device address inputs. The IS24C08 only use A2 input for hardwire addressing and a total of two devices may be addressed on a single bus system. The A0 and A1 pins are not used by IS24C08. They may be left floating or tied to either GND or Vcc. WP WP is the Write Protect pin. On the and 24C08, if the WP pin is tied to VCC the entire array becomes Write Protected (Read only). On the 24C16, if the WP pin is tied to Vcc the upper half array becomes Write Protected (Read only). When WP is tied to GND or left floating normal read/write operations are allowed to the device. Q2003 : IS24C08-3Z EEPROM (8K-Bit 2-Wire Serial CMOS EEPROM) PIN DESCRIPTIONS DATA REGISTER Y DECODER EEPROM ARRAY HIGH VOLTAGE GENERATOR, TIMING & CONTROL X DECODER CONTROL LOGIC SLAVE ADDRESS REGISTER & COMPARATOR WORD ADDRESS COUNTER nMOS ACK Clock DI/O 8 5 6 7 4 GND WP SCL SDA Vcc FUNCTIONAL BLOCK DIAGRAM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1 2 3 4 5 36 35 34 33 32 6 7 8 9 31 30 29 28 10 11 12 13 27 26 25 24 14 15 16 23 22 21 17 18 19 20 C IN VCC REG PEDESTAL CLAMP 2 Step Amp 6 2 Step Amp 5 PEDESTAL CLAMP PEDESTAL CLAMP 2 Step Amp 4 CLAMP SYNC SEL CLAMP 2 Step Amp 3 LPF 1 LPF 1 LPF 2 LPF 1 LPF 1 LPF 2 LPF 2 75 DRIVER 75 DRIVER 75 DRIVER 75 DRIVER 75 DRIVER 75 DRIVER 2 Step Amp 2 LPF 1 Y/C MIX C_OFFSET DC_CTL CLAMP 2 Step Amp 1 LPF GND Y1 IN Y/C MIX SW (MIX/COM) IN SW (G/Y) Y2(G) IN MUTE SW (ON/OFF) MUTE SW (ON/OFF) SQUEEZE SW VCC +5V COMPOSITE IN LETTER BOX SW LPF SW (OFF/ON) Cb(B) IN AMP4 6 SW (9dB/6dB) Cr(R) IN GND AMP1 3 SW (9dB/6dB) 2 Drive/1 Drive COMPOSITE OUT GND VCC +5V VCC +5V C OUT C_ DC OUT GND GND GND Y OUT 1 Y OUT 2 Cb OUT GND GND 2 Drive/1 Drive Cr OUT DV-CP702 IC BLOCK DIAGRAM/ TERMINAL DESCRIPTION Q201 : LA73054 6-CHANNEL VIDEO DRIVER Block Diagram www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-CP702 IC BLOCK DIAGRAM/ TERMINAL DESCRIPTION Q2001 : M65783AFP (BACKEND DECODER)-1 HA[11:14]: A11-A14 HAd[0:15]: A15-A30/D0-D15] BSEL0 RS WS ALE PIO0[0]: P00/Sin0 PIO0[1]: P01/Sout0 PIO0[2]: P02/Sclk0 PIO0[3]: P03/Srdy0 PIO0[4]: P04/Sin1 PIO0[5]: P05/Sout1 PIO0[6]: P06/Sclk1 PIO0[7]: P07/Srdy1 PIO1[0]: P10/Sin2 PIO1[1]: P11/Sout2 PIO1[2]: P12/Sclk2 PIO1[3]: P13/Srdy2 P1O1[4]: P14/RxD P1O1[5]: P15/TxD P1O1[6]: P16/CTS P1O1[7]: P17/RTS PIO2[0]: P20/INTM0 PIO2[1]: P21/INTM1 PIO2[2]: P22/INTM2/TMO0 PIO2[3]: P23/TMO1 PIO2[4]: P24/BSEL3/TMO2 PIO2[5]: P25/BSEL2 PIO2[6]: P26/BSEL1 PIO2[7]: P27/A10 PIO3[0]: P30/EXWIT PIO3[1]: P31/ADBCK PIO3[2]: P32/OSDKEY/ADLRCK PIO3[3]: P33/ADDIN PIO3[4]: P34/ADMCK/ SDITRSYNC PIO4[0]: P40/PD[0]/SDITRDATA[0] PIO4[1]: P41/PD[1]/SDITRDATA[1] PIO4[2]: P42/PD[2]/SDITRDATA[2] PIO4[3]: P43/PD[3]/SDITRDATA[3] PIO4[4]: P44/PD[4]/SDITRDATA[4] PIO4[5]: P45/PD[5]/SDITRDATA[5] PIO4[6]: P46/PD[6]/SDITRDATA[6] PIO4[7]: P47/PD[7]/SDITRDATA[7] PIO3[5]: P35/PXCLK/SDITRCLK PIO3[6]: P36/HSYNC/SDIEVENT[0] PIO3[7]: P37/VSYNC/SDIEVENT[1] MA[11:0] MB[1:0] DCS, DCS2 RAS CAS MCLK DWE DQMU, DQML MD[15:0] BD[7:0] BCLK BDEN BDREQ BSECH CDMCK CDBCK CDLRCK CDDIN CDDATA AO0-AO2, AOD DOCLK LRCLK DACCLK DOUT0, DOUT1 CLKO CLKIN ACLKI RESET TEST[5:0] NC1-4 PA0,PA1,PA2, PA00,PA01,PA02 DAOUTB,DTOU0B AVRI,IREF,BIAS1,BIAS2, AVRI0,IREF0,BIAS01,BIAS02 SDIYCK SDITMS SDITDI SDITDO SDITRST SDIDBI Addres Bus/ Data Bus Bus Control Port/ CSIO Port/ UART Port/interrupt/ Timer/ BSEL/Addres Port/ Bus Control/ CDDA input 2/ Digital display out/ SDI Port/ Digital display out/ SDI SDRAM Stream Data CDDA Input 1 Audio output Clock/ System Analog display out SDI www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Class Port name Function 1 Function 2 Function 3 I/O Description I/O Descrition I/O Descrition HA[11] O CPU Address HA[12] O CPU Address HA[13] O CPU Address HA[14] O CPU Address HA[0] I/O CPU Address/ Data HAD[0] I/O CPU Address/ Data HAD[1] I/O CPU Address/ Data HAD[2] I/O CPU Address/ Data HAD[3] I/O CPU Address/ Data HAD[4] I/O CPU Address/ Data HAD[5] I/O CPU Address/ Data HAD[6] I/O CPU Address/ Data HAD[7] I/O CPU Address/ Data HAD[8] I/O CPU Address/ Data HAD[9] I/O CPU Address/ Data HAD[10] I/O CPU Address/ Data HAD[11] I/O CPU Address/ Data HAD[12] I/O CPU Address/ Data HAD[13] I/O CPU Address/ Data HAD[14] I/O CPU Address/ Data HAD[15] I/O CPU Address/ Data BSEL0 O Block select 0 RS O Read Strobe WS O Wright Strobe ALE O Address Latch Enable PI03[0] I/O Port 30 I EXWIT PI00[0] I/O Port 00 I Sin0 PI00[1] I/O Port 01 O Sout0 PI00[2] I/O Port 02 I/O Sclk0 PI00[3] I/O Port 03 I/O Srdy0 PI00[4] I/O Port 04 I Sin1 PI00[5] I/O Port 05 O Sout1 PI00[6] I/O Port 06 I/O Sclk1 PI00[7] I/O Port 07 I/O Srdy1 PI01[0] I/O Port 10 I Sin2 PI01[1] I/O Port 11 O Sout2 CPU Circumference function PI01[2] I/O Port 12 I/O Sclk2 PI01[3] I/O Port 13 I/O Srdy2 PI01[4] I/O Port 14 I RxD PI01[5] I/O Port 15 O TxD PI01[6] I/O Port 16 I CTS PI01[7] I/O Port 17 O RTS PI02[0] I/O Port 20 I INTM0 PI02[1] I/O Port 21 I INTM1 PI02[2] I/O Port 22 I INTM2 O TM00 PI02[3] I/O Port 23 O TM01 PI02[4] I/O Port 24 O BSEL3 O TM02 PI02[5] I/O Port 25 O BSEL2 PI02[6] I/O Port 26 O BSEL1 PI02[7] I/O Port 27 O HA10 PORT ASSIGMENT-1 CPU outside Bus I/F DV-CP702 IC BLOCK DIAGRAM/ TERMINAL DESCRIPTION www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Class Port name Function 1 Function 2 Function 3 I/O Description I/O Descrition I/O Descrition PORT ASSIGMENT-2 PI02[5] I/O Port 25 O BSEL2 PI02[6] I/O Port 26 O BSEL1 PI02[7] I/O Port 27 O HA10 PI03[1] I/O Port 31 I ADBCK PI03[2] I/O Port 32 O OSDKEY I ADLRCK PI03[3] I/O Port 33 I ADDIN PI03[4] I/O Port 34 I ADMCK PI03[5] I/O Port 35 O PXCLK PI03[6] I/O Port 36 O HSYNC CPU Circumference function/ Digital Video output/ CDDA input PI03[7] I/O Port 37 O VSYNC PI04[0] I/O Port 40 O PD[0] PI04[1] I/O Port 41 O PD[1] PI04[2] I/O Port 42 O PD[2] PI04[3] I/O Port 43 O PD[3] PI04[4] I/O Port 44 O PD[4] PI04[5] I/O Port 45 O PD[5] PI04[6] I/O Port 46 O PD[6] PI04[7] I/O Port 47 O PD[7] SDITCK I SDI Clock input pin SDITMS I SDI Access mode input pin CPU Debug SDITDI I SDI Data input pin SDITDO O SDI Data output pin SDITRST I SDI Reset input pin SDIDBI I SDI Interrupt Debugging DAOUTB AO DAC Current output pin PA0 AO DAC signal output pin PA1 AO DAC signal output pin PA2 AO DAC signal output pin BIAS1 AI DAC Bias voltage (1) BIAS2 AI DAC Bias voltage (2) CPU external Bus I/F AVRI AI DAC Reference voltage input pin IREF AI DAC Reference voltage input pin DAOUT0B AO DAC Current output pin PA00 AO DAC signal output pin PA01 AO DAC signal output pin PA02 AO NC BIAS01 AI DAC Bias voltage (1) BIAS02 AI DAC Bias voltage (2) AVRI0 AI DAC Reference voltage input pin IREF0 AI DAC Reference voltage input pin DV-CP702 IC BLOCK DIAGRAM/ TERMINAL DESCRIPTION Video DAC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Class Port name Function 1 Function 2 Function 3 I/O Description I/O Descrition I/O Descrition PORT ASSIGMENT-3 MBA[1] O SDRAM Bank Address MD[0] I/O SDRAM Data input/ output MD[1] I/O SDRAM Data input/ output MD[2] I/O SDRAM Data input/ output MD[3] I/O SDRAM Data input/ output MD[4] I/O SDRAM Data input/ output MD[5] I/O SDRAM Data input/ output SDRAM I/F MD[6] I/O SDRAM Data input/ output MD[7] I/O SDRAM Data input/ output MD[8] I/O SDRAM Data input/ output MD[9] I/O SDRAM Data input/ output MD[10] I/O SDRAM Data input/ output MD[11] I/O SDRAM Data input/ output MD[12] I/O SDRAM Data input/ output MD[13] I/O SDRAM Data input/ output MD[14] I/O SDRAM Data input/ output MD[15] I/O SDRAM Data input/ output BDREQ O Stream Request output pin BDEN I Stream Enable input pin BSECH I Sector display of head BCLK I Stream data input pin BD[0] I Stream data input pin Stream I/F BD[1] I Stream data input pin BD[2] I Stream data input pin BD[3] I Stream data input pin BD[4] I Stream data input pin BD[5] I Stream data input pin BD[6] I Stream data input pin BD[7] I Stream data input pin CDNCK I CDDA Master clock input pin CDBCK I CDDA Bit clock input pin CDLRCK I CDDA L/R clock input pin CDDIN I CDDA PCM data input pin CDDATA I CDDA Digital data input pin DACCLK O Clock output pin for DAC Audio I/F DOCLK O Bit clock output pin for DAC LRCLK O L/R clock output pin for DAC AO0 O Audio PCM output pin AO1 O Audio PCM output pin AO2 O Audio PCM output pin AOD O Audio PCM output pin DOUT0 O Audio digital output pin DOUT1 O Audio digital output pin DCS O SDRAM Chip select output pin DCS2 O SDRAM Chip select output pin MCLK O SDRAM Clock output RAS O SDARAM RAS output CAS O SDARAM CAS output DQML O SDARAM Data master DQMU O SDARAM Data master DWE O SDARAM Wright enable output DV-CP702 IC BLOCK DIAGRAM/ TERMINAL DESCRIPTION www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Class Port name Function 1 Function 2 Function 3 I/O Description I/O Descrition I/O Descrition PORT ASSIGMENT-4 ACLKI I Audio clock input pin CLKIN I System clock input pin CLK0 O Clock output pin RESET I Reset input pin TEST[0] I Test mode input pin TEST[1] I Test mode input pin TEST[2] I Test mode input pin TEST[3] I Test mode input pin TEST[4] I Test mode input pin TEST[5] I Test mode input pin NC1 I Test mode input pin NC2 I Test mode input pin NC3 I Test mode input pin NC4 I Test mode input pin System DV-CP702 IC BLOCK DIAGRAM/ TERMINAL DESCRIPTION www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-CP702 IC BLOCK DIAGRAM/ TERMINAL DESCRIPTION Start-up circuit Reference voltage Error amp. Thermal shut down Drive circuit Sate operating area protection Saturation protection Over current protection INPUT OUTPUT GND BLOCK DIAGRAM Q2901, Q2904 : MPC29M33T REGURATOR IC 3.3 V output Q2902, Q2903 : MPC2918T REGURATOR IC 1.8 V output 1 2 3 4 1 : Input 2 : GND 3 : Output 4 : GND (Fin) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-CP702 IC BLOCK DIAGRAM/ TERMINAL DESCRIPTION - + - + 1 2 3 4 8 7 6 5 (Top view) Pin description 1. A OUTPUT 2. A -INPUT 3. A +INPUT 4. V- 5. B +INPUT 6. B -INPUT 7. B OUTPUT 8. V+ Q1002: NJM2115V (2-ch Ope. amp.) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-CP702 IC BLOCK DIAGRAM/ TERMINAL DESCRIPTION 5 4 3 2 1 PIN DESCRIPTION 1. Control 2. GND 3. Noise Bypass 4. Vout 5. Vin + - Band gap Reference Thermal Protection VIN CONT GND VOUT NOISE BYPASS Q431: NJM2370 (Regulated power supply) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-CP702 IC BLOCK DIAGRAM/ TERMINAL DESCRIPTION Q2401: NJM2373AF (Adjustable High Precision Shunt Regulator) NC ANODE NC REFERENCE CATHODE 1 2 3 5 4 Pin Configuration Block Diagram VREF Reference Cathode Anode www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-CP702 IC BLOCK DIAGRAM/ TERMINAL DESCRIPTION BLOCK DIAGRAM PIN ASSIGNMENTS PIN NAME TYPE FUNCTION 1 BCK IN Audio Data Bit Clock Input.(1) 2 DATA IN Audio Data Digital Input.(1) 3 LRCK IN L-Channel and R-Channel Audio Data Latch En- able Input.(1) 4 DGND - Digital Ground 5 VDD - Digital Power Supply, +3.3V 6 VCC - Analog Power Supply, +5V 7 VOUTL OUT Analog Output for L-Channel. 8 VOUTR OUT Analog Output for R-Channel. 9 AGND - Analog Ground 10 VCOM - Common Voltage Decoupling. 11 ZEROR/ OUT Zero Flag Output for R-Channel/Zero Flag Output ZEROA for L/R-Channel. 12 ZEROL/NA OUT Zero Flag Output for L-Channel/No Assign. 13 MD IN Mode Control Data Input.(2) 14 MC IN Mode Control Clock Input.(2) 15 ML IN Mode Control Latch Input.(2) 16 SCK IN System Clock Input. NOTES: (1) Schmitt-trigger input, 5V tolerant. (2) Schmitt-trigger with internal pull-down, 5V tolerant. PIN CONFIGURATION TOP VIEW SSOP Audio Serial Port Output Amp and Low-Pass Filter DAC 4x/8x Over sampling Digital Filter with Function Controller Enhanced Multilevel Delta-Sigma Modulator Output Amp and Low-Pass Filter DAC BCK LRCK DATA ML MC MD Serial Control Port System Clock Manager Zero Detect Power Supply VOUTL VCOM VOUTR VDD DGND ZEROL ZEROR SCK System Clock VCC AGND BCK DATA LRCK DGND VDD VCC VOUTL VOUTR SCK ML MC MD ZEROL/NA ZEROR/ZEROA VCOM AGND 1 2 3 4 5 6 7 8 16 15 14 13 12 11 10 9 PCM1742 1 3 2 15 14 13 16 12 11 5 4 6 9 8 10 7 24-Bit, 192kHz Sampling Enhanced Multilevel, Delta-Sigma, Audio Q401: PCM1742KE DIGITAL-TO-ANALOG CONVERTER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-CP702 IC BLOCK DIAGRAM/ TERMINAL DESCRIPTION 1 2 3 4 5 Q2002: S-80127CNMC-JKM VOLTAGE DETECTOR (12.7V N-ch open drain, Active L: out) Q702: S-80130CLMC-JKM VOLTAGE DETECTOR (13.0V CMOS, Active L: out) PIN CONFIGURATION Top view PIN DESCRIPTION No. 1 2 3 4 5 Symbol DS VSS NC OUT VDD Description ON/OFF switch for delay time GND Non-connection Voltage detection output pin Voltage input pin *1 *1. NC pin is electrically open. Oscillator counter timer VREF DELAY CIRCUIT VDD VSS DS OUT BLOCK DIAGRAM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-CP702 IC BLOCK DIAGRAM/ TERMINAL DESCRIPTION 1 2 3 4 5 (Top view) Q2502: TC7SZ125FU (BUS BUFFER 3-STAGE OUTPUT) G IN A GND VCC OUT Y PIN ASSIGNMENT Truth table INPUT A X L H G H L L OUTPUT Y Z L H X: Don't care Z: High impedance www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-CP702 IC BLOCK DIAGRAM/ TERMINAL DESCRIPTION � � � � � � � � Reg. Power Supply Vcc Vref Vss OUT1 OUT2 GND IN1 IN2 Q704, Q705: TA7291S (MOTOR DRIVER) Protection circuit INPUT OUTPUT IN1 IN2 OUT1 OUT2 0 1 0 1 0 0 1 1 � H L L � H L L MODE STOP CW/CCW CCW/CW BRAKE CW : Clockwise direction CCW : Counter clockwise direction Description Block diagram www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 13 12 11 10 9 8 1 2 3 4 5 6 7 VCC 4G 4A 4Y 3G 3A 3Y 1G 1A 1Y 2G 2A 2Y GND Pin Assignment Q2501: TC74VHCT125AF QUAD BUS BUFFER DV-CP702 IC BLOCK DIAGRAM/ TERMINAL DESCRIPTION Truth Table G H L L A X L H Y Z L H INPUTS OUTPUTS X: Don't Care Z: High Impedance www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-CP702 IC BLOCK DIAGRAM/ TERMINAL DESCRIPTION Q2301: TC74VCX162373FT 16-BIT D-TYPE LATCH 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 1OE 1Q1 1Q2 GND 1Q3 1Q4 VCC 1Q5 1Q6 GND 1Q7 1Q8 2Q1 2Q2 GND 2Q3 2Q4 VCC 2Q5 2Q6 GND 2Q7 2Q8 2OE 1LE 1D1 1D2 GND 1D3 1D4 VCC 1D5 1D6 GND 1D7 1D8 2D1 2D2 GND 2D3 2D4 VCC 2D5 2D6 GND 2D7 2D8 2LE PIN ASSIGNMENT D LE Q D LE Q D LE Q D LE Q D LE Q D LE Q D LE Q D LE Q 1D1 47 37 38 40 41 43 44 46 1D2 1D3 1D4 1D5 1D6 1D7 1D8 48 1 1Q1 1Q2 1Q3 1Q4 1Q5 1Q6 1Q7 1Q8 2 3 5 6 8 9 11 12 1LE 1OE D LE Q D LE Q D LE Q D LE Q D LE Q D LE Q D LE Q D LE Q 2D1 36 26 27 29 30 32 33 35 2D2 2D3 2D4 2D5 2D6 2D7 2D8 25 24 2Q1 2Q2 2Q3 2Q4 2Q5 2Q6 2Q7 2Q8 13 14 16 17 19 20 22 23 2LE 2OE Truth Table Inputs Outputs 1OE H L L L 1LE X L H H 1D1-1D8 X X L H 1Q1-1Q8 Z Qn L H Inputs Outputs 2OE H L L L 2LE X L H H 2D1-2D8 X X L H 2Q1-2Q8 Z Qn L H X: Don't care Z: High impedance Qn: Q output are latched at the time when the LE input is taken to a low logic level. SYSTEM DIAGRAM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-CP702 FL TUBE VIEW Q802: HNV-12SM34 PIN CONNECTION PIN No. CONNECTION 1 F1 2 F1 3 NP 4 NP 5 1G 6 2G 7 3G 8 4G 9 5G 10 6G 11 7G 12 8G 13 9G 14 10G 15 11G 16 12G 17-39 NP 40 P1 41 P2 42 P3 43 P4 44 P5 45 P6 46 P7 47 P8 48 P9 49 P10 50 P11 51 P12 52 P13 53 P14 54 P15 55 P16 56 P17 57 P18 58 P19 59 NP 60 NP 61 P2 62 P2 a f b g e c d (1G) e a f j h k b g m c n r p d (2G-11G) m 1 2 3 4 5 6 VCDVD VCDVD REMAIN REMAIN TOTAL TOTAL LAST LAST PRGV PRGV TRACK TRACK CHP CHP NEXT NEXT V.OFF V.OFF TITLE TITLE DISC DISC MODE MODE CHAIN CHAIN ALL ALL DVD DVD CD CD Col Col 1G 2G 3G 4G 5G 6G 7G 8G 9G 10G 11G 12G GRID ASSIGNMENT P1 P2 P3 P4 P5 P6 P7 P8 P9 P10 P11 P12 P13 P14 P15 P16 P17 P18 P19 1G a b f g m c e d 2G a j h k b f g m c e n r p d 3G a j h k b f g m c e n r p d 4G a j h k b f g m c e n r p d 5G a j h k b f g m c e n r p d 6G a j h k b f g m c e n r p d 7G a j h k b f g m c e n r p d 8G a j h k b f g m c e n r p d Col 9G a j h k b f g m c e n r p d 10G a j h k b f g m c e n r p d Col 12G 1 2 3 4 5 6 (1) (2) (3) (4) (5) (6) V C D VD VD REMAIN REMAIN TOTAL TOTAL LAST LAST PRGV PRGV TRACK TRACK CHP CHP NEXT NEXT V.OFF V.OFF TITLE TITLE DVD DVD CD CD DISC DISC ALL ALL CHAN MODE CHAN MODE 11G a j h k b f g m c e n r p d Col ANODE CONNECTION www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-CP702 MICROPROCESSOR TERMINAL DESCRIPTION-1 MODE2 MODE1 DVDBAND AVREF0 VDD0 XT1 XT2 X1 X2 VDD1 VSS0 MCRDY DSTBX 80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 P14/ANI4 P13/ANI3 P12/ANI2 P11/ANI1 P10/ANI0 AVREF0 VDD0 XT1/P07 XT2 IC X1 X2 VDD1 Vss0 P05/INTP5 P04/INTP4 P03/INTP3 P02/INTP2 P01/INTP1/TI01 61 P00/INTP0/TI00 1 P15/ANI5 RESET 60 RESET 2 P16/ANI6 P127/RTP7 59 MCRST 3 P17/ANI7 P126/RTP6 58 AVSS 4 Avss P125/RTP5 57 RIOUT 5 P130/ANO0 P124/RTP4 56 RIIN FL ON/OFF 6 P131/ANO1 P123/RTP3 55 AVREF1 7 AVREF1 P122/RTP2 54 FPSI 8 P70/SI2/RxD0 P121/RTP1 53 FLSO 9 P71/SO2/RxD0 P120/RTP0 52 FPCLK 10 P72/SCK2/ASCK P37 51 DSPSO 11 P20/SI1 P36/BUZ 50 DSPSI 12 P21/SO1 P35/PCL 49 DSPCKX 13 P22/SCK1 P34/TI2 48 R232TXD 14 P23/STB/TxD1 P33/TI1 47 PWRCTR R232RXD 15 P24/BUSY/RxD1 P32/TO2 46 AMUT MCSDI 16 P25/SI0/SB0 P31/TO1 45 MCSDO 17 P26/SO0/SB1 P30/TO0 44 VDOFF MCCLK 18 P27/SCK0 P67/ASTB 43 LADING_SW1 19 P40/AD0 P66/WAIT 42 LADING_SW2 20 P41/AD1 P65/WR 41 P42/AD2 P43/AD3 P44/AD4 P45/AD5 P46/AD6 P47/AD7 P50/A8 P51/A9 P52/A10 P53/A11 P54/A12 P55/A13 Vss1 P56/A14 P57/A15 P60 P61 P62 P63 P64/RD 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 STOP_POS_SENS DISC_SENS ROTHI VSS1 uPD780056 LADING_SW3 CURRENT LOADING_R LOADING_L ROTR ROTL EX_IRIN POFF PIN LAYOUT Q701: uPD780056 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-CP702 MICROPROCESSOR TERMINAL DESCRIPTION-2 PIN NO. Sign Functional name I/O Description 1 P15/ANI5 2 P16/ANI6 4 Avss AVSS I To connect VSS. 5 P130/ANO0 6 P131/ANO1 FL ON/OFF O Power ON/ OFF pin of FL tube. 7 AVREF1 AVREF1 I Reference voltage input pin for D/A converter. 8 P70/SI2/RxD0 FPSI I Serial data input pin for Flash processor. 9 P71/SO2/RxD0 FLSO O Serial data output pin for Flash processor. 10 P72/SCK2/ASCK FPCLK I Serial clock input pin for Flash processor. 11 P20/SI1 DSPSO I Serial communication port (SO). 12 P21/SO1 DSPSI O Serial communication port (SI). 13 P22/SCK1 DSPCKX I Serial communication port (CLK). 14 P23/STB/TxD1 R232TXD O TXD output pin. Serial data output pin at re-writing of the flash data. 15 P24/BUSY/RxD1 R232RXD I RXD input pin. Serial data input pin at re-writing of the flash data. 16 P25/SI0/SB0 MCSDI I Data input pin of sub microprocessor. 17 P26/SO0/SB1 MCSDO O Data output pin of sub microprocessor. 18 P27/SCK0 MCCLK O Serial clock output data pin. 21 P42/AD2 LADING_SW3 I Detecting pin of loading switch-3. 22 P43/AD3 CURRENT I Detecting current pin of loading (tray) motor. 23 P44/AD4 STOP_POS_SENS I The input terminal of the detection sensor of a roulette stop position. 24 P45/AD5 DISC_SENS I Disk detection sensor input terminal. 25 P46/AD6 26 P47/AD7 31 P54/A12 ROTHI O Roulette motor speed control terminal. 32 P55/A13 O 33 Vss1 VSS1 O To connect to GND. 34 P56/A14 35 P57/A15 36 P60 Not used. To connect to GND 37 P61 Not used. To connect to GND 38 P62 Not used. To connect to GND 39 P63 Not used. To connect to GND 3 P17/ANI7 MCRST O Reset output pin for sub microprocessor. 19 P40/AD0 LADING_SW1 I Detecting pin of loading switch-1. 20 P41/AD1 LADING_SW2 I Detecting pin of loading switch-2. 27 P50/A8 LOADING_R O Loading tray motor control terminal. L= right-handed rotation 28 P51/A9 LOADING_L O Loading tray motor control terminal. L= left-handed rotation 29 P52/A10 ROTR O Roulette motor control terminal. L= clockwise rotation. 30 P53/A11 ROTL O Roulette motor control terminal. L= counterclockwise rotation. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-CP702 MICROPROCESSOR TERMINAL DESCRIPTION-3 62 P01/INTP1/TI01 POFF I Power failure detection pin. 63 P02/INTP2 DSTBX I Serial data output pin (main STB signal). 64 P03/INTP3 MCRDY I Ready data detecting input pin of sub microprocessor. 65 P04/INTP4 Not used. To connect to GND 66 P05/INTP5 Not used. To connect to GND 67 Vss0 VSS0 I To connect to GND 68 VDD1 VDD1 I To connect to GND 69 X2 X2 O The crystal (5MHz) connection terminal for a main system clock oscillation. 70 X1 X1 I The crystal (5MHz) connection terminal for a main system clock oscillation. 71 IC I To connect to GND. Internal connection pin. 72 XT2 XT2 O Not used. Use to clock oscillator connection for sub microprocessor. 73 XT1/P07 XT1 I Not used. To connect to VDD 74 VDD0 VDD0 I To connect to +5V (power supply). 75 AVREF0 AVREF0 I The reference voltage input pin of a A/D converter. 76 P10/ANI0 DVDBAND I The destination judging terminal for DVD. 77 P11/ANI1 MODE1 I Mode select input pin 1. 78 P12/ANI2 MODE2 I Mode select input pin 2. 79 P13/ANI3 Not used. To connect to GND 80 P14/ANI4 Not used. To connect to GND 40 P64/RD Not used. To connect to GND 41 P65/WR Not used. To connect to GND 42 P66/WAIT Not used. To connect to GND 43 P67/ASTB Not used. To connect to GND 44 P30/TO0 VDOFF O Video off signal output pin. 45 P31/TO1 46 P32/TO2 AMUT O Analog mute signal output pin. 47 P33/TI1 PWRCTR O Power control output pin. When power ON is "H". 48 P34/TI2 Not used. To connect to GND 49 P35/PCL Not used. To connect to GND 50 P36/BUZ Not used. To connect to GND 51 P37 Not used. To connect to GND 52 P120/RTP0 Not used. To connect to GND 53 P121/RTP1 Not used. To connect to GND 54 P122/RTP2 Not used. To connect to GND 55 P123/RTP3 Not used. To connect to GND 56 P124/RTP4 RIIN I RI system code data input pin. 57 P125/RTP5 RIOUT O RI system code data output pin. 58 P126/RTP6 Not used. To connect to GND 59 P127/RTP7 Not used. To connect to GND 60 RESET RESET I Reset pin of microprocessor. 61 P00/INTP0/TI00 EX_IRIN I Remote control signal input pin from multi room. PIN NO. Sign Functional name I/O Description www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-CP702 PART REPLACEMENT-1 1. CABINET REPLACEMENT 1-1. Top cover and front panel 1-1-1. Remove the top cover. (six screws) 1-1-2. Remove the front panel assy. Remove the FFC (P704) and three screws. 1-2. Camper stay and Roulette 1-2-1. Remove the three screws and clamper assy. (1) 1-2-2. Remove one screw and roulette. (2) Screw Roulette 1-3. Tray panel and Mechanism assy 1-3-1. Remove four screws. (1) 1-3-2. Remove the mechanism assy. 1-3-3. Remove the FFC. (2) 2 times Bottom side view (1) 1-4-1. Slide the slider on the bottom chassis. (1) 1-4-2. Eject the tray panel. 1-4-3. Remove one FFC (P707) and draw out the tray while pulling a nail. (2) (1) (2) FFC Bottom side of mechanism Slide a holder direction the allow and remove the FFC. Removal (2) Nail (1) (2) PC board www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-CP702 PART REPLACEMENT-2 Tray panel 1-4-4. Insert the tray panel. 1-4-5. Set the FFC (P707) to mechanism control PC board assy. 1-4-6. The pin of main gear and fiting the position of the slot on the tray. 1-4-7. Pull up the nail on the tray panel and insert the tray. Nail www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-CP702 UPDATE FIRMWARE-1 1 Check the version of firmware 1 1.10.A 01.31 6 ---- 00000000 Region Code: Software Version: Loader: Panel Version: Disc Address: 1. Press the "STOP" key, while the set press the "DISPLAY" key in state of No DISC condition. 2. Press the "DISPLAY" key. Displayed on FL tube. SUB ****** FL Display X, XX, X Region code Destination and FW version TV monitor 3. Press the "STANDBY" key and finish the FW check mode. 2 Writing the firmware in CD-R Prepare the required data file. 1. BANK30.ROM "BANK30.ROM" is the program file for firmware. 2. Dummy data file. (About 40MB) NOTE: Every version and destination has same file name. Make the file holder Make the holder on the personal computer and make the required file the following tree structures. C: GARNET.F16 ETC File A File C File B Firmware program file About 40MB data file. A file name, a kind, and quantity do not have specification. NOTE: 1. Writing format is ISO9660 style. 2. Finalize are single session. 3 Check operation of unit Chech that the compact disc can be play normally. If compact disc cannot be play normally, cannot do the update firmware. 4 Connect the display to the unit To connect "VIDEO IN" terminal of TV and "VIDEO" terminal of the unit. 5 Update firmware 1. Press the "OPEN/CLOSE" button of the unit and tray is open. 2. Set the CD-R on disc-1 bay. 3. Disc is taken out. After Tray has opened, the "DISPLAY" button is pushed and push the "STOP" button. Press "STANDBY/ON" button. LOADING FL Display It is displayed on TV as "WRITING." "DONE" After writing is completed, the tray opens automatically. 6 Check the version of firmware Refer to item 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-CP702 UPDATE FIRMWARE-2 Exchange of DVD main board (NADG-7807) 1 Update firmware Check the version of present firmware. DVD main board is not necessarily in the newest version. 2 Setting the region code [Preparation] Remote controller: RC-484M Part No. 24140484 2 REGION SET REGION 04 RESET NO DISC 1 3 2 NO DISC FL display Press the "DVD" key and "2" key of the remote controller. Press the "RETURN" key. SP SETUP DVD RC-484M 1 RETURN 2 1 2 3 6 5 4 7 + 10 0 8 9 SP SETUP 1 2 3 6 5 4 7 + 10 0 8 9 SP SETUP Region-4 Press the 4 key CPA4P type ( Australian model) In the case of Australian model Press the STOP button of unit. 3 Check the version of the firmware and region code Refer to procedure step 1 Press the number key of region code. 3 CDD1N type (U.S.A. model) Region-1 Press the 1 key www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-CP702 PACKING VIEW R L DV-CP702(B) DV-CP702(B) A604 Tape A603 A608 A660 DV-CP702 Instruction Manual Instruction Manual RC-542DV A610 A651 A655 E810 A608 A652 A701 E801 E802 E803 E804 E805 A606 A653 S CPA4P A656 E811 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRINTED CIRCUIT BOARD PARTS LIST-1 U1 : DVD MAIN CIRCUIT PC BOARD CIRCUIT NO. PART NAME PART NO. DESCRIPTION REMARK N C1001 C-CERA C 150D-104K-P-AC CK725B1C-104K1 C1002 C-CERA C 150D-104K-P-AC CK725B1C-104K1 C1003 C-CERA C 15CH-220J-P-AC CC725CH1H-220J1 C1004 C-CERA C 15CH-220J-P-AC CC725CH1H-220J1 C1005 C-CERA C 15CH-220J-P-AC CC725CH1H-220J1 C1006 C-CERA C 15CH-220J-P-AC CC725CH1H-220J1 C1007 C-CERA C 150F-222K-P-AC CK725B1H-222K1 C1008 C-CERA C 150F-222K-P-AC CK725B1H-222K1 C1009 C-CERA C 150F-222K-P-AC CK725B1H-222K1 C1010 C-CERA C 150F-222K-P-AC CK725B1H-222K1 C1011 C-CERA C 15CH-331J-P-AC CC725CH1H-331J1 C1012 C-CERA C 150F-104K-P-AC CK725F1E-104Z1 C1013 CHIP ELECT C 157D-226M-3-JJI CEWX16V-22M C1014 C-CERA C 150F-104K-P-AC CK725F1E-104Z1 C1015 C-CERA C 150F-333K-P-AC CK725B1H-333K1 C1016 C-CERA C 150F-333K-P-AC CK725B1H-333K1 C1017 C-CERA C 15CH-151J-P-AC CC725CH1H-151J1 C1018 C-CERA C 150C-474K-P-AC CK725B1A-474K1 C1019 C-CERA C 150C-474K-P-AC CK725B1A-474K1 C1020 C-CERA C 150D-104K-P-AC CK725B1C-104K1 C1021 C-CERA C 150F-104K-P-AC CK725F1E-104Z1 C1022 CHIP ELECT C 157D-226M-3-JJI CEWX16V-22M C1023 C-CERA C 150F-104K-P-AC CK725F1E-104Z1 C1024 C-CERA C 150F-473K-P-AC CK725B1H-473K1 C1025 C-CERA C 150F-104K-P-AC CK725F1E-104Z1 C1026 CHIP ELECT C 157D-106M-3-HJI CEWX16V-10M C1027 C-CERA C 15CH-102J-P-AC CC725CH1H-102J1 C1028 C-CERA C 150D-104K-P-AC CK725B1C-104K1 C1029 C-CERA C 150D-104K-P-AC CK725B1C-104K1 C1030 C-CERA C 150D-104K-P-AC CK725B1C-104K1 C1031 C-CERA C 150F-104K-P-AC CK725F1E-104Z1 C1032 CHIP ELECT C 157D-226M-3-JJI CEWX16V-22M C1033 C-CERA C 150D-104K-P-AC CK725B1C-104K1 C1034 C-CERA C 150D-104K-P-AC CK725B1C-104K1 C1035 C-CERA C 150F-103K-P-AC CK725B1H-103K1 C1036 C-CERA C 15CH-100J-P-AC CC725CH1H-100D1 C1037 C-CERA C 15CH-100J-P-AC CC725CH1H-100D1 C1038 C-CERA C 150F-104K-P-AC CK725F1E-104Z1 C1039 CHIP ELECT C 157B-476M-3-JJI CEWX6.3V-47M C1040 C-CERA C 15CH-102J-P-AC CC725CH1H-102J1 C1041 CHIP ELECT C 157D-106M-3-HJI CEWX16V-10M C1042 CHIP ELECT C 157D-106M-3-HJI CEWX16V-10M C1043 CHIP ELECT C 157B-476M-3-JJI CEWX6.3V-47M C1044 C-CERA C 15CH-102J-P-AC CC725CH1H-102J1 C1045 CHIP ELECT C 157D-106M-3-HJI CEWX16V-10M C1046 CHIP ELECT C 157D-106M-3-HJI CEWX16V-10M C1047 CHIP ELECT C 157D-226M-3-JJI CEWX16V-22M C1049 C-CERA C 150F-104K-P-AC CK725F1E-104Z1 C1050 CHIP ELECT C 157B-107M-3-MJI CEWX6.3V-100M C1051 C-CERA C 150F-104K-P-AC CK725F1E-104Z1 C1052 CHIP ELECT C 157D-226M-3-JJI CEWX16V-22M C1053 CHIP ELECT C 157F-105M-3-HJI CEWX50V-1M C1101 C-CERA C 15CH-221J-P-AC CC725CH1H-221J1 C1102 C-CERA C 15CH-101J-P-AC CC725CH1H-101J1 C1103 C-CERA C 15CH-102J-P-AC CC725CH1H-102J1 C1104 C-CERA C 150F-104K-P-AC CK725F1E-104Z1 C1105 C-CERA C 150F-104K-P-AC CK725F1E-104Z1 C1106 CHIP ELECT C 157D-226M-3-JJI CEWX16V-22M C1107 C-CERA C 150F-104K-P-AC CK725F1E-104Z1 C1108 C-CERA C 150F-104K-P-AC CK725F1E-104Z1 C1109 CHIP ELECT C 157D-226M-3-JJI CEWX16V-22M C1110 C-CERA C 150F-104K-P-AC CK725F1E-104Z1 C1111 CHIP ELECT C 157D-106M-3-HJI CEWX16V-10M C1112 CHIP ELECT C 157D-106M-3-HJI CEWX16V-10M C1113 C-CERA C 150F-223K-P-AC CK725B1H-223K1 C1114 C-CERA C 150F-223K-P-AC CK725B1H-223K1 C1115 C-CERA C 150F-473K-P-AC CK725B1H-473K1 C1116 C-CERA C 150F-223K-P-AC CK725B1H-223K1 DV-CP702 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C1117 C-CERA C 150F-104K-P-AC CK725F1E-104Z1 C1201 C-CERA C 150C-105Z-P-AC CK725F1A-105Z1 C1202 C-CERA C 150C-105Z-P-AC CK725F1A-105Z1 C1203 C-CERA C 150C-105Z-P-AC CK725F1A-105Z1 C1206 C-CERA C 150C-105Z-P-AC CK725F1A-105Z1 C1207 C-CERA C 150C-105Z-P-AC CK725F1A-105Z1 C1208 C-CERA C 150C-105Z-P-AC CK725F1A-105Z1 C1209 C-CERA C 150F-223K-P-AC CK725B1H-223K1 C1210 C-CERA C 15CH-151J-P-AC CC725CH1H-151J1 C1211 C-CERA C 150F-223K-P-AC CK725B1H-223K1 C1212 C-CERA C 150D-104K-P-AC CK725B1C-104K1 C1213 C-CERA C 15CH-101J-P-AC CC725CH1H-101J1 C1214 C-CERA C 150F-223K-P-AC CK725B1H-223K1 C1215 C-CERA C 15CH-101J-P-AC CC725CH1H-101J1 C1216 C-CERA C 150D-154K-P-AC CK725B1A-154K1 C1217 C-CERA C 150C-105Z-P-AC CK725F1A-105Z1 C1218 C-CERA C 150C-105Z-P-AC CK725F1A-105Z1 C1219 C-CERA C 15CH-331J-P-AC CC725CH1H-331J1 C1220 C-CERA C 15CH-331J-P-AC CC725CH1H-331J1 C1221 C-CERA C 150C-105Z-P-AC CK725F1A-105Z1 C1222 C-CERA C 150F-104K-P-AC CK725F1E-104Z1 C1223 C-CERA C 150C-105Z-P-AC CK725F1A-105Z1 C1224 C-CERA C 150F-473K-P-AC CK725B1H-473K1 C1225 C-CERA C 150C-105Z-P-AC CK725F1A-105Z1 C1226 C-CERA C 150F-103K-P-AC CK725B1H-103K1 C1227 C-CERA C 150C-105Z-P-AC CK725F1A-105Z1 C1228 C-CERA C 150C-105Z-P-AC CK725F1A-105Z1 C1229 C-CERA C 150C-105Z-P-AC CK725F1A-105Z1 C1230 C-CERA C 150C-105Z-P-AC CK725F1A-105Z1 C1232 C-CERA C 150C-105Z-P-AC CK725F1A-105Z1 C1233 C-CERA C 150C-105Z-P-AC CK725F1A-105Z1 C1234 CHIP ELECT C 157D-226M-3-JJI CEWX16V-22M C1235 CHIP ELECT C 157B-226M-3-HJI CEWX6.3V-22M C1236 CHIP ELECT C 157B-107M-3-MJI CEWX6.3V-100M C1237 CHIP ELECT C 157B-107M-3-MJI CEWX6.3V-100M C1238 CHIP ELECT C 157D-106M-3-HJI CEWX16V-10M C1239 C-CERA C 150C-105Z-P-AC CK725F1A-105Z1 C1251 C-CERA C 15CH-471J-P-AC CC725CH1H-471J1 C1252 C-CERA C 150F-104K-P-AC CK725F1E-104Z1 C1253 C-CERA C 15CH-471J-P-AC CC725CH1H-471J1 C1254 C-CERA C 150F-104K-P-AC CK725F1E-104Z1 C1255 C-CERA C 15CH-471J-P-AC CC725CH1H-471J1 C1256 C-CERA C 150F-104K-P-AC CK725F1E-104Z1 C1257 CHIP ELECT C 157B-107M-3-MJI CEWX6.3V-100M C2001 C-CERA C 150C-105Z-P-AC CK725F1A-105Z1 C2002 C-CERA C 150C-105Z-P-AC CK725F1A-105Z1 C2003 C-CERA C 150C-105Z-P-AC CK725F1A-105Z1 C2004 C-CERA C 150C-105Z-P-AC CK725F1A-105Z1 C2005 C-CERA C 150C-105Z-P-AC CK725F1A-105Z1 C2006 C-CERA C 150C-105Z-P-AC CK725F1A-105Z1 C2007 C-CERA C 150C-105Z-P-AC CK725F1A-105Z1 C2008 C-CERA C 150C-105Z-P-AC CK725F1A-105Z1 C2009 C-CERA C 150C-105Z-P-AC CK725F1A-105Z1 C2010 C-CERA C 150C-105Z-P-AC CK725F1A-105Z1 C2011 C-CERA C 150C-105Z-P-AC CK725F1A-105Z1 C2012 C-CERA C 150C-105Z-P-AC CK725F1A-105Z1 C2013 C-CERA C 150C-105Z-P-AC CK725F1A-105Z1 C2014 C-CERA C 150C-105Z-P-AC CK725F1A-105Z1 C2015 C-CERA C 150C-105Z-P-AC CK725F1A-105Z1 C2016 C-CERA C 150C-105Z-P-AC CK725F1A-105Z1 C2017 C-CERA C 150C-105Z-P-AC CK725F1A-105Z1 C2018 C-CERA C 150C-105Z-P-AC CK725F1A-105Z1 C2019 C-CERA C 150C-105Z-P-AC CK725F1A-105Z1 C2020 C-CERA C 150C-105Z-P-AC CK725F1A-105Z1 C2021 C-CERA C 150C-105Z-P-AC CK725F1A-105Z1 C2022 C-CERA C 150C-105Z-P-AC CK725F1A-105Z1 C2023 C-CERA C 150C-105Z-P-AC CK725F1A-105Z1 C2024 C-CERA C 15CH-101J-P-AC CC725CH1H-101J1 C2025 C-CERA C 150F-104K-P-AC CK725F1E-104Z1 C2026 CHIP ELECT C 157B-107M-3-MJI CEWX6.3V-100M C2027 CHIP ELECT C 157B-107M-3-MJI CEWX6.3V-100M C2028 C-CERA C 150C-105Z-P-AC CK725F1A-105Z1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C2029 C-CERA C 150C-105Z-P-AC CK725F1A-105Z1 C2301 C-CERA C 150F-104K-P-AC CK725F1E-104Z1 C2302 C-CERA C 150F-104K-P-AC CK725F1E-104Z1 C2303 C-CERA C 150F-104K-P-AC CK725F1E-104Z1 C2304 C-CERA C 150F-104K-P-AC CK725F1E-104Z1 C2305 C-CERA C 15CH-101J-P-AC CC725CH1H-101J1 C2306 C-CERA C 150C-105Z-P-AC CK725F1A-105Z1 C2307 CHIP ELECT C 157B-107M-3-MJI CEWX6.3V-100M C2308 C-CERA C 150C-105Z-P-AC CK725F1A-105Z1 C2309 C-CERA C 150C-105Z-P-AC CK725F1A-105Z1 C2310 C-CERA C 150C-105Z-P-AC CK725F1A-105Z1 C2311 C-CERA C 150C-105Z-P-AC CK725F1A-105Z1 C2312 C-CERA C 150C-105Z-P-AC CK725F1A-105Z1 C2313 C-CERA C 150C-105Z-P-AC CK725F1A-105Z1 C2314 C-CERA C 150C-105Z-P-AC CK725F1A-105Z1 C2315 C-CERA C 150C-105Z-P-AC CK725F1A-105Z1 C2316 CHIP ELECT C 157D-106M-3-HJI CEWX16V-10M C2317 C-CERA C 150C-105Z-P-AC CK725F1A-105Z1 C2318 C-CERA C 150C-105Z-P-AC CK725F1A-105Z1 C2401 CHIP ELECT C 157B-107M-3-MJI CEWX6.3V-100M C2402 C-CERA C 150C-105Z-P-AC CK725F1A-105Z1 C2403 CHIP ELECT C 157B-107M-3-MJI CEWX6.3V-100M C2405 C-CERA C 150C-105Z-P-AC CK725F1A-105Z1 C2406 C-CERA C 150C-105Z-P-AC CK725F1A-105Z1 C2407 C-CERA C 150C-105Z-P-AC CK725F1A-105Z1 C2408 C-CERA C 150C-105Z-P-AC CK725F1A-105Z1 C2409 C-CERA C 150C-105Z-P-AC CK725F1A-105Z1 C2410 C-CERA C 150C-105Z-P-AC CK725F1A-105Z1 C2411 C-CERA C 150C-105Z-P-AC CK725F1A-105Z1 C2412 C-CERA C 150C-105Z-P-AC CK725F1A-105Z1 C2413 C-CERA C 150C-105Z-P-AC CK725F1A-105Z1 C2414 C-CERA C 150C-105Z-P-AC CK725F1A-105Z1 C2415 CHIP ELECT C 157D-106M-3-HJI CEWX16V-10M C2416 C-CERA C 15CH-102J-P-AC CC725CH1H-102J1 C2417 C-CERA C 15CH-102J-P-AC CC725CH1H-102J1 C2418 CHIP ELECT C 157B-107M-3-MJI CEWX6.3V-100M C2419 C-CERA C 150C-105Z-P-AC CK725F1A-105Z1 C2501 C-CERA C 150F-104K-P-AC CK725F1E-104Z1 C2502 C-CERA C 150F-104K-P-AC CK725F1E-104Z1 C2601 CHIP ELECT C 157B-226M-3-HJI CEWX6.3V-22M C2602 CHIP ELECT C 157B-107M-3-MJI CEWX6.3V-100M C2603 C-CERA C 150C-105Z-P-AC CK725F1A-105Z1 C2604 C-CERA C 150C-105Z-P-AC CK725F1A-105Z1 C2605 C-CERA C 150C-105Z-P-AC CK725F1A-105Z1 C2606 C-CERA C 15CH-120J-P-AC CC725CH1H-120J1 C2608 C-CERA C 15CH-120J-P-AC CC725CH1H-120J1 C2901 CHIP ELECT C 157B-107M-3-MJI CEWX6.3V-100M C2902 CHIP ELECT C 157B-107M-3-MJI CEWX6.3V-100M C2903 CHIP ELECT C 157B-107M-3-MJI CEWX6.3V-100M C2904 CHIP ELECT C 157B-107M-3-MJI CEWX6.3V-100M C2905 CHIP ELECT C 157B-107M-3-MJI CEWX6.3V-100M C2906 CHIP ELECT C 157B-107M-3-MJI CEWX6.3V-100M C2907 CHIP ELECT C 157A-227M-3-MJI CEWX4V-220M C2951 C-CERA C 15CH-560J-P-AC CC725CH1H-560J1 L1001 CHOKE COIL 1803-0063-0 NCH-1479 L1002 CHOKE COIL 1803-0063-0 NCH-1479 L1201 CHOKE COIL 1803-0064-0 NCH-1471 L1202 CHOKE COIL 1803-0064-0 NCH-1471 L1203 CHOKE COIL 1803-0064-0 NCH-1471 L1204 CHOKE COIL 1803-0064-0 NCH-1471 L1251 CHOKE COIL 1803-0064-0 NCH-1471 L2001 CHOKE COIL 1803-0064-0 NCH-1471 L2002 CHOKE COIL 1803-0064-0 NCH-1471 L2301 CHOKE COIL 1803-0064-0 NCH-1471 L2302 CHOKE COIL 1803-0064-0 NCH-1471 L2401 CHOKE COIL 1803-0064-0 NCH-1471 L2404 CHOKE COIL 1803-0064-0 NCH-1471 L2601 CHOKE COIL 1803-0074-0 BLM21P221SG L2602 CHOKE COIL 1803-0074-0 BLM21P221SG L2901 CHOKE COIL 1803-0064-0 NCH-1471 L2902 CHOKE COIL 1803-0064-0 NCH-1471 L2903 CHOKE COIL 1803-0064-0 NCH-1471 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com L2904 CHOKE COIL 1803-0064-0 NCH-1471 P1001 SOCKET 2101-1414-0 NSCT-26P2671 PU-Main P1101 PLUG 2101-1410-0 NPLG-6P932 TRV-Main P2001B SOCKET 2101-1413-0 NSCT-14P2684 DAC2ch-Main P2401B SOCKET 2101-1412-0 NSCT-15P2685 Video-Main P2501A PLUG 2101-3014-0 L2003P07S0T SubMicom-Main P2901A PLUG 2101-1410-0 NPLG-6P932 Power Q1001 IC 3131-9990-0 CXD1881BR DVD ANALOG FRONTEND Q1002 IC 3132-0010-0 NJM2115V Q1003 TR 4853-0190-3 2SK3019 Q1004 TR 4853-0190-3 2SK3019 Q1005 TR 4853-0190-3 2SK3019 Q1006 TR 4851-132R-3 2SB1132 Q1007 TR 4851-132R-3 2SB1132 Q1101 IC 3132-0020-0 FAN8042 Q1102 IC 3132-0030-0 BA4510FV Q1201 IC 3132-0040-0 CXD1885Q Q1251 IC 3132-0050-0 IC41LV16100-50T EDO-DRAM Q1251 or IC 3132-0050-0 IC41LV16100-50T EDO-DRAM CPQ2001 IC 3132-0060-0 M65783AFP Q2002 IC 3132-0070-0 S-80127CNMC-JKM-T2 Q2003 IC 3132-0290-0 IS24C08-3Z E2PROM Q2301 IC 3132-0090-0 TC74VCX162373FT CPQ2302 IC 3132-0100-0 MX29LV160ABTC-90 Need PreWriting CPQ2302 or IC 3132-0860-0 MX29LV160ABTC-70 Need PreWriting Q2303 IC 3132-0110-0 IC42S16400-7T SDRAM Q2303 or IC 3132-0110-0 IC42S16400-7T SDRAM Q2401 IC 3132-0120-0 NJM2373AF Q2402 TR 4851-774R-3 2SA1774 Q2403 TR 4851-774R-3 2SA1774 Q2404 TR 4851-774R-3 2SA1774 Q2405 TR 4851-774R-3 2SA1774 Q2406 TR 4851-774R-3 2SA1774 Q2501 IC 3132-0130-0 TC74VHCT125AFT Q2502 IC 3132-0140-0 TC7SZ125FU Q2601 IC 3132-0150-0 BU2288FV CLOCKGENERATOR Q2901 IC(REGULATOR) 3132-0160-0 MPC29M33T Q2902 IC(REGURATOR) 3132-0170-0 MPC2918T Q2903 IC(REGURATOR) 3132-0170-0 MPC2918T Q2904 IC(REGULATOR) 3132-0160-0 MPC29M33T R1001 C-R NET 8911-0015-0 RM4KJ152X04 R1002 C-R NET 8911-0023-0 RM4KJ000X04 R1003 C-CARBON R 4723-123A-P-R RN72K1J-123FE R1004 C-CARBON R 4723-103J-P-R RN72K1J-103JE R1005 C-CARBON R 4723-223J-P-R RN72K1J-223JE R1006 C-CARBON R 4723-223J-P-R RN72K1J-223JE R1007 C-CARBON R 4723-223J-P-R RN72K1J-223JE R1009 C-CARBON R 4723-103J-P-R RN72K1J-103JE R1010 C-CARBON R 4723-223J-P-R RN72K1J-223JE R1011 C-CARBON R 4723-223J-P-R RN72K1J-223JE R1012 C-CARBON R 4723-223J-P-R RN72K1J-223JE R1014 C-CARBON R 4723-103J-P-R RN72K1J-103JE R1015 C-CARBON R 4723-102J-P-R RN72K1J-102JE R1016 C-CARBON R 4723-330J-P-R RN72K1J-330JE R1017 C-CARBON R 4723-330J-P-R RN72K1J-330JE R1018 C-CARBON R 4723-102J-P-R RN72K1J-102JE R1019 C-CARBON R 4723-330J-P-R RN72K1J-330JE R1020 C-CARBON R 4723-330J-P-R RN72K1J-330JE R1021 C-CARBON R 4723-000J-P-R RN72K1J-000JE R1022 C-CARBON R 4723-101J-P-R RN72K1J-101JE R1023 C-CARBON R 4723-000J-P-R RN72K1J-000JE R1027 C-CARBON R 4723-102J-P-R RN72K1J-102JE R1028 C-CARBON R 4723-392J-P-R RN72K1J-392JE R1029 C-CARBON R 4723-104J-P-R RN72K1J-104JE R1101 C-CARBON R 4723-563J-P-R RN72K1J-563JE R1102 C-CARBON R 4723-153J-P-R RN72K1J-153JE R1103 C-CARBON R 4723-563J-P-R RN72K1J-563JE R1104 C-CARBON R 4723-333J-P-R RN72K1J-333JE R1105 C-CARBON R 4723-563J-P-R RN72K1J-563JE R1106 C-CARBON R 4723-333J-P-R RN72K1J-333JE R1107 C-CARBON R 4723-000J-P-R RN72K1J-000JE R1108 C-CARBON R 4723-103J-P-R RN72K1J-103JE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com R1109 C-CARBON R 4723-103J-P-R RN72K1J-103JE R1110 C-CARBON R 4723-103J-P-R RN72K1J-103JE R1111 C-CARBON R 4723-103J-P-R RN72K1J-103JE R1112 C-CARBON R 4723-000J-P-R RN72K1J-000JE R1113 C-CARBON R 4723-333J-P-R RN72K1J-333JE R1114 C-CARBON R 4723-752J-P-R RN72K1J-752JE R1115 C-CARBON R 4723-333J-P-R RN72K1J-333JE R1116 C-CARBON R 4723-752J-P-R RN72K1J-752JE R1117 C-CARBON R 4723-103A-P-R RN72K1J-103FE R1118 C-CARBON R 4723-103A-P-R RN72K1J-103FE R1119 C-CARBON R 4723-223J-P-R RN72K1J-223JE R1120 C-CARBON R 4723-103J-P-R RN72K1J-103JE R1121 C-CARBON R 4723-103J-P-R RN72K1J-103JE R1122 C-CARBON R 4723-104J-P-R RN72K1J-104JE R1123 C-CARBON R 4723-223J-P-R RN72K1J-223JE R1124 C-CARBON R 4723-103J-P-R RN72K1J-103JE R1125 C-CARBON R 4723-103J-P-R RN72K1J-103JE R1126 C-CARBON R 4723-104J-P-R RN72K1J-104JE R1127 C-CARBON R 4723-000J-P-R RN72K1J-000JE R1128 C-CARBON R 4723-000J-P-R RN72K1J-000JE R1202 C-CARBON R 4723-000J-P-R RN72K1J-000JE R1205 C-R NET 8911-0016-0 RM4KJ101X04 R1206 C-R NET 8911-0016-0 RM4KJ101X04 R1207 C-CARBON R 4723-181J-P-R RN72K1J-181JE R1208 C-R NET 8911-0016-0 RM4KJ101X04 R1209 C-R NET 8911-0017-0 RM4KJ330X04 R1210 C-R NET 8911-0016-0 RM4KJ101X04 R1211 C-R NET 8911-0016-0 RM4KJ101X04 R1212 C-R NET 8911-0018-0 RM4KJ181X04 R1213 C-R NET 8911-0019-0 RM4KJ103X04 R1214 C-CARBON R 4723-473J-P-R RN72K1J-473JE R1215 C-CARBON R 4723-473J-P-R RN72K1J-473JE R1216 C-CARBON R 4723-154J-P-R RN72K1J-154JE R1217 C-CARBON R 4723-471J-P-R RN72K1J-471JE R1218 C-CARBON R 4723-683J-P-R RN72K1J-683JE R1219 C-CARBON R 4723-473J-P-R RN72K1J-473JE R1220 C-CARBON R 4723-104J-P-R RN72K1J-104JE R1221 C-CARBON R 4723-182J-P-R RN72K1J-182JE R1222 C-CARBON R 4723-182J-P-R RN72K1J-182JE R1223 C-CARBON R 4723-223J-P-R RN72K1J-223JE R1224 C-CARBON R 4723-000J-P-R RN72K1J-000JE R1225 C-CARBON R 4723-103J-P-R RN72K1J-103JE R1226 C-CARBON R 4723-000J-P-R RN72K1J-000JE R1227 C-CARBON R 4723-103J-P-R RN72K1J-103JE R1228 C-CARBON R 4723-000J-P-R RN72K1J-000JE R1229 C-CARBON R 4723-000J-P-R RN72K1J-000JE R1230 C-CARBON R 4723-000J-P-R RN72K1J-000JE R1231 C-CARBON R 4723-333J-P-R RN72K1J-333JE R1232 C-CARBON R 4723-152J-P-R RN72K1J-152JE R1233 C-CARBON R 4723-333J-P-R RN72K1J-333JE R1234 C-R NET 8911-0016-0 RM4KJ101X04 R1235 C-R NET 8911-0016-0 RM4KJ101X04 R1236 C-R NET 8911-0016-0 RM4KJ101X04 R1237 C-R NET 8911-0016-0 RM4KJ101X04 R1238 C-R NET 8911-0016-0 RM4KJ101X04 R1240 C-CARBON R 4723-103J-P-R RN72K1J-103JE R1241 C-R NET 8911-0016-0 RM4KJ101X04 R1242 C-CARBON R 4723-000J-P-R RN72K1J-000JE R1243 C-CARBON R 4723-000J-P-R RN72K1J-000JE R1244 C-CARBON R 4723-000J-P-R RN72K1J-000JE R1251 C-R NET 8911-0016-0 RM4KJ101X04 R1252 C-R NET 8911-0016-0 RM4KJ101X04 R1253 C-R NET 8911-0016-0 RM4KJ101X04 R1254 C-R NET 8911-0016-0 RM4KJ101X04 R1291 C-R NET 8911-0020-0 RM6KJ103X08 R1292 C-R NET 8911-0020-0 RM6KJ103X08 R1293 C-R NET 8911-0020-0 RM6KJ103X08 R2001 C-CARBON R 4723-470J-P-R RN72K1J-470JE R2002 C-CARBON R 4723-470J-P-R RN72K1J-470JE R2003 C-CARBON R 4723-470J-P-R RN72K1J-470JE R2004 C-CARBON R 4723-470J-P-R RN72K1J-470JE R2005 C-CARBON R 4723-470J-P-R RN72K1J-470JE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com R2006 C-CARBON R 4723-470J-P-R RN72K1J-470JE R2007 C-CARBON R 4723-470J-P-R RN72K1J-470JE R2008 C-CARBON R 4723-470J-P-R RN72K1J-470JE R2009 C-CARBON R 4723-470J-P-R RN72K1J-470JE R2010 C-CARBON R 4723-220J-P-R RN72K1J-220JE R2011 C-CARBON R 4723-220J-P-R RN72K1J-220JE R2015 C-CARBON R 4723-220J-P-R RN72K1J-220JE R2016 C-CARBON R 4723-220J-P-R RN72K1J-220JE R2017 C-CARBON R 4723-220J-P-R RN72K1J-220JE R2018 C-CARBON R 4723-220J-P-R RN72K1J-220JE R2019 C-CARBON R 4723-103J-P-R RN72K1J-103JE R2020 C-CARBON R 4723-000J-P-R RN72K1J-000JE R2021 C-CARBON R 4723-100J-P-R RN72K1J-100JE R2022 C-R NET 8911-0021-0 RM4KJ470X04 R2023 C-R NET 8911-0021-0 RM4KJ470X04 R2024 C-CARBON R 4723-470J-P-R RN72K1J-470JE R2025 C-R NET 8911-0021-0 RM4KJ470X04 R2026 C-CARBON R 4723-000J-P-R RN72K1J-000JE R2027 C-CARBON R 4723-000J-P-R RN72K1J-000JE R2028 C-CARBON R 4723-222J-P-R RN72K1J-222JE R2029 C-CARBON R 4723-222J-P-R RN72K1J-222JE R2030 C-CARBON R 4723-100J-P-R RN72K1J-100JE R2031 C-CARBON R 4723-100J-P-R RN72K1J-100JE R2032 C-CARBON R 4723-470J-P-R RN72K1J-470JE R2033 C-CARBON R 4723-470J-P-R RN72K1J-470JE R2034 C-CARBON R 4723-470J-P-R RN72K1J-470JE R2035 C-R NET 8911-0021-0 RM4KJ470X04 R2036 C-CARBON R 4723-103J-P-R RN72K1J-103JE R2037 C-CARBON R 4723-103J-P-R RN72K1J-103JE R2038 C-R NET 8911-0022-0 RM4KJ150X04 R2039 C-R NET 8911-0022-0 RM4KJ150X04 R2040 C-R NET 8911-0022-0 RM4KJ150X04 R2041 C-R NET 8911-0022-0 RM4KJ150X04 R2042 C-R NET 8911-0022-0 RM4KJ150X04 R2043 C-CARBON R 4723-103J-P-R RN72K1J-103JE R2044 C-CARBON R 4723-102J-P-R RN72K1J-102JE R2045 C-CARBON R 4723-472J-P-R RN72K1J-472JE R2049 C-CARBON R 4723-000J-P-R RN72K1J-000JE R2050 C-CARBON R 4723-470J-P-R RN72K1J-470JE R2051 C-CARBON R 4723-470J-P-R RN72K1J-470JE R2052 C-CARBON R 4723-470J-P-R RN72K1J-470JE R2053 C-CARBON R 4723-470J-P-R RN72K1J-470JE R2054 C-CARBON R 4723-000J-P-R RN72K1J-000JE R2055 C-CARBON R 4723-103J-P-R RN72K1J-103JE R2056 C-CARBON R 4723-103J-P-R RN72K1J-103JE R2057 C-CARBON R 4723-103J-P-R RN72K1J-103JE R2301 C-CARBON R 4723-102J-P-R RN72K1J-102JE R2302 C-CARBON R 4723-103J-P-R RN72K1J-103JE R2401 C-CARBON R 4723-220J-P-R RN72K1J-220JE R2402 C-CARBON R 4723-221J-P-R RN72K1J-221JE R2403 C-CARBON R 4723-000J-P-R RN72K1J-000JE R2405 C-CARBON R 4723-100J-P-R RN72K1J-100JE R2406 C-CARBON R 4723-271A-P-R RN72K1J-271FE R2407 C-CARBON R 4723-271A-P-R RN72K1J-271FE R2408 C-CARBON R 4723-332A-P-R RN72K1J-332FE R2410 C-CARBON R 4723-271A-P-R RN72K1J-271FE R2411 C-CARBON R 4723-271A-P-R RN72K1J-271FE R2412 C-CARBON R 4723-332A-P-R RN72K1J-332FE R2414 C-CARBON R 4723-102J-P-R RN72K1J-102JE R2415 C-CARBON R 4723-271A-P-R RN72K1J-271FE R2416 C-CARBON R 4723-152A-P-R RN72K1J-152FE R2417 C-CARBON R 4723-102J-P-R RN72K1J-102JE R2418 C-CARBON R 4723-271A-P-R RN72K1J-271FE R2419 C-CARBON R 4723-152A-P-R RN72K1J-152FE R2420 C-CARBON R 4723-102J-P-R RN72K1J-102JE R2421 C-CARBON R 4723-271A-P-R RN72K1J-271FE R2422 C-CARBON R 4723-152A-P-R RN72K1J-152FE R2423 C-CARBON R 4723-102J-P-R RN72K1J-102JE R2424 C-CARBON R 4723-271A-P-R RN72K1J-271FE R2425 C-CARBON R 4723-152A-P-R RN72K1J-152FE R2426 C-CARBON R 4723-102J-P-R RN72K1J-102JE R2427 C-CARBON R 4723-271A-P-R RN72K1J-271FE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com R2428 C-CARBON R 4723-152A-P-R RN72K1J-152FE R2429 C-CARBON R 4723-000J-P-R RN72K1J-000JE R2430 C-CARBON R 4723-000J-P-R RN72K1J-000JE R2431 C-CARBON R 4723-000J-P-R RN72K1J-000JE R2501 C-CARBON R 4723-000J-P-R RN72K1J-000JE R2502 C-CARBON R 4723-220J-P-R RN72K1J-220JE R2503 C-CARBON R 4723-220J-P-R RN72K1J-220JE R2504 C-CARBON R 4723-220J-P-R RN72K1J-220JE R2505 C-CARBON R 4723-220J-P-R RN72K1J-220JE R2601 C-CARBON R 4723-561J-P-R RN72K1J-561JE R2602 EMI FIL 1806-3705-0 BK1608TS431-T R2603 C-CARBON R 4723-101J-P-R RN72K1J-101JE R2604 EMI FIL 1806-3706-0 BK1608HM471-T R2605 EMI FIL 1806-3705-0 BK1608TS431-T R2608 C-CARBON R 4723-000J-P-R RN72K1J-000JE R2901 C-CARBON R 4723-000J-P-R RN72K1J-000JE R2902 C-CARBON R 4723-000J-P-R RN72K1J-000JE R2903 C-CARBON R 4723-000J-P-R RN72K1J-000JE R2954 C-CARBON R 4723-000J-P-R RN72K1J-000JE R2955 C-CARBON R 4723-000J-P-R RN72K1J-000JE X2601 CRYSTAL 2300-2220-0 FCX-03-27MHz www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PRINTED CIRCUIT BOARD PARTS LIST-2 U3 : Front disp. PC board assy NADIS-7808-1A , NADIS-7808-1B U4 : Mecha. Control PC board assy NADG-7809-1A , NADG-7809-1B , NAVD-7810-1B U6 : Audio output terminal PC board as NAAF-7811-1A , NAAF-7811-1B U7 : Disc select switch PC board assy NASW-7812-1A , NASW-7812-1B U8 : Key operation PC board assy NASW-7813-1A , NASW-7813-1B U9 : Standby switch PC board assy NASW-7814-1A , NASW-7814-1B U10 : LED display PC board assy NADIS-7815-1A , NADIS-7815-1B U11 : Roulette motor PC board assy NAETC-7816-1A , NAETC-7816-1B U12 : Loading motor PC board assy NAETC-7817-1A , NAETC-7817-1B CIRCUIT NO. PART NAME PART NO. DESCRIPTION REMARK N D101 C-DIODE 4840-1660-0 1SS355 D101 or C-DIODE 480S-3520-3 1SS352 D102 C-DIODE 4840-1660-0 1SS355 D102 or C-DIODE 480S-3520-3 1SS352 D103 C-DIODE 4840-1660-0 1SS355 D103 or C-DIODE 480S-3520-3 1SS352 D104 C-DIODE 4840-1660-0 1SS355 D104 or C-DIODE 480S-3520-3 1SS352 D401 C-DIODE 4840-1660-0 1SS355 D401 or C-DIODE 480S-3520-3 1SS352 D701 ZENER D 483H-2V71-3 UDZ2.7B D702 ZENER D 483H-2V21-3 UDZ2.2B D703 ZENER D 483H-4V31-3 UDZS4.3B D731 C-DIODE 4840-1660-0 1SS355 D731 or C-DIODE 480S-3520-3 1SS352 D732 ZENER D 483H-5V11-3 UDZS5.1B D733 C-DIODE 4840-1660-0 1SS355 D733 or C-DIODE 480S-3520-3 1SS352 D734 C-DIODE 4840-1660-0 1SS355 D734 or C-DIODE 480S-3520-3 1SS352 D801 LED 3700-2824-B SLR-343BBT-XG D801 or LED 3700-2835-B SLR-343BBT-XH D801A HOLDER 4171-0021-0 (LED)LA-5-6 D802 LED 3700-2824-B SLR-343BBT-XG D802 or LED 3700-2835-B SLR-343BBT-XH D802A HOLDER 4171-0021-0 (LED)LA-5-6 D803 LED 3700-2531-R SLR-342VR Q109 TR 485A-1140-3 DTA114YKA Q109 or TR 4852-4070-3 RN2407 Q109 or TR 4860-3440-3 KRA107S Q110 TR 485C-1140-3 DTC114YKA Q110 or TR 4851-4070-3 RN1407 Q110 or TR 4851-07S0-3 KRC107S Q201 IC 3131-8760-0 LA73054 Q202 TR 485C-1140-3 DTC114YKA Q202 or TR 4851-4070-3 RN1407 Q202 or TR 4851-07S0-3 KRC107S Q203 TR 485A-1140-3 DTA114YKA Q203 or TR 4852-4070-3 RN2407 Q203 or TR 4860-3440-3 KRA107S Q401 IC 3132-0180-0 PCM1742KE Q403 IC 3131-9970-0 NJM4580M-D DV-CP702 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Q404 IC 3131-9970-0 NJM4580M-D Q405 IC 3131-9970-0 NJM4580M-D Q406 IC 3131-9970-0 NJM4580M-D Q407 TR 485C-03FB-3 HN1C03F-B Q408 TR 485C-03FB-3 HN1C03F-B Q411 IC 3131-9960-0 TC74VHCU04FT Q412 PHT CP 481T-X179-3 TOTX179 Q413 IC 3132-0270-0 NJM2370U05 Q415 TR 485C-1140-3 DTC114YKA Q415 or TR 4851-4070-3 RN1407 Q415 or TR 4851-07S0-3 KRC107S Q416 TR 485C-1140-3 DTC114YKA Q416 or TR 4851-4070-3 RN1407 Q416 or TR 4851-07S0-3 KRC107S Q417 TR 485A-1140-3 DTA114YKA Q417 or TR 4852-4070-3 RN2407 Q417 or TR 4860-3440-3 KRA107S Q418 TR 485A-1140-3 DTA114YKA Q418 or TR 4852-4070-3 RN2407 Q418 or TR 4860-3440-3 KRA107S Q419 TR 485C-1140-3 DTC114YKA Q419 or TR 4851-4070-3 RN1407 Q419 or TR 4851-07S0-3 KRC107S Q701 IC 3132-0190-1 MPD780053GC-141-8BT Q702 IC 3132-0200-0 S-80130CLMC-JIP-T2 Q703 TR 485A-1140-3 DTA114YKA Q703 or TR 4852-4070-3 RN2407 Q703 or TR 4860-3440-3 KRA107S Q704 IC 3131-7990-0 TA7291S Q705 IC 3131-7990-0 TA7291S Q706 TR 485C-1140-3 DTC114YKA Q706 or TR 4851-4070-3 RN1407 Q706 or TR 4851-07S0-3 KRC107S Q707 TR 4851-162O-3 2SA1162-O Q709 TR 485C-1140-3 DTC114YKA Q709 or TR 4851-4070-3 RN1407 Q709 or TR 4851-07S0-3 KRC107S Q710 TR 4852-712G-3 2SC2712-GR Q711 TR 4852-712G-3 2SC2712-GR Q712 TR 485C-1140-3 DTC114YKA Q712 or TR 4851-4070-3 RN1407 Q712 or TR 4851-07S0-3 KRC107S Q713 TR 485D-655E-K 2SD655-E Q714 TR 485D-655E-K 2SD655-E Q715 TR 485A-1140-3 DTA114YKA Q715 or TR 4852-4070-3 RN2407 Q715 or TR 4860-3440-3 KRA107S Q716 PHT INT 481P-2S28-3 GP2S28 Q717 PHT CP 481P-I576-3 RPI-576 Q801 IC 3131-9950-0 MPD780232GC-070-8BT Q802 FL TUBE 2460-2020-0 HNV-12SM34 Q802A HOLDER 4154-6111-0 (FL) Q802B SCREW 2954-3006-3000 3TTB+6B(BC) Q805 TR 485C-1140-3 DTC114YKA Q805 or TR 4851-4070-3 RN1407 Q805 or TR 4851-07S0-3 KRC107S Q806 TR 4852-712G-3 2SC2712-GR www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Q808 REMO SENS 481M-7138-3 RPM7138 Q809 TR 485C-1140-3 DTC114YKA Q809 or TR 4851-4070-3 RN1407 Q809 or TR 4851-07S0-3 KRC107S Q810 TR 485C-1140-3 DTC114YKA Q810 or TR 4851-4070-3 RN1407 Q810 or TR 4851-07S0-3 KRC107S L201 EMIFIL 1806-3647-0 BK1608LM182-T L221 CHOKE COIL 1803-0080-0 NCH-1482 L403 CHOKE COIL 1803-0064-0 NCH-1471 L404 CHOKE COIL 1803-0064-0 NCH-1471 L405 EMIFIL 1806-3647-0 BK1608LM182-T L406 CHOKE COIL 1803-0064-0 NCH-1471 L407 EMIFIL 1806-3647-0 BK1608LM182-T L701 CHOKE COIL 1803-0075-0 NCH-3608K470 L702 CHOKE COIL 1803-0075-0 NCH-3608K470 X701 CERA LOCK 2703-0870-0 CSTLS4M50G56-A0 X801 CERA LOCK 2703-0880-0 CSTS0500MG06 C201 C-CERA C 150D-104K-P-AC CK725B1C-104K1 C203 ELECT C 157D-106M-K-IUI CE04W16V10M(SC) C205 ELECT C 157D-106M-K-IUI CE04W16V10M(SC) C207 ELECT C 157D-106M-K-IUI CE04W16V10M(SC) C209 ELECT C 157D-106M-K-IUI CE04W16V10M(SC) C210 ELECT C 157B-107M-K-IUI CE04W6.3V100M(SC) C211 ELECT C 157B-107M-K-IUI CE04W6.3V100M(SC) C212 ELECT C 157B-108M-5-OVI CE04W6.3V1000M(SC) C213 ELECT C 157B-477M-5-LUI CE04W6.3V470M(SC) C214 ELECT C 157B-108M-5-OVI CE04W6.3V1000M(SC) C215 ELECT C 157B-477M-5-LUI CE04W6.3V470M(SC) C216 ELECT C 157B-477M-5-LUI CE04W6.3V470M(SC) C217 C-CERA C 150D-104K-P-AC CK725B1C-104K1 C231 C-CERA C 15CH-152J-P-AC CC725CH1H-152J1 C401 ELECT C 157D-107M-5-IUI CE04W16V100M(SC) C402 ELECT C 157D-107M-5-IUI CE04W16V100M(SC) C405 ELECT C 157B-227M-5-IUI CE04W6.3V220M(SC) C406 ELECT C 157B-227M-5-IUI CE04W6.3V220M(SC) C407 TF C 153F-104J-K-MMN ECQ-V50V-104J C408 TF C 153F-104J-K-MMN ECQ-V50V-104J C409 ELECT C 157F-475M-5-IUI CE04W50V4.7M(SC) C410 TF C 153F-104J-K-MMN ECQ-V50V-104J C411 ELECT C 157D-226M-5-IUI CE04W16V22M(SC) C412 ELECT C 157D-226M-5-IUI CE04W16V22M(SC) C413 TF C 153F-221K-5-MMN ECQ-B50V-221K C414 TF C 153F-221K-5-MMN ECQ-B50V-221K C415 TF C 153F-221K-5-MMN ECQ-B50V-122J C416 TF C 153F-221K-5-MMN ECQ-B50V-122J C417 TF C 153F-272J-K-MMN ECQ-B50V-272J C418 TF C 153F-272J-K-MMN ECQ-B50V-272J C419 ELECT C 157F-226M-5-IUI CE04W50V22M(SC) C420 ELECT C 157F-226M-5-IUI CE04W50V22M(SC) C421 ELECT C 157D-477M-5-OVI CE04W16V470M(SC) C422 ELECT C 157D-477M-5-OVI CE04W16V470M(SC) C423 ELECT C 157F-105M-K-IUI CE04W50V1.0M(SC) C424 C-CERA C 150F-223Z-P-AC CK725F1H-223Z1 C425 ELECT C 157B-227M-5-IUI CE04W6.3V220M(SC) C426 C-CERA C 150D-104K-P-AC CK725B1C-104K1 C427 C-CERA C 150D-104K-P-AC CK725B1C-104K1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C428 C-CERA C 15CH-020C-P-AC CC725CH1H-020C1 C429 C-CERA C 15CH-020C-P-AC CC725CH1H-020C1 C430 C-CERA C 150D-104K-P-AC CK725B1C-104K1 C431 C-CERA C 15CH-220J-P-AC CC725CH1H-220J1 C432 ELECT C 157B-107M-K-IUI CE04W6.3V100M(SC) C433 C-CERA C 150D-104K-P-AC CK725B1C-104K1 C434 ELECT C 157D-106M-K-IUI CE04W16V10M(SC) C435 ELECT C 157D-106M-K-IUI CE04W16V10M(SC) C436 C-CERA C 150F-104K-P-AC CK725F1E-104Z1 C437 C-CERA C 15CH-330J-P-AC CC725CH1H-330J1 C438 C-CERA C 15CH-330J-P-AC CC725CH1H-330J1 C439 TF C 153F-102J-K-MMN ECQ-B50V-102J C440 TF C 153F-102J-K-MMN ECQ-B50V-102J C441 ELECT C 157D-476M-K-IUI CE04W16V47M(SC) C442 ELECT C 157F-105M-K-IUI CE04W50V1.0M(SC) C603 C-CERA C 150F-104K-P-AC CK725F1E-104Z1 C604 C-CERA C 150F-104K-P-AC CK725F1E-104Z1 C703 ELECT C 157D-107M-K-LII CE04W16V100M(SSK) C704 ELECT C 157D-107M-K-LII CE04W16V100M(SSK) C705 C-CERA C 150F-223Z-P-AC CK725F1H-223Z1 C706 C-CERA C 150F-223Z-P-AC CK725F1H-223Z1 C707 C-CERA C 150F-223Z-P-AC CK725F1H-223Z1 C711 ELECT C 157D-106M-K-GII CE04W16V10M(SSK) C712 C-CERA C 150F-104K-P-AC CK725F1E-104Z1 C713 ELECT C 157D-106M-K-GII CE04W16V10M(SSK) C714 C-CERA C 150F-104K-P-AC CK725F1E-104Z1 C715 ELECT C 157D-106M-K-GII CE04W16V10M(SSK) C716 C-CERA C 150F-104K-P-AC CK725F1E-104Z1 C717 ELECT C 157D-106M-K-GII CE04W16V10M(SSK) C718 C-CERA C 150F-104K-P-AC CK725F1E-104Z1 C719 ELECT C 157D-106M-K-GII CE04W16V10M(SSK) C720 C-CERA C 150F-104K-P-AC CK725F1E-104Z1 C721 ELECT C 157D-106M-K-GII CE04W16V10M(SSK) C722 C-CERA C 150F-104K-P-AC CK725F1E-104Z1 C728 C-CERA C 150F-104K-P-AC CK725F1E-104Z1 C729 ELECT C 157B-107M-K-LII CE04W6.3V100M(SSK) C731 ELECT C 157F-105M-5-GII CE04W50V1M(SSK) C732 C-CERA C 150F-104K-P-AC CK725F1E-104Z1 C733 C-CERA C 15CH-102J-P-AC CC725CH1H-102J1 C761 C-CERA C 150F-223Z-P-AC CK725F1H-223Z1 C762 C-CERA C 150F-104K-P-AC CK725F1E-104Z1 C764 C-CERA C 150F-223Z-P-AC CK725F1H-223Z1 C765 C-CERA C 150F-104K-P-AC CK725F1E-104Z1 C766 C-CERA C 150F-104K-P-AC CK725F1E-104Z1 C767 ELECT C 157D-107M-K-LII CE04W16V100M(SSK) C768 ELECT C 157B-107M-K-LII CE04W6.3V100M(SSK) C801 ELECT C 157D-106M-K-IUI CE04W16V10M(SC) C802 C-CERA C 150F-104K-P-AC CK725F1E-104Z1 C803 C-CERA C 150F-104K-P-AC CK725F1E-104Z1 C804 ELECT C 157B-107M-K-IUI CE04W6.3V100M(SC) C808 C-CERA C 150F-104K-P-AC CK725F1E-104Z1 C813 C-CERA C 150F-223Z-P-AC CK725F1H-223Z1 C815 C-CERA C 15CH-330J-P-AC CC725CH1H-330J1 C816 C-CERA C 15CH-330J-P-AC CC725CH1H-330J1 C817 C-CERA C 15CH-330J-P-AC CC725CH1H-330J1 C818 C-CERA C 15CH-330J-P-AC CC725CH1H-330J1 C819 C-CERA C 15CH-330J-P-AC CC725CH1H-330J1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C820 ELECT C 157F-225M-5-IUI CE04W50V2.2M(SC) C827 CERA C 150F-223Z-5-RE CK45F50V-223Z C828 CERA C 150F-223Z-5-RE CK45F50V-223Z C829 CERA C 150F-223Z-5-RE CK45F50V-223Z R129 C-CARBON R 4723-223J-P-R RN72K1J-223JE R2001 C-CARBON R 4723-000J-P-R RN72K1J-000JE R2002 C-CARBON R 4723-000J-P-R RN72K1J-000JE R2003 C-CARBON R 4723-000J-P-R RN72K1J-000JE R2004 C-CARBON R 4723-000J-P-R RN72K1J-000JE R2005 C-CARBON R 4723-000J-P-R RN72K1J-000JE R2006 C-CARBON R 4723-000J-P-R RN72K1J-000JE R2007 C-CARBON R 4723-000J-P-R RN72K1J-000JE R2008 C-CARBON R 4723-000J-P-R RN72K1J-000JE R2009 C-CARBON R 4723-000J-P-R RN72K1J-000JE R205 C-CARBON R 4723-102J-P-R RN72K1J-102JE R206 C-CARBON R 4723-472J-P-R RN72K1J-472JE R207 C-CARBON R 4723-472J-P-R RN72K1J-472JE R208 C-CARBON R 4723-102J-P-R RN72K1J-102JE R211 C-CARBON R 4723-102J-P-R RN72K1J-102JE R212 C-CARBON R 4723-000J-P-R RN72K1J-000JE R214 C-CARBON R 4723-102J-P-R RN72K1J-102JE R215 C-CARBON R 4723-750J-P-R RN72K1J-750JE R216 C-CARBON R 4723-000J-P-R RN72K1J-000JE R217 C-CARBON R 4723-103J-P-R RN72K1J-103JE R218 C-CARBON R 4723-750J-P-R RN72K1J-750JE R219 C-CARBON R 4723-000J-P-R RN72K1J-000JE R220 C-CARBON R 4723-750J-P-R RN72K1J-750JE R221 C-CARBON R 4723-000J-P-R RN72K1J-000JE R222 C-CARBON R 4723-000J-P-R RN72K1J-000JE R223 C-CARBON R 4723-750J-P-R RN72K1J-750JE R224 C-CARBON R 4723-000J-P-R RN72K1J-000JE R225 C-CARBON R 4723-000J-P-R RN72K1J-000JE R226 C-CARBON R 4723-750J-P-R RN72K1J-750JE R229 C-CARBON R 4723-000J-P-R RN72K1J-000JE R230 C-CARBON R 4723-000J-P-R RN72K1J-000JE R231 C-CARBON R 4723-750J-P-R RN72K1J-750JE R234 C-CARBON R 4723-000J-P-R RN72K1J-000JE R235 C-CARBON R 4723-101J-P-R RN72K1J-101JE R236 C-CARBON R 4723-101J-P-R RN72K1J-101JE R237 C-CARBON R 4723-103J-P-R RN72K1J-103JE R238 C-CARBON R 4723-103J-P-R RN72K1J-103JE R275 C-CARBON R 4723-103J-P-R RN72K1J-103JE R281 C-CARBON R 4723-221J-P-R RN72K1J-221JE R282 C-CARBON R 4723-2R2J-P-R RN72K1J-022JE R4001 C-CARBON R 4723-000J-P-R RN72K1J-000JE R4003 C-CARBON R 4723-000J-P-R RN72K1J-000JE R401 C-CARBON R 4723-101J-P-R RN72K1J-101JE R402 C-CARBON R 4723-101J-P-R RN72K1J-101JE R403 C-CARBON R 4723-101J-P-R RN72K1J-101JE R404 C-CARBON R 4723-101J-P-R RN72K1J-101JE R405 C-CARBON R 4723-101J-P-R RN72K1J-101JE R406 C-CARBON R 4723-101J-P-R RN72K1J-101JE R407 C-CARBON R 4723-101J-P-R RN72K1J-101JE R408 C-CARBON R 4723-101J-P-R RN72K1J-101JE R409 C-CARBON R 4723-101J-P-R RN72K1J-101JE R411 C-CARBON R 4723-222J-P-R RN72K1J-222JE R412 C-CARBON R 4723-222J-P-R RN72K1J-222JE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com R413 C-CARBON R 4723-153J-P-R RN72K1J-153JE R414 C-CARBON R 4723-153J-P-R RN72K1J-153JE R415 C-CARBON R 4723-104J-P-R RN72K1J-104JE R416 C-CARBON R 4723-104J-P-R RN72K1J-104JE R417 C-CARBON R 4723-103J-P-R RN72K1J-103JE R418 C-CARBON R 4723-103J-P-R RN72K1J-103JE R419 C-CARBON R 4723-333J-P-R RN72K1J-333JE R420 C-CARBON R 4723-333J-P-R RN72K1J-333JE R421 C-CARBON R 4723-103J-P-R RN72K1J-103JE R422 C-CARBON R 4723-103J-P-R RN72K1J-103JE R423 C-CARBON R 4723-103J-P-R RN72K1J-103JE R424 C-CARBON R 4723-103J-P-R RN72K1J-103JE R425 C-CARBON R 4723-152J-P-R RN72K1J-152JE R426 C-CARBON R 4723-152J-P-R RN72K1J-152JE R427 C-CARBON R 4723-223J-P-R RN72K1J-223JE R428 C-CARBON R 4723-223J-P-R RN72K1J-223JE R430 C-CARBON R 4723-223J-P-R RN72K1J-223JE R431 C-CARBON R 4723-223J-P-R RN72K1J-223JE R432 C-CARBON R 4723-223J-P-R RN72K1J-223JE R433 C-CARBON R 4723-223J-P-R RN72K1J-223JE R434 C-CARBON R 4723-223J-P-R RN72K1J-223JE R435 C-CARBON R 4723-152J-P-R RN72K1J-152JE R436 C-CARBON R 4723-152J-P-R RN72K1J-152JE R437 C-CARBON R 4723-152J-P-R RN72K1J-152JE R438 C-CARBON R 4723-152J-P-R RN72K1J-152JE R439 C-CARBON R 4723-103J-P-R RN72K1J-103JE R440 C-CARBON R 4723-103J-P-R RN72K1J-103JE R441 C-CARBON R 4723-103J-P-R RN72K1J-103JE R442 C-CARBON R 4723-103J-P-R RN72K1J-103JE R443 C-CARBON R 4723-000J-P-R RN72K1J-000JE R444 C-CARBON R 4723-000J-P-R RN72K1J-000JE R445 C-CARBON R 4723-104J-P-R RN72K1J-104JE R446 C-CARBON R 4723-104J-P-R RN72K1J-104JE R447 C-CARBON R 4723-221J-P-R RN72K1J-221JE R448 C-CARBON R 4723-221J-P-R RN72K1J-221JE R449 C-CARBON R 4723-221J-P-R RN72K1J-221JE R450 C-CARBON R 4723-221J-P-R RN72K1J-221JE R451 C-CARBON R 4723-222J-P-R RN72K1J-222JE R452 C-CARBON R 4723-222J-P-R RN72K1J-222JE R453 C-CARBON R 4723-222J-P-R RN72K1J-222JE R454 C-CARBON R 4723-222J-P-R RN72K1J-222JE R455 METAL O R 4717-151J-5-X RS1/2WBJ-150 R456 METAL O R 4717-151J-5-X RS1/2WBJ-150 R457 C-CARBON R 4723-472J-P-R RN72K1J-472JE R458 C-CARBON R 4723-332J-P-R RN72K1J-332JE R459 C-CARBON R 4723-105J-P-R RN72K1J-105JE R460 C-CARBON R 4723-101J-P-R RN72K1J-101JE R461 C-CARBON R 4723-101J-P-R RN72K1J-101JE R462 C-CARBON R 4723-104J-P-R RN72K1J-104JE R463 C-CARBON R 4723-474J-P-R RN72K1J-474JE R464 C-CARBON R 4723-104J-P-R RN72K1J-104JE R465 C-CARBON R 4723-101J-P-R RN72K1J-101JE R466 C-CARBON R 4723-331J-P-R RN72K1J-331JE R467 C-CARBON R 4723-181J-P-R RN72K1J-181JE R468 C-CARBON R 4723-181J-P-R RN72K1J-181JE R471 METAL O R 4717-101J-5-X RS1/2WBJ-100 R474 C-CARBON R 4723-103J-P-R RN72K1J-103JE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com R476 C-CARBON R 4723-473J-P-R RN72K1J-473JE R477 C-CARBON R 4723-222J-P-R RN72K1J-222JE R480 C-CARBON R 4723-392J-P-R RN72K1J-392JE R481 C-CARBON R 4723-123J-P-R RN72K1J-123JE R482 C-CARBON R 4723-273J-P-R RN72K1J-273JE R7001 C-CARBON R 4723-000J-P-R RN72K1J-000JE R701 C-CARBON R 4723-822J-P-R RN72K1J-822JE R702 C-CARBON R 4723-332J-P-R RN72K1J-332JE R703 C-CARBON R 4723-105J-P-R RN72K1J-105JE R704 C-CARBON R 4723-103J-P-R RN72K1J-103JE R705 C-CARBON R 4723-822J-P-R RN72K1J-822JE R706 C-CARBON R 4723-562J-P-R RN72K1J-562JE R707 C-CARBON R 4723-105J-P-R RN72K1J-105JE R708 C-CARBON R 4723-103J-P-R RN72K1J-103JE R709 NF CARBON R 4705-4R7J-K-P R25J-4.7 R710 C-CARBON R 4723-222J-P-R RN72K1J-222JE R711 C-CARBON R 4723-104J-P-R RN72K1J-104JE R712 C-CARBON R 4723-104J-P-R RN72K1J-104JE R713 C-CARBON R 4723-104J-P-R RN72K1J-104JE R714 C-CARBON R 4723-104J-P-R RN72K1J-104JE R715 NF CARBON R 4705-4R7J-K-P R25J-4.7 R716 C-CARBON R 4723-682J-P-R RN72K1J-682JE R717 C-CARBON R 4723-103J-P-R RN72K1J-103JE R718 C-CARBON R 4723-472J-P-R RN72K1J-472JE R719 C-CARBON R 4723-562J-P-R RN72K1J-562JE R720 C-CARBON R 4723-222J-P-R RN72K1J-222JE R721 C-CARBON R 4723-103J-P-R RN72K1J-103JE R722 C-CARBON R 4723-103J-P-R RN72K1J-103JE R723 C-CARBON R 4723-103J-P-R RN72K1J-103JE R724 C-CARBON R 4723-224J-P-R RN72K1J-224JE R725 C-CARBON R 4723-223J-P-R RN72K1J-223JE R726 C-CARBON R 4723-223J-P-R RN72K1J-223JE R731 C-CARBON R 4723-272J-P-R RN72K1J-272JE R732 C-CARBON R 4723-101J-P-R RN72K1J-101JE R733 C-CARBON R 4723-272J-P-R RN72K1J-272JE R734 C-CARBON R 4723-101J-P-R RN72K1J-101JE R735 C-CARBON R 4723-101J-P-R RN72K1J-101JE R736 C-CARBON R 4723-101J-P-R RN72K1J-101JE R737 C-CARBON R 4723-101J-P-R RN72K1J-101JE R738 C-CARBON R 4723-272J-P-R RN72K1J-272JE R739 C-CARBON R 4723-101J-P-R RN72K1J-101JE R740 C-CARBON R 4723-272J-P-R RN72K1J-272JE R741 C-CARBON R 4723-101J-P-R RN72K1J-101JE R742 C-CARBON R 4723-101J-P-R RN72K1J-101JE R743 C-CARBON R 4723-101J-P-R RN72K1J-101JE R744 C-CARBON R 4723-101J-P-R RN72K1J-101JE R745 C-CARBON R 4723-101J-P-R RN72K1J-101JE R746 C-CARBON R 4723-101J-P-R RN72K1J-101JE R747 C-CARBON R 4723-100J-P-R RN72K1J-100JE R748 C-CARBON R 4723-473J-P-R RN72K1J-473JE R749 C-CARBON R 4723-471J-P-R RN72K1J-471JE R750 C-CARBON R 4723-224J-P-R RN72K1J-224JE R751 C-CARBON R 4723-472J-P-R RN72K1J-472JE R752 C-CARBON R 4723-102J-P-R RN72K1J-102JE R754 C-CARBON R 4723-272J-P-R RN72K1J-272JE R756 C-CARBON R 4723-272J-P-R RN72K1J-272JE R757 C-CARBON R 4723-000J-P-R RN72K1J-000JE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com R758 C-CARBON R 4723-272J-P-R RN72K1J-272JE R761 C-CARBON R 4723-181J-P-R RN72K1J-181JE R762 C-CARBON R 4723-154J-P-R RN72K1J-154JE R763 C-CARBON R 4723-391J-P-R RN72K1J-391JE R764 C-CARBON R 4723-474J-P-R RN72K1J-474JE R765 C-CARBON R 4723-274J-P-R RN72K1J-274JE R766 C-CARBON R 4723-472J-P-R RN72K1J-472JE R767 C-CARBON R 4723-103J-P-R RN72K1J-103JE R768 C-CARBON R 4723-222J-P-R RN72K1J-222JE R771 C-CARBON R 4723-103J-P-R RN72K1J-103JE R781 C-CARBON R 4723-000J-P-R RN72K1J-000JE R782 C-CARBON R 4723-000J-P-R RN72K1J-000JE R783 C-CARBON R 4723-000J-P-R RN72K1J-000JE R784 C-CARBON R 4723-000J-P-R RN72K1J-000JE R786 C-CARBON R 4723-000J-P-R RN72K1J-000JE R791 C-CARBON R 4723-000J-P-R RN72K1J-000JE R792 C-CARBON R 4723-000J-P-R RN72K1J-000JE R801 C-CARBON R 4723-391J-P-R RN72K1J-391JE R802 C-CARBON R 4723-471J-P-R RN72K1J-471JE R803 C-CARBON R 4723-821J-P-R RN72K1J-821JE R804 C-CARBON R 4723-102J-P-R RN72K1J-102JE R805 C-CARBON R 4723-182J-P-R RN72K1J-182JE R806 C-CARBON R 4723-392J-P-R RN72K1J-392JE R807 C-CARBON R 4723-103J-P-R RN72K1J-103JE R808 C-CARBON R 4723-391J-P-R RN72K1J-391JE R809 C-CARBON R 4723-471J-P-R RN72K1J-471JE R810 C-CARBON R 4723-821J-P-R RN72K1J-821JE R811 C-CARBON R 4723-102J-P-R RN72K1J-102JE R812 C-CARBON R 4723-182J-P-R RN72K1J-182JE R813 C-CARBON R 4723-391J-P-R RN72K1J-391JE R814 C-CARBON R 4723-471J-P-R RN72K1J-471JE R815 C-CARBON R 4723-821J-P-R RN72K1J-821JE R816 C-CARBON R 4723-102J-P-R RN72K1J-102JE R821 C-CARBON R 4723-000J-P-R RN72K1J-000JE R822 C-CARBON R 4723-272J-P-R RN72K1J-272JE R823 C-CARBON R 4723-272J-P-R RN72K1J-272JE R824 C-CARBON R 4723-272J-P-R RN72K1J-272JE R825 C-CARBON R 4723-272J-P-R RN72K1J-272JE R826 C-CARBON R 4723-101J-P-R RN72K1J-101JE R827 C-CARBON R 4723-101J-P-R RN72K1J-101JE R828 C-CARBON R 4723-471J-P-R RN72K1J-471JE R831 C-CARBON R 4723-272J-P-R RN72K1J-272JE R832 C-CARBON R 4723-272J-P-R RN72K1J-272JE R833 C-CARBON R 4723-272J-P-R RN72K1J-272JE R834 C-CARBON R 4723-272J-P-R RN72K1J-272JE R835 C-CARBON R 4723-104J-P-R RN72K1J-104JE R836 C-CARBON R 4723-104J-P-R RN72K1J-104JE R837 C-CARBON R 4723-104J-P-R RN72K1J-104JE R838 C-CARBON R 4723-104J-P-R RN72K1J-104JE R841 C-CARBON R 4723-471J-P-R RN72K1J-471JE R842 C-CARBON R 4723-471J-P-R RN72K1J-471JE R843 C-CARBON R 4723-471J-P-R RN72K1J-471JE R844 C-CARBON R 4723-471J-P-R RN72K1J-471JE R845 C-CARBON R 4723-471J-P-R RN72K1J-471JE R846 METAL O R 4717-4R7J-1 RS1/2WBJ-4.7 R847 C-CARBON R 4723-391J-P-R RN72K1J-391JE R848 C-CARBON R 4723-151J-P-R RN72K1J-151JE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com R849 C-CARBON R 4723-391J-P-R RN72K1J-391JE R850 C-CARBON R 4723-151J-P-R RN72K1J-151JE R856 C-CARBON R 4723-273J-P-R RN72K1J-273JE E201 WS CLAMP 6360-9650-0 CP-1S P2001A SOCKET 2101-1440-0 NSCT-14P2405 P2001A or SOCKET 2101-1542-0 NSCT-14P2211 P201 PIN JACK 2113-2017-0 NPJ-3PDGLR511 P202A PIN JACK 2113-2018-0 NPJ-5PDBY456 P2401A SOCKET 2101-1441-0 NSCT-15P2433 P2401A or SOCKET 2101-1543-0 NSCT-15P2249 P2501B PLUG 2101-3005-0 2003P0700T PH SIDE P2901B PLUG 2101-3006-0 2003P0600T PH SIDE P401 PIN JACK 2113-2020-0 NPJ-2PDRW435 P402 PIN JACK 2113-2021-0 NPJ-1PDOR369 P403 PLUG 2101-1416-0 NPLG-2P116 P403A SOCKET AS 7012-6551-0 NSAS-4P1100 P602 PIN JACK 2113-2022-0 NPJ-2PDB400 P701A SOCKET AS 7012-6540-0 NSAS-6P1140 P701B PLUG 2101-1415-0 NPLG-3P941 AMP SIDE P702A PLUG 2101-1418-0 NPLG-11P431 P702B PLUG 2101-1418-0 NPLG-11P431 P704 PLUG 2101-1417-0 NPLG-11P949 P704A SOCKET AS 7012-6542-0 NSAS-22P1126 P707A SOCKET 2101-1421-0 NSCT-6P2099 P707Aor SOCKET 2101-1538-0 NSCT-6P1600 P707Aor SOCKET 2101-1540-0 NSCT-6P1802 P707B SOCKET 2101-1422-0 NSCT-6P2136 P707Bor SOCKET 2101-1541-0 NSCT-6P1839 P707Bor SOCKET 2101-1539-0 NSCT-6P1637 P708A PLUG 2101-1451-0 NPLG-2P940 P708B SOCKET AS 7012-6554-0 NSAS-4P1138 P709A PLUG 2101-1424-0 NPLG-2P422 P709B SOCKET AS 7012-6545-0 NSAS-4P1127 P802A SOCKET AS 7012-6546-0 NSAS-8P1118 P804A PLUG 2101-1425-0 NPLG-5P425 AMP TOP P804B SOCKET AS 7012-6547-0 NSAS-10P1119 P805A PLUG 2101-1426-0 NPLG-4P424 AMP TOP P805B SOCKET AS 7012-6548-0 NSAS-8P1120 P806A SOCKET AS 7012-6552-0 NSAS-6P1137 S701 PUSH SW 5200-4862-0-01 NPS-111-S679 S702 PUSH SW 5200-4862-0-01 NPS-111-S679 S703 PUSH SW 5200-4862-0-01 NPS-111-S679 S801 PUSH SW 5200-4861-0-01 NPS-111-S681 S802 PUSH SW 5200-4861-0-01 NPS-111-S681 S803 PUSH SW 5200-4861-0-01 NPS-111-S681 S804 PUSH SW 5200-4861-0-01 NPS-111-S681 S805 PUSH SW 5200-4861-0-01 NPS-111-S681 S806 PUSH SW 5200-4861-0-01 NPS-111-S681 S807 PUSH SW 5200-4861-0-01 NPS-111-S681 S808 PUSH SW 5200-4861-0-01 NPS-111-S681 S809 PUSH SW 5200-4861-0-01 NPS-111-S681 S810 PUSH SW 5200-4861-0-01 NPS-111-S681 S811 PUSH SW 5200-4861-0-01 NPS-111-S681 S812 PUSH SW 5200-4861-0-01 NPS-111-S681 S813 PUSH SW 5200-4861-0-01 NPS-111-S681 S814 PUSH SW 5200-4861-0-01 NPS-111-S681 S815 PUSH SW 5200-4861-0-01 NPS-111-S681 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com S816 PUSH SW 5200-4861-0-01 NPS-111-S681 S817 PUSH SW 5200-4861-0-01 NPS-111-S681 S818 PUSH SW 5200-4861-0-01 NPS-111-S681 S819 PUSH SW 5200-4861-0-01 NPS-111-S681 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVD MECHANISM SECTION PARTS LIST NO. PART NAME PART NO. DESCRIPTION REMARK N Q'TY M1 RAIL 4154-6031-2 1 M2 Loading motor assy Q0090C-MOTCC (M2)+(M3) 1 (M2) MOTOR 8913-6002-1 CCM07B-045R1-1A NSP 1 (M3) PULLEY 4154-6001-0 M2*1 NSP 1 M4 SCREW 2900-2604-0000 2.6TTP+4S M1*2 2 M5 TAPE 9500-9006-0 CLOTH-8U 0.03MT 1 M6 RBR BELT 4157-0281-0 DVCP701 1 M7 GEAR 4154-6061-0 (PULLEY) 1 M8 GEAR 4154-6091-0 (A) 1 M9 GEAR 4154-6071-0 (MAIN) 1 M10 GEAR 4154-6101-0 (CAM) 1 M11 SCREW 4135-3301-0 SCREW M7*1,M9*1,M10*1 3 M12 DVD M 24801016 KHM-280AAA 1 M13 CHASSIS 4154-6041-1 (SUB) 1 M14 INSULATOR 4154-6141-0 (A) 2 M15 INSULATOR 4157-0261-0 (B) 2 M16 SCREW 4135-3301-0 SCREW M14*2,M15*2 4 M17 CAP 4154-6161-0 (CHC) 1 M18 YOKE 4135-3201-1 (CHB) 1 M19 MAGNET 4135-3211-0 (CHB) 1 M20 SCREW 2854-3008-0000 3TTB+8B PCB*6 6 M22 TAPE 9500-9007-0 TAPE(CLOTH-16U) M1:0.07:MT 1 M23 SPRING 2510-3591-0 (DV-CP701) 1 M30 TRAY 4154-6011-5 1 M31 BRACKET AS 8901-4650-1 (M) 1 M32 Roulette motor assy Q0090C-MOTPW (M32)+(M33)+(M42) 1 (M32) MOTOR 8913-6003-0 PWN10EA02D NSP 1 (M33) GEAR 4154-6081-0 (WORM) M32*1 NSP 1 (M42) WASHER 4155-0171-0 0.5t*2.1*6 M32*2 NSP 2 M34 SCREW 2900-2003-0000 2P+3F(BC) M31*2 2 M35 GEAR 4154-5991-0 (WHEEL) 1 M36 WASHER 4154-4491-0 (B) M35*1 1 M37 SCREW 2854-3008-0000 3TTB+8B M31*2,PCB*1 3 M38 ROLLER 4154-6131-0 DVCP701 M30*4 4 M39 ROULETTE 4154-6021-1 1 M40 SCREW 4135-3301-0 SCREW M30*1 1 M41 TAPE 9500-9006-0 CLOTH-8U M30:0.03:MT 1 M50 ARM 4154-6051-0 1 M51 CUSHION 4157-0532-0 M50*1,M52*1 2 M52 RETAINER 4135-3881-0 1 M53 SCREW 2854-3008-0000 3TTB+8B M52*1 1 M54 CUSHION 4157-0591-0 M1*2 2 ! : Safety part : Black color model : Silver color model : North American area : Australian area Parts marked by "NSP" are genrally unavailable because they are not in our Master Spare Parts List. DV-CP702 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com EXPLODED VIEW PARTS LIST NO. PART NAME PART NO. DESCRIPTION REMARK N A1 F PANEL 1466-1803-0 N A1 F PANEL 1466-1804-0 A2 KNOB 2446-3901-0 (STBY) A2 KNOB 2446-3701-0 (STBY) A3 KNOB 2446-4101-0 (SEL) A3 KNOB 2446-3801-0 (SEL) A4 KNOB 2446-4601-0 (EJ) A4 KNOB 2446-4401-0 (EJ) A5 KNOB 2446-4301-0 (PLAY) A5 KNOB 2446-4001-0 (PLAY) A6 KNOB 2446-4501-0 (DIS) A6 KNOB 2446-4201-0 (DIS) A7 RETAINER 4135-3701-0 (BDG) A8 BADGE 4154-6151-0 BADGE A8 BADGE 4154-6211-0 BADGE A12 CLEAR PLT 3717-1011-0 N A12 CLEAR PLT 3717-1110-0 A13 FACET 3716-8306-0 (LIGHT) A14 FACET 3716-8511-0 (S) A15 DF TAPE 9500-0400-0 W2 0.008MT A16 TAPE 9500-9006-0 CLOTH-8U 0.05MT A18 BRACKET 4135-3181-1 (F) A19 SCREW 2954-2608-3000 2.6TTB+8B(BC) A21 ISO PLT 4154-6191-0 A22 P RIVET 4154-5341-0-V P-3055B-8L A25 SCREW 2854-3008-0000 3TTB+8B A26 SCREW 2950-3008-3010 3TTW+8B(BC) A001x1 A30 CHASSIS 1404-7621-2 A31 HOLDER 4154-5291-0 KGLS-10RT A32 WS CLAMP 6360-9640-0 CLAMP WS-2W A33 RETAINER 4135-3191-0 (R) A41 LEG 4154-6171-0 LEG A42 CUSHION 4157-0311-0 A46 CUSHION 4149-0401-0 A48 BUSHING ! 4152-3851-0 S-RELIEF #2271 A50 DOOR 4154-6121-2 (TRAY) A50 DOOR 4154-6122-2 (TRAY) A53 REAR PANEL 1404-7501-0 N A53 REAR PANEL 1404-7503-0 N A54 SCREW 2954-3008-3000 3TTB+8B(BC) A053x11 A56 LABEL(DVD2) 3000-9443-0 A214 COVER 1404-7401-0 A214 COVER 1404-7402-0 A215 SCREW 2954-3008-3000 3TTB+8B(BC) A214(6) A215 SCREW 4135-3311-0 3TTB+8B(UN) A214(6) A216 SHEET 3000-9632-0 (S) A217 TAPE 9500-9006-0 CLOTH-8U 0.42MT E102 WIRE TIE 6360-1371-0 E821 CORE 1808-0740-0 GM8T25*15*10 F1 FUSE ! 5120-0130-0 1.6A-UL/T-237 F1 or FUSE ! 5120-1000-0 1.6A-T/UL-ST2 F1 FUSE ! 5120-0094-0 2.5A-SE-EAK FUSE F1 or FUSE ! 5120-1010-0 2.5A-SE-TL250V P1001 FFC 7012-6553-0 NCFCD-26003 P1101 SOCKET AS 7012-6524-0 NSAS-12P0960 P2001 FFC 7012-6525-0 NCFC5-141522 P2401 FFC 7012-6526-0 NCFC5-152022 P2501 SOCKET AS 7012-6795-0 001-0206-H KR-KR P2901 SOCKET AS 7012-6528-0 001-0486-H PH-PH P702 SOCKET AS 7012-6521-0 NSAS-22P1141 P707 FFC 7012-6522-0 NCFC6-063012 P901 AC CORD ! 7012-6533-1 AS-UC-2 P901 or AC CORD ! 7012-6781-0 AS-UC-2 P901 or AC CORD ! 7012-6774-0 AS-UC-2 P901 AC CORD ! 7012-6564-0 AS-SAA P901 or AC CORD ! 7012-6773-0 AS-SAA P901 or AC CORD ! 7012-6564-0 AS-SAA DV-CP702 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com U1 DVD Main circuit PC board assy PCB-Q0090C-MPEGA NADG-7807-1A U1 DVD Main circuit PC board assy PCB-Q0090C-MPEGB NADG-7807-1A U2 Display circuit PC board assy PCB-Q0150C-MAINA NADIS-7808-1A NSP U2 Display circuit PC board assy PCB-Q0150C-MAINB NADIS-7808-1B NSP (U3) Front disp. PC board assy 1H498508-1A NADIS-7808-1A (U3) Front disp. PC board assy 1H498508-1B NADIS-7808-1B (U4) Mecha. Control PC board assy 1H498509-1A NADG-7809-1A (U4) Mecha. Control PC board assy 1H498509-1B NADG-7809-1B (U5) Video output terminal PC board assy 1H498510-1A NAVD-7810-1A (U5) Video output terminal PC board assy 1H498510-1B NAVD-7810-1B (U6) Audio output terminal PC board assy 1H498511-1A NAAF-7811-1A (U6) Audio output terminal PC board assy 1H498511-1B NAAF-7811-1B (U7) Disc select switch PC board assy 1H498512-1A NASW-7812-1A (U7) Disc select switch PC board assy 1H498512-1B NASW-7812-1B (U8) Key operation PC board assy 1H498513-1A NASW-7813-1A (U8) Key operation PC board assy 1H498513-1B NASW-7813-1B (U9) Standby switch PC board assy 1H498514-1A NASW-7814-1A (U9) Standby switch PC board assy 1H498514-1B NASW-7814-1B (U10) LED display PC board assy 1H498515-1A NADIS-7815-1A (U10) LED display PC board assy 1H498515-1B NADIS-7815-1B (U11) Roulette motor PC board assy 1H498516-1A NAETC-7816-1A (U11) Roulette motor PC board assy 1H498516-1B NAETC-7816-1B (U12) Loading motor PC board assy 1H498517-1A NAETC-7817-1A (U12) Loading motor PC board assy 1H498517-1B NAETC-7817-1B (U13) Disc sensor PC board assy 1H498518-1A NAETC-7818-1A (U13) Disc sensor PC board assy 1H498518-1B NAETC-7818-1B U30 Power supply unit ! 8910-0740-0 NGPS-0036-100-120V U30 Power supply unit ! 8910-0750-0 NGPS-0037-100-240V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PACKING PARTS LIST NO. PART NAME PART NO. (GPE) DESCRIPTION REMARK N A603a PAD 1490-4401-0 (L) N A603b PAD 1490-4411-0 (R) N A604 SHEET 4154-6221-0 (DR) A606 BAG 1497-7542-0 A608 TAPE 9500-9012-0 (SEROHAN)NITTO NO.29 00.3MT A610 PP TAPE 9500-0070-0 W48 OPP TAPE 1.5MT A651 UPC LABEL 3001-0077-0 N A651 EAN LABEL 3001-0078-0 N A651 UPC LABEL 3001-0079-0 N A651 EAN LABEL 3001-0110-0 N A652 WRNTY CARD 3050-2491-1 A653 INST SHEET 3050-2521-0 A655 CARTON 1436-2906-0-1 N A655 CARTON 1436-2908-0-1 N A655 CARTON 1436-2907-0-1 N A655 CARTON 1436-2907-0-1 N A656 LABEL 3001-0102-0 (RE) N A660 POLY BAG 1497-7382-0 350*250 AC CORD A701 POLY BAG 1497-7382-0 350*250 E801 PIN CORD AS 7012-6531-0 RCA3P(YWR) E801 or PIN CORD AS 7012-6531-0 RCA-3P(YWR) E802 BATTERY 4060-0930-0 R6/AA(UM-3) E802 or BATTERY 4060-0930-0 R6/AA(UM-3) E803 PLUG CORD 7012-6539-0 3.5-MINI PLUG (RI) E804 CORD AS 7012-6532-0 (S CORD) E805 REMO CON 8912-0036-0 RC-542DV E810 INS MANUAL 4301-7123-0 En(DVCP702) E811 CORD AS 7012-6694-0 RCA-1P(O) ! : Safety part : Black color model : Silver color model : North American area : Australian area Parts marked by "NSP" are genrally unavailable because they are not in our Master Spare Parts List. DV-CP702 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DV-CP702 ONKYO U.S.A. CORPORATION 18 Park Way, Upper Saddle River, N.J. 07458, U.S.A. Tel: 201-785-2600 Fax: 201-785-2650 http://www.onkyousa.com ONKYO EUROPE ELECTRONICS GmbH Liegnitzerstrasse 6, 82194 Groebenzell, GERMANY Tel: +49-8142-4401-0 Fax: +49-8142-4401-555 http://www.onkyo.net ONKYO CHINA LIMITED Units 2102-2107, Metroplaza Tower I, 223 Hing Fong Road, Kwai Chung, N.T., HONG KONG Tel: 852-2429-3118 Fax: 852-2428-9039 Sales & Product Planning Div. : 2-1, Nisshin-cho, Neyagawa-shi, OSAKA 572-8540, JAPAN Tel: 072-831-8023 Fax: 072-831-8124 ONKYO CORPORATION http://www.onkyo.com/ HOMEPAGE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
