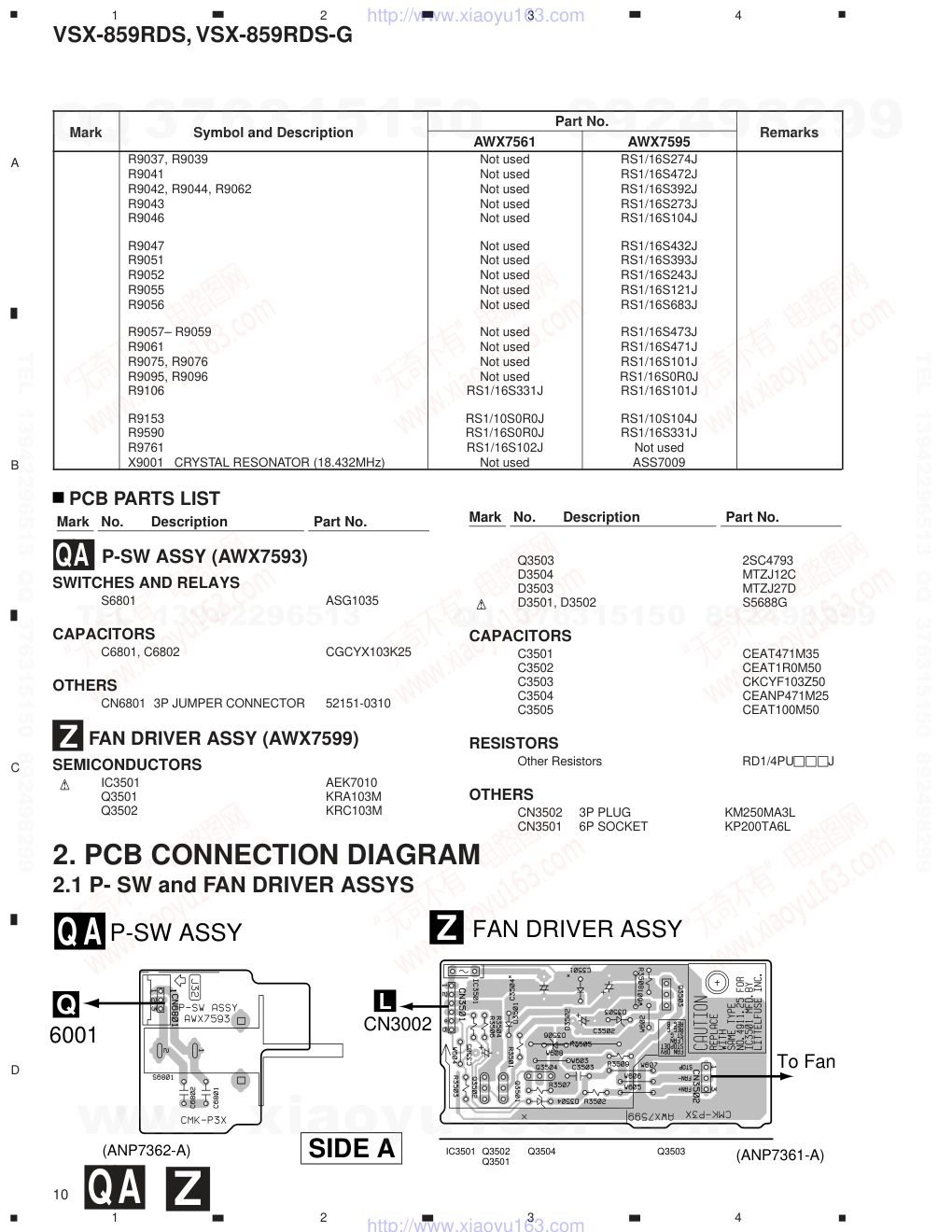

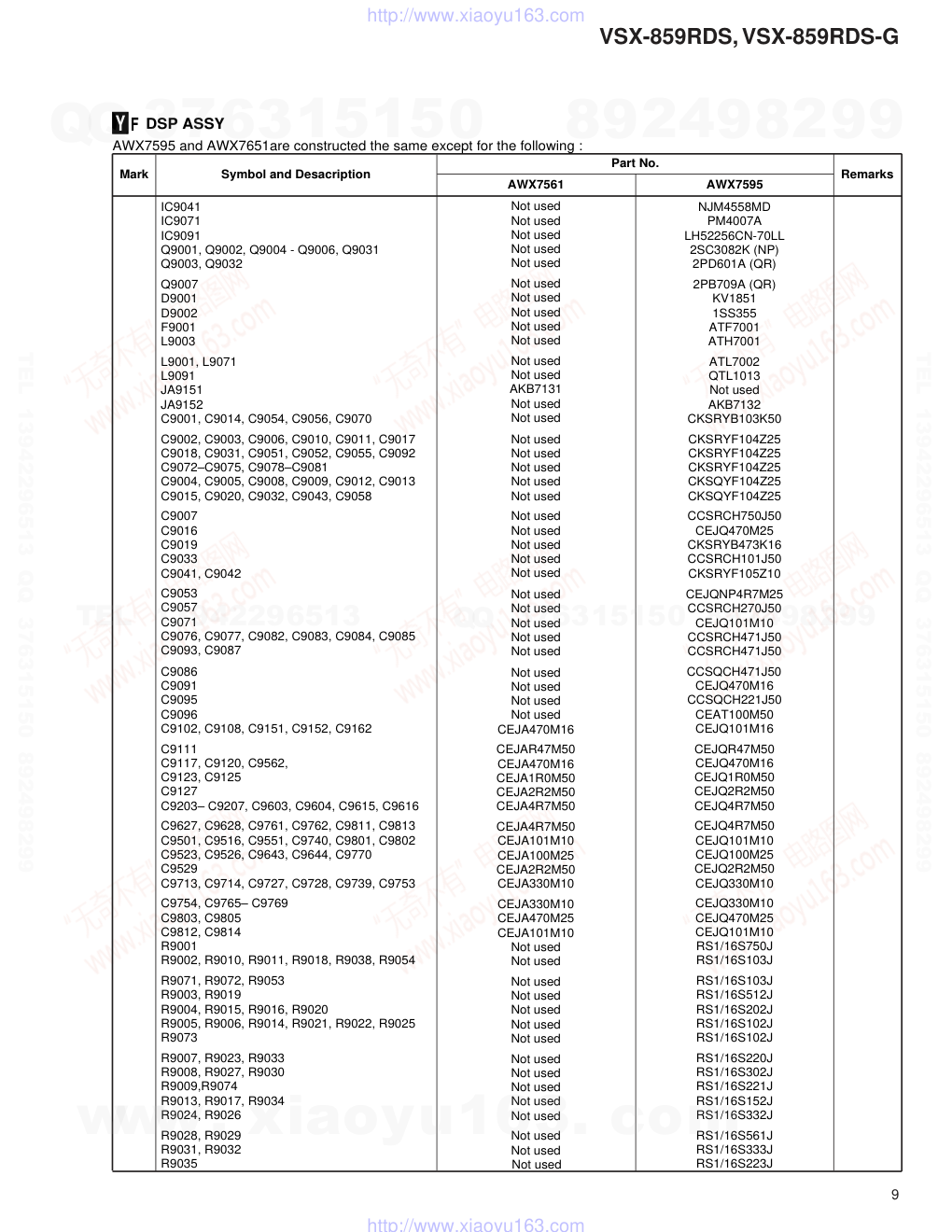

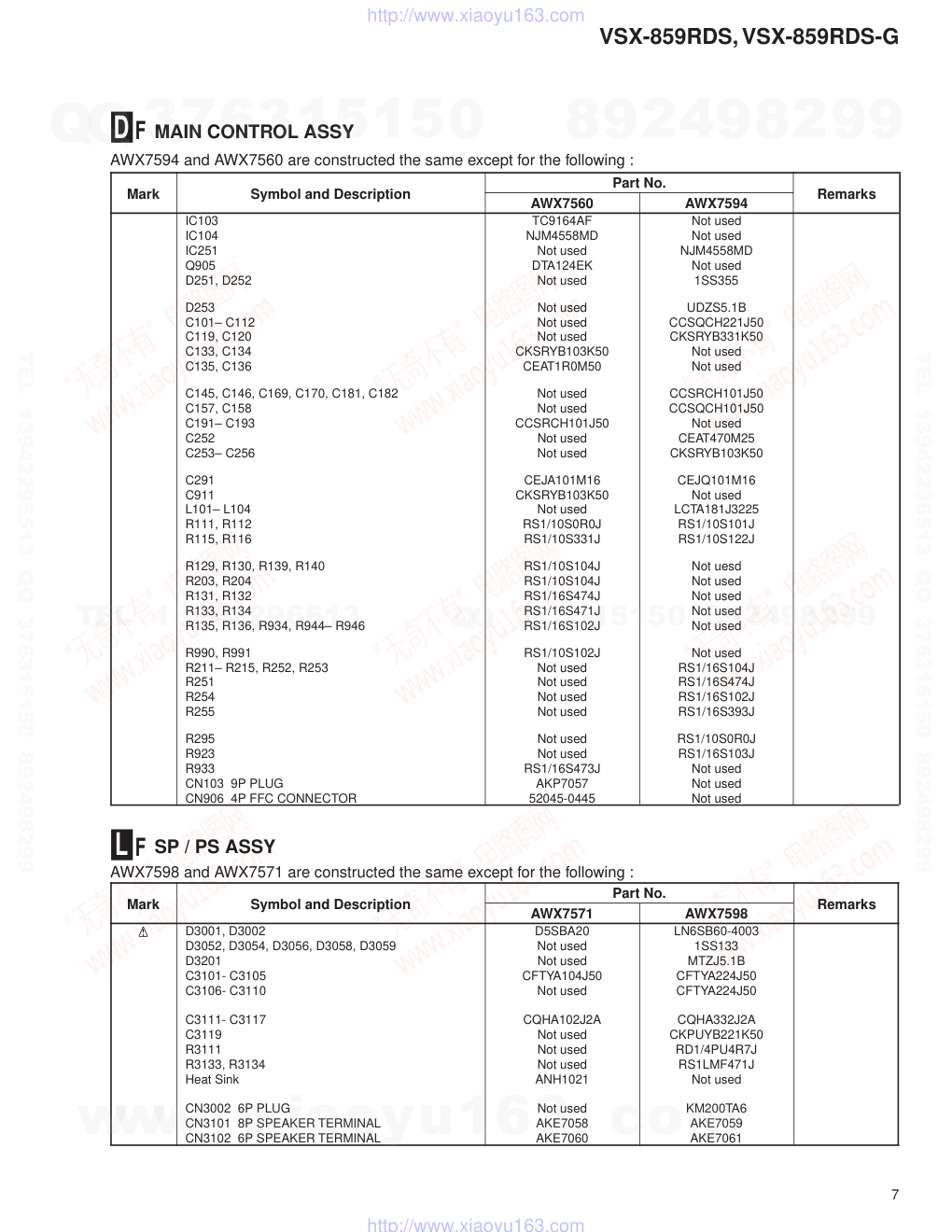

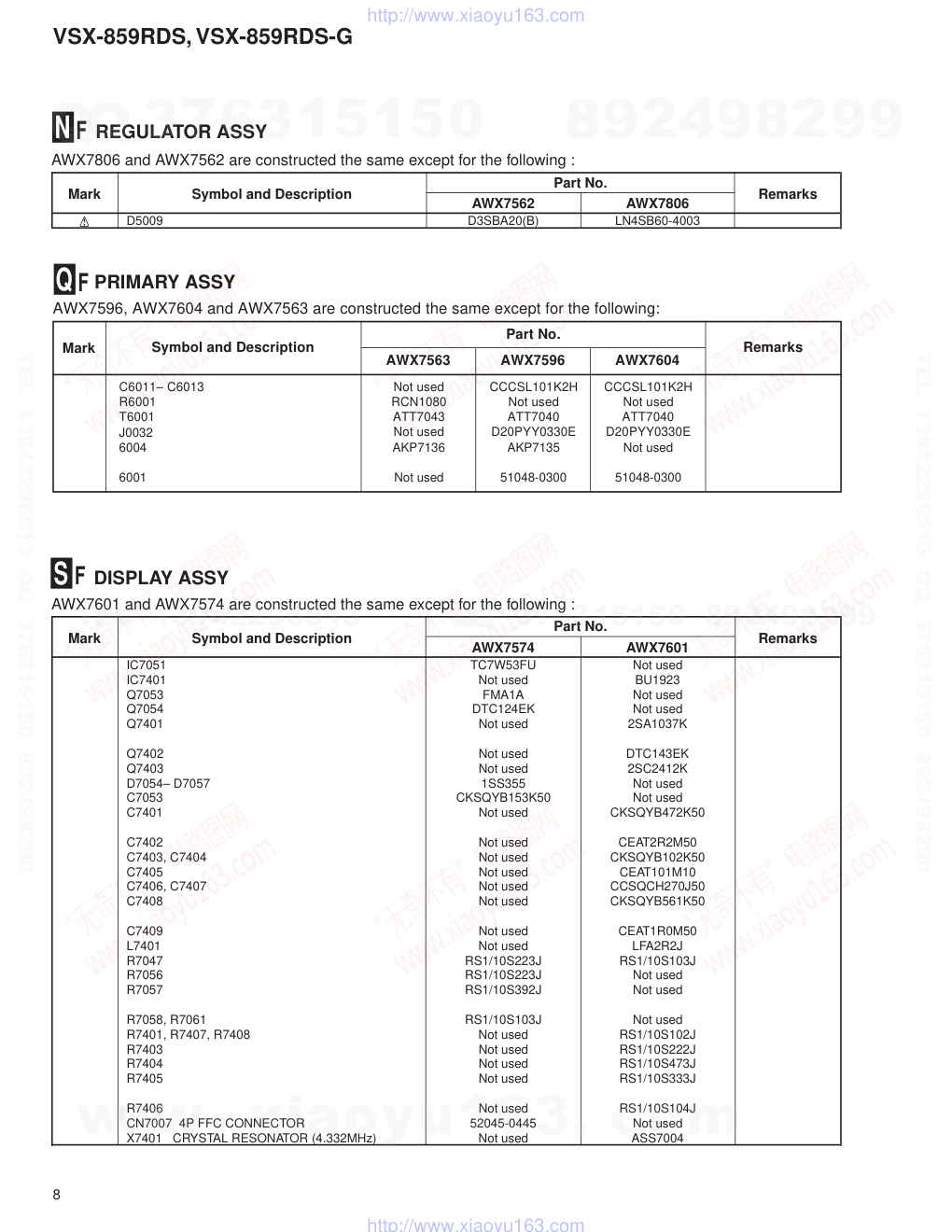

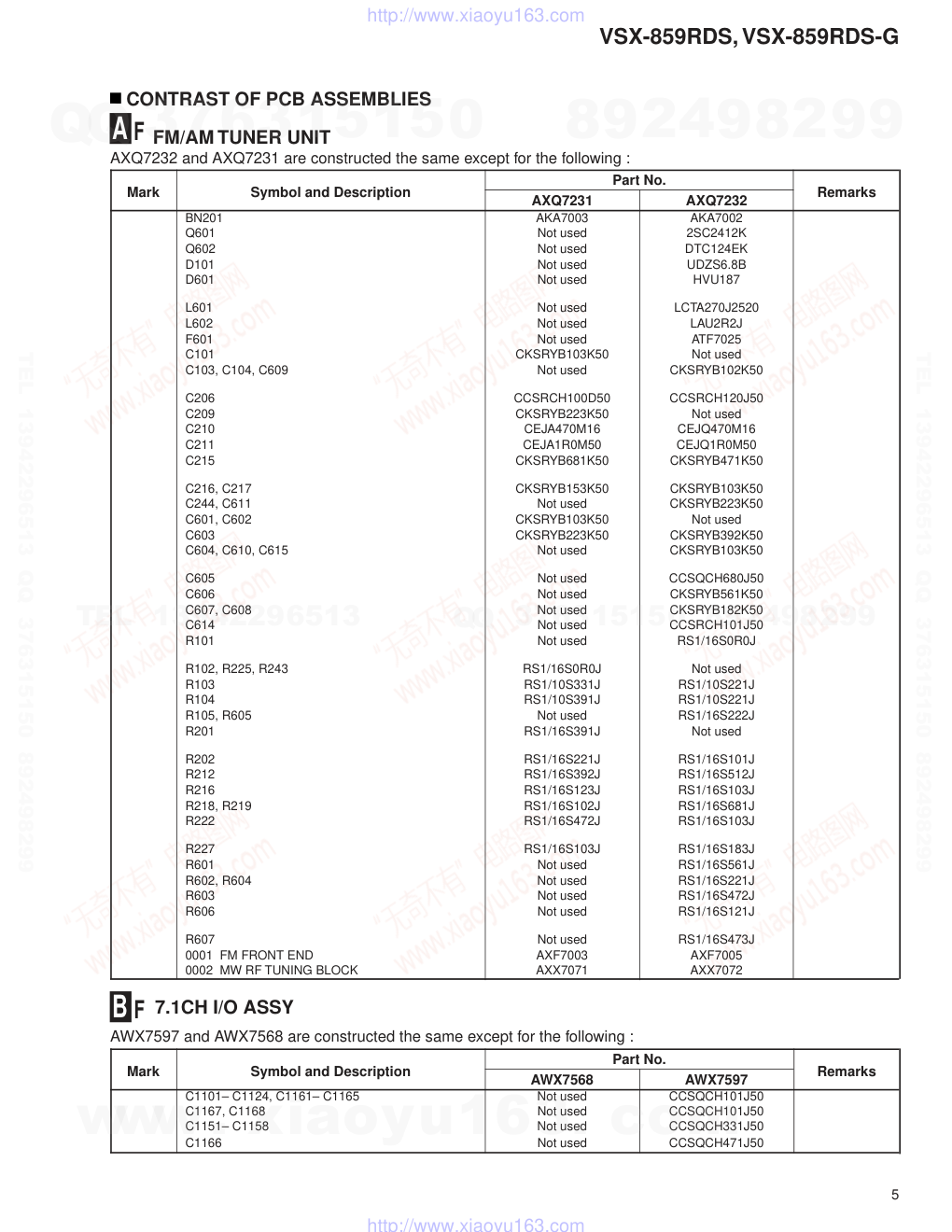

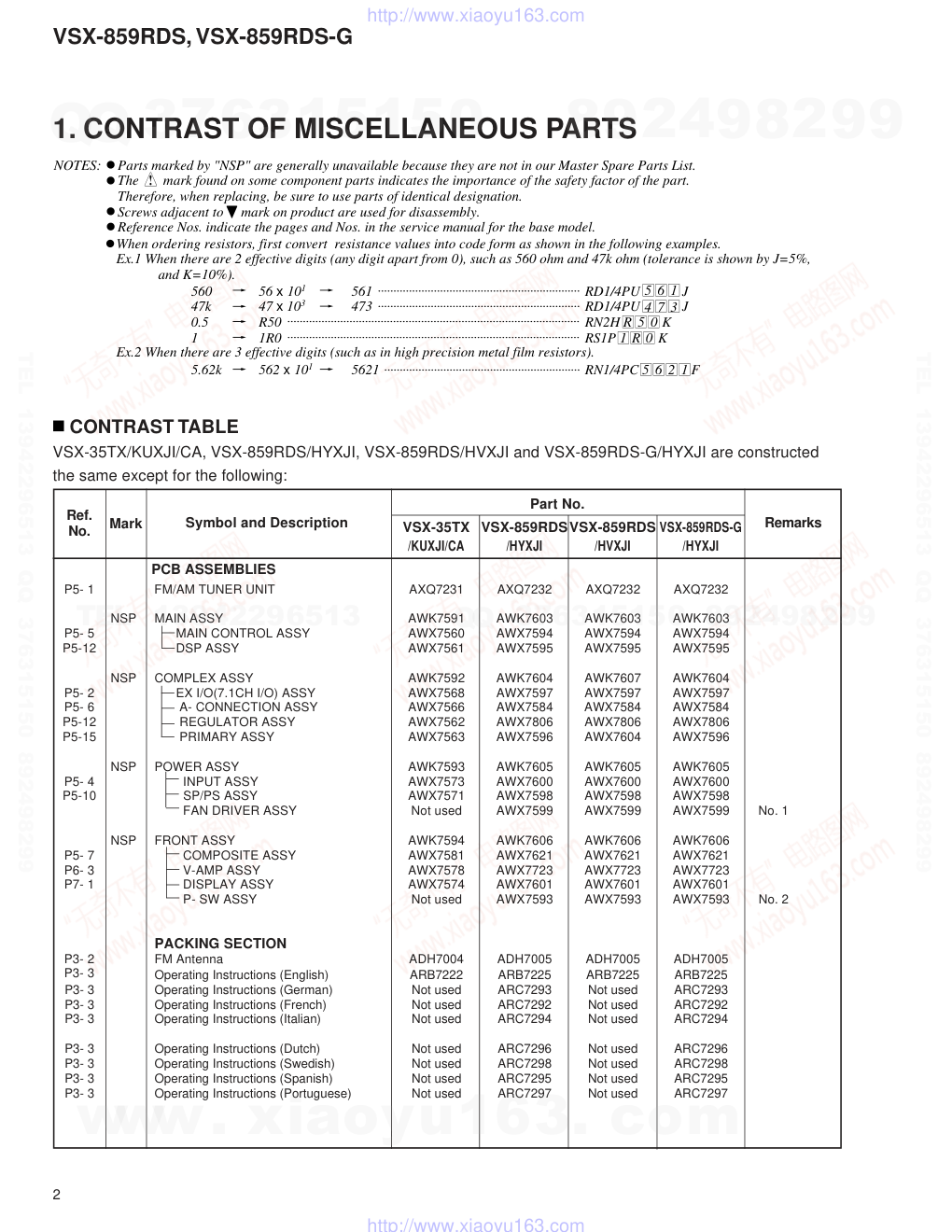

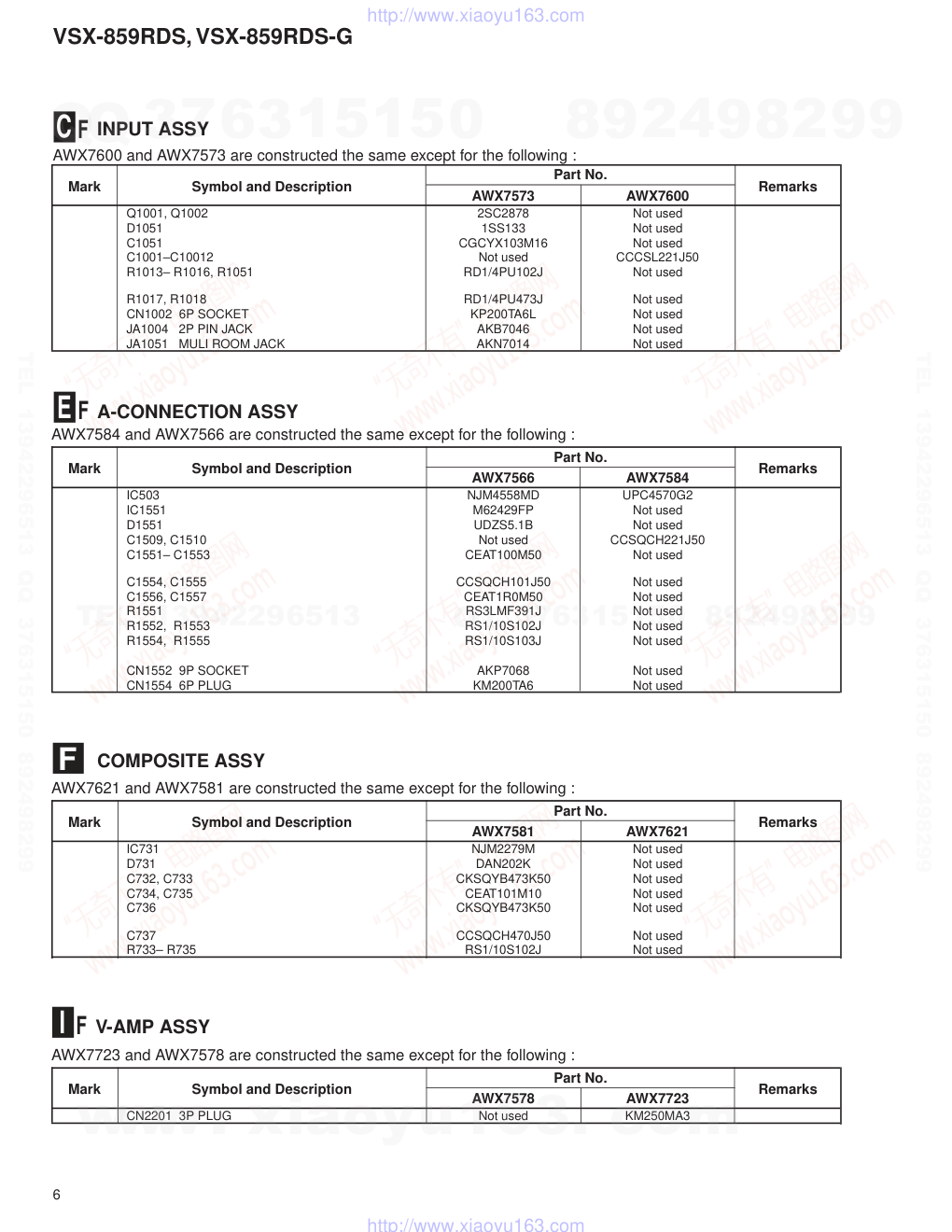

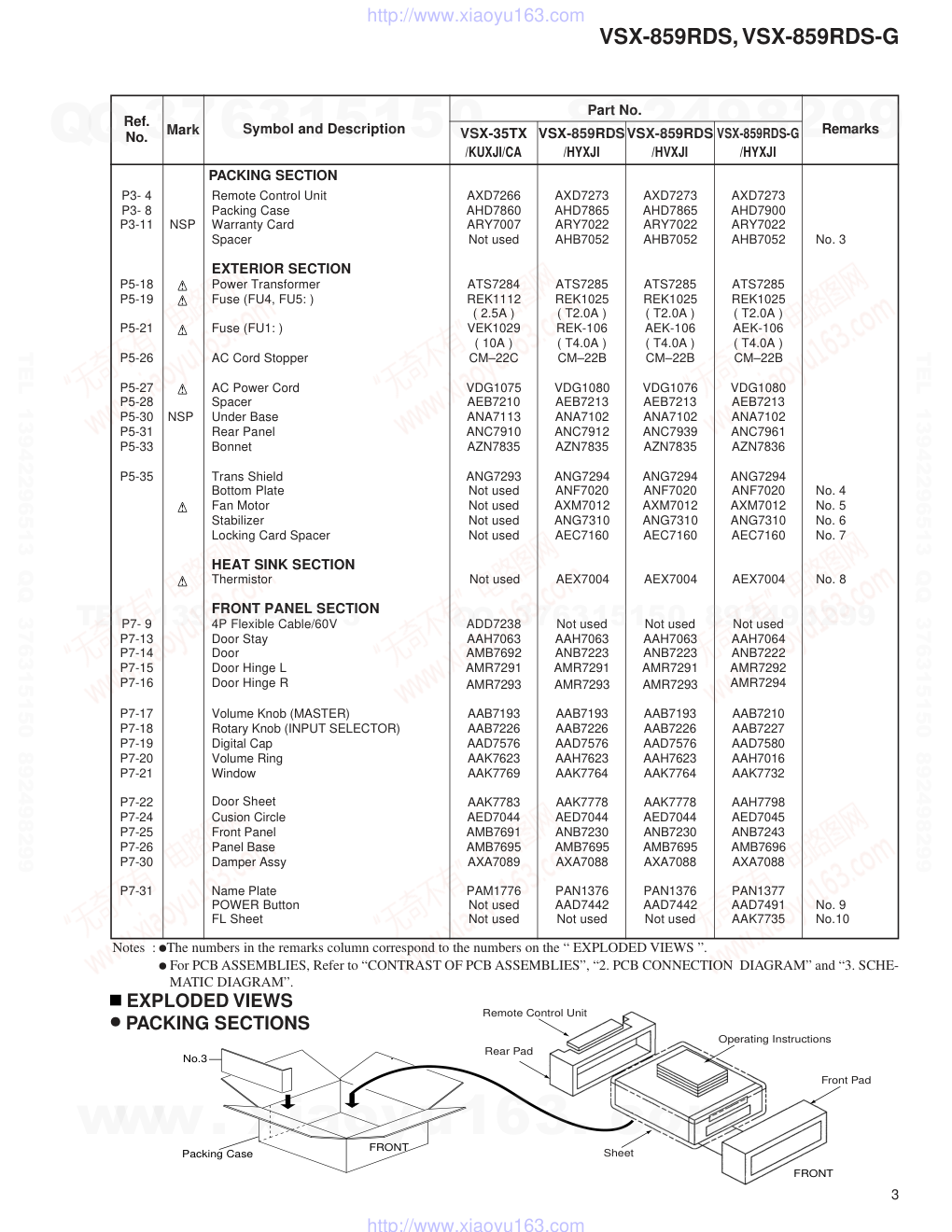

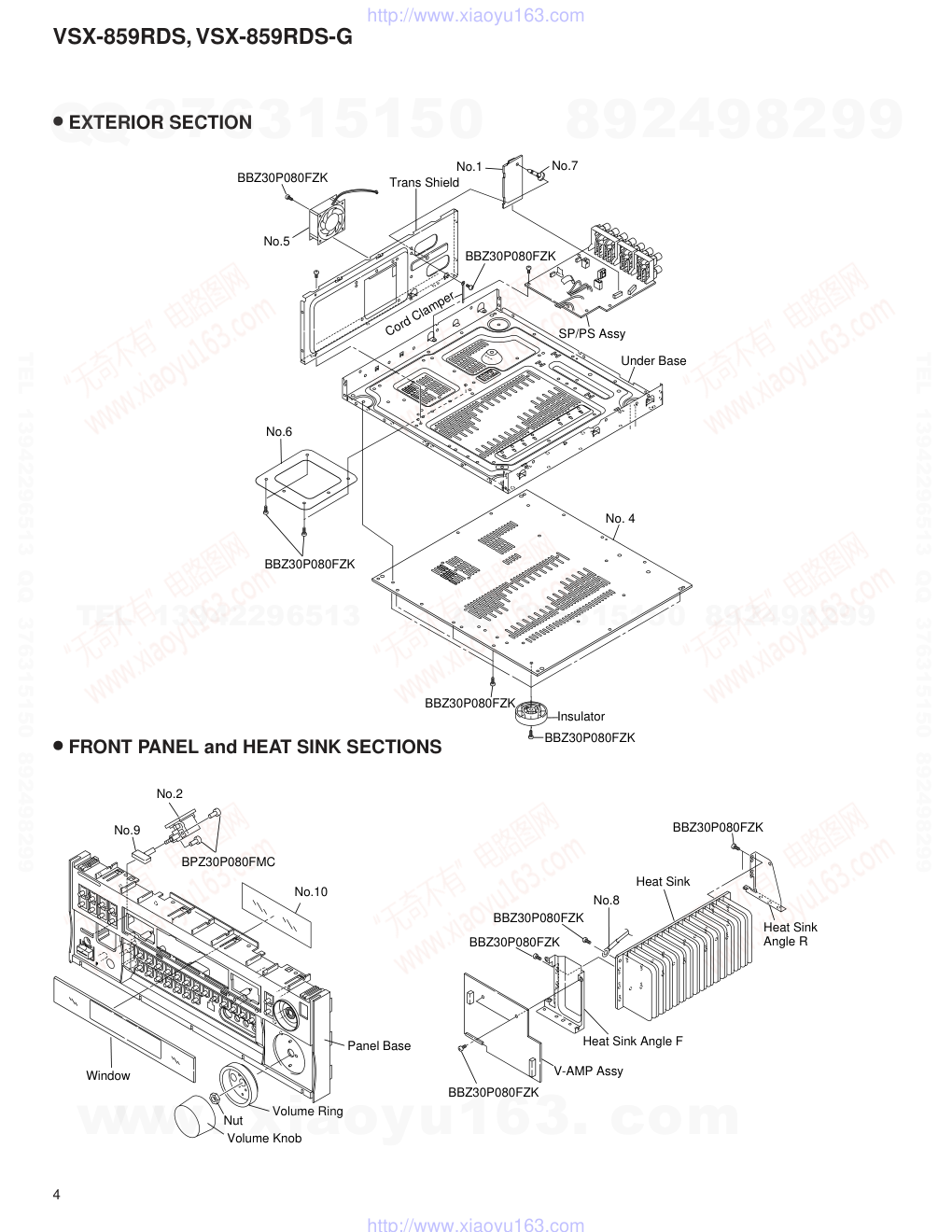

ORDER NO. PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER ELECTRONIC NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 � � � � � � � � � �PIONEER CORPORATION 2000 RRV2378 T – ZZR SEPT. 2000 Printed in Japan CONTENTS 1. CONTRAST OF MISCELLANEOUS PARTS ........ 2 2. PCB CONNECTION DIAGRAM .......................... 10 3. SCHEMATIC DIAGRAM ..................................... 12 4. REMOTE CONTROL UNIT ................................. 34 THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S). AUDIO/VIDEO MULTI-CHANNEL RECEIVER VSX-859RDS Model No. Order No. Remarks VSX-35TX/KUXJI/CA RRV2351 ¶ This service manual should be used together with the following manual(s): Type Model Power Requirement The voltage can be converted by the VSX-859RDS VSX-859RDS-G following method. HYXJI AC220-230V AC240V, ∗ HVXJI – AC230V AC240V, ∗ ∗ : Alter the wiring of the Power-supply block at the primary winding of Power-transformer referring to the "Line Voltage Selection" described in Service Manual. VSX-859RDS-G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-859RDS, VSX-859RDS-G 2 PCB ASSEMBLIES P5- 1 FM/AM TUNER UNIT AXQ7231 AXQ7232 AXQ7232 AXQ7232 NSP MAIN ASSY AWK7591 AWK7603 AWK7603 AWK7603 P5- 5 MAIN CONTROL ASSY AWX7560 AWX7594 AWX7594 AWX7594 P5-12 DSP ASSY AWX7561 AWX7595 AWX7595 AWX7595 NSP COMPLEX ASSY AWK7592 AWK7604 AWK7607 AWK7604 P5- 2 EX I/O(7.1CH I/O) ASSY AWX7568 AWX7597 AWX7597 AWX7597 P5- 6 A- CONNECTION ASSY AWX7566 AWX7584 AWX7584 AWX7584 P5-12 REGULATOR ASSY AWX7562 AWX7806 AWX7806 AWX7806 P5-15 PRIMARY ASSY AWX7563 AWX7596 AWX7604 AWX7596 NSP POWER ASSY AWK7593 AWK7605 AWK7605 AWK7605 P5- 4 INPUT ASSY AWX7573 AWX7600 AWX7600 AWX7600 P5-10 SP/PS ASSY AWX7571 AWX7598 AWX7598 AWX7598 FAN DRIVER ASSY Not used AWX7599 AWX7599 AWX7599 No. 1 NSP FRONT ASSY AWK7594 AWK7606 AWK7606 AWK7606 P5- 7 COMPOSITE ASSY AWX7581 AWX7621 AWX7621 AWX7621 P6- 3 V-AMP ASSY AWX7578 AWX7723 AWX7723 AWX7723 P7- 1 DISPLAY ASSY AWX7574 AWX7601 AWX7601 AWX7601 P- SW ASSY Not used AWX7593 AWX7593 AWX7593 No. 2 PACKING SECTION P3- 2 FM Antenna ADH7004 ADH7005 ADH7005 ADH7005 P3- 3 Operating Instructions (English) ARB7222 ARB7225 ARB7225 ARB7225 P3- 3 Operating Instructions (German) Not used ARC7293 Not used ARC7293 P3- 3 Operating Instructions (French) Not used ARC7292 Not used ARC7292 P3- 3 Operating Instructions (Italian) Not used ARC7294 Not used ARC7294 P3- 3 Operating Instructions (Dutch) Not used ARC7296 Not used ARC7296 P3- 3 Operating Instructions (Swedish) Not used ARC7298 Not used ARC7298 P3- 3 Operating Instructions (Spanish) Not used ARC7295 Not used ARC7295 P3- 3 Operating Instructions (Portuguese) Not used ARC7297 Not used ARC7297 1. CONTRAST OF MISCELLANEOUS PARTS Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly. Reference Nos. indicate the pages and Nos. in the service manual for the base model. NOTES: When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 5 6 1 4 7 3 R 5 0 1 R 0 5 6 2 1 560 47k 0.5 1 RD1/4PU J RD1/4PU J RN2H K RS1P K 56 x 101 47 x 103 R50 1R0 561 473 5.62k RN1/4PC F 562 x 101 5621 CONTRAST TABLE VSX-35TX/KUXJI/CA, VSX-859RDS/HYXJI, VSX-859RDS/HVXJI and VSX-859RDS-G/HYXJI are constructed the same except for the following: Remarks Part No. VSX-35TX VSX-859RDSVSX-859RDS VSX-859RDS-G /KUXJI/CA /HYXJI /HVXJI /HYXJI Ref. No. Mark Symbol and Description www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-859RDS, VSX-859RDS-G 3 PACKING SECTION P3- 4 Remote Control Unit AXD7266 AXD7273 AXD7273 AXD7273 P3- 8 Packing Case AHD7860 AHD7865 AHD7865 AHD7900 P3-11 NSP Warranty Card ARY7007 ARY7022 ARY7022 ARY7022 Spacer Not used AHB7052 AHB7052 AHB7052 No. 3 EXTERIOR SECTION P5-18 Power Transformer ATS7284 ATS7285 ATS7285 ATS7285 P5-19 Fuse (FU4, FU5: ) REK1112 REK1025 REK1025 REK1025 ( 2.5A ) ( T2.0A ) ( T2.0A ) ( T2.0A ) P5-21 Fuse (FU1: ) VEK1029 REK-106 AEK-106 AEK-106 ( 10A ) ( T4.0A ) ( T4.0A ) ( T4.0A ) P5-26 AC Cord Stopper CM–22C CM–22B CM–22B CM–22B P5-27 AC Power Cord VDG1075 VDG1080 VDG1076 VDG1080 P5-28 Spacer AEB7210 AEB7213 AEB7213 AEB7213 P5-30 NSP Under Base ANA7113 ANA7102 ANA7102 ANA7102 P5-31 Rear Panel ANC7910 ANC7912 ANC7939 ANC7961 P5-33 Bonnet AZN7835 AZN7835 AZN7835 AZN7836 P5-35 Trans Shield ANG7293 ANG7294 ANG7294 ANG7294 Bottom Plate Not used ANF7020 ANF7020 ANF7020 No. 4 Fan Motor Not used AXM7012 AXM7012 AXM7012 No. 5 Stabilizer Not used ANG7310 ANG7310 ANG7310 No. 6 Locking Card Spacer Not used AEC7160 AEC7160 AEC7160 No. 7 HEAT SINK SECTION Thermistor Not used AEX7004 AEX7004 AEX7004 No. 8 FRONT PANEL SECTION P7- 9 4P Flexible Cable/60V ADD7238 Not used Not used Not used P7-13 Door Stay AAH7063 AAH7063 AAH7063 AAH7064 P7-14 Door AMB7692 ANB7223 ANB7223 ANB7222 P7-15 Door Hinge L AMR7291 AMR7291 AMR7291 AMR7292 P7-16 Door Hinge R AMR7293 AMR7293 AMR7293 AMR7294 P7-17 Volume Knob (MASTER) AAB7193 AAB7193 AAB7193 AAB7210 P7-18 Rotary Knob (INPUT SELECTOR) AAB7226 AAB7226 AAB7226 AAB7227 P7-19 Digital Cap AAD7576 AAD7576 AAD7576 AAD7580 P7-20 Volume Ring AAK7623 AAH7623 AAH7623 AAH7016 P7-21 Window AAK7769 AAK7764 AAK7764 AAK7732 P7-22 Door Sheet AAK7783 AAK7778 AAK7778 AAH7798 P7-24 Cusion Circle AED7044 AED7044 AED7044 AED7045 P7-25 Front Panel AMB7691 ANB7230 ANB7230 ANB7243 P7-26 Panel Base AMB7695 AMB7695 AMB7695 AMB7696 P7-30 Damper Assy AXA7089 AXA7088 AXA7088 AXA7088 P7-31 Name Plate PAM1776 PAN1376 PAN1376 PAN1377 POWER Button Not used AAD7442 AAD7442 AAD7491 No. 9 FL Sheet Not used Not used Not used AAK7735 No.10 Notes : ÷The numbers in the remarks column correspond to the numbers on the “ EXPLODED VIEWS ”. ÷ For PCB ASSEMBLIES, Refer to “CONTRAST OF PCB ASSEMBLIES”, “2. PCB CONNECTION DIAGRAM” and “3. SCHE- MATIC DIAGRAM”. Remarks Part No. VSX-35TX VSX-859RDSVSX-859RDS VSX-859RDS-G /KUXJI/CA /HYXJI /HVXJI /HYXJI Ref. No. Mark Symbol and Description Packing Case FRONT FRONT No.3 Front Pad Rear Pad Sheet Remote Control Unit Operating Instructions ÷ PACKING SECTIONS EXPLODED VIEWS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-859RDS, VSX-859RDS-G 4 ÷ FRONT PANEL and HEAT SINK SECTIONS ÷ EXTERIOR SECTION Nut Panel Base Heat Sink Volume Ring Window Volume Knob No.9 No.10 No.2 BPZ30P080FMC BBZ30P080FZK Heat Sink Angle F Heat Sink Angle R No.8 BBZ30P080FZK BBZ30P080FZK BBZ30P080FZK V-AMP Assy SP/PS Assy Trans Shield Cord Clamper Under Base No. 4 No.5 No.7 No.1 No.6 Insulator BBZ30P080FZK BBZ30P080FZK BBZ30P080FZK BBZ30P080FZK BBZ30P080FZK www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-859RDS, VSX-859RDS-G 5 CONTRAST OF PCB ASSEMBLIES AXQ7232 and AXQ7231 are constructed the same except for the following : FM/AM TUNER UNIT F A Mark Symbol and Description Part No. Remarks AXQ7231 AXQ7232 BN201 AKA7003 AKA7002 Q601 Not used 2SC2412K Q602 Not used DTC124EK D101 Not used UDZS6.8B D601 Not used HVU187 L601 Not used LCTA270J2520 L602 Not used LAU2R2J F601 Not used ATF7025 C101 CKSRYB103K50 Not used C103, C104, C609 Not used CKSRYB102K50 C206 CCSRCH100D50 CCSRCH120J50 C209 CKSRYB223K50 Not used C210 CEJA470M16 CEJQ470M16 C211 CEJA1R0M50 CEJQ1R0M50 C215 CKSRYB681K50 CKSRYB471K50 C216, C217 CKSRYB153K50 CKSRYB103K50 C244, C611 Not used CKSRYB223K50 C601, C602 CKSRYB103K50 Not used C603 CKSRYB223K50 CKSRYB392K50 C604, C610, C615 Not used CKSRYB103K50 C605 Not used CCSQCH680J50 C606 Not used CKSRYB561K50 C607, C608 Not used CKSRYB182K50 C614 Not used CCSRCH101J50 R101 Not used RS1/16S0R0J R102, R225, R243 RS1/16S0R0J Not used R103 RS1/10S331J RS1/10S221J R104 RS1/10S391J RS1/10S221J R105, R605 Not used RS1/16S222J R201 RS1/16S391J Not used R202 RS1/16S221J RS1/16S101J R212 RS1/16S392J RS1/16S512J R216 RS1/16S123J RS1/16S103J R218, R219 RS1/16S102J RS1/16S681J R222 RS1/16S472J RS1/16S103J R227 RS1/16S103J RS1/16S183J R601 Not used RS1/16S561J R602, R604 Not used RS1/16S221J R603 Not used RS1/16S472J R606 Not used RS1/16S121J R607 Not used RS1/16S473J 0001 FM FRONT END AXF7003 AXF7005 0002 MW RF TUNING BLOCK AXX7071 AXX7072 AWX7597 and AWX7568 are constructed the same except for the following : 7.1CH I/O ASSY F B Mark Symbol and Description Part No. Remarks AWX7568 AWX7597 C1101– C1124, C1161– C1165 Not used CCSQCH101J50 C1167, C1168 Not used CCSQCH101J50 C1151– C1158 Not used CCSQCH331J50 C1166 Not used CCSQCH471J50 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-859RDS, VSX-859RDS-G 6 AWX7723 and AWX7578 are constructed the same except for the following : V-AMP ASSY F I Mark Symbol and Description Part No. Remarks AWX7578 AWX7723 CN2201 3P PLUG Not used KM250MA3 AWX7600 and AWX7573 are constructed the same except for the following : INPUT ASSY F C Mark Symbol and Description Part No. Remarks AWX7573 AWX7600 Q1001, Q1002 2SC2878 Not used D1051 1SS133 Not used C1051 CGCYX103M16 Not used C1001–C10012 Not used CCCSL221J50 R1013– R1016, R1051 RD1/4PU102J Not used R1017, R1018 RD1/4PU473J Not used CN1002 6P SOCKET KP200TA6L Not used JA1004 2P PIN JACK AKB7046 Not used JA1051 MULI ROOM JACK AKN7014 Not used AWX7584 and AWX7566 are constructed the same except for the following : A-CONNECTION ASSY F E Mark Symbol and Description Part No. Remarks AWX7566 AWX7584 IC503 NJM4558MD UPC4570G2 IC1551 M62429FP Not used D1551 UDZS5.1B Not used C1509, C1510 Not used CCSQCH221J50 C1551– C1553 CEAT100M50 Not used C1554, C1555 CCSQCH101J50 Not used C1556, C1557 CEAT1R0M50 Not used R1551 RS3LMF391J Not used R1552, R1553 RS1/10S102J Not used R1554, R1555 RS1/10S103J Not used CN1552 9P SOCKET AKP7068 Not used CN1554 6P PLUG KM200TA6 Not used AWX7621 and AWX7581 are constructed the same except for the following : COMPOSITE ASSY Mark Symbol and Description Part No. Remarks AWX7581 AWX7621 IC731 NJM2279M Not used D731 DAN202K Not used C732, C733 CKSQYB473K50 Not used C734, C735 CEAT101M10 Not used C736 CKSQYB473K50 Not used C737 CCSQCH470J50 Not used R733– R735 RS1/10S102J Not used F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-859RDS, VSX-859RDS-G 7 AWX7594 and AWX7560 are constructed the same except for the following : MAIN CONTROL ASSY F D Mark Symbol and Description Part No. Remarks AWX7560 AWX7594 IC103 TC9164AF Not used IC104 NJM4558MD Not used IC251 Not used NJM4558MD Q905 DTA124EK Not used D251, D252 Not used 1SS355 D253 Not used UDZS5.1B C101– C112 Not used CCSQCH221J50 C119, C120 Not used CKSRYB331K50 C133, C134 CKSRYB103K50 Not used C135, C136 CEAT1R0M50 Not used C145, C146, C169, C170, C181, C182 Not used CCSRCH101J50 C157, C158 Not used CCSQCH101J50 C191– C193 CCSRCH101J50 Not used C252 Not used CEAT470M25 C253– C256 Not used CKSRYB103K50 C291 CEJA101M16 CEJQ101M16 C911 CKSRYB103K50 Not used L101– L104 Not used LCTA181J3225 R111, R112 RS1/10S0R0J RS1/10S101J R115, R116 RS1/10S331J RS1/10S122J R129, R130, R139, R140 RS1/10S104J Not uesd R203, R204 RS1/10S104J Not used R131, R132 RS1/16S474J Not used R133, R134 RS1/16S471J Not used R135, R136, R934, R944– R946 RS1/16S102J Not used R990, R991 RS1/10S102J Not used R211– R215, R252, R253 Not used RS1/16S104J R251 Not used RS1/16S474J R254 Not used RS1/16S102J R255 Not used RS1/16S393J R295 Not used RS1/10S0R0J R923 Not used RS1/16S103J R933 RS1/16S473J Not used CN103 9P PLUG AKP7057 Not used CN906 4P FFC CONNECTOR 52045-0445 Not used AWX7598 and AWX7571 are constructed the same except for the following : SP / PS ASSY F L Mark Symbol and Description Part No. Remarks AWX7571 AWX7598 D3001, D3002 D5SBA20 LN6SB60-4003 D3052, D3054, D3056, D3058, D3059 Not used 1SS133 D3201 Not used MTZJ5.1B C3101- C3105 CFTYA104J50 CFTYA224J50 C3106- C3110 Not used CFTYA224J50 C3111- C3117 CQHA102J2A CQHA332J2A C3119 Not used CKPUYB221K50 R3111 Not used RD1/4PU4R7J R3133, R3134 Not used RS1LMF471J Heat Sink ANH1021 Not used CN3002 6P PLUG Not used KM200TA6 CN3101 8P SPEAKER TERMINAL AKE7058 AKE7059 CN3102 6P SPEAKER TERMINAL AKE7060 AKE7061 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-859RDS, VSX-859RDS-G 8 AWX7601 and AWX7574 are constructed the same except for the following : DISPLAY ASSY F S Mark Symbol and Description Part No. Remarks AWX7574 AWX7601 IC7051 TC7W53FU Not used IC7401 Not used BU1923 Q7053 FMA1A Not used Q7054 DTC124EK Not used Q7401 Not used 2SA1037K Q7402 Not used DTC143EK Q7403 Not used 2SC2412K D7054– D7057 1SS355 Not used C7053 CKSQYB153K50 Not used C7401 Not used CKSQYB472K50 C7402 Not used CEAT2R2M50 C7403, C7404 Not used CKSQYB102K50 C7405 Not used CEAT101M10 C7406, C7407 Not used CCSQCH270J50 C7408 Not used CKSQYB561K50 C7409 Not used CEAT1R0M50 L7401 Not used LFA2R2J R7047 RS1/10S223J RS1/10S103J R7056 RS1/10S223J Not used R7057 RS1/10S392J Not used R7058, R7061 RS1/10S103J Not used R7401, R7407, R7408 Not used RS1/10S102J R7403 Not used RS1/10S222J R7404 Not used RS1/10S473J R7405 Not used RS1/10S333J R7406 Not used RS1/10S104J CN7007 4P FFC CONNECTOR 52045-0445 Not used X7401 CRYSTAL RESONATOR (4.332MHz) Not used ASS7004 F Q Mark Symbol and Description Part No. AWX7563 AWX7596 AWX7604 Remarks PRIMARY ASSY AWX7596, AWX7604 and AWX7563 are constructed the same except for the following: C6011– C6013 Not used CCCSL101K2H CCCSL101K2H R6001 RCN1080 Not used Not used T6001 ATT7043 ATT7040 ATT7040 J0032 Not used D20PYY0330E D20PYY0330E 6004 AKP7136 AKP7135 Not used 6001 Not used 51048-0300 51048-0300 AWX7806 and AWX7562 are constructed the same except for the following : REGULATOR ASSY F N Mark Symbol and Description Part No. Remarks AWX7562 AWX7806 D5009 D3SBA20(B) LN4SB60-4003 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-859RDS, VSX-859RDS-G 9 Mark Symbol and Desacription Part No. Remarks AWX7561 AWX7595 IC9041 IC9071 IC9091 Q9001, Q9002, Q9004 - Q9006, Q9031 Q9003, Q9032 Q9007 D9001 D9002 F9001 L9003 L9001, L9071 L9091 JA9151 JA9152 C9001, C9014, C9054, C9056, C9070 C9002, C9003, C9006, C9010, C9011, C9017 C9018, C9031, C9051, C9052, C9055, C9092 C9072–C9075, C9078–C9081 C9004, C9005, C9008, C9009, C9012, C9013 C9015, C9020, C9032, C9043, C9058 C9007 C9016 C9019 C9033 C9041, C9042 C9053 C9057 C9071 C9076, C9077, C9082, C9083, C9084, C9085 C9093, C9087 C9086 C9091 C9095 C9096 C9102, C9108, C9151, C9152, C9162 C9111 C9117, C9120, C9562, C9123, C9125 C9127 C9203– C9207, C9603, C9604, C9615, C9616 C9627, C9628, C9761, C9762, C9811, C9813 C9501, C9516, C9551, C9740, C9801, C9802 C9523, C9526, C9643, C9644, C9770 C9529 C9713, C9714, C9727, C9728, C9739, C9753 C9754, C9765– C9769 C9803, C9805 C9812, C9814 R9001 R9002, R9010, R9011, R9018, R9038, R9054 R9071, R9072, R9053 R9003, R9019 R9004, R9015, R9016, R9020 R9005, R9006, R9014, R9021, R9022, R9025 R9073 R9007, R9023, R9033 R9008, R9027, R9030 R9009,R9074 R9013, R9017, R9034 R9024, R9026 R9028, R9029 R9031, R9032 R9035 NJM4558MD PM4007A LH52256CN-70LL 2SC3082K (NP) 2PD601A (QR) 2PB709A (QR) KV1851 1SS355 ATF7001 ATH7001 ATL7002 QTL1013 Not used AKB7132 CKSRYB103K50 CKSRYF104Z25 CKSRYF104Z25 CKSRYF104Z25 CKSQYF104Z25 CKSQYF104Z25 CCSRCH750J50 CEJQ470M25 CKSRYB473K16 CCSRCH101J50 CKSRYF105Z10 CEJQNP4R7M25 CCSRCH270J50 CEJQ101M10 CCSRCH471J50 CCSRCH471J50 CCSQCH471J50 CEJQ470M16 CCSQCH221J50 CEAT100M50 CEJQ101M16 CEJQR47M50 CEJQ470M16 CEJQ1R0M50 CEJQ2R2M50 CEJQ4R7M50 CEJQ4R7M50 CEJQ101M10 CEJQ100M25 CEJQ2R2M50 CEJQ330M10 CEJQ330M10 CEJQ470M25 CEJQ101M10 RS1/16S750J RS1/16S103J RS1/16S103J RS1/16S512J RS1/16S202J RS1/16S102J RS1/16S102J RS1/16S220J RS1/16S302J RS1/16S221J RS1/16S152J RS1/16S332J RS1/16S561J RS1/16S333J RS1/16S223J Not used Not used Not used Not used Not used Not used Not used Not used Not used Not used Not used Not used AKB7131 Not used Not used Not used Not used Not used Not used Not used Not used Not used Not used Not used Not used Not used Not used Not used Not used Not used Not used Not used Not used Not used CEJA470M16 CEJAR47M50 CEJA470M16 CEJA1R0M50 CEJA2R2M50 CEJA4R7M50 CEJA4R7M50 CEJA101M10 CEJA100M25 CEJA2R2M50 CEJA330M10 CEJA330M10 CEJA470M25 CEJA101M10 Not used Not used Not used Not used Not used Not used Not used Not used Not used Not used Not used Not used Not used Not used Not used AWX7595 and AWX7651are constructed the same except for the following : DSP ASSY Y F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-859RDS, VSX-859RDS-G 10 A B C D 1 2 3 4 1 2 3 4 (ANP7362-A) (ANP7361-A) SIDE A P-SW ASSY Q A 6001 Q CN3002 To Fan L Q3503 Q3504 Q3502 Q3501 IC3501 FAN DRIVER ASSY Z 2. PCB CONNECTION DIAGRAM 2.1 P- SW and FAN DRIVER ASSYS PCB PARTS LIST Mark No. Description Part No. P-SW ASSY (AWX7593) SWITCHES AND RELAYS S6801 ASG1035 CAPACITORS C6801, C6802 CGCYX103K25 OTHERS CN6801 3P JUMPER CONNECTOR 52151-0310 FAN DRIVER ASSY (AWX7599) SEMICONDUCTORS IC3501 AEK7010 Q3501 KRA103M Q3502 KRC103M QA QA Mark Symbol and Description Part No. Remarks AWX7561 AWX7595 R9037, R9039 Not used RS1/16S274J R9041 Not used RS1/16S472J R9042, R9044, R9062 Not used RS1/16S392J R9043 Not used RS1/16S273J R9046 Not used RS1/16S104J R9047 Not used RS1/16S432J R9051 Not used RS1/16S393J R9052 Not used RS1/16S243J R9055 Not used RS1/16S121J R9056 Not used RS1/16S683J R9057– R9059 Not used RS1/16S473J R9061 Not used RS1/16S471J R9075, R9076 Not used RS1/16S101J R9095, R9096 Not used RS1/16S0R0J R9106 RS1/16S331J RS1/16S101J R9153 RS1/10S0R0J RS1/10S104J R9590 RS1/16S0R0J RS1/16S331J R9761 RS1/16S102J Not used X9001 CRYSTAL RESONATOR (18.432MHz) Not used ASS7009 Q3503 2SC4793 D3504 MTZJ12C D3503 MTZJ27D D3501, D3502 S5688G CAPACITORS C3501 CEAT471M35 C3502 CEAT1R0M50 C3503 CKCYF103Z50 C3504 CEANP471M25 C3505 CEAT100M50 RESISTORS Other Resistors RD1/4PU J OTHERS CN3502 3P PLUG KM250MA3L CN3501 6P SOCKET KP200TA6L Mark No. Description Part No. Z Z www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-859RDS, VSX-859RDS-G 11 A B C D 1 2 3 4 1 2 3 4P O M Y6002 Q 220-230V 240V Line Voltage can be changed by the following modification: 1. Disconnect the AC power cord. 2. Remove the cover. 3. Change the connection wire from TRANS 1 ASSY (Terminal No. Y6002) to AMP ASSY (Terminal No. Y6002) as follows. Voltage Terminal No. of TRANS 1 ASSY 220-230V Y6002/HY/HL/HV 240V Y6002/J,/KU 4. Stick a line voltage label on the rear panel. Description Part No. 220V label AAX-193 240V label AAX-192 Line Voltage Selection TRANS 2-2 ASSY O 5010 N TRANS 2-1 ASSY M (ANP7360-A) (ANP7360-A) T1 POWER TRANSFORMER Y6001 Q TRANS 1 ASSY P (ANP7361-A) IC4501 IC4502 3001 L Y3 L Y2 L Y1 L 2.2 TRANS 2-1, TRANS 2-2 and TRANS 1 ASSYS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-859RDS, VSX-859RDS-G 12 A B C D 1 2 3 4 1 2 3 4 FM FRONT END MW RF TUNING BLOCK FM/AM TUNER UNIT (AXQ7232) OSC : 981 - 2052kHz 9k step L1 F A (AM) (AM) (AM) (AM) (AM) (AM) (FM) (FM) (FM) (FM) (FM) (FM) (FM) (FM) (FM) (FM) 3. SCHEMATIC DIAGRAM 3.1 FM/AM TUNER UNIT F A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-859RDS, VSX-859RDS-G 13 A B C D 5 6 7 8 5 6 7 8 3/3F D CN291 L201 ATE7003 : AUDIO SIGNAL ROUTE (TUNER) (TX) : AM SIGNAL ROUTE (AM) : FM SIGNAL ROUTE (FM) (AM) (AM) (FM) (AM) (AM) (AM) (AM) (AM) (AM) (FM) (AM) (FM) (TX) (TX) (TX) (TX) (TX) (FM) : The power supply is shown with the marked box. F A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-859RDS, VSX-859RDS-G 14 A B C D 1 2 3 4 1 2 3 4 3.2 7.1CH I/O and INPUT ASSYS F B 7.1CH I/O ASSY (AWX7597) JA1111 : AKB7048 JA1113 : AKB7046 CN1505 CN1501 CN1503 PREOUT MUTE B F : AUDIO SIGNAL ROUTE E F E F E F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-859RDS, VSX-859RDS-G 15 A B C D 1 2 3 4 1 2 3 4F C JA1003 : AKB7048 JA1003 : AKB7048 JA1003 : AKB7048 INPUT ASSY (AWX7600) CN1553 C F : AUDIO SIGNAL ROUTE (VCR1) V1 V1 V1 V1 V1 V2 V2 V2 V2 : AUDIO SIGNAL ROUTE (VCR2) V2 : AUDIO SIGNAL ROUTE (MR) MR : AUDIO SIGNAL ROUTE : AUDIO SIGNAL ROUTE (LD) LD : AUDIO SIGNAL ROUTE (TV) TV LD LD LD LD TV TV TV E F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-859RDS, VSX-859RDS-G 16 A B C D 1 2 3 4 1 2 3 4 1/3F D 3.3 MAIN CONTROL ASSY (1/3) PHONO RIAA-EQ : The power supply is shown with the marked box. D 2/3F CN7005 CN1551 D 2/3F P P LD CD T2 TU V2 P CD CD CD T2 MD TU TU MD TU T2 TU T2 P V1 MD TV LD TV V2 V1 E F S F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-859RDS, VSX-859RDS-G 17 A B C D 5 6 7 8 5 6 7 81/3F D MAIN CONTROL ASSY (AWX7594) CN5004 N D 2/3F 1/3 F D D301 D302 RB501V-40V RB501V-40V : AUDIO SIGNAL ROUTE (LD) LD : AUDIO SIGNAL ROUTE : AUDIO SIGNAL ROUTE (TV) TV : AUDIO SIGNAL ROUTE (VCR1) V1 : AUDIO SIGNAL ROUTE (VCR2) V2 : AUDIO SIGNAL ROUTE (MD) MD : AUDIO SIGNAL ROUTE (PHONO) P : AUDIO SIGNAL ROUTE (TUNER) TU : AUDIO SIGNAL ROUTE (CD) CD : AUDIO SIGNAL ROUTE (TAPE2) T2 : AUDIO SIGNAL ROUTE (MR) MR www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-859RDS, VSX-859RDS-G 18 A B C D 1 2 3 4 1 2 3 4 2/3F D D 1/3F D 3/3F D 1/3F : The power supply is shown with the marked box. MAIN CONTROL ASSY (AWX7594) 2/3 F D 3.4 MAIN CONTROL ASSY (2/3) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-859RDS, VSX-859RDS-G 19 A B C D 5 6 7 8 5 6 7 8 2/3F D D 3/3F CN1504 CN2001 CN1502 D 1/3F : AUDIO SIGNAL ROUTE E F E F I F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-859RDS, VSX-859RDS-G 20 A B C D 1 2 3 4 1 2 3 4 3/3F D CN7001 D 2/3F CN5008 N CN5005 CN201 N CN5010 N TU TU TU A F S F 3.5 MAIN CONTROL ASSY (3/3) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-859RDS, VSX-859RDS-G 21 A B C D 5 6 7 8 5 6 7 83/3F D CN9805 Y 4/5 CN9806 Y 4/5 CN5003 N CN601 H : AUDIO SIGNAL ROUTE (TUNER) TU : The power supply is shown with the marked box. MAIN CONTROL ASSY (AWX7594) 3/3 F D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-859RDS, VSX-859RDS-G 22 A B C D 1 2 3 4 1 2 3 4 3.6 A-CONNECTION and V-AMP ASSYS F E A-CONNECTION ASSY (AWX7584) CN107 D 2/3F CN101 D 1/3F CN106 D 2/3F CN1101 CN1102 CN1151 CN1001 E F V1 V2 LD TV : AUDIO SIGNAL ROUTE : AUDIO SIGNAL ROUTE (MR) MR MODE SELECTOR FOR SBch B F B F C F B F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-859RDS, VSX-859RDS-G 23 A B C D 1 2 3 4 1 2 3 4F I V-AMP ASSY (AWX7723) D 2/3F CN105 To Thermistor OVER LOAD DETECTION I F : AUDIO SIGNAL ROUTE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-859RDS, VSX-859RDS-G 24 A B C D 1 2 3 4 1 2 3 4 FU4, FU5 : T2.0A REK1025 CN3002 VSX-859 RDS CN6003 Q CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 49102.5 MFD, BY LITTELFUSE INC. FOR IC4501, IC4502 (AEK7019). TRANS 2-1 ASSY ( AWX7572 ) POWER TRANSFORMER J K M FAN DRIVER ASSY (AWX7599) Z LN6SB60 LN6SB60 D3201 MTZJ5.1B AMP FOR POWER AMP VOLTAGE AMPLIFYING STAGE " UH " RECTIFIER FOR POWER AMP "UL" 3.7 TRANS 2-1, FAN DRIVER and SP/PS ASSYS F L Z M www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-859RDS, VSX-859RDS-G 25 A B C D 5 6 7 8 5 6 7 8 VSX-859 RDS SP/PS ASSY (AWX7598) CN5001 CN5002 J K L F D3051– D3060 : 1SS133 • NOTE FOR FUSE REPLACEMENT FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE WITH SAME TYPE AND RATINGS ONLY. CAUTION - : AUDIO SIGNAL ROUTE SPEAKER RELAY N F N F F L www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-859RDS, VSX-859RDS-G 26 A B C D 1 2 3 4 1 2 3 4 P F N O TRANS 2-2 ASSY (AWX7565) CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 491.200 MFD, BY LITTELFUSE INC. FOR IC5009, IC5010 (AEK7023). CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 491005 MFD, BY LITTELFUSE INC. FOR IC5501 (AEK7019). 3004 CN3003 Q TRANS 1 ASSY (AWX7564) M REGULATOR ASSY (AWX7806) CN9803 P O LN4SB60 -4003 N F L F L F Y 2/5F 3.7 REGULATOR, TRANS 1 and TRANS 2-2 ASSYS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-859RDS, VSX-859RDS-G 27 A B C D 1 2 3 4 1 2 3 4 3.9 PRIMARY and P-SW ASSYS F Q PRIMARY ASSY (VSX-859RDS/HY : AWX7596) (VSX-859RDS/HV : AWX7604) CN3005 CN6003 KP200TA4L CN6002 RKP1751 LIVE NEUTRAL FU1 : T4.0A REK –106 AC IN P • NOTE FOR FUSE REPLACEMENT FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE WITH SAME TYPE AND RATINGS ONLY. CAUTION - Q F CN6801 P-SW ASSY (AWX7593) Q A HY Type Only L F Q A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-859RDS, VSX-859RDS-G 28 A B C D 1 2 3 4 1 2 3 4 S7001 : MEMORY S7002 : SEARCH S7003 : E ON S7007 : MPX S7008 : SPEAKERS S7009 : DIRECT S7010 : SELECT S7011 : CLASS S7012 : FM / AM S7013 : V SELECT S7014 : FL DIMMER S7015 : SPEAKERS S7016 : TONE ON/OFF S7017 : CH SELECT S7018 : BASS – S7019 : TAPE2 MONITOR S7020 : BASS + S7021 : TREBLE – S7022 : TREBLE + S7023 : LOUDNESS S7025 : STANDARD S7026 : ADVANCED S7027 : STEREO S7031 : DSP S7032 : MULTI CH IN S7033 : D–NR S7034 : MIDNIGHT S7035 : THX CINEMA S7501 : STAND BY/ON CN102 7501 7301 CN7201 D 1/3F V W U SEARCH E ON 3.10 DISPLAY ASSY F S www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-859RDS, VSX-859RDS-G 29 A B C D 5 6 7 8 5 6 7 8 DISPLAY ASSY (AWX7610) CN903 D 3/3F CN7101 T S F F S www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-859RDS, VSX-859RDS-G 30 A B C D 1 2 3 4 1 2 3 4 3.11 DSP ASSY (1/5) 1/5F Y Y 4/5 MB DSP ASSY (AWX7595) Y 1/5 F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-859RDS, VSX-859RDS-G 31 A B C D 5 6 7 8 5 6 7 8 1/5F Y Y 2/5F MA www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-859RDS, VSX-859RDS-G 32 A B C D 1 2 3 4 1 2 3 4 FRONT DIGIN ASSY ( AWX7648 ) CN5009 Y 5/5 Y 1/5F ME MA Y 1/5F MA Y 4/5MF X N F 3.12 DSP ASSY (2/5) 2/5F Y X www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-859RDS, VSX-859RDS-G 33 A B C D 5 6 7 8 5 6 7 8 : The power supply is shown with the marked box. CN5006 N CN5007 Y 4/5 3/5 3/5 Y 4/5 Y 4/5 MP MG MS ,D/A D/A CONVERTER for SB ch : AUDIO SIGNAL ROUTE DSP ASSY (AWX7595) Y 2/5 F N F 2/5F Y www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-859RDS, VSX-859RDS-G 34 4. REMOTE CONTROL UNIT [AXD7273] 4.1 CONTRAST OF MISCELLANEOUS PARTS 7 CONTRAST TABLE AXD7273 and AXD7266 are constructed the same except for the following: NOTES : ÷ Parts marked by “ NSP ” are generally unavailable because they are not in our Master Spare Parts List. ÷ The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. ÷ Screw adjacent to ∞ mark on the product are used for disassembly. ÷ Reference Nos. indicate the pages and Nos. in the service manual for the base model. P100-3 Rubber Sheet AZA7397 AZA7402 P100-15 Case A Assy AZA7864 AZA7863 Ref. No. Remarks AXD7266 AXD7273 Part No. Mark Symbol and Description 7� REMOTE PCB MODEL SWITCH MODEL SWITCH Model JP10 JP11 JP20 JP21 JP30 JP31 AXD7257, AXD7278 − √� − √� − √� AXD7258, AXD7279 − √� − √� √� − AXD7259 − √� √� − − √� AXD7266 − √� √� − √� − AXD7273 √� − − √� − √� AXD7275 √� − − √� √� − L L L H H H 51 P43 50 P44 49 P45 48 P46 47 P47 46 P50 45 P51 44 P52 43 P53 42 P54 41 P55 40 P56 39 P57 38 P60 37 P61 36 P62 35 P63 34 P64 33 P65 32 P66 31 P67 JP11 JP21 JP31 JP10 JP20 JP30 52 P42 53 P41 54 P40 55 P37 56 P36 57 P35 24 P76 25 P75 26 P74 27 P73 28 TA1OUT 29 TA0IN 30 P70 IC1 M30622MA-787FP www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
