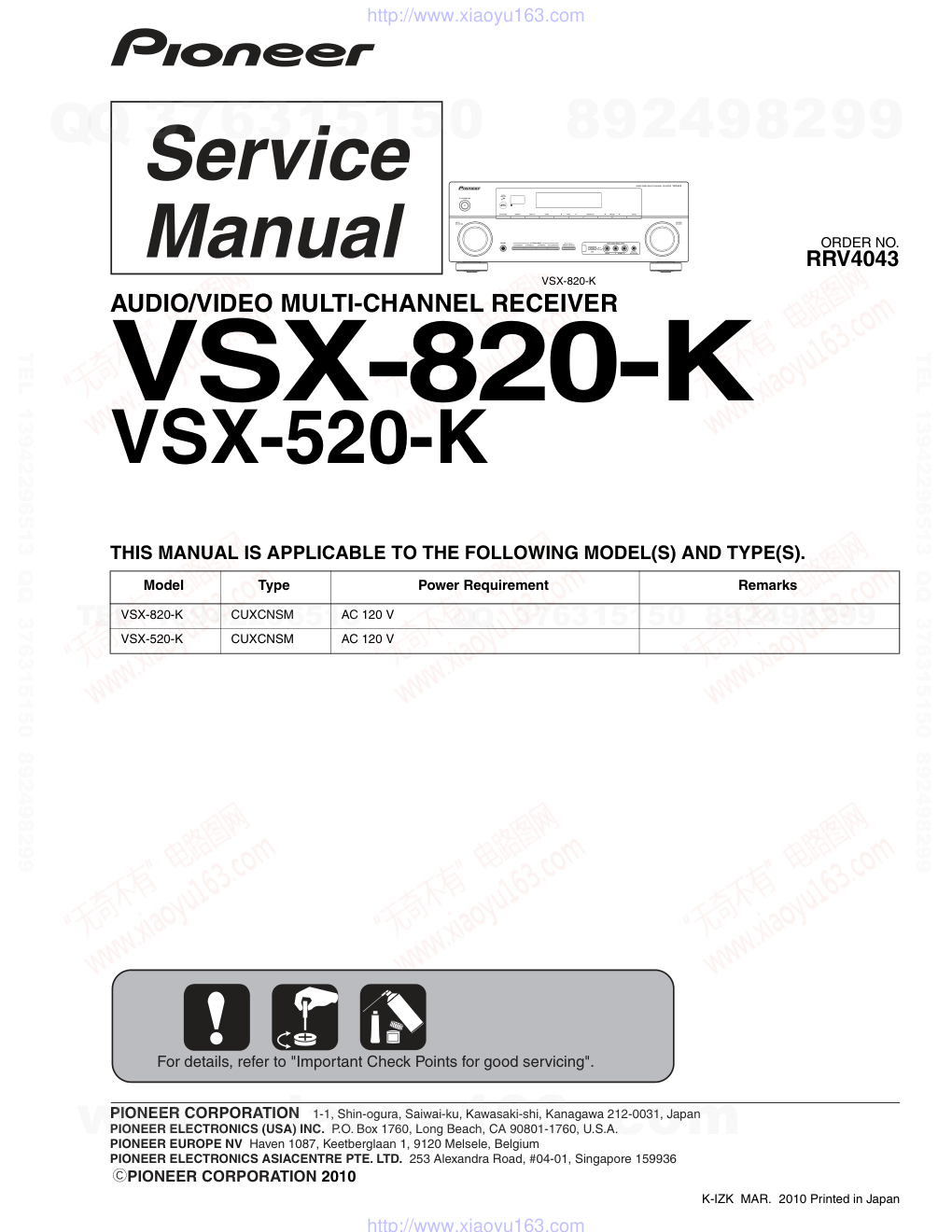

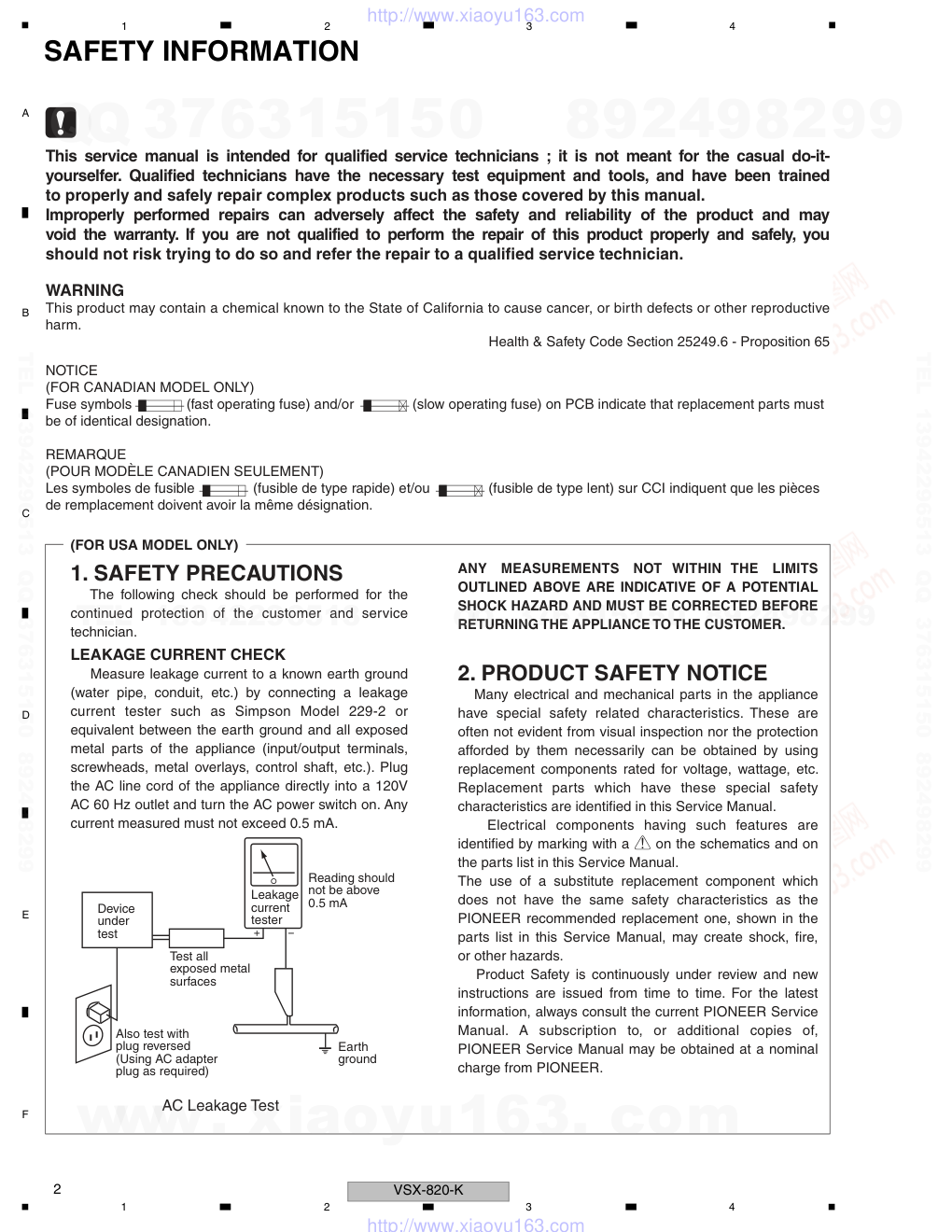

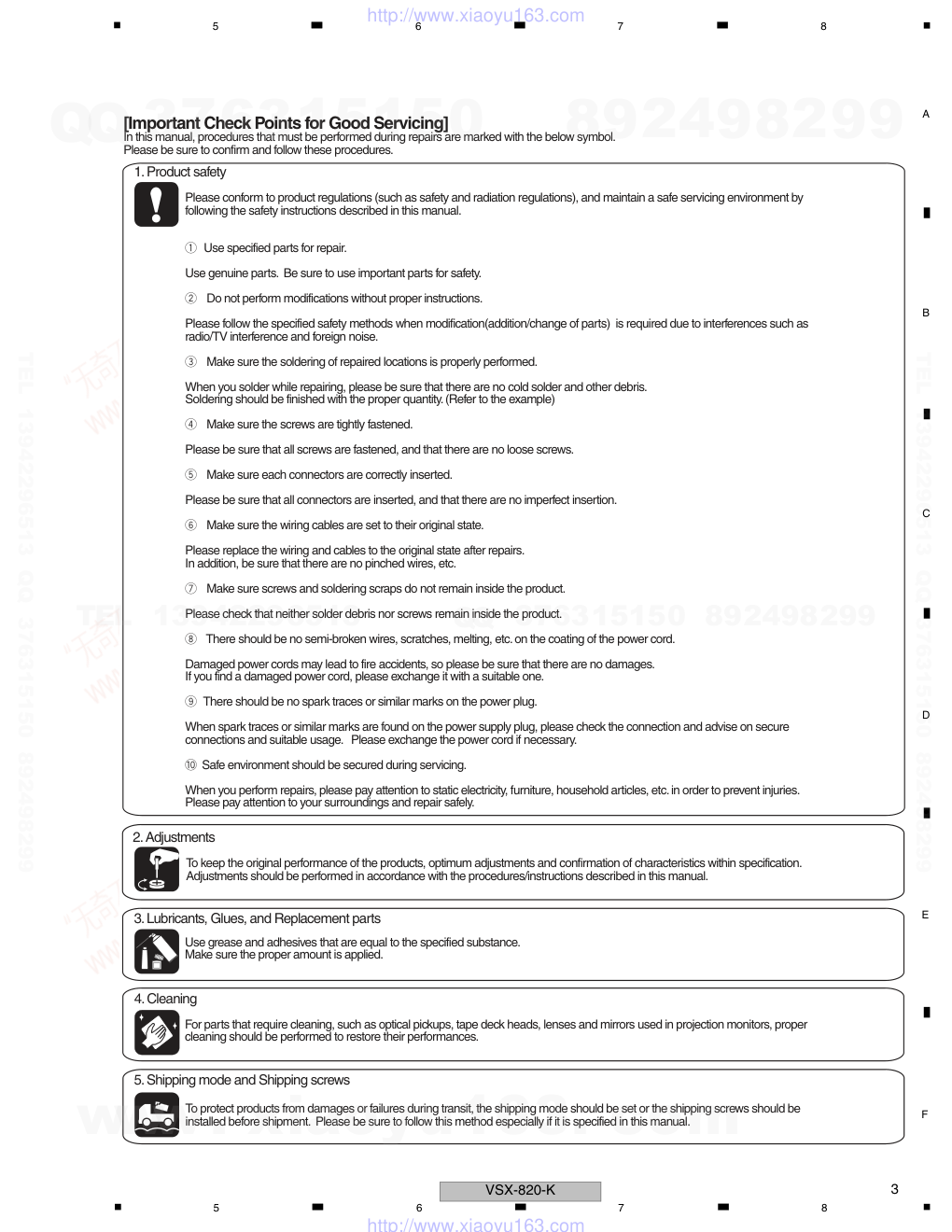

ORDER NO. PIONEER CORPORATION 1-1, Shin-ogura, Saiwai-ku, Kawasaki-shi, Kanagawa 212-0031, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2010 2010 Printed in Japan VSX-820-K RRV4043 AUDIO/VIDEO MULTI-CHANNEL RECEIVER VSX-820-K VSX-520-K THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S). Model Type Power Requirement Remarks VSX-820-K CUXCNSM AC 120 V VSX-520-K CUXCNSM AC 120 V For details, refer to "Important Check Points for good servicing". K-IZK MAR. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 VSX-820-K 1 2 3 4 A B C D E F 1 2 3 4 SAFETY INFORMATION 1. SAFETY PRECAUTIONS The following check should be performed for the continued protection of the customer and service technician. LEAKAGE CURRENT CHECK Measure leakage current to a known earth ground (water pipe, conduit, etc.) by connecting a leakage current tester such as Simpson Model 229-2 or equivalent between the earth ground and all exposed metal parts of the appliance (input/output terminals, screwheads, metal overlays, control shaft, etc.). Plug the AC line cord of the appliance directly into a 120V AC 60 Hz outlet and turn the AC power switch on. Any current measured must not exceed 0.5 mA. ANY MEASUREMENTS NOT WITHIN THE LIMITS OUTLINED ABOVE ARE INDICATIVE OF A POTENTIAL SHOCK HAZARD AND MUST BE CORRECTED BEFORE RETURNING THE APPLIANCE TO THE CUSTOMER. 2. PRODUCT SAFETY NOTICE Many electrical and mechanical parts in the appliance have special safety related characteristics. These are often not evident from visual inspection nor the protection afforded by them necessarily can be obtained by using replacement components rated for voltage, wattage, etc. Replacement parts which have these special safety characteristics are identified in this Service Manual. Electrical components having such features are identified by marking with a > on the schematics and on the parts list in this Service Manual. The use of a substitute replacement component which does not have the same safety characteristics as the PIONEER recommended replacement one, shown in the parts list in this Service Manual, may create shock, fire, or other hazards. Product Safety is continuously under review and new instructions are issued from time to time. For the latest information, always consult the current PIONEER Service Manual. A subscription to, or additional copies of, PIONEER Service Manual may be obtained at a nominal charge from PIONEER. Leakage current tester Reading should not be above 0.5 mA Device under test Test all exposed metal surfaces Also test with plug reversed (Using AC adapter plug as required) Earth ground AC Leakage Test (FOR USA MODEL ONLY) WARNING This product may contain a chemical known to the State of California to cause cancer, or birth defects or other reproductive harm. Health & Safety Code Section 25249.6 - Proposition 65 NOTICE (FOR CANADIAN MODEL ONLY) Fuse symbols (fast operating fuse) and/or (slow operating fuse) on PCB indicate that replacement parts must be of identical designation. REMARQUE (POUR MODÈLE CANADIEN SEULEMENT) Les symboles de fusible (fusible de type rapide) et/ou (fusible de type lent) sur CCI indiquent que les pièces de remplacement doivent avoir la même désignation. This service manual is intended for qualified service technicians ; it is not meant for the casual do-it- yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 VSX-820-K 5 6 7 8 5 6 7 8 A B C D E F [Important Check Points for Good Servicing] In this manual, procedures that must be performed during repairs are marked with the below symbol. Please be sure to confirm and follow these procedures. 1. Product safety Please conform to product regulations (such as safety and radiation regulations), and maintain a safe servicing environment by following the safety instructions described in this manual. 1 Use specified parts for repair. Use genuine parts. Be sure to use important parts for safety. 2 Do not perform modifications without proper instructions. Please follow the specified safety methods when modification(addition/change of parts) is required due to interferences such as radio/TV interference and foreign noise. 3 Make sure the soldering of repaired locations is properly performed. When you solder while repairing, please be sure that there are no cold solder and other debris. Soldering should be finished with the proper quantity. (Refer to the example) 4 Make sure the screws are tightly fastened. Please be sure that all screws are fastened, and that there are no loose screws. 5 Make sure each connectors are correctly inserted. Please be sure that all connectors are inserted, and that there are no imperfect insertion. 6 Make sure the wiring cables are set to their original state. Please replace the wiring and cables to the original state after repairs. In addition, be sure that there are no pinched wires, etc. 7 Make sure screws and soldering scraps do not remain inside the product. Please check that neither solder debris nor screws remain inside the product. 8 There should be no semi-broken wires, scratches, melting, etc. on the coating of the power cord. Damaged power cords may lead to fire accidents, so please be sure that there are no damages. If you find a damaged power cord, please exchange it with a suitable one. 9 There should be no spark traces or similar marks on the power plug. When spark traces or similar marks are found on the power supply plug, please check the connection and advise on secure connections and suitable usage. Please exchange the power cord if necessary. a Safe environment should be secured during servicing. When you perform repairs, please pay attention to static electricity, furniture, household articles, etc. in order to prevent injuries. Please pay attention to your surroundings and repair safely. 2. Adjustments To keep the original performance of the products, optimum adjustments and confirmation of characteristics within specification. Adjustments should be performed in accordance with the procedures/instructions described in this manual. 4. Cleaning For parts that require cleaning, such as optical pickups, tape deck heads, lenses and mirrors used in projection monitors, proper cleaning should be performed to restore their performances. 3. Lubricants, Glues, and Replacement parts Use grease and adhesives that are equal to the specified substance. Make sure the proper amount is applied. 5. Shipping mode and Shipping screws To protect products from damages or failures during transit, the shipping mode should be set or the shipping screws should be installed before shipment. Please be sure to follow this method especially if it is specified in this manual. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 VSX-820-K 1 2 3 4 A B C D E F 1 2 3 4 CONTENTS SAFETY INFORMATION..........................................................................................................................................................2 1. SERVICE PRECAUTIONS ....................................................................................................................................................5 1.1 NOTES ON SOLDERING ...............................................................................................................................................5 1.2 CAUTION ........................................................................................................................................................................5 2. SPECIFICATIONS .................................................................................................................................................................6 2.1 SPECIFICATIONS...........................................................................................................................................................6 2.2 PANEL FACILITIES.........................................................................................................................................................8 3. BASIC ITEMS FOR SERVICE.............................................................................................................................................16 3.1 CHECK POINTS AFTER SERVICING..........................................................................................................................16 3.2 PCB LOCATIONS .........................................................................................................................................................17 3.3 JIGS LIST......................................................................................................................................................................19 4. BLOCK DIAGRAM...............................................................................................................................................................20 4.1 OVERALL WIRING DIAGRAM......................................................................................................................................20 4.2 OVERALL BLOCK DIAGRAM.......................................................................................................................................22 4.3 POWER SUPPLY and MAIN UCOM BLOCK DIAGRAM ..............................................................................................24 5. DIAGNOSIS.........................................................................................................................................................................26 5.1 DIAGNOSIS FLOWCHART...........................................................................................................................................26 5.2 ADAPTER ERROR MESSAGE.....................................................................................................................................42 5.3 DETECTION CIRCUIT..................................................................................................................................................43 6. SERVICE MODE .................................................................................................................................................................46 6.1 SERVICE MODE...........................................................................................................................................................46 7. DISASSEMBLY....................................................................................................................................................................49 8. EACH SETTING AND ADJUSTMENT ................................................................................................................................59 8.1 HOW TO UPDATE FIRMWARE ....................................................................................................................................59 8.2 IDLE CURRENT ADJUSTMENT ..................................................................................................................................62 9. EXPLODED VIEWS AND PARTS LIST...............................................................................................................................64 9.1 PACKING SECTION......................................................................................................................................................64 9.2 EXTERIOR SECTION (VSX-820-K) .............................................................................................................................66 9.3 EXTERIOR SECTION (VSX-520-K) .............................................................................................................................70 10. SCHEMATIC DIAGRAM ....................................................................................................................................................74 10.1 INPUT ASSY...............................................................................................................................................................74 10.2 AMP ASSY..................................................................................................................................................................76 10.3 SPEAKER, HEADPHONE and MIC ASSYS...............................................................................................................78 10.4 PORTABLE, PT, HP_GUIDE, CNT1, CNT2, GUIDE_L and GUIDE_R ASSYS..........................................................79 10.5 VIDEO ASSY ..............................................................................................................................................................80 10.6 F-VIDEO, FRONT and FUNCTION ASSYS................................................................................................................82 10.7 MAIN and REG ASSYS ..............................................................................................................................................84 10.8 HDMI ASSY ................................................................................................................................................................86 10.9 DSP ASSY (1/2)..........................................................................................................................................................88 10.10 DSP ASSY (2/2)........................................................................................................................................................90 10.11 USB ASSY (VSX-820-K ONLY).................................................................................................................................92 10.12 BT ASSY...................................................................................................................................................................94 11. PCB CONNECTION DIAGRAM ........................................................................................................................................95 11.1 INPUT ASSY...............................................................................................................................................................96 11.2 AMP ASSY..................................................................................................................................................................98 11.3 SPEAKER, HEADPHONE, MIC and PORTABLE ASSYS ........................................................................................100 11.4 PT, HP_GUIDE, CNT1, CNT2, GUIDE_L and GUIDE_R ASSYS ............................................................................102 11.5 VIDEO ASSY ............................................................................................................................................................104 11.6 F-VIDEO, FRONT and FNCTION ASSYS ................................................................................................................106 11.7 MAIN and REG ASSYS ............................................................................................................................................110 11.8 HDMI ASSY ..............................................................................................................................................................114 11.9 DSP ASSY ................................................................................................................................................................116 11.10 USB ASSY (VSX-820-K ONLY)...............................................................................................................................118 11.11 BT ASSY.................................................................................................................................................................120 12. PCB PARTS LIST ............................................................................................................................................................121 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 VSX-820-K 5 6 7 8 5 6 7 8 A B C D E F 1. SERVICE PRECAUTIONS 1.1 NOTES ON SOLDERING 1.2 CAUTION • For environmental protection, lead-free solder is used on the printed circuit boards mounted in this unit. Be sure to use lead-free solder and a soldering iron that can meet specifications for use with lead-free solders for repairs accompanied by reworking of soldering. • Compared with conventional eutectic solders, lead-free solders have higher melting points, by approximately 40 ºC. Therefore, for lead-free soldering, the tip temperature of a soldering iron must be set to around 373 ºC in general, although the temperature depends on the heat capacity of the PC board on which reworking is required and the weight of the tip of the soldering iron. Do NOT use a soldering iron whose tip temperature cannot be controlled. Compared with eutectic solders, lead-free solders have higher bond strengths but slower wetting times and higher melting temperatures (hard to melt/easy to harden). The following lead-free solders are available as service parts: • Parts numbers of lead-free solder: GYP1006 1.0 in dia. GYP1007 0.6 in dia. GYP1008 0.3 in dia. • Discharging For more detail, please refer to “7. DISASSEMBLY - 1. Discharging”. • Notes on Ground Points Connection For more detail, please refer to “7. DISASSEMBLY - 2. Notes on Ground Points Connection”. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 VSX-820-K 1 2 3 4 A B C D E F 1 2 3 4 2. SPECIFICATIONS 2.1 SPECIFICATIONS 2.1.1 VSX-820-K iPod cable (L308102013010-IL) Accessories Remote control (8300758300010-IL) AM loop antenna (E601016000010-IL) FM wire antenna (E605010070001-IL) Dry cell batteries (AAA size IEC R03) x2 Microphone (for Auto MCACC setup) (M040000300200-IL) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 VSX-820-K 5 6 7 8 5 6 7 8 A B C D E F 2.1.2 VSX-520-K Accessories Remote control (8300758600010-IL) AM loop antenna (E601016000010-IL) FM wire antenna (E605010070001-IL) Dry cell batteries (AAA size IEC R03) x2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 VSX-820-K 1 2 3 4 A B C D E F 1 2 3 4 2.2 PANEL FACILITIES 2.2.1 VSX-820-K Front panel www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 VSX-820-K 5 6 7 8 5 6 7 8 A B C D E F Display www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 VSX-820-K 1 2 3 4 A B C D E F 1 2 3 4 Remote control www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 VSX-820-K 5 6 7 8 5 6 7 8 A B C D E F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 VSX-820-K 1 2 3 4 A B C D E F 1 2 3 4 2.2.2 VSX-520-K Front panel www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 VSX-820-K 5 6 7 8 5 6 7 8 A B C D E F Display www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 VSX-820-K 1 2 3 4 A B C D E F 1 2 3 4 Remote control www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 VSX-820-K 5 6 7 8 5 6 7 8 A B C D E F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 VSX-820-K 1 2 3 4 A B C D E F 1 2 3 4 3. BASIC ITEMS FOR SERVICE 3.1 CHECK POINTS AFTER SERVICING Item to be checked regarding video Item to be checked regarding audio Block noise Distortion Horizontal noise Noise Flicker Volume too low Disturbed image (video jumpiness) Volume too high Too dark Volume fluctuating Too bright Sound interrupted Mottled color No. Procedures Check points 1 2 3 4 5 6 7 8 Confirm whether the customer complain has been solved. If the customer complain occurs with the particular source, such as Dolby Digital, DTS, AAC, DVD-A and HDMI, input it for the operation check. The customer complain must not be reappeared. Video, Audio and operations must be normal. Check the analog audio playback. (Make the analog connections with a DVD player.) Each channel audio and operations must be normal. Check the digital audio playback. (Make the digital connections with a DVD player.) Each channel audio and operations must be normal. Check surround playback. (Select Surround mode and check the multichannel operations via the DSP circuit.) Each channel audio and operations must be normal. Check the tuner (AM and FM) operations. Audio and operations must be normal. Check the video outputs. (Connect with a DVD player.) Video and operations must be normal. Check the sound from headphone output. Sound must be normal, without noise. Check the appearance of the product. No scratches or dirt on its appearance after receiving it for service. Items to be checked after servicing / VSX, SC To keep the product quality after servicing, confirm recommended check points shown below. See the table below for the items to be checked regarding video and audio. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 VSX-820-K 5 6 7 8 5 6 7 8 A B C D E F 3.2 PCB LOCATIONS 3.2.1 VSX-820-K NSP 1..MAIN ASSY 7025HK0916010-IL 2..MAIN ASSY 7028069111010-IL 2..PT ASSY 7028069112010-IL 2..CNT2 ASSY 7028069113010-IL 2..HEADPHONE ASSY 7028069114010-IL 2..HP_GUIDE ASSY 7028069115010-IL 2..MIC ASSY 7028069116010-IL 2..GUIDE_L ASSY 7028069117010-IL 2..GUIDE_R ASSY 7028069118010-IL 2..CNT1 ASSY 7028069119010-IL NSP 1..VIDEO ASSY 7025HK0916013-IL 2..VIDEO ASSY 7028069141010-IL NSP 1..FRONT ASSY 7025HK0916011-IL 2..FRONT ASSY 7028069121010-IL 2..FUNCTION ASSY 7028069122010-IL 2..F-VIDEO ASSY 7028069123010-IL NSP 1..INPUT ASSY 7025HK0916012-IL 2..INPUT ASSY 7028069131010-IL NSP 1..SPEAKER ASSY 7025HK0916014-IL 2..SPEAKER ASSY 7028069151010-IL NSP 1..DSP ASSY 7025HK0916015-IL 2..DSP ASSY 7028069161010-IL 2..REG ASSY 7028069162010-IL NSP 1..HDMI ASSY 7025HK0916018-IL 2..HDMI ASSY 7028069191010-IL NSP 1..USB ASSY 7025HK0916016-IL 2..USB ASSY 7028069171010-IL NSP 1..BT ASSY 7025HK0916017-IL 2..BT ASSY 7028069181010-IL NSP 1..AMP ASSY 7025HK0916019-IL 2..AMP ASSY 7028067523010-IL Mark No. Description Part No. Mark No. Description Part No. LIST OF ASSEMBLIES NOTES: - Parts marked by “NSP” are generally unavailable because they are not in our Master Spare Parts List. - The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. O FRONT ASSY USB ASSY U R REG ASSY L GUIDE_R ASSY I CNT1 ASSY T DSP ASSY A INPUT ASSY S HDMI ASSY N F-VIDEO ASSY B AMP ASSY E MIC ASSY G PT ASSY P FUNCTION ASSY K GUIDE_L ASSY D HEADPHONE ASSY H HP_GUIDE ASSY M VIDEO ASSY Q MAIN ASSY J CNT2 ASSY BT ASSY V C SPEAKER ASSY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 VSX-820-K 1 2 3 4 A B C D E F 1 2 3 4 3.2.2 VSX-520-K NSP 1..MAIN ASSY 7025HK0915010-IL 2..MAIN ASSY 7028069111060-IL 2..PT ASSY 7028069112010-IL 2..CNT2 ASSY 7028069113010-IL 2..HEADPHONE ASSY 7028069114010-IL 2..HP_GUIDE ASSY 7028069115010-IL 2..GUIDE_L ASSY 7028069117010-IL 2..GUIDE_R ASSY 7028069118010-IL 2..CNT1 ASSY 7028069119010-IL 2..PORTABLE ASSY 702806911A010-IL NSP 1..VIDEO ASSY 7025HK0915013-IL 2..VIDEO ASSY 7028069141040-IL NSP 1..FRONT ASSY 7025HK0915011-IL 2..FRONT ASSY 7028069121020-IL 2..FUNCTION ASSY 7028069122010-IL NSP 1..INPUT ASSY 7025HK0915012-IL 2..INPUT ASSY 7028069131020-IL NSP 1..SPEAKER ASSY 7025HK0915014-IL 2..SPEAKER ASSY 7028069151030-IL NSP 1..DSP ASSY 7025HK0915015-IL 2..DSP ASSY 7028069161020-IL 2..REG ASSY 7028069162010-IL NSP 1..HDMI ASSY 7025HK0915016-IL 2..HDMI ASSY 7028069191020-IL NSP 1..BT ASSY 7025HK0916017-IL 2..BT ASSY 7028069181010-IL NSP 1..AMP ASSY 7025HK0916019-IL 2..AMP ASSY 7028067523010-IL Mark No. Description Part No. Mark No. Description Part No. LIST OF ASSEMBLIES NOTES: - Parts marked by “NSP” are generally unavailable because they are not in our Master Spare Parts List. - The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. FRONT ASSY R REG ASSY L GUIDE_R ASSY I CNT1 ASSY T DSP ASSY A INPUT ASSY S HDMI ASSY B AMP ASSY F PORTABLE ASSY G PT ASSY P FUNCTION ASSY K GUIDE_L ASSY D HEADPHONE ASSY H HP_GUIDE ASSY M VIDEO ASSY Q MAIN ASSY J CNT2 ASSY BT ASSY V C SPEAKER ASSY O www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 VSX-820-K 5 6 7 8 5 6 7 8 A B C D E F 3.3 JIGS LIST Jigs List Jig Name Part No. Remarks RS-232C update jig GGF1642 Firmware update (RS-232C ↔ Rear panel) 10P to 8P FFC GGD1676 Board to board extension jig cable GGD1673 Diagnosis (DSP Assy ↔ MAIN Assy) 10P extension jig cable GGD1628 Diagnosis (AMP Assy ↔ INPUT Assy) 8P extension jig cable GGD1629 Diagnosis (AMP Assy ↔ MAIN Assy) Lubricants and Glues List Name Part No. Remarks Silicon grease GEM1057 Refer to “9.2 EXTERIOR SECTION (VSX-820-K)” and “9.3 EXTERIOR SECTION (VSX-520-K)”. Silicon adhesive GYA1011 (KE40RTV-W) Refer to “9.2 EXTERIOR SECTION (VSX-820-K)” and “9.3 EXTERIOR SECTION (VSX-520-K)”. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 VSX-820-K 1 2 3 4 A B C D E F 1 2 3 4 4. BLOCK DIAGRAM 4.1 OVERALL WIRING DIAGRAM Q MAIN ASSY (7028069111010-IL: VSX-820-K) (7028069111060-IL: VSX-520-K) B AMP ASSY (7028067523010-IL) C SPEAKER ASSY (7028069151010-IL: VSX-820-K) (7028069151030-IL: VSX-520-K) H ( M VIDEO ASSY (7028069141010-IL: VSX-820-K) (7028069141040-IL: VSX-520-K) A INPUT ASSY (7028069131010-IL: VSX-820-K) (7028069131020-IL: VSX-520-K) I CNT1 ASSY (7028069119010-IL) H G HP_GUIDE ASSY (7028069115010-IL) PT ASSY (7028069112010-IL) CN1001 N F-VIDEO ASSY (7028069123010-IL) CN701 VSX-820-K ONLY VS VSX-520-K ONLY VSX-820-K ONLY VSX-820-K ONLY 1,2,3 PIN 4,5 PIN CN1002 CN807 CP804 CP802 CN707 CP805 CN121B CN121A CN803 CN806 CP122 CP123 CP110 CP117 CP118 CP125 CN201 CP126 CN202 C CP109 CP301 CN106 AC CORD OR INLET F CP120 CP121 V BT ASSY (7028069181010-IL) E MIC ASSY (7028069116010-IL) CN502 CP801 CP502 CP501 CN501 CN601 CP128 CP107 CN202 CP203 CN401 CP404 CN201 CP403 CP405 CN104 CP402 CN103 CN703 F PORTABLE ASSY (702806911A010-IL) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 VSX-820-K 5 6 7 8 5 6 7 8 A B C D E F - When ordering service parts, be sure to refer to "EXPLODED VIEWS and PARTS LIST" or "PCB PARTS LIST". - The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. - : The power supply is shown with the marked box. X-820-K) X-520-K) VSX-820-K) VSX-520-K) D HEADPHONE ASSY (7028069114010-IL) S HDMI ASSY (7028069191010-IL: VSX-820-K) (7028069191020-IL: VSX-520-K) J CNT2 ASSY (7028069113010-IL) VSX-820-K ONLY VSX-820-K ONLY CN702 CN701 CP111 CP112 CP114 CP115 CN202 CP116 CP105 CN204 CP704 CN706 CP702 CN203 CP200 CN200 CN205 CP105 UPGRADE CP703 CN703A R REG ASSY (7028069162010-IL) O FRONT ASSY (7028069121010-IL: VSX-820-K) (7028069121020-IL: VSX-520-K) P FUNCTION ASSY (7028069122010-IL) U USB ASSY (7028069171010-IL) K GUIDE_L ASSY (7028069117010-IL) L GUIDE_R ASSY (7028069118010-IL) CN207B CP303 CP101 CP102 CP109 CP301 AC CORD OR INLET FPC101 CN207A CN702 CP703 CN802 CP802 CN807 CN805 POWER TRANSFORMER DSP ASSY (7028069161010-IL: VSX-820-K) (7028069161020-IL: VSX-520-K) T T T 1/2, 2/2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 22 VSX-820-K 1 2 3 4 A B C D E F 1 2 3 4 4.2 OVERALL BLOCK DIAGRAM INPUT ASSY BD (VSX-820-K ONLY) HDMI OUT DVD(VSX-820-K) BD(VSX-520-K) TV/SAT(VSX-820-K) DVD(VSX-520-K) DVR/VCR(VSX-820-K) TV/SAT(VSX-520-K) 73 76 67 71 69 84 82 72 75 66 70 68 64 85 83 81 65 59 63 61 79 58 62 60 78 F_AUX R 86 F_AUX L T INPUT ASSY INPUT ASSY INPUT ASSY MAIN ASSY MAIN ASSY S HDMI ASSY U USB ASSY Q MAIN ASSY E MIC ASSY DSP ASSY V BT ASSY VSX-820-K ONLY VSX-820-K ONLY VSX-820-K ONLY VSX-520-K ONLY F PORTABLE ASSY VSX-820-K ONLY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 23 VSX-820-K 5 6 7 8 5 6 7 8 A B C D E F D HEADPHONE ASSY C SPEAKER ASSY G PT ASSY M VIDEO ASSY A INPUT ASSY MAIN ASSY MAIN ASSY INPUT ASSY VIDEO ASSY SPEAKER ASSY B AMP ASSY O FRONT ASSY N F-VIDEO ASSY The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. VSX-820-K ONLY VSX-820-K ONLY VSX-520-K ONLY VSX-820-K ONLY VSX-820-K ONLY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 24 VSX-820-K 1 2 3 4 A B C D E F 1 2 3 4 4.3 POWER SUPPLY and MAIN UCOM BLOCK DIAGRAM S4(FLT) S3(DSP, HDMI) AC CORD S2(+12V,-12V) S1(AMP B+/B-) S4(DIR/CODEC, HDMI, USB) MAIN TRANS SUB TRANS R REG ASSY Q MAIN ASSY VSX-820-K ONLY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 25 VSX-820-K 5 6 7 8 5 6 7 8 A B C D E F R REG ASSY The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. INPUT ASSY VSX-820-K ONLY VSX-820-K ONLY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 26 VSX-820-K 1 2 3 4 A B C D E F 1 2 3 4 5. DIAGNOSIS 5.1 DIAGNOSIS FLOWCHART Step 3: Regulator IC REG101, REG102 (Pin 3) Is the voltage of around 3.3 V input? Replace REG103. Check the ZD200 2.4 VB and IC106. To Step 3 To Step 4 Step 0: Preliminary confirmation Confirm the following items before checking Tighten screws securely. No Yes To Step 1 No [1] DSP TROUBLESHOOTING Step 2: Regulator IC Check the REG101, REG102 and MAIN Assy Check the REG103 and MAIN Assy. REG103 (Pin 3) Is the voltage of around 5 V input? No Yes (to chassis) ZD200 cathode Is the voltage of 2.5 V output? No *The I/O power of DSP Assy is OK. *The IC106 power of DSP Assy *The DSP IC CORE power of DSP Assy XMCK Note: REG101, REG102 is made of parallel connection. REG103 (Pin 2) Is the voltage of 3.3 V output? No Yes Yes Yes Is the voltage of 1.2 V output? Replace REG101 and REG102. Check the path to XTAL101. No Yes (to chassis) (to chassis) REG101, REG102 (Pin 2) (to chassis) Step 1: BtoB connector, wire CN200,CN202,CN203, CN204,CP105 Are the connectors securely inserted? Turn the power off and insert the connectors securely. No Yes To Step 2 *CP105 connectors doesn't connection in case of DSP JIG B'D use. BtoB connector, wire Do screws of COAX Jack securely tighten? OR connect GND wire of DSP JIG B'D to chassis. Step 4: X'tal To Step 5 Yes IC109 (Pin 6, 7) No Is there a 24.576 MHz output? Check the path to pins 6, 7 of IC109. Replace XTAL101. Yes IC102 (Pin 17) No Is there a 24.576 MHz input? www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 27 VSX-820-K 5 6 7 8 5 6 7 8 A B C D E F Replace IC109. Yes IC109 (Pin 15) DIR_BCK (Bit clock) No Is there a bit clock output? (0 V ⇔ 3.3 V) Yes IC106 (Pin 4) DAI_MCK (Master clock) Is there a master clock output? (0 V ⇔ 2.5 V) Yes IC106 (Pin 7) DAI_LRCK (LR clock) Is there a LR clock output? (0 V ⇔ 2.5 V) Yes IC106 (Pin 9) DAI_BCK (Bit clock) *IC106 Pin 1 0 V : DIR 3.3 V : HDMI Is there a bit clock output? (0 V ⇔ 2.5 V) Replace IC106. Check the path between IC106-pin 1 and MAIN Assy. No No No No Is the voltage of IC106-pin 1 0 V? Yes Switch Step 5: DIR Check the path to pins 10-13 of IC110 or replace IC110. Check the path to CP105 connector. Replace IC109. Check the path to OUTPUT PIN of JACK105, JACK106. IC110 (Pins 3, 5) OPTICAL (Pin 3: OPT2, Pin 5: OPT1) Check that the S/PDIF signal is output. Check that changes by pulling out and inserting the digital input lines. Can observe the digital signal ? No (0 V ⇔ 3.3 V) Yes IC109 (Pin 67) COAX Can observe the digital signal ? No Yes Yes Check that the data and clock signals are output. Check that it changes in the Playback and Pause modes of the USB (iPod). (0 V ⇔ 3.3 V) (0 V ⇔ 3.3 V) (0 V ⇔ 3.3 V) Yes IC109 (Pin 71) From USB Assy Can observe the digital signal ? No VSX-820-K ONLY (0 V ⇔ 3.3 V) Check the path to pins 4, 6 of IC110 or replace IC110. IC109 (Pins 61, 63) OPTICAL (Pin 61: OPT2, Pin 63: OPT1) Can observe the digital signal ? No Yes (0 V ⇔ 3.3 V) Check the MAIN Assy. IC109 (Pin 10) DIR_MCK (Master clock) No No Yes Is there a master clock output? IC109 (Pin 16) DIR_LRCK (LR clock) No Is there a LR clock output? Replace IC109. (0 V ⇔ 3.3 V) Yes IC109 (Pin 14) DIR_SDTO (Data) No Is there a data output? Is the voltage of PDN IC109-pin 31 3.3 V? Check the USB Assy. No To Step 6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 28 VSX-820-K 1 2 3 4 A B C D E F 1 2 3 4 Step 6: DSP output (digital) Yes Digital output of each CH when inputting the digital signal with audio. IC109 (Pin 26) Center/LFE data No Is there a data input? Yes Check the path between IC102 and data & address lines. SDRAM (IC100), FLASH ROM (IC101) IC109 (Pin 25) Surround back L/R data No Is there a data input? Yes IC109 (Pin 27) Surround L/R data No Is there a data input? Yes IC109 (Pin 18) DSP_BCK (Bit clock) No Is there a bit clock input? Yes IC109 (Pin 19) DSP_LRCK (LR clock) No Is there a LR clock output? Yes IC109 (Pin 28) Front L/R data No Is there a data input? (0 V ⇔ 3.3 V) (0 V ⇔ 3.3 V) (0 V ⇔ 3.3 V) (0 V ⇔ 3.3 V) (0 V ⇔ 3.3 V) (0 V ⇔ 3.3 V) To Step 7 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 29 VSX-820-K 5 6 7 8 5 6 7 8 A B C D E F Yes Replace IC109. IC109 (Pin 49) Front R out No Is the output 2.5 V fixing? Replace IC109. Yes Yes IC109 (Pin 43) Surround L out No Is the output 2.5 V fixing? Replace IC109. IC109 (Pin 41) Center out No Is the output 2.5 V fixing? Yes Replace IC109. IC109 (Pin 39) End LFE out No Is the output 2.5 V fixing? Yes Yes Replace IC109. IC109 (Pin 47) Front L out No Is the output 2.5 V fixing? Replace IC109. IC109 (Pin 45) Surround R out No Is the output 2.5 V fixing? Analog output of each CH when inputting the digital signal (-∞ dB (no signal)). Replace IC109. Yes IC109 (Pin 43) Surround L out No Is there a audio signal output? Replace IC109. Yes IC109 (Pin 41) Center out No Is there a audio signal output? Replace IC109. Yes IC109 (Pin 39) LFE out No Is there a audio signal output? Step 7: Codec output (analog) Analog output of each CH when inputting the digital signal with audio. Replace IC109. Yes IC109 (Pin 49) Front R out No Is there a audio signal output? Replace IC109. Yes IC109 (Pin 47) Front L out No Is there a audio signal output? Replace IC109. Yes IC109 (Pin 45) Surround R out No Is there a audio signal output? www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 30 VSX-820-K 1 2 3 4 A B C D E F 1 2 3 4 1. Causes for noncompletion of HDMI authentication between the source equipment and this unit (the HDMI indicator is unlit or flashes) [2] HDMI TROUBLESHOOTING Causes for no display or sound from the monitor HDMI Simple Diagnosis Replace the HDMI cable. NG OK OK OK Connect the source equipment (player) to the Sink equipment (monitor) directly. Replace the Player. Replace the HDMI cable. Repare the Receiver. Repare the Player. NG OK Replace the Monitor. Repare the Monitor. NG POWER ON Confirm the following items before checking Do screws of COAX jack securely tighten? Tighten screws securely. No Yes Source equipment: Connect a DVD player to BD or DVD or TV or DVR. To Step 2 To Step 1 Sink equipment: Connect a TV to HDMI OUT. Turn on the power of the Receiver and equipments which was connected with HDMI. Function switch (BD or DVD or TV or DVR) Switch the function that HDMI was assigned. Factory shipments setting: For VSX-820-K HDMI 1: BD HDMI 2: DVD HDMI 3: TV/SAT HDMI 4: DVR/VCR For VSX-520-K HDMI 1: BD HDMI 2: DVD HDMI 3: TV/SAT HDMI Troubleshooting Step 0: Preliminary confirmation Step 1: Connect the HDMI equipment www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 31 VSX-820-K 5 6 7 8 5 6 7 8 A B C D E F CN701 (Pin 1) Is the voltage 0 to 3.3 V? No SUB_ON Diagnose the MAIN Assy. Diagnose the MAIN Assy. Diagnose the MAIN Assy. Diagnose the MAIN Assy. Yes CN701 (Pin 9) Is the voltage 3.3 V? Is the voltage 3.3 V? Is the voltage 3.3 V? Is the voltage 5 V? No SUB MICOM 3.3V Q711 (collector) No SUB MICOM 3.3V Yes Yes CN701 (Pin 12) No HDMI_5V Yes CN701 (Pins 13, 14) No HDMI_3.3V Yes Is Q711 base voltage 2.6 V? No Yes To Step 3 Is the voltage 3.3 V? Is the voltage 1.8 V? Is the voltage 3.3 V? Is the voltage 1.2 V? Replace IC704. Replace IC701. IC704 (Pin 3) No HDMI 3.3V Yes IC704 (Pin 2) No HDMI 1.8V Yes Check the parts and patterns in the path. Check the parts and patterns in the path. Is IC704 abnormally hot? Is IC701 abnormally hot? No Yes IC701 (Pin 3) No HDMI 3.3V HDMI 1.2V Yes The output and GND may be short-circuited. Check the path between them. Check the parts and patterns in the path. Replace Q711, IC706, etc. Check the parts and patterns in the path Q711, Q714, etc. The output and GND may be short-circuited. Check the path between them. IC701 (Pin 2) No Yes No Yes Step 2: Power supply Replace Q714. No Yes Is Q714 collector voltage 0 V? (base is 3.3 V) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 32 VSX-820-K 1 2 3 4 A B C D E F 1 2 3 4 To Step 5 Step 4: X'TAL Replace IC706 or X702. Replace IC703 or X701. Is there a 12 MHz output? Is there a 12 MHz output? Is there a 27 MHz output? Is there a 27 MHz output? IC706 (Pin 15) No Yes IC706 (Pin 13) No Yes Check the path to pin13 of IC706. Replace IC706. IC703 (Pin 5) No Yes IC703 (Pin 4) No Yes Check the path to pin4 of IC703. Replace IC703. To Step 4 Check the parts and patterns in the path of pin 87 of IC706. Is the voltage 0 to 3.3 V? Is there a data 0 to 3.3 V? IC703 (Pin 21) No HR_RST Yes IC702 (Pin 25) No Yes Check the parts and patterns in the path of pin 89 of IC706. Step 3: Diagnosis CN701 (Pin 5) Is the voltage 0 to 3.3 V? No SUB_RESET Diagnose the MAIN Assy. Diagnose the MAIN Assy. Diagnose the MAIN Assy. Diagnose the MAIN Assy. Diagnose the MAIN Assy. Yes CN701 (Pin 4) Is the voltage 0 to 3.3 V? No SUB_PDN CN701 (Pin 8) Is there a data input? (0 to 3.3 V) Is there a data input? (0 to 3.3 V) No CSCK_MAIN Yes Yes CN701 (Pin 3) Is there a data input? (0 to 3.3 V) No MAIN_IRQ Yes CN701 (Pin 2) Is there a data output? (0 to 3.3 V) Is there a data output? (0 to 3.3 V) No SUB_IRQ Check the parts and patterns in the path of IC706. Yes CN701 (Pin 7) No SCDO_MAIN Yes CN701 (Pin 6) No SCDI_MAIN Yes Check the parts and patterns in the path of IC706. Each data lines confirmation checks it after standby OFF/ON. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 33 VSX-820-K 5 6 7 8 5 6 7 8 A B C D E F JACK701 (Pin 18) +5V_R3 Is the voltage 5 V? Is the voltage 5 V? Is the voltage 5 V? Check the JACK705. If JACK705 is failure, replace JACK705. Check the JACK704. If JACK704 is failure, replace JACK704. Check the JACK703. If JACK703 is failure, replace JACK703. Yes JACK703 (Pin 18) +5V_R2 Yes No No JACK704 (Pin 18) No +5V_R1 Yes * When connected the equipment to IN1(BD); * When connected the equipment to IN2(DVD); * When connected the equipment to IN3(TV/SAT); Is the voltage 5 V? Check the JACK705. If JACK705 is failure, replace JACK705. JACK705 (Pin 18) No +5V_R0 Yes * When connected the equipment to IN4(DVR/VCR); To Step 6 Step 5: IN/OUTPUT Diagnosis (VSX-820-K) JACK703 (Pin 18) +5V_R3 Is the voltage 5 V? Is the voltage 5 V? Is the voltage 5 V? Check the JACK703. If JACK703 is failure, replace JACK703. Check the JACK705. If JACK705 is failure, replace JACK705. Check the JACK704. If JACK704 is failure, replace JACK704. Yes JACK704 (Pin 18) +5V_R2 Yes No No JACK705 (Pin 18) No +5V_R1 Yes * When connected the equipment to IN1(BD); * When connected the equipment to IN2(DVD); * When connected the equipment to IN3(TV/SAT); To Step 6 Step 5: IN/OUTPUT Diagnosis (VSX-520-K) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 34 VSX-820-K 1 2 3 4 A B C D E F 1 2 3 4 JACK702 (Pin 19) HPD_SINK Check the JACK702. If JACK702 is failure, replace JACK702. Yes No Check the JACK703 and IC703. If JACK703 or IC703 is failure, replace JACK703 or IC703. JACK703 (Pin 19) No HPD2 Yes JACK704 (Pin 19) HPD1 * When connected the equipment to IN1 (BD); * When connected the equipment to IN2 (DVD); Is the voltage 5 V when selecting IN1? Is the voltage 5 V? Check the JACK704 and IC703. If JACK704 or IC703 is failure, replace JACK704 or IC703. No Yes Is the voltage 5 V when selecting IN2? JACK705 (Pin 19) HPD0 * When connected the equipment to IN3 (TV/SAT); Check the JACK705 and IC703. If JACK705 or IC703 is failure, replace JACK705 or IC703. No Yes Is the voltage 5 V when selecting IN3? To Step 7 Step 6: Hot plug detect (VSX-520-K) JACK702 (Pin 19) HPD_SINK Check the JACK702. If JACK702 is failure, replace JACK702. Yes JACK701 (Pin 19) HPD3 Yes No No Check the JACK703 and IC703. If JACK703 or IC703 is failure, replace JACK703 or IC703. JACK703 (Pin 19) No HPD2 Check the JACK701 and IC703. If JACK701 or IC703 is failure, replace JACK701 or IC703. Yes JACK704 (Pin 19) HPD1 * When connected the equipment to IN2 (DVD); * When connected the equipment to IN1 (BD); * When connected the equipment to IN3 (TV/SAT); Is the voltage 5 V when selecting IN2? Is the voltage 5 V when selecting IN1? Is the voltage 5 V? Check the JACK704 and IC703. If JACK704 or IC703 is failure, replace JACK704 or IC703. No Yes Is the voltage 5 V when selecting IN3? JACK705 (Pin 19) HPD0 * When connected the equipment to IN4 (DVR/VCR); Check the JACK705 and IC703. If JACK705 or IC703 is failure, replace JACK705 or IC703. No Yes Is the voltage 5 V when selecting IN4? To Step 7 Step 6: Hot plug detect (VSX-820-K) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 35 VSX-820-K 5 6 7 8 5 6 7 8 A B C D E F SDA2 (HDMI IN2 (DVD)) No IC703 (Pin 40) Is there a same signal as IC702-pin 49 when selecting IN2? Check the IC702 and JACK703. If IC702 or JACK703 is failure, replace IC702 or JACK703. * When connected the equipment to IN2 (DVD): SCL2 (HDMI IN2 (DVD)) No IC703 (Pin 39) Is there a same signal as IC702-pin 48 when selecting IN2? Yes Check the IC702 and JACK703. If IC702 or JACK703 is failure, replace IC702 or JACK703. (0 to 5 V) SDA1 (HDMI IN3 (TV/SAT)) No IC703 (Pin 36) Is there a same signal as IC702-pin 49 when selecting IN3? Yes Check the IC702 and JACK704. If IC702 or JACK704 is failure, replace IC702 or JACK704. * When connected the equipment to IN3 (TV/SAT): SCL1 (HDMI IN3 (TV/SAT)) No IC703 (Pin 35) Is there a same signal as IC702-pin 48 when selecting IN3? Yes Check the IC702 and JACK704. If IC702 or JACK704 is failure, replace IC702 or JACK704. (0 to 5 V) (0 to 5 V) SDA0 (HDMI IN4 (DVR/VCR)) No IC703 (Pin 32) Is there a same signal as IC702-pin 49 when selecting IN4? Yes Check the IC702 and JACK705. If IC702 or JACK705 is failure, replace IC702 or JACK705. * When connected the equipment to IN4 (DVR/VCR): SCL0 (HDMI IN4 (DVR/VCR)) No IC703 (Pin 31) Is there a same signal as IC702-pin 48 when selecting IN4? Yes Check the IC702 and JACK705. If IC702 or JACK705 is failure, replace IC702 or JACK705. (0 to 5 V) (0 to 5 V) To Step 8 IC702 (Pin 47) SDA (HDMI OUT) SDA3 (HDMI IN1(BD)) Does a signal output in constant period (0 to 5 V) ? Check the JACK702 and IC702. If JACK702 or IC702 is failure, replace JACK702 or IC702. No No No Yes IC702 (Pin 46) SCL (HDMI OUT) Does a clock output in constant period (0 to 5 V) ? Check the JACK702 and IC702. If JACK702 or IC702 is failure, replace JACK702 or IC702. Yes IC703 (Pin 44) Is there a same signal as IC702-pin 49 when selecting IN1? Yes Check the IC702 and JACK701. If IC702 or JACK701 is failure, replace IC702 or JACK701. * When connected the equipment to IN1(BD); SCL3 (HDMI IN1(BD)) No IC703 (Pin 43) Is there a same signal as IC702-pin 48 when selecting IN1? Yes Yes Check the IC702 and JACK701. If IC702 or JACK701 is failure, replace IC702 or JACK701. SDA_SINK No No SCL_SINK IC702 (Pin 49) Is there a same signal as IC703-pin 24 (0 to 3.3V) ? Yes Check the IC702 and IC703. If IC702 or IC703 is failure, replace IC702 or IC703. Check the IC702 and IC703. If IC702 or IC703 is failure, replace IC702 or IC703. IC702 (Pin 48) Is there a same signal as IC702-pin 23 (0 to 3.3V) ? Yes (0 to 5 V) (0 to 5 V) Step 7: SDA /SCL (VSX-820-K) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 36 VSX-820-K 1 2 3 4 A B C D E F 1 2 3 4 IC702 (Pins 30,31,33,34,36,37,39,40) TMDS OUTPUT SDA2 (HDMI IN1 (BD)) No IC703 (Pin 40) Is there a same signal as IC702-pin 49 when selecting IN1? Check the IC702 and JACK703. If IC702 or JACK703 is failure, replace IC702 or JACK703. * When connected the equipment to IN1 (BD): SCL2 (HDMI IN1 (BD)) No IC703 (Pin 39) Is there a same signal as IC702-pin 48 when selecting IN1? Yes Check the IC702 and JACK703. If IC702 or JACK703 is failure, replace IC702 or JACK703. Check the IC702 or IC703. If IC702 or IC703 is failure, replace IC702 or IC703. (0 to 5 V) End No Are there signals(approx. 0.5 Vp-p) in all lines? Yes Step 8: TMDS SDA1 (HDMI IN2 (DVD)) No IC703 (Pin 36) Is there a same signal as IC702-pin 49 when selecting IN2? Yes Check the IC702 and JACK704. If IC702 or JACK704 is failure, replace IC702 or JACK704. * When connected the equipment to IN2 (DVD): SCL1 (HDMI IN2 (DVD)) No IC703 (Pin 35) Is there a same signal as IC702-pin 48 when selecting IN2? Yes Check the IC702 and JACK704. If IC702 or JACK704 is failure, replace IC702 or JACK704. (0 to 5 V) (0 to 5 V) SDA0 (HDMI IN3 (TV/SAT)) No IC703 (Pin 32) Is there a same signal as IC702-pin 49 when selecting IN3? Yes Check the IC702 and JACK705. If IC702 or JACK705 is failure, replace IC702 or JACK705. * When connected the equipment to IN3 (TV/SAT): SCL0 (HDMI IN3 (TV/SAT)) No IC703 (Pin 31) Is there a same signal as IC702-pin 48 when selecting IN3? Yes Check the IC702 and JACK705. If IC702 or JACK705 is failure, replace IC702 or JACK705. (0 to 5 V) (0 to 5 V) To Step 8 IC702 (Pin 47) SDA (HDMI OUT) Does a signal output in constant period (0 to 5 V) ? Check the JACK702 and IC702. If JACK702 or IC702 is failure, replace JACK702 or IC702. No No Yes IC702 (Pin 46) SCL (HDMI OUT) Does a clock output in constant period (0 to 5 V) ? Check the JACK702 and IC702. If JACK702 or IC702 is failure, replace JACK702 or IC702. Yes Yes Yes SDA_SINK No No SCL_SINK IC702 (Pin 49) Is there a same signal as IC703-pin 24 (0 to 3.3V) ? Yes Check the IC702 and IC703. If IC702 or IC703 is failure, replace IC702 or IC703. Check the IC702 and IC703. If IC702 or IC703 is failure, replace IC702 or IC703. IC702 (Pin 48) Is there a same signal as IC702-pin 23 (0 to 3.3V) ? Step 7: SDA /SCL (VSX-520-K) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 37 VSX-820-K 5 6 7 8 5 6 7 8 A B C D E F Key Sequence Change Error 1 Communication Error When the communication is not possible normally. [Procedure] Disconnect a connector once, then connect a connector surely again after the main menu of the iPod was displayed. Nevertheless, reset the iPod when the iPod does not operate normally. Error 2 Generation Error (in the Type 1 operation only) When the non-support model for the iPod Mode Type 1 was connected. When the non-support function will be executed. When a version of the iPod software is old. [Procedure] Change the iPod Mode to Type2. Update the iPod software to the newest version. Error 3 Loading Error When there is no response from the iPod. [Procedure] The power is shut off once, then the unit back on. Reset the iPod. Update the iPod software to the newest version. Error 4 OverHeat Error No Track No Music Track Cautuion When a track does not exist in the selected category [Procedure] Select another category. iPod Error Message When the abnormality occurred, the error messages are indicated. OSD Display FL Display [3] USB iPod TROUBLESHOOTING (VSX-820-K ONLY) i P o d I / U E R R 1 i P o d / U S B E r r o r 1 i P o d I / U E R R 2 i P o d / U S B E r r o r 2 i P o d I / U E R R 3 i P o d / U S B E r r o r 3 i P o d I / U E R R 4 i P o d / U S B E r r o r 4 i P o d N O T R A C K N o T r a c k www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 38 VSX-820-K 1 2 3 4 A B C D E F 1 2 3 4 iPod Troubleshooting Step 0: Preliminary confirmation Step 1: Power supply Confirm the following items before checking. To STEP 1 To STEP 2 Do screws of COAX jack securely tighten ? Tighten screws securely. Check the patterns in the path. No Yes To STEP 1 Yes Yes Is there any loose connection CP105 of MAIN Assy? Check the MAIN Assy. No CN807 (pins 1, 3) REG2 (pin 3) Is the voltage 5 V ? No Yes Is REG1 abnormally hot? No No Yes Is REG2 abnormally hot? No No 5 V input (to chassis) 3.3 V output (to chassis) 5 V input Replace REG2. The output and GND may be short-circuited. Check the path between them. Yes Yes Is the voltage of 5 V input? No REG2 (pin 2) Yes Is the voltage 3.3 V output? Check the patterns in the path. REG1 (pin 3) Is the voltage 5 V ? No Yes 1.8 V output REG1 (pin 2) Is the voltage 1.8 V output? Replace REG1. The output and GND may be short-circuited. Check the path between them. Replace IC805. Yes Yes Yes Is pin 4 (EN) of IC805 Low? Is the voltage 5 V input? No Yes Is pin 3 (OC) of IC805 high? No No Check the parts and patterns in the path (JACK801). IC805 (pin 1) USB Bus power Is the voltage 5 V output? Check the parts and patterns in the path of JACK801. No IC805 (pin 5) 5 V input www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 39 VSX-820-K 5 6 7 8 5 6 7 8 A B C D E F Step 2: Operation of USB Media control IC Is there a 12 MHz output? Check the parts and patterns in the path. Replace XTAL1, etc. Yes No Yes No IC801 (pins 54,55) CP802 USB_RX, TX (Pins 4, 3) IC801 (pin 44) -> IC803 (pin 38) XIN/XOUT Do USB_RX and USB_TX communication with main micom? Operation of IC801 is OK. To STEP 3 Operation of IC801 is OK. To STEP 3 DATA and ADDRESS lines between SDRAM (IC803), FLASH ROM (IC802) and IC801 are may not be connected. D+ and D- should have waveform during normal condition. Check the pattern in the path of IC801, etc. USB_RX and USB_TX should be high during operation. Check the pattern in the path of the FRONT and MAIN Assys. Are there the waveforms like figure? After turning the power on and several seconds later, does SDCLK change 12 MHz to 80 MHz? Yes Yes No No JACK801 (pins 2,3) D+/D- Initial communication [SDCLK] Fig. D+ X: 1 μS/div, Y: 2 V/div X: 1 μS/div, Y: 2 V/div Fig. D- Yes Is CP802 pins 1, 2 (RESET, RDY) high? Yes Check CP105, CN802 of FRONT and MAIN Assy. No No Check the path to MAIN Assy. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 40 VSX-820-K 1 2 3 4 A B C D E F 1 2 3 4 Step 3: Operation of iPod (Authentication process) Do SCL and SDA communicate? Yes No No IC804 (pins 12, 13) SCL, SDA (I2C between IC801 and IC804) Does RESET_AUTH (pin 4) reset it? High after the reset Replace IC804. When SCL and SDA are normal operation = High (3.3 V), connect iPod, and communicate it about 10 seconds later (authentication starts). And communicate it about 60 seconds later (authentication is complete). Check the path between IC801 (pin 120). No Yes Step 4 Audio Out check Is there a S/PDIF signal ? Replace IC801. Yes No CN805 (pin 1) S/PDIF output Check the path between IC801 (pin 105) Check the parts and pattern of CN805 and IC801. Yes No Operation of IC804 is OK. To STEP 4 Refer to the [1] DSP TROUBLESHOOTING. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 41 VSX-820-K 5 6 7 8 5 6 7 8 A B C D E F Step 0: Preliminary confirmation Step 1: BT_DET Step 2: Power supply Step 3: BT_DET Confirm the following items before checking. To STEP 1 To STEP 2 Check the INPUT Assy. Do screws of Plate_Screw securely tighten ? Tighten screws securely. Check the patterns in the path. No Yes To STEP 2 Yes Yes Is there any loose connection CN501 of MAIN Assy? Check the patterns inthe path and MAIN Assy. No CP501 (pin 4) IC500 (pin 1) Is the voltage 5 V ? No 3.3 V Is IC500-pin 3 (EN) 3.3 V? 0 V No 5 V input (to chassis) Yes Is the voltage of 5 V input? No Check the patterns in the path and MAIN Assy. Check the MAIN Assy and CP501 (8P). Check the patterns in the path and replace IC500. CP501 (pin 2) BT_DET Yes Is the voltage 0 V? No To STEP 3 Check the patterns in the path. CN500 (pin 17) 5 V input Yes Is the voltage 5 V? No To STEP 4 Check the patterns in the path and MAIN Assy. CP501 (pin 2) BT_DET Yes Is the voltage 0.7 V to 12 V ? No Step 4: Communicaion Step 5: Audio Out check To STEP 5 BT_RXD and BT_TXD should be high during operation. Check the patterns in the path and MAIN Assy. CP501 (pins 6,7) BT_RXD, BT_TXD Yes No Yes 5 V output (to chassis) IC500 (pin 6) Is the voltage 5 V output? 0 V Is Q500-base (BT_ON/OFF/CE) 0 V? 3.3 V Check the patterns in the path and replace Q500. Yes CP502 (pins 1,4) Is there a audio signal? Check the parts in the path. No Do BT_RXD and BT_TXD commu- nicate with the main UCOM? [4] BT (BlueTooth) TROUBLESHOOTING www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 42 VSX-820-K 1 2 3 4 A B C D E F 1 2 3 4 5.2 ADAPTER ERROR MESSAGE Functional Name Adapter port overcurrent detection Outline When the BT adapter is inserted in Adapter port, turn off the power of the Adapter port forcibly when it detects an overcurrent. And display ERROR state in FL. Explain Operation Detail For detection method • Confirm a detection port at intervals of 20 msec to 50 msec (*2), and judge it as an overcurrent when you detected an error consecutively three times. *2 It is assumed that it is fixed value of the 20 msec to 50 msec degree. *1 Return the "ADP ERR" display to the normal display if you change it into other FUNCTION only in the APAPTER PORT FUNCTION. Also display "ADP ERR" if the APAPTER PORT FUNCTION is ERROR state. Basic Operation Front Key Sequence Change Character Display Time (sec.) Icon Display (FL) LED Display A *1 When the overcurrent is detected The display continues until the power is turned off. Check it after turning the power once off then back on again, and it becomes the normal operation if normal. D P E R R 1 2 1 2 3 4 5 6 7 8 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 43 VSX-820-K 5 6 7 8 5 6 7 8 A B C D E F 5.3 DETECTION CIRCUIT [1] DC Protection Circuit Diagram MAIN ASSY Q SPEAKER ASSY C PT ASSY G AMP ASSY B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 44 VSX-820-K 1 2 3 4 A B C D E F 1 2 3 4 [2] Overload Protection Circuit Diagram MAIN ASSY Q PT ASSY G AMP ASSY B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 45 VSX-820-K 5 6 7 8 5 6 7 8 A B C D E F [3] Power DC Protection Circuit Diagram MAIN ASSY Q PT ASSY G Q106 KTB778 VSX-820-K ONLY Q203 KTC107S HDMI_3.3V -5V +5V R105 IC114 R237 IC102 KIA7805API KIA7905PI R218 22k IC111 KIA78R33API C211 C225 C231 C110 C232 R235 R236 C113 R220 22k R219 47k C222 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 46 VSX-820-K 1 2 3 4 A B C D E F 1 2 3 4 6. SERVICE MODE 6.1 SERVICE MODE [1] Display mode for numbers of protection detections [Purpose] [Basic operations] FL Display Description of Indications Key Operation (STANDBY state) [PRESET –] + [STANDBY/ON] (Initial display) [ENTER key] [ENTER key] [ENTER key] (Initial display) 5 (-> normal) *1 5 (-> normal) *1 5 (-> normal) *1 Number of DC error detections Number of OVERLOAD error detections Number of abnormal-temperature error detections Time (sec.) The numbers of detections for various protection processes are displayed. *1 “5 (-> normal)” denotes that the display will return to the normal indication when no key operation is performed for 5 seconds. *2 Variable range: 0-255 [How to enter/exit] During Standby mode, simultaneously press and hold the [PRESET –] and [STANDBY/ON] keys for 2 seconds to enter this mode. The display will return to the normal indication when no key operation is performed for 5 seconds. Counter Counter Counter *2 *2 *2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 47 VSX-820-K 5 6 7 8 5 6 7 8 A B C D E F [2] Reset mode for numbers of protection detections [Purpose] [Basic operations] FL Display Description of Indications Key Operation (STANDBY state) [STANDARD SURROUND] + [STANDBY/ON] (press and hold the keys for 10 seconds.) (Counter Clear end) [ENTER key] (Normal display) 5 (-> normal) *1 5 (-> normal) *1 usually *2 Time (sec.) For clearing all the counts of protection detections. (This mode resets the counts of protection detections.) 1. When the procedures for Reset mode for numbers of protection detections are completed, all the counters will be reset to “000.” 2. Prohibitions: The protection detection counts cannot be cleared (reset to 000) with the MEMORY CLEAR process. They can only be cleared when the procedures of Reset mode are completed. *1 “5 (-> normal)” denotes that the display will return to the normal indication when no key operation is performed for 5 seconds. *2 Indication when the BD function is selected [How to enter/exit] During Standby mode, simultaneously press and hold the [STANDARD SURROUND] and [STANDBY/ON] keys for 10 seconds to enter this mode. The display will return to the normal indication when no key operation is performed for 5 seconds. [Detailed explanations] www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 48 VSX-820-K 1 2 3 4 A B C D E F 1 2 3 4 [3] The unit’s operation when a error is detected [Purpose] [Basic operations] FL Display Description of Indications Key Operation 3.1 DC (AMP is abnormality) error detection (Normal display) (DC detection) (Auto) (RECEIVER POWER OFF) usually *1, *2 Normal display Time (sec.) • The unit’s operation when a DC/OVER/TEMP error is detected is described here. • How to cancel the status after detection of a DC error is described here, because no key input will be accepted after a DC error detection. *1 The time required for the unit to be shut off after an error is detected depends on the circuit configuration. (However, 3 seconds after DC is internally detected, the unit will shut itself off.) *2 If the unit is automatically shut off after a DC error is detected, no key input will be accepted afterward. (The power will not be turned ON.) To turn it on again, see “3.4 How to cancel the status after detection of a DC error” below. A key input will not be inhibited after an OVERLOAD/TEMP error is detected. (The unit can be turned ON.) Simultaneously holding the [ADVANCD SURROUND] and [STANDBY/ON] keys on the front panel pressed for 2 seconds will cancel Key Input Inhibition mode after a DC error detection and turn the unit ON. [Detailed explanations] FL Display Description of Indications Key Operation 3.2 OVERLOAD (overcurrent) error detection (Normal display) (OVERLOAD detection) (Auto) (RECEIVER POWER OFF) usually *1 Normal display Time (sec.) FL Display Description of Indications Key Operation 3.3 TEMP (AMP overheat) error detection (Normal display) (TEMP detection) (Auto) (RECEIVER POWER OFF) usually *1 Normal display Time (sec.) FL Display Description of Indications Key Operation 3.4 How to cancel the status after detection of the DC error (STANDBY state) (Normal display) usually Normal display Time (sec.) [ADVANCED SURROUND] + [STANDBY/ON] (press and hold the keys for 2 seconds.) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 49 VSX-820-K 5 6 7 8 5 6 7 8 A B C D E F 7. DISASSEMBLY 1. Discharging (1) Unplug the power cord. (2) Disconnect the 8P CONNECTOR that connects the CN202 of the AMP Assy and CP107 of the MAIN Assy from the CP107. (3) Connect CP107 B+ (pins 5 and 6) and B- (pins 7 and 8, respectively) terminals, using resistor leads with 47 - 100 ohms (2 W or higher), for discharging. ∗ Discharging time: 30 - 60 seconds, depending on the level of resistance. (4) Check that the voltage between the B+ and GND terminals, as well as that between the B- and GND terminals, is less than 1 V, using a tester. ∗ Be sure to connect the GND terminal of the tester to the chassis. ∗ If the voltage is still 1 V or higher, repeat Step (3). [1] MAIN Assy Capacitor (C179, C180) [Procedures] (1) Unplug the power cord. (2) Connect CP704 -30 V (pins 1 and 2) of the FRONT Assy and GND (pins 3 and 4, respectively), using resistor leads with 47-100 ohms (2 W or higher), for discharging. ∗ Discharging time: 5 - 10 seconds, depending on the level of resistance. (3) Check that the voltage between the -30 V and GND terminals is less than 1 V, using a tester. ∗ Be sure to connect the GND terminal of the tester to the chassis. ∗ If the voltage is still 1 V or higher, repeat Step (2). [2] FL-30 V Capacitor [Procedures] 47 - 100 ohms (2 W or higher) 47 - 100 ohms (2 W or higher) C179 B– B+ CP107 C180 Note: (1) Even if the unit shown in the photos and illustrations in this manual may differ from your product, the procedures described here are common. (2) For performing the diagnosis shown below, the following jigs for service is required: • 10P extension jig cable (GGD1628) • 8P extension jig cable (GGD1629) • Board to board extension jig cable (GGD1673) MAIN Assy FRONT Assy www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 50 VSX-820-K 1 2 3 4 A B C D E F 1 2 3 4 2. Notes on Ground Points Connection During repair, before checking the MAIN Assy, etc., with the rear chassis removed, be sure to connect the GND terminal of the main capacitor to the chassis back (TUNER PACK chassis), as shown below, then connect the power cord. Without grounding connection, the protection circuit will be activated. After repairing, be sure to remove the ground wire before reassembling. [Note] Main capacitor GND MAIN Assy (SIDE B) TUNER PACK chassis Chassis back GND wire (Be sure to disconnect the GND wire before reassembly.) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 51 VSX-820-K 5 6 7 8 5 6 7 8 A B C D E F 3. Disassembly [1] Front Panel Section Remove the cabinet by removing the 10 screws. (1) Remove the six screws. (BBZ30P080FTB) (2) Remove the four screws. (BBZ30P080FTC) (3) Remove the two screws. (BBZ30P080FTC) (4) Unhook the two hooks. (5) Arrange the front panel section as shown in the photo below. 1 1 2 2 2 2 3 4 5 3 4 3 4 1 1 1 1 • Bottom view GUIDE_R Assy 2 2 GUIDE_R Assy (VSX-820-K) (VSX-820-K) (VSX-520-K) (VSX-520-K) GUIDE_L Assy Front panel section www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 52 VSX-820-K 1 2 3 4 A B C D E F 1 2 3 4 (1) Secure the wires from the USB Assy. (4) Style the 4P wire (F-VIDEO) so that it goes below the corresponding cables marked with circles in the figure below. (5) Style the remaining two wires above wire A, which connects the AMP and INPUT Assys. (2) Secure the card cable with the clamps. (3) Wrap the remaining wires with CU tape foil then secure them with a cable tie. CABLE DRESSING (VSX-820-K ONLY) GUIDE_R Assy Clamp Wire (USB <-> DSP) Card cable Wires CU tape foil Cable tie Wire A Style the wires so that they are placed above wire A. Wire (USB <-> MAIN) 4P wire www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 53 VSX-820-K 5 6 7 8 5 6 7 8 A B C D E F (6) Secure the cables bound with CU tape foil to the chassis, using a cable tie for grounding. • The wires bound with CU tape foil (part No.: 1220-21087-900-0S) are shown below. When repairing an assy on the front side, as the wires are secured to the assys, it is necessary to peel off CU tape foil to unbind the wires in order to disconnect them. After repair, wrap the wires again, using new CU tape foil. When repairing an assy on the rear side, as the wires are disconnected/connected with connectors, you don't have to peel off CU tape foil. After disconnecting the wires, style them again, following the procedures shown above. Cable tie Directly mounted wire Chassis USB Assy Front side Rear side CU tape foil DSP Assy Directly mounted wire F-VIDEO Assy MAIN Assy Directly mounted wire MIC Assy INPUT Assy www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 54 VSX-820-K 1 2 3 4 A B C D E F 1 2 3 4 [2] Heatsink Section Remove the cabinet by removing the 10 screws. Caution: Heatsink section in work becomes hot, and be careful with it. (1) Remove the seven screws. (BBZ30P080FTC) (2) Remove the four screws. (BBZ30P080FTC) (3) Disconnect the two connectors. 1 1 1 1 1 1 1 1 1 • Bottom view 3 3 INPUT Assy MAIN Assy AMP Assy Heatsink section CP107 CP801 2 2 2 2 GUIDE_R Assy 2 2 GUIDE_R Assy (VSX-820-K) (VSX-520-K) GUIDE_L Assy (VSX-820-K) (VSX-520-K) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 55 VSX-820-K 5 6 7 8 5 6 7 8 A B C D E F (4) Connect the two extension jig cables. (5) Rotate the heatsink section in the direction of the arrow. Note: The power transistor on the AMP Assy and heatsink on the MAIN Assy come closer. Make sure that they will not come into contact. 4 Heatsink section + AMP Assy 10P extension jig cable (GGD1628) Heatsink section + AMP Assy 4 8P extension jig cable (GGD1629) CP801 CP107 5 AMP Assy Power transistor Heatsink www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 56 VSX-820-K 1 2 3 4 A B C D E F 1 2 3 4 [3] MAIN Assy Remove the cabinet by removing the 10 screws. (1) Remove the seven screws. (BBT30P100FTB) (2) Remove the three screws. (BBZ30P080FTC) (3) Remove the six screws. (BBZ30P180FTC) (4) Arrange the unit as shown in the photo below. (5) Connect the chassis ground. See “2. Notes on Ground Points Connection”. • Rear view (VSX-820-K) (VSX-520-K) MAIN Assy MAIN Assy 1 1 1 1 3 3 3 3 3 3 2 2 2 1 1 1 4 5 • Rear view 1 1 1 1 1 1 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 57 VSX-820-K 5 6 7 8 5 6 7 8 A B C D E F [4] DSP Assy (for VSX-820-K) Remove the cabinet by removing the 10 screws. (1) Remove the five screws. (B020930083B10-IL) (2) Remove the one screw. (BMZ30P100FTB) (3) Remove the 24 screws. (BBT30P100FTB) (4) Remove the seven screws. (BBT30P100FTB) (5) Remove the chassis back. (6) Remove the DSP Assy. (7) Remove the two connectors and remove the BT Assy. Notes: The soldered portions of the extension jigs may have become in poor connection, depending on usage environment, etc. Be sure to confirm soldered portions before use and enhance soldering, if necessary. During attaching/detaching the jig, be careful not to damage the connectors or injure yourself. During failure diagnosis using the extension jig, the cable connecting CP200 on the MAIN Assy and CN200 on the DSP Assy can be disconnected. (8) Connect the board to board extension jig cable. (9) Reassembling the chassis back. Secure the HDMI, INPUT, and VIDEO Assys, using at least one screw each, and the chassis back and chassis, using at least two screws. (10) Remove the one connector and remove the CNT2 Assy. • Rear view Chassis back Chassis back CNT2 Assy DSP Assy BT Assy DSP Assy Board to board extension jig cable (GGD1673) 4 4 4 4 4 2 4 4 3 ×24 1 ×5 5 6 7 10 9 8 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 58 VSX-820-K 1 2 3 4 A B C D E F 1 2 3 4 [4] DSP Assy (for VSX-520-K) Remove the cabinet by removing the 10 screws. (1) Remove the four screws. (B020930083B10-IL) (2) Remove the 22 screws. (BBT30P100FTB) (3) Remove the seven screws. (BBT30P100FTB) (4) Remove the chassis back. (5) Remove the DSP Assy. (6) Remove the two connectors and remove the BT Assy. (7) Connect the board to board extension jig cable. (8) Reassembling the chassis back. Secure the HDMI, INPUT, and VIDEO Assy, using at least one screw each, and the chassis back and chassis, using at least two screws. (9) Remove the one connector and remove the CNT2 Assy. • Rear view Chassis back Chassis back DSP Assy BT Assy DSP Assy Board to board extension jig cable (GGD1673) 3 3 3 3 3 2 ×22 1 ×4 4 5 6 8 9 7 3 3 Notes: The soldered portions of the extension jigs may have become in poor connection, depending on usage environment, etc. Be sure to confirm soldered portions before use and enhance soldering, if necessary. During attaching/detaching the jig, be careful not to damage the connectors or injure yourself. CNT2 Assy www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 59 VSX-820-K 5 6 7 8 5 6 7 8 A B C D E F 8. EACH SETTING AND ADJUSTMENT 8.1 HOW TO UPDATE FIRMWARE • RS-232C cable (9-pin to 9-pin, straight cable) • PC with a serial port • Firmware for updating USB (VSX_USB.rom)(VSX-820-K ONLY) • Firmware ("mot" extension) [Connections] [Necessary Tools] [Purpose] Refer to this section when updating the firmware of each microcomputer is required by the service information, etc. [1] MAIN, SUB, USB and DSP microcomputers PC UPDATE jig GGF1642 RS-232C Straight cable Rear side (VSX-820-K) 8P 8P • RS-232C UPDATE jig : GGF1642 (Do not use FFC of GGF1642. Remove it and insert GGD1676 on 10 pin connector of board.) • 10P to 8P FFC : GGD1676 10P to 8P FFC GGD1676 Insert the FFC with its contact surface facing the " mark. (SUB microcomputer) (MAIN microcomputer) 2 Enter ID. Enter "ff" in all field. 1 Select the update file. Select "***.mot" file to update the MCU. Press the OK button. 3 Press OK button to go to next step. Connect as shown in the figure below. [Procedures] 1) MAIN and SUB microcomputers 1 Start up the application on the PC before plugging in the power cord of the main unit. 4 Select the update file and enter ID. 2 Plug the AC cord. For updating of the Main microcomputer, proceed with the following steps in STANDBY mode. In a case of the SUB microcomputer, turn the main unit on. 3 Press the OK button. 1 Select the update file. 10P 1 3 2 Enter ID. 3 Press OK button. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 60 VSX-820-K 1 2 3 4 A B C D E F 1 2 3 4 2 Update the MCU. E.P.R=>Erase+Program+Read 1 Set speed of update. Set Baud rate to 38400. If the following messages are displayed, shut the update program down, and start the update again from step 1. Press OK button. 5 Set speed update and update the MCU. 6 Finished. 7 Press the EXIT button to terminate the updating program. Unplug the AC cord of the unit then disconnect the FFC of the updating jig. 1 Set speed of update. 2 Update the MCU. Press the E.P.R button. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 61 VSX-820-K 5 6 7 8 5 6 7 8 A B C D E F [Procedures] 2) How to Update the USB Microcomputer (VSX-820-K ONLY) 1. Copy the “VSX_USB.rom” file to the root directory of a USB memory device. 2. Press the iPod USB key on the remote control unit to select iPod/USB function then connect the USB memory device. 3. After accessing the USB memory device, “UPG? NO” is displayed on the FL display and “UPDATE? NO” is displayed as an On-Screen display. 4. Press the iPod USB key on the remote control unit. 5. Send either iPod/USB Cursor Left or iPod/USB Cursor Right code. 6. “UPG? YES” is displayed on the FL display and “UPDATE? YES” is displayed as an On-Screen display. 7. After sending the iPod/USB Enter code, updating starts. (“UPDATE” is displayed on the FL display.) 8. When “UPG? NO” is displayed on the FL display and “UPDATE? NO” is displayed as the On-Screen display, updating is completed. 9. Disconnect the USB memory device then turn the unit off. [Procedures] 3) How to update the DSP Microcomputer 1. Select an Input Function that allows reception via Optical input 1 or 2 then set the unit to STBY_Off mode. 2. Press the SPEAKERS and STANDBY/ON keys simultaneously to enter DSP UpDate mode. (“DSP UP” is displayed.) 3. When “PLAY” is displayed, playback of the .wav file starts. (Play the file only once. NEVER repeat playback.) (“PLAY” is displayed.) 4. After playback is finished and “ENTER” is displayed, press the ENTER key on the front panel. (“ENTER” is displayed.) 5. “WRITING” is automatically displayed. 6. After writing is completed, “COMPLETE” is displayed. 7. Turn the unit off then confirm that the version has been updated. [How to Confirm the Version of the USB Microcomputer] 1. Select the iPod/USB function then turn the unit off. 2. While holding the ENTER key on the front panel pressed, press the STNADBY/ON key. 3. When the receiver is turned on, press the ENTER key on the main unit three times. (Each time the ENTER key is pressed, the indications on the FL display change as follows: Main -> Sub -> DSP -> USB -> All segments lit.) 4. The version is displayed on the FL display, as “USB:***.” Notes on updating • If you perform updating of the same software twice, it may fail. • If the indication “UPDATE” on the FL display does not change, let it sit for a few minutes. If the indication on the FL display changes to one other than “UPDATE,” the unit becomes operable. Turn the unit off after it becomes operable. [ Display of each UCOM (microcomputer) version] Reference Press and hold the [ENTER] and [STANDBY/ON] keys, then press the [ENTER] key to display each UCOM version. (Each time the ENTER key is pressed, the indications on the FL display change as follows:) Make sure that the main unit is in Standby mode. * The version of the USB microcomputer is displayed only when USB/IPOD FUNCTION is selected. SUB UCOM [ENTER] [ENTER] [ENTER] [ENTER] DSP UCOM USB UCOM All segments lit. VSX-820-K ONLY Pressing the [ENTER] key returns the display to that for the version of the MAIN UCOM. MAIN UCOM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 62 VSX-820-K 1 2 3 4 A B C D E F 1 2 3 4 8.2 IDLE CURRENT ADJUSTMENT 1. Idle Current Adjustment Procedure 1 Turn on the power. 2 Perform aging for one minute. 3 Connect a digital voltmeter to the measurement point. 4 Turn the adjustment VR so that the voltage becomes in 2.0 mV ± 0.2 mV. (Condition : No signal and no load) Adjustment Points VR201FL VR201FR VR201C VR201SL VR201SR Measurement Points TP201FL 3PIN : TEST POINT(+) TP201FL 1PIN : TEST POINT(-) TP201FR 3PIN : TEST POINT(+) TP201FR 1PIN : TEST POINT(-) TP201C 3PIN : TEST POINT(+) TP201C 1PIN : TEST POINT(-) TP201SL 3PIN : TEST POINT(+) TP201SL 1PIN : TEST POINT(-) TP201SR 3PIN : TEST POINT(+) TP201SR 1PIN : TEST POINT(-) • Adjustment Point and Measurement Points.... see fig1. AMP ASSY [Fig 1.] B SIDE A Idle current VR: VR201FL Idle current VR: VR201SL Idle current VR: VR201C Idle current VR: VR201SR Idle current VR: VR201FR TP201FL 1PIN TEST POINT(-) TP201C 1PIN TEST POINT(-) TP201SL 1PIN TEST POINT(-) TP201SR 1PIN TEST POINT(-) TP201FL 3PIN TEST POINT(+) TP201SL 3PIN TEST POINT(+) TP201C 3PIN TEST POINT(+) TP201SR 3PIN TEST POINT(+) TP201FR 1PIN TEST POINT(-) TP201FR 3PIN TEST POINT(+) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 63 VSX-820-K 5 6 7 8 5 6 7 8 A B C D E F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 64 VSX-820-K 1 2 3 4 A B C D E F 1 2 3 4 9. EXPLODED VIEWS AND PARTS LIST 9.1 PACKING SECTION NOTES: - Parts marked by “NSP” are generally unavailable because they are not in our Master Spare Parts List. - The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. - Screws adjacent to b mark on product are used for disassembly. - For the applying amount of lubricants or glue, follow the instructions in this manual. (In the case of no amount instructions, apply as you think it appropriate.) Poly bag packing style VSX-820-K/CUXCNSM Only VSX-820-K/CUXCNSM Only Cord AC Tape (clear) 1/2 2/2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 65 VSX-820-K 5 6 7 8 5 6 7 8 A B C D E F (1) PACKING SECTION PARTS LIST (2) CONTRAST TABLE VSX-820-K/CUXCNSM and VSX-520-K/CUXCNSM are constructed the same except for the following: Mark No. Description Part No. 1 Remote Control See Contrast table (2) NSP 2 Dry Cell Batteries G670001R50210-IL (AAA size IEC R03) 3 AM Loop Antenna E601016000010-IL 4 FM Wire Antenna E605010070001-IL 5 Setup Microphone See Contrast table (2) (for Auto MCACC setup) 6 iPod Cable See Contrast table (2) 7 Operating Instructions See Contrast table (2) (En, Frca, Es) 8 Poly Bag 6330210059000-IL NSP 9 Poly Bag 6337040062010-IL 10 Box, Gift See Contrast table (2) 11 Cushion, Snow 6230212824000-IL 12 PE, Sheet 6327040059000-IL 13 Sheet 5227000001050-IL NSP 14 Label VRW1629 15 • • • • • NSP 16 Label Getter See Contrast table (2) Mark No. Symbol and Description VSX-820-K /CUXCNSM VSX-520-K /CUXCNSM 1 Remote Control 8300758300010-IL 8300758600010-IL 5 Setup Microphone (for Auto MCACC setup) M040000300200-IL Not used 6 iPod Cable L308102013010-IL Not used 7 Operating Instructions (En, Frca, Es) 5707000003160-IL 5707000003110-IL 10 Box, Gift 6007211700060-IL 6007211700000-IL NSP 16 Label Getter 5507000004540-IL 5507000004530-IL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 66 VSX-820-K 1 2 3 4 A B C D E F 1 2 3 4 9.2 EXTERIOR SECTION (VSX-820-K) N O O P U K D E 1/2 Nut Nut ×6 ×6 ×2 ×5 ×2 ×3 ×5 ×5 ×14 ×2 2/2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 67 VSX-820-K 5 6 7 8 5 6 7 8 A B C D E F A M N G R S T V Q H I J L C E B CONTACT SIDE NON-CONTACT SIDE A A Silicon grease (GEM1057) Silicon adhesive (GYA1011) 1/2 ×5 ×7 ×5 ×4 ×15 ×4 ×6 ×5 ×34 ×4 ×6 ×2 ×5 ×2 ×4 ×2 ×3 ×5 ×2 ×10 ×14 ×5 ×5 ×4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 68 VSX-820-K 1 2 3 4 A B C D E F 1 2 3 4 EXTERIOR SECTION (VSX-820-K) PARTS LIST Mark No. Description Part No. 1 INPUT Assy 7028069131010-IL 2 AMP Assy 7028067523010-IL 3 SPEAKER Assy 7028069151010-IL 4 HEADPHONE Assy 7028069114010-IL 5 MIC Assy 7028069116010-IL 6 PT Assy 7028069112010-IL 7 HP_GUIDE Assy 7028069115010-IL 8 CNT1 Assy 7028069119010-IL 9 CNT2 Assy 7028069113010-IL 10 GUIDE_L Assy 7028069117010-IL 11 GUIDE_R Assy 7028069118010-IL 12 VIDEO Assy 7028069141010-IL 13 F-VIDEO Assy 7028069123010-IL 14 FRONT Assy 7028069121010-IL 15 FUNCTION Assy 7028069122010-IL 16 MAIN Assy 7028069111010-IL 17 REG Assy 7028069162010-IL 18 HDMI Assy 7028069191010-IL 19 DSP Assy 7028069161010-IL 20 USB Assy 7028069171010-IL 21 BT Assy 7028069181010-IL > 22 Power Trans. 8200960610590-IL > 23 Transistor (Q2071-Q2075) J5011560Y0000-IL > 24 Semi, Tr/Ge NPN 2SC J502396400010-IL (Q2051-Q2055) > 25 Transistor (Q2011-Q2015) J5032390Y0000-IL > 26 Cord Assy L068125101710-IL 27 Cable, Flat Card 1.25 N712232533810-IL 28 Pioneer Badge B (PLS) XAM3006 29 Sheet 1210210235000-IL 30 Sheet 1210210762000-IL 31 Plate 4470211956000-IL 32 Sheet 1217211152000-IL NSP 33 Heatsink 2120211378000-IL 34 Cabinet 3007211276200-IL 35 Panel Front 3067214861000-IL 36 Shield 3070210626000-IL NSP 37 Chassis 3200212676000-IL 38 Chassis Back 3207213456000-IL 39 Foot 4007210391000-IL 40 Bracket 4010056906010-IL 41 Cushion 4050211365000-IL 42 Cushion 4050211385000-IL 43 Cushion 4050211605000-IL 44 Cushion 4050211745000-IL 45 Spacer 4300040561010-IL 46 Cover 4317215111000-IL 47 Clamp MTG 4330000310000-IL 48 Clamp 4330040343010-IL 49 Stopper 4380040162010-IL 50 Window Display 5077212953010-IL 51 Knob 5080212361000-IL 52 Button 5090213741100-IL 53 Button 5 Key 5090214311000-IL 54 Button 10 Key 5090214321000-IL 55 Label Trans 5507000003270-IL 56 • • • • • 57 • • • • • 58 • • • • • 59 Screw 1500001456010-IL 60 Screw BBT30P100FTB 61 Screw BBT40P080FTB 62 Screw BBZ30P080FTB 63 Screw BBZ30P080FTC 64 Screw BBZ30P180FTC 65 Screw BMZ30P100FTB 66 Screw Tapping Assy B018230141H11-IL 67 Screw, Tap Tite B020930083B10-IL 68 Screw B028940101B11-IL Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 69 VSX-820-K 5 6 7 8 5 6 7 8 A B C D E F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 70 VSX-820-K 1 2 3 4 A B C D E F 1 2 3 4 9.3 EXTERIOR SECTION (VSX-520-K) O F O P K D 1/2 Nut Nut ×6 ×2 ×5 ×5 ×14 ×2 2/2 ×3 ×6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 71 VSX-820-K 5 6 7 8 5 6 7 8 A B C D E F A B M F G R S T V Q H I J L C Silicon grease (GEM1057) Silicon adhesive (GYA1011) A A CONTACT SIDE NON-CONTACT SIDE 1/2 ×5 ×7 ×5 ×4 ×15 ×4 ×6 ×4 ×34 ×4 ×4 ×6 ×4 ×2 ×2 ×3 ×5 ×2 ×10 ×14 ×5 ×5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 72 VSX-820-K 1 2 3 4 A B C D E F 1 2 3 4 EXTERIOR SECTION (VSX-520-K) PARTS LIST Mark No. Description Part No. 1 INPUT Assy 7028069131020-IL 2 AMP Assy 7028067523010-IL 3 SPEAKER Assy 7028069151030-IL 4 HEADPHONE Assy 7028069114010-IL 5 PORTABLE Assy 702806911A010-IL 6 PT Assy 7028069112010-IL 7 HP_GUIDE Assy 7028069115010-IL 8 CNT1 Assy 7028069119010-IL 9 CNT2 Assy 7028069113010-IL 10 GUIDE_L Assy 7028069117010-IL 11 GUIDE_R Assy 7028069118010-IL 12 VIDEO Assy 7028069141040-IL 13 • • • • • 14 FRONT Assy 7028069121020-IL 15 FUNCTION Assy 7028069122010-IL 16 MAIN Assy 7028069111060-IL 17 REG Assy 7028069162010-IL 18 HDMI Assy 7028069191020-IL 19 DSP Assy 7028069161020-IL 20 • • • • • 21 BT Assy 7028069181010-IL > 22 Power Trans. 8200960610470-IL > 23 Transistor (Q2071-Q2075) J5011560Y0000-IL > 24 Semi, Tr/Ge NPN 2SC J502396400010-IL (Q2051-Q2055) > 25 Transistor (Q2011-Q2015) J5032390Y0000-IL > 26 Cord Assy L068125101710-IL NSP 27 Cable, Flat Card 1.25 N712192533810-IL 28 Pioneer Badge B (PLS) XAM3006 29 Sheet 1210210235000-IL 30 Sheet 1210210772000-IL 31 • • • • • 32 • • • • • NSP 33 Heatsink 2120211378000-IL 34 Cabinet 3007211276200-IL 35 Panel Front 3067214851000-IL 36 • • • • • NSP 37 Chassis 3200212676000-IL 38 Chassis Back 3207213446000-IL 39 Foot (PLS) 4000210391000-IL 40 Bracket 4010056906010-IL 41 Cushion 4050211365000-IL 42 Cushion 4050211385000-IL 43 Cushion 4050211605000-IL 44 Cushion 4050211745000-IL 45 Spacer 4300040561010-IL 46 • • • • • 47 Clamp MTG 4330000310000-IL 48 Clamp 4330040343010-IL 49 Stopper 4380040162010-IL 50 Window Display 5077212953000-IL 51 Knob 5080212361000-IL 52 Button 5090213741100-IL 53 Button 5 Key 5090214311000-IL 54 Button 10 Key 5090214321000-IL 55 Label Trans 5507000003270-IL 56 • • • • • 57 • • • • • 58 • • • • • 59 Screw 1500001456010-IL 60 Screw BBT30P100FTB 61 Screw BBT40P080FTB 62 Screw BBZ30P080FTB 63 Screw BBZ30P080FTC 64 Screw BBZ30P180FTC 65 • • • • • 66 Screw Tapping Assy B018230141H11-IL 67 Screw, Tap Tite B020930083B10-IL 68 Screw B028940101B11-IL Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 73 VSX-820-K 5 6 7 8 5 6 7 8 A B C D E F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 74 VSX-820-K 1 2 3 4 A B C D E F 1 2 3 4 10. SCHEMATIC DIAGRAM 10.1 INPUT ASSY A V CP502 Q CP118 Q CP117 VSX-820-K ONLY VSX-820-K ONLY (SW) (SW) (SW) (SW) (SW) (SW) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 75 VSX-820-K 5 6 7 8 5 6 7 8 A B C D E F A A INPUT ASSY (7028069131010-IL: VSX-820-K) (7028069131020-IL: VSX-520-K) B CN201 The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. N CN701 E CN707 F CN703 Q CP120 I CN121B -K ONLY VSX-820-K ONLY VSX-820-K ONLY VSX-520-K ONLY VSX-520-K ONLY CP802(VSX-820-K) CP802(VSX-520-K) : Audio Signal Route (Front L ch) (FL) : Audio Signal Route (Surround L ch) (SL) : Audio Signal Route (Center ch) (C) : Audio Signal Route (Subwoofer ch) (SW) (FL) (FL) (SL) (SL) (SW) (SW) (SW) (SW) (C) (C) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 76 VSX-820-K 1 2 3 4 A B C D E F 1 2 3 4 10.2 AMP ASSY B B AMP ASSY (7028067523010-IL) A CP801 IDLE CURRENT IDLE CURRENT : Audio Signal Route (Front L ch) (FL) (SL) (SL) (SL) (FL) (FL) (FL) (C) (C) (C) : Audio Signal Route (Surround L ch) (SL) : Audio Signal Route (Center ch) (C) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 77 VSX-820-K 5 6 7 8 5 6 7 8 A B C D E F B The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. C CN401 Q CP107 IDLE CURRENT IDLE CURRENT IDLE CURRENT (SL) (SL) (FL) (FL) (FL) (C) (C) (C) (C) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 78 VSX-820-K 1 2 3 4 A B C D E F 1 2 3 4 10.3 SPEAKER, HEADPHONE and MIC ASSYS 4 1 2 1 NO. NM NM NM NM NO. 3 5 JACK402 J416 J417 CP405 Ref. NO. PUSH 4P VSX-520 Ref. NO. JACK401 JACK403 OTHER PUSH 2P JUMPER JUMPER 5267-02A VSX-820 SCREW 8P SCREW 2P SCREW 4P 820CUXCNSM 2. VSX-820/520 DESTINATION OPTION TABLE 1. SET OPTION TABLE D HEADPHONE ASSY (7028069114010-IL) C SPEAKER ASSY (7028069151010-IL: VSX-820-K) (7028069151030-IL: VSX-520-K) E MIC ASSY (7028069116010-IL) B CP203 Q CN104 Q CN103 Q CN106 A CP802 The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. C D E VSX-820-K ONLY VSX-820-K ONLY : Audio Signal Route (Front L ch) (FL) : Audio Signal Route (Headphone L ch) (C) (SL) (FL) (C) (C) (SL) (SL) (SL) (FL) (FL) (FL) : Audio Signal Route (Surround L ch) (SL) : Audio Signal Route (Center ch) (C) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 79 VSX-820-K 5 6 7 8 5 6 7 8 A B C D E F 10.4 PORTABLE, PT, HP_GUIDE, CNT1, CNT2, GUIDE_L and GUIDE_R ASSYS L K J I H G F L GUIDE_R ASSY (7028069118010-IL) K GUIDE_L ASSY (7028069117010-IL) J CNT2 ASSY (7028069113010-IL) I CNT1 ASSY (7028069119010-IL) G PT ASSY (7028069112010-IL) H HP_GUIDE ASSY (7028069115010-IL) Q CP126 Q CP125 Q CP128 Q CP121 A CP805 S CP703 F PORTABLE ASSY (702806911A010-IL) A CP802 VSX-520-K ONLY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 80 VSX-820-K 1 2 3 4 A B C D E F 1 2 3 4 10.5 VIDEO ASSY IN2 IN1 H L +5V L L L L L OSD L/H L L L H COMP_SW2 CVBS_A CVBS_C -5V H H COMPONENT INPUT MONITO (BU4 L SW2 SW1 NJM2586M INH OSD CVB COMP_SW1 COMP_MUTE CVBS_B CVBS_MUTE IN FUNC CONTRO M M VIDEO ASSY (7028069141010-IL: VSX-820-K) (7028069141040-IL: VSX-520-K) Q CP122 VSX-820-K ONLY VSX-520-K ONLY VSX-820-K ONLY R1058 330(VSX-820-K) 0(VSX-520-K) (Y) (Y) (Y) (Cb) (Cb) (Cb) (Cr) (Cr) (Cr) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 81 VSX-820-K 5 6 7 8 5 6 7 8 A B C D E F L L L L L H H 41 39 37 35 34 33 31 27 25 23 21 22 19 17 15 13 11 8 6 5 3 1 560 10 2K2 200 1/50 330 NM 330 NM NM NM 560 10 2K2 200 1/50 330 NM 330 NM NM NM 560 10 2K2 200 330 NM 330 L L L H L OUT L 40 38 36 32 26 28 30 29 18 20 24 9 10 12 14 16 7 4 2 No. NM 330 NM NM NM 330 NM NM NM 330 NM NM VGND OSD_DATA INPUT MONITOR Y7 Y2 Y1 Y0 (BU4051BCF) MUTE DVR-REC - DVD R1029 R1027 R1026 J1059 C1012 R1019 C1023 Q1011 C1015 R1024 C1014 R1040 C1041 R1028 Q1006 Q1007 REF. No. 0-3216 0-3216 100/10 100/10 24P-1608 JUMPER ISA1530AC1 18P-1608 0-3216 0-3216 0-1608 0-1608 33uH 33uH JUMPER 330-1608 14M318(18P) 820 NA/JP (NTSC) 0-3216 100/10 24P-1608 JUMPER ISA1530AC1 18P-1608 1/50 0-3216 0-1608 33uH JUMPER 330-1608 RT1P141C RT1N430C 17M734(18P) 14M318(18P) 820-GENERAL (NTSC / PAL SELECT) NM NM NM NM NM NM NM NM NM NM NM NM NM NM NM NM 1/50 NM NM NM NM NM NM 520 INH OSD Y6 Y5 Y4 Y3 X OUTPUT CVBS INPUT SW CONTROL-C - - BD X Q1005 C1042 C1020 R1013 C1025 IC1002 C1011 R1041 C1046 J1028 Q1008 J1005 J1001 2SC3052 10P-D 10P-D 100P-J 100P-J 270P-J 270P-J 10N-1608 0-1608 0-1608 1M-1608 470-1608 470/6.3 470/6.3 LC74781 15P-1608 JUMPER 100/10 100/10 0-1608 0-1608 2SC3052 10P-D 100P-J 270P-J 10N-1608 0-1608 1M-1608 470-1608 470/6.3 LC74781 15P-1608 JUMPER 100/10 0-3216 NM NM NM NM NM NM NM NM NM NM NM NM 10K-1608 NM JUMPER NM NM NM VIDEO OSD_CLK OSD_CE H H H L H H REC MUTE L H L TV/SAT H L L L L L VIDEO INPUT * MODEL OPTION J1062,J1015 C1017,C1019 24P-1608 J1024,J1033 JUMPER J1014,J1042 ISA1530AC1 18P-1608 J1010,J1026 L1001(AXIAL) JUMPER J1021(AXIAL) R1025(AXIAL) 330-1608 R1057(AXIAL) XTAL1002 17M734(18P) XTAL1001 MODEL 820 EUROPE (PAL) H L H L L H H H L DVR/VCR X X X A B C FUNCTION CONTROL-A 2SC3052 C1024,C1030 C1013,C1022 10N-1608 1M-1608 R1015,R1017 470-1608 J1016,J1017 LC74781 J1012,J1031 15P-1608 JUMPER R1058(AXIAL) R1039(AXIAL) * VSX-820 AREA OPTION * OPTION TABLE (PCB BASIS) ZD1001 5.6V M Q CP123 VSX820-K ONLY VSX-820-K ONLY R1058 30(VSX-820-K) (VSX-520-K) : Video Signal Route : Video Signal Route (Y) (Y) : Video Signal Route (Cb) (Cb) : Video Signal Route (Cb) (Cr) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 82 VSX-820-K 1 2 3 4 A B C D E F 1 2 3 4 10.6 F-VIDEO, FRONT and FUNCTION ASSYS N O P N F-VIDEO ASSY (7028069123010-IL) P FUNCTION ASSY (7028069122010-IL) O FRONT ASSY (7028069121010-IL: VSX-820-K) (7028069121020-IL: VSX-520-K) Q FPC10 A CP804 Q CP110 The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. VSX-820-K ONLY : Video Signal Route : Audio Signal Route www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 83 VSX-820-K 5 6 7 8 5 6 7 8 A B C D E F O 10-IL: 20-IL: U CP802 Q FPC101 VSX-820-K ONLY VSX-820-K ONLY 23P: VSX-820-K 19P: VSX-520-K www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 84 VSX-820-K 1 2 3 4 A B C D E F 1 2 3 4 10.7 MAIN and REG ASSYS KDS4148U KDS4148U Q R The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Q MAIN ASSY (7028069111010-IL: VSX-820-K) (7028069111060-IL: VSX-520-K) R REG ASSY (7028069162010-IL) H CN601 G CN201 G CN202 B CN202 C CP403 C CP405 I CN121A N CN701 M CN1001 M CN1002 C CP402 VSX-820-K ONLY VSX-820-K ONLY OUT IN GND : Video Signal Route • NOTE FOR FUSE REPLACEMENT CAUTION - FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE WITH SAME TYPE AND RATINGS OF FUSE. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 85 VSX-820-K 5 6 7 8 5 6 7 8 A B C D E F Q S CN701 S CN702 A CN807 A CN803 A CN806 V CP501 O CP704 U CN807 T 2/2 CN204 T 1/2 CN203 T 1/2 CN202 VSX-820-K ONLY VSX-820-K VSX-520-K VSX-820-K ONLY VSX-820-K ONLY VSX-820-K ONLY VSX-820-K ONLY K R145 47k: VSX-820-K OPEN: VSX-520-K R146 OPEN: VSX-820-K 47k: VSX-520-K FROM HEATSINK REG ASSY KIA7805API T 2/2 CN200 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 86 VSX-820-K 1 2 3 4 A B C D E F 1 2 3 4 10.8 HDMI ASSY HDMI Receiver IC S Q CP111 VSX-820-K ONLY VSX-820-K ONLY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 87 VSX-820-K 5 6 7 8 5 6 7 8 A B C D E F HDMI Transmitter S Q CP112 J CN703A K S HDMI ASSY (7028069191010-IL: VSX-820-K) (7028069191020-IL: VSX-520-K) The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 88 VSX-820-K 1 2 3 4 A B C D E F 1 2 3 4 10.9 DSP ASSY (1/2) The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Q CP114 T 1/2 DSP ASSY (7028069161010-IL: VSX-820-K) (7028069161020-IL: VSX-520-K) T 1/2 : Audio Signal Route (Front L ch) (FL) (FL) (SL) (C) (SW) (SBL) : Audio Signal Route (Surround L ch) (SL) : Audio Signal Route (Center ch) (C) : Audio Signal Route (Subwoofer ch) (SW) : Audio Signal Route (Surround Back L ch) (SBL) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 89 VSX-820-K 5 6 7 8 5 6 7 8 A B C D E F T 2/2 Q CP115 4 T 1/2 VSX-820-K ONLY (C) (SW) (SBL) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 90 VSX-820-K 1 2 3 4 A B C D E F 1 2 3 4 10.10 DSP ASSY (2/2) Q CP116 Q CP200 T 2/2 T 1/2 T 2/2 DSP ASSY (7028069161010-IL: VSX-820-K) (7028069161020-IL: VSX-520-K) VSX-820-K ONLY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 91 VSX-820-K 5 6 7 8 5 6 7 8 A B C D E F T 2/2 The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. U CN805 VSX-820-K ONLY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 92 VSX-820-K 1 2 3 4 A B C D E F 1 2 3 4 10.11 USB ASSY (VSX-820-K ONLY) U U USB ASSY (7028069171010-IL) The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. T 2/2 CP105 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 93 VSX-820-K 5 6 7 8 5 6 7 8 A B C D E F U O CN802 Q CP105 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 94 VSX-820-K 1 2 3 4 A B C D E F 1 2 3 4 10.12 BT ASSY V V BT ASSY (7028069181010-IL) A CN502 Q CN501 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 95 VSX-820-K 5 6 7 8 5 6 7 8 A B C D E F 11. PCB CONNECTION DIAGRAM NOTE FOR PCB DIAGRAMS : 1. The parts mounted on this PCB include all necessary parts for several destinations. For further information for respective desti- nations, be sure to check with the sche- matic diagram. Capacitor Connector P.C.Board Chip Part SIDE A SIDE B 2. View point of PCB diagrams. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 96 VSX-820-K 1 2 3 4 A B C D E F 1 2 3 4 11.1 INPUT ASSY A SIDE A SIDE A E CN707 (VSX-820-K) E CN703 (VSX-520-K) N CN701 CP804 V CP502 CN502 CP802 B CN201 CP801 Q CP117 CN807 Q CP118 CN803 Q CP120 CN806 I CN121B CP805 IC803 Q816 Q815 Q817 Q818 IC804 A INPUT ASSY VSX-820-K Only www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 97 VSX-820-K 5 6 7 8 5 6 7 8 A B C D E F A SIDE B SIDE B CN502 CP802 CP801 CN807 CN803 CN806 CP805 CP804 Q822 Q827 Q813 Q837 IC802 Q813 Q813 Q802 Q804 Q807 Q809 Q829 Q833 Q825 Q831 Q821 Q823 Q824 Q820 Q812 Q814 Q806 Q808 Q805 Q801 Q803 Q811 Q810 Q819 IC801 Q828 Q830 Q834 Q826 Q832 Q835 Q836 A INPUT ASSY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 98 VSX-820-K 1 2 3 4 A B C D E F 1 2 3 4 11.2 AMP ASSY B SIDE A SIDE B B AMP ASSY B AMP ASSY CN201 Q CP107 A CP801 CN202 C CN401 CP203 CN201 CN202 CP203 VR VR201C VR201SL VR201SR VR201FR VR201FL Q Q205FL Q205SL Q207SL Q207FL Q207SL Q207FL Q207FR Q201FR Q201C Q201FL Q201SR Q205C Q201SL Q205SR Q205FR Q202FR Q206FL Q202FL Q206SL Q206FR Q202SR Q202SL Q203SR Q203FL Q206SR Q204FL Q204FR Q203FR Q204SL Q203SL Q204SR Q204C Q206C Q202C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 99 VSX-820-K 5 6 7 8 5 6 7 8 A B C D E F B SIDE A SIDE B C CN401 CP203 CP203www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 100 VSX-820-K 1 2 3 4 A B C D E F 1 2 3 4 11.3 SPEAKER, HEADPHONE, MIC and PORTABLE ASSYS C D E F C SPEAKER ASSY D HEADPHONE ASSY SIDE A SIDE A Q CN104 CP403 Q CN103 CP402 Q CN106 CP405 B CP203 CN401 CN702 CP404 E MIC ASSY A CP802 VSX-820-K Only VSX-520-K Only CN707 F PORTABLE ASSY A CP802 CN703 VSX-820-K Only www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 101 VSX-820-K 5 6 7 8 5 6 7 8 A B C D E F E MIC ASSY VSX-820-K Only VSX-520-K Only F PORTABLE ASSY CP403 CP402 CP405 CN401 Q401 Q402 Q403 Q404 CN702 CP404 IC703 CN707 CN703 C D E F C SPEAKER ASSY D HEADPHONE ASSY SIDE B SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 102 VSX-820-K 1 2 3 4 A B C D E F 1 2 3 4 11.4 PT, HP_GUIDE, CNT1, CNT2, GUIDE_L and GUIDE_R ASSYS G H I J K L SIDE A SIDE A Q CP121 H HP_GUIDE ASSY G PT ASSY I CNT1 ASSY J CNT2 ASSY L GUIDE_R ASSY K GUIDE_L ASSY CN121A Q130 Q128 Q129 Q133 Q127 Q126 Q136 Q131 Q132 Q134 Q135 Q CP128 CN601 Q CP125 CN201 Q CP126 CN202 A CP805 S CP703 CN121B CN703A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 103 VSX-820-K 5 6 7 8 5 6 7 8 A B C D E F G H I J K L SIDE B SIDE B H HP_GUIDE ASSY G PT ASSY I CNT1 ASSY J CNT2 ASSY L GUIDE_R ASSY K GUIDE_L ASSY CN121A CN201 CN601 CN121B CN202 CN703A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 104 VSX-820-K 1 2 3 4 A B C D E F 1 2 3 4 11.5 VIDEO ASSY M SIDE A SIDE A Q CP122 M VIDEO ASSY CN1001 Q CP123 CN1002 IC1002 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 105 VSX-820-K 5 6 7 8 5 6 7 8 A B C D E F M SIDE B SIDE B M VIDEO ASSY CN1001 CN1002 IC1006 IC1003 IC1005 IC1004 Q1005 Q1007 Q1008 Q1006 Q1011 IC1001 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 106 VSX-820-K 1 2 3 4 A B C D E F 1 2 3 4 11.6 F-VIDEO, FRONT and FNCTION ASSYS O P O FRONT ASSY (1/2) O FRONT ASSY (2/2) P FUNCTION ASSY SIDE A CN705_A CN705_B CP703 POWER TRANSFORMER CP702 CN706 U CP802 CN802 VSX-820-K Only www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 107 VSX-820-K 5 6 7 8 5 6 7 8 A B C D E F O N N F-VIDEO ASSY SIDE A A CP804 Q CP110 CN701 Q702 Q FPC101 CP704 VSX-820-K Only www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 108 VSX-820-K 1 2 3 4 A B C D E F 1 2 3 4 N O SIDE B CN701 IC701 CP704 O FRONT ASSY (1/2) O N F-VIDEO ASSY VSX-820-K Only www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 109 VSX-820-K 5 6 7 8 5 6 7 8 A B C D E F P O SIDE B CN705_A CN705_B CP703 CP702 CN706 IC701 O FRONT ASSY (2/2) P FUNCTION ASSY CN802 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 110 VSX-820-K 1 2 3 4 A B C D E F 1 2 3 4 11.7 MAIN and REG ASSYS Q Q MAIN ASSY R R SIDE A G CN202 CP126 B CN202 CP107 H CN601 CP128 CN207B CN207A C CP405 VSX-820-K Only CN106 C CP402 CN103 C CP403 CN104 M CN1001 CP122 M CN1 CP12 AC CORD or INLET POWER TRANSFORMER CP301 CP303 CP101 CP102 CP109 IC104 IC103 Q106 Q107 IC111 IC114 IC112 IC115 Q108 IC102 Q123 Q124 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 111 VSX-820-K 5 6 7 8 5 6 7 8 A B C D E F R Q R REG ASSY SIDE A S CN702 CP111 S CN701 CP112 T CN203 CP115 O CP704 FPC101 A CN806 CP120 T CN204 CP116 G CN201 CP125 V CP501 CN501 T CN200 CP200 207B CN207A A CN807 CP117 A CN803 CP118 T CN202 CP114 N1001 122 M CN1002 CP123 I CN121A CP121 N CN701 CP110 IC115 IC102 Q123 Q124 IC106 IC109 IC110 Q122 IC120 Q121 IC101 VSX-820-K Only VSX-820-K Only www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 112 VSX-820-K 1 2 3 4 A B C D E F 1 2 3 4 Q R SIDE B FPC101 CP120 CP116 CP125 CP200 CN501 CP126 CN20 CN207A CP117 CP118 CP114 CP115 CP112 CP111 CP122 CP123 CP121 CP110 IC120 IC110 IC109 Q137 Q202 Q201 Q20 IC106 Q112 IC101 Q MAIN ASSY R REG ASSY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 113 VSX-820-K 5 6 7 8 5 6 7 8 A B C D E F Q SIDE B CP126 CP107 CP128 CN207B CN207A CN106 CN103 CN104 CP122 CP123 CP301 CP303 CP101 CP102 CP109 Q111 Q301 Q300 Q101 Q302 IC301 Q138 Q137 202 Q201 Q203 EG ASSY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 114 VSX-820-K 1 2 3 4 A B C D E F 1 2 3 4 11.8 HDMI ASSY S SIDE A SIDE A J CN703A S HDMI ASSY CP703 Q709 IC706 IC705 Q712 Q716 Q714 Q711 IC704 IC701 IC702 IC8311 IC703 Q710 Q708 Q717-Q720 Q CP111 CN702 Q CP112 CN701 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 115 VSX-820-K 5 6 7 8 5 6 7 8 A B C D E F S SIDE B SIDE B S HDMI ASSY CP703 Q713 Q715 Q706 Q707 Q703 Q704 Q701 Q702 CN702 CN701 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 116 VSX-820-K 1 2 3 4 A B C D E F 1 2 3 4 11.9 DSP ASSY T SIDE A SIDE A Q CP114 T DSP ASSY CN202 Q CP115 CN203 Q CP116 CN204 IC110 IC109 IC106 IC102 IC100 IC101 U CN805 CP105 Q CP200 CN200 VSX-820-K Only www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 117 VSX-820-K 5 6 7 8 5 6 7 8 A B C D E F T SIDE B SIDE B T DSP ASSY CN202 CN203 CN204 CP105 CN200 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 118 VSX-820-K 1 2 3 4 A B C D E F 1 2 3 4 11.10 USB ASSY (VSX-820-K ONLY) U SIDE A SIDE A O CN802 U USB ASSY Q CP105 T CP105 CP802 CN807 CN805 IC803 IC801 IC805 Q3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 119 VSX-820-K 5 6 7 8 5 6 7 8 A B C D E F U SIDE B SIDE B U USB ASSY CP802 CN807 CN805 IC802 IC804 Q2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 120 VSX-820-K 1 2 3 4 A B C D E F 1 2 3 4 11.11 BT ASSY V SIDE A SIDE A SIDE B SIDE B V BT ASSY V BT ASSY Q CN501 CP501 CP501 A CN502 CP502 CP502 Q500 IC500 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 121 VSX-820-K 5 6 7 8 5 6 7 8 A B C D E F 12. PCB PARTS LIST - Meaning of the figures and others in the parentheses in the parts list. Example) IC 301 is on the point (face A, 91 of x-axis, and 111 of y-axis) of the corresponding PC board. IC 301 (A, 91, 111) IC NJM2068V 5 6 2 1 1 R 0 R 5 0 5 6 1 4 7 3 NOTES: - Parts marked by “NSP” are generally unavailable because they are not in our Master Spare Parts List. - The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. - When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47 k ohm (tolerance is shown by J = 5%, and K = 10%). 560 Ω → 56 × 101 → 561 ...................................................................RD1/4PU J 47 kΩ → 47 × 103 → 473 ...................................................................RD1/4PU J 0.5 Ω → R50 .................................................................................................RN2H K 1 Ω → 1R0 .................................................................................................RS1P K Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 5.62 kΩ → 562 × 101 → 5621 .................................................................RN1/4PC F JA*** JACK***, JK*** RY*** RLY*** T*** PT*** X*** XTAL***, RES*** (CERAMIC) FU*** F*** V*** FLT*** S*** SW***, VEC*** (ENCODER) L*** FB*** CN*** CP***, PN*** Q*** Q***FL, Q***FR, Q***C, Q***SL, Q***SR D*** ZD*** - SCHEMATIC DIAGRAM and PCB CONNECTION DIAGRAM - PCB PARTS LIST Mark No. Description Part No. LIST OF ASSEMBLIES NSP 1..MAIN ASSY (VSX-820-K) 7025HK0916010-IL NSP 1..MAIN ASSY (VSX-520-K) 7025HK0915010-IL 2..MAIN ASSY (VSX-820-K) 7028069111010-IL 2..MAIN ASSY (VSX-520-K) 7028069111060-IL 2..PT ASSY 7028069112010-IL 2..CNT2 ASSY 7028069113010-IL 2..HEADPHONE ASSY 7028069114010-IL 2..HP_GUIDE ASSY 7028069115010-IL 2..MIC ASSY (VSX-820-K ONLY) 7028069116010-IL 2..GUIDE_L ASSY 7028069117010-IL 2..GUIDE_R ASSY 7028069118010-IL 2..CNT1 ASSY 7028069119010-IL 2..PORTABLE ASSY (VSX-520-K ONLY) 702806911A010-IL NSP 1..VIDEO ASSY (VSX-820-K) 7025HK0916013-IL NSP 1..VIDEO ASSY (VSX-520-K) 7025HK0915013-IL 2..VIDEO ASSY (VSX-820-K) 7028069141010-IL 2..VIDEO ASSY (VSX-520-K) 7028069141040-IL NSP 1..FRONT ASSY (VSX-820-K) 7025HK0916011-IL NSP 1..FRONT ASSY (VSX-520-K) 7025HK0915011-IL 2..FRONT ASSY (VSX-820-K) 7028069121010-IL 2..FRONT ASSY (VSX-520-K) 7028069121020-IL 2..FUNCTION ASSY 7028069122010-IL 2..F-VIDEO ASSY (VSX-820-K ONLY) 7028069123010-IL NSP 1..INPUT ASSY (VSX-820-K) 7025HK0916012-IL NSP 1..INPUT ASSY (VSX-520-K) 7025HK0915012-IL 2..INPUT ASSY (VSX-820-K) 7028069131010-IL 2..INPUT ASSY (VSX-520-K) 7028069131020-IL NSP 1..SPEAKER ASSY (VSX-820-K) 7025HK0916014-IL NSP 1..SPEAKER ASSY (VSX-520-K) 7025HK0915014-IL 2..SPEAKER ASSY (VSX-820-K) 7028069151010-IL 2..SPEAKER ASSY (VSX-520-K) 7028069151030-IL NSP 1..DSP ASSY (VSX-820-K) 7025HK0916015-IL NSP 1..DSP ASSY (VSX-520-K) 7025HK0915015-IL 2..DSP ASSY (VSX-820-K) 7028069161010-IL 2..DSP ASSY (VSX-520-K) 7028069161020-IL 2..REG ASSY 7028069162010-IL NSP 1..HDMI ASSY (VSX-820-K) 7025HK0916018-IL NSP 1..HDMI ASSY (VSX-520-K) 7025HK0915016-IL 2..HDMI ASSY (VSX-820-K) 7028069191010-IL 2..HDMI ASSY (VSX-520-K) 7028069191020-IL NSP 1..USB ASSY (VSX-820-K ONLY) 7025HK0916016-IL 2..USB ASSY (VSX-820-K ONLY) 7028069171010-IL NSP 1..BT ASSY 7025HK0916017-IL 2..BT ASSY 7028069181010-IL NSP 1..AMP ASSY 7025HK0916019-IL 2..AMP ASSY 7028067523010-IL Mark No. Description Part No. A INPUT ASSY (VSX-820-K) SEMICONDUCTORS IC 801 J084152180010-IL IC 802-804 J121458000020-IL Q 801,803,805,806 J522020011210-IL Q 802,804,807,809 J520101411210-IL Q 808,812,814,821 J522020011210-IL Q 813,817,838,839 J520101411210-IL Q 815,816 J5441170Y0050-IL Q 818 J522104411210-IL Q 822,826,828,830 J522020011210-IL Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 122 VSX-820-K 1 2 3 4 A B C D E F 1 2 3 4 Q 832,834,836 J522020011210-IL D 801-810,813,814 K005041480030-IL D 9801,9802 (ZD801,802) K06006R844520-IL MISCELLANEOUS JA 801 TER,RCA 9PIN G607902AA131Y-IL JA 802,803 TER,RCA 6PIN G603610A02000-IL CN502 CN,WIRE 2MM L002900042620-IL 502 CN,WIRE 2MM L002900042620-IL RESISTORS R 874,875 C060010165060-IL CAPACITORS C 821,861 D040221083090-IL A INPUT ASSY (VSX-520-K) SEMICONDUCTORS IC 801 J084152180010-IL IC 802-804 J121458000020-IL Q 801,803,805,806 J522020011210-IL Q 802,804,807,809 J520101411210-IL Q 808,821,822,826 J522020011210-IL Q 815,816 J5441170Y0050-IL Q 817,838,839 J520101411210-IL Q 818 J522104411210-IL Q 828,830,832,834 J522020011210-IL Q 836 J522020011210-IL D 801-810,813,814 K005041480030-IL D 9801,9802 (ZD801,802) K06006R844520-IL MISCELLANEOUS JA 801 TER,RCA 9PIN G607902AA131Y-IL JA 802,803 TER,RCA 6PIN G603610A02000-IL CN502 CN,WIRE 2MM L002900042620-IL 502 CN,WIRE 2MM L002900042620-IL RESISTORS R 874,875 C060010165060-IL CAPACITORS C 821,861 D040221083090-IL B AMP ASSY SEMICONDUCTORS Q 202,206 J5023200B0050-IL Q 203,204 J5000992F0050-IL D 201 K000013300520-IL MISCELLANEOUS L 201 COIL,FILTER-INDUCTOR D330900001330-IL VR201 VR,SEMI CARBON MOLD C541102315000-IL TP 201 CN.WAFER 2.0MM L101200100320-IL RESISTORS R 201 C00007526P520-IL R 202,207 C060056265050-IL R 203 C00002226P520-IL R 204 C00004746P520-IL R 205,223 C0604R7063050-IL R 206 C00001836P520-IL R 208 C00008216P520-IL Mark No. Description Part No. R 209,210,215,216 N113136647820-IL R 211 C00002216P520-IL R 212,218 C00003336P520-IL R 213 C00003026P520-IL R 214 C060010065520-IL R 219 C00003346P520-IL R 220 C00005616P520-IL R 221,225 C00001226P520-IL R 222 C00004736P520-IL R 224 C060047063050-IL R 226 C00004716P520-IL R 227,229 C060010065050-IL R 228 N113135610020-IL CAPACITORS C 201,211 D00410107D051-IL C 202 D040470087070-IL C 203 D00022106D051-IL C 204 D00033006D051-IL C 206,208 D040100087070-IL C 207 D040101082090-IL C 209 D004471277051-IL C 210 D004102277051-IL C 212,213 D040101088050-IL C 214,2131 D02010406C060-IL C 215 D0422R208C050-IL C SPEAKER ASSY (VSX-820-K) SEMICONDUCTORS Q 401-404 J522102371210-IL D 401-408 K005041480030-IL MISCELLANEOUS JA 401 TER,BOARD SCREW 8P G614108V1010M-IL JA 403 TER,BOARD SCREW 2P G611201A0200Y-IL RY401-403 RELAY G680120503020-IL RY404 RELAY G680240202030-IL RESISTORS R 401 C060033166520-IL CAPACITORS C 401 D02015306C060-IL C 402 D02010406C060-IL C SPEAKER ASSY (VSX-520-K) SEMICONDUCTORS Q 401-404 J522102371210-IL D 401-408 K005041480030-IL MISCELLANEOUS JA 401 TER,BOARD SCREW 4P G612405E0200Y-IL JA 402 TER,BOARD PUSH 4P G594408SA030Y-IL JA 403 TER,BOARD PUSH 2P G592212A0300Y-IL RY401-403 RELAY G680120503020-IL RY404 RELAY G680240202030-IL RESISTORS R 401 C060033166520-IL CAPACITORS C 401 D02015306C060-IL Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 123 VSX-820-K 5 6 7 8 5 6 7 8 A B C D E F C 402 D02010406C060-IL D HEADPHONE ASSY SEMICONDUCTORS D 705,706 K005041480030-IL MISCELLANEOUS JA 701 JACK,D6.5 G402PJ612AG0Y-IL E MIC ASSY (VSX-820-K ONLY) SEMICONDUCTORS IC 703 J121458000020-IL D 715,716 K005041480030-IL D 9705-9707 (ZD705-707) K06605R14P400-IL MISCELLANEOUS JA 702 JACK,D3.5 G401PJ354H40Y-IL F PORTABLE ASSY (VSX-520-K ONLY) SEMICONDUCTORS D 713,714 K005041480030-IL MISCELLANEOUS JA 703 JACK,D3.5 G401PJ354H70Y-IL G PT ASSY SEMICONDUCTORS Q 126,128,131,134 J5001268B0050-IL Q 127,129,130,132 J5023198Y0000-IL Q 133,135,136 J5023198Y0000-IL D 112,113 K005041480030-IL D 9110 K06603R34P400-IL MISCELLANEOUS CN0 CN.WAFER 2.0MM L101100030510-IL CN202 CONNECTOR (4P) L101100030410-IL 201 BRACKET 4010210196000-IL CAPACITORS C 193,195 D040221082090-IL H HP_GUIDE ASSY MISCELLANEOUS CN601 CONNECTOR (4P) L101100030410-IL 601 BRACKET 4010210196000-IL I CNT1 ASSY MISCELLANEOUS CN 1211,1212 (CN121A,121B) CN.WAFER 2.0MM L101100030710-IL J CNT2 ASSY MISCELLANEOUS CN7032 (CN703B) CN.FPC 1.0MM L130100150820-IL 700 BRACKET 4010210196100-IL Mark No. Description Part No. K GUIDE_L ASSY MISCELLANEOUS 0 JHMX9800 (ON) HAITI) 4330000120000-IL L GUIDE_R ASSY MISCELLANEOUS 901,902,905 JHMX9800 (ON) HAITI) 4330000120000-IL M VIDEO ASSY (VSX-820-K) SEMICONDUCTORS IC 1001 J040744051500-IL IC 1002 J170747810010-IL IC 1003 J171258600010-IL IC 1004 J040744053500-IL IC 1005 J040742440190-IL IC 1006 J127762800010-IL Q 1005 J522305200050-IL Q 1011 J520015301210-IL D 9001 K06605R64P400-IL MISCELLANEOUS JA 1001 TER,RCA 6PIN G603610D0400Y-IL JA 1002 TER,RCA 9PIN G607902AD016Y-IL X 1001 CRYSTAL (14 MHz) E80014R318080-IL CN1001 CN.WAFER 2.0MM L101100030910-IL CN1002 CN.WAFER 2.0MM L101100030510-IL CAPACITORS C 1025 D040471081070-IL M VIDEO ASSY (VSX-520-K) SEMICONDUCTORS IC 1001 J040744051500-IL IC 1003 J171258600010-IL IC 1004 J040744053500-IL IC 1005 J040742440190-IL IC 1006 J127762800010-IL D 9001 K06605R64P400-IL MISCELLANEOUS JA 1001 TER,RCA 6PIN G603610D0400Y-IL JA 1002 TER,RCA 9PIN G607902AD016Y-IL CN1001 CN.WAFER 2.0MM L101100030910-IL CN1002 CN.WAFER 2.0MM L101100030510-IL N F-VIDEO ASSY (VSX-820-K ONLY) SEMICONDUCTORS D 701-704 K005041480030-IL MISCELLANEOUS JA 704 TER,RCA 3PIN G60603W0192GD-IL O FRONT ASSY (VSX-820-K) SEMICONDUCTORS IC 701 J127163150010-IL Q 701 J522102371210-IL Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 124 VSX-820-K 1 2 3 4 A B C D E F 1 2 3 4 Q 702 J5000933S0050-IL Q 703 J522101441210-IL D 707,709 K005041480030-IL D 8701 (LED701) K500052009011-IL D 9701 (ZD701) K06007R544520-IL MISCELLANEOUS L 701 COIL D330101001020-IL L 702 COIL,FILTER-INDUCTOR D330100700520-IL V 701 DISPLAY,FLT K530126300010-IL S 701-714,716 SWITCH G180501000010-IL S 9701 (VEC701) SW,ENCODER G121123040011-IL CN9702 (CP702) CONNECTOR (3P) L102526803010-IL CN9704 (CP704) CN.FPC 1.25MM L131125022320-IL 0 HOLDER 432004078301A-IL U 701 MODULE,REMOCON E940349003810-IL O FRONT ASSY (VSX-520-K) SEMICONDUCTORS IC 701 J127163150010-IL Q 702 J5000933S0050-IL Q 703 J522101441210-IL D 707,709 K005041480030-IL D 9701 (ZD701) K06007R544520-IL MISCELLANEOUS L 701 COIL D330101001020-IL L 702 COIL,FILTER-INDUCTOR D330100700520-IL V 701 DISPLAY,FLT K530126300010-IL S 701-714,716 SWITCH G180501000010-IL S 9701 (VEC701) SW,ENCODER G121123040011-IL CN9702 (CP702) CONNECTOR (3P) L102526803010-IL CN9704 (CP704) CN.FPC 1.25MM L131125021920-IL 0 HOLDER 432004078301A-IL U 701 MODULE,REMOCON E940349003810-IL P FUNCTION ASSY SEMICONDUCTORS D 711,712 K005041480030-IL MISCELLANEOUS S 715 SWITCH G180501000010-IL S 9702 (VEC702) SW,ENCODER G121123050021-IL Q MAIN ASSY (VSX-820-K) SEMICONDUCTORS IC 101 8952520000011-IL IC 102 J126790500070-IL IC 103 J126781200040-IL IC 104 J126791200060-IL IC 106 J000241600020-IL IC 109 J040740800230-IL IC 110 J040740800240-IL IC 111 J12678R330010-IL IC 112 J126111733050-IL IC 114,115 J126780500110-IL IC 120 J040742570030-IL IC 301 J126111700041-IL Q 101,138,300,301 J522305200050-IL Mark No. Description Part No. Q 106,107 J501778000010-IL Q 108 J5011049Y0010-IL Q 111,112 J522102371210-IL Q 121,123,124 J5001268B0050-IL Q 122 J5023198Y0000-IL Q 125 J5000916Y0050-IL Q 137 J520015301210-IL Q 201-203 J522101411210-IL Q 302 J522101441210-IL D 101,102,104,114 K005041480030-IL D 106 K000013300520-IL D 110,111,131-134 K000400700010-IL D 125,127,128,135 K005041480030-IL D 136,301-304,315 K005041480030-IL D 137-140,305-308 K000400700010-IL D 7101-7103 (BD101-103) K047604000020-IL D 9101 (ZD101) K06603R34P400-IL D 9103,9104 (ZD103,104) K06016R044520-IL D 9105,9108 (ZD105,108) K06606R24P400-IL D 9107 (ZD107) K06003R344520-IL D 9301 (ZD301) K06605R14P400-IL D 9302 (ZD302) K06615R04P400-IL MISCELLANEOUS L 101,102 BEAD,COIL 7610010030000-IL JA 101 JACK,DIN G403515397000-IL JA 102 TER,BOARD PUSH 4P G594408SA030Y-IL JA 9101 (TUNER101) TUNER E903004100020-IL RY101 RELAY G680120503020-IL RY302 RELAY G680060102020-IL T 301 POWER TRANS 8200280150620-IL X 101 RESONATOR,CERAMIC E830160000060-IL CN9101 (CP101) CN.FPC 1.25MM L131125022310-IL CN9111,9120 (CP111,120) CONNECTOR (14P) L101100041410-IL CN9112 (CP112) CN.WAFER 2.0MM L101100041110-IL CN9115 (CP115) CN.WAFER 2.0MM L101100040810-IL CN9116,9118 (CP116,118) CONNECTOR (19P) L101100041910-IL CN9117,9123,9125 (CP117,123,125) L101100040510-IL CN.WAFER 2.0MM CN9119 (CN119B) CN.FPC 1.0MM L130100150820-IL CN9121 (CP121) CN.WAFER 2.0MM L101100040710-IL CN9122 (CP122) CN.WAFER 2.0MM L101100040910-IL CN9126,9128 (CP126,128) CONNECTOR (4P) L101100040410-IL 0 SCREW B020030081B10-IL 101 HEAT SINK 2120210958050-IL 104,114 HEAT SINK 2120000818020-IL 904 JHMX9800 (ON) HAITI) 4330000120000-IL FU 301 FUSE GLASS TUBE 20MM N751506301160-IL RESISTORS R 101-104,201,202 C060R22065050-IL R 105,106,203 C060033065050-IL R 159 C060015165050-IL R 174-176 C060022265050-IL R 178,179 C141R10069010-IL R 184 C0604R7065050-IL R 186 C060022065050-IL R 304 C060010063050-IL CAPACITORS C 101 D02010306C060-IL C 167,222,224,235 D040471082060-IL Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 125 VSX-820-K 5 6 7 8 5 6 7 8 A B C D E F C 179,180 D040682088010-IL C 182-186 D02010407H080-IL C 189 D040331088230-IL C 200 D040682083000-IL C 201-203,208-210 D02047306C060-IL C 206 D040472084020-IL C 207 D040102084060-IL C 229 D040221082090-IL C 236 D040103083000-IL C 237-239 D02047306C060-IL C 301 D040222083010-IL C 304 D00847208H010-IL Q MAIN ASSY (VSX-520-K) SEMICONDUCTORS IC 101 8952520000011-IL IC 102 J126790500070-IL IC 103 J126781200040-IL IC 104 J126791200060-IL IC 106 J000241600020-IL IC 111 J12678R330010-IL IC 112 J126111733050-IL IC 114 J126780500110-IL IC 120 J040742570030-IL IC 301 J126111700041-IL Q 101,138,300,301 J522305200050-IL Q 106,107 J501778000010-IL Q 112 J522102371210-IL Q 121,123,124 J5001268B0050-IL Q 122 J5023198Y0000-IL Q 125 J5000916Y0050-IL Q 137 J520015301210-IL Q 201,203 J522101411210-IL Q 302 J522101441210-IL D 104,114,125,127 K005041480030-IL D 106 K000013300520-IL D 110,111,131-134 K000400700010-IL D 128,135,136 K005041480030-IL D 137-140,305-308 K000400700010-IL D 301-304,315 K005041480030-IL D 7101-7103 (BD101-103) K047604000020-IL D 9103,9104 (ZD103,104) K06016R044520-IL D 9107 (ZD107) K06003R344520-IL D 9301 (ZD301) K06605R14P400-IL D 9302 (ZD302) K06615R04P400-IL MISCELLANEOUS L 101,102 BEAD,COIL 7610010030000-IL JA 9101 (TUNER101) TUNER E903004100020-IL RY302 RELAY G680060102020-IL T 301 POWER TRANS 8200280150620-IL X 101 RESONATOR,CERAMIC E830160000060-IL CN9101 (CP101) CN.FPC 1.25MM L131125021910-IL CN9111,9120 (CP111,120) CONNECTOR (14P) L101100041410-IL CN9112 (CP112) CN.WAFER 2.0MM L101100041110-IL CN9115 (CP115) CN.WAFER 2.0MM L101100040810-IL CN9116,9118 (CP116,118) CONNECTOR (19P) L101100041910-IL CN9117,9123,9125 (CP117,123,125) L101100040510-IL CN.WAFER 2.0MM CN9119 (CN119B) CN.FPC 1.0MM L130100150820-IL Mark No. Description Part No. CN9121 (CP121) CN.WAFER 2.0MM L101100040710-IL CN9122 (CP122) CN.WAFER 2.0MM L101100040910-IL CN9126,9128 (CP126,128) CONNECTOR (4P) L101100040410-IL 0 SCREW B020030081B10-IL 101 HEAT SINK 2120210958050-IL 104,114 HEAT SINK 2120000818020-IL 904 JHMX9800 (ON) HAITI) 4330000120000-IL FU 301 FUSE GLASS TUBE 20MM N751506301160-IL RESISTORS R 101-104,201,202 C060R22065050-IL R 105,106 C060033065050-IL R 159 C060015165050-IL R 174-176 C060022265050-IL R 178,179 C141R10069010-IL R 184 C0604R7065050-IL R 186 C060022065050-IL R 304 C060010063050-IL CAPACITORS C 101 D02010306C060-IL C 167,222,224 D040471082060-IL C 179,180 D040682088010-IL C 182-186 D02010407H080-IL C 189 D040331088230-IL C 200 D040682083000-IL C 201-203,208-210 D02047306C060-IL C 206 D040472084020-IL C 207 D040102084060-IL C 229 D040221082090-IL C 236 D040103083000-IL C 237-239 D02047306C060-IL C 301 D040222083010-IL C 304 D00847208H010-IL R REG ASSY SEMICONDUCTORS IC 113 J126780500110-IL S HDMI ASSY (VSX-820-K) SEMICONDUCTORS IC 701 J126111712040-IL IC 702 SII9134CTU IC 703 SII9233ACTU IC 704 J126111710011-IL IC 706 8952520000021-IL IC 8311 J046255100010-IL Q 711 J500124200010-IL Q 714 J522101411210-IL D 711-720 K067020500010-IL D 9701 (ZD701) K06605R14P400-IL MISCELLANEOUS JA 701-705 CN.WAFER L109100190050-IL X 701 CRYSTAL CHIP (27 MHz) E80527R000050-IL X 702 CRYSTAL CHIP (16 MHz) E80516R000050-IL CN701 CN.WAFER 2.0MM L101100031110-IL CN702 CONNECTOR (14P) L101100031410-IL CN9703 (CP703) CN.WAFER 2.0MM L101200100820-IL Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 126 VSX-820-K 1 2 3 4 A B C D E F 1 2 3 4 S HDMI ASSY (VSX-520-K) SEMICONDUCTORS IC 701 J126111712040-IL IC 702 SII9134CTU IC 703 SII9233ACTU IC 704 J126111710011-IL IC 706 8952520000021-IL IC 8311 J046255100010-IL Q 711 J500124200010-IL Q 714 J522101411210-IL D 711-720 K067020500010-IL D 9701 (ZD701) K06605R14P400-IL MISCELLANEOUS JA 702-705 CN.WAFER L109100190050-IL X 701 CRYSTAL CHIP (27 MHz) E80527R000050-IL X 702 CRYSTAL CHIP(16 MHz) E80516R000050-IL CN701 CN.WAFER 2.0MM L101100031110-IL CN702 CONNECTOR (14P) L101100031410-IL CN9703 (CP703) CN.WAFER 2.0MM L101200100820-IL T DSP ASSY (VSX-820-K) SEMICONDUCTORS IC 100 J001638165610-IL IC 101 8952520000030-IL IC 102 J080320788010-IL IC 106 J040742570030-IL IC 109 J080458800010-IL IC 110 J040740400270-IL IC 9101 (REG101) J126111712070-IL IC 9103 (REG103) J126111700041-IL D 101 K005041480030-IL D 9200 (ZD200) K06002R444520-IL MISCELLANEOUS JA 102 TER,RCA 1PIN G600107A0000Y-IL JA 105,106 OPTICAL RECEIVER E100116500040-IL X 101 CRYSTAL CHIP (24.576 MHz) E80524R576050-IL CN202 CN.WAFER 2.0MM L101100032010-IL CN203 CONNECTOR (8P) L101100030810-IL CN204 CONNECTOR (19P) L101100031910-IL CN9105 (CP105) CONNECTOR (3P) L102526803010-IL CAPACITORS C 100 D040102081050-IL C 116,157,228 D040221082090-IL C 146 D040222083010-IL T DSP ASSY (VSX-520-K) SEMICONDUCTORS IC 100 J001638165610-IL IC 101 8952520000030-IL IC 102 J080320788010-IL IC 106 J040742570030-IL IC 109 J080458800010-IL IC 110 J040740400270-IL IC 9101 (REG101) J126111712070-IL IC 9103 (REG103) J126111700041-IL D 101 K005041480030-IL Mark No. Description Part No. D 9200 (ZD200) K06002R444520-IL MISCELLANEOUS JA 102 TER,RCA 1PIN G600107A0000Y-IL JA 105,106 OPTICAL RECEIVER E100116500040-IL X 101 CRYSTAL CHIP (24.576 MHz) E80524R576050-IL CN202 CN.WAFER 2.0MM L101100032010-IL CN203 CONNECTOR (8P) L101100030810-IL CN204 CONNECTOR (19P) L101100031910-IL CAPACITORS C 100 D040102081050-IL C 116,157,228 D040221082090-IL C 146 D040222083010-IL U USB ASSY (VSX-820-K ONLY) SEMICONDUCTORS IC 801 J085860000010-IL IC 802 8952820000040-IL IC 803 J001638165610-IL IC 804 341S2164 IC 805 J046205100010-IL IC 9001 (REG1) J126111710011-IL IC 9002 (REG2) J126111700041-IL Q 2 J522101411210-IL Q 3 J520103S00210-IL MISCELLANEOUS JA 801 CN,PLUG CONTACT G480040101410-IL X 1 CRYSTAL (12 MHz) E80012R000010-IL D1 1 D,ESD CHIP K067012020020-IL D2 2 D,ESD CHIP K067012020020-IL V BT ASSY SEMICONDUCTORS IC 500 J046255100010-IL Q 500 J522101411210-IL MISCELLANEOUS CN500 CONNECTOR CKS5712 CN9501 (CP501) CN.WAFER 2.0MM L101200100820-IL CN9502 (CP502) CN.WAFER 2.0MM L101200100410-IL 701,702 BRACKET 4010210196100-IL Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
