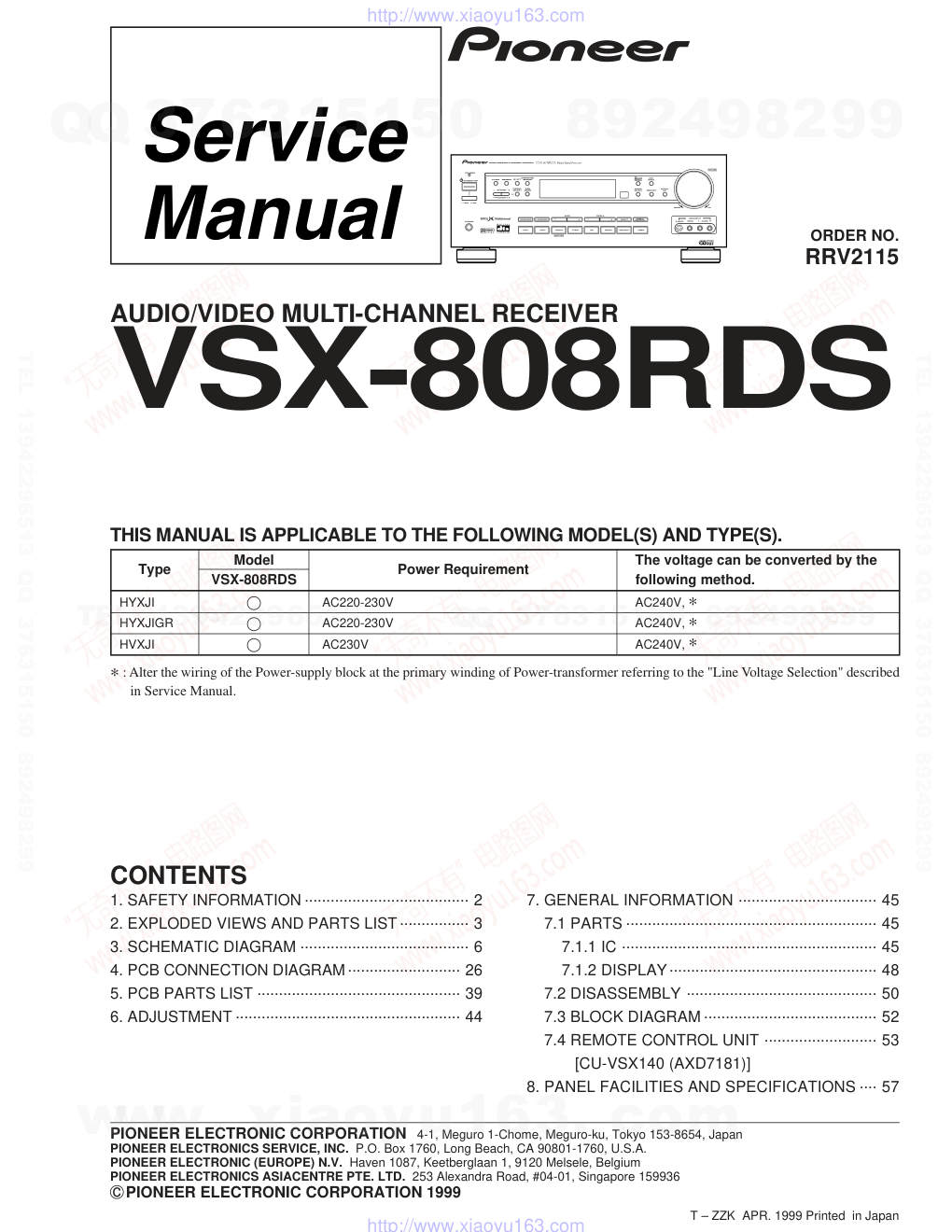

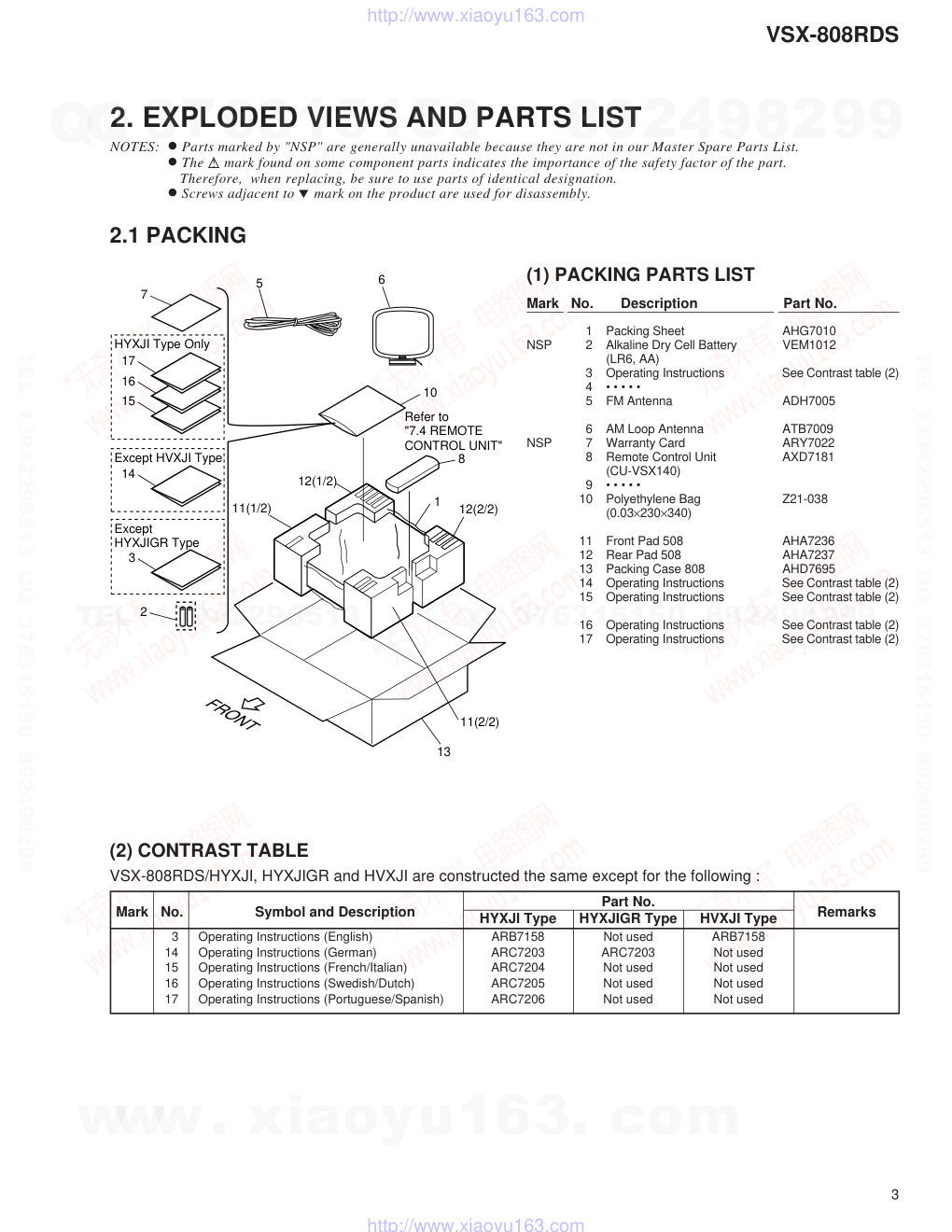

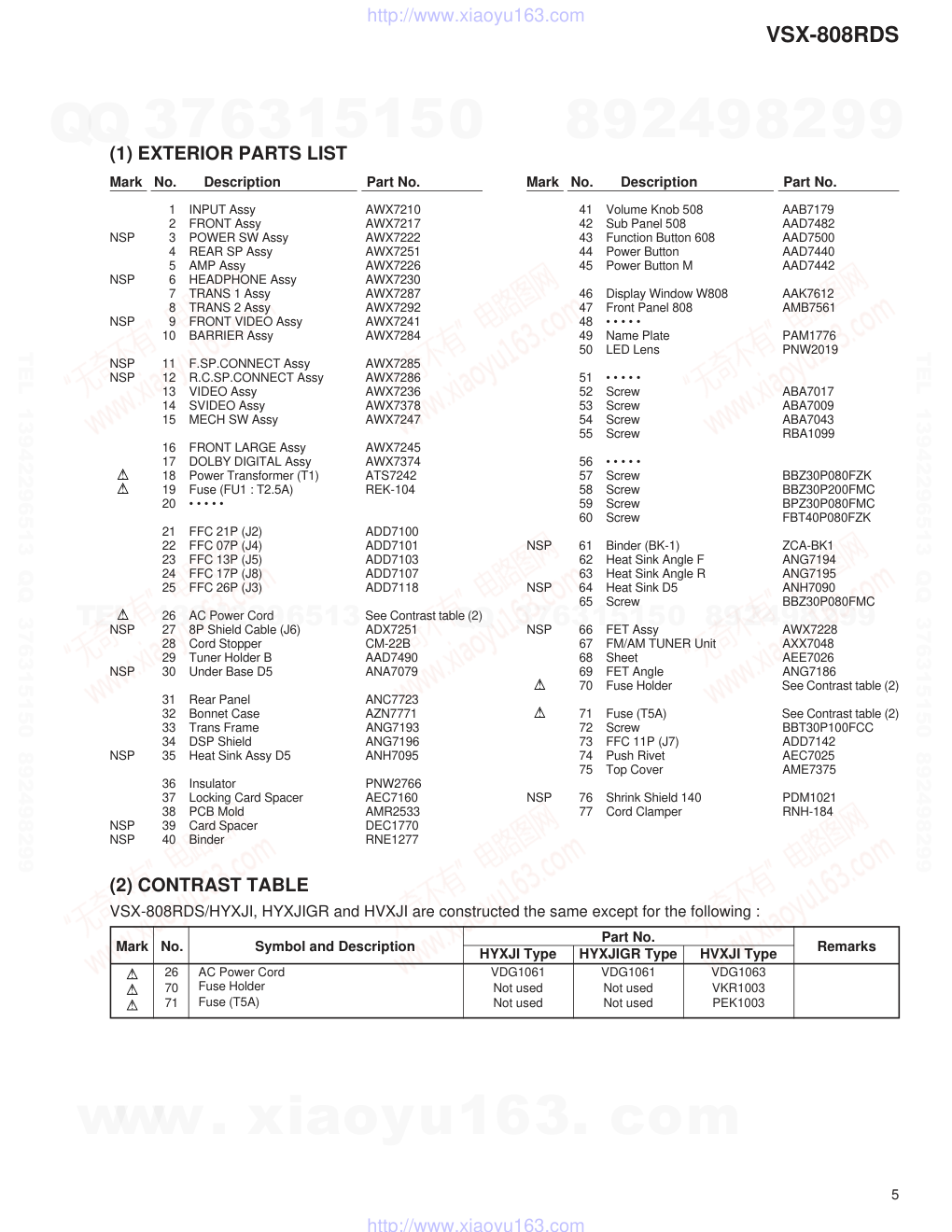

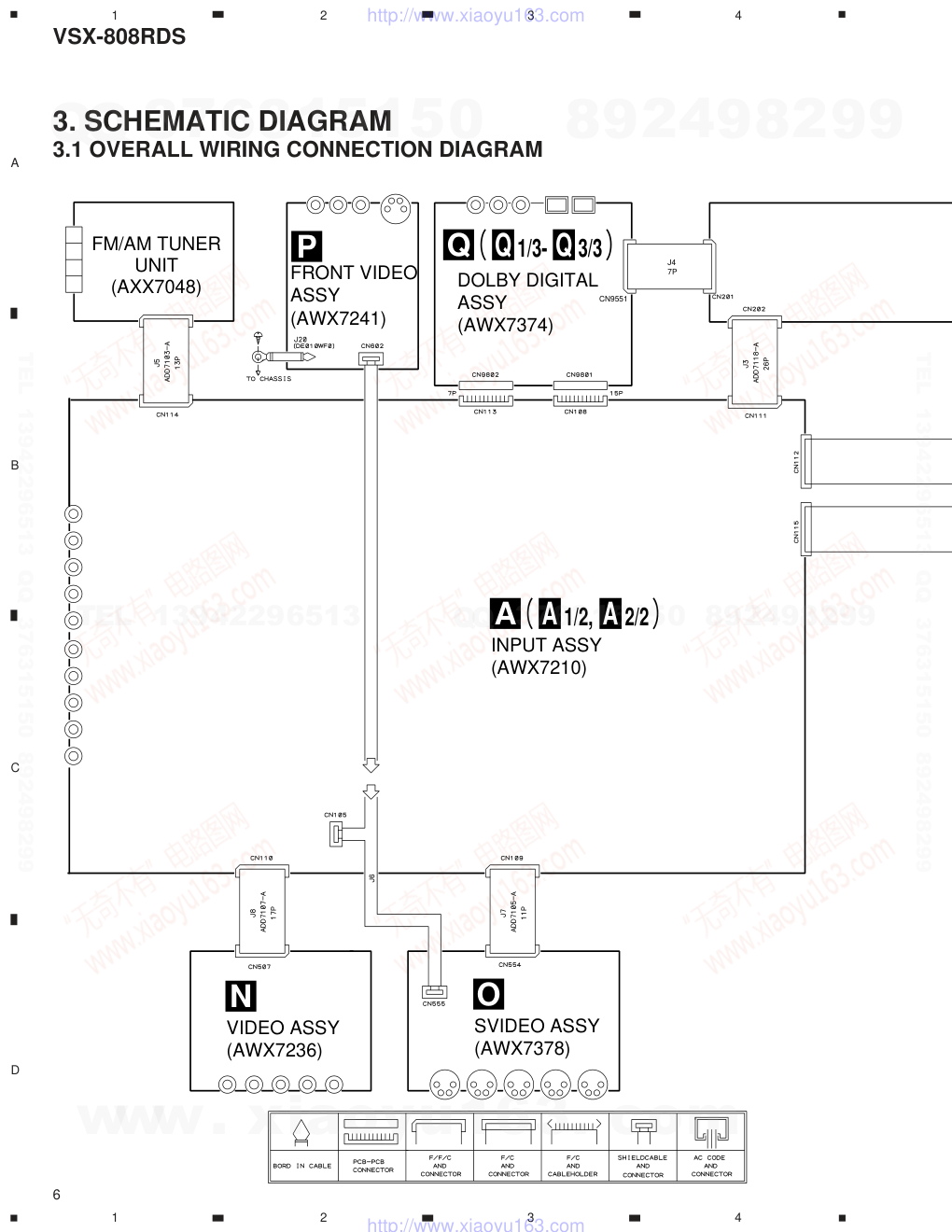

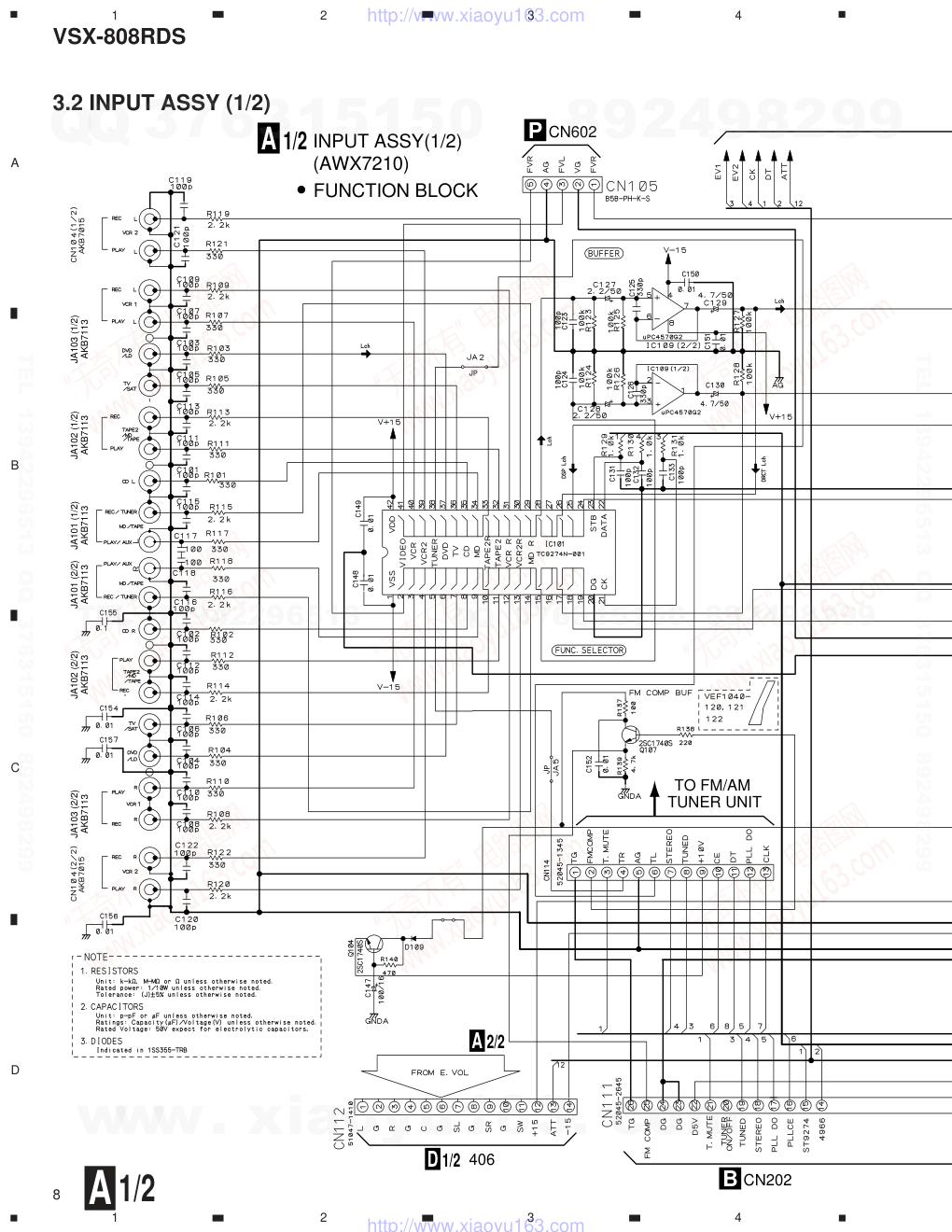

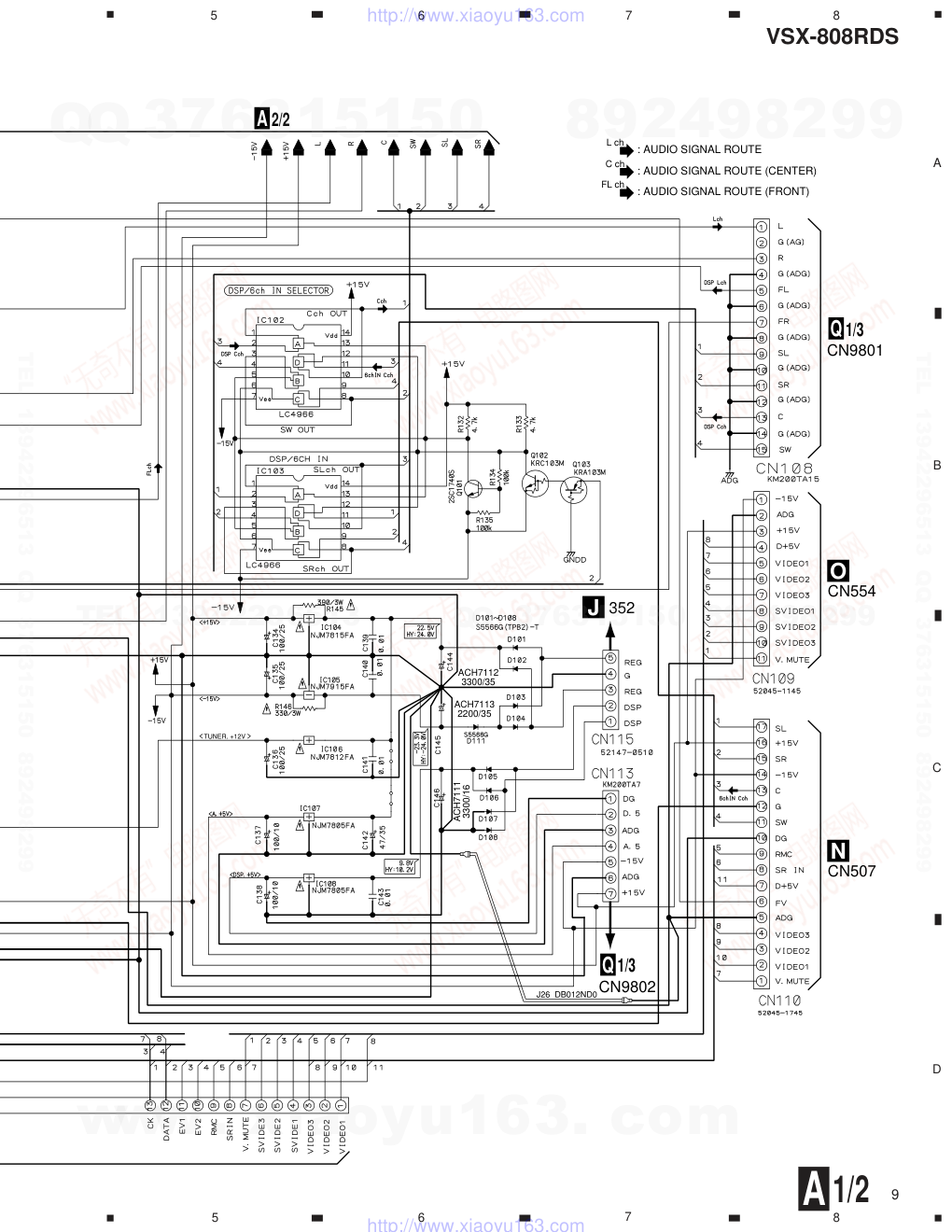

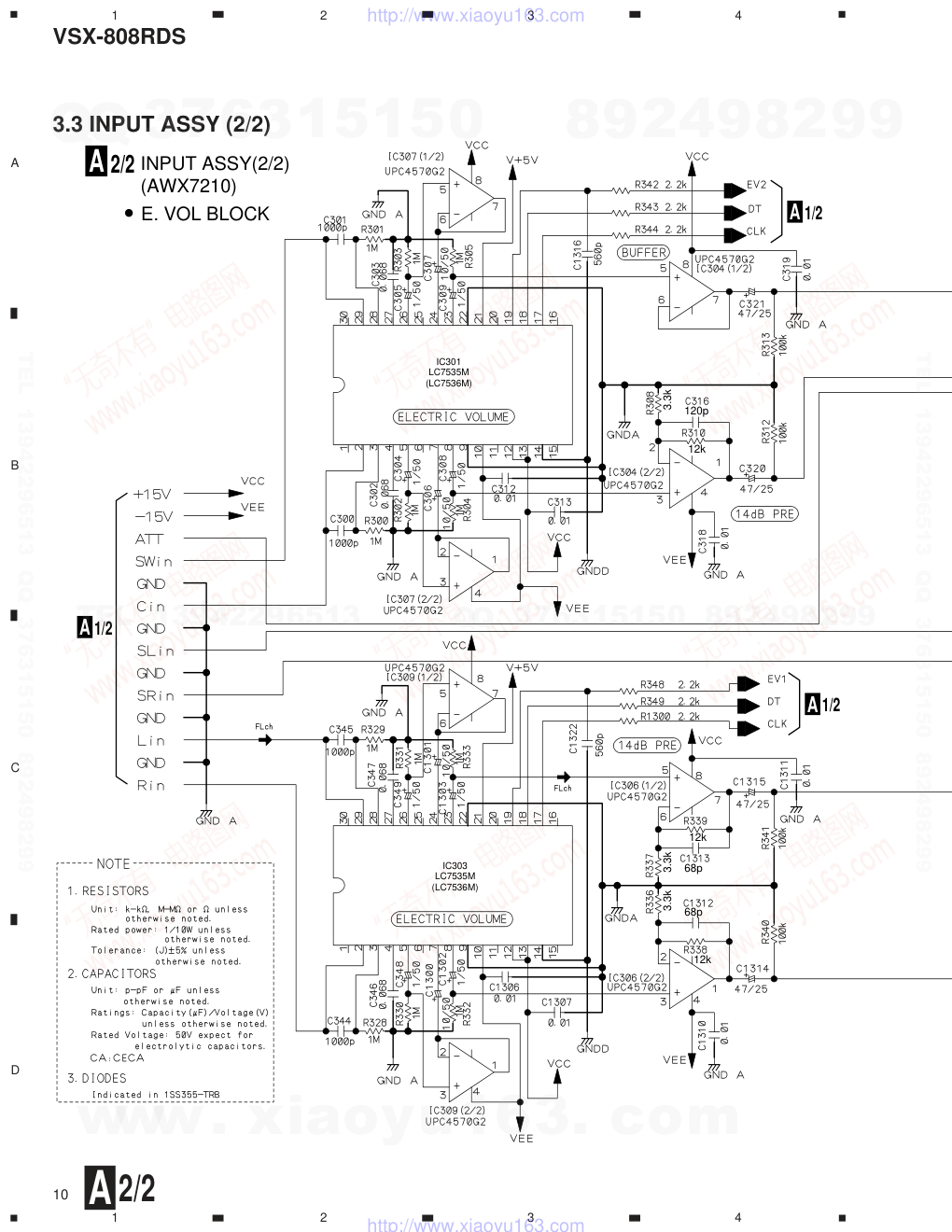

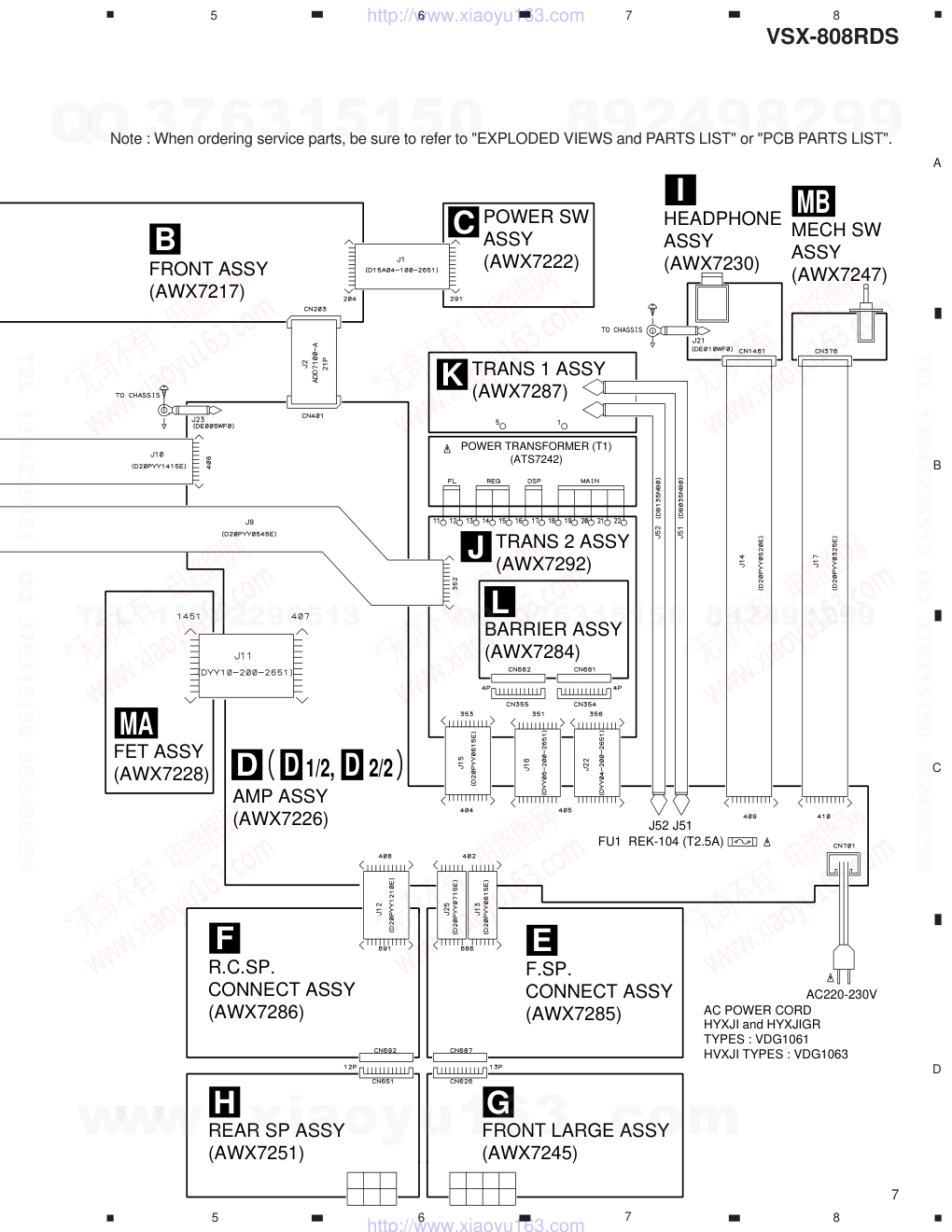

ORDER NO. PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 � � � � � � � � � �PIONEER ELECTRONIC CORPORATION 1999 c VSX-808RDS RRV2115 1. SAFETY INFORMATION ...................................... 2 2. EXPLODED VIEWS AND PARTS LIST ................ 3 3. SCHEMATIC DIAGRAM ....................................... 6 4. PCB CONNECTION DIAGRAM .......................... 26 5. PCB PARTS LIST ............................................... 39 6. ADJUSTMENT .................................................... 44 CONTENTS 7. GENERAL INFORMATION ................................ 45 7.1 PARTS .......................................................... 45 7.1.1 IC ........................................................... 45 7.1.2 DISPLAY................................................ 48 7.2 DISASSEMBLY ............................................ 50 7.3 BLOCK DIAGRAM ........................................ 52 7.4 REMOTE CONTROL UNIT .......................... 53 [CU-VSX140 (AXD7181)] 8. PANEL FACILITIES AND SPECIFICATIONS .... 57 T – ZZK APR. 1999 Printed in Japan Type Model Power Requirement The voltage can be converted by the VSX-808RDS following method. HYXJI AC220-230V AC240V, ∗ HYXJIGR AC220-230V AC240V, ∗ HVXJI AC230V AC240V, ∗ THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S). AUDIO/VIDEO MULTI-CHANNEL RECEIVER R – OFF - ON EON STANDBY/ON STANDBY PHONES AUDIO/VIDEO MULTI-CHANNEL RECEIVER STATION TUNING SELECT EON MODE CHARACTER /SEARCH SIGNAL SELECT MIDNIGHT DOWN UP BASS TREBLE VCR 1 VCR 2 DVD/LD TV/SAT CD FM/AM MD/TAPE 1 VIDEO LOUDNESS TAPE 2 MONITOR DIRECT VIDEO INPUT VIDEO S-VIDEO L MASTER VOLUME CLASS MEMORY RF ATT + + – + – + – – FREQUENCY MPEG DSP MODE DIGITAL NR AUDIO R SPEAKERS DVD 5.1CH / DTS ∗ : Alter the wiring of the Power-supply block at the primary winding of Power-transformer referring to the "Line Voltage Selection" described in Service Manual. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 VSX-808RDS 1. SAFETY INFORMATION This service manual is intended for qualified service technicians ; it is not meant for the casual do-it- yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. WARNING This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 – Proposition 65 NOTICE (FOR CANADIAN MODEL ONLY) Fuse symbols (fast operating fuse) and/or (slow operating fuse) on PCB indicate that replacement parts must be of identical designation. REMARQUE (POUR MODÈLE CANADIEN SEULEMENT) Les symboles de fusible (fusible de type rapide) et/ou (fusible de type lent) sur CCI indiquent que les pièces de remplacement doivent avoir la même désignation. ANY MEASUREMENTS NOT WITHIN THE LIMITS OUTLINED ABOVE ARE INDICATIVE OF A POTENTIAL SHOCK HAZARD AND MUST BE CORRECTED BEFORE RETURNING THE APPLIANCE TO THE CUSTOMER. 2. PRODUCT SAFETY NOTICE Many electrical and mechanical parts in the appliance have special safety related characteristics. These are often not evident from visual inspection nor the protection afforded by them necessarily can be obtained by using replacement components rated for voltage, wattage, etc. Replacement parts which have these special safety characteristics are identified in this Service Manual. Electrical components having such features are identified by marking with a on the schematics and on the parts list in this Service Manual. The use of a substitute replacement component which does not have the same safety characteristics as the PIONEER recommended replacement one, shown in the parts list in this Service Manual, may create shock, fire, or other hazards. Product Safety is continuously under review and new instructions are issued from time to time. For the latest information, always consult the current PIONEER Service Manual. A subscription to, or additional copies of, PIONEER Service Manual may be obtained at a nominal charge from PIONEER. 1. SAFETY PRECAUTIONS The following check should be performed for the continued protection of the customer and service technician. LEAKAGE CURRENT CHECK Measure leakage current to a known earth ground (water pipe, conduit, etc.) by connecting a leakage current tester such as Simpson Model 229-2 or equivalent between the earth ground and all exposed metal parts of the appliance (input/output terminals, screwheads, metal overlays, control shaft, etc.). Plug the AC line cord of the appliance directly into a 120V AC 60Hz outlet and turn the AC power switch on. Any current measured must not exceed 0.5mA. (FOR USA MODEL ONLY) Leakage current tester Reading should not be above 0.5mA Device under test Test all exposed metal surfaces Also test with plug reversed (Using AC adapter plug as required) Earth ground AC Leakage Test www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 VSX-808RDS 2.1 PACKING (1) PACKING PARTS LIST Mark No. Description Part No. 2. EXPLODED VIEWS AND PARTS LIST NOTES: • Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. • The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. • Screws adjacent to mark on the product are used for disassembly. 1 Packing Sheet AHG7010 NSP 2 Alkaline Dry Cell Battery VEM1012 (LR6, AA) 3 Operating Instructions See Contrast table (2) 4 • • • • • 5 FM Antenna ADH7005 6 AM Loop Antenna ATB7009 NSP 7 Warranty Card ARY7022 8 Remote Control Unit AXD7181 (CU-VSX140) 9 • • • • • 10 Polyethylene Bag Z21-038 (0.03×230×340) 11 Front Pad 508 AHA7236 12 Rear Pad 508 AHA7237 13 Packing Case 808 AHD7695 14 Operating Instructions See Contrast table (2) 15 Operating Instructions See Contrast table (2) 16 Operating Instructions See Contrast table (2) 17 Operating Instructions See Contrast table (2) 7 5 6 3 14 15 16 17 HYXJI Type Only Except HVXJI Type Except HYXJIGR Type 2 10 11(1/2) 11(2/2) 12(2/2) 12(1/2) 1 13 8 Refer to "7.4 REMOTE CONTROL UNIT" Mark No. Symbol and Description Part No. Remarks HYXJI Type HYXJIGR Type HVXJI Type 3 Operating Instructions (English) ARB7158 Not used ARB7158 14 Operating Instructions (German) ARC7203 ARC7203 Not used 15 Operating Instructions (French/Italian) ARC7204 Not used Not used 16 Operating Instructions (Swedish/Dutch) ARC7205 Not used Not used 17 Operating Instructions (Portuguese/Spanish) ARC7206 Not used Not used (2) CONTRAST TABLE VSX-808RDS/HYXJI, HYXJIGR and HVXJI are constructed the same except for the following : www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 VSX-808RDS K J D L N K I F G C G F M H B I C D E L E B H A A M H P P 32 57 57 57 57 57 57 57 57 57 57 23 67 13 29 57 38 39 39 57 57 57 Accessories of Front Panel 608 (No. 47) HVXJI Type Only 57 36 Note ∗1 : Torque is 12 kg • cm 57 21 25 22 2 52 59 59 53 57 47 9 36 37 30 57 57 76 1 58 34 17 24 72 16 4 11 12 26 28 31 60 60 57 53 69 66 ∗1 ∗1 68 57 61 57 52 64 65 65 62 63 57 57 57 58 19 54 52 10 55 55 18 33 5 8 7 52 57 57 52 77 35 27 57 59 59 44 50 53 57 49 57 42 46 41 51 6 43 3 40 +2 –0 14 73 69 57 40 70 71 26 59 59 45 15 N Except HVXJI Type (HVXJI Type Only) 74 75 J 2.2 EXTERIOR www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 VSX-808RDS 1 INPUT Assy AWX7210 2 FRONT Assy AWX7217 NSP 3 POWER SW Assy AWX7222 4 REAR SP Assy AWX7251 5 AMP Assy AWX7226 NSP 6 HEADPHONE Assy AWX7230 7 TRANS 1 Assy AWX7287 8 TRANS 2 Assy AWX7292 NSP 9 FRONT VIDEO Assy AWX7241 10 BARRIER Assy AWX7284 NSP 11 F.SP.CONNECT Assy AWX7285 NSP 12 R.C.SP.CONNECT Assy AWX7286 13 VIDEO Assy AWX7236 14 SVIDEO Assy AWX7378 15 MECH SW Assy AWX7247 16 FRONT LARGE Assy AWX7245 17 DOLBY DIGITAL Assy AWX7374 18 Power Transformer (T1) ATS7242 19 Fuse (FU1 : T2.5A) REK-104 20 • • • • • 21 FFC 21P (J2) ADD7100 22 FFC 07P (J4) ADD7101 23 FFC 13P (J5) ADD7103 24 FFC 17P (J8) ADD7107 25 FFC 26P (J3) ADD7118 26 AC Power Cord See Contrast table (2) NSP 27 8P Shield Cable (J6) ADX7251 28 Cord Stopper CM-22B 29 Tuner Holder B AAD7490 NSP 30 Under Base D5 ANA7079 31 Rear Panel ANC7723 32 Bonnet Case AZN7771 33 Trans Frame ANG7193 34 DSP Shield ANG7196 NSP 35 Heat Sink Assy D5 ANH7095 36 Insulator PNW2766 37 Locking Card Spacer AEC7160 38 PCB Mold AMR2533 NSP 39 Card Spacer DEC1770 NSP 40 Binder RNE1277 41 Volume Knob 508 AAB7179 42 Sub Panel 508 AAD7482 43 Function Button 608 AAD7500 44 Power Button AAD7440 45 Power Button M AAD7442 46 Display Window W808 AAK7612 47 Front Panel 808 AMB7561 48 • • • • • 49 Name Plate PAM1776 50 LED Lens PNW2019 51 • • • • • 52 Screw ABA7017 53 Screw ABA7009 54 Screw ABA7043 55 Screw RBA1099 56 • • • • • 57 Screw BBZ30P080FZK 58 Screw BBZ30P200FMC 59 Screw BPZ30P080FMC 60 Screw FBT40P080FZK NSP 61 Binder (BK-1) ZCA-BK1 62 Heat Sink Angle F ANG7194 63 Heat Sink Angle R ANG7195 NSP 64 Heat Sink D5 ANH7090 65 Screw BBZ30P080FMC NSP 66 FET Assy AWX7228 67 FM/AM TUNER Unit AXX7048 68 Sheet AEE7026 69 FET Angle ANG7186 70 Fuse Holder See Contrast table (2) 71 Fuse (T5A) See Contrast table (2) 72 Screw BBT30P100FCC 73 FFC 11P (J7) ADD7142 74 Push Rivet AEC7025 75 Top Cover AME7375 NSP 76 Shrink Shield 140 PDM1021 77 Cord Clamper RNH-184 (1) EXTERIOR PARTS LIST Mark No. Description Part No. Mark No. Description Part No. (2) CONTRAST TABLE VSX-808RDS/HYXJI, HYXJIGR and HVXJI are constructed the same except for the following : Mark No. Symbol and Description Part No. Remarks HYXJI Type HYXJIGR Type HVXJI Type 26 AC Power Cord VDG1061 VDG1061 VDG1063 70 Fuse Holder Not used Not used VKR1003 71 Fuse (T5A) Not used Not used PEK1003 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-808RDS 6 A B C D 1 2 3 4 1 2 3 4 3. SCHEMATIC DIAGRAM 3.1 OVERALL WIRING CONNECTION DIAGRAM 2/2 INPUT ASSY (AWX7210) A VIDEO ASSY (AWX7236) N SVIDEO ASSY (AWX7378) O FRONT VIDEO ASSY (AWX7241) P DOLBY DIGITAL ASSY (AWX7374) A 1/2, A 3/3 Q Q 1/3- Q CN9551 J4 7P FM/AM TUNER UNIT (AXX7048) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-808RDS 7 A B C D 5 6 7 8 5 6 7 8 Note : When ordering service parts, be sure to refer to "EXPLODED VIEWS and PARTS LIST" or "PCB PARTS LIST". R.C.SP. CONNECT ASSY (AWX7286) F REAR SP ASSY (AWX7251) H FRONT LARGE ASSY (AWX7245) G F.SP. CONNECT ASSY (AWX7285) E BARRIER ASSY (AWX7284) L TRANS 2 ASSY (AWX7292) J TRANS 1 ASSY (AWX7287) K POWER SW ASSY (AWX7222) HEADPHONE ASSY (AWX7230) C FRONT ASSY (AWX7217) B I J52 J51 AMP ASSY (AWX7226) D D 1/2, 2/2 D FET ASSY (AWX7228) POWER TRANSFORMER (T1) (ATS7242) AC POWER CORD HYXJI and HYXJIGR TYPES : VDG1061 HVXJI TYPES : VDG1063 FU1 REK-104 (T2.5A) AC220-230V MECH SW ASSY (AWX7247) MB MA www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-808RDS 8 A B C D 1 2 3 4 1 2 3 4 1/2 INPUT ASSY(1/2) (AWX7210) CN602 P CN202 B A • FUNCTION BLOCK 406 1/2 D 2/2 A TO FM/AM TUNER UNIT JA103 (1/2) AKB7113 JA102 (1/2) AKB7113 JA101 (1/2) AKB7113 JA101 (2/2) AKB7113 JA102 (2/2) AKB7113 JA103 (2/2) AKB7113 3.2 INPUT ASSY (1/2) 1/2 A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-808RDS 9 A B C D 5 6 7 8 5 6 7 8 CN507 N 352 J 2/2 A CN9801 1/3 Q CN9802 1/3 Q : AUDIO SIGNAL ROUTE L ch : AUDIO SIGNAL ROUTE (CENTER) C ch : AUDIO SIGNAL ROUTE (FRONT) FL ch CN554 O ACH7112 3300/35 ACH7113 2200/35 ACH7111 3300/16 1/2 A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-808RDS 10 A B C D 1 2 3 4 1 2 3 4 3.3k 120p 12k 12k 12k 68p 68p 3.3k 3.3k 1/2 A 2/2 INPUT ASSY(2/2) (AWX7210) A • E. VOL BLOCK 1/2 A 1/2 A IC301 LC7535M (LC7536M) IC303 LC7535M (LC7536M) 3.3 INPUT ASSY (2/2) 2/2 A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-808RDS 11 A B C D 5 6 7 8 5 6 7 8 12k 12k 120p 120p 3.3k 3.3k 1/2 A : AUDIO SIGNAL ROUTE (FRONT) FL ch IC302 LC7535M (LC7536M) 2/2 A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-808RDS 12 A B C D 1 2 3 4 1 2 3 4 POWER SW ASSY (AWX7222) C CN111 1/2 A CN9551 1/3 Q MASTER VOLUME REMOTE RECEIVER UNIT 3.4 FRONT and POWER SW ASSYS B C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-808RDS 13 A B C D 5 6 7 8 5 6 7 8 0.47/5.5 FRONT ASSY (AWX7217) B CN401 2/2 D FRONT ASSY S201 : SIGNAL SELECT S202 : MIDNIGHT S203 : DIGITAL NR S205 : – S206 : + S207 : – S208 : + S209 : SPEAKERS S210 : LOUDNESS S211 : DIRECT S212 : TAPE2 MONITOR S213 : / DTS MPEG S214 : DSP MODE S217 : DVD/LD S218 : TV/SAT S219 : CD S220 : FM/AM S221 : VCR 1 S222 : VCR 2 S223 : MD/TAPE1 S224 : VIDEO S229 : CLASS S230 : MEMORY S231 : RF ATT S232 : CHARACTER/SEARCH S233 : – S234 : + S235 : TUNING SELECT S236 : EON MODE S250 : MASTER VOLUME STATION/FREQUENCY BASS TREBLE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-808RDS 14 A B C D 1 2 3 4 1 2 3 4 3.5 AMP (1/2), F.SP.CONNECT, R.C.SP.CONNECT, FRONT LARGE and REAR SP ASSYS 1/2 D 4.7/50 NP 4.7/50 4.7/50 39p 39p 4.7/50 4.7/50 JA413 AKB7111 C439 220p /500 SL C1441 220p /500 SL C442 220p /500 SL C1442 220p /500 SL R1456 C1439 4.7 10000p YF NP NP NP NP C1438 330p 1/2 AMP ASSY(1/2) (AWX7226) D CN112 1/2 A 2/2 D 2/2 D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-808RDS 15 A B C D 5 6 7 8 5 6 7 8H G F E 1/2 D 0.22 0.22 0.22 0.22 0.01 0.01 0.01 0.01 0.01 0.01 AKE7026 20k 2k 0.01 0.01 0.01 0.01 JA653 AKB7111 0.22 0.22 AKE7042 0.22 0.22 0.22 0.22 RETURN RETURN RETURN C443 220p/500 SL C444 220p/500 SL REAR SP ASSY (AWX7251) H R.C.SP. CONNECT ASSY (AWX7286) F F.SP. CONNECT ASSY (AWX7285) E FRONT LARGE ASSY (AWX7245) G 2/2 D 2/2 D : AUDIO SIGNAL ROUTE (FRONT) FL ch CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE NO. ICP-N25, MFD BY ROHM CO., LTD. FOR IC404 and IC405. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-808RDS 16 A B C D 1 2 3 4 1 2 3 4 2/2 AMP ASSY(2/2) (AWX7226) D HEADPHONE ASSY (AWX7230) I 1/2 D CN203 B ATT7037 VNF-091 1000/25 : AUDIO SIGNAL ROUTE (HEAD PHONE) HP +42.4 (B) (B) –42.4 CN376 MB 3.6 AMP (2/2), HEADPHONE, TRANS 2, TRANS 1, BARRIER, FET and MECH SW ASSYS 2/2 D I www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-808RDS 17 A B C D 5 6 7 8 5 6 7 8 AC220-230V NP 1.8k TRANS 1 ASSY (AWX7287) K TRANS 2 ASSY (AWX7292) J BARRIER ASSY (AWX7284) L FET ASSY (AWX7228) CN115 MAIN TRANS. 1/2 A MAIN TRANS. AC POWER CORD VDG1061: EXCEPT HVXJI TYPE VDG1063: HVXJI TYPE ONLY LIVE NEUTRAL REK-104 T2.5A250V AC240V AC230V ATF-151 (B) +59.5 –59.5 • NOTE FOR FUSE REPLACEMENT FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE WITH SAME TYPE AND RATINGS ONLY. CAUTION - MA MB MECH SW ASSY (AWX7247) 410 2/2 D CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE NO. 491005, MFD BY LITTELFUSE INK. FOR IC351, IC352 (AEK7019). CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE NO. ICP-N70, MFD BY ROHM CO., LTD. FOR IC353. 2/2 D L K J MA MB www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-808RDS 18 A B C D 1 2 3 4 1 2 3 4 VIDEO ASSY (AWX7236) N CN110 1/2 A UPC4570C UPC4570C UPC4570C UPC4570C 3.7 VIDEO, SVIDEO and FRONT VIDEO ASSYS N O www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-808RDS 19 A B C D 5 6 7 8 5 6 7 8 PCB BINDER PCB BINDER 551 SVIDEO ASSY (AWX7378) O FRONT VIDEO ASSY (AWX7241) P CN109 1/2 A CN602 P CN555 O CN105 1/2 A CN601 : S-VIDEO Y-SIGNAL ROUTE Y C DC : S-VIDEO C-SIGNAL ROUTE : S-VIDEO C-DC ROUTE Y20 ADX7248 P O www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-808RDS 20 A B C D 1 2 3 4 1 2 3 4 C9121 (R9103) 0 3/3 Q CN108 1/2 A 3.8 DOLBY DIGITAL ASSY (1/3) 1/3 Q www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-808RDS 21 A B C D 5 6 7 8 5 6 7 8 C9506 (R9521) 47k 7.7MHz 1/3 DOLBY DIGITAL ASSY(1/3) (AWX7374) Q CN113 1/2 A • INPUT, CODEC & CONTROL BLOCK CN201 B 2/3 Q 3/3 Q 2/3 Q 3/3 Q 3/3 Q 1/3 Q www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-808RDS 22 A B C D 1 2 3 4 1 2 3 4 1/3 Q 1/3 Q 3.9 DOLBY DIGITAL ASSY (2/3) 2/3 Q www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-808RDS 23 A B C D 5 6 7 8 5 6 7 8 2/3 DOLBY DIGITAL ASSY(2/3) (AWX7374) Q • DSP & MEMORY BLOCK 2/3 Q www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-808RDS 24 A B C D 1 2 3 4 1 2 3 4 3.10 DOLBY DIGITAL ASSY (3/3) 3/3 Q UPC4570G2 UPC4570G2 UPC4570G2 UPC4570G2 UPC4570G2 UPC4570G2 1/3 Q 1/3 Q 1/3 Q www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-808RDS 25 A B C D 5 6 7 8 5 6 7 83/3 Q UPC4570G2 UPC4570G2 UPC4570G2 UPC4570G2 UPC4570G2 UPC4570G2 UPC4570G2 UPC4570G2 UPC4570G2 UPC4570G2 3/3 DOLBY DIGITAL ASSY(3/3) (AWX7374) Q • OUTPUT FILTER & MUTE BLOCK 1/3 Q www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-808RDS 26 A B C D 1 2 3 4 1 2 3 4 4. PCB CONNECTION DIAGRAM Q1351 IC107 IC108 IC104-IC106 IC110 (ANP7274-A) 406 D 352 J FRONT VIDEO ASSY P INPUT ASSY A CN980 Q CN555 O SIDE A NOTE FOR PCB DIAGRAMS : 1. Part numbers in PCB diagrams match those in the schematic diagrams. 2. A comparison between the main parts of PCB and schematic diagrams is shown below. 3. The parts mounted on this PCB include all necessary parts for several destinations. For further information for respective destinations, be sure to check with the schematic diagram. 4. View point of PCB diagrams. Symbol In PCB Diagrams Symbol In Schematic Diagrams Part Name B C E D D G G S S B C E B C E D G S B C E B C E B C E Transistor Transistor with resistor Field effect transistor Resistor array 3-terminal regulator Capacitor Connector P.C.Board Chip Part SIDE A SIDE B 4.1 INPUT and FRONT VIDEO ASSYS A P www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-808RDS 27 A B C D 5 6 7 8 5 6 7 8 IC102 IC103 Q104-Q107 IC101 Q101-Q103 (ANP7273-A) CN9801 Q CN9802 Q CN507 N CN554 O CN202 B SIDE A FM/AM TUNER UNIT A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-808RDS 28 A B C D 1 2 3 4 1 2 3 4 IC109 IC307-IC309 INPUT ASSY A SIDE B A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-808RDS 29 A B C D 5 6 7 8 5 6 7 8 (ANP7273-A) 07-IC309 IC301-IC303 IC304-IC306 IC310 SIDE B A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-808RDS 30 A B C D 1 2 3 4 1 2 3 4 IC201 Q202 Q205 Q204 Q282 Q281 IC281 Q203 Q201 CN401 D POWER SW ASSY C 4.2 FRONT and POWER SW ASSYS B C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-808RDS 31 A B C D 5 6 7 8 5 6 7 8 (ANP7273-A) (ANP7273-A) Q201 Q207 Q206 Q283 FRONT ASSY B FRONT ASSY B CN111 A CN9551 Q SIDE A SIDE B B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-808RDS 32 A B C D 1 2 3 4 1 2 3 4 4.3 AMP, HEADPHONE, FET and MECH SW ASSYS Q403 Q404 Q1404 Q1405 IC405 Q1452 Q1451 IC401 Q408 Q1402 IC4 Q407 Q401 Q405 Q406 Q402 (ANP7274-A) (ANP7274-A) FET ASSY MA AMP ASSY D HEADPHONE ASSY I CN112 A 351 356 J 353 J CN203 B SIDE A (ANP7268-B) MECH SW ASSY MB D I MA MB www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-808RDS 33 A B C D 5 6 7 8 5 6 7 8 Q454 02 Q1403 Q1401 Q451Q457 Q455 IC402 Q452 Q1433 Q1434 IC403 IC701 Q701 Q453 Q456 Q458 Q711-Q714 IC404 (ANP7274-A) 691 F J52 K J51 K 686 E AC IN LIVE NEUTRAL D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-808RDS 34 A B C D 1 2 3 4 1 2 3 4 4.4 F.SP.CONNECT, R.C.SP.CONNECT, FRONT LARGE and REAR SP ASSYS (ANP7273-A) (ANP7268-B) (ANP7274-A) Q652 Q651 408 D REAR SP ASSY H REAR SP ASSY H R.C.SP. CONNECT ASSY F FRONT LARGE ASSY G SIDE A SIDE B (ANP7274-A) 402 D F.SP. CONNECT ASSY E Q630 Q629 Q631 Q627 Q626 Q628 E F G H www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-808RDS 35 A B C D 1 2 3 4 1 2 3 4 4.5 TRANS 2, TRANS 1 and BARRIER ASSYS (ANP7274-A) (ANP7274-A) (ANP7274-A) IC351 IC353 CN115 A 404 D POWER TRANSFORMER (T1) 405 D J51 D TRANS 2 ASSY J TRANS 1 ASSY K BARRIER ASSY L J52 SIDE A 220-230V 240V Line Voltage can be changed by the following modification: 1. Disconnect the AC power cord. 2. Remove the cover. 3. Change the connection wire from TRANS 1 ASSY [Terminal No. J52 or J53] to AMP ASSY (Terminal No. J52) as follows. Voltage Terminal No. of TRANS 1 ASSY 220-230V J52 240V J53 4. Stick a line voltage label on the rear panel. Description Part No. 220V label AAX-193 240V label AAX-192 Line Voltage Selection L K J www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-808RDS 36 A B C D 1 2 3 4 1 2 3 4 4.6 DOLBY DIGITAL ASSY (ANP7297-B) IC9501 Q9606 Q9609 Q9608 Q9605 Q9604 Q9603 Q9602 Q9601 IC9601 IC9702 IC9704 IC9201 Q9203 Q9204 Q9201 Q9202 IC9391 IC9374 Q9607 Q9610 IC9604 IC9603 IC9602 IC9321 IC9311 IC9701 IC9703 IC9373 IC9372 IC9371 IC9361 IC9401 IC9451 Q9401 Q9402 IC9705 CN113 A DOLBY DIGITAL ASSY Q CN201 B CN108 A SIDE A Q www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-808RDS 37 A B C D 1 2 3 4 1 2 3 4 DOLBY DIGITAL ASSY Q SIDE B (ANP7297-B) IC9151 IC9101 Q www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-808RDS 38 A B C D 1 2 3 4 1 2 3 4 N 4.7 VIDEO and SVIDEO ASSYS IC501 IC502 IC503 Q506 Q501-Q505 (ANP7268-B) (ANP7274-A) CN110 A CN602 P CN109 A VIDEO ASSY N SIDE A SVIDEO ASSY O IC551 IC552 Q554 Q551Q552 IC553 Q556 Q557 Q553 O www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 39 VSX-808RDS Mark No. Description Part No. Mark No. Description Part No. Mark No. Description Part No. Mark No. Description Part No. 5. PCB PARTS LIST NOTES: •Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. •The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. •When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). 560 Ω → 56 × 10 1 → 561 ........................................................ RD1/4PU 5 6 1 J 47k Ω → 47 × 10 3 → 473 ........................................................ RD1/4PU 4 7 3 J 0.5 Ω → R50 ..................................................................................... RN2H R 5 0 K 1 Ω → 1R0 ..................................................................................... RS1P 1 R 0 K Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 5.62k Ω → 562 × 10 1 → 5621 ...................................................... RN1/4PC 5 6 2 1 F LIST OF ASSEMBLIES NSP INPUT ASSY AWK7474 INPUT ASSY AWX7210 FRONT ASSY AWX7217 NSP POWER SW ASSY AWX7222 REAR SP ASSY AWX7251 NSP AMP ASSY AWK7482 AMP ASSY AWX7226 NSP FET ASSY AWX7228 NSP HEADPHONE ASSY AWX7230 VIDEO ASSY AWX7236 NSP FRONT VIDEO ASSY AWX7241 BARRIER ASSY AWX7284 NSP F.SP.CONNECT ASSY AWX7285 NSP R.C.SP.CONNECT ASSY AWX7286 TRANS1 ASSY AWX7287 TRANS2 ASSY AWX7292 NSP EXCELLENT ASSY AWK7486 FRONT LARGE ASSY AWX7245 MECH SW ASSY AWX7247 SVIDEO ASSY AWX7378 DOLBY DIGITAL ASSY AWX7374 INPUT ASSY SEMICONDUCTORS IC102, IC103 LC4966 IC301–IC303 LC7536M IC107, IC108 NJM7805FA IC106 NJM7812FA IC104 NJM7815FA IC105 NJM7915FA IC101 TC9274N-001 IC109, IC304–IC310 UPC4570G2 Q101, Q104, Q107 2SC1740S Q1351 2SC2878 Q103 KRA103M Q102 KRC103M D109 1SS355 D101–D108, D111 S5566G(TPB2) D110 UDZS5.1B CAPACITORS C1314, C1315, C320, C342, C343 ACH7110 (47µF/25V) C146 (3300µF/16V) ACH7111 C144 (3300µF/35V) ACH7112 C145 (2200µF/35V) ACH7113 C101–C124, C131–C133 CCSQCH101J50 C300, C301, C322, C323 CCSQCH102J50 C344, C345 CCSQCH102J50 C316, C340, C341 CCSQCH121J50 C1316, C1319, C1322 CCSQCH561J50 C1312, C1313 CCSQCH680J50 C153, C307 CEAT100M50 C137, C138 CEAT101M10 C147 CEAT101M16 C134–C136 CEAT101M25 C305, C309 CEAT1R0M50 C127, C128 CEAT2R2M50 C321 CEAT470M25 C142 CEAT470M35 C129, C130, C1352, C1354 CEAT4R7M50 C304, C326, C327, C348, C349 CEBA1R0M50 C1300, C1301, C306, C328, C329 CECA100M50 C1302, C1303, C308, C330, C331 CECA1R0M50 C1351 CKSQYB102K50 C1306, C1307, C1310, C1311 CKSQYB103K50 C1355, C1356, C139–C141, C143 CKSQYB103K50 C148–C152, C154, C156, C157 CKSQYB103K50 C312, C313, C318, C319 CKSQYB103K50 C334, C335, C338, C339 CKSQYB103K50 C155 CKSQYB104K25 C1353 CKSQYB222K50 C125, C126 CKSQYB331K50 C302, C303, C324, C325 CKSQYB683K25 C346, C347 CKSQYB683K25 RESISTORS R146 RS3LMF331J R145 RS3LMF391J Other Resistors RS1/10S J OTHERS CN109 11P FFC CONNECTOR 52045-1145 CN114 13P FFC CONNECTOR 52045-1345 CN110 17P FFC CONNECTOR 52045-1745 CN111 26P FFC CONNECTOR 52045-2645 CN115 5P JUMPER CONNECTOR 52147-0510 A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 40 VSX-808RDS Mark No. Description Part No. Mark No. Description Part No. CN112 14P JUMPER CONNECTOR 52147-1410 CN104 6P PIN JACK AKB7015 JA101–JA103 6P PIN JACK AKB7113 CN105 KR CONNECTOR B5B-PH-K-S CN108 15P PLUG KM200TA15 CN113 7P PLUG KM200TA7 120–122 PCB BINDER VEF1040 FRONT ASSY SEMICONDUCTORS IC281 BU1923 IC201 PDG252A Q282 2SA1515 Q201, Q202 2SA933S Q206, Q207, Q283 2SC1740S Q203–Q205, Q281 KRC101M D201–D203, D205–D221 1SS355 D224–D226, D229 1SS355 D227, D228 UDZS5.1B COILS AND FILTERS L201, L281 LFA2R2J SWITCHES AND RELAYS S201–S203, S205–S214 ASG1034 S217–S224, S229–S236 ASG1034 S250 ASX7004 CAPACITORS C204 (0.047F/5.5V) ACH7017 C220–C222 CCSQCH101J50 C217 CCSQCH102J50 C281, C282 CCSQCH270J50 C283, C287 CEAT101M10 C290 CEAT1R0M50 C206, C208, C288 CEAT2R2M50 C212 CEAT470M25 C205 CEAT470M50 C202 CEAT471M6R3 C227 CEJA221M6R3 C284, C285 CKSQYB102K50 C201, C203, C211 CKSQYB103K50 C214 CKSQYB104K25 C289 CKSQYB472K50 C209, C210 CKSQYB473K50 C286 CKSQYB561K50 C207 CKSQYF104Z25 RESISTORS R230 RA8T103J R225 RA9T104J Other Resistors RS1/10S J OTHERS 201 REMOTE RECEIVER UNIT GP1U27X 204 4P CABLE HOLDER 51063-0405 CN201 15P FFC CONNECTOR 52044-0745 CN203 21P FFC CONNECTOR 52045-2145 CN202 26P FFC CONNECTOR 52045-2645 B V201 FL TUBE AAV7062 X201 CERAMIC RESONATOR ASS1055 (7.7MHz) X281 CRYSTAL RESONATOR ASS7004 (4.332MHz) POWER SW ASSY SEMICONDUCTORS D291 BR3371XJ30A SWITCHES AND RELAYS S291 ASG1034 RESISTORS All Resistors RS1/10S J OTHERS 291 4P CABLE HOLDER 51063-0405 AMP ASSY SEMICONDUCTORS IC404, IC405 ICP-N25 IC701 NJM78M56FA IC401, IC402 PAC007A IC403 PAC008A Q712 2SA992 Q1404, Q1405 2SC1740S Q711 2SC1845 Q1402, Q403, Q404, Q453, Q454 2SC2240 Q405, Q406, Q455, Q456 2SC2705 Q1401, Q1403, Q1434, Q401, Q402 2SC2878 Q407, Q408, Q451, Q452 2SC2878 Q457, Q458 2SC2878 Q1436, Q714 KRA103M Q1435, Q701 KRC101M Q713 KRC103M D1401, D1403, D1435, D1436 1SS133 D401, D402, D405, D406 1SS133 D411, D412, D451, D452 1SS133 D455, D456, D461, D462 1SS133 D703–D705 1SS133 D711, D712, D717 D5SBA20(B) D713, D714 MTZJ18B D701 MTZJ5.1A D702 S1WB20 COILS AND FILTERS L701 LINE FILTER ATF-151 L1432, L1433 AF CHOKE COIL ATH1004 SWITCHES AND RELAYS RY401 ASR7001 RY701 ASR7016 CAPACITORS C704, C705 (10000pF/AC250V) ACG7020 C715, C716 (8200µF/71V) ACH7018 C1408, C1410 CCCSL101K2H C1411, C1442, C415, C416 CCCSL221J50 C465, C466 CCCSL221J50 C D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 41 VSX-808RDS Mark No. Description Part No. Mark No. Description Part No. C1441, C439, C442–C444 CCCSL221K2H C1420, C1421 CCCSL390J50 C437, C438, C479, C480 CCCSL470J50 C1403, C1404, C405, C406 CEANP2R2M2A C455, C456 CEANP2R2M2A C1415, C423, C424, C473, C474 CEANP2R2M50 C1402, C403, C404, C453, C454 CEANP4R7M50 C413, C414, C463, C464 CEAT100M50 C436, C486 CEAT101M10 C1405, C411, C412, C461, C462 CEAT101M25 C713, C714 CEAT101M2A C702 CEAT102M25 C490, C717, C718 CEAT1R0M50 C1419 CEAT221M10 C701 CEAT470M25 C1413, C1414, C421, C422 CEAT4R7M2A C471, C472 CEAT4R7M2A C1432, C1433, C1436, C1437 CFTYA224J50 C1440 CGCYX104M25 C1417, C1418, C429, C430 CKCYB102K50 C477, C478 CKCYB102K50 C1401, C401, C402, C451, C452 CKCYB331K50 C1412 CKCYB471K2H C1407, C1409 CKCYB471K50 C1439, C703, C706, C707 CKCYF103Z50 C1438 CKPUYB331K50 C711, C712 CQMA103K2E RESISTORS R1412, R423, R424, R473, R474 ACN7094 (0.22Ω, 5W) R703 RD1/2PM270J R1409, R1410, R415, R416 RD1/4MUF331J R465, R466 RD1/4MUF331J R419, R420, R469, R470 RD1/4MUF820J R1432, R1433 RD1/4PMF4R7J R1436, R1437 RS1LMF4R7J R1448 RS1LMF561J Other Resistors RD1/4PU J OTHERS 410 3P CABLE HOLDER 51048-0300 404, 409 5P CABLE HOLDER 51048-0500 408 12P CABLE HOLDER 51048-1200 402 13P CABLE HOLDER 51048-1300 405, 407 10P CABLE HOLDER 51052-1000 CN401 21P FFC CONNECTOR 52045-2145 JA413 1P PIN JACK AKB7111 H701, H702 FUSE CLIP AKR1004 T701 POWER TRANSFORMER ATT7037 J17 JUMPER WIRE 3P D20PYY0325E J14 JUMPER WIRE 5P D20PYY0520E J10 JUMPER WIRE 14P D20PYY1415E J18 BOARD IN WIRE DB020ND0 CN701 AC CORD SOCKET RKP1751 401, 403, 411, 412 PCB BINDER VEF1040 704 GROUND PLATE VNF-091 F.SP.CONNECT ASSY OTHERS 686 13P CABLE HOLDER 51048-1300 R.C.SP.CONNECT ASSY OTHERS 691 12P CABLE HOLDER 51048-1200 FRONT LARGE ASSY SEMICONDUCTORS Q626–Q628 KRA103M Q629–Q631 KRC101M D626–D631 1SS133 COILS AND FILTERS L627, L628 AF CHOKE COIL ATH1004 SWITCHES AND RELAYS RY626–RY628 ASR7001 CAPACITORS C627–C630 CFTYA224J50 C631–C636 CQMA103K2E RESISTORS R629, R630 RD1/4LMF4R7J R631, R632 RS1LMF4R7J R626–R628 RS1LMF561J OTHERS 627 8P SPEAKER TERMINAL AKE7026 CN626 13P PLUG AKM7006 REAR SP ASSY SEMICONDUCTORS Q652 2SC1740S Q651 KRA101M D653–D656 1SS355 COILS AND FILTERS L651 AF CHOKE COIL ATH1004 SWITCHES AND RELAYS RY651, RY652 ASR7001 CAPACITORS C651, C652 CFTYA224J50 C653 CGCYX103M16 C654–C656 CQMA103K2E RESISTORS R652 RD1/4LMF4R7J R657 RS1LMF4R7J R651 RS2LMF271J Other Resistors RS1/10S J E F G H www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 42 VSX-808RDS Mark No. Description Part No. Mark No. Description Part No. OTHERS JA653 1P PIN JACK AKB7111 CN652 SPEAKER TERMINAL 6P AKE7042 CN651 12P PLUG AKM7007 HEADPHONE ASSY CAPACITORS C1461, C1462 CKCYB392K50 C1464 CKPUYB101K50 RESISTORS R1463, R1464 RS1LMF681J R1461, R1462 RS3LMF331J OTHERS JA1461 HEADPHONE JACK RKB1014 TRANS2 ASSY SEMICONDUCTORS IC351, IC352 (5A) AEK7019 IC353 (2.5A) ICP-N70 D356 MTZJ20A D357 MTZJ9.1B D354, D355 S5688G CAPACITORS C350–C354, C360, C361(1µF/100V) ACH1237 C362 CEANP470M25 C359 CEAT101M10 C358 CEAT101M35 C357 CEAT470M50 RESISTORS R350–R352 RD1/4PMF100J R353 RFA1/4PS4R7J R358 RS1LMF182J Other Resistors RD1/4PU J OTHERS 352, 353 5P CABLE HOLDER 51048-0500 356 4P CABLE HOLDER 51052-0400 351 6P CABLE HOLDER 51052-0600 J9 JUMPER WIRE 5P D20PYY0545E CN354, CN355 4P PLUG KM200TA4 357, 358 PCB BINDER VEF1040 TRANS1 ASSY OTHERS J51 LEAD WIRE UNIT DB035NB0 J52 LEAD WIRE UNIT DB135NB0 BARRIER ASSY OTHERS CN681, CN682 4P SOCKET KP200TA4L J K L FET ASSY SEMICONDUCTORS Q1452 IRF540A Q1451 IRF9540A RESISTORS R1451, R1452 RD1/4PMF101J Other Resistors RD1/4PM J OTHERS 1451 10P CABLE HOLDER 51052-1000 MECH SW ASSY SWITCHES AND RELAYS S376 ASG7014 CAPACITORS C376, C377 CKCYF103Z50 OTHERS CN376 3PJUMPER CONNECTOR 52151-0310 VIDEO ASSY SEMICONDUCTORS IC501 NJM2296D IC502, IC503 UPC4570C Q502 2SA1515 Q505 2SA933S Q501 2SC3377 Q506 KRC103M D503, D505–D510 1SS133 D501, D502 MTZJ6.2B CAPACITORS C540–C543 CCCSL101J50 C505–C507, C536–C539 CCCSL221J50 C501–C504, C511, C512, C535 CEAT470M25 C517, C518, C521, C522 CEAT4R7M50 C545, C546 CEHAT470M25 C509, C510 CGCYX473M25 C508, C513, C514, C523–C526 CKCYF103Z50 C531–C533 CKCYF103Z50 RESISTORS R510, R511 RS1LMF151J Other Resistors RD1/4PU J OTHERS CN507 17P FFC CONNECTOR 52045-1745 502, 503 2P PIN JACK AKB7017 JA501 3P PIN JACK AKB7056 CN504 4P PIN JACK AKB7087 JA505, JA506 RKN1004 REMOTE CONTROL JACK N MB I MA www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 43 VSX-808RDS Mark No. Description Part No. Mark No. Description Part No. SVIDEO ASSY SEMICONDUCTORS IC551, IC552 NJM2296D IC553 TC4051BP Q554 2SA1515 Q551 2SA933S Q552 2SC1740S Q553 2SC3377 D555, D556, D559, D560 1SS133 D557, D558 MTZJ6.2B CAPACITORS C570–C575 CCCSL221J50 C578, C579 CEAT470M10 C551, C555, C559, C563 CEAT470M25 C590, C591 CEAT470M25 C593, C594 CEHAT470M25 C552, C556, C560, C564, C567 CGCYX104M16 C580–C582 CGCYX104M16 C553, C557, C561, C565 CGCYX473M16 C576, C577 CGCYX473M16 C584, C585, C587 CKCYF103Z50 C554, C558, C562, C566 CKPUYY103M16 C568, C569 CKPUYY103M16 RESISTORS R583, R584 RS2LMF101J Other Resistors RD1/4PU J OTHERS CN554 11P FFC CONNECTOR 52044-1145 CN552, CN553 4P MINI DIN SOCKET AKP7020 CN551 4P MINI DIN SOCKET AKP7043 CN555 KR CONNECTOR 3P B3B-PH-K-S 551 PCB BINDER VEF1040 FRONT VIDEO ASSY CAPACITORS C601, C602 CCCSL221J50 C604, C608 CEAT470M25 C605–C607 CGCYX104M25 C603 CGCYX473M25 C609, C610 CKCYB471K50 C611, C612 CKCYF103Z50 RESISTORS All Resistors RD1/4PU J OTHERS CN601 FRONT PIN JACK AKX7007 601 PCB BINDER VEF1040 DOLBY DIGITAL ASSY SEMICONDUCTORS IC9401 CS4226-KQ IC9371–IC9373 KM68V1002AJ-15 IC9201 NJM2100M IC9501 PD5502A IC9374 PDK038A P Q IC9391 PQ20WZ51 IC9151 TC74ACT151F IC9101 TC74HCU04AF IC9311 TC74VHCT244AFT IC9451 TC7SH08FU IC9361 TC7WU04F IC9601 TC9164AF IC9602–IC9604, IC9701–IC9705 UPC4570G2 IC9321 XCD56362PV100 Q9201, Q9202, Q9601–Q9606 2SC3326 Q9203, Q9402, Q9607, Q9609, Q9610 DTA124EK Q9204, Q9401, Q9608 DTC124EK D9601, D9602 1SS181 COILS AND FILTERS L9391, L9501, L9807, L9809 ATL7002 CHIP FERRITE BEAD F9326, F9375, F9377, F9379, F9381 DTF1064 CHIP BEAD L9101, L9102, L9151, L9311, L9361 QTL1013 L9402, L9403, L9451, L9801–L9805 QTL1013 CHIP SOLID INDUCTOR CAPACITORS C9334, C9365 CCSQCH100D50 C9341, C9349, C9355, C9357, C9358 CCSQCH101J50 C9373, C9377, C9381 CCSQCH101J50 C9300, C9301, C9304–C9307, C9309 CCSQCH221J50 C9314, C9316, C9366, C9368 CCSQCH221J50 C9387–C9390, C9395–C9400, C9422 CCSQCH221J50 C9428, C9429 CCSQCH221J50 C9108, C9154, C9505 CCSQCH271J50 C9127 CCSQCH471J50 C9104 CCSQCH560J50 C9159, C9201, C9202, C9324, C9326 CCSRCH101J50 C9329, C9336, C9338, C9340, C9345 CCSRCH101J50 C9348, C9386 CCSRCH101J50 C9736 CCSRCH102J50 C9363, C9364 CCSRCH150J50 C9420, C9707, C9708, C9721, C9722 CCSRCH151J50 C9735 CCSRCH151J50 C9408, C9409 CCSRCH180J50 C9360, C9405, C9424, C9554 CCSRCH221J50 C9609, C9610, C9621, C9622 CCSRCH221J50 C9362, C9629 CCSRCH271J50 C9411, C9426, C9427, C9452, C9508 CCSRCH471J50 C9601, C9602, C9605, C9606 CCSRCH471J50 C9613, C9614, C9617, C9618, C9625 CCSRCH471J50 C9639 CCSRCH471J50 C9105, C9109, C9151, C9312, C9372 CEJA101M10 C9376, C9380, C9383, C9393, C9402 CEJA101M10 C9501, C9801 CEJA101M10 C9410 CEJA1R0M50 C9803, C9805 CEJA220M25 C9207, C9343 CEJA221M6R3 C9391, C9401, C9415, C9454 CEJA4R7M50 C9205, C9206 CEJANP100M10 C9713, C9714, C9727, C9728 CEWAR220M25 C9739, C9740 CEWAR220M25 O www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 44 VSX-808RDS Mark No. Description Part No. Mark No. Description Part No. 6. ADJUSTMENT There is no information to be shown in this chapter. C9203, C9204, C9603, C9604 CEWAR4R7M50 C9615, C9616, C9627, C9628 CEWAR4R7M50 C9103 CKSQYB102K50 C9101, C9107, C9153, C9313, C9322 CKSQYB103K50 C9332, C9333, C9342, C9344 CKSQYB103K50 C9350, C9351, C9353, C9354, C9367 CKSQYB103K50 C9374, C9378, C9382, C9636, C9637 CKSQYB103K50 C9158, C9504 CKSQYB104K16 C9407 CKSQYB224K16 C9330 CKSQYB474K16 C9430 CKSQYF103Z50 C9102, C9115–C9117, C9119, C9421 CKSQYF104Z25 C9423, C9431, C9607, C9608 CKSQYF104Z25 C9619, C9620, C9631, C9632 CKSQYF104Z25 C9709–C9712, C9723–C9726 CKSQYF104Z25 C9737, C9738 CKSQYF104Z25 C9323, C9325, C9327, C9335, C9337 CKSRYB103K50 C9339, C9346, C9347, C9352, C9361 CKSRYB103K50 C9385, C9626, C9642 CKSRYB103K50 C9705, C9706, C9719, C9720 CKSRYB104K16 C9733, C9734 CKSRYB104K16 C9633 CKSRYB122K50 C9703, C9704, C9717, C9718, C9731 CKSRYB222K50 C9406 CKSRYB223K50 C9359 CKSRYB562K50 C9701, C9702, C9715, C9716, C9729 CKSRYB682K50 C9732 CKSRYB682K50 C9123, C9125, C9451 CKSRYF103Z50 C9208, C9209, C9404, C9807 CKSRYF104Z16 RESISTORS R9103, R9109, R9115, R9151, R9157 RS1/10S0R0J R9378, R9380, R9382, R9386–R9388 RS1/10S0R0J R9690 RS1/10S0R0J R9108, R9121–R9123, R9125, R9126 RS1/10S101J R9165–R9167 RS1/10S102J R9107 RS1/10S222J R9106, R9348, R9521, R9713, R9714 RS1/10S473J R9727, R9728, R9741, R9742 RS1/10S473J R9101 RS1/10S750J Other Resistors RS1/16S J OTHERS CN9551 7P FFC CONNECTOR 52044-0745 JA9103–JA9105 GP1F32R OPTICAL RECEIVE MODULE JA9107 OPTICAL SEND MODULE GP1F32T CN9801 15P SOCKET KP200TA15L CN9802 7P SOCKET KP200TA7L JA9101 1P PIN JACK VKB1077 X9501 CERAMIC RESONATOR ASS1055 (7.7MHz) X9361 CERAMIC RESONATOR ASS7023 (20.000MHz) X9401 CERAMIC RESONATOR RSS1052 (18.432MHz) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 45 VSX-808RDS 1 G2 G1 NC ACIN RDS_DT RDS_CK DSP_CS2 RMC HPIN PLL_CE Not used KEYIN1 KEYIN2 KEYIN3 FM+(RDS) DSP_MT ENC_A ENC_B A.MUTE DSP_RST DSP_CS1 DSP_CK DSP_SI DSP_SO ST_EVR1 ST_EVR2 PLL_DO STEREO TUNED G1/A1 G0/A0 NC PE0/EC0/INT PE1/EC1/INT PE2/INT2 PE3/INT3/N PE4/RMC PE5 PE6/PWM PE7/TO/ADJ PC0/KR0 PC1/KR1 PC2/KR2 PC3/KR3 PC4/KR4 PC5/KR5 PC6/KR6 PC7/KR7 PB0/CINT PB1/CS0 PB2/SCK0 PB3/SI0 PB4/SO0 PB5/SCK1 PB6/SI1 PB7/SO1 AVREF PA1/AN0 PA1/AN1 AMP_DC AMP_OL Not used Not used MVR_ATT TPOWON VIDEO1 VIDEO2 VIDEO3 SYS_DT SYS_CK PA2/AN2 PA3/AN3 PA4/AN4 PA5/AN5 PA6/AN6 PA7/AN7 AVSS RST EXTAL XTAL VSS TX TEX VDD VFIP PD0/A55 PD1/A54 PD2/A53 PD3/A52 PD4/A51 A21 A22 A23 PH7/A24 PH6/A25 PH5/A26 PH4/A27 PH3/A28 PH2/A29 PH1/A30 PH0/A31 PG7/A32 PG6/A33 PG5/A34 PG4/A35 PG3/A36 PG2/A37 PG1/A38 PG0/A39 PF7/A40 PF6/A41 PF5/A42 PF4/A43 PF3/A44 PF2/A45 PF1/A46 PF0/A47 PD7/A48 PD6/A49 PD5/A50 S11/KEY2 S12/KEY3 S13/KEY4 S14/KEY5 S15/KEY6 S16/KEY7 S17/KEY8 S18/KEY9 S19/KEY10 S20/KEY11 S21/KEY12 S22/KEY13 VHVL RY_A RY_B RY_A+B RY_C/R RY_HP RY_AC Not used Not used Not used ST_9274 LC4966 Not used V.MUTE T.MUTE SVIDEO3 SVIDEO2 SVIDEO1 G2/A2 G3/A3 G4/A4 G5/A5 G6/A6 G7/A7 G8/A8 G9/A9 G10/A10 G11/A11 G12/A12 VDD G13/A13 G14/A14 G15/A15 A16 A17 A18 A19 A20 G3 G4 G5 G6 G7 G8 G9 G10 G11 S1 S2 S3 S4 S5 S6 S7 S8 S9 S10/KEY1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 100 99 98 97 96 95 94 93 92 91 90 89 88 87 86 85 84 83 82 81 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 21 22 23 24 25 26 27 28 29 30 80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 60 59 58 57 56 55 54 53 52 51 7. GENERAL INFORMATION • The information shown in the list is basic information and may not correspond exactly to that shown in the schematic diagrams. PDG252A (FRONT ASSY : IC201) • System Control Microcomputer •Pin Arrangement (Top View) 7.1 PARTS 7.1.1 IC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 46 VSX-808RDS •Pin Function No. Pin Name I/O Pin Function Active 1 G2 O Grid output 2 H 2 G1 O Grid output 1 H 3 NC − Connect to VDD 4 ACIN I AC pulse input 5 RDS_DT I Serial control data signal for RDS communication 6 RDS_CK I Serial control clock signal for RDS communication (used for external interrupt) 7 DSP_CS2 I CS input from DSP microcomputer 8 RMC I Remote control signal input (no-carrier signal) 9 HPIN I Headphone connection detection (H : connect) 10 PLL_CE O Chip select signal for communication with LC72131 (tuner) H 11 Not used O Open 12 KEYIN1 I Key scan input 1 13 KEYIN2 I Key scan input 2 14 KEYIN3 I Key scan input 3 15 FM+(RDS) O Tr switch ON/OFF for power supply of RDS decoder (L : AM power off, H : others) H 16 DSP_MT I Mute requirement from DSP microcomputer (H : Mute requirement) H 17 ENC_A I Rotary encoder signal input A 18 ENC_B I Rotary encoder signal input B 19 AMUTE O Audio mute L 20 DSP_RST O Reset signal of DSP microcomputer L 21 DSP_CS1 O CS output to DSP microcomputer L 22 DSP_CK O Clock signal for communication with DSP microcomputer H 23 DSP_SI I Data input signal for communication with DSP microcomputer 24 DSP_SO O Data output signal for communication with DSP microcomputer H 25 ST_EVR1 O Strobe 1 for electric volume LC7535M H 26 ST_EVR2 O Strobe 2 for electric volume LC7535M H 27 PLL_DO I Data input signal for communication with LC72131 (tuner) 28 AVref − Connect to VDD 29 STEREO I Stereo/Monoral signal judgment signal 30 TUNED I TUNED information 31 AMP_DC I DC abnormality detection of protection circuit (L : Abnormality detection) 32 AMP_OL I Over-load detection of protection circuit (L : Abnormality detection) 33 Not used I 34 Not used I 35 MVR_ATT O ATT control of master volume (L : Less than -20dB) L 36 TPOWON O Tuner module ON/OFF (North America model only) H 37 AVSS − Connect to VSS 38 RST − Reset 39 EXTAL − Connect to the oscillator (8MHz) 40 XTAL − 41 VSS − Connect to VSS 42 TX − Open 43 TEX − Connect to VSS 44 VDD − +5V 45 VFDP − -30V 46 VIDEO1 O NJM2296D control H 47 VIDEO2 48 VIDEO3 49 SYS_DT O Clock signal for communication with LC7535M and TC9274N-001 H 50 SYS_CK www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 47 VSX-808RDS Note :• In the power off condition (with the remote control unit key or the main unit tact key), set to "L" excepting tuner mute (pin 54). However, it nothing is done against to the input port. • When pin 10 and 11 detect "L" at the reset, be careful because it enter the microcomputer's own test mode. No. Pin Name I/O Pin Function Active 51 SVIDEO1 O TC4051 control (S terminal control) H 52 SVIDEO2 53 SVIDEO3 54 TMUTE O Tuner mute H 55 VMUTE O Video mute L 56 Not used O Open 57 LC4966 O Input switch the DVD 6ch H 58 ST_9174 O Strobe signal for communication with TC9174 H 59 Not used O Open 60 Not used O Open 61 Not used O Open 62 RY_AC O AC relay ON/OFF H 63 RY_HP O Headphone relay ON/OFF H 64 RY_C/R O Rear/Center relay ON/OFF H 65 RY_A+B O Speaker A + B relay ON/OFF H 66 RY_B O Speaker B relay ON/OFF H 67 RY_A O Speaker A relay ON/OFF H 68 VHVL O Power switch for AMP system (H : VH) H 69 S22/KEY13 O Segment output 22/key scan output 13 H 70 S21/KEY12 Segment output 21/key scan output 12 71 S20/KEY11 Segment output 20/key scan output 11 72 S19/KEY10 Segment output 19/key scan output 10 73 S18/KEY9 Segment output 18/key scan output 9 74 S17/KEY8 Segment output 17/key scan output 8 75 S16/KEY7 Segment output 16/key scan output 7 76 S15/KEY6 Segment output 15/key scan output 6 77 S14/KEY5 Segment output 14/key scan output 5 78 S13/KEY4 Segment output 13/key scan output 4 79 S12/KEY3 Segment output 12/key scan output 3 80 S11/KEY2 Segment output 11/key scan output 2 81 S10/KEY1 Segment output 10/key scan output 1 82 S9 O Segment output 9 H 83 S8 Segment output 8 84 S7 Segment output 7 85 S6 Segment output 6 86 S5 Segment output 5 87 S4 Segment output 4 88 S3 Segment output 3 89 VDD − 5V 90 S2 O Segment output 2 H 91 S1 Segment output 1 92 G11 Grid output 11 93 G10 Grid output 10 94 G9 Grid output 9 95 G8 Grid output 8 96 G7 Grid output 7 97 G6 Grid output 6 98 G5 Grid output 5 99 G4 Grid output 4 100 G3 Grid output 3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 48 VSX-808RDS • Pin Assignment 7.1.2 DISPLAY • Pin Connection • Grid Assignment AAV7062 (FRONT ASSY : V201) • FL Indicator Tube www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 49 VSX-808RDS • Anode Connection www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 50 VSX-808RDS 7.2 DISASSEMBLY Remove the Bonnet. (seven screws) Put the Power Transformer on the bottom side, and stand the component sideways. Release three binders ( ) from the Power Transformer (T1). Remove all screws which fixing the Chassis. 1 1 • INPUT Assy (eight screws , Card Spacer ) • DSP Shield (screw ) 2 3 4 • Heat Sink (four screws ) 5 5 • AMP Assy (three screws , Locking Card Spacer ) 6 • Power Transformer (T1) (four screws ) 7 8 • Rear Panel (three screws ) 9 9 ×4 8 ×4 Power Transformer (T1) Power Transformer (T1) INPUT Assy Rear Panel Front DSP Shield Heat Sink AMP Assy 2 2 3 4 2 2 2 5 7 6 6 9 9 1 2 3 4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 51 VSX-808RDS Open the Chassis and Rear Panel It can be disgnosed under this condition. Show the principal PCB Assemblies in the illustration. Chassis Chassis VIDEO Assy Power Transformer (T1) Rear Panel Front Panel FRONT Assy TRANS 2 Assy TRANS 1 Assy DOLBY DIGITAL Assy Rear Panel INPUT Assy (Side B) Rear View Top View AMP Assy (Side B) 5 A D Q B J K N S VIDEO Assy O www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 52 VSX-808RDS Q A JA9107 JA9101 JA9105 JA9104 JA9103 JA101 P CN601 N CN504 N JA501 N IC501 A IC101 A Q IC109 A IC102, IC103 A IC301, IC302, IC303 D IC401, IC402, IC403 D RY401 G CN627 G RY626 H RY651, RY652 A IC310 O IC551 O IC552 O CN551-CN553 O CN551-CN553 G RY628 G RY627 H CN652 H JA653 D JA413 I JA1461 P CN601 JA502 JA102 JA103 CN104 TAPE2 IN TAPE2 OUT 7.3 BLOCK DIAGRAM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-808RDS 53 • Parts List Mark No. Description Part No. 1 Filter AZA7152 2 Name Plate AZA7317 3 Rubber Sheet (A) AZA7308 4 Rubber Sheet (B) AZA7307 5 Spring (+) AZB7049 6 Spring (–) AZB7050 7 Spring AZB7051 8 Screw AZB7052 9 Remo-con Case (A) AZN7738 10 Remo-con Case (B) AZN7326 11 Battery Cover AZN7327 12 Main Key (FF) AZN7751 13 Main Key (STOP) AZN7741 14 Main Key (REV) AZN7752 15 Main Key (PAUSE) AZN7742 16 Main Key (PLAY) AZN7664 NSP 17 PCB AZW7248 2 9 13 12 16 15 14 3 17 1 10 8 11 7 6 5 4 7.4 REMOTE CONTROL UNIT [CU-VSX140 (AXD7181)] 7.4.1 Exploded Views and Parts List NOTES: • Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. • The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. • Screws adjacent to mark on the product are used for disassembly. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-808RDS 54 A B C D 1 2 3 4 1 2 3 4 8 16 24 32 40 7 15 23 31 39 6 14 22 30 38 5 13 21 29 37 4 12 20 28 36 3 11 19 27 35 2 10 18 26 34 1 9 17 25 33 No. 1 28 27 26 25 24 23 22 21 20 19 18 17 16 15 3.0V T5 T4 T3 T1 X1 4.0MHz T2 D2 RLS-73 KEY No. R3 47Ω R7 100kΩ R6 100kΩ R1 1.8Ω R2 220Ω IC1 AZC7282 R18 0 Q4 Q3 Q2 R5 100kΩ R10 R13 R16 R15 R14 R12 R11 R9 R8 D11 D14 D17 D1 SE303A-C C3 1/50 C4 1/50 Q1 2SC3265 D16 D15 D13 D12 D10 D9 Q2 - Q4 : RN4605 × 3 D9 - D17 : CL-230HR-CD × 9 R8 - R16 : 240Ω × 9 P0D1 P0D0 P0C3 P0C2 P0C1 P0C0 P0B3 P0B2 P0B1 P0B0 P0A3 P0A2 P0A1 P0A0 2 3 4 5 6 7 8 9 10 11 12 13 14 P0D2 P0D3 P0D3 P0D2 P0D1 P0E3 P0E2 P0E0 INT P0E0 P0E1 P0E2 P0E3 REM VDD XOUT XIN GND RESET WDOUT C1 220/6.3 C2 47/10 K01 : RECEIVER (POWER) K02 : TV (POWER) K03 : MUTING K04 : POWER K05 : TV FUNC. K06 : VOL.- K07 : VOL.+ K08 : DISP MODE K09 : MPX K10 : K11 : K12 : ENT. K13 : CH- K14 : CH+ K15 : DVD/LD K16 : TV/SAT K17 : CD K18 : VCR1 K19 : TUNER K20 : TV CONTROL K21 : VCR2 K22 : AMP K23 : MD/TAPE K24 : 1 K25 : 2 K26 : 3 K27 : 4 K28 : 5 K29 : 6 K30 : 7 K31 : 8 K32 : 9 K33 : 0 K34 : +10 K35 : MENU K36 : DIRECT K37 : FUNCTION K38 : FL DIMMER K39 : MODE CHECK K40 : COMMANDER SET UP SWITCHES 7.4.2 Schematic Diagram Note : When ordering service parts, be sure to refer to "EXPLODED VIEWS and PARTS LIST" or "PCB PARTS LIST". www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-808RDS 55 A B C D 1 2 3 4 1 2 3 4 7.4.3 PCB Diagram K01 K04 K10 K12 K11 K09 K03 K07 K05 K06 K13 K15 K02 K08 K14 K16 K17 K18 K24 K20 K19 K21 K37 K36 K38 K39 K40 K22 K23 K25 K26 K27 K33 K28 K29 K30 K32 K34 K35 K31 SIDE A SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-808RDS 56 Mark No. Description Part No. SEMICONDUCTORS IC1 AZC7282 Q1 2SC3265 Q2-Q4 RN4605 D1 SE303A-C D2 RLS-73 D9-D17 CL-230HR-CD CAPACITORS C2 CEAT470M10 C1 CEAT221M6R3 C3,C4 CEATR10M50 RESISTORS R1 RS1/8S1R8J Other Resistors RS1/10S J OTHERS X1 CERAMIC RESONATOR KBR-4.0M (4MHz) 7.4.4 PCB Parts List NOTES: ¶Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. ¶The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. ¶When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). 560 Ω = 56 × 10 1 = 561 ........................................................ RD1/4PU 5 6 1 J 47k Ω = 47 × 10 3 = 473 ........................................................ RD1/4PU 4 7 3 J 0.5 Ω = R50 ..................................................................................... RN2H  5 0 K 1 Ω = 1R0 ..................................................................................... RS1P 1  0 K Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 5.62k Ω = 562 × 10 1 = 5621 ...................................................... RN1/4PC 5 6 2 1 F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 57 VSX-808RDS 8.1 PANEL FACILITIES 8. PANEL FACILITIES AND SPECIFICATIONS Front Section R – OFF - ON EON STANDBY/ON STANDBY PHONES AUDIO/VIDEO MULTI-CHANNEL RECEIVER STATION TUNING SELECT EON MODE CHARACTER /SEARCH SIGNAL SELECT MIDNIGHT DOWN UP BASS TREBLE VCR 1 VCR 2 DVD/LD TV/SAT CD FM/AM MD/TAPE 1 VIDEO LOUDNESS TAPE 2 MONITOR DIRECT VIDEO INPUT VIDEO S-VIDEO L MASTER VOLUME CLASS MEMORY RF ATT + + – + – + – – FREQUENCY MPEG DSP MODE DIGITAL NR AUDIO R SPEAKERS DVD 5.1CH / DTS 1 ) _ ™� ¡� 2 3 4 5 6 7890 - = ~ ! @ # $ % ^ & * ( + 1 Main power switch (— OFF, _ ON) 2 STANDBY/ON button Press to switch the receiver on or put in standby. 3 STANDBY indicator Lights when the receiver is in standby mode. (Please note that this receiver consumes a small amount of power (2 W) during the standby mode.) 4 CLASS button Press repeatedly to switch the preset station classes. 5 MEMORY button Press to memorize a preset station. 6 RF ATT button Set this button to on when receiving strong FM signals (nearby stations) to reduce sound distortion. Normally, this button should be set off. This button does not affect AM reception. 7 TUNING SELECT button Press to switch between STATION and FREQUENCY. 8 CHARACTER/SEARCH button Press to select the character input mode, or initiate an RDS PTY search. 9 EON MODE button Press to select the EON mode. 0 SPEAKERS button Press repeatedly to switch between A and B speaker systems as follows. - LOUDNESS button Switches the loudness on or off. Use to raise the level of the bass and treble so they can be more easily heard when listening at low volumes. = BASS (+/–) button Press to adjust low frequencies in the range of ±6. ~ Display ! TREBLE (+/–) button Used to adjust high frequencies in the range of ±6. @ DIRECT button Switches direct playback on or off. Use to bypass the receiver’s tone control circuitry or level control for higher fidelity to the program source. When DIRECT is ON, Dolby, DSP, LOUDNESS, DIGITAL NR and MIDNIGHT mode are automatically turned OFF. # Remote sensor Point the remote control toward the remote sensor to operate the receiver. $ /DTS MPEG button Press repeatedly to select the standard Dolby/DTS, MPEG mode and the ADVANCED THEATER modes. 3 3 3 3 A A+B OFF B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 58 VSX-808RDS % SIGNAL SELECT button Use to select input signals for the digital components. First press DVD/LD, TV/SAT, MD/TAPE 1, CD or VCR 1 (+, Function buttons) to select the component, then press SIGNAL SELECT repeatedly to select one of the following: ANALOG : Selects the analog (R and L) audio signals. DIGITAL : Selects the digital audio signals. This receiver automatically detects and displays the format of the signal being input. AC-3 lights when Dolby Digital signals are input, DTS lights when DTS signals are input, and MPEG lights when MPEG signals are input. (AC-3 and DTS decoding is switched automatically.) • SIGNAL SELECT is fixed in the “ANALOG” position for components not assigned to one of the four digital input jacks. • Because the audio from a karaoke microphone and LD recorded with analog audio only is not output from the digital output, set SIGNAL SELECT to “ANALOG”. • This receiver can only play back Dolby Digital, PCM (32kHz, 44kHz, and 48kHz), DTS, and MPEG digital signal formats. With digital signal formats other than these, set SIGNAL SELECT to “ANALOG”. ^ DSP MODE button Press repeatedly to select a DSP sound mode (HALL 1, HALL 2, JAZZ, DANCE, THEATER 1, or THEATER 2). Use these modes to produce surround sound from standard (two channel) stereo sources. & MIDNIGHT button Press to hear effective surround sound at low volume levels. The effect is automatically adjusted according to the volume level. * DIGITAL NR button Switches DIGITAL NR on or off. Use to reduce noise in digital audio sources. ( MASTER VOLUME After turning on the desired component, rotate to adjust the volume. ) PHONES jack Connect headphones for private listening (the speakers turn off automatically). _ STATION/FREQUENCY (+/–) button STATION: Press to select the preset channel. FREQUENCY: Press to select the frequency. + Function buttons Selects the function. Each press switches the DVD/LD input between DVD/LD and DVD 5.1 channel. ¡ TAPE 2 MONITOR button Switches the TAPE 2 monitor on or off. ™ VIDEO INPUT jacks Connect a video camera, video game system, etc. to the VIDEO INPUT jacks. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 59 VSX-808RDS dB SP SIGNAL SELECT ANALOG DIGITAL AC-3 MPEG MPEG DTS PRO LOGIC AB DIGITAL L C R RS S LS LFE SFC 5-D THEATER ATT DNR MIDNIGHT LOUDNESS STEREO RDS RF ATT H.P MONO EON TUNED TAPE2 DIRECT 1 2 3 4 5 6 7 0 ! # $ % & ^ * 8 9 @ = - ~ Display 0 DIRECT indicator Lights when direct playback is on (refer to “Front Panel”, @, DIRECT). - TAPE 2 indicator Lights when TAPE 2 MONITOR is on. = Tuner indicators STEREO : Lights when an FM stereo broadcast is received in the auto stereo mode. TUNED : Lights when a broadcast is received. MONO : Lights when the tuner is set to receive FM broadcasts in monaural. ~ H.P indicator Lights when headphones are plugged in. ! Speaker indicators Light to indicate the current speaker system (refer to “Front Panel”, 0, SPEAKERS (A/B)). SP 3 A : Lights when speaker system A is selected. SP 3 B : Lights when speaker system B is selected. @ EON and EON reception indicators EON indicator lights when the EON mode is on. EON reception indicator lights when an RDS station transmitting the EON data service is being received. # Program format indicators The following indicators light to show the channels being played back. L : Left front*1*2, C : Center*1, R : Right front*1*2, LS : Left surround*1, S : Surround (mono)*2, RS : Right surround*1 *1: Indicates 5.1ch Dolby Digital playback. *2: Indicates Dolby surround playback. $ LFE indicator LFE (Low Frequency Effects) indicator lights to indicate that the program source contains an LFE channel. The indicator to the left of LFE lights during actual playback of the LFE signals (LFE signals are not present in all parts of the sound track). % Character display ^ RDS indicator Lights when RDS broadcast is received. & Volume level display Displays the volume level. Volume level is maintained even when the power is off. ---dB indicates the minimum level, and 0dB indicates the maximum level. • Depending on the level settings for individual channels, the MAX level can range between –10dB and 0dB. * RF ATT indicator 1 SIGNAL SELECT indicators Light to indicate the type of input signal selected for the current component (refer to “Front Panel”, %, SIGNAL SELECT). ANALOG : Lights when the analog audio signals are selected. DIGITAL : Lights when the digital audio signals are selected. AC-3 : Lights when a source with Dolby Digital signals is played. DTS : Lights when a source with DTS audio signals is played. MPEG : Blinks when the MPEG mode is selected, and lights when a source with MPEG audio signals is played. 2 Digital indicators dts : Lights when DTS signals are input. (Dolby/DTS/ MPEG mode is ON) MPEG : Lights when MPEG signals are input. (Dolby/ DTS/MPEG mode is ON) PRO LOGIC : When the Dolby mode on the receiver is on, this indicator lights during 2 channel playback of Dolby Digital sources. DIGITAL : When the Dolby mode on the receiver is on, this indicator lights to indicate playback of a Dolby Digital signal. However, PRO LOGIC lights during 2 channel playback of Dolby Digital. 3 SFC (DSP) mode indicator Lights when the DSP mode or ADVANCED THEATER mode (except for 5-D THEATER) is selected. 4 ATT indicator Lights when ATT (refer to “Remote Control”, 7, Number buttons) is used to reduce the level of the input signal (available in ANALOG mode only). 5 Overload indicator When “ANALOG” is selected in SIGNAL SELECT, this indicator lights to show that an excessively strong signal is being processed. When this occurs, press ATT on the remote control to attenuate the signal. Also, when “DIGITAL” is selected in SIGNAL SELECT, this indicator lights to show that a source containing an excessive amount of information is being processed. When this occurs. 6 5-D THEATER indicator Lights when 5-D THEATER is selected. 7 MIDNIGHT indicator Lights when the MIDNIGHT mode is on. 8 DNR indicator Lights when the DIGITAL NR is on. 9 LOUDNESS indicator Lights when loudness is on (refer to “Front Panel”, -, LOUDNESS). www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 60 VSX-808RDS Remote Control Unit These pages describe the buttons on the remote control used to operate the receiver. 6 MULTI CONTROL buttons Use these buttons to select the remote operation mode. For example, pressing TUNER sets the remote to operate the tuner functions. 7 Number buttons These buttons can perform a variety of different functions depending on the remote operation mode. • [RECEIVER operations (press RECEIVER first)] : Press repeatedly to select the standard mode, the ADVANCED THEATER modes and MPEG mode. DSP MODE : Press repeatedly to select a DSP sound mode. MIDNIGHT : Press to hear surround sound effectively at low volumes. CH.SELECT : Use to select a speaker when adjusting speaker levels. TEST TONE : Press to switch the test tone on or off when listening to a surround mode. ATT : Press to attenuate (lower) the level of the input signals and prevent distortion (refer to “Display”, 5, Overload indicator). SIG.SELECT : When the same component uses both analog and digital connections, use to select input signals as digital or analog. CH.LEVEL (–/+) : Use to adjust individual speaker levels. EFFECT (+/–) : Use to adjust the DSP mode effect level. • [TUNER operations (press TUNER first)] Number buttons (0~9) : During preset tuning, use to input the number of the preset station. Use to input the station frequency during direct tuning. CLASS (+10) : Press repeatedly to switch the preset station classes during preset tuning. MENU : Press to activate direct tuning. 8 FUNCTION button Press repeatedly to select a source. 9 MODE CHECK button Press to confirm the current remote operation mode and to switch operation modes without changing the source . 0 Power button Press to turn on or put in standby all connected components other than this unit. - TV/TV FUNC button Press TV to turn the TV’s power on or put in standby. Press TV FUNC to select the TV for remote control operation. = RECEIVER button Press to select the receiver for remote control operation. ~ FL DIMMER button Press to adjust the brightness of the fluorescent display. Four levels of brightness ranging from very dim to very bright can be selected. ! COMMANDER SET UP button Use to customize the remote control functions. @ DIRECT button Use to playback original source audio. When DIRECT is ON, Dolby, DSP, LOUDNESS, DIGITAL NR and MIDNIGHT mode are automatically turned OFF. 1 RECEIVER button Press to switch the receiver on or to put in standby. 2 MUTING button Press to mute the volume. “MUTING” appears in the display. Press again to cancel. 3 [When set to SURROUND] %, fi, @, #, (Select/Adjust) buttons [When set to other than OPERATIONS] *(Pause), &(Stop), !(Rewind), ⁄(Fast Forward), ENTER/‹(Play) buttons [Tuner Operations] FQ + (to higher frequencies), FQ – (to lower frequencies), MPX, DISP MODE, #� (FM/AM) buttons MPX: Use to switch the auto stereo/monaural mode for receiving FM broadcasts. When the received broadcast signal is weak, press this button to set the monaural mode. DISP MODE: Use to switch the RDS data while listening to an FM station. Each press changes the display in the order of RT, PS, PTY, and frequency. 4 VOL (+/–) buttons Press to adjust the volume. When VOL (+/–) buttons are pressed while muting, muting is canceled. 5 CHANNEL (+/–) button Use to select preset stations when operating the tuner. When the remote is used to control other components, this button may be used to change channels, tracks, or chapters. DVD/LD VCR 1 TV/SAT CD TUNER VCR 2 MD/TAPE TV CONTROL RECEIVER DSP MODE CH.SELECT ATT SIG.SELECT MIDNIGHT TEST TONE AUDIO/VIDEO PRE-PROGRAMMED REMOTE CONTROL UNIT 2 3 5 0 6 9 +10 TV/VCR CLASS 7 8 4 1 CHANNEL MULTI CONTROL ENTER VOL VOL FQ FQ + – TV FUNC RECEIVER TV MUTING CH.LEVEL EFFECT FL DIMMER FUNCTION DIRECT MODE CHECK COMMANDER SET UP Î� MEMU DISP MODE MPX 1 2 3 4 5 6 7 8 9 0 - = ~ ! @ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 61 VSX-808RDS Audio Components Connections L R /DTS/MPEG VIDEO OUT FM UNBAL 75Ω OUT IN IN CONTROL LOOP ANTENNA AM DIGITAL IN OPT 1 OPT 2 OPT 3 OPT DIGITAL OUT COAX DIGITAL IN PLAY REC MD/TAPE 1 IN IN OUT PLAY REC IN IN IN IN IN IN OUT IN OUT OUT CD TAPE 2 MONITOR TO MONITOR TV S S IN S IN S OUT S IN IN OUT OUT IN S OUT S OUT R L R L TV/ SAT DVD/ LD DVD 5.1 CH INPUT SURROUND L R CENTER SUBWOOFER DVD 5.1 CH FRONT VCR 1 VCR 2 PCM/ /DTS/MPEG PCM/ CENTER PREOUT SUB WOOFER PREOUT L L R R B A SURROUND SPEAKERS FRONT SPEAKERS CENTER SPEAKER ANTENNA VIDEO REC PLAY L R L R REC PLAY L R L R L OUTPUT R »� «� «� »� »� Be sure to switch power to standby and remove the power cord from the wall outlet when you make or change connections. Connect your audio components as shown below. 7� Audio cords Use audio cords (not supplied) to connect the audio components. Connect red plugs to R (right) and white plugs to L (left). Be sure to insert completely. MD recorder or Cassette deck CD player Cassette deck *The arrows indicate the direction of the audio signal. Cassette deck placement Depending on where the cassette deck is placed, noise may occur during playback of your cassette deck which is caused by leakage flux from the transformer in the receiver. If you experience noise, move the cassette deck farther away from the receiver. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 62 VSX-808RDS 8.2 SPECIFICATIONS “AA” IEC LR6 batteries × 2 FM wire antenna (ADH7005) AM loop antenna (ATB7009) Remote control unit (CU-VSX140 : AXD7181) Accessories FM Tuner Section Frequency Range ........................................ 87.5 MHz to 108 MHz Usable Sensitivity ..................... Mono: 15.2 dBf, IHF (1.5 µV/75 Ω) 50 dB Quieting Sensitivity .......................................Mono: 20.2 dBf Stereo: 41.2 dBf Signal-to-Noise Ratio ................................ Mono: 76 dB (at 85 dBf) Stereo: 72 dB (at 85 dBf) Distortion .......................................................Stereo: 0.6 % (1 kHz) Alternate Channel Selectivity ................................ 70 dB (400 kHz) Stereo Separation ..................................................... 40 dB (1 kHz) Frequency Response .............................. 30 Hz to 15 kHz (± 1) dB Antenna Input .......................................................75 Ω unbalanced Sensitivity (DIN) ..................................... Mono: 1.1 µV (S/N 26 dB) Stereo: 50 µV (S/N 46 dB) Signal-to-Noise Ratio (DIN) ........................................Mono: 62 dB Stereo: 58 dB AM Tuner Section Frequency Range .........................................531 kHz to 1,620 kHz Sensitivity (IHF, Loop antenna) ....................................... 350 µV/m Selectivity ...............................................................................30 dB Signal-to-Noise Ratio .............................................................50 dB Antenna ..................................................................... Loop antenna Miscellaneous Power Requirement ................................. AC 220-230 V, 50/60 Hz Power Consumption ..............................................................220 W Power Consumption in Standby mode ......................................2 W Dimensions ................................. 420 (W) × 158 (H) × 401 (D) mm Weight (without package)...................................................... 9.8 kg Furnished Parts FM Antenna ................................................................................... 1 AM Loop Antenna ......................................................................... 1 Dry Cell Batteries (SIZE “AA” (IEC LR6)) ..................................... 2 Remote Control Unit ..................................................................... 1 Operating Instructions ................................................................... 1 NOTE: Specifications and the design are subject to possible modifications without notice, due to improvements. Amplifier Section Continuous average power output of 80 watts* per channel, min., at 8 ohms, from 20 Hz to 20,000 Hz with no more than 0.09 %** total harmonic distortion (front; stereo mode). Continuous Power Output (DIN, 1 kHz, T.H.D. 1%, 8 Ω) STEREO Front ........................................ 100 W + 100 W SURROUND Front ............................................ 60 W + 60 W Center.......................................................60 W Rear ..........................................................60 W Input (Sensitivity/Impedance) VCR 1, VCR 2, DVD/LD, TV/SAT, VIDEO, CD, MD/TAPE 1, TAPE 2 .......................................... 200 mV/47 kΩ Frequency Response VCR 1, VCR 2, DVD/LD, TV/SAT, VIDEO, CD, MD/TAPE 1, TAPE 2 ......................... 5 Hz to 100,000 Hz dB Output (Level/Impedance) VCR 1 REC, VCR 2 REC, MD/TAPE 1 REC, TAPE 2 REC ..................................................... 200 mV/2.2 kΩ Tone Control BASS ..................................................................± 6 dB (100 Hz) TREBLE ............................................................. ± 6 dB (10 kHz) LOUDNESS ................................. +9 dB/+7 dB (100 Hz/10 kHz) Signal-to-Noise Ratio [DIN (Rated power output/50 mW)]* VCR 1, VCR 2, DVD/LD, TV/SAT, VIDEO, CD, MD/TAPE 1, TAPE 2 ............................................. 82 dB/62 dB VIDEO Section Input (Sensitivity/Impedance) VCR 1, VCR 2, DVD/LD, TV/SAT, VIDEO ................1 Vp-p/75 Ω Output (Level/Impedance) VCR 1, VCR 2, MONITOR .......................................1 Vp-p/75 Ω Frequency Response VCR 1, VCR 2, MONITOR ........................... 5 Hz to 7 MHz dB Signal-to-Noise Ratio .............................................................55 dB Cross Talk ..............................................................................55 dB * Direct: ON ** Measured by Audio Spectrum Analyzer. +0 –3 +0 –3 The MPEG logo is a registered trademark of Royal Philips Electronics. “DTS” and “DTS Digital Surround” are trademarks of Digital Theater Systems, Inc. Manufactured under licence from Digital Theater Systems, Inc. Manufactured under license from Dolby Laboratories. “Dolby”, “AC-3”, “Pro Logic”, and double-D symbol are trademarks of Dolby Laboratories. Confidential Unpublished Works. © 1992 - 1997 Dolby Laboratories, Inc. All rights reserved. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
