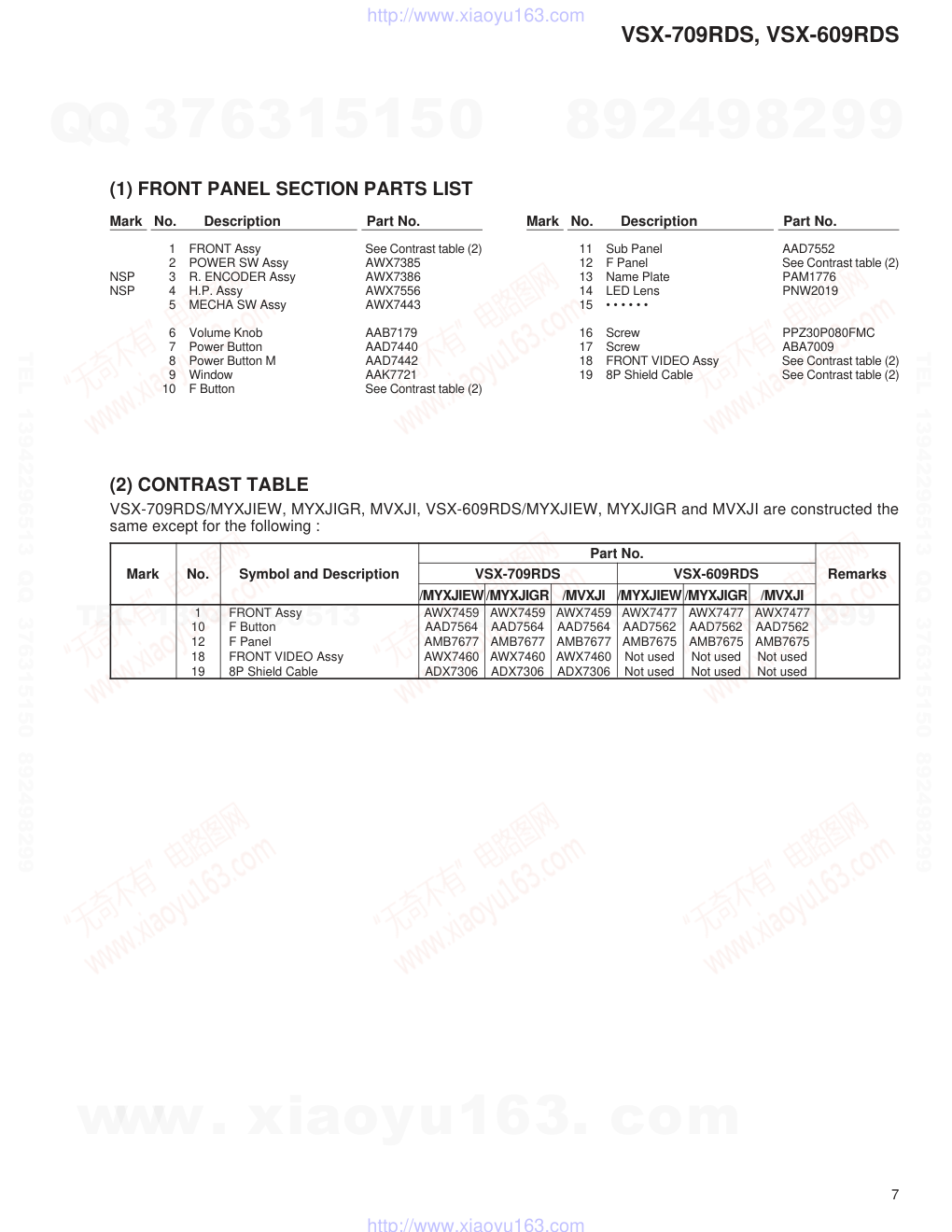

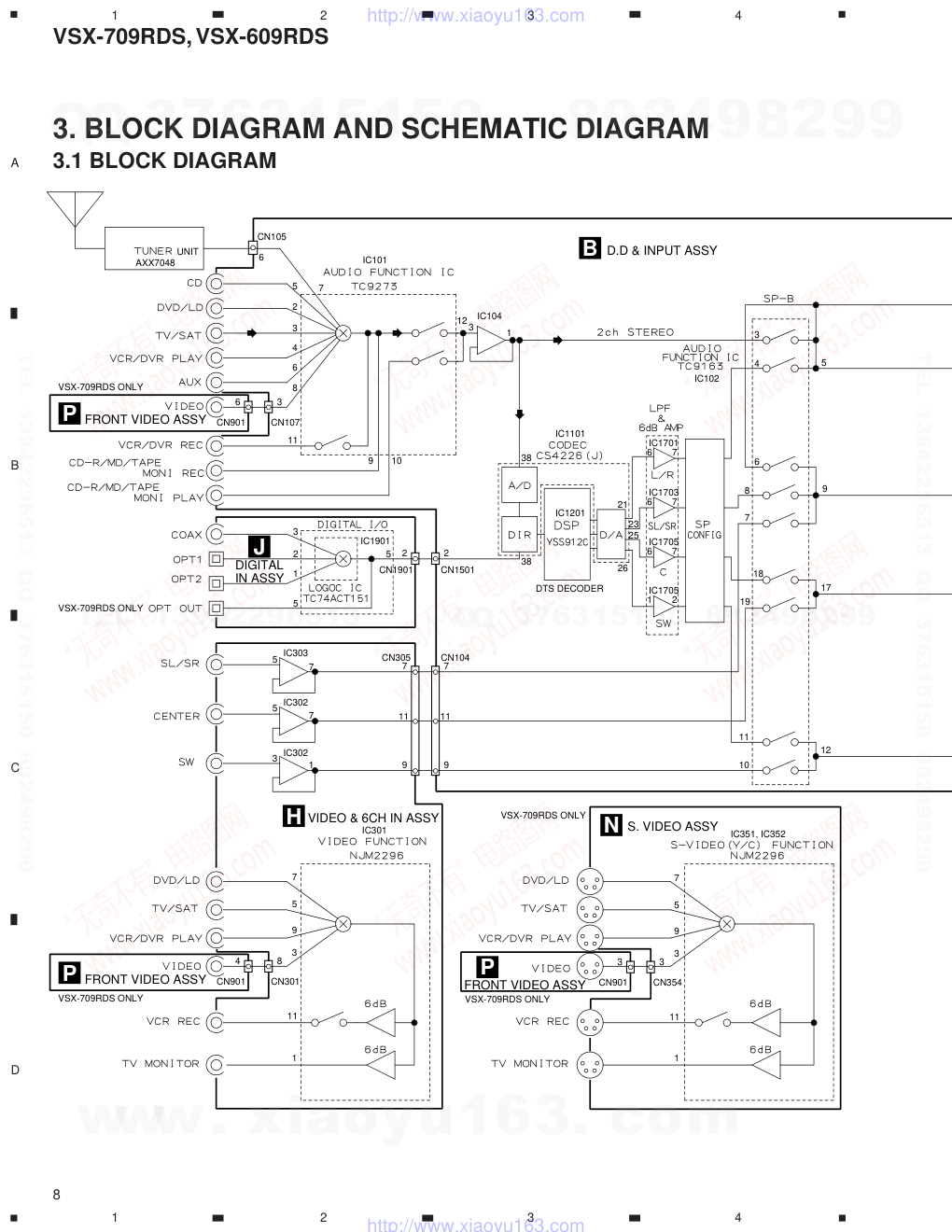

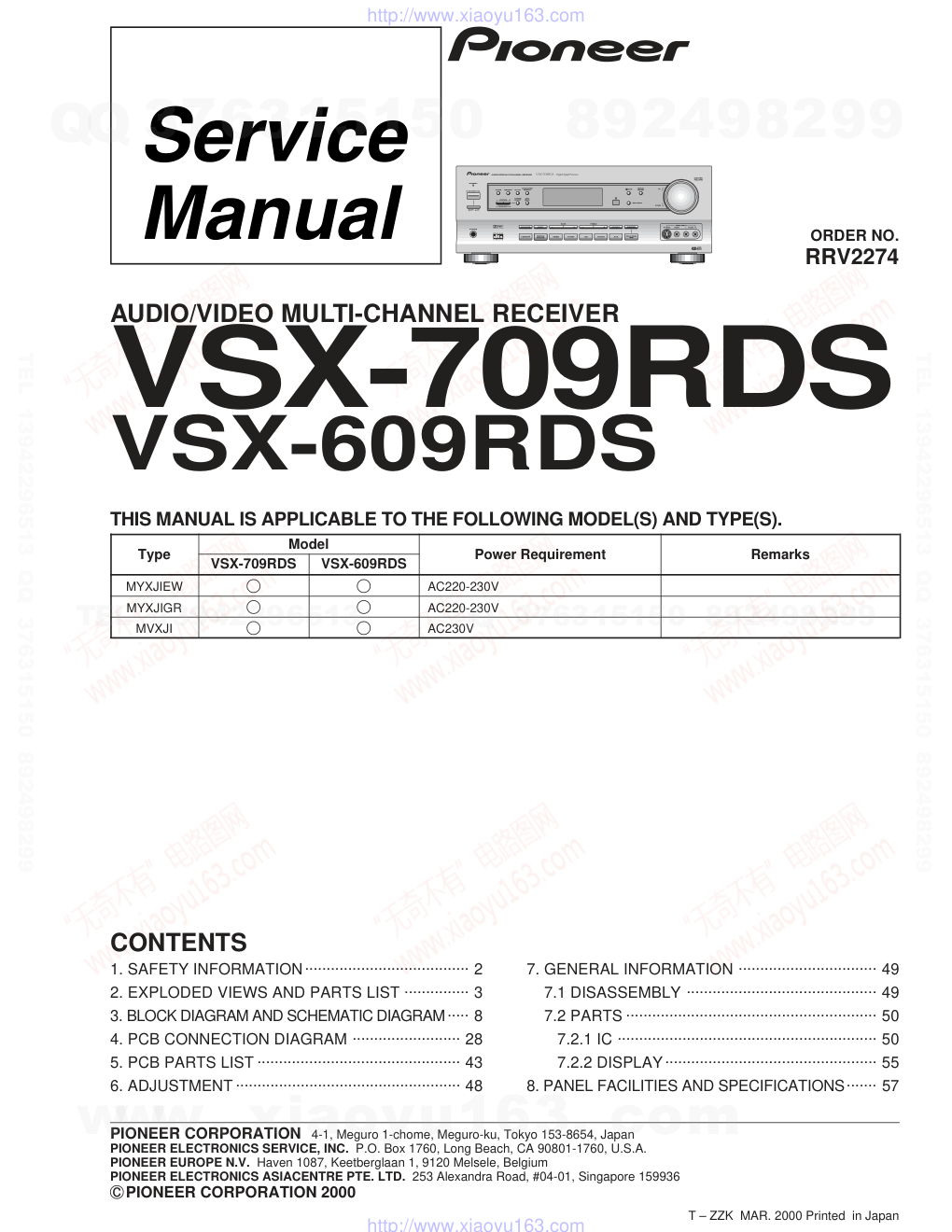

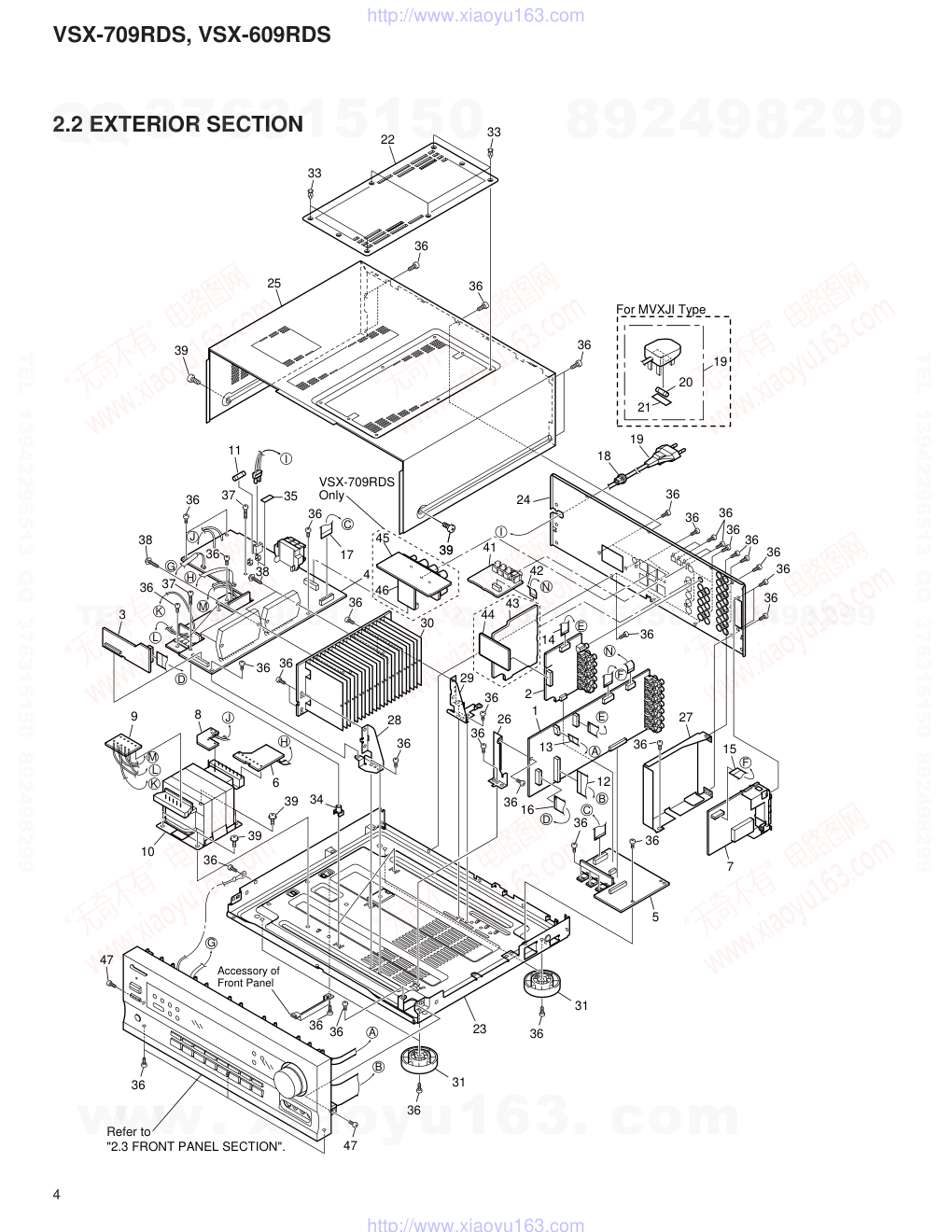

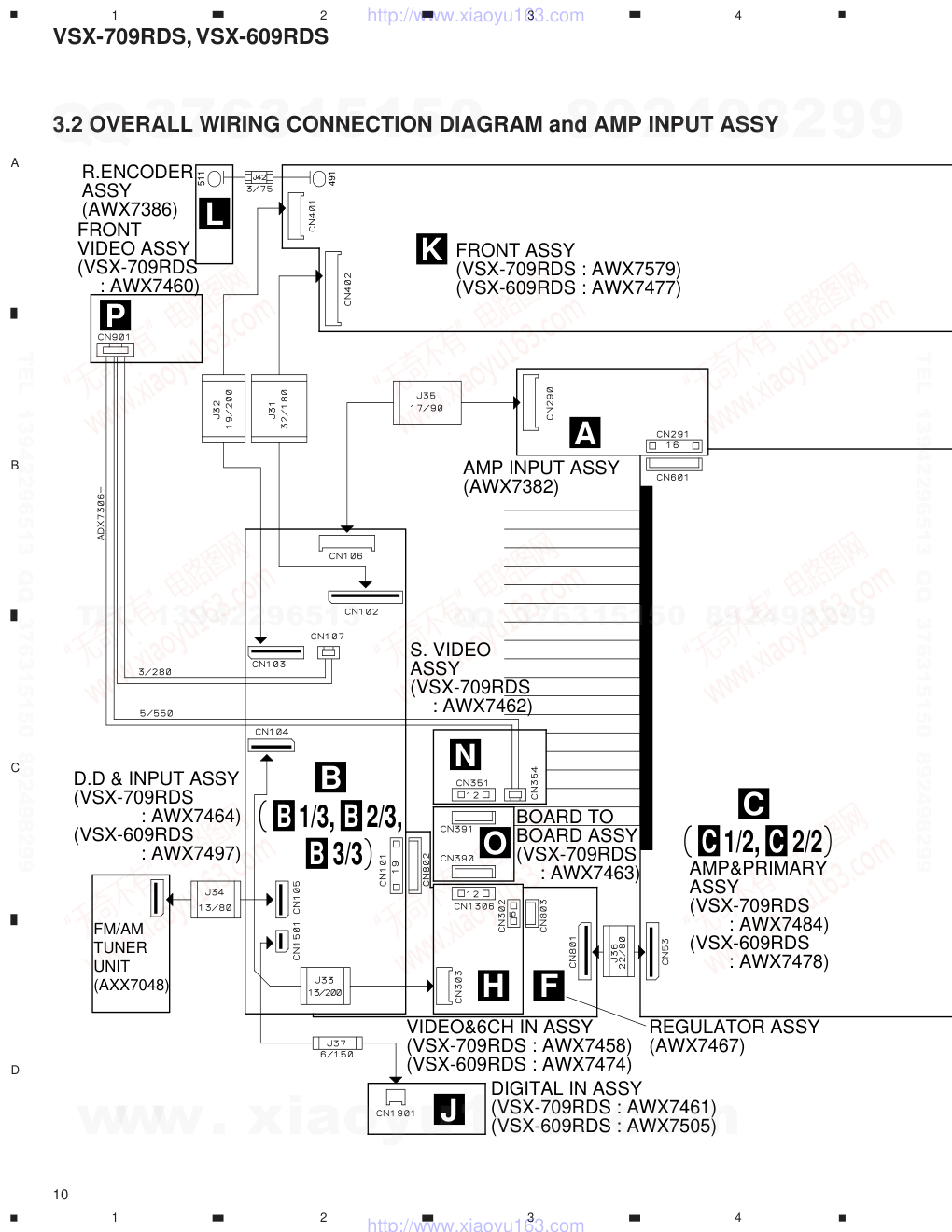

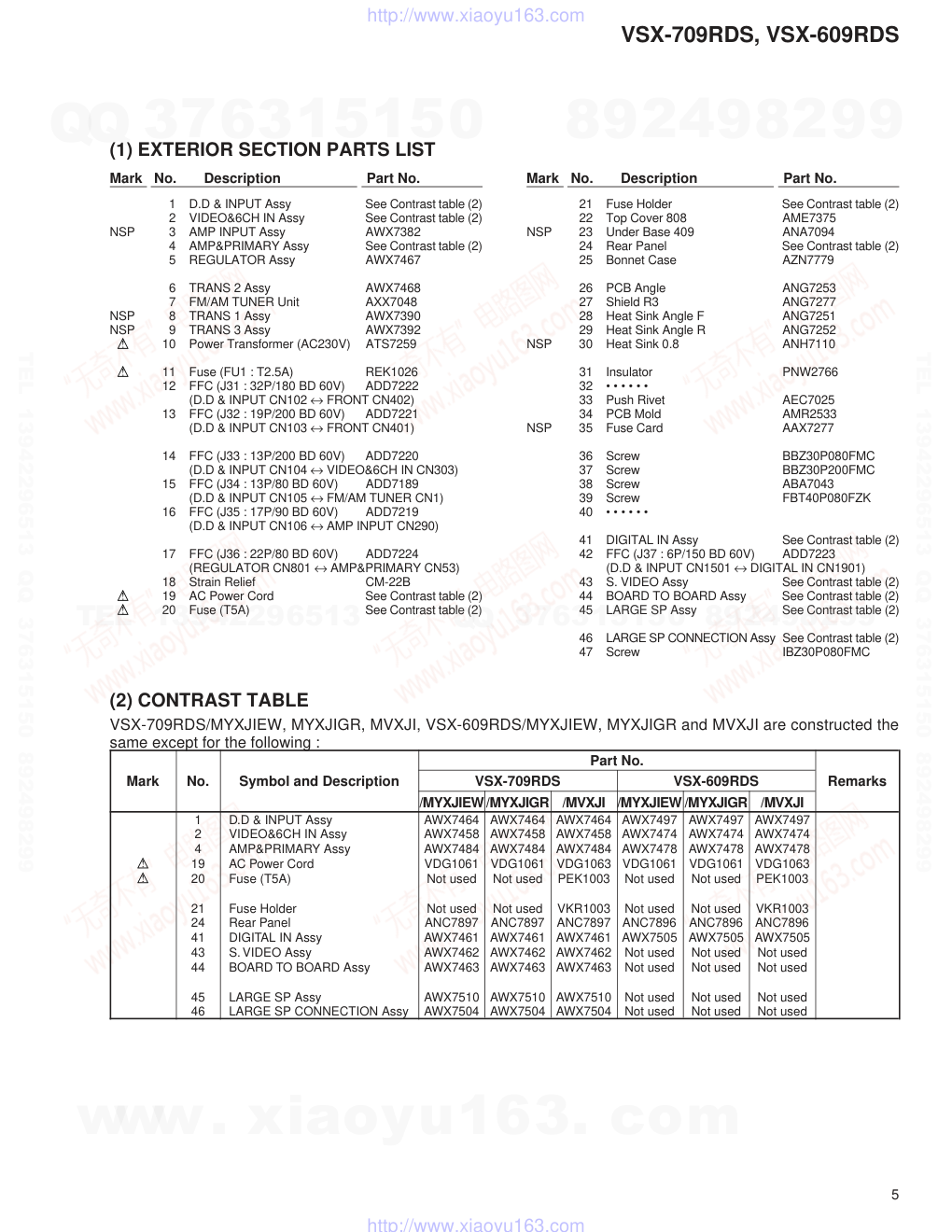

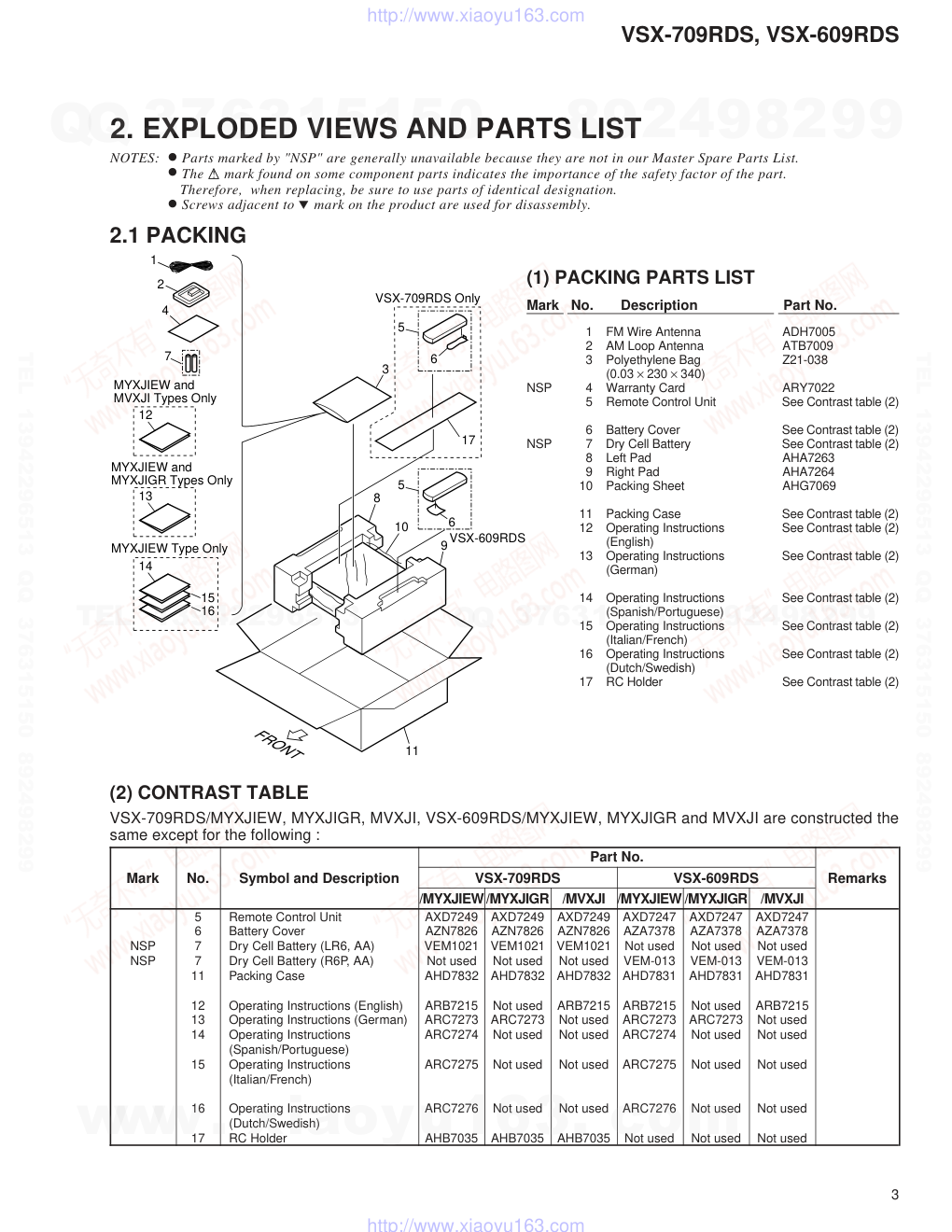

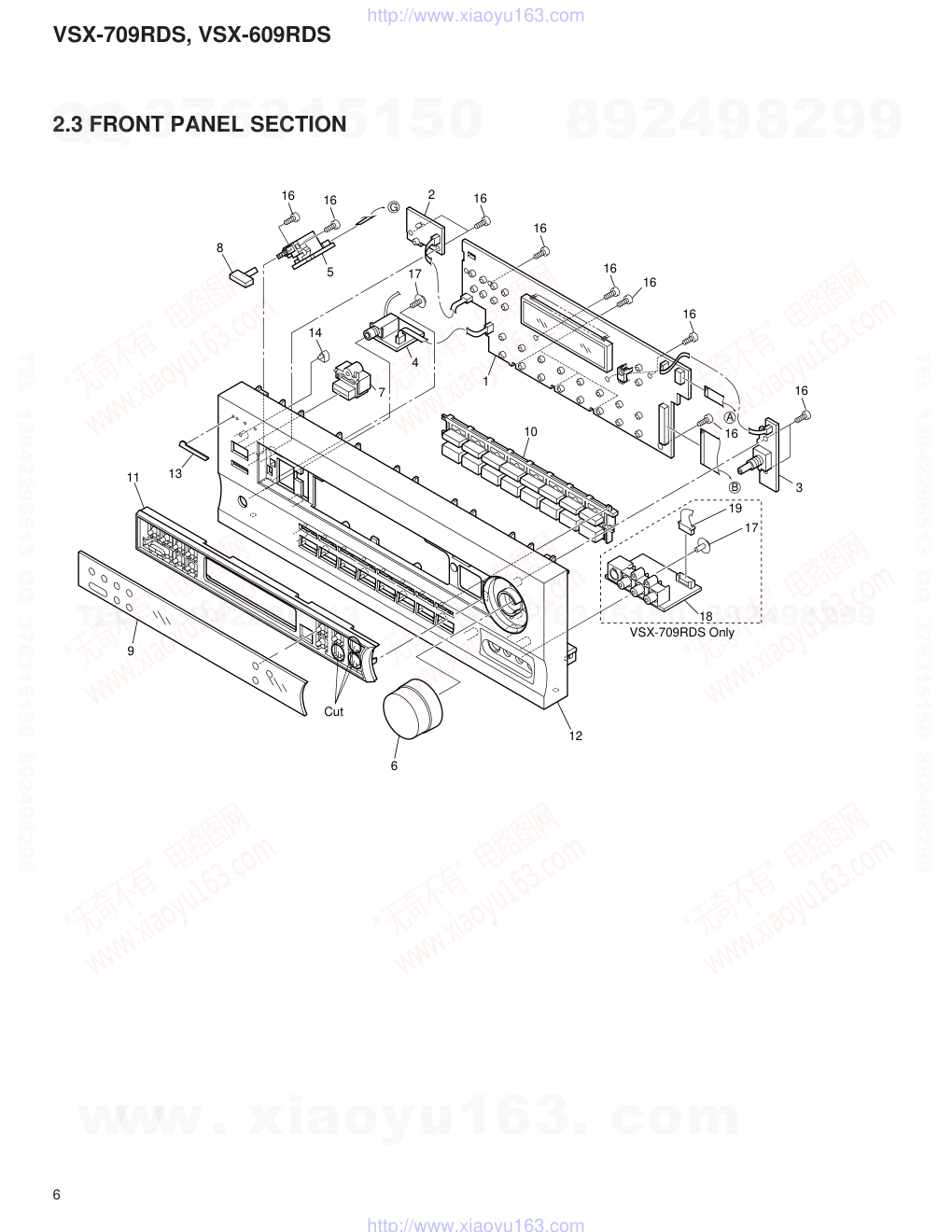

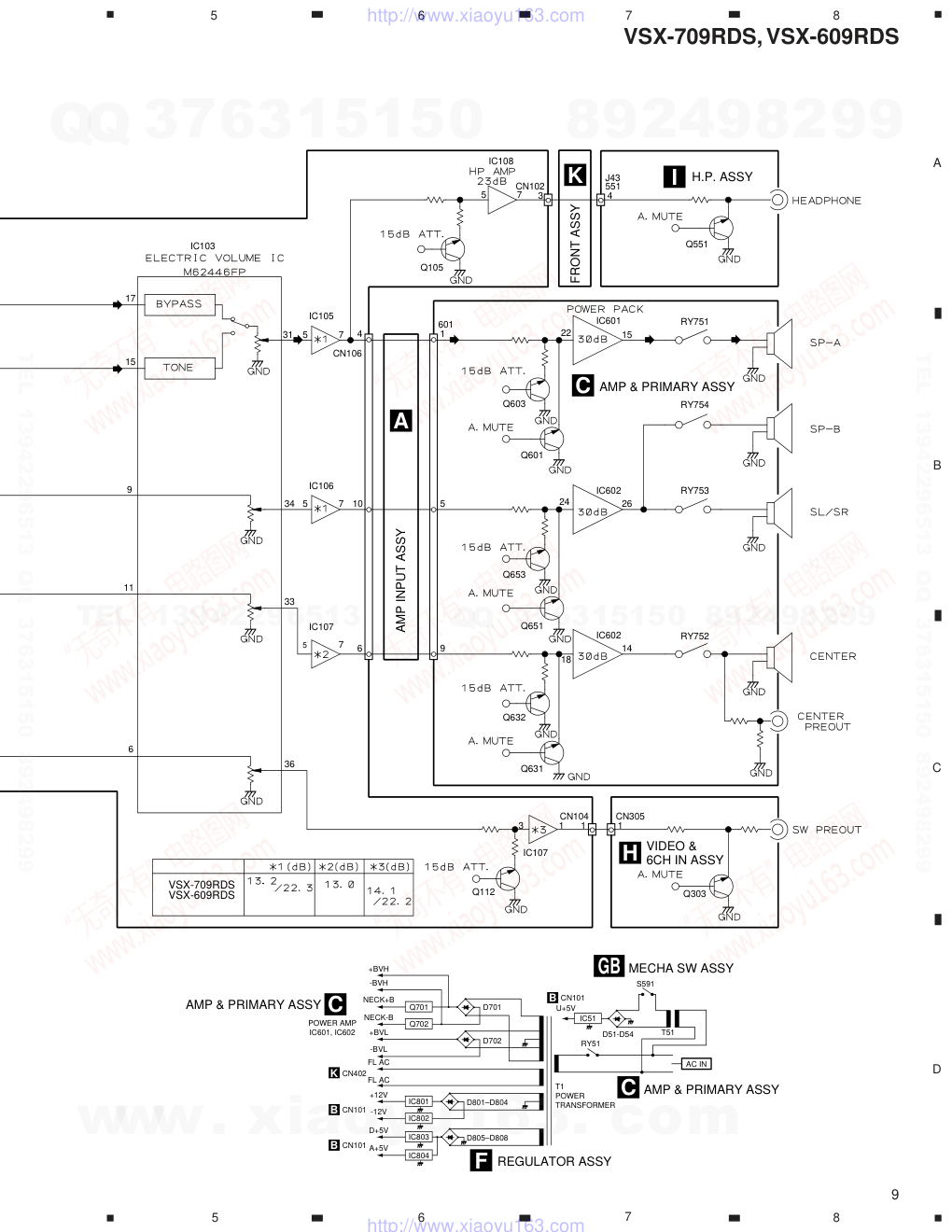

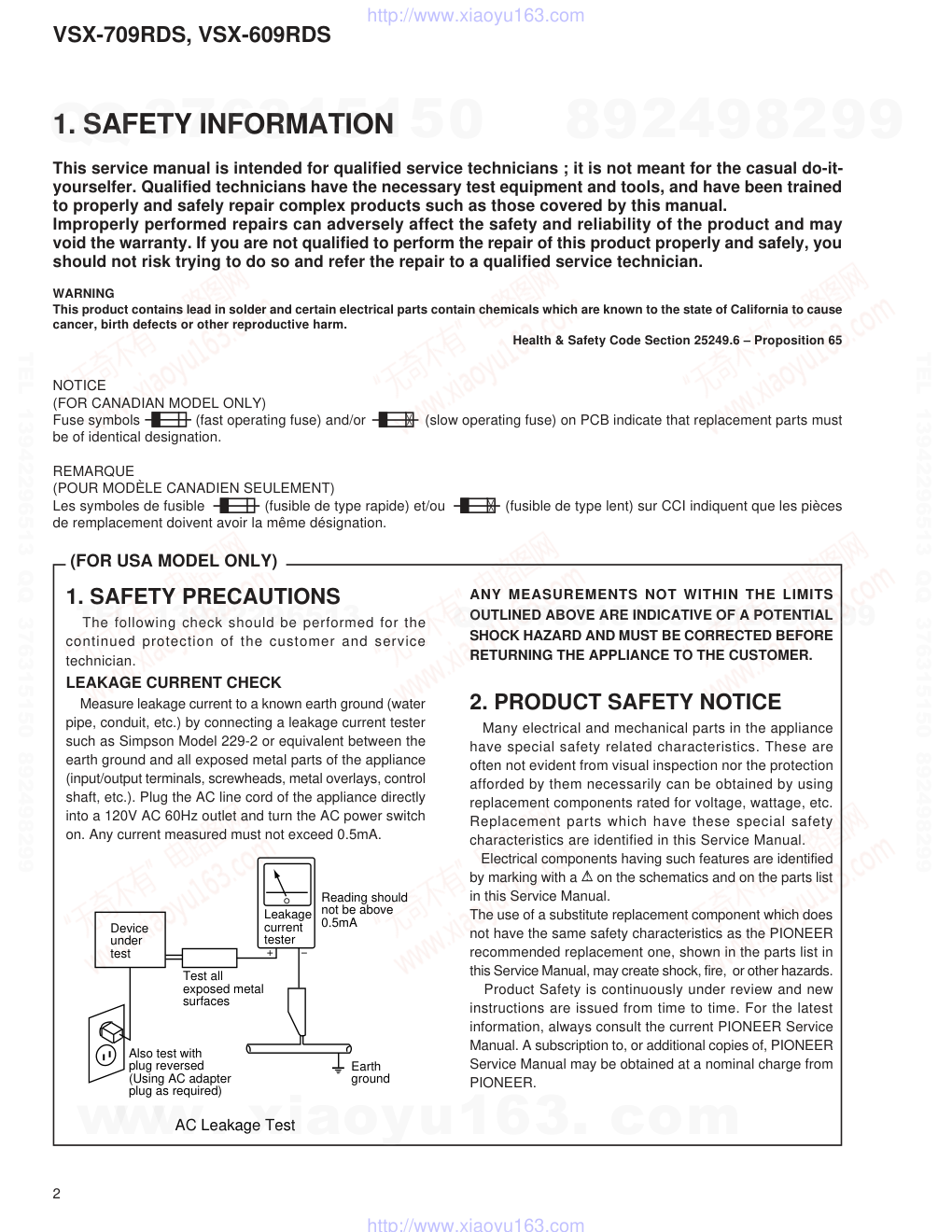

ORDER NO. PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 � � � � � � � � � �PIONEER CORPORATION 2000 c RRV2274 1. SAFETY INFORMATION...................................... 2 2. EXPLODED VIEWS AND PARTS LIST ............... 3 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM..... 8 4. PCB CONNECTION DIAGRAM ......................... 28 5. PCB PARTS LIST ............................................... 43 6. ADJUSTMENT .................................................... 48 CONTENTS 7. GENERAL INFORMATION ................................ 49 7.1 DISASSEMBLY ............................................ 49 7.2 PARTS .......................................................... 50 7.2.1 IC ............................................................ 50 7.2.2 DISPLAY................................................. 55 8. PANEL FACILITIES AND SPECIFICATIONS....... 57 T – ZZK MAR. 2000 Printed in Japan THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S). AUDIO/VIDEO MULTI-CHANNEL RECEIVER VSX-709RDS VSX-609RDS Type Model Power Requirement Remarks VSX-709RDS VSX-609RDS MYXJIEW AC220-230V MYXJIGR AC220-230V MVXJI AC230V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 VSX-709RDS, VSX-609RDS 1. SAFETY INFORMATION This service manual is intended for qualified service technicians ; it is not meant for the casual do-it- yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. WARNING This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 – Proposition 65 NOTICE (FOR CANADIAN MODEL ONLY) Fuse symbols (fast operating fuse) and/or (slow operating fuse) on PCB indicate that replacement parts must be of identical designation. REMARQUE (POUR MODÈLE CANADIEN SEULEMENT) Les symboles de fusible (fusible de type rapide) et/ou (fusible de type lent) sur CCI indiquent que les pièces de remplacement doivent avoir la même désignation. ANY MEASUREMENTS NOT WITHIN THE LIMITS OUTLINED ABOVE ARE INDICATIVE OF A POTENTIAL SHOCK HAZARD AND MUST BE CORRECTED BEFORE RETURNING THE APPLIANCE TO THE CUSTOMER. 2. PRODUCT SAFETY NOTICE Many electrical and mechanical parts in the appliance have special safety related characteristics. These are often not evident from visual inspection nor the protection afforded by them necessarily can be obtained by using replacement components rated for voltage, wattage, etc. Replacement parts which have these special safety characteristics are identified in this Service Manual. Electrical components having such features are identified by marking with a on the schematics and on the parts list in this Service Manual. The use of a substitute replacement component which does not have the same safety characteristics as the PIONEER recommended replacement one, shown in the parts list in this Service Manual, may create shock, fire, or other hazards. Product Safety is continuously under review and new instructions are issued from time to time. For the latest information, always consult the current PIONEER Service Manual. A subscription to, or additional copies of, PIONEER Service Manual may be obtained at a nominal charge from PIONEER. 1. SAFETY PRECAUTIONS The following check should be performed for the continued protection of the customer and service technician. LEAKAGE CURRENT CHECK Measure leakage current to a known earth ground (water pipe, conduit, etc.) by connecting a leakage current tester such as Simpson Model 229-2 or equivalent between the earth ground and all exposed metal parts of the appliance (input/output terminals, screwheads, metal overlays, control shaft, etc.). Plug the AC line cord of the appliance directly into a 120V AC 60Hz outlet and turn the AC power switch on. Any current measured must not exceed 0.5mA. (FOR USA MODEL ONLY) Leakage current tester Reading should not be above 0.5mA Device under test Test all exposed metal surfaces Also test with plug reversed (Using AC adapter plug as required) Earth ground AC Leakage Test www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 VSX-709RDS, VSX-609RDS 1 2 4 7 3 8 9 5 17 10 11 6 5 6 12 MYXJIEW and MVXJI Types Only VSX-709RDS Only VSX-609RDS 13 MYXJIEW and MYXJIGR Types Only MYXJIEW Type Only 15 16 14 2.1 PACKING 1 FM Wire Antenna ADH7005 2 AM Loop Antenna ATB7009 3 Polyethylene Bag Z21-038 (0.03 × 230 × 340) NSP 4 Warranty Card ARY7022 5 Remote Control Unit See Contrast table (2) 6 Battery Cover See Contrast table (2) NSP 7 Dry Cell Battery See Contrast table (2) 8 Left Pad AHA7263 9 Right Pad AHA7264 10 Packing Sheet AHG7069 11 Packing Case See Contrast table (2) 12 Operating Instructions See Contrast table (2) (English) 13 Operating Instructions See Contrast table (2) (German) 14 Operating Instructions See Contrast table (2) (Spanish/Portuguese) 15 Operating Instructions See Contrast table (2) (Italian/French) 16 Operating Instructions See Contrast table (2) (Dutch/Swedish) 17 RC Holder See Contrast table (2) (1) PACKING PARTS LIST Mark No. Description Part No. 2. EXPLODED VIEWS AND PARTS LIST NOTES: • Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. • The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. • Screws adjacent to mark on the product are used for disassembly. (2) CONTRAST TABLE VSX-709RDS/MYXJIEW, MYXJIGR, MVXJI, VSX-609RDS/MYXJIEW, MYXJIGR and MVXJI are constructed the same except for the following : Part No. Mark No. Symbol and Description VSX-709RDS VSX-609RDS Remarks /MYXJIEW/MYXJIGR /MVXJI /MYXJIEW /MYXJIGR /MVXJI 5 Remote Control Unit AXD7249 AXD7249 AXD7249 AXD7247 AXD7247 AXD7247 6 Battery Cover AZN7826 AZN7826 AZN7826 AZA7378 AZA7378 AZA7378 NSP 7 Dry Cell Battery (LR6, AA) VEM1021 VEM1021 VEM1021 Not used Not used Not used NSP 7 Dry Cell Battery (R6P, AA) Not used Not used Not used VEM-013 VEM-013 VEM-013 11 Packing Case AHD7832 AHD7832 AHD7832 AHD7831 AHD7831 AHD7831 12 Operating Instructions (English) ARB7215 Not used ARB7215 ARB7215 Not used ARB7215 13 Operating Instructions (German) ARC7273 ARC7273 Not used ARC7273 ARC7273 Not used 14 Operating Instructions ARC7274 Not used Not used ARC7274 Not used Not used (Spanish/Portuguese) 15 Operating Instructions ARC7275 Not used Not used ARC7275 Not used Not used (Italian/French) 16 Operating Instructions ARC7276 Not used Not used ARC7276 Not used Not used (Dutch/Swedish) 17 RC Holder AHB7035 AHB7035 AHB7035 Not used Not used Not used www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 VSX-709RDS, VSX-609RDS G D L K H M J I C I J M L K H E E B A C D F N N F A B 35 45 46 G 36 31 18 24 19 36 36 36 36 36 36 36 36 36 36 36 36 36 36 26 15 7 1 2 5 27 12 13 14 16 36 43 44 36 17 4 3 9 8 6 36 11 36 36 37 37 38 38 36 36 36 10 Accessory of Front Panel 36 34 36 36 47 36 Refer to "2.3 FRONT PANEL SECTION". 39 39 29 28 30 41 42 47 36 31 23 36 For MVXJI Type 20 21 19 36 39 36 36 25 39 39 33 33 22 VSX-709RDS Only 2.2 EXTERIOR SECTION www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 VSX-709RDS, VSX-609RDS 1 D.D & INPUT Assy See Contrast table (2) 2 VIDEO&6CH IN Assy See Contrast table (2) NSP 3 AMP INPUT Assy AWX7382 4 AMP&PRIMARY Assy See Contrast table (2) 5 REGULATOR Assy AWX7467 6 TRANS 2 Assy AWX7468 7 FM/AM TUNER Unit AXX7048 NSP 8 TRANS 1 Assy AWX7390 NSP 9 TRANS 3 Assy AWX7392 10 Power Transformer (AC230V) ATS7259 11 Fuse (FU1 : T2.5A) REK1026 12 FFC (J31 : 32P/180 BD 60V) ADD7222 (D.D & INPUT CN102 ↔ FRONT CN402) 13 FFC (J32 : 19P/200 BD 60V) ADD7221 (D.D & INPUT CN103 ↔ FRONT CN401) 14 FFC (J33 : 13P/200 BD 60V) ADD7220 (D.D & INPUT CN104 ↔ VIDEO&6CH IN CN303) 15 FFC (J34 : 13P/80 BD 60V) ADD7189 (D.D & INPUT CN105 ↔ FM/AM TUNER CN1) 16 FFC (J35 : 17P/90 BD 60V) ADD7219 (D.D & INPUT CN106 ↔ AMP INPUT CN290) 17 FFC (J36 : 22P/80 BD 60V) ADD7224 (REGULATOR CN801 ↔ AMP&PRIMARY CN53) 18 Strain Relief CM-22B 19 AC Power Cord See Contrast table (2) 20 Fuse (T5A) See Contrast table (2) (1) EXTERIOR SECTION PARTS LIST Mark No. Description Part No. Mark No. Description Part No. 21 Fuse Holder See Contrast table (2) 22 Top Cover 808 AME7375 NSP 23 Under Base 409 ANA7094 24 Rear Panel See Contrast table (2) 25 Bonnet Case AZN7779 26 PCB Angle ANG7253 27 Shield R3 ANG7277 28 Heat Sink Angle F ANG7251 29 Heat Sink Angle R ANG7252 NSP 30 Heat Sink 0.8 ANH7110 31 Insulator PNW2766 32 • • • • • • 33 Push Rivet AEC7025 34 PCB Mold AMR2533 NSP 35 Fuse Card AAX7277 36 Screw BBZ30P080FMC 37 Screw BBZ30P200FMC 38 Screw ABA7043 39 Screw FBT40P080FZK 40 • • • • • • 41 DIGITAL IN Assy See Contrast table (2) 42 FFC (J37 : 6P/150 BD 60V) ADD7223 (D.D & INPUT CN1501 ↔ DIGITAL IN CN1901) 43 S. VIDEO Assy See Contrast table (2) 44 BOARD TO BOARD Assy See Contrast table (2) 45 LARGE SP Assy See Contrast table (2) 46 LARGE SP CONNECTION Assy See Contrast table (2) 47 Screw IBZ30P080FMC (2) CONTRAST TABLE VSX-709RDS/MYXJIEW, MYXJIGR, MVXJI, VSX-609RDS/MYXJIEW, MYXJIGR and MVXJI are constructed the same except for the following : Part No. Mark No. Symbol and Description VSX-709RDS VSX-609RDS Remarks /MYXJIEW/MYXJIGR /MVXJI /MYXJIEW /MYXJIGR /MVXJI 1 D.D & INPUT Assy AWX7464 AWX7464 AWX7464 AWX7497 AWX7497 AWX7497 2 VIDEO&6CH IN Assy AWX7458 AWX7458 AWX7458 AWX7474 AWX7474 AWX7474 4 AMP&PRIMARY Assy AWX7484 AWX7484 AWX7484 AWX7478 AWX7478 AWX7478 19 AC Power Cord VDG1061 VDG1061 VDG1063 VDG1061 VDG1061 VDG1063 20 Fuse (T5A) Not used Not used PEK1003 Not used Not used PEK1003 21 Fuse Holder Not used Not used VKR1003 Not used Not used VKR1003 24 Rear Panel ANC7897 ANC7897 ANC7897 ANC7896 ANC7896 ANC7896 41 DIGITAL IN Assy AWX7461 AWX7461 AWX7461 AWX7505 AWX7505 AWX7505 43 S. VIDEO Assy AWX7462 AWX7462 AWX7462 Not used Not used Not used 44 BOARD TO BOARD Assy AWX7463 AWX7463 AWX7463 Not used Not used Not used 45 LARGE SP Assy AWX7510 AWX7510 AWX7510 Not used Not used Not used 46 LARGE SP CONNECTION Assy AWX7504 AWX7504 AWX7504 Not used Not used Not used www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 VSX-709RDS, VSX-609RDS 2.3 FRONT PANEL SECTION G B A 11 13 10 14 17 7 4 2 6 Cut 9 12 18 17 1 3 16 16 16 16 16 16 16 19 16 8 5 16 VSX-709RDS Only www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 VSX-709RDS, VSX-609RDS (1) FRONT PANEL SECTION PARTS LIST Mark No. Description Part No. 1 FRONT Assy See Contrast table (2) 2 POWER SW Assy AWX7385 NSP 3 R. ENCODER Assy AWX7386 NSP 4 H.P. Assy AWX7556 5 MECHA SW Assy AWX7443 6 Volume Knob AAB7179 7 Power Button AAD7440 8 Power Button M AAD7442 9 Window AAK7721 10 F Button See Contrast table (2) Mark No. Description Part No. 11 Sub Panel AAD7552 12 F Panel See Contrast table (2) 13 Name Plate PAM1776 14 LED Lens PNW2019 15 • • • • • • 16 Screw PPZ30P080FMC 17 Screw ABA7009 18 FRONT VIDEO Assy See Contrast table (2) 19 8P Shield Cable See Contrast table (2) (2) CONTRAST TABLE VSX-709RDS/MYXJIEW, MYXJIGR, MVXJI, VSX-609RDS/MYXJIEW, MYXJIGR and MVXJI are constructed the same except for the following : Part No. Mark No. Symbol and Description VSX-709RDS VSX-609RDS Remarks /MYXJIEW/MYXJIGR /MVXJI /MYXJIEW /MYXJIGR /MVXJI 1 FRONT Assy AWX7459 AWX7459 AWX7459 AWX7477 AWX7477 AWX7477 10 F Button AAD7564 AAD7564 AAD7564 AAD7562 AAD7562 AAD7562 12 F Panel AMB7677 AMB7677 AMB7677 AMB7675 AMB7675 AMB7675 18 FRONT VIDEO Assy AWX7460 AWX7460 AWX7460 Not used Not used Not used 19 8P Shield Cable ADX7306 ADX7306 ADX7306 Not used Not used Not used www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-709RDS, VSX-609RDS 8 A B C D 1 2 3 4 1 2 3 4 N P 7 5 9 3 1 11 CN901 3 CN354 IC351, IC352 3 P 3 CN901 4 CN301 8 8 P CN901 6 CN107 3 5 FRONT VIDEO ASSY S. VIDEO ASSY FRONT VIDEO ASSY FRONT VIDEO ASSY AXX7048 UNIT CN105 6 CN305 IC101 IC303 IC1901 IC302 IC302 IC301 IC104 IC102 IC1701 IC1101 IC1201 B H J 7 7 7 1 9 11 CN104 7 9 11 CN1901 2 CN1501 2 5 3 7 5 9 1 11 5 5 3 2 5 1 3 4 6 123 38 38 21 26 23 25 6 7 IC1703 6 7 IC1705 DTS DECODER 6 7 IC1705 1 2 4 6 3 8 7 19 18 17 12 11 10 9 5 1 7 2 11 9 10 D.D & INPUT ASSY DIGITAL IN ASSY VIDEO & 6CH IN ASSY VSX-709RDS ONLY VSX-709RDS ONLY VSX-709RDS ONLY VSX-709RDS ONLY VSX-709RDS ONLY 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM 3.1 BLOCK DIAGRAM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-709RDS, VSX-609RDS 9 A B C D 5 6 7 8 5 6 7 8 IC103 IC105 IC106 IC107 IC108 IC107 Q112 Q303 Q603 Q601 Q653 Q651 Q632 Q631 H CN104 1 CN305 1 11 15 17 31 34 33 36 6 9 5 7 5 7 5 7 5 7 3 1 IC602 18 14 IC602 24 26 IC601 RY751 RY753 RY754 RY752 22 15 Q551 Q105 I K C A CN102 3 551 J43 4 CN106 4 601 1 10 5 6 9 +12V -12V T1 POWER TRANSFORMER T51 AC IN D801–D804 U+5V D51-D54 RY51 IC51 IC801 CN101 IC802 NECK+B POWER AMP IC601, IC602 NECK-B D702 D701 +BVL +BVH -BVH -BVL FL AC FL AC Q701 Q702 S591 C C B D+5V D805–D808 IC803 A+5V IC804 CN101 F B CN101 B CN402 K AMP & PRIMARY ASSY GB MECHA SW ASSY AMP & PRIMARY ASSY REGULATOR ASSY AMP & PRIMARY ASSY VIDEO & 6CH IN ASSY H.P. ASSY FRONT ASSY AMP INPUT ASSY VSX-709RDS VSX-609RDS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-709RDS, VSX-609RDS 10 A B C D 1 2 3 4 1 2 3 4 3.2 OVERALL WIRING CONNECTION DIAGRAM and AMP INPUT ASSY BOARD TO BOARD ASSY (VSX-709RDS : AWX7463) S. VIDEO ASSY (VSX-709RDS : AWX7462) FRONT VIDEO ASSY (VSX-709RDS : AWX7460) N P O FRONT ASSY (VSX-709RDS : AWX7579) (VSX-609RDS : AWX7477) K R.ENCODER ASSY (AWX7386) L D.D & INPUT ASSY (VSX-709RDS : AWX7464) (VSX-609RDS : AWX7497) B REGULATOR ASSY (AWX7467) F DIGITAL IN ASSY (VSX-709RDS : AWX7461) (VSX-609RDS : AWX7505) J VIDEO&6CH IN ASSY (VSX-709RDS : AWX7458) (VSX-609RDS : AWX7474) H AMP&PRIMARY ASSY (VSX-709RDS : AWX7484) (VSX-609RDS : AWX7478) C AMP INPUT ASSY (AWX7382) A FM/AM TUNER UNIT (AXX7048) 491 511 C 1/2, C 2/2 B 1/3, B 2/3, B 3/3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-709RDS, VSX-609RDS 11 A B C D 5 6 7 8 5 6 7 8 Note : When ordering service parts, be sure to refer to "EXPLODED VIEWS and PARTS LIST" or "PCB PARTS LIST". A LARGE SP ASSY (VSX-709RDS : AWX7510) R LARGE SP CONNECTION ASSY (VSX-709RDS : AWX7504) Q AMP INPUT ASSY (AWX7382) A CN106 CN601 B 1/3 C 1/2 POWER SW ASSY (AWX7385) M H.P. ASSY (AWX7556) I TRANS3 ASSY (AWX7392) E TRANS1 ASSY (AWX7390) GA MECHA SW ASSY (AWX7443) GB TRANS2 ASSY (AWX7468) D 471 J3 J7 J6 501 403 551 701 851 J1 J2 J4 J5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-709RDS, VSX-609RDS 12 A B C D 1 2 3 4 1 2 3 4 VSX-709RDS VSX-609RDS VSX-709RDS ONLY VSX-709RDS VSX-609RDS VSX-709RDS ONLY CN901 P D.D & INPUT ASSY (VSX-709RDS : AWX7464) (VSX-609RDS : AWX7497) B 1/3 FM/AM TUNER UNIT CN802 F 3.3 D.D & INPUT (1/3) ASSY 1/3 B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-709RDS, VSX-609RDS 13 A B C D 5 6 7 8 5 6 7 8 CN290 A CN401 K CN402 K B 3/3 B 2/3 B 3/3 B 2/3 B 3/3 CN303 H : The power supply is shown with the marked box. E-VR IC 1/3 B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-709RDS, VSX-609RDS 14 A B C D 1 2 3 4 1 2 3 4 3.4 D.D & INPUT ASSY (2/3) 2/3 B D.D & INPUT ASSY (VSX-709RDS : AWX7464) (VSX-609RDS : AWX7497) B 2/3 CN1901 J B 1/3 B 3/3 B 1/3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-709RDS, VSX-609RDS 15 A B C D 5 6 7 8 5 6 7 82/3 B : The power supply is shown with the marked box. B 3/3 DTS DECODER IC SRAM(256K) MULTI CH CODEC IC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-709RDS, VSX-609RDS 16 A B C D 1 2 3 4 1 2 3 4 D.D & INPUT ASSY (VSX-709RDS : AWX7464) (VSX-609RDS : AWX7497) B 3/3 B 2/3 B 2/3 B 1/3 E-SW IC 3.5 D.D & INPUT ASSY (3/3) 3/3 B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-709RDS, VSX-609RDS 17 A B C D 5 6 7 8 5 6 7 8 B 1/3 3/3 B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-709RDS, VSX-609RDS 18 A B C D 1 2 3 4 1 2 3 4 12P 12P 12P 12P 12P 12P 12P 12P 12P 12P AMP&PRIMARY ASSY (VSX-709RDS : AWX7484) (VSX-609RDS : AWX7478) C 1/2 CN291 A 3.6 AMP&PRIMARY (1/2), TRANS2 and TRANS3 ASSYS 1/2 C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-709RDS, VSX-609RDS 19 A B C D 5 6 7 8 5 6 7 8 VSX-709RDS VSX-609RDS VSX -709RDS VSX -609RDS VSX-609RDS ONLY VSX-709RDS ONLY VSX -709RDS ONLY TRANS3 ASSY (AWX7392) E TRANS2 ASSY (AWX7468) D POWER TRANSFORMER CN785 Q CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 49101.6 FOR IC851, IC852 AND IC853 MFD, BY LITTELFUSE INC. CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 491001 FOR IC603 MFD, BY LITTELFUSE INC. C 2/2 C 2/2 1/2 C E D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-709RDS, VSX-609RDS 20 A B C D 1 2 3 4 1 2 3 4 2/2 C 3.7 AMP&PRIMARY (2/2), REGULATOR, TRANS1 and MECHA SW ASSYS F CN101 B 1/3 REGULATOR ASSY (AWX7467) F CN306 H www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-709RDS, VSX-609RDS 21 A B C D 5 6 7 8 5 6 7 8 2/2 C AMP&PRIMARY ASSY (VSX-709RDS : AWX7484) (VSX-609RDS : AWX7478) C 2/2 C 1/2 C 1/2 TRANS1 ASSY (AWX7390) GB GA MECHA SW ASSY (AWX7443) POWER TRANSFORMER LIVE NEUTRAL REK1026 (T2.5A) ATT7037 AC POWER CORD MYXJIEW : VDG1061 MYXJIGR : VDG1061 MVXJI : VDG1063 • NOTE FOR FUSE REPLACEMENT FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE WITH SAME TYPE AND RATINGS ONLY. CAUTION - CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 491.315 FOR IC52 MFD, BY LITTELFUSE INC. GB GA www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-709RDS, VSX-609RDS 22 A B C D 1 2 3 4 1 2 3 4 VSX-609RDS VSX-709RDS VSX-709RDS ONLY CN390 O VIDEO&6CH IN ASSY (VSX-709RDS : AWX7458) (VSX-609RDS : AWX7474) H CN104 CN803 F B 1/3 VIDEO SW IC 3.8 VIDEO&6CH IN, H. P. and DIGITAL IN ASSYS H www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-709RDS, VSX-609RDS 23 A B C D 1 2 3 4 1 2 3 4 VSX-709RDS ONLY H.P. ASSY (AWX7556) I DIGITAL IN ASSY (VSX-709RDS : AWX7461) (VSX-609RDS : AWX7505) J CN1501 B 2/3 403 K J I www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-709RDS, VSX-609RDS 24 A B C D 1 2 3 4 1 2 3 4 VSX-709RDS VSX-609RDS FRONT ASSY (VSX-709RDS : AWX7459) (VSX-609RDS : AWX7477) K R.ENCODER ASSY (AWX7386) L CN102 B 1/3 CN103 B 1/3 3.9 FRONT, R. ENCODER and POWER SW ASSYS K L www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-709RDS, VSX-609RDS 25 A B C D 5 6 7 8 5 6 7 8 POWER SW ASSY (AWX7385) M 551 I FRONT ASSY S451 : DOLBY PRO LOGIC S452 : DSP MODE S453 : SIGNAL SELECT S454 : MONITOR S455 : TREBLE (+) S456 : FM/AM S457 : LOUDNESS S458 : TREBLE (–) S459 : BASS (+) S460 : VIDEO S461 : TV/SAT S462 : CD S463 : DIRECT S464 : BASS (–) S465 : DVD/LD S466 : VCR/DVR S467 : SPEAKERS S469 : MPX MODE S470 : MEMORY S471 : CLASS S472 : TUNING SELECT S473 : STATION (+) S474 : STATION (–) S475 : CD-R S476 : AUX SYSTEM CONTROL MCU M K www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-709RDS, VSX-609RDS 26 A B C D 1 2 3 4 1 2 3 4 3.10 S. VIDEO, BOARD TO BOARD, FRONT VIDEO, LARGE SP CONNECTION and LARGE SP ASSYS N O BOARD TO BOARD ASSY (VSX-709RDS : AWX7463) O CN301 H CN901 P www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-709RDS, VSX-609RDS 27 A B C D 5 6 7 8 5 6 7 8R Q LARGE SP CONNECTION ASSY (VSX-709RDS : AWX7504) Q LARGE SP ASSY (VSX-709RDS : AWX7510) R FRONT VIDEO ASSY (VSX-709RDS : AWX7460) P S. VIDEO ASSY (VSX-709RDS : AWX7462) N CN354 N CN784 C 1/2 CN107 B 1/3 P N www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-709RDS, VSX-609RDS 28 A B C D 1 2 3 4 1 2 3 4 NOTE FOR PCB DIAGRAMS : 1. Part numbers in PCB diagrams match those in the schematic diagrams. 2. A comparison between the main parts of PCB and schematic diagrams is shown below. 3. The parts mounted on this PCB include all necessary parts for several destinations. For further information for respective destinations, be sure to check with the schematic diagram. 4. View point of PCB diagrams. Symbol In PCB Diagrams Symbol In Schematic Diagrams Part Name B C E D D G G S S B C E B C E D G S B C E B C E B C E Transistor Transistor with resistor Field effect transistor Resistor array 3-terminal regulator Capacitor Connector P.C.Board Chip Part SIDE A SIDE B 4. PCB CONNECTION DIAGRAM 4.1 DIGITAL IN ASSY J (ANP7341-A) CN1501 B SIDE A DIGITAL IN ASSY J (ANP7341-A) DIGITAL IN ASSY J SIDE B IC1901 IC1902 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-709RDS, VSX-609RDS 29 A B C D 1 2 3 4 1 2 3 4 4.2 TRANS2, TRANS3, REGULATOR and TRANS1 ASSYS F E (ANP7331-B) Q805 Q803 Q806 Q801 Q804 Q802 IC804 REGULATOR ASSY F TRANS3 ASSY E TRANS2 ASSY D CN53 C CN306 H CN101 B 701 C J1 J2 C J6 J4 J3 J5 J7 C SIDE A IC802 IC803 IC801 POWER TRANSFORMER TRANS1 ASSY GA D GA www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-709RDS, VSX-609RDS 30 A B C D 1 2 3 4 1 2 3 4 AMP INPUT ASSY A AMP&PRIMARY ASSY C CN106 B Q604 Q606 Q605 Q602 Q603 IC601 IC603 Q632 Q704 Q702 Q703 Q701 Q631 Q656 IC602 Q633 Q655 Q691 Q692 Q652 Q654 Q651 Q653 J7 E J6 E J3 E (ANP7331-B) SIDE A (ANP7331-B) SIDE A GB MECHA SW ASSY (ANP7341-A) SIDE B (ANP7341-A) SIDE A A C 4.3 AMP INPUT and AMP&PRIMARY ASSYS GB www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-709RDS, VSX-609RDS 31 A B C D 5 6 7 8 5 6 7 8 J4 E J5 E 851 D Q51 IC52 IC51 AC IN NEUTRAL LIVE CN801 F J2 GA GA J1 CN785 (VSX-709RDS) Q C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-709RDS, VSX-609RDS 32 A B C D 1 2 3 4 1 2 3 4 B 4.4 D.D & INPUT ASSY D.D & INPUT ASSY B CN402 K CN401 K CN303 H CN290 A IC102 IC1602 IC103 IC16 IC1701 IC1712 IC17 Q1602 Q1601 Q1604 Q Q106 Q111 IC107 Q112 Q1608 Q1607 Q1609 Q1610 Q107 Q108 Q109 Q110 IC109 IC105 IC106 IC108 Q105 CN901 (VSX-70 P www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-709RDS, VSX-609RDS 33 A B C D 5 6 7 8 5 6 7 8B CN802 F CN1901 J IC102 1602 IC1603 IC1604 IC1201 1701 IC1712 IC1704 IC1703 IC1705 Q1003 Q1004 Q1001 Q1002 IC1101 IC1301 Q101 Q102 Q104 Q103 2 Q1601 Q1604 Q1603 Q1606 Q1605 IC1001 IC104 IC1401 Q1101 Q1102 (ANP7342-B) SIDE A FM/AM TUNER UNIT CN901 (VSX-709RDS) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-709RDS, VSX-609RDS 34 A B C D 1 2 3 4 1 2 3 4 B D.D & INPUT ASSY B IC1801 IC101 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-709RDS, VSX-609RDS 35 A B C D 5 6 7 8 5 6 7 8B C1801 (ANP7342-B) SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-709RDS, VSX-609RDS 36 A B C D 1 2 3 4 1 2 3 4 FRONT ASSY K POWER SW ASSY M H.P. ASSY I Q471 Q483 Q481 Q482 4.5 H.P., FRONT, R.ENCODER and POWER SW ASSYS I K M www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-709RDS, VSX-609RDS 37 A B C D 5 6 7 8 5 6 7 8L K CN103 B CN102 B R.ENCODER ASSY L Q441 Q401 Q442 Q405 Q402 Q403 (ANP7341-A) SIDE A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-709RDS, VSX-609RDS 38 A B C D 1 2 3 4 1 2 3 4 K L FRONT ASSY K IC401 (ANP7341-A) SIDE B R.ENCODER ASSY L www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-709RDS, VSX-609RDS 39 A B C D 5 6 7 8 5 6 7 8M K I IC481 IC401 POWER SW ASSY M H.P. ASSY I www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-709RDS, VSX-609RDS 40 A B C D 1 2 3 4 1 2 3 4 H 4.6 VIDEO&6CH IN ASSY (ANP7341-A) VIDEO&6CH IN ASSY H CN104 B CN803 F SIDE A Q301 Q303 Q306 Q305 Q307 Q304 Q302 (ANP7341-A) SIDE B VIDEO&6CH IN ASSY H IC302 IC303 IC301 CN390 O (VSX-709RDS) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-709RDS, VSX-609RDS 41 A B C D 1 2 3 4 1 2 3 4 4.7 S.VIDEO, BOARD TO BOARD and FRONT VIDEO ASSYS (ANP7341-A) FRONT VIDEO ASSY P CN107 B CN301 H SIDE A (ANP7341-A) SIDE B BOARD TO BOARD ASSY O S. VIDEO ASSY N IC351 IC352 Q351 P O N www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-709RDS, VSX-609RDS 42 A B C D 1 2 3 4 1 2 3 4 4.8 LARGE SP CONNECTION and LARGE SP ASSYS Q R (ANP7331-B) LARGE SP ASSY R LARGE SP CONNECTION ASSY Q CN784 C SIDE A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 43 VSX-709RDS, VSX-609RDS Mark No. Description Part No. Mark No. Description Part No. 5. PCB PARTS LIST NOTES: •The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. •When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). 560 Ω → 56 × 10 1 → 561 ........................................................ RD1/4PU 5 6 1 J 47k Ω → 47 × 10 3 → 473 ........................................................ RD1/4PU 4 7 3 J 0.5 Ω → R50 ..................................................................................... RN2H R 5 0 K 1 Ω → 1R0 ..................................................................................... RS1P 1 R 0 K Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 5.62k Ω → 562 × 10 1 → 5621 ...................................................... RN1/4PC 5 6 2 1 F Part No. Mark Symbol and Description VSX-709RDS VSX-609RDS Remarks /MYXJIEW, /MYXJIEW, MYXJIGR, MVXJI MYXJIGR, MVXJI NSP COMPLEX ASSY AWK7573 AWK7567 POWER SW ASSY AWX7385 AWX7385 NSP R.ENCODER ASSY AWX7386 AWX7386 MECHA SW ASSY AWX7443 AWX7443 VIDEO&6CH IN ASSY AWX7458 AWX7474 FRONT ASSY AWX7459 AWX7477 FRONT VIDEO ASSY AWX7460 Not used DIGITAL IN ASSY AWX7461 AWX7505 S. VIDEO ASSY AWX7462 Not used BOARD TO BOARD ASSY AWX7463 Not used NSP H.P. ASSY AWX7556 AWX7556 NSP AMP&PS ASSY AWK7574 AWK7568 NSP AMP INPUT ASSY AWX7382 AWX7382 REGULATOR ASSY AWX7467 AWX7467 TRANS2 ASSY AWX7468 AWX7468 NSP TRANS1 ASSY AWX7390 AWX7390 NSP TRANS3 ASSY AWX7392 AWX7392 AMP&PRIMARY ASSY AWX7484 AWX7478 LARGE SP CONNECTION ASSY AWX7504 Not used LARGE SP ASSY AWX7510 Not used D.D & INPUT ASSY AWX7464 AWX7497 CONTRAST OF PCB ASSEMBLIES D.D & INPUT ASSY B AWX7497 and AWX7464 are constructed the same except for the following : Mark Symbol and Description Part No. Remarks AWX7464 AWX7497 CN107 3P CONNECTOR POST B3B-PH-K-S Not used 101, 102 PCB BINDER VEF1040 Not used VIDEO&6CH IN ASSY H AWX7474 and AWX7458 are constructed the same except for the following : Mark Symbol and Description Part No. Remarks AWX7458 AWX7474 R309 RS1/10S101J Not used R313, R316 RS2LMF560J Not used R343, R344 Not used RS1LMF820J CN301 12P SOCKET KP200TA12L Not used www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 44 VSX-709RDS, VSX-609RDS Mark No. Description Part No. Mark No. Description Part No. Mark No. Description Part No. Mark No. Description Part No. AMP INPUT ASSY OTHERS CN290 17P CONNECTOR 52044-1745 CN291 16P SOCKET KP200TA16L D.D & INPUT ASSY SEMICONDUCTORS IC1101 CS4226-KQ(J) IC1301 KM68257EJ-15 IC108 M5216FP IC103 M62446FP IC1001 NJM2100M IC1602–IC1604,IC1701–IC1705 NJM4558MD IC1401 PQ20WZ51 IC102 TC9163AF IC1601 TC9164AF IC101 TC9273F-007 IC104–IC107 UPC4570G2 IC1201 YSS912C Q101, Q102 2SC2412K Q1001, Q1002, Q105–Q112 2SC3326 Q1601–Q1606 2SC3326 Q1003, Q1101, Q1607, Q1608, Q1610 DTA124EK Q1004, Q1102, Q1609 DTC124EK D1601, D1602 1SS181 D103, D105, D106 1SS355 D104 UDZS5.1B D101, D102 UDZS6.8B COILS AND FILTERS L1401 CHIP SOLID INDUCTOR ATL7002 F1101, F1123, F1124, F1203, F1204 DTF1064 F1302, F1601, F1602 CHIP BEAD DTF1064 F101, F111, F112 CHIP BEAD DTF1067 L1101–L1104 QTL1013 CHIP SOLID INDUCTOR CAPACITORS C101–C114, C1207, C1209, C1213 CCSQCH101J50 C1217, C1218, C1221, C1303 CCSQCH101J50 C1640, C1641, C197, C198 CCSQCH101J50 C207, C208 CCSQCH101J50 C211, C212 CCSQCH220J50 C1119 CCSQCH271J50 C1123, C1124 CCSQCH331J50 C1118, C1130, C1639 CCSQCH471J50 C1001, C1002, C121, C1212, C122 CCSRCH101J50 C1223, C123, C126–C128 CCSRCH101J50 PCB PARTS LIST FOR VSX-709RDS UNLESS OTHERWISE NOTED FRONT ASSY K AWX7477 and AWX7459 are constructed the same except for the following : Mark Symbol and Description Part No. Remarks AWX7459 AWX7477 R428 Not used RS1/10S472J R429 RS1/10S0R0J RS1/10S751J AMP&PRIMARY ASSY C AWX7478 and AWX7484 are constructed the same except for the following : Mark Symbol and Description Part No. Remarks AWX7484 AWX7478 C757–C759 Not used CQMBA472J50 C769 CKCYB102K50 Not used R757 Not used RD1/4PU223J R758 Not used RD1/4PU222J CN751 SPEAKER TERMINAL 6-P Not used AKE7020 CN753 PIN JACK 1-P Not used AKB7042 CN784 10P SOCKET KP250NA10 Not used DIGITAL IN ASSY J AWX7505 and AWX7461 are constructed the same except for the following : Mark Symbol and Description Part No. Remarks AWX7461 AWX7505 C1903 CKSQYB104K25 Not used R1903 RS1/10S101J Not used JA1904 OPTICAL LINK OUT GP1F32T Not used B A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 45 VSX-709RDS, VSX-609RDS Mark No. Description Part No. Mark No. Description Part No. C152–C154, C159, C160 CCSRCH101J50 C163, C164 CCSRCH101J50 C1102, C1736 CCSRCH102J50 C1707, C1708, C1721, C1722, C173 CCSRCH151J50 C1735, C174 CCSRCH151J50 C1113, C1114 CCSRCH180J50 C1203, C1204 CCSRCH200J50 C1601, C1602, C1609, C1610, C167 CCSRCH221J50 C1623 CCSRCH271J50 C1103, C1104 CCSRCH390J50 C1101, C1106, C1110, C1210 CCSRCH471J50 C1603, C1604, C1611, C1612 CCSRCH471J50 C130–C137, C146 CEAT100M50 C1116, C1121, C1122, C1201, C1404 CEAT101M10 C157, C175, C176 CEAT101M16 C1112 CEAT1R0M50 C1713, C1714, C1727, C1728 CEAT220M25 C1739, C1740 CEAT220M25 C1005, C1202 CEAT221M6R3 C144, C145, C147–C151, C205 CEAT3R3M50 C117, C118, C161, C162 CEAT470M25 C165, C166, C169 CEAT470M25 C155, C156 CEAT471M10 C1003, C1004, C115, C116, C1401 CEAT4R7M50 C1605, C1606, C1613, C1614 CEAT4R7M50 C1625, C1626, C170, C194, C195 CEAT4R7M50 C201 CEAT4R7M50 C1115 CEATR47M50 C1301 CEJA101M10 C1007, C1008 CEJANP100M10 C1129, C1132, C1206, C1208 CKSQYB103K50 C1215, C1216, C1220, C1302 CKSQYB103K50 C1607, C1608, C1619, C1620 CKSQYB103K50 C1629, C1630, C177–C180, C183 CKSQYB103K50 C186–C193, C199 CKSQYB103K50 C1108 CKSQYB224K16 C140, C143 CKSQYB334K16 C1009, C1111, C1117, C1133, C1219 CKSQYF104Z25 C1224, C1225, C1228, C1229, C1231 CKSQYF104Z25 C1304, C1631, C1632, C209 CKSQYF104Z25 C184, C185 CKSQYF473Z50 C1006, C1128, C1134, C119, C120 CKSRYB103K50 C1205, C1211, C1214, C1222 CKSRYB103K50 C124, C125, C158, C1636, C1637 CKSRYB103K50 C1642, C1709, C171, C1710–C1712 CKSRYB103K50 C172, C1723–C1726, C1737, C1738 CKSRYB103K50 C1705, C1706, C1719, C1720 CKSRYB104K16 C1733, C1734 CKSRYB104K16 C1621 CKSRYB122K50 C168 CKSRYB152K50 C139, C142 CKSRYB153K50 C1615–C1618, C1627, C1703, C1704 CKSRYB222K50 C1717, C1718, C1731 CKSRYB222K50 C1107 CKSRYB223K50 C1701, C1702, C1715, C1716, C1729 CKSRYB682K50 C1732 CKSRYB682K50 C138, C141 CKSRYB822K50 C1105, C1109, C1226, C1227, C1230 CKSRYF104Z16 C1232, C202 CKSRYF104Z16 C1628 CKSRYF104Z50 RESISTORS R1302, R1689 RS1/10S0R0J R211, R212 RS1/10S100J R1206–R1208, R1638–R1640 RS1/10S102J R115–R118, R121, R122 RS1/10S104J R132–R135, R139–R143 RS1/10S104J R157, R158, R163, R164 RS1/10S104J R185, R186, R192, R193 RS1/10S104J R183 RS1/10S122J R144 RS1/10S204J R103, R104, R111, R112 RS1/10S222J R101, R102, R105–R110 RS1/10S331J R113, R114, R129, R130 RS1/10S331J R1211–R1213 RS1/10S472J R138, R1641, R1713, R1714 RS1/10S473J R1727, R1728, R1741, R1742, R182 RS1/10S473J R174, R175 RS1LMF101J Other Resistors RS1/16S&&&J OTHERS CN1501 CONNECTOR 6P 52045-0645 CN104, CN105 13P CONNECTOR 52045-1345 CN106 17P CONNECTOR 52045-1745 CN103 19P CONNECTOR 52045-1945 CN102 32P CONNECTOR 52045-3245 JA101–JA104 PIN JACK(4P) AKB7048 CN107 3P CONNECTOR POST B3B-PH-K-S CN101 19P SOCKET KP200TA19L 101, 102 PCB BINDER VEF1040 X1101 CRYSTAL RESONATOR RSS1052 (18.432MHz) X1201 CRYSTAL RESONATOR VSS1140 (12.288MHz) AMP&PRIMARY ASSY SEMICONDUCTORS IC52 PROTECTOR (315mA) AEK7003 IC603 PROTECTOR (1A) AEK7009 IC51 NJM78M56FA IC601 PAC010A IC602 PAC011A Q703 2SA1145 Q702 2SB1238X Q691, Q692 2SC1740S Q704 2SC1845 Q605, Q606, Q633, Q655, Q656 2SC2240 Q601–Q604, Q631, Q632 2SC2878 Q651–Q654 2SC2878 Q701 2SD1859X Q51 KRC101M D56, D57, D601–D604 1SS133 D631, D632, D651–D654 1SS133 D751–D758 1SS133 D701, D702 D5SBA20(B) D711 MTZJ22D D58 MTZJ5.1A D712 MTZJ5.1B D605, D606, D633, D634 MTZJ8.2A D51–D55 S5688G C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 46 VSX-709RDS, VSX-609RDS Mark No. Description Part No. Mark No. Description Part No. COILS AND FILTERS L751–L753, L761, L762 ATH1004 L52 XTF3001 SWITCHES AND RELAYS RY751–RY754 ASR7001 RY51 JOE LOWPOWER RELAY ASR7013 CAPACITORS C707, C708 (0.01µF/AC250V) ACG1005 C51, C52 (10000pF/AC250V) ACG7020 C701, C702 (4700µF/63V) ACH7134 C703, C704 (3300µF/42V) ACH7135 C607–C610, C634, C635 CCCSL120J50 C657–C660 CCCSL120J50 C613, C614, C637, C663, C664 CCCSL221J50 C615, C616, C638, C665, C666 CEANP2R2M50 C705, C706 CEAT100M2A C712 CEAT101M10 C611, C612, C636, C661, C662 CEAT101M16 C711 CEAT101M35 C53 CEAT102M16 C692 CEAT221M10 C54 CEAT470M25 C605, C606, C633, C655, C656 CEAT4R7M50 C751–C756, C761–C764 CFTYA224J50 C55–C57 CGCYX103M25 C601, C602, C631, C651, C652 CKCYB102K50 C691, C769 CKCYB102K50 C603, C604, C632, C653, C654 CKCYB331K50 C765–C768 CQMBA472J50 RESISTORS R615, R616, R638, R665, R666 ACN7094 (0.22Ω/5W) R52 RD1/2PM270J R751, R752, R755, R761, R762 RD1/4PMF101J R753, R754, R756, R763, R764 RS1LMF4R7J R711 RS2LMF272J Other Resistors RD1/4PU&&&J OTHERS 53 3P CABLE HOLDER 51048-0300 701 7P CABLE HOLDER 51048-0700 CN53 22P CONNECTOR 52045-2245 CN754 SPEAKER TERMINAL 8-P AKE7057 H51, H52 FUSE CLIP AKR7001 T51 STANDBY TRANSFORMER ATT7037 J44 3P JUMPER WIRE D20PYY0325E CN601 16P PLUG KM200TA16 CN784 10P SOCKET KP250NA10 CN51 AC CODE SOCKET RKP1751 KN51, KN601 VNF1084 EARTH METAL FITTING TRANS2 ASSY SEMICONDUCTORS IC851–IC853 PROTECTOR (1.6A) AEK7012 OTHERS 851 7P CABLE HOLDER 51048-0700 TRANS3 ASSY TRANS3 ASSY has no service part. REGULATOR ASSY SEMICONDUCTORS IC803, IC804 NJM78M05FA IC801 NJM78M12FA IC802 NJM79M12FA Q801, Q803, Q805 KRA103M Q802, Q804, Q806 KRC101M D801–D808 S5688G CAPACITORS C808, C811 CEAT101M10 C805, C806 CEAT101M16 C809 CEAT222M16 C801, C802 CEAT222M25 C803, C804, C807, C810 CGCYX103M25 OTHERS CN801 22P CONNECTOR 52045-2245 CN802 19P PLUG KM200TA19 CN803 5P PLUG KM200TA5 TRANS1 ASSY TRANS1 ASSY has no service part. MECHA SW ASSY SWITCHES AND RELAYS S591 ASG7014 CAPACITORS C591, C592 CKSQYF103Z50 OTHERS CN591 52151-0310 VIDEO&6CH IN ASSY SEMICONDUCTORS IC301 NJM2296M IC302, IC303 NJM4558MD Q302 2SA1515 Q303 2SC2878 Q301 2SC3377 D301, D302, D305, D306 1SS355 D303, D304 UDZS6.2B CAPACITORS C319, C320, C327, C328 CCSQCH101J50 C342–C345 CCSQCH101J50 C347 CCSQCH470J50 C307–C310, C312, C314, C338 CEAT470M25 C321, C324, C331, C332 CEAT4R7M50 D E F H GA GB www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 47 VSX-709RDS, VSX-609RDS Mark No. Description Part No. Mark No. Description Part No. C302, C315, C316, C322, C323 CKSQYB103K50 C329, C330 CKSQYB103K50 C346 CKSQYB104K16 C304–C306, C317, C318 CKSQYB221K50 C325, C326 CKSQYB221K50 C333 CKSQYB331K50 C311, C313 CKSQYB473K50 RESISTORS R313, R316 RS2LMF560J Other Resistors RS1/10S&&&J OTHERS CN303 13P CONNECTOR 52044-1345 CN307 PIN JACK(4P) AKB7087 CN305 6P PIN JACK AKB7123 CN301 12P SOCKET KP200TA12L CN302 5P SOCKET KP200TA5L JA301 JACK RKN1004 H.P. ASSY SEMICONDUCTORS Q551, Q552 2SC2878 CAPACITORS C553 CCSQCH471J50 C552 CKSQYB103K50 C551 CKSQYB104K16 C555, C556 CKSQYB223K50 RESISTORS R551, R552 RS1/2LMF121J Other Resistors RS1/10S&&&J OTHERS 551 CABLE HOLDER(4P) 51063-0405 JA551 JACK RKN1002 DIGITAL IN ASSY SEMICONDUCTORS IC1901 TC74ACT151F IC1902 TC74HCU04AF COILS AND FILTERS F1901–F1904 CHIP BEAD DTF1067 CAPACITORS C1917 CCSQCH220J50 C1918 CCSQCH221J50 C1907, C1914 CCSQCH271J50 C1916 CCSQCH471J50 C1911 CCSQCH560J50 C1904, C1905, C1912 CEAT101M10 C1915 CKSQYB102K50 C1906, C1910, C1913, C1919, C1920 CKSQYB103K50 C1922 CKSQYB103K50 C1901–C1903, C1908, C1909, C1921 CKSQYB104K25 RESISTORS All Resistors RS1/10S&&&J OTHERS CN1901 CONNECTOR 6P 52045-0645 JA1902,JA1903 GP1F32R OPTICAL RECEIV MOD. JA1904 OPTICAL LINK OUT GP1F32T JA1901 JACK VKB1077 FRONT ASSY SEMICONDUCTORS IC481 BU1923F IC401 PDG247B Q481 2SA1515 Q405 2SA933S Q483 2SC1740S Q401, Q402, Q442, Q471 KRA103M Q403, Q441, Q482 KRC101M D407, D408, D442 1SS355 D403, D405 DAN217 D401, D404 DAP202K COILS AND FILTERS L401, L481 LFEA2R2J SWITCHES AND RELAYS S451–S477 XSG3001 CAPACITORS C404 (0.047F/5.5V) ACH7017 C420 (220µF/35V) ACH7101 C489, C490 CCSQCH270J50 C483, C487 CEAT101M10 C486 CEAT1R0M50 C402, C405 CEAT221M6R3 C409, C410, C484 CEAT2R2M50 C412 CEAT470M50 C442 CEJA470M10 C451–C454, C481, C482, C495 CKSQYB102K50 C401, C403, C411, C441, C531 CKSQYB103K50 C408, C416, C418, C491–C494 CKSQYB104K16 C532 CKSQYB223K25 C485 CKSQYB472K50 C406, C407 CKSQYB473K16 C488 CKSQYB561K50 RESISTORS All Resistors RS1/10S&&&J OTHERS 491 CABLE HOLDER(3P) 51063-0305 403, 471 CABLE HOLDER(4P) 51063-0405 CN401 19P CONNECTOR 52044-1945 CN402 32P CONNECTOR 52044-3245 V401 FL TUBE AAV7072 X481 CRYSTAL RESONATOR ASS7004 (4.332MHz) X401 CERAMIC RESONATOR ASS7018 (7.2MHz) 401 REMOTE RECEIVER UNIT GP1U27X I J K www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 48 VSX-709RDS, VSX-609RDS Mark No. Description Part No. Mark No. Description Part No. 6. ADJUSTMENT There is no information to be shown in this chapter. R.ENCODER ASSY SWITCHES AND RELAYS S511 ASX7004 OTHERS 511 CABLE HOLDER(3P) 51063-0305 POWER SW ASSY SEMICONDUCTORS D501 BR3371XJ30A SWITCHES AND RELAYS S501 XSG3001 RESISTORS All Resistors RS1/10S&&&J OTHERS 501 CABLE HOLDER(4P) 51063-0405 S. VIDEO ASSY SEMICONDUCTORS IC351, IC352 NJM2296M D351–D354 1SS355 CAPACITORS C375, C376 CCSQCH470J50 C352, C355, C358, C361–C363 CEAT470M25 C366 CEAT470M25 C372, C373 CKSQYB103K50 C353, C356, C359, C360 CKSQYB104K25 C364, C365, C368–C371 CKSQYB221K50 RESISTORS All Resistors RS1/10S&&&J OTHERS CN353 MINI DIN SOCKET 2P AKP7020 CN352 MINI DIN SOCKET 3P AKP7043 CN354 CONNECTOR POST B5B-PH-K-S CN351 12P SOCKET KP200TA12L BOARD TO BOARD ASSY OTHERS CN390, CN391 12P PLUG KM200TA12 FRONT VIDEO ASSY CAPACITORS C903, C905 CEAT470M25 C908, C911, C914 CKSQYB103K50 C904, C906, C909, C912 CKSQYB104K25 C901, C902 CKSQYB221K50 C907, C910, C913 CKSQYB471K50 M L N O P RESISTORS All Resistors RS1/10S&&&J OTHERS CN902 PIN JACK(4P) AKX7007 KN901 EARTH METAL FITTING VNF1084 LARGE SP CONNECTION ASSY OTHERS CN785, CN786 10P PLUG KM250NA10L LARGE SP ASSY CAPACITORS C781–C783 CQMBA472J50 RESISTORS All Resistors RD1/4PU&&&J OTHERS CN782 PIN JACK 1P AKB7042 CN781 SPEAKER TERMINAL 6P AKE7056 CN783 10P SOCKET KP250NA10 Q R www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 49 VSX-709RDS, VSX-609RDS 2 ×2 Remove the Bonnet (seven screws). 1 Rear Panel Pull up 2 2 4 Diagnosis AMP&PRIMARY Assy REGULATOR Assy Heat Sink 5 ×2 2 ×3 2 ×5 3 ×3 ×2 2 ×3 7.1 DISASSEMBLY 7. GENERAL INFORMATION Diagnosis PCB Location AMP&PRIMARY Assy FRONT Assy FRONT VIDEO Assy AMP INPUT Assy D.D & INPUT Assy VIDEO&6CH IN Assy FM/AM TUNER Unit REGULATOR Assy DIGITAL IN Assy H.P. Assy TRANS 3 Assy TRANS 2 Assy TRANS 1 Assy P R. ENCODER Assy L A B H LARGE SP Assy R S.VIDEO Assy N F K J I E GA D C POWER SW Assy M MECHA SW Assy GB Note : This photograph shows other models. However, the work method is the same. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 50 VSX-709RDS, VSX-609RDS PDG247A (FRONT ASSY : IC401) • System Control MCU • Pin Arrangement (Top View) • The information shown in the list is basic information and may not correspond exactly to that shown in the schematic diagrams. 7.2 PARTS 7.2.1 IC 1 G2 G1 NC ACIN RDS_DT RDS_CK OVFB RMC MRIN PLL_CE CDC_CS CDC_CK CDC_DO CDC_DI STEREO TUNED ENC_A ENC_B A.MUTE CSB DSP_CS DSP_CK DSP_SI DSP_SO VER_2 ST_EVR PLL_DO KEYIN1 KEYIN2 G1/A1 G0/A0 NC PE0/EC0/INT0 PE1/EC1/INT1 PE2/INT2 PE3/INT3/NMI PE4/RMC PE5 PE6/PWM PE7/TO/ADJ PC0/KR0 PC1/KR1 PC2/KR2 PC3/KR3 PC4/KR4 PC5/KR5 PC6/KR6 PC7/KR7 PB0/CINT PB1/CS0 PB2/SCK0 PB3/SI0 PB4/SO0 PB5/SCK1 PB6/SI1 PB7/SO1 AVREF PA1/AN0 PA1/AN1 KEYIN3 KEYIN4 VERSION AMP_DC AMP_OL MVRATT VIDEO1 VIDEO2 VIDEO3 SYS_CK SYS_DT PA2/AN2 PA3/AN3 PA4/AN4 PA5/AN5 PA6/AN6 PA7/AN7 AVSS RST EXTAL XTAL VSS TX TEX VDD VFIP PD0/A55 PD1/A54 PD2/A53 PD3/A52 PD4/A51 A21 A22 A23 PH7/A24 PH6/A25 PH5/A26 PH4/A27 PH3/A28 PH2/A29 PH1/A30 PH0/A31 PG7/A32 PG6/A33 PG5/A34 PG4/A35 PG3/A36 PG2/A37 PG1/A38 PG0/A39 PF7/A40 PF6/A41 PF5/A42 PF4/A43 PF3/A44 PF2/A45 PF1/A46 PF0/A47 PD7/A48 PD6/A49 PD5/A50 S11 S12 S13 S14 S15 S16 S17 S18 S19 S20 S21 S22 RY_B RY_C/R RY_A RY_AC GAIN NECK DSP_RST 9164_CS T_MUTE T_POWON FM+(RDS) CDC_RST DSP_MT 9273_CS D_MUTE G2/A2 G3/A3 G4/A4 G5/A5 G6/A6 G7/A7 G8/A8 G9/A9 G10/A10 G11/A11 G12/A12 VDD G13/A13 G14/A14 G15/A15 A16 A17 A18 A19 A20 G3 G4 G5 G6 G7 G8 G9 G10 S1 S2 S3 S4 S5 S6 S7 S8 S9 S10 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 100 99 98 97 96 95 94 93 92 91 90 89 88 87 86 85 84 83 82 81 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 21 22 23 24 25 26 27 28 29 30 80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 60 59 58 57 56 55 54 53 52 51 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 51 VSX-709RDS, VSX-609RDS No. Pin Name I/O Pin Function Active 1 G2 O Grid output 2 H 2 G1 O Grid output 1 H 3 NC − Connect to VDD 4 ACIN I AC pulse input 5 RDS_DT I Serial control DATA signal of RDS communication 6 RDS_CK I Serial control CLOCK signal of RDS communication 7 DIRLOCK I ERR/OVER input from CODEC 8 RMC I Remote control signal input (no-carrier signal) 9 MRIN I MULTI-ROOM input 10 PLL_CE O Chip select signal for communication with LC72131 (tuner) H 11 CDC_CS O CODEC chip serect 12 CDC_CK O CODEC, TC9164 control clock 13 CDC_DO O CODEC, TC9164 control data output 14 CDC_DI I Data input from CODEC 15 STEREO I Stereo/Monoral signal judgment signal 16 TUNED I TUNED information 17 ENC_A I Rotary encoder signal input A 18 ENC_B I Rotary encoder signal input B 19 AMUTE O Audio mute L 20 CSB O Chip select for control of YSS912 sub DSP L 21 DSP_CS O Chip select for control of YSS912 main DSP L 22 DSP_CK O Clock signal for communication with YSS912 H 23 DSP_SI I DATA input for communication with YSS912 24 DSP_SO O DATA output signal for communication with YSS912 H 25 VER_2 I Destination switch 2 26 ST_EVR O Strobe signal for communication with electric volume IC H 27 PLL_DO I Data input signal for communication with LC72131 (tuner) 28 AVref − Connect to VDD 29 KEYIN1 I Key input A/D conversion port 1 30 KEYIN2 I Key input A/D conversion port 2 31 KEYIN3 I Key input A/D conversion port 3 32 KEYIN4 I Key input A/D conversion port 4 33 VER 1 I Destination switch (A/D input) 34 AMP_DC I DC abnormality detection of protection circuit (L : Abnormality detection) L 35 AMP_OL I Over-load detection of protection circuit (L : Abnormality detection) L 36 MVRATT O ATT control of master volume (L : Less than -15dB) H 37 AVSS − Connect to VSS 38 RST − Reset 39 EXTAL − Connect to the oscillator (7.2MHz) 40 XTAL − 41 VSS − Connect to VSS 42 TX − Open 43 TEX − Connect to VSS 44 VDD − +5V 45 VFDP − -30V 46 VIDEO1 O NJM2296D control H 47 VIDEO2 48 VIDEO3 49 SYS_DT O Data signal for communication with M62446, TC9163, TC9164 and PLL H O Clock signal for communication with M62446, TC9163, TC9164 and PLL H 50 SYS_CK • Pin Function www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 52 VSX-709RDS, VSX-609RDS No. Pin Name I/O Pin Function Active 51 D_MUTE O TC9273 Chip select O Digital mute (Not used) O DSP mute (ASSY mute) H H H 52 9273_CS 53 DSP_MT 54 CDC_RST O CODEC reset H 55 FM+(RDS) O Tr switch ON/OFF for power supply of RDS decoder (L : AM, power OFF , H : Other) H 56 O Not used 57 T_POWON O Tuner module ON/OFF (North America model only) H 58 T_MUTE O Tuner mute H 59 9164 CS O TC9163, TC9164 Chip select H 60 DSP_RST O YSS912 reset 61 NECK_SEL O 5.1ch, surround mode and A+B Stereo : H / Stereo : L H/L 62 GAIN_SEL O Gain select (5.1ch and Stereo of analog input : H ) H 63 O Not used H 64 RY_AC O AC relay ON/OFF H 65 RY_A O Speaker A relay ON/OFF H 66 RY_C/R O Rear/Center Speaker relay ON/OFF H 67 O Not used H 68 O Not used H 69 S22 O Segment output 22 H 70 S21 Segment output 21 71 S20 Segment output 20 72 S19 Segment output 19 73 S18 Segment output 18 74 S17 Segment output 17 75 S16 Segment output 16 76 S15 Segment output 15 77 S14 Segment output 14 78 S13 Segment output 13 79 S12 Segment output 12 80 S11 Segment output 11 81 S10 Segment output 10 82 S9 Segment output 9 H 83 S8 Segment output 8 84 S7 Segment output 7 85 S6 Segment output 6 86 S5 Segment output 5 87 S4 Segment output 4 88 S3 Segment output 3 89 VDD − 5V 90 S2 O O Segment output 2 H 91 S1 Segment output 1 92 Not used (Fixed Vfdp) 93 G10 Grid output 10 94 G9 Grid output 9 95 G8 Grid output 8 96 G7 Grid output 7 97 G6 Grid output 6 98 G5 Grid output 5 99 G4 Grid output 4 100 G3 Grid output 3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 53 VSX-709RDS, VSX-609RDS OUT4 OUT3 OUT2 OUT1 AVDD SWin GNDS SRin 1 2 3 4 5 6 7 8 SLin GNDC Cin GNDR Rin GNDL Lin BYPASSR 9 10 11 12 13 14 15 16 BYPASSR LTRE LBASS3 LBASS2 LBASS1 17 18 19 20 21 MCU I/F DVDD CLK DATA LATCH DGND AGND SWout Volume 17-24kΩ SRout 42 41 40 39 38 37 36 35 SLout Cout Rout Lout AVSS CL1 CL2 CR1 34 33 32 31 30 29 28 27 CR2 RTRE RBASS3 RBASS2 RBASS1 26 25 24 23 22 Volume 17-24kΩ Volume 17-24kΩ Volume 17-24kΩ Volume 17-24kΩ 70kΩ 70kΩ Volume 17-24kΩ S T 70kΩ 70kΩ 70kΩ 12kΩ 12kΩ 300kΩ 1.5kΩ S T 70kΩ 12kΩ 12kΩ 300kΩ 1.5kΩ M62446FP (D.D & INPUT ASSY : IC103) • Sound Controller IC (Volume and Tone Control) • Pin Function • Block Diagram No. Pin Name Function 1 OUT4 2 OUT3 Output port (open drain of PchTr) 3 OUT2 4 OUT1 5 AVDD Analog positive power supply port 7 GNDS 10 GNDC GND (connect to analog ground) 12 GNDR 14 GNDL 6 SWin 8 SRin Volume input 9 SLin 11 Cin 36 SWout 35 SRout Volume output 34 SLout 33 Cout 13 Rin TONE input 15 Lin 16 BYPASSR L and R Volume input at bypass 17 BYPASSL 31 Lout L output 32 Rout R output No. Pin Name Function 18 LTRE TONE TREBLE frequency control port 25 RTRE 19 LBASS3 24 RBASS3 20 LBASS2 TONE BASS frequency control port 23 RBASS2 21 LBASS1 22 RBASS1 26 CR2 TONE output port 28 CL2 27 CR1 L and R volume input 29 CL1 31 Lout L output 32 Rout R output 30 AVSS Analog negative power supply port 37 AGND Analog ground port 38 DGND Digital ground port 39 LATCH Latch input port 40 DATA Data input port 41 CLK Clock input port for data transmission 42 DVDD Digital power supply port www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 54 VSX-709RDS, VSX-609RDS W24257AJ-12 (D.D & INPUT ASSY : IC1301) • 32K × 8 High-Speed CMOS Static RAM • Block Diagram • Pin Function VDD DSS A0 A14 28 14 10 1 20 22 27 I/O8 19 I/O1 11 CS OE WE DECORER DATA I/O CORE ARRAY CONTROL No. Pin Name Function 1 A14 2 A12 3 A7 4 A6 5 A5 6 A4 7 A3 8 A2 Addres Inputs 9 A1 10 A0 21 A10 23 A11 24 A9 25 A8 26 A13 11 I/O1 12 I/O2 13 I/O3 15 I/O4 Data Inputs/Outputs 16 I/O5 17 I/O6 18 I/O7 19 I/O8 14 Vss Ground 20 CS Chip Select Input 22 OE Output Enable Input 27 WE Write Enable Input 28 Vdd Power Supply TC9273F-007 (D.D & INPUT ASSY : IC101) • Analog Switch Array • Block Diagram • Pin Function VDD DSS S1 28 1 CK GND 14 13 STB DATA 16 15 2 S2 3 S3 4 S4 5 S5 6 S6 7 S7 8 S8 9 S9 10 Level Shift + Shift Register Circuit (L-ch) 10 bit Latch Circuit (R-ch) 10 bit Latch Circuit S10 11 S11 S1 S2 S3 S4 S5 S6 S7 S8 S9 S10 S11 12 27 26 25 24 23 22 21 20 19 18 17 No. Pin Name Function 1 VSS Minus Power Supply 2, 27 S1 3, 26 S2 4, 25 S3 5, 24 S4 6, 23 S5 7, 22 S6 Input and Output 8, 21 S7 9, 20 S8 10, 19 S9 21, 18 S10 26, 17 S11 13 GND Digital Ground 14 CK Clock Input 15 DATA Data Input 16 STB Strobe Input 28 VDD Plus Power Supply www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 55 VSX-709RDS, VSX-609RDS AAV7072 (FRONT ASSY : V401) • FL DISPLAY 7.2.2 DISPLAY • Pin Assignment • Pin Connection • Grid Assignment www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 56 VSX-709RDS, VSX-609RDS • Anode Connection www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 57 VSX-709RDS, VSX-609RDS 8.1 PANEL FACILITIES 8. PANEL FACILITIES AND SPECIFICATIONS Front Panel This illustration shows the VSX-709RDS model. 1 — OFF/ _ ON (Main power) button If the button is OFF (—), the power of the receiver is shut off and the STANDBY/ON button (3) on the receiver or the remote control do not function. Pressing the button again will turn the receiver ON (_) and the receiver enters the standby mode. In the standby mode, you can turn on the receiver using the STANDBY/ON button (3) on the receiver or the remote control. 2 STANDBY indicator Lights when the receiver is in standby mode (note that the receiver consumes a small amount of power (1 W) in standby mode). 3 STANDBY/ON button Switches the receiver between on and standby (note that the receiver consumes a small amount of power (1 W) in standby mode). 4 TUNING SELECT button Switches between station memory and frequency select modes. STATION (+/–) buttons Selects station memories when using the tuner. FREQUENCY (+/–) buttons Selects the frequency when using the tuner. 5 CLASS button Switches between the three banks (classes) of station memories. 6 MEMORY button Press to memorize a station for recall using the STATION (+/–) buttons. 7 RF ATT button Use to lower the input level of a radio signal that is too powerful or contain interference thus causing the receiver to distort 8 CHARACTER/SEARCH button Use to search for different program types in RDS mode. It is also used to input station names. 9� DIRECT button Use to switch Direct playback on or off. This mode bypasses the tone controls and channel levels for the most accurate reproduction of a program source. 0 BASS (+/–) buttons Use to increase/decrease bass (within a range of – 6 dB to 6 dB in 2 dB steps). - Display = TREBLE (+/–) buttons Use to increase/decrease treble (within a range of – 6 dB to 6 dB in 2 dB steps). ~ MIDNIGHT button Use when listening to movie soundtracks at low volume. This feature will enable you to hear quiet sounds and not get jolted by loud or sudden sound effects. !� Remote sensor (Î) Receives the signals from the remote control. @ DSP MODE button Use to switch between the various DSP modes available (HALL1, HALL 2, JAZZ, DANCE, THEATER1, THEATER 2) and DSP off. Use to create different surround sound effects from any stereo source. # 2 /DTS button Use to switch between the various Dolby/DTS surround modes. $ SIGNAL SELECT button Use to select between an analog or digital signal. % MASTER VOLUME Use to set the overall listening volume. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 58 VSX-709RDS, VSX-609RDS dB PRO LOGIC DIGITAL DSP ATT SIGNAL SELECT MIDNIGHT LOUDNESS DIRECT S.BASS MONITOR EON RDS RF ATT TUNED MONO ANALOG DIGITAL DIGITAL DTS SP AB STEREO � Display ^ PHONES jack Use to connect headphones but this does not switch the speakers off. & EON MODE button Use to search for different programs that are transmitting traffic or news information (this search method is called EON). *�� SPEAKERS button Use to switch the speaker system A = B = A+B = off. (�� Function buttons Use to select a source for playback or recording. ) MONITOR button Press to switch tape monitoring on/off. _ VIDEO INPUT jacks (VSX-709RDS only) Connect a video camera, video game system, etc. to the VIDEO INPUT jacks. 1 indicator Lights when DTS mode is being used. 2 2 PRO LOGIC indicator When the 2(Dolby)/DTS mode of the receiver is on, this lights to indicate playback of a two channel source. 3 DSP indicator Lights when any Advanced Theater or DSP mode is selected. 4 MIDNIGHT indicator Lights when Midnight listening mode is in use. 5 DIRECT indicator Lights when Direct playback is ON. This function bypasses all tone, balance, DSP and Dolby Surround effects. 6� MONITOR indicator Lights when MONITOR is selected to hear a recording as it’s being made. 7 Tuner indicators MONO: Lights when the mono mode is set using the MPX button. TUNED: Lights when a broadcast is being received. STEREO: Lights when a stereo FM broadcast is being received in Auto stereo mode. 8 EON indicator The box around EON indicator lights to inform you that the currently tuned station carries the EON data service. When the EON mode is set, the EON indicator ligh†s, but during actual reception of an EON broadcast the EON indicator will flash. An empty box in the EON indicator spot means it is possible to pick up an EON broadcast but the receiver has not been set to do so (this will only appear when RDS is switched on). 9 RDS indicator Lights when an RDS broadcast is received. 0 RF ATT indicator Lights when the RF ATT is on. - SIGNAL SELECT indicators Light to indicate the type of input signal assigned for the current component (see “Front Panel“, $, SIGNAL SELECT). ANALOG : Lights when an analog signal is selected. DIGITAL : Lights when a digital audio signal is selected. 2 DIGITAL : Lights when a Dolby Digital signal is played. DTS: Lights when a source with DTS audio signals is played. = 2 DIGITAL indicator When the 2(Dolby)/DTS mode of the receiver is on, this lights to indicate playback of a Dolby Digital signal. However 2 PRO LOGIC lights during 2 channel playback of Dolby Digital. ~ Character display Shows the radio frequency or function (DVD/LD, CD, etc.) receiver is using . ! ÷ (Overload) indicator This lights when an analog signal is too strong (the SIGNAL SELECT needs to be on ANALOG). It indicates the sound is distorting and the signal should be reduced. @ ATT indicator Lights when ATT is used to attenuate (reduce) the level of the input signal (can only be used in ANALOG mode). # LOUDNESS indicator Lights when the LOUDNESS, used to boost the bass and treble in quiet listening, is on. $ SP 3 AB (Speakers) indicator Shows if the speaker system is on or not. SP 3A and/or B means speakers are switched on. SP 3� means speakers are switched off. % Master volume level display Shows the overall volume level. Volume level is maintained even when the power is off. – – – dB indicates the minimum level, and 0 dB indicates the maximum level. • Depending on the level settings you make for individual channels, the MAX level can range between –10 dB and 0 dB. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 59 VSX-709RDS, VSX-609RDS Remote Control (VSX-709RDS) 1 SOURCE button Use to turn on/off other components connected to the receiver. 2 MULTI CONTROL buttons Use to put the receiver/remote control in the stated mode. For other equipment controls, see Controlling the Rest of Your System. 3 RCV button Use this button when setting up the surround sound for the receiver. 4 Number/Mode buttons Use the number buttons to select the radio frequency in tuner Direct access mode or the tracks in CD, DVD mode etc. Also, buttons marked with the following names have special functions. If you try to use one of these functions but the display flashes it means that function cannot be used in the current mode (for example DSP modes cannot be used when 5.1 CH setting is on). MIDNIGHT Use to put receiver in Midnight mode. To use first press the RCV button then operate this button. 5.1 CH When the DVD/LD or DVD 5.1 CH function is selected each press switches the DVD/LD input between DVD/LD and DVD 5.1 CH. To use first press the RCV button then operate this button. ATT Use to attenunate (lower) the level of an analog input signal and prevent distortion. To use first press the RCV button then operate this button. SIGNAL SELECT Use to select the proper signal (analog, digital) for the source you are inputting. To use first press the RCV button then operate this button. EFFECT +/– buttons Use to adjust the amount of effect in different DSP sound modes or advanced listening modes. To use, first press the RCV button then operate this button. 5 TV CONTROL buttons The following five sets of buttons are dedicated TV controls. TV VOL +/– buttons Use to adjust the volume on your TV. TV button Use to turn on the power of the TV. TV FUNC button Use select the TV function. 6 2�3�5∞ ( FQ +/–, ST +/–) & ENTER buttons Use these arrow buttons when setting up your surround sound system (see pages 15 – 20). These buttons are also used to control DVD menus/options. The FQ +/– buttons can be used to find radio frequencies. The ST +/– buttons can be used to select the stations of memorized radio frequencies. 7 8� button Use to pause other components. Î� SOURCE DISC MIDNIGHT SIGNAL SELECT TV CONTROL TV VOL TVFUNC TV MENU ENTER D.ACCESS BAND CLASS CH SELECT CH LEVEL AV PRE-PROGRAMMED AND LEARNING REMOTE CONTROL UNIT DSP TEST TONE FL DIMMER LOUDNESS FUNCTION SETUP MUTING MPX DISPLAY RF ATT FQ FQ ST ST CHANNEL EFFECT MASTER VOLUME +10 5.1CH MULTI CONTROL ATT DVD TV VCR CD-R RCV CD TUN TVC RECEIVER 1 2 3 4 5 6 7 8 9 7� 4� ¢� 3� 1� ¡� 0 8 2 1 = ~ ! @ 8 9 0 4 6 2 3 - 7 _ ¡� $ ™� £� % * ( ) ^ & ∞� + # 5 ¢� www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 60 VSX-709RDS, VSX-609RDS _� 4� button (DISPLAY) Use to skip backward tracks on CD players etc. Also use to display the RDS information. + TEST TONE Use to sound the TEST TONE when setting up the surround sound of the receiver. To use, first press the RCV button, then operate this button. ¡ FL DIMMER button Use to make the fluorescent display (FL) dimmer or brighter. There are three brightness settings as well as an off setting. ™ SETUP button Use this button when setting up the remote control to control other components. £ MUTING button Use to mute the sound or restore the sound if it has been muted. ¢ MENU button Use to access different menus associated with your DVD player. ∞ CHANNEL +/– buttons Use to change channels on your TV. 8 1� button (BAND) Use to fast reverse search on CD etc. Also use to switch between the AM and FM band when in TUNER mode. 9� 3 button (D. ACCESS) Use to play other components. Also use to directly access a radio station by pressing the number of the station you want. 0� 7 button (MPX) Use to stop other components. Also use to switch between auto stereo and mono reception of FM broadcasts. If the signal is weak then switching to MONO will improve the sound quality. - 2 button Use to put receiver in Dolby Digital, Dolby Surround and DTS modes. To use first press the RCV button then operate this button. = DSP button Use to put receiver in one of the DSP modes. To use first press the RCV button then operate this button. ~ CH SELECT Use to select a speaker when setting up the surround sound of the receiver. To use, first press the RCV button, then operate this button. ! LOUDNESS button Use to switch on the loudness. This feature is useful for getting good bass and treble sounds listening at low volumes. @� FUNCTION button Use to select the playback or recording source. This button lets you cycle through the different functions of the receiver in the following order: CD, tuner (FM/AM), AUX, CD-R/ TAPE/MD, VCR/DVR, DVD/LD, VIDEO and TV/SAT. # CH LEVEL +/– buttons Use to adjust the output level of the selected channel(s). $ LED display This display flashes when a command is sent from the remote control to the receiver. It also flashes at other times, for example, when teaching the receiver preset codes. % RECEIVER button This switches the receiver between STANDBY mode and power ON. ^ DISC button Only used when controlling other components. &� MASTER VOLUME +/– buttons Use to set the overall listening volume. * ¶� button Use to record with other components. ( ¡� button (CLASS) Use to fast forward search on CDs etc. Also use the CLASS feature to switch between the three banks (classes) of station memories. ) ¢� button (RF ATT) Use to skip forward tracks on CD players etc. Also use to lower the input level of a radio signal. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 61 VSX-709RDS, VSX-609RDS Remote Control (VSX-609RDS) 1 MULTI CONTROL buttons Use to put the receiver/remote control in the stated mode. For other equipment controls, see Controlling the Rest of Your System. 2 RECEIVER button Use this button when setting up the surround sound for the receiver. 3 Number/Mode buttons Use the number buttons to select the radio frequency in tuner Direct access mode or the tracks in CD, DVD mode etc. Also, buttons marked with the following names have special functions. If you try to use one of these functions but the display flashes it means that function cannot be used in the current mode (for example DSP modes cannot be used when 5.1 CH setting is on). 2 Use to put receiver in Dolby Digital, Dolby Surround and DTS modes. To use first press the RECEIVER button then operate this button. DSP MODE Use to put receiver in one of the DSP modes. To use first press the RECEIVER button then operate this button. MIDNIGHT Use to put receiver in Midnight mode. To use, first press the RECEIVER button, then operate this button. 5.1 CH When the DVD/LD or DVD 5.1 CH function is selected each press switches the DVD/LD input between DVD/LD and DVD 5.1 CH. To use, first press the RECEIVER button, then operate this button. CHANNEL SELECT Use to select a speaker when setting up the surround sound of the receiver. To use, first press the RECEIVER button, then operate this button. TEST TONE Use to sound the TEST TONE when setting up the surround sound of the receiver. To use, first press the RECEIVER button, then operate this button. ATT Use to attenunate (lower) the level of an analog input signal and prevent distortion. To use, first press the RECEIVER button, then operate this button. CHANNEL LEVEL +/– Use to set up the levels of the surround sound of the receiver. To use, first press the RECEIVER button, then operate this button. SIGNAL SELECT Use to select the proper signal (analog, digital) for the source your are inputting. To use, first press the RECEIVER button, then operate this button. MULTI CONTROL DVD/LD TV/SAT VCR/DVR CD SOURCE CLASS MPX BAND LOUDNESS FUNCTION MUTING RECEIVER D.ACCESS ATT VOL MENU TOP MENU VOL CH 2 DSP MODE MIDNIGHT 5.1CH CD-R/ TAPE/MD CHANNEL SELECT CHANNEL LEVEL EFFECT ENTER FQ FQ ST ST FL DIMMER REMOTE SETUP MASTER VOLUME AUDIO/VIDEO PRE-PROGRAMMED REMOTE CONTROL UNIT TV CONTROL FUNC 10 DISC SIGNAL SELECT TEST TONE RECEIVER TUNER TV CONT Î� 1 2 3 4 1� ¡� 4� ¢� 7� 8� 3 5 6 7 8 9 0 CHANNEL DISPLAY RF ATT 2 6 8 5 1 3 0 9 - = ! @ ~ # % $ ^ 7 4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 62 VSX-709RDS, VSX-609RDS = LED display This display flashes when a command is sent from the remote control to the receiver. It also flashes at other times, for example when teaching the receiver preset codes. ~ EFFECT +/– buttons Use to adjust the amount of effect in different DSP sound modes or advanced listening modes. ! 2�3�5∞ ( FQ +/–, ST +/–) & ENTER buttons Use these arrow buttons when setting up your surround sound system (see pages 15 – 20). These buttons are also used to control DVD menus/options and for deck 1 of a double cassette deck player. The FQ +/– buttons can be used to find radio frequencies. The ST +/– buttons can be used to select the stations of memorized radio frequencies. @ TOP MENU button In DVD mode this button brings you to the top or most fundamental menu. # CHANNEL +/– buttons (4/DISPLAY, ¢/RF ATT) Use to select the stations of memorized radio frequencies. Also use to skip tracks backward or forward on CDs, DVDs, etc. Also use to display the RDS information (DISPLAY) and use to lower the input level of a radio signal (RF ATT). $ MUTING button Use to mute the sound or restore the sound if it has been muted. % MASTER VOLUME +/– buttons Use to set the overall listening volume. ^ REMOTE SETUP button Use this button when setting up the remote control to control other components. 4 TV CONTROL buttons The following four sets of buttons are dedicated TV controls. FUNC button Use to select the TV function. button Use to turn on the power of the TV. CH +/– buttons Use to change channels on your TV. VOL +/– buttons Use to adjust the volume on your TV. 5 MENU button Use to access different menus associated with your DVD player. 6� SOURCE button Use to turn on/off other components connected to the receiver. 7 The following buttons are both controls for other components (like a DVD player) and dedicated tuner controls. The tuner controls are explained here. You can use them after you have pushed the TUNER MULTI CONTROL button. CLASS button Use to switch between the three banks (classes) of station memories. MPX button Use to switch between auto stereo and mono reception of FM broadcasts. If the signal is weak then switching to MONO will improve the sound quality. Also, this is the pause button for CDs, tapes, DVDs, etc. BAND button Use to switch between the AM and FM band when in TUNER mode. D. ACCESS button Use to directly access a radio station by pressing the number of the station you want. 8 LOUDNESS button Use to switch on the loudness. This feature is useful for getting good bass and treble sounds listening at low volumes. 9� FUNCTION button Use to select the playback or recording source. This button lets you cycle through the different functions of the receiver in the following order: CD, tuner (FM/AM), AUX, CDR/ TAPE/MD, VCR/DVR, DVD/LD, DVD 5.1 CH., and TV/SAT. 0 RECEIVER button This switches the receiver between STANDBY mode and power ON. - FL DIMMER button Use this button to make the fluorescent display (FL) dimmer or brighter. There are three brightness settings as well as an off setting. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 63 VSX-709RDS, VSX-609RDS 7 Audio cords Use audio cords (not supplied) to connect the audio components. Cassette deck placement Cassette deck placement Depending on where the cassette deck is placed, noise may occur during playback of your cassette deck which is caused by leakage flux from the transformer in the receiver. If you experience noise, move the cassette deck farther away from the receiver. Connect red plugs to R (right) and white plugs to L (left). Be sure to insert completely. L R Audio Components To begin set up connect your audio components to the jacks as shown below. These are all analog connections and your analog audio components (cassette deck etc.) use these jacks. Remember that for components you want to record with you need to hook up four plugs (a set of stereo ins and a set of stereo outs), but for components that only play you only need to hook up one set of stereo plugs (two plugs). To use Digital sources features you must hook up your digital components to the digital inputs, but it is also a good idea to hook up your digital components to analog audio jacks. If you want to record to/from digital components (like an MD) to/from analog components you must hook up your digital equipment with these analog connections. • Only the VSX-709RDS has S-video jacks and optical digital out jack. • The arrows indicate the direction of the audio signal. REC PLAY L R L R OUTPUT CD player CD-R or Cassette deck or MD recorder VSX-709RDS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 64 VSX-709RDS, VSX-609RDS 8.2 SPECIFICATIONS Sensitivity (DIN) ...................................... Mono: 1.1 µV (S/N 26 dB) Stereo: 50 µV (S/N 46 dB) Signal-to-Noise Ratio ................................. Mono: 76 dB (at 85 dBf) Stereo: 72 dB (at 85 dBf) Signal-to-Noise Ratio (DIN) ......................................... Mono: 62 dB Stereo: 58 dB Distortion ........................................................ Stereo: 0.6 % (1 kHz) Alternate Channel Selectivity ................................. 70 dB (400 kHz) Stereo Separation ...................................................... 40 dB (1 kHz) Frequency Response ................................. 30 Hz to 15 kHz (± 1dB) Antenna Input ........................................................ 75 Ω unbalanced AM Tuner Section Frequency Range ........................................... 531 kHz to 1,602 kHz Sensitivity (IHF, Loop antenna) ......................................... 350 µV/m Selectivity ................................................................................ 30 dB Signal-to-Noise Ratio .............................................................. 50 dB Antenna ...................................................................... Loop antenna Miscellaneous Power Requirements UK model ...................................................... AC 230 V, 50/60 Hz European model .................................. AC 220 – 230 V, 50/60 Hz Power Consumption ............................................................... 220 W Power Consumption in Standby mode .................................... 1.0 W Dimensions VSX-709RDS ........................... 420 (W) × 158 (H) × 401 (D) mm VSX-609RDS ........................... 420 (W) × 158 (H) × 391 (D) mm Weight (without package) VSX-709RDS ..................................................................... 8.4 kg VSX-609RDS ..................................................................... 8.4 kg Furnished Parts FM Antenna ................................................................................... 1 AM Loop Antenna .......................................................................... 1 Dry Cell Batteries VSX-709RDS (SIZE “AA” (IEC LR6)) ......................................... 2 VSX-609RDS (SIZE “AA” (IEC R6P)) ........................................ 2 Remote Control Unit ...................................................................... 1 Operating Instructions .................................................................... 1 NOTE: Specifications and the design are subject to possible modifications without notice, due to improvements. AM loop antenna (ATB7009) FM wire antenna (ADH7005) VSX-609RDS: AA size IEC R6P batteries (x2) VSX-709RDS: AA size IEC LR6 batteries (x2) VSX-609RDS VSX-709RDS SOURCE MIDNIGHT SIGNAL SELECT TV CONTROL TV VOL TVFUNC TV MENU ENTER D.ACCESS BAND CLASS CH SELECT CH LEVEL AV PRE-PROGRAMMED AND LEARNING REMOTE CONTROL UNIT DSP TEST TONE FL DIMMER LOUDNESS FUNCTION SETUP MUTING MPX DISPLAY RF ATT FQ FQ ST ST CHANNEL EFFECT MASTER VOLUME DISC +10 5.1CH MULTI CONTROL ATT DVD TV VCR CD-R RCV CD TUN TVC RECEIVER 1 2 3 4 5 6 7 8 9 7� 4� ¢� 3� 1� ¡� 0 8 2 Î� MULTI CONTROL DVD/LD TV/SAT VCR/DVR CD SOUCE CLASS MPX BAND LOUDNESS FUNCTION MUTING RECEIVER D.ACCESS ATT VOL MENU TOP MENU VOL CH 2 DSP MODE MIDNIGHT 5.1CH CD-R/ TAPE/MD CHANNEL SELECT CHANNEL LEVEL EFFECT ENTER ENTER FQ FQ ST ST FL DIMMER REMOTE SETUP MASTER VOLUME AUDIO/VIDEO PRE-PROGRAMMED REMOTE CONTROL UNIT TV CONTROL FUNC 10 DISC SIGNAL SELECT TEST TONE RECEIVER TUNER TV CONT Î� 1 2 3 4 1� ¡� 4� ¢� 7� 8� 3 5 6 7 8 9 0 ‡ CHANNEL DISPLAY RF ATT Accessories Manufactured under license from Digital Theater Systems, Inc. US Pat. No. 5,451,942 and other worldwide patents issues and pending. “DTS” and “DTS Digital Surround” are trademarks of Digital Theater Systems, Inc. © 1996 Digital Theater Systems, Inc. All right reserved. Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic” and the double-D symbol are trademarks of Dolby Laboratories. Confidential unpublished works. © 1992 - 1997 Dolby Laboratories. All rights reserved. Remote control unit (AXD7247) Remote control unit (AXD7249) Amplifier Section Continuous Power Output (STEREO MODE) FRONT .......................80 W + 80 W (DIN 1 kHz, THD 0.9 %, 8Ω) Continuous Power Output (SURROUND MODE) FRONT ..................................... 80 W/ch (1 kHz, THD 0.9 %, 8Ω) CENTER ....................................... 80 W (1 kHz, THD 0.9 %, 8Ω) SURROUND............................. 80 W/ch (1 kHz, THD 0.9 %, 8Ω) • Above specifications are applicable when the power supply is 230V. Input (Sensitivity/Impedance) VCR/DVR, DVD/LD, TV/SAT, CD, AUX, CD-R/TAPE/MD (, VIDEO) .................................... 200 mV/47 kΩ Frequency Response VCR/DVR, DVD/LD, TV/SAT, CD, AUX, CD-R/TAPE/MD (, VIDEO) ................... 5 Hz to 100,000 Hz dB Output (Level/Impedance) VCR/DVR, CD-R/TAPE/MD .................................. 200 mV/2.2 kΩ Tone Control BASS ................................................................... ± 6 dB (100 Hz) TREBLE .............................................................. ± 6 dB (10 kHz) LOUDNESS .................................. +9 dB/+9 dB (100 Hz/10 kHz) Signal-to-Noise Ratio [DIN (Continuous rated power output/50 mW)] VCR/DVR, DVD/LD, TV/SAT, CD, AUX, CD-R/TAPE/MD (, VIDEO) ....................................... 88 dB/64 dB VIDEO Section Input (Sensitivity/Impedance) VCR/DVR, TV/SAT, DVD/LD (, VIDEO) ..................... 1 Vp-p/75 Ω Output (Level/Impedance) VCR/DVR, TO MONITOR TV .................................... 1 Vp-p/75 Ω Frequency Response VCR/DVR, TV/SAT, DVD/LD (, VIDEO) = TO MONITOR TV...................................... 5 Hz to 7 MHz dB Signal-to-Noise Ratio .............................................................. 55 dB FM Tuner Section Frequency Range .......................................... 87.5 MHz to 108 MHz Usable Sensitivity ....................... Mono: 15.2 dBf, IHF (1.6 µV/75 Ω) 50 dB Quieting Sensitivity ........................................ Mono: 20.2 dBf Stereo: 41.2 dBf +0 –3 +0 –3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
