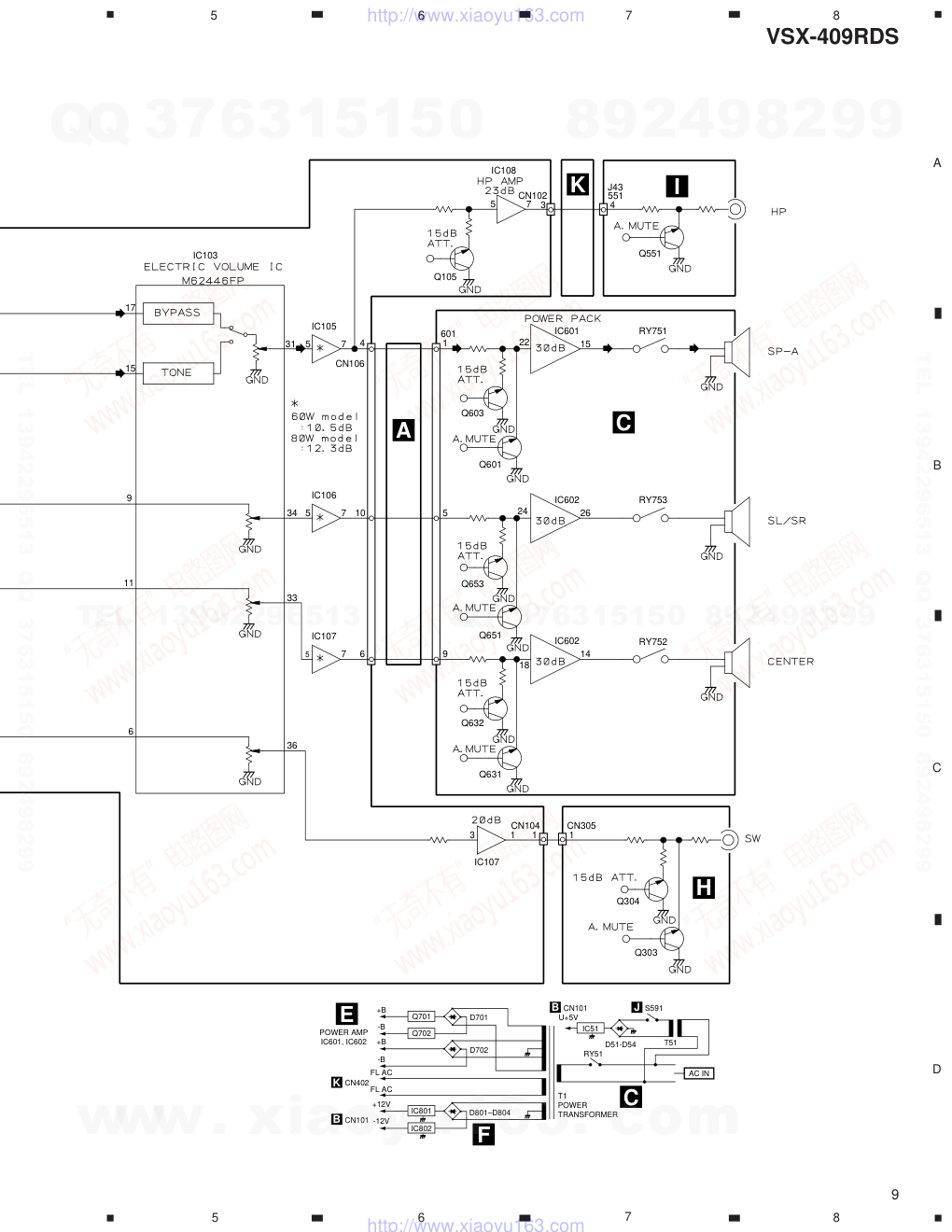

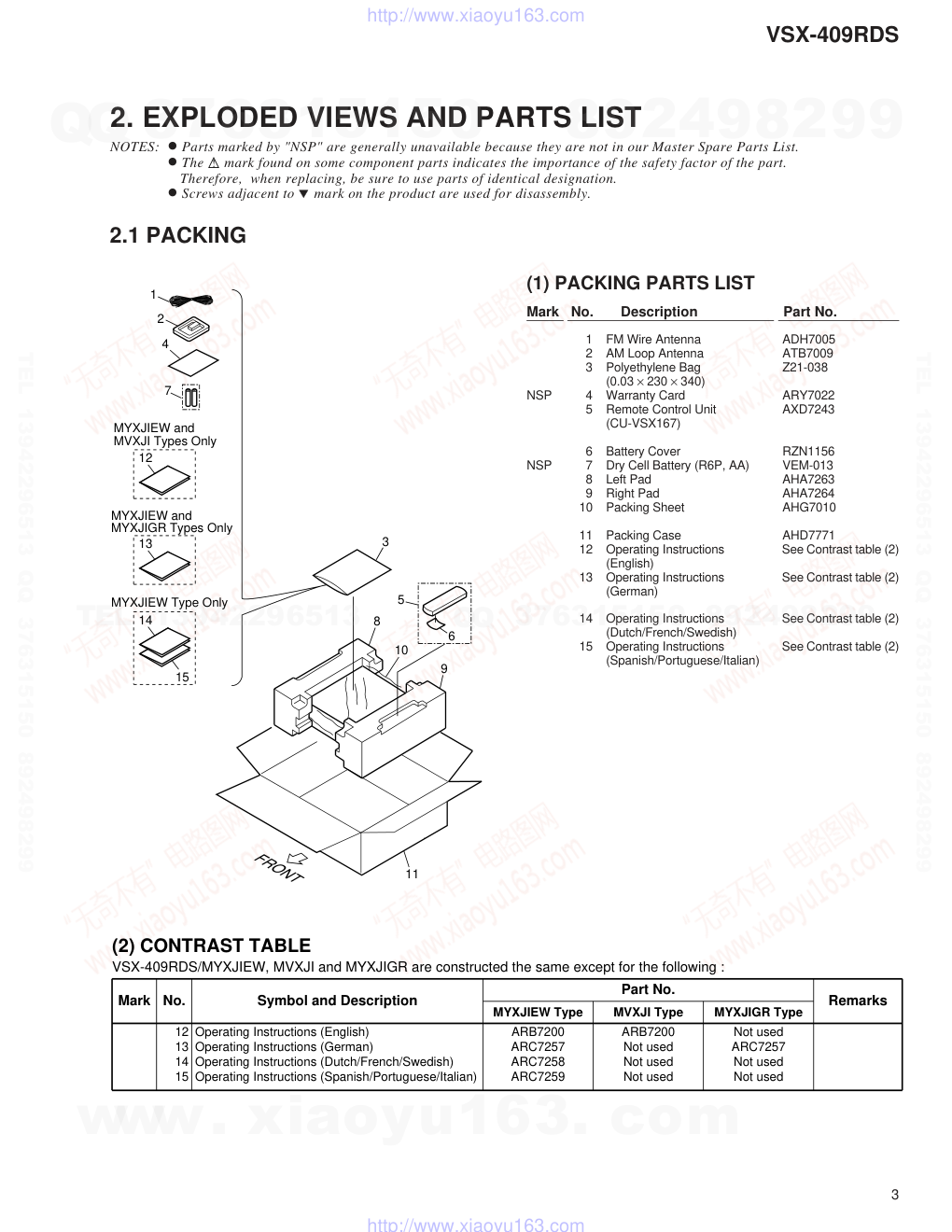

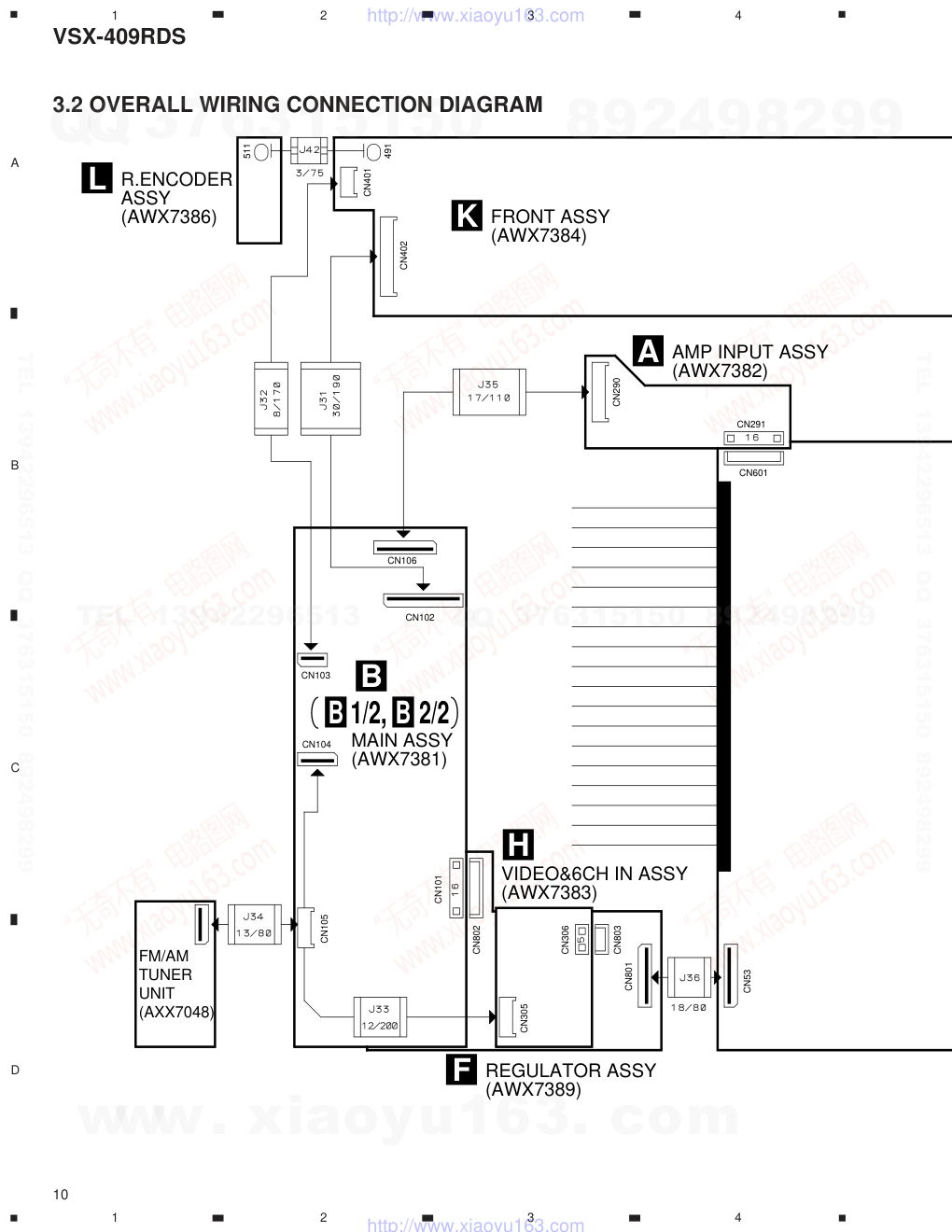

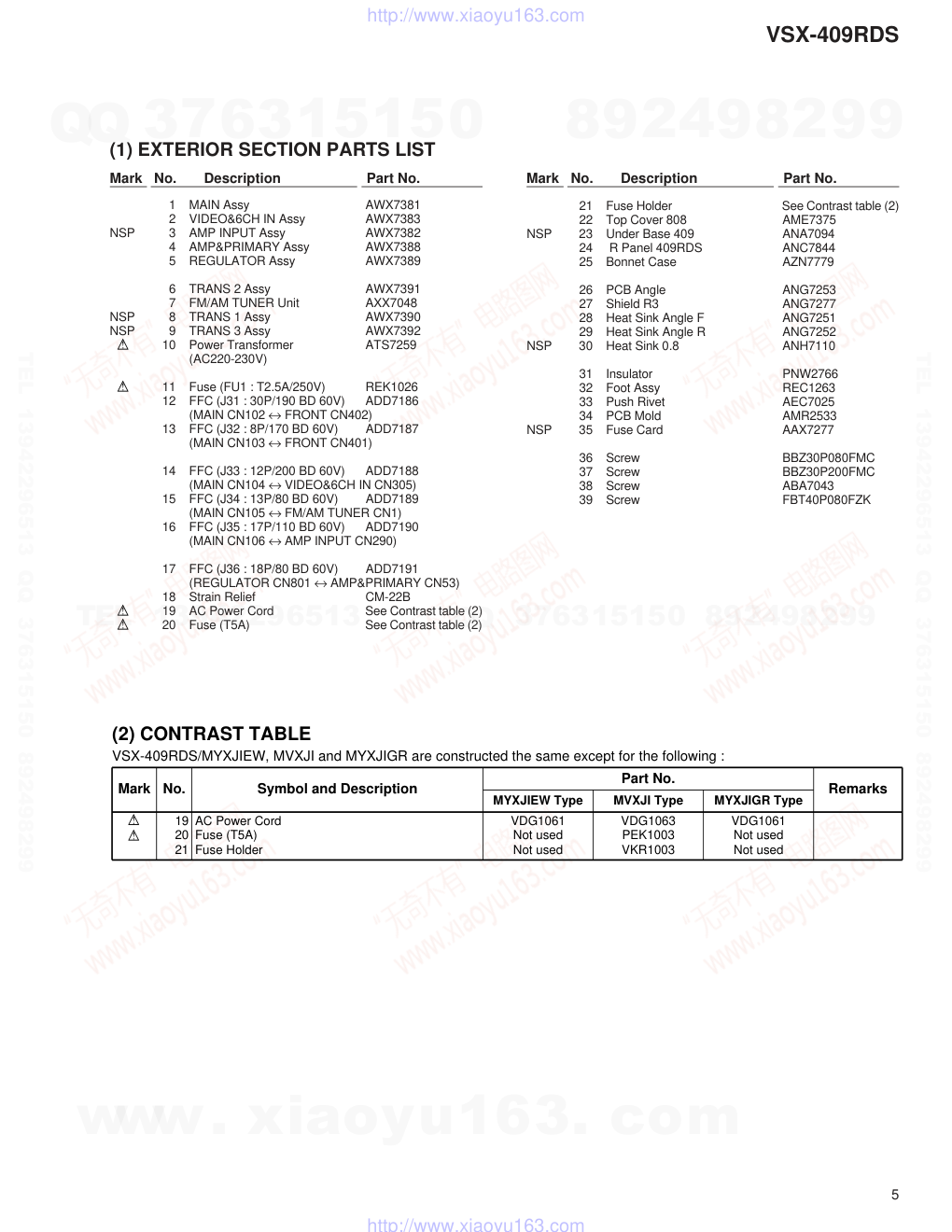

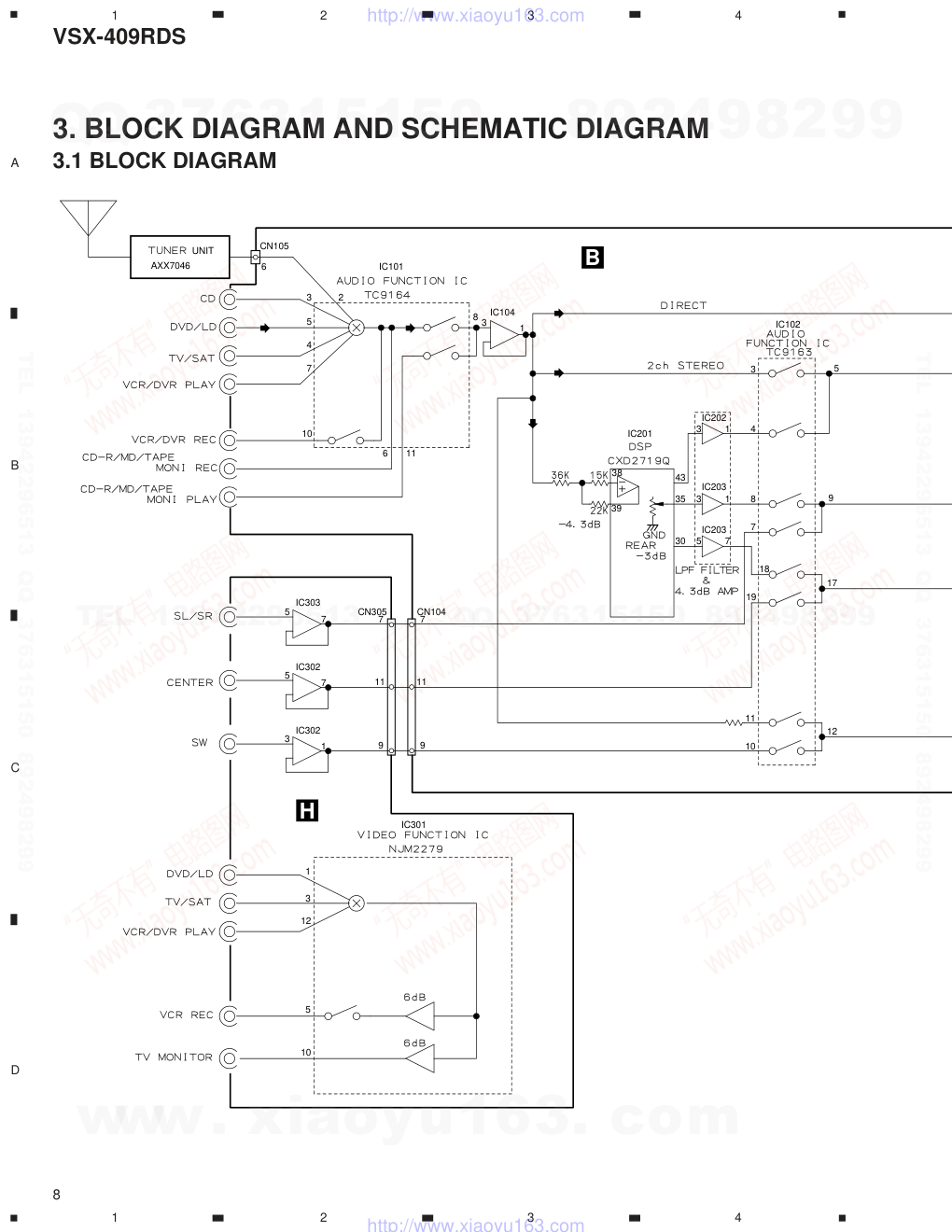

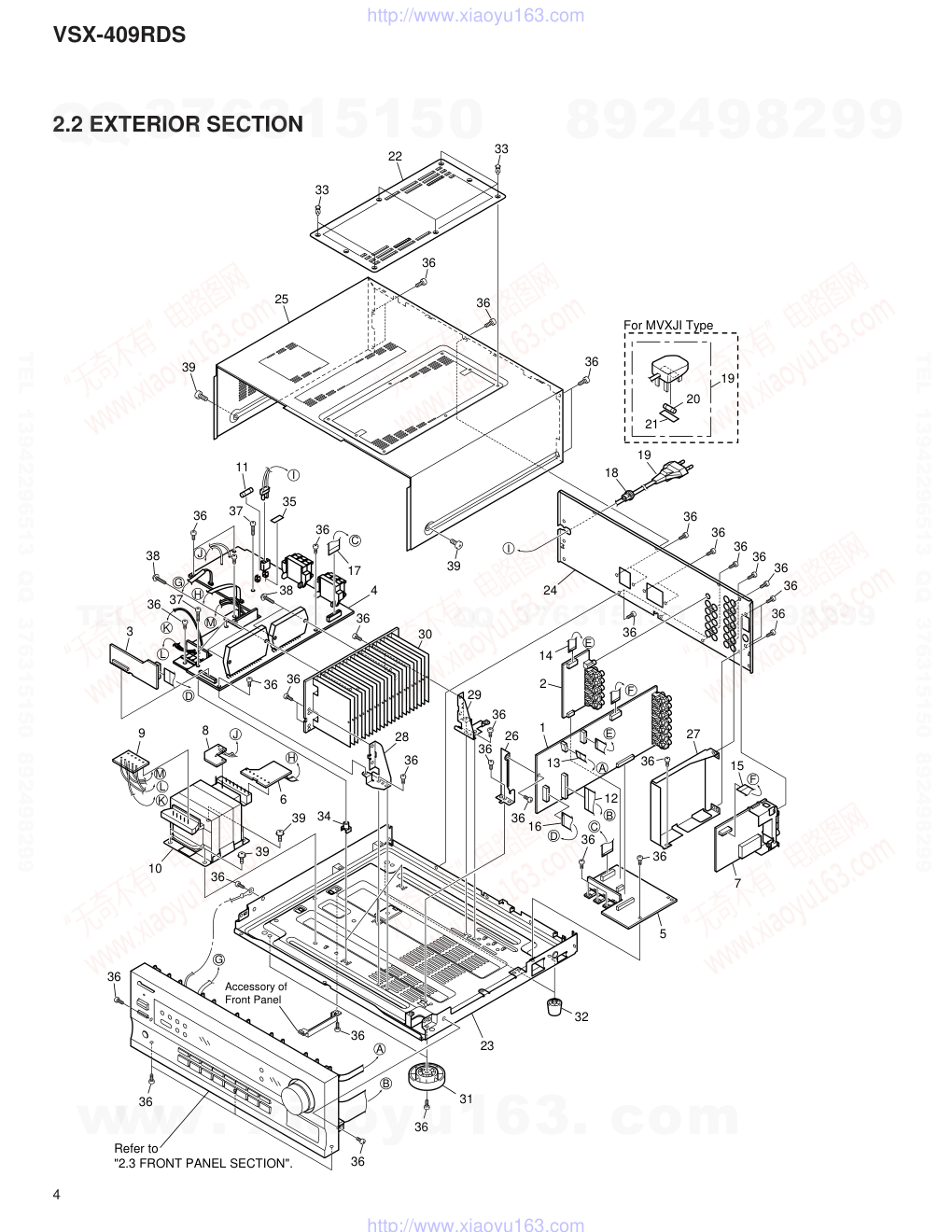

ORDER NO. PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 � � � � � � � � � �PIONEER CORPORATION 1999 c VSX-409RDS RRV2200 1. SAFETY INFORMATION...................................... 2 2. EXPLODED VIEWS AND PARTS LIST ............... 3 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM..... 8 4. PCB CONNECTION DIAGRAM ......................... 24 5. PCB PARTS LIST ............................................... 36 6. ADJUSTMENT .................................................... 39 CONTENTS 7. GENERAL INFORMATION ................................ 40 7.1 DISASSEMBLY ............................................ 40 7.2 PARTS .......................................................... 41 7.2.1 IC ............................................................ 41 7.2.2 DISPLAY................................................. 47 8. PANEL FACILITIES AND SPECIFICATIONS....... 49 T – IZK SEPT. 1999 Printed in Japan AUDIO/VIDEO MULTI-CHANNEL RECEIVER Type Model Power Requirement Remarks VSX-409RDS MYXJIEW AC220-230V MYXJIGR AC220-230V MVXJI AC230V THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S). www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 VSX-409RDS 1. SAFETY INFORMATION This service manual is intended for qualified service technicians ; it is not meant for the casual do-it- yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. WARNING This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 – Proposition 65 NOTICE (FOR CANADIAN MODEL ONLY) Fuse symbols (fast operating fuse) and/or (slow operating fuse) on PCB indicate that replacement parts must be of identical designation. REMARQUE (POUR MODÈLE CANADIEN SEULEMENT) Les symboles de fusible (fusible de type rapide) et/ou (fusible de type lent) sur CCI indiquent que les pièces de remplacement doivent avoir la même désignation. ANY MEASUREMENTS NOT WITHIN THE LIMITS OUTLINED ABOVE ARE INDICATIVE OF A POTENTIAL SHOCK HAZARD AND MUST BE CORRECTED BEFORE RETURNING THE APPLIANCE TO THE CUSTOMER. 2. PRODUCT SAFETY NOTICE Many electrical and mechanical parts in the appliance have special safety related characteristics. These are often not evident from visual inspection nor the protection afforded by them necessarily can be obtained by using replacement components rated for voltage, wattage, etc. Replacement parts which have these special safety characteristics are identified in this Service Manual. Electrical components having such features are identified by marking with a on the schematics and on the parts list in this Service Manual. The use of a substitute replacement component which does not have the same safety characteristics as the PIONEER recommended replacement one, shown in the parts list in this Service Manual, may create shock, fire, or other hazards. Product Safety is continuously under review and new instructions are issued from time to time. For the latest information, always consult the current PIONEER Service Manual. A subscription to, or additional copies of, PIONEER Service Manual may be obtained at a nominal charge from PIONEER. 1. SAFETY PRECAUTIONS The following check should be performed for the continued protection of the customer and service technician. LEAKAGE CURRENT CHECK Measure leakage current to a known earth ground (water pipe, conduit, etc.) by connecting a leakage current tester such as Simpson Model 229-2 or equivalent between the earth ground and all exposed metal parts of the appliance (input/output terminals, screwheads, metal overlays, control shaft, etc.). Plug the AC line cord of the appliance directly into a 120V AC 60Hz outlet and turn the AC power switch on. Any current measured must not exceed 0.5mA. (FOR USA MODEL ONLY) Leakage current tester Reading should not be above 0.5mA Device under test Test all exposed metal surfaces Also test with plug reversed (Using AC adapter plug as required) Earth ground AC Leakage Test www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 VSX-409RDS 2.1 PACKING 1 FM Wire Antenna ADH7005 2 AM Loop Antenna ATB7009 3 Polyethylene Bag Z21-038 (0.03 × 230 × 340) NSP 4 Warranty Card ARY7022 5 Remote Control Unit AXD7243 (CU-VSX167) 6 Battery Cover RZN1156 NSP 7 Dry Cell Battery (R6P, AA) VEM-013 8 Left Pad AHA7263 9 Right Pad AHA7264 10 Packing Sheet AHG7010 11 Packing Case AHD7771 12 Operating Instructions See Contrast table (2) (English) 13 Operating Instructions See Contrast table (2) (German) 14 Operating Instructions See Contrast table (2) (Dutch/French/Swedish) 15 Operating Instructions See Contrast table (2) (Spanish/Portuguese/Italian) (1) PACKING PARTS LIST Mark No. Description Part No. 2. EXPLODED VIEWS AND PARTS LIST NOTES: • Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. • The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. • Screws adjacent to mark on the product are used for disassembly. (2) CONTRAST TABLE VSX-409RDS/MYXJIEW, MVXJI and MYXJIGR are constructed the same except for the following : Mark No. Symbol and Description Part No. Remarks MYXJIEW Type MVXJI Type MYXJIGR Type 12 13 14 15 Operating Instructions (English) Operating Instructions (German) Operating Instructions (Dutch/French/Swedish) Operating Instructions (Spanish/Portuguese/Italian) ARB7200 ARC7257 ARC7258 ARC7259 ARB7200 Not used Not used Not used Not used ARC7257 Not used Not used 1 2 4 12 MYXJIEW and MVXJI Types Only 7 3 8 9 5 6 10 11 13 MYXJIEW and MYXJIGR Types Only MYXJIEW Type Only 15 14 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 VSX-409RDS D L K G H M J I C I J M L K H E E B A C D F F A G B For MVXJI Type 20 18 24 21 19 19 33 36 36 39 36 36 36 36 36 36 36 36 36 36 36 36 36 36 26 15 7 1 2 5 27 36 33 22 25 39 12 13 14 16 36 17 4 3 9 8 6 36 11 35 36 36 37 37 38 38 36 36 10 Accessory of Front Panel 36 34 36 36 36 36 Refer to "2.3 FRONT PANEL SECTION". 39 39 29 28 30 36 36 31 32 23 2.2 EXTERIOR SECTION www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 VSX-409RDS 1 MAIN Assy AWX7381 2 VIDEO&6CH IN Assy AWX7383 NSP 3 AMP INPUT Assy AWX7382 4 AMP&PRIMARY Assy AWX7388 5 REGULATOR Assy AWX7389 6 TRANS 2 Assy AWX7391 7 FM/AM TUNER Unit AXX7048 NSP 8 TRANS 1 Assy AWX7390 NSP 9 TRANS 3 Assy AWX7392 10 Power Transformer ATS7259 (AC220-230V) 11 Fuse (FU1 : T2.5A/250V) REK1026 12 FFC (J31 : 30P/190 BD 60V) ADD7186 (MAIN CN102 ↔ FRONT CN402) 13 FFC (J32 : 8P/170 BD 60V) ADD7187 (MAIN CN103 ↔ FRONT CN401) 14 FFC (J33 : 12P/200 BD 60V) ADD7188 (MAIN CN104 ↔ VIDEO&6CH IN CN305) 15 FFC (J34 : 13P/80 BD 60V) ADD7189 (MAIN CN105 ↔ FM/AM TUNER CN1) 16 FFC (J35 : 17P/110 BD 60V) ADD7190 (MAIN CN106 ↔ AMP INPUT CN290) 17 FFC (J36 : 18P/80 BD 60V) ADD7191 (REGULATOR CN801 ↔ AMP&PRIMARY CN53) 18 Strain Relief CM-22B 19 AC Power Cord See Contrast table (2) 20 Fuse (T5A) See Contrast table (2) (1) EXTERIOR SECTION PARTS LIST Mark No. Description Part No. Mark No. Description Part No. 21 Fuse Holder See Contrast table (2) 22 Top Cover 808 AME7375 NSP 23 Under Base 409 ANA7094 24 R Panel 409RDS ANC7844 25 Bonnet Case AZN7779 26 PCB Angle ANG7253 27 Shield R3 ANG7277 28 Heat Sink Angle F ANG7251 29 Heat Sink Angle R ANG7252 NSP 30 Heat Sink 0.8 ANH7110 31 Insulator PNW2766 32 Foot Assy REC1263 33 Push Rivet AEC7025 34 PCB Mold AMR2533 NSP 35 Fuse Card AAX7277 36 Screw BBZ30P080FMC 37 Screw BBZ30P200FMC 38 Screw ABA7043 39 Screw FBT40P080FZK (2) CONTRAST TABLE VSX-409RDS/MYXJIEW, MVXJI and MYXJIGR are constructed the same except for the following : Mark No. Symbol and Description Part No. Remarks MYXJIEW Type MVXJI Type MYXJIGR Type 19 20 21 AC Power Cord Fuse (T5A) Fuse Holder VDG1061 Not used Not used VDG1063 PEK1003 VKR1003 VDG1061 Not used Not used www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 VSX-409RDS • FRONT PANEL SECTION PARTS LIST Mark No. Description Part No. 2.3 FRONT PANEL SECTION 1 FRONT Assy AWX7384 2 POWER SW Assy AWX7385 NSP 3 R. ENCODER Assy AWX7386 NSP 4 H.P. Assy AWX7387 5 MECHA SW Assy AWX7443 6 Volume Knob AAB7179 7 Power Button AAD7440 8 Power Button M AAD7442 9 Window W 409RDS AAK7683 10 F Button 409RDS AAD7537 Mark No. Description Part No. 11 Sub Panel 409RDS AAD7552 12 F Panel 409RDS AMB7644 13 Name Plate PAM1776 14 LED Lens PNW2019 NSP 15 Getter 409RDS AAX7727 16 Screw PPZ30P080FMC 17 Screw ABA7009 G B A 15 11 13 10 14 17 16 7 8 4 2 6 9 12 1 5 3 16 16 16 16 16 16 16 16 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 VSX-409RDS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-409RDS 8 A B C D 1 2 3 4 1 2 3 4 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM 3.1 BLOCK DIAGRAM AXX7046 UNIT CN105 6 CN305 IC101 IC303 IC302 IC302 IC301 IC104 IC102 IC202 IC203 IC203 IC201 B H 7 7 7 1 9 11 CN104 7 9 11 3 3 1 3 12 5 10 5 5 4 7 8 3 39 38 43 35 30 3 1 4 3 8 7 19 18 17 12 11 10 9 5 3 5 1 7 1 2 5 10 6 11 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-409RDS 9 A B C D 5 6 7 8 5 6 7 8 IC103 IC105 IC106 IC107 IC108 IC107 Q304 Q303 Q603 Q601 Q653 Q651 Q632 Q631 H CN104 1 CN305 1 11 15 17 31 34 33 36 6 9 5 7 5 7 5 7 5 7 3 1 IC602 18 14 IC602 24 26 IC601 RY751 RY753 RY752 22 15 Q551 Q105 I K C A CN102 3 551 J43 4 CN106 4 601 1 10 5 6 9 +12V -12V T1 POWER TRANSFORMER T51 AC IN D801–D804 U+5V D51-D54 RY51 IC51 IC801 CN101 IC802 +B POWER AMP IC601, IC602 -B D702 D701 +B -B FL AC FL AC Q701 Q702 S591 F E C J B CN101 B CN402 K www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-409RDS 10 A B C D 1 2 3 4 1 2 3 4 3.2 OVERALL WIRING CONNECTION DIAGRAM FRONT ASSY (AWX7384) K R.ENCODER ASSY (AWX7386) L MAIN ASSY (AWX7381) B REGULATOR ASSY (AWX7389) F VIDEO&6CH IN ASSY (AWX7383) H AMP INPUT ASSY (AWX7382) A FM/AM TUNER UNIT (AXX7048) CN105 CN101 CN802 CN305 CN306 CN803 CN801 CN53 CN104 CN103 CN102 CN106 CN291 CN601 CN402 CN401 491 511 CN290 B 1/2, B 2/2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-409RDS 11 A B C D 5 6 7 8 5 6 7 8 Note : When ordering service parts, be sure to refer to "EXPLODED VIEWS and PARTS LIST" or "PCB PARTS LIST". POWER SW ASSY (AWX7385) M MECHA SW ASSY (AWX7443) J H.P. ASSY (AWX7387) I TRANS3 ASSY (AWX7392) E TRANS1 ASSY (AWX7390) G TRANS2 ASSY (AWX7391) D AMP&PRIMARY ASSY (AWX7388) C CN591 471 J3 J6 J7 501 403 551 701 J44 851 J1 J2 J5 J4 C 1/2, C 2/2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-409RDS 12 A B C D 1 2 3 4 1 2 3 4 MAIN ASSY (AWX7381) AMP INPUT ASSY (AWX7382) A B 1/2 CN106 CN601 B 1/2 C 1/2 B 2/2 FM/AM TUNER UNIT CN802 F 3.3 AMP INPUT and MAIN (1/2) ASSYS A 1/2 B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-409RDS 13 A B C D 5 6 7 8 5 6 7 8 CN290 A CN401 K CN402 K B 2/2 CN305 H 1/2 B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-409RDS 14 A B C D 1 2 3 4 1 2 3 4 3.4 MAIN ASSY (2/2) 2/2 B MAIN ASSY (AWX7381) B 2/2 B 1/2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-409RDS 15 A B C D 5 6 7 8 5 6 7 82/2 B : The power supply is shown with the marked box. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-409RDS 16 A B C D 1 2 3 4 1 2 3 4 AMP&PRIMARY ASSY (AWX7388) C 1/2 CN291 A 3.5 AMP&PRIMARY (1/2), TRANS2 and TRANS3 ASSYS 1/2 C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-409RDS 17 A B C D 5 6 7 8 5 6 7 8 TRANS3 ASSY (AWX7392) E TRANS2 ASSY (AWX7391) D POWER TRANSFORMER CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 49101.6 FOR IC851 AND IC852 MFD, BY LITTELFUSE INC. CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 491001 FOR IC603, 491.315 FOR IC52 MFD, BY LITTELFUSE INC. C 2/2 C 2/2 1/2 C E D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-409RDS 18 A B C D 1 2 3 4 1 2 3 4 2/2 C 3.6 AMP&PRIMARY (2/2), REGULATOR and TRANS1 ASSYS F CN101 B 1/2 REGULATOR ASSY (AWX7389) F CN306 H www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-409RDS 19 A B C D 5 6 7 8 5 6 7 8 2/2 C G • NOTE FOR FUSE REPLACEMENT FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE WITH SAME TYPE AND RATINGS ONLY. CAUTION - AMP&PRIMARY ASSY (AWX7388) C 2/2 C 1/2 C 1/2 CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 491.315 FOR IC52 MFD, BY LITTELFUSE INC. CN591 J TRANS1 ASSY (AWX7390) G POWER TRANSFORMER LIVE NEUTRAL REK1026 (T2.5A) AC POWER CORD MYXJIEW, MYXJIGR : VDG1061 MVXJI : VDG1063 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-409RDS 20 A B C D 1 2 3 4 1 2 3 4 VIDEO&6CH IN ASSY (AWX7383) H CN104 CN803 F B 1/2 3.7 VIDEO&6CH IN, H. P. and MECHA SW ASSYS H www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-409RDS 21 A B C D 5 6 7 8 5 6 7 8 MECHA SW ASSY (AWX7443) J H.P. ASSY (AWX7387) I J44 403 K C 2/2 J I www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-409RDS 22 A B C D 1 2 3 4 1 2 3 4 FRONT ASSY (AWX7384) K R.ENCODER ASSY (AWX7386) L CN102 B 1/2 CN103 B 1/2 3.8 FRONT, R. ENCODER and POWER SW ASSYS K L www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-409RDS 23 A B C D 5 6 7 8 5 6 7 8 POWER SW ASSY (AWX7385) M 551 I FRONT ASSY S451 : DOLBY PRO LOGIC S452 : DSP MODE S454 : DIRECT S455 : TREBLE (+) S456 : FM/AM S457 : S.BASS S458 : TREBLE (–) S459 : BASS (+) S460 : DVD 5.1CH S461 : TV/SAT S462 : CD S463 : FL DIMMER S464 : BASS (–) S465 : DVD/LD S466 : VCR/DVR S467 : SPEAKERS S468 : EON MODE S469 : RF ATT S470 : MEMORY S471 : CLASS S472 : TUNING SELECT S473 : STATION (+) S474 : STATION (–) S475 : MONITOR S476 : CD-R/TAPE MD S477 : CHARACTER/SEARCH M K www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-409RDS 24 A B C D 1 2 3 4 1 2 3 4 NOTE FOR PCB DIAGRAMS : 1. Part numbers in PCB diagrams match those in the schematic diagrams. 2. A comparison between the main parts of PCB and schematic diagrams is shown below. 3. The parts mounted on this PCB include all necessary parts for several destinations. For further information for respective destinations, be sure to check with the schematic diagram. 4. View point of PCB diagrams. Symbol In PCB Diagrams Symbol In Schematic Diagrams Part Name B C E D D G G S S B C E B C E D G S B C E B C E B C E Transistor Transistor with resistor Field effect transistor Resistor array 3-terminal regulator Capacitor Connector P.C.Board Chip Part SIDE A SIDE B 4. PCB CONNECTION DIAGRAM 4.1 VIDEO&6CH IN ASSY (ANP7330-B) VIDEO&6CH IN ASSY H CN104 B CN803 F SIDE A (ANP7330-B) SIDE B Q301 Q303 Q304 Q302 IC302 IC303 IC301 H www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-409RDS 25 A B C D 1 2 3 4 1 2 3 4 4.2 TRANS2, TRANS3, REGULATOR and TRANS1 ASSYS G F E (ANP7331-A) Q805 Q803 Q806 Q801 Q804 Q802 IC804 REGULATOR ASSY F TRANS3 ASSY E TRANS2 ASSY D TRANS1 ASSY G CN53 C CN306 H CN101 B 701 C J1 J2 C J6 J4 J3 J5 J7 C SIDE A IC802 IC803 IC801 POWER TRANSFORMER D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-409RDS 26 A B C D 1 2 3 4 1 2 3 4 AMP INPUT ASSY A AMP&PRIMARY ASSY C MECHA SW ASSY J CN106 B Q604 Q606 Q605 Q602 Q603 IC601 IC603 Q632 Q704 Q702 Q703 Q701 Q631 Q656 IC602 Q633 Q655 Q691 Q692 Q652 Q654 Q651 Q653 J7 E J6 E J3 E (ANP7331-A) SIDE A (ANP7331-A) SIDE A (ANP7330-B) SIDE B (ANP7330-B) SIDE A A C 4.3 AMP INPUT, AMP&PRIMARY and MECHA SW ASSYS J www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-409RDS 27 A B C D 5 6 7 8 5 6 7 8 J2 G J1 G J4 E J5 E 851 D Q51 IC52 IC51 AC IN NEUTRAL LIVE CN801 F C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-409RDS 28 A B C D 1 2 3 4 1 2 3 4 B 4.4 MAIN ASSY MAIN ASSY B CN802 F Q101 Q104 Q103 FM/AM TUNER UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-409RDS 29 A B C D 5 6 7 8 5 6 7 8B CN402 K CN401 K CN305 H CN290 A Q101 Q103 Q102 Q105 Q106 (ANP7330-B) SIDE A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-409RDS 30 A B C D 1 2 3 4 1 2 3 4 MAIN ASSY B IC102 IC202 IC203 IC105 IC106 IC107 IC108 IC103 B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-409RDS 31 A B C D 5 6 7 8 5 6 7 8B C102 C202 IC203 IC201 IC101 IC104 (ANP7330-B) SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-409RDS 32 A B C D 1 2 3 4 1 2 3 4 FRONT ASSY K POWER SW ASSY M H.P. ASSY I Q471 Q483 Q482 Q481 4.5 H.P., FRONT, R.ENCODER and POWER SW ASSYS I K M www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-409RDS 33 A B C D 5 6 7 8 5 6 7 8L K CN103 B CN102 B R.ENCODER ASSY L Q441 Q442 Q402 Q403 Q401 (ANP7330-B) SIDE A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-409RDS 34 A B C D 1 2 3 4 1 2 3 4 FRONT ASSY K IC4 (ANP7330-B) SIDE B R.ENCODER ASSY L K L www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-409RDS 35 A B C D 5 6 7 8 5 6 7 8M K IC481 IC401 POWER SW ASSY M H.P. ASSY I I www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 36 VSX-409RDS Mark No. Description Part No. Mark No. Description Part No. 5. PCB PARTS LIST NOTES: •The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. •When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). 560 Ω → 56 × 10 1 → 561 ........................................................ RD1/4PU 5 6 1 J 47k Ω → 47 × 10 3 → 473 ........................................................ RD1/4PU 4 7 3 J 0.5 Ω → R50 ..................................................................................... RN2H R 5 0 K 1 Ω → 1R0 ..................................................................................... RS1P 1 R 0 K Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 5.62k Ω → 562 × 10 1 → 5621 ...................................................... RN1/4PC 5 6 2 1 F Mark No. Description Part No. Mark No. Description Part No. NSP COMPLEX ASSY AWK7519 MAIN ASSY AWX7381 VIDEO&6CH IN ASSY AWX7383 FRONT ASSY AWX7384 POWER SW ASSY AWX7385 NSP R.ENCODER ASSY AWX7386 NSP H.P. ASSY AWX7387 MECHA SW ASSY AWX7443 NSP AMP&PS ASSY AWK7520 NSP AMP INPUT ASSY AWX7382 AMP&PRIMARY ASSY AWX7388 REGULATOR ASSY AWX7389 TRANS2 ASSY AWX7391 NSP TRANS1 ASSY AWX7390 NSP TRANS3 ASSY AWX7392 AMP INPUT ASSY OTHERS CN290 17P CONNECTOR 52044-1745 CN291 16P SOCKET KP200TA16L MAIN ASSY SEMICONDUCTORS IC201 CXD2719Q IC108 M5216FP IC103 M62446FP IC202, IC203 NJM4558MD IC102 TC9163AF IC101 TC9164AF IC104–IC107 UPC4570G2 Q101, Q102 2SC1740S Q105, Q106 2SC2878 D103, D105, D106 1SS355 D104 UDZS5.1B D101, D102 UDZS6.8B COILS AND FILTERS F101, F102, F201, F203 DTF1067 L202 LFEA470J CAPACITORS C101–C114, C121–C123 CCSQCH101J50 C126–C128, C152–C154 CCSQCH101J50 C198, C199, C205, C206, C241 CCSQCH101J50 C239, C240 CCSQCH120J50 C173, C174 CCSQCH151J50 C271–C276 CCSQCH220J50 C159, C160, C163, C164, C167 CCSQCH221J50 C235 CCSQCH221J50 C211, C212, C225, C226 CCSQCH331J50 C229, C230 CCSQCH331J50 C242 CCSQCH471J50 C150, C151, C207, C208 CEAT100M50 C221, C222 CEAT100M50 C157, C175, C176 CEAT101M16 C219, C220 CEAT1R0M50 C170 CEAT220M25 C115, C116 CEAT2R2M50 C130–C137, C144–C149 CEAT3R3M50 C201, C202 CEAT470M16 C117, C118, C161, C162 CEAT470M25 C165, C166, C169 CEAT470M25 C155, C156 CEAT471M10 C237, C238 CEAT471M6R3 C194, C195, C233, C234 CEAT4R7M50 C168, C209, C210, C223, C224 CKSQYB102K50 C236 CKSQYB102K50 C119, C120, C124, C125, C129 CKSQYB103K50 C158, C171, C172, C177–C180 CKSQYB103K50 C183, C186–C193, C197 CKSQYB103K50 C217, C218, C231, C232, C245 CKSQYB103K50 C259 CKSQYB103K50 C254, C257, C258 CKSQYB105K10 C139, C142 CKSQYB153K50 C203, C204, C215, C216 CKSQYB331K50 C140, C143 CKSQYB334K16 C243, C244, C247–C253, C255 CKSQYB472K50 C184, C185 CKSQYB473K25 C138, C141 CKSQYB822K50 RESISTORS R174, R175 RS1LMF101J Other Resistors RS1/10S J OTHERS CN105 13P CONNECTOR 52044-1345 CN103 8P CONNECTOR 52045-0845 CN104 12P CONNECTOR 52045-1245 CN106 17P CONNECTOR 52045-1745 CN102 30P CONNECTOR 52045-3045 JA102, JA103 PIN JACK(4P) AKB7048 JA101 PIN JACK(6P) AKB7050 CN101 16P SOCKET KP200TA16L X201 XTAL RES (OSC) ASS7002 (33.8688MHZ) A B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 37 VSX-409RDS Mark No. Description Part No. Mark No. Description Part No. AMP&PRIMARY ASSY SEMICONDUCTORS IC52 PROTECTOR (315mA) AEK7003 IC603 PROTECTOR (1A) AEK7009 IC51 NJM78M56FA IC601 PAC010A IC602 PAC011A Q703 2SA1145 Q702 2SB1238X Q691, Q692 2SC1740S Q704 2SC1845 Q605, Q606, Q633, Q655, Q656 2SC2240 Q601–Q604, Q631, Q632 2SC2878 Q651–Q654 2SC2878 Q701 2SD1859X Q51 KRC101M D56, D57, D601–D604 1SS133 D631, D632, D651–D654 1SS133 D751–D756 1SS133 D701, D702 D5SBA20(B) D711 MTZJ22D D58 MTZJ5.1A D712 MTZJ5.1B D605, D606, D633, D634 MTZJ8.2A D51–D55 S5688G COILS AND FILTERS L751–L753, L761, L762 ATH1004 L52 FILTER XTF3001 SWITCHES AND RELAYS RY751–RY753 ASR7001 RY51 ASR7013 CAPACITORS C707, C708 (0.01µF/AC250V) ACG1005 C51, C52 (10000pF/AC250V) ACG7020 C701, C702 (4700µF/63V) ACH7134 C703, C704 (3300µF/42V) ACH7135 C607–C610, C634, C635 CCCSL120J50 C657–C660 CCCSL120J50 C613, C614, C637, C663, C664 CCCSL221J50 C615, C616, C638, C665, C666 CEANP2R2M50 C705, C706 CEAT100M2A C712 CEAT101M10 C611, C612, C636, C661, C662 CEAT101M16 C711 CEAT101M35 C53 CEAT102M16 C692 CEAT221M10 C54 CEAT470M25 C605, C606, C633, C655, C656 CEAT4R7M50 C751–C756, C761–C764 CFTYA224J50 C55–C57 CGCYX103M25 C601, C602, C631, C651, C652 CKCYB102K50 C691 CKCYB102K50 C603, C604, C632, C653, C654 CKCYB331K50 C757–C759, C765, C766 CQMBA472J50 RESISTORS R615, R616, R638, R665, R666 ACN7094 (0.22Ω/5W) R52 RD1/2PM270J R751, R752, R755, R761, R762 RD1/4PMF101J R753, R754, R756, R763, R764 RS1LMF4R7J R711 RS2LMF182J Other Resistors RD1/4PU J OTHERS 53 3P CABLE HOLDER 51048-0300 701 7P CABLE HOLDER 51048-0700 CN53 18P CONNECTOR 52045-1845 752 SPEAKER TERMINAL 4P AKE1012 CN751 SPEAKER TERMINAL 6P AKE7020 H51, H52 FUSE CLIP AKR7001 T51 STANDBY TRANSFORMER ATT7037 J44 JUMPER WIRE 3P D20PYY0325E CN601 16P PLUG KM200TA16 CN51 AC CODE SOCKET RKP1751 KN51, KN601 VNF1084 EARTH METAL FITTING TRANS2 ASSY SEMICONDUCTORS IC851, IC852 PROTECTOR (1.6A) AEK7012 OTHERS 851 7P CABLE HOLDER 51048-0700 TRANS3 ASSY TRANS3 ASSY has no service part. REGULATOR ASSY SEMICONDUCTORS IC803 NJM78M05FA IC801 NJM78M12FA IC802 NJM79M12FA Q801, Q803 KRA103M Q802, Q804 KRC101M D801–D804 S5688G CAPACITORS C808 CEAT101M10 C805, C806 CEAT101M16 C802 CEAT102M25 C801, C809 CEAT222M25 C803, C804, C807 CGCYX103M25 RESISTORS R801 RS1LMF6R8J OTHERS CN801 18P CONNECTOR 52045-1845 CN802 16P PLUG KM200TA16 CN803 5P PLUG KM200TA5 C E D F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 38 VSX-409RDS Mark No. Description Part No. Mark No. Description Part No. TRANS1 ASSY TRANS1 ASSY has no service part. VIDEO&6CH IN ASSY SEMICONDUCTORS IC301 NJM2279M IC302, IC303 NJM4558MD Q302 2SA1515 Q303, Q304 2SC2878 Q301 2SC3377 D301, D302 UDZS6.2B CAPACITORS C329–C332 CCSQCH101J50 C301–C303, C307, C308 CEAT470M25 C333–C336 CEAT4R7M50 C314 CKSQYB102K50 C313, C315, C337–C342 CKSQYB103K50 C304, C305, C321–C328 CKSQYB221K50 C309, C310 CKSQYB473K16 RESISTORS R309, R310 RS1LMF151J Other Resistors RS1/10S J OTHERS CN305 12P CONNECTOR 52044-1245 CN304 PIN JACK (4P) AKB7087 CN301 6P PIN JACK AKB7123 CN306 5P SOCKET KP200TA5L JA303 JACK RKN1004 H.P. ASSY SEMICONDUCTORS Q551, Q552 2SC2878 CAPACITORS C552 CKSQYB103K50 C551 CKSQYB104K16 C555, C556 CKSQYB223K50 RESISTORS R551, R552 RS1/2LMF121J Other Resistors RS1/10S J OTHERS 551 CABLE HOLDER(4P) 51063-0405 JA551 JACK RKN1002 MECHA SW ASSY SWITCHES AND RELAYS S591 ASG7014 CAPACITORS C591, C592 CKSQYF103Z50 OTHERS CN591 3PJUMPER CONNECTOR 52151-0310 FRONT ASSY SEMICONDUCTORS IC481 BU1923F IC401 PDG246A Q481 2SA1515 Q483 2SC1740S Q401, Q402, Q442, Q471 KRA103M Q403, Q441, Q482 KRC101M D407, D442 1SS355 D403, D405 DAN217 D401, D404 DAP202K COILS AND FILTERS L401, L481 LFEA2R2J SWITCHES AND RELAYS S451, S452, S454–S477 XSG3001 CAPACITORS C404 (0.047F/5.5V) ACH7017 C420 (220µF/35V) ACH7101 C495 CCSQCH102J50 C489, C490 CCSQCH270J50 C483, C487 CEAT101M10 C486 CEAT1R0M50 C402, C405 CEAT221M6R3 C409, C410, C484 CEAT2R2M50 C412 CEAT470M35 C442 CEJA470M10 C451–C454, C481, C482 CKSQYB102K50 C401, C403, C411, C415, C417 CKSQYB103K50 C441 CKSQYB103K50 C496 CKSQYB223K50 C485 CKSQYB472K50 C406, C407, C416, C418, C419 CKSQYB473K16 C488 CKSQYB561K50 C408 CKSQYF104Z25 RESISTORS All Resistors RS1/10S J OTHERS 491 CABLE HOLDER (3P) 51063-0305 403, 471 CABLE HOLDER (4P) 51063-0405 CN401 8P CONNECTOR 52044-0845 CN402 30P CONNECTOR 52044-3045 V401 FL TUBE AAV7072 X481 CRYSTAL RESONATOR ASS7004 (4.332MHz) X401 CERAMIC RESONATOR ASS7018 (7.2MHz) 401 REMOTE RECEIVER UNIT GP1U27X I J K G H www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 39 VSX-409RDS Mark No. Description Part No. Mark No. Description Part No. R.ENCODER ASSY SWITCHES AND RELAYS S511 ASX7004 OTHERS 511 CABLE HOLDER (3P) 51063-0305 POWER SW ASSY SEMICONDUCTORS D501 BR3371XJ30A SWITCHES AND RELAYS S501 XSG3001 RESISTORS All Resistors RS1/10S J OTHERS 501 CABLE HOLDER (4P) 51063-0405 M L 6. ADJUSTMENT There is no information to be shown in this chapter. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 40 VSX-409RDS 2 ×2 Remove the Bonnet (seven screws). 1 Rear Panel Pull up 2 2 4 Diagnosis AMP&PRIMARY Assy REGULATOR Assy AMP&PRIMARY Assy FRONT Assy R. Encoder Assy AMP INPUT Assy MAIN Assy VIDEO&6CH IN Assy FM/AM TUNER Unit REGULATOR Assy POWER SW Assy MECHA SW Assy H.P. Assy TRANS 3 Assy TRANS 2 Assy TRANS 1 Assy Heat Sink 5 ×2 2 ×3 2 ×5 3 ×3 ×2 2 ×3 7.1 DISASSEMBLY 7. GENERAL INFORMATION Diagnosis PCB Location www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 41 VSX-409RDS PDG246A (FRONT ASSY : IC401) • System Control IC • Pin Arrangement (Top View) • The information shown in the list is basic information and may not correspond exactly to that shown in the schematic diagrams. 7.2 PARTS 7.2.1 IC 1 G2 G1 NC ACIN RDS_DT RDS_CK RMC PLL_CE STEREO TUNED ENC_A ENC_B A.MUTE XRST XLAT CLOK READY RVDT ST_EVR PLL_DO KEYIN1 KEYIN2 G1/A1 G0/A0 NC PE0/EC0/INT0 PE1/EC1/INT1 PE2/INT2 PE3/INT3/NMI PE4/RMC PE5 PE6/PWM PE7/TO/ADJ PC0/KR0 PC1/KR1 PC2/KR2 PC3/KR3 PC4/KR4 PC5/KR5 PC6/KR6 PC7/KR7 PB0/CINT PB1/CS0 PB2/SCK0 PB3/SI0 PB4/SO0 PB5/SCK1 PB6/SI1 PB7/SO1 AVREF PA1/AN0 PA1/AN1 KEYIN3 KEYIN4 VERSION AMP_DC AMP_OL MVRATT VIDEO1 VIDEO2 VIDEO3 SYS_CK SYS_DT PA2/AN2 PA3/AN3 PA4/AN4 PA5/AN5 PA6/AN6 PA7/AN7 AVSS RST EXTAL XTAL VSS TX TEX VDD VFIP PD0/A55 PD1/A54 PD2/A53 PD3/A52 PD4/A51 A21 A22 A23 PH7/A24 PH6/A25 PH5/A26 PH4/A27 PH3/A28 PH2/A29 PH1/A30 PH0/A31 PG7/A32 PG6/A33 PG5/A34 PG4/A35 PG3/A36 PG2/A37 PG1/A38 PG0/A39 PF7/A40 PF6/A41 PF5/A42 PF4/A43 PF3/A44 PF2/A45 PF1/A46 PF0/A47 PD7/A48 PD6/A49 PD5/A50 S11 S12 S13 S14 S15 S16 S17 S18 S19 S20 S21 S22 RY_B RY_C/R RY_A RY_AC NECK_SEL 9164_CS T_MUTE T_POWON FM+(RDS) G2/A2 G3/A3 G4/A4 G5/A5 G6/A6 G7/A7 G8/A8 G9/A9 G10/A10 G11/A11 G12/A12 VDD G13/A13 G14/A14 G15/A15 A16 A17 A18 A19 A20 G3 G4 G5 G6 G7 G8 G9 G10 S1 S2 S3 S4 S5 S6 S7 S8 S9 S10 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 100 99 98 97 96 95 94 93 92 91 90 89 88 87 86 85 84 83 82 81 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 21 22 23 24 25 26 27 28 29 30 80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 60 59 58 57 56 55 54 53 52 51 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 42 VSX-409RDS No. Pin Name I/O Pin Function Active 1 G2 O Grid output 2 H 2 G1 O Grid output 1 H 3 NC − Connect to VDD 4 ACIN I AC pulse input 5 RDS_DT I Serial control DATA signal of RDS communication 6 RDS_CK I Serial control CLOCK signal of RDS communication 7 I Not used 8 RMC I Remote control signal input (no-carrier signal) 9 I Not used 10 PLL_CE O Chip select signal for communication with LC72131 (tuner) H 11 O Not used 12 O Not used 13 O Not used 14 I Not used 15 STEREO I Stereo/Monoral signal judgment signal 16 TUNED I TUNED information 17 ENC_A I Rotary encoder signal input A 18 ENC_B I Rotary encoder signal input B 19 AMUTE O Audio mute L 20 XRST O DSP reset L 21 XLAT O Chip select for control of DSP L 22 CLOK O Clock signal for communication with DSP H 23 READY I READY input for communication with DSP 24 RVDT O DATA output signal for communication with DSP H 25 I Not used 26 ST_EVR O Strobe signal for communication with electric volume IC H 27 PLL_DO I Data input signal for communication with LC72131 (tuner) 28 AVref − Connect to VDD 29 KEYIN1 I Key input A/D conversion port 1 30 KEYIN2 I Key input A/D conversion port 2 31 KEYIN3 I Key input A/D conversion port 3 32 KEYIN4 I Key input A/D conversion port 4 33 VER 1 I Destination switch (A/D input) 34 AMP_DC I DC abnormality detection of protection circuit (L : Abnormality detection) 35 AMP_OL I Over-load detection of protection circuit (L : Abnormality detection) 36 MVRATT O ATT control of master volume (L : Less than -15dB) H 37 AVSS − Connect to VSS 38 RST − Reset 39 EXTAL − Connect to the oscillator (7.2MHz) 40 XTAL − 41 VSS − Connect to VSS 42 TX − Open 43 TEX − Connect to VSS 44 VDD − +5V 45 VFDP − -30V 46 VIDEO1 O NJM2296D control H 47 VIDEO2 48 VIDEO3 49 SYS_DT O Data signal for communication with M62446, TC9163, TC9164 and PLL H O Clock signal for communication with M62446, TC9163, TC9164 and PLL H 50 SYS_CK • Pin Function www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 43 VSX-409RDS No. Pin Name I/O Pin Function Active 51 O Not used O Not used O Not used H H H 52 53 54 O Not used H 55 FM+(RDS) O Tr switch ON/OFF for power supply of RDS decoder (L : AM, power OFF , H : Other) H 56 O Not used 57 T_POWON O Tuner module ON/OFF (North America model only) H 58 T_MUTE O Tuner mute H 59 9164 CS O TC9163, TC9164 Chip select H 60 O Not used 61 NECK_SEL O 5.1ch and surround mode / Stereo H/L 62 O Not used H 63 O Not used H 64 RY_AC O AC relay ON/OFF H 65 RY_A O Speaker A relay ON/OFF H 66 RY_C/R O Rear/Center Speaker relay ON/OFF H 67 O Not used H 68 O Not used H 69 S22 O Segment output 22 H 70 S21 Segment output 21 71 S20 Segment output 20 72 S19 Segment output 19 73 S18 Segment output 18 74 S17 Segment output 17 75 S16 Segment output 16 76 S15 Segment output 15 77 S14 Segment output 14 78 S13 Segment output 13 79 S12 Segment output 12 80 S11 Segment output 11 81 S10 Segment output 10 82 S9 Segment output 9 H 83 S8 Segment output 8 84 S7 Segment output 7 85 S6 Segment output 6 86 S5 Segment output 5 87 S4 Segment output 4 88 S3 Segment output 3 89 VDD − 5V 90 S2 O O Segment output 2 H 91 S1 Segment output 1 92 Not used (Fixed Vfdp) 93 G10 Grid output 10 94 G9 Grid output 9 95 G8 Grid output 8 96 G7 Grid output 7 97 G6 Grid output 6 98 G5 Grid output 5 99 G4 Grid output 4 100 G3 Grid output 3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 44 VSX-409RDS OUT4 OUT3 OUT2 OUT1 AVDD SWin GNDS SRin 1 2 3 4 5 6 7 8 SLin GNDC Cin GNDR Rin GNDL Lin BYPASSR 9 10 11 12 13 14 15 16 BYPASSR LTRE LBASS3 LBASS2 LBASS1 17 18 19 20 21 MCU I/F DVDD CLK DATA LATCH DGND AGND SWout Volume 17-24kΩ SRout 42 41 40 39 38 37 36 35 SLout Cout Rout Lout AVSS CL1 CL2 CR1 34 33 32 31 30 29 28 27 CR2 RTRE RBASS3 RBASS2 RBASS1 26 25 24 23 22 Volume 17-24kΩ Volume 17-24kΩ Volume 17-24kΩ Volume 17-24kΩ 70kΩ 70kΩ Volume 17-24kΩ S T 70kΩ 70kΩ 70kΩ 12kΩ 12kΩ 300kΩ 1.5kΩ S T 70kΩ 12kΩ 12kΩ 300kΩ 1.5kΩ M62446FP (MAIN ASSY : IC103) • Sound Controller IC • Pin Function • Block Diagram No. Pin Name Function 1 OUT4 2 OUT3 Output port (open drain of PchTr) 3 OUT2 4 OUT1 5 AVDD Analog positive power supply port 7 GNDS 10 GNDC GND (connect to analog ground) 12 GNDR 14 GNDL 6 SWin 8 SRin Volume input 9 SLin 11 Cin 36 SWout 35 SRout Volume output 34 SLout 33 Cout 13 Rin TONE input 15 Lin 16 BYPASSR L and R Volume input at bypass 17 BYPASSL 31 Lout L output 32 Rout R output No. Pin Name Function 18 LTRE TONE TREBLE frequency control port 25 RTRE 19 LBASS3 24 RBASS3 20 LBASS2 TONE BASS frequency control port 23 RBASS2 21 LBASS1 22 RBASS1 26 CR2 TONE output port 28 CL2 27 CR1 L and R volume input 29 CL1 31 Lout L output 32 Rout R output 30 AVSS Analog negative power supply port 37 AGND Analog ground port 38 DGND Digital ground port 39 LATCH Latch input port 40 DATA Data input port 41 CLK Clock input port for data transmission 42 DVDD Digital power supply port www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 45 VSX-409RDS CXD2719Q (MAIN ASSY : IC201) • Dolby Pro Logic Surround Decoder IC • Pin Function • Block Diagram No. Pin Name I/O Function 1-3 T.P O Monitor pin for test Normally, outputs "L". 4 VSS0 – Digital ground 5-8 T.P O Monitor pin for test Normally, outputs "L". 9 TST0 I Test pin Normally, fix to L. 10 VDD0 – Digital power supply 11 VSS1 – Digital ground 12 TST1 I Test pin Normally, fix to "L". 13 TST2 I Test pin Normally, fix to "L". 14 TST3 I Test pin Normally, fix to "L". 15 TST4 I Test pin Normally, fix to "L". 16 XRST I System reset input L : reset. 17 BFOT O Clock and divided frequency output (384/768/256/512 fs) 18 CSL1 I Test pin Normally, fix to "H". 19 CSL2 I Test pin Normally, fix to "L". 20 VSS2 – Digital ground 21 AVS3 – Ground for L-ch D/A converter 22 AVD3 – Power supply for L-ch D/A converter 23 LOUT O L-ch A/D converter output 24 AVD1 – Power supply for L-ch A/D converter 25 AVS1 – Ground for L-ch A/D converter 26 LO1 O OP amp. inverting output for LPF of L-ch A/D converter 27 LIN I Analog input of L-ch A/D converter 28 AVD5 – Power supply for C-ch D/A converter 29 AVS5 – Ground for C-ch D/A converter 30 XCOUT O C-ch D/A converter output 31 AVDX – Analog power supply for master clock 32 XTLO O Crystal oscillation circuit output RVDT SCK XLAT REDY LRCK BCK SI XMST 50 46 49 47 58 57 55 60 XTLI 33 XTLO 32 BFOT 17 XSOUT 35 XCOUT 30 ROUT 42 LOUT 23 LO2 39 RIN 38 LO1 26 LIN 27 MICRO COMPUTER I/F DSP 24k bit DELAY RAM ADC1 ADC2 DAC1 DAC2 Trim Vol Trim Vol Analog SW Analog SW DAC3 DAC4 CLOCK GENERATOR /TIMING CIRCUIT SERIAL DATA I/F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 46 VSX-409RDS No. Pin Name I/O Function 33 XTLI I Crystal oscillation circuit input 34 AVSX – Analog ground for master clock 35 XSOUT O S-ch D/A converter output 36 AVS6 – Ground for S-ch D/A converter 37 AVD6 – Power supply for S-ch D/A converter 38 RIN I Analog input of R-ch A/D converter 39 LO2 O OP amp. inverting output for LPF of R-ch A/D converter 40 AVS2 – Ground for R-ch A/D converter 41 AVD2 – Power supply for R-ch A/D converter 42 ROUT O R-ch D/A converter output 43 AVD4 – Power supply for R-ch D/A converter 44 AVS4 – Ground for R-ch D/A converter 45 VSS3 – Digital ground 46 SCK I Shift clock input of microprocessor interface 47 REDY O Transfer permission signal output of microprocessor interface L : Transfer prohibition 48 T.P O Monitor pin for test Normally, outputs "Hi-Z". 49 XLAT I Latch input of microprocessor interface 50 RVDT I Data input of microprocessor interface 51 XS24 I 24/32 bit slot selection of serial data L : 24 bit slot (It is effective at slave mode.) 52 VDD1 – Digital power supply 53 VSS4 – Digital ground 54 T.P – Monitor pin for test Normally, outputs "L". 55 SI I Serial data input of 1 sampling 2 channel 56 T.P I Input pin for test Normelly, outputs "L". 57 BCK I/O Serial bit transfer clock of serial input/output data SI and SO 58 LRCK I/O Sampling frequency clock of serial input/output data SI and SO 59 VSS5 – Digital ground 60 XMST I Master/slave mode switching input of BCK and LRCK L : master mode 61-63 T.P O Monitor pin for test Normally, outputs "L". 64 VSS6 – Digital ground 65-72 T.P O Monitor pin for test Normally, outputs "L". 73 VDD2 – Digital power supply 74 VSS7 – Digital ground 75-80 T.P O Monitor pin for test Normally, outputs "L". www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 47 VSX-409RDS AAV7072 (FRONT ASSY : V401) • FL DISPLAY 7.2.2 DISPLAY • Pin Assignment • Pin Connection • Grid Assignment www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 48 VSX-409RDS • Anode Connection www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 49 VSX-409RDS 1 # $ ( * @ & % ^ 2 3 4 5 6 7 8 9 0 - = ~ ! 8.1 PANEL FACILITIES 8. PANEL FACILITIES AND SPECIFICATIONS Front Section 1 MAIN POWER button Push to send electricity to the receiver. Note the STANDBY/ ON button below actually turns the receiver on and standby. 2 STANDBY indicator Lights when the receiver is in standby mode (note that the receiver consumes a small amount of power (1W) in standby mode). 3 STANDBY/ON button Switches the receiver between on and standby. 4 STATION (+/–), FREQUENCY (+/–), TUNING SELECT buttons STATION (+/–) Selects station memories when using the tuner. FREQUENCY (+/–) Selects the frequency when using the tuner. TUNING SELECT Switches between station memory and frequency select modes. 5 CLASS button Switches between the three banks (classes) of station memories. 6 MEMORY button Press to memorize a station for recall using the STATION (+/–) buttons. Also use to search in RDS mode 7 RF ATT button Use to lower the input level of a radio signal that is too powerful or has interfering waves, thus causing the receiver to distort 8 CHARACTER/SEARCH button Use this button to search for different program types in RDS mode. It is also used to input station names. 9 EON MODE button Use this button to search for different programs that are transmitting traffic or news information (this search method is called EON). 0 Display - Remote sensor Receives the signals fromthe remote control. = DSP MODE button Use to switch between the various DSP modes available (HALL, JAZZ, DANCE, THEATER1, THEATER2) and DSP off. Use to create different surround sound effects from any stereo source. ~ DOLBY PRO LOGIC button Use to switch between the various Pro Logic modes (PRO LOGIC, PRO LOGIC THEATER1, PRO LOGIC THEATER2) and Pro Logic off. ! MASTER VOLUME Use to set the overall listening volume. @ PHONES jack Connect headphones for private listening . # SPEAKERS button Use to switch the speaker system on or off. $ FL DIMMER button Use this button to make the fluorescent display (FL) dimmer or brighter. There are three brightness settings as well as an off setting. % BASS (+/–) buttons Use to increase/decrease bass (within a range of – 6dB to 6dB in 2dB steps). It cannot be used when S.BASS is on. ^ TREBLE (+/–) buttons Use to increase/decrease treble (within a range of – 6dB to 6 dB in 2dB steps). & Function buttons Use to select a source for playback or recording. * S.BASS button Use to switch on and off the bass boost. Use for a more powerful bass sound. Negates use of BASS buttons. ( DIRECT button Use to switch DIRECT playback on or off. This mode bypasses all tone controls, Dolby, DSP and channel levels for the most accurate reproduction of a program source. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 50 VSX-409RDS Display 1 2 PRO LOGIC indicator Lights when any Dolby Pro Logic mode is selected. The main character display briefly shows the current Pro Logic mode (PRO LOGIC, THEATER1, THEATER2) after selection. 2 DSP indicator Lights when any DSP mode is selected. The main character display briefly shows the current DSP mode (HALL, JAZZ, DANCE, THEATER1 and THEATER2) after selection. 3 DIRECT indicator Lights when source DIRECT is on. This function bypasses all tone, channel level, DSP and Dolby Surround effects. 4� MONITOR indicator Lights when MONITOR is selected to hear a recording as it's being made. 5 TUNER indicators MONO: Lights when the mono mode is set using the MPX MODE button. TUNED: Lights when a broadcast is being received. STEREO: Lights when a stereo FM broadcast is being received in auto stereo mode. 6 EON indicator When the EON mode is set the EON indicator with a box around it ligh†s, but during actual reception of an EON broadcast the EON indicator will flash. An empty box in the EON indicator spot means it is possible to pick up an EON broadcast but the receiver has not been set to do so (this will only appear when RDS is switched on). 7 RDS indicator Lights when an RDS broadcast is received. 8 RF ATT indicator Lights when the RF ATT is on. 9� MASTER VOLUME LEVEL Shows the overall volume level. Volume level is maintained even when the power is off. ---dB indicates the minimum level, and 0dB indicates the maximum level. • Depending on the level settings for individual channels, the MAX level can range between –10dB and 0dB. 0 SPEAKER indicator Shows if the speaker system is on or not. If SP3A appears speakers are switched on. If SP3 appears speakers are switched off. - S. BASS indicator Lights when the S. BASS is on. = CHARACTER display Shows radio frequency or function (DVD/LD, CD, etc.) receiver is using . dB PRO LOGIC DSP DIRECT MONITOR S. BASS TUNED MONO SP A STEREO RF ATT RDS EON 1 2 6 7 8 4 3 5 9 0 - = www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 51 VSX-409RDS CLASS MENU MPX SET UP D. ACCESS TOP MENU SOURCE SOURCE SELECT DVD TAPE CD TUNER TV CONT. CH. SELECT FUNCTION FL DIMMER RECEIVER MD CD-R * & # @ TV VOL. EFFECT TV FUNC. TEST TONE MUTING MASTER VOLUME DSP MODE SORROUND 2 ! ! Î� AV MULTI-CHANNEL RECEIVER REMOTE CONTROL UNIT LEVEL CHANNEL STATION $ $ ENTER RF ATT DISP FQ FQ 1 2 3 4 5 6 9 0 7 8 1 9 8 7 6 5 4 3 2 0 ^ % $ # @ ! ~ = - Remote Control Unit 1 SOURCE (POWER) button This button turns on/off the power for PIONEER components connected to the VSX-409RDS. 2 NUMBER/PLAYER COMMAND buttons Use to select radio frequency in tuner mode. Also, you can use to contol PIONEER components like CD players, cassette decks, etc. according to the comands printed above the button (4 3 7, etc.) 3 D.ACCESS/TOP MENU button This button gives you direct access to radio frequency input, allowing you to input a station directly. In DVD mode this button brings you to the top menu. 4 TEST TONE button Use this button to hear a test tone from each speaker in turn to set the relative speaker volumes. Also switches the BAND in TUNER mode. 5 SURROUND button Use this button to set up the surround sound features of the VSX-409RDS. In particular, it's used to select the type of center mode, turn on/off subwoofer option and select distance for each speaker. Also used to start the process of setting the effect levels 6 2 button Use to select a Dolby Pro Logic mode. Also used to access Test Tone. 7 CH. SELECT button Used to start the process of setting the speaker levels (see $� below). 8 RECEIVER STANDBY/ON button Use to switch the receiver between on and standby modes. 9� FUNCTION button Use select the playback or recording source. 0 SOURCE SELECT keys Use to put the remote control (NOT the receiver) in the stated mode. For other equipment controls. - CHANNEL/STATION +/– buttons Use to select the station of memorized frequencies or change channels on Pioneer-made TVs. = CLASS/MENU button Use to switch between the three banks (classes) of station memories. ~ 2� (RF ATT)�3� (DISP)�5∞ ( FQ +/–) & ENTER buttons Use these arrow buttons when setting up your surround sound system. These buttons are also used to control DVD menus/options and for deck 1 of a double cassette deck player. The FQ +/– buttons can be used to find radio frequencies and the RF ATT and DISP buttons have special functions. ! MPX/SETUP button Use to switch between auto stereo and mono reception of FM broadcasts. If the signal is weak then switching to MONO will improve the sound quality. In DVD mode this button brings up the SETUP menus. @ DSP MODE button Use to switch between the various DSP modes available (HALL, JAZZ, DANCE, THEATER1, THEATER2) and DSP off. Use to create different surround sound effects from any stereo source. # MUTING button Use to mute all audio without affecting any of the current sound settings. If you adjust the volume the muting is automatically cancelled. $ LEVEL +/– buttons Use to set the relative speaker volumes for all the speakers in your system (see 7� above). % MASTER VOLUME +/– buttons Use to set the overall listening volume. ^ FL DIMMER button Use this button to make the fluorescent display (FL) dimmer or brighter. There are three brightness settings and an off setting. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 52 VSX-409RDS CD player CD-R , Cassette deck MD , DAT etc. FM UNBAL 75Ω L R L R AM LOOP ANTENNA FM ANTENNA CD OUT CD-R /TAPE /MD IN IN IN IN IN IN IN IN CONTROL SURROUND CENTER SUB WOOFER PREOUT TO MONITOR TV VCR/ DVR TV/ SAT DVD /LD FRONT P L A Y CENTER SPEAKER SURROUND SPEAKERS FRONT SPEAKERS L R SUB WOOFER L R O U T R E C DVD 5.1 CH INPUT OUT PLAY REC L R OUT L R Connecting Audio Components Connect your audio components as shown below. When connecting equipment, always make sure the power switched off and the power cord is disconnected from the wall outlet. Audio cords Use good quality audio cords with RCA/phono plugs at each end (not supplied) to connect your audio components. L R Cassette deck placement Depending on where the cassette deck is placed, noise caused by leakage flux from the transformer in the receiver may occur during playback. If you experience noise, move the cassette deck farther away from the receiver. Connect red plugs to R (right) and white plugs to L (left) terminals. Be sure to push home the plugs into their sockets. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 53 VSX-409RDS Accessories 8.2 SPECIFICATIONS M A I N T E N A N C E O F E X T E R N A L SURFACES ¶ Use a polishing cloth or dry cloth to wipe off dust and dirt. ¶ When the surfaces are very dirty, wipe with a soft cloth dipped in some neutral cleanser diluted five or six times with water, and wrung out well, and then wipe again with a dry cloth. Do not use furniture wax or cleaners. ¶ Never use thinners, benzene, insecticide sprays or other chemicals on or near this unit, since these will corrode surfaces. Continuous Power Output Front ................................ 80 W + 80 W (DIN,1kHz, 0.9 %, 8 Ω) Center .......................................... 80 W (DIN,1kHz, 0.9 %, 8 Ω) Surround ......................... 80 W + 80 W (DIN,1kHz, 0.9 %, 8 Ω) ÷ Above specifications are for when power supply is 230 V. Input (Sensitivity/Impedance) CD, VCR/DVR, CD-R/TAPE/MD, DVD/LD, TV/SAT ........................................................................ 200 mV/47 kΩ Frequency Response CD, VCR/DVR, CD-R/TAPE/MD, DVD/LD, TV/SAT ....................................................... 5 Hz to 100,000 Hz dB Output (Level/Impedance) VCR/DVR REC, CD-R/TAPE/MD REC ....................................................................... 200 mV/2.2 kΩ Tone Control BASS ............................................................. ± 6 dB (100 Hz) TREBLE ........................................................ ± 6 dB (10 kHz) S.BASS .........................................................+ 8 dB (100 Hz) Signal-to-Noise Ratio [DIN(Rated power output/50 mW)] CD, VCR/DVR, CD-R/TAPE/MD, DVD/LD, TV/SAT ........................................................................... 88 dB/64 dB Video Section Input (Sensitivity/Impedance) VCR, DVD/LD, TV/SAT .......................................1 Vp-p/75 Ω Output (Level/Impedance) VCR .....................................................................1 Vp-p/75 Ω Frequency Response VCR, DVD/LD, TV/SAT → MONITOR ............................................................... 5 Hz to 7 MHz dB Signal-to-Noise Ratio ........................................................55 dB Cross Talk .........................................................................55 dB FM Tuner Section Frequency Range ................................... 87.5 MHz to 108 MHz Usable Sensitivity ................. Mono:15.2 dBf, IHF (1.6 µV/75 Ω) 50 dB Quieting Sensitivity ................................. Mono: 20.2 dBf Stereo: 41.2 dBf Signal-to-Noise Ratio ........................... Mono: 76 dB (at 85 dBf) Stereo: 72 dB (at 85 dBf) Distortion ................................................. Stereo: 0.6 % (1 kHz) Alternate Channel Selectivity ........................... 70 dB (400 kHz) Stereo Separation ................................................ 40 dB (1 kHz) Frequency Response ...........................30 Hz to 15 kHz (±1) dB Antenna Input ..................................................75 Ω unbalanced Sensitivity (DIN) .................................. Mono: 1.1 uV(S/N 26dB) Stereo 50 uV(S/N 46dB) Signal-to-Noise Ratio (DIN) ....................................Mono: 62dB Stereo: 58dB +0 –3 AM Tuner Section Frequency Range ................................... 531 kHz to 1,602 kHz Sensitivity (IHF, Loop antenna) .................................. 350 µV/m Selectivity ......................................................................... 30 dB Signal-to-Noise Ratio ........................................................50 dB Antenna ................................................................ Loop antenna Miscellaneous Power Requirements .......................... AC 220-230 V, 50/60 Hz Power Consumption ........................................................ 220 W In Standby Condition ............................................................1 W Dimensions .............................420 (W) x 158 (H) x 391 (D) mm Weight (without package)................................................. 8.4 kg Furnished Parts FM Wire Antenna ..................................................................... 1 AM Loop Antenna .................................................................... 1 Dry Cell Batteries size "AA" (IEC R6P) ............................................................. 2 Remote Control Unit ................................................................ 1 Operating Instructions .............................................................. 1 NOTE: Specifications and the design are subject to possible modifications without notice, due to improvements. * Manufactured under license from Dolby Laboratories. "Dolby", "Pro Logic" and double-D symbol are trademarks of Dolby Laboratories. Confidential unpublished works. © 1992-1997 Dolby Laboratries.All rights reserved. Remote control unit (CU-VSX167 : AXD7243) AM loop antenna (ATB7009) FM wire antenna (ADH7005) 'AA' size IEC R6P batteries (x2) CLASS MENU MPX SET UP D. ACCESS TOP MENU SOURCE SOURCE SELECT DVD TAPE CD TUNER TV CONT. CH. SELECT FUNCTION FL DIMMER RECEIVER MD CD-R * & # TV VOL. EFFECT TEST TONE MUTING MASTER VOLUME DSP MODE SORROUND 2 ! ! Î� AV MULTI-CHANNEL RECEIVER REMOTE CONTROL UNIT LEVEL CHANNEL STATION $ $ ENTER RF ATT DISP FQ FQ 1 2 3 4 5 6 9 0 7 8 +0 –3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
