先锋PIONEER VSX-35TX电路图

分类：电子电工 日期： 点击：0

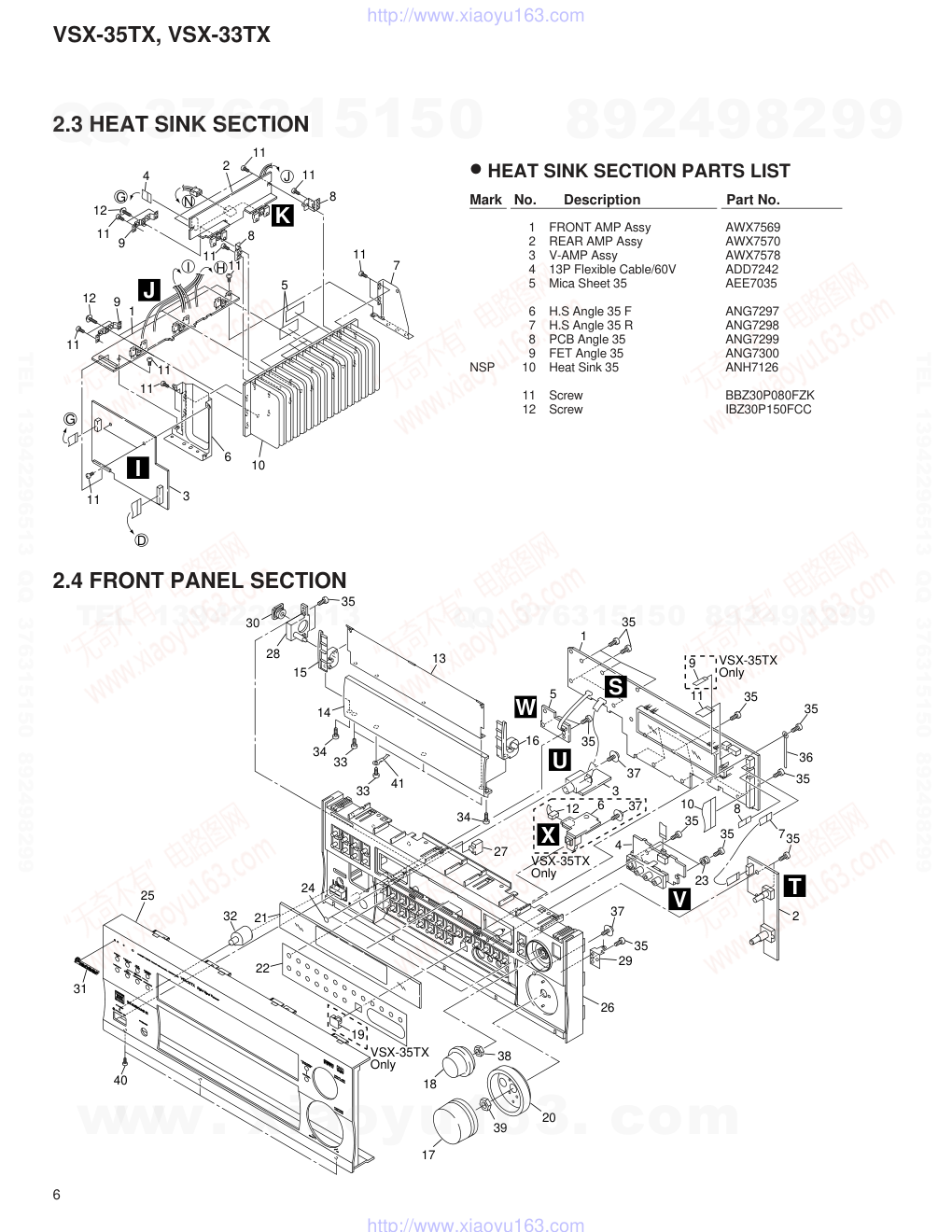

先锋PIONEER VSX-35TX电路图-0 先锋PIONEER VSX-35TX电路图-1 先锋PIONEER VSX-35TX电路图-2 先锋PIONEER VSX-35TX电路图-3 先锋PIONEER VSX-35TX电路图-4 先锋PIONEER VSX-35TX电路图-5 先锋PIONEER VSX-35TX电路图-6 先锋PIONEER VSX-35TX电路图-7 先锋PIONEER VSX-35TX电路图-8 先锋PIONEER VSX-35TX电路图-9

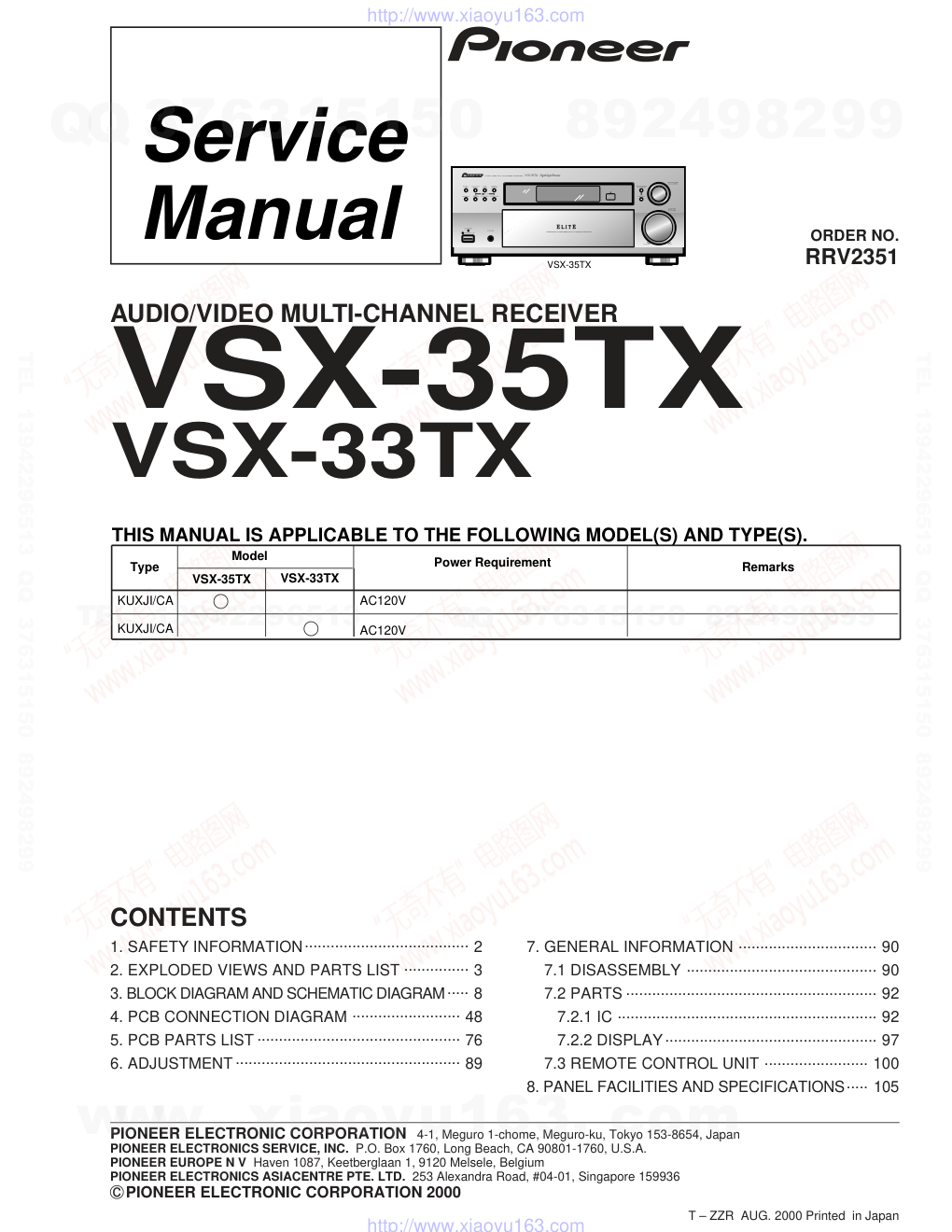

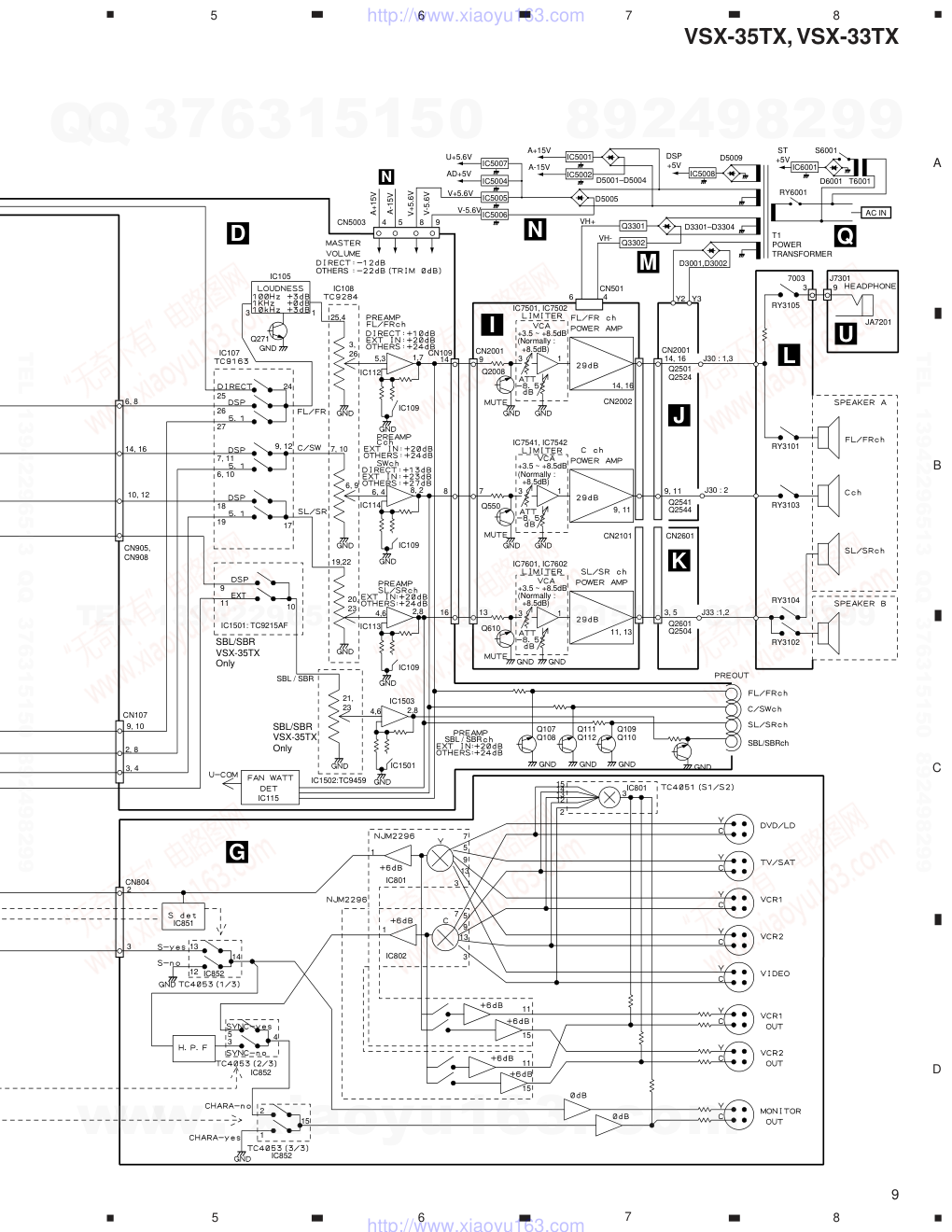

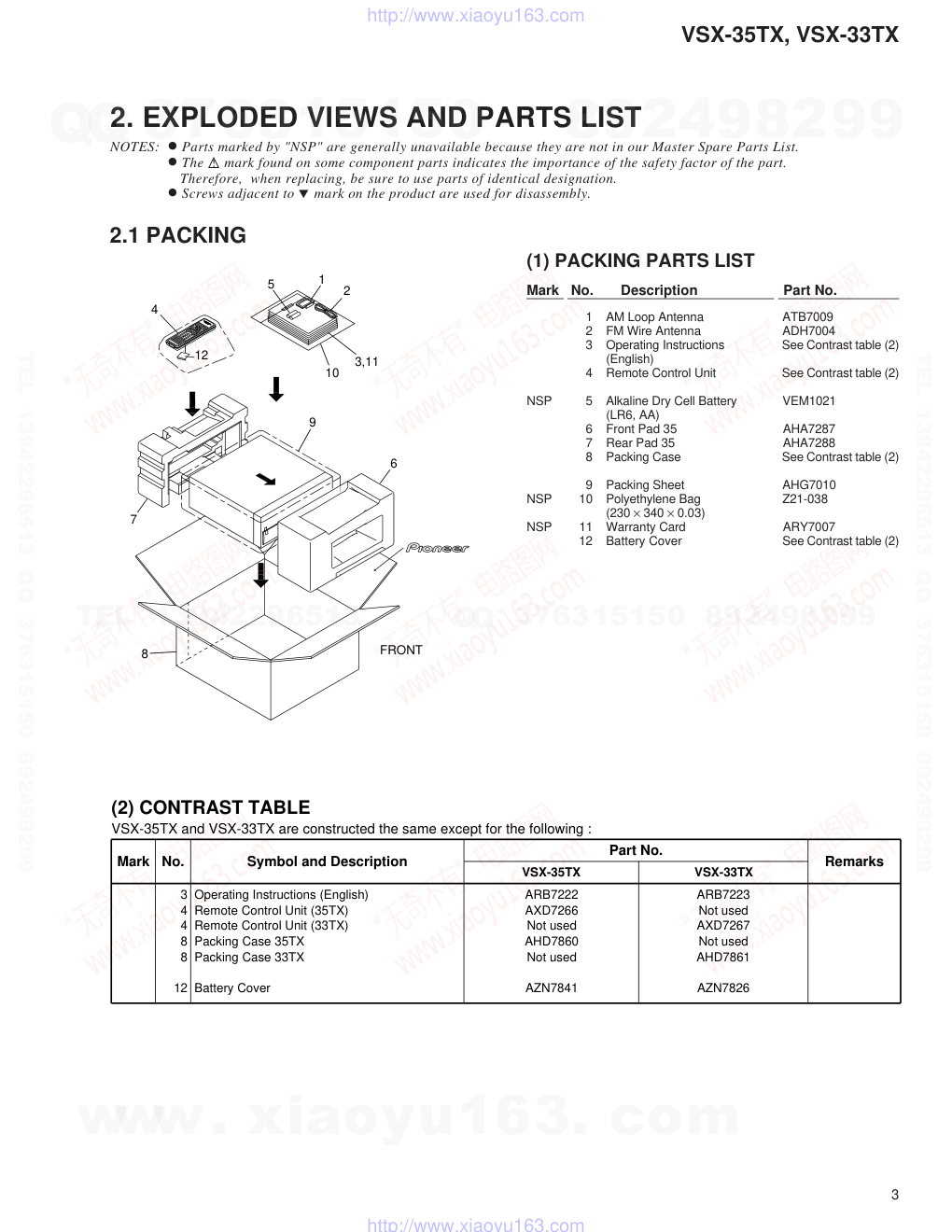

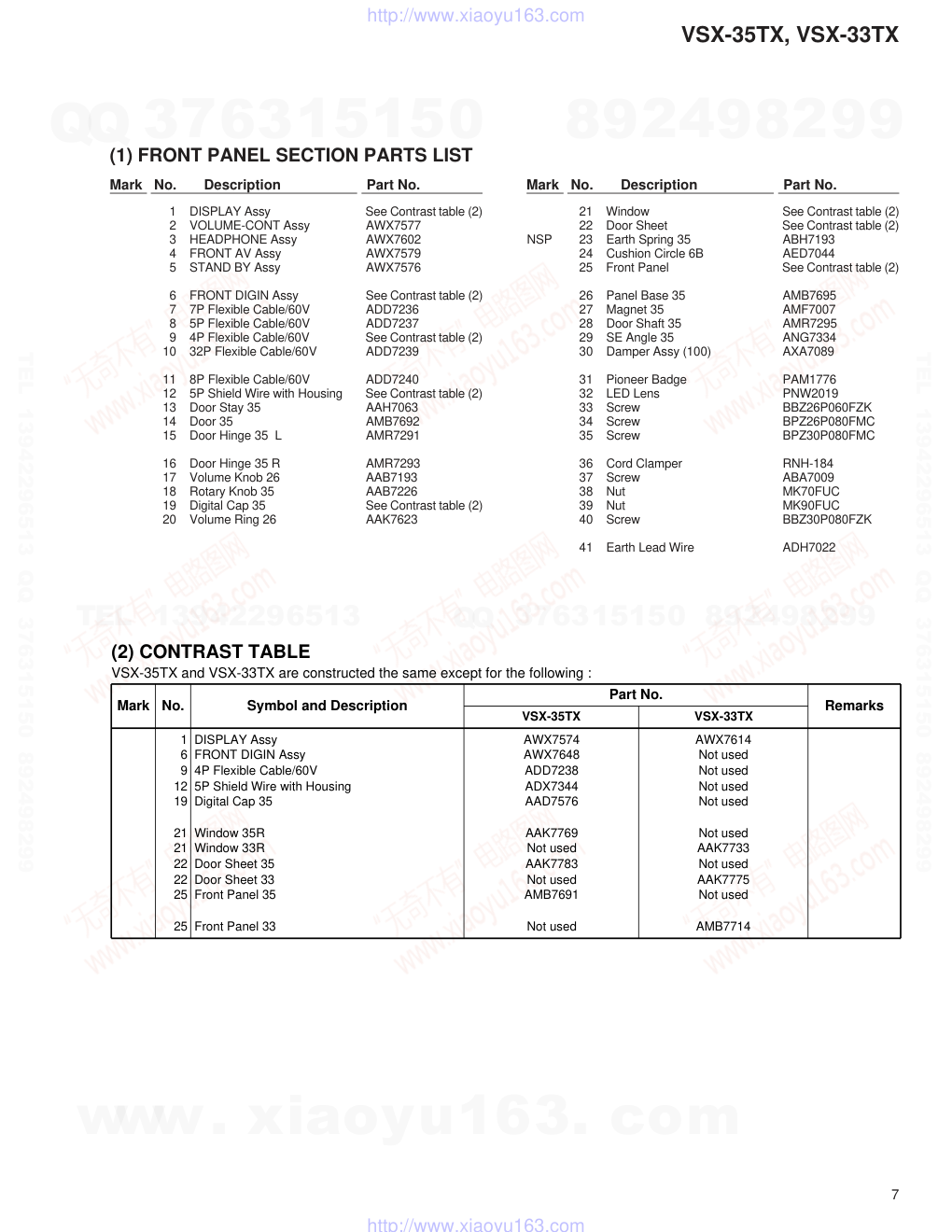

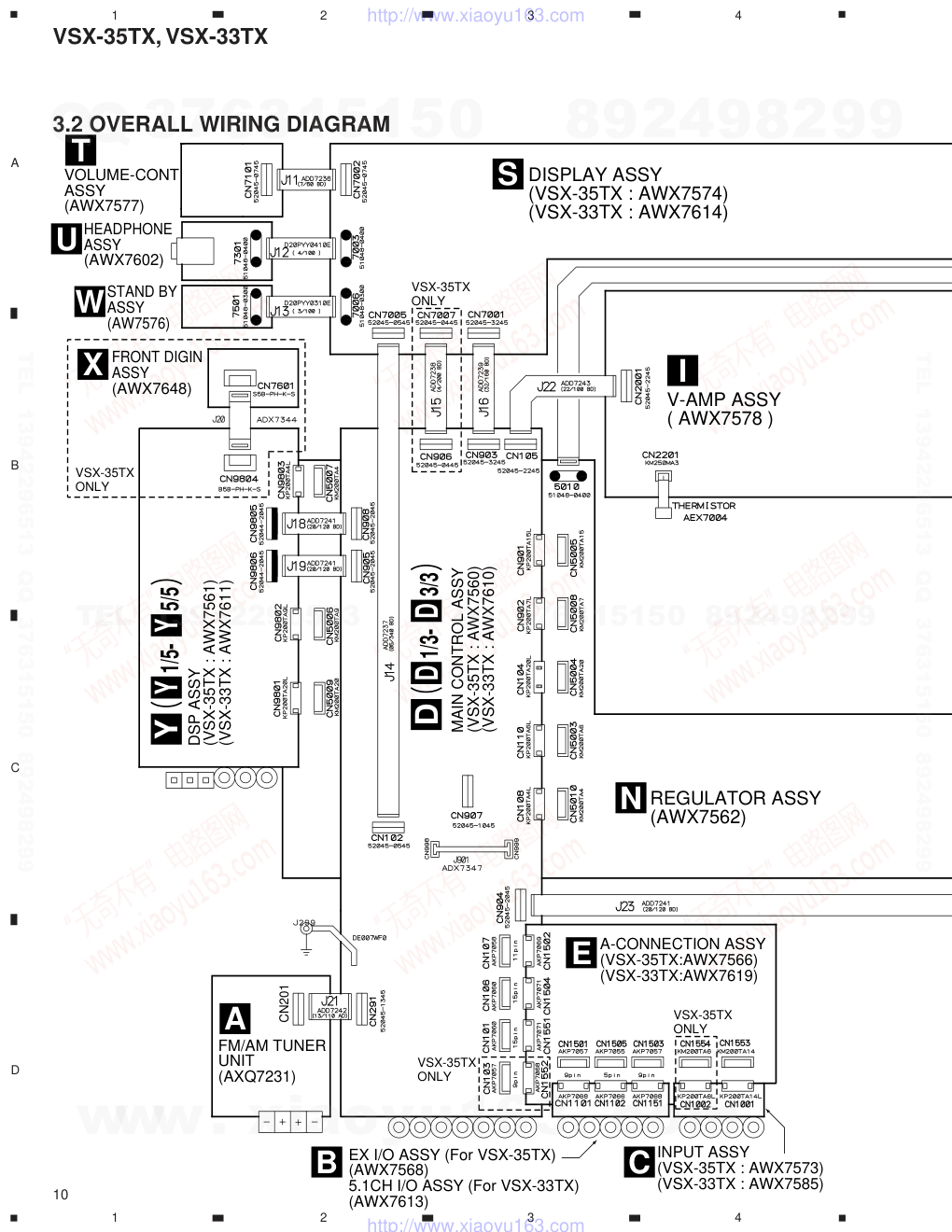

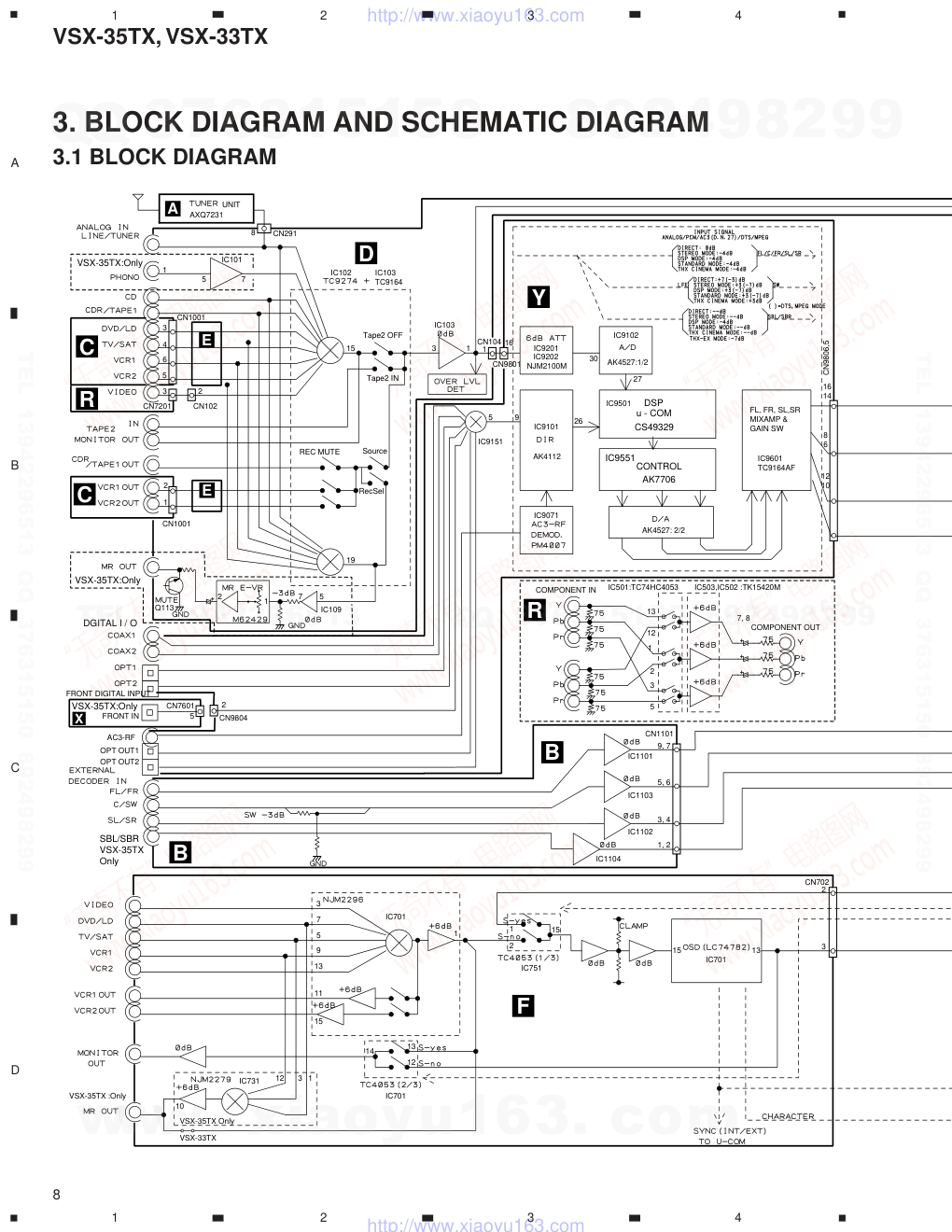

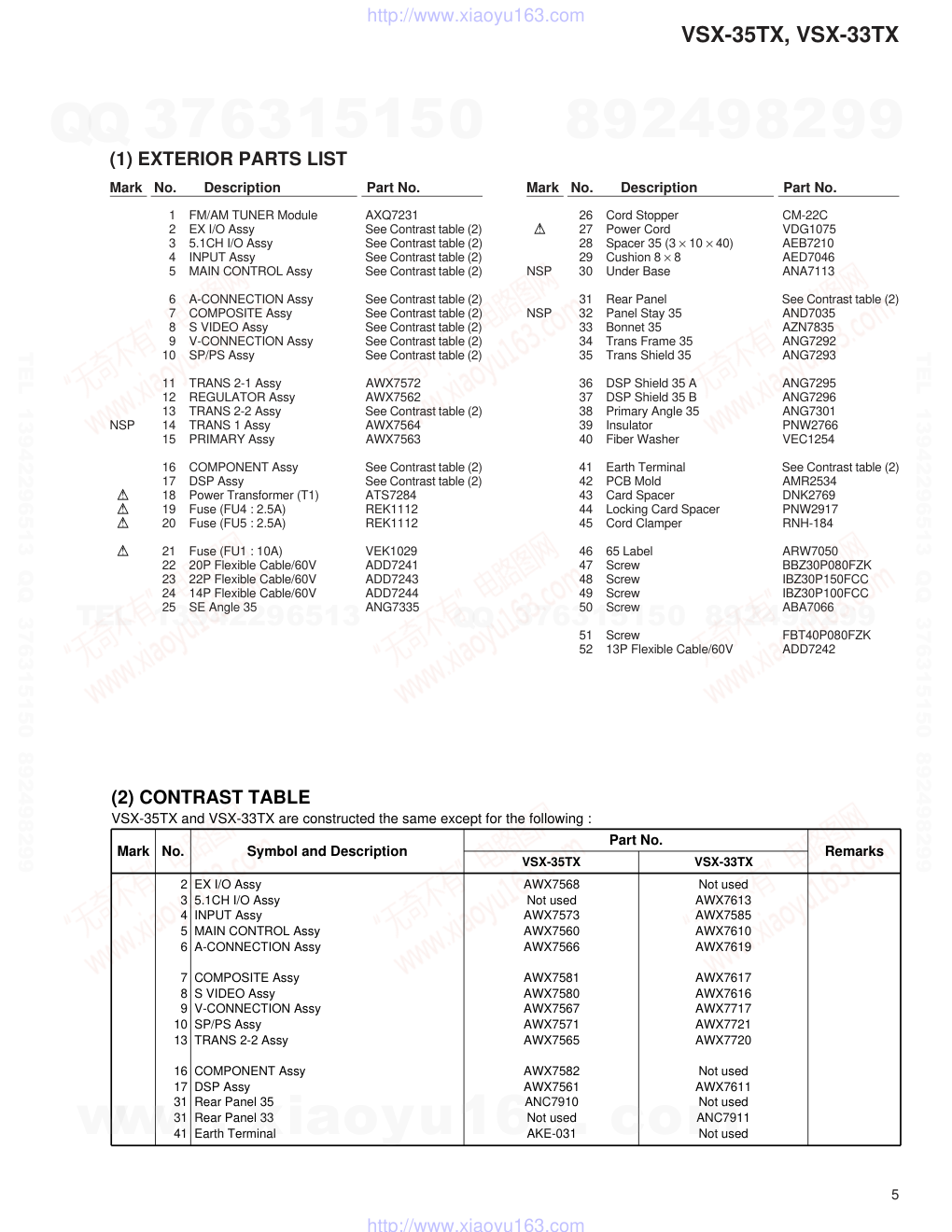

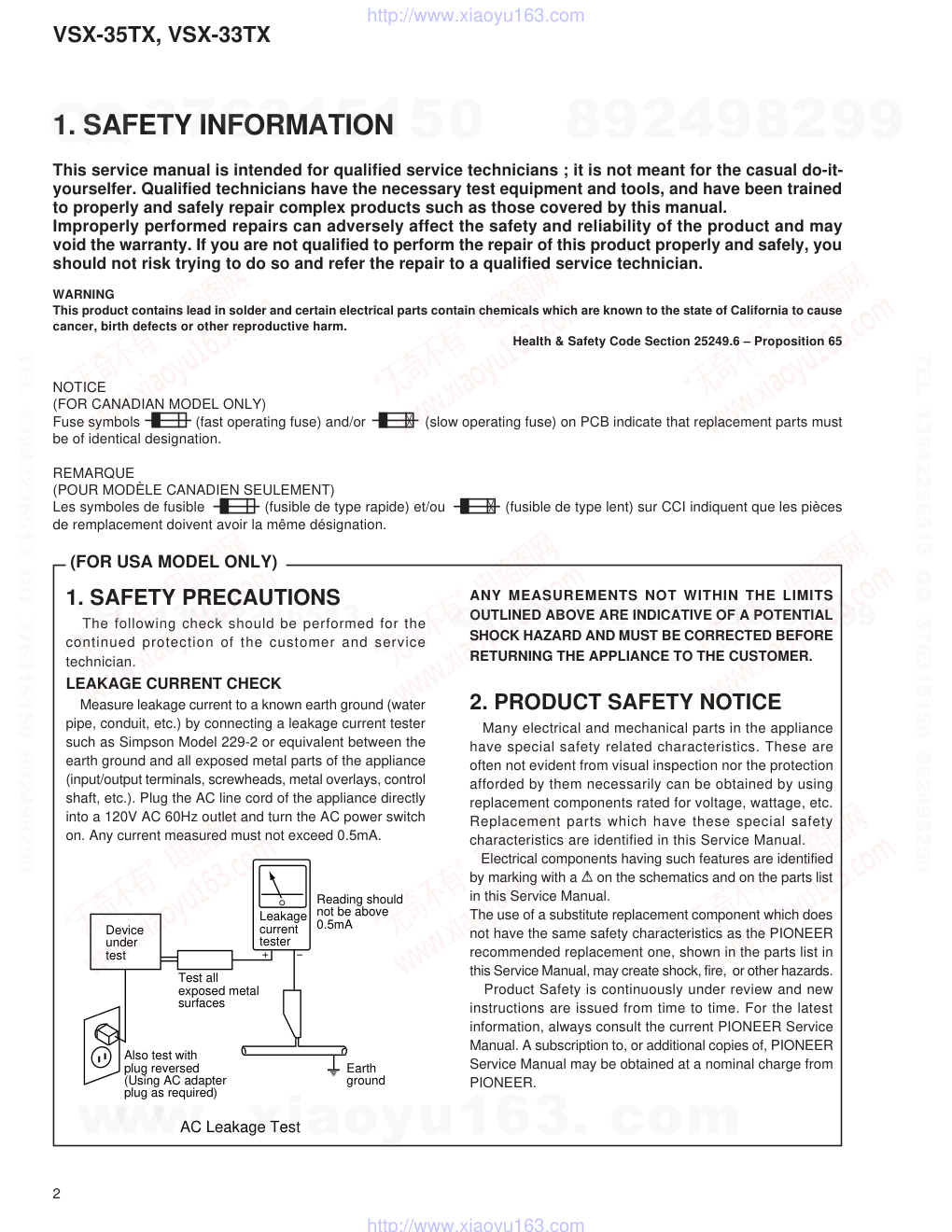

ORDER NO. PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE N V Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 � � � � � � � � � �PIONEER ELECTRONIC CORPORATION 2000 c VSX-35TX RRV2351 1. SAFETY INFORMATION...................................... 2 2. EXPLODED VIEWS AND PARTS LIST ............... 3 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM..... 8 4. PCB CONNECTION DIAGRAM ......................... 48 5. PCB PARTS LIST ............................................... 76 6. ADJUSTMENT .................................................... 89 CONTENTS 7. GENERAL INFORMATION ................................ 90 7.1 DISASSEMBLY ............................................ 90 7.2 PARTS .......................................................... 92 7.2.1 IC ............................................................ 92 7.2.2 DISPLAY................................................. 97 7.3 REMOTE CONTROL UNIT ........................ 100 8. PANEL FACILITIES AND SPECIFICATIONS..... 105 T – ZZR AUG. 2000 Printed in Japan VSX-33TX AUDIO/VIDEO MULTI-CHANNEL RECEIVER Type Model Power Requirement Remarks VSX-35TX VSX-33TX KUXJI/CA KUXJI/CA AC120V AC120V THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S). VSX-35TX REFERENCE AUDIO/VIDEO MULTI–CHANNEL RECEIVER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 VSX-35TX, VSX-33TX 1. SAFETY INFORMATION This service manual is intended for qualified service technicians ; it is not meant for the casual do-it- yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. WARNING This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 – Proposition 65 NOTICE (FOR CANADIAN MODEL ONLY) Fuse symbols (fast operating fuse) and/or (slow operating fuse) on PCB indicate that replacement parts must be of identical designation. REMARQUE (POUR MODÈLE CANADIEN SEULEMENT) Les symboles de fusible (fusible de type rapide) et/ou (fusible de type lent) sur CCI indiquent que les pièces de remplacement doivent avoir la même désignation. ANY MEASUREMENTS NOT WITHIN THE LIMITS OUTLINED ABOVE ARE INDICATIVE OF A POTENTIAL SHOCK HAZARD AND MUST BE CORRECTED BEFORE RETURNING THE APPLIANCE TO THE CUSTOMER. 2. PRODUCT SAFETY NOTICE Many electrical and mechanical parts in the appliance have special safety related characteristics. These are often not evident from visual inspection nor the protection afforded by them necessarily can be obtained by using replacement components rated for voltage, wattage, etc. Replacement parts which have these special safety characteristics are identified in this Service Manual. Electrical components having such features are identified by marking with a on the schematics and on the parts list in this Service Manual. The use of a substitute replacement component which does not have the same safety characteristics as the PIONEER recommended replacement one, shown in the parts list in this Service Manual, may create shock, fire, or other hazards. Product Safety is continuously under review and new instructions are issued from time to time. For the latest information, always consult the current PIONEER Service Manual. A subscription to, or additional copies of, PIONEER Service Manual may be obtained at a nominal charge from PIONEER. 1. SAFETY PRECAUTIONS The following check should be performed for the continued protection of the customer and service technician. LEAKAGE CURRENT CHECK Measure leakage current to a known earth ground (water pipe, conduit, etc.) by connecting a leakage current tester such as Simpson Model 229-2 or equivalent between the earth ground and all exposed metal parts of the appliance (input/output terminals, screwheads, metal overlays, control shaft, etc.). Plug the AC line cord of the appliance directly into a 120V AC 60Hz outlet and turn the AC power switch on. Any current measured must not exceed 0.5mA. (FOR USA MODEL ONLY) Leakage current tester Reading should not be above 0.5mA Device under test Test all exposed metal surfaces Also test with plug reversed (Using AC adapter plug as required) Earth ground AC Leakage Test www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 VSX-35TX, VSX-33TX 2.1 PACKING (1) PACKING PARTS LIST Mark No. Description Part No. 2. EXPLODED VIEWS AND PARTS LIST NOTES: • Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. • The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. • Screws adjacent to mark on the product are used for disassembly. 1 AM Loop Antenna ATB7009 2 FM Wire Antenna ADH7004 3 Operating Instructions See Contrast table (2) (English) 4 Remote Control Unit See Contrast table (2) NSP 5 Alkaline Dry Cell Battery VEM1021 (LR6, AA) 6 Front Pad 35 AHA7287 7 Rear Pad 35 AHA7288 8 Packing Case See Contrast table (2) 9 Packing Sheet AHG7010 NSP 10 Polyethylene Bag Z21-038 (230 × 340 × 0.03) NSP 11 Warranty Card ARY7007 12 Battery Cover See Contrast table (2) (2) CONTRAST TABLE VSX-35TX and VSX-33TX are constructed the same except for the following : Mark No. Symbol and Description Part No. Remarks VSX-35TX VSX-33TX 3 4 4 8 8 12 Operating Instructions (English) Remote Control Unit (35TX) Remote Control Unit (33TX) Packing Case 35TX Packing Case 33TX Battery Cover ARB7222 AXD7266 Not used AHD7860 Not used AZN7841 ARB7223 Not used AXD7267 Not used AHD7861 AZN7826 1 2 3,11 10 12 9 5 4 6 7 8 FRONT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 VSX-35TX, VSX-33TX 2.2 EXTERIOR SECTION C B F E B P N O Q R S J H I K L R T P Q V B T U F S V U O E M C D L A K D G A I H N G J 33 51 51 28 48 22 17 PCB Holder 22 48 48 12 36 47 47 47 47 47 47 47 31 37 47 40 47 45 47 47 47 47 47 35 34 44 47 47 47 47 47 49 47 47 47 29 25 47 45 47 46 45 47 38 15 21 Refer to "2.3 HEAT SINK SECTION". 47 23 4 6 11 19 14 13 50 50 18 20 5 2 or 3 51 47 Refer to "2.4 FRONT PANEL SECTION". B C E N A F G R L Q H Y M P O D 47 47 47 47 4747 9 24 47 47 48 10 43 30 42 22 7 52 41 47 1 26 49 27 (VSX-35TX Only) (VSX-35TX Only) (VSX-35TX Only) 8 16 43 43 39 47 32 47 47 Screw Cover Screw Cover 47 51 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 VSX-35TX, VSX-33TX 1 FM/AM TUNER Module AXQ7231 2 EX I/O Assy See Contrast table (2) 3 5.1CH I/O Assy See Contrast table (2) 4 INPUT Assy See Contrast table (2) 5 MAIN CONTROL Assy See Contrast table (2) 6 A-CONNECTION Assy See Contrast table (2) 7 COMPOSITE Assy See Contrast table (2) 8 S VIDEO Assy See Contrast table (2) 9 V-CONNECTION Assy See Contrast table (2) 10 SP/PS Assy See Contrast table (2) 11 TRANS 2-1 Assy AWX7572 12 REGULATOR Assy AWX7562 13 TRANS 2-2 Assy See Contrast table (2) NSP 14 TRANS 1 Assy AWX7564 15 PRIMARY Assy AWX7563 16 COMPONENT Assy See Contrast table (2) 17 DSP Assy See Contrast table (2) 18 Power Transformer (T1) ATS7284 19 Fuse (FU4 : 2.5A) REK1112 20 Fuse (FU5 : 2.5A) REK1112 21 Fuse (FU1 : 10A) VEK1029 22 20P Flexible Cable/60V ADD7241 23 22P Flexible Cable/60V ADD7243 24 14P Flexible Cable/60V ADD7244 25 SE Angle 35 ANG7335 (1) EXTERIOR PARTS LIST Mark No. Description Part No. Mark No. Description Part No. 26 Cord Stopper CM-22C 27 Power Cord VDG1075 28 Spacer 35 (3 × 10 × 40) AEB7210 29 Cushion 8 × 8 AED7046 NSP 30 Under Base ANA7113 31 Rear Panel See Contrast table (2) NSP 32 Panel Stay 35 AND7035 33 Bonnet 35 AZN7835 34 Trans Frame 35 ANG7292 35 Trans Shield 35 ANG7293 36 DSP Shield 35 A ANG7295 37 DSP Shield 35 B ANG7296 38 Primary Angle 35 ANG7301 39 Insulator PNW2766 40 Fiber Washer VEC1254 41 Earth Terminal See Contrast table (2) 42 PCB Mold AMR2534 43 Card Spacer DNK2769 44 Locking Card Spacer PNW2917 45 Cord Clamper RNH-184 46 65 Label ARW7050 47 Screw BBZ30P080FZK 48 Screw IBZ30P150FCC 49 Screw IBZ30P100FCC 50 Screw ABA7066 51 Screw FBT40P080FZK 52 13P Flexible Cable/60V ADD7242 (2) CONTRAST TABLE VSX-35TX and VSX-33TX are constructed the same except for the following : Mark No. Symbol and Description Part No. Remarks VSX-35TX VSX-33TX 2 3 4 5 6 7 8 9 10 13 16 17 31 31 41 EX I/O Assy 5.1CH I/O Assy INPUT Assy MAIN CONTROL Assy A-CONNECTION Assy COMPOSITE Assy S VIDEO Assy V-CONNECTION Assy SP/PS Assy TRANS 2-2 Assy COMPONENT Assy DSP Assy Rear Panel 35 Rear Panel 33 Earth Terminal AWX7568 Not used AWX7573 AWX7560 AWX7566 AWX7581 AWX7580 AWX7567 AWX7571 AWX7565 AWX7582 AWX7561 ANC7910 Not used AKE-031 Not used AWX7613 AWX7585 AWX7610 AWX7619 AWX7617 AWX7616 AWX7717 AWX7721 AWX7720 Not used AWX7611 Not used ANC7911 Not used www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 VSX-35TX, VSX-33TX 29 35 35 35 34 28 15 14 30 35 35 35 37 37 12 37 35 26 38 39 18 19 17 20 35 23 2 4 6 3 5 16 13 35 36 11 9 7 8 10 VSX-35TX Only VSX-35TX Only VSX-35TX Only T S W U X V 35 1 34 24 21 22 25 31 40 27 33 33 41 32 1 FRONT AMP Assy AWX7569 2 REAR AMP Assy AWX7570 3 V-AMP Assy AWX7578 4 13P Flexible Cable/60V ADD7242 5 Mica Sheet 35 AEE7035 6 H.S Angle 35 F ANG7297 7 H.S Angle 35 R ANG7298 8 PCB Angle 35 ANG7299 9 FET Angle 35 ANG7300 NSP 10 Heat Sink 35 ANH7126 11 Screw BBZ30P080FZK 12 Screw IBZ30P150FCC • HEAT SINK SECTION PARTS LIST Mark No. Description Part No. 2.3 HEAT SINK SECTION 2.4 FRONT PANEL SECTION D G I H N G J 7 11 5 11 11 11 11 11 11 11 11 11 12 12 2 4 8 8 9 9 6 10 3 1 I J K www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 VSX-35TX, VSX-33TX 1 DISPLAY Assy See Contrast table (2) 2 VOLUME-CONT Assy AWX7577 3 HEADPHONE Assy AWX7602 4 FRONT AV Assy AWX7579 5 STAND BY Assy AWX7576 6 FRONT DIGIN Assy See Contrast table (2) 7 7P Flexible Cable/60V ADD7236 8 5P Flexible Cable/60V ADD7237 9 4P Flexible Cable/60V See Contrast table (2) 10 32P Flexible Cable/60V ADD7239 11 8P Flexible Cable/60V ADD7240 12 5P Shield Wire with Housing See Contrast table (2) 13 Door Stay 35 AAH7063 14 Door 35 AMB7692 15 Door Hinge 35 L AMR7291 16 Door Hinge 35 R AMR7293 17 Volume Knob 26 AAB7193 18 Rotary Knob 35 AAB7226 19 Digital Cap 35 See Contrast table (2) 20 Volume Ring 26 AAK7623 (1) FRONT PANEL SECTION PARTS LIST Mark No. Description Part No. Mark No. Description Part No. 21 Window See Contrast table (2) 22 Door Sheet See Contrast table (2) NSP 23 Earth Spring 35 ABH7193 24 Cushion Circle 6B AED7044 25 Front Panel See Contrast table (2) 26 Panel Base 35 AMB7695 27 Magnet 35 AMF7007 28 Door Shaft 35 AMR7295 29 SE Angle 35 ANG7334 30 Damper Assy (100) AXA7089 31 Pioneer Badge PAM1776 32 LED Lens PNW2019 33 Screw BBZ26P060FZK 34 Screw BPZ26P080FMC 35 Screw BPZ30P080FMC 36 Cord Clamper RNH-184 37 Screw ABA7009 38 Nut MK70FUC 39 Nut MK90FUC 40 Screw BBZ30P080FZK 41 Earth Lead Wire ADH7022 (2) CONTRAST TABLE VSX-35TX and VSX-33TX are constructed the same except for the following : Mark No. Symbol and Description Part No. Remarks VSX-35TX VSX-33TX 1 6 9 12 19 21 21 22 22 25 25 DISPLAY Assy FRONT DIGIN Assy 4P Flexible Cable/60V 5P Shield Wire with Housing Digital Cap 35 Window 35R Window 33R Door Sheet 35 Door Sheet 33 Front Panel 35 Front Panel 33 AWX7574 AWX7648 ADD7238 ADX7344 AAD7576 AAK7769 Not used AAK7783 Not used AMB7691 Not used AWX7614 Not used Not used Not used Not used Not used AAK7733 Not used AAK7775 Not used AMB7714 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-35TX, VSX-33TX 8 A B C D 1 2 3 4 1 2 3 4 DGITAL I / O FRONT DIGITAL INPUT FRONT IN AC3-RF OPT OUT1 OPT OUT2 AK4527:1/2 AXQ7231 UNIT CN291 CN1001 IC101 IC102 IC103 TC9164 IC103 REC MUTE Tape2 OFF Source RecSel Tape2 IN IC9151 IC9201 IC9202 NJM2100M IC9101 IC9071 IC9102 AK4112 IC9501 FL, FR, SL,SR MIXAMP & GAIN SW AK4527: 2/2 IC9601 TC9164AF CN104 CN9801 8 D Y C E A 1 3 4 6 5 CN7201 R 3 CN102 2 5 15 3 1 7 1 5 9 16 26 30 27 CN1001 Q113 IC109 C E 2 1 2 1 7 5 19 X CN7601 5 CN1101 VSX-33TX VSX-35TX Only VSX-35TX :Only B CN9806,5 16 14 12 10 CN702 2 3 13 1 2 3 5 12 7, 8 SBL/SBR VSX-35TX Only IC1101 IC1103 IC1102 IC1104 9, 7 5, 6 3, 4 1, 2 CN9804 2 F IC701 IC751 IC701 IC701 IC731 3 7 5 9 13 11 15 1 13 12 14 13 15 15 1 2 1 3 12 10 B R DSP u - COM CS49329 AK7706 CONTROL IC9551 VSX-35TX:Only VSX-35TX:Only VSX-35TX:Only IC503,IC502 :TK15420M IC501:TC74HC4053 COMPONENT OUT COMPONENT IN 8 6 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM 3.1 BLOCK DIAGRAM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-35TX, VSX-33TX 9 A B C D 5 6 7 8 5 6 7 8 U+5.6V AD+5V A+15V DSP +5V A-15V T1 POWER TRANSFORMER T6001 AC IN D3301–D3304 VH+ VH- Q3301 Q3302 D5005 D5001–D5004 V+5.6V V-5.6V IC5005 D5009 D3001,D3002 IC5008 ST +5V D6001 RY6001 IC6001 IC5006 IC5001 IC5002 IC5007 IC5004 A-15V A+15V V+5.6V V-5.6V S6001 Q M N N CN5003 SBL/SBRch D I J L U K G CN905, CN908 IC107 IC108 Q271 IC114 IC112 IC113 IC115 Q109 Q110 Q111 Q112 Q107 Q108 IC109 IC1501 EXT SBL / SBR SBL / SBR IC109 IC7501, IC7502 IC7541, IC7542 IC7601, IC7602 IC109 IC105 6, 8 25,4 3 1 7, 10 19,22 25 26 27 7, 11 6, 10 18 19 3, 26 6, 9 20, 23 4,6 6, 4 5,3 1,7 8, 2 2,8 IC1502:TC9459 IC1503 IC1501: TC9215AF 21, 23 4,6 2,8 17 9 11 10 9, 12 24 14, 16 10, 12 CN2001 Q2008 RY3105 RY3101 RY3103 RY3104 RY3102 Q2501 Q2524 Q2541 Q2544 Q2601 Q2504 Q550 Q610 9 7 13 CN2002 14, 16 9, 11 11, 13 CN2001 CN2601 CN2101 9, 11 14, 16 J30 : 1,3 3, 5 CN109 14 8 3 1 3 1 3 1 16 SBL/SBR VSX-35TX Only SBL/SBR VSX-35TX Only CN107 9, 10 2, 8 3, 4 CN804 IC851 IC852 IC852 IC852 IC801 IC801 IC802 2 13 12 14 2 1 15 5 3 4 1 1 7 5 9 13 5 9 13 15 14 12 2 3 13 3 11 15 11 15 3 7 3 J30 : 2 J33 :1,2 7003 J7301 JA7201 3 9 OTHERS +3.5 ~ +8.5dB (Normally : +8.5dB) +3.5 ~ +8.5dB (Normally : +8.5dB) +3.5 ~ +8.5dB (Normally : +8.5dB) CN501 4 6 Y3 Y2 5 4 9 8 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-35TX, VSX-33TX 10 A B C D 1 2 3 4 1 2 3 4 T VOLUME-CONT ASSY (AWX7577) DISPLAY ASSY (VSX-35TX : AWX7574) (VSX-33TX : AWX7614) S V-AMP ASSY ( AWX7578 ) I 1/5- 5/5 DSP ASSY (VSX-35TX : AWX7561) (VSX-33TX : AWX7611) Y Y Y FM/AM TUNER UNIT (AXQ7231) 1/3- 3/3 MAIN CONTROL ASSY (VSX-35TX : AWX7560) (VSX-33TX : AWX7610) D D D REGULATOR ASSY (AWX7562) N A-CONNECTION ASSY (VSX-35TX:AWX7566) (VSX-33TX:AWX7619) E EX I/O ASSY (For VSX-35TX) (AWX7568) 5.1CH I/O ASSY (For VSX-33TX) (AWX7613) B A INPUT ASSY (VSX-35TX : AWX7573) (VSX-33TX : AWX7585) C X U FRONT DIGIN ASSY (AWX7648) HEADPHONE ASSY (AWX7602) W STAND BY ASSY (AW7576) VSX-35TX ONLY VSX-35TX ONLY VSX-35TX ONLY VSX-35TX ONLY CN201 3.2 OVERALL WIRING DIAGRAM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-35TX, VSX-33TX 11 A B C D 5 6 7 8 5 6 7 8 T1 POWER TRANSFORMER (ATS7284) FRONT AV ASSY ( AWX7579 ) V COMPOSITE ASSY (VSX-35TX : AWX7581) (VSX-33TX : AWX7617) F S VIDEO ASSY (VSX-35TX : AWX7580) (VSX-33TX : AWX7616) G V-CONNECTION ASSY (VSX-35TX : AWX7567) (VSX-33TX : AWX7717) H SP/PS ASSY (VSX-35TX : AWX7571) (VSX-33TX : AWX7721) L PRIMARY ASSY (AWX7563) POWER CORD : VDG1075 AC120V 60Hz Q FRONT AMP ASSY (AWX7569) J REAR AMP ASSY (AWX7570) K TRANS 2-1 ASSY (AWX7572) M TRANS 2-2 ASSY (VSX-35TX : AWX7565) (VSX-33TX : AWX7720) O TRANS 1 ASSY (AWX7564) P COMPONENT ASSY (AWX7582) VSX-35TX ONLY R Note : When ordering service parts, be sure to refer to "EXPLODED VIEWS and PARTS LIST" or "PCB PARTS LIST". www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-35TX, VSX-33TX 12 A B C D 1 2 3 4 1 2 3 4 FM FRONT END MW RF TUNING BLOCK FM/AM TUNER UNIT (AXQ7231) A OSC : 980 - 2150kHz 10k step (AM) (AM) (AM) (AM) (AM) (AM) (FM) (FM) (FM) (FM) (FM) (FM) (FM) (FM) (FM) (FM) 3.3 FM/AM TUNER UNIT A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-35TX, VSX-33TX 13 A B C D 5 6 7 8 5 6 7 8 3/3 D CN291 L201 ATE7003 PLL IC AM/FM IF+MPX IC ATF7026 : AUDIO SIGNAL ROUTE (TUNER) (TX) : AM SIGNAL ROUTE (AM) : FM SIGNAL ROUTE (FM) (AM) (AM) (FM) (AM) (AM) (AM) (AM) (AM) (AM) (FM) (AM) (FM) (TX) (TX) (TX) (TX) (TX) (FM) : The power supply is shown with the marked box. A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-35TX, VSX-33TX 14 A B C D 1 2 3 4 1 2 3 4 VSX-35TX VSX-33TX EX I/O ASSY (For VSX-35TX) (AWX7568) 5.1CH I/O ASSY (For VSX-33TX) (AWX7613) B JA1111 : AKB7048 JA1113 : AKB7046 CN1505 E CN1501 E CN1503 E PREOUT MUTE VSX-35TX ONLY VSX-35TX ONLY : AUDIO SIGNAL ROUTE B 3.4 EX I/O (5.1CH I/O) ASSY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-35TX, VSX-33TX 15 A B C D 1 2 3 4 1 2 3 4 JA1004 : AKB7046 JA1003 : AKB7048 JA1003 : AKB7048 JA1003 : AKB7048 INPUT ASSY (VSX-35TX : AWX7573) (VSX-33TX : AWX7585) VSX-35TX ONLY CN1553 E CN1554 E C : AUDIO SIGNAL ROUTE (VCR1) V1 V1 V1 V1 V1 V2 V2 V2 V2 : AUDIO SIGNAL ROUTE (VCR2) V2 : AUDIO SIGNAL ROUTE (MR) MR MR MR MR MR : AUDIO SIGNAL ROUTE : AUDIO SIGNAL ROUTE (LD) LD : AUDIO SIGNAL ROUTE (TV) TV LD LD LD LD TV TV TV MR MUTE 3.5 INPUT ASSY C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-35TX, VSX-33TX 16 A B C D 1 2 3 4 1 2 3 4 PHONO RIAA-EQ : The power supply is shown with the marked box. D 2/3 CN7005 S CN1551 E D 2/3 VSX-35TX ONLY P P LD CD T2 TU V2 P CD CD CD T2 MD TU TU MD TU T2 TU T2 P V1 MD TV LD TV V2 V1 1/3 D 3.6 MAIN CONTROL ASSY (1/3) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-35TX, VSX-33TX 17 A B C D 5 6 7 8 5 6 7 8 BUFFER FOR MR 1/3 MAIN CONTROL ASSY (VSX-35TX : AWX7560) (VSX-33TX : AWX7610) D CN5004 N CN1552 E D 2/3 D 2/3 D 2/3 VSX-35TX ONLY D302 D301 RB501V-40 RB501V-40 : AUDIO SIGNAL ROUTE (LD) LD : AUDIO SIGNAL ROUTE : AUDIO SIGNAL ROUTE (TV) TV : AUDIO SIGNAL ROUTE (VCR1) V1 : AUDIO SIGNAL ROUTE (VCR2) V2 : AUDIO SIGNAL ROUTE (MD) MD : AUDIO SIGNAL ROUTE (PHONO) P : AUDIO SIGNAL ROUTE (TUNER) TU : AUDIO SIGNAL ROUTE (CD) CD : AUDIO SIGNAL ROUTE (TAPE2) T2 : AUDIO SIGNAL ROUTE (MR) MR MR MR MR MR MR MR 1/3 D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-35TX, VSX-33TX 18 A B C D 1 2 3 4 1 2 3 4 2/3 MAIN CONTROL ASSY (VSX-35TX : AWX7560) (VSX-33TX : AWX7610) D D 1/3 D 3/3 D 1/3 : The power supply is shown with the marked box. 2/3 D 3.7 MAIN CONTROL ASSY (2/3) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-35TX, VSX-33TX 19 A B C D 5 6 7 8 5 6 7 8 FAN not : Disuse D 3/3 CN1504 E CN2001 I CN1502 E D 1/3 : AUDIO SIGNAL ROUTE 2/3 D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-35TX, VSX-33TX 20 A B C D 1 2 3 4 1 2 3 4 R923 : VSX-33TX. ONLY VSX-35TX. Not used R924 : VSX-35TX. ONLY VSX-33TX. Not used ∗1 ∗1 ∗1 CN7001 S D 2/3 CN5008 N CN5005 CN201 N A CN5010 N TU TU TU 3/3 D 3.8 MAIN CONTROL ASSY (3/3) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-35TX, VSX-33TX 21 A B C D 5 6 7 8 5 6 7 8 For VSX-35TX Only VSX-35TX ONLY CN9805 3/3 MAIN CONTROL ASSY (VSX-35TX : AWX7560) (VSX-33TX : AWX7610) D CN7007 S Y 4/5 CN9806 Y 4/5 CN5003 N CN601 H : AUDIO SIGNAL ROUTE (TUNER) TU : The power supply is shown with the marked box. 3/3 D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-35TX, VSX-33TX 22 A B C D 1 2 3 4 1 2 3 4 A-CONNECTION ASSY (VSX-35TX : AWX7566) (VSX-33TX : AWX7619) CN107 D 2/3 CN103 D 1/3 CN101 D 1/3 CN106 D 2/3 For VSX-35TX Only For VSX-35TX Only CN1101 B CN1102 B CN1151 B CN1001 C CN1002 C E V1 V2 MR LD TV : AUDIO SIGNAL ROUTE : AUDIO SIGNAL ROUTE (MR) MR MR MR MR MODE SELECTOR FOR SBch E 3.9 A-CONNECTION ASSY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-35TX, VSX-33TX 23 A B C D 1 2 3 4 1 2 3 4 JA704 : AKB7056 For VSX-35TX :ONLY For VSX-35TX ONLY For VSX-35TX ONLY JA702 : AKB7056 JA703, 703 VSX-35TX : AKB7017 VSX-33TX : VKB1048 VSX-35TX F COMPOSITE ASSY (VSX-35TX : AWX7581) (VSX-33TX : AWX7617) CN602 OSD SELECTOR H (SW1= SW3 and SW4 OR ) : AUDIO SIGNAL ROUTE 3.10 COMPOSITE ASSY F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-35TX, VSX-33TX 24 A B C D 1 2 3 4 1 2 3 4 For VSX-35TX Only H G V-CONNECTION ASSY (VSX-35TX : AWX7567) (VSX-33TX : AWX7717) D 3/3 CN904 CN701 F CN501 R S VIDEO ASSY (VSX-35TX : AWX7580) (VSX-33TX : AWX7616) DC SELECTOR C C C C C Y Y Y G H 3.11 S VIDEO and V-CONNECTION ASSYS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-35TX, VSX-33TX 25 A B C D 5 6 7 8 5 6 7 8 VSX-35TX VSX-33TX For VSX-35TX Only OSD SELECTOR MAIN FUNCTION(Y) MAIN FUNCTION(C) : AUDIO SIGNAL ROUTE : Y SIGNAL ROUTE Y : C SIGNAL ROUTE C C Y C C C C C C C C Y Y Y Y Y Y Y Y C C G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-35TX, VSX-33TX 26 A B C D 1 2 3 4 1 2 3 4 D 2/3 CN105 OVER LOAD DETECTION I 3.12 V-AMP ASSY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-35TX, VSX-33TX 27 A B C D 5 6 7 8 5 6 7 8 V-AMP ASSY (AWX7578) CN2501 J CN2601 K DC DETECTION I : AUDIO SIGNAL ROUTE I www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-35TX, VSX-33TX 28 A B C D 1 2 3 4 1 2 3 4 L L REAR AMP ASSY (AWX7570) FRONT AMP ASSY (AWX7569) CN2002 CN2101 I I J K J K 3.13 FRONT AMP and REAR AMP ASSYS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-35TX, VSX-33TX 29 A B C D 5 6 7 8 5 6 7 8 L L CURRENT : AUDIO SIGNAL ROUTE J www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-35TX, VSX-33TX 30 A B C D 1 2 3 4 1 2 3 4 FU4, FU5 : 2.5A REK1079 CN3002 VSX-35TX VSX-33TX CN6003 Not used Q • NOTE FOR FUSE REPLACEMENT FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE WITH SAME TYPE AND RATINGS ONLY. CAUTION - CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 49102.5 MFD, BY LITTELFUSE INC. FOR IC4501, IC4502 (AEK7019). TRANS 2-1 ASSY ( AWX7572 ) POWER TRANSFORMER J K M AMP FOR POWER AMP VOLTAGE AMPLIFYING STAGE " UH " RECTIFIER FOR POWER AMP "UL" L M 3.14 SP/PS and TRANS 2-1 ASSYS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-35TX, VSX-33TX 31 A B C D 5 6 7 8 5 6 7 8 VSX-35TX VSX-35TX VSX-33TX VSX-33TX SP/PS ASSY (VSX-35TX : AWX7571) (VSX-33TX : AWX7721) CN5001 CN5002 N N J K L : AUDIO SIGNAL ROUTE SPEAKER RELAY L www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-35TX, VSX-33TX 32 A B C D 1 2 3 4 1 2 3 4 TRANS 2-2 ASSY (VSX-35TX:AWX7565) (VSX-33TX:AWX7720) For VXS-35TX Only CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 491.200 MFD, BY LITTELFUSE INC. FOR IC5009, IC5010 (AEK7023). CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 491005 MFD, BY LITTELFUSE INC. FOR IC5501 (AEK7019). 3004 L CN3003 L Q TRANS 1 ASSY (AWX7564) M REGULATOR ASSY (AWX7562) CN9803 Y 2/5 N P O N O P 3.15 REGULATOR, TRANS 2-2 and TRANS 1 ASSYS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-35TX, VSX-33TX 33 A B C D 5 6 7 8 5 6 7 8 CN9801 Y 2/5 CN9802 Y 2/5 CN901 D 3/3 CN902 D 3/3 CN110 D 3/3 CN108 D 3/3 CN104 D 1/3 CN5006 : AUDIO SIGNAL ROUTE N www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-35TX, VSX-33TX 34 A B C D 1 2 3 4 1 2 3 4 PRIMARY ASSY (AWX7563) CN3005 CN6003 KP200TA4L CN6002 RKP1751 LIVE NEUTRAL FU1 : 10A VEK1029 AC IN L P • NOTE FOR FUSE REPLACEMENT FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE WITH SAME TYPE AND RATINGS ONLY. CAUTION - Q 3.16 PRIMARY ASSY Q www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-35TX, VSX-33TX 35 A B C D 1 2 3 4 1 2 3 4 COMPONENT ASSY ( AWX7582 ) CN604 H JA501 : AKB7124 JA503 : AKB7124 JA502 : AKB7124 R OSD IC VIDEO AMP COMPONENT SIGNAL SELECTOR : AUDIO SIGNAL ROUTE : Y SIGNAL ROUTE Y Y Y Y Y Y Y : C SIGNAL ROUTE C 3.17 COMPONENT ASSY (VSX-35TX ONLY) R www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-35TX, VSX-33TX 36 A B C D 1 2 3 4 1 2 3 4 S7001 : MEMORY S7002 : S7003 : S7007 : MPX S7008 : SPEAKERS S7009 : DIRECT S7010 : SELECT S7011 : CLASS S7012 : FM / AM S7013 : V SELECT S7014 : FL DIMMER S7015 : SPEAKERS S7016 : TONE ON/OFF S7017 : CH SELECT S7018 : BASS – S7019 : TAPE2 MONITOR S7020 : BASS + S7021 : TREBLE – S7022 : TREBLE + S7023 : LOUDNESS S7025 : STANDARD S7026 : ADVANCED S7027 : STEREO S7031 : DSP S7032 : MULTI CH IN S7033 : D–NR S7034 : MIDNIGHT S7035 : THX CINEMA S7501 : STAND BY/ON VSX-35TX VSX-33TX DISPLAY ASSY (VSX-35TX : AWX7574) (VSX-33TX : AWX7614) FRONT AV ASSY ( AWX7579 ) HEADPHONE ASSY ( AWX7602 ) STAND BY ASSY (AWX7576) CN102 D 1/3 CN906 VSX-35TX ONLY D 3/3 S V W U S 3.18 DISPLAY, VOLUME-CONT, HEADPHONE, FRONT AV and STAND BY ASSYS U V W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-35TX, VSX-33TX 37 A B C D 5 6 7 8 5 6 7 8 VOLUME-CONT ASSY (AWX7577) CN903 D 3/3 VSX-35TX ONLY T S T www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-35TX, VSX-33TX 38 A B C D 1 2 3 4 1 2 3 4 1/5 DSP ASSY (VSX-35TX : AWX7561)(VSX-33TX : AWX7611) Y Y 4/5 MB 1/5 Y 3.19 DSP ASSY (1/5) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-35TX, VSX-33TX 39 A B C D 5 6 7 8 5 6 7 8 Y 2/5 MA 1/5 Y www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-35TX, VSX-33TX 40 A B C D 1 2 3 4 1 2 3 4 R9154 VSX-35TX:100k VSX-33TX: 0 FRONT DIGIN ASSY ( AWX7648 ) VSX-35TX ONLY VSX-35TX ONLY VSX-35TX ONLY VSX-36TX, VSX-D909S ONLY CN5009 N Y 5/5 Y 1/5 ME MA Y 1/5 MA Y 4/5MF X 2/5 Y 3.20 DSP (2/5) and FRONT DIGIN ASSYS X www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-35TX, VSX-33TX 41 A B C D 5 6 7 8 5 6 7 8 : The power supply is shown with the marked box. 2/5 DSP ASSY (VSX-35TX : AWX7561) (VSX-33TX : AWX7611) Y CN5006 N CN5007 N Y 4/5 3/5 3/5 Y 4/5 Y 4/5 MP MG MS ,D/A D/A CONVERTER for SB ch For VSX35TX : Only : AUDIO SIGNAL ROUTE 2/5 Y www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-35TX, VSX-33TX 42 A B C D 1 2 3 4 1 2 3 4 VSX-35TX VSX-33TX 3/5 DSP ASSY (VSX-35TX : AWX7561)(VSX-33TX : AWX7611) Y Y 2/5 MG Y 4/5 MK LEVEL SHIFT 5V =�3.3V ROM CRYSTAL DSP (MAIN DSP) S-RAM for AAC F . F F . F 3/5 Y 3.21 DSP ASSY (3/5) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-35TX, VSX-33TX 43 A B C D 5 6 7 8 5 6 7 8 : AUDIO SIGNAL ROUTE Y 4/5 MN LEVEL SHIFT 3.3V =�5V SECOND DSP S-RAM 3/5 Y www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-35TX, VSX-33TX 44 A B C D 1 2 3 4 1 2 3 4 For VSX-35TX : Only CN905 D 3/3 Y 2/5 MG MS Y 5/5 MF Y 2/5 MF 4/5 DSP ASSY (VSX-35TX : AWX7561) (VSX-33TX : AWX7611) Y Y 2/5 4/5 Y 3.22 DSP ASSY (4/5) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-35TX, VSX-33TX 45 A B C D 5 6 7 8 5 6 7 8 VSX-35TX VSX-33TX Y 5/5 Y 2/5 MZ MT Y 3/5 MK CN908 D 3/3 4/5 Y www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-35TX, VSX-33TX 46 A B C D 1 2 3 4 1 2 3 4 Y 4/5 MF 5/5 DSP ASSY (VSX-35TX : AWX7561) (VSX-33TX : AWX7611) Y Y 4/5 MP 5/5 Y 3.23 DSP ASSY (5/5) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-35TX, VSX-33TX 47 A B C D 5 6 7 8 5 6 7 8 : AUDIO SIGNAL ROUTE Y 2/5 ME Y 4/5 MZ VSX-33TX VSX-35TX 5/5 Y www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-35TX, VSX-33TX 48 NOTE FOR PCB DIAGRAMS : 1. Part numbers in PCB diagrams match those in the schematic diagrams. 2. A comparison between the main parts of PCB and schematic diagrams is shown below. 3. The parts mounted on this PCB include all necessary parts for several destinations. For further information for respective destinations, be sure to check with the schematic diagram. 4. View point of PCB diagrams. Symbol In PCB Diagrams Symbol In Schematic Diagrams Part Name B C E D D G G S S B C E B C E D G S B C E B C E B C E Transistor Transistor with resistor Field effect transistor Resistor array 3-terminal regulator Capacitor Connector P.C.Board Chip Part SIDE A SIDE B 4. PCB CONNECTION DIAGRAM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-35TX, VSX-33TX 49 A B C D 1 2 3 4 1 2 3 4 (ANP7338-B) (ANP7338-B) CN291 D FM/AM TUNER UNIT A FM/AM TUNER UNIT A SIDE A SIDE B IC201 Q204 Q205 Q203 Q601 IC202 Q602 Q202 4.1 FM/AM TUNER UNIT A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-35TX, VSX-33TX 50 A B C D 1 2 3 4 1 2 3 4 IC1103 IC1102 IC1101 Q1157 Q1158 Q1155 Q1156 Q1154 Q1153 Q1152 Q1151 IC1104 (ANP7360-A) (ANP7360-A) EX I/O ASSY (5.1CH I/O ASSY) B EX I/O ASSY (5.1CH I/O ASSY) B CN1503 E CN1501 E CN1505 E SIDE A SIDE B B 4.2 EX I/O ASSY (5.1CH I/O ASSY) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-35TX, VSX-33TX 51 A B C D 1 2 3 4 1 2 3 4 (ANP7361-A) INPUT ASSY C Q1002 Q1001 CN1554 E CN1553 E SIDE A C 4.3 INPUT ASSY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-35TX, VSX-33TX 52 A B C D 1 2 3 4 1 2 3 4 IC251 IC109 IC108 IC107 IC106 IC Q251 Q252 IC111 Q902 Q905 Q901 IC112 CN2001 I CN5005 N MAIN CONTROL ASSY D CN9806 Y CN7001 S CN9805 Y CN7007 S CN6008 N CN5004 N 4.4 MAIN CONTROL ASSY D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-35TX, VSX-33TX 53 A B C D 5 6 7 8 5 6 7 8 IC106 IC103 IC102 IC104 IC101 Q293 Q291 Q251 Q252 (ANP7364-B) CN1502 E CN601 H CN201 A CN7005 S CN1551 E CN1504 E CN5003 N CN5010 N CN1552 E SIDE A D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-35TX, VSX-33TX 54 A B C D 1 2 3 4 1 2 3 4 Q294 MAIN CONTROL ASSY D D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-35TX, VSX-33TX 55 A B C D 5 6 7 8 5 6 7 8 IC901 IC110 (ANP7364-B) SIDE B D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-35TX, VSX-33TX 56 A B C D 1 2 3 4 1 2 3 4 IC1501 IC1502 IC1503 IC1551 (ANP7360-A) (ANP7360-A) CN106 D A-CONNECTION ASSY E A-CONNECTION ASSY E CN1002 C CN1151 B CN1001 C CN1101 B CN1102 B CN107 D CN101 D CN103 D SIDE A SIDE B 4.5 A-CONNECTION ASSY E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-35TX, VSX-33TX 57 A B C D 1 2 3 4 1 2 3 4 Q701 IC751 IC731 IC701 (ANP7362-A) (ANP7362-A) COMPOSITE ASSY F COMPOSITE ASSY F CN602 H SIDE A SIDE B 4.6 COMPOSITE ASSY F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-35TX, VSX-33TX 58 A B C D 1 2 3 4 1 2 3 4 Q852 Q853 IC801 IC831 IC852 IC802 Q831 Q833 Q834 (ANP7362-A) S VIDEO ASSY G S VIDEO ASSY G CN501 R CN904 D CN701 F SIDE A SIDE B (ANP7360-A) (ANP7360-A) (ANP7362-A) V-CONNECTION ASSY H V-CONNECTION ASSY H 4.7 S VIDEO and V-CONNECTION ASSYS G H www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-35TX, VSX-33TX 59 A B C D 1 2 3 4 1 2 3 4 4.8 SP/PS ASSY Q3304 Q3305 Q3302 Q3301 Q3303 Q3156 Q3151 Q3152 Q3155 Q3159 Q3157 Q3154 Q3158 Q3153 Q3005 (ANP7361-A) SP/PS ASSY L 4001 M CN6003 Q CN6004 Q SL, SR K CN5001 N Y1, Y2, Y3 M CN5002 N CN2602 K FL, C, FR J +VR, AMPG, -VL J SIDE A L www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-35TX, VSX-33TX 60 A B C D 1 2 3 4 1 2 3 4 Q2251 Q2127 Q2126 Q2107 Q2106 Q2027 Q2028 Q2047 Q2046 Q2007 Q2006 Q2128 Q2108 Q2028 Q2048 Q2008 Q2253 Q2252 Q2125 Q2105 Q2025 Q2045 Q2005 Q2123 Q2103 Q2023 Q2043 Q2003 Q2124 Q2104 Q2024 Q2044 Q2004 (ANP7362-A) V-AMP ASSY I CN2501 J CN2601 TO THERMISTOR K CN105 D SIDE A 4.9 V-AMP ASSY I www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-35TX, VSX-33TX 61 A B C D 1 2 3 4 1 2 3 4 SIDE B Q2122 Q2042 Q2121 Q2101 Q2022 Q2021 Q2041 Q2002 Q2001 IC2201 (ANP7362-A) V-AMP ASSY I I www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-35TX, VSX-33TX 62 A B C D 1 2 3 4 1 2 3 4 VR2521 (ANP7361-A) Q2524 Q2521 Q2523 Q2522 Q2542 Q2544 Q REAR AMP ASSY K FRONT AMP ASSY J CN2101 I CN3006 L CN3008 L CN3007 Pin 3 Pin 2 Pin 1 Pin 1 CN3006 L Pin 2 Pin 1 L VR2621 VR2601 Q2621 Q2624 Q2622 Q2623 Q2604 Q2602 Q2601 Q2603 4.10 FRONT AMP and REAR AMP ASSYS J K www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-35TX, VSX-33TX 63 A B C D 5 6 7 8 5 6 7 8 VR2541 VR2501 (ANP7361-A) 7361-A) Q2541 Q2542 Q2544 Q2543 Q2523 Q2522 Q2501 Q2502 Q2504 Q2503 CN2002 I 01 Pin 2 Pin 3 CN3008 L SIDE A J www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-35TX, VSX-33TX 64 A B C D 1 2 3 4 1 2 3 4 (ANP7360-A) (ANP7360-A) (ANP7361-A) IC4501 IC4502 Y6001 Q TRANS 2-2 ASSY O TRANS 2-1 ASSY M TRANS 1 ASSY P T1 POWER TRANSFORMER 3001 L Y3 L Y2 L Y1 L 5010 N Y6002 Q SIDE A 4.11 TRANS 2-1, TRANS 2-2 and TRANS 1 ASSYS M O P www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-35TX, VSX-33TX 65 A B C D 1 2 3 4 1 2 3 4 (ANP7363-A) (ANP7363-A) CN604 H COMPONENT ASSY R COMPONENT ASSY R IC501 IC503 IC502 IC551 SIDE B SIDE A 4.12 COMPONENT ASSY R www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-35TX, VSX-33TX 66 A B C D 1 2 3 4 1 2 3 4 IC5006 IC5010 IC5009 IC5005 IC5004 REGULATOR ASSY N CN110 D CN104 D CN9802 Y CN108 D CN3003 L 3004 L C P P SIDE A N 4.13 REGULATOR and PRIMARY ASSYS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-35TX, VSX-33TX 67 A B C D 5 6 7 8 5 6 7 8 (ANP7360-A) (ANP7360-A) IC6001 Q6001 IC5002 IC5001 IC5003 IC5008 IC5007 IC5008 PRIMARY ASSY Q CN104 CN902 D CN901 D CN9801 Y CN9803 Y 5501 O CN3010 L CN3005 L Y6002 P Y6001 P AC IN NEUTRAL LIVE Q N www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-35TX, VSX-33TX 68 A B C D 1 2 3 4 1 2 3 4 VOLUME-CONT ASSY T DISPLAY ASSY S HEADPHONE ASSY U STAND BY ASSY W IC7401 (ANP7362-A) (ANP7362-A) (ANP7362-A) S T U W 4.14 DISPLAY, VOLUME-CONT, HEADPHONE, FRONT AV and STANDBY ASSYS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-35TX, VSX-33TX 69 A B C D 5 6 7 8 5 6 7 8 (ANP7362-A) CN102 D FRONT AV ASSY V CN906 D CN903 D SIDE A (ANP7362-A) S V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-35TX, VSX-33TX 70 A B C D 1 2 3 4 1 2 3 4 FRONT AV ASSY V DISPLAY ASSY S Q7054 Q7053 IC7051 Q7051 Q7052 Q7005 IC7001 SIDE B (ANP7362-A) S V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-35TX, VSX-33TX 71 A B C D 5 6 7 8 5 6 7 8 (ANP7362-A) (ANP7362-A) (ANP7362-A) (ANP7362-A) VOLUME-CONT ASSY T HEADPHONE ASSY U STAND BY ASSY W Q7403 Q7401 Q7402 S T U W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-35TX, VSX-33TX 72 A B C D 1 2 3 4 1 2 3 4 Q9612 Q9611 Q9606 Q9605 Q9602 IC9101 IC9551 Q9204 IC9102 IC9601 IC9552 IC9103 Q9202 Q9203 IC9103 Q9201 I I Q Q Q Q9103 Q9608 Q9610 Q9604 Q9603 Q9501 DSP ASSY Y CN905 D CN5007 N CN5009 N CN908 D 4.15 DSP and FRONT DIGIN ASSYS Y www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-35TX, VSX-33TX 73 A B C D 5 6 7 8 5 6 7 8 IC9551 Q9006 IC9811 IC9507 Q9002 IC9812 IC9504 Q9003 IC9091 Q9032 Q9031 Q9001 IC9506 IC9101 Q9401 Q9102 Q9104 Q9103 IC9505 IC9501 Q9007 Q9005 Q9004 IC9508 IC9041 IC9071 (ANP7364-B) (ANP7362-A) FRONT DIGIN ASSY X CN5006 N SIDE A X Y www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-35TX, VSX-33TX 74 A B C D 1 2 3 4 1 2 3 4 DSP ASSY Y FRONT DIGIN ASSY X (ANP7362-A) Q9612 Q9611 Q9606 Q9605 Q9602 IC9101 IC9202 Q9501 IC9502 IC9503 Q9608 Q9610 Q9604 Q9603 Q9501 X Y www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-35TX, VSX-33TX 75 A B C D 5 6 7 8 5 6 7 8 IC9202 IC9702 IC9604 IC9603 IC9602 IC9201 IC9702 IC9701 IC9706 IC9703 IC9705 IC9704 (ANP7364-B) SIDE B Y www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 76 VSX-35TX, VSX-33TX Mark No. Description Part No. Mark No. Description Part No. 5. PCB PARTS LIST NOTES: •Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. •The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. •When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). 560 Ω → 56 × 10 1 → 561 ........................................................ RD1/4PU 5 6 1 J 47k Ω → 47 × 10 3 → 473 ........................................................ RD1/4PU 4 7 3 J 0.5 Ω → R50 ..................................................................................... RN2H R 5 0 K 1 Ω → 1R0 ..................................................................................... RS1P 1 R 0 K Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 5.62k Ω → 562 × 10 1 → 5621 ...................................................... RN1/4PC 5 6 2 1 F Mark Symbol and Description Part No. Remarks VSX-33TX/KUXJI/CA NSP NSP NSP NSP NSP NSP FM/AM TUNER UNIT COMPLEX ASSY EX I/O ASSY 5.1CH I/O ASSY A-CONNECTION ASSY TRANS 2-2 ASSY REGULATOR ASSY V-CONNECTION ASSY PRIMARY ASSY TRANS 1 ASSY POWER ASSY INPUT ASSY FRONT AMP ASSY REAR AMP ASSY SP/PS ASSY TRANS 2-1 ASSY MAIN ASSY MAIN CONTROL ASSY DSP ASSY FRONT ASSY V-AMP ASSY S VIDEO ASSY COMPOSITE ASSY FRONT AV ASSY DISPLAY ASSY VOLUME-CONT ASSY HEADPHONE ASSY FRONT DIGIN ASSY STAND BY ASSY VIDEO ASSY COMPONENT ASSY AXQ7231 AWK7613 Not used AWX7613 AWX7619 AWX7720 AWX7562 AWX7717 AWX7563 AWX7564 AWK7598 AWX7585 AWX7569 AWX7570 AWX7721 AWX7572 AWK7612 AWX7610 AWX7611 AWK7614 AWX7578 AWX7616 AWX7617 AWX7579 AWX7614 AWX7577 AWX7602 Not used AWX7576 Not used Not used VSX-35TX/KUXJI/CA AXQ7231 AWK7592 AWX7568 Not used AWX7566 AWX7565 AWX7562 AWX7567 AWX7563 AWX7564 AWK7593 AWX7573 AWX7569 AWX7570 AWX7571 AWX7572 AWK7591 AWX7560 AWX7561 AWK7594 AWX7578 AWX7580 AWX7581 AWX7579 AWX7574 AWX7577 AWX7602 AWX7648 AWX7576 AWK7595 AWX7582 LIST OF WHOLE PCB ASSEMBLIES www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 77 VSX-35TX, VSX-33TX Mark No. Description Part No. Mark No. Description Part No. Mark Symbol and Description Part No. Remarks AWX7585 Q1001, Q1002 D1051 C1051 R1013-R1016, R1051 R1017, R1018 CN1002 6P SOCKET JA1004 2P PIN JACK JA1051 MULTI ROOM JACK Not used Not used Not used Not used Not used Not used Not used Not used AWX7573 2SC2878 1SS133 CGCYX103M16 RD1/4PU102J RD1/4PU473J KP200TA6L AKB7046 AKN7014 INPUT ASSY AWX7573 and AWX7585 are constructed the same except for the following : C Mark Symbol and Description Part No. Remarks AWX7610 IC101 IC103 IC104 Q905 C113, C114 C115, C116 C117, C118 C121, C122 C123, C124 C125, C126 C127, C128 C133, C134, C911 C135, C136 C191-C193 R111, R112 R113, R114, R117, R118, R129, R130, R139, R140 R203, R204 R115, R116 R119, R120 R121, R122 R123, R124 R125, R126, R133, R134 R131, R132 R135, R136, R934, R944-R946 R923 R924 R933 R990, R991 CN103 9P PLUG CN906 4P FFC CONNECTOR JA151 2P PIN JACK Not used Not used Not used Not used Not used Not used Not used Not used Not used Not used Not used Not used Not used Not used Not used Not used Not used Not used Not used Not used Not used Not used Not used Not used RS1/16S103J Not used Not used Not used Not used Not used Not used AWX7560 M5220FP TC9164AF NJM4558MD DTA124EK CEAT100M50 CCSQCH181J50 CEAT470M25 CQMA822J50 CQMA242J50 CEAT2R2M50 CEJQ101M25 CKSRYB103K50 CEAT1R0M50 CCSRCH101J50 RS1/10S0R0J RS1/10S104J RS1/10S104J RS1/10S331J RS1/10S511J RS1/10S394J RS1/10S303J RS1/10S471J RS1/10S474J RS1/16S102J Not used RS1/16S103J RS1/16S473J RS1/10S102J AKP7057 52045-0445 VKB1060 MAIN CONTROL ASSY AWX7560 and AWX7610 are constructed the same except for the following : D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 78 VSX-35TX, VSX-33TX Mark No. Description Part No. Mark No. Description Part No. Mark Symbol and Description Part No. Remarks AWX7619 IC1501 IC1502 IC1503 IC1551 D1551 C1501-C1504, C1517, C1518 C1507, C1508 C1511, C1512 C1515, C1516, C1551-C1553 C1541-C1543 C1554, C1555 C1556, C1557 R1503, R1504, R1511, R1512 R1505, R1506, R1554, R1555 R1507, R1508 R1509, R1510 R1541-R1545, R1552, R1553 R1551 R1569-R1574 CN1552 9P SOCKET CN1554 6P PLUG Not used Not used Not used Not used Not used Not used Not used Not used Not used Not used Not used Not used Not used Not used Not used Not used Not used Not used Not used Not used Not used AWX7566 TC9215AF TC9459F NJM4558MD M62429FP UDZS5.1B CKSQYB103K50 CEAT100M50 CCSQCH560J50 CEAT100M50 CCSQCH101J50 CCSQCH101J50 CEAT1R0M50 RS1/10S104J RS1/10S103J RS1/10S472J RS1/10S152J RS1/10S102J RS3LMF391J RS1/10S0R0J AKP7068 KM200TA6 A-CONNECTION ASSY AWX7566 and AWX7619 are constructed the same except for the following : E Mark Symbol and Description Part No. Remarks AWX7617 IC731 IC751 Q701 D731 C707 C712, C734, C735 C713 C714, C732, C733, C736, C785, C786 C715 C737 R707 R712 R713 R714 R715 R733-R735, R766 R767 JA703 703 2P PIN JACK Not used Not used Not used Not used Not used Not used Not used Not used Not used Not used Not used Not used Not used Not used Not used Not used Not used VKB1048 Not used AWX7581 NJM2279M TC4W53FU 2SA933S DAN202K CCSQCH181J50 CEAT101M10 CEAT101M16 CKSQYB473K50 CCSQCH150J50 CCSQCH470J50 RS1/10S750J RS1/10S183J RS1/10S103J RS1/10S101J RD1/2VM201J RS1/10S102J RS1/10S104J Not used AKB7017 COMPOSITE ASSY AWX7581 and AWX7617 are constructed the same except for the following : F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 79 VSX-35TX, VSX-33TX Mark No. Description Part No. Mark No. Description Part No. Mark Symbol and Description Part No. Remarks AWX7721 L3111, L3112 BEAD FILTER C3001, C3002 Not used ACH7145 AWX7571 ATX1012 ACH7147 SP/PS ASSY AWX7571 and AWX7721 are constructed the same except for the following : L Mark Symbol and Description Part No. Remarks AWX7720 C5501, C5502 R5501 Not used Not used AWX7565 CQMA104J50 RD1/4MUF100J TRANS 2-2 ASSY AWX7565 and AWX7720 are constructed the same except for the following : O Mark Symbol and Description Part No. Remarks AWX7614 IC7051 Q7053 Q7054 D7054-D7057 C7053 R7056 R7057 R7058, R7061 CN7007 4P FFC CONNECTOR Not used Not used Not used Not used Not used Not used Not used Not used Not used AWX7574 TC7W53FU FM1A DTC124EK 1SS355 CKSQYB153K50 RS1/10S223J RS1/10S392J RS1/10S103J 52045-0445 DISPLAY ASSY AWX7574 and AWX7614 are constructed the same except for the following : S Mark Symbol and Description Part No. Remarks AWX7717 Q601 C601 R601 CN604 10P PLUG Not used Not used Not used Not used AWX7567 KRC103M CKSQYB103K50 RS1/10S103J KM200TA10 V-CONNECTION ASSY AWX7567 and AWX7717 are constructed the same except for the following : H Mark Symbol and Description Part No. Remarks AWX7616 IC852 C854 C855, C856 R855 R868-R870 R883, R885 R884 Not used Not used Not used Not used Not used RS1/10S0R0J Not used AWX7580 BU4053BCF CCSQCH151J50 CKSQYB103K50 RS1/10S103J RS1/10S102J Not used RS1/10S0R0J S VIDEO ASSY AWX7580 and AWX7616 are constructed the same except for the following : G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 80 VSX-35TX, VSX-33TX Mark No. Description Part No. Mark No. Description Part No. Mark No. Description Part No. Mark No. Description Part No. Mark Symbol and Description Part No. Remarks AWX7611 IC9103 IC9602-IC9604, IC9701-IC9705 IC9706, IC9707 Q9611, Q9612 L9105, L9106 CHIP SOLID INDUCTOR C9120 C9121, C9124 C9122 C9123, C9125 C9126 C9167 C9705, C9706, C9759, C9760 C9745, C9746, C9781, C9782 C9749-C9752 C9753, C9754 C9755, C9756 C9757, C9758 C9761, C9762 C9763, C9764 R9104 R9120, R9122 R9121, R9749, R9750 R9123 R9154 R9173 R9577 R9737-R9742, R9753, R9754, R9763, R9764 R9743-R9746, R9755, R9756 R9747, R9748 R9751, R9752 R9757, R9758 R9759, R9760 CN9804 KR CONNECTOR JA9156 OPTICAL LINK OUT Not used NJM4558MD Not used Not used Not used Not used Not used Not used Not used Not used Not used Not used Not used Not used Not used Not used Not used Not used Not used RS1/16S331J Not used Not used Not used RS1/10S0R0J Not used Not used Not used Not used Not used Not used Not used Not used Not used Not used AWX7561 CS4391 UPC4570G2 UPC4570G2 2SC3326 QTL1013 CEJA470M16 CKSRYB103K50 CCSRCH471J50 CEJA1R0M50 CKSRYB104K16 CKSQYF104Z50 CKSQYF104Z25 CKSRYB102K50 CCSRCH221J50 CEJA330M10 CKSRYB122K50 CCSRCH271J50 CEJA4R7M50 CKSRYB222K50 RS1/16S101J RS1/10S681J RS1/10S562J RS1/10S182J RS1/10S104J RS1/10S0R0J RS1/16S331J RS1/10S153J RS1/16S332J RS1/16S122J RS1/16S822J RS1/16S474J RS1/16S101J S5B-PH-K-S GP1FA551TZ DSP ASSY AWX7561 and AWX7611 are constructed the same except for the following : Y PCB PARTS LIST FOR VSX-35TX/KUXJI/CA UNLESS OTHERWISE NOTED FM/AM TUNER UNIT SEMICONDUCTORS IC201 BA1451F IC202 LC72131MD Q201,Q204,Q205 2SC2412K Q202 DTA124ES Q203 DTC124EK D201 1SS133 D202 MTZJ5.1C COILS AND FILTERS L201 FM COIL ATE7003 F202 FM CERAMIC FILTER ATF-107 F201 FM CERAMIC FILTER ATF-119 F203 AM CERAMIC FILTER ATF7026 CAPACITORS C206 CCSRCH100D50 C212,C213,C226,C233-C235 CCSRCH101J50 C240 CCSRCH101J50 C231,C232 CCSRCH150J50 C223 CEAT100M50 C229 CEAT101M10 C224 CEAT1R0M50 C227 CEAT220M25 C241 CEAT2R2M50 C243 CEAT330M16 C228 CEAT3R3M50 C237 CEAT470M10 C211 CEJA1R0M50 C210 CEJA470M16 C204,C238,C602 CKSRYB102K50 A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 81 VSX-35TX, VSX-33TX Mark No. Description Part No. Mark No. Description Part No. C101,C102,C208,C220,C239 CKSRYB103K50 C242,C601 CKSRYB103K50 C216,C217,C225 CKSRYB153K50 C201,C205,C209,C214,C230 CKSRYB223K50 C236,C603 CKSRYB223K50 C221 CKSRYB224K10 C202,C222 CKSRYB473K16 C215 CKSRYB681K50 RESISTORS R211 RD1/4PU221J R221 RD1/4PU222J R233 RD1/4PU391J R243 RS1/10S0R0J R103 RS1/10S331J R104 RS1/10S391J Other Resistors RS1/16S J OTHERS CN201 13P FFC CONNECTOR 52044-1345 BN201 4P ANTENNA TERMINAL AKA7003 SHIELD CASE T ANK7072 SHIELD CASE B ANK7073 X201 CRYSTAL RESONATOR ASS1093 (7.2MHz) EX I/O ASSY (For VSX-35TX) SEMICONDUCTORS IC1101-IC1104 UPC4570G2 Q1151-Q1158 HN1C03F CAPACITORS C1114,C1125-C1132 CEAT100M50 C1109-C1113,C1115,C1116 CEAT4R7M50 C1133-C1142,C1159,C1160 CKSQYB103K50 RESISTORS All Resistors RS1/10S J OTHERS CN1112,CN1162 2P PIN JACK AKB7008 JA1113,JA1163 2P PIN JACK AKB7046 JA1111,JA1161 4P PIN JACK AKB7048 CN1102 5P SOCKET AKP7066 CN1101,CN1151 9P SOCKET AKP7068 5.1CH I/O ASSY (For VSX-33TX) SEMICONDUCTORS IC1101-IC1103 NJM4558MD Q1151-Q1156 HN1C03F CAPACITORS C1114,C1125-C1130 CEAT100M50 C1109-C1113 CEAT4R7M50 C1133-C1138,C1141,C1142,C1159 CKSQYB103K50 C1160 CKSQYB103K50 RESISTORS All Resistors RS1/10S J OTHERS CN1112,CN1162 2P PIN JACK AKB7008 JA1111,JA1161 4P PIN JACK AKB7048 CN1102 5P SOCKET AKP7066 CN1101,CN1151 9P SOCKET AKP7068 INPUT ASSY SEMICONDUCTORS Q1001,Q1002 2SC2878 D1051 1SS133 CAPACITORS C1019,C1021,C1051 CGCYX103M16 RESISTORS All Resistors RD1/4PU J OTHERS JA1004 2P PIN JACK AKB7046 JA1001-JA1003 4P PIN JACK AKB7048 JA1051 MULTI ROOM JACK AKN7014 CN1001 14P SOCKET KP200TA14L CN1002 6P SOCKET KP200TA6L MAIN CONTROL ASSY SEMICONDUCTORS IC101 M5220FP IC104 NJM4558MD IC901 PD5587A IC107,IC109 TC9163AF IC103 TC9164AF IC102 TC9274F-001 IC108 TC9482F IC106,IC110-IC112 UPC4570G2 Q291 2SC1740S Q251,Q252 2SC2412K Q902,Q905 DTA124EK Q901 DTC143EK D254,D255,D901-D910 1SS355 D301,D302 RB501V-40 D292 UDZ11B D256 UDZS5.1B COILS L901 LCTA2R2J3225 L991-L993 NOISE FILTER RTF1167 CAPACITORS C902 (0.22F/5.5V) ACH7132 C947-C949,C993 CCSQCH101J50 C115,C116 CCSQCH181J50 C159,C160 CCSQCH560J50 C191-C193,C941-C946,C952 CCSRCH101J50 C963,C964 CCSRCH101J50 C171,C172,C183 CCSRCH560J50 C113,C114,C131,C132 CEAT100M50 C143,C144,C155,C156 CEAT100M50 C163,C164,C167,C168 CEAT100M50 B B C D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 82 VSX-35TX, VSX-33TX Mark No. Description Part No. Mark No. Description Part No. C175,C176,C179,C180 CEAT100M50 C187,C188,C259-C261 CEAT100M50 C135,C136 CEAT1R0M50 C147,C148 CEAT220M50 C903 CEAT221M10 C125,C126,C905 CEAT2R2M50 C921 CEAT331M10 C117,C118 CEAT470M25 C965 CEAT471M10 C291 CEJA101M16 C127,C128 CEJQ101M25 C992 CKSQYB102K50 C129,C130,C141,C142 CKSQYB103K50 C161,C162,C165,C166 CKSQYB103K50 C173,C174,C177,C178 CKSQYB103K50 C189,C190,C901,C904,C920 CKSQYB103K50 C299 CKSQYB104K25 C991 CKSQYB221K50 C298 CKSQYB223K50 C292 CKSQYF225Z16 C293 CKSRYB102K50 C133,C134,C149,C150 CKSRYB103K50 C195,C196,C257,C258,C294 CKSRYB103K50 C911,C966,C967 CKSRYB103K50 C184 CKSRYB333K16 C910,C912 CKSRYB473K16 C297,C906 CKSRYF105Z10 C123,C124 CQMA242J50 C121,C122 CQMA822J50 RESISTORS R292 RS1/16S0R0J R135,R136,R907,R918,R934 RS1/16S102J R941-R949,R955-R957 RS1/16S102J R165,R166,R177,R259-R262 RS1/16S103J R912,R922,R924 RS1/16S103J R199-R202,R257,R258,R910 RS1/16S104J R913,R914,R932,R935 RS1/16S104J R992,R993 RS1/16S104J R159,R160,R171,R172 RS1/16S152J R183,R184 RS1/16S152J R178 RS1/16S183J R984 RS1/16S392J R133,R134 RS1/16S471J R167,R168,R179,R180 RS1/16S472J R293,R905,R906,R933 RS1/16S473J R131,R132 RS1/16S474J R903 RS1/16S512J R911 RS1/16S683J R157,R158,R169,R170 RS1/16S751J R182 RS1/16S821J Other Resistors RS1/10S J OTHERS X901 CERAMIC RESONATOR ASS7032 (15.7MHz) CN906 4P FFC CONNECTOR 52045-0445 CN102 5P FFC CONNECTOR 52045-0545 CN907 10P FFC CONNECTOR 52045-1045 CN291 13P FFC CONNECTOR 52045-1345 CN904,CN905,CN908 52045-2045 20P FFC CONNECTOR CN105 22P FFC CONNECTOR 52045-2245 CN903 32P FFC CONNECTOR 52045-3245 J901 4P SHIELD ASSY ADX7347 152 6P PIN JACK AKB7012 CN153 4P PIN JACK AKB7015 CN103 9P PLUG AKP7057 CN107 11P PLUG AKP7058 CN101,CN106 15P PLUG AKP7060 CN901 15P SOCKET KP200TA15L CN104 20P SOCKET KP200TA20L CN108 4P SOCKET KP200TA4L CN110 6P SOCKET KP200TA6L CN902 7P SOCKET KP200TA7L JA991,JA992 RKN1004 REMOTE CONTROL JACK 101 PCB BINDER VEF1040 JA151 2P PIN JACK VKB1060 A-CONNECTION ASSY SEMICONDUCTORS IC1551 M62429FP IC1503 NJM4558MD IC1501 TC9215AF IC1502 TC9459F D1551 UDZS5.1B CAPACITORS C1541-C1543,C1554,C1555 CCSQCH101J50 C1511,C1512 CCSQCH560J50 C1507,C1508,C1515,C1516 CEAT100M50 C1551-C1553 CEAT100M50 C1556,C1557 CEAT1R0M50 C1501-C1504,C1517,C1518 CKSQYB103K50 RESISTORS R1551 RS3LMF391J Other Resistors RS1/10S J OTHERS CN1505 5P PLUG AKP7055 CN1501,CN1503 9P PLUG AKP7057 CN1552 9P SOCKET AKP7068 CN1502 11P SOCKET AKP7069 CN1504,CN1551 15P SOCKET AKP7071 CN1553 14P PLUG KM200TA14 CN1554 6P PLUG KM200TA6 1501 PCB BINDER VEF1040 COMPOSITE ASSY SEMICONDUCTORS IC731 NJM2279M IC701 NJM2296M IC751 TC4W53FU Q701 2SA933S D701,D731 DAN202K E F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 83 VSX-35TX, VSX-33TX Mark No. Description Part No. Mark No. Description Part No. CAPACITORS C715 CCSQCH150J50 C705-C707,C731 CCSQCH181J50 C737 CCSQCH470J50 C701-C704,C710-C712 CEAT101M10 C734,C735,C781,C782 CEAT101M10 C713 CEAT101M16 C708,C709,C714,C732,C733 CKSQYB473K50 C736,C785,C786,C793 CKSQYB473K50 RESISTORS R715 RD1/2VM201J Other Resistors RS1/10S J OTHERS 703 2P PIN JACK AKB7017 JA702,JA704 3P PIN JACK AKB7056 CN701 12P SOCKET KP200TA12L S VIDEO ASSY SEMICONDUCTORS IC831 BU4051BCF IC852 BU4053BCF IC801,IC802 NJM2296M Q852,Q853 2SA933S Q833,Q834 IMH11 Q831 IMZ1A D801,D802 1SS355 CAPACITORS C857 CCSQCH100D50 C858 CCSQCH150J50 C854 CCSQCH151J50 C815-C818,C861,C862 CCSQCH181J50 C809 CCSQCH330J50 C801,C803,C805,C807 CEAT101M10 C819-C822,C863,C881,C882 CEAT101M10 C866,C868 CEAT101M16 C831-C836,C855,C856 CKSQYB103K50 C893,C894 CKSQYB103K50 C810-C814,C859,C864,C865 CKSQYB104K25 C802,C804,C806,C808 CKSQYB473K50 C823-C826,C867,C869 CKSQYB473K50 RESISTORS R864 RD1/2VM201J R859 RD1/4VM471J Other Resistors RS1/10S J OTHERS CN802,CN803 4P MINI DIN SOCKET AKP7020 CN801 4P MINI DIN SOCKET AKP7043 CN804 11P SOCKET KP200TA11L V-CONNECTION ASSY SEMICONDUCTOR Q601 KRC103M CAPACITOR C601 CKSQYB103K50 RESISTORS All Resistors RS1/10S J OTHERS CN601 20P FFC CONNECTOR 52044-2045 CN604 10P PLUG KM200TA10 CN603 11P PLUG KM200TA11 CN602 12P PLUG KM200TA12 V-AMP ASSY SEMICONDUCTORS IC2201 BU4052BCF Q2003,Q2023,Q2043,Q2103,Q2123 2SA933S Q2004,Q2007,Q2024,Q2027,Q2044 2SA970 Q2047,Q2104,Q2107,Q2124,Q2127 2SA970 Q2252,Q2253 2SC1740S Q2005,Q2006,Q2025,Q2026 2SC2240 Q2045,Q2046,Q2105,Q2106 2SC2240 Q2125,Q2126,Q2251 2SC2240 Q2008,Q2028,Q2048,Q2108,Q2128 2SC2878 Q2001,Q2021,Q2041,Q2101,Q2121 FMS3 Q2002,Q2022,Q2042,Q2102,Q2122 FMW4 D2001,D2002,D2004,D2005 1SS355 D2021,D2022,D2024,D2025 1SS355 D2041,D2042,D2044,D2045 1SS355 D2101,D2102,D2104,D2105 1SS355 D2121,D2122,D2124,D2125 1SS355 D2201-D2208 1SS355 D2003,D2023,D2043,D2103,D2123 UDZS6.8B D2006,D2026,D2046,D2106,D2126 UDZS8.2B CAPACITORS C2011,C2012,C2031,C2032 CCCSL181K2H C2051,C2052,C2111,C2112 CCCSL181K2H C2131,C2132 CCCSL181K2H C2009,C2029,C2049,C2109,C2129 CCCSL5R0C2H C2004,C2024,C2044,C2104,C2124 CCSQCH101J50 C2002,C2022,C2042,C2102,C2122 CCSQCH221J50 C2006,C2007,C2026,C2027 CCSQCH560J50 C2046,C2047,C2106,C2107 CCSQCH560J50 C2126,C2127 CCSQCH560J50 C2001,C2021,C2041,C2101,C2121 CEAT100M50 C2005,C2008,C2025,C2028,C2045 CEAT101M16 C2048,C2105,C2108,C2125,C2128 CEAT101M16 C2161,C2162 CEAT221M50 C2252 CEAT331M10 C2010,C2030,C2050,C2110,C2130 CEAT470M16 C2013,C2033,C2053,C2113,C2133 CEAT470M50 C2151-C2155 CKSQYB222K50 C2003,C2023,C2043,C2103,C2123 CKSQYB332K50 C2251 CKSQYF223Z50 C2201,C2202 CKSQYF225Z16 I G H www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 84 VSX-35TX, VSX-33TX Mark No. Description Part No. Mark No. Description Part No. RESISTORS R2018,R2038,R2058,R2118,R2138 RD1/4MUF473J R2012,R2032,R2132 RS1/10S101J R2013,R2014,R2033,R2034 RS1/10S121J R2053,R2054,R2113,R2114 RS1/10S121J R2133,R2134 RS1/10S121J Other Resistors RS1/10S J OTHERS CN2101 13P FFC CONNECTOR 52045-1345 CN2001 22P FFC CONNECTOR 52045-2245 CN2002 18P SOCKET KP200TA18L FRONT AMP ASSY SEMICONDUCTORS Q2503,Q2523,Q2543 2SA970 Q2502,Q2522,Q2542 2SC4137 Q2501,Q2521,Q2541 IRF540A Q2504,Q2524,Q2544 IRF9540A D2501-D2505,D2521-D2525 1SS133 D2541-D2545 1SS133 CAPACITORS C2501,C2521,C2541 CEANPR22M50 C2551,C2552 CEAT330M2A RESISTORS R2512,R2532,R2552 (0.05Ω/5W×2) ACN7097 R2506,R2510,R2526,R2530,R2546 RD1/4PUF391J R2550 RD1/4PUF391J R2501,R2511,R2521,R2531,R2541 RD1/4PUF680J R2551 RD1/4PUF680J VR2501,VR2521,VR2541 (470Ω) ACP1067 Other Resistors RD1/4PU J OTHERS CN2501 18P PLUG KM200TA18 REAR AMP ASSY SEMICONDUCTORS Q2603,Q2623 2SA970 Q2602,Q2622 2SC4137 Q2601,Q2621 IRF540A Q2604,Q2624 IRF9540A D2601-D2605,D2621-D2625 1SS133 CAPACITORS C2601,C2621 CEANPR22M50 C2651,C2652 CEAT220M2A RESISTORS R2612,R2632 (0.05Ω/5W×2) ACN7097 R2606,R2610,R2626,R2630 RD1/4PUF391J R2601,R2611,R2621,R2631 RD1/4PUF680J VR2601,VR2621 (470Ω) RCP1135 Other Resistors RD1/4PU J OTHERS CN2601 13P FFC CONNECTOR 52045-1345 2602 PCB BINDER VEF1040 SP/PS ASSY SEMICONDUCTORS Q3302 2SA1837 Q3301 2SC4793 Q3304 KRA101M Q3005,Q3156-Q3159 KRA103M Q3151-Q3155,Q3303 KRC101M Q3305 KRC103M D3051,D3053,D3055,D3057,D3060 1SS133 D3001,D3002 D5SBA20 D3309,D3310 MTZJ13C D3313 MTZJ16B D3305-D3308 MTZJ18C D3301-D3304,D3311,D3312 S5688G COILS L3101-L3105 AF CHOKE COIL ATH1053 L3111,L3112 BEAD FILTER ATX1012 RELAYS RY3101-RY3105 ASR7026 CAPACITORS C3001,C3002 (22000µF/56V) ACH7147 C3305,C3306 CEAT101M50 C3307,C3308 CEAT221M50 C3118 CEAT470M50 C3303,C3304 CEAT471M63 C3101-C3105 CFTYA104J50 C3111-C3117 CQHA102J2A RESISTORS R3151-R3155 RD1/2PM471J R3305,R3306 RD1/4PMF332J R3001,R3002 RD1/4PMF473J R3101-R3105 RD1/4PMF4R7J R3106-R3110 RS1LMF4R7J R3131,R3132 RS2LMF331J Other Resistors RD1/4PU J OTHERS 3001 6P CABLE HOLDER 51048-0600 3004 8P CABLE HOLDER 51048-0800 CN3003 14P FFC CONNECTOR 52045-1445 CN3101 8P SPEAKER TERMINAL AKE7058 CN3102 6P SPEAKER TERMINAL AKE7060 3013,3014,3303,3304 SCREW BBZ30P080FZK CN3005,CN3010 4P PLUG KM200TA4 J K L www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 85 VSX-35TX, VSX-33TX Mark No. Description Part No. Mark No. Description Part No. TRANS 2-1 ASSY SEMICONDUCTORS IC4501,IC4502 (5A) AEK7019 CAPACITOR C4502 CQMA333K2E RESISTOR R4502 RFA1/4PS220J OTHERS 4001 6P CABLE HOLDER 51048-0600 H4501-H4504 FUSE HOLDER AKR7001 REGULATOR ASSY SEMICONDUCTORS IC5009,IC5010 (200mA) AEK7023 IC5004,IC5008 NJM78M05FA IC5003 NJM78M12FA IC5001 NJM78M15FA IC5005,IC5007 NJM78M56FA IC5006 NJM79M05FA IC5002 NJM79M15FA D5010 1SS355 D5005,D5009 D3SBA20(B) D5012 MTZJ6.2B D5001-D5004 S5566G(TPB2) D5011 UDZS5.1B CAPACITORS C5015,C5017 CEAT101M10 C5013,C5025 CEAT101M25 C5021 CEAT221M10 C5001,C5003,C5006 CEAT222M25 C5002,C5004 CEAT222M35 C5019 CEAT331M10 C5005 CEAT332M25 C5024 CEAT470M50 C5023 CEAT471M10 C5009,C5011 CEAT471M25 C5007 CEAT472M16 C5034 CKSQYB102K50 C5008,C5010,C5012,C5014,C5016 CKSQYB103K50 C5018,C5020,C5022,C5031,C5035 CKSQYB103K50 C5030 CQMA104J50 RESISTORS R5005 RD1/2VM1R0J Other Resistors RS1/10S J OTHERS 5010 4P CABLE HOLDER 51048-0400 CN5002 14P FFC CONNECTOR 52045-1445 CN5001 8P FFC CONNECTOR 52147-0810 CN5005 15P PLUG KM200TA15 CN5004,CN5009 20P PLUG KM200TA20 CN5007,CN5010 4P PLUG KM200TA4 CN5003 6P PLUG KM200TA6 CN5008 7P PLUG KM200TA7 CN5006 9P PLUG KM200TA9 KN5002 EARTH METAL FITTING VNF1084 TRANS 2-2 ASSY SEMICONDUCTOR IC5501 (5A) AEK7019 CAPACITORS C5501,C5502 CQMA104J50 RESISTOR R5501 RD1/4MUF100J OTHERS 5501 4P CABLE HOLDER 51048-0400 PRIMARY ASSY SEMICONDUCTORS IC6001 NJM78M56FA Q6001 KRC101M D6005-D6007 1SS355 D6001 S1WB(A)60SD D6008 UDZS5.1B COILS L6001 LINE FILTER ATF7018 L6003,L6004 BEAD FILTER ATX1012 TRANSFORMER T6001 ATT7043 RELAY RY6001 ASR7025 CAPACITORS C6002 (0.01µF/AC275V) ACE7013 C6003 (10000pF/AC250V) ACG7033 C6005 CEAT102M25 C6006 CEAT221M25 C6015 CQMA104J50 RESISTORS R6001 (2.2MΩ, 1/2W) RCN1080 R6003 RD1/2VM101J Other Resistors RS1/10S J OTHERS 6004 AC SOCKET AKP7136 H6001,H6002 FUSE CLIP AKR7001 CN6003,CN6004 4P SOCKET KP200TA4L CN6002 AC CORD SOCKET RKP1751 6003 SCREW TERMINAL VNE1948 COMPONENT ASSY SEMICONDUCTORS IC551 LC74782M-9011 IC501 TC74HC4053AF IC502,IC503 TK15420M Q551 DTC124EK D551,D552 1SS355 M N Q O R www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 86 VSX-35TX, VSX-33TX Mark No. Description Part No. Mark No. Description Part No. COILS L552,L553 LCTA100J3225 L551 LCTA330J3225 CAPACITORS C551,C559 CCSQCH101J50 C555 CCSQCH150J50 C556 CCSQCH180J50 C557,C558 CCSQCH240J50 C513-C515 CCSQCH470J50 C501-C504,C507,C508,C552 CEAT101M10 C562,C563 CEAT101M10 C505,C506,C509-C512,C518 CKSQYB103K50 C553,C554,C560,C561 CKSQYB473K50 RESISTORS All Resistors RS1/10S J OTHERS X551 CRYSTAL RESONATOR ASS1056 (14.31818MHz) JA501-JA503 3P PIN JACK AKB7124 CN501 10P SOCKET KP200TA10L DISPLAY ASSY SEMICONDUCTORS IC7001 PD5588A IC7051 TC7W53FU Q7051 2SA1037K Q7001,Q7052,Q7054 DTC124EK Q7053 FMA1A D7051-D7057 1SS355 D7009,D7010 DAN202K COIL L7001 LFA2R2J SWITCHES S7001-S7003,S7007-S7023 ASG7013 S7025-S7027,S7031-S7035 ASG7013 CAPACITORS C7010 (0.22µF/5.5V) ACH7132 C7007,C7092,C7093 CCSQCH101J50 C7701,C7702 CEAT100M50 C7008,C7013,C7052 CEJA101M6R3 C7001-C7006,C7091 CKSQYB102K50 C7051 CKSQYB103K50 C7053 CKSQYB153K50 C7009 CKSQYB473K50 RESISTORS R7044 RA15T104J Other Resistors RS1/10S J OTHERS X7001 CERAMIC RESONATOR ASS7018 (7.2MHz) 7006 3P CABLE HOLDER 51048-0300 7003 4P CABLE HOLDER 51048-0400 CN7007 4P FFC CONNECTOR 52045-0445 CN7005 5P FFC CONNECTOR 52045-0545 CN7002 7P FFC CONNECTOR 52045-0745 CN7004 8P FFC CONNECTOR 52045-0845 CN7001 32P FFC CONNECTOR 52045-3245 V7001 FL TUBE AAV7076 7010 FL HOLDER VNF1085 VOLUME-CONT ASSY SWITCHES S7103,S7104 ASG7013 S7101 ASX7004 S7102 ASX7036 CAPACITORS C7101-C7104 CKSQYB103K50 RESISTORS All Resistors RS1/10S J OTHERS CN7101 7P FFC CONNECTOR 52045-0745 KN7101 EARTH METAL FITTING VNF1084 HEADPHONE ASSY CAPACITORS C7304 CKSQYB103K50 C7301,C7302 CKSQYB392K50 RESISTORS All Resistors RS1/10S J OTHERS 7301 4P CABLE HOLDER 51048-0400 JA7301 HEADPHONE JACK RKB1014 KN7301 EARTH METAL FITTING VNF1084 FRONT AV ASSY SEMICONDUCTORS Q7201,Q7202 2SC2412K CAPACITORS C7203,C7204 CCSQCH101J50 C7201,C7202,C7215,C7216 CCSQCH271J50 C7208,C7209 CEJA101M10 C7207 CEJA1R0M50 C7220 CKSQYB102K50 C7210,C7217-C7219 CKSQYB103K50 C7211 CKSQYB104K25 C7213,C7214 CKSQYB105K10 RESISTORS All Resistors RS1/10S J OTHERS CN7201 8P FFC CONNECTOR 52044-0845 JA7202 FRONT PIN JACK 4P AKX7014 S T U V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 87 VSX-35TX, VSX-33TX Mark No. Description Part No. Mark No. Description Part No. STAND BY ASSY SEMICONDUCTOR D7501 SLR-343VR(MNP) SWITCH S7501 ASG7013 OTHERS 7501 3P CABLE HOLDER 51048-0300 FRONT DIGIN ASSY CAPACITOR C7601 CKSQYF104Z50 RESISTORS All Resistors RS1/10S J OTHERS JA7601 OPTICAL LINK IN GP1FA551RZ CN7601 KR CONNECTOR S5B-PH-K-S KN7601 EARTH METAL FITTING VNF1084 DSP ASSY SEMICONDUCTORS IC9101 AK4112AVF IC9102 AK4527VQ IC9551 AK7706VT IC9103 CS4391 IC9501 CS493292 IC9201,IC9202 NJM2100M IC9504 PDN030A IC9811 PQ20WZ51 IC9812 PQ7VZ5 IC9552 TC551001CFT-70L IC9151 TC74ACT151F IC9152 TC74HCU04AF IC9505 TC74LVX244FT IC9502,IC9503 TC74VHC574F IC9506 TC74VHCT244AFT IC9507 TC7WU04FU IC9601 TC9164AF IC9602-IC9604,IC9701-IC9707 UPC4570G2 Q9201,Q9202,Q9601-Q9606 2SC3326 Q9611,Q9612 2SC3326 Q9102,Q9104,Q9203,Q9607 DTA124EK Q9609,Q9610 DTA124EK Q9101,Q9103,Q9204,Q9608 DTC124EK D9601,D9602 1SS181 COILS AND FILTERS L9501,L9551,L9801,L9802,L9807 ATL7002 CHIP FERRITE BEAD L9809,L9811,L9812 ATL7002 CHIP FERRITE BEAD F9151-F9153 CHIP BEAD DTF1064 L9101-L9107,L9502,L9503 QTL1013 CHIP SOLID INDUCTOR L9506,L9507,L9552 QTL1013 CHIP SOLID INDUCTOR CAPACITORS C9135 CCSQCH101J50 C9809 CCSQCH221J50 C9159,C9161 CCSQCH470J50 C9154,C9156,C9518,C9564 CCSQCH471J50 C9510,C9511 CCSRCH100D50 C9609,C9610,C9721,C9722,C9735 CCSRCH101J50 C9107 CCSRCH150J50 C9106 CCSRCH180J50 C9621,C9622,C9749-C9752 CCSRCH221J50 C9509,C9629,C9757,C9758 CCSRCH271J50 C9101,C9104,C9112,C9115,C9119 CCSRCH471J50 C9122,C9503,C9505,C9507,C9513 CCSRCH471J50 C9515,C9520,C9522,C9525,C9528 CCSRCH471J50 C9553,C9555,C9557,C9559,C9561 CCSRCH471J50 C9617,C9618,C9639 CCSRCH471J50 C9201,C9202 CCSRCH560J50 C9707,C9708 CCSRCH820J50 C9611,C9612,C9736 CCSRCH821J50 C9113 CEAT221M10 C9523,C9526,C9643,C9644,C9770 CEJA100M25 C9501,C9516,C9551,C9740 CEJA101M10 C9801,C9802,C9812,C9814 CEJA101M10 C9123,C9125 CEJA1R0M50 C9127,C9529 CEJA2R2M50 C9713,C9714,C9727,C9728,C9739 CEJA330M10 C9753,C9754,C9765-C9769 CEJA330M10 C9102,C9108,C9117,C9120 CEJA470M16 C9151,C9152,C9162,C9562 CEJA470M16 C9803,C9805 CEJA470M25 C9203,C9204,C9206,C9207 CEJA4R7M50 C9603,C9604,C9615,C9616 CEJA4R7M50 C9627,C9628,C9761,C9762,C9811 CEJA4R7M50 C9813 CEJA4R7M50 C9110 CEJAR47M50 C9815 CKSQYB102K50 C9134,C9153,C9155,C9157,C9160 CKSQYB103K50 C9517,C9563,C9816 CKSQYB103K50 C9607,C9608,C9619,C9620 CKSQYF104Z25 C9631,C9632,C9705,C9706 CKSQYF104Z25 C9709-C9712,C9723-C9726 CKSQYF104Z25 C9737,C9738,C9759,C9760,C9810 CKSQYF104Z25 C9163-C9167 CKSQYF104Z50 C9745,C9746,C9781,C9782 CKSRYB102K50 C9103,C9105,C9118,C9121,C9124 CKSRYB103K50 C9133,C9158,C9502,C9504,C9506 CKSRYB103K50 C9508,C9512,C9514,C9519,C9521 CKSRYB103K50 C9524,C9527,C9531,C9552,C9554 CKSRYB103K50 C9556,C9558,C9560,C9572 CKSRYB103K50 C9636,C9637 CKSRYB103K50 C9109,C9114,C9116,C9126,C9626 CKSRYB104K16 W X Y www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 88 VSX-35TX, VSX-33TX Mark No. Description Part No. Mark No. Description Part No. C9605,C9606,C9633,C9755,C9756 CKSRYB122K50 C9211,C9212 CKSRYB152K50 C9703,C9704,C9715,C9716,C9729 CKSRYB182K50 C9601,C9602,C9613,C9614,C9625 CKSRYB222K50 C9763,C9764 CKSRYB222K50 C9701,C9702 CKSRYB272K50 C9732 CKSRYB333K16 C9645 CKSRYB472K50 C9111 CKSRYB682K50 C9717,C9718,C9731 CKSRYB821K50 C9205,C9208-C9210 CKSRYF104Z25 C9730 CKSRYF104Z50 RESISTORS R9153,R9172,R9173,R9175,R9812 RS1/10S0R0J R9815 RS1/10S0R0J R9159,R9162,R9169-R9171 RS1/10S101J R9165-R9167 RS1/10S102J R9561,R9563-R9570,R9584 RS1/10S103J R9151,R9152,R9154-R9156 RS1/10S104J R9814,R9816 RS1/10S122J R9123 RS1/10S182J R9101 RS1/10S183J R9813 RS1/10S202J R9161,R9168 RS1/10S222J R9588,R9589 RS1/10S331J R9552,R9553,R9562 RS1/10S472J R9160,R9164 RS1/10S473J R9811 RS1/10S511J R9121 RS1/10S562J R9120,R9122 RS1/10S681J R9158,R9163 RS1/10S750J Other Resistors RS1/16S J OTHERS X9101 CRYSTAL RESONATOR ASS7025 (24MHz) X9501 CHIP CRYSTAL (27MHz) VSS1086 CN9805,CN9806 52044-2045 20P FFC CONNECTOR JA9151 2P PIN JACK AKB7131 JA9153,JA9154 OPTICAL LINK IN GP1FA551RZ JA9155,JA9156 OPTICAL LINK OUT GP1FA551TZ CN9801 20P SOCKET KP200TA20L CN9803 4P SOCKET KP200TA4L CN9802 9P SOCKET KP200TA9L CN9804 KR CONNECTOR S5B-PH-K-S www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 89 VSX-35TX, VSX-33TX Front Side Table 1 VR2621 VR2601 VR2621 VR2601 VR2521 VR2521 2531 2531 2551 2511 2551 2511 W432 W433 W441 W443 W432 W433 W441 W443 VR2541 VR2501 VR2541 VR2501 FRONT AMP ASSY Fig.1 Adjustment Points J REAR AMP ASSY K 6. ADJUSTMENT IDLE CURRENT ADJUSTMENT 5 4 3 1 2 1 2 3 4 5 • CAUTION : Do not turn arround the adjustment Varriable resistors (VRs) fast ! If you go over the adjustment specification value too much. MOS-FET may be broken. Steps 1. Decrease the level of the Adjustment Variable resistors (VR) for the channel to be adjusted. ( Turn counterclockwise.) 2. Set the power switch to ON. 3. First adjustment : Adjust VRs in following the step in table 1 and table 2. 4. Second adjustment : Adjust VRs in following the step in table 1 and table 2 that depends on aging time. Step No. VR2601 SL ch VR2621 SR ch VR2501 FL ch VR2541 C ch VR2521 Between W441 and W443 Between W432 and W433 Between two terminal of 2511 Between two terminal of 2551 Between two terminal of 2531 FR ch Adjustment Point Measurement Point Adjustment Channel Table 2 00 : 00 - 01 : 30 07 : 00 - 08 : 59 09 : 00 - 11 : 59 12 : 00 - 14 : 59 15 : 00 - First adjustment Second adjustment 16.6mV ± 10% (16.6mV ± 1.6mV) 8.2mV ± 10% (8.2mV ± 0.8mV) 7.5mV ± 0.5mV 7.0mV ± 0.5mV 7.0mV ± 0.5mV Adjustment Time Adjustment Value www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 90 VSX-35TX, VSX-33TX 7.1 DISASSEMBLY 7. GENERAL INFORMATION 1 ×2 1 ×2 3 ×2 3 ×2 1 ×4 1 ×2 1 ×2 1 ×2 4 1 2 ×2 1 ×4 1 ×5 4 Bonnet Front Panel Section Heat Sink Section CN102 CN2602 CN3007 CN3006 CN3008 Remove three Flexible cables. CN906 CN903 1 1 1 2 Release two Binders. 1 Disconnect four connectors. 2 (from FRONT DIG. IN Assy) (from HEADPHONE Assy) Bonnet STANDBY Assy VOLUME CONT. Assy • PCB Location (Front Panel Section) DISPLAY Assy HEADPHONE Assy V-AMP Assy FRONT AMP Assy REAR AMP Assy Heat Sink FRONT DIG. IN Assy (VSX-35TX only) FRONT AV Assy Remove three Screw 3 T X V U W J K I S SE Angle www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 91 VSX-35TX, VSX-33TX 1 ×3 1 ×4 PCB Location Replace the Regulator IC. REGULATOR Assy DSP Assy MAIN CONTROL Assy REGULATOR Assy A-CONNECTION Assy COMPOSITE Assy S VIDEO Assy TRANS 1 Assy TRANS 2-2 Assy TRANS 2-1 Assy PRIMARY Assy SP/PS Assy COMPONENT Assy (VSX-35TX only) V-CONNECTION Assy EX I/O Assy (VSX-35TX) 5.1CH I/O Assy (VSX-33TX) FM/AM TUNER Unit H R L Q M O E A B Y D N N F G P www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 92 VSX-35TX, VSX-33TX • The information shown in the list is basic information and may not correspond exactly to that shown in the schematic diagrams. PD5588A (DISPLAY ASSY : IC7001) • Display Control IC • Pin Assignment (Top View) 7.2 PARTS 7.2.1 IC •List of IC PD5588A, PD5587A 100 99 98 97 96 95 94 93 92 91 90 89 88 87 86 85 84 83 82 81 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 60 59 58 57 56 55 54 53 52 51 P77 P76 KEY2 KEY1 P75 KEY3 P74 KEY4 P73 KEY5 P72 KEY6 P71 NC P70 NC PB3 NC PB2 2279 SW1 P57 RDY3 2279 SW2 P56 SCK3 T_POW P55 SO3 T_CK P54 SI3 T_DO P53 RDY2 T_DI P52 SCK2 T_CE P51 SO2 NC P50 SI2 DISP_RDY P67 CS1/RDY1 DISP_PD P66 SCK11 DISP_CK P65 SO1 DISP_DO P64 SI1 DISP_DI TUNED P63 NC P62 P61 STEREO P60 T_MUTE P47 RDS_FM+ P46 RDS_DAT P45 INT1 NC P44 INT4 P20 P19 P18 P17 P16 P15 P14 P13 P12 P11 P10 P9 P8 P7 P6 P5 P4 P3 P2 P1 G16 G15 G14 G13 5V GND Vee P36 P35 P34 P33 P32 P31 5V P30 P29 P28 P27 P26 P25 P24 P23 P22 P21 P43 INT3 P42 INT2 P41 P40 INT0 XRESET PB1 PB0 XIN XOUT VSS P27 P26 P25 P24 P23 P22 P21 P20 P17 P16 VREF AVSS Vee PA0 PA1 PA2 PA3 PA4 PA5 VCC PA6 PA7 P80 P81 P82 P83 P84 P85 P86 P87 MRIN RMCIN HP-SW CHECKER RESET(from system) LED XANTECH XIN XOUT Vss VOL+ VVOL – FUNC R FUNC L G1 G2 G3 G4 G5 G6 G12 G11 G10 G9 G8 G7 RDS_CLK P90 P91 P92 P93 P94 P95 P96 P97 P30 P31 P32 P33 P34 P35 P36 P37 P00 P01 P02 P03 P04 P05 P06 P07 P10 P11 P12 P13 P14 P15 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 93 VSX-35TX, VSX-33TX • Pin Function . o N e m a N n i P O /I n o it c n u F . o N e m a N n i P O /I n o it c n u F 1 1 Y E K I 1 t u p ni n a c s y e K 1 5 7 G O 7 t u p t u o dir G 2 2 Y E K I 2 t u p ni n a c s y e K 2 5 8 G O 8 t u p t u o dir G 3 3 Y E K I 3 t u p ni n a c s y e K 3 5 9 G O 9 t u p t u o dir G 4 4 Y E K I 4 t u p ni n a c s y e K 4 5 0 1 G O 0 1 t u p t u o dir G 5 5 Y E K I 5 t u p ni n a c s y e K 5 5 1 1 G O 1 1 t u p t u o dir G 6 6 Y E K I 6 t u p ni n a c s y e K 6 5 2 1 G O 2 1 t u p t u o dir G 7 C N O n e p O 7 5 3 1 G O 3 1 t u p t u o dir G 8 C N O n e p O 8 5 4 1 G O 4 1 t u p t u o dir G 9 C N O n e p O 9 5 5 1 G O 5 1 t u p t u o dir G 0 1 1 W S 9 7 2 2 O 9 7 2 2 M J N r o f lo rt n o C 0 6 6 1 G O 6 1 t u p t u o dir G 1 1 2 W S 9 7 2 2 O 9 7 2 2 M J N r o f lo rt n o C 1 6 1 S O 1 t u p t u o t n e m g e S 2 1 W O P - T O n w o d r e w o p r e n u T 2 6 2 S O 2 t u p t u o t n e m g e S 3 1 K C - T O elu d o m r e n u t r o f k c ol C 3 6 3 S O 3 t u p t u o t n e m g e S 4 1 O D - T I elu d o m r e n u t m o rf a t a D 4 6 4 S O 4 t u p t u o t n e m g e S 5 1 I D - T O elu d o m r e n u t r o f a t a D 5 6 5 S O 5 t u p t u o t n e m g e S 6 1 E C - T O elu d o m r e n u t r o f elb a n e pih C 6 6 6 S O 6 t u p t u o t n e m g e S 7 1 C N I n e p O 7 6 7 S O 7 t u p t u o t n e m g e S 8 1 Y D R P S I D O M O C - U N I A M 1 0 9 C I r o f ts e u q e r a t a D 8 6 8 S O 8 t u p t u o t n e m g e S 9 1 D P P S I D O n e w o d r e w o p m o c - u y alp si D 9 6 9 S O 9 t u p t u o t n e m g e S 0 2 K C P S I D I M O C - U N I A M 1 0 9 C I m o rf k c ol C 0 7 0 1 S O 0 1 t u p t u o t n e m g e S 1 2 O D P S I D O M O C - U N I A M 1 0 9 C I r o f a t a D 1 7 1 1 S O 1 1 t u p t u o t n e m g e S 2 2 I D P S I D I M O C - U N I A M 1 0 9 C I m o rf a t a D 2 7 2 1 S O 2 1 t u p t u o t n e m g e S 3 2 C N O n e p O 3 7 3 1 S O 3 1 t u p t u o t n e m g e S 4 2 D E N U T I elu d o m r e n u t m o rf a t a d d e n u T 4 7 4 1 S O 4 1 t u p t u o t n e m g e S 5 2 O E R E T S I elu d o m r e n u t m o rf a t a d d e n u t o e r e t S 5 7 5 1 S O 5 1 t u p t u o t n e m g e S 6 2 E T U M - T O F F O / N O e t u m r e n u T 6 7 6 1 S O 6 1 t u p t u o t n e m g e S 7 2 + M F S D R − ) yln o le d o m S D R ( 3 2 9 1 U B 1 0 4 7 C I r o f D D V 7 7 7 1 S O 7 1 t u p t u o t n e m g e S 8 2 T A D S D R O ) yln o le d o m S D R ( 3 2 9 1 U B 1 0 4 7 C I r o f a t a D 8 7 8 1 S O 8 1 t u p t u o t n e m g e S 9 2 C N I ) p u -llu p ( 9 7 9 1 S O 9 1 t u p t u o t n e m g e S 0 3 K L C S D R I ) yln o le d o m S D R ( 3 2 9 1 U B 1 0 4 7 C I r o f k c ol C 0 8 0 2 S O 0 2 t u p t u o t n e m g e S 1 3 N I R M I lo rt n o c e t o m e r m o o r b u S ) yln o le d o m R M , S & R M ( 1 8 1 2 S O 1 2 t u p t u o t n e m g e S 2 3 N I C M R I lo rt n o c e t o m e R 2 8 2 2 S O 2 2 t u p t u o t n e m g e S 3 3 W S - P H I tc e t e d tc e n n o c e n o h p d a e H 3 8 3 2 S O 3 2 t u p t u o t n e m g e S 4 3 R E K C E H C I n oitc e t e d e d o m ts e t k c e h c tin u r o F 4 8 4 2 S O 4 2 t u p t u o t n e m g e S 5 3 T E S E R - M O C I t e s e R 5 8 5 2 S O 5 2 t u p t u o t n e m g e S 6 3 D E L O D E L y b d n a t S 6 8 6 2 S O 6 2 t u p t u o t n e m g e S 7 3 H C E T N A X O F F O / N O H C E T N A X 7 8 7 2 S O 7 2 t u p t u o t n e m g e S 8 3 N I X − r o t allic s o z H M 2 . 7 a tc e n n o C 8 8 8 2 S O 8 2 t u p t u o t n e m g e S 9 3 T U O X − 9 8 9 2 S O 9 2 t u p t u o t n e m g e S 0 4 S S V − D N G 0 9 0 3 S O 0 3 t u p t u o t n e m g e S 1 4 + L O V I + la n gis r e d o c n e y r a t o R 1 9 D D V − V 5 + ylp p u s r e w o P 2 4 - L O V I - la n gis r e d o c n e y r a t o R 2 9 1 3 S O 1 3 t u p t u o t n e m g e S 3 4 R / C N U F I R la n gis r e d o c n e y r a t o R 3 9 2 3 S O 2 3 t u p t u o t n e m g e S 4 4 L / C N U F I L la n gis r e d o c n e y r a t o R 4 9 3 3 S O 3 3 t u p t u o t n e m g e S 5 4 1 G O 1 t u p t u o dir G 5 9 4 3 S O 4 3 t u p t u o t n e m g e S 6 4 2 G O 2 t u p t u o dir G 6 9 5 3 S O 5 3 t u p t u o t n e m g e S 7 4 3 G O 3 t u p t u o dir G 7 9 6 3 S O 6 3 t u p t u o t n e m g e S 8 4 4 G O 4 t u p t u o dir G 8 9 E E V − V 5 ylp p u s r e w o P 9 4 5 G O 5 t u p t u o dir G 9 9 S S V A − D N G 0 5 6 G O 6 t u p t u o dir G 0 0 1 F E R V − V 5 e g a tlo v e c n e r e f e R www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 94 VSX-35TX, VSX-33TX PD5587A (MAIN CONTROL ASSY : IC901) • Main Control IC • Pin Assignment (Top View) PD5587A AUDIO CK1 AUDIO DT1 AUDIO ST1 DISP RDY DISP RST DIR ERR EVOL_CK EVOL_DT TC9215_C34 TC9215_C12 TC9459_ST 9164 ck 9164 CS DM LCK DM RST DM STP GND DSEL A 5V DSEL B DSEL C DIR SDTO DIR PD AK CS AK CS AK DT CODEC PD ADMD ABOT FS96 = = = + = + = = = = = = = + = = = = = + = = = = = = = + 80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 60 59 58 57 56 55 54 53 52 51 P10 P11 P12 P13 P14 P15 P16 P17 P20 P21 P22 P23 P24 P25 P26 P27 VSS P30 VCC P31 P32 P33 P34 P35 P36 P37 P40 P41 P42 P43 TC9482_ST +� 81 p07 P44 50 = 9164 dt TC9163 ST + 82 p06 P45 49 CRS A17 A.MUTE + 83 p05 P46 48 = CRS A15 + 84 p04 P47 47 = CRS A16 RY-B 85 p03 P50 46 = DSP MUTE RY-A + 86 p02 P51 45 + CRS REQ NECK(VH/VL) + 87 p01 P52 44 = CRS CS RY-AC + 88 p00 P53 43 = CRS RST FAN DRY + 89 p107 P54 42 = ASK IRST FAN LOW + 90 p106 P55 41 = ATT TEMP IN = 91 p105 P56 40 = ASK DRST DSP OL = 92 p104 P57 39 = ASK REQ SIMUKE1 = 93 p103 P60 38 + ASK RDY SIMUKE2 94 p102 P61 37 CRS CK WATT IN 95 p101 P62 36 CRS DI GND 96 AVSS P63 35 CRS DO FAN STOP = 97 P100 P64 34 + ASK DRDY 5V 98 VREF P65 33 = ASK CK 5V 99 AVCC P66 32 + ASK DI OSD ON + 100 P97 P67 31 = ASK DO P96 P95 P94 P93 P92 P91 P90 BYTE CMVSS PB7 PB6 XRESET XOUT VSS XIN VCC PB5 PB4 PB3 PB2 PB1 PB0 P77 P76 P75 P74 P73 P72 P71 P70 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 + + + + + = + + + + = = = + + + + + + + + + + OSD DT OSD CK OSD CS DISP DWN DISP DO DISP DI DISP CK GND GND RY-HP RY-C/S XRESET XOUT GND XIN 5V GND AMP OLDET WAKEUP AMP DCDET MR.MUTE MR.DT MR.CK V.2296SW2 V.2296SW5 V.2296SW3 V.2296SW4 OSD RST V4053A V40531NH � = = www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 95 VSX-35TX, VSX-33TX . o N e m a N n i P O /I n o it c n u F . o N e m a N n i P O /I n o it c n u F 1 T D D S O O 1 1 0 9 - M 2 8 7 4 7 C L 2 5 7 C I r o f a t a D 1 4 T T A O r o t a u n e tt a oid u A 2 K C D S O O 1 1 0 9 - M 2 8 7 4 7 C L 2 5 7 C I r o f k c ol C 2 4 T S R I K S A O t e s e r d r a H 6 0 7 7 K A r o f 3 S C D S O O 1 1 0 9 - M 2 8 7 4 7 C L 2 5 7 C I r o f tc ele s pih C 3 4 T S R S R C O 9 2 3 9 4 S C r o f t e s e R 4 N W D P S I D O M O C - U P S D 1 0 5 9 C I r o f t e s e R 4 4 S C S R C O 9 2 3 9 4 S C r o f tc ele s pih C 5 O D P S I D I M O C - U P S I D 1 0 0 7 C I m o rf a t a D 5 4 Q E R S R C I 9 2 3 9 4 S C r o f a t a D 6 I D P S I D O M O C - U P S I D 1 0 0 7 C I r o f a t a D 6 4 E T U M P S D O M O C - U P S D m o rf ts e u q e r e t u M 7 K C P S I D O M O C - U P S I D 1 0 0 7 C I r o f k c ol C 7 4 6 1 A S R C O A 0 3 0 N D P r o flo rt n o C 8 D N G − D N G 8 4 5 1 A S R C O A 0 3 0 N D P r o flo rt n o C 9 D N G − D N G 9 4 7 1 A S R C O A 0 3 0 N D P r o flo rt n o C 0 1 P H - Y R O F F O / N O y ale r e n o h p d a e H 0 5 T D 4 6 1 9 O 4 6 1 9 C T m o rf a t a D 1 1 S / C - Y R O F F O / N O y ale r S / C P S 1 5 6 9 S F I tc e t e d z H k 6 9 2 1 T E S E R X I t e s e R 2 5 T O B A O la n gis t o o B 3 1 T U O X O r o t allic s o z H M 9 1 . 4 a tc e n n o C 3 5 D M D A O F F O / N O e t u m t u o e r p oid u A 4 1 D N G − 4 5 D P C E D O C O n w o d r e w o P C E D O C 5 1 N I X I 5 5 T D K A O C E D O C m o rf a t a D 6 1 D D V − V 5 + ylp p u s r e w o P 6 5 K C K A O C E D O C r o flo rt n o C 7 1 D N G − D N G 7 5 S C K A O C E D O C r o f tc ele s pih C 8 1 P M A T E D L O O tc e t e d d a olr e v O p m A 8 5 D P R I D O n w o d r e w o P R I D 9 1 P U E K A W I t u p ni e slu p C A 9 5 O T D S R I D O t u p t u o r o f a t a d R I D 0 2 P M A T E D C D O tc e t e d . C . D p m A 0 6 C L E S D O F 1 5 1 T C A 4 7 C T r o flo rt n o C 1 2 E T U M R M O m o o r b u s r o f F F O / N O e t u m oid u A ) yln o le d o m R M , S & R M ( 1 6 B L E S D O F 1 5 1 T C A 4 7 C T r o flo rt n o C 2 2 T D V - R M O lo rt n o c P F 9 2 4 2 6 M 0 1 1 C I r o f a t a D ) yln o le d o m S & R M ( 2 6 d d V − V 5 + ylp p u s r e w o P 3 2 K C V - R M O lo rt n o c P F 9 2 4 2 6 M 0 1 1 C I r o f k c ol C ) yln o le d o m S & R M ( 3 6 A L E S D O F 1 5 1 T C A 4 7 C T r o flo rt n o C 4 2 2 W S 6 9 2 2 . V O M 6 9 2 2 M J N 2 0 8 , 1 0 8 , 1 0 7 C I r o flo rt n o C 4 6 D N G − D N G 5 2 5 W S 6 9 2 2 . V O M 6 9 2 2 M J N 2 0 8 , 1 0 8 , 1 0 7 C I r o flo rt n o C 5 6 P T S M D O r e t e r u d o m e D r o f a t a D 6 2 3 W S 6 9 2 2 . V O M 6 9 2 2 M J N 2 0 8 , 1 0 8 , 1 0 7 C I r o flo rt n o C 6 6 T S R M D O r e t e r u d o m e D r o f t e s e R 7 2 4 W S 6 9 2 2 . V O M 6 9 2 2 M J N 2 0 8 , 1 0 8 , 1 0 7 C I r o flo rt n o C 7 6 K C L M D O r e t e r u d o m e D r o f k c ol C 8 2 T S R D S O O 1 1 0 9 - M 2 8 7 4 7 C L 2 5 7 C I r o f t e s e R 8 6 S C 4 6 1 9 O 4 6 1 9 C T r o f tc ele s pih C 9 2 A 3 5 0 4 V O ) nia r D n e p O h c N ( 3 5 0 4 C H 4 7 C T r o flo rt n o C 9 6 K C 4 6 1 9 O 4 6 1 9 C T r o f k c ol C 0 3 H N I 3 5 0 4 V O ) nia r D n e p O h c N ( 3 5 0 4 C H 4 7 C T r o f tibih n I 0 7 T S _ 9 5 9 4 C T O 9 5 9 4 C T r o f e b o rt S 1 3 O D K S A I 6 0 7 7 K A m o rf a t a D 1 7 - C _ 5 1 2 9 C T 2 1 O 5 1 2 9 C T r o flo rt n o C 2 3 I D K S A O la n gis t u p n I 6 0 7 7 K A r o f a t a D 2 7 - C _ 5 1 2 9 C T 4 3 O 5 1 2 9 C T r o flo rt n o C 3 3 K C K S A O 6 0 7 7 K A r o f k c ol C 3 7 T D _ L O V E O e m ulo V rtc el E r o f a t a D 4 3 Y D R D K S A O 6 0 7 7 K A m o rf y d a e r a t a D 4 7 K C _ L O V E O e m ulo V rtc el E r o f k c ol C 5 3 O D S R C I 9 2 3 9 4 S C m o rf a t a D 5 7 R R E R I D I tc e t e d r o rr E R I D 6 3 I D S R C O la n gis t u p n I 9 2 3 9 4 S C r o f a t a D 6 7 T S R P S I D O M O C - U P S I D 1 0 0 7 C I r o f t e s e R 7 3 K C S R C O 9 2 3 9 4 S C r o f k c ol C 7 7 Y D R P S I D I M O C - U P S I D 1 0 0 7 C I m o rf ts e u q e r a t a D 8 3 Y D R K S A I 6 0 7 7 K A m o rf ts e u q e r a t a D 8 7 1 T S O I D U A O 3 6 1 9 C T , 4 6 1 9 C T , F 4 7 2 9 C T r o f e b o rt S 9 3 Q E R K S A O 6 0 7 7 K A r o f tc ele s pih C 9 7 1 T D O I D U A O 3 6 1 9 C T , 4 6 1 9 C T , F 4 7 2 9 C T r o f a t a D 0 4 T S R D K S A O t e s e r tf o S 6 0 7 7 K A r o f 0 8 1 K C O I D U A O 3 6 1 9 C T , 4 6 1 9 C T , F 4 7 2 9 C T r o f k c ol C • Pin Function www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 96 VSX-35TX, VSX-33TX . o N e m a N n i P O /I n o it c n u F . o N e m a N n i P O /I n o it c n u F 1 8 T S 2 8 4 9 C T O lo rt n o c N 2 8 4 9 C T 8 0 1 C I r o f e b o rt S 1 9 N I P M E T O D / A e r u t a r e p m e t n a F /I ,) D S ,J, U K ( n e p o / O )r e h t o ( t u p ni 2 8 T S 3 6 1 9 C T O lo rt n o c F 3 6 1 9 C T 7 0 1 C I r o f e b o rt S 2 9 L O P S D I t u p ni D / A ,tc e t e d d a olr e v o P S D 3 8 E T U M A O F F O / N O e t u m oid u A 3 9 1 E K U M I S I ) n w o d r o p u -llu p ( E K U M I S 4 8 C N O n e p O 4 9 2 E K U M I S I ) n w o d r o p u -llu p ( E K U M I S 5 8 B - Y R O F F O / N O y ale r B P S 5 9 N I T T A W O /I ,t u p ni e g a tt a w n a F /I ,) D S ,J, U K ( n e p O / O )r e h t o ( t u p ni D / A 6 8 A - Y R O F F O / N O y ale r A P S 6 9 D N G − D N G 7 8 -/ H V ( K C E N ) L V O ) yln o 8 3 9 , 8 0 9 , 6 2 , 4 2 ( F F O / N O k c e N 7 9 P O T S N A F O /I )r e h t o ( r e tc e t e d p o ts n a F /I ,) D S ,J, U K ( n e p O / O 8 8 C A - Y R O F F O / N O y ale r C A 8 9 V 5 − V 5 + ylp p u s r e w o P 9 8 E V I R D N A F O )r e h t o ( e vir d n a F ,) D S ,J, U K ( n e p O 9 9 V 5 − V 5 + ylp p u s r e w o P 0 9 W O L N A F O )r e h t o ( w ol n a F ,) D S ,J, U K ( n e p O 0 0 1 N O D S O O U F 3 5 W 4 C T , F C B 3 5 0 4 U B 2 0 1 C I r o flo rt n o C ) yln o le d o m S & R M ( • Pin Function www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 97 VSX-35TX, VSX-33TX AAV7076 (DISPLAY ASSY :V7001) • FL Indicator Tube • Pin Assignment 7.2.2 DISPLAY • Grid Assignment www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 98 VSX-35TX, VSX-33TX • Anode Connection NOTE : F1, F2 : Filament G1 to G15 : Grid NC : No Connection NP: No Pin DL : Datum Line www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 99 VSX-35TX, VSX-33TX www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-35TX, VSX-33TX 100 7.3.1.1 EXPLODED VIEWS AND PARTS LIST NOTES: • Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. • The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. • Screws adjacent to mark on the product are used for disassembly. 7.3.1 AXD7266 (Remote Control 35) 1 2 9 14 13 3 7 11 12 10 4 15 6 5 8 • PARTS LIST Mark No. Description Part No. 1 Name Plate A AZA7380 2 Name Plate B (AXD7266) AZA7396 3 Rubber Sheet (AXD7266) AZA7397 4 Filter AZA7340 5 Terminal A (+) AZB7141 6 Terminal B (-) AZB7142 7 Spring AZB7143 8 Battery Cover AZN7841 9 Case (A) AZN7832 10 Case (B) AZN7781 NSP 11 Illumi Plate AZN7782 12 PCB AZW7260 13 Knob AZA7398 14 Slide Switch AZS7036 15 Case A assy : 7266 AZN7864 7.3 REMOTE CONTROL UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-35TX, VSX-33TX 101 A B C D 1 2 3 4 1 2 3 4 7.3.2.2 PCB DIAGRAM LED SW1 Q3 D1 D2 D3 Q1 Q2 R20 R4 R8 R13 C8 R19 R12 C7 81 1 100 T1 T4 R54 C4 Q4 Q9 T3 T5 1 3 X1 8MHz R25 R53 R52 R28 R63 R56 R51 R55 R65 R57 R29 R40 C2 C10 IC4 R64 D54 D55 D53 D45 D56 IC3 R30 Q7 C1 C9 R32 R31 R14 R33 R17 R16 R18 R36 BAT T6 T7 R38 R35 R71 IC2 Q8 30 31 IC1 M30622MA R10 R69 R70 50 JP21 JP20 R50 Q10 C11 R76 D48 R83 R5 R1 R2 R81 R82 R75 D47 R72 R6 R73 R24 JP31 JP30 JP10 JP11 C3 R48 R49 R47 R46 R45 R44 R43 R42 R41 C61 Q6 Q5 R26 R23 R68 R27 R59 R58 R62 R61 R60 R67 R66 T8 3 1 1 5 L1 D46 R15 R34 R37 011 A RRC4000- 75XXR 401RRC-201-05R D52 D51 D47 D50 T2 R23 R7 R9 7 7 IC6 IC7 74HC08 IC5 74HC07 74HC07 8 8 8 14 14 14 1 R11 7 1 Q11 R74 R21 R22 R3 D19 D4 D5 D22 D21 D8 D7 D20 D6 D10 D11 D12 D9 D13 D24 D23 D34 D31 D30 D29 D28 D27 D25 D26 D32 D15 D17 D14 D33 D36 D18 D16 D35 D37 D38 Open (Remove) JP11, 20, 30, SIDE A SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-35TX, VSX-33TX 102 A B C D 1 2 3 4 1 2 3 4 R55 100k R56 100k R57 100k R58 100k R59 100k R60 100k R63 100k R64 100k R65 100k R66 100k C10 1 R51 3.3k Q8 2SC2712 D45 RLS-73 D46 1SS344 Q7 2SK1959 L1 47µH R52 47k R71 100 BATTERY T6 T7 R54 100k R53 330k R67 10 R68 100 X1 8MHz C3 0.1 C9 0.1F C2 47/16 C1 1000/6.3 T5 Q9 2SK2009 R45 100k R7 360 D7 TV/SAT R44 100k R6 360 D6 DVD/LD R43 100k R5 360 D5 SYS OFF R42 100k R41 100k SW1 NORMAL SETUP IC6 R4 360 D4 M.OPE D4, D5 : FA1111C D6-D18 : BR1102W IC4 1.8V IC3 1.5V IC2 3.3V 1 1 1 2 2 2 5 4 NC 3 3 3 CMOS CMOS S-8322AGMP-DOG-T2 S-80718AL-AF-T1 S-80715AL-AC-T1 T3 T4 T8 C5 0.1 T1 T2 D49 D49-D56 : 1SS294 D50 D51 D52 D53 D54 D55 D56 R61 100k R62 100k 58 P34 59 P33 60 P32 61 62 63 64 P31 VCC P30 65 P27 66 P26 67 P25 68 P24 1 P96 2 P95 3 P94 4 P93 5 P92 6 P91 7 TB0 IN 8 BYTE 9 CNVSS 10 P87 11 P86 12 RESET 13 XOUT 14 VSS 15 XIN 16 VCC 17 P85/NMI 18 INT2 19 INT1 20 INT0 21 P81 22 P80 23 P77 69 P23 70 P22 71 P21 72 P20 73 P17 74 P16 75 P15 76 P14 77 P13 78 P12 79 P11 80 P10 81 P07 82 P06 83 P05 84 P04 85 P03 86 P02 87 P01 88 P00 89 P107 90 P106 91 P105 92 P104 93 P103 94 P102 95 P101 96 AVSS 97 P100 98 VREF 99 AVCC 100 P97 VSS 57 58 49 50 51 52 53 54 55 56 41 42 43 44 45 46 47 48 33 34 35 36 37 38 39 40 25 26 27 28 29 30 31 32 17 18 19 20 21 22 23 24 9 10 11 12 13 14 15 16 1 2 3 4 5 6 7 8 IC1 M30622MA-787FP 7.3.2.3 SCHEMATIC DIAGRAM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-35TX, VSX-33TX 103 A B C D 5 6 7 8 5 6 7 8 C5 47/16 R40 100 R82 220 R14 360 R13 360 R12 360 R11 360 R10 360 R9 360 R50 100k R49 100k R48 100k R47 100k R46 100k R18 360 R19 360 R36 360 R83 220 R81 220 R70 100k R69 100k Q1 2SC3265 Q2 2SC3265 Q3 2SC3265 D1 D2 D14 D18 D19 D36 X20 X5 ALL KEY CURSOR Q5 DTA113ZK Q6 DTA113ZK D3 R1 3.9 1/4W R2 3.9 1/4W R3 3.9 1/4W C8 0.1 C7 0.1 D13 TVCONT. D12 TUNER D11 MD D10 CD D9 VCR2 R8 360 D8 VCR1 C6 0.1 IC7 IC6 IC7 IC5 8 6 3 IC8 7 7 7 13 13 11 12 14 14 14 74HC08 SID303C-01 SID303C-01 SID303C-01 74HC07 74HC07 1 L L L H H H 51 P43 50 P44 49 P45 48 P46 47 P47 46 P50 45 P51 44 P52 43 P53 42 P54 41 P55 40 P56 39 P57 38 P60 37 P61 36 P62 35 P63 34 P64 33 P65 32 P66 31 P67 JP11 JP21 JP31 JP10 JP20 JP30 2 4 5 10 9 R73 47k R72 56k Q10 2SA1037 Q11 2SC2412 Q4 DTC113ZK 52 P42 53 P41 54 P40 55 P37 56 P36 57 P35 24 P76 25 P75 26 P74 27 P73 28 TA1OUT 29 TA0IN 30 P70 R74 100k R76 4.7k R75 15k D47 RLS-73 C11 470p D48 SPS-503C MODEL SWITCH Model JP10 JP11 JP20 JP21 JP30 JP31 AXD7257, AXD7278 − √� − √� − √� AXD7258, AXD7279 − √� − √� √� − AXD7259 − √� √� − − √� AXD7266 − √� √� − √� − AXD7273 √� − − √� − √� AXD7275 √� − − √� √� − www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-35TX, VSX-33TX 104 7.3.2.4 PCB PARTS LIST NOTES: •The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. •When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). 560 Ω → 56 × 10 1 → 561 ........................................................ RD1/4PU 5 6 1 J 47k Ω → 47 × 10 3 → 473 ........................................................ RD1/4PU 4 7 3 J 0.5 Ω → R50 ..................................................................................... RN2H R 5 0 K 1 Ω → 1R0 ..................................................................................... RS1P 1 R 0 K Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 5.62k Ω → 562 × 10 1 → 5621 ...................................................... RN1/4PC 5 6 2 1 F Mark No. Description Part No. IC1 M30622MA-787FP IC2 S-8322AGMP-DOG-T2 IC3 S-80715AL-AC-T1 IC4 S-80718AL-AF-T1 IC5,IC6 74HC07 IC7 74HC08 Q1-Q3 2SC3265 Q4 DTC113ZK Q5,Q6 DTA113ZK Q7 2SK1959 Q8 2SC2712 Q9 2SK2009 Q10 2SA1037 Q11 2SC2412 D1-D3 SID303C-01 D6-D18 BR1102W D23-D36 CL190TD-CD D45,D47 RLS-73 D46 1SS344 D48 SPS-503C D49-D56 1SS294 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 105 VSX-35TX, VSX-33TX 8.1 PANEL FACILITIES 8. PANEL FACILITIES AND SPECIFICATIONS Front Section (VSX-35TX,VSX-33TX) All the controls on the front panel are explained and/or referenced here. To open the front panel push gently on the lower third of the panel. VSX-35TX VSX-33TX VSX-33TX 1 2 3 4 5 6 7 8 9 10 11 12 21 13 17 18 19 20 15 16 22 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 106 VSX-35TX, VSX-33TX 1 STANDBY/ON button Press to switch the receiver ON or into STANDBY mode. STANDBY indicator Lights when the receiver is in STANDBY mode. (Please note that this receiver consumes a small amount of power [1.0 W] in the standby mode.) 2 MIDNIGHT button Switches the MIDNIGHT mode on or off (cannot be used in THX mode). 3 DIGITAL NR button Switches the DIGITAL Noise Reduction on or off (cannot be used in THX mode). 4 MULTI CH INPUT Use to hook up an external component that can decode other types of signals and input them into the VSX-35TX. 5 DSP MODE button Press repeatedly to select a DSP sound mode. (HALL 1, HALL 2, JAZZ, DANCE, THEATER 1, or THEATER 2, 5/7 CH STEREO). Use these modes to produce surround sound from standard (two channel) stereo sources and create different listening environments. STEREO/DIRECT button Switches the receiver into STEREO mode if it was in a different sound mode (like ADVANCED THEATER) or toggles between DIRECT and STEREO mode. For more on STEREO mode. DIRECT playback bypasses the tone controls and channel level for the most accurate repro- duction of a program source. / DTS buttons THX CINEMA – Cycles through the THX CINEMA, THX SURROUND EX or THX AUTO sound modes. Use when listening THX- certified sources if you have THX-certified speaker setup or want to re-create a THX-style sound environment. It is also appropriate for Dolby Digital, Dolby Pro Logic or DTS sources.Those with surround back speakers can use all three THX modes, those without should use the THX CINEMA mode. ADVANCED THEATER – Use to select one of the four Advanced Theater modes. Use to create certain types of sound environments when listening to Dolby Digital, Dolby Pro Logic or DTS sources. STANDARD – Use for pure decoding of multi channel sources, especially Dolby Digital, Dolby Pro Logic or DTS software. 6 SPEAKERS (A/B) button Use to select the speaker system. A is the primary setting. It plays all speakers hooked up to the A system. A & B setting only plays the front speakers of both the A & B systems and the sub-woofer. Multi channel sources will be down-mixed to these speakers so no sound will be lost. B setting only plays the front speakers connected to the B system and multi channel sources will be down-mixed to these two speakers. The button cycles through the speaker systems as follows: A]B]A&B]off 7 FL DIMMER button Use to adjust the brightness of the fluorescent display (FL = fluorescent display). Four levels of the brightness ranging from very dim to very bright can be selected. Each press changes the brightness of the display. 8 VIDEO SELECT button Switches the receiver between the various types of video input while keeping the audio input the same. 9 TAPE 2 MONITOR button Selects the tape deck (MD recorder, etc.) connected to the TAPE 2 MONITOR inputs/ outputs. Allows monitoring of a recording as it's being made. 10 TUNER CONTROL buttons BAND – Press to select the AM or FM band. CLASS – Press repeatedly to switch the preset station classes. TUNING SELECT – Switches the STATION/ TUNING button between station memory and frequency select modes. STATION –/+ – Selects station memories when using the tuner. TUNING –/+ – Selects the frequency when using the tuner. MPX – Press to switch between auto stereo and MONO reception of FM broadcasts. When the broadcast signal is weak, selecting MONO will improve the sound quality. MEMORY – Press to start the memorization of a preset station. 11 Display 12 Remote sensor Point the remote control toward the remote sensor to operate the receiver. 13 MULTI-JOG CONTROL buttons SETUP – Press to switch the setup mode. RETURN – Press to move back one step in the SETUP process. Front Section (for VSX-35TX and VSX-33TX) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 107 VSX-35TX, VSX-33TX 14 MULTI-ROOM & SOURCE button (VSX-33TX Only) Press to use the multi room feature (it's best to have an optional PIONEER Multi-Room Remote Sensor Unit MR-100 or another IR receiver for this feature). CONTROL button Used together with the INPUT SELECTOR to select the function to select the volume of the MULTI ROOM sys- tem. 15 MULTI JOG dial You can use this dial for three purposes. In normal mode turn it to select a source compo- nent or press it to switch the display between function mode and sound mode. When you press the SETUP button (13), you can use it to perform SETUP operations (turn to select, push to enter). The source indicators show the current compo- nent: DVD/LD – DVD player or LaserDisc player. TV/SAT– TV or satellite tuner. CD – Compact Disc player. CD-R/TAPE1/MD – CD recorder, tape deck or Mini Disc recorder connected to CD-R/TAPE 1/ MD inputs/outputs. TUNER – The built-in tuner. PHONO – Turntable. VIDEO – Video camera (etc.) connected to the VIDEO INPUT on the front panel. VCR1/DVR – Video cassette recorder connect- ed to VCR1/DVR inputs. VCR 2 – Video cassette recorder or other component connected to VCR 2 inputs. 16 MASTER VOLUME Adjusts the overall receiver volume. 17 VIDEO INPUT jacks DIGITAL IN: (VSX-35TX Only) Optical video input for connecting a video camera (or video game, portable DVD, etc.), that has an optical out. S-VIDEO : Video input for connecting a video camera (etc.), that has an S-Video out. VIDEO / AUDIO (L/R) : Video input for connect- ing a video camera, etc. that has standard video/audio outputs. 18 LOUDNESS button Switches the LOUDNESS mode on or off (cannot be used in THX mode). 19 TONE button This button has two functions. Firstly, it switch- es between TONE on and TONE BYPASS, which bypasses the tone circuitry. Secondly, you need to press the button before using the CHANNEL SELECT buttons to adjust the BASS & TREBLE (cannot be used in THX mode). CHANNEL SELECT button Switches the tone adjust controls between the FRONT, CENTER, SURROUND and SUR- ROUND BACK speakers. You can then use the BASS and TREBLE controls to adjust the sound. BASS (–/+) button Use to adjust low frequencies. TREBLE (–/+) button Use to adjust the high frequencies. 20 PHONES jack Connect headphones for private listening (no sound will be heard through the speakers). 21 SIGNAL SELECT button (VSX-33TX Only) Press SIGNAL SELECT repeatedly to select one of the following: ANALOG – Analog signal. DIGITAL – Digital signal (DVD/LD, TV/SAT, CD, CD-R/TAPE 1/MD, VCR 1/DVR, VCR 2). AUTO – This is the default. If there are both analog, digital, the receiver automatically selects the best possible signal. 22 INPUT ATT button (VSX-33TX Only) Use to lower the input level of an analog signal that is too powerful, thus causing the sound to distort (the OVER indicator will light when this is the case). www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 108 VSX-35TX, VSX-33TX Display (for VSX-35TX) All the display information is explained and /or referenced here. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 5 DSP indicator Light when a DSP or Advanced Theater mode is selected. 6 STEREO indicator Lights when a STEREO mode is selected. 7 Source indicators 3 indicator lights at the selecting source. 8 TAPE 2 indicator Lights when the TAPE 2 monitor is on. 9 MASTER VOLUME indicator Displays current volume level. 10 MULTI-ROOM indicator Lights when the Multi-room system is on. 11 Sound control indicators DNR – Lights when the digital NR is on. LOUDNESS – Lights when the Loudness is on. TONE – Lights when the Tone control is on. MIDNIGHT – Lights when the Midnight mode is on. 12 Tuner indicators STEREO – Lights when a FM stereo broadcast is received in the auto stereo mode. TUNED – Lights when a broadcast is received. MONO – Lights when the tuner is set to receive FM broadcasts with the mono mode selected. 13 H.P. (headphones) Lights when headphones are connected to the PHONES jack (speakers systems A and B both turn off automatically). 14 Character display Shows current mode, status, etc. 15 Analog level indicators OVER – When the source signal is analog, this lights if the signal is in danger of distorting. Press INPUT ATT on the remote control to lower the signal level. ATT – Lights when INPUT ATT is used to reduce the level of the analog source signal. 1 Speaker indicators Light to indicate the current speaker system, A and/or B. 2 SIGNAL SELECT indicators Light to indicate the input signal you selected. ANALOG – Lights when analog signals are assigned. DIGITAL – Lights when digital audio signals are selected. AUTO – Lights when the receiver is set to select the input signal automatically. 3 Program Format indicator 2 DIGITAL – Lights when a source with Dolby Digital signals is played. DTS – Lights when a source with DTS audio signals is played. For Dolby Digital or DTS sources: These indicators change according to which channels are active in the source. When all three LS (left surround), S (surround) and RS (right surround) light at the same time it means a SURROUND EX source or a DTS ES source with surround back channels is being used. L – Left front channel. C – Center channel. R – Right front channel. LS – Left surround channel. S – Surround channel (mono). RS – Right surround channel. LFE – Low Frequency Effects channel. 4 2/dts mode indicators 2 DIGITAL – Indicates multi channel playback of a Dolby Digital source. 2 PRO LOGIC – Lights when Dolby Pro Logic decoding is switched on. dts – When the 2/dts mode on the receiver is on, this indicator lights to indicate playback of a DTS signal. THX – Lights when the HOME THX CINEMA mode is selected. EX – Lights when decoding a Surround EX source. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 109 VSX-35TX, VSX-33TX Remote Control Unit (VSX-35TX) These pages describe the buttons on the remote control used to operate the receiver. For example : If you programmed power on for your TV and VCR, pressing the SYSTEM OFF button will turn off these components even if they are not PIONEER products. RECEIVER button Press to turn power of the receiver on or to STANDBY (off). 3 MULTI CONTROL buttons Use these to select a source and the corresponding remote operation mode. For example, pressing TUNER selects the built in tuner and sets the remote operation to the tuner functions. 4 Component Control buttons Use to control specific components, like a CD player or DVD player, after you have programmed the remote control to do these operations and the remote is put in that operation mode. [Tuner control] CLASS – Press repeatedly to switch the preset station classes. MPX – Press to switch between auto stereo and MONO reception of FM broadcasts. BAND – Press to select AM or FM band. DIRECT ACCESS – Press to activate the direct access tuning mode. TUNING +/– – Use to manually tune in to radio stations. STATION +/– – Use to choose programmed radio stations. 5 Number buttons These buttons can perform a variety of different functions depending on the remote operation mode. They are most useful for CD and tuner operations. 6 ENTER button Use for controlling other components only. 7 TV CONTROL buttons The following buttons are used to control the TV only and can be used no matter what function the remote control is set to. TV button – Press to turn the power of the TV on/off. TV FUNC button – Press TV FUNC to select the TV for remote control operation. TV VOL +/– button – Use to adjust the TV volume. 1 USE/SETUP slide switch Use to put the remote into receiver SETUP, or receiver USE mode. 2 SOURCE button Use to turn on the power of your other components after you have recalled or taught the signals to this remote control. MULTI OPERATION button Use this button to start the MULTI OPERATION mode. for how to program and use the MULTI OPERATION mode. SYSTEM OFF button This button turns off components in two ways. First, when pressed it will turn off all PIONEER components. Secondly, any component that has programmed into the MULTI OPERATIONS settings will also be turned off AV PRE-PROGRAMMED AND LEARNING REMOTE CONTROL UNIT S0URCE DVD/LD TV/SAT VCR2 CD TV VOL TV FUNC MENU ENTER STEREO/ DIRECT DSP THX LIGHT /DTS MUTE TV VOLUME VCR 1/ DVR CD-R/ TAPE 1 TUNER TV CONT RECEIVER USE SETUP MULTI OPERATION CLASS DTV ON/OFF DTV MENU MPX DIRECT ACCESS CHANNEL STATION TUNING DISC +10 EXIT GUIDE TV CONTROL FUNCTION REMOTE SETUP SYSTEM SETUP INPUT ATT ADVANCED MIDNIGHT MULTI CH INPUT STANDARD DIGITAL NR EFFECT/ CH SEL SIGNAL SELECT BAND SYSTEM OFF 1 2 3 4 5 6 7 8 9 0 ENTER Î� ¶� 8 7 3 1 ¡� 4 ¢� + - + - + - MULTI CONTROL + + – – + – 1 2 3 4 5 6 8 9 10 7 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 110 VSX-35TX, VSX-33TX 8 MASTER VOLUME buttons Use to raise or lower the volume of the receiver. 9 INPUT ATT button (when USE mode is selected) Use to lower the input level of an analog signal that is too powerful, thus causing the sound to distort (the OVERLOAD indicactor will light). REMOTE SETUP button (when SETUP mode is selected) Use to customize the remote control functions and the remote control itself. (See “Setting Up the Remote Control to Control Other Compo- nents“ , “Multi Operations“ MENU button Use to get the various menus for your DVD, TV or DTV. MUTE button Press to mute or restore the volume. EFFECT/CH SEL (when USE mode is selected) button . EFFECT – Use these buttons to increase or decrease the amount of effect applied in a DSP or Advanced Theater mode. When the amount of effect is increased in a DSP/Advanced Theater mode the characteristics of that mode become stronger and more noticeable. The scale ranges from 10-90 with 70 as the default setting. First turn on the DSP/Advanced Theater you want (by pressing the DSP/ Advanced Theater button until you get the mode) and then increase or decrease the amount of effect. CH SEL – You may want to adjust the channels when listening to some sound sources. Use this button to select the channel you want to adjust. SYSTEM SET UP button (when SETUP mode is selected) Use to set up the speaker and sound systems. For more information see “Setting up for Surround Sound“ . FUNCTION button Press to select a source. The button will cycle through all the possible sources. 5(+)/∞(–)/2/3/ENTER buttons Use to operate the on-screen menu on your TV screen and enter commands when setting up surround sound, speakers levels & settings, and other set up features . They also can be used to operate DVD players, DTVs and other components after you have input the components preset codes. Specific use of these buttons is described in conjunction with the operations they perform. For more information see each individual section. DIGITAL NR button Press to switch Digital NR on or off. SIGNAL SELECT button Press SIGNAL SELECT repeatedly to select one of the following: ANALOG – Analog signal. DIGITAL – Digital signal (DVD/LD, TV/SAT, CD, CD-R/TAPE 1, VCR 1/DVR, VCR 2, VIDEO). AUTO – This is the default. If there are analog, or digital signals input the receiver automatical- ly selects the best possible signal. 10 MIDNIGHT button Switches the MIDNIGHT mode on or off. MULTI CH INPUT button . Press to switch to multi channel input mode. DSP button Press to select a DSP sound mode. Repeated presses cycle through the diffferent possible DSP modes. STEREO/DIRECT button Switches the receiver into STEREO mode if it was in a different sound mode (like ADVANCED THEATER) or or toggles between DIRECT and STEREO mode. For more on STEREO mode . DIRECT playback bypasses the tone controls and channel level for the most accurate repro- duction of a program source. LIGHT button Press to light the remote control buttons. /DTS buttons Press these buttons to put the receiver in the selected sound mode. For more information on these specific sound modes . www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 111 VSX-35TX, VSX-33TX 8.2 SPECIFICATIONS Continuous average power output of 90 watts* per channel, min., at 8 ohms, from 20 Hz to 20,000 Hz with no more than 0.09 %** total harmonic distortion (front). Continuous Power Output Front ......... 90 W + 90 W (20 Hz – 20 kHz, 0.09 %, 8 Ω) Center ................... 90 W (20 Hz – 20 kHz, 0.09 %, 8 Ω) Rear .......... 90 W + 90 W (20 Hz – 20 kHz, 0.09 %, 8 Ω) Input (Sensitivity/Impedance) PHONO MM .........................................4.7 mV/47 kΩ VCR 1/DVR, VCR 2, DVD/LD, TV/SAT, VIDEO, CD, CD-R/TAPE 1/MD, TAPE 2....................335 mV/47 kΩ Phono Overload level (T.H.D.0.1 %, 1kHz) PHONO MM...................................................... 120 mV Frequency Response PHONO MM..................... 20 Hz to 20,000 Hz ± 0.3 dB VCR 1/DVR, VCR 2, DVD/LD, TV/SAT, VIDEO, CD, CD-R/TAPE 1/MD, TAPE 2 ......5 Hz to 100,000 Hz dB Output (Level/Impedance) VCR 1/DVR REC, VCR 2 REC, CD-R/TAPE 1/MD REC, TAPE 2 REC ........................................... 335 mV/2.2 kΩ Tone Control BASS ..................................................... ± 6 dB (100 Hz) TREBLE ................................................. ± 6 dB (10 kHz) LOUDNESS .............................. +10 dB (100 Hz/10 kHz) Signal-to-Noise Ratio (IHF, short circuited, A network) PHONO MM......................................................... 80 dB VCR 1/DVR, VCR 2, DVD/LD, TV/SAT, VIDEO, CD, CD-R/TAPE 1/MD, TAPE 2, MULTI CH IN ............ 101 dB Signal-to-Noise Ratio [EIA, at 1 W (1 kHz)] PHONO MM......................................................... 80 dB VCR 1/DVR, VCR 2, DVD/LD, TV/SAT, VIDEO, CD, CD-R/TAPE 1/MD, TAPE 2 .................................... 83 dB * Measured pursuant to the Federal Trade Commission’s Trade Regulation rule on Power Output Claims for Amplifiers. ** Measured by Audio Spectrum Analyzer. VIDEO Section (S jack) Input (Sensitivity/Impedance) VCR 1/DVR, VCR 2, VIDEO, DVD/LD, TV/SAT Luminance signal (Y) ............................. 1 Vp-p/75 Ω Chrominance signal (C) ................... 0.286 Vp-p/75 Ω Output (Level/Impedance) VCR 1/DVR, VCR 2, MONITOR OUT Luminance signal (Y) ............................. 1 Vp-p/75 Ω Chrominance signal (C) ................... 0.286 Vp-p/75 Ω Frequency Response VCR 1/DVR, VCR 2, VIDEO, DVD/LD, TV/SAT Luminance signal (Y) .............. 5 Hz to 10 MHz dB Signal-to-Noise Ratio Luminance signal (Y) ...................................... 65 dB Component Video Section Input (Sensitivity) Y .............................................................. 1 Vp-p/75 Ω PB/PR ....................................................................0.7 V Output (Level/Impedance) Y .............................................................. 1 Vp-p/75 Ω PB/PR ....................................................................0.7 V Frequency Response Y ................................................. 5 Hz to 20 MHz dB PB/PR .......................................... 5 Hz to 13 MHz dB VIDEO Section (Composite) Input (Sensitivity/Impedance) VCR 1/DVR, VCR 2, VIDEO, DVD/LD, TV/SAT ......................................................... 1 Vp-p/75 Ω Output (Level/Impedance) VCR 1/DVR, VCR 2, MONITOR OUT, MONITOR OUT2 ......................................... 1 Vp-p/75 Ω Frequency Response VCR 1/DVR, VCR 2, TV/SAT, DVD/LD VIDEO=MONITOR OUT, ............. 5 Hz to 10 MHz dB Signal-to-Noise Ratio .............................................. 65 dB FM Tuner Section Frequency Range .......................... 87.5 MHz to 108 MHz Usable Sensitivity....... Mono: 13.2 dBf, IHF (1.3 µV/75 Ω) 50 dB Quieting Sensitivity.......................Mono: 20.2 dBf Stereo: 38.6 dBf Signal-to-Noise Ratio ................. Mono: 73 dB (at 85 dBf) Stereo: 70 dB (at 85 dBf) Distortion ...................................... Stereo: 0.5 % (1 kHz) Alternate Channel Selectivity ................. 60 dB (400 kHz) Stereo Separation ...................................... 40 dB (1 kHz) Frequency Response.................30 Hz to 15 kHz (± 1) dB Antenna Input ....................................... 75 Ω unbalanced AM Tuner Section Frequency Range .......................... 530 kHz to 1,700 kHz Sensitivity (IHF, Loop antenna) ......................... 350 µV/m Selectivity............................................................... 25 dB Signal-to-Noise Ratio .............................................. 50 dB Antenna ...................................................... Loop antenna Miscellaneous Power Requirements ..............................AC 120 V, 60 Hz Power Consumption ................................. 400 W, 550 VA Power Consumption in Standby mode.................... 1.0 W AC Outlet SWITCHED (×2) ........ Total 100 W (0.8 A) MAX Dimensions ................... 420 (W) × 173 (H) × 463 (D) mm (16-9/16 (W) × 6-13/16 (H) × 18-1/4 (D) in.) Weight (without package) .................. 15.0 kg (33 lb 1 oz) Furnished Parts FM wire Antenna ...........................................................1 AM loop Antenna ...........................................................1 “AA” IEC LR6 batteries ...................................................2 Remote Control Unit ......................................................1 Operating Instructions....................................................1 NOTE: Specifications and the design are subject to possible modifications without notice, due to improvements. Amplifier Section VSX-35TX : www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 112 VSX-35TX, VSX-33TX “AA” IEC LR6 batteries x 2 Remote control unit (Remocon35 : AXD7266) VSX-35TX (Remocon33 : AXD7267) VSX-33TX Accessories (VSX-35TX / VSX-33TX) FM wire antenna (ADH7004) AM loop antenna (ATB7009) Continuous average power output of 80 watts* per channel, min., at 8 ohms, from 20 Hz to 20,000 Hz with no more than 0.09 %** total harmonic distortion (front). Continuous Power Output Front ............. 80 W + 80 W (20Hz-20 kHz, 0.09 %, 8 Ω) Center ....................... 80 W (20Hz-20 kHz, 0.09 %, 8 Ω) Rear .............. 80 W + 80 W (20Hz-20 kHz, 0.09 %, 8 Ω) Input (Sensitivity/Impedance) VCR 1/DVR, VCR 2, DVD/LD, TV/SAT, VIDEO, CD, CD-R/TAPE 1/MD, TAPE 2....................335 mV/47 kΩ Frequency Response VCR 1/DVR, VCR 2, DVD/LD, TV/SAT, VIDEO, CD, CD-R/TAPE 1/MD, TAPE 2 ......5 Hz to 100,000 Hz dB VCR 1/DVR REC, VCR 2 REC, CD-R/TAPE 1/MD REC, TAPE 2 REC ........................................... 335 mV/2.2 kΩ Tone Control BASS ..................................................... ± 6 dB (100 Hz) TREBLE ................................................. ± 6 dB (10 kHz) LOUDNESS .............................. +10 dB (100 Hz/10 kHz) Signal-to-Noise Ratio (IHF, short circuited, A network) VCR 1/DVR, VCR 2, DVD/LD, TV/SAT, VIDEO, CD, CD-R/TAPE 1/MD, TAPE 2 ................................... 101 dB MULTI CH IN ....................................................... 101 dB Signal-to-Noise Ratio [EIA, at 1 W (1 kHz)] VCR 1/DVR, VCR 2, DVD/LD, TV/SAT, VIDEO, CD, CD-R/TAPE 1/MD, TAPE 2 .................................... 83 dB * Measured pursuant to the Federal Trade Commission’s Trade Regulation rule on Power Output Claims for Amplifiers. ** Measured by Audio Spectrum Analyzer. VIDEO Section (S jack) Input (Sensitivity/Impedance) VCR 1/DVR, VCR 2, VIDEO, DVD/LD, TV/SAT Luminance signal (Y) ............................. 1 Vp-p/75 Ω Chrominance signal (C) ................... 0.286 Vp-p/75 Ω Output (Level/Impedance) VCR 1/DVR, VCR 2, MONITOR OUT Luminance signal (Y) ............................. 1 Vp-p/75 Ω Chrominance signal (C) ................... 0.286 Vp-p/75 Ω Frequency Response VCR 1/DVR, VCR 2, VIDEO, DVD/LD, TV/SAT Luminance signal (Y) .............. 5 Hz to 10 MHz dB Signal-to-Noise Ratio Luminance signal (Y) ...................................... 65 dB VIDEO Section (Composite) Input (Sensitivity/Impedance) VCR 1/DVR, VCR 2, VIDEO, DVD/LD, TV/SAT ......................................................... 1 Vp-p/75 Ω Output (Level/Impedance) VCR 1/DVR, VCR 2, MONITOR OUT ............ 1 Vp-p/75 Ω Frequency Response VCR 1/DVR, VCR 2, TV/SAT, DVD/LD VIDEO=MONITOR OUT, ............. 5 Hz to 10 MHz dB Signal-to-Noise Ratio .............................................. 65 dB FM Tuner Section Frequency Range ............................ 87.5 MHz to 108 MHz Usable Sensitivity......... Mono: 13.2 dBf, IHF (1.3 µV/75 Ω) 50 dB Quieting Sensitivity .........................Mono: 20.2 dBf Stereo: 38.6 dBf Signal-to-Noise Ratio ................... Mono: 73 dB (at 85 dBf) Stereo: 70 dB (at 85 dBf) Distortion ........................................ Stereo: 0.5 % (1 kHz) Alternate Channel Selectivity ................... 60 dB (400 kHz) Stereo Separation ........................................ 40 dB (1 kHz) Frequency Response...................30 Hz to 15 kHz (± 1) dB Antenna Input .........................................75 Ω unbalanced AM Tuner Section Frequency Range ............................ 530 kHz to 1,700 kHz Sensitivity (IHF, Loop antenna) ........................... 350 µV/m Selectivity................................................................. 25 dB Signal-to-Noise Ratio ................................................ 50 dB Antenna ........................................................ Loop antenna Miscellaneous Power Requirements ............................... AC 120 V, 60 Hz Power Consumption................................... 400 W, 550 VA Power Consumption in Standby mode ...................... 1.0 W AC Outlet SWITCHED (×2) .......... Total 100 W (0.8 A) MAX Dimensions ..................... 420 (W) × 173 (H) × 463 (D) mm (16-9/16 (W) × 6-13/16 (H) × 18-1/4 (D) in.) Weight (without package) ....................14.6 kg (32 lb 3 oz) Amplifier Section VSX-33TX : www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
