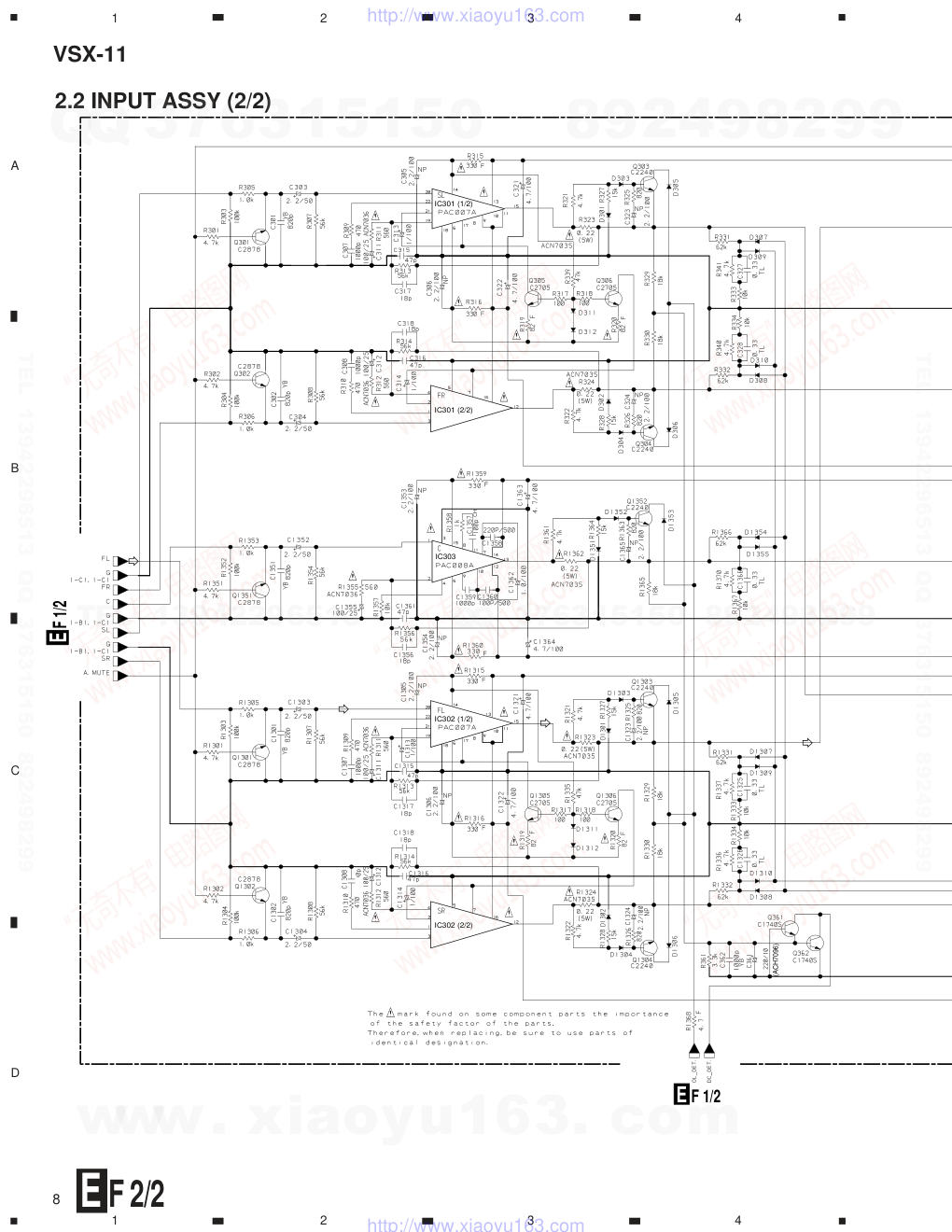

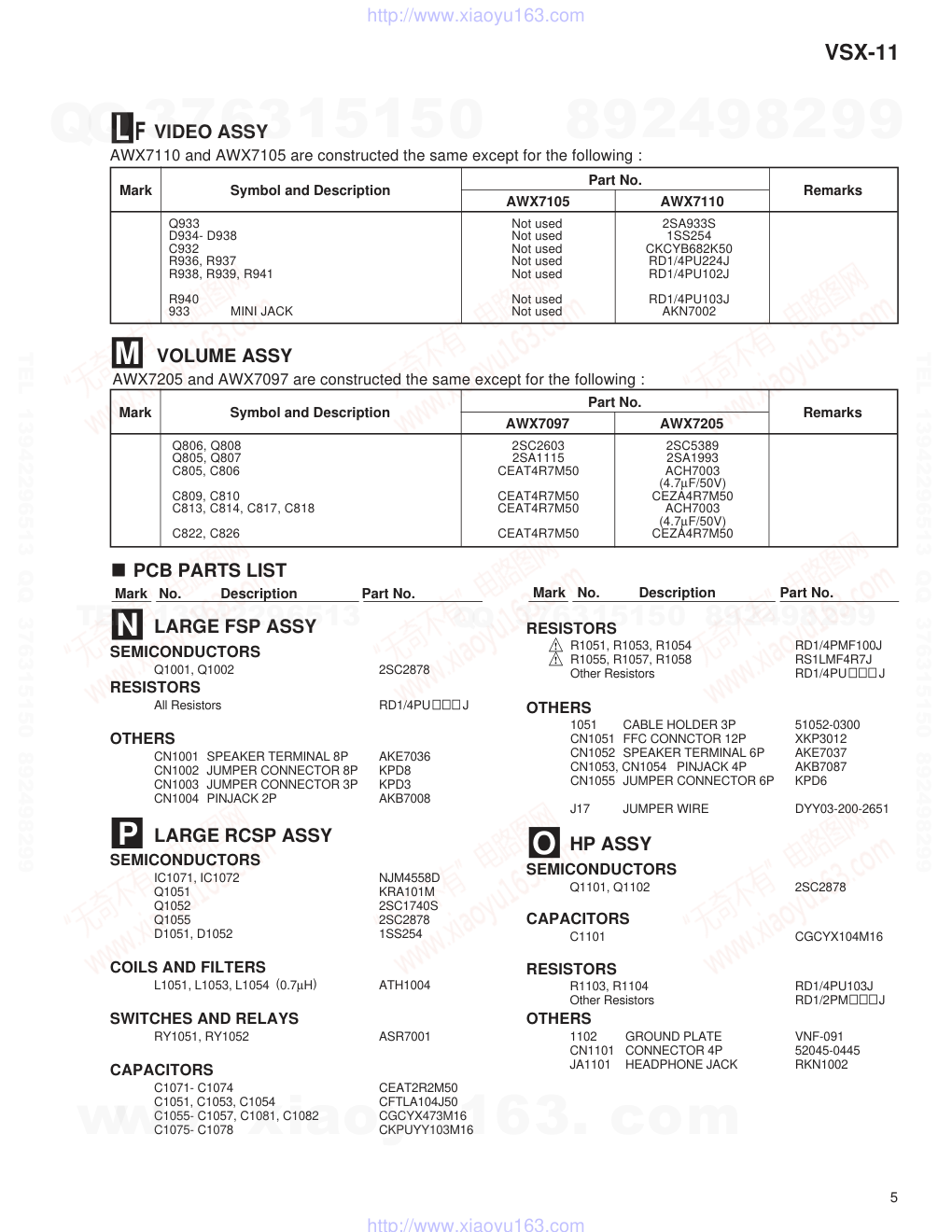

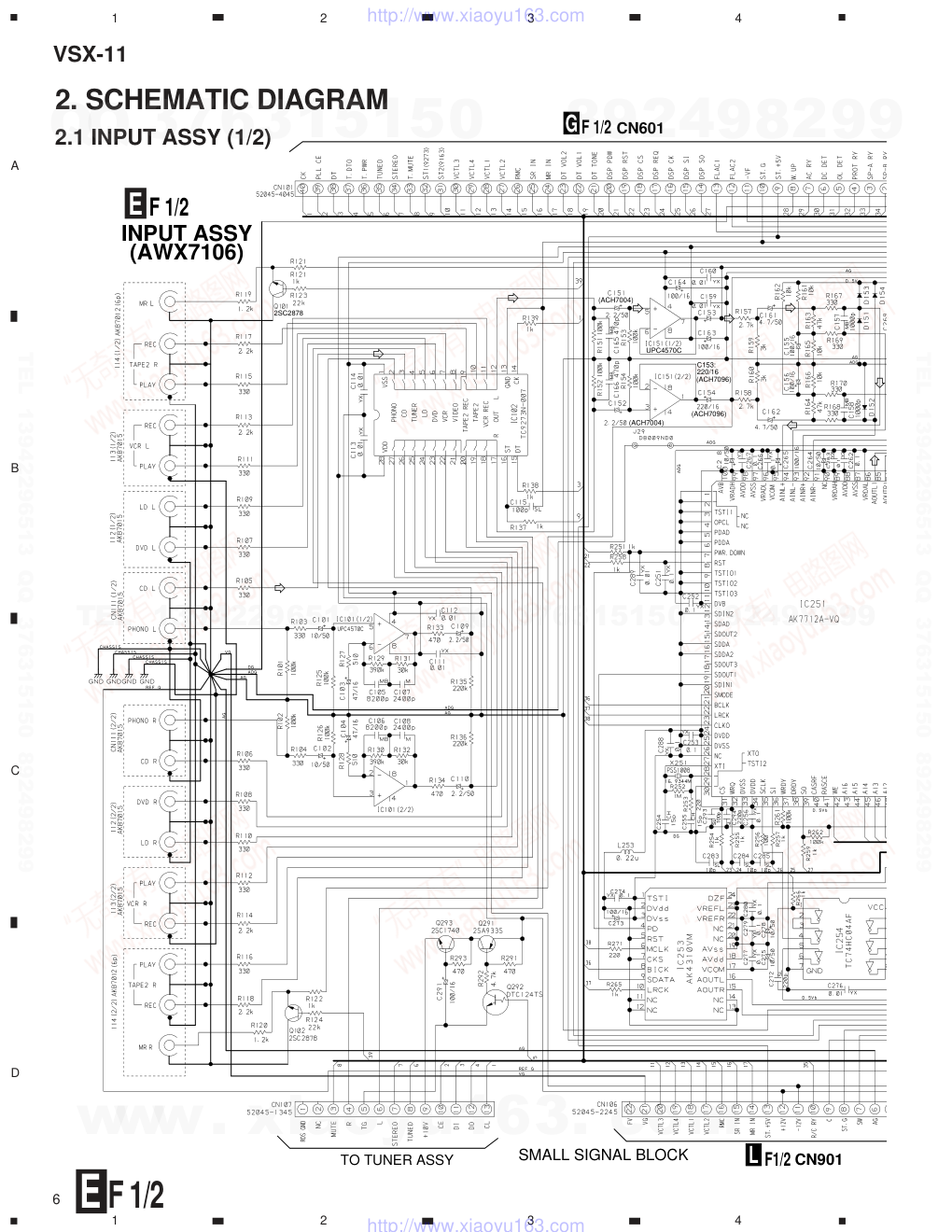

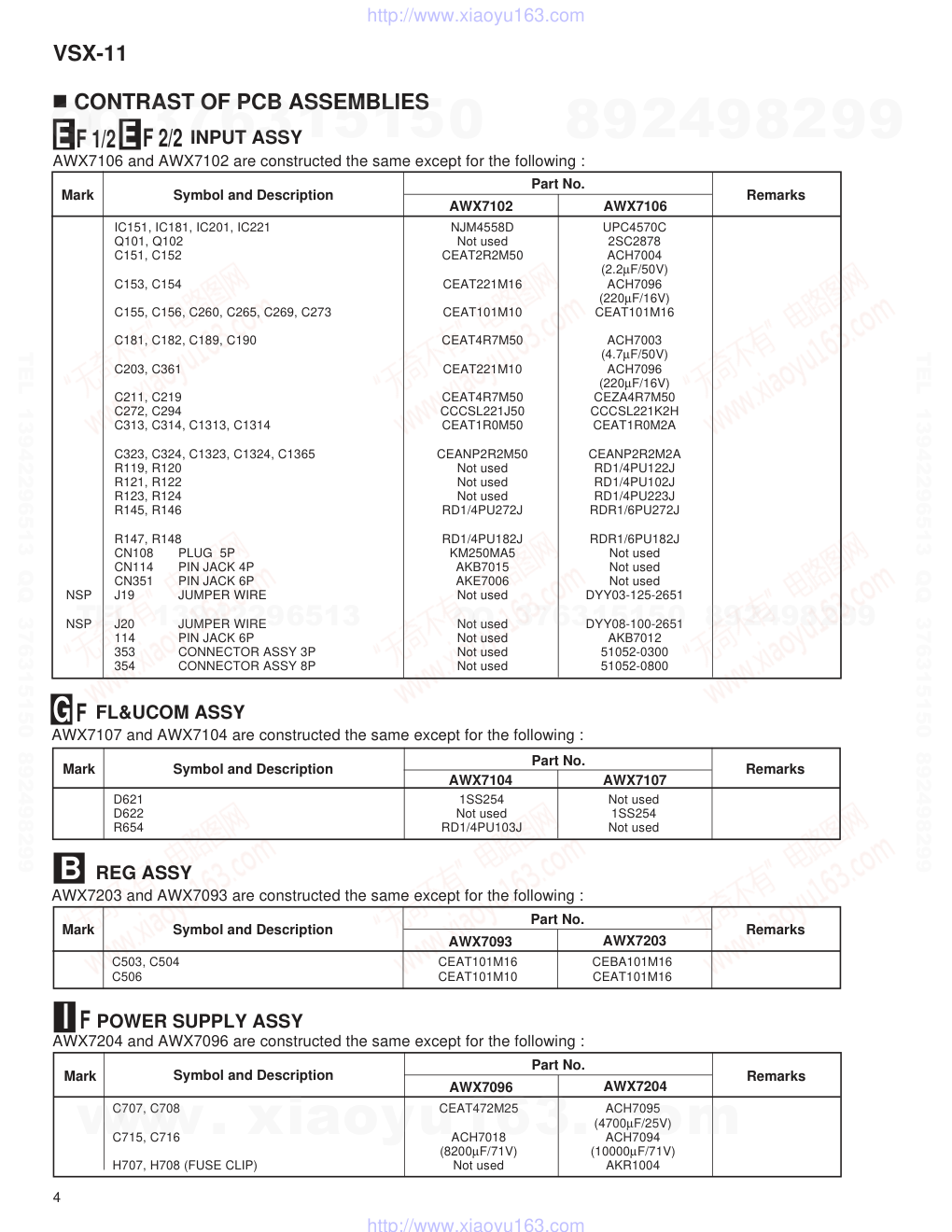

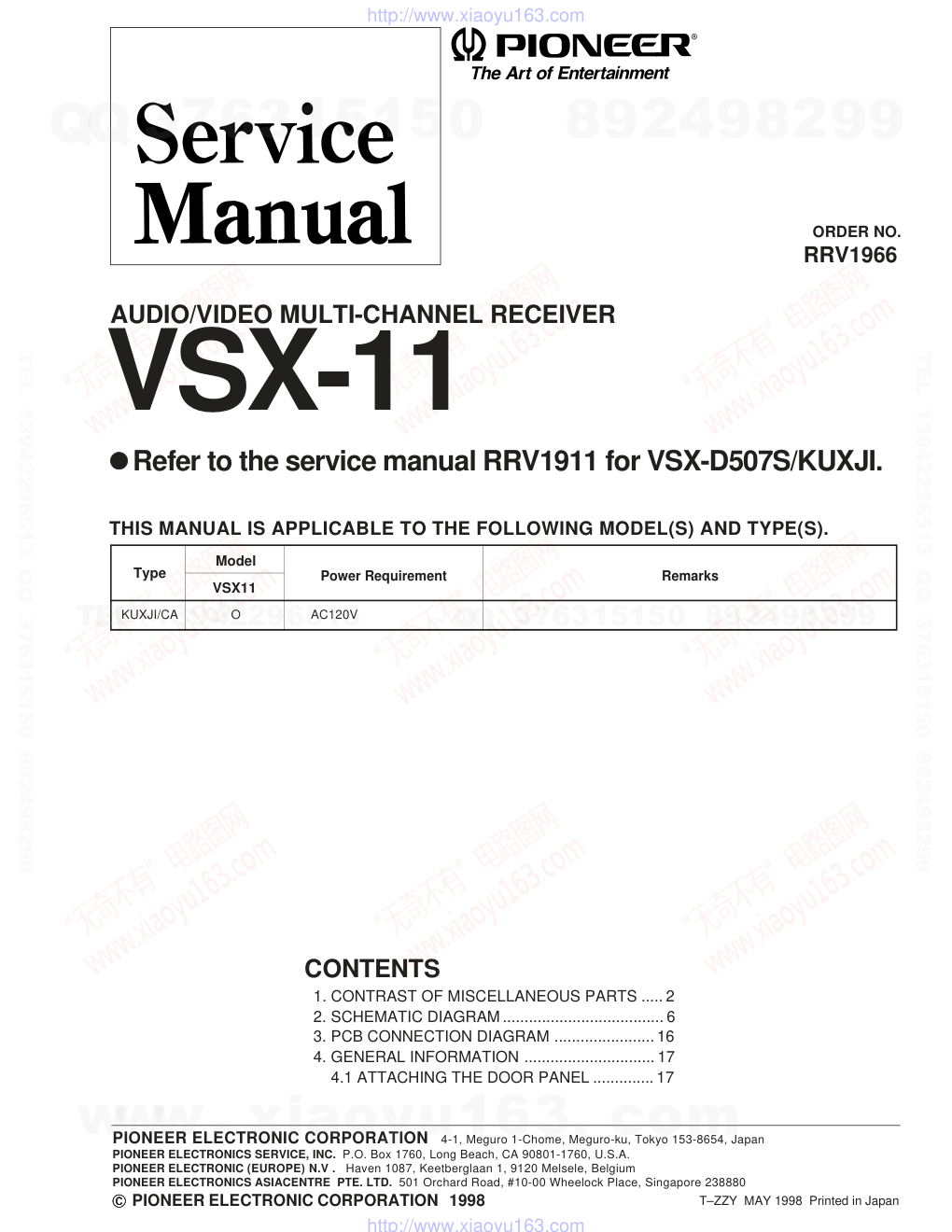

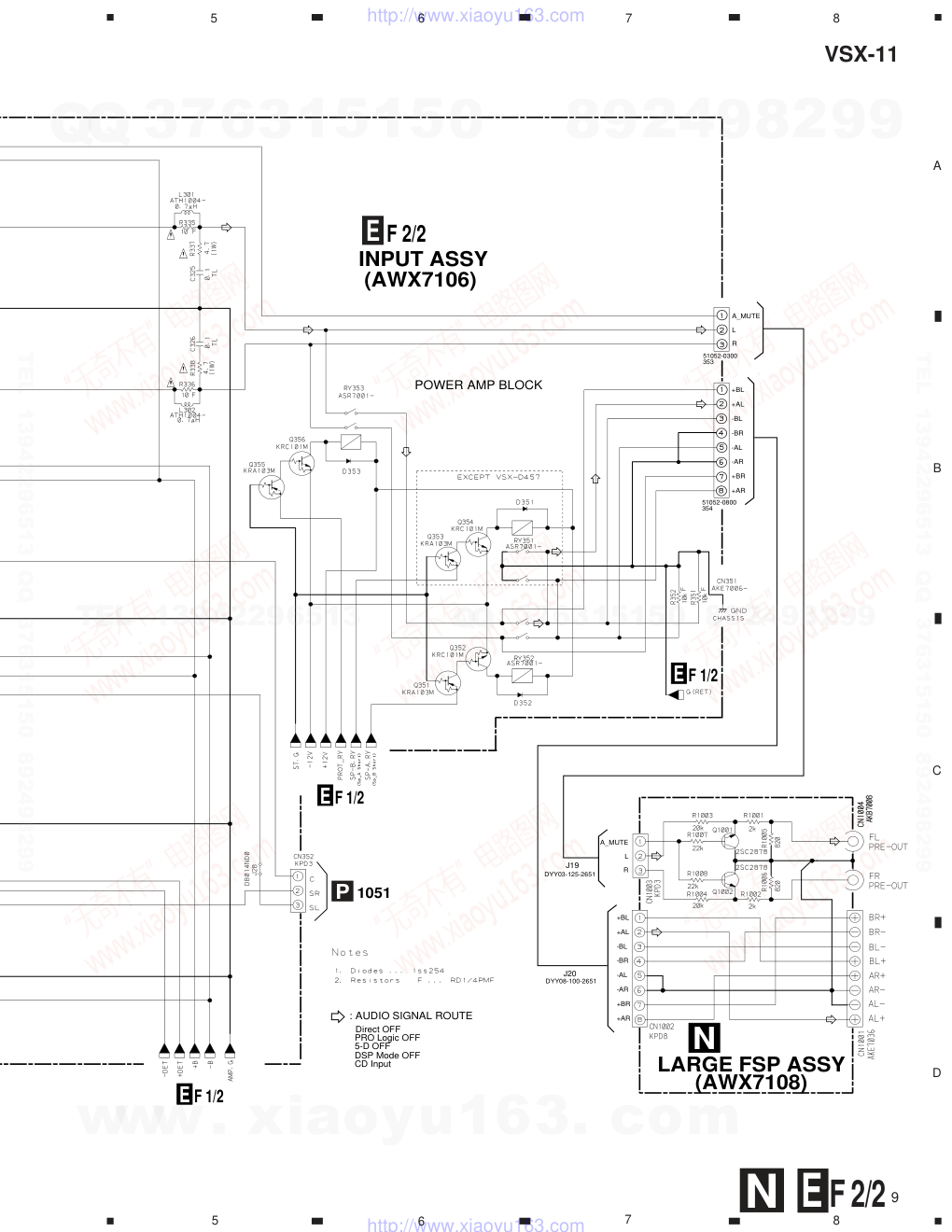

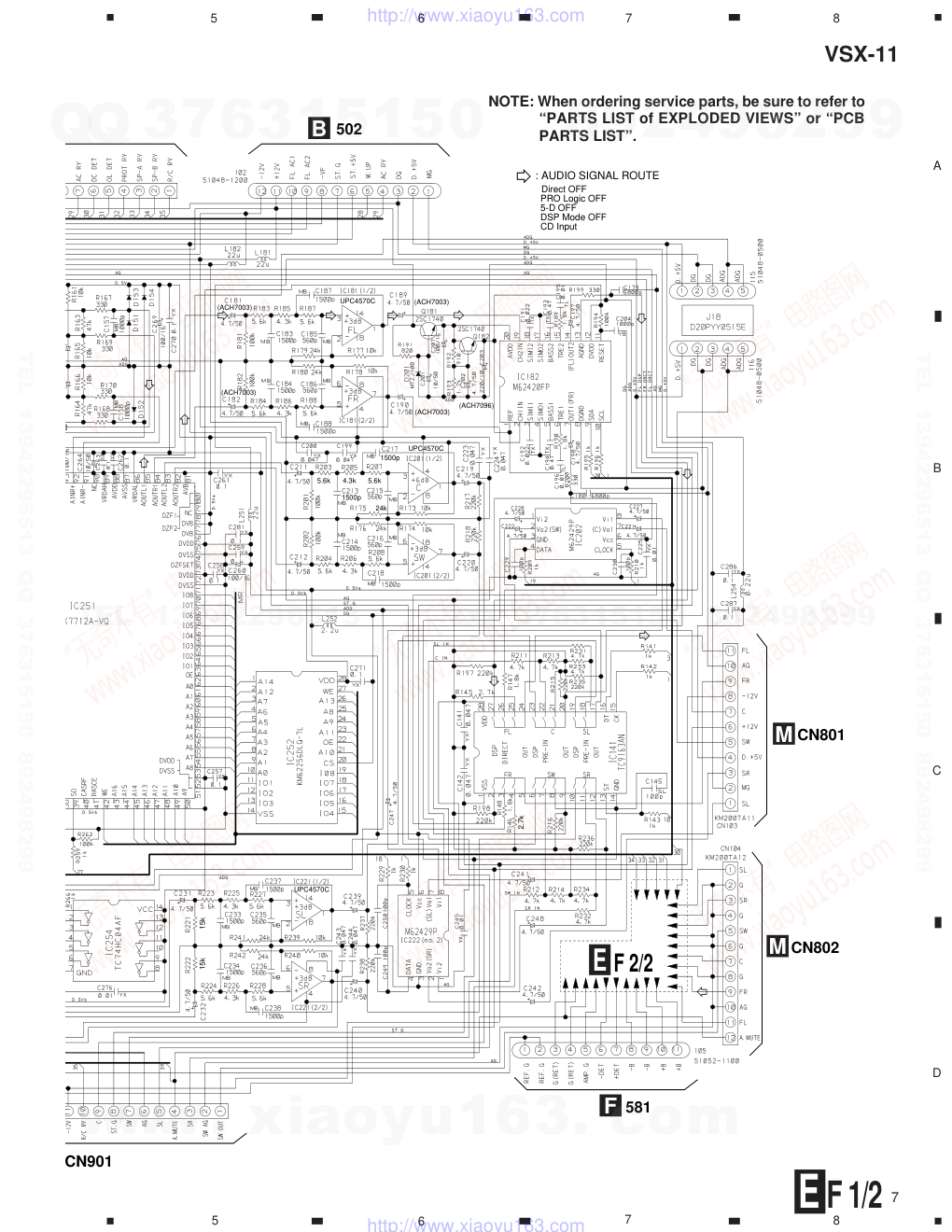

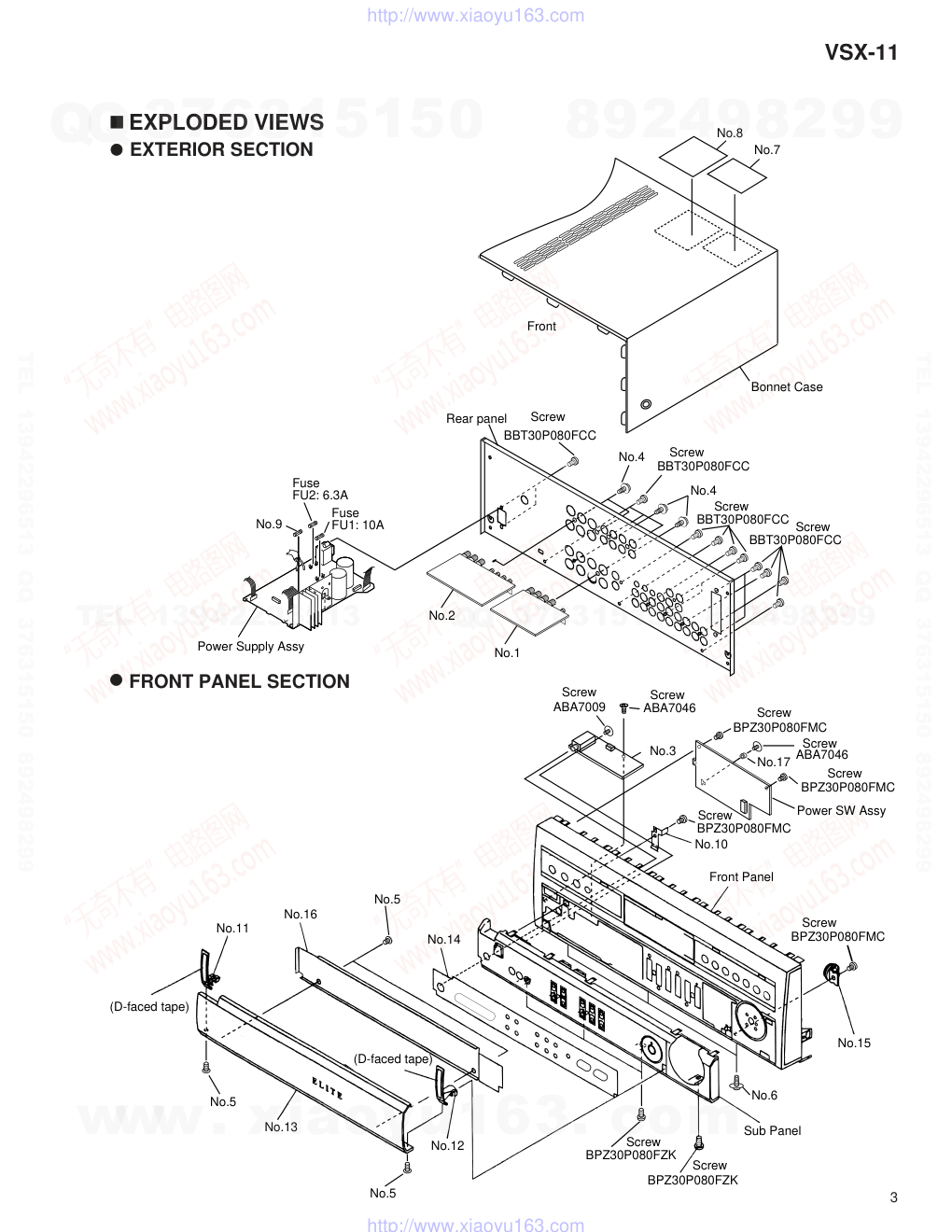

ORDER NO. PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER ELECTRONIC (EUROPE) N.V . Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 501 Orchard Road, #10-00 Wheelock Place, Singapore 238880 C C C C C�PIONEER ELECTRONIC CORPORATION 1998 KUXJI/CA O AC120V AUDIO/VIDEO MULTI-CHANNEL RECEIVER RRV1966 VSX-11 T–ZZY MAY 1998 Printed in Japan Type THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S). VSX11 Model Refer to the service manual RRV1911 for VSX-D507S/KUXJI. Power Requirement Remarks CONTENTS 1. CONTRAST OF MISCELLANEOUS PARTS ..... 2 2. SCHEMATIC DIAGRAM ..................................... 6 3. PCB CONNECTION DIAGRAM ....................... 16 4. GENERAL INFORMATION .............................. 17 4.1 ATTACHING THE DOOR PANEL .............. 17 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-11 2 1. CONTRAST OF MISCELLANEOUS PARTS CONTRAST TABLE VSX-11/KUXJI/CA and VSX-D507S/KUXJI are constructed the same except for the following : Remarks Ref. No. KUXJI/CA Symbol and Description Mark VSX-11 Part No. VSX-D507S KUXJI NOTES : ÷ Parts marked by “ NSP ” are generally unavailable because they are not in our Master Spare Parts List. ÷ The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing,be sure to use parts of identical designation. ÷ Reference Nos. indicate the pages and Nos. in the service manual for the base model. ÷ Screw adjacent to ∞ mark on the product are used for disassembly. ÷ When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex. 1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J = 5%, and K = 10%). 560 Ω = 56 × 10 1 = 561 ................................................... RD1/4PU 5 6 1 J 47k Ω = 47 × 10 3 = 473 .................................................. RD1/4PU 4 7 3 J 0.5 Ω = R50 ...................................................................... RN2H Â 5 0 K 1 Ω = 1R0 ......................................................................... RS1P 1 Â 0 K Ex. 2 When there are 3 effective digits (such as in high precision metal film resistors). 5.62k Ω = 562 × 10 1 = 5621 ........................................... RN1/4PC 5 6 2 1 F ASSEMBLIES NSP MOTHER Assy AWK7432 AWK7437 P5-1 INPUT Assy AWX7102 AWX7106 P5-2 R/C SP&6CH Assy AWX7092 Not used P5-3 REG Assy AWX7093 AWX7203 HP&FAV Assy AWX7103 Not used NSP FRONT & PS Assy AWK7433 AWK7438 P5-6 POWER SUPPLY Assy AWX7096 AWX7204 P5-7 VIDEO Assy AWX7105 AWX7110 P6-2 FL&UCOM Assy AWX7104 AWX7107 P6-4 VOLUME Assy AWX7097 AWX7205 NSP ELITE ASSY Not used AWK7439 LARGE FSP Assy Not used AWX7108 No.1 LAGE RCSP Assy Not used AWX7109 No.2 HP ASSY Not used AWX7159 No.3 PACKING P3-3 Operating Instructions (English) ARB7134 ARB7135 P3-4 NSP Warranty Card ARY1051 ARY7007 P3-11 Packing Case AHD7554 AHD7556 EXTERIOR SECTION P5-11 Power Transformer T1 (AC120V) ATS7207 ATS7208 P5-17 Flat Flexible Cable (12P) ADD7090 ADD7091 P5-19 Rear Panel ANC7624 ANC7626 P5-26 Foot Assy (Rear Side) REC1263 Not used P5-30 Screw ABA7043 ABA1022 Screw Not used ABA1193 No.4 Screw Not used ABA7023 No.5 Screw Not used ABA7035 No.6 FCC Label Not used VRW1725 No.7 DOC Label Not used VRW1726 No.8 Fuse (FU4: 10A) Not used REK1087 No.9 FRONT PANEL SECTION P6-16 Sub Panel AAP7041 AAP7039 P6-17 Front Panel AMB7486 AMB7487 P6-24 Housing 5P Shield ADX7238 Not used Plate Spring Not used ABK7011 No.10 Door Hinge L Not used AMR7171 No.11 Door Hinge R Not used AMR7172 No.12 Door Panel Not used AAK7561 No.13 PVC Panel Not used AAK7534 No.14 Dumper Assy Not used AXA7046 No.15 Door Plate Not used ANG7187 No.16 Collar Spacer Not used AEC7146 No.17 Note: The numbers in the remarks column correspond to the numbers on the exploded diagram, Refer to “EXPLODED VIEWS”. For ASSEMBLIES, Refer to “ CONTRAST OF PCB ASSEMBLES” and “2. SCHEMATIC AND PCB DIAGRAMS”. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-11 3 No.4 No.4 BBT30P080FCC BBT30P080FCC BBT30P080FCC BBT30P080FCC Rear panel No.10 No.2 No.7 No.8 No.1 BPZ30P080FMC Front Panel BPZ30P080FMC No.15 Sub Panel BPZ30P080FZK BPZ30P080FZK No.12 No.5 No.13 No.5 No.11 No.16 No.14 No.5 (D-faced tape) (D-faced tape) No.6 BPZ30P080FMC BPZ30P080FMC ABA7009 No.17 No.3 Power SW Assy ABA7046 Screw ABA7046 Screw Screw Screw Screw Screw Screw Screw Screw Screw Screw Screw Screw Front Bonnet Case No.9 Power Supply Assy Fuse FU2: 6.3A Fuse FU1: 10A FRONT PANEL SECTION EXTERIOR SECTION EXPLODED VIEWS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-11 4 INPUT ASSY AWX7106 and AWX7102 are constructed the same except for the following : Remarks Mark Symbol and Description Part No. AWX7102 AWX7106 IC151, IC181, IC201, IC221 NJM4558D UPC4570C Q101, Q102 Not used 2SC2878 C151, C152 CEAT2R2M50 ACH7004 (2.2µF/50V) C153, C154 CEAT221M16 ACH7096 (220µF/16V) C155, C156, C260, C265, C269, C273 CEAT101M10 CEAT101M16 C181, C182, C189, C190 CEAT4R7M50 ACH7003 (4.7µF/50V) C203, C361 CEAT221M10 ACH7096 (220µF/16V) C211, C219 CEAT4R7M50 CEZA4R7M50 C272, C294 CCCSL221J50 CCCSL221K2H C313, C314, C1313, C1314 CEAT1R0M50 CEAT1R0M2A C323, C324, C1323, C1324, C1365 CEANP2R2M50 CEANP2R2M2A R119, R120 Not used RD1/4PU122J R121, R122 Not used RD1/4PU102J R123, R124 Not used RD1/4PU223J R145, R146 RD1/4PU272J RDR1/6PU272J R147, R148 RD1/4PU182J RDR1/6PU182J CN108 PLUG 5P KM250MA5 Not used CN114 PIN JACK 4P AKB7015 Not used CN351 PIN JACK 6P AKE7006 Not used NSP J19 JUMPER WIRE Not used DYY03-125-2651 NSP J20 JUMPER WIRE Not used DYY08-100-2651 114 PIN JACK 6P Not used AKB7012 353 CONNECTOR ASSY 3P Not used 51052-0300 354 CONNECTOR ASSY 8P Not used 51052-0800 POWER SUPPLY ASSY AWX7204 and AWX7096 are constructed the same except for the following : Remarks Mark Symbol and Description Part No. AWX7096 AWX7204 C707, C708 CEAT472M25 ACH7095 (4700µF/25V) C715, C716 ACH7018 ACH7094 (8200µF/71V) (10000µF/71V) H707, H708 (FUSE CLIP) Not used AKR1004 FL&UCOM ASSY AWX7107 and AWX7104 are constructed the same except for the following : Remarks Mark Symbol and Description Part No. AWX7104 AWX7107 D621 1SS254 Not used D622 Not used 1SS254 R654 RD1/4PU103J Not used REG ASSY AWX7203 and AWX7093 are constructed the same except for the following : Remarks Mark Symbol and Description Part No. AWX7093 AWX7203 C503, C504 CEAT101M16 CEBA101M16 C506 CEAT101M10 CEAT101M16 G F CONTRAST OF PCB ASSEMBLIES E F 1/2 E F 2/2 I F B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-11 5 PCB PARTS LIST Mark No. Description Part No. Mark No. Description Part No. LARGE FSP ASSY SEMICONDUCTORS Q1001, Q1002 2SC2878 RESISTORS All Resistors RD1/4PU J OTHERS CN1001 SPEAKER TERMINAL 8P AKE7036 CN1002 JUMPER CONNECTOR 8P KPD8 CN1003 JUMPER CONNECTOR 3P KPD3 CN1004 PINJACK 2P AKB7008 LARGE RCSP ASSY SEMICONDUCTORS IC1071, IC1072 NJM4558D Q1051 KRA101M Q1052 2SC1740S Q1055 2SC2878 D1051, D1052 1SS254 COILS AND FILTERS L1051, L1053, L1054 (0.7µH) ATH1004 SWITCHES AND RELAYS RY1051, RY1052 ASR7001 CAPACITORS C1071- C1074 CEAT2R2M50 C1051, C1053, C1054 CFTLA104J50 C1055- C1057, C1081, C1082 CGCYX473M16 C1075- C1078 CKPUYY103M16 VIDEO ASSY AWX7110 and AWX7105 are constructed the same except for the following : Remarks Mark Symbol and Description Part No. AWX7105 AWX7110 Q933 Not used 2SA933S D934- D938 Not used 1SS254 C932 Not used CKCYB682K50 R936, R937 Not used RD1/4PU224J R938, R939, R941 Not used RD1/4PU102J R940 Not used RD1/4PU103J 933 MINI JACK Not used AKN7002 VOLUME ASSY AWX7205 and AWX7097 are constructed the same except for the following : Remarks Mark Symbol and Description Part No. AWX7097 AWX7205 Q806, Q808 2SC2603 2SC5389 Q805, Q807 2SA1115 2SA1993 C805, C806 CEAT4R7M50 ACH7003 (4.7µF/50V) C809, C810 CEAT4R7M50 CEZA4R7M50 C813, C814, C817, C818 CEAT4R7M50 ACH7003 (4.7µF/50V) C822, C826 CEAT4R7M50 CEZA4R7M50 RESISTORS R1051, R1053, R1054 RD1/4PMF100J R1055, R1057, R1058 RS1LMF4R7J Other Resistors RD1/4PU J OTHERS 1051 CABLE HOLDER 3P 51052-0300 CN1051 FFC CONNCTOR 12P XKP3012 CN1052 SPEAKER TERMINAL 6P AKE7037 CN1053, CN1054 PINJACK 4P AKB7087 CN1055 JUMPER CONNECTOR 6P KPD6 J17 JUMPER WIRE DYY03-200-2651 HP ASSY SEMICONDUCTORS Q1101, Q1102 2SC2878 CAPACITORS C1101 CGCYX104M16 RESISTORS R1103, R1104 RD1/4PU103J Other Resistors RD1/2PM J OTHERS 1102 GROUND PLATE VNF-091 CN1101 CONNECTOR 4P 52045-0445 JA1101 HEADPHONE JACK RKN1002 M L F P N O www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D 1 2 3 4 1 2 3 4 VSX-11 6 2. SCHEMATIC DIAGRAM 2.1 INPUT ASSY (1/2) INPUT ASSY (AWX7106) E F 1/2 CN601 CN901 SL 100p (ACH7096) (ACH7096) (ACH7004) (ACH7004) UPC4570C G F 1/2 L F1/2 SMALL SIGNAL BLOCK TO TUNER ASSY 2SC2878 C153: 220/16 E F 1/2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D 5 6 7 8 5 6 7 8 VSX-11 7 NOTE: When ordering service parts, be sure to refer to “PARTS LIST of EXPLODED VIEWS” or “PCB PARTS LIST”. B 502 M CN801 M CN802 F 581 CN901 E F 2/2 : AUDIO SIGNAL ROUTE Direct OFF PRO Logic OFF 5-D OFF DSP Mode OFF CD Input 15k 15k 2.7k UPC4570C UPC4570C UPC4570C (ACH7003) (ACH7003) (ACH7003) (ACH7003) (ACH7096) 1500p 1500p 5.6k 5.6k 4.3k 24k E F 1/2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D 1 2 3 4 1 2 3 4 VSX-11 8 2.2 INPUT ASSY (2/2) (ACH7096) E F 1/2 E F 1/2 IC301 (1/2) IC301 (2/2) IC302 (1/2) IC302 (2/2) IC303 E F 2/2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D 5 6 7 8 5 6 7 8 VSX-11 9 INPUT ASSY (AWX7106) E F 2/2 P 1051 POWER AMP BLOCK A_MUTE L R A_MUTE L R +BL +AL -BL -BR -AL -AR +BR +AR +BL +AL -BL -BR -AL -AR +BR +AR J19 J20 51052-0300 353 51052-0800 354 DYY08-100-2651 DYY03-125-2651 LARGE FSP ASSY (AWX7108) E F 1/2 E F 1/2 E F 1/2 N : AUDIO SIGNAL ROUTE Direct OFF PRO Logic OFF 5-D OFF DSP Mode OFF CD Input E F 2/2 N www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D 1 2 3 4 1 2 3 4 VSX-11 10 2.3 FL&UCOM ASSY M CN803 E CN101 F 1/2 H CN981 HP ASSY (AWX7159) O G F O www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D 5 6 7 8 5 6 7 8 VSX-11 11 G F FL&UCOM ASSY (AWX7107) FRONT BLOCK FL&UCOM ASSY S601 : TONE/BALANCE +/R S602 : TONE/BALANCE –/L S603 : TAPE2 MONITOR S604 : PHONO S605 : FM/AM S606 : CD S607 : LD/SAT S608 : DVD/TV S609 : VCR/TAPE1 S610 : TONE/BALANCE SELECT S611 : CLASS S612 : ST/FEQ. – S613 : ST/FEQ. TUNING SELECT S614 : MEMORY S615 : ST/FEQ. + S616 : DIGITAL NR(VSX-D507S) MUTING(VSX-D457) S617 : MPX MODE S618 : DIRECT S619 : SPEAKERS S620 : LOUDNESS G F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D 1 2 3 4 1 2 3 4 VSX-11 12 2.4 POWER SUPPLY ASSY POWER SUPPLY BLOCK F CN582 J J22 J J21 P CN1055 D CN572 C739 10/50 ASR7016 REK1087 (10A/125V) LIVE NEUTRAL VEK1026 (6.3A/125V) KM200TA13 POWER SUPPLY ASSY S711 : IMPEDANCE SELECTOR • NOTE FOR FUSE REPLACEMENT FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE WITH SAME TYPE AND RATINGS ONLY. CAUTION - AC Power cord PDG1055 AC120V 60Hz I F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D 5 6 7 8 5 6 7 8 VSX-11 13 POWER SUPPLY ASSY (AWX7204) K 951 K 952 FU4 H707 AKR1004 REK1087 (10A/125V) H708 (ACH7095) (ACH7095) (ACH7094) (ACH7094) I F I F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D 1 2 3 4 1 2 3 4 VSX-11 14 VIDEO ASSY (AWX7110) P CN1051 E CN106 F 1/2 VIDEO & SR BLOCK L F 2.5 VIDEO ASSY L F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D 1 2 3 4 1 2 3 4 VSX-11 15 LARGE RCSP ASSY (AWX7109) I F 713 E F 2/2 CN352 L F CN902 P 2.6 LARGE RCSP ASSY P www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A B C D 1 2 3 4 1 2 3 4 VSX-11 16 3. PCB CONNECTION DIAGRAM 3.1 LAEGE FSP, HP and LARGE RCSP ASSY SIDE A NOTE FOR PCB DIAGRAMS: 1. Part numbers in PCB diagrams match those in the schematic diagrams. 2. A comparison between the main parts of PCB and schematic diagrams is shown below. 3. The parts mounted on this PCB include all necessary parts for several destination. For further information for respective destinations, be sure to check with the schematic diagram. 4. Viewpoint of PCB diagrams Symbol in PCB Diagrams Symbol in Schematic Diagrams Part Name Transistor Transistor with resistor Field effect transistor B C E B C E B C E D G S B C E B C E B C E D G S D G S Resistor array 3-terminal regulator Capacitor Connector P. C. Board Chip Part SIDE B SIDE A LARGE RCSP ASSY I L E 713 E 353 E 354 G CN603 CN352 CN902 (ANP7236-B) P HP ASSY O LARGE FSP ASSY N IC1072 IC1071 Q1055 Q1051 Q1052 Q1002 Q1001 Q1102 Q1101 N O P www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSX-11 17 4. GENERAL INFORMATION 4.1 ATTACHING THE DOOR PANEL 4 4 1 2 3 4 2 3 Slide the Door Panel slantways. Rotate it so that it is horizontal. Push it straight in. Move it downwards a little,and push in with bending it. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
