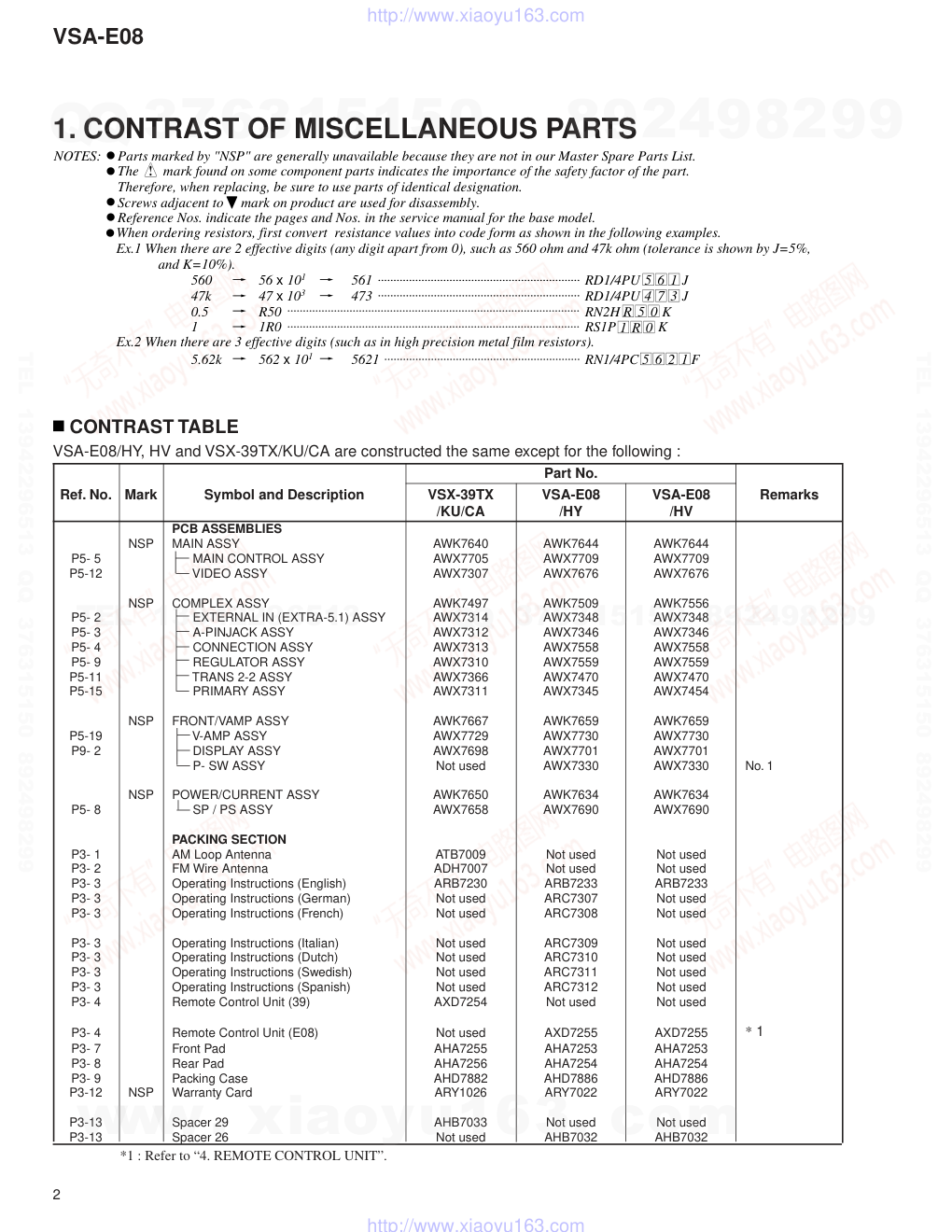

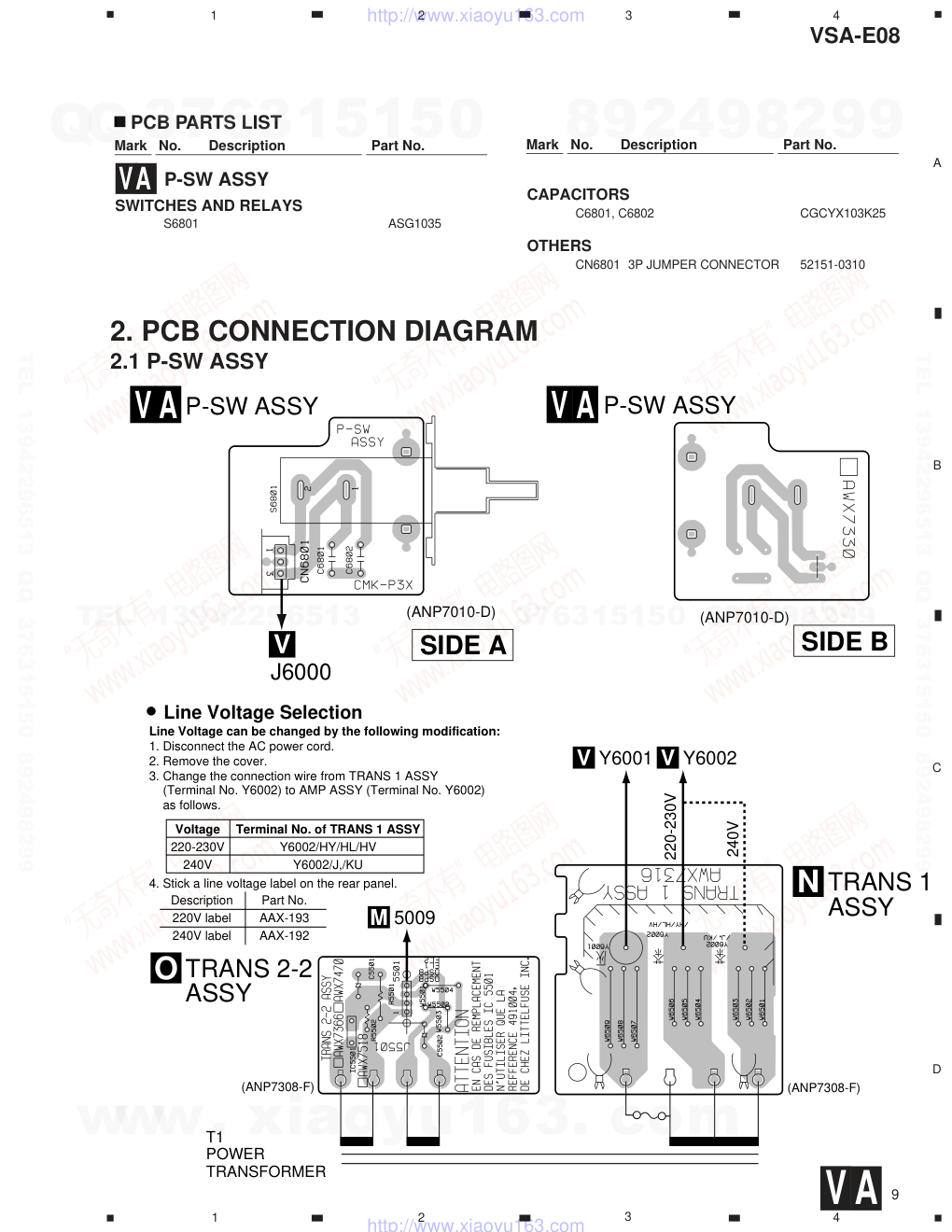

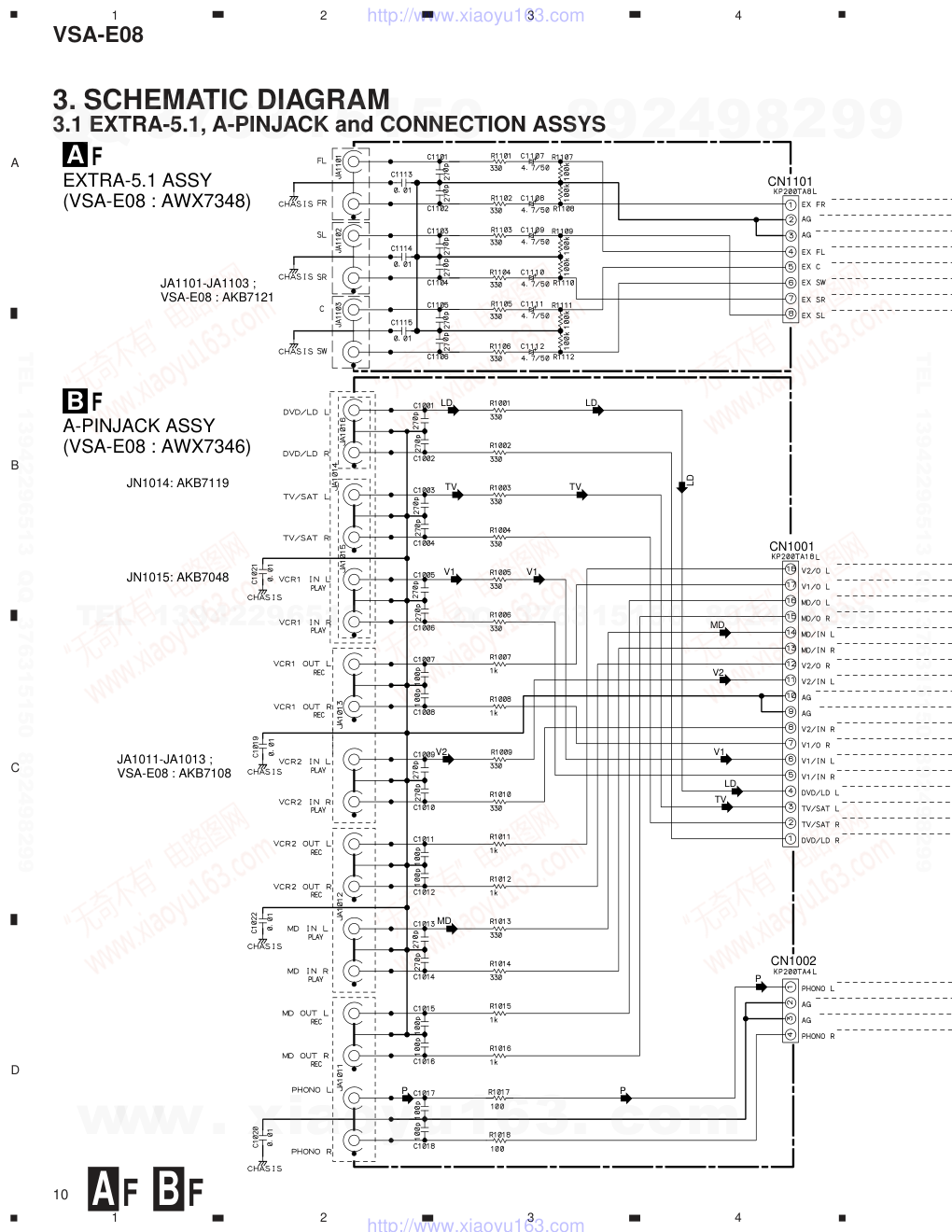

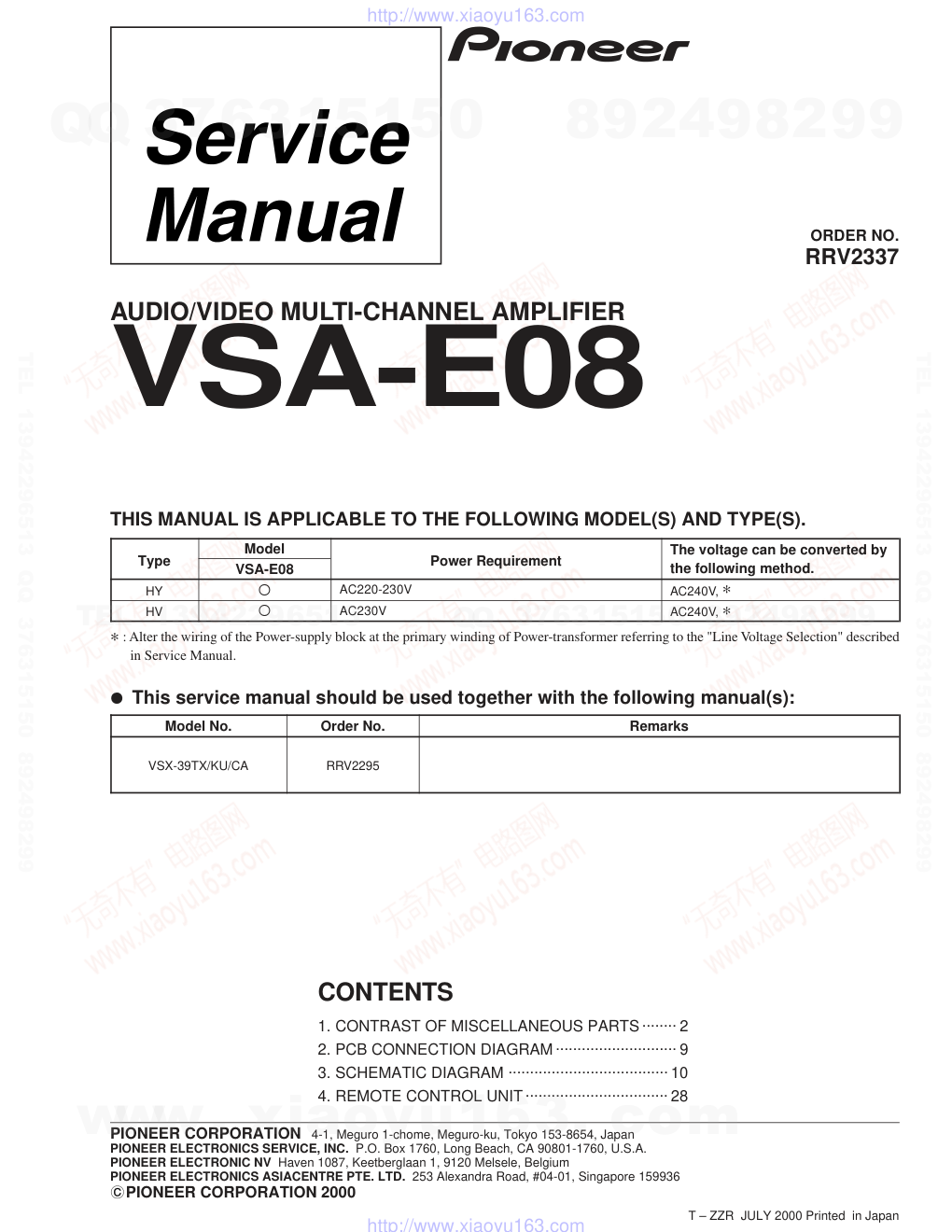

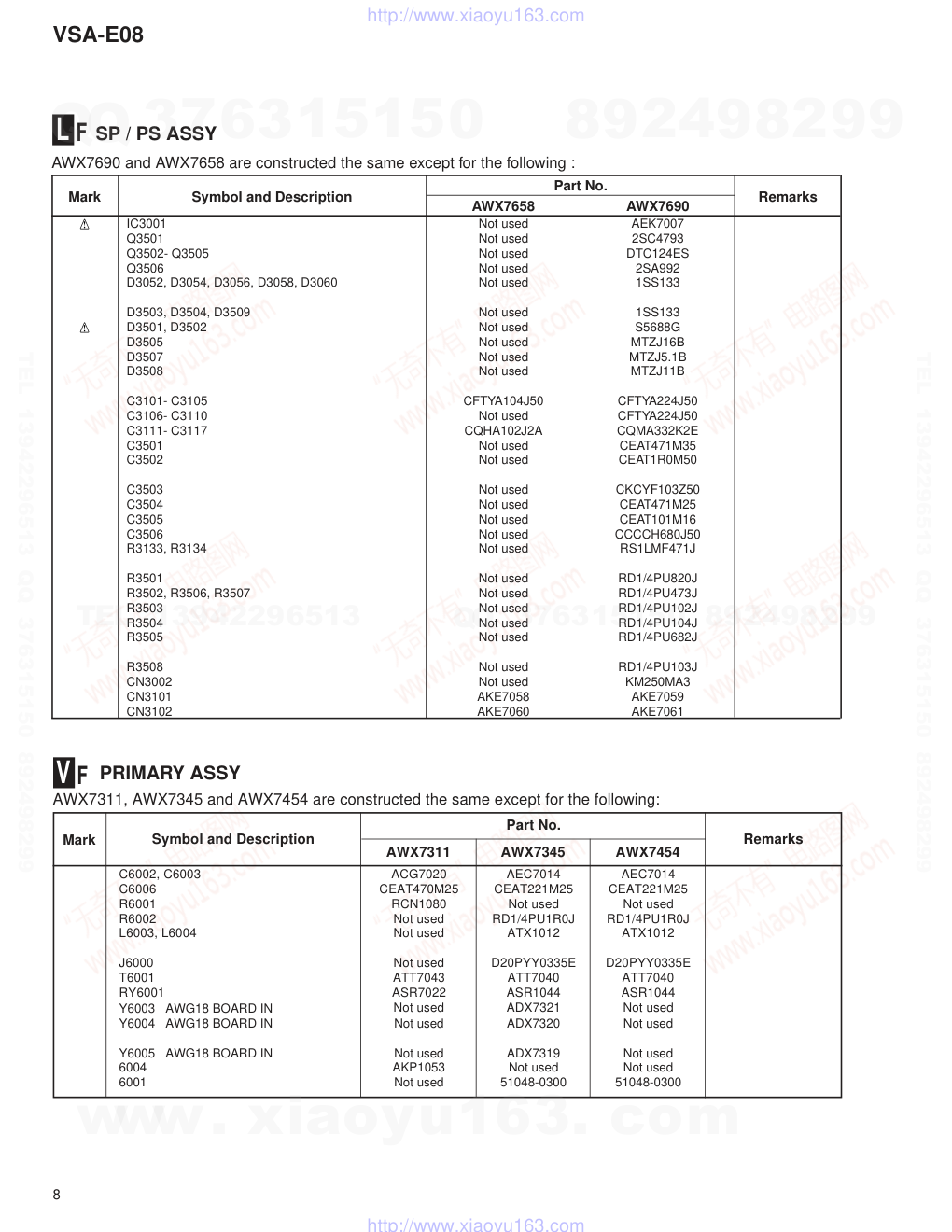

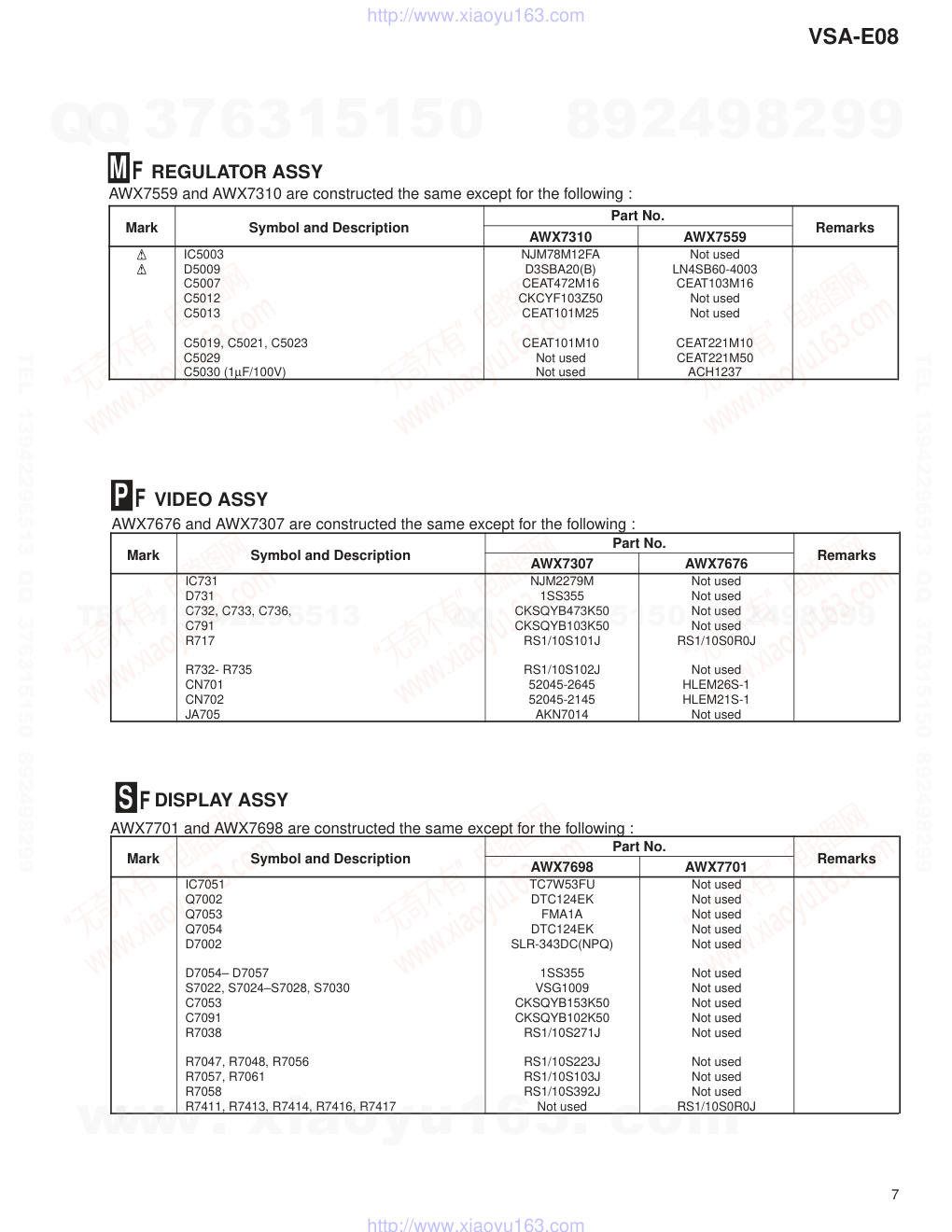

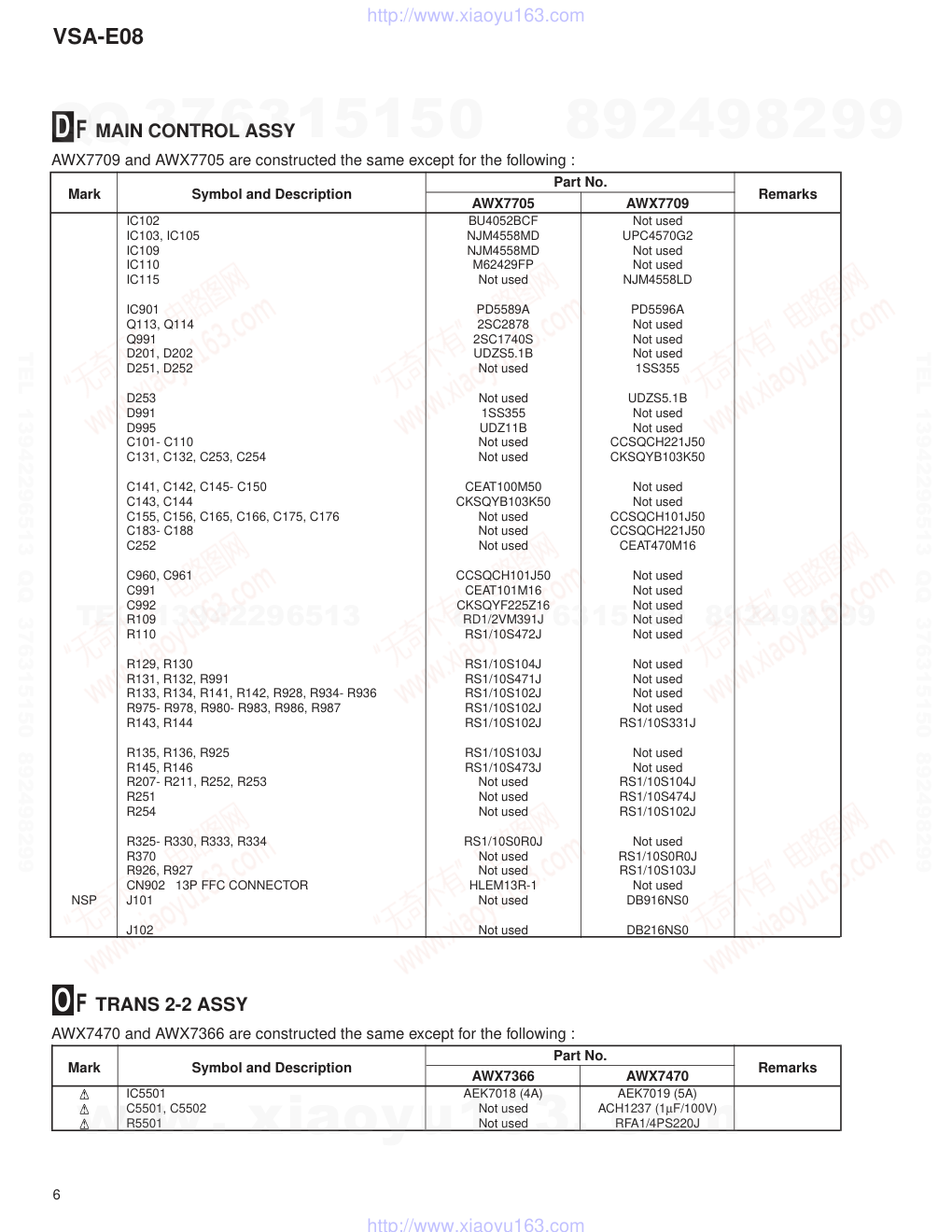

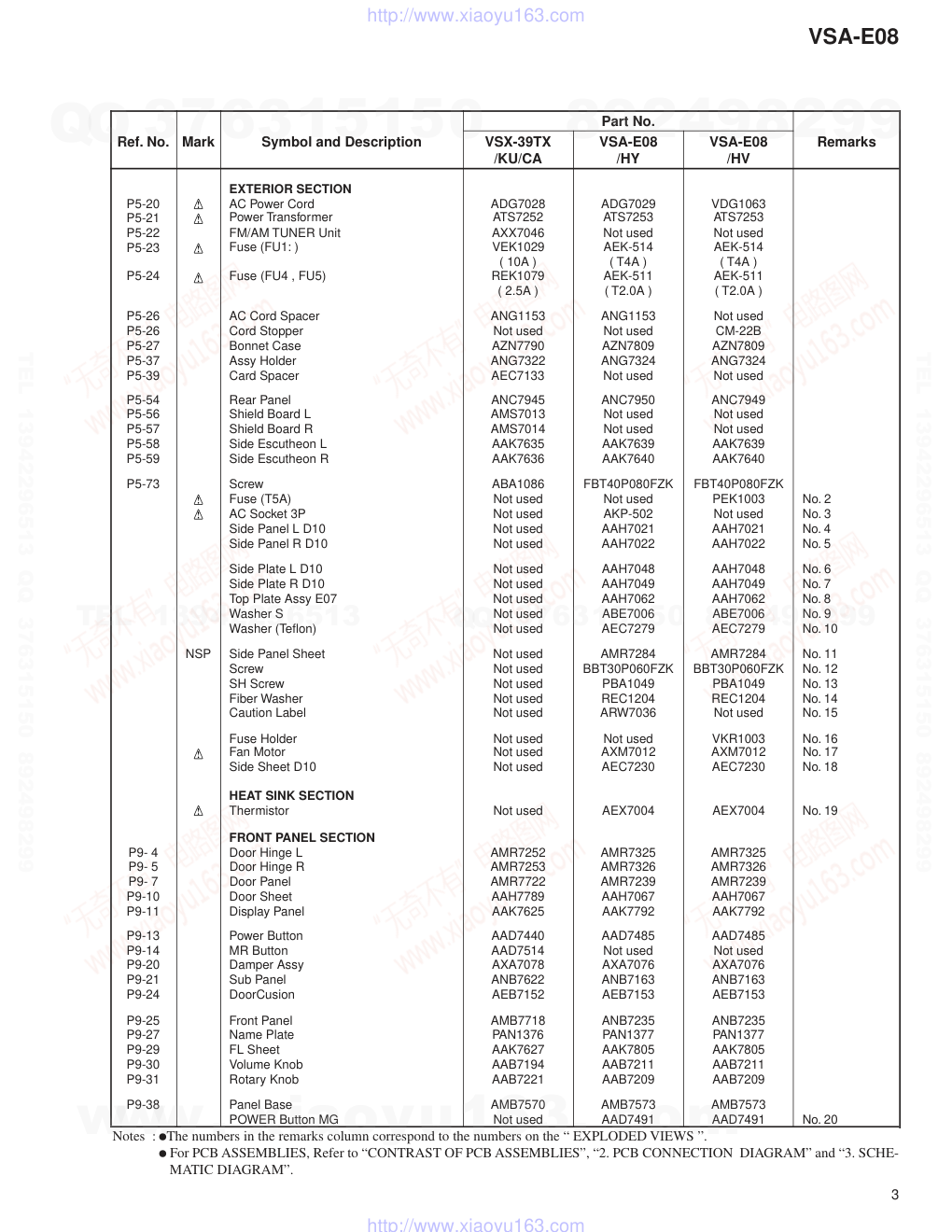

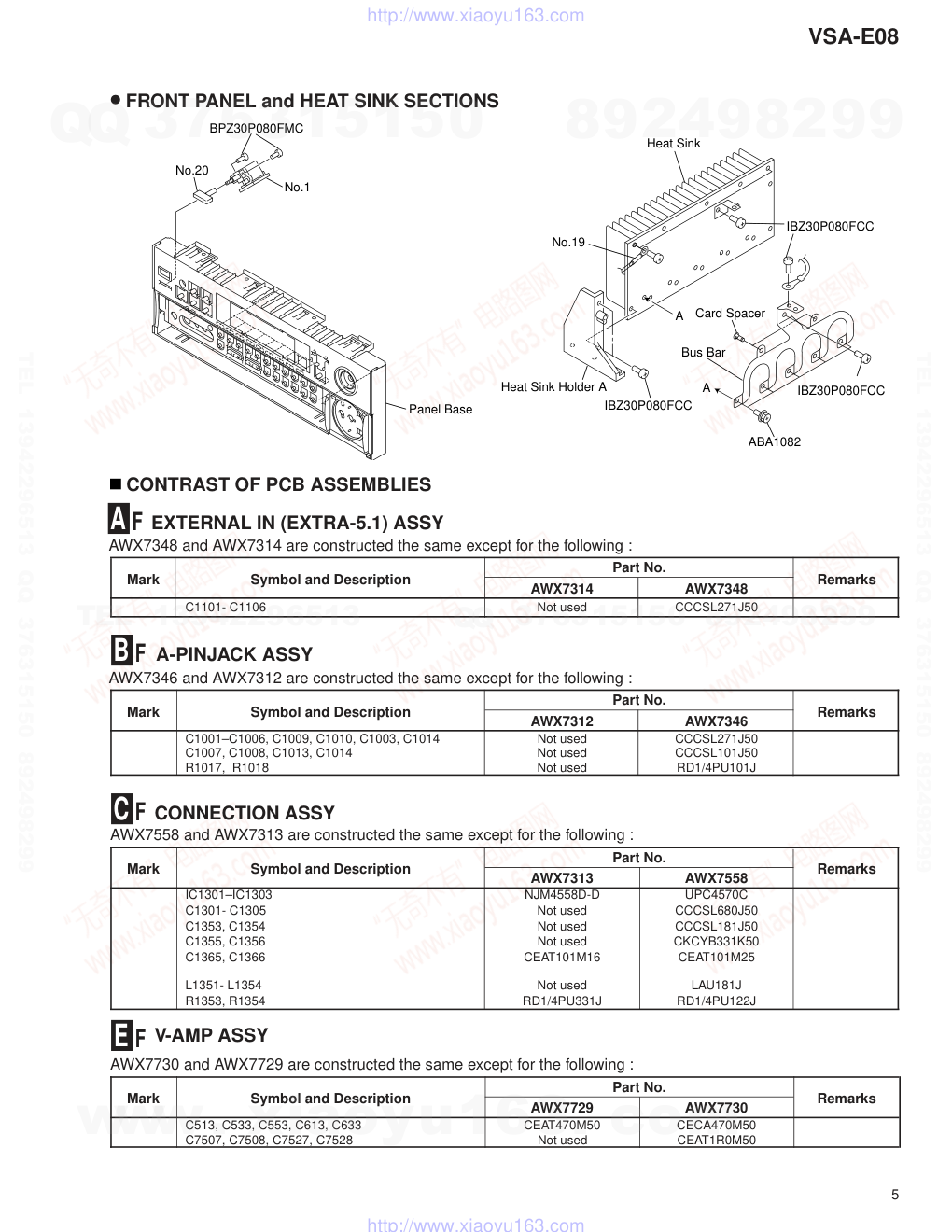

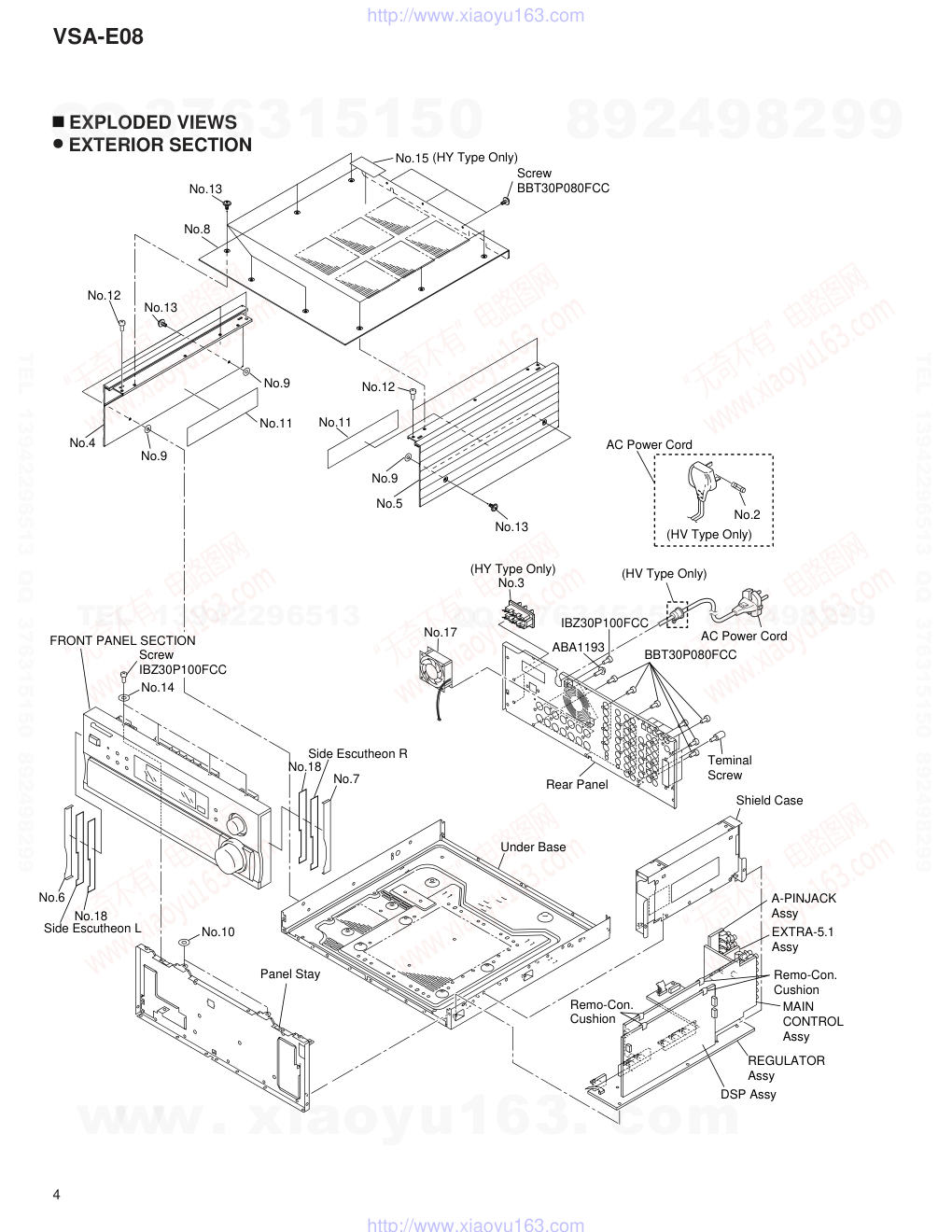

ORDER NO. PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER ELECTRONIC NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 � � � � � � � � � �PIONEER CORPORATION 2000 RRV2337 T – ZZR JULY 2000 Printed in Japan CONTENTS 1. CONTRAST OF MISCELLANEOUS PARTS ........ 2 2. PCB CONNECTION DIAGRAM ............................ 9 3. SCHEMATIC DIAGRAM ..................................... 10 4. REMOTE CONTROL UNIT ................................. 28 THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S). AUDIO/VIDEO MULTI-CHANNEL AMPLIFIER VSA-E08 Type Model Power Requirement The voltage can be converted by VSA-E08 the following method. HY ‡ AC220-230V AC240V, ∗ HV ‡ AC230V AC240V, ∗ ∗ : Alter the wiring of the Power-supply block at the primary winding of Power-transformer referring to the "Line Voltage Selection" described in Service Manual. Model No. Order No. Remarks VSX-39TX/KU/CA RRV2295 ¶ This service manual should be used together with the following manual(s): www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSA-E08 2 1. CONTRAST OF MISCELLANEOUS PARTS Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly. Reference Nos. indicate the pages and Nos. in the service manual for the base model. NOTES: When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 5 6 1 4 7 3 R 5 0 1 R 0 5 6 2 1 560 47k 0.5 1 RD1/4PU J RD1/4PU J RN2H K RS1P K 56 x 101 47 x 103 R50 1R0 561 473 5.62k RN1/4PC F 562 x 101 5621 CONTRAST TABLE Part No. Ref. No. Mark Symbol and Description VSX-39TX VSA-E08 VSA-E08 Remarks /KU/CA /HY /HV PCB ASSEMBLIES NSP MAIN ASSY AWK7640 AWK7644 AWK7644 P5- 5 MAIN CONTROL ASSY AWX7705 AWX7709 AWX7709 P5-12 VIDEO ASSY AWX7307 AWX7676 AWX7676 NSP COMPLEX ASSY AWK7497 AWK7509 AWK7556 P5- 2 EXTERNAL IN (EXTRA-5.1) ASSY AWX7314 AWX7348 AWX7348 P5- 3 A-PINJACK ASSY AWX7312 AWX7346 AWX7346 P5- 4 CONNECTION ASSY AWX7313 AWX7558 AWX7558 P5- 9 REGULATOR ASSY AWX7310 AWX7559 AWX7559 P5-11 TRANS 2-2 ASSY AWX7366 AWX7470 AWX7470 P5-15 PRIMARY ASSY AWX7311 AWX7345 AWX7454 NSP FRONT/VAMP ASSY AWK7667 AWK7659 AWK7659 P5-19 V-AMP ASSY AWX7729 AWX7730 AWX7730 P9- 2 DISPLAY ASSY AWX7698 AWX7701 AWX7701 P- SW ASSY Not used AWX7330 AWX7330 No. 1 NSP POWER/CURRENT ASSY AWK7650 AWK7634 AWK7634 P5- 8 SP / PS ASSY AWX7658 AWX7690 AWX7690 PACKING SECTION P3- 1 AM Loop Antenna ATB7009 Not used Not used P3- 2 FM Wire Antenna ADH7007 Not used Not used P3- 3 Operating Instructions (English) ARB7230 ARB7233 ARB7233 P3- 3 Operating Instructions (German) Not used ARC7307 Not used P3- 3 Operating Instructions (French) Not used ARC7308 Not used P3- 3 Operating Instructions (Italian) Not used ARC7309 Not used P3- 3 Operating Instructions (Dutch) Not used ARC7310 Not used P3- 3 Operating Instructions (Swedish) Not used ARC7311 Not used P3- 3 Operating Instructions (Spanish) Not used ARC7312 Not used P3- 4 Remote Control Unit (39) AXD7254 Not used Not used P3- 4 Remote Control Unit (E08) Not used AXD7255 AXD7255 * 1 P3- 7 Front Pad AHA7255 AHA7253 AHA7253 P3- 8 Rear Pad AHA7256 AHA7254 AHA7254 P3- 9 Packing Case AHD7882 AHD7886 AHD7886 P3-12 NSP Warranty Card ARY1026 ARY7022 ARY7022 P3-13 Spacer 29 AHB7033 Not used Not used P3-13 Spacer 26 Not used AHB7032 AHB7032 VSA-E08/HY, HV and VSX-39TX/KU/CA are constructed the same except for the following : *1 : Refer to “4. REMOTE CONTROL UNIT”. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSA-E08 3 Part No. Ref. No. Mark Symbol and Description VSX-39TX VSA-E08 VSA-E08 Remarks /KU/CA /HY /HV EXTERIOR SECTION P5-20 AC Power Cord ADG7028 ADG7029 VDG1063 P5-21 Power Transformer ATS7252 ATS7253 ATS7253 P5-22 FM/AM TUNER Unit AXX7046 Not used Not used P5-23 Fuse (FU1: ) VEK1029 AEK-514 AEK-514 ( 10A ) ( T4A ) ( T4A ) P5-24 Fuse (FU4 , FU5) REK1079 AEK-511 AEK-511 ( 2.5A ) ( T2.0A ) ( T2.0A ) P5-26 AC Cord Spacer ANG1153 ANG1153 Not used P5-26 Cord Stopper Not used Not used CM-22B P5-27 Bonnet Case AZN7790 AZN7809 AZN7809 P5-37 Assy Holder ANG7322 ANG7324 ANG7324 P5-39 Card Spacer AEC7133 Not used Not used P5-54 Rear Panel ANC7945 ANC7950 ANC7949 P5-56 Shield Board L AMS7013 Not used Not used P5-57 Shield Board R AMS7014 Not used Not used P5-58 Side Escutheon L AAK7635 AAK7639 AAK7639 P5-59 Side Escutheon R AAK7636 AAK7640 AAK7640 P5-73 Screw ABA1086 FBT40P080FZK FBT40P080FZK Fuse (T5A) Not used Not used PEK1003 No. 2 AC Socket 3P Not used AKP-502 Not used No. 3 Side Panel L D10 Not used AAH7021 AAH7021 No. 4 Side Panel R D10 Not used AAH7022 AAH7022 No. 5 Side Plate L D10 Not used AAH7048 AAH7048 No. 6 Side Plate R D10 Not used AAH7049 AAH7049 No. 7 Top Plate Assy E07 Not used AAH7062 AAH7062 No. 8 Washer S Not used ABE7006 ABE7006 No. 9 Washer (Teflon) Not used AEC7279 AEC7279 No. 10 NSP Side Panel Sheet Not used AMR7284 AMR7284 No. 11 Screw Not used BBT30P060FZK BBT30P060FZK No. 12 SH Screw Not used PBA1049 PBA1049 No. 13 Fiber Washer Not used REC1204 REC1204 No. 14 Caution Label Not used ARW7036 Not used No. 15 Fuse Holder Not used Not used VKR1003 No. 16 Fan Motor Not used AXM7012 AXM7012 No. 17 Side Sheet D10 Not used AEC7230 AEC7230 No. 18 HEAT SINK SECTION Thermistor Not used AEX7004 AEX7004 No. 19 FRONT PANEL SECTION P9- 4 Door Hinge L AMR7252 AMR7325 AMR7325 P9- 5 Door Hinge R AMR7253 AMR7326 AMR7326 P9- 7 Door Panel AMR7722 AMR7239 AMR7239 P9-10 Door Sheet AAH7789 AAH7067 AAH7067 P9-11 Display Panel AAK7625 AAK7792 AAK7792 P9-13 Power Button AAD7440 AAD7485 AAD7485 P9-14 MR Button AAD7514 Not used Not used P9-20 Damper Assy AXA7078 AXA7076 AXA7076 P9-21 Sub Panel ANB7622 ANB7163 ANB7163 P9-24 DoorCusion AEB7152 AEB7153 AEB7153 P9-25 Front Panel AMB7718 ANB7235 ANB7235 P9-27 Name Plate PAN1376 PAN1377 PAN1377 P9-29 FL Sheet AAK7627 AAK7805 AAK7805 P9-30 Volume Knob AAB7194 AAB7211 AAB7211 P9-31 Rotary Knob AAB7221 AAB7209 AAB7209 P9-38 Panel Base AMB7570 AMB7573 AMB7573 POWER Button MG Not used AAD7491 AAD7491 No. 20 Notes : ÷The numbers in the remarks column correspond to the numbers on the “ EXPLODED VIEWS ”. ÷ For PCB ASSEMBLIES, Refer to “CONTRAST OF PCB ASSEMBLIES”, “2. PCB CONNECTION DIAGRAM” and “3. SCHE- MATIC DIAGRAM”. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSA-E08 4 EXPLODED VIEWS ÷ EXTERIOR SECTION (HV Type Only) Screw IBZ30P100FCC Panel Stay MAIN CONTROL Assy REGULATOR Assy DSP Assy EXTRA-5.1 Assy A-PINJACK Assy Shield Case No.7 No.6 FRONT PANEL SECTION No.18 No.10 Side Escutheon L No.12 No.14 Remo-Con. Cushion Remo-Con. Cushion Under Base No.13 No.4 No.5 No.13 No.9 No.11 No.9 No.11 No.9 No.13 No.8 Screw BBT30P080FCC No.12 Side Escutheon R No.18 (HY Type Only) No.3 Rear Panel No.17 BBT30P080FCC IBZ30P100FCC ABA1193 Teminal Screw AC Power Cord No.2 (HY Type Only) No.15 AC Power Cord (HV Type Only) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSA-E08 5 A A Panel Base No.20 No.1 BPZ30P080FMC Heat Sink ABA1082 IBZ30P080FCC IBZ30P080FCC IBZ30P080FCC Heat Sink Holder A No.19 Bus Bar Card Spacer CONTRAST OF PCB ASSEMBLIES AWX7348 and AWX7314 are constructed the same except for the following : EXTERNAL IN (EXTRA-5.1) ASSY F A Mark Symbol and Description Part No. Remarks AWX7314 AWX7348 C1101- C1106 Not used CCCSL271J50 AWX7346 and AWX7312 are constructed the same except for the following : A-PINJACK ASSY F B Mark Symbol and Description Part No. Remarks AWX7312 AWX7346 C1001–C1006, C1009, C1010, C1003, C1014 Not used CCCSL271J50 C1007, C1008, C1013, C1014 Not used CCCSL101J50 R1017, R1018 Not used RD1/4PU101J ÷ FRONT PANEL and HEAT SINK SECTIONS AWX7558 and AWX7313 are constructed the same except for the following : CONNECTION ASSY F C Mark Symbol and Description Part No. Remarks AWX7313 AWX7558 IC1301–IC1303 NJM4558D-D UPC4570C C1301- C1305 Not used CCCSL680J50 C1353, C1354 Not used CCCSL181J50 C1355, C1356 Not used CKCYB331K50 C1365, C1366 CEAT101M16 CEAT101M25 L1351- L1354 Not used LAU181J R1353, R1354 RD1/4PU331J RD1/4PU122J AWX7730 and AWX7729 are constructed the same except for the following : V-AMP ASSY F E Mark Symbol and Description Part No. Remarks AWX7729 AWX7730 C513, C533, C553, C613, C633 CEAT470M50 CECA470M50 C7507, C7508, C7527, C7528 Not used CEAT1R0M50 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSA-E08 6 AWX7709 and AWX7705 are constructed the same except for the following : MAIN CONTROL ASSY F D Mark Symbol and Description Part No. Remarks AWX7705 AWX7709 IC102 BU4052BCF Not used IC103, IC105 NJM4558MD UPC4570G2 IC109 NJM4558MD Not used IC110 M62429FP Not used IC115 Not used NJM4558LD IC901 PD5589A PD5596A Q113, Q114 2SC2878 Not used Q991 2SC1740S Not used D201, D202 UDZS5.1B Not used D251, D252 Not used 1SS355 D253 Not used UDZS5.1B D991 1SS355 Not used D995 UDZ11B Not used C101- C110 Not used CCSQCH221J50 C131, C132, C253, C254 Not used CKSQYB103K50 C141, C142, C145- C150 CEAT100M50 Not used C143, C144 CKSQYB103K50 Not used C155, C156, C165, C166, C175, C176 Not used CCSQCH101J50 C183- C188 Not used CCSQCH221J50 C252 Not used CEAT470M16 C960, C961 CCSQCH101J50 Not used C991 CEAT101M16 Not used C992 CKSQYF225Z16 Not used R109 RD1/2VM391J Not used R110 RS1/10S472J Not used R129, R130 RS1/10S104J Not used R131, R132, R991 RS1/10S471J Not used R133, R134, R141, R142, R928, R934- R936 RS1/10S102J Not used R975- R978, R980- R983, R986, R987 RS1/10S102J Not used R143, R144 RS1/10S102J RS1/10S331J R135, R136, R925 RS1/10S103J Not used R145, R146 RS1/10S473J Not used R207- R211, R252, R253 Not used RS1/10S104J R251 Not used RS1/10S474J R254 Not used RS1/10S102J R325- R330, R333, R334 RS1/10S0R0J Not used R370 Not used RS1/10S0R0J R926, R927 Not used RS1/10S103J CN902 13P FFC CONNECTOR HLEM13R-1 Not used NSP J101 Not used DB916NS0 J102 Not used DB216NS0 AWX7470 and AWX7366 are constructed the same except for the following : TRANS 2-2 ASSY F O Mark Symbol and Description Part No. Remarks AWX7366 AWX7470 IC5501 AEK7018 (4A) AEK7019 (5A) C5501, C5502 Not used ACH1237 (1µF/100V) R5501 Not used RFA1/4PS220J www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSA-E08 7 AWX7559 and AWX7310 are constructed the same except for the following : REGULATOR ASSY F M Mark Symbol and Description Part No. Remarks AWX7310 AWX7559 IC5003 NJM78M12FA Not used D5009 D3SBA20(B) LN4SB60-4003 C5007 CEAT472M16 CEAT103M16 C5012 CKCYF103Z50 Not used C5013 CEAT101M25 Not used C5019, C5021, C5023 CEAT101M10 CEAT221M10 C5029 Not used CEAT221M50 C5030 (1µF/100V) Not used ACH1237 AWX7701 and AWX7698 are constructed the same except for the following : DISPLAY ASSY F S Mark Symbol and Description Part No. Remarks AWX7698 AWX7701 IC7051 TC7W53FU Not used Q7002 DTC124EK Not used Q7053 FMA1A Not used Q7054 DTC124EK Not used D7002 SLR-343DC(NPQ) Not used D7054– D7057 1SS355 Not used S7022, S7024–S7028, S7030 VSG1009 Not used C7053 CKSQYB153K50 Not used C7091 CKSQYB102K50 Not used R7038 RS1/10S271J Not used R7047, R7048, R7056 RS1/10S223J Not used R7057, R7061 RS1/10S103J Not used R7058 RS1/10S392J Not used R7411, R7413, R7414, R7416, R7417 Not used RS1/10S0R0J VIDEO ASSY F P Mark Symbol and Description Part No. Remarks AWX7307 AWX7676 IC731 NJM2279M Not used D731 1SS355 Not used C732, C733, C736, CKSQYB473K50 Not used C791 CKSQYB103K50 Not used R717 RS1/10S101J RS1/10S0R0J R732- R735 RS1/10S102J Not used CN701 52045-2645 HLEM26S-1 CN702 52045-2145 HLEM21S-1 JA705 AKN7014 Not used AWX7676 and AWX7307 are constructed the same except for the following : www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSA-E08 8 C6002, C6003 ACG7020 AEC7014 AEC7014 C6006 CEAT470M25 CEAT221M25 CEAT221M25 R6001 RCN1080 Not used Not used R6002 Not used RD1/4PU1R0J RD1/4PU1R0J L6003, L6004 Not used ATX1012 ATX1012 J6000 Not used D20PYY0335E D20PYY0335E T6001 ATT7043 ATT7040 ATT7040 RY6001 ASR7022 ASR1044 ASR1044 Y6003 AWG18 BOARD IN Not used ADX7321 Not used Y6004 AWG18 BOARD IN Not used ADX7320 Not used Y6005 AWG18 BOARD IN Not used ADX7319 Not used 6004 AKP1053 Not used Not used 6001 Not used 51048-0300 51048-0300 AWX7690 and AWX7658 are constructed the same except for the following : SP / PS ASSY F L Mark Symbol and Description Part No. Remarks AWX7658 AWX7690 IC3001 Not used AEK7007 Q3501 Not used 2SC4793 Q3502- Q3505 Not used DTC124ES Q3506 Not used 2SA992 D3052, D3054, D3056, D3058, D3060 Not used 1SS133 D3503, D3504, D3509 Not used 1SS133 D3501, D3502 Not used S5688G D3505 Not used MTZJ16B D3507 Not used MTZJ5.1B D3508 Not used MTZJ11B C3101- C3105 CFTYA104J50 CFTYA224J50 C3106- C3110 Not used CFTYA224J50 C3111- C3117 CQHA102J2A CQMA332K2E C3501 Not used CEAT471M35 C3502 Not used CEAT1R0M50 C3503 Not used CKCYF103Z50 C3504 Not used CEAT471M25 C3505 Not used CEAT101M16 C3506 Not used CCCCH680J50 R3133, R3134 Not used RS1LMF471J R3501 Not used RD1/4PU820J R3502, R3506, R3507 Not used RD1/4PU473J R3503 Not used RD1/4PU102J R3504 Not used RD1/4PU104J R3505 Not used RD1/4PU682J R3508 Not used RD1/4PU103J CN3002 Not used KM250MA3 CN3101 AKE7058 AKE7059 CN3102 AKE7060 AKE7061 Mark Symbol and Description Part No. AWX7311 AWX7345 AWX7454 Remarks PRIMARY ASSY AWX7311, AWX7345 and AWX7454 are constructed the same except for the following: F V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSA-E08 9 A B C D 1 2 3 4 1 2 3 4 2. PCB CONNECTION DIAGRAM 2.1 P-SW ASSY PCB PARTS LIST Mark No. Description Part No. P-SW ASSY SWITCHES AND RELAYS S6801 ASG1035 (ANP7308-F) (ANP7308-F) 220-230V 240V T1 POWER TRANSFORMER (ANP7010-D) (ANP7010-D) J6000 V P-SW ASSY V A P-SW ASSY V A SIDE A SIDE B Line Voltage can be changed by the following modification: 1. Disconnect the AC power cord. 2. Remove the cover. 3. Change the connection wire from TRANS 1 ASSY (Terminal No. Y6002) to AMP ASSY (Terminal No. Y6002) as follows. Voltage Terminal No. of TRANS 1 ASSY 220-230V Y6002/HY/HL/HV 240V Y6002/J,/KU 4. Stick a line voltage label on the rear panel. Description Part No. 220V label AAX-193 240V label AAX-192 Line Voltage Selection Y6001 V TRANS 2-2 ASSY O TRANS 1 ASSY N 5009 M Y6002 V VA V A CAPACITORS C6801, C6802 CGCYX103K25 OTHERS CN6801 3P JUMPER CONNECTOR 52151-0310 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSA-E08 10 A B C D 1 2 3 4 1 2 3 4 3. SCHEMATIC DIAGRAM 3.1 EXTRA-5.1, A-PINJACK and CONNECTION ASSYS JA1101-JA1103 ; VSA-E08 : AKB7121 JA1011-JA1013 ; VSA-E08 : AKB7108 JN1014: AKB7119 JN1015: AKB7048 CN1101 CN1001 CN1002 A EXTRA-5.1 ASSY (VSA-E08 : AWX7348) B A-PINJACK ASSY (VSA-E08 : AWX7346) V1 V1 V1 V2 V2 MD MD P P P LD LD LD LD TV TV TV F F F A F B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSA-E08 11 A B C D 5 6 7 8 5 6 7 8 CN1351 CN1301 CN1302 CN1353 CN1352 : AUDIO SIGNAL ROUTE (LD) LD : AUDIO SIGNAL ROUTE (TV) TV : AUDIO SIGNAL ROUTE (VCR1) V1 V1 V1 V2 V2 : AUDIO SIGNAL ROUTE (VCR2) V2 : AUDIO SIGNAL ROUTE (MD) MD MD MD : AUDIO SIGNAL ROUTE (PHONO) P P P P P P P LD LD TV TV F C CONNECTION ASSY (AWX7558) UPC4570C UPC4570C UPC4570C F F CN103 D 1/3 CN101 D 1/3 F C Note : When ordering service parts, be sure to refer to "EXPLODED VIEWS and PARTS LIST" or "PCB PARTS LIST" www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSA-E08 12 A B C D 1 2 3 4 1 2 3 4 1SS355 1SS355 D 2/3 D 2/3 F F CN7005 CN906 52045-0545 CN101 JA901 (1/2) JA901 (2/2) JA901 : AKB7075 JA911 : AKB7075 DB916NS0 DB216NS0 JA911 (1/2) JA911 (2/2) P P LD CD T2 TU V2 CD CD T2 TU T2 TU T2 V1 MD TV LD TV V2 V1 MD : The power supply is shown with the marked box. TU S F C F CN1353 3.2 MAIN CONTROL ASSY (1/3) 1/3F D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSA-E08 13 A B C D 5 6 7 8 5 6 7 8 1/2 2/2 CN103 CN104 UPC4570G2 UPC4570G2 UPC4570G2 UPC4570G2 : AUDIO SIGNAL ROUTE (LD) LD : AUDIO SIGNAL ROUTE : AUDIO SIGNAL ROUTE (TV) TV : AUDIO SIGNAL ROUTE (VCR1) V1 : AUDIO SIGNAL ROUTE (VCR2) V2 : AUDIO SIGNAL ROUTE (MD) MD : AUDIO SIGNAL ROUTE (PHONO) P : AUDIO SIGNAL ROUTE (TUNER) TU : AUDIO SIGNAL ROUTE (CD) CD : AUDIO SIGNAL ROUTE (TAPE2) T2 1/3 F MAIN CONTROL ASSY (AWX7709) D CN5004 CN1302 M F C F 1/3F D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSA-E08 14 A B C D 1 2 3 4 1 2 3 4 D 1/3 D 1/3 D 3/3 M5220FP M5220FP M5220L M5220L F F F 100p C176 100p C156 100p C155 100p C165 100p C166 100p M5220L M5220L MAIN CONTROL ASSY ( AWX7709 ) D 2/3 F 3.3 MAIN CONTROL ASSY (2/3) 2/3F D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSA-E08 15 A B C D 5 6 7 8 5 6 7 8 Q107 - Q112 : HN1C03F E 1/2 CN501 CN105 D 3/3 103 or 113 (2/3) 103 or 113 (1/3) 103 or 113 (3/3) VSA-E08 103 : AKB7088 F 1SS355 1SS355 : AUDIO SIGNAL ROUTE : The power supply is shown with the marked box. D 1/3F F 2/3F D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSA-E08 16 A B C D 1 2 3 4 1 2 3 4 D905-D908 1SS355 1SS355 D901-D904 1SS355 D 2/3 Y 4/5 F M F M F CN9551 CN903 CN920 CN901 CN5008 CN5005 3/3 F MAIN CONTROL ASSY (AWX7709) D 3/3F D 3.4 MAIN CONTROL ASSY (3/3) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSA-E08 17 A B C D 5 6 7 8 5 6 7 83/3F D S F CN904 CN7001 CN905 CN108 : The power supply is shown with the marked box. CN701 CN5003 M F P F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSA-E08 18 A B C D 1 2 3 4 1 2 3 4 3.5 V-AMP ASSY (1/2) IC7601 (1/2) UPC4570G2 IC7501 (1/2) UPC4570G2 IC7541 (1/2) UPC4570G2 IC7521 (1/2) UPC4570G2 IC7621 (1/2) UPC4570G2 D 2/3 E 2/2 CN105 505, 506 VEF1040 CN501 E 2/2 F 1/2 F V-AMP ASSY (AWX7730) E 1/2F E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSA-E08 19 A B C D 5 6 7 8 5 6 7 81/2F E IC7601 (2/2) UPC4570G2 IC7501 (2/2) UPC4570G2 IC7541 (2/2) UPC4570G2 IC7521 (2/2) UPC4570G2 IC7621 (2/2) UPC4570G2 E 2/2 : AUDIO SIGNAL ROUTE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSA-E08 20 A B C D 1 2 3 4 1 2 3 4 CN3001 CN3002 3001 4001 TRANS 2-1 ASSY (AWX7659) K J DIODE ASSY (AWX7660) I I TO FAN POWER TRANSFORMER HE • NOTE FOR FUSE REPLACEMENT FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE WITH SAME TYPE AND RATINGS ONLY. CAUTION - FU4, FU5 : T2A AEK-511 ACH1237 (NP1/100) CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 491.750 MFD, BY LITTELFUSE INC. FOR IC3001 (AEK7007). CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 49102.5 MFD, BY LITTELFUSE INC. FOR IC4501, IC4502 (AEK7014). C4503 R4503 LN6SB60-4003 LN6SB60-4003 V F CN6003 3.6 TRANS 2-1, DIODE and SP/PS ASSYS F L www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSA-E08 21 A B C D 5 6 7 8 5 6 7 8 CN3101 3004 CN3003 CN3102 SP/PS ASSY (AWX7690) I HA HE L F M F M F CN5001 CN5002 F L www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSA-E08 22 A B C D 1 2 3 4 1 2 3 4 D5010 1SS133 MTZJ10C MTZJ5.1B TRANS 1 ASSY (AWX7316) TRANS 2-2 ASSY (AWX7470) POWER TRANSFORMER 3004 CN5001 CN5002 5501 5009 52147-0810 V J CN3003 N LN4SB60-4003 C5501 R5501 C5501 ACH1237 NP 1/100 R5501 22 C5502 ACH1237 NP 1/100 C5030 ACH1237 NP 1/100 REGULATOR ASSY (AWX7559) F M F O CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 491.200 MFD, BY LITTELFUSE INC. FOR IC5009, IC5010 (AEK7023). CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 491005 MFD, BY LITTELFUSE INC. FOR IC5501 (AEK7019). L F L F 3.7 REGULATOR, TRANS 1 and TRANS 2-2 ASSYS N F O F M www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSA-E08 23 A B C D 5 6 7 8 5 6 7 8F M CN5006 CN5007 CN5005 CN5008 CN5004 CN5003 CN108 D 3/3 F CN104 D 1/3 F CN901 D 3/3 F CN920 D 3/3 F CN9801 Y 2/5 CN9802 Y 2/5 : AUDIO SIGNAL ROUTE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSA-E08 24 A B C D 1 2 3 4 1 2 3 4 1SS355 1SS355 1SS355 1SS355 702(2/2) 706(2/2) 706(1/2) 702(1/2) 707 JA703(1/2) JA703(2/2) JA703(3/3) 702 : AKB7076 707 : AKB7020 CN702 CN701 HLEM21S-1 HLEM26S-1 Y Y Y Y Y CN905 D 3/3 CN804 Q P F VIDEO ASSY (AWX7676) F F P 3.8 VIDEO, PRIMARY and P-SW ASSYS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSA-E08 25 A B C D 1 2 3 4 1 2 3 4F V 6001 CN6003 KP200TA4L CN6801 J6000 CN6002 RKP1751 LIVE NEUTRAL FU1 : T4A AEK-514 AC IN N 1SS133 DTC143ES 1SS133 ACG7014 EXCEPT HV TYPE ACG7014 ADX7279 ADX7280 D6001-D6004 : S5688G PRIMARY ASSY (HY : AWX7345) (HV : AWX7454) P-SW ASSY (AWX7330) V V A F L F CN3001 VA www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSA-E08 26 A B C D 1 2 3 4 1 2 3 4 R H. PHONE/F. VIDEO ASSY (AWX7342) CN7201 CN7004 CN7005 S7001 : STANDARD S7002 : STEREO S7003 : DSP MODE S7004 : ADVANCED S7005 : THX CINEMA S7006 : STAND BY/ON S7007 : EXTERNAL DECODER IN S7008 : SPEAKERS S7009 : DIRECT S7010 : BASS – S7011 : LOUDNESS S7012 : BASS + S7013 : MIDNIGHT S7014 : TREBLE – S7015 : DIGITAL NR S7016 : TREBLE + S7017 : SIGNAL SELECT S7018 : INPUT ATT S7019 : MPX S7020 : TAPE2 MONITOR S7021 : LEVEL – S7023 : LEVEL + S7029 : FL DIMMER M663111FP CN906 D 1/3 F R DISPLAY ASSY (AWX7701) F S F S 3.9 H. PHONE/F. VIDEO and DISPLAY ASSYS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSA-E08 27 A B C D 5 6 7 8 5 6 7 8F S CN7003 CN7002 CN7001 2SA1037K CN904 D 3/3 F CN7301 U CN7101 T www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VSA-E08 28 4. REMOTE CONTROL UNIT [AXD7255(E8)] 4.1 CONTRAST OF MISCELLANEOUS PARTS 7 CONTRAST OF AXD7254 AND AXD7255 AXD7254 and AXD7255 are constructed the same except for the following: P99-13 Seal A AZA7367 AZA7369 P99-14 Seal B AZA7368 AZA7370 P99-16 Case A AZN7840 AZN7839 (Gold) P99-17 Name Plate AZA7393 AZA7394 (Gold) P99-21 Case B AZN7784 AZA7394 (Gold) P99-23 Pen Holder AZN7786 AZN7798 P99-26 Battery Cover AZN7785 AZN7797 P99-30 Touch Pen E-AA1445-001 AZA7350 P99-32 Slide Knob AZA7347 AZA7365 P99-36 Key Top A AZA7345 AZA7363 P99-37 Key Top B AZA7346 AZA7364 P99-39 Rubber Sheet B AZA7349 AZA7371 Ref. No. Remarks AXD7254(39) AXD7255(E8) Part No. Mark Symbol and Description NOTES : ÷ Parts marked by “ NSP ” are generally unavailable because they are not in our Master Spare Parts List. ÷ The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. ÷ Screw adjacent to ∞ mark on the product are used for disassembly. ÷ Reference Nos. indicate the pages and Nos. in the service manual for the base model. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
