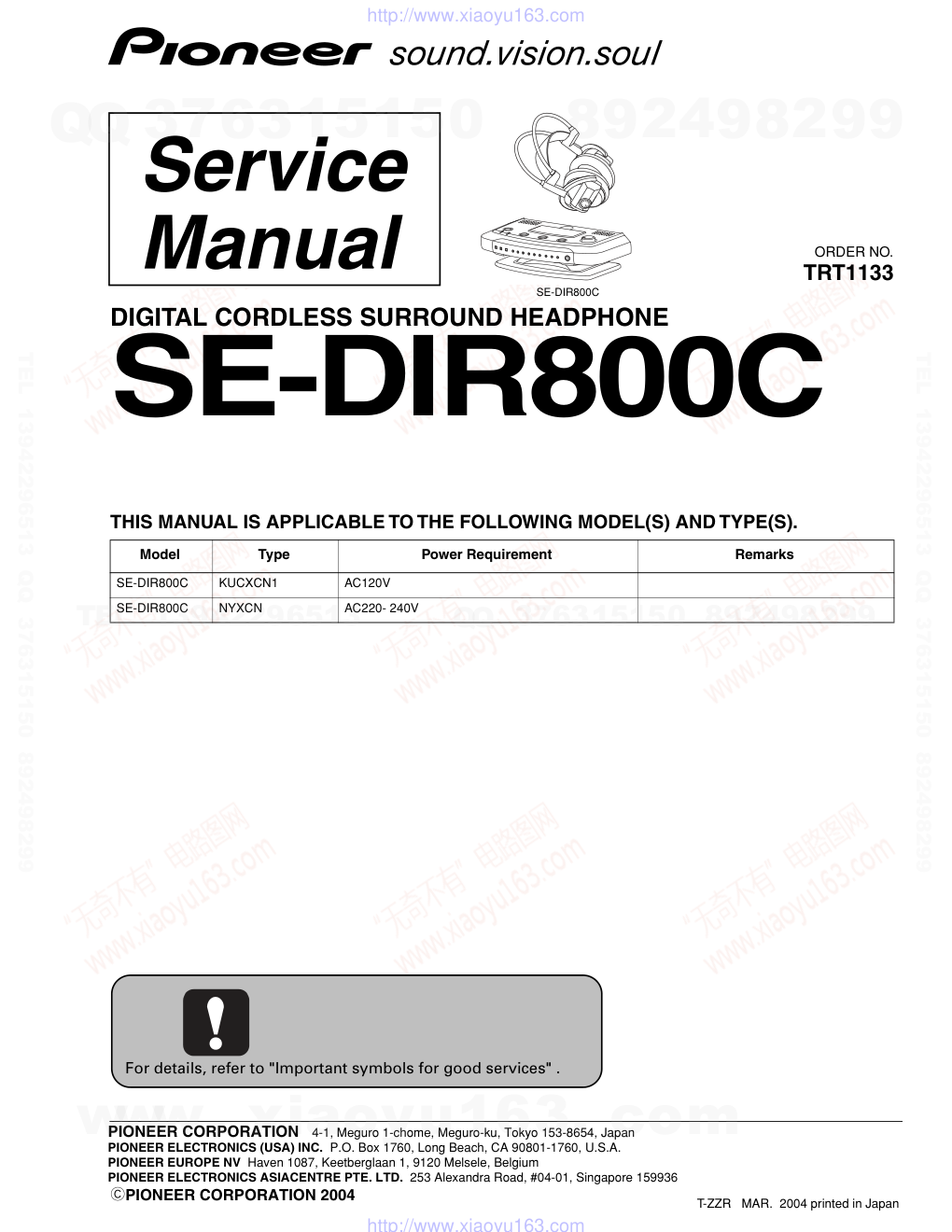

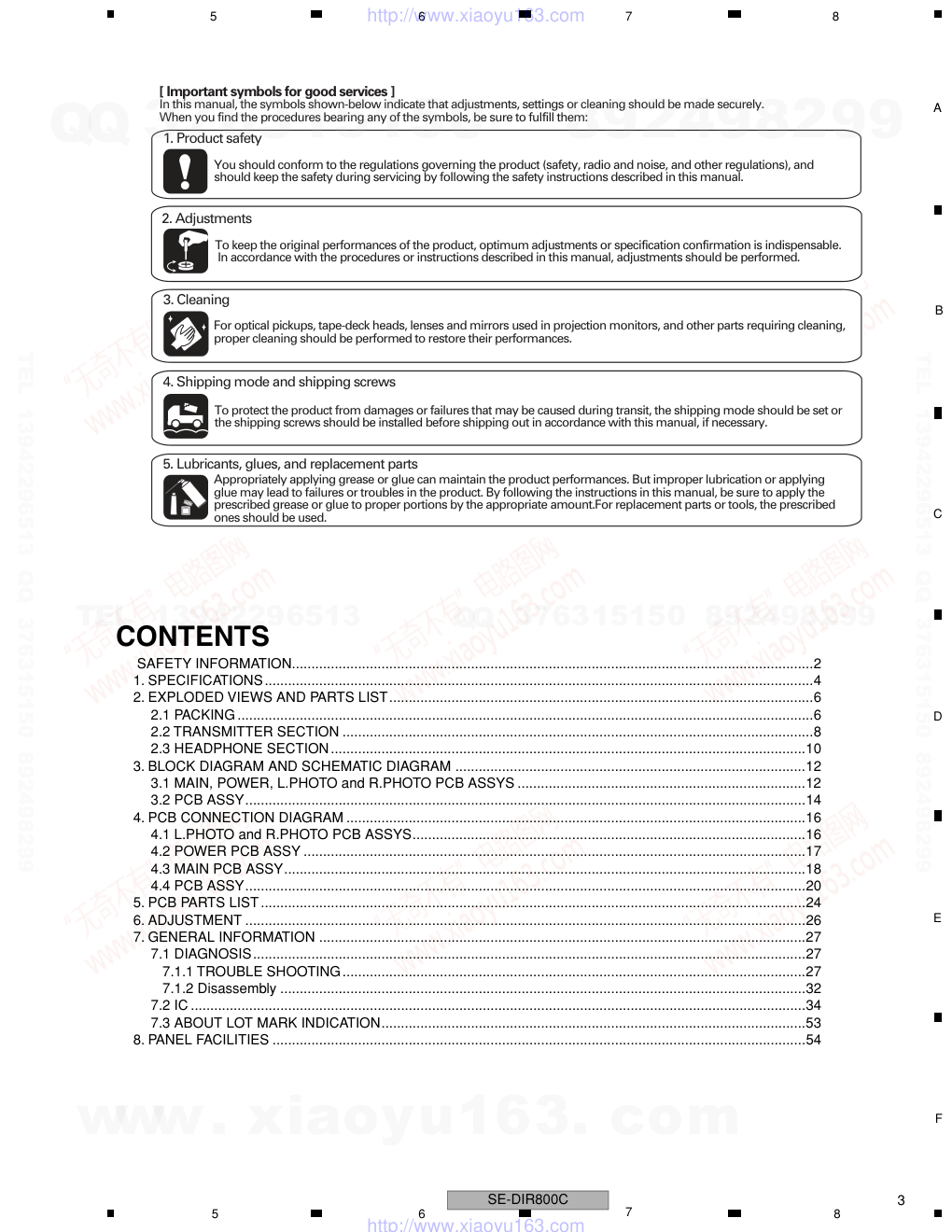

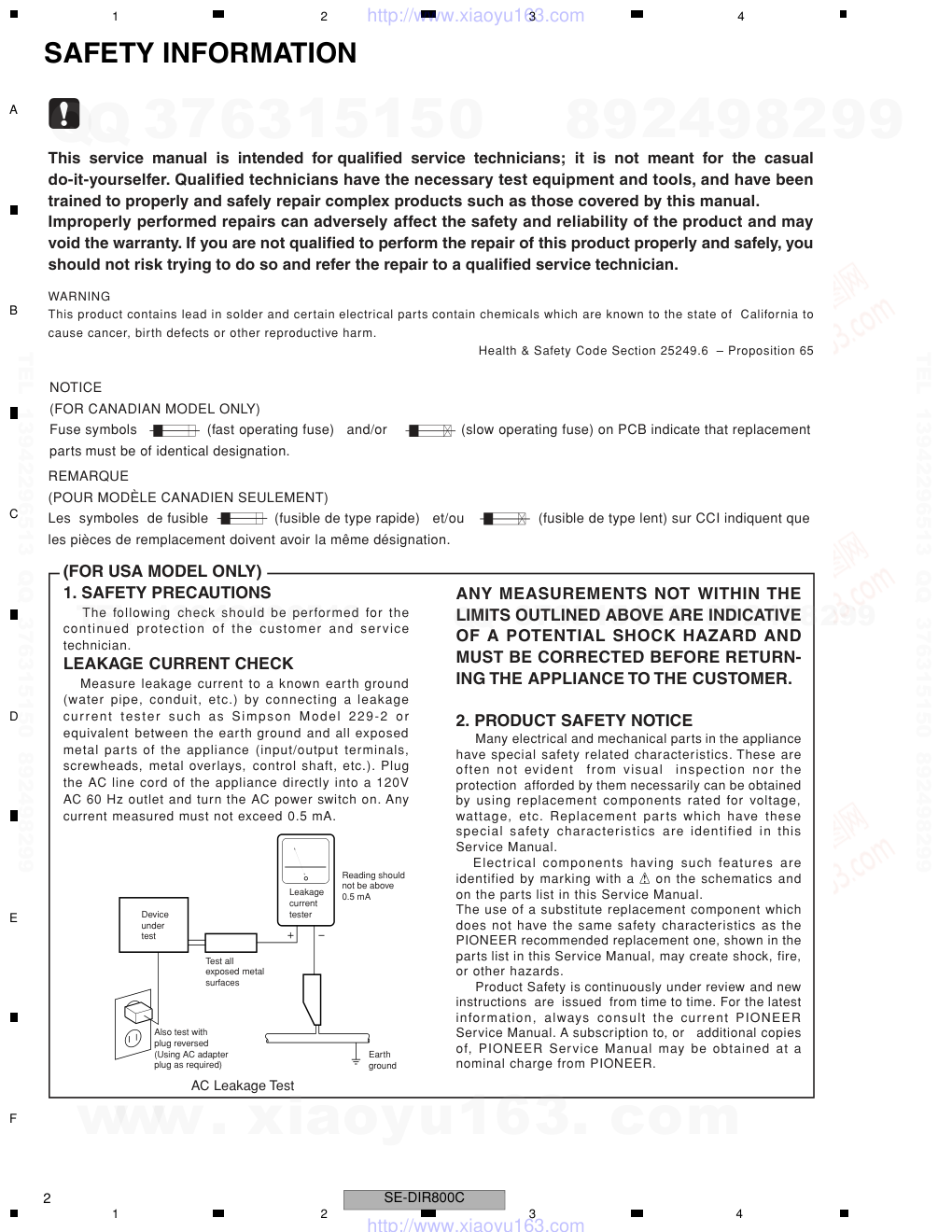

ORDER NO. PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2004 SE-DIR800C TRT1133 DIGITAL CORDLESS SURROUND HEADPHONE SE-DIR800C THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S). Model Type Power Requirement Remarks SE-DIR800C KUCXCN1 AC120V SE-DIR800C NYXCN AC220- 240V For details, refer to "Important symbols for good services" . T-ZZR MAR. 2004 printed in Japan www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SE-DIR800C 2 1 2 3 4 1 2 3 4 C D F A B E SAFETY INFORMATION This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. WARNING This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 – Proposition 65 NOTICE (FOR CANADIAN MODEL ONLY) Fuse symbols (fast operating fuse) and/or (slow operating fuse) on PCB indicate that replacement parts must be of identical designation. REMARQUE (POUR MODÈLE CANADIEN SEULEMENT) Les symboles de fusible (fusible de type rapide) et/ou (fusible de type lent) sur CCI indiquent que les pièces de remplacement doivent avoir la même désignation. ANY MEASUREMENTS NOT WITHIN THE LIMITS OUTLINED ABOVE ARE INDICATIVE OF A POTENTIAL SHOCK HAZARD AND MUST BE CORRECTED BEFORE RETURN- ING THE APPLIANCE TO THE CUSTOMER. 2. PRODUCT SAFETY NOTICE Many electrical and mechanical parts in the appliance have special safety related characteristics. These are often not evident from visual inspection nor the protection afforded by them necessarily can be obtained by using replacement components rated for voltage, wattage, etc. Replacement parts which have these special safety characteristics are identified in this Service Manual. Electrical components having such features are identified by marking with a on the schematics and on the parts list in this Service Manual. The use of a substitute replacement component which does not have the same safety characteristics as the PIONEER recommended replacement one, shown in the parts list in this Service Manual, may create shock, fire, or other hazards. Product Safety is continuously under review and new instructions are issued from time to time. For the latest information, always consult the current PIONEER Service Manual. A subscription to, or additional copies of, PIONEER Service Manual may be obtained at a nominal charge from PIONEER. (FOR USA MODEL ONLY) 1. SAFETY PRECAUTIONS The following check should be performed for the continued protection of the customer and service technician. LEAKAGE CURRENT CHECK Measure leakage current to a known earth ground (water pipe, conduit, etc.) by connecting a leakage current tester such as Simpson Model 229-2 or equivalent between the earth ground and all exposed metal parts of the appliance (input/output terminals, screwheads, metal overlays, control shaft, etc.). Plug the AC line cord of the appliance directly into a 120V AC 60 Hz outlet and turn the AC power switch on. Any current measured must not exceed 0.5 mA. Device under test Leakage current tester Earth ground Reading should not be above 0.5 mA Also test with plug reversed (Using AC adapter plug as required) Test all exposed metal surfaces AC Leakage Test www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SE-DIR800C 3 5 6 7 8 5 6 7 8 C D F A B E CONTENTS SAFETY INFORMATION......................................................................................................................................2 1. SPECIFICATIONS.............................................................................................................................................4 2. EXPLODED VIEWS AND PARTS LIST.............................................................................................................6 2.1 PACKING ....................................................................................................................................................6 2.2 TRANSMITTER SECTION .........................................................................................................................8 2.3 HEADPHONE SECTION..........................................................................................................................10 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM ..........................................................................................12 3.1 MAIN, POWER, L.PHOTO and R.PHOTO PCB ASSYS ..........................................................................12 3.2 PCB ASSY................................................................................................................................................14 4. PCB CONNECTION DIAGRAM ......................................................................................................................16 4.1 L.PHOTO and R.PHOTO PCB ASSYS.....................................................................................................16 4.2 POWER PCB ASSY .................................................................................................................................17 4.3 MAIN PCB ASSY......................................................................................................................................18 4.4 PCB ASSY................................................................................................................................................20 5. PCB PARTS LIST............................................................................................................................................24 6. ADJUSTMENT ................................................................................................................................................26 7. GENERAL INFORMATION .............................................................................................................................27 7.1 DIAGNOSIS..............................................................................................................................................27 7.1.1 TROUBLE SHOOTING.......................................................................................................................27 7.1.2 Disassembly .......................................................................................................................................32 7.2 IC ..............................................................................................................................................................34 7.3 ABOUT LOT MARK INDICATION.............................................................................................................53 8. PANEL FACILITIES .........................................................................................................................................54 [ Important symbols for good services ] In this manual, the symbols shown-below indicate that adjustments, settings or cleaning should be made securely. When you find the procedures bearing any of the symbols, be sure to fulfill them: 2. Adjustments To keep the original performances of the product, optimum adjustments or specification confirmation is indispensable. In accordance with the procedures or instructions described in this manual, adjustments should be performed. 3. Cleaning For optical pickups, tape-deck heads, lenses and mirrors used in projection monitors, and other parts requiring cleaning, proper cleaning should be performed to restore their performances. 5. Lubricants, glues, and replacement parts Appropriately applying grease or glue can maintain the product performances. But improper lubrication or applying glue may lead to failures or troubles in the product. By following the instructions in this manual, be sure to apply the prescribed grease or glue to proper portions by the appropriate amount.For replacement parts or tools, the prescribed ones should be used. 4. Shipping mode and shipping screws To protect the product from damages or failures that may be caused during transit, the shipping mode should be set or the shipping screws should be installed before shipping out in accordance with this manual, if necessary. 1. Product safety You should conform to the regulations governing the product (safety, radio and noise, and other regulations), and should keep the safety during servicing by following the safety instructions described in this manual. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SE-DIR800C 4 1 2 3 4 1 2 3 4 C D F A B E 1. SPECIFICATIONS Specifications Transmitter TRE-D800 Decoder function ....................... Dolby Digital .......................................... Dolby Pro Logic II ................................................................. DTS ........................... PCM (Fs=44.1kHz, 48kHz) Dolby Headphone (DH) mode ...................................... DH1/DH2/DH3/OFF Dolby Pro Logic II mode ........................... AUTO/MOVIE/MUSIC/OFF Modulation system.............................. DQPSK Secondary carrier wave frequency... 3.75MHz Transmission distance ................................ Approx. 8m to the front Transmission range.................... 12Hz - 22kHz Distortion rate...................... 1% or less (1kHz) Audio input ..... Optical digital input (rectangular type) x 1 ...... Coaxial digital input (RCA terminal) x 1 ........... Analog input (RCA terminal L/R) x 1 Power source.......................................... DC9V ........ (from the supplied AC power adaptor) Dimensions....... 209 (W) x 50 (H) x 104 (D) mm Mass............................................ Approx. 520g Headphones SE-DHP800 Playback frequency range......... 12Hz - 22kHz Power source....................................... DC 2.4V (supplied rechargeable battery x 2) ............. DC 3V (size AA dry cell battery x 2) Mass........ Approx. 250g (excluding batteries) Accessories AC power adaptor (9V 800mA) ......................1 Rechargeable nickel-metal hydride battery (size AA) .......................................................... 2 Coaxial digital cable (1.5m) ........................... 1 Vertical stand ..................................................1 Operating instructions ...................................1 Warranty card ................................................. 1 Note � Design and specifications are subject to change without notice. * Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic” and the double-D symbol are trademarks of Dolby Laboratories. ** “DTS” and “DTS VIRTUAL” are trademarks of Digital Theater Systems, Inc. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SE-DIR800C 5 5 6 7 8 5 6 7 8 C D F A B E Accessories Vertical Stand (WNK2387) Coaxial digital cable (WDE1228 / UC) (WDE1236 / EW) (WEX1012) AC/DC Power Adaptor (WWR1017 / UC) (WWR1018 / EW) Operating Instructions (WRB1055 / UC/EW) (WRB1056 / EW) (WRX1003 / UC) (WRX1004 / EW) Warranty card Rechargeable nickel-metal hydride batteries (2) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SE-DIR800C 6 1 2 3 4 1 2 3 4 C D F A B E 2. EXPLODED VIEWS AND PARTS LIST 2.1 PACKING Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly. For the applying amount of lubricants or glue, follow the instructions in this manual. (In the case of no amount instructions, apply as you think it appropriate.) NOTES: 2 1 6 6 5 10 8 12 7 4 13 3 9 9 11 x5 set www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SE-DIR800C 7 5 6 7 8 5 6 7 8 C D F A B E PACKING Parts List (2) CONTRAST TABLE SE-DIR800C/KUCXCN1 and SE-DIR800C/NYXCN are constructed the same except for the following : Mark No. Description Part No. NSP 1 Warranty card See Contrast table(2) 2 Coaxial digital cable See Contrast table(2) NSP 3 HEADPHONE WPH1021 4 Rechargeble Battery WEX1012 5 Vertical stand WNK2387 6 Operating Instructions See Contrast table(2) > 7 AC/DC Power adaptor See Contrast table(2) 8 Packing Case See Contrast table(2) 9 Headhone case WHG1864 10 Transmitter case WHG1865 11 Outer carton See Contrast table(2) 12 Handle WNK2160 NSP 13 TRANSMITTER WPX1010 Mark No. Description Part No. Mark No. Symbol and Description SE-DIR800C/ KUCXCN1 SE-DIR800C/ NYXCN NSP 1 Warranty card WRX1003 WRX1004 2 Coaxial digital cable WDE1228 WDE1236 6 Operating Instructions (English, French, Spanish) WRB1055 WRB1055 6 Operating Instructions (Garman, Duch, Italian, Portuguese, Swedish) Not used WRB1056 7 AC/DC Power adaptor WWR1017 WWR1018 8 Packing Case WHG1946 WHG1947 11 Outer carton WHP1603 WHP1610 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SE-DIR800C 8 1 2 3 4 1 2 3 4 C D F A B E 2.2 TRANSMITTER SECTION 3 25 4 8 11 5 24 7 31 28 9 22 22 16 18 19 10 29 33 34 32 1 29 14 13 15 6 12 35 36 2 21 21 21 21 21 23 26 30 30 27 17 E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SE-DIR800C 9 5 6 7 8 5 6 7 8 C D F A B E TRANSMITTER SECTION Parts List (2) CONTRAST TABLE SE-DIR800C/KUCXCN1 and SE-DIR800C/NYXCN are constructed the same except for the following : Mark No. Description Part No. 1 PCB Assy WWX1067 2 Weight WNA1127 3 Cover WNK2291 4 Front panel WNK2396 5 Upper case WNK2397 6 Bottom case WNK2422 7 Battery lid WNK2398 8 Upper lens WNK2297 9 Volume knob WNK2393 10 Switching button WNK2394 11 Power button WNK2395 12 Stand WNK2386 13 LED holder_C WNK2302 14 LED holder_L WNK2303 15 LED holder_R WNK2304 16 - terminal WNA1126 17 + terminal WBH1028 18 C terminal WBH1029 19 Connect terminal WBH1030 20 • • • • 21 Foot WEP1061 22 Sheet WER1107 23 Label WRW1067 24 Seal WRW1063 25 Front lens WNK2296 26 Screw PMZ30P060FZK 27 Screw PPZ26P080FZK 28 Screw PPZ30P060FZK 29 Screw PPZ20P050FZK 30 Screw CPZ30P080FNI NSP 31 Caution sheet See Contrast table(2) 32 Shield sheet WET1020 33 Heat sink WNC1002 34 Screw PMA30P060FZN 35 Screw KPZ14P050FZK NSP 36 License label See Contrast table(2) Mark No. Description Part No. Mark No. Symbol and Description SE-DIR800C/ KUCXCN1 SE-DIR800C/ NYXCN NSP 31 Caution sheet WRN1002 Not used NSP 36 License label WRW1068 Not used www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SE-DIR800C 10 1 2 3 4 1 2 3 4 C D F A B E 2.3 HEADPHONE SECTION Power PCB SW Phot PCB Main PCB Vol Phot PCB 1Heart Shield L=700 (It lets the inside of a rear band tube pass.) 4 Heart Rittsu wire L=560 (It lets the inside of a front band tube pass.) 2 Heart Rittsu wire L=700 (It lets the inside of a front band tube pass.) 2 Heart Rittsu wire L=110 Cable wiring Diagram 22 22 27 27 16 42 17 39 39 4 37 7 2 9 12 42 3 3 29 28 17 42 39 16 13 5 40 18 41 40 39 14 40 5 19 41 40 21 10 40 40 40 34 42 42 35 40 40 23 25 20 36 15 8 43 44 1 26 24 4 11 38 6 32 31 30 33 SP R SP L R ch L ch B D A C Refer to " 7.1.2 Wiring processing figure " Refer to " 7.1.2 Wiring processing figure " www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SE-DIR800C 11 5 6 7 8 5 6 7 8 C D F A B E HEADPHONE SECTION Parts List Mark No. Description Part No. 1 Power PCB ASSY WWX1066 2 Main PCB ASSY WWX1065 3 Headband WNA1123 4 Photo cover WNK2282 5 Bracket WNA1125 6 Case L WNK2371 7 Case R WNK2372 8 Base cover L WNK2278 9 Base cover R WNK2279 10 Volume cover WNK2389 11 Battery lid WNK2388 NSP 12 Base R WNK2277 13 Holder_ L WNK2390 14 Holder_ R WNK2391 NSP 15 Base L WNK2276 16 Hanger WNK2375 17 Hanger cover WNK2284 18 Holder cover L WNK2287 19 Holder cover R WNK2399 20 Switch knob WNK2289 21 Volume knov WNK2392 22 Ear pad WNV1113 23 + terminal F WBH1020 24 + terminal R WBH1021 25 - terminal F WBH1022 26 - terminal R WBH1023 27 Band tube WBP1059 28 Rubber band WER1102 29 Band cushion WNV1114 NSP 30 Shield wire WDA1031 NSP 31 Cable WDC1066 NSP 32 Cable WDC1067 NSP 33 Cable WDC1068 NSP 34 Damper WER1103 NSP 35 Resistance WER1104 36 Seal WRW1063 NSP 37 R PHOTO PCB ASSY WWX1069 NSP 38 L PHOTO PCB ASSY WWX1068 39 Screw KPZ14P050FZK 40 Screw PPZ20P060FZK 41 Screw PPZ20P080FZK 42 Screw PPZ25P100FZK 43 L Speaker unit Assy WXX1338 44 R Speaker unit Assy WXX1339 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SE-DIR800C 12 1 2 3 4 1 2 3 4 C D F A B E 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM 3.1 MAIN, POWER, L.PHOTO and R.PHOTO PCB ASSYS : AUDIO SIGNAL ROUTE (L ch) A D MAIN PCB ASSY (WWX1065) A R. PHOTO PCB ASSY (WWX1069) D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SE-DIR800C 13 5 6 7 8 5 6 7 8 C D F A B E C A B POWER PCB ASSY (WWX1066) B L. PHOTO PCB ASSY (WWX1068) C ÷ When ordering service parts, be sure to refer to "EXPLODED VIEWS and PARTS LIST" or "PCB PARTS LIST". ÷ The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. ÷ : The power supply is shown with the marked box. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SE-DIR800C 14 1 2 3 4 1 2 3 4 C D F A B E 3.2 PCB ASSY E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SE-DIR800C 15 5 6 7 8 5 6 7 8 C D F A B E : AUDIO SIGNAL ROUTE (L ch) PCB ASSY (WWX1067) E E : The power supply is shown with the marked box. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SE-DIR800C 16 1 2 3 4 1 2 3 4 C D F A B E PCB CONNECTION DIAGRAM 4.1 L.PHOTO and R.PHOTO PCB ASSYS NOTE FOR PCB DIAGRAMS : 1. Part numbers in PCB diagrams match those in the schematic diagrams. 2. A comparison between the main parts of PCB and schematic diagrams is shown below. 3. The parts mounted on this PCB include all necessary parts for several destinations. For further information for respective destinations, be sure to check with the schematic diagram. 4. View point of PCB diagrams. Symbol In PCB Diagrams Symbol In Schematic Diagrams Part Name B C E D D G G S S B C E B C E D G S B C E B C E B C E Transistor Transistor with resistor Field effect transistor Resistor array 3-terminal regulator Capacitor Connector P.C.Board Chip Part SIDE A SIDE B SIDE A SIDE B C D C D L.PHOTO PCB ASSY C L.PHOTO PCB ASSY C R.PHOTO PCB ASSY D R.PHOTO PCB ASSY D B To TP2part angle hole Direct solder To TP4part angle hole Direct solder To TP1part angle hole Direct solder To TP3part angle hole Direct solder B A A (WNP1056) (WNP1056) (WNP1057) (WNP1057) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SE-DIR800C 17 5 6 7 8 5 6 7 8 C D F A B E 4.2 POWER PCB ASSY SIDE A SIDE A SIDE B SIDE B B B POWER PCB ASSY POWER PCB ASSY B B A TP15 TP19 A TP17 TP21 A TP14 TP18 A TP16 TP20 Q1 IC8 IC7 IC9 (WNP1055-A) (WNP1055-A) A A TP4 (Shield Line Heart Line) TP2 TP3 (Shield Line GND) TP1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SE-DIR800C 18 1 2 3 4 1 2 3 4 C D F A B E 4.3 MAIN PCB ASSY SIDE A SIDE A A A MAIN PCB ASSY A IC1 IC2 IC6 IC3 IC4 IC5 VR1 (WNP1053-A) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SE-DIR800C 19 5 6 7 8 5 6 7 8 C D F A B E SIDE B SIDE B A A MAIN PCB ASSY A (WNP1053) B TP20 TP16 SPEAKER L ch TP5 TP6 TP7 SPEAKER R ch TP8 B TP21 TP17 B TP18 TP14 B TP19 TP15 TP1 B B TP3 TP2 TP4 (Shield Line Heart Line) (Shield Line GND) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SE-DIR800C 20 1 2 3 4 1 2 3 4 C D F A B E 4.4 PCB ASSY SIDE A E PCB ASSY E IC10 IC4 Q29 Q11 Q17 Q18 Q12 Q13 Q32 Q19 Q27 Q20 IC6 IC7 IC2 IC16 IC17 IC14 IC8 IC9 Q28 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SE-DIR800C 21 5 6 7 8 5 6 7 8 C D F A B E E173761 SIDE A E IC1 IC5 IC12 IC3 IC11 IC4 Q30 Q5 Q18 Q32 Q27 Q26 Q20 Q14 Q24 Q15 Q7 Q1 Q2 Q10 Q3 Q23 Q16 Q4 IC13 Q9 Q31 Q21 Q22 (WNP1054-A) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SE-DIR800C 22 1 2 3 4 1 2 3 4 C D F A B E SIDE B E E PCB ASSY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SE-DIR800C 23 5 6 7 8 5 6 7 8 C D F A B E SIDE B E (WNP1054-A) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SE-DIR800C 24 1 2 3 4 1 2 3 4 C D F A B E 5. PCB PARTS LIST LIST OF ASSEMBLIES Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 5 6 1 4 7 3 R 5 0 1 R 0 5 6 2 1 NOTES: 560 Ω 47k Ω 0.5 Ω 1 Ω RD1/4PU J RD1/4PU J RN2H K RS1P K 56 x 10 1 47 x 10 3 R50 1R0 561 473 5.62k Ω RN1/4PC F 562 x 10 1 5621 Mark Symbol and Description SE-DIR800C /KUCXCN SE-DHT800C /NYXCN NSP 1..DIGITAL CORDLESS HEADPHONE WPH1021 WPH1021 NSP 1..Composite PCB ASSY WNX1019 WNX1019 2..MAIN PCB ASSY WWX1065 WWX1065 2..Power PCB ASSY WWX1066 WWX1066 NSP 2..L.PHOTO PCB ASSY WWX1068 WWX1068 NSP 2..R.PHOTO PCB ASSY WWX1069 WWX1069 NSP 1..TRANSMITTER WPX1010 WPX1010 NSP 1..Gathering PCB ASSY WNX1020 WNX1020 2.. PCB ASSY WWX1067 WWX1067 Mark No. Description Part No. A MAIN PCB ASSY SEMICONDUCTORS IC3 PCM1773PWR IC1 CXA3504M IC2 CXD4004R IC4, IC5 NJM2149V IC6 BD4723G IC10 NL17SZ17DFT2G COILS AND FILTERS F1, F2, F3, F4 EMI Filter WTF1007 L1, L2, L3, L5, L6 Chip inductor WTH1021 L4 Chip inductor WTH1029 CAPACITORS C3 CCSRCH121J50 C37, C42 CCSRCH181J50 C23, C24 CCSRCH8R0D50 C5, C13 CKSRYB102K50 C8 CKSRYB103K50 C7 CKSRYB223K50 C4 CKSRYB332K50 C1, C12, C10, C14, C16, C17 CKSRYF104Z25 C19, C2, C20, C22, C21, C26 CKSRYF104Z25 C25, C27, C29, C31, C6, C9,C47 CKSRYF104Z25 C15, C30, C32, C33, C34, C38 CSZS100M4 C39, C43 CSZS100M4 C18, C36, C41 CSZS1R0M16 C28, C44, C45, C46 CSZS220M4 C35, C40 CSZS4R7M6R3 C11 CSZSC101M6R3 RESISTORS R25, R27 RS1/16S0R0J R16, R2, R5 RS1/16S101J R13 RS1/16S102J R11, R14, R15, R20, R22 RS1/16S103J R28 RS1/16S104J R8 RS1/16S122J R1 RS1/16S222J R21, R23, R4 RS1/16S223J R18, R19, R17 RS1/16S331J R24, R26 RS1/16S393J R7 RS1/16S433J R3 RS1/16S512J R10, R9 RS1/16S752J R12 RS1/16S820J VR1 Volume (10k) WCS1022 OTHERS X1 Ossillator (12.28MHz) WSS1018 B POWER PCB ASSY SEMICONDUCTORS IC9 LT1615ES5-1 IC7 NJM2870F25 IC8 S-80820CNNB-B8F Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SE-DIR800C 25 5 6 7 8 5 6 7 8 C D F A B E Q1 2SC4081 D1 SLC-22VR3F D2 RB520S-30 COILS AND FILTERS L11 Chip inductor WTH1030 L10, L12 Chip inductor WTH1029 CAPACITORS C58 CCSRCH5R0C50 C50, C52, C53, C56 CKSRYF105Z10 C54, C55 CSZS220M4 C51, C57, C59 CSZSC101M6R3 RESISTORS R32 RS1/16S103J R34, R36 RS1/16S105J R31 RS1/16S331J R30, R33 RS1/16S561J R35 RS1/16S754J SWITCH SW1 WSH1020 C L.PHOTO PCB ASSY SEMICONDUCTORS L Photo PCB WNP1057 D11, D12, D13, D14 BPV22NF D R.PHOTO PCB ASSY SEMICONDUCTORS R Photo PCB WNP1056 D15, D16, D17, D18 BPV22NF E PCB ASSY SEMICONDUCTORS IC17 BA05SFP IC16 BA33C25FP IC14 BD4727G IC3 CXD4003Q IC2 LC83200W IC11 MC74HC4046AF IC6, IC9 NJM3404AM IC10 NJM4556AL IC8 PCM1742KEG/2K IC7 PCM1802DBR IC4 PEF001A9 IC12, IC13 TC74HCU04AF IC5 TORX141 IC1 YSS932-S Q5, Q7, Q9 2SA1037AK Q1, Q25, Q26, Q31 2SB1197K Q4, Q3, Q30 2SC4081 Q10, Q6, Q8 2SD1664 Q11, Q12, Q13, Q14, Q15, Q16 DTC124EUA Q17, Q18, Q19, Q2, Q20, Q21 DTC124EUA Q22, Q23, Q24, Q27, Q28, Q29, Q32 DTC124EUA D6 1SR139-400 D3, D4, D5, D9 1SS119 D1, D2 MA2Z371 Mark No. Description Part No. D30, D31, D32, D33, D34, D35 MPG4361F D39, D40, D41 MPG4361F D36, D37, D38 BR4361F D11, D12, D13, D14, D15, D16 DAL5820 D17, D18, D19, D20, D21, D22 DAL5820 D7, D8 SLR-342VC COILS AND FILTERS F1, F2, F3,F4, F5 EMI Filter WTF1008 F10, F11, F12, F6, F7,F8,F9 Filter WTF1009 L1, L2, L6, L8, L9 Inductor WTH1031 L3 Chip inductor WTH1032 L4 Chip inductor WTH1026 L5, L7 Inductor LAYU1R5K CAPACITORS C57, C58, C122 CCSRCH100D50 C1, C10, C2, C75, C77, C88, C89, C9 CCSRCH101J50 C42, C43 CCSRCH390J50 C33, C34 CCSRCH391J50 C54, C55 CCSRCH470J50 C108, C60 CCSRCH471J50 C11, C12, C13, C14, C18 CEAT100M16 C19, C22, C24, C26, C28 CEAT100M16 C29, C30, C37, C38, C39 CEAT100M16 C40, C5, C50, C6, C61 CEAT100M16 C110 CEAT101M16 C112, C115, C116, C118 CEAT101M16 C121, C135 CEAT101M16 C100 CEAT101M25 C125, C44 CEAT102M16 C46, C47, C7 CEAT221M16 C35, C41, C53, C79, C86 CEAT330M16 C3, C4 CEAT4R7M50 C123, C134, C52 CKSRYB103K50 C130, C131 CKSRYB152K50 C15, C16 CKSRYB222K50 C59, C63, C81 CKSRYB472K50 C101, C102, C103, C104, C105 CKSRYF104Z25 C106, C107, C109, C111, C113 CKSRYF104Z25 C114, C117, C119, C120, C124 CKSRYF104Z25 C126, C17, C20, C21, C23, C25 CKSRYF104Z25 C27, C36, C45, C51, C56, C62 CKSRYF104Z25 C64, C65, C66, C67, C68, C69 CKSRYF104Z25 C70, C71, C72, C73, C74, C76 CKSRYF104Z25 C78, C8, C80, C82, C83, C84, C85 CKSRYF104Z25 C90, C91, C92, C93, C94, C95, C96 CKSRYF104Z25 C97, C98, C99 CKSRYF104Z25 C132, C133, C32, C87 CKSRYF105Z10 C48, C49 CQMA103K50 C127 (2200uF/25) WCH1011 RESISTORS R79, R82, R85 RD1/4PS100JL R92 RD1/4PS1R2JL R93 RD1/4PS1R5JL R32, R33 RD1/4PS330JL R22, R29, R35 RS1/16S100J R58, R77, R80, R83 RS1/16S101J R40, R71, R98, R100 RS1/16S102J R10, R11, R12, R13, R44, R57, R64 RS1/16S103J Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SE-DIR800C 26 1 2 3 4 1 2 3 4 C D F A B E ADJUSTMENT R69, R95, R97, R99 RS1/16S103J R28, R31, R62, R63, R90, R91 RS1/16S104J R38 RS1/16S105J R14, R15, R65, R75 RS1/16S151J R126, R127, R128, R74 RS1/16S152J R25, R26, R72 RS1/16S153J R18, R19 RS1/16S182J R9 RS1/16S220J R68 RS1/16S221J R37, R70, R78, R81, R84 RS1/16S222J R1, R2 RS1/16S273J R73 RS1/16S242J R67 RS1/16S272J R66 RS1/16S331J R105 RS1/16S332J R120, R121, R122, R123, R124 RS1/16S391J R125, R129, R130, R131 RS1/16S391J R3, R4, R5, R6 RS1/16S393J R39, R43, R45, R46, R47 RS1/16S471J R51, R54, R55, R94, R96 RS1/16S471J R101, R104, R60, R76 RS1/16S472J R102, R103, R36 RS1/16S473J R42 RS1/16S512J R56 RS1/16S562J R61, R88, R89 RS1/16S681J R7, R8 RS1/16S682J R59 RS1/16S684J R34 RS1/16S750J R16, R17, R21, R24, R41, R106 RS1/16S822J VR1 Volume (10k) WCS1022 SWITCHES AND RELAYS SW1, SW2, SW3, SW4 WSG1013 SW5 WSH1018 OTHERS JA1 JACK (2P) WKN1022 JA2 JACK (HP) WKN1020 JA3 JACK (1P) WKN1019 Heat Sink WNC1002 X1 Oscillator (24.57MHz) WSS1019 JA4 Jack WKN1021 Mark No. Description Part No. There is no information to be shown in this chapter. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SE-DIR800C 27 5 6 7 8 5 6 7 8 C D F A B E 7. GENERAL INFORMATION 7.1 DIAGNOSIS 7.1.1 TROUBLE SHOOTING Symptom: No recharging possible Insert the dedicated rechargeable battery (supplied) into the battery case of the transmitter. Check the periphery of Q25 and R92-R93 of the transmitter. START Does the CHARGE LED light up? Short-circuit between TP14 and TP15. Does the CHARGE LED light up for 5 sec.? Check the periphery of the charge terminal. No No Yes Yes Yes Check the peripheries of Q24, Q26, Q27, Q30, Q31, and Q32 of the transmitter. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SE-DIR800C 28 1 2 3 4 1 2 3 4 C D F A B E Symptom: No sound from the cordless headphones Connect the AC adaptor while holding the POWER switch and the ProLogic II switch of the transmitter pressed. (Noise simulation mode) START Is sound output from the headphone terminal of the transmitter? Is the IR-LED-drive waveform normal? (TP11-TP13) Check the headphones. Check the transmitter. Yes Yes No No www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SE-DIR800C 29 5 6 7 8 5 6 7 8 C D F A B E Symptoms: Failure in sound and indication of the transmitter (Checking the transmitter) Connect the AC adaptor while holding the POWER switch and the INPUT switch of the transmitter pressed. Check the power source (AVCC). Check the peripheries of the LED drive TR and of microcomputer (IC4). Check the peripheries of the following: headphone output (IC10), filter (IC9), DSP (IC2), DECODER (IC1), and D/A (IC8). Check the peripheries of IC11 and IC12. Check the peripheries of IC3, and of the IR-LED-drive TR. START Did all the LEDs light up in order? Disconnect the AC adaptor. Connect the AC adaptor while holding the POWER switch and the ProLogic II switch of the transmitter pressed. Is noise output from the headphone terminal? Is the VCOT circuit oscillating? (TP9) Is the IR-LED-drive waveform normal? (TP11-TP13) POWER-OFF Yes Yes Yes Yes No No No No www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SE-DIR800C 30 1 2 3 4 1 2 3 4 C D F A B E Connect a player (DIGITAL 1, DIGITAL 2, and analog). POWER ON Is sound output? Switch to analog input. Switch to DIGITAL 2. Is sound output? After three minutes or more of continuous playback, does the IR LED remain lit? OK Checking audio detection Check the peripheries of IC9 and Q1. Check the peripheries of A/D (IC7), IC6 and JA1. Check the peripheries of IC5 and IC1. No No Is sound output? Check the peripheries of IC13 and JA3. No No Yes Yes Yes www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SE-DIR800C 31 5 6 7 8 5 6 7 8 C D F A B E Symptoms: Failure in sound and indication of the cordless headphones (Checking the headphones) START Insert the battery and set the Power switch to ON. Does the LED light up? Is each voltage (VCC, A1.5 V, D1.5 V, A2.5 V, D2.5 V, and DAC2.5 V) OK? Is sound output while signals are being received? OK Check the Power Board Assy, lead wires, and the peripheries of Q1 and D1. Check the Power Board Assy, the peripheries of IC7, IC8, and IC9, and the periphery of Q1. Check the Photo Board Assy, and the peripheries of the following: IC1 (RF amplifier), IC2 (decoder), IC3 (DAC), IC4 and IC5 (power amplifier), and the speaker. Yes No No No Yes Yes www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SE-DIR800C 32 1 2 3 4 1 2 3 4 C D F A B E 7.1.2 Disassembly 1. Remove the two screws of the stand. 2. Remove the four screws of the lower case. 3. Slide the cover of the upper and lower cases. 4. Remove the lower case. 5. Remove the soldering from the charge terminal. 6. Remove the three fixing screws of the phono jack. 7. Remove the Board Assy from the upper case with the VR control attached. 7 Transmitter 7 Headphones Board Assy POWER BOARD Assy PHOTO BOARD Assy MAIN BOARD Assy PHOTO BOARD Assy 1. Remove the ear pad. 2. Remove the three screws of the base and remove the base. 3. Remove the two screws of the base cover and remove the base cover. 4. Remove the soldering from the lead wire on the photo board. 5. Remove the screw of the board. 6. Remove the photo cover. 6. Remove the photo cover. 1. Remove the ear pad. 2. Remove the three screws of the base and remove the base. 3. Remove the two screws of the base cover and remove the base cover. 4. Remove the soldering from the lead wire on the photo board. 5. Remove the screw of the board. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SE-DIR800C 33 5 6 7 8 5 6 7 8 C D F A B E Wire dressing Wire dressing Wire dressing Shielding wire Shielding wire 7 Lead dressing on the L-ch side Incorrect dressing of the wire may result in insufficient transmissible distance between the transmitter and the cordless headphones. 7 Lead dressing on the R-ch side Incorrect dressing of the wire may result in insufficient transmissible distance between the transmitter and the cordless headphones. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SE-DIR800C 34 1 2 3 4 1 2 3 4 C D F A B E 7.2 IC YSS932 (PCB ASSY : IC1) TRANSMITTER TRE-D800 • 96kHz DIR + Dolby Digital / Pro Logic II / DTS Decoder + SubDSP Pin Arrangement (Top view) • The information shown in the list is basic information and may not correspond exactly to that shown in the schematic diagrams. List of IC YSS932, LC83200W, CXD4003Q, PEF001A9, CXA3504M, CXD4004R SDBCKI1 RAMD8 OPORT1 OPORT2 OPORT4 OPORT3 OPORT6 OPORT5 RAMD0 OPORT7 RAMD1 RAMA6 VDD2 RAMOEN RAMA0 VSS VDD1 RAMWEN RASN RAMD15 CASN RAMD13 RAMD14 RAMA7 VSS RAMD11 RAMD12 VDD1 RAMD10 RAMD7 VSS RAMD5 RAMD6 RAMD3 RAMD4 SDOB3 RAMD2 SDOB2 RAMA8 VSS DBL/V SDWCKI1 SYNC/U FS128/C ERR/BS RAMD9 DIRBCK DIRMCK DIRWCK /SDBCKO OPORT0 DIRSDO SDOB0 VDD1 SDOB1 RAMA11 RAMA2 RAMA4 RAMA1 RAMA5 RAMA9 RAMA10 VSS RAMA3 VSS SCK /IC SO SI /LOCK /CS MUTE CRC DTSDATA SURENC VSS NONPCM ZEROFLG DIRINT RAMA17 OVFB/END RAMA15 RAMA16 RAMA13 RAMA14 VDD2 RAMA12 DDIN3 TESTXI TESTBRK AVSS TESTR2 TESTR1 VDD2 XO DDIN0 XI DDIN2 DDIN1 SDBCKI0 DIRPRO VSS SDWCKI0 AVDD CPO VDD1 DIRPCO IPORT1 IPORT0 IPORT3 IPORT2 TESTXO IPORT4 TESTXEN TESTMS VSS VDD2 VDD1 AC3DATA KARAOKE SDOA2 SDIA SDOA0 SDOA1 SDIB2 SDIB3 SDIB0 SDIB1 101 102 99 100 97 98 95 96 93 94 91 92 89 90 87 88 85 86 83 84 81 82 79 80 77 78 75 76 73 74 71 72 69 70 67 68 65 66 128 127 125 126 123 124 121 122 119 120 117 118 115 116 113 114 111 112 109 110 107 108 105 106 103 104 2 1 4 3 6 5 8 7 10 9 12 11 14 13 16 15 18 17 20 19 22 21 24 23 26 25 28 27 30 29 32 31 34 33 36 35 38 37 63 61 62 59 60 57 58 55 56 53 54 51 52 49 50 47 48 45 46 43 44 41 42 39 40 64 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SE-DIR800C 35 5 6 7 8 5 6 7 8 C D F A B E Block Diagram DIRMCK DDIN0 DDIN1 DDIN2 DDIN3 DDINSEL V ERR/BS DBL/V DIRINT PLL DIR DIRO Interface DIRBCK DIRWCK SDIASEL SDIA Interface SDIACKSEL SDWCKI0 SDBCKI0 /SDBCKO CRC DIRPCO DIRSDO SDIA SURENC KARAOKE MUTE CRC AC3DATA DTSDATA NONPCM ZEROFLG XI XO CPO PLL Clock for DIR Block (25MHz) Clock for DSP Block (30MHz) SDOA Interface MainDSP (AC-3/ProLogicII/DTS decoder) SDIB Interface SDOA0 SDOA1 SDOA2 L,R LS,RS C,LFE SDIB0 SDIB1 SDIB2 SDIB3 SDIBSEL SDIBCKSEL External Memory Interface SubDSP RAMD0-15 CASN RASN RAMWEN RAMOEN RAMA0-17 OVFB/END SDOB Interface SDOBCKSEL SDOB3 SDOB2 SDOB1 SDOB0 SDWCKI1 SDBCKI1 OPORT0-7 Coefficient / Program RAM MPLOAD /CS SO SI SCK IPORT0-4 Control Signal DBL Control Register Microprocessor I/F VMOD BSMOD ERR BS SYNC U FS128 C SYNC/U FS128/C UMOD CMOD OVFSEL OVFB END 7 6 5 IPORT5-7 DIRPRO /LOCK www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SE-DIR800C 36 1 2 3 4 1 2 3 4 C D F A B E Pin Function No. Pin Name I/O Function 1 TESTXI I LSI Test pin (must be connected to VSS) 2 TESTXO O LSI Test pin (to be open) 3 VDD2 − +2.5V power supply (for internal core logic) 4 XO O Crystal oscillator connection 5 XI I Crystal oscillator connection (24.576MHz) 6 TESTMS I+ LSI Test pin (to be open) 7 TESTXEN I+ LSI Test pin (to be open) 8 IPORT0 I+ General purpose input port 9 IPORT1 I+ General purpose input port 10 IPORT2 I+ General purpose input port 11 IPORT3 I+ General purpose input port 12 IPORT4 I+ General purpose input port 13 DDIN0 Is DIR: Digital audio interface data input 0 14 DDIN1 Is DIR: Digital audio interface data input 1 / General purpose input port 15 DDIN2 Is DIR: Digital audio interface data input 2 / General purpose input port 16 DDIN3 Is DIR: Digital audio interface data input 3 / General purpose input port 17 VSS − Ground 18 CPO A PLL filter connection 19 AVDD − +3.3V power supply (for DIR block) 20 DIRPCO A DIR: PLL filter connection 21 DIRPRO A DIR: PLL filter connection 22 AVSS − Ground (for DIR block) 23 TESTBRK I+ LSI Test pin (to be open) 24 TESTR1 I+ Initial Clear input for PLL in DSP block 25 TESTR2 I+ LSI Test pin (to be open) 26 VDD1 − +3.3V power supply (for I/O) 27 SDWCKI0 I+ Word clock input for SDIA, SDOA, SDIB, SDOB 28 SDBCKI0 I+ Bit clock input for SDIA, SDOA, SDIB, SDOB 29 /SDBCKO O Reverse clock output of DIRBCK or SDBCKI0 30 SDIA I Input of bitstream or PCM data to Main DSP 31 SDOA2 O PCM data output from Main DSP (C, LFE) 32 SDOA1 O PCM data output from Main DSP (LS, RS) 33 SDOA0 O PCM data output from Main DSP (L, R) 34 SDIB3 I+ PCM data input 3 to Sub DSP 35 SDIB2 I+ PCM data input 2 to Sub DSP 36 SDIB1 I+ PCM data input 1 to Sub DSP 37 SDIB0 I+ PCM data input 0 to Sub DSP 38 VSS − Ground 39 VDD2 − +2.5V power supply (for internal core logic) 40 DIRSDO O Output of bitstream or PCM data from DIR 41 DIRWCK O DIR: Serial data word clock (fs) output 42 DIRBCK O DIR: Serial data bit clock (64fs) output 43 DIRMCK O DIR: Serial data master clock (256fs or 128fs) output 44 ERR/BS O DIR: Data error detect / Block start output 45 SYNC/U O DIR: Serial data synchronized timing / User data output 46 FS128/C O DIR: Serial data master clock 128fs / Channel status output 47 DBL/V O DIR: Double rate lock detect / Validity flag output 48 SDWCKI1 I+ Word clock input for SDIB, SDOB 49 SDBCKI1 I+ Bit clock input for SDIB, SDOB 50 VSS − Ground www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SE-DIR800C 37 5 6 7 8 5 6 7 8 C D F A B E No. Pin Name I/O Function 51 SDOB3 O PCM data output from Sub DSP 52 SDOB2 O PCM data output from Sub DSP 53 SDOB1 O PCM data output from Sub DSP 54 SDOB0 O PCM data output from Sub DSP 55 VDD1 − +3.3v power supply (for I/O) 56 OPORT0 O General purpose output port (LED control : DD) 57 OPORT1 O General purpose output port (LED control : PL2) 58 OPORT2 O General purpose output port (LED control : DTS) 59 OPORT3 O General purpose output port (LED control : DIG1) 60 OPORT4 O General purpose output port (LED control : DIG2) 61 OPORT5 O General purpose output port (LED control : ANA) 62 OPORT6 O General purpose output port 63 OPORT7 O General purpose output port 64 VSS − Ground 65 VDD2 − +2.5V power supply (for internal core logic) 66 RAMD0 I+/O Sub DSP: External memory interface Data 0 67 RAMD1 I+/O Sub DSP: External memory interface Data 1 68 RAMD2 I+/O Sub DSP: External memory interface Data 2 69 RAMD3 I+/O Sub DSP: External memory interface Data 3 70 RAMD4 I+/O Sub DSP: External memory interface Data 4 71 RAMD5 I+/O Sub DSP: External memory interface Data 5 72 RAMD6 I+/O Sub DSP: External memory interface Data 6 73 RAMD7 I+/O Sub DSP: External memory interface Data 7 74 VSS − Ground 75 VDD1 − +3.3V power supply (for I/O) 76 RAMD8 I+/O Sub DSP: External memory interface Data 8 77 RAMD9 I+/O Sub DSP: External memory interface Data 9 78 RAMD10 I+/O Sub DSP: External memory interface Data 10 79 RAMD11 I+/O Sub DSP: External memory interface Data 11 80 RAMD12 I+/O Sub DSP: External memory interface Data 12 81 RAMD13 I+/O Sub DSP: External memory interface Data 13 82 RAMD14 I+/O Sub DSP: External memory interface Data 14 83 RAMD15 I+/O Sub DSP: External memory interface Data 15 84 CASN O Sub DSP: External DRAM interface Column address strobe output 85 RAMWEN O Sub DSP: External memory interface Write enable output 86 RAMOEN O Sub DSP: External memory interface Output enable output 87 RASN O Sub DSP: External DRAM interface Row address strobe output 88 VSS − Ground 89 VDD1 − +3.3V power supply (for I/O) 90 RAMA8 O Sub DSP: External memory interface Address 8 91 RAMA7 O Sub DSP: External memory interface Address 7 92 RAMA0 O Sub DSP: External memory interface Address 0 93 RAMA6 O Sub DSP: External memory interface Address 6 94 RAMA1 O Sub DSP: External memory interface Address 1 95 RAMA5 O Sub DSP: External memory interface Address 5 96 RAMA2 O Sub DSP: External memory interface Address 2 97 RAMA4 O Sub DSP: External memory interface Address 4 98 RAMA3 O Sub DSP: External memory interface Address 3 99 RAMA9 O Sub DSP: External memory interface Address 9 100 RAMA10 O Sub DSP: External memory interface Address 10 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SE-DIR800C 38 1 2 3 4 1 2 3 4 C D F A B E No. Pin Name I/O Function 101 RAMA11 O Sub DSP: External memory interface Address 11 102 VSS − Ground 103 VDD2 − +2.5V power supply (for internal core logic) 104 RAMA12 O Sub DSP: External memory interface Address 12 105 RAMA13 O Sub DSP: External memory interface Address 13 106 RAMA14 O Sub DSP: External memory interface Address 14 107 RAMA15 O Sub DSP: External memory interface Address 15 108 RAMA16 O Sub DSP: External memory interface Address 16 109 RAMA17 O Sub DSP: External memory interface Address 17 110 OVFB/END O Sub DSP: Overflow / Program end detect 111 ZEROFLG O Main DSP: Zero flag output 112 VSS − Ground 113 NONPCM O Main DSP: non-PCM data detect 114 DTSDATA O Main DSP: DTS data detect 115 AC3DATA O Main DSP: AC-3 data detect 116 MUTE O Main DSP: Auto mute detect 117 KARAOKE O Main DSP: AC-3 Karaoke data detect 118 VDD1 − +3.3V power supply (for I/O) 119 SURENC O Main DSP: AC-3 2/0 mode Dolby Surround Encode input detect 120 CRC O Main DSP: AC-3 CRC error detect 121 /LOCK O DIR: PLL lock detect 122 DIRINT O DIR: interrupt output 123 /CS Is Microprocessor interface Chip select input 124 SO Ot Microprocessor interface Data output 125 SI Is Microprocessor interface Data input 126 SCK Is Microprocessor interface Clock input 127 /IC Is Initial clear input 128 VSS − Ground I : Input pin Is : Schmitt trigger input pin I+ : Input pin with a pull-up resistor O : Output pin Ot : Tri-state output pin A : Analog pin www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SE-DIR800C 39 5 6 7 8 5 6 7 8 C D F A B E LC83200W (PCB ASSY : IC2) • Dolby Headphone LSI Pin Arrangement (Top view) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SE-DIR800C 40 1 2 3 4 1 2 3 4 C D F A B E Block Diagram Data RAM 11.5k×24bits Input Register Output Register Status I/O I/F Program ROM 15kW×32bits Control Register Host I/F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SE-DIR800C 41 5 6 7 8 5 6 7 8 C D F A B E Pin Function Block No. Pin Name I/O Function Audio IN 7 LRCLOCK I LR clock for audio data input 8 SCLOCK I Bit clock for audio data input 3 SDI0 I Audio data serial input (L, R) 4 SDI1 I Audio data serial input (Ls, Rs) 5 SDI2 I Audio data serial input (C, LFE) Audio OUT 2 SDO O Audio data serial output (L, R) Host I/F 41 ENABLE I Command enable input 40 CLOCK I Serial data input clock 39 DATA I Address and data input Reset 47 RESET I System reset input (Low: reset on) PLL 14 R I VCO bias resistor pin 15 VCNT I VCO control input pin 23 MCLOCK I Moving clock input pin 16 PDO O Output pin for VCO charge pump Power supply 1,19 VDD1 − I/O power supply 25,37,43 VDD2 − Digital power supply 13 AVDD − Power supply for PLL 6,20 VSS1 − I/O GND 31,36,46 VSS2 − Digital GND 12 AVSS − GND for PLL Test 9,10,11,17,24 I Test pin 32,38 O Test pin Parallel control port 42 CMODE I Parallel (High) / Serial (Low) selection pin 30 PRG4 I Dolby headphone mode selection pin 29 PRG3 I 28 PRG2 I 27 PRG1 I 26 PRG0 I 35 FMT2 I Audio I/O selection pin 34 FMT1 I 33 FMT0 I 44 MUTE I Mute pin (High: Mute on) 45 STEREO I Bypass setting pin of LR signal (High: Stereo bypass) 18 PLL STOP I Power save pin (Low: PLL circuit OFF) 21 PLL1 I PLL clock selection pin 22 PLL0 I www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SE-DIR800C 42 1 2 3 4 1 2 3 4 C D F A B E CXD4003Q (PCB ASSY : IC3) • Digital signal-processing LSI that provides functions for both transmission and reception in the DIAT (Digital Infrared Audio Transmission) system Pin Arrangement (Top view) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SE-DIR800C 43 5 6 7 8 5 6 7 8 C D F A B E Block Diagram www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SE-DIR800C 44 1 2 3 4 1 2 3 4 C D F A B E Pin Function No. Pin Name I/O Function 1 VSS − Digital GND 2 NC − Non connection 3 NC − Non connection 4 DAAVD − Analog power supply for RF DAC 5 DAAOUT O RF DAC output 6 DAAVS − Analog GND for RF DAC 7 DAVRO I/O Internal current setting for RF DAC 8 DAVREF I Reference voltage input for RF DAC 9 NC − Non connection 10 ADAVS − Analog GND for RF ADC 11 ADVRH I Reference voltage input for RF DAC (high) 12 ADAVD − Analog power supply for RF DAC 13 ADVRL I Reference voltage input for RF DAC (low) 14 ADVIN I RF ADC input 15 TEST1 I Test pin, normally fixed to L 16 TEST2 I Test pin, normally fixed to L 17 VSS − Digital GND 18 TEST3 I Test pin, normally fixed to L 19 TEST4 O Test pin, normally open-circuit 20 TEST5 I Test pin, normally fixed to L 21 TEST6 I Test pin, normally fixed to L 22 TEST7 I Test pin, normally fixed to L 23 TEST8 I/O Test pin, normally open-circuit 24 TEST9 I/O Test pin, normally open-circuit 25 TEST10 I/O Test pin, normally open-circuit 26 TEST11 I/O Test pin, normally open-circuit 27 TEST12 I/O Test pin, normally open-circuit 28 VSS − Digital GND 29 TEST13 I/O Test pin, normally open-circuit 30 TEST14 I/O Test pin, normally open-circuit 31 TEST15 I/O Test pin, normally open-circuit 32 TEST16 I Test pin, normally fixed to L 33 VDD − Digital power supply 34 TEST17 O Test pin, normally open-circuit 35 TEST18 O Test pin, normally open-circuit 36 TEST19 O Test pin, normally open-circuit 37 TEST20 O Test pin, normally open-circuit 38 TEST21 I Test pin, normally fixed to L 39 VSS − Digital GND 40 TEST22 I Test pin, normally fixed to L 41 TEST23 I Test pin, normally fixed to L 42 TEST24 I Test pin, normally fixed to L 43 TEST25 I Test pin, normally fixed to L 44 TEST26 I Test pin, normally fixed to L 45 TEST27 I Test pin, normally fixed to L 46 TEST28 I Test pin, normally fixed to L 47 TEST29 O Test pin, normally open-circuit 48 TEST30 O Test pin, normally open-circuit 49 TEST31 O Test pin, normally open-circuit 50 VSS − Digital GND www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SE-DIR800C 45 5 6 7 8 5 6 7 8 C D F A B E No. Pin Name I/O Function 51 TEST32 O Test pin, normally open-circuit 52 TEST33 O Test pin, normally open-circuit 53 TEST34 O Test pin, normally open-circuit 54 TEST35 O Test pin, normally open-circuit 55 TEST36 O Test pin, normally open-circuit 56 VDD − Digital power supply 57 TEST37 I Test pin, normally fixed to L 58 TEST38 O Test pin, normally open-circuit 59 TEST39 O Test pin, normally open-circuit 60 TEST40 O Test pin, normally open-circuit 61 VSS − Digital GND 62 TEST41 O Test pin, normally open-circuit 63 TEST42 O Test pin, normally open-circuit 64 TEST43 O Test pin, normally open-circuit 65 TEST44 I Test pin, normally fixed to L 66 TEST45 I Test pin, normally fixed to L 67 TEST46 I Test pin, normally fixed to L 68 TEST47 I Test pin, normally fixed to L 69 VSS − Digital GND 70 NC − Non connection 71 OSCO O X'tal resonator circuit output (24.576MHz) 72 VSS − Digital GND 73 OSCI I X'tal resonator circuit input (24.576MHz) 74 XOSCEN I Stop function control of X'tal resonator circuit 75 TEST48 I Test pin, normally fixed to L 76 TEST49 I Test pin, normally fixed to L 77 VDD − Digital power supply 78 NC − Non connection 79 VSS − Digital GND 80 TEST50 O Test pin, normally open-circuit 81 TEST51 O Test pin, normally open-circuit 82 TEST52 O Test pin, normally open-circuit 83 VSS − Digital GND 84 TEST53 O Test pin, normally open-circuit 85 TEST54 O Test pin, normally open-circuit 86 TEST55 O Test pin, normally open-circuit 87 VPD I Penetration current prevention pin, normally fixed to L 88 EMP O Emphasis output (Off/On=L/H) 89 FSO0 O Sampling frequency detecting output 0 (FSO1, FSO0) = 00 (44.1kHz), 01 (48kHz), 11 (32kHz) 90 FSO1 O Sampling frequency detecting output 1 91 DTVALID O Data valid flag (Valid/Invalidity = H/L) 92 TXOUT O Digital audio interface format output 93 DAOUT O Data output for audio DA converter 94 VSS − Digital GND 95 RXIN I Digital audio interface format input 96 DTIN I Data input 97 BCKIN I Bit clock input 98 LRCKIN I LR clock input (L ch/R ch = H/L) 99 LRCKO O LR clock output (L ch/R ch = H/L) 100 VDD − Digital power supply www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SE-DIR800C 46 1 2 3 4 1 2 3 4 C D F A B E No. Pin Name I/O Function 101 BCKO O Bit clock output 102 DACLKO O Clock output for audio DA converter, 256fs (VCOR/2) 103 DTOK O Receive data condition (Good/poor = H/L) 104 C12 O 12.288MHz clock output (OSCI/2) 105 VSS − Digital GND 106 TEST56 I/O Test pin, normally open-circuit 107 TEST57 I/O Test pin, normally open-circuit 108 TEST58 O Test pin, normally open-circuit 109 TEST59 I/O Test pin, normally open-circuit 110 PDDN O Phase comparison output down 111 PDUP O Phase comparison output up 112 PLVAR O PLL comparator output (VCOT/640 or VCOR/512) 113 PLREF O PLL reference output (fs) 114 TEST60 I Test pin, normally fixed to L 115 TEST61 I Test pin, normally fixed to L 116 VSS − Digital GND 117 VCOR I Reception VCO input 118 TEST62 I Test pin, normally fixed to H 119 TEST63 I Test pin, normally fixed to H 120 VCOT I Transmission VCO input 121 VDD − Digital power supply 122 TEST64 I Test pin, normally fixed to L 123 TEST65 I Test pin, normally fixed to L 124 TEST66 I Test pin, normally fixed to L 125 TEST67 I Test pin, normally fixed to L 126 TEST68 I Test pin, normally fixed to H 127 VSS − Digital GND 128 CSOD O Chapter start delay output 129 CSO O Chapter start output 130 SCMODE I Serial control mode selection (Pin/Serial = L/H) 131 TRMODE I Transmission/Reception mode selection (Transmission/Reception = L/H) 132 TEST69 I Test pin, normally fixed to L 133 DIVCODE I Full/Half band mode selection (Full/Half = L/H) 134 CHNUM I Channel number selection (0 ch/1 ch = L/H) 135 TEST70 I Test pin, normally fixed to L 136 ERRO O Error output (No error/Error = L/H) 137 TEST71 O Test pin, normally open-circuit 138 VSS − Digital GND 139 XRST I Hardware reset (Reset=L) 140 XRSTS I Software reset (Reset=L) 141 IIFSEL0 I Input selection 0 142 TEST72 I Test pin, normally fixed to L 143 MLSEL I MSB/LSB selection of digital-audio AD/DA converter data 144 VDD − Digital power supply 145 PSSEL I Front/back squeeze selection of digital-audio AD/DA converter data 146 XMUTE I Mute input (Mute/Through = L/H) 147 CRCCK I CRC check request (Off/On = L/H) 148 TEST73 I Test pin, normally fixed to L 149 VSS − Digital GND 150 SRDT O Read-out output of CPU interface data www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SE-DIR800C 47 5 6 7 8 5 6 7 8 C D F A B E No. Pin Name I/O Function 151 SCLK I Clock input of CPU interface data 152 XLAT I Latch input of CPU interface data 153 SWDT I Writing input of CPU interface data 154 TEST74 O Test pin, normally open-circuit 155 TEST75 I Test pin, normally fixed to L 156 TEST76 O Test pin, normally open-circuit 157 TEST77 O Test pin, normally open-circuit 158 TEST78 O Test pin, normally open-circuit 159 TEST79 O Test pin, normally open-circuit 160 VSS − Digital GND 161 TEST80 O Test pin, normally open-circuit 162 TEST81 O Test pin, normally open-circuit 163 TEST82 O Test pin, normally open-circuit 164 TEST83 O Test pin, normally open-circuit 165 VDD − Digital power supply 166 TEST84 O Test pin, normally open-circuit 167 TEST85 I Test pin, normally fixed to L 168 TEST86 I Test pin, normally fixed to L 169 TEST87 O Test pin, normally open-circuit 170 TEST88 O Test pin, normally open-circuit 171 VSS − Digital GND 172 TEST89 O Test pin, normally open-circuit 173 TEST90 O Test pin, normally open-circuit 174 TEST91 O Test pin, normally open-circuit 175 TEST92 I Test pin, normally fixed to L 176 TEST93 O Test pin, normally open-circuit www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SE-DIR800C 48 1 2 3 4 1 2 3 4 C D F A B E PEF001A9 (PCB ASSY : IC4) • 8-bit 1-chip microcomputer Pin Arrangement (Top view) Pin Function 1 PB5 28 PB6 2 PB4 27 PB7 3 PA3 26 PA4 4 PA2 25 PA5 5 PA1 24 PA6 6 PA0 23 PA7 7 PB3 22 OSC2/PG2 8 PB2 21 OSC1/PG1 9 PB1/BZ 20 VDD 10 PB0/BZ 19 RES 11 VSS 18 PC5/TMR1 12 PG0/INT 17 PC4 13 PC0/TMR0 16 PC3 14 PC1 15 PC2 No. Pin Name I/O Pin Function 1 PB5 O LED control 2 PB4 O LED control 3 PA3 O LED control 4 PA2 O LED control 5 PA1 O LED control 6 PA0 O LED control 7 PB3 O Chip enable output for DSP 8 PB2 O Chip select output for DSP 9 PB1 O Serial clock output 10 PB0 O Serial data output 11 VSS − Ground 12 PG0 I Serial data input 13 PC0 I Key input 1 14 PC1 I Key input 2 15 PC2 I Key input 3 16 PC3 I Key input 4 17 PC4 I Battery detection input 18 PC5 I Battery voltage abnormality detection 19 RES − External reset input 20 VDD − Power supply 21 OSC1 I CR oscillation input 22 OSC2 O Oscillation output 23 PA7 O LED control 24 PA6 O Charge control 25 PA5 O IR LED control 26 PA4 O A/D reset output 27 PB7 O DSP reset output 1 28 PB6 O DSP reset output 2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SE-DIR800C 49 5 6 7 8 5 6 7 8 C D F A B E CXA3504M (MAIN PCB ASSY : IC1) • DIAT Receiver Analog Signal Processing IC Block Diagram HEADPHONE SE-DHP800 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SE-DIR800C 50 1 2 3 4 1 2 3 4 C D F A B E Pin Function No. Pin Name I/O Pin Function 1 AGC22 O AGC response setting pin 2 AGC21 O Charging current control pin 3 VCCI − Power supply of the input section 4 SIS I Electric shunt input pin 5 GNDI − GND of the input section 6 IN I Photodiode input signal pin 7 NC − Non connection 8 NC − Non connection 9 NC − Non connection 10 AGC13 I AGC amplifier input pin 11 AGC12 O Input AGC response setting pin 12 AGC11 O Charging current control pin 13 GNDS − GND of the signal processing section 14 NC − Non connection 15 RSET O Resistor connection pin for power supply setting 16 ADJ O Resistor connection pin for power supply setting for filter Adjust the center frequency of the BPF. 17 NC − Non connection 18 F_H I Filter switching pin Switch the H/L, BPF, Full BPF. H/L BPF: 3 to 4.5MHz, Full BPF: 3 to 6MHz 19 NC − Non connection 20 NC − Non connection 21 NC − Non connection 22 VCCS − Power supply for signal processing section 23 VCCO − Power supply for output section 24 OUT O Signal output pin 25 DET O Output pin for input level detection 26 GNDO − GND for output section 27 AGC24 O AGC amplifier output pin 28 AGC23 I AGC amplifier input pin F_H (pin 18) Mode L FULL (3 to 6MHz) H H/L (3 to 4.5MHz) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SE-DIR800C 51 5 6 7 8 5 6 7 8 C D F A B E CX4004R (MAIN PCB ASSY : IC2) • Digital Signal-processing IC for DIAT system reception Pin Arrangement (Top view) Block Diagram * Without TEST pin www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SE-DIR800C 52 1 2 3 4 1 2 3 4 C D F A B E Pin Function No. Pin Name I/O Function No. Pin Name I/O Function 1 TEST12 I Test pin, normally fixed to L 33 CSOD O Chapter start delayed output 2 TEST13 I Test pin, normally fixed to H 34 SRDT O Read-out output of serial interface data 3 TEST14 I Test pin, normally fixed to H 35 SWDT I Writing input of serial interface data 4 VDDE − Digital I/O power supply 36 XSCEN I Enable input of serial interface data (negative logic) 5 VSS − Digital GND 37 SCLK I Clock input of serial interface data 6 ADVRH I Reference voltage input for RF A/D converter (high) 38 SCMODE I Control mode selection (L: Pin setting, H: Serial setting) 7 ADAVS − Analog GND for RF A/D converter 39 VSS − Digital GND 8 ADAVD − Analog power supply for RF A/D converter 40 OSCI I Crystal resonator circuit input (12.288MHz) 9 ADVRL I Reference voltage input for RF A/D converter (low) 41 VDDE − Digital I/O power supply 10 ADVIN I RF A/D converter input 42 VSS − Digital GND 11 VDDE − Digital I/O power supply 43 OSCO O Crystal resonator circuit output (12.288MHz) 12 VSS − Digital GND 44 TEST0 I Test pin, normally fixed to L 13 XRST I Reset (negative logic) 45 TEST1 I Test pin, normally fixed to L 14 DIFM0 I Select the audio output type 46 TEST2 I Test pin, normally fixed to L 15 DIFM1 I Select the audio output type 47 TEST3 I Test pin, normally fixed to L 16 TEST15 I Test pin, normally fixed to L 48 TEST4 I Test pin, normally fixed to L 17 PLREF O PLL reference output (fs) 49 TEST5 I Test pin, normally fixed to L 18 PLVAR O PLL dividing output (256 dividing of APX output or VCOR input) 50 TEST6 I Test pin, normally fixed to L 19 TEST16 I Test pin, normally fixed to L 51 TEST7 I Test pin, normally fixed to L 20 APVCI I PLL VCO control voltage input 52 TEST8 O Test pin, normally open-circuit 21 VSS − Digital GND 53 TEST9 O Test pin, normally open-circuit 22 APCPO O PLL charge pump 54 BCK O Bit clock output 23 APAVD − Power supply for PLL VCO 55 TEST10 O Test pin, normally open-circuit 24 APAVS − GND for PLL VCO 56 VDDE − Digital I/O power supply 25 VSS − Digital GND 57 VSS − Digital GND 26 VDDI − Digital internal power supply 58 VDDI − Digital internal power supply 27 VDDE − Digital I/O power supply 59 LRCK O Audio sampling clock output 28 VCOR I Clock input for data output 60 DAOUT O Data output for audio D/A converter 29 CHNUM I Channel number selection (L: 0ch,H: 1ch) 61 DTVALID O Data valid flag output (DTVALID, L: valid, H: Invalidity) 30 DIVCODE I Full/Half band mode selection (L: Full-band, H: Half-band) 62 EMPFS0 O Emphasis, fs information output 31 APX 0 PLL VCO output 63 EMPFS1 O Emphasis, fs information output 32 EXTCK I Clock selection for data output (L: APX internal connection, H: VCOR pin input) 64 TEST11 I Test pin, normally fixed to H www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SE-DIR800C 53 5 6 7 8 5 6 7 8 C D F A B E 7.3 ABOUT LOT MARK INDICATION 7 Lot mark is sealing indication to the above part of the product. Indication of lot is four columns 0 4 2 4 2004 Indicates the total weeks through the year Date code TX RX Date code location XXXX TX sticker placed in middle www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SE-DIR800C 54 1 2 3 4 1 2 3 4 C D F A B E 8. PANEL FACILITIES Controls and displays Transmitter (top) 1 STANDBY/ON button Press to turn the transmitter on / off. 2 Standby indicator Lights when the transmitter is in standby. The indicator is unlit when the transmitter is on. 3 CHARGE indicator Lights when the rechargeable batteries are being charged. The indicator is unlit when the batteries are fully charged. 4 DOLBY HEADPHONE button Press to select the Dolby Headphone mode (DH1 / DH2 / DH3 / OFF). 5 DOLBY PRO LOGIC II button Press to select the Dolby Pro Logic II mode (AUTO / MOVIE / MUSIC / OFF). 6 INPUT button Press to select the source input (DIGITAL 1 / DIGITAL 2 / ANALOG). 7 VOLUME control Use to adjust volume level of headphones (sold separately) connected to the PHONES jack on the front panel. 8 Battery compartment Use to recharge the supplied rechargeable batteries. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SE-DIR800C 55 5 6 7 8 5 6 7 8 C D F A B E Transmitter (front) 1 Infrared transmitters Infrared transmitters are located on either side of the unit. Make sure there is an unobstructed path from the transmitter to your listening position. 2 DECODE indicators Light to indicate the automatic decoding mode for the current source: 2D: Dolby Digital 2PL II: Dolby Pro Logic II decoding of analog or digital source. DTS: DTS 3 DOLBY HEADPHONE mode indicators Light to show the Dolby Headphone mode (DH1 / DH2 / DH3). 4 DOLBY PRO LOGIC II mode indicators Light to show the Dolby Pro Logic II mode (AUTO / MOVIE / MUSIC). 5 INPUT mode indicators The corresponding indicator lights up to show the selected input mode (DIGITAL 1 / DIGITAL 2 / ANALOG). 6 PHONES jack Use for connecting corded headphones. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SE-DIR800C 56 1 2 3 4 1 2 3 4 C D F A B E Transmitter (rear) 1 DC IN jack Connect the supplied AC power adaptor to this jack. (Use only the supplied AC power adaptor. Using adpators with different plug polarities or other characteristics could cause malfunction.) 2 ATT switch Switches the analog input level between -8dB and 0dB for compatibility with a wide range of analog equipment. 3 LINE IN jacks Analog input jacks for connection to audio/video equipment such as a VCR or TV. 4 DIGITAL IN 2 COAX Coaxial digital input for connection to digital audio/video equipment such as a DVD player, LD player or CD player. 5 DIGITAL IN 1 OPT Optical digital input for connection to digital audio/video equipment such as a DVD player, LD player or CD player. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SE-DIR800C 57 5 6 7 8 5 6 7 8 C D F A B E 1 VOL (Volume) control Use to adjust the volume. 2 Self-adjusting headband The headband automatically adjusts when you put the headphones on. 3 POWER indicator Lights when the headphones are on. 4 POWER switch Press to turn on / off. 5 Battery compartment Press and slide where indicated to open the cover. Use with the supplied rechargeable batteries or size AA dry-cell batteries. 6 Infrared sensor Infrared sensors are located on either side. 7 Ear pads HEADPHONES www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
