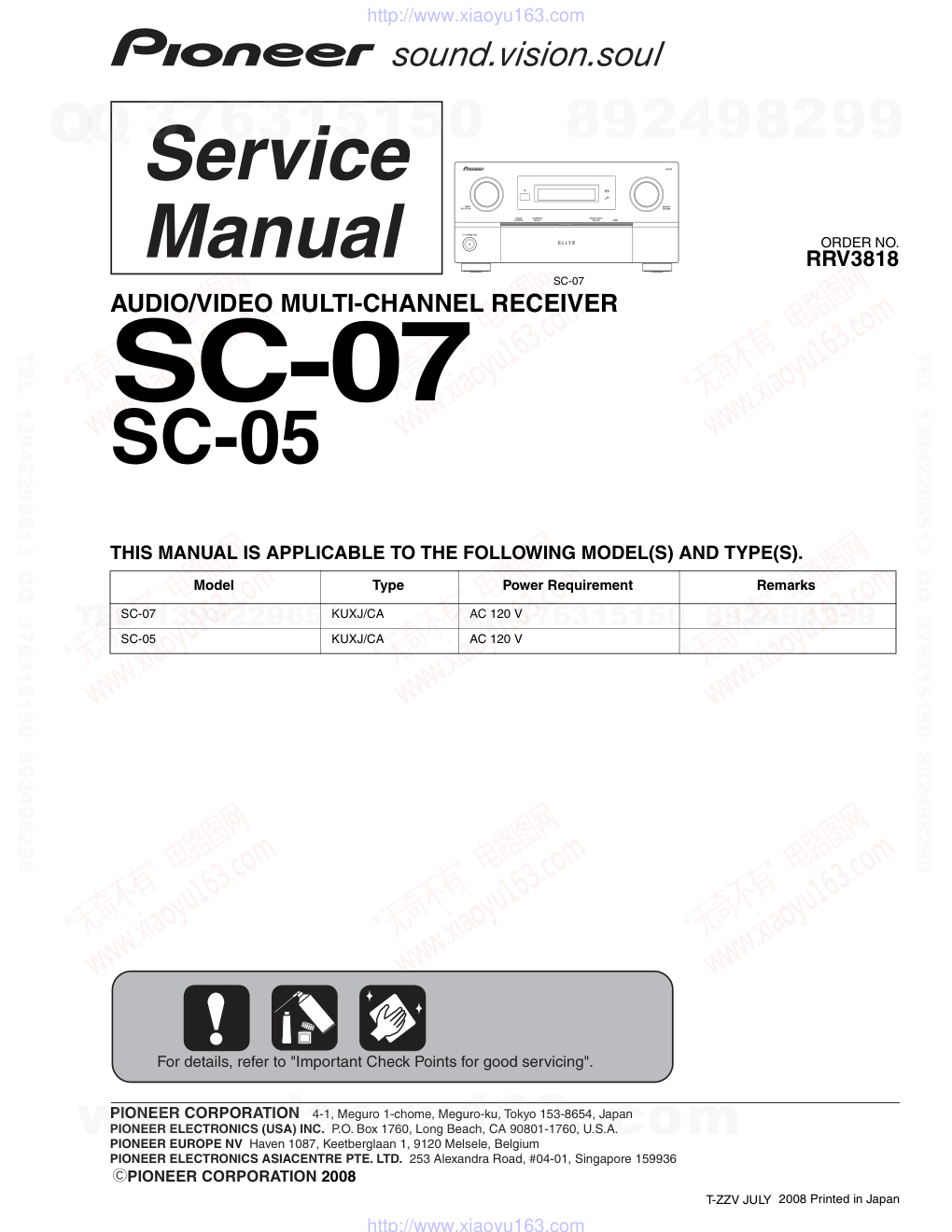

ORDER NO. PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2008 2008 Printed in Japan SC-07 RRV3818 AUDIO/VIDEO MULTI-CHANNEL RECEIVER SC-07 SC-05 THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S). Model Type Power Requirement Remarks SC-07 KUXJ/CA AC 120 V SC-05 KUXJ/CA AC 120 V For details, refer to "Important Check Points for good servicing". T-ZZV JULY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 SC-07 1 2 3 4 A B C D E F 1 2 3 4 SAFETY INFORMATION This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. WARNING This product contains certain electrical parts contain chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 – Proposition 65 NOTICE (FOR CANADIAN MODEL ONLY) Fuse symbols (fast operating fuse) and/or (slow operating fuse) on PCB indicate that replacement parts must be of identical designation. REMARQUE (POUR MODÈLE CANADIEN SEULEMENT) Les symboles de fusible (fusible de type rapide) et/ou (fusible de type lent) sur CCI indiquent que les pièces de remplacement doivent avoir la même désignation. ANY MEASUREMENTS NOT WITHIN THE LIMITS OUTLINED ABOVE ARE INDICATIVE OF A POTENTIAL SHOCK HAZARD AND MUST BE CORRECTED BEFORE RETURN- ING THE APPLIANCE TO THE CUSTOMER. 2. PRODUCT SAFETY NOTICE Many electrical and mechanical parts in the appliance have special safety related characteristics. These are often not evident from visual inspection nor the protection afforded by them necessarily can be obtained by using replacement components rated for voltage, wattage, etc. Replacement parts which have these special safety characteristics are identified in this Service Manual. Electrical components having such features are identified by marking with a on the schematics and on the parts list in this Service Manual. The use of a substitute replacement component which does not have the same safety characteristics as the PIONEER recommended replacement one, shown in the parts list in this Service Manual, may create shock, fire, or other hazards. Product Safety is continuously under review and new instructions are issued from time to time. For the latest information, always consult the current PIONEER Service Manual. A subscription to, or additional copies of, PIONEER Service Manual may be obtained at a nominal charge from PIONEER. (FOR USA MODEL ONLY) 1. SAFETY PRECAUTIONS The following check should be performed for the continued protection of the customer and service technician. LEAKAGE CURRENT CHECK Measure leakage current to a known earth ground (water pipe, conduit, etc.) by connecting a leakage current tester such as Simpson Model 229-2 or equivalent between the earth ground and all exposed metal parts of the appliance (input/output terminals, screwheads, metal overlays, control shaft, etc.). Plug the AC line cord of the appliance directly into a 120V AC 60 Hz outlet and turn the AC power switch on. Any current measured must not exceed 0.5 mA. Device under test Leakage current tester Earth ground Reading should not be above 0.5 mA Also test with plug reversed (Using AC adapter plug as required) Test all exposed metal surfaces AC Leakage Test www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 SC-07 5 6 7 8 5 6 7 8 A B C D E F [Important Check Points for Good Servicing] In this manual, procedures that must be performed during repairs are marked with the below symbol. Please be sure to confirm and follow these procedures. 1. Product safety Please conform to product regulations (such as safety and radiation regulations), and maintain a safe servicing environment by following the safety instructions described in this manual. 1 Use specified parts for repair. Use genuine parts. Be sure to use important parts for safety. 2 Do not perform modifications without proper instructions. Please follow the specified safety methods when modification(addition/change of parts) is required due to interferences such as radio/TV interference and foreign noise. 3 Make sure the soldering of repaired locations is properly performed. When you solder while repairing, please be sure that there are no cold solder and other debris. Soldering should be finished with the proper quantity. (Refer to the example) 4 Make sure the screws are tightly fastened. Please be sure that all screws are fastened, and that there are no loose screws. 5 Make sure each connectors are correctly inserted. Please be sure that all connectors are inserted, and that there are no imperfect insertion. 6 Make sure the wiring cables are set to their original state. Please replace the wiring and cables to the original state after repairs. In addition, be sure that there are no pinched wires, etc. 7 Make sure screws and soldering scraps do not remain inside the product. Please check that neither solder debris nor screws remain inside the product. 8 There should be no semi-broken wires, scratches, melting, etc. on the coating of the power cord. Damaged power cords may lead to fire accidents, so please be sure that there are no damages. If you find a damaged power cord, please exchange it with a suitable one. 9 There should be no spark traces or similar marks on the power plug. When spark traces or similar marks are found on the power supply plug, please check the connection and advise on secure connections and suitable usage. Please exchange the power cord if necessary. a Safe environment should be secured during servicing. When you perform repairs, please pay attention to static electricity, furniture, household articles, etc. in order to prevent injuries. Please pay attention to your surroundings and repair safely. 2. Adjustments To keep the original performance of the products, optimum adjustments and confirmation of characteristics within specification. Adjustments should be performed in accordance with the procedures/instructions described in this manual. 4. Cleaning For parts that require cleaning, such as optical pickups, tape deck heads, lenses and mirrors used in projection monitors, proper cleaning should be performed to restore their performances. 3. Lubricants, Glues, and Replacement parts Use grease and adhesives that are equal to the specified substance. Make sure the proper amount is applied. 5. Shipping mode and Shipping screws To protect products from damages or failures during transit, the shipping mode should be set or the shipping screws should be installed before shipment. Please be sure to follow this method especially if it is specified in this manual. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 SC-07 1 2 3 4 A B C D E F 1 2 3 4 CONTENTS 1. SERVICE PRECAUTIONS ....................................................................................................................................................6 1.1 NOTES ON SOLDERING ...............................................................................................................................................6 1.2 NOTES ON REPLACING PARTS ...................................................................................................................................6 1.3 NOTES ON ASSEMBLING.............................................................................................................................................7 2. SPECIFICATIONS .................................................................................................................................................................9 2.1 ACCESSORIES ..............................................................................................................................................................9 2.2 SPECIFICATIONS.........................................................................................................................................................10 2.3 PANEL FACILITIES.......................................................................................................................................................11 3. BASIC ITEMS FOR SERVICE.............................................................................................................................................18 3.1 CHECK POINTS AFTER SERVICING..........................................................................................................................18 3.2 PCB LOCATIONS .........................................................................................................................................................19 3.3 JIGS LIST .....................................................................................................................................................................21 4. BLOCK DIAGRAM...............................................................................................................................................................22 4.1 OVERALL WIRING DIAGRAM......................................................................................................................................22 4.2 AUDIO BLOCK DIAGRAM............................................................................................................................................24 4.3 DSP BLOCK DIAGRAM................................................................................................................................................26 4.4 HDMI NETWORK BLOCK DIAGRAM...........................................................................................................................27 4.5 MICROCOMPUTER BLOCK DIAGRAM.......................................................................................................................28 4.6 POWER BLOCK DIAGRAM..........................................................................................................................................30 5. DIAGNOSIS.........................................................................................................................................................................32 5.1 DIAGNOSIS FLOWCHART...........................................................................................................................................32 5.2 CIRCUIT DESCRIPTION..............................................................................................................................................66 6. SERVICE MODE .................................................................................................................................................................74 6.1 TEST MODE .................................................................................................................................................................74 7. DISASSEMBLY....................................................................................................................................................................79 8. EACH SETTING AND ADJUSTMENT ................................................................................................................................82 8.1 HOW TO UPDATE FIRMWARE ....................................................................................................................................82 9. EXPLODED VIEWS AND PARTS LIST...............................................................................................................................88 9.1 PACKING SECTION .....................................................................................................................................................88 9.2 EXTERIOR SECTION...................................................................................................................................................90 9.3 CHASSIS SECTION .....................................................................................................................................................92 9.4 REAR PANEL SECTION...............................................................................................................................................94 9.5 FRONT PANEL SECTION ............................................................................................................................................96 10. SCHEMATIC DIAGRAM ....................................................................................................................................................98 10.1 AUDIO ASSY ..............................................................................................................................................................98 10.2 D-MOTHER ASSY (1/4)............................................................................................................................................100 10.3 D-MOTHER ASSY (2/4)............................................................................................................................................102 10.4 D-MOTHER ASSY (3/4)............................................................................................................................................104 10.5 D-MOTHER ASSY (4/4)............................................................................................................................................106 10.6 FRONT IN and V-BRIDGE ASSYS ...........................................................................................................................108 10.7 232C & CONTROL ASSY.........................................................................................................................................110 10.8 HDMI NETWORK ASSY (1/6)...................................................................................................................................112 10.9 HDMI NETWORK ASSY (2/6)...................................................................................................................................114 10.10 HDMI NETWORK ASSY (3/6).................................................................................................................................116 10.11 HDMI NETWORK ASSY (4/6).................................................................................................................................118 10.12 HDMI NETWORK ASSY (5/6).................................................................................................................................120 10.13 HDMI NETWORK ASSY (6/6).................................................................................................................................122 10.14 INTERFACE ASSY .................................................................................................................................................124 10.15 COMPONENT ASSY ..............................................................................................................................................126 10.16 COMPOSITE S ASSY ............................................................................................................................................128 10.17 FRONT BRIDGE ASSY ..........................................................................................................................................130 10.18 DISPLAY, VOL and POWER SW ASSYS ...............................................................................................................132 10.19 PRE BRIDGE, ICE BUFFER, ICE SHIELD and PRIMARY GUARD ASSYS..........................................................134 10.20 ICE INTERFACE and ZOUT ASSYS ......................................................................................................................136 10.21 ICEPOWER AMP ASSY (1/5).................................................................................................................................138 10.22 ICEPOWER AMP ASSY (2/5).................................................................................................................................140 10.23 ICEPOWER AMP ASSY (3/5).................................................................................................................................142 10.24 ICEPOWER AMP ASSY (4/5).................................................................................................................................144 10.25 ICEPOWER AMP ASSY (5/5).................................................................................................................................146 10.26 PRIMARY ASSY .....................................................................................................................................................148 10.27 REG ASSY..............................................................................................................................................................150 10.28 ICE REG ASSY.......................................................................................................................................................152 10.29 B REG ASSY ..........................................................................................................................................................154 10.30 B DIODE, DCDC, and HDMI RECT ASSYS...........................................................................................................156 11. PCB CONNECTION DIAGRAM ......................................................................................................................................157 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 SC-07 5 6 7 8 5 6 7 8 A B C D E F 11.1 AUDIO ASSY............................................................................................................................................................158 11.2 D-MOTHER ASSY.................................................................................................................................................... 162 11.3 FRONT IN ASSY ......................................................................................................................................................166 11.4 232C & CONTROL ASSY......................................................................................................................................... 167 11.5 HDMI NETWORK ASSY...........................................................................................................................................168 11.6 INTERFACE ASSY ................................................................................................................................................... 172 11.7 COMPONENT and V-BRIDGE ASSYS .................................................................................................................... 176 11.8 COMPOSITE S ASSY .............................................................................................................................................. 180 11.9 FRONT BRIDGE ASSY ............................................................................................................................................ 182 11.10 DISPLAY, POWER SW and VOL ASSYS ............................................................................................................... 184 11.11 PRE BRIDGE, ICE BUFFER and ICE SHIELD ASSYS ......................................................................................... 188 11.12 ICE INTERFACE ASSY .......................................................................................................................................... 190 11.13 ICEPOWER AMP ASSY......................................................................................................................................... 192 11.14 ZOUT, PRIMARY GUARD and REG ASSYS..........................................................................................................196 11.15 PRIMARY ASSY..................................................................................................................................................... 200 11.16 ICE REG ASSY ......................................................................................................................................................202 11.17 B DIODE and B REG ASSYS................................................................................................................................. 204 11.18 DCDC and HDMI RECT ASSYS ............................................................................................................................ 206 12. ELECTRICAL PARTS LIST ............................................................................................................................................. 207 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 SC-07 1 2 3 4 A B C D E F 1 2 3 4 1. SERVICE PRECAUTIONS 1.1 NOTES ON SOLDERING 1.2 NOTES ON REPLACING PARTS • For environmental protection, lead-free solder is used on the printed circuit boards mounted in this unit. Be sure to use lead-free solder and a soldering iron that can meet specifications for use with lead-free solders for repairs accompanied by reworking of soldering. • Compared with conventional eutectic solders, lead-free solders have higher melting points, by approximately 40 ºC. Therefore, for lead-free soldering, the tip temperature of a soldering iron must be set to around 373 ºC in general, although the temperature depends on the heat capacity of the PC board on which reworking is required and the weight of the tip of the soldering iron. Do NOT use a soldering iron whose tip temperature cannot be controlled. Compared with eutectic solders, lead-free solders have higher bond strengths but slower wetting times and higher melting temperatures (hard to melt/easy to harden). The following lead-free solders are available as service parts: • Parts numbers of lead-free solder: GYP1006 1.0 in dia. GYP1007 0.6 in dia. GYP1008 0.3 in dia. The part listed below is difficult to replace as a discrete component part. When the part listed in the table is defective, replace whole Assy. Ref No. FUNCTION Part No. Remarks IC101 HDMI Receiver SII9135CTU IC with heat-pad IC701 MEDIA Processor DM850E IC with heat-pad IC791 iPod Co-Processor 341S2154 IC with heat-pad HDMI NETWORK ASSY ASSY NAME Parts that is Difficult to Replace SC-07 : AWX9135 SC-05 : AWX9190 PCB ASSY Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 SC-07 5 6 7 8 5 6 7 8 A B C D E F 1.3 NOTES ON ASSEMBLING When assembling the ICE amplifier block, please note the following points of screws to prevent from short circuit. The following 7 points of screws must always be used PMH30P080FCC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 SC-07 1 2 3 4 A B C D E F 1 2 3 4 If a screw at any of these points needs to be removed for service, be sure to check that the swarf is not on the screw before refastening. Points to be watched for swarf www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 SC-07 5 6 7 8 5 6 7 8 A B C D E F 2. SPECIFICATIONS 2.1 ACCESSORIES AM Loop Antenna (ATB7013) Remote Control Unit (AXD7520) Setup Microphone (for Auto MCACC setup) (APM7008) FM Wire Antenna (ADH7030) AA/IEC R6P Dry Cell Batteries SR+ mini-plug cable (ADE7095) SERVICE PARTS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 SC-07 1 2 3 4 A B C D E F 1 2 3 4 2.2 SPECIFICATIONS Specifications Amplifier section Continuous average power output of 140 watts* per channel, min., at 8 ohms, from 20 Hz to 20 000 Hz with no more than 0.09 %** total harmonic distortion. Multi channel simultaneous power output (1 kHz, 1 %, 8 Ω) 7ch total . . . . . . . . . . . . . . . . 700 W (SC-07)/630 W (SC-05) Continuous Power Output (20 Hz to 20 kHz, 8 Ω, 0.09 %) Front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140 W + 140 W Center . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140 W Surround . . . . . . . . . . . . . . . . . . . . . . . . . . . 140 W + 140 W Surround back . . . . . . . . . . . . . . . . . . . . . . 140 W + 140 W Continuous Power Output (1 kHz, 6 Ω, 1.0 %) Front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180 W + 180 W Center . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180 W Surround . . . . . . . . . . . . . . . . . . . . . . . . . . . 180 W + 180 W Surround back . . . . . . . . . . . . . . . . . . . . . . 180 W + 180 W Total harmonic distortion. . . . . . . . . . . . . . . . . . . . . . . . 0.05 % (20 Hz to 20 kHz, 130 W, 8 Ω) * Measured pursuant to the Federal Trade Commission’s Trade Regulation rule on Power Output Claims for Amplifiers ** Measured by Audio Spectrum Analyzer Audio Section Input (Sensitivity/Impedance) PHONO MM . . . . . . . . . . . . . . . . . . . . . . . . . . 4.2 mV/47 kΩ LINE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 335 mV/47 kΩ Frequency Response (LINE) . . . . . 5 Hz to 100 000 Hz dB Output (Level/Impedance) REC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 335 mV/2.2 kΩ Signal-to-Noise Ratio (IHF, short circuited, A network) LINE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .103 dB Signal-to-Noise Ratio [EIA, at 1 W (1 kHz)] LINE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .83 dB Composite Video / S-Video Section Input (Sensitivity/Impedance) . . . . . . . . . . . . . . . .1 Vp-p/75 Ω Output (Level/Impedance) . . . . . . . . . . . . . . . . . . .1 Vp-p/75 Ω Signal-to-Noise Ratio . . . . . . . . . . . . . . . . . . . . . . . . . . . .65 dB Frequency Response . . . . . . . . . . . . . . . . . . . 5 Hz to 10 MHz Component Video Section Input (Sensitivity/Impedance) . . . . . . . . . . . . . . . .1 Vp-p/75 Ω Output (Level/Impedance) . . . . . . . . . . . . . . . . . . .1 Vp-p/75 Ω Signal-to-Noise Ratio . . . . . . . . . . . . . . . . . . . . . . . . . . . .65 dB Frequency Response . . . . . . . . . . . . . . . . . . 5 Hz to 100 MHz HDMI Section Input. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19-pin Output . . . . . . . . . . . . . . . . . . . . . . . . . . . .19-pin (5 V, 100 mA) Network Section LAN terminal . . . . . . . . . . . . . . . . . .10 BASE-T/100-BASE-TX USB Section USB terminal . . . . . . . . . . . . . . . . . . . . . . . USB2.0 Full Speed +0 -3 FM Tuner Section Frequency Range . . . . . . . . . . . . . . . . . 87.5 MHz to 108 MHz Antenna Input . . . . . . . . . . . . . . . . . . . . . . . .75 Ω unbalanced AM Tuner Section Frequency Range . . . . . . . . . . . . . . . . . . 530 kHz to 1700 kHz Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Loop antenna Miscellaneous Power Requirements . . . . . . . . . . . . . . . . . . .AC 120 V, 60 Hz Power Consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . 330 W In standby . . . . . . . . . . . . . . . . 0.4 W (HDMI Control OFF) 0.6 W (HDMI Control ON) Dimensions . . . . 420 (W) mm x 200 (H) mm x 459.5 (D) mm (16 9/16 (W) in. x 7 7/8 (H) in. x 18 1/8 (D) in.) Weight (without package) . . . . . . . . . . . . . . . 18.5 kg (40.8 lb) Furnished Parts Setup microphone (for Auto MCACC Setup) . . . . . . . . . . . . 1 AA/IEC R6P dry cell batteries. . . . . . . . . . . . . . . . . . . . . . . . . 2 Remote control unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 AM loop antenna. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 FM wire antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 Warranty card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Operating instructions • Specifications and the design are subject to possible modifications without notice, due to improvements. Note Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic”, “Surround EX” and the double-D symbol are trademarks of Dolby Laboratories. Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,226,616; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS is a registered trademark and the DTS logos, Symbol, DTS-HD and DTS-HD Master Audio are trademarks of DTS, Inc. © 1996-2007 DTS, Inc. All Rights Reserved. Windows Media and the Windows logo are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries. THX, the THX logo, Ultra2 Plus and Select2 Plus are trademarks of THX Ltd. which may be registered in some jurisdictions. All rights reserved. All other trademarks are the property of their respective owners. “Neural Surround”, “Neural Audio”, “Neural” and “NRL” are trademarks and logos owned by Neural Audio Corporation, THX is a trademark of THX Ltd., which may be registered in some jurisdictions. All rights reserved. XM Ready® is a registered trademark of XM Satellite Radio Inc. The XM® name and related logo are registered trademarks of XM Satellite Radio Inc. All rights reserved. SIRIUS and the Sirius READY logo are registered trademarks of SIRIUS Satellite Radio Inc. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 SC-07 5 6 7 8 5 6 7 8 A B C D E F 2.3 PANEL FACILITIES [1] Front panel 1 STANDBY/ON Switches the receiver between on and standby. Power indicator lights when the receiver is on. 2 INPUT SELECTOR dial Use to select an input source. 3 PHASE CONTROL indicator – Lights to indicate Phase Control or Full Band Phase Control is selected. ADVANCED MCACC indicator – Lights when one of the Selecting MCACC presets is selected. DIGITAL VIDEO SCALER indicator – Lights when Resolution is set to a setting other than PURE (for example, when the video input signal is upscaled HDMI indicator – Blinks when connecting an HDMI- equipped component; lights when the component is connected. 4 Remote sensor Receives the signals from the remote control. 5 Character display 6 MASTER VOLUME dial 7 Front panel controls To access the front panel controls, push gently on the lower third portion of the panel with your finger. 8 AUDIO PARAMETER Use to access the Audio options. 9 VIDEO PARAMETER Use to access the Video options. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 SC-07 1 2 3 4 A B C D E F 1 2 3 4 10 �/�/�/� (TUNE/ST) /ENTER Use the arrow buttons when setting up your HOME MENU. Use TUNE �/� to find radio frequencies and use ST �/� to find preset stations. 11 TUNER EDIT Use with �/�/�/�/ENTER to memorize and name stations for recall. 12 BAND Switches between AM and FM radio bands. 13 Listening mode buttons AUTO SURR/STREAM DIRECT – Press to select Auto Surround or Stream Direct listening. HOME THX – Press to select a Home THX listening mode. STANDARD SURROUND – Press for Standard decoding and to switch between the various ∂ Pro Logic IIx and Neo:6 options. ADVANCED SURROUND – Use to switch between the various surround modes. STEREO/A.L.C. – Switches between stereo playback, Auto level control stereo mode and Front Stage Surround Advance modes. 14 MULTI-ZONE & SOURCE controls If you’ve made MULTI-ZONE connections use these controls to control the sub zone from the main zone. 15 SPEAKERS Use to change the speaker system. 16 HOME MENU Press to access the HOME MENU. 17 RETURN Press to confirm and exit the current menu screen. 18 iPod DIRECT USB terminal Use to connect your Apple iPod as an audio source, or connect a USB audio device for playback. 19 VIDEO 3 INPUT 20 MCACC SETUP MIC jack Use to connect the supplied microphone. 21 PHONES jack Use to connect headphones. When the headphones are connected, there is no sound output from the speakers. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 SC-07 5 6 7 8 5 6 7 8 A B C D E F [2] Rear panel • Before making or changing the connections, switch off the power and disconnect the power cord from the power outlet. Plugging in should be the final step. Caution 1 LAN (10/100) terminal 2 HDMI connectors (x6 (SC-07), x5 (SC-05)) Multiple inputs and one (SC-05) or two (SC-07) outputs for high-quality audio/video connection to compatible HDMI devices. 3 XM Radio input 4 Optical and coaxial digital audio inputs (x7 (SC-07), x6 (SC-05)) Use for digital audio sources, including DVD players/ recorders, digital satellite receivers, CD players, etc. 5 Optical digital audio outputs (x2) Use for recording to a CD or MiniDisc recorder. ZONE3/SOURCE OUT jack is also used for MULTI-ZONE connections. 6 12 V trigger jacks (total 50 mA max.) (x2) Use to switch components in your system on and off according to the input function of the receiver. 7 SIRIUS Radio input 8 Remote inputs/output Use for connection to an external remote control sensor for use in a MULTI-ZONE setup, for example. 9 Control input/output Use to connect other Pioneer components so that you can control all your equipment from a single IR remote sensor. 10 RS-232C connector Use for connection to a PC for graphical output when using Advanced MCACC or Full Band Phase Control. 11 Component video inputs (x3) Use the inputs to connect any video source that has component video output, such as a DVD player. 12 SC-07 only: ZONE 2 component video output Use to connect monitors or TVs in a separate room. 13 MULTI-ZONE audio/video outputs Use to connect a second or third amplifier and monitors or TVs in a separate room. 14 Stereo analog audio source inputs/(outputs) (x4) Use for connection to audio sources such as CD players, tape decks, turntables, etc. 15 Composite, S-Video and Component monitor outputs Use to connect monitors and TVs. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 SC-07 1 2 3 4 A B C D E F 1 2 3 4 16 Audio/video source inputs/(outputs) (x8) Use for connection to audio/visual sources, such as DVD players/recorders, VCRs, etc. Each set of inputs has jacks for composite video, S-Video and stereo analog audio. 17 AM and FM antenna terminals Use to connect indoor or outdoor antennas for radio broadcasts. 18 Multichannel pre-amplifier outputs Use to connect separate amplifiers for front, center, surround, surround back and subwoofer channels. 19 Multichannel analog audio inputs 7.1 channel inputs for connection to a DVD player with multichannel analog outputs. 20 Speaker terminals Use for connection to the main front, center, surround and surround back speakers. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 SC-07 5 6 7 8 5 6 7 8 A B C D E F 1 SIGNAL indicators Light to indicate the currently selected input signal. AUTO lights when the receiver is set to select the input signal automatically. 2 Program format indicators These change according to which channels are active in digital sources. L – Left front channel C – Center channel R – Right front channel SL – Left surround channel S – Surround channel (mono) SR – Right surround channel SBL – Left surround back channel SB – Surround back channel (mono) SBR – Right surround back channel LFE – Low frequency effects channel (the ((( ))) indicators light when an LFE signal is being input) 3 Digital format indicators Light when a signal encoded in the corresponding format is detected (DSD]PCM lights during DSD (Digital Stream Direct) to PCM conversion with SACDs). 4 S.RTRV Lights when the Sound Retriever is switched on. 5 MULTI-ZONE Lights when the MULTI-ZONE feature is active. 6 FULL BAND Lights when the Full Band Phase Control is switched on. 7 PHASE CONTROL Lights when the Phase Control or Full Band Phase Control is switched on. 8 Sound processing indicators Light according to the active Audio parameter(s) and/or ANALOG ATT. 9 V.SB Lights during Virtual surround back processing. 10 TUNER indicators [3] Display TUNED – Lights when a broadcast is being received. STEREO – Lights when a stereo FM broadcast is being received in auto stereo mode. MONO – Lights when the mono mode is set using MPX. 11 SOUND Lights when any of the Midnight, Loudness or tone controls feature is selected. 12 Master volume level Shows the overall volume level. –80dB indicates the minimum level, and +12dB indicates the maximum level. 13 SR+ Lights when the SR+ mode is switched on. 14 STREAM DIRECT Lights when Direct/Pure Direct is selected. 15 Speaker indicators Lights to indicate the current speaker system, A and/or B. 16 Listening mode indicators THX – Lights when one of the Home THX modes is selected. ADV.SURROUND – Lights when one of the Advanced Surround modes has been selected. STEREO – Lights when stereo listening is switched on. STANDARD – Lights when one of the Standard Surround modes is switched on. 17 SLEEP Lights when the receiver is in sleep mode. 18 Matrix decoding format indicators ∂PRO LOGIC IIx – This lights to indicate ∂ Pro Logic II / ∂ Pro Logic IIx decoding. Neo:6 – When one of the Neo:6 modes of the receiver is on, this lights to indicate Neo:6 processing. 19 Character display Displays various system information. 20 Input source indicators Light to indicate the input source you have selected. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 SC-07 1 2 3 4 A B C D E F 1 2 3 4 [4] Remote control The remote has been conveniently color-coded according to component control using the following system: • White – Receiver control, TV Control • Blue – Other controls 1 MULTI-ZONE operation selector switch Switch to perform operations in the main zone, zone 2 and zone 3. 2 RECEIVER This switches between standby and on for this receiver. 3 MULTI OPERATION Use this button to perform multi operations. 4 Input source buttons Press to select control of other components. 5 INPUT SELECT Use to select the input source. 6 Character display (LCD) This display shows information when transmitting control signals. The following commands are shown when you’re setting the remote to control other components: SETUP – Indicates the setup mode, from which you choose the options below. PRESET – LEARNING – MULTI OP – SYS OFF – DIRECT F – RENAME – ERASE – RESET – READ ID – 7 TV CONTROL buttons These buttons are dedicated to control the TV assigned to TV operation selector switch. Thus if you only have one TV to hook up to this system assign it to the TV operation selector switch. – Use to turn on/off the power of the TV. VOL +/– – Use to adjust the volume on your TV. INPUT – Use to select the TV input signal. CH +/– – Use to select channels. MUTE – Use to mute the sound or cancel the mute mode. 8 Tuner/component control buttons/HOME MENU These button controls can be accessed after you have selected the corresponding input source button (DVD, DVR 1, TV, etc.). Set the operation selector switch to RCV to access the following controls: AUDIO PARAMETER – Use to access the Audio options. VIDEO PARAMETER – Use to access the Video options. HOME MENU – Use to access the HOME MENU. RETURN – Press to confirm and exit the current menu screen (also use to return to the previous menu with DVDs or to select closed captioning with DTV). 9 �/�/�/� (TUNE/ST) /ENTER Use the arrow buttons when setting up your surround sound system and the Audio or Video options. Also used to control DVD menus/ options and for deck 1 of a double cassette deck player. Use TUNE �/� to find radio frequencies and use ST �/� to find preset stations. 10 Component control buttons The main buttons (�, �, etc.) are used to control a component after you have selected it using the input source buttons. The controls above these buttons can be accessed after you have selected the corresponding input source button (for example DVD, DVR 1 or TV). These buttons also function as described below. Press TUNER first to access: MPX – Switches between stereo and mono reception of FM broadcasts. If the signal is weak, then switching to mono will improve the sound quality. NOISE CUT MODE 1 to 2 can be selected when receiving AM broadcasts. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 SC-07 5 6 7 8 5 6 7 8 A B C D E F Set the operation selector switch to RCV first to access: STATUS – Press to check selected receiver settings. PHASE CTRL – Press to switch on/off Phase Control or Full Band Phase Control. CH LEVEL – Press repeatedly to select a channel, then use �/� to adjust the level. 11 Receiver controls AUTO/DIRECT – Press to select Auto Surround or Stream Direct listening. STEREO/A.L.C. – Switches between the stereo playback mode and the Front Stage Surround Advance mode. STANDARD – Press for Standard decoding and to switch between the various ∂ Pro Logic IIx and Neo:6 options. ADV SURR – Use to switch between the various surround modes. THX – Press to select a Home THX listening mode. 12 Number buttons and other receiver/component controls Use the number buttons to directly select a radio frequency or the tracks on a CD, DVD, etc. ENTER can be used to enter commands for TV or DTV. After set the remote control operation switch to RCV: SIGNAL SEL – Use to select an input signal. SLEEP – Use to put the receiver in sleep mode and select the amount of time before sleep. DIMMER – Dims or brightens the display. SR+ – Switches the SR+ mode on/off. SBch – Use to select the surround/virtual back channel mode. MCACC – Press to switch between MCACC presets. A.ATT – Attenuates (lowers) the level of an analog input signal to prevent distortion. GENRE – Automatically selects the most appropriate Advanced Surround mode for the genre of the source currently being played back (this feature is available only when a Pioneer DVD recorder supporting HDMI Control is connected to this receiver via HDMI). SC-07 only: HDMI OUT – Switch the HDMI output terminal. Press TUNER first to access: D.ACCESS – After pressing, you can access a radio station directly using the number buttons. CLASS – Switches between the three banks (classes) of radio station presets. 13 SOURCE Press to turn on/off other components connected to the receiver. 14 Remote control illumination button Press to turn on/off the illumination of some of the buttons and the LCD light. 15 Remote control operation selector switch Set to RCV to operate the receiver, TV or SOURCE to operate the TV or the source device. When this switch is set to RCV, the receiver can be controlled (used to select the white commands above the number buttons (A.ATT, etc.). Also use this switch to set up surround sound. 16 VOL +/– Use to set the listening volume. 17 MUTE Mutes the sound or restores the sound if it has been muted (adjusting the volume also restores the sound). www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 SC-07 1 2 3 4 A B C D E F 1 2 3 4 3. BASIC ITEMS FOR SERVICE 3.1 CHECK POINTS AFTER SERVICING To keep the product quality after servicing, confirm recommended check points shown below. See the table below for the items to be checked regarding video and audio: Items to be checked regarding video Block noise Item to be checked regarding audio Distortion Horizontal noise Noise Dot noise Volume too low Disturbed image (video jumpiness) Volume too high Too dark Volume fluctuating Too bright Sound interrupted Mottled color No. Procedures Item to be checked 1 Confirm whether the customer complain has been solved. If the customer complain occurs with the particular source, such as Dolby Digital, DTS, AAC, DVD-A and HDMI, input it for the operation check. The customer complain must not be reappeared. Video, Audio and operations must be normal. 2 Check the analog audio playback. (Make the analog connections with a DVD player.) Each channel audio and operations must be normal. 3 Check the digital audio playback. (Make the digital connections with a DVD player.) Each channel audio and operations must be normal. 4 Check surround playback. (Select Surround mode and check the multichannel operations via the DSP circuit.) Each channel audio and operations must be normal. 5 Check the video outputs. (Connect with a DVD player.) Video and operations must be normal. 6 Check the sound from headphone output. Sound must be normal, without noise. 7 Check the appearance of the product. No scratches or dirt on its appearance after receiving it for service. Cleaning the Fan Before shipment, be sure to clean the fan, using the following cleaning materials: Cleaning paper : GED-008 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 SC-07 5 6 7 8 5 6 7 8 A B C D E F 3.2 PCB LOCATIONS FRONT BRIDGE ASSY I ICE BUFFER ASSY O AUDIO ASSY A ICEPOWER AMP ASSY Q ICE INTERFACE ASSY P ZOUT ASSY S PRIMARY ASSY T B DIODE ASSY X B REG ASSY Y H GUARD1 ASSY H GUARD2 ASSY ICE REG ASSY W HDMI NETWORK ASSY E FRONT IN ASSY C POWER SW ASSY M DCDC ASSY Z VOL ASSY L DISPLAY ASSY K HDMI RECT ASSY PRIMARY GUARD ASSY U ICE SHIELD ASSY R COMPOSITE S ASSY H INTERFACE ASSY F 232C & CONTROL ASSY D D-MOTHER ASSY B COMPONENT ASSY G REG ASSY V V-BRIDGE ASSY J PRE BRIDGE ASSY N AA www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 SC-07 1 2 3 4 A B C D E F 1 2 3 4 LIST OF ASSEMBLIES Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: Mark Symbol and Description SC-07/KUXJ /CA SC-05/KUXJ /CA NSP NSP NSP NSP NSP NSP NSP 1..ICEPOWER AMP ASSY AWH7015 AWH7015 1..COMPOSITE ICE ASSY AWM8106 AWM8106 1..PRIM DISPLAY ASSY AWX9144 AWX9144 2..COMPOSITE S ASSY AWX9145 AWX9145 2..ICE BUFFER ASSY AWX9146 AWX9146 2..PRE BRIDGE ASSY AWX9173 AWX9173 2..ICE SHIELD ASSY AWM8119 AWM8128 2..PRIMARY ASSY AWX9154 AWX9154 2..HDMI RECT ASSY AWX9156 AWX9156 2..DISPLAY ASSY AWX9158 AWX9238 AWX9159 AWX9159 AWX9160 AWX9160 1..FBRIDGE REG ASSY 2..REG ASSY 2..FRONT BRIDGE ASSY 1..AUDIO ASSY 2..AUDIO ASSY 2..232C & CONTROL ASSY 2..PRIMARY GUARD ASSY 1..HDMI/NETWORK ASSY AWX9161 AWX9161 1..COMPONENT FIN ASSY 2..COMPONENT ASSY 2..FRONT IN ASSY 2..ZOUT ASSY AWP7057 AWP7063 1..INTERFACE REG ASSY 2..INTERFACE ASSY 2..ICE REG ASSY 2..B REG ASSY 2..B DIODE ASSY AWX9136 AWX9201 1..DIGITAL MOTHER ASSY 2..D-MOTHER ASSY 2..ICE INTERFACE ASSY 2..DCDC ASSY 2..H GUARD2 ASSY 2..H GUARD1 ASSY 2..VOL ASSY 2..POWER SW ASSY 2..V-BRIDGE ASSY AWX9137 AWX9137 AWX9138 AWX9138 AWX9147 AWX9147 AWX9174 AWX9174 AWR7067 AWR7067 AWX9148 AWX9148 AWX9149 AWX9149 AWX9150 AWX9150 AWX9171 AWX9171 AWR7070 AWR7070 AWX9139 AWX9139 AWX9140 AWX9140 AWX9172 AWX9172 AWX9135 AWX9190 AWR7068 AWR7068 AWX9152 AWX9152 AWX9155 AWX9155 AWQ7058 AWQ7061 AWX9141 AWX9211 AWX9142 AWX9142 AWX9143 AWX9143 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 SC-07 5 6 7 8 5 6 7 8 A B C D E F 3.3 JIGS LIST [1] Jigs List [2] Lubricants and Glues List Name Jig No. Remarks 27P FFC GGD1588 Diagnosis 19P FFC GGD1589 Diagnosis 21P FFC GGD1590 Diagnosis 16P FFC GGD1591 Diagnosis 30p+13p board to board extension cable GGD1592 Diagnosis 17p+19p board to board extension cable GGD1593 Diagnosis 5p extension cable GGD1594 Diagnosis Name Lubricants and Glues No. Remarks Lubicating Oil GYA1001 Refer to “9.5 FRONT PANEL SECTION” Silicone Grease GEM1057 Refer to “9.3 CHASSIS SECTION” www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 22 SC-07 1 2 3 4 A B C D E F 1 2 3 4 4. BLOCK DIAGRAM 4.1 OVERALL WIRING DIAGRAM ADX7635- 2/115 FRONT IN ASSY (AWX9142) HDMI RECT ASSY (AWX9156) INTERFACE ASSY (AWX9148) VOL ASSY (AWX9159) B REG ASSY (AWX9150) V-BRIDGE ASSY (AWX9161) COMPOSITE S A (AWX9144) FRONT BRIDGE ASSY (AWX9155) ZOUT ASSY (AWX9143) AUDIO ASSY (AWX9139) ICE BUFFER ASSY (AWX9145) ICE INTERF (AWX 232C & CONTROL ASSY (AWX9140) HDMI NETWORK ASSY (SC-07:AWX9135) (SC-05:AWX9190) D-MOTHER ASSY (SC-07:AWX9136) (SC-05:AWX9201) COMPONENT ASSY (SC-07:AWX9141) (SC-05:AWX9211) DISPLAY ASSY (SC-07:AWX9158) (SC-05:AWX9238) D B E F G C L Y K S J H I A O P AA E 1/6- E 6/6 B 1/4- B 4/4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 23 SC-07 5 6 7 8 5 6 7 8 A B C D E F • When ordering service parts, be sure to refer to "EXPLODED VIEWS and PARTS LIST" or "PCB PARTS LIST". • The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. • : The power supply is shown with the marked box. POWER SW ASSY (AWX9160) B DIODE ASSY (AWX9171) V-BRIDGE ASSY (AWX9161) COMPOSITE S ASSY (AWX9144) FRONT BRIDGE ASSY (AWX9155) PRE BRIDGE ASSY (AWX9146) PRIMARY GUARD ASSY (AWX9172) ER ASSY 9145) ICE INTERFACE ASSY (AWX9137) ICEPOWER AMP ASSY (AWH7015) ICE SHIELD ASSY (AWX9173) TUNER MODULE PRIMARY ASSY (AWX9154) REG ASSY (AWX9152) MAIN TRANS ICE REG ASSY (AWX9149) DISPLAY ASSY (SC-07:AWX9158) (SC-05:AWX9238) K J H I O Q N U P X M W V T R Q 1/5- Q 5/5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 24 SC-07 1 2 3 4 A B C D E F 1 2 3 4 4.2 AUDIO BLOCK DIAGRAM COAX2(CD) IC701 MNP DM850E IC101 HDMI RECEIVER SII9135CTU OPT IN1(TV/SAT) OPT IN2(DVR2) OPT IN3(VIDEO1) COAX1(DVD) XM BD HDMI IN1 HDMI IN2 IC1151 HDMI SWITCH SII9185ACTU IC2601 XM DT BU9450KV IC2401 DIR&DIT AK4114VQ IC2701 1st DSP DSPA56720AG IC2951 ADC PCM1804DB TX1 TX0 JA1101 JA1102 JA1103 JA2402 JA2403 JA2404 JA2601 JA2408 VIDEO3 VIDEO3 USB MIC CD CD-R TV/SAT DVR1 DVR2 TUNER Module DVD Sirius MULTI IN L/R MULTI IN SL/SR MULTI IN SBL/SBR MULTI IN C/SW SW DownMix JA6202 JA6202 JA6202 JA6301 IC5301, IC5302 JA5002 JA5005 JA5005 JA5006 JA5007 JA5008 JA5009 JA5010 JA5010 PHONO VIDEO1 VIDEO2 IC5255 PHONO/MULTI CH SELECTOR TC4053BFN JA5001 JA5001 JA5004 JA5004 IC5351 VIDEO3/MIC SELECTOR TC4053BFN JA5807 232C & CONTROL ASSY MIC Amp IC6201 NJM4565MD FRONT IN ASSY HDMI IN3 JA1104 NETWORK JA701 IC861 ETHERNET PHYCEIVER RTL8201CP-LF S/PDIF COAX3(DVR2) JA2401 (SC-05 MODEL) (SC-07 MODEL) OPT IN4(CD-R) JA2405 I2S DSD I2S HDMI NETWORK ASSY D-MOTHER ASSY S/PDIF DSD S/PDIF DSD(SL) PCM(C,SW,SL.SR,SBL,SBR) DSD(FR,C,SW,SR) IC2402 XM/AD SELECTOR IC2403 ZONE2 XM/NET SELECTOR IC2406,IC2409 S/PDIF SELECTOR IC2404 DIR/HDMI SELECTOR I2S PCM(FL,FR) DSD(FL) I2S A/D BUFFER IC2901 NJM4565MD I2S B E C D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 25 SC-07 5 6 7 8 5 6 7 8 A B C D E F OPT OUT2 HDMI OUT1 DAC WM8740SEDS X4 IC252 BASIC AUDIO SELECTOR IC301 HDMI TRANSMITTER SII9134CTU IC3451 ZONE2 DAC AK4387ET ZONE3/ OPT OUT1 LPF JA301 JA2406 PREOUT L/R PREOUT SW PREOUT SL/SR PREOUT SBL/SBR CD-R REC DVR1 REC DVR2 REC ZONE2 OUT IC5201 Selector/Volume /PRE Amp BD3473KS2 IC5221 ZONE2/ZONE3 E-VOL BD3814FV SP L/R SP C SP SL/SR SP SBL/SBR HP SW PRE Amp IC5282 NJM4565MD <> JA6401 JA5002 JA5006 JA5007 JA6351 JA4101 JA4101 JA4301 JA4501 JA6502 JA6502 JA6501 JA6501 PREOUT C JA6502 ZONE3 OUT JA6401 HEADPHONE AMP IC5401 NJM4565MD <> IC6820, IC6840 IC6800 IC6860, IC6880 IC6900, IC6920 FRONT IN ASSY ICE BUFFER ASSY ICEPOWER AMP ASSY <> COMPOSITE S ASSY ZOUT ASSY <
