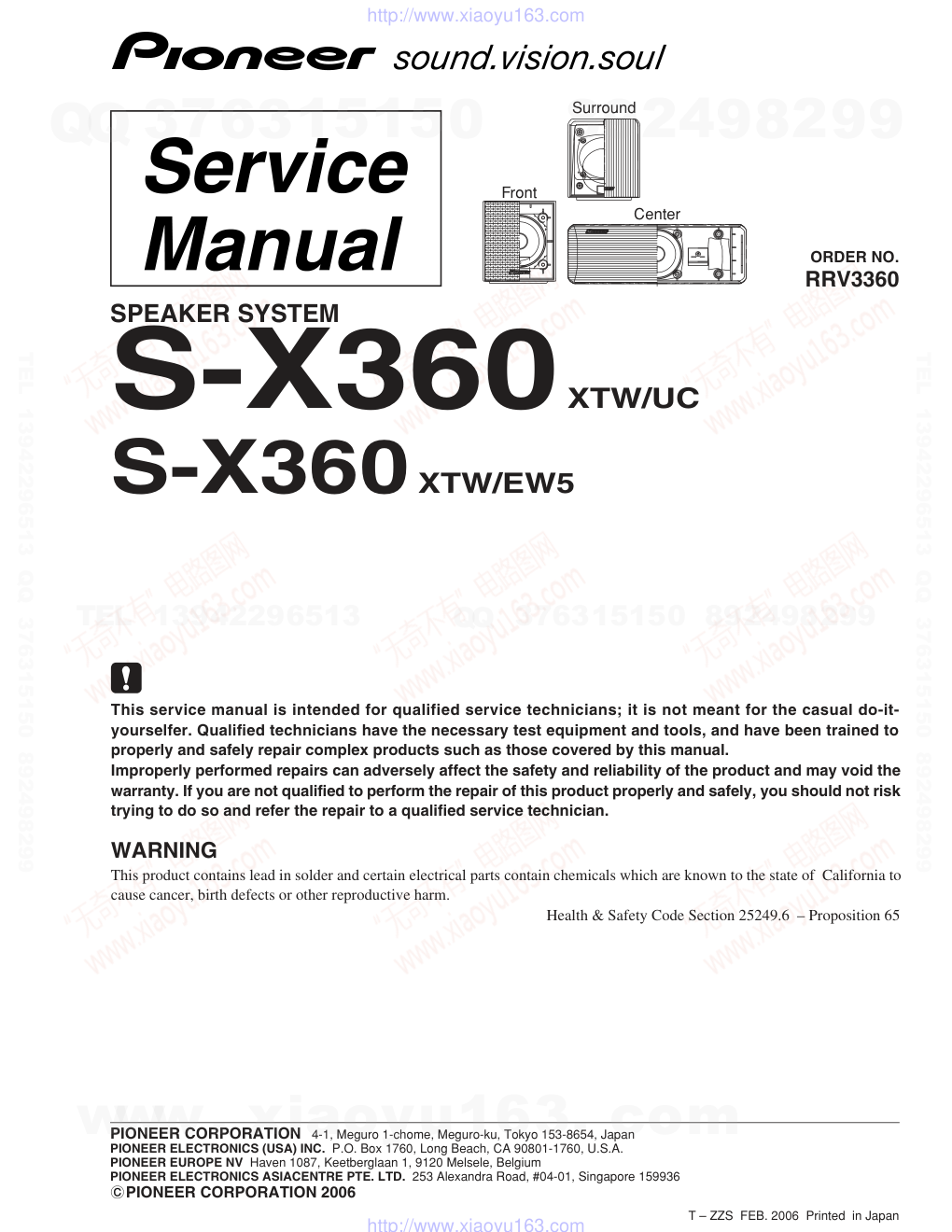

ORDER NO. PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2006 RRV3360 T – ZZS FEB. 2006 Printed in Japan SPEAKER SYSTEM Front Center Surround S-X360 XTW/UC S-X360 XTW/EW5 This service manual is intended for qualified service technicians; it is not meant for the casual do-it- yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. WARNING This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 – Proposition 65 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 1 2 3 4 1 2 3 4 C D F A B E S-X360 NSP 1 CS Assy (Front) SMW1927 NSP 2 CS Assy (Surround) SMW1928 NSP 3 CS Assy (Center) SMW1929 2-1. PACKING Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: 2. PARTS LIST Mark No. Description Part No. 1 2 3 6 7 5 5 8 4 Mark No. Description Part No. NSP 4 Accessory Set SEA1711 Speaker Wire (FL: White) SDS1174 Speaker Wire (FR: Red) SDS1175 Speaker Wire (SL: Blue) SDS1176 Speaker Wire (SR: Gray) SDS1177 Speaker Wire (C: Green) SDS1178 NSP Bracket Set SEA1680 NSP Screw Set SEA1676 Screw BMZ50P120FNC Polyethylene Bag S0 SHL1314 Mounting Bracket SNN1047 Polyethylene Bag S1 SHL1429 Non Skid Pad (for Subwoofer) SEC1912 Non Skid Pad (for Front, Center)SEP6002 Polyethylene Bag S2 SHL1251 5 Protector SHA2509 6 Polyethylene Bag S1 SHL1419 7 Polyethylene Bag S2 SHL1420 for XTW/UC type NSP Model Label (FL) SAN3794 NSP Model Label (FR) SAN3795 NSP Model Label (SL) SAN3796 NSP Model Label (SR) SAN3797 NSP Model Label (C) SAN3798 8 Packing Case SHG2722 for XTW/EW5 type NSP Model Label (FL) SAN3820 NSP Model Label (FR) SAN3821 NSP Model Label (SL) SAN3822 NSP Model Label (SR) SAN3823 NSP Model Label (C) SAN3824 8 Packing Case SHG2723 1. FOR PRECAUTION OF REASSEMBLY AND DISASSEMBLY CS Assy ( Front ) The grille assy is attached to the cabinet by 4 external screws. To detach it, unfasten those screws. The speaker unit, together with the grille assy, is attached to the cabinet by 4 external screws. To detach it, first unfasten those screws. Next remove the cabi- net. Then remove the cable. When attaching it, face its terminal downward. CS Assy ( Surround ) The grille assy is attached to the cabinet by its bosses. To de- tach it, pry it open by inserting a flat blade screw driver into lower slot. To attach it, press it to the inner baffle. The speaker unit is attached to the inner baffle by 4 external screws. To detach it, first remove the grille assy. Next unfasten those screws, and remove the cable. When attaching it, face its terminal downward. CS Assy ( Center ) The grille assy is attached to the cabinet by 8 external screws. To detach it ,unfasten those screws. The speaker unit, together with the grille assy, is attached to the cabinet by 4 external screws. To detach it, first remove the grille assy. Next remove the cabi- net. Then remove the cable. When attaching it, face its terminal toward the input terminal. Packing Parts List www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 1 2 3 4 1 2 3 4 C D F A B E S-X360 CS Assy (Front) Parts List NSP 16 Cabinet SNK2928 17 Grille SMG1864 NSP 18 Badge 28 SAM1506 NSP Grille Cloth SAS1603 NSP Baffle SNK2847 19 Connecting Cord SDD1345 20 Input Terminal SKX1096 2-2. CS Assy (Front) 24 16 17 23 18 19 21 21 22 20 Model Label 25 (x4) < TOP > < FRONT > < BACK > < A-A' : SECTION > < SIDE (LEFT) > ←A ←A' NSP 21 Acoustic Absorbent (White) SMV2194 NSP 22 Acoustic Absorbent (Black) SMV2198 23 Speaker K77DU55-52C 24 Screw (for Input Terminal) BPZ35P080FNI 25 Screw (for Cabinet) BPZ35P120FNI Mark No. Description Part No. Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 1 2 3 4 1 2 3 4 C D F A B E S-X360 32 or 33 31 40 39 (x2) 44 (x4) 34 36 37 38 41 35 42 43 (x5) Glue Model Label only surround (R) only surround (L) Bent to 45° − 55° Mark No. Description Part No. CS Assy (Surround) Parts List NSP 31 Inner Baffle SNK2848 NSP 32 Cabinet (L) SNK2929 NSP 33 Cabinet (R) SNK2930 34 Grille SMG1865 NSP 35 Badge 28 SAM1506 NSP Grille Cloth SAS1604 NSP Grille Frame SMH1117 36 Connecting Cord SDD1345 37 Gasket SEC1910 38 Packing (size: 4 x 104) SEC1927 39 Packing (size: 4 x 111) SEC1928 40 Packing (size: 4 x 84) SEC1929 41 Input Terminal SKX1096 42 Speaker K77DU55-51C 43 Screw (for Speaker, Input Terminal) BPZ35P080FNI 44 Screw (for Inner Baffle) BPZ35P120FNI 2-3. CS Assy (Surround) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 1 2 3 4 1 2 3 4 C D F A B E S-X360 CS Assy (Center) Parts List 2-4. CS Assy (Center) 58 51 59 52 56 Model Label 61 (x8) 57 (x2) 54 60 55 (x2) 53 NSP 51 Cabinet SNK2931 52 Grille SMG1866 NSP 53 Badge 28 SAM1506 NSP Grille Cloth SAS1605 NSP Baffle SNK2852 54 Connecting Cord SDD1345 55 Packing SEC1913 56 Input Terminal SKX1096 NSP 57 Acoustic Absorbent (White) SMT1293 NSP 58 Acoustic Absorbent (Black) SMV2198 59 Speaker K77DU55-51C 60 Screw (for Input Terminal) BPZ35P080FNI 61 Screw (for Cabinet) BPZ35P120FNI Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 1 2 3 4 1 2 3 4 C D F A B E S-X360 3. SCHEMATIC DIAGRAM INPUT Speaker White Red Connecting Cord (SDD1345) 1. CS Assy (Front, Center, Surround) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
