先锋PIONEER S-W37XE电路图

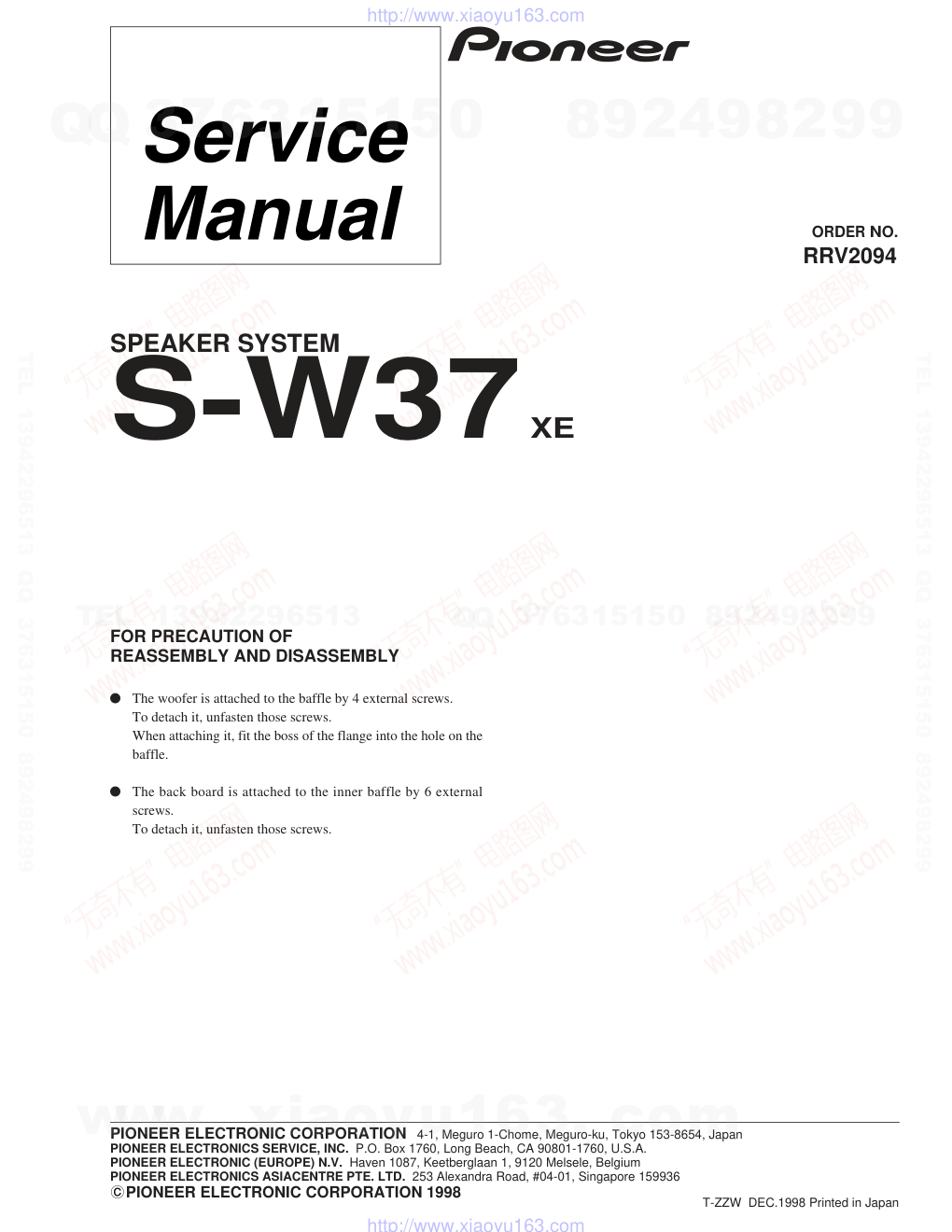

ORDER NO. PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 � � � � � � � � � �PIONEER ELECTRONIC CORPORATION 1998 RRV2094 T-ZZW DEC.1998 Printed in Japan SPEAKER SYSTEM S-W37 XE FOR PRECAUTION OF REASSEMBLY AND DISASSEMBLY The woofer is attached to the baffle by 4 external screws. To detach it, unfasten those screws. When attaching it, fit the boss of the flange into the hole on the baffle. The back board is attached to the inner baffle by 6 external screws. To detach it, unfasten those screws. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 Mark No. Description Part No. SCHEMATIC DIAGRAM For Packing Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: PARTS LIST Mark No. Description Part No. S-W37 Network ASSY FRWN-100 NSP Badge FRAM-026 NSP Label Back FRAN-223 Input Terminal FRKX-008 Port Ring FRNK-141 Speaker (Woofer) P12EC65-57D Screw (for Woofer) FRBA-011 Screw (for Back Board) FRBA-016 Speaker Wire (2m) FRDD-042 NSP Warranty Card FRRY-022 Protector FRHA-086 Protection Mat S4 FRHC-020 Packing Case FRHG-213 Network ASSY (FRWN-100) Woofer 2 INPUT 2.7mH Woofer 1 INPUT 2.7mH Operating Instructions FRRD-129 (English /French/German /Dutch /Italian /Swedish /Spanish /Portuguese) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
