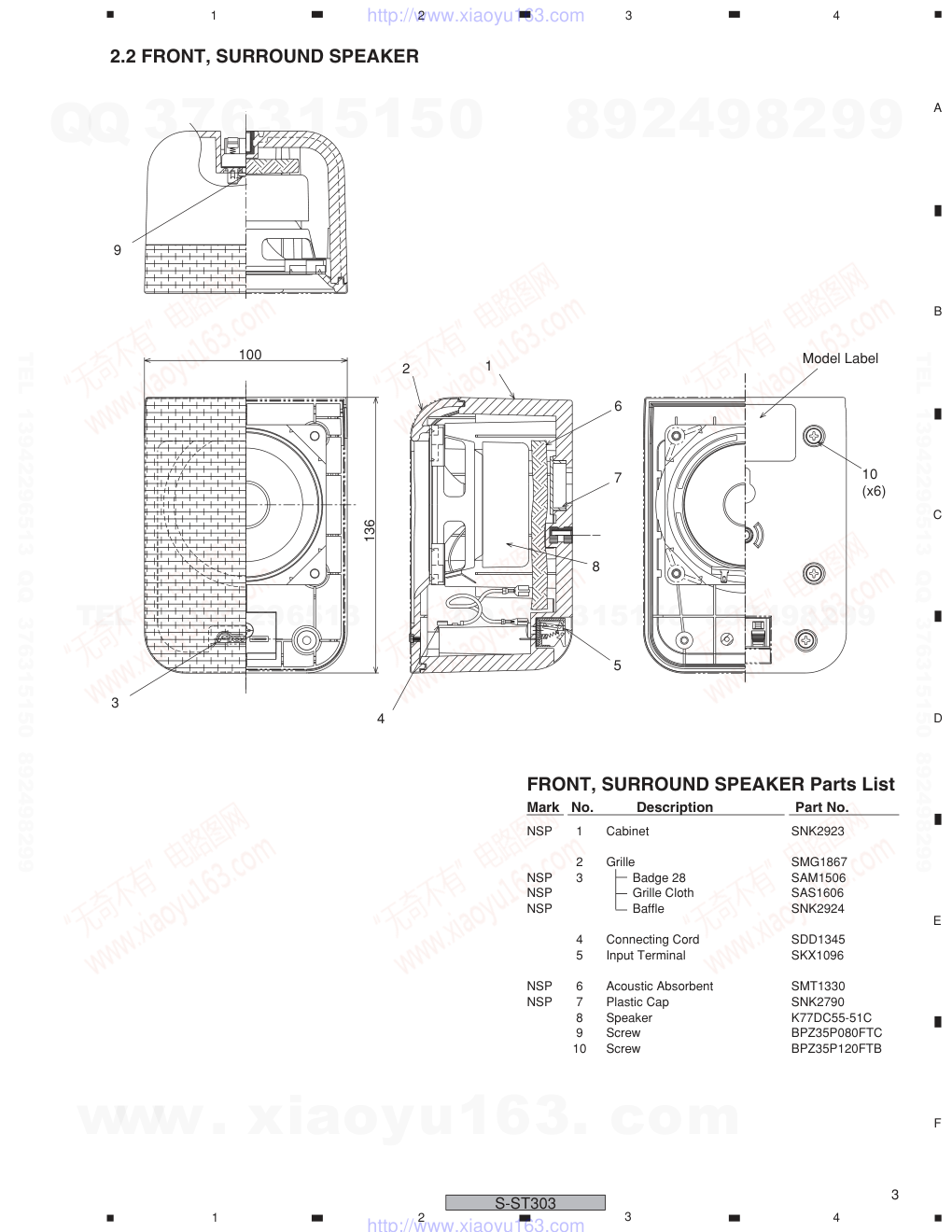

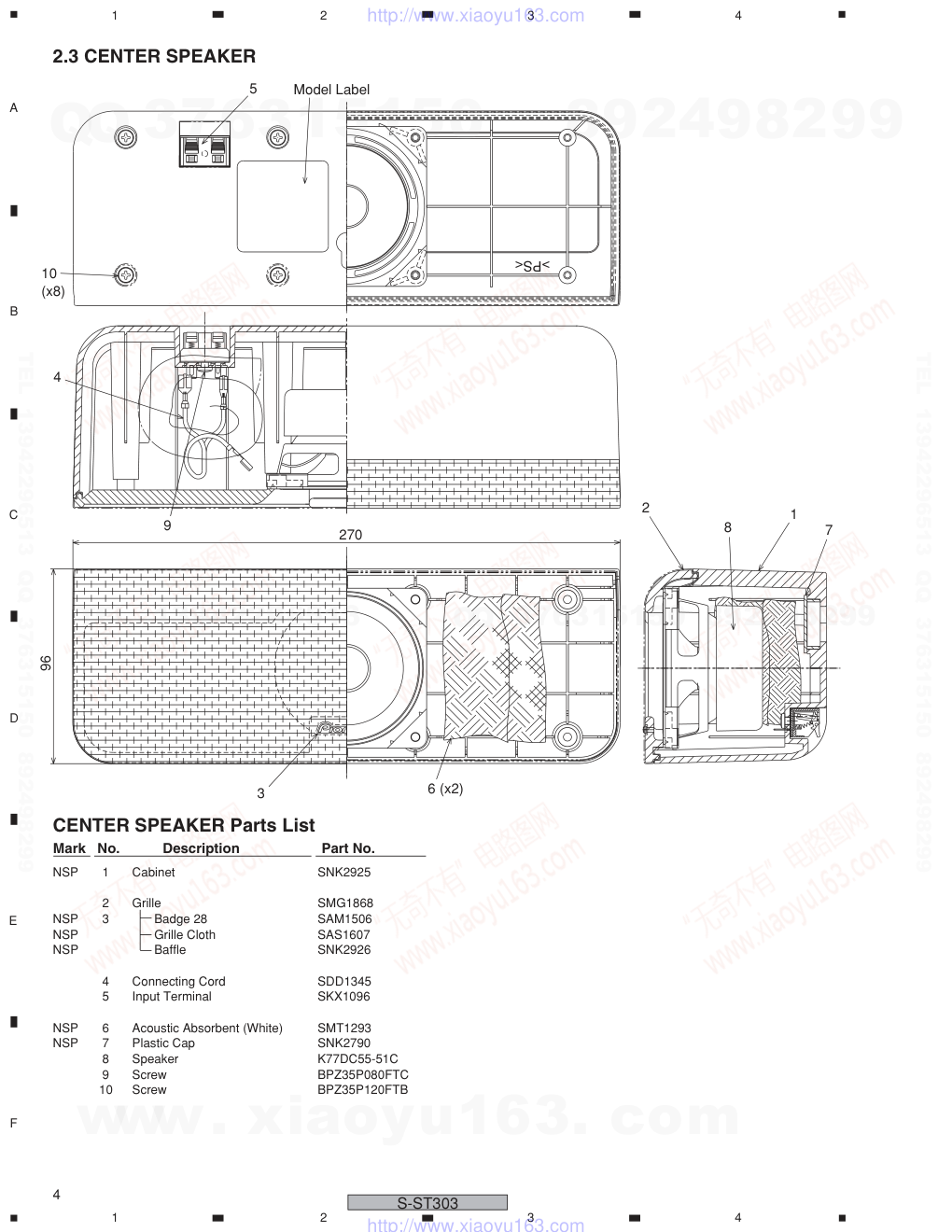

ORDER NO. PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2006 RRV3417 T – ZZS JUNE 2006 Printed in Japan 1. REASSEMBLY AND DISASSEMBLY PRECAUTIONS FRONT, SURROUND SPEAKER The grille is attached to the cabinet by 6 external screws. To detach it, unfasten those screws. The speaker unit, together with the grille, is attached to the cabinet by 4 external screws. To detach it, first unfasten those screws. Next remove the cabi- net. Then remove the cable. When attaching it, face its terminal downward. SPEAKER SYSTEM Front Surround Center S-ST303 XJC/E CENTER SPEAKER The grille is attached to the cabinet by 8 external screws. To detach it, unfasten those screws. The speaker unit, together with the grille, is attached to the cabinet by 4 external screws. To detach it, first remove the grille. Next remove the cabinet. Then remove the cable. When attaching it, face its terminal toward the input terminal. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 1 2 3 4 1 2 3 4 C D F A B E S-ST303 Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: 8 3 7 4 9 1 2 6 5 NSP 1 Front, Surround Speaker SMW1930 NSP 2 Center Speaker SMW1931 NSP 3 Accessory Set SME3720 Speaker Wire (FL: White) SDS1174 Speaker Wire (FR: Red) SDS1175 Speaker Wire (SL: Blue) SDS1176 Speaker Wire (SR: Gray) SDS1177 Speaker Wire (C: Green) SDS1178 NSP Screw Set SME3721 Screw CMZ50P120FNC Polyethylene Bag S0 SHL1314 Non Skid Pad (for Subwoofer) SEC2070 Non Skid Pads SEP1240 (for Front, Center, Surround) Polyethylene Bag S2 SHL1251 PACKING Parts List NSP Stand Set SME3722 4 Stand SNK2922 5 Polyethylene Bag S1 SHL1414 6 Protector SHA2532 7 Polyethylene Bag S2 SHL1417 8 Polyethylene Bag S2 SHL1420 9 Packing Case SHG2733 NSP Model Label (FL) SAN3809 NSP Model Label (FR) SAN3810 NSP Model Label (SL) SAN3811 NSP Model Label (SR) SAN3812 NSP Model Label (C) SAN3813 Mark No. Description Part No. Mark No. Description Part No. 2.1 PACKING 2. EXPLODED VIEWS AND PARTS LIST www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 1 2 3 4 1 2 3 4 C D F A B E S-ST303 6 7 5 4 8 2 1 Model Label 10 (x6) 9 3 136 100 FRONT, SURROUND SPEAKER Parts List NSP 1 Cabinet SNK2923 2 Grille SMG1867 NSP 3 Badge 28 SAM1506 NSP Grille Cloth SAS1606 NSP Baffle SNK2924 4 Connecting Cord SDD1345 5 Input Terminal SKX1096 NSP 6 Acoustic Absorbent SMT1330 NSP 7 Plastic Cap SNK2790 8 Speaker K77DC55-51C 9 Screw BPZ35P080FTC 10 Screw BPZ35P120FTB 2.2 FRONT, SURROUND SPEAKER Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 1 2 3 4 1 2 3 4 C D F A B E S-ST303 >PS< 6 (x2) 7 Model Label 3 10 (x8) 9 4 270 96 5 8 2 1 CENTER SPEAKER Parts List NSP 1 Cabinet SNK2925 2 Grille SMG1868 NSP 3 Badge 28 SAM1506 NSP Grille Cloth SAS1607 NSP Baffle SNK2926 4 Connecting Cord SDD1345 5 Input Terminal SKX1096 NSP 6 Acoustic Absorbent (White) SMT1293 NSP 7 Plastic Cap SNK2790 8 Speaker K77DC55-51C 9 Screw BPZ35P080FTC 10 Screw BPZ35P120FTB 2.3 CENTER SPEAKER Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 1 2 3 4 1 2 3 4 C D F A B E S-ST303 3. SCHEMATIC DIAGRAM INPUT Speaker White Red Connecting Cord (SDD1345) 3.1 FRONT, SURROUND, CENTER SPEAKER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
