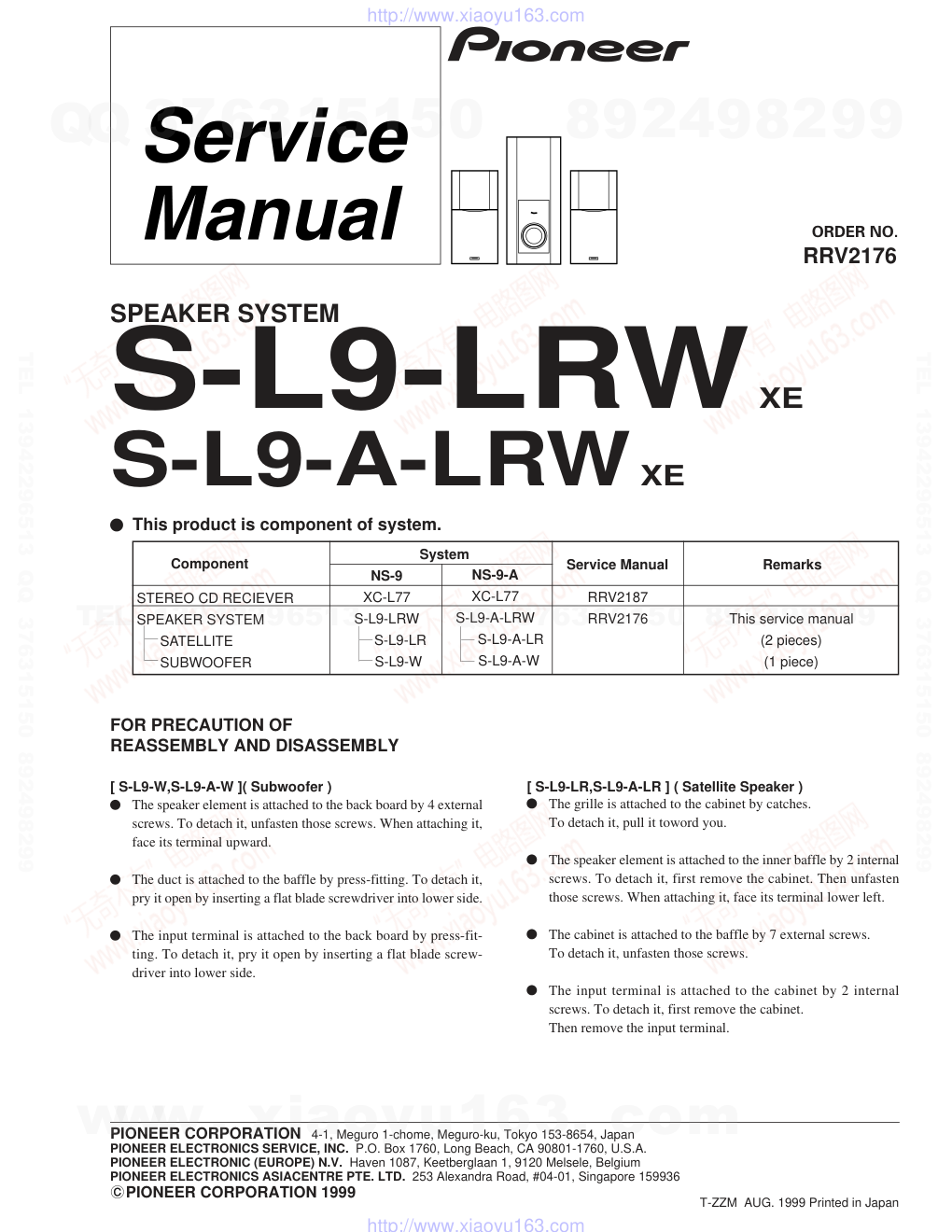

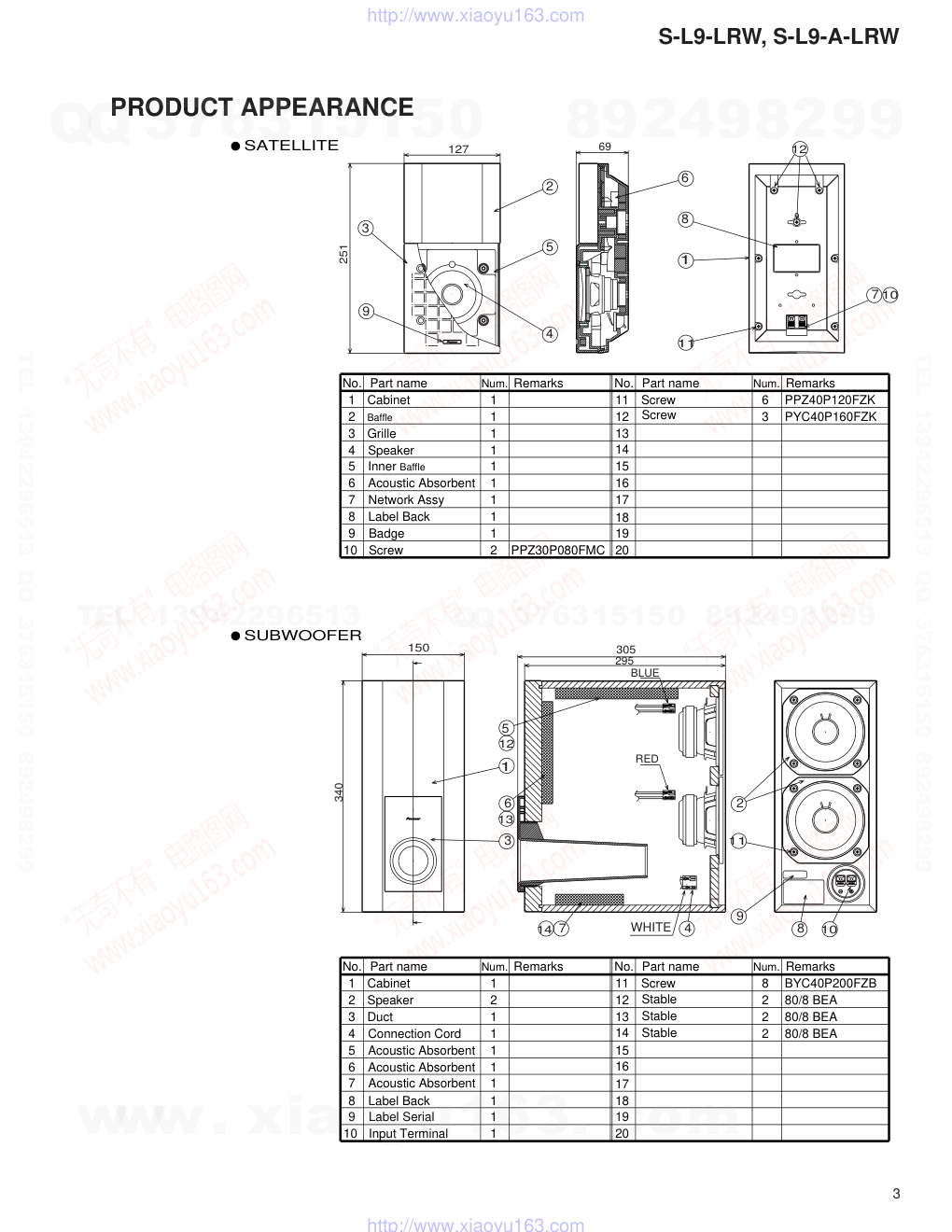

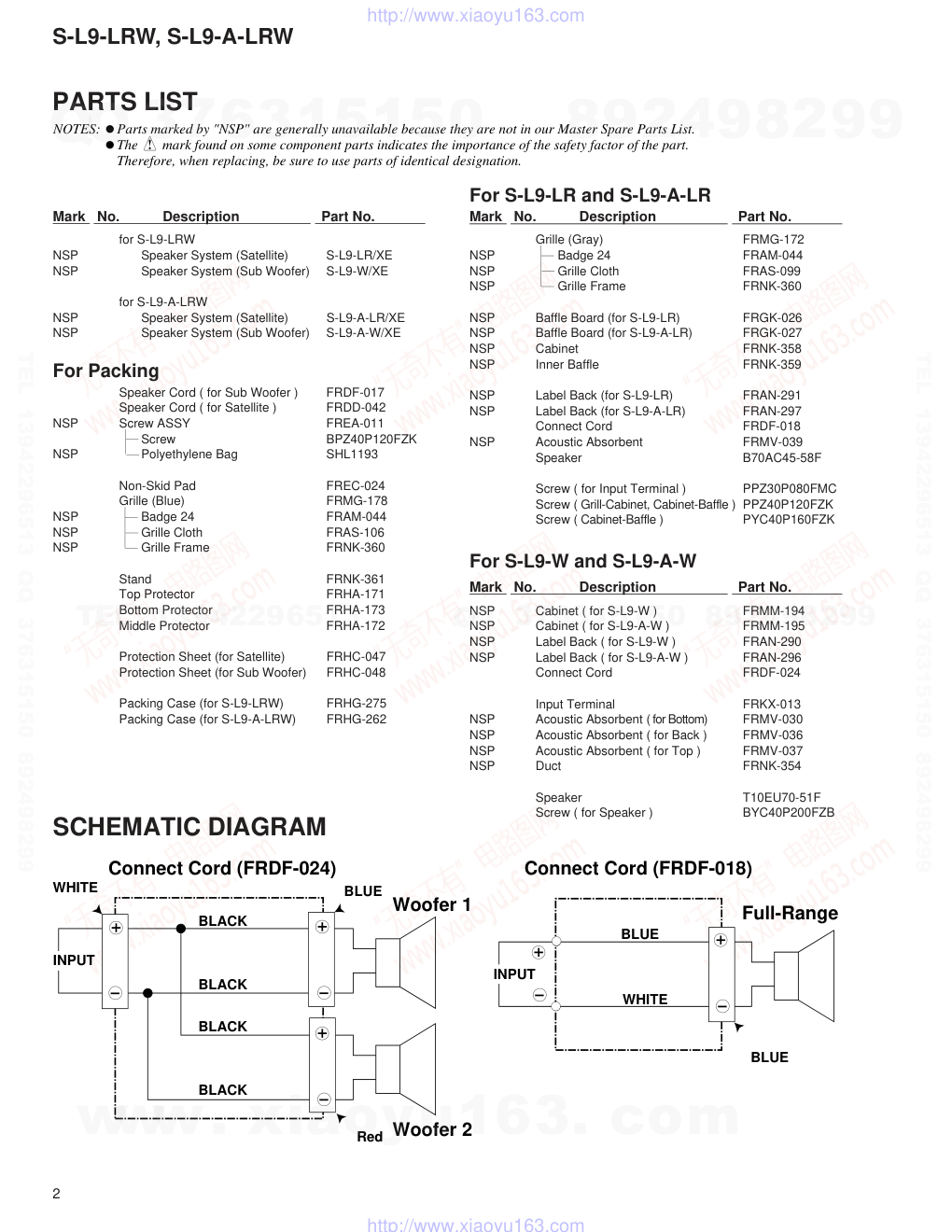

ORDER NO. PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 � � � � � � � � � �PIONEER CORPORATION 1999 RRV2176 T-ZZM AUG. 1999 Printed in Japan FOR PRECAUTION OF REASSEMBLY AND DISASSEMBLY This product is component of system. SPEAKER SYSTEM S-L9-LRW XE S-L9-A-LRW XE System Service Manual Remarks RRV2187 RRV2176 Component NS-9 XC-L77 S-L9-LRW S-L9-LR S-L9-W STEREO CD RECIEVER SPEAKER SYSTEM SATELLITE SUBWOOFER This service manual (2 pieces) (1 piece) The grille is attached to the cabinet by catches. To detach it, pull it toword you. The speaker element is attached to the inner baffle by 2 internal screws. To detach it, first remove the cabinet. Then unfasten those screws. When attaching it, face its terminal lower left. The cabinet is attached to the baffle by 7 external screws. To detach it, unfasten those screws. The input terminal is attached to the cabinet by 2 internal screws. To detach it, first remove the cabinet. Then remove the input terminal. The speaker element is attached to the back board by 4 external screws. To detach it, unfasten those screws. When attaching it, face its terminal upward. The duct is attached to the baffle by press-fitting. To detach it, pry it open by inserting a flat blade screwdriver into lower side. The input terminal is attached to the back board by press-fit- ting. To detach it, pry it open by inserting a flat blade screw- driver into lower side. [ S-L9-W,S-L9-A-W ]( Subwoofer ) [ S-L9-LR,S-L9-A-LR ] ( Satellite Speaker ) NS-9-A XC-L77 S-L9-A-LRW S-L9-A-LR S-L9-A-W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 S-L9-LRW, S-L9-A-LRW Mark No. Description Part No. For S-L9-LR and S-L9-A-LR Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: PARTS LIST Mark No. Description Part No. NSP Cabinet ( for S-L9-W ) FRMM-194 NSP Cabinet ( for S-L9-A-W ) FRMM-195 NSP Label Back ( for S-L9-W ) FRAN-290 NSP Label Back ( for S-L9-A-W ) FRAN-296 Connect Cord FRDF-024 Input Terminal FRKX-013 NSP Acoustic Absorbent ( for Bottom) FRMV-030 NSP Acoustic Absorbent ( for Back ) FRMV-036 NSP Acoustic Absorbent ( for Top ) FRMV-037 NSP Duct FRNK-354 Speaker T10EU70-51F Screw ( for Speaker ) BYC40P200FZB for S-L9-LRW NSP Speaker System (Satellite) S-L9-LR/XE NSP Speaker System (Sub Woofer) S-L9-W/XE for S-L9-A-LRW NSP Speaker System (Satellite) S-L9-A-LR/XE NSP Speaker System (Sub Woofer) S-L9-A-W/XE For Packing Speaker Cord ( for Sub Woofer ) FRDF-017 Speaker Cord ( for Satellite ) FRDD-042 NSP Screw ASSY FREA-011 Screw BPZ40P120FZK NSP Polyethylene Bag SHL1193 Non-Skid Pad FREC-024 Grille (Blue) FRMG-178 NSP Badge 24 FRAM-044 NSP Grille Cloth FRAS-106 NSP Grille Frame FRNK-360 Stand FRNK-361 Top Protector FRHA-171 Bottom Protector FRHA-173 Middle Protector FRHA-172 Protection Sheet (for Satellite) FRHC-047 Protection Sheet (for Sub Woofer) FRHC-048 Packing Case (for S-L9-LRW) FRHG-275 Packing Case (for S-L9-A-LRW) FRHG-262 Grille (Gray) FRMG-172 NSP Badge 24 FRAM-044 NSP Grille Cloth FRAS-099 NSP Grille Frame FRNK-360 NSP Baffle Board (for S-L9-LR) FRGK-026 NSP Baffle Board (for S-L9-A-LR) FRGK-027 NSP Cabinet FRNK-358 NSP Inner Baffle FRNK-359 NSP Label Back (for S-L9-LR) FRAN-291 NSP Label Back (for S-L9-A-LR) FRAN-297 Connect Cord FRDF-018 NSP Acoustic Absorbent FRMV-039 Speaker B70AC45-58F Screw ( for Input Terminal ) PPZ30P080FMC Screw ( Grill-Cabinet, Cabinet-Baffle ) PPZ40P120FZK Screw ( Cabinet-Baffle ) PYC40P160FZK For S-L9-W and S-L9-A-W Mark No. Description Part No. SCHEMATIC DIAGRAM Woofer 1 INPUT Woofer 2 Full-Range INPUT BLUE WHITE Connect Cord (FRDF-024) Connect Cord (FRDF-018) BLUE Red WHITE BLACK BLACK BLACK BLACK BLUE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 S-L9-LRW, S-L9-A-LRW PRODUCT APPEARANCE 8 9 10 2 Screw 6 11 12 13 14 15 16 17 18 19 20 Network Assy 7 1 1 1 Badge Screw Speaker Label Back Inner Baffle Grille Baffle Cabinet 1 1 1 1 1 6 5 4 3 2 1 Part name Num. No. Remarks Part name Num. No. Remarks 1 Acoustic Absorbent PPZ30P080FMC PPZ40P120FZK 3 PYC40P160FZK Screw 8 9 10 1 Screw 8 11 12 13 14 15 16 17 18 19 20 Acoustic Absorbent 7 1 1 1 Label Serial Input Terminal Connection Cord Label Back Acoustic Absorbent Duct Speaker Cabinet 1 2 1 1 1 6 5 4 3 2 1 Part name Num. No. Remarks Part name Num. No. Remarks 1 Acoustic Absorbent BYC40P200FZB 2 80/8 BEA 2 80/8 BEA 2 80/8 BEA Stable Stable Stable 251 127 69 12 5 9 7 4 2 3 6 11 10 1 8 340 150 8 4 7 5 6 3 1 11 2 9 10 14 13 12 305 295 RED BLUE WHITE SATELLITE SUBWOOFER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
