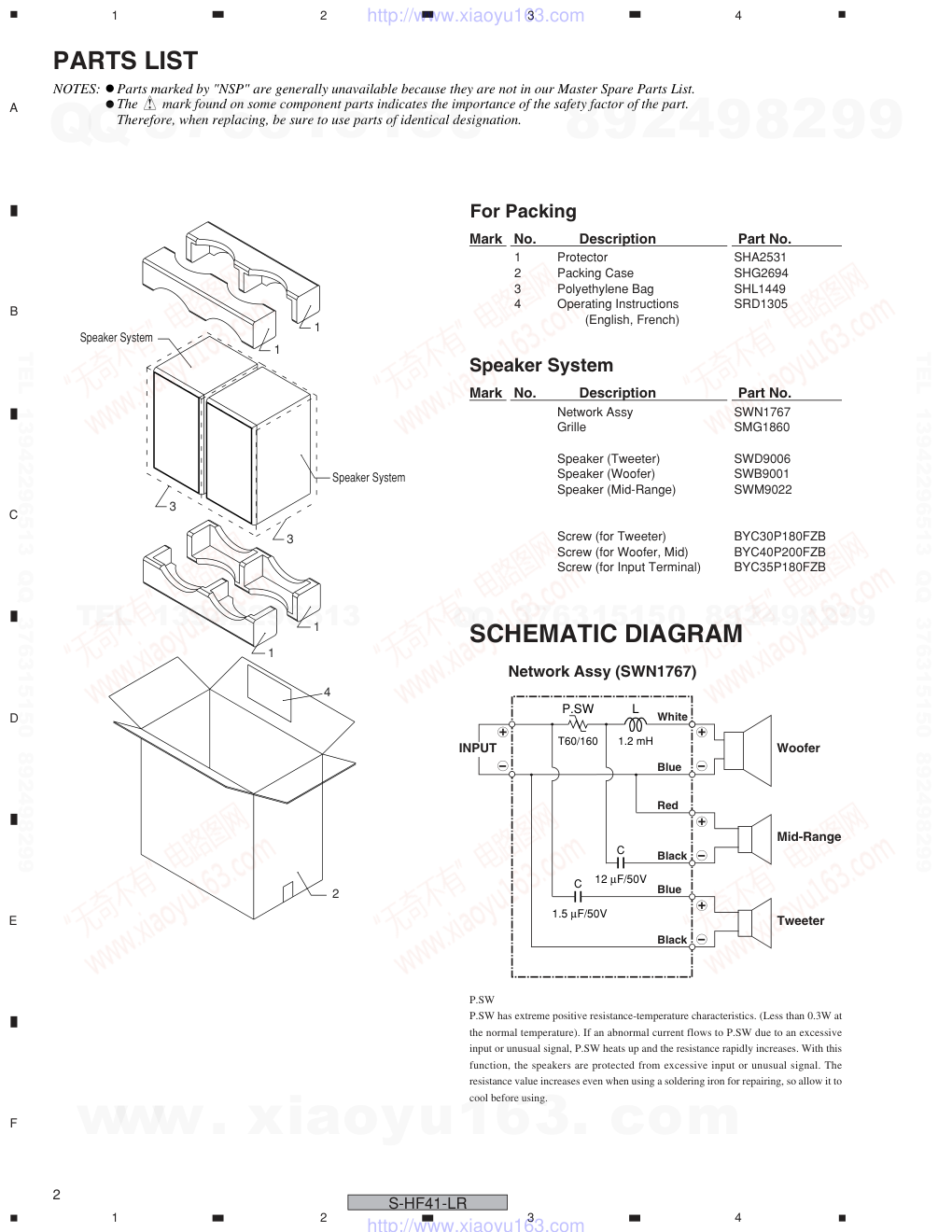

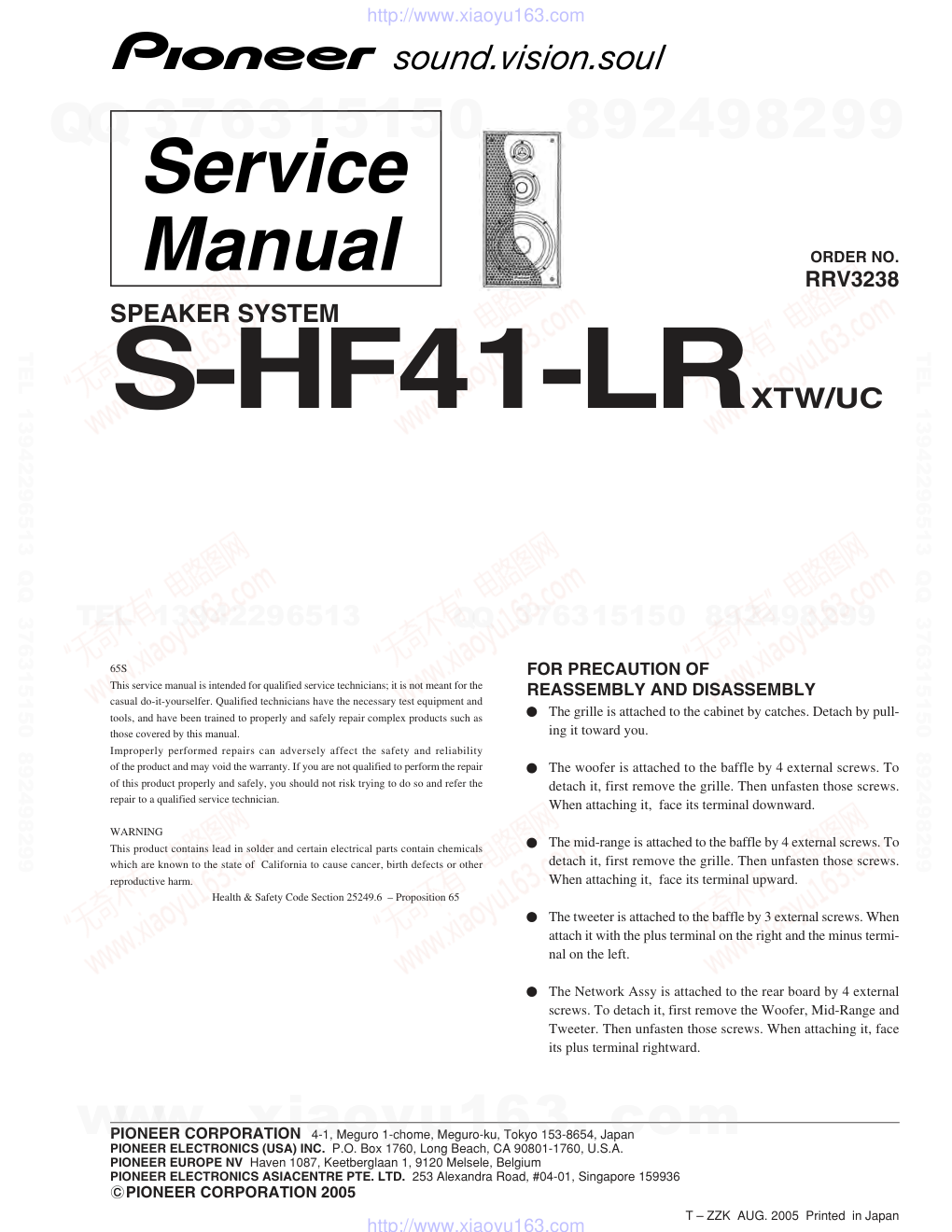

ORDER NO. PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2005 RRV3238 T – ZZK AUG. 2005 Printed in Japan FOR PRECAUTION OF REASSEMBLY AND DISASSEMBLY The grille is attached to the cabinet by catches. Detach by pull- ing it toward you. The woofer is attached to the baffle by 4 external screws. To detach it, first remove the grille. Then unfasten those screws. When attaching it, face its terminal downward. The mid-range is attached to the baffle by 4 external screws. To detach it, first remove the grille. Then unfasten those screws. When attaching it, face its terminal upward. The tweeter is attached to the baffle by 3 external screws. When attach it with the plus terminal on the right and the minus termi- nal on the left. The Network Assy is attached to the rear board by 4 external screws. To detach it, first remove the Woofer, Mid-Range and Tweeter. Then unfasten those screws. When attaching it, face its plus terminal rightward. SPEAKER SYSTEM S-HF41-LR XTW/UC 65S This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. WARNING This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 – Proposition 65 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 1 2 3 4 1 2 3 4 C D F A B E S-HF41-LR Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: PARTS LIST Speaker System 4 2 3 Speaker System 3 1 1 1 1 SCHEMATIC DIAGRAM 1 Protector SHA2531 2 Packing Case SHG2694 3 Polyethylene Bag SHL1449 4 Operating Instructions SRD1305 (English, French) Network Assy SWN1767 Grille SMG1860 Speaker (Tweeter) SWD9006 Speaker (Woofer) SWB9001 Speaker (Mid-Range) SWM9022 Screw (for Tweeter) BYC30P180FZB Screw (for Woofer, Mid) BYC40P200FZB Screw (for Input Terminal) BYC35P180FZB For Packing Mark No. Description Part No. Speaker System Mark No. Description Part No. Network Assy (SWN1767) L 1.2 mH T60/160 P.SW 1.5 µF/50V C 12 µF/50V C INPUT Woofer Blue White Black Blue Tweeter Black Red Mid-Range P.SW P.SW has extreme positive resistance-temperature characteristics. (Less than 0.3W at the normal temperature). If an abnormal current flows to P.SW due to an excessive input or unusual signal, P.SW heats up and the resistance rapidly increases. With this function, the speakers are protected from excessive input or unusual signal. The resistance value increases even when using a soldering iron for repairing, so allow it to cool before using. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 1 2 3 4 1 2 3 4 C D F A B E S-HF41-LR PRODUCT APPEARANCE 1 1 1 1 1 1 4 12 1 Screw 11 3 8 1 10 1 4 Part Name No. Num. 9 8 7 6 5 4 3 2 1 Catch Screw Grille Cabinet Model Label Duct Network Assy Acoustic Absorbent Tweeter Mid-Range 13 14 Woofer Screw 14 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
