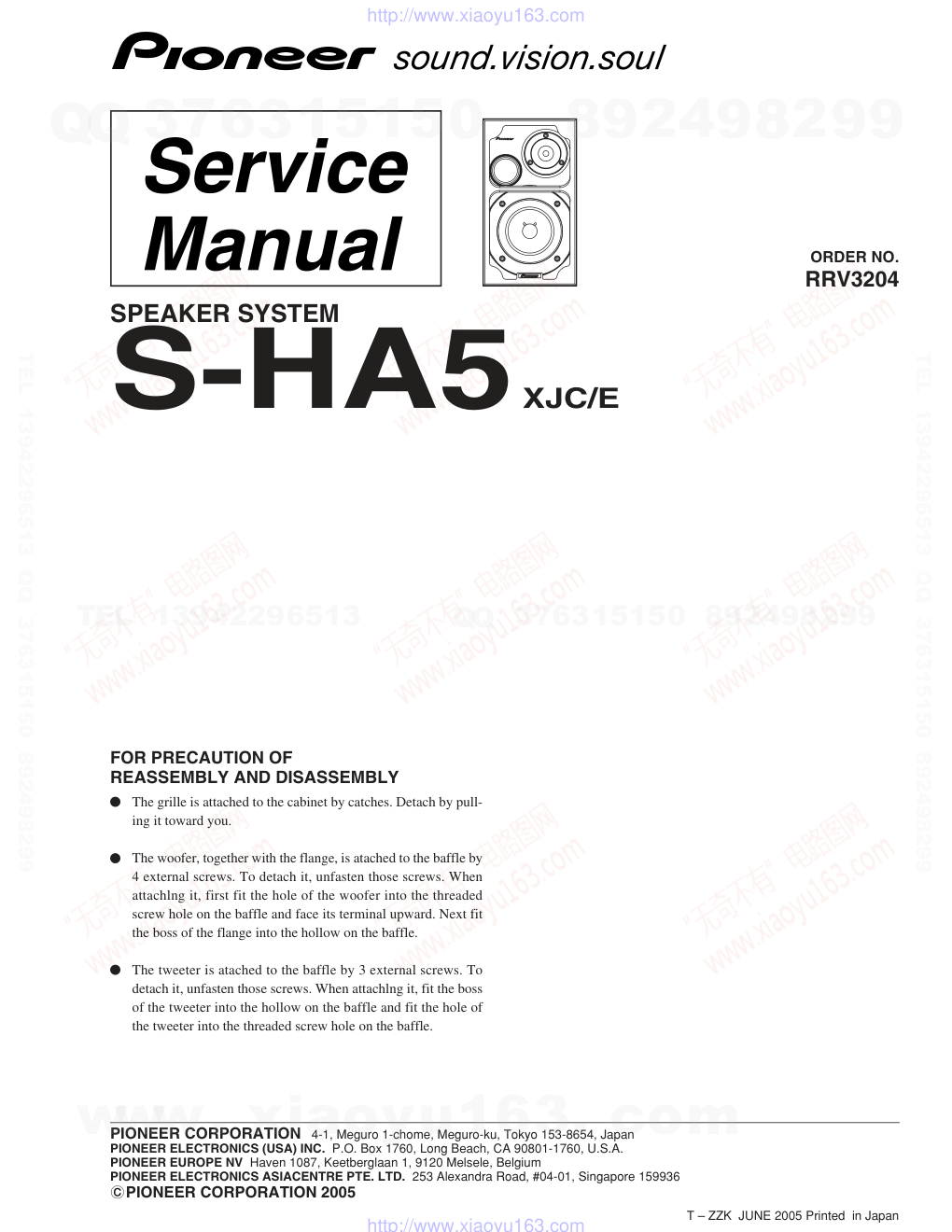

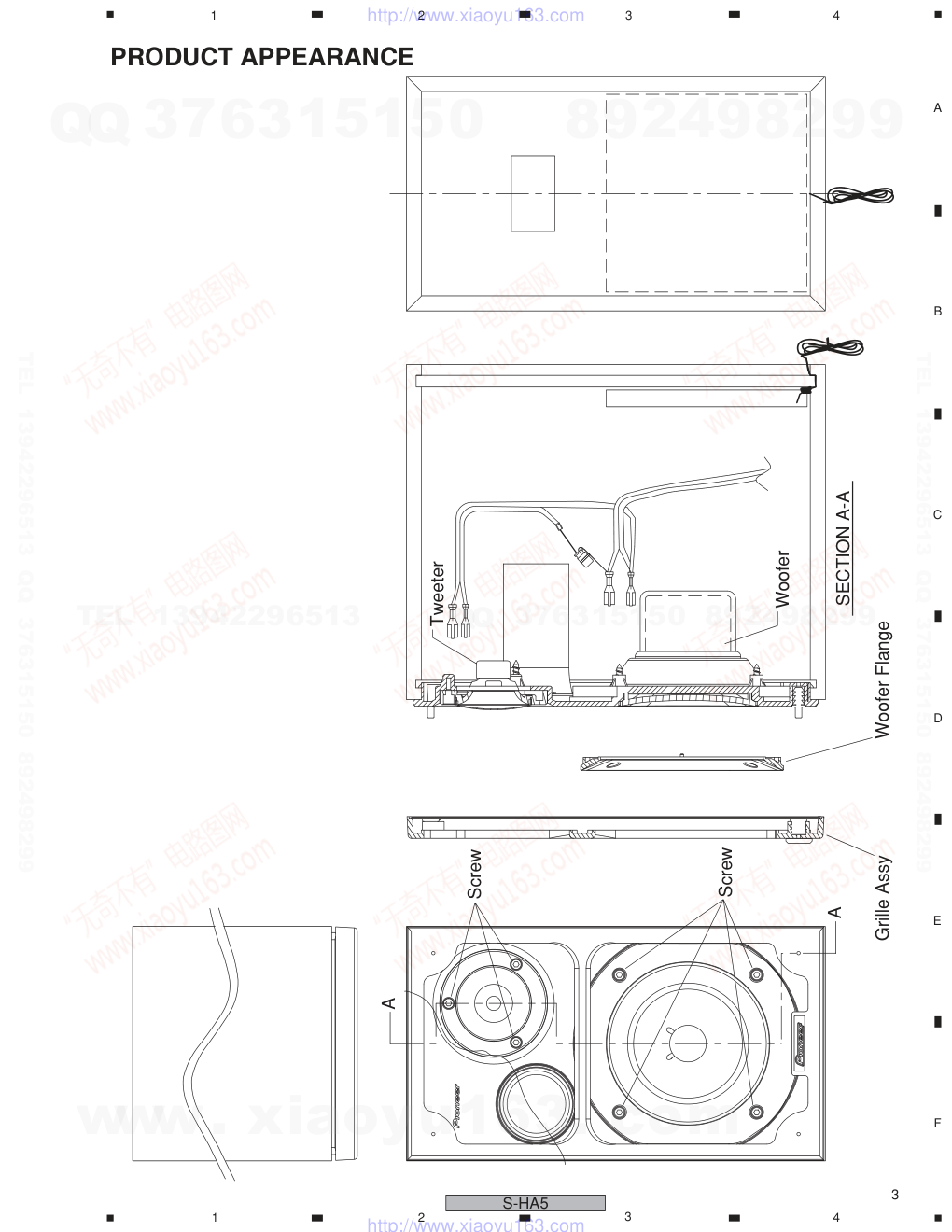

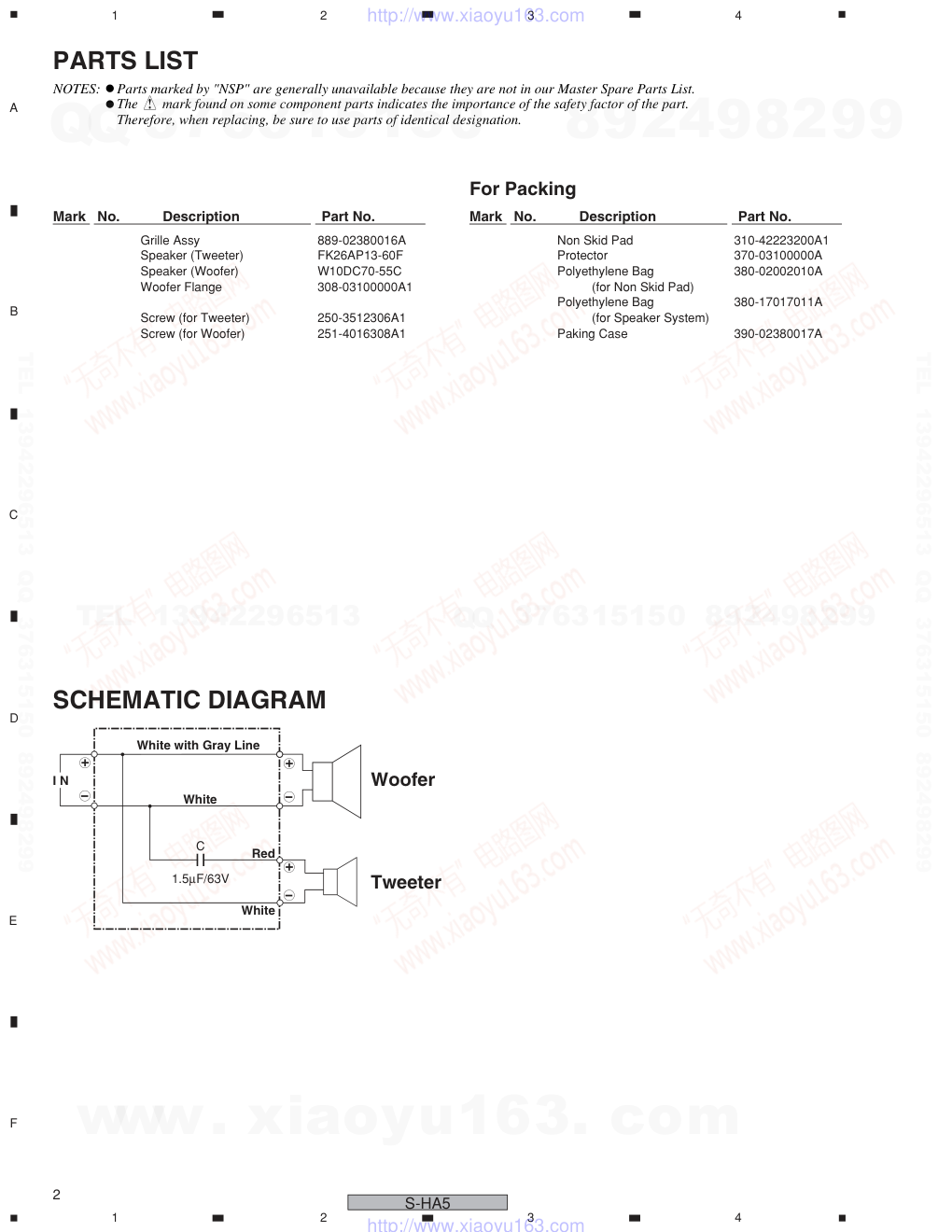

ORDER NO. PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2005 RRV3204 T – ZZK JUNE 2005 Printed in Japan FOR PRECAUTION OF REASSEMBLY AND DISASSEMBLY The grille is attached to the cabinet by catches. Detach by pull- ing it toward you. The woofer, together with the flange, is atached to the baffle by 4 external screws. To detach it, unfasten those screws. When attachlng it, first fit the hole of the woofer into the threaded screw hole on the baffle and face its terminal upward. Next fit the boss of the flange into the hollow on the baffle. The tweeter is atached to the baffle by 3 external screws. To detach it, unfasten those screws. When attachlng it, fit the boss of the tweeter into the hollow on the baffle and fit the hole of the tweeter into the threaded screw hole on the baffle. SPEAKER SYSTEM S-HA5 XJC/E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 1 2 3 4 1 2 3 4 C D F A B E S-HA5 For Packing Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: PARTS LIST Mark No. Description Part No. Mark No. Description Part No. SCHEMATIC DIAGRAM C I N White White with Gray Line White Red 1.5µF/63V Woofer Tweeter Grille Assy 889-02380016A Speaker (Tweeter) FK26AP13-60F Speaker (Woofer) W10DC70-55C Woofer Flange 308-03100000A1 Screw (for Tweeter) 250-3512306A1 Screw (for Woofer) 251-4016308A1 Non Skid Pad 310-42223200A1 Protector 370-03100000A Polyethylene Bag 380-02002010A (for Non Skid Pad) Polyethylene Bag 380-17017011A (for Speaker System) Paking Case 390-02380017A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 1 2 3 4 1 2 3 4 C D F A B E S-HA5 PRODUCT APPEARANCE SECTION A-A A A Woofer Woofer Flange Tweeter Grille Assy Screw Screw www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
