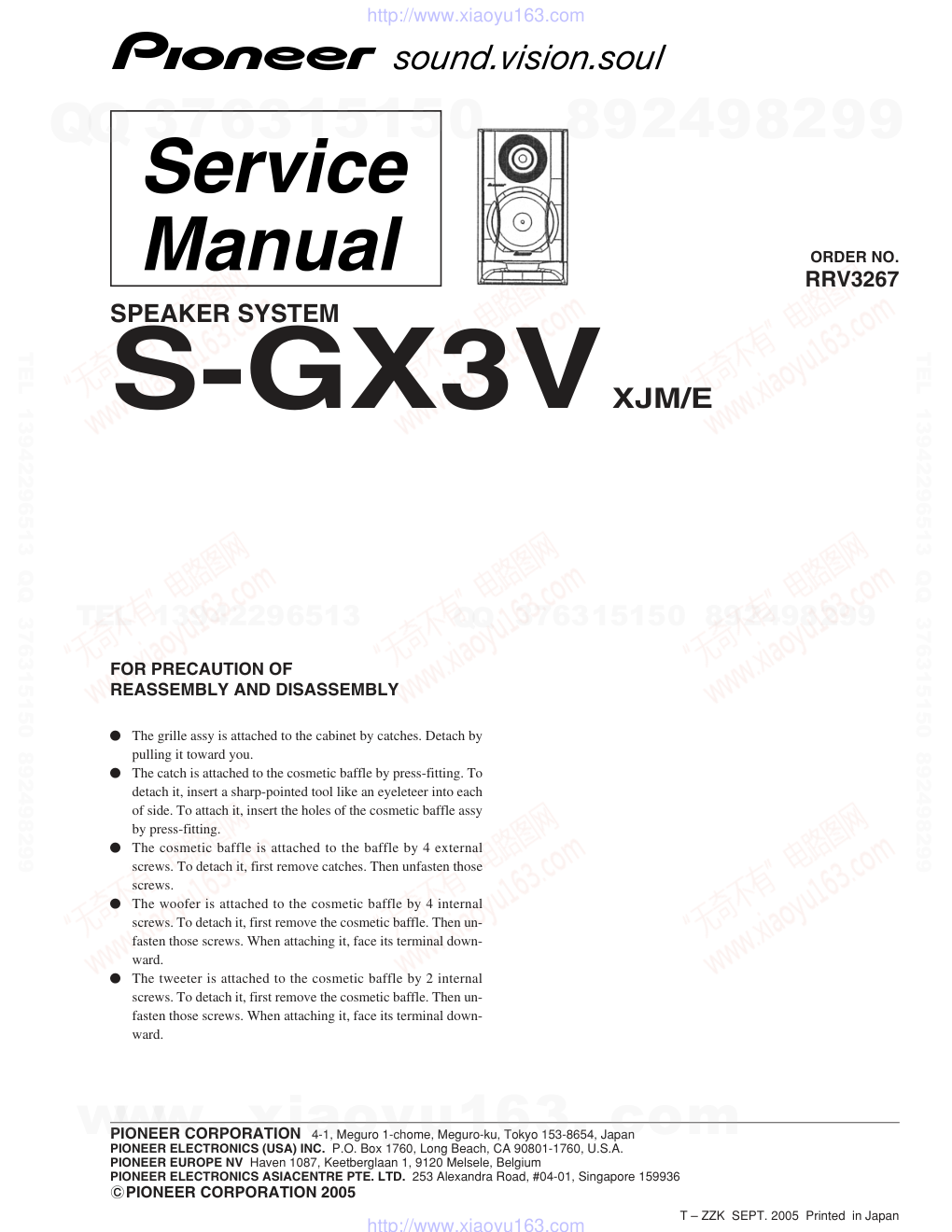

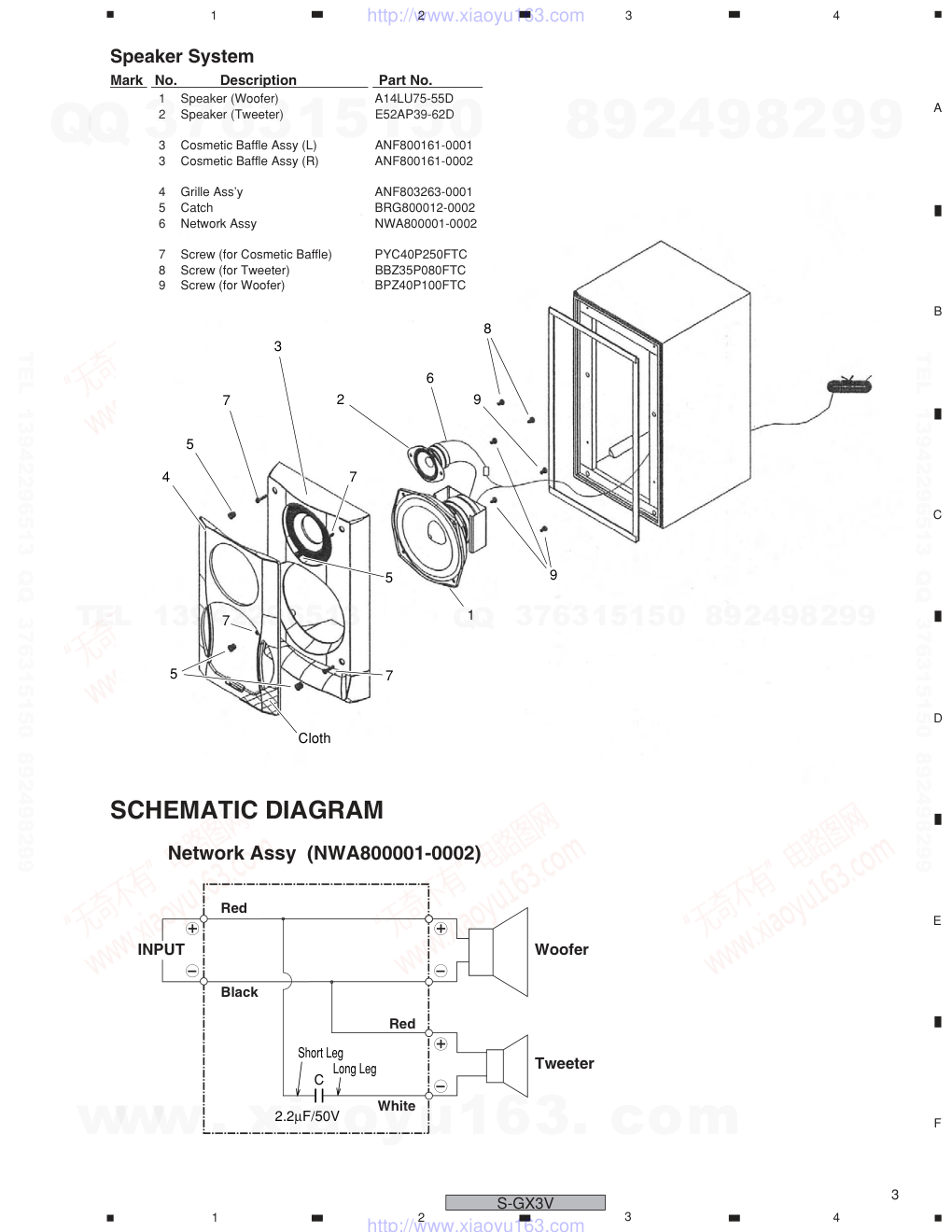

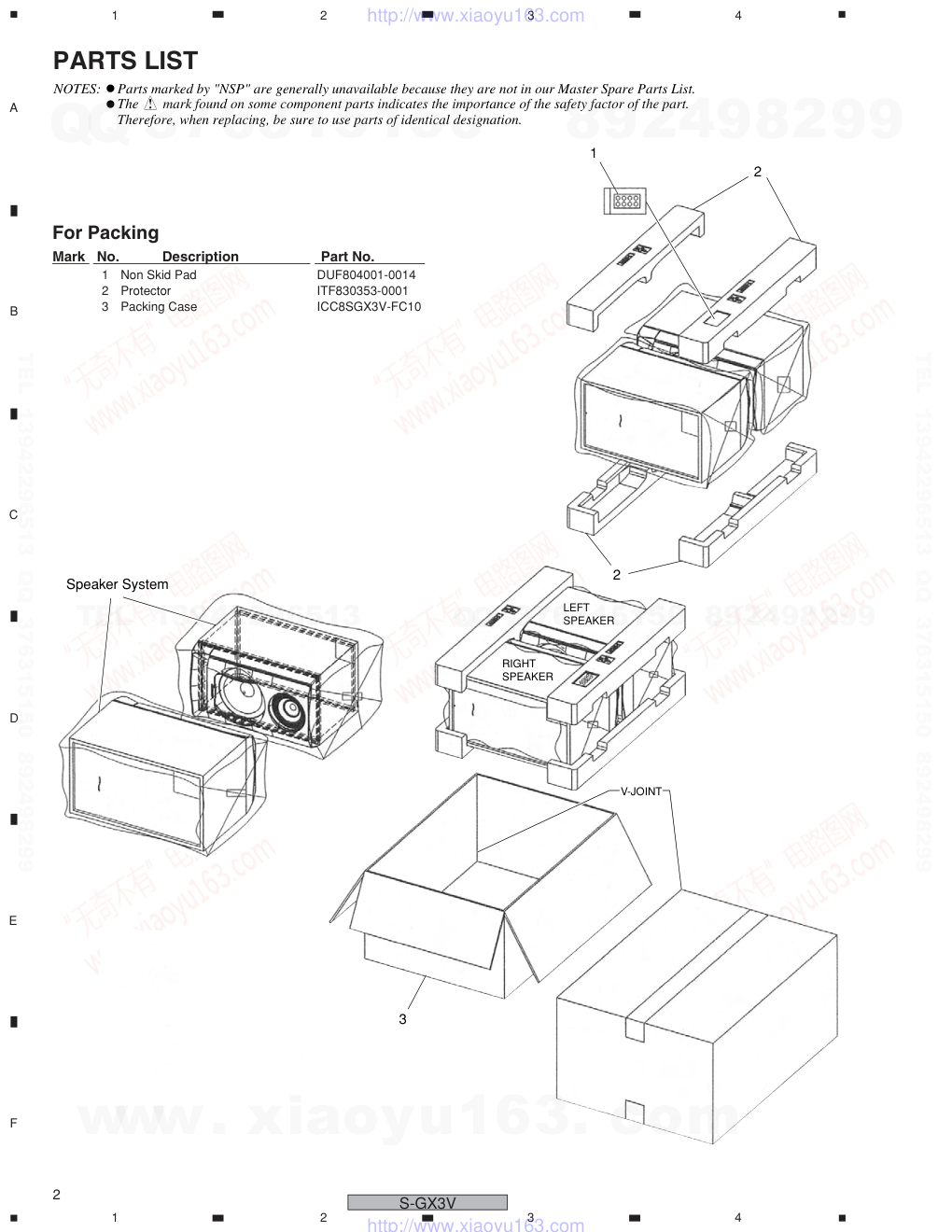

ORDER NO. PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2005 RRV3267 T – ZZK SEPT. 2005 Printed in Japan SPEAKER SYSTEM S-GX3V XJM/E FOR PRECAUTION OF REASSEMBLY AND DISASSEMBLY The grille assy is attached to the cabinet by catches. Detach by pulling it toward you. The catch is attached to the cosmetic baffle by press-fitting. To detach it, insert a sharp-pointed tool like an eyeleteer into each of side. To attach it, insert the holes of the cosmetic baffle assy by press-fitting. The cosmetic baffle is attached to the baffle by 4 external screws. To detach it, first remove catches. Then unfasten those screws. The woofer is attached to the cosmetic baffle by 4 internal screws. To detach it, first remove the cosmetic baffle. Then un- fasten those screws. When attaching it, face its terminal down- ward. The tweeter is attached to the cosmetic baffle by 2 internal screws. To detach it, first remove the cosmetic baffle. Then un- fasten those screws. When attaching it, face its terminal down- ward. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 1 2 3 4 1 2 3 4 C D F A B E S-GX3V 1 Non Skid Pad DUF804001-0014 2 Protector ITF830353-0001 3 Packing Case ICC8SGX3V-FC10 For Packing Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: PARTS LIST 1 2 2 RIGHT SPEAKER LEFT SPEAKER V-JOINT 3 Speaker System Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 1 2 3 4 1 2 3 4 C D F A B E S-GX3V 1 8 9 9 6 2 3 7 7 7 7 5 5 5 4 Cloth 1 Speaker (Woofer) A14LU75-55D 2 Speaker (Tweeter) E52AP39-62D 3 Cosmetic Baffle Assy (L) ANF800161-0001 3 Cosmetic Baffle Assy (R) ANF800161-0002 4 Grille Ass’y ANF803263-0001 5 Catch BRG800012-0002 6 Network Assy NWA800001-0002 7 Screw (for Cosmetic Baffle) PYC40P250FTC 8 Screw (for Tweeter) BBZ35P080FTC 9 Screw (for Woofer) BPZ40P100FTC Speaker System Mark No. Description Part No. SCHEMATIC DIAGRAM Network Assy (NWA800001-0002) 2.2µF/50V Long Leg C INPUT Woofer Black Red White Red Tweeter Short Leg www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
