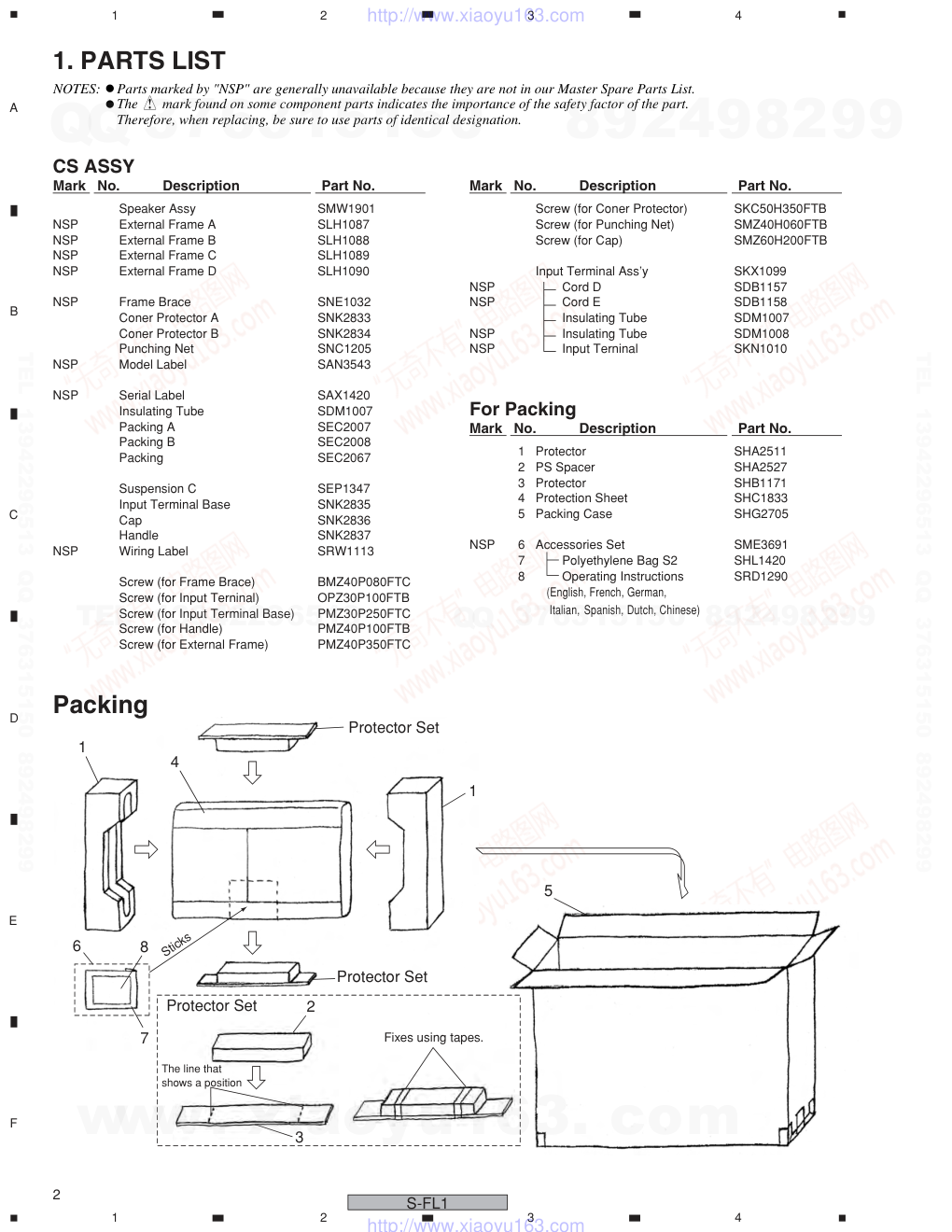

ORDER NO. PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2005 RRV3263 T-ZZS NOV. 2005 Printed in Japan S-FL1 Flat Panel Speaker XTW/E5 S-FL1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 1 2 3 4 1 2 3 4 C D F A B E S-FL1 Protector Set Protector Set Protector Set Sticks The line that shows a position Fixes using tapes. 1 4 1 6 8 7 5 2 3 Packing Speaker Assy SMW1901 NSP External Frame A SLH1087 NSP External Frame B SLH1088 NSP External Frame C SLH1089 NSP External Frame D SLH1090 NSP Frame Brace SNE1032 Coner Protector A SNK2833 Coner Protector B SNK2834 Punching Net SNC1205 NSP Model Label SAN3543 NSP Serial Label SAX1420 Insulating Tube SDM1007 Packing A SEC2007 Packing B SEC2008 Packing SEC2067 Suspension C SEP1347 Input Terminal Base SNK2835 Cap SNK2836 Handle SNK2837 NSP Wiring Label SRW1113 Screw (for Frame Brace) BMZ40P080FTC Screw (for Input Terninal) OPZ30P100FTB Screw (for Input Terminal Base) PMZ30P250FTC Screw (for Handle) PMZ40P100FTB Screw (for External Frame) PMZ40P350FTC Screw (for Coner Protector) SKC50H350FTB Screw (for Punching Net) SMZ40H060FTB Screw (for Cap) SMZ60H200FTB Input Terminal Ass’y SKX1099 NSP Cord D SDB1157 NSP Cord E SDB1158 Insulating Tube SDM1007 NSP Insulating Tube SDM1008 NSP Input Terninal SKN1010 1 Protector SHA2511 2 PS Spacer SHA2527 3 Protector SHB1171 4 Protection Sheet SHC1833 5 Packing Case SHG2705 NSP 6 Accessories Set SME3691 7 Polyethylene Bag S2 SHL1420 8 Operating Instructions SRD1290 (English, French, German, Italian, Spanish, Dutch, Chinese) Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: 1. PARTS LIST Mark No. Description Part No. CS ASSY For Packing Mark No. Description Part No. Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 1 2 3 4 1 2 3 4 C D F A B E S-FL1 Detach the Coner Protector A,B and Cap Speaker System Frame Brace (NSP) Coner Protector A : 4pcs. (SNK2833) Coner Protector B : 4pcs. (SNK2834) Wiring Label Wiring Label Model Label Cap x 4pcs. (SNK2836) Screw(SMZ60H200FTB) x 4pcs. Screw (SKC50H350FTB) x 2pcs. Screw (SKC50H350FTB) x 2pcs. Screw (SKC50H350FTB) x 2pcs. Screw (SKC50H350FTB) x 2pcs. Handle(SNK2837) Screw(PMZ40P100FTB) x 2pcs. Serial Label 2-1. DISASSEMBLY < Back Side > Packing (SEC2067) x8pcs. Detach the Punching Net Punching Net (SNC1205) Punching Net (SNC1205) Packing A (Short)x 2pcs. (SEC2007) Packing A (Short)x 2pcs. (SEC2007) Packing B (Long)x 2pcs. (SEC2008) Packing B (Long)x 2pcs. (SEC2008) < Front Side > Screw (SMZ40H060FTB) x 20pcs. Screw (SMZ40H060FTB) x 20pcs. 2. FOR PRECAUTION OF DISASSEMBLY AND REASSEMBLY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 1 2 3 4 1 2 3 4 C D F A B E S-FL1 Cord Cord Screw for External Frame (PMZ40P350FTC) Screw for External Frame (PMZ40P350FTC) x 12pcs. Screw for External Frame (PMZ40P350FTC) Screw for External Frame (PMZ40P350FTC) Turns over the speaker. < Back side > Screw for Frame Brace (BMZ40P080FTC) Screw for Frame Brace (BMZ40P080FTC) Frame Brace (NSP) x 4pcs. Be careful of direction. Screw for Frame Brace (BMZ40P080FTC) Screw for Frame Brace (BMZ40P080FTC) Screw for Frame Brace (BMZ40P080FTC) Screw for Frame Brace (BMZ40P080FTC) Screw for Frame Brace (BMZ40P080FTC) x 16pcs. Screw for Frame Brace (BMZ40P080FTC) Unfasten the Screw for the External Frame and Detach the Frame Brace Disconnect the Input Terminal Assy Cords and Speaker Assy Cords A B Insulating Tube (SDM1007) Insulating Tube (SDM1007) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 1 2 3 4 1 2 3 4 C D F A B E S-FL1 Reassembles by the order of -> -> Connecting the Input Terminal Assy cord and the Speaker Assy cord, Puts the Insulation Tube, Styling the connection cord -> -> . Note 1) When you attach the Extenal Frame A, B, C, D to the speaker at first, don't tighten the screw strongly. But when you attach the Frame brace, fasten the screws strongly. Note 2) Stick the Suspension C Stucks the suspension C on the center of the frame back side, as shown in a figure. Note 3) Attach the Corner Protector Sticks the Packing to the Corner Protector. Covers the Frame Brace by the corner protector and fasten the Screws. Note 4) Attach the Punching Net The Punching Net have distinction of the front and the back side. The side which has burr arround the hole is the back side. Be sure to attach it to inside. 2-2. REASSEMBLY Frame Brace Corner Protector A x4pcs. (SNK2833) Corner Protector B x4pcs. (SNK2834) 2pcs. in each every corner (SKC50H350FTB) Packing (SEC2067) x8pcs. (Sticks on the illustration part of the corner protector inner side.) Suspension C (SEP1347) < Front side > Detach the External Frame Speaker Assy (SMW1901) Hole External Frame B (NSP) Draw out the cord from the hole of External Frame B. Draw out the cord from the hole of External Frame D. External Frame C (NSP) Screw for External Frame (PMZ40P350FTC) External Frame D (NSP) Hole External Frame A (NSP) Screw for External Frame (PMZ40P350FTC) The direction that the speaker cord comes. The direction that the speaker cord comes. Screw for External Frame (PMZ40P350FTC) < Front Side > Screw for External Frame (PMZ40P350FTC) x 6pcs. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 1 2 3 4 1 2 3 4 C D F A B E S-FL1 Input Terminal Ass'y (SKX1099) Attach the Input Terminal Ass'y Input Terminal (SKN1010) Cord E Cord D Puts through the tube firmly. Screw OPZ30P100FTB (2 pcs.) Screw OPZ30P100FTB (2 pcs.) Screw PMZ30P250FTC (2 pcs.) Screw PMZ30P250FTC (2 pcs.) Input Terminal Assy Input Terminal Assy Input Terminal Base (SNK2835) (Puts through previously) Input Terminal Base (SNK2835) (Puts through previously) The direction that takes out the Input Terminal Assy Cords. < Back Side > Input Terminal Ass'y (SKX1099) The Insulating Tube is not shrunk. (Do not heat.) Move the Insulating Tubes to the soldering part and fixes by heating. Insulating Tube Connects the code (White) to [1+] terminal. Connects the code (Black) to [1-] terminal. Puts through the tip of code into a terminal hole. After bending, solders. Previously, puts through the cord to the Input Terminal Base. Then puts through the cord to External Frame. 2-3. CONNECTING and SCHEMATIC DIAGRAM The terminal number to connect A B The direction that takes out the Input Terminal Assy Cords. Direction of the metal plate Direction of the metal plate www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 1 2 3 4 1 2 3 4 C D F A B E S-FL1 Connection of the Input Terminal Ass'y Cords and the Speaker Assy Cords Styling Solders, after twisting the Cord 3 times or more. Connect the same color cord. Pushes the cord in between the Frame and the Frame Brace. In this position, Pushes the connection part in between the Frame and the Frame Brace. Puts the cord into the inside of External Frame. Checks that the cord has not appeared from Extenal Frame. Extenal Frame C Extenal Frame D Turned up the connection part and puts into the inside of External Frame. Turned up the cord. Checks that the cord has not appeared from Extenal Frame. A B Turned up the connection part and the cord and puts into the inside of External Frame. Insulating Tube (SDM1007) Insulating Tube (SDM1007) A B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 1 2 3 4 1 2 3 4 C D F A B E S-FL1 Caution • Be careful not to short the two pins (1+ and 1–) of the free speaker terminal. Doing so could damage the speaker and your amplifier. • Switch off the amplifier before connecting any speakers. There are two connection terminals on the rear side of the speaker. To connect the speaker to your amplifier you will need a suitable speaker cord terminated in a Neutrik Speakon® speaker connector [NL4MP]. Only the 1+ and 1– pins should be connected. These connect to the positive (+) and negative (–) speaker terminals respectively on the amplifier. Neutrik [NL4FX] and [NL4FC] Speakon speaker cord can be used for the connection. Please refer to Neutrik for more information. 1 Use a suitable speaker cord (not supplied) to connect the speaker terminal on your amplifier to one of the input terminals on the rear of the speaker. The speaker’s terminals are exactly the same; use whichever is convenient. • See the manual that came with your amplifier for more details. a Plug the speaker cord connector into the speaker's input terminal. Check the alignment for the connector with the jack before plugging in. b After inserting the connector fully, turn clockwise to lock it in place. • After connecting, gently pull the connector to make sure that it is securely connected. Improper connection can be a cause of noise or other problems. Connecting another speaker On the rear of the speaker are two terminals; you can use these to connect another speaker of the same type to this speaker. • The number of speakers you may connect will vary according to the impedance rating of the amplifier. See the manual that came with your amplifier for more details. • The diagram below shows the wiring of two connected speakers. Squeeze the lever on the speaker connector with your thumb, then twist the whole connector counter- clockwise and pull out. 1 2 Amplifier S-FL1 S-FL1 + - 1+ 1- 8 Ω 1+ 1- Amplifier 1+ 1+ 1- 8 Ω 1- S-FL1 S-FL1 Disconnecting SCHEMATIC DIAGRAM Connecting to your amplifier EXCITER 1+ 1+ 1– 1– 2+ 2+ 2– 2– EXCITER Input Terminal 1 Input Terminal 2 EXCITER EXCITER Black White www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 1 2 3 4 1 2 3 4 C D F A B E S-FL1 3. JIGS SPEAKON (GGF1541) 20 19 65 65 250 250 Screw M8, Screw Length 35 Measure for abnormal sound, be sure to use the washer(M8) and the spring washer(M8). [ mm ] 2–φ9 HOLES 150 75 1- 1+ 2+ 2- 1. Turn the black cap leftward and removed. (Don't turn rightward) 2. Loosen the screw and insert the speaker cable in the silver color hole of [1-] and [1+]. Next tighten the screws. (Part A) 3. After connecting the speaker cable, according to the thickness of a cable, it inserts in order of the adapter(for fixation) and the cap, and it turns rightward and fixes. 4. Finish • Usually, [1+] is connected as [+] and [1-] is connected as [-]. • In case of the diameter of speaker cable is thin, please stick a tape etc. and make the diameter of cable thick. • There is a lock mechanism. Disassembly will be impossible once it assembles. SPEAKER STAND for S-FL1 Part A Part A Part B Part B Part C Part C Please make this stand by your side. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 1 2 3 4 1 2 3 4 C D F A B E S-FL1 SPEAKON GGF1541 Jig Name Jig No. Note Jigs List The check of operation www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
