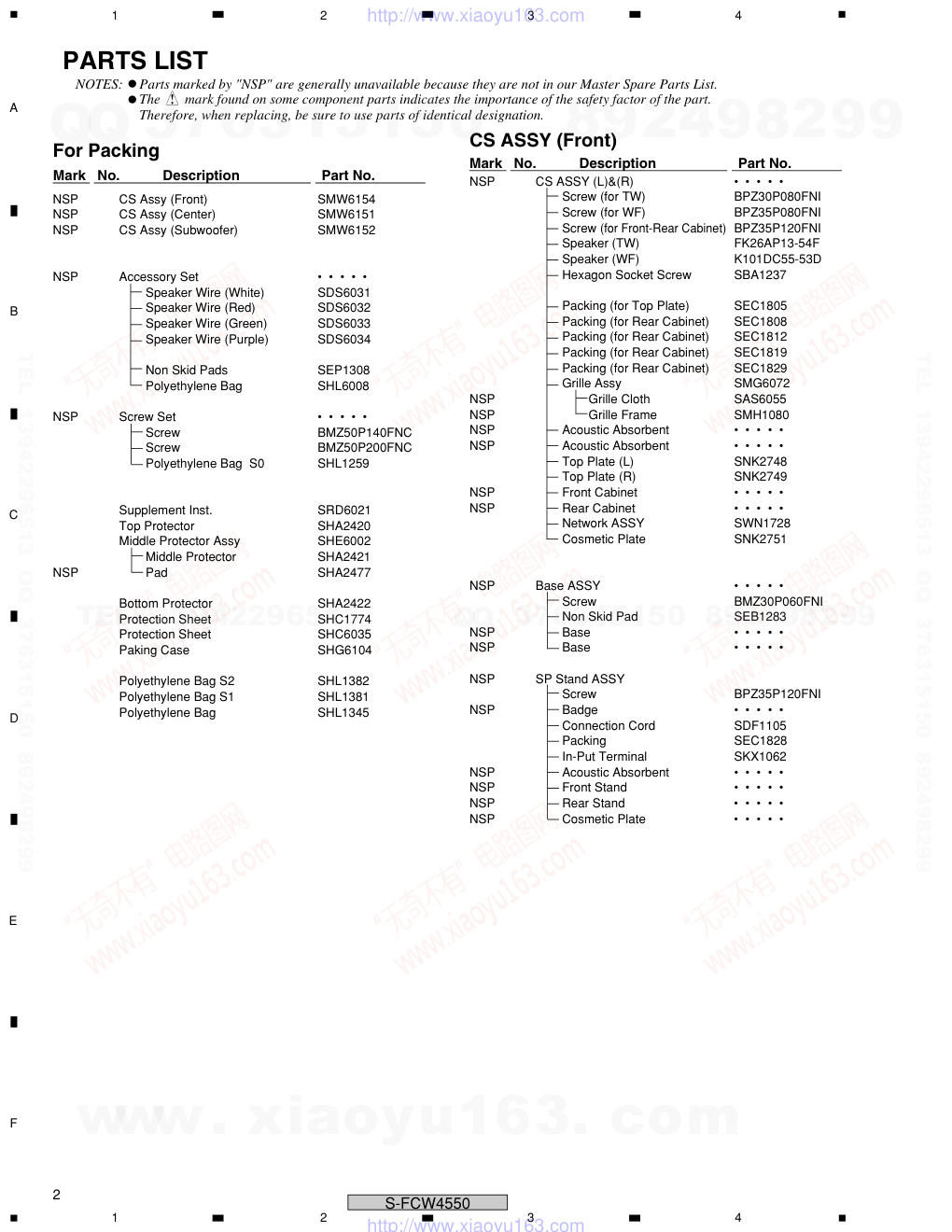

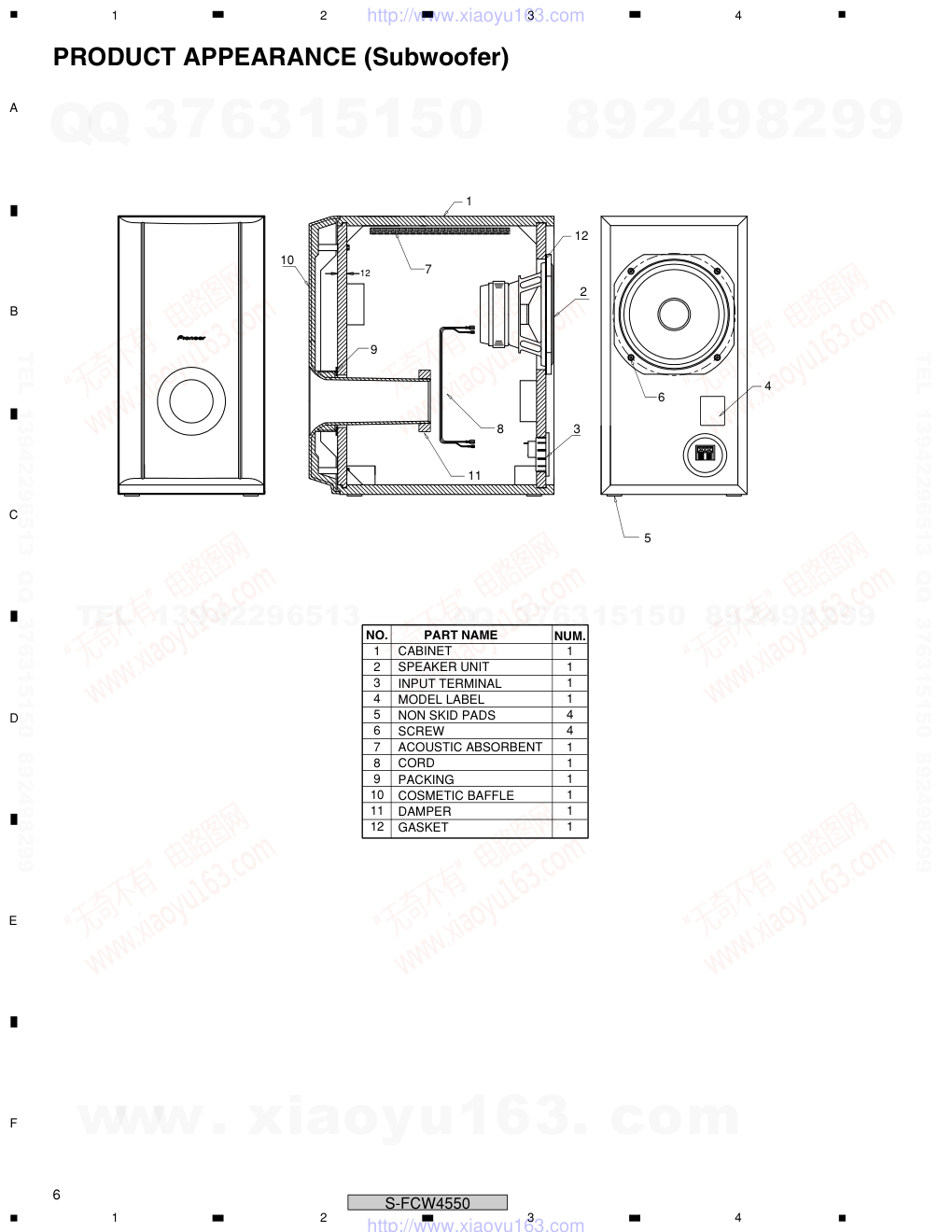

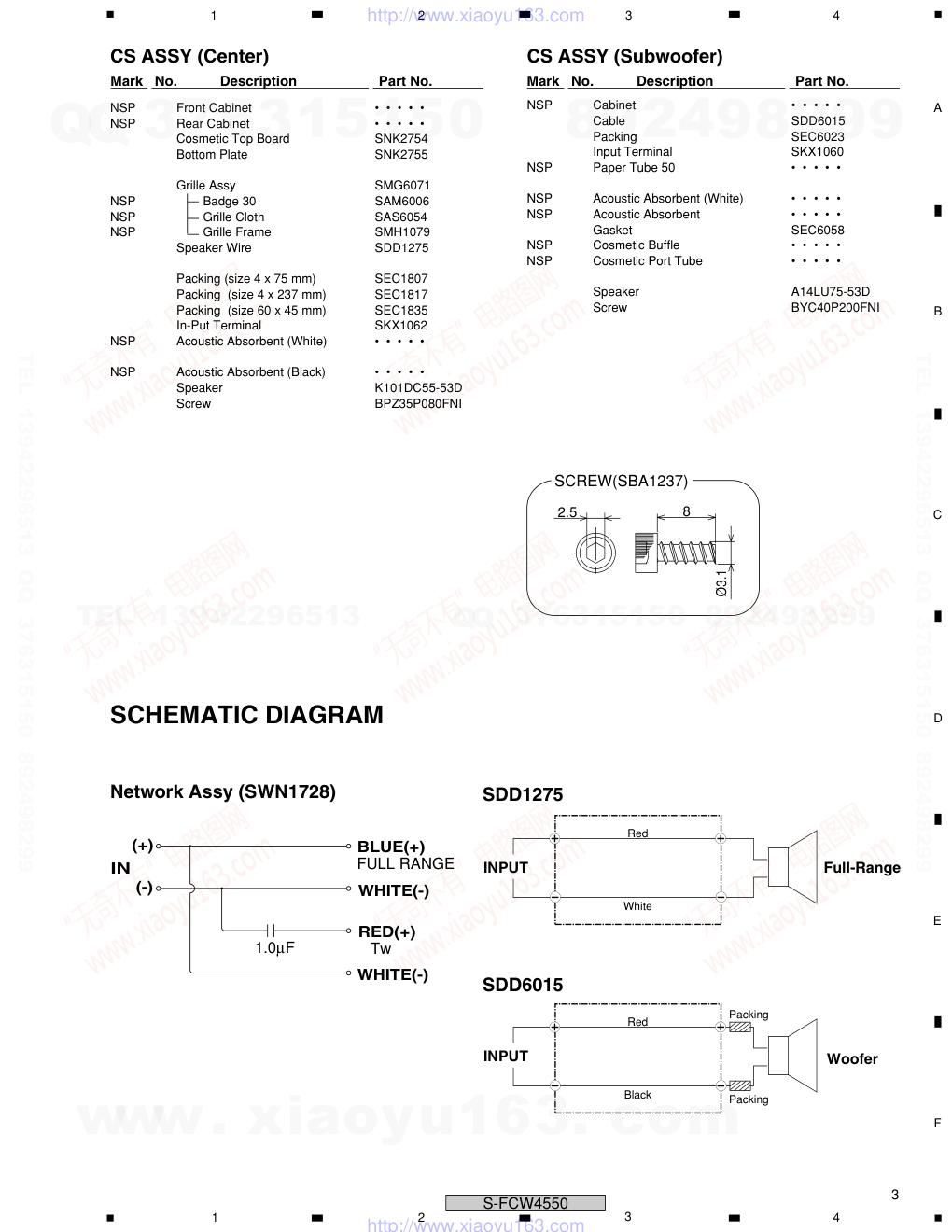

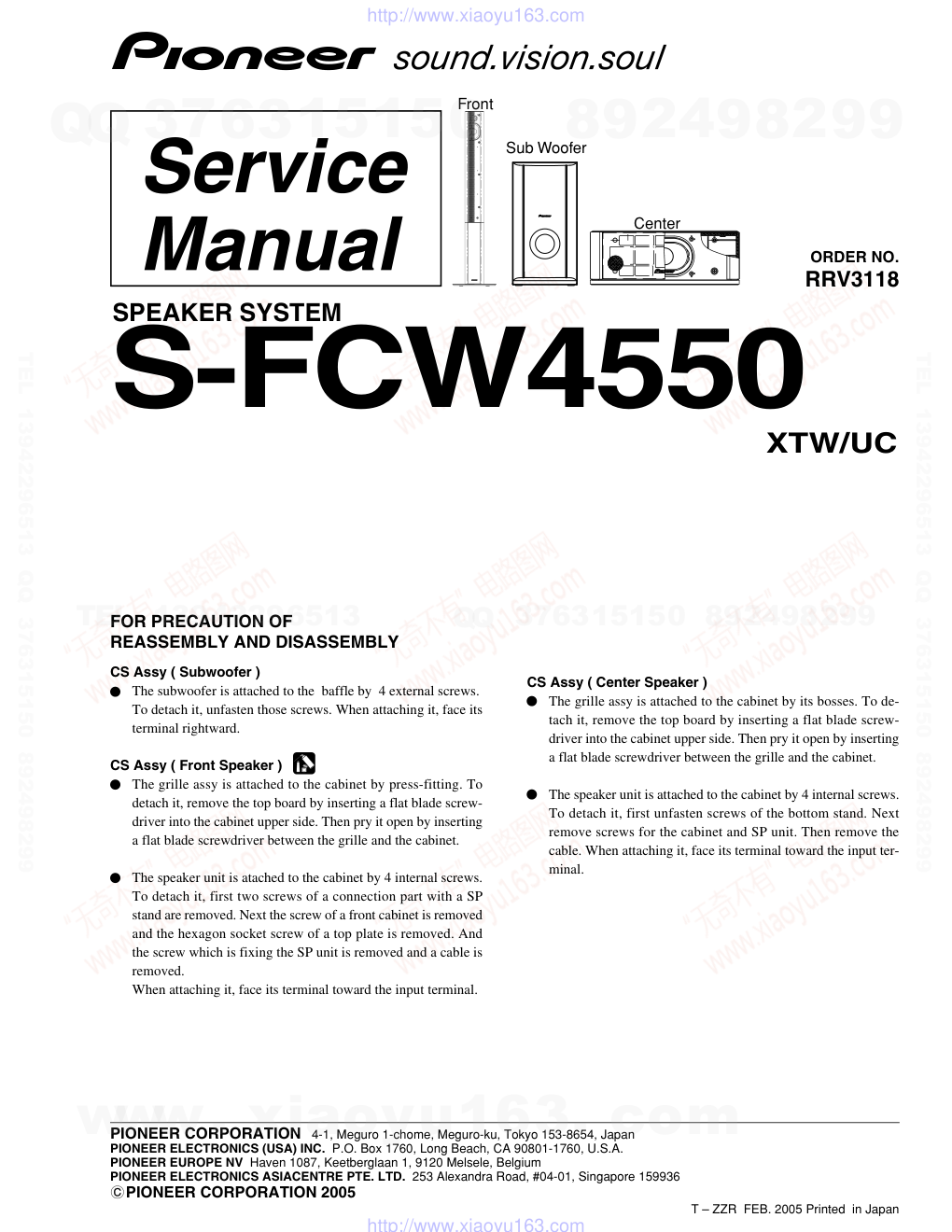

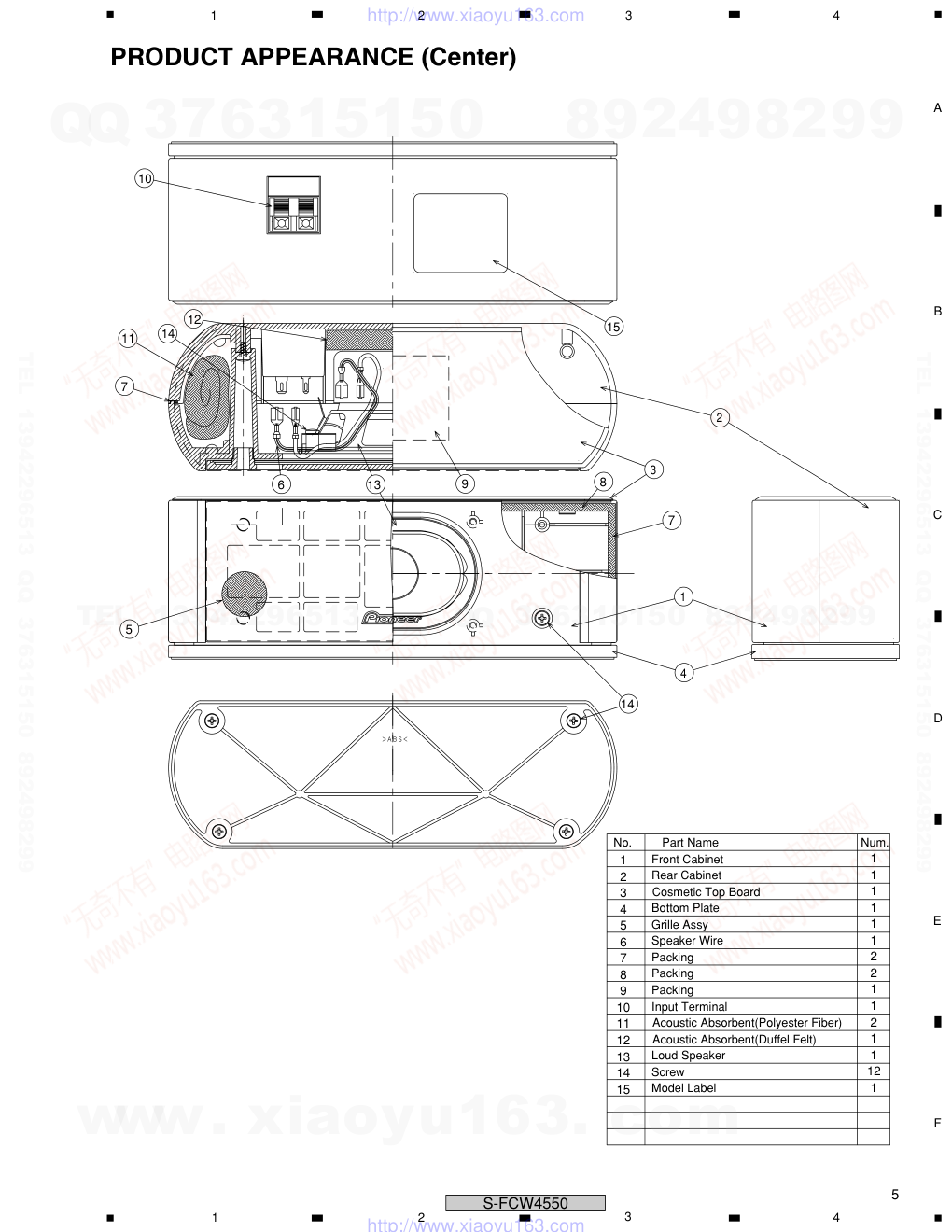

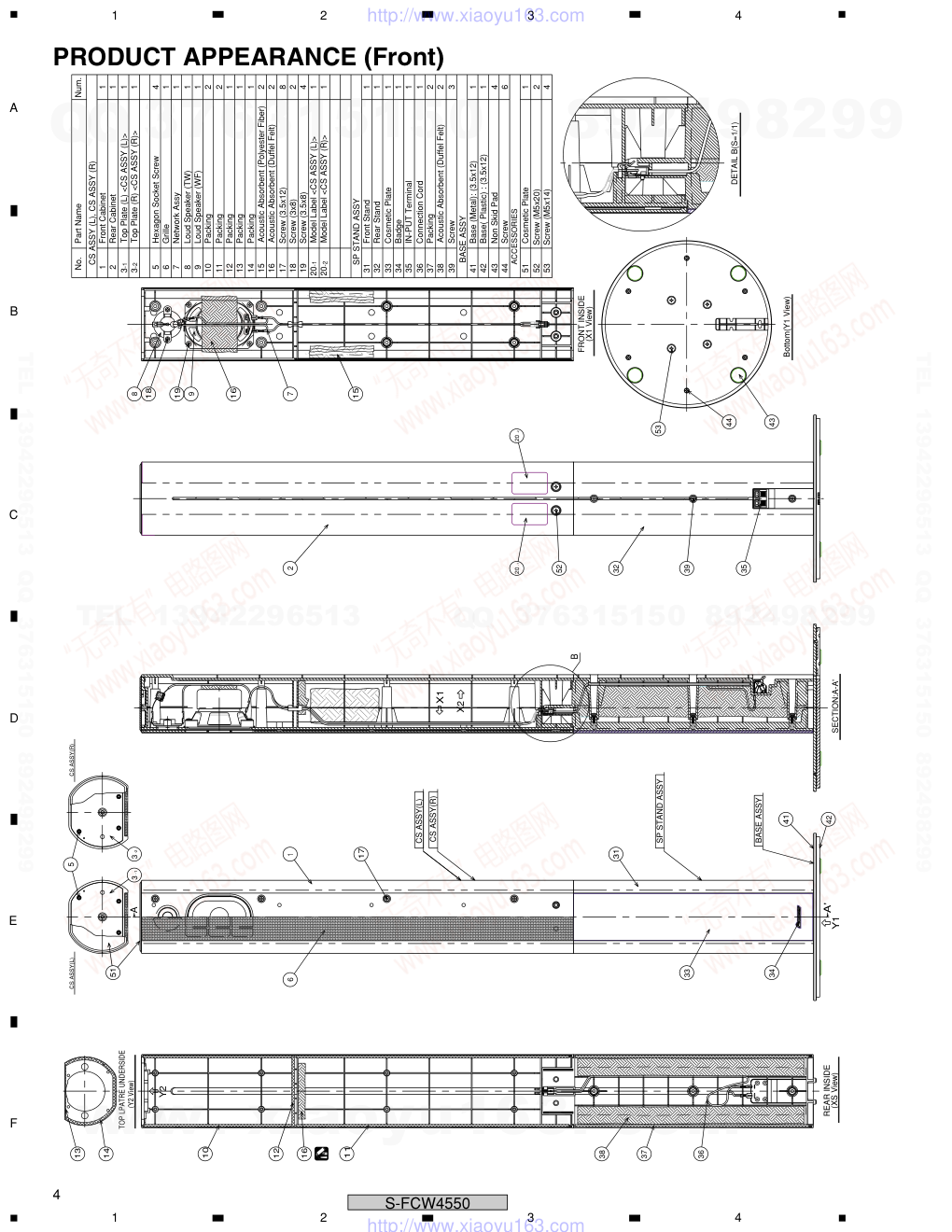

ORDER NO. PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2005 RRV3118 T – ZZR FEB. 2005 Printed in Japan S-FCW4550 XTW/UC SPEAKER SYSTEM FOR PRECAUTION OF REASSEMBLY AND DISASSEMBLY CS Assy ( Subwoofer ) The subwoofer is attached to the baffle by 4 external screws. To detach it, unfasten those screws. When attaching it, face its terminal rightward. CS Assy ( Front Speaker ) The grille assy is attached to the cabinet by press-fitting. To detach it, remove the top board by inserting a flat blade screw- driver into the cabinet upper side. Then pry it open by inserting a flat blade screwdriver between the grille and the cabinet. The speaker unit is atached to the cabinet by 4 internal screws. To detach it, first two screws of a connection part with a SP stand are removed. Next the screw of a front cabinet is removed and the hexagon socket screw of a top plate is removed. And the screw which is fixing the SP unit is removed and a cable is removed. When attaching it, face its terminal toward the input terminal. CS Assy ( Center Speaker ) The grille assy is attached to the cabinet by its bosses. To de- tach it, remove the top board by inserting a flat blade screw- driver into the cabinet upper side. Then pry it open by inserting a flat blade screwdriver between the grille and the cabinet. The speaker unit is attached to the cabinet by 4 internal screws. To detach it, first unfasten screws of the bottom stand. Next remove screws for the cabinet and SP unit. Then remove the cable. When attaching it, face its terminal toward the input ter- minal. Front Sub Woofer Center www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 1 2 3 4 1 2 3 4 C D F A B E S-FCW4550 For Packing Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: PARTS LIST Mark No. Description Part No. NSP CS Assy (Front) SMW6154 NSP CS Assy (Center) SMW6151 NSP CS Assy (Subwoofer) SMW6152 NSP Accessory Set • • • • • Speaker Wire (White) SDS6031 Speaker Wire (Red) SDS6032 Speaker Wire (Green) SDS6033 Speaker Wire (Purple) SDS6034 Non Skid Pads SEP1308 Polyethylene Bag SHL6008 NSP Screw Set • • • • • Screw BMZ50P140FNC Screw BMZ50P200FNC Polyethylene Bag S0 SHL1259 Supplement Inst. SRD6021 Top Protector SHA2420 Middle Protector Assy SHE6002 Middle Protector SHA2421 NSP Pad SHA2477 Bottom Protector SHA2422 Protection Sheet SHC1774 Protection Sheet SHC6035 Paking Case SHG6104 Polyethylene Bag S2 SHL1382 Polyethylene Bag S1 SHL1381 Polyethylene Bag SHL1345 CS ASSY (Front) Mark No. Description Part No. NSP CS ASSY (L)&(R) • • • • • Screw (for TW) BPZ30P080FNI Screw (for WF) BPZ35P080FNI Screw (for Front-Rear Cabinet) BPZ35P120FNI Speaker (TW) FK26AP13-54F Speaker (WF) K101DC55-53D Hexagon Socket Screw SBA1237 Packing (for Top Plate) SEC1805 Packing (for Rear Cabinet) SEC1808 Packing (for Rear Cabinet) SEC1812 Packing (for Rear Cabinet) SEC1819 Packing (for Rear Cabinet) SEC1829 Grille Assy SMG6072 NSP Grille Cloth SAS6055 NSP Grille Frame SMH1080 NSP Acoustic Absorbent • • • • • NSP Acoustic Absorbent • • • • • Top Plate (L) SNK2748 Top Plate (R) SNK2749 NSP Front Cabinet • • • • • NSP Rear Cabinet • • • • • Network ASSY SWN1728 Cosmetic Plate SNK2751 NSP Base ASSY • • • • • Screw BMZ30P060FNI Non Skid Pad SEB1283 NSP Base • • • • • NSP Base • • • • • NSP SP Stand ASSY Screw BPZ35P120FNI NSP Badge • • • • • Connection Cord SDF1105 Packing SEC1828 In-Put Terminal SKX1062 NSP Acoustic Absorbent • • • • • NSP Front Stand • • • • • NSP Rear Stand • • • • • NSP Cosmetic Plate • • • • • www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 1 2 3 4 1 2 3 4 C D F A B E S-FCW4550 Mark No. Description Part No. CS ASSY (Subwoofer) CS ASSY (Center) Mark No. Description Part No. NSP Front Cabinet • • • • • NSP Rear Cabinet • • • • • Cosmetic Top Board SNK2754 Bottom Plate SNK2755 Grille Assy SMG6071 NSP Badge 30 SAM6006 NSP Grille Cloth SAS6054 NSP Grille Frame SMH1079 Speaker Wire SDD1275 Packing (size 4 x 75 mm) SEC1807 Packing (size 4 x 237 mm) SEC1817 Packing (size 60 x 45 mm) SEC1835 In-Put Terminal SKX1062 NSP Acoustic Absorbent (White) • • • • • NSP Acoustic Absorbent (Black) • • • • • Speaker K101DC55-53D Screw BPZ35P080FNI NSP Cabinet • • • • • Cable SDD6015 Packing SEC6023 Input Terminal SKX1060 NSP Paper Tube 50 • • • • • NSP Acoustic Absorbent (White) • • • • • NSP Acoustic Absorbent • • • • • Gasket SEC6058 NSP Cosmetic Buffle • • • • • NSP Cosmetic Port Tube • • • • • Speaker A14LU75-53D Screw BYC40P200FNI SDD1275 SDD6015 Full-Range INPUT Red White Packing Packing INPUT Red Black Woofer SCHEMATIC DIAGRAM Network Assy (SWN1728) WHITE(-) BLUE(+) RED(+) WHITE(-) Tw IN (+) (-) 1.0µF FULL RANGE Ø3.1 2.5 8 SCREW(SBA1237) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 1 2 3 4 1 2 3 4 C D F A B E S-FCW4550 PRODUCT APPEARANCE (Front) TOP LPATRE UNDERSIDE (Y2 View) No. Part Name Num. 1 1 Front Cabinet 1 2 Rear Cabinet 1 3-1 Top Plate (L) 1 3-2 Top Plate (R) 4 5 Hexagon Socket Screw 1 6 Grille 1 7 Network Assy 1 8 Loud Speaker (TW) 1 9 Loud Speaker (WF) 2 10 Packing 2 11 Packing 1 12 Packing 1 13 Packing 1 14 Packing 2 15 Acoustic Absorbent (Polyester Fiber) 2 16 Acoustic Absorbent (Duffel Felt) 8 17 Screw (3.5x12) 2 18 Screw (3x8) 4 19 Screw (3.5x8) 1 31 Front Stand 1 32 Rear Stand 1 33 Cosmetic Plate 1 34 Badge 1 35 IN-PUT Terminal 1 36 Connection Cord 2 37 Packing 2 38 Acoustic Absorbent (Duffel Felt) 3 39 Screw 1 41 Base (Metal): (3.5x12) 1 42 Base( Plastic) : (3.5x12) 4 43 Non Skid Pad 6 44 Screw 1 51 Cosmetic Plate 1 20-1 Model Label 1 20-2 Model Label 2 52 Screw (M5x20) 4 53 Screw (M5x14) CS ASSY(L) CS ASSY(R) CS ASSY(L) CS ASSY(R) SP STAND ASSY SECTION:A-A' BASE ASSY REAR INSIDE (XS View) Bottom(Y1 View) DETAIL B(S=1/1) FRONT INSIDE (X1 View) ACCESSORIES BASE ASSY SP STAND ASSY CS ASSY (L), CS ASSY (R) Y2 X1 X2 B 2 5 1 3 -1 3 -2 6 7 8 9 10 11 12 13 14 16 15 17 18 19 31 32 33 35 34 36 37 38 39 52 41 42 43 20 -2 44 20 -1 53 16 51 A A' Y1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 1 2 3 4 1 2 3 4 C D F A B E S-FCW4550 6 1 2 3 4 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 1 1 1 1 1 1 2 2 1 1 2 1 1 12 1 Num. No. Part Name Front Cabinet Speaker Wire Acoustic Absorbent(Duffel Felt) Input Terminal Model Label Loud Speaker Cosmetic Top Board Bottom Plate Packing Packing Packing Rear Cabinet Grille Assy Acoustic Absorbent(Polyester Fiber) Screw 5 7 8 7 9 10 11 12 13 15 14 14 PRODUCT APPEARANCE (Center) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 1 2 3 4 1 2 3 4 C D F A B E S-FCW4550 PRODUCT APPEARANCE (Subwoofer) 12 5 6 4 2 3 8 7 11 1 12 9 10 NO. NUM. PART NAME 1 1 1 1 4 4 1 1 1 1 1 1 1 2 3 4 5 6 7 8 9 10 11 12 CABINET SPEAKER UNIT INPUT TERMINAL MODEL LABEL NON SKID PADS SCREW ACOUSTIC ABSORBENT CORD PACKING COSMETIC BAFFLE DAMPER GASKET www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
