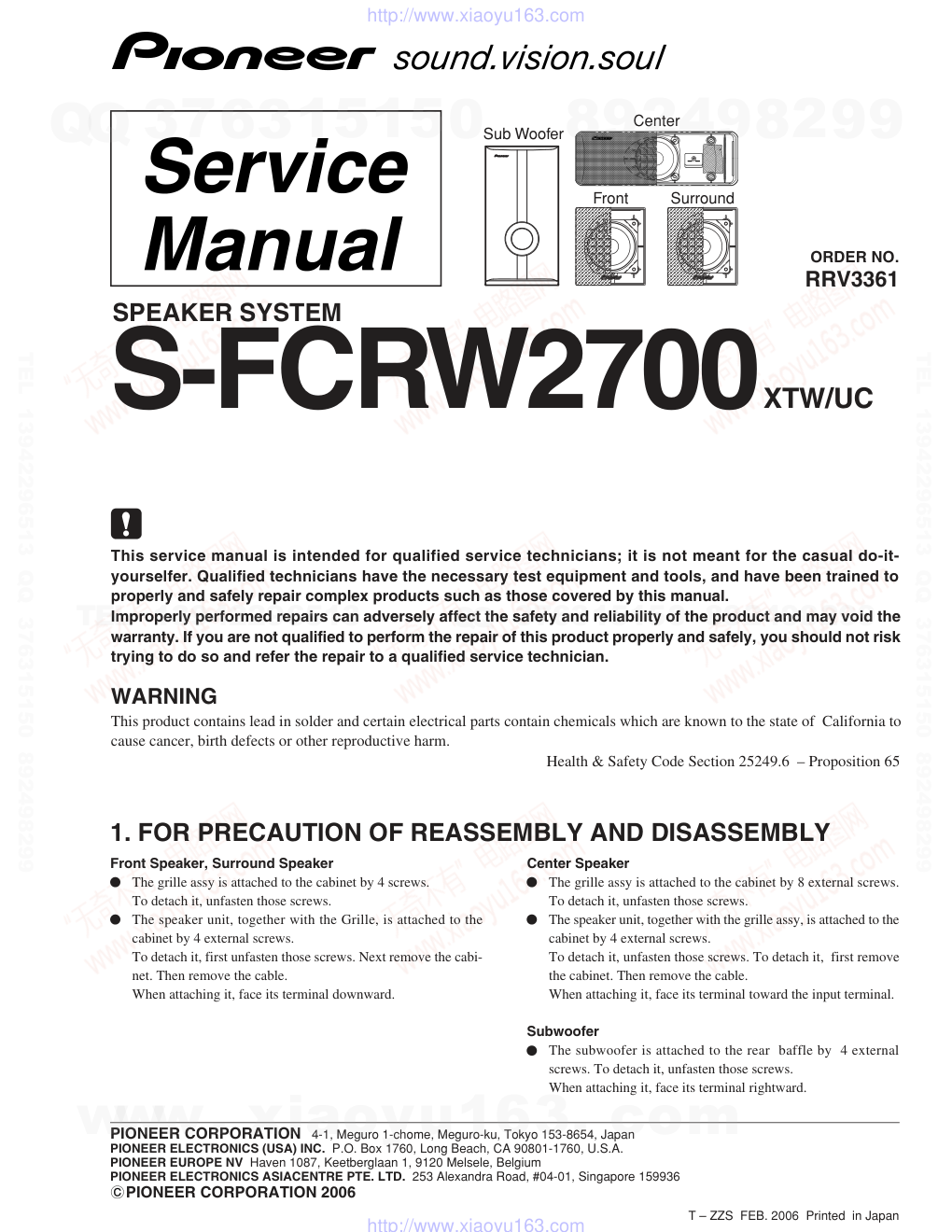

ORDER NO. PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2006 RRV3361 T – ZZS FEB. 2006 Printed in Japan S-FCRW2700 XTW/UC SPEAKER SYSTEM Sub Woofer Center Front Surround This service manual is intended for qualified service technicians; it is not meant for the casual do-it- yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. WARNING This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 – Proposition 65 1. FOR PRECAUTION OF REASSEMBLY AND DISASSEMBLY Front Speaker, Surround Speaker The grille assy is attached to the cabinet by 4 screws. To detach it, unfasten those screws. The speaker unit, together with the Grille, is attached to the cabinet by 4 external screws. To detach it, first unfasten those screws. Next remove the cabi- net. Then remove the cable. When attaching it, face its terminal downward. Center Speaker The grille assy is attached to the cabinet by 8 external screws. To detach it, unfasten those screws. The speaker unit, together with the grille assy, is attached to the cabinet by 4 external screws. To detach it, unfasten those screws. To detach it, first remove the cabinet. Then remove the cable. When attaching it, face its terminal toward the input terminal. Subwoofer The subwoofer is attached to the rear baffle by 4 external screws. To detach it, unfasten those screws. When attaching it, face its terminal rightward. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 1 2 3 4 1 2 3 4 C D F A B E S-FCRW2700 2.1 Packing Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: 2. PARTS LIST Mark No. Description Part No. Packing Parts List 4 9 8 7 3 13 11 1 10 2 5 12 6 NSP 1 Front Speaker SMW1938 NSP 2 Surround Speaker SMW1939 NSP 3 Center Speaker SMW1940 NSP 4 Subwoofer SMW1941 NSP Model Label (FL) SAN3849 NSP Model Label (FR) SAN3850 NSP Model Label (SL) SAN3851 NSP Model Label (SR) SAN3852 NSP Model Label (C) SAN3853 NSP Model Label (SW) SAN3854 NSP 5 Accessary Set SEA1719 Speaker Cord (for center) SDS1173 Non Skid Pad SEP1240 (for Front, Surround, Center) Non Skid Pad (for Subwoofer) SEC1912 Polyethylene Bag S1 SHL1296 NSP Bracket Set SEA1720 NSP Screw Set SEA1721 Screw BMZ50P120FNC Polyethylene Bag S0 SHL1314 Bracket SNN1047 Polyethylene Bag S1 SHL1429 6 Operating Guide SRD1317 (English, French) 7 Top Protector SHA2489 8 Middle Protector SHA2490 9 Bottom Protector SHA2491 10 Protection Sheet SHC1821 11 Packing Case SHG2739 12 Polyethylene Bag S2 SHL1417 13 Polyethylene Bag S1 SHL1419 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 1 2 3 4 1 2 3 4 C D F A B E S-FCRW2700 Model Label 26 21 25 22 23 or 24 < BACK VIEW > White with Gray Line White Front Speaker Parts List NSP 21 Cabinet SNK2840 22 Grille SMG1875 NSP Badge 28 SAM1506 NSP Grille Cloth SAS1614 NSP Baffle SNK2843 23 Connecting Cord (White) SDD1340 24 Connecting Cord (Red) SDD1341 25 Speaker K77DC55-52F 26 Screw BPZ35P120FTB 2.2 Front Speaker Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 1 2 3 4 1 2 3 4 C D F A B E S-FCRW2700 Model Label 36 33 or 34 31 35 32 < BACK VIEW > White White with Gray Line 2.3 Surround Speaker Surround Speaker Parts List NSP 31 Cabinet SNK2840 32 Grille SMG1875 NSP Badge 28 SAM1506 NSP Grille Cloth SAS1614 NSP Baffle SNK2843 33 Connecting Cord (Blue) SDD1342 34 Connecting Cord (Gray) SDD1343 35 Speaker K77DC55-52F 36 Screw BPZ35P120FTB Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 1 2 3 4 1 2 3 4 C D F A B E S-FCRW2700 NSP 41 Cabinet SNK2851 42 Grille SMG1876 NSP 43 Badge 28 SAM1506 NSP Grille Cloth SAS1615 NSP Baffle SMK2852 44 Connecting Cord SDD1345 45 Packing (size: 4 x 75) SEC1913 46 Input Terminal SKX1096 NSP 47 Acoustic Absorbent (White) SMT1293 NSP 48 Acoustic Absorbent (Black) SMV2198 49 Speaker K77DC55-53F 50 Screw BPZ35P080FTC 51 Screw BPZ35P120FTB Center Speaker Parts List 2.4 Center Speaker 48 41 49 42 46 Model Label 51 (x8) 47 (x2) 44 50 45 (x2) 43 White Red Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 1 2 3 4 1 2 3 4 C D F A B E S-FCRW2700 Model Label 67 White with Gray Line White 290 (287) 317 66 Glue < BACK VIEW > 61 62 65 64 63 190 360 2.5 Subwoofer Subwoofer Parts List NSP 61 Cabinet SMM2038 62 Cosmetic Baffle Assy SXB1485 NSP Cosmetic Baffle SNK6125 NSP Badge 37 SAM1507 NSP Paper Tube 56 SMR6009 NSP Damper SEP1305 63 Gasket SEC6058 64 Packing SEC6059 65 Connecting Cord (Purple) SDD1344 66 Speaker A14LU75-52F 67 Screw BYC40P130FTB Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 1 2 3 4 1 2 3 4 C D F A B E S-FCRW2700 3. SCHEMATIC DIAGRAM Connecting Cord (SDD1342, SDD1343) 2. Surround Speaker Connecting Cord (SDD1340, SDD1341) 1. Front Speaker Tube color SDD1340: White (for Left channel) SDD1341: Red (for Right channel) Tube color SDD1342: Blue (for Left channel) SDD1343: Gray (for Right channel) INPUT Speaker White White with Gray Line Tube Connecting Cord (SDD1344) 4. Subwoofer Tube color SDD1344: Purple INPUT Speaker White White with Gray Line Tube Connecting Cord (SDD1345) 3. Center Speaker INPUT Speaker White Red INPUT Speaker White White with Gray Line Tube www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
