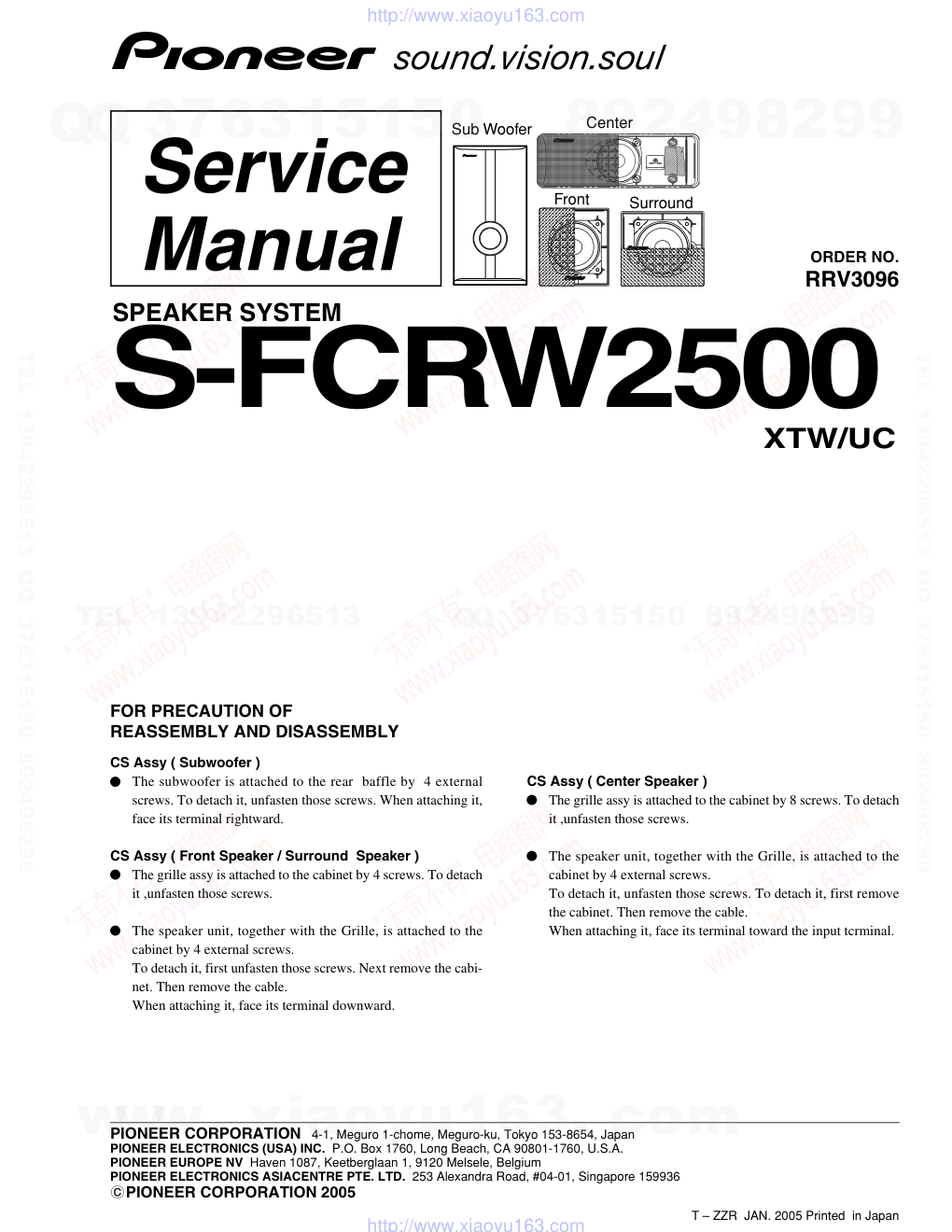

'ORDER NO.
PIONEER CORPORATION   4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC.  P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV  Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD.  253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2005
RRV3096
T – ZZR  JAN. 2005 Printed  in Japan
S-FCRW2500

XTW/UC
SPEAKER SYSTEM
FOR PRECAUTION OF
REASSEMBLY AND DISASSEMBLY
CS Assy ( Subwoofer )
The subwoofer is attached to the rear  baffle by  4 external
screws. To detach it, unfasten those screws. When attaching it,
face its terminal rightward.
CS Assy ( Front Speaker / Surround  Speaker )
The grille assy is attached to the cabinet by 4 screws. To detach
it ,unfasten those screws.
The speaker unit, together with the Grille, is attached to the
cabinet by 4 external screws.
To detach it, first unfasten those screws. Next remove the cabi-
net. Then remove the cable.
When attaching it, face its terminal downward.
CS Assy ( Center Speaker )
The grille assy is attached to the cabinet by 8 screws. To detach
it ,unfasten those screws.
The speaker unit, together with the Grille, is attached to the
cabinet by 4 external screws.
To detach it, unfasten those screws. To detach it, first remove
the cabinet. Then remove the cable.
When attaching it, face its terminal toward the input tcrminal.
Front
Sub Woofer
Surround
Center
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
2
1
2
3
4
1
2
3
4
C
D
F
A
B
E
S-FCRW2500
For Packing

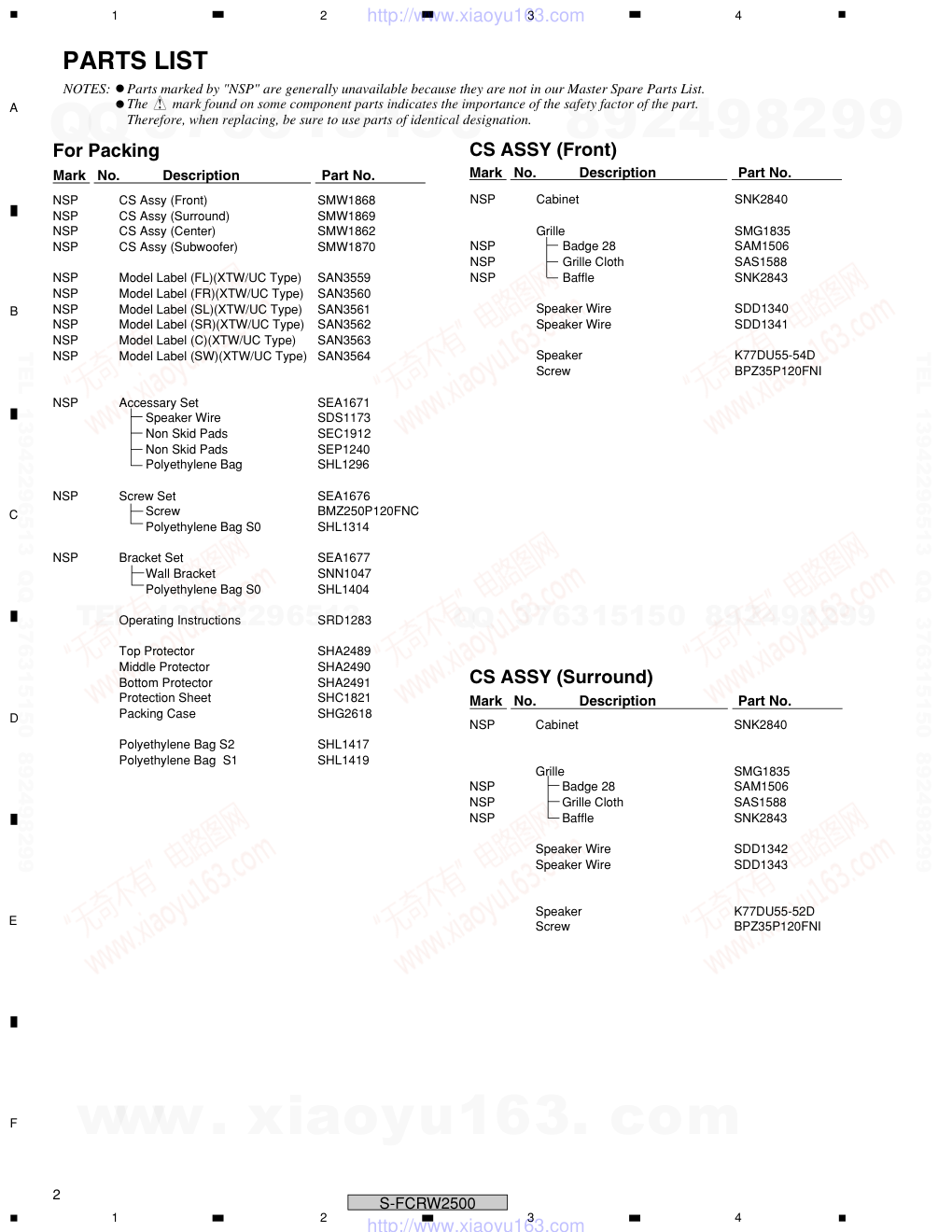

Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
The       mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
NOTES:
PARTS LIST
Mark   No.           Description                     Part No.
Mark   No.           Description                     Part No.
CS ASSY (Surround)
NSP
Cabinet
SNK2840
Grille
SMG1835
NSP
Badge 28
SAM1506
NSP
Grille Cloth
SAS1588
NSP
Baffle
SNK2843
Speaker Wire
SDD1342
Speaker Wire
SDD1343
Speaker
K77DU55-52D
Screw
BPZ35P120FNI
CS ASSY (Front)
Mark   No.           Description                     Part No.
NSP
Cabinet
SNK2840
Grille
SMG1835
NSP
Badge 28
SAM1506
NSP
Grille Cloth
SAS1588
NSP
Baffle
SNK2843
Speaker Wire
SDD1340
Speaker Wire
SDD1341
Speaker
K77DU55-54D
Screw
BPZ35P120FNI
NSP
CS Assy (Front)
SMW1868
NSP
CS Assy (Surround)
SMW1869
NSP
CS Assy (Center)
SMW1862
NSP
CS Assy (Subwoofer)
SMW1870
NSP
Model Label (FL)(XTW/UC Type)
SAN3559
NSP
Model Label (FR)(XTW/UC Type)
SAN3560
NSP
Model Label (SL)(XTW/UC Type)
SAN3561
NSP
Model Label (SR)(XTW/UC Type)
SAN3562
NSP
Model Label (C)(XTW/UC Type)
SAN3563
NSP
Model Label (SW)(XTW/UC Type)
SAN3564
NSP
Accessary Set
SEA1671
Speaker Wire
SDS1173
Non Skid Pads
SEC1912
Non Skid Pads
SEP1240
Polyethylene Bag
SHL1296
NSP
Screw Set
SEA1676
Screw
BMZ250P120FNC
Polyethylene Bag S0
SHL1314
NSP
Bracket Set
SEA1677
Wall Bracket
SNN1047
Polyethylene Bag S0
SHL1404
Operating Instructions
SRD1283
Top Protector
SHA2489
Middle Protector
SHA2490
Bottom Protector
SHA2491
Protection Sheet
SHC1821
Packing Case
SHG2618
Polyethylene Bag S2
SHL1417
Polyethylene Bag  S1
SHL1419
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
3
1
2
3
4
1
2
3
4
C
D
F
A
B
E
S-FCRW2500

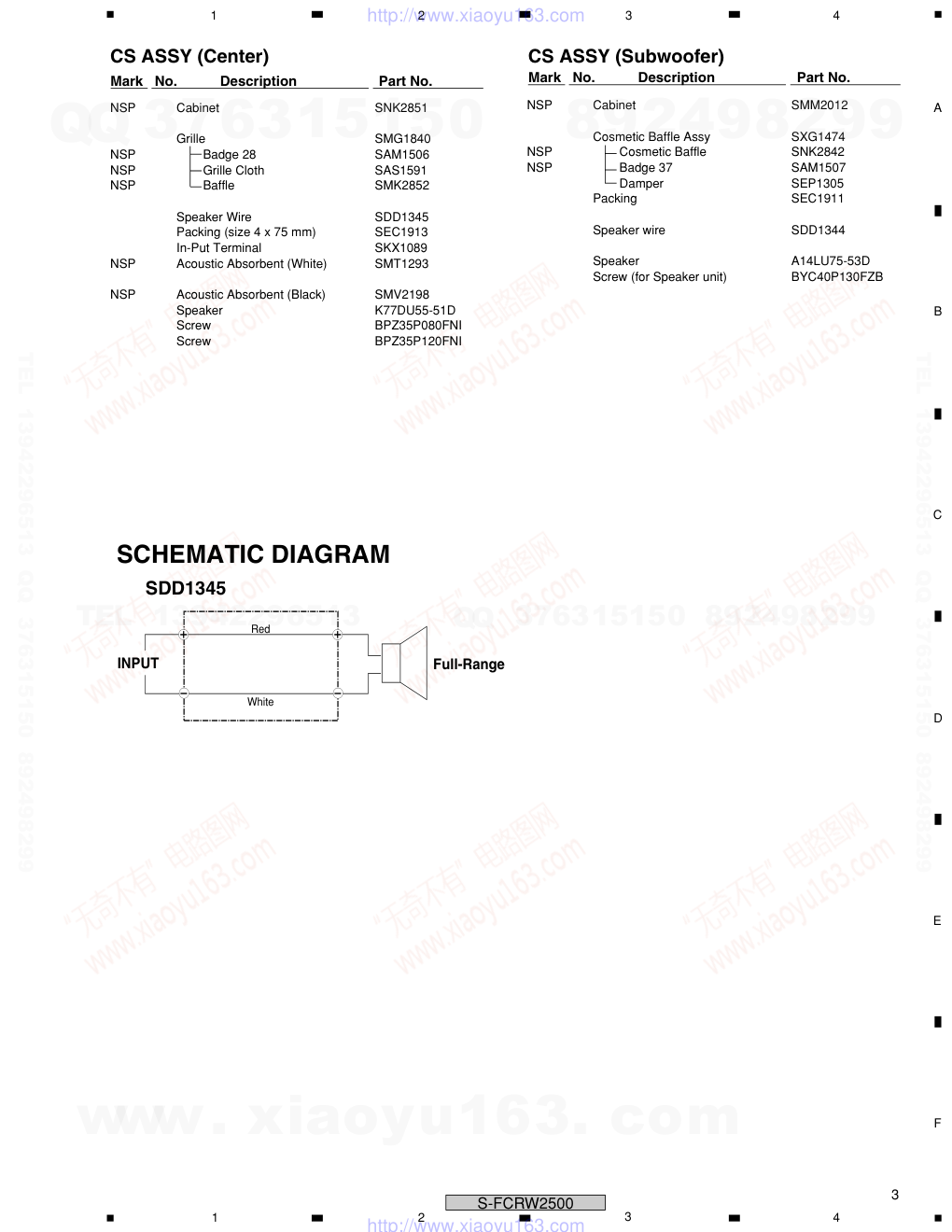

Mark   No.           Description                     Part No.
CS ASSY (Subwoofer)
Mark   No.           Description                     Part No.
CS ASSY (Center)
NSP
Cabinet
SNK2851
Grille
SMG1840
NSP
Badge 28
SAM1506
NSP
Grille Cloth
SAS1591
NSP
Baffle
SMK2852
Speaker Wire
SDD1345
Packing (size 4 x 75 mm)
SEC1913
In-Put Terminal
SKX1089
NSP
Acoustic Absorbent (White)
SMT1293
NSP
Acoustic Absorbent (Black)
SMV2198
Speaker
K77DU55-51D
Screw
BPZ35P080FNI
Screw
BPZ35P120FNI
NSP
Cabinet
SMM2012
Cosmetic Baffle Assy
SXG1474
NSP
Cosmetic Baffle
SNK2842
NSP
Badge 37
SAM1507
Damper
SEP1305
Packing
SEC1911
Speaker wire
SDD1344
Speaker
A14LU75-53D
Screw (for Speaker unit)
BYC40P130FZB
SCHEMATIC DIAGRAM
SDD1345
Full-Range
INPUT
Red
White
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
4
1
2
3
4
1
2
3
4
C
D
F
A
B
E
S-FCRW2500
3
2
1
Screw (M3.5x12)
Loud Speaker
1
1
1
Part Name
No.
Num.
4
6
5
3
2
1
Cabinet
Grille Assy
Model Label
Connecting Cord
1
2
3
4
5
6
1
1
4

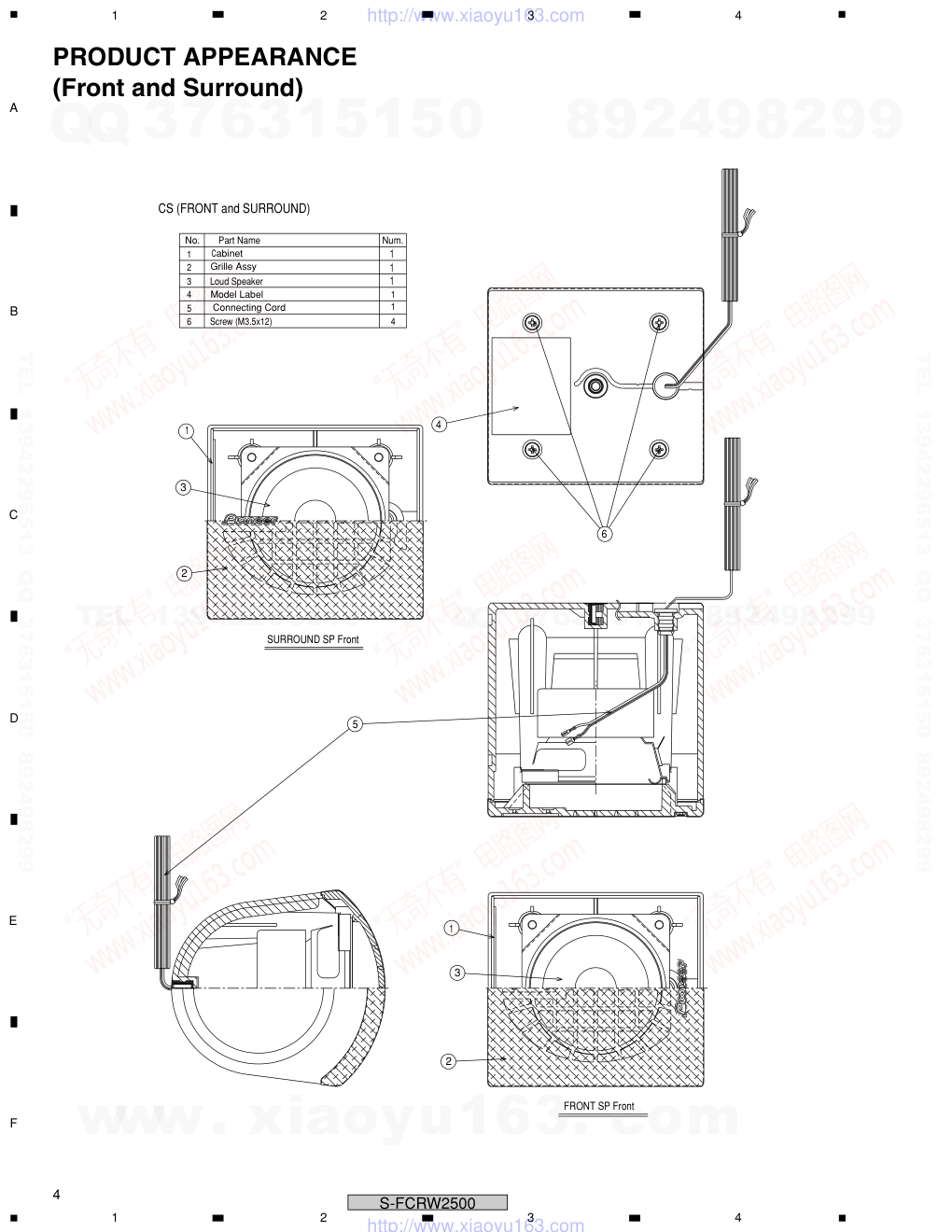

SURROUND SP Front
FRONT SP Front
CS (FRONT and SURROUND)
PRODUCT APPEARANCE
(Front and Surround)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
5
1
2
3
4
1
2
3
4
C
D
F
A
B
E
S-FCRW2500

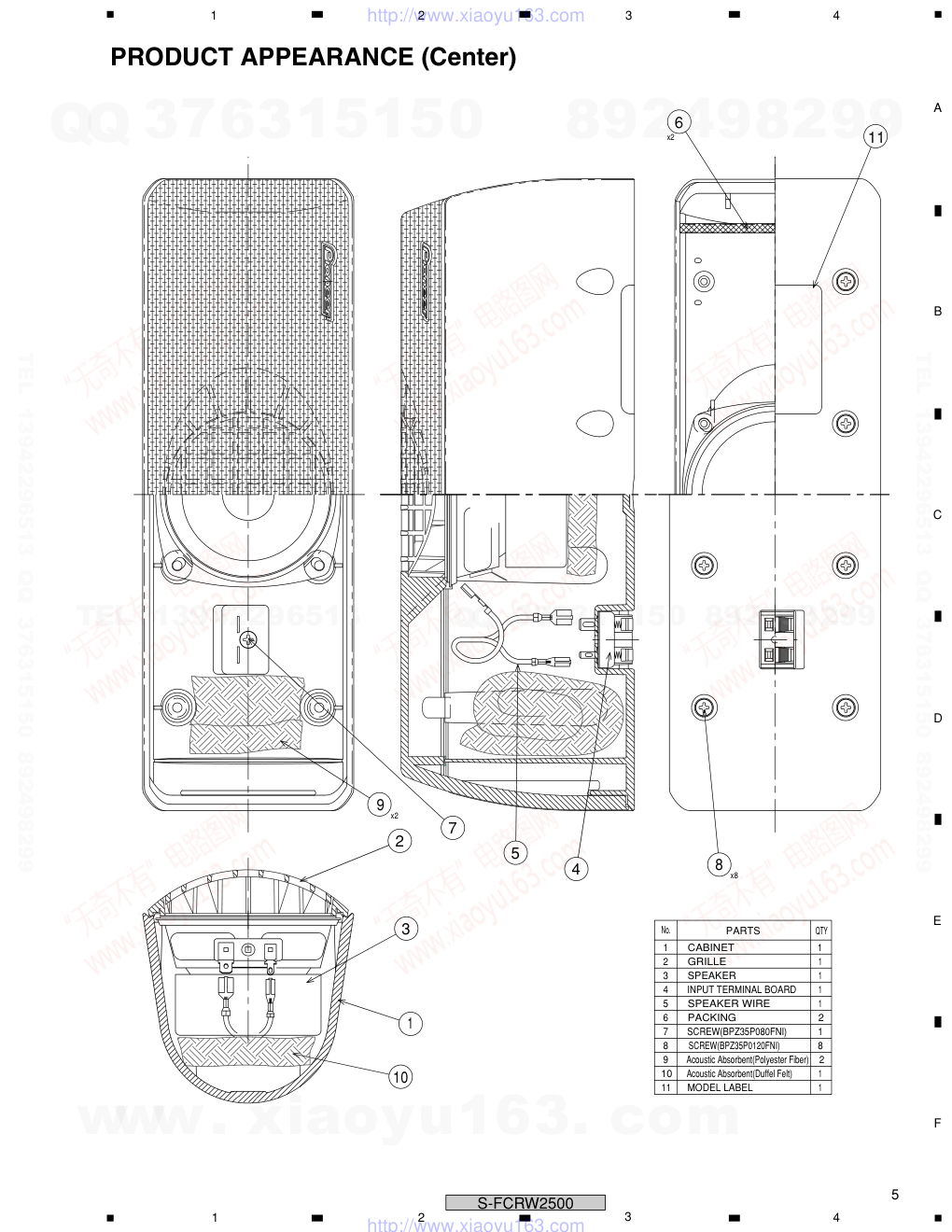

PRODUCT APPEARANCE (Center)
x2
x2
PARTS
QTY
No.
2
1
3
4
5
6
7
1
1
1
1
1
2
8
CABINET
GRILLE
SPEAKER
INPUT TERMINAL BOARD
SPEAKER WIRE
PACKING
8
Acoustic Absorbent(Polyester Fiber)
9
2
10
1
Acoustic Absorbent(Duffel Felt)
11
1
MODEL LABEL
1
SCREW(BPZ35P080FNI)
x8
1
4
5
7
8
10
9
2
3
6
11
SCREW(BPZ35P0120FNI)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
6
1
2
3
4
1
2
3
4
C
D
F
A
B
E
S-FCRW2500

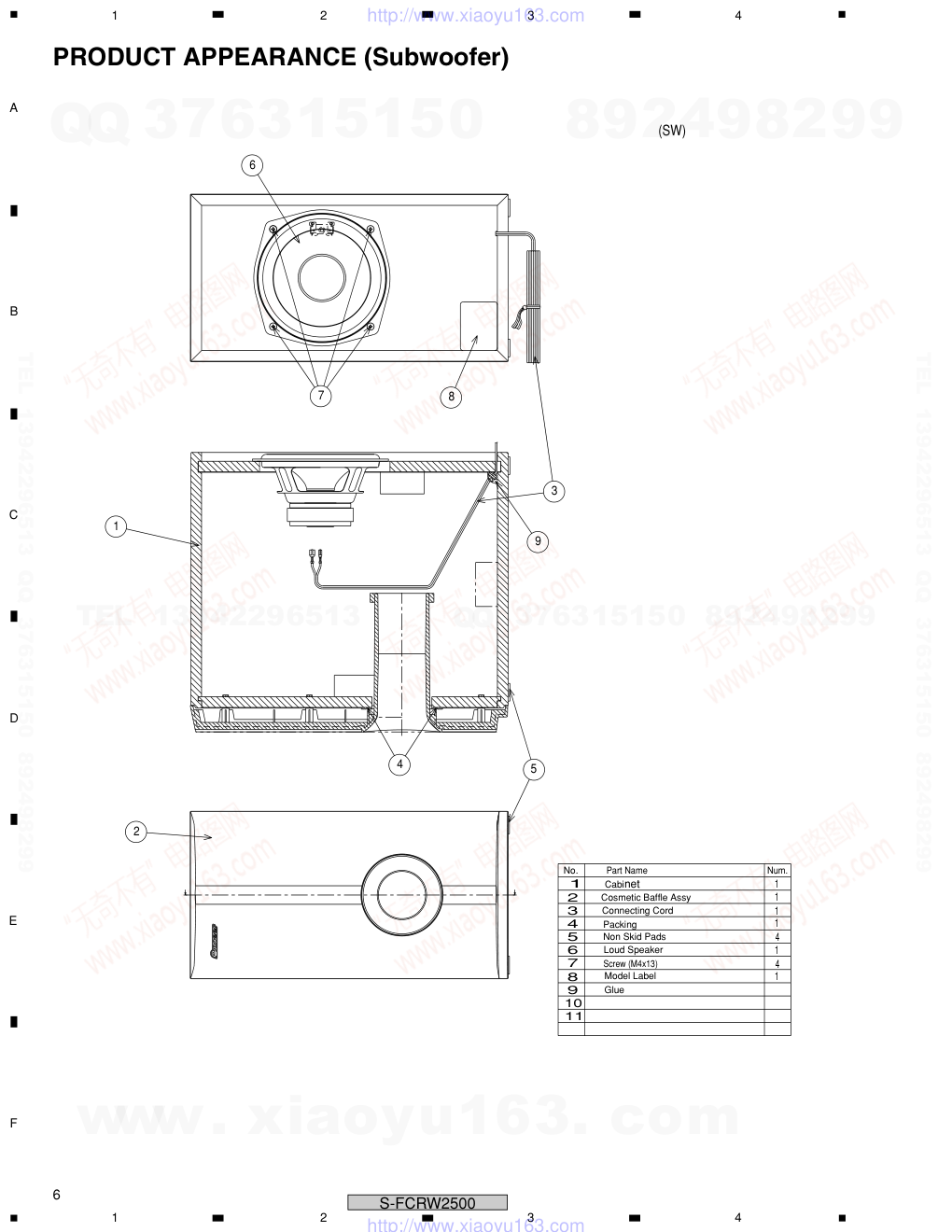

PRODUCT APPEARANCE (Subwoofer)
5
4
3
2
1
Screw (M4x13)
1
Loud Speaker
11
1
10
1
1
1
1
Part Name
No.
Num.
 9
 8
 7
 6
 5
 4
 3
 2
 1
Cosmetic Baffle Assy
9
6
7
8
4
4
Packing
Non Skid Pads
Model Label
Glue
(SW)
Cabinet
Connecting Cord
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
'

array (
  0 =>
  array (
    'url' => 'http://file.wenhuiw.com/202303/ba21ad99f12e0e6.png#系统开启了相对路径模式，本地址是站外域名，不能转为相对路径（在关闭开发者模式后不显示这句话）',
    'file' => '51294',
    'title' => '先锋PIONEER S-FCRW2500XTWUC电路图-0',
    'description' => '先锋PIONEER S-FCRW2500XTWUC电路图-0',
  ),
  1 =>
  array (
    'url' => 'http://file.wenhuiw.com/202303/49860992a798ac6.png#系统开启了相对路径模式，本地址是站外域名，不能转为相对路径（在关闭开发者模式后不显示这句话）',
    'file' => '51295',
    'title' => '先锋PIONEER S-FCRW2500XTWUC电路图-1',
    'description' => '先锋PIONEER S-FCRW2500XTWUC电路图-1',
  ),
  2 =>
  array (
    'url' => 'http://file.wenhuiw.com/202303/fbb09eba265d600.png#系统开启了相对路径模式，本地址是站外域名，不能转为相对路径（在关闭开发者模式后不显示这句话）',
    'file' => '51296',
    'title' => '先锋PIONEER S-FCRW2500XTWUC电路图-2',
    'description' => '先锋PIONEER S-FCRW2500XTWUC电路图-2',
  ),
  3 =>
  array (
    'url' => 'http://file.wenhuiw.com/202303/f8404fe47fc8dde.png#系统开启了相对路径模式，本地址是站外域名，不能转为相对路径（在关闭开发者模式后不显示这句话）',
    'file' => '51297',
    'title' => '先锋PIONEER S-FCRW2500XTWUC电路图-3',
    'description' => '先锋PIONEER S-FCRW2500XTWUC电路图-3',
  ),
  4 =>
  array (
    'url' => 'http://file.wenhuiw.com/202303/e30c3077d42de72.png#系统开启了相对路径模式，本地址是站外域名，不能转为相对路径（在关闭开发者模式后不显示这句话）',
    'file' => '51298',
    'title' => '先锋PIONEER S-FCRW2500XTWUC电路图-4',
    'description' => '先锋PIONEER S-FCRW2500XTWUC电路图-4',
  ),
  5 =>
  array (
    'url' => 'http://file.wenhuiw.com/202303/89a1e867fc639.png#系统开启了相对路径模式，本地址是站外域名，不能转为相对路径（在关闭开发者模式后不显示这句话）',
    'file' => '51299',
    'title' => '先锋PIONEER S-FCRW2500XTWUC电路图-5',
    'description' => '先锋PIONEER S-FCRW2500XTWUC电路图-5',
  ),
)

'1680183773'

'1680183773'

'{"file":["51294","51295","51296","51297","51298","51299"],"title":["\\u5148\\u950bPIONEER S-FCRW2500XTWUC\\u7535\\u8def\\u56fe-0","\\u5148\\u950bPIONEER S-FCRW2500XTWUC\\u7535\\u8def\\u56fe-1","\\u5148\\u950bPIONEER S-FCRW2500XTWUC\\u7535\\u8def\\u56fe-2","\\u5148\\u950bPIONEER S-FCRW2500XTWUC\\u7535\\u8def\\u56fe-3","\\u5148\\u950bPIONEER S-FCRW2500XTWUC\\u7535\\u8def\\u56fe-4","\\u5148\\u950bPIONEER S-FCRW2500XTWUC\\u7535\\u8def\\u56fe-5"],"description":["\\u5148\\u950bPIONEER S-FCRW2500XTWUC\\u7535\\u8def\\u56fe-0","\\u5148\\u950bPIONEER S-FCRW2500XTWUC\\u7535\\u8def\\u56fe-1","\\u5148\\u950bPIONEER S-FCRW2500XTWUC\\u7535\\u8def\\u56fe-2","\\u5148\\u950bPIONEER S-FCRW2500XTWUC\\u7535\\u8def\\u56fe-3","\\u5148\\u950bPIONEER S-FCRW2500XTWUC\\u7535\\u8def\\u56fe-4","\\u5148\\u950bPIONEER S-FCRW2500XTWUC\\u7535\\u8def\\u56fe-5"]}'

'先锋,PIONEER, ,S,-,FCRW2500XTWUC,电路,电路图'

array (
  '先锋' => '/index.php?s=wenku&c=search&keyword=%E5%85%88%E9%94%8B',
  'PIONEER' => '/index.php?s=wenku&c=search&keyword=PIONEER',
  'S' => '/index.php?s=wenku&c=search&keyword=S',
  '-' => '/index.php?s=wenku&c=search&keyword=-',
  'FCRW2500XTWUC' => '/index.php?s=wenku&c=search&keyword=FCRW2500XTWUC',
  '电路' => '/index.php?s=wenku&c=search&keyword=%E7%94%B5%E8%B7%AF',
  '电路图' => '/index.php?s=wenku&c=search&keyword=%E7%94%B5%E8%B7%AF%E5%9B%BE',
)

array (
)

array (
  'id' => '11730',
  'catid' => '8',
  'title' => '先锋PIONEER S-FCRW240W-S电路图',
  'thumb' => '51283',
  'keywords' => '先锋,PIONEER, ,S,-,FCRW240W,-,S,电路,电路图',
  'description' => '',
  'hits' => '2',
  'uid' => '1',
  'author' => 'admin',
  'status' => '9',
  'url' => '/wenku/a11730.html',
  'link_id' => '0',
  'tableid' => '0',
  'inputip' => '127.0.0.1',
  'inputtime' => '1680183751',
  'updatetime' => '1680183751',
  'displayorder' => '0',
  'xerhu_score' => '5',
  'xerhu_score_sku' => NULL,
  'xerhu_score_down_num' => '0',
  'xerhu_score_down_type' => '2',
  'xerhu_score_file' => '51282',
  'xerhu_score_pan' => NULL,
  'xerhu_score_tqm' => NULL,
)

array (
  'id' => '11732',
  'catid' => '8',
  'title' => '先锋PIONEER S-FCRW2700XTWUC电路图',
  'thumb' => '51301',
  'keywords' => '先锋,PIONEER, ,S,-,FCRW2700XTWUC,电路,电路图',
  'description' => '',
  'hits' => '0',
  'uid' => '1',
  'author' => 'admin',
  'status' => '9',
  'url' => '/wenku/a11732.html',
  'link_id' => '0',
  'tableid' => '0',
  'inputip' => '127.0.0.1',
  'inputtime' => '1680183794',
  'updatetime' => '1680183794',
  'displayorder' => '0',
  'xerhu_score' => '5',
  'xerhu_score_sku' => NULL,
  'xerhu_score_down_num' => '0',
  'xerhu_score_down_type' => '2',
  'xerhu_score_file' => '51300',
  'xerhu_score_pan' => NULL,
  'xerhu_score_tqm' => NULL,
)

'先锋PIONEER S-FCRW2500XTWUC电路图_电子电工_行业资料_文汇知识网'

'先锋,PIONEER, ,S,-,FCRW2500XTWUC,电路,电路图'

''

array (
  'id' => '8',
  'pid' => '5',
  'pids' => '0,5',
  'name' => '电子电工',
  'dirname' => 'dzdg',
  'pdirname' => 'hangye/',
  'child' => 0,
  'disabled' => '0',
  'ismain' => 1,
  'childids' => 8,
  'thumb' => '',
  'show' => '1',
  'setting' =>
  array (
    'disabled' => '0',
    'linkurl' => '',
    'getchild' => '0',
    'notedit' => '0',
    'seo' =>
    array (
    ),
    'template' =>
    array (
      'pagesize' => '20',
      'mpagesize' => '20',
      'list' => 'list.html',
      'category' => 'category.html',
      'search' => 'search.html',
      'show' => 'show.html',
    ),
    'cat_field' => NULL,
    'module_field' => NULL,
    'urlrule' => 4,
    'html' => 0,
    'chtml' => 0,
  ),
  'displayorder' => '0',
  'icon' => '',
  'index' => '2',
  'mid' => 'wenku',
  'pcatpost' => 0,
  'topid' => '5',
  'catids' =>
  array (
    0 => '8',
  ),
  'is_post' => 1,
  'tid' => 1,
  'url' => 'http://www.wenhuiw.com/wenku/dzdg',
  'total' => '请使用count标签查询',
  'field' =>
  array (
  ),
)

array (
  'id' => '5',
  'pid' => '0',
  'pids' => '0',
  'name' => '行业资料',
  'dirname' => 'hangye',
  'pdirname' => '',
  'child' => 1,
  'disabled' => '0',
  'ismain' => 1,
  'childids' => '5,8,12,13,14,15,16',
  'thumb' => '20',
  'show' => '1',
  'setting' =>
  array (
    'disabled' => '0',
    'linkurl' => '',
    'getchild' => '0',
    'notedit' => '0',
    'seo' =>
    array (
    ),
    'template' =>
    array (
      'pagesize' => '20',
      'mpagesize' => '20',
      'list' => 'list.html',
      'category' => 'category.html',
      'search' => 'search.html',
      'show' => 'show.html',
    ),
    'cat_field' => NULL,
    'module_field' => NULL,
    'urlrule' => 4,
    'html' => 0,
    'chtml' => 0,
  ),
  'displayorder' => '0',
  'icon' => 'fa fa-gears',
  'index' => '1',
  'mid' => 'wenku',
  'pcatpost' => 0,
  'topid' => '5',
  'catids' =>
  array (
    0 => '5',
    1 => '8',
    2 => '12',
    3 => '13',
    4 => '14',
    5 => '15',
    6 => '16',
  ),
  'is_post' => 0,
  'tid' => 1,
  'url' => 'http://www.wenhuiw.com/wenku/hangye',
  'total' => '请使用count标签查询',
  'field' =>
  array (
  ),
)

1

array (
  'catid' => '8',
)

array (
  'id' => '5',
  'pid' => '0',
  'pids' => '0',
  'name' => '行业资料',
  'dirname' => 'hangye',
  'pdirname' => '',
  'child' => 1,
  'disabled' => '0',
  'ismain' => 1,
  'childids' => '5,8,12,13,14,15,16',
  'thumb' => '20',
  'show' => '1',
  'setting' =>
  array (
    'disabled' => '0',
    'linkurl' => '',
    'getchild' => '0',
    'notedit' => '0',
    'seo' =>
    array (
    ),
    'template' =>
    array (
      'pagesize' => '20',
      'mpagesize' => '20',
      'list' => 'list.html',
      'category' => 'category.html',
      'search' => 'search.html',
      'show' => 'show.html',
    ),
    'cat_field' => NULL,
    'module_field' => NULL,
    'urlrule' => 4,
    'html' => 0,
    'chtml' => 0,
  ),
  'displayorder' => '0',
  'icon' => 'fa fa-gears',
  'index' => '1',
  'mid' => 'wenku',
  'pcatpost' => 0,
  'topid' => '5',
  'catids' =>
  array (
    0 => '5',
    1 => '8',
    2 => '12',
    3 => '13',
    4 => '14',
    5 => '15',
    6 => '16',
  ),
  'is_post' => 0,
  'tid' => 1,
  'url' => 'http://www.wenhuiw.com/wenku/hangye',
  'total' => '请使用count标签查询',
  'field' =>
  array (
  ),
)

array (
  8 =>
  array (
    'id' => '8',
    'pid' => '5',
    'pids' => '0,5',
    'name' => '电子电工',
    'dirname' => 'dzdg',
    'pdirname' => 'hangye/',
    'child' => 0,
    'disabled' => '0',
    'ismain' => 1,
    'childids' => 8,
    'thumb' => '',
    'show' => '1',
    'setting' =>
    array (
      'disabled' => '0',
      'linkurl' => '',
      'getchild' => '0',
      'notedit' => '0',
      'seo' =>
      array (
      ),
      'template' =>
      array (
        'pagesize' => '20',
        'mpagesize' => '20',
        'list' => 'list.html',
        'category' => 'category.html',
        'search' => 'search.html',
        'show' => 'show.html',
      ),
      'cat_field' => NULL,
      'module_field' => NULL,
      'urlrule' => 4,
      'html' => 0,
      'chtml' => 0,
    ),
    'displayorder' => '0',
    'icon' => '',
    'index' => '2',
    'mid' => 'wenku',
    'pcatpost' => 0,
    'topid' => '5',
    'catids' =>
    array (
      0 => '8',
    ),
    'is_post' => 1,
    'tid' => 1,
    'url' => 'http://www.wenhuiw.com/wenku/dzdg',
    'total' => '请使用count标签查询',
    'field' =>
    array (
    ),
  ),
  12 =>
  array (
    'id' => '12',
    'pid' => '5',
    'pids' => '0,5',
    'name' => '电脑手机',
    'dirname' => 'dnsj',
    'pdirname' => 'hangye/',
    'child' => 0,
    'disabled' => '0',
    'ismain' => 1,
    'childids' => 12,
    'thumb' => '',
    'show' => '1',
    'setting' =>
    array (
      'disabled' => '0',
      'linkurl' => '',
      'getchild' => '0',
      'notedit' => '0',
      'seo' =>
      array (
      ),
      'template' =>
      array (
        'pagesize' => '20',
        'mpagesize' => '20',
        'list' => 'list.html',
        'category' => 'category.html',
        'search' => 'search.html',
        'show' => 'show.html',
      ),
      'cat_field' => NULL,
      'module_field' => NULL,
      'urlrule' => 4,
      'html' => 0,
      'chtml' => 0,
    ),
    'displayorder' => '0',
    'icon' => '',
    'index' => '2',
    'mid' => 'wenku',
    'pcatpost' => 0,
    'topid' => '5',
    'catids' =>
    array (
      0 => '12',
    ),
    'is_post' => 1,
    'tid' => 1,
    'url' => 'http://www.wenhuiw.com/wenku/dnsj',
    'total' => '请使用count标签查询',
    'field' =>
    array (
    ),
  ),
  13 =>
  array (
    'id' => '13',
    'pid' => '5',
    'pids' => '0,5',
    'name' => '交通道路',
    'dirname' => 'jtdl',
    'pdirname' => 'hangye/',
    'child' => 0,
    'disabled' => '0',
    'ismain' => 1,
    'childids' => 13,
    'thumb' => '',
    'show' => '1',
    'setting' =>
    array (
      'disabled' => '0',
      'linkurl' => '',
      'getchild' => '0',
      'notedit' => '0',
      'seo' =>
      array (
      ),
      'template' =>
      array (
        'pagesize' => '20',
        'mpagesize' => '20',
        'list' => 'list.html',
        'category' => 'category.html',
        'search' => 'search.html',
        'show' => 'show.html',
      ),
      'cat_field' => NULL,
      'module_field' => NULL,
      'urlrule' => 4,
      'html' => 0,
      'chtml' => 0,
    ),
    'displayorder' => '0',
    'icon' => '',
    'index' => '2',
    'mid' => 'wenku',
    'pcatpost' => 0,
    'topid' => '5',
    'catids' =>
    array (
      0 => '13',
    ),
    'is_post' => 1,
    'tid' => 1,
    'url' => 'http://www.wenhuiw.com/wenku/jtdl',
    'total' => '请使用count标签查询',
    'field' =>
    array (
    ),
  ),
  14 =>
  array (
    'id' => '14',
    'pid' => '5',
    'pids' => '0,5',
    'name' => '机械设备',
    'dirname' => 'jixie',
    'pdirname' => 'hangye/',
    'child' => 0,
    'disabled' => '0',
    'ismain' => 1,
    'childids' => 14,
    'thumb' => '',
    'show' => '1',
    'setting' =>
    array (
      'disabled' => '0',
      'linkurl' => '',
      'getchild' => '0',
      'notedit' => '0',
      'seo' =>
      array (
      ),
      'template' =>
      array (
        'pagesize' => '20',
        'mpagesize' => '20',
        'list' => 'list.html',
        'category' => 'category.html',
        'search' => 'search.html',
        'show' => 'show.html',
      ),
      'cat_field' => NULL,
      'module_field' => NULL,
      'urlrule' => 4,
      'html' => 0,
      'chtml' => 0,
    ),
    'displayorder' => '0',
    'icon' => '',
    'index' => '2',
    'mid' => 'wenku',
    'pcatpost' => 0,
    'topid' => '5',
    'catids' =>
    array (
      0 => '14',
    ),
    'is_post' => 1,
    'tid' => 1,
    'url' => 'http://www.wenhuiw.com/wenku/jixie',
    'total' => '请使用count标签查询',
    'field' =>
    array (
    ),
  ),
  15 =>
  array (
    'id' => '15',
    'pid' => '5',
    'pids' => '0,5',
    'name' => '能源动力',
    'dirname' => 'nydl',
    'pdirname' => 'hangye/',
    'child' => 0,
    'disabled' => '0',
    'ismain' => 1,
    'childids' => 15,
    'thumb' => '',
    'show' => '1',
    'setting' =>
    array (
      'disabled' => '0',
      'linkurl' => '',
      'getchild' => '0',
      'notedit' => '0',
      'seo' =>
      array (
      ),
      'template' =>
      array (
        'pagesize' => '20',
        'mpagesize' => '20',
        'list' => 'list.html',
        'category' => 'category.html',
        'search' => 'search.html',
        'show' => 'show.html',
      ),
      'cat_field' => NULL,
      'module_field' => NULL,
      'urlrule' => 4,
      'html' => 0,
      'chtml' => 0,
    ),
    'displayorder' => '0',
    'icon' => '',
    'index' => '2',
    'mid' => 'wenku',
    'pcatpost' => 0,
    'topid' => '5',
    'catids' =>
    array (
      0 => '15',
    ),
    'is_post' => 1,
    'tid' => 1,
    'url' => 'http://www.wenhuiw.com/wenku/nydl',
    'total' => '请使用count标签查询',
    'field' =>
    array (
    ),
  ),
  16 =>
  array (
    'id' => '16',
    'pid' => '5',
    'pids' => '0,5',
    'name' => '电气工控',
    'dirname' => 'dqgk',
    'pdirname' => 'hangye/',
    'child' => 0,
    'disabled' => '0',
    'ismain' => 1,
    'childids' => 16,
    'thumb' => '',
    'show' => '1',
    'setting' =>
    array (
      'disabled' => '0',
      'linkurl' => '',
      'getchild' => '0',
      'notedit' => '0',
      'seo' =>
      array (
      ),
      'template' =>
      array (
        'pagesize' => '20',
        'mpagesize' => '20',
        'list' => 'list.html',
        'category' => 'category.html',
        'search' => 'search.html',
        'show' => 'show.html',
      ),
      'cat_field' => NULL,
      'module_field' => NULL,
      'urlrule' => 4,
      'html' => 0,
      'chtml' => 0,
    ),
    'displayorder' => '0',
    'icon' => '',
    'index' => '2',
    'mid' => 'wenku',
    'pcatpost' => 0,
    'topid' => '5',
    'catids' =>
    array (
      0 => '16',
    ),
    'is_post' => 1,
    'tid' => 1,
    'url' => 'http://www.wenhuiw.com/wenku/dqgk',
    'total' => '请使用count标签查询',
    'field' =>
    array (
    ),
  ),
)

'/index.php?s=wenku&c=show&id=11731&page=[page]'

''

'http://www.wenhuiw.com/wenku/a11731.html'

array (
  's' => 'wenku',
  'c' => 'show',
  'id' => '11731',
  'm' => 'index',
)
