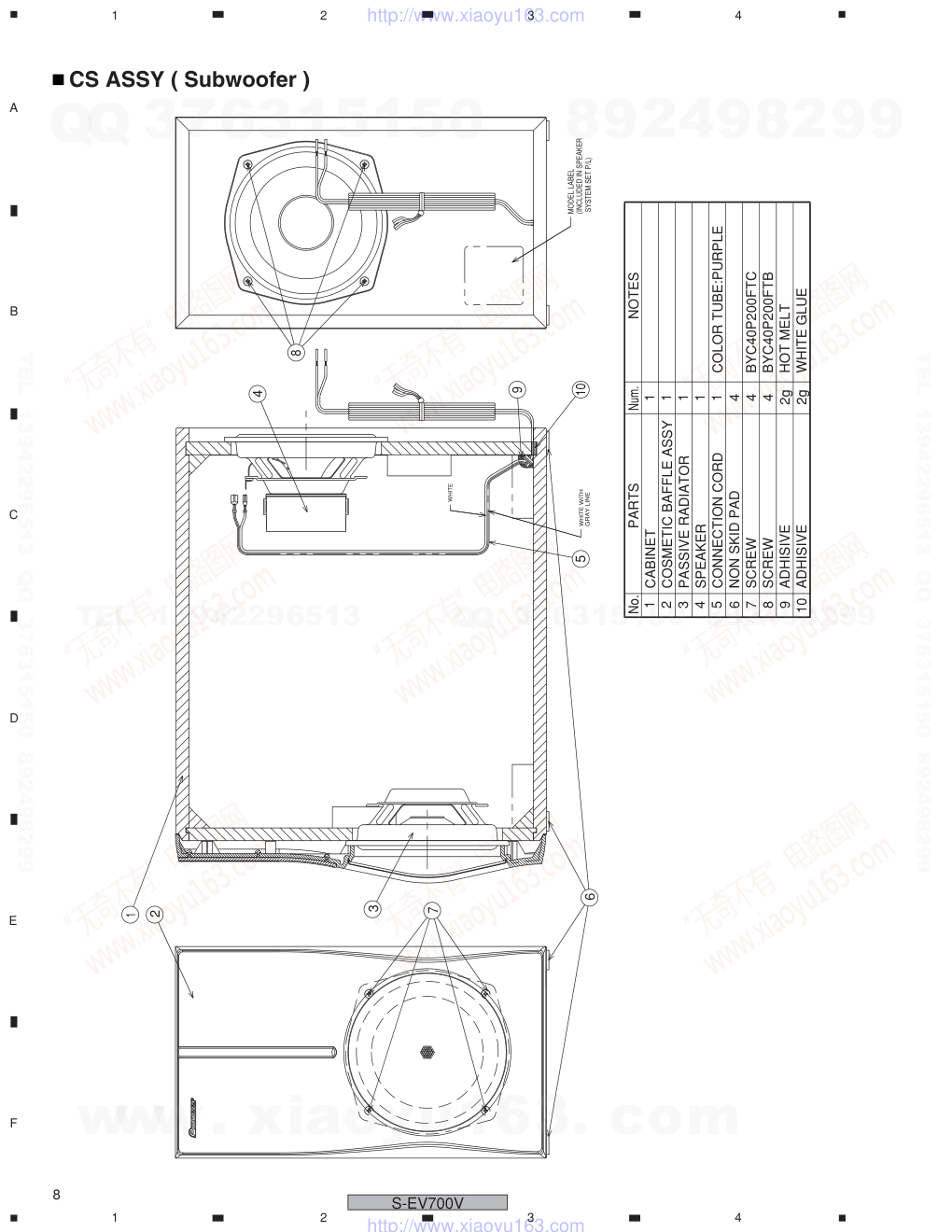

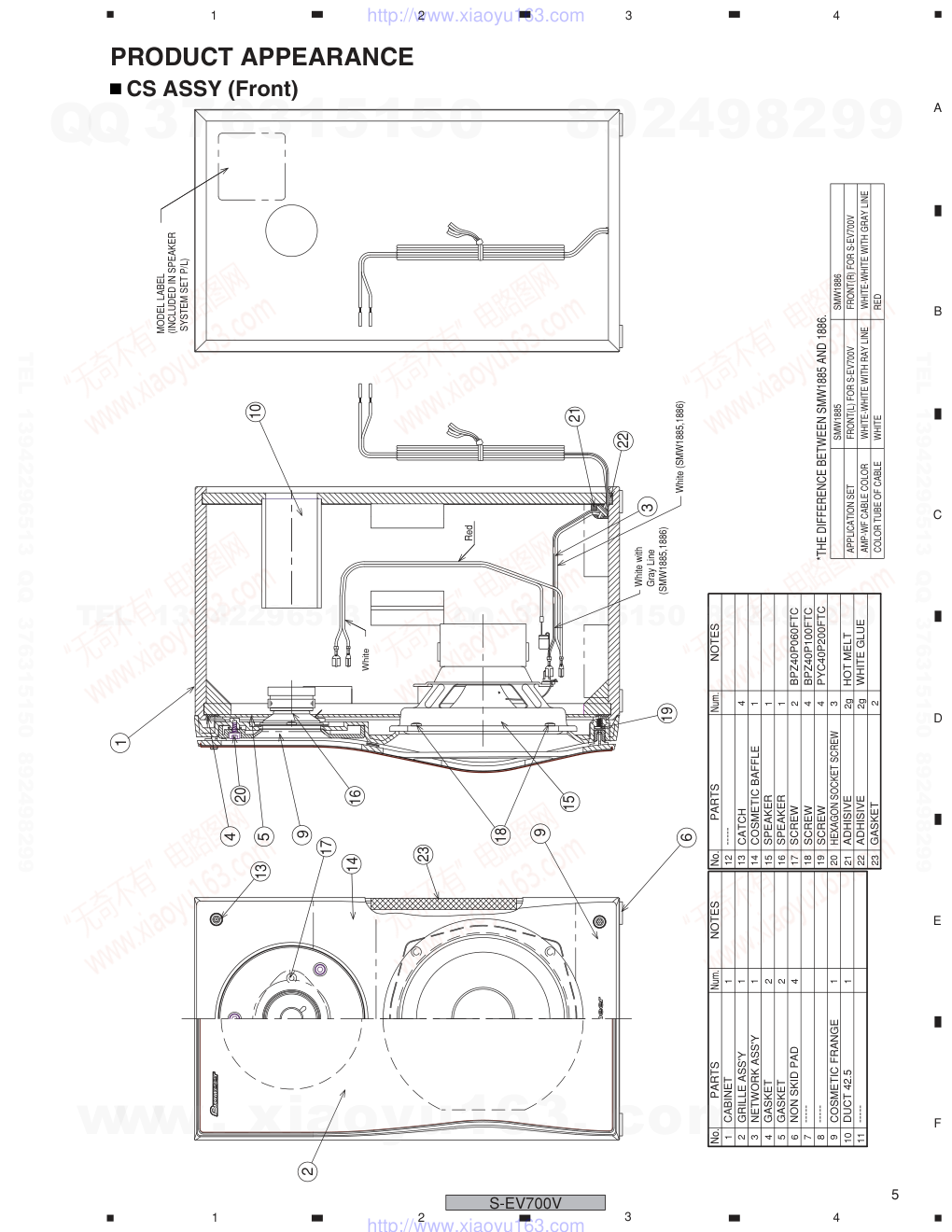

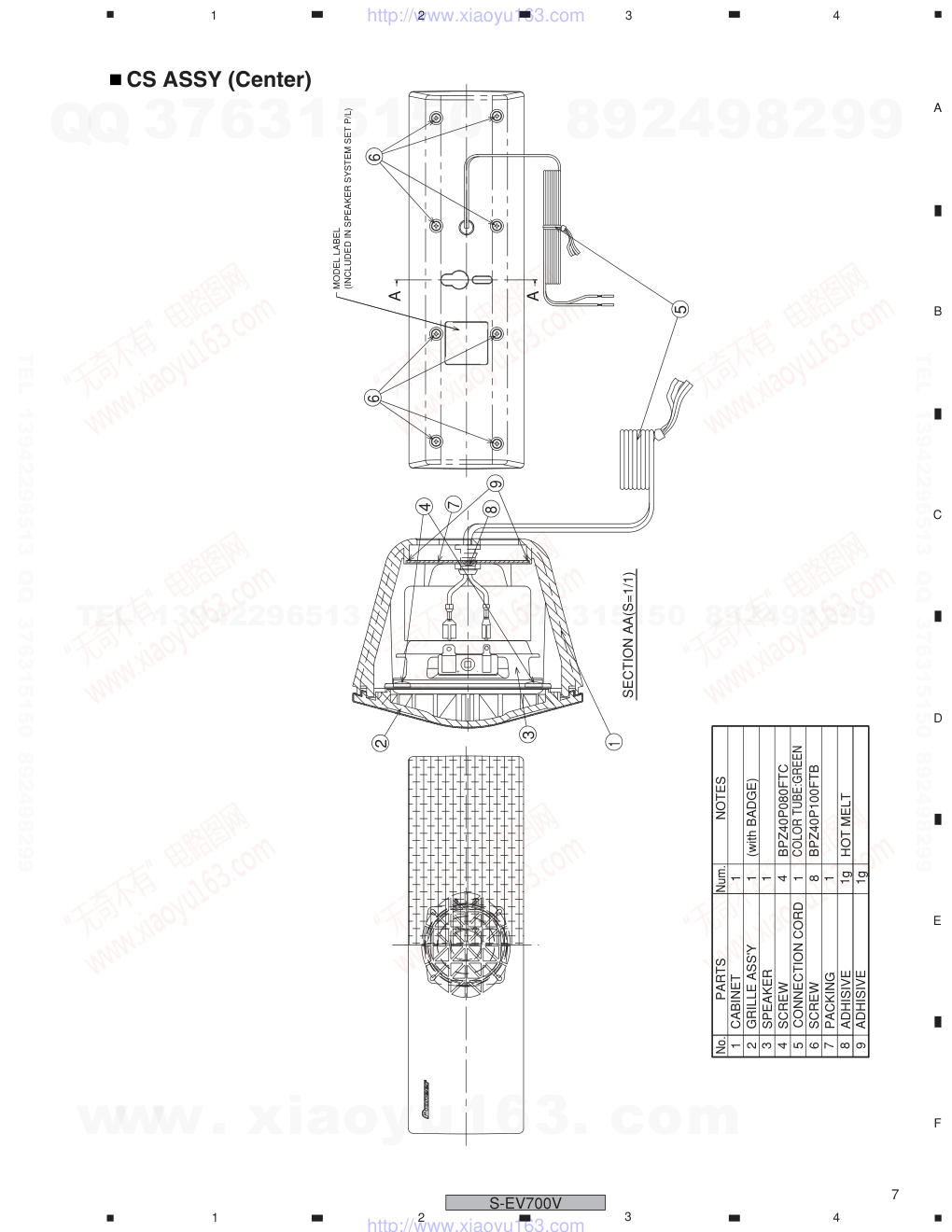

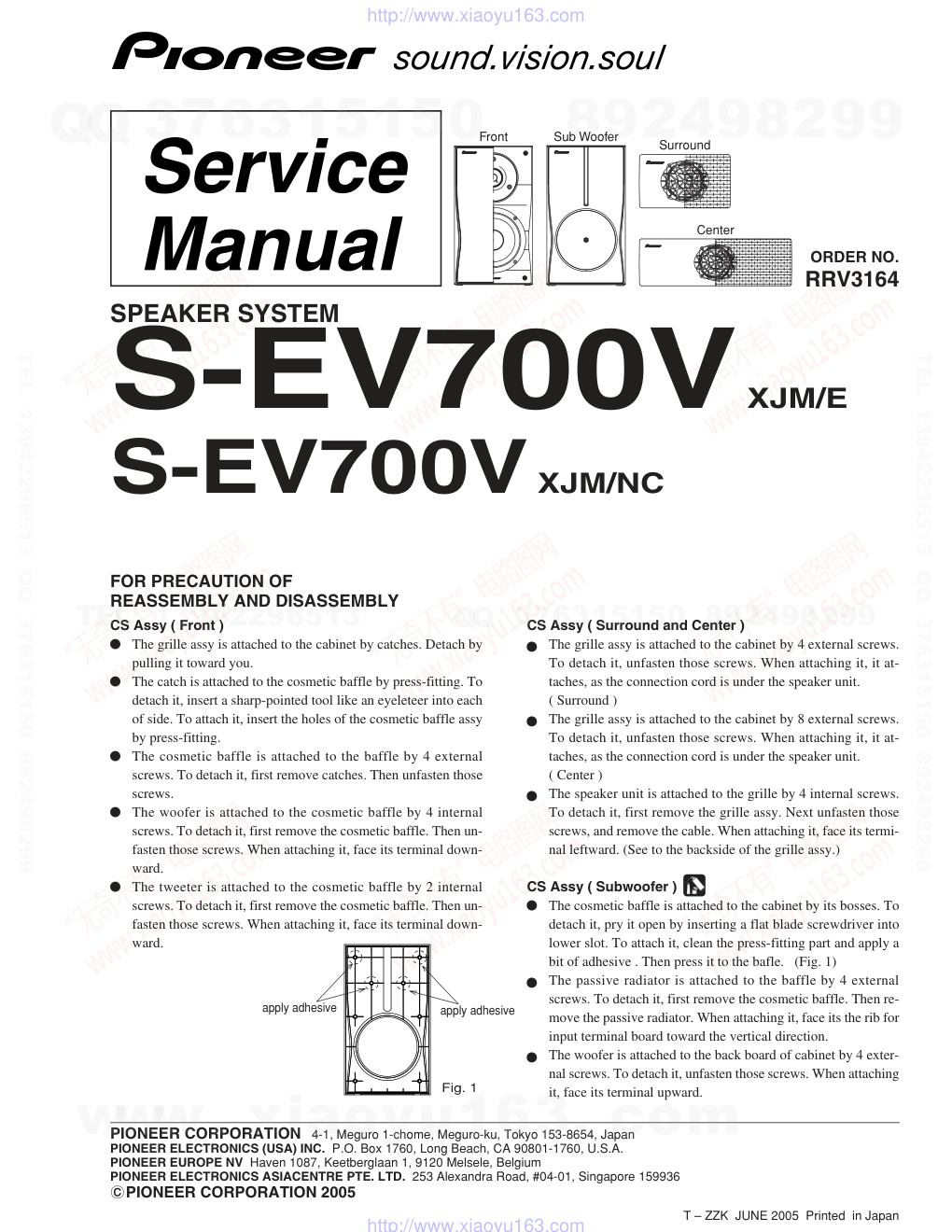

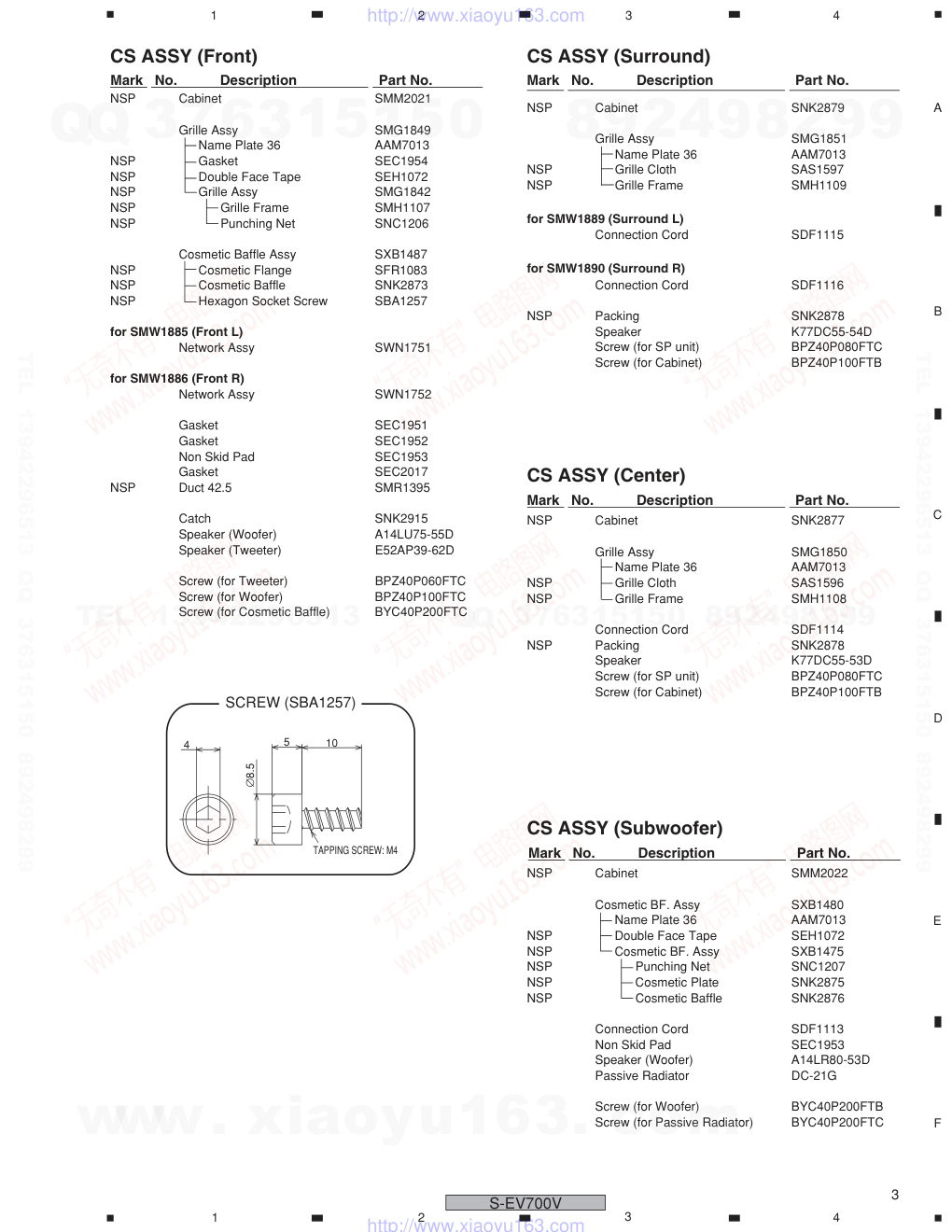

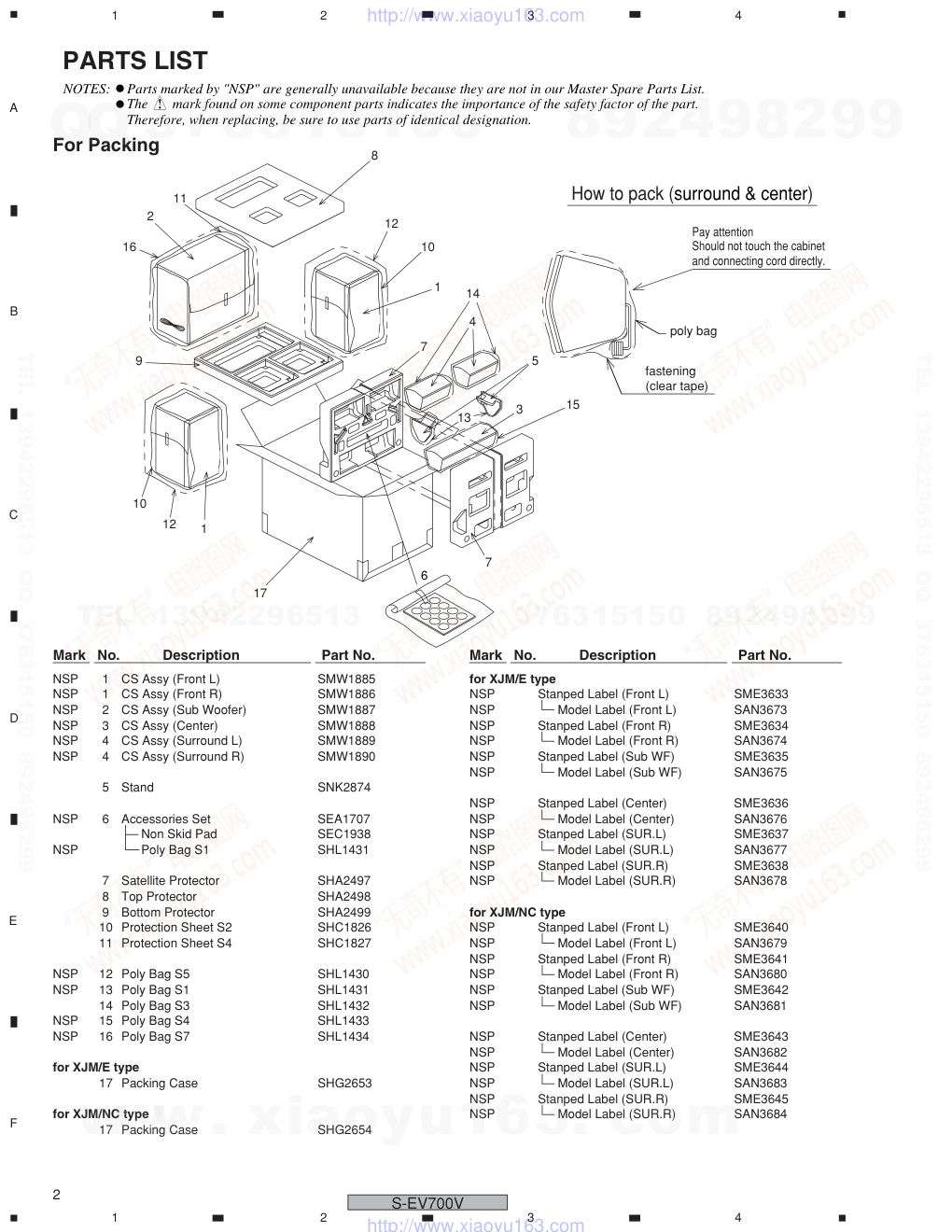

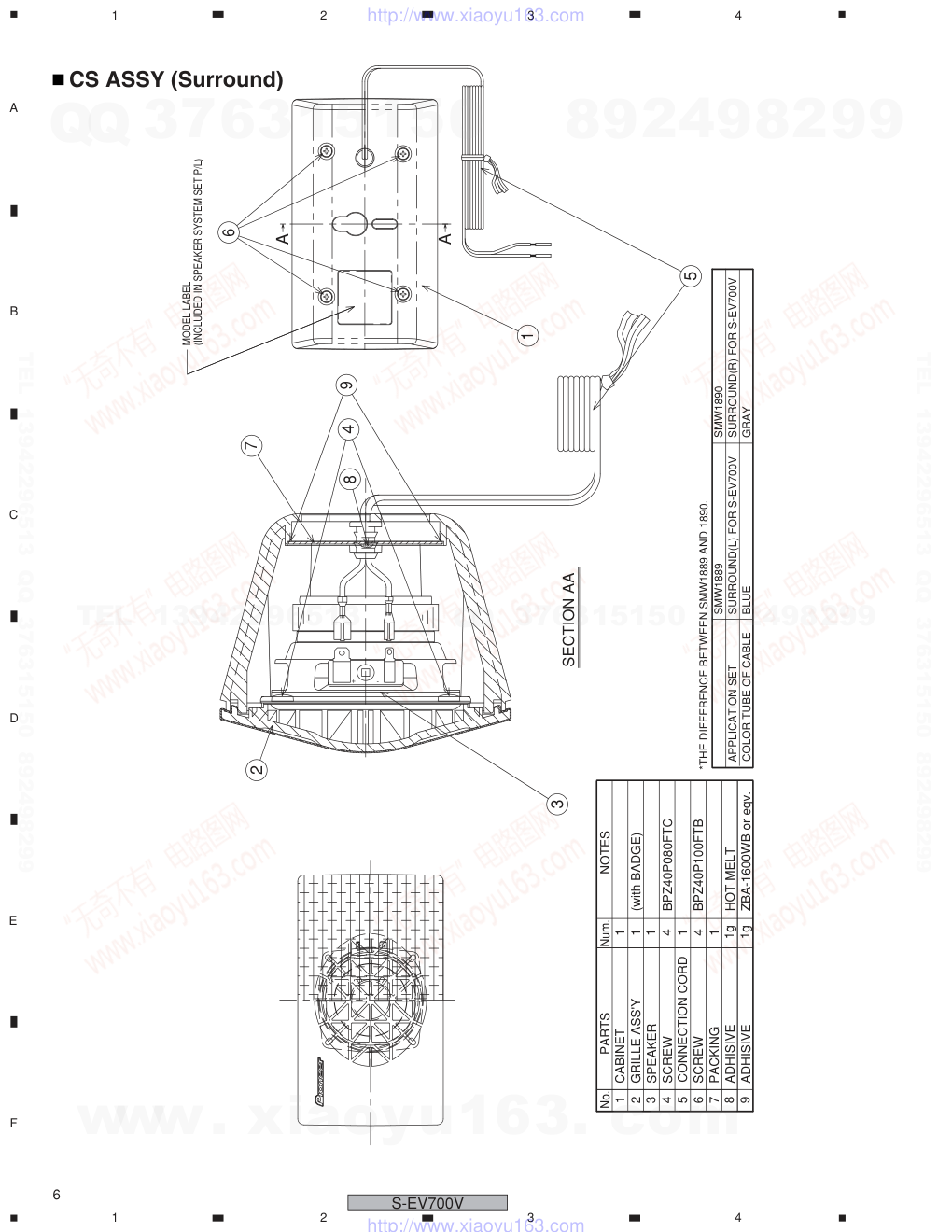

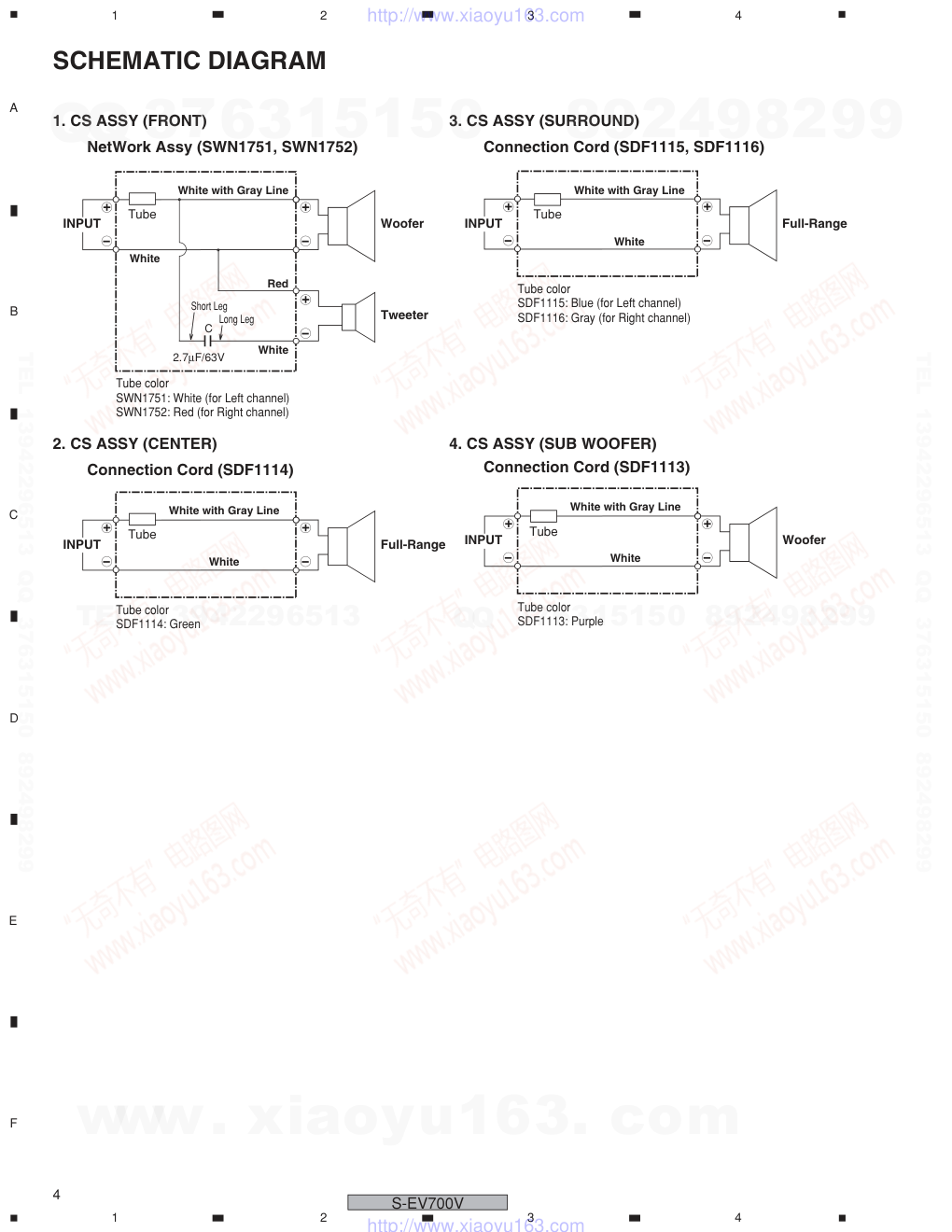

ORDER NO. PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2005 RRV3164 T – ZZK JUNE 2005 Printed in Japan SPEAKER SYSTEM S-EV700V XJM/E S-EV700V XJM/NC Center Surround Sub Woofer Front FOR PRECAUTION OF REASSEMBLY AND DISASSEMBLY CS Assy ( Front ) The grille assy is attached to the cabinet by catches. Detach by pulling it toward you. The catch is attached to the cosmetic baffle by press-fitting. To detach it, insert a sharp-pointed tool like an eyeleteer into each of side. To attach it, insert the holes of the cosmetic baffle assy by press-fitting. The cosmetic baffle is attached to the baffle by 4 external screws. To detach it, first remove catches. Then unfasten those screws. The woofer is attached to the cosmetic baffle by 4 internal screws. To detach it, first remove the cosmetic baffle. Then un- fasten those screws. When attaching it, face its terminal down- ward. The tweeter is attached to the cosmetic baffle by 2 internal screws. To detach it, first remove the cosmetic baffle. Then un- fasten those screws. When attaching it, face its terminal down- ward. CS Assy ( Surround and Center ) The grille assy is attached to the cabinet by 4 external screws. To detach it, unfasten those screws. When attaching it, it at- taches, as the connection cord is under the speaker unit. ( Surround ) The grille assy is attached to the cabinet by 8 external screws. To detach it, unfasten those screws. When attaching it, it at- taches, as the connection cord is under the speaker unit. ( Center ) The speaker unit is attached to the grille by 4 internal screws. To detach it, first remove the grille assy. Next unfasten those screws, and remove the cable. When attaching it, face its termi- nal leftward. (See to the backside of the grille assy.) CS Assy ( Subwoofer ) The cosmetic baffle is attached to the cabinet by its bosses. To detach it, pry it open by inserting a flat blade screwdriver into lower slot. To attach it, clean the press-fitting part and apply a bit of adhesive . Then press it to the bafle. (Fig. 1) The passive radiator is attached to the baffle by 4 external screws. To detach it, first remove the cosmetic baffle. Then re- move the passive radiator. When attaching it, face its the rib for input terminal board toward the vertical direction. The woofer is attached to the back board of cabinet by 4 exter- nal screws. To detach it, unfasten those screws. When attaching it, face its terminal upward. Fig. 1 apply adhesive apply adhesive www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 1 2 3 4 1 2 3 4 C D F A B E S-EV700V NSP 1 CS Assy (Front L) SMW1885 NSP 1 CS Assy (Front R) SMW1886 NSP 2 CS Assy (Sub Woofer) SMW1887 NSP 3 CS Assy (Center) SMW1888 NSP 4 CS Assy (Surround L) SMW1889 NSP 4 CS Assy (Surround R) SMW1890 5 Stand SNK2874 NSP 6 Accessories Set SEA1707 Non Skid Pad SEC1938 NSP Poly Bag S1 SHL1431 7 Satellite Protector SHA2497 8 Top Protector SHA2498 9 Bottom Protector SHA2499 10 Protection Sheet S2 SHC1826 11 Protection Sheet S4 SHC1827 NSP 12 Poly Bag S5 SHL1430 NSP 13 Poly Bag S1 SHL1431 14 Poly Bag S3 SHL1432 NSP 15 Poly Bag S4 SHL1433 NSP 16 Poly Bag S7 SHL1434 for XJM/E type 17 Packing Case SHG2653 for XJM/NC type 17 Packing Case SHG2654 For Packing Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: PARTS LIST Mark No. Description Part No. for XJM/E type NSP Stanped Label (Front L) SME3633 NSP Model Label (Front L) SAN3673 NSP Stanped Label (Front R) SME3634 NSP Model Label (Front R) SAN3674 NSP Stanped Label (Sub WF) SME3635 NSP Model Label (Sub WF) SAN3675 NSP Stanped Label (Center) SME3636 NSP Model Label (Center) SAN3676 NSP Stanped Label (SUR.L) SME3637 NSP Model Label (SUR.L) SAN3677 NSP Stanped Label (SUR.R) SME3638 NSP Model Label (SUR.R) SAN3678 for XJM/NC type NSP Stanped Label (Front L) SME3640 NSP Model Label (Front L) SAN3679 NSP Stanped Label (Front R) SME3641 NSP Model Label (Front R) SAN3680 NSP Stanped Label (Sub WF) SME3642 NSP Model Label (Sub WF) SAN3681 NSP Stanped Label (Center) SME3643 NSP Model Label (Center) SAN3682 NSP Stanped Label (SUR.L) SME3644 NSP Model Label (SUR.L) SAN3683 NSP Stanped Label (SUR.R) SME3645 NSP Model Label (SUR.R) SAN3684 Mark No. Description Part No. 6 17 9 1 1 2 8 7 7 3 4 5 10 10 11 16 12 12 14 13 15 Pay attention Should not touch the cabinet and connecting cord directly. poly bag fastening (clear tape) How to pack (surround & center) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 1 2 3 4 1 2 3 4 C D F A B E S-EV700V 4 5 ∅8.5 TAPPING SCREW: M4 SCREW (SBA1257) 10 NSP Cabinet SMM2022 Cosmetic BF. Assy SXB1480 Name Plate 36 AAM7013 NSP Double Face Tape SEH1072 NSP Cosmetic BF. Assy SXB1475 NSP Punching Net SNC1207 NSP Cosmetic Plate SNK2875 NSP Cosmetic Baffle SNK2876 Connection Cord SDF1113 Non Skid Pad SEC1953 Speaker (Woofer) A14LR80-53D Passive Radiator DC-21G Screw (for Woofer) BYC40P200FTB Screw (for Passive Radiator) BYC40P200FTC CS ASSY (Subwoofer) Mark No. Description Part No. Mark No. Description Part No. CS ASSY (Center) NSP Cabinet SNK2877 Grille Assy SMG1850 Name Plate 36 AAM7013 NSP Grille Cloth SAS1596 NSP Grille Frame SMH1108 Connection Cord SDF1114 NSP Packing SNK2878 Speaker K77DC55-53D Screw (for SP unit) BPZ40P080FTC Screw (for Cabinet) BPZ40P100FTB NSP Cabinet SMM2021 Grille Assy SMG1849 Name Plate 36 AAM7013 NSP Gasket SEC1954 NSP Double Face Tape SEH1072 NSP Grille Assy SMG1842 NSP Grille Frame SMH1107 NSP Punching Net SNC1206 Cosmetic Baffle Assy SXB1487 NSP Cosmetic Flange SFR1083 NSP Cosmetic Baffle SNK2873 NSP Hexagon Socket Screw SBA1257 for SMW1885 (Front L) Network Assy SWN1751 for SMW1886 (Front R) Network Assy SWN1752 Gasket SEC1951 Gasket SEC1952 Non Skid Pad SEC1953 Gasket SEC2017 NSP Duct 42.5 SMR1395 Catch SNK2915 Speaker (Woofer) A14LU75-55D Speaker (Tweeter) E52AP39-62D Screw (for Tweeter) BPZ40P060FTC Screw (for Woofer) BPZ40P100FTC Screw (for Cosmetic Baffle) BYC40P200FTC CS ASSY (Front) Mark No. Description Part No. NSP Cabinet SNK2879 Grille Assy SMG1851 Name Plate 36 AAM7013 NSP Grille Cloth SAS1597 NSP Grille Frame SMH1109 for SMW1889 (Surround L) Connection Cord SDF1115 for SMW1890 (Surround R) Connection Cord SDF1116 NSP Packing SNK2878 Speaker K77DC55-54D Screw (for SP unit) BPZ40P080FTC Screw (for Cabinet) BPZ40P100FTB CS ASSY (Surround) Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 1 2 3 4 1 2 3 4 C D F A B E S-EV700V SCHEMATIC DIAGRAM INPUT Full-Range Connection Cord (SDF1115, SDF1116) 3. CS ASSY (SURROUND) 4. CS ASSY (SUB WOOFER) INPUT Woofer Connection Cord (SDF1113) INPUT Full-Range Connection Cord (SDF1114) 2. CS ASSY (CENTER) NetWork Assy (SWN1751, SWN1752) 1. CS ASSY (FRONT) 2.7µF/63V Long Leg C INPUT Woofer White Tube color SWN1751: White (for Left channel) SWN1752: Red (for Right channel) Tube color SDF1115: Blue (for Left channel) SDF1116: Gray (for Right channel) Tube color SDF1114: Green White with Gray Line White Red Tweeter Short Leg Tube White White with Gray Line Tube White White with Gray Line Tube Tube color SDF1113: Purple White White with Gray Line Tube www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 1 2 3 4 1 2 3 4 C D F A B E S-EV700V PRODUCT APPEARANCE CS ASSY (Front) SMW1885 SMW1886 APPLICATION SET AMP-WF CABLE COLOR COLOR TUBE OF CABLE FRONT(L) FOR S-EV700V FRONT(R) FOR S-EV700V WHITE-WHITE WITH RAY LINE WHITE-WHITE WITH GRAY LINE WHITE RED *THE DIFFERENCE BETWEEN SMW1885 AND 1886. No. PARTS NOTES Num. 1 2 3 6 5 4 7 8 DUCT 42.5 9 10 GASKET NETWORK ASS'Y GRILLE ASS'Y GASKET 11 CABINET NON SKID PAD ----- ----- ----- ----- COSMETIC FRANGE 2 1 2 1 1 4 1 1 No. PARTS NOTES Num. SPEAKER COSMETIC BAFFLE 14 13 12 15 SPEAKER CATCH SCREW SCREW SCREW HEXAGON SOCKET SCREW 16 17 18 19 20 21 22 23 ADHISIVE ADHISIVE GASKET PYC40P200FTC BPZ40P100FTC BPZ40P060FTC HOT MELT WHITE GLUE 1 1 4 1 4 3 2 2 4 2g 2g MODEL LABEL (INCLUDED IN SPEAKER SYSTEM SET P/L) White White with Gray Line (SMW1885,1886) White (SMW1885,1886) Red 1 10 4 5 9 9 2 3 6 13 14 15 16 17 18 19 20 21 22 23 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 1 2 3 4 1 2 3 4 C D F A B E S-EV700V CS ASSY (Surround) A A MODEL LABEL (INCLUDED IN SPEAKER SYSTEM SET P/L) CONNECTION CORD No. PARTS NOTES 1 2 3 6 5 4 8 7 9 SPEAKER GRILLE ASS'Y CABINET SCREW SCREW PACKING ADHISIVE ADHISIVE Num. 1 1 1 1 4 1 4 1g 1g BPZ40P080FTC (with BADGE) BPZ40P100FTB HOT MELT ZBA-1600WB or eqv. *THE DIFFERENCE BETWEEN SMW1889 AND 1890. GRAY BLUE SMW1890 SMW1889 APPLICATION SET COLOR TUBE OF CABLE SURROUND(R) FOR S-EV700V SURROUND(L) FOR S-EV700V SECTION AA - + 1 3 4 5 6 2 7 9 8 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 1 2 3 4 1 2 3 4 C D F A B E S-EV700V CS ASSY (Center) A A MODEL LABEL (INCLUDED IN SPEAKER SYSTEM SET P/L) SECTION AA(S=1/1) + - 1 2 3 4 7 5 6 6 8 9 COLOR TUBE:GREEN CONNECTION CORD No. PARTS NOTES 1 2 3 6 5 4 8 7 9 SPEAKER GRILLE ASS'Y CABINET SCREW SCREW PACKING ADHISIVE ADHISIVE Num. 1 1 1 1 4 1 8 1g 1g BPZ40P080FTC (with BADGE) BPZ40P100FTB HOT MELT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 1 2 3 4 1 2 3 4 C D F A B E S-EV700V CS ASSY ( Subwoofer ) MODEL LABEL (INCLUDED IN SPEAKER SYSTEM SET P/L) No. PARTS NOTES 1 2 3 6 5 4 7 8 9 10 CONNECTION CORD SCREW NON SKID PAD SPEAKER COSMETIC BAFFLE ASSY CABINET PASSIVE RADIATOR ADHISIVE SCREW ADHISIVE Num. 1 1 1 4 4 1 1 2g 4 2g BYC40P200FTB BYC40P200FTC HOT MELT WHITE GLUE COLOR TUBE:PURPLE WHITE WHITE WITH GRAY LINE 2 7 8 4 5 1 3 10 6 9 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
