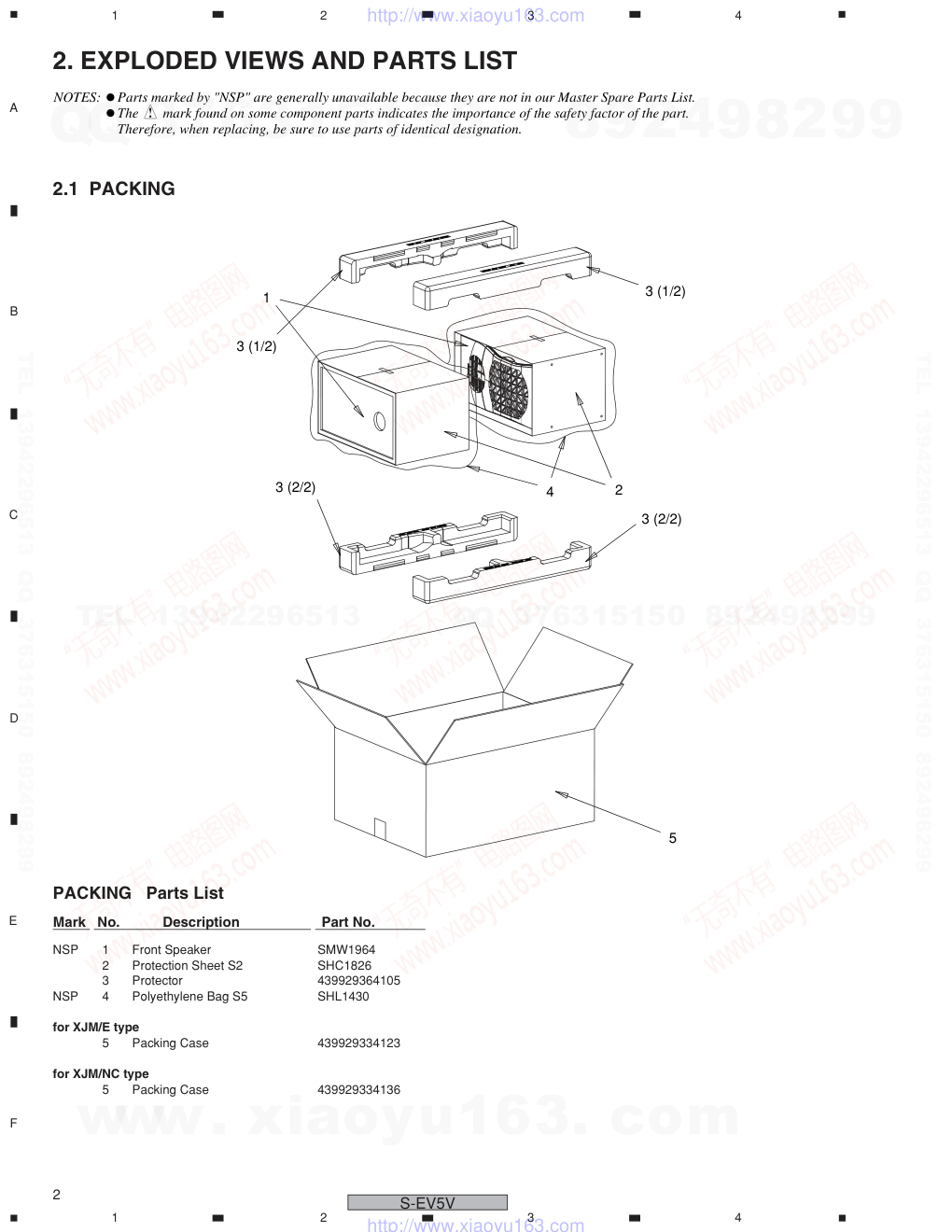

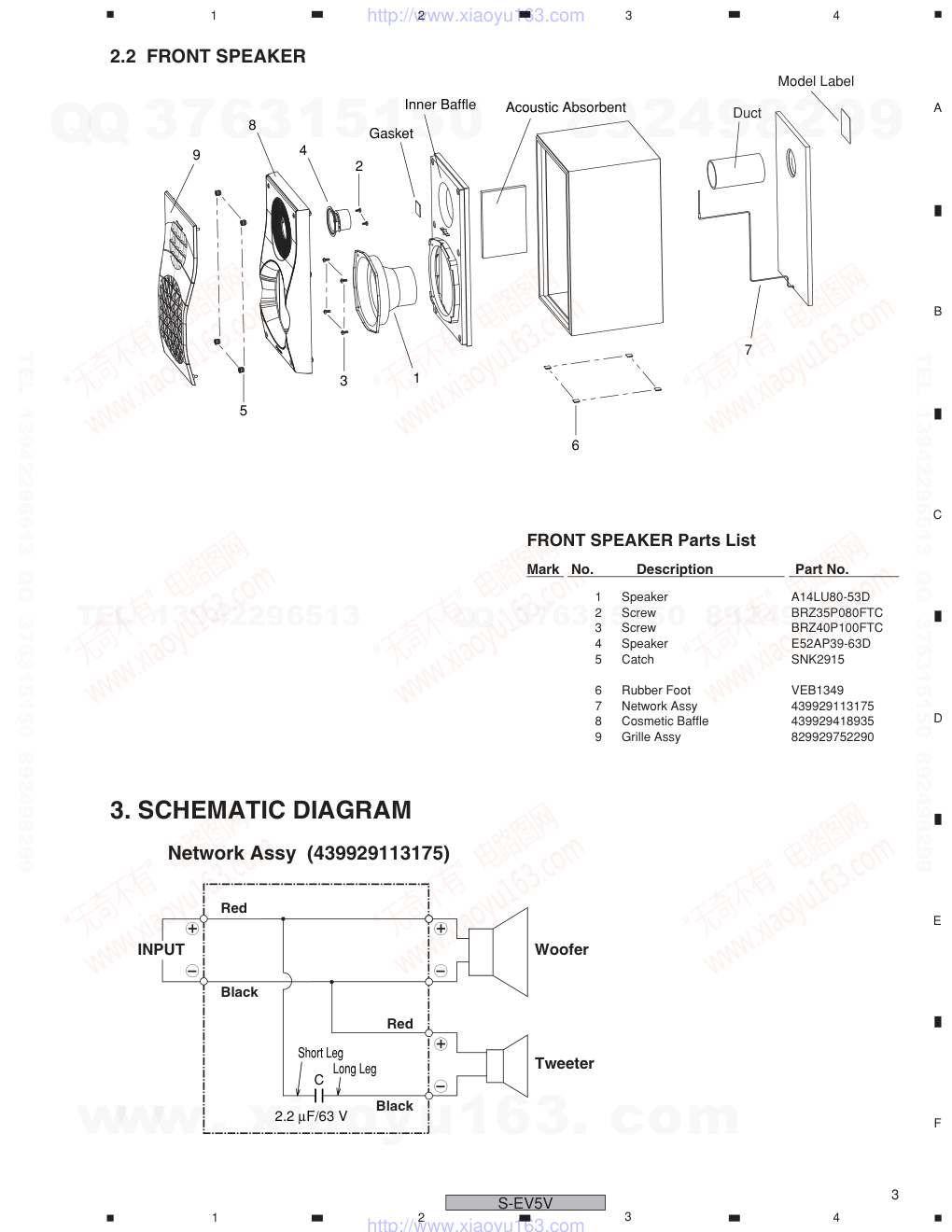

ORDER NO. PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2006 RRV3420 T – ZZS JUNE 2006 Printed in Japan SPEAKER SYSTEM 1. REASSEMBLY AND DISASSEMBLY PRECAUTIONS The grille assy is attached to the cosmetic baffle by catches. Detach by pulling it toward you. The catch is attached to the cosmetic baffle by press-fitting. To detach it, insert a sharp-pointed tool like an eyeleteer into each of side. To attach it, insert the holes of the cosmetic baffle assy by press-fitting. The cosmetic baffle is attached to the inner baffle by its bosses. To detach it, pry it open by inserting a flat blade screwdriver into lower side. The woofer is attached to the inner baffle by 4 screws with the screw heads facing the baffle. To detach it, first remove the cos- metic baffle, next disconnect the cord to tweeter. Then unfasten those screws. When attaching it, face its terminal upward. The tweeter is attached to the cosmetic baffle by 2 internal screws. To detach it, first remove the cosmetic baffle, next dis- connect the cord to tweeter. Then unfasten those screws. When attaching it, face its terminal downward. S-EV5V XJM/E S-EV5V XJM/NC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 1 2 3 4 1 2 3 4 C D F A B E S-EV5V 1 3 (1/2) 3 (1/2) 3 (2/2) 3 (2/2) 5 2 4 2.1 PACKING Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: Mark No. Description Part No. NSP 1 Front Speaker SMW1964 2 Protection Sheet S2 SHC1826 3 Protector 439929364105 NSP 4 Polyethylene Bag S5 SHL1430 for XJM/E type 5 Packing Case 439929334123 for XJM/NC type 5 Packing Case 439929334136 PACKING Parts List 2. EXPLODED VIEWS AND PARTS LIST www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 1 2 3 4 1 2 3 4 C D F A B E S-EV5V Duct Model Label 4 Gasket 9 8 Inner Baffle 1 5 3 2 6 Acoustic Absorbent 7 FRONT SPEAKER Parts List Mark No. Description Part No. 3. SCHEMATIC DIAGRAM Network Assy (439929113175) 2.2 µF/63 V Long Leg C INPUT Woofer Black Red Black Red Tweeter Short Leg 1 Speaker A14LU80-53D 2 Screw BRZ35P080FTC 3 Screw BRZ40P100FTC 4 Speaker E52AP39-63D 5 Catch SNK2915 6 Rubber Foot VEB1349 7 Network Assy 439929113175 8 Cosmetic Baffle 439929418935 9 Grille Assy 829929752290 2.2 FRONT SPEAKER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
