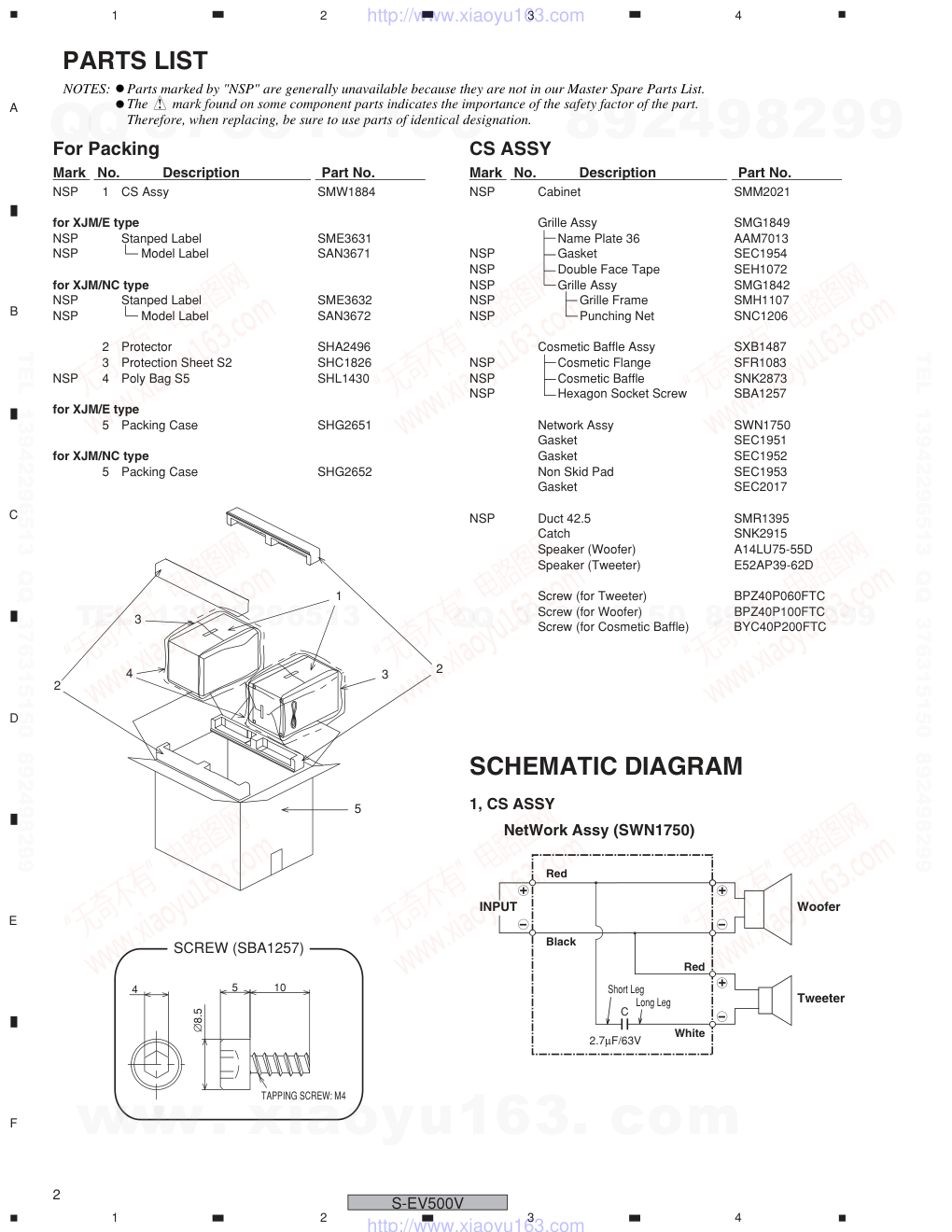

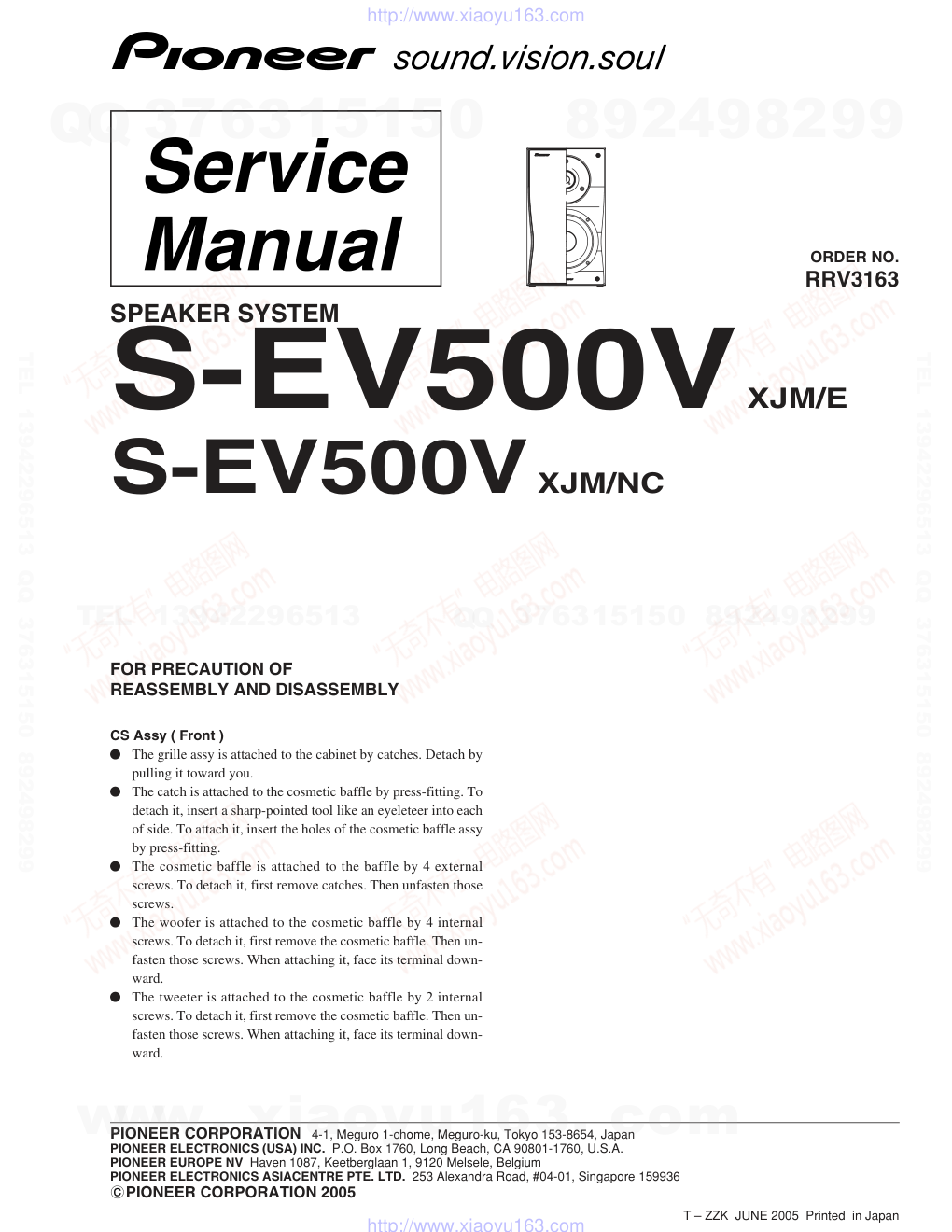

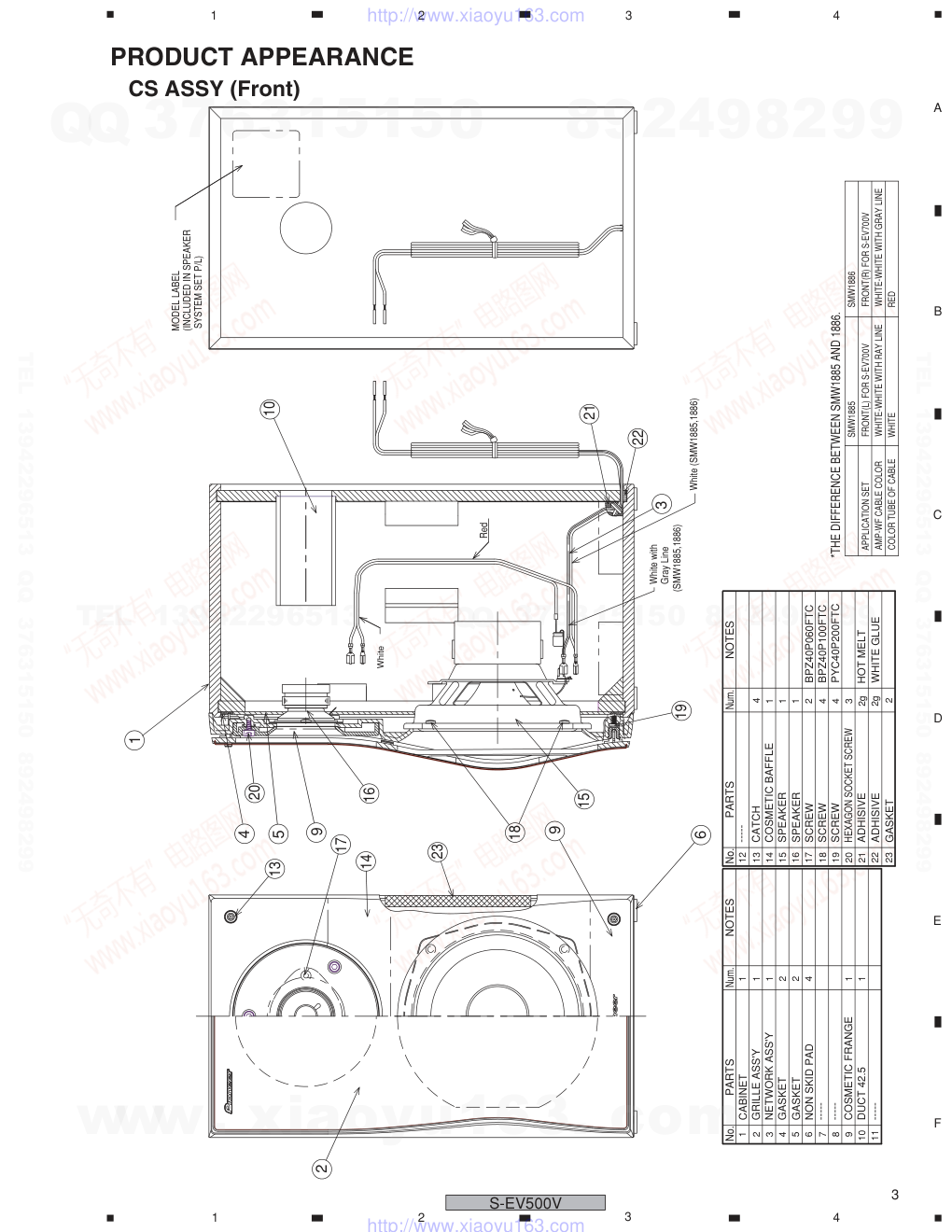

ORDER NO. PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2005 RRV3163 T – ZZK JUNE 2005 Printed in Japan SPEAKER SYSTEM S-EV500V XJM/E S-EV500V XJM/NC FOR PRECAUTION OF REASSEMBLY AND DISASSEMBLY CS Assy ( Front ) The grille assy is attached to the cabinet by catches. Detach by pulling it toward you. The catch is attached to the cosmetic baffle by press-fitting. To detach it, insert a sharp-pointed tool like an eyeleteer into each of side. To attach it, insert the holes of the cosmetic baffle assy by press-fitting. The cosmetic baffle is attached to the baffle by 4 external screws. To detach it, first remove catches. Then unfasten those screws. The woofer is attached to the cosmetic baffle by 4 internal screws. To detach it, first remove the cosmetic baffle. Then un- fasten those screws. When attaching it, face its terminal down- ward. The tweeter is attached to the cosmetic baffle by 2 internal screws. To detach it, first remove the cosmetic baffle. Then un- fasten those screws. When attaching it, face its terminal down- ward. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 1 2 3 4 1 2 3 4 C D F A B E S-EV500V NSP Cabinet SMM2021 Grille Assy SMG1849 Name Plate 36 AAM7013 NSP Gasket SEC1954 NSP Double Face Tape SEH1072 NSP Grille Assy SMG1842 NSP Grille Frame SMH1107 NSP Punching Net SNC1206 Cosmetic Baffle Assy SXB1487 NSP Cosmetic Flange SFR1083 NSP Cosmetic Baffle SNK2873 NSP Hexagon Socket Screw SBA1257 Network Assy SWN1750 Gasket SEC1951 Gasket SEC1952 Non Skid Pad SEC1953 Gasket SEC2017 NSP Duct 42.5 SMR1395 Catch SNK2915 Speaker (Woofer) A14LU75-55D Speaker (Tweeter) E52AP39-62D Screw (for Tweeter) BPZ40P060FTC Screw (for Woofer) BPZ40P100FTC Screw (for Cosmetic Baffle) BYC40P200FTC NSP 1 CS Assy SMW1884 for XJM/E type NSP Stanped Label SME3631 NSP Model Label SAN3671 for XJM/NC type NSP Stanped Label SME3632 NSP Model Label SAN3672 2 Protector SHA2496 3 Protection Sheet S2 SHC1826 NSP 4 Poly Bag S5 SHL1430 for XJM/E type 5 Packing Case SHG2651 for XJM/NC type 5 Packing Case SHG2652 For Packing Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: PARTS LIST Mark No. Description Part No. CS ASSY Mark No. Description Part No. 4 5 ∅8.5 TAPPING SCREW: M4 SCREW (SBA1257) 10 SCHEMATIC DIAGRAM NetWork Assy (SWN1750) 1, CS ASSY 2.7µF/63V Long Leg C INPUT Woofer Black Red White Red Tweeter Short Leg 5 1 2 2 4 3 3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 1 2 3 4 1 2 3 4 C D F A B E S-EV500V PRODUCT APPEARANCE CS ASSY (Front) SMW1885 SMW1886 APPLICATION SET AMP-WF CABLE COLOR COLOR TUBE OF CABLE FRONT(L) FOR S-EV700V FRONT(R) FOR S-EV700V WHITE-WHITE WITH RAY LINE WHITE-WHITE WITH GRAY LINE WHITE RED *THE DIFFERENCE BETWEEN SMW1885 AND 1886. No. PARTS NOTES Num. 1 2 3 6 5 4 7 8 DUCT 42.5 9 10 GASKET NETWORK ASS'Y GRILLE ASS'Y GASKET 11 CABINET NON SKID PAD ----- ----- ----- ----- COSMETIC FRANGE 2 1 2 1 1 4 1 1 No. PARTS NOTES Num. SPEAKER COSMETIC BAFFLE 14 13 12 15 SPEAKER CATCH SCREW SCREW SCREW HEXAGON SOCKET SCREW 16 17 18 19 20 21 22 23 ADHISIVE ADHISIVE GASKET PYC40P200FTC BPZ40P100FTC BPZ40P060FTC HOT MELT WHITE GLUE 1 1 4 1 4 3 2 2 4 2g 2g MODEL LABEL (INCLUDED IN SPEAKER SYSTEM SET P/L) White White with Gray Line (SMW1885,1886) White (SMW1885,1886) Red 1 10 4 5 9 9 2 3 6 13 14 15 16 17 18 19 20 21 22 23 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
