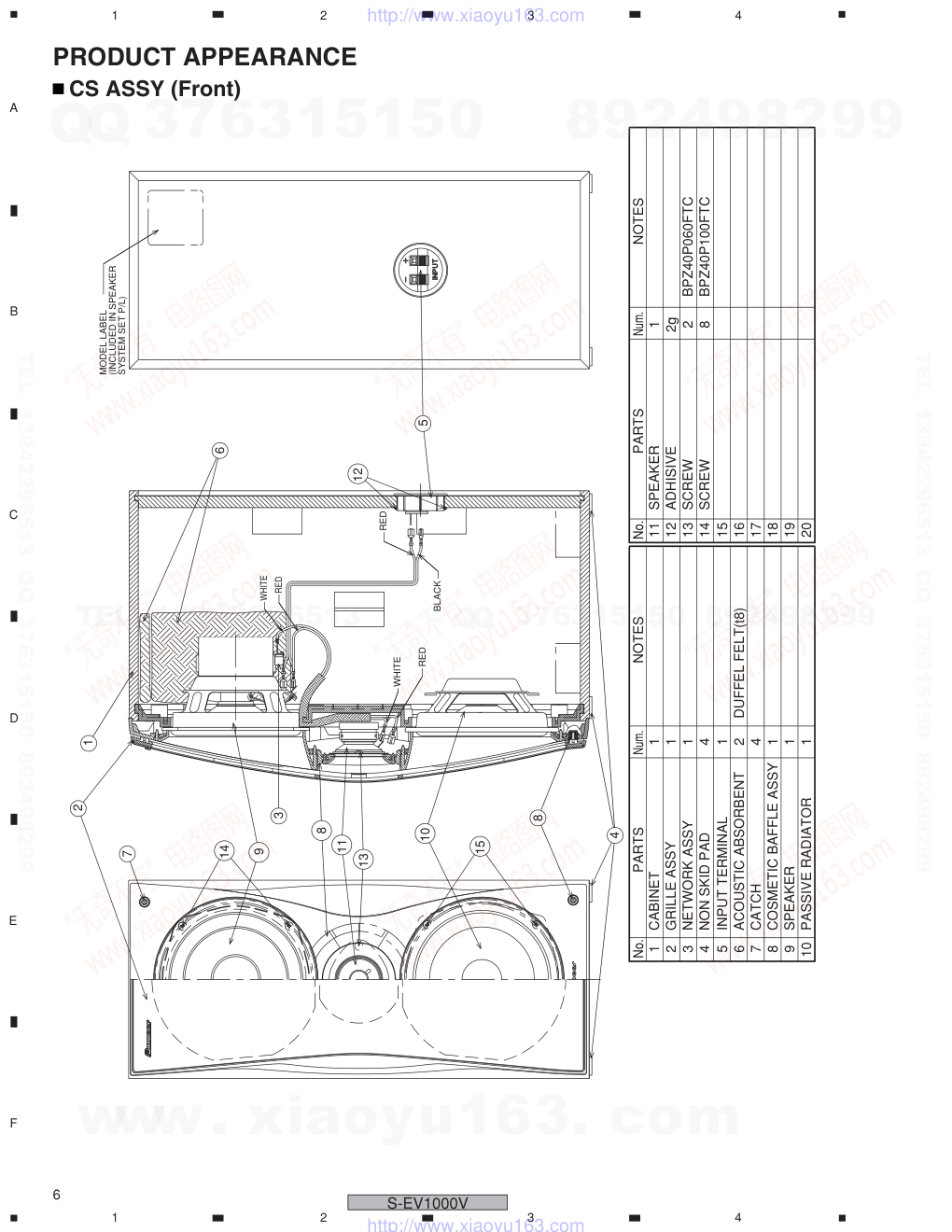

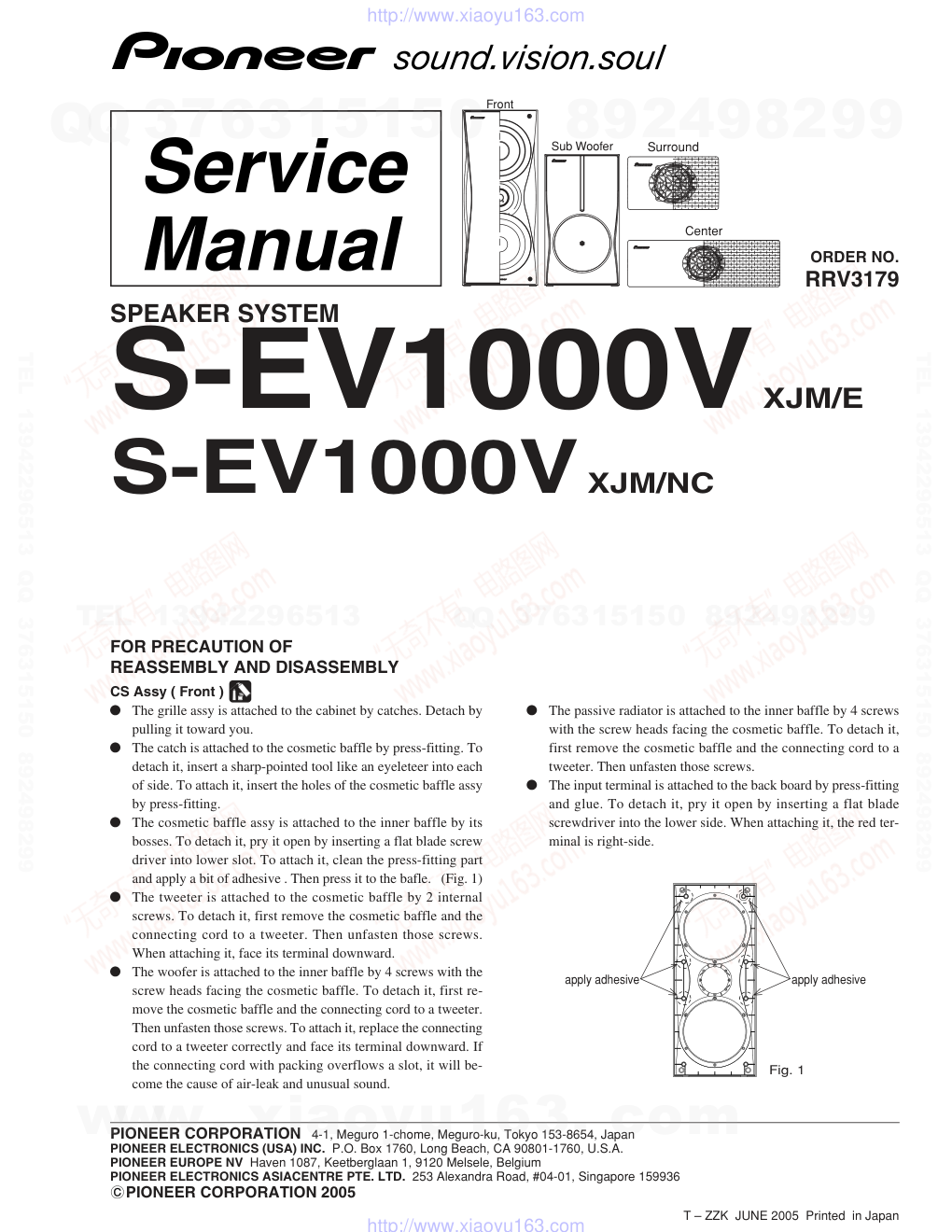

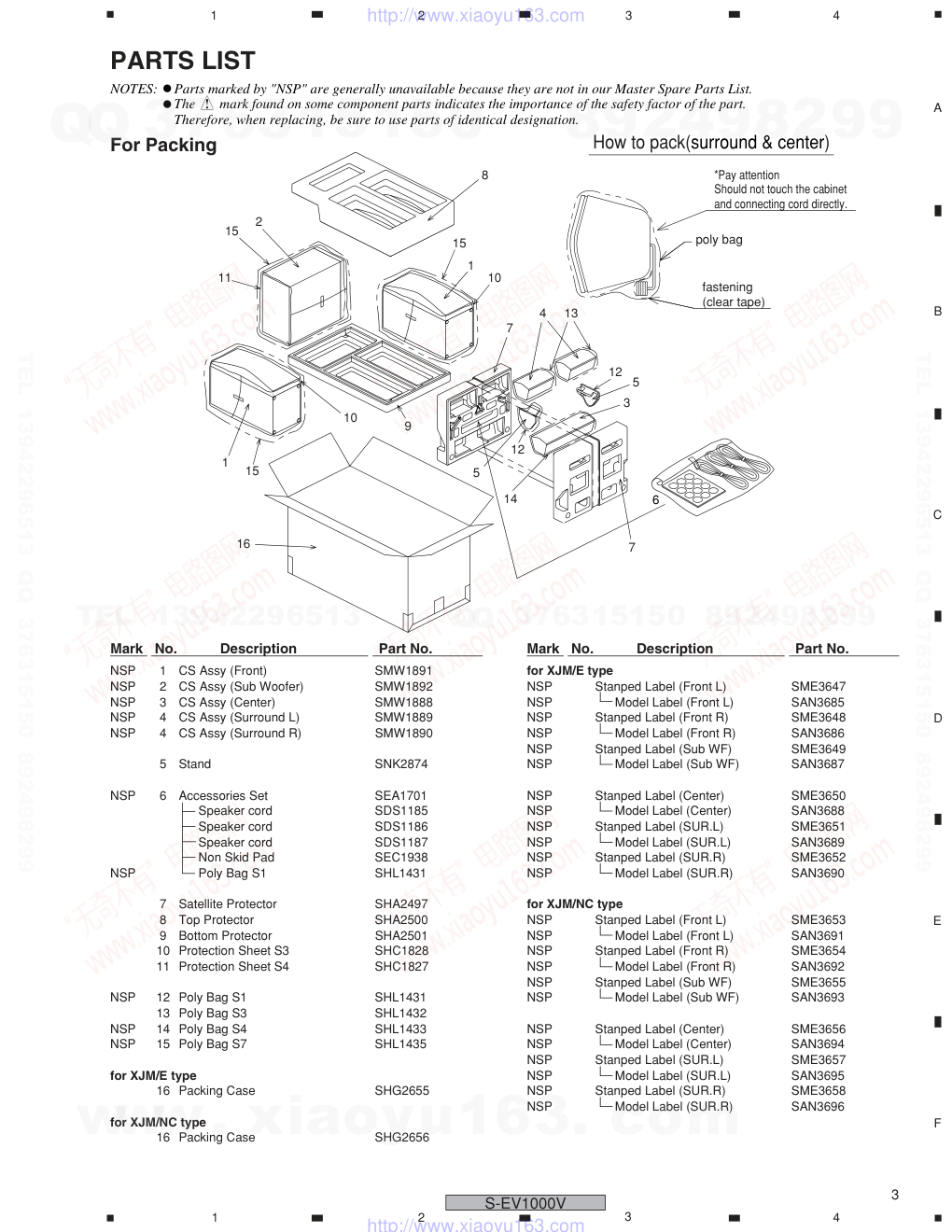

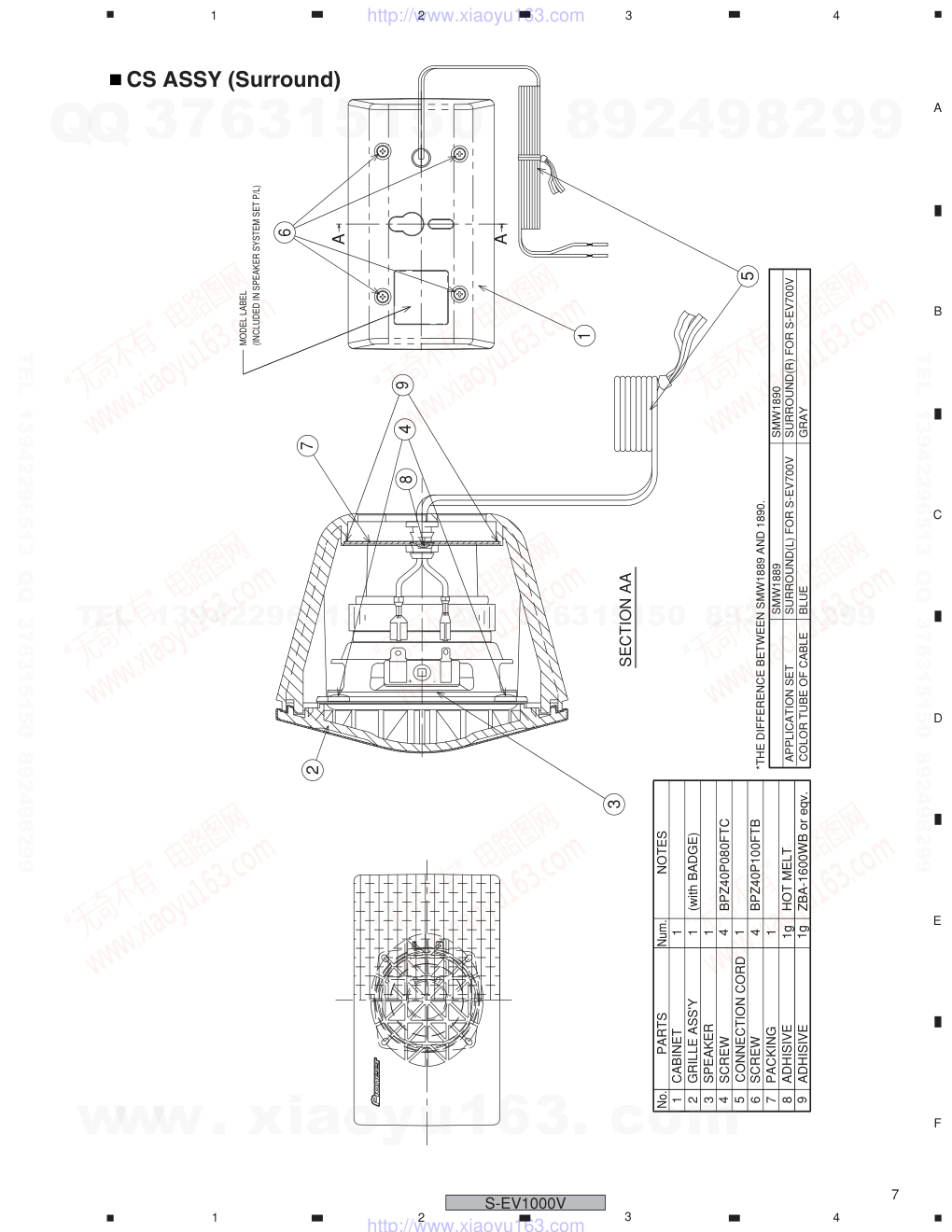

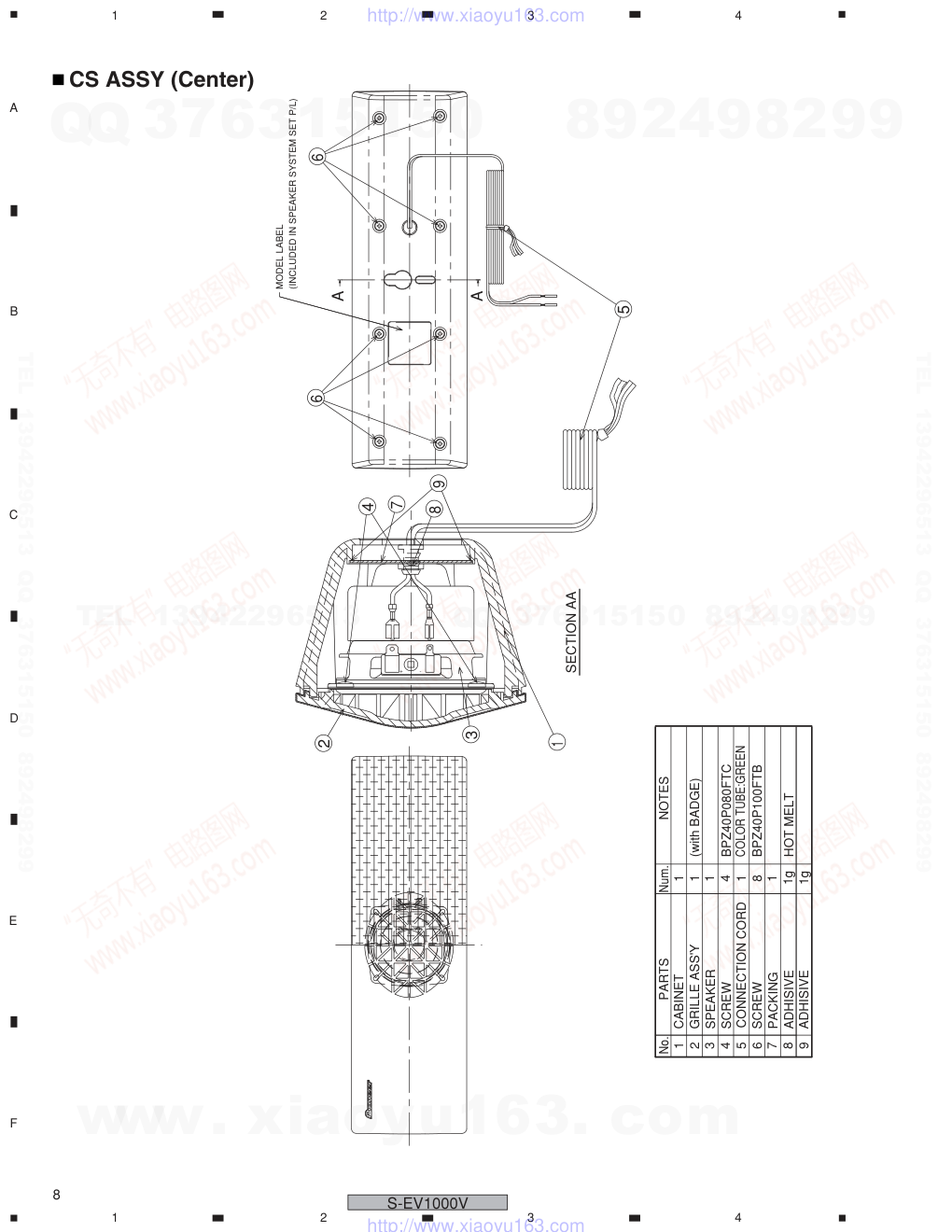

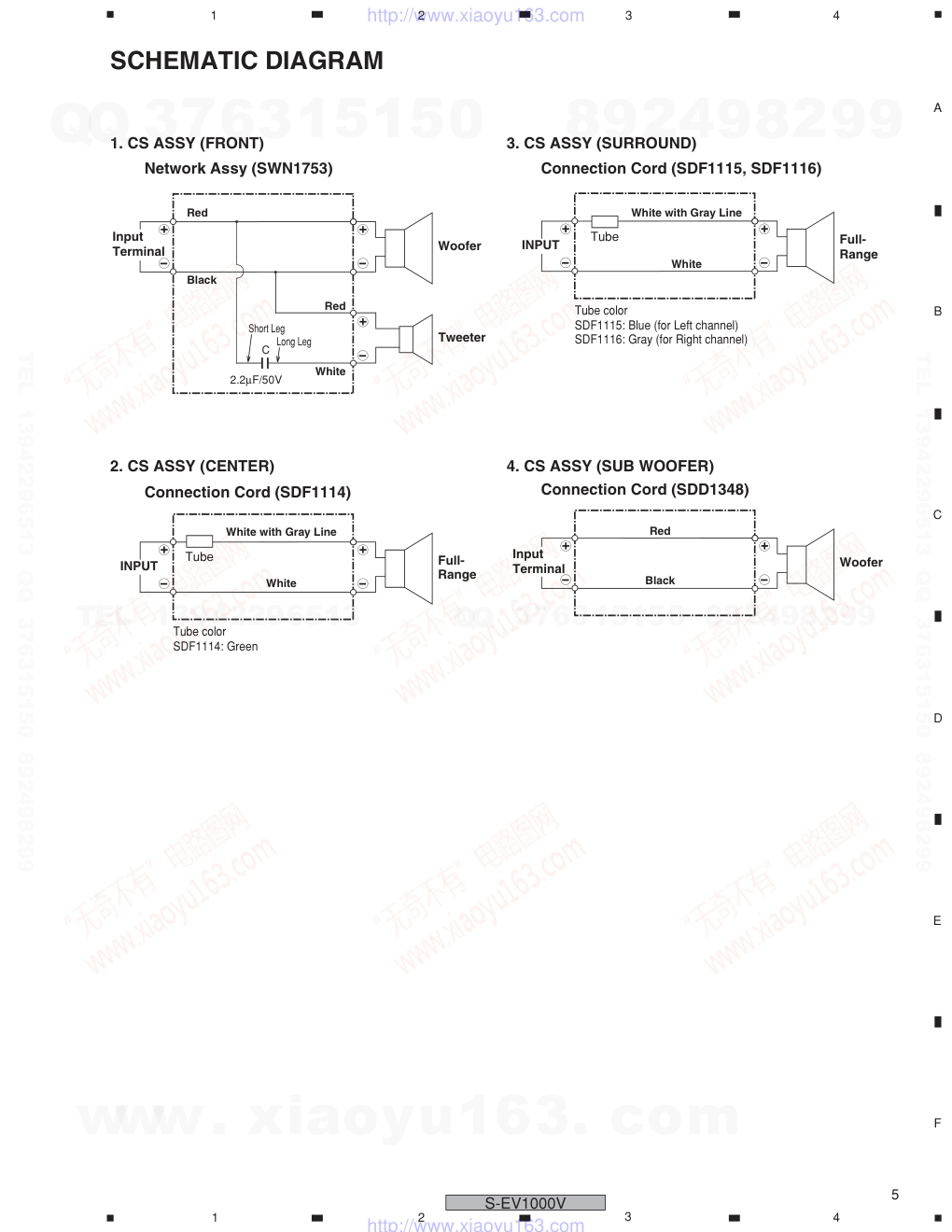

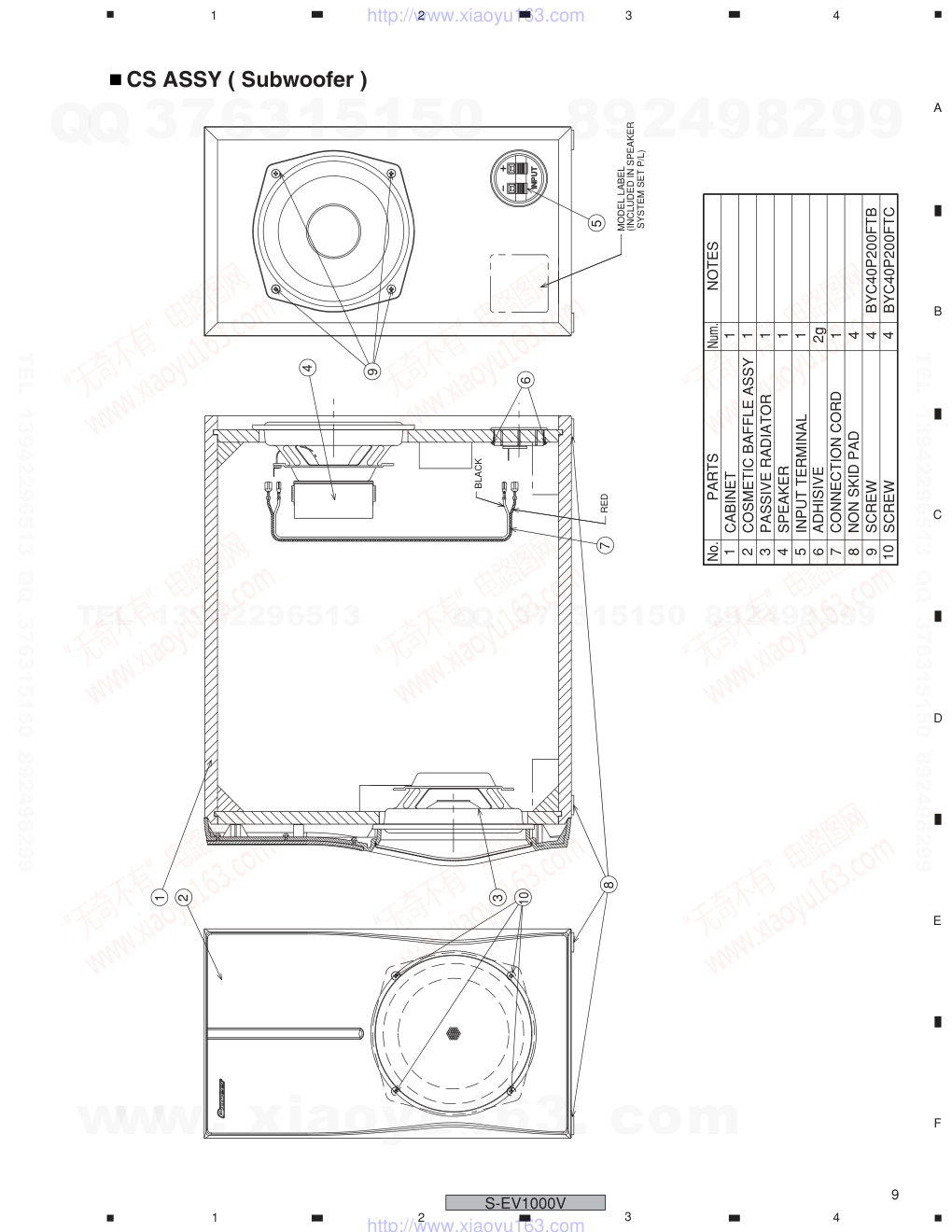

ORDER NO. PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2005 RRV3179 T – ZZK JUNE 2005 Printed in Japan SPEAKER SYSTEM S-EV1000V XJM/E S-EV1000V XJM/NC Center Surround Sub Woofer Front FOR PRECAUTION OF REASSEMBLY AND DISASSEMBLY CS Assy ( Front ) The grille assy is attached to the cabinet by catches. Detach by pulling it toward you. The catch is attached to the cosmetic baffle by press-fitting. To detach it, insert a sharp-pointed tool like an eyeleteer into each of side. To attach it, insert the holes of the cosmetic baffle assy by press-fitting. The cosmetic baffle assy is attached to the inner baffle by its bosses. To detach it, pry it open by inserting a flat blade screw driver into lower slot. To attach it, clean the press-fitting part and apply a bit of adhesive . Then press it to the bafle. (Fig. 1) The tweeter is attached to the cosmetic baffle by 2 internal screws. To detach it, first remove the cosmetic baffle and the connecting cord to a tweeter. Then unfasten those screws. When attaching it, face its terminal downward. The woofer is attached to the inner baffle by 4 screws with the screw heads facing the cosmetic baffle. To detach it, first re- move the cosmetic baffle and the connecting cord to a tweeter. Then unfasten those screws. To attach it, replace the connecting cord to a tweeter correctly and face its terminal downward. If the connecting cord with packing overflows a slot, it will be- come the cause of air-leak and unusual sound. The passive radiator is attached to the inner baffle by 4 screws with the screw heads facing the cosmetic baffle. To detach it, first remove the cosmetic baffle and the connecting cord to a tweeter. Then unfasten those screws. The input terminal is attached to the back board by press-fitting and glue. To detach it, pry it open by inserting a flat blade screwdriver into the lower side. When attaching it, the red ter- minal is right-side. Fig. 1 apply adhesive apply adhesive www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 1 2 3 4 1 2 3 4 C D F A B E S-EV1000V CS Assy ( Surround and Center ) The grille assy is attached to the cabinet by 4 external screws. To detach it, unfasten those screws. When attaching it, it at- taches, as the connection cord is under the speaker unit. ( Surround ) The grille assy is attached to the cabinet by 8 external screws. To detach it, unfasten those screws. When attaching it, it at- taches, as the connection cord is under the speaker unit. ( Center ) The speaker unit is attached to the grille by 4 internal screws. To detach it, first remove the grille assy. Next unfasten those screws, and remove the cable. When attaching it, face its termi- nal leftward. (See to the backside of the grille assy.) Fig. 2 apply adhesive apply adhesive CS Assy ( Subwoofer ) The cosmetic baffle is attached to the cabinet by its bosses. To detach it, pry it open by inserting a flat blade screw driver into lower slot. To attach it, clean the press-fitting part and apply a bit of adhesive . Then press it to the bafle. (Fig. 2) The passive radiator is attached to the baffle by 4 external screws. To detach it, first remove the cosmetic baffle. Then re- move the passive radiator. When attaching it, face its the rib for input terminal board toward the vertical direction. The woofer is attached to the back board of cabinet by 4 exter- nal screws. To detach it, unfasten those screws. When attaching it, face its terminal upward. The input terminal is attached to the back board by press-fitting and glue. To detach it, pry it open by inserting a flat blade screwdriver into the lower side. When attaching it, the red ter- minal is right-side. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 1 2 3 4 1 2 3 4 C D F A B E S-EV1000V For Packing Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: PARTS LIST NSP 1 CS Assy (Front) SMW1891 NSP 2 CS Assy (Sub Woofer) SMW1892 NSP 3 CS Assy (Center) SMW1888 NSP 4 CS Assy (Surround L) SMW1889 NSP 4 CS Assy (Surround R) SMW1890 5 Stand SNK2874 NSP 6 Accessories Set SEA1701 Speaker cord SDS1185 Speaker cord SDS1186 Speaker cord SDS1187 Non Skid Pad SEC1938 NSP Poly Bag S1 SHL1431 7 Satellite Protector SHA2497 8 Top Protector SHA2500 9 Bottom Protector SHA2501 10 Protection Sheet S3 SHC1828 11 Protection Sheet S4 SHC1827 NSP 12 Poly Bag S1 SHL1431 13 Poly Bag S3 SHL1432 NSP 14 Poly Bag S4 SHL1433 NSP 15 Poly Bag S7 SHL1435 for XJM/E type 16 Packing Case SHG2655 for XJM/NC type 16 Packing Case SHG2656 Mark No. Description Part No. for XJM/E type NSP Stanped Label (Front L) SME3647 NSP Model Label (Front L) SAN3685 NSP Stanped Label (Front R) SME3648 NSP Model Label (Front R) SAN3686 NSP Stanped Label (Sub WF) SME3649 NSP Model Label (Sub WF) SAN3687 NSP Stanped Label (Center) SME3650 NSP Model Label (Center) SAN3688 NSP Stanped Label (SUR.L) SME3651 NSP Model Label (SUR.L) SAN3689 NSP Stanped Label (SUR.R) SME3652 NSP Model Label (SUR.R) SAN3690 for XJM/NC type NSP Stanped Label (Front L) SME3653 NSP Model Label (Front L) SAN3691 NSP Stanped Label (Front R) SME3654 NSP Model Label (Front R) SAN3692 NSP Stanped Label (Sub WF) SME3655 NSP Model Label (Sub WF) SAN3693 NSP Stanped Label (Center) SME3656 NSP Model Label (Center) SAN3694 NSP Stanped Label (SUR.L) SME3657 NSP Model Label (SUR.L) SAN3695 NSP Stanped Label (SUR.R) SME3658 NSP Model Label (SUR.R) SAN3696 Mark No. Description Part No. 6 How to pack(surround & center) *Pay attention Should not touch the cabinet and connecting cord directly. poly bag fastening (clear tape) 16 9 1 1 2 8 7 7 3 4 5 5 13 14 15 15 15 10 10 11 12 12 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 1 2 3 4 1 2 3 4 C D F A B E S-EV1000V NSP Cabinet SNK2879 Grille Assy SMG1851 Name Plate 36 AAM7013 NSP Grille Cloth SAS1597 NSP Grille Frame SMH1109 for SMW1889 (Surround L) Connection Cord SDF1115 for SMW1890 (Surround R) Connection Cord SDF1116 NSP Packing SNK2878 Speaker K77DC55-54D Screw (for SP unit) BPZ40P080FTC Screw (for Cabinet) BPZ40P100FTB CS ASSY (Surround) Mark No. Description Part No. NSP Cabinet SMM2023 NSP Inner Baffle SNK2882 Grille Assy SMG1846 Name Plate 36 AAM7013 Packing SEC1924 NSP Double Face Tape SEH1072 NSP Grille Frame SMH1110 NSP Punching Net SNC1208 Cosmetic Baffle Assy SXB1481 NSP Cosmetic Flange SFR1084 NSP Cosmetic Baffle SNK2883 NSP Upper Cosmetic Ring SNK2884 NSP Lower Cosmetic Ring SNK2885 Network Assy SWN1753 Non Skid Pad SEC1953 Input Terminal SKX1095 NSP Acoustic Absorbent SMV2225 Catch SNK2915 Speaker (Woofer) A14LR80-52D Speaker (Tweeter) E52AP39-62D Passive Radiator DC-22G Screw (for Tweeter) BPZ40P060FTC Screw (for Woofer, Passive Radiator) BPZ40P100FTC CS ASSY (Front) Mark No. Description Part No. Mark No. Description Part No. CS ASSY (Center) NSP Cabinet SNK2877 Grille Assy SMG1850 Name Plate 36 AAM7013 NSP Grille Cloth SAS1596 NSP Grille Frame SMH1108 Connection Cord SDF1114 NSP Packing SNK2878 Speaker K77DC55-53D Screw (for SP unit) BPZ40P080FTC Screw (for Cabinet) BPZ40P100FTB NSP Cabinet SMM2024 Cosmetic Baffle Assy SXB1483 Name Plate 36 AAM7013 NSP Double Face Tape SEH1072 NSP Cosmetic BF. Assy SXB1482 NSP Punching Net SNC1207 NSP Cosmetic Plate SNK2916 NSP Cosmetic Baffle SNK2876 Connection Cord SDD1348 Non Skid Pad SEC1953 Input Terminal SKX1095 Speaker (Woofer) A14LR80-53D Passive Radiator DC-21G Screw (for Woofer) BYC40P200FTB Screw (for Passive Radiator) BYC40P200FTC CS ASSY (Subwoofer) Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 1 2 3 4 1 2 3 4 C D F A B E S-EV1000V SCHEMATIC DIAGRAM INPUT Full- Range Connection Cord (SDF1115, SDF1116) 3. CS ASSY (SURROUND) 4. CS ASSY (SUB WOOFER) Woofer Connection Cord (SDD1348) INPUT Full- Range Connection Cord (SDF1114) 2. CS ASSY (CENTER) Network Assy (SWN1753) 1. CS ASSY (FRONT) 2.2µF/50V Long Leg C Input Terminal Input Terminal Woofer Black Tube color SDF1115: Blue (for Left channel) SDF1116: Gray (for Right channel) Tube color SDF1114: Green Red White Red Tweeter Short Leg White White with Gray Line Tube White White with Gray Line Tube Black Red www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 1 2 3 4 1 2 3 4 C D F A B E S-EV1000V PRODUCT APPEARANCE CS ASSY (Front) No. PARTS NOTES 1 2 3 6 5 4 7 8 9 10 SCREW NON SKID PAD SPEAKER SPEAKER COSMETIC BAFFLE ASSY CABINET PASSIVE RADIATOR ADHISIVE SCREW Num. 1 1 1 4 1 1 2g No. PARTS NOTES 11 12 13 16 15 14 17 18 19 20 Num. INPUT TERMINAL 1 1 NETWORK ASSY GRILLE ASSY 2 ACOUSTIC ABSORBENT CATCH 4 1 2 8 BPZ40P060FTC BPZ40P100FTC DUFFEL FELT(t8) MODEL LABEL (INCLUDED IN SPEAKER SYSTEM SET P/L) WHITE RED 15 14 13 8 9 10 11 12 RED BLACK RED WHITE 1 2 3 4 5 6 7 8 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 1 2 3 4 1 2 3 4 C D F A B E S-EV1000V CS ASSY (Surround) A A MODEL LABEL (INCLUDED IN SPEAKER SYSTEM SET P/L) CONNECTION CORD No. PARTS NOTES 1 2 3 6 5 4 8 7 9 SPEAKER GRILLE ASS'Y CABINET SCREW SCREW PACKING ADHISIVE ADHISIVE Num. 1 1 1 1 4 1 4 1g 1g BPZ40P080FTC (with BADGE) BPZ40P100FTB HOT MELT ZBA-1600WB or eqv. *THE DIFFERENCE BETWEEN SMW1889 AND 1890. GRAY BLUE SMW1890 SMW1889 APPLICATION SET COLOR TUBE OF CABLE SURROUND(R) FOR S-EV700V SURROUND(L) FOR S-EV700V SECTION AA - + 1 3 4 5 6 2 7 9 8 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 1 2 3 4 1 2 3 4 C D F A B E S-EV1000V CS ASSY (Center) A A MODEL LABEL (INCLUDED IN SPEAKER SYSTEM SET P/L) SECTION AA + - 1 2 3 4 7 5 6 6 8 9 COLOR TUBE:GREEN CONNECTION CORD No. PARTS NOTES 1 2 3 6 5 4 8 7 9 SPEAKER GRILLE ASS'Y CABINET SCREW SCREW PACKING ADHISIVE ADHISIVE Num. 1 1 1 1 4 1 8 1g 1g BPZ40P080FTC (with BADGE) BPZ40P100FTB HOT MELT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 1 2 3 4 1 2 3 4 C D F A B E S-EV1000V CS ASSY ( Subwoofer ) BLACK RED CONNECTION CORD Num. No. PARTS NOTES 1 2 3 6 1 1 5 4 7 1 8 BYC40P200FTB 1 SCREW 9 4 SPEAKER 10 4 COSMETIC BAFFLE ASSY CABINET PASSIVE RADIATOR 1 2g ADHISIVE 1 INPUT TERMINAL SCREW BYC40P200FTC 4 NON SKID PAD 2 10 9 4 7 1 3 6 5 8 MODEL LABEL (INCLUDED IN SPEAKER SYSTEM SET P/L) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
