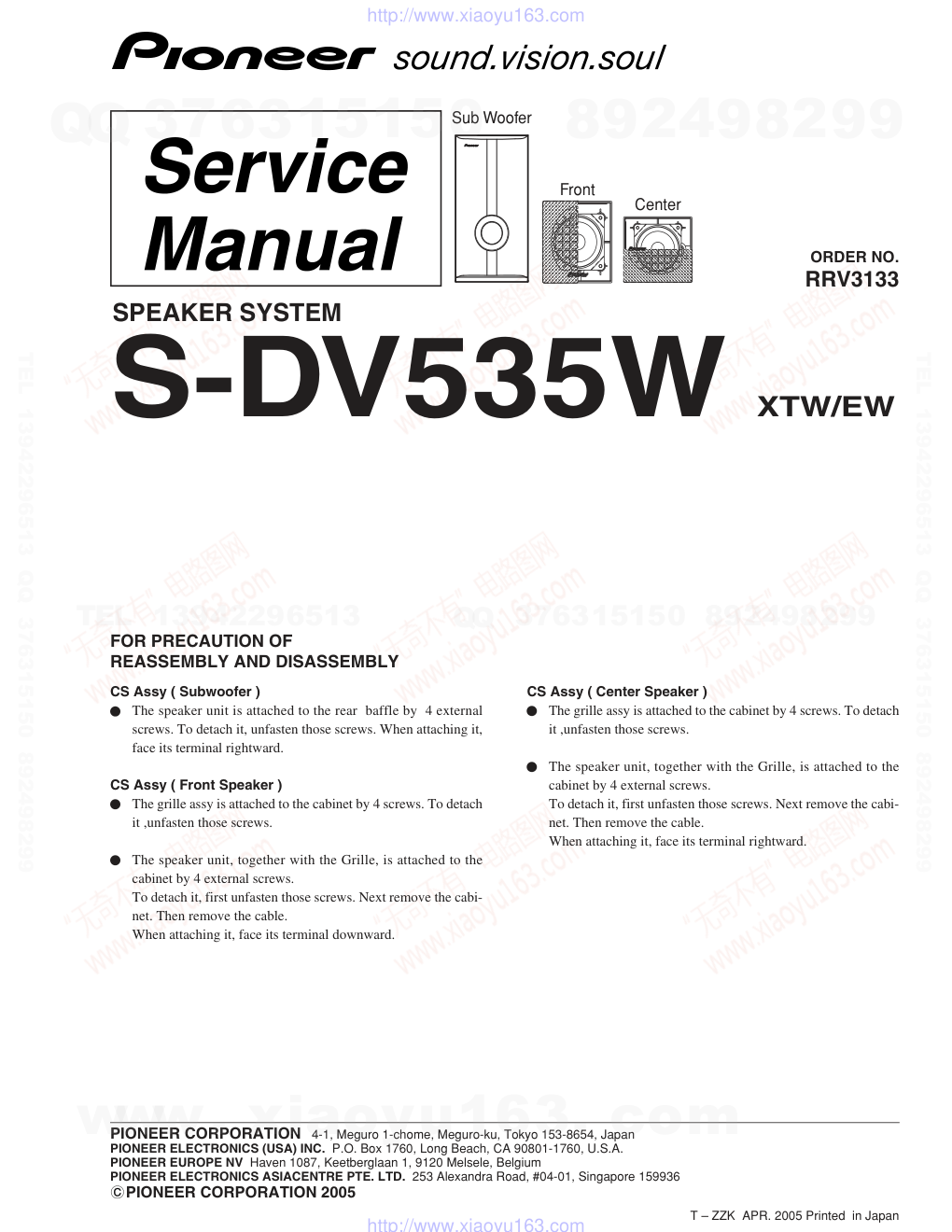

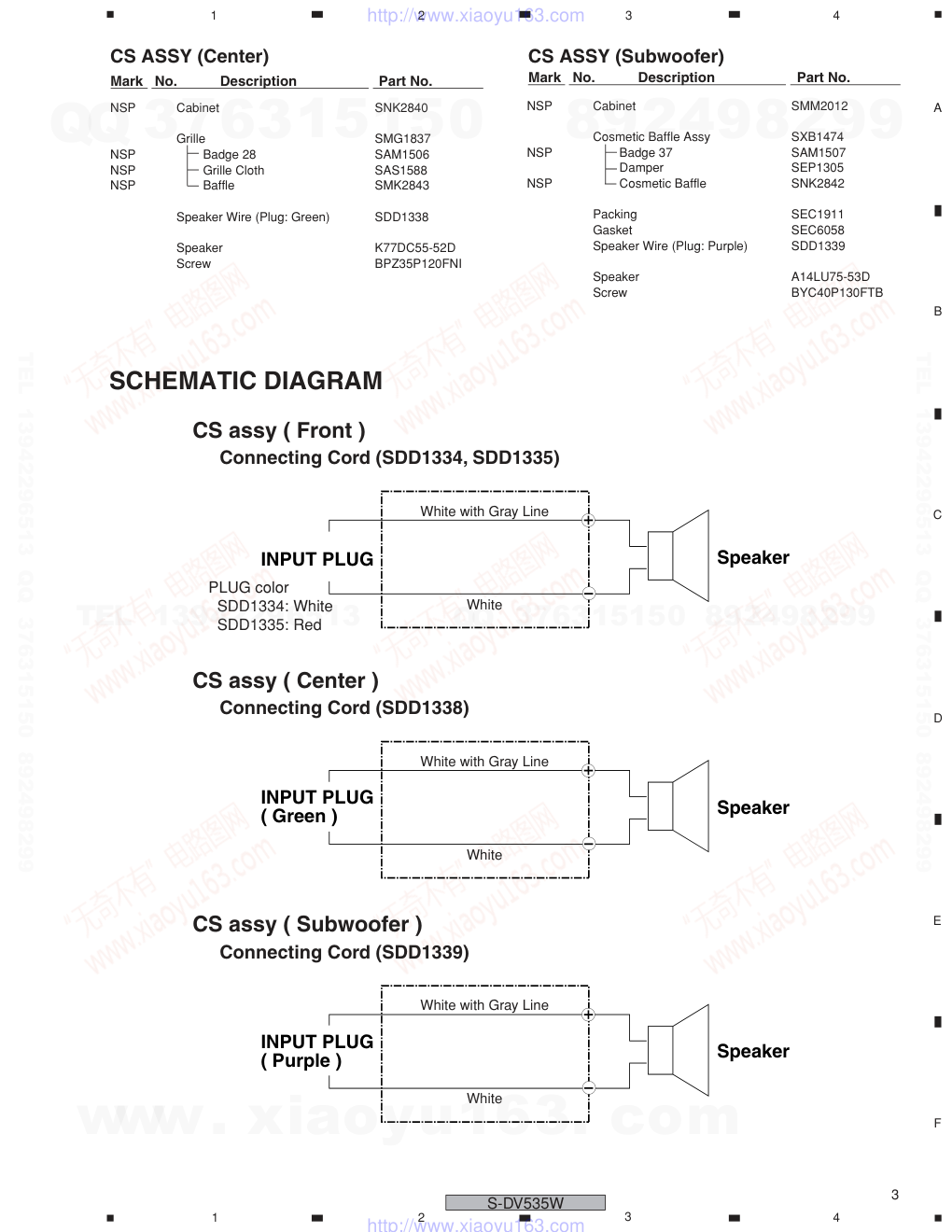

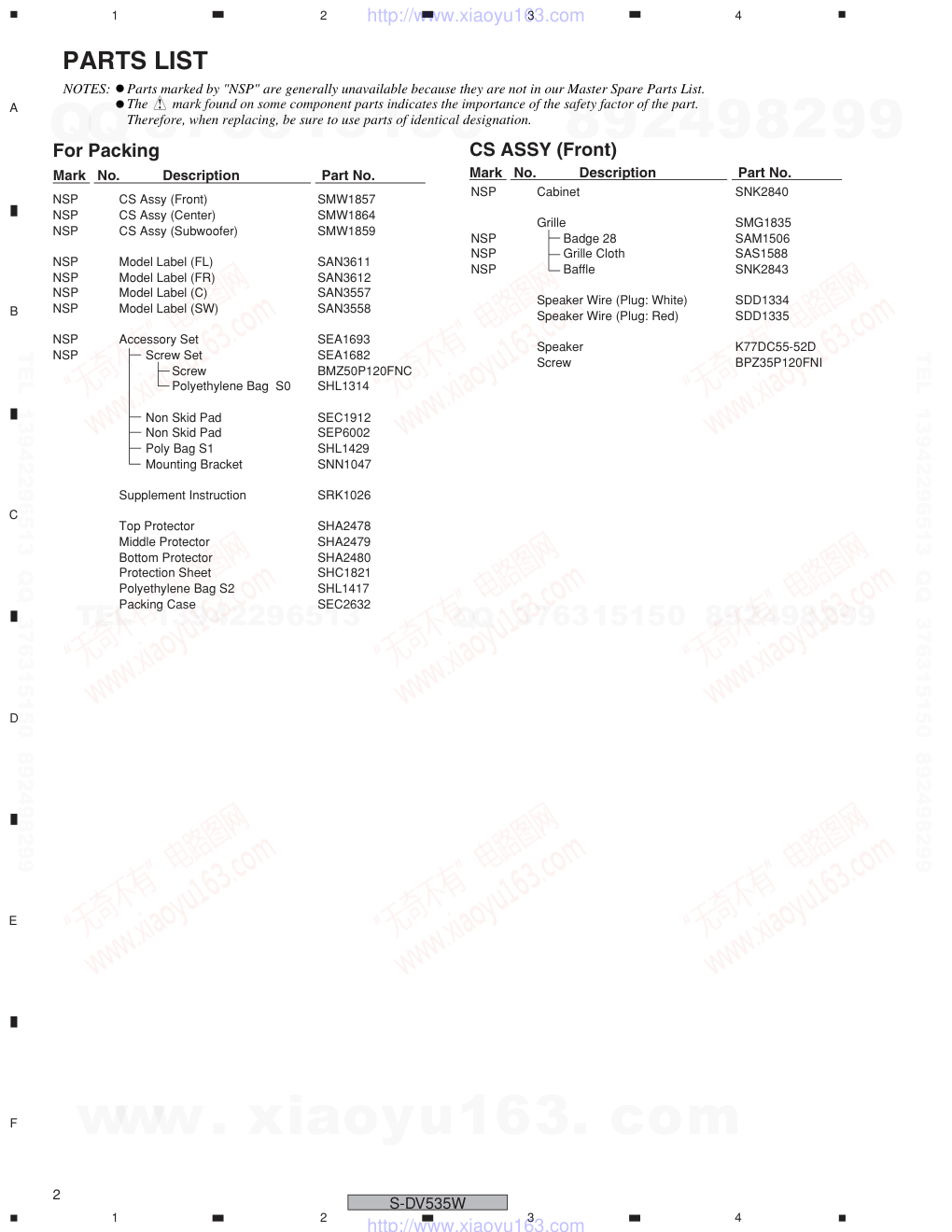

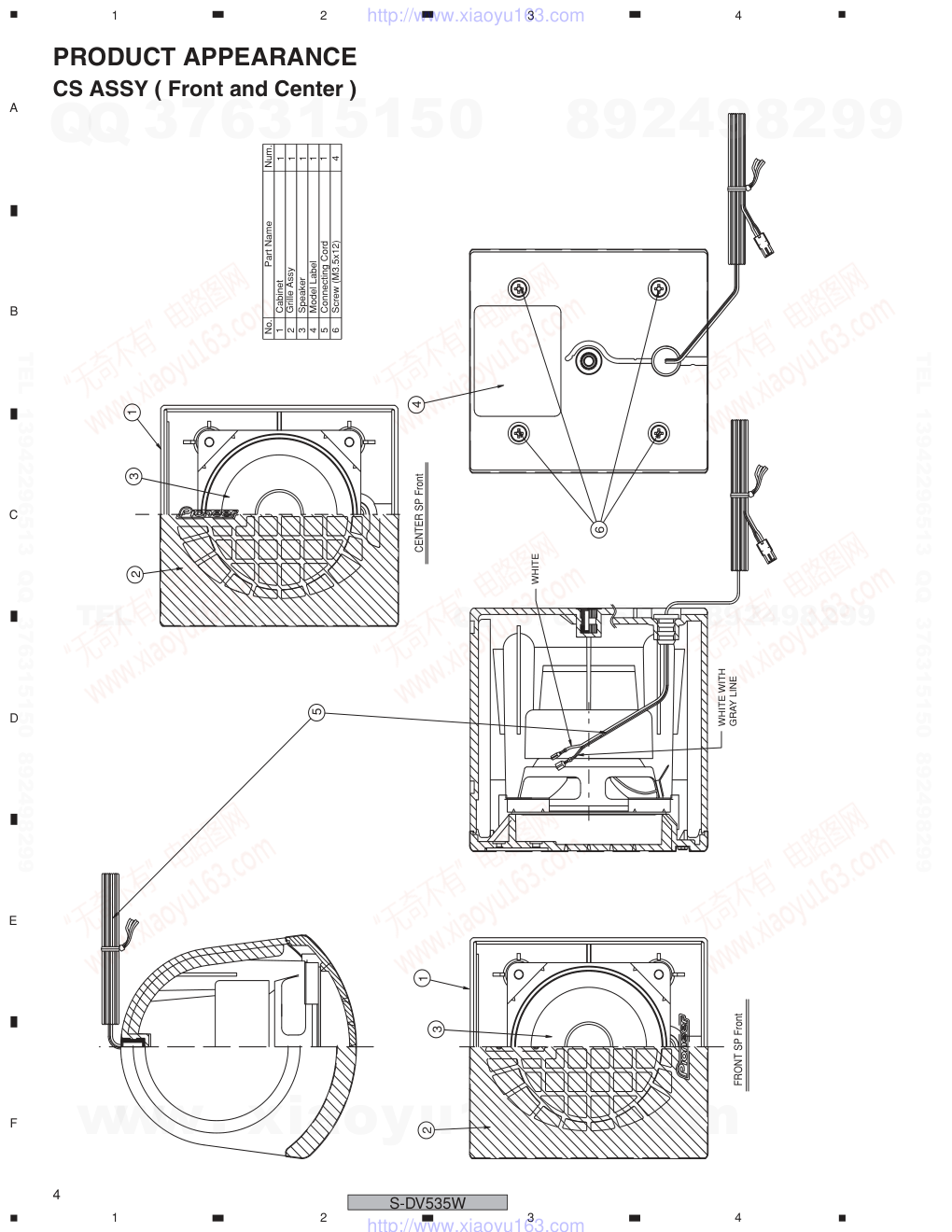

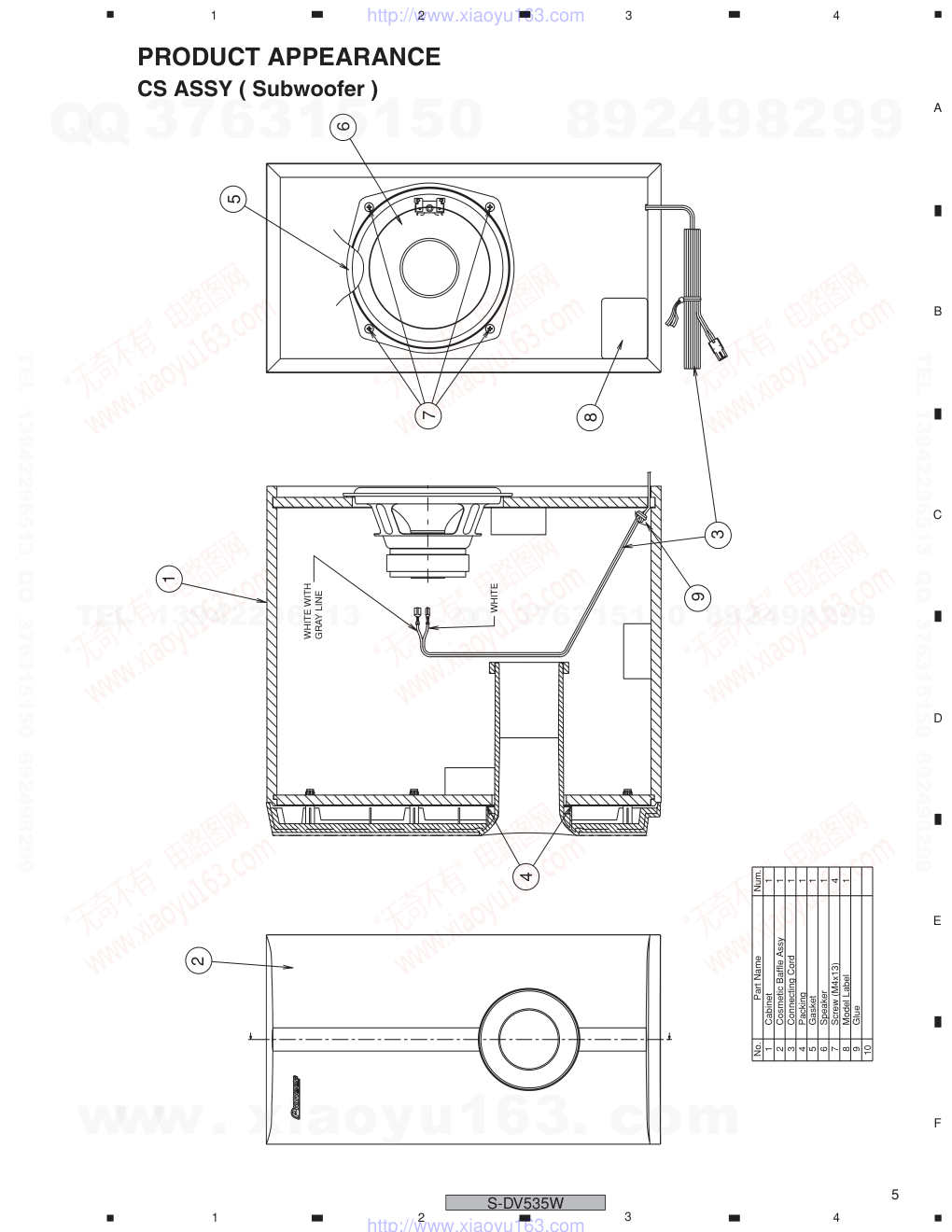

ORDER NO. PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2005 RRV3133 T – ZZK APR. 2005 Printed in Japan S-DV535W XTW/EW FOR PRECAUTION OF REASSEMBLY AND DISASSEMBLY CS Assy ( Subwoofer ) The speaker unit is attached to the rear baffle by 4 external screws. To detach it, unfasten those screws. When attaching it, face its terminal rightward. CS Assy ( Front Speaker ) The grille assy is attached to the cabinet by 4 screws. To detach it ,unfasten those screws. The speaker unit, together with the Grille, is attached to the cabinet by 4 external screws. To detach it, first unfasten those screws. Next remove the cabi- net. Then remove the cable. When attaching it, face its terminal downward. CS Assy ( Center Speaker ) The grille assy is attached to the cabinet by 4 screws. To detach it ,unfasten those screws. The speaker unit, together with the Grille, is attached to the cabinet by 4 external screws. To detach it, first unfasten those screws. Next remove the cabi- net. Then remove the cable. When attaching it, face its terminal rightward. Front Sub Woofer Center SPEAKER SYSTEM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 1 2 3 4 1 2 3 4 C D F A B E S-DV535W For Packing Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: PARTS LIST Mark No. Description Part No. CS ASSY (Front) Mark No. Description Part No. NSP Cabinet SNK2840 Grille SMG1835 NSP Badge 28 SAM1506 NSP Grille Cloth SAS1588 NSP Baffle SNK2843 Speaker Wire (Plug: White) SDD1334 Speaker Wire (Plug: Red) SDD1335 Speaker K77DC55-52D Screw BPZ35P120FNI NSP CS Assy (Front) SMW1857 NSP CS Assy (Center) SMW1864 NSP CS Assy (Subwoofer) SMW1859 NSP Model Label (FL) SAN3611 NSP Model Label (FR) SAN3612 NSP Model Label (C) SAN3557 NSP Model Label (SW) SAN3558 NSP Accessory Set SEA1693 NSP Screw Set SEA1682 Screw BMZ50P120FNC Polyethylene Bag S0 SHL1314 Non Skid Pad SEC1912 Non Skid Pad SEP6002 Poly Bag S1 SHL1429 Mounting Bracket SNN1047 Supplement Instruction SRK1026 Top Protector SHA2478 Middle Protector SHA2479 Bottom Protector SHA2480 Protection Sheet SHC1821 Polyethylene Bag S2 SHL1417 Packing Case SEC2632 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 1 2 3 4 1 2 3 4 C D F A B E S-DV535W Mark No. Description Part No. CS ASSY (Subwoofer) Mark No. Description Part No. CS ASSY (Center) NSP Cabinet SNK2840 Grille SMG1837 NSP Badge 28 SAM1506 NSP Grille Cloth SAS1588 NSP Baffle SMK2843 Speaker Wire (Plug: Green) SDD1338 Speaker K77DC55-52D Screw BPZ35P120FNI NSP Cabinet SMM2012 Cosmetic Baffle Assy SXB1474 NSP Badge 37 SAM1507 Damper SEP1305 NSP Cosmetic Baffle SNK2842 Packing SEC1911 Gasket SEC6058 Speaker Wire (Plug: Purple) SDD1339 Speaker A14LU75-53D Screw BYC40P130FTB SCHEMATIC DIAGRAM CS assy ( Subwoofer ) CS assy ( Center ) White with Gray Line White Speaker INPUT PLUG ( Green ) Connecting Cord (SDD1338) CS assy ( Front ) White with Gray Line White Speaker INPUT PLUG Connecting Cord (SDD1334, SDD1335) White with Gray Line White Speaker INPUT PLUG ( Purple ) Connecting Cord (SDD1339) PLUG color SDD1334: White SDD1335: Red www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 1 2 3 4 1 2 3 4 C D F A B E S-DV535W PRODUCT APPEARANCE CS ASSY ( Front and Center ) Screw (M3.5x12) Speaker 1 1 1 Part Name No. Num. Cabinet Grille Assy Model Label Connecting Cord 1 2 3 4 5 6 1 1 4 CENTER SP Front FRONT SP Front WHITE WITH GRAY LINE WHITE 1 1 2 2 3 3 4 5 6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 1 2 3 4 1 2 3 4 C D F A B E S-DV535W PRODUCT APPEARANCE CS ASSY ( Subwoofer ) Screw (M4x13) 1 Speaker 1 10 1 1 1 1 Part Name No. Num. 9 8 7 6 5 4 3 2 1 Cosmetic Baffle Assy Connecting Cord Cabinet 1 4 Packing Gasket Model Label Glue WHITE WITH GRAY LINE WHITE 1 2 4 5 7 8 9 3 6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
