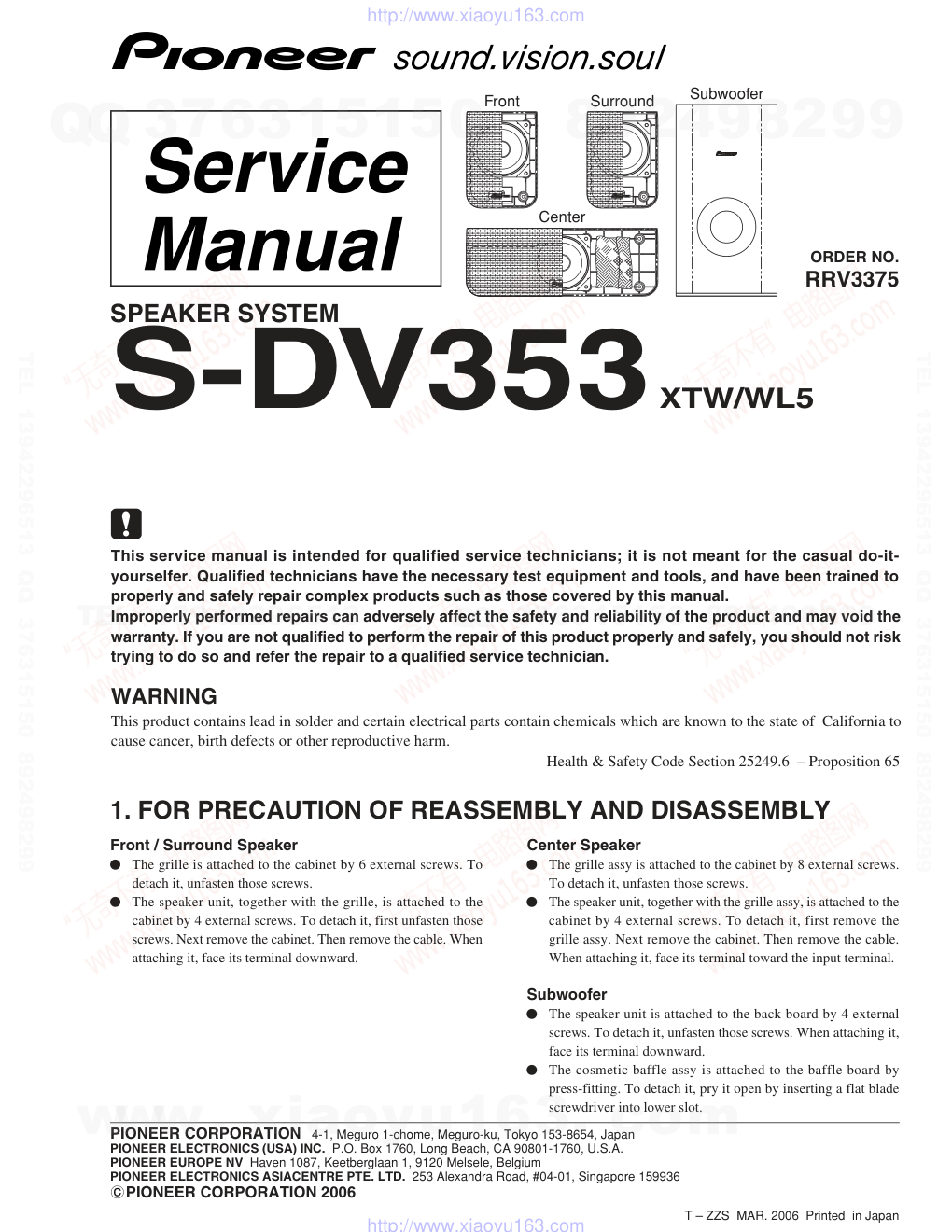

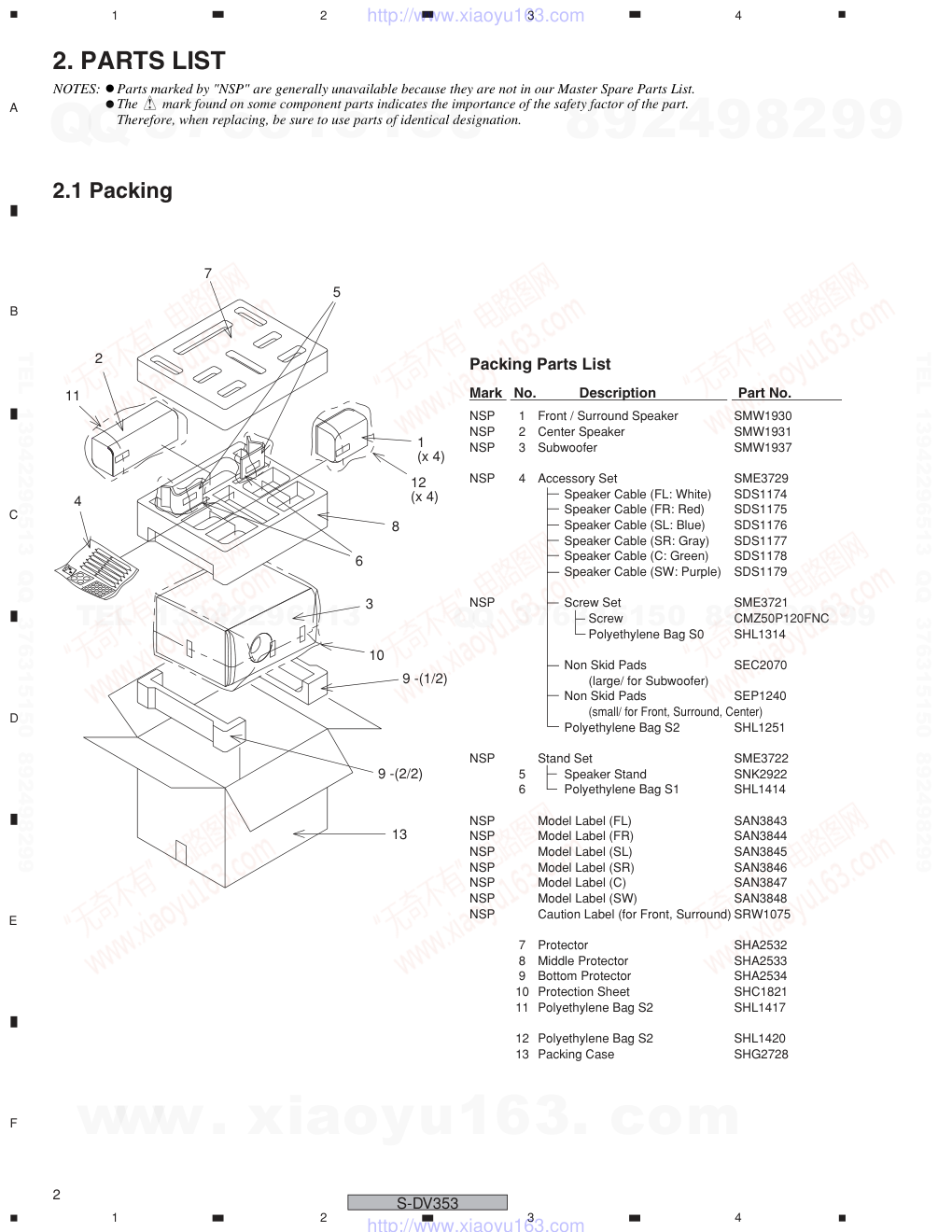

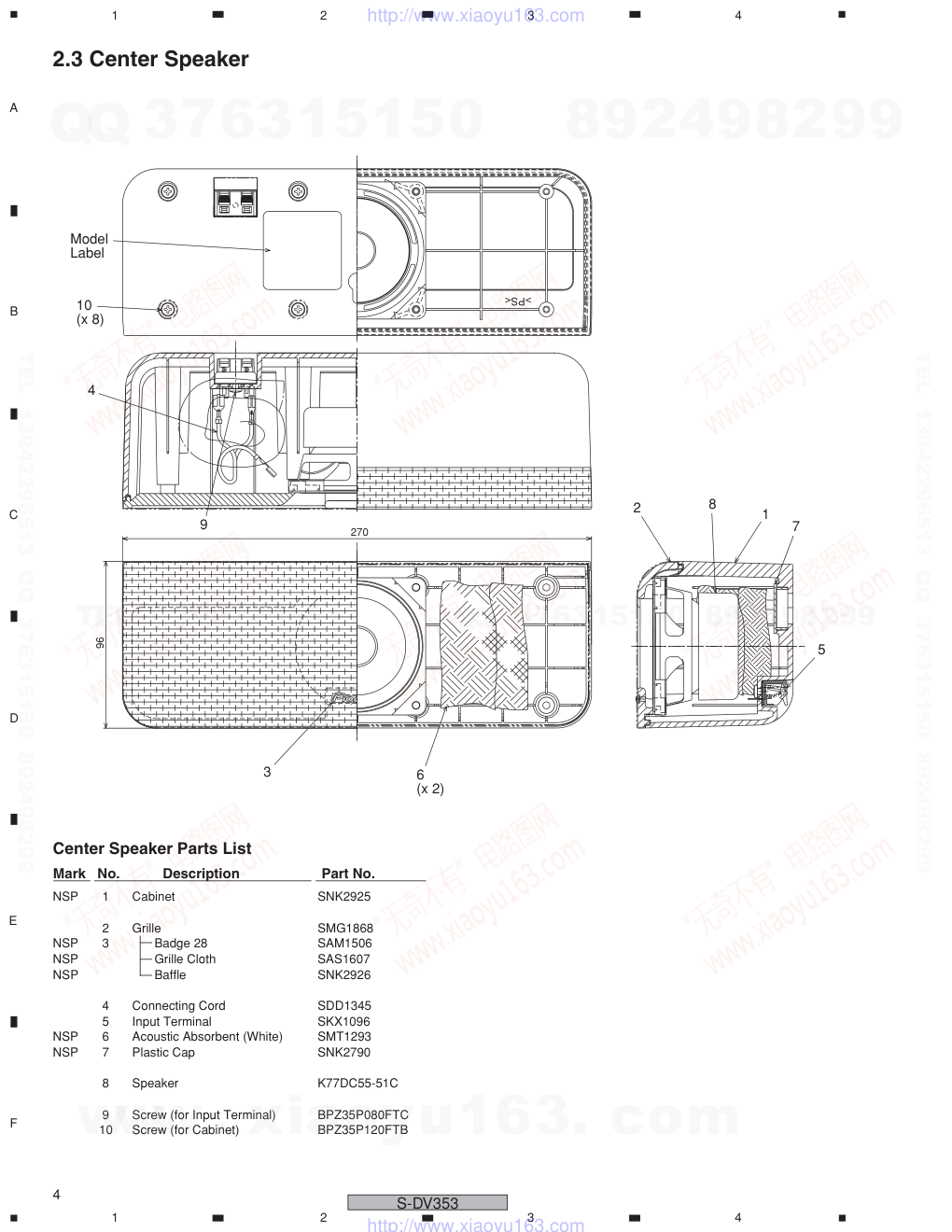

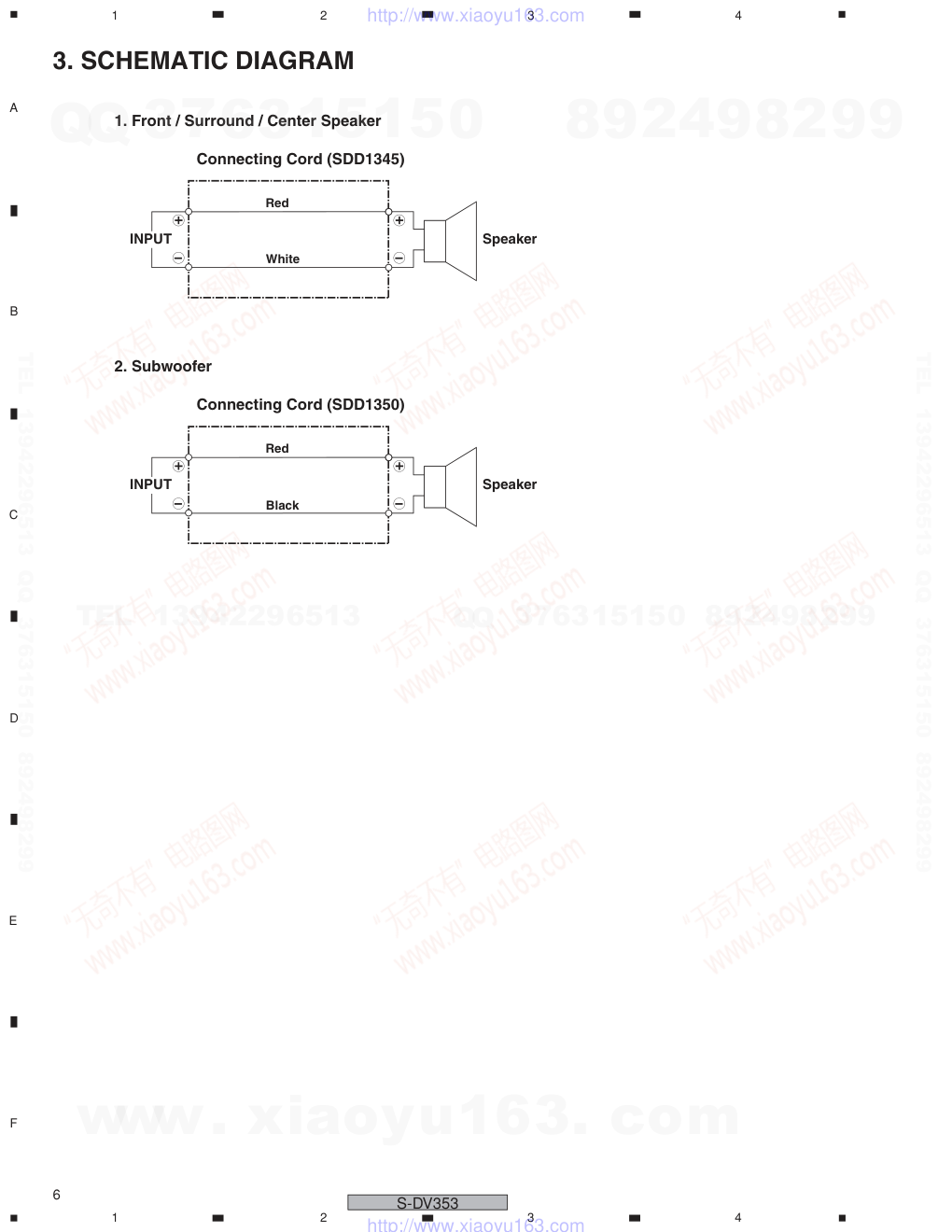

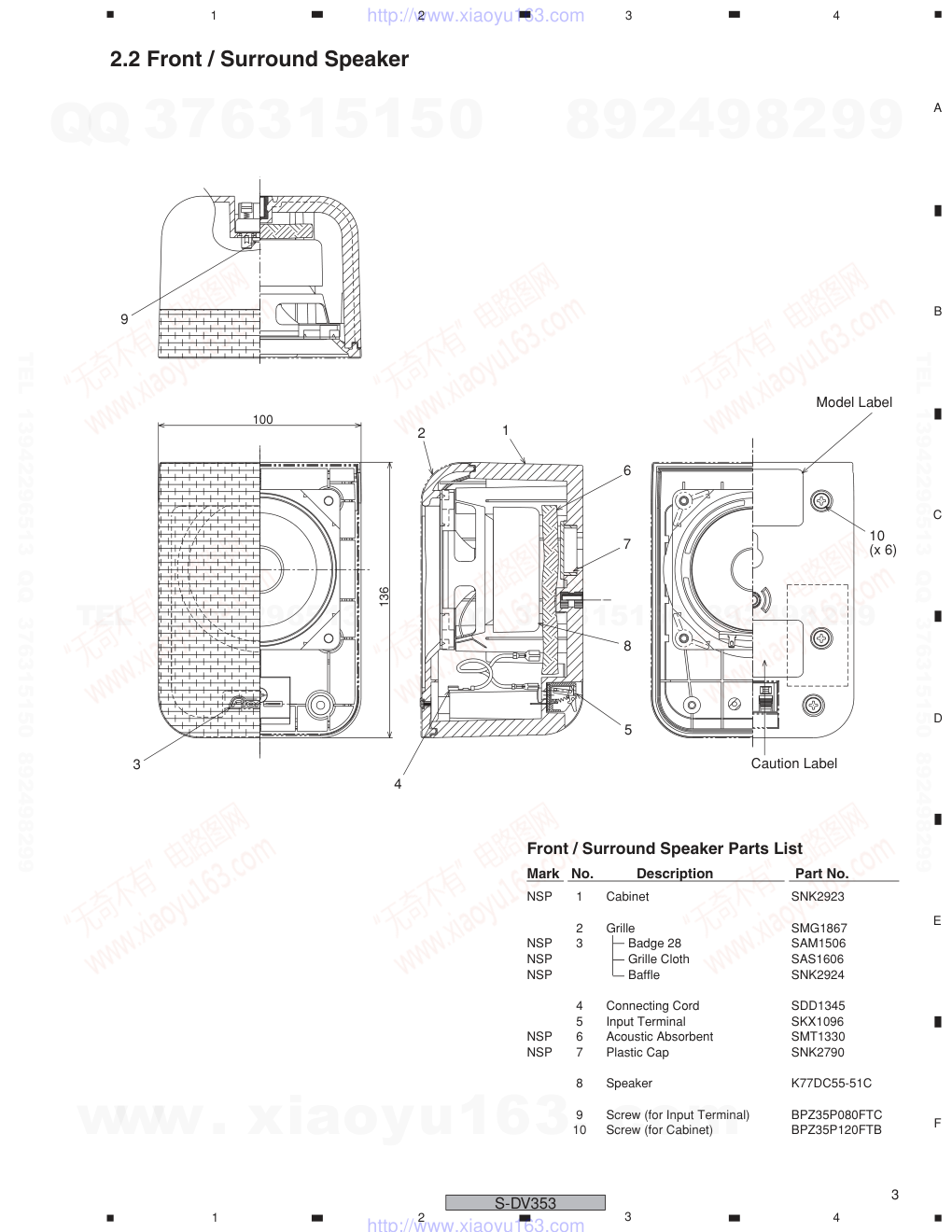

ORDER NO. PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2006 RRV3375 T – ZZS MAR. 2006 Printed in Japan 1. FOR PRECAUTION OF REASSEMBLY AND DISASSEMBLY Front / Surround Speaker The grille is attached to the cabinet by 6 external screws. To detach it, unfasten those screws. The speaker unit, together with the grille, is attached to the cabinet by 4 external screws. To detach it, first unfasten those screws. Next remove the cabinet. Then remove the cable. When attaching it, face its terminal downward. SPEAKER SYSTEM Front Subwoofer Surround Center S-DV353 XTW/WL5 This service manual is intended for qualified service technicians; it is not meant for the casual do-it- yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. WARNING This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 – Proposition 65 Center Speaker The grille assy is attached to the cabinet by 8 external screws. To detach it, unfasten those screws. The speaker unit, together with the grille assy, is attached to the cabinet by 4 external screws. To detach it, first remove the grille assy. Next remove the cabinet. Then remove the cable. When attaching it, face its terminal toward the input terminal. Subwoofer The speaker unit is attached to the back board by 4 external screws. To detach it, unfasten those screws. When attaching it, face its terminal downward. The cosmetic baffle assy is attached to the baffle board by press-fitting. To detach it, pry it open by inserting a flat blade screwdriver into lower slot. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 1 2 3 4 1 2 3 4 C D F A B E S-DV353 NSP 1 Front / Surround Speaker SMW1930 NSP 2 Center Speaker SMW1931 NSP 3 Subwoofer SMW1937 NSP 4 Accessory Set SME3729 Speaker Cable (FL: White) SDS1174 Speaker Cable (FR: Red) SDS1175 Speaker Cable (SL: Blue) SDS1176 Speaker Cable (SR: Gray) SDS1177 Speaker Cable (C: Green) SDS1178 Speaker Cable (SW: Purple) SDS1179 NSP Screw Set SME3721 Screw CMZ50P120FNC Polyethylene Bag S0 SHL1314 Non Skid Pads SEC2070 (large/ for Subwoofer) Non Skid Pads SEP1240 (small/ for Front, Surround, Center) Polyethylene Bag S2 SHL1251 NSP Stand Set SME3722 5 Speaker Stand SNK2922 6 Polyethylene Bag S1 SHL1414 NSP Model Label (FL) SAN3843 NSP Model Label (FR) SAN3844 NSP Model Label (SL) SAN3845 NSP Model Label (SR) SAN3846 NSP Model Label (C) SAN3847 NSP Model Label (SW) SAN3848 NSP Caution Label (for Front, Surround) SRW1075 7 Protector SHA2532 8 Middle Protector SHA2533 9 Bottom Protector SHA2534 10 Protection Sheet SHC1821 11 Polyethylene Bag S2 SHL1417 12 Polyethylene Bag S2 SHL1420 13 Packing Case SHG2728 Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: 2. PARTS LIST Mark No. Description Part No. 3 8 12 (x 4) 4 11 7 5 13 9 -(2/2) 9 -(1/2) 1 (x 4) 10 2 6 2.1 Packing Packing Parts List www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 1 2 3 4 1 2 3 4 C D F A B E S-DV353 NSP 1 Cabinet SNK2923 2 Grille SMG1867 NSP 3 Badge 28 SAM1506 NSP Grille Cloth SAS1606 NSP Baffle SNK2924 4 Connecting Cord SDD1345 5 Input Terminal SKX1096 NSP 6 Acoustic Absorbent SMT1330 NSP 7 Plastic Cap SNK2790 8 Speaker K77DC55-51C 9 Screw (for Input Terminal) BPZ35P080FTC 10 Screw (for Cabinet) BPZ35P120FTB Caution Label 6 Model Label 7 9 10 (x 6) 5 4 3 8 2 1 136 100 2.2 Front / Surround Speaker Front / Surround Speaker Parts List Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 1 2 3 4 1 2 3 4 C D F A B E S-DV353 >PS< 6 (x 2) 7 Model Label 3 10 (x 8) 9 4 270 96 5 8 2 1 NSP 1 Cabinet SNK2925 2 Grille SMG1868 NSP 3 Badge 28 SAM1506 NSP Grille Cloth SAS1607 NSP Baffle SNK2926 4 Connecting Cord SDD1345 5 Input Terminal SKX1096 NSP 6 Acoustic Absorbent (White) SMT1293 NSP 7 Plastic Cap SNK2790 8 Speaker K77DC55-51C 9 Screw (for Input Terminal) BPZ35P080FTC 10 Screw (for Cabinet) BPZ35P120FTB Center Speaker Parts List 2.3 Center Speaker Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 1 2 3 4 1 2 3 4 C D F A B E S-DV353 Subwoofer Parts List 2.4 Subwoofer Model Label 11 10 320 288 (285) 1 2 4 3 8 5 7 6 9 190 360 NSP 1 Cabinet SMM2037 2 Cosmetic BF. Assy SXB1490 NSP 3 Badge 37 SAM1507 4 Packing SEC2072 NSP 5 Paper Tube 60 SMR1402 NSP 6 Acoustic Absorbent SMV2229 NSP 7 Cosmetic Baffle SNK2927 8 Connecting Cord SDD1350 9 Input Terminal SKX1060 10 Speaker A14LU80-51C 11 Screw (for Speaker) BYC40P130FTB Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 1 2 3 4 1 2 3 4 C D F A B E S-DV353 3. SCHEMATIC DIAGRAM INPUT Speaker White Red Connecting Cord (SDD1345) 1. Front / Surround / Center Speaker INPUT Speaker Black Red Connecting Cord (SDD1350) 2. Subwoofer www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
