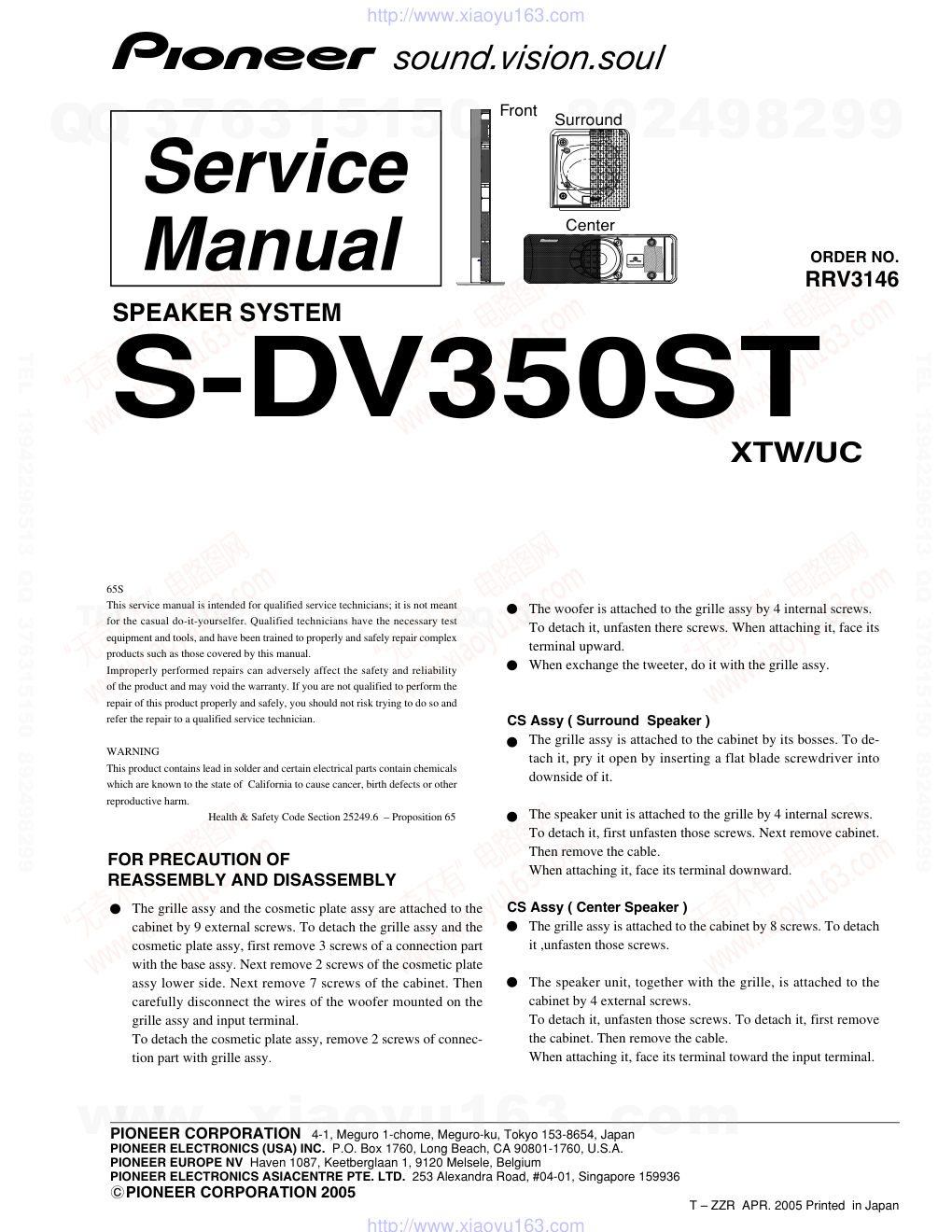

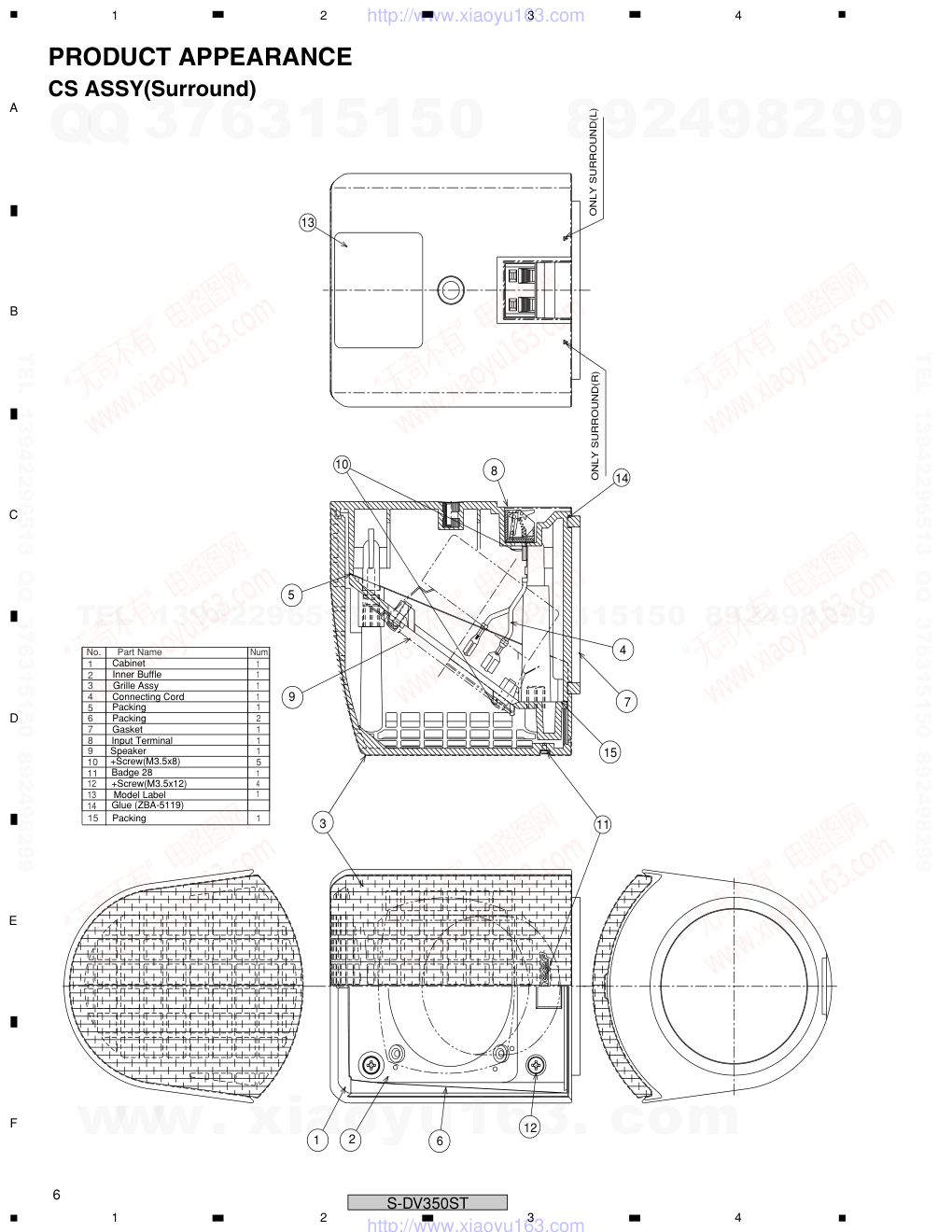

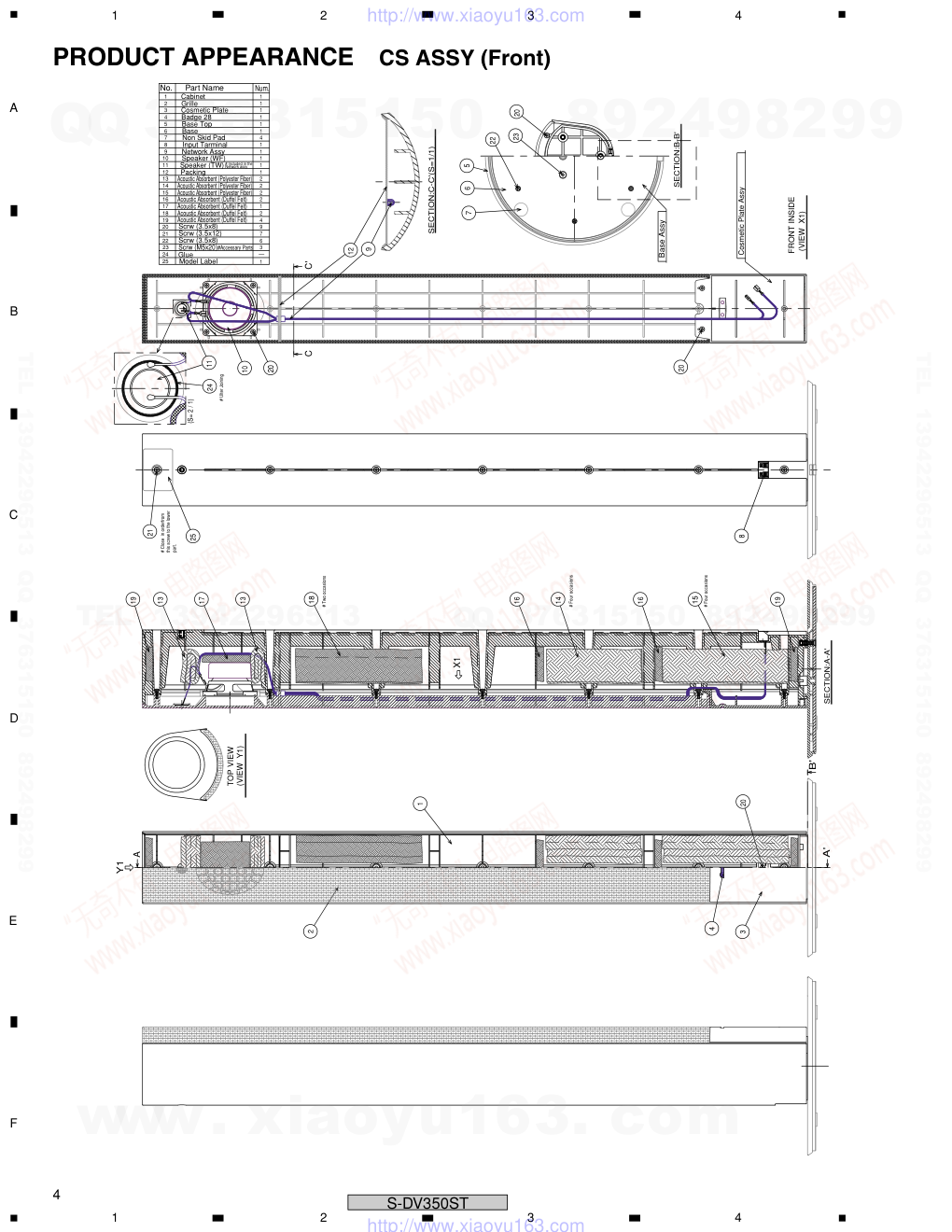

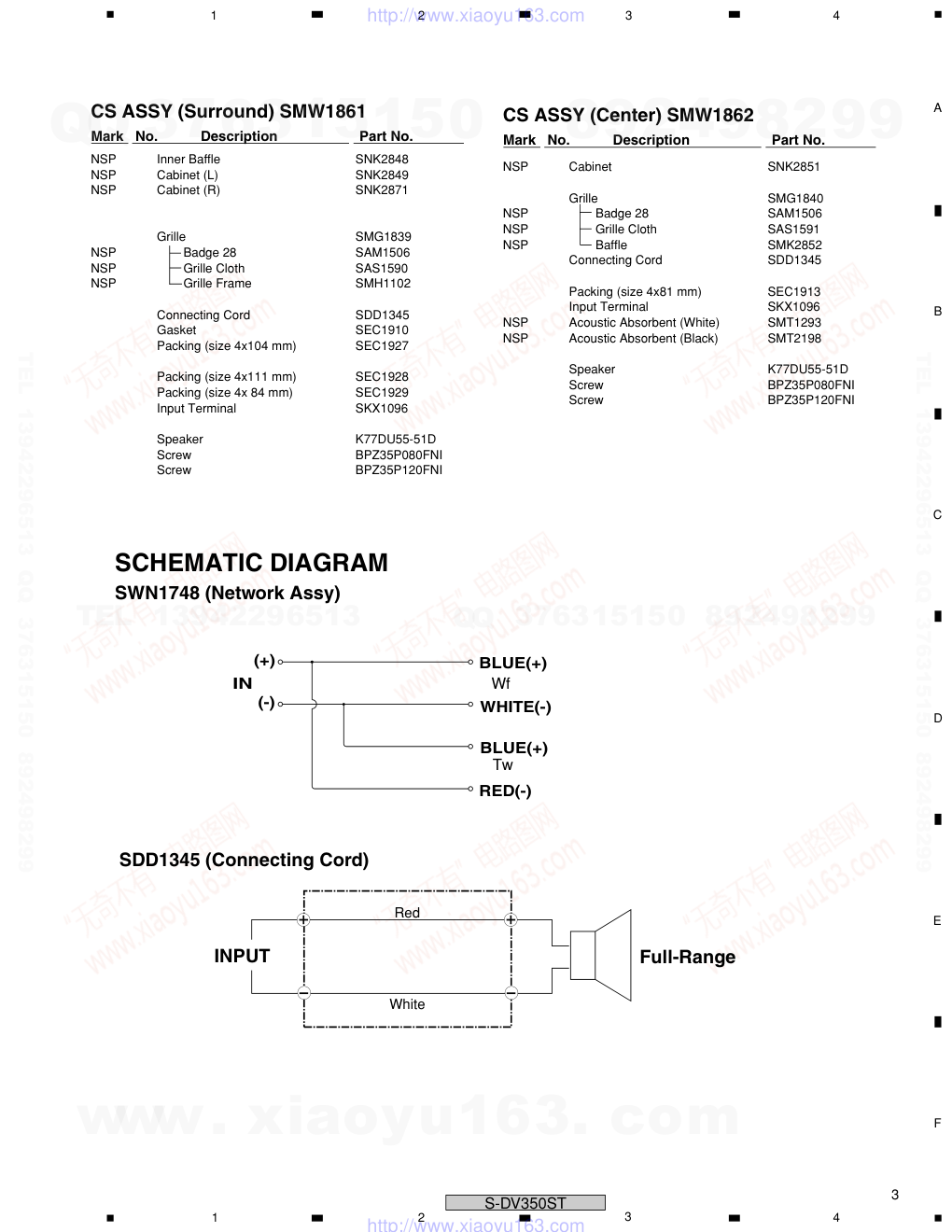

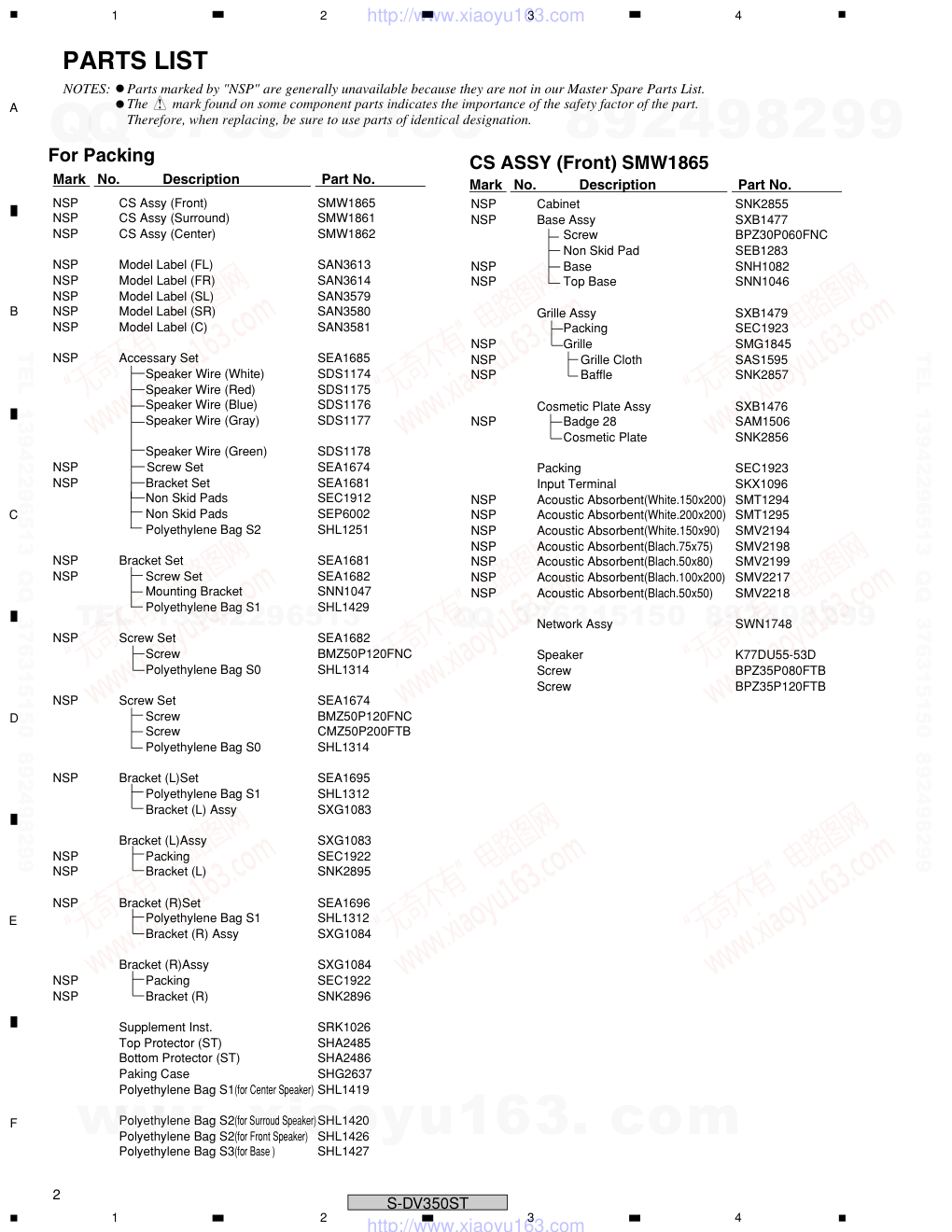

ORDER NO. PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2005 RRV3146 T – ZZR APR. 2005 Printed in Japan S-DV350ST XTW/UC FOR PRECAUTION OF REASSEMBLY AND DISASSEMBLY The grille assy and the cosmetic plate assy are attached to the cabinet by 9 external screws. To detach the grille assy and the cosmetic plate assy, first remove 3 screws of a connection part with the base assy. Next remove 2 screws of the cosmetic plate assy lower side. Next remove 7 screws of the cabinet. Then carefully disconnect the wires of the woofer mounted on the grille assy and input terminal. To detach the cosmetic plate assy, remove 2 screws of connec- tion part with grille assy. The woofer is attached to the grille assy by 4 internal screws. To detach it, unfasten there screws. When attaching it, face its terminal upward. When exchange the tweeter, do it with the grille assy. CS Assy ( Surround Speaker ) The grille assy is attached to the cabinet by its bosses. To de- tach it, pry it open by inserting a flat blade screwdriver into downside of it. The speaker unit is attached to the grille by 4 internal screws. To detach it, first unfasten those screws. Next remove cabinet. Then remove the cable. When attaching it, face its terminal downward. CS Assy ( Center Speaker ) The grille assy is attached to the cabinet by 8 screws. To detach it ,unfasten those screws. The speaker unit, together with the grille, is attached to the cabinet by 4 external screws. To detach it, unfasten those screws. To detach it, first remove the cabinet. Then remove the cable. When attaching it, face its terminal toward the input terminal. SPEAKER SYSTEM Surround Center Front 65S This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. WARNING This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 – Proposition 65 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 1 2 3 4 1 2 3 4 C D F A B E S-DV350ST NSP CS Assy (Front) SMW1865 NSP CS Assy (Surround) SMW1861 NSP CS Assy (Center) SMW1862 NSP Model Label (FL) SAN3613 NSP Model Label (FR) SAN3614 NSP Model Label (SL) SAN3579 NSP Model Label (SR) SAN3580 NSP Model Label (C) SAN3581 NSP Accessary Set SEA1685 Speaker Wire (White) SDS1174 Speaker Wire (Red) SDS1175 Speaker Wire (Blue) SDS1176 Speaker Wire (Gray) SDS1177 Speaker Wire (Green) SDS1178 NSP Screw Set SEA1674 NSP Bracket Set SEA1681 Non Skid Pads SEC1912 Non Skid Pads SEP6002 Polyethylene Bag S2 SHL1251 NSP Bracket Set SEA1681 NSP Screw Set SEA1682 Mounting Bracket SNN1047 Polyethylene Bag S1 SHL1429 NSP Screw Set SEA1682 Screw BMZ50P120FNC Polyethylene Bag S0 SHL1314 NSP Screw Set SEA1674 Screw BMZ50P120FNC Screw CMZ50P200FTB Polyethylene Bag S0 SHL1314 NSP Bracket (L)Set SEA1695 Polyethylene Bag S1 SHL1312 Bracket (L) Assy SXG1083 Bracket (L)Assy SXG1083 NSP Packing SEC1922 NSP Bracket (L) SNK2895 NSP Bracket (R)Set SEA1696 Polyethylene Bag S1 SHL1312 Bracket (R) Assy SXG1084 Bracket (R)Assy SXG1084 NSP Packing SEC1922 NSP Bracket (R) SNK2896 Supplement Inst. SRK1026 Top Protector (ST) SHA2485 Bottom Protector (ST) SHA2486 Paking Case SHG2637 Polyethylene Bag S1(for Center Speaker) SHL1419 Polyethylene Bag S2(for Surroud Speaker)SHL1420 Polyethylene Bag S2(for Front Speaker) SHL1426 Polyethylene Bag S3(for Base ) SHL1427 For Packing Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: PARTS LIST Mark No. Description Part No. CS ASSY (Front) SMW1865 Mark No. Description Part No. NSP Cabinet SNK2855 NSP Base Assy SXB1477 Screw BPZ30P060FNC Non Skid Pad SEB1283 NSP Base SNH1082 NSP Top Base SNN1046 Grille Assy SXB1479 Packing SEC1923 NSP Grille SMG1845 NSP Grille Cloth SAS1595 NSP Baffle SNK2857 Cosmetic Plate Assy SXB1476 NSP Badge 28 SAM1506 Cosmetic Plate SNK2856 Packing SEC1923 Input Terminal SKX1096 NSP Acoustic Absorbent(White.150x200) SMT1294 NSP Acoustic Absorbent(White.200x200) SMT1295 NSP Acoustic Absorbent(White.150x90) SMV2194 NSP Acoustic Absorbent(Blach.75x75) SMV2198 NSP Acoustic Absorbent(Blach.50x80) SMV2199 NSP Acoustic Absorbent(Blach.100x200) SMV2217 NSP Acoustic Absorbent(Blach.50x50) SMV2218 Network Assy SWN1748 Speaker K77DU55-53D Screw BPZ35P080FTB Screw BPZ35P120FTB www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 1 2 3 4 1 2 3 4 C D F A B E S-DV350ST Mark No. Description Part No. CS ASSY (Center) SMW1862 NSP Cabinet SNK2851 Grille SMG1840 NSP Badge 28 SAM1506 NSP Grille Cloth SAS1591 NSP Baffle SMK2852 Connecting Cord SDD1345 Packing (size 4x81 mm) SEC1913 Input Terminal SKX1096 NSP Acoustic Absorbent (White) SMT1293 NSP Acoustic Absorbent (Black) SMT2198 Speaker K77DU55-51D Screw BPZ35P080FNI Screw BPZ35P120FNI SCHEMATIC DIAGRAM SDD1345 (Connecting Cord) Full-Range INPUT Red White SWN1748 (Network Assy) Mark No. Description Part No. CS ASSY (Surround) SMW1861 NSP Inner Baffle SNK2848 NSP Cabinet (L) SNK2849 NSP Cabinet (R) SNK2871 Grille SMG1839 NSP Badge 28 SAM1506 NSP Grille Cloth SAS1590 NSP Grille Frame SMH1102 Connecting Cord SDD1345 Gasket SEC1910 Packing (size 4x104 mm) SEC1927 Packing (size 4x111 mm) SEC1928 Packing (size 4x 84 mm) SEC1929 Input Terminal SKX1096 Speaker K77DU55-51D Screw BPZ35P080FNI Screw BPZ35P120FNI WHITE(-) BLUE(+) BLUE(+) RED(-) Tw IN (+) (-) Wf www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 1 2 3 4 1 2 3 4 C D F A B E S-DV350ST PRODUCT APPEARANCE CS ASSY (Front) SECTION:C-C'(S=1/1) No. Part Name (S= 2 / 1) C C' FRONT INSIDE (VIEW X1) SECTION:B-B' TOP VIEW (VIEW Y1) SECTION:A-A' X1 1 1 1 2 1 3 1 4 1 5 1 6 4 7 1 8 1 9 1 10 1 11 1 12 2 13 2 14 2 15 2 16 3 22 1 1 17 2 18 9 19 7 20 6 21 # Four occasions # Four occasions # Two occasions # Ulter Joining # Close in orderfrom this screw to the lower part. 23 24 4 25 21 12 1 19 10 8 2 4 5 20 7 22 6 23 3 13 17 13 18 16 14 16 15 19 20 20 20 25 9 24 11 Num. Cabinet Grille — Cosmetic Plate Badge 28 Base Top Base Non Skid Pad Input Tarminal Network Assy Speaker (WF) Speaker (TW) # Included in the Network assy Packing Acoustic Absorbent (Polyester Fiber) Acoustic Absorbent (Polyester Fiber) Acoustic Absorbent (Polyester Fiber) Acoustic Absorbent (Duffel Felt) Acoustic Absorbent (Duffel Felt) Acoustic Absorbent (Duffel Felt) Acoustic Absorbent (Duffel Felt) Scrw (3.5x8) Scrw (3.5x8) Scrw (M5x20) Scrw (3.5x12) #Accessary Parts Glue Model Label A A' B' Y1 Cosmetic Plate Assy Base Assy www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 1 2 3 4 1 2 3 4 C D F A B E S-DV350ST x2 x2 PARTS QTY No. 2 1 3 4 5 6 7 1 1 1 1 1 2 8 CABINET GRILLE SPEAKER INPUT TERMINAL BOARD SPEAKER WIRE PACKING 8 Acoustic Absorbent(Polyester Fiber) 9 2 10 1 Acoustic Absorbent(Duffel Felt) 11 1 MODEL LABEL 1 SCREW(BPZ35P080FZB) x8 1 4 5 7 8 10 9 2 3 6 11 SCREW(BPZ35P0120FZK) Center 6 x2 11 6 8 7 5 4 x8 x2 12 3 2 10 1 Screw (M3.5x12) 8 1 Screw (M3.5x8) 2 1 1 1 12 1 Speaker 11 1 1 1 10 2 1 Part Name No. Num. 9 8 7 6 5 4 3 2 1 Grille Input Terminal Connecting Cord Packing Acoustic Absorbent(Polyester Fiber) Acoustic Absorbent(Duffel Felt) Model Label Badge 28 Cabinet PRODUCT APPEARANCE CS ASSY(Center) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 1 2 3 4 1 2 3 4 C D F A B E S-DV350ST 1 4 1 +Screw(M3.5x8) +Screw(M3.5x12) 1 1 14 13 12 1 Speaker 5 1 11 1 1 1 10 2 1 Part Name No. Num. 9 8 7 6 5 4 3 2 1 Cabinet Inner Buffle Grille Assy Connecting Cord Packing 1 15 Packing Packing Gasket Input Terminal Badge 28 Model Label Glue (ZBA-5119) 9 5 11 3 6 12 2 1 7 15 4 14 10 8 13 ONLY SURROUND(R) ONLY SURROUND(L) PRODUCT APPEARANCE CS ASSY(Surround) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
