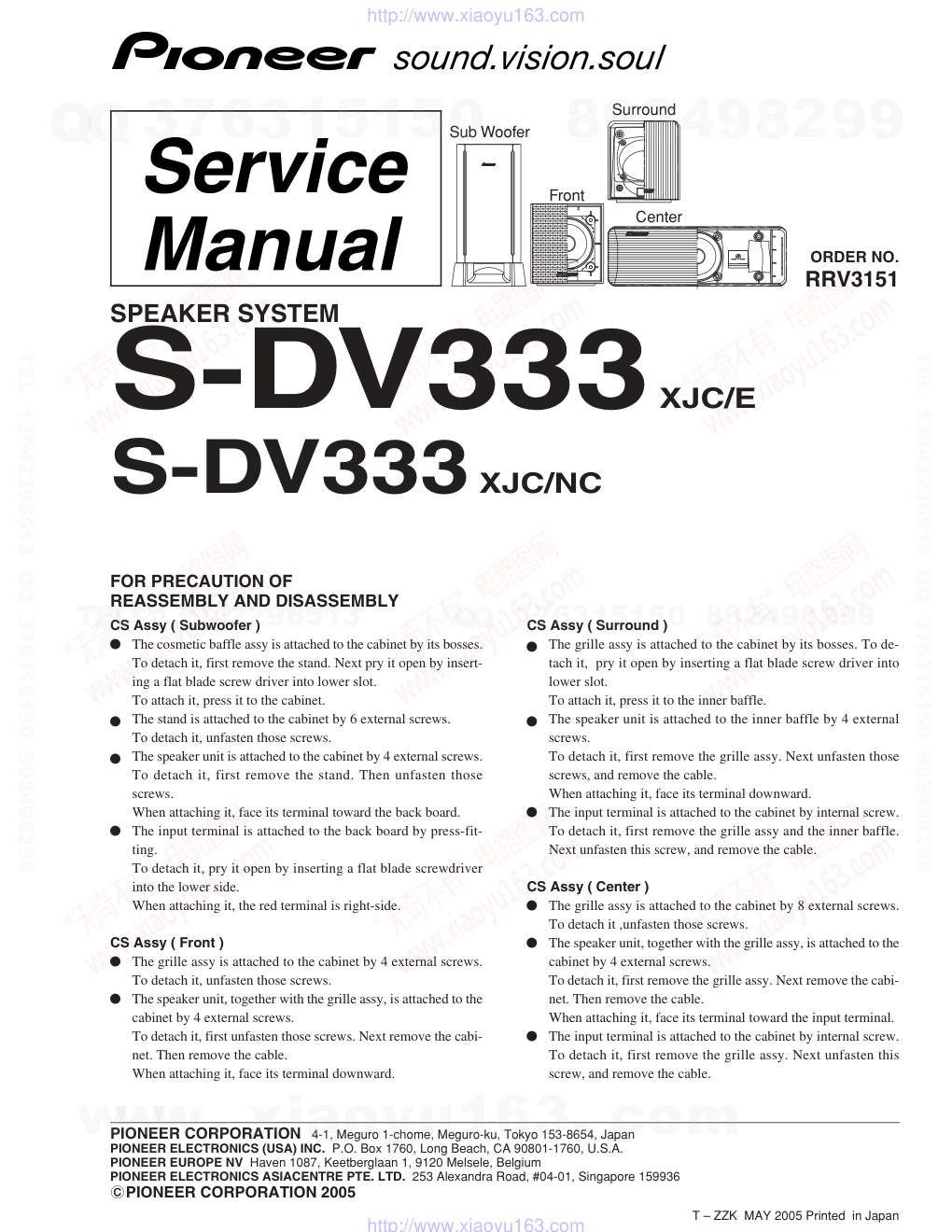

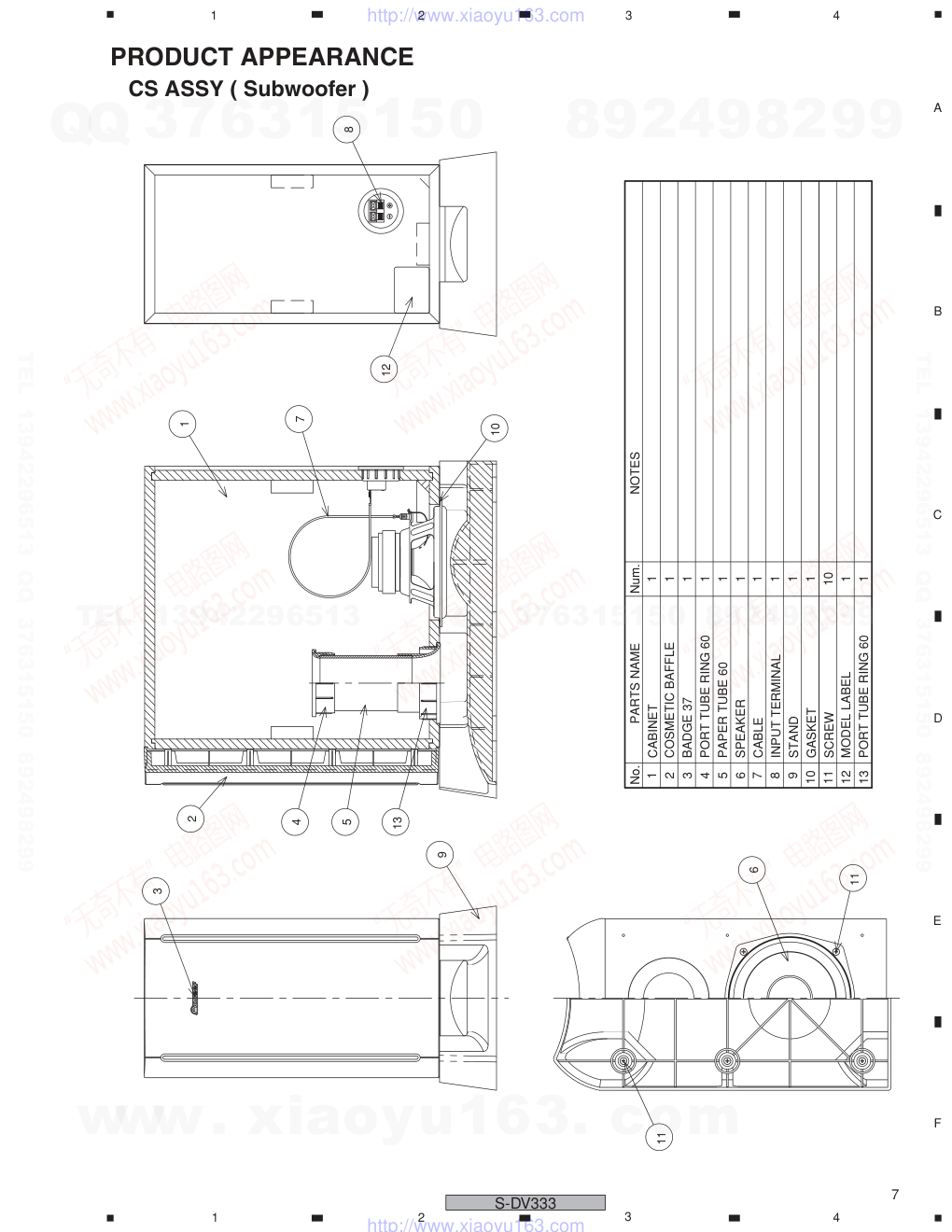

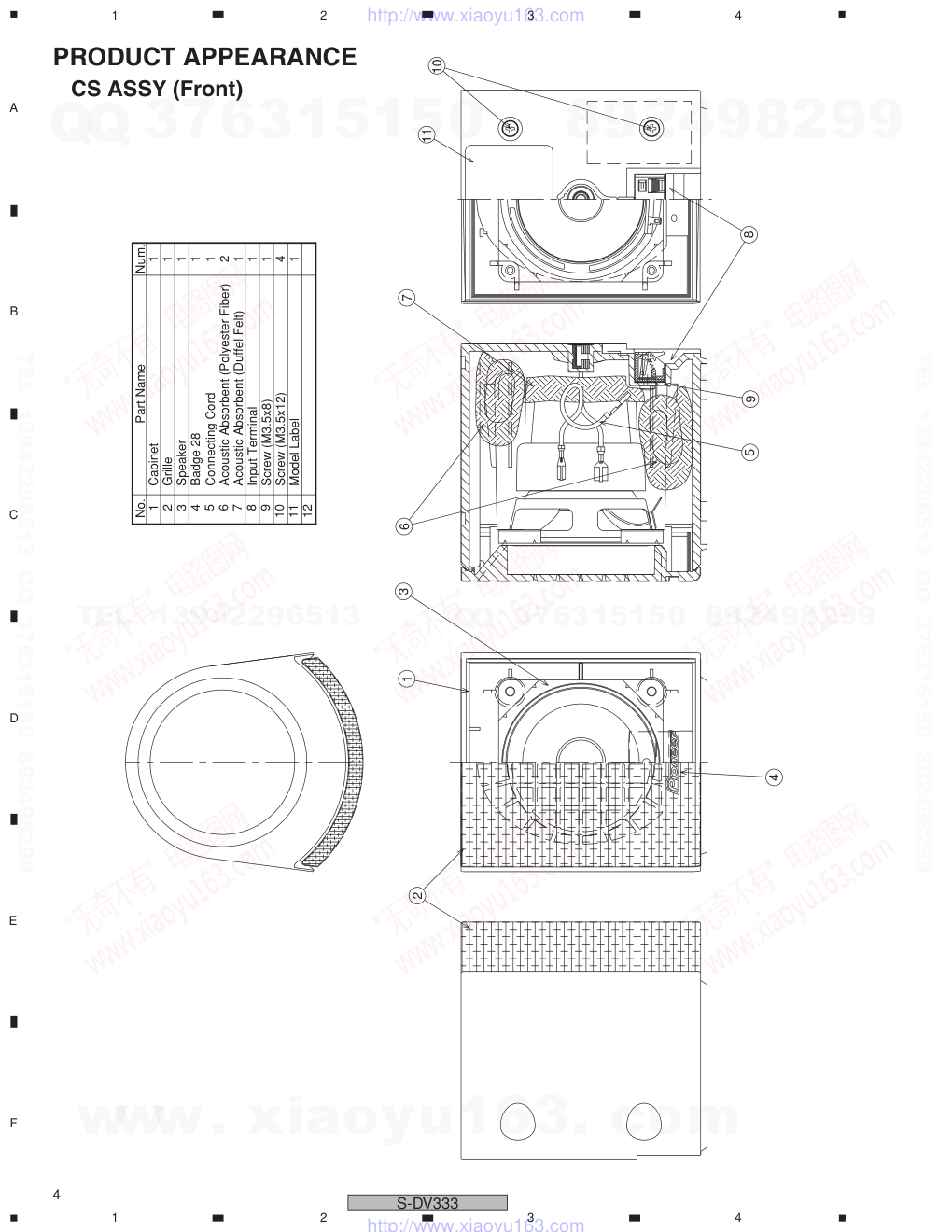

ORDER NO. PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2005 RRV3151 T – ZZK MAY 2005 Printed in Japan FOR PRECAUTION OF REASSEMBLY AND DISASSEMBLY CS Assy ( Subwoofer ) The cosmetic baffle assy is attached to the cabinet by its bosses. To detach it, first remove the stand. Next pry it open by insert- ing a flat blade screw driver into lower slot. To attach it, press it to the cabinet. The stand is attached to the cabinet by 6 external screws. To detach it, unfasten those screws. The speaker unit is attached to the cabinet by 4 external screws. To detach it, first remove the stand. Then unfasten those screws. When attaching it, face its terminal toward the back board. The input terminal is attached to the back board by press-fit- ting. To detach it, pry it open by inserting a flat blade screwdriver into the lower side. When attaching it, the red terminal is right-side. CS Assy ( Front ) The grille assy is attached to the cabinet by 4 external screws. To detach it, unfasten those screws. The speaker unit, together with the grille assy, is attached to the cabinet by 4 external screws. To detach it, first unfasten those screws. Next remove the cabi- net. Then remove the cable. When attaching it, face its terminal downward. CS Assy ( Surround ) The grille assy is attached to the cabinet by its bosses. To de- tach it, pry it open by inserting a flat blade screw driver into lower slot. To attach it, press it to the inner baffle. The speaker unit is attached to the inner baffle by 4 external screws. To detach it, first remove the grille assy. Next unfasten those screws, and remove the cable. When attaching it, face its terminal downward. The input terminal is attached to the cabinet by internal screw. To detach it, first remove the grille assy and the inner baffle. Next unfasten this screw, and remove the cable. CS Assy ( Center ) The grille assy is attached to the cabinet by 8 external screws. To detach it ,unfasten those screws. The speaker unit, together with the grille assy, is attached to the cabinet by 4 external screws. To detach it, first remove the grille assy. Next remove the cabi- net. Then remove the cable. When attaching it, face its terminal toward the input terminal. The input terminal is attached to the cabinet by internal screw. To detach it, first remove the grille assy. Next unfasten this screw, and remove the cable. SPEAKER SYSTEM S-DV333 XJC/E S-DV333 XJC/NC Front Sub Woofer Center Surround www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 1 2 3 4 1 2 3 4 C D F A B E S-DV333 For Packing Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: PARTS LIST Mark No. Description Part No. CS ASSY (Front) Mark No. Description Part No. NSP Cabinet SNK2846 Grille SMG1838 NSP Badge 28 SAM1506 NSP Grille Cloth SAS1588 NSP Baffle SNK2847 Connecting Cord SDD1345 Input Terminal SKX1096 NSP Acoustic Absorbent (White) SMV2194 NSP Acoustic Absorbent (Black) SMV2198 Speaker (Full-Range) K77DU55-52D Screw (for Input Terminal) BPZ35P080FNI Screw (for Cabinet) BPZ35P120FNI NSP CS Assy (Front) SMW1860 NSP CS Assy (Surround) SMW1861 NSP CS Assy (Center) SMW1862 NSP CS Assy (Subwoofer) SMW6156 for XJC/E type NSP Model Label (FL) SAN3571 NSP Model Label (FR) SAN3572 NSP Model Label (SL) SAN3573 NSP Model Label (SR) SAN3574 NSP Model Label (C) SAN3575 NSP Model Label (SW) SAN3576 for XJC/NC type NSP Model Label (FL) SAN3644 NSP Model Label (FR) SAN3645 NSP Model Label (SL) SAN3646 NSP Model Label (SR) SAN3647 NSP Model Label (C) SAN3648 NSP Model Label (SW) SAN3649 NSP Accessory Set SEA1684 Speaker Wire (FL: White) SDS1174 Speaker Wire (FR: Red) SDS1175 Speaker Wire (SL: Blue) SDS1176 Speaker Wire (SR: Gray) SDS1177 Speaker Wire (C: Green) SDS1178 Speaker Wire (SW: Purple) SDS1179 NSP Bracket Set SEA1680 NSP Screw Set SEA1676 Screw BMZ50P120FNC Polyethylene Bag S0 SHL1314 Mounting Bracket SNN1047 Polyethylene Bag S1 SHL1429 Non Skid Pad SEP6002 Polyethylene Bag S1 SHL1251 Top Protector SHA2507 Middle Protector SHA2494 Bottom Protector SHA2495 Polyethylene Bag S1 SHL1419 Polyethylene Bag S2 SHL1420 Non Skid pads SEP1332 Protection Sheet S6 SHC1825 for XJC/E type Paking Case SHG2633 for XJC/NC type Paking Case SHG2642 Mark No. Description Part No. CS ASSY (Surround) NSP Inner Baffle SNK2848 NSP Cabinet (L) SNK2849 NSP Cabinet (R) SNK2871 Grille SMG1839 NSP Badge 28 SAM1506 NSP Grille Cloth SAS1590 NSP Grille Frame SMH1102 Connecting Cord SDD1345 Gasket SEC1910 Packing (size: 4 x 104 mm) SEC1927 Packing (size: 4 x 111 mm) SEC1928 Packing (size: 4 x 84 mm) SEC1929 Input Terminal SKX1096 Speaker (Full-Range) K77DU55-51D Screw (for Full-Range) BPZ35P080FNI Screw (for Input Terminal) BPZ35P080FNI Screw (for Inner Baffle) BPZ35P120FNI www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 1 2 3 4 1 2 3 4 C D F A B E S-DV333 Mark No. Description Part No. CS ASSY (Subwoofer) Mark No. Description Part No. CS ASSY (Center) NSP Cabinet SNK2851 Grille SMG1840 NSP Badge 28 SAM1506 NSP Grille Cloth SAS1591 NSP Baffle SNK2852 Connecting Cord SDD1345 Packing SEC1913 Input Terminal SKX1096 NSP Acoustic Absorbent (White) SMT1293 NSP Acoustic Absorbent (Black) SMV2198 Speaker (Full-Range) K77DU55-51D Screw (for Input Terminal) BPZ35P080FNI Screw (for Cabinet) BPZ35P120FNI Speaker (Woofer) A14LU75-54D Screw (for Woofer) BYC40P160FNI Screw (for Stand) BYC40P160FNI Cable SDD6008 Gasket SEC6058 Input Terminal SKX1060 Cosmetic BF Assy SXB6003 NSP Badge 37 SAM1507 NSP Cosmetic Baffle SNK6109 SCHEMATIC DIAGRAM INPUT Full-Range White Red Connecting Cord (SDD1345) 1, CS ASSY (FRONT, CENTER, SURROUND) 2, CS ASSY (SUB WOOFER) INPUT Woofer Black Red Cable (SDD6008) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 1 2 3 4 1 2 3 4 C D F A B E S-DV333 PRODUCT APPEARANCE CS ASSY (Front) 9 Num. No. Part Name Cabinet 1 1 2 1 1 1 Connecting Cord Input Terminal 4 Speaker 1 1 1 Screw (M3.5x8) Grille Acoustic Absorbent (Polyester Fiber) Acoustic Absorbent (Duffel Felt) Badge 28 1 Model Label Screw (M3.5x12) 1 2 3 4 5 6 7 8 11 10 1 2 3 4 5 6 7 8 9 10 11 12 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 1 2 3 4 1 2 3 4 C D F A B E S-DV333 PRODUCT APPEARANCE CS ASSY (Surround) Num. No. Part Name Cabinet 1 1 2 1 1 1 Connecting Cord Input Terminal 5 Speaker 1 1 1 Screw (M3.5x8) Screw (M3.5x12) Grille Badge 28 1 1 4 1 Model Label Glue 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 Packing Packing Packing Gasket Inner Baffle 1 2 5 6 14 3 4 7 15 8 11 9 10 13 12 only surround (R) only surround (L) less than 90° www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 1 2 3 4 1 2 3 4 C D F A B E S-DV333 PRODUCT APPEARANCE CS ASSY (Center) Num. No. Part Name Cabinet 1 2 2 8 1 1 Connecting Cord Input Terminal 1 Speaker 1 1 1 Screw (M3.5x8) Acoustic Absorbent (Polyester Fiber) Acoustic Absorbent (Duffel Felt) Screw (M3.5x12) Grille Badge 28 1 1 Model Label 1 2 3 4 5 6 7 8 9 10 11 12 13 Packing 10 1 3 2 4 11 8 9 5 7 x8 x2 6 12 x2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 1 2 3 4 1 2 3 4 C D F A B E S-DV333 PRODUCT APPEARANCE CS ASSY ( Subwoofer ) 10 1 Num. No. PARTS NAME 1 2 3 6 5 4 7 8 1 1 1 1 1 1 1 10 9 1 1 11 10 1 12 1 13 CABINET COSMETIC BAFFLE BADGE 37 PORT TUBE RING 60 PAPER TUBE 60 SPEAKER CABLE INPUT TERMINAL STAND GASKET SCREW MODEL LABEL PORT TUBE RING 60 NOTES 6 7 3 1 2 5 8 9 11 11 12 4 13 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
