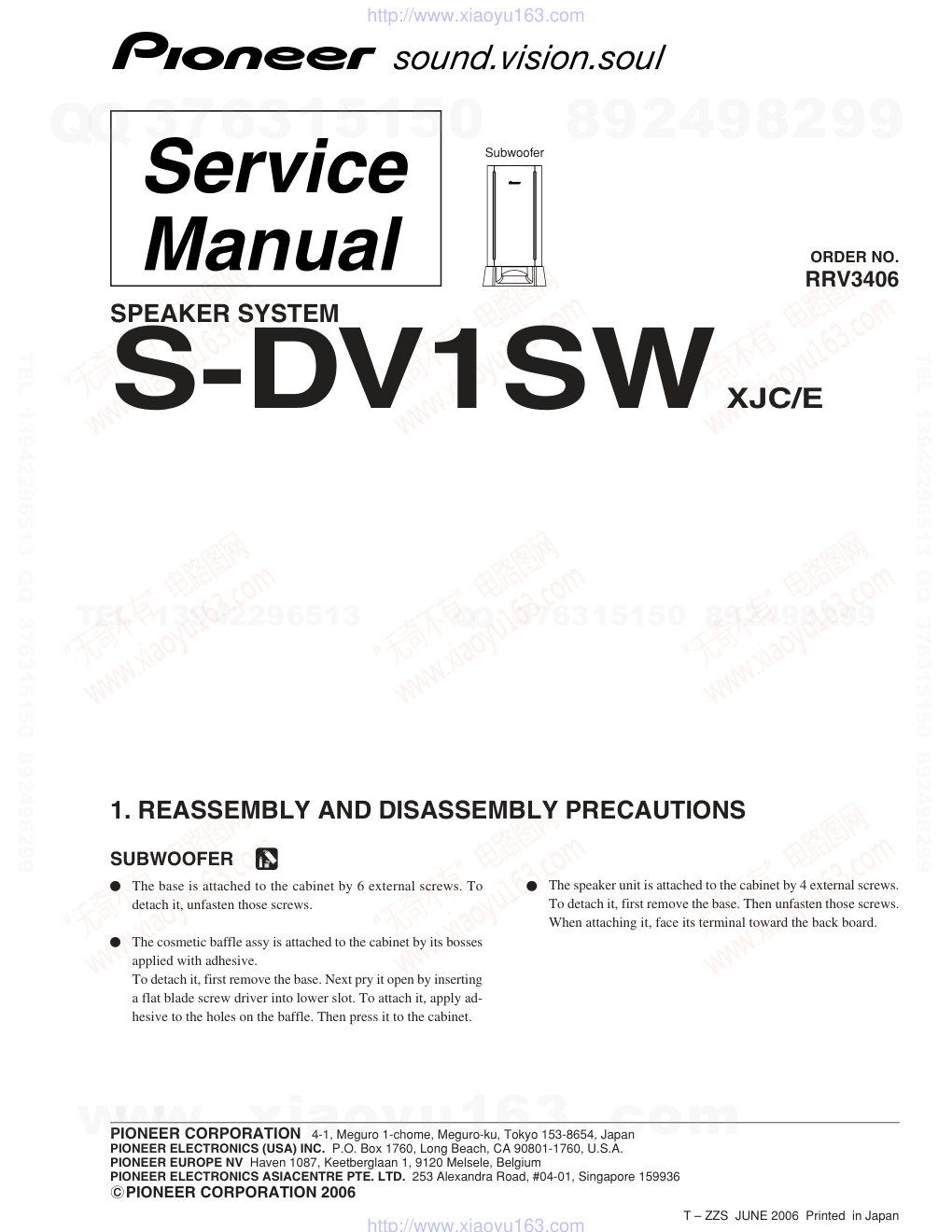

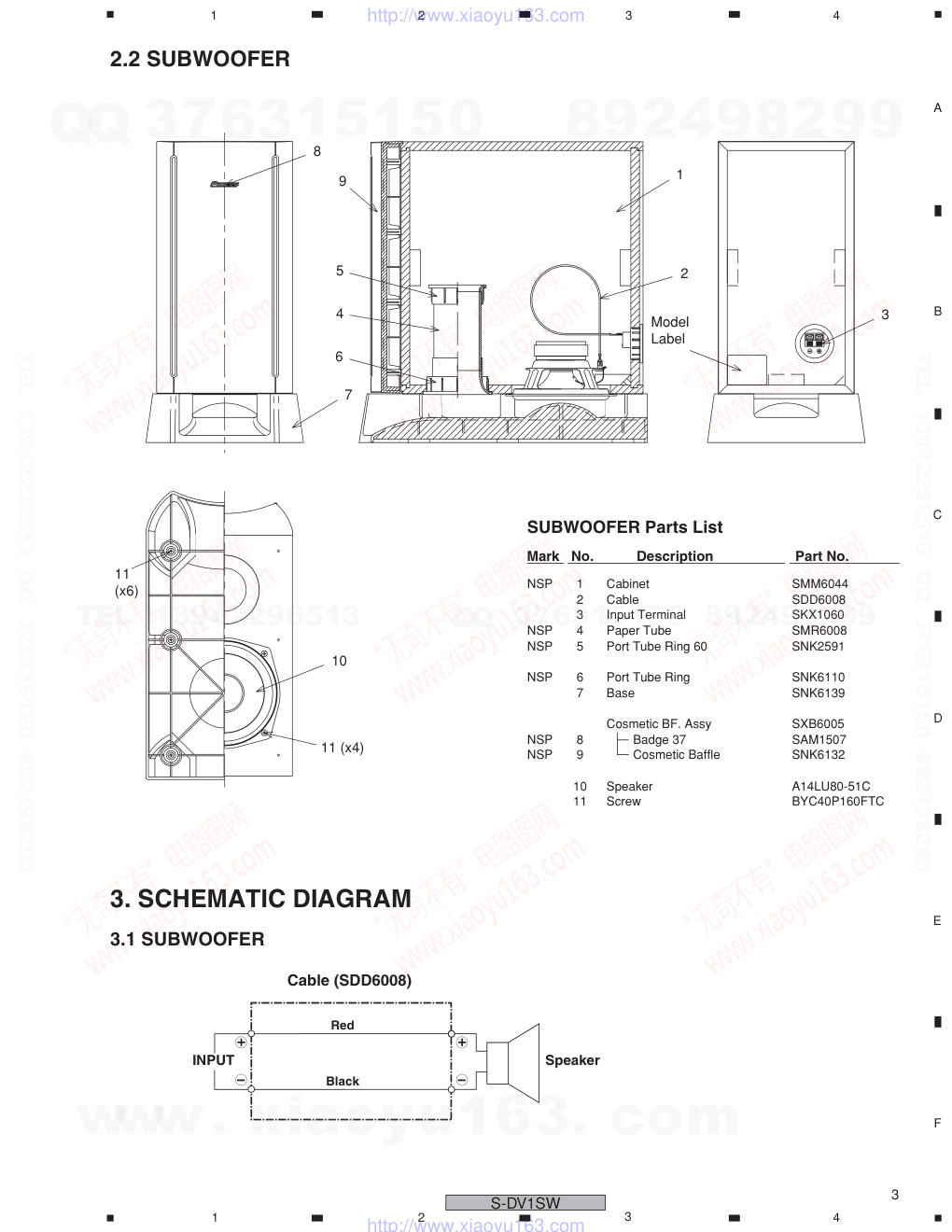

ORDER NO. PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2006 RRV3406 T – ZZS JUNE 2006 Printed in Japan SPEAKER SYSTEM S-DV1SW XJC/E Subwoofer The base is attached to the cabinet by 6 external screws. To detach it, unfasten those screws. The cosmetic baffle assy is attached to the cabinet by its bosses applied with adhesive. To detach it, first remove the base. Next pry it open by inserting a flat blade screw driver into lower slot. To attach it, apply ad- hesive to the holes on the baffle. Then press it to the cabinet. 1. REASSEMBLY AND DISASSEMBLY PRECAUTIONS The speaker unit is attached to the cabinet by 4 external screws. To detach it, first remove the base. Then unfasten those screws. When attaching it, face its terminal toward the back board. SUBWOOFER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 1 2 3 4 1 2 3 4 C D F A B E S-DV1SW 2 5 4 6 3 1 Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: NSP 1 Subwoofer SMW6199 NSP Model Label SAN6353 NSP 2 Accessory Set SME6081 Speaker Cables (SW: Purple) SDS1179 Large Non Skid Pads SEP1332 Polyethylene Bag S1 SHL1352 3 Top Protector (SW) SHA2502 4 Bottom Protector (SW) SHA2506 5 Protection Sheet S6 SHC1825 6 Packing Case SHG6215 2. EXPLODED VIEWS AND PARTS LIST 2.1 PACKING Mark No. Description Part No. PACKING Parts List www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 1 2 3 4 1 2 3 4 C D F A B E S-DV1SW 10 2 8 1 9 4 3 7 11 (x6) 11 (x4) Model Label 5 6 NSP 1 Cabinet SMM6044 2 Cable SDD6008 3 Input Terminal SKX1060 NSP 4 Paper Tube SMR6008 NSP 5 Port Tube Ring 60 SNK2591 NSP 6 Port Tube Ring SNK6110 7 Base SNK6139 Cosmetic BF. Assy SXB6005 NSP 8 Badge 37 SAM1507 NSP 9 Cosmetic Baffle SNK6132 10 Speaker A14LU80-51C 11 Screw BYC40P160FTC 2.2 SUBWOOFER SUBWOOFER Parts List 3. SCHEMATIC DIAGRAM 3.1 SUBWOOFER INPUT Speaker Black Red Cable (SDD6008) Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
