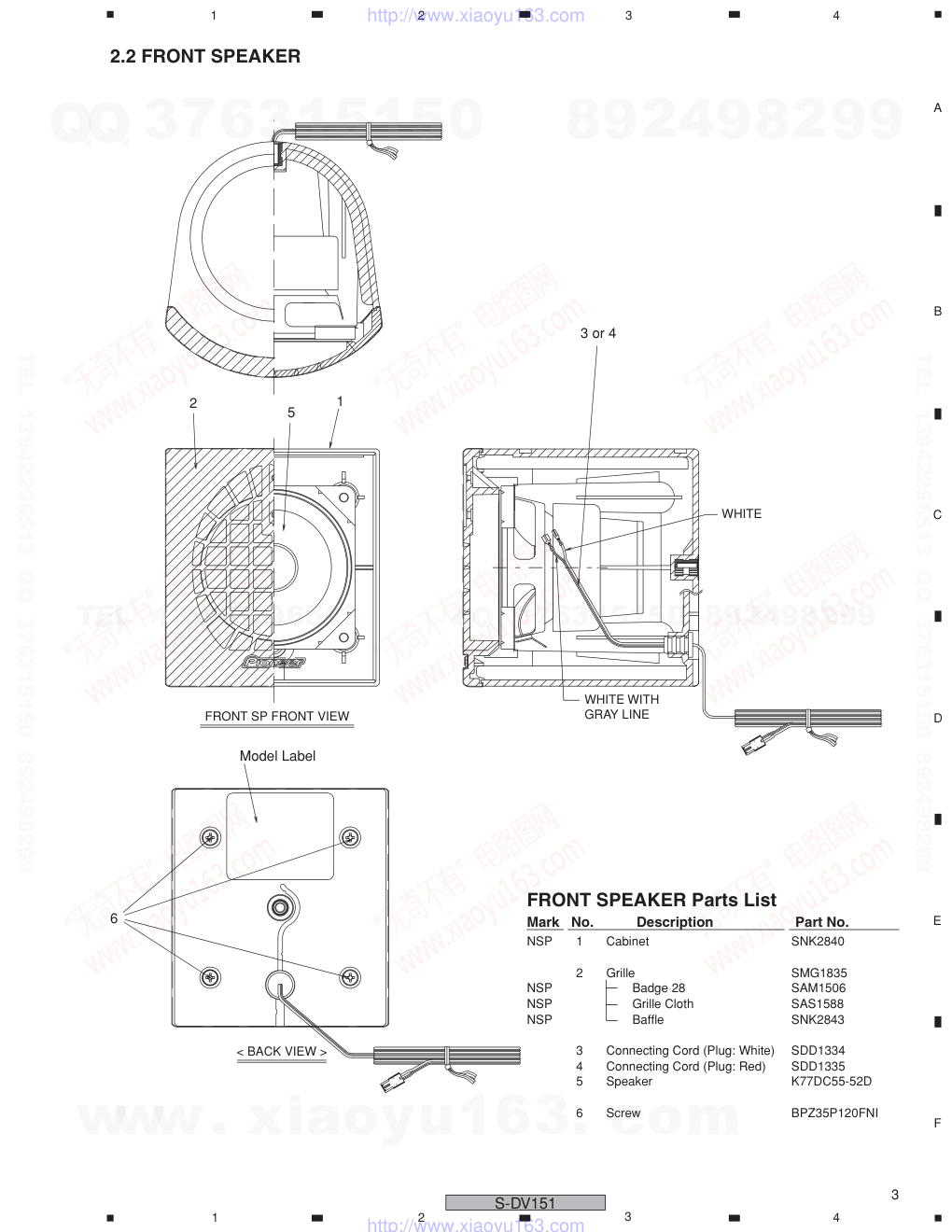

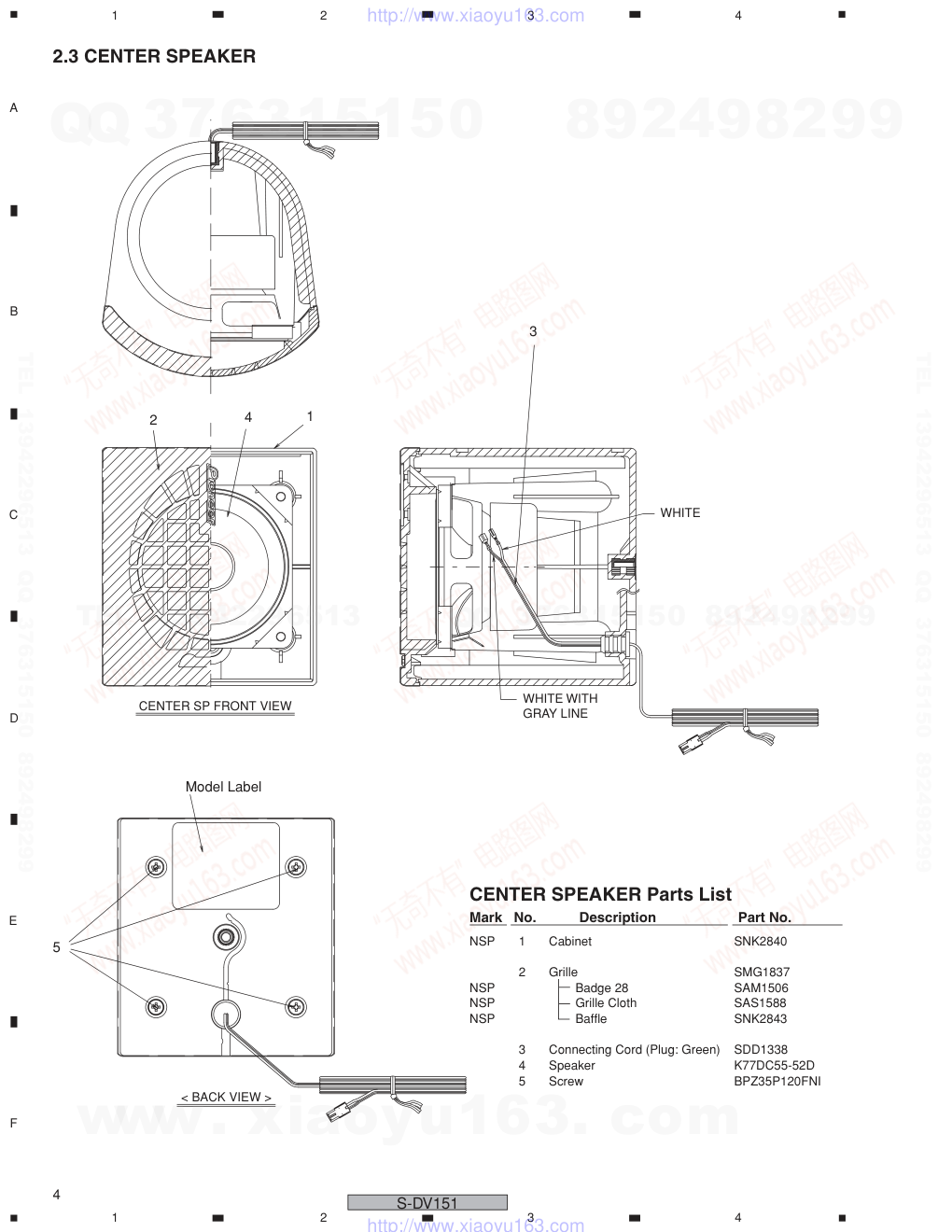

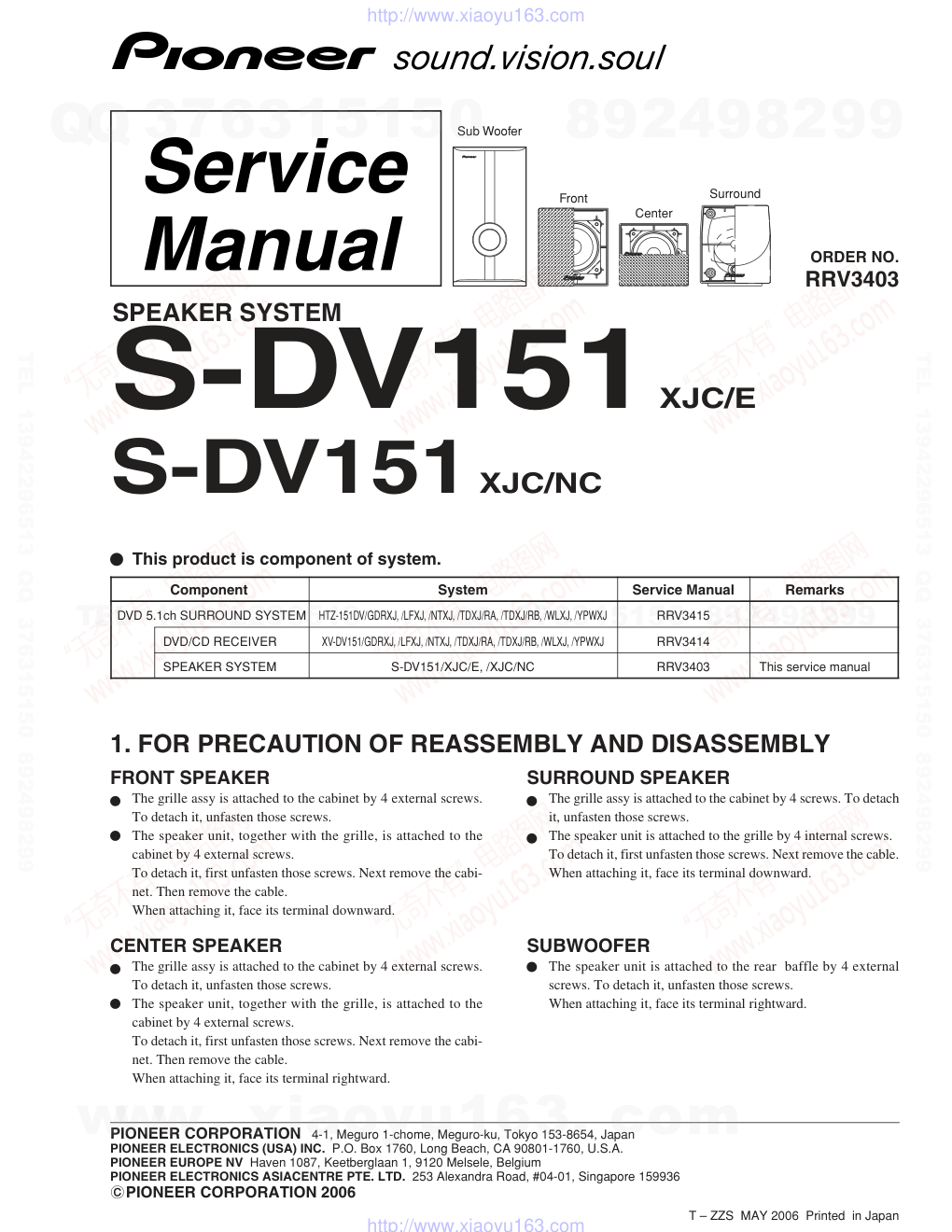

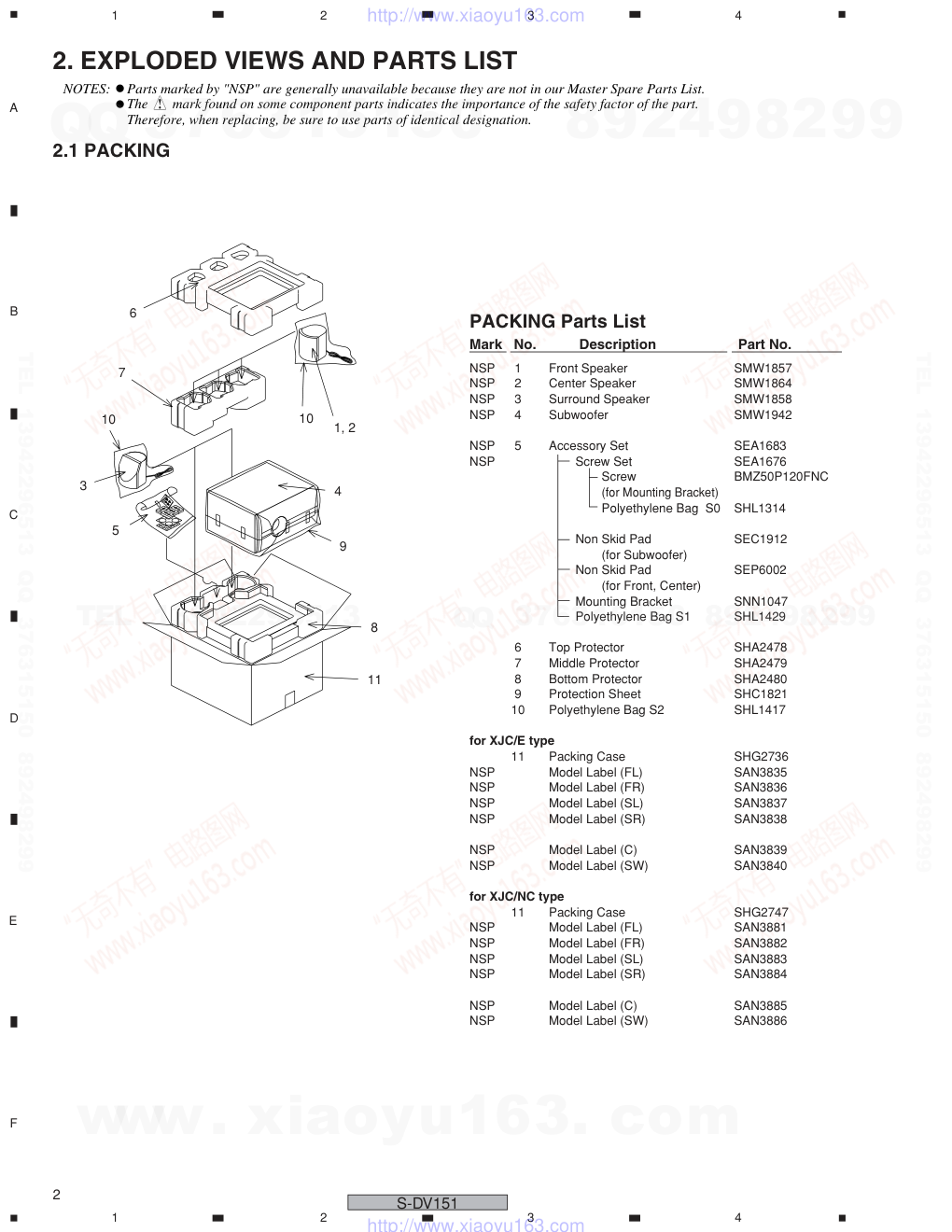

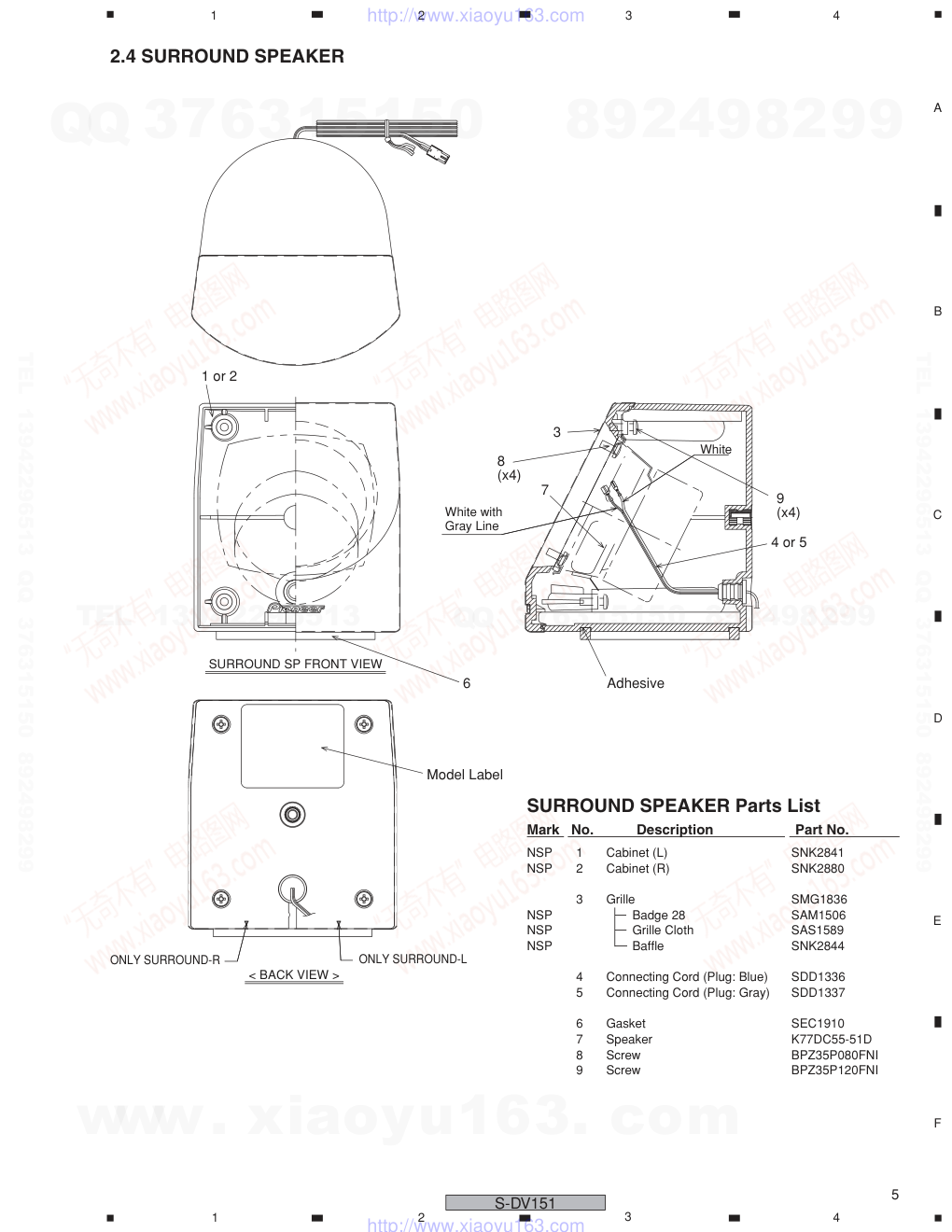

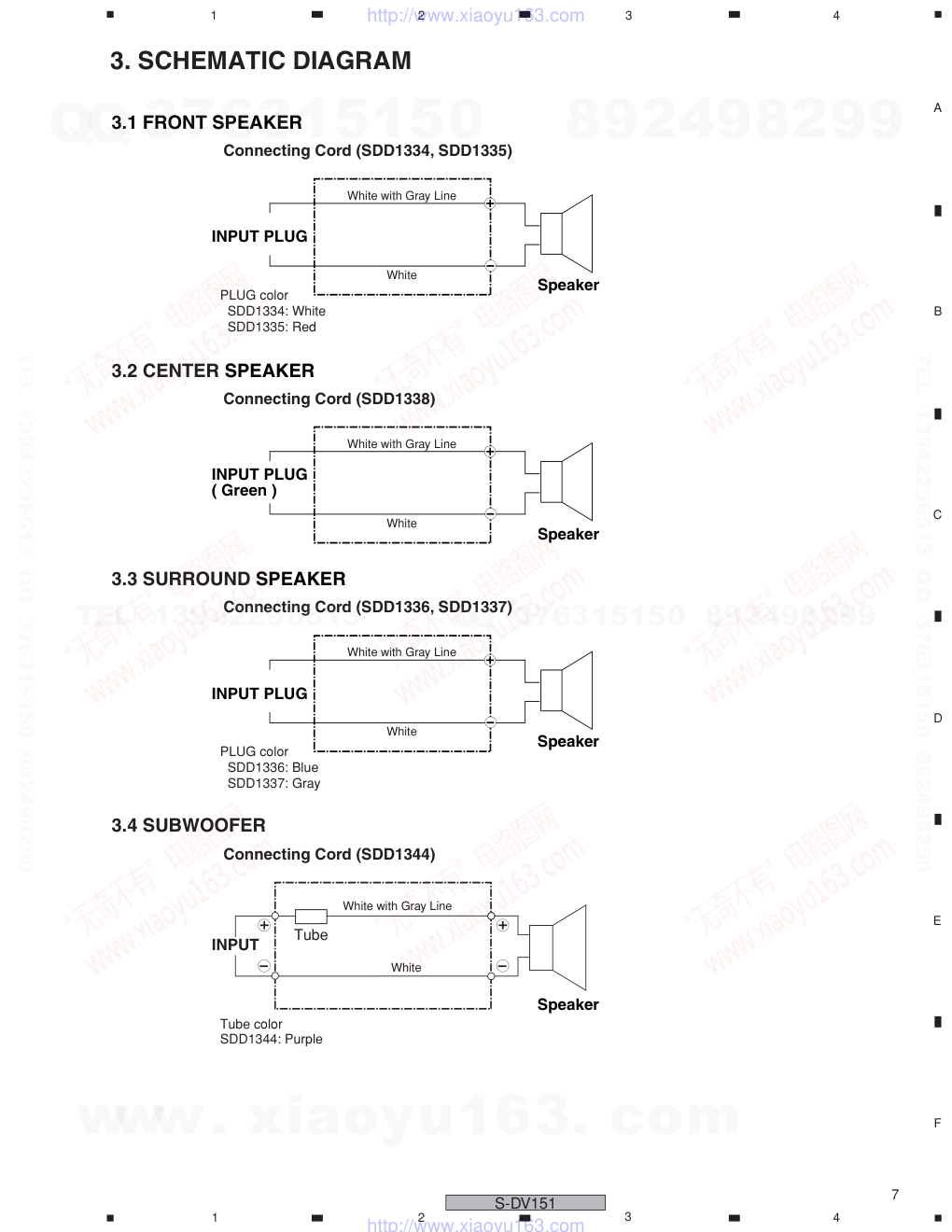

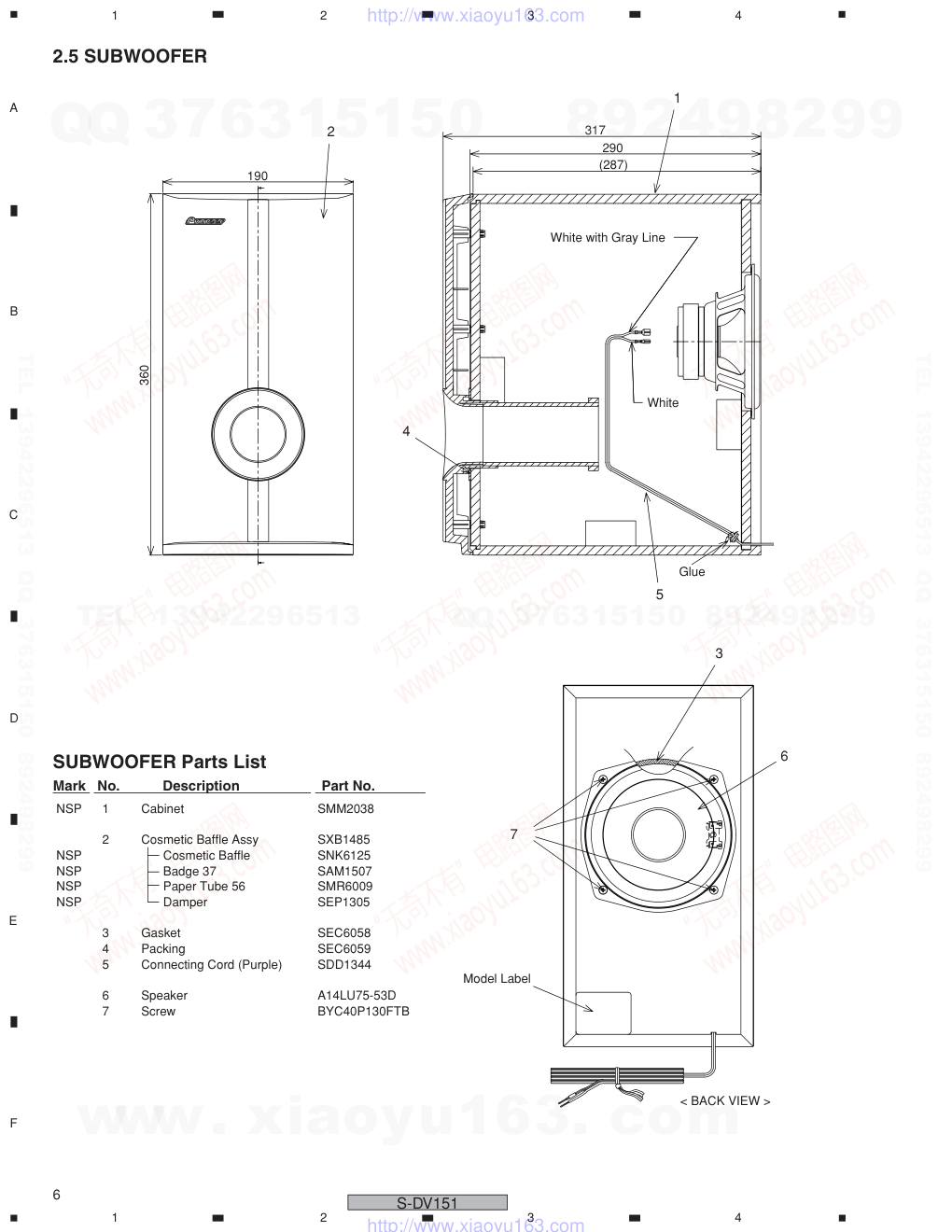

ORDER NO. PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2006 RRV3403 T – ZZS MAY 2006 Printed in Japan 1. FOR PRECAUTION OF REASSEMBLY AND DISASSEMBLY FRONT SPEAKER The grille assy is attached to the cabinet by 4 external screws. To detach it, unfasten those screws. The speaker unit, together with the grille, is attached to the cabinet by 4 external screws. To detach it, first unfasten those screws. Next remove the cabi- net. Then remove the cable. When attaching it, face its terminal downward. CENTER SPEAKER The grille assy is attached to the cabinet by 4 external screws. To detach it, unfasten those screws. The speaker unit, together with the grille, is attached to the cabinet by 4 external screws. To detach it, first unfasten those screws. Next remove the cabi- net. Then remove the cable. When attaching it, face its terminal rightward. SURROUND SPEAKER The grille assy is attached to the cabinet by 4 screws. To detach it, unfasten those screws. The speaker unit is attached to the grille by 4 internal screws. To detach it, first unfasten those screws. Next remove the cable. When attaching it, face its terminal downward. SUBWOOFER The speaker unit is attached to the rear baffle by 4 external screws. To detach it, unfasten those screws. When attaching it, face its terminal rightward. SPEAKER SYSTEM S-DV151 XJC/E S-DV151 XJC/NC Sub Woofer Center Surround Front This product is component of system. Component System Service Manual Remarks DVD 5.1ch SURROUND SYSTEM HTZ-151DV/GDRXJ, /LFXJ, /NTXJ, /TDXJ/RA, /TDXJ/RB, /WLXJ, /YPWXJ RRV3415 DVD/CD RECEIVER XV-DV151/GDRXJ, /LFXJ, /NTXJ, /TDXJ/RA, /TDXJ/RB, /WLXJ, /YPWXJ RRV3414 SPEAKER SYSTEM S-DV151/XJC/E, /XJC/NC RRV3403 This service manual www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 1 2 3 4 1 2 3 4 C D F A B E S-DV151 2.1 PACKING Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: 2. EXPLODED VIEWS AND PARTS LIST 10 5 10 1, 2 3 6 7 8 11 9 4 Mark No. Description Part No. NSP 1 Front Speaker SMW1857 NSP 2 Center Speaker SMW1864 NSP 3 Surround Speaker SMW1858 NSP 4 Subwoofer SMW1942 NSP 5 Accessory Set SEA1683 NSP Screw Set SEA1676 Screw BMZ50P120FNC (for Mounting Bracket) Polyethylene Bag S0 SHL1314 Non Skid Pad SEC1912 (for Subwoofer) Non Skid Pad SEP6002 (for Front, Center) Mounting Bracket SNN1047 Polyethylene Bag S1 SHL1429 6 Top Protector SHA2478 7 Middle Protector SHA2479 8 Bottom Protector SHA2480 9 Protection Sheet SHC1821 10 Polyethylene Bag S2 SHL1417 for XJC/E type 11 Packing Case SHG2736 NSP Model Label (FL) SAN3835 NSP Model Label (FR) SAN3836 NSP Model Label (SL) SAN3837 NSP Model Label (SR) SAN3838 NSP Model Label (C) SAN3839 NSP Model Label (SW) SAN3840 for XJC/NC type 11 Packing Case SHG2747 NSP Model Label (FL) SAN3881 NSP Model Label (FR) SAN3882 NSP Model Label (SL) SAN3883 NSP Model Label (SR) SAN3884 NSP Model Label (C) SAN3885 NSP Model Label (SW) SAN3886 PACKING Parts List www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 1 2 3 4 1 2 3 4 C D F A B E S-DV151 FRONT SPEAKER Parts List Mark No. Description Part No. NSP 1 Cabinet SNK2840 2 Grille SMG1835 NSP Badge 28 SAM1506 NSP Grille Cloth SAS1588 NSP Baffle SNK2843 3 Connecting Cord (Plug: White) SDD1334 4 Connecting Cord (Plug: Red) SDD1335 5 Speaker K77DC55-52D 6 Screw BPZ35P120FNI 2.2 FRONT SPEAKER FRONT SP FRONT VIEW < BACK VIEW > WHITE WITH GRAY LINE WHITE 1 2 5 Model Label 3 or 4 6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 1 2 3 4 1 2 3 4 C D F A B E S-DV151 CENTER SP FRONT VIEW 1 2 4 WHITE WITH GRAY LINE WHITE 3 Model Label 5 < BACK VIEW > 2.3 CENTER SPEAKER CENTER SPEAKER Parts List NSP 1 Cabinet SNK2840 2 Grille SMG1837 NSP Badge 28 SAM1506 NSP Grille Cloth SAS1588 NSP Baffle SNK2843 3 Connecting Cord (Plug: Green) SDD1338 4 Speaker K77DC55-52D 5 Screw BPZ35P120FNI Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 1 2 3 4 1 2 3 4 C D F A B E S-DV151 2.4 SURROUND SPEAKER SURROUND SP FRONT VIEW < BACK VIEW > Model Label Adhesive ONLY SURROUND-R ONLY SURROUND-L 3 4 or 5 6 9 (x4) White White with Gray Line 7 8 (x4) 1 or 2 SURROUND SPEAKER Parts List NSP 1 Cabinet (L) SNK2841 NSP 2 Cabinet (R) SNK2880 3 Grille SMG1836 NSP Badge 28 SAM1506 NSP Grille Cloth SAS1589 NSP Baffle SNK2844 4 Connecting Cord (Plug: Blue) SDD1336 5 Connecting Cord (Plug: Gray) SDD1337 6 Gasket SEC1910 7 Speaker K77DC55-51D 8 Screw BPZ35P080FNI 9 Screw BPZ35P120FNI Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 1 2 3 4 1 2 3 4 C D F A B E S-DV151 2.5 SUBWOOFER Model Label 7 White with Gray Line White 290 (287) 317 6 Glue < BACK VIEW > 1 2 5 4 3 190 360 SUBWOOFER Parts List NSP 1 Cabinet SMM2038 2 Cosmetic Baffle Assy SXB1485 NSP Cosmetic Baffle SNK6125 NSP Badge 37 SAM1507 NSP Paper Tube 56 SMR6009 NSP Damper SEP1305 3 Gasket SEC6058 4 Packing SEC6059 5 Connecting Cord (Purple) SDD1344 6 Speaker A14LU75-53D 7 Screw BYC40P130FTB Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 1 2 3 4 1 2 3 4 C D F A B E S-DV151 3. SCHEMATIC DIAGRAM Tube color SDD1344: Purple INPUT Speaker White White with Gray Line Tube White with Gray Line White Speaker INPUT PLUG ( Green ) Connecting Cord (SDD1338) Connecting Cord (SDD1344) White with Gray Line White Speaker INPUT PLUG PLUG color SDD1334: White SDD1335: Red Connecting Cord (SDD1334, SDD1335) White with Gray Line White Speaker INPUT PLUG Connecting Cord (SDD1336, SDD1337) PLUG color SDD1336: Blue SDD1337: Gray 3.1 FRONT SPEAKER 3.2 CENTER SPEAKER 3.3 SURROUND SPEAKER 3.4 SUBWOOFER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
