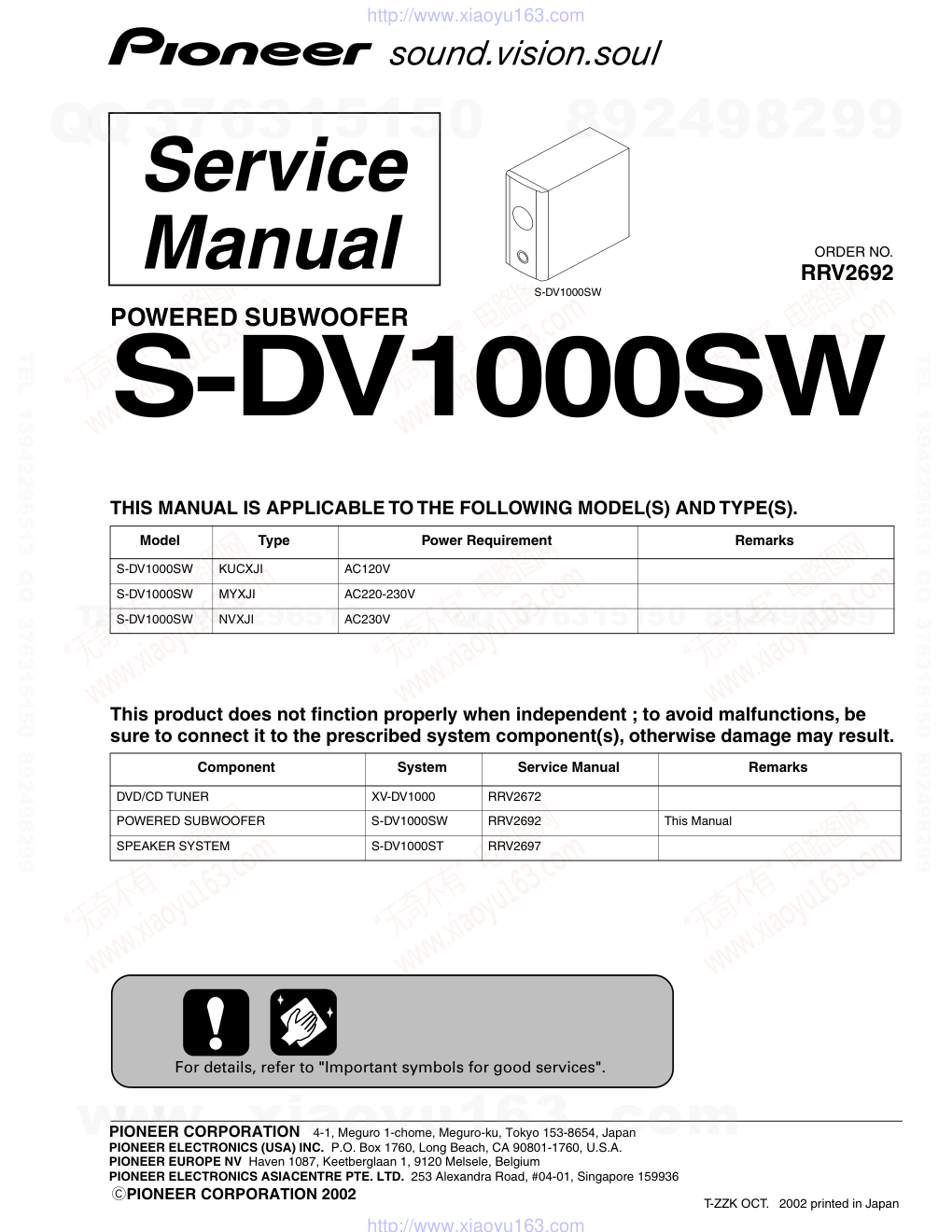

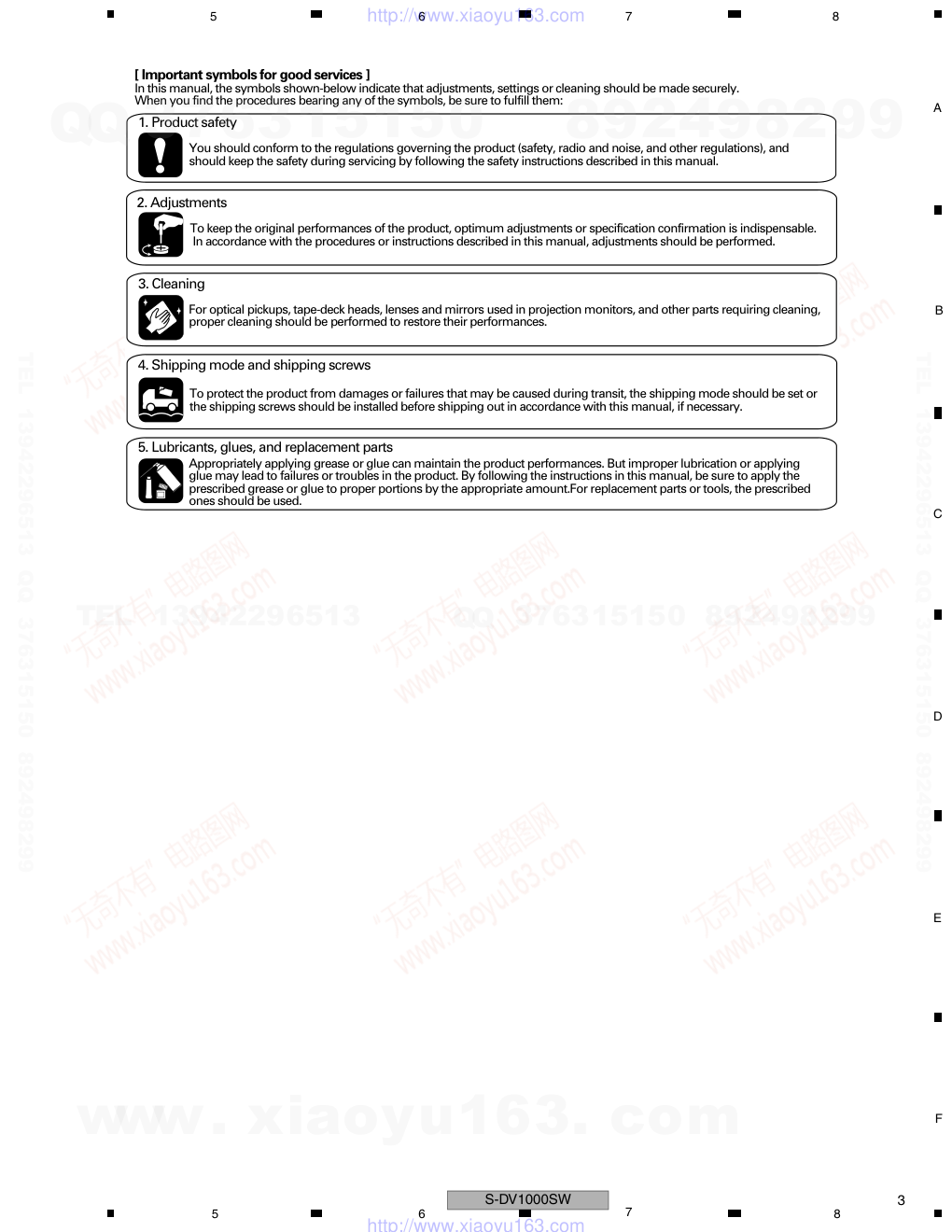

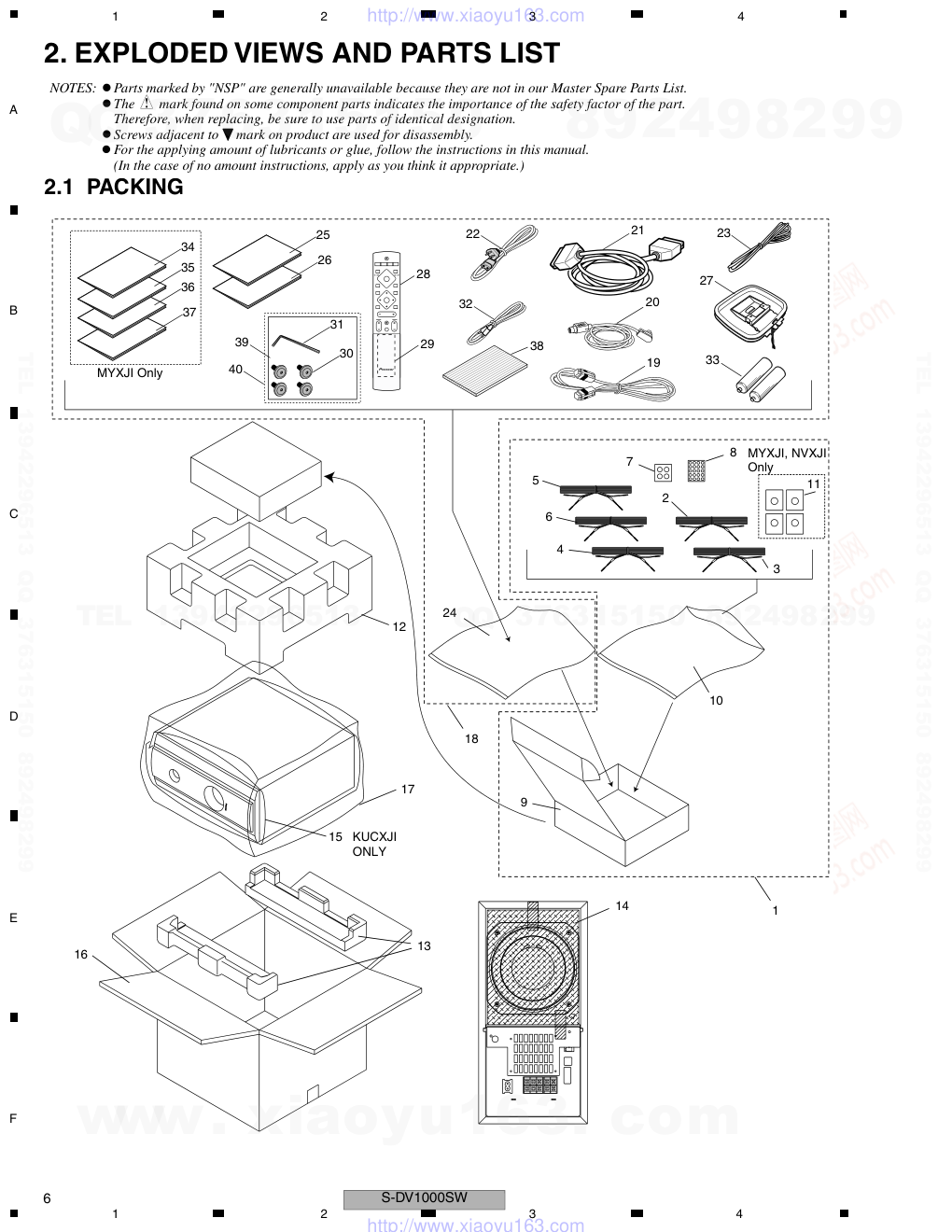

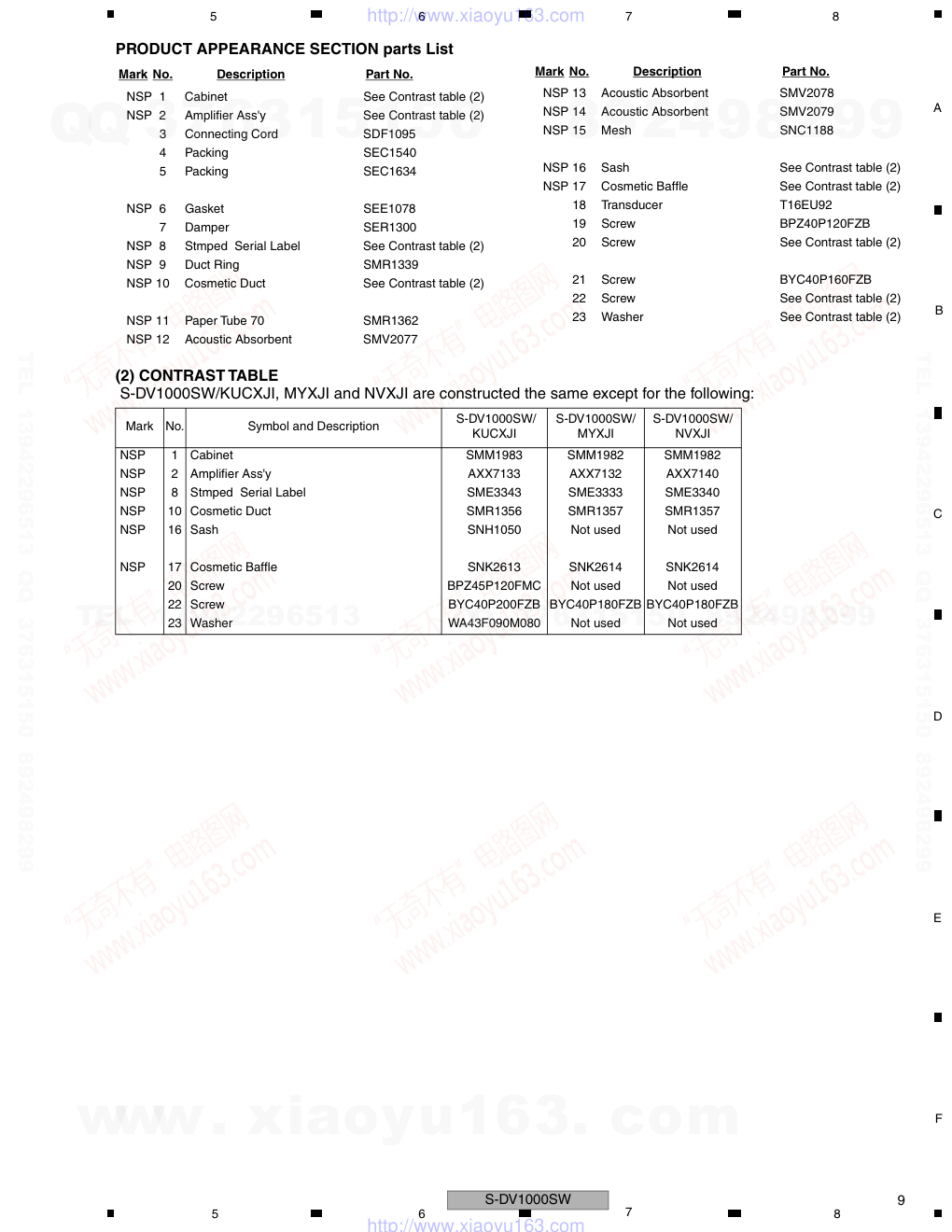

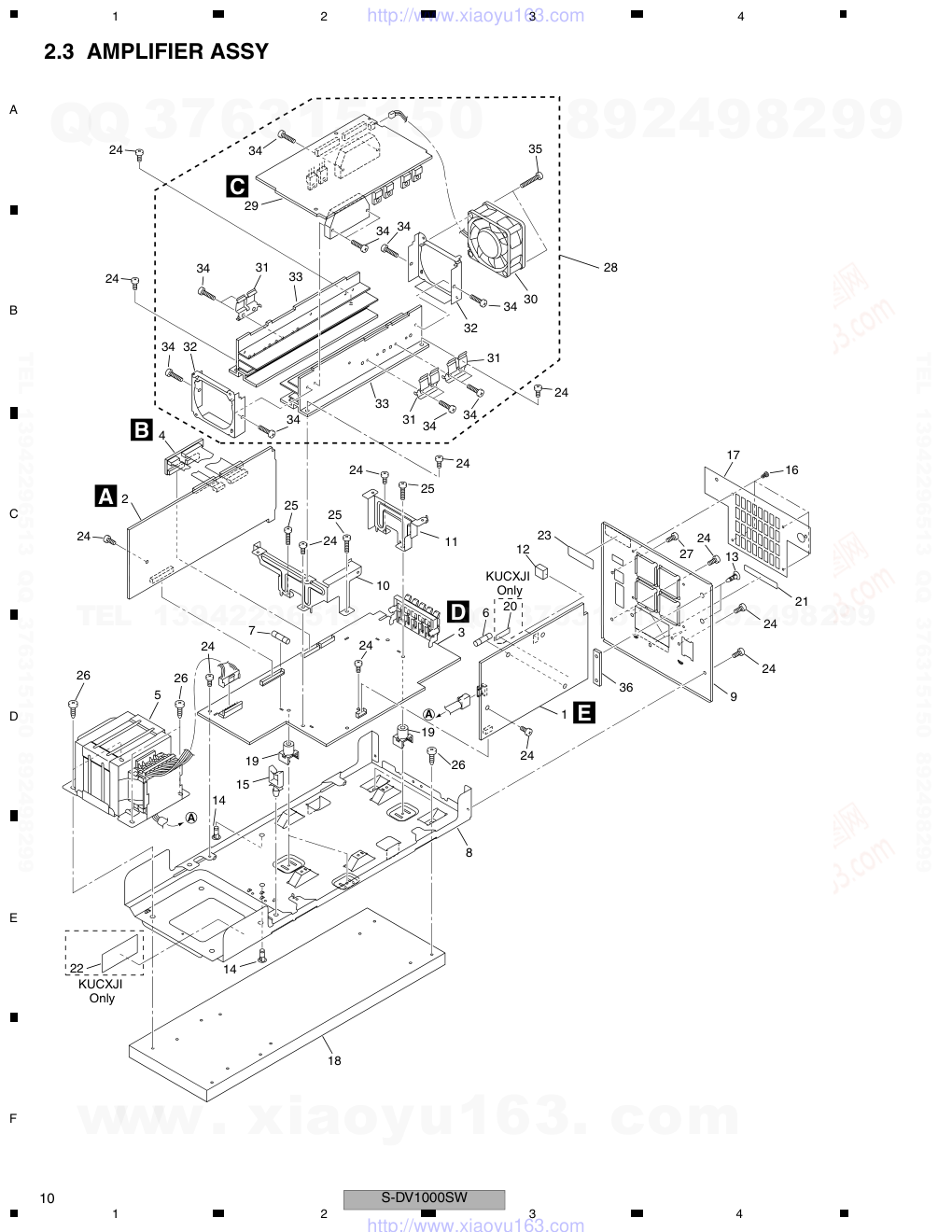

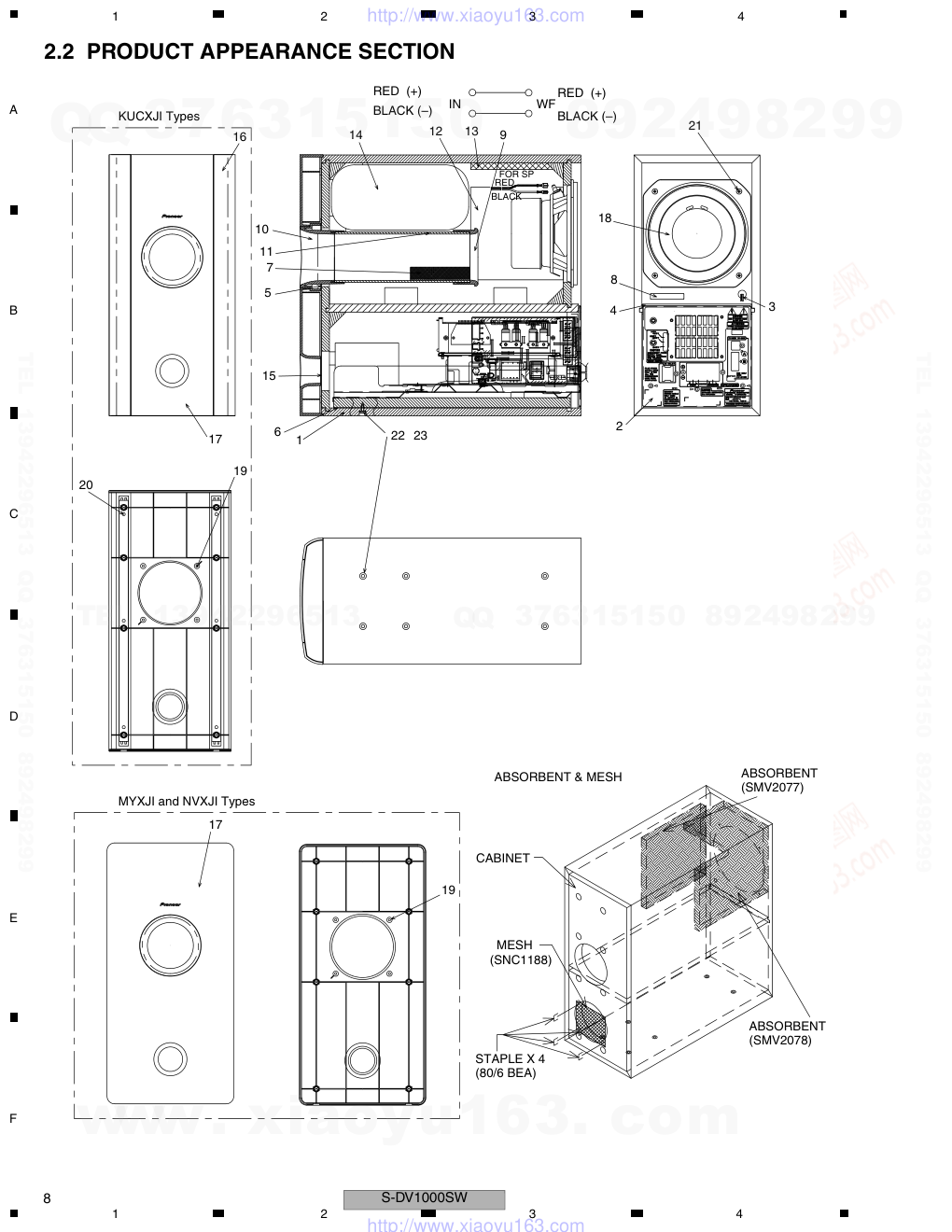

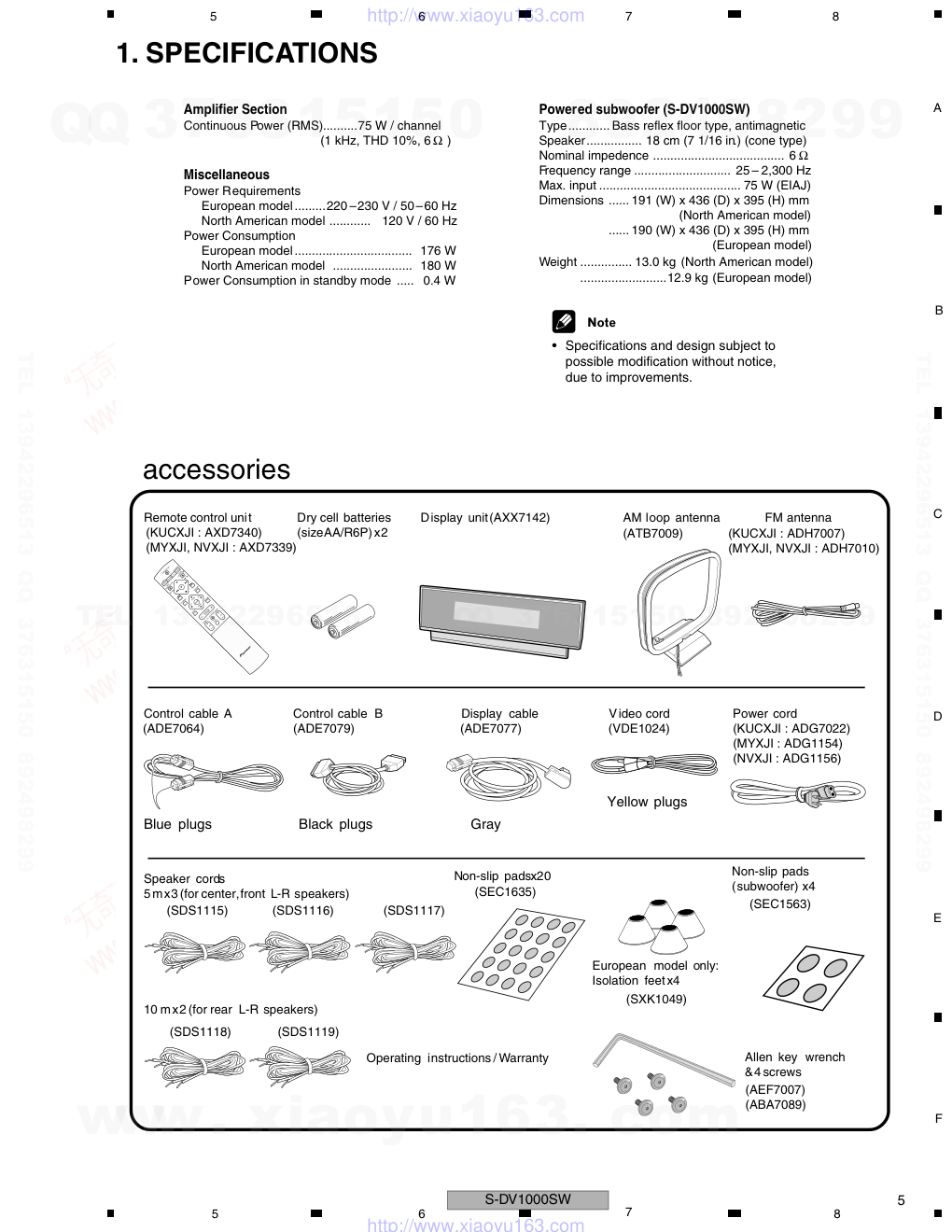

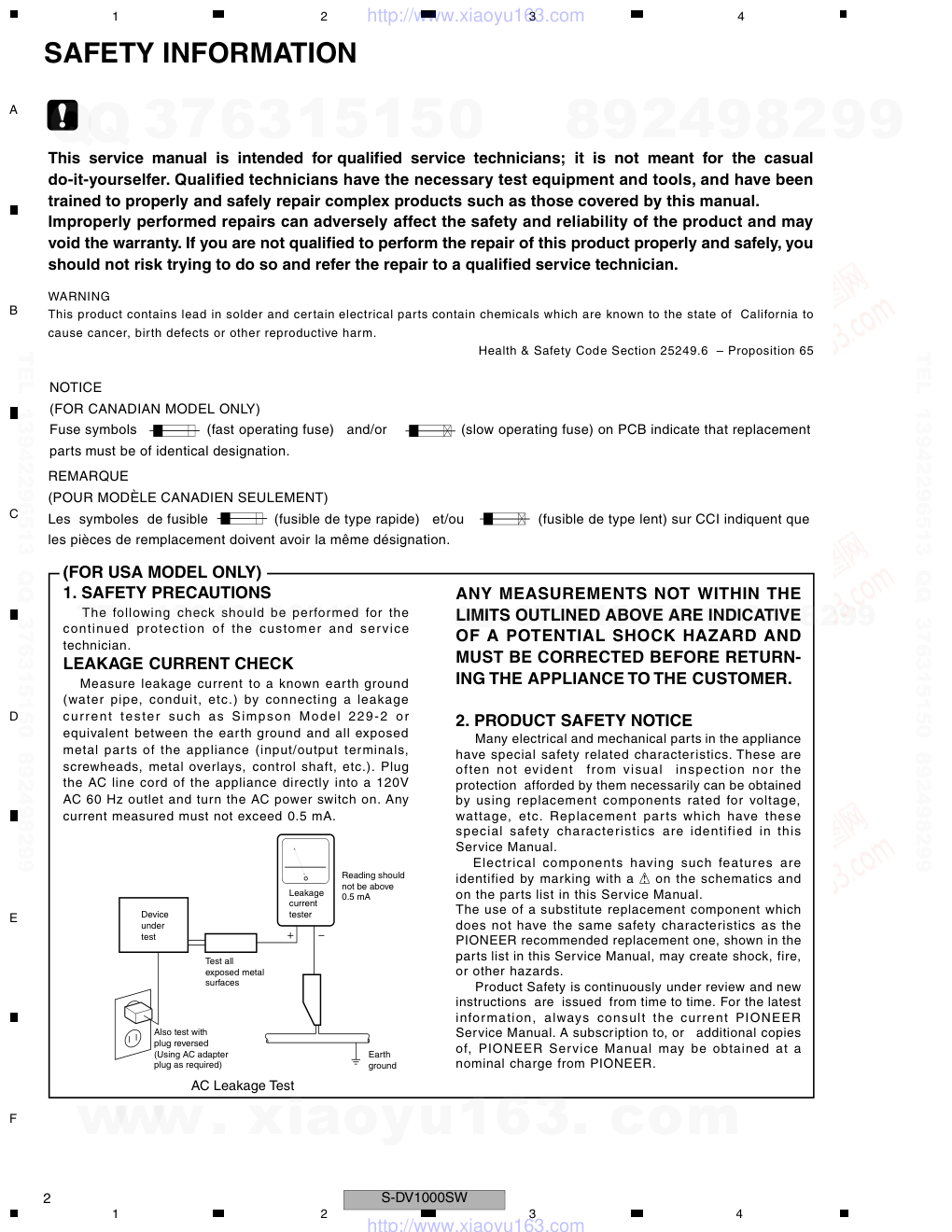

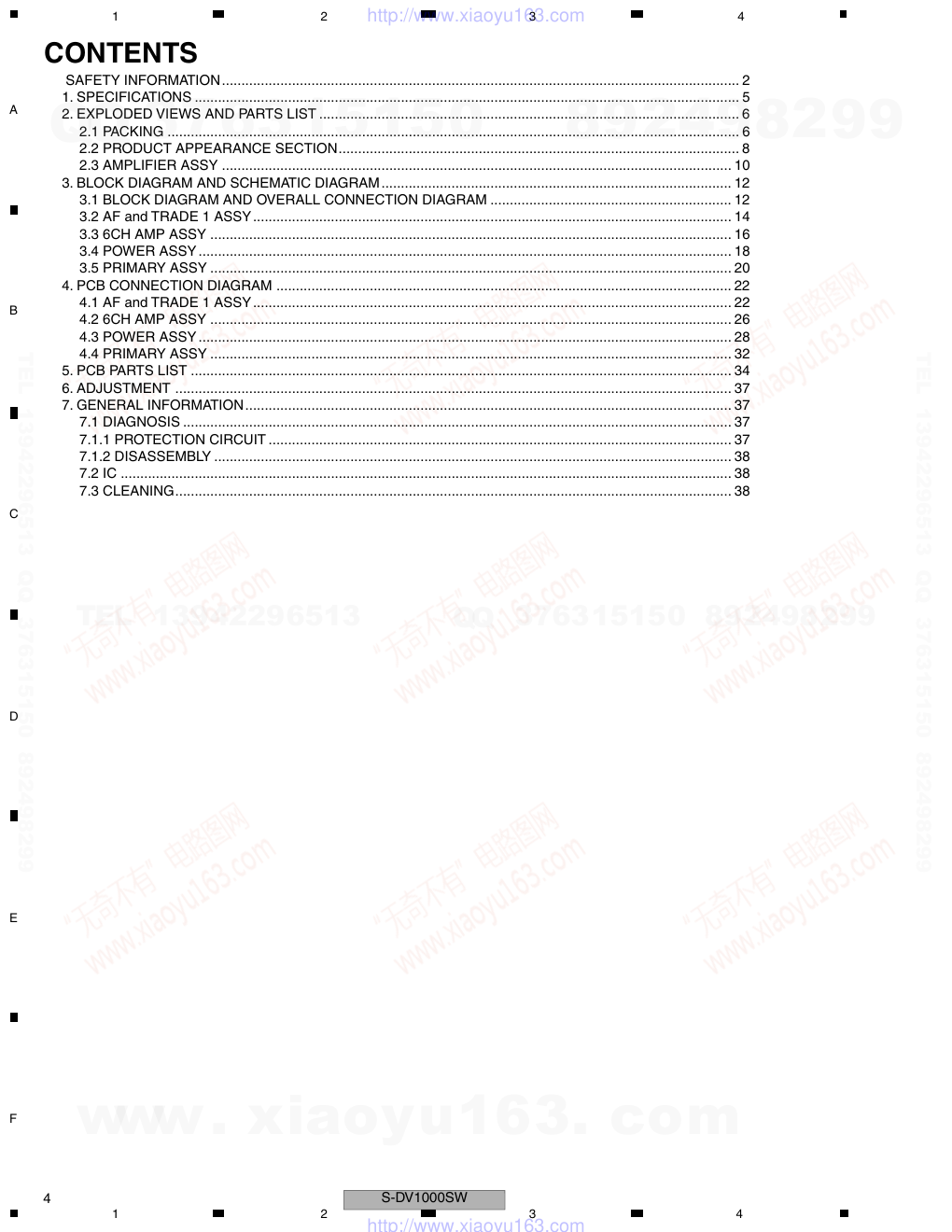

ORDER NO. PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2002 S-DV1000SW RRV2692 POWERED SUBWOOFER S-DV1000SW THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S). This product does not finction properly when independent ; to avoid malfunctions, be sure to connect it to the prescribed system component(s), otherwise damage may result. Model Type Power Requirement Remarks S-DV1000SW KUCXJI AC120V S-DV1000SW MYXJI AC220-230V S-DV1000SW NVXJI AC230V Component System Service Manual Remarks DVD/CD TUNER XV-DV1000 RRV2672 POWERED SUBWOOFER S-DV1000SW RRV2692 This Manual SPEAKER SYSTEM S-DV1000ST RRV2697 For details, refer to "Important symbols for good services". T-ZZK OCT. 2002 printed in Japan www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com S-DV1000SW 2 1 2 3 4 1 2 3 4 C D F A B E SAFETY INFORMATION This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. WARNING This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 – Proposition 65 NOTICE (FOR CANADIAN MODEL ONLY) Fuse symbols (fast operating fuse) and/or (slow operating fuse) on PCB indicate that replacement parts must be of identical designation. REMARQUE (POUR MODÈLE CANADIEN SEULEMENT) Les symboles de fusible (fusible de type rapide) et/ou (fusible de type lent) sur CCI indiquent que les pièces de remplacement doivent avoir la même désignation. ANY MEASUREMENTS NOT WITHIN THE LIMITS OUTLINED ABOVE ARE INDICATIVE OF A POTENTIAL SHOCK HAZARD AND MUST BE CORRECTED BEFORE RETURN- ING THE APPLIANCE TO THE CUSTOMER. 2. PRODUCT SAFETY NOTICE Many electrical and mechanical parts in the appliance have special safety related characteristics. These are often not evident from visual inspection nor the protection afforded by them necessarily can be obtained by using replacement components rated for voltage, wattage, etc. Replacement parts which have these special safety characteristics are identified in this Service Manual. Electrical components having such features are identified by marking with a on the schematics and on the parts list in this Service Manual. The use of a substitute replacement component which does not have the same safety characteristics as the PIONEER recommended replacement one, shown in the parts list in this Service Manual, may create shock, fire, or other hazards. Product Safety is continuously under review and new instructions are issued from time to time. For the latest information, always consult the current PIONEER Service Manual. A subscription to, or additional copies of, PIONEER Service Manual may be obtained at a nominal charge from PIONEER. (FOR USA MODEL ONLY) 1. SAFETY PRECAUTIONS The following check should be performed for the continued protection of the customer and service technician. LEAKAGE CURRENT CHECK Measure leakage current to a known earth ground (water pipe, conduit, etc.) by connecting a leakage current tester such as Simpson Model 229-2 or equivalent between the earth ground and all exposed metal parts of the appliance (input/output terminals, screwheads, metal overlays, control shaft, etc.). Plug the AC line cord of the appliance directly into a 120V AC 60 Hz outlet and turn the AC power switch on. Any current measured must not exceed 0.5 mA. Device under test Leakage current tester Earth ground Reading should not be above 0.5 mA Also test with plug reversed (Using AC adapter plug as required) Test all exposed metal surfaces AC Leakage Test www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com S-DV1000SW 3 5 6 7 8 5 6 7 8 C D F A B E [ Important symbols for good services ] In this manual, the symbols shown-below indicate that adjustments, settings or cleaning should be made securely. When you find the procedures bearing any of the symbols, be sure to fulfill them: 2. Adjustments To keep the original performances of the product, optimum adjustments or specification confirmation is indispensable. In accordance with the procedures or instructions described in this manual, adjustments should be performed. 3. Cleaning For optical pickups, tape-deck heads, lenses and mirrors used in projection monitors, and other parts requiring cleaning, proper cleaning should be performed to restore their performances. 5. Lubricants, glues, and replacement parts Appropriately applying grease or glue can maintain the product performances. But improper lubrication or applying glue may lead to failures or troubles in the product. By following the instructions in this manual, be sure to apply the prescribed grease or glue to proper portions by the appropriate amount.For replacement parts or tools, the prescribed ones should be used. 4. Shipping mode and shipping screws To protect the product from damages or failures that may be caused during transit, the shipping mode should be set or the shipping screws should be installed before shipping out in accordance with this manual, if necessary. 1. Product safety You should conform to the regulations governing the product (safety, radio and noise, and other regulations), and should keep the safety during servicing by following the safety instructions described in this manual. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com S-DV1000SW 4 1 2 3 4 1 2 3 4 C D F A B E CONTENTS SAFETY INFORMATION..................................................................................................................................... 2 1. SPECIFICATIONS ............................................................................................................................................ 5 2. EXPLODED VIEWS AND PARTS LIST ............................................................................................................ 6 2.1 PACKING ................................................................................................................................................... 6 2.2 PRODUCT APPEARANCE SECTION....................................................................................................... 8 2.3 AMPLIFIER ASSY ................................................................................................................................... 10 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM.......................................................................................... 12 3.1 BLOCK DIAGRAM AND OVERALL CONNECTION DIAGRAM .............................................................. 12 3.2 AF and TRADE 1 ASSY........................................................................................................................... 14 3.3 6CH AMP ASSY ...................................................................................................................................... 16 3.4 POWER ASSY......................................................................................................................................... 18 3.5 PRIMARY ASSY ...................................................................................................................................... 20 4. PCB CONNECTION DIAGRAM ..................................................................................................................... 22 4.1 AF and TRADE 1 ASSY........................................................................................................................... 22 4.2 6CH AMP ASSY ...................................................................................................................................... 26 4.3 POWER ASSY......................................................................................................................................... 28 4.4 PRIMARY ASSY ...................................................................................................................................... 32 5. PCB PARTS LIST ........................................................................................................................................... 34 6. ADJUSTMENT ............................................................................................................................................... 37 7. GENERAL INFORMATION............................................................................................................................. 37 7.1 DIAGNOSIS ............................................................................................................................................. 37 7.1.1 PROTECTION CIRCUIT ....................................................................................................................... 37 7.1.2 DISASSEMBLY ..................................................................................................................................... 38 7.2 IC ............................................................................................................................................................. 38 7.3 CLEANING............................................................................................................................................... 38 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com S-DV1000SW 5 5 6 7 8 5 6 7 8 C D F A B E 1. SPECIFICATIONS Amplifier Section Continuous Power (RMS)..........75 W / channel (1 kHz, THD 10%, 6 Ω ) Miscellaneous Power Requirements European model.........220 –230 V / 50–60 Hz North American model ............ 120 V / 60 Hz Power Consumption European model.................................. 176 W North American model ....................... 180 W Power Consumption in standby mode ..... 0.4 W Powered subwoofer (S-DV1000SW) Type............ Bass reflex floor type, antimagnetic Speaker................ 18 cm (7 1/16 in.) (cone type) Nominal impedence ...................................... 6 Ω Frequency range ............................ 25 – 2,300 Hz Max. input ......................................... 75 W (EIAJ) Dimensions ...... 191 (W) x 436 (D) x 395 (H) mm (North American model) (North American model) ...... 190 (W) x 436 (D) x 395 (H) mm (European model) (European model) Weight ............... 13.0 kg .........................12.9 kg • Specifications and design subject to possible modification without notice, due to improvements. accessories Remote control unit ST+ TUNE+ ENTER TUNE– MASTER VOLUME ST– STANDBY/ON CD TRAY OPEN CLOSE DOOR OPEN CLO SE DVD FM/AM TV VIDEO V1/V2/V3 0 1 4 4 ¡ 8 3 7 0 DVD MENU RETURN SOUND TV CONTROL PV OL INPUT MUTE PROGRAM REPEAT RANDOM AUTO ROOM SETU P TEST TONE 123 DVD SYSTEM CH LEVE LT CP MENU SYS MENU DIMMER DVD DISP SYS DISP SET UP SURROUN D ANGLE AUDIOS UBTITLE ZOOM ADVANCED 45 6 7 89 0 LANGUAGE MAIN AX0000 SUB PCM TELETEXT ON/OFF TIMER (CLOCK ADJ) FOLDER – CLR ENTE R / –– – FOLDER+ Dry cell batteries (size AA/R6P) x 2 Display unit (AXX7142) AM loop antenna FM antenna Control cable A Control cable B Display cable Video cord Gray Yellow plugs Blue plugs Power cord Speaker cords 5 m x 3 (for center, front L-R speakers) Operating instructions / Warranty Non-slip pads x20 10 m x 2 (for rear L-R speakers) Black plugs Non-slip pads (subwoofer) x4 European model only: Isolation feet x4 Allen key wrench & 4 screws (ATB7009) (KUCXJI : ADH7007) (MYXJI, NVXJI : ADH7010) (KUCXJI : ADG7022) (MYXJI : ADG1154) (NVXJI : ADG1156) (VDE1024) (ADE7077) (ADE7079) (ADE7064) (SDS1115) (SDS1116) (SDS1117) (SDS1118) (SDS1119) (SEC1635) (SXK1049) (SEC1563) (AEF7007) (ABA7089) (KUCXJI : AXD7340) (MYXJI, NVXJI : AXD7339) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com S-DV1000SW 6 1 2 3 4 1 2 3 4 C D F A B E 2. EXPLODED VIEWS AND PARTS LIST 2.1 PACKING Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly. For the applying amount of lubricants or glue, follow the instructions in this manual. (In the case of no amount instructions, apply as you think it appropriate.) NOTES: 12 13 16 17 15 1 18 14 10 24 2 4 6 8 5 11 MYXJI, NVXJI Only MYXJI Only KUCXJI ONLY 9 3 7 20 21 19 22 32 27 33 23 28 38 29 30 31 37 36 35 34 39 40 26 25 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com S-DV1000SW 7 5 6 7 8 5 6 7 8 C D F A B E PACKING parts List (2) CONTRAST TABLE S-DV1000SW/KUCXJI, MYXJI and NVXJI are constructed the same except for the following: Mark No. Description Part No. NSP 1 Accessories Set See Contrast table (2) 2 Speaker Cords (5m : Red) SDS1115 3 Speaker Cords (5m : White) SDS1116 4 Speaker Cords (5m : Green) SDS1117 5 Speaker Cords (10m : Blue) SDS1118 6 Speaker Cords (10m : Gray) SDS1119 7 Sheet of large Non-Slip Pads SEC1563 8 Sheet of small Non-Slip Pads SEC1635 9 Packing Case SHG2449 10 Poly Bag S3 SHL1293 11 Accessory Set See Contrast table (2) (Subwoofer Isolation Feet) 12 Top Protector SHA2361 13 Bottom Protector SHA2362 14 Protector SHB1097 15 Protection Sheet See Contrast table (2) 16 Packing Case See Contrast table (2) 17 Poly Bag S6 SHL1292 NSP 18 Accessories Assy See Contrast table (2) 19 Control Cable A (Blue Plugs) ADE7064 20 Display cable (Gray Plugs) ADE7077 21 Control cable B (Black Plugs) ADE7079 > 22 Power Cord See Contrast table (2) 23 FM Antenna See Contrast table (2) NSP 24 Poly Bag AHG7098 25 Operating Instructions ARE7305 (English/French) 26 Setup guide(English/French) ARE7306 27 AM Loop Antenna ATB7009 28 Remote Control Unit See Contrast table (2) 29 Battery Cover AZN7919 30 Side Panel Replacement Screw ABA7089 31 Allen Key Wrench AEF7007 32 Video Cord (Yellow) VDE1024 NSP 33 Dry cell batteries (AA/R6P) VEM1031 34 Operating Instructions See Contrast table (2) (German/Italian) 35 Setup guide (German/Italian) See Contrast table (2) 36 Operating Instructions See Contrast table (2) (Spanish/Dutch) 37 Setup guide (Spanish/Dutch) See Contrast table (2) NSP 38 Accessory Board AHB7082 NSP 39 Poly Sheet AHG7100 NSP 40 Screw Asy AXX7146 Mark No. Description Part No. Mark No. Symbol and Description S-DV1000SW/ KUCXJI S-DV1000SW/ MYXJI S-DV1000SW/ NVXJI NSP 1 Accessories Set SME3356 SME3355 SME3355 11 Accessory Set (Subwoofer Isolation Feet) Not used SEA1596 SEA1596 15 Protection Sheet SHC1790 Not used Not used 16 Packing Case SHG2454 SHG2450 SHG2453 NSP 18 Accessories Assy AXX7137 AXX7136 AXX7141 > 22 Power Cord ADG7022 ADG1154 ADG1156 23 FM Antenna ADH7007 ADH7010 ADH7010 28 Remote Control Unit AXD7340 AXD7339 AXD7339 34 Operating Instructions (German/Italian) Not used ARC7414 Not used 35 Setup guide (German/Italian) Not used ARC7415 Not used 36 Operating Instructions (Spanish/Dutch) Not used ARC7416 Not used 37 Setup guide (Spanish/Dutch) Not used ARC7417 Not used www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com S-DV1000SW 8 1 2 3 4 1 2 3 4 C D F A B E 2.2 PRODUCT APPEARANCE SECTION BLACK RED FOR SP RED (+) RED (+) BLACK (–) BLACK (–) IN WF 7P 7P 1 2 3 4 5 6 7 8 9 10 11 14 15 16 17 21 22 23 18 19 20 13 12 17 19 MYXJI and NVXJI Types KUCXJI Types ABSORBENT & MESH ABSORBENT (SMV2077) STAPLE X 4 (80/6 BEA) MESH (SNC1188) CABINET ABSORBENT (SMV2078) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com S-DV1000SW 9 5 6 7 8 5 6 7 8 C D F A B E PRODUCT APPEARANCE SECTION parts List (2) CONTRAST TABLE S-DV1000SW/KUCXJI, MYXJI and NVXJI are constructed the same except for the following: Mark No. Description Part No. NSP 1 Cabinet See Contrast table (2) NSP 2 Amplifier Ass'y See Contrast table (2) 3 Connecting Cord SDF1095 4 Packing SEC1540 5 Packing SEC1634 NSP 6 Gasket SEE1078 7 Damper SER1300 NSP 8 Stmped Serial Label See Contrast table (2) NSP 9 Duct Ring SMR1339 NSP 10 Cosmetic Duct See Contrast table (2) NSP 11 Paper Tube 70 SMR1362 NSP 12 Acoustic Absorbent SMV2077 NSP 13 Acoustic Absorbent SMV2078 NSP 14 Acoustic Absorbent SMV2079 NSP 15 Mesh SNC1188 NSP 16 Sash See Contrast table (2) NSP 17 Cosmetic Baffle See Contrast table (2) 18 Transducer T16EU92 19 Screw BPZ40P120FZB 20 Screw See Contrast table (2) 21 Screw BYC40P160FZB 22 Screw See Contrast table (2) 23 Washer See Contrast table (2) Mark No. Description Part No. Mark No. Symbol and Description S-DV1000SW/ KUCXJI S-DV1000SW/ MYXJI S-DV1000SW/ NVXJI NSP 1 Cabinet SMM1983 SMM1982 SMM1982 NSP 2 Amplifier Ass'y AXX7133 AXX7132 AXX7140 NSP 8 Stmped Serial Label SME3343 SME3333 SME3340 NSP 10 Cosmetic Duct SMR1356 SMR1357 SMR1357 NSP 16 Sash SNH1050 Not used Not used NSP 17 Cosmetic Baffle SNK2613 SNK2614 SNK2614 20 Screw BPZ45P120FMC Not used Not used 22 Screw BYC40P200FZB BYC40P180FZB BYC40P180FZB 23 Washer WA43F090M080 Not used Not used www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com S-DV1000SW 10 1 2 3 4 1 2 3 4 C D F A B E 2.3 AMPLIFIER ASSY A A 29 C 2 A 8 18 22 KUCXJI Only KUCXJI Only 9 21 24 36 24 27 24 23 16 17 5 26 26 26 14 14 15 19 19 1 E 3D 10 25 25 25 11 4 B 6 20 7 28 30 31 31 31 32 32 12 13 33 33 35 34 34 34 34 34 34 34 34 34 24 24 24 24 24 24 24 24 24 24 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com S-DV1000SW 11 5 6 7 8 5 6 7 8 C D F A B E AMPLIFIER ASSY parts List (2) CONTRAST TABLE S-DV1000SW/KUCXJI, MYXJI and NVXJI are constructed the same except for the following: Mark No. Description Part No. 1 PRIMARY ASSY See Contrast table (2) 2 AF ASSY AWU8005 3 POWER ASSY See Contrast table (2) 4 TRADE 1 ASSY AWU8028 > 5 Power Transformer See Contrast table (2) > 6 Fuse (FU1) See Contrast table (2) > 7 Fuse (FU4) See Contrast table (2) NSP 8 Chassis ANA7109 9 Rear Panel See Contrast table (2) 10 HS Holder F ANG7439 11 HS Holder R ANG7440 12 Cushion B AEB7290 13 Spacer AEC1360 14 Card Spacer AEC7133 15 Wire Saddel AEC7297 16 Nylon Rivet AEC7318 17 Fan Cover AEC7427 18 Wood Base AMM7006 NSP 19 PCB Mould AMR1525 NSP 20 Fuse Card See Contrast table (2) NSP 21 SP Label AAX7956 22 65 Label See Contrast table (2) NSP 23 Serial Paper RRW-168 24 Screw BBZ30P080FMC 25 Screw BBZ30P200FMC 26 Screw BYC40P140FMC 27 Screw PSC30P080FNI NSP 28 AMP MODULE 6CH AXQ7242 29 6CH AMP ASSY AWM7720 30 DC Fan Motor AXM7025 31 FET Bracket ANG7418 32 Fan Plate ANG7425 33 Heat Sink ANH7161 34 Screw BBZ30P140FMC 35 Screw BBZ30P300FZK NSP 36 USE ASSY • • • • • Mark No. Description Part No. Mark No. Symbol and Description S-DV1000SW/ KUCXJI S-DV1000SW/ MYXJI S-DV1000SW/ NVXJI 1 PRIMARY ASSY AWU8003 AWU8001 AWU8001 3 POWER ASSY AWU8007 AWU8006 AWU8006 > 5 Power Transformer ATS7342 ATS7341 ATS7341 > 6 Fuse (FU1 : 6.3A) REK1069 Not used Not used > 6 Fuse (FU1 : T3.15A) Not used REK1027 REK1027 > 7 Fuse (FU4 : 6.3A) REK1069 Not used Not used > 7 Fuse (FU4 : T5A) Not used REK1029 REK1029 9 Rear Panel ANC8113 ANC8112 ANC8131 NSP 20 Fuse Card AAX2374 Not used Not used 22 65 Label ARW7050 Not used Not used www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com S-DV1000SW 12 1 2 3 4 1 2 3 4 C D F A B E 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM 3.1 BLOCK DIAGRAM AND OVERALL CONNECTION DIAGRAM AF ASSY (AWU8005) A 6CH AMP ASSY (AWM7720) C TRADE 1 ASSY (AWU8028) B IC3301 STK402-270 IC3401 STK402-270 5 31 33 34 36 17 15 11 9 6 IC3101(1/2) UPC4570 IC3001 M62446FP IC3103(1/2) BA4558F IC3104(2/2) BA4558F IC3102(1/2) BA4558F 6 7 3 2 1 3 2 1 IC3104(1/2) BA4558F 5 6 7 IC3103(2/2) BA4558F 5 6 7 5 6 7 3 IC3002(1/2) BA4558F IC3004(1/2) BA4558F IC3003(1/2) BA4558F IC3004(2/2) BA4558F 2 1 3 2 1 3 2 1 5 6 SWN SWP SLN FLN FLP SLP CN CP 7 1 6 16 18 1 6 16 18 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com S-DV1000SW 13 5 6 7 8 5 6 7 8 C D F A B E POWER ASSY (KUCXJI : AWU8007) (MYXJI, NVXJI : AWU8006) D PRIMARY ASSY (KUCXJI : AWU8003) (MYXJI, NVXJI : AWU8001) E Note : When ordering service parts, be sure to refer to "EXPLODED VIEWS and PARTS LIST" or "PCB PARTS LIST". RY3361(1/3) RY51(2/2) D51 RY3461(1/3) RY3561(2/3) D41 D31 VH+ VL+ VH- VL- D11 UN+8 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com S-DV1000SW 14 1 2 3 4 1 2 3 4 C D F A B E 3.2 AF and TRADE 1 ASSY A CN3052 D (C) (SW) : C ch AUDIO SIGNAL ROUTE (SL) : SL ch AUDIO SIGNAL ROUTE (FL) : FL ch AUDIO SIGNAL ROUTE : SW ch AUDIO SIGNAL ROUTE (FL) (FL) (FL) (FL) (FL) (FL) (FL) (FL) (SW) (SW) (C) (SL) (SL) (SL) (SL) (SL) (SL) (FL) (FL) (FL) (SL) (C) (C) (C) (C) (C) (SW) (SW) (SW) (SW) (SW) (SW) (C) (SL) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com S-DV1000SW 15 5 6 7 8 5 6 7 8 C D F A B E AF ASSY (AWU8005) A B A CN3001 C CN3002 C CN3051 D CN3054 D : The power supply is shown with the marked box. (SL) (SL) (SL) (SW) (C) (SL) (SW) (SW) (FL) (FL) (SW) (SW) (SL) (SL) (C) (C) (SW) (FL) (SL) (C) (FL) (FL) (FL) (FL) (FL) (C) (C) (SW) (SW) (SW) (SW) (SW) (SW) TRADE 1 ASSY (AWU8028) B To Speaker www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com S-DV1000SW 16 1 2 3 4 1 2 3 4 C D F A B E 3.3 6CH AMP ASSY Non Distortion Circuit 3 4 6 CN3651 CN3001 CN3002 to FAN Motor (SL) (FL) (SW) (C) (SL) (FL) (SW) (C) C CN3705 A CN3704 A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com S-DV1000SW 17 5 6 7 8 5 6 7 8 C D F A B E 6CH AMP ASSY (AWM7720) C (C) (SW) : C ch AUDIO SIGNAL ROUTE (SL) : SL ch AUDIO SIGNAL ROUTE (FL) : FL ch AUDIO SIGNAL ROUTE : SW ch AUDIO SIGNAL ROUTE (C) (FL) (SW) (SL) C : The power supply is shown with the marked box. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com S-DV1000SW 18 1 2 3 4 1 2 3 4 C D F A B E 3.4 POWER ASSY D CN51 E CN3703 A CN3707 B CN3706 B (FL) (C) (SW) (SW) (SW) (SL) (FL) (FL) (FL) (SW) (SL) (C) (SL) (C) (SW) CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE ONLY WITH SAME TYPE NO. 491005 MFD, BY LITTELFUSE INK. FOR IC3051. 38.43V 24.784V 14.66V 12.112V 15.883V -39.21V -25.513V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com S-DV1000SW 19 5 6 7 8 5 6 7 8 C D F A B E D • NOTE FOR FUSE REPLACEMENT FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE WITH SAME TYPE AND RATINGS ONLY. CAUTION - POWER ASSY (KUCXJI : AWU8007) (MYXJI, NVXJI : AWU8006) D : The power supply is shown with the marked box. (C) (SW) : C ch AUDIO SIGNAL ROUTE (SL) : SL ch AUDIO SIGNAL ROUTE (FL) (FL) (FL) (SL) (SL) (SL) (C) (C) (C) (C) (C) (SW) (SW) (SW) (SW) (SW) (FL) (FL) : FL ch AUDIO SIGNAL ROUTE : SW ch AUDIO SIGNAL ROUTE To Speaker www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com S-DV1000SW 20 1 2 3 4 1 2 3 4 C D F A B E 3.5 PRIMARY ASSY E CN3053 D CN11 D 11.619V • NOTE FOR FUSE REPLACEMENT FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. REPLACE WITH SAME TYPE AND RATINGS ONLY. CAUTION - www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com S-DV1000SW 21 5 6 7 8 5 6 7 8 C D F A B E E PRIMARY ASSY (KUCXJI : AWU8003) (MYXJI, NVXJI : AWU8001) E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com S-DV1000SW 22 1 2 3 4 1 2 3 4 C D F A B E 4. PCB CONNECTION DIAGRAM 4.1 AF and TRADE 1 ASSY 23 1 1 W338 W189 W167 R3071 C3122 D3003 C3038 R3041 C3037 D3006 R3040 D3004 C3032 D3005 C3119 C3118 C3005 C3006 C3011 C3012 C3017 W169 W142 C3108 C3107 C3081 C3124 C3125 C3126 C3127 C3082 C3121 W198 W197 W138 W345 W193 W351 W192 W196 8 W172 CN3703 W168 W199 W342 W171 W195 W137 80 W146 W145 W129 W356 W175 77 W203 W202 W204 W144 W125 W205 W170 W143 W200 W201 W194 W191 W174 W357 CN3704 W117 W173 C3128 C3129 W176 W343 W122 W118 W116 W341 W135 W136 W141 W140 W139 W119 W313 W190 W317 W340 W337 W375 W334 W335 W339 W358 W359 1 XMUTE F 23 1 23 1 GNDA GNDA VP+12 GNDA GNDA VA-12 GNDA GNDA GNDM UNE+56 VA+12 VP+12 VP+3 VD+5 SW C SR SL FR FL 1 1.GNDF UN+8 UN+8 GNDREG 5.GNDREG XPROTECT TUNER VD+5 VA-12 10.VP+15 VFL+5 SENSE+8 MUTEC MUTE 15.FLIN GNDA FRIN CIN SWIN 20.SLIN SRIN VP+8 VP+8 VP+8 GNDF GNDAC RYF XMUTE GNDD VP+8 VD+5 XPROTECT P ON/OFF VP+12 VA+12 VA+12 FL ANDREW OUT FR ANDREW OUT C ANDREW OUT SW ANDREW OUT SR ANDREW OUT SL ANDREW OUT DD GNDA EVOL OUT EVOL OUT EVOL OUT EVOL OUT EVOL OUT EVOL OUT NE M PF2 23 SIDE A A CN3052 D AF ASSY A CN3703 B NOTE FOR PCB DIAGRAMS : 1. Part numbers in PCB diagrams match those in the schematic diagrams. 2. A comparison between the main parts of PCB and schematic diagrams is shown below. 3. The parts mounted on this PCB include all necessary parts for several destinations. For further information for respective destinations, be sure to check with the schematic diagram. 4. View point of PCB diagrams. Symbol In PCB Diagrams Symbol In Schematic Diagrams Part Name B C E D D G G S S B C E B C E D G S B C E B C E B C E Transistor Transistor with resistor Field effect transistor Resistor array 3-terminal regulator Capacitor Connector P.C.Board Chip Part SIDE A SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com S-DV1000SW 23 5 6 7 8 5 6 7 8 C D F A B E 15 14 1 13 1 4 1 10 1 20 1 23 1 1 23 4 1 10 1 CN3706 CN3707 J3703 J3704 C3004 C3009 C3010 C3015 C3016 C3021 C3032 C3003 R3036 R3035 C3022 CN3701 C3017 CN3702 CN3705 C3019 C3020 C3043 C3045 CN3601 W148 W160 W184 W131 W183 W155 C3048 W154 W156 W162 W157 W130 W180 W151 W182 W150 W153 W146 W145 W129 W147 W177 W204 W205 W178 C3047 W206 W208 W207 W336 W209 W161 W346 W344 J3701 J3702 W361 W378 TRADE ASSY 15 1 13 1 1 AWU8028 10 1 NE M PF2 10.SWOUT GNDS FLOUT FROUT FROUT VH- 1.VH- POW ON/OFF VA+12 10.VP+12 GNDM VP+3 SLOUT VL- FLOUT VL+ 20.VL- 1.XMUTE GNDP 15.COUT COUT VH+ VH+ SROUT SROUT XPROTECT GNDD VD+5 15.GND GNDA GND GNDF UN+8 UN+8 GNDREG 20.GNDREG GNDREG 1.GNDA VP+8 VP+8 VP+12 5.GNDM VP+3 DATA CLK NC 10.VA-12 UNE+56 GND XMUTE 15.LATCH NC 1 20 23 1 23 SLOUT SWOUT GNDA GNDA 5.GNDAC UNE+56 1 10 1 GNDA VL+ 5.GNDP RYF AC1 RYR GNDD VD+5 C SR SW C SR SL FR FL 1 1 1.GNDF UN+8 UN+8 GNDREG 5.GNDREG XPROTECT TUNER VD+5 GNDA GNDM ACPULSE 20.POW ON/OFF XPROTECT NC 1.SWN FLN FLP FRP 5.SWP FRN CP SRN 10.SRP SLN CN SLP GNDD VD+5 VA+12 VP+8 VP+8 GNDD GNDA GNDD EVOL IN EVOL IN EVOL IN EVOL IN EVOL IN EVOL IN EVOL OUT EVOL OUT 23 SIDE A B A TRADE 1 ASSY B (ANP7432-B) CN3054 D CN3002 B CN3001 B CN3051 D To XV-DV1000 To XV-DV1000 To Subwoofer CN3707 CN3706 CN3704 CN3705 CN3702 CN3701 CN3601 J3702 J3701 J3704 J3703 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com S-DV1000SW 24 1 2 3 4 1 2 3 4 C D F A B E 21 1 42 22 R3001 R3003 R3005 C3001 C3002 R3008 R3004 R3006 R3002 IC3001 C3023 R3042 R3043 R3044 C3036 C3034 C3035 C3117 R3126 R3122 R3121 C311 C3116 R3 R3112 R3018 R3014 R3016 R3012 R3017 R3013 R3015 R3011 C3008 C3007 C3014 R3028 R3024 R3026 R3022 C3013 R3027 R3025 R3023 R3021 C3024 C3033 C3031 R3030 R3019 R3020 R3010 R3009 R3029 C3 R3007 IC3002 IC3003 IC3004 R3095 R3097 R3098 R3094 R3096 C3029 C3028 C3025 C3026 C3030 C3027 R3089 R3090 C3039 C3040 C3041 R3566 C3570 C3568 C3566 D3025 D3024 D3022 D3023 D3021 D3020 D3019 D3009 D3027 D3028 D3029 D3030 D3026 D3007 D3011 D3010 D3008 D3017 R3155 R3160 R3047 D3002 D3001 D3018 D3014 D3016 D3015 D3013 D3012 R3050 R3049 R3159 15 1 13 1 1 4 10 1 SW GNDRSW VH- FROUT GNDP FLOUT GNDS SWOUT VH+ COUT VL+ SROUT VL- SLOUT NE M PF2 CN3707 CN3706 J3704 J3703 22 21 42 1 8 5 4 1 8 5 4 1 8 5 4 1 20 1 23 1 23 1 4 10 1 0 0 0 1 1 1 2 2 2 3 3 3 4 4 4 5 5 5 6 6 6 7 7 7 8 8 8 9 9 9 1 -A AF ASSY AWU8005 SW GNDRSW VH- FROUT GNDS FLOUT GNDP SWOUT VH+ COUT VL+ SROUT VL- SLOUT 1 VP+15 VFL+5 SENSE+8 GNDREG UN+8 UN+8 GNDREG XPROTECT TUNER VD+5 VA-12 GNDF GND GNDM VP+8 GNDA GND GNDM DATA LATCH XMUTE XPROTECT VP+8 VP+12 VP+3 UNE+56 VA-12 CLK GNDM GNDM ACPULSE POWON/OFF 1 23 1 5 10 15 20 5 10 20 15 2 1 CN3702 3 4 5 6 7 8 9 10 11 12 CN3701 CN3601 AWU 8 7 AWU8053 SIDE B A B AF ASSY A TRADE 1 ASSY B CN3707 CN3706 CN3704 CN3705 CN3702 CN3701 CN3601 J3702 J3701 J3704 J3703 IC3001 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com S-DV1000SW 25 5 6 7 8 5 6 7 8 C D F A B E R3149 C3105 C3106 R3104 C3101 R3102 R3042 R3043 R3044 C3034 C3035 C3117 C3120 R3126 R3039 R3037 R3038 R3105 IC3101 IC3103 R3106 R3122 R3121 C3115 C3116 R3123 IC3102 R3116 R3114 R3112 C3112 R3115 R3111 C3111 R3113 C3113 C3114 C3031 R3103 R3101 C3103 C3104 C3102 C3109 C3110 R3127 R3109 R3107 R3110 R3108 R3117 R3119 R3124 R3125 R3118 R3120 R3081 R3082 R3142 R3138 R3140 R3136 R3134 R3133 R3135 IC3104 R3132 R3143 R3141 R3139 R3137 R3033 R3032 R3031 R3085 R3084 R3083 R3130 R3131 R3129 C3123 R3086 R3087 R3034 Q3006 Q3001 Q3003 Q3002 Q3007 Q3008 Q3009 Q3081 Q3005 Q3004 Q3101 Q3102 R3046 R3045 C3132 R3158 R3128 R3157 C3133 R3155 R3160 R3144 R3145 R3146 R3147 Q3103 C3131 R3150 R3153 R3151 R3154 C3130 R3148 R3152 C3134 R3048 R3049 C3049 C3050 R3159 C3018 8 5 4 1 8 5 4 1 8 5 4 1 8 5 4 1 23 1 1 0 0 0 1 -A NE M PF2 VP+15 VFL+5 SENSE+8 MUTEC MUTE FLIN GNDA FRIN CIN SWIN SLIN SRIN VP+8 VP+8 GNDREG GNDREG XPROTECT TUNER VD+5 VA-12 RYR AC1 XMUTE GND VD+5 GNDA GND VP+3 GNDM VP+12 VA+12 POWON/OFF UNE+56 GNDAC ACU RYF GNDREG GNDREG XPROT GNDD GNDF UN+8 UN+8 23 1 23 1 20 15 5 15 10 20 AWU SIDE B A (ANP7432-B) CN3703 4 IC3101 IC3104 Q3006 Q3001 Q3003 Q3002 Q3007 Q3008 Q3009 Q3081 Q3005 Q3004 Q3101 IC3102 IC3103 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com S-DV1000SW 26 1 2 3 4 1 2 3 4 C D F A B E 4.2 6CH AMP ASSY 1 10 19 1 23 1 10 19 1 23 1 W125 D3651 W104 C3501 W123 D3652 C3301 D3654 W124 D3653 W126 C3302 W114 W158 W133 W184 C3402 C3401 IC81 D98 C3317 C3421 C3407 R3421 C91 C98 Q91 W122 W119 W106 W107 W105 IC3301 CN3002 C3168 C3167 C3179 W101 C3318 W185 W183 D82 W121 D3390 D3394 R3388 R3387 D3393 D3389 C63 W206 W207 W201 W200 D3425 Q62 W189 W165 W205 C3507 C3408 D3424 R3422 W202 D3426 R3419 W128 R3327 W204 W132 W127 R3328 C3322 W163 C72 D72 W164 R3418 Q3383 D3392 R3420 W156 W155 R3518 C3308 C3324 R3322 R3321 C3321 W153 D3321 D3322 R3517 R3519 W162 W186 W187 D3422 D3428 IC3401 W160 W161 C3508 W152 D3327 D3387 R3318 W177 W146 W134 W144 W157 W179 W176 W182 W178 W174 D3385 W199 W181 W175 W180 R3417 D3386 D3388 R3320 Q3384 W166 W188 W167 D3421 D3423 D3427 W168 W169 W150 W190 D3323 D3325 W149 R3317 W198 W154 W151 D3326 D3328 W203 D3324 R3319 CN3001 C3423 Q3654 W192 D3655 W111 R3657 C3652 C102 C101 W113 W130 W135 C3307 W112 C3651 C3424 C3653 W108 W193 W194 W196 W131 W129 C82 W195 C3422 W120 W170 W143 W110 W138 W139 W140 W142 R3427 W141 R3520 C3323 C3478 IC71 C3502 C3377 D63 D3391 W159 W173 W172 W171 W145 W148 W147 IC3303 C3477 W109 C3578 Q61 W197 C3577 W136 W116 R3428 W118 W137 W191 CN3651 C3378 W115 W117 W103 W102 C3178 AMP Assy 7788 VL- VH+ VL+ IRFIZ34G SWOUT FLOUT Production Code SROUT DC VA-12 FC UN+8 VF-12 VP+15 XPROTECT VPF+15 IRFI9Z34G GNDS -B GNDP SLOUT GNDP +B +B IRFI9Z34G Word Surface Word NJM7805FA VH+ FROUT VH- GNDREG SROUT VD+5 VA-12 GNDP 2SD2012 NJM7912FA VL+ VL+ VL- GNDP 7787 7786 7720 AWM -B GNDP GNDP +B Surface SWOUT -B VL- 1 10 19 word surface 23 1 1 10 19 word surface 23 1 SIDE A SIDE A C C (ANP7440-C) 6CH AMP ASSY C CN3705 A CN3001 CN3704 A CN3002 IC3303 IC81 IC3301 Q91 IC71 IC3401 Q62 Q3384 Q3654 Q61 Q3383 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com S-DV1000SW 27 5 6 7 8 5 6 7 8 C D F A B E R96 R97 C97 C81 R3504 D106 R3413 R3402 R3404 R3401 R3403 R3514 R3503 R3414 R3313 R3301 R3303 R48 R92 R3371 R93 R95 R3409 C92 C3403 Q3301 Q92 R108 R3500 R3372 R3572 R3472 R3471 Q106 Q3402 Q3401 R94 R3302 R3502 R3389 R3390 R102 D101 R3405 R3423 R63 R66 R62 R61 R3334 C3409 R3407 C3405 R3433 R3437 R3431 Q3431 Q63 R3411 R3451 C3503 R3507 R3505 R3509 R3410 C3404 R3408 R3406 C3505 C3406 R3424 R3591 R3434 R3307 R3438 R3432 C3410 R3412 C3509 R3511 R3383 R3539 R3543 R3513 R3533 R3537 R103 R3435 R3531 Q3432 C71 Q3531 D3581 D3441 R3345 D3343 R3339 D3582 R3478 R3343 D3344 R3308 R3306 R3310 C3306 Q3471 Q3472 R3473 R3475 R3344 C3304 R3324 R3323 R3333 R3331 R3337 R3335 D3341 R3338 R3332 D3482 R3340 R3492 Q3333 R3476 R3474 Q3334 Q3572 C3504 R3574 R3576 Q3372 R3573 R3506 R3508 R3510 C3506 R3592 R3540 R3544 R3534 Q3332 R3538 R3532 Q3532 R3571 R3385 R3386 R3384 R3491 R3382 D3481 R3381 D3544 Q3534 Q3381 Q3382 R47 R45 R91 R3391 R3392 Q107 D3381 D3382 D42 Q3331 R3311 R3312 D105 R3326 R3309 C3303 R3305 R3316 C3309 D91 R46 R3373 R3375 R3416 R3658 R3656 R3655 R3654 R3651 D3657 D3658 C3326 R106 R105 R104 R101 C3305 D3443 Q3652 Q3653 R3376 Q3371 R3426 C3426 R123 Q111 TH111 R122 R111 R113 R3374 R3351 Q3651 D102 R65 R114 D104 R121 TH121 Q121 Q43 Q3433 R68 R67 R3501 R64 R109 R3346 Q3571 C62 C61 R3377 R3440 Q103 Q104 R3444 D3444 D3543 R3446 R3512 Q102 R112 R3443 C3310 R3477 R3578 R3575 R3545 R3378 Q101 R3439 Q3533 R3577 R3445 R3546 C3510 Q3434 Q3302 Q3502 Q3504 Q3501 R3314 R3304 S AMP Assy 7788 FLOUT COUT GNDS GNDP FLOUT COUT VH- FROUT VH- FROUT GNDP VL- VL+ SWOUT VH+ VH- VH+ VH+ SWOUT 1 D G 1 SROUT FLOUT SWOUT SROUT VL- VL- VL+ SROUT VL+ SLOUT SLOUT GNDF UN+8 UN+8 GNDR GNDR VD+5 XPRCT TUNER VA-12 VP+15 SLIN FAN SIDE 23 1 D G S UN+8 VA-12 VFL+5 MUTE MUTEC FLIN FRIN GNDA SEN+8 CIN SWIN SRIN VPR+8 23 D GNDP -B +B SWOUT GNDP SLOUT GNDS VPR+8 IC3301 SROUT GNDREG VH+ FROUT GNDP E B C E1 B2 B1 C1 VF-12 VL+ VA-12 XPROTECT S G VP+15 VL+ 7720 7787 7786 AWM E2 C2 IC3401 VL- GNDP -B +B GNDP +B GNDP 1 VD+5 VPF+15 VL- -B NP NP SIDE B SIDE B Q92 Q3301 Q3402 Q3504 Q3502 Q3302 Q3401 Q3382 Q3332 Q3331 Q3432 Q3334 Q3333 Q3653 Q3652 Q3532 Q3381 Q3534 Q63 Q104 Q3651 Q107 Q106 Q101 Q102 Q103 Q121 Q43 Q3471 Q3572 Q3372 Q3371 Q111 Q3533 C C (ANP7440-C) 6CH AMP ASSY C CN3001 CN3002 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com S-DV1000SW 28 1 2 3 4 1 2 3 4 C D F A B E 4.3 POWER ASSY 4 3 2 1 4 3 2 1 4 3 2 1 4 1 4 3 1 23 1 7 1 C42 D41 IC41 KN3001 D32 C37 C34 IC33 C33 D31 C19 C17 C18 C16 R11 D11 C15 C3603 C3602 C3601 R3602 D3603 D3601 CN42 D3602 CN11 CN3052 C13 C14 C11 C12 C31 C32 R31 C41 C35 Q3606 Q3608 W249 W259 W365 H42 W280 W262 W360 W282 W305 W300 W283 W263 W281 W224 W303 W248 W233 W260 W261 W267 W266 W264 W265 W304 W234 W285 W301 W287 0 9 8 W366 W284 W286 W291 W302 W292 W363 W354 W235 W364 W236 W250 W232 W216 W353 W376 W246 W320 W322 W324 W323 W321 H41 W362 W380 CN3053 W379 IC3051 IC3052 A B C OPEN SIDE OPEN SIDE OPEN SIDE 4 1 7 1 1 23 1 4700u/35 ATTENTION 6800u/25 2200u/50 1 +6AC +6AC GND VL VL VH VH -REPLACE FUSE CAUTION RISK OF FIRE 7 1 REFERENCE 491005 DE CHEZ LITTELFUSE INC. IC3051 N'UTILISER QUE LA BY LITTELFUSE INC. #491005 FOR IC3051 MFD. REPLACE WITH SAME TYPE CAUTION EN CAS REMPLACEMENT DES FUSIBLES IC3054 IC3053 BOND BOND BOND BOND BOND BOND BOND BOND IC31 IC32 IC11 IC12 VL+ VL- VR+12 VH+ VH- VH- VH+ VL- VL+ VH+ VL+ VL- VH- GNDP GNDS GNDAC VP+12 GNDA GNDREG GNDF UN+8 WORD SURFACE FU4 BOND AS MARKED. NE M PF2 I H SIDE A D POWER ASSY D CN3703 A To Power Transformer CN3052 CN11 CN51 D CN3053 B IC41 IC33 Q3606 Q3 IC3051 IC3052 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com S-DV1000SW 29 5 6 7 8 5 6 7 8 C D F A B E 4 9 5 10 8 3 7 2 6 1 6 3 5 2 4 1 15 14 1 13 1 W299 KN30 C3604 D3604 C3602 C3601 R3602 D3603 R3562 L3562 R3552 R3561 L3561 R3551 R3462 L3462 R3452 L3461 R3461 R3451 L3362 R3362 R3352 R3361 L3361 R3351 D3601 W238 W227 D3602 CN3401 R3622 RY3361 RY3561 RY3461 Q3606 Q3608 Q3614 W271 W374 R3621 W306 W307 W308 W229 W285 W241 W269 W254 W270 W290 W293 W268 W294 W289 W288 W275 W252 W272 W251 W273 W291 W219 W217 W292 W237 W235 W228 W236 W231 W239 W218 W230 W276 W297 W298 W310 W309 W253 W311 W242 W243 W244 W255 W355 W312 W278 W257 W279 W277 W353 W274 D3606 W226 W245 W315 W314 CN3054 CN3051 IC3051 IC3052 OPEN SIDE D E EN SIDE PRODUCTION CODE ATTE 1 1 SL SR C FL FR 15 1 1 13 REFERENCE 4 EN CAS REM BOND BOND BOND BOND BOND BOND VH+ VL+ VL- GNDP GNDS GNDP VR+12 VD+5 VR+12 SIDE A (ANP7432-B) D CN3706 B CN3054 CN3707 B CN3051 Q3606 Q3608 IC3051 Q3614 52 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com S-DV1000SW 30 1 2 3 4 1 2 3 4 C D F A B E R3612 R3611 R3603 R3608 R3606 R3605 R3604 C3552 R3556 C3562 C3564 R3564 R3558 R3554 R3555 C3561 C3563 R3563 R3557 R3553 C3465 C3467 C3468 C3466 C3567 C3565 D3451 C3569 R3465 R3565 R3466 C3462 C3464 R3464 R3458 R3454 R3455 R3456 C3470 C3461 C3463 R3453 C3469 R3463 R3457 C3367 C3368 R3364 R3358 D3351 D3352 R3356 R3355 R3365 C3365 R3366 C3366 C3362 C3364 R3354 C3370 C3369 C3363 C3361 R3363 R3357 R3353 R3601 R3610 R3609 R3607 D3605 Q3351 Q3352 Q3451 Q3452 Q3551 Q3552 Q3601 Q3603 Q3607 Q3609 Q3602 Q3604 Q3605 Q3612 Q3610 Q3615 Q3613 Q3611 D3452 D3552 D3551 D3353 D3354 D3453 D3454 D3553 D3554 D3561 D3361 D3461 R3699 A B C 1 0 0 3 2 1 0 9 8 7 6 5 4 3 2 1 0 1 15 1 13 1 7 0 0 0 1 1 1 2 2 2 3 3 3 4 4 4 5 5 5 6 6 6 7 7 7 8 8 8 9 9 9 1 -A NE M PF2 POWER ASSY AWU8007 AWU8006 CN3053 CN3051 GNDP GNDP 15.SWOUT SWOUT 13.SW SW GNDRSW GNDRSW VH+ VH+ COUT COUT VL+ VL+ SROUT SROUT VL- VL- SLOUT SLOUT FLOUT FLOUT 1.GNDS FROUT FROUT VH- VH- 1 1.NC 1 1 CN3054 CN3051 CN3401 AWU 7 8 SIDE B D POWER ASSY D Q3615 C CN3054 CN3051 Q3351 Q3352 Q3451 Q3452 Q3551 Q3552 Q3601Q3603 Q3607 Q3609 Q3602 Q3605 Q3612 Q3610 Q3613 Q3611 Q3604 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com S-DV1000SW 31 5 6 7 8 5 6 7 8 C D F A B E C36 C21 C22 C23 C20 C3301 C3302 C3304 C3303 R3301 3699 C38 R3052 R3051 1 4 7 1 23 1 7 1 CN3052 23.GNDF UN+8 UN+8 20.GNDREG GNDREG XPROT GNDD VD+5 GND VP+3 GNDM 10.VP+12 VA+12 POWON/OFF UNE+56 GNDAC 5.ACU RYR AC1 1.XMUTE RYF 15.GND GNDA 1 CN3052 CN3053 SIDE B (ANP7432-B) D CN3052 CN11 CN3053 07 Q3609 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com S-DV1000SW 32 1 2 3 4 1 2 3 4 C D F A B E 4.4 PRIMARY ASSY 3 1 3 1 7 1 9 5 4 1 R1 C51 AN1 C1 C2 C52 C3 L1 H2 H1 H3 H4 H6 H5 CN2 CN1 KN2 S101 S102 Q51 RY51 D52 W371 W115 W188 W377 CN51 W101 W114 T2 W133 W211 W134 W164 W163 W369 W187 W166 W332 W102 W215 W214 W212 W213 W222 W185 W223 W186 W368 W220 W221 W210 W165 W331 W348 W349 W347 W350 W370 W373 W372 W101,W102 TUBE SIDE 4 1 2 1 DFL ONLY DFL,YPW ONLY W114,W115 7 1 FU2 FU1 PRIMARY SECONDARY FU3 240V These knob position is W163,W164 Except DFL,YPW Except YPW ONLY YPW ONLY W187,W188 DFL,YPW ONLY DFL,YPW ONLY W222,W223 W212,W213 Except DFL,YPW W214,W215 NE M PF2 1 DFL,YPW UNE+56 GNDS (S101 and S102) SIDE A SIDE A E E (ANP7432-B) PRIMARY ASSY E To Power Transformer T1 CN1 AC IN AN1 CN3053 D CN51 Q51 NEUTRAL LIVE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com S-DV1000SW 33 5 6 7 8 5 6 7 8 C D F A B E D51 R53 R52 D54 R55 R54 Q52 R51 D55 D53 ~ ~ + - 4 1 2 1 7 1 0 0 0 1 1 1 2 2 2 3 3 3 4 4 4 5 5 5 6 6 6 7 7 7 8 8 8 9 9 9 1 -A G PRIMARY ASSY AWU8004 AWU8003 AWU8030 AWU8045 NE M PF2 CAUTION PRIMARY SECONDARY AWU8001 MODELE INDENTIQUE EN INTENSITE REMPLACER PAR LE FUSIBLE PAR UN AND RATINGS OF FUSE REPLACE WITH SAME TYPE ATTENTION 240V 220-230V 110-120V 110-120V 220-230V 240V NEUTRAL LIVE CN51 CN1 CN2 8 7 AWU SIDE B SIDE B E E (ANP7432-B) PRIMARY ASSY E CN1 AN1 CN51 Q52 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com S-DV1000SW 34 1 2 3 4 1 2 3 4 C D F A B E 5. PCB PARTS LIST LIST OF ASSEMBLIES • CONTRAST OF PCB ASSEMBLIES EPRIMARI ASSY AWU8003 and AWU8001 are constructed the same except for the following : DPOWER ASSY Although AWU8007 and AWU8006 are different in part number, they have the same service parts. • PARTS LIST FOR S-DV1000SW/KUCXJI Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 5 6 1 4 7 3 R 5 0 1 R 0 5 6 2 1 NOTES: 560 Ω 47k Ω 0.5 Ω 1 Ω RD1/4PU J RD1/4PU J RN2H K RS1P K 56 x 10 1 47 x 10 3 R50 1R0 561 473 5.62k Ω RN1/4PC F 562 x 10 1 5621 Mark Symbol and Description S-DV1000SW/ KUCXJI S-DV1000SW/ MYXJI S-DV1000SW/ NVXJI NSP 1..DVD AMP ASSY AWM7709 AWM7707 AWM7707 2..PRIMARY ASSY AWU8003 AWU8001 AWU8001 2..AF ASSY AWU8005 AWU8005 AWU8005 2..POWER ASSY AWU8007 AWU8006 AWU8006 2..TRADE 1 ASSY AWU8028 AWU8028 AWU8028 NSP 1..AMP MODULE 6CH AXQ7242 AXQ7242 AXQ7242 2..6CH AMP ASSY AWM7720 AWM7720 AWM7720 Mark Symbol and Description AWU8003 AWU8001 R1 (2.2M ohm/ 1/2W) RCN1080 Not used T2 STANDBY TRANSFORMER ATT7079 ATT7078 AN1 AC INLET 1P XKP3042 XKP3041 KN2 EARTH METAL FITTING VNF1084 Not used Mark No. Description Part No. AAF ASSY SEMICONDUCTORS IC3002–IC3004, IC3102–IC3104 BA4558F-HT IC3001 M62446FP IC3101 UPC4570G2 Q3004, Q3005 2SC4081 Q3009 UN5112 Q3081 UN511L Q3008 UN5212 Q3006 UN521L D3004–D3006 1SS133 D3003 MTZJ2.7B D3001, D3002 UDZS6.8B D3007–D3030 UDZS8.2B CAPACITORS C3034–C3036 CCSRCH101J50 C3003, C3004, C3009, C3010 CEAL100M16 C3015, C3016, C3019, C3020, C3043 CEAL100M16 C3045 CEAL100M16 C3032 CEAL101M6R3 C3021, C3022 CEAL221M10 C3048 CEAL470M16 C3037, C3121, C3122 CEAT100M50 C3081, C3082 CEAT220M50 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com S-DV1000SW 35 5 6 7 8 5 6 7 8 C D F A B E C3038, C3047, C3107, C3108 CEAT470M25 C3118, C3119 CFTLA224J50 C3001, C3002, C3007, C3008 CKSRYB103K50 C3013, C3014, C3025, C3028, C3031 CKSRYB103K50 C3105, C3106, C3109, C3110 CKSRYB103K50 C3113, C3114, C3117, C3120 CKSRYB103K50 C3023, C3024 CKSRYB104K25 C3111, C3112, C3115 CKSRYB123K50 C3101, C3102 CKSRYB183K25 C3103, C3104 CKSRYB223K50 C3116 CKSRYB273K16 C3123 CKSRYB332K50 C9001, C9002 CKSRYB392K50 C3566, C3568 CKSRYB473K50 C3026, C3029 CKSRYB474K10 C3133, C3134 CKSRYB561K50 C3130–C3132 CKSRYB681K50 C3027, C3030 CKSRYB822K50 C3017 CQMBA683J50 C3570 (10pF/100V) XCG3008 RESISTORS R3035, R3036 RD1/2PM151J R3041 RD1/2PM222J R3040 RD1/4PU273J R3050 RS1/10S0R0J R3005–R3008, R3015–R3018 RS1/16S1001F R3025–R3028 RS1/16S1001F R3001–R3004, R3011–R3014 RS1/16S2201F R3021–R3024 RS1/16S2201F Other Resistors RS1/16S###J OTHERS 3701 CABLE HOLDER(4P) 51052-0400 3702 CABLE HOLDER(4P) 51052-1000 CN3601 2P CONNECTOR 5569-02A1 CN3703–CN3705 23P SOCKET AKP7075 CN3702 20P SOCKET AKP7129 CN3701 12P CONNECTOR AKP7131 J3701 JUMPER WIRE D25PDD0415E J3702 JUMPER WIRE D25PDD1015E PCB BINDER VEF1040 BTRADE 1 ASSY OTHERS 3703 CABLE HOLDER(4P) 51052-0400 3704 CABLE HOLDER(10P) 51052-1000 CN3707 13P SOCKET AKP7070 CN3706 15P SOCKET AKP7071 C6CH AMP ASSY SEMICONDUCTORS > IC81 NJM7805FA > IC71 NJM7912FA > IC3301, IC3401 STK402-270 Q3382, Q43 2SA1576A Q62 2SB1237X Q111, Q3381, Q63, Q92 2SC4081 > Q61 2SD2012 Q3301, Q3302, Q3401, Q3402 2SD2114K Mark No. Description Part No. Q3501, Q3502, Q3504 2SD2114K Q3654 2SD2144S Q107, Q3653 DTA124EUA Q3652 DTA124TK Q106 DTC124EUA > Q3383, Q91 IRFI9Z34G > Q3384 IRFIZ34G Q3651 RN1901 Q101, Q103 UMB1N Q102, Q104 UMH1N > D3321–D3326 1SR139-400 D3327, D3328 1SR139-400 > D3421–D3426 1SR139-400 D3427, D3428 1SR139-400 D3387, D3388, D3651–D3655 1SS133 D101, D102, D104, D3657, D42 1SS355 > D3381, D3382, D3481, D3482 DAN217 > D3581, D3582 DAN217 D3391, D3392 LT2A03 D3389, D3390 MTZJ10C > D98 MTZJ11B > D72 MTZJ15C D3393, D3394 MTZJ18B > D63 MTZJ18C D3385, D3386 MTZJ36A > D82 MTZJ7.5C D91 UDZS18B D105, D106, D3658 UDZS7.5B TH111 NCP18WF104J03RB CAPACITORS C3305, C3306, C3405, C3406 CCSRCH221J50 C3505, C3506, C62, C97 CCSRCH221J50 C3309, C3310, C3409, C3410 CCSRCJ3R0C50 C3509, C3510 CCSRCJ3R0C50 C3307, C3308, C3407, C3408, C3508 CEAL100M16 C3507 CEAL470M6R3 C72 CEAT100M50 C3651 CEAT101M25 C101, C102 CEAT1R0M50 C3323, C3324, C3423, C3424 CEAT221M50 C3167, C3168, C3178, C3179 CEAT2R2M50 C3301, C3302, C3317, C3318 CEAT2R2M50 C3401, C3402, C3501, C3502 CEAT2R2M50 C3652, C63, C82, C98 CEAT470M25 C3653 CEAT470M35 C3303, C3304, C3403, C3404 CKSRYB102K50 C3503, C3504 CKSRYB102K50 C92 CKSRYB104K16 C71, C81 CKSRYB473K50 RESISTORS > R3327, R3328, R3427, R3428 RD1/4MUF470J R3387, R3388 RD1/4PU101J R3657 RD1/4PU330J R96, R97 RS1/16S1002F > R3323, R3324, R3351, R3423, R3424 RS1/16S1R0J > R3451 RS1/16S1R0J R67, R68 RS1/16S2201F R94, R95 RS1/16S2701F > R62 RS1/16S330J Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com S-DV1000SW 36 1 2 3 4 1 2 3 4 C D F A B E R65 RS1/16S4700F R47, R48 RS1/16S4701F R3317–R3320, R3417–R3420 RS2LMFR22J R3517–R3520 RS2LMFR22J Other Resistors RS1/16S###J OTHERS CN3001, CN3002 23P PLUG AKP7064 CN3651 PLUG(2P) KM200SA2 DPOWER ASSY SEMICONDUCTORS > IC3051 PROTECTOR(5A) AEK7046 > IC33 NJM7812FA Q3351, Q3352, Q3451, Q3452 2SC4081 Q3551, Q3552, Q3604, Q3605, Q3610 2SC4081 Q3612, Q3615 2SC4081 Q3614 2SD1858X Q3606, Q3608 DTA123JS Q3602, Q3611, Q3613 UN511L Q3601, Q3603, Q3607, Q3609 UN521L D3601–D3604, D3606 1SS133 D3351–D3354, D3361, D3451–D3454 1SS355 D3461, D3551–D3554, D3561 1SS355 > D11, D31, D41 D5SBA20(B) D3605 DA204K COILS AND FILTERS L3361, L3362, L3461, L3462 ATH-059 L3561, L3562 AF COIL ATH-059 CAPACITORS C33, C34 (4700uF/35V) ACH7171 C18, C19 (2200uF/50V) ACH7172 C3601 CEAL100M50 C3602 CEAL101M10 C3604 CEAL470M16 C35 CEAT100M50 C3603 CEAT101M10 C37 CEAT470M25 C42 CEAT682M25 C3552, C36 CKSRYB103K50 C3365–C3368, C3465–C3468, C3565 CKSRYB473K50 C3567 CKSRYB473K50 C31, C32 CQMBA103J50 C20–C23, C3301–C3304 XCG3008 C3369, C3370, C3469, C3470, C3569 XCG3008 (10pF/100V) RESISTORS R3351, R3352, R3451, R3452 ACN7112 R3551, R3552 (0.1 ohm/2W) ACN7112 R3361, R3362, R3461, R3462 RD1/2PM101J R3561, R3562 RD1/2PM101J R31 RD1/4PU100J R3602 RD1/4PU222J R3621, R3622 RD1/4PU820J Other Resistors RS1/16S###J OTHERS 3401 SPEAKER TERMINAL10-P AKE7081 CN3053 7P PLUG AKP7056 Mark No. Description Part No. CN3051 13P PLUG AKP7059 CN3054 15P PLUG AKP7060 CN3052 23P PLUG AKP7064 H41, H42 FUSE CLIP AKR7001 RY3361, RY3461, RY3561 SP RELAY ASR7008 CN11 7P VH CONNECTOR B7P-VH KN3001 EARTH METAL FITTING VNF1084 EPRIMARY ASSY SEMICONDUCTORS Q52 2SC4081 Q51 2SD1858X D52 1SS133 D53, D54 1SS355 > D51 S1WB(A)60SD D55 UDZS20B COILS AND FILTERS > L1 LINE FILTER ATF7018 TRANSFORMERS > T2 STANDBY TRANSFORMER ATT7079 CAPACITORS > C1, C2 (0.022F/AC275V) ACE7022 > C3 (10000pF/AC250V) ACG7033 C52 CEAT102M25 RESISTORS > R1 (2.2M ohm/ 1/2W) RCN1080 Other Resistors RS1/16S###J OTHERS CN51 7P SOCKET AKP7067 H1, H2 FUSE CLIP AKR7001 > RY51 RELAY ASR7027 > CN1 2P VH CONNECTOR B2P3S-VH KN2 EARTH METAL FITTING VNF1084 > AN1 AC INLET 1P XKP3042 Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com S-DV1000SW 37 5 6 7 8 5 6 7 8 C D F A B E 6. ADJUSTMENT 7. GENERAL INFORMATION 7.1 DIAGNOSIS 7.1.1 PROTECTION CIRCUIT There is no information to be shown in this chapter. to XPROTECT µ-com AMP Assy R108 27k R101 (R104) 1k C101 (C102) 1/50 Q102 (Q104) Q101 (Q103) D101 (D102) D105 (D106) UDZS7.5B Q101 (Q103) C2 E2 B2 E2 C2 B2 C E B E C B Q102 (Q104) R102 (R105) 10k R103 (R106) 10k A B V+5D VD+5 VH+ (VP+15) VH– (VA–12) Note: • Refer to the Schematic Diagram about the actual circuit. (The & number corresponds to the marked circuits.) ¶At normal state as Q101 (E2, B2, C2)(Q103), Q102 (E2, B2, C2) (Q104) is ON state, A point is about 5V. Therefore B point is also almost the same voltage as A and Q101 (E, C, B) (Q103) do not turn ON, and Q102(E, C, B) do not turn ON. (1) When VH+(VP+15) is short-circuited (to GND) B point voltage becomes almost GND level and turned to be opera- ting point for Q101(E, C, B)(Q103). Therefore Q101(E, C, B) (Q103) turns ON. Also Q102(E, C, B)(Q104) turns ON. Then XPROTECT becomes LOW level. →U-com detects the XPROTECT level and sets Power OFF. (2) When VH–(VA–12) is short-circuited AS VE of Q102 (E2, C2, B2)(Q104) becomes the same voltage as VB, Q102(E2, C2, B2) (Q104) turns OFF. And Q101 (E2, B2, C2)(Q103) becomes OFF. Therefore the voltage of A and B points are not 5V, Q101 (E, C, B)(Q103) turns ON. Also Q102(E, C, B)(Q104) turns ON. Then XPROTECT becomes LOW level. →U-com detects the XPROTECT level and sets Power OFF. (3) When VD+5 is short-circuited The line voltage of XPROTECT becomes Low level, then U-com detects and set the POWER OFF. 3 Short Circuit Detection Circuit of AMP Power Line (+15V(VP+15), Vb+5, -12V(VA-12)) The Circuit for making POWER OFF when VP+15, VD+5 and VA-12 is short-circuited (to GND). R108 27k VP+8 VD+5 XPROTECT Q106 DTC124EUA Q107 DTA124EUA D104 1SS355 XPROTECT µ-com Q3654 2SD2144S (VW) Q3652 DTA124TK Q3651 RN1901 Q3651 RN1901 D3658 UDZS7.5B D3657 1SS355 FAN+ FAN- C2 E2 C E B B2 D3656 S5688G D3655 1SS133 V+12F VD+5 R3656 22k R3655 8.2k R108 27k R3654 1.8k R3658 2.2k R3657 33(1/4W)FU C3652 47/50 TUNER AMP Assy AMP Assy V-12F A 4 Short Circuit Detection Circuit of DVD Power Line (VP+8) 6 FAN Detection Circuit VP+8 is Power Line when the set is DVD Function (TUNER is High level). At this time when VP+8 is short-circuited, as TUNER is Low level, Q106 turns ON and XPROTECT becomes Low level. →U-com detects the XPROTECT level and sets Power OFF. Except DVD Function even if VP+8 is GND level, as TUNER is also High level, Q107 is OFF and XPROTECT does not become LOW level. When the FAN is not connected between FAN+ and FAN-, or FAN is locked state as the foreign matter is blocked, Q3652 Base turns open, and then Q3652 and Q3651(E, C, B) turns OFF. Then Q3651 (E2, B2, C2) turns ON and XPROTECT becomes LOW level. →U-com detects the XPROTECT level and sets Power OFF. When FAN+ and FAN- is short-circuited, A point voltage becomes higher than GND level because of part D3656 and D3657. Then it is lower than part D3658, Q3651(E, C, B) turns OFF and Q3651(E2, B2, C2) turns ON, and XPROTECT becomes LOW level. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com S-DV1000SW 38 1 2 3 4 1 2 3 4 C D F A B E 7.1.2 DISASSEMBLY 7.2 IC 7.3 CLEANING Screw 1 Screw 2 Connecting Code Amplifier Assy Screw 2 Screw 1 1. Removing the Amplifier Assy 1) The Amplifier Assy is attached to the cabinet by 6 external screws 1. To detach it, pull down the subwoofer toward the left side. 2) Then unfasten those screws 1 . 3) Then stand up the speaker again. To detach the Amplifier Assy, first remove the connecting code. Then pull straight the Amplifier Assy toward back and remove it. 2. Removing the Subwoofer 1) The speaker element is attached to the back board by 4 external screws 2.To detach it, unfasten those screws. 2) When attaching it,face its terminal upward. 3. Removing the Cosmetic Baffle 1) The cosmetic baffie is attached to the baffle by press-fitting. To detach it,pry it open by inserting a flat blade screwdriver into lower side. 4. Removing the Cosmetic Duct 1) The cosmetic baffle, those screws are removed when removing the cosmetic duct attached in cosmetic baffle with 4 screws. EXPAND port in E-vol IC No. Mark Pin Name Pin Function Active 4 Q1 NOISEHELP Noise help H 3 Q2 CMUTE Control C mute H 2 Q3 SPRYRC Control relay for rear and center speaker H 1 Q4 SPRYS Control relay for front speaker H M62446FP (AF ASSY : IC3001) • The information shown in the list is basic information and may not correspond exactly to that shown in the schematic diagrams. Before shipping out the product, be sure to clean the following positions by using the prescribed cleaning tools: Position to be cleaned Cleaning tools Fans Cleaning paper : GED-008 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
