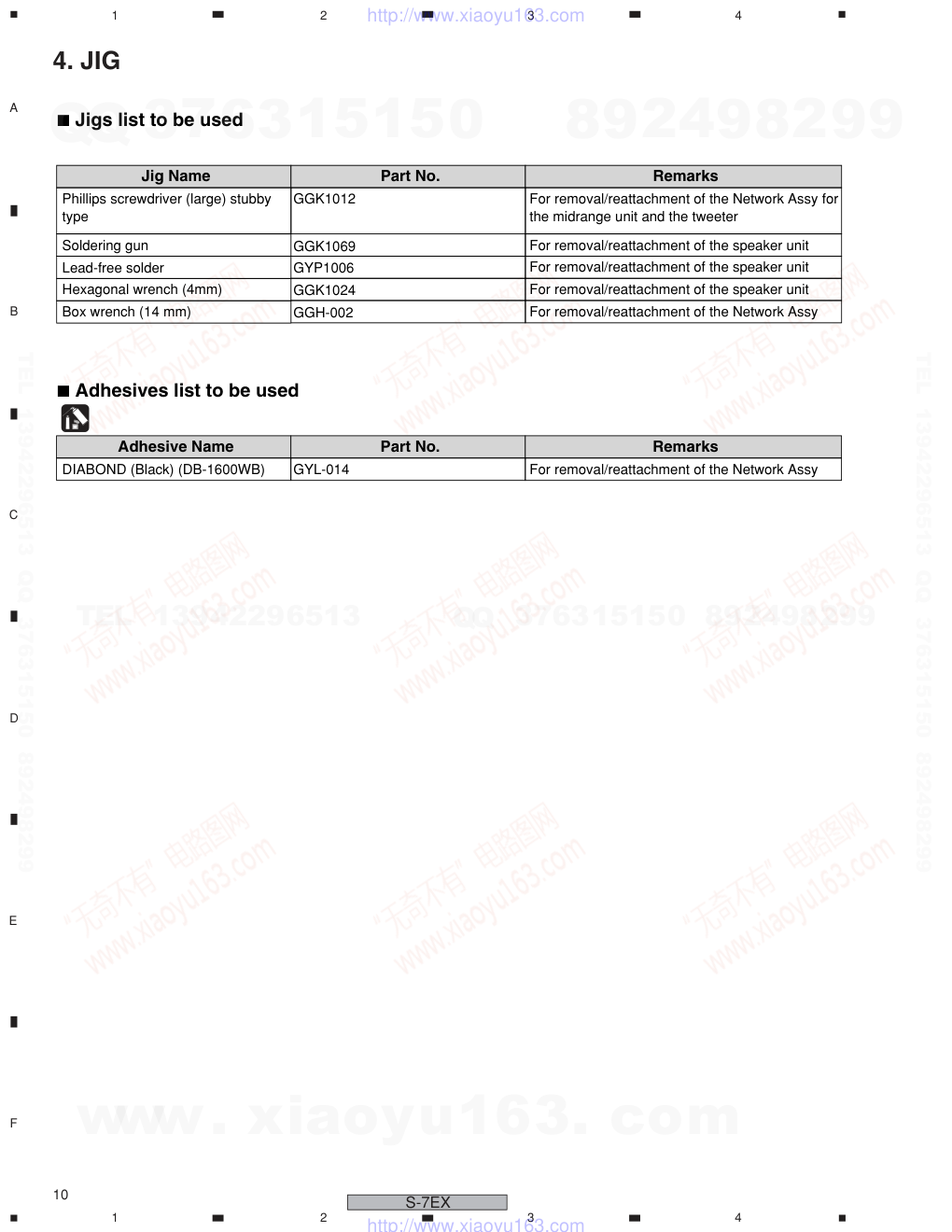

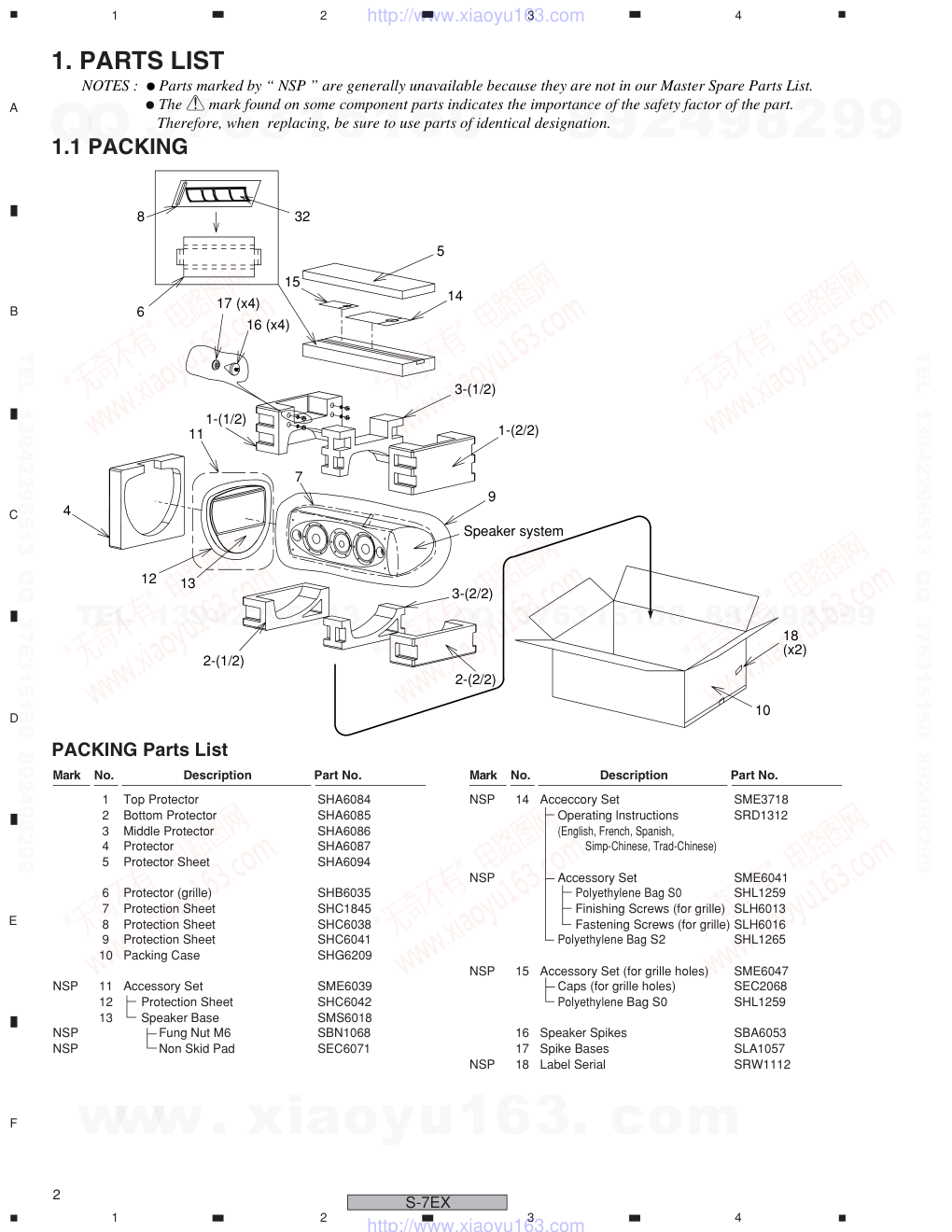

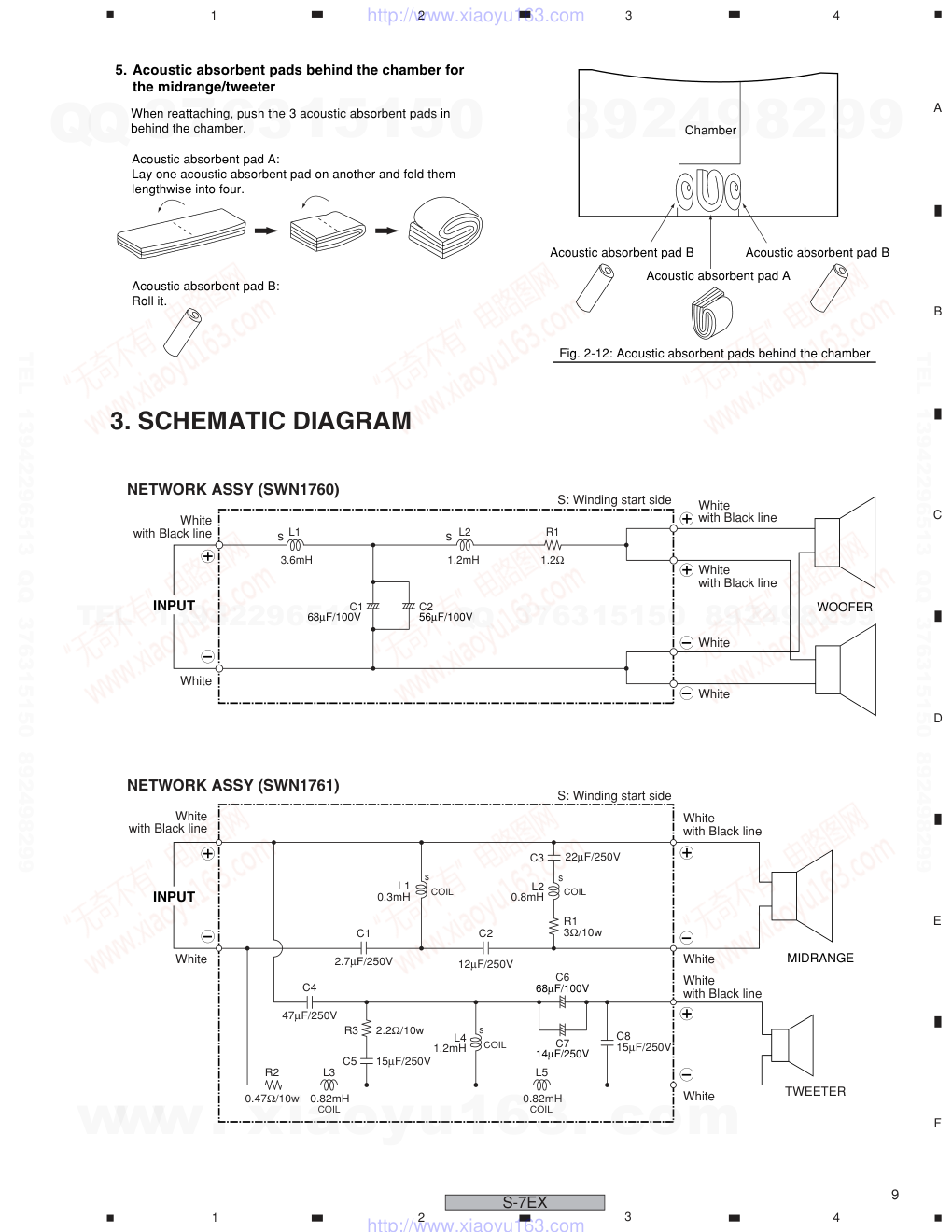

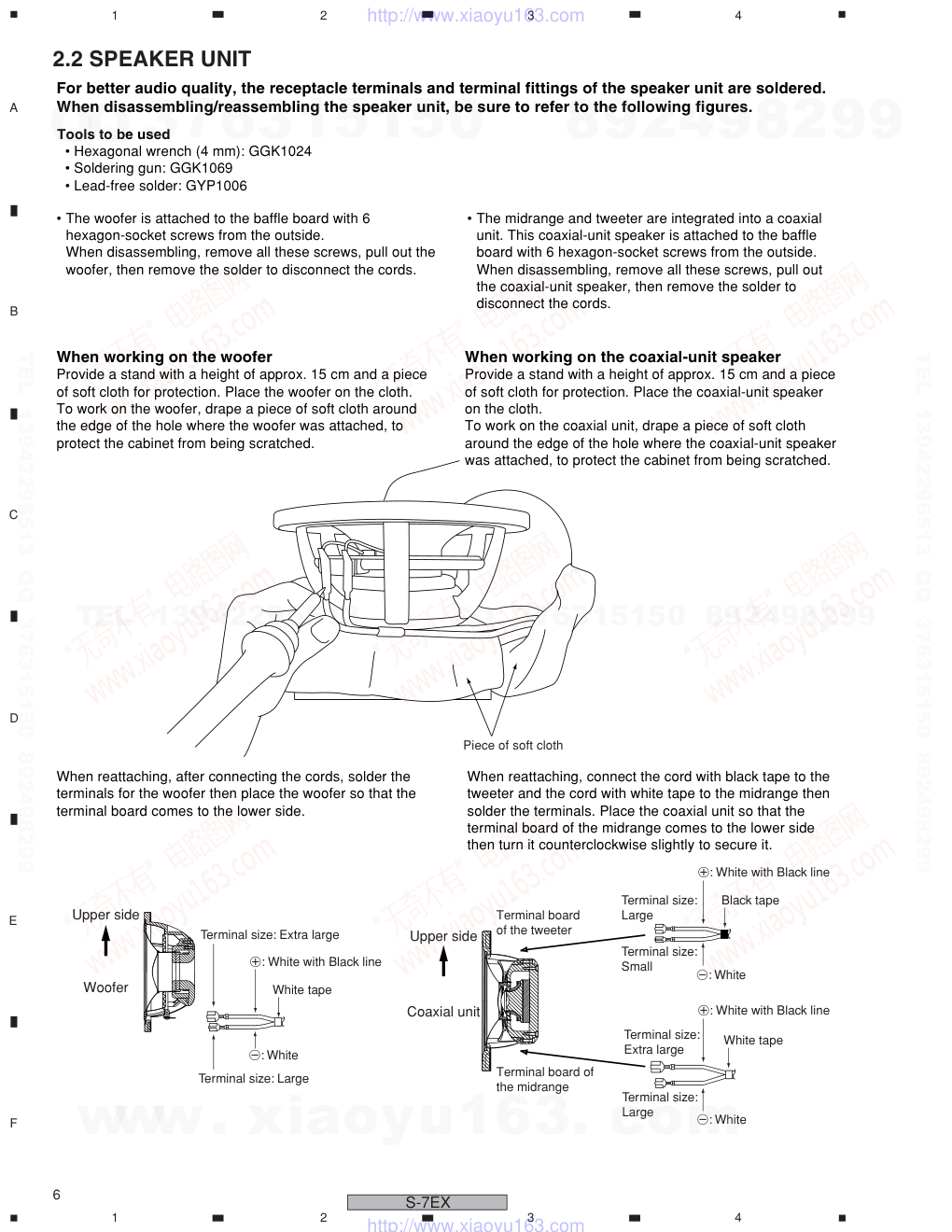

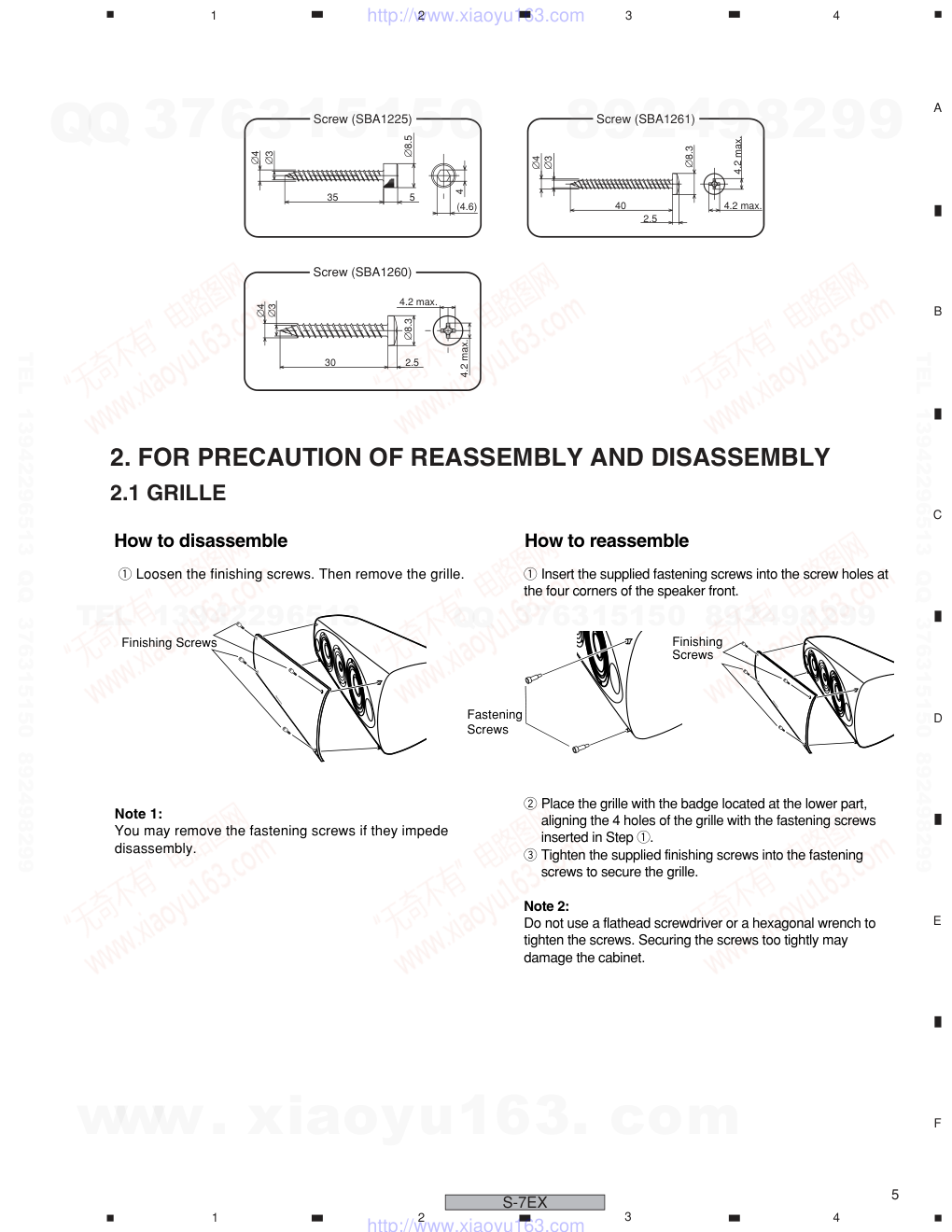

ORDER NO. PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2006 T – ZZS FEB. 2006 Printed in Japan RRV3339 CONTENTS 1. PARTS LIST ................................................................................. 2 2. FOR PRECAUTION OF REASSEMBLY AND DISASSEMBLY ... 5 3. SCHEMATIC DIAGRAM ............................................................... 9 4. JIG .............................................................................................. 10 NOTE For better audio quality, the receptacle terminals and terminal fittings of the speaker unit are soldered. When disassembling/reassembling the speaker unit, be sure to follow the instructions in this manual. If you will be working on the speaker unit with it turned on its side, lay it on a piece of soft cloth, etc., to protect the cabinet from being scratched. SPEAKER SYSTEM S-7EX XTW/E This service manual is intended for qualified service technicians; it is not meant for the casual do-it- yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. WARNING This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 – Proposition 65 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 1 2 3 4 1 2 3 4 C D F A B E S-7EX 8 6 17 (x4) 1-(1/2) 11 4 12 13 2-(1/2) 16 (x4) 15 32 10 2-(2/2) 3-(2/2) Speaker system 9 7 1-(2/2) 3-(1/2) 14 5 18 (x2) 1. PARTS LIST 1.1 PACKING 1 Top Protector SHA6084 2 Bottom Protector SHA6085 3 Middle Protector SHA6086 4 Protector SHA6087 5 Protector Sheet SHA6094 6 Protector (grille) SHB6035 7 Protection Sheet SHC1845 8 Protection Sheet SHC6038 9 Protection Sheet SHC6041 10 Packing Case SHG6209 NSP 11 Accessory Set SME6039 12 Protection Sheet SHC6042 13 Speaker Base SMS6018 NSP Fung Nut M6 SBN1068 NSP Non Skid Pad SEC6071 NSP 14 Acceccory Set SME3718 Operating lnstructions SRD1312 (English, French, Spanish, Simp-Chinese, Trad-Chinese) NSP Accessory Set SME6041 Polyethylene Bag S0 SHL1259 Finishing Screws (for grille) SLH6013 Fastening Screws (for grille) SLH6016 Polyethylene Bag S2 SHL1265 NSP 15 Accessory Set (for grille holes) SME6047 Caps (for grille holes) SEC2068 Polyethylene Bag S0 SHL1259 16 Speaker Spikes SBA6053 17 Spike Bases SLA1057 NSP 18 Label Serial SRW1112 PACKING Parts List NOTES : ÷ Parts marked by “ NSP ” are generally unavailable because they are not in our Master Spare Parts List. ÷ The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Mark No. Description Part No. Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 1 2 3 4 1 2 3 4 C D F A B E S-7EX C MID lower side WF lower side WF lower side TW Upper side Upper side for the HPF input terminals Bottom side for the LPF input terminals 43 44 44 52 (x4) 39 51 (x4) 45 (x4) 31 50 (x6 /unit) 49 48 A A' Upper side Lower side B B' Connect the cords with white tape to the midrange unit. Connect the cords with black tape to the midrange unit. : Refer to the adhesive points on page 7 1.2 SPEAKER SYSTEM NSP 31 Cabinet SMM2027 NSP Fung Nut M6 (for stand) SBN1060 NSP Fung Nut M4 (for grille) SBN1066 39 Network Assy (low pass) SWN1760 NSP 43 Gasket (for MID/TW) SEC2031 NSP 44 Gasket (for WF) SEC2032 NSP 45 Gasket (cabinet - input terminals) SEC2065 NSP Acoustic Absorbent SMT1313 (behind chamber, inside chamber) NSP Acoustic Absorbent SMT1314 (WF - chamber) NSP Acoustic Absorbent SMT1316 (WF upper and lower side board) NSP Acoustic Absorbent SMT1320 (chamber/holes, input terminals) NSP Acoustic Absorbent SMT1323 (behind duct, black) SPEAKER SYSTEM Parts List NSP Acoustic Absorbent SMT1324 (duct side, roll) NSP Acoustic Absorbent SMT1326 (fold half both side, inside chamber) NSP Acoustic Absorbent SMT1327 (around duct board) NSP Acoustic Absorbent SMT1328 (duct board short side) 48 Speaker (WF) B18IU60-52H 49 Speaker (MID/TW) A14GR55-52DX 50 Hexagon Socket Screw SBA1225 (for WF, MID/TW) 51 Screw (for NW assy) SBA1260 52 Screw (for closure panel) SBA1261 Mark No. Description Part No. Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 1 2 3 4 1 2 3 4 C D F A B E S-7EX 34 35 37 38 36 No.32 Grille Front View Back View 33 A-A' Sectional view B-B' Sectional view HPF input (+) LPF input (+) HPF input (-) LPF input (-) (40) 40 51 (x4) Lower side Upper side Arrow view C: Detail of the input terminal board 42 42 Lower side Upper side 46 47 54 41 53 55 The direction of the cord holes must be vertical. The direction of the cord holes must be vertical. 32 Grille SMG6095 33 Badge FRAM-048 34 Packing SEC6060 NSP 35 Grille Assy SMG6096 NSP 36 Fung Nut SBN6019 NSP 37 Grille Frame SMC6003 NSP 38 Punching Net SNH6014 40 Network Assy (high pass) SWN1761 NSP 41 Sticker SAN3871 42 Cord SDS1192 SPEAKER SYSTEM Parts List 46 Input Terminal (Red) SKX6027 47 Input Terminal (Black) SKX6028 51 Screw (for NW assy) SBA1260 NSP 53 Model Label SAN3792 NSP 54 Country Label SAN3782 NSP 55 Label Serial SRW1111 Mark No. Description Part No. Mark No. Description Part No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 1 2 3 4 1 2 3 4 C D F A B E S-7EX How to disassemble 1 Loosen the finishing screws. Then remove the grille. Note 1: You may remove the fastening screws if they impede disassembly. How to reassemble Finishing Screws Finishing Screws Fastening Screws 2 Place the grille with the badge located at the lower part, aligning the 4 holes of the grille with the fastening screws inserted in Step 1. 3 Tighten the supplied finishing screws into the fastening screws to secure the grille. Note 2: Do not use a flathead screwdriver or a hexagonal wrench to tighten the screws. Securing the screws too tightly may damage the cabinet. 1 Insert the supplied fastening screws into the screw holes at the four corners of the speaker front. 2. FOR PRECAUTION OF REASSEMBLY AND DISASSEMBLY 2.1 GRILLE ∅3 ∅4 35 5 ∅8.5 4 (4.6) Screw (SBA1225) ∅3 ∅4 ∅8.3 2.5 30 4.2 max. 4.2 max. Screw (SBA1260) 4.2 max. ∅8.3 ∅3 ∅4 40 2.5 4.2 max. Screw (SBA1261) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 1 2 3 4 1 2 3 4 C D F A B E S-7EX For better audio quality, the receptacle terminals and terminal fittings of the speaker unit are soldered. When disassembling/reassembling the speaker unit, be sure to refer to the following figures. Piece of soft cloth Tools to be used • Hexagonal wrench (4 mm): GGK1024 • Soldering gun: GGK1069 • Lead-free solder: GYP1006 • The woofer is attached to the baffle board with 6 hexagon-socket screws from the outside. When disassembling, remove all these screws, pull out the woofer, then remove the solder to disconnect the cords. When working on the woofer Provide a stand with a height of approx. 15 cm and a piece of soft cloth for protection. Place the woofer on the cloth. To work on the woofer, drape a piece of soft cloth around the edge of the hole where the woofer was attached, to protect the cabinet from being scratched. When working on the coaxial-unit speaker Provide a stand with a height of approx. 15 cm and a piece of soft cloth for protection. Place the coaxial-unit speaker on the cloth. To work on the coaxial unit, drape a piece of soft cloth around the edge of the hole where the coaxial-unit speaker was attached, to protect the cabinet from being scratched. • The midrange and tweeter are integrated into a coaxial unit. This coaxial-unit speaker is attached to the baffle board with 6 hexagon-socket screws from the outside. When disassembling, remove all these screws, pull out the coaxial-unit speaker, then remove the solder to disconnect the cords. When reattaching, after connecting the cords, solder the terminals for the woofer then place the woofer so that the terminal board comes to the lower side. When reattaching, connect the cord with black tape to the tweeter and the cord with white tape to the midrange then solder the terminals. Place the coaxial unit so that the terminal board of the midrange comes to the lower side then turn it counterclockwise slightly to secure it. White tape Terminal size: Extra large Terminal size: Large �: White with Black line �: White Woofer Upper side White tape Black tape Terminal size: Extra large Terminal size: Large Terminal size: Large Terminal size: Small �: White with Black line �: White with Black line �: White �: White Upper side Coaxial unit Terminal board of the tweeter Terminal board of the midrange 2.2 SPEAKER UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 1 2 3 4 1 2 3 4 C D F A B E S-7EX 2.3 NETWORK ASSY Before removing the Network Assy, remove the grille and each speaker unit then disconnect the cords from the speaker unit. • For removal/reattachment of the Network Assy for the woofer: Only the woofer must be removed. • For removal/reattachment of the Network Assy for the midrange/tweeter: Removal of all the units is required. 2.3.1 Network Assy for the Woofers • The Network Assy for the woofers is located inside the back board behind the right woofer and secured with 4 screws. (1) Remove the acoustic absorbent pads that are located on the input terminals and behind the chamber. (See Figs. 2-5 to 2-8.) (2) Remove the 2 nuts that secure the round connectors from the lower input terminals. (See Fig. 2-1. Tool: Box wrench, 14 mm/GGH-002) (3) Remove the 4 screws that secure the Network Assy then pull the Assy out through the hole where the woofer was attached. (See Fig. 2-2.) (4) When reattaching, pass the Network Assy through the hole where the woofer was attached then secure it in place with the 4 screws. (See Fig. 2-2.) (5) Among the 3 pairs of cords from the Network Assy, connect the cords with the round connectors to the lower input terminals and secure them with the nuts. (See Fig. 2-1. Tool: Box wrench, 14 mm/GGH-002) (6) Apply adhesive to the secured nuts. (Adhesive: DIABOND black/GYL-014) (7) Reinstall the acoustic absorbent pads, at the input terminals and behind the chamber. (See Figs. 2-5 to 2-8.) (8) Connect and solder the remaining 2 pairs of cords from the Network Assy to the woofers and reinstall the woofer in the cabinet. 2.3.2 Network Assy for the midrange / tweeter • The Network Assy for the midrange/tweeter is located inside the bottom board behind the left woofer and secured with 4 screws. (1) Remove the acoustic absorbent pads that are located at the input terminals, inside and at the rear of the chamber, and behind the chamber. (See Figs. 2-5 to 2-8 and 2-9 to 2-11.) (2) Remove the 2 nuts that secure the round connectors from the upper input terminals. (See Fig. 2-1. Tool: Box wrench, 14 mm/GGH-002) (3) Remove the 4 screws that secure the closure panel inside the chamber, remove the 4 screws that secure the Network Assy, and pull the Network Assy out through the hole where the woofer was attached. (See Figs. 2-3 and 2-4. Tool: Screwdriver/GGK1012) (4) When reattaching, pass the Network Assy through the hole where the woofer was attached and secure it in place using the 4 screws. (See Fig. 2-3. Tool: Screwdriver/GGK1012) (5) Among the cords from the Network Assy, connect the cords with the round connectors to the upper input terminals and secure them with the nuts. (See Fig. 2-1. Tool: Box wrench, 14 mm/GGH-002) (6) Apply adhesive to the secured nuts. (Adhesive: DIABOND black/GYL-014) (7) Pass the 2 pairs of cords from the closure panel through behind the chamber then secure the closure panel from inside the chamber, using the 4 screws. (See Fig. 2-4.) (8) Reinstall the acoustic absorbent pads at the input terminals, inside the chamber, and behind the chamber. (See Figs. 2-5 to 2-8 and 2-9 to 2-11.) (9) Connect and solder the cords to the coaxial-unit speaker and reinstall it in the cabinet. Fig. 2-1: Input terminals (inside the cabinet) Fig. 2-4: Specifications for attaching the closure panel (cross-sectional view of the coaxial-unit speaker) +: White with Black line : Screws Chamber Closure panel From the Network Assy for the midrange/ tweeter From the Network Assy for the woofers Apply adhesive. -: White Upper side Note: The NW Assy shown in this photo is for the S-1EX, but the shape of the closure panel is the same. Fig. 2-3: Specifications for attaching the Network Assy for the midrange/tweeter : Screws Back-board side Baffle-board side Fig. 2-2: Specifications for attaching the Network Assy for the woofers : Screws Uppe side Bottom side www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 1 2 3 4 1 2 3 4 C D F A B E S-7EX Note: When reattaching the Network Assy for the midrange/tweeter, before reattaching the closure panel, be sure to remove the acoustic absorbent pads located behind the chamber. (See Fig. 2-8.) If the closure panel pinches an acoustic absorbent pad when it is secured, air leakage may occur, which may result in poor performance of this speaker system. Removal/reattachment of acoustic absorbent pads is necessary before or after removal/reattachment of the Network Assy. 1. Acoustic absorbent pads around the Network Assy for the midrange/tweeter 2. Acoustic absorbent pads around the input terminals 4. Acoustic absorbent pads inside the chamber for the midrange/tweeter 3. Acoustic absorbent pads around the Network Assy for the woofers Fig. 2-5: After the left woofer is removed (1) Fig. 2-6: After the left woofer is removed (2) Fig. 2-9: After the midrange/tweeter is removed (1) Fig. 2-10: After the midrange/tweeter is removed (2) Fig. 2-11: After the midrange/tweeter is removed (3) Fig. 2-8: After the right woofer is removed (2) Fig. 2-7: After the right woofer is removed (1) 1 Remove this acoustic absorbent pad. When reattaching, push it in so that it covers the Network Assy. 3 Remove the 3 acoustic absorbent pads pushed into the concave part of the input terminals. When reattaching, fold the acoustic absorbent pad in half and push it in. 5 Remove the acoustic absorbent pads from around the Network Assy then remove the screws that secure the Network Assy. 4 Remove this acoustic absorbent pad. When reattaching, roll the pad and push it in deep behind the chamber. As this rolled acoustic absorbent pad must be fixed with adhesive, before pushing it in, apply adhesive to the deep behind the chamber. (Adhesive: DIABOND black/GYL-014) 2 Remove this acoustic absorbent pad. When reattaching, roll the acoustic absorbent pad and push it in deep behind the chamber. As this acoustic absorbent pad must be fixed with adhesive, before pushing it in, apply adhesive to the deep behind the chamber. (Adhesive: DIABOND black/GYL-014) In this state, remove the screws that secure the Network Assy. In this state, remove or reattach the nuts of the input terminals. 6 Remove the 3 acoustic absorbent pads that are stuffed in the space behind the chamber for the midrange/tweeter. Insert your hand in the direction of the arrow to remove. Removal/reattachment of the Network Assy must be done in this state. 1 Remove this acoustic absorbent pad. When reattaching, place it along the surface inside the chamber so that it forms a U shape. 2 Remove this acoustic absorbent pad. When reattaching, place it along the surface of the chamber from the upper to the lower boards, so that it forms a U shape. 3 Remove this acoustic absorbent pad (from the closure panel section). When reattaching, fold the acoustic absorbent pad in half and push it in. Removal/reattachment of the closure panel and the Network Assy for the midrange/tweeter must be done in this state. 2.3.3 Removal/Reattachment of Acoustic absorbent pads www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 1 2 3 4 1 2 3 4 C D F A B E S-7EX 3. SCHEMATIC DIAGRAM 5. Acoustic absorbent pads behind the chamber for the midrange/tweeter Fig. 2-12: Acoustic absorbent pads behind the chamber When reattaching, push the 3 acoustic absorbent pads in behind the chamber. Acoustic absorbent pad A: Lay one acoustic absorbent pad on another and fold them lengthwise into four. Acoustic absorbent pad B: Roll it. Chamber Acoustic absorbent pad A Acoustic absorbent pad B Acoustic absorbent pad B INPUT NETWORK ASSY (SWN1760) NETWORK ASSY (SWN1761) L1 3.6mH 1.2mH 68µF/100V C1 56µF/100V C2 L2 1.2Ω R1 s s WOOFER MIDRANGE TWEETER White with Black line White White with Black line White White with Black line White White with Black line White with Black line White White White with Black line White INPUT C1 2.7µF/250V L1 0.3mH L2 0.8mH R3 R2 2.2Ω/10w 0.47Ω/10w 0.82mH L3 C5 15µF/250V s s R1 3Ω/10w C3 22µF/250V C2 12µF/250V C4 47µF/250V COIL L4 1.2mH s COIL C8 15µF/250V COIL 0.82mH L5 COIL COIL C7 14µF/250V C6 68µF/100V S: Winding start side S: Winding start side www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 1 2 3 4 1 2 3 4 C D F A B E S-7EX 4. JIG Soldering gun Phillips screwdriver (large) stubby type GGK1069 GGK1012 For removal/reattachment of the Network Assy for the midrange unit and the tweeter For removal/reattachment of the speaker unit Jig Name Part No. Remarks Lead-free solder GYP1006 For removal/reattachment of the speaker unit 7 Jigs list to be used Hexagonal wrench (4mm) GGK1024 For removal/reattachment of the speaker unit Box wrench (14 mm) GGH-002 For removal/reattachment of the Network Assy DIABOND (Black) (DB-1600WB) GYL-014 For removal/reattachment of the Network Assy Adhesive Name Part No. Remarks 7 Adhesives list to be used www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
